Strategies for Molecular Imprinting and the Evolution of MIP Nanoparticles as Plastic Antibodies—Synthesis and Applications

Department of Pathology, Animal Health Research Institute (AHRI), Agricultural Research Center (ARC), Giza 12618, Egypt
Department of Materials Science and Nanotechnology, Faculty of Postgraduate Studies for Advanced Sciences (PSAS), Beni-Suef University, Beni-Suef 62511, Egypt
Department of Biotechnology, Animal Health Research Institute (AHRI), Agricultural Research Center (ARC), Giza 12618, Egypt
Bioorganic & Biophysical Chemistry Laboratory, Linnaeus University Centre for Biomaterials Chemistry, Department of Chemistry & Biomedical Sciences, Linnaeus University, SE-39182 Kalmar, Sweden
Chemistry Department, College of Science and Engineering, University of Leicester, Leicester LE1 7RH, UK
Authors to whom correspondence should be addressed.
Int. J. Mol. Sci. 2019, 20(24), 6304;
Submission received: 12 November 2019 / Revised: 4 December 2019 / Accepted: 5 December 2019 / Published: 13 December 2019
(This article belongs to the Collection Feature Papers in Molecular Biophysics)


Materials that can mimic the molecular recognition-based functions found in biology are a significant goal for science and technology. Molecular imprinting is a technology that addresses this challenge by providing polymeric materials with antibody-like recognition characteristics. Recently, significant progress has been achieved in solving many of the practical problems traditionally associated with molecularly imprinted polymers (MIPs), such as difficulties with imprinting of proteins, poor compatibility with aqueous environments, template leakage, and the presence of heterogeneous populations of binding sites in the polymers that contribute to high levels of non-specific binding. This success is closely related to the technology-driven shift in MIP research from traditional bulk polymer formats into the nanomaterial domain. The aim of this article is to throw light on recent developments in this field and to present a critical discussion of the current state of molecular imprinting and its potential in real world applications.

Graphical Abstract

1. Introduction

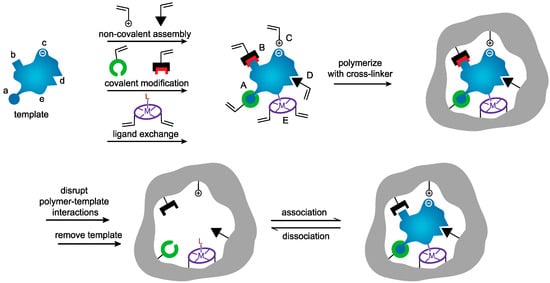

Molecular recognition, the ability of systems to selectively recognize and bind complementary molecules present in complex mixtures, is the fundamental basis for all chemical and biological processes. Binding occurs via various forms of non-covalent interactions, such as hydrogen bonds, electrostatic interactions, hydrophobic interactions, and weak metal coordination [1]. Molecular imprinting is a strategy that entails the use of these types of interactions for the recognition of predetermined ligands by synthetic polymers, thus mimicking the recognition events observed in biomolecular recognition processes [2]. Molecular imprinting has become established as a mature technology with, currently, over 15,000 publications describing MIP synthesis, characterization, and use in a wide range of application areas [3]. The ligand-selectivities that can be observed in MIP-systems, together with their robust chemical nature, which is in particular due to their high degree of cross-linking and provides them with substantially more stability than biomolecular recognition species, e.g., antibodies, have driven research in this field [4,5,6].
The molecular imprinting concept has a long history which traces back to the 1930s when the Soviet chemist Polyakov reported unusual adsorption properties of silica particles prepared in the presence of soluble additives [7]. The modern-day approaches to imprinting began in Europe in the 1970s and 1980s with Günter Wulff in Germany and Klaus Mosbach in Sweden [8,9]. Synthetic polymer-based imprinting strategies fall into three general classes; covalent, non-covalent, and semi-covalent imprinting protocols as defined by the nature of the interaction between the template and functional monomer(s) (T/M) [10] (Figure 1). The covalent approach yields a remarkably well defined and homogenous distribution of binding sites [11], while the non-covalent counterpart yields heterogenous binding sites [12,13,14]. The semi-covalent strategy is a hybrid of the former two, where the T/M binding and analyte rebinding occur via covalent and non-covalent chemistries, respectively [15].
The literature reports the synthesis of MIPs in formats suitable for different applications ranging from monoliths and membranes to films and beads [16]; however, a number of shortcomings have hindered their implementation in real-world applications. These drawbacks include recognition site heterogeneity, template leakage, mass transfer limitations, and solubilities. A step-change in the field has resulted from a shift of focus in MIP research from bulk polymers to nanomaterials, which has provided a strategy to address these issues [2]. A number of factors underlie the success obtained using MIP nanoparticles (nanoMIPs) to resolve the problems associated with bulk MIPs; notably, they possess larger surface/mass ratio, have more easily accessible recognition sites and, importantly, they have lower heterogeneities and better solubilities; factors which have been instrumental in their successful use in a diverse range of applications such as diagnostics, imaging and drug delivery [2,17]. This current review highlights the challenges faced when using bulk imprinting and the recent achievements in the development of nanoscale molecularly imprinted plastic antibodies along with their potential for use in real-world applications.

2. Imprinting Challenges

MIPs have tremendous commercial potential; however, there is very little evidence of their successful application in solving real world problems. There are two main reasons behind this. The first one is associated with the dominance of antibodies in diagnostic and therapeutic applications. For MIPs, aptamers and other biomimetic materials it is very difficult to compete with well-established technologies that already have attracted multibillion-dollar investments [18,19,20]. The second reason is related to the technological challenges faced by traditional (bulk) molecular imprinting, particularly:
Difficulty with imprinting of biological macromolecules, which are not soluble in organic solvents that are traditionally used in molecular imprinting. All bulk polymers, especially polymers imprinted with large templates such as proteins, also suffer from slow mass transfer kinetics. Protein recognition is the most important area of bioanalysis and drug development and for these reasons traditional MIPs are not considered as a viable alternative to antibodies.
Template leakage (bleeding) which affects analytical applications of MIP particles. It is not feasible to use MIP as a biorecognition material in assays and sensors if there is a risk that leaked template can compromise clinical or forensic analysis.
Heterogeneity of binding sites. Bulk MIPs always have large numbers of non-specific sites which contribute to the “polyclonal” nature of their binding profiles [12,21,22]. High levels of non-specific binding limit the utility of MIPs in diagnostic, pharmaceutical, and separation applications, except in a limited number of special cases where there is no alternative.
Herein, the significant recent attempts that have been made to address these challenges by producing MIPs in ‘nano’ formats and to improve their performance are presented.

2.1. Imprinting of Proteins

The molecular imprinting of proteins is necessary for the use of imprinted materials in many applications, such as diagnostics, drug delivery, environmental analysis, and proteomics [23]. Protein imprinting is a challenge due to the large size of protein molecules, their complexity, flexibility, and poor solubility in organic solvents [24]. Bulk imprinting, at first glance, appears the simplest approach for protein imprinting, with the objective of obtaining macroporous polymer networks which can entrap and release entire protein molecules. However, in the case of whole protein imprinting, conformational variation will lead to a multitude of different binding sites in an imprinted polymer, with different affinities and specificities. Accordingly, the product of protein imprinting will be polyclonal in character, due to the broad range of binding sites obtained [21]. Proteins are water-soluble substances representing a challenge for imprinting in organic solvents typical for the bulk imprinting process [21]. Furthermore, protein structure is sensitive to the non-physiological environment of radical polymerization such as the presence of organic solvent and functional monomers [25] and changes in temperature or pH [26]. Thus, polymerization in an aqueous environment is the preferred option. However, many popular monomers used in molecular imprinting are insoluble in water [24] and water may also compete with the template-monomers interactions reducing MIP affinity [27]. On the other hand, water provides an opportunity to explore hydrophobic interactions for template recognition [28,29]. The non-specific hydrophobic interactions can be reduced by using hydrophilic monomers and cross-linkers [30]. Proteins can be wasted by being trapped inside bulk polymers, which is particularly bad in case of expensive targets. Furthermore, both the surface chemistry and the pore sizes of the polymer can be affected by the extremely harsh conditions such as high temperature and strong acids necessary for at least partial removal of protein template entrapped in the polymer matrix, which can in turn impact adversely on selectivity and adsorption. To circumvent these challenges several other approaches have been developed to address these issues in bulk polymers, including; surface imprinting [31,32], epitope-mediated surface imprinting [33], and micro-contact imprinting [34].

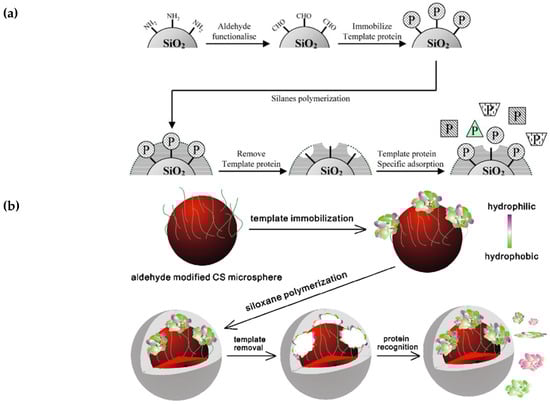

In surface imprinting (Figure 2), a certain degree of protein stabilization is achieved by using oriented immobilization of template [35,36,37,38]. Typically, template is immobilized onto the surface of a sacrificial material such as SiO2, which is immersed in the monomer mixture during polymerization. Following polymerization SiO2 is dissolved, leaving behind binding sites occupied by template. In the final step template is extracted from the polymer by extensive washing or hydrolysis [39,40]. In addition to stabilization of protein structure, template immobilization expands the range of solvents available for imprinting, thus allowing for substances insoluble in the polymerization mixture to be imprinted [41]. This also helps with achieving better control over conformation of created imprints through the control of template orientation [41], prevents protein aggregation [12] and facilitates the mass transfer kinetics [42,43]. Even this approach has associated challenges, including: poor control over the thickness of the polymer film, difficulty with extraction of the template from a dense polymer layer, potential leaking of the entrapped template from the polymer, and long time required to prepare MIPs [44]. Surface imprinting can be easily combined with different nanomaterial strategies where nanomaterials act as sacrificial molds, offering more precise control over the morphology of the imprinted polymer. This involves MIP synthesis inside a sacrificial porous nanomaterial which is then removed, leaving the nanostructured polymeric material, in the form of nanorods [45,46], nanofilaments [47] or ordered cavities [48]. The nano-structuring of the material provides significant enhancement of the MIP surface area and, consequently, improves sensitivity, detectability, and response time when used in a sensor format. NanoMIPs can also be synthesized by confining the polymerization reaction to the surface of nanoparticles made from silica [49], quantum dots [50], iron oxide [51,52], and alumina membranes [53,54]. However, the translation of surface imprinting from bulk polymers to nanoparticles through the grafting of MIP shells onto nanoparticle cores is much more difficult to control. Aggregation of nanoparticles, poor penetration of UV light through the dense suspension, and complicated purification procedures make this approach unsuitable for large-scale industrial applications. One option to avoid imprinting of costly or difficult to handle proteins is to instead imprint epitopes. In epitope-mediated imprinting, the whole protein template is replaced by a peptide fragment (typically 6–12 amino acids) characteristic of this protein [12,55]. In a model study, imprinting of cytochrome, alcohol dehydrogenase, and bovine serum albumin was achieved using C-terminal nonapeptides [33,56]. The epitope approach is superior to the other general techniques since it provides relatively easy template removal, generates uniform binding sites and reduces costs of synthesis, especially in the case of expensive protein templates [12,57]. The polypeptide templates are far less sensitive to the surrounding environments as they do not have secondary and tertiary structures [58]. The disadvantage of this approach is actually closely related to the major problem associated with production of antibodies, which lies in the complex procedure applied to finding appropriate (linear) epitopes. Prediction of epitope structure requires detailed knowledge of protein conformations [59]. Structural analysis by crystallography does not necessarily provide structures accurately representing native protein structure in solution as may be observed using NMR. A protocol for identification of protein epitopes suitable for molecular imprinting has recently been reported that can facilitate this process [60], as summarized in Figure 3.

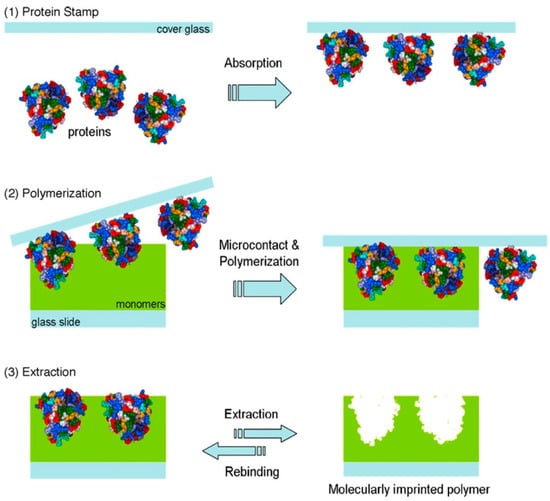

Micro-contact imprinting is considered as one of the promising techniques for protein imprinting [61] that can address its common associated problems such as solubility, conformational stability, and aggregation during the polymerization process [62]. This approach allows rapid fabrication of MIPs using small amounts of template, and monomer solution with a possibility to polymerize dozens of samples at the same time applying the same polymerization batch [62,63,64,65]. In a typical procedure, the template is firstly immobilized or adsorbed on a support (glass) to create the protein stamp. The stamp is subsequently set in contact with monomers followed by a polymerization step. The cover glass is then removed yielding an imprinted thin film (Figure 4).

2.2. Incomplete Template Removal and Template Leakage

Once the polymerization process is complete, a subsequent template removal is required to free the imprinted sites [57]. Large templates [12] and the highly cross-linked nature of MIPs [66] together have negative impacts on the release of template molecules [43,67]. An inefficient template removal results in subsequent “template leakage” or “template bleeding” that may contribute to false positive signals in sensing [2] and poor separation in chromatography [68]. Approaches to solve these problems include the use of dummy templates and surface imprinting [12]. To date, the dummy imprinting strategy using a template structural analog (auxiliary template) produces satisfactory outcomes [69,70]. Moreover, the dummy template represents an effective solution in cases when the original template is a dangerous or unstable material, or is very expensive [71,72]. An example of such a case lies in the development of MIPs selective for TNT, which were fabricated using trinitrophenol (TNP) as a dummy template [71]. The resultant MIP demonstrated high sensitivity and selective binding capabilities (Figure 5). Unfortunately, suitable dummy templates are not always available.
Shifting MIP synthesis from bulk to nanoparticles can improve the situation with template leaking as it is easier to extract template from small particles with binding sites located onto or close to the surface [73]. Even so, extraction is a slow procedure, typically performed by dialysis, and in the case of protein imprinting, complete removal of the template is impossible [49].

2.3. Heterogeneous and Non-Specific Binding Sites

The problem of high levels of non-specific binding in bulk MIPs is a result of random orientation of the template-monomer complex in the polymer network [74], differences in the nature of the complexation of the template due to the equilibria governing the non-covalent interactions of these complexes and even the presence of template–template interactions [14]. In addition, the relatively high surface areas of imprinted polymers in relation to the number of high affinity sites contribute directly to the non-specific binding observed for the template and interfering molecules [75], a feature which often hinders MIP use in applications such as sensing and separation. To improve the homogeneity of the binding sites, several successful strategies have been suggested such as the semi-covalent approach [76] and stoichiometric non-covalent imprinting [77].
The type of the template has major impact on selecting functional monomers suitable for molecular imprinting. Strong interactions are required to form stable complexes between small organic templates and monomers that can ‘survive’ through the radical polymerization and produce good quality binding sites. However, employing charged monomers to gain a strong monomer-template interaction may lead to very high non-specific binding [68]. These monomers randomly distribute over the surface of the polymer as well as in the imprinted sites and a net negative or positive charge can interact non-specifically with all species carrying the opposite charge. The optimal ratio between monomers and template can be determined empirically [78] or computationally, by using molecular modelling [14,79,80,81]. In the case of protein imprinting, the use of monomers with strong interactions between monomers and template is not recommended. This can be compensated by a multitude of weak bonds formed between protein functional groups and neutral monomers such as acrylamide or weak acids and bases [57]. The nano-format opens another interesting procedure for improving the homogeneity of binding sites. While it is practically impossible to generate perfect binding sites in every single nanoparticle, affinity separation can be used to remove low affinity nanoMIPs from the population of high affinity nanoparticles [82], thus increasing the number of high affinity sites per unit surface area. This approach is similar to the affinity separation of polyclonal antibodies [82].
To summarize, bulk imprinting, specifically in relation to imprinting of proteins, has numerous issues that cannot be easily resolved without turning to the nano format, as this format offers solutions to problems associated with imprinting of proteins [83], template leaking [84], and heterogeneity of imprinted sites [85].

3. Synthesis of MIP Nanoparticles

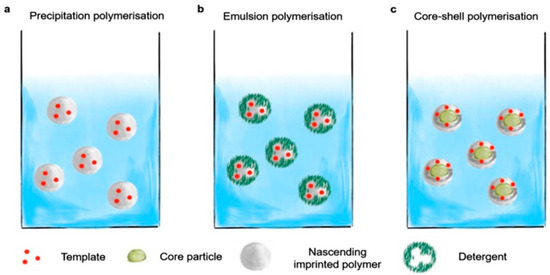

The synthesis of nanoMIPs with precise dimensions and properties is a goal towards which significant steps have been made. While the general theory of controlled radical polymerization is well advanced [86], it is less developed for cross-linked materials such as MIPs. There are very few publications describing modeling of polymerization processes related to MIP synthesis, and studies showing relationships between polymerization parameters and size of cross-linked nanoparticles [87,88]. There are however numerous publications describing empirical syntheses of nanoMIPs with excellent recognition properties [89,90]. The most popular techniques used in nanoMIPs synthesis include precipitation polymerization, emulsion polymerization, and core–shell polymerization with subsequent grafting [91] (Figure 6).

3.1. Precipitation Polymerization

Precipitation polymerization is a very promising technique for producing uniform sub-micrometer imprinted particles [12,15,93,94]. It was firstly described by Ye et al. [95] when used for the imprinting of 17ß-estradiol and theophylline. In this method the imprinting process occurs in an excess of solvent. The growing polymer continues to catch oligomers [96] and functional monomers from the solution until they reach critical size leading to precipitation [97,98,99]. The polymer beads are recovered by washing and centrifugation [27]. The advantage of this approach lies in the fact that there is no need for a stabilizer as the MIP particles show no coalescence by virtue of their cross-linking and rigidity [98]. Several factors such as solvent polarity, temperature and stirring speed have a great impact on the MIP particle size [100,101,102]. The main problem associated with this method is the requirement for a large quantity of template dissolved in the excess of solvent [12,27,44]. The high dilution factor may subsequently decrease the interactions between templates and the functional monomers leading to a reduction in the product’s selectivity and sensitivity [91]. Overall this approach is poorly controlled, expensive, and time consuming [12,44].

3.2. Emulsion Polymerization

Particles of sub-micrometer scale can also be prepared by emulsion polymerization [2]. Commonly, polymerization is performed in oil-in-water emulsions (O/W) in the presence of surfactant [103,104,105]. This technique can be performed in the form of mini and micro-emulsion polymerization. In the mini emulsion method, a high yield of homogenous [2] MIP-nanoparticles of 30–500 nm diameter can be obtained by stabilizing the monomer droplets (50–1000 nm) in water using co-surfactant (e.g., hexadecane and cetyl alcohol) along with a suitable surfactant, to suppress the diffusion processes in the aqueous phase [17]. In order to disperse the two phases, high-shear homogenization is required either by vigorous stirring and/or sonication [103]. However, the presence of water and surfactants can have adverse effects on the formation of stable monomer-template complexes. Micro-emulsion polymerization can yield particles of 5–50 nm diameter [17]. It is performed in a thermodynamically stable emulsion formed in the presence of co-surfactant by a high shear homogenization step [106]. This system requires higher surfactant concentration and lower monomer concentration than that used in the mini-emulsion method [17]. Generally speaking, all emulsion approaches suffer from the use of chemicals, in particular surfactants, that interfere with molecular recognition, contaminate the polymeric product and require complicated and time-consuming purification steps.

3.3. Core–Shell Grafting and Polymerization

Principally, there are two stages required to obtain core-shell MIP nanoparticles. The first one is the formation of solid nanocore (seed particle) while the second stage is the grafting of the imprinted shell [107]. The solid core can be formed from diverse materials containing additional functionalities suitable for anchoring e.g., catalytic groups capable of initiating polymer grafting [108,109]. This approach allows formation of recognition sites at the surface of MIP beads [107,110] improving analyte transfer [111,112]. Grafting of a thin imprinted layer on prefabricated nanoparticles [113] is preferred over emulsion polymerization in the presence of seed particles [17] since it allows better control of the thickness of imprinted film [114]. In addition, grafting using iniferter chemistry allows post functionalisation of synthesized nanoparticles with fluorescent, PEG, or anchoring groups [115,116].

3.4. Solid Phase Imprinting

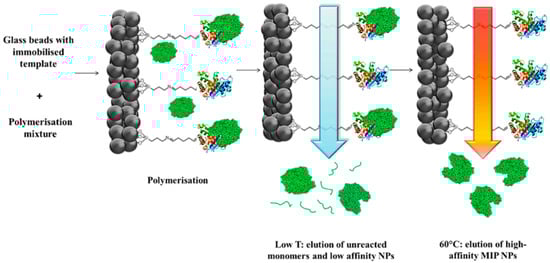

This technique is considered as one of the most advanced approaches for the fabrication of nanoMIPs. According to Canfarotta et al. [84], the solid phase method consists of three main steps: preparation of the glass beads by activation and silanization, immobilization of the template on the silanized glass beads, and finally the polymerization and purification process (Figure 7).
The advantages of solid-phase imprinting include: the possibility for re-using templates attached to the solid phase, orientational control of template-polymer interaction contributes to a more homogeneous distribution of recognition sites, the ‘inbuilt’ affinity purification yields high affinity nanoMIPs, products are virtually free from templates which eliminates bleeding issues.

4. Applications of Nano MIPs

The main advantages of nanoMIPs as compared with antibodies, aptamers and other biomimetics include:
  • High stability against non-physiological conditions such as high temperature, extreme pH, and pressure [6,22].
  • Size of these nanoparticles is comparable to those of proteins and they have high apparent binding constants.
  • NanoMIPs can be stored at room temperature for very long time [117].
  • Synthesis of nanoMIPs requires weeks instead of months as in the case of antibodies [92].
  • NanoMIPs can be easily functionalized with fluorescent, catalytic, or magnetic labels [17,118].
  • NanoMIPs can pass the cell membrane barrier and be delivered to cell targets orally [30].
  • While it has not yet been demonstrated in practice, the production of nanoMIPs has the potential to be more economical than that of antibodies [119].

4.1. NanoMIPs in Separation

The separation field is continuously expanding driven by the needs of the pharmaceutical and chemical industries, and by the demands for water purification and waste remediation. By virtue of their high affinity and selectivity, MIPs have been employed as stationary phases in high performance liquid chromatography [120], capillary chromatography [121,122], and solid phase extraction [123]. The nano format however is not ideally suited for large-scale separation. The main barrier for this is the relatively low binding capacity of nanoMIPs, especially monoclonal nanoparticles, and their high price. In addition, nanoparticles have to be covalently immobilized onto solid support for chromatographic application, and this procedure can potentially affect their recognition properties. To solve this problem, nanoMIPs were fabricated with a magnetic core which facilitated their handling during extraction of tetracycline antibiotics [124]. In some other rare examples of separation, applications nanoMIPs have been successfully employed in capillary electrophoresis [125,126].

4.2. NanoMIPs in Catalysis

MIPs with catalytic properties can be considered as suitable alternatives for natural enzymes [127]. MIP-based catalysis continues to evolve as one of the most interesting challenges [128]. To date, the main success with creation of catalytic sites in nanoMIPs is related to imprinting of transition state analogs (TSA) of catalytic reactions [129,130]. In these examples, nanoMIPs demonstrated very impressive catalytic constants and turnover. However, despite demonstrating proof-of-concept, no examples have yet been reported that address problems related to real (industrial) applications and for the present, this application remains a scientific curiosity similar to catalytic antibodies [131].

4.3. NanoMIPs in Assays and Sensors

Microtiter plate-based assays are very important for clinical and environmental analysis [132,133]. Enzyme-linked immunosorbent assay (ELISA) is among the most common methods of quantification of analytes in various complex samples. Its principle is based on exploring recognition properties of natural antibodies and enzymatic amplification of the signal [134]. In total ~12,000 assay protocols are available in the PubChem BioAssays database. However, traditional assays generally include between 7 and 10 time consuming liquid-handling steps and take three to five hours to produce a result [135]. Other drawbacks of ELISA include relatively limited detection range due to the narrow sensitivity of monoclonal antibodies, their low stability and high cost of production. The intrinsic low stability of antibodies has a big negative impact on shelf life of the manufactured bioassays and requires a constant cold chain supply. It also limits the operation conditions to a very narrow physiological range. Production of antibodies is a long process, which takes 3–6 months. There is a specific requirement for ‘good’ antigens to be at least 6,000 Da in order to generate good antibodies. The antibody production for small molecules includes synthesis of a conjugate consisting of a carrier molecule, usually a protein, and a molecule of interest [79]. Sometimes antibodies are not available due to the high toxicity of the target molecule, as in the case of the mycotoxin patulin [79]. For these reasons, there are continuous R&D efforts to develop robust, more rapid and more sensitive assay systems.
Several attempts over the years were made to use MIPs in the assays [136,137]. The obvious advantage of MIPs is their ability to recognize small molecules, including toxins [138,139]. Historically, MIPs were prepared using the bulk polymerization approach and were ground to micrometer size for use in the assays [140]. A problem commonly associated with this approach is the difficulty with reproducible immobilization of MIPs in microplate wells. Several attempts were made to avoid the problem with poor reproducibility of immobilization protocols in the development of MIP-based homologous assays using competition with a fluorescently labeled template [141,142,143,144]. Since MIPs used in these examples were in the form of microparticles, they did not form stable suspensions in solution, which made their practical application unreliable. Only with the development of effective synthesis of MIP nanoparticles using a solid phase approach [145] did it become possible to prepare MIP nanoparticles or ‘plastic’ antibodies for practically any analyte of interest and integrate them with microtiter plates by standard protocols used in antibody-based ELISA. In a first such example, MIP nanoparticles for vancomycin were physically immobilized on the surface of a microtiter plate and all other steps were conducted as in the classical ELISA [146]. It was demonstrated that the developed assay was able to detect the antibiotic vancomycin in buffer and in blood plasma within the range of 0.001−70 nM with a detection limit of 2.5 pM. Other examples of pseudo-ELISA assays based on MIP nanoparticles describe assays for cocaine [147] and gentamicin [148] with very similar sensitivity for relevant targets. Attractive features of the new assays included long shelf life, lower manufacturing costs, and a short production time.

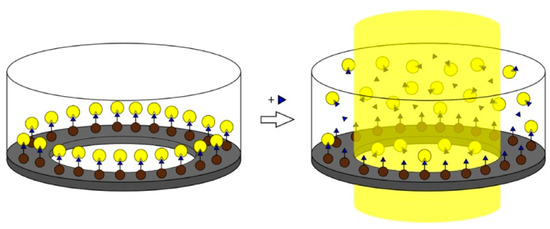

Another important aspect in the development of abiotic assays featuring MIP nanoparticles was the introduction of magnetic inserts in the wells of the microtiter plate [149]. The innovation involved the use of disk-shaped inserts made of magnetic material, which quickly and effectively captured any paramagnetic nanoparticles with immobilized target analytes. The internal opening of the disks allowed measurements of the reactions using standard microtiter plate readers. One of the examples of such application demonstrated that magnetic nanoMIPs imprinted with blood type B trisaccharide (Gal-⍺-1,3(Fuc-⍺-1,2)Gal) could be used in blood typing assays instead of natural antibodies [150]. The new format of the test system was based on magnetically-induced decolorization, caused by removal of erythrocytes from the solution by magnetic nanoMIPs (Figure 8).
A similar principle is used in the magnetic imprinted nanoparticle-based assay (MINA) for detection of methyl parathion [151], biotin [152], and proteins [153]. This assay was based on competition of fluorescent nanoMIPs for binding to free analyte and analyte immobilized on magnetic inserts (Figure 9). The presence of free analyte in solution led to increase in fluorescence, with a biotin limit of detection of 7 nM [152].

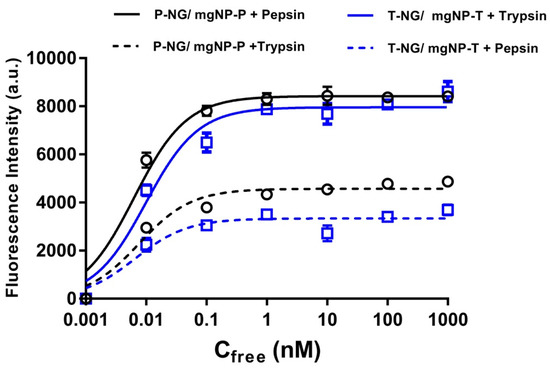

Recently, an integrating approach for the synthesis and direct assay for protein-imprinted nanoMIPs has been reported using magnetic nanoparticles [153]. The enzymes trypsin and pepsin were immobilized on solid support, i.e., functionalized magnetic nanoparticles (magNPs). Subsequently, lightly crosslinked fluorescently doped polyacrylamide nanoMIPs were produced in the presence of the magNPs. The nanoMIPs were then used in a magnetic competitive fluorescence assay employing identical protein-conjugated magNPs as ligands to reversibly immobilize the corresponding nanoMIPs. Both nanoMIPs exhibited Kd < 10 pM for their respective target protein and low cross-reactivity was observed for reference proteins (Figure 10).
The advantages of this assay format, as compared with ELISA, include the use of highly stable reagents and simple protocols with minimal operational steps that do not require highly experienced operators [152]. MINA assays are characteristically very effective, and can in principle be developed for any template of interest, moreover they are capable of working in any complex media, such as milk or blood plasma. They have a long shelf-life and do not depend on availability of a cold chain supply.
Sensors are probably the most advanced (and attractive) niche application for imprinted polymers. More papers were published on MIP sensors than any other types of sensors based on synthetic receptors (Web of Science, accessed 10 December 2019). Representative examples include MIP-based QCM sensors for human rhinovirus immunoglobulins [154], tobacco mosaic virus [155], and Salmonella paratyphi [34]. MIP films were deposited on the sensor surface via surface grafting [156,157] or electropolymerization [158,159]. MIPs were incorporated into QCM sensors [160], optical sensors [161,162], and electrochemical sensors [163]. The advantages offered by nanoMIPs over other imprinting formats make them interesting targets for use in other sensing configurations not least surface-based techniques—e.g., QCM, SPR—where high densities of recognition sites close to the transducer is most desirable.

4.4. NanoMIPs in Life Science and In Vivo Applications

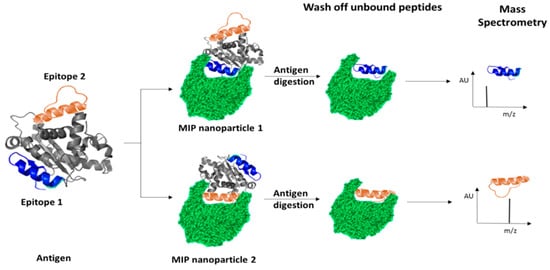

In vivo applications demand MIPs in the form of nanoparticles. For such applications it is also necessary to demonstrate that nanoMIPs are not toxic, and do not interfere with cell ‘machinery’. There is a limited body of evidence that suggests that nanoMIPs are not toxic in cell culture [164]. Interestingly, nanoMIPs were able to cross cell membranes, which indicates an opportunity for pursuing intracellular targets for therapeutic applications. NanoMIPs selective for melittin showed no toxicity in fibrosarcoma cell culture over the tested concentration range (3−3000 µg·mL−1). When tested with mice, the same nanoMIPs showed no toxicity two weeks after injection in histopathological examination of liver, lung, and kidney [138,139]. There are three most obvious areas for possible application of nanoMIPs in vivo: toxin scavenging, imaging, and drug delivery. In a first study of such nature, Hoshino and colleagues have tailored imprinted nanoparticles against melittin, the active component of the bee venom. When the melittin-imprinted polymer was injected into living mice, it was acting as an effective antidote via capturing and clearing melittin from blood circulation. Significantly, both toxic symptoms and mortality were greatly diminished [138,139].
An exciting area for nanoMIP application is in targeted drug delivery. Recently, a series of reports have been published describing the use of nanoMIPs as drug carriers for insulin, (R)-thalidomide, carbazole derivatives, quercetin, and paclitaxel anti-cancer drugs [30,165,166,167,168]. The drug release was achieved using either photo-, thermo-, or pH-responsive stimuli [169,170,171,172,173]. For imaging applications nanoMIPs can be easily functionalized either with quantum dots or fluorescent dyes [139,174,175]. Kunath, et al. [176] targeted hyaluronan molecules on cell surfaces of fixated and living tissues. In this work, they used fluorescence for detecting the presence of dye-labelled nanoMIPs in the epidermal basal layer and papillary dermis. A very significant step towards targeted drug delivery can be found in the recent report by the Liu group [177] describing HER2 N-glycan nanoMIPs, which were shown in in vitro studies to inhibit HER2+ cell proliferation. Importantly, in vivo studies demonstrated the attenuation of HER2+ breast cancer tumor growth by approximately 50% relative to control groups, highlighting the potential of nanoMIPs in therapeutic applications.

5. Conclusions and Future Outlook

It has been shown that nanoMIPs possess superior properties to bulk polymers in many respects, including affinity, specificity, and their ease of integration into assays and sensor formats. The soluble nature of these materials opens for their possible use in in vivo applications such as imaging and drug delivery, areas which are being pursued by us and others. The remaining challenges associated with this technology include: (i) lack of evidence of commercial success for MIP-based assays and sensors; (ii) requirement for comprehensive analysis of nanoMIP toxicity, biodistribution and clearance; and (iii) demonstration of comparable performance of MIP nanoparticles to antibodies in key therapeutic applications, such as immunotherapy. We believe that these developments shall be in part driven through fundamental studies of these novel materials. Resolution of these challenges shall undoubtedly open for a broader interest for using of these materials in a range of applications where antibodies or biomolecular receptors are currently used.


This research received no external funding.

Conflicts of Interest

The authors declare no conflict of interest.


  1. Chen, B.; Piletsky, S.; Turner, A.P.F. Molecular Recognition: Design of “Keys”. Comb. Chem. High Throughput Screen. 2002, 5, 409–427. [Google Scholar] [CrossRef] [PubMed]
  2. Wackerlig, J.; Schirhagl, R. Applications of molecularly imprinted polymer nanoparticles and their advances toward industrial use: A review. Anal. Chem. 2015, 88, 250–261. [Google Scholar] [CrossRef] [PubMed]
  3. MIPdatabase. Available online: (accessed on 10 December 2019).
  4. Ansell, R.J.; Ramstrom, O.; Mosbach, K. Towards artificial antibodies prepared by molecular imprinting. Clin. Chem. 1996, 42, 1506–1512. [Google Scholar] [CrossRef] [Green Version]
  5. Hussain, M.; Wackerlig, J.; Lieberzeit, P.A. Biomimetic Strategies for Sensing Biological Species. Biosensors 2013, 3, 89–107. [Google Scholar] [CrossRef]
  6. Svenson, J.; Nicholls, I.A. On the thermal and chemical stability of molecularly imprinted polymers. Anal. Chim. Acta 2001, 435, 19–24. [Google Scholar] [CrossRef]
  7. Polyakov, M. Adsorption properties and structure of silica gel. Zhurnal Fiz. Khimii 1931, 2, 799–805. [Google Scholar]
  8. Wulff, G.; Sarhan, A. Über die Anwendung von enzymanalog gebauten Polymeren zur Racemattrennung. Angew. Chem. 1972, 84, 364. [Google Scholar] [CrossRef]
  9. Arshady, R.; Mosbach, K. Synthesis of substrate-selective polymers by host-guest polymerization. Makromol. Chem. 1981, 182, 687–692. [Google Scholar] [CrossRef]
  10. Caro, E.; Masqué, N.; Marcé, R.M.; Borrull, F.; Cormack, P.A.; Sherrington, D.C. Non-covalent and semi-covalent molecularly imprinted polymers for selective on-line solid-phase extraction of 4-nitrophenol from water samples. J. Chromatogr. A 2002, 963, 169–178. [Google Scholar] [CrossRef]
  11. Shah, N.; Ul-Islam, M.; Haneef, M.; Park, J.K. A brief overview of molecularly imprinted polymers: From basics to applications. J. Pharm. Res. 2012, 3309–3317. [Google Scholar]
  12. Chen, L.; Xu, S.; Li, J. Recent advances in molecular imprinting technology: Current status, challenges and highlighted applications. Chem. Soc. Rev. 2011, 40, 2922–2942. [Google Scholar] [CrossRef]
  13. Haupt, K. (Ed.) Molecular Imprinting; Springer: Berlin/Heidelberg, Germany, 2012; Volume 325. [Google Scholar]
  14. Karlsson, B.C.; O’Mahony, J.; Karlsson, J.G.; Bengtsson, H.; Eriksson, L.A.; Nicholls, I.A. Structure and dynamics of monomer-template complexation: An explanation for molecularly imprinted polymer recognition site heterogeneity. J. Am. Chem. Soc. 2009, 131, 13297–13304. [Google Scholar] [CrossRef]
  15. Chen, L.; Wang, X.; Lu, W.; Wu, X.; Li, J. Molecular imprinting: Perspectives and applications. Chem. Soc. Rev. 2016, 45, 2137–2211. [Google Scholar] [CrossRef]
  16. Alexander, C.; Andersson, H.S.; Andersson, L.I.; Ansell, R.J.; Kirsch, N.; Nicholls, I.A.; O’Mahony, J.; Whitcombe, M.J. Molecular imprinting science and technology: A survey of the literature for the years up to and including 2003. J. Mol. Recognit. 2006, 19, 106–180. [Google Scholar] [CrossRef]
  17. Ye, L. (Ed.) Molecular Imprinting: Principles and Applications of Micro- and Nanostructure Polymers; CRC Press: Boca Raton, FL, USA, 2013. [Google Scholar]
  18. Huckle, D. Point-of-care diagnostics: An advancing sector with nontechnical issues. Expert Rev. Mol. Diagn. 2008, 8, 679–688. [Google Scholar] [CrossRef]
  19. Huckle, D. Point-of-care diagnostics—Is this driven by supply or demand? Expert Opin. Med. Diagn. 2010, 4, 189–200. [Google Scholar] [CrossRef]
  20. Junker, R.; Petersmann, A.; Luppa, P.B. The relevance of POCT in healthcare. In Point-of-Care Testing: Principles and Clinical Applications; Luppa, P.B., Junker, R., Eds.; Springer: Berlin/Heidelberg, Germany, 2018; pp. 9–17. [Google Scholar]
  21. Bossi, A.; Bonini, F.; Turner, A.; Piletsky, S. Molecularly imprinted polymers for the recognition of proteins: The state of the art. Biosens. Bioelectron. 2007, 22, 1131–1137. [Google Scholar] [CrossRef]
  22. Cheong, W.J.; Yang, S.H.; Ali, F. Molecular imprinted polymers for separation science: A review of reviews. J. Sep. Sci. 2013, 36, 609–628. [Google Scholar] [CrossRef]
  23. Baggiani, C.; Anfossi, L.; Giovannoli, C. MIP-based Immunoassays: State of the Art, Limitations and Perspectives. Mol. Impr. 2013, 1, 41–54. [Google Scholar] [CrossRef] [Green Version]
  24. Turner, N.W.; Jeans, C.W.; Brain, K.R.; Allender, C.J.; Hlady, V.; Britt, D.W. From 3D to 2D: A review of the molecular imprinting of proteins. Biotechnol. Prog. 2006, 22, 1474–1489. [Google Scholar] [CrossRef]
  25. Sellergren, B. Molecularly imprinted polymers: Shaping enzyme inhibitors. Nat. Chem. 2010, 2, 7–8. [Google Scholar] [CrossRef]
  26. Szenczi, A.; Kardos, J.; Medgyesi, G.A.; Zavodszky, P. The effect of solvent environment on the conformation and stability of human polyclonal IgG in solution. Biologicals 2006, 34, 5–14. [Google Scholar] [CrossRef]
  27. Vasapollo, G.; Sole, R.D.; Mergola, L.; Lazzoi, M.R.; Scardino, A.; Scorrano, S.; Mele, G. Molecularly imprinted polymers: Present and future prospective. Int. J. Mol. Sci. 2011, 12, 5908–5945. [Google Scholar] [CrossRef] [Green Version]
  28. Tan, C.J.; Tong, Y.W. Preparation of superparamagnetic ribonuclease A surface-imprinted submicrometer particles for protein recognition in aqueous media. Anal. Chem. 2007, 79, 299–306. [Google Scholar] [CrossRef]
  29. Awino, J.K.; Zhao, Y. Water-soluble molecularly imprinted nanoparticles (MINPs) with tailored, functionalized, modifiable binding pockets. Chem. Eur. J. 2015, 21, 655–661. [Google Scholar] [CrossRef]
  30. Paul, P.K.; Treetong, A.; Suedee, R. Biomimetic insulin-imprinted polymer nanoparticles as a potential oral drug delivery system. Acta Pharm. 2017, 67, 149–168. [Google Scholar] [CrossRef] [Green Version]
  31. Li, Y.; Yang, H.H.; You, Q.H.; Zhuang, Z.X.; Wang, X.R. Protein recognition via surface molecularly imprinted polymer nanowires. Anal. Chem. 2006, 78, 317–320. [Google Scholar] [CrossRef]
  32. Nicholls, I.A.; Rosengren, J.P. Molecular imprinting of surfaces. Bioseparation 2001, 10, 301–305. [Google Scholar] [CrossRef]
  33. Nishino, H.; Huang, C.S.; Shea, K.J. Selective Protein Capture by Epitope Imprinting. Angew. Chem. Int. Ed. 2006, 45, 2392–2396. [Google Scholar] [CrossRef]
  34. Perçin, I.; Idil, N.; Bakhshpour, M.; Yılmaz, E.; Mattiasson, B.; Denizli, A. Microcontact Imprinted Plasmonic Nanosensors: Powerful Tools in the Detection of Salmonella paratyphi. Sensors 2017, 17, 1375. [Google Scholar] [CrossRef] [Green Version]
  35. Shiomi, T.; Matsui, M.; Mizukami, F.; Sakaguchi, K. A method for the molecular imprinting of hemoglobin on silica surfaces using silanes. Biomaterials 2005, 26, 5564–5571. [Google Scholar] [CrossRef]
  36. Li, F.; Li, J.; Zhang, S. Molecularly imprinted polymer grafted on polysaccharide microsphere surface by the sol–gel process for protein recognition. Talanta 2008, 74, 1247–1255. [Google Scholar] [CrossRef]
  37. Yang, J.C.; Shin, H.K.; Hong, S.W.; Park, J.Y. Lithographically patterned molecularly imprinted polymer for gravimetric detection of trace atrazine. Sens. Actuators B Chem. 2015, 216, 476–481. [Google Scholar] [CrossRef]
  38. Yang, H.H.; Zhang, S.Q.; Tan, F.; Zhuang, Z.X.; Wang, X.R. Surface molecularly imprinted nanowires for biorecognition. J. Am. Chem. Soc. 2005, 127, 1378–1379. [Google Scholar] [CrossRef]
  39. Ansari, S.; Karimi, M. Recent configurations and progressive uses of magnetic molecularly imprinted polymers for drug analysis. Talanta 2017, 167, 470–485. [Google Scholar] [CrossRef]
  40. Hu, Y.; Li, Y.; Liu, R.; Tan, W.; Li, G. Magnetic molecularly imprinted polymer beads prepared by microwave heating for selective enrichment of β-agonists in pork and pig liver samples. Talanta 2011, 84, 462–470. [Google Scholar] [CrossRef]
  41. Liu, L.; Zheng, J.; Fang, G.; Xie, W. Improvement of the homogeneity of protein-imprinted polymer films by orientated immobilization of the template. Anal. Chim. Acta 2012, 726, 85–92. [Google Scholar] [CrossRef]
  42. Tan, C.J.; Tong, Y.W. Molecularly imprinted beads by surface imprinting. Anal. Bioanal. Chem. 2007, 389, 369–376. [Google Scholar] [CrossRef]
  43. Cumbo, A. Virus Imprinted Particles. Ph.D. Thesis, University of Basel, Basel, Switzerland, 2013. [Google Scholar]
  44. Yan, H.; Row, K.H. Characteristic and synthetic approach of molecularly imprinted polymer. Int. J. Mol. Sci. 2006, 7, 155–178. [Google Scholar] [CrossRef] [Green Version]
  45. Mandal, S.; Suriyanarayanan, S.; Nicholls, I.A.; Ramanujam, K. Selective Sensing of the Biotinyl Moiety Using Molecularly Imprinted Polyaniline Nanowires. J. Electrochem. Soc. 2018, 165, B669–B678. [Google Scholar] [CrossRef]
  46. Suriyanarayanan, S.; Mandal, S.; Ramanujam, K.; Nicholls, I.A. Electrochemically synthesized molecularly imprinted polythiophene nanostructures as recognition elements for an aspirin-chemosensor. Sens. Actuators B Chem. 2017, 253, 428–436. [Google Scholar] [CrossRef]
  47. Ndizeye, N.; Suriyanarayanan, S.; Nicholls, I.A. Hierarchical polymeric architectures through molecular imprinting in liquid crystalline environments. Eur. Polym. J. 2018, 106, 223–231. [Google Scholar] [CrossRef]
  48. Suriyanarayanan, S.; Petrone, L.; Ederth, T.; Nicholls, I.A. Biotinyl moiety-selective polymer films with highly ordered macropores. Chem. Commun. 2013, 49, 5274–5276. [Google Scholar] [CrossRef] [PubMed]
  49. Zhang, W.; Qin, L.; He, X.W.; Li, W.Y.; Zhang, Y.K. Novel surface modified molecularly imprinted polymer using acryloyl-β-cyclodextrin and acrylamide as monomers for selective recognition of lysozyme in aqueous solution. J. Chromatogr. A 2009, 1216, 4560–4567. [Google Scholar] [CrossRef] [PubMed]
  50. Wang, H.F.; He, Y.; Ji, T.R.; Yan, X.P. Surface molecular imprinting on Mn-doped ZnS quantum dots for room-temperature phosphorescence optosensing of pentachlorophenol in water. Anal. Chem. 2009, 81, 1615–1621. [Google Scholar] [CrossRef]
  51. Tan, C.J.; Chua, H.G.; Ker, K.H.; Tong, Y.W. Preparation of bovine serum albumin surface-imprinted submicrometer particles with magnetic susceptibility through core-shell miniemulsion polymerization. Anal. Chem. 2008, 80, 683–692. [Google Scholar] [CrossRef]
  52. Jing, T.; Xia, H.; Guan, Q.; Lu, W.; Dai, Q.; Niu, J.; Lim, J.M.; Hao, Q.; Lee, Y.I.; Zhou, Y. Rapid and selective determination of urinary lysozyme based on magnetic molecularly imprinted polymers extraction followed by chemiluminescence detection. Anal. Chim. Acta 2011, 692, 73–79. [Google Scholar] [CrossRef]
  53. Li, Y.; Yin, X.F.; Chen, F.R.; Yang, H.H.; Zhuang, Z.X.; Wang, X.R. Synthesis of magnetic molecularly imprinted polymer nanowires using a nanoporous alumina template. Macromolecules 2006, 39, 4497–4499. [Google Scholar] [CrossRef]
  54. Xie, C.; Liu, B.; Wang, Z.; Gao, D.; Guan, G.; Zhang, Z. Molecular imprinting at walls of silica nanotubes for TNT recognition. Anal. Chem. 2008, 80, 437–443. [Google Scholar] [CrossRef]
  55. Rachkov, A.; Minoura, N. Recognition of oxytocin and oxytocin-related peptides in aqueous media using a molecularly imprinted polymer synthesized by the epitope approach. J. Chromatogr. A 2000, 889, 111–118. [Google Scholar] [CrossRef]
  56. Polevoda, B.; Sherman, F. Nα-terminal acetylation of eukaryotic proteins. J. Biol. Chem. 2000, 275, 36479–36482. [Google Scholar] [CrossRef] [Green Version]
  57. Whitcombe, M.J.; Chianella, I.; Larcombe, L.; Piletsky, S.A.; Noble, J.; Porter, R.; Horgan, A. The rational development of molecularly imprinted polymer-based sensors for protein detection. Chem. Soc. Rev. 2011, 40, 1547–1571. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  58. Kryscio, D.R.; Peppas, N.A. Critical review and perspective of macromolecularly imprinted polymers. Acta Biomater. 2012, 8, 461–473. [Google Scholar] [CrossRef] [PubMed]
  59. Kolaskar, A.; Kulkarni-Kale, U. Prediction of three-dimensional structure and mapping of conformational epitopes of envelope glycoprotein of Japanese encephalitis virus. Virology 1999, 261, 31–42. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  60. Piletsky, S.; Piletska, E.; Canfarotta, F.; Karim, K.; Jones, D.; Norman, R.; Guerreiro, A. Methods and Kits for Determining Binding Sites. U.S. Patent WO/2018/178629, 19 March 2018. [Google Scholar]
  61. Lin, H.Y.; Hsu, C.Y.; Thomas, J.L.; Wang, S.E.; Chen, H.C.; Chou, T.C. The microcontact imprinting of proteins: The effect of cross-linking monomers for lysozyme, ribonuclease A and myoglobin. Biosens. Bioelectron. 2006, 22, 534–543. [Google Scholar] [CrossRef] [PubMed]
  62. Sener, G.; Ozgur, E.; Rad, A.Y.; Uzun, L.; Say, R.; Denizli, A. Rapid real-time detection of procalcitonin using a microcontact imprinted surface plasmon resonance biosensor. Analyst 2013, 138, 6422–6428. [Google Scholar] [CrossRef] [PubMed]
  63. Osman, B.; Uzun, L.; Beşirli, N.; Denizli, A. Microcontact imprinted surface plasmon resonance sensor for myoglobin detection. Mater. Sci. Eng. C 2013, 33, 3609–3614. [Google Scholar] [CrossRef]
  64. Ertürk, G.; Mattiasson, B. Molecular imprinting techniques used for the preparation of biosensors. Sensors 2017, 17, 288. [Google Scholar] [CrossRef] [Green Version]
  65. Rosengren-Holmberg, J.P.; Andersson, J.; Smith, J.R.; Alexander, C.; Alexander, M.R.; Tovar, G.; Ekdahl, K.N.; Nicholls, I.A. Heparin molecularly imprinted surfaces for the attenuation of complement activation in blood. Biomater. Sci. 2015, 3, 1208–1217. [Google Scholar] [CrossRef] [Green Version]
  66. Bergmann, N.M.; Peppas, N.A. Molecularly imprinted polymers with specific recognition for macromolecules and proteins. Prog. Polym. Sci. 2008, 33, 271–288. [Google Scholar] [CrossRef]
  67. Dvorakova, G.; Haschick, R.; Chiad, K.; Klapper, M.; Müllen, K.; Biffis, A. Molecularly imprinted nanospheres by nonaqueous emulsion polymerization. Macromol. Rapid Commun. 2010, 31, 2035–2040. [Google Scholar] [CrossRef] [PubMed]
  68. Advincula, R.C. Engineering molecularly imprinted polymer (MIP) materials: Developments and challenges for sensing and separation technologies. Korean J. Chem. Eng. 2011, 28, 1313–1321. [Google Scholar] [CrossRef]
  69. Manesiotis, P.; Hall, A.J.; Courtois, J.; Irgum, K.; Sellergren, B. An artificial riboflavin receptor prepared by a template analogue imprinting strategy. Angew. Chem. 2005, 117, 3970–3974. [Google Scholar] [CrossRef]
  70. Ma, X.; Ji, W.; Chen, L.; Wang, X.; Liu, J.; Wang, X. Molecularly imprinted polymers with synthetic dummy templates for the preparation of capsaicin and dihydrocapsaicin from chili peppers. J. Sep. Sci. 2015, 38, 100–107. [Google Scholar] [CrossRef]
  71. Xu, S.; Lu, H.; Li, J.; Song, X.; Wang, A.; Chen, L.; Han, S. Dummy molecularly imprinted polymers-capped CdTe quantum dots for the fluorescent sensing of 2,4,6-trinitrotoluene. ACS Appl. Mater. Interfaces 2013, 5, 8146–8154. [Google Scholar] [CrossRef]
  72. Quaglia, M.; Chenon, K.; Hall, A.J.; De Lorenzi, E.; Sellergren, B. Target analogue imprinted polymers with affinity for folic acid and related compounds. J. Am. Chem. Soc. 2001, 123, 2146–2154. [Google Scholar] [CrossRef]
  73. Tokonami, S.; Shiigi, H.; Nagaoka, T. Review: Micro- and nanosized molecularly imprinted polymers for high-throughput analytical applications. Anal. Chim. Acta 2009, 641, 7–13. [Google Scholar] [CrossRef]
  74. Umpleby, R.J.; Baxter, S.C.; Rampey, A.M.; Rushton, G.T.; Chen, Y.; Shimizu, K.D. Characterization of the heterogeneous binding site affinity distributions in molecularly imprinted polymers. J. Chromatogr. B 2004, 804, 141–149. [Google Scholar] [CrossRef]
  75. Nicholls, I.A. Thermodynamic considerations for the design of and ligand recognition by non-covalent molecularly imprinted polymers. Chem. Lett. 1995, 24, 1035–1036. [Google Scholar] [CrossRef]
  76. Curcio, P.; Zandanel, C.; Wagner, A.; Mioskowski, C.; Baati, R. Semi-Covalent Surface Molecular Imprinting of Polymers by One-Stage Mini-emulsion Polymerization: Glucopyranoside as a Model Analyte. Macromol. Biosci. 2009, 9, 596–604. [Google Scholar] [CrossRef]
  77. Zimmerman, S.C.; Lemcoff, N.G. Synthetic hosts via molecular imprinting—Are universal synthetic antibodies realistically possible? Chem. Commun. 2004, 5–14. [Google Scholar] [CrossRef] [PubMed]
  78. Spivak, D.A. Optimization, evaluation, and characterization of molecularly imprinted polymers. Adv. Drug. Deliv. Rev. 2005, 57, 1779–1794. [Google Scholar] [CrossRef] [PubMed]
  79. Piletska, E.V.; Pink, D.; Karim, K.; Piletsky, S.A. Development of a computationally-designed polymeric adsorbent specific for mycotoxin patulin. Analyst 2017, 142, 4678–4683. [Google Scholar] [CrossRef] [Green Version]
  80. Bates, F.; Busato, M.; Piletska, E.; Whitcombe, M.J.; Karim, K.; Guerreiro, A.; del Valle, M.; Giorgetti, A.; Piletsky, S. Computational design of molecularly imprinted polymer for direct detection of melamine in milk. Sep. Sci. Technol. 2017, 52, 1441–1453. [Google Scholar] [CrossRef] [Green Version]
  81. Cowen, T.; Karim, K.; Piletsky, S. Computational approaches in the design of synthetic receptors—A review. Anal. Chim. Acta 2016, 936, 62–74. [Google Scholar] [CrossRef]
  82. Guerreiro, A.R.; Chianella, I.; Piletska, E.; Whitcombe, M.J.; Piletsky, S.A. Selection of imprinted nanoparticles by affinity chromatography. Biosens. Bioelectron. 2009, 24, 2740–2743. [Google Scholar] [CrossRef] [Green Version]
  83. Poma, A.; Guerreiro, A.; Caygill, S.; Moczko, E.; Piletsky, S. Automatic reactor for solid-phase synthesis of molecularly imprinted polymeric nanoparticles (MIP NPs) in water. RSC Adv. 2014, 4, 4203–4206. [Google Scholar] [CrossRef] [Green Version]
  84. Canfarotta, F.; Poma, A.; Guerreiro, A.; Piletsky, S. Solid-phase synthesis of molecularly imprinted nanoparticles. Nat. Protoc. 2016, 11, 443–455. [Google Scholar] [CrossRef]
  85. Basozabal, I.; Guerreiro, A.; Gomez-Caballero, A.; Goicolea, M.A.; Barrio, R.J. Direct potentiometric quantification of histamine using solid-phase imprinted nanoparticles as recognition elements. Biosens. Bioelectron. 2014, 58, 138–144. [Google Scholar] [CrossRef]
  86. Otsu, T.; Matsunaga, T.; Kuriyama, A.; Yoshioka, M. Living radical polymerization through the use of iniferters: Controlled synthesis of polymers. Eur. Polym. J. 1989, 25, 643–650. [Google Scholar] [CrossRef]
  87. Cowen, T.; Busato, M.; Karim, K.; Piletsky, S.A. In Silico Synthesis of Synthetic Receptors: A Polymerization Algorithm. Macromol. Rapid Commun. 2016, 37, 2011–2016. [Google Scholar] [CrossRef] [PubMed]
  88. Cowen, T.; Karim, K.; Piletsky, S.A. Solubility and size of polymer nanoparticles. Polym. Chem. 2018, 9, 4566–4573. [Google Scholar] [CrossRef] [Green Version]
  89. Hoshino, Y.; Shea, K.J. The evolution of plastic antibodies. J. Mater. Chem. 2011, 21, 3517–3521. [Google Scholar] [CrossRef]
  90. Wulff, G. Fourty years of molecular imprinting in synthetic polymers: Origin, features and perspectives. Microchim. Acta 2013, 180, 1359–1370. [Google Scholar] [CrossRef]
  91. Poma, A.; Turner, A.P.; Piletsky, S.A. Advances in the manufacture of MIP nanoparticles. Trends Biotechnol. 2010, 28, 629–637. [Google Scholar] [CrossRef]
  92. Canfarotta, F.; Cecchini, A.; Piletsky, S. Nano-sized Molecularly Imprinted Polymers as Artificial Antibodies. In Molecularly Imprinted Polymers for Analytical Chemistry Applications; Kutner, W., Sharma, P.S., Eds.; Royal Society of Chemistry: London, UK, 2018; pp. 1–27. [Google Scholar]
  93. Ye, L.; Mosbach, K. Molecularly imprinted microspheres as antibody binding mimics. React. Funct. Polym. 2001, 48, 149–157. [Google Scholar] [CrossRef]
  94. Poma, A. Automatic Solid-Phase Synthesis of Molecularly Imprinted Nanoparticles (MIP NPs). Ph.D. Thesis, Cranfield University, Cranfield, UK, 2012. [Google Scholar]
  95. Ye, L.; Cormack, P.A.; Mosbach, K. Molecularly imprinted monodisperse microspheres for competitive radioassay. Anal. Commun. 1999, 36, 35–38. [Google Scholar] [CrossRef]
  96. Li, W.H.; Stöver, H.D. Monodisperse cross-linked core− shell polymer microspheres by precipitation polymerization. Macromolecules 2000, 33, 4354–4360. [Google Scholar] [CrossRef]
  97. Jing, T.; Gao, X.D.; Wang, P.; Wang, Y.; Lin, Y.F.; Hu, X.Z.; Hao, Q.L.; Zhou, Y.K.; Mei, S.R. Determination of trace tetracycline antibiotics in foodstuffs by liquid chromatography–tandem mass spectrometry coupled with selective molecular-imprinted solid-phase extraction. Anal. Bioanal. Chem. 2009, 393, 2009–2018. [Google Scholar] [CrossRef]
  98. Pérez-Moral, N.; Mayes, A. Comparative study of imprinted polymer particles prepared by different polymerisation methods. Anal. Chim. Acta 2004, 504, 15–21. [Google Scholar] [CrossRef]
  99. Downey, J.S.; McIsaac, G.; Frank, R.S.; Stöver, H.D. Poly (divinylbenzene) microspheres as an intermediate morphology between microgel, macrogel, and coagulum in cross-linking precipitation polymerization. Macromolecules 2001, 34, 4534–4541. [Google Scholar] [CrossRef]
  100. Beltran, A.; Marcé, R.; Cormack, P.; Borrull, F. Synthesis by precipitation polymerisation of molecularly imprinted polymer microspheres for the selective extraction of carbamazepine and oxcarbazepine from human urine. J. Chromatogr. A 2009, 1216, 2248–2253. [Google Scholar] [CrossRef] [PubMed]
  101. Alizadeh, T. Preparation of molecularly imprinted polymer containing selective cavities for urea molecule and its application for urea extraction. Anal. Chim. Acta 2010, 669, 94–101. [Google Scholar] [CrossRef] [PubMed]
  102. Liu, Y.; Hoshina, K.; Haginaka, J. Monodispersed, molecularly imprinted polymers for cinchonidine by precipitation polymerization. Talanta 2010, 80, 1713–1718. [Google Scholar] [CrossRef]
  103. Vaihinger, D.; Landfester, K.; Kräuter, I.; Brunner, H.; Tovar, G.E. Molecularly imprinted polymer nanospheres as synthetic affinity receptors obtained by miniemulsion polymerisation. Macromol. Chem. Phys. 2002, 203, 1965–1973. [Google Scholar] [CrossRef]
  104. Ambrosini, S.; Beyazit, S.; Haupt, K.; Bui, B.T.S. Solid-phase synthesis of molecularly imprinted nanoparticles for protein recognition. Chem. Commun. 2013, 49, 6746–6748. [Google Scholar] [CrossRef]
  105. Congur, G.; Senay, H.; Turkcan, C.; Canavar, E.; Erdem, A.; Akgol, S. Estrone specific molecularly imprinted polymeric nanospheres: Synthesis, characterization and applications for electrochemical sensor development. Comb. Chem. High Throughput Screen. 2013, 16, 503–510. [Google Scholar] [CrossRef]
  106. Van Herk, A.M.; Monteiro, M. Heterogeneous systems. In Handbook of Radical Polymerization; Matyjaszewski, K., Davis, T.P., Eds.; John Wiley & Sons, Inc.: Hoboken, NJ, USA, 2003; pp. 301–332. [Google Scholar]
  107. Pérez, N.; Whitcombe, M.J.; Vulfson, E.N. Molecularly imprinted nanoparticles prepared by core-shell emulsion polymerization. J. Appl. Polym. Sci. 2000, 77, 1851–1859. [Google Scholar] [CrossRef]
  108. Mijangos, I.; Guerreiro, A.; Piletska, E.; Whitcombe, M.J.; Karim, K.; Chianella, I.; Piletsky, S. Macroradical initiated polymerisation of acrylic and methacrylic monomers. J. Sep. Sci. 2009, 32, 3340–3346. [Google Scholar] [CrossRef]
  109. Bossi, A.; Whitcombe, M.J.; Uludag, Y.; Fowler, S.; Chianella, I.; Subrahmanyam, S.; Sanchez, I.; Piletsky, S.A. Synthesis of controlled polymeric cross-linked coatings via iniferter polymerisation in the presence of tetraethyl thiuram disulphide chain terminator. Biosens. Bioelectron. 2010, 25, 2149–2155. [Google Scholar] [CrossRef] [Green Version]
  110. Carter, S.; Lu, S.Y.; Rimmer, S. Core-shell molecular imprinted polymer colloids. Supramol. Chem. 2003, 15, 213–220. [Google Scholar] [CrossRef]
  111. Li, L.; He, X.; Chen, L.; Zhang, Y. Preparation of core-shell magnetic molecularly imprinted polymer nanoparticles for recognition of bovine hemoglobin. Chem. Asian J. 2009, 4, 286–293. [Google Scholar] [CrossRef] [PubMed]
  112. Madrakian, T.; Afkhami, A.; Mahmood-Kashani, H.; Ahmadi, M. Superparamagnetic surface molecularly imprinted nanoparticles for sensitive solid-phase extraction of tramadol from urine samples. Talanta 2013, 105, 255–261. [Google Scholar] [CrossRef] [PubMed]
  113. Li, Y.; Dong, C.; Chu, J.; Qi, J.; Li, X. Surface molecular imprinting onto fluorescein-coated magnetic nanoparticles via reversible addition fragmentation chain transfer polymerization: A facile three-in-one system for recognition and separation of endocrine disrupting chemicals. Nanoscale 2011, 3, 280–287. [Google Scholar] [CrossRef]
  114. Gao, D.; Zhang, Z.; Wu, M.; Xie, C.; Guan, G.; Wang, D. A surface functional monomer-directing strategy for highly dense imprinting of TNT at surface of silica nanoparticles. J. Am. Chem. Soc. 2007, 129, 7859–7866. [Google Scholar] [CrossRef]
  115. Moczko, E.; Poma, A.; Guerreiro, A.; de Vargas Sansalvador, I.M.P.; Caygill, S.; Canfarotta, F.; Whitcombe, M.J.; Piletsky, S. Surface-modified multifunctional MIP nanoparticles. Nanoscale 2013, 5, 3733–3741. [Google Scholar] [CrossRef] [Green Version]
  116. Moczko, E.; Guerreiro, A.; Piletska, E.; Piletsky, S. PEG-stabilized core–shell surface-imprinted nanoparticles. Langmuir 2013, 29, 9891–9896. [Google Scholar] [CrossRef] [Green Version]
  117. Subrahmanyam, S.; Guerreiro, A.; Poma, A.; Moczko, E.; Piletska, E.; Piletsky, S. Optimisation of experimental conditions for synthesis of high affinity MIP nanoparticles. Eur. Polym. J. 2013, 49, 100–105. [Google Scholar] [CrossRef]
  118. Valero-Navarro, A.; Medina-Castillo, A.L.; Fernandez-Sanchez, J.F.; Fernández-Gutiérrez, A. Synthesis of a novel polyurethane-based-magnetic imprinted polymer for the selective optical detection of 1-naphthylamine in drinking water. Biosens. Bioelectron. 2011, 26, 4520–4525. [Google Scholar] [CrossRef]
  119. Piletsky, S.A.; Turner, N.W.; Laitenberger, P. Molecularly imprinted polymers in clinical diagnostics—Future potential and existing problems. Med. Eng. Phys. 2006, 28, 971–977. [Google Scholar] [CrossRef]
  120. Gutiérrez-Climente, R.; Gómez-Caballero, A.; Halhalli, M.; Sellergren, B.; Goicolea, M.A.; Barrio, R.J. Iniferter-mediated grafting of molecularly imprinted polymers on porous silica beads for the enantiomeric resolution of drugs. J. Mol. Recognit. 2016, 29, 106–114. [Google Scholar] [CrossRef] [PubMed]
  121. Zhang, Z.; Wu, R.A.; Wu, M.; Zou, H. Recent progress of chiral monolithic stationary phases in CEC and capillary LC. Electrophoresis 2010, 31, 1457–1466. [Google Scholar] [CrossRef] [PubMed]
  122. Liu, X.; Zong, H.Y.; Huang, Y.P.; Liu, Z.S. Liquid crystal-based molecularly imprinted nanoparticles with low crosslinking for capillary electrochromatography. J. Chromatogr. A 2013, 1309, 84–89. [Google Scholar] [CrossRef] [PubMed]
  123. Maciel, E.V.S.; de Toffoli, A.L.; Neto, E.S.; Nazario, C.E.D.; Lancas, F.M. New materials in sample preparation: Recent advances and future trends. TrAC Trends Anal. Chem. 2019, 119, 115633. [Google Scholar] [CrossRef]
  124. Chen, L.; Liu, J.; Zeng, Q.; Wang, H.; Yu, A.; Zhang, H.; Ding, L. Preparation of magnetic molecularly imprinted polymer for the separation of tetracycline antibiotics from egg and tissue samples. J. Chromatogr. A 2009, 1216, 3710–3719. [Google Scholar] [CrossRef]
  125. Priego-Capote, F.; Ye, L.; Shakil, S.; Shamsi, S.A.; Nilsson, S. Monoclonal behavior of molecularly imprinted polymer nanoparticles in capillary electrochromatography. Anal. Chem. 2008, 80, 2881–2887. [Google Scholar] [CrossRef] [Green Version]
  126. Shi, X.X.; Xu, L.; Duan, H.Q.; Huang, Y.P.; Liu, Z.S. CEC separation of ofloxacin enantiomers using imprinted microparticles prepared in molecular crowding conditions. Electrophoresis 2011, 32, 1348–1356. [Google Scholar] [CrossRef]
  127. Li, S.; Li, W. Molecular imprinting: A versatile tool for separation, sensors and catalysis. Adv. Polym. Sci. 2007, 206, 191–210. [Google Scholar] [CrossRef]
  128. Wulff, G. Enzyme-like catalysis by molecularly imprinted polymers. Chem. Rev. 2002, 102, 1–28. [Google Scholar] [CrossRef]
  129. Berti, F.; Todros, S.; Lakshmi, D.; Whitcombe, M.J.; Chianella, I.; Ferroni, M.; Piletsky, S.A.; Turner, A.P.; Marrazza, G. Quasi-monodimensional polyaniline nanostructures for enhanced molecularly imprinted polymer-based sensing. Biosens. Bioelectron. 2010, 26, 497–503. [Google Scholar] [CrossRef]
  130. Wulff, G.; Liu, J. Design of biomimetic catalysts by molecular imprinting in synthetic polymers: The role of transition state stabilization. Acc. Chem. Res. 2011, 45, 239–247. [Google Scholar] [CrossRef] [PubMed]
  131. Servant, A. Synthesis and Characterisation of Molecularly Imprinted Nanoparticles with Enzyme-Like Catalytic Activity for the Kemp Elimination. Ph.D. Thesis, Queen Mary University, London, UK, 2010. [Google Scholar]
  132. Anfossi, L.; Baggiani, C.; Giovannoli, C.; D’Arco, G.; Giraudi, G. Lateral-flow immunoassays for mycotoxins and phycotoxins: A review. Anal. Bioanal. Chem. 2013, 405, 467–480. [Google Scholar] [CrossRef] [PubMed]
  133. Piletska, E.V.; Piletsky, S.S.; Whitcombe, M.J.; Chianella, I.; Piletsky, S.A. Development of a New Microtiter Plate Format for Clinically Relevant Assays. Anal. Chem. 2012, 84, 2038–2043. [Google Scholar] [CrossRef] [PubMed]
  134. Aydin, S. A short history, principles, and types of ELISA, and our laboratory experience with peptide/protein analyses using ELISA. Peptides 2015, 72, 4–15. [Google Scholar] [CrossRef] [PubMed]
  135. Linares, E.M.; Pannuti, C.S.; Kubota, L.T.; Thalhammer, S. Immunospot assay based on fluorescent nanoparticles for Dengue fever detection. Biosens. Bioelectron. 2013, 41, 180–185. [Google Scholar] [CrossRef]
  136. Bedwell, T.S.; Whitcombe, M.J. Analytical applications of MIPs in diagnostic assays: Future perspectives. Anal. Bioanal. Chem. 2016, 408, 1735–1751. [Google Scholar] [CrossRef] [Green Version]
  137. Akbulut, M.; Lakshmi, D.; Whitcombe, M.J.; Piletska, E.V.; Chianella, I.; Güven, O.; Piletsky, S.A. Microplates with adaptive surfaces. ACS Comb. Sci. 2011, 13, 646–652. [Google Scholar] [CrossRef]
  138. Hoshino, Y.; Kodama, T.; Okahata, Y.; Shea, K.J. Peptide imprinted polymer nanoparticles: A plastic antibody. J. Am. Chem. Soc. 2008, 130, 15242–15243. [Google Scholar] [CrossRef]
  139. Hoshino, Y.; Koide, H.; Urakami, T.; Kanazawa, H.; Kodama, T.; Oku, N.; Shea, K.J. Recognition, neutralization, and clearance of target peptides in the bloodstream of living mice by molecularly imprinted polymer nanoparticles: A plastic antibody. J. Am. Chem. Soc. 2010, 132, 6644–6645. [Google Scholar] [CrossRef] [Green Version]
  140. Haupt, K.; Dzgoev, A.; Mosbach, K. Assay system for the herbicide 2, 4-dichlorophenoxyacetic acid using a molecularly imprinted polymer as an artificial recognition element. Anal. Chem. 1998, 70, 628–631. [Google Scholar] [CrossRef]
  141. Lin, C.I.; Joseph, A.K.; Chang, C.K.; Der Lee, Y. Synthesis and photoluminescence study of molecularly imprinted polymers appended onto CdSe/ZnS core-shells. Biosens. Bioelectron. 2004, 20, 127–131. [Google Scholar] [CrossRef] [PubMed]
  142. Hunt, C.E.; Pasetto, P.; Ansell, R.J.; Haupt, K. A fluorescence polarisation molecular imprint sorbent assay for 2, 4-D: A non-separation pseudo-immunoassay. Chem. Commun. 2006, 1754–1756. [Google Scholar] [CrossRef] [PubMed]
  143. Navarro-Villoslada, F.; Urraca, J.L.; Moreno-Bondi, M.C.; Orellana, G. Zearalenone sensing with molecularly imprinted polymers and tailored fluorescent probes. Sens. Actuators B Chem. 2007, 121, 67–73. [Google Scholar] [CrossRef]
  144. Lu, C.H.; Zhou, W.H.; Han, B.; Yang, H.H.; Chen, X.; Wang, X.R. Surface-imprinted core-shell nanoparticles for sorbent assays. Anal. Chem. 2007, 79, 5457–5461. [Google Scholar] [CrossRef] [PubMed]
  145. Poma, A. Solid-Phase Synthesis of Molecularly Imprinted Polymer Nanoparticles with a Reusable Template—“Plastic Antibodies”. Adv. Funct. Mater. 2013, 23, 2821–2827. [Google Scholar] [CrossRef] [Green Version]
  146. Chianella, I.; Guerreiro, A.; Moczko, E.; Caygill, J.S.; Piletska, E.V.; de Vargas Sansalvador, I.M.P.; Whitcombe, M.J.; Piletsky, S.A. Direct Replacement of Antibodies with Molecularly Imprinted Polymer Nanoparticles in ELISA—Development of a Novel Assay for Vancomycin. Anal. Chem. 2013, 85, 8462–8468. [Google Scholar] [CrossRef] [Green Version]
  147. Garcia, Y.; Smolinska-Kempisty, K.; Pereira, E.; Piletska, E.; Piletsky, S. Development of competitive ‘pseudo’-ELISA assay for measurement of cocaine and its metabolites using molecularly imprinted polymer nanoparticles. Anal. Methods 2017, 9, 4592–4598. [Google Scholar] [CrossRef]
  148. Tang, S.P.; Canfarotta, F.; Smolinska-Kempisty, K.; Piletska, E.; Guerreiro, A.; Piletsky, S. A pseudo-ELISA based on molecularly imprinted nanoparticles for detection of gentamicin in real samples. Anal. Methods 2017, 9, 2853–2858. [Google Scholar] [CrossRef]
  149. Piletska, E.V.; Piletsky, S.S.; Guerreiro, A.; Karim, K.; Whitcombe, M.J.; Piletsky, S.A. Microplates with enhanced immobilization capabilities controlled by a magnetic field. J. Chin. Adv. Mater. Soc. 2014, 2, 118–129. [Google Scholar] [CrossRef]
  150. Piletsky, S.; Rabinowicz, S.; Yang, Z.; Zagar, C.; Piletska, E.V.; Guerreiro, A.; Piletsky, S.A. Development of molecularly imprinted polymers specific for blood antigens for application in antibody-free blood typing. Chem. Commun. 2017, 53, 1793–1796. [Google Scholar] [CrossRef] [Green Version]
  151. Esen, C.; Czulak, J.; Cowen, T.; Piletska, E.; Piletsky, S.A. Highly Efficient Abiotic Assay Formats for Methyl Parathion–MINA as Alternative to ELISA. Anal. Chem. 2018, 91, 958–964. [Google Scholar] [CrossRef] [PubMed]
  152. Piletsky, S.S.; Cass, A.E.; Piletska, E.V.; Czulak, J.; Piletsky, S.A. A Novel Assay Format as an Alternative to ELISA: MINA Test for Biotin. ChemNanoMat 2018, 4, 1214–1222. [Google Scholar] [CrossRef]
  153. Mahajan, R.; Rouhi, M.; Shinde, S.; Bedwell, T.; Incel, A.; Mavliutova, L.; Piletsky, S.; Nicholls, I.A.; Sellergren, B. Highly Efficient Synthesis and Assay of Protein-Imprinted Nanogels by Using Magnetic Templates. Angew. Chem. Int. Ed. 2019, 58, 727–730. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  154. Schirhagl, R.; Lieberzeit, P.A.; Dickert, F.L. Chemosensors for viruses based on artificial immunoglobulin copies. Adv. Mater. 2010, 22, 2078–2081. [Google Scholar] [CrossRef]
  155. Dickert, F.L.; Hayden, O.; Bindeus, R.; Mann, K.J.; Blaas, D.; Waigmann, E. Bioimprinted QCM sensors for virus detection—Screening of plant sap. Anal. Bioanal. Chem. 2004, 378, 1929–1934. [Google Scholar] [CrossRef]
  156. Piletsky, S.A.; Piletska, E.V.; Chen, B.; Karim, K.; Weston, D.; Barrett, G.; Lowe, P.; Turner, A.P. Chemical grafting of molecularly imprinted homopolymers to the surface of microplates. Application of artificial adrenergic receptor in enzyme-linked assay for β-agonists determination. Anal. Chem. 2000, 72, 4381–4385. [Google Scholar] [CrossRef]
  157. Titirici, M.M.; Sellergren, B. Thin molecularly imprinted polymer films via reversible addition− fragmentation chain transfer polymerization. Chem. Mater. 2006, 18, 1773–1779. [Google Scholar] [CrossRef]
  158. Cai, D.; Ren, L.; Zhao, H.; Xu, C.; Zhang, L.; Yu, Y.; Wang, H.; Lan, Y.; Roberts, M.F.; Chuang, J.H. A molecular-imprint nanosensor for ultrasensitive detection of proteins. Nat. Nanotechnol. 2010, 5, 597–601. [Google Scholar] [CrossRef] [Green Version]
  159. Li, Y.; Liu, Y.; Liu, J.; Liu, J.; Tang, H.; Cao, C.; Zhao, D.; Ding, Y. Molecularly imprinted polymer decorated nanoporous gold for highly selective and sensitive electrochemical sensors. Sci. Rep. 2015, 5, 7699. [Google Scholar] [CrossRef] [Green Version]
  160. Reimhult, K.; Yoshimatsu, K.; Risveden, K.; Chen, S.; Ye, L.; Krozer, A. Characterization of QCM sensor surfaces coated with molecularly imprinted nanoparticles. Biosens. Bioelectron. 2008, 23, 1908–1914. [Google Scholar] [CrossRef]
  161. Fang, Y.; Yan, S.; Ning, B.; Liu, N.; Gao, Z.; Chao, F. Flow injection chemiluminescence sensor using molecularly imprinted polymers as recognition element for determination of maleic hydrazide. Biosens. Bioelectron. 2009, 24, 2323–2327. [Google Scholar] [CrossRef] [PubMed]
  162. Uchida, A.; Kitayama, Y.; Takano, E.; Ooya, T.; Takeuchi, T. Supraparticles comprised of molecularly imprinted nanoparticles and modified gold nanoparticles as a nanosensor platform. RSC Adv. 2013, 3, 25306–25311. [Google Scholar] [CrossRef]
  163. Dechtrirat, D.; Jetzschmann, K.J.; Stöcklein, W.F.; Scheller, F.W.; Gajovic-Eichelmann, N. Protein rebinding to a surface-confined imprint. Adv. Funct. Mater. 2012, 22, 5231–5237. [Google Scholar] [CrossRef]
  164. Canfarotta, F.; Waters, A.; Sadler, R.; McGill, P.; Guerreiro, A.; Papkovsky, D.; Haupt, K.; Piletsky, S. Biocompatibility and internalization of molecularly imprinted nanoparticles. Nano Res. 2016, 9, 3463–3477. [Google Scholar] [CrossRef]
  165. Curcio, M.; Cirillo, G.; Parisi, O.I.; Iemma, F.; Picci, N.; Puoci, F. Quercetin-imprinted nanospheres as novel drug delivery devices. J. Funct. Biomater. 2012, 3, 269–282. [Google Scholar] [CrossRef]
  166. Suksuwan, A.; Lomlim, L.; Rungrotmongkol, T.; Nakpheng, T.; Dickert, F.L.; Suedee, R. The composite nanomaterials containing (R)-thalidomide-molecularly imprinted polymers as a recognition system for enantioselective-controlled release and targeted drug delivery. J. Appl. Polym. Sci. 2015, 132. [Google Scholar] [CrossRef]
  167. Ishkuh, F.A.; Javanbakht, M.; Esfandyari-Manesh, M.; Dinarvand, R.; Atyabi, F. Synthesis and characterization of paclitaxel-imprinted nanoparticles for recognition and controlled release of an anticancer drug. J. Mater. Sci. 2014, 49, 6343–6352. [Google Scholar] [CrossRef]
  168. Parisi, O.I.; Morelli, C.; Puoci, F.; Saturnino, C.; Caruso, A.; Sisci, D.; Trombino, G.E.; Picci, N.; Sinicropi, M.S. Magnetic molecularly imprinted polymers (MMIPs) for carbazole derivative release in targeted cancer therapy. J. Mater. Chem. B 2014, 2, 6619–6625. [Google Scholar] [CrossRef]
  169. Puoci, F.; Iemma, F.; Picci, N. Stimuli-responsive molecularly imprinted polymers for drug delivery: A review. Curr. Drug Deliv. 2008, 5, 85–96. [Google Scholar] [CrossRef]
  170. Suedee, R.; Jantarat, C.; Lindner, W.; Viernstein, H.; Songkro, S.; Srichana, T. Development of a pH-responsive drug delivery system for enantioselective-controlled delivery of racemic drugs. J. Control. Release 2010, 142, 122–131. [Google Scholar] [CrossRef]
  171. Wang, Y.Z.; Li, D.Y.; He, X.W.; Li, W.Y.; Zhang, Y.K. Epitope imprinted polymer nanoparticles containing fluorescent quantum dots for specific recognition of human serum albumin. Microchim. Acta 2015, 182, 1465–1472. [Google Scholar] [CrossRef]
  172. Li, C.E.; Zhong, S.A.; Li, X.J.; Guo, M. Silica particles coated with azobenzene-containing photoresponsive molecule-imprinted skin layer. Colloid. Polym. Sci. 2013, 291, 2049–2059. [Google Scholar] [CrossRef]
  173. Pan, G.; Guo, Q.; Cao, C.; Yang, H.; Li, B. Thermo-responsive molecularly imprinted nanogels for specific recognition and controlled release of proteins. Soft Matter 2013, 9, 3840–3850. [Google Scholar] [CrossRef]
  174. Lin, C.I.; Joseph, A.K.; Chang, C.K.; Der Lee, Y. Molecularly imprinted polymeric film on semiconductor nanoparticles: Analyte detection by quantum dot photoluminescence. J. Chromatogr. A 2004, 1027, 259–262. [Google Scholar] [CrossRef]
  175. Liu, R.; Guan, G.; Wang, S.; Zhang, Z. Core-shell nanostructured molecular imprinting fluorescent chemosensor for selective detection of atrazine herbicide. Analyst 2011, 136, 184–190. [Google Scholar] [CrossRef]
  176. Kunath, S.; Panagiotopoulou, M.; Maximilien, J.; Marchyk, N.; Sänger, J.; Haupt, K. Cell and tissue imaging with molecularly imprinted polymers as plastic antibody mimics. Adv. Healthc. Mater. 2015, 4, 1322–1326. [Google Scholar] [CrossRef]
  177. Dong, Y.; Li, W.; Gu, Z.; Xing, R.; Ma, Y.; Zhang, Q.; Liu, Z. Inhibition of HER2-Positive Breast Cancer Growth by Blocking the HER2 Signaling Pathway with HER2-Glycan-Imprinted Nanoparticles. Angew. Chem. Int. Ed. 2019, 58, 10621–10625. [Google Scholar] [CrossRef]
Figure 1. Schematic representation of the molecular imprinting process, reproduced from [16] with permission.
Figure 1. Schematic representation of the molecular imprinting process, reproduced from [16] with permission.
Ijms 20 06304 g001
Figure 2. Schematic representations of protocols used in surface imprinting; (a) imprinting immobilized template on silica surfaces, reproduced from [35] with permission; (b) imprinting by surface grafting, reproduced from [36] with permission; and (c) soft lithography and UV initiated polymerization, adapted from [37] with permission.
Figure 2. Schematic representations of protocols used in surface imprinting; (a) imprinting immobilized template on silica surfaces, reproduced from [35] with permission; (b) imprinting by surface grafting, reproduced from [36] with permission; and (c) soft lithography and UV initiated polymerization, adapted from [37] with permission.
Ijms 20 06304 g002aIjms 20 06304 g002b
Figure 3. Epitope mapping: imprinting of the target protein (antigen), digestion of the protein to produce a peptide–polymer complex; isolation the peptide–polymer complex; and sequencing the attached peptide(s).
Figure 3. Epitope mapping: imprinting of the target protein (antigen), digestion of the protein to produce a peptide–polymer complex; isolation the peptide–polymer complex; and sequencing the attached peptide(s).
Ijms 20 06304 g003
Figure 4. Schematic representation of micro-contact imprinting, reproduced from [61] with permission.
Figure 4. Schematic representation of micro-contact imprinting, reproduced from [61] with permission.
Ijms 20 06304 g004

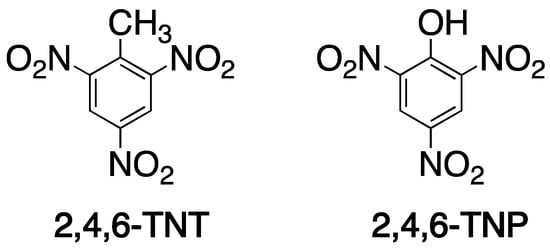

Figure 5. TNT and its less explosive analog TNP.
Figure 5. TNT and its less explosive analog TNP.
Ijms 20 06304 g005
Figure 6. Several protocols used in preparation of nanoMIPs: (a) precipitation, (b) emulsion, (c) core–shell [2,92].
Figure 6. Several protocols used in preparation of nanoMIPs: (a) precipitation, (b) emulsion, (c) core–shell [2,92].
Ijms 20 06304 g006
Figure 7. Schematic representation of solid phase synthesis of nanoMIPs.
Figure 7. Schematic representation of solid phase synthesis of nanoMIPs.
Ijms 20 06304 g007
Figure 8. Responses of blood type B or AB to the presence of blood type B-specific MIP nanoparticles. The black circles are magnetic disks on the inside walls of the microtiter plate wells.
Figure 8. Responses of blood type B or AB to the presence of blood type B-specific MIP nanoparticles. The black circles are magnetic disks on the inside walls of the microtiter plate wells.
Ijms 20 06304 g008
Figure 9. A schematic representation of the MINA process: the microtiter plate well is coated with fluorescent nanoMIPs (yellow) linked to biotin (blue). The biotin is fixed on magnetic nanoparticles (brown). By addition of free target species to the tested well, a displacement of the nanoMIPs occurs with subsequent diffusion to the center enhancing the fluorescent signal. Reproduced from [152] with permission.
Figure 9. A schematic representation of the MINA process: the microtiter plate well is coated with fluorescent nanoMIPs (yellow) linked to biotin (blue). The biotin is fixed on magnetic nanoparticles (brown). By addition of free target species to the tested well, a displacement of the nanoMIPs occurs with subsequent diffusion to the center enhancing the fluorescent signal. Reproduced from [152] with permission.
Ijms 20 06304 g009
Figure 10. Fluorescence intensity of nanoMIPs displaced from the corresponding magNPs upon addition of incremental amounts of protein and incubation for 2 h. The excitation/emission filters used were 485 and 520 nm, adapted from data presented by Mahajan et al. [153].
Figure 10. Fluorescence intensity of nanoMIPs displaced from the corresponding magNPs upon addition of incremental amounts of protein and incubation for 2 h. The excitation/emission filters used were 485 and 520 nm, adapted from data presented by Mahajan et al. [153].
Ijms 20 06304 g010

Share and Cite

MDPI and ACS Style

Refaat, D.; Aggour, M.G.; Farghali, A.A.; Mahajan, R.; Wiklander, J.G.; Nicholls, I.A.; Piletsky, S.A. Strategies for Molecular Imprinting and the Evolution of MIP Nanoparticles as Plastic Antibodies—Synthesis and Applications. Int. J. Mol. Sci. 2019, 20, 6304.

AMA Style

Refaat D, Aggour MG, Farghali AA, Mahajan R, Wiklander JG, Nicholls IA, Piletsky SA. Strategies for Molecular Imprinting and the Evolution of MIP Nanoparticles as Plastic Antibodies—Synthesis and Applications. International Journal of Molecular Sciences. 2019; 20(24):6304.

Chicago/Turabian Style

Refaat, Doaa, Mohamed G. Aggour, Ahmed A. Farghali, Rashmi Mahajan, Jesper G. Wiklander, Ian A. Nicholls, and Sergey A. Piletsky. 2019. "Strategies for Molecular Imprinting and the Evolution of MIP Nanoparticles as Plastic Antibodies—Synthesis and Applications" International Journal of Molecular Sciences 20, no. 24: 6304.

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
