Article

Antitumor Effect of Pyrogallol via miR-134 Mediated S Phase Arrest and Inhibition of PI3K/AKT/Skp2/cMyc Signaling in Hepatocellular Carcinoma

1
College of Korean Medicine, Kyung Hee University, Seoul 02447, Korea
2
Department of Herbal Crop Research, National Institute of Horticultural and Herbal Science, Rural Development Administration (RDA), Eumseong 27709, Korea
*
Author to whom correspondence should be addressed.
These authors contributed equally to this work.
Int. J. Mol. Sci. 2019, 20(16), 3985; https://doi.org/10.3390/ijms20163985
Submission received: 18 July 2019 / Revised: 10 August 2019 / Accepted: 13 August 2019 / Published: 16 August 2019
(This article belongs to the Section Molecular Oncology)

Abstract

:
Though Pyrogallol, one of the natural polyphenols, was known to have anti-inflammatory and antitumor effects in breast and colon cancers, the underlying antitumor mechanisms of Pyrogallol, still remain unclear so far. Here, the antitumor mechanisms of Pyrogallol were elucidated in Hep3B and Huh7 hepatocellular carcinoma cells (HCCs). Pyrogallol showed significant cytotoxicity and reduced the number of colonies in Hep3B and Huh7 cells. Interestingly, Pyrogallol induced S-phase arrest and attenuated the protein expression of CyclinD1, Cyclin E, Cyclin A, c-Myc, S-phase kinase-associated protein 2 (Skp2), p-AKT, PI3K, increased the protein expression of p27, and also reduced the fluorescent expression of Cyclin E in Hep3B and Huh7 cells. Furthermore, Pyrogallol disturbed the interaction between Skp2, p27, and c-Myc in Huh7 cells. Notably, Pyrogallol upregulated miRNA levels of miR-134, and conversely, miR-134 inhibition rescued the decreased expression levels of c-Myc, Cyclin E, and Cyclin D1 and increased the expression of p27 by Pyrogallol in Huh7 cells. Taken together, our findings provide insight that Pyrogallol exerts antitumor effects in HCCs via miR-134 activation-mediated S-phase arrest and inhibition of PI3K/AKT/Skp2/cMyc signaling as a potent anticancer candidate.

Graphical Abstract

1. Introduction

Liver cancer is recognized as the sixth most common cancer and the fourth leading cause of cancer mortality all over the world [1]. Among them, hepatocellular carcinoma (HCC) accounts for almost 90% of all primary hepatic malignancies [2]. Although chemotherapy, mainly with sorafenib, radiotherapy, surgery, and immunotherapy have been used for the treatment of HCC for years, the therapies are unsatisfactory due to its high recurrence rates and frequent accompanying cirrhosis [3,4]. Therefore, combination treatments to overcome resistance to anticancer agents were recommended for effective cancer therapy [5,6]. Consistently, Fan et al. reported the synergistic effect of 3-bromopyruvate as an effective glycolytic inhibitor in combination with other antitumor drugs (e.g., cisplatin, doxorubicin, 5-fluorouracil) in HL-60, U937, and HCT116 cells [7].
It is well documented that cell cycle arrest, including G0/G1, S, and G2/M phases are another option regardless of apoptosis induction in cancers [8,9]. Among them, many natural products such as lupeol [10], Biochanin A [11], and sulforaphane [12] are attractive for targeting S-phase arrest.
MicroRNAs (miRNAs), endogenous small non-coding RNAs of 19–25 nucleotides in length, are well known to act as a tumor suppressors or oncogenes in several cancers by regulating gene expression at a post-transcriptional level [13,14,15]. Among them, miRNA 134 was reported to act as a tumor suppressor in breast cancer [16], lung cancer [17], endometrial cancer [18], gastric cancer [19], osteosarcoma [20], and glioma cancer [21].
Pyrogallol, a major compound contained in Emblica officinalis and Mangifera indica, was known to have anti-inflammatory [22] and antitumor effects in colon cancer [23], breast cancer [24], leukemia [25] and lung cancer [26,27]. Nonetheless, the underlying antitumor mechanisms of Pyrogallol have not been elucidated in hepatocellular carcinoma yet. Thus, in the present study, the antitumor mechanisms of Pyrogallol were investigated in Hep3B and Huh7 HCCs in association with S-phase arrest and miRNA134 upregulation.

2. Results

2.1. Pyrogallol Reduced the Viability and Proliferation of Hep3B and Huh7 Cells

The effect of Pyrogallol (Figure 1A) was evaluated on the viability and proliferation of two hepatocellular carcinoma cells (Hep3B and Huh7) by the MTT assay. After cells were treated with various concentrations of Pyrogallol (0, 5, 10, 20, 40, 80 μM) for 24 h, MTT and colony formation assays were conducted. The MTT assay revealed that Pyrogallol decreased the viability of Hep3B and Huh7 in a dose-dependent manner (Figure 1B). Furthermore, Pyrogallol reduced the number of colonies in Hep3B and Huh7 cells by the colony formation assay (Figure 1C).

2.2. Pyrogallol Induced S-phase Arrest in Hep3B and Huh7 Cells

To identify the effect of Pyrogallol on the cell cycle phases in Hep3B and Huh7 cells, the cells treated with various concentrations of Pyrogallol were subjected to cell cycle analysis by using flow cytometry after staining with PI. Herein, S-phase arrest was induced by Pyrogallol in Hep3B and Huh7 cells (Figure 2A,B).

2.3. Pyrogallol Regulated the Expression of Cell Cycle-Related Proteins in Hep3B and Huh7 Cells

Cell cycle analysis revealed that Pyrogallol induced S-phase arrest in Hep3B and Huh7 cells. Consistently, Pyrogallol attenuated the protein expression of Cyclin D1, Cyclin E, and Cyclin A (Figure 3A) and also reduced the fluorescent expression of Cyclin E in Hep3B and Huh7 cells (Figure 3B).

2.4. Pyrogallol Decreased the Expression of c-Myc, Skp2, p-AKT, PI3K and Increased the expression of p27 in Hep3B and Huh7 Cells

Skp2 (S-phase kinase-associated protein 2) is involved in tumorigenesis, regulation of cell cycle and cell survival by targeting c-Myc and p27 [28,29]. Here the effect of Pyrogallol was assessed on Skp2, c-Myc, PI3K, and p-AKT in Hep3B and Huh7 cells by Western blotting. We found that the expression of Skp2, c-Myc, PI3K, and p-AKT was attenuated, but p27 was upregulated in Pyrogallol-treated Hep3B and Huh7 cells (Figure 4).

2.5. Pyrogallol Reduced the Expression of Skp2 and Disturbed the Interaction Between Skp2, p27, and c-Myc in Huh7 Cells

To check the effect of Pyrogallol on Skp2, immunofluorescence was conducted in Hep3B and Huh7 cells. Here Pyrogallol decreased the expression of Skp2 in Hep3B and Huh7 cells (Figure 5A). To confirm the direct binding between Skp2, p27, and c-Myc, since the binding score between Skp2 and p27, p27 and c-Myc, Skp2 and c-Myc was 9, 9, and 8, respectively by the STRING database (Figure 5B), the immunuoprecipitation assay was conducted in Hep3B and Huh7 cells. Immunoprecipitation confirmed that the interaction between Skp2, p27, and c-Myc was disturbed by Pyrogallol in Huh7 cells (Figure 5C).

2.6. The Pivotal Role of miR-134 in Pyrogallol-Induced S-Phase Arrest and Antiproliferation in Huh7 Cells

It is well documented that miR-134 was highly expressed in lung tumor, pancreatic cancer, colon cancer, and prostate cancer while it was minimally expressed in glioblastomas, breast cancer, renal cell carcinoma, colorectal cancer, hepatocellular carcinoma, and osteosarcoma cell lines [30]. To demonstrate the important role of miR-134 in Pyrogallol-treated Huh7 cells, RT-qPCR analysis was performed in Huh7 cells. The mRNA level of miR-134 was significantly induced by Pyrogallol in Huh7 cells (Figure 6A). However, miR-134 inhibition rescued the decreased expression levels of c-Myc, Cyclin E, and Cyclin D1 and increased the expression of p27 by Pyrogallol in Huh7 cells (Figure 6B).

3. Discussion

Due to bad prognosis and unsatisfactory efficacy in HCC treatment, recently natural compounds such as aloperine [31], 7-deoxynarciclasine [32], quercetin [33], avicularin [34], and decursin [35] have been attractive in the treatment of HCC. On the same line, here the underlying antitumor mechanism of Pyrogallol contained in Emblica officinalis and Mangifera indica was explored in Hep3B and Huh7 HCCs in association with S-phase arrest and miR-134 activation.
Pyrogallol significantly increased cytotoxicity and reduced the number of colonies in Hep3B and Huh7 cells, implying cytotoxic and antiproliferative effects of Pyrogallol.
It is well documented that cell proliferation depends on four distinct phases of the cell cycle including G0/G1, S, G2, and M, which is usually regulated by several cyclin-dependent kinases (CDKs) and so dysregulation of the cell cycle is regarded a promising target for cancer therapy [36]. Here, cell cycle analysis revealed that Pyrogallol induced S-phase arrest, while not affecting sub G1 population, in Hep3B and Huh7 cells. To confirm S-phase arrest induced by Pyrogallol, Western blotting was conducted in Hep3B and Huh7 cells targeting S-phase-related proteins. Herein Pyrogallol induced downregulation of CyclinD1, Cyclin A, and Cyclin E, and upregulation of p27 and also reduced the fluorescent expression of Cyclin E in Hep3B and Huh7 cells, indicating S-phase arrest by Pyrogallol.
S-phase kinase-associated protein 2 (Skp2) regulates phosphorylated cell cycle regulator proteins and their ubiquitination as a cell cycle regulator and oncogene [29,37], c-Myc also works as an oncogene and cell cycle regulator [38], while PI3K and AKT are considered typical survival proteins in several cancers [39]. As expected, Pyrogallol attenuated the expression of Skp2, c-Myc, and PI3K/pAKT in Hep3B and Huh7 cells, demonstrating antiproliferative effects of Pyrogallol via inhibition of Skp2/ c-Myc and PI3K/ pAKT signaling. Similarly, Nemec et al. reported that Pyrogallol increased phosphorylation of AMPK and decreased phosphorylation of the AKT/mTOR pathway in MCF10DCIS.com breast cancer cells.
Emerging evidence reveals that regulation of protein protein interaction(PPI) networks is considered as a hot strategy for cancer therapy [40,41]. Interestingly, we found that Pyrogallol disturbed the interaction between Skp2, p27, and c-Myc in Huh7 cells, implying that the antitumor effect of Pyrogallol is mediated by the inhibition of PPI between Skp2, p27, and c-Myc.
Of note, Pyrogallol significantly increased the expression level of miR-134 that was known to be a tumor suppressor [14,19], since miR-134 was minimally expressed in HepG2, Hep3B, and SMMC7721 HCCs compared to L02 l normal liver cell lines [42]. Conversely, inhibition of miR134 rescued c-Myc and cyclin E rather than p27 or cyclin D1 in Pyrogallol-treated Huh 7 cells, implying that miR134 activation mediates the antitumor effect of Pyrogallol at least in part, which requires further study on the detailed mechanisms of Pyrogallol in HCCs in the future.
In summary, Pyrogallol showed significant cytotoxic and antiproliferative effects, induced S-phase arrest, attenuated the protein expression of CyclinD1, Cyclin E, Cyclin A, c-Myc, Skp2, p-AKT, PI3K, increased p27, reduced the fluorescent expression of Cyclin E, and disturbed the interaction between Skp2, p27, and c-Myc in Huh7 cells. Notably, Pyrogallol upregulated miRNA levels of miR-134 and conversely miR-134 inhibition rescued the decreased expression levels of c-Myc, Cyclin E, and Cyclin D1 and increased expression of p27 by Pyrogallol in Huh7 cells. Overall, our findings suggest the scientific evidence that Pyrogallol exerts antitumor effecst in HCCs via S-phase arrest and miR-134 activation as a potent anticancer agent (Figure 7).

4. Materials and Methods

4.1. Pyrogallol and Reagents

Pyrogallol (CAS No. 87-66-1), 3-(4,5-dimethylthiazol-2-yl)-2,5-diphenyltetrazolium bromide (MTT) and beta-actin were purchased from Sigma (Sigma, St. Louis, MO, USA). Also, specific antibodies for Skp2, CyclinE, CyclinA, p27 (Santa cruz Biotechnology, Dallas, USA), c-Myc (abcam, Cambridge, UK), cyclinD1, p-AKT, and PI3K (Cell signaling Technology, Danvers, MA, USA) were purchased for Western blot analysis.

4.2. Cell Culture

The human hepatocellular carcinoma cell line such as Hep3B (ATCC® HB-8064, Manassas, VA, USA was purchased from American Type Culture Collection (ATCC, Manassas, VA, USA) and the Huh7 cell line was bought from the Korean Cell Line Bank (KCLB, Seoul, Korea). Hep3B cells were cultured in DMEM with 10% FBS and 1% antibiotics and Huh7 cells were maintained in RPMI1640 (Welgene, Gyeongsan, Korea) in a humidified atmosphere of 5% CO2 at 37 °C.

4.3. Cell Viability Assay

The effect of Pyrogallol on the viability of the Hep3B and Huh7 cells was measured by 3-(4,5- dimethylthiazol-2-yl)-2,5-diphenyltetrazolium bromide (MTT) assay. Hep3B and Huh7 cells were seeded in a 96-well plate for 24 h and were exposed to various concentrations (0, 5, 10, 20, 40, 80 μM) of Pyrogallol for 24 h, then added to the MTT solution (1 mg/mL) and incubated at 37 °C for 2 h. After formazan was dissolved in DMSO, optical density was measured using a microplate reader (Molecular Devices Co., Silicon Valley, CA, USA) at 570 nm. Cell viability was calculated as a percentage of viable cells in the Pyrogallol-treated group versus the untreated control.

4.4. Colony Formation

Hep3B and Huh7 cells (3 × 103/well) were seeded onto six-well plates and incubated at 37 °C. After 24 h, the cells were exposed to the concentrations (0, 20, 40, 80 μM) of Pyrogallol for 24 h and culture medium was replaced by a fresh one. After 10–12 days, cells were washed PBS, fixed, and stained with Diff quick solution (Sysmex, Kobe, Japan). The plate was dried at room temperature and colonies were manually counted under light microscopy.

4.5. Cell Cycle Analysis

Hep3B and Huh7 cells were treated with Pyrogallol (0, 20, 40, 80 μM) for 24 h, washed with PBS and fixed in 70% ethanol overnight at −20 °C. The cells were washed with cold PBS and treated with RNase A (1 mg/mL) for 40 min at 37 °C and stained PI (50 μg/mL) at room temperature and were analyzed using the FACS caliber (Becton Dickinson, Franklin Lakes, NJ, USA).

4.6. Real-time Quantitative PCR (RT-qPCR)

Total RNAs were extracted from Hep3B and Huh7 cells by using the QIAzol Lysis Reagent (QIAGEN, Hilden, Germany). The cDNA was synthesized with oligodT (bioneer) and M-MLV reverse transcriptase (Enzynomics, Gyeonggi-do, Korea). qRT-PCR was conducted according to Light cycler TM manufacturer’s protocol. The sequence of miR-134 was as follows: 5′-UGUGACUGGUUGACCAGAGGGG-3′

4.7. Western Blotting

Hep3B and Huh7 cells (2 × 105/well) treated with Pyrogallol (20, 40, 80 μM) for 24 h were lysed with RIPA buffer containing protease inhibitor and phosphatase inhibitor for 30 min on ice. Lysate were centrifuged at 13,000× g for 25 min. Proteins were separated on 8%–12% SDS-PAGE gel and transferred on to Nitrocellulose transfer membrane (GE healthcare, Chicago, IL, USA) at 300 mA. After blocking with 5% non-fat skim milk in TBST for 1 h and probed with antibodies for Skp2, Cyclin E, Cyclin A, p27 (Santa Cruz Biotechnology, Dallas, TX, USA), beta-actin (sigma, St. Louis, MI, USA), c-Myc (Abcam, Cambridge, UK), cyclin D1, p-AKT, and PI3K (Cell signaling Technology, Danvers, Essex County, MA, USA).

4.8. Immunofluorescence

Hep3B and Huh7 cells were seeded onto four-well slide and exposed to 80 μM Pyrogallol for 24 h at 37 °C. The cells were fixed 4% paraformaldehyde and permeabilized with 0.1% Triton-X 100 in PBS for 10 min and incubated with 5% bovine serum albumin (BSA) for 1 h. After washing with PBS, the plate was probed with Cyclin E and Skp2 antibody overnight at 4 °C, and then with FITC secondary antibody for 1 h. The cells were stained with DAPI and mounted in medium (Vector Laboratories, Burlingame, CA, USA), and visualized under the FLUOVIEW FV10i confocal microscope (Olympuse, Japan).

4.9. Immunoprecipitation

The cells were lyzed in NP-40 lysis buffer, and then 300 μg of proteins were incubated overnight with antibody c-Myc at 4 °C and followed by protein A/G Plus-beads (Santa Cruz Biotechnology, Dallas, TX, USA) overnight at 4 °C and washed with NP-40 buffer. Immunoprecipitants were subjected to immunoblotting with the indicated antibodies.

4.10. MicroRNA Transfection

The miR-134 inhibitor and miR control (40 nM) (Bioneer, Daejeon, Korea) were transfected into Huh7 cells using the X-treme GENE HP DNA Transfection reagent (Roche, Basel, Switzerland) according to the manufacture’s protocol.

4.11. Statistical Analysis

All data were expressed as means ± standard deviation (SD) and the Student t-test was applied by using sigma plot for the comparison of groups. Values of p < 0.05 was considered a significant difference between groups.

5. Conclusions

Our findings suggest that Pyrogallol showed significant cytotoxicity and reduced the number of colonies in Hep3B and Huh7 cells. Interestingly, Pyrogallol induced S-phase arrest and attenuated the protein expression of Cyclin D1, Cyclin E, Cyclin A, c-Myc, S-phase kinase-associated protein 2 (Skp2), p-AKT, PI3K, increased the protein expression of p27, and also reduced the fluorescent expression of Cyclin E in Hep3B and Huh7 cells. Furthermore, Pyrogallol disturbed the interaction between Skp2, p27, and c-Myc in Huh7 cells. Notably, Pyrogallol upregulated miRNA level of miR-134 and conversely miR-134 inhibition rescued the decreased expression levels of c-Myc, Cyclin E, and Cyclin D1 and increased expression of p27 by Pyrogallol in Huh7 cells. Taken together, our findings provide insight that Pyrogallol exerts antiproliferative effects in HCCs via miR-134 activation mediated S-phase arrest and inhibition of PI3K/AKT/Skp2/cMyc signaling as a potent anticancer candidate.

Author Contributions

H.A. and E.I. conceived and designed the experiments; H.A., E.I., D.Y.L., H.-J.L. and J.H.J. performed the experiments; H.A. and E.I. contributed to the data analysis; S.-H.K. supervised all the experiments, wrote, and edited the manuscript.

Funding

This research received no external funding or This research was funded by a Foundation (KOSEF) grant funded by the Korean government (No.2017R1A2A1A17069297).

Acknowledgments

We thank all the members of the Korean Pathology laboratory for administrative and technical support.

Conflicts of Interest

The authors declare no conflict of interest.

Abbreviations

Skp2S-phase kinase-associated protein 2
PI3KPhosphoinositide 3-kinase
P27Cyclin-dependent kinase inhibitor 1B
HCCHepatocellular carcinoma
PPIProtein-protein interaction

References

  1. Bray, F.; Ferlay, J.; Soerjomataram, I.; Siegel, R.L.; Torre, L.A.; Jemal, A. Global cancer statistics 2018: GLOBOCAN estimates of incidence and mortality worldwide for 36 cancers in 185 countries. CA Cancer J. Clin. 2018, 68, 394–424. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  2. Ferlay, J.; Soerjomataram, I.; Dikshit, R.; Eser, S.; Mathers, C.; Rebelo, M.; Parkin, D.M.; Forman, D.; Bray, F. Cancer incidence and mortality worldwide: Sources, methods and major patterns in GLOBOCAN 2012. Int. J. Cancer 2015, 136, 359–386. [Google Scholar] [CrossRef] [PubMed]
  3. Ikeda, M.; Morizane, C.; Ueno, M.; Okusaka, T.; Ishii, H.; Furuse, J. Chemotherapy for hepatocellular carcinoma: Current status and future perspectives. JPN J. Clin. Oncol. 2018, 48, 103–114. [Google Scholar] [CrossRef] [PubMed]
  4. Liu, C.Y.; Chen, K.F.; Chen, P.J. Treatment of Liver Cancer. Cold Spring Harb. Perspect. Med. 2015, 5, a021535. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  5. Sun, G.; Fan, T.; Zhao, L.; Zhou, Y.; Zhong, R. The potential of combi-molecules with DNA-damaging function as anticancer agents. Future Med. Chem. 2017, 9, 403–435. [Google Scholar] [CrossRef] [PubMed]
  6. Sun, G.; Zhao, L.; Zhong, R.; Peng, Y. The specific role of O(6)-methylguanine-DNA methyltransferase inhibitors in cancer chemotherapy. Future Med. Chem. 2018, 10, 1971–1996. [Google Scholar] [CrossRef] [PubMed]
  7. Fan, T.; Sun, G.; Sun, X.; Zhao, L.; Zhong, R.; Peng, Y. Tumor energy metabolism and potential of 3-bromopyruvate as an inhibitor of aerobic glycolysis: Implications in tumor treatment. Cancers 2019, 11, 317. [Google Scholar] [CrossRef]
  8. Chen, J. The cell-cycle arrest and apoptotic functions of p53 in tumor initiation and progression. Cold Spring Harb. Perspect. Med. 2016, 6, a026104. [Google Scholar] [CrossRef]
  9. Engeland, K. Cell cycle arrest through indirect transcriptional repression by p53: I have a DREAM. Cell Death Differ. 2018, 25, 114–132. [Google Scholar] [CrossRef]
  10. Prasad, N.; Sabarwal, A.; Yadav, U.C.S.; Singh, R.P. Lupeol induces S-phase arrest and mitochondria-mediated apoptosis in cervical cancer cells. J. Biosci. 2018, 43, 249–261. [Google Scholar] [CrossRef]
  11. Li, Y.; Yu, H.; Han, F.; Wang, M.; Luo, Y.; Guo, X. Biochanin a induces S phase arrest and apoptosis in lung cancer cells. Biomed. Res. Int. 2018, 2018, 3545376. [Google Scholar] [CrossRef] [PubMed]
  12. Cheng, A.C.; Shen, C.J.; Hung, C.M.; Hsu, Y.C. Sulforaphane decrease of SERTAD1 expression triggers G1/S arrest in breast cancer cells. J. Med. Food 2019, 22, 444–450. [Google Scholar] [CrossRef] [PubMed]
  13. Wu, K.; He, J.; Pu, W.; Peng, Y. The role of Exportin-5 in MicroRNA biogenesis and cancer. Genom. Proteom. Bioinform. 2018, 16, 120–126. [Google Scholar] [CrossRef] [PubMed]
  14. Acunzo, M.; Romano, G.; Wernicke, D.; Croce, C.M. MicroRNA and cancer—A brief overview. Adv. Biol. Regul. 2015, 57, 1–9. [Google Scholar] [CrossRef] [PubMed]
  15. Rupaimoole, R.; Slack, F.J. MicroRNA therapeutics: Towards a new era for the management of cancer and other diseases. Nat. Rev. Drug Discov. 2017, 16, 203–222. [Google Scholar] [CrossRef] [PubMed]
  16. Lu, L.; Ju, F.; Zhao, H.; Ma, X. MicroRNA-134 modulates resistance to doxorubicin in human breast cancer cells by downregulating ABCC1. Biotechnol. Lett. 2015, 37, 2387–2394. [Google Scholar] [CrossRef] [PubMed]
  17. Chen, T.; Gao, F.; Feng, S.; Yang, T.; Chen, M. MicroRNA-134 regulates lung cancer cell H69 growth and apoptosis by targeting WWOX gene and suppressing the ERK1/2 signaling pathway. Biochem. Biophys. Res. Commun. 2015, 464, 748–754. [Google Scholar] [CrossRef] [PubMed]
  18. Gao, Y.; Liu, T.; Huang, Y. MicroRNA-134 suppresses endometrial cancer stem cells by targeting POGLUT1 and Notch pathway proteins. FEBS Lett. 2015, 589, 207–214. [Google Scholar] [CrossRef] [PubMed]
  19. Liu, Y.; Sun, Y.; Zhao, A. MicroRNA-134 suppresses cell proliferation in gastric cancer cells via targeting of GOLPH3. Oncol. Rep. 2017, 37, 2441–2448. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  20. Zhang, L.; Lv, Z.; Xu, J.; Chen, C.; Ge, Q.; Li, P.; Wei, D.; Wu, Z.; Sun, X. MicroRNA-134 inhibits osteosarcoma angiogenesis and proliferation by targeting the VEGFA/VEGFR1 pathway. FEBS J. 2018, 285, 1359–1371. [Google Scholar] [CrossRef] [PubMed]
  21. Zhao, Y.; Pang, D.; Wang, C.; Zhong, S.; Wang, S. MicroRNA-134 modulates glioma cell U251 proliferation and invasion by targeting KRAS and suppressing the ERK pathway. Tumour Biol. 2016, 37, 11485–11493. [Google Scholar] [CrossRef] [PubMed]
  22. Nicolis, E.; Lampronti, I.; Dechecchi, M.C.; Borgatti, M.; Tamanini, A.; Bianchi, N.; Bezzerri, V.; Mancini, I.; Giri, M.G.; Rizzotti, P.; et al. Pyrogallol, an active compound from the medicinal plant Emblica officinalis, regulates expression of pro-inflammatory genes in bronchial epithelial cells. Int. Immunopharmacol. 2008, 8, 1672–1680. [Google Scholar] [CrossRef] [PubMed]
  23. Revathi, S.; Hakkim, F.L.; Kumar, N.R.; Bakshi, H.A.; Rashan, L.; Al-Buloshi, M.; Hasson, S.; Krishnan, M.; Javid, F.; Nagarajan, K. Induction of HT-29 colon cancer cells apoptosis by Pyrogallol with growth inhibiting efficacy against drug-resistant Helicobacter pylori. Anticancer Agents Med. Chem. 2018, 18, 1875–1884. [Google Scholar] [CrossRef] [PubMed]
  24. Nemec, M.J.; Kim, H.; Marciante, A.B.; Barnes, R.C.; Talcott, S.T.; Mertens-Talcott, S.U. Pyrogallol, an absorbable microbial gallotannins-metabolite and mango polyphenols (Mangifera Indica L.) suppress breast cancer ductal carcinoma in situ proliferation in vitro. Food Funct. 2016, 7, 3825–3833. [Google Scholar] [CrossRef] [PubMed]
  25. Mitsuhashi, S.; Saito, A.; Nakajima, N.; Shima, H.; Ubukata, M. Pyrogallol structure in polyphenols is involved in apoptosis-induction on HEK293T and K562 cells. Molecules 2008, 13, 2998–3006. [Google Scholar] [CrossRef] [PubMed]
  26. Yang, C.J.; Wang, C.S.; Hung, J.Y.; Huang, H.W.; Chia, Y.C.; Wang, P.H.; Weng, C.F.; Huang, M.S. Pyrogallol induces G2-M arrest in human lung cancer cells and inhibits tumor growth in an animal model. Lung Cancer 2009, 66, 162–168. [Google Scholar] [CrossRef] [PubMed]
  27. Han, Y.H.; Moon, H.J.; You, B.R.; Park, W.H. The effects of MAPK inhibitors on pyrogallol-treated Calu-6 lung cancer cells in relation to cell growth, reactive oxygen species and glutathione. Food Chem. Toxicol. 2010, 48, 271–276. [Google Scholar] [CrossRef]
  28. Chan, C.H.; Lee, S.W.; Wang, J.; Lin, H.K. Regulation of Skp2 expression and activity and its role in cancer progression. ScientificWorldJournal 2010, 10, 1001–1015. [Google Scholar] [CrossRef]
  29. Lee, Y.; Lim, H.S. Skp2 Inhibitors: Novel anticancer strategies. Curr. Med. Chem. 2016, 23, 2363–2379. [Google Scholar] [CrossRef]
  30. Pan, J.Y.; Zhang, F.; Sun, C.C.; Li, S.J.; Li, G.; Gong, F.Y.; Bo, T.; He, J.; Hua, R.X.; Hu, W.D.; et al. miR-134: A human cancer suppressor? Mol. Ther. Nucleic Acids 2017, 6, 140–149. [Google Scholar] [CrossRef]
  31. Liu, J.S.; Huo, C.Y.; Cao, H.H.; Fan, C.L.; Hu, J.Y.; Deng, L.J.; Lu, Z.B.; Yang, H.Y.; Yu, L.Z.; Mo, Z.X.; et al. Aloperine induces apoptosis and G2/M cell cycle arrest in hepatocellular carcinoma cells through the PI3K/Akt signaling pathway. Phytomedicine 2019, 61, 152843. [Google Scholar] [CrossRef] [PubMed]
  32. Yin, S.; Qiu, Y.; Jin, C.; Wang, R.; Wu, S.; Liu, H.; Koo, S.; Han, L.; Zhang, Y.; Gao, X.; et al. 7-Deoxynarciclasine shows promising antitumor efficacy by targeting Akt against hepatocellular carcinoma. Int. J. Cancer 2019. [Google Scholar] [CrossRef] [PubMed]
  33. Ji, Y.; Li, L.; Ma, Y.X.; Li, W.T.; Li, L.; Zhu, H.Z.; Wu, M.H.; Zhou, J.R. Quercetin inhibits growth of hepatocellular carcinoma by apoptosis induction in part via autophagy stimulation in mice. J. Nutr. Biochem. 2019, 69, 108–119. [Google Scholar] [CrossRef] [PubMed]
  34. Wang, Z.; Li, F.; Quan, Y.; Shen, J. Avicularin ameliorates human hepatocellular carcinoma via the regulation of NFkappaB/COX2/PPARgamma activities. Mol. Med. Rep. 2019, 19, 5417–5423. [Google Scholar] [PubMed]
  35. Li, J.; Wang, H.; Wang, L.; Tan, R.; Zhu, M.; Zhong, X.; Zhang, Y.; Chen, B.; Wang, L. Decursin inhibits the growth of HepG2 hepatocellular carcinoma cells via Hippo/YAP signaling pathway. Phytother. Res. 2018, 32, 2456–2465. [Google Scholar] [CrossRef] [PubMed]
  36. Otto, T.; Sicinski, P. Cell cycle proteins as promising targets in cancer therapy. Nat. Rev. Cancer 2017, 17, 93–115. [Google Scholar] [CrossRef] [Green Version]
  37. Li, C.; Du, L.; Ren, Y.; Liu, X.; Jiao, Q.; Cui, D.; Wen, M.; Wang, C.; Wei, G.; Wang, Y.; et al. SKP2 promotes breast cancer tumorigenesis and radiation tolerance through PDCD4 ubiquitination. J. Exp. Clin. Cancer Res. 2019, 38, 76. [Google Scholar] [CrossRef]
  38. Yang, Y.; Xue, K.; Li, Z.; Zheng, W.; Dong, W.; Song, J.; Sun, S.; Ma, T.; Li, W. c-Myc regulates the CDK1/cyclin B1 dependentG2/M cell cycle progression by histone H4 acetylation in Raji cells. Int. J. Mol. Med. 2018, 41, 3366–3378. [Google Scholar]
  39. Yu, J.S.; Cui, W. Proliferation, survival and metabolism: The role of PI3K/AKT/mTOR signalling in pluripotency and cell fate determination. Development 2016, 143, 3050–3060. [Google Scholar] [CrossRef]
  40. Pawson, T.; Nash, P. Protein-protein interactions define specificity in signal transduction. Genes Dev. 2000, 14, 1027–1047. [Google Scholar]
  41. Li, J.; Xi, W.; Li, X.; Sun, H.; Li, Y. Advances in inhibition of protein-protein interactions targeting hypoxia-inducible factor-1 for cancer therapy. Bioorg. Med. Chem. 2019, 27, 1145–1158. [Google Scholar] [CrossRef] [PubMed]
  42. Liu, S.; Pan, H.C.J.; Liang, Y.; Liu, X.; Sui, A.; Wang, L.; Zhou, Q.; Wan, Z.; Fu, K.; Liu, Z.; et al. MicroRNA-134 inhibits HCC cell growth and migration through the AKT/GSK3β/SNAIL signaling pathway. Int. J. Clin. Exp. Pathol. 2016, 9, 6877–6886. [Google Scholar]

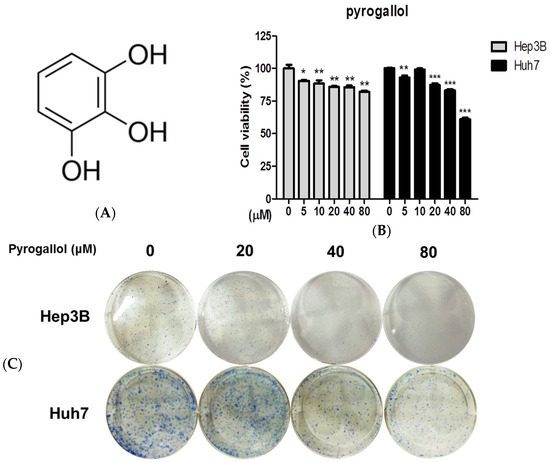

Figure 1. Pyrogallol decreased the viability of Hep3B and Huh7 cells. (A) Chemical structure of Pyrogallol. (B) Cells were seeded in a 96-well plate and exposed to various concentrations of Pyrogallol (0, 5, 10, 20, 40, 80 μM) for 24 h and cell viability was determined by MTT assay. (C) Photos for colony formation of Pyrogallol (0, 5, 10, 20, 40, 80 μM) in Hep3B and Huh7 cells. The colonies were visualized by staining with crystal violet. Data are expressed as means ± SD. * p < 0.05, ** p < 0.01, *** p < 0.001.
Figure 1. Pyrogallol decreased the viability of Hep3B and Huh7 cells. (A) Chemical structure of Pyrogallol. (B) Cells were seeded in a 96-well plate and exposed to various concentrations of Pyrogallol (0, 5, 10, 20, 40, 80 μM) for 24 h and cell viability was determined by MTT assay. (C) Photos for colony formation of Pyrogallol (0, 5, 10, 20, 40, 80 μM) in Hep3B and Huh7 cells. The colonies were visualized by staining with crystal violet. Data are expressed as means ± SD. * p < 0.05, ** p < 0.01, *** p < 0.001.
Ijms 20 03985 g001
Figure 2. Pyrogallol induced S-phase arrest in Hep3B and Huh7 cells. (A,B) Hep3B and Huh7 cells were treated with Pyrogallol (0, 20, 40, 80 μM) for 24 h. The cells were washed with PBS, fixed in 70% ethanol, stained with PI and then subjected to flow cytometric analysis. Graphs show each phase of the cell cycle population (%).
Figure 2. Pyrogallol induced S-phase arrest in Hep3B and Huh7 cells. (A,B) Hep3B and Huh7 cells were treated with Pyrogallol (0, 20, 40, 80 μM) for 24 h. The cells were washed with PBS, fixed in 70% ethanol, stained with PI and then subjected to flow cytometric analysis. Graphs show each phase of the cell cycle population (%).
Ijms 20 03985 g002

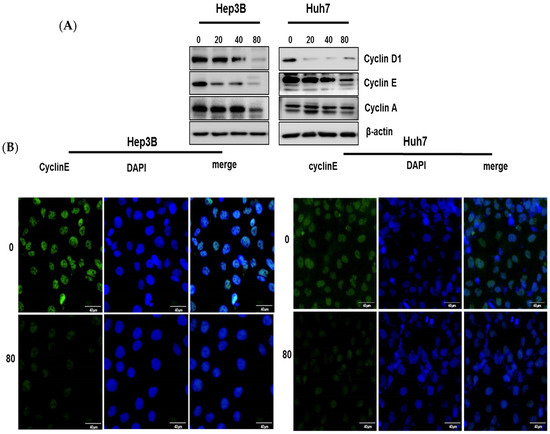

Figure 3. Pyrogallol regulated the expression of cell cycle-related proteins in Hepatocellular carcinoma. (A) Hep3B and Huh7 cells were treated with Pyrogallol (0, 20, 40, 80 μM) for 24 h. Significantly decreased expression of cell cycle-related protein cyclin D1, Cyclin E, and Cyclin A by Western blotting. (B) Cells were treated with 80 μM of Pyrogallol for 24 h and fixed, permeabilized, probed with Cyclin E antibody and secondary (FITC) antibody and were stained with DAPI and mounted in media and visualized under the FLUOVIEW FV10i confocal microscope (Olympuse, Japan). Scale bars = 40 μm.
Figure 3. Pyrogallol regulated the expression of cell cycle-related proteins in Hepatocellular carcinoma. (A) Hep3B and Huh7 cells were treated with Pyrogallol (0, 20, 40, 80 μM) for 24 h. Significantly decreased expression of cell cycle-related protein cyclin D1, Cyclin E, and Cyclin A by Western blotting. (B) Cells were treated with 80 μM of Pyrogallol for 24 h and fixed, permeabilized, probed with Cyclin E antibody and secondary (FITC) antibody and were stained with DAPI and mounted in media and visualized under the FLUOVIEW FV10i confocal microscope (Olympuse, Japan). Scale bars = 40 μm.
Ijms 20 03985 g003

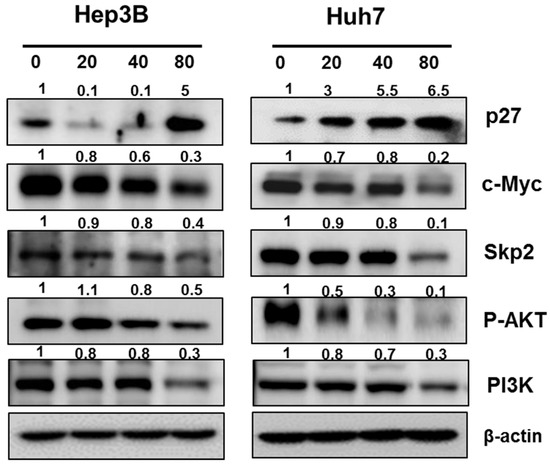

Figure 4. Pyrogallol modulated the expression of p27, c-Myc, Skp2, p-AKT and PI3K in Hep3B and Huh7 cells.
Figure 4. Pyrogallol modulated the expression of p27, c-Myc, Skp2, p-AKT and PI3K in Hep3B and Huh7 cells.
Ijms 20 03985 g004

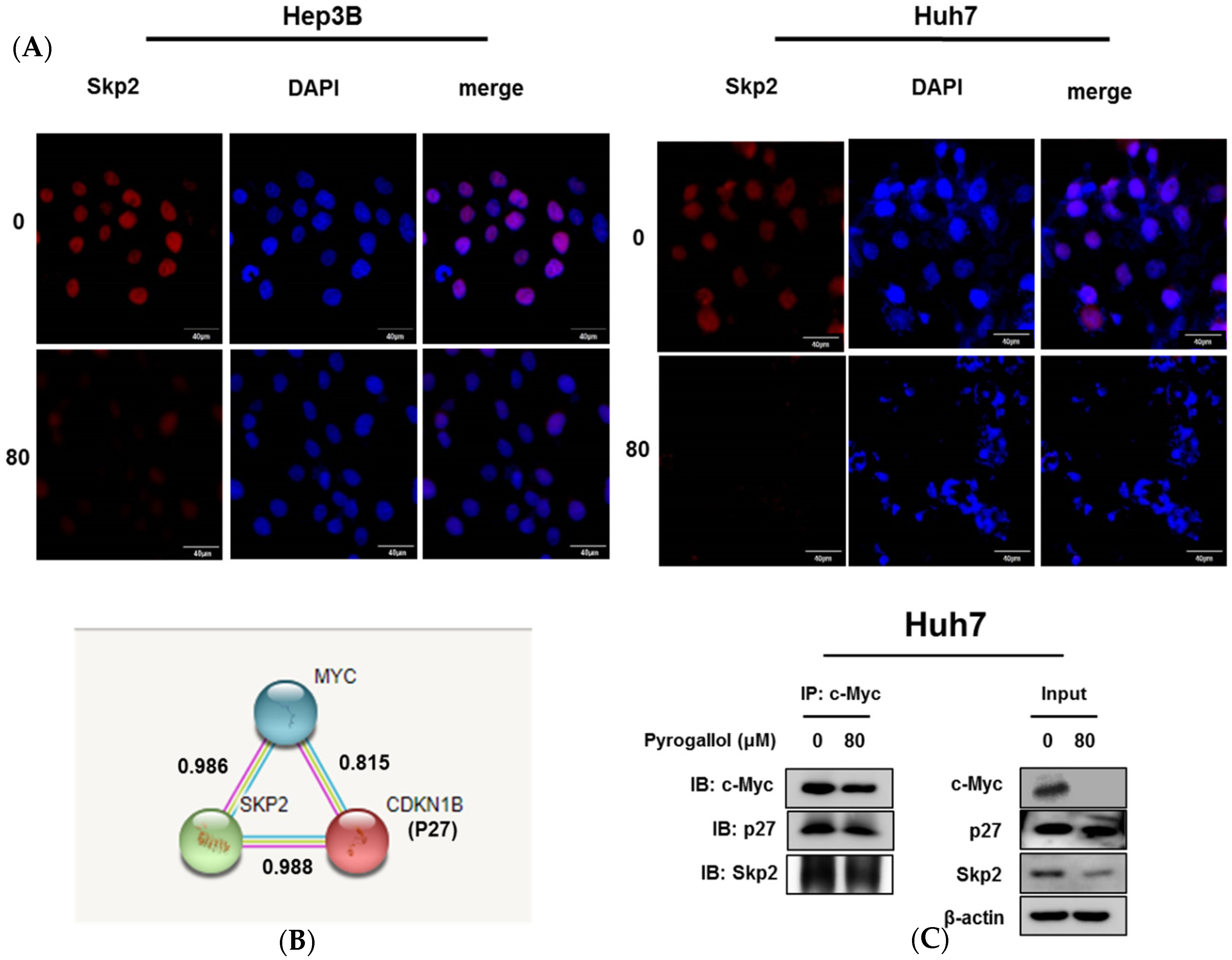

Figure 5. Pyrogallol reduced the expression of Skp2 and disturbed the interaction between Skp2 and c-Myc in Huh7 cells. (A) Effect of Pyrogallol on Skp2 expression in Hep3B and Huh7 cells. The cells were treated with 80 μM Pyrogallol for 24 h, fixed, permeabilized, and then probed with Skp2 antibody and with secondary (FITC) antibody and were stained with DAPI and mounted in media, and visualized under the FLUOVIEW FV10i confocal microscope (Olympuse, Japan). Scale bars = 40 μm. (B) Interaction Network scores between c-Myc and Skp2 by STRING. (C) Effect of Pyrogallol on the interaction between Skp2, p27, and c-Myc in Huh7 cells. Immunoprecipitation was performed in Huh7 cells by using c-Myc, p27, and Skp2 antibodies and then was subjected to Western blotting.
Figure 5. Pyrogallol reduced the expression of Skp2 and disturbed the interaction between Skp2 and c-Myc in Huh7 cells. (A) Effect of Pyrogallol on Skp2 expression in Hep3B and Huh7 cells. The cells were treated with 80 μM Pyrogallol for 24 h, fixed, permeabilized, and then probed with Skp2 antibody and with secondary (FITC) antibody and were stained with DAPI and mounted in media, and visualized under the FLUOVIEW FV10i confocal microscope (Olympuse, Japan). Scale bars = 40 μm. (B) Interaction Network scores between c-Myc and Skp2 by STRING. (C) Effect of Pyrogallol on the interaction between Skp2, p27, and c-Myc in Huh7 cells. Immunoprecipitation was performed in Huh7 cells by using c-Myc, p27, and Skp2 antibodies and then was subjected to Western blotting.
Ijms 20 03985 g005

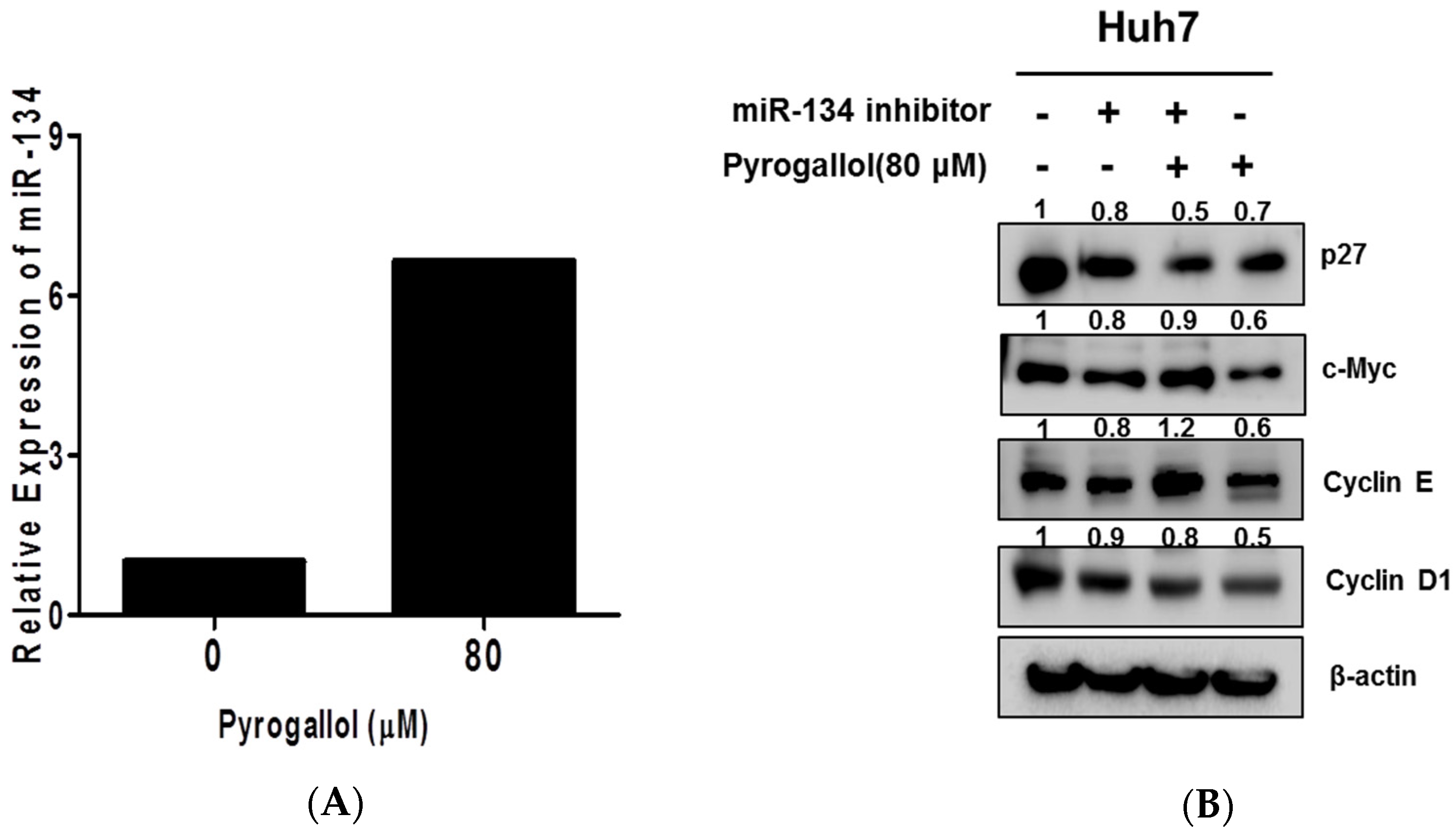

Figure 6. The pivotal role of miR-134 in Pyrogallol-regulated cell cycle-related proteins in Huh7 cells. (A) RT-qPCR analyzed the expression of miR-134 levels in Huh7 cells. (B) Huh7 cells were transfected with miR-134 for 48 h and exposed to Pyrogallol for 24 h. The expression levels of p27, c-Myc, Cyclin E, and Cyclin D1 were evaluated by Western blotting.
Figure 6. The pivotal role of miR-134 in Pyrogallol-regulated cell cycle-related proteins in Huh7 cells. (A) RT-qPCR analyzed the expression of miR-134 levels in Huh7 cells. (B) Huh7 cells were transfected with miR-134 for 48 h and exposed to Pyrogallol for 24 h. The expression levels of p27, c-Myc, Cyclin E, and Cyclin D1 were evaluated by Western blotting.
Ijms 20 03985 g006

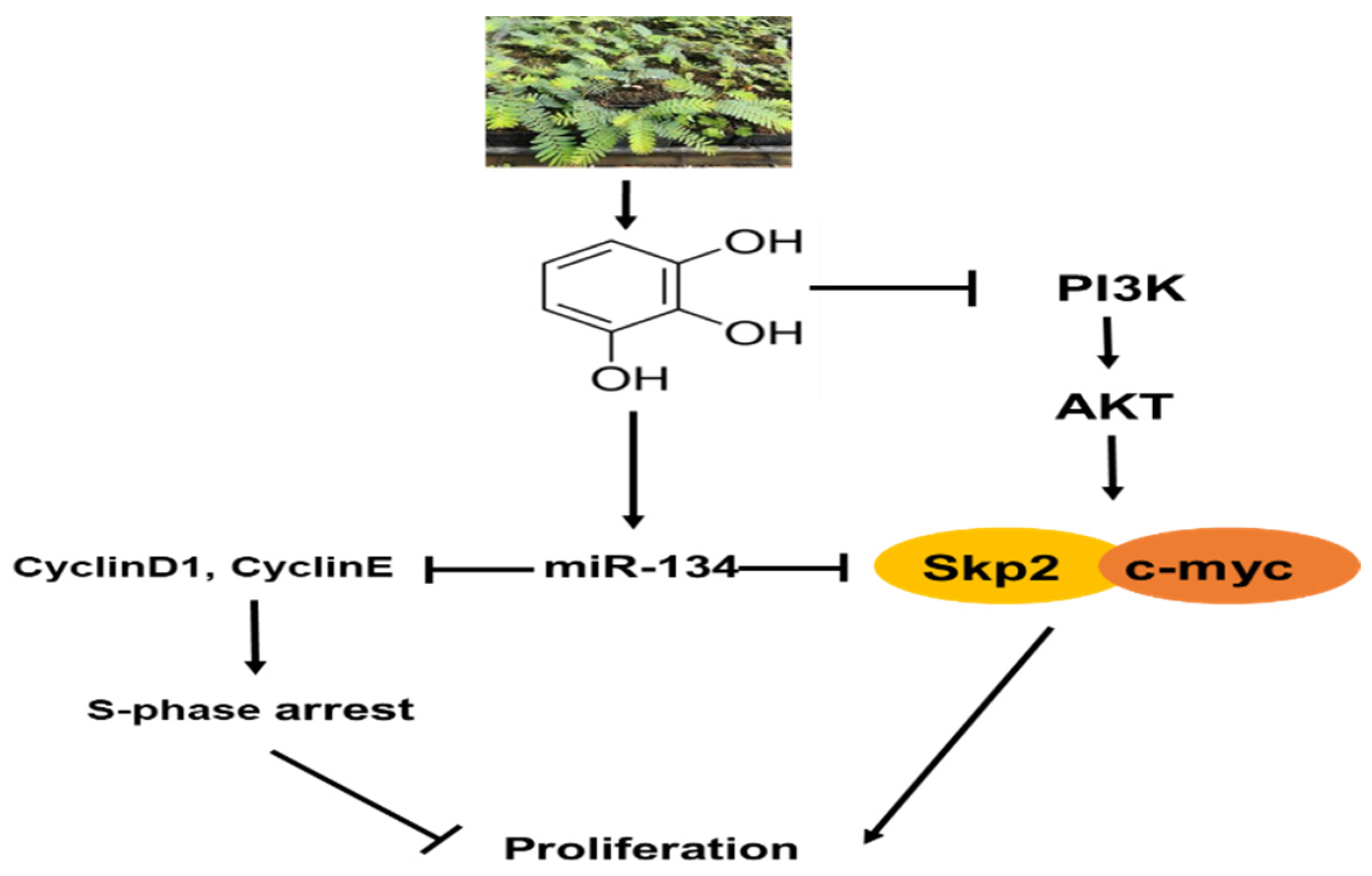

Figure 7. Molecular mechanisms of Pyrogallol via miR-134 activation mediated S-phase arrest and inhibition of the P13K/AKT/SKP2 and cMyc signaling axis.
Figure 7. Molecular mechanisms of Pyrogallol via miR-134 activation mediated S-phase arrest and inhibition of the P13K/AKT/SKP2 and cMyc signaling axis.
Ijms 20 03985 g007
