Can Aluminum Tolerant Wheat Cultivar Perform Better under Phosphate Deficient Conditions?

by
Mohammad Rezaul Karim
1,2,
Xiaoying Dong
1,
Lu Zheng
1,
Renfang Shen
1 and
Ping Lan
1,*
1
State Key Laboratory of Soil and Sustainable Agriculture, Institute of Soil Science, Chinese Academy of Sciences, Nanjing 210008, China
2
University of Chinese Academy of Sciences, Beijing 100049, China
*
Author to whom correspondence should be addressed.
Int. J. Mol. Sci. 2018, 19(10), 2964; https://doi.org/10.3390/ijms19102964
Submission received: 31 August 2018 / Revised: 19 September 2018 / Accepted: 26 September 2018 / Published: 28 September 2018
(This article belongs to the Special Issue Regulation of Mineral Nutrients Homeostasis and Their Crosstalk in Plants)
Browse Figures
Versions Notes

Abstract

:
Low availability of inorganic phosphate (Pi), together with aluminum (Al), is a major constraint for plant growth and development in acidic soils. To investigate whether or not Al-resistant cultivars can perform better under Pi deficiency, we chose two wheat cultivars with different Al-responses—Atlas 66, being Al-tolerant, and Scout 66, which is Al-sensitive—and analyzed their responses to Pi deficiency. Results showed that, unexpectedly, the Al-sensitive cultivar Scout 66 contained comparatively higher amount of soluble phosphate (Pi) and total phosphorus (P) both in the roots and in the shoots than Atlas 66 under P deficiency. In addition, Scout 66 exhibited higher root biomass, root volume, and root tip numbers, compared with Atlas 66. The expression of Pi-responsive marker genes, TaIPS1, TaSPX3, and TaSQD2 was strongly induced in both cultivars, but the extents of induction were higher in Scout 66 than in Atlas 66 under long-term Pi starvation. Taken together, our results suggest that the Al-sensitive cultivar Scout 66 performed much better under sole Pi starvation, which sets the following experimental stage to uncover the underlying mechanisms of why Scout 66 can display better under Pi deficiency. Our study also raises an open question whether Al-resistant plants are more sensitive to Pi deficiency.

1. Introduction

Phosphorus (P) is an essential macronutrient for the growth and development in plants. The total P is naturally abundant in soil; however, the plant available P, inorganic phosphate (Pi), is always beyond the demand of growth in natural and agricultural ecosystem, especially in acidic and calcareous soils. The low bio-availability of P is due to the rapid transformation of Pi into organic P and the formation of insoluble Pi complexes with soil cations, such as aluminum (Al) and iron (Fe) or calcium and manganese under acidic or alkaline soils, respectively [1,2]. A large amount of P-fertilizers over the crop’s demand therefore are normally supplied to maintain or increase the crop yields, which results in the future non-renewable P source scarcity and severe environmental concerns due to the run-off of excess Pi [3,4,5]. Therefore, it is clear that excess use of P-fertilizers is neither sustainable nor environmental friendly. Hence, to understand how plants respond to P deficiency and translate the gained knowledge to improve P-acquisition and P-use efficiency is a major approach to maintain food security and reduce environmental damage.
To cope with low Pi stress, plants have evolved an array of adaptive processes to improve Pi uptake and remobilization when the external Pi pool is limited. Such responses include morphological and physiological changes, as well as biochemical and molecular regulation [6,7,8,9,10,11]. The morphological changes include the increase of root length in monocot [12], an increase of root biomass and root-shoot ratio, and the final alteration of root system architecture [13,14]. Biochemical adaptations comprise the increased excretion of organic acids and increased secretion of Pi-releasing enzymes, such as RNases and purple acid phosphatases, providing the roots a larger rhizospheric Pi pool for uptake [15,16,17]. Along with the increased Pi pools, the expression and activity of high-affinity Pi-transporters, controlling the influx of extracellular Pi, are induced [2]. Besides Pi-transporter, omics approaches have revealed that more than 1000 genes and hundreds of proteins are regulated by Pi [2,11,18]. Some major controllers, such as PHR1, SPX1, SPX3, SIZ1 and so on from Arabidopsis thaliana and homologies from rice and other species have been documented to play central roles in the regulation of gene activity [19,20,21,22,23,24,25,26,27,28,29,30,31,32,33,34,35]. The sensor for Pi until recent was reported [36].
While the Pi deficiency responses have been expansively documented in the model plant Arabidopsis, limited information is available of the responses to Pi deficiency in agronomically important crops, such as wheat [6]. Wheat is one of the major staple food crops in the world in terms of both the cultivation area and the consumption and prevalence as a food source. A quite lot of wheat cultivation area is in the tropical and subtropical regions, with the arable soils in these regions being acidic with low P level, which is a major limiting factor for wheat production. It is estimated that ~40% of the potentially arable lands are acidic in the world. In Acidic soils, with the decrease of pH below 5, non-toxic Al is solubilized into Al ion, a form of extremely toxic to plant growth [37]. Meanwhile, with the release of ions of Al and Fe, most Pi become insoluble complexes with these cations. Thus, Al toxicity (and possible Fe toxicity) and Pi deficiency occur simultaneously in acidic soils [37,38,39], both of which cause severe losses of wheat yields. It is therefore becoming urgent to find a solution to develop Pi-efficient wheat cultivars for sustainable wheat production [6].
The two wheat cultivars Atlas 66 and Scout 66 are well known for their contrasting behavior in Al toxicity conditions (Atlas 66 is Al-tolerant, while Scout 66 is Al-sensitive) and have been extensively studied regarding Al responses [40,41]. In this study, the responses of these two cultivars to sole Pi deficiency were observed and results showed that Scout 66 performed much better under sole Pi starvation than Atlas 66. This study raises two open questions for future attempts: (1) Whether Al-resistant plants are more sensitive to Pi deficiency; (2) how plants balance the responses to different stresses simultaneously.

2. Results

2.1. Scout 66 Showed Higher Root and Shoot Biomass under Phosphate Starvation

To comparatively explore the physiological responses of the two cultivars to Pi deficiency, three-week-old seedlings grown in Pi sufficient solution were transferred to either Pi deficient or sufficient solution for defined treatment time as indicated before sampling. As showed in Figure 1, the root lengths of both cultivars did not show significantly change upon Pi deficiency when compared to those grown in Pi sufficient solution in 3 d treatment (Figure 1a). A sharp increase of root lengths was observed under Pi starvation after 7 d treatment and root lengths were significantly increased after 21 d of Pi deficiency treatment in both cultivars (Figure 1a). In contrast, Pi deficiency did not affect the shoot length over the entire observation period in both cultivars (Figure 1b). In terms of shoot lengths, there was no significant difference between the two cultivars regardless of Pi levels. However, the root lengths of Scout 66 were generally shorter than that of Atlas 66 in both Pi conditions, although the difference was not always remarkable.
In agreement with the root length, as shown in Figure 2, the root biomass of both cultivars were not shown dramatically changed upon Pi deficiency under short- to mid-term treatments; while Pi deficiency led to a remarkable increase of root biomass in both cultivars under long-term treatment (Figure 2a). It is noticed that Scout 66 had higher root biomass than that of Atlas 66, particularly under Pi deficiency, at 14 d and beyond after transfer. By contrast, Pi deficiency generally resulted in a decrease of shoot biomass under long-term treatment, with about 21% and 7% shoot biomass being reduced in Atlas 66 and in Scout 66, respectively, when compared to Pi sufficient conditions (Figure 2b). Combining the root and the shoot biomass together, it is clear that Pi deficiency significantly increased the root-shoot ratio (DW) from 14 d onwards regardless of cultivars, but the difference of root-shoot ratio between cultivars was not significant (Figure 2c). Taken all the results together, Scout 66 can accumulate more biomass under Pi deficient conditions than Atlas 66, particularly under long-term Pi deficiency.

2.2. Scout 66 Produced Higher Root Volume and Had More Root Tip Number under Phosphate Deficiency

It is believed that the root volume will be increased upon Pi deficiency to facilitate the Pi uptake from the soil. To further compare the Pi deficiency responses, the root volumes were measured in the two cultivars under long-term treatments. As shown in Figure 3, Pi deficiency led to an increase of root volume in both cultivars, but only in Scout 66 the increase was showed significant (Figure 3a). In addition, Scout 66 was showed to have bigger root volume than that of Atlas 66 at both Pi levels, especially under Pi deficiency (Figure 3a). To know whether the increased root volume is due to the increased lateral roots or not, we further counted the root tip numbers in both cultivars over a range of treatments. Similarly, it was not significantly changed in the root tip numbers under short- and mid-term Pi deficient treatments when compared to the Pi sufficiency (Figure 3b). However, with the extension of Pi deficiency, the root tip numbers increased, and a significant increase of root tip numbers was observed at 21 d after transfer in both cultivars, with Scout 66 having significantly higher root tip numbers than that of Atlas 66 under Pi deficient conditions (Figure 3b). Taken together, Scout 66 possesses significantly higher root volume and produces a greater number of root tips than Atlas 66 under Pi starvation.

2.3. Higher Total P and Soluble Phosphate Concentrations in Scout 66 under Phosphate Deficiency

To get more information about the Pi deficiency response of the two cultivars, we measured both P contents and Pi concentrations over a range of treatment periods. Overall, seedlings grown in Pi sufficient solution contain higher P content than that grown in Pi deficient solution, which is cultivar independent (Figure 4). In addition, in general the shoots, regardless of cultivars, contain higher P content than that of the roots (Figure 4). With the increasing of growth time, the P contents in both roots and shoots were shown increased sharply under Pi sufficient conditions; this increase is faster in the roots (after transfer of 3 d) than in the shoots (after transfer of 7 d) (Figure 4a,b). It is noteworthy that the increase magnitude of P contents in both roots and shoots was much higher in Scout 66 than that of in Atlas 66 under Pi-replete conditions (Figure 4a,b). By contrast, the P contents in both roots and shoots did not differ very much over the treatment periods under Pi deficient conditions, and no significant difference was observed either between the two cultivars (Figure 4a,b).
It is believed that the cellular soluble Pi is associated with the metabolic activity, reflecting the plant’s fitness [42,43]. Thus, we further determined the Pi concentrations. In general, Pi deficiency led to a decrease of soluble Pi concentrations of both roots and shoots in both cultivars (Figure 5). Under Pi sufficient conditions, Scout 66 generally contained higher Pi concentrations in both roots and shoots than that of Atlas 66 (Figure 5a,b); while under Pi deficient conditions, Scout 66 roots contained higher Pi concentrations than that of Atlas 66 roots under short- and mid-term treatments (<3 d after transfer), but not under long-term treatment (Figure 5a). In the shoots, however, the Pi concentrations were observed decreased much earlier in Scout 66 than that in Atlas 66, with the Pi concentration being significantly decreased at 12 h, and 3 d after transfer in Scout 66 and Atlas 66, respectively (Figure 5b).

2.4. Scout 66 Contains Higher Iron (Fe) and Zinc (Zn) Contents in the Roots under Phosphate Deficiency

It has been reported that Pi deficiency leads to an increase of Fe content and alterations of other mineral elements [44,45,46,47]. In agreement with these reports, the contents of Fe were shown increased under Pi deficiency in the roots of both cultivars, particularly in the Scout 66, in which more than two fold-changes of Fe content were determined between Pi deficiency and Pi sufficiency. By contrast, the shoot Fe contents did not show significantly difference regardless of both treatments and cultivars (Table 1). In general, Pi deficiency leaded to a decrease of Zn content both in the roots and in the shoots of both cultivars. However, this decrease was significant only in the roots of Scout 66 (Table 1).

2.5. Scout 66 Can Maintain Higher Chlorophyll Content under Phosphate Deficiency

The leaf chlorophyll content is one of the major plant pigments and is usually used as a physiological index of plant fitness. The leaf chlorophyll contents in two cultivars were determined at 21 d after transfer under both Pi levels; and results showed that Pi deficiency led to an increase of chlorophyll contents in both cultivars (Figure 6). However, this increase was only significant in Scout 66, but not in Atlas 66.

2.6. The Molecular Responses of the Two Cultivars under Phosphate Deficiency

To coordinate the Pi deficiency responses, plants have evolved sophisticated systems to sense the Pi-status and to regulate the expression of Pi starvation inducible (PSI) genes according to plant’s demand, both transcriptionally and post-transcriptionally [2,11,18,42]. To assess the molecular responses of the two cultivars to Pi deficiency, the expression of three known PSI marker genes, namely, a non-protein coding gene IPS1 [48], TaSQD2 involved in the biosynthesis of sulpholipids [49], and TaSPX3 [50], were measured by using quantitative RT-PCR (qRT-PCR). Overall, the expression of these marker genes was induced and increased with the increasing periods of Pi starvation, reaching a maximum after 21 d of Pi starvation (Figure 7). Among them, TaIPS1 showed the strongest induction both in the roots and in the shoots in both cultivars (Figure 7a,b). It was noticed that the steady-state abundance of TaIPS1 was lower in the roots of Scout 66 than that in the Atlas 66 under Pi sufficiency, while the abundance is comparable in the shoots in the two cultivars (Figure 7a,b). In addition, the steady-state abundance of TaIPS1 was relatively higher in the shoots than in the roots under Pi sufficiency regardless of cultivars.
Compared to the early response of TaIPS1, the induction of TaSQD2 was later, but a remarkable increase of TaSQD2 was observed in the roots at 3 d of Pi starvation and reached a maximum at 21 d after initiating the Pi treatment (Figure 7c). Moreover, this response was comparable in the roots between two cultivars (Figure 7c). Similarly, the induction of TaSQD2 was later in the shoots, but earlier in the roots, being upregulated after 12 h of Pi starvation, but this only occurred in Scout 66 not in Atlas 66 (Figure 7d). Under long-term Pi deficient conditions, the expression of TaSQD2 was strongly induced in both cultivars (Figure 7d).
Similar to TaIPS1, overall, the steady-state abundance of TaSPX3 was very low in the roots under Pi sufficiency, regardless of cultivars. Nevertheless, its expression was strongly induced upon Pi deficiency and this induction occurred as early as 1 h of Pi starvation in both cultivars (Figure 7e), reaching a maximum after 21 d of Pi starvation. In general, the magnitude of induction was comparably higher in Atlas 66 than in Scout 66 (Figure 7e). In the shoots, however, the inductions of TaSPX3 were later than that of in the roots, being upregulated significantly after 1 d of Pi starvation, reaching a maximum induction after 21 d of Pi starvation; and the induction extents were stronger in Scout 66 than that of in Atlas 66 under long-term Pi starvation (Figure 7f).

3. Discussion

In modern agriculture systems, the demand for P-fertilizer is increasing and indispensable for crop productivity, which is becoming urgent to ensure food security under negative impacts of climate change and growing population in the world. Wheat is one of the main crops and sometimes the only food source in some areas. Maintaining and increasing wheat production is therefore critically important in the world [6]. However, quite high percentage of wheat is produced in acidic soils with low Pi levels, resulting in low wheat yields. Enhancing wheat productivity under low Pi conditions is thus urgent and important. It has been reported that different species and varieties exhibit contrasting tolerance to low Pi stress [51,52]. In the present study, with the attempt to explore more gene resources involved in the low Pi adaptation in wheat, we chose to compare the physiological and molecular responses of two wheat cultivars, contrasting in Al tolerance, to Pi deficiency. Initially, the reason why to choose these two cultivars is based on this suspicion that Al-tolerant cultivar might have better performance than that of Al-sensitive one. Because under acidic soils, in addition to the negative impacts of low Pi stress on plant growth, Al toxicity, particularly under pH below 4.5, is a must-be considering factor that hinders plant growth and development [37]. To exclude the side effects of Al toxicity, the wheat seedlings were cultured in a hydroponic system under controlled conditions and the only variable is the Pi concentration as mentioned in the materials and methods.
Unexpectedly, under Pi deficiency, the Al-tolerant cultivar Atlas 66 did not grow better than that of Al-sensitive cultivar Scout 66, in terms of root and shoot biomass (Figure 2) and chlorophyll content (Figure 6). The better performance of Scout 66 under Pi deficiency is likely because of its larger root volume and root tip numbers (Figure 3), rather than root lengths (Figure 1). It is well established that root architecture plays an important role in Pi uptake from the soil and is discussed to be a target for Pi-efficiency breeding [5,6,7,8,10,14]. Indeed, transgenic rice lines with high expression of PSTOL1 exhibited larger root system to confer tolerance of Pi deficiency, leading to superior performance [51]. A similar finding was also reported in Arabidopsis [52]. A larger root system not only enhances Pi acquisition, but also facilitates the uptake of water and other nutrients, such as nitrogen, which confers the plants to have better fitness under abiotic stresses. Indeed, we found that scout 66 contains higher chlorophyll content under long-term Pi starvation (Figure 6), which could be due to the larger root dry biomass caused by larger root volume (Figure 3). Although whether the higher content of chlorophyll is due to high nitrogen content in the shoots remains elusive, Scout 66 is indeed more tolerant to nitrogen deficiency than that of Atlas 66, with being much delayed yellowing upon nitrogen starvation (in preparation). The transcript factors or regulatory factors, such as kinase [53], controlling the root volume and tip numbers in Scout 66 awaits future study. Taken together, from morphological traits, it seemed that Scout 66 shows better performance in response to nutritional deficiencies than that of Atlas 66.
The higher Pi concentration might represent better metabolic adaptations to Pi deficiency [43]. In this study, Scout 66 was found to contain both high total P and soluble Pi under Pi deficiency (Figure 4 and Figure 5), which might suggest that Scout 66 possess more active metabolic activity to adapt to Pi deficiency, leading to the larger dry biomass and root volume. In the future, comparative metabolomics of the two cultivars to Pi starvation response would provide insight into the molecular mechanism why Scout 66 performs better upon Pi deficiency.
It is established that both Fe and Zn are essential micronutrients for plant growth and development and their homeostasis is altered upon Pi deficiency [45,54,55,56]. Previous studies have reported that Pi starvation promotes metal accumulation in plants, mainly aluminum, and Fe [45,55,56,57]. PHR1 has been documented to be involved in the interactions between Fe and Pi, as well as the interaction between Pi and Zn [45,55,56]. Long-term Pi deficiency leads to Zn over-accumulation in Arabidopsis [44]. In line with this, our results showed, at long-term Pi deficiency, that overall increased Fe contents in the roots were observed (Table 1). However, only in the Scout 66, this increase was significant (Table 1). Future study will address whether the increased Fe content in the Pi deficiency Scout 66 roots is due to the formed iron plaque (IP) in the root system upon Pi deficiency, or due to the more Fe uptake. By contrast, under our conditions, in general, long-term Pi deficiency leads to a decrease of Zn content in both roots and shoots, regardless of cultivars (Table 1), which is controversy to previous study in Arabidopsis [44], but is in agreement with the study in wheat [58]. A significant decrease of Zn content in the Scout 66 roots under long-term Pi deficiency might be due to the pronounced increase of Fe content (Table 1), which is agreement with previous observation that excess Fe will cause Zn deficiency [45]. In the future, the interactions between Pi and Fe, Pi and Zn, and Fe and Zn are worthy of further studies in wheat.
Over the past decade, the molecular responses to Pi deficiency have been extensively explored and subsets of core Pi-responsive genes have been identified in model plants Arabidopsis, as well as in rice [11]. Nevertheless, due to the high genome complex and limited genome information available, as well as the low efficiency of gene transformation, the wheat molecular responses to Pi deficiency remain fragmentary [6]. In this study, although tried our best, we failed to obtain consistent results on the expression of high affinity Pi transporter genes. However, we succeeded to determine the expression of three well-known Pi responsive genes by means of qRT-PCR (Figure 7). Because IPS1 is reported robustly upregulated upon Pi starvation and suggested to be involved in the early Pi deficiency-mediated signal transduction [2]. We thus first analyzed the expression patterns of IPS1 in wheat, TaIPS1. The expression of TaIPS1 was induced very early upon Pi starvation, but the expression patterns were comparable in both cultivars under Pi deficiency (Figure 7). We thus suggest that TaIPS1 is a good Pi-responsive marker gene in wheat, but may be not suitable for indicating the differential response in different cultivars. This could be applied to another Pi-responsive marker gene TaSQD2, although whose induction by Pi deficiency is much later than that TaIPS1. In contrast to the later induction of TaSQD2, TaSPX3 was an early-response gene upon Pi deficiency (Figure 7). The SPX gene family has been documented to play a major role in controlling the expression of PSI genes [20,27,34,35,59], the early-response and strong induction of TaSPX3 implicated that this regulator might play an important role in wheat, although we could not rule out the possibility that other SPX genes are also critical for wheat to deal with Pi deficiency. The induction extent of TaSPX3 in the roots is higher in Atlas 66, but in the shoots is higher in Scout 66 (Figure 7). This contrasting induction in the two cultivars might imply the differential responses to Pi starvation. In the roots, Atlas 66 produced smaller root systems than that of Scout 66, which might lead to Atlas 66 more sensitive to Pi starvation, since larger root systems can enhance the uptake of nutrients. While in the shoots, Scout 66 contains higher chlorophyll than that of Atlas 66, which probably leads Scout 66 to have stronger photosynthesis. To maintain stronger photosynthesis, more Pi is required, which is transported from the roots to the shoots, leading to a stronger induction of TaSPX3 and subsequently the downstream gene expression. This explanation can be supported by the fact that Scout 66 contains higher Pi concentration in the shoots under Pi deficiency (Figure 5). In addition, Scout 66 accumulated more root dry biomass, which requires more sugar produced in the shoots to transport to the roots, further supporting our hypothesis. Nevertheless, this hypothesis remains to be further verified by means of transcriptome coupled with biochemical analysis.

4. Materials and Methods

4.1. Plant Materials and Growth Conditions

Wheat (Tritium aestivum L.) seeds were surface sterilized with 10% (v/v) H2O2 for 30 min and rinsed five times with distilled water, and then soaked in distilled water for another two hours (h). The seeds were germinated in a petri dish with filter paper saturated with distilled water in darkness at 26 °C for 3 days. Followed by, the seedlings with similar size were transferred into a plastic box containing 7.5 L Modified Hoagland solution (1/4th strength) for about 3 weeks until the third leaves were fully developed. Next, half of the wheat plants were treated with nutrient solution without P (0 µM Pi, −Pi) and the rest of the wheat plants were remained in the nutrient solution with sufficient P (250 µM Pi, +Pi). The Modified Hoagland solution (1/4th strength) was described as follows: Ca(NO3)2·4H2O (2 mM), MgSO4·7H2O (650 μM), KH2PO4 (250 μM), K2SO4 (750 μM), MnSO4·H2O (10 μM), CuSO4·5H2O(0.1 μM), ZnSO4·7H2O (1 μM), H3BO3 (1 μM), (NH4)6MoO24·4H2O (0.05 μM), KCl (100 μM), Fe-EDTA (40 μM). The nutrient solution without Pi was supplemented with KCl (250 µM) to make an equal K+ supply. The nutrient solution was exchanged every 3 days and the pH was adjusted to 6.0 with NaOH. All experiments were conducted in a controlled environmental condition maintained at 26 °C with 65% relative humidity. Photoperiod was adjusted to 14 h/10 h light/dark condition with a light intensity of 200 µmol photon m−2·s−1.

4.2. Root and Shoot Length, Biomass, Root Volume and Root Tip Numbers

The samples were collected from short (6 h to 1 d), mid (1 d to 7 d) and long time periods (7 d to 21 d) under both Pi levels. To minimize the circadian effect, sample collection was performed at the same time (10 am) of the day. The roots were rinsed several times with distilled water to remove the surface ions and blotted dry with tissue papers. After measuring root and shoot length, the samples were dried at 72 °C in the oven for 60 h.
To measure root volume and tip numbers, the harvested roots were dispersed in a transparent tray with water, and then scanned with a root system scanner (EPSON Expression 1600, Seiko EPSON Corp., Nagano, Japan). The scanned images were analyzed by WinRHIZO image analysis system (WIN MAC, Regent Instruments Inc., Quebec, QC, Canada, http://www.regentinstruments.com/).

4.3. Measurement of Total Phosphorus and Soluble Phosphate Concentration

To determine the total P content, the dried root and shoot samples were digested with 2 mL H2SO4 (2 h at 150 °C and 3 h at 180 °C), thereafter H2O2 was added to make them properly digest. Total P content was determined using molybdenum blue-colorimetric method [60]. To measure soluble Pi, the root and shoot (around 50 mg, fresh weight) were homogenized with extraction buffer (10 mM Tris, 1 mM EDTA, 100 mM NaCl, 1 mM β-mercaptoethanol, and 1 mM PMSF) and the Pi concentration was subsequently determined as described in [61].

4.4. Measurement of Iron and Zinc Concentration

Root and shoot samples were harvested at 21 d time point and used to determine the iron and zinc concentration. The roots were washed with 2 mM CaSO4 for 10 min and 10 mM EDTA for another 10 min to remove the surface ions. The dried samples were digested with HNO3 (2 mL), and the Fe and Zn concentrations were determined by ICP-MS (Optima 8000 ICP-OES Spectrometer, PerkinElmer, Inc., Waltham, MA, USA).

4.5. Measurement of Chlorophyll Content

For chlorophyll content analysis, the fresh leaves collected at 21 d (0.2 g) were placed into vials containing 10 mL of 80% (v/v) acetone. The vials were placed in a dark place at room temperature overnight to ensure a complete leaching of the pigments. The leaf total chlorophyll content was determined according to the method by Arnon [62]. The absorbance values for the chlorophyll a and chlorophyll b were recorded at the wavelength of 663 nm and 646 nm, respectively and subsequently determined chlorophyll content.

4.6. Phosphate Induced Marker Genes Expression Analysis by qRT-PCR

The fresh roots and shoots were collected in the scheduled time point (for the marker gene expression analysis, 1 h and 3 h time points were included), and immediately kept in liquid nitrogen and stored at −80 °C for further analysis. For RNAs extraction, fresh tissues were grinded with a mortar and pestle and total RNAs were extracted using TRIzol reagent (Invitrogen, Karlsruhe, Germany) according to the manufacturer’s instructions. RNA concentration was determined with NanoDrops (Thermo Scientific, NanoDrop 2000 Spectrophotomer, Wilmington, DE, USA) and its integrity was verified through agarose gel electrophoresis. 1 µg of total RNA from each sample was converted into cDNAs using Prime Script reverse transcriptase (Invitrogen, Karlsruhe, Germany). Quantitative real time PCR (qRT-PCR) was applied to determine the gene expression level using the SYBR green PCR Master Mix (Takara Bio Inc., Kusatsu, Japan). The program was described as follows: Pre-denaturation at 95 °C for 30s, 40 cycles of denaturation at 95 °C for 5 s and annealing at 60 °C for 30 s, followed by melt-curve analysis (60 °C–95 °C, 0.5 °C increments for 5s). The relative expression levels of different studied genes were calculated according to the 2−ΔCt method [63]. The primers used in this study were listed in the Supplementary Table S1. The wheat TaAPT1 (Adenine phosphoribosyltransferase 1) gene was used as a house keeping gene.

4.7. Statistical Analysis

All of the data presented here were mean values for each treatment. Two-way analysis of variance (ANOVA) was carried out between cultivars and p under control and treatments and followed by the least significant difference (LSD) multiple range test (p < 0.05) using SPSS version 22 statistical software (IBM Corp., Armonk, NY, USA).

5. Conclusions

In this study, two genotypes contrasting in Al-tolerance were comparatively analyzed, focusing on the morphological, physiological and molecular characteristics under Pi deficient conditions. It was concluded that the Al-sensitive cultivar, Scout 66, exhibited better performance under Pi deficient conditions compared to Atlas 66. With the common wheat genome sequencing completed and more genome information available, it provides us more chance to uncover the molecular mechanism by which Scout 66 performs better under Pi deficiency than Atlas 66 in the near future. Combined the Al—tolerance related genes with the Pi-efficiency genes, it is possible to develop Pi-efficiency wheat cultivars that have good fitness on acidic soils.

Supplementary Materials

Supplementary materials can be found at https://www.mdpi.com/1422-0067/19/10/2964/s1.

Author Contributions

P.L. designed the research, M.R.K. and P.L. performed and analyzed experiments, X.D. and R.S. provided materials and infrastructure, L.Z. provided advice during writing, P.L. and M.R.K. wrote the manuscript.

Acknowledgments

This research was supported by the National Key R&D Program (2016YFD0200308), the National Key Basic Research Program of China (2015CB150501), the National Science Foundation in Jiangsu Provinces (BK20141511), and the Project of Priority and Key Areas, Institute of Soil Science, Chinese Academy of Sciences (ISSASIP1605 and ISSASIP1640). The authors thank Wenfeng Li for constructive comments on the manuscript.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Raghothama, K.G. Phosphate acquisition. Annu. Rev. Plant Physiol. Plant Mol. Biol. 1999, 50, 665–693. [Google Scholar] [CrossRef] [PubMed]
  2. Chiou, T.J.; Lin, S.I. Signaling network in sensing phosphate availability in plants. Annu. Rev. Plant Biol. 2011, 62, 185–206. [Google Scholar] [CrossRef] [PubMed]
  3. Bouain, N.; Doumas, P.; Rouached, H. Recent advances in understanding the molecular mechanisms regulating the root system response to phosphate deficiency in arabidopsis. Curr. Genom. 2016, 17, 308–314. [Google Scholar] [CrossRef] [PubMed]
  4. Rouached, H.; Tran, L.S. Regulation of plant mineral nutrition: Transport, sensing and signaling. Int. J. Mol. Sci. 2015, 16, 29717–29719. [Google Scholar] [CrossRef] [PubMed]
  5. Lambers, H.; Plaxton, W.C. Phosphorus: Back to the Roots; John Wiley & Sons, Inc.: Hoboken, NJ, USA, 2015. [Google Scholar]
  6. Secco, D.; Bouain, N.; Rouached, A.; Prom, U.T.C.; Hanin, M.; Pandey, A.K.; Rouached, H. Phosphate, phytate and phytases in plants: From fundamental knowledge gained in arabidopsis to potential biotechnological applications in wheat. Crit. Rev. Biotechnol. 2017, 37, 898–910. [Google Scholar] [CrossRef] [PubMed]
  7. Ham, B.K.; Chen, J.; Yan, Y.; Lucas, W.J. Insights into plant phosphate sensing and signaling. Curr. Opin. Biotechnol. 2018, 49, 1–9. [Google Scholar] [CrossRef] [PubMed]
  8. Abel, S. Phosphate scouting by root tips. Curr. Opin. Plant Biol. 2017, 39, 168–177. [Google Scholar] [CrossRef] [PubMed]
  9. Shahzad, Z.; Amtmann, A. Food for thought: How nutrients regulate root system architecture. Curr. Opin. Plant Biol. 2017, 39, 80–87. [Google Scholar] [CrossRef] [PubMed]
  10. Gutierrez-Alanis, D.; Ojeda-Rivera, J.O.; Yong-Villalobos, L.; Cardenas-Torres, L.; Herrera-Estrella, L. Adaptation to phosphate scarcity: Tips from arabidopsis roots. Trends Plant Sci. 2018, 23, 721–730. [Google Scholar] [CrossRef] [PubMed]
  11. Lan, P.; Li, W.; Schmidt, W. ‘Omics’ approaches towards understanding plant phosphorus acquisition and use. In Annual Plant Reviews; John Wiley & Sons, Inc.: Hoboken, NJ, USA, 2015; Volume 48, pp. 65–97. [Google Scholar]
  12. Niu, Y.F.; Chai, R.S.; Jin, G.L.; Wang, H.; Tang, C.X.; Zhang, Y.S. Responses of root architecture development to low phosphorus availability: A review. Ann. Bot. 2012, 112, 391–408. [Google Scholar] [CrossRef] [PubMed]
  13. Vance, C.P. Symbiotic nitrogen fixation and phosphorus acquisition. Plant nutrition in a world of declining renewable resources. Plant Physiol. 2001, 127, 390–397. [Google Scholar] [CrossRef] [PubMed]
  14. Vance, C.P.; Uhde-Stone, C.; Allan, D.L. Phosphorus acquisition and use: Critical adaptations by plants for securing a nonrenewable resource. New Phytol. 2010, 157, 423–447. [Google Scholar] [CrossRef]
  15. Shen, J.; Yuan, L.; Zhang, J.; Li, H.; Bai, Z.; Chen, X.; Zhang, W.; Zhang, F. Phosphorus dynamics: From soil to plant. Plant Physiol. 2011, 156, 997–1005. [Google Scholar] [CrossRef] [PubMed]
  16. Yuan, H.; Liu, D. Signaling components involved in plant responses to phosphate starvation. J. Integr. Plant Biol. 2008, 50, 849–859. [Google Scholar] [CrossRef] [PubMed]
  17. Wang, L.; Liu, D. Functions and regulation of phosphate starvation-induced secreted acid phosphatases in higher plants. Plant Sci. Int. J. Exp. Plant Biol. 2018, 271, 108–116. [Google Scholar] [CrossRef] [PubMed]
  18. Lan, P.; Li, W.; Schmidt, W. Complementary proteome and transcriptome profiling in phosphate-deficient arabidopsis roots reveals multiple levels of gene regulation. Mol. Cell. Proteom. MCP 2012, 11, 1156–1166. [Google Scholar] [CrossRef] [PubMed]
  19. Wang, J.; Sun, J.; Miao, J.; Guo, J.; Shi, Z.; He, M.; Chen, Y.; Zhao, X.; Li, B.; Han, F.; et al. A phosphate starvation response regulator ta-phr1 is involved in phosphate signalling and increases grain yield in wheat. Ann. Bot. 2013, 111, 1139–1153. [Google Scholar] [CrossRef] [PubMed]
  20. Qi, W.; Manfield, I.W.; Muench, S.P.; Baker, A. Atspx1 affects the atphr1-DNA-binding equilibrium by binding monomeric atphr1 in solution. Biochem. J. 2017, 474, 3675–3687. [Google Scholar] [CrossRef] [PubMed]
  21. Rouached, H.; Secco, D.; Arpat, B.; Poirier, Y. The transcription factor phr1 plays a key role in the regulation of sulfate shoot-to-root flux upon phosphate starvation in arabidopsis. BMC Plant Biol. 2011, 11, 19. [Google Scholar] [CrossRef] [PubMed]
  22. Jung, J.Y.; Ried, M.K.; Hothorn, M.; Poirier, Y. Control of plant phosphate homeostasis by inositol pyrophosphates and the spx domain. Curr. Opin. Biotechnol. 2018, 49, 156–162. [Google Scholar] [CrossRef] [PubMed]
  23. Rubio, V.; Linhares, F.; Solano, R.; Martin, A.C.; Iglesias, J.; Leyva, A.; Paz-Ares, J. A conserved myb transcription factor involved in phosphate starvation signaling both in vascular plants and in unicellular algae. Genes Dev. 2001, 15, 2122–2133. [Google Scholar] [CrossRef] [PubMed]
  24. Xue, Y.B.; Xiao, B.X.; Zhu, S.N.; Mo, X.H.; Liang, C.Y.; Tian, J.; Liao, H.; Miriam, G. Gmphr25, a gmphr member up-regulated by phosphate starvation, controls phosphate homeostasis in soybean. J. Exp. Bot. 2017, 68, 4951–4967. [Google Scholar] [CrossRef] [PubMed]
  25. Zhong, Y.; Wang, Y.; Guo, J.; Zhu, X.; Shi, J.; He, Q.; Liu, Y.; Wu, Y.; Zhang, L.; Lv, Q.; et al. Rice spx6 negatively regulates the phosphate starvation response through suppression of the transcription factor phr2. New Phytol. 2018, 219, 135–148. [Google Scholar] [CrossRef] [PubMed]
  26. Nilsson, L.; Lundmark, M.; Jensen, P.E.; Nielsen, T.H. The arabidopsis transcription factor phr1 is essential for adaptation to high light and retaining functional photosynthesis during phosphate starvation. Physiol. Plant. 2012, 144, 35–47. [Google Scholar] [CrossRef] [PubMed]
  27. Lv, Q.; Zhong, Y.; Wang, Y.; Wang, Z.; Zhang, L.; Shi, J.; Wu, Z.; Liu, Y.; Mao, C.; Yi, K.; et al. Spx4 negatively regulates phosphate signaling and homeostasis through its interaction with phr2 in rice. Plant Cell 2014, 26, 1586–1597. [Google Scholar] [CrossRef] [PubMed]
  28. Nilsson, L.; Muller, R.; Nielsen, T.H. Increased expression of the myb-related transcription factor, phr1, leads to enhanced phosphate uptake in arabidopsis thaliana. Plant Cell Environ. 2007, 30, 1499–1512. [Google Scholar] [CrossRef] [PubMed]
  29. Bari, R.; Datt Pant, B.; Stitt, M.; Scheible, W.R. Pho2, microrna399, and phr1 define a phosphate-signaling pathway in plants. Plant Physiol. 2006, 141, 988–999. [Google Scholar] [CrossRef] [PubMed]
  30. Guo, M.; Ruan, W.; Li, C.; Huang, F.; Zeng, M.; Liu, Y.; Yu, Y.; Ding, X.; Wu, Y.; Wu, Z.; et al. Integrative comparison of the role of the phosphate response1 subfamily in phosphate signaling and homeostasis in rice. Plant Physiol. 2015, 168, 1762–1776. [Google Scholar] [CrossRef] [PubMed]
  31. Sun, L.; Song, L.; Zhang, Y.; Zheng, Z.; Liu, D. Arabidopsis phl2 and phr1 act redundantly as the key components of the central regulatory system controlling transcriptional responses to phosphate starvation. Plant Physiol. 2016, 170, 499–514. [Google Scholar] [CrossRef] [PubMed]
  32. Bustos, R.; Castrillo, G.; Linhares, F.; Puga, M.I.; Rubio, V.; Perez-Perez, J.; Solano, R.; Leyva, A.; Paz-Ares, J. A central regulatory system largely controls transcriptional activation and repression responses to phosphate starvation in arabidopsis. PLoS Genet. 2010, 6, e1001102. [Google Scholar] [CrossRef] [PubMed]
  33. Miura, K.; Rus, A.; Sharkhuu, A.; Yokoi, S.; Karthikeyan, A.S.; Raghothama, K.G.; Baek, D.; Koo, Y.D.; Jin, J.B.; Bressan, R.A.; et al. The arabidopsis sumo e3 ligase siz1 controls phosphate deficiency responses. Proc. Natl. Acad. Sci. USA 2005, 102, 7760–7765. [Google Scholar] [PubMed]
  34. Puga, M.I.; Mateos, I.; Charukesi, R.; Wang, Z.; Franco-Zorrilla, J.M.; de Lorenzo, L.; Irigoyen, M.L.; Masiero, S.; Bustos, R.; Rodriguez, J.; et al. Spx1 is a phosphate-dependent inhibitor of phosphate starvation response 1 in arabidopsis. Proc. Natl. Acad. Sci. USA 2014, 111, 14947–14952. [Google Scholar] [CrossRef] [PubMed]
  35. Wang, Z.; Ruan, W.; Shi, J.; Zhang, L.; Xiang, D.; Yang, C.; Li, C.; Wu, Z.; Liu, Y.; Yu, Y.; et al. Rice spx1 and spx2 inhibit phosphate starvation responses through interacting with phr2 in a phosphate-dependent manner. Proc. Natl. Acad. Sci. USA 2014, 111, 14953–14958. [Google Scholar] [CrossRef] [PubMed]
  36. Wild, R.; Gerasimaite, R.; Jung, J.Y.; Truffault, V.; Pavlovic, I.; Schmidt, A.; Saiardi, A.; Jessen, H.J.; Poirier, Y.; Hothorn, M.; et al. Control of eukaryotic phosphate homeostasis by inositol polyphosphate sensor domains. Science 2016, 352, 986–990. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  37. Zheng, L.; Lan, P.; Shen, R.F.; Li, W.F. Proteomics of aluminum tolerance in plants. Proteomics 2014, 14, 566–578. [Google Scholar] [CrossRef] [PubMed]
  38. Du, H.; Yang, C.; Ding, G.; Shi, L.; Xu, F. Genome-wide identification and characterization of spx domain-containing members and their responses to phosphate deficiency in brassica napus. Front. Plant Sci. 2017, 8, 35. [Google Scholar] [CrossRef] [PubMed]
  39. Ma, J.F.; Zheng, S.J.; Li, X.F.; Takeda, K.; Matsumoto, H. A rapid hydroponic screening for aluminium tolerance in barley. Plant Soil 1997, 191, 133–137. [Google Scholar] [CrossRef]
  40. Tabuchi, A.; Kikui, S.; Matsumoto, H. Differential effects of aluminium on osmotic potential and sugar accumulation in the root cells of al-resistant and al-sensitive wheat. Physiol. Plant. 2004, 120, 106–112. [Google Scholar] [CrossRef] [PubMed]
  41. Cocker, K.M.; Evans, D.E.; Hodson, M.J. The amelioration of aluminium toxicity by silicon in wheat (Triticum aestivum L.): Malate exudation as evidence for an in planta mechanism. Planta 1998, 204, 318–323. [Google Scholar] [CrossRef]
  42. Scheible, W.R.; Rojas-Triana, M. Sensing, signalling, and control of phosphate starvation in plants: Molecular players and applications. In Annual Plant Reviews; John Wiley & Sons, Inc.: Hoboken, NJ, USA, 2015; Volume 48, p. 474. [Google Scholar]
  43. Lambers, H.; Clode, P.L.; Hawkins, H.J.; Laliberté, E.; Oliveira, R.S.; Reddell, P.; Shane, M.W.; Stitt, M.; Weston, P. Metabolic adaptations of the non-mycotrophic proteaceae to soils with low phosphorus availability. In Annual Plant Reviews; John Wiley & Sons, Inc.: Hoboken, NJ, USA, 2015; Volume 48, pp. 289–335. [Google Scholar]
  44. Misson, J.; Raghothama, K.G.; Jain, A.; Jouhet, J.; Block, M.A.; Bligny, R.; Ortet, P.; Creff, A.; Somerville, S.; Rolland, N.; et al. A genome-wide transcriptional analysis using arabidopsis thaliana affymetrix gene chips determined plant responses to phosphate deprivation. Proc. Natl. Acad. Sci. USA 2005, 102, 11934–11939. [Google Scholar] [CrossRef] [PubMed]
  45. Briat, J.F.; Rouached, H.; Tissot, N.; Gaymard, F.; Dubos, C. Integration of p, s, fe, and zn nutrition signals in arabidopsis thaliana: Potential involvement of phosphate starvation response 1 (phr1). Front. Plant Sci. 2015, 6, 290. [Google Scholar] [CrossRef] [PubMed]
  46. Chaiwong, N.; Prom, U.T.C.; Bouain, N.; Lacombe, B.; Rouached, H. Individual versus combinatorial effects of silicon, phosphate, and iron deficiency on the growth of lowland and upland rice varieties. Int. J. Mol. Sci. 2018, 19, 899. [Google Scholar] [CrossRef] [PubMed]
  47. Dong, J.; Pineros, M.A.; Li, X.; Yang, H.; Liu, Y.; Murphy, A.S.; Kochian, L.V.; Liu, D. An arabidopsis abc transporter mediates phosphate deficiency-induced remodeling of root architecture by modulating iron homeostasis in roots. Mol. Plant 2017, 10, 244–259. [Google Scholar] [CrossRef] [PubMed]
  48. Huang, C.Y.; Shirley, N.; Genc, Y.; Shi, B.; Langridge, P. Phosphate utilization efficiency correlates with expression of low-affinity phosphate transporters and noncoding rna, ips1, in barley. Plant Physiol. 2011, 156, 1217–1229. [Google Scholar] [CrossRef] [PubMed]
  49. Hammond, J.P.; Broadley, M.R.; White, P.J. Genetic responses to phosphorus deficiency. Ann. Bot. 2004, 94, 323–332. [Google Scholar] [CrossRef] [PubMed]
  50. Yang, G.; Ding, G.; Shi, L.; Cai, H.; Xu, F. Characterization of phosphorus starvation-induced gene bnspx3 in brassica napus. Plant Soil 2012, 350, 339–351. [Google Scholar] [CrossRef]
  51. Gamuyao, R.; Chin, J.H.; Pariasca-Tanaka, J.; Pesaresi, P.; Catausan, S.; Dalid, C.; Slamet-Loedin, I.; Tecson-Mendoza, E.M.; Wissuwa, M.; Heuer, S. The protein kinase pstol1 from traditional rice confers tolerance of phosphorus deficiency. Nature 2012, 488, 535–539. [Google Scholar] [CrossRef] [PubMed]
  52. Chevalier, F.; Rossignol, M. Proteomic analysis of arabidopsis thaliana ecotypes with contrasted root architecture in response to phosphate deficiency. J. Plant Physiol. 2011, 168, 1885–1890. [Google Scholar] [CrossRef] [PubMed]
  53. Lan, P.; Li, W.; Schmidt, W. Genome-wide co-expression analysis predicts protein kinases as important regulators of phosphate deficiency-induced root hair remodeling in arabidopsis. BMC Genom. 2013, 14, 210. [Google Scholar] [CrossRef] [PubMed]
  54. Xue, Y.; Xia, H.; Christie, P.; Zhang, Z.; Li, L.; Tang, C. Crop acquisition of phosphorus, iron and zinc from soil in cereal/legume intercropping systems: A critical review. Ann. Bot. 2016, 117, 363–377. [Google Scholar] [CrossRef] [PubMed]
  55. Bouain, N.; Shahzad, Z.; Rouached, A.; Khan, G.A.; Berthomieu, P.; Abdelly, C.; Poirier, Y.; Rouached, H. Phosphate and zinc transport and signalling in plants: Toward a better understanding of their homeostasis interaction. J. Exp. Bot. 2014, 65, 5725–5741. [Google Scholar] [CrossRef] [PubMed]
  56. Kisko, M.; Bouain, N.; Safi, A.; Medici, A.; Akkers, R.C.; Secco, D.; Fouret, G.; Krouk, G.; Aarts, M.G.; Busch, W. Lpcat1 controls phosphate homeostasis in a zinc-dependent manner. Elife 2018, 7, e32077. [Google Scholar] [CrossRef] [PubMed]
  57. Li, W.; Lan, P. Genome-wide analysis of overlapping genes regulated by iron deficiency and phosphate starvation reveals new interactions in arabidopsis roots. BMC Res. Notes 2015, 8, 555. [Google Scholar] [CrossRef] [PubMed]
  58. WenXuan, M.; Tian, X.; Gale, W.J.; Yang, X.; XinChun, L. Tolerance to zn deficiency and p-zn interaction in wheat seedlings cultured in chelator-buffered solutions. J. Arid Land 2011, 3, 206–213. [Google Scholar]
  59. Shi, J.; Hu, H.; Zhang, K.; Zhang, W.; Yu, Y.; Wu, Z.; Wu, P. The paralogous spx3 and spx5 genes redundantly modulate pi homeostasis in rice. J. Exp. Bot. 2014, 65, 859–870. [Google Scholar] [PubMed]
  60. Murphy, J.; Riley, J.P. A modified single solution method for the determination of phosphate in natural waters. Anal. Chim. Acta 1962, 27, 31–36. [Google Scholar] [CrossRef]
  61. Chiou, T.-J.; Aung, K.; Lin, S.-I.; Wu, C.-C.; Chiang, S.-F.; Su, C.-L. Regulation of phosphate homeostasis by microrna in arabidopsis. Plant Cell 2006, 18, 412–421. [Google Scholar] [CrossRef] [PubMed]
  62. Arnon, D.I. Copper enzymes in isolated chloroplasts. Polyphenoloxidase in beta vulgaris. Plant Physiol. 1949, 24, 1–15. [Google Scholar] [CrossRef] [PubMed]
  63. Livak, K.J.; Schmittgen, T.D. Analysis of relative gene expression data using real-time quantitative pcr and the 2−δδct method. Methods 2001, 25, 402–408. [Google Scholar] [CrossRef] [PubMed]
Ijms 19 02964 g001 550

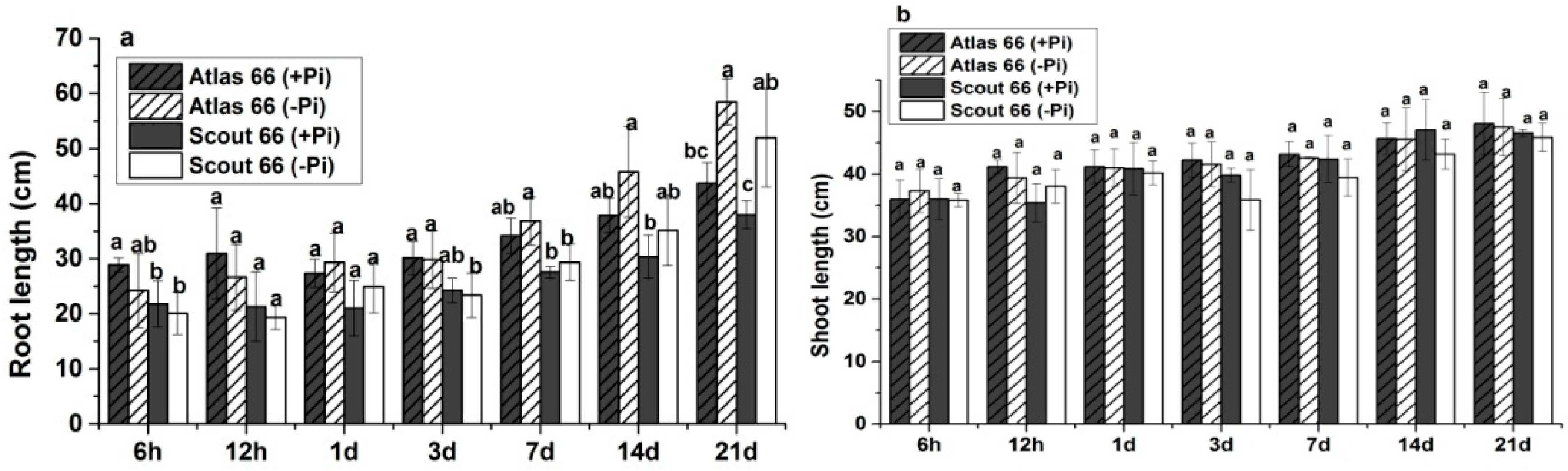

Figure 1. Root length (a), and shoot length (b) of two wheat cultivars in different observed time points (6 h to 21 d) in phosphate sufficient (250 µM) and deficient (0 µM) conditions. Error bars are Standard Deviation (SD), n = 6. Different small letters indicated significant differences (p ≤ 0.05) among the different treatment combinations within the same time point.
Figure 1. Root length (a), and shoot length (b) of two wheat cultivars in different observed time points (6 h to 21 d) in phosphate sufficient (250 µM) and deficient (0 µM) conditions. Error bars are Standard Deviation (SD), n = 6. Different small letters indicated significant differences (p ≤ 0.05) among the different treatment combinations within the same time point.
Ijms 19 02964 g001
Ijms 19 02964 g002 550

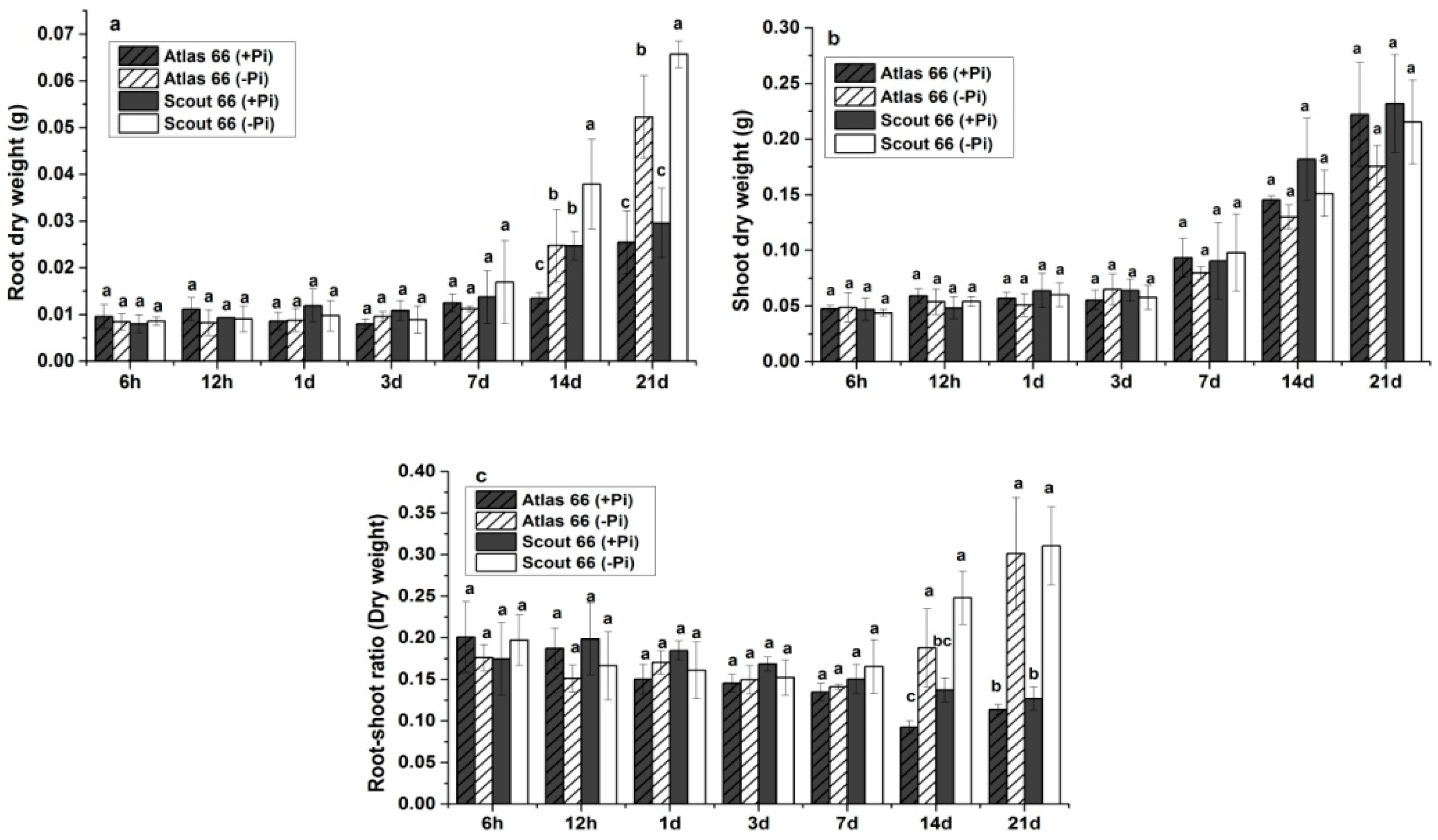

Figure 2. Root dry weight (a), shoot dry weight (b), and root-shoot dry weight (c) ratio of two wheat cultivars in different observed time points (6 h to 21 d) under the phosphate sufficient (250 µM) and deficient (0 µM) conditions. Error bars are SD, n = 6. Different small letters indicated significant differences (p ≤ 0.05) among the different treatment combinations within the same time point.
Figure 2. Root dry weight (a), shoot dry weight (b), and root-shoot dry weight (c) ratio of two wheat cultivars in different observed time points (6 h to 21 d) under the phosphate sufficient (250 µM) and deficient (0 µM) conditions. Error bars are SD, n = 6. Different small letters indicated significant differences (p ≤ 0.05) among the different treatment combinations within the same time point.
Ijms 19 02964 g002
Ijms 19 02964 g003 550
Figure 3. Root volume at 14 d time point (a), and root tips number (b) in different observed time points (6 h to 21 d) of two wheat cultivars in both phosphate sufficient (250 µM) and deficient (0 µM) conditions. Error bars are Standard Deviation (SD), n = 3. Different small letters indicated significant differences (p ≤ 0.05) among the different treatment combinations within the same time point.
Figure 3. Root volume at 14 d time point (a), and root tips number (b) in different observed time points (6 h to 21 d) of two wheat cultivars in both phosphate sufficient (250 µM) and deficient (0 µM) conditions. Error bars are Standard Deviation (SD), n = 3. Different small letters indicated significant differences (p ≤ 0.05) among the different treatment combinations within the same time point.
Ijms 19 02964 g003
Ijms 19 02964 g004 550

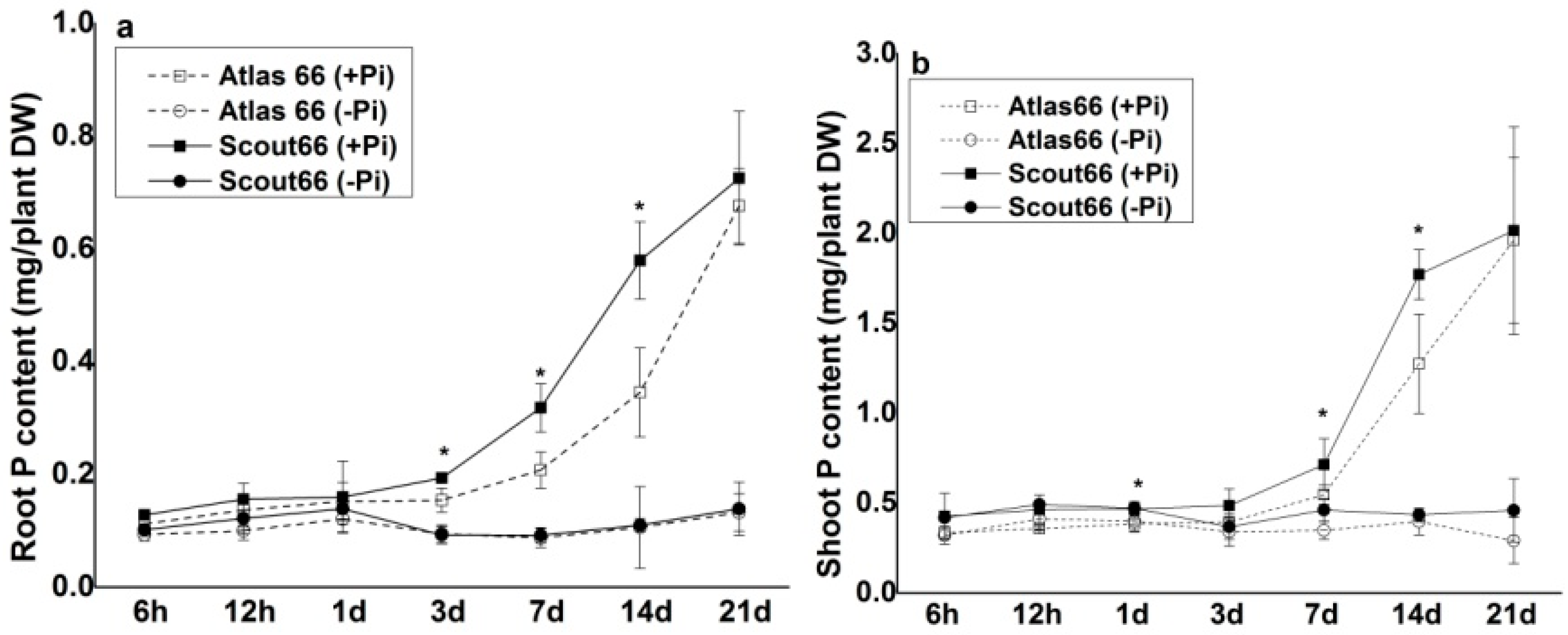

Figure 4. Root (a) and shoot (b) total phosphorus (P) of two wheat cultivars in different observed time points (6 h to 21 d) in both phosphate sufficient (250 µM) and deficient (0 µM) conditions. Error bars are SD, n = 3. Asterisk (*) indicated significant differences (p ≤ 0.05) between two cultivars under phosphate sufficient conditions at that time points.
Figure 4. Root (a) and shoot (b) total phosphorus (P) of two wheat cultivars in different observed time points (6 h to 21 d) in both phosphate sufficient (250 µM) and deficient (0 µM) conditions. Error bars are SD, n = 3. Asterisk (*) indicated significant differences (p ≤ 0.05) between two cultivars under phosphate sufficient conditions at that time points.
Ijms 19 02964 g004
Ijms 19 02964 g005 550
Figure 5. Root (a), and shoot (b) soluble phosphate (Pi) concentration of two wheat cultivars in different observed time points (6 h to 21 d) in both phosphate sufficient (250 µM) and deficient (0 µM) conditions. Error bars SD, n = 3. Different small letters indicated significant differences (p ≤ 0.05) among the different treatment combinations within the same time point.
Figure 5. Root (a), and shoot (b) soluble phosphate (Pi) concentration of two wheat cultivars in different observed time points (6 h to 21 d) in both phosphate sufficient (250 µM) and deficient (0 µM) conditions. Error bars SD, n = 3. Different small letters indicated significant differences (p ≤ 0.05) among the different treatment combinations within the same time point.
Ijms 19 02964 g005
Ijms 19 02964 g006 550
Figure 6. Chlorophyll content of two wheat cultivar at 21 d time point under phosphate sufficient (250 µM) and deficient (0 µM) conditions. Error bars are SD, n = 3, Different small letters indicated significant differences (p ≤ 0.05) among the different treatment combinations.
Figure 6. Chlorophyll content of two wheat cultivar at 21 d time point under phosphate sufficient (250 µM) and deficient (0 µM) conditions. Error bars are SD, n = 3, Different small letters indicated significant differences (p ≤ 0.05) among the different treatment combinations.
Ijms 19 02964 g006
Ijms 19 02964 g007 550

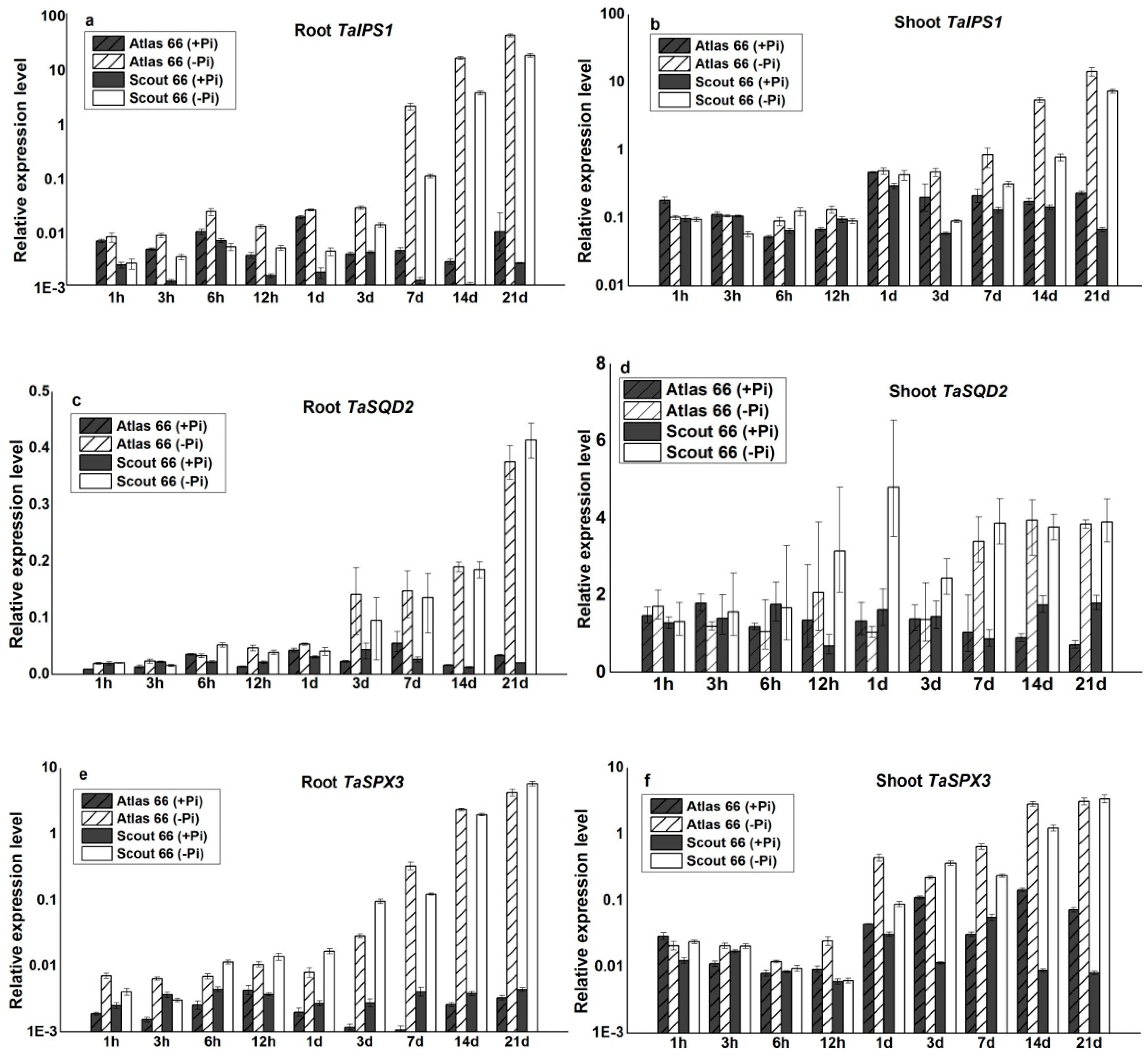

Figure 7. Relative mRNA expression levels of genes, TaIPS1 in root (a) and in shoot (b), TaSQD2 in root (c) and in shoot (d), and TaSPX3 in root (e) and in shoot (f) of two wheat cultivars at 9 different time points (1 h to 21 d) in both phosphate sufficient (250 µM) and deficient (0 µM) conditions. Error bars are SD, n = 3.
Figure 7. Relative mRNA expression levels of genes, TaIPS1 in root (a) and in shoot (b), TaSQD2 in root (c) and in shoot (d), and TaSPX3 in root (e) and in shoot (f) of two wheat cultivars at 9 different time points (1 h to 21 d) in both phosphate sufficient (250 µM) and deficient (0 µM) conditions. Error bars are SD, n = 3.
Ijms 19 02964 g007
Table
Table 1. Iron and zinc content in root and shoot in two wheat cultivars under phosphate sufficient (250 µM) and deficient (0 µM) conditions.
Table 1. Iron and zinc content in root and shoot in two wheat cultivars under phosphate sufficient (250 µM) and deficient (0 µM) conditions.
CultivarsPhosphate TreatmentFe (mg/g DW)Zn (µg/g DW)
RootShootRootShoot
Atlas 66(+Pi)7.08 ± 2.64 b0.13 ± 0.004 a128.5 ± 5.0 b65.6 ± 17.1 a
(−Pi)8.31 ± 1.51 ab0.12 ± 0.024 a106.5 ± 19.5 b49.7 ± 8.7 a
Scout 66(+Pi)5.62 ± 1.45 b0.10 ± 0.044 a189.2 ± 39.0 a68.2 ± 9.8 a
(−Pi)12.41 ± 4.25 a0.12 ± 0.007 a114.5 ± 1.5 b60.6 ± 4.3 a
Seedlings were grown in both Pi levels at 21 d time point. Different small letters indicated significant differences (p ≤ 0.05) among the different treatment combinations, (±) are Standard Deviation (SD), n = 3.

Share and Cite

MDPI and ACS Style

Karim, M.R.; Dong, X.; Zheng, L.; Shen, R.; Lan, P. Can Aluminum Tolerant Wheat Cultivar Perform Better under Phosphate Deficient Conditions? Int. J. Mol. Sci. 2018, 19, 2964. https://doi.org/10.3390/ijms19102964

AMA Style

Karim MR, Dong X, Zheng L, Shen R, Lan P. Can Aluminum Tolerant Wheat Cultivar Perform Better under Phosphate Deficient Conditions? International Journal of Molecular Sciences. 2018; 19(10):2964. https://doi.org/10.3390/ijms19102964

Chicago/Turabian Style

Karim, Mohammad Rezaul, Xiaoying Dong, Lu Zheng, Renfang Shen, and Ping Lan. 2018. "Can Aluminum Tolerant Wheat Cultivar Perform Better under Phosphate Deficient Conditions?" International Journal of Molecular Sciences 19, no. 10: 2964. https://doi.org/10.3390/ijms19102964

APA Style

Karim, M. R., Dong, X., Zheng, L., Shen, R., & Lan, P. (2018). Can Aluminum Tolerant Wheat Cultivar Perform Better under Phosphate Deficient Conditions? International Journal of Molecular Sciences, 19(10), 2964. https://doi.org/10.3390/ijms19102964

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
