Int. J. Mol. Sci. 2016, 17(3), 233; https://doi.org/10.3390/ijms17030233

Article
The Indeterminate Domain Protein ROC1 Regulates Chilling Tolerance via Activation of DREB1B/CBF1 in Rice
1
College of Life Sciences, Shandong Normal University, Wenhua East Road 88, Jinan 250014, Shandong, China
2
Northeast Institute of Geography and Agroecology, Chinese Academy of Sciences, Changchun 130102, China
3
University of Chinese Academy of Sciences, Beijing 100049, China
4
College of Plant Protection, Shenyang Agricultural University, Dongling Road 120, Shenyang 110866, Liaoning, China
5
School of Pharmaceutical Science, Wenzhou Medical University, Wenzhou 325000, Zhejiang, China
*
Authors to whom correspondence should be addressed.
Academic Editor: Marcello Iriti
Received: 30 December 2015 / Accepted: 4 February 2016 / Published: 25 February 2016

Abstract

:
Abiotic stress, including salinity, drought and cold, severely affect diverse aspects of plant development and production. Rice is an important crop that does not acclimate to cold; therefore, it is relatively sensitive to low temperature stress. Dehydration-responsive element-binding protein 1s (DREB1s)/C-repeat binding factors (CBFs) are well known for their function in cold tolerance, but the transcriptional regulation of CBFs remains elusive, especially in rice. Here, we performed a yeast one-hybrid assay using the promoter of CBF1, a cold-induced gene, to isolate transcriptional regulators of CBF1. Among the seven candidates identified, an indeterminate domain (IDD) protein named ROC1 (a regulator of CBF1) was further analyzed. The ROC1 transcript was induced by exogenously-treated auxin, while it was not altered by cold or ABA stimuli. ROC1-GFP was localized at the nucleus, and ROC1 showed trans-activation activity in yeast. The electrophoretic mobility shift assay (EMSA) and ChIP analyses revealed that ROC1 directly bound to the promoter of CBF1. Furthermore, ROC1 mutants exhibited chilling-sensitive symptoms and inhibited cold-mediated induction of CBF1 and CBF3, indicating that ROC1 is a positive regulator of cold stress responses. Taken together, this study identified the CBF1 regulator, and the results are important for rice plant adaptation to chilling stress.
Keywords:
ROC1; indeterminate domain; cold stress; CBF1; rice

1. Introduction

Cold is an abiotic stress that is separated into two parts; one is chilling (<20 °C for many plants), and the other one is freezing (<0 °C) temperature. Cold limits the spatial distribution of plants and adversely affects agricultural quality and productivity [1]. Cold acclimation is a process to increase freezing tolerance by experiencing a low non-freezing temperature before freezing stress [2]. Rice (Oryza sativa) is one of the major cereal plants worldwide; therefore, a higher yield potential and yield stability are needed to meet the challenges of increasing demand for rice production [3]. However, world climate changes have become serious problems for many crops when they experience a relatively lower temperature and dehydration [2]. Therefore, isolation of genes involved in the cold stress tolerance response may be an important approach to develop rice plants that can resist low temperature damage.
One of the strategies by which plants adapt to environmental changes is the rapid reprograming of the transcriptome. Many genes respond to low temperature, including some transcription factors, which are primarily important for understanding cold signaling [1]. Among the transcription factors regulated by cold, transcription activators DREBs1/CBFs have been identified to regulate many cold-responsive genes carrying a specific cis-element motif ((DRE; 5’-TACCGACAT-3’)/C-repeat (CRT; 5’-TGGCCGAC-3’) with a common core motif (5’-CCGAC-3’)) in their promoters [4]. In Arabidopsis, AtCBF1/DREB1B, AtCBF2/DERB1C and AtCBF3/DREB1A are rapidly induced by cold stress [5,6]. In rice, OsDREB1B and OsDREB1A are quickly induced, while OsDREB1C is not altered upon cold stress [7]. Further, overexpression of AtCBF1, AtCBF3 and OsCBF3 activated the transcription of genes carrying the DRE/CRT element in their promoters, even under normal growth conditions in Arabidopsis [4,7,8,9,10]. However, AtCBF2 negatively regulated freezing tolerance via the negative regulation of CBF1 and CBF3 [11].
HOS1, ICE1 and MYB15 were identified to directly regulate CBF/DREB1 expression in Arabidopsis [12,13,14]. The high expression of osmotically-responsive gene 1 (HOS1), which is an RING-type ubiquitin E3 ligase, negatively regulated cold-induced CBF/DREB1 expression [15]. The inducer of CBF/DREB1 expression 1 (ICE1) encodes a MYC-like basic helix-loop-helix transcription factor that activates CBF/DREB1 expression in a cold-dependent manner [16]. MYB15 represses the expression of CBF/DREB1 via binding of CBF/DREB1 promoter to regulate freezing tolerance, and it also physically interacts with ICE1, which in turn attenuates MYB15 expression [12]. However, transcriptional regulators that directly regulate CBFs/DREB1s transcription have not been reported in rice.
The indeterminate domain (IDD) genes have been characterized as playing roles in diverse aspects of plant metabolism and development. ID1 regulates the flowering time in maize and rice [17,18]. The magpie/IDD3 (MAG) and jackdaw/IDD10 (JKD) genes determine root fate, whereas IDD1/ENY (enhydrous) and IDD8 are involved in the regulation of metabolic processes for seed maturation and plant development in Arabidopsis [19,20,21]. The Arabidopsis shoot gravity response 5/IDD15 (SGR5) gene and rice Loose Plant Architecture1/IDD14 (LPA1) gene are involved in shoot gravitropism [22,23]. We previously demonstrated that IDD10 regulates NH4+-dependent gene expressions in rice roots [24]. In this study, we identified a novel regulator of the rice CBF1 gene ROC1 from yeast one-hybrid screening and found that ROC1 encodes an indeterminate domain protein. Further, molecular and biochemical assays revealed that ROC1 directly bound to the promoter of CBF1. Loss of function of ROC1 showed a decrease in cold response, and roc1 mutant plants were hypersensitive to chilling stress. This study was to isolate and characterize a direct regulator of CBF1, and we identified an IDD protein function in chilling tolerance responses in rice.

2. Results

2.1. Isolation of the Regulators of CBF1

DREB1s/CBFs, key transcription factors, are induced by cold stress and play a key role in abiotic stress response in plants [2]. Interestingly, rice CBF1 is different from other CBF members that are specifically induced by cold stress [7]. To isolate the putative transcription factors regulating rice CBF1 expression, we performed a yeast one-hybrid assay using a rice cDNA library and the 2.0-kb CBF1 promoter to screen for novel proteins binding to the CBF1 promoter (Figure 1a). The information of the positive interactors is listed in Table S1. The 15 positive clones identified belonged to seven genes, and five clones originated from the same gene (ZOS9-17-C2H2 zinc finger protein, LOC_Os09g38340). Sequence analysis revealed that LOC_Os09g12770 encodes an IDD protein, which we named ROC1 (regulator of CBF1). IDD proteins contain a zinc finger domain comprising two C2H2 and two C2HC motifs [17]. The sequence alignment between ROC1 and ID1 showed that they are highly conserved in the ID domain and divergent in the C-terminal region (Figure S1). Two more putative transcription factors (putative zinc finger protein, LOC_Os01g54930; MYB family transcription factor, LOC_Os02g41510) were also isolated with the yeast one-hybrid assay.
To further analyze the strength of activation of the CBF1 promoter by ROC1, 3-amino-1,2,4-triazole (3AT), a competitive inhibitor of HIS3, was added to the synthetic defined (SD) medium, and yeast cell growth was monitored. The results showed that the yeast cells expressing AD (activation domain)-ROC1 and pCBF1-His were able to grow in the SD media missing histidine and containing 5 mM 3AT, while the empty vector transforming cells failed to grow. However, they also failed to grow in 10 mM 3AT containing SD medium (Figure 1b). These data indicated that ROC1 encodes an ID domain protein and activates the CBF1 promoter in yeast.
Figure 1. Identification of a regulator of the CBF1 gene. (a) A rice complementary DNA (cDNA) library was generated using a pGAD424 vector in which the coding sequences of the protein of interest were C-terminally fused to the activation domain (AD). A 2.0-kb section of the CBF1 gene promoter was cloned into the pHISi vector in which His was a reporter gene; (b) A yeast one-hybrid assay was performed to analyze the regulator of the CBF1 gene (ROC1) activation of the CBF1 promoter. Yeast cells harboring either AD-ROC1 and pCBF1-His or AD and pCBF1-His were grown on SD media lacking Leu or His and containing the indicated concentrations of 3-amino-1,2,4-triazole (3AT), a competitive inhibitor of HIS3.
Figure 1. Identification of a regulator of the CBF1 gene. (a) A rice complementary DNA (cDNA) library was generated using a pGAD424 vector in which the coding sequences of the protein of interest were C-terminally fused to the activation domain (AD). A 2.0-kb section of the CBF1 gene promoter was cloned into the pHISi vector in which His was a reporter gene; (b) A yeast one-hybrid assay was performed to analyze the regulator of the CBF1 gene (ROC1) activation of the CBF1 promoter. Yeast cells harboring either AD-ROC1 and pCBF1-His or AD and pCBF1-His were grown on SD media lacking Leu or His and containing the indicated concentrations of 3-amino-1,2,4-triazole (3AT), a competitive inhibitor of HIS3.
Ijms 17 00233 g001

2.2. ROC1 Directly Binds to the Promoter of CBF1

Because ROC1 is able to activate the CBF1 promoter in a yeast one-hybrid assay, we further confirmed whether ROC1 binds directly to the CBF1 promoter. Previous studies reported the motifs that bound the IDD protein in maize (ID1, 5’-TTTGTCG/CTTTT-3’), Arabidopsis (IDD8, 5’-TTTTGTCC-3’) and rice (IDD10, 5’-TTTGTCC/G-3’) [21,24,25]. Promoter sequence analysis identified that putative IDD binding motifs were located 1118 to 1125 (P1) and 289 to 295 (P2) bp upstream of the start codon (Figure 2a). To verify the binding affinity of ROC1 to the putative IDD binding motifs, an electrophoretic mobility shift assay (EMSA) was performed using a GST:ROC1 fusion protein. The results showed that ROC1 directly bound to the P1 and P2 sequences (Figure 2b). To analyze ROC1 binding to the promoter of CBF1 in vivo, a chromatin immunoprecipitation (ChIP) assay was performed using ROC1-Myc transgenic plants. ROC1-Myc lines express ROC1 cDNA fused to Myc coding sequences, and ROC1-Myc expression was tested by Western blot analysis using an anti-cMyc antibody. The immunoblotting data showed that ROC1-Myc was successfully expressed in the transgenic rice plants, while no visible signal was detected in the non-transgenic plants (Figure 2c). Immunoprecipitates were isolated with IgG and anti-Myc antibodies. Two sets of primers were used to detect P1 and P2 regions using the immunoprecipitates. The ChIP-PCR results indicated that ROC1 is able to bind to the P1 region, but not the P2 region (Figure 2d). Furthermore, competitive electrophoretic mobility shift assays (EMSAs) were performed between P1 and mutated P1 (mP1). The increase of unlabeled P1 content significantly affected the binding between ROC1 and the labeled P1 probe, whereas mP1 slightly interfered with the binding (Figure S2). These results indicated that ROC1 directly binds to the P1 sequences of the CBF1 promoter.

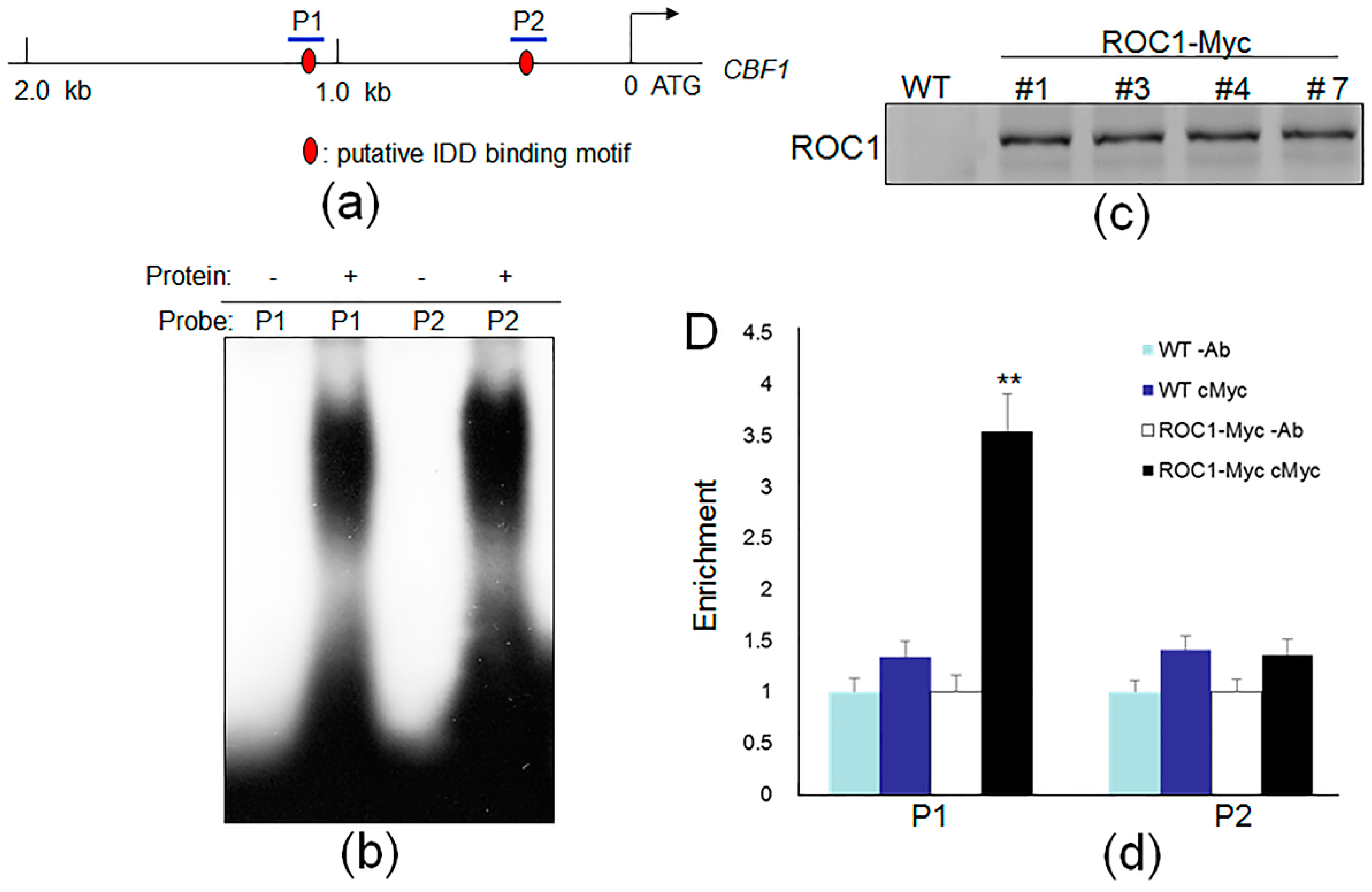

Figure 2. ROC1 directly binds to the promoter of CBF1. (a) The schematic diagram shows the locations of the putative IDD binding motifs (red oval) in the CBF1 promoter and regions (blue line) tested in the electrophoretic mobility shift assay (EMSA) and ChIP assays; (b) EMSA was performed to evaluate the ROC1 affinities to each of the putative IDD binding motifs located in the CBF1 promoter; (c) ROC1-Myc expression in Ubiquitin:ROC1-Myc transgenic rice plants was analyzed by immunoblotting using an anti-cMyc antibody; (d) A CHIP assay was performed by amplifying immunoprecipitated DNA to detect the P1 and P2 regions in the CBF1promoter; immunoprecipitated DNA was normalized to input DNA after ChIP-PCR. Data represent the means ± SE (n = 3); non-transgenic plants (wild-type) were used as controls. Ab: IgG; cMyc: Myc antibody. ** p < 0.01; the p-value of the ROC1-Myc sample was calculated with respect to that of the controls.
Figure 2. ROC1 directly binds to the promoter of CBF1. (a) The schematic diagram shows the locations of the putative IDD binding motifs (red oval) in the CBF1 promoter and regions (blue line) tested in the electrophoretic mobility shift assay (EMSA) and ChIP assays; (b) EMSA was performed to evaluate the ROC1 affinities to each of the putative IDD binding motifs located in the CBF1 promoter; (c) ROC1-Myc expression in Ubiquitin:ROC1-Myc transgenic rice plants was analyzed by immunoblotting using an anti-cMyc antibody; (d) A CHIP assay was performed by amplifying immunoprecipitated DNA to detect the P1 and P2 regions in the CBF1promoter; immunoprecipitated DNA was normalized to input DNA after ChIP-PCR. Data represent the means ± SE (n = 3); non-transgenic plants (wild-type) were used as controls. Ab: IgG; cMyc: Myc antibody. ** p < 0.01; the p-value of the ROC1-Myc sample was calculated with respect to that of the controls.
Ijms 17 00233 g002

2.3. ROC1 Is Localized in the Nucleus and Shows Trans-Activation Activity in Yeast

Since IDDs have been reported as transcription factors, the transcriptional activity of ROC1 was analyzed in yeast. In a transcriptional activation assay, GAL4DNA-binding domain (BD) N-terminally fused to the full-length of the ROC1 open reading frame (ORF) region, which consists of 495 amino acids (Figure 3a). Rice ID1 was used as a positive control [18], while an empty vector was used as a negative control. The ROC1 and ID1 exhibited strong trans-activation activity (Figure 3a). To understand the subcellular localization of ROC1, ROC1-GFP was expressed in onion epidermis cells under the control of a non-specific promoter (35S). Free GFP expression was observed in the cytosol and nucleus, while ROC1-GFP was detected in the nucleus (Figure 3b).

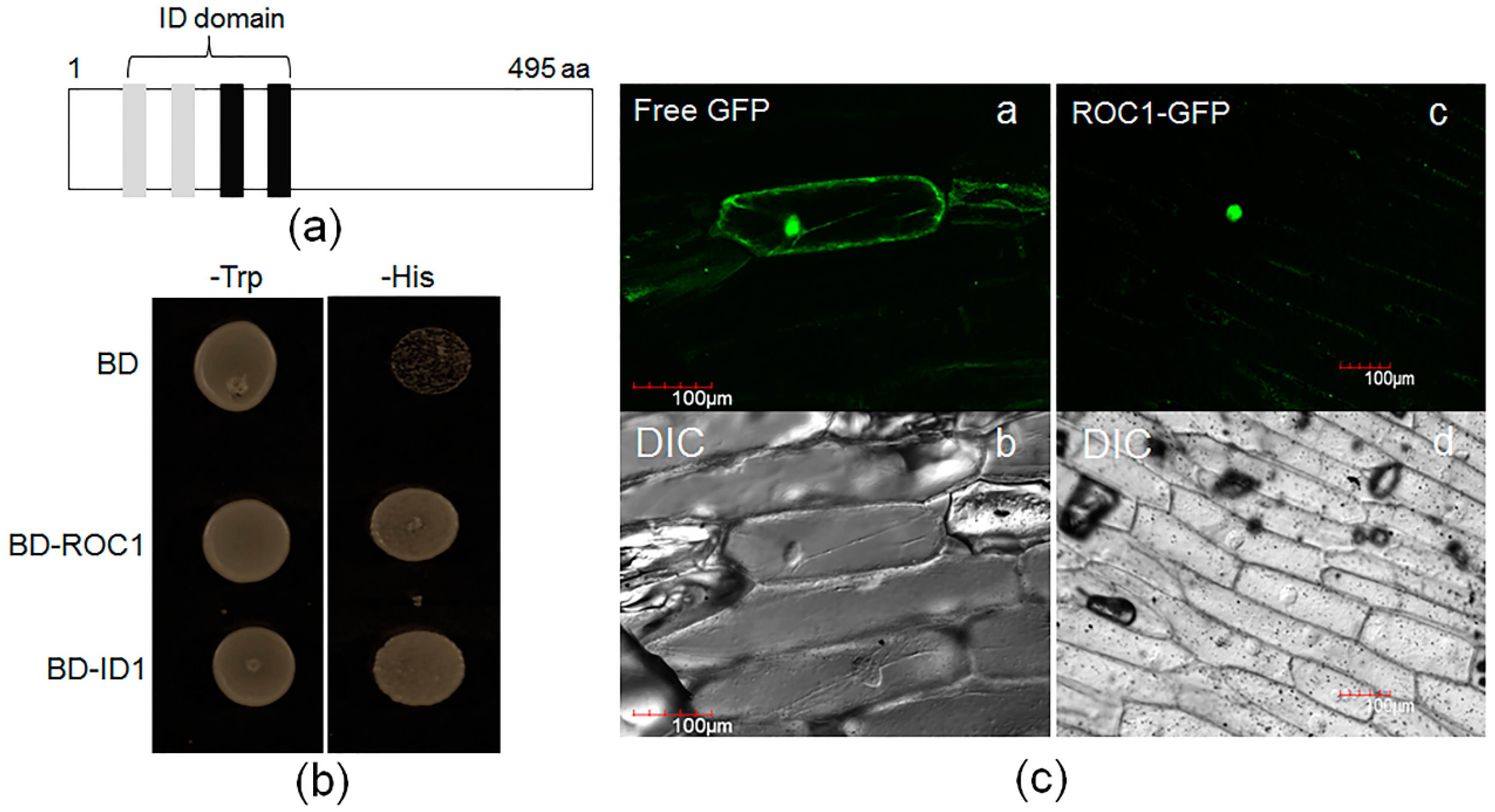

Figure 3. Trans-activation and sub-cellular localization of ROC1. (a) ROC1 consists of 495 amino acids and encodes an indeterminate domain. Gray and black boxes indicate the C2H2 and C2HC zinc finger motifs, respectively; (b) Trans-activation activity of ROC1. DNA encoding full-length ROC1 was C-terminally fused to the GAL4 DNA-binding domain (BD) and expressed in yeast cells. Rice ID1 and an empty vector were used as the positive and negative control, respectively. Yeast cells expressing the indicated constructs were grown on SD media lacking Trp or His; (c) Localization of free GFP (a) and ROC1-GFP (c) in onion epidermal cells. GFP indicates the green fluorescence of proteins; (b,d) DIC indicates the differential interference contrast phase. Bars = 100 µm.
Figure 3. Trans-activation and sub-cellular localization of ROC1. (a) ROC1 consists of 495 amino acids and encodes an indeterminate domain. Gray and black boxes indicate the C2H2 and C2HC zinc finger motifs, respectively; (b) Trans-activation activity of ROC1. DNA encoding full-length ROC1 was C-terminally fused to the GAL4 DNA-binding domain (BD) and expressed in yeast cells. Rice ID1 and an empty vector were used as the positive and negative control, respectively. Yeast cells expressing the indicated constructs were grown on SD media lacking Trp or His; (c) Localization of free GFP (a) and ROC1-GFP (c) in onion epidermal cells. GFP indicates the green fluorescence of proteins; (b,d) DIC indicates the differential interference contrast phase. Bars = 100 µm.
Ijms 17 00233 g003

2.4. ROC1 Mutants Are Sensitive to Cold Stress

To detect the role of ROC1 in response to chilling stress, a ROC1 T-DNA mutant and the corresponding wild-type plants were compared. In this mutant, T-DNA was located in the second intron of ROC1 gene (Figure 4a). A step before testing the transcript level in a roc1 mutant, the ROC1 expression pattern was examined in roots, leaves, shoot apices and flowers tissues. ROC1 mRNA was expressed in all tissues and was found to be highly expressed in shoot apices (Figure S3). The qRT-PCR results showed that no visible ROC1 transcript was detected in the roc1 mutant (Figure 4b). In normal growth conditions in the growth chamber, no visible phenotypes were observed between roc1 mutants and wild-type plants (Figure 4c). Next, we tested chilling stress responses in wild-type and roc1 mutants. Fifteen-day-old plants were transferred to a low temperature chamber (4 °C) for four days and moved back to the normal growth chamber (28 °C) to determine the survival rates. After 10 days of recovery, ~94% of wild-type plants were recovered, while ~16% of roc1 mutants survived (Figure 4c,f). To confirm the roc1 mutant phenotype, ROC1 RNAi transgenic plants were produced. More than 10 independent lines were developed, and the expression levels of ROC1 in four T2 transgenic plants were analyzed by qRT-PCR. The results showed that ROC1 was suppressed at different levels and that the Ri5 plant showed strong suppression (~80%; Figure 4d). To verify the phenotypic expression of roc1 mutants in response to chilling stress, the survival rate was analyzed from Ri3 and Ri5 transgenic lines. Wild-type plants have a ~96 survival rate after four days of cold stress. Ri3 and Ri5 showed ~56% and ~18% survival rates, respectively, which were correlated with the ROC1 expression levels (Figure 4e,f). These data indicated that ROC1 positively regulates chilling tolerance in rice.
Figure 4. Genomic structure and phenotypic expression of ROC1 mutants. (a) The diagram shows the genomic structure of the ROC1 T-DNA insertional mutant (roc1). Black and white boxes indicate the exons and UTR regions, respectively. The triangle in the second intron indicates the T-DNA insertion sites; (b) The ROC1 expression levels in wild-type (WT) and ROC1 mutants were analyzed by qRT-PCR. The expression levels were normalized against that of Ubiquitin mRNA. A significant difference between the wild-type and mutant was shown (*** p < 0.001); (c) Fifteen-day-old wild-type and ROC1 mutant plants grown in a rice growth chamber (28 °C, upper side) were further grown in a low temperature growth chamber (4 °C) for four days. The plants were then moved to a 28 °C growth chamber and photographed after 10 days of recovery (lower side); (d) The ROC1 expression levels were monitored in four independent wild-type ROC1 RNAi transgenic plants (Ri1, Ri3, Ri4 and Ri5). Significant differences between the wild-type and RNAi lines are shown (* p < 0.05, ** p < 0.01); (e) Wild-type and two RNAi lines (Ri3 and Ri5) grown in a rice growth chamber (28 °C) were further grown in a low temperature growth chamber (4 °C) for four days. The plants were then moved to a 28 °C growth chamber and photographed after 10 days of recovery; (f) The survival rates of each line were calculated. Black columns indicate roc1 and its corresponding wild-type plants while grey columns indicate RNAi lines and their corresponding wild-type plants. Experiments were repeated at least three times, and data represent the mean ± SE (n > 10 plants). Significant differences between the wild-type and mutants or RNAi lines are shown (* p < 0.05, ** p < 0.01).
Figure 4. Genomic structure and phenotypic expression of ROC1 mutants. (a) The diagram shows the genomic structure of the ROC1 T-DNA insertional mutant (roc1). Black and white boxes indicate the exons and UTR regions, respectively. The triangle in the second intron indicates the T-DNA insertion sites; (b) The ROC1 expression levels in wild-type (WT) and ROC1 mutants were analyzed by qRT-PCR. The expression levels were normalized against that of Ubiquitin mRNA. A significant difference between the wild-type and mutant was shown (*** p < 0.001); (c) Fifteen-day-old wild-type and ROC1 mutant plants grown in a rice growth chamber (28 °C, upper side) were further grown in a low temperature growth chamber (4 °C) for four days. The plants were then moved to a 28 °C growth chamber and photographed after 10 days of recovery (lower side); (d) The ROC1 expression levels were monitored in four independent wild-type ROC1 RNAi transgenic plants (Ri1, Ri3, Ri4 and Ri5). Significant differences between the wild-type and RNAi lines are shown (* p < 0.05, ** p < 0.01); (e) Wild-type and two RNAi lines (Ri3 and Ri5) grown in a rice growth chamber (28 °C) were further grown in a low temperature growth chamber (4 °C) for four days. The plants were then moved to a 28 °C growth chamber and photographed after 10 days of recovery; (f) The survival rates of each line were calculated. Black columns indicate roc1 and its corresponding wild-type plants while grey columns indicate RNAi lines and their corresponding wild-type plants. Experiments were repeated at least three times, and data represent the mean ± SE (n > 10 plants). Significant differences between the wild-type and mutants or RNAi lines are shown (* p < 0.05, ** p < 0.01).
Ijms 17 00233 g004

2.5. Cold-Induction of CBFs Is Inhibited in roc1 Mutants

Because ROC1 is involved in cold responses, cold-mediated expression of ROC1 was analyzed. Fifteen-day-old plants were transferred to a low temperature chamber (4 °C), and the seedlings were sampled after 0, 1, 3, 6, 12 and 24 and 48 h of cold treatment. The qRT-PCR results showed that ROC1 was not altered upon cold treatment (Figure 5a). Phytohormones are known to regulate diverse aspects of plant growth and respond to environmental stresses. Therefore, phytohormone-mediated ROC1 expression was further examined. After synthetic auxin, NAA (1-naphthaleneacetic acid), BL (brassinolide) GA (gibberellic acid), ethylene precursor, ACC (1amino-cyclopropane-1-carboxylic acid) and ABA (abscisic acid) treatment, ROC1 was specifically induced by ~1.9-fold by NAA after 3 h of accumulation, but not by other hormones (Figure 5b).

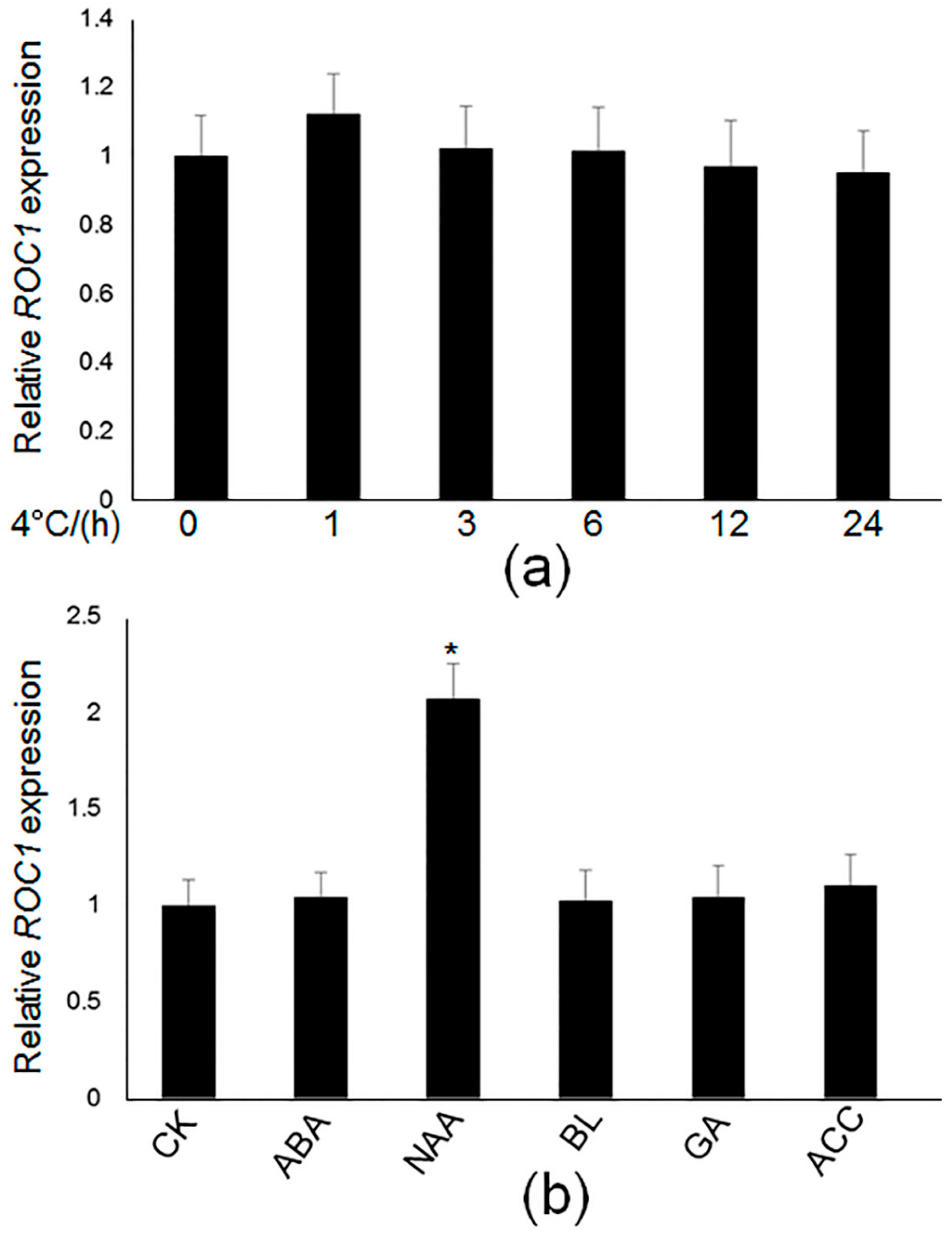

Figure 5. Cold stress and hormone-dependent expression of ROC1. (a) Fifteen-day-old wild-type seedlings were grown in a normal rice growth chamber (28 °C) and were moved into a low temperature growth chamber (4 °C), and then, the seedlings were sampled after 0, 1, 3, 6, 12 and 24 h. ROC1 expression levels were monitored with qRT-PCR; (b) Hormonal-regulation of ROC1 transcription. Fifteen-day-old seedlings were treated with 1 μM ABA, 1 μM NAA, 0.1 μM 2,4-epiBL, 1 μM GA and 1 μM ACC for 3 h. qRT-PCR was performed to analyze the expression patterns of ROC1 upon hormone treatment. The expression levels were normalized against that of Ubiquitin mRNA. Significant differences between NAA-treated and -untreated samples (control, CK) are shown (* p < 0.05).
Figure 5. Cold stress and hormone-dependent expression of ROC1. (a) Fifteen-day-old wild-type seedlings were grown in a normal rice growth chamber (28 °C) and were moved into a low temperature growth chamber (4 °C), and then, the seedlings were sampled after 0, 1, 3, 6, 12 and 24 h. ROC1 expression levels were monitored with qRT-PCR; (b) Hormonal-regulation of ROC1 transcription. Fifteen-day-old seedlings were treated with 1 μM ABA, 1 μM NAA, 0.1 μM 2,4-epiBL, 1 μM GA and 1 μM ACC for 3 h. qRT-PCR was performed to analyze the expression patterns of ROC1 upon hormone treatment. The expression levels were normalized against that of Ubiquitin mRNA. Significant differences between NAA-treated and -untreated samples (control, CK) are shown (* p < 0.05).
Ijms 17 00233 g005
In the next step, we analyzed the cold-induction of CBFs in wild-type and roc1 mutants. Northern blot analysis shows that CBF1 is induced for 24 h, while CBF3 reached the maximum after 12 h of cold treatment (Figure 6a). However, the CBF1 levels were lower overall at the time points, and CBF3 reached a maximum after 6 h of cold accumulation in roc1 knock-out mutants (Figure 6a). Furthermore, the cold-induction of CBFs was analyzed in the ROC1 RNAi lines (Ri3 and Ri5) after 1 and 3 h of cold treatment. The results showed that expression levels of CBF1 and CBF3 were lower in two independent RNAi plants after 3 h of cold accumulation (Figure 6b). In sum, these data suggest that ROC1 is induced by auxin and positively regulates cold-induction of CBF1 and CBF3.
Figure 6. Cold stress-mediated expressions of CBF1 and CBF3 in ROC1 mutants. (a) Fifteen-day-old wild-type and roc1 seedlings were grown in a normal rice growth chamber (28 °C) and were moved into a low temperature growth chamber (4 °C). The seedlings were sampled after 0, 1, 3, 6, 12, 24 and 48 h. The expression levels of CBF1 and CBF3 were detected by Northern blot analysis; (b) The levels of CBF1 and CBF3 were analyzed in wild-type and two ROC1 RNAi lines (Ri3 and Ri5) after 0, 1 and 3 h of cold treatment. Ethidium bromide (EtBr) staining of rRNA is shown as the loading control.
Figure 6. Cold stress-mediated expressions of CBF1 and CBF3 in ROC1 mutants. (a) Fifteen-day-old wild-type and roc1 seedlings were grown in a normal rice growth chamber (28 °C) and were moved into a low temperature growth chamber (4 °C). The seedlings were sampled after 0, 1, 3, 6, 12, 24 and 48 h. The expression levels of CBF1 and CBF3 were detected by Northern blot analysis; (b) The levels of CBF1 and CBF3 were analyzed in wild-type and two ROC1 RNAi lines (Ri3 and Ri5) after 0, 1 and 3 h of cold treatment. Ethidium bromide (EtBr) staining of rRNA is shown as the loading control.
Ijms 17 00233 g006

3. Discussion

Low temperature is a phenomenon of climate change that affects crop production. To adapt to cold damage, plants trigger the activation of many cold-responsive genes. The CBF family of transcription factors are key regulators during cold acclimation and activate the transcription of genes harboring the DRE/CRT cis-element in their promoters [1]. However, cold tolerance requires a cascade of transcriptional regulations. In Arabidopsis, the MYC and MYB types of transcription factors have been reported to directly regulate CBFs [12,16]. In this study, we performed yeast one-hybrid assays to screen the transcriptional regulators of CBF1, which is induced specifically by cold stress [7]. Two zinc finger types and one MYB-like putative transcription factor were selected. Subsequent searches revealed that the putative zinc finger and MYB-like proteins were functionally unknown proteins (Table S1). However, the MYB gene (LOC_Os02g41510) was reported for its cold-induction and as the putative paralog of OsMyb4, which has a pivotal role in abiotic stress response. Furthermore, OsMyb4 represses its own promoter and Os02g4151 gene promoter, implying that the complex circuit of MYB regulation occurs during cold stress in rice [26]. ZOS9-17 was recognized as an IDD protein and named ROC1, which directly binds to the putative IDD protein binding motifs presented in the promoter of CBF1. Analysis of the roc1 knock-out and knock-down mutants identified that the ROC1 mutation significantly inhibited the chilling tolerance and cold induction of CBF1 and CBF3 (Figure 4 and Figure 6). Because ROC1 positively regulated cold-mediated CBF3 transcription, the cis-elements of the CBF3 promoter were analyzed. However, no putative IDD binding motifs were observed (data not shown).
CBF1-3 are known to act in the ABA-independent pathway to regulate the expression of DRE cis-element-containing genes [27]. Hormonal regulation tests for ROC1 showed that ROC1 was not altered by ABA treatment, at least at the transcriptional level. Further experiments are required to understand ABA regulation on post-translational modification of ROC1 in the future. However, interestingly, auxin treatment increased ROC1 levels (Figure 5), and promoter sequence analysis of ROC1 revealed that auxin responsive elements (AttuRE) are present in the ROC1 promoter, indicating that ROC1 is involved in auxin signaling. Previous studies reported the connections between auxin biosynthesis or PIN-mediated transport and cold stress [28,29]. Expression tests for ROC1 identified that ROC1 does not respond to cold accumulation (Figure 5), but that ROC1 was required for cold induction of CBF1 and CBF3 (Figure 6). ICE1 is a master regulator of CBFs in Arabidopsis, the expression of which is sensitive to low temperatures [16]. However, SIZ-mediated SUMOylation at K393 of ICE1 significantly inhibited its activity, which in turn repressed the expression of CBFs [30]. Previously, we identified that another IDD family member, IDD10, activates NH4+-mediated gene expressions in rice root, but the IDD10 transcript was unexpectedly repressed upon NH4+ treatment [24]. More recently, we identified that NH4+ treatment reduced the phosphorylation level of IDD10 at S313 via a phosphoproteomic approach [31], which may affect protein activity. Further biochemical and molecular studies are required to elucidate the complex regulation of ROC1 during low temperature stress.

4. Materials and Methods

4.1. Mutant Isolation and Plant Growth

The T-DNA insertion line roc1 (PFG_3A-09378) was obtained from a rice T-DNA database (http://signal.salk.edu/cgi-bin/RiceGE/) [32]. The mutant lines were derived from the Japonica rice cultivar “Dongjin”. Transgenic plants were generated from the Japonica rice cultivar “Nipponbare”.
For testing the low temperature stress response, wild-type, roc1 mutant and RNAi plants were grown in a rice growth chamber (28 °C, ~30% humidity, 10 h/14 h (light/dark)) for 15 days and transferred to the low Nipponbare temperature chamber (4 °C, ~30% humidity, 10 h/14 h (light/dark)) for 5 days. After 5 days of low temperature treatment, plants were moved to the normal growth chamber (28 °C, ~30% humidity, 10 h/14 h (light/dark)). Fifteen-day-old seedlings grown in a rice growth chamber (28°C, ~30% humidity, 10 h/14 h (light/dark)) were transferred to a low temperature chamber (4°C, ~30% humidity, 10 h/14 h (light/dark)), and the shoots were sampled after 0, 2, 3, 6, 12, 24 and 48 h of cold treatment.
For phytohormone (ABA, NAA, BR, GA and ACC) treatment experiments, plants were grown for 7 days on liquid 0.5X Murashige and Skoog (MS) medium and were transferred to the same medium containing 1 μM NAA (synthetic auxin), 0.1 μM 2,4-epiBL (BR), 1 μM GA, 1 μM ACC and 1 μM ABA for 3 h. Whole seedlings were sampled for RNA extraction.

4.2. Plants Expressing the Plasmid Construction

To generate ROC1:Myc transgenic plants, ROC1 ORF sequences were amplified by primers ROC1 Myc-F and ROC1 Myc-R listed in Table S2 and further cloned into HindIII and BamHI sites of the PGA1611 binary vector, in which ROC1 coding sequences were N-terminally fused to Myc coding sequences. To generate ROC1 RNAi plants, 315-bp sequences, including the C-terminal and 3’ UTR regions of the ROC1 gene, were cloned by primers ROC1 Ri-F and ROC1 Ri-R listed in Table S2. The PCR fragments were digested and cloned into AscI and SwaI sites in sense and BamHI and XbaI sites in antisense orientation, respectively, in the pFGC5941 binary vector (ChromDB).

4.3. Yeast One-Hybrid Analysis

To isolate the regulators of CBF1, a rice cDNA library using 10-day-old seedlings was established as similar to described previously [33]. A 2.0-kb section of the CBF1 promoter was cloned using PCR primers pCBF1 F and pCBF1 R listed in Table S2 and cloned into a pHISi vector. Interaction clone screening was performed by a mating method according to the Matchmaker Gold Systems (Clontech) [33]. Among the approximately 1.5 million yeast (cerevisiae) transformants, 15 potential positives clones showed their association with the 2.0-kb CBF1 promoter. The 15 positive clones selected were further amplified in Escherichia coli and sequenced. To verify the interaction between the CBF1 promoter (2.0 kb) and ROC1, the ORF sequences of ROC1 were cloned into the pGAD424 vector. The constructed pGAD424-ROC1 or pGAD424 empty vector was transformed into the yeast strain (YM4271), and the growth of yeast cells was monitored on synthetic dropout-Leu or -His together with 3-amino-1,2,4-triazole (3AT), a competitive inhibitor of HIS3.

4.4. Subcellular Localization

ROC1-GFP construct was transformed into onion (Allium cepa) epidermis cells using the Bio-Rad Helios gene gun system. After bombardment, the onion layers were kept in a growth chamber (22 °C, 24 h dark) for 16 to 20 h. The GFP localization was observed by the Olympus confocal laser scanning microscope [18].

4.5. Trans-Activation Assays

For testing ROC1 transactivation activity, the Gal4 DNA-binding domain (BD) was N-terminally fused to the ROC1 and ID1ORF regions in a pGBT9 vector and further expressed in the yeast strain PJ69-4A, which contained the lacZ and HIS3 reporter genes [34]. The empty vector (pGBT9) transformed yeast cell was used as the control. Yeast transformants were grown on SD/Trp- and SD/His-plates. The sequences of primers ROC1 BD-F and ROC1 BD-R used for cloning the ROC1 ORF are listed in Table S2.

4.6. RT-PCR Analysis

Total RNA was extracted by using RNeasy Plant Mini Kits [18]. The cDNA was reverse-transcribed from the extracted total RNA using the ReverTra Ace-α- [18]. SYBR Green Master Mix (Bio-Rad) was used for qRT-PCR reaction. A typical qRT-PCR reaction consisted of an initial denaturation at 95 °C for 3 min, followed by 40 cycles with 95 °C for 30 s, 58 °C for 30 s and 72 °C for 30 s, followed by a final extension at 72 °C for 5 min. qRT-PCR products were quantified using the Illumina Research Quantity software (EcoStudy Software v3.0), and the values were normalized against that of Ubiquitin mRNA. The sequences of primers (ROC1 RT-F, ROC1 RT-R, Ubiquitin-F and Ubiquitin-R) used for qRT-PCR are listed in Table S2.

4.7. Northern Blot Analysis

One-point-three percent formaldehyde gels were prepared in MOPS (3-(N-morpholino) propanesulfonic acid)/EDTA buffer (0.5 M MOPS, pH 7.0; 0.01 M Na2EDTA, pH 7.5) for Northern blot analysis. Twenty micrograms of RNA for each sample were heat-denatured in a formaldehyde/formamide solution. The gels were electrophoresed and further washed with 10X SSC for 1 h before being blotted onto a Hybond N+ membrane (Amersham Pharmacia Biotech, U.K.). EtBr (ethidium bromide) staining for rRNA was used as a loading control. The membrane and a 32P-labeled gene-specific probe were hybridized at 65 °C in Church buffer (1% BSA, 200 µM EDTA, 0.5 M sodium phosphate, 7% SDS). The membranes were autoradiographed using Fuji X-ray film. CBF1 and CBF3 fragments were used as probes. The sequences of primers that were used to clone CBF1 (CBF1 F and CBF1 R) and CBF3 (CBF3 F and CBF3 R) cDNA fragments are listed in Table S2.

4.8. Immunoblot Analysis

The concentrations of the proteins extracted from the seedlings of ROC1-Myc transgenic plants were measured with a Bradford protein assay (Bio-Rad, Richmond, CA, USA). Twenty micrograms of ROC1-Myc protein from each line were separated on SDS-PAGE and further transferred to Immobilon-P transfer membranes (MILLIPORE JAPAN, Tokyo, Japan). The membranes were blocked in 1X TBS solution containing 5% skim milk and 0.05% Tween-20 for 1 h, before reaction with an anti-cMyc antibody (Abcam) at 4 °C overnight. An anti-mouse HRP-linked secondary antibody (1:2000, Cell Signaling Technology, Danvers, MA, USA) was used for 1 h. The antigen-antibody complexes were then visualized using an electrochemiluminescence (ECL) kit (GE healthcare, New York, NY, USA).

4.9. EMSA

To produce ROC1 recombinant protein, ROC1 (47 to 212 aa) sequences were sub-cloned into the pGEX5x-1 expression vector. The pGEX5x-1+ROC1 plasmid was further transformed into E. coli (BL21 DE3), and the recombinant GST-ROC1 proteins were harvested after 4 h of 0.5 mM IPTG treatment at 28 °C.
For the EMSA assay, 1 μg of purified GST-ROC1 protein, 40 k cpm (counts per minute) of 32P-labeled probe DNA (Amersham, Louisville, KY, USA) and 1 μg of poly (dI-dC) (Sigma, Saint Louis, MO, USA) were reacted in B buffer (25 mM HEPES-KOH (Sigma, Saint Louis, MO, USA), pH 7.5, 100 mM KCl (Sigma, Saint Louis, MO, USA), 0.1 mM EDTA (Sigma, Saint Louis, MO, USA), 10% (v/v) glycerol (Sigma, Saint Louis, MO, USA) and 1 mM DTT (Dithiothreitol, Sigma, Saint Louis, MO, USA)) at room temperature for 30 min in a total volume of 20 μL. The protein and DNA complex was separated on an 8% polyacrylamide gel (Sigma, Saint Louis, MO, USA) run in 0.5X TBE buffer (Sigma, Saint Louis, MO, USA) [35]. For probe labeling, 20-nucleotide probe DNA was labeled with [γ-32P] ATP using T4 polynucleotide kinase (NEB, Ipswich, MA, USA). The sequences of primers that were used for the generation of the EMSA probes (P1 F, P1 R, P2 F, P2 R, mP1 F and mP1 R) are listed in Table S2.

4.10. ChIP Assay

Two grams of young seedlings from non-transgenic and ROC1-Myc transgenic plants were used for the ChIP assay. Pre-absorption with a pre-immune serum was performed prior to anti-Myc-mediated immunoprecipitation using a cMyc monoclonal antibody (Abcam, Cambridge, CA, USA). The immunoprecipitates were analyzed by ChIP-PCR. The immunoprecipitates were normalized to the corresponding input DNA for analyzing the relative ratio [35]. The sequences of primers used for ChIP-PCR (P1 ChIP-F, P1 ChIP-R, P2 ChIP-F and P2 ChIP-R) are listed in Table S2.

4.11. Statistical Analysis

Statistical analysis was performed by prism 5 (GraphPad, San Diego, CA, USA). Error bars indicate the mean ± SE. Significant differences between the two groups compared were performed by the t-test (* p < 0.05; ** p < 0.01).

5. Conclusions

Rice is an important cereal plant, but chilling sensitive. To isolate genes responsible for rice cold stress tolerance, transcriptional activators against CBF1, a cold specifically-induced gene, were used. The yeast one-hybrid assay and further experiments show that ROC1 directly binds and activates the promoter of CBF1. ROC1 mutants are sensitive to chilling temperature, and cold-induced CBF1 and CBF3 are inhibited in its mutants. This study may provide useful information for developing cold-tolerant rice plants in the future.

Supplementary Materials

Supplementary materials can be found at https://www.mdpi.com/1422-0067/17/3/233/s1.

Acknowledgments

This work was made possible by an initiative grant from Shenyang Agricultural University and Wenzhou City public welfare technology projects (N20150021).

Author Contributions

Mingzhu Dou, Yuanhu Xuan and Minglong Shao designed experiments for screen and analysis of materials. Mingzhu Dou, Shuai Cheng and Baotian Zhao performed the experiments. Mingzhu Dou, Yuanhu Xuan and Minglong Shao analyzed the data and wrote the manuscript.

Conflicts of Interest

The authors declare no conflict of interest.

Abbreviations

IDD
Indeterminate domain
CBF
C-repeat binding factor
ROC1
Regulator of CBF1
ABA
Abscisic acid
NAA
1-Naphthaleneacetic acid
BR
Brassinosteroid
GA
Gibberellic acid
ACC
1-Amino-cyclopropane-1-carboxylic acid

References

  1. Thomashow, M.F. PLANT COLD ACCLIMATION: Freezing Tolerance Genes and Regulatory Mechanisms. Annu. Rev. Plant Physiol. Plant Mol. Biol. 1999, 50, 571–599. [Google Scholar] [CrossRef] [PubMed]
  2. Chinnusamy, V.; Zhu, J.; Zhu, J.K. Cold stress regulation of gene expression in plants. Trends Plant Sci. 2007, 12, 444–451. [Google Scholar] [CrossRef] [PubMed]
  3. Khush, G.S. Origin, dispersal, cultivation and variation of rice. Plant Mol. Biol. 1997, 35, 25–34. [Google Scholar] [CrossRef] [PubMed]
  4. Stockinger, E.J.; Gilmour, S.J.; Thomashow, M.F. Arabidopsis thaliana CBF1 encodes an AP2 domain-containing transcriptional activator that binds to the C-repeat/DRE, a cis-acting DNA regulatory element that stimulates transcription in response to low temperature and water deficit. Proc. Natl. Acad. Sci. USA 1997, 94, 1035–1040. [Google Scholar] [CrossRef] [PubMed]
  5. Medina, J.; Bargues, M.; Terol, J.; Perez-Alonso, M.; Salinas, J. The Arabidopsis CBF gene family is composed of three genes encoding AP2 domain-containing proteins whose expression is regulated by low temperature but not by abscisic acid or dehydration. Plant Physiol. 1999, 119, 463–470. [Google Scholar] [CrossRef] [PubMed]
  6. Gilmour, S.J.; Zarka, D.G.; Stockinger, E.J.; Salazar, M.P.; Houghton, J.M.; Thomashow, M.F. Low temperature regulation of the Arabidopsis CBF family of AP2 transcriptional activators as an early step in cold-induced COR gene expression. Plant J. 1998, 16, 433–442. [Google Scholar] [CrossRef] [PubMed]
  7. Dubouzet, J.G.; Sakuma, Y.; Ito, Y.; Kasuga, M.; Dubouzet, E.G.; Miura, S.; Seki, M.; Shinozaki, K.; Yamaguchi-Shinozaki, K. OsDREB genes in rice, Oryza sativa L., encode transcription activators that function in drought-, high-salt- and cold-responsive gene expression. Plant J. 2003, 33, 751–763. [Google Scholar] [CrossRef] [PubMed]
  8. Jaglo-Ottosen, K.R.; Gilmour, S.J.; Zarka, D.G.; Schabenberger, O.; Thomashow, M.F. Arabidopsis CBF1 overexpression induces COR genes and enhances freezing tolerance. Science 1998, 280, 104–106. [Google Scholar] [CrossRef] [PubMed]
  9. Shinwari, Z.K.; Nakashima, K.; Miura, S.; Kasuga, M.; Seki, M.; Yamaguchi-Shinozaki, K.; Shinozaki, K. An Arabidopsis gene family encoding DRE/CRT binding proteins involved in low-temperature-responsive gene expression. Biochem. Biophys. Res. Commun. 1998, 250, 161–170. [Google Scholar] [CrossRef] [PubMed]
  10. Kasuga, M.; Liu, Q.; Miura, S.; Yamaguchi-Shinozaki, K.; Shinozaki, K. Improving plant drought, salt, and freezing tolerance by gene transfer of a single stress-inducible transcription factor. Nat. Biotechnol. 1999, 17, 287–291. [Google Scholar] [PubMed]
  11. Novillo, F.; Alonso, J.M.; Ecker, J.R.; Salinas, J. CBF2/DREB1C is a negative regulator of CBF1/DREB1B and CBF3/DREB1A expression and plays a central role in stress tolerance in Arabidopsis. Proc. Natl. Acad. Sci. USA 2004, 101, 3985–3990. [Google Scholar] [CrossRef] [PubMed]
  12. Agarwal, M.; Hao, Y.; Kapoor, A.; Dong, C.H.; Fujii, H.; Zheng, X.; Zhu, J.K. A R2R3 type MYB transcription factor is involved in the cold regulation of CBF genes and in acquired freezing tolerance. J. Biol. Chem. 2006, 281, 37636–37645. [Google Scholar] [CrossRef] [PubMed]
  13. Chinnusamy, V.; Zhu, J.K.; Sunkar, R. Gene regulation during cold stress acclimation in plants. Methods Mol. Biol. 2010, 639, 39–55. [Google Scholar] [PubMed]
  14. Dong, C.H.; Agarwal, M.; Zhang, Y.; Xie, Q.; Zhu, J.K. The negative regulator of plant cold responses, HOS1, is a RING E3 ligase that mediates the ubiquitination and degradation of ICE1. Proc. Natl. Acad. Sci. USA 2006, 103, 8281–8286. [Google Scholar] [CrossRef] [PubMed]
  15. Ishitani, M.; Xiong, L.; Lee, H.; Stevenson, B.; Zhu, J.K. HOS1, a genetic locus involved in cold-responsive gene expression in arabidopsis. Plant Cell 1998, 10, 1151–1161. [Google Scholar] [CrossRef] [PubMed]
  16. Chinnusamy, V.; Ohta, M.; Kanrar, S.; Lee, B.H.; Hong, X.; Agarwal, M.; Zhu, J.K. ICE1: A regulator of cold-induced transcriptome and freezing tolerance in Arabidopsis. Gene Dev. 2003, 17, 1043–1054. [Google Scholar] [CrossRef] [PubMed]
  17. Colasanti, J.; Yuan, Z.; Sundaresan, V. The indeterminate gene encodes a zinc finger protein and regulates a leaf-generated signal required for the transition to flowering in maize. Cell 1998, 93, 593–603. [Google Scholar] [CrossRef]
  18. Park, S.J.; Kim, S.L.; Lee, S.; Je, B.I.; Piao, H.L.; Park, S.H.; Kim, C.M.; Ryu, C.H.; Park, S.H.; Xuan, Y.H.; et al. Rice Indeterminate 1 (OsId1) is necessary for the expression of Ehd1 (Early heading date 1) regardless of photoperiod. Plant J. 2008, 56, 1018–1029. [Google Scholar] [CrossRef] [PubMed]
  19. Welch, D.; Hassan, H.; Blilou, I.; Immink, R.; Heidstra, R.; Scheres, B. Arabidopsis JACKDAW and MAGPIE zinc finger proteins delimit asymmetric cell division and stabilize tissue boundaries by restricting SHORT-ROOT action. Gene Dev. 2007, 21, 2196–2204. [Google Scholar] [CrossRef] [PubMed]
  20. Feurtado, J.A.; Huang, D.; Wicki-Stordeur, L.; Hemstock, L.E.; Potentier, M.S.; Tsang, E.W.; Cutler, A.J. The Arabidopsis C2H2 zinc finger INDETERMINATE DOMAIN1/ENHYDROUS promotes the transition to germination by regulating light and hormonal signaling during seed maturation. Plant Cell 2011, 23, 1772–1794. [Google Scholar] [CrossRef] [PubMed]
  21. Seo, P.J.; Ryu, J.; Kang, S.K.; Park, C.M. Modulation of sugar metabolism by an INDETERMINATE DOMAIN transcription factor contributes to photoperiodic flowering in Arabidopsis. Plant J. 2011, 65, 418–429. [Google Scholar] [CrossRef] [PubMed]
  22. Morita, M.T.; Sakaguchi, K.; Kiyose, S.; Taira, K.; Kato, T.; Nakamura, M.; Tasaka, M. A C2H2-type zinc finger protein, SGR5, is involved in early events of gravitropism in Arabidopsis inflorescence stems. Plant J. 2006, 47, 619–628. [Google Scholar] [CrossRef] [PubMed]
  23. Wu, X.; Tang, D.; Li, M.; Wang, K.; Cheng, Z. Loose Plant Architecture1, an INDETERMINATE DOMAIN protein involved in shoot gravitropism, regulates plant architecture in rice. Plant Physiol. 2013, 161, 317–329. [Google Scholar] [CrossRef] [PubMed]
  24. Xuan, Y.H.; Priatama, R.A.; Huang, J.; Je, B.I.; Liu, J.M.; Park, S.J.; Piao, H.L.; Son, D.Y.; Lee, J.J.; Park, S.H.; et al. Indeterminate domain 10 regulates ammonium-mediated gene expression in rice roots. New Phytol. 2013, 197, 791–804. [Google Scholar] [CrossRef] [PubMed]
  25. Kozaki, A.; Hake, S.; Colasanti, J. The maize ID1 flowering time regulator is a zinc finger protein with novel DNA binding properties. Nucleic Acids Res. 2004, 32, 1710–1720. [Google Scholar] [CrossRef] [PubMed]
  26. Baldoni, E.; Genga, A.; Medici, A.; Coraggio, I.; Locatelli, F. The OsMyb4 gene family: Stress response andtranscriptional auto-regulation mechanisms. Biol. Plant. 2013, 57, 691–700. [Google Scholar] [CrossRef]
  27. Agarwal, P.K.; Agarwal, P.; Reddy, M.K.; Sopory, S.K. Role of DREB transcription factors in abiotic and biotic stress tolerance in plants. Plant Cell Rep. 2006, 25, 1263–1274. [Google Scholar] [CrossRef] [PubMed]
  28. Du, H.; Liu, H.; Xiong, L. Endogenous auxin and jasmonic acid levels are differentially modulated by abiotic stresses in rice. Front. Plant Sci. 2013, 4, 397. [Google Scholar] [CrossRef] [PubMed]
  29. Shibasaki, K.; Uemura, M.; Tsurumi, S.; Rahman, A. Auxin response in Arabidopsis under cold stress: Underlying molecular mechanisms. Plant Cell 2009, 21, 3823–3838. [Google Scholar] [CrossRef] [PubMed]
  30. Miura, K.; Jin, J.B.; Lee, J.; Yoo, C.Y.; Stirm, V.; Miura, T.; Ashworth, E.N.; Bressan, R.A.; Yun, D.J.; Hasegawa, P.M. SIZ1-mediated sumoylation of ICE1 controls CBF3/DREB1A expression and freezing tolerance in Arabidopsis. Plant Cell 2007, 19, 1403–1414. [Google Scholar] [CrossRef] [PubMed]
  31. Zhu, X.F.; Cai, W.H.; Jung, J.H.; Xuan, Y.H. NH4+-mediated protein phosphorylation in rice root. Acta Biol. Cracov. Bot. 2015, 57, 1–12. [Google Scholar]
  32. An, S.; Park, S.; Jeong, D.H.; Lee, D.Y.; Kang, H.G.; Yu, J.H.; Hur, J.; Kim, S.R.; Kim, Y.H.; Lee, M.; et al. Generation and analysis of end sequence database for T-DNA tagging lines in rice. Plant Physiol. 2003, 133, 2040–2047. [Google Scholar] [CrossRef] [PubMed]
  33. Wang, R.; Jing, W.; Xiao, L.; Jin, Y.; Shen, L.; Zhang, W. The Rice High-Affinity Potassium Transporter1;1 Is Involved in Salt Tolerance and Regulated by an MYB-Type Transcription Factor. Plant Physiol. 2015, 168, 1076–1090. [Google Scholar] [CrossRef] [PubMed]
  34. James, P.; Halladay, J.; Craig, E.A. Genomic libraries and a host strain designed for highly efficient two-hybrid selection in yeast. Genetics 1996, 144, 1425–1436. [Google Scholar] [PubMed]
  35. Je, B.I.; Piao, H.L.; Park, S.J.; Park, S.H.; Kim, C.M.; Xuan, Y.H.; Park, S.H.; Huang, J.; Choi, Y.D.; An, G.; et al. RAV-Like1 maintains brassinosteroid homeostasis via the coordinated activation of BRI1 and biosynthetic genes in rice. Plant Cell 2010, 22, 1777–1791. [Google Scholar] [CrossRef] [PubMed]
