The Telomerase-Derived Anticancer Peptide Vaccine GV1001 as an Extracellular Heat Shock Protein-Mediated Cell-Penetrating Peptide

Department of Biomedical Sciences, Microbiology and Immunology, and Liver Research Institute, College of Medicine, Seoul National University, Seoul 03080, Korea
Department of Microbiology, Konkuk University School of Medicine, Seoul 05030, Korea
Author to whom correspondence should be addressed.
These authors contributed equally to this work.
Int. J. Mol. Sci. 2016, 17(12), 2054;
Submission received: 7 November 2016 / Revised: 28 November 2016 / Accepted: 1 December 2016 / Published: 7 December 2016
(This article belongs to the Special Issue Cell-Penetrating Peptides 2016)


Cell-penetrating peptides (CPPs), which can facilitate the transport of molecular cargo across the plasma membrane, have become important tools in promoting the cellular delivery of macromolecules. GV1001, a peptide derived from a reverse-transcriptase subunit of telomerase (hTERT) and developed as a vaccine against various cancers, reportedly has unexpected CPP properties. Unlike typical CPPs, such as the HIV-1 TAT peptide, GV1001 enabled the cytosolic delivery of macromolecules such as proteins, DNA and siRNA via extracellular heat shock protein 90 (eHSP90) and 70 (eHSP70) complexes. The eHSP-GV1001 interaction may have biological effects in addition to its cytosolic delivery function. GV1001 was originally designed as a major histocompatibility complex (MHC) class II-binding cancer epitope, but its CPP properties may contribute to its strong anti-cancer immune response relative to other telomerase peptide-based vaccines. Cell signaling via eHSP-GV1001 binding may lead to unexpected biological effects, such as direct anticancer or antiviral effects. In this review, we focus on the CPP effects of GV1001 bound to eHSP90 and eHSP70.

1. Introduction

A number of biopharmaceuticals, including peptides, proteins, DNA and siRNA, are being considered as therapeutic agents that target intracellular molecules. However, macromolecules lack the ability to cross cell membranes due to their high molecular weight, charge and polarity, which limits their full therapeutic potential [1,2,3]. Thus, the search for effective ways to deliver such therapeutic agents has sparked scientific interest. Since the first discovery of cell membrane penetration by a peptide derived from TAT, the trans-activator of transcription protein of the human immunodeficiency virus (HIV) [4], cell-penetrating peptides (CPPs) have attracted much interest in both the research and medical fields as pharmaceutical carriers for macromolecules [5,6]. Several mechanisms for the penetration of cell membranes by CPPs have been proposed, including clathrin-mediated endocytosis, caveolae-mediated endocytosis, macropinocytosis and direct translocation [7,8].
GV1001, a 16 amino-acid peptide derived from the reverse transcriptase of human telomerase (hTERT), has been developed as an anticancer peptide vaccine to treat advanced pancreatic cancer, non-small cell lung cancer, melanoma, and other cancers [9,10,11,12,13]. GV1001 exhibits biological activities beyond its use as a cancer vaccine, including as an anti-inflammatory agent [14], as a direct anticancer drug [15], as an anti-apoptotic and antioxidant compound [16] and as an antiviral [17,18]. We recently reported that GV1001 is also a CPP [19]. In contrast to other CPPs, which penetrate the cell membrane through electrostatic interactions with proteoglycans, GV1001 permits the cytosolic delivery of macromolecules such as proteins, DNA and siRNA via extracellular heat shock protein 90 (eHSP90) and 70 (eHSP70) complexes [19]. The eHSP-GV1001 complex may also have biological effects in addition to the cytosolic delivery function of GV1001. Cell signaling via eHSP-GV1001 binding can lead to unexpected biological effects, such as direct anticancer activity [15] or antiviral effects against HCV [17] and HIV [18]. In this review, we mainly focus on the CPP effects of the GV1001-eHSP90 and -eHSP70 complexes.

2. Potential of GV1001 as a Heat Shock Protein (HSP)-Mediated CPP

2.1. Intracellular Delivery of the GV1001 Peptide

GV1001, a telomerase peptide, was reported to have the strongest anticancer effect among several telomerase-derived peptides that were developed as candidates for active telomerase immunotherapy [20]. It was originally designed to be capable of binding to molecules encoded by multiple alleles of all three human leukocyte antigen (HLA) class II loci [21]. Curiously, GV1001 can also be further processed into cytotoxic T lymphocyte (CTL) epitopes, resulting in a GV1001-specific CD8+ CTL response to MHC class I presentation in treated cancer patients [21,22,23]. To address the issue of how GV1001 elicits a specific CTL response, we hypothesized that the peptide might be directly delivered into the cytosol via penetration of the cell membrane barrier, allowing access to the MHC class I molecules of antigen-presenting cells, particularly dendritic cells. The potential of GV1001 as a CPP molecule was examined using a Fluorescein isothiocyanate (FITC)-labeled peptide [19]. The labeled peptide was able to penetrate the cells used in our study in a concentration-dependent manner, irrespective of cell type, whether tumor cells (Huh7, MCF7, Raji, THP1, CHO, HepG2 and K562) or primary cells (mouse BMDCs and human PBMCs). GV1001 exhibited greater cell-penetrating activity than TAT in several cell types, particularly in immune cells such as human PBMCs, the Jurkat human T-cell line and the THP1 human monocyte-like cell line, suggesting the potential use of GV1001 as a CPP to deliver therapeutic agents into immune cells [19].

2.2. Cytosolic Localization of the GV1001 Peptide

For efficient therapeutic targeting and CTL activation of delivered antigens, CPPs must be able to effectively deliver therapeutic agents or antigens into the cytosol [24,25,26]. The cytosolic distribution of GV1001 was examined using confocal microscopy. GV1001 was mainly distributed in the cytoplasm in MCF7, Huh7 and HepG2 cells. This result contrasted with that of TAT peptides, which showed an even distribution all over the cells, in accord with previous reports [27,28]. The confocal imaging also showed that GV1001 was rarely localized in the nucleus, despite the positive correlation between TAT and nuclear co-localization. Given that the nuclear delivery of CPP may cause harmful mutations or random genomic effects [29], the preferential location of GV1001 in the cytosol rather than the nucleus may provide an additional advantage for its therapeutic application.

2.3. Extracellular Heat Shock Protein Complex-Mediated Cytosolic Delivery of GV1001 Peptide

CPPs generally enter cells via two major mechanisms, namely direct cell membrane penetration and endosomal pathways, including macropinocytosis, clathrin-mediated endocytosis and caveolae-mediated endocytosis [30,31,32,33]. Most CPPs are positively charged and can interact with such negatively charged cell membrane components as heparin sulfate proteoglycans, thereby facilitating the endocytosis of CPPs [31]. Of the 16 amino acids in the GV1001 peptide (EARPALLTSRLRFIPK), only four are strongly basic. Given a previous study suggesting that more than eight positive charges are needed for the efficient uptake of cationic CPPs [6,34], cell penetration via charge–charge interactions may be not the main mechanism driving the cellular uptake of GV1001. In addition to interaction with glycosaminoglycans, receptor-mediated endocytosis can also contribute to the cell entry of CPPs [35]. Our confocal data showed that GV1001 was also distributed near the cell membrane in various treated cells [19], suggesting that receptor-mediated endocytosis may be the main mechanism of cell entry for GV1001. Our data showing minimal nuclear levels of GV1001 also support the hypothesis that receptor-mediated endocytosis, rather than cell penetration due to overall positive charge, may contribute to GV1001 cell entry.
To better understand the underlying mechanisms governing the cytosolic delivery of GV1001, we compared the internalization capacity of GV1001 and TAT in Jurkat T-cells upon co-treatment with additives that can affect the cell entry and intracellular trafficking of CPPs [19], namely heparin (10 mg/mL), methyl-b-cyclodextrin (MbCD), nocodazole (20 mM), brefeldin A (10 mM), cytochalasin D (5 mM) and chloroquine (Chloroq., 100 mM). The disruption of lipid rafts by MbCD more strongly inhibited the internalization of GV1001 than the internalization of the Tat peptide, suggesting that lipid raft-mediated endocytosis may play a pivotal role in the cellular uptake of GV1001. This result also raised the hypothesis that endocytosis via receptors associated with lipid rafts in the cell membrane may be the major mechanism for the delivery of GV1001 into cells. To identify the GV1001-binding receptor, we performed co-precipitation using a GV1001-GFP fusion protein that was incubated with total cell lysates from HEK293T cells. We identified four proteins, namely HSP90, HSP70, enolase 1 and creatine kinase B, that co-precipitated with the GV1001-GFP fusion protein but not with the GFP protein control. Taking into account the plasma membrane location of GV1001 and a cell entry assay after Ab blocking, we finally determined that the extracellular heat shock proteins eHSP70 and/or eHSP90 play a significant role in the cellular entry of GV1001 [19].
Mammalian HSPs appear to be derived from prokaryotic ancestors that evolved to relieve problems in protein folding and that also function as cytoprotective molecules [36,37]. HSPs, including HSP70 and HSP90, are released into the extracellular space and are typically located on the cell surface. These proteins respond to stress in the extracellular environment with the help of receptors such as toll-like receptors (TLRs) 2 and 4, CD40, CD91, CCR5 and LRP1 [38,39,40]. The eHSPs, particularly eHSP70, have been exploited for entry by rotavirus, reovirus and hepatitis B virus into host cells [41,42,43,44]. In an analogous manner, eHSPs are the membrane receptor for a number of CPPs [45,46]. The eHSP-CPP complex may also be taken up by antigen-presenting cells (APCs), such as dendritic cells. Such peptides can escape into the cytosol from the phagosome via an unknown mechanism and can be transferred to MHC class I molecules through a process known as cross-presentation, leading to a strong CTL response after recognition by CD8+ T cells [47]. The binding of GV1001 to form an eHSP complex may be the reason why treatment with the peptide stimulates a strong anti-tumor CTL response despite its original design as a MHC class II-binding peptide.
In addition to antitumor T cell responses via cross presentation, eHSPs, particularly eHSP90, play roles in such diverse biological functions as immune modulation, wound healing and cell motility via interactions with various cell receptors, including LRP1-eHSP90 [48,49]. Because GV1001 is capable of forming an eHSP complex, it likely exerts other biological effects in addition to its function as a CPP. Indeed, we have recently reported that GV1001 can exert direct anticancer and antiviral effects (anti-HCV and anti-HIV) via modulation of eHSP-mediated cell signaling [17,18].

2.4. Delivery of Macromolecules by GV1001

The efficient delivery of proteins into cells using CPPs is useful for various therapeutic purposes [50]. CPPs are of great interest in vaccine design, as they can deliver target antigens into such antigen-presenting cells as dendritic cells. The delivery of proteins directly into the cytoplasm of APCs is attractive because a strong immune response may be elicited against target antigens via cross-presentation by the MHC class I antigen presentation pathway [51,52]. To evaluate the cytosolic delivery capacity of GV1001-fused proteins, we examined whether GV1001 would permit cell penetration by a GV1001-GFP fusion protein. Fluorescence-activated cell sorting (FACS) and Western blotting analyses showed that GV1001 can deliver directly conjugated cargo proteins into various cells, including the MCF7, Huh7, CHO and Jurkat cell lines. Our confocal microscopy data also indicated that the GV1001-GFP fusion protein had a cytoplasmic distribution similar to that of the GV1001 peptide alone, demonstrating the capability of GV1001 to deliver directly fused proteins into cells. This result suggests the potential use of GV1001 as a carrier for protein therapeutics that target cytoplasmic proteins [19].
DNA-based vaccines represent an attractive immunization platform that can offer several advantages over conventional formulations of live attenuated viral vectors and proteins. However, a major limitation in DNA vaccination is the safe delivery of genetic material into target cells through the plasma and nuclear membranes [53,54]. Several CPPs, including the herpes simplex virus (HSV-1) protein VP22 and TAT, have been exploited for the delivery of genetic materials into cells [1,55]. To evaluate the potential of GV1001 for DNA delivery, we added polylysine (15-mer) to the carboxyl-terminus of GV1001 (GV1001-pK) and investigated whether non-covalently linked DNA was transferred into the cell. We found that the GV1001-pK and a luciferase-expressing plasmid complex were successfully delivered into Huh7, HepG2, MCF7 and CHO cells. The resulting cells exhibited higher luciferase activity than that measured in the same cells using a TAT-pK carrier, suggesting the potential of GV1001 as a DNA vaccine delivery system [19].
RNAi-mediated gene silencing is used for the analysis of gene functions due to its high specificity, high efficiency and ease of use. Moreover, this method is one of the most attractive methods of gene therapy for many diseases, including viral infectious diseases, cancers and inflammatory diseases [56,57]. The most important hurdle in CPP-mediated siRNA delivery is the delivery of the cargo throughout the cytosol after internalization [1,58]. To evaluate the potential of GV1001 to deliver directly conjugated siRNA, we compared the gene silencing activities of luciferase-targeting siRNAs conjugated to three types of CPPs, namely TAT, Penetratin and GV1001, in Huh-7 and CHO cells transiently transfected with luciferase plasmids. Our data showed that the siRNA conjugated to GV1001, but not to the two other CPPs, showed a statistically significant reduction in luciferase activity. These results suggest that GV1001 can be used as a delivery system for conjugated siRNA in gene therapy [19].

3. Conclusions

Biological functions of GV1001 are summarized in Figure 1. GV1001, originally developed as a vaccine against various cancers, is reported to have unexpected CPP properties. Unlike typical CPPs, such as the HIV-1 TAT peptide, GV1001 enables the cytosolic delivery of such macromolecules as proteins, DNA and siRNA via eHSP90 or eHSP70 complexes. The binding of GV1001 to eHSP permits its cytosolic delivery and can also lead to additional biological effects via an eHSP-GV1001 complex. Though GV1001 was originally designed as a cancer MHC class II-binding epitope, its CPP function may explain its increased anticancer immune response relative to other peptide-based vaccines. Furthermore, cell signaling via eHSP-GV1001 binding may lead to unexpected biological effects, perhaps resulting in the potential development of a direct anticancer drug. In this review, we focused on the CPP effect and direct anticancer effect of GV1001 via the formation of eHSP90 and eHSP70 complexes.


This review was supported by a National Research Foundation (NRF) grant of Ministry of Science, Information & Communication Technology (ICT) and Future Planning, South Korea, No. NRF-2015R1C1A1A02037267.

Author Contributions

Bum-Joon Kim conceptualized this review; Hong Kim and Eun-Hye Seo wrote the manuscript; Bum-Joon Kim and Seung-Hyun Lee revised the manuscript.

Conflicts of Interest

The authors declare no conflict of interest.


  1. Gupta, B.; Levchenko, T.S.; Torchilin, V.P. Intracellular delivery of large molecules and small particles by cell-penetrating proteins and peptides. Adv. Drug Deliv. Rev. 2005, 57, 637–651. [Google Scholar] [CrossRef] [PubMed]
  2. Vasir, J.K.; Labhasetwar, V. Biodegradable nanoparticles for cytosolic delivery of therapeutics. Adv. Drug Deliv. Rev. 2007, 59, 718–728. [Google Scholar] [CrossRef] [PubMed]
  3. Gump, J.M.; Dowdy, S.F. TAT transduction: The molecular mechanism and therapeutic prospects. Trends Mol. Med. 2007, 13, 443–448. [Google Scholar] [CrossRef] [PubMed]
  4. Frankel, A.D.; Pabo, C.O. Cellular uptake of the TAT protein from human immunodeficiency virus. Cell 1988, 55, 1189–1193. [Google Scholar] [CrossRef]
  5. Heitz, F.; Morris, M.C.; Divita, G. Twenty years of cell-penetrating peptides: From molecular mechanisms to therapeutics. Br. J. Pharmacol. 2009, 157, 195–206. [Google Scholar] [CrossRef] [PubMed]
  6. Bechara, C.; Sagan, S. Cell-penetrating peptides: 20 years later, where do we stand? FEBS Lett. 2013, 587, 1693–1702. [Google Scholar] [CrossRef] [PubMed]
  7. Choi, Y.S.; David, A.E. Cell penetrating peptides and the mechanisms for intracellular entry. Curr. Pharm. Biotechnol. 2014, 15, 192–199. [Google Scholar] [CrossRef] [PubMed]
  8. Middleton, G.; Silcocks, P.; Cox, T.; Valle, J.; Wadsley, J.; Propper, D.; Coxon, F.; Ross, P.; Madhusudan, S.; Roques, T.; et al. Gemcitabine and capecitabine with or without telomerase peptide vaccine GV1001 in patients with locally advanced or metastatic pancreatic cancer (TeloVac): An open-label, randomised, phase 3 trial. Lancet Oncol. 2014, 15, 829–840. [Google Scholar] [CrossRef]
  9. Staff, C.; Mozaffari, F.; Frodin, J.E.; Mellstedt, H.; Liljefors, M. Telomerase (GV1001) vaccination together with gemcitabine in advanced pancreatic cancer patients. Int. J. Oncol. 2014, 45, 1293–1303. [Google Scholar] [CrossRef] [PubMed]
  10. Annels, N.E.; Shaw, V.E.; Gabitass, R.F.; Billingham, L.; Corrie, P.; Eatock, M.; Valle, J.; Smith, D.; Wadsley, J.; Cunningham, D.; et al. The effects of gemcitabine and capecitabine combination chemotherapy and of low-dose adjuvant GM-CSF on the levels of myeloid-derived suppressor cells in patients with advanced pancreatic cancer. Cancer Immunol. Immunother. 2014, 63, 175–183. [Google Scholar] [CrossRef] [PubMed]
  11. Brunsvig, P.F.; Kyte, J.A.; Kersten, C.; Sundstrom, S.; Moller, M.; Nyakas, M.; Hansen, G.L.; Gaudernack, G.; Aamdal, S. Telomerase peptide vaccination in NSCLC: A phase II trial in stage III patients vaccinated after chemoradiotherapy and an 8-year update on a phase I/II trial. Clin. Cancer Res. 2011, 17, 6847–6857. [Google Scholar] [CrossRef] [PubMed]
  12. Hunger, R.E.; Kernland Lang, K.; Markowski, C.J.; Trachsel, S.; Moller, M.; Eriksen, J.A.; Rasmussen, A.M.; Braathen, L.R.; Gaudernack, G. Vaccination of patients with cutaneous melanoma with telomerase-specific peptides. Cancer Immunol. Immunother. 2011, 60, 1553–1564. [Google Scholar] [CrossRef] [PubMed]
  13. Choi, J.; Kim, H.; Kim, Y.; Jang, M.; Jeon, J.; Hwang, Y.I.; Shon, W.J.; Song, Y.W.; Kang, J.S.; Lee, W.J. The anti-inflammatory effect of GV1001 mediated by the downregulation of ENO1-induced pro-inflammatory cytokine production. Immune Netw. 2015, 15, 291–303. [Google Scholar] [CrossRef] [PubMed]
  14. Koo, T.Y.; Yan, J.J.; Yang, J. Protective effect of peptide GV1001 against renal ischemia-reperfusion injury in mice. Transplant. Proc. 2014, 46, 1117–1122. [Google Scholar] [CrossRef] [PubMed]
  15. Nava-Parada, P.; Emens, L.A. GV-1001, an injectable telomerase peptide vaccine for the treatment of solid cancers. Curr. Opin. Mol. Ther. 2007, 9, 490–497. [Google Scholar] [PubMed]
  16. Kim, B.K.; Kim, B.R.; Lee, H.J.; Lee, S.A.; Kim, B.J.; Kim, H.; Won, Y.S.; Shon, W.J.; Lee, N.R.; Inn, K.S.; et al. Tumor-suppressive effect of a telomerase-derived peptide by inhibiting hypoxia-induced HIF-1α-VEGF signaling axis. Biomaterials 2014, 35, 2924–2933. [Google Scholar] [CrossRef] [PubMed]
  17. Lee, S.A.; Kim, J.; Sim, J.; Kim, S.G.; Kook, Y.H.; Park, C.G.; Kim, H.R.; Kim, B.J. A telomerase-derived peptide regulates reactive oxygen species and hepatitis C virus RNA replication in HCV-infected cells via heat shock protein 90. Biochem. Biophys. Res. Commun. 2016, 471, 156–162. [Google Scholar] [CrossRef] [PubMed]
  18. Kim, H.; Choi, M.-S.; Inn, K.-S.; Kim, B.J. Inhibition of HIV-1 reactivation by a telomerase-derived peptide in a HSP90-dependent manner. Sci. Rep. 2016, 6, 28896–28906. [Google Scholar] [CrossRef] [PubMed]
  19. Lee, S.A.; Kim, B.R.; Kim, B.K.; Kim, D.W.; Shon, W.J.; Lee, N.R.; Inn, K.S.; Kim, B.J. Heat shock protein-mediated cell penetration and cytosolic delivery of macromolecules by a telomerase-derived peptide vaccine. Biomaterials 2013, 34, 7495–7505. [Google Scholar] [CrossRef] [PubMed]
  20. Harley, C.B. Telomerase and cancer therapeutics. Nat. Rev. Cancer 2008, 8, 167–179. [Google Scholar] [CrossRef] [PubMed]
  21. Brunsvig, P.F.; Aamdal, S.; Gjertsen, M.K.; Kvalheim, G.; Markowski-Grimsrud, C.J.; Sve, I.; Dyrhaug, M.; Trachsel, S.; Moller, M.; Eriksen, J.A.; et al. Telomerase peptide vaccination: A phase I/II study in patients with non-small cell lung cancer. Cancer Immunol. Immunother. 2006, 55, 1553–1564. [Google Scholar] [CrossRef] [PubMed]
  22. Inderberg-Suso, E.M.; Trachsel, S.; Lislerud, K.; Rasmussen, A.M.; Gaudernack, G. Widespread CD4+ T-cell reactivity to novel hTERT epitopes following vaccination of cancer patients with a single hTERT peptide GV1001. Oncoimmunology 2012, 1, 670–686. [Google Scholar] [CrossRef] [PubMed]
  23. Shaw, V.E.; Naisbitt, D.J.; Costello, E.; Greenhalf, W.; Park, B.K.; Neoptolemos, J.P.; Middleton, G.W. Current status of GV1001 and other telomerase vaccination strategies in the treatment of cancer. Exp. Rev. Vaccines 2010, 9, 1007–1016. [Google Scholar] [CrossRef] [PubMed]
  24. Tacken, P.J.; de Vries, I.J.; Torensma, R.; Figdor, C.G. Dendritic-cell immunotherapy: From ex vivo loading to in vivo targeting. Nat. Rev. Immunol. 2007, 7, 790–802. [Google Scholar] [CrossRef] [PubMed]
  25. Torchilin, V.P. Recent advances with liposomes as pharmaceutical carriers. Nat. Rev. Drug Discov. 2005, 4, 145–160. [Google Scholar] [CrossRef] [PubMed]
  26. Bolhassani, A.; Safaiyan, S.; Rafati, S. Improvement of different vaccine delivery systems for cancer therapy. Mol. Cancer 2011, 10, 3–23. [Google Scholar] [CrossRef] [PubMed]
  27. Fittipaldi, A.; Ferrari, A.; Zoppe, M.; Arcangeli, C.; Pellegrini, V.; Beltram, F.; Giacca, M. Cell membrane lipid rafts mediate caveolar endocytosis of HIV-1 Tat fusion proteins. J. Biol. Chem. 2003, 278, 34141–34149. [Google Scholar] [CrossRef] [PubMed]
  28. Vives, E.; Brodin, P.; Lebleu, B. A truncated HIV-1 Tat protein basic domain rapidly translocates through the plasma membrane and accumulates in the cell nucleus. J. Biol. Chem. 1997, 272, 16010–16017. [Google Scholar] [CrossRef] [PubMed]
  29. Huang, Y.; Jiang, Y.; Wang, H.; Wang, J.; Shin, M.C.; Byun, Y.; He, H.; Liang, Y.; Yang, V.C. Curb challenges of the “Trojan Horse” approach: Smart strategies in achieving effective yet safe cell-penetrating peptide-based drug delivery. Adv. Drug Deliv. Rev. 2013, 65, 1299–1315. [Google Scholar] [CrossRef] [PubMed]
  30. Raagel, H.; Saalik, P.; Pooga, M. Peptide-mediated protein delivery-which pathways are penetrable? Biochim. Biophys. Acta 2010, 1798, 2240–2248. [Google Scholar] [CrossRef] [PubMed]
  31. Madani, F.; Lindberg, S.; Langel, U.; Futaki, S.; Graslund, A. Mechanisms of cellular uptake of cell-penetrating peptides. J. Biophys. 2011, 2011, 414729–414739. [Google Scholar] [CrossRef] [PubMed]
  32. Zorko, M.; Langel, U. Cell-penetrating peptides: Mechanism and kinetics of cargo delivery. Adv. Drug Deliv. Rev. 2005, 57, 529–545. [Google Scholar] [CrossRef] [PubMed]
  33. Zhao, F.; Zhao, Y.; Liu, Y.; Chang, X.; Chen, C.; Zhao, Y. Cellular uptake, intracellular trafficking, and cytotoxicity of nanomaterials. Small 2011, 7, 1322–1337. [Google Scholar] [CrossRef] [PubMed]
  34. Schmidt, N.; Mishra, A.; Lai, G.H.; Wong, G.C. Arginine-rich cell-penetrating peptides. FEBS Lett. 2010, 584, 1806–1813. [Google Scholar] [CrossRef] [PubMed]
  35. Xiao, G.; Gan, L.S. Receptor-mediated endocytosis and brain delivery of therapeutic biologics. Int. J. Cell Biol. 2013, 2013, 703545–703559. [Google Scholar] [CrossRef] [PubMed]
  36. Mayer, M.P.; Bukau, B. HSP70 chaperones: Cellular functions and molecular mechanism. Cell. Mol. Life Sci. 2005, 62, 670–684. [Google Scholar] [CrossRef] [PubMed]
  37. Bukau, B.; Weissman, J.; Horwich, A. Molecular chaperones and protein quality control. Cell 2006, 125, 443–451. [Google Scholar] [CrossRef] [PubMed]
  38. Calderwood, S.K.; Theriault, J.; Gray, P.J.; Gong, J. Cell surface receptors for molecular chaperones. Methods 2007, 43, 199–206. [Google Scholar] [CrossRef] [PubMed]
  39. Calderwood, S.K.; Gong, J.; Murshid, A. Extracellular HSPs: The complicated roles of extracellular HSPs in immunity. Front. Immunol. 2016, 7, 159–169. [Google Scholar] [CrossRef] [PubMed]
  40. Tsen, F.; Bhatia, A.; O’Brien, K.; Cheng, C.F.; Chen, M.; Hay, N.; Stiles, B.; Woodley, D.T.; Li, W. Extracellular heat shock protein 90 signals through subdomain II and the NPVY motif of LRP-1 receptor to Akt1 and Akt2: A circuit essential for promoting skin cell migration in vitro and wound healing in vivo. Mol. Cell. Biol. 2013, 33, 4947–4959. [Google Scholar] [CrossRef] [PubMed]
  41. Perez-Vargas, J.; Romero, P.; Lopez, S.; Arias, C.F. The peptide-binding and ATPase domains of recombinant hsc70 are required to interact with rotavirus and reduce its infectivity. J. Virol. 2006, 80, 3322–3331. [Google Scholar] [CrossRef] [PubMed]
  42. Wang, Y.P.; Liu, F.; He, H.W.; Han, Y.X.; Peng, Z.G.; Li, B.W.; You, X.F.; Song, D.Q.; Li, Z.R.; Yu, L.Y.; et al. Heat stress cognate 70 host protein as a potential drug target against drug resistance in hepatitis B virus. Antimicrob. Agents Chemother. 2010, 54, 2070–2077. [Google Scholar] [CrossRef] [PubMed]
  43. Lopez, S.; Arias, C.F. Multistep entry of rotavirus into cells: A Versaillesque dance. Trends Microbiol. 2004, 12, 271–278. [Google Scholar] [CrossRef] [PubMed]
  44. Ivanovic, T.; Agosto, M.A.; Chandran, K.; Nibert, M.L. A role for molecular chaperone hsc70 in reovirus outer capsid disassembly. J. Biol. Chem. 2007, 282, 12210–12219. [Google Scholar] [CrossRef] [PubMed]
  45. Kohno, M.; Horibe, T.; Ohara, K.; Ito, S.; Kawakami, K. The membrane-lytic peptides K8L9 and melittin enter cancer cells via receptor endocytosis following subcytotoxic exposure. Chem. Biol. 2014, 21, 1522–1532. [Google Scholar] [CrossRef] [PubMed]
  46. Gehrmann, M.; Stangl, S.; Foulds, G.A.; Oellinger, R.; Breuninger, S.; Rad, R.; Pockley, A.G.; Multhoff, G. Tumor imaging and targeting potential of an HSP70-derived 14-mer peptide. PLoS ONE 2014, 9, e105344. [Google Scholar] [CrossRef] [PubMed]
  47. Den Haan, J.M.; Bevan, M.J. Antigen presentation to CD8+ T cells: Cross-priming in infectious diseases. Curr. Opin. Immunol. 2001, 13, 437–441. [Google Scholar] [CrossRef]
  48. Hance, M.W.; Nolan, K.D.; Isaacs, J.S. The double-edged sword: Conserved functions of extracellular Hsp90 in wound healing and cancer. Cancers 2014, 6, 1065–1097. [Google Scholar] [CrossRef] [PubMed]
  49. Li, W.; Tsen, F.; Sahu, D.; Bhatia, A.; Chen, M.; Multhoff, G.; Woodley, D.T. Extracellular Hsp90 (eHsp90) as the actual target in clinical trials: Intentionally or unintentionally. Int. Rev. Cell Mol. Biol. 2013, 303, 203–235. [Google Scholar] [PubMed]
  50. Van den Berg, A.; Dowdy, S.F. Protein transduction domain delivery of therapeutic macromolecules. Curr. Opin. Biotechnol. 2011, 22, 888–893. [Google Scholar] [CrossRef] [PubMed]
  51. Brooks, N.A.; Pouniotis, D.S.; Tang, C.K.; Apostolopoulos, V.; Pietersz, G.A. Cell-penetrating peptides: Application in vaccine delivery. Biochim. Biophys. Acta 2010, 1805, 25–34. [Google Scholar] [CrossRef] [PubMed]
  52. Jiang, Y.; Li, M.; Zhang, Z.; Gong, T.; Sun, X. Cell-penetrating peptides as delivery enhancers for vaccine. Curr. Pharm. Biotechnol. 2014, 15, 256–266. [Google Scholar] [CrossRef] [PubMed]
  53. Gurunathan, S.; Klinman, D.M.; Seder, R.A. DNA vaccines: Immunology, application, and optimization. Annu. Rev. Immunol. 2000, 18, 927–974. [Google Scholar] [CrossRef] [PubMed]
  54. Liu, M.A. DNA vaccines: A review. J. Intern. Med. 2003, 253, 402–410. [Google Scholar] [CrossRef] [PubMed]
  55. Mann, A.; Thakur, G.; Shukla, V.; Ganguli, M. Peptides in DNA delivery: Current insights and future directions. Drug Discov. Today 2008, 13, 152–160. [Google Scholar] [CrossRef] [PubMed]
  56. McManus, M.T.; Sharp, P.A. Gene silencing in mammals by small interfering RNAs. Nat. Rev. Genet. 2002, 3, 737–747. [Google Scholar] [CrossRef] [PubMed]
  57. Zimmermann, T.S.; Lee, A.C.; Akinc, A.; Bramlage, B.; Bumcrot, D.; Fedoruk, M.N.; Harborth, J.; Heyes, J.A.; Jeffs, L.B.; John, M.; et al. RNAi-mediated gene silencing in non-human primates. Nature 2006, 441, 111–114. [Google Scholar] [CrossRef] [PubMed]
  58. Juliano, R.; Alam, M.R.; Dixit, V.; Kang, H. Mechanisms and strategies for effective delivery of antisense and siRNA oligonucleotides. Nucleic Acids Res. 2008, 36, 4158–4171. [Google Scholar] [CrossRef] [PubMed]

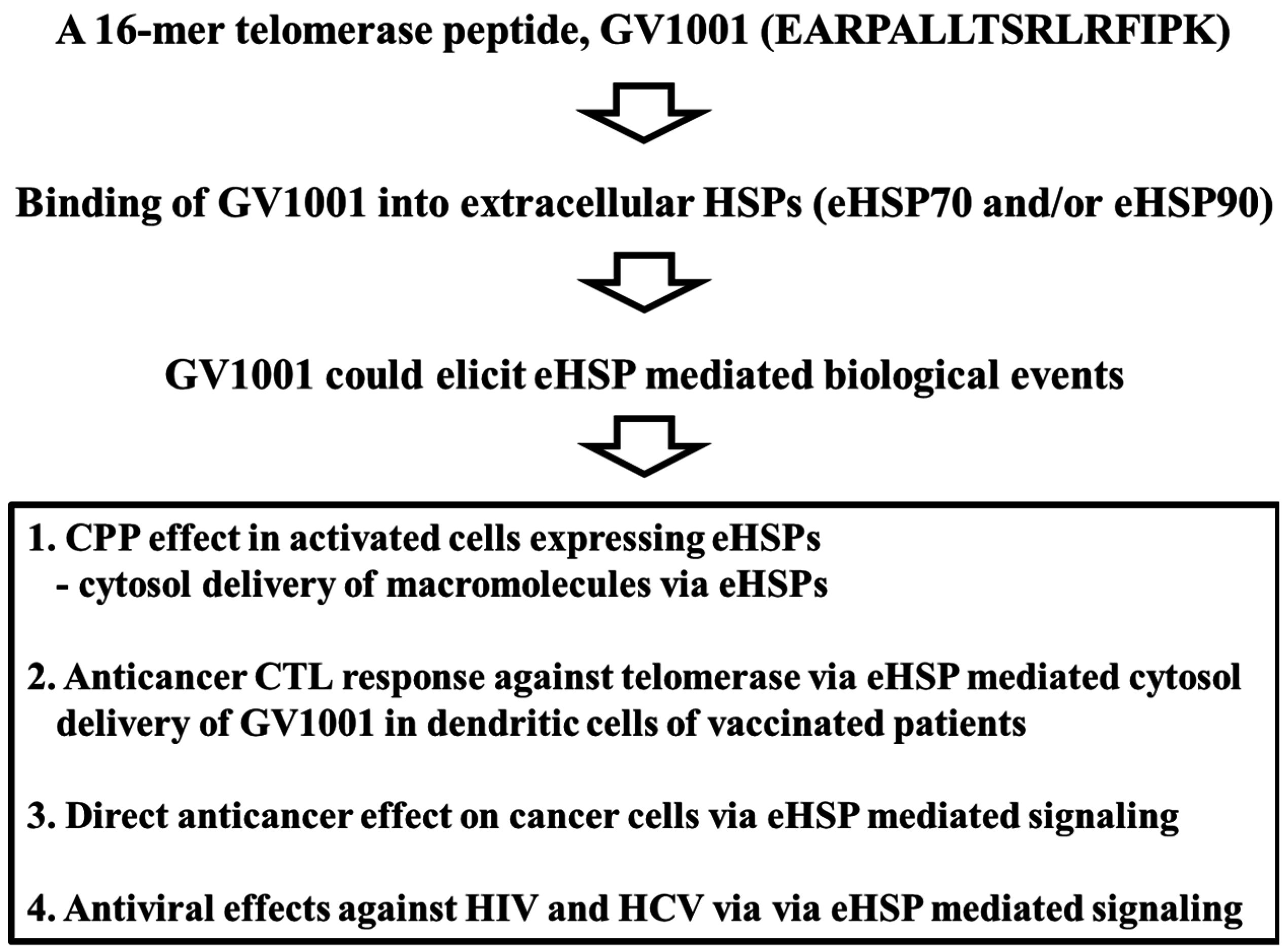

Figure 1. GV1001 could have various biological events via extracellular heat shock proteins (eHSPs).
Figure 1. GV1001 could have various biological events via extracellular heat shock proteins (eHSPs).
Ijms 17 02054 g001
