Next Article in Journal
Plant-Derived Modulators of Tumor Metabolism as Novel, Efficacious, and Low-Toxicity Therapeutic Agents for Cancer Treatment
Previous Article in Journal
Thermodynamic Properties, Crystallization Kinetics and Crystal Morphology of Plutonium Oxalate Crystals: A Review


Search for Articles:
Title / Keyword
Author / Affiliation / Email
Journal
Article Type


Advanced Search

Section
Special Issue
Volume
Issue
Number
Page

Journals
Molecules
Volume 31
Issue 9
10.3390/molecules31091392
molecules-logo
Submit to this Journal Review for this Journal Propose a Special Issue
► Article Menu

Article Menu

share Share announcement Help format_quote Cite question_answer Discuss in SciProfiles
first_page
settings
Order Article Reprints
Font Type:
Arial Georgia Verdana
Font Size:
Aa Aa Aa
Line Spacing:
Column Width:
Background:
Article

Antibacterial Biofilms of Chitosan Incorporated with the Ethanolic Extract of the Stem Bark of Libidibia ferrea and Its Fractions

by
Andreza Santos de Jesus
1,
Aiane Nascimento Santana
1,
Helena Carla Magalhães dos Reis
1,
Giovanna Regina Gonzalez de Santana Wojnar
1,
Vitor Hugo Migues
1,
Arnaud Victor dos Santos
1,
Madson de Godoi Pereira
1,
Lourdes Cardoso de Souza Neta
1,*,
Sandra Aparecida Alexandre Lucas
2 and
Rodrigo Lassarote Lavall
2
1
Department of Exact and Earth Sciences I, UNEB-State University of Bahia, Silveira Martins Street, 2555 Cabula, Salvador 41150-000, Bahia, Brazil
2
Department of Chemistry, Institute of Exact Sciences, UFMG-Federal University of Minas Gerais, Antônio Carlos Av., 6627 Pampulha, Belo Horizonte 31270-901, Minas Gerais, Brazil
*
Author to whom correspondence should be addressed.
Molecules 2026, 31(9), 1392; https://doi.org/10.3390/molecules31091392
Submission received: 6 March 2026 / Revised: 13 April 2026 / Accepted: 14 April 2026 / Published: 23 April 2026
(This article belongs to the Special Issue Chitosan-Based Materials for Pharmaceutical and Medical Applications)
Browse Figures
Versions Notes

Abstract

The high mortality rate from microbial infections underscores the need to discover new antimicrobials. This work produced antibacterial Chitosan biofilms with and without the incorporation of the ethanolic extract of Libidibia ferrea stem bark and its ethyl acetate and aqueous fractions. The extract and fractions were subjected to FTIR and 1H NMR analysis. The biofilms were characterized by FTIR, scanning electron microscopy, thermogravimetry, and differential scanning calorimetry analysis. The 1H NMR and FTIR data, as well as the colorimetric quantification of total phenolics, demonstrated the presence of phenolic compounds. Staphylococcus aureus and Bacillus cereus were the most susceptible bacteria for Chitosan/L. ferrea biofilms and fractions (growth inhibition zones values in the range of 10.8 ± 0.1 to 14.0 ± 0.1 mm, and minimum inhibitory or bactericidal concentration, MIC or MBC values of the fractions were in the range of 125 to 250 µg mL−1. Only the fractions inhibited Pseudomonas aeruginosa (MIC = 250 µg mL−1). Chitosan/L. ferrea biofilms exhibited efficient interactions between chitosan functional groups and secondary metabolites, good thermal stability, and increased rigidity in mechanical tests. This study reinforces the pharmacological potential of biodegradable Chitosan/L. ferrea biofilms as antibacterial agents biofilms.

Graphical Abstract

1. Introduction

The increase in mortality due to bacterial infections, especially due to antimicrobial resistance, is one of the most serious global public health problems, according to the World Health Organization (WHO) [1,2,3]. Among bacteria, Gram-positive bacteria, such as those in the genus Staphylococcus, can cause infections in immunocompromised individuals, leading to skin and respiratory diseases (such as pneumonia and acute bronchitis), sepsis, and endocarditis [4]. Additionally, other Gram-positive bacteria present risks; for example, Bacillus cereus causes food poisoning and, consequently, gastroenteritis, vomiting, or diarrhea [5].
Pseudomonas aeruginosa, a Gram-negative bacterium identified by the WHO as a serious public health threat, causes severe lung infections [6,7]. As a result, treating these infections is challenging due to the rise in multidrug-resistant and conventional antimicrobial-resistant strains [1,2,3,8]. Antimicrobial resistance (AMR) occurs when microorganisms become resistant to antibiotics through intrinsic or acquired mechanisms, limiting treatment options for infections [9,10]. The WHO estimates that by 2050, such microorganisms could cause over 10 million deaths, underscoring AMR’s critical public health relevance. This situation highlights the urgent need to discover and develop new antimicrobial compounds [11].
The traditional use of natural products in treating and preventing diseases has long contributed to the development of new medicines, particularly by enabling the discovery of secondary metabolites effective against various diseases, such as bacterial infections [12,13]. Isolated plant compounds, including flavonoids, alkaloids, polyphenols, terpenoids, quinones, saponins, and lactones, have shown efficacy against diverse biological targets [13,14,15]. Examples such as anthocyanins, naringenin, ellagic acid, and catechins demonstrate antimicrobial activity against various microorganisms [16,17,18,19,20,21].
In addition to these secondary metabolites, researchers have sought new antibacterial and antifungal strategies as alternatives to commercial antibiotics. Among these alternatives are inorganic nanomaterials, including metallic and metal oxide nanoparticles such as silver nanoparticles [22], as well as antibacterial fabrics [23]. Moreover, methods such as photodynamic therapy [24] have been explored. In addition, other promising approaches include organic–inorganic hybrid materials like organocyclophosphazenes [25,26], antimicrobial peptides [27], carbon nanomaterials [28], carbon-based quantum dots [29], and natural biopolymer films with medicinal plant extracts [30].
Chitosan is a promising matrix for antimicrobial films because it is a biodegradable and non-toxic copolymer. It is derived from the deacetylation of chitin, a polysaccharide, and exhibits antimicrobial activity against many bacteria and fungi [31,32]. These activities may relate to molecular weight, degree of deacetylation, or concentration. The origin and polycationic nature of chitosan may also contribute to its antibacterial activity. Its polycationic character enables interactions with bacterial membranes and biomolecules such as DNA and RNA [33,34,35].
Given the antimicrobial properties of chitosan and secondary metabolites, the association of plant extracts and their fractions with natural polymers has emerged as a strategy for preparing biodegradable biomaterials with improved antimicrobial efficacy and/or potential for use in packaging applications or as dressings [36,37]. Therefore, biodegradable chitosan biopolymers were prepared by incorporating various plant extracts, such as pink pepper, thyme, beet leaves, rosemary, fruit extracts, and cinnamon barks, among others [38,39,40,41,42,43,44,45,46]. In this context, antimicrobial biomaterials made from chitosan and natural sources have diverse potential uses in general merchandise and biodegradable food packaging. Specifically, these materials can replace plastic packaging (petrochemical-based), which harms ecosystems due to its persistence [47,48]. Furthermore, they also offer promising options for wound dressings [49].
Libidibia ferrea (MART. Ex TUL.) L.P. QUEIROZ (synonym Caesalpinia ferrea, genus Libidibia; family Fabaceae) is a promising option for producing biologically active biomaterials. Traditionally, it is used as an antimicrobial and anti-inflammatory agent in the treatment of bronchitis, infections, diabetes, and wounds [50,51,52,53,54,55,56]. Moreover, extracts and fractions of L. ferrea have demonstrated diverse biological activities, including antibacterial, anticancer, cytotoxic, analgesic, antioxidant, wound-healing, anti-inflammatory, and anti-ulcer properties [53,54,56,57,58,59,60,61,62]. The classes of metabolites identified in L. ferrea extracts were catechin, quercetin, ellagic acid, gallic acid, apigenin, kaempferol, rutin, linoleic acid, steroids, condensed tannins, hydrolyzable tannins, saponins, coumarins, among others [19,63,64,65,66,67,68,69].
Regarding the antimicrobial activity of L. ferrea, fruit, stem and leaves extracts showed activity against Staphylococcus aureus, Streptococcus mutans, S. oralis, S. salivarius, Lactobacillus casei, and Candida albicans [54,70,71]. Stem extracts showed activity against S. aureus, S. epidermidis, Bacillus subtilis, B. cereus, P. aeruginosa, E. coli, Cronobacter sp., Salmonella sp., and C. albicans [68,72,73,74,75].
In this context, biodegradable chitosan biofilms were produced with and without the incorporation of the ethanolic extract of L. ferrea stem bark, as well as its ethyl acetate and aqueous fractions. Additionally, the antibacterial and antifungal potential of the L. ferrea extract, its fractions, and chitosan and chitosan/L. ferrea biofilms were evaluated against bacterial strains (Gram-positive and Gram-negative) and against the yeast Candida albicans.

2. Results

2.1. Results of Spectroscopic Analyses of L. ferrea Samples

2.1.1. H NMR Data of the Ethanolic Extract of L. ferrea Stem Bark and Its Fractions

The 1H NMR spectrum of the ethanolic extract of L. ferrea stem bark (ELF) showed mainly signals in the aromatic hydrogen region at δH 6.00 to δH 8.00. In addition to signals at δH 3.47 to δH 5.39 (Figure S1a, Supplementary Data). The signals in the 1H NMR spectra of the ethyl acetate fraction of the ethanolic extract of the stem bark of L. ferrea (ELFA) (Figure S1b, Supplementary Data) and the aqueous fraction of the ethanolic extract of the stem bark of L. ferrea (ELFAq) (Figure S1c, Supplementary Data) were similar to those of ELF; however, the signals in the δH 7.06 to δH 6.20 and δH 5.35 to δH 4.03 regions were more intense in the 1H NMR spectrum of fraction ELFA than in the spectra of extract ELF and fraction ELFAq.

2.1.2. FTIR Data of the Ethanolic Extract of L. ferrea Stem Bark and Its Fractions

The infrared absorption spectra of the ethanolic extract of L. ferrea stem bark (ELF) and its aqueous fraction of the ethanolic extract of the stem bark (ELFAq) and ethyl acetate fraction of the ethanolic extract of the stem bark (ELFA) are shown in Figure 1.

2.2. Total Phenolics

Total phenolic values, measured by the Folin–Ciocalteu method, were 160.95 ± 0.95 mg GAE g−1 for ELFA and 97.05 ± 2.15 mg GAE g−1 for ELFAq (mg gallic acid equivalent per g of fraction; y = 0.048x − 0.00431, R2 = 0.9972).

2.3. Characterization of Chitosan Biofilms with and Without L. ferrea Samples

2.3.1. FT-IR Spectra Analysis of Biofilms

The infrared absorption spectra of the biofilm without L. ferrea samples (BCH100) and with incorporation of the ethanol extract of L. ferrea stem bark (BLFE) and its ethyl acetate (BLFA) and aqueous (BLFAq) fractions showed similarities in spectral features, however, with differences in intensities and band broadening (Figure 2).

2.3.2. Thermal Properties of Biofilms

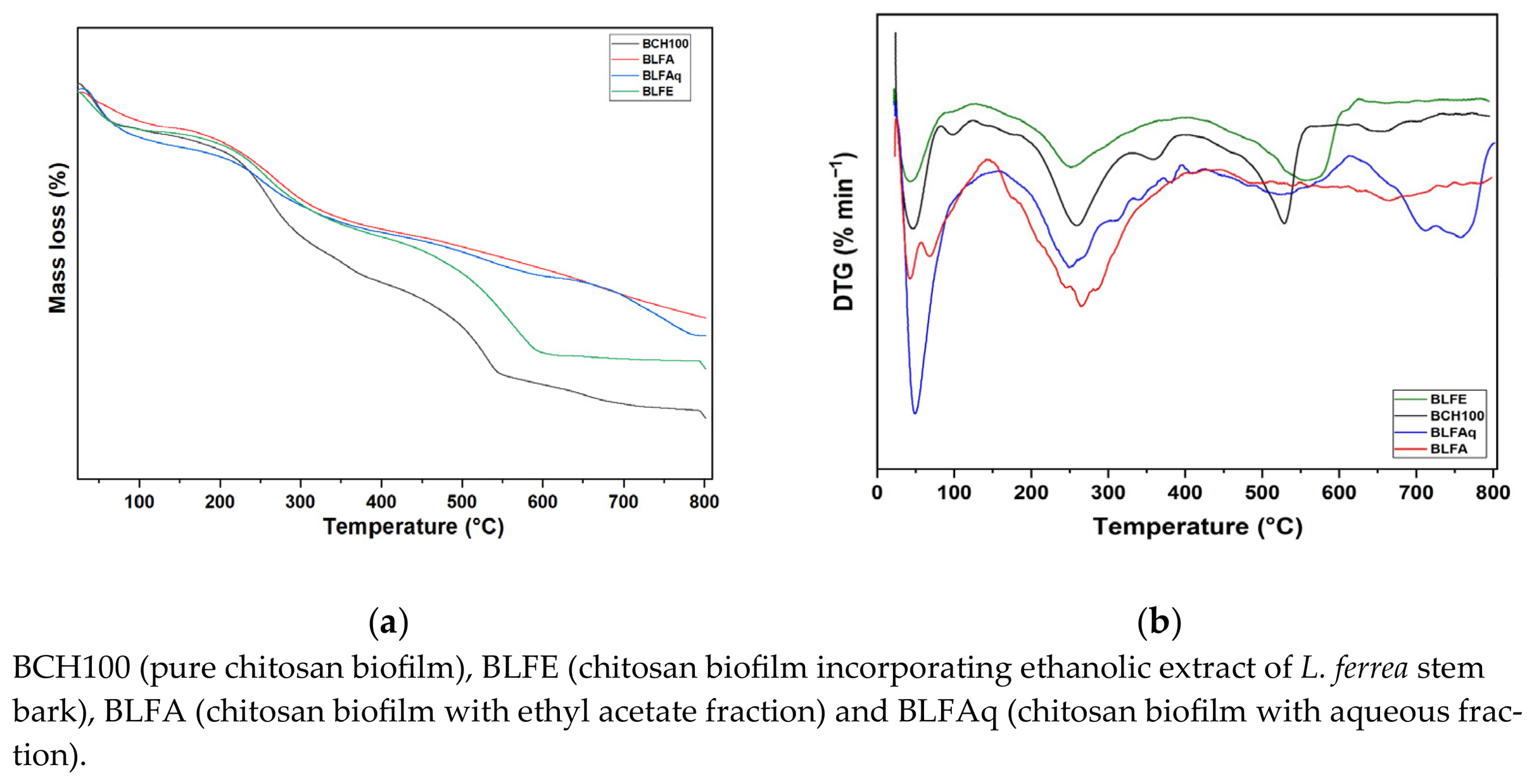

Thermogravimetric analyses of the BCH100, BLFE, BLFA, and BLFAF biofilms were performed to assess their thermal stability. The thermogravimetry and derivative thermogravimetry (TG/DTG) curves showed three stages of mass loss of the biofilms (Figure 3 and Table 1).
In the first stage, the BCH100, BLFE, BLFA, and BLFAq biofilms showed mass losses in the following temperature ranges: 39.26 °C to 59.63 °C (14.467% loss); 37.78 °C to 63.76 °C (14.500% loss); 40.71 °C to 74.55 °C (12.009% loss); and 45.39 °C to 73.07 °C (19.731%) (Table 1). In the second stage of biofilm degradation, the approximate temperature range was 200.0 °C to 311.0 °C [BCH100 (230.43 °C to 287.76 °C); BLFE (220.20 °C to 296.67 °C); BLFA (208.74 °C to 310.20 °C) and BLFAq (224.40 °C to 300.98 °C), resulting in a mass loss of 42.437%; 35.152%; 37.17% and 33.379%, respectively. The third mass loss for BCH100 occurred in the range of 504.06 °C to 541.73 °C, with a loss of 34.365%. The BLFE, BLFA, and BLFAq biofilms showed losses of 40.777, 34.984, and 41.467, respectively, in ranges varying from 510.84 to 780.00 °C (Table 1).

2.3.3. Appearance and Surface Analysis of Biofilms

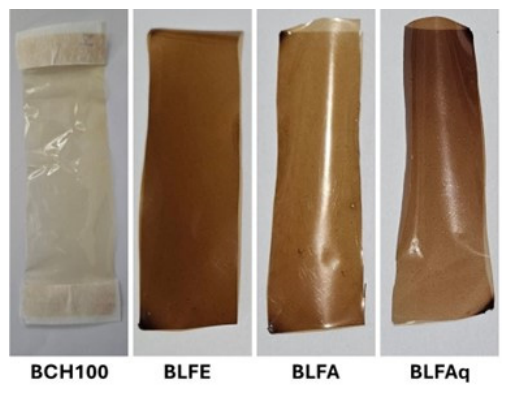

The appearance of chitosan biofilms with and without incorporation of L. ferrea samples is shown in Figure 4.
Micrographs of the biofilms obtained by scanning electron microscopy are shown in Figure 5. Specifically, the BCH100 biofilm displays a more homogeneous surface with low porosity and few aggregates (Figure 5a) compared to the BLFE (Figure 5b) and BLFA (Figure 5c) biofilms. In contrast, BLFE and BLFA (Figure 5b,c) biofilms showed greater surface roughness and aggregates. Notably, the BLFAq biofilm (Figure 5d) showed greater morphological similarity to BCH100. Furthermore, analysis of the energy-dispersive spectroscopy spectra of the BCH100, BLFAq, and BLFA biofilms showed that the main elements present in all films were carbon and oxygen (Figure S2, Supplementary Data).

2.3.4. Thickness and Mechanical Properties of Biofilms

The thickness measurements and mechanical parameters, such as tensile strength and stress, of biofilms are presented in Table 2. The data on thickness showed that the BLFE, BLFAq, and BLFA biofilms have significantly greater thickness than the BCH100 chitosan biofilm at the 95% confidence level (two-sample t-test). Regarding the breaking strength (burst strength) of the biofilms, the BCH100 biofilm showed an average of 17.50 ± 14.81 N. In comparison, the chitosan biofilms incorporating ethyl acetate and aqueous fractions showed average values of 39.83 ± 13.22 N and 40.92 ± 11.30 N, respectively. The BLFAq biofilm showed the highest tensile strength (40.92 N), indicating greater uniformity and structural resistance among the formulations tested (Table 2).

2.3.5. Biodegradability Test in Soil and Water of the Biofilms

Biofilms of pure chitosan and chitosan with incorporated fractions were subjected to biodegradation tests in soil and water. After 25 days, the percentage of mass loss was obtained in these two environments (Table 3).

2.4. Antimicrobial Activity

All samples tested (ELF extract, ELFA and ELFAq fractions, BCH100 (pure chitosan biofilm) BLFE, BLFA, and BLFAq biofilms) using the agar diffusion method were selective for the Gram-positive bacteria Staphylococcus aureus and Bacillus cereus. Under the tested conditions, no sample inhibited fungal growth (Table 4). There was a significant difference in the inhibition zones (IZ) between chitosan biofilms produced with the incorporation of the aqueous fraction (BFLAq) and the ethyl acetate fraction (BLFA), and the respective inhibition zones of the aqueous and ethyl acetate fractions against S. aureus (95% confidence using the t-test for comparing two means). However, for B. cereus, there was no statistically significant difference between the inhibition zones of the BLFAq and BLFA biofilms and their respective ELFAq and LFA fractions (95% confidence using the t-test for comparing two means). The chitosan biofilm without incorporation of the ethanolic extract of L. ferrea stem bark (BCH100, pure chitosan) showed only a growth inhibition zone for B. cereus (IZ = 13.6 ± 0.1 mm), among all microorganisms tested. The ethanolic extract of the leaves (ELF) inhibited B. cereus (IZ = 14.0 ± 0.1 mm), while the biofilm prepared with this extract did not show antibacterial activity against B. cereus. This suggests that the compounds present in the extract and in the biofilm with chitosan had an antagonistic effect against B. cereus (Table 4).
In the broth microdilution assay, both the ethyl acetate and aqueous fractions of the ethanolic extract of L. ferrea stem bark showed antibacterial activity against S. aureus and B. cereus, Gram-positive bacteria, and P. aeruginosa, Gram-negative bacteria, with minimum inhibitory concentration (MIC) values in the range of 500 to 125 µg mL−1. Among these, the acetate fraction was the most active against Gram-positive bacteria (MIC = 125 µg mL−1) (Table 5).

3. Discussion

1H NMR data from the ELF extract and the ELFa and ELFAq fractions suggest the presence of aromatic acids derived from phenolic compounds, such as gallic and ellagic acid derivatives [76,77,78,79], and hydrolyzable tannins [80] (Figure S1, Supplementary Data). Signals in the δH 3.47–5.39 region indicate hydrogens on sugar skeletons characteristic of glycosylated flavonoids (Figure S1a, Supplementary Data) [79,81,82]. These findings align with previous phytochemical studies of the genus Libidibia, which identified phenolic compounds in these species [78,83,84,85,86,87].

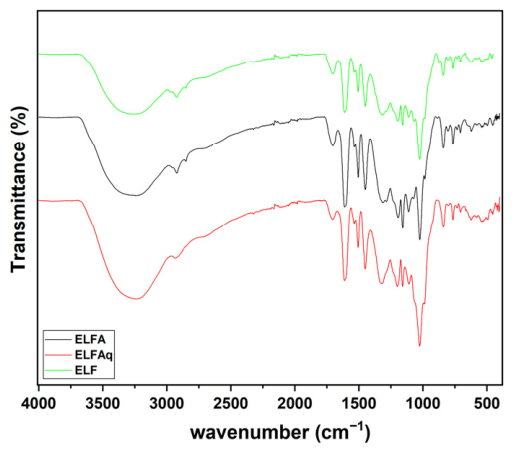

The infrared absorption spectra of the ELF extract and its ELFA and ELFAq fractions (Figure 1) display a broad band in the range of 2500 cm−1 to 3500 cm−1, with the highest intensity at 3239 cm−1 due to O-H bond stretching. In addition, other overlapping bands appear at 1700–1650 cm−1 in the spectra, corresponding to the stretching of the C=O bond (carbonyl functional group). Angular vibrations at 1454 cm−1 and in the stretching range from 1322 cm−1 to 1022 cm−1 (overlapping) of C-H and C-O bonds, respectively, can also reinforce the presence of alcohols, ethers, phenolic compounds, and polysaccharides polissacarídeos [88,89].
These findings indicate the presence of phenolic compounds in the extract and fractions, including carboxylic acid derivatives, glycosylated flavonoids, and tannins, as observed in the 1H NMR data [72,78,89,90,91]. The determination of the total phenolic in the ELFA and ELFAq fractions corroborates the 1H NMR data of these fractions and is in agreement with the data obtained in the literature for the ethanolic extract of the stem bark of L. ferrea [68]. Previous studies with L. ferrea have quantified phenolic compounds, including catechin, gallic acid, epicatechin, and ellagic acid, in extracts of its stem and aerial parts [85,92]. Additionally, studies show that the total phenolic content of the hydromethanolic extract of L. ferrea stems was 0.151 ± 0.005 mg GAE g−1, determined by the Folin–Ciocalteu method [93]. De Araújo et al. (2014) [84] obtained the flavonoid content and total phenolic of the aerial part extract of L. ferrea, using spectrophotometric methods, of 4.56 ± 1.58 mg g−1 GAE and 68.13 ± 15.93 mg g−1, respectively.
In all FT-IR spectra of the biofilms, a broad band was observed in the 3400–2600 cm−1 region. This band covered the entire spectrum and had a maximum at 3286 cm−1. The overlap of the stretching vibrations of O-H and N-H bonds is indicated (Figure 2). These stretching patterns suggest the presence of amino and hydroxyl groups. These groups originate from chitosan alcohols (about 3000–3400 cm−1) and from phenolic acids and flavonoids in the chitosan/extract and chitosan/fractions biofilms [94]. FTIR spectra show greater intensity and broader bands in chitosan biofilms with the incorporation of the extract or fraction than in those without L. ferrea samples (Figure 1) [46,88,89,91,95,96].
The presence of phenolic compounds in the extract and its fractions, as observed in the 1H NMR and FTIR data of the extract and fractions, may contribute to the increased intensity of these bands. In all infrared spectra of chitosan biofilms (100%) and with the incorporation of L. ferrea samples, the overlap of absorption bands at 1557 cm−1 (range of 1500–1600 cm−1) is in the region of N-H angular vibrations of the amino group, which, together with the absorption bands in the range of 1025 cm−1 to 1322 cm−1, characterize the presence of stretching vibrations of the C-OH, C-O-C and C-C-O bonds and C-N angular vibrations, confirming the presence of glycopyranosidic derivatives of chitosan [32,96,97].

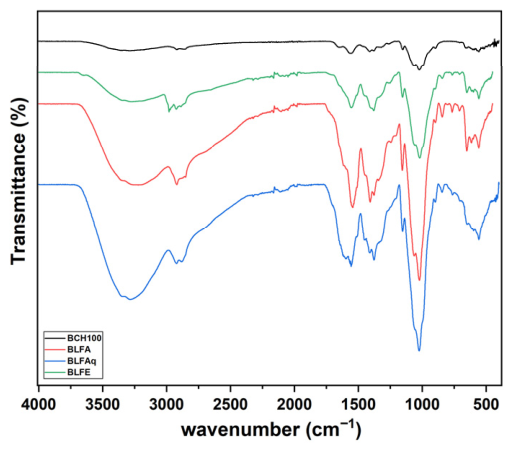

The FT-IR spectra of chitosan biofilms with L. ferrea samples displayed characteristic aromatic C-C bond vibration bands at 1605 cm−1, 1504 cm−1, and 1459 cm−1 [89,94], also present in the FTIR spectra of L. ferrea extract and fractions. Additionally, the bands between 900 cm−1 and 700 cm−1 (with peaks at 844 cm−1, 767 cm−1, and 710 cm−1) indicate angular deformations of C-O-C bonds in glycosidic links and C-H bonds in aromatic compounds [96,97,98]. TG/DTG curves were used to evaluate the thermal stability of chitosan biofilms without (BCH100) and with incorporation of the ethanolic extract of L. ferrea stem bark and its fractions in ethyl acetate and aqueous fraction (BLFE, BLFA, and BLFAq) (Figure 3).
The initial mass loss in biofilms likely results from evaporation of water and volatile solvents at 30 °C to 110 °C [99]. A second stage of mass loss is attributed to the decomposition of glycerol. Huong et al. (2026) [95] reported that chitosan present in Pseuderanthemum palatiferum leaf extract causes mass loss above 50% between 150 °C and 300 °C. Furthermore, the onset of chitosan decomposition occurs in the temperature range of 210 °C to 300 °C [99,100,101]. At temperatures above 400 °C, the losses are attributed to the complete depolymerization of the polysaccharides, including the breakage of the pyran ring and the cleavage of the glycosidic bonds between glucosamine and N-acetylglucosamine [97,102]. Furthermore, this loss may be due to the oxidative degradation of carbonaceous residues and aromatic rings present in the plant material, as obtained by Fajardo et al. (2025) [97] for the methanolic extract of Acmella oleracea leaves, with mass loss in the range of 670 to 730 °C. In the first stage, it was observed that incorporating the ethyl acetate and aqueous fractions into chitosan biofilms resulted in a slight increase in the temperature range, with little impact on mass loss. However, in the third stage, the incorporation of these fractions and the extract into chitosan biofilms increased the degradation range of the biofilms (BLFE, BLFA, and BLFAq), in agreement with the findings of Fajardo et al. (2025) [97]. Studying thermal stability allows us to determine the maximum temperature at which the film can be processed without inactivating the active component. Therefore, even when the main focus is on antimicrobial activity, thermal stability is fundamental because temperature directly affects the material’s structure and the effectiveness of the active agents incorporated into it. Thermal stability ensures the film performs consistently in real-world applications, such as food packaging and medical devices.
Chitosan biofilms incorporating ethanolic extract of L. ferrea stem bark (BLFE) and its ethyl acetate (BLFA) and aqueous fractions showed a brown coloration, which was visually darker in the BLFE and BLFAq (BLFAq) biofilms compared to the chitosan biofilm without incorporation of L. ferrea samples (BCH100) (Figure 4).

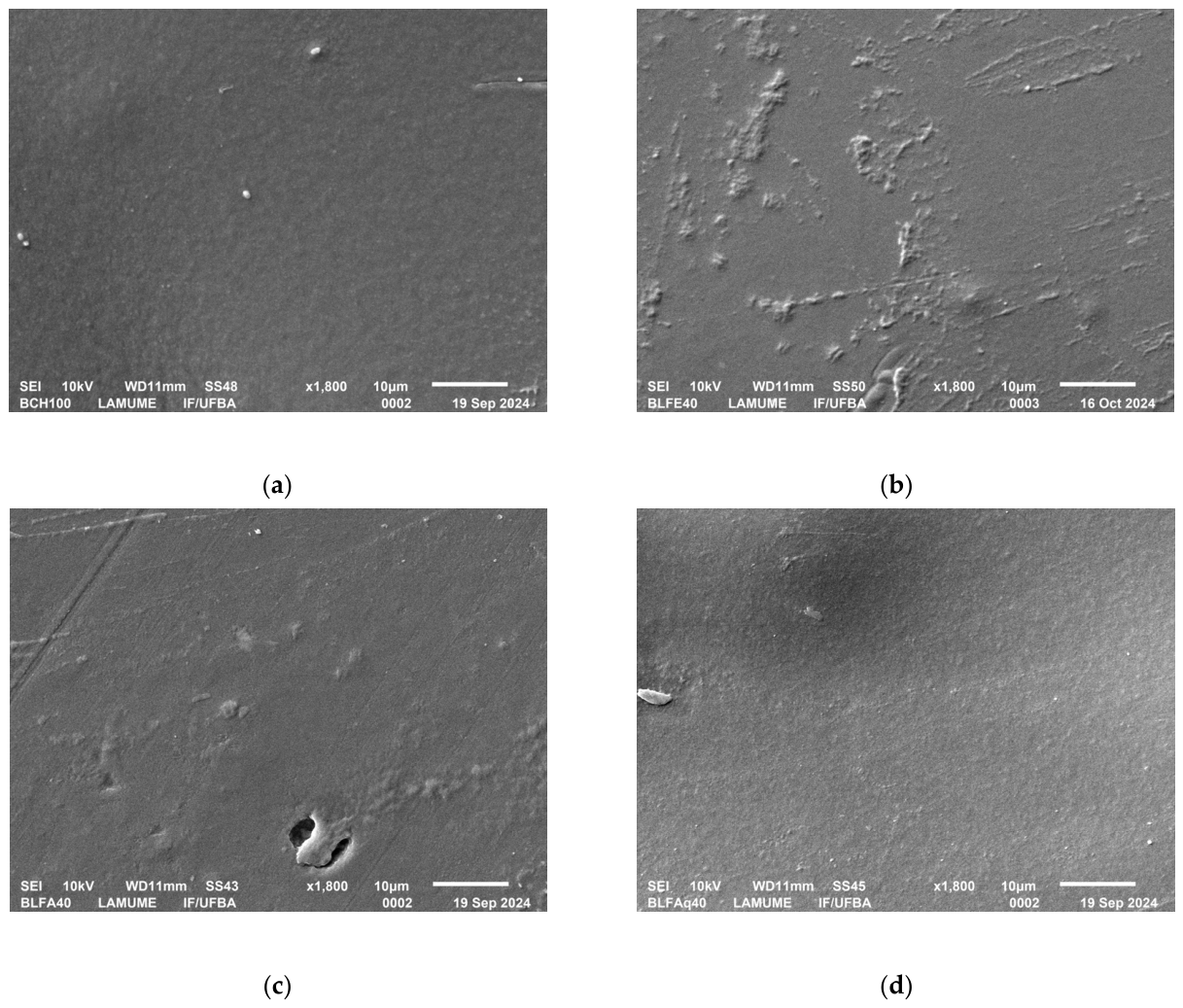

In SEM analyses, chitosan biofilms incorporating L. ferrea samples showed decreased homogeneity compared to chitosan biofilms without plant material incorporation (Figure 5). This finding is in agreement with that obtained in the literature [102,103] in chitosan films prepared with the hydroalcoholic extract of jaboticaba bagasse (Jaboticaba pomace) (concentrations used of the extract: 2.5; 5; 10 and 20 m m−1) and by Fajardo et al. (2025) [97] in chitosan films prepared with the methanolic extract of jambu leaves (A. oleracea) (concentrations used of the extract: 5.0%, 2.5% and 1.0% m m−1), among others [46,96,100]. The greater roughness of the BLFE (Figure 5b) and BLFA (Figure 5c) biofilms suggests a higher concentration of insoluble compounds, such as fats, in the chitosan matrix during film preparation [95].
The BLFAq biofilm (Figure 5d) showed porosity, with some holes on the surface and maintenance of a few surface reliefs, compared to the BLFE and BLFA biofilms, with an appearance similar to white (BCH100), suggesting a greater compatibility of the constituents of the aqueous fraction with the chitosan matrix, consistent with the micrograph found by Iquiapaza et al. (2025) [96] in chitosan biofilms with aqueous propolis extract. Among all the films, BLFAq showed the greatest potential for application as a wound dressing, as its surface is most similar to that of the pure chitosan film (BCH100). The compatibility between the secondary metabolites and the chitosan matrix can be improved by optimizing the amounts of extracts added to the matrix, as obtained by incorporating the ethanolic extract of Sonneratia caseolaris (L.) Engl. leaves into the chitosan matrix [104].
The element nitrogen was not detected on the surfaces, as expected from the chitosan structure, suggesting that nitrogen atoms may be arranged towards the interior of the matrix in biofilms. In this study, carbon, oxygen, and sodium were also identified as the main components of chitosan–alginate–neomycin–lidocaine hybrid biofilms [105].
Regarding thickness, BLFE was the thickest of all, which may be due to the presence of soluble solids and/or phenolic compounds in the extract, among other factors [46]. This behavior was also observed in chitosan-pectin films incorporated with the ethanolic extract of Piper betle L. leaves [106], methylcellulose films and the aqueous extract of jambolan bark (Syzygium cumini) [36], and chitosan with extracts of purslane, Portulaca oleracea L. [107].
The tension obtained for the BCH100 biofilm was 28.62 ± 15.31 Mpa (Table 2), within the range reported in the literature [106,107,108,109]. This value was lower than that found for biofilms prepared by incorporating L. ferrea samples (BLFE, BLFA, and BLFAq). These results are consistent with preliminary studies, as in films prepared with methylcellulose and the aqueous extract of jambolan bark (Syzygium cumini) [45], and in sodium alginate films with the hydroalcoholic extract of guava leaves, Psidium guajava Linn [100]. However, this result was contrary to that obtained by Fan et al. (2023) [107], who observed a decrease in the stiffness of chitosan films with P. oleraceae L. extract.
Regarding the biofilm rupture strength, there was a statistically significant difference between BCH100 and the biofilms produced with L. ferrea samples: BLFE, BLFAq, and BLFA. However, among these, there was no significant difference at the 95% confidence level (t-test for two means). The compounds present in the extract and fractions acted as mechanical enhancers, favoring intermolecular interactions between the chitosan chains, such as hydrogen bonds and hydrophobic interactions, resulting in a more cohesive and resistant structure.
The biodegradation of the films in water and soil was expressed as percent weight loss. Chitosan biofilms with and without L. ferrea incorporation showed no significant difference in biodegradation in soil and water (95% confidence, t-test for two means). There was a significant difference in biodegradation in an aquatic environment between BCH100 and biofilms of the following fractions: BFA and BLFAq. In soil, there was a significant difference between BCH100 and BLFAq. However, there was no significant difference between BCH100 and BLFA (95% confidence using the t-test for comparing two means). These findings suggest that adding fractions to chitosan biofilms delayed microbial biodegradation, primarily of the chitosan glycosidic bonds, in soil [110,111].
In the biodegradation test in water, similarly, there was also a greater loss of mass in the pure chitosan film (BCH100), compared to the others. Degradation in an aqueous environment is generally influenced by the material’s solubility and swelling, factors that are relevant for pure chitosan and thus facilitate microbial attack [112]. Soil moisture readily penetrates the polymer network, weakens the polymer chains, and makes them susceptible to hydrolysis by soil microbes at the glycosidic bonds.
The ethanol extract of L. ferrea stem bark and its ethyl acetate and aqueous fractions, along with chitosan biofilms with and without L. ferrea (BCH100, pure chitosan) samples showed antibacterial activity using both methods. In this study, all samples tested were selective for the Gram-positive strains S. aureus and B. cereus by the agar diffusion method, while, by the broth dilution method, the ELFAq and ELFA fractions from the ELF extract were also active against S. aureus, B. cereus, and, additionally, against the Gram-negative P. aeruginosa.
In a previous seasonal study, the ELF extract, which was collected in the spring season in the Atlantic Forest biome (Bahia, Brazil), showed selectivity for Gram-positive strains, such as S. aureus, B. subtilis, B. cereus, and Staphylococcus epidermidis (MICs = range of 62.5 to 500 µg mL−1). In addition, ELF showed a higher total phenolic content, with a significant difference observed only in the summer season. The highest flavonoid content was observed in the winter and autumn seasons, at the 98% confidence level (Tukey test) [68]. Extracts and fractions of L. ferrea have already demonstrated antibacterial effects against S. aureus. Specifically, alcoholic extracts (including ethanol) from both leaf and stem bark exhibited MICs ranging from 100 to 0.39 µg mL−1 [73]; the hydroalcoholic fraction of the stem bark showed an MIC of 0.39 mg mL−1 [72]; and the ethanolic extract of the leaf had an MIC of 250 μg mL−1 [113]. The ethanolic extract of L. ferrea pods inhibited Enterococcus faecalis, B. subtilis, S. aureus, E. coli, K. pneumoniae, and P. aeruginosa. The MIC values ranged from 50 to 125 µg mL−1 [114]. Santana et al. (2024) [68] evaluated the antimicrobial activity of L. ferrea extracts from the Brazilian biome using the microdilution method. They found that ethanolic extracts of L. ferrea stem bark, collected in winter from the Atlantic Forest biome, were effective against S. epidermidis (MIC = 125.0 μg mL−1; MBC = 500.0 μg mL−1). The Caatinga biome stem extract, though more selective for Gram-positive bacteria, also inhibited P. aeruginosa and E. coli, in all seasons of the year, with MICs of 500 μg mL−1 and MBCs of 2000 μg mL−1 [68].
In the agar diffusion assay, there was a significant difference between the zones of microbial growth inhibition of S. aureus, with the fractions being more active than their respective biofilms. However, the pure chitosan film (BCH100) showed no effect against this bacterium under the experimental conditions employed. Given this result, there was little suppression of the groups in the active principles and potential pharmacophores in the BLFAq and BLFA chitosan biofilms. Meanwhile, for B. cereus, BCH100 showed activity, and the incorporation of the fractions into the chitosan matrix showed an antagonistic effect.
The greater antibacterial activity demonstrated by L. ferrea fractions against S. aureus and B. cereus, and by its chitosan biofilms against S. aureus, can be attributed to the presence of phenolic compounds, which are known to exert antibacterial effects. These compounds are reported to be responsible for the biological activities of L. ferrea, among others [54]. The phenolic compounds and flavonoids present in L. ferrea can act through various mechanisms, including altering bacterial membrane permeability, leading to loss of cellular integrity [115], inhibiting intracellular enzymes and the respiratory chain [116], and binding to proteins and bacterial DNA, thereby compromising essential metabolic processes. These mechanisms explain the greater effectiveness against Gram-positive bactéria [117,118,119]. Although the aqueous fraction (ELFAq) had lower phenolic content than the ethyl acetate fraction (ELFA), the chitosan biofilm (BLFAq) with ELFAq showed better homogeneity and tensile strength. This suggests more effective intermolecular interactions between the chitosan matrix and phenolic compounds in the aqueous fraction. The antibacterial effect of the biofilm fractions suggests that the active principles diffused more from BLFAq into the nutrient agar. This is shown by the similar microbial growth inhibition zones against S. aureus and B. cereus (95% confidence, t-test for two means).
The bacteria have cell walls composed of peptidoglycan, a linear polysaccharide chain linked by tetrapeptides, which provide protection and support. Specifically, Gram-positive bacteria have thicker walls and an inner membrane, whereas Gram-negative bacteria have an outer membrane, a thinner cell wall, and an inner membrane. The outer membrane of Gram-negative bacteria, rich in lipopolysaccharides, acts as a barrier against the action of antibiotics, especially those that affect peptidoglycan synthesis, such as penicillin [53,114,120]. All samples tested were inactive against C. albicans. Further assays with more fungal strains are needed to determine selectivity [121].
The results obtained against these bacteria are relevant given the increasing mortality from infections caused by antibiotic-resistant bacteria, especially among immunocompromised patients. Notably, according to the WHO, P. aeruginosa and S. aureus are among the priority pathogens. Furthermore, the observed effect on B. cereus may contribute to the long-term treatment of gastrointestinal infections. Taken together, these results demonstrate the potential of the L. ferrea stem extract and its fractions to provide antibacterial compounds, as evidenced by bio-guided phytochemical studies on this activity [4,6,7].
Chitosan offers beneficial properties, including biodegradability, air permeability, biocompatibility, low cytotoxicity, analgesic effects, skin repair, and antimicrobial activity [104,122]. Antibacterial chitosan biofilms prepared from the ethanolic extract of L. ferrea stem bark and its fractions have shown promise for long-term biomedical use. These biofilms are effective mainly against S. aureus and B. cereus. They may serve as dressings for infectious wounds or as antimicrobial food packaging, including active packaging to prevent food contamination. Among all biofilms, the biofilm produced with the incorporation of the aqueous fraction of the L. ferrea etanolic extract was the most promising for future use as an antibacterial dressing, due to its mechanical properties and good homogeneity, both of which meet the requirements sought in dressings [104,122].
The possibility of using chitosan/L. ferrea biofilms as dressings are also promising when compared to those made with other plant extracts [38,39,40,41,42,43,44,45,46], since the results obtained support the medicinal use of L. ferrea. Ointments produced with L. ferrea bark powder demonstrated healing capacity in cutaneous wounds with a reduction in bacterial infection caused by S. aureus [93]. Given the findings of this study, antibacterial biofilms produced with L. ferrea samples, particularly the aqueous fraction, contribute to the medicinal use of this species in the treatment of infections and reinforce the potential application of these biofilms as dressings. However, to achieve these applications, chitosan films with L. ferrea require research to improve their structural properties and additional biological testing, such as cytotoxicity studies using different cell lines.

4. Materials and Methods

4.1. Collection of Plant Material

The stem bark of L. ferrea was collected in the Atlantic Forest biome in the city of Jussari—BA, Brazil (15°11′29″ S and 39°29′43″ W) on 11 December 2018 (spring, Jussari municipality, Bahia, Brazil). The specimen’s exsiccata was registered in the RADAMBRASIL Herbarium (HBS), Botanical Garden, Salvador-BA, under voucher specimen number 61850 [68].

4.2. Obtaining the Extract and Its Fractions

The ethanolic extract of the stem bark (ELF) was obtained by maceration in ethanol as described by Santana et al. (2024) [68]. To solubilize the extract, 10 g of the ethanolic extract of the stem bark of L. ferrea were transferred to a separating funnel and thoroughly mixed with 300 mL of a methanol: water solution [CH3OH:H2O (1:9)] (Methanol 99.8%, Química Moderna, Santana de Parnaíba, São Pualo, Brazil) until completely dissolved. This solution was submitted to liquid–liquid partitioning with ethyl acetate (150 mL, 3×) (Synth Labsynth, Diadema, São Paulo, Brazil), according to the methodology of OLIVEIRA et al. (2024) [93], with minor modifications. The organic fraction obtained was dried with anhydrous sodium sulfate (99.0% Synth Labsynth, Diadema, São Paulo, Brazil), and the solvent was removed by distillation under reduced pressure, in a rotary evaporator (Ika RV 10 Basic), yielding an ethyl acetate fraction, ELFA (5.96 g ± 0.28). The aqueous fraction, ELFAq, was subjected to freeze-drying (SL 404 from Solab Laboratory Equipment, Piracicaba, São Paulo, Brazil), yielding 3.40 g ± 0.20 g of this fraction.

4.3. Synthesis of Biofilms of Chitosan Incorporated with Samples of L. ferrea

Commercial chitosan (Polymar, Brazil, deacetylation degree of 87%) [123] was purified by crystallization with acetic acid (2% v v−1, 99.7% Dinâmica, Indaiatuba, São Paulo, Brazil) as described by KOC et al. (2020) [99]. Biofilms were synthesized according to Dos Santos (2024) [32], with modifications. The 100% chitosan film, without the addition of extract samples or fractions, was prepared by mixing 0.75 g of chitosan with 35 mL of acetic acid solution (of 2% v v−1), which was kept under stirring for 3 h in a magnetic stirrer (Fisatom Mod 752 A stirrer, Brazil). After this period, glycerol was added (0.0833 g, 10% v v−1) (glycerol, ACS Científica, Sumaré, São Paulo, Brazil). First, stir the mixture for another 21 h at room temperature. Next, gravity-filter the solution through Oxford cloth, then pour the filtered solution into a 20 cm-diameter polystyrene Petri dish. Finally, dry the solution at room temperature in a laminar-flow chamber (Vertical Unidirectional Flow 12—Veco Group, Campinas, São Paulo, Brazil). Similarly, chitosan films were prepared by incorporating the ethanol extract of L. ferrea stem bark and its ethyl acetate and water fractions, which were added after 23 h of stirring. Chitosan biofilms were prepared by incorporating 40% each respective of L. ferrea samples into the chitosan matrix. The following amounts were used to prepare each chitosan/L. ferrea biofilm: (a) Chitosan biofilm with ethanolic extract (BLFE): 0.45 g chitosan, 0.30 g extract; (b) Chitosan biofilm with aqueous fraction (BLFAq): 0.45 g chitosan, 0.30 g aqueous fraction; (c) Chitosan biofilm with ethyl acetate fraction (BLFA): 0.45 g chitosan, 0.30 g ethyl acetate fraction.

4.4. Antimicrobial Assay

Antimicrobial assays of L. ferrea extract and fractions were performed against the microorganisms Staphylococcus aureus (ATCC 6538), Bacillus subtilis (ATCC 6633), Bacillus cereus Frankland & Frankland (No. CCT 0198; ATCC 14579), Escherichia coli (ATCC 94863), Pseudomonas aeruginosa (No. CCT 0090; ATCC 27853), Salmonella enterica subsp. enterica serovar Typhimurium (CCT: 1478; ATCC 14028), Candida albicans (ATCC 18804). The microorganisms were obtained from the Tropical Culture Collection (CCT) of the André Tosello Foundation, Campinas, São Paulo, Brazil. They were reactivated and deactivated in the Bioassay Laboratory of the Department of Exact and Earth Sciences at the State University of Bahia I, Salvador, Bahia, Brazil.

4.4.1. Microdilution Assay

The broth microdilution assay was used to determine the minimum inhibitory concentrations (MIC) of the ethanolic extract of L. ferrea stem bark (ELF), its aqueous and ethyl acetate fractions (ELFA and ELFAq), and pure chitosan, according to the Clinical and Laboratory Standards Institute (CLSI, 2020) [124] with modifications [68]. Only the experimental conditions will be described, as the microdilution assay methodology was identical to that reported in the literature [68]. The concentration of the stock solution in H2O-DMSO (20% v/v; DMSO: Synth 99.9%, São Paulo, Brazil) was 2000 µg mL−1 for the sample. In the experiment, the concentration range used for the sample was 500 to 3.9 µg mL−1.
The media used for the maintenance and cultivation of microorganisms were nutrient broth (NB) for bacteria (Acumedia, Lansing, MI, USA) and yeast and malt broth (YMB) for fungi (Acumedia, Brazil). Stock solutions, at a concentration of 200 µg mL−1, of tetracycline (Sigma-Aldrich, Chaoyang District, Beijing, China), gentamicin (Gibco, Pudong District, Shanghai, China), and ciclopirox olamine (EMS, Hortolância, São Paulo, Brazil) were used in experiments with Gram-positive bacteria, Gram-negative bacteria, and fungi, respectively. The initial inoculum for the experiment was turbidity at 0.5 McFarland scale. Bacteria and fungi were incubated in a BOD incubator (Bacteria: BOD incubator Quimis; Q315M, Diadema, São Paulo, Brazil). Fungi: Incubator Tecnal; TE371, Piracicaba, São Paulo, Brazil) at 37 °C (24 h), and fungi at 26 °C (72 h). After this period, the minimum inhibitory concentration (MIC) was visually determined. The minimum bactericidal concentration (MBC) and minimum fungicidal concentration (MFC) values were obtained as described in the literature [68].

4.4.2. Agar Diffusion Assay

The antimicrobial activity of chitosan biofilms, both without (BCH100, pure chitosan film) and with the incorporation of the extract and its fractions (BLFE, BLFAq, and BLFA), as well as that of the extract and their fractions, was determined using the agar diffusion method. This followed the procedure described by DOS SANTOS et al. (2024) [32]. 20 mL of nutrient agar (NA) culture medium (Acumedia, Lansing, MI, USA) was transferred to a Petri dish (9 × 10 cm). After the medium solidified, 300 µL of the microorganism inoculum [turbidity 0.5 on the McFarland scale (~0.5 × 108 CFU/mL)] was added, and the inoculum was uniformly spread using a Drigalski loop. Immediately after seeding, wells with a 6 mm diameter were drilled into the medium. In these wells, 20 µL of the stock solutions of the extract, fractions, and chitosan (8000 µg mL−1) and the antibiotics tetracycline (10 µg mL−1), gentamicin (400 µg mL−1), and ciclopirox olamine (200 µg mL−1) were added. To accommodate the agar diffusion assay with biofilms, some adaptations were made. Specifically, the biofilms were cut into discs (6 mm in diameter) and transferred to the solid medium inoculated with the microorganism. Following this, all plates were properly sealed and incubated (bacteria for 24 h at 37 °C and fungi for 72 h at 26 °C) in a BOD incubator (Bacteria: Quimis; Q315M. Fungi: Tecnal; TE371). After the incubation period, the inhibition zones were measured with a millimeter ruler. The entire experiment was conducted in triplicate, and standard deviation values were obtained.

4.5. Determination of Total Phenolics

The determination of the total phenolic of the ethanolic extract of L. ferrea stem bark and its fractions in ethyl acetate and water was carried out using Folin–Ciocalteu spectrophotometric method, according to the literature [32,68]. The reagents and solvents used in these methods were methanol (99.8%, Química Moderna, Santana de Parnaíba, São Pualo, Brazil), Folin–Ciocalteu reagent (Merck, Darmstadt, Germany), sodium carbonate (99.5%, Synth Labsynth, Diadema, São Paulo, Brazil); gallic acid (Vetec Sigma Aldrich 98%, Duque de Caxias, Rio de Janeiro, Brazil). Total Phenolics: a 20 µL aliquot of a methanolic solution of the sample (extract or fraction) (1 mg mL−1) was transferred to wells of a 96-well microplate. To these wells, 20 µL of aqueous Folin–Ciocalteu reagent solution (10% v v−1), 60 µL of aqueous sodium carbonate solution (7.5% m v−1), and 200 µL of distilled water were added. The microplate was then incubated for 20 min at room temperature, protected from light. After incubation, readings were taken at 760 nm using a UV/VIS spectrophotometer (LMR 96, Loccus, Cotia, São Paulo, Brazil). The calibration curve was constructed similarly with gallic acid at concentrations of 1, 2, 4, 6, 8, 10, 15, 20, 40, and 60 µg mL−1.

4.6. Sample Characterization

4.6.1. Nuclear Magnetic Resonance Analysis

The aqueous and ethyl acetate fractions, obtained from the ethanolic extract of the stem bark of L. ferrea, were subjected to Nuclear Magnetic Resonance analysis. The equipment used was the Bruker AVANCE III 9.4 Tesla (400 MHz) from the Nuclear Magnetic Resonance Laboratory of the Organic Chemistry Department at the Federal University of São Carlos (UFSCar). The samples were solubilized in deuterated methanol.

4.6.2. Fourier Transform Infrared Spectroscopy (FTIR) Analysis

FTIR data from extract samples, fractions, chitosan, and chitosan biofilms with and without the incorporation of L. ferrea samples were acquired on a Fourier Transform Infrared Spectrometer (FTIR) (Perkin Elmer Spectrum Two FTIR model), in the range of 4000–450 cm−1 (resolution of 4 cm−1), in attenuated total radiation (ATR) mode, with an accumulation of 8 scans.

4.6.3. Thermal Properties of Chitosan Biofilms and Chitosan/L. ferrea Biofilms

Thermogravimetric data for the extract, L. ferrea fractions, chitosan, and chitosan-based biofilms were collected using a DTG-60H Analyzer (SHIMADZU, Nishinokyo-Kuwabara-cho, Kyoto, Japão). Samples were heated from 25 to 800 °C under nitrogen at 50 mL min−1 and 10 °C min−1, in an aluminum crucible.

4.6.4. Microstructure Analysis of Chitosan Biofilms and Chitosan/L. ferrea Biofilms

Morphological analyses of chitosan biofilms with and without the incorporation of L. ferrea were performed using a Scanning Electron Microscope (JSM-6610LV, Jeol, Oxford Instruments, Pleasanton, CA, USA). The samples were covered with a thin layer of gold (Denton Vacuum, Desk V). The operating conditions were: accelerometer voltage: 10KV; sensor/sample distance: WD10 mm; magnification: ×80, ×300, and ×1800. Energy-dispersive spectroscopy (EDS) was also performed at x1000 magnification to determine the composition of the samples’ surface layers, which were processed using AZtec software (AZtec 3.3 SP1).

4.6.5. Thickness of Chitosan Biofilms and Chitosan/L. ferrea Biofilms

Biofilm thickness, with and without the L. ferrea sample, was measured using a digital micrometer (Aquibras). Ten measurements from different regions were taken for each biofilm, and their arithmetic mean, reported in millimeters (mm), was calculated.

4.6.6. Mechanical Properties of Chitosan Biofilms and Chitosan/L. ferrea Biofilms

Mechanical testing of chitosan biofilms, with and without ethanolic extract and L. ferrea fractions, was conducted using a scanning electron microscope (EMIC, DL-200 MF, Brazil). Ten specimens were used to analyze rupture strength (N) and stress (MPa). Test parameters were: speed of 500 mm/min, return speed of 100 mm/min, tensile strength limit of 100 N, and strain limit of 200 mm.

4.7. Biodegradability of Chitosan Biofilms and Chitosan/L. ferrea Biofilms

The soil biodegradation assay was conducted according to Oberlintner et al. (2020) [110] and De Carli et al. (2022) [125], with a few modifications. The soil used in the experiment was collected on campus I of the State University of Bahia (−12.951944, −38.459714). The biofilm samples were cut into fragments (2 cm × 3 cm) and buried in the soil, approximately 5 cm deep, in polystyrene vessels. The initial masses of the biofilms (Mi) were measured before immersion in soil. The samples were then incubated at 26 ± 1 °C for 25 days in a climate-controlled chamber, with 10 mL of water added on alternate days to moisten the soil. After incubation, biofilms were cleaned with a soft brush, rinsed with distilled water, dried at room temperature, and their final masses (Mf) were recorded. The experiment was conducted in triplicate.
The biofilm biodegradation assay in water was continuous [125,126]. First, the initial masses (Mi) of biofilm fragments (2 cm × 3 cm) were obtained. Next, these fragments were immersed in 30 mL of water and incubated in a climate-controlled chamber at 26 ± 1 °C. After 25 days of incubation, the samples were removed from the aqueous medium. Then, surface water was removed with filter paper. Finally, the samples were placed in an oven at 50 °C to dry and determine their final masses (Mf). The percentage of biodegradation in soil and water was calculated gravimetrically using the equation. Biodegradation = [(Mi − Mf)/Mi] × 100 [125,127].

5. Conclusions

This study reinforces the antibacterial potential of chitosan biopolymers incorporating extracts and fractions of L. ferrea, a medicinal plant. To advance this research, further studies are needed to purify and structurally identify the main secondary metabolites of the ethanolic extract from the stem bark. Additionally, it is necessary to improve the mechanical properties of the biofilms by incorporating the extract and fraction ethyl acetate without affecting their antibacterial activities. However, the chitosan film incorporating the aqueous fraction showed the greatest potential for biomedical applications. Together, these efforts will enable their long-term application as a dressing or antibacterial packaging.

Supplementary Materials

The following supporting information can be downloaded at: https://www.mdpi.com/article/10.3390/molecules31091392/s1. Figure S1: 1H NMR spectra (CD3OD, 400 MHz), (a) Ethanolic extract of L. ferrea stem bark (ELFA); (b) Ethyl acetate fractions of the ethanolic extract (ELFA); and (c) Aqueous fraction of the ethanolic extract (ELFAq); Figure S2: Energy dispersive spectroscopy spectra of biofilms.

Author Contributions

Conceptualization, A.V.d.S., M.d.G.P., R.L.L. and L.C.d.S.N.; methodology, A.S.d.J., A.N.S., H.C.M.d.R., S.A.A.L., H.C.M.d.R., V.H.M., S.A.A.L. and L.C.d.S.N.; formal analysis, A.S.d.J., A.N.S. and L.C.d.S.N.; investigation, A.S.d.J., A.N.S., H.C.M.d.R., L.C.d.S.N., M.d.G.P. and V.H.M.; writing—original draft preparation, L.C.d.S.N., A.V.d.S., M.d.G.P., G.R.G.d.S.W. and A.S.d.J.; writing—review and editing, L.C.d.S.N., A.V.d.S., M.d.G.P., G.R.G.d.S.W. and H.C.M.d.R.; supervision, L.C.d.S.N. and A.V.d.S.; project administration, L.C.d.S.N. All authors have read and agreed to the published version of the manuscript.

Funding

This research received no external funding. The results were obtained through partnerships.

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Data Availability Statement

The data presented in the manuscript can be requested from the authors via email.

Acknowledgments

The authors thank the Bahia State Research Support Foundation (FAPESB, in Portuguese), the Coordination for the Improvement of Higher Education Personnel (CAPES, in Portuguese), and the Bahia Nuclear Magnetic Resonance Laboratory (LABAREMN-UFBA, in Portuguese). They also acknowledge the Nuclear Magnetic Resonance Laboratory of the Organic Chemistry Department of the Federal University of São Carlos (UFSCar, in Portuguese), the Multi-User Electron Microscopy Laboratory (LAMUME-IF/UFBA, in Portuguese), and the Chemistry laboratories’ infrastructure at the State University of Bahia (UNEB, in Portuguese).

Conflicts of Interest

The authors declare no conflicts of interest.

References

  1. Kuloğlu, T.O.; Unuvar, G.K.; Cevahir, F.; Kilic, A.U.; Alp, E. Risk factors and mortality rates of carbapenem-resistant Gram-negative bacterial infections in intensive care units. J. Intensive Med. 2024, 4, 347–354. [Google Scholar] [CrossRef] [PubMed]
  2. Vitello, A.; Zovi, A.; Sabbatucci, M.; Fabbro, E.; Ricciardi, W.; Villani, L.; Rezza, G.; Boccellino, M.; Capuano, A.; Rossi, F.; et al. Intervention studies and antimicrobial resistance in Italy: An overview of the latest evidence. J. Glob. Antimicrob. Resist. 2026, 46, 288–296. [Google Scholar] [CrossRef]
  3. Gbd, 2021 Antimicrobial Resistance Collaborators. Global burden of bacterial antimicrobial resistance 1990–2021: A systematic analysis with forecasts to 2050. Lancet 2024, 404, 1199–1226.
  4. Kim, H.-K.; Han, S.-J.; Cho, Y.-S.; Park, H.-H. Antibacterial and antifogging nanopillar array films: Targeted efficacy against Staphylococcus aureus. ACS Appl. Polym. Mater. 2024, 6, 2836–2848. [Google Scholar] [CrossRef]
  5. Manjhi, M.K.; Chauhan, P.; Upadhyaya, C.P.; Singh, A.K.; Anupam, R. Mechanism of antibacterial activity of diallyl sulfide against Bacillus cereus. J. Ayurveda Integr. Med. 2024, 15, 100951. [Google Scholar] [CrossRef]
  6. Pompilio, A.; Kaya, E.; Lupetti, V.; Catelli, E.; Bianchi, M.; Maisetta, G.; Esin, S.; Di Bonaventura, G.; Batoni, G. Cell-free supernatants from Lactobacillus strains exert antibacterial, antibiofilm, and antivirulence activity against Pseudomonas aeruginosa from cystic fibrosis patients. Microbes Infect. 2024, 26, 105301. [Google Scholar] [CrossRef]
  7. Song, Y.; Zhang, S.; Zhao, N.; Nong, C.; He, Y.; Bao, R. Pseudomonas aeruginosa two-component system CprRS regulates HigBA expression and bacterial cytotoxicity in response to LL-37 stress. PLoS Pathog. 2024, 20, e1011946. [Google Scholar] [CrossRef] [PubMed]
  8. World Health Organization (WHO). Antimicrobial resistance. In WHO Fact Sheet; World Health Organization (WHO): Geneva, Switzerland, 2023. [Google Scholar]
  9. Ghanadi, M.; Milke, M.; Larcher, S.; Mackey, H.R.; Bello-Mendoza, R. Critical review of antimicrobials, antimicrobial resistance, and their associated genes in decentralized wastewater treatment systems. J. Environ. Chem. Eng. 2026, 14, 121039. [Google Scholar] [CrossRef]
  10. Xuan, J.; Feng, W.; Wang, J.; Wang, R.; Zhang, B.; Bo, L.; Chen, Z.-S.; Yang, H.; Sun, L. Antimicrobial peptides for combating drug-resistant bacterial infections. Drug Resist. Updat. 2023, 68, 100954. [Google Scholar] [CrossRef]
  11. Shan, J.; Jin, X.; Zhang, C.; Huang, M.; Xing, J.; Li, Q.; Cui, Y.; Niu, Q.; Chen, X.L.; Wang, X. Metal natural product complex Ru-procyanidins with quadruple enzymatic activity combat infections from drug-resistant bacteria. Acta Pharm. Sin. B 2024, 14, 2298–2316. [Google Scholar] [CrossRef]
  12. Goel, H.; Kumar, R.; Tanwar, P.; Upadhyay, T.K.; Khan, F.; Pandey, P.; Kang, S.; Moon, M.; Choi, J.; Choi, M.; et al. Unraveling the therapeutic potential of natural products in the prevention and treatment of leukemia. Biomed. Pharmacother. 2023, 160, 114351. [Google Scholar] [CrossRef] [PubMed]
  13. Newman, D.J.; Cragg, G.M. Natural products as sources of new drugs over the nearly four decades from 01/1981 to 09/2019. J. Nat. Prod. 2020, 83, 770–803. [Google Scholar] [CrossRef]
  14. Tao, T.; Zhang, P.; Wang, M. Advances in autophagy modulation of natural products in cervical cancer. J. Ethnopharmacol. 2023, 314, 116575. [Google Scholar] [CrossRef]
  15. Thomas, S.D.; Jha, N.K.; Jha, S.K.; Sadek, B.; Ojha, S. Pharmacological and molecular insight on the cardioprotective role of apigenin. Nutrients 2023, 15, 385. [Google Scholar] [CrossRef] [PubMed]
  16. Chen, Z.; Li, M.; Guo, Y.; Li, J.; Wei, C.; Han, J.; Liu, C.; Bai, J.; Yang, Y. Discovery of natural agents against Staphylococcus aureus based on EIIC by protein modeling, virtual screening and molecular dynamics. LWT 2024, 198, 115914. [Google Scholar] [CrossRef]
  17. Dong, Y.; Yang, C.; Zhong, W.; Shu, Y.; Zhang, Y.; Yang, D. Antibacterial effect and mechanism of anthocyanin from Lycium ruthenicum Murr. Front. Microbiol. 2022, 13, 974602. [Google Scholar] [CrossRef]
  18. Wen, Q.-H.; Wang, R.; Zhao, S.-Q.; Chen, B.-R.; Zeng, X.-A. Inhibition of biofilm formation of foodborne Staphylococcus aureus by the citrus flavonoid naringenin. Foods 2021, 10, 2614. [Google Scholar] [CrossRef]
  19. Zhang, W.; Bai, J.; Qin, B.; Chen, W.; Chen, Y.; Tong, S. Ellagic acid screened from Rosa rugosa cv. ‘Plena’: Antibacterial mechanism against Staphylococcus aureus and application in leafy vegetable preservation. Food Chem. 2026, 509, 148582. [Google Scholar] [CrossRef]
  20. Petruskevicius, A.; Viskelis, J.; Urbonaviciene, D.; Viskelis, P. Anthocyanin Accumulation in Berry Fruits and Their Antimicrobial and Antiviral Properties: An Overview. Horticulturae 2023, 9, 288. [Google Scholar] [CrossRef]
  21. Ma, Y.; Ding, S.; Fei, Y.; Liu, G.; Jang, H.; Fang, J. Antimicrobial activity of anthocyanins and catechins against foodborne pathogens Escherichia coli and Salmonella. Food Control 2019, 106, 106712. [Google Scholar] [CrossRef]
  22. Agarwal, M.; Ganesan, R.; Dutta, J.R. Functional nanomaterials in combating antimicrobial resistance: Innovations in wound dressings and biomedical implants. Nano Trends 2026, 13, 100174. [Google Scholar] [CrossRef]
  23. Yang, M.; Zhang, F.; Jing, Z.; Wang, W.; Feng, G.; Liu, X.; Wang, L.; Wang, C.; Liu, L.; Xu, L. Recent advances in antibacterial fibers and fabrics: Mechanism, materials, fabrication and applications. Chem. Eng. J. 2026, 531, 174110. [Google Scholar] [CrossRef]
  24. Li, D.; Li, Z.H.; Yang, S.; Ampomah-Wireko, M.; Amengor, C.D.K.; Wang, Y.N.; Zhang, E. Phototherapeutic antibacterial applications of AIE-active antibiotic photosensitizer. Bioorg. Chem. 2026, 170, 109542. [Google Scholar] [CrossRef]
  25. Yudaev, P.; Tupikov, A.; Chistyakov, E. Organocyclophosphazenes and materials based on them for pharmaceuticals and biomedicine. Biomolecules 2025, 15, 262. [Google Scholar] [CrossRef] [PubMed]
  26. Tamboura, B.; Yudaev, P.; Butorova, I.; Klyukin, B.; Chuev, V.; Chistyakov, E. Hexaallylaminocyclotriphosphazene-modified dental compositions for 3D printing of dental crowns. Polymers 2026, 18, 53. [Google Scholar] [CrossRef] [PubMed]
  27. Deng, H.; Zhang, S.; Fu, Y.; Dong, N.; Bi, C.; Shan, A.; Shao, C. Advances in the delivery and application of antimicrobial peptide-based nanomaterials. Chem. Eng. J. 2024, 496, 154232. [Google Scholar] [CrossRef]
  28. Magdy, G.; Elattar, R.H.; Abdel Salam, R.A.; Hadad, G.M.; El-Deen, A.K. Unlocking the power of nanohybrids: A critical review on carbon nanomaterial-functionalized silver nanoparticles for advanced antimicrobial applications. Colloids Surf. B Biointerfaces 2025, 252, 114678. [Google Scholar] [CrossRef]
  29. Vadakkan, K.; Korattil, T.T.; Ramdas, V.; Vijayanand, S. Exploring the physicochemical properties of carbon dots for antibacterial applications: A comprehensive review. Next Mater. 2026, 11, 101933. [Google Scholar] [CrossRef]
  30. Behan, A.; Nateghi, L.; Rashidi, L.; Afshari, K.P. Development and characterization of biodegradable chitosan films incorporating olive and pomegranate leaf extracts for active food packaging. Appl. Food Res. 2026, 6, 101885. [Google Scholar] [CrossRef]
  31. Nasaj, M.; Chehelgerdi, M.; Asghari, B.; Ahmadieh-Yazdi, A.; Asgari, M.; Kabiri-Samani, S.; Sharifi, E.; Arabestani, M. Factors influencing the antimicrobial mechanism of chitosan action and its derivatives: A review. Int. J. Biol. Macromol. 2024, 277, 134321. [Google Scholar] [CrossRef]
  32. Dos Santos, A.V.; Santos, R.N.; Santana, A.N.; Santos, J.A.; Torquato, S.J.C.; Pereira, M.G.; Santos, L.F.G.; Lassarote, L.R.; Malta, M.; Dos Santos, G.S.; et al. Antimicrobial potential of chitosan films incorporated with alcoholic extract from Mimosa tenuiflora leaves. Chem. Biodivers. 2024, 22, e202400645. [Google Scholar] [CrossRef] [PubMed]
  33. Másson, M. The quantitative molecular weight–antimicrobial activity relationship for chitosan polymers, oligomers, and derivatives. Carbohydr. Polym. 2024, 337, 122159. [Google Scholar] [CrossRef] [PubMed]
  34. El-araby, A.; Janati, W.; Ullah, R.; Ercisli, S.; Errachidi, F. Chitosan, chitosan derivatives, and chitosan-based nanocomposites: Eco-friendly materials for advanced applications (a review). Front. Chem. 2024, 11, 132746. [Google Scholar]
  35. Ianniciello, D.; Montosa, A.P.; De Melo, B.R.; Villén, F.G.; Salvia, R.; Scieuzo, C.; Viseras, C.; Falabella, P. Development of chitosan-clay nanocomposite films from Hermetia illucens: Analysis of chemical, physical, and mechanical properties. Int. J. Biol. Macromol. 2025, 311, 143496. [Google Scholar] [CrossRef]
  36. Eranda, D.H.U.; Chaijan, M.; Panpipat, W.; Karnjanapratum, S.; Cerqueira, M.A.; Castro-Muñoz, R. Gelatin–chitosan interactions in edible films and coatings doped with plant extracts for biopreservation of fresh tuna fish products: A review. Int. J. Biol. Macromol. 2024, 280, 135661. [Google Scholar]
  37. Velázquez-Hernández, A.M.; Martínez-Gallegos, S.; Albiter, V.; González-Juárez, J.C.; García-Ibarra, C. Synthesis of an antimicrobial chitosan film impregnated with ZnO nanoparticles phytosynthesized with Ruta graveolens plant extract. Microb. Pathog. 2025, 200, 107268. [Google Scholar] [CrossRef] [PubMed]
  38. Alves, R.D.N.; Grisi, C.V.B.; Araújo, R.N.; Ferreira, R.D.S.B.; Pereira, E.M.; Cavalcanti, M.T.; Silva, W.P.D.; Gonçalves, M.C. Development and characterization of pink pepper extract incorporated chitosan, guar gum, gelatin, and palm mucilage based active film for sustainable food packaging applications. Int. J. Biol. Macromol. 2025, 328, 147559. [Google Scholar] [CrossRef]
  39. Shokri, S.; Yeganegi, M.; Alikord, M.; Rezagholizade-Shirvan, A. Biological control of postharvest spoilage and diseases in apples caused by pathogens, using plant extracts in collaboration with a chitosan-based coating. Food Chem. 2025, 29, 102849. [Google Scholar]
  40. Soufiani, S.P.; Yousefi, S.; Honarvar, M.; Weisany, W.; Gholamhassan, A. Bioactive chitosan packaging films with encapsulated beet leaf extract for preserving chicken fillets. Food Chem. 2025, 32, 103335. [Google Scholar]
  41. Bonilla, J.; Sobral, P.J.A. Investigation of the physicochemical, antimicrobial and antioxidant properties of gelatin–chitosan edible film mixed with plant ethanolic extracts. Food Biosci. 2016, 16, 17–25. [Google Scholar] [CrossRef]
  42. Bajic, M.; Ročnik, T.; Oberlintner, A.; Scognamiglio, F.; Novak, U.; Likozar, B. Natural plant extracts as active components in chitosan-based films: A comparative study. Food Packag. Shelf Life 2019, 21, 100365. [Google Scholar] [CrossRef]
  43. Le, X.-T.; Nguyen, Q.S.; Nguyen, M.-T.K.; Nguyen, T.Q.N. Enhancement of chitosan/gelatin biodegradable films with cashew nut skin extract and Ocimum gratissimum L. essential oil for active food packaging. Food Packag. Shelf Life 2026, 47, 101395. [Google Scholar]
  44. Sun, L.-K.; Du, T.; Zhou, P.-R.; Zhang, Y.; Zheng, Y.Z. NADES-extracted tea stem polyphenols as multifunctional additives in chitosan films for shrimp preservation. LWT 2026, 239, 118941. [Google Scholar] [CrossRef]
  45. Filipini, G.S.; Romani, V.P.; Martins, V.G. Biodegradable and active-intelligent films based on methylcellulose and jambolão skins extract. Food Hydrocoll. 2020, 109, 106139. [Google Scholar] [CrossRef]
  46. Silva, A.C.; Lemos, A.S.O.; Campos, L.M.; Fabri, R.L.; Costa, F.F.; Silva, J.G.; Vilela, F.M.P.; Tavares, G.D.; Rodarte, M.P.; Denadai, A.M.L. Development of chitosan film containing Coffea arabica extract. Mater. Today Commun. 2024, 38, 108503. [Google Scholar] [CrossRef]
  47. Rolińska, K.; Jakubowska, E.; Łęczycka-Wilk, K.; Żmieńko, M.; Mania, S.; Banach-Kopeć, A. Chitosan-based films embedded with deep eutectic solvent and fruit peel extract for food packaging applications. Ind. Crops Prod. 2025, 236, 121895. [Google Scholar] [CrossRef]
  48. Sarraf-ov, N.; Awlqadr, F.H.; Abdalla, K.R.; Hashemi, H.; Rouhi, M.; Mohammadi, R.; Ebrahimi, B. Characterization of gelatin-chitosan films incorporated with Nicotiana tabacum extract nanoliposomes for food packaging applications. Int. J. Biol. Macromol. 2025, 311, 143701. [Google Scholar] [CrossRef]
  49. Rahman, M.H.; Mondal, M.I.H. Investigation of neem-oil-loaded PVA/chitosan biocomposite film for hydrophobic dressing, rapid hemostasis and wound healing applications. Int. J. Biol. Macromol. 2025, 316, 144712. [Google Scholar]
  50. Passos, M.R.; Almeida, R.S.; Lima, B.O.; Rodrigues, J.Z.S.; de Macêdo Neres, N.S.; Pita, L.S.; Marinho, P.D.F.; Santos, I.A.; da Silva, J.P.; Oliveira, M.C.; et al. Anticariogenic activities of Libidibia ferrea, gallic acid and ethyl gallate against Streptococcus mutans in biofilm model. J. Ethnopharmacol. 2021, 274, 114059. [Google Scholar] [CrossRef]
  51. Sampaio, F.C.; Pereira, M.S.; Dias, C.S.; Costa, V.C.; Conde, N.C.; Buzalaf, M.A. In vitro antimicrobial activity of Caesalpinia ferrea Martius fruits against oral pathogens. J. Ethnopharmacol. 2009, 124, 289–294. [Google Scholar] [CrossRef]
  52. Dias, A.M.A.; Rey-Rico, A.; Oliveira, R.A.; Marceneiro, S.; Alvarez-Lorenzo, C.; Concheiro, A.; Júnior, R.N.C.; Braga, M.E.M.; De Sousa, H.C. Wound dressings loaded with an anti-inflammatory jucá (Libidibia ferrea) extract using supercritical carbon dioxide technology. J. Supercrit. Fluids 2013, 74, 34–45. [Google Scholar] [CrossRef]
  53. Luna, M.S.M.; De Paula, R.A.; Brandão Costa, R.M.P.; dos Anjos, J.V.; da Silva, M.V.; Correia, M.T.S. Bioprospection of Libidibia ferrea var. ferrea. S. Afr. J. Bot. 2020, 130, 103–108. [Google Scholar] [CrossRef]
  54. Luna, M.S.M.; Costa, R.F.; Araujo, S.S.; Araujo, J.R.S.; Miranda, P.H.O.; Veras, B.O.; Oliveira, F.G.S.; Harand, W.; Silva, C.E.S.; Carvalho, M.E.T.; et al. Chemical composition of Libidibia ferrea aqueous extract. S. Afr. J. Bot. 2022, 148, 336–343. [Google Scholar] [CrossRef]
  55. Magno-Silva, E.R.; Teixeira, T.; Martins, T.; Caldeira, A.C. Ethnobotany and ethnopharmacology of medicinal plants used in communities of the Soure Marine Extractive Reserve, Pará State, Brazil. Boletín Latinoam. Caribe Plantas Med. Aromáticas 2020, 19, 29–64. [Google Scholar]
  56. Falcão, T.R.; de Araújo, A.A.; Soares, L.A.L.; de Farias, I.B.; da Silva, W.A.V.; Ferreira, M.R.A.; de Araújo, R.F., Jr.; de Medeiros, J.S.; Lopes, M.L.D.S.; Guerra, G.C.B. Libidibia ferrea: Libidibia ferrea Fruit Crude Extract and Fractions Show Anti-Inflammatory, Antioxidant, and Antinociceptive Effect In Vivo and Increase Cell Viability In Vitro. Evid.-Based Complement. Altern. Med. 2019, 21, 6064805. [Google Scholar]
  57. Ferreira, M.R.A.; Fernandes, M.T.M.; Da Silva, W.A.V.; Bezerra, I.C.F.; de Souza, T.P.; Pimentel, M.F.; Soares, L.A. Chromatographic and spectrophotometric analysis of phenolic compounds from fruits of Libidibia ferrea Martius. Pharmacogn. Mag. 2012, 12, S285–S291. [Google Scholar]
  58. Guerra, A.C.V.D.A.; Soares, L.A.L.; Ferreira, M.R.A.; Araújo, A.A.; Rocha, H.A.O.; Medeiros, J.S.; Cavalcante, R.D.S.; de Araújo Júnior, R.F. Libidibia ferrea presents antiproliferative, apoptotic and antioxidant effects in a colorectal cancer cell line. Biomed. Pharmacother. 2017, 92, 696–706. [Google Scholar] [CrossRef] [PubMed]
  59. Falcão, T.R.; Rodrigues, C.A.O.; de Araújo, A.A.; de Medeiros, C.A.C.X.; Soares, L.A.L.; Ferreira, M.R.A.; Vasconcelos, R.C.; de Araújo Júnior, R.F.; de Sousa, L.M.D.; Guerra, G.C.B. Crude extract from Libidibia ferrea (Mart. ex Tul.) L.P. Queiroz leaves decreased intra-articular inflammation induced by zymosan in rats. BMC Complement. Altern. Med. 2019, 19, 1. [Google Scholar] [CrossRef]
  60. Pickler, T.B.; Lopes, K.P.; Magalhães, S.A.; Krueger, C.M.A.; Martins, M.M.; Filho, V.C.; Jozala, A.F.; Grotto, D.; Gerenutti, M. Effect of Libidibia ferrea bark and seed in maternal reproductive and biochemical outcomes and fetal anomaly in rats. Birth Defects Res. 2019, 111, 871. [Google Scholar] [CrossRef]
  61. Costa, R.F.; Silva, M.T.S.C.; Santos, M.D.C.; Coelho, L.C.D.B.; Napoleão, T.H.; Paiva, P.M.G. A new thermostable, non-cytotoxic and non-genotoxic lectin purified from pod of Libidibia ferrea var. ferrea (LifePL). S. Afr. J. Bot. 2024, 169, 38–45. [Google Scholar] [CrossRef]
  62. De Macedo, A.R.S.; Oliveira, J.F.A.; Sommerfeld, S.; Notário, F.O.; Martins, M.M.; Bastos, L.M.; Bezerra, B.G.P.; Lisboa, L.S.; Rocha, H.A.O.; Araujo, R.M.; et al. Unlocking the power of Libidibia ferrea extracts: Antimicrobial, antioxidant, and protective properties for potential use in poultry production. Poult. Sci. 2024, 103, 103668. [Google Scholar] [CrossRef]
  63. Da Silva, K.S.; Oliveira, F.G.S.; De Miranda, P.H.O.; De Santana, E.S.; De Souza, Z.N.; Amorim, L.C.; Da Silva, R.S. Phytotherapeutic properties of the Caesalpinia genus present in the Caatinga biome. Sci. Electron. Arch. 2021, 14, 6. [Google Scholar] [CrossRef]
  64. Nawwar, M.A.; Hussein, S.A.M.; El-Mousallamy, A.M.D.; Souleman, A.M.A.; Hashim, A.N.; El-Senousy, A.N.; Barakat, H.H. Phenolics from Caesalpinia ferrea Mart.: Antioxidant, cytotoxic and hypolipidemic activity. Pharmazie 2015, 70, 553–558. [Google Scholar]
  65. Pedrosa, T.D.; Barros, A.O.; Nogueira, J.R.; Fruet, A.C.; Rodrigues, I.C.; Calcagno, D.Q.; Smith, M.A.C.; De Souza, T.P.; Barros, S.B.M.; De Vasconcellos, M.C.; et al. Anti-wrinkle and anti-whitening effects of jucá (Libidibia ferrea Mart) extracts. Arch. Dermatol. Res. 2016, 308, 643–654. [Google Scholar] [CrossRef] [PubMed]
  66. Hussein, S.A.M.; El-Mesallamy, A.M.D.; Souleman, A.M.A.; Mousa, M.A. Cytotoxic activity of bioactive compound from Caesalpinia ferrea Martius, Fabaceae. Int. J. Pharmacogn. Phytochem. Res. 2016, 8, 2080–2084. [Google Scholar]
  67. Carvalho, R.; Bonfá, I.S.; Muller, J.A.I.; Pando, S.C.; Toffoli-Kadri, M.C.; Bezerra, F.C.A. Protease inhibitor from Libidibia ferrea seeds attenuates inflammatory and nociceptive responses in mice. J. Ethnopharmacol. 2023, 300, 115694. [Google Scholar] [CrossRef]
  68. Santana, A.N.; Pereira, L.F.; Costa, R.M.; Oliveira, T.P.; Silva, R.M.; Andrade, J.C. Influence of seasonality on Libidibia ferrea properties. Heliyon 2024, 10, e30632. [Google Scholar] [CrossRef] [PubMed]
  69. Botelho, J.; Carvalho, R.; de Sousa, H.C.; Braga, M. Sequential extraction of chalcones from Libidibia ferrea Mart. fruits by green pressurised fluids. J. Supercrit. Fluids. 2026, 228, 106767. [Google Scholar] [CrossRef]
  70. Venâncio, G.N.; Souza, W.M.; Sampaio, F.C.; Bandeira, M.F.C.L.; De Vasconcellos, M.C.; De Souza, T.P.; Toda, C.; Conde, N.C.O. Cytotoxicity and antimicrobial activity of mouthwash obtained from the extract of Libidibia ferrea Mart. Braz. J. Dev. 2020, 6, 69828–69841. [Google Scholar]
  71. Silva, D.; Sampaio, P.T.B.; Osorio, M.I.C.; Fachin-Espinar, M.T.; Nunez, C.V. Prospecting phytochemical and biological of seedling extract of Libidibia ferrea (Fabaceae) produced from in vitro propagation. In Biotechnological Production of Bioactive Phytochemicals of Medicinal Value; Kishor, P.B.K., Pullaiah, T., Suprasanna, P., Rao, A.R., Romano, A., Eds.; Elsevier: Amsterdam, The Netherlands, 2024; pp. 147–161. [Google Scholar]
  72. Jozala, A.F.; Santos, J.R.; Dos Santos, G.R.; Viroel, F.J.M.; Pickler, T.B.; Dos Santos, C.A.; Rebelo, M.A.; Chaud, M.V.; Hataka, A.; Grotto, D.; et al. Libidibia ferrea loaded in bacterial nanocellulose. Braz. J. Dev. 2020, 6, 6212–6226. [Google Scholar] [CrossRef]
  73. Parente, J.C.; Pinto, T.S. A utilização do jucá (Libidibia ferrea) como agente antimicrobiano: Uma revisão da literatura. Cognitionis Sci. J. 2024, 7, e465. [Google Scholar] [CrossRef]
  74. Ferreira, M.R.A.; Santiago, R.R.; Silva-Rocha, W.P.; De Souza, L.B.F.C.; Faria, M.G.I.; De Mello, J.C.P.; Langassner, S.M.Z.; Chaves, G.M.; Milan, E.P.; Svidzinski, T.I.E.; et al. In vitro antifungal activity and phytochemical characterization of Eugenia uniflora, Libidibia ferrea and Psidium guajava. Braz. J. Pharm. Sci. 2020, 56, e18456. [Google Scholar] [CrossRef]
  75. Alves, P.L.M.; De Borba, M.W.; Machado, G.P.; Chacon, A.C.S.; Simões, L.O.; Pickler, T.B.; Grotto, D.; Jozala, A.F. Atividade antimicrobiana da nanocelulose bacteriana contendo Caesalpinia ferrea. Obs. Econ. Latinoam. 2024, 22, e4332. [Google Scholar] [CrossRef]
  76. Kamatham, S.; Kumar, N.; Gudipalli, P. Isolation and characterization of gallic acid and methyl gallate. Toxicol. Rep. 2015, 2, 520–529. [Google Scholar] [CrossRef]
  77. Makule, E.E.; Kraus, W.; Mdee, L.K.; Mbwambo, Z.H.; Moshi, M.J. Dioic acid glycosides and tannins from Morella salicifolia. Phytochem. Lett. 2018, 28, 76–83. [Google Scholar] [CrossRef]
  78. Vigbedor, B.Y.; Annan, K.; Mensah, M.L.; Dickson, R.A.; Fleischer, T.C. Isolation of 3,3-di-O-methyl ellagic acid from Afzelia africana. Sci. Afr. 2022, 17, e01332. [Google Scholar]
  79. Ouedraogo, J.C.W.; Henoumont, C.; Semay, I.; Kini, F.B.; Laurent, S.; Gerbaux, P.; Bonzi-Coulibaly, Y.L. Flavonoid glycosides from Odontonema strictum leaves. Heliyon 2024, 10, e37273. [Google Scholar] [CrossRef] [PubMed]
  80. Oudane, B.; Boudemagh, D.; Bounekhel, M.; Sobhi, W.; Vidal, M.; Broussy, S. Isolation, characterization, antioxidant activity, and protein-precipitating capacity of the hydrolyzable tannin punicalagin from pomegranate yellow peel (Punica granatum). J. Mol. Struct. 2018, 1156, 390–396. [Google Scholar] [CrossRef]
  81. Jia, S.; Zhang, Y.; Liu, Q.; Wang, L.; Chen, R.; Li, X. Efficient and green production of flavone-5-O-glycosides. Int. J. Biol. Macromol. 2024, 277, 134477. [Google Scholar] [CrossRef]
  82. Shybray, Y.; Liu, L.; Zhao, H.; Li, J.; Aisa, H.A. Flavonoid glycosides in Lepidium sativum seeds. Phytochemistry 2025, 233, 114410. [Google Scholar] [CrossRef] [PubMed]
  83. Carlton, R.R.; Gray, A.I.; Lavaud, C.; Massiot, G.; Waterman, P.G. Kaempferol-3-(2,3-diacetoxy-4-p-coumaroyl) rhamnoside from leaves of Myrica gale. Phytochemistry 1990, 29, 2369–2371. [Google Scholar] [CrossRef]
  84. De Araújo, A.A.; Soares, L.A.L.; Ferreira, M.R.A.; De Souza Neto, M.A.; Da Silva, G.R.; De Araújo, R.F., Jr.; Guerra, G.C.B.; De Melo, M.C.N. Quantification of polyphenols and evaluation of antimicrobial, analgesic and anti-inflammatory activities of Libidibia ferrea, Parapiptadenia rigida and Psidium guajava extracts. J. Ethnopharmacol. 2014, 156, 88–96. [Google Scholar] [CrossRef]
  85. Comandolli-Wyrepkowski, C.D.; Grafova, I.; Naiff, M.F.; Avella, M.; Gentile, G.; Grafova, A.; Franco, A.M.R. Topical treatment of experimental cutaneous leishmaniasis in golden hamster (Mesocricetus auratus) with formulations containing pentamidine. Acta Amazonica 2017, 47, 39–46. [Google Scholar] [CrossRef][Green Version]
  86. Chekuri, S.; Sirigiripeta, S.R.; Thupakula, S.; Vyshnava, S.S.; Ayesha, S.; Cheniya, S.B.K.; Kuruva, R.; Anupalli, R.R. Rutin isolated from Acalypha indica L.: A comprehensive analysis of its antibacterial and anticancer activities. Biochem. Biophys. Res. Commun. 2025, 765, 151833. [Google Scholar] [CrossRef] [PubMed]
  87. Şengönül, H.; Demircan, O. Isolation of quercetin and synthesis of Fe3O4 nanoparticles. Inorg. Chem. Commun. 2024, 159, 111688. [Google Scholar] [CrossRef]
  88. Frota, L.S.; Barbosa, S.I.C.G.; Feitosa, C.C.; Lopes, F.F.S.; De Oliveira, D.P.; Freitas, L.S.; Mattos, A.L.A.; Da Silva, W.M.B.; Ishiki, H.M.; De Morais, S.M. Chemical characterization and biological activities of Libidibia ferrea and in silico studies. Chem. Biodivers. 2025, 22, e00550. [Google Scholar] [CrossRef]
  89. Moravkar, K.K.; Laddha, U.D.; Patil, M.D.; Kale, S.S.; Girase, N.; Bhairav, B.A.; Bhaumik, J.; Chalikwar, S.S. Extraction of rutin and nano-suspension preparation. Carbohydr. Polym. Technol. Appl. 2023, 5, 100320. [Google Scholar]
  90. Okon, O.E.; Ajienka, J.A.; Ikiensikimama, S.S.; Akaranta, O.E. Phytochemical characterization of agro-waste extracts. Results Eng. 2024, 23, 102429. [Google Scholar] [CrossRef]
  91. de Araújo, D.F.; Madeira, J.D.C.; Cunha, A.P.; Ricardo, N.M.P.S.; Bezerra, F.F.; Mourão, P.A.S.; Assreuy, A.M.S.; Pereira, M.G. Structural characterization of anticoagulant and antithrombotic polysaccharides isolated from Caesalpinia ferrea stem barks. Int. J. Biol. Macromol. 2021, 175, 147–155. [Google Scholar] [CrossRef]
  92. Vasconcelos, C.F.B.; Maranhão, H.M.; Batista, T.M.; Carneiro, E.M.; Ferreira, F.; Costa, J.; Soares, L.A.; Sá, M.D.; Souza, T.P.; Wanderley, A.G. Hypoglycaemic activity and molecular mechanisms of Caesalpinia ferrea Martius bark extract on streptozotocin-induced diabetes in Wistar rats. J. Ethnopharmacol. 2011, 137, 1533–1541. [Google Scholar] [CrossRef]
  93. Oliveira, A.F.; Batista, J.S.; Paiva, E.S.; Silva, A.E.; Farias, Y.J.M.D.; Damasceno, C.A.R.; Brito, P.D.; Queiroz, S.A.C.; Rodrigues, C.M.F.; Freitas, C.I.A. Evaluation of the Brazilian ironwood (Caesalpinia ferrea Mart. ex Tul. var. ferrea) healing activity on cutaneous lesions of goats. Rev. Bras. Plantas Med. 2010, 12, 302–310. [Google Scholar] [CrossRef]
  94. Ribeiro, L.G.; Mota, J.B.; Silva, T.E.C.; Alves, T.F.R.; Chaud, M.V.; Nunes, X.P.; Gonsalves, J.K.M.C. Influence of Triplaris gardneriana Wedd ethanolic extract in the chemic-mechanics properties of chitosan: Polyvinyl alcohol membranes as intelligent curatives. Mater. Today Commun. 2023, 34, 105153. [Google Scholar] [CrossRef]
  95. Huong, D.P.M.; Tam, D.H.M.; Dat, T.D.; Loi, T.L.; Nhung, T.N.C.; Nam, H.M.; Hieu, N.H. Synthesis of biodegradable chitosan film loaded with Pseuderanthemum palatiferum leaf extract obtained by supercritical CO2 extraction: Characterization, antibacterial properties, and fruit preservation. J. Supercrit. Fluids 2026, 227, 106736. [Google Scholar] [CrossRef]
  96. Iquiapaza, I.Y.C.; Aguilar, G.J.; Zitei-Baptista, L.F.; Trindade, D.M.; da Silva Ferreira, M.E.; Tapia-Blácido, D.R. Effect of Brazilian green propolis extracts on starch–chitosan blended films. Int. J. Biol. Macromol. 2025, 321, 146551. [Google Scholar] [CrossRef] [PubMed]
  97. Fajardo, J.B.; Vianna, M.H.; Polo, A.B.; Ferreira, T.G.; Lemos, A.S.; de Freitas, S.T.; Campos, L.M.; de Lima, P.P.; Andrade, N.B.; Gonçalves, G.C.; et al. Development and in vitro biological characterization of chitosan films loaded with the Acmella oleracea leaves extract for wound healing application. Int. J. Biol. Macromol. 2025, 318, 144960. [Google Scholar] [CrossRef]
  98. Karkar, B.; Şahin, S.; Bekiz, D.; Akça, B.; Özakın, C. Evaluation of antioxidant films of chitosan with Aquilaria agallocha extract as packaging material. J. Food Sci. 2023, 88, 2571–2582. [Google Scholar] [CrossRef] [PubMed]
  99. Koc, B.; Akyuz, L.; Cakmak, Y.S.; Sargin, I.; Salaberria, A.M.; Labidi, J.; Ilk, S.; Cekic, F.O.; Akata, I.; Kaya, M. Production and characterization of chitosan-fungal extract films. Food Biosci. 2020, 35, 100545. [Google Scholar] [CrossRef]
  100. Mouzahim, M.E.; Pedrini, A.; Dalcanale, E.; Riboni, N.; Bianchi, F.; Parola, A.J.; Pinalli, R. Design of responsive films using phenylurea modified chitosan and Viburnum tinus L. extract as atural indicator. Carbohydr. Polym. Technol. Appl. 2026, 13, 101103. [Google Scholar]
  101. Kepekci, R.A.; Şekeroğlu, G.; Alhveis, I. Development of bioactive chitosan-based film using pistachio waste. Int. J. Biol. Macromol. 2024, 272, 132866. [Google Scholar] [CrossRef]
  102. Chen, Y.C.; Weng, C.H.; Huang, S.M.; Wolde, G.S.; Huang, J.W.; Chokejaroenrat, C.; Apiladda, P.; Lin, Y.T. Multifunctional chitosan-based bioactive films incorporated with jaboticaba pomace extract for sustainable pork preservation. Int. J. Biol. Macromol. 2025, 322, 146439. [Google Scholar] [CrossRef]
  103. Valencia-Gómez, L.E.; Martel-Estrada, S.A.; Vargas-Requena, C.; Rivera-Armenta, J.L.; Alba-Baena, N.; Rodríguez-González, C.; Olivas-Armendáriz, I. Chitosan/Mimosa tenuiflora films as potential cellular patch for skin regeneration. Int. J. Biol. Macromol. 2016, 93, 1217–1225. [Google Scholar] [CrossRef]
  104. Nguyen, T.T.; Dao, U.T.T.; Bui, Q.P.T.; Bach, G.L.; Thuc, C.N.H.; Thuc, H.H. Enhanced antimicrobial activities and physicochemical properties of edible film based on chitosan incorporated with Sonneratia caseolaris (L.) Engl. leaf extract. Prog. Org. Coat. 2020, 140, 105487. [Google Scholar] [CrossRef]
  105. Chagas, V.L.; Silva, L.D.S.; Sousa, C.E.M.; Silva, R.G.; Carvalho, L.R.S.; Silva, I.S.S.; Bazán, J.M.N.; Tofanello, A.; Garcia, W.; Teixeira, C.S.; et al. Development and characterization of alginate and chitosan hybrid films for dual administration of neomycin and lidocaine. Int. J. Biol. Macromol. 2025, 309, 142632. [Google Scholar] [CrossRef] [PubMed]
  106. Nguyen, T.T.T.; Le, T.Q.; Nguyen, T.T.A.; Nguyen, L.T.M.; Nguyen, D.T.C.; Tran, T.V. Passion fruit peel/chitosan composite films. Heliyon 2022, 8, e10096. [Google Scholar] [CrossRef]
  107. Fan, X.; Zhang, B.; Zhang, X.; Ma, Z.; Feng, X. Incorporating Portulaca oleracea extract endows the chitosan–starch film with antioxidant capacity. Food Chem. 2023, 18, 100662. [Google Scholar]
  108. Sun, X.; Wang, Z.; Kadouh, H.; Zhou, K. Antimicrobial and structural properties of chitosan–gallic acid films. LWT Food Sci. Technol. 2014, 57, 83–89. [Google Scholar]
  109. Luo, Y.; Liu, H.; Yang, S.; Zeng, J.; Wu, Z. Sodium alginate-based green packaging films functionalized by guava leaf extracts. Materials 2019, 12, 2923. [Google Scholar] [CrossRef]
  110. Oberlintner, A.; Bajić, V.; Kalčíková, G.; Likozar, B.; Novak, U. Biodegradability study of active chitosan biopolymer films enriched with Quercus polyphenol extract in different soil types. Environ. Technol. Innov. 2021, 21, 101318. [Google Scholar] [CrossRef]
  111. Zehra, A.; Wani, S.M.; Bashir, I.; Amin, T.; Zargar, I.A.; Mir, S.A.; Manzar, A.; Begum, S.; Gulzar, B. Development and evaluation of chitosan-based biodegradable biocomposite films for environmentally friendly packaging of carrot candy. Int. J. Biol. Macromol. 2026, 337, 149441. [Google Scholar] [CrossRef]
  112. Chen, S.; Zhang, Z.; Wei, X.; Sui, Z.; Geng, J.; Xiao, J.; Huang, D. Antibacterial and antioxidant water-degradable food packaging chitosan film prepared from American cockroach. Food Biosci. 2022, 49, 101893. [Google Scholar] [CrossRef]
  113. Américo, Á.V.L.D.S.; Nunes, K.M.; de Assis, F.F.V.; Dias, S.R.; Passos, C.T.S.; Morini, A.C.; de Araújo, J.A.; Castro, K.C.F.; da Silva, S.K.R.; Barata, L.E.S.; et al. Efficacy of phytopharmaceuticals from the Amazonian plant Libidibia ferrea for wound healing in dogs. Front. Vet. Sci. 2020, 7, 244. [Google Scholar] [CrossRef] [PubMed]
  114. Nascimento, P.L.A.; Nascimento, T.C.E.S.; Gomes, J.E.G.; Silva, M.D.S.; Souza, S.A.; Silva, T.M.S.; Falcão, R.A.; Moreira, K.A. Antioxidant and antimicrobial properties of Libidibia ferrea pods. Rev. Fitos 2015, 9, 207–216. [Google Scholar] [CrossRef]
  115. Xie, Y.; Yang, W.; Tang, F.; Chen, X.; Ren, L. Antibacterial activities of flavonoids: Structure-activity relationship and mechanism. Curr. Med. Chem. 2015, 22, 132–149. [Google Scholar] [CrossRef]
  116. De Rossi, L.; Rocchetti, G.; Lucini, L.; Rebecchi, A. Antimicrobial Potential of Polyphenols: Mechanisms of Action and Microbial Responses—A Narrative Review. Antioxidants 2025, 14, 200. [Google Scholar] [CrossRef]
  117. Zhao, L.; Zhou, Y.; Yue, W.; Shen, Q.; Ke, J.; Ma, Y.; Zhang, L.; Bian, H. Natural phenolics as multitarget antimicrobials for food preservation: Mechanisms of action. Food Chem. X 2025, 31, 103056. [Google Scholar] [CrossRef]
  118. Zouine, N.; Ghachtouli, N.E.; Abed, S.E.; Koraichi, S.I. A comprehensive review on medicinal plant extracts as antibacterial agents: Factors, mechanism insights and future prospects. Sci. Afr. 2024, 26, e02395. [Google Scholar] [CrossRef]
  119. Jubair, N.; Rajagopal, M.; Chinnappan, S.; Abdullah, N.B.; Fatima, A. Review on the Antibacterial Mechanism of Plant-Derived Compounds against Multidrug-Resistant Bacteria (MDR). Evid Based Complement Altern. Med. 2021, 3663315. [Google Scholar] [CrossRef] [PubMed]
  120. Lai, Z.; Xu, J.; Zhao, Y.; Wang, J.; Ye, D.; Liu, H.; Wang, X.; Yang, Z.; Dou, L. A narrative review for antibacterials design and modification targeting outer membrane against Gram-negative bactéria. Anim. Zoonoses 2026, in press. [Google Scholar] [CrossRef]
  121. Curto, M.A.; Butassi, E.; Ribas, J.C.; Svetaz, L.A.; Cortés, J.C.G. Natural products targeting the synthesis of β(1,3)-D-glucan and chitin of the fungal cell wall: Existing drugs and recent findings. Phytomedicine 2021, 88, 153556. [Google Scholar] [CrossRef]
  122. Riaz, S.; Waheed, H.; Ahmad, F.; Khan, M.I.; Shanableh, A. Natural and synthetic biomaterials, structural matrices-based wound dressings: Key properties, material correlation, and adaptability. Regenesis Repair Rehabil. 2025, 4, 47–65. [Google Scholar] [CrossRef]
  123. Abreu, J.M.; Santana, A.J.; Nascimento, R.T.; Braz, E.M.A.; Silva, S.C.C.C.; Santos, M.R.M.C.; Osajima, J.A.; Silva-Filho, E.C. Incorporation and release of diclofenac sodium using chitosan chemically modified with glutaraldehyde and ethylenediamine. Int. J. Biol. Macromol. 2025, 334, 148599. [Google Scholar] [CrossRef] [PubMed]
  124. CLSI. Performance Standards for Antimicrobial Susceptibility Testing, 30th ed.; Clinical and Laboratory Standards Institute: Wayne, PA, USA, 2020. [Google Scholar]
  125. De Carli, C.; Aylanc, V.; Mouffok, K.M.; Santamaria-Echart, A.; Barreiro, F.; Tomás, A.; Pereira, C.; Rodrigues, P.; Vilas-Boas, M.; Falcão, S.I. Production of chitosan-based biodegradable active films using bio-waste enriched with polyphenol propolis extract envisaging food packaging applications. Int. J. Biol. Macromol. 2022, 213, 486–495. [Google Scholar] [CrossRef]
  126. Stefanowska, K.; Woźniak, M.; Dobrucka, R.; Ratajczak, I. Chitosan with Natural Additives as a Potential Food Packaging. Materials 2023, 16, 1579. [Google Scholar] [CrossRef] [PubMed]
  127. Jahed, E.; Khaledabad, M.A.; Ahmed, S.A.; Almasi, H.; Hassanzadeh, H. Application of chitosan-based edible films reinforced with nanofibers to improve the shelf life of rapeseed oil: Release kinetics of essential oils and biodegradability. Int. J. Biol. Macromol. 2025, 307, 141832. [Google Scholar] [CrossRef] [PubMed]
Molecules 31 01392 g001
Figure 1. FT-IR spectra of the ethanolic extract of L. ferrea stem bark (ELF) and its ethyl acetate (ELFA) and aqueous (ELFAq) fractions.
Figure 1. FT-IR spectra of the ethanolic extract of L. ferrea stem bark (ELF) and its ethyl acetate (ELFA) and aqueous (ELFAq) fractions.
Molecules 31 01392 g001
Molecules 31 01392 g002
Figure 2. FT-IR spectra of chitosan biofilms: BCH100 (pure chitosan biofilm), BLFE (chitosan biofilm incorporating ethanolic extract of L. ferrea stem bark), BLFA (chitosan biofilm with ethyl acetate fraction) and BLFAq (chitosan biofilm with aqueous fraction).
Figure 2. FT-IR spectra of chitosan biofilms: BCH100 (pure chitosan biofilm), BLFE (chitosan biofilm incorporating ethanolic extract of L. ferrea stem bark), BLFA (chitosan biofilm with ethyl acetate fraction) and BLFAq (chitosan biofilm with aqueous fraction).
Molecules 31 01392 g002
Molecules 31 01392 g003
Figure 3. TGA and DTG curves of chitosan biofilms with and without incorporation of L. ferrea samples: (a) TGA curve; (b) DTG curve.
Figure 3. TGA and DTG curves of chitosan biofilms with and without incorporation of L. ferrea samples: (a) TGA curve; (b) DTG curve.
Molecules 31 01392 g003
Molecules 31 01392 g004
Figure 4. Appearance of the biofilms: BCH100 (pure chitosan biofilm), BLFE (chitosan biofilm incorporating ethanolic extract of L. ferrea stem bark), BLFA (chitosan biofilm with ethyl acetate fraction) and BLFAq (chitosan biofilm with aqueous fraction).
Figure 4. Appearance of the biofilms: BCH100 (pure chitosan biofilm), BLFE (chitosan biofilm incorporating ethanolic extract of L. ferrea stem bark), BLFA (chitosan biofilm with ethyl acetate fraction) and BLFAq (chitosan biofilm with aqueous fraction).
Molecules 31 01392 g004
Molecules 31 01392 g005
Figure 5. Micrographs of chitosan biofilms with and without incorporation of L. ferrea biofilm. of chitosan biofilms: (a) BCH100 (Pure chitosan biofilm); (b) BLFE (Chitosan biofilm incorporating ethanolic extract of L. ferrea stem bark); (c) BLFA (Chitosan biofilm with ethyl acetate fraction) and (d) BLFAq (Chitosan biofilm with aqueous fraction).
Figure 5. Micrographs of chitosan biofilms with and without incorporation of L. ferrea biofilm. of chitosan biofilms: (a) BCH100 (Pure chitosan biofilm); (b) BLFE (Chitosan biofilm incorporating ethanolic extract of L. ferrea stem bark); (c) BLFA (Chitosan biofilm with ethyl acetate fraction) and (d) BLFAq (Chitosan biofilm with aqueous fraction).
Molecules 31 01392 g005
Table 1. Mass loss events of chitosan biofilm and chitosan biofilms incorporated into the extract and fractions of L. ferrea.
Table 1. Mass loss events of chitosan biofilm and chitosan biofilms incorporated into the extract and fractions of L. ferrea.
ΔT1 (°C)Δm1 (%)Tp1
(°C)		ΔT2 (°C)Δm2
(%)		Tp2
(°C)		ΔT3
(°C)		Δm3
(%)		Tp3
(°C)
BCH10039.26–59.6314.46746.15230.43–287.7642.437262.09504.06–541.7334.365526.54
BLFE37.78–63.7914.50045.68220.20–296.6735.152255.19510.84–593.2640.770552.43
BLFA40.72–74.5512.00943.56208.74–310.2037.17263.89632.50–739.9034.984666.26
BLFAq45.39–73.0719.73147.81224.40–300.9833.379247.12684.26–780.041.467759.25
ΔT: Temperature range at each event; Δm: percentage change in mass at each event; Tp: Peak temperature of the DTG at each event. BCH100 (pure chitosan biofilm), BLFE (chitosan biofilm incorporating ethanolic extract of L. ferrea stem bark), BLFA (chitosan biofilm with ethyl acetate fraction), and BLFAq (Chitosan biofilm with aqueous fraction).
Table 2. Thickness and mechanical parameters of biofilms with and without incorporation of L. ferrea samples.
Table 2. Thickness and mechanical parameters of biofilms with and without incorporation of L. ferrea samples.
SampleThickness
(mm)		Rupture
(N)		Tensão
(Mpa)
BCH1000.021± 0.00217.50 ± 14.8128.62 ± 15.31
BLFE0.032 ± 0.00239.83 ± 13.2252.78 ± 18.50
BLFA0.019 ± 0.00140.05 ± 19.8187.43 ± 41.98
BLFAq0.029 ± 0.00540.92 ± 11.3060.58 ± 19.53
BCH100: Pure chitosan biofilm; BLFE: chitosan biofilm incorporating ethanolic extract of L. ferrea stem bark; BLFA: chitosan biofilm with ethyl acetate fraction; BLFAq: chitosan biofilm with aqueous fraction.
Table 3. Biodegradation of biofilms in water and soil.
Table 3. Biodegradation of biofilms in water and soil.
Weight Loss (%)
BiofilmsSoilWater
BCH10047.8 ± 4.242.3 ± 6.5
BLFAq36.2 ± 3.829.8 ± 4.1
BLFA34.1 ± 5.928.7 ± 7.2
BCH100: pure chitosan biofilm; BLFA: chitosan biofilm with ethyl acetate fraction of ethanolic extract of L. ferrea stem bark; BLFAq: chitosan biofilm with aqueous fraction of ethanolic extract of L. ferrea stem bark.
Table 4. Antibacterial activity by the agar diffusion method.
Table 4. Antibacterial activity by the agar diffusion method.
Inhibition Zones (IZ, mm)
SampleS. aureusB. cereusB. subtilisE. coliP. aeruginosa
BLFA12.0 ± 0.110.0 ± 0.1- --
BLFAq12.0 ± 0.110.0 ± 0.1---
BLFE14.1 ± 0.1----
BCH100-13.6 ± 0.1---
ELF14.0 ± 0.114.0 ± 0.1---
ELFA12.3 ± 0.110.3 ± 0.2---
ELFAq12.8 ± 0.210.8 ± 0.1---
Tetracycline33.0 ± 0.132.0 ± 0.133.0 ± 0.1
Gentamicin 14.0 ± 0.115.0 ± 0.1
-: There was no IZ; BCH100: pure chitosan biofilm; BLFE: chitosan biofilm incorporating ethanolic extract of L. ferrea stem bark; BLFA: chitosan biofilm with ethyl acetate fraction; BLFAq: chitosan biofilm with aqueous fraction. ELF: ethanolic extract of stem bark, ELFAq: aqueous fraction, and ELFA and ethyl acetate fraction. Tetracycline (10 µg mL−1), Gentamicin (400 µg mL−1), and extracts and fractions (8000 µg mL−1).
Table 5. Antibacterial activity by broth microdilution assay of aqueous and ethyl acetate fractions of the ethanolic extract of L. ferrea stem bark.
Table 5. Antibacterial activity by broth microdilution assay of aqueous and ethyl acetate fractions of the ethanolic extract of L. ferrea stem bark.
SamplesS. aureusB. cereusB. subtilisP. aeruginosaE. coli
MIC and MBC Values in µg mL−1
MICMBCMICMBCMICMBCMICMBCMICMBC
ELFAq250500250250>500-250>500>500-
ELFA125500125125>500-250>500>500-
Tetracycline7.87.87.87.87.87.8
Gentamicin 15.662.50.30.3
˃: no >: inhibitory effect on growth at the highest concentration tested [500 µg mL−1]. ELFAq: aqueous fraction of the ethanolic extract of the stem bark of L. ferrea, and ELFA and ethyl acetate fraction of the ethanolic extract of the stem bark of L. ferrea: Tetracycline (100 µg mL−1) and gentamicin (200 µg mL−1). Ethyl acetate fraction of the ethanolic extract of the stem bark of L. ferrea.
Disclaimer/Publisher’s Note: The statements, opinions and data contained in all publications are solely those of the individual author(s) and contributor(s) and not of MDPI and/or the editor(s). MDPI and/or the editor(s) disclaim responsibility for any injury to people or property resulting from any ideas, methods, instructions or products referred to in the content.

Share and Cite

MDPI and ACS Style

de Jesus, A.S.; Santana, A.N.; dos Reis, H.C.M.; de Santana Wojnar, G.R.G.; Migues, V.H.; dos Santos, A.V.; Pereira, M.d.G.; Souza Neta, L.C.d.; Alexandre Lucas, S.A.; Lavall, R.L. Antibacterial Biofilms of Chitosan Incorporated with the Ethanolic Extract of the Stem Bark of Libidibia ferrea and Its Fractions. Molecules 2026, 31, 1392. https://doi.org/10.3390/molecules31091392

AMA Style

de Jesus AS, Santana AN, dos Reis HCM, de Santana Wojnar GRG, Migues VH, dos Santos AV, Pereira MdG, Souza Neta LCd, Alexandre Lucas SA, Lavall RL. Antibacterial Biofilms of Chitosan Incorporated with the Ethanolic Extract of the Stem Bark of Libidibia ferrea and Its Fractions. Molecules. 2026; 31(9):1392. https://doi.org/10.3390/molecules31091392

Chicago/Turabian Style

de Jesus, Andreza Santos, Aiane Nascimento Santana, Helena Carla Magalhães dos Reis, Giovanna Regina Gonzalez de Santana Wojnar, Vitor Hugo Migues, Arnaud Victor dos Santos, Madson de Godoi Pereira, Lourdes Cardoso de Souza Neta, Sandra Aparecida Alexandre Lucas, and Rodrigo Lassarote Lavall. 2026. "Antibacterial Biofilms of Chitosan Incorporated with the Ethanolic Extract of the Stem Bark of Libidibia ferrea and Its Fractions" Molecules 31, no. 9: 1392. https://doi.org/10.3390/molecules31091392

APA Style

de Jesus, A. S., Santana, A. N., dos Reis, H. C. M., de Santana Wojnar, G. R. G., Migues, V. H., dos Santos, A. V., Pereira, M. d. G., Souza Neta, L. C. d., Alexandre Lucas, S. A., & Lavall, R. L. (2026). Antibacterial Biofilms of Chitosan Incorporated with the Ethanolic Extract of the Stem Bark of Libidibia ferrea and Its Fractions. Molecules, 31(9), 1392. https://doi.org/10.3390/molecules31091392

Article Metrics

Back to TopTop
