1. Introduction
The increasing global demand for sustainable and carbon-neutral energy has intensified research on photocatalytic water splitting as a promising pathway for hydrogen production. Semiconductor-based photocatalysts have received particular attention due to their capability to directly convert solar energy into chemical fuels. Among various semiconductors, cadmium sulfide (CdS) stands out because of its narrow band gap (~2.4 eV), visible-light responsiveness, and strong absorption in the solar spectrum. CdS has been extensively studied in diverse morphologies such as nanoparticles, nanorods, nanowires, and quantum dots, each exhibiting distinct electronic and catalytic characteristics [
1,
2,
3]. However, the underlying atomistic mechanisms that govern the interaction of CdS with surrounding molecules, especially water, remain insufficiently understood. Such molecular-level insights are crucial for improving photocatalytic performance and stability in water-splitting environments.
The photocatalytic activity of CdS is inherently linked to its morphology and electronic structure. Rod-shaped CdS nanostructures often exhibit efficient charge separation along their longitudinal axis, enabling enhanced migration of photogenerated carriers and reduced recombination losses. In contrast, cluster-shaped CdS nanoparticles possess a higher density of surface atoms, which can act as active centers for adsorption and reaction processes but may also suffer from rapid electron-hole recombination or surface oxidation [
4,
5,
6,
7]. Understanding how these structural differences influence electron localization, charge transfer, and molecular interactions is essential for rational catalyst design. Moreover, water molecules not only serve as reactants in the photocatalytic process but also dynamically interact with CdS surfaces, altering local charge distributions, hydrogen-bond networks, and interfacial stability [
8,
9,
10,
11]. To summarize the key structural and functional distinctions relevant to this study, a comparative overview of both morphologies and their interaction behavior with water is presented in
Table 1.
The information summarized in
Table 1 highlights that both shapes contribute distinct advantages to photocatalytic hydrogen production. Understanding these morphological and interfacial effects at the atomistic level is therefore essential to rationalize the differences in electronic structure, charge transfer, and stability explored in this work. Despite extensive experimental investigations, probing such interactions at the atomic scale remains challenging due to the transient and complex nature of solvent-semiconductor interfaces [
19,
20,
21,
22,
23,
24,
25]. In this context, density functional theory (DFT) and classical all-atom molecular dynamics (MD) simulations provide a powerful computational framework to examine electronic structure and molecular interaction of photocatalytic systems.
In the present work, we perform detailed DFT calculations and classical all-atom MD simulations to elucidate the molecular interactions of rod- and cluster-shaped CdS in the presence of implicit and explicit water molecules. The following sections present a detailed analysis of the DFT results for the implicit-water case including optimized structures, reduced density gradients (RDG), noncovalent interactions (NCI), critical points, and molecular electrostatic potential (MEP) maps, followed by the molecular snapshots and radial distribution functions (RDF) from classical all-atom MD simulations for the explicitly solvated water case, the methodology, and finally the conclusions.
2. Results and Discussion
2.1. DFT Calculation Results and Discussion
2.1.1. Optimized Structures
Figure 1 illustrates the optimized geometries of the rod-shaped and cluster-shaped CdS structures obtained under implicit water solvation. Both morphologies preserve the characteristic Cd–S bonding network of wurtzite-type CdS; however, their local coordination environments and surface relaxation behaviors differ noticeably. The rod-shaped system exhibits a more ordered and extended CdS framework along the crystallographic growth axis, leading to relatively uniform Cd–S bond distances and S–Cd–S angles. In contrast, the cluster-shaped CdS undergoes more pronounced geometric relaxation after optimization, reflecting its higher proportion of under-coordinated surface atoms. This results in slightly shorter Cd–S bonds and broader angular distributions at the surface.
Implicit hydration stabilizes both morphologies by screening surface charge irregularities, but its effect is more significant in the cluster system, where solvation reduces geometric distortions associated with dangling bonds. The differences in bond lengths and angles between rod and cluster geometries directly influence their electronic structure, potentially affecting charge separation efficiency and surface-active sites during photocatalytic water splitting (
Table 2, see
Supplementary Materials).
These structural observations provide crucial atomistic insight into how morphology and hydration modulate CdS reactivity, thereby informing the rational design of shape-dependent photocatalysts.
2.1.2. Reduced Density Gradient and Noncovalent Interactions
Figure 2 illustrates the nature and strength of NCI for rod-shaped (a) and cluster-shaped (b) CdS systems optimized with implicit water. The analysis utilizes the sign of the second Hessian eigenvalue multiplied by the electron density, plotted against the RDG. This method effectively separates interactions into three distinct regimes, as detailed in the color scale legend: strong attraction (blue), Van der Waals interactions (green), and strong steric repulsion (red). In the scatter plots for both the rod and cluster configurations, the vertical spikes represent areas of low-density gradient, which correspond to the presence of interactions.
In
Figure 2a (rod-shaped), a significant region of strong attraction is visible on the negative side of the x-axis. Specifically, the dense blue scattering appears in the region where the sign of the second Hessian eigenvalue ranges from approximately −0.05 to −0.02 a.u. These spikes indicate strong attractive forces, likely attributable to electrostatic interactions within the ionic CdS lattice and hydrogen bonding interactions with the implicit solvent environment. Simultaneously, a broad green region is observed centered near 0.00 a.u., extending roughly between −0.01 and +0.01 a.u. This corresponds to the green isosurfaces visible in the 3D molecular representation below the plot. These extensive green surfaces suggest that Van der Waals forces play a critical role in stabilizing the elongated rod structure. The presence of red spikes on the positive side of the
x-axis, extending from +0.01 to +0.05 a.u., signifies steric repulsion. In the rod-shaped 3D model, these are visualized as red patches, often found within the center of ring structures where electron density is crowded (the “steric effect in ring and cage”).
Figure 2b (cluster-shaped) exhibits a similar tripartite distribution but with notable morphological differences in the 3D NCI plot. The scatter plot maintains the strong attractive spikes (blue) near −0.04 a.u. and the Van der Waals region (green) near zero. However, the globular nature of the cluster results in a more condensed arrangement of steric repulsion zones. The 3D visualization for the cluster shows a complex network of red isosurfaces deeply embedded within the core, consistent with the higher steric hindrance expected in a crowded, cage-like geometry.
The coexistence of strong attractive peaks (blue) and Van der Waals interactions (green) in the RDG plots for both systems confirms their structural stability in the implicit water medium, balanced against the inevitable steric repulsions (red) inherent to the atomic packing.
2.1.3. Critical Points
Figure 3 shows the bond critical points (BCPs) identified for the rod- and cluster-shaped CdS models optimized with implicit water. The BCPs are concentrated along Cd–S linkages in the interior of the rod, whereas the cluster exhibits a larger spread of BCPs with a higher density near under-coordinated surface sites. Electron density at Cd–S BCPs (ρ) is higher in the rod model than in the cluster, reflecting the more uniform, bulk-like Cd–S bonding in the rod and the greater surface relaxation in the cluster (
Table 3).
The Laplacian values (∇
2ρ) at the Cd–S BCPs are negative or only slightly positive, indicating accumulation of electron density between the Cd and S centers and a partially shared (covalent/closed-shell mixed) character. Ellipticity (ε) at these BCPs is small, consistent with largely cylindrically symmetric Cd–S bonds and limited π-type distortion. Using the potential energy density V(r) at the BCP and Espinosa’s approximation, estimated interaction energies for representative Cd–S contacts are significantly larger (more stabilizing) in the rod than in the cluster model, indicating stronger localized bonding in the rod interior. Together, these CP indicators confirm that rod-shaped CdS preserves bulk-like bonding motifs, while the cluster shape shows weakened and more heterogeneous surface bonds, insights that correlate with the RDG/NCI maps in
Figure 2 and that have implications for surface reactivity in photocatalysis.
2.1.4. Molecular Electrostatic Potential Maps
MEP analysis was performed on the CdS nanostructures optimized in implicit water. The MEP maps, presented in
Figure 4, visualize the charge distribution across the molecular surfaces, allowing the identification of electron-rich (nucleophilic) and electron-deficient (electrophilic) sites. The color code ranges from red (negative potential) to blue (positive potential).
Figure 4a displays the MEP of the rod-shaped CdS. The surface is predominantly covered by red and orange regions, indicating a strong negative electrostatic potential with a magnitude reaching −0.23 a.u. This extensive negative surface charge implies a high electron density, likely localized around the surface sulfur or oxygen atoms (as noted in the caption), suggesting that the rod structure is highly susceptible to electrophilic attack.
In contrast, the cluster-shaped CdS in
Figure 4b reveals a distinct charge separation, directly addressing the question regarding polarization. The map shows a heterogeneous distribution, with significant blue patches (positive potential) intermixed with green and yellow areas (neutral to slightly negative), within a narrower range of ±0.10 a.u. This variation confirms that considerable polarization occurs within the cluster geometry. The implicit solvent calculation highlights that, while the rod maintains a strong overall negative surface potential, the cluster exhibits a polarized surface with distinct positive and negative poles, which is critical for understanding its specific electrostatic interactions in an aqueous environment.
Recent experimental and theoretical studies further highlight the importance of interfacial charge-management strategies in CdS-based photocatalysts. For example, Wu et al. demonstrated that constructing S-scheme CdS QD/In
2O
3 heterojunctions significantly suppresses carrier recombination and enhances H
2 evolution by over an order of magnitude, underscoring the critical role of controlled charge separation pathways [
26]. Similarly, Zhang et al. reported that Mn
0.3Cd
0.7S/CoPB Schottky junctions featuring interfacial Co–S bonding greatly promote directional electron transfer and photothermal-assisted activity, emphasizing how engineered interfaces can stabilize charge flow, an effect consistent with our observation that rod-shaped CdS favors more efficient charge separation than cluster morphologies [
27].
2.2. Classical All-Atom MD Simulation Results and Discussion
2.2.1. Classical All-Atom MD Simulation Snapshots

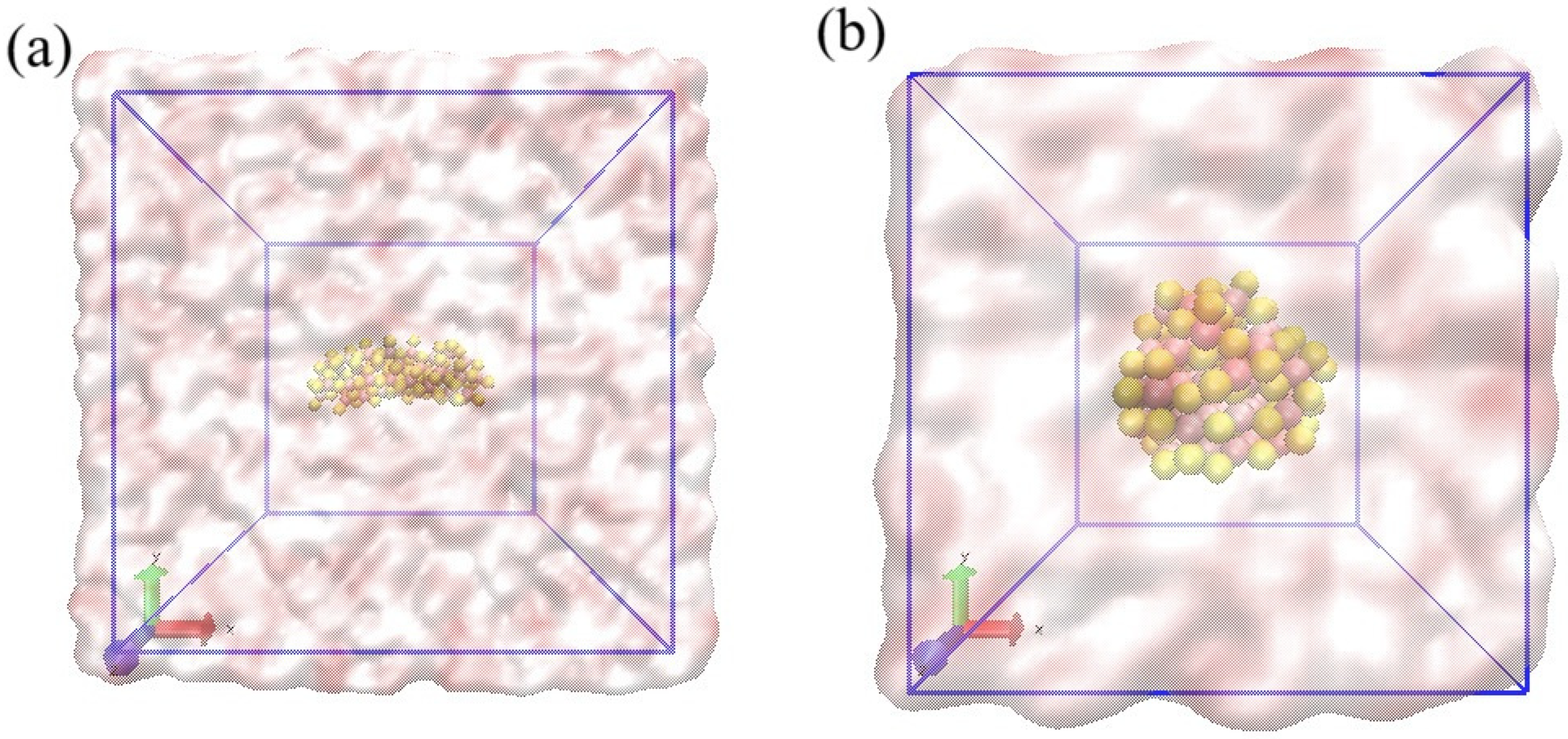

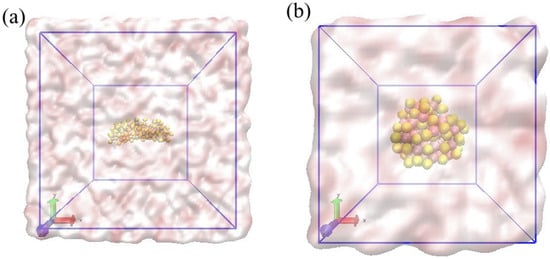

Figure 5 illustrates the simulation systems used for the classical all-atom MD study. Unlike the implicit solvent models utilized in the quantum mechanical calculations, these snapshots depict the rod-shaped (a) and cluster-shaped (b) CdS nanostructures fully immersed in an explicit aqueous environment.
The nanoparticles are centered within cubic simulation boxes under periodic boundary conditions, ensuring a continuous bulk solvent phase. The transparent red-and-white isosurfaces represent the explicitly solvated water molecules, which completely encapsulate the CdS surfaces. This setup is crucial for capturing the realistic dynamic behavior of the system, allowing for the subsequent analysis of RDFs.
2.2.2. Radial Distribution Functions
The local structure of the solvent surrounding the nanoparticles was investigated using Radial Distribution Functions (RDFs),
, as shown in
Figure 6. These RDFs quantify the probability of finding water oxygen atoms of water at specific distances from the Cadmium (Cd) and Sulfur (S) atoms of the nanostructures. The most prominent feature in both plots is the interaction between the surface sulfur atoms and water oxygen, indicated by the orange lines. For the rod-shaped CdS nanostructure (
Figure 6a), the S–O interaction exhibits a sharp, intense peak centered at a radial distance of approximately 2.7 Å. This short bond distance reflects strong hydrogen bonding or electrostatic interactions between water molecules and surface sulfur atoms. In contrast, the Cd–O interaction (blue line) appears as a broader and less intense peak at a larger distance of around 3.3 Å, suggesting that water molecules are less tightly bound to cadmium sites or predominantly reside in a secondary solvation shell.
A comparison of the different morphologies indicates that the rod-shaped structure demonstrates stronger solvation behavior than the cluster-shaped counterpart. Peak intensity in the RDFs serves as a quantitative measure of interaction strength and local ordering. In the rod-shaped system, the S–O peak reaches a maximum value of approximately 3.9, whereas the cluster-shaped system (
Figure 6b) exhibits a lower peak intensity of 3.5. Similarly, the Cd–O interaction is well-defined in the rod (
) but significantly weaker and more irregular in the cluster (
). The reduction in peak heights in the cluster indicates a more disordered solvent structure and weaker hydrophilic interactions (see
Supplementary Materials). These observations confirm that the rod-shaped CdS geometry promotes stronger, more ordered hydration, highlighting the critical role of nanoparticle morphology in determining solvent structuring at the molecular level.
2.3. Comparison with Experimental Work
The computational results obtained in this work show clear morphology-dependent behavior that aligns with experimental observations on CdS nanostructures. Rod-shaped CdS exhibits more uniform charge distribution along its axis and maintains structural stability when interacting with water, which corresponds well with reports that rod-like CdS materials display higher photocatalytic activity and improved optical performance in aqueous systems. In contrast, cluster-shaped CdS shows stronger local interactions with surrounding molecules and more heterogeneous charge localization, matching experimental findings that CdS nanoparticles, although rich in active surface sites, often experience faster recombination and reduced long-term stability.
These correlations (
Table 4) are consistent with the literature, indicating that CdS nanorods generally outperform nanoparticles in hydrogen evolution experiments, doped and structured CdS exhibit improved visible-light response, and morphology plays a crucial role in photocatalytic durability and efficiency [
28,
29,
30,
31].
3. Materials and Methods
3.1. Theoretical Model and Designed System
To investigate the molecular-level behavior of cadmium sulfide (CdS) with different morphologies, two representative models—rod-shaped and cluster-shaped CdS—were constructed (
Figure 7). These geometries were designed to mimic experimentally observed CdS nanostructures that exhibit distinctive photocatalytic activities depending on their morphology. The rod-shaped CdS represents an elongated configuration with an extended Cd–S network, while the cluster-shaped CdS corresponds to a more compact assembly of Cd and S atoms with higher surface curvature.
Both CdS systems were optimized in two distinct environments: (i) in the absence of water (gas phase) and (ii) in the presence of a single explicit water molecule to model initial hydration effects at the molecular level. This comparative setup allows for the assessment of how structural morphology and direct water interaction influence the stability, charge distribution, and electronic properties of CdS.
The rod-shaped and cluster-shaped CdS models were constructed by truncating the hexagonal wurtzite CdS crystal structure, the thermodynamically stable polymorph under photocatalytic conditions. The rod comprises 40 Cd and 80 S atoms (with hydrogen passivation of dangling bonds), while the cluster contains 65 Cd and 99 S atoms, as listed in the
Supporting Information. The final model sizes represent the smallest clusters that retain realistic Cd–S bond lengths and S–Cd–S angles. All optimized structures were confirmed as true minima with no imaginary frequencies, and no reconstruction or phase change was observed. Hydrogen passivation and symmetric truncation were applied to minimize edge effects inherent to finite non-periodic models.
3.2. DFT Calculation Methodology
The LC-ωPBE functional was employed due to its reliable treatment of long-range exchange interactions and accurate description of semiconductor band structures. The LANL2DZ basis set [
32,
33] was used for all atoms, as it effectively incorporates relativistic effective core potentials (ECPs) suitable for heavy elements such as cadmium.
To simulate solvation effects, an implicit solvent model was included using the Self-Consistent Reaction Field (SCRF) approach with the Integral Equation Formalism Polarizable Continuum Model (IEFPCM), where water was defined as the solvent in all cases. This setup provides a more realistic depiction of aqueous photocatalytic environments while maintaining computational efficiency. The combination of implicit solvation (PCM model) and explicit single water molecule allows for simultaneous evaluation of bulk and localized hydration effects.
Geometry optimizations were conducted without imposing any symmetry constraints using the opt keyword. Tight SCF convergence criteria (SCF = XQC) were applied to ensure energy convergence and stability of the electronic wavefunction. All optimized structures were confirmed as true minima by verifying the absence of imaginary vibrational frequencies.
The atomic coordinates were initially built and visualized using GaussView 6, ensuring realistic configurations with minimized steric hindrance and proper Cd–S bonding geometries. These optimized structures were later used for in-depth analysis of reduced density gradient, noncovalent interactions, critical points, and electron localization function. Density Functional Theory (DFT) calculations were performed using the Gaussian 16 software package [
34,
35].
Post-optimization analyses were performed using Multiwfn 3.7 software [
36,
37], which enabled quantitative and visual examination of reduced density gradient (RDG) plots, non-covalent interaction (NCI) regions, topological features within the Quantum Theory of Atoms in Molecules (QTAIM) framework, and electron localization function.
This computational approach—combining explicit and implicit solvation, advanced long-range corrected DFT functionals, and topological electron density analyses—provides a robust foundation for understanding the structure–property relationship and photocatalytic efficiency of CdS with different morphologies.
3.3. Classical All-Atom MD Simulations Methodology
Classical all-atom MD simulations were carried out using the LAMMPS version: 7 February 2024 (Update 1) package, and VMD 1.9.1 software [
38,
39] to investigate two different CdS–H nanostructures immersed in explicit water: a spherical CdS–H nanocluster and a rod-shaped CdS–H structure. For both systems periodic boundary conditions were applied in all three directions.
A hybrid/overlay interaction scheme was used. The Cd–S framework in both the nanocluster and rod structure was described using the modified Stillinger–Weber (SW) potential, which incorporates the required three-body terms for Cd–Cd–S and S–Cd–S interactions [
40,
41]. Water molecules were modeled using the TIP3P potential [
42], where harmonic O–H bonds and a fixed H–O–H angle of 104.52° were applied to maintain molecular geometry. Hydrogen atoms attached to surface sulfur atoms (H passivation) were treated via harmonic H–S bonds and Cd–S–H angles. Nonbonded interactions between water and the inorganic components were represented using Lennard-Jones with Coulombic interactions with TIP3P-consistent parameters assigned to oxygen and with O–S cross-interactions defined through LJ mixing rules. The H–S and Cd–water LJ terms were set to zero to avoid nonphysical attractions. Long-range electrostatic forces were computed using the PPPM method.
To keep the inorganic structures rigid, all Cd and S atoms were grouped and immobilized with zero initial velocities. This ensured that both the spherical and rod-shaped CdS–H structures remained fixed, allowing only the surrounding TIP3P water to evolve dynamically.
Two CdS–H nanostructures (rod and cluster) were constructed and solvated in explicit water. Cadmium (Cd) atoms are shown in pink, sulfur (S) atoms in yellow. Water molecules were rendered transparent to highlight the solute geometry. Both systems were equilibrated prior to production runs, with simulation box sizes chosen to accommodate their distinct morphologies: the compact cluster was placed in a cubic box of 40 Å per side, while the elongated rod-shaped nanostructure required a larger cubic box of 80 Å per side to avoid self-interaction across periodic boundaries.
Each system underwent energy minimization using a conjugate-gradient algorithm before equilibration. Production simulations were performed in the NVT ensemble at 298 K using a Nosé–Hoover thermostat with a 100 fs relaxation time. A timestep of 1 fs was used, and neighbor lists were updated every timestep with a 2.0 Å skin distance. Thermodynamic quantities were recorded every 100 steps, and the total production time for each system was 10 ns.
4. Conclusions
Based on the comprehensive atomistic investigation conducted in this study, we conclude that the morphology of CdS nanostructures plays a decisive role in modulating their structural stability, electronic properties, and interfacial interactions with water, which collectively influence photocatalytic performance for water splitting.
Density functional theory (DFT) calculations revealed that rod-shaped CdS maintains a more ordered and anisotropic bonding network with stronger directional Cd–S interactions and higher electron localization, favoring efficient charge separation along its longitudinal axis. In contrast, cluster-shaped CdS exhibits greater surface relaxation, heterogeneous charge distribution, and weakened surface bonds, which may promote charge recombination. Molecular electrostatic potential (MEP) maps further confirmed that rod-shaped CdS possesses a uniformly negative surface, while cluster-shaped CdS shows localized charge polarization.
Classical all-atom molecular dynamics (MD) simulations of explicitly solvated systems demonstrated that water molecules interact more strongly and orderly with rod-shaped CdS, particularly through S–O hydrogen bonding, as evidenced by sharper and more intense radial distribution function (RDF) peaks. The cluster-shaped system exhibited less structured hydration and weaker solvent interactions, correlating with its more disordered surface.
These computational insights align with experimental trends where rod-like CdS morphologies generally exhibit superior photocatalytic activity and stability compared to nanoparticle clusters. The integrated DFT and MD approach clarifies that the synergistic combination of morphological integrity, controlled charge separation, and ordered hydration shells makes rod-shaped CdS a more promising candidate for efficient and durable hydrogen evolution.
However, these findings are limited by the reliance on static DFT calculations and simplified CdS photocatalysts in implicit water models, which cannot fully capture explicit solvent effects. In this work, we also employed classical all-atom MD simulations to study intermolecular interactions between explicitly solvated water and CdS; however, this approach cannot model the creation and breaking of chemical bonds on the CdS surface in the presence of explicit water molecules. Additionally, because finite CdS clusters were used rather than periodic surfaces, some degree of edge-induced artifacts may remain despite geometric optimization and hydrogen passivation. Reactive all-atom MD simulations using ReaxFF or ab initio molecular dynamics (AIMD) were not implemented in the present study. Future work should incorporate AIMD or reactive force field-based simulations to capture time-dependent hydration behavior, bond rearrangements, and more complex photocatalytic processes.
Supplementary Materials
The following supporting information can be downloaded at:
https://www.mdpi.com/article/10.3390/molecules31010092/s1. The attached supporting material contains coordinate files for the rod- and cluster-shaped CdS structures used in DFT calculations, along with a Python version 3.10.12 script for plotting the radial distribution function from classical all-atom MD simulations.
Author Contributions
A.A. (Aliya Assilbekova)—Computational methodology, DFT calculation, writing—original draft; I.I.—Computational methodology, writing—review and editing; M.K.—Data analysis, writing—review and editing; A.A. (Ayaulym Amankeldiyeva)—classical all-atom MD simulations, writing—review and editing; S.P.—formal analysis, writing—review and editing; N.A.—formal analysis, writing—review and editing; G.B.—formal analysis, conceptualization writing—review and editing; A.A. (Anuar Aldongarov)—DFT calculation, conceptualization, supervision, data analysis, funding, writing—review and editing. All authors have read and agreed to the published version of the manuscript.
Funding
This research was funded by the Science Committee of the Ministry of Science and Higher Education of the Republic of Kazakhstan, under Grant No. AP23487993, titled “Development of nanosized hybrid semiconducting structures based on metal sulfides/oxides and sulfides/hydroxides for photocatalytic water splitting”.
Institutional Review Board Statement
Not applicable.
Informed Consent Statement
Not applicable.
Data Availability Statement
All data supporting the findings of this computational study are reported in the manuscript.
Acknowledgments
This research was funded by the Science Committee of the Ministry of Science and Higher Education of the Republic of Kazakhstan, under Grant No. AP23487993, titled “Development of nanosized hybrid semiconducting structures based on metal sulfides/oxides and sulfides/hydroxides for photocatalytic water splitting”. The DFT calculations were performed on an L.N. Gumilyov Eurasian National University.
Conflicts of Interest
The authors have no conflicts to disclose.
Abbreviations
The following abbreviations are used in this manuscript:
| BCP | Bond critical points |
| CP | Critical points |
| DFT | Density functional theory |
| MEP | Molecular electrostatic potential maps |
| MD | Molecular dynamics |
| NCI | Noncovalent interactions |
| RDG | Reduced density gradient |
| RDF | Radial distribution function |
References
- Raja, A.; Selvakumar, K.; Kang, M. Hydrogen production via water splitting and photocatalytic Cr (VI) reduction using cadmium sulfide-integrated Ni–Co–Mn layered double hydroxide. Fuel 2026, 406, 136949. [Google Scholar] [CrossRef]
- Ding, M.; Cui, S.; Lin, Z.; Yang, X. Crystal facet engineering of hollow cadmium sulfide for efficient photocatalytic hydrogen evolution. Appl. Catal. B Environ. Energy 2024, 357, 124333. [Google Scholar] [CrossRef]
- Billah, A.; Anju, A.N.; Miyazawa, R.; Maboya, W.K.; Hirose, F.; Ahmmad, B. Biomolecule-Incorporated CdS Nanocomposites as Highly Active Photocatalysts for Hydrogen Production from Water. ACS Appl. Nano Mater. 2025, 8, 16936–16943. [Google Scholar] [CrossRef]
- Mao, J.; Xu, W.; Seo, S. Exploring the dual phases of cadmium sulfide: Synthesis, properties, and applications of hexagonal wurtzite and cubic zinc blende crystal structures. J. Mater. Chem. A 2024, 12, 23218–23242. [Google Scholar] [CrossRef]
- Yu, X.; Li, H.; Tian, W.; Ge, Y.; Wang, T.; Qi, Z.; Liu, J. Single-layer semiconductor-decorated flexible 2D protein nanosheets by engineered anchoring for efficient photocatalytic hydrogen production. Int. J. Biol. Macromol. 2024, 261, 129819. [Google Scholar] [CrossRef]
- Azmand, A.; Firoozi, S.; Haghshenas, D.F. Facile green synthesis of CdS nanoparticles in a glycine medium for waste valorization of Ni-Cd battery. Waste Biomass Valorization 2025, 16, 5939–5951. [Google Scholar] [CrossRef]
- Zheng, X.; Liu, Y.; Yang, Y.; Song, Y.; Deng, P.; Li, J.; Liu, W.; Shen, Y.; Tian, X. Recent advances in cadmium sulfide-based photocatalysts for photocatalytic hydrogen evolution. Renewables 2023, 1, 39–56. [Google Scholar] [CrossRef]
- Billah, A.; Tojo, F.; Kubota, S.; Hirose, F.; Ahmmad, B. Organic molecule embedded CdS nanocomposite for hydrogen generation from water: Effect of precursors’ concentrations. Int. J. Hydrogen Energy 2021, 46, 35302–35310. [Google Scholar] [CrossRef]
- Devaraji, P.; Gao, R.; Xiong, L.; Jia, X.; Huang, L.; Chen, W.; Liu, S.; Mao, L. Usage of natural leaf as a bio-template to inorganic leaf: Leaf structure black TiO2/CdS heterostructure for efficient photocatalytic hydrogen evolution. Int. J. Hydrogen Energy 2021, 46, 14369–14383. [Google Scholar] [CrossRef]
- Yang, H.; Zhang, H.; Han, Z.; Sun, H.; Liao, N.; Li, X.; Gohi, B.F.C.A.; Ali, A.M.; Jiang, Z. Efficient CdS nanoparticle/Zn (OH) F heterojunction catalysts for hydrogen evolution. ACS Appl. Nano Mater. 2022, 5, 17900–17908. [Google Scholar] [CrossRef]
- Wang, Q.; Lian, J.; Li, J.; Wang, R.; Huang, H.; Su, B.; Lei, Z. Highly efficient photocatalytic hydrogen production of flower-like cadmium sulfide decorated by histidine. Sci. Rep. 2015, 5, 13593. [Google Scholar] [CrossRef] [PubMed]
- Fatemipayam, N.; Keramati, N.; Ghazi, M.M. Synthesis and characterization of cadmium sulfide and titania photocatalysts supported on mesoporous silica for optimized dye degradation under visible light. Sci. Rep. 2025, 15, 8160. [Google Scholar] [CrossRef] [PubMed]
- Lu, H.; Liu, Y.; Zhang, S.; Wan, J.; Wang, X.; Deng, L.; Kan, J.; Wu, G. Clustered tubular S-scheme ZnO/CdS heterojunctions for enhanced photocatalytic hydrogen production. Mater. Sci. Eng. B 2023, 289, 116282. [Google Scholar] [CrossRef]
- Wang, L.; Wang, L. Ligands modification strategies for mononuclear water splitting catalysts. Front. Chem. 2022, 10, 996383. [Google Scholar] [CrossRef]
- Tugelbay, S.A.; Bakbolat, B. Visible-Light-Responsive Ag3PO4-Based Photocatalysts for Water Treatment and Wastewater Remediation: Advances, Challenges, and Future Directions. J. Environ. Chem. Eng. 2025, 13, 120339. [Google Scholar] [CrossRef]
- Nasir, J.A.; Rehman, Z.U.; Shah, S.N.A.; Khan, A.; Butler, I.S.; Catlow, C.R.A. Recent developments and perspectives in CdS-based photocatalysts for water splitting. J. Mater. Chem. A 2020, 8, 20752–20780. [Google Scholar] [CrossRef]
- Isa, A.T.; Hafeez, H.Y.; Mohammed, J.; Kafadi, A.D.G.; Ndikilar, C.E.; Suleiman, A.B. A review on the progress and prospect of CdS-based photocatalysts for hydrogen generation via photocatalytic water splitting. J. Alloys Compd. Commun. 2024, 4, 100043. [Google Scholar] [CrossRef]
- Senasu, T.; Ruengchai, N.; Khamdon, S.; Lorwanishpaisarn, N.; Nanan, S. Hydrothermal synthesis of cadmium sulfide photocatalyst for detoxification of azo dyes and ofloxacin antibiotic in wastewater. Molecules 2022, 27, 7944. [Google Scholar] [CrossRef]
- Tang, J.; Ma, X.; He, J.; Liu, X.; Li, M. Zr (IV) metal-organic framework based cadmium sulfide for enhanced photocatalytic water splitting. J. Environ. Chem. Eng. 2022, 10, 107820. [Google Scholar] [CrossRef]
- Imran, M.; Yousaf, A.B.; Farooq, M.; Kasak, P. Enhancement of visible light-driven hydrogen production over zinc cadmium sulfide nanoparticles anchored on BiVO4 nanorods. Int. J. Hydrogen Energy 2022, 47, 8327–8337. [Google Scholar] [CrossRef]
- Lei, Y.; Ng, K.H.; Zhang, Y.; Li, Z.; Xu, S.; Huang, J.; Lai, Y. One-pot loading of cadmium sulfide onto tungsten carbide for efficient photocatalytic H2 evolution under visible light irradiation. Chem. Eng. J. 2022, 434, 134689. [Google Scholar] [CrossRef]
- Abdullah, U.; Ali, M.; Pervaiz, E. Cadmium sulfide embedded Prussian Blue as highly active bifunctional electrocatalyst for water-splitting process. Int. J. Hydrogen Energy 2022, 47, 21160–21172. [Google Scholar] [CrossRef]
- Song, L.; Zhang, S.; Yang, H.; Wei, J. Temperature-controlled ultra-high hydrogen evolution photocatalytic activity of cadmium sulfide without cocatalysts. J. Colloid Interface Sci. 2022, 608, 366–377. [Google Scholar] [CrossRef]
- Karibayev, M.; Myrzakhmetov, B.; Bekeshov, D.; Wang, Y.; Mentbayeva, A. Atomistic modeling of Quaternized Chitosan Head Groups: Insights into chemical stability and ion transport for anion exchange membrane applications. Molecules 2024, 29, 3175. [Google Scholar] [CrossRef] [PubMed]
- Abuova, A.U.; Tolegen, U.Z.; Inerbaev, T.M.; Karibayev, M.; Satanova, B.M.; Abuova, F.U.; Popov, A.I. A Brief Review of Atomistic Studies on BaTiO3 as a Photocatalyst for Solar Water Splitting. Ceramics 2025, 8, 100. [Google Scholar] [CrossRef]
- Wu, Y.H.; Yan, Y.Q.; Deng, Y.X.; Huang, W.Y.; Yang, K.; Lu, K.Q. Rational construction of S-scheme CdS quantum dots/In2O3 hollow nanotubes heterojunction for enhanced photocatalytic H2 evolution. Chin. J. Catal. 2025, 70, 333–340. [Google Scholar] [CrossRef]
- Zhang, R.; Liu, Q.; Wang, T.; Xiao, P.; Ji, X.Y.; Liu, J.; Cai, P.; Zhang, D.; Pu, X.; Zhang, H.; et al. Interfacial Co–S bond-enhanced Mn0.3Cd0.7S/CoPB Schottky junction for photothermal-assisted photocatalytic hydrogen evolution. J. Colloid Interface Sci. 2025, 703, 139176. [Google Scholar] [CrossRef]
- Mamiyev, Z.; Balayeva, N.O. Metal sulfide photocatalysts for hydrogen generation: A review of recent advances. Catalysts 2022, 12, 1316. [Google Scholar] [CrossRef]
- Sharma, K.; Hasija, V.; Malhotra, M.; Verma, P.K.; Khan, A.A.P.; Thakur, S.; Van Le, Q.; Quang, H.H.P.; Nguyen, V.H.; Singh, P.; et al. A review of CdS-based S-scheme for photocatalytic water splitting: Synthetic strategy and identification techniques. Int. J. Hydrogen Energy 2024, 52, 804–818. [Google Scholar] [CrossRef]
- Mamiyev, Z.Q.; Balayeva, N.O. Synthesis and characterization of CdS nanocrystals and maleic anhydride octene-1 copolymer nanocomposite materials by the chemical in-situ technique. Compos. Part B Eng. 2015, 68, 431–435. [Google Scholar] [CrossRef]
- Xiong, S.; Xi, B.; Qian, Y. CdS hierarchical nanostructures with tunable morphologies: Preparation and photocatalytic properties. J. Phys. Chem. C 2010, 114, 14029–14035. [Google Scholar] [CrossRef]
- Vydrov, O.A.; Scuseria, G.E. Assessment of a long-range corrected hybrid functional. J. Chem. Phys. 2006, 125, 234109. [Google Scholar] [CrossRef] [PubMed]
- Hay, P.J.; Wadt, W.R. Ab initio effective core potentials for molecular calculations—Potentials for the transition-metal atoms Sc to Hg. J. Chem. Phys. 1985, 82, 270–283. [Google Scholar] [CrossRef]
- Frisch, M.J.; Trucks, G.W.; Schlegel, H.B.; Scuseria, G.E.; Robb, M.A.; Cheeseman, J.R.; Scalmani, G.; Barone, V.; Petersson, G.A.; Nakatsuji, H.; et al. Gaussian 16; Gaussian, Inc.: Wallingford, CT, USA, 2016. [Google Scholar]
- Dennington, R.; Keith, T.A.; Millam, J.M. GaussView, Version 6.1; Semichem Inc.: Shawnee Mission, KS, USA, 2016. [Google Scholar]
- Lu, T.; Chen, F. Multiwfn: A Multifunctional Wavefunction Analyzer. J. Comput. Chem. 2012, 33, 580–592. [Google Scholar] [CrossRef]
- Lu, T. A comprehensive electron wavefunction analysis toolbox for chemists. Multiwfn. J. Chem. Phys. 2024, 161, 082503. [Google Scholar] [CrossRef]
- Thompson, A.P.; Aktulga, H.M.; Berger, R.; Bolintineanu, D.S.; Brown, W.M.; Crozier, P.S.; in’t Veld, P.J.; Kohlmeyer, A.; Moore, S.G.; Nguyen, T.D.; et al. LAMMPS—A flexible simulation tool for particle-based materials modeling at the atomic, meso, and continuum scales. Comput. Phys. Commun. 2022, 271, 108171. [Google Scholar] [CrossRef]
- Humphrey, W.; Dalke, A.; Schulten, K. VMD: Visual molecular dynamics. J. Mol. Graph. 1996, 14, 33–38. [Google Scholar] [CrossRef]
- Zhou, X.W.; Ward, D.K.; Martin, J.E.; Van Swol, F.B.; Cruz-Campa, J.L.; Zubia, D. Stillinger-Weber potential for the II-VI elements Zn-Cd-Hg-S-Se-Te. Phys. Rev. B 2013, 88, 199902. [Google Scholar] [CrossRef]
- Chavez, J.J.; Zhou, X.W.; Almeida, S.F.; Aguirre, R.; Zubia, D. Molecular Dynamics Study of High Symmetry Planar Defect Evolution during Growth of CdTe/CdS Films. J. Phys. Chem. C 2017, 122, 751–761. [Google Scholar] [CrossRef]
- Jorgensen, W.L.; Chandrasekhar, J.; Madura, J.D.; Impey, R.W.; Klein, M.L. Comparison of simple potential functions for simulating liquid water. J. Chem. Phys. 1983, 79, 926–935. [Google Scholar] [CrossRef]

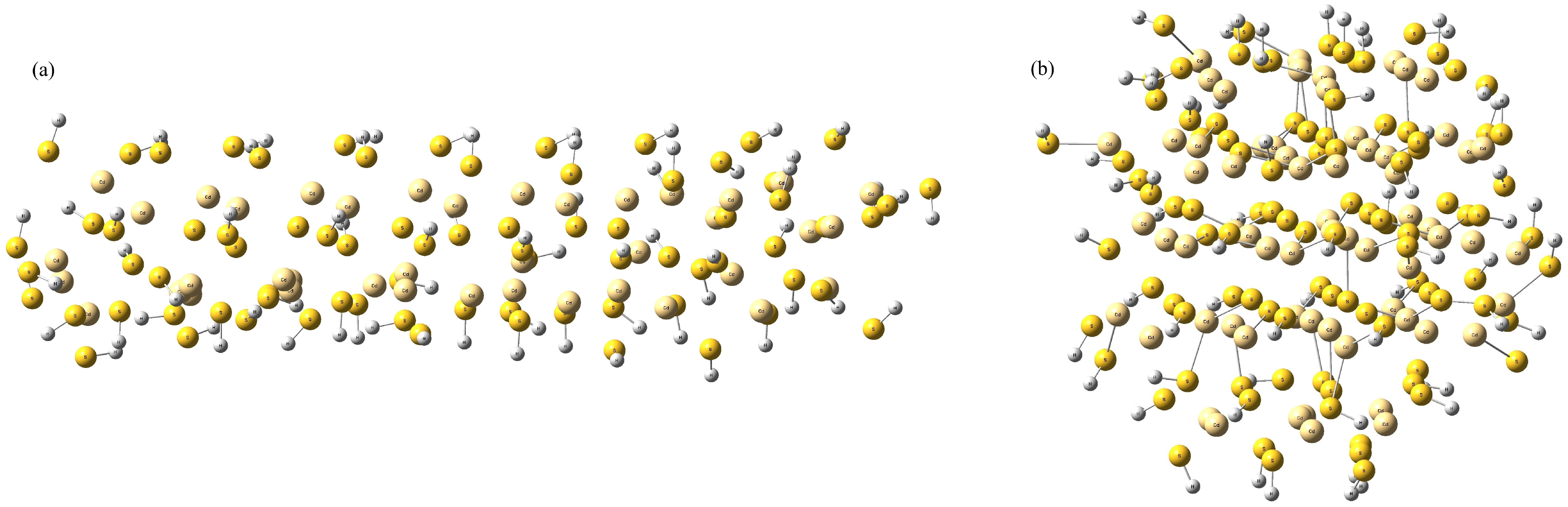

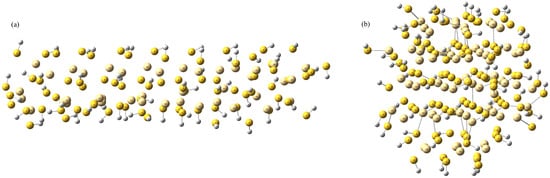

Figure 1.
Optimized structure of (a) rod-shaped CdS, (b) cluster-shaped CdS, both optimized with implicit water. Color scheme: light yellow (cadmium); dark yellow (sulfur); and white (hydrogen).
Figure 1.
Optimized structure of (a) rod-shaped CdS, (b) cluster-shaped CdS, both optimized with implicit water. Color scheme: light yellow (cadmium); dark yellow (sulfur); and white (hydrogen).

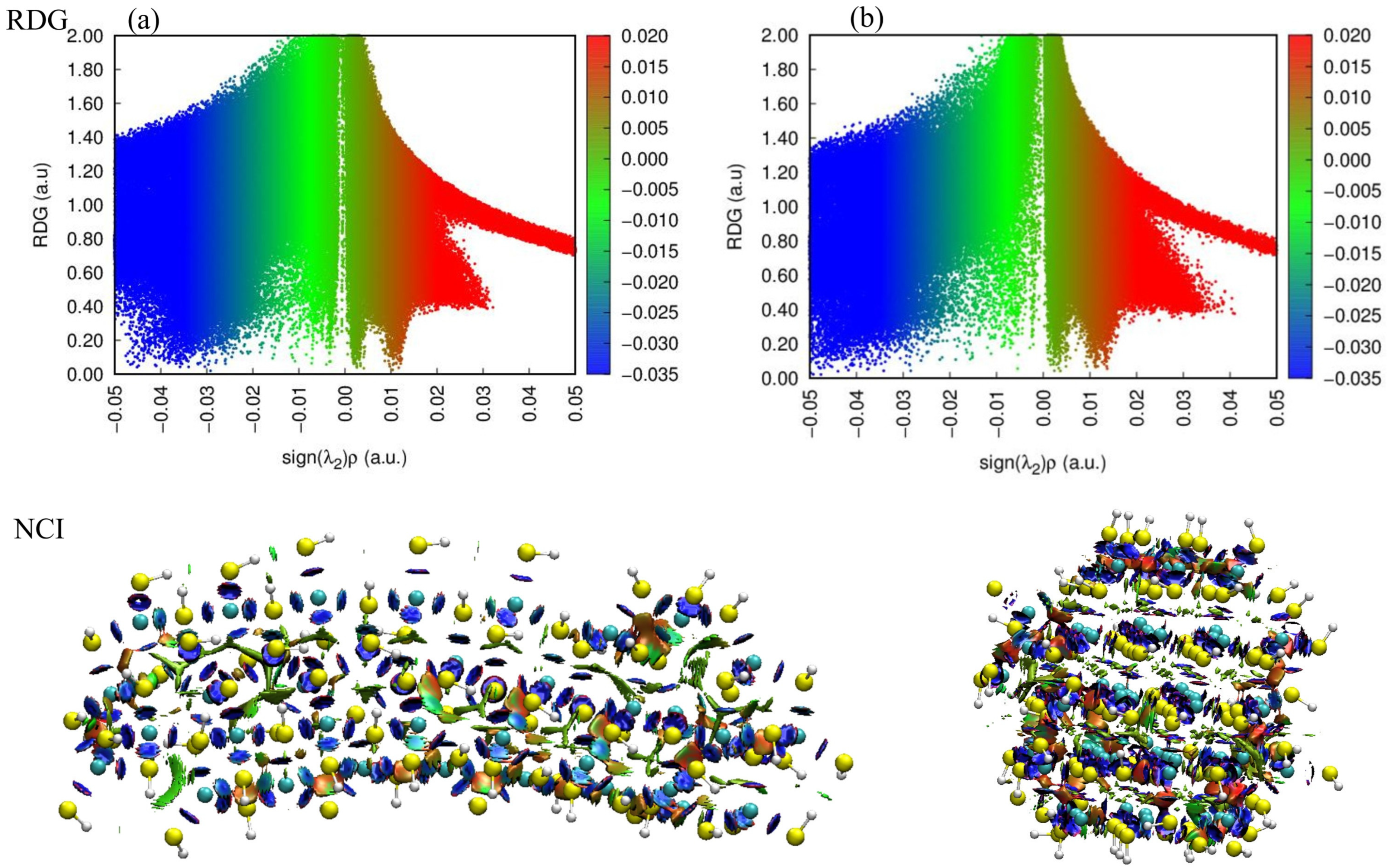

Figure 2.
RDGs and NCIs of (a) rod-shaped CdS with implicit water, (b) cluster-shaped CdS, both optimized with implicit water. Color scheme of atoms: cyan (cadmium), yellow (sulfur), and white (hydrogen). Color scheme of RDG and NCI: blue (strong attraction), green (van der Waals interaction), and red (strong repulsion).
Figure 2.
RDGs and NCIs of (a) rod-shaped CdS with implicit water, (b) cluster-shaped CdS, both optimized with implicit water. Color scheme of atoms: cyan (cadmium), yellow (sulfur), and white (hydrogen). Color scheme of RDG and NCI: blue (strong attraction), green (van der Waals interaction), and red (strong repulsion).

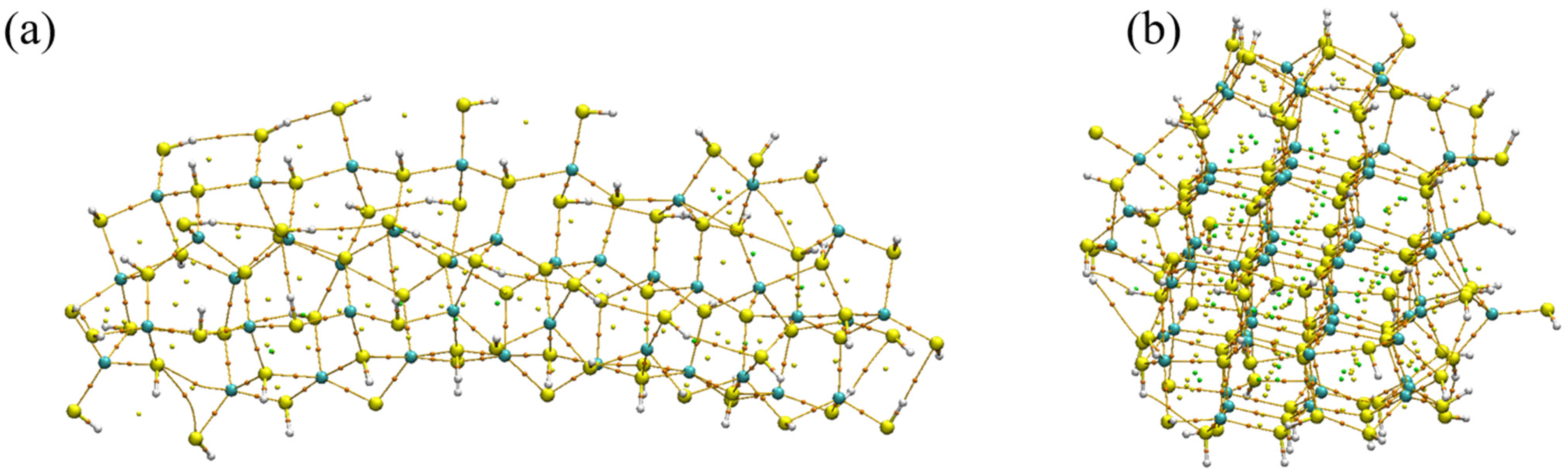

Figure 3.
Critical points of (a) rod-shaped CdS with implicit water, (b) cluster-shaped CdS, both optimized with implicit water. Color scheme: orange (bond critical points); cyan (cadmium); yellow (sulfur); and white (hydrogen).
Figure 3.
Critical points of (a) rod-shaped CdS with implicit water, (b) cluster-shaped CdS, both optimized with implicit water. Color scheme: orange (bond critical points); cyan (cadmium); yellow (sulfur); and white (hydrogen).

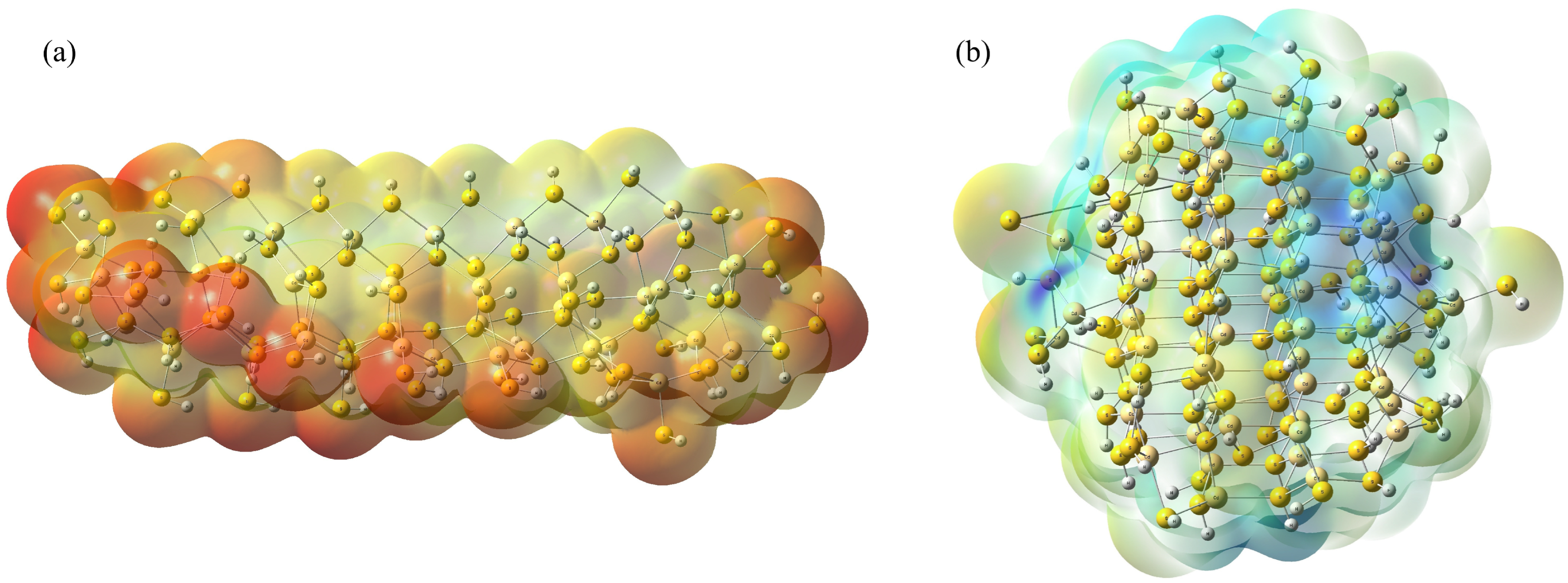

Figure 4.
MEP maps of (a) rod-shaped CdS (magnitude from −0.23 a.u. to 0.23 a.u.), (b) cluster-shaped CdS (magnitude from −0.10 a.u. to 0.10 a.u.), both optimized with implicit water. Color scheme: light yellow (cadmium); dark yellow (sulfur); and white (hydrogen).
Figure 4.
MEP maps of (a) rod-shaped CdS (magnitude from −0.23 a.u. to 0.23 a.u.), (b) cluster-shaped CdS (magnitude from −0.10 a.u. to 0.10 a.u.), both optimized with implicit water. Color scheme: light yellow (cadmium); dark yellow (sulfur); and white (hydrogen).
Figure 5.
Electron localization function of (a) rod-shaped CdS, (b) cluster-shaped CdS, both optimized with implicit water. Color scheme: reddish (cadmium); white (hydrogen); and yellow (oxygen), white red transparent isosurface (explicitly solvated water molecules).
Figure 5.
Electron localization function of (a) rod-shaped CdS, (b) cluster-shaped CdS, both optimized with implicit water. Color scheme: reddish (cadmium); white (hydrogen); and yellow (oxygen), white red transparent isosurface (explicitly solvated water molecules).

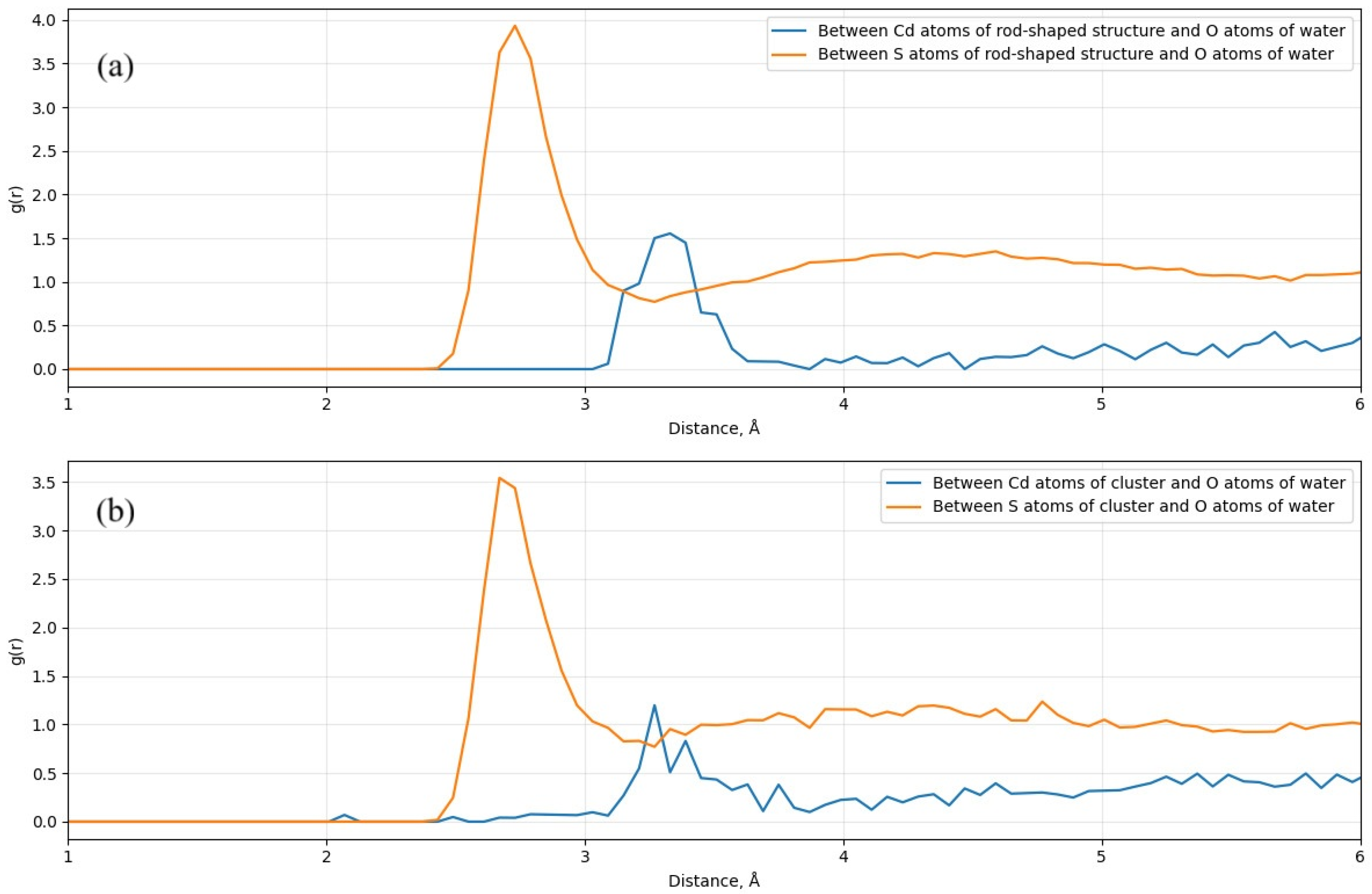

Figure 6.
RDFs of (a) rod-shaped CdS, (b) cluster-shaped CdS, both optimized with implicit water.
Figure 6.
RDFs of (a) rod-shaped CdS, (b) cluster-shaped CdS, both optimized with implicit water.

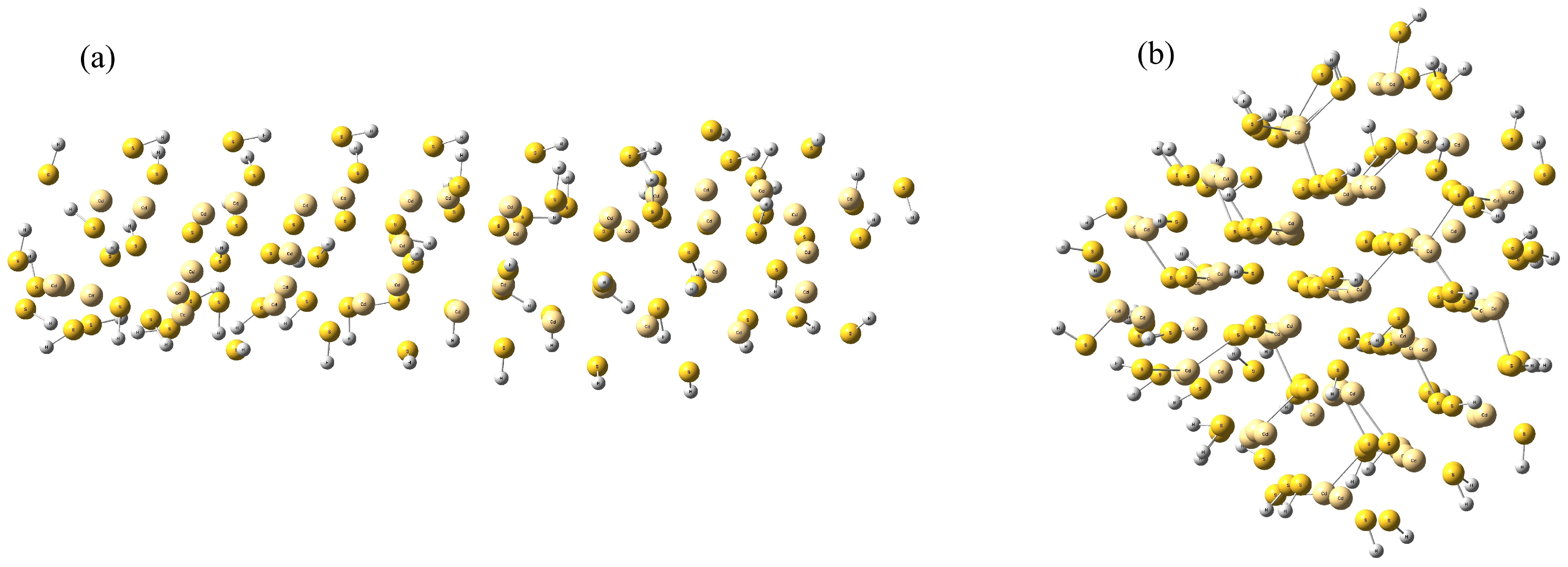

Figure 7.
Three-dimensional structures of (a) rod-shaped, (b) cluster-shaped CdS. Color scheme: light yellow (cadmium); dark yellow (sulfur); and white (hydrogen).
Figure 7.
Three-dimensional structures of (a) rod-shaped, (b) cluster-shaped CdS. Color scheme: light yellow (cadmium); dark yellow (sulfur); and white (hydrogen).
Table 1.
Comparative overview of rod- and cluster-shaped CdS morphologies [
11,
12,
13,
14,
15,
16,
17,
18].
Table 1.
Comparative overview of rod- and cluster-shaped CdS morphologies [
11,
12,
13,
14,
15,
16,
17,
18].
| Aspect | Rod-Shaped CdS | Cluster-Shaped CdS | Effect of Water & Intermolecular Interactions | Photocatalytic Implications |
|---|
| Morphology | Elongated 1D structures with anisotropic charge transport. | Nearly spherical or aggregated nanoparticles with higher surface area. | Water molecules form hydrogen bonds, influencing aggregation and surface stability. | Rods favor charge separation; clusters offer abundant active sites. |
| Synthesis | Typically obtained via hydro/solvothermal routes with controlled precursor ratios. | Formed under similar conditions with variations in solvent or capping agents. | Solvent polarity and hydration modulate nucleation and surface chemistry. | Synthesis control enhances morphology and stability for catalysis. |
| Electronic/Optical | Band gap ≈ 2.4 eV; efficient visible-light absorption; reduced recombination. | Comparable gap but higher carrier recombination due to boundaries. | Water alters surface charge density, affecting carrier dynamics. | Charge separation efficiency governs hydrogen evolution rate. |
| Stability | Enhanced by surface passivation and uniform growth. | More prone to photocorrosion from surface defects. | Hydration can either stabilize or promote surface oxidation. | Stability improved via heterojunctions or protective coatings. |
| Hydrogen Evolution | Active rod tips enhance catalytic sites and electron transfer. | High surface area aids adsorption but needs recombination control. | Water acts as both reactant and stabilizing medium. | Regarding morphology, environment synergy dictates overall efficiency. |
Table 2.
Key structural parameters of optimized CdS models (implicit water).
Table 2.
Key structural parameters of optimized CdS models (implicit water).
| Parameter | Rod-Shaped CdS | Cluster-Shaped CdS |
|---|
| Average Cd–S distance (Å) | 2.53 | 2.49 |
| Average S–Cd–S angle (°) | 107.8 | 104.6 |
| Range of Cd–S distances (Å) | 2.50–2.57 | 2.42–2.54 |
| Range of S–Cd–S angles (°) | 103–112 | 95–110 |
| Notable structural feature | Highly ordered anisotropic CdS chain | Higher surface relaxation and distortion |
Table 3.
Representative Cd–S BCP properties (Interaction energies estimated as kcal·mol−1).
Table 3.
Representative Cd–S BCP properties (Interaction energies estimated as kcal·mol−1).
| System (Representative BCP) | Rod, Selected BCP | Cluster, Selected BCP |
|---|
| Bond length (Å) | 2.53 | 2.49 |
| ρ (a.u.) | 0.16 | 0.05 |
| ∇2ρ (a.u.) | −0.27 | +0.16 |
| Ellipticity ε | 0.0362 | 0.0002 |
| V(r) (hartree) | −0.1795639 | −0.0490795 |
| Estimated E (kcal·mol−1) | −56.40 | −15.40 |
Table 4.
Representative Alignment Between Experimental Findings and Present Computational Trends.
Table 4.
Representative Alignment Between Experimental Findings and Present Computational Trends.
| Reference | Experiment Type | Key Finding | Alignment with Current Work |
|---|
| [28] | Optical/electronic characterization of doped CdS | Doped nanostructures show enhanced visible-light activity and reduced recombination via electronic structure tuning. | Matches rod-shaped CdS. |
| [29] | Review of CdS S-scheme for water splitting | Rods/nanowires balance crystallinity/surface area, reducing photocorrosion | Validates computational prediction of rod stability |
| [30] | Photocatalytic activity trends in pristine/doped CdS | Morphology dictates optical properties and activity; rods outperform clusters in stability. | Aligns with rod integrity under hydration (RDG/NCI) |
| [31] | Hydrothermal synthesis and RhB degradation | Nanorod-based hierarchical CdS shows superior activity from high surface area and crystallinity | Supports rod-shaped CdS balanced interactions |
| Disclaimer/Publisher’s Note: The statements, opinions and data contained in all publications are solely those of the individual author(s) and contributor(s) and not of MDPI and/or the editor(s). MDPI and/or the editor(s) disclaim responsibility for any injury to people or property resulting from any ideas, methods, instructions or products referred to in the content. |
