Blast Nucleation Suppressed Growth of Large-Sized High-Quality CsPbBr₃ Single Crystals for Photodetector Applications

Abstract

During the growth of lead halide perovskite single crystals (SCs) with the conventional inverse temperature crystallization (ITC) method, the blast nucleation of the precursor under supersaturation conditions is always unavoidable. In the current study, three kinds of additives namely methanol (MOE), ethyl alcohol (EtOH), and polyethylene glycol (PEG) are introduced to regulate the growth of CsPbBr₃ SCs. Benefiting from the strong anchoring hydroxy groups (-OH) with the Pb²⁺ species, large-sized CsPbBr₃ crystals with reduced defect densities were prepared (PEG-regulated). In addition, the viscosity of the precursor solution increases after adding PEG additive, which provides a more stabilized environment for crystal growth. Finally, the photodetectors prepared from our PEG-tuned CsPbBr₃ SCs show a responsivity of 2.25 A/W and a detectivity of 6.06 × 10¹¹ Jones, demonstrating the potential of CsPbBr₃ SCs for photo-detecting applications.

1. Introduction

Recently, lead halide perovskites with ABX₃ structure are drawing interest due to their optoelectronic applications [1,2,3,4,5]. Lead halide perovskites can be classified as polycrystalline thin films, low-dimensional nanostructures, and single crystals (SCs) [6]. The polycrystalline perovskite thin films are regarded as the ideal choice for high-performance solar cells [1,7,8], while the light-emitting devices are based on perovskite low-dimensional nanostructures [9,10]. As for perovskite SCs with reduced defect densities and extended carrier diffusion length, they are showing great potential as photodetectors, X-ray detectors, and γ-ray detectors [11,12,13,14,15]. Liu and co-workers demonstrated that the photo-detecting performance of the FAPbI₃ SCs was much better than that of the polycrystalline films [6]. C. Su reported the CH₃NH₃PbBr₃ narrowband photodetector displayed high response under a low bias (−1 V) [16]. An ultraviolet (UV) detector prototype has been demonstrated by M. Bakr using MAPbCl₃ SCs [17]. Despite progressive achievements, the organic cations (CH₃NH₃⁺, FA⁺, CH(NH₂)₂⁺), etc.) of the organic–inorganic hybrid perovskite (OIHP) are extremely sensitive to environmental humidity and oxygen, resulting in poor stability [18]. Thus, CsPbBr₃ SCs with strong chemical bonding stand out and are being extensively investigated [19,20,21]. The stability of selective devices can be further enhanced via encapsulation [22,23].

The performance of the perovskite photodetector is highly dependent on the quality of the synthesized SCs [24]. Thus, an elaborate control of the nucleation and growth of the perovskite SCs turns out to be the first step towards high-performance photodetectors. Generally, the vertical Bridgman method and solution growth method are widely used in the growth of CsPbBr₃ SCs [25,26,27,28,29]. X. Tao reported centimeter-scale CsPbBr₃ SCs with the modified Bridgman method [25]. H. Zeng suggested that the defect densities of the Bridgman method-grown CsPbBr₃ SCs can be as low as 1 × 10⁹ cm⁻³ [26]. Despite the progressive development, the Bridgman method requires high temperature processing and several post-treatments, which increase the difficulty of the as-synthesized SCs. Moreover, phase transition is frequently unavoidable in Bridgman-grown crystals, which brings external defect densities [27].

The solution growth method refers to the nucleation and growth of the precursor in a supersaturation condition. Inverse temperature crystallization (ITC) and anti-solvent vapor crystallization (AVC) methods are frequently used in the solution-grown CsPbBr₃ SCs. With methanol as the anti-solvent, X. Zhan revealed the 2D nucleation growth of the CsPbBr₃ SCs [30]. W. Jie prepared centimeter-scale CsPbBr₃ SCs with the AVC method and demonstrated effective light detection in a wavelength region of 365–420 nm [31]. In 2016, M.V. Kovalenko demonstrated that the ITC method can be used for growing CsPbBr₃ SCs [30]. Different from the Bridgman method, the solution-grown method can be processed in ambient conditions with a temperature of less than 150 °C, which is advantageous for low-cost production. However, the ITC-grown SCs frequently suffer from tiny crystals with irregular shapes. This is mainly due to the blast nucleation of the precursors right-reaching the steep part of the solubility curve [30]. Thus, the controlled release of the solute has become the key issue in the ITC-processed perovskite SCs. M. V. Kovalenko suggested that a mixed solvent was essential for the ITC-grown CsPbBr₃ and the growth can be controlled via changing temperature [30]. CyOH has been introduced to reduce the secondary phase (SP) defects in the ITC-grown CsPbBr₃ SCs [31]. Y. Feng demonstrated that the choline bromide (CB) can be used to regulate the growth and the exposed facet of the synthesized CsPbBr₃ SCs [32]. X. Zhao further proved the importance of CB in the growth of CsPbBr₃ SCs [20]. X. Han proposed that polymer additives with oxygen groups are effective regulators during the growth of large-sized compositional varied perovskite SCs. It seems that additive engineering is an effective strategy during the synthesis of high-quality large-sized CsPbBr₃ SCs.

In this work, we introduce 2-Methoxyethanol (MOE), anhydrous ethanol (EtOH), and polyethylene glycol (PEG) as additives to tune the growth of CsPbBr₃ SCs. The oxygen-containing additives bond strongly with the lead precursors and contribute to the gradual precipitation of the solute, and irregularly shaped crystals caused by the blast nucleation of the precursors are eliminated. With PEG additives, the largest crystal size of 6 mm × 3 mm × 1 mm with reduced defect densities has been achieved. As for device performance, the photodetectors prepared from our PEG-assisted SCs show a responsivity of 2.25 A/W and a detectivity of up to 6.06 × 10¹¹ Jones, showing their advantage for light-detection applications.

2. Results and Discussion

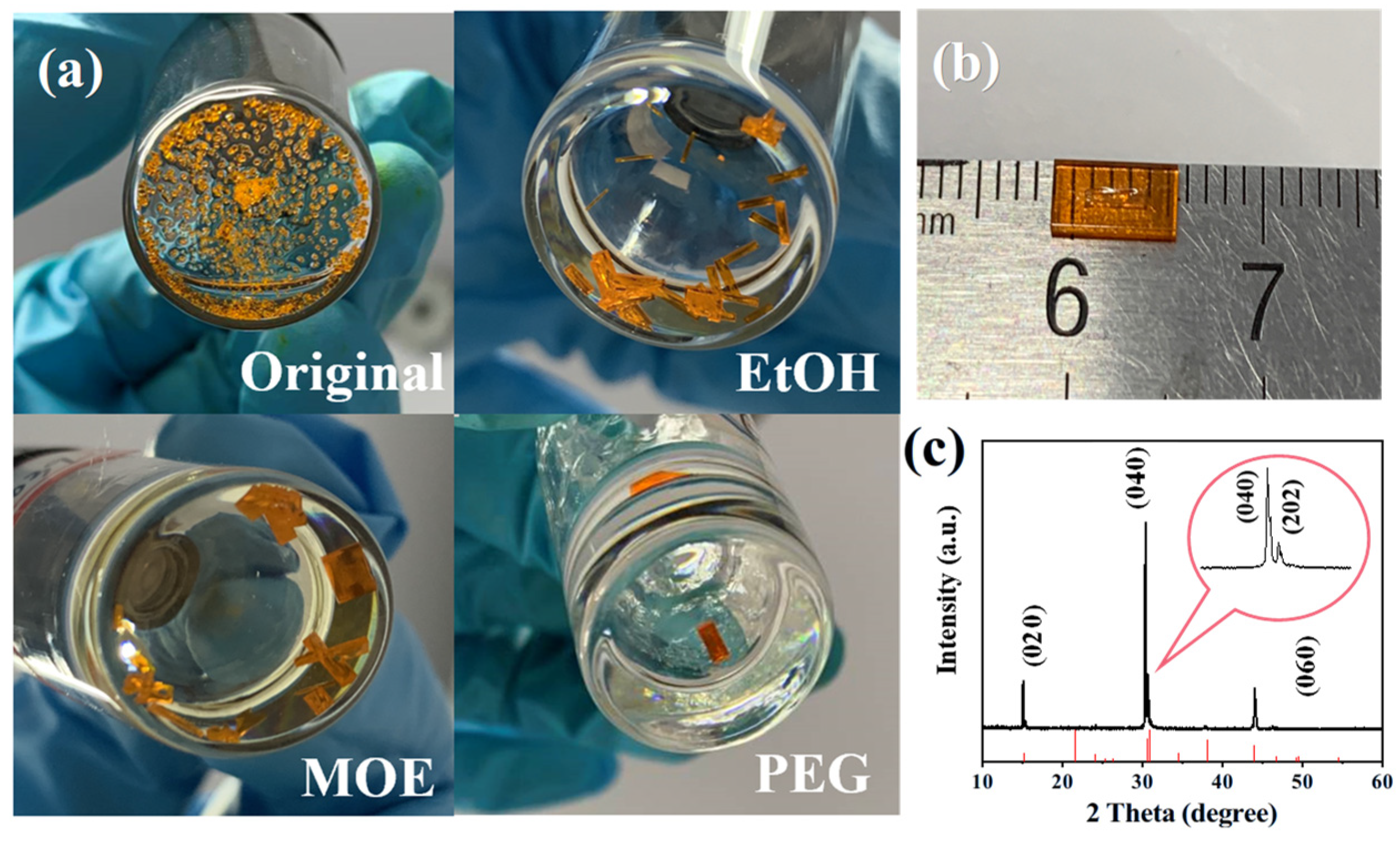

First, DMSO has been selected as the solvent of ITC-grown CsPbBr₃ SCs. The molar ratio of CsBr and PbBr₂ has been fixed to 1:2 to avoid Cs₄PbBr₆ by-product formation [33]. Shown in Figure 1a, although the seed-assisted method has been used, we receive a vast number of tiny crystals after the evaporation of the solvent. While large-sized crystals can be obtained from the additive-regulated ITC solutions. It seems that the alcohol-based additives can, to a great extent, suppress the problem of blast nucleation during CsPbBr₃ SC growth. The PEG additive turns out to be the most effective, resulting in large-sized single crystals. The concentration of the PEG additive has also been investigated in detail (Figure S1). Although both contribute to large crystals, the surface of 0.05 g PEG-regulated SCs shows visible pits, so 0.1 g of additive has been used in our follow-up studies. Using PEG as additive, we receive a maximum-sized CsPbBr₃ SC with a length of 6 mm (Figure 1b). More photographs of the as-synthesized crystals are summarized in Figure S2.

According to Figure 1c, the synthesized CsPbBr₃ SCs can be indexed to an orthogonal phase (PDF#54-0751) [34]. The morphological characterizations of the as-synthesized SCs are listed in Figures S3 and S4. As shown in the scanning electron microscope (SEM) images, a step-like structure has been detected in the control SCs, indicating the poor quality of the control SCs. Pinholes and cracks are clear in crystals with EtOH and MOE additives. Only the PEG additive results in a smooth surface with fewer defects, which is beneficial for optoelectronic applications. The high quality of the PEG-regulated SCs is also supported by atomic force microscope (AFM) characterization (Figure S4).

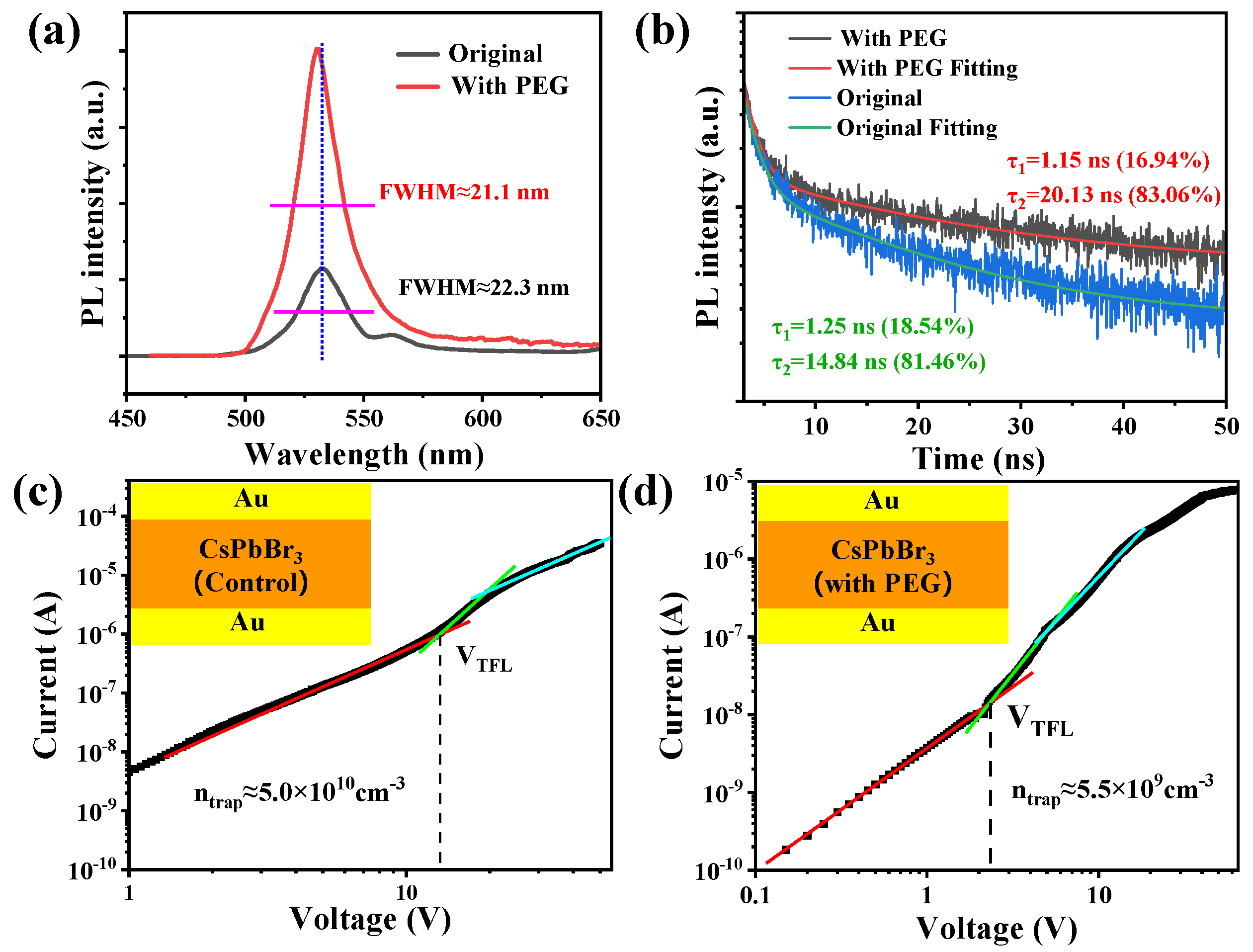

Compared with the control SCs, PL intensity has been dramatically enhanced in PEG-regulated ones (Figure 2a). In addition, a relatively lower full width at half maxima (FWHM) of the PL spectrum has been detected in PEG-regulated SCs. Moreover, the sub-peak at ~560 nm of the control SCs disappeared in the PEG-regulated samples, indicating a reduced defect density. The TRPL characterization has been listed in Figure 2b. The TRPL curves follow a bi-exponential decay fitting. The fast time component (τ₁) can be regarded as surface recombination and the slow time component (τ₂) is bulk recombination. The average PL lifetime (τ_ave) has increased from 14.58 ns to 20.13 ns, and can be calculated via the following equation:

$${\tau }_{ave}={\displaystyle \frac{A_1{\tau }_1^2 + A_2{\tau }_2^2}{A_1{\tau }_1 + A_2{\tau }_2}}$$

(1)

The above PL characterization supports the improved quality of the PEG-regulated CsPbBr₃ SCs. With the assistance of the space charge limiting current (SCLC) analysis, the defect density (N_trp) of the synthesized SCs can be calculated with the following equation:

$$N_{trap}=2\epsilon {\epsilon }_0{V}_{FTL}/\left(e{d}^2\right)$$

(2)

where $\epsilon$ is the relative dielectric constant of CsPbBr₃ (≈22), ${\epsilon }_0$ is the vacuum dielectric constant, e is the electron charge, and d is the thickness of the as-prepared SCs (dsample1 ≈ 0.08 cm; dsample2 ≈ 0.10 cm). The N_trap of the control CsPbBr₃ SCs has been calculated to be 5.0 × 10¹⁰ cm⁻³ (Figure 2c), similar to previous reports. However, this has been reduced by an order in PEG-regulated CsPbBr₃ SCs (5.5 × 10⁹ cm⁻³, Figure 2d), among the lowest trap densities reported to date (Table S1).

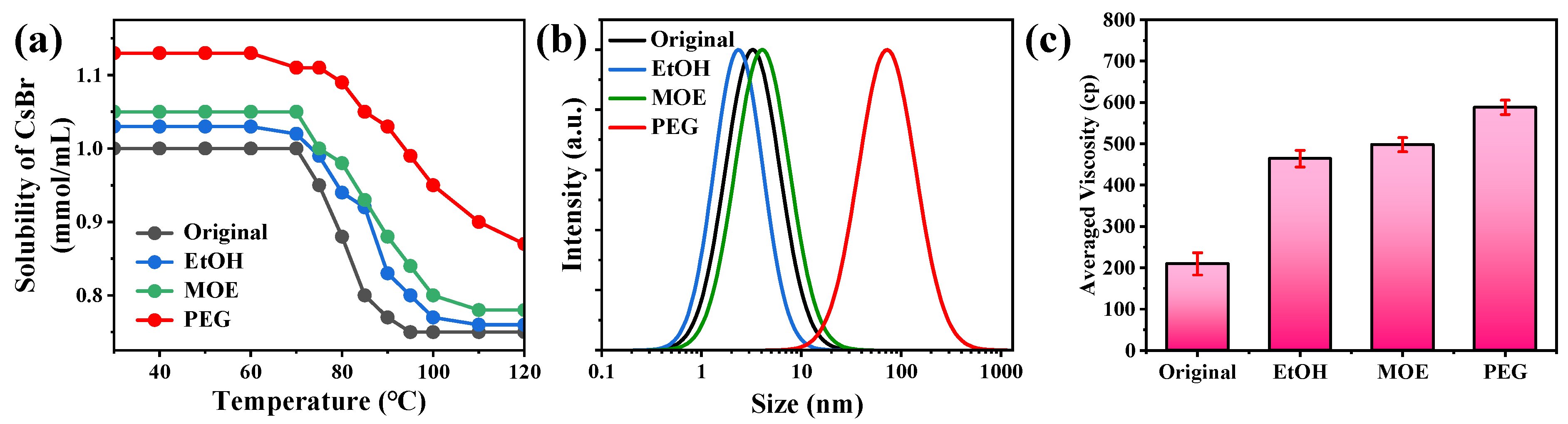

According to previous research, the poor solubility of CsBr is responsible for the blast nucleation of the ITC-grown CsPbBr₃ SCs [35]. Figure 3a suggests that the solubility of CsBr can be greatly enhanced after adding PEG additives. Thus, the blast nucleation of the precursors at high temperatures can be largely eliminated. In addition, the PEG additive promotes the formation of large-sized crystal nuclei (Figure 3b and Figure S5), which is also beneficial for the growth of large SCs. According to Figure 3c, the viscosity of the precursors has been improved, which slows down the precipitation rate of additive-regulated precursors.

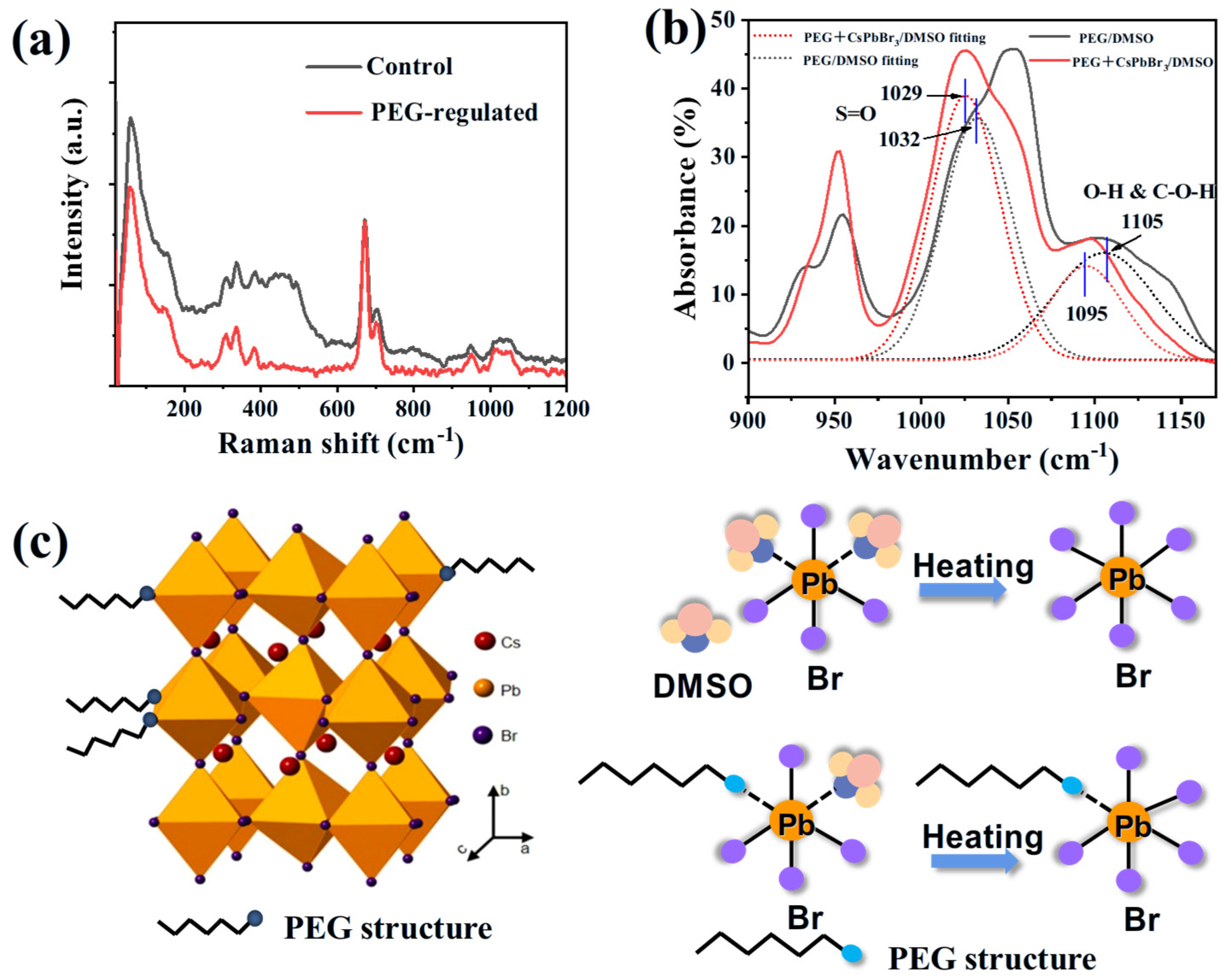

Raman and Fourier transform infrared spectrometer (FTIR) analysis has been used to clarify the role of PEG-assisted growth. Raman analysis has been performed by exciting the precursor solution with a 532 nm laser at room temperature. The peak at low wavelength can be assigned to the Pb-Br bond [36]. This peak has been reduced after introducing PEG, indicating the stabilization of the Pb-Br bond after introducing the PEG additive. Figure 4b records the FTIR data of the precursor solutions. The peak at a wavenumber of 1032 cm⁻¹, which belongs to the S=O bond of DMSO, has been shifted to 1029 cm⁻¹ after introducing CsPbBr₃ precursors. This downshifting tendency can be explained by the interaction between Pb²⁺ and the S=O bond [37]. A similar down-shifting tendency has been detected for the FTIR peak near 1105 cm⁻¹. According to previous research, this peak is due to the stretching of the O-H and C-O-H bond [38]. This down-shifting can be explained as follows: the electrons have been dragged from the Pb²⁺ ions to the OH- species, which weakens the C-O bond and in turn, shifts the vibration frequency towards low wavenumbers [39]. The strong interaction between the OH- species and the Pb²⁺ can also be confirmed by XPS analysis (Figure S6).

To investigate the potential of the as-grown SCs for photodetector applications, a planar-structured photodetector has been used (Figure S7). A 50 nm gold electrode has been deposited on the surface of the CsPbBr₃ SCs with thermal evaporation. The distance of the electrode has been set to 75 um using a pre-designed mask. The devices have been measured by a two-probe station equipped with a wavelength and power-tuned light source. The dark current of PEG-regulated devices is two orders of magnitude lower than that of the control devices (Figure 5a), highlighting the low defect densities of the PEG-regulated SCs. After light illumination, under a bias of 5 V, the current of the PEG-regulated SCs has jumped from 6.46 × 10⁻⁹ A (dark) to 1.94 × 10⁻⁵ A (light illumination), corresponding to an on–off ratio of 3003. This on–off ratio is much higher than that of the control device (73), having approximately 40 times of enhancement. In addition, the current increases steadily with the increased light intensity (Figure 5b). The chopped transient photocurrent response has been listed in Figure 5c,d. The device exhibits remarkable operational stability under repeated on/off cycles. A current spike has been detected right after the lamp has been turned on, possibly due to the ion migration. After that, the incident current decreases until the mobile ions reach the equilibrium point (stabilized current) [28,38]. The rise time and fall times of the PEG-regulated photodetector during one chopped cycle have been calculated to be 36 ms and 14 ms, pointing to the fast response of our devices. Finally, taking the responsivity (R) and detectivity (D) into consideration, R can be defined as follows:

$$R={\displaystyle \frac{I_P-I_{Dark}}{P}}$$

(3)

where $I_P$ is photocurrent, $I_{Dark}$ is dark current, and $P$ is the intensity of the incident light. The D can be calculated by the following equation:

$$D={\displaystyle \frac{R}{\sqrt{\frac{2e{I}_{Dark}}{S}}}}$$

(4)

Here, $e$ is the elementary charge and $S$ is the effective area of the electrode.

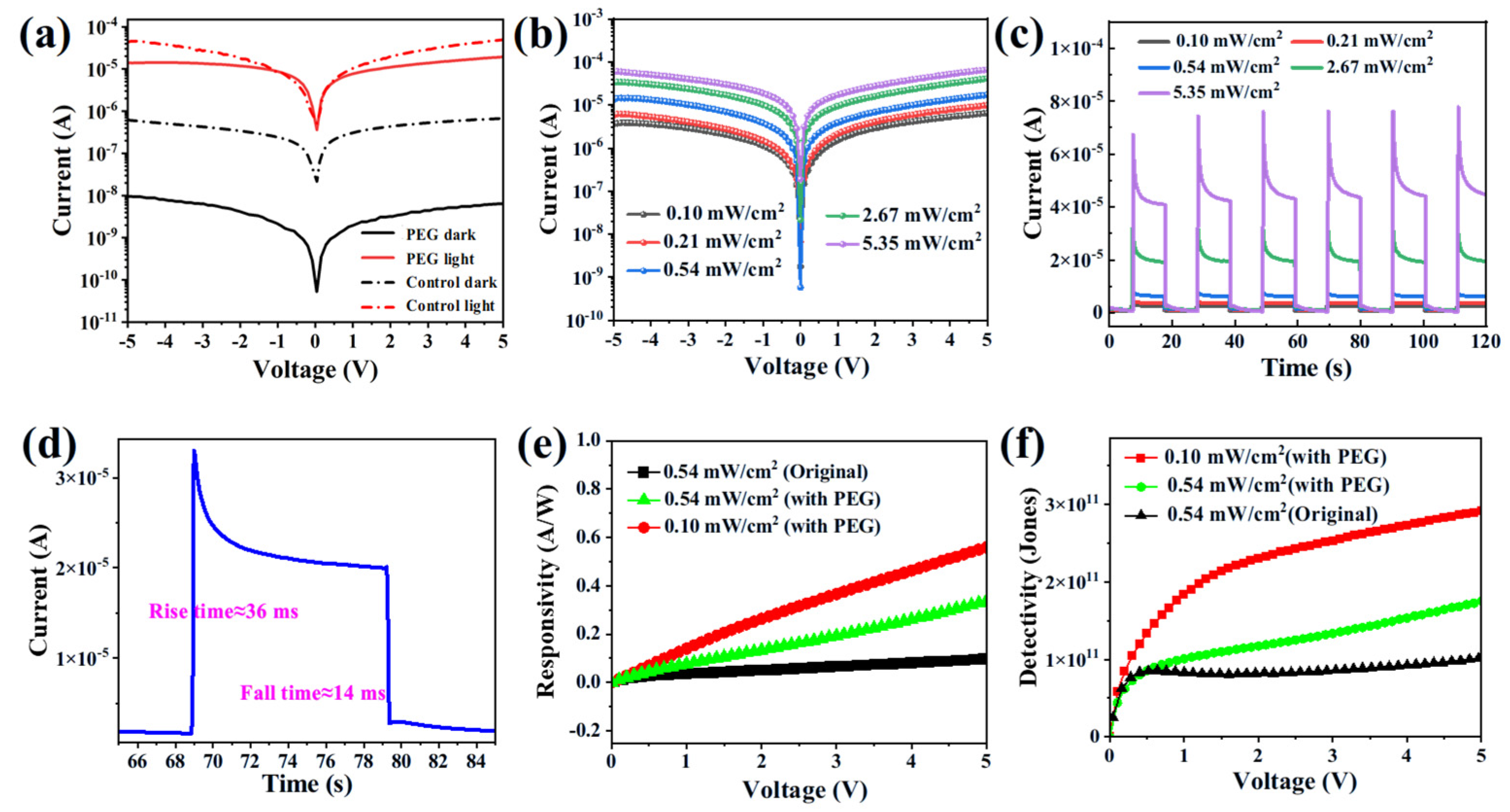

Figure 5. (a) Dark and light current—voltage (J—V) characteristics of the control and PEG—regulated CsPbBr₃ device, and a 405 laser with a light intensity of 0.54 mW/cm² has been used. (b) Light-dependent J—V characteristics of the PEG—regulated CsPbBr₃ device, and the light intensity has been varied from 0.10 mW/cm² to 5.35 mW/cm². (c) The on—off current characteristics of the PEG-regulated CsPbBr₃ device with different light intensities. (d) The response curve of the PEG—regulated CsPbBr₃ device with 2.67 mW/cm² illumination and a bias of 5V. The responsivity (e) and detectivity (f) curves of the two selective SC photodetector devices.

Figure 5. (a) Dark and light current—voltage (J—V) characteristics of the control and PEG—regulated CsPbBr₃ device, and a 405 laser with a light intensity of 0.54 mW/cm² has been used. (b) Light-dependent J—V characteristics of the PEG—regulated CsPbBr₃ device, and the light intensity has been varied from 0.10 mW/cm² to 5.35 mW/cm². (c) The on—off current characteristics of the PEG-regulated CsPbBr₃ device with different light intensities. (d) The response curve of the PEG—regulated CsPbBr₃ device with 2.67 mW/cm² illumination and a bias of 5V. The responsivity (e) and detectivity (f) curves of the two selective SC photodetector devices.

With a light intensity of 0.54 mA/cm² and 5 V bias, the R has been calculated to be 0.37 A/W of the control SCs. This has been increased to 1.26 A/W in PEG-regulated SCs under the same condition (Figure 5e). The R of the PEG-regulated SCs has been further enhanced to 2.25 A/W with weak light illumination (0.1 mW/cm²). This indicates the potential of PEG-regulated SCs for weak light detection. As for D, this has been increased from 2.02 × 10¹¹ Jones (control) to 3.39 × 10¹¹ Jones (PEG-regulated). A weak light also promotes the D towards 6.07 × 10¹¹ Jones in PEG-regulated SCs (Figure 5f). Listed in Table S2, the measured R and D are among the highest values reported to date, highlighting the good quality of our synthesized PEG-regulated SCs. As for the stability concern, the photocurrent of our PEG-regulated SCs has decreased by only 5.8% after being kept in ambient conditions with a relative humidity of 60% for two months (Figure S8). This superior stability can be attributed to the suppressed ion migration of the perovskite SCs [40,41,42].

3. Experiments

3.1. Material

Dimethyl sulfoxide (DMSO, AR) was purchased from Hushi chemicals (Shanghai, China). Anhydrous ethanol (EtOH, AR) was ordered from Fuyu Reagent (Tianjin, China). Lead bromide (PbBr₂, >99.0%), cesium bromide (CsBr, >99.5%), and 2-Methoxyethanol (MOE, >99.5%) were purchased from Macklin (Shanghai, China). Polyethylene glycol (PEG—2000) was bought from Aladdin (Shanghai, China). All reagents and materials were used directly without further purification.

3.2. Growth of CsPbBr₃ SC

The CsPbBr₃ SCs used in this study were grown using the seed-assisted ITC method. Firstly, the growth solution was prepared by dissolving 2 mmol PbBr₂ and 1 mmol CsBr in 2 mL DMSO. The solution was first stirred at 70 °C until completely dissolution. Subsequently, 0.1 mL of ethanol, 0.1 mL of 2-Methoxyethanol, and 0.05–0.1 g of PEG-2000 were added to the precursor solutions separately. The precursor solution was filtered with a 0.22 um filter and transferred to a clean vial. After heating the precursor solution at 110 °C for sufficient time, the CsPbBr₃ SCs nucleated and grew with the evaporation of the DMSO solvent. In terms of the seed-assisted growth, tiny CsPbBr₃ nuclei have been received from the supersaturated precursor solutions and transferred to another growth solution as the seed crystals. The obtained CsPbBr₃ SCs were washed with hot DMF and dried in a vacuum drying oven for storage. All experiments were performed in ambient conditions.

3.3. Characterization

The structure of the as-grown CsPbBr₃ SCs were characterized by the X-ray diffraction (XRD; Bruker, Karlsruhe, Germany). To investigate the optoelectronic properties of the synthesized CsPbBr₃ SCs, the steady-state PL spectrum has been measured by Edinburgh FLS980 (Edinburgh Instruments Ltd., Livingston, UK)with an excitation wavelength of 400 nm. The TRPL measurements have been performed with Edinburgh FL980 using an excitation wavelength of 405 nm. The absorption spectra were collected by the UV-VIS spectrophotometer (Agilent Technologies, carey-8454; Agilent Technologies, Santa Clara, CA, USA). Au electrode has been deposited on the CsPbBr₃ SCs with thermal evaporation. The viscosity of the precursor has been measured with a rotational rheometer (Anton Paar MCR92; Anton Paar GmbH, Graz, Austria) at 25 °C. The shear rate range has been set at 0.1–1000 s⁻¹. Five datasets have been collected and the results have been recorded in Figure 3c. The shape of the electrode has been controlled by a pre-designed mask. The current–voltage (J-V) curves of the Au/CsPbBr₃/Au-structured photodetectors were recorded with the Keithley 2400 (Solon, OH, USA) source measurement unit.

4. Summary

In summary, we introduce an additive-tuning strategy to solve the blast nucleation of ITC-grown CsPbBr₃ SCs. First and foremost, the oxhydryl groups on PEG bond strongly with the PbBr_n⁽ⁿ⁻²⁾⁻ clusters, which reduces the number of nucleation species during crystal growth. In addition, the high viscosity of the PEG additive is also beneficial for the smooth growth of the SCs, resulting in defectless crystals. Finally, our PEG-regulated CsPbBr₃ SCs show good responsivity (2.25 A/W) and detectivity (6.07 × 10¹¹ Jones) to weak light, demonstrating their significant potential in the field of optoelectronic devices.
