Hyperpolarized Carbon-13 Metabolic Imaging Differentiates Distinctive Molecular Phenotypes in Diffuse Midline Gliomas

by
Ilwoo Park
1,2,3,4,*,
Rintaro Hashizume
5 and
Joanna Phillips
6
1
Department of Radiology, Chonnam National University Medical School and Hospital, Gwangju 61469, Republic of Korea
2
Department of Artificial Intelligence Convergence, Chonnam National University, Gwangju 61186, Republic of Korea
3
Department of Data Science, Chonnam National University, Gwangju 61186, Republic of Korea
4
Department of Radiology and Biomedical Imaging, University of California, San Francisco, CA 94143, USA
5
Department of Pediatrics, University of Alabama at Birmingham, Birmingham, AL 35233, USA
6
Department of Neurological Surgery and Pathology, University of California, San Francisco, CA 94143, USA
*
Author to whom correspondence should be addressed.
Molecules 2025, 30(21), 4175; https://doi.org/10.3390/molecules30214175 (registering DOI)
Submission received: 14 September 2025 / Revised: 18 October 2025 / Accepted: 22 October 2025 / Published: 24 October 2025
(This article belongs to the Special Issue Emerging Horizons of Hyperpolarization in Chemistry and Biomedicine)
Browse Figures
Versions Notes

Abstract

Despite a specific histone mutation defining the unique genetic makeup, diffuse midline gliomas are heterogeneous tumors with a wide range of morphologic and molecular spectrum. We investigated the feasibility of using hyperpolarized carbon-13(13C) MR metabolic imaging to differentiate distinctive molecular features from two H3K27M-mutant, biopsy-originated diffuse midline glioma xenografts. 13C MR metabolic imaging data were acquired on a 3T scanner from 12 rats that had been implanted with SF8628 or SF7761 diffuse midline glioma cells in brainstem, following injection of hyperpolarized [1-13C]pyruvate. Despite the two tumors’ similar appearance of T2-hyperintensity throughout the cerebellum and pons without contrast enhancement, 13C metabolic imaging data revealed that SF8627 had significantly higher ratios of lactate to pyruvate, lactate to total carbon, and normalized lactate than SF7761. Elevated lactate levels in SF8628 were associated with large amounts of lactate dehydrogenase (LDH)-A and carbonic anhydrase-IX staining in SF8628 compared to SF7761, which implied that the highly hypoxic condition in SF8628 appeared to contribute to the high level of LDH-A enzyme activity, which, in turn, induced the large conversion from hyperpolarized pyruvate to lactate. Our findings suggest that this advanced metabolic imaging technique may be used for the noninvasive characterization of molecular hypoxia and lactate dehydrogenase-A activity in these pediatric brainstem gliomas.

1. Introduction

Diffuse midline glioma is a new entity added to the 2016 World Health Organization Classification of Tumors of the Central Nervous System (CNS) [1]. It is a diffusely infiltrating astrocytic tumor, which generally develops in the pons, thalamus, and other midline CNS structures of children and young adults. Diffuse midline gliomas have a specific mutation at K27 position of histone H3 [2,3,4] and present aggressive clinical symptoms and dismal prognosis with a median survival time of 9 months [5,6,7]. Due to its diffusive nature and the intricacy of the brainstem location, surgical resection is impossible and biopsies have rarely been performed.
Several advances have been achieved in recent diffuse midline glioma research. Cell cultures derived from postmortem tumor tissue and patient biopsy have been established and orthotopic xenograft models created [8,9]. A combination of autopsy and biopsy samples have shed insight on the genetic and morphologic makeup of diffuse midline gliomas [3,10]. Despite the H3K27M mutation defining the unique genetic makeup of these diseases, diffuse midline gliomas are a heterogeneous group of tumors that display a wide range of characteristics on the morphologic and molecular spectrum [4,11,12]. Despite this heterogeneity, H3K27M-mutant diffuse midline gliomas are considered WHO grade IV tumors based on their dismal prognosis irrespective of their histologic grade. Histologic grading of H3K27M-mutant glioma, based on an assessment of features associated with aggressive disease, including elevated proliferation, necrosis, and microvascular proliferation, located in the thalamus suggest additional tumor features may retain prognostic value in specific anatomic regions [13].
Magnetic resonance imaging (MRI) is the standard imaging modality for diagnosis, monitoring of disease status, and treatment response in diffuse midline glioma [14]. Although conventional MRI techniques offer useful information about anatomic features, imaging features from MRI are heterogeneous with variable levels of necrosis, patterns of enhancement and edema [15]. In addition, the results obtained are not prognostic and are incapable of assessing tumor molecular characteristics and tissue function associated with effective therapy [16]. While positron emission tomography has been extensively used for evaluating tumor metabolism in oncology clinics, its use in children with diffuse midline glioma is limited due to ionizing radiation and has produced non-specific and non-prognostic outcome [17,18,19]. The development of noninvasive metabolic imaging methods that can be used to render insight into the molecular features of diffuse midline glioma will be beneficial in identifying tumor molecular characteristics as well as tailoring appropriate treatment options based on molecular features.
Dynamic Nuclear Polarization and the development of a dissolution process which retains polarization into the liquid state enable the real-time investigation of in vivo carbon-13 (13C) metabolism with more than 10,000-fold signal increase over conventional 13C methods [20]. Previous studies have demonstrated the promise of this technique for examining in vivo tumor metabolism for application in the management of cancer [21,22,23]. Hyperpolarized 13C pyruvate, labeled at the C1 position, has been most widely used as a substrate for evaluating metabolism in combination with high-resolution 13C magnetic resonance spectroscopic imaging (MRSI) or MRI, which can be integrated with anatomic MRI. Recent studies using the hyperpolarized substrate [1-13C]pyruvate have demonstrated the promise of this technique for examining in vivo tumor metabolism in brain tumors, including the differentiation of the tumor from normal brain tissue as well as the detection of early response to treatment in animal models of high-grade glioma [24,25,26,27]. Recent human studies in neuro-oncology and other areas using hyperpolarized 13C MR metabolic imaging showed the safety and feasibility of this technology for evaluating real-time metabolism in humans [28,29,30,31].
Here, we investigate the feasibility of using 13C MR metabolic imaging with hyperpolarized [1-13C]pyruvate to characterize the molecular features of two H3K27M-mutant, biopsy-originated diffuse midline glioma. 13C MRSI data were acquired on a 3T scanner from 12 rats that had been implanted with SF8628 or SF7761 diffuse midline glioma cells in the brainstem. The metabolic imaging data were compared with histopathologic features from immunohistochemical analysis to determine whether specific metabolic features obtained from hyperpolarized 13C MR metabolic imaging can be used to differentiate distinct molecular phenotypes.

2. Results

Figure 1 shows representative data from rats injected with SF8628 and SF7761 diffuse midline glioma cells. Figure 1A,B,F,G represent T2-weighted sagittal and axial images for SF8628 and SF7761 tumors, respectively. The sagittal and axial T2 fast spin echo (FSE) images showed regions of T2-hyperintensity expanding throughout the pons and cerebellum for both tumors (yellow arrow in Figure 1A,F). SF8628 had a relatively well-defined margin of T2 lesion (Figure 1A,B). In contrast, SF7761 showed T2 abnormality, which spread throughout the entire brainstem (Figure 1F,G) and extended to the spinal cord (red arrow in Figure 1F). There was no contrast enhancement on T1 post-gadolinium (Gd) images for both tumors (Figure 1C,H).
The axial T2-weighted images in Figure 1B,G show a 13C MRSI grid over the brainstem for SF8628 and SF7761 tumors, respectively. The horizontal dotted lines in Figure 1A,F delimit the location of 5.4 mm axial slice of 13C MRSI data presented in Figure 1D,I. The corresponding 13C spectra in Figure 1D,I demonstrated the spatial distribution of 13C-labeled pyruvate and its metabolic product lactate with high signal intensity in the entire brainstem region. SF8628 produced elevated lactate signal in the T2 lesions (pink voxels in Figure 1D) and relatively small lactate peaks in the contralateral normal brain (blue voxels in Figure 1D). The corresponding region of T2-hyperintensity exhibited a high ratio of lactate to pyruvate (Lac/Pyr, Figure 1E). In contrast, SF7761 did not show elevated levels of lactate in the T2 lesions (pink voxels in Figure 1I) and exhibited relatively low level of Lac/Pyr (Figure 1J).
The summary of 13C parameters from the hyperpolarized 13C MR metabolic imaging data between two diffuse midline gliomas and the contralateral normal brain is shown in Table 1 and Figure 2. The mean Lac/Pyr and the ratio of lactate to total carbon (Lac/tC, tC: a sum of lactate, pyruvate-hydrate, alanine and pyruvate) and normalized lactate (nLac) in T2-hyperintensity from rats bearing SF8628 diffuse midline glioma were significantly higher than those in T2-hyperintensity from rats bearing SF7761 diffuse midline glioma (p < 0.01 for Lac/Pyr and Lac/tC, p < 0.03 for nLac). In addition, the levels of Lac/Pyr, Lac/tC and nLac in SF8628 tumor were significantly higher than those in contralateral brain tissue (p < 0.01). The levels of Lac/Pyr, Lac/tC and nLac in SF7761 tumors were similar to those of contralateral normal brain tissue measured from rats with SF8628 tumor (p > 0.05). The levels of normalized pyruvate (nPyr) were similar between SF8628 tumor, SF7761 tumor and contralateral brain tissue (p > 0.5 in all three pairwise comparison).
Figure 3 shows histologic and immunohistologic comparisons between SF8628 and SF7761 xenografts. Both diffuse midline glioma models displayed infiltrative, highly proliferative tumors that recapitulated the histopathology of pediatric diffuse midline glioma (Figure 3A,B,E,F). SF8628, however, had more aggressive features than SF7761 with numerous atypical mitoses and prominent nuclear pleomorphism (Figure 3A,E). These histopathologic differences in the xenograft tumors mirrored differences in the human tumors from which they were derived as SF8628 had a histologic grade of IV while SF7761 was histologically a grade II with the lack of necrosis or microvascular proliferation.
Immunohistochemical analysis revealed a clear distinction in the molecular characteristics of two diffuse midline gliomas. In comparison to SF7761, SF8628 tumors had diffuse positive immunostaining for lactate dehydrogenase (LDH)-A (Figure 3C,G), an enzyme that catalyzes pyruvate-to-lactate conversion. SF8628 were also strongly positive for carbonic anhydrase (CA)-IX (Figure 3D), a downstream target of hypoxia-inducible factor-1 alpha (HIF-1α), compared to SF7761 (Figure 3H). In SF8628, the regions with elevated LDH-A immunostaining and marked infiltration of neoplastic astrocytes in the pons (Figure 4B,C) corresponded with T2-hyperintense lesions on T2-weighted FSE images (Figure 4A).

3. Discussion

This study demonstrates the feasibility of assessing heterogeneous metabolic profiles, associated with distinct molecular characteristics in human diffuse midline glioma orthotopic xenografts, using hyperpolarized 13C metabolic imaging with [1-13C]pyruvate as a substrate. Compressed sensing hyperpolarized 3D 13C MRSI data provided adequate signal to detect hyperpolarized [1-13C]pyruvate and its metabolic product lactate in brainstem. High spatial resolution of 13C spectra (0.022 cm3) enabled the comparison of 13C metabolic parameters between two diffuse midline gliomas and contralateral normal brain tissue.
All three of the 13C lactate parameters that were evaluated displayed significant differences between SF8628 and SF7761 tumors (Figure 2). SF8628 produced significantly higher levels of Lac/Pyr, Lac/tC and nLac than SF7761 (Table 1). Consistent with these imaging differences, immunohistochemical analysis of the two tumors revealed substantial differences in the levels of LDH-A and CA-IX (Figure 3). The robust expression of LDH-A and CA-IX in SF8628 corresponded with the elevated levels of lactate detected from the hyperpolarized 13C imaging. Similarly, the low level of lactate observed in the hyperpolarized 13C imaging of SF7761 xenografts was associated with the minimal expression of LDH-A and CA-IX.
The association between the hyperpolarized 13C lactate signal and the expression of LDH-A and CA-IX can be explained by a molecular response to hypoxia in cancer. Metabolically active tumors can become hypoxic, which drives the expression of hypoxia-inducible factors such as HIF-1α [32]. LDHA, a known transcriptional target of HIF-1A [33], encodes the enzyme LDH-A that catalyzes the inter-conversion of pyruvate and lactate [34]. CA-IX is also an indicator of cellular hypoxia [35,36]. Thus, a hypoxic metabolic phenotype of SF8628 likely contributed to the high level of LDH-A enzyme activity and the large conversion of 13C-label from hyperpolarized pyruvate to lactate. In contrast, less hypoxic SF7761 contributed to the low level of LDH-A enzyme activity, and as a result, relatively low lactate levels were produced from hyperpolarized 13C pyruvate. These results suggest that this advanced metabolic imaging technique may be used for the noninvasive characterization of molecular hypoxia and LDH-A activity in these pediatric brainstem gliomas.
Interestingly, the levels of normalized pyruvate were similar between T2-hyperintense lesions of SF8628 (1.0 ± 0.3), SF7761 (1.0 ± 0.3) and contralateral brain tissue from rats bearing SF8628 (1.1 ± 0.4), highlighting that the amount of pyruvate delivered via i.v. injection and taken up by these tissues were comparable between these different tissues. Given that these tumors are non-enhancing and different levels of lactate were observed in these three tissues, we can conclude that the majority of 13C lactate observed in our experiments came from the conversion of 13C pyruvate by tumor cells with minimal contributions from the vasculature.
Although MRI has been mainly used for the diagnosis and assessment of therapy response in diffuse midline gliomas, radiographic appearance obtained from the conventional MRI methods exhibits diverse imaging features [15]. Similarly, morphologic features obtained from MRI cannot provide the prediction of response to treatment in diffuse midline gliomas. Two diffuse midline glioma xenografts used in this study presented distinctive metabolic profiles based on hyperpolarized 13C MR imaging which reflect their distinct molecular phenotype. In contrast, their radiographic characteristics were comparable with high T2-hyperintensity, accompanied by the absence of contrast enhancement. Our findings suggest that metabolic information acquired from hyperpolarized 13C MR imaging can be used to differentiate two diffuse midline gliomas that have inherent differences in their molecular and histopathological makeups.
We believe that another potential application of this technique may be monitoring and evaluating response to treatment in patients with diffuse midline glioma. Cells undergoing growth arrest or apoptosis convert less lactate from hyperpolarized pyruvate [22,37]. Thus, the administration of hyperpolarized [1-13C]pyruvate to tumor-bearing subjects, followed by the real-time monitoring of conversion to [1-13C]lactate has allowed for not only the localization of malignant tissue, but also the study of therapy response. The reduced conversion of hyperpolarized pyruvate-to-lactate was shown to be linked to temozolomide-induced DNA damage and radiation-induced response in the rodent models of high-grade adult brain tumors [26].
The first human study using hyperpolarized 13C MR metabolic imaging was accomplished in prostate cancer patients and demonstrated the safety and feasibility of this technology for use in a clinical setting [30]. This has triggered great interest in applying this novel imaging method for volunteer cardiac studies [38] and adult patients with brain tumors [31]. Conceivable challenges in translating this imaging method to the clinic for children with diffuse midline glioma include the necessity of anesthesia for younger-age patients and ensuring adequate SNR in the brainstem, where the surrounding tissue is less perfused and far removed from RF receiver coil elements. This technical challenge is an area of rapid development and expected to be overcome in the near future. A recent pilot study demonstrated the safety and tolerability of hyperpolarized 13C MR metabolic imaging in pediatric patients with brain tumors [39].
While these early studies underscore the promise of hyperpolarized 13C MR imaging in a clinical setting, several practical considerations remain. The technique requires specialized hyperpolarization equipment and rapid dissolution systems that are not yet widely available, limiting accessibility to a few research centers with dedicated infrastructure. The short polarization lifetime and the need for precise timing between polarization, injection, and imaging acquisition further demand rigorous coordination and technical expertise. These logistical and cost-related constraints currently hinder broader implementation in both preclinical and clinical settings. From a translational perspective, the application of hyperpolarized 13C MRI in pediatric patients also raises considerations related to safety, feasibility, and standardization. Although [1-13C]pyruvate has demonstrated a favorable safety profile in adult clinical trials, additional validation is required to confirm its safety and optimal dosing in children, who may have distinct metabolic and physiological characteristics. Moreover, standardization of acquisition parameters, quantification methods, and data interpretation frameworks remains essential to ensure reproducibility across sites and studies. Establishing consensus protocols and quality control measures will be critical for integrating hyperpolarized 13C MRI into multicenter pediatric studies and, ultimately, for its translation into clinical practice as a robust metabolic imaging biomarker.
While we find the results from this study very promising, there are several limitations of this study. Diffuse midline gliomas are a very heterogeneous tumor. The primary pediatric human diffuse midline glioma cell lines that were used to generate intracranial tumors may not represent the whole spectrum of morphologic and metabolic characteristics of diffuse midline glioma. In addition, there may be differences in brain metabolism between humans and other species; therefore, the proper preparation of experimental setup as well as careful interpretation of the data are necessary to study human subjects. In addition, the relatively small sample size of animals included in this study constitutes a limitation that warrants consideration. The limited number of animals could affect the robustness of the conclusions. Furthermore, as the experiments were conducted under controlled laboratory conditions using xenografts with specific cell lines, the extent to which these findings can be generalized to other diffuse midline gliomas models or clinical contexts remains uncertain. Nonetheless, the consistent observation of the distinct imaging and molecular patterns supports the relevance of the results. Future investigations involving larger cohorts and complementary validation approaches will be valuable to strengthen and extend these conclusions.

4. Materials and Methods

4.1. Cell Culture and Implantation of Intracranial Tumors

Primary pediatric human diffuse midline glioma cell lines, SF8628 and SF7761, were obtained from the UCSF medical center in accordance with institutionally approved protocol. The diagnostic histopathology of the tissue obtained from the surgical biopsy was consistent with an infiltrative astrocytoma, WHO grade II for SF7761 and Grade IV for SF8628. Establishment of diffuse midline glioma cell cultures, from surgical specimens, and tumor cell modification for expression of firefly luciferase, for in vivo bioluminescence imaging, have been described [8]. Six-week-old male athymic rats (rnu/rnu, homozygous) purchased from Harlan (Indianapolis, IN, USA) were housed under aseptic conditions with filtered air and sterilized food, water, bedding, and cages. Tumor cells were implanted into the pontine tegmentum of athymic rats as previously described [40]. Briefly, rats were anesthetized by i.p. injection of a mixture containing ketamine (60 mg/kg) and xylazine (7.5 mg/kg) in 0.9% saline. A 1 cm sagittal incision was made along the scalp, and the skull suture lines were exposed. A small hole was created by puncture with a 25 g needle at 2.0 mm to the right of the midline and 9.6 mm behind the bregma. Using a sterile Hamilton syringe (Stoelting, Wood Dale, IL, USA), 1 × 106 cells in 1 μL Hanks’ Balanced Salt Solution, without Ca2+ and Mg2+, were slowly injected into the pontine tegmentum at 9.6 mm deep from the inner base of the skull. All protocols were approved by the Institutional Animal Care and Use Committee.

4.2. Animal Preparation

A total of 12 male athymic rats with human diffuse midline glioma xenograft tumors (8 injected with SF8628 cell lines and 4 with SF7761 cell lines) were included in this study. The timing of imaging data acquisition was based on the animals’ clinical symptoms, including weight loss, abnormal posture, lethargy, decreased activity, ataxia, and head tilt. Due to the distinct growth characteristics of the two cell lines, rats implanted with the SF8628 cell line went through imaging experiments at 59 ± 7 days (mean ± SD), and those implanted with the SF7761 cell line at 103 ± 3 days (mean ± SD) after the tumor implantation. The median weight of the animals at the time of the imaging experiment was 280 g. The following procedures were carried out for each imaging experiment. The animal was anesthetized with approximately 1.5% isoflurane and placed on a warm pad. For the i.v. injection of hyperpolarized pyruvate solution, a catheter was placed into the tail vein. The animal was then brought to a warm pad located in the RF coil of the MR scanner. Anesthesia was continued with a constant delivery of approximately 1.5% isoflurane through a tube to a cone fixed over the rat’s nose and mouth while the rat underwent the imaging experiment. Rats’ body temperature was maintained using a warm pad placed inside the RF coil.

4.3. Polarization Procedure

For the polarization of pyruvate, 35 μL of [1-13C]pyruvate mixed with 15 mM OX063 trityl radical (GE Healthcare, Oslo, Norway) and 1.5 mM Gadolinium (Gd)-DOTA was polarized using a HyperSense polarizer (Oxford Instruments, Abingdon, UK) at 3.35 T and 1.4 K by irradiation with 94.1 GHz microwaves using the method described previously [20]. After approximately 60 min of microwave irradiation, the mixture was rapidly dissolved in a saline solution with 5.96 g/L Tris (40 mM), 4.00 g/L NaOH (100 mM), and 0.1 mg/L Na2 ethylenediaminetetraacetic acid (EDTA). The final dissolved solution had a concentration of 100 mM pyruvate and pH ~7.5. A sample from the dissolved pyruvate solution with a volume of 2.7 mL was injected into the tail vein of the rat over 10 s duration.

4.4. 1H and 13C MR Imaging

All imaging experiments were performed using a 3 T clinical MRI system (GE Healthcare, Waukesha, WI, USA) with a multinuclear spectroscopy (MNS) hardware package, and a custom-designed 1H/13C coil with a quadrature 13C channel and linear 1H channel with an 8 cm inner coil diameter and 9 cm length.
The following 1H and 13C data were acquired in sequence for each imaging session: (1) T2-weighted axial images using a FSE sequence (TE/TR = 60/4000 ms, 8 cm FOV, 256 × 192 matrix, 2 mm slice thickness and 4 NEX); (2) compressed sensing 13C 3D MRSI data (TE/TR = 140/215 ms, phase encoding in x and y axes, flyback echo-planar spectroscopic imaging readout in z-axis, 20 × 16 × 16 matrix, 2 × 2 × 5.4 mm spatial resolution) [41] acquired at 20 s from the start of the pyruvate injection [42]; and (3) T1-weighted axial images using a spin-echo sequence (TE/TR = 10/700 ms, 8 cm FOV, 320 × 192 matrix, 1.2 mm slice thickness, and 6 NEX) after the injection of 0.1 mL Gd-DTPA (approximately 0.2 mmol/kg).

4.5. Immunohistochemical Analysis

Following completion of the imaging experiments, animals were euthanized, and the brains were extracted and fixed in 4% formalin prepared in phosphate buffer. Tissue samples were subsequently dehydrated through a graded ethanol series and embedded in Paraplast Plus wax (McCormick Scientific, Berkeley, MO, USA). Sections of 5 µm thickness were prepared and stained with hematoxylin and eosin (H&E) as well as specific antibodies. The primary antibodies employed included Ki-67 (clone MIB-1; Ventana Medical Systems, Inc., Oro Valley, AZ, USA), LDH-A (Cell Signaling Technology, Danvers, MA, USA), and CA-IX (Novus Biologicals, Centennial, CO, USA), targeting cellular proliferation, LDH-A, and HIF-1 expression, respectively. Comparative histological and immunohistochemical evaluations of SF8628 and SF7761 tumors were performed on tissue regions approximately corresponding to the centers of the spectroscopic voxels. Immunostaining was carried out on a Benchmark XT automated stainer (Ventana Medical Systems, Inc.) using the iView detection kit. Digital images were captured using an Olympus DP72 microscope camera.

4.6. Data Processing and Analysis

Processing of the 13C MRSI data followed previously established procedures [43]. In summary, raw readout signals were reorganized into a four-dimensional array, and only k-space data acquired during the constant gradient portions of the flyback trajectory were retained. The time-domain data were apodized using a 16 Hz Gaussian filter and zero-filled to 256 points. Spectral reconstruction was achieved via a four-dimensional Fourier transform, generating a three-dimensional spatial array of spectra. A linear phase correction was subsequently applied along the flyback dimension to compensate for k-space point offsets. Missing k-space information was reconstructed using an iterative compressed sensing algorithm based on the L1-norm. A detailed description of this reconstruction approach has been reported elsewhere [44].
For quantification of 13C metabolites, Lac/Pyr and Lac/tC were calculated. In addition, the lactate and pyruvate signals in the brainstem were normalized with respect to the relative signals in normal brain in the supratentorial region (Supplementary Figure S1). Regions of interests were manually contoured on T2 FSE images for the T2-hyperintense lesion and the percentage of T2 lesion volume was calculated for each voxel. In order to evaluate the spatial variation of 13C metabolites, the mean 13C parameters were compared between the T2-hyperintense lesion (voxels with >70% T2 lesion), and contralateral normal brain (voxels with 100% normal appearing brain tissue). The 13C parameters from the T2-hyperintense lesion of SF8628 and SF7761 xenografts and the contralateral normal brain of SF8628 xenografts were compared using a paired or Student’s t-test. All statistical analyses were performed using MATLAB (version 7.0; The MathWorks, Inc., Natick, MA, USA).

5. Conclusions

Hyperpolarized 13C metabolic imaging was able to detect differences in metabolism associated with distinct molecular characteristics in two human diffuse midline glioma orthotopic xenografts. The elevated lactate signal observed in the diffuse midline glioma xenografts was associated with increased levels of LDH-A and CA-IX. Thus, this novel metabolic imaging method may be used to noninvasively characterize molecular hypoxia and LDH-A activity in diffuse midline gliomas and may be useful to assist in monitoring disease progression and response to treatment response.

Supplementary Materials

The following supporting information can be downloaded at: https://www.mdpi.com/article/10.3390/molecules30214175/s1, Figure S1: Graphical illustration of two brain regions used for the quantification of hyperpolarized 13C imaging data. In addition to calculating the ratio of lactate-to-pyruvate and lactate-to-total carbon in infratentorial brain (C), lactate and pyruvate signal were normalized by their respective values from normal appearing brain tissue in supratentorial region (A).

Author Contributions

Conceptualization, I.P.; Methodology, I.P., J.P. and R.H.; Formal Analysis, I.P.; Investigation, I.P., J.P. and R.H.; Resources, I.P., J.P. and R.H.; Data Curation, I.P.; Writing—Original Draft Preparation, I.P.; Writing—Review and Editing, I.P., J.P. and R.H.; Visualization, I.P. and J.P.; Supervision, I.P.; Funding Acquisition, I.P. All authors have read and agreed to the published version of the manuscript.

Funding

This research was funded by Institute of Information & communications Technology Planning & Evaluation (IITP) under the Artificial Intelligence Convergence Innovation Human Resources Development (IITP-2023-RS-2023-00256629, I.P.) funded by the Korea government (MSIT), Chonnam National University (2023-0083, I.P.), Chonnam National University Hospital Biomedical Research Institute (BCRI25010, I.P.), NIH grants R01NS126513 (R.H.), Rally Foundation for Childhood Cancer Research (R.H.), Pediatric Cancer Research Foundation (R.H.), Cure Starts Now Foundation (R.H.), Prayers Maria Foundation (R.H.), Cure Childhood Cancer Foundation (R.H.), and NIH grant R01NS131474 (J.P.). Resources were provided by the UCSF Brain Tumor SPORE Biorepository (NIH grant P50 CA097257, J.P.). The content is solely the responsibility of the authors and does not necessarily represent the official views of the National Institutes of Health.

Institutional Review Board Statement

The animal study protocol was approved by the Institutional Animal Care and Use Committee of University of California San Francisco (approval number, AN111194-01C).

Informed Consent Statement

Not applicable.

Data Availability Statement

The datasets presented in this article are not readily available owing to ethical and institutional restrictions related to the use of animal experimental data. Requests to access the datasets should be directed to the corresponding author.

Conflicts of Interest

The authors declare no conflicts of interest. The funders had no role in the design of this study; in the collection, analyses, or interpretation of data; in the writing of this manuscript; or in the decision to publish the results.

References

  1. Louis, D.N.; Perry, A.; Reifenberger, G.; von Deimling, A.; Figarella-Branger, D.; Cavenee, W.K.; Ohgaki, H.; Wiestler, O.D.; Kleihues, P.; Ellison, D.W. The 2016 World Health Organization Classification of Tumors of the Central Nervous System: A summary. Acta Neuropathol. 2016, 131, 803–820. [Google Scholar] [CrossRef]
  2. Fontebasso, A.M.; Liu, X.Y.; Sturm, D.; Jabado, N. Chromatin remodeling defects in pediatric and young adult glioblastoma: A tale of a variant histone 3 tail. Brain Pathol. 2013, 23, 210–216. [Google Scholar] [CrossRef] [PubMed]
  3. Schwartzentruber, J.; Korshunov, A.; Liu, X.Y.; Jones, D.T.; Pfaff, E.; Jacob, K.; Sturm, D.; Fontebasso, A.M.; Quang, D.A.; Tonjes, M.; et al. Driver mutations in histone H3.3 and chromatin remodelling genes in paediatric glioblastoma. Nature 2012, 482, 226–231. [Google Scholar] [CrossRef]
  4. Solomon, D.A.; Wood, M.D.; Tihan, T.; Bollen, A.W.; Gupta, N.; Phillips, J.J.; Perry, A. Diffuse Midline Gliomas with Histone H3-K27M Mutation: A Series of 47 Cases Assessing the Spectrum of Morphologic Variation and Associated Genetic Alterations. Brain Pathol. 2016, 26, 569–580. [Google Scholar] [CrossRef]
  5. Cohen, K.J.; Heideman, R.L.; Zhou, T.; Holmes, E.J.; Lavey, R.S.; Bouffet, E.; Pollack, I.F. Temozolomide in the treatment of children with newly diagnosed diffuse intrinsic pontine gliomas: A report from the Children’s Oncology Group. Neuro-Oncology 2011, 13, 410–416. [Google Scholar] [CrossRef]
  6. Hargrave, D.; Bartels, U.; Bouffet, E. Diffuse brainstem glioma in children: Critical review of clinical trials. Lancet Oncol. 2006, 7, 241–248. [Google Scholar] [CrossRef]
  7. Ostrom, Q.T.; Gittleman, H.; Liao, P.; Vecchione-Koval, T.; Wolinsky, Y.; Kruchko, C.; Barnholtz-Sloan, J.S. CBTRUS Statistical Report: Primary brain and other central nervous system tumors diagnosed in the United States in 2010–2014. Neuro-Oncology 2017, 19, v1–v88. [Google Scholar] [CrossRef] [PubMed]
  8. Hashizume, R.; Smirnov, I.; Liu, S.; Phillips, J.J.; Hyer, J.; McKnight, T.R.; Wendland, M.; Prados, M.; Banerjee, A.; Nicolaides, T.; et al. Characterization of a diffuse intrinsic pontine glioma cell line: Implications for future investigations and treatment. J. Neurooncol. 2012, 110, 305–313. [Google Scholar] [CrossRef]
  9. Monje, M.; Mitra, S.S.; Freret, M.E.; Raveh, T.B.; Kim, J.; Masek, M.; Attema, J.L.; Li, G.; Haddix, T.; Edwards, M.S.; et al. Hedgehog-responsive candidate cell of origin for diffuse intrinsic pontine glioma. Proc. Natl. Acad. Sci. USA 2011, 108, 4453–4458. [Google Scholar] [CrossRef] [PubMed]
  10. Wu, G.; Broniscer, A.; McEachron, T.A.; Lu, C.; Paugh, B.S.; Becksfort, J.; Qu, C.; Ding, L.; Huether, R.; Parker, M.; et al. Somatic histone H3 alterations in pediatric diffuse intrinsic pontine gliomas and non-brainstem glioblastomas. Nat. Genet. 2012, 44, 251–253. [Google Scholar] [CrossRef]
  11. Aihara, K.; Mukasa, A.; Gotoh, K.; Saito, K.; Nagae, G.; Tsuji, S.; Tatsuno, K.; Yamamoto, S.; Takayanagi, S.; Narita, Y.; et al. H3F3A K27M mutations in thalamic gliomas from young adult patients. Neuro-Oncology 2014, 16, 140–146. [Google Scholar] [CrossRef] [PubMed]
  12. Feng, J.; Hao, S.; Pan, C.; Wang, Y.; Wu, Z.; Zhang, J.; Yan, H.; Zhang, L.; Wan, H. The H3.3 K27M mutation results in a poorer prognosis in brainstem gliomas than thalamic gliomas in adults. Hum. Pathol. 2015, 46, 1626–1632. [Google Scholar] [CrossRef] [PubMed]
  13. Ryall, S.; Krishnatry, R.; Arnoldo, A.; Buczkowicz, P.; Mistry, M.; Siddaway, R.; Ling, C.; Pajovic, S.; Yu, M.; Rubin, J.B.; et al. Targeted detection of genetic alterations reveal the prognostic impact of H3K27M and MAPK pathway aberrations in paediatric thalamic glioma. Acta Neuropathol. Commun. 2016, 4, 93. [Google Scholar] [CrossRef]
  14. Rao, P. Role of MRI in paediatric neurooncology. Eur. J. Radiol. 2008, 68, 259–270. [Google Scholar] [CrossRef]
  15. Aboian, M.S.; Solomon, D.A.; Felton, E.; Mabray, M.C.; Villanueva-Meyer, J.E.; Mueller, S.; Cha, S. Imaging Characteristics of Pediatric Diffuse Midline Gliomas with Histone H3 K27M Mutation. AJNR Am. J. Neuroradiol. 2017, 38, 795–800. [Google Scholar] [CrossRef]
  16. Hargrave, D.; Chuang, N.; Bouffet, E. Conventional MRI cannot predict survival in childhood diffuse intrinsic pontine glioma. J. Neuro-Oncol. 2008, 86, 313–319. [Google Scholar] [CrossRef] [PubMed]
  17. Caretti, V.; Zondervan, I.; Meijer, D.H.; Idema, S.; Vos, W.; Hamans, B.; Bugiani, M.; Hulleman, E.; Wesseling, P.; Vandertop, W.P.; et al. Monitoring of tumor growth and post-irradiation recurrence in a diffuse intrinsic pontine glioma mouse model. Brain Pathol. 2011, 21, 441–451. [Google Scholar] [CrossRef]
  18. Jansen, M.H.; Kloet, R.W.; van Vuurden, D.G.; Veldhuijzen van Zanten, S.E.; Witte, B.I.; Goldman, S.; Vandertop, W.P.; Comans, E.F.; Hoekstra, O.S.; Boellaard, R.; et al. 18F-FDG PET standard uptake values of the normal pons in children: Establishing a reference value for diffuse intrinsic pontine glioma. EJNMMI Res. 2014, 4, 8. [Google Scholar] [CrossRef]
  19. Zukotynski, K.A.; Fahey, F.H.; Kocak, M.; Alavi, A.; Wong, T.Z.; Treves, S.T.; Shulkin, B.L.; Haas-Kogan, D.A.; Geyer, J.R.; Vajapeyam, S.; et al. Evaluation of 18F-FDG PET and MRI associations in pediatric diffuse intrinsic brain stem glioma: A report from the Pediatric Brain Tumor Consortium. J. Nucl. Med. Off. Publ. Soc. Nucl. Med. 2011, 52, 188–195. [Google Scholar] [CrossRef]
  20. Ardenkjaer-Larsen, J.H.; Fridlund, B.; Gram, A.; Hansson, G.; Hansson, L.; Lerche, M.H.; Servin, R.; Thaning, M.; Golman, K. Increase in signal-to-noise ratio of > 10,000 times in liquid-state NMR. Proc. Natl. Acad. Sci. USA 2003, 100, 10158–10163. [Google Scholar] [CrossRef]
  21. Albers, M.J.; Bok, R.; Chen, A.P.; Cunningham, C.H.; Zierhut, M.L.; Zhang, V.Y.; Kohler, S.J.; Tropp, J.; Hurd, R.E.; Yen, Y.F.; et al. Hyperpolarized 13C lactate, pyruvate, and alanine: Noninvasive biomarkers for prostate cancer detection and grading. Cancer Res. 2008, 68, 8607–8615. [Google Scholar] [CrossRef]
  22. Day, S.E.; Kettunen, M.I.; Gallagher, F.A.; Hu, D.E.; Lerche, M.; Wolber, J.; Golman, K.; Ardenkjaer-Larsen, J.H.; Brindle, K.M. Detecting tumor response to treatment using hyperpolarized 13C magnetic resonance imaging and spectroscopy. Nat. Med. 2007, 13, 1382–1387. [Google Scholar] [CrossRef]
  23. Kurhanewicz, J.; Vigneron, D.B.; Brindle, K.; Chekmenev, E.Y.; Comment, A.; Cunningham, C.H.; Deberardinis, R.J.; Green, G.G.; Leach, M.O.; Rajan, S.S.; et al. Analysis of cancer metabolism by imaging hyperpolarized nuclei: Prospects for translation to clinical research. Neoplasia 2011, 13, 81–97. [Google Scholar] [CrossRef]
  24. Chaumeil, M.M.; Ozawa, T.; Park, I.; Scott, K.; James, C.D.; Nelson, S.J.; Ronen, S.M. Hyperpolarized 13C MR spectroscopic imaging can be used to monitor Everolimus treatment in vivo in an orthotopic rodent model of glioblastoma. Neuroimage 2012, 59, 193–201. [Google Scholar] [CrossRef]
  25. Park, I.; Larson, P.E.; Zierhut, M.L.; Hu, S.; Bok, R.; Ozawa, T.; Kurhanewicz, J.; Vigneron, D.B.; Vandenberg, S.R.; James, C.D.; et al. Hyperpolarized 13C magnetic resonance metabolic imaging: Application to brain tumors. Neuro-Oncology 2010, 12, 133–144. [Google Scholar] [CrossRef]
  26. Park, I.; Mukherjee, J.; Ito, M.; Chaumeil, M.M.; Jalbert, L.E.; Gaensler, K.; Ronen, S.M.; Nelson, S.J.; Pieper, R.O. Changes in pyruvate metabolism detected by magnetic resonance imaging are linked to DNA damage and serve as a sensor of temozolomide response in glioblastoma cells. Cancer Res. 2014, 74, 7115–7124. [Google Scholar] [CrossRef] [PubMed]
  27. Park, J.M.; Spielman, D.M.; Josan, S.; Jang, T.; Merchant, M.; Hurd, R.E.; Mayer, D.; Recht, L.D. Hyperpolarized 13C-lactate to 13C-bicarbonate ratio as a biomarker for monitoring the acute response of anti-vascular endothelial growth factor (anti-VEGF) treatment. NMR Biomed. 2016, 29, 650–659. [Google Scholar] [CrossRef] [PubMed]
  28. Deen, S.S.; Rooney, C.; Shinozaki, A.; McGing, J.; Grist, J.T.; Tyler, D.J.; Serrão, E.; Gallagher, F.A. Hyperpolarized Carbon 13 MRI: Clinical Applications and Future Directions in Oncology. Radiol. Imaging Cancer 2023, 5, e230005. [Google Scholar] [CrossRef] [PubMed]
  29. Larson, P.E.Z.; Bernard, J.M.L.; Bankson, J.A.; Bøgh, N.; Bok, R.A.; Chen, A.P.; Cunningham, C.H.; Gordon, J.W.; Hövener, J.B.; Laustsen, C.; et al. Current methods for hyperpolarized [1-13C]pyruvate MRI human studies. Magn. Reson. Med. 2024, 91, 2204–2228. [Google Scholar] [CrossRef] [PubMed]
  30. Nelson, S.J.; Kurhanewicz, J.; Vigneron, D.B.; Larson, P.E.; Harzstark, A.L.; Ferrone, M.; van Criekinge, M.; Chang, J.W.; Bok, R.; Park, I.; et al. Metabolic imaging of patients with prostate cancer using hyperpolarized [1-13C]pyruvate. Sci. Transl. Med. 2013, 5, 198ra108. [Google Scholar] [CrossRef]
  31. Park, I.; Larson, P.E.Z.; Gordon, J.W.; Carvajal, L.; Chen, H.Y.; Bok, R.; Van Criekinge, M.; Ferrone, M.; Slater, J.B.; Xu, D.; et al. Development of methods and feasibility of using hyperpolarized carbon-13 imaging data for evaluating brain metabolism in patient studies. Magn. Reson. Med. 2018, 80, 864–873. [Google Scholar] [CrossRef]
  32. Ivanov, S.; Liao, S.Y.; Ivanova, A.; Danilkovitch-Miagkova, A.; Tarasova, N.; Weirich, G.; Merrill, M.J.; Proescholdt, M.A.; Oldfield, E.H.; Lee, J.; et al. Expression of hypoxia-inducible cell-surface transmembrane carbonic anhydrases in human cancer. Am. J. Pathol. 2001, 158, 905–919. [Google Scholar] [CrossRef]
  33. Iyer, N.V.; Kotch, L.E.; Agani, F.; Leung, S.W.; Laughner, E.; Wenger, R.H.; Gassmann, M.; Gearhart, J.D.; Lawler, A.M.; Yu, A.Y.; et al. Cellular and developmental control of O2 homeostasis by hypoxia-inducible factor 1 alpha. Genes Dev. 1998, 12, 149–162. [Google Scholar] [CrossRef]
  34. Semenza, G.L. HIF-1 mediates metabolic responses to intratumoral hypoxia and oncogenic mutations. J. Clin. Investig. 2013, 123, 3664–3671. [Google Scholar] [CrossRef]
  35. Chung, F.Z.; Tsujibo, H.; Bhattacharyya, U.; Sharief, F.S.; Li, S.S. Genomic organization of human lactate dehydrogenase-A gene. Biochem. J. 1985, 231, 537–541. [Google Scholar] [CrossRef]
  36. Wykoff, C.C.; Beasley, N.J.; Watson, P.H.; Turner, K.J.; Pastorek, J.; Sibtain, A.; Wilson, G.D.; Turley, H.; Talks, K.L.; Maxwell, P.H.; et al. Hypoxia-inducible expression of tumor-associated carbonic anhydrases. Cancer Res. 2000, 60, 7075–7083. [Google Scholar] [PubMed]
  37. Ward, C.S.; Venkatesh, H.S.; Chaumeil, M.M.; Brandes, A.H.; Vancriekinge, M.; Dafni, H.; Sukumar, S.; Nelson, S.J.; Vigneron, D.B.; Kurhanewicz, J.; et al. Noninvasive detection of target modulation following phosphatidylinositol 3-kinase inhibition using hyperpolarized 13C magnetic resonance spectroscopy. Cancer Res. 2010, 70, 1296–1305. [Google Scholar] [CrossRef] [PubMed]
  38. Cunningham, C.H.; Lau, J.Y.; Chen, A.P.; Geraghty, B.J.; Perks, W.J.; Roifman, I.; Wright, G.A.; Connelly, K.A. Hyperpolarized 13C Metabolic MRI of the Human Heart: Initial Experience. Circ. Res. 2016, 119, 1177–1182. [Google Scholar] [CrossRef]
  39. Autry, A.W.; Park, I.; Kline, C.; Chen, H.Y.; Gordon, J.W.; Raber, S.; Hoffman, C.; Kim, Y.; Okamoto, K.; Vigneron, D.B.; et al. Pilot Study of Hyperpolarized 13C Metabolic Imaging in Pediatric Patients with Diffuse Intrinsic Pontine Glioma and Other CNS Cancers. AJNR Am. J. Neuroradiol. 2021, 42, 178–184. [Google Scholar] [CrossRef] [PubMed]
  40. Hashizume, R.; Ozawa, T.; Dinca, E.B.; Banerjee, A.; Prados, M.D.; James, C.D.; Gupta, N. A human brainstem glioma xenograft model enabled for bioluminescence imaging. J. Neurooncol. 2010, 96, 151–159. [Google Scholar] [CrossRef]
  41. Park, I.; Hu, S.; Bok, R.; Ozawa, T.; Ito, M.; Mukherjee, J.; Phillips, J.J.; James, C.D.; Pieper, R.O.; Ronen, S.M.; et al. Evaluation of heterogeneous metabolic profile in an orthotopic human glioblastoma xenograft model using compressed sensing hyperpolarized 3D 13C magnetic resonance spectroscopic imaging. Magn. Reson. Med. 2013, 70, 33–39. [Google Scholar] [CrossRef] [PubMed]
  42. Nguyen, N.T.; Rasanjala, O.N.M.D.; Park, I. Optimization of Scan Parameters for in vivo Hyperpolarized Carbon-13 Magnetic Resonance Spectroscopic Imaging. Investig. Magn. Reson. Imaging 2022, 26, 125–134. [Google Scholar] [CrossRef]
  43. Nelson, S.J. Analysis of volume MRI and MR spectroscopic imaging data for the evaluation of patients with brain tumors. Magn. Reson. Med. 2001, 46, 228–239. [Google Scholar] [CrossRef] [PubMed]
  44. Lustig, M.; Donoho, D.; Pauly, J.M. Sparse MRI: The application of compressed sensing for rapid MR imaging. Magn. Reson. Med. 2007, 58, 1182–1195. [Google Scholar] [CrossRef] [PubMed]
Molecules 30 04175 g001

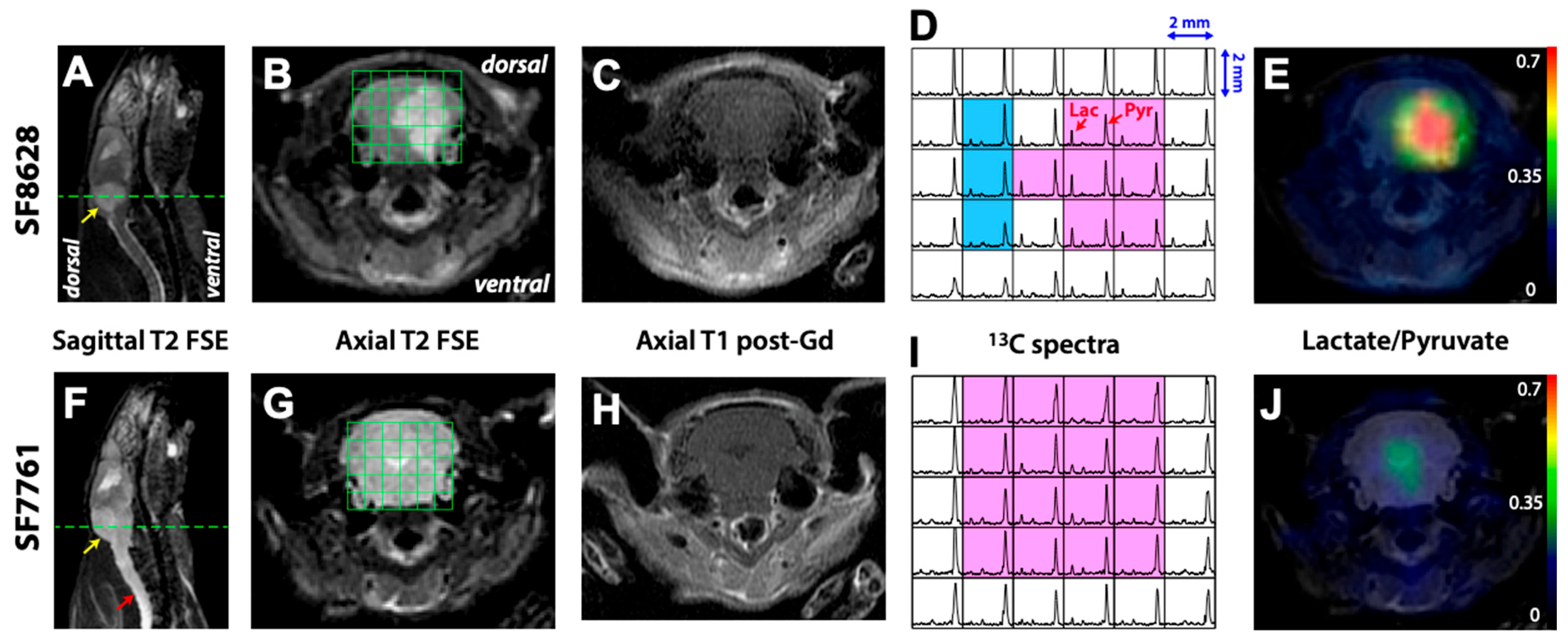

Figure 1. Examples of hyperpolarized 13C MR metabolic imaging data from two rats bearing SF8628 (A–E) or SF7761 (F–J) diffuse midline gliomas showing sagittal T2-weighted images (A,F), axial T2-wegihted images in brainstem (B,G), axial T1 post-gadolinium images in brainstem (C,H), 13C spectra (D,I) from the green spectral arrays in B and G, and the corresponding map of lactate-to-pyruvate ratio overlaid on top of the axial T2-weighted images (E,J). The yellow arrows in (A,F) indicate T2-hyperintensity, and the horizontal dashed lines delimit the location of 5.4 mm axial slice of the 13C spectra shown in (D,I). The red arrow indicates T2 abnormality that spread throughout the entire brainstem in the SF7761 bearing rat. The pink and blue boxes in (D,I) represent voxels over the T2-hyperintense lesion and contralateral normal brain tissue, respectively. The 13C spectra and the map of lactate-to-pyruvate show highly elevated lactate signal in SF8628 tumor compared to both contralateral brain and SF7761 tumor.
Figure 1. Examples of hyperpolarized 13C MR metabolic imaging data from two rats bearing SF8628 (A–E) or SF7761 (F–J) diffuse midline gliomas showing sagittal T2-weighted images (A,F), axial T2-wegihted images in brainstem (B,G), axial T1 post-gadolinium images in brainstem (C,H), 13C spectra (D,I) from the green spectral arrays in B and G, and the corresponding map of lactate-to-pyruvate ratio overlaid on top of the axial T2-weighted images (E,J). The yellow arrows in (A,F) indicate T2-hyperintensity, and the horizontal dashed lines delimit the location of 5.4 mm axial slice of the 13C spectra shown in (D,I). The red arrow indicates T2 abnormality that spread throughout the entire brainstem in the SF7761 bearing rat. The pink and blue boxes in (D,I) represent voxels over the T2-hyperintense lesion and contralateral normal brain tissue, respectively. The 13C spectra and the map of lactate-to-pyruvate show highly elevated lactate signal in SF8628 tumor compared to both contralateral brain and SF7761 tumor.
Molecules 30 04175 g001
Molecules 30 04175 g002

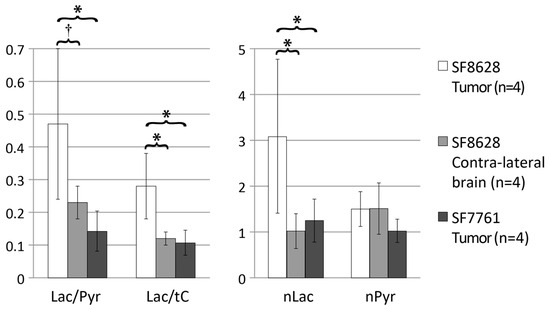

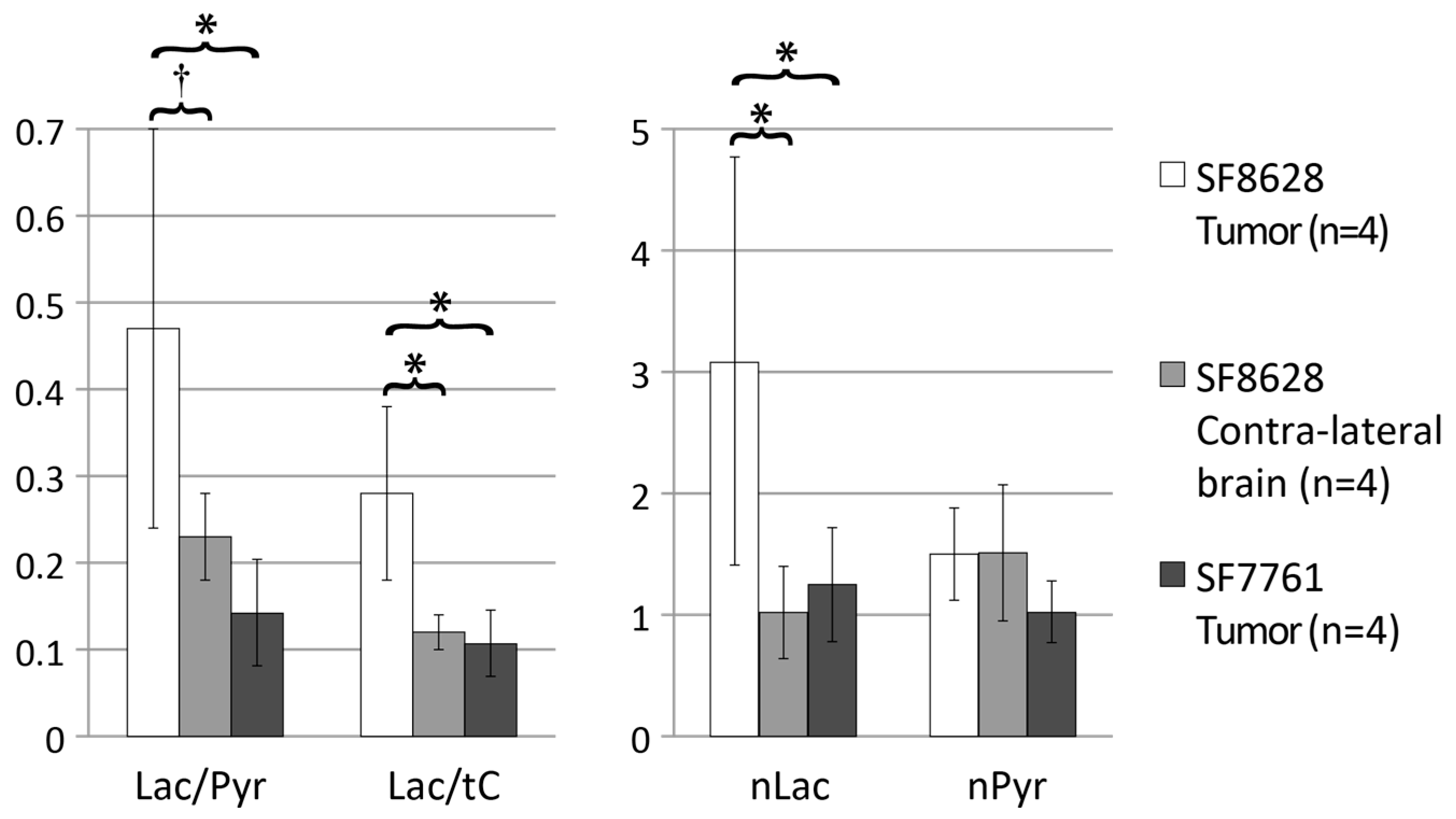

Figure 2. Comparison of 13C metabolite parameters between SF8628 tumor, SF8628 contralateral brain and SF7761 tumor. SF8628 tumor exhibited significantly higher levels of the ratio of lactate to pyruvate (Lac/Pyr), lactate to total carbon (Lac/tC) and normalized lactate (nLac) than contralateral brain tissue and SF7761 tumor. The levels of normalized pyruvate (nPyr) were similar between three tissues. * Significant difference with p < 0.01. † Significant difference with p < 0.03.
Figure 2. Comparison of 13C metabolite parameters between SF8628 tumor, SF8628 contralateral brain and SF7761 tumor. SF8628 tumor exhibited significantly higher levels of the ratio of lactate to pyruvate (Lac/Pyr), lactate to total carbon (Lac/tC) and normalized lactate (nLac) than contralateral brain tissue and SF7761 tumor. The levels of normalized pyruvate (nPyr) were similar between three tissues. * Significant difference with p < 0.01. † Significant difference with p < 0.03.
Molecules 30 04175 g002
Molecules 30 04175 g003
Figure 3. Comparison of histologic and immunohistologic features of SF8628 and SF7761 diffuse midline gliomas. (A,B,E,F) Both tumors displayed infiltrative, highly proliferative tumors recapitulating the histopathology of pediatric diffuse midline glioma with slightly higher proliferation in SF8628, as indicated by MIB1. (C,D,G,H) SF8628 tumors displayed increased expression of LDH-A and CA-IX compared to SF7761. The scale bar in F applies to all sub-figures (A) through (H). H&E, hematoxylin and eosin; MIB1, Molecular Immunology Borstel1; LDH-A, lactate dehydrogenase-A, CA-IX, carbonic anhydrase-IX.
Figure 3. Comparison of histologic and immunohistologic features of SF8628 and SF7761 diffuse midline gliomas. (A,B,E,F) Both tumors displayed infiltrative, highly proliferative tumors recapitulating the histopathology of pediatric diffuse midline glioma with slightly higher proliferation in SF8628, as indicated by MIB1. (C,D,G,H) SF8628 tumors displayed increased expression of LDH-A and CA-IX compared to SF7761. The scale bar in F applies to all sub-figures (A) through (H). H&E, hematoxylin and eosin; MIB1, Molecular Immunology Borstel1; LDH-A, lactate dehydrogenase-A, CA-IX, carbonic anhydrase-IX.
Molecules 30 04175 g003
Molecules 30 04175 g004
Figure 4. Pathologic features of a diffuse midline glioma (SF8628) and the corresponding radiographic feature. (A) A T2-weighted (top) and a T1 post- gadolinium (bottom) axial images demonstrate a non-enhancing, T2-hyperintense mass expanding the pons with infiltration into the adjacent cerebellum. (B) H&E stained section shows a highly cellular glioma with diffuse invasion into adjacent brain. (C) Immunostaining demonstrates LDH-A expression within the tumor cells. The scale bar in C applies to Figure 4B as well. The red square represents the region that corresponds to the pathologic images in (B,C).
Figure 4. Pathologic features of a diffuse midline glioma (SF8628) and the corresponding radiographic feature. (A) A T2-weighted (top) and a T1 post- gadolinium (bottom) axial images demonstrate a non-enhancing, T2-hyperintense mass expanding the pons with infiltration into the adjacent cerebellum. (B) H&E stained section shows a highly cellular glioma with diffuse invasion into adjacent brain. (C) Immunostaining demonstrates LDH-A expression within the tumor cells. The scale bar in C applies to Figure 4B as well. The red square represents the region that corresponds to the pathologic images in (B,C).
Molecules 30 04175 g004
Table 1. Summary of hyperpolarized 13C metabolite quantification. Metabolite values are mean ± SD.
Table 1. Summary of hyperpolarized 13C metabolite quantification. Metabolite values are mean ± SD.
Lactate/Pyruvate 1,2Lactate/Total Carbon 1,2Normalized Lactate 1,3Normalized Pyruvate
SF8628 tumor (n = 8)0.70 ± 0.240.36 ± 0.082.9 ± 1.11.0 ± 0.3
SF8628 contralateral brain (n = 8)0.28 ± 0.110.18 ± 0.071.1 ± 0.31.1 ± 0.4
SF7761 tumor (n = 4)0.14 ± 0.060.11 ± 0.041.3 ± 0.51.0 ± 0.3
1 Significant difference between SF8628 tumor and SF8628 contralateral brain (p < 0.01, paired t-test). 2 Significant difference between SF8628 tumor and SF7761 tumor (p < 0.01, Student’s t-test). 3 Significant difference between SF8628 tumor and SF7761 tumor (p < 0.03, Student’s t-test).
