Article

Synthesis and Optical Properties of N-Arylnaphtho- and Anthra[2,3-d]oxazol-2-amines

School of Pharmaceutical Sciences, Aichi Gakuin University, 1-100 Kusumoto-cho, Chikusa-ku, Nagoya 464-8650, Japan
*
Author to whom correspondence should be addressed.
Molecules 2025, 30(2), 319; https://doi.org/10.3390/molecules30020319
Submission received: 23 December 2024 / Revised: 11 January 2025 / Accepted: 12 January 2025 / Published: 15 January 2025

Abstract

:
Oxazole, a versatile and significant heteroarene, serves as a bridge between synthetic organic chemistry and applications in the medicinal, pharmaceutical, and industrial fields. Polycyclic aromatic compounds with amino groups substituted at the 2-position of an oxazole, such as 2-aminonaphthoxazoles, are expected to be functional probes, but their synthetic methods are extremely limited. Herein, we describe electrochemical reactions of 3-amino-2-naphthol or 3-amino-2-anthracenol and isothiocyanates in DMSO, using a graphite electrode as an anode and a platinum electrode as a cathode in the presence of potassium iodide (KI), which afford N-arylnaphtho- and N-arylanthra[2,3-d]oxazol-2-amines via cyclodesulfurization. This reaction is the first example of synthesis of 2-aminoxazole-based polycyclic compounds using an electrochemical reaction. An examination of the spectroscopic properties of polycyclic oxazoles revealed that the λabs value of the tetracyclic oxazoles was redshifted relative to that of the tricyclic oxazoles. Moreover, synthesized naphthalene/anthracene-fused tricyclic and tetracyclic oxazoles exhibited extended π-conjugated skeletons and fluoresced in the 340–430 nm region in chloroform.

1. Introduction

Oxazoles are important building blocks for the synthesis of functional organic materials and biologically active compounds [1,2,3,4,5]. Among them, N-substituted benzo[d]oxazol-2-amines (2-aminobenzoxazoles) have garnered considerable attention due to their potential applications in biological and pharmaceutical therapies. For example, suvorexant was recently approved as a medication for treating insomnia [6,7]. Furthermore, 2-aminobenzoxazole derivatives have demonstrated significant inhibitory effects on 5-lipoxygenase and p90 ribosomal S6 kinase, as well as strong α-glucosidase inhibition activity [8,9,10]. As a result, numerous synthetic methods for producing 2-aminobenzoxazoles have been developed [11,12,13]. Moreover, 2-aminonaphthoxazole, which has one more fused benzene ring, has also been reported to be a potential probe for detecting γ-hydroxybutyric acid in soft drinks and alcoholic beverages based on color and fluorescence changes [14]. However, only a few methods are known for the synthesis of its parent 2-aminonaphthoxazole [14,15,16,17,18]. For instance, in 2018, synthesis of N-phenylnaphtho[2,3-d]oxazol-2-amine via triphenylbismuth dichloride-promoted cyclodesulfurization of thioureas derived from 3-amino-2-naphthol and phenyl isothiocyanate was reported [15]. Since then, Cu2O/tetrabutylammonium bromide [16] and elemental sulfur/K2CO3 systems [17] have been used as reagents for the oxidative cyclodesulfurization reactions, and artificial hemoglobin-containing cobalt porphyrin [18] has been reported to serve as a catalyst in these reactions. However, these studies were more focused on the synthesis of benzoxazoles than on the synthesis of polycyclic N-arylnaphtho- and anthra[2,3-d]oxazol-2-amines. Moreover, the spectroscopic properties of the synthesized compounds were not investigated despite their potential as functional materials. Electrochemical synthesis attracted attention as an environmentally friendly method [19,20,21]. Bicyclic 2-aminobenzoxazoles have been synthesized through tandem electrochemical reactions from 2-aminophenols and isothiocyanates via thiourea [22]. Inspired by these works, this study aimed to synthesize N-aryloxazol-2-amines fused with naphthalene and anthracene rings, namely N-arylnaphtho- and N-arylanthra[2,3-d]oxazol-2-amines, via electrochemical cyclodesulfurization from 3-amino-2-naphthol or 3-amino-2-anthracenol and isothiocyanates. The optical properties of the synthesized compounds were also investigated.

2. Results and Discussion

In the electrolytic synthesis of 2-aminobenzoxazoles from 2-aminophenols and isothiocyanates, as reported by Wacharasindhu et al., two reagents, NaI and NaCl, were used as electrolytes and/or reaction mediators with a mixed ethanol–water solvent [22]. Since polycyclic aromatic heterocycles are poorly soluble in water, we attempted to carry out the reaction under simpler electrolysis conditions while considering the solubility of the products. The electrocyclization of thioamide (3a) generated from 3-amino-2-naphthol (1) and phenyl isothiocyanate (2a) in the presence of various electrolytes was carried out to obtain suitable reaction conditions (Table 1). To clarify the effect of the electrolyte, MeCN was used as the solvent with a current of 20 mA using a graphite electrode as the anode [C(+)] and a platinum electrode as the cathode [Pt(−)] (entries 1–5). KI was found to be the best electrolyte for the reaction in terms of the yield of the desired oxazole (4). Solvent screening experiments suggested that the reaction proceeded efficiently in DMSO (87%), MeCN (83%), DMF (79%), and DMA (69%) (entries 4 and 6–8), whereas the reaction did not proceed in EtOH or THF (entries 9 and 10). Next, several combinations of the graphite and platinum electrodes were examined. As evident in Table 1, slightly higher yields were obtained when graphite and platinum were used as the anode and cathode, respectively (entries 4 and 11–13). The yield decreased when the KI concentration was reduced (entry 14). When the applied current was reduced from 20 to 5 mA, the reaction time increased (entry 15). Thus, the best result was obtained when 3a, generated from 1 and 2a, reacted in DMSO in the presence of a KI (0.5 M) electrolyte at a current density of 20 mA using a graphite [C(+)] anode and a platinum [Pt(−)] cathode (entry 8).
The generality of this protocol was evaluated by examining the reactions of 3-amino-2-naphthol (1) or 3-amino-2-anthracenol (5) with aryl isothiocyanate (2); the results are summarized in Table 2. The reaction of 1 with aryl isothiocyanate (2) gave the corresponding tricyclic naphthoxazoles (68) in high yields. When 3-amino-2-anthracenols (5) were used as a substrate instead of 1, the desired tetracyclic anthroxazoles (912) were obtained, albeit in low yields. These lower yields can be attributed to the low solubility of the thiourea intermediates (3) derived from 5 and 2.
The mechanism of this electrochemical synthesis is unclear at present. However, a plausible mechanism has been proposed (Scheme 1). Iodine (I2) is generated from the iodide (I) of an electrolyte such as nBuN4I, KI, and NaI at the positive electrode of the electrolytic system [23,24,25]. The thiolic form (A), a tautomer of thiourea derived from aminophenol and isothiocyanate, reacts with iodine to produce B. The electrochemical reaction of 1,3-diphenylthiourea (13) under standard conditions affords carbodiimide (14) in a 62% yield (Scheme 2a), and the reductive elimination of B generates carbodiimide (C), sulfur, and hydroiodic acid (Route A). Finally, C undergoes intramolecular cyclization to give polycyclic oxazole. Another possible route (Route B) could be the intramolecular cyclization of B to give oxazole through dehydrosulfurization via D. Reactions of thiourea (3a) using catalytic or equivalent amounts of iodine, without electrolysis, gave the corresponding product (4) in a 43% yield (Scheme 2b). These results suggest that the addition of iodine alone is less effective and that electrolytic reactions proceed more efficiently using KI, although the reaction mechanism remains unclear.
The optical properties of tricyclic and tetracyclic oxazole derivatives 4 and 612 were evaluated based on their UV–Vis absorption and fluorescence spectra in chloroform (Figure 1 and Figure 2 and Table 3). Tricyclic oxazoles 4 and 68 exhibited an absorption band with a maximum (λabs) at around 330 nm. The absorption maxima were largely unaffected by the substituents at the 4-position of the N-phenyl ring. Tetracyclic oxazoles 912 displayed three bands (λabs) ranging from 350 to 400 nm, which were largely unaffected by the substituents at the 4-position of the N-phenyl ring. It is evident that the λabs value of the tetracyclic oxazoles was redshifted by ~70 nm relative to that of the tricyclic oxazoles, as presented in Table 3. Compounds 4 and 68 exhibited fluorescence maxima (λem) at 339–357 nm. The 4-methoxyphenyl derivative (6) exhibited negligible fluorescence, while the 4-trifluoromethyl derivative (8) showed stronger fluorescence (ΦF = 32%) than compounds 4 and 7. Furthermore, the λem of 4 and 68 was redshifted from 339 to 357 nm with an increase in the electron-donating ability of the substituents at the 4-position on the N-phenyl ring. Tetracyclic oxazoles 912 exhibited two fluorescence emission bands at around 410 and 430 nm, with ΦF values of 14–27%. The λem values of tetracyclic oxazoles 912 were not affected by the electronic property of the substituent on the N-phenyl ring.

3. Materials and Methods

3.1. General Information

Unless otherwise stated, all reagents and solvents were purchased from commercial suppliers and used without further purification. 1H NMR (DMSO: δ 2.48 ppm as an internal standard), 13C NMR (DMSO-d6: δ 39.5 ppm as an internal standard), and 19F NMR (trifluoromethylbenzene: δ −64.0 ppm as an external standard) spectra were recorded on a JEOL ECZ-400S (400 MHz, 100 MHz, and 376 MHz) spectrometer (JEOL Ltd., Tokyo, Japan) in DMSO-d6. Melting points were measured on a Yanagimoto micro melting point hot stage apparatus (Yanaco Technical Science Co., Ltd., Tokyo, Japan) and were not corrected. GC-MS (EI) spectra were recorded on an Agilent 5977E Diff-SST MSD-230V spectrometer (Agilent Technologies Japan, Ltd., Tokyo, Japan). HRMS (ESI) were measured on an Agilent 6230 TOF mass spectrometer (Agilent Technologies Japan, Ltd., Tokyo, Japan). IR spectra were recorded on an FTIR-8400S system from Shimadzu (SHIMADZU Corp., Kyoto, Japan) and are reported using the frequency of absorption (cm−1). UV–Vis spectra were recorded at room temperature on a HITACHI U-2800A spectrophotometer (Hitachi High-Tech Corporation, Tokyo, Japan, C = 1.30 × 10−5–2.98 × 10−5 M in CHCl3), and fluorescence spectra were recorded on a JASCO FP-8300 luminescence spectrometer (JASCO Corporation, Tokyo, Japan, C = 1.51 × 10−6–4.73 × 10−6 M in CHCl3). Only selected IR absorbencies are reported. All chromatographic separations were accomplished with Silica Gel 60N (Kanto Chemical Co., Inc., Tokyo, Japan). Thin-layer chromatography (TLC) was performed with Macherey-Nagel Sil G25 UV254 pre-coated TLC plates. 3-Amino-2-naphthol (1) and isothiocyanates (2) were purchased from TCI Fine Chemicals, Japan. Aminophenol (5) [27] was prepared according to the reported procedure. All electrochemical reactions were carried out in an IKA ElectraSyn 2.0 using ElectraSyn 2.0 undivided cells (a 5 mL vial) equipped with standard IKA ElectraSyn 2.0 electrodes (IKA Japan K.K., Osaka, Japan).

3.2. Synthesis of N-Arylnaphtho- and Anthra[2,3-d]oxazol-2-amines

In a 5.0 mL ElectraSyn vial, a mixture of aminophenol (1 or 5: 0.4 mmol) and arylisothiocyanate (2: 0.4 mmol) in DMSO (5.0 mL) was stirred well for 18 h. After complete conversion of the reaction, KI (83.0 mg, 0.5 mmol, and 0.1 M) was added to the reaction mixture. The vial was sealed with an ElectraSyn vial cap fitted with graphite SK-50 as an anode and platinum foil as a cathode. Constant-current electrolysis was performed at 20 mA for 2–4 h. The reaction mixture was diluted with H2O (20 mL) and AcOEt (20 mL), and the aqueous phase was extracted with AcOEt (3 × 30 mL). The combined organic phase was washed with brine (20 mL) and dried over MgSO4. Evaporation of the solvent provided the crude product. The crude product was then purified by column chromatography on silica gel (copies of 1H and 13C NMR see Supplementary Materials).

3.3. Characterization Data

3.3.1. N-Phenylnaphtho[2,3-d]oxazol-2-amine (4) [15]

Yellow prisms (90.4 mg, 87%), m.p.: 198–200 °C (from CH2Cl2-Hexane), Rf = 0.45 (Hexane/AcOEt = 8:2). 1H NMR (400 MHz, DMSO-d6): δ 10.9 (brs, 1H, NH), 7.93–7.90 (m, 3H, Ar-H), 7.84 (s, 1H, Ar-H), 7.79 (d, J = 8.0 Hz, 2H, Ar-H), 7.42–7.37 (m, 4H, Ar-H), and 7.05 (t, J = 7.6 Hz, 1H, Ar-H) ppm. 13C NMR (100 MHz, DMSO-d6): δ 159.3 (C), 146.9 (C), 142.9 (C), 138.4 (C), 131.3 (C), 129.6 (C), 129.0 (CH), 127.6 (CH), 127.5 (CH), 124.4 (CH), 124.0 (CH), 122.6 (CH), 118.0 (CH), 112.3 (CH), and 104.5 (CH) ppm. HRMS: m/z [M + H]+ calculated for C17H13N2O: 261.1022. Found: 261.1019. IR (KBr): ν 3019 (NH) cm−1.

3.3.2. N-(4-Methoxyphenyl)naphtho[2,3-d]oxazol-2-amine (6) [16]

Colorless needles (104 mg, 90%), m.p.: 190–191 °C (from CH2Cl2), Rf = 0.40 (Hexane/AcOEt = 8:2). 1H NMR (400 MHz, DMSO-d6): δ 10.6 (brs, 1H, NH), 7.92–7.88 (m, 3H, Ar-H), 7.78 (s, 1H, Ar-H), 7.68 (td, J = 9.2, 2.9 Hz, 2H, Ar-H), 7.41–7.35 (m, 2H, Ar-H), 6.96 (td, J = 9.2, 2.9 Hz, 2H, Ar-H), and 3.73 (s, 3H, OCH3) ppm. 13C NMR (100 MHz, DMSO-d6): δ 160.2 (C), 155.5 (C), 147.7 (C), 143.7 (C), 132.1 (C), 131.9 (C), 130.0 (C), 128.2 (CH), 128.0 (CH), 124.9 (CH), 124.5 (CH), 120.2 (CH), 114.9 (CH), 112.5 (CH), 104.9 (CH), and 55.9 (CH3) ppm. HRMS: m/z [M + H]+ calculated for C18H15N2O2: 291.1128. Found: 291.1118. IR (KBr): ν 3018 (NH) cm−1.

3.3.3. N-(4-Fluorophenyl)naphtho[2,3-d]oxazol-2-amine (7)

Colorless prisms (95.6 mg, 86%), m.p.: 250–252 °C (from CH2Cl2-Hexane), Rf = 0.4 (Hexane/AcOEt = 9:1). 1H NMR (400 MHz, DMSO-d6): δ 10.9 (brs, 1H, NH), 7.93–7.89 (m, 3H, Ar-H), 7.82–7.78 (m, 3H, Ar-H), 7.42–7.36 (m, 2H, Ar-H), and 7.23 (tt, J = 9.2, 3.6 Hz, 2H, Ar-H) ppm. 13C NMR (100 MHz, DMSO-d6): δ 159.9 (C), 158.3 (d, 1JC,F = 237 Hz, C), 147.6 (C), 143.4 (C), 135.4 (C), 131.9 (C), 130.1 (C), 128.2 (CH), 128.0 (CH), 125.0 (CH), 124.6 (CH), 120.2 (d, 3JC,F = 7.7 Hz, CH), 116.2 (d, 2JC,F = 22.0 Hz, CH), 112.9 (CH), and 105.1 (CH) ppm. 19F NMR (376 MHz, DMSO-d6): δ −120.4 ppm. HRMS: m/z [M + H]+ calculated for C17H12FN2O: 279.0928. Found: 279.0923. IR (KBr): ν 3057 (NH) cm−1.

3.3.4. N-[4-(Trifluoromethyl)phenyl]naphtho[2,3-d]oxazol-2-amine (8)

Colorless prisms (116 mg, 89%), m.p.: 201–202 °C (from CH2Cl2-Hexane), Rf = 0.43 (Hexane/AcOEt = 8:2). 1H NMR (400 MHz, DMSO-d6): δ 11.3 (brs, 1H, NH), 8.00–7.90 (m, 6H, Ar-H), 7.76 (d, J = 9.2 Hz, 2H, Ar-H), and 7.45–7.39 (m, 2H, Ar-H) ppm. 13C NMR (100 MHz, DMSO-d6): δ 159.3 (C), 147.4 (C), 142.9 (C), 142.6 (C), 131.8 (C), 130.4 (C), 128.3 (CH), 128.2 (CH), 127.0 (q, 3JC,F = 3.8 Hz, CH), 125.4 (q, 1JC,F = 270 Hz, C), 125.1 (CH), 124.9 (CH), 123.0 (q, 2JC,F = 31.6 Hz, C), 118.4 (CH), 113.5 (CH), and 105.4 (CH) ppm. 19F NMR (376 MHz, DMSO-d6): δ −60.0 ppm. HRMS: m/z [M + H]+ calculated for C18H12F3N2O: 329.0896. Found: 329.0888. IR (KBr): ν 3018 (NH) cm−1.

3.3.5. N-(4-Methoxyphenyl)anthra[2,3-d]oxazol-2-amine (9)

Yellow powder (23.1 mg, 17%), m.p. > 300 °C (from THF-Hexane), Rf = 0.40 (Hexane/AcOEt = 7:3). 1H NMR (400 MHz, DMSO-d6): δ 10.8 (brs, 1H, NH), 8.52 (d, J = 7.9 Hz, 2H, Ar-H), 7.99 (t, J = 4.6 Hz, 3H, Ar-H), 7.88 (s, 1H, Ar-H), 7.69 (d, J = 8.6 Hz, 2H, Ar-H), 7.43–7.39 (m, 2H, Ar-H), 6.98 (d, J = 9.1 Hz, 2H, Ar-H), and 3.74 (s, 3H, OCH3) ppm. 13C NMR (100 MHz, DMSO-d6): δ 160.5 (C), 155.7 (C), 148.3 (C), 144.6 (C), 137.9 (C), 131.8 (C), 131.7 (C), 130.9 (CH), 130.5 (C), 129.2 (C), 128.14 (CH), 128.05 (CH), 126.1 (CH), 125.5 (CH), 125.3 (CH), 120.4 (CH), 114.9 (CH), 111.2 (CH), 103.8 (CH), and 55.9 (CH3) ppm. HRMS: m/z [M + H]+ calculated for C22H17N2O2: 341.1285. Found: 341.1275. IR (KBr): ν 2955 (NH) cm−1.

3.3.6. N-Phenylanthra[2,3-d]oxazol-2-amine (10) [15]

Yellow powder (44.7 mg, 36%), m.p.: 278–281 °C (from AcOEt-Hexane), Rf = 0.37 (Hexane/AcOEt = 8:2). 1H NMR (400 MHz, DMSO-d6): δ 10.9 (brs, 1H, NH), 8.56 (d, J = 4.4 Hz, 2H, Ar-H), 8.03–8.00 (m, 3H, Ar-H), 7.95 (s, 1H, Ar-H), 7.81 (d, J = 7.2 Hz, 2H, Ar-H), 7.45–7.38 (m, 4H, Ar-H), and 7.08 (t, J = 7.6 Hz, 1H, Ar-H) ppm. 13C NMR (100 MHz, DMSO-d6): δ 159.7 (C), 147.5 (C), 143.7 (C), 138.2 (C), 130.3 (C), 130.2 (C), 129.9 (C), 129.0 (CH), 128.7 (CH), 127.6 (CH), 127.5 (CH), 125.5 (CH), 125.1 (CH), 124.9 (CH), 124.7 (CH), 122.8 (CH), 118.2 (CH), 111.0 (CH), and 103.3 (CH) ppm. HRMS: m/z [M + H]+ calculated for C21H15N2O: 311.1179. Found: 311.1168. IR (KBr): ν 2997 (NH) cm−1.

3.3.7. N-(4-Fluorophenyl)anthra[2,3-d]oxazol-2-amine (11)

Yellow prisms (61.7 mg, 47%), m.p.: 285–286 °C (from AcOEt-Hexane), Rf = 0.25 (Hexane/AcOEt = 8:2). 1H NMR (400 MHz, DMSO-d6): δ 11.0 (brs, 1H, NH), 8.55 (d, J = 4.8 Hz, 2H, Ar-H), 8.03–8.00 (m, 3H, Ar-H), 7.94 (s, 1H, Ar-H), 7.84–7.81 (m, 2H, Ar-H), 7.46–7.41 (m, 2H, Ar-H), and 7.26 (t, J = 8.0 Hz, Ar-H) ppm. 13C NMR (100 MHz, DMSO-d6): δ 160.3 (C), 158.4 (d, 1JC,F = 237 Hz, C), 148.1 (C), 144.2 (C), 135.2 (C), 130.9 (C), 130.8 (C), 130.5 (C), 129.2 (C), 128.13 (CH), 128.11 (CH), 126.1 (C), 125.7 (C), 125.5 (CH), 125.3 (CH), 120.3 (d, 3JC,F = 7.7 Hz, CH), 116.3 (d, 2JC,F = 23.0 Hz, CH), 111.6 (CH), and 103.9 (CH) ppm. 19F NMR (376 MHz, DMSO-d6): δ -120.1 ppm. HRMS: m/z [M+] calculated for C21H14FN2O: 329.1085. Found: 329.1076. IR (KBr): ν 2928 (NH) cm−1.

3.3.8. N-[4-(Trifluoromethyl)phenyl]anthra[2,3-d]oxazol-2-amine (12)

Yellow powder (80.1 mg, 53%), m.p. > 300 °C (from THF-Hexane), Rf = 0.35 (Hexane/AcOEt = 8:2). 1H NMR (400 MHz, DMSO-d6): δ 11.4 (brs, 1H, NH), 8.57 (s, 2H, Ar-H), 8.08 (s, 1H, Ar-H), 8.03–8.00 (m, 5H, Ar-H), 7.77 (d, J = 8.2 Hz, 2H, Ar-H), and 7.44–7.42 (m, 2H, Ar-H) ppm. 13C NMR (100 MHz, DMSO-d6): δ 159.8 (C), 147.9 (C), 143.8 (C), 142.4 (C), 130.9 (C), 130.73 (C), 130.69 (C), 129.4 (C), 128.1 (q, 3JC,F = 4.8 Hz, CH), 127.0 (q, 4JC,F = 3.8 Hz, CH), 126.2 (CH), 125.9 (CH), 125.7 (CH), 125.5 (CH), 124.9 (q, 1JC,F = 273 Hz, C), 123.3 (q, 2JC,F = 31.3 Hz, C), 118.7 × 2 (CH), 112.4 (CH), and 104.3 (CH) ppm. 19F NMR (376 MHz, DMSO-d6): δ −60.0 ppm. HRMS: m/z [M + H]+ calculated for C22H14F3N2O: 379.1053. Found: 379.1047. IR (KBr): ν 3059 (NH) cm−1.

4. Conclusions

In conclusion, we have demonstrated a simple method for the synthesis of polycyclic benzene-fused oxazoles using electrochemical cyclodesulfurization reactions. These are environmentally friendly reactions that use commercially available and inexpensive KI as an electrolytic mediator. Oxazoles 4 and 612 exhibited fluorescence in the 340–430 nm region in chloroform. Detailed mechanistic investigations of these electrochemical reactions, structural characterization, and elucidation of the physical properties of the polycyclic oxazoles are currently underway in our laboratory.

Supplementary Materials

The following supporting information can be downloaded at https://www.mdpi.com/article/10.3390/molecules30020319/s1.

Author Contributions

Conceptualization, Y.M. and S.Y.; methodology, Y.M. and S.Y.; validation, A.M. and Y.M.; formal analysis, M.K. and M.M.; investigation, A.M. and Y.M.; writing—original draft preparation, Y.M. and S.Y.; writing—review and editing, Y.M., M.M. and S.Y.; supervision, S.Y.; project administration, S.Y.; funding acquisition, M.K., Y.M., M.M. and S.Y.; All authors have read and agreed to the published version of the manuscript.

Funding

This research was supported by a research grant from the Institute of Pharmaceutical Life Sciences, Aichi Gakuin University, and a Nagai Memorial Research Scholarship from the Pharmaceutical Society of Japan (M.K.).

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Data Availability Statement

Data are available from the authors upon reasonable request.

Conflicts of Interest

The authors declare no conflicts of interest.

References

  1. Yan, X.; Wen, J.; Zhou, L.; Fan, L.; Wang, X.; Xu, Z. Current scenario of 1,3-oxazole derivatives for anticancer activity. Curr. Top. Med. Chem. 2020, 20, 1916–1937. [Google Scholar] [CrossRef] [PubMed]
  2. Demmer, C.S.; Bunch, L. Benzoxazoles and oxazolopyridines in medicinal chemistry studies. Eur. J. Med. Chem. 2015, 97, 778–785. [Google Scholar] [CrossRef]
  3. Kaur, A.; Wakode, S.; Pathak, D.P. Benzoxazole: The molecule of diverse pharmacological importance. Int. J. Pharm. Pharm. Sci. 2015, 7, 16–23. [Google Scholar]
  4. Singh, S.; Veeraswamy, G.; Bhattarai, D.; Goo, J.; Lee, K.; Choi, Y. Recent advances in the development of pharmacologically active compounds that contain a benzoxazole scaffold. Asian J. Org. Chem. 2015, 4, 1338–1361. [Google Scholar] [CrossRef]
  5. Oliveira, E.; Santos, H.M. An overview on sensing materials depending on the electromagnetic spectra region applied. Dye. Pigment. 2016, 135, 3–25. [Google Scholar] [CrossRef]
  6. Flick, A.C.; Ding, H.X.; Leverett, C.A.; Kyne, R.E., Jr.; Liu, K.K.C.; Fink, S.J.; O’Donnell, C.J. Synthetic approaches to the 2014 new drugs. Bioorg. Med. Chem. 2016, 24, 1937–1980. [Google Scholar] [CrossRef] [PubMed]
  7. Dubey, A.K.; Handu, S.S.; Mediratta, P.K. Suvorexant: The first orexin receptor antagonist to treat insomnia. J. Pharmacol. Pharmacother. 2015, 6, 118–121. [Google Scholar] [CrossRef]
  8. Song, H.; Oh, S.R.; Lee, H.K.; Han, G.; Kim, J.H.; Chang, H.W.; Doh, K.E.; Rhee, H.K.; Choo, H.Y.P. Synthesis and evaluation of benzoxazole derivatives as 5-lipoxygenase inhibitors. Bioorg. Med. Chem. 2010, 18, 7580–7585. [Google Scholar] [CrossRef] [PubMed]
  9. Costales, A.; Mathur, M.; Ramurthy, S.; Lan, J.; Subramanian, S.; Jain, R.; Atallah, G.; Setti, L.; Lindvall, M.; Appleton, B.A.; et al. 2-Amino-7-substituted benzoxazole analogs as potent RSK2 inhibitors. Bioorg. Med. Chem. Lett. 2014, 24, 1592–1596. [Google Scholar] [CrossRef]
  10. Wang, G.; Peng, Z.; Wang, J.; Li, J.; Li, X. Synthesis, biological evaluation and molecular docking study of N-arylbenzo[d]oxazol-2-amines as potential α-glucosidase inhibitors. Bioorg. Med. Chem. 2016, 24, 5374–5379. [Google Scholar] [CrossRef]
  11. Kadagathur, M.; Shaikh, A.S.; Jadhav, G.S.; Sigalapalli, D.K.; Shankaraiah, N.; Tangellamudi, N.D. Cyclodesulfurization: An enabling protocol for synthesis of various heterocycles. ChemstrySelect 2021, 6, 2621–2640. [Google Scholar] [CrossRef]
  12. Gu, Y.; Li, Y.D.; Ge, Y.; Huang, J.L.; Xu, H.J.; Hu, Y. Hypervalent iodine mediated synthesis of 2-aminobenzazoles and 2-aminobenzothiazoles. Asian J. Org. Chem. 2024, 13, e202400076. [Google Scholar] [CrossRef]
  13. Kant, K.; Patel, C.K.; Banerjee, S.; Naik, P.; Padhi, A.; Sharma, V.; Singh, V.; Almeer, R.; Keremane, K.S.; Atta, A.K.; et al. HFIP-mediated cyclodesulfurization approach for the synthesis of 2-aminobenzoxazole and 2-aminobenzothiazole derivatives. Asian J. Org. Chem. 2024, 13, e202400223. [Google Scholar] [CrossRef]
  14. Rodríguez-Nuévalos, S.; Costero, A.M.; Arroyo, P.; Sáez, J.A.; Parra, M.; Sancenón, F.; Martínez-Máñez, R. Protection against chemical submission: Naked-eye detection of γ-hydroxybutyric acid (GHB) in soft drinks and alcoholic beverages. Chem. Commun. 2020, 56, 12600–12603. [Google Scholar] [CrossRef] [PubMed]
  15. Murata, Y.; Matsumoto, N.; Miyata, M.; Kitamura, Y.; Kakusawa, N.; Matsumura, M.; Yasuike, S. One-pot reaction for the synthesis of N-substituted 2-aminobenzoxazoles using triphenylbismuth dichloride as cyclodesulfurization reagent. J. Organomet. Chem. 2018, 859, 18–23. [Google Scholar] [CrossRef]
  16. Zhang, J.; Chen, L.; Dong, Y.; Yang, J.; Wu, Y. A Cu2O/TBAB-promoted approach to synthesize heteroaromatic 2-amines via one-pot cyclization of aryl isothiocyanates with ortho-substituted amines in water. Org. Biomol. Chem. 2020, 18, 7425–7430. [Google Scholar] [CrossRef] [PubMed]
  17. Tran, D.T.; Huynh, T.N.; Nguyen, P.C.; Phan, N.T.S.; Nguyen, T.T. Synthesis of 2-aminobenzoxazoles from elemental sulfur mediated cyclization of 2-aminophenols and aryl isothiocyanates. Tetrahedron Lett. 2023, 122, 154510. [Google Scholar] [CrossRef]
  18. Xu, Y.; Li, F.; Zhao, N.; Su, J.; Wang, C.; Wang, C.; Li, Z.; Wang, L. Environment-friendly and efficient synthesis of 2-aminobenzo-xazoles and 2-aminobenzothiazoles catalyzed by Vitreoscilla hemoglobin incorporating a cobalt porphyrin cofactor. Green Chem. 2021, 23, 8047–8052. [Google Scholar] [CrossRef]
  19. Listratova, A.V.; Sbei, N.; Voskressensky, L.G. Catalytic electrosynthesis of N,O-heterocycles—Recent advances. Eur. J. Org. Chem. 2020, 2020, 2012–2027. [Google Scholar] [CrossRef]
  20. Sbei, N.; Listratova, A.V.; Titov, A.A.; Voskressensky, L.G. Recent advances in electrochemistry for the synthesis of N-heterocycles. Synthesis 2019, 51, 2455–2473. [Google Scholar] [CrossRef]
  21. Jiang, Y.; Xu, K.; Zeng, C. Use of electrochemistry in the synthesis of heterocyclic structures. Chem. Rev. 2018, 118, 4485–4540. [Google Scholar] [CrossRef]
  22. Huynh, T.N.T.; Tankam, T.; Koguchi, S.; Rerkrachaneekorn, T.; Sukwattanasinitt, M.; Wacharasindhu, S. Electrochemical NaI/NaCl-mediated one-pot synthesis of 2-aminobenzoxazoles in aqueous media via tandem addition–cyclization. Green Chem. 2021, 23, 5189–5194. [Google Scholar] [CrossRef]
  23. Liu, K.; Song, C.; Lei, A. Recent advances in iodine mediated electrochemical oxidative cross-coupling. Org. Biomol. Chem. 2018, 16, 2375–2387. [Google Scholar] [CrossRef]
  24. Bentlety, C.L.; Bond, A.M.; Hollenkamp, A.F.; Mahon, P.J.; Zhang, J. Electrochemistry of iodide, iodine, and iodine monochloride in chloride containing nonhaloaluminate ionic liquids. Anal. Chem. 2016, 88, 1915–1921. [Google Scholar] [CrossRef] [PubMed]
  25. Zhang, X.; Wang, C.; Jiang, H.; Sun, L. Convenient synthesis of selenyl-indoles via iodide ion-catalyzed electrochemical C–H selenation. Chem. Commun. 2018, 54, 8781–8784. [Google Scholar] [CrossRef] [PubMed]
  26. Eaton, D.F. Reference materials for fluorescence measurement. Pure Appl. Chem. 1988, 60, 1107–1114. [Google Scholar] [CrossRef]
  27. Partes, C.; Yildirim, C.; Schuster, S.; Kind, M.; Bats, J.W.; Zharnikov, M.; Terfort, A. Self-assembled monolayers of pseudo-C2v-Symmetric, low-band-gap areneoxazolethiolates on gold surfaces. Langmuir 2016, 32, 11474–11484. [Google Scholar] [CrossRef] [PubMed]

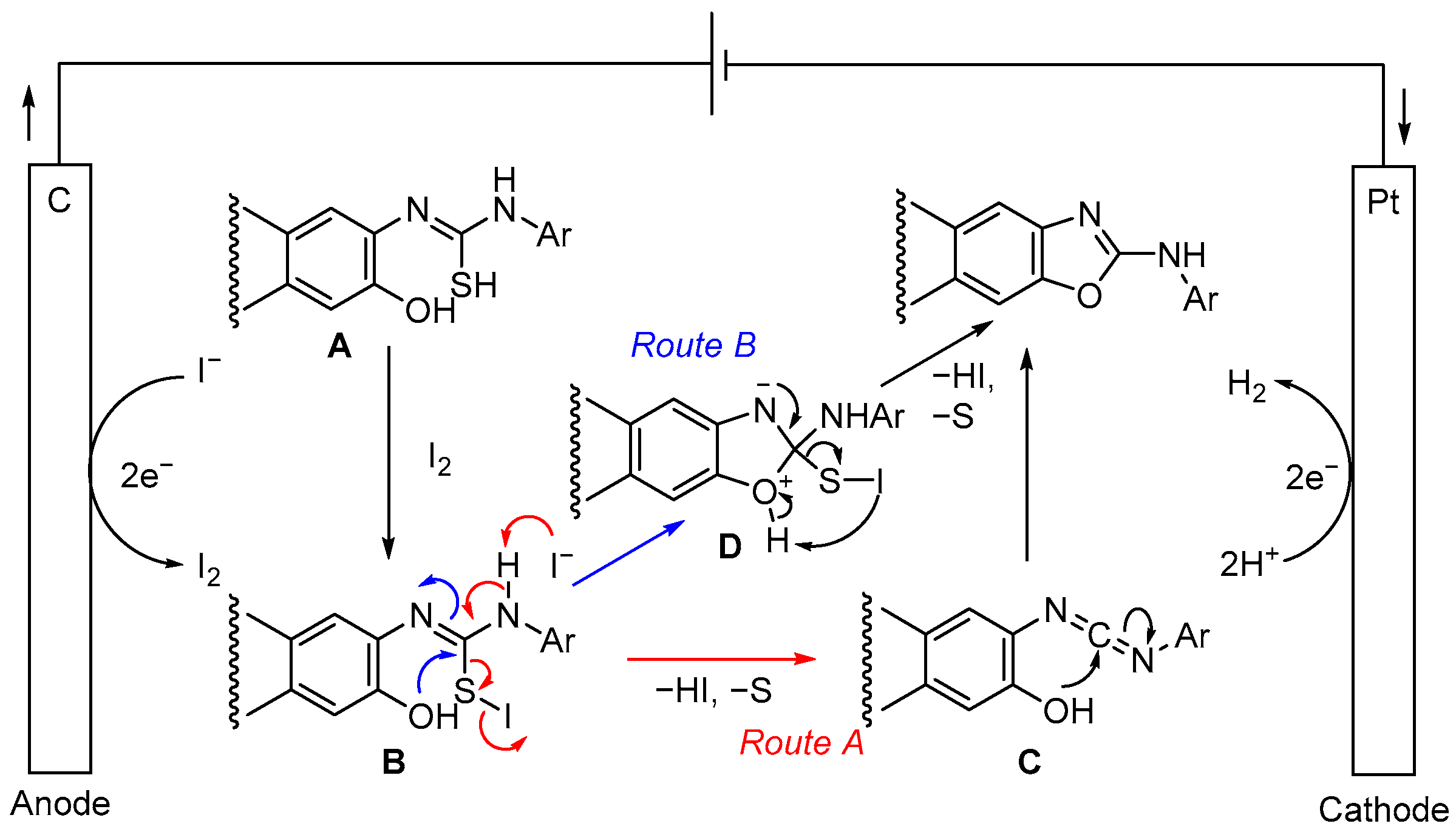

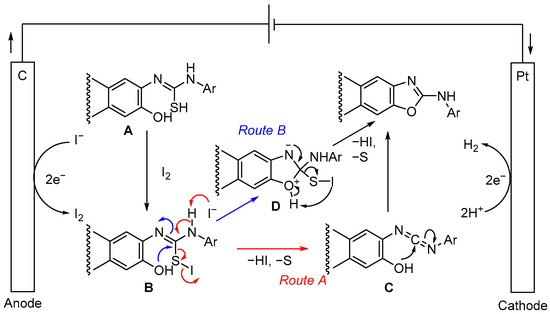

Scheme 1. Proposed mechanism.
Scheme 1. Proposed mechanism.
Molecules 30 00319 sch001

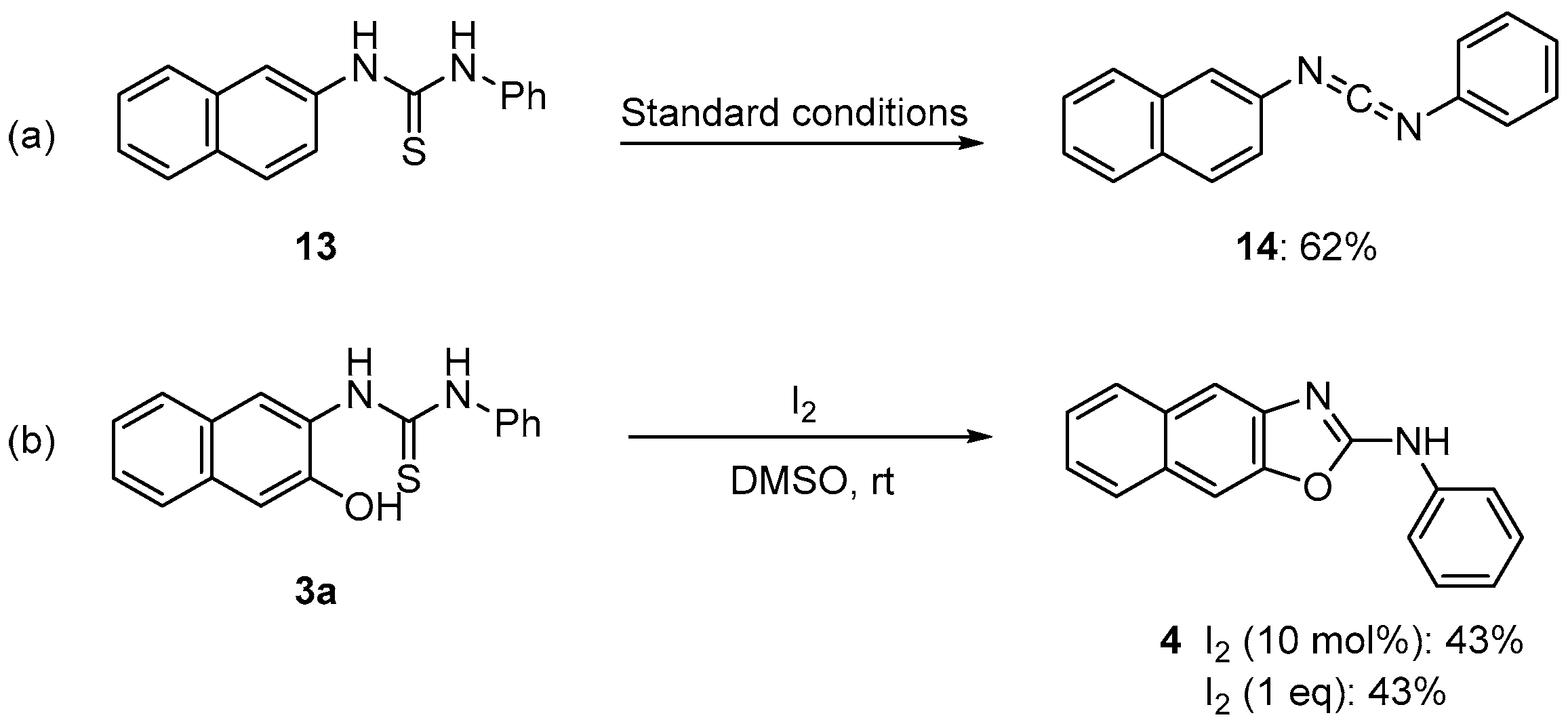

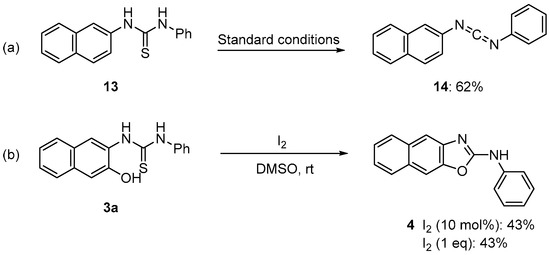

Scheme 2. Control reactions. (a) Desulfurization of thiourea. (b) Experiments using catalytic or equivalent amounts of iodine.
Scheme 2. Control reactions. (a) Desulfurization of thiourea. (b) Experiments using catalytic or equivalent amounts of iodine.
Molecules 30 00319 sch002

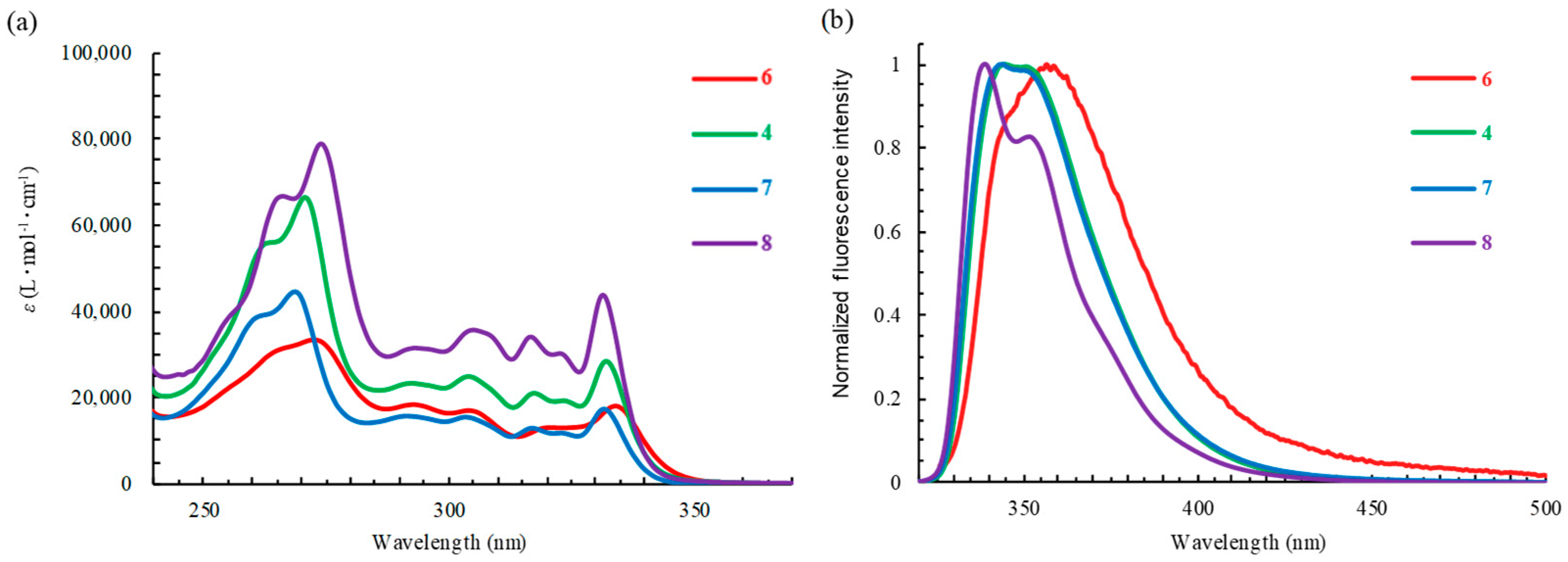

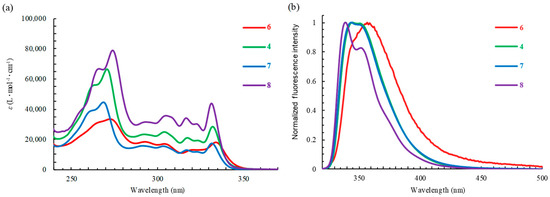

Figure 1. The (a) absorption and (b) fluorescence spectra of N-arylnaphtho[2,3-d]oxazol-2-amines 4 and 68 in CHCl3. The excitation wavelength was 310 nm.
Figure 1. The (a) absorption and (b) fluorescence spectra of N-arylnaphtho[2,3-d]oxazol-2-amines 4 and 68 in CHCl3. The excitation wavelength was 310 nm.
Molecules 30 00319 g001

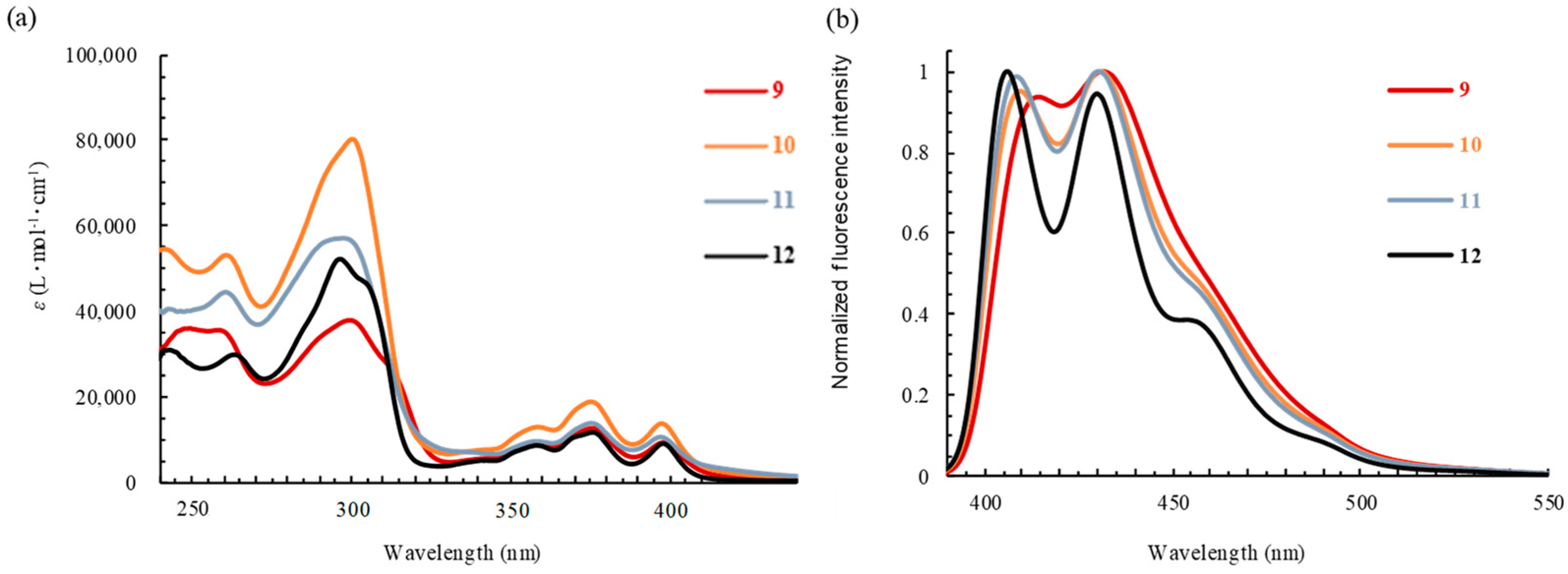

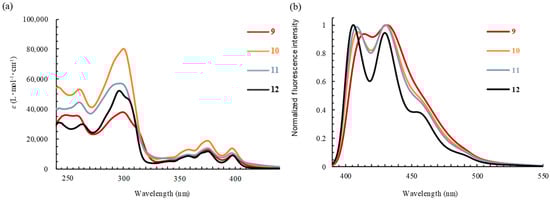

Figure 2. The (a) absorption and (b) fluorescence spectra of N-arylanthra[2,3-d]oxazol-2-amines 912 in CHCl3. The excitation wavelength was 380 nm.
Figure 2. The (a) absorption and (b) fluorescence spectra of N-arylanthra[2,3-d]oxazol-2-amines 912 in CHCl3. The excitation wavelength was 380 nm.
Molecules 30 00319 g002
Table 1. Screening of reaction conditions a.
Table 1. Screening of reaction conditions a.
Molecules 30 00319 i001
EntryElectrolyteElectrodeCurrent (mA)SolventTime (h)Yield (%) b
1NaIC(+)/Pt(−)20MeCN364
2NH4IC(+)/Pt(−)20MeCN377
3nBu4NIC(+)/Pt(−)20MeCN476
4KIC(+)/Pt(−)20MeCN383
5KBrC(+)/Pt(−)20MeCN24---
6KIC(+)/Pt(−)20DMF379
7KIC(+)/Pt(−)20DMA369
8KIC(+)/Pt(−)20DMSO287
9KIC(+)/Pt(−)20EtOH24---
10KIC(+)/Pt(−)20THF24---
11KIC(+)/C(–)20DMSO272
12KIPt(+)/Pt(−)20DMSO381
13KIPt(+)/C(–)20DMSO481
14 cKIC(+)/Pt(−)20DMSO360
15KIC(+)/Pt(−)5DMSO2480
a 1a (0.4 mmol), 2a (0.4 mmol), electrolyte (0.5 mmol, 0.1 M), and solvent (5 mL). b Yield of isolated product. c Electrolyte (0.024 M).
Table 2. Synthesis of polycyclic N-aryloxazol-2-amines a,b.
Table 2. Synthesis of polycyclic N-aryloxazol-2-amines a,b.
Molecules 30 00319 i002
Molecules 30 00319 i003Molecules 30 00319 i004Molecules 30 00319 i005Molecules 30 00319 i006
6: 90% (4 h)7: 86% (2 h)8: 89% (2 h)9: 17% (4 h)
Molecules 30 00319 i007Molecules 30 00319 i008Molecules 30 00319 i009
10: 36% (2 h)11: 47% (2 h)12: 53% (2 h)
a All reactions were carried out using 1 or 5 (0.4 mmol), 2 (0.4 mmol), KI (0.5 mmol, 0.1 M), and DMSO (5 mL). b Yield of isolated product.
Table 3. Absorption (C = 1.30 × 10−5–2.98 × 10−5 M) and fluorescence (C = 1.51 × 10−6–4.73 × 10−6 M) data for 4 and 612 in CHCl3 at room temperature.
Table 3. Absorption (C = 1.30 × 10−5–2.98 × 10−5 M) and fluorescence (C = 1.51 × 10−6–4.73 × 10−6 M) data for 4 and 612 in CHCl3 at room temperature.
CompoundArλabs (nm)λem (nm) aΦF (%) a,b
64-MeOC6H4334357<1
4C6H533234515
74-FC6H433234411
84-CF3C6H433233932
94-MeOC6H4359, 376, 398414, 43127
10C6H5359, 376, 398409, 43118
114-FC6H4359, 376, 398408, 43014
124-CF3C6H4359, 376, 398406, 43020
a Excitation at 310 (4 and 68) or 380 (912) nm. b The relative quantum yields were estimated using a solution of anthracene in ethanol (ΦF = 0.27) for 4 and 68 and using 9,10-diphenyl anthracene in cyclohexane (ΦF = 0.90) for 912 [26].
