Article

Ion-Channel-Targeting Drugs for Chikungunya Virus

by
Hiya Lahiri
1,2,*,
Kingshuk Basu
1,2,* and
Isaiah T. Arkin
1,2,*
1
Department of Biological Chemistry, The Alexander Silberman Institute of Life Sciences, The Hebrew University of Jerusalem, Edmond J. Safra Campus, Jerusalem 9190400, Israel
2
Department of Biomedical Engineering, City University of Hong Kong, Tat Chee Avenue, Kowloon, Hong Kong, China
*
Authors to whom correspondence should be addressed.
Molecules 2025, 30(19), 3942; https://doi.org/10.3390/molecules30193942
Submission received: 20 August 2025 / Revised: 18 September 2025 / Accepted: 26 September 2025 / Published: 1 October 2025
(This article belongs to the Section Chemical Biology)
Browse Figures
Review Reports Versions Notes

Abstract

Alphaviruses are transmitted by Aedes mosquitoes and cause large-scale epidemics worldwide. Chikungunya virus (CHIKV) infection can cause febrile seizures known as chikungunya fever (CHIKF), which ultimately leads to severe joint pain and myalgia. While a vaccine has recently been introduced against CHIKV, at present, no anti-viral drug is available. CHIKV, like other alphaviruses, has a short 6K protein capable of forming an ion channel. Blocking this ion channel with drugs can therefore serve as a potential way to curtail CHIKV infection. To that end, we screened a repurposed drug library using three bacteria-based channel assays to detect blockers against 6K viroporin, yielding several hits. Interestingly, several of the blockers were able to inhibit the 6K protein from the similar Eastern equine encephalitis virus (EEEV), while others were not, pointing to structural specificity which may be explained by modeling studies. In conclusion, our study provides a starting point for developing a new route to potentially inhibit CHIKV.

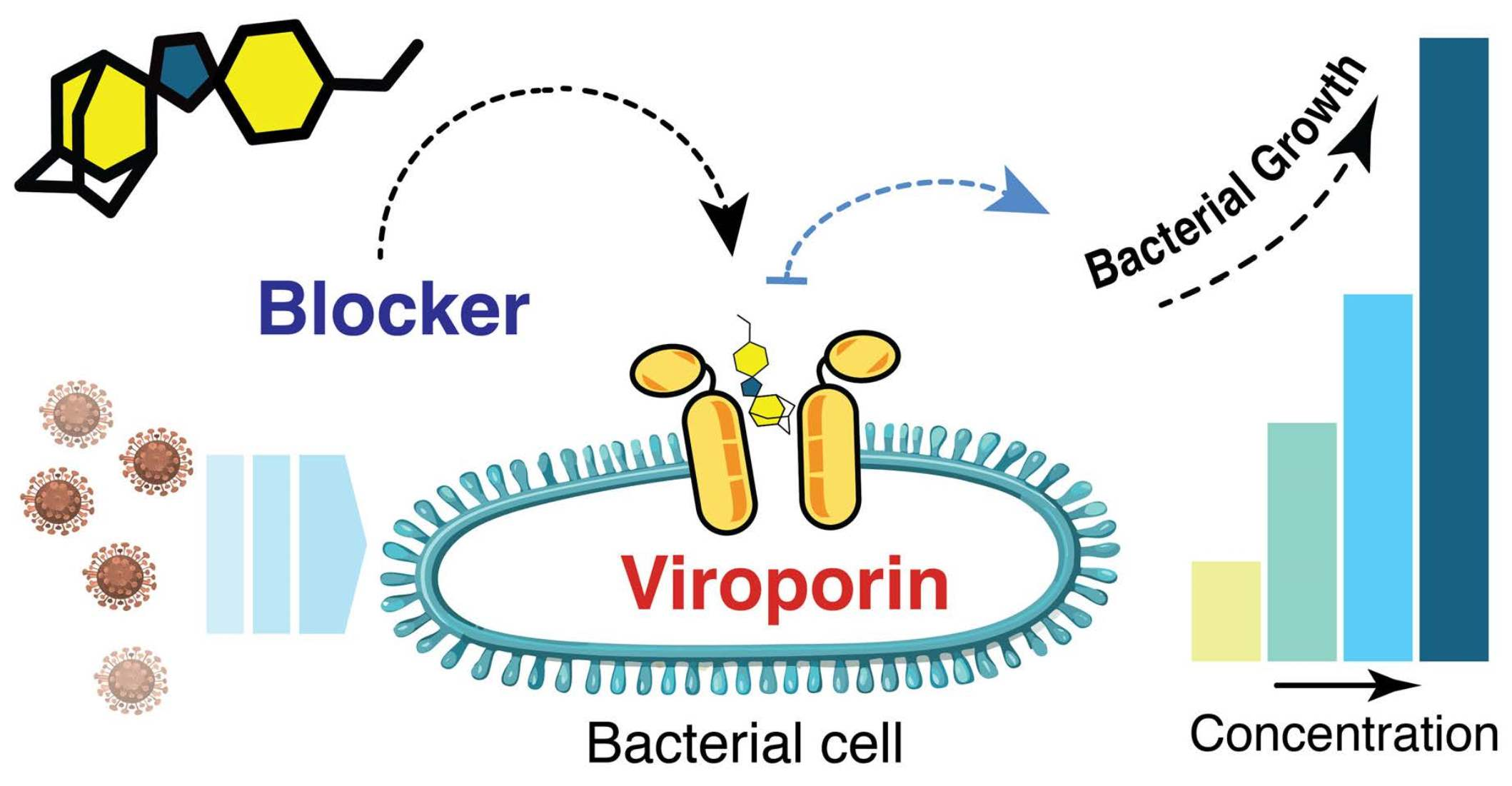

Graphical Abstract

1. Introduction

Chikungunya virus (CHIKV) is a single-stranded positive-sense RNA virus that belongs to the genus Alphaviruses and Togaviridae family, and is mainly transmitted by Aedes mosquitoes [1]. The first case of chikungunya was reported in the Makonde plateau (Tanzania) [2] in 1952 and named in the local language, meaning “that which bends you up”. This describes the posture of the infected patient and how the infection causes severe joint pain. CHIKV outbreaks were reported even before 1779, but those were incorrectly documented as dengue fever. After the 1960s, frequent outbreaks were reported in southeast Asia [3,4,5,6]. In India, major outbreaks were observed in 1973, 2005, and 2010, and the most pronounced was in 2016 [7,8,9,10,11]. Recently, outbreaks have also been observed in the South Pacific region and America [12,13,14].
CHIKV has the same structural and genomic organization as other alphaviruses. It has a lipid bilayer envelope and nucleocapsid shell along with a single-stranded RNA genome of approximately 11.8 kb length [15]. The genome consists of two open reading frames, the first of which encodes a polyprotein that is a precursor of nonstructural proteins nsP1-4, and the second encodes capsid, envelope1 (E1), envelope2 (E2), and two small proteins, 6K and E3. Melton et al. reported that this small 6K protein of alphaviruses can form ion channels [16]. Banerjee and co-workers demonstrated that amantadine can inhibit the 6K ion channel of CHIKV [17]. It also plays a crucial role in viral replication and assembly and has significant importance in the virion release of alphaviruses, confirmed by mutation studies [18,19]. The small cysteine-rich protein forms a cation-selective ion channel in the lipid bilayer and is found to have selectivity for both monovalent and bivalent metal ions (Na+, K+, and Ca2+) [20,21,22], making it an interesting target for blocking.
Many viruses are known to have such ion channels, collectively termed viroporins. One such well-characterized viroporin is the influenza A M2 channel, which can be targeted by aminoadamantane drugs (amantadine and rimantadine) [23,24]. Several other viral ion channels have been found to be successfully targeted by blockers [25,26,27,28,29,30,31,32,33,34].
A vaccine for CHIKV received approval from the FDA in 2023 [35]. A number of studies showed the anti-viral effect of certain compounds by searching for the effects of repurposing drugs [36,37]. Few drugs act by targeting entry inhibition of the virus [38,39]. RNA interference (RNAi) was also used to inhibit viral genome replication and translation [40,41]. Varghese et al. showed the anti-viral activity of abamectin, ivermectin, and berberine against CHIKV infection [42]. However, until now, there has been no specific anti-viral drug available on the market to treat CHIKV infection. This prompted us to search for potential anti-viral agents by targeting the 6K ion channel.
Herein, we targeted 6K viroporin from CHIKV to determine possible anti-viral drugs using bacteria-based channel assays. We screened a repurposed drug library and found nine possible blockers that can serve as the starting point of anti-viral drugs against CHIKV. Moreover, we tested the hit compounds on the 6K ion channel of another Alphavirus, Eastern equine encephalitis virus (EEEV). Further, we conducted computational studies to determine the probable structure of the 6K ion channel, which could ultimately increase the specificity of targeting specific viroporin with drugs.

2. Results and Discussion

2.1. Channel-Based Activity in a Bacterial Setting

To characterize the CHIKV 6K protein as a potential viroporin, and subsequently search for blockers that inhibit its conductivity, we utilized bacteria-based assays. In these assays, channel activity changes the bacterial phenotype and, as such, can point to a protein as a potential viroporin. Subsequently, a search for blockers can be conducted by identifying agents that reverse the channel-driven phenotype.
To ensure proper incorporation within the bacterial inner membrane, we expressed the viral protein as a chimera fused to the carboxy-terminus of the maltose-binding protein. Subsequently, their viroporin activities were examined by three bacteria-based assays, which are detailed in the next sections. Moreover, for comparative purposes, we expressed and examined the 6K protein from another Alphavirus genus member—EEEV (sequence conservation and comparison are shown in Figure S1). Finally, the expression of both viral proteins was confirmed by Western blotting, as shown in Figure S2. The presence of both bands near 50 kDa validates the expression of both proteins, and the bands at around 43 kDa signify the presence of native MBP expression in bacterial cells.

2.1.1. Negative Assay

When a channel is overexpressed in the bacterial inner membrane, it results in excessive permeabilization and consequently impairs the ability of the bacteria to grow [28]. Hence, in this assay, the channel eponymously impacts the bacteria negatively. In practice, we examined the outcome of different concentrations of Isopropyl-β-D-1-thiogalactopyranoside(IPTG), which is used to induce expression, on bacterial growth by monitoring optical density (OD) at 600 nm versus time. Figure 1a shows that increasing the inducer concentration from 20 to 200 μM reduces the bacterial growth gradually. For example, 80 μM of IPTG more than halves the growth rate. However, IPTG does not impact the growth rate of bacteria with an empty pMAL vector, as shown in earlier reports [26,43]. Note that not only does the maximum growth rate decrease upon increasing the inducer concentration, but the culture density is also lowered. However, in our experience, growth rate is a more reliable metric for channel activity within a bacterial setting [26,28,30,31,32,33,43,44].

2.1.2. Positive Assay

This assay is reciprocal to the negative assay mentioned above: K+–uptake deficient bacteria are incapable of growing in a regular medium unless it is supplemented with high K+ concentration [45,46]. However, if the bacteria express a channel capable of potassium transport, growth can be restored, and therefore the channel has a positive impact on its host. Encouragingly, results shown in Figure 1b indicate that bacterial growth is observed upon the induction of CHIKV 6K protein with different concentrations of IPTG. Note that in this assay, lower concentrations of the inducer are used, since at high expression levels, the protein is once more deleterious to growth due to excessive permeabilization (observed in the negative assay).

2.1.3. Fluorescence-pH Assay

In the final experimental assay, a change in the H+ intake of bacterial cells on the expression of the viral ion channel was monitored. In this assay, the bacterial cells express a pH-sensitive green fluorescence protein, which has two excitation maxima at 390 and 466 nm, and their ratio is a function of pH [47]. Consequently, a H+ influx into the bacteria through a channel triggered by acidification of the media can be readily observed [48]. The result shown in Figure 1c demonstrate that upon increasing the inducer concentration, a corresponding intake of H+ is observed.
In conclusion, the above studies have shown that the protein exhibits channel activity in all three bacteria-based assays, and as such can be designated as a viroporin. The 6K from CHIKV was able to reduce the bacterial growth when the inducer concentration increased gradually in the negative assay (Figure 1a). Channel activity was also confirmed for CHIKV 6K by the positive assay, where protein expression increases the growth of K+–uptake-deficient bacteria at low K+ concentration (Figure 1b). Finally, the 6K protein was able to increase the H+ flow into the cell, which was detected by a chromosomally encoded GFP fluorescence change (Figure 1c). Taken together, all bacteria-based assays were able to demonstrate channel activity of the 6K protein from CHIKV.

2.2. Drug Screening

After having shown in three independent bacteria-based assays that CHIKV 6K protein exhibits viroporin characteristics, we set forth to search for blockers that can inhibit its channel activity. We adapted a screening method by complementary assays based on bacterial genetic selection. The channel expression and the activity of targeted blockers were quantified as a function of bacterial growth. This makes drug screening easier and less time-consuming, and produces fewer false positive results, especially while screening sizable drug libraries. To that end, a repurposed drug library of 2839 compounds was first screened on the 6K channel from CHIKV using the negative assay. Here, active compounds, upon addition to the screening assay, should increase the bacterial growth since they reverse the negative impact of the channel on its heterologous host. The active compounds were then subjected to the positive assay, where they are expected to hinder bacterial growth, since, in this instance, the viroporin is beneficial to its host. The reciprocal nature of both positive and negative assays decreased erroneous results. Finally, the hit compounds were checked by the fluorescence–pH assay to further minimize false positive results.
From Figure 2a, it can be seen that nine compounds exhibit activity in the negative assay by increasing the bacterial growth rate: sulfabenzamide, tarenflurbil, sodium phenylbutyrate, tocofersolan, 5-azacytidine, pentamidine, arterolane, saroglitazar, and plerixafor. Among them, sulfabenzamide and arterolane are capable of restoring bacterial growth to levels that approach values that are seen when the bacteria do not harbor any channel. These nine compounds are also active in the positive assay, where a reduction in bacterial growth is the indicator of activity (Figure 2b). In addition, all nine blockers scored positively in the fluorescence–pH assay. Figure 2c shows that the said nine compounds resulted in a reduction in the fluorescence intensity, once more providing proof of their activity.
Finally, a dose–response analysis of the said nine compounds was conducted, employing the negative and positive assays as shown in Figure 3. The data from the negative assay were used to calculate Monod coefficients (Ks) for each drug, as shown in Figure S3.

2.3. Comparison with 6K EEEV

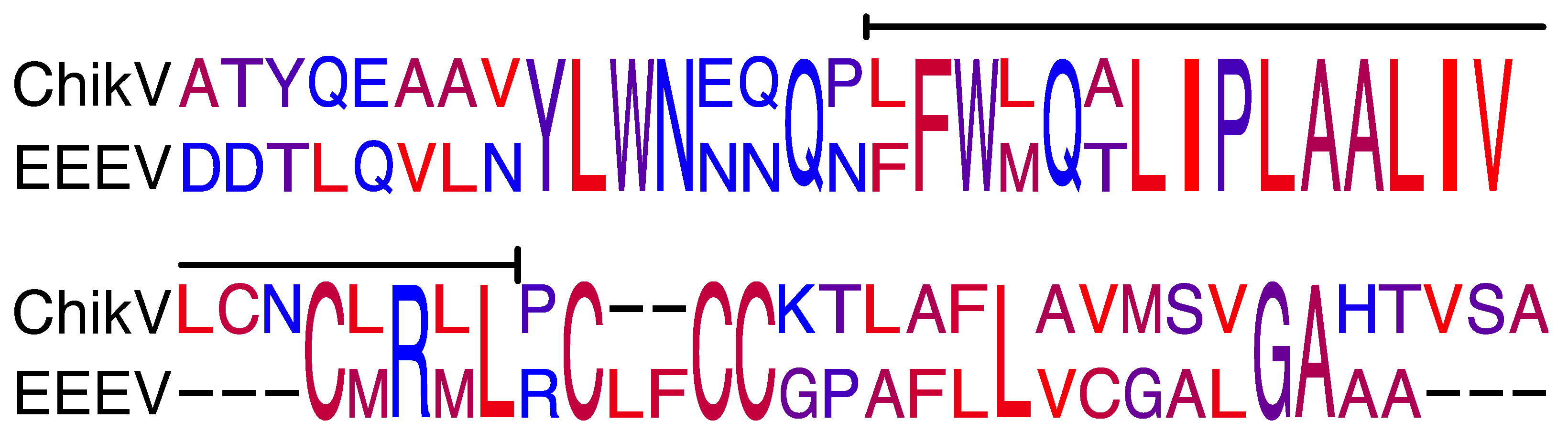

Another important member of the Alphavirus genus is the EEEV. A comparison of the 6K protein sequences from CHIKV and EEEV revealed appreciable sequence identity between the two 6K proteins of 52% (Figure 4), in particular in the transmembrane (TM) region (Figure 4). Moreover, the sequence conservation study reveals higher sequence conservation in the TM domain of both channels (Figure S1). Since we have previously shown that EEEV 6K protein exhibits ion channel activity [26], we sought to compare the activity of both proteins. Such a comparison may provide additional insights into the detailed structure and function of both proteins. To that end, we utilized the positive and negative bacteria-based assays to demonstrate the channel activity once more. Indeed, the results shown in Figure S4 depict similar activity in the negative and positive assays.
Considering that both proteins exhibit similar channel characteristics in the bacteria-based assays, we decided to examine the effects of the blockers that inhibited the 6K viroporin from CHIKV on the 6K channel from EEEV. Interestingly, as shown in Figure 5, it was observed that the nine hit compounds that were active against CHIKV 6K exhibited varying activities against the EEEV protein. In particular, arterolane was again the most potent blocker against both proteins. However, 5-azacytidine, sulfabenzamide, and saroglitazar, which were the second, third, and fourth most active compounds against CHIKV 6K, respectively, exhibited little to no activity in either assay against EEEV 6K. The rest of the compounds exhibited different activity ranges, as tabulated in Table 1.

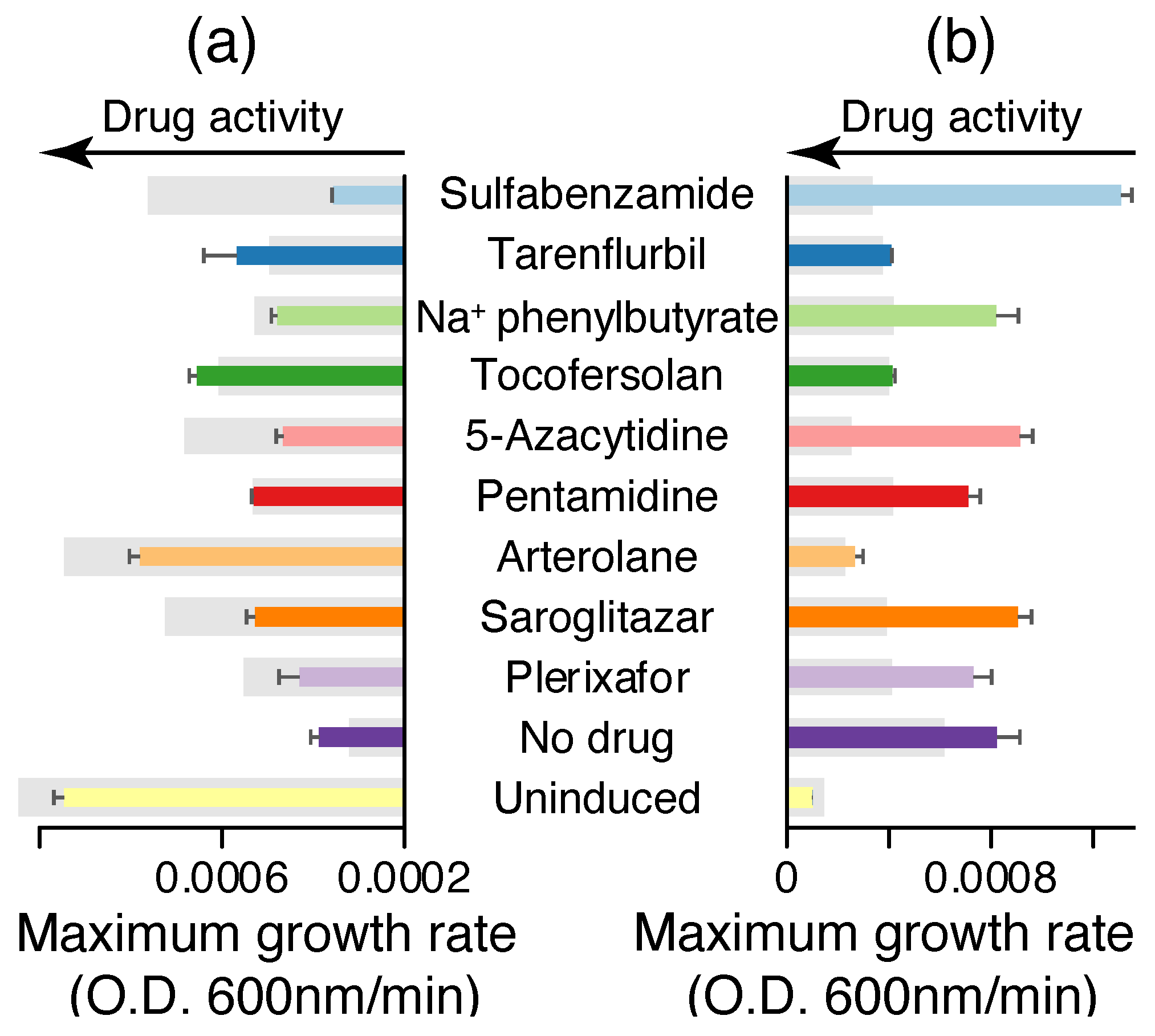

To avoid the probability of non-specificity, we checked the three hit compounds on an empty vector and also on the M2 channel (well-characterized channel) from influenza, and no activity was observed.
The differences and similarities in the activities between the various hits can be attributed to the sequences of the two proteins. For example, the binding site of arterolane, tarenflurbil, and tocofersolan (active against both proteins) is likely unchanged between the two proteins. However, the same cannot be said of the binding site for sulfabenzamide, which exhibits activity only against the 6K protein from CHIKV.

2.4. Structural Analyses

In order to gain a more detailed understanding of the 6K channels from the CHIKV and EEEV, we proceeded with structural analyses. Since, to the best of our knowledge, the structures of either protein have not been determined experimentally, we proceeded by employing AlphaFold2 [50] to predict the structural features from the corresponding amino acid sequences.
One important consideration in utilizing the above strategy is the oligomeric state of the protein. In particular, due to their small size, many viroporins form a homo-oligomeric symmetric complex surrounding a pore [51,52]. Therefore, as an input to AlphaFold2, we utilized the primary sequences of the proteins at different degrees of oligomerization, from dimer to hexamer.
In order to select structures for detailed investigation, two criteria were enacted in series: (i) The structure must have a pore. Subsequently, (ii) structures with a pore are sorted according to their value in the site-wise confidence score provided by AlphaFold2 [50]. Supporting Figures S5–S8 show the Local Difference Distance Test (lDDT) plots for different oligomers. The residue-wise lDDT-score is a superposition-free score representing the local atomic-distance difference. This score provides a residue-wise quality factor for the predicted structure [53]. For 6K from the CHIKV, the trimer produces the highest score with a porous structure, whereas the tetramer and pentamers also possess pores but have lower confidence values. On the other hand, for the 6K viroporin from EEEV, though the tetramer and hexamer have higher confidence scores than the trimer, they do not form pore-like structures. Hence, in both instances, a trimeric assembly was utilized for future studies.

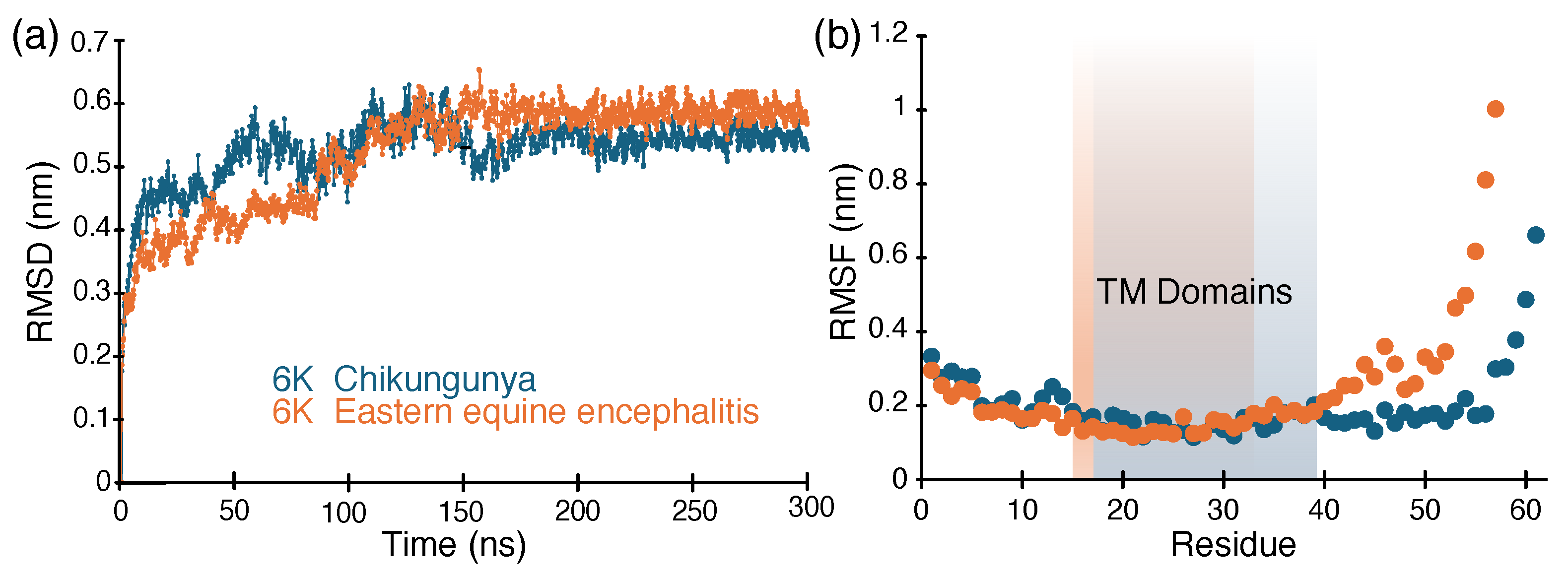

Molecular dynamics simulations were subsequently conducted on the protein structures for 300 ns by incorporating them within an ERGIC-like (ER-Golgi intermediate compartment) membrane to mimic the native conditions. Figure 6a shows the root mean square deviation of both proteins during the simulations as a function of time. It can be seen that, for both membrane–protein assemblies, convergence is reached after 150 ns. To further compare the dynamics of the two proteins in a membrane environment, sequence-wise root mean square fluctuations (rmsf) were measured for each protein and plotted in Figure 6b. Blue and orange shaded areas mark the transmembrane domains for 6K CHIKV and 6K EEEV, respectively. It is evident from Figure 6b that both proteins show similar dynamic behavior of the transmembrane domain, with variations in fluctuation of the outer membrane segments.

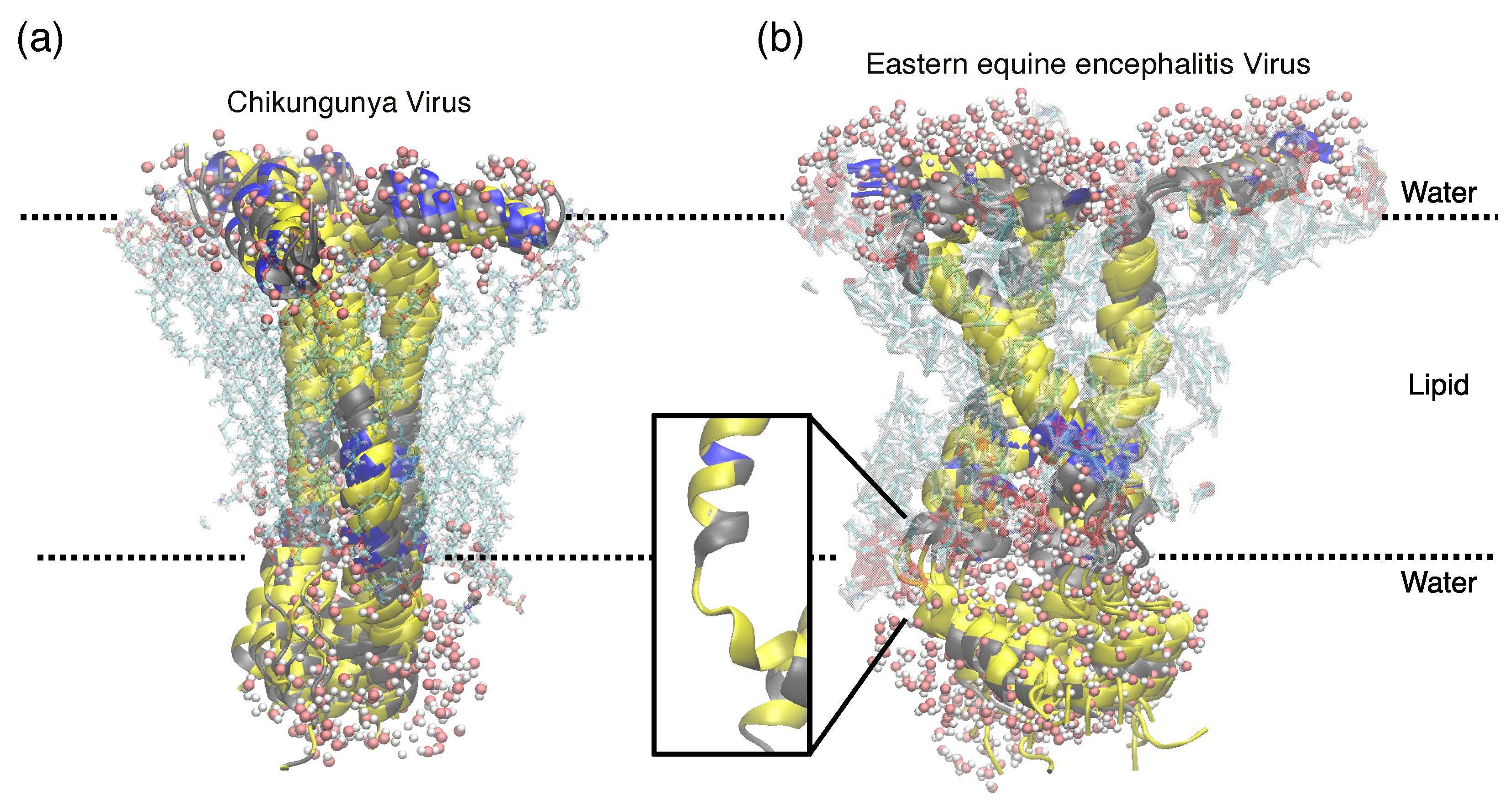

Such stable structures with RMSD values for each protein were overlayed (approximately 40 structures for each protein) to yield a representative structure of the proteins within the lipid environment, as shown in Figure 7. In both cases, though the oligomerization mode is the same, EEEV 6K exhibits a different channel geometry. This can be due to the presence of higher fluctuations in the post-TM region (from Leu40 onwards) compared to the CHIKV counterpart. Moreover, the time-averaged Ramachandran plot [54] of 40th to 46th amino acid residues (Figure S9) of both proteins reveals a break in the helical geometry of 6K from EEEV. This deviation is also visible in the molecular model, shown in Figure 7b, inset. Such factors may have a significant effect on the dissimilarities in drug interaction with the viroporins (Table 1). To elucidate the pore shape of 6K proteins, we utilized PoreWalker [55] to analyse pore geometry. Figure S10 shows pore geometry analysis for 6K CHIKV and EEEV. It is evident from the figure that the pore geometry of CHIKV 6K is very different from the EEEV counterpart. The CHIKV 6K shows an open, funnel-like geometry (summed up as SUS; see figure for details), whereas EEEV 6K shows a bottle-like geometry with narrow ends (summed up as USDS; see figure for details). These different pore geometries can be a reason for the varied activity of the same drugs in both ion channels.

3. Materials and Methods

3.1. Protein Sequence

The sequences of the CHIKV and EEEV 6K proteins were obtained from the NCBI databases GenBank:WGZ84057.1 [56] and GenBank:AMT80038.1 [57], respectively. Potential transmembrane domains of both proteins were identified using TMHMM [58]. The conserved sequences were displayed in LOGO format using the Seq2Logo web server [59].

3.2. Cloning

gBlocks of the aforementioned gene sequences were constructed with the desired sequence along with a histidine tag and stop codon at the C-terminal end and ordered from Integrated DNA Technologies (Coralville, IA, USA). All the proteins were then expressed as a chimera with the maltose-binding protein using the pMAL-p2X plasmid (New England BioLabs; Ipswich, MA, USA), employing a Gibson assembly (Gibson Assembly® Cloning Kit from New England BioLabs).

3.3. Bacterial Strain

Different strains of K12 Escherichia coli were used for this study: DH10B (Invitrogen; Carlsbad, CA, USA); LB650 [45] potassium uptake deficit strain ( Δ trkG, Δ trkH, and Δ kdpABC5), which were a kind gift from Professor K. Jung, Ludwig-Maximilians Universität München and Professor G.A. Berkowitz, University of Connecticut; and the LR1 strain, containing a chromosomal copy of a pH-sensitive green fluorescent protein [47], which was kindly donated by Professor M. Willemoës and Professor K. Lindorff-Larsen (Københavns Universitet).

3.4. Chemicals

Isopropyl- β -D-1-thiogalactopyranoside (IPTG) was purchased from Biochemika-Fluka (Buchs, Switzerland). All other chemicals were purchased from Sigma-Aldrich Laboratories (Rehovot, Israel).

3.5. Bacteria Based Assays

Three bacteria-based channel assays were used to determine the channel activity of the above-mentioned proteins.

3.5.1. Negative Assays

E. coli DH10B either containing the viral chimera or lacking it (as a control group) was grown overnight in Lysogeny Broth (LB) at 37 °C. Then, on the next day, the culture was diluted 500-fold as a secondary culture and subjected to further growth until it reached an OD600 of 0.2. Subsequently, in a 96-well plate containing 50 μL of the desired solution, another 50 μL of the bacterial culture was added, and control wells were prepared without IPTG. Different concentrations of IPTG were added for the induction, alongside 1% D-glucose. The 96-well plates were incubated in a multi-plate reader (LogPhase 600 from BioTek; Santa Clara, CA, USA) at 37 °C for 16 h. Readings were taken at 15 min time intervals and plotted with respect to time.

3.5.2. Positive Assays

The positive assay employed the same protocol as the negative assay described above, with the following differences: the LB650 bacterial strain was used instead of DH10B, and LB media was replaced with LBK media containing 150 mM KCl instead of NaCl.

3.5.3. Fluorescence pH (Acidity) Assay

For this assay, a special type of bacterial strain (LR1) was used that contains a chromosomal copy of a pH-sensitive green fluorescent protein [48]. These LR1 cells with different viroporin chimeras were grown overnight in LB media containing 1% D-glucose. The next day, the culture was diluted 500-fold and grown until the OD600 reached 0.6 to 0.8. Induction was conducted with different concentrations of IPTG and diluted to reach an OD600 of 0.2. Cultures without IPTG were used as control. After an OD600 of 0.2 was reached, cells were pelleted down by centrifuging at 3000 g for 10 min. The cells were then washed and dissolved in McIlvaine Buffer [60] (200 mM Na2HPO4 and 0.9% NaCl adjusted to pH 7.6 with 0.1 M citric acid). Subsequently, 200 μL of cell culture was added to each well containing 30 μL of McIlvaine buffer in a 96-well plate (Nunclon f96 Microwell Black Polystyrene, Thermo Fisher Scientific; Waltham, MA, USA). Three wells contained McIlvaine buffer and bacterial cultures, but without induction as a control. Then, 70 μL of citric acid (300 mM, 0.9% NaCl) was added at the starting point to each well by a liquid handling system (Tecan; Männedorf, Switzerland). The fluorescent measurements were carried out at an ambient temperature in a microplate reader (Infinite F200 Pro, Tecan Group), setting the emission at 520 nm and alternating between 390 and 466 nm excitations. The proton concentrations were then calculated using the ratio of two wavelengths according to [48].

3.5.4. Drug Screening Assay

A chemical library consisting of 2839 compounds purchased from MedChem Express (HY-L035, Monmouth Junction, NJ, USA) was subjected to bacteria-based screening on corresponding channels. According to the vendor, “the library contains approved drugs and compounds that have passed phase I clinical trials, which have been completed extensive pre-clinical and clinical studies and have well-characterized bio-activities, safety, and bio-availability properties”.
All the compounds were used at a concentration of 100 μM. Initial screening was performed with the negative assay. Subsequently, compounds that passed through the negative assay by increasing bacterial growth were subjected to the positive assay, which is exactly reciprocal to the previous one. The compounds that showed activity in both assays were then assessed with the acidity assay. Initial screening was performed on the CHIKV 6K channel, and hit compounds were tested on another 6K channel from EEEV.

3.6. Western Blot

The CHIKV and EEEV 6K-maltose binding protein (6K-MBP) chimera was expressed in DH10B cells at 26 °C overnight after induction with 0.1 mM IPTG. Cells were then calibrated for OD600 of 1. The over-expressed cells were pelleted at 5000× g for 5 min at 4 °C. The cell pellets were lysed using lysis buffer (50 mM Tris pH 8.0, 10% Glycerol, 1% Triton X-100, 2 mM PMSF, 100 µg/mL DNAse, and 100 µg/mL lysozyme). The cells were then kept at 37 °C for 15 min on a dry bath and then freeze-thawed twice, immediately followed by ultrasonication for three cycles of 30 s with a 10 s gap at 40 watts (Vibra-Cell™ Ultrasonic Liquid Processors; Newtown, CT, USA). Cell lysates were collected after centrifugation (15,000× g for 20 min, 4 °C) and treated with 5X sample buffer solution (5X solution of 250 mM Tris·HCl, pH 6.8, 10% SDS, 30% (v/v) Glycerol, 10 mM DTT, 0.05% (w/v) Bromophenol Blue) in a 5:1 ratio followed by heating for 5 min in a dry bath at 100 °C. The lysate was then resolved using electrophoresis, followed by the transfer of the antigens to nitrocellulose membranes using a Semi-dry Trans-Blot® Turbo™ Transfer System (BIO-RAD; Hercules, CA, USA). The membranes were blocked with TBS-T (tris-buffered saline containing Tween-20) containing 1% low-fat milk, incubated overnight with a primary antibody (Anti-MBP, New England BioLabs), washed three times with TBS-T, incubated for two hours with a secondary antibody linked to horseradish peroxidase (anti-rabbit, Novagen; Temecula, CA, USA), and washed once again with TBS-T. Immunoreactive bands were detected using an ECL kit (Biological Industries; Haemek, Israel).

3.7. Dissociation Constant Calculation

The Monod coefficients (Ks) for each hit compound were calculated by using Prism 10 (GraphPad Software; San Diego, CA, USA). The data obtained are non-linearly fit, and the data are given in the Supporting Information.

3.8. Computational Studies

Primary protein sequences (oligomeric) were input into AlphaFold2.ipynb using ColabFold v1.5.2: AlphaFold2 to obtain tentative three-dimensional structures [50]. The proteins were subsequently embedded within a pre-equilibrated ER–Golgi intermediate compartment (ERGIC) membrane composed of 1-palmitoyl-2-oleoyl-sn-glycero-3-phosphoethanolamine, 1-palmitoyl-2-oleoyl-sn-glycero-3-phosphocholine, and 1-palmitoyl-2-oleoyl-sn-glycero-3-phospho-L-serine at a 3:1:1 ratio using CHARMM-GUI [61,62,63]. Subsequently, position-restraints (100,000 kcal/mol/Å2) on protein-heavy atoms were used to ensure that the protein does not change during energy minimization, accomplished using the steepest descent minimization algorithm with a tolerance of 500 kj mol−1 nm−1.
Molecular dynamics (MD) simulations for all the systems were carried out for 200 ns using GROMACS version 2022.3 [64,65,66,67,68] and CHARMM36m force field [69]. A LINCS algorithm with integration time step of 2 fs was used in all cases to constrain the length and angles of hydrogen atoms [70]. Atomic coordinates were saved at every 500 ps interval. The temperature for reference was set at 323 K, and solvents, lipids, and proteins were coupled separately to a Nosé–Hoover temperature bath [71,72] with a coupling constant value τ = 0.5 ps. Pressure coupling was obtained with a Parrinello–Rahman barostat with τ = 2 ps [73,74]. A 1.2 nm cut-off was set for van der Waals interactions. The updating frequency of the neighbor list was kept at 10 fs. Electrostatic parameters were calculated using 4th order Particle Mesh Ewald (PME) long-range electrostatics [75] and the cut-off for short-range electrostatics was set to 1.2 nm.
All the simulation boxes contained 190 lipid molecules and approximately 19,481 water molecules, with Na+ and Cl− counter ions (at 0.15 M concentration). Water molecules were fitted in the FLEXSPC model [76] and the total number of atoms was in the 86,000 range. RMSD values versus time were extracted, and structures of the simulated proteins were visualized and analyzed with VMD software version 1.9.4a51 [77].

4. Conclusions

The treatment of CHIKV infection is challenging due to the lack of anti-viral drugs. However, the severity of CHIKV infection needs immediate attention to control the epidemic. In this study, we have screened a library of repurposed drugs using bacteria-based ion-channel blocking experiments. We found nine effective drugs against the chikungunya virus 6K ion channel and checked them on another 6K variant from Eastern equine encephalitis virus. Interestingly, three of the compounds showed significant activity. We concluded by employing structure prediction tools and molecular dynamics simulation to elucidate the probable structures of the corresponding ion channels within the lipid bilayer. This study can be further extended to in vitro and in vivo assays [78] to confirm the drug activity. Rigorous electrophysiological experiments can be performed to characterize binding events at the molecular level.

Supplementary Materials

The following supporting information can be downloaded at: https://www.mdpi.com/article/10.3390/molecules30193942/s1, Figure S1: Sequence conservation of CHIKV and EEEV 6K, Figure S2: Western blot of the 6K CHIKV and 6K EEEV, Figure S3: Ks value for each blocker identified in the bacteria–based assays concentration, Figure S4: Bacteria based channel assays of 6K EEEV, Figures S5–S8: lDDT vs position plots obtained from AlphaFold2, Figure S9: Ramachandran plot for the transmembrane domains of the predicted protein structures, Figure S10: Pore structure analysis of the proteins.

Author Contributions

Conceptualization, H.L., K.B. and I.T.A.; methodology, H.L. and K.B.; formal analysis, H.L. and K.B.; investigation, H.L. and K.B.; resources, I.T.A.; writing—original draft preparation, H.L. and K.B.; writing—review and editing, H.L., K.B., and I.T.A.; visualization, H.L., K.B., and I.T.A.; supervision, I.T.A.; project administration, I.T.A.; funding acquisition, I.T.A. All authors have read and agreed to the published version of the manuscript.

Funding

This work was supported in part by grants from the Israel Science Foundation (948/19), The National Institutes of Health (1U19AI179421), the Binational Agricultural Research and Development Fund (IS-5567-23 R), and a startup fund from the City University of Hong Kong.

Data Availability Statement

All data are available upon request from the corresponding authors.

Conflicts of Interest

The authors declare that they have filed a patent for second medicinal use of the compounds in question. In addition, ITA has shares in a company that is attempting to commercialize the compounds in question.

References

  1. Weinbren, M.; Haddow, A.J.; Williams, M. The occurrence of chikungunya virus in Uganda I. Isolation from mosquitoes. Trans. R. Soc. Trop. Med. Hyg. 1958, 52, 253–262. [Google Scholar] [CrossRef]
  2. Robinson, M.C. An epidemic of virus disease in Southern Province, Tanganyika territory, in 1952–1953. Trans. R. Soc. Trop. Med. Hyg. 1955, 49, 28–32. [Google Scholar] [CrossRef]
  3. Lam, S.; Chua, K.; Hooi, P.; Rahimah, M.; Kumari, S.; Tharmaratnam, M.; Chuah, S.; Smith, D.; Sampson, I. Chikungunya infection-an emerging disease in Malaysia. Southeast Asian J. Trop. Med. Public Health 2001, 32, 447–451. [Google Scholar] [PubMed]
  4. Laras, K.; Sukri, N.C.; Larasati, R.P.; Bangs, M.J.; Kosim, R.; Djauzi; Wandra, T.; Master, J.; Kosasih, H.; Hartati, S.; et al. Tracking the re-emergence of epidemic chikungunya virus in Indonesia. Trans. R. Soc. Trop. Med. Hyg. 2005, 99, 128–141. [Google Scholar] [CrossRef] [PubMed]
  5. Chastel, C. Human infections in Cambodia by the chikungunya virus or an apparently closely related agent. I. Clinical aspects. Isolations and identification of the viruses. Serology. Bull. Société Pathol. Exot. Ses Fil. 1963, 56, 892–915. [Google Scholar]
  6. Thein, S.; La Linn, M.; Aaskov, J.; Aung, M.M.; Aye, M.; Zaw, A.; Myint, A. Development of a simple indirect enzyme-linked immunosorbent assay for the detection of immunoglobulin M antibody in serum from patients following an outbreak of chikungunya virus infection in Yangon, Myanmar. Trans. R. Soc. Trop. Med. Hyg. 1992, 86, 438–442. [Google Scholar] [CrossRef] [PubMed]
  7. Padbidri, V.; Gnaneswar, T. Epidemiological investigations of chikungunya epidemic at Barsi, Maharashtra state, India. J. Hyg. Epidemiol. Microbiol. Immunol. 1979, 23, 445–451. [Google Scholar]
  8. Arankalle, V.A.; Shrivastava, S.; Cherian, S.; Gunjikar, R.S.; Walimbe, A.M.; Jadhav, S.M.; Sudeep, A.; Mishra, A.C. Genetic divergence of Chikungunya viruses in India (1963–2006) with special reference to the 2005–2006 explosive epidemic. J. Gen. Virol. 2007, 88, 1967–1976. [Google Scholar] [CrossRef]
  9. Kumar, N.P.; Joseph, R.; Kamaraj, T.; Jambulingam, P. A226V mutation in virus during the 2007 chikungunya outbreak in Kerala, India. J. Gen. Virol. 2008, 89, 1945–1948. [Google Scholar] [CrossRef]
  10. Shrinet, J.; Jain, S.; Sharma, A.; Singh, S.S.; Mathur, K.; Rana, V.; Bhatnagar, R.K.; Gupta, B.; Gaind, R.; Deb, M.; et al. Genetic characterization of Chikungunya virus from New Delhi reveal emergence of a new molecular signature in Indian isolates. Virol. J. 2012, 9, 1–8. [Google Scholar] [CrossRef]
  11. Jain, J.; Kaur, N.; Haller, S.L.; Kumar, A.; Rossi, S.L.; Narayanan, V.; Kumar, D.; Gaind, R.; Weaver, S.C.; Auguste, A.J.; et al. Chikungunya outbreaks in India: A prospective study comparing neutralization and sequelae during two outbreaks in 2010 and 2016. Am. J. Trop. Med. Hyg. 2020, 102, 857. [Google Scholar] [CrossRef]
  12. Weaver, S.C. Arrival of chikungunya virus in the new world: Prospects for spread and impact on public health. PLoS Neglected Trop. Dis. 2014, 8, e2921. [Google Scholar] [CrossRef]
  13. Weaver, S.C.; Charlier, C.; Vasilakis, N.; Lecuit, M. Zika, chikungunya, and other emerging vector-borne viral diseases. Annu. Rev. Med. 2018, 69, 395–408. [Google Scholar] [CrossRef]
  14. Gibney, K.B.; Fischer, M.; Prince, H.E.; Kramer, L.D.; St. George, K.; Kosoy, O.L.; Laven, J.J.; Staples, J.E. Chikungunya fever in the United States: A fifteen year review of cases. Clin. Infect. Dis. 2011, 52, e121–e126. [Google Scholar] [CrossRef]
  15. Silva, L.A.; Dermody, T.S. Chikungunya virus: Epidemiology, replication, disease mechanisms, and prospective intervention strategies. J. Clin. Investig. 2017, 127, 737–749. [Google Scholar] [CrossRef]
  16. Melton, J.V.; Ewart, G.D.; Weir, R.C.; Board, P.G.; Lee, E.; Gage, P.W. Alphavirus 6K proteins form ion channels. J. Biol. Chem. 2002, 277, 46923–46931. [Google Scholar] [CrossRef] [PubMed]
  17. Dey, D.; Siddiqui, S.I.; Mamidi, P.; Ghosh, S.; Kumar, C.S.; Chattopadhyay, S.; Ghosh, S.; Banerjee, M. The effect of amantadine on an ion channel protein from Chikungunya virus. PLoS Neglected Trop. Dis. 2019, 13, e0007548. [Google Scholar] [CrossRef] [PubMed]
  18. Meng, H.; Mou, C.; Zhang, L.; Zhou, J.; Lu, T.; Chen, Z. The roles of 6K protein on Getah virus replication and pathogenicity. J. Med. Virol. 2023, 95, e29302. [Google Scholar] [CrossRef]
  19. Gaedigk-Nitschko, K.; Ding, M.; Levy, M.A.; Schlesinger, M.J. Site-directed mutations in the Sindbis virus 6K protein reveal sites for fatty acylation and the underacylated protein affects virus release and virion structure. Virology 1990, 175, 282–291. [Google Scholar] [CrossRef]
  20. Madan, V.; Sanz, M.A.; Carrasco, L. Requirement of the vesicular system for membrane permeabilization by Sindbis virus. Virology 2005, 332, 307–315. [Google Scholar] [CrossRef]
  21. Madan, V.; Castelló, A.; Carrasco, L. Viroporins from RNA viruses induce caspase-dependent apoptosis. Cell. Microbiol. 2008, 10, 437–451. [Google Scholar] [CrossRef] [PubMed]
  22. Jose, J.; Snyder, J.E.; Kuhn, R.J. A structural and functional perspective of alphavirus replication and assembly. Future Microbiol. 2009, 4, 837–856. [Google Scholar] [CrossRef] [PubMed]
  23. Davies, W.; Grunert, R.; Haff, R.; McGahen, J.; Neumayer, E.; Paulshock, M.; Watts, J.; Wood, T.; Hermann, E.; Hoffmann, C. Antiviral activity of 1-adamantanamine (amantadine). Science 1964, 144, 862–863. [Google Scholar] [CrossRef]
  24. Hay, A.; Wolstenholme, A.; Skehel, J.; Smith, M.H. The molecular basis of the specific anti-influenza action of amantadine. EMBO J. 1985, 4, 3021–3024. [Google Scholar] [CrossRef]
  25. Schnell, J.R.; Chou, J.J. Structure and mechanism of the M2 proton channel of influenza A virus. Nature 2008, 451, 591–595. [Google Scholar] [CrossRef] [PubMed]
  26. Tomar, P.P.S.; Oren, R.; Krugliak, M.; Arkin, I.T. Potential Viroporin Candidates From Pathogenic Viruses Using Bacteria-Based Bioassays. Viruses 2019, 11, 632. [Google Scholar] [CrossRef]
  27. Assa, D.; Alhadeff, R.; Krugliak, M.; Arkin, I.T. Mapping the resistance potential of Influenza’s H+ channel against an antiviral blocker. J. Mol. Biol. 2016, 428, 4209–4217. [Google Scholar] [CrossRef]
  28. Astrahan, P.; Flitman-Tene, R.; Bennett, E.R.; Krugliak, M.; Gilon, C.; Arkin, I.T. Quantitative analysis of influenza M2 channel blockers. Biochim. Biophys. Acta 2011, 1808, 394–398. [Google Scholar] [CrossRef]
  29. Taube, R.; Alhadeff, R.; Assa, D.; Krugliak, M.; Arkin, I.T. Bacteria-based analysis of HIV-1 Vpu channel activity. PLoS ONE 2014, 9, e105387. [Google Scholar] [CrossRef]
  30. Tomar, P.P.S.; Krugliak, M.; Arkin, I.T. Identification of SARS-CoV-2 E Channel Blockers from a Repurposed Drug Library. Pharmaceuticals 2021, 14, 604. [Google Scholar] [CrossRef]
  31. Tomar, P.P.S.; Krugliak, M.; Singh, A.; Arkin, I.T. Zika M—A Potential Viroporin: Mutational Study and Drug Repurposing. Biomedicines 2022, 10, 641. [Google Scholar] [CrossRef]
  32. Lahiri, H.; Arkin, I.T. Searching for blockers of dengue and West Nile virus Viroporins. Viruses 2022, 14, 1750. [Google Scholar] [CrossRef]
  33. Basu, K.; Krugliak, M.; Arkin, I.T. Viroporins of Mpox Virus. Int. J. Mol. Sci. 2023, 24, 13828. [Google Scholar] [CrossRef]
  34. Singh, A.; Arkin, I.T. Targeting viral Ion channels: A promising strategy to curb SARS-CoV-2. Pharmaceuticals 2022, 15, 396. [Google Scholar] [CrossRef] [PubMed]
  35. Chikungunya vaccine approved. Nat. Biotechnol. 2023, 41, 1667. [CrossRef] [PubMed]
  36. Kasabe, B.; Ahire, G.; Patil, P.; Punekar, M.; Davuluri, K.S.; Kakade, M.; Alagarasu, K.; Parashar, D.; Cherian, S. Drug repurposing approach against chikungunya virus: An in vitro and in silico study. Front. Cell. Infect. Microbiol. 2023, 13, 1132538. [Google Scholar] [PubMed]
  37. Davuluri, K.S.; Ghanghav, R.; Ahire, G.; Kakade, M.; Cherian, S.; Alagarasu, K.; Parashar, D. Repurposed drugs in combinations exert additive anti-chikungunya virus activity: An in-vitro study. Virol. J. 2024, 21, 5. [Google Scholar] [CrossRef]
  38. Khan, M.; Santhosh, S.; Tiwari, M.; Lakshmana Rao, P.; Parida, M. Assessment of in vitro prophylactic and therapeutic efficacy of chloroquine against Chikungunya virus in vero cells. J. Med. Virol. 2010, 82, 817–824. [Google Scholar] [CrossRef]
  39. Henß, L.; Beck, S.; Weidner, T.; Biedenkopf, N.; Sliva, K.; Weber, C.; Becker, S.; Schnierle, B.S. Suramin is a potent inhibitor of Chikungunya and Ebola virus cell entry. Virol. J. 2016, 13, 1–8. [Google Scholar] [CrossRef]
  40. Bitko, V.; Barik, S. Phenotypic silencing of cytoplasmic genes using sequence-specific double-stranded short interfering RNA and its application in the reverse genetics of wild type negative-strand RNA viruses. BMC Microbiol. 2001, 1, 34. [Google Scholar] [CrossRef]
  41. Presloid, J.B.; Novella, I.S. RNA viruses and RNAi: Quasispecies implications for viral escape. Viruses 2015, 7, 3226–3240. [Google Scholar] [CrossRef] [PubMed]
  42. Varghese, F.S.; Kaukinen, P.; Gläsker, S.; Bespalov, M.; Hanski, L.; Wennerberg, K.; Kümmerer, B.M.; Ahola, T. Discovery of berberine, abamectin and ivermectin as antivirals against chikungunya and other alphaviruses. Antivir. Res. 2016, 126, 117–124. [Google Scholar] [CrossRef] [PubMed]
  43. Singh Tomar, P.P.; Arkin, I.T. SARS-CoV-2 E protein is a potential ion channel that can be inhibited by Gliclazide and Memantine. Biochem. Biophys. Res. Commun. 2020, 530, 10–14. [Google Scholar] [CrossRef] [PubMed]
  44. Tomar, P.P.S.; Krugliak, M.; Arkin, I.T. Blockers of the SARS-CoV-2 3a Channel Identified by Targeted Drug Repurposing. Viruses 2021, 13, 532. [Google Scholar] [CrossRef]
  45. Stumpe, S.; Bakker, E.P. Requirement of a large K+-uptake capacity and of extracytoplasmic protease activity for protamine resistance of Escherichia coli. Arch. Microbiol. 1997, 167, 126–136. [Google Scholar] [CrossRef]
  46. Stumpe, S.; Schmid, R.; Stephens, D.L.; Georgiou, G.; Bakker, E.P. Identification of OmpT as the protease that hydrolyzes the antimicrobial peptide protamine before it enters growing cells of Escherichia coli. J. Bacteriol. 1998, 180, 4002–4006. [Google Scholar] [CrossRef]
  47. Miesenböck, G.; De Angelis, D.A.; Rothman, J.E. Visualizing secretion and synaptic transmission with pH-sensitive green fluorescent proteins. Nature 1998, 394, 192–195. [Google Scholar] [CrossRef]
  48. Santner, P.; Martins, J.M.d.S.; Laursen, J.S.; Behrendt, L.; Riber, L.; Olsen, C.A.; Arkin, I.T.; Winther, J.R.; Willemoës, M.; Lindorff-Larsen, K. A Robust Proton Flux (pHlux) Assay for Studying the Function and Inhibition of the Influenza A M2 Proton Channel. Biochemistry 2018, 57, 5949–5956. [Google Scholar] [CrossRef]
  49. Hallgren, J.; Tsirigos, K.D.; Pedersen, M.D.; Almagro Armenteros, J.J.; Marcatili, P.; Nielsen, H.; Krogh, A.; Winther, O. DeepTMHMM predicts alpha and beta transmembrane proteins using deep neural networks. bioRxiv 2022. [Google Scholar] [CrossRef]
  50. Mirdita, M.; Schutze, K.; Moriwaki, Y.; Heo, L.; Ovchinnikov, S.; Steinegger, M. ColabFold: Making protein folding accessible to all. Nat. Methods 2022, 19, 679–682. [Google Scholar] [CrossRef]
  51. Nieva, J.L.; Madan, V.; Carrasco, L. Viroporins: Structure and biological functions. Nat. Rev. Microbiol. 2012, 10, 563–574. [Google Scholar] [CrossRef]
  52. Xia, X.; Cheng, A.; Wang, M.; Ou, X.; Sun, D.; Mao, S.; Huang, J.; Yang, Q.; Wu, Y.; Chen, S.; et al. Functions of Viroporins in the Viral Life Cycle and Their Regulation of Host Cell Responses. Front. Immunol. 2022, 13, 890549. [Google Scholar] [CrossRef]
  53. Roy, S.; Ben-Hur, A. Protein quality assessment with a loss function designed for high-quality decoys. Front. Bioinform. 2023, 3, 1198218. [Google Scholar] [CrossRef] [PubMed]
  54. Ramachandran, G.N.; Ramakrishnan, C.; Sasisekharan, V. Stereochemistry of polypeptide chain configurations. J. Mol. Biol. 1963, 7, 95–99. [Google Scholar] [CrossRef] [PubMed]
  55. Pellegrini-Calace, M.; Maiwald, T.; Thornton, J.M. PoreWalker: A novel tool for the identification and characterization of channels in transmembrane proteins from their three-dimensional structure. PLoS Comput. Biol. 2009, 5, e1000440. [Google Scholar] [CrossRef] [PubMed]
  56. Structural Polyprotein, Partial [Chikungunya Virus]-Protein-NCBI. Available online: https://www.ncbi.nlm.nih.gov/protein/WGZ84057.1?from=749&to=809 (accessed on 20 August 2025).
  57. Structural Polyprotein [Eastern Equine Encephalitis Virus]-Protein-NCBI. Available online: https://www.ncbi.nlm.nih.gov/protein/AMT80038.1?from=745&to=801 (accessed on 20 August 2025).
  58. Krogh, A.; Larsson, B.; Von Heijne, G.; Sonnhammer, E.L. Predicting transmembrane protein topology with a hidden Markov model: Application to complete genomes. J. Mol. Biol. 2001, 305, 567–580. [Google Scholar] [CrossRef]
  59. Thomsen, M.C.F.; Nielsen, M. Seq2Logo: A method for construction and visualization of amino acid binding motifs and sequence profiles including sequence weighting, pseudo counts and two-sided representation of amino acid enrichment and depletion. Nucleic Acids Res. 2012, 40, W281–W287. [Google Scholar] [CrossRef]
  60. McIlvaine, T. A buffer solution for colorimetric comparison. J. Biol. Chem. 1921, 49, 183–186. [Google Scholar] [CrossRef]
  61. Jo, S.; Kim, T.; Iyer, V.G.; Im, W. CHARMM-GUI: A web-based graphical user interface for CHARMM. J. Comput. Chem. 2008, 29, 1859–1865. [Google Scholar] [CrossRef]
  62. Brooks, B.R.; Brooks, C.L., III; Mackerell, A.D., Jr.; Nilsson, L.; Petrella, R.J.; Roux, B.; Won, Y.; Archontis, G.; Bartels, C.; Boresch, S.; et al. CHARMM: The biomolecular simulation program. J. Comput. Chem. 2009, 30, 1545–1614. [Google Scholar] [CrossRef]
  63. Lee, J.; Cheng, X.; Jo, S.; MacKerell, A.D.; Klauda, J.B.; Im, W. CHARMM-GUI input generator for NAMD, GROMACS, AMBER, OpenMM, and CHARMM/OpenMM simulations using the CHARMM36 additive force field. Biophys. J. 2016, 110, 641a. [Google Scholar] [CrossRef]
  64. Abraham, M.J.; Murtola, T.; Schulz, R.; Páll, S.; Smith, J.C.; Hess, B.; Lindahl, E. GROMACS: High performance molecular simulations through multi-level parallelism from laptops to supercomputers. SoftwareX 2015, 1, 19–25. [Google Scholar] [CrossRef]
  65. Bekker, H.; Berendsen, H.; Dijkstra, E.; Achterop, S.; Vondrumen, R.; Vanderspoel, D.; Sijbers, A.; Keegstra, H.; Renardus, M. Gromacs-a parallel computer for molecular-dynamics simulations. In Proceedings of the 4th International Conference on Computational Physics (PC 92), Prague, Czech Republic, 24–28 August 1992; World Scientific Publishing: New Jersey, CA, USA, 1993; pp. 252–256. [Google Scholar]
  66. Berendsen, H.J.; van der Spoel, D.; van Drunen, R. GROMACS: A message-passing parallel molecular dynamics implementation. Comput. Phys. Commun. 1995, 91, 43–56. [Google Scholar] [CrossRef]
  67. Lindahl, E.; Hess, B.; Van Der Spoel, D. GROMACS 3.0: A package for molecular simulation and trajectory analysis. Mol. Model. Annu. 2001, 7, 306–317. [Google Scholar] [CrossRef]
  68. Pronk, S.; Páll, S.; Schulz, R.; Larsson, P.; Bjelkmar, P.; Apostolov, R.; Shirts, M.R.; Smith, J.C.; Kasson, P.M.; Van Der Spoel, D.; et al. GROMACS 4.5: A high-throughput and highly parallel open source molecular simulation toolkit. Bioinformatics 2013, 29, 845–854. [Google Scholar] [CrossRef] [PubMed]
  69. Huang, J.; Rauscher, S.; Nawrocki, G.; Ran, T.; Feig, M.; De Groot, B.L.; Grubmüller, H.; MacKerell, A.D., Jr. CHARMM36m: An improved force field for folded and intrinsically disordered proteins. Nat. Methods 2017, 14, 71–73. [Google Scholar] [CrossRef] [PubMed]
  70. Hess, B.; Bekker, H.; Berendsen, H.J.; Fraaije, J.G. LINCS: A linear constraint solver for molecular simulations. J. Comput. Chem. 1997, 18, 1463–1472. [Google Scholar] [CrossRef]
  71. Nosé, S. A molecular dynamics method for simulations in the canonical ensemble. Mol. Phys. 1984, 52, 255–268. [Google Scholar] [CrossRef]
  72. Hoover, W.G. Canonical dynamics: Equilibrium phase-space distributions. Phys. Rev. A 1985, 31, 1695. [Google Scholar] [CrossRef]
  73. Parrinello, M.; Rahman, A. Polymorphic transitions in single crystals: A new molecular dynamics method. J. Appl. Phys. 1981, 52, 7182–7190. [Google Scholar] [CrossRef]
  74. Nosé, S.; Klein, M. Constant pressure molecular dynamics for molecular systems. Mol. Phys. 1983, 50, 1055–1076. [Google Scholar] [CrossRef]
  75. Darden, T.; York, D.; Pedersen, L. Particle mesh Ewald An N log (N) method for Ewald sums in large systems. J. Chem. Phys. 1993, 98, 10089–10092. [Google Scholar] [CrossRef]
  76. Berendsen, H.J.; Grigera, J.R.; Straatsma, T.P. The missing term in effective pair potentials. J. Phys. Chem. 1987, 91, 6269–6271. [Google Scholar] [CrossRef]
  77. Humphrey, W.; Dalke, A.; Schulten, K. VMD: Visual molecular dynamics. J. Mol. Graph. 1996, 14, 33–38. [Google Scholar] [CrossRef]
  78. Lahiri, H.; Israeli, E.; Krugliak, M.; Basu, K.; Britan-Rosich, Y.; Ravins Yaish, T.; Arkin, I.T. A bacteria-based search for drugs against avian and swine flu yields a potent and resistance-resilient channel blocker. Proc. Natl. Acad. Sci. USA 2025, 122, e2502240122. [Google Scholar] [CrossRef]
Molecules 30 03942 g001

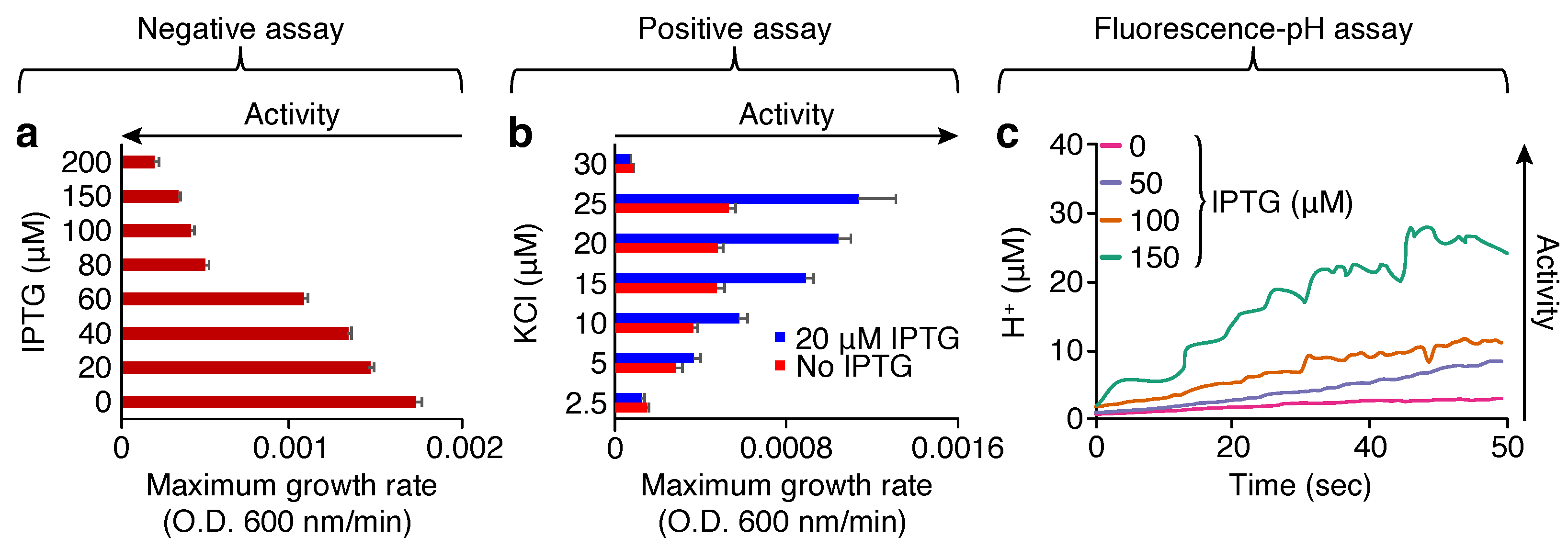

Figure 1. Three bacteria-based channel assays to assess the ion channel activity of chikungunya virus 6K protein: (a) negative assay, (b) positive assay, and (c) fluorescence-pH assay.
Figure 1. Three bacteria-based channel assays to assess the ion channel activity of chikungunya virus 6K protein: (a) negative assay, (b) positive assay, and (c) fluorescence-pH assay.
Molecules 30 03942 g001
Molecules 30 03942 g002

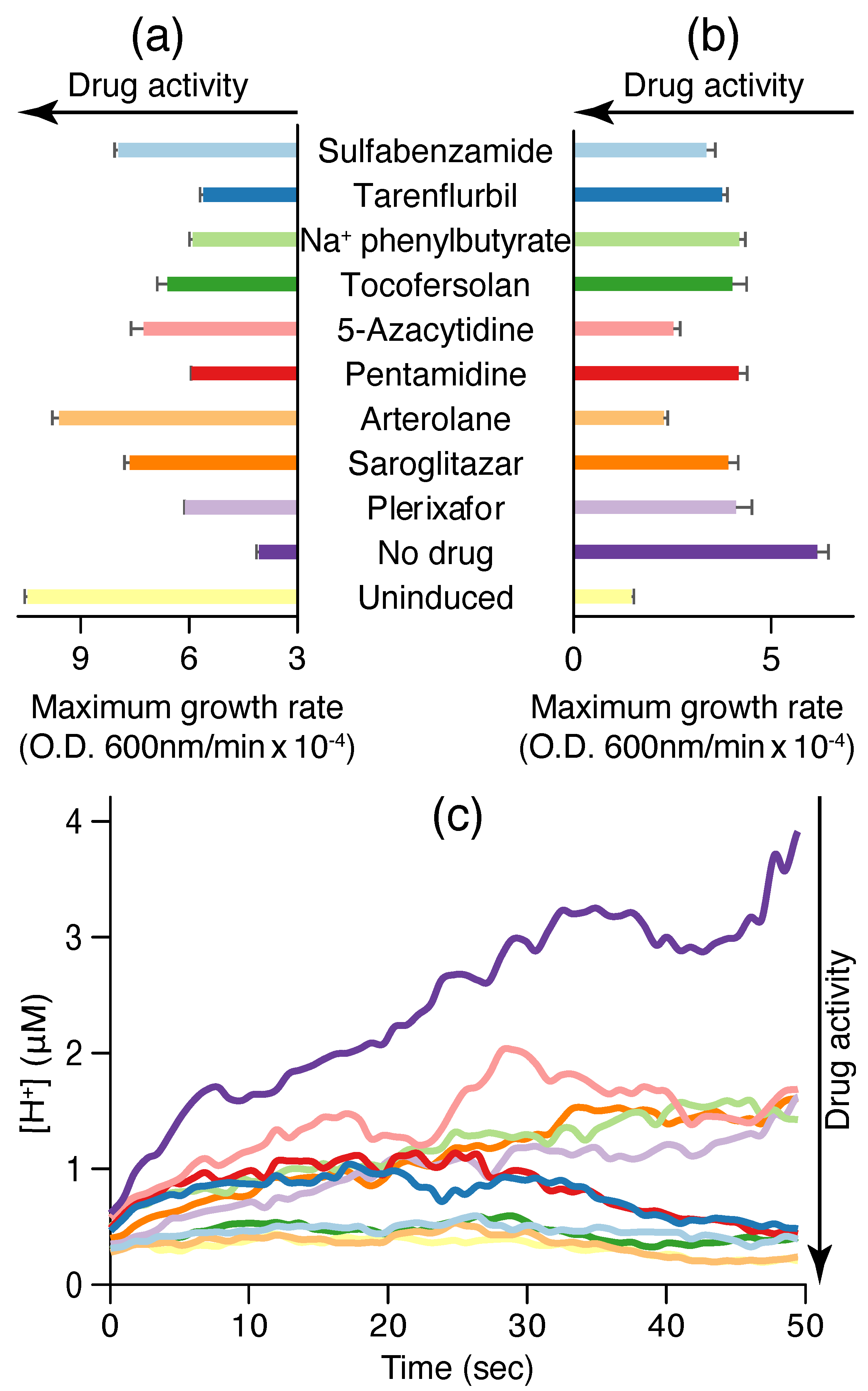

Figure 2. Blocker screening results against CHIKV 6K viroporin using the (a) negative assay, (b) positive assay, and (c) acidity assay. Drug activity in each of the assays is denoted by arrows. Bacteria in which the channel expression was not induced serve as a control group. Note reciprocal activity of the drugs in the negative and positive assays. Blocker concentration was 100 μM.
Figure 2. Blocker screening results against CHIKV 6K viroporin using the (a) negative assay, (b) positive assay, and (c) acidity assay. Drug activity in each of the assays is denoted by arrows. Bacteria in which the channel expression was not induced serve as a control group. Note reciprocal activity of the drugs in the negative and positive assays. Blocker concentration was 100 μM.
Molecules 30 03942 g002
Molecules 30 03942 g003

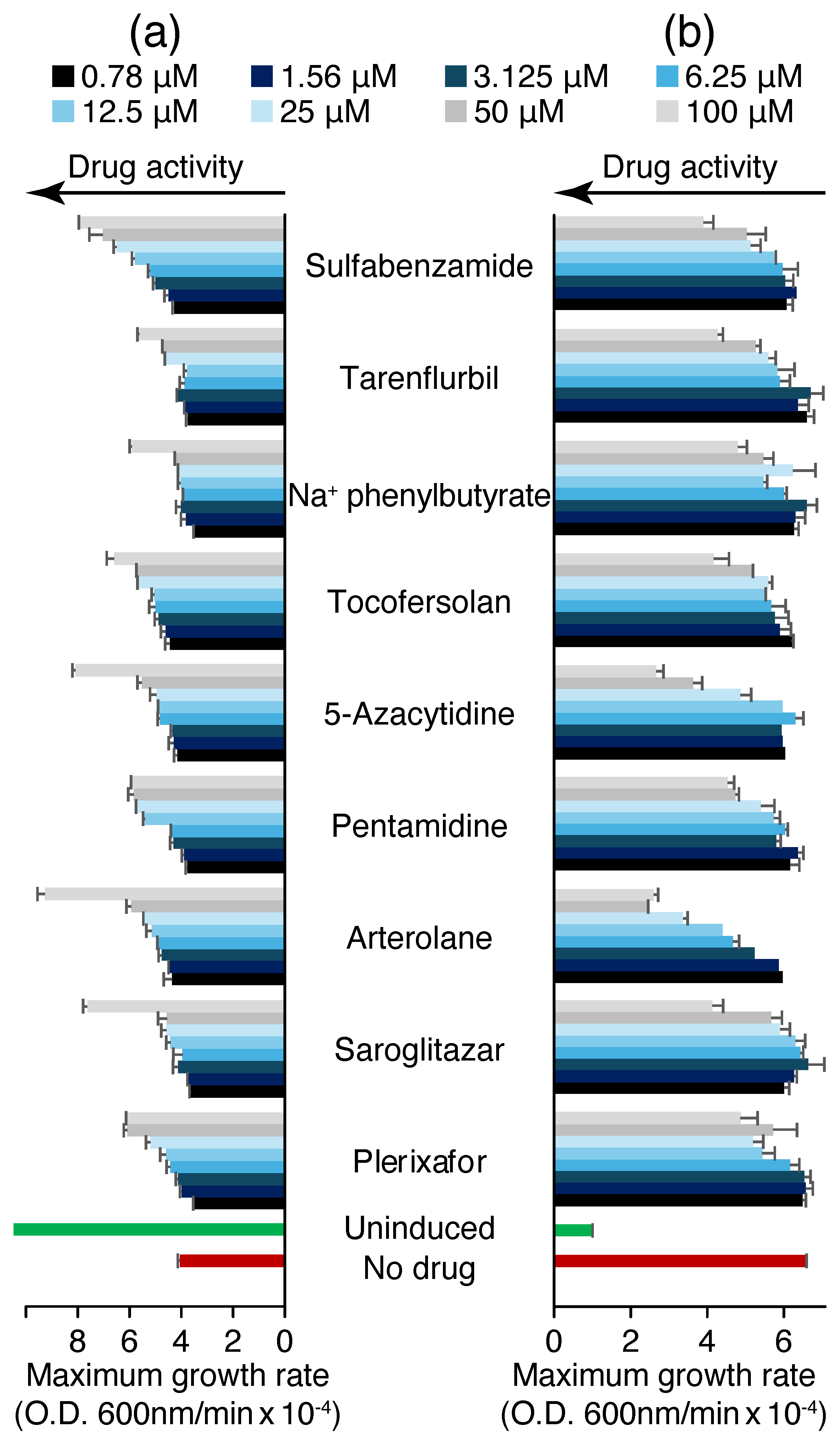

Figure 3. Blocker screening results against 6K CHIKV viroporin utilizing (a) the negative and (b) the positive assays. Maximum growth rates are shown as a function of different compound concentration (0.78–100 µM). Bacteria in which channel expression was not induced (in red) are used as the control. Drug activity in each of the assays is denoted by arrows.
Figure 3. Blocker screening results against 6K CHIKV viroporin utilizing (a) the negative and (b) the positive assays. Maximum growth rates are shown as a function of different compound concentration (0.78–100 µM). Bacteria in which channel expression was not induced (in red) are used as the control. Drug activity in each of the assays is denoted by arrows.
Molecules 30 03942 g003
Molecules 30 03942 g004
Figure 4. Amino acid sequences and conservation of 6K proteins of CHIKV (top) and EEEV (bottom). The color-coding is according to hydrophobicity, whereby red is the most hydrophobic and blue is hydrophilic. The bar represents the potential transmembrane domain according to TMHMM [49].
Figure 4. Amino acid sequences and conservation of 6K proteins of CHIKV (top) and EEEV (bottom). The color-coding is according to hydrophobicity, whereby red is the most hydrophobic and blue is hydrophilic. The bar represents the potential transmembrane domain according to TMHMM [49].
Molecules 30 03942 g004
Molecules 30 03942 g005
Figure 5. Activity of hit compounds obtained from 6K CHIKV blocker screening on the 6K EEEV by (a) the negative assay and (b) the positive assay. The gray rectangles indicate the corresponding activity obtained against the CHIKV 6K viroporin shown in Figure 2. Drug activity in each of the assays is denoted by arrows.
Figure 5. Activity of hit compounds obtained from 6K CHIKV blocker screening on the 6K EEEV by (a) the negative assay and (b) the positive assay. The gray rectangles indicate the corresponding activity obtained against the CHIKV 6K viroporin shown in Figure 2. Drug activity in each of the assays is denoted by arrows.
Molecules 30 03942 g005
Molecules 30 03942 g006
Figure 6. (a) Root mean square deviation as a function of time plots of protein–membrane assemblies (blue: CHIKV 6K and orange: EEEV 6K protein trimers). (b) Residue-wise root mean square fluctuation (averaged from 250 to 300 ns) (orange: CHIKV 6K and blue: EEEV 6K protein trimers). Transmembrane domains are highlighted in blue and orange for CHIKV 6K and EEEV 6K, respectively.
Figure 6. (a) Root mean square deviation as a function of time plots of protein–membrane assemblies (blue: CHIKV 6K and orange: EEEV 6K protein trimers). (b) Residue-wise root mean square fluctuation (averaged from 250 to 300 ns) (orange: CHIKV 6K and blue: EEEV 6K protein trimers). Transmembrane domains are highlighted in blue and orange for CHIKV 6K and EEEV 6K, respectively.
Molecules 30 03942 g006
Molecules 30 03942 g007
Figure 7. MD simulated overlayed ensemble structures of 6K in (a) CHIKV and (b) EEEV embedded within a lipid bilayer. Rough bilayer boundaries are shown in dotted lines with lipid and water molecules within 5 Å vicinity of proteins (color coding: hydrophobic residues in yellow; charged residues in blue).
Figure 7. MD simulated overlayed ensemble structures of 6K in (a) CHIKV and (b) EEEV embedded within a lipid bilayer. Rough bilayer boundaries are shown in dotted lines with lipid and water molecules within 5 Å vicinity of proteins (color coding: hydrophobic residues in yellow; charged residues in blue).
Molecules 30 03942 g007
Table 1. Comparison of drug screening results between CHIKV and EEEV 6K proteins. Raw data are found in Figure 2 and Figure 5 and were calculated by comparing the growth rates of uninduced and untreated bacteria to the growth rates of drug-treated bacteria. The average activity is the mean of the results of the negative and positive assays.
Table 1. Comparison of drug screening results between CHIKV and EEEV 6K proteins. Raw data are found in Figure 2 and Figure 5 and were calculated by comparing the growth rates of uninduced and untreated bacteria to the growth rates of drug-treated bacteria. The average activity is the mean of the results of the negative and positive assays.
CHIKVEEEV
Neg.Pos.Ave.Neg.Pos.Ave.
Sulfabenzamide61%60%60%−5%−67%−36%
Tarenflurbil24%51%38%32%57%45%
Na+ phenylbutyrate29%42%35%16%0%8%
Tocofersolan39%46%43%48%57%52%
5-Azacytidine50%78%64%14%−13%1%
Pentamidine29%42%36%25%15%20%
Arterolane86%83%84%70%77%74%
Saroglitazar56%48%52%25%−12%7%
Disclaimer/Publisher’s Note: The statements, opinions and data contained in all publications are solely those of the individual author(s) and contributor(s) and not of MDPI and/or the editor(s). MDPI and/or the editor(s) disclaim responsibility for any injury to people or property resulting from any ideas, methods, instructions or products referred to in the content.

Share and Cite

MDPI and ACS Style

Lahiri, H.; Basu, K.; Arkin, I.T. Ion-Channel-Targeting Drugs for Chikungunya Virus. Molecules 2025, 30, 3942. https://doi.org/10.3390/molecules30193942

AMA Style

Lahiri H, Basu K, Arkin IT. Ion-Channel-Targeting Drugs for Chikungunya Virus. Molecules. 2025; 30(19):3942. https://doi.org/10.3390/molecules30193942

Chicago/Turabian Style

Lahiri, Hiya, Kingshuk Basu, and Isaiah T. Arkin. 2025. "Ion-Channel-Targeting Drugs for Chikungunya Virus" Molecules 30, no. 19: 3942. https://doi.org/10.3390/molecules30193942

APA Style

Lahiri, H., Basu, K., & Arkin, I. T. (2025). Ion-Channel-Targeting Drugs for Chikungunya Virus. Molecules, 30(19), 3942. https://doi.org/10.3390/molecules30193942

Article Metrics

Back to TopTop
