Article

Metal- and Solvent-Free Synthesis of Phosphinothioates, Phosphonothioates, Phosphorothioates, and Related Selenium Derivatives: An Efficient Green Protocol

by
Yajie Fu
1,2,
Hexia Ye
2,
Xinyao Zhao
2,
Yingle Liu
1,*,
Junchen Li
2,* and
Xiaojing Bi
2,*
1
College of Chemistry and Environmental Engineering, Sichuan University of Science and Engineering, Zigong 643002, China
2
State Key Laboratory Chemistry for NBC Hazards Protection, Beijing 102205, China
*
Authors to whom correspondence should be addressed.
Molecules 2025, 30(10), 2097; https://doi.org/10.3390/molecules30102097
Submission received: 1 April 2025 / Revised: 28 April 2025 / Accepted: 4 May 2025 / Published: 9 May 2025
Browse Figures
Versions Notes

Abstract

:
Methodologies for the effective fabrication of phosphinothioates, phosphonothioates, and phosphorothioates have always been of great interest due to their widespread application in many research fields. We present here a solvent-free reaction system for the synthesis of above compounds without any catalysts or additives, directly using disulfides with diarylphosphine oxides, dialkylphosphites, and phosphinates as substrates. Most of the target compounds were obtained in nearly quantitative yields by heating at 50 °C for 5–10 min or stirring at room temperature for 3 h. The products were efficiently separated via a water extraction operation, simultaneously recovering the by-product thiols. This mild and practical coupling protocol was also employed to prepare phosphinoselenoates from the corresponding diselenides with good yields.

1. Introduction

Phosphinothioates, phosphonothioates, and phosphorothioates, containing a typical P(O)-S group, are intriguing structural motifs that have great potential in the areas of pharmaceuticals [1,2,3,4,5], agrochemicals [6,7,8,9], and materials [10,11,12,13]. In the fields of medicinal and agricultural chemistry, some representative biologically active phosphonothioates and phosphorothioates are illustrated in Figure 1a, such as echothiophate iodide (I) [14,15], which is used for accommodative esotropia, amifostine (II) [16,17] for cancer adjuvant therapy, azamethiphos (III) [18,19] for insecticide, and inezin (IV) [20,21] for fungicide (Figure 1a). While the synthesis of these compounds can be achieved via relatively multifarious methodologies, traditional approaches generally rely on the incorporation of the toxic and moisture-sensitive halides R2P(O)Cl or RSO2Cl for nucleophilic substitution or Michaelis–Arbuzov reaction [22,23,24,25,26,27]. In particular, disulfides are attached to the HP(O) species (diarylphosphine oxides, dialkylphosphites, and phosphinates) to access phosphinothioates, phosphonothioates, and phosphorothioates. This has become a powerful method (Figure 1b). Pioneering work on direct coupling of dialkyl- or diarylphosphites and disulfides was achieved by Torii using an electrolytic technique with the assistance of NaBr [28]. In 2009, Zhao and co-workers developed a transition-metal catalysis protocol for the preparation of phosphorothioates from dialkylphosphites employing CuI as catalyst and Et3N as base [29]. Since then, a variety of relatively straightforward and effective methods based on disulfides have been reported, including base catalysis [30,31,32], N-heterocyclic carbene (NHC) catalysis [33], and photocatalysis [34]. Without any catalyst or oxidant and solely utilizing THF as the solvent under an N2 atmosphere, disulfides were coupled with diarylphosphine oxides [35]. Further, Badsara discovered that disulfides and diarylphosphine oxide could be efficiently converted in air at room temperature by employing inexpensive silica gel as the medium [36]. Most of these disulfide-based methods are characterized by simple conditions and convenient manipulations; however, the fly in the ointment is that the use of organic solvent or other types of media remains unavoidable.
As part of an ongoing research program in our group towards developing disulfides as viable feedstocks for organosulfur molecule synthesis [37,38], we are also very concerned about the development of disulfide-involved green synthetic methods, especially focusing on enhancing the simplicity of reaction systems, minimizing additive usage, and improving the convenience of work-up operations [39,40,41,42]. Herein, we report our efforts for the coupling of disulfides and HP(O) species without solvent or any additive under air, merely involving heating or stirring at room temperature. Broad substrate compatibility was demonstrated by successfully engaging substrates including diarylphosphine oxides, dialkylphosphites, and phosphinates with disulfides (Figure 1c).

2. Results

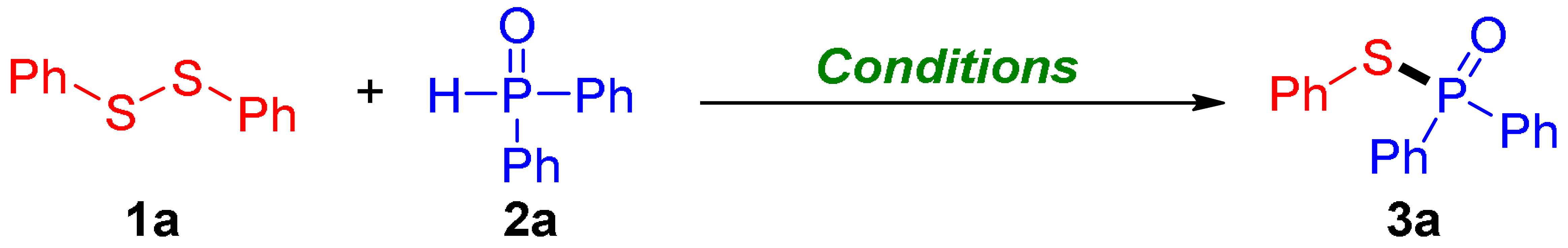

We commenced our investigation by examining the coupling of diphenyl disulfide 1a and diphenylphosphine oxide 2a (Table 1). Initially, we adopted Cheng’s conditions [35] as a reference; however, the temperature was adjusted from 80 °C to room temperature and N2 atmosphere to air atmosphere in this work. As expected, after stirring for 3 h at room temperature, a 75% yield of S-phenyl diphenylphosphinothioate 3a was detected (entry 1). Other solvents (MeOH, DCM, MeCN, EtOAc, and 1,4-dioxane) were not advantageous for this transformation (entries 2–6), whereas the exciting aspect was that the yield of 3a increased dramatically when H2O or DMF was utilized as the solvent (entries 7–8). Surprisingly, under solvent-free conditions, 1a and 2a were converted almost quantitatively into the corresponding product (entry 9). Shortening the reaction time from 3 h to 1 h only led to a slight decrease in yield (entry 10). Altering the substrate ratio had a great effect on the reaction. When the dosage of diphenylphosphine oxide 2a was increased to 2 equivalents, the yield of 3a significantly decreased to 42% (entry 11). Conversely, increasing the dosage of diphenyl disulfide 1a to 2 equivalents did not result in a notable change in yield (entry 12). It is interesting that increasing the reaction temperature facilitated the conversion without any by-products (entries 13–16). When running the reaction at 50 °C, an impressive yield of 99% was achieved in just 10 min (entry 15). Practically, the by-product thiophenol generated in the reaction was easily removed by washing with saturated Na2CO3 aqueous solution, almost leaving the product only.
With a set of optimal conditions in hand, we evaluated the scope of the transformation with respect to other diarylphosphine oxides (Figure 2). A variety of functionalized diarylphosphine oxides were employed in the reaction with diphenyl disulfide 1a, affording the phosphinothioates 3a–3w with good to excellent yields. For example, diarylphosphine oxides with ortho-, meta-, or para-methyl substitution gave yields of 66–75% (3b–3d), whereas a higher yield of 90% was obtained with ortho-ethyl substitution (3e). Similar results were gained for MeO-substituted arenes (3f and 3g). Notably, diarylphosphines with aryl groups bearing an electron-donating or electron-withdrawing substituent on the para-position proceeded smoothly to give the respective products in excellent yields (3h–3n), indicating that the electronic effect of the substituents might have hardly any impact on this transformation. It should be pointed out that a reactive group (Br, 3n) was very compatible with the reaction. Moreover, aryl groups with two or more substituents were also successfully converted to the desired products with 82%–99% yields (3o–3t).
Other aromatic rings of diarylphosphine oxides, such as naphthalene (3u and 3v) were well tolerated, giving high yields. Relatively rigid 2,8-dimethylphenoxaphosphinine 10-oxide was a suitable substrate that afforded a good yield of 3w.
Next, we examined several HP(O) species that contain at least one P-O bond, specifically focusing on phosphinates and dialkylphosphites (Figure 3). Unlike diarylphosphine oxide substrates, these substrates exhibited comparatively lower reactivity with diphenyl disulfide 1a and required higher reaction temperature as well as extended reaction time. For example, 6H-dibenzo[c,e][1,2]oxaphosphinine 6-oxide (DOPO), a flame retardant intermediate, showed good reactivity and generated the desired product 4a with 73% yield at 70 °C for 13 h. (Ethoxy)phenylphosphinate gave a better yield of 89% for 4b than DOPO under similar conditions. Though dialkylphosphites were also compatible with 1a, relatively lower yields of 4c–4e were obtained at an elevated temperature (100 °C) and longer time (48 h).
The scope of the disulfide coupling partners was also identified (Figure 4). Employing diphenylphosphine oxide 2a as the coupling substrate, most of the diaryl disulfides and dialkyl disulfides were transformed into the corresponding phosphinothioates with good to excellent yields (5a–5e, 5g–5l). The effect of the substituted groups of diaryl disulfides for transformation was similar to the reaction of the above diarylphosphine oxides. It was apparent that both electron-donating and electron-withdrawing groups at the para-, ortho-, or meta-positions of diaryl disulfides were compatible, and the corresponding products (5a–5e, 5g–5i) were obtained with good to high yields, whereas the competitive coupling of bis(4-bromophenyl) disulfide with 2a resulted in a significant decrease in the observed yield of 5f. When bis(p-tolyl) disulfide was used as the substrate, diarylphosphine oxides, bearing CF3, tBu, MeO, or a naphthyl group, all proceeded well to give products with 92%–98% yields (5m–5p). As for phosphinate, for example, (ethoxy)phenylphosphinate reacted well to afford 5q (inezin, a fungicide) in a synthetically useful yield of 54%. Excitingly, the reaction was found to be tolerant of diaryl or dialkyl diselenides, and moderate to good yields of 5r–5s were obtained by reacting with diphenylphosphine oxide.
To demonstrate the synthetic utility of our protocol, we applied this method to the preparation of 3a on a 5 mmol scale, and the reaction occurred smoothly at room temperature to give 3a in a nearly quantitative yield (Figure 5a). Then, to gain further insights into this reaction, we conducted several control experiments (Figure 5b–e). Based on Han’s radical 1,2-bisphosphorylation of alkynes [43], we first considered whether this coupling proceeded via a radical process. When 3 equivalents of a radical scavenger, TEMPO or BHT, were added, the reaction still ran well to produce 3a with 99% and 92% yields, respectively (Figure 5b). What is more, running the reaction under an N2 atmosphere brought about 3a in a yield of 99% (Figure 5c). These results suggested that this transformation might not involve a radical mechanism. Thiophenol, the only by-product observed in the reaction process, did not couple with diphenylphosphine oxide 2a (Figure 5d), implying that thiophenol was probably not a reaction intermediate. A series of 31P NMR monitoring experiments were then performed with model 2a using bis(p-tolyl) disulfide as the coupling partner (Figure 5e). According to the integral area of 5a and 2a, we could clearly observe that no other phosphorus-containing intermediates were formed during the reaction.
Based on our experimental findings, we hypothesize that the reaction proceeds through a classical ionic process, shown in Figure 6. The nucleophilic hydroxydiphenylphosphane B, the equilibration form of diphenphosphine oxide A, attacks diphenyl disulfide to give a possible ion pair that is composed of a phosphonium cation C and a thiophenol anion D. Fast intramolecular proton transfer of this ion pair occurred to generate the desired product 3a (resonant structure E) and the by-product thiophenol F.

3. Materials and Methods

Unless otherwise specified, materials obtained from commercial suppliers were used directly without further purification. Reactions were monitored with an Agilent 8890-5977B Fisher Polaris Q GC-MS or Agilent 1260-LC/MSD (Santa Clara, CA, USA). High-resolution mass spectra (HRMS) were recorded on a Waters Xevo G2-XS QTOF (Waters, Medford, MA, USA) using the electrospray ionization (ESI) mode. Flash column chromatography was carried out on silica gel (200–300 mesh) from Qingdao Haiyang Huagong Co., Ltd. (Qingdao, China). Thin-layer chromatography (TLC) was performed using silica gel GF254 plates (Yantai Chemical Industry, Shandong, China). 1H NMR, 13C NMR, 31P NMR, and 19F NMR spectra were recorded on a Bruker Advance 300 spectrometer at ambient temperature in CDCl3. The residual solvent protons (1H NMR @ δ 0.00 ppm) or the solvent carbons (13C NMR @ δ 77.16 ppm) were used as internal standards. For 19F NMR, CF3COOC2H5 was used as the reference (19F NMR @ δ −75.80 ppm) with chemical shift at 0 ppm. 31P NMR spectra were referenced externally to phosphoric acid (31P NMR @ δ −0.00 ppm). 1H NMR data are presented as chemical shift in ppm (δ) downfield from tetramethylsilane. NMR data are reported as chemical shift, multiplicity (s = singlet, d = doublet, t = triplet, q = quartet, dd = doublet of doublets, td = triplet of doublets, qd = quartet of doublets, m = multiplet), coupling constants (Hz), and integration.
Experimental Procedure.
Disulfide 1 (0.3 mmol, 1.0 equiv.) and P(O)H compound 2 (0.3 mmol, 1.0 equiv.) were added to a 4 mL sealed tube and the mixture was then stirred at the corresponding temperature in air for several hours. The reaction was monitored by TLC. After completion of the reaction, DCM (10 mL) was added and the mixture was washed with saturated Na2CO3 solution (3 × 10 mL). During this weak alkali wash process, mercaptan was removed and recovered efficiently. The combined organic layer was dried over anhydrous Na2SO4 and concentrated by vacuum. In most cases, the products were obtained without any further purification. In some cases, the residues were purified by flash column chromatography on silica gel to provide the corresponding product with good to excellent yields.
General procedure for the gram-scale synthesis:
1,2-Diphenyldisulfane 1a (5 mmol, 1.0 equiv.) and diphenylphosphine oxide 2a (5 mmol, 1.0 equiv.) were added to a 10 mL sealed tube and the mixture was then stirred at room temperature under air for 3 h. The reaction was monitored by TLC. After completion of the reaction, DCM (20 mL) was added and the mixture was washed with saturated Na2CO3 solution (3 × 20 mL). During this weak alkali wash process, mercaptan was removed and recovered efficiently. The combined organic layer was dried over anhydrous Na2SO4 and concentrated by vacuum. The residues were purified by flash column chromatography on silica gel to provide the corresponding product in 97% yields.
S-Phenyl diphenylphosphinothioate (3a) [44]. 25 °C for 3h. White solid, 90% yield. 1H NMR (300 MHz, chloroform-d) δ 7.92–7.77 (m, 4H), 7.50–7.35 (m, 8H), 7.18 (t, J = 7.9 Hz, 3H). 13C NMR (75 MHz, chloroform-d) δ 135.33 (d, J = 3.9 Hz), 132.46 (d, J =105.1 Hz), 132.30 (d, J = 3.1 Hz), 131.55 (d, J = 10.2 Hz), 129.09 (d, J = 1.7 Hz), 128.90 (d, J = 2.2 Hz), 128.51 (d, J = 13.1 Hz), 126.12 (d, J = 5.2 Hz). 31P NMR (121 MHz, chloroform-d) δ 40.2.
S-Phenyl di-o-tolylphosphinothioate (3b) [45]. 70 °C for 1h. White solid, 71% yield. 1H NMR (300 MHz, chloroform-d) δ 7.79 (dd, J = 15.0, 7.6 Hz, 2H), 7.47 (d, J = 7.3 Hz, 2H), 7.39 (t, J = 7.4 Hz, 2H), 7.30–7.14 (m, 7H), 2.39 (s, 6H). 13C NMR (75 MHz, chloroform-d) δ 142.05 (d, J = 9.8 Hz), 135.81 (d, J = 3.8 Hz), 132.79 (d, J = 11.8 Hz), 132.36 (d, J = 3.0 Hz), 131.96 (d, J = 12.1 Hz), 131.54 (d, J = 102.8 Hz), 129.11 (d, J = 1.8 Hz), 128.94 (d, J = 2.2 Hz), 126.39 (d, J = 4.9 Hz), 125.64 (d, J = 13.4 Hz), 21.57 (d, J = 4.1 Hz). 31P NMR (121 MHz, chloroform-d) δ 42.67.
S-Phenyl di-m-tolylphosphinothioate (3c). 25 °C for 3h. Oily liquid, 66% yield. 1H NMR (300 MHz, chloroform-d) δ 7.72–7.56 (m, 4H), 7.46 (d, J = 7.8 Hz, 2H), 7.36–7.27 (m, 4H), 7.21 (q, J = 7.0, 6.2 Hz, 3H), 2.34 (s, 6H). 13C NMR (75 MHz, chloroform-d) δ 138.51 (d, J = 13.0 Hz), 135.43 (d, J = 3.8 Hz), 133.15 (d, J = 3.1 Hz), 132.35 (d, J = 106.4 Hz), 132.15 (d, J = 9.9 Hz), 129.13 (d, J = 1.8 Hz), 128.92 (d, J = 2.2 Hz), 128.70, 128.53 (d, J = 3.3 Hz), 128.32, 126.38 (d, J = 5.2 Hz), 21.43. 31P NMR (121 MHz, chloroform-d) δ 40.87. HRMS (ESI): m/z calculated for C20H20OPS+ [M+H] +: 339.0974, found 339.0967.
S-Phenyl di-p-tolylphosphinothioate (3d) [36]. 25 °C for 3h. White solid, 75% yield. 1H NMR (300 MHz, chloroform-d) δ 7.72 (dd, J = 12.7, 8.0 Hz, 4H), 7.46 (d, J = 7.3 Hz, 2H), 7.21 (t, J = 7.6 Hz, 7H), 2.37 (s, 6H). 13C NMR (75 MHz, chloroform-d) δ 142.92 (d, J = 3.0 Hz), 135.34 (d, J = 3.9 Hz), 131.72 (d, J = 10.7 Hz), 130.31, 129.35 (d, J = 13.6 Hz), 129.16 (d, J = 1.6 Hz), 128.85, 126.77 (d, J = 5.1 Hz), 21.73 (d, J = 1.2 Hz). 31P NMR (121 MHz, chloroform-d) δ 40.71.
S-Phenyl bis(2-ethoxyphenyl)phosphinothioate (3e). 70 °C for 1h. Oily liquid, 90% yield. 1H NMR (300 MHz, chloroform-d) δ 7.79 (dd, J = 15.2, 7.7 Hz, 2H), 7.50 (d, J = 7.4 Hz, 2H), 7.42 (t, J = 7.5 Hz, 2H), 7.29–7.16 (m, 7H), 1.00 (t, J = 7.5 Hz, 6H). 13C NMR (75 MHz, chloroform-d) δ 148.52 (d, J = 10.1 Hz), 135.66 (d, J = 3.8 Hz), 132.60 (d, J = 12.3 Hz), 132.43 (d, J = 3.0 Hz), 131.65 (d, J = 102.6 Hz), 130.23 (d, J = 12.0 Hz), 129.07 (d, J = 1.8 Hz), 128.81 (d, J = 2.2 Hz), 126.75 (d, J = 4.9 Hz), 125.47 (d, J = 13.5 Hz), 27.12 (d, J = 4.3 Hz), 15.35. 31P NMR (121 MHz, chloroform-d) δ 43.49. HRMS (ESI): m/z calculated for C22H24OPS+ [M+H] +: 367.1281, found 367.1280.
S-Phenyl bis(2-methoxyphenyl)phosphinothioate (3f). 70 °C for 1h. White solid, 89% yield, m.p: 134.5–136.2 °C. 1H NMR (300 MHz, chloroform-d) δ 7.81 (ddd, J = 15.2, 7.6, 1.5 Hz, 2H), 7.44 (t, J = 7.4 Hz, 4H), 7.18 (q, J = 6.7, 6.2 Hz, 3H), 6.98 (td, J = 7.4, 2.1 Hz, 2H), 6.90–6.79 (m, 2H), 3.66 (s, 6H). 13C NMR (75 MHz, chloroform-d) δ 160.42 (d, J = 3.6 Hz), 135.83 (d, J = 4.1 Hz), 133.91, 133.82 (d, J = 2.1 Hz), 128.73 (d, J = 1.9 Hz), 128.48 (d, J = 2.4 Hz), 127.82 (d, J = 5.7 Hz), 122.87, 121.40, 120.47 (d, J = 13.2 Hz), 111.30 (d, J = 7.3 Hz), 55.68. 31P NMR (121 MHz, chloroform-d) δ 35.56. HRMS (ESI): m/z calculated for C20H20O3PS+ [M+H] +: 371.0865, found 371.0865.
S-Phenyl bis(4-methoxyphenyl)phosphinothioate (3g) [46]. 70 °C for 1h. White solid, 95% yield. 1H NMR (300 MHz, chloroform-d) δ 7.76 (dd, J = 12.2, 8.7 Hz, 4H), 7.45 (d, J = 7.6 Hz, 2H), 7.21 (q, J = 7.0, 6.2 Hz, 3H), 6.93 (dd, J = 8.8, 2.6 Hz, 4H), 3.83 (s, 6H). 13C NMR (75 MHz, chloroform-d) δ 162.78 (d, J = 3.1 Hz), 135.30 (d, J = 3.9 Hz), 133.65 (d, J = 11.8 Hz), 129.17 (d, J = 1.9 Hz), 128.84 (d, J = 2.2 Hz), 127.03 (d, J = 5.1 Hz), 124.03 (d, J = 115.0 Hz), 114.13 (d, J = 14.3 Hz), 55.49. 31P NMR (121 MHz, chloroform-d) δ 35.64.
S-Phenyl bis(4-(methylthio)phenyl)phosphinothioate (3h). 25 °C for 3h. Oily liquid, 99% yield. 1H NMR (300 MHz, chloroform-d) δ 7.70 (dd, J = 12.4, 8.3 Hz, 4H), 7.45 (d, J = 7.3 Hz, 2H), 7.23 (h, J = 7.1, 6.4 Hz, 7H), 2.46 (s, 6H). 13C NMR (75 MHz, chloroform-d) δ 145.08 (d, J = 3.3 Hz), 135.26 (d, J = 3.9 Hz), 131.77 (d, J = 11.0 Hz), 129.20 (d, J = 1.8 Hz), 128.96 (d, J = 2.3 Hz), 127.93 (d, J = 111.8 Hz), 126.29 (d, J = 5.2 Hz), 125.08 (d, J = 13.7 Hz), 14.70. 31P NMR (121 MHz, chloroform-d) δ 39.80; HRMS (ESI): m/z calculated for C20H20OPS3+ [M+H] +: 403.0409, found 403.0407.
S-Phenyl bis(4-(tert-butyl)phenyl)phosphinothioate (3i). 70 °C for 3h. White solid, 99% yield, m.p: 137.1–138.3 °C. 1H NMR (300 MHz, chloroform-d) δ 7.83–7.70 (m, 1H), 7.50–7.39 (m, 2H), 7.27–7.12 (m, 1H), 1.31 (s, 6H). 13C NMR (75 MHz, chloroform-d) δ 155.85 (d, J = 3.1 Hz), 135.41 (d, J = 3.9 Hz), 131.61 (d, J = 10.6 Hz), 130.33, 129.10 (d, J = 1.7 Hz), 128.88, 128.79 (d, J = 2.2 Hz), 126.90 (d, J = 5.1 Hz), 125.61 (d, J = 13.4 Hz), 35.15, 31.20. 31P NMR (121 MHz, chloroform-d) δ 40.30. HRMS (ESI): m/z calculated for C26H32OPS+ [M+H] +: 423.1904, found 423.1906.
S-Phenyl bis(4-(trifluoromethoxy)phenyl)phosphinothioate (3j). 25 °C for 3h. Yellow solid, 96% yield, m.p: 66.7–68.4 °C. 1H NMR (300 MHz, chloroform-d) δ 7.89 (dd, J = 12.3, 8.8 Hz, 4H), 7.46–7.39 (m, 2H), 7.26 (dd, J = 15.6, 8.5 Hz, 7H). 13C NMR (75 MHz, chloroform-d) δ 152.41 (dd, J = 3.5, 1.7 Hz), 135.55 (d, J = 4.1 Hz), 133.72 (d, J = 11.5 Hz), 130.69 (d, J = 109.5 Hz), 129.47 (d, J = 1.9 Hz), 125.25 (d, J = 5.4 Hz), 120.68 (d, J = 14.1 Hz), 120.35 (d, J = 259.2 Hz). 31P NMR (121 MHz, chloroform-d) δ 37.20. 19F NMR (282 MHz, chloroform-d) δ −56.84. HRMS (ESI): m/z calculated for C20H14F6O3PS+ [M+H] +: 479.0301, found 479.0300.
S-Phenyl bis(4-(trifluoromethyl)phenyl)phosphinothioate (3k). Yellow solid, 95% yield, m.p: 100.5–102.2 °C. 1H NMR (300 MHz, chloroform-d) δ 7.98 (dd, J = 12.5, 8.0 Hz, 4H), 7.73 (d, J = 6.1 Hz, 4H), 7.45 (d, J = 7.5 Hz, 2H), 7.26 (p, J = 7.2 Hz, 3H). 13C NMR (75 MHz, chloroform-d) δ 137.00, 135.62 (d, J = 3.9 Hz), 134.47 (dd, J = 32.9, 3.2 Hz), 132.16 (d, J = 10.6 Hz), 129.68 (dd, J = 8.8, 2.2 Hz), 125.74 (dq, J = 13.5, 3.7 Hz), 125.29, 124.60 (d, J = 5.4 Hz), 121.66. 31P NMR (121 MHz, chloroform-d) δ 36.56. 19F NMR (282 MHz, chloroform-d) δ −62.39. HRMS (ESI): m/z calculated for C20H14F6OPS+ [M+H] +: 447.0400, found 447.0402.
S-Phenyl bis(4-fluorophenyl)phosphinothioate (3l). 25 °C for 3h. Oily liquid, 91% yield, m.p: 78.3–79 °C. 1H NMR (300 MHz, chloroform-d) δ 7.84 (ddd, J = 12.3, 8.7, 5.5 Hz, 4H), 7.47–7.42 (m, 2H), 7.30–7.08 (m, 7H). 13C NMR (75 MHz, chloroform-d) δ 166.96 (d, J = 3.6 Hz), 163.59 (d, J = 3.6 Hz), 135.34 (d, J = 4.0 Hz), 134.13 (dd, J = 11.9, 8.9 Hz), 129.24 (dd, J = 5.7, 2.1 Hz), 127.52 (d, J = 3.4 Hz), 125.69 (d, J = 5.3 Hz), 116.05 (dd, J = 21.5, 14.5 Hz). 31P NMR (121 MHz, chloroform-d) δ 38.05. 19F NMR (282 MHz, chloroform-d) δ −105.57–−105.67 (m). HRMS (ESI): m/z calculated for C18H14F2OPS+[M+H] +: 347.0464, found 347.0466.
S-Phenyl bis(4-chlorophenyl)phosphinothioate (3m) [45]. 25 °C for 3h. Oily liquid, 88% yield. 1H NMR (300 MHz, chloroform-d) δ 7.76 (dd, J = 12.4, 8.5 Hz, 4H), 7.46–7.38 (m, 6H), 7.28–7.19 (m, 3H). 13C NMR (75 MHz, methylene chloride-d2) δ 139.26 (d, J = 3.7 Hz), 135.43 (d, J = 4.0 Hz), 132.97 (d, J = 11.2 Hz), 130.75 (d, J = 109.4 Hz), 129.39 (d, J =2.3 Hz), 129.09 (d, J = 13.9 Hz), 125.39 (d, J = 5.3 Hz). 31P NMR (121 MHz, chloroform-d) δ 38.10.
S-Phenyl bis(4-bromophenyl)phosphinothioate (3n). 70 °C for 1h. White solid, 90% yield, m.p: 157.8–159.6 °C. 1H NMR (300 MHz, chloroform-d) δ 7.68 (dd, J = 12.2, 8.5 Hz, 4H), 7.59 (dd, J = 8.3, 3.0 Hz, 4H), 7.44 (d, J = 8.0 Hz, 2H), 7.25 (p, J = 6.3 Hz, 3H). 13C NMR (75 MHz, chloroform-d) δ 135.46 (d, J = 4.0 Hz), 133.06 (d, J = 11.1 Hz), 132.79 (d, J = 11.2 Hz), 132.06 (d, J = 13.7 Hz), 131.16 (d, J = 108.7 Hz)), 129.46 (d, J = 2.0 Hz), 127.97 (d, J = 3.9 Hz), 125.26 (d, J = 5.3 Hz). 31P NMR (121 MHz, chloroform-d) δ 38.22. HRMS (ESI): m/z calculated for C18H14Br2OPS+ [M+H] +: 466.8862, found 466.8864.
S-Phenyl dimesitylphosphinothioate (3o). White solid, 82% yield, m.p: 167.8–169.5 °C. 1H NMR (300 MHz, chloroform-d) δ 7.29–7.18 (m, 3H), 7.12 (t, J = 7.6 Hz, 2H), 6.74 (d, J = 4.3 Hz, 4H), 2.25 (d, J = 5.7 Hz, 18H). 13C NMR (75 MHz, chloroform-d) δ 141.45 (d, J = 11.3 Hz), 141.13 (d, J = 3.0 Hz), 137.19 (d, J = 3.8 Hz), 130.89 (d, J = 12.7 Hz), 130.67 (d, J = 100.6 Hz), 129.03 (d, J = 2.8 Hz), 128.49 (d, J = 2.4 Hz), 127.54 (d, J = 5.6 Hz), 22.92 (d, J = 4.0 Hz), 21.08 (d, J = 1.5 Hz). 31P NMR (121 MHz, chloroform-d) δ 45.53. HRMS (ESI): m/z calculated for C24H28OPS+ [M+H] +: 395.1590, found 395.1593.
S-Phenyl bis(3,5-dimethylphenyl)phosphinothioate (3p) [36]. White solid, 91% yield. 1H NMR (300 MHz, chloroform-d) δ 7.43 (d, J = 13.3 Hz, 6H), 7.19 (d, J = 6.9 Hz, 3H), 7.09 (s, 2H), 2.29 (s, 12H). 13C NMR (75 MHz, chloroform-d) δ 138.25 (d, J = 13.9 Hz), 135.39 (d, J = 3.8 Hz), 134.04 (d, J = 3.3 Hz), 132.33 (d, J = 105.7 Hz), 129.16 (d, J = 10.4 Hz), 128.81 (d, J = 2.2 Hz), 126.65 (d, J = 5.1 Hz), 21.32. 31P NMR (121 MHz, chloroform-d) δ 41.38.
S-Phenyl bis(3,5-di-tert-butylphenyl)phosphinothioate (3q). White solid, 97% yield, m.p: 127.6–128.6 °C. 1H NMR (300 MHz, chloroform-d) δ 7.68 (dd, J = 13.7, 1.4 Hz, 4H), 7.54 (s, 2H), 7.41 (d, J = 7.6 Hz, 2H), 7.16 (q, J = 8.0, 6.6 Hz, 3H), 1.30 (s, 36H). 13C NMR (75 MHz, chloroform-d) δ 150.98 (d, J = 12.8 Hz), 135.39 (d, J = 3.8 Hz), 131.61 (d, J = 105.8 Hz), 128.93 (d, J = 1.8 Hz), 128.63 (d, J = 2.2 Hz), 126.35 (d, J = 3.1 Hz), 125.93 (d, J = 10.9 Hz), 35.12, 31.40. 31P NMR (121 MHz, chloroform-d) δ 43.24. HRMS (ESI): m/z calculated for C34H48OPS+ [M+H] +: 535.3155, found 535.3158.
S-Phenyl bis(3,5-di-phenyl)phosphinothioate (3r). Yellow solid, 97% yield, m.p: 148.3–149.9 °C. 1H NMR (300 MHz, chloroform-d) δ 8.13 (d, J = 13.2 Hz, 4H), 7.93 (s, 2H), 7.60 (d, J = 7.3 Hz, 10H), 7.40 (dt, J = 23.4, 7.2 Hz, 12H), 7.27–7.20 (m, 3H). 13C NMR (75 MHz, chloroform-d) δ 142.23 (d, J = 13.7 Hz), 139.70 (d, J = 1.0 Hz), 135.39 (d, J = 3.9 Hz), 133.69 (d, J = 105.7 Hz), 129.96 (d, J = 3.0 Hz), 129.24 (d, J = 1.7 Hz), 129.08 (d, J = 2.1 Hz), 128.93 (d, J = 5.7 Hz), 128.00, 127.21, 126.05 (d, J = 5.2 Hz). 31P NMR (121 MHz, chloroform-d) δ 40.46. HRMS (ESI): m/z calculated for C42H32OPS+ [M+H] +: 615.1904, found 615.1906.
S-Phenyl bis(3,5-di-tert-butyl-4-methoxyphenyl)phosphinothioate (3s). White solid, 89% yield. m.p: 139.5–141.2 °C. 1H NMR (300 MHz, chloroform-d) δ 7.71 (s, 2H), 7.66 (s, 2H), 7.41 (d, J = 7.8 Hz, 2H), 7.23–7.11 (m, 3H), 3.67 (s, 6H), 1.38 (s, 36H). 13C NMR (75 MHz, chloroform-d) δ 163.17 (d, J = 3.6 Hz), 144.19 (d, J = 13.2 Hz), 135.37 (d, J = 3.8 Hz), 130.45 (d, J = 11.9 Hz), 128.95 (d, J = 1.7 Hz), 128.62 (d, J = 2.1 Hz), 127.69 (d, J = 5.0 Hz), 126.11 (d, J = 110.5 Hz), 64.59, 36.12, 32.00. 31P NMR (121 MHz, chloroform-d) δ 42.57. HRMS (ESI): m/z calculated for C36H52O3PS+ [M+H] +: 595.3372, found 595.3369.
S-Phenyl bis(3,5-difluorophenyl)phosphinothioate (3t). White solid, 99% yield. m.p: 85.7–86.5 °C. 1H NMR (300 MHz, chloroform-d) δ 7.73–7.56 (m, 4H), 7.46 (d, J = 7.9 Hz, 2H), 7.34–7.22 (m, 5H). 13C NMR (75 MHz, chloroform-d) δ 154.98 (dd, J = 12.6, 3.2 Hz), 152.12 (dd, J = 19.7, 12.8 Hz), 151.57 (dd, J = 12.6, 3.2 Hz), 148.75 (dd, J = 19.7, 12.8 Hz), 135.46 (d, J = 4.1 Hz), 129.92 (t, J = 4.1 Hz), 129.65 (dd, J = 7.5, 2.2 Hz), 128.59 (ddt, J = 14.5, 7.4, 4.0 Hz), 124.77 (d, J = 5.4 Hz), 121.01 (ddd, J = 18.4, 12.4, 1.7 Hz), 118.35 (dd, J = 17.6, 16.0 Hz). 31P NMR (121 MHz, chloroform-d) δ 35.20. 19F NMR (282 MHz, chloroform-d) δ −128.76–−128.91 (m), −133.89–−134.04 (m). HRMS (ESI): m/z calculated for C18H12F4OPS+ [M+H] +:383.0279, found 383.0278.
S-Phenyl di(naphthalen-1-yl)phosphinothioate (3u). White solid, 98% yield. m.p: 158.2–159.2 °C. 1H NMR (300 MHz, chloroform-d) δ 8.90–8.81 (m, 2H), 8.11–8.05 (m, 1H), 8.04–7.97 (m, 3H), 7.88 (dt, J = 6.8, 2.1 Hz, 2H), 7.58–7.37 (m, 8H), 7.24–7.09 (m, 3H). 13C NMR (75 MHz, chloroform-d) δ 135.36 (d, J = 4.1 Hz), 134.03 (d, J = 10.2 Hz), 133.88 (d, J = 3.3 Hz), 133.62 (d, J = 11.5 Hz), 133.32 (d, J = 9.5 Hz), 129.11 (d, J = 1.9 Hz), 129.02 (d, J = 103.0 Hz), 128.96 (d, J = 1.7 Hz), 128.88 (d, J = 2.2 Hz), 127.48, 127.27 (d, J = 5.0 Hz), 127.10 (d, J = 5.2 Hz), 126.63, 124.50 (d, J = 15.4 Hz). 31P NMR (121 MHz, chloroform-d) δ 44.24. HRMS (ESI): m/z calculated for C26H20OPS+ [M+H] +: 411.0967, found 411.0967.
S-Phenyl di(naphthalen-2-yl)phosphinothioate (3v) [47]. White solid, 96% yield. 1H NMR (300 MHz, chloroform-d) δ 8.46 (d, J = 14.8 Hz, 2H), 7.88 (dd, J = 14.9, 7.2 Hz, 8H), 7.67–7.54 (m, 3H), 7.54–7.48 (m, 3H), 7.18 (t, J = 8.0 Hz, 3H). 13C NMR (75 MHz, chloroform-d) δ 135.51 (d, J = 3.9 Hz), 134.94 (d, J = 2.7 Hz), 134.09 (d, J = 9.4 Hz), 132.51 (d, J = 14.4 Hz), 130.42, 129.30 (d, J = 1.8 Hz), 129.10 (d, J = 2.4 Hz), 129.09 (d, J = 15.0 Hz), 128.60 (d, J = 3.7 Hz), 127.92, 127.79 (d, J = 100.6 Hz), 127.12, 126.40, 126.21 (d, J = 6.3 Hz). 31P NMR (121 MHz, chloroform-d) δ 40.30.
2,8-Dimethyl-10-(phenylthio)phenoxaphosphinine 10-oxide (3w). White solid, 90% yield, m.p: 124.7–125.5 °C. 1H NMR (300 MHz, chloroform-d) δ 7.74 (d, J = 14.5 Hz, 2H), 7.33 (d, J = 8.5 Hz, 2H), 7.22 (t, J = 7.3 Hz, 1H), 7.03 (t, J = 7.7 Hz, 2H), 6.94 (t, J = 8.0 Hz, 2H), 6.86 (d, J = 7.7 Hz, 2H), 2.39 (s, 6H). 13C NMR (75 MHz, chloroform-d) δ 153.92 (d, J = 4.1 Hz), 136.08 (d, J = 4.0 Hz), 135.31 (d, J = 2.3 Hz), 133.54 (d, J = 11.5 Hz), 129.93 (d, J = 4.6 Hz), 129.17 (d, J = 3.2 Hz), 128.87 (d, J = 2.7 Hz), 127.08 (d, J = 5.8 Hz), 117.62 (d, J = 7.4 Hz), 114.37 (d, J = 105.3 Hz), 20.71. 31P NMR (121 MHz, chloroform-d) δ 18.09. HRMS (ESI): m/z calculated for C20H18O2PS+[M+H] +: 353.0760, found 353.0760.
6-(Phenylthio)dibenzo[c,e] [1,2] oxaphosphinine 6-oxide (4a). Oily liquid, 71% yield. 1H NMR (300 MHz, chloroform-d) δ 7.94–7.77 (m, 2H), 7.74–7.60 (m, 2H), 7.46 (td, J = 7.2, 3.6 Hz, 1H), 7.33 (t, J = 7.7 Hz, 1H), 7.25–7.11 (m, 5H), 7.05 (t, J = 7.6 Hz, 2H). 13C NMR (75 MHz, chloroform-d) δ 150.52 (d, J = 9.6 Hz), 136.41 (d, J = 7.4 Hz), 136.10 (d, J = 4.3 Hz), 133.88 (d, J = 2.7 Hz), 130.83 (d, J = 10.2 Hz), 130.57, 129.45 (d, J = 3.1 Hz), 129.08 (d, J = 2.6 Hz), 128.53 (d, J = 15.0 Hz), 125.66, 124.99, 124.75, 124.31 (d, J = 65.7 Hz), 124.23 (d, J = 6.3 Hz), 123.36 (d, J = 11.4 Hz), 121.81 (d, J = 11.6 Hz), 120.07 (d, J = 7.1 Hz). 31P NMR (121 MHz, chloroform-d) δ 33.11. HRMS (ESI): m/z calculated for C18H14O2PS+ [M+H] +: 325.0447, found 325.0447.
O-Ethyl S-phenyl phenylphosphonothioate (4b). Oily liquid, 89% yield. 1H NMR (300 MHz, chloroform-d) δ 7.70–7.59 (m, 2H), 7.55–7.44 (m, 1H), 7.33 (ddd, J = 27.5, 9.6, 4.8 Hz, 5H), 7.24–7.17 (m, 2H), 4.55–4.24 (m, 2H), 1.40 (t, J = 7.1 Hz, 3H). 13C NMR (75 MHz, chloroform-d) δ 135.56 (d, J = 4.2 Hz), 132.57 (d, J = 3.2 Hz), 131.49 (d, J = 10.6 Hz), 130.51, 129.19 (d, J = 2.3 Hz), 129.05 (d, J = 2.8 Hz), 128.26 (d, J = 14.9 Hz), 126.65 (d, J = 5.6 Hz), 62.53 (d, J = 6.9 Hz), 16.41 (d, J = 6.8 Hz). 31P NMR (121 MHz, chloroform-d) δ 40.43. HRMS (ESI): m/z calculated for C14H16O2PS+[M+H] +: 279.0605, found 279.0604.
O, O-Diethyl (S-phenyl)phosphorothioate (4c) [48]. Oily liquid, 63% yield. 1H NMR (300 MHz, chloroform-d) δ 7.57 (dd, J = 4.9, 2.4 Hz, 2H), 7.39–7.32 (m, 3H), 4.19 (dq, J = 14.2, 7.0 Hz, 4H), 1.31 (t, J = 7.1 Hz, 6H). 13C NMR (75 MHz, chloroform-d) δ 134.60 (d, J = 5.2 Hz), 129.41 (d, J = 2.2 Hz), 129.06 (d, J = 2.9 Hz), 126.62 (d, J = 7.2 Hz), 64.13 (d, J = 6.2 Hz), 16.07 (d, J = 7.2 Hz). 31P NMR (121 MHz, chloroform-d) δ 21.69.
O, O-Disopropyl (S-phenyl)phosphorothioate (4d) [48]. Oily liquid, 51% yield. 1H NMR (300 MHz, chloroform-d) δ 7.69–7.54 (m, 2H), 7.46–7.25 (m, 3H), 4.76 (ddd, J = 12.4, 8.4, 6.2 Hz, 2H), 1.33 (d, J = 6.2 Hz, 6H), 1.25 (d, J = 6.2 Hz, 6H). 13C NMR (75 MHz, chloroform-d) δ 134.28 (d, J = 5.5 Hz), 129.26 (d, J = 2.1 Hz), 128.74 (d, J = 2.7 Hz), 127.38 (d, J = 7.1 Hz), 73.39 (d, J = 6.7 Hz), 23.93 (d, J = 4.1 Hz), 23.57 (d, J = 5.8 Hz). 31P NMR (121 MHz, chloroform-d) δ 19.35.
O, O-dibutyl (S-phenyl) phosphorothioate (4e). Oily liquid, 60% yield. 1H NMR (300 MHz, chloroform-d) δ 7.63–7.51 (m, 2H), 7.41–7.29 (m, 3H), 4.11 (p, J = 7.2 Hz, 4H), 1.68–1.57 (m, 4H), 1.34 (dt, J = 14.6, 7.4 Hz, 4H), 0.90 (t, J = 7.4 Hz, 6H). 13C NMR (75 MHz, chloroform-d) δ 134.53 (d, J = 5.3 Hz), 129.35 (d, J = 2.2 Hz), 128.97 (d, J = 2.8 Hz), 126.68 (d, J = 7.1 Hz), 67.82 (d, J = 6.6 Hz), 32.17 (d, J = 7.2 Hz), 18.70, 13.61. 31P NMR (121 MHz, chloroform-d) δ 21.79. HRMS (ESI): m/z calculated for C14H24O3PS+ [M+H] +: 303.1168, found 303.1178.
S-(p-Tolyl) diphenylphosphinothioate (5a) [45]. White solid, 92% yield. 1H NMR (300 MHz, chloroform-d) δ 7.85 (ddd, J = 12.9, 8.0, 1.4 Hz, 4H), 7.52–7.28 (m, 8H), 6.98 (d, J = 8.0 Hz, 2H), 2.20 (s, 3H). 13C NMR (75 MHz, chloroform-d) δ 139.17 (d, J = 2.5 Hz), 135.35 (d, J = 3.8 Hz), 132.65, (d, J =105.1), 132.27 (d, J = 3.0 Hz), 131.64 (d, J = 10.3 Hz), 129.98 (d, J = 1.9 Hz), 128.52 (d, J = 13.1 Hz), 122.26 (d, J = 5.2 Hz), 21.19.31P NMR (121 MHz, chloroform-d) δ 40.06.
S-(4-tert-Buty)phenyl)diphenylphosphinothioate (5b). White solid, 97% yield. m.p: 128.2–129 °C. 1H NMR (300 MHz, chloroform-d) δ 7.90–7.79 (m, 4H), 7.51–7.34 (m, 8H), 7.21 (d, J = 8.4 Hz, 2H), 1.22 (s, 9H). 13C NMR (75 MHz, chloroform-d) δ 152.22 (d, J = 2.5 Hz), 135.22 (d, J = 3.7 Hz), 132.67 (d, J = 106.6 Hz), 132.25 (d, J = 3.0 Hz), 131.62 (d, J = 10.3 Hz), 128.49 (d, J = 13.1 Hz), 126.31 (d, J = 1.9 Hz), 122.28 (d, J = 5.2 Hz), 34.59, 31.15. 31P NMR (121 MHz, chloroform-d) δ 40.31. HRMS (ESI): m/z calculated for C22H24OPS+ [M+H] +: 367.1281, found 367.1280.
S-(4-Methoxyphenyl) diphenylphosphinothioate (5c) [45]. White solid, 80% yield. 1H NMR (300 MHz, chloroform-d) δ 7.90–7.78 (m, 4H), 7.50–7.38 (m, 6H), 7.33 (dd, J = 8.7, 1.5 Hz, 2H), 6.72 (d, J = 8.8 Hz, 2H), 3.69 (s, 3H). 13C NMR (75 MHz, chloroform-d) δ 160.52 (d, J = 2.3 Hz), 137.15 (d, J = 3.5 Hz), 132.69 (d, J = 106.2 Hz), 132.33 (d, J = 3.1 Hz), 131.72 (d, J = 10.2 Hz), 128.60 (d, J = 13.0 Hz), 116.06 (d, J = 5.3 Hz), 114.88 (d, J = 1.9 Hz), 55.37. 31P NMR (121 MHz, chloroform-d) δ 40.16.
S-(4-Fluorophenyl) diphenylphosphinothioate (5d) [49]. Oil liquid, 92% yield. 1H NMR (300 MHz, chloroform-d) δ 7.84 (dd, J = 12.8, 7.1 Hz, 4H), 7.57–7.36 (m, 8H), 6.89 (t, J = 8.6 Hz, 2H). 13C NMR (75 MHz, chloroform-d) δ 165.07 (d, J = 2.5 Hz), 161.76 (d, J = 2.5 Hz), 137.45 (dd, J = 8.5, 3.6 Hz), 133.00, 132.47 (d, J = 3.0 Hz), 131.61 (d, J = 10.3 Hz), 128.64 (d, J = 13.2 Hz), 121.22 (dd, J = 5.2, 3.4 Hz), 116.36 (dd, J = 22.0, 1.9 Hz).31P NMR (121 MHz, chloroform-d) δ 41.48 (d, J = 4.3 Hz). 19F NMR (282 MHz, chloroform-d) δ −111.75 (tq, J = 9.2, 5.0 Hz).
S-(4-Chlorophenyl) diphenylphosphinothioate (5e). White solid, 93% yield, m.p: 105–106.6 °C. 1H NMR (300 MHz, chloroform-d) δ 7.79–7.72 (m, 4H), 7.49–7.41 (m, 2H), 7.41–7.33 (m, 4H), 7.30 (dd, J = 8.4, 1.5 Hz, 2H), 7.13–7.05 (m, 2H). 13C NMR (75 MHz, chloroform-d) δ 136.62 (d, J = 3.8 Hz), 135.64 (d, J = 2.7 Hz), 132.98, 132.61 (d, J = 3.0 Hz), 131.76, 131.59 (d, J = 4.5 Hz), 129.42 (d, J = 1.9 Hz), 128.74 (d, J = 13.2 Hz), 124.78 (d, J = 5.3 Hz). 31P NMR (121 MHz, chloroform-d) δ 40.35.
S-(4-Bromophenyl) diphenylphosphinothioate (5f) [36]. Yellow solid, 65% yield. 1H NMR (300 MHz, chloroform-d) δ 7.84 (dd, J = 12.9, 7.0 Hz, 4H), 7.57–7.41 (m, 6H), 7.32 (s, 4H). 13C NMR (75 MHz, chloroform-d) δ 136.78 (d, J = 3.8 Hz), 132.58 (d, J = 3.1 Hz), 132.32 (d, J = 1.8 Hz), 132.19 (d, J = 107.1 Hz), 131.63 (d, J = 10.3 Hz), 128.70 (d, J = 13.2 Hz), 125.44 (d, J = 5.2 Hz), 123.84 (d, J = 2.8 Hz). 31P NMR (121 MHz, chloroform-d) δ 40.24.
S-(2-Chlorophenyl) diphenylphosphinothioate (5g) [45]. White solid, 97% yield. 1H NMR (300 MHz, chloroform-d) δ 7.88 (dd, J = 13.0, 7.1 Hz, 4H), 7.69 (t, J = 7.5 Hz, 1H), 7.54–7.39 (m, 6H), 7.22 (q, J = 7.2 Hz, 1H), 7.02 (t, J = 7.5 Hz, 1H), 6.92 (t, J = 8.6 Hz, 1H). 13C NMR (75 MHz, chloroform-d) δ 164.23 (d, J = 4.2 Hz), 160.93 (d, J = 4.0 Hz), 137.83 (d, J = 3.7 Hz), 133.02, 132.53 (d, J = 3.1 Hz), 131.61 (d, J = 10.4 Hz), 131.36 (d, J = 2.1 Hz), 131.25 (d, J = 2.1 Hz), 128.58 (d, J = 13.2 Hz), 124.70 (dd, J = 3.9, 1.8 Hz), 116.13 (d, J = 1.9 Hz), 115.82 (d, J = 1.9 Hz), 113.63 (d, J = 5.1 Hz), 113.39 (d, J = 5.0 Hz). 31P NMR (121 MHz, chloroform-d) δ 40.77(d, J = 1.9 Hz).
S-(3-Chlorophenyl) diphenylphosphinothioate (5h) [36]. Yellow solid, 89% yield. 1H NMR (300 MHz, chloroform-d) δ 7.85 (dd, J = 13.0, 7.1 Hz, 4H), 7.58–7.42 (m, 6H), 7.41–7.37 (m, 2H), 7.22 (d, J = 7.7 Hz, 1H), 7.13 (t, J = 8.1 Hz, 1H). 13C NMR (75 MHz, chloroform-d) δ 134.91 (d, J = 4.0 Hz), 134.55 (d, J = 2.0 Hz), 133.50 (d, J = 3.9 Hz), 132.64 (d, J = 3.1 Hz), 132.14 (d, J = 107.5 Hz), 131.66 (d, J = 10.3 Hz), 130.10 (d, J = 1.8 Hz), 129.27 (d, J = 2.2 Hz), 128.73 (d, J = 13.2 Hz), 128.19 (d, J = 5.0 Hz). 31P NMR (121 MHz, chloroform-d) δ 40.43.
S-(2,4-Dimethylphenyl) diphenylphosphinothioate (5i) [50]. Yellow solid, 75% yield. 1H NMR (300 MHz, chloroform-d) δ 7.82 (dd, J = 12.8, 7.2 Hz, 4H), 7.57–7.36 (m, 6H), 7.30 (d, J = 7.9 Hz, 1H), 6.95 (s, 1H), 6.81 (d, J = 7.8 Hz, 1H), 2.31 (s, 3H), 2.21 (s, 3H). 13C NMR (75 MHz, chloroform-d) δ 142.75 (d, J = 3.7 Hz), 139.48 (d, J = 2.5 Hz), 136.74 (d, J = 3.6 Hz),133.66, 132.24 (d, J = 2.8 Hz), 131.66 (d, J = 2.1 Hz), 131.52 (d, J = 10.2 Hz), 128.46 (d, J = 13.0 Hz), 127.35 (d, J = 2.1 Hz), 121.54 (d, J = 5.4 Hz), 21.26 (d, J = 20.9 Hz). 31P NMR (121 MHz, chloroform-d) δ 39.66.
S-n-Propyl diphenylphosphinothioate (5j) [45]. Oily liquid, 83% yield. 1H NMR (300 MHz, chloroform-d) δ 7.99–7.81 (m, 4H), 7.68–7.41 (m, 6H), 2.78 (dt, J = 10.3, 7.3 Hz, 2H), 1.66 (q, J = 7.3 Hz, 2H), 0.93 (t, J = 7.3 Hz, 3H). 13C NMR (75 MHz, chloroform-d) δ 133.55 (d, J = 107.0 Hz), 132.30 (d, J = 3.1 Hz), 131.53 (d, J = 10.4 Hz), 128.71 (d, J = 13.0 Hz), 31.30 (d, J = 2.3 Hz), 24.13 (d, J = 5.0 Hz), 13.35. 31P NMR (121 MHz, chloroform-d) δ 41.92.
S-n-Butyl diphenylphosphinothioate (5k) [45]. Oily liquid, 76% yield. 1H NMR (300 MHz, chloroform-d) δ 8.11–7.79 (m, 4H), 7.50 (dtt, J = 14.1, 6.7, 3.8 Hz, 6H), 2.80 (dt, J = 10.1, 7.4 Hz, 2H), 1.61 (p, J = 7.3 Hz, 2H), 1.35 (h, J = 7.3 Hz, 2H), 0.83 (t, J = 7.3 Hz, 3H). 13C NMR (75 MHz, chloroform-d) δ 133.53 (d, J = 107.0 Hz), 132.31 (d, J = 3.0 Hz), 131.54 (d, J = 10.4 Hz), 128.71 (d, J = 13.1 Hz), 32.66 (d, J = 4.9 Hz), 29.07 (d, J = 2.2 Hz), 21.81, 13.52. 31P NMR (121 MHz, chloroform-d) δ 41.90.
S-Benzyl diphenylphosphinothioate (5l) [51]. White solid, 98% yield. 1H NMR (300 MHz, chloroform-d) δ 7.86 (dd, J = 13.0, 7.1 Hz, 4H), 7.59–7.35 (m, 6H), 7.19 (s, 5H), 4.02 (d, J = 9.2 Hz, 2H). 13C NMR (75 MHz, chloroform-d) δ 136.81 (d, J = 5.5 Hz), 133.01 (d, J = 107.0 Hz), 132.41 (d, J = 3.0 Hz), 131.57 (d, J = 10.5 Hz), 128.94 (d, J = 19.0 Hz), 128.06 (d, J = 85.4 Hz), 33.23 (d, J = 2.1 Hz). 31P NMR (121 MHz, chloroform-d) δ 41.56.
S-(p-Tolyl) bis(4-(trifluoromethyl)phenyl)phosphinothioate (5m) [52]. White solid, 92% yield. 1H NMR (300 MHz, chloroform-d) δ 7.99 (dd, J = 12.5, 8.0 Hz, 4H), 7.72 (dd, J = 8.4, 2.9 Hz, 4H), 7.33 (dd, J = 8.2, 1.8 Hz, 2H), 7.05 (d, J = 7.8 Hz, 2H), 2.27 (s, 3H). 13C NMR (75 MHz, chloroform-d) δ 140.08 (d, J = 2.6 Hz), 136.44 (d, J = 105.0 Hz), 135.51 (d, J = 3.9 Hz), 134.54 (d, J = 3.2 Hz), 134.11 (d, J = 3.2 Hz), 132.14 (d, J = 10.6 Hz), 130.40 (d, J = 2.1 Hz), 125.66 (dq, J = 13.3, 3.7 Hz), 123.46 (d, J = 272.0 Hz), 21.23. 31P NMR (121 MHz, chloroform-d) δ 36.46. 19F NMR (282 MHz, chloroform-d) δ −62.42.
S-(p-Toyl)bis(3,5-di-tert-butylphenyl)phosphinothioate (5n) [50]. White solid, 90% yield. 1H NMR (300 MHz, chloroform-d) δ 7.70 (s, 2H), 7.66 (s, 2H), 7.55 (s, 2H), 7.28 (d, J = 7.3 Hz, 2H), 6.96 (d, J = 7.9 Hz, 2H), 2.22 (s, 3H), 1.30 (s, 36H). 13C NMR (75 MHz, chloroform-d) δ 150.80 (d, J = 12.8 Hz), 138.64 (d, J = 2.5 Hz), 135.36 (d, J = 3.7 Hz), 131.63 (d, J = 105.5 Hz), 129.66 (d, J = 1.9 Hz), 126.15 (d, J = 3.1 Hz), 125.84 (d, J = 10.8 Hz), 123.31 (d, J = 5.1 Hz), 35.01, 31.31, 21.09. 31P NMR (121 MHz, chloroform-d) δ 43.11.
S-(p-Tolyl)di(naphthalen-1-yl)phosphinothioate (5o) [50]. White solid, 98% yield. 1H NMR (300 MHz, chloroform-d) δ 8.84–8.72 (m, 2H), 8.00–7.81 (m, 4H), 7.76–7.68 (m, 2H), 7.41–7.32 (m, 4H), 7.28 (td, J = 8.1, 2.3 Hz, 4H), 6.83 (d, J = 7.9 Hz, 2H), 2.08 (s, 3H). 13C NMR (75 MHz, chloroform-d) δ 139.06 (d, J = 2.5 Hz), 135.33 (d, J = 3.9 Hz), 133.91 (d, J = 10.2 Hz), 133.73 (d, J = 3.3 Hz), 133.49 (d, J = 11.6 Hz), 133.25 (d, J = 9.3 Hz), 129.89 (d, J = 1.9 Hz), 129.02 (d, J = 102.5 Hz), 128.85 (d, J = 1.3 Hz), 127.33, 127.21 (d, J = 4.9 Hz), 126.49, 124.38 (d, J = 15.4 Hz), 123.06 (d, J = 5.2 Hz), 21.17. 31P NMR (121 MHz, chloroform-d) δ 44.22.
S-(p-Tolyl) bis(4-methoxyphenyl)phosphinothioate (5p) [47]. Oily liquid, 95% yield. 1H NMR (300 MHz, chloroform-d) δ 7.66 (dd, J = 12.3, 8.5 Hz, 4H), 7.23 (d, J = 7.4 Hz, 2H), 6.89 (d, J = 7.9 Hz, 2H), 6.82 (dd, J = 8.8, 2.8 Hz, 4H), 3.69 (s, 6H), 2.13 (s, 3H). 13C NMR (75 MHz, chloroform-d) δ 162.57 (d, J = 3.1 Hz), 138.84 (d, J = 2.4 Hz), 135.08 (d, J = 3.8 Hz), 133.48 (d, J = 11.8 Hz), 129.85 (d, J = 1.8 Hz), 124.80, 123.28, 123.04 (d, J = 5.2 Hz), 113.95 (d, J = 14.3 Hz), 55.30, 21.11. 31P NMR (121 MHz, chloroform-d) δ 40.20.
S-Benzyl O-ethyl phenylphosphonothioate (5q) [45]. Oily liquid, 54% yield. 1H NMR (300 MHz, chloroform-d) δ 7.83 (ddd, J = 13.9, 6.9, 1.5 Hz, 2H), 7.55–7.40 (m, 3H), 7.21 (d, J = 2.8 Hz, 5H), 4.34–4.08 (m, 2H), 4.04–3.85 (m, 2H), 1.33 (t, J = 7.0 Hz, 3H). 13C NMR (75 MHz, chloroform-d) δ 137.21 (d, J = 5.2 Hz), 132.52 (d, J = 3.3 Hz), 132.46 (d, J = 150.5 Hz), 131.18 (d, J = 10.9 Hz), 128.64 (d, J = 33.1 Hz), 128.59 (d, J = 3.7 Hz), 127.45, 62.22 (d, J = 6.8 Hz), 34.51 (d, J = 2.7 Hz), 16.30 (d, J = 6.9 Hz). 31P NMR (121 MHz, chloroform-d) δ 42.54.
Se-Phenyl diphenylphosphinoselenoate (5r) [53]. Yellow solid, 74% yield. 1H NMR (300 MHz, chloroform-d) δ 7.87–7.76 (m, 4H), 7.55–7.38 (m, 8H), 7.29–7.11 (m, 3H). 13C NMR (75 MHz, chloroform-d) δ 136.40 (d, J = 3.3 Hz), 134.19, 132.89, 132.37 (d, J = 3.1 Hz), 131.43 (d, J = 10.6 Hz), 129.35 (d, J = 1.8 Hz), 128.85 (d, J = 2.0 Hz), 128.61 (d, J = 13.2 Hz), 123.86 (d, J = 5.8 Hz). 31P NMR (121 MHz, chloroform-d) δ 30.15.
Se-Benzyl diphenylphosphinoselenoate (5s) [54]. Yellow solid, 45% yield. 1H NMR (300 MHz, chloroform-d) δ 7.85 (ddd, J = 13.3, 8.2, 1.6 Hz, 4H), 7.60–7.41 (m, 6H), 7.17 (s, 5H), 4.07 (d, J = 8.3 Hz, 2H). 13C NMR (75 MHz, chloroform-d) δ 137.68 (d, J = 4.3 Hz), 134.09 (d, J = 97.5 Hz), 132.42 (d, J = 3.1 Hz), 131.43 (d, J = 10.9 Hz), 129.03 (d, J = 25.0 Hz), 128.68 (d, J = 1.3 Hz), 127.29, 28.43 (d, J = 2.5 Hz). 31P NMR (121 MHz, chloroform-d) δ 38.94.
Se-Ethyl diphenylphosphinoselenoate (5t) [54]. Yellow solid, 86% yield. 1H NMR (300 MHz, chloroform-d) δ 7.89 (ddt, J = 13.2, 6.4, 1.7 Hz, 4H), 7.59–7.39 (m, 6H), 2.84 (dq, J = 10.1, 7.5 Hz, 2H), 1.39 (t, J = 7.5 Hz, 3H). 13C NMR (75 MHz, chloroform-d) δ 134.41 (d, J = 97.5 Hz), 132.26 (d, J = 3.2 Hz), 131.27 (d, J = 10.7 Hz), 128.66 (d, J = 13.1 Hz), 19.48 (d, J = 2.8 Hz), 16.64 (d, J = 4.0 Hz). 31P NMR (121 MHz, chloroform-d) δ 38.53.

4. Conclusions

In summary, we have developed an additive- and solvent-free direct coupling of disulfides and HP(O) species, providing access to phosphinothioates and thiophosphates with good to excellent yields. This method was found to be tolerant of various functional groups on HP(O) species, that is to say, almost no significant substituent effect was observed. In addition, the transformation is also suitable for diselenide substrates.

Supplementary Materials

The following supporting information can be downloaded at https://www.mdpi.com/article/10.3390/molecules30102097/s1.

Author Contributions

Conceptualization, X.B.; methodology, Y.F. and J.L.; investigation, Y.F., X.Z., and H.Y.; data curation, Y.L. All authors have read and agreed to the published version of the manuscript.

Funding

This research received no external funding.

Institutional Review Board Statement

This study did not involve humans or animals.

Informed Consent Statement

Not applicable.

Data Availability Statement

The data supporting this article have been included as part of the Supplementary Information.

Conflicts of Interest

There are no conflicts of interest to declare.

References

  1. Demkowicz, S.; Rachon, J.; Daśko, M.; Kozak, W. Selected organophosphorus compounds with biological activity: Applications in medicine. RSC Adv. 2016, 6, 7101–7112. [Google Scholar] [CrossRef]
  2. Yu, H.; Yang, H.; Shi, E.; Tang, W. Development and clinical application of phosphorus-containing drugs. Med. Drug Discov. 2020, 8, 100063. [Google Scholar] [CrossRef] [PubMed]
  3. Talma, M.; Maślanka, M.; Mucha, A. Recent developments in the synthesis and applications of phosphinic peptide analogs. Bioorg. Med. Chem. Lett. 2019, 29, 1031–1042. [Google Scholar] [CrossRef] [PubMed]
  4. Marshall, W.S.; Caruthers, M.H. Phosphorodithioate DNA as a potential therapeutic drug. Science 1993, 259, 1564–1570. [Google Scholar] [CrossRef]
  5. Phosphorothioates, F.E. Essential components of therapeutic oligonucleotides. Nucleic Acid Ther. 2014, 24, 374–387. [Google Scholar]
  6. Terreni, M.; Pregnolato, M.; Resnati, G.; Benfenati, E. Selective sulfur oxygenation in phosphoroamidate, thionophosphate, and thiophosphate agrochemicals by perfluoro-cis-2,3-dialkyloxaziridine. Tetrahedron 1995, 51, 7981–7992. [Google Scholar] [CrossRef]
  7. Xu, Z.; Wang, J.; Han, J.; Liu, B.; Wang, M. Synthesis and biological activity of novel (thio)phosphates with hydantoin. Chin. J. Org. Chem. 2012, 32, 2134–2140. [Google Scholar] [CrossRef]
  8. Jeschke, P. Propesticides and their use as agrochemicals. Pest Manag. Sci. 2016, 72, 210–225. [Google Scholar] [CrossRef]
  9. Sidhu, G.K.; Singh, S.; Kumar, V.; Dhanjal, D.S.; Datta, S.; Singh, J. Toxicity, Monitoring and biodegradation of organophosphate pesticides: A Review. Crit. Rev. Environ. Sci. Technol. 2019, 49, 1135–1187. [Google Scholar] [CrossRef]
  10. Johnson, D.W.; Hils, J.E. Phosphate esters, thiophosphate esters and metal thiophosphates as lubricant additives. Lubricants 2013, 1, 132–148. [Google Scholar] [CrossRef]
  11. Zhu, M.; Kou, H.; Wang, K.; Wu, H.; Ding, D.; Zhou, G.; Ding, S. Promising functional two-dimensional lamellar metal thiophosphates: Synthesis strategies, properties and applications. Mater. Horiz. 2020, 7, 3131–3160. [Google Scholar] [CrossRef]
  12. Susner, M.A.; Chyasnavichyus, M.; McGuire, M.A.; Ganesh, P.; Maksymovych, P. Metal thio- and selenophosphates as multifunctional van der waals layered materials. Adv. Mater. 2017, 29, 1602852. [Google Scholar] [CrossRef] [PubMed]
  13. Li, Z.; Yao, J.; Wu, Y. Chalcophosphates: A treasure house of infrared nonlinear optical materials. Cryst. Growth Des. 2020, 20, 7550–7564. [Google Scholar] [CrossRef]
  14. Hill, K.; Stromberg, A.E. Echothiophate iodide in the management of esotropia. Am. J. Ophthalmol. 1962, 53, 488–494. [Google Scholar] [CrossRef]
  15. Kraus, C.L.; Trivedi, R.H.; Wilson, M.E. Intraocular pressure control with echothiophate iodide in children’s eyes with glaucoma after cataract extraction. J. Am. Assoc. Pediatr. Ophthalmol. Strabismus 2015, 19, 116–118.e1. [Google Scholar] [CrossRef]
  16. Büntzel, J.; Küttner, K.; Fröhlich, D.; Glatzel, M. Selective cytoprotection with amifostine in concurrent radiochemotherapy for head and neck cancer. Ann. Oncol. 1998, 9, 505–509. [Google Scholar] [CrossRef]
  17. Brizel, D.M. Does amifostine have a role in chemoradiation treatment. Lancet Oncol. 2003, 4, 378–380. [Google Scholar] [CrossRef]
  18. Reissert-Oppermann, S.; Bauer, B.; Steuber, S.; Clausen, P.-H. Insecticide resistance in stable flies (stomoxys calcitrans) on dairy farms in Germany. Parasitol. Res. 2019, 118, 2499–2507. [Google Scholar] [CrossRef]
  19. Intorre, L.; Soldani, G.; Cognetti-Varriale, A.M.; Monni, G.; Meucci, V.; Pretti, C. Safety of azamethiphos in eel, seabass and trout. Pharmacol. Res. 2004, 49, 171–176. [Google Scholar] [CrossRef]
  20. Uesugi, Y.; Tomizawa, C. Metabolism of S-benzyl O-ethyl phenylphosphonothioate (inezin®) by Mycelial Cells of Pyricularia oryzae. Agric. Biol. Chem. 1972, 36, 313–317. [Google Scholar] [CrossRef]
  21. Murai, T.; Tomizawa, C. Chemical transformation of S-benzyl O-ethyl phenylphosphonothiolate (inezin®) by Ultraviolet Light. J. Environ. Sci. Health Pt. B Pestic. Food Contam. Agric. Wastes 1976, 11, 185–197. [Google Scholar] [CrossRef] [PubMed]
  22. Dahl, O. Preparation of nucleoside phosphorothioates, phosphorodithioates and related compounds. Sulfur Rep. 1991, 11, 167–188. [Google Scholar] [CrossRef]
  23. Liu, C.; Wang, L.; Zhang, X. Advances in the synthesis of phosphorothioate and phosphinothioate. Chin. J. Org. Chem. 2021, 41, 2964–2973. [Google Scholar] [CrossRef]
  24. Majchrzak, A.; Mlostoń, G.; Linden, A.; Heimgartner, H. Reactions of chlorosulfanyl derivatives of cyclobutanones with different nucleophiles. Helv. Chim. Acta 2006, 89, 1042–1061. [Google Scholar] [CrossRef]
  25. Bigley, A.N.; Mabanglo, M.F.; Harvey, S.P.; Raushel, F.M. Variants of phosphotriesterase for the enhanced detoxification of the chemical warfare agent VR. Biochemistry 2015, 54, 5502–5512. [Google Scholar] [CrossRef]
  26. Althoff, M.A.; Grieger, K.; Härtel, M.A.C.; Karaghiosoff, K.L.; Klapötke, T.M.; Metzulat, M. Application of the transpiration method To determine the vapor pressure and related physico-chemical data of low volatile, thermolabile, and toxic organo(thio)phosphates. J. Phys. Chem. A 2017, 121, 2603–2609. [Google Scholar] [CrossRef]
  27. Liu, X.; Zhou, L.; Yang, R.; Song, X.-R.; Xiao, Q. Recent Advances in the direct synthesis of sulfur-containing organophosphorus compounds via radical processes. Adv. Synth. Catal. 2023, 365, 2280–2298. [Google Scholar] [CrossRef]
  28. Torii, S.; Tanaka, H.; Sayo, N. Electrosynthesis of heteroatom-heteroatom bonds. 4. Direct Cross-Coupling of Dialkyl (or Diaryl) Phosphites with disulfides by a sodium bromide promoted electrolytic procedure. J. Org. Chem. 1979, 44, 2938–2941. [Google Scholar] [CrossRef]
  29. Gao, Y.-X.; Tang, G.; Cao, Y.; Zhao, Y.-F. A Novel and general method for the formation of S-Aryl, Se-Aryl, and Te-Aryl Phosphorochalcogenoates. Synthesis 2009, 2009, 1081–1086. [Google Scholar]
  30. Ouyang, Y.; Qiu, R.; Chen, S.; Chen, J.; Xu, X. KOH-catalyzed synthesis of O, O-dialkyl-S-aryl phosphoroselenoates Activated by Novel Calix [4] arene. Chin. J. Org. Chem. 2015, 35, 2636–2641. [Google Scholar] [CrossRef]
  31. Wang, J.; Wang, X.; Li, H.; Yan, J. Fast and transition metal-free general method for the preparation of chalcogenophosphates. J. Organomet. Chem. 2018, 859, 75–79. [Google Scholar] [CrossRef]
  32. Ouyang, Y.-J.; Li, Y.-Y.; Li, N.-B.; Xu, X.-H. A simple and convenient method for the synthesis of S-aryl phosphorothioates Catalyzed by Cesium Hydroxide. Chin. Chem. Lett. 2013, 24, 1103–1105. [Google Scholar] [CrossRef]
  33. Crocker, R.D.; Hussein, M.A.; Ho, J.; Nguyen, T.V. NHC-catalyzed metathesis and phosphorylation reactions of disulfides: Development and mechanistic Insights. Chem. Eur. J. 2017, 23, 6259–6263. [Google Scholar] [CrossRef]
  34. Shen, B.-R.; Annamalai, P.; Wang, S.-F.; Bai, R.; Lee, C.-F. Blue LED-promoted syntheses of phosphorothioates and phosphorodithioates. J. Org. Chem. 2022, 87, 8858–8870. [Google Scholar] [CrossRef]
  35. Xia, M.; Cheng, J. Catalyst- and oxidant-free coupling of disulfides with H-phosphine oxide: Construction of P–S bond leading to thiophosphinates. Tetrahedron Lett. 2016, 57, 4702–4704. [Google Scholar] [CrossRef]
  36. Choudhary, R.; Singh, P.; Bai, R.; Sharma, M.C.; Badsara, S.S. Highly atom-economical, catalyst-free, and solvent-free phosphorylation of chalcogenides. Org. Biomol. Chem. 2019, 17, 9757–9765. [Google Scholar] [CrossRef]
  37. Sun, S.; Li, J.; Pan, L.; Liu, H.; Guo, Y.; Gao, Z.; Bi, X. Controllable synthesis of disulfides and thiosulfonates from sodium sulfinates mediated by hydroiodic acid using ethanol and H2O as solvents. Org. Biomol. Chem. 2022, 20, 8885–8892. [Google Scholar] [CrossRef] [PubMed]
  38. Sun, S.; Ye, H.; Mao, T.; Guo, Y.; Liu, H.; Li, J.; Bi, X. Synthesis of asymmetric diaryl sulfides via HI-mediated C(sp2)-H sulfenylation of arenes with sodium sulfinates. J. Org. Chem. 2023, 88, 4092–4100. [Google Scholar] [CrossRef]
  39. Anastas, P.T.; Kirchhoff, M.M. Origins, current status, and future challenges of green chemistry. Acc. Chem. Res. 2002, 35, 686–694. [Google Scholar] [CrossRef]
  40. Anastas, P.; Eghbali, N. Green chemistry: Principles and practice. Chem. Soc. Rev. 2010, 39, 301–312. [Google Scholar] [CrossRef]
  41. Sarkar, A.; Santra, S.; Kundu, S.K.; Hajra, A.; Zyryanov, G.V.; Chupakhin, O.N.; Charushin, V.N.; Majee, A. A decade update on solvent and catalyst-free neat organic reactions: A step forward towards sustainability. Green Chem. 2016, 18, 4475–4525. [Google Scholar] [CrossRef]
  42. Baruah, B.; Deb, M.L. Catalyst-free and additive-free reactions enabling C–C bond formation: A Journey Towards a Sustainable Future. Org. Biomol. Chem. 2021, 19, 1191–1229. [Google Scholar] [CrossRef] [PubMed]
  43. Guo, H.; Yoshimura, A.; Chen, T.; Saga, Y.; Han, L.-B. Air-induced double addition of P(O)-H bonds to alkynes: A clean and practical method for the preparation of 1,2-bisphosphorylethanes. Green Chem. 2017, 19, 1502–1506. [Google Scholar] [CrossRef]
  44. Hong, W.; Li, X.; Lu, Y.; Wang, L.; Liu, S.; Gao, W.; Tang, Y.; Wang, L.; Niu, L.; Chen, J. Et4NCl-promoted electrochemical atherton-todd type reaction to construct P(O)-F bonds. J. Org. Chem. 2023, 88, 7006–7014. [Google Scholar]
  45. Wang, J.; Huang, X.; Ni, Z.; Wang, S.; Wu, J.; Pan, Y. TBPB-promoted metal-free synthesis of thiophosphinate/phosphonothioate by direct P–S bond coupling. Green Chem. 2015, 17, 314–319. [Google Scholar] [CrossRef]
  46. Li, H.; Yan, W.; Ren, P.; Hu, H.; Sun, R.; Liu, M.; Fu, Z.; Guo, S.; Cai, H. Bromide ion promoted practical synthesis of phosphinothioates of sulfinic acid derivatives and H-phosphine oxides. RSC Adv. 2022, 12, 32350–32354. [Google Scholar] [CrossRef]
  47. Zhang, Z.; Lao, T.; Deng, L.; Zhang, C.; Liu, J.; Fu, M.; Su, Z.; Yu, Y.; Cao, H. Mechanochemical electrophilic mono- or disulfur transfer: Construction of P(O)-S or P(O)-S-S bonds. Org. Lett. 2022, 24, 7222–7226. [Google Scholar] [CrossRef]
  48. Cao, Y.; Bai, M.; Huang, J.; Chen, F.; Liu, Y.; Tang, G.; Zhao, Y. Three-component coupling reaction of white phosphorus, alcohols and diaryl disulfides: A chlorine-free avenue for accessing phosphorothioates. Green Chem. 2024, 26, 477–482. [Google Scholar] [CrossRef]
  49. Liu, H.; Zhu, S.; Zhao, M.; Li, W.; Xu, X.; Zhuang, Y.; Han, D. Synthesis of thiophosphates by visible-light daual photoredox/nickel catalysis. Tetrahedron 2023, 136, 133338. [Google Scholar] [CrossRef]
  50. Qiao, H.; Yang, L.; Yang, X.; Wang, J.; Chen, Y.; Zhang, L.; Sun, W.; Zhai, L.; Mi, L. Design of photoactive covalent organic frameworks as heterogeneous catalyst for preparation of thiophosphinates from phosphine oxides and thiols. Chem. Eur. J. 2022, 28, e202200600. [Google Scholar] [CrossRef]
  51. Zhang, W.; Deng, Z.; Deng, J.; Au, C.-T.; Liao, Y.; Yang, H.; Liu, Q. Regulating the exciton binding energy of covalent triazine frameworks for enhancing photocatalysis. J. Mater. Chem. 2022, 10, 22419–22427. [Google Scholar] [CrossRef]
  52. Lin, Y.M.; Lu, G.P.; Wang, G.X.; Yi, W.B. Acid/Phosphide-induced radical route to alkyl and alkenyl sulfides and phosphonothioates from sodium arylsulfinates in water. J. Org. Chem. 2017, 82, 382–389. [Google Scholar] [CrossRef] [PubMed]
  53. Guo, S.; Li, S.; Zhang, Z.; Yan, W.; Cai, H. Electrochemical selenation of phosphonates and phosphine oxides. Tetrahedron Lett. 2020, 61, 151566. [Google Scholar] [CrossRef]
  54. Yang, B.; Zhang, X.Y.; Yue, H.-Q.; Li, W.-Z.; Li, M.; Lu, L.; Wu, Z.-Q.; Li, J.; Sun, K.; Yang, S.D. A promoter-free protocol for the synthesis of selenophosphates and thiophosphates via a spontaneous process at room temperature. Adv. Synth. Catal. 2022, 364, 3528–3538. [Google Scholar] [CrossRef]
Molecules 30 02097 g001

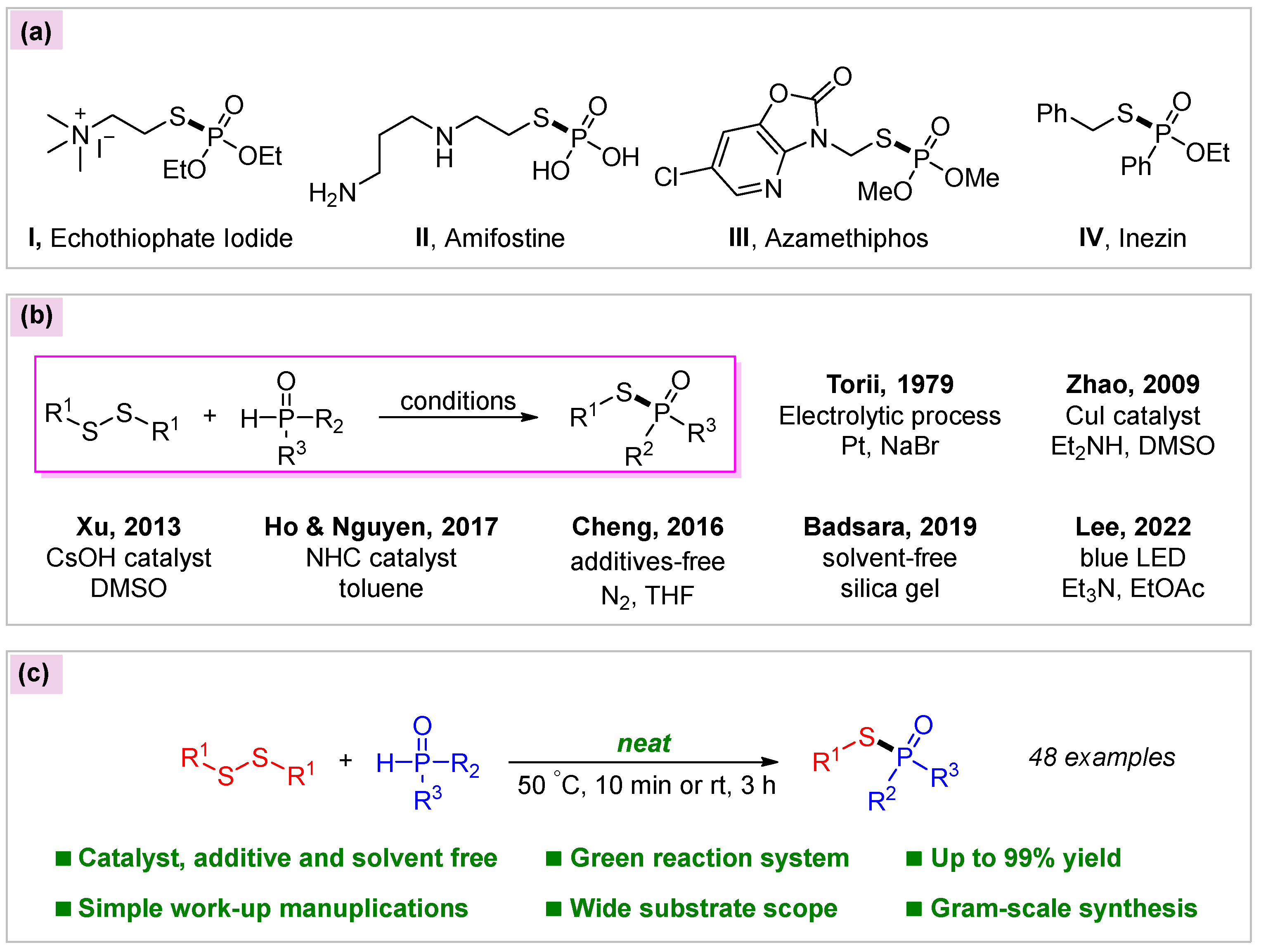

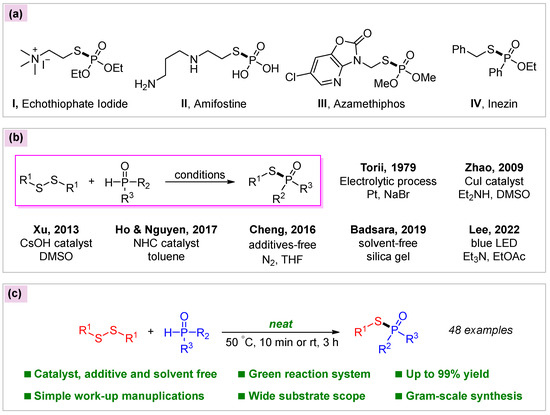

Figure 1. Significance and methods of synthesizing phosphinothioates, phosphonothioates, and phosphorothioates from disulfides. (a) Representative biologically thiophosphoryl compounds; (b) Reported typical approaches to thiophosphoryl compounds from disulfides [28,29,32,33,34,35,36]; (c) This work: Direct synthesis of thiophosphoryl compounds without any additives.
Figure 1. Significance and methods of synthesizing phosphinothioates, phosphonothioates, and phosphorothioates from disulfides. (a) Representative biologically thiophosphoryl compounds; (b) Reported typical approaches to thiophosphoryl compounds from disulfides [28,29,32,33,34,35,36]; (c) This work: Direct synthesis of thiophosphoryl compounds without any additives.
Molecules 30 02097 g001
Molecules 30 02097 g002

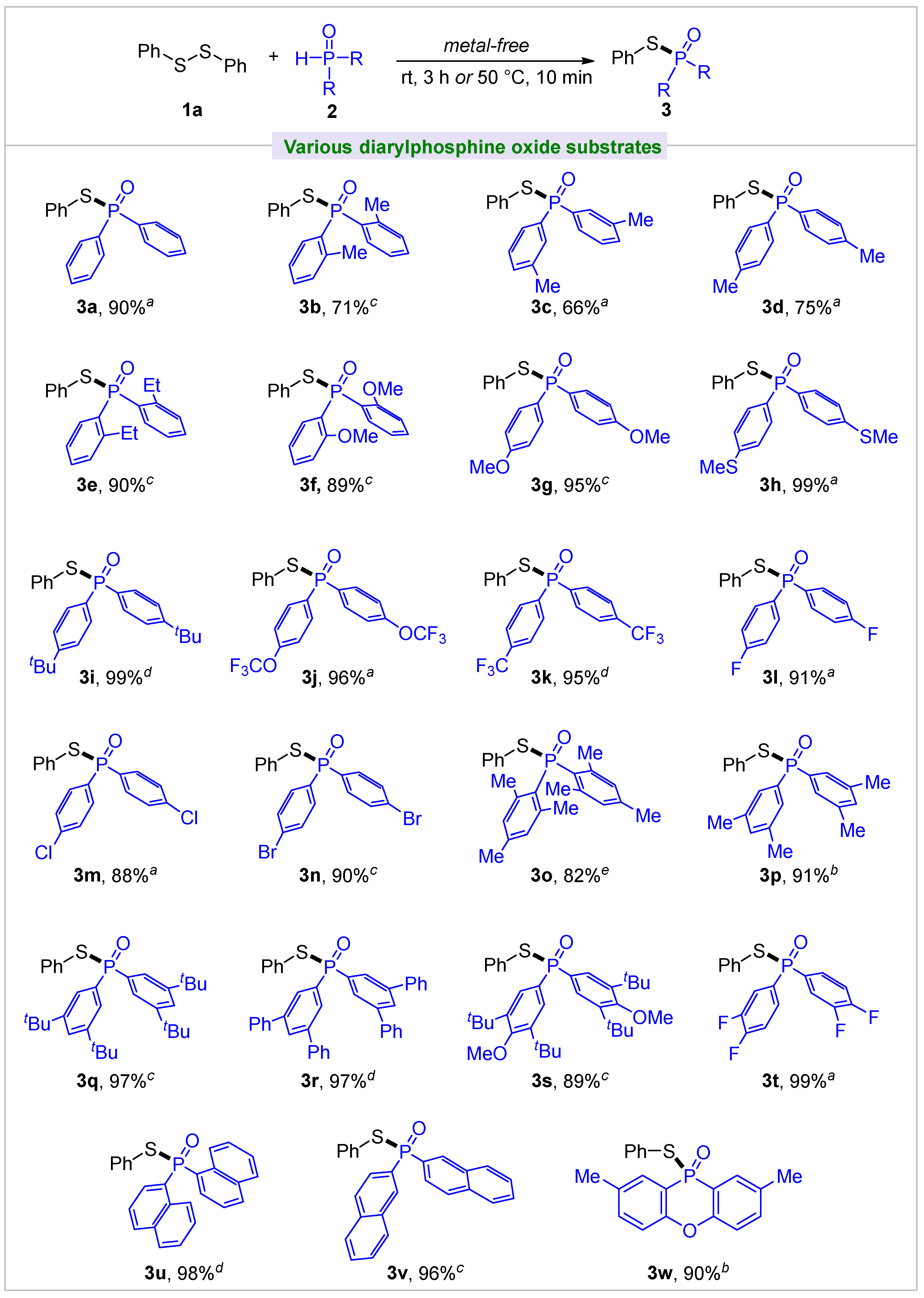

Figure 2. Substrate scope of diarylphosphine oxides. All yields are isolated. Standard conditions: diphenyl disulfide 1a (0.3 mmol), diarylphosphine oxide. 2 (0.3 mmol). a Reaction was performed at rt for 3 h, or 50 °C for 10 min. b 50 °C for 1 h. c 70 °C for 1 h. d 70 °C for 3 h. e 70 °C for 7 h.
Figure 2. Substrate scope of diarylphosphine oxides. All yields are isolated. Standard conditions: diphenyl disulfide 1a (0.3 mmol), diarylphosphine oxide. 2 (0.3 mmol). a Reaction was performed at rt for 3 h, or 50 °C for 10 min. b 50 °C for 1 h. c 70 °C for 1 h. d 70 °C for 3 h. e 70 °C for 7 h.
Molecules 30 02097 g002
Molecules 30 02097 g003

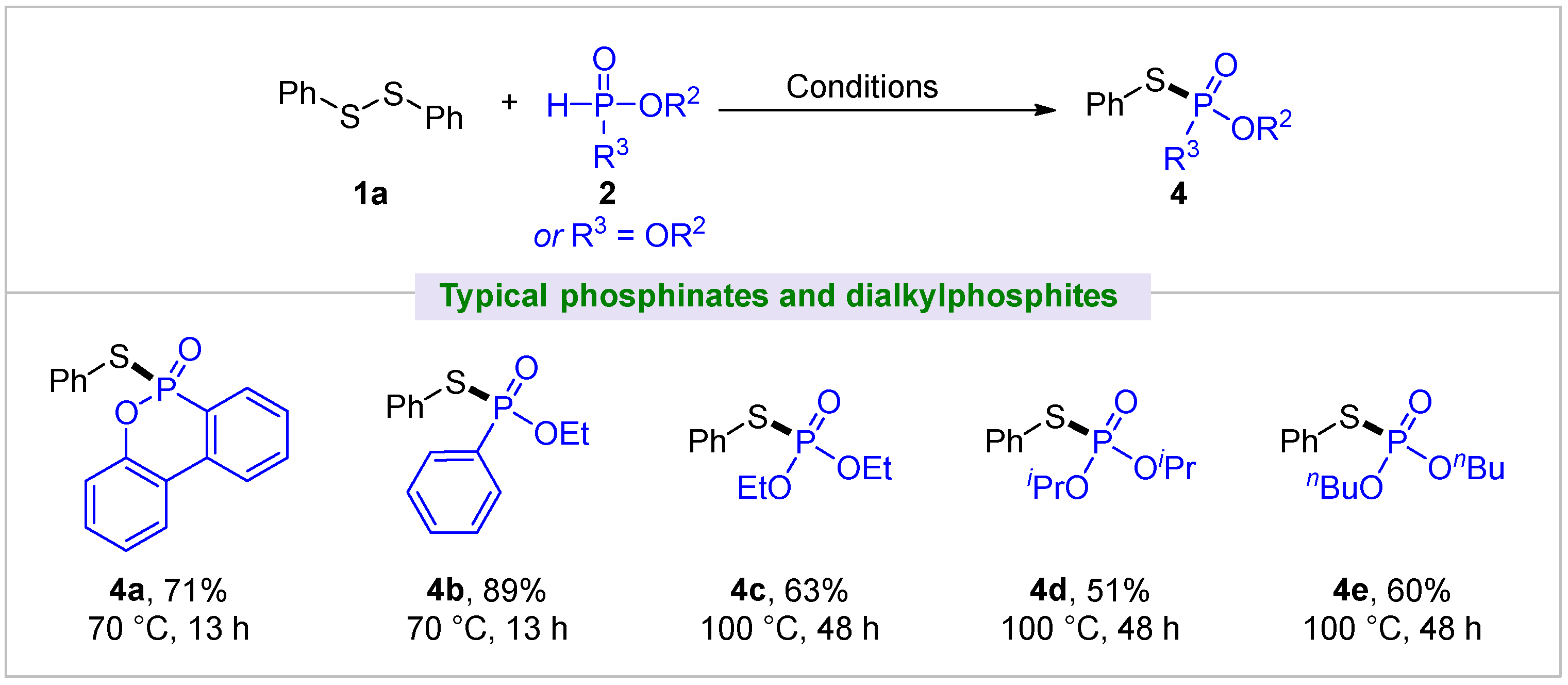

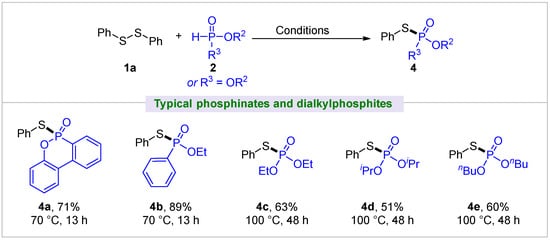

Figure 3. Substrate scope of phosphinates and dialkylphosphites. All yields are isolated. Standard conditions: diphenyl disulfide 1a (0.3 mmol), phosphinates and dialkylphosphites 2 (0.3 mmol).
Figure 3. Substrate scope of phosphinates and dialkylphosphites. All yields are isolated. Standard conditions: diphenyl disulfide 1a (0.3 mmol), phosphinates and dialkylphosphites 2 (0.3 mmol).
Molecules 30 02097 g003
Molecules 30 02097 g004

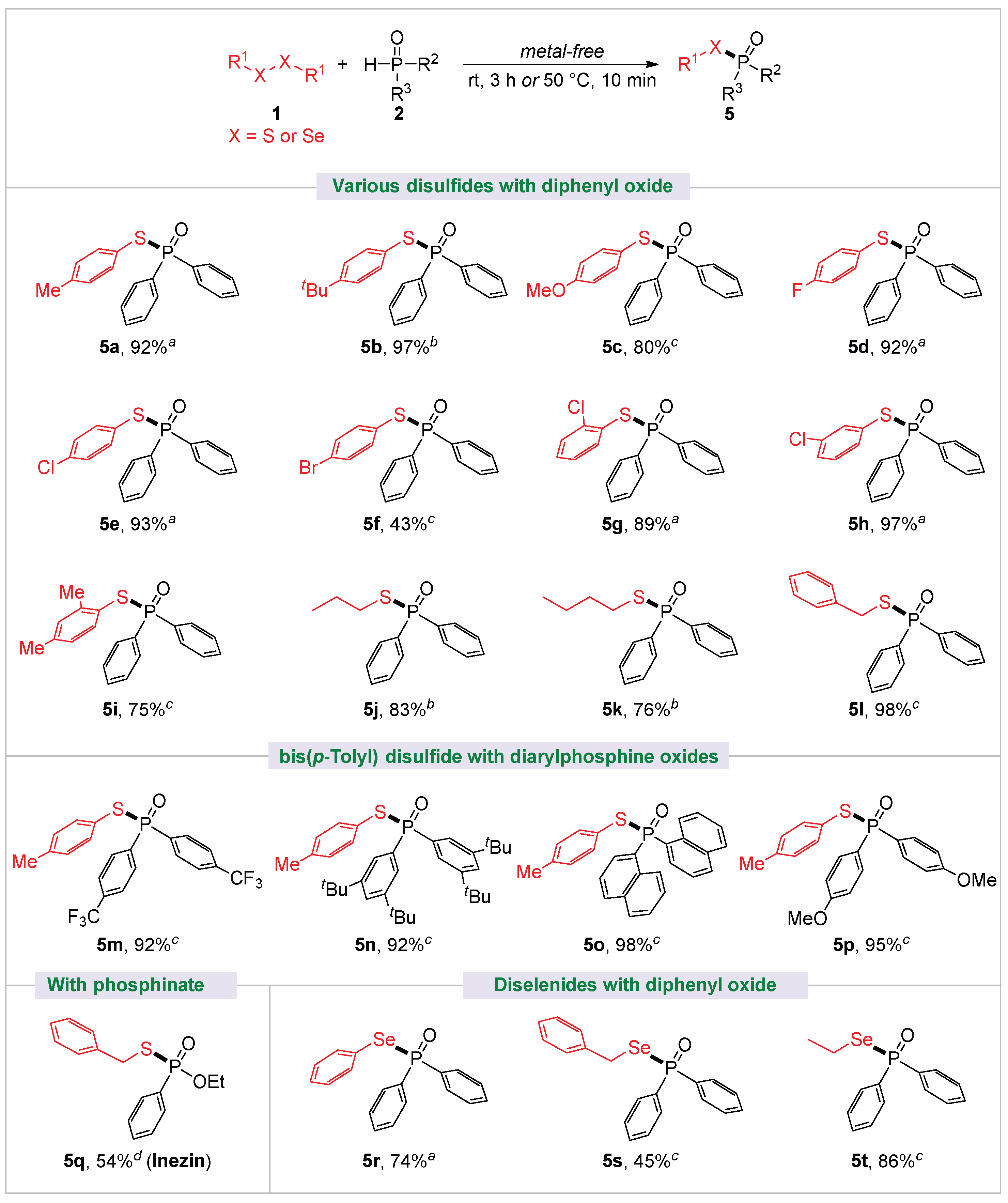

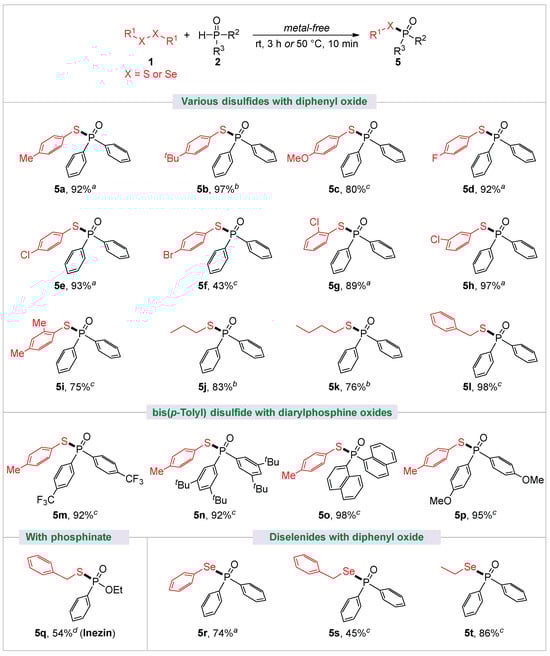

Figure 4. Substrate scope of disulfides and diselenides. All yields are isolated. Standard conditions: disulfide or diselenide 1 (0.3 mmol), diarylphosphine oxide 2 (0.3 mmol). a Reaction was performed at rt for 3 h, or 50 °C for 10 min. b 50 °C for 7 h. c 70 °C for 3 h. d 70 °C for 4 h.
Figure 4. Substrate scope of disulfides and diselenides. All yields are isolated. Standard conditions: disulfide or diselenide 1 (0.3 mmol), diarylphosphine oxide 2 (0.3 mmol). a Reaction was performed at rt for 3 h, or 50 °C for 10 min. b 50 °C for 7 h. c 70 °C for 3 h. d 70 °C for 4 h.
Molecules 30 02097 g004
Molecules 30 02097 g005

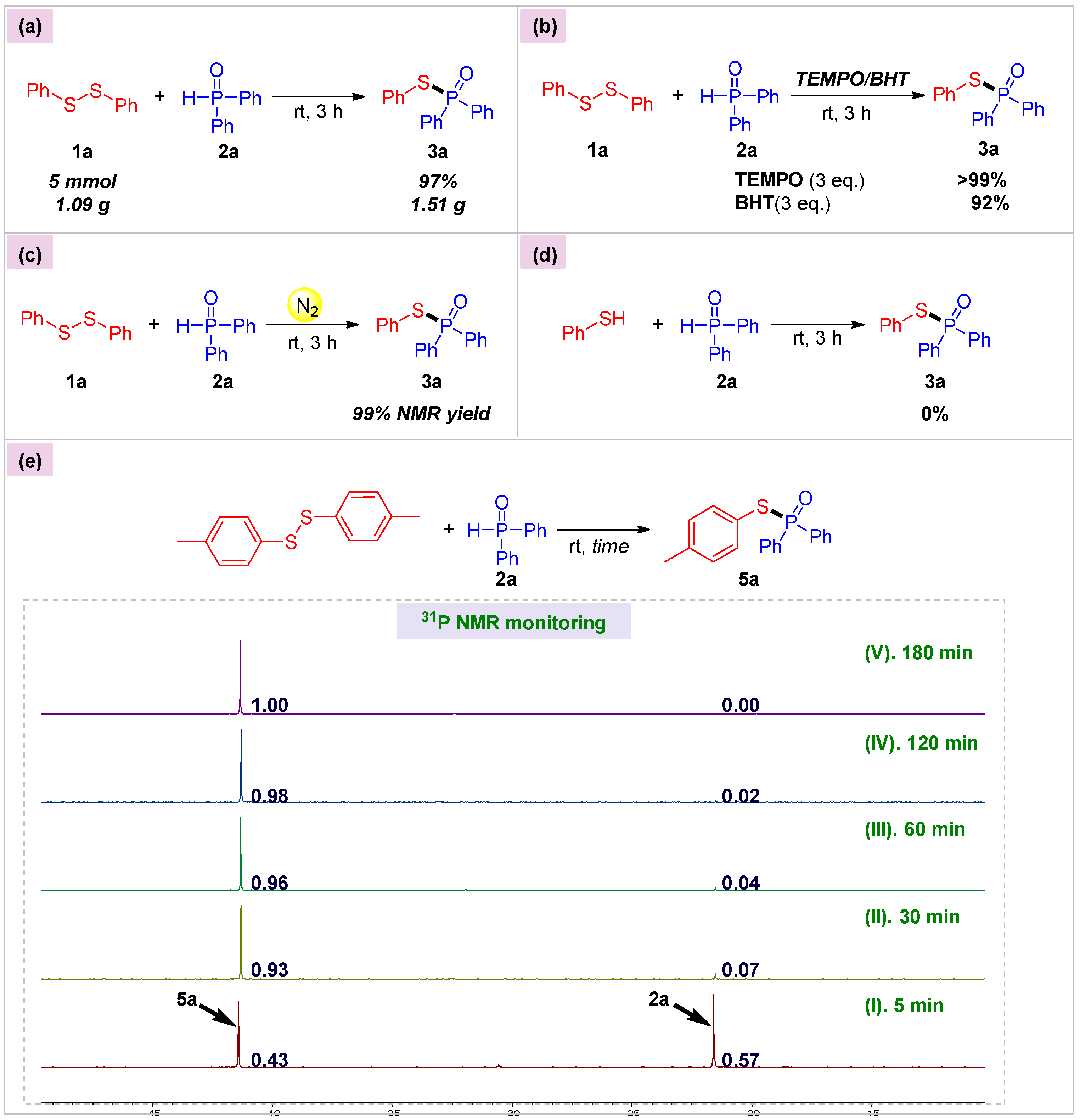

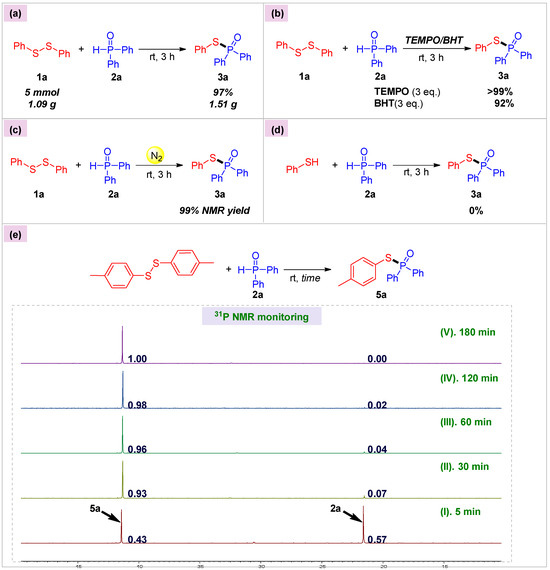

Figure 5. Gram-scale preparation and mechanistic study reactions. (a) Scalability experiment; (b) Radical inhibition experiments; (c) Air-excluding experiment; (d) Intermediate determination; (e) Reaction process monitoring experiments.
Figure 5. Gram-scale preparation and mechanistic study reactions. (a) Scalability experiment; (b) Radical inhibition experiments; (c) Air-excluding experiment; (d) Intermediate determination; (e) Reaction process monitoring experiments.
Molecules 30 02097 g005
Molecules 30 02097 g006

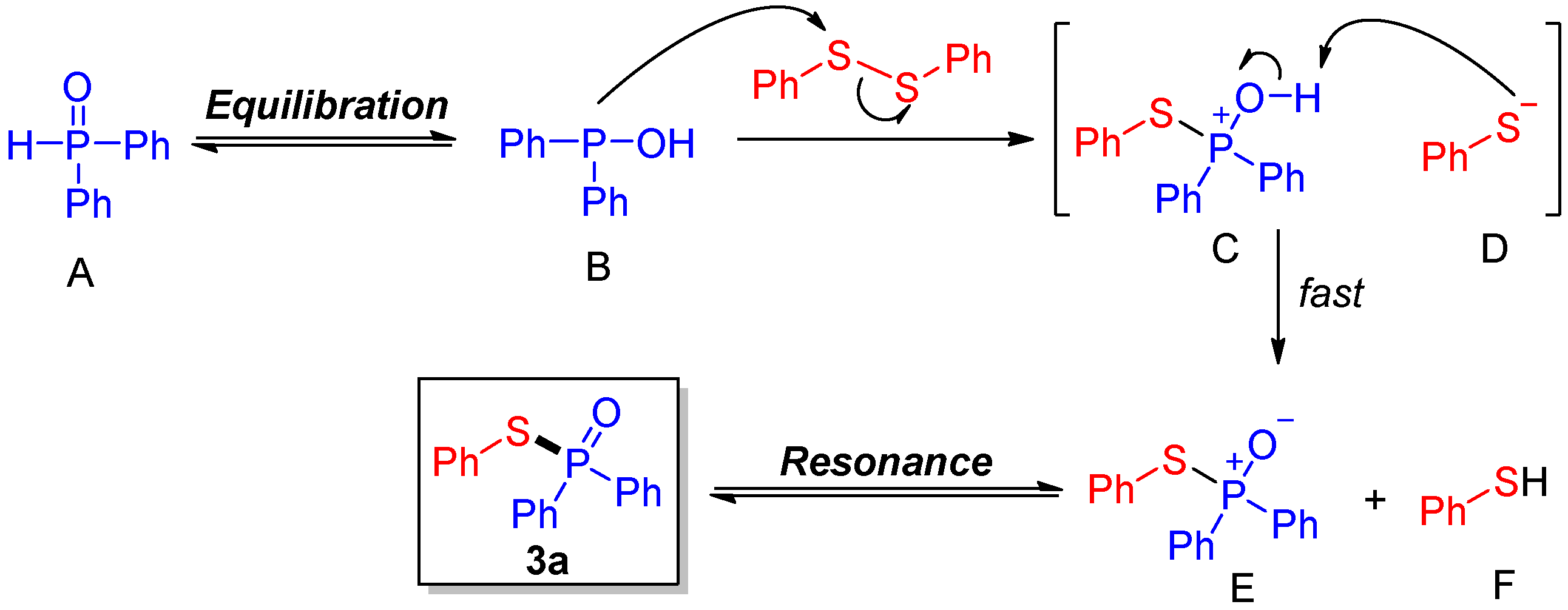

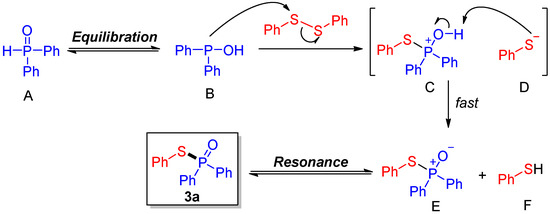

Figure 6. Proposed mechanism.
Figure 6. Proposed mechanism.
Molecules 30 02097 g006
Table 1. Optimization of the reaction conditions a.
Table 1. Optimization of the reaction conditions a.
Molecules 30 02097 i001
Entry1a:2aSolventTimeTemp (°C)Yield b (%)
11:1THF3 hrt75
21:1MeOH3 hrt25
31:1DCM3 hrt22
41:1MeCN3 hrt25
51:1EtOAc3 hrt61
61:11,4-dioxane3 hrt54
71:1H2O3 hrt98
81:1DMF3 hrt97
91:1-3 hrt>99 (90) c
101:1-1 hrt96
111:2-3 hrt42
122:1-3 hrt97
131:1-3 h50>99
141:1-5 min5096
151:1-10 min50>99
161:1-10 min4097
a Reaction conditions: 1a (0.3 mmol), 2a (0.3 mmol), in the air. b NMR yield. c Isolated yield.
Disclaimer/Publisher’s Note: The statements, opinions and data contained in all publications are solely those of the individual author(s) and contributor(s) and not of MDPI and/or the editor(s). MDPI and/or the editor(s) disclaim responsibility for any injury to people or property resulting from any ideas, methods, instructions or products referred to in the content.

Share and Cite

MDPI and ACS Style

Fu, Y.; Ye, H.; Zhao, X.; Liu, Y.; Li, J.; Bi, X. Metal- and Solvent-Free Synthesis of Phosphinothioates, Phosphonothioates, Phosphorothioates, and Related Selenium Derivatives: An Efficient Green Protocol. Molecules 2025, 30, 2097. https://doi.org/10.3390/molecules30102097

AMA Style

Fu Y, Ye H, Zhao X, Liu Y, Li J, Bi X. Metal- and Solvent-Free Synthesis of Phosphinothioates, Phosphonothioates, Phosphorothioates, and Related Selenium Derivatives: An Efficient Green Protocol. Molecules. 2025; 30(10):2097. https://doi.org/10.3390/molecules30102097

Chicago/Turabian Style

Fu, Yajie, Hexia Ye, Xinyao Zhao, Yingle Liu, Junchen Li, and Xiaojing Bi. 2025. "Metal- and Solvent-Free Synthesis of Phosphinothioates, Phosphonothioates, Phosphorothioates, and Related Selenium Derivatives: An Efficient Green Protocol" Molecules 30, no. 10: 2097. https://doi.org/10.3390/molecules30102097

APA Style

Fu, Y., Ye, H., Zhao, X., Liu, Y., Li, J., & Bi, X. (2025). Metal- and Solvent-Free Synthesis of Phosphinothioates, Phosphonothioates, Phosphorothioates, and Related Selenium Derivatives: An Efficient Green Protocol. Molecules, 30(10), 2097. https://doi.org/10.3390/molecules30102097

Article Metrics

Back to TopTop
