Review

Enhancing the Efficacy of Chiral Ligands and Catalysts: Siloxane-Substituted Oxazoline Ferrocenes as Next-Generation Candidates

by
Li Dai
1,2,
Li Zhao
1,
Di Xu
1,*,
Chen Yang
2 and
Xin-Kuan Zhang
1
1
School of Environmental and Municipal Engineering, North China University of Water Resources and Electric Power, Zhengzhou 450046, China
2
Collaborative Innovation Center for Efficient Utilization of Water Resources, North China University of Water Resources and Electric Power, Zhengzhou 450046, China
*
Author to whom correspondence should be addressed.
Molecules 2024, 29(5), 968; https://doi.org/10.3390/molecules29050968
Submission received: 7 January 2024 / Revised: 31 January 2024 / Accepted: 20 February 2024 / Published: 22 February 2024
(This article belongs to the Special Issue Emerging Catalytic, Energetic, and Inorganic Nonmetallic Materials—2nd Edition)
Browse Figures
Versions Notes

Abstract

:
Since the discovery of classical chiral oxazoline ferrocene ligands in 1995, they have become pivotal in transition metal-catalyzed asymmetric transformations. Over the past decade, a notable evolution has been observed with the emergence of siloxane-substituted oxazoline ferrocenes, demonstrating significant potential as chiral ligands and catalysts. These compounds have consistently delivered exceptional results in diverse and mechanistically distinct transformations, surpassing the capabilities of classical oxazoline ferrocene ligands. This review meticulously delineates the research progress on siloxane-substituted oxazoline ferrocene compounds. It encompasses the synthesis of crucial precursors and desired products, highlights their achievements in asymmetric catalysis reactions, and delves into the exploration of the derivatization of these compounds, emphasizing the introduction of ionophilic groups and their impact on the recovery of transition metal catalysts. In addition to presenting the current state of knowledge, this review propels future research directions by identifying potential topics for further investigation concerning the siloxane-tagged derivatives. These derivatives are poised to be promising candidates for the next generation of highly efficient ligands and catalysts.

1. Introduction

Ferrocene-type compounds have captivated the attention of organic chemists as versatile chiral ligands and catalysts. The appeal lies not only in the ease of preparing poly-substituted ferrocene compounds through electrophilic substitutions, leveraging the higher electron density in the cyclopentadienyl (Cp) ring compared to benzene, but also in the creation of “planar chirality” by introducing multiple substituents, breaking the symmetry plane of ferrocene. This distinctive feature enhances the efficacy of ferrocene-based ligands and catalysts in asymmetric catalysis transformations. Originating from independent research in 1995 by Richards [1], Sammakia [2], and Uemura’s [3] groups, chiral ligands based on the oxazoline ferrocene backbone have played a pivotal role in diverse transition metal-catalyzed asymmetric reactions over the past three decades, ranging from academic laboratory researches to industrial productions [4,5,6], with more than 600 publications and patents attesting to their significance. Even today, chiral oxazoline phosphine ferrocene ligands (FOXAPs) remain the preferred choice for many emerging reactions aimed at achieving highly stereoselective products [7,8,9,10,11,12,13,14,15,16,17,18,19,20,21,22].
With the continued research of oxazoline ferrocene ligands, research on their structural modification has also been ongoing (Figure 1). The first strategy is the exploration of substituent patterns. For instance, Hou developed a class of 1,1′-N,P bidentate ligands 1 from 2001 [23]. The applications of these ligands have demonstrated that the established ligands provide powerful stereo control on the corresponding chiral products in the aggregation of Pd-catalyzed asymmetric reactions [24,25,26]. Alternatively, in 2002, based on the seminal work from Patti’s group [27], Moyano and co-workers delivered the absolute configuration of chiral 4-oxazoline ferrocene 2, and then examined the applicability in asymmetric allylic alkylation of rac-(E)-1,3-diphenyl-2-propenyl acetate, which provided the target alkylated product with 97:3 e.r. [28]. The second strategy is the exploration of donor groups. Several donor groups have been introduced into the oxazoline ferrocene backbone to establish their corresponding chiral ligands, which are utilized in various asymmetric mechanistically different transformations. Notably, Richards recently proposed a novel synthetic scheme for FOXAP ligands 3, which incorporates three chiral elements [29]. The strategy involves the use of a “deuterium blocking group” to control the absolute configuration of planar chirality [30] and a stepwise stereoselective synthesis of P-stereogenic diastereoisomers. The catalytic results revealed that the phosphorus-based stereogenic center had a positive influence on the enantioselectivity of the alkylated products in the presence of matched elements of chirality. The third strategy is the exploration of oxazoline ferrocene backbone modification. An example of structural modification was presented by Guiry, who reported the synthesis of a series of novel chiral 5,5-gem-disubstituted oxazoline ferrocene ligands 4 [31,32]. The Zn-mediated enantioselective nucleophilic additions to aldehydes with the generated ligands provided a wide range of secondary alcohols with yields up to 93% and up to over 99% ee.
In comparison, there are limited studies on the modification of chiral substituents in oxazoline moieties. The chiral side chains in oxazoline are derived from simple chiral amino alcohols. As a result, traditional chiral substituents in oxazoline ferrocene ligands are alkyl groups (such as iso-propyl, tert-butyl, etc.) and aryl groups (such as phenyl and benzyl). Functionalized substituents usually imply relatively complicated synthesis processes and specialized starting materials. Richards’ group, who devoted their efforts on the research on mono-substituted oxazoline metallocene ligands 5, established a straightforward five steps for chiral N,P-ligand from (S)-Serine methyl ester [33,34]. In 2016, Liu reported the preparation scheme of desired uncommon chiral amino alcohol from commercial available L-tyrosine in five continuous reactions, which was designed as a crucial substrate for MeO-PEG-supported chiral oxazoline carbinol ferrocene ligand 6 [35].
In particular, the design of the side chain of the oxazoline ring has been identified as a crucial aspect in achieving highly efficient catalysts. The steric bulkiness generated by chiral oxazoline side chains imparts planar chiral ferrocene derivatives with high diastereoselectivity and rigid hindrance for prochiral substrates. This property has proven instrumental in directed ortho-metallation processes and transition metal-catalyzed asymmetric reactions, resulting in satisfactory stereoselective outcomes. Amidst this context, tunable siloxane-substituted oxazoline ferrocenes 7 have emerged as promising candidates for the next generation of highly efficient ligands and catalysts. Their tunability and potential for further derivatization offer exciting possibilities for applications in emerging reactions requiring precise steric resistance. In the last decade, tunable siloxane-substituted oxazoline ferrocenes have demonstrated impressive results in various transition metal-catalyzed asymmetric transformations, solidifying their potential in advancing catalytic methodologies.
While critical reviews on chiral oxazoline ferrocene ligands exist, most focus on classical ligands with traditional chiral substituents [36,37,38,39,40]. This brief review seeks to consolidate the knowledge on chiral siloxane-substituted oxazoline ferrocenes, shedding light on their achievements in asymmetric reactions and paving the way for potential developments in this specialized class of compounds.

2. Synthetic Strategies of Siloxane-Substituted Oxazoline Ferrocene Ligands

2.1. Enantiopure Siloxane-Substituted Oxazoline Ferrocenes

The development of efficient methods to obtain optically pure oxazoline ferrocene compounds is crucial for achieving highly diastereoselective planar chiral ligands through direct ortho-metallation of ferrocene. In our recent review, we comprehensively summarized the synthesis methods for 2-oxazoline ferrocene derivatives [40]. Currently, three independent strategies for synthesizing siloxane-substituted oxazoline ferrocenes are discussed in this article, illustrated in the following reaction schemes.
In 2000, Aït-Haddou and Balavoine’s group reported a facile cyclization method for oxazoline ferrocene on a large scale (Scheme 1) [41]. The starting material, chiral β-hydroxyl ferrocene amide 8, is prepared by the condensation of ferrocenyl carbonyl chloride with a slight excess of (1S,2S)-2-amino-3-phenyl-1,3-dipropanediol. It is then treated with TsCl and a catalytic amount of DMAP to yield the oxazoline ferrocene analogue 9 in an excellent yield of 95%. Before investigating the effectiveness of the oxazoline fragment in diastereoselective ortho-lithiation, the free hydroxyl group on the side chain of the oxazoline unit is protected by TBSCl in DMF, resulting in the desired siloxane-substituted oxazoline ferrocene 10 with a yield of 95%.
Sammakia, recognized as one of the pioneers in the application of chiral oxazoline-substituted ferrocene-type ligands, proposed an alternative route for silyl-protected oxazoline ferrocene (Scheme 2) [2]. Chiral β-hydroxyl ferrocene amides 11 are prepared through the condensation of ferrocenyl carbonyl chloride and (S)-serine methyl ester hydrochloride. Subsequent silylation of the hydroxyl group of 12 by TBSCl precedes the reduction procedure of the ester group to avoid the formation of an achiral cyclization product. The desired silyl-protected oxazoline ferrocene 13 is then prepared from 12 in a ring-closure process by the treatment of TsCl and trimethylamine, yielding 64% after flash chromatography purification.
Richards and co-workers presented a direct process for chiral oxazoline ring formation (Scheme 3) [33,34]. The establishment of oxazoline metallocenes 14 is performed from the serine-derived β-hydroxy amides 11 using 1.1 equivalents of DAST at −78 °C for 1 h, followed by the addition of anhydrous K2CO3, resulting in the corresponding products in almost quantitative yield. Subsequently, Zhou reported a synthetic route extension of 14 with a reduction of the carboxylic ester group by LiAlH4 in ether and a subsequent silylation of the produced hydroxyl group with TBSCl in anhydrous THF. The target siloxane-substituted oxazoline ferrocene (S)-13, outlined as an enantiomeric isomer in Sammakia’s work, is finally achieved as a red viscous liquid in 90% yield in two steps (Scheme 3, Path A) [42]. Moreover, the chiral side chain of the oxazoline fragment was then extended by Zhou’s subsequent work as 13b and 13c with good conversion (Scheme 3, Path B).

2.2. Synthesis of Planar Chiral Oxazoline Ferrocene Derivatives

Planar chiral 1,2-disubstituted ferrocene-type compounds stand out as the most preferred ligands in research focused on their applications in asymmetric transformations. Consequently, the preparation schemes of these planar chiral ferrocenes, which yield highly stereochemical outcomes, have garnered attention from various organic chemistry research groups. Chiral oxazoline groups have proven to be accessible directing groups for establishing 1,2-disubstituted ferrocenes through a diastereoselective direct ortho-metallation (DoM) procedure. Sammakia reported a dramatic diastereoselectivity of planar chiral products, achieving an over 500:1 diastereoisomer ratio upon the addition of N,N,N′,N′-tetramethylethylenediamine (TMEDA) [43]. The DoM procedure with chiral oxazoline moieties has been theoretically supported by several experimental and computational results [44,45,46]. However, in comparison to conventional chiral oxazoline ferrocenes, the DoM procedures with enantiopure siloxane-substituted oxazoline ferrocenes as starting materials remain challenging but intriguing topics in current research.

2.2.1. Sulfur and Phosphine Ligands

Aït-Haddou and colleagues investigated the possibility of diastereoselective ortho-functionalization using oxazoline ferrocenes as substrates, bearing two stereogenic centers [41]. The deprotonation reaction was conducted with 1.3 equivalents of RLi at −78 °C in THF for 2 h, followed by the addition of selected electrophiles (Scheme 4). Results demonstrated high diastereoselectivities exceeding 95:5 d.r. of 15a in the absence of additional additives, while OMe group was attached to the side chain of oxazoline. Notably, when utilizing siloxane-substituted oxazoline ferrocene derivatives, the diastereoselectivity of 15b increased to 99:1 due to enhanced steric hindrance established by the siloxane moiety. The researchers concluded that N,S- and N,P-ligands could be generated using the same procedure by varying the electrophilic reagents, offering versatility in subsequent asymmetric reactions.
Zhou explored the facile preparation of planar chiral siloxane-substituted oxazoline phosphine ferrocene ligand from the readily generated ferrocene compounds through a standard diastereoselective direct ortho-metallation (DoM) procedure [42]. Enantiopure (S)-13 was treated with a slight excess of n-BuLi under −78 °C with the addition of TMEDA in ether for 2 h. The preferred electrophile PPh2Cl was then added, and the mixture was allowed to stir overnight. The designed ligand (S,Rp)-16a was obtained in 89% yield after purification through column chromatography. In their subsequent work, the identical method was employed to synthesize ligand (S,Rp)-16b, introducing a larger steric hindrance on the chiral side chain of the oxazoline fragment (Scheme 5) [47].
However, recent research has unveiled a decrease in diastereoselectivity during the DoM process when a bulky substituent is present on the oxazoline chiral side chain. In the treatment of siloxane-substituted oxazoline ferrocene (S)-13c, the conversion of (S,Rp)-16c was regarded as only 75%, and a significant reduction in diastereoselectivity was observed (d.r. = 4.5:1, Scheme 6). The hypothesis put forward suggests that the excessively bulky substituent may decelerate the lithiation reaction rate and diminish regioselectivity during the lithiation process.

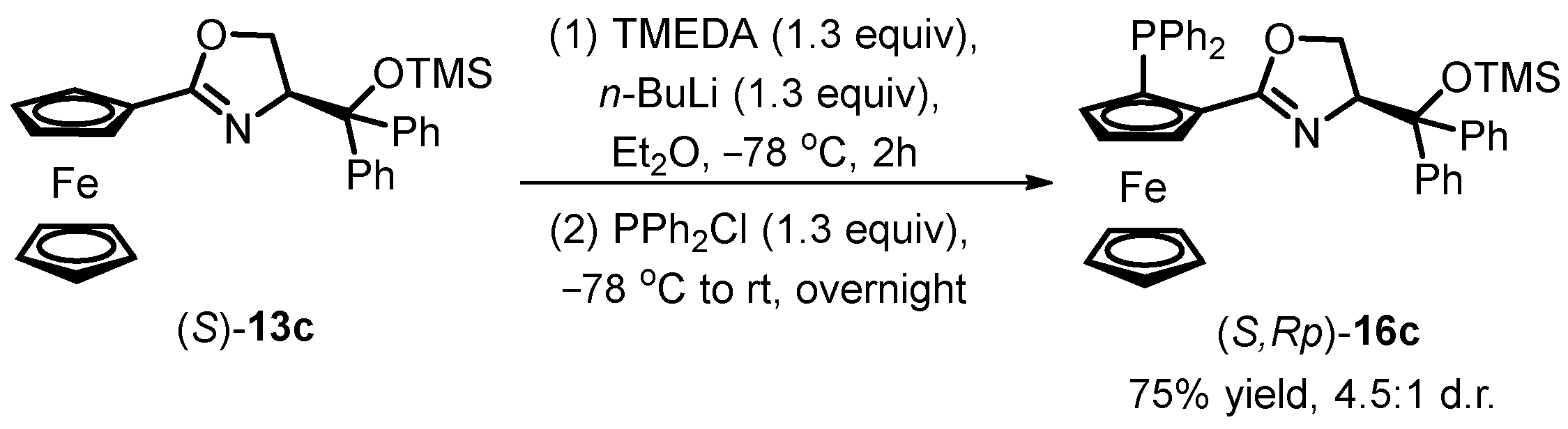

2.2.2. Bisphosphine Ligands

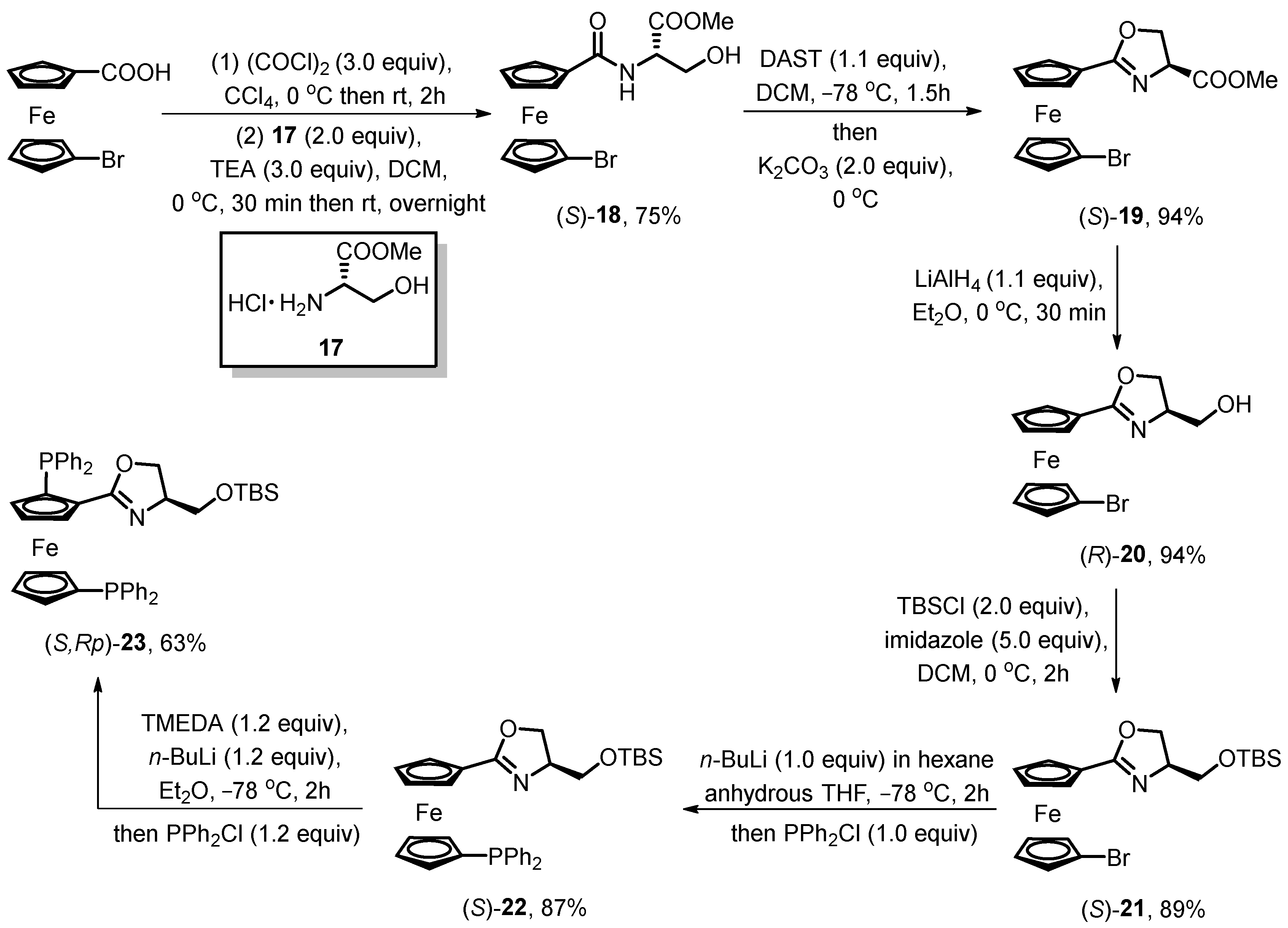

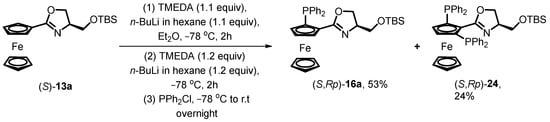

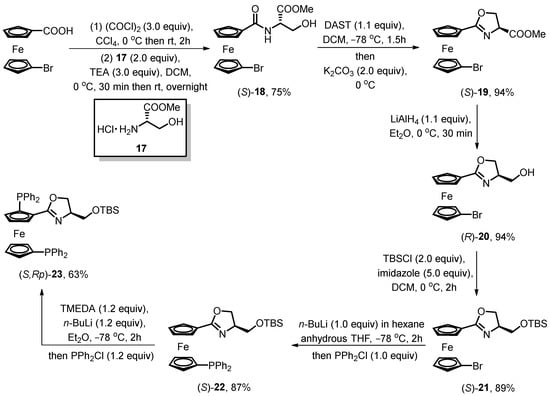

In 2019, Dai reported groundbreaking work on the chiral bisphosphine oxazoline ferrocene derivative with a siloxane substituent group [48]. In contrast to the synthesis method of mono-phosphine ligands 16, this study successfully synthesized the 1,2′-bisphosphine ferrocene compound using 1-bromo-1′-carboxyferrocene as the starting material (Scheme 7). The oxazoline ring formation followed Richards’ synthesis process, with the hydroxyl ferrocene amide (S)-18 participating in the cyclization reaction under the treatment of DAST. The side-chain modification of the oxazoline moiety adopted Zhou’s scheme, leading to the successful synthesis of siloxane-substituted oxazoline ferrocene (S)-19. Prior to the directed ortho-lithiation process, a phosphonation reaction was carried out on the lower Cp ring at the preset bromine atom, resulting in the formation of 1,1′-N,P-oxazoline ferrocene derivative (S)-22. The analytically pure oxazoline bisphosphine ferrocene (S,Rp)-23 was finally generated in six steps with an overall yield of 32% from the starting material. The presented bisphosphine ferrocene compound is considered a potential ligand for transition metal-catalyzed asymmetric allylic alkylation and Heck reactions.
The authors also explored the possibility of obtaining the desired product from enantiopure oxazoline ferrocene (S)-13a through a stepwise lithiation process reported by Kumada for the establishment of 1,2′-bisphosphine ferrocene ligands BPPFA from Ugi’s amine [49]. However, under the standard stepwise lithiation process conditions, the appearance of the 2,5-bisphosphine product (S,Rp)-24 demonstrated the failure to obtain the desired product due to the possible simultaneous N-directed and O-directed ortho-lithiation induced by oxazoline as a chiral auxiliary (Scheme 8).

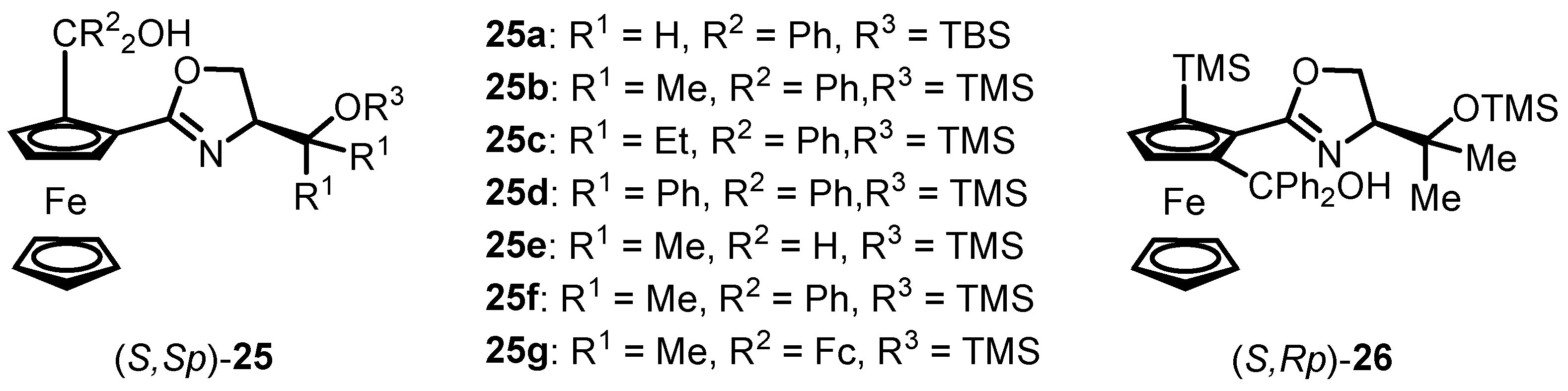

2.2.3. Hydroxyl Ligands (Catalysts)

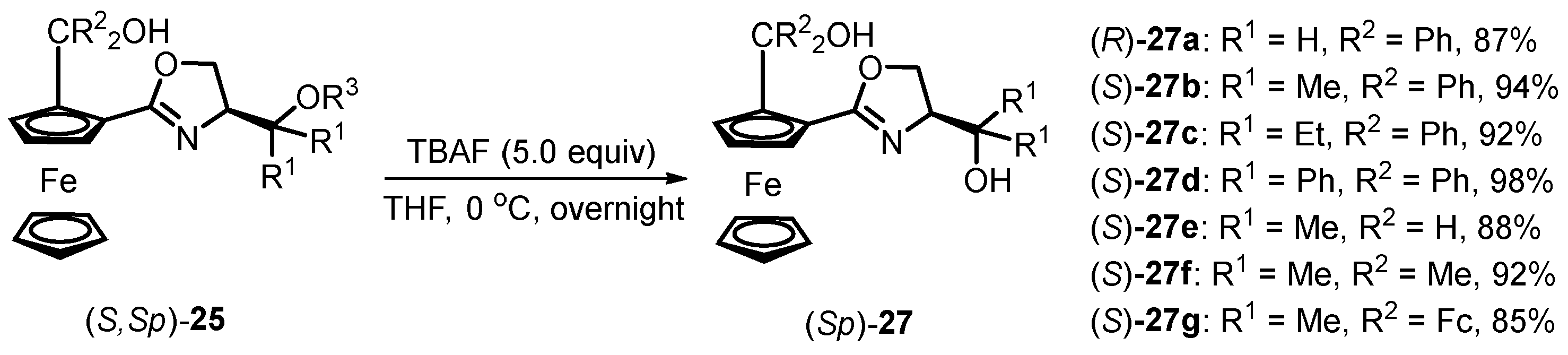

Our research group has recently presented an innovative synthesis scheme for siloxane-substituted hydroxyl oxazoline ferrocene compounds [50]. Classical hydroxyl oxazoline ferrocene compounds are widely employed as chiral ligands, demonstrating excellent results in various Zn-catalyzed enantioselective nucleophilic additions to aldehydes [39]. Catalytic findings have revealed that the chiral side-chain structure of oxazoline ferrocene, the type of coordinative carbinol groups, and the absolute planar chiral configuration of the participating ligands play crucial roles in determining the stereoselectivity of the optically active products. In this research report, the structure of siloxane-substituted ligands has been effectively tailored, leading to the preparation of ligands (S,Sp)-25 and (S,Rp)-26 with distinct chiral side-chain substituents, carbinol groups, and planar chirality, as listed in Figure 2.
Notably, a novel series of N,O,O-tridentate ligands can be easily synthesized from chiral oxazolinyl hydroxyl ferrocene ligands (S,Sp)-25 with siloxane substitution (Scheme 9). The desilylation reaction was executed by reacting the synthesized siloxane-substituted oxazoline ferrocene compounds with 5.0 equivalents of TBAF in THF at 0 °C under an inert atmosphere. The desired desilylated compounds (Sp)-27 were obtained in high yield for most products. Our laboratory is currently exploring the application of siloxane-substituted N,O-ligands 25 and 26 and their corresponding desilylated N,O,O-ligands 27 in enantioselective nucleophilic additions and alkynylation to aldehydes.

3. Applications of Siloxane-Substituted Oxazoline Ferrocene Ligand in Transition Metal-Catalyzed Reactions

3.1. Pd-Catalyzed Asymmetric Allylic Alkylation

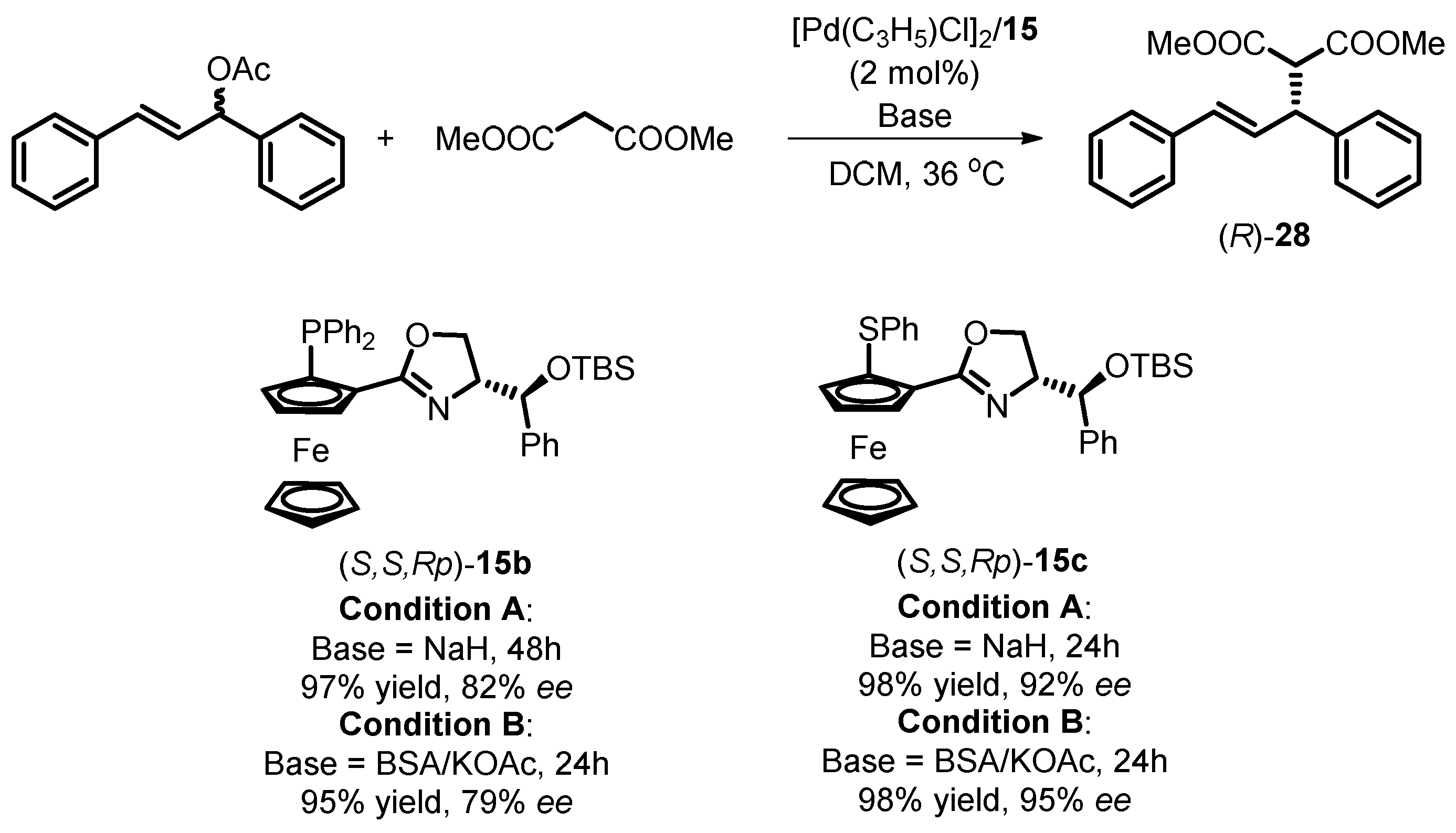

Aït-Haddou and colleagues employed the synthesized bidentate oxazoline ferrocene compounds (S,S,Rp)-15 as chiral ligands in a palladium-catalyzed allylic alkylation reaction [41]. This reaction involved the use of rac-1,3-diphenylprop-2-enyl acetate as the substrate and dimethyl malonate as the nucleophile (Scheme 10). The Pd complex catalysts were generated in situ from the readily prepared ligands and bis[(η-allyl)palladium chloride]. The asymmetric allylic substitution took place smoothly in dichloromethane at 36 °C using this Pd complex catalyst. Notably, when employing S,N-bidentate oxazoline ferrocene ligand (S,S,Rp)-15c, the catalytic reaction yielded alkylation products with high enantioselectivity and almost quantitative yields. This held true regardless of whether NaH or BSA/KOAc was used as an additive to generate the dimethyl malonate anion. The researchers also explored the use of corresponding P,N-type ligand (S,S,Rp)-15b under the same catalytic conditions, which resulted in competitive chemical yields but slightly decreased enantioselectivity in the chiral alkylation products.

3.2. Cu-Catalyzed [3 + 2] 1,3-Dipolar Cycloaddition

The FOXAP compounds have proven to be effective ligands in transition metal-catalyzed [3 + 2] 1,3-dipolar cycloaddition of azomethine ylides, facilitating the synthesis of enantioenriched pyrrolidines with high stereoselectivity [51,52,53,54,55,56,57,58]. Furthermore, recent investigations have explored the potential of siloxane-substituted oxazoline phosphine ferrocenes as alternative ligands in this cycloaddition. In a pioneering study by Zhou’s group in 2015, chiral siloxane-tagged ligands, exemplified by ligand (S,Rp)-16a, were evaluated as a candidate ligand for the Cu(I)-catalyzed cycloaddition of azomethine ylides with nitroalkenes [42]. The resulting cycloadduct exo-29a was obtained in 74% yield with an 89:11 d.r. and nearly 97% enantiomeric excess (Scheme 11).

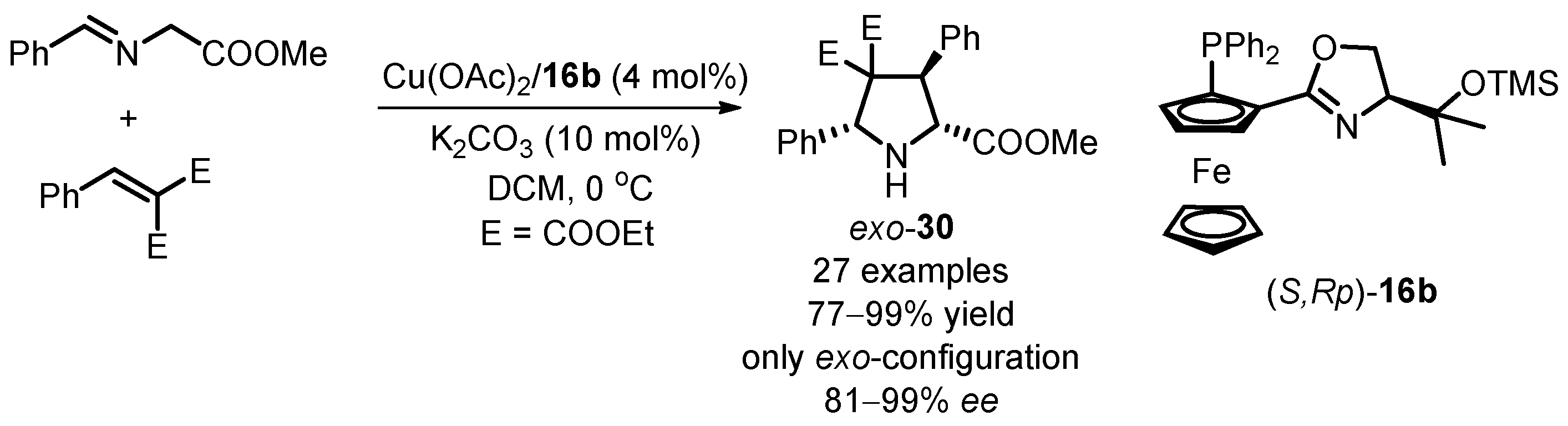

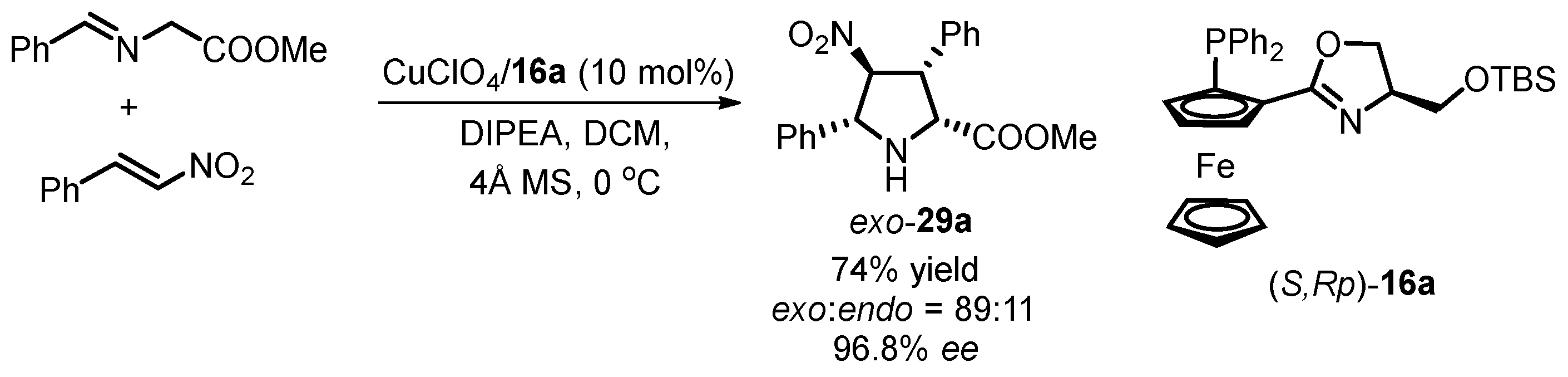

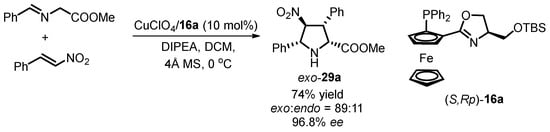

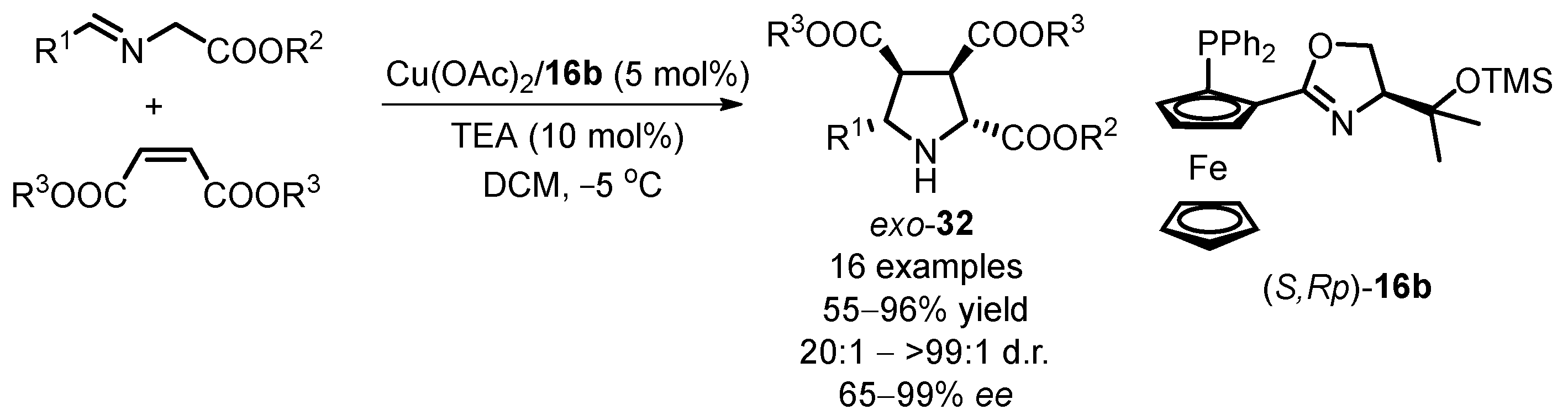

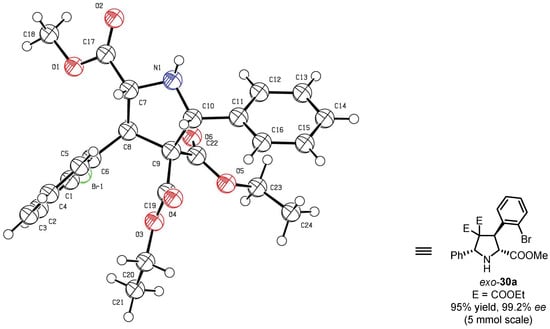

Zhou’s group proposed a practical strategy for synthesizing chiral exo-selective pyrrolidine-2,4,4-tricarboxylate derivatives through Cu(II)-catalyzed [3 + 2] 1,3-dipolar cycloaddition of azomethine ylides with alkylidene malonates in the presence of siloxane-substituted ligands (S,Rp)-16 [47]. Optimizing the reaction conditions led to the model reaction providing the cyclization product with high yield and excellent enantioselectivity (up to 99% ee). The optimized conditions involved 4 mol% catalyst loading, 10 mol% K2CO3 as the additive base, and DCM as the solvent at 0 °C (Scheme 12). The study expanded the scope of reaction substrates, successfully preparing enantioselective pyrrolidines exo-30 with different substituents, exhibiting enantioselectivity ranging from 78 to 99% ee under the optimized conditions. Importantly, the stable results obtained in the gram-scale preparation of exo-30a (Figure 3, 95% yield with 99.2% ee) indicated its potential industrial applicability as a chiral Cu complex system.

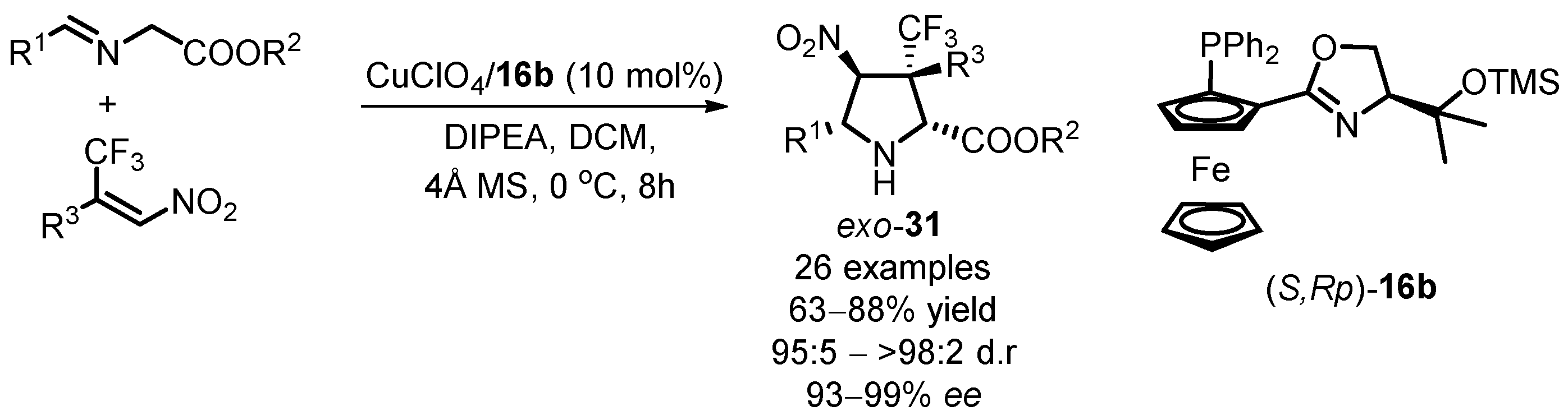

Chiral poly-substituted pyrrolidine derivatives containing a trifluoromethyl unit with a quaternary stereogenic center can be synthesized using similar catalytic systems [59]. The trifluoromethyl group is valuable in medicinal and agrochemistry due to its ability to modify the properties of target molecules. Zhou’s group used glycine imidate and β-trifluoromethyl nitroalkenes as substrates and observed that the target products, 4-nitro-3-(trifluoromethyl)-pyrrolidine-2-carboxylates exo-31, could be obtained by using the catalyst generated in situ from Cu(CH3CN)4ClO4 with the readily presented siloxane-substituted oxazoline phosphine ferrocene (S,Rp)-16b in DCM at 0 °C for 8 h (Scheme 13). The results of extended scope on reaction substrates indicate that chiral pyrrolidine compounds containing quaternary stereogenic centers can be synthesized with excellent stereoselectivity in most cases. The availability of easily accessible substrates and the potential bioactivity of enantioenriched trifluoromethylated pyrrolidine derivatives make this methodology particularly useful in medicinal and organofluorine chemistry.

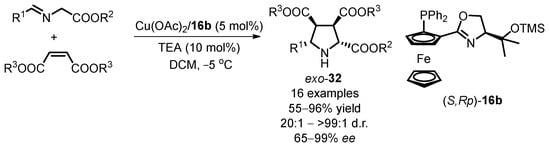

In a recent advancement, Zhou’s group presented an enhanced method for obtaining chiral pyrrolidine-2,3,4-tricarboxylates through enantioselective [3 + 2] 1,3-dipolar cycloaddition of azomethine ylides [60]. Initial screening involving diethyl fumarate as the dipolarophile yielded unsatisfactory results. The stereoselectivity of the target product, chiral pyrrolidine derivatives, was substantially improved by substituting diethyl maleates for diethyl fumarates. The Cu(II) complex, consisting of Cu(OAc)2 and the siloxane-substituted ligand (S,Rp)-16b, facilitated the generation of the desired exo-cycloadduct with excellent outcome (up to 96% yield, 99:1 d.r., and 96% ee). Further exploration of substrate reactions revealed that the position of the substituent on the phenyl group of the azomethine ylide significantly influenced both catalytic activity and stereoselectivity. The pyrrolidine-2,3,4-tricarboxylate compounds exo-32 were obtained with the highest stereoselectivity of 99:1 d.r. and 99% ee, underscoring the success of this improved methodology (Scheme 14). This development not only enhances the efficiency of the enantioselective cycloaddition process but also provides valuable insights into the impact of substrate modifications on the reaction outcomes.

3.3. Cu-Catalyzed Self-Michael Reaction

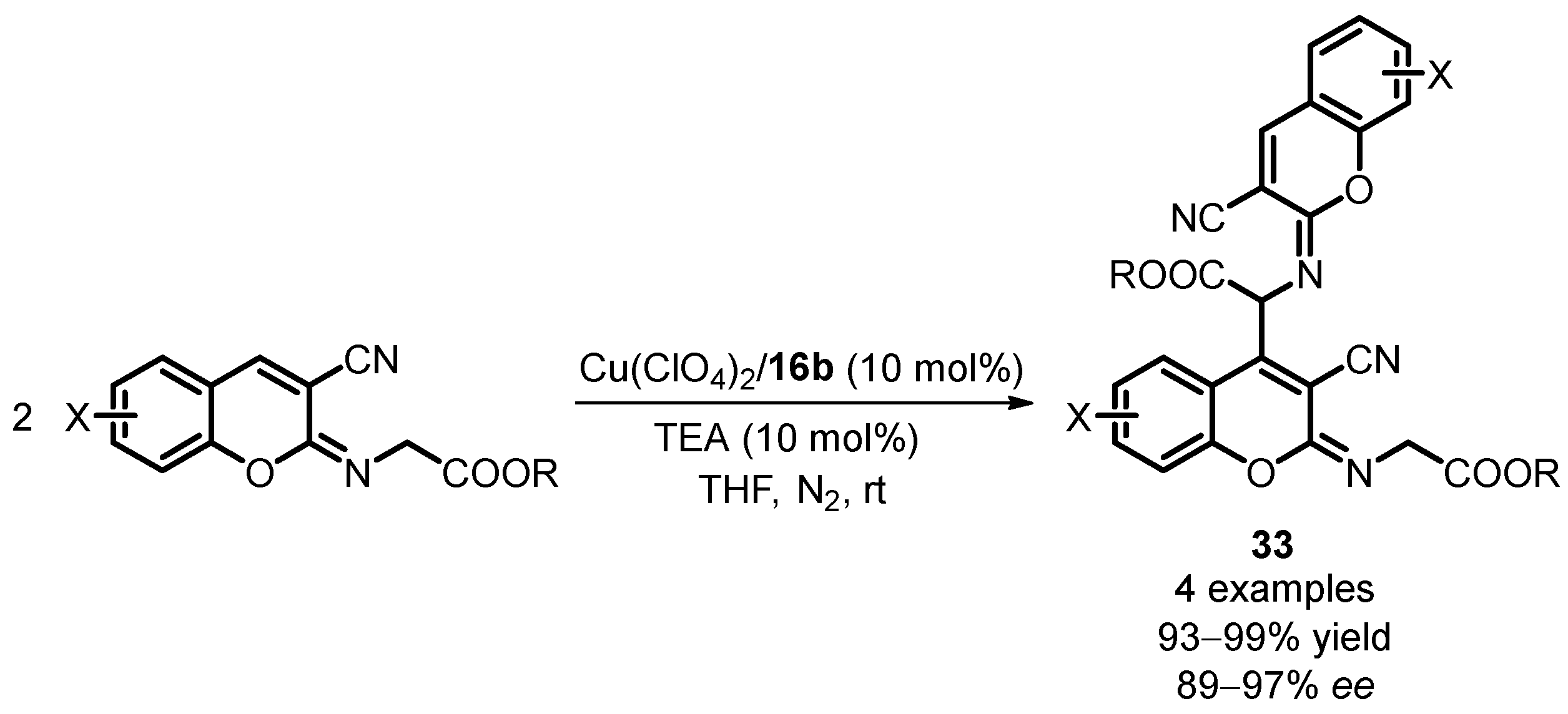

Zhang reported an innovative synthesis of chiral dimeric chromene derivatives catalyzed by Cu(II) salts using the precursor 2-[(3-cyano-2H-chromen-2-ylidene)amino]acetates in a self-Michael addition reaction [61]. This method results in the formation of imino-chromene derivatives 33 with remarkable fluorescence properties, making them highly suitable for applications as optical whitening agents, laser dyes, and fluorescent probes in the medical field. Efforts to achieve enantioselective formation of the Michael addition with the siloxane-tagged FOXAP ligand (S,Rp)-16b led to the synthesis of 2-imino-chromene dimers with enantiomeric excess ranging from 89% to 97% (Scheme 15). This highlights the potential of the siloxane-substituted ligands in enabling the controlled and enantioselective synthesis of chiral chromene derivatives with desirable fluorescence properties.

3.4. Further Derivation of Siloxane-Substituted Oxazoline Ferrocenes

As discussed in Section 2.2.3, siloxane-substituted oxazoline phosphine ferrocene ligands can undergo a subsequent desilylation process (Scheme 16). The resulting hydroxyl group can be further functionalized with ionic groups, enhancing the solubility of chiral ionic-tagged ligands and their corresponding transition metal complexes in polar solvents, particularly ionic liquids. This advancement offers a sustainable approach for the recovery of expensive and environmentally unfriendly transition metal complexes in asymmetric catalytic reactions.
In 2015, Zhang introduced an innovative recyclable ionic-tagged ferrocene-ruthenium catalyst system for the asymmetric hydrogenation of aromatic ketones (Scheme 17) [62]. The study revealed that the newly developed ferrocene-oxazoline phosphine ligand (S,Rp)-35, incorporating a quaternary ammonium ion group, exhibited outstanding catalytic performance in the hydrogenation reaction, yielding high product yields (up to 99%) and enantioselectivity (up to 99.7% ee).
Moreover, the research provided insights into the method for recycling ionic fragment-containing Ru complexes. The chosen ionic liquid, [Bmim]PF6, served as the immobilized phase for the chiral catalyst, facilitating the recovery of ionic-tagged transition metal complexes. Catalytic results demonstrated that the stereoselectivity of the chiral alcoholic product could be enhanced to 99.9% ee with the involvement of the ionic liquid. The asymmetric reduction of the catalyst remained effective for at least six runs with a minimum of 92.2% ee for product 37a (Table 1). Mass spectrometry analysis of the catalyst anion after the sixth run confirmed the stability of the anionic group of chiral ligand. This approach highlights the potential for sustainable and efficient recycling in asymmetric catalytic processes.

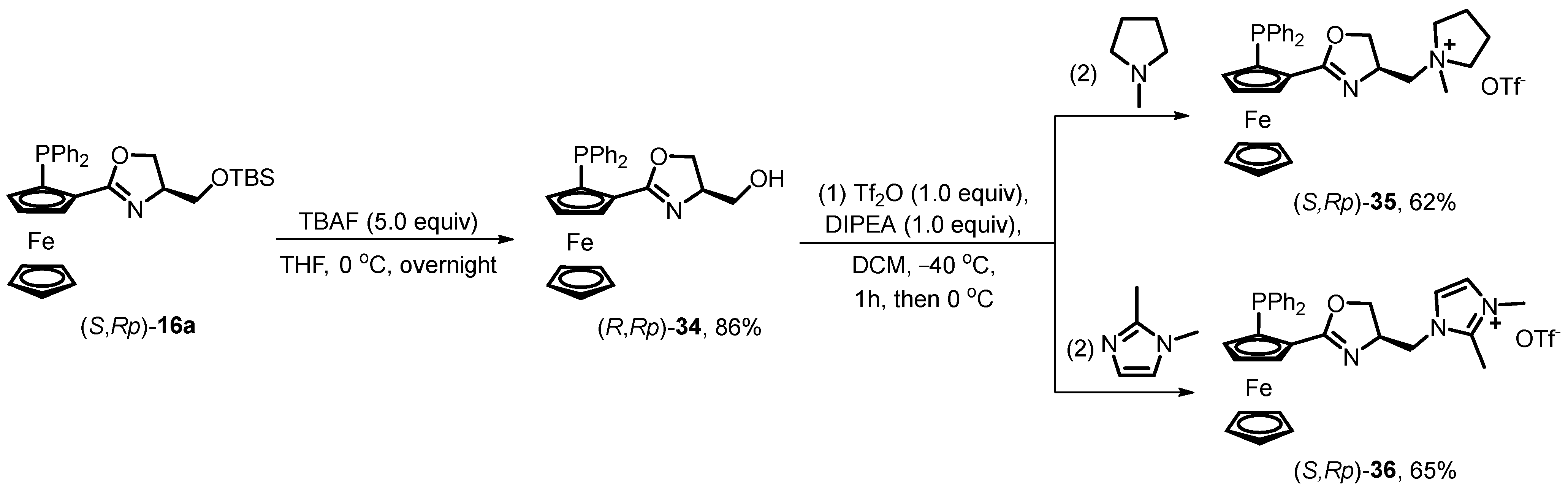

In the same year, Zhou introduced a scheme for synthesizing imidazolium-labelled oxazoline–phosphine–ferrocene ligands (S,Rp)-36 (labeled as FimiOXAP) [42]. Commencing with siloxane-substituted oxazoline ferrocene (S,Rp)-16a, these imidazolium-tagged ligands were successfully obtained through a three-step sequential reaction. Meanwhile, five distinct ligands with varying anions were prepared by anion exchange. Subsequently, this class of chiral ligands found successful application in Cu(I)-catalyzed enantioselective [3 + 2] 1,3-dipolar cycloaddition of azomethine ylides with nitroalkenes (Scheme 18). In-depth studies into the reaction mechanism led to the conclusion that the electrostatic interaction of the charged ionic groups in the side chain of oxazoline can further enhance the stereoselectivity of the resulting optically active cycloadducts exo-29.

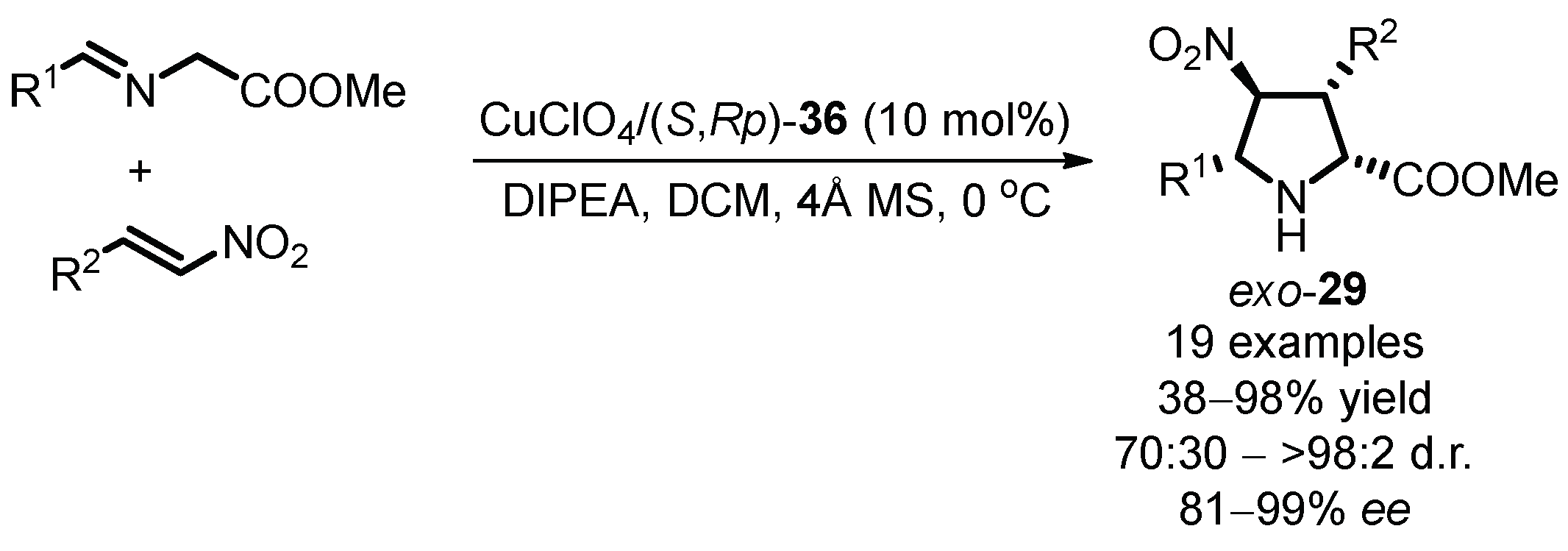

Remarkably, these ligands (S,Rp)-36, along with their corresponding transition metal complexes, exhibited excellent solubility in ionic liquids owing to the incorporation of ionophilic groups in the chiral ligand structure. Leveraging this unique property, the cycloaddition reaction smoothly progressed under the combined system of an ionic liquid and an organic solvent. Notably, the chiral complex catalyst displayed easy recyclability, maintaining robust conversion and enantioselectivity of exo-29b even after four consecutive runs (Table 2). This pioneering approach showcases the potential of ionic tagging for enhancing stereoselectivity and facilitating recyclability in asymmetric catalysis.

4. Summary and Outlook

In this brief review, we present the research achievements related to siloxane-substituted oxazoline ferrocene compounds in the past decade. The discussion on synthetic processes has unveiled several independent methodologies for crafting precursors of these compounds. Unlike conventional oxazoline ferrocene compounds, this section presents extended synthetic routes involving intricate substrates. Fortuitously, the effective synthetic strategies devised by researchers pave the way for their extensive derivatization and large-scale applications. Furthermore, the DoM procedure emerges as an indispensable pathway for obtaining highly stereoselective planar chiral ligands. The chemical inertness and substantial steric hindrance of the siloxane group empower the construction of ortho-functionalized ferrocene products with remarkable diastereoselectivity, even in the absence of additional additives. Siloxane-substituted oxazoline ferrocene ligands have transcended mono-phosphine ligands, venturing into the synthesis of unsymmetrical bisphosphine ligands and planar chiral N,O-catalysts.
On another front, siloxane-substituted oxazoline phosphine ferrocenes have proven to be highly effective ligands across mechanistically diverse transformations, yielding products with impressive stereoselectivity. In the realm of Cu-catalyzed [3 + 2] 1,3-dipolar cycloaddition of azomethine ylides, more than 70 chiral poly-substituted pyrrolidine derivatives have been synthesized with outstanding stereoselectivity. The consistent outcomes on a gram scale underscore the potential industrial applicability of Cu complex catalysts. Positive results in asymmetric allylic alkylation and Michael reactions further underscore the broad and practical applications of siloxane-substituted oxazoline phosphine ferrocenes.
A noteworthy development is the production of a series of ionic-tagged chiral ligands through further functionalization of the oxazoline side chain, implemented in recoverable catalytic systems. In the arena of asymmetric catalysis, these ionic-tagged catalysts exhibit comparable, if not superior, catalytic efficacy compared to traditional FOXAP ligands. The solubility of these ligands in ionic liquids facilitates the recovery of expensive and environmentally unfriendly transition metal complexes, marking a notable advancement in sustainable catalytic processes.
While the recent advancements in siloxane-substituted oxazoline ferrocene ligands have shown promise in transition metal-catalyzed asymmetric reactions, there remains substantial room for improvement and further exploration in this field. Addressing the following aspects could pave the way for enhanced applications and innovative developments:
1. Optimizing Steric Hindrance: Siloxane-substituted oxazoline ferrocene ligands, with their tunable side-chain structure, provide superior steric hindrance compared to conventional oxazoline ferrocene ligands. This characteristic is particularly valuable in the preparation of pharmaceutical fragments or natural products requiring precise steric hindrance. Future research could focus on exploiting this flexibility to achieve optimal stereoselective results in challenging synthesis processes.
2. Functionalization and Solubility Enhancement: The derivatization of chiral siloxane-substituted oxazoline ferrocene compounds opens avenues for further functionalization as chiral ligands and catalysts. Incorporating ionophilic or hydrophilic groups into the chiral side chain can enhance the solubility of these ligands and their corresponding transition metal complexes in ionic liquids or pure water. This advancement could lead to transition metal-catalyzed asymmetric reactions conducted in environmentally friendly solvents, aligning with green chemistry principles.
3. Unique Catalytic Properties: The electron-rich siloxane group’s ability to attract electrophilic reagents and repel nucleophiles presents an intriguing challenge and opportunity. Understanding and harnessing this unique property could offer valuable insights into optimizing reaction conditions and improving stereoselectivity. Further research is essential to unravel the implications of the siloxane-substituted oxazoline ferrocene’s distinctive catalytic behavior.
Our research group is actively exploring these subjects, aiming to contribute to the ongoing progress in the synthesis and application of siloxane-substituted oxazoline ferrocene compounds. As we delve deeper into these investigations, we anticipate uncovering new possibilities and refining existing methodologies for more sustainable and efficient asymmetric catalysis.

Author Contributions

Writing—original draft preparation, L.D., L.Z. and X.-K.Z.; writing—review and editing, D.X. and C.Y. All authors have read and agreed to the published version of the manuscript.

Funding

This research was funded by Key R&D and Promotion Projects (Scientific and Technological Research) of Henan Province (No. 232102310367), Key Scientific Research Projects of Colleges and Universities in Henan Province (No. 24A430024), English Teaching Demonstration Course for International Students of North China University of Water Resources and Electric Power (2023YS08), Projects for Research and Reform of Education and Teaching in School of Environment and Municipal Engineering, North China University of Water Resources and Electric Power (HGJGXM202304), and the Program for Science & Technology Innovation Talents in Universities of Henan Province (21HASTIT010). The APC was funded by Key Scientific Research Projects of Colleges and Universities in Henan Province (No. 24A430024) and the Program for Science & Technology Innovation Talents in Universities of Henan Province (21HASTIT010).

Conflicts of Interest

The authors declare that they have no known competing financial interests or personal relationships that could appear to have influenced the work reported in this paper.

List of Abbreviations

BSAN,O-bis(trimethlysilyl)acetamide
d.r.diastereoselectivity ratio
DASTdiethylaminosulphur trifluoride
DCMdichloromethane
DIPEAN,N-diisopropylethylamine
DMAP4-(dimethylamino)pyridine
DMFN,N-dimethylformamide
eeenantiomeric excess
FOXAPoxazoline phosphine ferrocene (ligands)
ILionic liquids
o-Tol2-methylphenyl
PEGpolyethylene glycol
rtroom temperature
TBAFtetrabutylammonium fluoride
TBStert-butyldimethylsilyl
TEAtriethylamine
THFtetrahydrofuran
TMEDAN,N,N′,N′-tetramethylethylenediamine
TMStrimethylsilyl
TsCltosyl chloride

References

  1. Richards, C.J.; Damalidis, T.; Hibbs, D.E.; Hursthouse, M.B. Synthesis of 2-[2-(Diphenylphosphino)ferrocenyl]oxazoline Ligands. Synlett 1995, 1, 74–76. [Google Scholar] [CrossRef]
  2. Sammakia, T.; Latham, H.A.; Schaad, D.R. Highly Diastereoselective Ortho Lithiations of Chiral Oxazoline-Substituted Ferrocenes. J. Org. Chem. 1995, 60, 10–11. [Google Scholar] [CrossRef]
  3. Nishibayashi, Y.; Uemura, S. Asymmetric Synthesis and Highly Diastereoselective Ortho-Lithiation of Oxazolinylferrocenes. Synlett 1995, 1, 79–81. [Google Scholar] [CrossRef]
  4. Hartung, J.; Greszler, S.N.; Klix, R.C.; Kallemeyn, J.M. Development of an Enantioselective [3 + 2] Cycloaddition to Synthesize the Pyrrolidine Core of ABBV-3221 on Multikilogram Scale. Org. Process Res. Dev. 2019, 23, 2532–2537. [Google Scholar] [CrossRef]
  5. Greszler, S.N.; Zhao, G.; Buchman, M.; Searle, X.B.; Liu, B.; Voight, E.A. General Asymmetric Synthesis of Densely Functionalized Pyrrolidines via endo-Selective [3 + 2] Cycloaddition of β-Quaternary-Substituted Nitroalkenes and Azomethine Ylides. J. Org. Chem. 2020, 85, 7620–7632. [Google Scholar] [CrossRef]
  6. Zou, X.; Yang, W.; Zhu, J.; Deng, W. Catalytic Enantioselective Formal Synthesis of MDM2 Antagonist RG7388 and Its Analogues. Chin. J. Chem. 2020, 38, 435–438. [Google Scholar] [CrossRef]
  7. Wang, H.; Li, J.; Peng, L.; Song, J.; Guo, C. Cu-Catalyzed Switchable Asymmetric Defluoroalkylation and [3 + 2] Cycloaddition of Trifluoropropene. Org. Lett. 2022, 24, 7828–7833. [Google Scholar] [CrossRef]
  8. Wang, K.; Chen, J.; Liu, W.; Kong, W. Nickel-Catalyzed Defluorinative Asymmetric Cyclization of Fluoroalkyl-Substituted 1,6-Enynes for the Synthesis of Seletracetam. Angew. Chem. Int. Ed. 2022, 61, e202212664. [Google Scholar] [CrossRef]
  9. Xiao, L.; Chang, X.; Xu, H.; Xiong, Q.; Dang, Y.; Wang, C.-J. Cooperative Catalyst-Enabled Regio- and Stereodivergent Synthesis of α-Quaternary α-Amino Acids via Asymmetric Allylic Alkylation of Aldimine Esters with Racemic Allylic Alcohols. Angew. Chem. Int. Ed. 2022, 61, e202212948. [Google Scholar] [CrossRef]
  10. Zhang, Q.-X.; Gu, Q.; You, S.-L. Palladium(0)-Catalyzed Intermolecular Asymmetric Allylic Dearomatization of Substituted β-Naphthols with Morita-Baylis-Hillman (MBH) Adducts. Org. Lett. 2022, 24, 8031–8035. [Google Scholar] [CrossRef]
  11. Yu, H.; Zhang, Q.; Zi, W. Synergistic Pd/Cu-Catalyzed Enantioselective Csp2-F Bond Alkylation of Fluoro-1,3-Dienes with Aldimine Esters. Nat. Commun. 2022, 13, 2470. [Google Scholar] [CrossRef]
  12. Zhao, L.; Luo, Y.; Xiao, J.; Huo, X.; Ma, S.; Zhang, W. Stereodivergent Synthesis of Allenes with α,β-Adjacent Central Chiralities Empowered by Synergistic Pd/Cu Catalysis. Angew. Chem. Int. Ed. 2023, 62, e202218146. [Google Scholar] [CrossRef]
  13. Wang, C.; Hu, X.; Xu, C.; Ge, Q.; Yang, Q.; Xiong, J.; Duan, W.-L. Synthesis of P-Stereogenic Phosphine Oxides via Nickel-Catalyzed Asymmetric Cross-Coupling of Secondary Phosphine Oxides with Alkenyl and Aryl Bromides. Angew. Chem. Int. Ed. 2023, 62, e202300011. [Google Scholar] [CrossRef]
  14. Chen, Z.; Huang, X.; Liao, J.; Wang, M. Copper-Catalyzed Enantioselective Fluoroalkenylation of Cyclic Imino Esters. Org. Chem. Front. 2023, 10, 163–168. [Google Scholar] [CrossRef]
  15. Liang, R.-X.; Tang, H.-W.; Liu, J.-L.; Xu, J.-F.; Chen, L.-J.; Jia, Y.-X. Cobalt-Catalyzed Enantioselective Desymmetrizing Reductive Cyclization of Alkynyl Cyclodiketones. Chem. Sci. 2023, 14, 6393–6398. [Google Scholar] [CrossRef] [PubMed]
  16. Furuya, S.; Muroi, K.; Kanemoto, K.; Fukuzawa, S.-i. Dipolarophile-Steered Formal Stereodivergent Synthesis of 2,5-Cis/Trans-Pyrrolidines Based on Asymmetric 1,3-Dipolar Cycloaddition of Imino Lactones. Chem. A Eur. J. 2023, 29, e202302609. [Google Scholar] [CrossRef] [PubMed]
  17. Chang, X.; Liu, X.-T.; Li, F.; Yang, Y.; Chung, L.W.; Wang, C.-J. Electron-Rich Benzofulvenes as Effective Dipolarophiles in Copper(I)-Catalyzed Asymmetric 1,3-Dipolar Cycloaddition of Azomeyhine Ylides. Chem. Sci. 2023, 14, 5460–5469. [Google Scholar] [CrossRef]
  18. Zhu, B.-K.; Xu, H.; Xiao, L.; Chang, X.; Wei, L.; Teng, H.; Dang, Y.; Dong, X.-Q.; Wang, C.-J. Enantio- and Diastereodivergent Synthesis of Fused Indolizines Enabled by Synergistic Cu/Ir Catalysis. Chem. Sci. 2023, 14, 4134–4142. [Google Scholar] [CrossRef] [PubMed]
  19. Zhang, Q.; Cui, R.-R.; Zhang, Q.-W. Nickel-Catalyzed Asymmetric Arylation of H-Phosphinates. Synlett 2023, 34, 1819–1823. [Google Scholar] [CrossRef]
  20. Bera, M.; Tambe, S.D.; Hwang, H.S.; Kim, S.; Cho, E.J. Base-Free NiH-Catalyzed Regio- and Stereo-Selective Hydroacylation of Allenes: A New Route to Synthesis of tetra-Substituted Olefins. Chem Catal. 2023, 3, 100606. [Google Scholar] [CrossRef]
  21. Yan, X.; Li, Z.; Fan, L.; Li, J.; Liu, G. Highly Regio- and Enantioselective Cu/Pd Co-catalyzed Allylic Alkylation of A-pyridyl-α-fluoroesters: Construction of Quaternary C-F Stereocenters. Chem.—Asian J. 2023, 18, e202300160. [Google Scholar] [CrossRef]
  22. Liu, Z.-C.; Wang, Z.-Q.; Zhang, X.; Yin, L. Copper(I)-Catalyzed Asymmetric Alkylation of α-Imino-Esters. Nat. Commun. 2023, 14, 2187. [Google Scholar] [CrossRef]
  23. You, S.-L.; Zhu, X.-Z.; Luo, Y.-M.; Hou, X.-L.; Dai, L.-X. Highly Regio- and Enantioselective Pd-Catalyzed Allylic Alkylation and Amination of Monosubstituted Allylic Acetates with Novel Ferrocene P,N-Ligands. J. Am. Chem. Soc. 2001, 123, 7471–7472. [Google Scholar] [CrossRef]
  24. Huang, J.-Q.; Liu, W.; Zheng, B.-H.; Liu, X.Y.; Yang, Z.; Ding, C.-H.; Li, H.; Peng, Q.; Hou, X.-L. Pd-Catalyzed Asymmetric Cyclopropanation Reaction of Acyclic Amides with Allyl and Polyenyl Carbonates. Experimental and Computational Studies for the Origin of Cyclopropane Formation. ACS Catal. 2018, 8, 1964–1972. [Google Scholar] [CrossRef]
  25. Suo, J.-J.; Du, J.; Jiang, Y.-J.; Chen, D.; Ding, C.-H.; Hou, X.-L. Diastereo- and Enantioselective Palladium-Catalyzed Dearomative [4 + 2] Cycloaddition of 3-Nitroindoles. Chin. Chem. Lett. 2019, 30, 1512–1514. [Google Scholar] [CrossRef]
  26. Bai, D.; Liu, X.; Li, H.; Ding, C.; Hou, X. Tandem Thorpe Reaction/Palladium Catalyzed Asymmetric Allylic Alkylation: Access to Chiral β-Enaminonitriles with Excellent Enantioselectivity. Chem.—Asian J. 2017, 12, 212–215. [Google Scholar] [CrossRef]
  27. Patti, A.; Lotz, M.; Knochel, P. Synthesis of α,β-Disubstituted Ferrocenes via a Ferrocenylepoxide Intermediate. Preparation and Catalytic Activity of a New Chiral Ferrocenyloxazoline. Tetrahetron Asymmetry 2001, 12, 3375–3380. [Google Scholar] [CrossRef]
  28. Moreno, R.M.; Bueno, A.; Moyano, A. 4-Ferrocenyl-1,3-oxazoline Derivatives as Ligands for Catalytic Asymmetric Allylation Reactions. J. Organomet. Chem. 2002, 660, 62–70. [Google Scholar] [CrossRef]
  29. Arthurs, R.A.; Hughes, D.L.; Richards, C.J. Stereoselective Synthesis of All Possible Phosferrox Ligand Diastereoisomers Displaying Three Elements of Chirality: Stereochemical Optimization for Asymmetric Catalysis. J. Org. Chemistry. 2020, 85, 4838–4847. [Google Scholar] [CrossRef] [PubMed]
  30. Arthurs, R.A.; Richards, C.J. Deuterium as a Stereochemically Invisible Blocking Group for Chiral Ligand Synthesis. Org. Lett. 2017, 19, 702–705. [Google Scholar] [CrossRef] [PubMed]
  31. McCartney, D.; Nottingham, C.; Muller-Bunz, H.; Guiry, P.J. Exploiting the gem-Disubstitution Effect in FcPHOX and HetPHOX P,N Ligands: Synthesis and Applications in Pd-Catalyzed Intermolecular Heck Reactions. J. Org. Chem. 2015, 80, 10151–10162. [Google Scholar] [CrossRef]
  32. Nottingham, C.; Benson, R.; Muller-Bunz, H.; Guiry, P.J. Synthesis of Ferrocene Oxazoline N,O ligands and Their Application in Asymmetric Ethyl- and Phenylzinc Additions to Aldehydes. J. Org. Chem. 2015, 80, 10163–10176. [Google Scholar] [CrossRef]
  33. Jones, G.; Richards, C.J. (S)-Serine Derived N-O and N-P Oxazoline Ligands for Asymmetric Catalysis. Tetrahedron Asymmetry 2004, 15, 653–664. [Google Scholar] [CrossRef]
  34. Jones, G.; Richards, C.J. Simple Phosphinite-Oxazoline Ligands for Asymmetric Catalysis. Tetrahedron Lett. 2001, 42, 5553–5555. [Google Scholar] [CrossRef]
  35. Zhao, W.-X.; Liu, G.-J.; Wang, J.; Li, F.; Liu, L. Synthesis of MeO-PEG2000-Supported Chiral Ferrocenyl Oxazoline Carbinol Ligand and its Application in Asymmetric Catalysis. Tetrahedron Asymmetry 2016, 27, 1139–1144. [Google Scholar] [CrossRef]
  36. Sutcliffe, O.B.; Bryce, M.R. Planar Chiral 2-Ferrocenyloxazolines and 1,1′-Bis(Oxazolinyl)Ferrocenes-Syntheses and Applications in Asymmetric Catalysis. Tetrahedron Asymmetry 2003, 14, 2297–2325. [Google Scholar] [CrossRef]
  37. Li, Y.; Zheng, Y.; Tian, F.; Zhang, Y.J.; Zhang, W. Development of Planar Chiral Diarylphosphino-oxazoline Ligands and Their Applications to Asymmetric Catalysis. Chin. J. Org. Chem. 2009, 29, 1487–1498. [Google Scholar]
  38. Miyake, Y.; Nishibayashi, Y.; Uemura, S. Optically Active Chiral Ligands, Ferrocenyloxazolinylphosphines (FOXAPs): Development and Application to Catalytic Asymmetric Reactions. Synlett 2008, 12, 1747–1758. [Google Scholar] [CrossRef]
  39. Xu, D.; Zhang, J.; Dai, L. Chiral Oxazolinyl Hydroxyl Ferrocene Catalysts: Synthesis and Applications in Asymmetric Reactions. ChemistrySelect 2020, 5, 9443–9456. [Google Scholar] [CrossRef]
  40. Dai, L.; Xu, D.; Yang, M.-J. Synthesis of 2-Oxazoline Ferrocenes: Towards High-Efficient Chiral Ligands and Catalysts. J. Organomet. Chem. 2023, 999, 122831. [Google Scholar] [CrossRef]
  41. Manoury, E.; Fossey, J.S.; Aït-Haddou, H.; Daran, J.-C.; Balavoine, G.G.A. New Ferrocenyloxazoline for the Preparation of Ferrocenes with Planar Chirality. Organometallics 2000, 19, 3736–3739. [Google Scholar] [CrossRef]
  42. Dai, L.; Xu, D.; Dong, X.; Zhou, Z. The Design, Synthesis and Application of Imidazolium-Tagged Ferrocenyl Oxazoline Phosphine Ligands for the Asymmetric 1,3-Dipolar Cycloaddition of Azomethine Ylides with Nitroalkenes: Ion Effect for Enhancing the Reactivity, Stereoselectivity and Recyclability. Tetrahedron Asymmetry 2015, 26, 350–360. [Google Scholar] [CrossRef]
  43. Sammakia, T.; Latham, H.A. On the Mechanism of Oxazoline-Directed Metalations: Evidence for Nitrogen-Directed Reactions. J. Org. Chem. 1996, 61, 1629–1635. [Google Scholar] [CrossRef] [PubMed]
  44. Howell, J.A.S.; Yates, P.C.; Fey, N.; McArdle, P.; Cunningham, D.; Parsons, S.; Rankin, D.W.H. Molecular Mechanics Analysis of Structure and Diastereoselectivity toward Lithiation in Amido- and α-Aminoferrocene Complexes. Organometallics 2002, 21, 5272–5286. [Google Scholar] [CrossRef]
  45. Chadwick, S.T.; Ramirez, A.; Gupta, L.; Collum, D.B. n-Butyllithium/N,N,N′,N′-Tetramethylethylenediamine-Mediated Ortholithiations of Aryl Oxazolines: Substrate-Dependent Mechanisms. J. Am. Chem. Soc. 2007, 129, 2259–2268. [Google Scholar] [CrossRef] [PubMed]
  46. Škvorcová, A.; Šebesta, R. Computational Study of Diastereoselective Ortho-Lithiations of Chiral Ferrocenes. Org. Biomol. Chem. 2014, 12, 132–140. [Google Scholar] [CrossRef]
  47. Dai, L.; Xu, D.; Tang, L.; Zhou, Z. A CuII-N,P Oxazolinylferrocene Ligand Complex for the Asymmetric [3+2] 1,3-Dipolar Cycloaddition of Azomethine Ylide with Malonates. ChemCatChem 2015, 7, 1078–1082. [Google Scholar] [CrossRef]
  48. Xu, D.; Dai, L.; Zhi, Y.-Q.; Zhang, J.; Xu, C. Unsymmetrical 1-Oxazolinyl 1′,2-Bisphosphine Ferrocene Silyl Ether: Preparation and Lithiation Mechanism. J. Organomet. Chem. 2019, 904, 120998. [Google Scholar] [CrossRef]
  49. Hayashi, T.; Mise, T.; Fukushima, M.; Kagotani, M.; Nagashima, N.; Matsumoto, A.; Kawakami, S.; Konishi, M.; Yamamoto, K.; Kumada, M. Asymmetric Synthesis Catalyzed by Chiral Ferrocenylphosphine-Transition Metal Complexes. I. Preparation of Chiral Ferrocenylphosphines. Bull. Chem. Soc. Jpn. 1980, 53, 1138–1151. [Google Scholar] [CrossRef]
  50. Dai, L.; Xu, D.; Song, P.-F.; Zhang, J. Preparation of Planar Chiral Oxazolinyl Hydroxyl Ferrocene Silyl Ethers and Their Desilylation Derivatives. J. Organomet. Chem. 2023, 984, 122575. [Google Scholar] [CrossRef]
  51. Adrio, J.; Carretero, J.C. Novel Dipolarophiles and Dipoles in the Metal-Catalyzed Enantioselective 1,3-Dipolar Cycloaddition of Azomethine Ylides. Chem. Commun. 2011, 47, 6784–6794. [Google Scholar] [CrossRef]
  52. Adrio, J.; Carretero, J.C. Recent Advances in the Catalytic Asymmetric 1,3-Dipolar Cycloaddition of Azomethine Ylides. Chem. Commun. 2014, 50, 12434–12446. [Google Scholar] [CrossRef] [PubMed]
  53. Bdiri, B.; Zhao, B.-J.; Zhou, Z.-M. Recent Advances in the Enantioselective 1,3-Dipolar Cycloaddition of Azomethine Ylides and Dipolarophiles. Tetrahedron Asymmetry 2017, 28, 876–899. [Google Scholar] [CrossRef]
  54. Fang, X.; Wang, C.-J. Catalytic Asymmetric Construction of Spiropyrrolidines via 1,3-Dipolar Cycloaddition of Azomethine Ylides. Org. Biomol. Chem. 2018, 16, 2591–2601. [Google Scholar] [CrossRef] [PubMed]
  55. Adrio, J.; Carretero, J.C. Stereochemical Diversity in Pyrrolidine Synthesis by Catalytic Asymmetric 1,3-Dipolar Cycloaddition of Azomethine Ylides. Chem. Commun. 2019, 55, 11979–11991. [Google Scholar] [CrossRef] [PubMed]
  56. Wei, L.; Chang, X.; Wang, C.-J. Catalytic Asymmetric Reactions with N-Metallated Azomethine Ylides. Acc. Chem. Res. 2020, 53, 1084–1100. [Google Scholar] [CrossRef] [PubMed]
  57. Breugst, M.; Reissig, H. The Huisgen Reaction: Milestones of the 1,3-Dipolar Cycloaddition. Angew. Chem. Int. Ed. 2020, 59, 12293–12307. [Google Scholar] [CrossRef]
  58. Wei, L.; Wang, C. Synergistic Catalysis with Azomethine Ylides. Chin. J. Chem. 2021, 39, 15–24. [Google Scholar] [CrossRef]
  59. Tang, L.; Zhao, B.; Dai, L.; Zhang, M.; Zhou, Z. Asymmetric Construction of Pyrrolidines Bearinga Trifluoromethylated Quaternary Stereogenic Center via CuI-Catalyzed 1,3-Dipolar Cycloaddition of Azomethine Ylides with β-CF3-β, β-Disubstituted Nitroalkenes. Chem.—Asian J. 2016, 11, 2470–2477. [Google Scholar] [CrossRef]
  60. Bdiri, B.; Dai, L.; Zhou, Z.-M. CuII-Catalysed Asymmetric 1,3-Dipolar Cycloaddition of Azomethine Ylides with a Chiral Ferrocene-Derived P,N-Ligand. Tetrahedron Lett. 2017, 58, 2475–2481. [Google Scholar] [CrossRef]
  61. Xu, D.; Dai, L.; Li, L.; Zhou, Z.; Zhang, J. Enantioselective Synthesis of New Dimeric Chromene Derivatives by A Ferrocene-Copper Catalyst System. J. Chem. Res. 2015, 39, 226–229. [Google Scholar] [CrossRef]
  62. Xu, D.; Zhou, Z.-M.; Dai, L.; Tang, L.-W.; Zhang, J. Asymmetric Hydrogenation of Aromatic Ketones by New Recyclable Ionic Tagged Ferrocene-Ruthenium Catalyst System. Bioorganic Med. Chem. Lett. 2015, 25, 1961–1964. [Google Scholar] [CrossRef] [PubMed]
Molecules 29 00968 g001

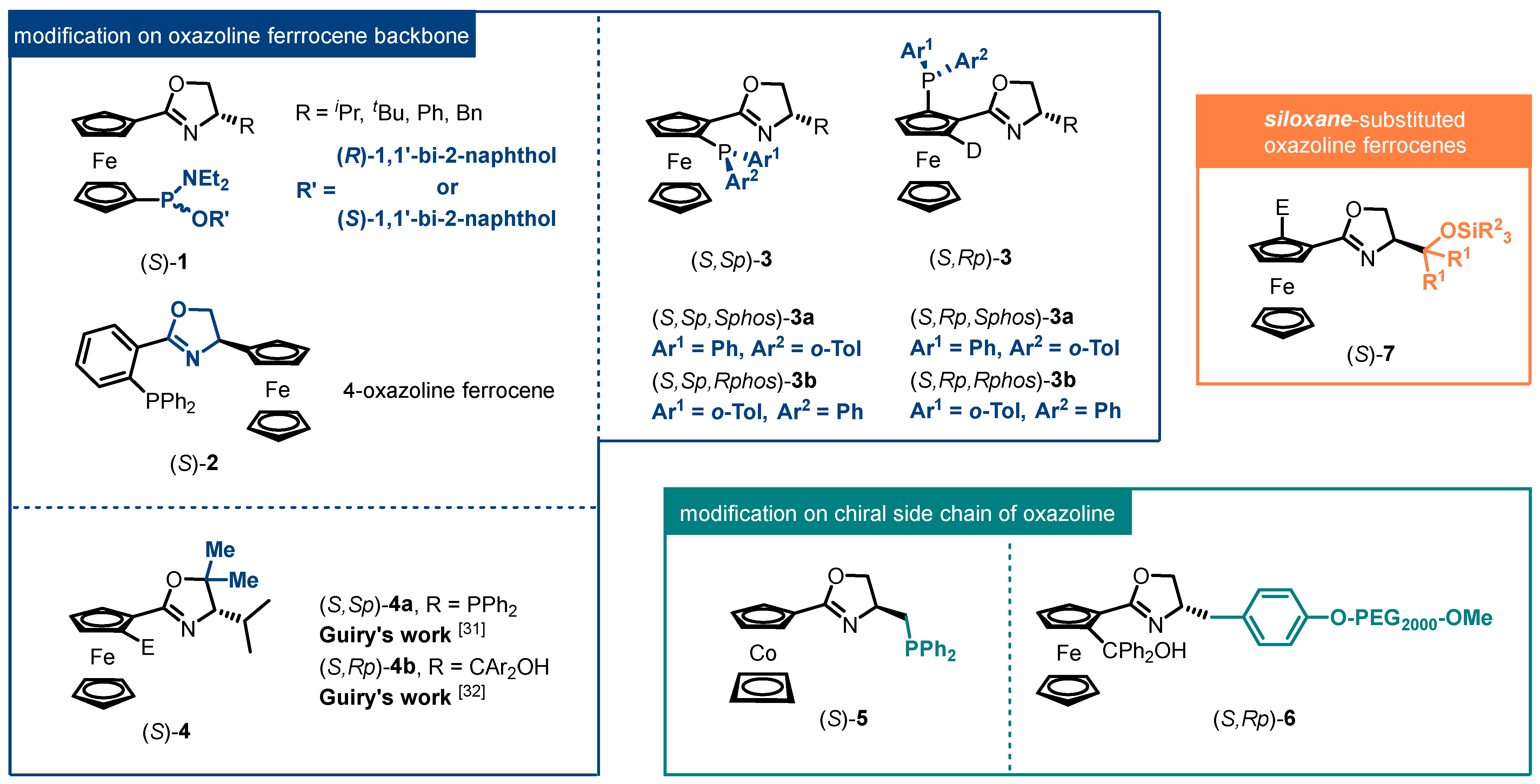

Figure 1. Modified ligands from oxazoline metallocene skeleton.
Figure 1. Modified ligands from oxazoline metallocene skeleton.
Molecules 29 00968 g001
Molecules 29 00968 sch001

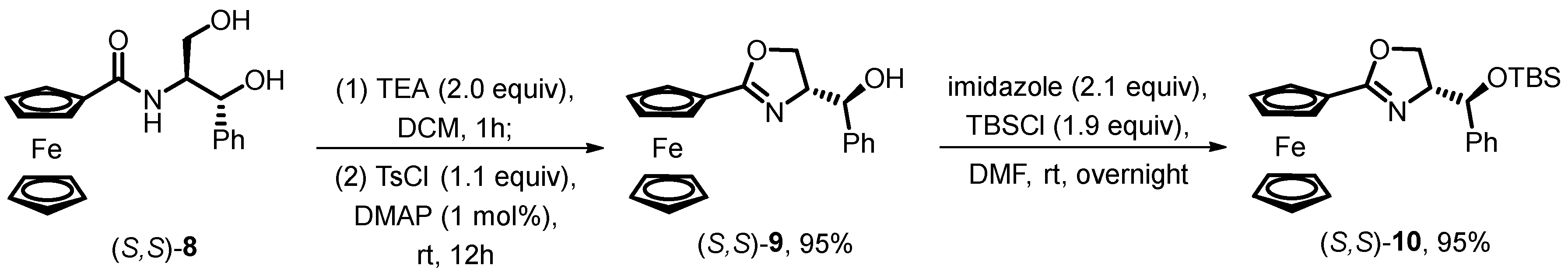

Scheme 1. Synthesis of siloxane-substituted oxazoline ferrocene by Aït-Haddou’s group.
Scheme 1. Synthesis of siloxane-substituted oxazoline ferrocene by Aït-Haddou’s group.
Molecules 29 00968 sch001
Molecules 29 00968 sch002

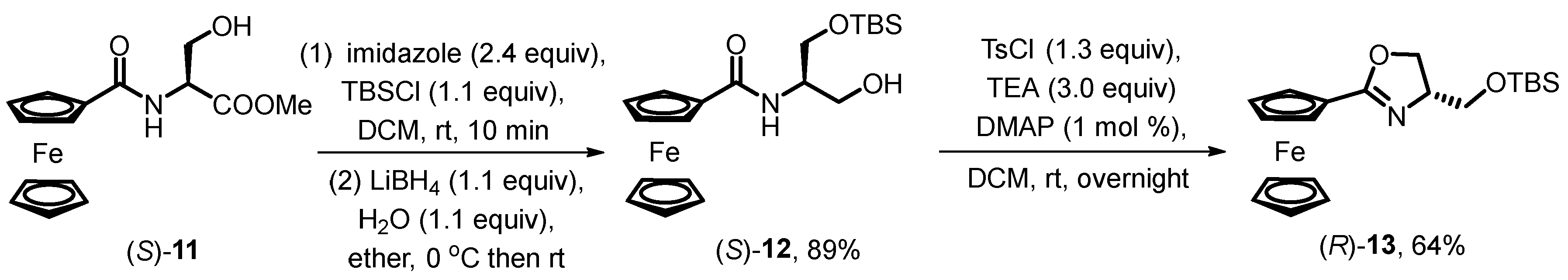

Scheme 2. Synthesis of siloxane-substituted oxazoline ferrocene by Sammakia’s group.
Scheme 2. Synthesis of siloxane-substituted oxazoline ferrocene by Sammakia’s group.
Molecules 29 00968 sch002
Molecules 29 00968 sch003

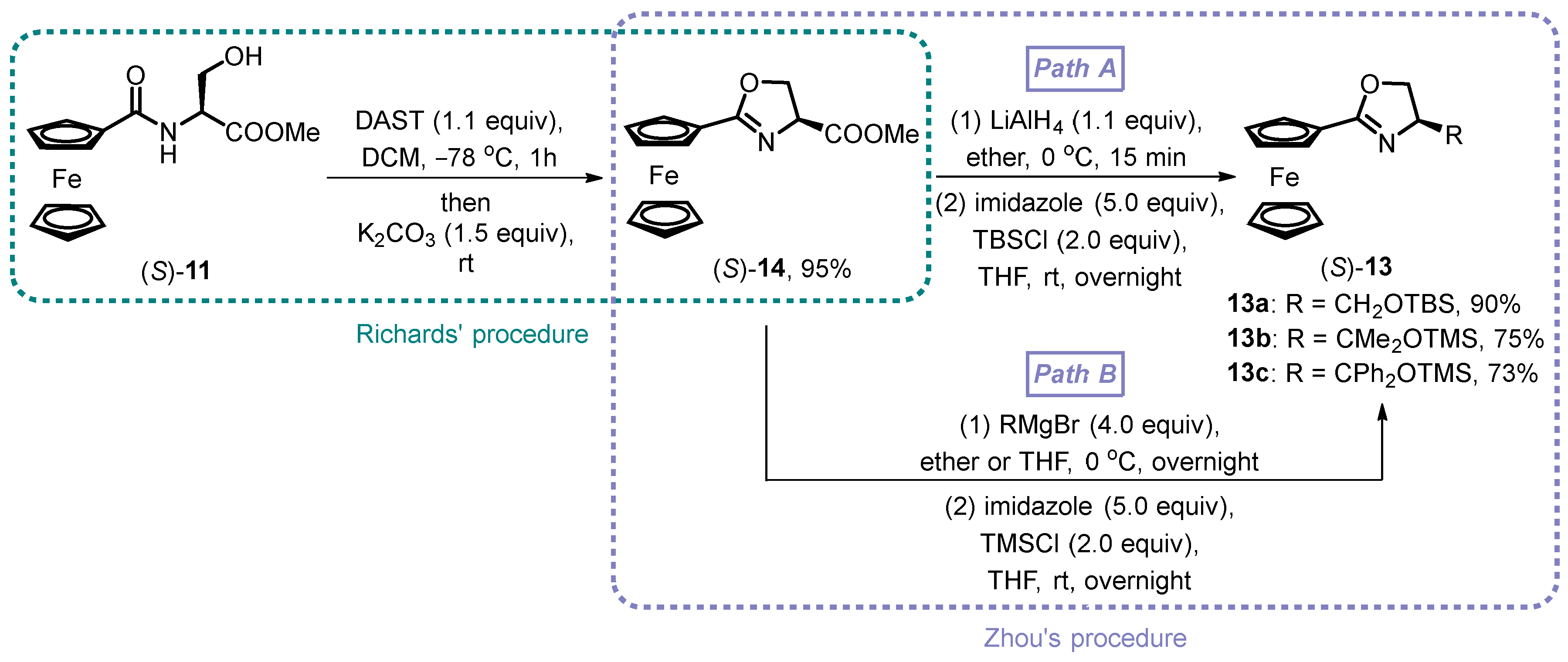

Scheme 3. Synthesis of siloxane-substituted oxazoline ferrocene by Zhou’s procedure.
Scheme 3. Synthesis of siloxane-substituted oxazoline ferrocene by Zhou’s procedure.
Molecules 29 00968 sch003
Molecules 29 00968 sch004

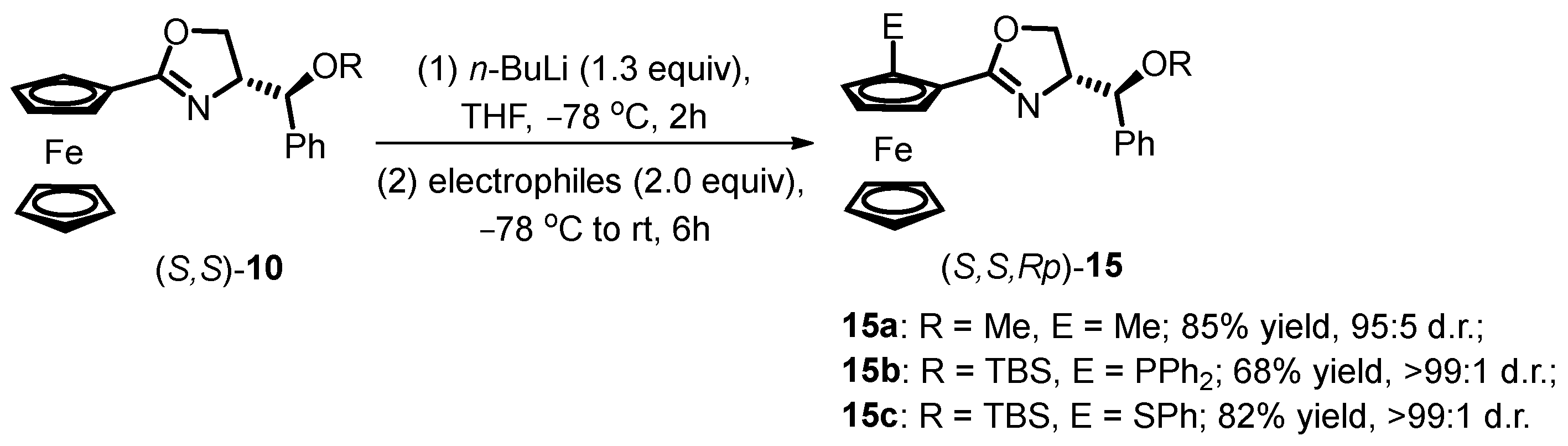

Scheme 4. DoM procedures of oxazoline ferrocene with two stereogenic centers.
Scheme 4. DoM procedures of oxazoline ferrocene with two stereogenic centers.
Molecules 29 00968 sch004
Molecules 29 00968 sch005

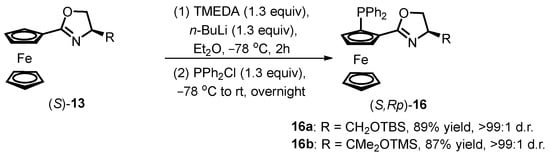

Scheme 5. DoM procedures of oxazoline ferrocenes with the addition of TMEDA.
Scheme 5. DoM procedures of oxazoline ferrocenes with the addition of TMEDA.
Molecules 29 00968 sch005
Molecules 29 00968 sch006

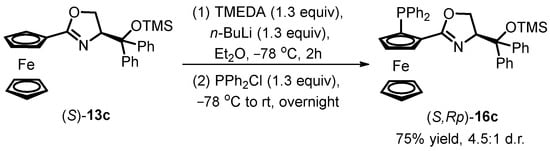

Scheme 6. DoM procedure of oxazoline ferrocene with a bulky substituent.
Scheme 6. DoM procedure of oxazoline ferrocene with a bulky substituent.
Molecules 29 00968 sch006
Molecules 29 00968 sch007
Scheme 7. Synthetic approach of chiral oxazoline 1,2′-bisphosphine ferrocene.
Scheme 7. Synthetic approach of chiral oxazoline 1,2′-bisphosphine ferrocene.
Molecules 29 00968 sch007
Molecules 29 00968 sch008

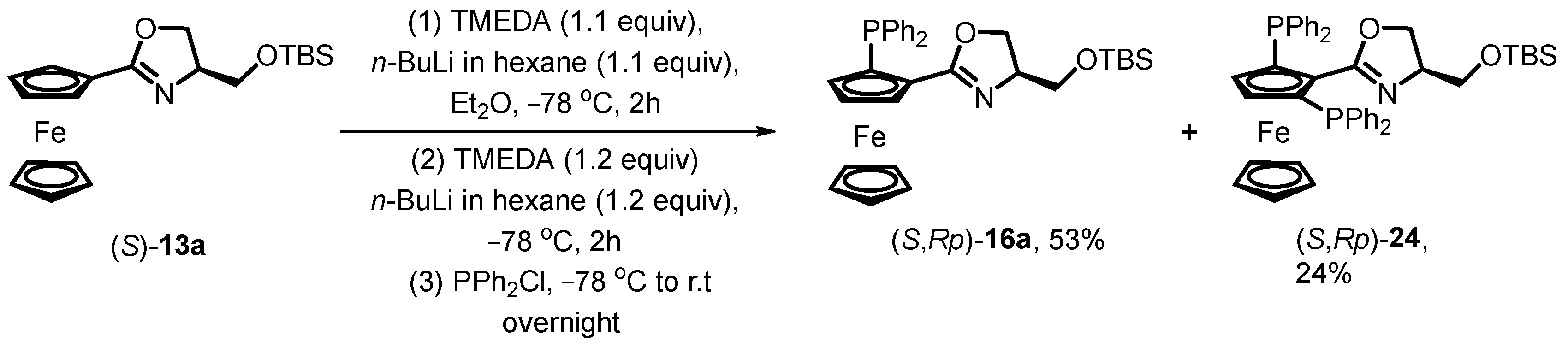

Scheme 8. Stepwise lithiation of chiral oxazoline ferrocene.
Scheme 8. Stepwise lithiation of chiral oxazoline ferrocene.
Molecules 29 00968 sch008
Molecules 29 00968 g002
Figure 2. Structures of siloxane-substituted hydroxyl oxazoline ferrocenes.
Figure 2. Structures of siloxane-substituted hydroxyl oxazoline ferrocenes.
Molecules 29 00968 g002
Molecules 29 00968 sch009
Scheme 9. Praparation of N,O,O-tridentate ferrocenes via a desilylation reaction. The structure of R3 in (S,Sp)-25 is presented in Figure 2.
Scheme 9. Praparation of N,O,O-tridentate ferrocenes via a desilylation reaction. The structure of R3 in (S,Sp)-25 is presented in Figure 2.
Molecules 29 00968 sch009
Molecules 29 00968 sch010
Scheme 10. Palladium-catalyzed asymmetric allylic alkylation with siloxane-substituted oxazoline ferrocene ligands.
Scheme 10. Palladium-catalyzed asymmetric allylic alkylation with siloxane-substituted oxazoline ferrocene ligands.
Molecules 29 00968 sch010
Molecules 29 00968 sch011
Scheme 11. Cu(I)-catalyzed [3 + 2] 1,3-dipolar cycloaddition with nitroalkenes.
Scheme 11. Cu(I)-catalyzed [3 + 2] 1,3-dipolar cycloaddition with nitroalkenes.
Molecules 29 00968 sch011
Molecules 29 00968 sch012
Scheme 12. Cu(OAc)2-catalyzed [3 + 2] 1,3-dipolar cycloaddition with alkylidene malonates.
Scheme 12. Cu(OAc)2-catalyzed [3 + 2] 1,3-dipolar cycloaddition with alkylidene malonates.
Molecules 29 00968 sch012
Molecules 29 00968 g003

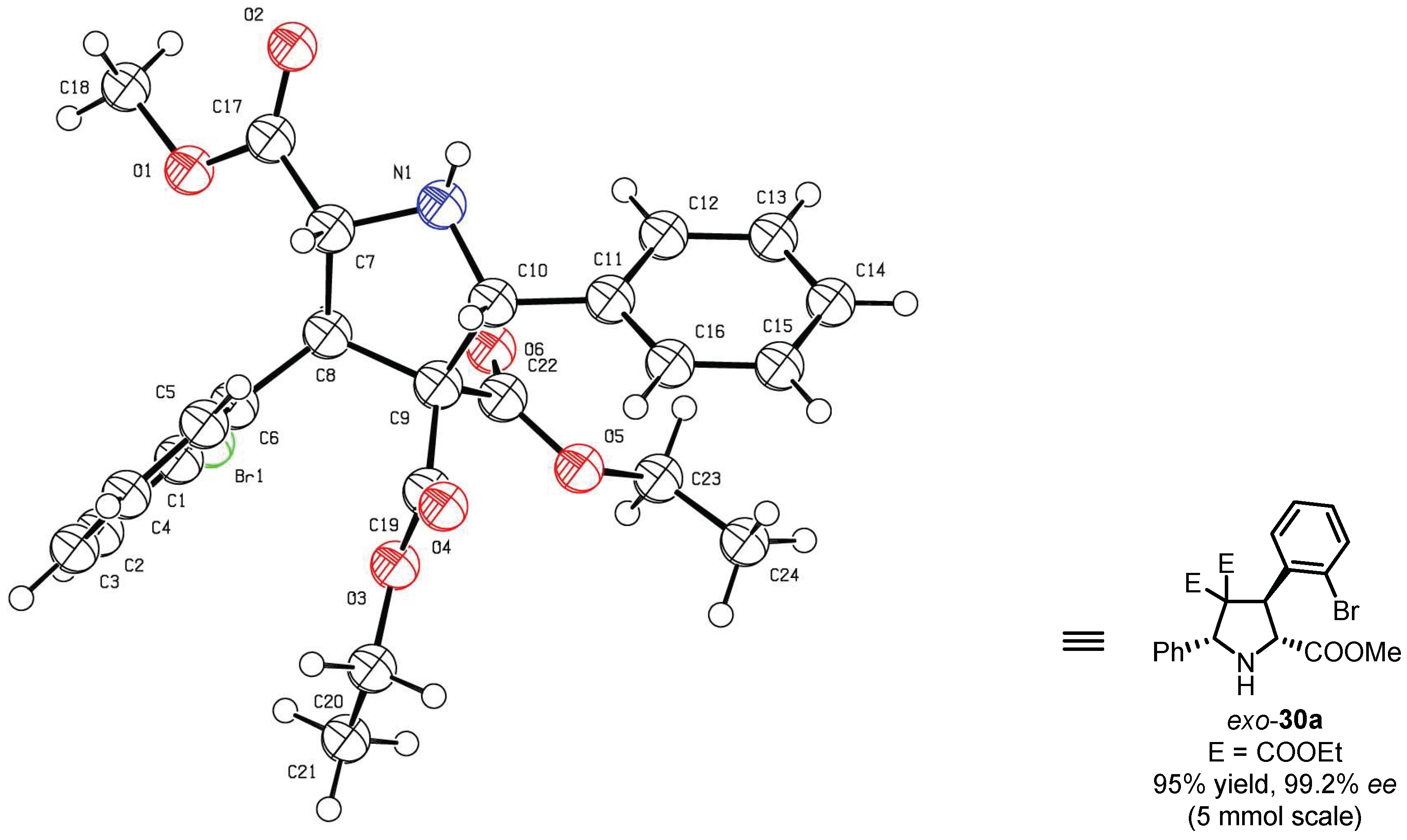

Figure 3. Catalytic result and X-ray structure of exo-30a. Copyright 2015 WILEY-VCH Verlag GmbH & Co. KGaA, Weinheim, Germany.
Figure 3. Catalytic result and X-ray structure of exo-30a. Copyright 2015 WILEY-VCH Verlag GmbH & Co. KGaA, Weinheim, Germany.
Molecules 29 00968 g003
Molecules 29 00968 sch013
Scheme 13. Cu(I)-catalyzed [3 + 2] 1,3-dipolar cycloaddition with β-trifluoromethyl nitroalkenes.
Scheme 13. Cu(I)-catalyzed [3 + 2] 1,3-dipolar cycloaddition with β-trifluoromethyl nitroalkenes.
Molecules 29 00968 sch013
Molecules 29 00968 sch014
Scheme 14. Cu(II)-catalyzed [3 + 2] 1,3-dipolar cycloaddition with maleate esters.
Scheme 14. Cu(II)-catalyzed [3 + 2] 1,3-dipolar cycloaddition with maleate esters.
Molecules 29 00968 sch014
Molecules 29 00968 sch015
Scheme 15. Asymmetric self-Michael addition of 2-[(3-cyano-2H-chromen-2-ylidene)amino]acetates.
Scheme 15. Asymmetric self-Michael addition of 2-[(3-cyano-2H-chromen-2-ylidene)amino]acetates.
Molecules 29 00968 sch015
Molecules 29 00968 sch016
Scheme 16. Synthetic schemes for establishing ionic-tagged oxazoline phosphine ferrocene ligands.
Scheme 16. Synthetic schemes for establishing ionic-tagged oxazoline phosphine ferrocene ligands.
Molecules 29 00968 sch016
Molecules 29 00968 sch017
Scheme 17. Asymmetric hydrogenation of aromatic ketones with quaternary ammonium tagged oxazoline phosphine ferrocene ligand.
Scheme 17. Asymmetric hydrogenation of aromatic ketones with quaternary ammonium tagged oxazoline phosphine ferrocene ligand.
Molecules 29 00968 sch017
Molecules 29 00968 sch018
Scheme 18. Cu(I)-catalyzed asymmetric [3 + 2] 1,3-dipolar cycloaddition with FimiOXAP ligands.
Scheme 18. Cu(I)-catalyzed asymmetric [3 + 2] 1,3-dipolar cycloaddition with FimiOXAP ligands.
Molecules 29 00968 sch018
Table 1. Selected example of recycled catalysts in asymmetric hydrogenation a.
Table 1. Selected example of recycled catalysts in asymmetric hydrogenation a.
Chiral ProductRunYield %ee %
Molecules 29 00968 i001199>99.9
29999.9
39797.8
48493.4
57392.5
66792.2
a catalytic reaction condition: substrate (1 mmol) concentration of 0.5 M in solvent and KOH (0.1 mmol) as base under 2 MPa of H2, 30 °C, 12 h, substrate/catalyst = 200:1.

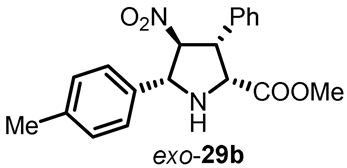

Table 2. Selected example of catalyst recycling in asymmetric 1,3-dipolar cycloaddition a.
Table 2. Selected example of catalyst recycling in asymmetric 1,3-dipolar cycloaddition a.
Chiral ProductRunYield %d.r. (exo:endo)ee % (exo)
Molecules 29 00968 i00218594:697.0
27185:1592.6
36893:793.8
47482:1891.4
a catalytic reaction condition: glycine imino ester (0.1 mmol), nitroalkene (0.11 mmol) in 1 mL of DCM/[Bmim]PF6 as solvent and DIPEA (0.01 mmol) as base, 0 °C, 12 h, substrate/catalyst = 10:1. Chiral ligand = (S,Rp)-36.
Disclaimer/Publisher’s Note: The statements, opinions and data contained in all publications are solely those of the individual author(s) and contributor(s) and not of MDPI and/or the editor(s). MDPI and/or the editor(s) disclaim responsibility for any injury to people or property resulting from any ideas, methods, instructions or products referred to in the content.

Share and Cite

MDPI and ACS Style

Dai, L.; Zhao, L.; Xu, D.; Yang, C.; Zhang, X.-K. Enhancing the Efficacy of Chiral Ligands and Catalysts: Siloxane-Substituted Oxazoline Ferrocenes as Next-Generation Candidates. Molecules 2024, 29, 968. https://doi.org/10.3390/molecules29050968

AMA Style

Dai L, Zhao L, Xu D, Yang C, Zhang X-K. Enhancing the Efficacy of Chiral Ligands and Catalysts: Siloxane-Substituted Oxazoline Ferrocenes as Next-Generation Candidates. Molecules. 2024; 29(5):968. https://doi.org/10.3390/molecules29050968

Chicago/Turabian Style

Dai, Li, Li Zhao, Di Xu, Chen Yang, and Xin-Kuan Zhang. 2024. "Enhancing the Efficacy of Chiral Ligands and Catalysts: Siloxane-Substituted Oxazoline Ferrocenes as Next-Generation Candidates" Molecules 29, no. 5: 968. https://doi.org/10.3390/molecules29050968

APA Style

Dai, L., Zhao, L., Xu, D., Yang, C., & Zhang, X. -K. (2024). Enhancing the Efficacy of Chiral Ligands and Catalysts: Siloxane-Substituted Oxazoline Ferrocenes as Next-Generation Candidates. Molecules, 29(5), 968. https://doi.org/10.3390/molecules29050968

Article Metrics

Back to TopTop
