Efficient Synthesis and HPLC-Based Characterization for Developing Vanadium-48-Labeled Vanadyl Acetylacetonate as a Novel Cancer Radiotracer for PET Imaging

Abstract

Bis(acetylacetonato)oxidovanadium(IV) [(VO(acac)₂], generally known as vanadyl acetylacetonate, has been shown to be preferentially sequestered in malignant tissue. Vanadium-48 (⁴⁸V) generated with a compact medical cyclotron has been used to label VO(acac)₂ as a potential radiotracer in positron emission tomography (PET) imaging for the detection of cancer, but requires lengthy synthesis. Current literature protocols for the characterization of VO(acac)₂ require macroscale quantities of reactants and solvents to identify products by color and to enable crystallization that are not readily adaptable to the needs of radiotracer synthesis. We present an improved method to produce vanadium-48-labeled VO(acac)₂, [⁴⁸V]VO(acac)₂, and characterize it using high-performance liquid chromatography (HPLC) with radiation detection in combination with UV detection. The approach is suitable for radiotracer-level quantities of material. These methods are readily applicable for production of [⁴⁸V]VO(acac)₂. Preliminary results of preclinical, small-animal PET studies are presented.

1. Introduction

The vanadyl (VO²⁺) cation is the most stable diatomic cation in chemistry, and VO(acac)₂ is one of the most stable vanadyl chelates known, exhibiting an equilibrium association constant of the order of ~10²³ [1,2]. It has been shown through application of electron nuclear double resonance (ENDOR) spectroscopy that VO(acac)₂ enters cells as an intact metallochelate [3] while other, structurally similar vanadyl (VO²⁺) chelates of lesser stability dissociate in the blood stream, releasing VO²⁺ and the organic ligand [4]. Both the vanadyl cation and VO(acac)₂ have long been associated with insulin-mimetic activity [5,6]. However, the structural basis of their activity, defined as increased cellular glucose uptake in insulin sensitive tissues, differs greatly: The action of VO²⁺ enhances glucose uptake into cells independently of the insulin receptor (IR) via activation of phosphatidyl 3’-kinase, that in turn enhances synthesis of glycogen from increased glucose uptake [7]. In contrast, VO(acac)₂ promotes phosphorylation of tyrosine residues on the insulin receptor and the IR substrate-1 (IRS1) in a dose-dependent manner that is synergistic with added insulin [8]. The action of VO(acac)₂ here is indirect, inhibiting protein tyrosine phospha-tase-1B (PTP1B), the enzyme that regulates the phosphotyrosine level of the IR [9]. VO(acac)₂ is an uncompetitive inhibitor of PTP1B in the presence of phosphorylated analogs of its phosphotyrosine protein substrates [10].

In addition to the established role of PTP1B in glucose metabolism, PTP1B also regulates the phosphotyrosine level of other proteins and receptors that are, in general, regulators of cell migration, cell adhesion, and cellular proliferation. These include the human epidermal growth factor receptor-2 (HER2), the proto-oncogene tyrosine-protein kinase Src, the scaffolding adaptor protein ERBIN, the focal adhesion kinase FAK, and the cub domain containing protein-1 (CDCP1), among others [11,12]. PTP1B, thus, has a central role in cellular metabolism, proliferation, tumorigenesis, and anoikis. Gradual, increased accumulation of VO(acac)₂ into neoplastic xenograft tissue, leading to a plateau in VO(acac)₂ content, occurs over a time period of 3 h to 4 h following intravenous or intraperitoneal injection [3,13]. In contrast, the level of VO(acac)₂ in neighboring, normal tissue increases immediately after injection, but washout of the metallochelate from normal tissue appears complete within 30 min following injection. The mechanism leading to sustained, high levels of VO(acac)₂ in neoplasms in contrast to the more rapid release of the metallochelate from neighboring normal tissue is not defined. However, it is likely related to the cellular content of PTP1B as an inhibitor, for not only is VO(acac)₂ preferentially sequestered in neoplastic tissue [3] but it also augments the uptake of 2-(Fluorine-18)-2-deoxy-glucose into xenograft tumors through a non-insulin dependent pathway [13].

Because we anticipate promising utility of VO(acac)₂ as an inhibitor of PTP1B not only for cancer detection but also for monitoring neoplastic, tumorigenic processes lasting several days or weeks, we are investigating its potential as a radiotracer for PET imaging by labeling it with vanadium-48 (⁴⁸V, t_1/2 = 15.97 d). Because of the long half-life of ⁴⁸V, cellular processes could be investigated for which more commonly used radioisotopes, e.g., ¹⁸F, t_1/2 = 109.7 min; ¹¹C, t_1/2 = 20.4 min; ¹⁵O, t_1/2 = 2.05 min, are unsuitable. In contrast to ⁴⁸V being generated with dedicated solid targetry [14,15], in previous work, we developed a protocol to generate the radioisotope with use of a makeshift, solid target using the beamstop of a compact medical cyclotron [16]. Description of the synthesis of VO(acac)₂ in the chemical literature is on the macroscale; characterization methods typically include visual inspection (by color) and crystallization and are unsuitable for radiotracer synthesis and characterization. We describe here the synthesis, purification, and characterization of the ⁴⁸V-labled metallochelate. Activity levels are suitable for radiotracer studies generally employed in preclinical, small animal investigations. Preliminary results of these studies are presented.

2. Results

2.1. [⁴⁸V]VO(acac)₂ Yield

In this study, the starting activity was 275 MBq (7.44 mCi). The overall decay-corrected yield of the 4-day synthesis was 12%; of the 232 MBq (6.26 mCi) potentially available at the end of synthesis, 28 MBq (0.77 mCi) of the radiotracer were produced.

In the foil dissolution step, 90 MBq (2.42 mCi) could not be dissolved or leached from the foil, resulting in a step-wise yield of 65%. Further dissolution was not pursued due to time constraints. The AG 50w-X8 column separation yielded 162 MBq (4.38 mCi), accounting for 93% of the activity transferred (Certain commercial equipment, instruments, or materials are identified in this paper to foster understanding. Such identification does not imply recommendation by the authors or their affiliated institutions, nor does it imply that the materials or equipment identified are necessarily the best available for the purpose). To speed up sample evaporation, only two aliquots were chosen, totaling 154 MBq (4.16 mCi) of activity. After subsequent evaporation and refluxing steps (detailed in Section 2.1), a C-18 solid-phase-extraction cartridge (SPE) was used. A reaction sample of 143 MBq (3.87 mCi) was applied to the column, of which 108 MBq (2.92 mCi) passed through unbound, while 33 MBq (0.89 mCi) remained trapped in the cartridge. Elution yielded 27 MBq (0.77 mCi) in 400 μL of ethanol (EtOH); 2.3 MBq (0.061 mCi) was left in the round bottom flask, resulting in a step-wise yield of 19.9%. The entire synthesis required 4 d to complete.

2.2. Isolating HPLC VO(acac)₂ Signal from Acetylacetone

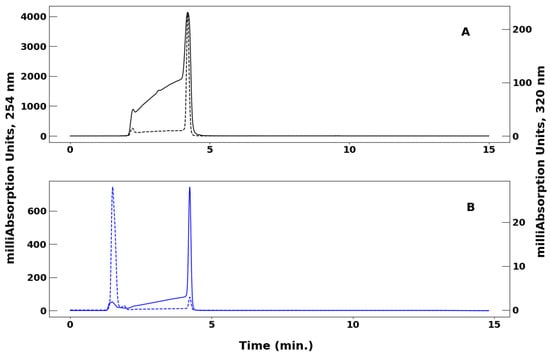

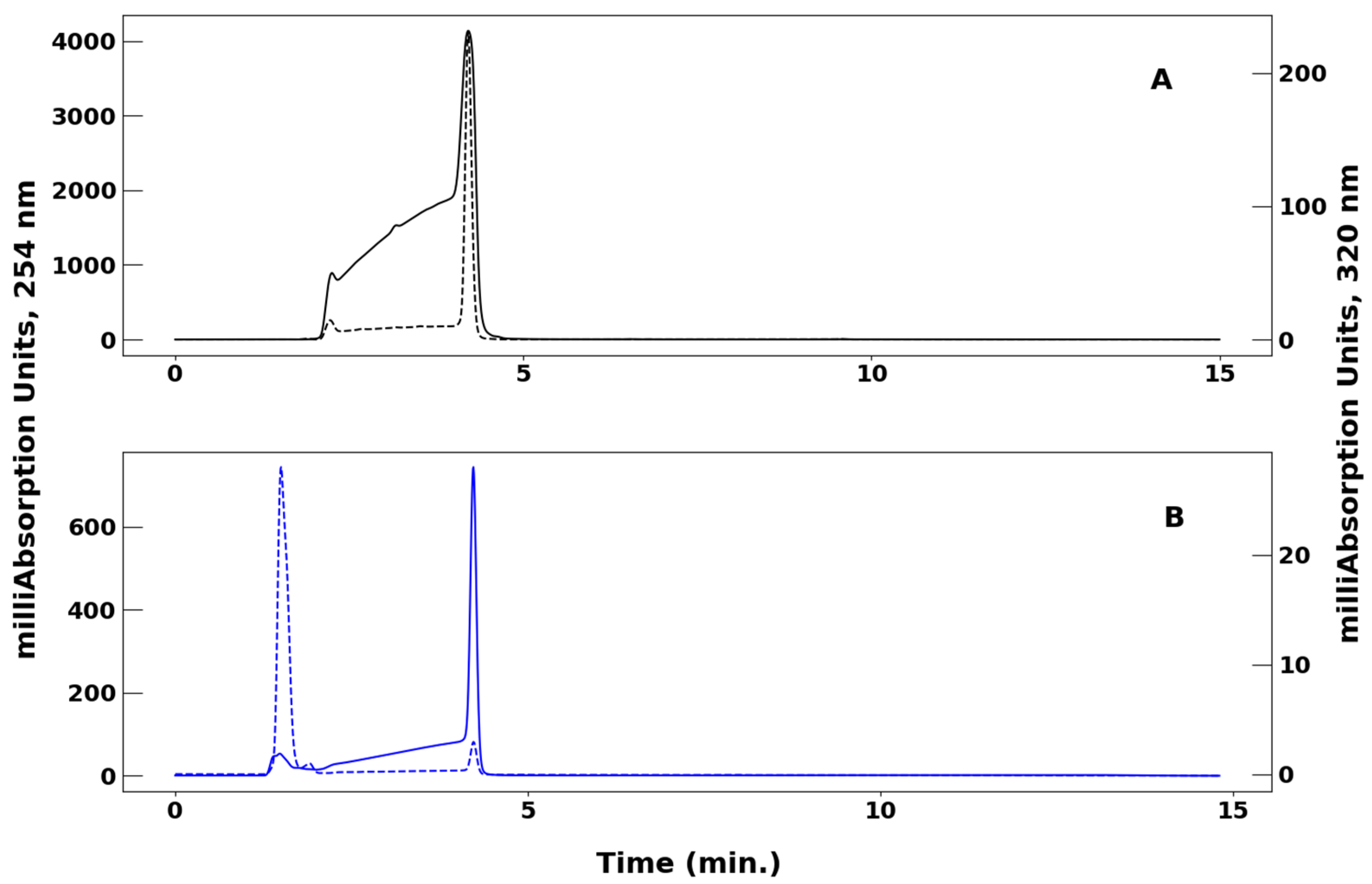

Figure 1 shows chromatograms comparing acetylacetone and VO(acac)₂ at 254 nm and 320 nm wavelengths. A gradient mobile phase of 40% to 60% acetonitrile (MeCN) in water with 0.1% Trifluoroacetic acid (TFA) was used. While acetylacetone and VO(acac)₂ exhibit overlapping absorption in the far-UV at 254 nm (solid lines), the absorption properties for the two compounds are distinct at 320 nm (dashed lines).

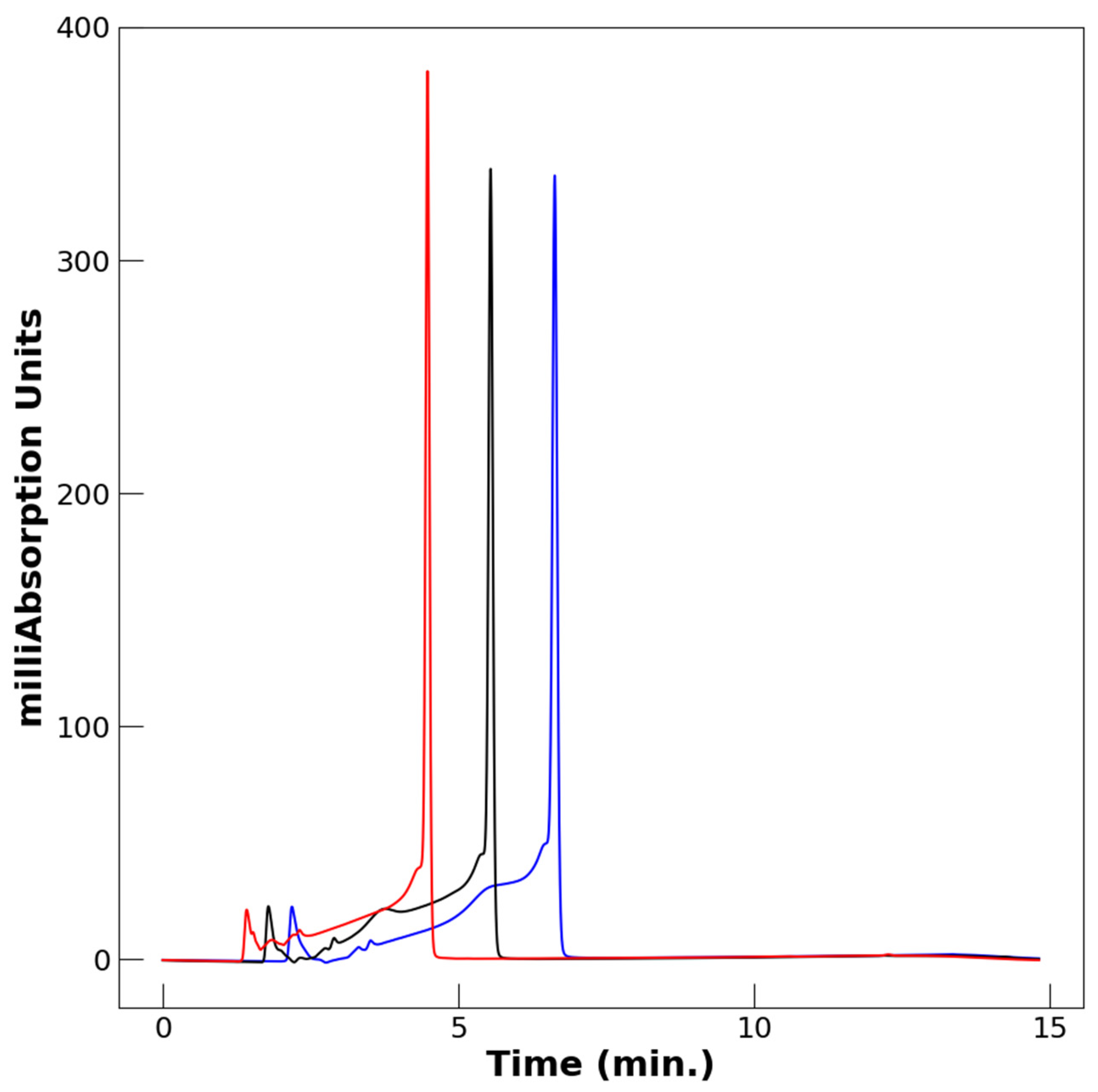

Figure 2 compares the effects of different flow rates. Of the three flow rates assessed for this mobile phase, 1.2 mL/min was chosen for further application. A smaller tail and a longer retention time are preferable; the chosen flow rate provided a middle ground of these conditions.

2.3. Effect of Trifluoroacetic Acid

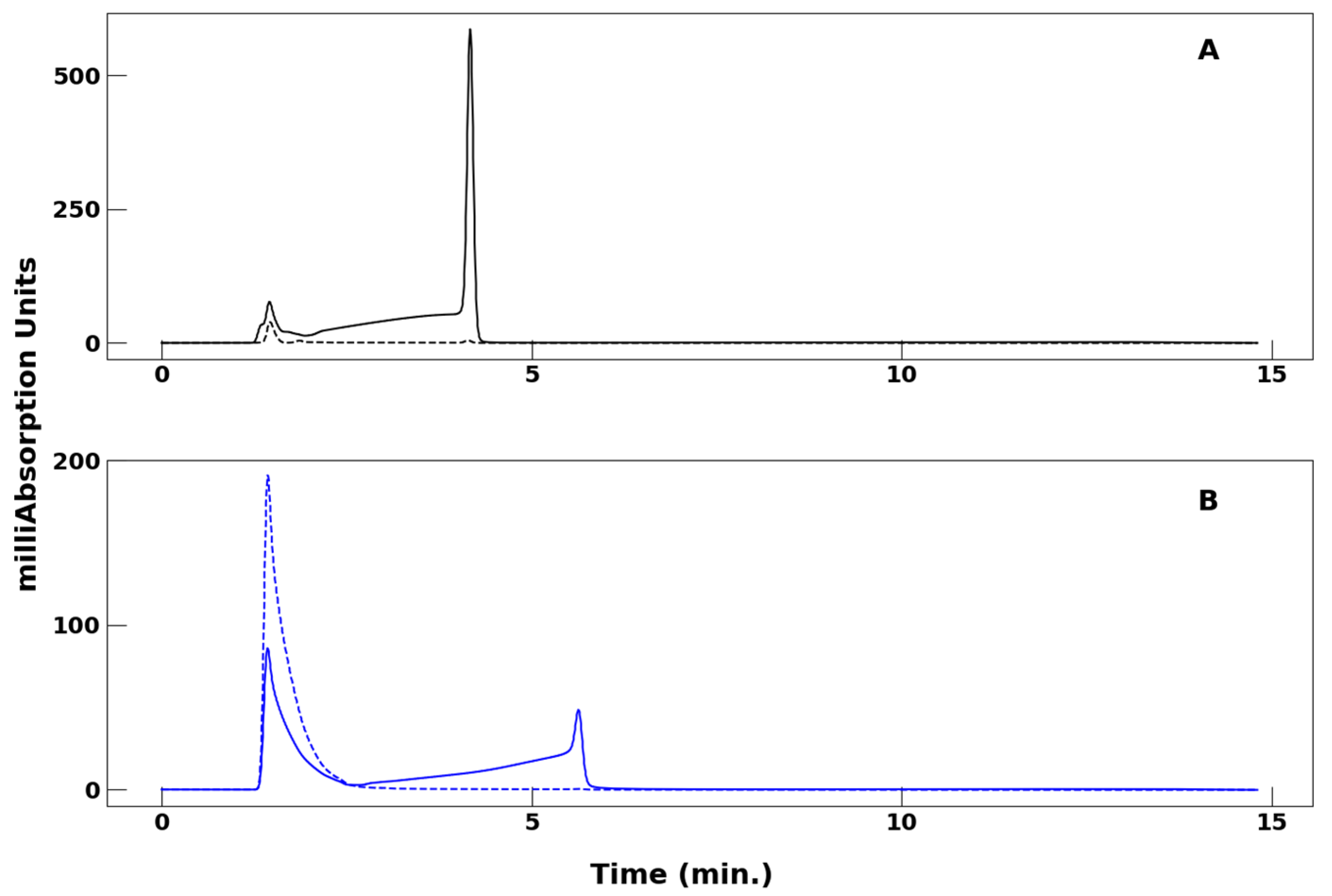

Figure 3 compares chromatograms of VO(acac)₂ in 40% to 60% MeCN/H₂O in the presence and absence of TFA. In Figure 3A, the 320 nm trace exhibits a prominent peak at 1.47 min and almost no peak at 4.19 min, whereby the 1.47/4.19 ratio of the amplitudes is approximately 9:1. Correspondingly, the 254 nm trace illustrates a small feature at 1.47 min and a prominent peak at 4.19 min, whereby the 1.47/4.19 ratio of the amplitudes is interestingly 1:9.

In Figure 3B, the 320 nm chromatogram shows a prominent feature with highest amplitude at 0.81 min followed by a tail. Similarly, the 254 nm trace shows a peak coinciding with that in the 320 nm trace at 0.81 min. It can be concluded that this feature belongs to the metallochelate. In the 254 nm trace, however, this peak is followed by a broad signal of lower amplitude starting at 2.79 min. Because there is no indication of the metallochelate at 2.79 min in the 320 nm trace, it does not contribute to this feature.

2.4. Effect of Oxidation of the Metallochelate

Following the observations of Grybos et al. [17], who investigated the kinetics of oxidation of VO(acac)₂ by molecular oxygen dissolved in methanol, we have carried out HPLC analysis of changes in the oxidation state of VO²⁺ moiety as a function of time. While the expectation is to use the radioactive product as quickly as possible upon synthesis of [⁴⁸V]VO(acac)₂, it is necessary to evaluate how changes in oxidation state over time may affect chromatographic behavior. The results are illustrated in Figure 4.

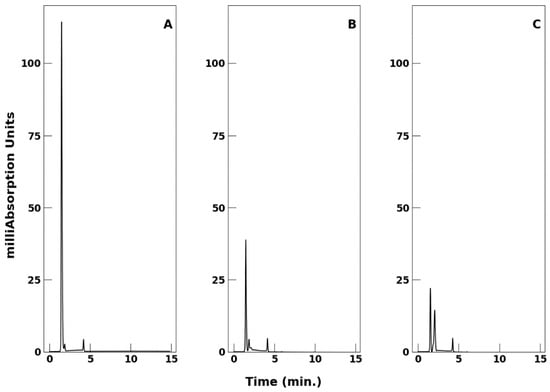

In Figure 4A–C, a distinct peak appears in the HPLC chromatogram at 1.48 min. As a function of time, the amplitude of this peak decreases significantly by ~65% on day 4. Further decrease is observed a week after sample preparation. Additionally, other peaks emerge; we note that an additional species essentially immediately adjacent to the prominent 1.48 min component increases in amplitude with time, while the component at 4.03 min remains constant in amplitude.

2.5. HPLC Comparison of Synthetic [⁴⁸V]VO(acac)₂ with Authentic VO(acac)₂

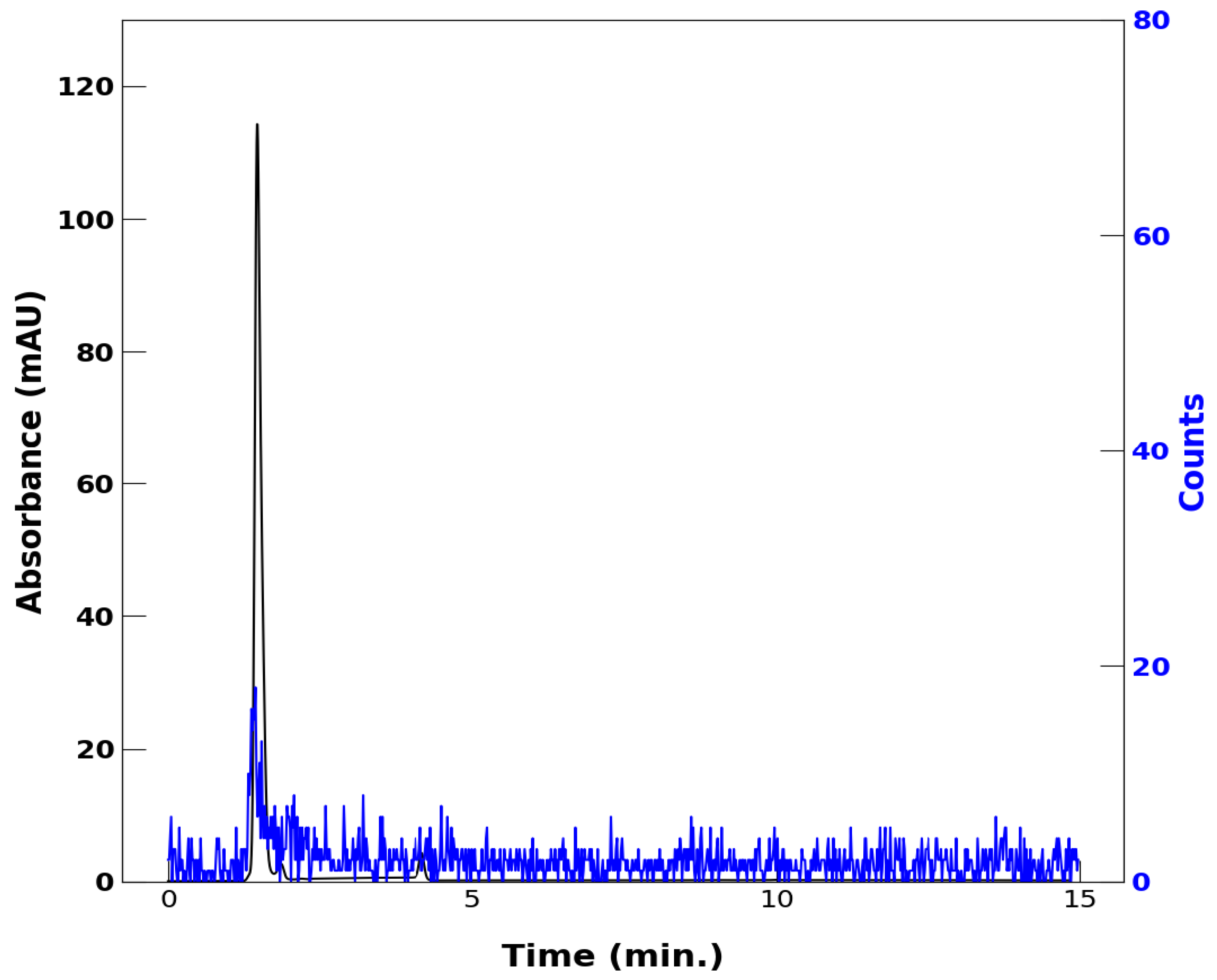

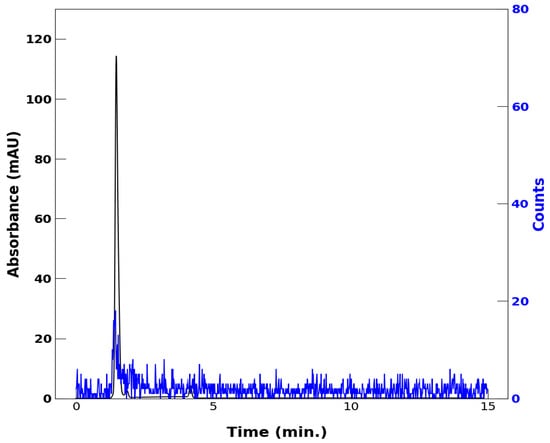

Figure 5 compares the HPLC chromatogram to characterize [⁴⁸V]VO(acac)₂ synthesized as described in the Methods and Materials with that of an authentic sample of commercially available VO(acac)₂ in 40% to 60% MeCN, as described in Figure 1, Figure 2, Figure 3 and Figure 4. The prominent peak of radioactivity due to [⁴⁸V]VO(acac)₂ showing a retention time of 1.49 min is essentially identical to that of 1.56 min of commercially available VO(acac)₂ and confirms that the synthetic radiometallochelate is identical to the sample of authentic VO(acac)₂.

The maximum amplitude of the 320 nm peak in Figure 5 corresponds to 0.115 OD units. Extracting an extinction coefficient at 320 nm for VO(acac)₂ from Figure 2 of Hon and coworkers [10] and applying it to the OD at 32 0nm of 0.115 absorbance units indicates that the 1 mL spectrophotometer cell of the Agilent 1260 Infinity II HPLC system contained 0.0051 mg of VO(acac)₂. On the basis of a 5 μL injection volume of 2.0 mg of VO(acac)₂ per mL EtOH, this represents 50% recovery of the commercially available metallochelate applied to the HPLC system.

2.6. Results of Imaging Studies

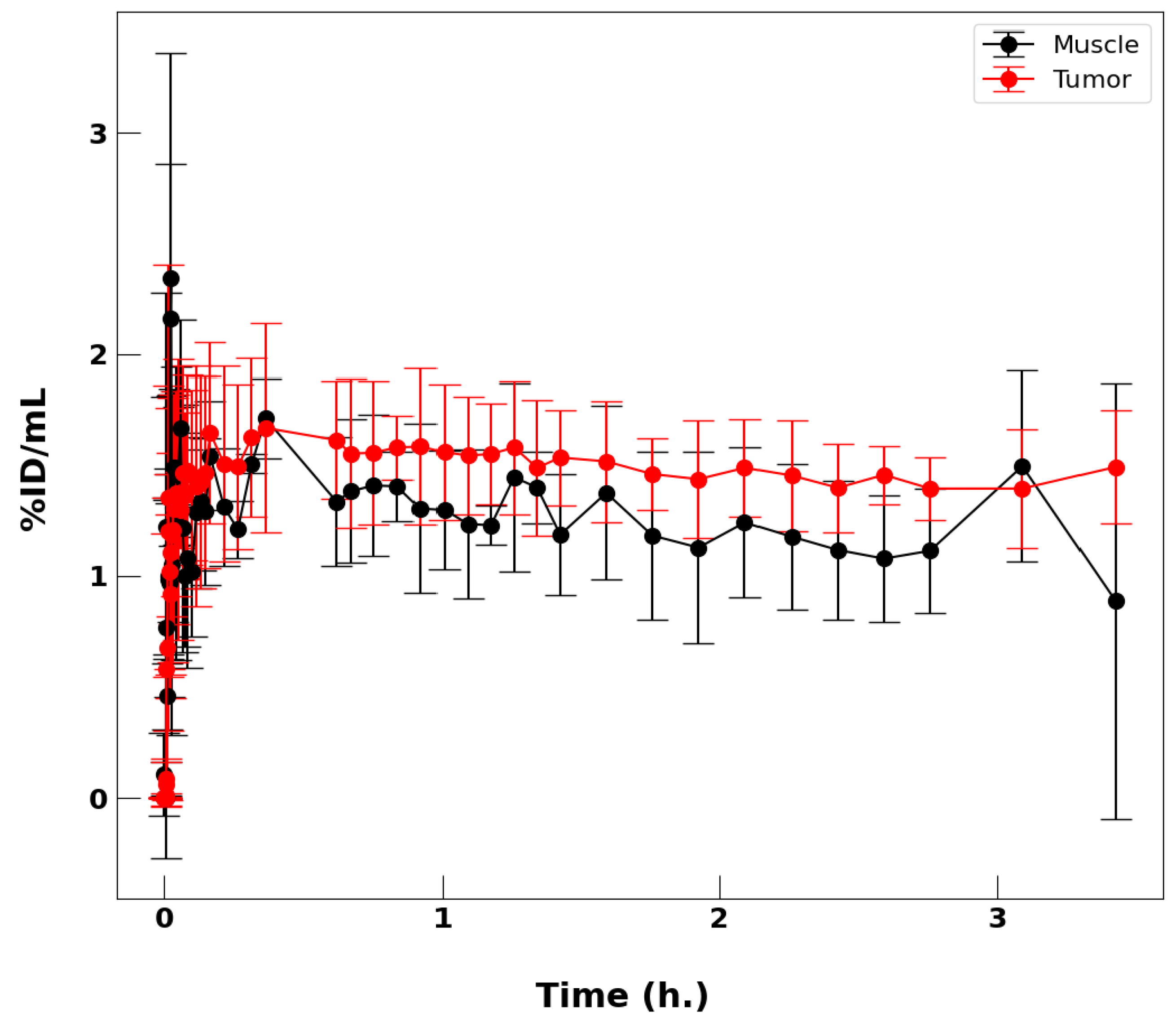

In the three tumor-bearing HSD athymic mice with HCA-7 colonic adenocarcinoma cell lines that were imaged, tumor volumes averaged 101(52) mm³ and the injected dose was 2.81(0.24) MBq (75.90(6.49) μCi); uncertainties are the standard deviation of the mean. Figure 6 compares the time-activity curve for tumor tissue and skeletal muscle tissue from the contralateral leg. After approximately 30 min, the tumor tissue consistently had higher uptake than muscle tissue. The ratio between the two uptake values averages 1.23(0.85) over this time period (0.5 h to 4 h).

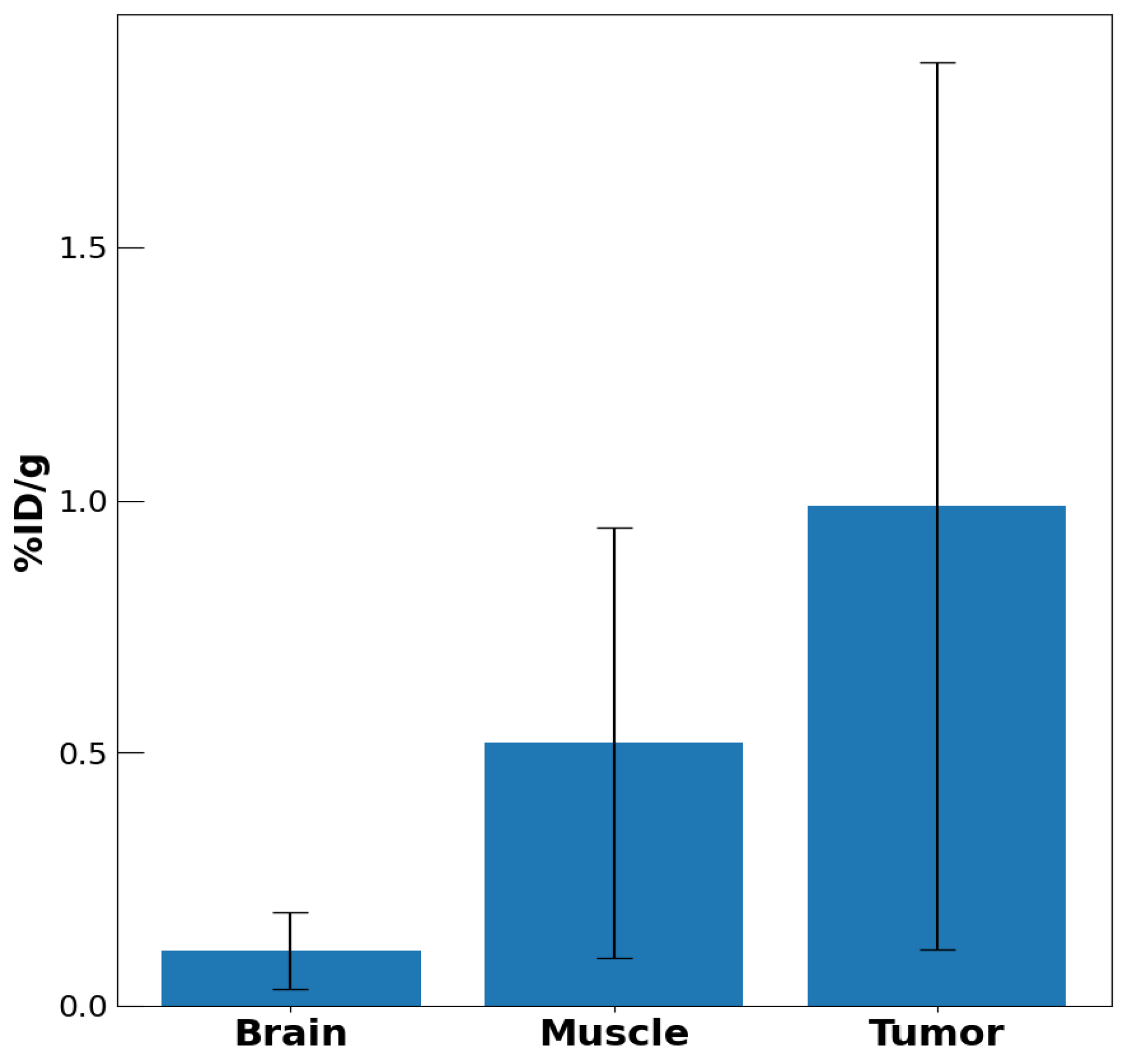

Figure 7 shows select biodistribution uptake values of [⁴⁸V]VO(acac)₂ in brain, skeletal muscle, and tumor tissue measured by ex-vivo gamma counting after imaging, again showing higher uptake in the tumor tissue compared to skeletal muscle tissue. The biodistribution data showed an average tumor to muscle ratio of 1.76(0.78), consistent with the last time point of Figure 6, exhibiting a ratio of 1.68(0.23).

3. Discussion

3.1. [⁴⁸V]VO(acac)₂ Yield

Of the 232 MBq (6.26 mCi) potentially available at the end of synthesis, 28 MBq (0.77 mCi) was produced as the radiotracer. This yield of 12% is comparable to that of our previously reported method (13%) [16]. However, the method presented herein has the distinct advantage of being completed in a much shorter time frame (4 days compared to 13 days, respectively). This improved timescale allows for higher radiation yields and provides flexibility in down-stream radiotracer utility, making it preferable for future work.

3.2. Isolating HPLC VO(acac)₂ Signal from Acetylacetone

HPLC analysis of VO(acac)₂ and acetylacetone using a gradient mobile phase of 40% to 60% MeCN in water with 0.1% TFA showed overlapping absorption in the far-UV at 254 nm (Figure 1, solid lines), a wavelength commonly used in HPLC characterization of organic compounds. Further studies revealed that the absorption properties for the two compounds are distinct at 320 nm. This indicates that the shared peak visible at 254 nm can be attributed to de-complexed acetylacetone.

For this method, a flow rate of 1.2 mL/min was determined to produce the best elution profile. In comparison, Figure 2 demonstrates that a flow rate of 1.0 mL/min had a slightly longer retention time but a slightly larger tail, while a flow rate of 1.5 mL/min had a slightly shorter retention time and a slightly smaller tail. While the ideal profile would have the smallest tail, the flow rate that produced that condition, 1.5 mL/min, also had a shorter retention time and was therefore not adopted.

3.3. Effect of Trifluoroacetic Acid

The comparison of HPLC chromatograms with and without TFA (Figure 3) illustrates that the presence of TFA enhances the peak shape of VO(acac)₂. TFA was shown to impact the HPLC profile by sharpening peaks, leading to more precise retention times. In the chromatograms in which TFA is absent (Figure 3B), a peak is observed for both the 254 nm and 320 nm wavelengths at 0.81 min, which can be attributed to the VO(acac)₂ metallochelate. However, the 254 nm trace, on the other hand, shows an additional broad signal of lower amplitude starting at 2.79 min. Because there is no indication of the metallochelate at 2.79 min in the 320 nm trace, it does not contribute to this feature. Further study is needed to understand the difference in chromatogram structure at these two wavelengths, which is currently being carried out in our laboratories.

Although there are no direct structural data to explain the basis of the interaction of TFA with VO(acac)₂, it is possible that the effect is not through acidification of the mobile phase despite the low acid dissociation constant (pKa ~ 0.25) of TFA in water [18]. The vanadyl chelate is known to dissociate under acidic conditions, yielding the free VO²⁺ cation [19].

A suggestion of how TFA improved resolution can be made on the basis of the structure of VO(acac)₂ in aqueous methanol [20] and the greatly depressed pKa (~12.65) of TFA in MeCN [21]. Determination of the structure of VO(acac)₂ in aqueous methanol by ENDOR spectroscopy revealed a methanol molecule hydrogen bonded to the oxygen atom of the VO²⁺ moiety [20]. Under the conditions that the pKa of TFA is depressed in aqueous MeCN mixtures, it is possible that the TFA molecule is hydrogen bonded to the vanadyl oxygen through its undissociated carboxylic acid group. Complex formation through hydrogen bonding of TFA to the vanadyl oxygen atom would change the hydrodynamic properties of the metallochelate, resulting in its separation from acetylacetone. Future work could use a milder acid in order to ensure compound integrity and maintain sharp absorption peaks.

3.4. Effect of Oxidation of the Metallochelate

HPLC analysis of a VO(acac)₂ sample (Figure 4) demonstrated the effects of oxidation. Over the course of a week, the amplitude of the primary signal decreased. Because oxidation of the VO²⁺ moiety in VO(acac)₂ results in decreased absorption in the 310 nm to 320 nm region with concomitant increase in absorption intensity in the 270 nm region [10], the decrease in amplitude of the 1.48 min feature is likely due entirely to oxidation of V⁴⁺ to the V⁵⁺ oxidation state.

Additionally, during this 1-week period, several other peaks appeared in the chromatogram. The additional species adjacent to the prominent 1.48 min component increased in amplitude with time, while the component at 4.03 min remained constant in amplitude. There are no structural data to characterize the oxidized species further except to note the change in oxidation state. Because oxidized species of the metallochelate exhibit altered inhibitory properties with respect to the kinetics of protein tyrosine phosphatase-1B catalyzed reactions compared to those in the presence of VO(acac)₂ [10], the oxidized and reduced species must differ from each other in structure.

3.5. HPLC Comparison of Synthetic [⁴⁸V]VO(acac)₂ with Authentic VO(acac)₂

In the HPLC chromatograms of both the commercially available compound and the synthesized radiotracer (Figure 5), the prominent peaks were shown to correspond quite well, indicating that the synthetic radiometallochelate was identical to the sample of authentic VO(acac)₂. The strong overlap between the black and the blue traces in Figure 5 indicates that the radiometallochelate synthesized in the presence of EtOH has maintained the VO²⁺ moiety in its +4 oxidation state.

3.6. Results of Imaging Studies

Animal imaging and biodistribution studies showed a higher uptake in tumor tissue compared to muscle. However, the standard deviation was high for tumor to muscle ratios of both studies: 15% for the last point in the time-activity curve in Figure 6 and 44% for the biodistribution study in Figure 7. This somewhat high value reflects a large variation in uptake of radioactivity among the three mice imaged. Further animal imaging studies are needed to determine more accurately the time dependent uptake of the radiometallochelate into different tissues and to assess the applicability of this radiotracer for small animal imaging studies.

4. Materials and Methods

4.1. [⁴⁸V]VO(acac)₂ Synthesis

Chemicals and reagents of the highest purity available were purchased from Sigma-Aldrich (St. Louis, MO 63103, USA). Except for acetylacetone, no further purification of commercially available reagents was carried out. Acetylacetone was treated first with a mass concentration of 4% NaHCO₃ to remove acetic acid, followed by brine, drying over Na₂SO₄, and finally filtration with a fritted glass funnel under partial vacuum. For HPLC, an Agilent 1260 Infinity II system equipped with a 250 mm × 4.6 mm Phenomenex Luna 5 μm C18(2) 100 Å column was used. Milli-Q deionized water at 18 MΩ was used throughout.

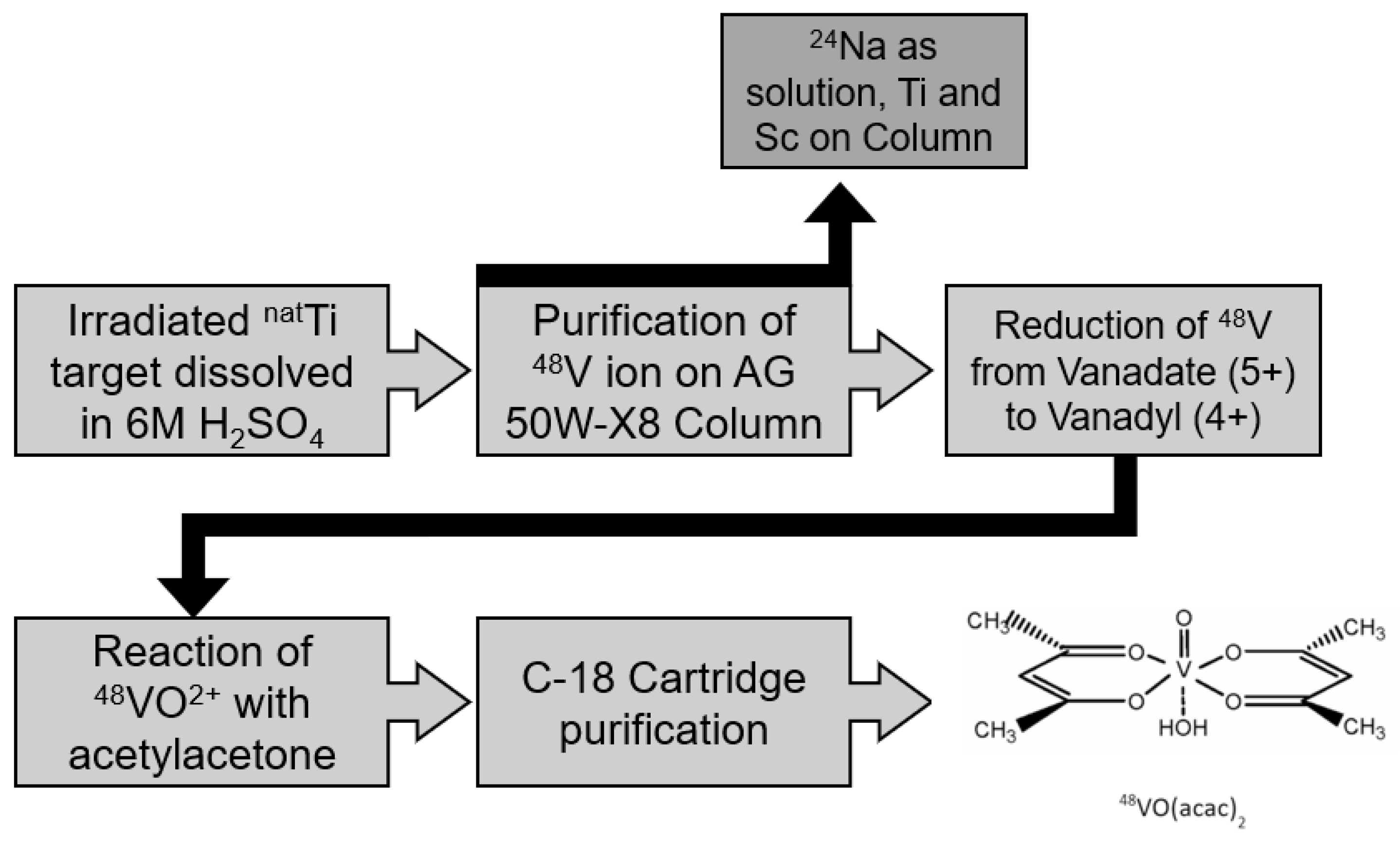

The efficient synthesis of [⁴⁸V]VO(acac)₂ was based on the procedures described by Rowe et al. [22] and Zeisler et al. [15]. A summary is shown below in Scheme 1. The ⁴⁸V was produced by irradiating natural titanium foils with 18 MeV protons in the beamstop of an IBA Cyclone^® 18/9 cyclotron (IBA, Louvain-La-Neuve, Belgium) for approximately 40 h over 5 d [16]. The irradiated foils were weighed and placed in a perfluoro-alkoxy-coated beaker over an oil bath at 140 °C and dissolved by addition of 2 mL 6 mol/L H₂SO₄. A column was prepared with 3.0 g of AG 50W-X8 cation exchange resin (mesh size 100 μm to 200 μm) and fitted with a frit. The target solution was diluted to 30 mL by addition of 28 mL H₂O. It was then loaded onto the preconditioned column. The column was eluted with a solution of 1% H₂O₂ in 0.01 mol/L HNO₃ and collected in 1 mL aliquots. Aliquots containing radioactivity were combined and the sample was evaporated by adding 100 μL concentrated H₂SO₄ and heating overnight.

After cooling to room temperature, 1 mL EtOH, 0.5 mL H₂O, and 0.05 mL 0.2 mol/L H₂SO₄ were added with refluxing overnight to reduce vanadium from oxidation state +5 to oxidation state +4. The next day, 0.5 mL acetylacetone was added with shaking. The solution was refluxed for 1 h further and then allowed to cool to room temperature after which the solution was neutralized with 0.8 g Na₂CO₃ dissolved in 5 mL H₂O. The mixture was then applied to a C-18 SPE cartridge preconditioned with 5 mL EtOH, followed by addition of 10 mL water. The trapped [⁴⁸V]VO(acac)₂ was eluted in 400 μL EtOH.

4.2. Characterization of [⁴⁸V]VO(acac)₂

While HPLC chromatography can be used to separate the metallochelate from excess acetylacetone, in this investigation, it was used to characterize the product. After synthesis, the product was characterized by both gamma ray spectroscopy with use of a NaI(Tl) detector and reverse-phase HPLC with 40% to 60% gradient of MeCN in water mobile phase over 10 min, 1 min at 60% MeCN, decrease to 40% MeCN in 1 min, and remaining at 40% MeCN for 3 min. Other gradients and mobile phases were considered in selecting this protocol; a complete summary has been made by Broder [23]. TFA (volume concentration 0.1%) was added to the water phase to improve peak shape. TFA at this concentration has been shown to exhibit no absorption at 254 nm in MeCN/water [24], the wavelength at which acetylacetone was monitored spectrophotometrically. Commercially available VO(acac)₂ was dissolved in 100% EtOH at a concentration of 2 mg/mL. Acetylacetone was dissolved in EtOH at a concentration of 5.4 mg/mL. An injection volume of 5 μL corresponding to 0.01 mg VO(acac)₂ or 0.027 g acetylacetone, respectively, was used. Solutions of VO(acac)₂ were freshly prepared unless otherwise noted. In some cases, freshly prepared solutions were compared to older samples (age of preparation < 1 week) to determine possible effects of oxidation of the metallochelate on its chromatographic behavior.

A flow rate ranging from 1.0 to 1.5 mL/min was used resulting in approximately 15 min per trial chromatographic separation. The eluent was monitored optically at 254 nm for acetylacetone and at 320 nm for VO(acac)₂ unless otherwise specified [10].

4.3. Imaging Studies with [⁴⁸V]VO(acac)₂

HSD athymic, female, nude mice were acquired from Harlan-Envigo (Indianapolis, IN 46250, USA) and three mice were inoculated subcutaneously with 1 × 10⁶ to 5 × 10⁶ HCA-7 cells in the right hind limb. Tumors were allowed to grow for up to 6 weeks until a tumor volume > 100 mm³ was reached.

[⁴⁸V]VO(acac)₂ was prepared by evaporating the solution to dryness and reconstituting it in normal saline. Prior to imaging studies, mice were anesthetized and injected via the tail vein with approximately 2.8 MBq (75 µCi) of [⁴⁸V]VO(acac)₂ in normal saline. Animals were imaged for 4 h using a β-Cube PET system (Molecubes, Lexington, MA 02421, USA). Computed tomography (CT) scans were obtained after PET imaging. After 4 h, the animals were sacrificed and biodistribution studies were performed. All tissues were assayed with the use of a gamma counter. Time-activity curves were obtained using Vivo-Quant (Invicro, Needham Heights, MA 02494, USA). Regions of interest (ROIs) were manually selected per animal based on the CT scan and confirmed with the PET image to measure the activity in the organ as a function of time.

All animals were handled and studies were conducted in accordance with protocols approved by The University of Chicago Institutional Animal Care and Use Committee.

5. Conclusions

In this investigation, we have described the synthesis of [⁴⁸V]VO(acac)₂, a novel radiotracer, and characterized it according to its HPLC chromatographic behavior. This more efficient synthesis method, requiring only four days to complete, provided a yield of 27 MBq. Although the yield was comparable to that of 32 MBq ± 3 MBq in our previous study that required approximately three weeks for preparation of the radiometallochelate [16], the present method requiring only four days represented a substantial time improvement. Illustrative preclinical imaging studies demonstrated higher time dependent uptake of [⁴⁸V]VO(acac)₂ in xenograft tumor tissue compared to that in skeletal muscle tissue. Further investigation is needed to accurately determine the maximum uptake of the radiotracer in xenograft tumors over time and in all organs for a complete biodistribution study.
