Article

Facile Synthesis of Quinolinecarboxylic Acid–Linked Covalent Organic Framework via One–Pot Reaction for Highly Efficient Removal of Water–Soluble Pollutants

by
Mingzhu Yang
1 and
Wenhua Ji
1,2,*
1
Key Laboratory for Applied Technology of Sophisticated Analytical Instruments of Shandong Province, Shandong Analysis and Test Center, Qilu University of Technology (Shandong Academy of Sciences), Jinan 250014, China
2
Key Laboratory for Natural Active Pharmaceutical Constituents Research in Universities of Shandong Province, School of Pharmaceutical Sciences, Qilu University of Technology (Shandong Academy of Sciences), Jinan 250014, China
*
Author to whom correspondence should be addressed.
Molecules 2023, 28(9), 3752; https://doi.org/10.3390/molecules28093752
Submission received: 16 April 2023 / Revised: 25 April 2023 / Accepted: 25 April 2023 / Published: 27 April 2023
(This article belongs to the Special Issue Design of Molecularly Interfaced Nanostructures for Biological, Environmental and Food Applications)
Browse Figures
Review Reports Versions Notes

Abstract

:
To efficiently eliminate highly polar organic pollutants from water has always been a difficult issue, especially in the case of ultralow concentrations. Herein, we present the facile synthesis of quinolinecarboxylic acid-linked COF (QCA–COF) via the Doebner multicomponent reaction, possessing multifunction, high specific surface area, robust physicochemical stability, and excellent crystallinity. The marked feature lies in the quinolinyl and carboxyl functions incorporated simultaneously to QCA–COF in one step. The major cis–orientation of carboxyl arms in QCA–COF was speculated by powder X–ray diffraction and total energy analysis. QCA–COF demonstrates excellent adsorption capacity for water–soluble organic pollutants such as rhodamine B (255.7 mg/g), methylene blue (306.1 mg/g), gentamycin (338.1 mg/g), and 2,4–dichlorophenoxyacetic acid (294.1 mg/g) in water. The kinetic adsorptions fit the pseudo–second order model and their adsorption isotherms are Langmuir model. Remarkably, QCA–COF can capture the above four water–soluble organic pollutants from real water samples at ppb level with higher than 95% removal efficiencies and excellent recycling performance.

1. Introduction

Covalent organic frameworks (COFs) are a class of designable, porous, crystalline polymers with outstanding merits of tunable functionality and flexible topological connectivity [1,2,3,4,5]. The precise arrangement of building blocks and rigid backbone affords highly crystalline materials, making COFs more robust than amorphous organic polymers [6]. Structural functionalization in COFs can provide performance enhancements, including adsorption, host–guest interactions, and optical/electrical responses [7,8,9,10]. The flexible pore wall decoration for the affiliated groups or active sites in COFs offers potential exploration in their functionality [11], while the covalent linkages contribute to the high thermal and chemical stabilities of COFs. The efficient fabrication of functionalized COFs is one of the most vital synthetic challenges, which largely affects the expansion of their application fields.
An alternative strategy to convert active sites of COFs into versatile linkages is the post-synthetic modification of some linkers. Recently, it has been demonstrated that the imine–linked COFs can be transformed into quinoline, pyridine, secondary amine, secondary amide, thiazole, and oxazole–connected COFs [12,13,14,15,16,17]. In such a way, it is easy to generate new COFs or improve their physical and chemical features [18], but it is difficult to prevent the framework from collapsing. Furthermore, it suffers from tedious work–up and high energy and time consumption in most cases. Aiming to achieve the diversity, feasibility, and generality of synthetic methodology, recent advances that have improved the stability of COFs include the Knoevenagel reaction [19,20], Aldol condensation [21], nucleophilic aromatic substitution [22,23], and multicomponent reactions [24,25,26,27,28,29,30]. The multicomponent reactions delicately combine a series of irreversible/reversible covalent assemblies in one step to conveniently construct ideal annular scaffolds. To create the cyclic linkages, they show potential superiorities: (i) more diversity of COFs in functionality and structure can be facilely realized; (ii) more organic monomers break the structural restriction of the design and synthesis of frameworks. However, the delicate control over specific multicomponent reactions to produce ordered COF materials remains an arduous challenge.
The incorporation of functionalized side arms into COFs is capable of carrying out new applications. Different functional side arms, involving –SH, –NH2, –CO2H, –CONR–, –CO2R–, –COSR–, and chiral groups, can be introduced into COFs using post–synthetic modification with the click reaction [9,31,32,33] or the esterification reaction [34,35,36,37]. However, it is rather difficult for functionalizing COFs as they lack suitable reactive groups in most cases [34]. The tedious synthetic efforts and potential interactions during the process of COFs formation also limit the post–synthetic modification [38]. Potentially, the multicomponent reactions can open up a novel route for the introduction of multivariate functions into COFs. Unfortunately, a few recent works upon applying the multicomponent reactions to build COFs mainly focus on their frameworks, where the linkages formed without any side functional arms.
In view of the adsorption–based separation featuring quick removal, ease of operation, and cost–effectiveness, some COF materials have been utilized as adsorbents to remove toxic organic pollutants from water [39,40], but they are mostly limited to the water–insoluble organic pollutants, involving per– and poly–fluorinated alkyl substances (PFASs), bisphenol A, and nitrobenzene. Furthermore, a few COF adsorptions documented were only performed for the removal of pollutants at high concentrations, for instance, PFASs at 200 ng/mL [41], methylene blue (MB) at 8000 ng/mL [42], and rhodamine B (RhB) at 10,000 ng/mL [43]. To efficiently eliminate highly polar organic pollutants from water has always been a difficult issue, especially in the case of ultralow concentrations. Therefore, it is of significance to develop new COF adsorbents for the efficient removal of toxic organic pollutants at ultralow concentrations from water.
In this work, we develop a simple and efficient approach to construct a quinolinecarboxylic acid–linked COF, QCA–COF, based on the Doebner multicomponent reaction (Figure 1). QCA–COF was facilely prepared under solvothermal conditions from 1,3,5–tris(4–aminophenyl)benzene (TAPB), p–phthalaldehyde (PDA), and pyruvic acid using sulfamic acid as a catalyst. Note that all monomers are easily available on a large scale. More importantly, compared with the previous reports [27,28,29,30], sulfamic acid can greatly simplify the reaction process and shorten the reaction time from 72 h to 8 h. In view of its multiple binding sites involving quinoline N, aromatic rings, and carboxyl functions, adsorption applications of QCA–COF for ultralow concentration water-soluble organic contaminants were evaluated.

2. Results and Discussion

2.1. Synthesis and Characterization

The Doebner multicomponent reaction catalyzed with sulfamic acid is a powerful method for the synthesis of quinoline–4–carboxylic acid derivatives [44]. We initiated our studies by evaluating the model three–component reaction of aniline, benzaldehyde, and pyruvic acid with sulfamic acid as a catalyst (see Supplementary Materials). The NMR spectra confirmed that the desirable model compound quinoline–4–carboxylic acid was successfully synthesized (Figures S1 and S2). Next, to obtain QCA–COF with good crystallinity, the reaction conditions involving solvents and temperatures have been optimized. After many designable trials, we have successfully achieved the right conditions to yield QCA–COF (Table S1). Highly crystalline QCA–COF was obtained in a solution of 1,4–dioxane/n–butanol (v/v = 1:4) at 110 °C for 8 h.
The chemical structure of QCA–COF was identified by solid–state 13C NMR, FT–IR, elemental analysis, and XPS techniques. The formation of QCA–COF was well supported by the FT–IR spectra. As dedicated in Figure S3, the characteristic absorptions at 1551 and 1603 cm−1 indicate the existence of quinolyl skeletons. The typical peaks around 1707 cm−1 are ascribed to the carboxyl functions. The solid-state 13C NMR spectrum of QCA–COF identifies the carboxyl function at 168 ppm, and the quinolyl group at ca. 156, 138, and 123 ppm (Figure S4). These results are similar to those of the model compound. In the XPS of QCA–COF (Figure S5), the characteristic peaks at 531.78 eV, 398.58 eV, and 285.58 eV represent the carboxyl O, quinolyl N, and quinolyl C atoms, respectively. Elemental analysis data of QCA–COF (C, 73.25%; H, 3.65%; N, 5.49%) essentially matched the values (C, 76.92%; H, 3.44%; N, 5.98%) calculated for its corresponding formula [C90H48O12N6]n. The scanning electron microscope image of QCA–COF gives a similar spherical shape (Figure S6). All characterizations imply that the expected QCA–COF has been successfully prepared by the one–pot reaction. It should be noted that our method is of significance for constructing COF materials that possess functionalized side arms aimed to further expand their applications.
The porosity of QCA–COF was evaluated with the N2 adsorption–desorption test at 77 K. As shown in Figure 2a, the IV isotherm indicated that QCA–COF has the characteristic mesoporous structure. Its N2 adsorption quantity at 77 K is 527 cm3/g, and its Brunauer−Emmett−Teller (BET) surface area is 716 m2/g. The pore size distribution based on Barrett−Joyner−Halenda isotherms (Figure 2a, inserts) center at 3.07 nm, which matches well with the data of the simulated structure for QCA–COF (3.0 nm).
Thermogravimetric analysis certificated that QCA–COF is stable enough to 420 °C, featuring good thermal stability (Figure S7). Furthermore, it was treated under different harsh conditions for 72 h to examine the chemical stability. All FT–IR spectra of QCA–COF almost remain unchanged (Figure S8) after treatments, showing its remarkable chemical stability. N2 adsorption−desorption investigations proved its permanent porosity under harsh environments (Figure S8).
Theoretically, QCA–COF generated via the Doebner three-component reaction should mainly exist in two isomers: cis–form and trans-form (Figure S9), which originated from the different spatial configurations of its p–phenyl-bridged bis–quinolinecarboxylic acid linkers. The PXRD analysis of QCA–COF displays peaks at 2.84°, 4.86°, 5.68°, and 7.46°, corresponding to the facets of (100), (110), (200), and (210), respectively (Figure 2b). Materials Studio software was used to conduct the lattice modeling and Pawley refinement of QCA–COF, which outputs the most probable structure being its cis–form with the eclipsed AA stacking. The crystallographic information was shown in Table S2. The Pawley refinements afforded optimized parameters, which provide agreement factors: Rwp = 12.33%, Rp = 9.71% for its cis-form, and Rwp = 17.97%, Rp = 13.17% for its trans–form. Obviously, the former is more consistent with the experimental data. Moreover, the total energy for its cis–form is 191 kcal/mol, which is lower than that for its trans–form (195 kcal/mol). Thus, the PXRD analysis confirmed that QCA–COF exists mainly in its cis–form rather than in its trans–form. Note that after being treated under harsh conditions, the PXRD patterns of QCA–COF almost retain the identical characteristic peaks (Figure S8), indicating no framework collapsing.
To offer insights into this one–pot synthesis mechanism of QCA–COF, the imine–linked TAPB–PDA–COF was prepared and the post–synthetic modification was carried out. Pyruvic acid and sulfamic acid were combined with the precursor TAPB–PDA–COF under the same conditions (1,4–dioxane/n–butanol, 110 °C, 8 h). However, the elemental analysis certificated that we have not obtained the desired QCA–COF. This implied that the mechanism may not involve the formation process of imine but α,β–unsaturated carbonyl compound yielded as the Doebner–von Miller reaction [45]. Hence, a plausible mechanism was proposed for this three–component synthesis of QCA–COF (Figure S10): (i) a condensation between PDA and pyruvic acid to α,β–unsaturated keto acid I occurs, where the I quickly converts into its cis–form driven by the stabilization of H–bonding formation with TAPB; (ii) and (iii) a conjugate addition happens through amine to attack the cis–form of I, creating intermediate II followed by cyclization and aromatization to produce intermediate III; (iv) III continues to repeat (ii) and (iii) steps in turn, yielding a cis–edge IV of COF; and then, the sequence from (ii) to (iv) was repeated until QCA–COF was finally formed. This H–bonding directed synthesis of COFs with cis–functional arms is quite interesting.

2.2. Pollutant Removal Evaluation

Our obtained QCA–COF can be qualified as potential adsorbents for removing organic pollutants from water due to their intrinsic acidic and basic functions along with different aromatic nuclei. Thus, QCA–COF is used to evaluate its removal function of highly water–soluble contaminants, involving 2,4–D, RhB, MB, and gentamycin from water. The analysis details of four contaminants are shown in Supplementary Materials (Tables S3–S6). Delightedly, we found that all four organic pollutants can be removed >98% within 5 min, 9 min, and 15 min at 20.0 ng/mL, 100.0 ng/mL, and 200.0 ng/mL (Figure 3a–c), respectively.
Remarkably, our results are much superior to that of COF powder described previously, which was removed at 70% after 2 h [42]. Moreover, control experiments show that QCA–COF achieves much higher removal efficiencies for four pollutants at 20.0 ng/mL than TAPB–PDA–COF, QCA–COP, activated carbon, and ion exchange resin (Figure 4). These results demonstrate that QCA–COF can efficiently clean up the water contaminated with ultralow concentration highly water-soluble organic pollutants in the independent experiment.
The isothermal adsorption of four contaminants by QCA–COF was carried out to evaluate the maximum adsorption capacity. The details are shown in Supplementary Materials (Figure S11). The amount of four pollutants adsorbed on QCA–COF increases along with their initial concentrations. The experimental maximum adsorption capacities for 2,4–D, RhB, MB, and gentamycin are 294.1, 255.7, 306.1, and 338.1 mg/g, respectively. Fitting with the Langmuir equation, the highest monolayer adsorption capacities are calculated to be 303.0 mg/g (2,4–D), 263.2 mg/g (RhB), 312.5 mg/g (MB), and 344.8 mg/g (gentamycin). This good adsorption capacity may be ascribed to the multiple binding sites and high specific surface area of QCA–COF. As shown in Figure S12, all values of n for the Freundlich model are more than two, demonstrating the easy occurrence of adsorption.

2.3. Adsorption Mechanism

As QCA–COF has multiple binding sites, unique porous structural frameworks, and large conjugate systems, it can interact with the heterocycle, electron–donating, or nitrogen–containing groups of adsorbates through a wide variety of contacts, such as H–bonding, π–π stacking, as well as hydrophobic, electrostatic, and hydrophilic interactions. As shown in the charge density distribution under natural pH conditions (Figure 5), most areas of QCA–COF are neutral, except for quinoline N and carbonyl O, which are negatively charged. For MB, the N element at the end of the structure is positive, while for gentamycin and RhB, most areas of their structure are slightly positive. In 2,4–D, the terminal H atoms of its structure are positive. These results proclaimed that the electrostatic interaction is a key driving force for QCA–COF adsorbing these contaminants.
Based on the consideration of quantum mechanics, the behavior of materials can be predicted and calculated via the DFT method. Hence, the information of adsorbates/adsorbent–combined configurations was studied. For adsorbates, the top-site and pore–site of COF are the potential adsorption sites. According to the statistical results of annealing configurations, almost all adsorbates are trapped in the pore–size rather than top–size [46]. The adsorption energies for QCA–COF-adsorbed 2,4–D, RhB, MB, and gentamycin are −51.2, −44.4, −57.1, and −79.6 kcal/mol, respectively, which indicated that the adsorption ability of QCA–COF for gentamycin is superior to that for 2,4–D, RhB, and MB.

2.4. Reusability

The high cost for synthesis of COFs is one of the main limitations for their applications. Accordingly, the reusability of QCA–COF was studied to make it more economical. Fortunately, RhB, MB, and gentamycin captured by QCA–COF can be completely desorbed using HCl aqueous solution (1.0 M). However, 2,4–D should be desorbed using methanol due to its poor solubility in the acidic solution. As shown in Figure 6, QCA–COF almost maintains the same removal efficiencies even after six cycles. Furthermore, QCA–COF remains stable in these solvents.

2.5. Application of QCA–COF

The applicability of QCA–COF to remove four environmental pollutants from real water samples was validated. The results are summarized in Table 1. Above 95% removal efficiencies indicate that QCA–COF has an anti–interference ability and strong affinity in real water samples, including pond water, tap water, and industrial wastewater. It is noteworthy that low adsorption capacities for Na+ (0.9 mg/g), Ca2+ (2.4 mg/g), and Mg2+ (1.7 mg/g) imply that QCA–COF can be applied for the purification of drinking water.

3. Materials and Methods

3.1. Chemical Reagents

Benzaldehyde (99.5%), aniline (99.5%), pyruvic acid (98%), PDA (98%), rhodamine B (RhB, 99%), methylene blue (MB, 98%), gentamycin sulfate (98%), 2,4–dichlorophenoxyacetic acid (2,4–D, 98%), o–dichlorobenzene (o–DCB, 99%), and sulfamic acid (99.5%) were purchased from Aladdin (Shanghai, China). 1,3,5–Tris(4–aminophenyl)benzene (TAPB, 98%) was purchased from J&K Scientific Ltd. (Beijing, China). Mesitylene (98%), 1,4–dioxane (99%), n–butanol (99%), acetic acid (99%), acetone (99%), and tetrahydrofuran (THF, 99%) were purchased from Sinopharm Chemical Reagent Co., Ltd. (Shanghai, China). These chemicals were used without further purification. The chemical structures of four water-soluble organic contaminants are shown in Figure S12.

3.2. Characterization and Chromatographic Conditions

Powder X–ray diffraction (PXRD) data were measured by a D8 ADVANCE X–ray powder diffractometer (Rigaku, Tokyo, Japan) under Cu Kα radiation (λ = 1.5405 Å). The range was from 2θ = 2.0° up to 30°. Scanning electron microscope (SEM) images were recorded on a SWPRATM55 scanning electron microscope (Carl Zeiss, AG, Aalen, Germany). The FT–IR data were obtained ranging from 500 to 3700 cm−1 on a Nicolet 710 spectrometer (Waltham, MA, USA). The N2 adsorption–desorption experiments were performed on a Kubo–X1000 analyzer (Bjbuilder, Beijing, China). The Brunauer−Emmett−Teller (BET) method was applied to calculate the surface area and pore volume. The pore size distribution was calculated with the Barrett−Joyner−Halenda model. Thermogravimetric (TG) analysis was performed from room temperature to 850 °C on the STA 449F3–QMS403C system (Netzsch, Germany). The X–ray photoelectron spectroscopy (XPS) was conducted using an ESCALAB 250XI imaging electron spectrometer (Thermo, Waltham, MA, USA). A Vario EL III analyzer (Elementar, Germany) was used to perform the elemental analysis.
The liquid–state NMR was recorded on an Avance III HD 400 MHz spectrometer (Bruker Biospin AG, Switzerland) using tetramethylsilane (TMS) as an internal standard. Chemical shifts were reported in ppm. 1H NMR spectra were referenced to DMSO–d6 (2.50 ppm), and 13C NMR spectra were referenced to DMSO–d6 (39.5 ppm). All 13C NMR spectra were measured with complete proton decoupling. The solid–state 13C NMR spectra were measured on a JNM–ECZ600R NMR spectrometer (JEOL, Japan). Contaminants were analyzed using the Waters ACQUITY UHPLC system coupled to a Waters Xevo TQ–XS triple quadrupole mass spectrometer (Milford, USA).
The analysis of four contaminants was performed using a Waters Acquity UPLC coupled with Waters Xevo TQ–XS (Milford, USA). The separations were obtained using a Waters Acquity UPLC BEH C18 column (1.7 µm, 2.1 × 50 mm) with the mobile phase, as listed in Tables S3 and S4, pumped at a flow rate of 0.3 mL/min. The temperature of the autosampler and column were 10 °C and 40 °C, respectively. The injection volume was 5 μL.
The mass spectrometry experiment was working with ESI mode under multiple reaction monitoring (MRM) conditions. The MRM details are listed in Table S5. The ESI source parameters were: capillary voltage, 0.5 kV; source temperature, 150 °C; desolvation temperature, 400 °C; desolvation gas, 800 L h−1; desolvation gas, 99.99% purity of N2; and nebulization flow, 7.0 Bar.
The linear ranges and limits of quantification (LOQs) for the determination of four contaminants using UHPLC–MS/MS are listed in Table S6.

3.3. Synthesis of QCA–COF

To a 10 mL round–bottom flask, PDA (60.3 mg, 0.45 mmol), TAPB (105.3 mg, 0.3 mmol), and 1,4–dioxane/n–butanol solution (5 mL, v/v = 1:4) were added. After they were sonicated for 10 min, pyruvic acid (79.2 mg, 0.9 mmol) and sulfamic acid (1 mol%) were added. The mixture was heated at 110 °C for 8 h and then cooled to room temperature. The yellow precipitate was collected by centrifugation and washed with water and THF, respectively. After Soxhlet extraction in acetone and THF for 6 h and drying under vacuum at 60 °C for 2 h, QCA–COF was obtained as a yellow powder in 53% isolated yield.

3.4. Synthesis of TAPB–PDA–COF

TAPB–PDA–COF was prepared using the procedure reported [47]. A mixture of TAPB (84.0 mg, 0.24 mmol), PDA (48.3 mg, 0.36 mmol), and acetic acid aqueous solution (6 M, 0.3 mL) in o–dichlorobenzene/n–butanol (3 mL, v/v = 1:1) was added in a Pyrex tube (35 mL) using three freeze–pump–thaw cycles. The tube was sealed and heated at 120 °C for 72 h. The precipitate was collected by centrifugation, washed with THF, and dried at 120 °C under vacuum overnight to give TAPB–PDA–COF.

3.5. Organic Contaminants Removal Experiments

QCA–COF (10 mg) was soaked in 20 mL of four aqueous solutions containing RhB, MB, 2,4–D, and gentamycin at three concentrations (20.0 ng/mL, 100.0 ng/mL, and 200.0 ng/mL), respectively. Each mixture was stirred at 22 °C. The concentrations of the supernatant solutions were analyzed through the ultrahigh performance liquid chromatography tandem mass spectrometry (UHPLC–MS/MS) at different times. All experiments were performed in triplicate. The removal efficiencies (R, %) of four contaminants at different times were calculated as follows:
R (%) = (Ci − Ct)/Ci × 100%
where Ci (ng/mL) is the initial concentration in solution, and Ct (ng/mL) is the contaminant concentration in the system at time t (min).
Control experiments were performed using TAPB–PDA–COF without modification, and QCA–COP without crystallinity, activated carbon, and ion exchange resin.

3.6. Computational Method

The DMol3 program was used to perform all the spin-polarized density functional theory (DFT) calculations within the generalized gradient approximation (GGA) using the Perdew–Burke–Ernzerhof (PBE) formulation. The projected augmented wave potentials were chosen to describe the ionic cores. Based on a plane wave basis set, the valence electrons were taken into account. DFT semi-core pseudopotential was used for the core-electron treatment. The SCF convergence for each electronic energy was set as 1.0 × 10−5 Ha. The geometry optimization convergence criteria were set up as follows: 1.0 × 10−5 Ha for energy, 0.004 Ha Å−1 for force, and 0.01 Å for displacement, respectively. In addition, the van der Waals interactions have been considered in the calculation.
Under the environment of water, the surface charge distribution for four contaminants, QCA–COF, and TAPB–PDA–COF were simulated using the DFT method with the DMol3 program of Materials Studio 8.0. Double numerical basis with polarization functions was selected as the basis set. GGA–PBE was selected as the exchange–correlation functional. Grimme dispersion correction was used in all calculations to describe π-stacking and van der Waals interactions.

4. Conclusions

A powerful one–step synthetic strategy for constructing carboxy–functionalized quinoline–linked COFs has been successfully developed. Multivariate functions are smartly incorporated into the robust COF, which largely avoids the tedious work-up of post-synthetic modifications. Our QCA–COF possesses carboxyl-functionalized side arms and inherent physicochemical stability, so it can be qualified as an outstanding absorbent material. Compared with the reported sorbents, at ultralow concentrations (20–200 ng/mL) the water–soluble organic contaminants can be effectively purged from water. We anticipate that our robustly synthetic strategy may be utilized to fabricate a great variety of functionalized quinoline-bridged COF materials that show a wider range of applications in the future.

Supplementary Materials

The following supporting information can be downloaded at: https://www.mdpi.com/article/10.3390/molecules28093752/s1, Figure S1: 1H NMR spectrum of model compound; Figure S2: 13C NMR spectrum of model compound; Figure S3: FT-IR spectra of TAPB, PDA, pyruvic acid, model compound, and QCA–COF; Figure S4: Liquid-state 13C NMR spectrum of model compound and solid–state 13C NMR spectra of QCA–COF; Figure S5: High-resolution XPS spectra of C, N, and O for QCA–COF; Figure S6: SEM image of QCA–COF, Inset showing its appearance; Figure S7: TGA data indicate that QCA–COF is thermally stable up to 420 °C; Figure S8: N2 adsorption-desorption isotherms (a), PXRD patterns (b) and FT–IR spectra (c) for QCA–COF measured after 72 h treating with DMF, THF, water, 6M NaOH, and 6M HCl; Figure S9: Structures of QCA–COF in its cis- and trans-form; Figure S10: A plausible mechanism proposed for QCA–COF yielded in its cis-form; Figure S11: The isothermal adsorption, Langmuir model, and Freundlich model of four contaminants binding by QCA–COF; Figure S12: Chemical structures of four water-soluble organic contaminants; Table S1: The optimized conditions by changing solvents and temperatures; Table S2: Unit cell parameters and fractional atomic coordinates for QCA–COF in cis-form based AA topology after unit cell correction and Pawley refinement; Table S3: UHPLC gradient conditions of 2,4–D, MB, and RhB. UHPLC gradient conditions, percentage of: (A) 0.1% formic acid solution in water; (B) CAN; Table S4: UHPLC gradient conditions of gentamicin. UHPLC gradient conditions, percentage of: (B) ACN; (C) 200 mM ammonium formate solution in water; Table S5: Mass conditions; Table S6: The linearity of UHPLC–MS/MS method for 2,4–D, MB, RhB, and gentamicin.

Author Contributions

Methodology, W.J. and M.Y.; software, M.Y.; formal analysis, validation, and investigation, W.J. and M.Y.; writing—original draft preparation, W.J.; writing—review and editing, W.J. and M.Y.; funding acquisition, W.J. The manuscript was written through contributions of all authors. All authors have read and agreed to the published version of the manuscript.

Funding

The authors are grateful for the financial support from the Key R&D Program of Shandong Province, China (2021CXGC010508), the Taishan Scholars Program of Shandong Province (W. Ji), the innovative team of Jinan (202228020), and the Science, Education and Industry Integration Innovation Pilot Project from Qilu University of Technology (Shandong Academy of Sciences) (2022JBZ02-04).

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Data Availability Statement

Data are contained within the article.

Conflicts of Interest

The authors declare no conflict of interest.

Sample Availability

Samples of the compounds 2,4–D, MB, and RhB are available from Wenhua Ji.

References

  1. Li, J.; Yang, Y.; Ma, W.; Li, G.; Lu, Q.; Lin, Z. One-pot room-temperature synthesis of covalent organic framework-coated superhydrophobic sponges for highly efficient oil-water separation. J. Hazard. Mater. 2021, 411, 125190. [Google Scholar] [CrossRef] [PubMed]
  2. Lv, H.; Zhao, X.; Niu, H.; He, S.; Tang, Z.; Wu, F.; Giesy, J.P. Ball milling synthesis of covalent organic framework as a highly active photocatalyst for degradation of organic contaminants. J. Hazard. Mater. 2019, 369, 494–502. [Google Scholar] [CrossRef] [PubMed]
  3. Song, X.; Wang, R.; Wang, X.; Han, H.; Qiao, Z.; Sun, X.; Ji, W. An amine-functionalized olefin-linked covalent organic framework used for the solid-phase microextraction of legacy and emerging per- and polyfluoroalkyl substances in fish. J. Hazard. Mater. 2022, 423, 127226. [Google Scholar] [CrossRef]
  4. Zhang, L.; Li, Y.; Wang, Y.; Ma, S.; Ou, J.; Shen, Y.; Ye, M.; Uyama, H. Integration of covalent organic frameworks into hydrophilic membrane with hierarchical porous structure for fast adsorption of metal ions. J. Hazard. Mater. 2020, 407, 124390. [Google Scholar] [CrossRef]
  5. Liu, Z.; Wang, H.; Ou, J.; Chen, L.; Ye, M. Construction of hierarchically porous monoliths from covalent organic frameworks (COFs) and their application for bisphenol A removal. J. Hazard. Mater. 2018, 355, 145–153. [Google Scholar] [CrossRef] [PubMed]
  6. Bhanja, P.; Mishra, S.; Manna, K.; Mallick, A.; Saha, K.D.; Bhaumik, A. Covalent organic framework material bearing phloroglucinol building units as a potent anticancer agent. ACS Appl. Mater. Interfaces 2017, 9, 31411–31423. [Google Scholar] [CrossRef]
  7. Sun, X.; Wang, R.; Li, L.; Wang, X.; Ji, W. Online extraction based on ionic covalent organic framework for sensitive determination of trace per- and polyfluorinated alkyl substances in seafoods by UHPLC-MS/MS. Food Chem. 2021, 362, 130214. [Google Scholar] [CrossRef]
  8. Li, F.-F.; Cui, W.-R.; Jiang, W.; Zhang, C.-R.; Liang, R.-P.; Qiu, J.-D. Stable sp2 carbon-conjugated covalent organic framework for detection and efficient adsorption of uranium from radioactive wastewater. J. Hazard. Mater. 2020, 392, 122333. [Google Scholar] [CrossRef]
  9. Huang, L.; Shuai, Q. Facile approach to prepare sulfur-functionalized magnetic amide-linked organic polymers for enhanced Hg(II) removal from water. ACS Sustain. Chem. Eng. 2019, 7, 9957–9965. [Google Scholar] [CrossRef]
  10. Zhong, X.; Lu, Z.; Liang, W.; Hu, B. The magnetic covalent organic framework as a platform for high-performance extraction of Cr(VI) and bisphenol a from aqueous solution. J. Hazard. Mater. 2020, 393, 122353. [Google Scholar] [CrossRef]
  11. Li, W.; Jiang, H.-X.; Geng, Y.; Wang, X.-H.; Gao, R.-Z.; Tang, A.-N.; Kong, D.-M. Facile removal of phytochromes and efficient recovery of pesticides using heteropore covalent organic framework-based magnetic nanospheres and electrospun films. ACS Appl. Mater. Interfaces 2020, 12, 20922–20932. [Google Scholar] [CrossRef] [PubMed]
  12. Waller, P.J.; Lyle, S.J.; Osborn Popp, T.; Diercks, C.S.; Reimer, J.A.; Yaghi, O.M. Chemical conversion of linkages in covalent organic frameworks. J. Am. Chem. Soc. 2016, 138, 15519–15522. [Google Scholar] [CrossRef] [PubMed]
  13. Haase, F.; Troschke, E.; Savasci, G.; Banerjee, T.; Duppel, V.; Dörfler, S.; Grundei, M.M.J.; Ochsenfeld, C.; Kaskel, S.; Lotsch, B.V. Topochemical conversion of an imine- into a thiazole-linked covalent organic framework enabling real structure analysis. Nat. Commun. 2018, 9, 2600. [Google Scholar] [CrossRef] [PubMed]
  14. Liu, H.; Chu, J.; Yin, Z.; Cai, X.; Zhuang, L.; Deng, H. Covalent organic frameworks linked by amine bonding for concerted electrochemical reduction of CO2. Chem 2018, 4, 1696–1709. [Google Scholar] [CrossRef]
  15. Li, X.; Zhang, C.; Cai, S.; Lei, X.; Altoe, V.; Hong, F.; Urban, J.J.; Ciston, J.; Chan, E.M.; Liu, Y. Facile transformation of imine covalent organic frameworks into ultrastable crystalline porous aromatic frameworks. Nat. Commun. 2018, 9, 2998. [Google Scholar] [CrossRef] [PubMed]
  16. Waller, P.J.; AlFaraj, Y.S.; Diercks, C.S.; Jarenwattananon, N.N.; Yaghi, O.M. Conversion of imine to oxazole and thiazole linkages in covalent organic frameworks. J. Am. Chem. Soc. 2018, 140, 9013–9099. [Google Scholar] [CrossRef]
  17. Wang, Y.; Liu, H.; Pan, Q.; Wu, C.; Hao, W.; Xu, J.; Chen, R.; Liu, J.; Li, Z.; Zhao, Y. Construction of fully conjugated covalent organic frameworks via facile linkage conversion for efficient photoenzymatic catalysis. J. Am. Chem. Soc. 2020, 142, 5958–5963. [Google Scholar] [CrossRef]
  18. Yang, Z.; Gu, Y.; Yuan, B.; Tian, Y.; Shang, J.; Tsang, D.; Liu, M.; Gan, L.; Mao, S.; Li, L. Thio-groups decorated covalent triazine frameworks for selective mercury removal. J. Hazard. Mater. 2021, 403, 123702. [Google Scholar] [CrossRef]
  19. Shi, J.-L.; Chen, R.; Hao, H.; Wang, C.; Lang, X. 2D sp2 carbon-conjugated porphyrin covalent organic framework for cooperative photocatalysis with TEMPO. Angew. Chem. Int. Ed. 2020, 59, 9088–9093. [Google Scholar] [CrossRef]
  20. Jin, E.; Asada, M.; Xu, Q.; Dalapati, S.; Addicoat, M.A.; Brady, M.A.; Xu, H.; Nakamura, T.; Heine, T.; Chen, Q.; et al. Two-dimensional sp2 carbon-conjugated covalent organic frameworks. Science 2017, 357, 673–676. [Google Scholar] [CrossRef]
  21. Acharjya, A.; Pachfule, P.; Roeser, J.; Schmitt, F.-J.; Thomas, A. Vinylene-linked covalent organic frameworks by base-catalyzed Aldol condensation. Angew. Chem. Int. Ed. 2019, 58, 14865–14870. [Google Scholar] [CrossRef] [PubMed]
  22. Guan, X.; Li, H.; Ma, Y.; Xue, M.; Fang, Q.; Yan, Y.; Valtchev, V.; Qiu, S. Chemically stable polyarylether-based covalent organic frameworks. Nat. Chem. 2019, 11, 587–594. [Google Scholar] [CrossRef] [PubMed]
  23. Ji, W.; Guo, Y.-S.; Xie, H.-M.; Wang, X.; Jiang, X.; Guo, D.-S. Rapid microwave synthesis of dioxin-linked covalent organic framework for efficient micro-extraction of perfluorinated alkyl substances from water. J. Hazard. Mater. 2020, 397, 122793. [Google Scholar] [CrossRef]
  24. Wang, P.-L.; Ding, S.-Y.; Zhang, Z.-C.; Wang, Z.-P.; Wang, W. Constructing robust covalent organic frameworks via multicomponent reactions. J. Am. Chem. Soc. 2019, 141, 18004–18008. [Google Scholar] [CrossRef]
  25. Wang, K.; Jia, Z.; Bai, Y.; Wang, X.; Hodgkiss, S.; Chen, L.; Chong, S.Y.; Wang, X.; Yang, H.; Xu, Y.; et al. Synthesis of stable thiazole-linked covalent organic frameworks via a multicomponent reaction. J. Am. Chem. Soc. 2020, 142, 11131–11138. [Google Scholar] [CrossRef] [PubMed]
  26. Li, X.-T.; Zou, J.; Wang, T.-H.; Ma, H.-C.; Chen, G.-J.; Dong, Y.-B. Construction of covalent organic frameworks via three-component one-pot Strecker and Povarov Reactions. J. Am. Chem. Soc. 2020, 142, 6521–6526. [Google Scholar] [CrossRef]
  27. Li, X.-T.; Zou, J.; Yu, Q.; Liu, Y.; Li, J.-R.; Li, M.-J.; Ma, H.-C.; Chen, G.-J.; Dong, Y.-B. Construction of acid-base bifunctional covalent organic frameworks via Doebner reaction for catalysing cascade reaction. Chem. Commun. 2022, 58, 2508–2511. [Google Scholar] [CrossRef]
  28. Ding, L.-G.; Wang, S.; Yao, B.-J.; Wu, W.-X.; Kan, J.-L.; Liu, Y.; Wu, J.; Dong, Y.-B. Covalent organic framework based multifunctional self-sanitizing face masks. J. Mater. Chem. A 2022, 10, 3346–3358. [Google Scholar] [CrossRef]
  29. Yang, Y.; Yu, L.; Chu, T.; Niu, H.; Wang, J.; Cai, Y. Constructing chemical stable 4-carboxyl-quinoline linked covalent organic frameworks via Doebner reaction for nanofiltration. Nat. Commun 2022, 13, 2615. [Google Scholar] [CrossRef]
  30. Das, P.; Chakraborty, G.; Roeser, J.; Vogl, S.; Rabeah, J.; Thomas, A. Integrating bifunctionality and chemical stability in covalent organic frameworks via one-pot multicomponent reactions for solar-driven H2O2 production. J. Am. Chem. Soc. 2023, 145, 2975–2984. [Google Scholar] [CrossRef]
  31. Sun, Q.; Aguila, B.; Perman, J.; Earl, L.D.; Abney, C.W.; Cheng, Y.; Wei, H.; Nguyen, N.; Wojtas, L.; Ma, S. Postsynthetically modified covalent organic frameworks for efficient and effective mercury removal. J. Am. Chem. Soc. 2017, 139, 2786–2793. [Google Scholar] [CrossRef] [PubMed]
  32. Xu, H.; Gao, J.; Jiang, D. Stable, crystalline, porous, covalent organic frameworks as a platform for chiral organocatalysts. Nat. Chem. 2015, 7, 905–912. [Google Scholar] [CrossRef] [PubMed]
  33. Huang, L.; Shen, R.; Liu, R.; Shuai, Q. Thiol-functionalized magnetic covalent organic frameworks by a cutting strategy for efficient removal of Hg2+ from water. J. Hazard. Mater. 2020, 392, 122320. [Google Scholar] [CrossRef] [PubMed]
  34. Lu, Q.; Ma, Y.; Li, H.; Guan, X.; Yusran, Y.; Xue, M.; Fang, Q.; Yan, Y.; Qiu, S.; Valtchev, V. Postsynthetic functionalization of three-dimensional covalent organic framework for selective extraction of Lanthanide ions. Angew. Chem. Int. Ed. 2018, 57, 6042–6048. [Google Scholar] [CrossRef] [PubMed]
  35. Liu, C.; Jiang, Y.; Nalaparaju, A.; Jiang, J.; Huan, A. Post-synthesis of a covalent organic framework nanofiltration membrane for highly efficient water treatment. J. Mater. Chem. A 2019, 7, 24205–24210. [Google Scholar] [CrossRef]
  36. Li, W.-K.; Ren, P.; Zhou, Y.-W.; Feng, J.-T.; Ma, Z.-Q. Europium(III) functionalized 3D covalent organic framework for quinones adsorption and sensing investigation. J. Hazard. Mater. 2020, 388, 121740. [Google Scholar] [CrossRef]
  37. Li, J.; Yang, X.; Bai, C.; Tian, Y.; Li, B.; Zhang, S.; Yang, X.; Ding, S.; Xia, C.; Tan, X.; et al. A novel benzimidazole-functionalized 2-D COF material: Synthesis and application as a selective solid-phase extractant for separation of uranium. J. Colloid. Interf. Sci. 2015, 437, 211–218. [Google Scholar] [CrossRef]
  38. Yue, J.-Y.; Wang, L.; Ma, Y.; Yang, P.; Zhang, Y.-Q.; Jiang, Y.; Tang, B. Metal ions-assisted carboxyl-containing covalent organic frameworks for the efficient removal of congo red. Dalton Trans. 2019, 48, 17763–17769. [Google Scholar] [CrossRef]
  39. Wang, J.; Zhuang, S. Covalent organic frameworks (COFs) for environmental applications. Coordin. Chem. Rev. 2019, 400, 213046. [Google Scholar] [CrossRef]
  40. Wang, X.-L.; Sun, Y.-Y.; Xiao, Y.; Chen, X.-X.; Huang, X.-C.; Zhou, H.-L. Facile solution-refluxing synthesis and photocatalytic dye degradation of a dynamic covalent organic framework. Molecules 2022, 27, 8002. [Google Scholar] [CrossRef]
  41. Ji, W.; Xiao, L.; Ling, Y.; Ching, C.; Matsumoto, M.; Bisbey, R.P.; Helbling, D.E.; Dichtel, W.R. Removal of genx and perfluorinated alkyl substances from water by amine-functionalized covalent organic frameworks. J. Am. Chem. Soc. 2018, 140, 12677–12681. [Google Scholar] [CrossRef] [PubMed]
  42. Karak, S.; Dey, K.; Torris, A.; Halder, A.; Bera, S.; Kanheerampockil, F.; Banerjee, R. Inducing disorder in order: Hierarchically porous covalent organic framework nanostructures for rapid removal of persistent organic pollutants. J. Am. Chem. Soc. 2019, 141, 7572–7581. [Google Scholar] [CrossRef] [PubMed]
  43. Mon, M.; Bruno, R.; Tiburcio, E.; Viciano-Chumillas, M.; Kalinke, L.H.G.; Ferrando-Soria, J.; Armentano, D.; Pardo, E. Multivariate metal-organic frameworks for the simultaneous capture of organic and inorganic contaminants from water. J. Am. Chem. Soc. 2019, 141, 13601–13609. [Google Scholar] [CrossRef]
  44. Yahya, S.; Beheshtiha, S.H.; Majid, M.; Dehghani, M. Sulfamic acid: An efficient and recyclable solid acid catalyst for the synthesis of quinoline-4-carboxylic acid derivatives in water. Mod. Chem. Appl. 2016, 4, 1000195. [Google Scholar]
  45. Itoh, S.; Fukui, Y.; Haranou, S.; Ogino, M.; Komatsu, M.; Ohshiro, Y. Synthesis and characterization of dimethyl 9,10-dihydro-9,10-dioxobenzo[f]quinoline-2,4-dicarboxylate. Effect of the pyrrole nucleus on the reactivity of coenzyme PQQ. J. Org. Chem. 1992, 57, 4452–4457. [Google Scholar] [CrossRef]
  46. Zhuang, S.; Liu, Y.; Wang, J. Covalent organic frameworks as efficient adsorbent for sulfamerazine removal from aqueous solution. J. Hazard. Mater. 2020, 383, 121126. [Google Scholar] [CrossRef]
  47. Xu, Q.; Tao, S.; Jiang, Q.; Jiang, D. Designing covalent organic frameworks with a tailored ionic interface for ion transport across one-dimensional channels. Angew. Chem. Int. Ed. 2020, 59, 4557–4563. [Google Scholar] [CrossRef]
Molecules 28 03752 g001 550

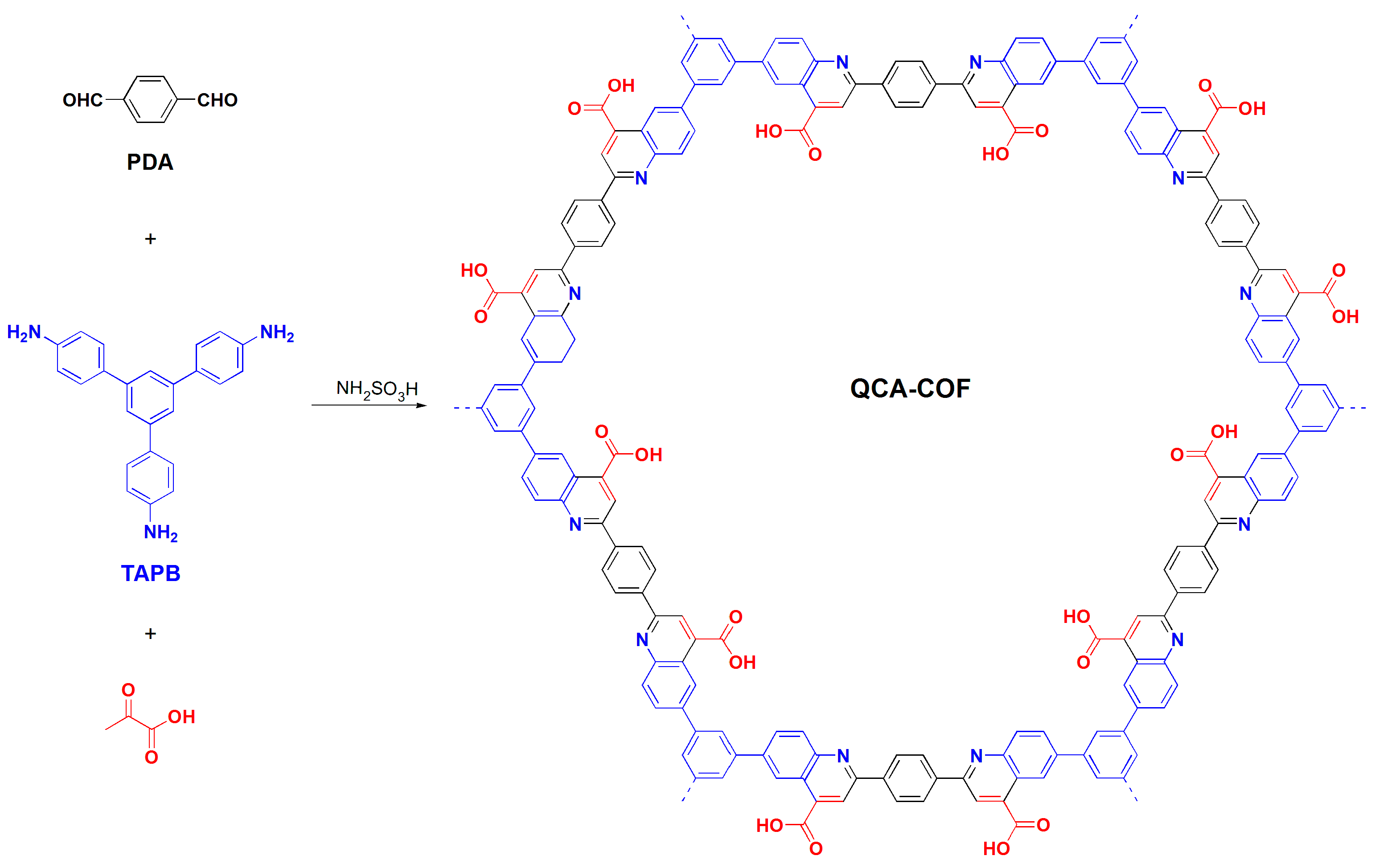

Figure 1. Synthesis of QCA–COF via the Doebner three–component reaction.
Figure 1. Synthesis of QCA–COF via the Doebner three–component reaction.
Molecules 28 03752 g001
Molecules 28 03752 g002 550

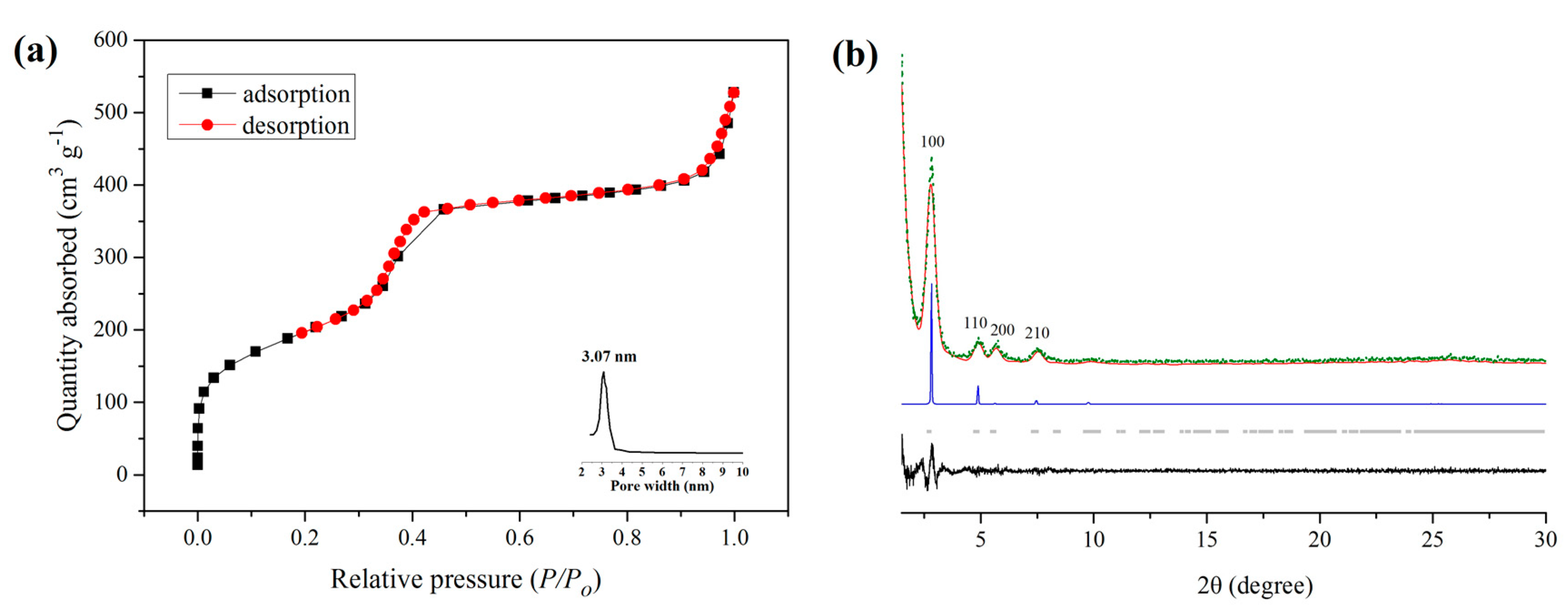

Figure 2. The nitrogen adsorption–desorption isotherms and pore size distribution for QCA–COF (a) and PXRD patterns of QCA–COF (b) observed experimentally (red), Pawley–refined patterns of its cis–form (green), difference between the experimental and calculated data (black), calculated patterns of its cis-form for AA (blue), and Bragg positions (gray).
Figure 2. The nitrogen adsorption–desorption isotherms and pore size distribution for QCA–COF (a) and PXRD patterns of QCA–COF (b) observed experimentally (red), Pawley–refined patterns of its cis–form (green), difference between the experimental and calculated data (black), calculated patterns of its cis-form for AA (blue), and Bragg positions (gray).
Molecules 28 03752 g002
Molecules 28 03752 g003 550

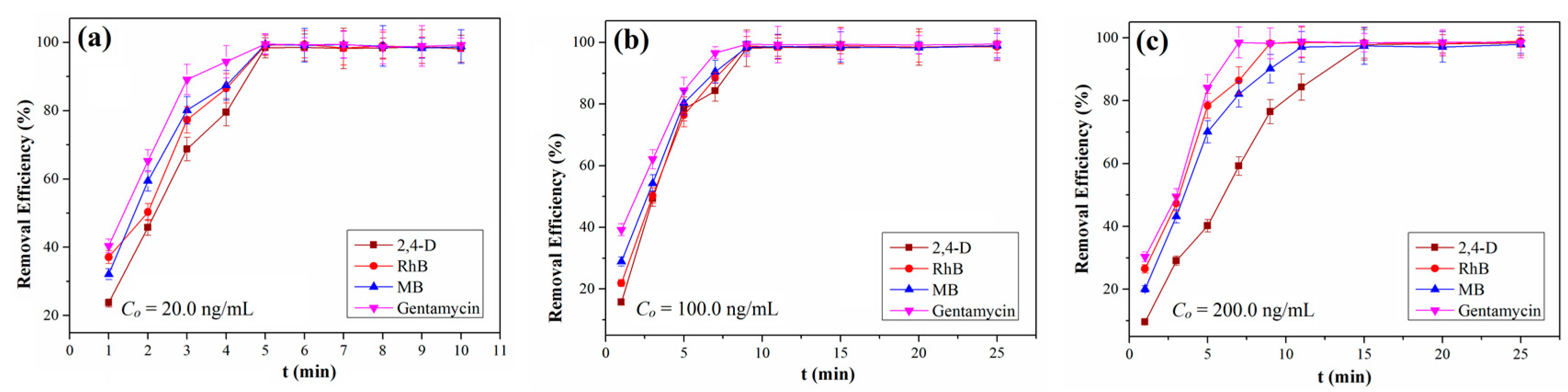

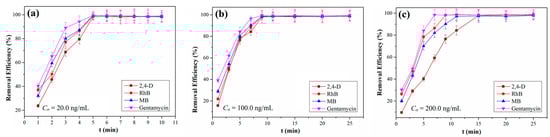

Figure 3. The removal efficiencies of QCA–COF at the initial concentration of 20.0 ng/mL (a), 100.0 ng/mL (b), and 200.0 ng/mL (c).
Figure 3. The removal efficiencies of QCA–COF at the initial concentration of 20.0 ng/mL (a), 100.0 ng/mL (b), and 200.0 ng/mL (c).
Molecules 28 03752 g003
Molecules 28 03752 g004 550

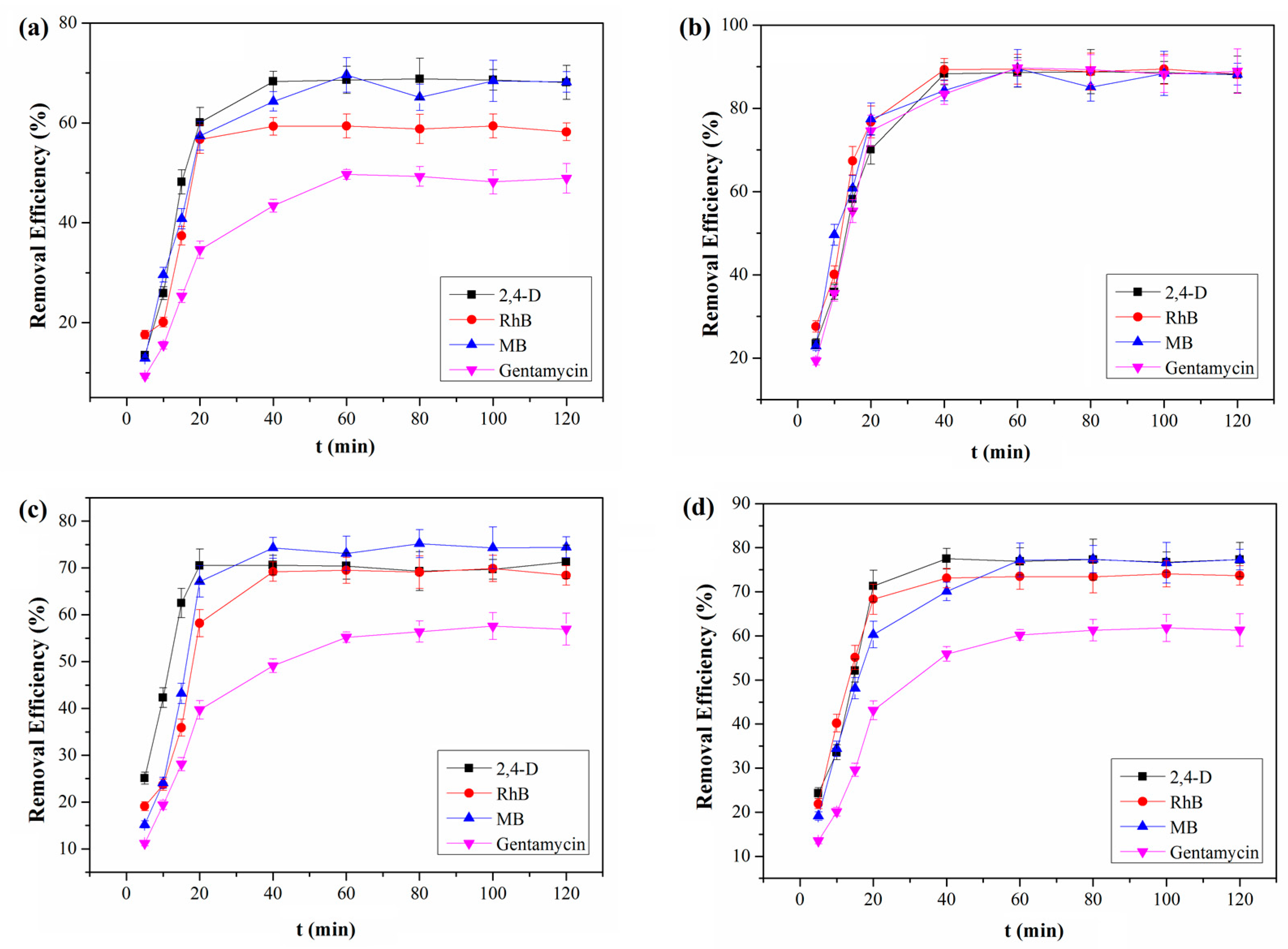

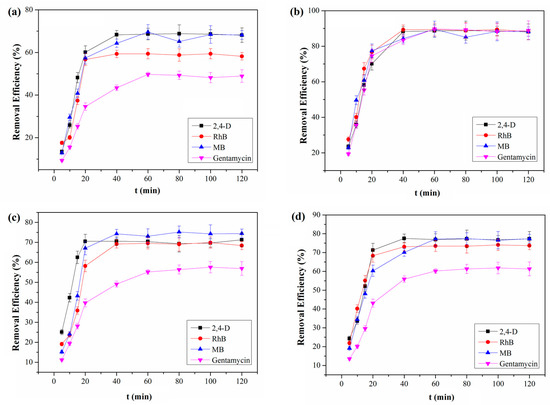

Figure 4. The removal efficiencies of TAPB–PDA–COF (a), QCA–COP (b), activated carbon (c), and ion exchange resin (d) for four water-soluble organic pollutants at 20.0 ng/mL.
Figure 4. The removal efficiencies of TAPB–PDA–COF (a), QCA–COP (b), activated carbon (c), and ion exchange resin (d) for four water-soluble organic pollutants at 20.0 ng/mL.
Molecules 28 03752 g004
Molecules 28 03752 g005 550

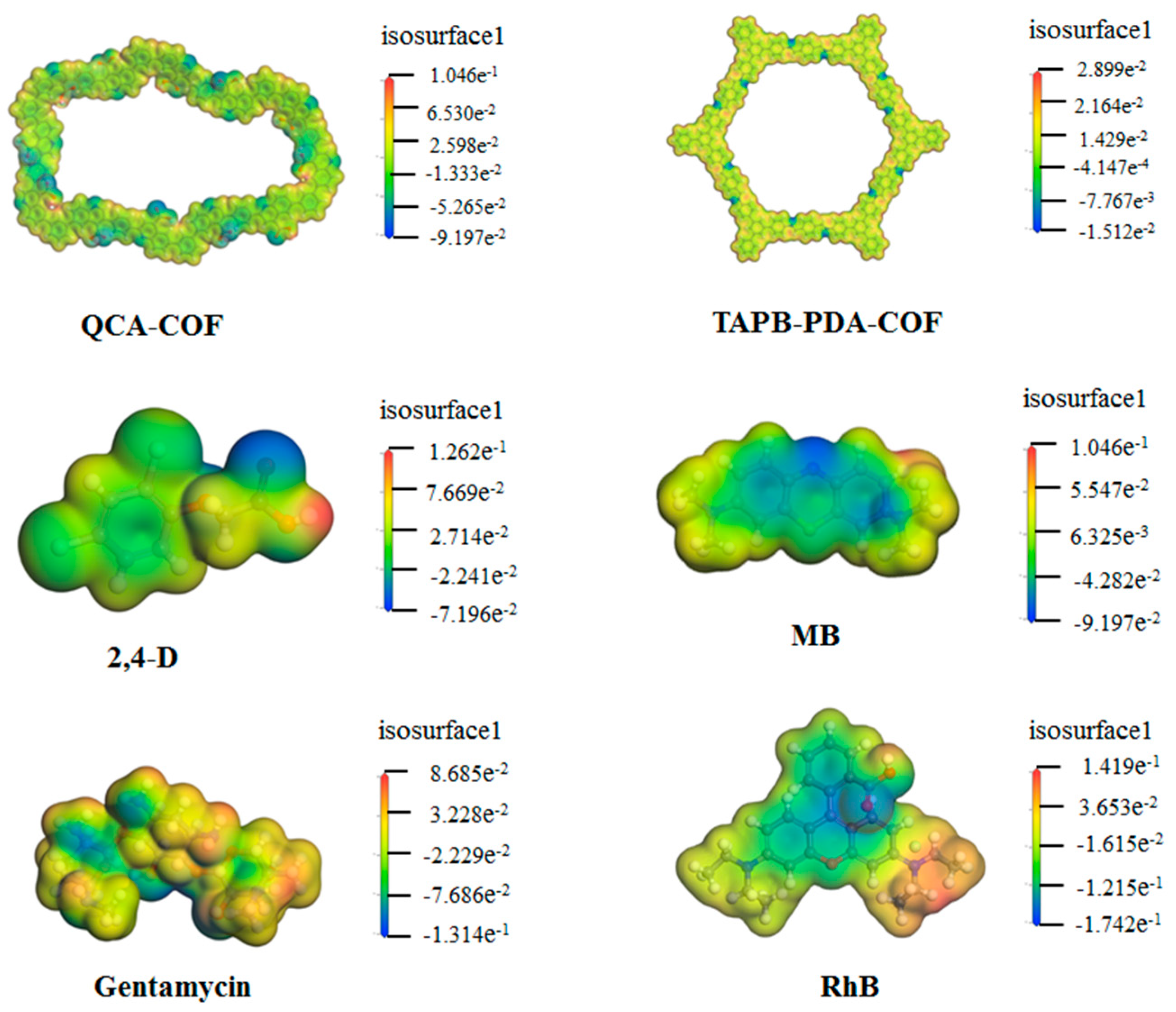

Figure 5. The charge distributions of QCA–COF, TAPB–PDA–COF, 2,4–D, gentamycin, MB, and RhB under the environment of water.
Figure 5. The charge distributions of QCA–COF, TAPB–PDA–COF, 2,4–D, gentamycin, MB, and RhB under the environment of water.
Molecules 28 03752 g005
Molecules 28 03752 g006 550

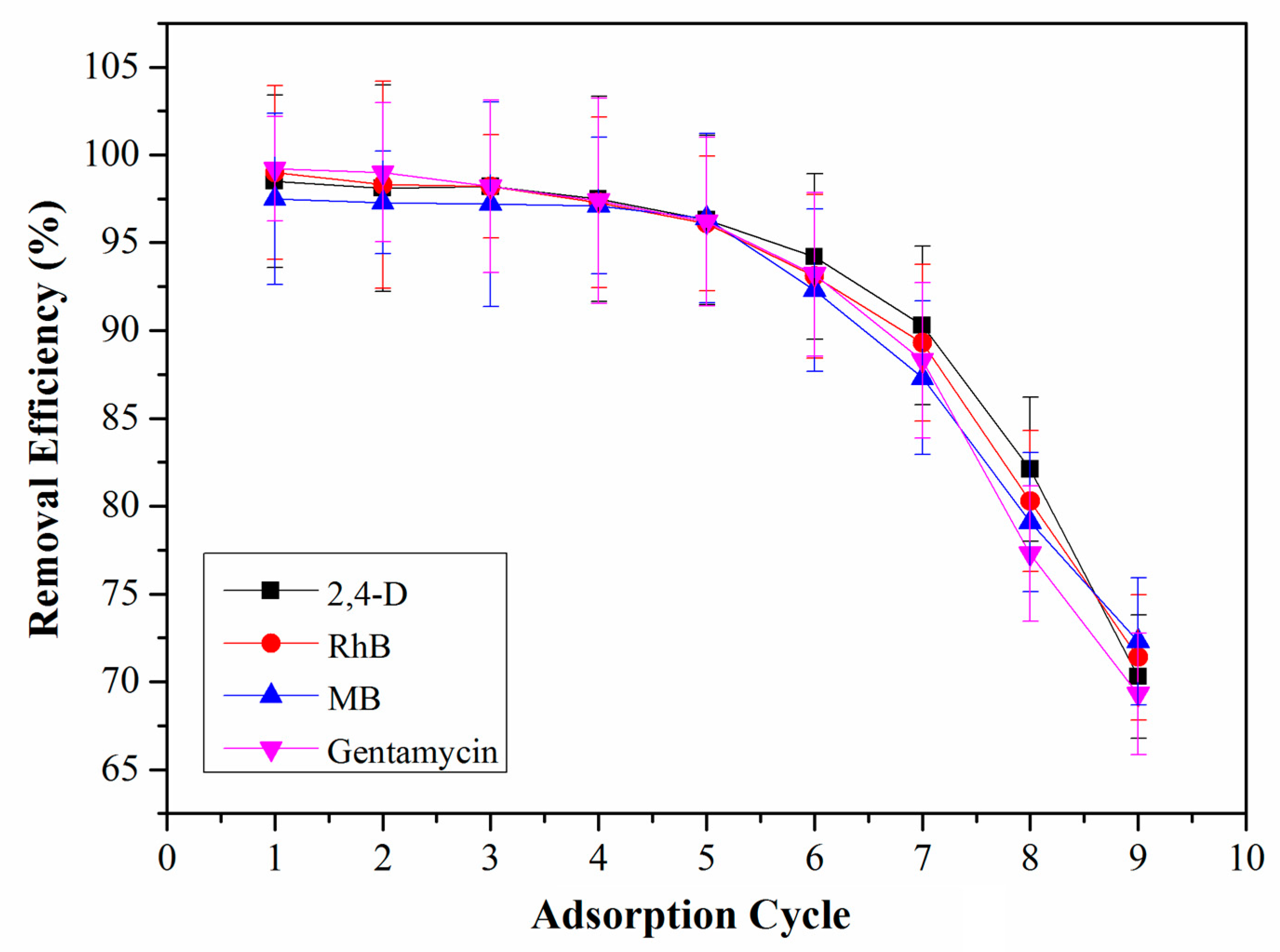

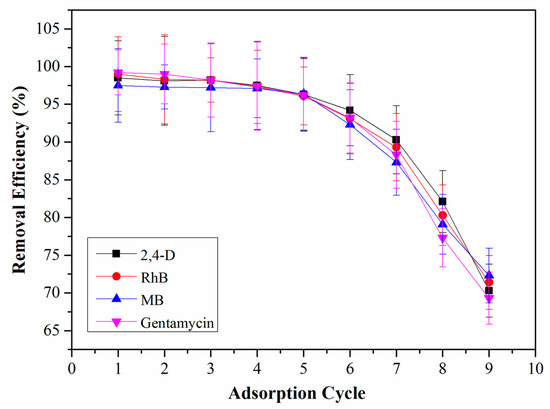

Figure 6. The regeneration performance of QCA–COF.
Figure 6. The regeneration performance of QCA–COF.
Molecules 28 03752 g006
Table
Table 1. The removal efficiency of QCA–COF for tap water, pond water, and industrial wastewater [a].
Table 1. The removal efficiency of QCA–COF for tap water, pond water, and industrial wastewater [a].
Pond Water [b]Tap Water [b]Industrial Wastewater [b]
Found/Spiked
(ng/mL)		After Removal
(ng/mL)		Removal
(%)		Found/Spiked
(ng/mL)		After Removal
(ng/mL)		Removal
(%)		Found/Spiked
(ng/mL)		After Removal
(ng/mL)		Removal
(%)
RhBND [c]ND [c]-ND [c]ND [c]-ND [c]ND [c]-
10.0 [e]0.1898.210.0 [e]0.3296.810.0 [e]0.3196.9
40.0 [e]0.5498.640.0 [e]1.4796.340.0 [e]1.3596.6
80.0 [e]1.3298.480.0 [e]2.8696.480.0 [e]3.2595.9
MBND [c]ND [c]-ND [c]ND [c]-ND [c]ND [c]-
10.0 [e]0.3996.110.0 [e]0.2397.710.0 [e]0.2897.2
40.0 [e]0.6598.440.0 [e]1.5996.040.0 [e]1.9495.2
80.0 [e]1.4498.280.0 [e]3.3895.880.0 [e]3.2496.0
GentamycinND [c]ND [c]-7.72 [d]0.2596.7ND [c]ND [c]-
10.0 [e]0.2397.710.0 [e]0.7695.710.0 [e]0.2197.9
40.0 [e]0.7398.240.0 [e]1.2397.440.0 [e]1.4896.3
80.0 [e]2.0197.580.0 [e]3.7695.780.0 [e]2.4197.0
2,4-DND [c]ND [c]-ND [c]ND [c]-14.7 [d]0.2998.0
10.0 [e]0.2197.910.0 [e]0.4995.110.0 [e]0.5997.6
40.0 [e]0.8997.840.0 [e]1.1397.140.0 [e]2.6395.2
80.0 [e]2.9796.380.0 [e]3.6295.580.0 [e]3.7496.0
[a] Removal conditions as follows: sample volume, 25 mL; QCA–COF, 10 mg; adsorption temperature, 25 °C; adsorption time, 30 min. [b] Tap water was collected from our laboratory (Jinan, China), pond water came from the Shandong Analysis and Test Center (Jinan, China), and industrial wastewater was collected from a pharmaceutical factory (Jinan, China). [c] Not detected. [d] Found concentration. [e] Spiked concentration.
