Article

Design of Liquid Crystal Materials Based on Palmitate, Oleate, and Linoleate Derivatives for Optoelectronic Applications

by
Salma A. Al-Zahrani
1,
Mohd Taukeer Khan
2,
Violeta Jevtovic’
1,
Najat Masood
1,
Yassin Aweis Jeilani
1 and
Hoda A. Ahmed
3,4,*
1
Chemistry Department, Faculty of Science, University of Ha’il, P.O. Box 2440, Ha’il 81451, Saudi Arabia
2
Department of Physics, Faculty of Science, Islamic University of Madinah, Al-Madinah Al-Munawwarah 42351, Saudi Arabia
3
Department of Chemistry, Faculty of Science, Cairo University, Cairo 12613, Egypt
4
Chemistry Department, Faculty of Science, Taibah University, Yanbu 46423, Saudi Arabia
*
Author to whom correspondence should be addressed.
Molecules 2023, 28(4), 1744; https://doi.org/10.3390/molecules28041744
Submission received: 9 January 2023 / Revised: 4 February 2023 / Accepted: 7 February 2023 / Published: 11 February 2023

Abstract

:
Herein, liquid crystalline derivatives based on palmitate, oleate, and linoleate moieties with azomethine cores were synthesized, and their physical, chemical, optical, and photophysical properties were investigated in detail. The mesomorphic activity of these materials was examined through polarized optical microscopy (POM) and differential scanning calorimetry (DSC). The observed results revealed that the stability of the thermal mesophase depends on the terminal polar as well as on the fatty long-chain substituents. Purely smectogenic phases were detected in all three terminal side chains. A eutectic composition with a low melting temperature and a broad smectic A range was found by constructing a binary phase diagram and addressing it in terms of the mesomorphic temperature range. The energy bandgap of the palmitate-based derivative (Ia) was determined as 3.95 eV and slightly increased to 4.01 eV and 4.05 eV for the oleate (Ib) and linoleate (Ic) derivatives, respectively. The optical constants (n, κ, εr, and εi) were extracted from the fitting of measured spectroscopic ellipsometer data. The steady-state spectra of these samples exhibited a broad emission in the range 400–580 nm, which was found to be blue shifted to 462 nm for both Ib and Ic derivatives. The average fluorescence decay lifetime of the Ia derivative was found to be 598 ps, which became faster for the Ib and Ic derivatives and slower for the sample with a chloride end polar group.

1. Introduction

Optical liquid crystal (LC) materials are compounds that have a metaphase between solid and liquid phases. LC materials display one or more different mesophase according to the molecular ordering, such as layered smectic (Sm) and nematic (N) phases [1,2,3]. LCs can play an important role in a variety of applications, including displays, solar cells, sensors, modulators, optical imaging, etc., because of their properties [4,5]. Additionally suitable for use in biology, food production, medicine, and oil recovery are LCs. As a result, recent years have seen a rise in study into the development and design of liquid crystalline systems [6,7,8,9,10,11,12,13,14]. Three different forms of liquid crystalline materials can be distinguished: polymeric, lyotropic, and thermotropic. For their linear and nonlinear optical properties, thermotropic LCs have been extensively investigated and employed [14,15,16,17,18,19,20,21,22,23,24,25].
Numerous rod-like LC materials have been generated from Schiff bases and extensively examined [26,27,28,29,30,31]. Different impacts, including the orientation of the ester group within the rigid core, the position of the Schiff base unit with regard to the ester group, the lateral substitution [32], and the length of the terminal chain [33,34,35,36,37,38,39,40,41,42], have been studied. A terminal fatty acid substituent may stimulate and lower the melting temperature [43,44,45]. The resulting mesomorphic characteristics clearly illustrate this. In such a study, the polarity and direction of dipole moments change, but the molecular structure shows little change. As a result, a small modification to the shape of the molecule improves its optical properties, leading to novel mesophase behavior. When the length of the terminal substituent increases, the molecules tend to position themselves in a parallel configuration [46]. The length of the terminal chains also affects the twist-bend nematic and heliconical phases [47,48,49,50].
Typically, a multicomponent mixture with specific physical and chemical properties, namely, a wide temperature range of the mesophase, low viscosity, and the appropriate optical birefringence, is used to fill commercially available liquid crystal displays (LCDs). Only a few mesogenic and/or nonmesogenic chemical mixes may successfully satisfy these conditions. In order to design mixtures with the necessary properties, it is particularly necessary to understand the interactions between molecules of different components in liquid crystalline mixtures. Binary systems [23,42,45] have often been used to achieve extended liquid crystalline temperature ranges. In binary mixtures consisting of electron donors and acceptors, parallel molecular arrangement, required by liquid crystal formation, becomes observable if an electron donor–acceptor charge transfer interaction acts as the orientational force [51,52,53,54].
To find applications for liquid crystal materials in optoelectronic devices, it is vital to understand their optical and photophysical properties. In order to check whether the synthesized liquid crystalline materials are suitable for solar cells or optical sensors, it is important to evaluate the optical band gap, absorption coefficient, and lifetime of the charge carriers inside the material [55]. Moreover, to find applications for liquid crystalline materials in display devices, the knowledge of steady-state and time-resolved photoluminescence is requisite [56]. Furthermore, the optical parameters, including refractive index (n), extinction coefficient (κ), and real and imaginary parts of dielectric constants (εr, εi), are vital to determine the performance of the optoelectronic devices. The optical constant was evaluated by measurements with a spectroscopic ellipsometer.
Mesogenic materials, specifically as LCD displays, organic light-emitting diodes, anisotropic networks, photoconductors, and semiconductor materials, offer a wide range of valuable applications in science and technology [4]. Numerous mesogens, particularly thermotropic LCs, have been created as a result of the strong demand for new LCs for applications [28,29,30]. In earlier research, we found that the connecting units, azomethine and ester, were helpful for producing mesomorphism in thermotropic liquid crystals with two and three aromatic rings. Different polarity aromatic azomethine ester substitutes were shown to either enhance or reduce the mesomorphic characteristics [21].
In order to fully understand the correlation between the molecular structures of mesogens and their mesomorphic capabilities, several azomethine/ester homologous series of rod-like LCs have been described and frequently studied from the perspective of their alluring optical features [17]. These structural studies [26,27,28,29,30,31] can be used to determine the ester orientation inside a rigid core, the location of Schiff base/ester groups, lateral substitutions, and the terminal chain length. An LC compound’s molecules are strengthened by lateral substitution, which also contributes to the derivatives’ mesogenic properties. Through the disruption of molecular closed packing and a decrease in the LC melting point, the lateral substituent in the stiff core can successfully increase LC solubility.
Compounds that exhibit thermotropic mesomorphic properties widely vary in chemical constitution, but all of them possess a common feature: molecular geometric anisotropy. That is, the molecules of mesomorphic compounds are elongated and rod- or lath-like in shape, and this should be a necessary requirement. Compounds, such as normal paraffins and the homologues of acetic acid, are apparently geometrically suitable for mesophase formation but do not exhibit liquid crystalline properties. This is simply because the attractive forces operating between the molecules are insufficiently strong to maintain the parallel arrangement of the molecules after the crystal lattice has melted. In predicting whether a compound will be mesomorphic, the nature and probably strength of the intermolecular attractions must be considered, together with the purely geometric aspects of the molecule.
The goal of the present work was to design two different series of liquid crystalline derivatives based on palmitate, oleate, and linoleate moieties, and investigate them in detail. The two series differ from each other in the length of the terminal fatty chain attached to one end of the aromatic core, as shown in Figure 1. In the first series, a methoxy group (CH3O) was used [45], while in the second series, the methoxy group was replaced by chloro-substituent. The impact of the type of terminal group and the fatty chain length on their thermal, mesomorphic, and optical properties was investigated. The impact of the terminal fatty chain length and the terminal polar group (CH3O and Cl) on the optical and photophysical properties was investigated through the recording of the absorption spectra, spectroscopic ellipsometer measurements, and steady-state and time-resolved fluorescence spectra of the synthesized LC samples.

2. Results and Discussion

2.1. Liquid Crystalline Behavior

The transition temperatures and associated enthalpies of the synthesized materials were extracted from a DSC scan, which are tabulated in Table 1 and graphically depicted in Figure 2. The second heating scans were used to calculate the transition temperatures and enthalpy values. The stability of the heating and cooling DSC curves proved that all derivatives were thermally stable. Figure 3 illustrates the DSC heating and cooling traces of compound IIa as an example. The POM measurements showed textures that supported the formation of mesophases (Figure 4).
As can be seen in Table 1, all compounds from the Ia-c and IIa-c series displayed enantiotropic LC phases, except for the Ia derivative, which showed a monotropic phase. Moreover, all of them exhibited thermal mesophases in different temperature ranges depending on the nature of the terminal fatty chain. To determine the effect of the length of the terminal fatty chain as well as the terminal polar group (CH3O and Cl) on the mesophase behavior in each series, the transition temperatures of all the examined derivatives are graphically displayed in Figure 2.
For the polar CH3O group (Ia-c) [45] that donated electrons (Table 1 and Figure 2), all of the produced compounds proved the presence of the smectic A mesophase. Compound Ia had a limited monotropic smectic A phase range of 9.8 °C and was completely smectogenic. A wider SmA temperature range than that of the saturated counterpart Ia (20.1 °C) was observed because of the length and unsaturation of the wing group in compound Ib [45]. In general, mesophase stability was enhanced by increasing the polarizability and/or polarity of the entire molecule’s mesogenic component. Compound Ic expanded the SmA temperature range (to 27.7 °C) by means of its longer terminal chain compared with that of compound Ia and two conjugated double bonds above its corresponding analogue Ib.
Changing the terminal polar group X from the methoxy to the chloro led to the formation of the second series of materials IIa-c. As can be seen from Table 1 and Figure 2, the melting temperatures were reduced for all derivatives because of the dilution effect caused by the longer fatty chain. Essentially, the same phase type observed in Ia-c was also exhibited by IIa-c. Additionally, all of the members of the homologous series IIa-c were enantiotropic with mesophase thermal stability greater than that of group Ia-c. The SmA range decreased when replacing the X from methoxy to the Cl moiety. Figure 1 also illustrates that the presence of one or two double bonds resulted in a reduction in the smectic A stabilities and melting temperatures. The single double bond in structure IIb or the two conjugated double bonds in structure IIc, which were separated from the core mesogenic group, inhibited conjugation with the central linking azomethine group. The main potential cause of this decline in smectic A phase stability is a nonlinear cis-trans effect [43,44,45].

2.2. Binary Mixtures

A sample binary phase diagram for two components with identical fatty chain lengths and differing terminal polar groups X is shown in Figure 5. The binary mixtures were produced from the enantiotropic terminal chain homologues (Ib/IIb). Both derivatives showed an enantiotropic SmA mesophase. In this figure, the binary phase diagram shows a slight increase in the SmA phase relative to the expected behavior. The differences in polarity between the two components of the combination that were attracted to one another and the improved the arrangement of the molecules were responsible for the minor special properties of the smectic A phase. Figure 5 also demonstrates that a solid mixture with a eutectic composition of 40.0 mol % of IIb had a eutectic melting point of 31.8 °C and a mesomorphic temperature range of 35.1 °C. It may be deduced that the incorporation of the terminal polar groups (CH3O and Cl) influenced both the conformation and steric effect in pure and mixed states and led to the formation of a wide SmA phase.

2.3. Optical Properties

The optical properties of the liquid crystalline materials were recorded by preparing thick films on glass slides. The absorption spectra were recorded with an Agilent Cary 5000 UV–Vis–NIR spectrophotometer. The absorption spectra of these films are shown in Figure 6. It can be noticed that these films exhibited a broad absorption in the UV region corresponding to the π → π* transition in the aromatic ring [57,58]. All liquid materials displayed similar absorbance spectra, and absorbance became zero for wavelengths greater than 350 nm. The energy bandgap (Eg) of the synthesized liquid crystalline materials was evaluated through Tauc’s relation [59]: (αhv) = B(EEg), where α is the absorption coefficient, B is an empirical constant, and E is the energy of the incident light. The absorption coefficient α was calculated by the relation [60]: α = ln ( 10 ) A L , where A and L are the absorbance and thickness of the sample, respectively. The energy bandgap was extracted by the intercept of the tangent to the energy axis, as illustrated in Figure 7, with corresponding values listed in Table 2. The energy bandgap of (4-methoxybenzylideneamino) phenyl palmitate was determined to be 3.95 eV, which slightly increased to 4.01 eV and 4.05 eV for the (4-methoxybenzylideneamino) phenyl oleate (Ib) and (4-methoxybenzylideneamino) phenyl linoleate (Ic) samples, respectively. The increase in Eg values was due to the bending of the alkyl side chain [61] in these two samples, whereas the fatty side chain was straight in the first sample, as illustrated in the chemical structure shown in Figure 1. However, no significant change in the absorption spectra was noticed when replacing the methoxy group with chloride; even the energy band gap was found to be similar, indicating end groups had no significant impact on the absorbance spectra.
The spectroscopic ellipsometer is a tool used to indirectly determine the optical parameters of a thin film. It measures the change in the amplitude ratio (ψ) and phase difference (Δ) of the reflected elliptical polarized light through the sample. The Fresnel reflection coefficient ρ is defined through the equation [62,63,64,65]: ρ = tanψeiΔ. The measured spectroscopic data were analyzed through the optical model shown in Figure 8, and the extracted optical parameters as a function of wavelength are shown in Figure 9.
The complex refractive index is defined as N ~ = n i κ , where n is the refractive index, defined by the ratio of the speed of light in a vacuum to the speed of light inside the material; κ is the extinction coefficient, illustrating the loss of optical energy inside the materials. It can be noticed from Figure 9a that the refractive index of (4-methoxybenzylideneamino) phenyl palmitate was 1.56 at 450 nm, which slightly decreased with the increase in wavelength. The refractive index of (4-methoxybenzylideneamino) phenyl oleate samples was found to be more stable than that of Ia; however, it dropped below 1.44 for the (4-methoxybenzylideneamino) phenyl linoleate liquid crystalline sample. The refractive index of the second series was found to be lower than that of the first series. The extinction coefficient of the liquid crystalline material shown in Figure 9b was very low in the 450–900 nm region because these materials do not absorb much light in this region, as shown in Figure 6. The real part of dielectric constant εr is shown in Figure 9c. The εr values of samples Ia and Ib were found to be 2.42 and 2.39 at 450 nm, respectively, which slightly decreased for higher wavelengths. However, the value of εr was very low for sample Ic and dropped to 2.06 and remained constant at higher wavelengths. The dielectric constant of IIa sample, i.e., replacing terminal polar groups from CH3O to Cl, was found to be 2.39 at 450 nm and decreased faster than that of the same sample with the polar group CH3O. Samples IIb and IIc had lower a dielectric constant than IIa.

2.4. Photophysical Properties

To understand the photophysical phenomenon in liquid crystalline materials, the steady-state and time-resolved fluorescence (TRF) spectra were recorded with a DeltaFlex time correlated single photon counting (TCSPC) system from Horiba (Horiba Instruments, Piscataway, United States). The steady-state spectra were recorded by exciting the sample with a delta-diode wavelength λ = 319 ± 10 nm, whereas the decay was monitored at 470 nm. The steady-state spectra shown in Figure 10a exhibited a broad emission in the range of 400 nm–580 nm associated with the π→π emission of the benzene ring. The peak emission for (4-methoxybenzylideneamino) phenyl palmitate sample (Ia) was observed at 470 nm, which blue-shifted to 462 nm for both the (4-methoxybenzylideneamino) phenyl oleate (Ib) and (4-methoxybenzylideneamino) phenyl linoleate (Ic) samples, shown by dotted lines. The blue shift in the emission spectra was associated with the bending of a long side chain in phenyl oleate (Ib) and phenyl linoleate (Ic) samples. It can be noticed from Figure 10a that no significant change in emission spectra was observed by replacing the methoxy group with a chloride group. The TRF spectra of the synthesized liquid crystalline materials are shown in Figure 10b, which were recorded at 470 nm. The spectra were fitted with a biexponential decay function: I(t) = A + B1et/τ1 + B2et/τ1, where τ1 and τ2 are the lifetime attributed to different photophysical phenomena; A is an empirical constant; and B1 and B2 represent the proportion of electrons with lifetime of τ1 and τ2, respectively. The fitting parameters are listed in Table 2. It can be noticed that for all samples, the lifetime was in the ps range, and both τ1 and τ2 had similar values, indicating that they had the same origin. The average lifetime was calculated through the relation [62,63]: τ avg = B 1 τ 1 + B 2 τ 2 B 1 + B 2 . The average lifetime of the Ia sample was evaluated to be 598 ps. The decay was slightly faster for Ib and Ic, with lifetimes of 548 ps and 518 ps, respectively. Furthermore, the series with chloride end polar groups had a slightly longer lifetime. The liquid crystalline sample (4-chlorobenzylideneamino) phenyl palmitate (IIa) had the highest lifetime among the six samples, with an average lifetime of 892 ps. The lifetime of samples IIb and IIc had lifetimes similar to those of Ib and Ic, with an average lifetime of 532 ps and 523 ps, respectively.

3. Experimental Section

All materials used are given in Supplementary Materials.

3.1. Synthesis of Materials

Series Ia-c and IIa-c were formed according to the following Scheme 1.

3.1.1. Synthesis of (4-Substituted Benzylideneamino) phenol (A)

In 10 mL of ethanol, 4.1 mmol of each of (4-substitutedbenzaldehyde) and (4-aminophenol) were refluxed for two hours. The separated product was filtered when the reaction mixture had cooled. From ethanol, the resulting solid was recrystallized.

3.1.2. Synthesis of Fatty acid Derivatives, Ia-c and IIa-c

In 25 mL of dry methylene chloride, equimolar quantities of 4-substituted benzylideneamino phenol (A, 4.1 mmol) and 4-fatty acids (4.1 mmol each) were dissolved. A very little amount of crystals of 4-dimethylaminopyridine (DMAP) served as a catalyst, and N,N′-dicyclohexylcarbodiimide (DCC, 0.02 mole) was added. The mixture was continuously stirred while being allowed to stand for 72 hours at room temperature. To produce TLC pure products, the obtained solid residue was filtered out and recrystallized twice from ethanol. TLC’s TLC chromatogram showed a single distinct spot, and its differential scanning calorimetry (DSC) thermograms showed sharp melting and clearing peaks. This approach has already been described [45].

3.2. Characterization

Using TLC sheets from Merck (Sigma-Aldrich Chemie GmbH, Taufkirchen Germany) coated in silica gel, spots were detected by UV irradiation.
Tetramethyl silane was employed as an internal standard in a 500 MHz Varian EM 350 L spectrometer (Oxford, UK), and the chemical shift values were recorded in parts per million. Elemental studies were performed using a Thermo Scientific Flash 2000 CHS/O Elemental Analyzer (Milan, Italy).
Phase transitions were recorded using a TA Instruments Co. Q20 Differential Scanning Calorimeter (DSC) (New Castle, DE 19720, USA) device. Lead and indium were used to calibrate the melting temperatures and enthalpies for DSC. For the DSC investigation, samples weighing 2–4 mg were employed in aluminum pans. The rate of heating was 10 °C/min in an inert atmosphere of nitrogen gas (30 mL/min). All transition temperatures were recorded during the second heating scan, which involved heating the atmosphere to 300 °C and then cooling it to 0 °C.
A polarized optical microscope (POM, Wild, Germany) attached to a Mettler FP82HT hot stage was used to check the transition temperatures for the produced compounds and to identify phases.
Using an Agilent Cary 5000 UV–Vis–NIR spectrophotometer, the absorption spectra of the produced films were recorded. By excitation, the sample from a Delta-diode at 320 nm with a peak width of 10 nm and a Horiba delta flex TCSPC lifetime fluorometer was used to record the steady-state emission and time-resolved decay spectra. A Horiba Smart-SE spectroscopic ellipsometer was employed to evaluate the refractive index (n), extinction coefficient (k), and dielectric constants of liquid crystalline samples.
  • Examples of characterizations
Ia: Yield = 92.0%, m.p. = 90.0 °C, FTIR (υ’, cm−1): 2924–2865 (CH2 stretching), 1739 (C=O), 1613 (C=N), 1604 (C=C), 1472 (C−OAsym), 1232 (C–OSym). 1H NMR (500 MHz, DMSO-d6) δ 8.63 (s, 1H, CH=N), 7.93 (d, 2H, Ar-H), 7.57 (d, 2H, Ar-H), 7.30 (d, 2H, Ar-H), 7.14 (d, 2H, Ar-H), 3.90–3.10 (m, 3H), 2.50 (m, 2H, CH2), 1.68–1.59 (m, 2H, CH2), 1.34–1.22 (m, 24H, 12CH2), 0.82 (t, 3H, CH3). Anal. Calc.: C, 77.38; H, 9.31; N, 3.01. Found: C, 77.35; H, 9.30; N, 3.00.
Ib: Yield = 94.7%, m.p. = 41.9 °C, 1H NMR (600 MHz, DMSO) δ 8.37 (s, 1H), 7.85 (d, J = 8.7 Hz, 2H), 7.20 (d, J = 8.6 Hz, 2H), 7.09 (d, J = 8.6 Hz, 2H), 6.99 (d, J = 8.7 Hz, 2H), 5.98 (m, 1H), 5.36 (m, 1H), 3.87 (s, 3H), 2.55 (t, J = 7.5 Hz, 2H), 2.11–1.95 (m, 4H), 1.78–1.69 (m, 2H), 1.53–1.07 (m, 22H), 0.87 (t, J = 6.9 Hz, 3H). 13C NMR (151 MHz, DMSO) δ = 169.24, 158.86, 156.44, 146.42, 145.04, 127.24, 126.76, 126.46, 125.70, 118.93, 118.35, 110.91, 52.25, 30.99, 30.56, 28.55, 26.42, 26.34, 26.18, 25.98, 25.81, 25.75, 25.72, 23.84, 22.27, 21.62, 19.38 Anal. Calc.: C, 78.17; H, 9.22; N, 2.85. Found: C, 78.16; H, 9.20; N, 2.84.

4. Conclusions

Two liquid crystal series that differed from each other in the length of the terminal fatty chain and terminal polar compact substituent were prepared and thermally investigated. The experimental mesomorphic and optical properties for all prepared materials and their binary mixtures revealed that the terminal polar groups played an important role in the thermal stabilities of the prepared compounds. All materials showed a purely SmA phase. Moreover, a low melting temperature with a broad smectic A range was detected at the eutectic composition of their binary phase diagram. The energy bandgap was found to slightly increase with the increase in the fatty side chain length; however, no significant change in bandgap was observed when replacing the terminal polar groups from CH3O to Cl. The optical constants of two series were extracted from the fitting of spectroscopic ellipsometer data, which were found to be lower for the samples with a longer fatty chain as well as for Cl end polar group samples. The synthesized liquid crystalline materials exhibited a broad PL emission with charge carrier lifetime of the order of ps, which was found to decay faster for the longer fatty side chain derivatives. The obtained results revealed that the synthesized materials can be employed in display devices, but further investigation is required to check how the optical property varies with electrical signal.

Supplementary Materials

The following supporting information can be downloaded at: https://www.mdpi.com/article/10.3390/molecules28041744/s1, the material details of the investigated compounds.

Author Contributions

Formal analysis, M.T.K., H.A.A., S.A.A.-Z. and N.M.; funding acquisition, S.A.A.-Z., V.J., Y.A.J. and N.M.; methodology, H.A.A., M.T.K., S.A.A.-Z. and V.J.; project administration, S.A.A.-Z.; resources, Y.A.J., N.M. and V.J.; software, M.T.K., H.A.A. and Y.A.J.; writing—original draft, H.A.A., S.A.A.-Z., M.T.K., N.M., V.J. and Y.A.J.; writing—review and editing, H.A.A., S.A.A.-Z. and M.T.K. All authors have read and agreed to the published version of the manuscript.

Funding

This research was funded by Scientific Research Deanship at University of Ha’il, Saudi Arabia, through project number RG-21018.

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Data Availability Statement

The data presented in this study are available on request from the corresponding author.

Acknowledgments

The authors extend their appreciation to Scientific Research Deanship at University of Ha’il, Saudi Arabia, through project number RG-21018.

Conflicts of Interest

The authors declare no conflict of interest.

Sample Availability

Not applicable.

References

  1. De Gennes, P.-G.; Prost, J. The Physics of Liquid Crystals; Oxford University, Clarendon Press, Science: Cary, NC, USA, 1993. [Google Scholar]
  2. Chandrasekhar, S. Liquid Crystals; Cambridge University Press: Cambridge, UK; New York, NY, USA, 1994; Volume 49, pp. 587–588. [Google Scholar]
  3. Priestly, E. Introduction to Liquid Crystals; Springer Science & Business Media: Berlin, Germany, 2012. [Google Scholar]
  4. Kraft, A.; Reichert, A.; Kleppinger, R. Supramolecular liquid crystals with columnar mesophases through self-assembly of carboxylic acids around a tribasic core. Chem. Commun. 2000, 12, 1015–1016. [Google Scholar] [CrossRef]
  5. Fleischmann, E.K.; Zentel, R. Liquid-crystalline ordering as a concept in materials science: From semiconductors to stimuli-responsive devices. Angew. Chem. Int. Ed. 2013, 52, 8810–8827. [Google Scholar] [CrossRef]
  6. Laschat, S.; Baro, A.; Steinke, N.; Giesselmann, F.; Haegele, C.; Scalia, G.; Judele, R.; Kapatsina, E.; Sauer, S.; Schreivogel, A. Discotic liquid crystals: From tailor-made synthesis to plastic electronics. Angew. Chem. Int. Ed. 2007, 46, 4832–4887. [Google Scholar] [CrossRef]
  7. Tschierske, C. Development of structural complexity by liquid-crystal self-assembly. Angew. Chem. Int. Ed. 2013, 52, 8828–8878. [Google Scholar] [CrossRef]
  8. Rosu, C.; Maximean, D.M.; Kundu, S.; Almeida, P.L.; Danila, O. Perspectives on the electrically induced properties of electrospun cellulose/liquid crystal devices. J. Electrost. 2011, 69, 623–630. [Google Scholar] [CrossRef]
  9. Gilli, J.; Thiberge, S.; Manaila-Maximean, D. New aspect of the voltage/confinement ratio phase diagram for a confined homeotropic cholesteric. Mol. Cryst. Liq. Cryst. 2004, 417, 207–213. [Google Scholar] [CrossRef]
  10. Ibrahim, M.F.; Senior, S.A.; El-atawy, M.A.; El-Sadany, S.K.; Hamed, E.A. Dft calculations of 2,4,6-trinitrophenylbenzoate derivatives: Structure, ground state properties and spectral properties. J. Mol. Struct. 2011, 1006, 303–311. [Google Scholar] [CrossRef]
  11. Chen, K.-y. Crystal Structure, Hydrogen-Bonding Properties, and DFT Studies of 2-((2-(2-Hydroxyphenyl) benzo [d] thiazol-6-yl) methylene) malononitrile. Mol. Cryst. Liq. Cryst. 2015, 623, 285–296. [Google Scholar] [CrossRef]
  12. Shoji, M.; Tanaka, F. Theoretical study of hydrogen-bonded supramolecular liquid crystals. Macromolecules 2002, 35, 7460–7472. [Google Scholar] [CrossRef]
  13. Sundaram, S.; Jayaprakasam, R.; Dhandapani, M.; Senthil, T.; Vijayakumar, V. Theoretical (DFT) and experimental studies on multiple hydrogen bonded liquid crystals comprising between aliphatic and aromatic acids. J. Mol. Liq. 2017, 243, 14–21. [Google Scholar] [CrossRef]
  14. Nafee, S.S.; Hagar, M.; Ahmed, H.A.; Alhaddad, O.; El-Shishtawy, R.M.; Raffah, B.M. New two rings Schiff base liquid crystals; ball mill synthesis, mesomorphic, Hammett and DFT studies. J. Mol. Liq. 2020, 299, 112161. [Google Scholar] [CrossRef]
  15. El-Atawy, M.; Naoum, M.; Al-Zahrani, S.; Ahmed, H. New Nitro-Laterally Substituted Azomethine Derivatives; Synthesis, Mesomorphic and Computational Characterizations. Molecules. 2021, 26, 1927–1938. [Google Scholar] [CrossRef] [PubMed]
  16. Ahmed, N.H.; Saad, G.R.; Ahmed, H.A.; Hagar, M. New wide-stability four-ring azo/ester/Schiff base liquid crystals: Synthesis, mesomorphic, photophysical, and DFT approaches. RSC Adv. 2020, 10, 9643–9656. [Google Scholar] [CrossRef] [PubMed]
  17. Alhaddad, O.A.; Khushaim, M.S.; Gomha, S.M.; Ahmed, H.A.; Naoum, M.M. Mesophase behavior of four ring ester/azomethine/ester liquid crystals in pure and mixed states. Liq. Cryst. 2022, 49, 1395–1402. [Google Scholar] [CrossRef]
  18. Nafee, S.S.; Ahmed, H.A.; Hagar, M. New architectures of supramolecular H-bonded liquid crystal complexes based on dipyridine derivatives. Liq. Cryst. 2020, 47, 1811–1824. [Google Scholar] [CrossRef]
  19. Ahmed, H.A.; Hagar, M.; Alhaddad, O.A. Phase behavior and DFT calculations of laterally methyl supramolecular hydrogen-bonding complexes. Crystals 2019, 9, 133. [Google Scholar] [CrossRef]
  20. Ahmed, H.; Hagar, M.; Saad, G. Impact of the proportionation of dialkoxy chain length on the mesophase behaviour of Schiff base/ester liquid crystals; experimental and theoretical study. Liq. Cryst. 2019, 46, 1611–1620. [Google Scholar] [CrossRef]
  21. Hagar, M.; Ahmed, H.; El-Sayed, T.; Alnoman, R. Mesophase behavior and DFT conformational analysis of new symmetrical diester chalcone liquid crystals. J. Mol. Liq. 2019, 285, 96–105. [Google Scholar] [CrossRef]
  22. Alnoman, R.; Al-Nazawi, F.K.; Ahmed, H.A.; Hagar, M. Synthesis, optical, and geometrical approaches of new natural fatty acids’ esters/Schiff base liquid crystals. Molecules 2019, 24, 4293. [Google Scholar] [CrossRef]
  23. Hagar, M.; Ahmed, H.; Alhaddad, O. New azobenzene-based natural fatty acid liquid crystals with low melting point: Synthesis, DFT calculations and binary mixtures. Liq. Cryst. 2019, 46, 2223–2234. [Google Scholar] [CrossRef]
  24. Ahmed, H.; Hagar, M.; Alhaddad, O. Mesomorphic and geometrical orientation study of the relative position of fluorine atom in some thermotropic liquid crystal systems. Liq. Cryst. 2019, 1–10. [Google Scholar] [CrossRef]
  25. Zaki, A.A.; Ahmed, H.; Hagar, M. Impact of fluorine orientation on the optical properties of difluorophenylazophenyl benzoates liquid crystal. Mater. Chem. Phys. 2018, 216, 316–324. [Google Scholar] [CrossRef]
  26. Dave, J.S.; Bhatt, H.S. Synthesis of liquid crystals with lateral methyl group and study of their mesomorphic properties. Mol. Cryst. Liq. Cryst. 2012, 562, 1–9. [Google Scholar] [CrossRef]
  27. Thaker, B.T.; Kanojiya, J.B.; Tandel, R.S. Effects of different terminal substituents on the mesomorphic behavior of some azo-schiff base and azo-esterbased liquid crystals. Mol. Cryst. Liq Cryst. 2010, 528, 120–137. [Google Scholar] [CrossRef]
  28. Alamro, F.S.; Tolan, D.A.; El-Nahas, A.M.; Ahmed, H.A.; El-Atawy, M.A.; Al-Kadhi, N.S.; Aziz, S.G.; Shibl, M.F. Wide Nematogenic Azomethine/Ester Liquid Crystals Based on New Biphenyl Derivatives: Mesomorphic and Computational Studies. Molecules 2022, 27, 4150. [Google Scholar] [CrossRef] [PubMed]
  29. Ahmed, H.A.; Aboelnaga, A. Synthesis and mesomorphic study of new phenylthiophene liquid crystals. Liq. Cryst. 2022, 49, 804–811. [Google Scholar] [CrossRef]
  30. Al-Kadhi, N.S.; Alamro, F.S.; Popoola, S.A.; Gomha, S.M.; Bedowr, N.S.; Al-Juhani, S.S.; Ahmed, H.A. Novel Imidazole Liquid Crystals; Experimental and Computational Approaches. Molecules 2022, 27, 4607. [Google Scholar] [CrossRef]
  31. Alamro, F.S.; Al-Kadhi, N.S.; Gomha, S.M.; Popoola, S.A.; Khushaim, M.S.; Alhaddad, O.A.; Ahmed, H.A. Experimental and Theoretical Investigations of Three-Ring Ester/Azomethine Materials. Materials 2022, 15, 2312. [Google Scholar] [CrossRef]
  32. El-Atawy, M.; Alhaddad, O.A.; Ahmed, H.A. Experimental and geometrical structure characterizations of new synthesized laterally fluorinated nematogenic system. Liq. Cryst. 2021, 48, 2106–2116. [Google Scholar] [CrossRef]
  33. Dave, J.S.; Menon, M. Azomesogens with a heterocyclic moiety. Bull. Mater. Sci. 2000, 23, 237–238. [Google Scholar] [CrossRef]
  34. Prajapati, K.; Pandya, H. Azomesogens with 1,2,4–trisubstituted benzene moiety. Bull. Mater. Sci. 2002, 25, 355–358. [Google Scholar]
  35. Prajapati, K.; Pandya, H. Azomesogens with methoxyethyl tail: Synthesis and characterization. J. Chem. Sci. 2005, 117, 255–261. [Google Scholar] [CrossRef]
  36. Uhood, J.A.; Gassim, T.; Radhy, H. Synthesis and characterization of a substituents on their liquid crystalline behavior. Molecules 2010, 15, 5620–5628. [Google Scholar]
  37. Ahmed, H.A.; El-Atawy, M.A.; Alamro, F.S.; Al-Kadhi, N.S.; Alhaddad, O.A.; Omar, A.Z. Mesomorphic, Computational Investigations and Dyeing Applications of Laterally Substituted Dyes. Molecules 2022, 27, 8980. [Google Scholar] [CrossRef] [PubMed]
  38. Yeap, G.Y.; Ha, S.T.; Lim, P.L.; Boey, P.L.; Ito, M.M.; Sanehisa, S.; Youhei, Y. Synthesis, physical and mesomorphic properties of Schiff base esters containing ortho-, meta-, and para-substituents in benzylidene-4′-alkanoyloxyanilines. Liq. Cryst. 2006, 33, 205–211. [Google Scholar] [CrossRef]
  39. Ha, S.-T.; Ong, L.-K.; Wong, J.P.-W.; Yeap, G.Y.; Lin, H.-C.; Ong, S.-T.; Koh, T.-M. Mesogenic Schiff’s base ether with dimethylamino end group. Phase Transit. 2009, 82, 387–397. [Google Scholar] [CrossRef]
  40. Bhatt, H.S.; Patel, P.D.; Dave, J.S. Study of mixed mesomorphism in binary systems of azo-ester mesogens with structurally dissimilar nonmesogenic as well as mesogenic ester homologues. Mol. Cryst. Liq. Cryst. 2013, 587, 80–91. [Google Scholar] [CrossRef]
  41. Naoum, M.M.; Fahmi, A.A.; Abaza, A.H.; Saad, G.R. Effect of exchange of terminal substituents on the mesophase behaviour of some azo/ester compounds. Liq. Cryst. 2014, 41, 1559–1568. [Google Scholar] [CrossRef]
  42. Ahmed, H.A. Mesophase stability in binary mixtures of monotropic nematogens. Liq. Cryst. 2015, 42, 70–80. [Google Scholar] [CrossRef]
  43. Alshabanah, L.A.; Al-Mutabagani, L.A.; Gomha, S.M.; Ahmed, H.A.; Popoola, S.A.; Shaban, M. Novel sulphonic acid liquid crystal derivatives: Experimental, computational and optoelectrical characterizations. RSC Advances 2021, 11, 27937–27949. [Google Scholar] [CrossRef]
  44. Kumar, A.; Varshney, D.; Prakash, J. Role of ionic contribution in dielectric behaviour of a nematic liquid crystal with variable cell thickness. J. Mol. Liq. 2020, 303, 112520. [Google Scholar] [CrossRef]
  45. Alamro, F.S.; Ahmed, H.A.; Bedowr, N.S.; Naoum, M.M.; Mostafa, A.M.; Al-Kadhi, N.S. New Liquid Crystals Based on Terminal Fatty Chains and Polymorphic Phase Formation from Their Mixtures. Crystals 2022, 12, 350. [Google Scholar] [CrossRef]
  46. Varshney, D.; Kumar, A.; Prakash, J.; Meena, R.; Asokan, K. Gamma irradiation induced dielectric modulation and dynamic memory in nematic liquid crystal materials. J. Mol. Liq. 2020, 320, 114374. [Google Scholar] [CrossRef]
  47. Alamro, F.S.; Ahmed, H.A.; Bedowr, N.S.; Khushaim, M.S.; El-Atawy, M.A. New advanced liquid crystalline materials bearing bis-azomethine as central spacer. Polymers 2022, 14, 1256. [Google Scholar] [CrossRef] [PubMed]
  48. Yeap, G.-Y.; Osman, F.; Imrie, C.T. Non-symmetric dimers: Effects of varying the mesogenic linking unit and terminal substituent. Liq. Cryst. 2015, 42, 543–554. [Google Scholar] [CrossRef]
  49. Yeap, G.-Y.; Hng, T.-C.; Yeap, S.-Y.; Gorecka, E.; Ito, M.M.; Ueno, K.; Okamoto, M.; Mahmood, W.A.K.; Imrie, C.T. Why do non-symmetric dimers intercalate? The synthesis and characterisation of the α-(4-benzylidene-substituted-aniline-4′-oxy)-ω-(2-methylbutyl-4′-(4″-phenyl) benzoateoxy) alkanes. Liq. Cryst. 2009, 36, 1431–1441. [Google Scholar] [CrossRef]
  50. Imrie, C.T.; Henderson, P.A. Liquid crystal dimers and oligomers. Curr. Opin. Colloid Interface Sci. 2002, 7, 298–311. [Google Scholar] [CrossRef]
  51. Imrie, C.T.; Henderson, P.A. Liquid crystal dimers and higher oligomers: Between monomers and polymers. Chem. Soc. Rev. 2007, 36, 2096–2124. [Google Scholar] [CrossRef]
  52. Park, J.W.; Bak, C.S.; Labes, M.M. Effects of molecular complexing on the properties of binary nematic liquid crystal mixtures. J. Am. Chem. Soc. 1975, 97, 4398–4400. [Google Scholar]
  53. Al-Mutabagani, L.A.; Alshabanah, L.A.; Gomha, S.M.; Ahmed, H.A. Synthesis, thermal and optical characterizations of new lateral organic systems. Crystals 2021, 11, 551. [Google Scholar] [CrossRef]
  54. Araya, K.; Matsunaga, Y. Liquid Crystal Formation in Binary Systems. I. An Interpretation of the Phase Diagrams of the Azoxydianisole–Schiff Base Systems. Bull. Chem. Soc. Jpn. 1980, 53, 989–993. [Google Scholar]
  55. Griffin, A.C.; Fisher, R.F.; Havens, S.J. Effect of molecular structure on mesomorphism. 7. Enhancement of smectic-isotropic transition temperatures in binary mixtures of a new liquid crystal series: The 4-nitrophenyl 4’-n-alkoxybenzoates. J. Am. Chem. Soc. 1978, 100, 6329–6333. [Google Scholar]
  56. Radwan, S.S.; Sorkhoh, N.A. Lipids of n-alkane-utilizing microorganisms and their application potential. In Advances in Applied Microbiology; Academic Press: Cambridge, MA, USA, 1993; Volume 39, pp. 29–90. [Google Scholar]
  57. Khan, M.T.; Almohammedi, A.; Kazim, S.; Ahmad, S. Electrical methods to elucidate charge transport in hybrid perovskites thin films and devices. Chem. Rec. 2020, 20, 452–465. [Google Scholar] [CrossRef]
  58. Khan, M.T. Unraveling the impact of graphene nanostructures passivation on the electrical properties of the perovskite solar cell. Mater. Sci. Semicond. Process. 2023, 153, 107172. [Google Scholar] [CrossRef]
  59. Jacquemin, D.; Laurent, A.D.; Perpète, E.A.; André, J.-M. An Ab Initio Simulation of the UV/Visible Spectra of N-Benzylideneaniline Dyes. Int. J. Quantum Chem. 2009, 109, 3506–3515. [Google Scholar] [CrossRef]
  60. Ebara, N. Benzylideneaniline. I. Structure and Ultraviolet Absorption Spectrum of Benzylideneaniline. Bull. Chem. Soc. Jpn. 1960, 33, 534–539. [Google Scholar]
  61. Almohammedi, A.; Khan, M.T.; Benghanem, M.; Aboud, S.W.; Shkir, M.; AlFaify, S. Elucidating the impact of PbI2 on photophysical and electrical properties of poly(3-hexythiophene). Mater. Sci. Semicond. Process. 2020, 120, 105272. [Google Scholar] [CrossRef]
  62. Khan, M.T.; Shkir, M.; Alhouri, B.; Almohammedi, A.; Ismail, Y.A. Modulation of optical, photophysical and electrical properties of poly(3-hexylthiophene) via Gd:CdS nanoparticles. Optik 2022, 260, 169092. [Google Scholar] [CrossRef]
  63. Khan, M.T.; Bajpai, M.; Kaur, A.; Dhawan, S.; Chand, S. Electrical, optical and hole transport mechanism in thin films of poly (3-octylthiophene-co-3-hexylthiophene): Synthesis and characterization. Synth. Met. 2010, 160, 1530–1534. [Google Scholar] [CrossRef]
  64. Deng, X.; Wen, X.; Zheng, J.; Young, T.; Lau, C.F.J.; Kim, J.; Green, M.; Huang, S.; Ho-Baillie, A. Dynamic study of the light soaking effect on perovskite solar cells by in-situ photoluminescence microscopy. Nano Energy 2018, 46, 356–364. [Google Scholar] [CrossRef]
  65. Khan, M.T.; Almohammedi, A.; Shkir, M.; Aboud, S.W. Effect of Ag2S nanoparticles on optical, photophysical and electrical properties of P3HT thin films. Luminescence 2021, 36, 761–768. [Google Scholar] [CrossRef] [PubMed]
Disclaimer/Publisher’s Note: The statements, opinions and data contained in all publications are Solely those of the individual author(s) and contributor(s) and not of MDPI and/or the editor(s). MDPI and/or the editor(s) disclaim responsibility for any injury to people or property resulting from any ideas, methods, instructions or products referred to in the content.

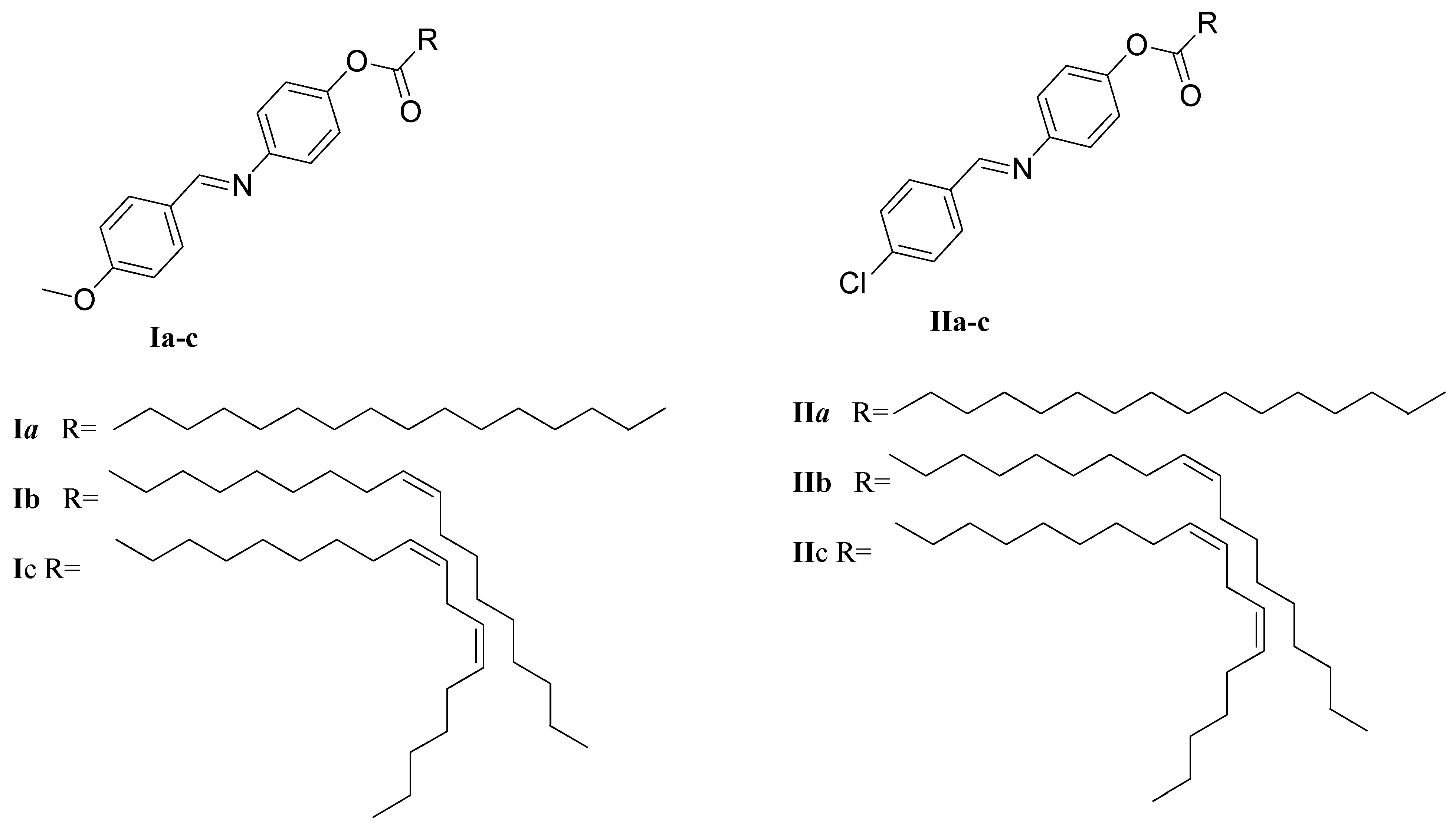

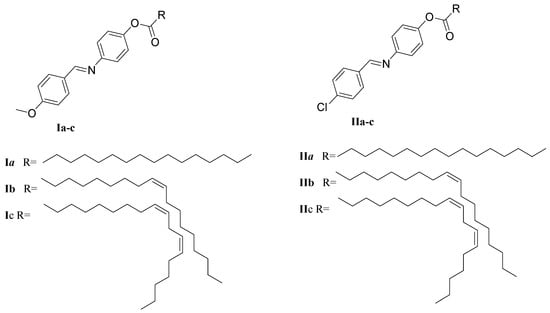

Figure 1. Schematic molecular structural of series Ia-c and IIa-c.
Figure 1. Schematic molecular structural of series Ia-c and IIa-c.
Molecules 28 01744 g001

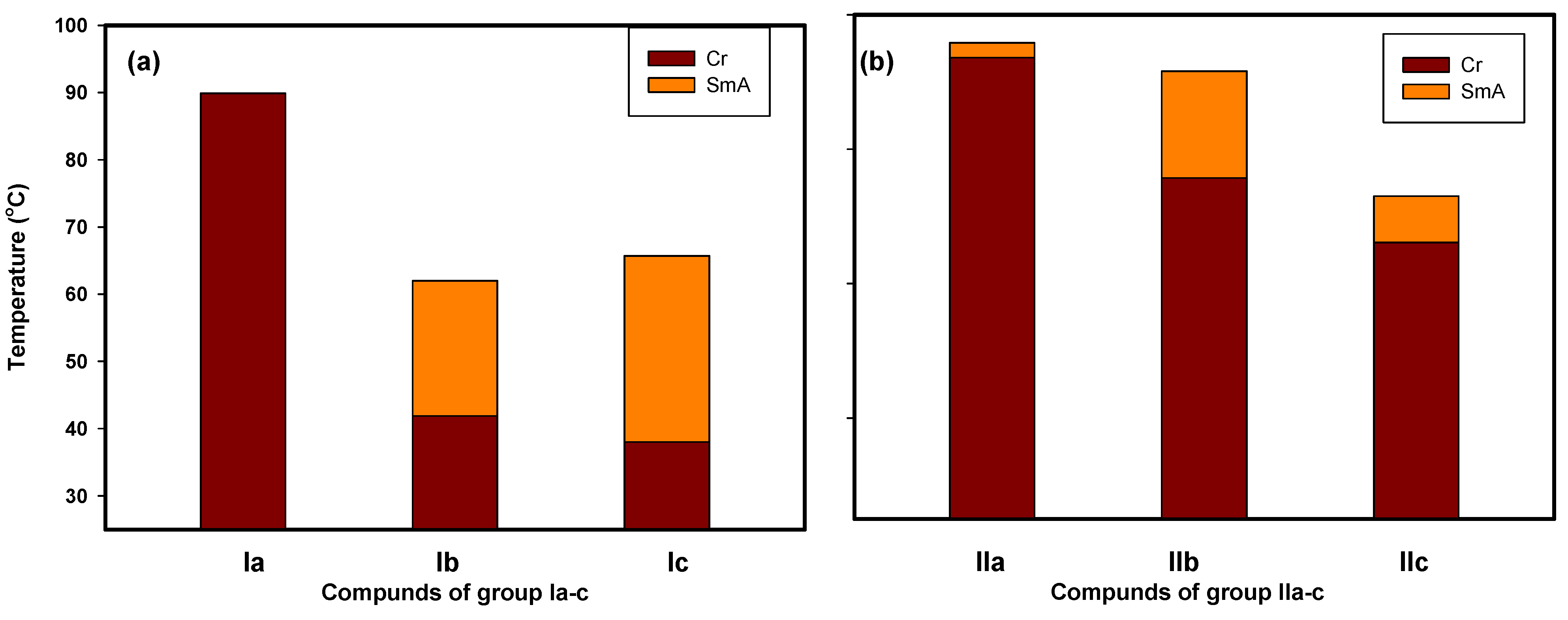

Figure 2. Transition temperature of mesophase behavior on heating of prepared derivatives for (a) Ia-c and (b) IIa-c.
Figure 2. Transition temperature of mesophase behavior on heating of prepared derivatives for (a) Ia-c and (b) IIa-c.
Molecules 28 01744 g002

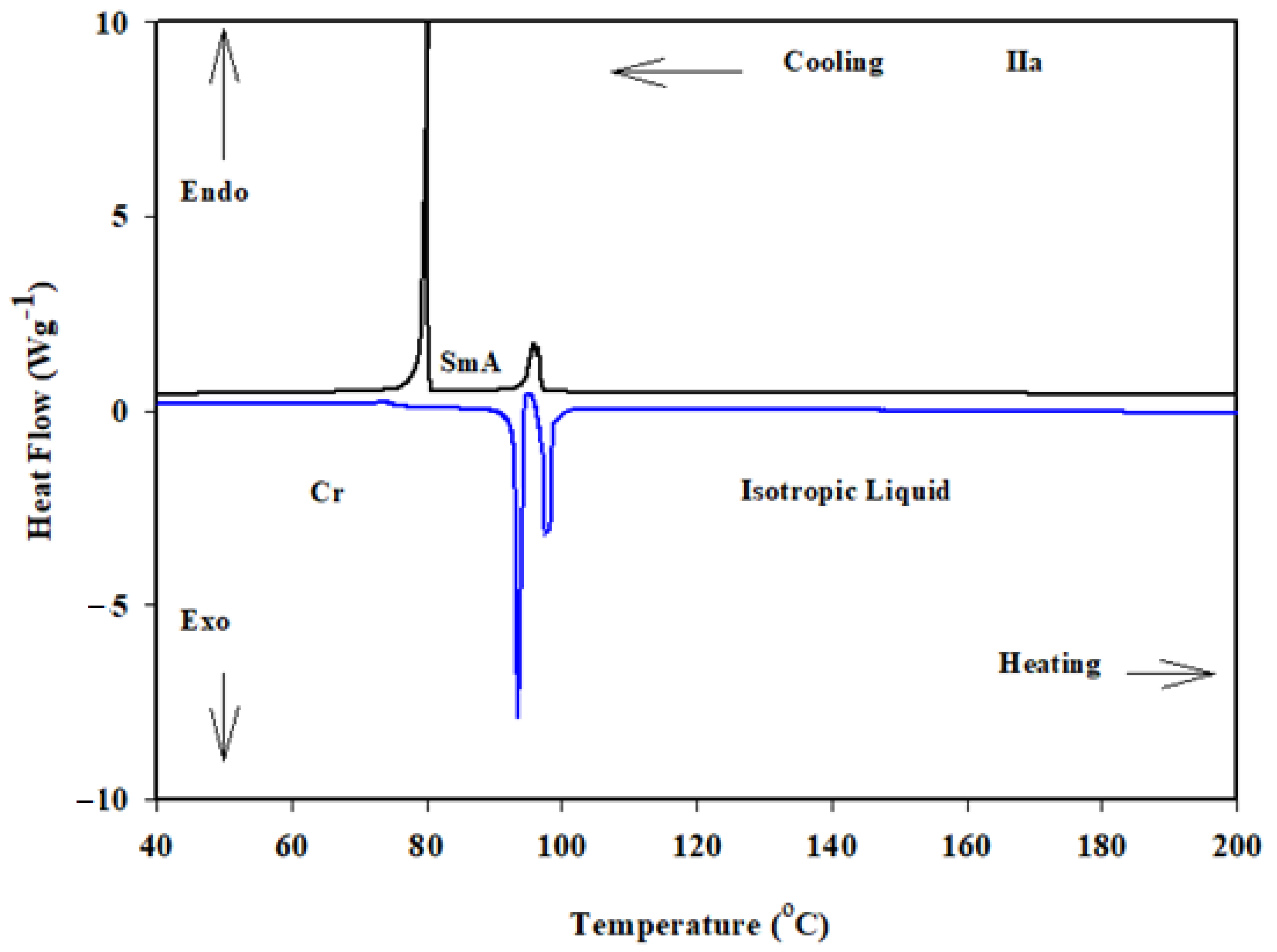

Figure 3. DSC thermograms of IIa derivative recorded from second heating and cooling at a rate of 10 oC min−1.
Figure 3. DSC thermograms of IIa derivative recorded from second heating and cooling at a rate of 10 oC min−1.
Molecules 28 01744 g003
Figure 4. SmA texture of IIa derivative during cooling scan at 85 °C.
Figure 4. SmA texture of IIa derivative during cooling scan at 85 °C.
Molecules 28 01744 g004

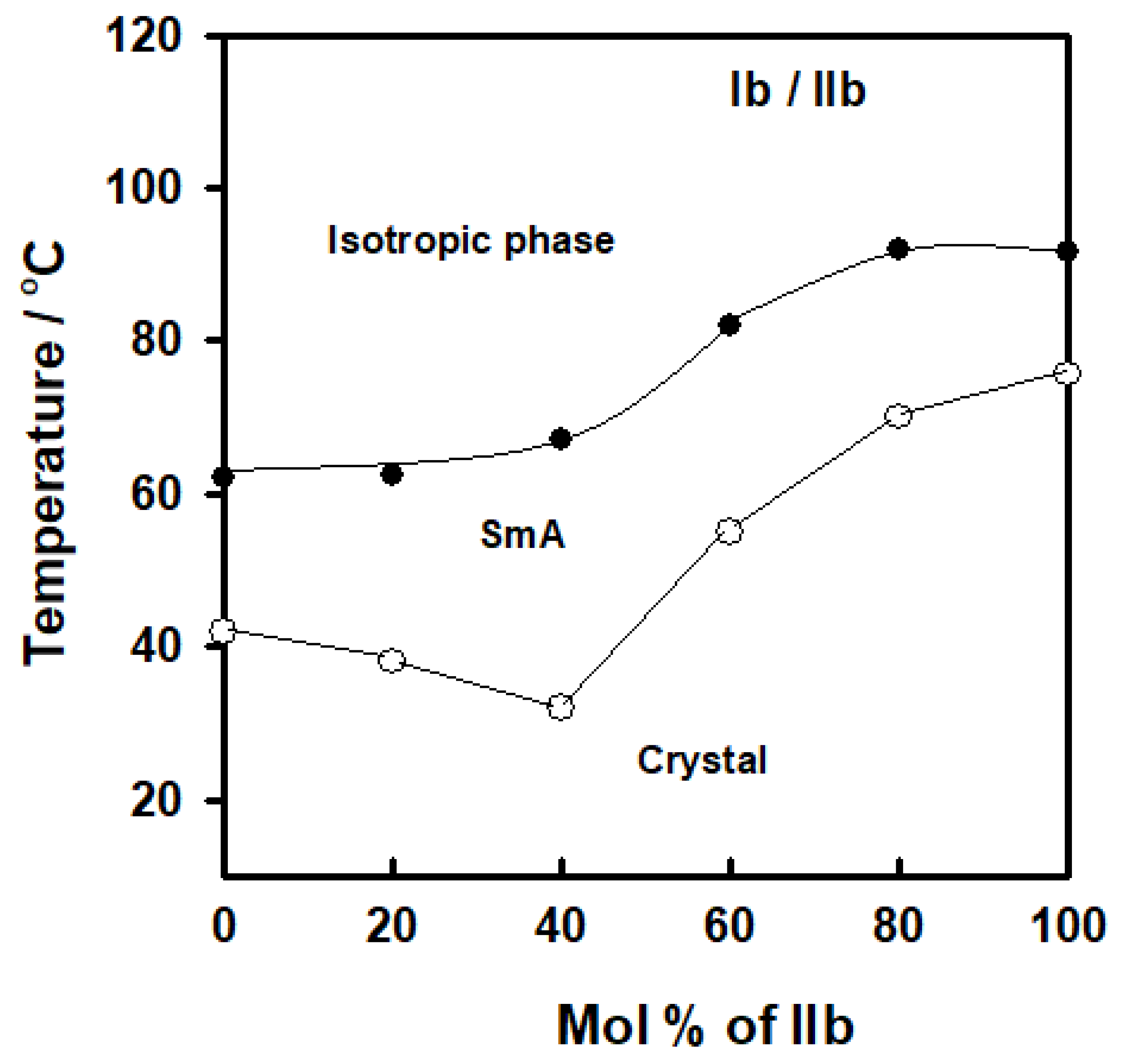

Figure 5. Binary phase diagram of Ib/IIb system.
Figure 5. Binary phase diagram of Ib/IIb system.
Molecules 28 01744 g005

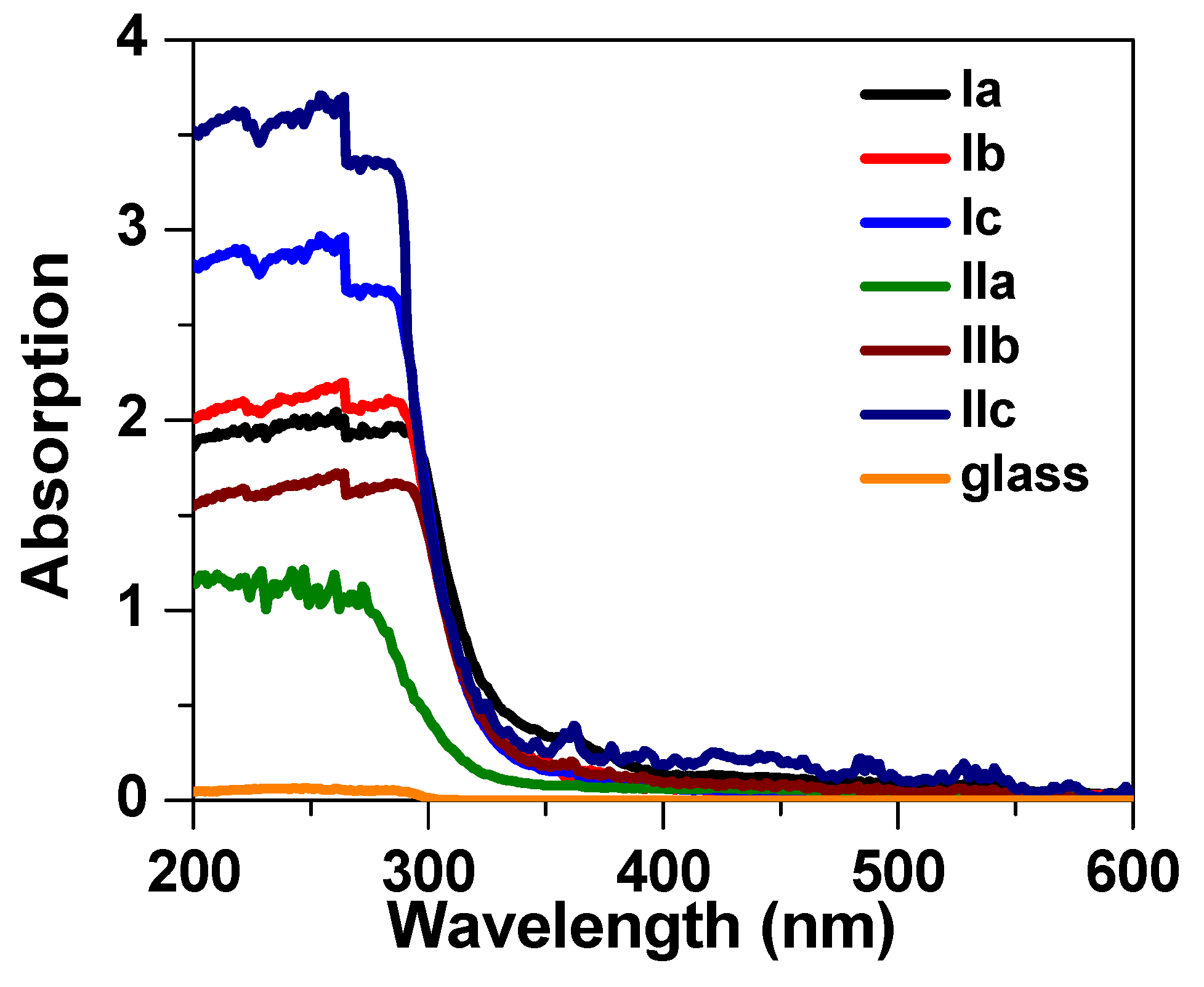

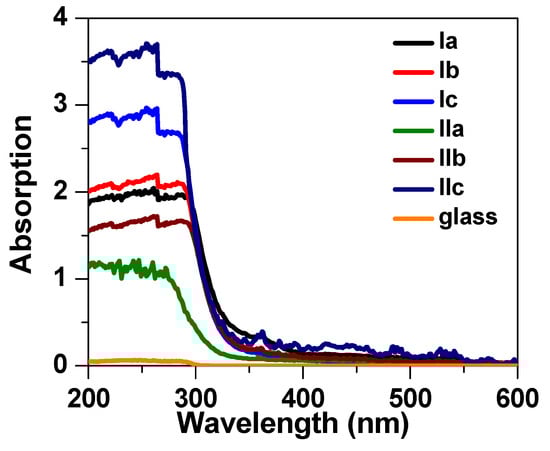

Figure 6. Absorption spectra of the liquid crystalline solid films on glass slides.
Figure 6. Absorption spectra of the liquid crystalline solid films on glass slides.
Molecules 28 01744 g006

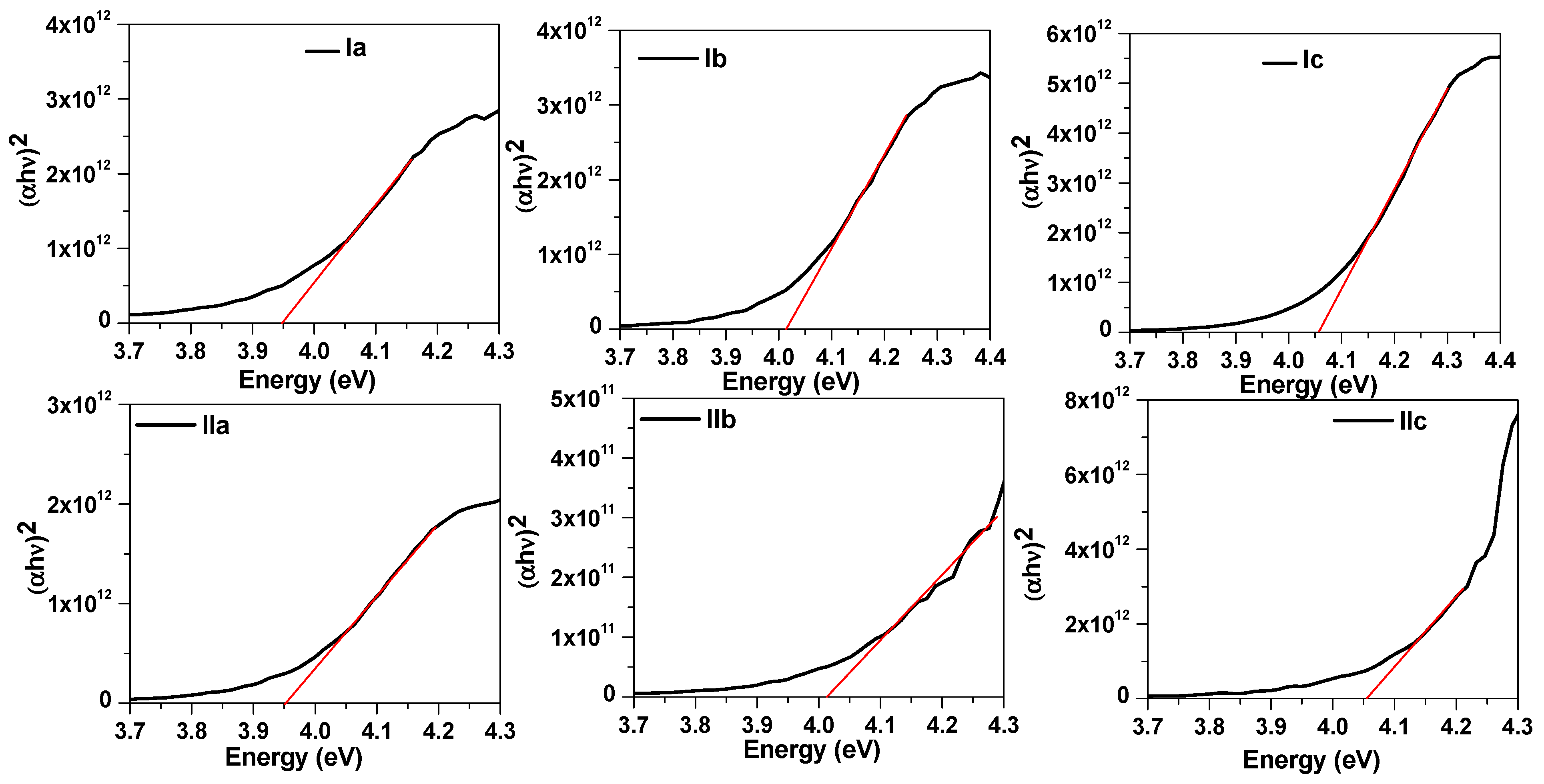

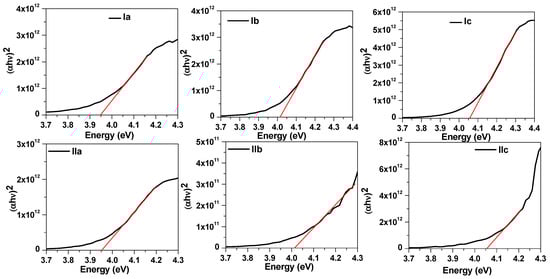

Figure 7. Tauc plots of synthesized liquid crystalline materials.
Figure 7. Tauc plots of synthesized liquid crystalline materials.
Molecules 28 01744 g007

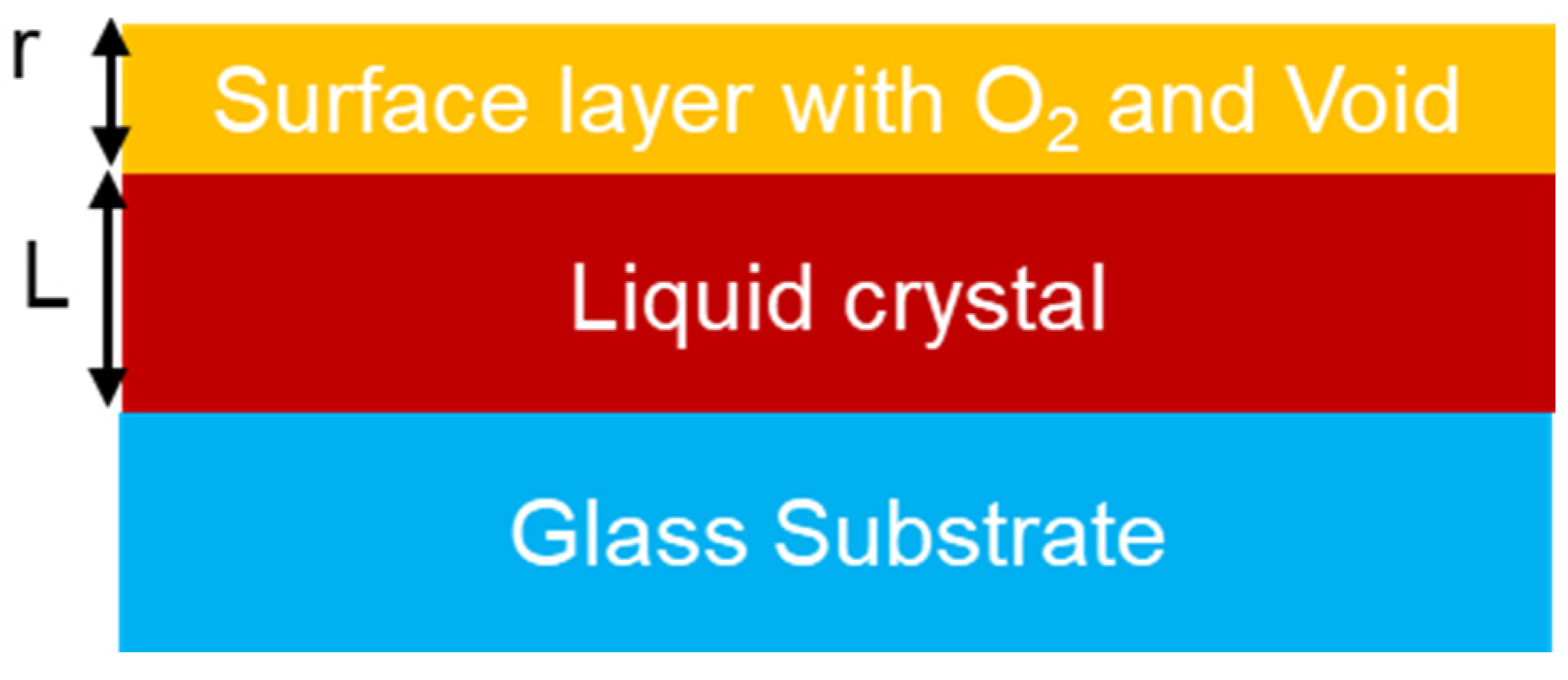

Figure 8. The optical model used to extract the optical constants of liquid crystalline thin films.
Figure 8. The optical model used to extract the optical constants of liquid crystalline thin films.
Molecules 28 01744 g008

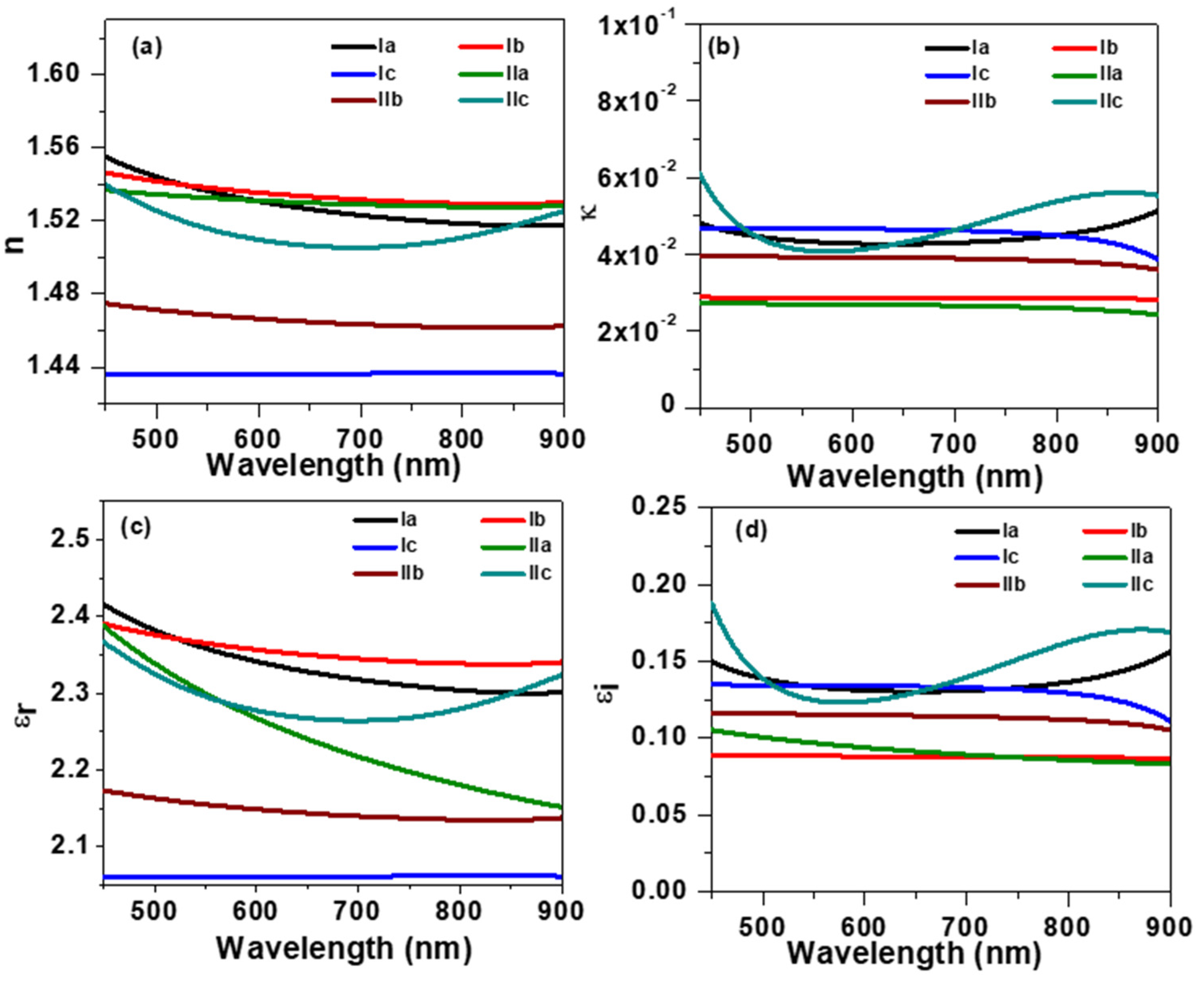

Figure 9. The optical constants of liquid crystalline materials extracted with spectroscopic ellipsometer measurement; (a) refractive index; (b) extinction coefficient; (c,d) dielectric contents.
Figure 9. The optical constants of liquid crystalline materials extracted with spectroscopic ellipsometer measurement; (a) refractive index; (b) extinction coefficient; (c,d) dielectric contents.
Molecules 28 01744 g009

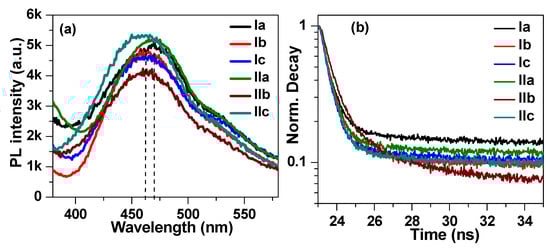

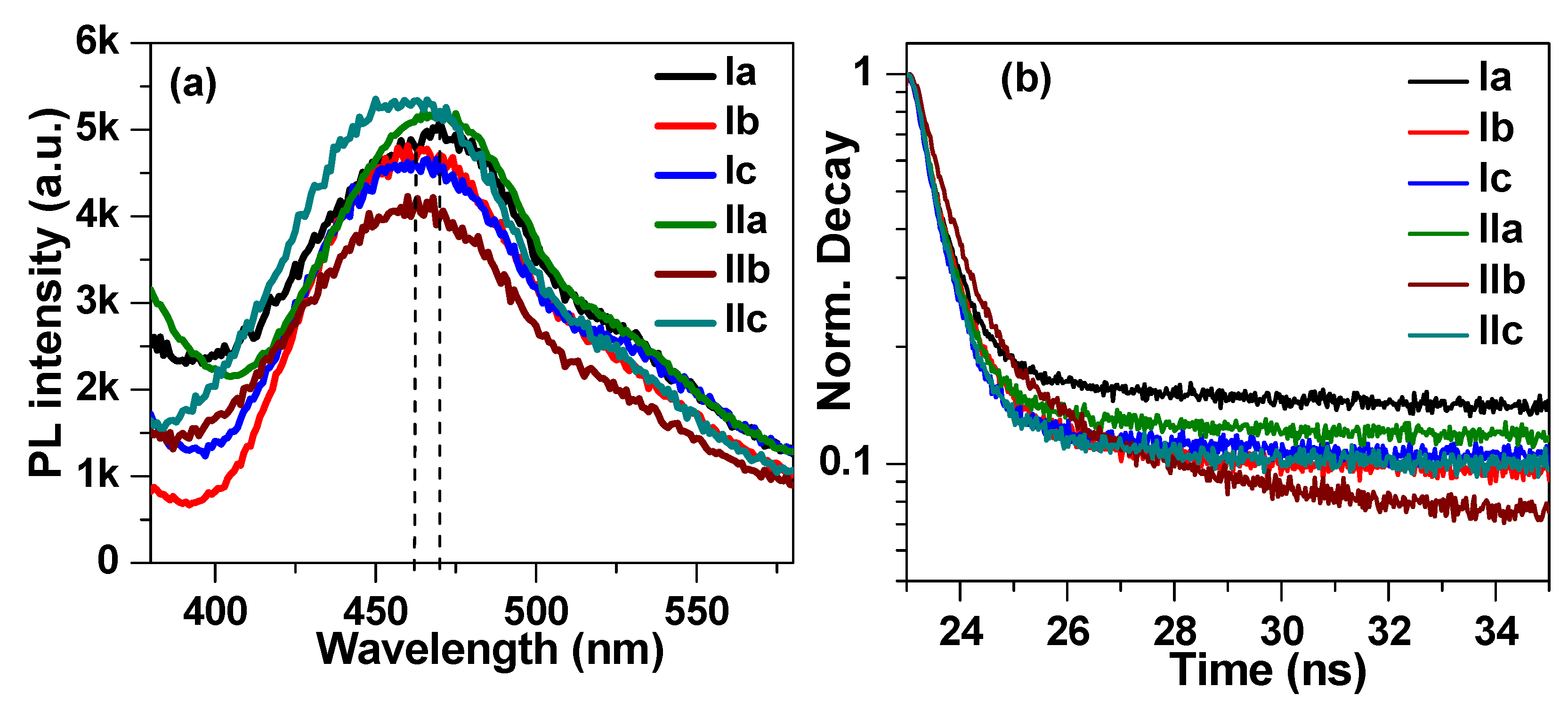

Figure 10. (a) Steady-state photoluminescence and (b) time-resolved fluorescence spectra of liquid crystalline material.
Figure 10. (a) Steady-state photoluminescence and (b) time-resolved fluorescence spectra of liquid crystalline material.
Molecules 28 01744 g010

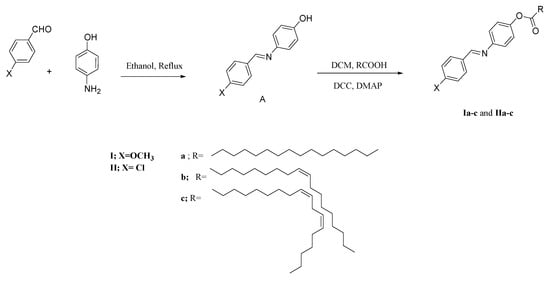

Scheme 1. Synthesis of groups Ia-c and IIa-c.
Scheme 1. Synthesis of groups Ia-c and IIa-c.
Molecules 28 01744 sch001
Table 1. Transition temperature (°C), enthalpy (kJ/mol), normalized entropy of transition, and mesophase range of groups Ia-c and IIa-c.
Table 1. Transition temperature (°C), enthalpy (kJ/mol), normalized entropy of transition, and mesophase range of groups Ia-c and IIa-c.
CompoundXTCr-SmAHCr-SmATSmA-IHSmA-ITSmAS/R
IaCH3O89.932.9388.8 *2.699.8 *0.89
IbCH3O41.935.7862.02.9820.11.07
IcCH3O38.037.2365.72.2027.70.78
IIaCl93.640.3795.82.342.20.76
IIbCl75.738.0391.62.7115.90.89
IIcCl66.132.3373.01.656.90.57
Abbreviations: Cr-SmA = transition from solid to the SmA phase; SmA-I = transition from SmA to the isotropic phase. * monotropic SmA phase.
Table 2. Optical bandgap and fitting parameters of decay spectra for series Ia-c and IIa-c.
Table 2. Optical bandgap and fitting parameters of decay spectra for series Ia-c and IIa-c.
FilmsEg (eV)Aτ1 (ps)B1τ2 (ps)B2τavg (ps)χ2
Ia3.957346300.814650.195981.84
Ib4.0112885600.735140.275481.20
Ic4.06 9465180.795170.215181.72
IIa3.957519960.824200.188921.21
IIb4.029135350.805190.205321.18
IIc4.059795260.775120.235231.67
Disclaimer/Publisher’s Note: The statements, opinions and data contained in all publications are solely those of the individual author(s) and contributor(s) and not of MDPI and/or the editor(s). MDPI and/or the editor(s) disclaim responsibility for any injury to people or property resulting from any ideas, methods, instructions or products referred to in the content.

Share and Cite

MDPI and ACS Style

Al-Zahrani, S.A.; Khan, M.T.; Jevtovic’, V.; Masood, N.; Jeilani, Y.A.; Ahmed, H.A. Design of Liquid Crystal Materials Based on Palmitate, Oleate, and Linoleate Derivatives for Optoelectronic Applications. Molecules 2023, 28, 1744. https://doi.org/10.3390/molecules28041744

AMA Style

Al-Zahrani SA, Khan MT, Jevtovic’ V, Masood N, Jeilani YA, Ahmed HA. Design of Liquid Crystal Materials Based on Palmitate, Oleate, and Linoleate Derivatives for Optoelectronic Applications. Molecules. 2023; 28(4):1744. https://doi.org/10.3390/molecules28041744

Chicago/Turabian Style

Al-Zahrani, Salma A., Mohd Taukeer Khan, Violeta Jevtovic’, Najat Masood, Yassin Aweis Jeilani, and Hoda A. Ahmed. 2023. "Design of Liquid Crystal Materials Based on Palmitate, Oleate, and Linoleate Derivatives for Optoelectronic Applications" Molecules 28, no. 4: 1744. https://doi.org/10.3390/molecules28041744

APA Style

Al-Zahrani, S. A., Khan, M. T., Jevtovic’, V., Masood, N., Jeilani, Y. A., & Ahmed, H. A. (2023). Design of Liquid Crystal Materials Based on Palmitate, Oleate, and Linoleate Derivatives for Optoelectronic Applications. Molecules, 28(4), 1744. https://doi.org/10.3390/molecules28041744

Article Metrics

Back to TopTop
