Article

Linear-Shaped Low-Bandgap Asymmetric Conjugated Donor Molecule for Fabrication of Bulk Heterojunction Small-Molecule Organic Solar Cells

by
Abdullah
1,
Sei-Jin Lee
1,*,
Jong Bae Park
1,
Yang Soo Kim
1,
Hyung-Shik Shin
2,
Ashique Kotta
3,4,
Qamar Tabrez Siddiqui
3,
Youn-Sik Lee
3,* and
Hyung-Kee Seo
3,4,*
1
Korea Basic Science Institute (KBSI), Jeonju Center, Jeonju 54896, Republic of Korea
2
Korea Basic Science Institute (KBSI), Daejeon 34133, Republic of Korea
3
School of Chemical Engineering, Jeonbuk National University, Jeonju 54896, Republic of Korea
4
Future Energy Convergence Core Center, Jeonbuk National University, Jeonju 54896, Republic of Korea
*
Authors to whom correspondence should be addressed.
Molecules 2023, 28(4), 1538; https://doi.org/10.3390/molecules28041538
Submission received: 18 January 2023 / Revised: 31 January 2023 / Accepted: 3 February 2023 / Published: 5 February 2023
(This article belongs to the Special Issue Synthesis of Conjugates and Their Applications for Solar Cells)
Browse Figures
Versions Notes

Abstract

:
A linear–shaped small organic molecule (E)-4-(5-(3,5-dimethoxy-styryl)thiophen-2-yl)-7-(5″-hexyl-[2,2′:5′,2″-terthiophen]-5-yl)benzo[c][1,2,5]thiadiazole (MBTR) comprising a benzothiadiazole (BTD) acceptor linked with the terminal donors bithiophene and dimethoxy vinylbenzene through a π-bridge thiophene was synthesized and analyzed. The MBTR efficiently tuned the thermal, absorption, and emission characteristics to enhance the molecular packing and aggregation behaviors in the solid state. The obtained optical bandgap of 1.86 eV and low-lying highest occupied molecular orbital (HOMO) level of −5.42 eV efficiently lowered the energy losses in the fabricated devices, thereby achieving enhanced photovoltaic performances. The optimized MBTR:PC71BM (1:2.5 w/w%) fullerene-based devices showed a maximum power conversion efficiency (PCE) of 7.05%, with an open-circuit voltage (VOC) of 0.943 V, short-circuit current density (JSC) of 12.63 mA/cm2, and fill factor (FF) of 59.2%. With the addition of 3% 1,8-diiodooctane (DIO), the PCE improved to 8.76% with a high VOC of 1.02 V, JSC of 13.78 mA/cm2, and FF of 62.3%, which are associated with improved charge transport at the donor/acceptor interfaces owing to the fibrous active layer morphology and favorable phase separation. These results demonstrate that the introduction of suitable donor/acceptor groups in molecular design and device engineering is an effective approach to enhancing the photovoltaic performances of organic solar cells.

1. Introduction

Rapidly growing bulk heterojunction (BHJ) organic solar cells (OSCs) show promising application potential for high energy throughput owing to their distinguished features, such as fixed molecular weight, mechanical flexibility, optical transparency, and solution processability [1,2,3,4,5,6,7]. Over the past few years, BHJ OSCs containing small molecules have achieved exciting progress while benefitting from the development of new photoactive materials and device structure engineering approaches, with power conversion efficiencies (PCEs) exceeding 18% for non-fullerene acceptor (NFA)-based OSCs [8,9,10,11]. Compared to the NFAs, PCEs of approximately 11% have been achieved for traditional OSCs using fullerene derivatives [12]. Over time, fullerene derivatives such as phenyl-C61-butyric acid methyl ester (PC61BM, PC71BM) have been widely used as electron acceptors to construct BHJ OSCs. In OSCs, the fullerene PCBM is an important class of electron acceptors because of its potential characteristics of high electron affinity, increased carrier mobility, and ability to form evenly distributed surfaces for efficient electron transport [13]. Gupta et al. recently developed efficient donor molecules containing donor–acceptor–donor (D–A–D) units that exhibited a PCE of 8.00% when blended with a PCBM acceptor [14]. Abdullah et al. reported a reasonable PCE of 6.88% using a simple benzoselenadiazole containing small molecules and systematic optimization of the end groups with different electron donor units, such as triphenylamine (TPA) and alkyl bithiophene [15]. The π–conjugated system of small molecules efficiently tunes the photophysical properties while lowering the highest occupied molecular orbital (HOMO) and lowest unoccupied molecular orbital (LUMO) [16,17,18]. The selection of an appropriate donor–acceptor unit for developing small molecules is very important in the design of semiconducting materials for achieving high electrical properties [19]. From the molecular design perspective, the optical and energy levels of conjugate molecules can be realistically tuned by substituting different electron donating/accepting groups, such as alkylated bithiophene, alkyl phenyl, and heterocyclic units, in the donor/acceptor backbone [20,21,22,23,24]. The heterocyclic benzothiadiazole (BTD) is believed to be a useful building block in the design of organic electronic materials owing to its higher electron-withdrawing capability, electron affinity (EA), and high stability [16,17,18,19]. Alternatively, two rigid nitrogen atoms in the BTD ring form hydrogen bonds with the adjacent atoms to improve the molecular backbone’s planarity [25]. Many BTD-containing polymers and small molecules have been widely used in several organic electronic applications, such as solar cells, organic light-emitting diodes (OLEDs), and organic field-effect transistors (OFETs) [26,27,28]. However, thiophene and oligothiophene derivates have been extensively studied as donor units for developing small organic molecules owing to their ease of synthesis, superb stability, and excellent hole/electron transport characteristics [29,30,31]. In particular, oligothiophene is proven to be efficient in the design of D–A–D conjugated molecules along with an electron-deficient acceptor unit, since these molecules increase the light-harvesting ability through intramolecular charge transfer [32]. It is observed from the literature that hexyl bithiophene has been introduced as the end-group units in BTD-containing derivatives to extend the conjugation length through interchromic π–π stacking and desirable film-forming capabilities to produce photoactive layers with nano morphologies [33]. In some of our recently reported work, a simple BTD-based small molecule having the D1–π–A–D2 configuration with a methoxy-substituted vinylbenzene or styryl and hexyl bithiophene end-capped unit was designed by Lamiaa et al. It demonstrated excellent optoelectronic properties and achieved a maximum PCE of 3.53% with an improved fill factor (FF) in BHJ devices [34]. In another work, a planar D-π-A-type vinylbenzene-based small molecule was designed that efficiently tuned optical and electrochemical properties and realized different H- and J-aggregation in the solid state [35]. The designed molecule was utilized as donor material in fullerene-based BHJ OSCs, delivering a PCE of 4.05% with extended Jsc of 10.43 mA/cm2. It has been reported that the incorporation of electron-rich thiophene and its derivative as the π-bridge between the donor and acceptor units not only extends the conjugation length and π–π stacking ability, but also broadens the absorption band and molecular coplanarity while enhancing charge mobility [36]. Therefore, it is necessary to achieve a subtle balance among molecular design, energy levels, film morphology, and engineering in device fabrication to realize high-performance OSCs [37]. One of the well-known challenges in OSCs is to maintain open-circuit voltage (VOC) while improving the short-circuit current density (JSC) and fill factor (FF) value, which could be attained through better molecular design, desired film morphology, and controlled device structure.
Inspired by the above discussed photophysical and electronoic properties of BTD, thiophene and its derivatives, and vinyl benbenzene, the present work focuses on the synthesis of a new small molecule (E)-4-(5-(3,5-dimethoxy-styryl)thiophen-2-yl)-7-(5″-h-exyl-[2,2′:5′,2″-terthiophen]-5-yl)benzo[c][1,2,5]thiadiazole (MBTR) in a stepwise synthetic pathway using BTD as the central core unit that is end-capped with different donor hexyl bithiophene and methoxy substituted moieties connected through the π-bridge thiophene unit. The synthesized MBTR is applied as a donor molecule with a fullerene acceptor (PC71BM) for the fabrication of BHJ OSCs with or without a 1,8-diiodooctane (DIO) additive. The highest PCE of ~8.76% was achieved for the best device, MBTR:PC71BM (1:2.5 w/w%, 3% DIO), with an improved VOC of ~1.021 V, controlled JSC of 13.78 mA/cm2, and FF of ~62.3%.

2. Results and Discussion

2.1. Synthesis of Small Molecule and Thermal Properties

A schematic of the synthesis is illustrated in Scheme 1, and the detailed methods used are discussed in the experimental part. The novel MBTR molecule was synthesized using commercial BTD as the main reactant and compound 3 as the π-bridge unit. Subsequently, monomer 7 was prepared using compounds 5 and 6 by the Suzuki coupling reaction, which was further used with compound 8 to obtain the MBTR small molecule with a yield of 58% [38,39]. The intermediate and target molecules were characterized by nuclear magnetic resonance (NMR), Fourier-transform infrared (FTIR), and mass spectroscopy to confirm the chemical structure shown in the Supplementary Materials (Figures S1–S3). Further, the thermal properties of MBTR were detected by thermogravimetric analysis (TGA) and differential scanning calorimetry (DSC), as displayed in Figure 1a,b. The TGA thermogram indicated a high thermal stability at 430 °C with less than 5% weight loss, and the DSC plot exhibited multiple endothermic melting transition crystallization transitions attributed to the high thermal stability and crystallinity, which meet the desired requirements for organic photovoltaic (PV) device fabrication.

2.2. Optical, Electrochemical, and Emission Investigations of MBTR

The optical properties of the MBTR molecule in solution, solid-state thin film, and blend films were characterized via UV-visible spectroscopy, as shown in Figure 2a,b; the corresponding data are summarized in Table 1. The MBTR in the solution form displayed two absorption peaks (λmax) located at 378 and 519 nm, with the high-lying region assigned to the π–π* electronic transition and low-lying region resulting from intramolecular charge transfer transition [40]. The high-lying absorption band in the thin film was observed at 406 nm owing to the strong intermolecular π–π* interactions, and a negligible blue shift was observed in the low-lying region centered at 515 nm due to H-aggregation in the solid state [35]. Eventually, the absorption coefficient for the thin film was evaluated as ~4.01 × 104 M−1 cm−1. In contrast to the solution, the thin-film absorption covers a wide region in the UV-visible spectrum with a narrow optical bandgap (Eg) of approximately 1.86 eV. Analogous to other small molecules, the narrow Eg of the MBTR molecule indicates its more efficient intermolecular charge transfer (ICT) interactions, and it is believed that a narrow optical bandgap is related to low energy losses in PV devices, which is beneficial for improving the VOC [41]. As shown in Figure 2b, the active layer blend film loaded with different weight amounts of the MBTR and PC71BM acceptor exhibits absorption in the range of 320–670 nm. However, the blend film with MBTR:PC71BM (1:2.5 w/w%) loaded with 3% DIO shows a higher absorption intensity than other blend films. Thus, the blend film of MBTR:PC71BM (1:2.5 w/w%) with 3% DIO significantly enhanced photon-harvesting properties, which may have a great influence on generating a higher photocurrent (JSC) [42].
The electrochemical behavior of the MBTR molecule was measured by cyclic voltammetry (CV) to extract the frontier energy levels. The oxidation (+0.62 and +0.59 V) and reduction (−1.20 and −1.15 V) potentials were extracted from the onset of the CV graph against ferrocene/ferrocenium (0.43 V). The HOMO and LUMO energy levels for MBTR without and with DIO were calculated as −5.42/−3.60 eV and −5.39/−3.65 eV, respectively, from the onset of oxidation and reduction by assuming the standard energy level of Fc/Fc+ (4.8 eV) below vacuum. The charge transfer at the active layer interface depends on the HOMO–HOMO and LUMO–LUMO offset values between the utilized donor and acceptor materials [43]. Effective electron transfer occurs at the donor/acceptor (D/A) interface from the MBTR donor to the PC71BM acceptor owing to a sufficient driving force of 0.30 (without DIO) and 0.25 eV (with DIO) between the donor and acceptor LUMO levels for separation of the coulombic-bonded excitons into free charge carriers [44]. Furthermore, the VOC of the solar device is proportional to the difference between the donor HOMO and acceptor LUMO levels [45]. Therefore, a donor with a deep-lying HOMO level and large energy gap significantly results in a device with high VOC.
To understand the excitation energy transfer between the D/A of the photoactive layer, the photoluminescence (PL) emission spectra were measured. The output of the PL measurement is shown in Figure 2e. The MBTR PL spectrum was obtained with excitation at 450 nm and exhibited an intense and broad emission band (λmax) at 640 nm in the solution state. Next, the MBTR thin film excited at same excitation wavelength (450 nm) displayed a prominent red-shift in the emission spectrum at 700 nm because of J-type aggregation-induced emissions and high energy transfer in the D/A groups [46]. The photoactive blend films of optimized MBTR:PC71BM (1:2.5 w/w%) without and with DIO showed noticeable quenching effects of approximately 97% and 99%, respectively, against the pure MBTR film, indicating efficient photoinduced charge transfer (electron and hole) driven by the MBTR donor molecule and PC71BM acceptor [47]. However, the low quenching (90–94%) observed in the 1:1.5 and 1:3.5 (w/w%) ratios indicate limited electron and hole transfer from the donor to acceptor, which could explain the poor performance of PV devices [48]. The fluorescence lifetime of the photoactive MBTR:PC71BM film presented in Figure 2f was inspected by time-resolved photoluminescence (TRPL) measurement, which further verified the efficiency and charge transfer dynamics of the fabricated devices. It is evident from the TRPL results that the MBTR:PC71BM (1:2.5) blend film exhibits a faster decay lifetime of ~1.27 ns versus the other blend films, leading to well-organized photoexcited charge separation. Compared to the pristine MBTR:PC71BM (1:2.5), the blend film of MBTR:PC71BM (1:2.5) loaded with 3% DIO displays an even faster decay of ~0.75 ns, which is in line with the PL quenching effect [49,50]. The faster fluorescence decay implies more efficient exciton dissociations, yielding lower charge recombinations in PV devices that are consistent with the improved PV parameters.

2.3. Photovoltaic Characteristics of MBTR

The PV performances of BHJ devices fabricated with the electron donor MBTR and electron acceptor PC71BM with a ITO/PEDOT:PSS/photoactive layer/Au structure were investigated using the current density vs. voltage (J–V) measurements. The J–V curves of the PV devices are shown in Figure 3, and the detailed data are summarized in Table 2. The OSCs displayed a low PCE of 4.24% with a VOC of 0.910 V, JSC of 10.36 mA/cm2, and FF of 45.0% for MBTR:PC71BM (1:1.5 w/w%). After changing the D/A content in the blend ratio (i.e., MBTR:PC71BM at 1:2.0 w/w%), the performances of the resulting devices gradually improved to a PCE of approximately 5.15%, and there were significant improvements in the other PV parameters, such as the JSC, VOC, and FF values. The PCE of the optimized devices reached up to 7.05% with a loaded content of MBTR:PC71BM (1:2.5 w/w%) and an enhanced VOC of 0.943 V, JSC of 12.63 mA/cm2, and FF of 59.2%. Further, the PV parameters improved with the addition of 3% DIO in the photoactive blend of BHJ OSCs to produce a high JSC of 13.78 mA/cm2, VOC of 1.02 V, and increased FF of 62.3%, which together delivered a maximum PCE of 8.76%. Upon the addition of DIO, the interfacial area between the donor and acceptor was enhanced, and photo exciton charge dissociation was facilitated, producing an enhanced VOC [51]. In addition, the high VOC values in devices processed with 3% DIO are attributed to the low energy offset of about 0.51 eV between the HOMO of MBTR and PC71BM, which also lowers the energy loss to attain a high VOC in the OSCs [52]. The energy loss of the device estimated using the equation Eloss = Egopt − qVOC is 0.84 V compared to the value of 0.92 V for devices without DIO, which is consistent with obtained VOC value, as illustrated in Table 2. Further, the improvement in JSC is related to the superior charge splitting of the photogenerated carriers and their transport in the BHJ devices as a result of the active layer intermixing morphology and appropriate crystallinity that were observed after adding DIO [53]. In addition, the decrease in series resistance (RS) and increase in shunt resistance (RSh) values are proportionally related for improving the FF of the OSCs. The RS value of the MBTR:PC71BM (1:2.5 w/w%) loaded with 3% DIO gradually declined to 1.20 Ω cm2, and the RSh value increased to 69.78 Ω cm2 compared with the RS of 1.59 Ω cm2 and RSh of 60.50 Ω cm2 for the optimized devices without DIO. Such resistance values are assumed to decrease molecular recombination and thereby afford high carrier mobility to enable a percolation passage for adequate transport of the dissociated electrons and holes in PV cells; hence, a high FF is noted compared to cells fabricated without DIO [54]. The accuracy of FF for organic devices was investigated by the fourth quadrant I-V characteristics of MBTR:PC71BM with the varying donor: acceptor (w/w% ratio) content under the illumination of 1.5 A.M. at 100 mW/cm2, which is explained in the supporting information (Figure S3).
The photoresponses of solar devices are expressed by the incident photon-to-current conversion efficiency (IPCE) measurements. As shown in Figure 3, the IPCE spectra exhibit photoresponses in the 300–800 nm range and cover 50–70% of the IPCE region. From the integration of the IPCE spectra, the integrated JSC values are estimated as 12.29, 13.51, and 11.70 mA/cm2 for the MBTR:PC71BM (1:2.5 without and with DIO as well as 1:3.0 w/w%), which are consistent with the JSC values extracted from the J–V curve. Further, we investigated the Eg value from the onset of the IPCE spectrum as 1.84 eV, which is in good agreement with the bandgap value obtained from the UV-visible absorption band; hence, these supporting data validate our findings.
We additionally conducted a water contact angle analysis to explain the surface compositions and wettability of the active layer films with and without the DIO additive, as demonstrated in Figure 4. The water contact angles of the pure PC71BM and MBTR films were 82.30° and 100.41°, revealing the hydrophilic and hydrophobic top surfaces of both films, respectively [55]. The contact angle of the PC71BM:MBTR blend film processed with 3% DIO was approximately 88.76°, which was relatively lower than the contact angle of PC71BM:MBTR (94.71°), indicating the richness of the PC71BM content on the top of the blend surface. Therefore, an appreciative ohmic contact is formed with the metal cathode owing to the smaller contact angle, thus improving the performances of the fabricated solar devices [56].

2.4. Thin-Film Morphology

The surface morphology of the MBTR:PC71BM blend film acquired by atomic force microscopy (AFM) and transmission electron microscopy (TEM) are demonstrated in Figure 5. For efficient exciton separation and transport in BHJ OSCs, the active layer domain size should not be too small or too large compared with the exciton diffusion length of 15–20 nm [57]. The blend films of MBTR:PC71BM (1:2.5 and 1:3.0) cast with chlorobenzene showed decent phase-separated morphologies with root mean-squared (RMS) roughness values of 0.410 nm and 0.434 nm, respectively. Some irregularities were found on the surface, which may increase the RS and adversely affect the VOC and FF values. After processing with DIO (Figure 5d–e), more compatible fibrous domains were observed owing to the crystallinity features of the MBTR molecule, as confirmed by the DSC results. The average domain size was in the range of 15–20 nm, and the surface roughness was reduced from 0.410 to 0.377 nm, which is beneficial for carrier transport, resulting in higher photocurrent density (JSC) and FF values [47]. The TEM images of the MBTR:PC71BM (1:2.5) with DIO displayed a dense and notable intermixed network of D/A at the BHJ surface. Appropriate phase separation and average domain size with a controlled BHJ surface can mitigate charge recombination, thus scaling up exciton separation and their transport at the interface for enhanced JSC, VOC, and FF of the solar device [49].

3. Materials and Methods

All the materials and reagents employed in this study are high-purity grade and were used without further treatment. The 2,1,3-benzothiadiazole, 2-(tributylstannyl)thiophene, (E)-2-(3,5-dimethoxystyryl)-4,4,5,5-tetramethyl-1,3,2-dioxaborolane, and 5′-hexyl-2,2-bi–thiophene-5-boronic acid pinacol ester were acquired from Sigma Aldrich chemical company (St. Louis, MO, USA). The hydrobromic acid, bromine, and N-bromosuccinimide were purchased from Tokyo Chemical Industry (TCI) (Tokyo, Japan).

3.1. Synthesis of (E)-4-(5-Bromothiophen-2-yl)-7-(5-(3,5-dimethoxystyryl)thiophen-2-yl)–benzo[c][1,2,5]thiadiazole (Compound 7)

Compound 7 was synthesized by adding 1.23 g, 4.25 mmol of (E)-2-(3,5-dimethoxystyryl)-4,4,5,5-tetramethyl-1,3,2-dioxaborolane (6) to a degassed solution of monomer 5 (1.5 g, 3.27 mmol) in 100 mL of dry toluene. Immediately after the temperature of the hot plate exceeded 100 °C, a Pd(PPh3)4 catalyst at 5 mol% (0.185 g, 0.16 mmol) and 20 mL aqueous solution of K2CO3 (2M) were added and heated overnight at 120 °C with vigorous stirring. After the reaction, the substance was quenched with water, extracted with excess dichloromethane (DCM) and deionized (DI) water, saturated with a NaCl solution (4.4%), and dried over anhydrous Mg2SO4. The purification was performed on silica gel column chromatography using hexane:ethyl acetate in a 20:2 ratio by preparing a thick slurry of the crude product to obtain monomer 7 as a dark-brown solid (1.2 g, yield = 67%). 1H NMR (400 MHz, CDCl3, ppm): 8.10 (d, J = 3.4, Hz, 1H), 7.84–7.90 (m, 2H), 7.83 (s, 2H), 7.31 (d, J = 6.84 Hz, 1H), 7.20 (d, J = 3.92, 1H), 7.05 (s, 2H), 6.71 (d, J = 1.92 Hz, 1H), 6.47 (s, 1H), 3.90 (s, 6H). 13C NMR (100 MHz, CDCl3, δC/ppm): 161.4, 152.7, 144.6, 141.1, 139.1, 138.3, 131.0, 129.5, 128.7, 127.9, 127.4, 126.4, 125.5, 125.2, 122.5, 114.9, 104.8, 100.6, 55.6. MS, m/z; calculated for [C24H17BrN2O2S3 +H]+: 542.5030, found 542.7250.

3.2. Synthesis of (E)-4-(5-(3,5-Dimethoxystyryl)thiophen-2-yl)-7-(5″-hexyl-[2,2′:5′,2″-terthiophen]-5-yl)benzo[c][1,2,5]thiadiazole (MBTR)

Under nitrogen flow, products 7 (0.700 g, 1.30 mmol) and 8 (0.587 g, 1.56 mmol) were mixed in 60 mL of dry toluene and stirred at 120 °C to obtain a homogenous solution. Thereafter, 3 mol% Pd(PP3)4 catalyst (0.045 g, 0.039 mmol) and an aqueous 2M solution of K2CO3 were added stepwise to the reaction mixture with continuous heating at 120 °C for 24 h. The resulting mixture was cooled and poured into a separating funnel containing 50 mL of DCM. The organic phase was separated by adding DI water, collected, and dried by portion-wise addition of Mg2SO4. The preabsorbed product on silica gel beads (400–650 mesh) was added to a silica-packed column and purified using hexane:DCM (10:2). Further, the dried crude was recrystallized through ethyl alcohol and hexane to obtain MBTR as a dark solid (0.540 g, yield = 58%). 1H NMR (600 MHz, CDCl3, ppm): 8.06 (t, J = 4.44 Hz, 4.8 Hz, 2H), 7.86 (d, J = 2.4 Hz, 2H), 7.25 (d, J = 4.8 Hz, 1H), 7.23 (s, 1H), 7.18 (d, J = 4.5 Hz, 1H), 7.16 (d, J = 4.5 Hz, 1H), 7.04 ((d, J = 4.8 Hz, 1H), 7.01 (t, J = 3.48 Hz, 2H), 6.98 (s, 1H), 6.70 (d, J = 4.08 Hz, 1H), 6.67 (d, J = 2.4 Hz, 1H), 6.41 (s, 1H), 3.85 (s, 6H), 2.81 (t, J = 8.94 Hz, 2H), 1.31–1.34 (m, 4H), 1.68–1.73 (m, 4H), 0.89 (t, J = 8.58 Hz, 3H). MS: m/z calc. for [C38H34N2O2S5 + H]+: 712.0138, found: 712.0175. FTIR (KBr, Pellet): 3064, 3020, 2977, 2957, 2926, 2851, 1591, 1533, 1487, 1450, 1348, 1293, 1207, 1152, 1112, 1065, 948, 877, 854, 837, 795, 677, 638, 520.

3.3. Characterization

The MBTR molecular structure was elucidated by 1HNMR, FTIR (JASCO, 4100-FTIR, Tokyo, Japan), and mass (TQ-S, XEVO) spectroscopy measurements. A TGA Ta instrument (TGA Q50) and DSC instrument (Shimadzu, DSC-60, Kyoto, Japan) at a constant heating rate of 5 °C/min under a nitrogen atmosphere were utilized to determine the thermal stability and crystal nature of MBTR. The solution and thin-film absorbance of the MBTR were recorded with a JASCO ultraviolet-visible (UV–vis) spectrophotometer (V–670). Fluorescence emission spectra and time-resolved photoluminescence (TRPL) measurements in solution as well as for the thin film and blend films were carried out on a 4th generation Horiba Fluorolog-QM (Kyoto, Japan) spectrofluorometer at the future energy convergence core (FECC) center, Jeonbuk National University. The CV curves were determined with a three-electrode system with Ossila potentiostat containing an Ag/AgCl−, a Pt wire, and a glassy carbon electrode used as the reference, counter, and working electrodes, respectively. The electrolyte solution for the CV measurement was prepared with 0.1 M tetrabutylammonium hexafluorophosphate (Bu4NPF6) solution in dry acetonitrile. The contact angle of the active layer film was investigated via a contact angle goniometer instrument (Ossila, L2004A10, Sheffield, UK) using water as the reference solvent. The photovoltaic properties of the solar devices were evaluated by measuring the J–V curves on a solar simulator device (Newport, 94022A, Irvine, CA, USA) under a light source of 100 mW/cm2 at AM 1.5 radiation. The quantum efficiency of the BHJ OSCs was measured using an IPCE Spectrometer. The surface morphology of the MBRT:PC71BM active layer was examined with an atomic force microscope system (Nanoscope V multimode 8 AFM) and field-effect transmission electron microscopy (FE–TEM) equipment (JEM–220FS (HT)).

3.4. Device Fabrication of BHJ OSCs

The OSCs were fabricated with the conventional ITO/PEDOT:PSS/MBTR:PC71BM(w/w)/Au structure. Transparent ITO glass was critically cleaned in an ultrasonic bath using 2 mL hellmanex III solution in 200 mL hot water for 5 min. Next, the substrates were sequentially cleaned with DI water, acetone, and ethanol each for 10 min and dried in a vacuum oven. Further, the cleaned substrates were placed in UV–ozone equipment and exposed to UV–ozone for surface treatment for 15 min to remove the surface impurities and improve adhesion properties. We used solar-grade PEDOT:PSS (HTL Solar) for deposition of the buffer layer, which was filtered through a 0.45 μm polytetrafluoroethylene (PTFE) filter using a rubber-free syringe. The freshly prepared PEDOT:PSS solution was spin coated on the cleaned substrates at the rate of 4000 RPM for 30 s and annealed over a previously heated hot plate. Varying blend ratio (w/w) solutions were prepared by mixing MBTR and PC71BM in absolute chlorobenzene using a constant concentration of 30 mg/mL. The blend solution with 3% DIO additive for optimized devices was prepared in a volume ratio of chlorobenzene/DIO (97/3 v/v%) with a fixed active material concentration of 30 mg/mL. Next, the blend solution with and without DIO was spin-coated on ITO/PEDOT:PSS at a rate of 3000 RPM for 40 s and immediately baked at 80 °C for 10 min. Finally, the ITO/PEDOT:PSS/MBTR:PC71BM-deposited substrate was placed in a shadow mask, and a metal electrode layer of Au (gold) was thermally evaporated under a high vacuum of 1 × 10−6 Torr. The BHJ PV devices were fabricated at ambient temperature with an active area of 0.12 cm2.

4. Conclusions

This work demonstrates the synthesis of a low-bandgap BTD-based novel small-molecule donor (MBTR) linked through the thiophene π-bridge and end-capped with different donor units. The MBTR displayed a strong absorption band in the UV-visible region and an optical bandgap of 1.86 eV. The deep HOMO-LUMO levels and low energy offset between the MBTR and PC71BM promote the separation of the photogenerated excitons and charge transport at the BHJ interface. We fabricated organic solar devices with and without a DIO additive and examined the potential of the MBTR donor in combination with a fullerene acceptor. The solar cell based on the MBTR:PC71BM (1:2.5 w/w%) with DIO realized a high PCE of 8.76% with JSC of 13.78 mA/cm2, VOC of 1.021 V, and FF of 62.3% compared to the PCE of 7.05% without the additive. The high PCE with improved PV parameters is attributed to the appropriate phase separation in the active layer, charge transport, and low energy loss in BHJ OSCs. This work suggests that suitable choices of the donor and acceptor units in designing small organic molecules can afford more competent donors for economically feasible OSCs.

Supplementary Materials

The following supporting information can be downloaded at: https://www.mdpi.com/article/10.3390/molecules28041538/s1, S1.1: Synthesis of intermediate 4,7-dibromobenzothiadiazole (2); S1.2: Synthesis of monomer 4,7-dithienyl-2,1-3-benzothiadiazole (4); S1.3: Synthesis of 4,7-bis(5-bromothiophen-2-yl)benzo[c][1,2,5]thiadiazole (5); Figure S1: 1H NMR spectrum of the MBTR molecule.; Figure S2: Mass spectroscopy plots of (a) intermediate 7 and (b) MBTR molecule; (c) FTIR spectra of MBTR molecule.; Figure S3: 4th quadrant I-V characteristics of BHJ OSCs with different w/w% ratio of MBTR:PC71BM; (a) MBTR:PC71BM (1:2.0), (b) MBTR:PC71BM (1:2.5), (c) MBTR:PC71BM (1:2.5) with DIO and (d) MBTR:PC71BM (1:3.0). S.2: FF of BHJ OSCs [58,59,60].

Author Contributions

Conceptualization, S.-J.L., Y.-S.L., H.-K.S. and A.; methodology, A.; validation, S.-J.L., Y.-S.L., H.-K.S. and A.; formal analysis, A.; investigation, A.; resources, J.B.P., Y.S.K. and H.-S.S.; data curation, Q.T.S. and A.K.; writing—original draft preparation, A.; writing—review and editing, S.-J.L., A.K., Y.-S.L. and H.-K.S.; visualization, J.B.P., Y.S.K. and H.-K.S.; supervision, S.-J.L. and H.-K.S.; project administration, S.-J.L.; funding acquisition, S.-J.L. and H.-K.S. All authors have read and agreed to the published version of the manuscript.

Funding

This study was supported by the Korea Basic Science Institute under the R&D program of Global Agriculture and Life-ICT platform (project no. C230650), granted by the Ministry of Science and ICT. This study was also supported by a Korea Basic Science Institute (National Research Facilities and Equipment Center) grant, funded by the Ministry of Education (grant no. 2021R1A6C102A528), and a Korea Basic Science Institute (National Research Facilities and Equipment Center) grant funded by the Ministry of Education (grant no. 2022R1A6C103A744).

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Data Availability Statement

Not applicable.

Conflicts of Interest

The authors declare no conflict of interest.

Sample Availability

Samples of the compounds are available from the authors by request.

References

  1. Li, Z.; Wang, X.; Zheng, N.; Saparbaev, A.; Zhang, J.; Xiao, C.; Lei, S.; Zheng, X.; Zhang, M.; Li, Y.; et al. Over 17% Efficiency All-Small-Molecule Organic Solar Cells Based on an Organic Molecular Donor Employing a 2D Side Chain Symmetry Breaking Strategy. Energy Environ. Sci. 2022, 15, 4338–4348. [Google Scholar] [CrossRef]
  2. Zhou, D.; Li, Y.; Zhang, H.; Zheng, H.; Shen, X.; You, W.; Hu, L.; Han, L.; Tong, Y.; Chen, L. N-Type Small Molecule Electron Transport Materials with D-A-D Conjugated Core for Non-Fullerene Organic Solar Cells. Chem. Eng. J. 2023, 452, 139260. [Google Scholar] [CrossRef]
  3. Zhang, G.; Lin, F.R.; Qi, F.; Heumüller, T.; Distler, A.; Egelhaaf, H.J.; Li, N.; Chow, P.C.Y.; Brabec, C.J.; Jen, A.K.Y.; et al. Renewed Prospects for Organic Photovoltaics. Chem. Rev. 2022, 122, 14180–14274. [Google Scholar] [CrossRef] [PubMed]
  4. Ryan, J.W.; Palomares, E. Photo-Induced Charge Carrier Recombination Kinetics in Small Molecule Organic Solar Cells and the Influence of Film Nanomorphology. Adv. Energy Mater. 2017, 7, 1601509. [Google Scholar] [CrossRef]
  5. Cheng, P.; Li, G.; Zhan, X.; Yang, Y. Next-Generation Organic Photovoltaics Based on Non-Fullerene Acceptors. Nat. Photonics 2018, 12, 131–142. [Google Scholar] [CrossRef]
  6. Jiang, J.M.; Raghunath, P.; Lin, H.K.; Lin, Y.C.; Lin, M.C.; Wei, K.H. Location and Number of Selenium Atoms in Two-Dimensional Conjugated Polymers Affect Their Band-Gap Energies and Photovoltaic Performance. Macromolecules 2014, 47, 7070–7080. [Google Scholar] [CrossRef]
  7. Radu (Călugăr), A.I.; Antohe, V.A.; Iftimie, S.; Radu, A.; Filipescu, M.; Ion, L.; Dinescu, M.; Antohe, Ş. On the Physical and Photo-Electrical Properties of Organic Photovoltaic Cells Based on 1,10-Phenanthroline and 5,10,15,20-Tetra(4-Pyridyl)-21H,23H-Porphine Non-Fullerene Thin Films. Appl. Surf. Sci. 2020, 531, 147332. [Google Scholar] [CrossRef]
  8. Ahmad, M.; Amelot, D.; Cruguel, H.; Patil, B.R.; Ahmadpour, M.; Giangrisostomi, E.; Ovsyannikov, R.; Silly, M.G.; Dudy, L.; Madsen, M.; et al. Unveiling the Energy Alignment across Ultrathin 4P-NPD Hole Extraction Interlayers in Organic Solar Cells. ACS Appl. Energy Mater. 2022, 5, 5018–5025. [Google Scholar] [CrossRef]
  9. Guan, M.; Tao, W.; Xu, L.; Qin, Y.; Zhang, J.; Tan, S.; Huang, M.; Zhao, B. An Asymmetric Small-Molecule Donor Enables over 18% Efficiency in Ternary Organic Solar Cells. J. Mater. Chem. A 2022, 10, 9746–9752. [Google Scholar] [CrossRef]
  10. Li, C.; Zhou, J.; Song, J.; Xu, J.; Zhang, H.; Zhang, X.; Guo, J.; Zhu, L.; Wei, D.; Han, G.; et al. Non-Fullerene Acceptors with Branched Side Chains and Improved Molecular Packing to Exceed 18% Efficiency in Organic Solar Cells. Nat. Energy 2021, 6, 605–613. [Google Scholar] [CrossRef]
  11. Radu, A.I.; Antohe, V.A.; Iftimie, S.; Antohe, I.; Filipescu, M.; Radu, A.; Coman, D.; Stîngescu, M.L.; Dinescu, M.; Antohe, Ş. Study of a New Composite Based on SnO2 Nanoparticles—P3HT:PC71BM Co-Polymer Blend, Used as Potential Absorber in Bulk Heterojunction Photovoltaic Cells. Mater. Today Commun. 2022, 33, 104757. [Google Scholar] [CrossRef]
  12. Gao, H.H.; Sun, Y.; Li, S.; Ke, X.; Cai, Y.; Wan, X.; Zhang, H.; Li, C.; Chen, Y. An All Small Molecule Organic Solar Cell Based on a Porphyrin Donor and a Non-Fullerene Acceptor with Complementary and Broad Absorption. Dye. Pigment. 2020, 176, 108250. [Google Scholar] [CrossRef]
  13. Speller, E.M.; Clarke, A.J.; Luke, J.; Lee, H.K.H.; Durrant, J.R.; Li, N.; Wang, T.; Wong, H.C.; Kim, J.S.; Tsoi, W.C.; et al. From Fullerene Acceptors to Non-Fullerene Acceptors: Prospects and Challenges in the Stability of Organic Solar Cells. J. Mater. Chem. A 2019, 7, 23361–23377. [Google Scholar] [CrossRef]
  14. Gupta, A.; Ali, S.; Jameel, M.A.; Evans, R.A.; Kaur, N.; Sharma, G.D.; Li, J.L. Improvement of Charge Mobility and Photovoltaic Performance of Small Molecule Oligothiophene Donors through Self-Assembly. Dye. Pigment. 2022, 207, 110718. [Google Scholar] [CrossRef]
  15. Abdullah; Kim, E.B.; Akhtar, M.S.; Ameen, S. Highly Stable Bulk Heterojunction Organic Solar Cells Based on Asymmetric Benzoselenadiazole-Oriented Organic Chromophores. Int. J. Energy Res. 2022, 46, 7825–7839. [Google Scholar] [CrossRef]
  16. Çakal, D.; Ercan, Y.E.; Önal, A.M.; Cihaner, A. Effect of Fluorine Substituted Benzothiadiazole on Electro-Optical Properties of Donor-Acceptor-Donor Type Monomers and Their Polymers. Dye. Pigment. 2020, 182, 108622. [Google Scholar] [CrossRef]
  17. Kan, B.; Li, M.; Zhang, Q.; Liu, F.; Wan, X.; Wang, Y.; Ni, W.; Long, G.; Yang, X.; Feng, H.; et al. A Series of Simple Oligomer-like Small Molecules Based on Oligothiophenes for Solution-Processed Solar Cells with High Efficiency. J. Am. Chem. Soc. 2015, 137, 3886–3893. [Google Scholar] [CrossRef] [PubMed]
  18. Wen, J.; Lin, H.; Yu, X.; Li, M.; Du, X.; Luo, J.; Yang, G.; Zheng, C.; Tao, S. Efficient and Stable Ternary Organic Solar Cells Using Liquid Crystal Small Molecules with Multiple Synergies. ACS Appl. Energy Mater. 2022, 5, 12809–12816. [Google Scholar] [CrossRef]
  19. Kim, H.; Reddy, M.R.; Kim, H.; Choi, D.; Kim, C.; Seo, S.Y. Benzothiadiazole-Based Small-Molecule Semiconductors for Organic Thin-Film Transistors and Complementary-like Inverters. Chempluschem 2017, 82, 742–749. [Google Scholar] [CrossRef] [PubMed]
  20. Du, Z.; Bao, X.; Andersen, C.P.; Didriksen, C.B.; Wang, J.; Lin, M.C.; Cao, Z.; Yu, D. Fluorination on Electron-Deficient Units of Benzothiadiazole-Based Donor-Acceptor Conjugated Polymers for Novel Fullerene-Based Organic Solar Cells. Sol. Energy 2021, 220, 864–872. [Google Scholar] [CrossRef]
  21. Abdullah; Akhtar, M.S.; Kim, E.B.; Fijahi, L.; Shin, H.S.; Ameen, S. A Symmetric Benzoselenadiazole Based D–A–D Small Molecule for Solution Processed Bulk-Heterojunction Organic Solar Cells. J. Ind. Eng. Chem. 2020, 81, 309–316. [Google Scholar] [CrossRef]
  22. Zhang, M.; Gu, Y.; Guo, X.; Liu, F.; Zhang, S.; Huo, L.; Russell, T.P.; Hou, J. Efficient Polymer Solar Cells Based on Benzothiadiazole and Alkylphenyl Substituted Benzodithiophene with a Power Conversion Efficiency over 8%. Adv. Mater. 2013, 25, 4944–4949. [Google Scholar] [CrossRef] [PubMed]
  23. Cheung, A.M.H.; Yu, H.; Luo, S.; Wang, Z.; Qi, Z.; Zhou, W.; Arunagiri, L.; Chang, Y.; Yao, H.; Ade, H.; et al. Incorporation of Alkylthio Side Chains on Benzothiadiazole-Based Non-Fullerene Acceptors Enables High-Performance Organic Solar Cells with over 16% Efficiency. J. Mater. Chem. A 2020, 8, 23239–23247. [Google Scholar] [CrossRef]
  24. Sun, Y.; Seifter, J.; Huo, L.; Yang, Y.; Hsu, B.B.Y.; Zhou, H.; Sun, X.; Xiao, S.; Jiang, L.; Heeger, A.J. High-Performance Solution-Processed Small-Molecule Solar Cells Based on a Dithienogermole-Containing Molecular Donor. Adv. Energy Mater. 2015, 5, 1400987. [Google Scholar] [CrossRef]
  25. Li, M.; Li, Z.; Yang, Z.; Liu, Z.; Zhang, K.; Yang, L.; Peng, Q.; Zhu, W.; Liu, Y. An Effective Heteroatom-Substituted Strategy on Photovoltaic Properties of D(A-Ar)2 Small Molecules for Efficient Organic Solar Cells. Dye. Pigment. 2019, 170, 107595. [Google Scholar] [CrossRef]
  26. Zhu, Y.; Zhang, Z.; Si, W.; Sun, Q.; Cai, G.; Li, Y.; Jia, Y.; Lu, X.; Xu, W.; Zhang, S.; et al. Organic Photovoltaic Catalyst with Extended Exciton Diffusion for High-Performance Solar Hydrogen Evolution. J. Am. Chem. Soc. 2022, 144, 12747–12755. [Google Scholar] [CrossRef]
  27. Neto, B.A.D.; Lapis, A.A.M.; Da Silva Júnior, E.N.; Dupont, J. 2,1,3-Benzothiadiazole and Derivatives: Synthesis, Properties, Reactions, and Applications in Light Technology of Small Molecules. European J. Org. Chem. 2013, 228–255. [Google Scholar] [CrossRef]
  28. Gamage, P.L.; Udamulle Gedara, C.M.; Ma, Z.; Bhadran, A.; Gunawardhana, R.; Bulumulla, C.; Biewer, M.C.; Stefan, M.C. Incorporation of Selenopheno[3,2-b]Pyrrole into Benzothiadiazole-Based Small Molecules for Organic Field-Effect Transistors. ACS Appl. Electron. Mater. 2021, 3, 5335–5344. [Google Scholar] [CrossRef]
  29. Xu, T.; Chang, Y.; Yan, C.; Yang, Q.; Kan, Z.; Singh, R.; Kumar, M.; Li, G.; Lu, S.; Duan, T. Fluorinated Oligothiophene Donors for High-Performance Nonfullerene Small-Molecule Organic Solar Cells. Sustain. Energy Fuels 2020, 4, 2680–2685. [Google Scholar] [CrossRef]
  30. Chen, C.H.; Lu, Y.J.; Su, Y.W.; Lin, Y.C.; Lin, H.K.; Chen, H.C.; Wang, H.C.; Li, J.X.; Wu, K.H.; Wei, K.H. Enhancing Performance of Ternary Blend Photovoltaics by Tuning the Side Chains of Two-Dimensional Conjugated Polymer. Org. Electron. 2019, 71, 185–193. [Google Scholar] [CrossRef]
  31. Lin, Y.C.; Su, Y.W.; Li, J.X.; Lin, B.H.; Chen, C.H.; Chen, H.C.; Wu, K.H.; Yang, Y.; Wei, K.H. Energy Transfer within Small Molecule/Conjugated Polymer Blends Enhances Photovoltaic Efficiency. J. Mater. Chem. A 2017, 5, 18053–18063. [Google Scholar] [CrossRef]
  32. Du, J.; Biewer, M.C.; Stefan, M.C. Benzothiadiazole Building Units in Solution-Processable Small Molecules for Organic Photovoltaics. J. Mater. Chem. A 2016, 4, 15771–15787. [Google Scholar] [CrossRef]
  33. Sun, Y.; Welch, G.C.; Leong, W.L.; Takacs, C.J.; Bazan, G.C.; Heeger, A.J. Solution-Processed Small-Molecule Solar Cells with 6.7% Efficiency. Nat. Mater. 2012, 11, 44–48. [Google Scholar] [CrossRef] [PubMed]
  34. Fijahi, L.; Shaheer Akhtar, M.; Abdullah; Kim, E.-B.; Seo, H.-K.; Shin, H.-S.; Ameen, S. Investigation of Newly Designed Asymmetric Chromophore in View of Power Conversion Efficiency Improvements for Organic Solar Cells. Mater. Lett. 2020, 260, 126865. [Google Scholar] [CrossRef]
  35. Alam, S.; Akhtar, M.S.; Abdullah; Kim, E.B.; Shin, H.S.; Ameen, S. New Energetic Indandione Based Planar Donor for Stable and Efficient Organic Solar Cells. Sol. Energy 2020, 201, 649–657. [Google Scholar] [CrossRef]
  36. Agneeswari, R.; Kim, D.; Park, S.W.; Jang, S.; Yang, H.S.; Shin, I.; Jeong, J.H.; Tamilavan, V.; Jung, Y.K.; Park, S.H. Influence of Thiophene and Furan π–Bridge on the Properties of Poly(Benzodithiophene-Alt-Bis(π–Bridge)Pyrrolopyrrole-1,3-Dione) for Organic Solar Cell Applications. Polymer 2021, 229, 123991. [Google Scholar] [CrossRef]
  37. Zhang, Q.; Kan, B.; Liu, F.; Long, G.; Wan, X.; Chen, X.; Zuo, Y.; Ni, W.; Zhang, H.; Li, M.; et al. Small-Molecule Solar Cells with Efficiency over 9%. Nat. Photonics 2014, 9, 35–41. [Google Scholar] [CrossRef]
  38. Garcias-Morales, C.; Romero-Borja, D.; Maldonado, J.L.; Roa, A.E.; Rodríguez, M.; García-Merinos, J.P.; Ariza-Castolo, A. Small Molecules Derived from Thieno[3,4-c]Pyrrole-4,6-Dione (TPD) and Their Use in Solution Processed Organic Solar Cells. Molecules 2017, 22, 1607. [Google Scholar] [CrossRef]
  39. Abdullah; Kim, E.B.; Akhtar, M.S.; Shin, H.S.; Ameen, S. Benzoselenadiazole-Core Asymmetric D-A-A Small Molecule for Solution Processed Bulk Heterojunction Organic Solar Cells. Int. J. Energy Res. 2020, 44, 12100–12111. [Google Scholar] [CrossRef]
  40. Rajkumar, B.; Khanam, L.; Koukaras, E.N.; Sharma, G.D.; Singh, S.P.; Lochab, B. Cardanol- And Guaiacol-Sourced Solution-Processable Green Small Molecule-Based Organic Solar Cells. ACS Sustain. Chem. Eng. 2020, 8, 5891–5902. [Google Scholar] [CrossRef]
  41. Van der Pol, T.P.A.; Li, J.; van Gorkom, B.T.; Colberts, F.J.M.; Wienk, M.M.; Janssen, R.A.J. Analysis of the Performance of Narrow-Bandgap Organic Solar Cells Based on a Diketopyrrolopyrrole Polymer and a Nonfullerene Acceptor. J. Phys. Chem. C 2021, 125, 5505–5517. [Google Scholar] [CrossRef] [PubMed]
  42. Xu, J.; Zhang, J.; Yang, D.; Yu, K.; Li, D.; Xia, Z.; Ge, Z. Two Star-Shaped Small Molecule Donors Based on Benzodithiophene Unit for Organic Solar Cells. Chin. Chem. Lett. 2022, 33, 247–251. [Google Scholar] [CrossRef]
  43. Keshtov, M.L.; Shikin, D.Y.; Khokhlov, A.R.; Ostapov, I.E.; Alekseev, V.G.; Singh, M.K.; Sharma, G.D. Dithieno[2,3-e:3′,2′-g]Isoindole-7,9(8H)-Dione and Dithieno[3′,2′:5,6;2″,3″:7,8]Naphtho[2,3-d]Imidazol-9(10H)-One-Based Wide Bandgap Copolymer for Efficient Polymer Solar Cells. Energy Technol. 2022, 9, 2201211. [Google Scholar] [CrossRef]
  44. Li, S.; Zhan, L.; Sun, C.; Zhu, H.; Zhou, G.; Yang, W.; Shi, M.; Li, C.Z.; Hou, J.; Li, Y.; et al. Highly Efficient Fullerene-Free Organic Solar Cells Operate at Near Zero Highest Occupied Molecular Orbital Offsets. J. Am. Chem. Soc. 2019, 141, 3073–3082. [Google Scholar] [CrossRef]
  45. Bauer, N.; Zhang, Q.; Zhao, J.; Ye, L.; Kim, J.H.; Constantinou, I.; Yan, L.; So, F.; Ade, H.; Yan, H.; et al. Comparing Non-Fullerene Acceptors with Fullerene in Polymer Solar Cells: A Case Study with FTAZ and PyCNTAZ. J. Mater. Chem. A 2017, 5, 4886–4893. [Google Scholar] [CrossRef]
  46. Zhao, Q.; Yu, X.; Xie, Z.; Liu, J.; Han, Y. Optimizing H-/J-Type Aggregation and Vertical Phase Separation to Improve Photovoltaic Efficiency of Small Molecule Solar Cells by Adding a Macromolecule Additive. ACS Appl. Energy Mater. 2018, 1, 6338–6344. [Google Scholar] [CrossRef]
  47. Zhang, M.; Zeng, M.; Chen, H.; Li, L.; Zhao, B.; Tan, S. A2-D-A1-D-A2-Type Small Molecule Acceptors Incorporated with Electron-Deficient Core for Non-Fullerene Organic Solar Cells. Sol. Energy 2020, 197, 511–518. [Google Scholar] [CrossRef]
  48. Duan, T.; Babics, M.; Seitkhan, A.; Firdaus, Y.; Liang, R.Z.; Cruciani, F.; Liu, S.; Lopatin, S.; Beaujuge, P.M. F-Substituted Oligothiophenes Serve as Nonfullerene Acceptors in Polymer Solar Cells with Open-Circuit Voltages >1 V. J. Mater. Chem. A 2018, 6, 9368–9372. [Google Scholar] [CrossRef]
  49. Lee, J.; Singh, R.; Sin, D.H.; Kim, H.G.; Song, K.C.; Cho, K. A Nonfullerene Small Molecule Acceptor with 3D Interlocking Geometry Enabling Efficient Organic Solar Cells. Adv. Mater. 2016, 28, 69–76. [Google Scholar] [CrossRef]
  50. Hu, D.; Tang, H.; Karuthedath, S.; Chen, Q.; Chen, S.; Khan, J.I.; Liu, H.; Yang, Q.; Gorenflot, J.; Petoukhoff, C.E.; et al. A Volatile Solid Additive Enables Oligothiophene All-Small-Molecule Organic Solar Cells with Excellent Commercial Viability. Adv. Funct. Mater. 2022, 33, 2211873. [Google Scholar] [CrossRef]
  51. Wienhold, K.S.; Körstgens, V.; Grott, S.; Jiang, X.; Schwartzkopf, M.; Roth, S.V.; Müller-Buschbaum, P. Effect of Solvent Additives on the Morphology and Device Performance of Printed Nonfullerene Acceptor Based Organic Solar Cells. ACS Appl. Mater. Interfaces 2019, 11, 42313–42321. [Google Scholar] [CrossRef] [PubMed]
  52. Abdullah; Akhtar, M.S.; Kim, E.B.; Shin, H.S.; Ameen, S. Justifying Benzoselenadiazole Acceptor Core as Organic Semiconductor for Stable Bulk-Heterojunction Organic Solar Cells at Ambient Temperature. J. Mater. 2021, 7, 1112–1121. [Google Scholar] [CrossRef]
  53. Li, D.; Wang, J.; Xie, L.; Ge, J.; Zhou, R.; Gu, Q.; Yang, D.; Zhang, J.; Ge, Z. Crystallinity Modulation of Donors by Heteroatom Side-Chain Engineering and Solvent Additive Achieving 14.3% All-Small-Molecule Organic Solar Cells. J. Mater. Chem. A 2022, 10, 9635–9642. [Google Scholar] [CrossRef]
  54. Li, J.; Wang, Y.; Liang, Z.; Wang, N.; Tong, J.; Yang, C.; Bao, X.; Xia, Y. Enhanced Organic Photovoltaic Performance through Modulating Vertical Composition Distribution and Promoting Crystallinity of the Photoactive Layer by Diphenyl Sulfide Additives. ACS Appl. Mater. Interfaces 2019, 11, 7022–7029. [Google Scholar] [CrossRef] [PubMed]
  55. Ye, L.; Jing, Y.; Guo, X.; Sun, H.; Zhang, S.; Zhang, M.; Huo, L.; Hou, J. Remove the Residual Additives toward Enhanced Efficiency with Higher Reproducibility in Polymer Solar Cells. J. Phys. Chem. C 2013, 117, 14920–14928. [Google Scholar] [CrossRef]
  56. Zhu, X.; Lu, K.; Xia, B.; Fang, J.; Zhao, Y.; Zhao, T.; Wei, Z.; Jiang, L. Improving the Performances of Random Copolymer Based Organic Solar Cells by Adjusting the Film Features of Active Layers Using Mixed Solvents. Polymers 2016, 8, 4. [Google Scholar] [CrossRef] [PubMed]
  57. Zong, X.; Dahiya, H.; Song, Y.; Liang, X.; Pandey, S.K.; Xu, H.; Sharma, G.D. Alkynyl BODIPY-Core Bridged Perylene Diimide Star-Shaped Nonfullerene Acceptors for Efficient Polymer Solar Cells. ACS Appl. Energy Mater. 2022, 5, 15624–15637. [Google Scholar] [CrossRef]
  58. Ion, L.; Enculescu, I.; Iftimie, S.; Ghenescu, V.; Tazlaoanu, C.; Besleaga, C.; Mitran, T.L.; Antohe, V.A.; Gugiu, M.M.; Antohe, S. Effects of Proton Irradiation on the Spectral Performance of Photovoltaic Cells Based on CdS/CdTe Thin Films. Chalcogenide Lett. 2010, 7, 521–530. [Google Scholar]
  59. Radu, A.; Iftimie, S.; Ghenescu, V.; Besleaga, C.; Antohe, V.A.; Bratina, G.; Ion, L.; Craciun, S.; Girtan, M.; Antohe, S. The Influence of Lif Layer and ZnO Nanoparticles Addings on the Performances of Flexible Photovoltaic Cells Based on Polymer Blends. Dig. J. Nanomater. Biostructures 2011, 6, 1141–1148. [Google Scholar]
  60. Antohe, S.; Iftimie, S.; Hrostea, L.; Antohe, V.A.; Girtan, M. A Critical Review of Photovoltaic Cells Based on Organic Monomeric and Polymeric Thin Film Heterojunctions. Thin Solid Films 2017, 642, 219–231. [Google Scholar] [CrossRef]
Molecules 28 01538 sch001 550

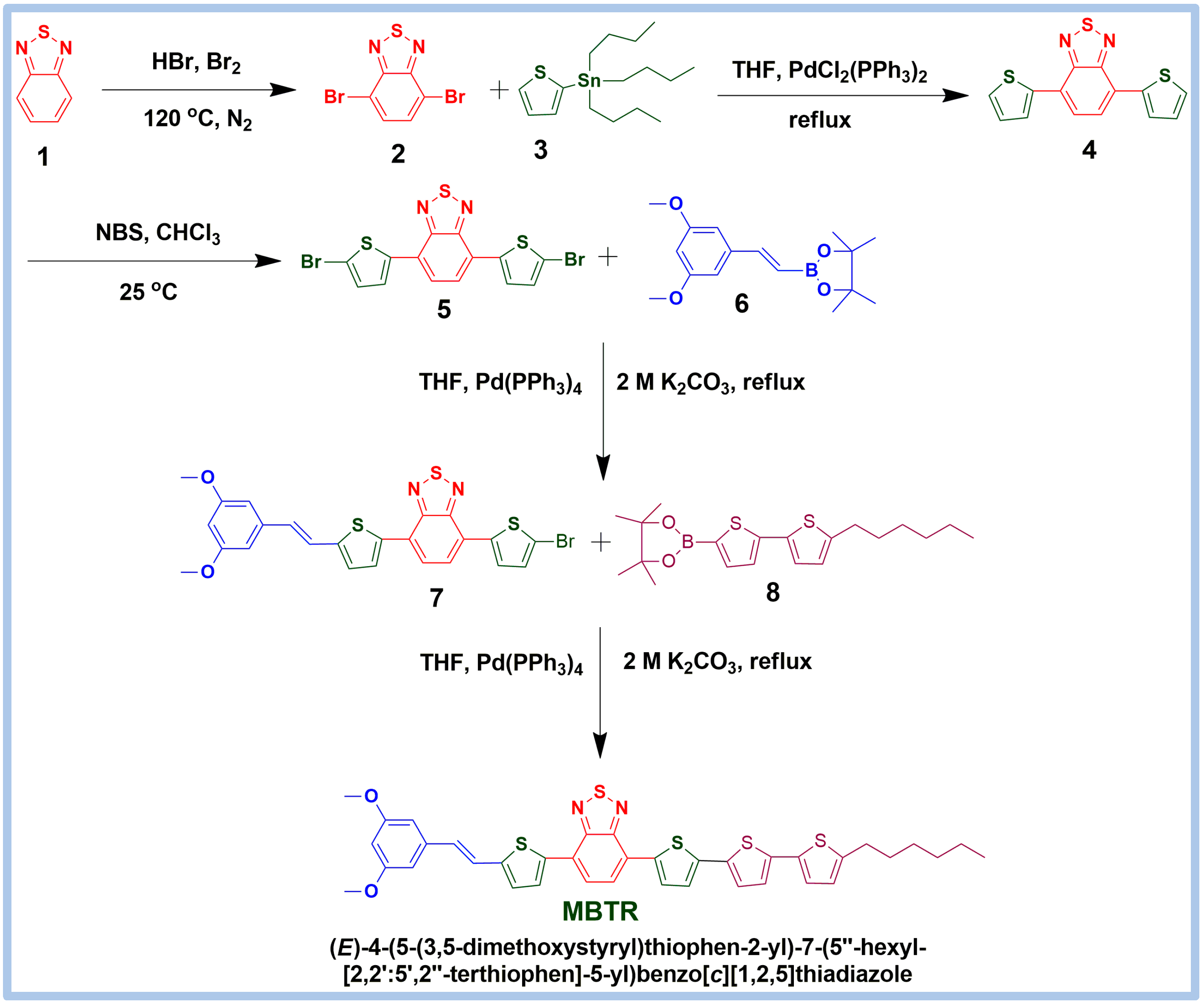

Scheme 1. Synthesis protocols for the intermediates and MBTR molecule.
Scheme 1. Synthesis protocols for the intermediates and MBTR molecule.
Molecules 28 01538 sch001
Molecules 28 01538 g001 550

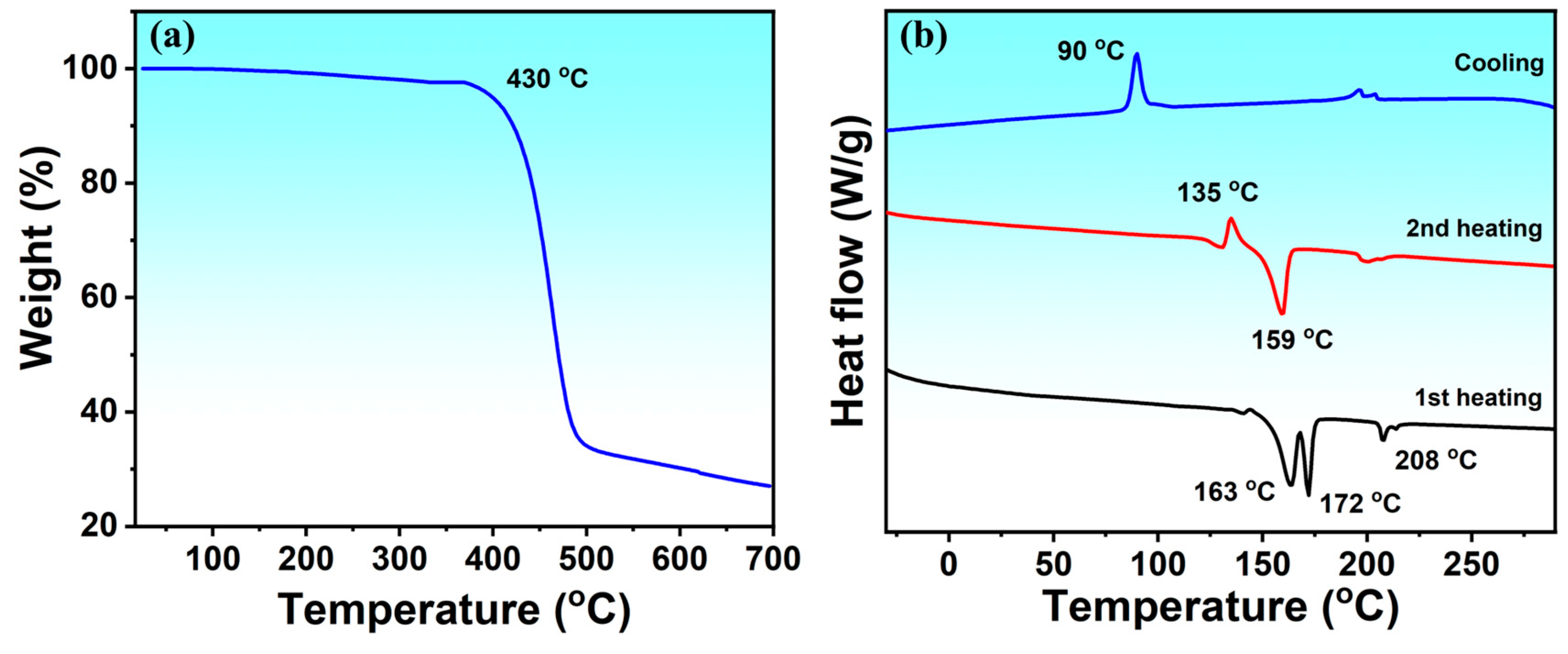

Figure 1. (a) TGA and (b) DSC results of the MBTR molecule.
Figure 1. (a) TGA and (b) DSC results of the MBTR molecule.
Molecules 28 01538 g001
Molecules 28 01538 g002 550

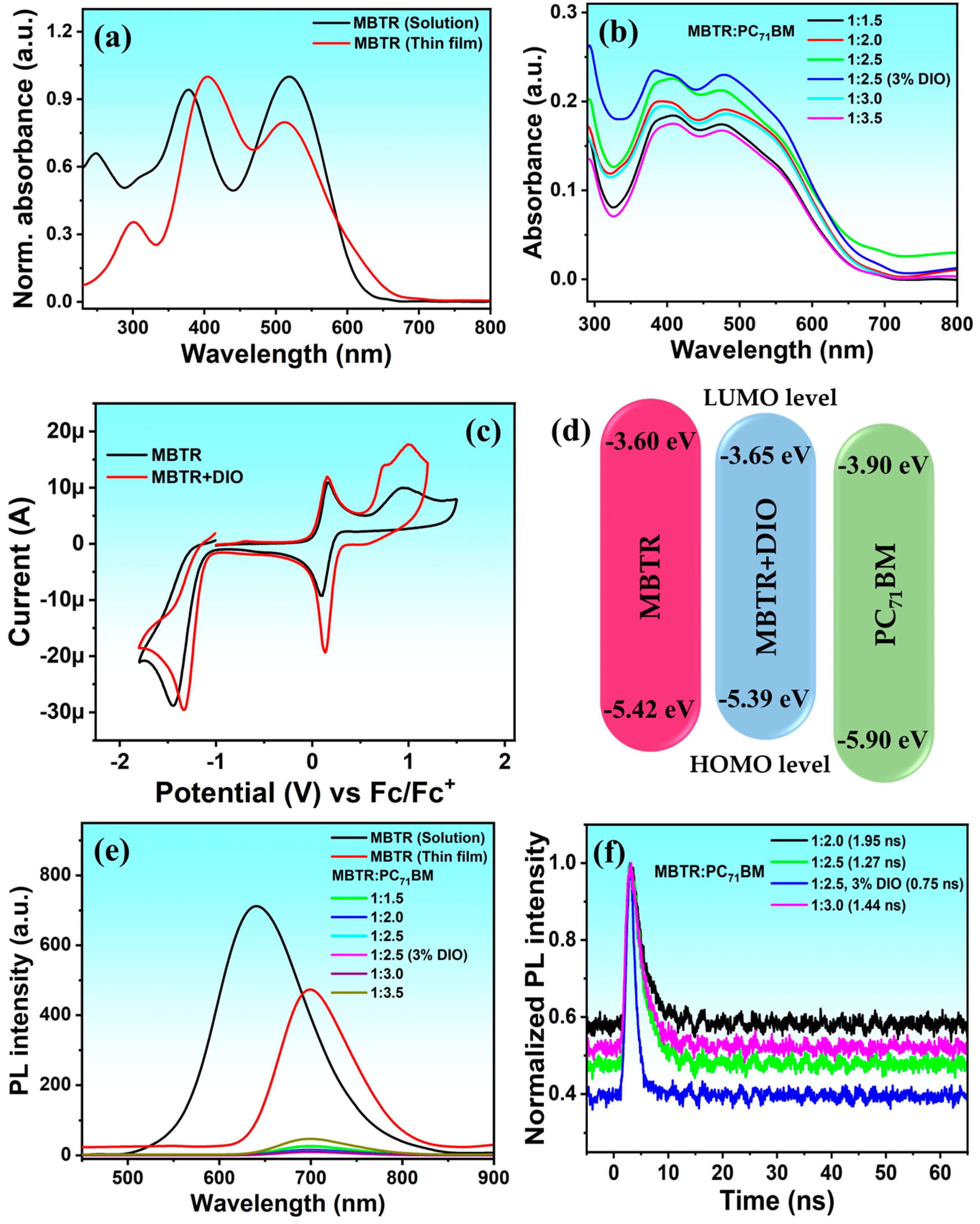

Figure 2. Optoelectronic properties of the MBTR molecule: (a,b) UV−visible absorption spectra; (c,d) electrochemical cyclic voltammogram and energy level diagram; (e) PL emission spectra; and (f) TRPL spectra of MBTR:PC71BM blend films.
Figure 2. Optoelectronic properties of the MBTR molecule: (a,b) UV−visible absorption spectra; (c,d) electrochemical cyclic voltammogram and energy level diagram; (e) PL emission spectra; and (f) TRPL spectra of MBTR:PC71BM blend films.
Molecules 28 01538 g002
Molecules 28 01538 g003 550
Figure 3. (a) J−V and (b) IPCE characteristics of the MBTR:PC71BM BHJ OSCs.
Figure 3. (a) J−V and (b) IPCE characteristics of the MBTR:PC71BM BHJ OSCs.
Molecules 28 01538 g003
Molecules 28 01538 g004 550

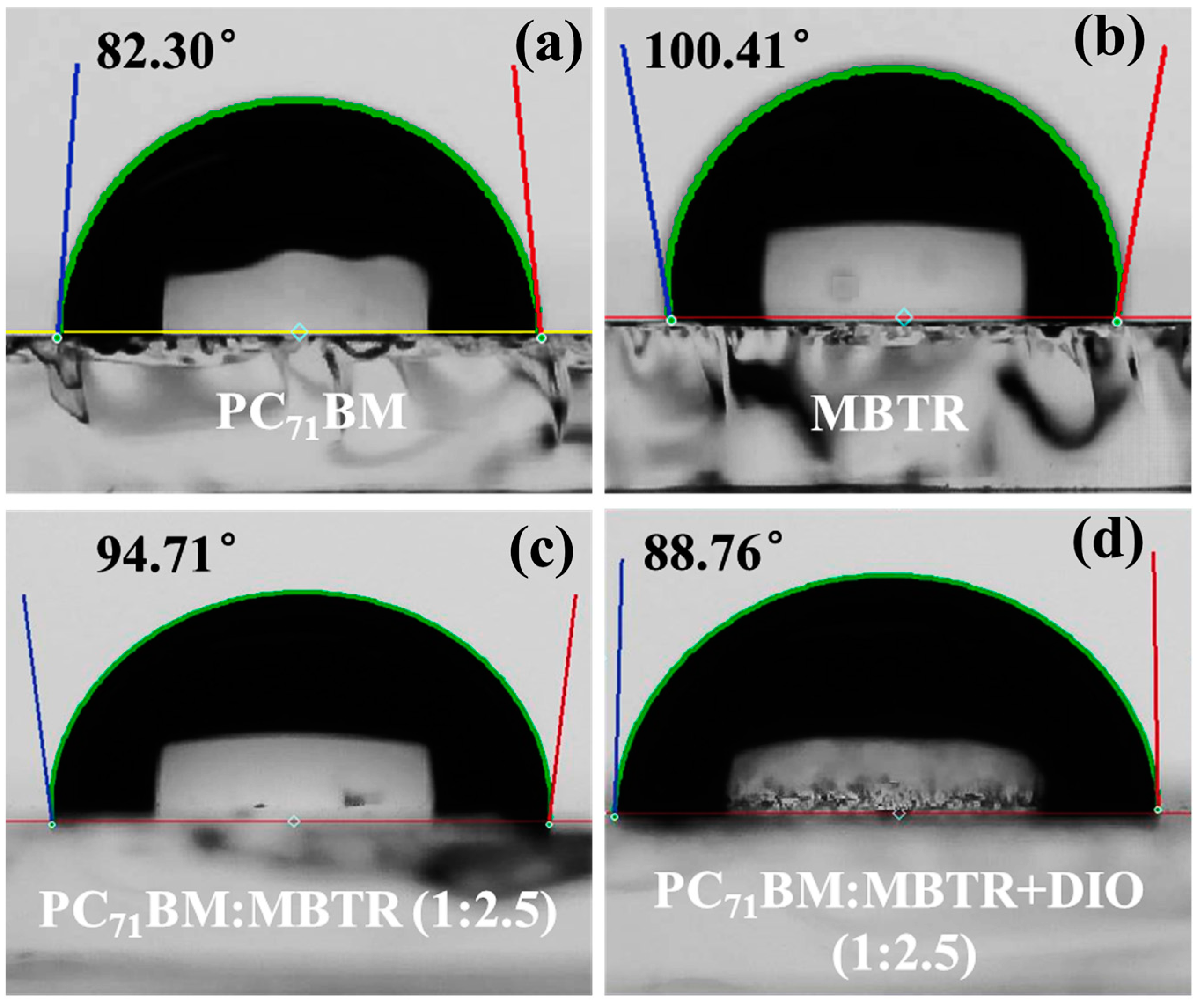

Figure 4. Contact angle measurements of (a) PC71BM; (b) MBTR; (c) PC71BM:MBTR (1:2.5); (d) PC71BM:MBTR (1:2.5) with DIO additive.
