Interfaces and Oxygen Vacancies-Enriched Catalysts Derived from Cu-Mn-Al Hydrotalcite towards High-Efficient Water–Gas Shift Reaction

by
Hanci Li
1,
Zhenyi Xiao
1,
Pei Liu
1,
Hairu Wang
1,
Jiajun Geng
1,
Huibin Lei
1,2 and
Ou Zhuo
1,2,*
1
College of Chemistry and Chemical Engineering, Jishou University, Jishou 416000, China
2
Hunan Province Key Laboratory of Mineral Cleaner Production and Green Functional Materials, Jishou University, Jishou 416000, China
*
Author to whom correspondence should be addressed.
Molecules 2023, 28(4), 1522; https://doi.org/10.3390/molecules28041522
Submission received: 11 January 2023 / Revised: 31 January 2023 / Accepted: 1 February 2023 / Published: 4 February 2023
(This article belongs to the Special Issue Chemical Functionalization of Two-Dimensional Materials)
Browse Figures
Versions Notes

Abstract

:
The water–gas shift (WGS) reaction is an important process in the hydrogen industry, and its catalysts are of vital importance for this process. However, it is still a great challenge to develop catalysts with both high activity and high stability. Herein, a series of high-purity Cu-Mn-Al hydrotalcites with high Cu content have been prepared, and the WGS performance of the Cu-Mn-Al catalysts derived from these hydrotalcites have been studied. The results show that the Cu-Mn-Al catalysts have both outstanding catalytic activity and excellent stability. The optimized Cu-Mn-Al catalyst has displayed a superior reaction rate of 42.6 μ mol CO − 1 ⋅ g cat − 1 ⋅ s − 1 , while the CO conversion was as high as 96.1% simultaneously. The outstanding catalytic activities of the Cu-Mn-Al catalysts could be ascribed to the enriched interfaces between Cu-containing particles and manganese oxide particles, and/or abundant oxygen vacancies. The excellent catalytic stability of the Cu-Mn-Al catalysts may be benefitting from the low valence state of the manganese of manganese oxides, because the low valence manganese oxides have good anti-sintering properties and can stabilize oxygen vacancies. This study provides an example for the construction of high-performance catalysts by using two-dimensional hydrotalcite materials as precursors.

1. Introduction

Hydrogen gas is not only a kind of vital chemical raw material, but it is also a kind of clean energy carrier with bright prospects. To date, approximately 95% of the appreciable supply is produced from reforming gas, which originates from the reforming of natural gas, coal, biomass, and organic wastes [1,2]. The reforming gas usually contains an appreciable amount of CO, and the water–gas shift (WGS) reaction is used to transfer CO into hydrogen and CO2 [3]. Pure hydrogen production is obtained by removing the easily separated CO2 and excess H2O from the outflow gas of the WGS reaction. A high CO conversion is critically important for the production of pure hydrogen. However, the WGS reaction is a reversible exothermic reaction (CO + H2O ⇌ CO2 + H2, ΔH = −41.1 kJ·mol−1) [1,3]. It means that the low reaction temperature favors high CO equilibrium conversion but causes a low reaction rate. Thus, it is significant to develop high active catalysts with high CO conversion for the WGS reaction.
Cu-based catalysts are widely adopted for the low-temperature WGS reaction due to their high catalytic activity and relatively low cost. Since the 1960s, the Cu/ZnO/Al2O3 catalyst has been used in industrial WGS applications [4]. For decades, many Cu-based catalysts have been prepared and their performance in WGS reactions, such as Cu/CeO2 [5,6], Cu/ZnO [7,8], CuO-Fe2O3/SiO2 [9], Cu/MgO/Al2O3 [10,11], and Cu-Mn spinel oxide, have been deeply investigated [12,13]. Further studies have been carried out to reveal the active site and catalytic mechanism. For Cu/CeO2 catalysts, it has been proposed that the active sites of low-temperature WGS reactions are located at the Cu-CeO2 interface [5,6,14]. Chen and his co-workers [5] suggested that the Cu+ site and the neighboring oxygen vacancies (Ov) of the ceria site at the interface of Cu/CeO2 (Cu+-Ov-Ce3+) are the active sites for the WGS reaction: the Cu+ site chemically adsorbs CO, whereas the neighboring Ov-Ce3+ site dissociatively activates H2O. In Cu/ZnO catalysts, the Cu-hydroxylated ZnO ensemble is considered as the active site [8]. In brief, it is generally believed that the active sites of WGS reactions are closely correlated with the interfaces between Cu species and supports.
Hydrotalcite-type compounds, also known as layered double hydroxides (LDH), are a class of two-dimensional (2D) layered materials, which are widely used as catalysts or catalyst precursors [15,16,17]. A key structural feature of LDH is that the divalent and trivalent metal cations are homogeneously distributed in LDH layers at an atomic level [l4,15]. Benefitting from this feature, the catalysts derived from LDH precursors usually exhibit a high dispersion of the metal particles and abundant interfaces between the metal particles and oxide supports [15]. The Cu/ZnO/Al2O3 catalysts, prepared by calcining and activating the Cu-Zn-Al LDH, have been studied for the catalytic performance of the WGS reaction in 1995 [18]. Afterwards, by improving preparation method, optimizing composition or adding promoter in the Cu-Zn-Al LDH, various Cu/ZnO/Al2O3 catalysts were developed with excellent performance [4,19,20,21]. The Cu/MgO/Al2O3 catalysts derived from Cu-Mg-Al LDH also displayed outstanding catalytic performance [10,11,22]. In addition, Cu-Al LDH [11], Ni-Al LDH [23], Ni-Ti LDH [24], and Ni-Cr LDH [25] are used as precursors for WGS catalysts. These reports believe that the excellent catalytic activities of these catalysts are benefitting from the well dispersion of active phase and/or abundant interfaces of metal-support. However, the catalytic stability of these catalysts for the WGS reaction is not satisfactory, and strategies for improving the stability were seldom discussed.
Creating oxygen vacancies is an effective approach to enhance the activation of H2O, and, therefore, improve the catalytic activities of WGS catalysts [5,6,26]. It is well known that adding manganese components into the solid catalysts can make oxygen vacancies [27,28,29]. Catalysts derived from Cu-Mn-Al LDH are rich with oxygen vacancies and exhibit good catalytic performances in hydrogenation and oxidation reactions [30,31]. However, using Cu-Mn-Al LDH as the catalyst precursor is still absent for the WGS reaction. In this study, a series of high-purity Cu-Mn-Al LDH with high Cu contents have been prepared by the coprecipitation method under low supersaturation. The catalytic performance of the Cu-Mn-Al catalysts derived from these LDH samples have been studied in WGS conditions, and the underlining structure–function relationships have been discussed.

2. Experimental Section

2.1. Preparation of Hydrotalcite Samples

All hydrotalcite samples are prepared by the coprecipitation method. In a typical procedure, solution A (100 mL) was prepared by dissolving a mixture of metal nitrates (Cu(NO3)2, Mn(NO3)2, and Al(NO3)3 with a total amount of 0.06 mol) in deionized water. Solution B (100 mL) was obtained by dissolving 0.12 mol of NaOH in deionized water. Solution A and B were simultaneously pumped into a three-neck flask containing 100 mL of Na2CO3 solution by two peristaltic pumps. To keep hydroxyl ions at a low supersaturation, the flow rates of solution A and solution B were controlled equally at 5 mL/min. The slurry was stirred slowly at 60 °C for 12 h. Then, the resulting precipitate was filtered, washed with deionized water, and dried at 80 °C for 10 h. The solid sample was ground to fine powders and labelled as CuxMnyAlz-LDH, where x, y, and z are the designed molar percentage of corresponding metal in the total metal amounts. The obtained sample was heated in air from atmospheric temperature to 773 K by 10 K·min−1 and kept for 3 h. The calcined sample was denoted as CuxMnyAlz-MMO and was ready for use. For comparison, the Cu-Zn-Al LDH and Cu-Mg-Al LDH were also prepared with x = 50, y = 25, and z = 25. The CuMn sample is also prepared by the same method with x = 50 and y = 50.

2.2. Catalyst Characterization

X-ray diffraction (XRD) patterns were collected on a TD-3500 X-ray diffractometer (Dandong Tongda Instrument Co., Dandong, China) with a Cu Ka source (k = 0.154 nm) at 40 kV and 30 mA. The metal content of the samples was determined by inductively coupled plasma optical emission spectroscopy (ICP-OES, PerkinElmer Avio 200). N2 adsorption/desorption isotherm was measured on a surface area and pore size analyzer (Quantachrome Nova 2000e). All samples were outgassed prior to analysis at 200 °C for 12 h. Specific surface area (SBET) was calculated via the multipoint BET method, and pore size distributions were calculated by using the non-local density functional theory (NLDFT) equilibrium model (N2 at 77 K, cylindr. pore on silica). Transmission electron microscopy (TEM) and high-resolution TEM (HRTEM) were carried out on a Talos F200S instrument operated at an accelerating voltage of 200 kV. The high angle annular dark-field (HAADF) image and the corresponding energy dispersive X-ray spectroscopy (EDX) mappings were recorded on a SUPER X detector. X-ray photoelectron spectroscopy (XPS) was measured through a Thermo Scientific K-Alpha XPS spectrometer. Binding energies were calibrated based on the graphite C1s peak at 284.8 eV. The electron paramagnetic resonance (EPR) of the solid samples was determined at room temperature on an EMX Plus EPR spectrometer (Bruker BioSpin). Before the XPS and EPR measures, the catalyst samples were first reduced for 0.5 h in a H2 atmosphere at 300 °C and, then, operated in a WGS condition for 5 h.

2.3. Catalytic Testing

The WGS reaction tests were performed on a fixed bed reactor with a diameter of 8 mm. The reaction temperature was automatically controlled by a PID temperature controller with a thermocouple inserted into the center of the catalyst bed. Typically, 50 mg of catalyst and 3.0 g of quartz sand (40–80 mesh) were mixed evenly and charged into the reactor. The catalyst was reduced with pure H2 (20 mL·min−1) for 0.5 h at 300 °C. After cooling to 200 °C, a gas mixture of CO/H2/CO2/N2 (molar ratio: 14.9/27.2/7.3/50.6) was fed into the reactor with flow rate of 20 mL·min−1, corresponding to the gas hourly space velocity (GHSV) of 24,000 mL·g−1·h−1. The deionized water was injected into the gasification chamber by a quantitative pump, and the produced steam fully mixed with the gas flow. The tests were operated at an elevated temperature from 200 to 400 °C. The outlet gas was analyzed by a gas chromatography system (Qiyang GC9860) equipped with a thermal conductivity detector and a flame ionization detector.

3. Results and Discussion

Figure 1 shows the XRD patterns of the LDH samples. The (003), (006), (012), (015) and (018) diffraction peaks are attributed to hydrotalcite-like materials (JCPDS No. 37-0630). Apart from these peaks, there are only a few extremely weak diffraction peaks. It suggests that all the samples are of an almost pure LDH phase. As known, due to the Jahn-Teller effect of copper ions, it is a challenge to prepare pure Cu-containing LDH phases, especially with high copper contents. In this study, by keeping hydroxyl ions under low supersaturation in the preparation process, the by-phases have been successfully suppressed at a low level for all the LDH samples. Curiously, the by-phase usually is CuO in Cu-Mg-Al-LDH and Cu-Zn-Al-LDH samples (Figure 1b) [32,33], but it is cuprite phase (Cu2O, JCPDS No. 05-0667) in Cu-Mn-Al LDH samples (Figure 1). This phenomenon has also been observed in previous research [34]. After calcination, the LDH phases disappeared and transformed to corresponding mixed metal oxides (MMO) (Figure S1 in Supplementary Materials). XRD patterns of the MMO samples were only present the diffraction peaks of MnAl2O4 and CuO phases, and no diffraction peak was related to manganese-containing oxide or other phase (Figure S1). In addition, the XRD pattern shows that the CuMn sample mainly contained CuO and CuMn2O4 phases (Figure S2).
Table 1 shows the designed contents of metals (the designed percentage of metals in the preparation process), the detected contents of metals, and the specific surface area (SBET) for all samples. The detected metal contents of the samples are very close to the corresponding designed contents (no more than 1.2 at.% deviation), except for the Al content of the Cu50Mg25Al25-MMO sample. Such precise control of metal contents provides favorable conditions for the comparative studies. In the following discussions, the metal contents of the samples will be expressed using the designed percentage. For the MMO samples at a fixed Mn/Al ratio of 1/1, the SBET decreases from 122 to 71 m2·g−1 as the Cu content increases from 30 to 70%. For the MMO samples at a fixed Cu content of 50%, the SBET increases from 72 to 88 m2·g−1, with the Mn content increasing from 20 to 25%, and decreases to 62 m2·g−1 when the Mn content reaches 35%. The SBET of the Cu50Zn25Al25-MMO and Cu50Mg25Al25-MMO samples were only 67 and 58 m2·g−1, respectively, evidently lower than that of the Cu50Mn25Al25-MMO sample (88 m2·g−1). These results suggest that the addition of manganese into LDH can increase the SBET of the derived MMO.
Figure 2 displays pore size distribution plots and (HR)TEM images of the samples. Interestingly, the Cu50Mn25Al25-MMO and Cu50Mn30Al20-MMO samples have a large number of 3–6 nm pores, which are much more than that of the Cu50Zn25Al25-MMO and Cu50Mg25Al25-MMO samples (Figure 2a). Furthermore, the (HR)TEM images also demonstrate the enrichment pores with the size of ~5 nm in the Cu50Mn25Al25-MMO sample (Figure 2b,c and Figure S3). These HRTEM images show that these pores should originate from the stacking of the CuO and MnAl2O4 nanoparticles (as marked by the red cycle in Figure 2c). The other Cu-Mn-Al MMO samples also contain similar pores as shown in Figure S4. By comparison, there are only a few similar pores in the Cu50Zn25Al25-MMO and Cu50Mg25Al25-MMO samples (Figure 2a,e,f and Figure S3). Additionally, the CuMn catalyst is constructed by non-ordered stacking of CuO and CuMn2O4 nanoparticles (Figures S2 and S5). The pore sizes of CuMn catalyst are larger than 3.6 nm and distributed in a wide range (Figure S4). Additionally, the SBET of CuMn catalyst is much smaller than all the MMO samples (Table 1). These properties may be closely correlated with the large sizes and non-ordered stacking of the nanoparticles (Figures S4 and S5). Therefore, the MMO samples derived from Cu-Mn-Al LDH possess abundant pores of 3–6 nm and high surface areas, which will provide plentiful active sites and therefore be beneficial for the catalytic reaction.
Figure 3 demonstrates the catalytic performance of the MMO samples for the WGS reaction. For the MMO catalysts at a fixed Mn/Al ratio of 1/1, CO conversions increased between 200 °C and 275 °C (Figure 3a). It is noted that the CO conversion increased with the increasing of Cu content from 30 to 50% and reduced as the Cu content increased from 50 to 70% (Figure 3a). At reaction temperature above 300 °C, CO conversions were very close for all the catalysts due to the achievement of equilibrium conversion and showed a downward trend with the increasing reaction temperature. For the supported catalysts, maximizing the exposed surface of metal particles is usually beneficial to enhancing the catalytic activity [35,36]. However, for the WGS reaction, there is general agreement that maximizing the density of the metal/support interfaces increases the catalytic activity [14,18,37,38]. Evidently, too high or too low Cu content in the Cu-Mn-Al MMO is not conducive to maximizing the interface between the Cu particles and Mn or/and Al oxides. Regardless of the influence of dispersion state and particle sizes, it should be helpful to maximize the metal–oxide interface when the catalyst has similar content of metal and oxides. The experimental results display that the Cu50Mn25Al25-MMO catalyst with Cu content of ~50 at.% exhibited a high reaction rate of 42.6 μ mol CO − 1 ⋅ g cat − 1 ⋅ s − 1 (with CO conversion of 96.1%), which located it at the top level of non-precious metal catalysts (Table S1).
For the MMO catalysts at a fixed Cu content of 50%, CO conversions of the Cu50Mn25Al25-MMO and Cu50Mn30Al20-MMO catalysts below 300 °C were close to each other but higher than that of the Cu50Mn20Al30-MMO and Cu50Mn35Al15-MMO catalysts (Figure 3b). It indicated that appropriate Mn content is needed for high activity in the WGS reaction. For the Cu50Mg25Al25-MMO and Cu50Zn25Al25-MMO catalysts, the CO conversions were initially at a high level (at 200 °C) and increased slowly as the temperature rose from 200 to 300 °C (Figure 3c). Contrarily, CO conversion of the CuMn catalyst increased quickly with the rising temperature (Figure 3c). CO conversion of the Cu50Mn25Al25-MMO catalyst was at a high level initially and increased quickly as the temperature rose from 200 to 300 °C (Figure 3b). These results indicate that the Mn components present considerable effects on the catalytic activity of WGS reaction.
The Mn-containing MMO catalysts (the Cu50Mn25Al25-MMO and Cu50Mn30Al20-MMO samples) exhibited impressive catalytic activities in the WGS reaction as described above. Significantly, the Mn-containing MMO catalysts also delivered outstanding catalytic stability, as shown in Figure 3d. After 50 h on-stream measurement, the catalytic activity decreased slightly for the Cu50Mn30Al20-MMO. The Cu50Mn25Al25-MMO catalyst presented lower catalytic stability than the Cu50Mn30Al20-MMO catalyst, but it was still much more stable than the Cu50Zn25Al25-MMO, Cu50Mg25Al25-MMO, and CuMn catalysts (Figure 3d). The CuMn catalyst showed a high activity initially but decreased quickly over time, which is much different from the cases of Mn-containing MMO catalysts. As it was known, the aluminum component was a typical structural promoter, which can increase stability by preventing catalyst sintering [39,40]. It could explain why there was such a significant difference in the catalytic stability between the Cu-Mn-Al MMO and CuMn catalysts. However, it cannot elucidate the poor stability of the Cu50Zn25Al25-MMO and Cu50Mg25Al25-MMO catalysts. This contradiction inspires us to obtain insight into the underlining mechanism.
Figure 4 exhibits the microscopic structure and morphology of the spent catalysts in the WGS reaction for 5 h. The average particle sizes of the Cu50Mn25Al25-MMO and Cu50Mn30Al20-MMO catalysts (Figure 4a,b,e,f) were only 3.4 nm, while they were 4.9, 5.3 and 12.7 nm for the Cu50Zn25Al25-MMO (Figure 4c,g), Cu50Mg25Al25-MMO (Figure 4d,h) and CuMn (Figure S6) catalysts, respectively. In addition to the smaller average sizes, the particle sizes of the Cu50Mn25Al25-MMO and Cu50Mn30Al20-MMO catalysts were distributed in a very narrow range compared to the other catalysts (Figure 4e–h and Figure S6). The EDX mapping and corresponding HAADF-TEM image demonstrated that the Cu, Mn and Al components were well dispersed in the spent Cu50Mn25Al25-MMO catalyst (Figure 4i–n). Benefitting from the smaller sizes of particles and the well dispersion of metal components, the density of the metal/support interfaces for the Cu-Mn-Al catalysts sharply increased, and, therefore, the catalytic activities should have been intensively improved [14,18,37,38]. In other words, the high activity of the CuMnAl-MMO catalysts could be attributed to the rich interfaces between Cu-containing particles and manganese oxide particles. In addition, the XRD patterns and HRTEM images (Figure 4o,p and Figure S7) showed that there are Cu, Cu2O, and CuO phases in the spent catalysts. Interestingly, it could find such a rule that the catalyst with better catalytic stability contained less Cu and more Cu2O (Figure 3d and Figure S7). Further studies are needed to reveal the mechanism of this rule.
Figure 5 is the XPS spectra and EPR spectra for the spent catalysts. The O1s XPS spectra were deconvolved into two fitted peaks OI and OII (Figure 5a), representing two different kinds of oxygen species. The peak OI at 530.7 ± 0.15 eV corresponded to the lattice oxygen bound to metal cations [30,31,42]. The peak OII at 531.9 ± 0.1 eV was mainly assigned to the adsorbed surface oxygen on oxygen vacancies, including the surface hydroxyl-like species [30,31,42]. The OII/OI ratio could qualitatively estimate the ratio of surface oxygen to lattice oxygen, thus, the higher OII/OI ratio usually suggests the more oxygen vacancies [26,29,30]. Creating an oxygen-vacancy-rich surface may be an effective approach to enhance the activation of H2O, and, therefore, may improve the catalytic performance of the WGS reaction [26,43]. The Mn-containing catalysts, i.e., Cu50Mn30Al20-MMO, Cu50Mn25Al25-MMO, and CuMn, all have high OII/OI ratios above 2.4, which are much higher than the Cu50Zn25Al25-MMO and Cu50Mg25Al25-MMO catalysts. The catalysts with high OII/OI ratios display high catalytic activities for WGS reactions between 250 and 300 °C (Figure 3b,c and Figure 5a), suggesting the important role of oxygen vacancies on the catalytic activity of the catalysts.
EPR results exhibit that the Mn-containing catalysts all have a g value of 2.003 or 2.004 (Figure 5b,c), which proves the existence of oxygen vacancies [44]. For the Cu-Mn-Al MMO catalysts, the intensity of EPR spectra increases with the rise of Mn content except the Cu50Mg35Al15-MMO catalyst (Figure 5c). It suggests that appropriate content of Mn may be beneficial to improving the amount of oxygen vacancies for the Cu-Mn-Al MMO catalysts. The Cu50Mg30Al20-MMO and Cu50Mn25Al25-MMO catalysts with relatively high intensity of EPR spectra not only present high catalytic activity in WGS, but also deliver outstanding catalytic stability (Figure 3d).
Figure 6 shows the XPS spectra of the spent catalysts and the relationship between the Hüttig/Tamman temperature and the Mn valence state for manganese oxides. Mn 2p XPS spectra show that the Mn components in the catalysts presented as divalent (Mn2+) and trivalent (Mn3+) forms (Figure 6a). The ratio of Mn2+/Mn3+ is 0.9, 2.0, and 1.4 for the CuMn, Cu50Mg25Al25-MMO, and Cu50Mg30Al20-MMO catalysts, respectively. It suggests that Mn components in the Cu-Mg-Al MMO catalysts present a relatively low-valence state. Rhodochrosite (MnCO3) was the only Mn phase detected by the XRD measurement in the spent catalysts (Figure S7), but it easily decomposes into MnO at temperatures above 200 °C. Consequently, MnO should be the main Mn-containing phase for the Cu-Mg-Al MMO catalysts in the WGS operation condition at temperatures around 300 °C. By comparison, Mn2O3 and/or Mn3O4 may be the main Mn-containing phase for the CuMn catalyst. Figure 6b presents the Cu 2p XPS spectra of spent catalysts. There are two fitting peaks at 932.7 ± 0.2 eV and 934.8 ± 0.3 eV in the Cu 2p3/2 photoelectron peaks, which could be assigned to Cu/Cu2O and CuO, respectively. According to the area of the fitting peaks, the Cu and/or Cu2O are the main phases for Cu components in the spent catalysts. Since the binding energy of Cu 2p for pure Cu and pure Cu2O are very close (at about 932.5–932.7 eV) [45,46,47], it is hard to separate the peaks of Cu and Cu2O from each other. Combined with the XRD patterns (Figure S7), it can be deduced that Cu2O should be the main Cu-containing phase for the spent Cu50Mn30Al20-MMO and Cu50Mn25Al25-MMO catalysts.
Catalyst sintering is considered as the primary reason for the deactivation of WGS catalysts besides sulfur poisoning [48,49]. The rate of catalyst sintering has a strong correlation with operation temperature [50,51]. The Hüttig temperature (THüt) and Tamman temperature (TTam) can roughly estimate the sinter temperature for different materials [50]. The atoms at the particle surface start to exhibit mobility at THüt, and the atoms from bulk start to mobile above the TTam [50]. As shown in Figure 6b, the THüt and TTam of the manganese oxides sharply decreased with the increase in the valence state of manganese. It means that the Mn-containing particles in a high valence state are mobile and aggregate into larger particles. In contrast, the Mn-containing particles in a low valence state would have good anti-sintering performance. In fact, the Cu50Mn30Al20-MMO and Cu50Mn25Al25-MMO catalysts with a low-valence state of manganese exhibit much higher catalytic stability than the CuMn catalyst, as mentioned above.
Since the THüt is as high as 392 °C, the surface atoms of MnO cannot migrate below this temperature; this is because the oxygen vacancies (Mn2+-Ov-Mn2+) should be very stable below this temperature, which is beneficial to improving the catalytic durability of the catalysts besides the activation of H2O. Recently, Xi and his co-workers [26] have also reported that stabilizing the oxygen vacancies is a feasible pathway to enhance the durability of Pt cluster catalysts supported on reduced MoO3 monoliths. Based on this reason, the Cu-Mn-Al MMO catalysts of rich and stable oxygen vacancies are more durable than the Cu50Zn25Al25-MMO and Cu50Mg25Al25-MMO catalysts.

4. Conclusions

A series of high-purity Cu-Mn-Al LDH with high Cu content have been prepared by coprecipitation method under low supersaturation. The Cu-Mn-Al MMO derived from these LDH samples features a large number of 3–6 nm pores that are much different from the MMO without manganese component. The Cu-Mn-Al MMO catalysts exhibited outstanding catalytic activity and excellent stability in the WGS reaction. The optimized Cu50Mn25Al25-MMO catalyst displayed an exceptionally high reaction rate of 42.6 μ mol CO − 1 ⋅ g cat − 1 ⋅ s − 1 , while the CO conversion was as high as 96.1% simultaneously. The outstanding catalytic activity for Cu-Mn-Al MMO catalysts should benefit from the rich interfaces between Cu-containing particles, manganese oxide particles, and/or abundant oxygen vacancies. Furthermore, the Cu-Mn-Al MMO catalysts demonstrated excellent catalytic stability during the durability test. The excellent stability may originate from the manganese oxides within a low valence state, which have good anti-sintering properties and can stabilize oxygen vacancies.

Supplementary Materials

The following supporting information can be downloaded at: https://www.mdpi.com/article/10.3390/molecules28041522/s1, Figure S1: XRD patterns of the mixed metal oxides (MMO) derived from layered double hydroxides (LDH) samples; Figure S2: XRD pattern of the CuMn sample; Figure S3: HRTEM images of the MMO samples; Figure S4: N2 adsorption/desorption isotherms (a) and pore size distributions (b–d) of the samples; Figure S5: TEM image and particle size distribution for the CuMn sample; Table S1: Comparison of the activities of the representative catalytic systems with non-noble metal for the WGS reaction; Figure S6: TEM image and particle size distribution for the CuMn catalyst after 5 h on stream in WGS reaction; Figure S7: XRD pattern of the spent catalysts in WGS reaction for 5 h; Table S2: The melting point, Hüttig temperature and Tamman temperature of manganese oxides [52,53,54,55,56].

Author Contributions

Conceptualization, O.Z. and H.L. (Huibin Lei); methodology, O.Z. and H.L. (Huibin Lei); software, O.Z.; validation, O.Z., H.L. (Hanci Li), Z.X. and P.L.; resources, H.L. (Hanci Li), Z.X. and H.W.; data curation, O.Z., H.L. (Hanci Li), H.W. and J.G.; writing—original draft preparation, O.Z. and H.L. (Huibin Lei); writing—review and editing, O.Z.; supervision, O.Z.; funding acquisition, O.Z. and H.L. (Huibin Lei). All authors have read and agreed to the published version of the manuscript.

Funding

This work was financially supported by the Hunan Provincial Natural Science Foundation of China (No. 2021JJ40437), and the Scientific Research Fund of Hunan Provincial Education Department (No. 22B0551).

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Data Availability Statement

The data presented in this study are available on request from the corresponding author.

Acknowledgments

We thank Xianli Yang and Yufei Jiang from the State Key Laboratory of Coordination Chemistry at Nanjing University for EPR measures.

Conflicts of Interest

The authors declare no conflict of interest.

Sample Availability

Samples of the catalysts are available from the authors.

References

  1. Pal, D.B.; Chand, R.; Upadhyay, S.N.; Mishra, P.K. Performance of water gas shift reaction catalysts: A review. Renew. Sustain. Energy Rev. 2018, 93, 549–565. [Google Scholar] [CrossRef]
  2. Sun, X.C.; Yuan, K.; Hua, W.D.; Gao, Z.R.; Zhang, Q.; Yuan, C.Y.; Liu, H.C.; Zhang, Y.W. Weakening the Metal–Support Interactions of M/CeO2 (M = Co, Fe, Ni) Using a NH3-Treated CeO2 Support for an Enhanced Water–Gas Shift Reaction. ACS Catal. 2022, 12, 11942–11954. [Google Scholar] [CrossRef]
  3. Baraj, E.; Ciahotný, K.; Hlinčík, T. The water gas shift reaction: Catalysts and reaction mechanism. Fuel 2021, 288, 119817. [Google Scholar] [CrossRef]
  4. Li, D.; Xu, S.; Cai, Y.; Chen, C.; Zhan, Y.; Jiang, L. Characterization and Catalytic Performance of Cu/ZnO/Al2O3 Water–Gas Shift Catalysts Derived from Cu–Zn–Al Layered Double Hydroxides. Ind. Eng. Chem. Res. 2017, 56, 3175–3183. [Google Scholar] [CrossRef]
  5. Chen, A.; Yu, X.; Zhou, Y.; Miao, S.; Li, Y.; Kuld, S.; Sehested, J.; Liu, J.; Aoki, T.; Hong, S.; et al. Structure of the catalytically active copper–ceria interfacial perimeter. Nat. Catal. 2019, 2, 334–341. [Google Scholar] [CrossRef]
  6. Yan, H.; Yang, C.; Shao, W.P.; Cai, L.H.; Wang, W.W.; Jin, Z.; Jia, C.J. Construction of stabilized bulk-nano interfaces for highly promoted inverse CeO2/Cu catalyst. Nat. Commun. 2019, 10, 3470. [Google Scholar] [CrossRef]
  7. Zhang, Z.; Wang, S.S.; Song, R.; Cao, T.; Luo, L.; Chen, X.; Gao, Y.; Lu, J.; Li, W.X.; Huang, W. The most active Cu facet for low-temperature water gas shift reaction. Nat. Commun. 2017, 8, 488. [Google Scholar] [CrossRef]
  8. Zhang, Z.; Chen, X.; Kang, J.; Yu, Z.; Tian, J.; Gong, Z.; Jia, A.; You, R.; Qian, K.; He, S.; et al. The active sites of Cu–ZnO catalysts for water gas shift and CO hydrogenation reactions. Nat. Commun. 2021, 12, 4331. [Google Scholar] [CrossRef]
  9. Zhu, M.; Tian, P.; Kurtz, R.; Lunkenbein, T.; Xu, J.; Schlögl, R.; Wachs, I.E.; Han, Y.F. Strong Metal–Support Interactions between Copper and Iron Oxide during the High-Temperature Water-Gas Shift Reaction. Angew. Chem. Int. Ed. 2019, 58, 9083–9087. [Google Scholar] [CrossRef]
  10. Lee, C.H.; Kim, S.; Yoon, H.J.; Yoon, C.W.; Lee, K.B. Water gas shift and sorption-enhanced water gas shift reactions using hydrothermally synthesized novel Cu–Mg–Al hydrotalcite-based catalysts for hydrogen production. Renew. Sustain. Energy Rev. 2021, 145, 111064. [Google Scholar] [CrossRef]
  11. Li, D.; Cai, Y.; Ding, Y.; Li, R.; Lu, M.; Jiang, L. Layered double hydroxides as precursors of Cu catalysts for hydrogen production by water-gas shift reaction. Int. J. Hydrogen Energy 2015, 40, 10016–10025. [Google Scholar] [CrossRef]
  12. Tabakova, T.; Idakiev, V.; Avgouropoulos, G.; Papavasiliou, J.; Manzoli, M.; Boccuzzi, F.; Ioannides, T. Highly active copper catalyst for low-temperature water-gas shift reaction prepared via a Cu-Mn spinel oxide precursor. Appl. Catal. A-Gen. 2013, 451, 184–191. [Google Scholar] [CrossRef]
  13. Tanaka, Y.; Utaka, T.; Kikuchi, R.; Takeguchi, T.; Sasaki, K.; Eguchi, K. Water gas shift reaction for the reformed fuels over Cu/MnO catalysts prepared via spinel-type oxide. J. Catal. 2003, 215, 271–278. [Google Scholar] [CrossRef]
  14. Su, Y.Q.; Xia, G.J.; Qin, Y.; Ding, S.; Wang, Y.G. Lattice oxygen self-spillover on reducible oxide supported metal cluster: The water–gas shift reaction on Cu/CeO2 catalyst. Chem. Sci. 2021, 12, 8260–8267. [Google Scholar] [CrossRef] [PubMed]
  15. Xu, M.; Wei, M. Layered Double Hydroxide-Based Catalysts: Recent Advances in Preparation, Structure, and Applications. Adv. Funct. Mater. 2018, 28, 1802943. [Google Scholar] [CrossRef]
  16. Xia, S.; Fang, L.; Meng, Y.; Zhang, X.; Zhang, L.; Yang, C.; Ni, Z. Water-gas shift reaction catalyzed by layered double hydroxides supported Au-Ni/Cu/Pt bimetallic alloys. Appl. Catal. B-Environ. 2020, 272, 118949. [Google Scholar] [CrossRef]
  17. Liu, N.; Xu, M.; Yang, Y.; Zhang, S.; Zhang, J.; Wang, W.; Zheng, L.; Hong, S.; Wei, M. Auδ−–Ov–Ti3+ Interfacial Site: Catalytic Active Center toward Low-Temperature Water Gas Shift Reaction. ACS Catal. 2019, 9, 2707–2717. [Google Scholar] [CrossRef]
  18. Ginés, M.J.L.; Amadeo, N.; Laborde, M.; Apesteguía, C.R. Activity and structure-sensitivity of the water-gas shift reaction over CuZnAl mixed oxide catalysts. Appl. Catal. A-Gen. 1995, 131, 283–296. [Google Scholar] [CrossRef]
  19. Lucarelli, C.; Molinari, C.; Faure, R.; Fornasari, G.; Gary, D.; Schiaroli, N.; Vaccari, A. Novel Cu-Zn-Al catalysts obtained from hydrotalcite-type precursors for middle-temperature water-gas shift applications. Appl. Clay Sci. 2018, 155, 103–110. [Google Scholar] [CrossRef]
  20. Nishida, K.; Atake, I.; Li, D.; Shishido, T.; Oumi, Y.; Sano, T.; Takehira, K. Effects of noble metal-doping on Cu/ZnO/Al2O3 catalysts for water–gas shift reaction: Catalyst preparation by adopting “memory effect” of hydrotalcite. Appl. Catal. A-Gen. 2008, 337, 48–57. [Google Scholar] [CrossRef]
  21. Santos, J.L.; Reina, T.R.; Ivanova, S.; Centeno, M.A.; Odriozola, J.A. Gold promoted Cu/ZnO/Al2O3 catalysts prepared from hydrotalcite precursors: Advanced materials for the WGS reaction. Appl. Catal. B-Environ. 2017, 201, 310–317. [Google Scholar] [CrossRef]
  22. Thouchprasitchai, N.; Luengnaruemitchai, A.; Pongstabodee, S. The activities of Cu-based Mg–Al layered double oxide catalysts in the water gas shift reaction. Int. J. Hydrogen Energy 2016, 41, 14147–14159. [Google Scholar] [CrossRef]
  23. Gabrovska, M.; Ivanov, I.; Nikolova, D.; Kovacheva, D.; Tabakova, T. Hydrogen production via water-gas shift reaction over gold supported on Ni-based layered double hydroxides. Int. J. Hydrogen Energy 2021, 46, 458–473. [Google Scholar] [CrossRef]
  24. Xu, M.; He, S.; Chen, H.; Cui, G.; Zheng, L.; Wang, B.; Wei, M. TiO2–x-Modified Ni Nanocatalyst with Tunable Metal–Support Interaction for Water–Gas Shift Reaction. ACS Catal. 2017, 7, 7600–7609. [Google Scholar] [CrossRef]
  25. Xia, S.; Dai, T.; Meng, Y.; Zhou, X.; Pan, G.; Zhang, X.; Ni, Z. A low-temperature water–gas shift reaction catalyzed by hybrid NiO@NiCr-layered double hydroxides: Catalytic property, kinetics and mechanism investigation. Phys. Chem. Chem. Phys. 2020, 22, 12630–12643. [Google Scholar] [CrossRef]
  26. Xi, S.; Zhang, J.; Xie, K. Low-temperature Water-gas Shift Reaction Enhanced by Oxygen Vacancies in Pt-loaded Porous Single-crystalline Oxide Monoliths. Angew. Chem. Int. Ed. 2022, 61, e202209851. [Google Scholar] [CrossRef]
  27. López Cámara, A.; Cortés Corberán, V.; Martínez-Arias, A.; Barrio, L.; Si, R.; Hanson, J.C.; Rodriguez, J.A. Novel manganese-promoted inverse CeO2/CuO catalyst: In situ characterization and activity for the water-gas shift reaction. Catal. Today 2020, 339, 24–31. [Google Scholar] [CrossRef]
  28. Wang, Y.; Yang, D.; Li, S.; Zhang, L.; Zheng, G.; Guo, L. Layered copper manganese oxide for the efficient catalytic CO and VOCs oxidation. Chem. Eng. J. 2019, 357, 258–268. [Google Scholar] [CrossRef]
  29. Liu, X.; Wu, J.; Zhang, S.; Li, Q.; Wu, Z.; Zhang, J. Evaluation of an ε-manganese (IV) oxide/manganese vanadium oxide composite catalyst enriched with oxygen vacancies for enhanced formaldehyde removal. Appl. Catal. B-Environ. 2023, 320, 121994. [Google Scholar] [CrossRef]
  30. Hu, Q.; Yang, L.; Fan, G.; Li, F. Hydrogenation of biomass-derived compounds containing a carbonyl group over a copper-based nanocatalyst: Insight into the origin and influence of surface oxygen vacancies. J. Catal. 2016, 340, 184–195. [Google Scholar] [CrossRef]
  31. Zhang, Y.; Lin, Y.; Huang, Z.; Jing, G.; Zhao, H.; Wu, X.; Zhang, S. CuMnAl–O Catalyst Synthesized via Pyrolysis of a Layered Double Hydroxide Precursor Attains Enhanced Performance for Benzene Combustion. Energy Fuel 2021, 35, 743–751. [Google Scholar] [CrossRef]
  32. Behrens, M.; Kasatkin, I.; Kühl, S.; Weinberg, G. Phase-Pure Cu, Zn, Al Hydrotalcite-like Materials as Precursors for Copper rich Cu/ZnO/Al2O3 Catalysts. Chem. Mater. 2010, 22, 386–397. [Google Scholar] [CrossRef]
  33. Comelli, N.A.; Ruiz, M.L.; Aparicio, M.S.L.; Merino, N.A.; Cecilia, J.A.; Rodríguez-Castellón, E.; Lick, I.D.; Ponzi, M.I. Influence of the synthetic conditions on the composition, morphology of CuMgAl hydrotalcites and their use as catalytic precursor in diesel soot combustion reactions. Appl. Clay Sci. 2018, 157, 148–157. [Google Scholar] [CrossRef]
  34. Machej, T.; Serwicka, E.M.; Zimowska, M.; Dula, R.; Michalik-Zym, A.; Napruszewska, B.; Rojek, W.; Socha, R. Cu/Mn-based mixed oxides derived from hydrotalcite-like precursors as catalysts for methane combustion. Appl. Catal. A-Gen. 2014, 474, 87–94. [Google Scholar] [CrossRef]
  35. Munnik, P.; de Jongh, P.E.; de Jong, K.P. Recent Developments in the Synthesis of Supported Catalysts. Chem. Rev. 2015, 115, 6687–6718. [Google Scholar] [CrossRef] [PubMed]
  36. Mehrabadi, B.A.T.; Eskandari, S.; Khan, U.; White, R.D.; Regalbuto, J.R. A Review of Preparation Methods for Supported Metal Catalysts. Adv. Catal. 2017, 61, 1–35. [Google Scholar]
  37. Fu, X.P.; Guo, L.W.; Wang, W.W.; Ma, C.; Jia, C.J.; Wu, K.; Si, R.; Sun, L.D.; Yan, C.H. Direct Identification of Active Surface Species for the Water–Gas Shift Reaction on a Gold–Ceria Catalyst. J. Am. Chem. Soc. 2019, 141, 4613–4623. [Google Scholar] [CrossRef]
  38. Zhang, X.; Zhang, M.; Deng, Y.; Xu, M.; Artiglia, L.; Wen, W.; Gao, R.; Chen, B.; Yao, S.; Zhang, X.; et al. A stable low-temperature H2-production catalyst by crowding Pt on α-MoC. Nature 2021, 589, 396–401. [Google Scholar] [CrossRef]
  39. Völs, P.; Hilbert, S.; Störr, B.; Bette, N.; Lißner, A.; Seidel, J.; Mertens, F. Methanation of CO2 and CO by (Ni,Mg,Al)-Hydrotalcite-Derived and Related Catalysts with Varied Magnesium and Aluminum Oxide Contents. Ind. Eng. Chem. Res. 2021, 60, 5114–5123. [Google Scholar] [CrossRef]
  40. Koo, H.M.; Ahn, C.I.; Lee, D.H.; Roh, H.S.; Shin, C.H.; Kye, H.; Bae, J.W. Roles of Al2O3 promoter for an enhanced structural stability of ordered-mesoporous Co3O4 catalyst during CO hydrogenation to hydrocarbons. Fuel 2018, 225, 460–471. [Google Scholar] [CrossRef]
  41. Choi, Y.; Stenger, H.G. Water gas shift reaction kinetics and reactor modeling for fuel cell grade hydrogen. J. Power Sources 2003, 124, 432–439. [Google Scholar] [CrossRef]
  42. Song, L.; Cao, X.; Li, L. Engineering Stable Surface Oxygen Vacancies on ZrO2 by Hydrogen-Etching Technology: An Efficient Support of Gold Catalysts for Water-Gas Shift Reaction. ACS Appl. Mater. Int. 2018, 10, 31249–31259. [Google Scholar] [CrossRef] [PubMed]
  43. Gokhale, A.A.; Dumesic, J.A.; Mavrikakis, M. On the Mechanism of Low-Temperature Water Gas Shift Reaction on Copper. J. Am. Chem. Soc. 2008, 130, 1402–1414. [Google Scholar] [CrossRef] [PubMed]
  44. Ye, K.; Li, K.; Lu, Y.; Guo, Z.; Ni, N.; Liu, H.; Huang, Y.; Ji, H.; Wang, P. An overview of advanced methods for the characterization of oxygen vacancies in materials. TrAC-Trend Anal. Chem. 2019, 116, 102–108. [Google Scholar] [CrossRef]
  45. Espinós, J.P.; Morales, J.; Barranco, A.; Caballero, A.; Holgado, J.P.; González-Elipe, A.R. Interface Effects for Cu, CuO, and Cu2O Deposited on SiO2 and ZrO2. XPS Determination of the Valence State of Copper in Cu/SiO2 and Cu/ZrO2 Catalysts. J. Phy. Chem. B 2002, 106, 6921–6929. [Google Scholar] [CrossRef]
  46. Tahir, D.; Tougaard, S. Electronic and optical properties of Cu, CuO and Cu2O studied by electron spectroscopy. J. Phy-Condens Mater. 2012, 24, 175002. [Google Scholar] [CrossRef]
  47. Galtayries, A.; Bonnelle, J.P. XPS and ISS studies on the interaction of H2S with polycrystalline Cu, Cu2O and CuO surfaces. Surf. Interface Anal. 1995, 23, 171–179. [Google Scholar] [CrossRef]
  48. Carter, J.H.; Liu, X.; He, Q.; Althahban, S.; Nowicka, E.; Freakley, S.J.; Niu, L.; Morgan, D.J.; Li, Y.; Niemantsverdriet, J.W.; et al. Activation and Deactivation of Gold/Ceria–Zirconia in the Low-Temperature Water–Gas Shift Reaction. Angew. Chem. Int. Ed. 2017, 56, 16037–16041. [Google Scholar] [CrossRef]
  49. Zhu, M.; Tian, P.; Chen, J.; Ford, M.E.; Xu, J.; Wachs, I.E.; Han, Y.F. Activation and deactivation of the commercial-type CuO–Cr2O3–Fe2O3 high temperature shift catalyst. AIChE J. 2020, 66, e16846. [Google Scholar] [CrossRef]
  50. Dai, Y.; Lu, P.; Cao, Z.; Campbell, C.T.; Xia, Y. The physical chemistry and materials science behind sinter-resistant catalysts. Chem. Soc. Rev. 2018, 47, 4314–4331. [Google Scholar] [CrossRef]
  51. Hansen, T.W.; DeLaRiva, A.T.; Challa, S.R.; Datye, A.K. Sintering of Catalytic Nanoparticles: Particle Migration or Ostwald Ripening? Acc. Chem. Res. 2013, 46, 1720–1730. [Google Scholar] [CrossRef] [PubMed]
  52. Yan, H.; Qin, X.-T.; Yin, Y.; Teng, Y.-F.; Jin, Z.; Jia, C.-J. Promoted Cu-Fe3O4 catalysts for low-temperature water gas shift reaction: Optimization of Cu content. Appl. Catal. B: Environ. 2018, 226, 182–193. [Google Scholar] [CrossRef]
  53. Jin, S.; Park, Y.; Bang, G.; Vo, N.D.; Lee, C.-H. Revisiting magnesium oxide to boost hydrogen production via water-gas shift reaction: Mechanistic study to economic evaluation. Appl. Catal. B: Environ. 2020, 284, 119701. [Google Scholar] [CrossRef]
  54. Navasery, M.; Halim, S.A.; Lim, K.P.; Chen, S.K.; Roslan, A.S.; Abd-Shukor, R. STRUCTURE, ELECTRICAL TRANSPORT AND MAGNETO-RESISTANCE PROPERTIES OFLa5/8Ca3/8MnO3MANGANITE SYNTHESIZED WITH DIFFERENT MANGANESE PRECURSORS. Mod. Phys. Lett. B 2012, 26. [Google Scholar] [CrossRef]
  55. Moiseev, G.K.; Ivanovskii, A.L. Products of CuO heating in argon. Inorg. Mater. 2006, 42, 632–634. [Google Scholar] [CrossRef]
  56. Kosenko, A.V.; Emel’Chenko, G.A. Equilibrium phase relationships in the system Cu-O under high oxygen pressure. J. Phase Equilibria Diffus. 2001, 22, 12–19. [Google Scholar] [CrossRef]
Molecules 28 01522 g001 550

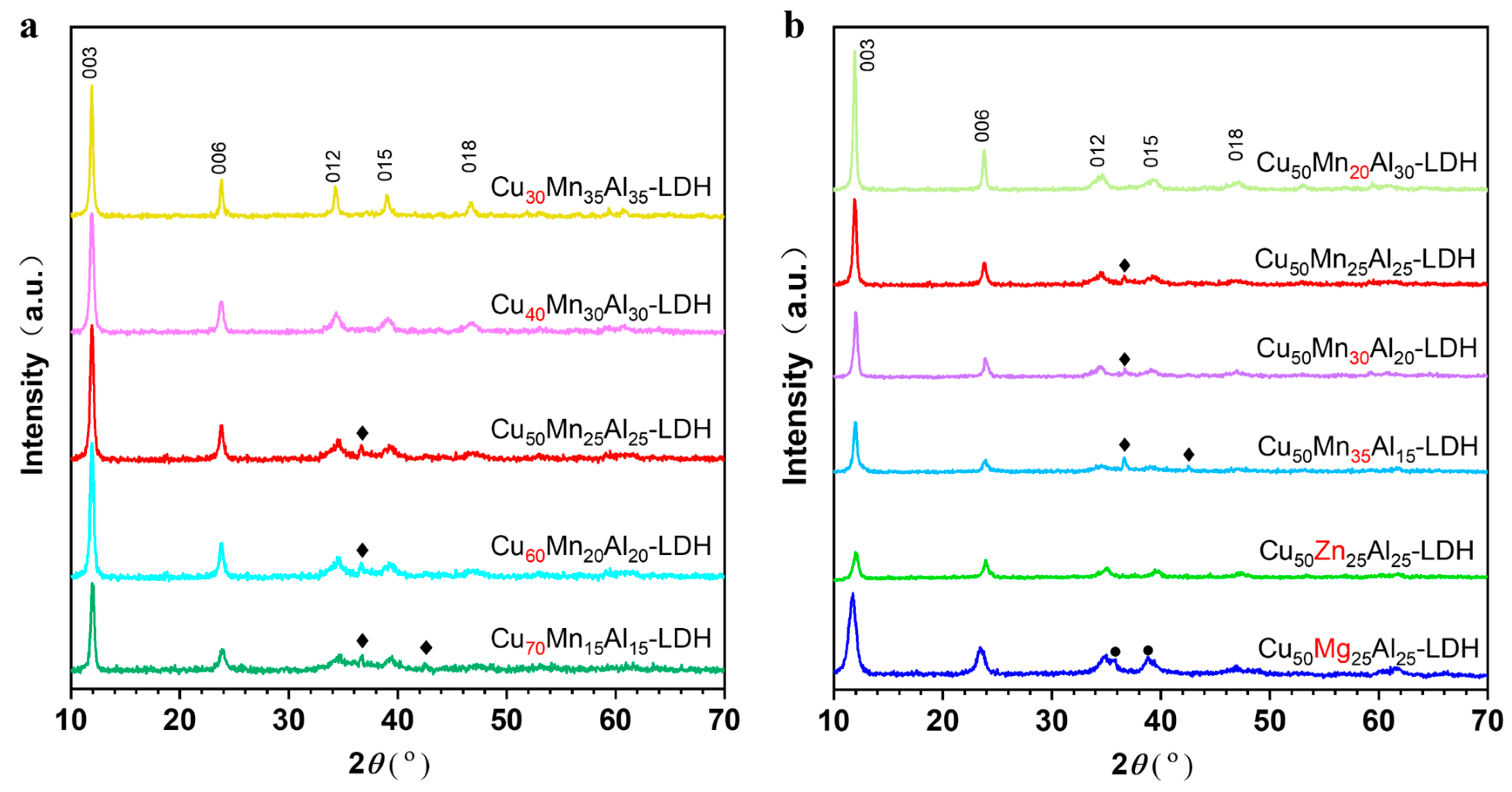

Figure 1. XRD patterns of the LDH precursors. (a) CuxMnyAlz-LDH. (b) CuxMgyAlz-LDH, CuxZnyAlz-LDH and Cu50MnyAlz-LDH. The diffraction peaks marked by the symbols (♦, ●) and are corresponding to the Cu2O phase (♦ JCPDS No. 05-0667) and CuO phase (● JCPDS No. 45-0937).
Figure 1. XRD patterns of the LDH precursors. (a) CuxMnyAlz-LDH. (b) CuxMgyAlz-LDH, CuxZnyAlz-LDH and Cu50MnyAlz-LDH. The diffraction peaks marked by the symbols (♦, ●) and are corresponding to the Cu2O phase (♦ JCPDS No. 05-0667) and CuO phase (● JCPDS No. 45-0937).
Molecules 28 01522 g001
Molecules 28 01522 g002 550
Figure 2. Pore size distribution plots and (HR)TEM images of the MMO samples. (a) Pore size distributions plots of the samples. (b–f) (HR)TEM images for the Cu50Mn25Al25-MMO (b,c), Cu50Mn30Al20-MMO (d), Cu50Zn25Al25-MMO (e), and Cu50Mg25Al25-MMO (f) samples. The inserted pore size distribution plot of Figure 2b is obtained by counting the sizes of 300 pores in the TEM image. Corresponding N2 adsorption/desorption isotherm and pore size distributions in the range of 0–70 nm for the samples are shown in Figure S4.
Figure 2. Pore size distribution plots and (HR)TEM images of the MMO samples. (a) Pore size distributions plots of the samples. (b–f) (HR)TEM images for the Cu50Mn25Al25-MMO (b,c), Cu50Mn30Al20-MMO (d), Cu50Zn25Al25-MMO (e), and Cu50Mg25Al25-MMO (f) samples. The inserted pore size distribution plot of Figure 2b is obtained by counting the sizes of 300 pores in the TEM image. Corresponding N2 adsorption/desorption isotherm and pore size distributions in the range of 0–70 nm for the samples are shown in Figure S4.
Molecules 28 01522 g002
Molecules 28 01522 g003 550

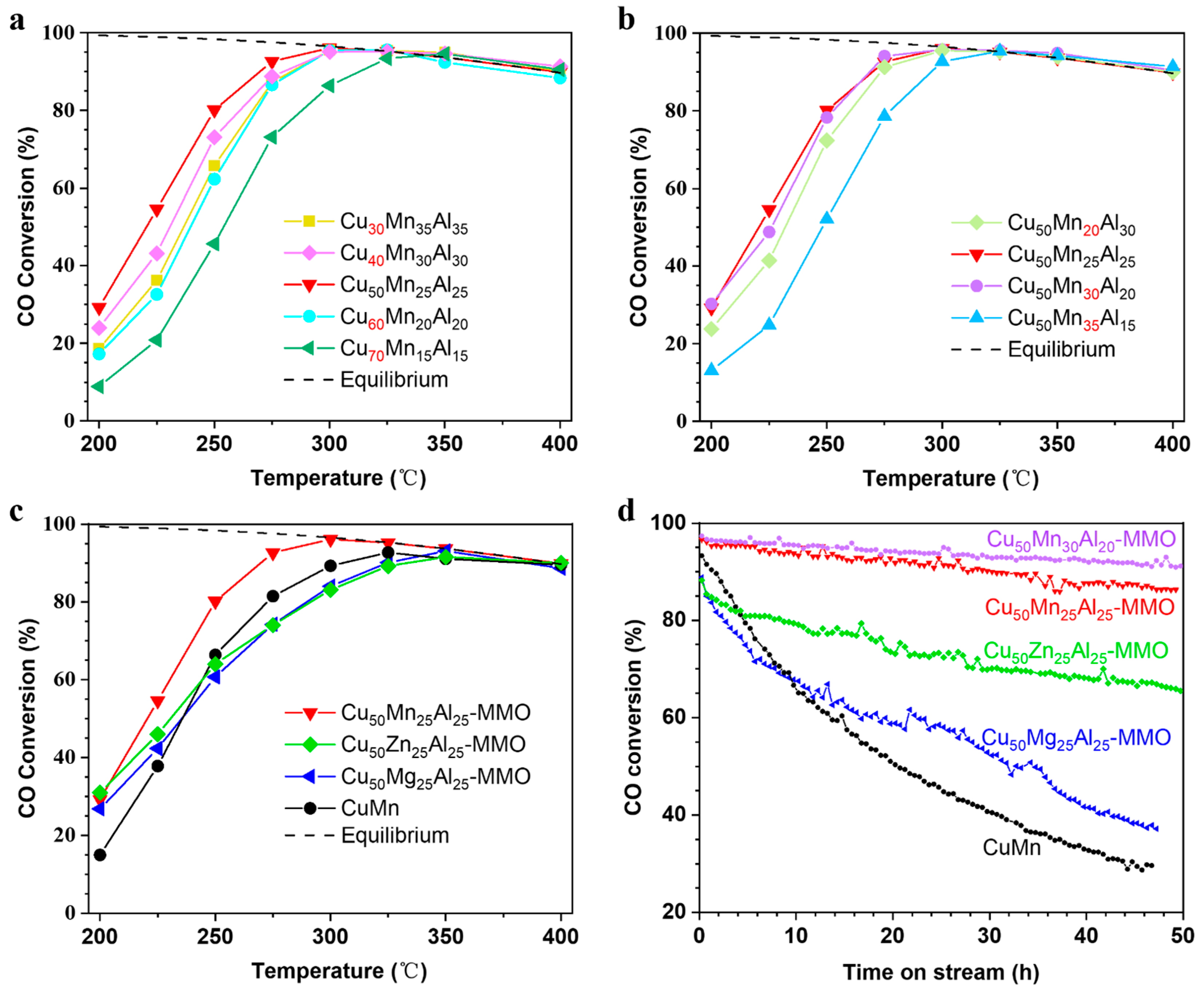

Figure 3. Catalytic performance of the MMO samples after activation. (a–c) Temperature-dependent activities of the catalysts. (d) Long-term stability test of the WGS reaction at 300 °C. Reaction conditions: CO/H2/CO2/N2 = 14.9/27.2/7.3/50.6 (molar ratio), GHSV = 24,000 m L · g c a t − 1 ·h−1 (steam not included), H2O/CO = 4/1 (molar ratio), 50 mg catalyst. The dotted line indicates the CO thermodynamic equilibrium conversion that was calculated according to the reported method [41].
Figure 3. Catalytic performance of the MMO samples after activation. (a–c) Temperature-dependent activities of the catalysts. (d) Long-term stability test of the WGS reaction at 300 °C. Reaction conditions: CO/H2/CO2/N2 = 14.9/27.2/7.3/50.6 (molar ratio), GHSV = 24,000 m L · g c a t − 1 ·h−1 (steam not included), H2O/CO = 4/1 (molar ratio), 50 mg catalyst. The dotted line indicates the CO thermodynamic equilibrium conversion that was calculated according to the reported method [41].
Molecules 28 01522 g003
Molecules 28 01522 g004 550
Figure 4. Microscopic characterizations of the catalysts after 5 h on stream in WGS reaction. (a–d) TEM images of the spent catalysts. (e,f) The particle sizes distribution of the spent catalysts. (i–n) The EDX mapping and corresponding HAADF-TEM image of the spent Cu50Mn25Al25-MMO catalyst. (o,p) HRTEM images of the spent catalysts. (a,e,o) Cu50Mn25Al25-MMO, (b,f) Cu50Mn30Al20-MMO, (c,g,p) Cu50Zn25Al25-MMO, (d,h) Cu50Mg25Al25-MMO.
Figure 4. Microscopic characterizations of the catalysts after 5 h on stream in WGS reaction. (a–d) TEM images of the spent catalysts. (e,f) The particle sizes distribution of the spent catalysts. (i–n) The EDX mapping and corresponding HAADF-TEM image of the spent Cu50Mn25Al25-MMO catalyst. (o,p) HRTEM images of the spent catalysts. (a,e,o) Cu50Mn25Al25-MMO, (b,f) Cu50Mn30Al20-MMO, (c,g,p) Cu50Zn25Al25-MMO, (d,h) Cu50Mg25Al25-MMO.
Molecules 28 01522 g004
Molecules 28 01522 g005 550

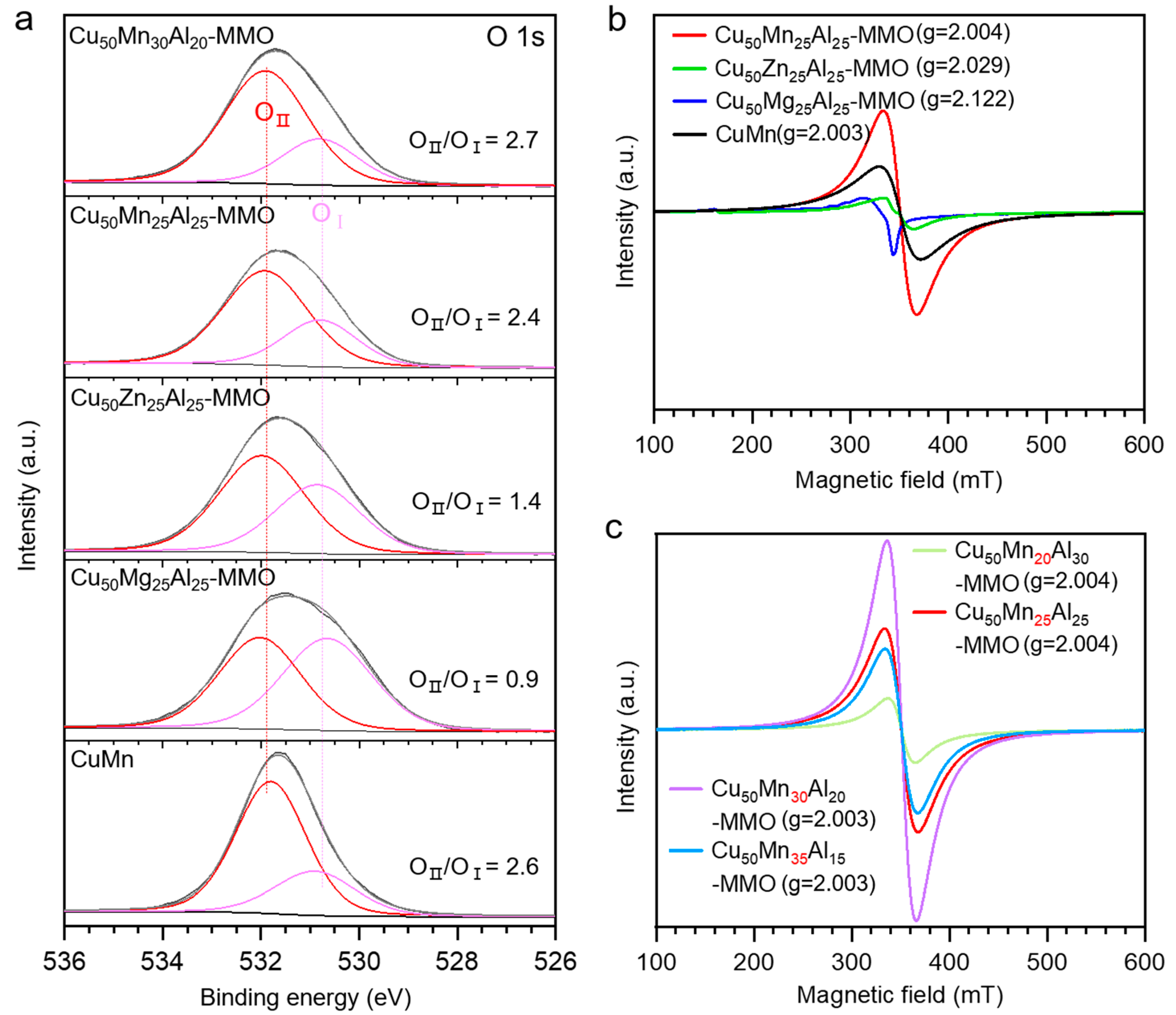

Figure 5. O 1s XPS spectra (a) and EPR spectra (b,c) for the catalysts after 5 h on stream in WGS reaction. The reaction conditions are the same as those of the long-term stability test (Figure 3d).
Figure 5. O 1s XPS spectra (a) and EPR spectra (b,c) for the catalysts after 5 h on stream in WGS reaction. The reaction conditions are the same as those of the long-term stability test (Figure 3d).
Molecules 28 01522 g005
Molecules 28 01522 g006 550

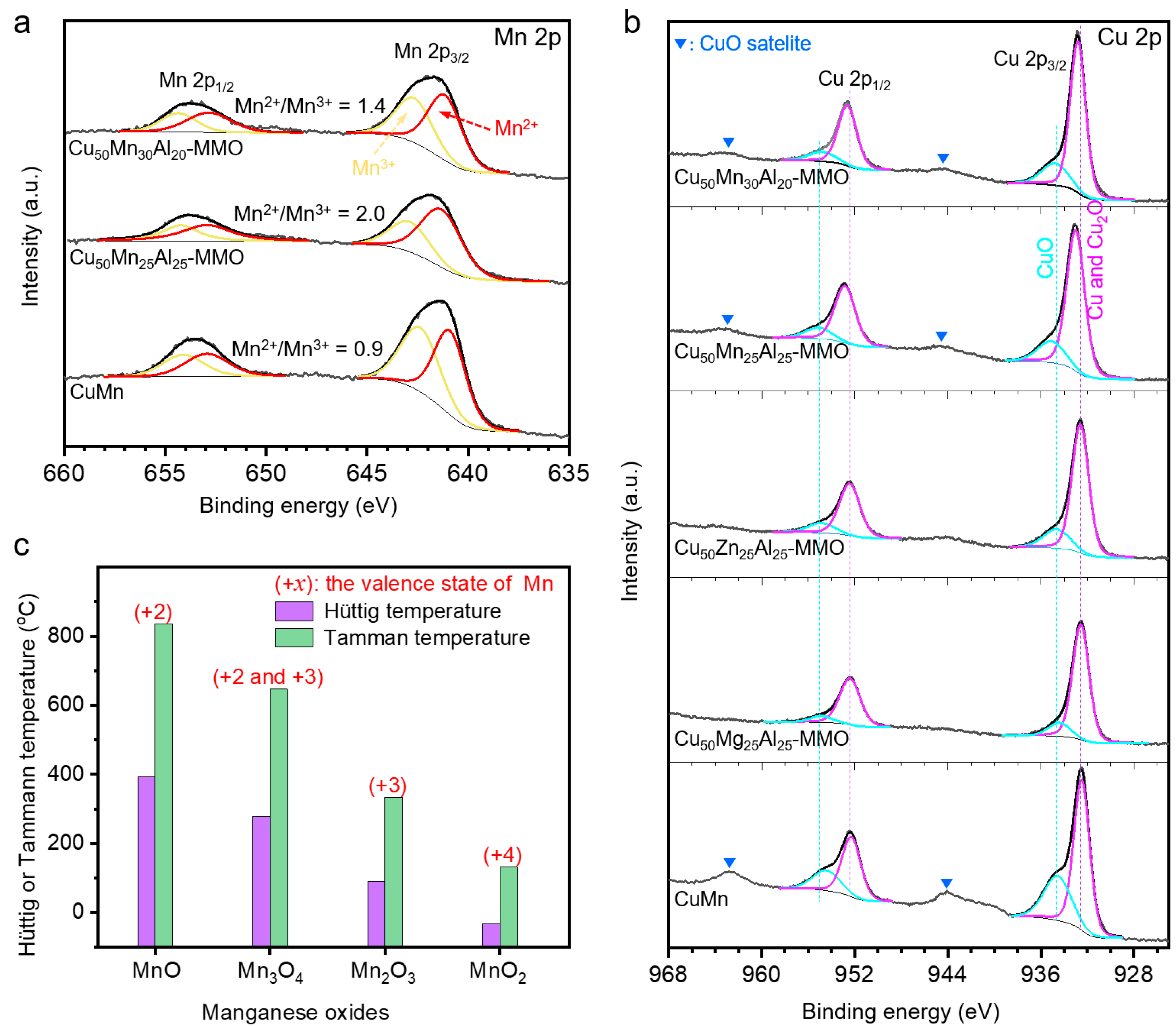

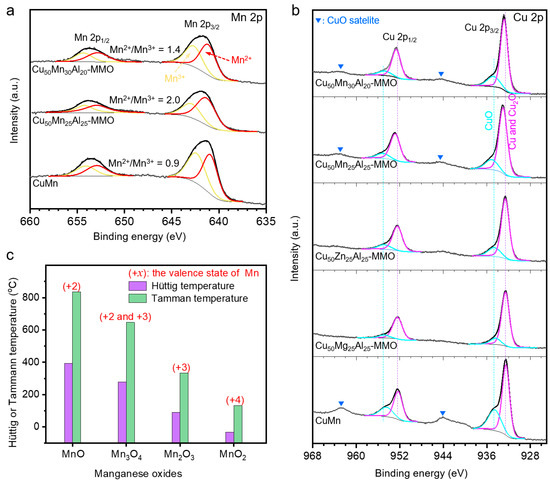

Figure 6. XPS spectra for the spent catalysts and physical/chemical properties for manganese oxides. (a,b) Mn 2p (a) and Cu 2p (b) XPS spectra of the catalysts after 5 h on stream in WGS reaction. The reaction conditions are the same as those of the long-term stability test (Figure 3d). (c) The Mn valence state, Hüttig temperature and Tamman temperature for manganese oxides, and more details are shown in Table S2.
Figure 6. XPS spectra for the spent catalysts and physical/chemical properties for manganese oxides. (a,b) Mn 2p (a) and Cu 2p (b) XPS spectra of the catalysts after 5 h on stream in WGS reaction. The reaction conditions are the same as those of the long-term stability test (Figure 3d). (c) The Mn valence state, Hüttig temperature and Tamman temperature for manganese oxides, and more details are shown in Table S2.
Molecules 28 01522 g006
Table
Table 1. Physicochemical properties of different MMO samples.
Table 1. Physicochemical properties of different MMO samples.
SamplesDesigned Contents a (Cu:M:Al b)Detected Contents (at.%) cSBET
(m2·g−1)
CuMnAlZnMg
Cu30Mn35Al35-MMO30:35:3529.934.635.5--122
Cu40Mn30Al30-MMO40:30:3040.229.830.0--117
Cu50Mn25Al25-MMO50:25:2550.625.623.8--88
Cu60Mn20Al20-MMO60:20:2060.819.719.5--74
Cu70Mn15Al15-MMO70:15:1570.415.014.7--71
Cu50Mn20Al30-MMO50:20:3050.719.330.1--72
Cu50Mn30Al20-MMO50:30:2050.829.220.0--73
Cu50Mn35Al15-MMO50:35:1550.934.414.7--62
Cu50Zn25Al25-MMO50:25:2549.3-25.325.4-67
Cu50Mg25Al25-MMO50:25:2550.9-26.2-22.858
CuMn50:50:050.849.2---37
Note: a Designed contents represent the designed molar percentage of corresponding metals in the preparation process. b M represents the metal of Mn, Zn or Mg. c The detected contents of metals for different samples were measured by ICP-OES.
