Radiolabelling of Polyclonally Expanded Human Regulatory T Cells (Treg) with ⁸⁹Zr-oxine for Medium-Term In Vivo Cell Tracking

Abstract

Regulatory T cells (Tregs) are a promising candidate cell therapy to treat autoimmune diseases and aid the longevity of transplanted solid organs. Despite increasing numbers of clinical trials using human Treg therapy, important questions pertaining to their in vivo fate, distribution, and function remain unanswered. Treg accumulation in relevant tissues was found to be crucial for Treg therapy efficacy, but existing blood-borne biomarkers are unlikely to accurately reflect the tissue state. Non-invasive Treg tracking by whole-body imaging is a promising alternative and can be achieved by direct radiolabelling of Tregs and following the radiolabelled cells with positron emission tomography (PET). Our goal was to evaluate the radiolabelling of polyclonal Tregs with ⁸⁹Zr to permit their in vivo tracking by PET/CT for longer than one week with current preclinical PET instrumentation. We used [⁸⁹Zr]Zr(oxinate)₄ as the cell-labelling agent and achieved successful radiolabelling efficiency of human Tregs spanning 0.1–11.1 Bq ⁸⁹Zr/Treg cell, which would be compatible with PET tracking beyond one week. We characterized the ⁸⁹Zr-Tregs, assessing their phenotypes, and found that they were not tolerating these intracellular ⁸⁹Zr amounts, as they failed to survive or expand in a ⁸⁹Zr-dose-dependent manner. Even at 0.1 Bq ⁸⁹Zr per Treg cell, while ⁸⁹Zr-Tregs remained functional as determined by a five-day-long effector T cell suppression assay, they failed to expand beyond day 3 in vitro. Moreover, PET imaging revealed signs of ⁸⁹Zr-Treg death after adoptive transfer in vivo. In summary, ⁸⁹Zr labelling of Tregs at intracellular radioisotope amounts compatible with cell tracking over several weeks did not achieve the desired outcomes, as ⁸⁹Zr-Tregs failed to expand and survive. Consequently, we conclude that indirect Treg labelling is likely to be the most effective alternative method to satisfy the requirements of this cell tracking scenario.

1. Introduction

Regulatory T cells (Tregs) represent a lymphocyte subset with immunosuppressive properties which is fundamental for the maintenance of tolerance to self-antigens in vivo [1,2]. Tregs readily migrate to sites of inflammation where they exert powerful anti-inflammatory properties and participate in tissue repair and regeneration. Tregs are characterized by a constitutively high expression of CD25 and the master transcription factor forkhead-box protein 3 (FOXP3). Tregs play pivotal roles in various autoimmune diseases [3,4,5], and they are crucial in solid organ transplantation, where they contribute to controlling responses to alloantigens. A correlation between the proportion of Tregs within a transplanted organ and graft survival has been observed [6,7,8]. This has led to the pursuit of protocols designed to tip the balance between Tregs and effector T cells (Teffs) in favor of Tregs to induce transplantation tolerance and cure autoimmune diseases such as type 1 diabetes. One strategy to elevate Treg numbers is the isolation and purification of Tregs from patients, expanding and potentially manipulating them ex vivo, and finally re-administering them to these patients. In humanized animal models transplanted with human skin and reconstituted with human peripheral blood mononuclear cells (PBMCs), adoptive transfer of human in vitro expanded polyclonal Tregs significantly prolonged the survival of skin allografts [9,10].

Polyclonal Treg-based cell therapy approaches yielded early promising results for the prevention of graft-versus-host disease, after allogeneic hematopoietic stem cell transplantation [11,12], and maintenance of C-peptide levels in type 1 diabetes [13,14]. We led two clinical phase I/II trials using adoptive transfer of polyclonal expanded Tregs to promote tolerance in kidney (ONE-Study: NCT02129881) and liver (ThRIL: NCT02166177) transplant recipients [15,16,17]. Resultant data suggested Treg therapy to be safe and well-tolerated and indicated signs of efficacy. Despite an increase in the numbers of clinical trials using human Treg therapy in transplantation and autoimmune diseases, important questions pertaining to their in vivo fate, distribution, and function remain unanswered. Recently, polyclonal Tregs labelled with [6,6-²H₂] glucose were detected in the circulation of type 1 diabetic patients for up to one year [14]. Blood-borne parameters are unlikely to be relevant biomarkers reflecting the situation in relevant tissues; however, it remains a challenge to identify adoptively transferred Tregs within tissues non-invasively.

Cell tracking by whole-body imaging can address this challenge. Non-invasive radionuclide imaging by single photon emission computed tomography (SPECT) or positron emission tomography (PET) offers excellent sensitivity with absolute quantification and true 3D information while being translatable to clinical practice. Cell labelling is required to visualize and quantify cells by imaging. It can either be based on direct or indirect labelling, with each approach offering distinct advantages and disadvantages [18]. We previously showed that the direct radiolabelling of murine CD4⁺ T cells with ^99mTc-hexamethylpropyleneamine oxime did not affect cell viability, but the radiolabelled cells could only be detected for about 24 h due to the short half-life of ^99mTc (6.0 h) [19]. This allowed the assessment of Treg distribution within a day after administration. However, in transplant immunology, when aiming to track Tregs to transplants, even one week represents too short an observation time, and significantly longer cell tracking would be beneficial (several weeks).

Longer tracking times can be achieved either by indirect cell tracking based on genetically engineered cells or by using longer-half-life radioisotopes in a conventional direct cell-labelling approach [18,20]. A genetic-engineering-based methodology is, however, an unlikely contender when there is not already a need to genetically engineer the therapeutic cells for the purpose of conferring therapeutic efficacy. Consequently, for cell therapies that are not genetically engineered, there is a requirement to evaluate the feasibility of using longer-half-life radioisotopes for direct cell tracking. Longer-half-life radioisotopes are available, for example, ¹¹¹In, ⁸⁹Zr, and ⁵²Mn with half-lives of 2.8, 3.3, and 5.6 days, respectively. However, they may also cause a higher received radioactive dose [21], thereby potentially risking study validity through unintended radio-damage to labelled therapeutic cells or radiation-associated side effects to healthy tissues. Using ¹¹¹In-oxine-labelled Tregs, 72 h tracking was achieved clinically in humans [22]. Notably, cell labelling with the radioisotope ⁸⁹Zr has been developed in recent years, because (i) ⁸⁹Zr is a neutron-deficient radioisotope decaying via electron capture (77%) and positron emission (23%), thus being suitable for PET imaging, (ii) ⁸⁹Zr presents with a half-life of 3.3 days, (iii) ⁸⁹Zr, when complexed by ionophores such as 8-hydroxychinoline, is an efficient lipophilic cell-labelling agent [23] that readily labels many different cell types, and (iv) zirconium is a rare element in mammals, with no known biological function or relevant chemical toxicity [24]. Furthermore, various ⁸⁹Zr-labelled T lymphocyte types were recently tracked for about one week in preclinical models [25,26,27], thereby providing a rationale for also evaluating its use in Tregs. So far, in vivo tracking of human Tregs beyond four weeks has not been achieved other than recently demonstrated by us through adopting a reporter gene engineering approach [28]. This work also pointed towards the relevant tracking times for Tregs in transplantation being longer than one week after administration. In principle, such tracking periods might also be within reach using direct cell labelling using ⁸⁹Zr; however, ⁸⁹Zr labelling under conditions permitting tracking times beyond one week in Tregs has not yet been evaluated.

Our goal here was to evaluate the radiolabelling of polyclonal Tregs with ⁸⁹Zr at concentrations that could permit their in vivo tracking by PET/CT for longer than one week with current preclinical PET instrumentation.

2. Results

2.1. Radiolabelling of Tregs with ⁸⁹Zr-oxine

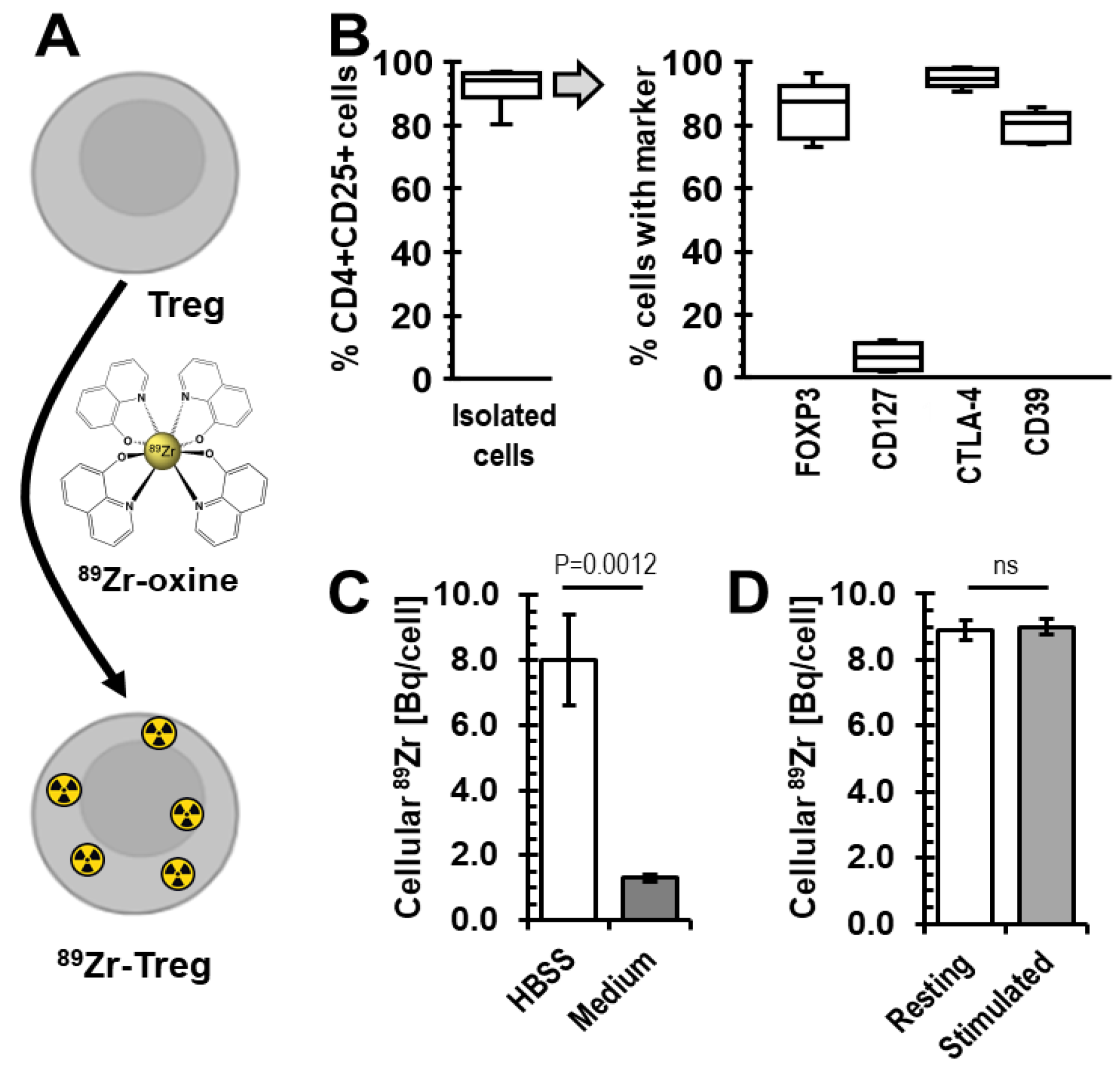

Building on our previous direct cell-labelling experience [19,23,26], we explored the feasibility of using [⁸⁹Zr]Zr(oxinate)₄ (⁸⁹Zr-oxine) for Treg radiolabelling (Figure 1A). Human CD4⁺CD25^high CD127^lowFOXP3⁺ cells were enriched from donor blood using GMP-compatible protocols [15,29] and stimulated polyclonally in vitro with anti-CD3/CD28 beads in the presence of rapamycin and IL-2. After three weeks of culture, their phenotype was determined and their Treg nature confirmed (Figure 1B). Specifically, we found cells to be 92.1 ± 5.5% positive for both CD4 and CD25 markers and, when gated on this population, confirmed expression of Treg markers to be as expected (Figure 1B/right). Tregs were then radiolabelled with ⁸⁹Zr-oxine as a cell-labelling agent to incorporate ⁸⁹Zr into these cells.

It was previously reported that the radiolabelling efficiency of immune cells (dendritic cells, cytotoxic T cells, NK cells) with ⁸⁹Zr-oxine depended on their culture medium [27]. Therefore, we investigated whether our regular Treg culture medium, X-Vivo15, provided an environment permitting good Treg labelling in comparison to saline, which previously served as a reference condition for cell labelling with oxinate-chelated radioisotopes. We found, however, that ⁸⁹Zr-oxine labelling in Hank’s Balanced Salt Solution (HBSS) far outcompeted radiolabelling in X-Vivo15, with cellular Treg uptake being >4-times higher in HBSS (Figure 1C). Moreover, we evaluated whether resting or CD3/CD28-bead-stimulated Tregs were radiolabelled better in HBSS. Radiolabelling of resting Tregs did not differ significantly from radiolabelling of stimulated ones (Figure 1D).

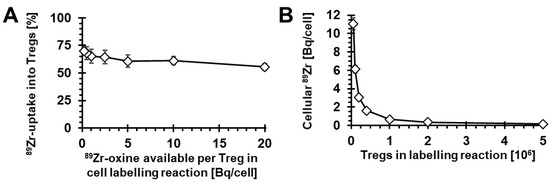

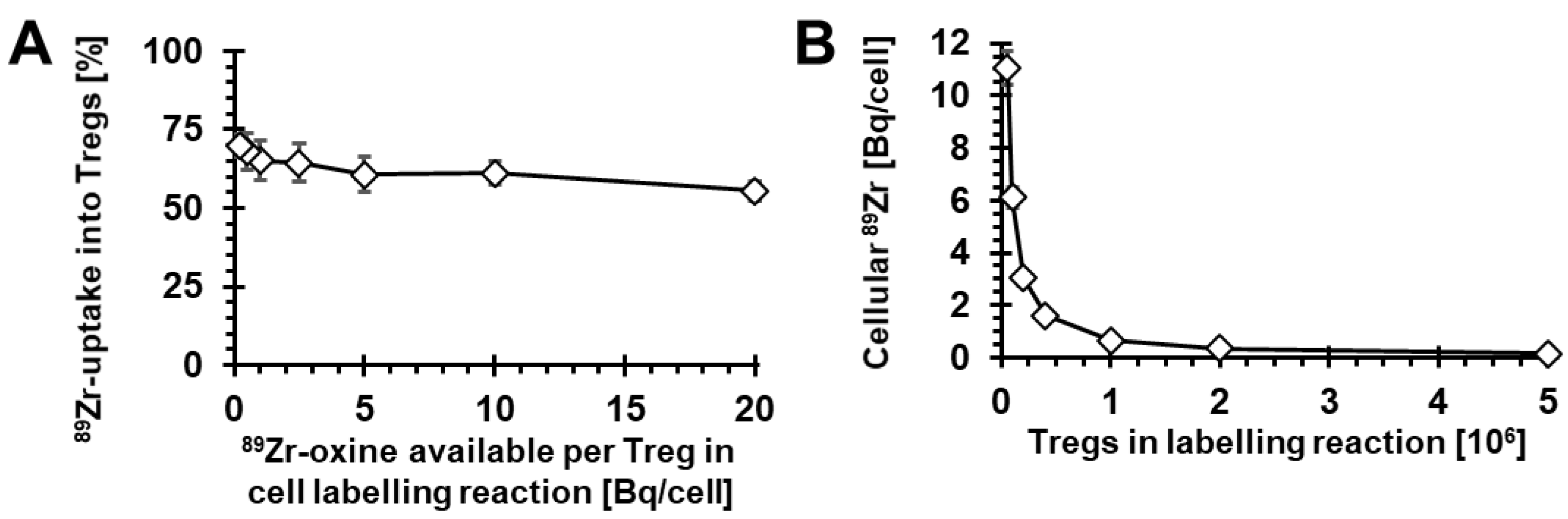

Next, we investigated the impact of increasing concentrations of ⁸⁹Zr-oxine in relation to Treg numbers in the cell-labelling reaction. As Tregs are sensitive to their numbers in suspension during culture, we kept their cell concentration constant at 10⁶ cells/mL for all conditions. By keeping the absolute ⁸⁹Zr-oxine amount (as determined by its radioactivity) constant for each labelling condition, we achieved variation of available ⁸⁹Zr-oxine per Treg cell in the reaction over two orders of magnitude. Under these conditions, we found that radiolabelling was successful across all conditions, with approximately 55–70% of available ⁸⁹Zr being taken up into Tregs (Figure 2A). As expected, the resultant cellular ⁸⁹Zr uptake expressed as radioactivity per Treg increased with decreasing Tregs in the reaction. The resultant intracellular ⁸⁹Zr per Treg ranged from 0.1 to 11.1 Bq/cell (Figure 2B).

2.2. Viability of ⁸⁹Zr-labelled Tregs

Importantly, radiolabelling at high concentration can cause radio-damage to cells, which does not necessarily manifest in altered surface marker expression immediately after radiolabelling. Consequently, we assessed the viability of radiolabelled cells not straight after radiolabelling, but instead following three days of culture (in optimal growth medium). We found that radiolabelling resulting in cellular radioactivity >0.3 Bq ⁸⁹Zr per cell negatively affected Treg viability, while at ≤0.3 Bq ⁸⁹Zr per cell, we observed Treg viability of >90% (Figure 3A).

2.3. Phenotype and Suppressive Capacity of ⁸⁹Zr-labelled Tregs

Furthermore, we were interested in the impact of cellular ⁸⁹Zr on the phenotype of the radiolabelled Tregs. The percentage of CD4⁺ and CD25⁺ Tregs significantly decreased in the radiolabelled population compared to the control population, which had only received vehicle (DMSO) but no radioactivity during a mock cell-labelling reaction. Notably, this effect was observed even at intracellular ⁸⁹Zr amounts that did not impact on Treg viability (i.e., 0.3 Bq ⁸⁹Zr/cell; compare Figure 3B,C with Figure 3A). No impact of radiolabelling with ⁸⁹Zr on the percentage of CD4⁺CD25⁺ Tregs expressing CD39 was detected, not even at much higher cellular ⁸⁹Zr amounts (up to 2 Bq/cell; Figure 3D). Together, this suggested that the presence of ⁸⁹Zr within Tregs triggered downmodulation of CD4 and CD25 from the Treg plasma membrane. These results demonstrated that ⁸⁹Zr-oxine labelling at amounts greater than 0.3 Bq/Treg cell resulted in phenotypic changes of the radiolabelled cells. Moreover, our results showed that assessment of cell viability alone (Figure 3A) was less sensitive to changes than phenotype analysis by CD4/CD25 surface marker quantification (Figure 3B,C).

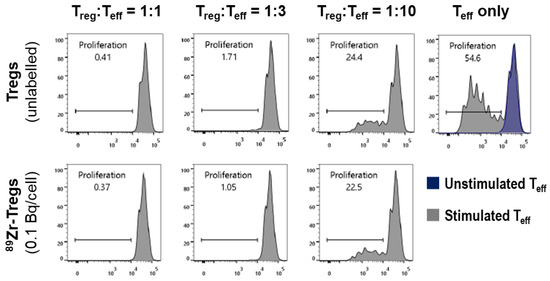

Tregs are not only defined by their phenotype with respect to marker expression, but also by their function to suppress the proliferation of effector T cells (Teffs). We therefore determined whether ⁸⁹Zr-oxine labelling had an impact on this Treg feature. We labelled HLA-A2-negative expanded Tregs with lower concentrations of ⁸⁹Zr as in Figure 3 (due to the ⁸⁹Zr impact observed there); we labelled them to amounts of 0.1 Bq ⁸⁹Zr per Treg cell. We then labelled HLA-A2-positive freshly isolated Teffs with the CellTrace Violet dye and stimulated their proliferation with CD3/CD28-beads. Dye-labelled Teffs were combined with radiolabelled or unlabelled Tregs and co-cultured over five days, after which Teff proliferation and its suppression by Tregs were analyzed by flow cytometry [28,30]. Figure 4 shows corresponding histograms demonstrating both the CD3/CD28-bead-mediated Teff proliferation and its suppression by Tregs (in a Treg-dose-dependent manner). Notably, the Tregs used in this assay were added to the assay after radiolabelling; however, the assay does not represent a snapshot of Tregs’ suppressive capacity at assay start only, but instead a cumulative measurement over the assay duration of five days. These results were promising, as we did not find a negative impact of ⁸⁹Zr labelling on Treg suppressive function at 0.1 Bq ⁸⁹Zr/cell.

2.4. Survival of ⁸⁹Zr-labelled Tregs in Immunodeficient Mice

Next, we were interested whether and for how long radiolabelled ⁸⁹Zr-Tregs can be detected in vivo as well as how they would distribute in immunodeficient animals, as they are frequently the basis for establishing humanized mouse/xenograft models. Therefore, we labelled HLA-A2-negative expanded Tregs (95% of CD4⁺CD25⁺ cells positive for FOXP3⁺ in this batch) with ⁸⁹Zr-oxine to levels of 0.1 Bq ⁸⁹Zr/cell. A total of 5 million of these HLA-A2-negative ⁸⁹Zr-Tregs were combined with 5 million human HLA-A2-positive CD25⁻ PBMCs and co-administered intravenously into BRG mice. The animals were imaged 1 h after adoptive cell transfer by PET/CT as well as 48 h and 120 h later. One hour post-administration, ⁸⁹Zr-Tregs were found mainly in the lungs and liver, as was expected (Figure 5A). Two days later, ⁸⁹Zr signals had decreased in the lungs, indicative of active ⁸⁹Zr-Treg clearance from the lungs, which was also expected. ⁸⁹Zr signals were at this point predominantly in the liver alongside minor signals in shoulder and knee joints (Figure 5B,D). Five days post-administration, although most radioactivity remained in the liver, large ⁸⁹Zr signals were found in different bones, including the spine (Figure 5C,D; see also inset depicting the pelvic area). Quantitative image analysis showed ⁸⁹Zr signals increased in various bones over time across different animals (Figure 5D,E). Importantly, Treg accumulation in bones is not expected. In contrast, ⁸⁹Zr signals from bones are generally associated with free ⁸⁹Zr that is rapidly mineralized [31].

Notably, we kept excess ⁸⁹Zr-Tregs from this batch which were not administered to animals and assessed their growth in vitro alongside the animal experiment. This included various control Tregs: (i) mock-labelled Tregs that did not receive ⁸⁹Zr as ‘expansion control’, (ii) ⁸⁹Zr-Tregs labelled to 0.3 Bq/cell as controls, linking the experiments with previous ones in Figure 2 and Figure 3, and (iii) ⁸⁹Zr-Tregs labelled to 0.6 Bq/cell as ‘damaged Treg control’. This experiment demonstrated that while ⁸⁹Zr-Tregs radiolabelled to 0.1 and 0.3 Bq/cell initially expanded similarly to unlabelled Tregs (in line with data from Figure 3A), they failed to further expand (Figure 5F). This could not be rectified by re-stimulating the Tregs with CD3/CD28-beads (note higher expansion in mock-labelled Tregs after stimulation in Figure 5F), and all radiolabelled ⁸⁹Zr-Tregs suffered from progressive cell death.

3. Discussion

Here, we aimed to radiolabel isolated and expanded human polyclonal Tregs with ⁸⁹Zr for the purpose of non-invasive in vivo cell tracking beyond one week. It is noteworthy that several previous studies demonstrated successful radiolabelling of various immune cell types, but not Tregs, using ⁸⁹Zr-oxine. For example, Sato et al. achieved ⁸⁹Zr labelling of dendritic cells, cytotoxic T lymphocytes (CTLs), and NK cells at levels ranging from 0.009 to 0.045 Bq ⁸⁹Zr per cell [27]. As for CTLs, they reported successful tumor therapy in the OT-1 tumor model with ⁸⁹Zr-CTLs containing 0.032 Bq ⁸⁹Zr per cell as well as in vivo tracking for seven days. Elsewhere, chimeric antigen receptor-engineered T cells were radiolabelled at 0.070 Bq ⁸⁹Zr per cell, and in vivo tracking for around six days was reported [25]. We also ⁸⁹Zr-labelled T cells before, more specifically, gamma-delta T cells at ~0.020 Bq ⁸⁹Zr per cell, and tracked them non-invasively by PET over seven days in tumor-bearing mice [26].

Importantly, to achieve the longer in vivo cell tracking periods desired here, the intracellular ⁸⁹Zr concentration per cell had to be increased. We built on two previous observations: (i) detection thresholds of current preclinical PET instrumentation permitted good determination of ⁸⁹Zr-labelled cell distribution in mice one week after administration with 0.020–0.070 Bq ⁸⁹Zr per cell, and (ii) ⁸⁹Zr was generally well retained in T cells, and we assumed this was also the case for Tregs (for both observations, see [25,26,27]). As per the radioactive decay law, this meant 4.3-fold, 19.5-fold, or 86-fold higher amounts of intracellular ⁸⁹Zr to obtain a similarly acceptable image quality after two, three, or four weeks of cell tracking, respectively (without considering label dilution and efflux). Building on these observations, we aimed for the intracellular ⁸⁹Zr concentration in Tregs spanning ~0.2 to ~4.3 Bq ⁸⁹Zr per cell. We achieved this through variation of ⁸⁹Zr-oxine:Treg cell number ratios in the radiolabelling reactions, with obtained intracellular ⁸⁹Zr concentrations ranging from 0.1 to 11.1 Bq ⁸⁹Zr per Treg cell (Figure 2). Radiolabelling efficiencies were good in saline but poor in the widely used Treg growth medium X-Vivo15 (serum-free) (Figure 1C). While the detrimental effect of X-Vivo15 on radiolabelling was larger than reported with other immune cell media, our saline data are in line with others reporting the best ⁸⁹Zr-oxine radiolabelling efficiencies under this condition [25,26,27,32]. Moreover, we found little impact of Treg activation status on radiolabelling efficiency (Figure 1D).

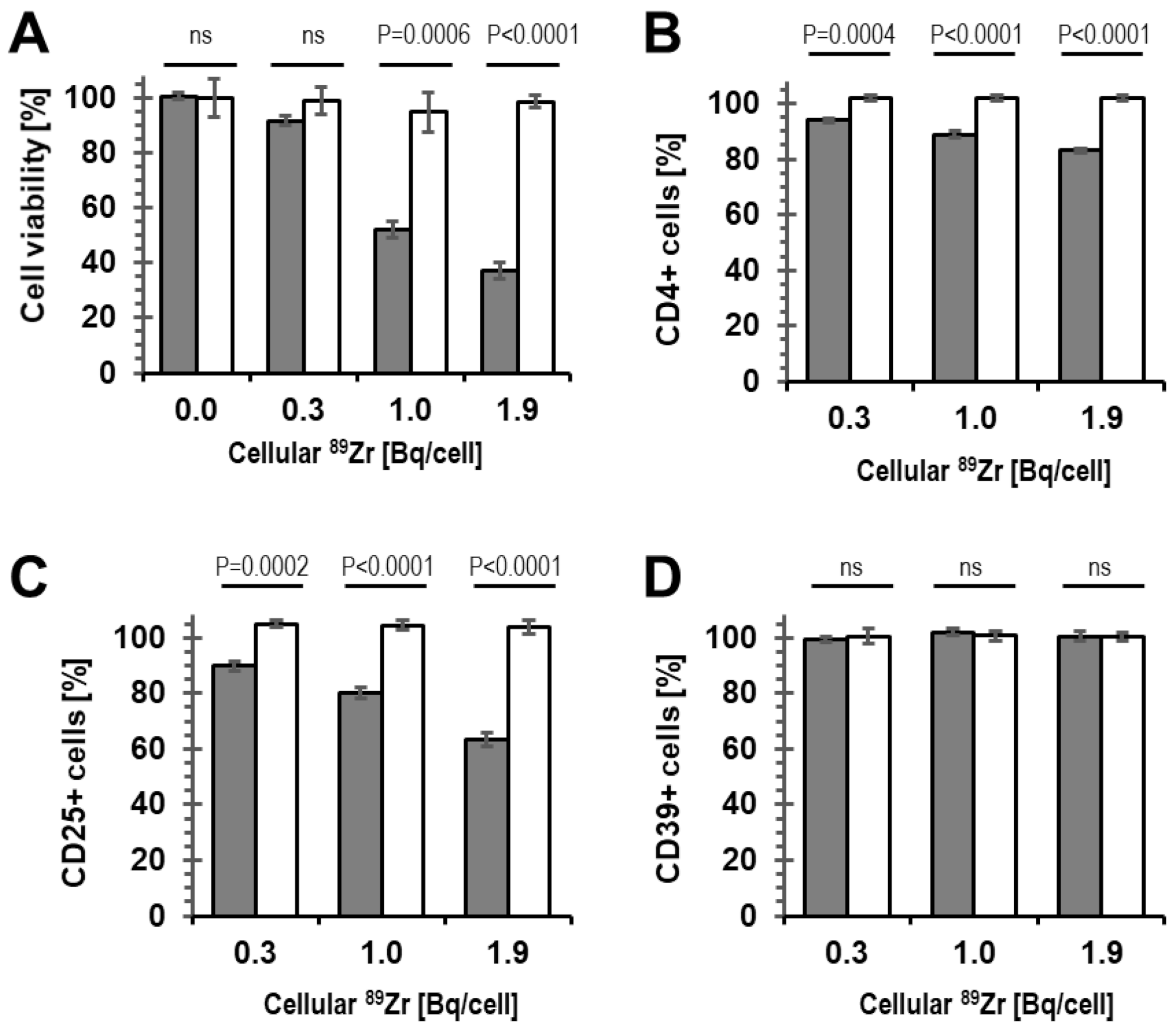

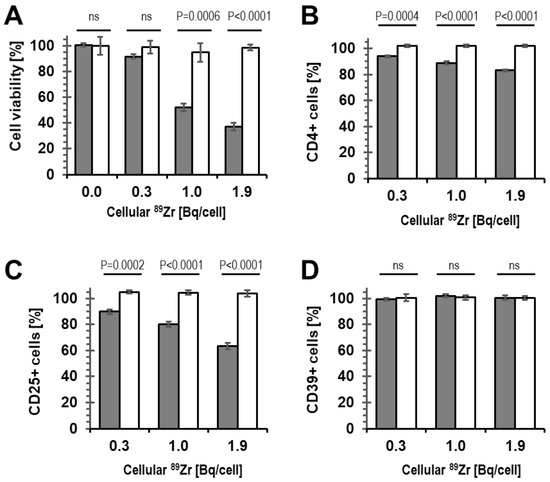

Treg viability assessed three days after radiolabelling was only unaffected by intracellular ⁸⁹Zr at concentrations ≤0.3 Bq/cell (Figure 3A). It is noteworthy that even at 0.3 Bq/cell, the ⁸⁹Zr-Treg phenotype, as defined by marker expression, was not stable, as the percentages of CD4⁺ and CD25⁺ cells in the expanded Treg population decreased following radiolabelling in a dose-dependent manner (Figure 3B,C). The study of the biological consequence of ⁸⁹Zr radiation on Tregs was not the aim of this work, but phenotypic changes of Treg populations under distinct irradiation conditions have been described previously [33]. Functional assessment of Treg suppressive capacity was retained at radiolabelling with 0.1 Bq ⁸⁹Zr per cell (Figure 4), which was therefore chosen as the only condition to evaluate ⁸⁹Zr-Treg in vivo imaging in mice, despite it already being rather low compared to the needs for longer-term tracking (see above).

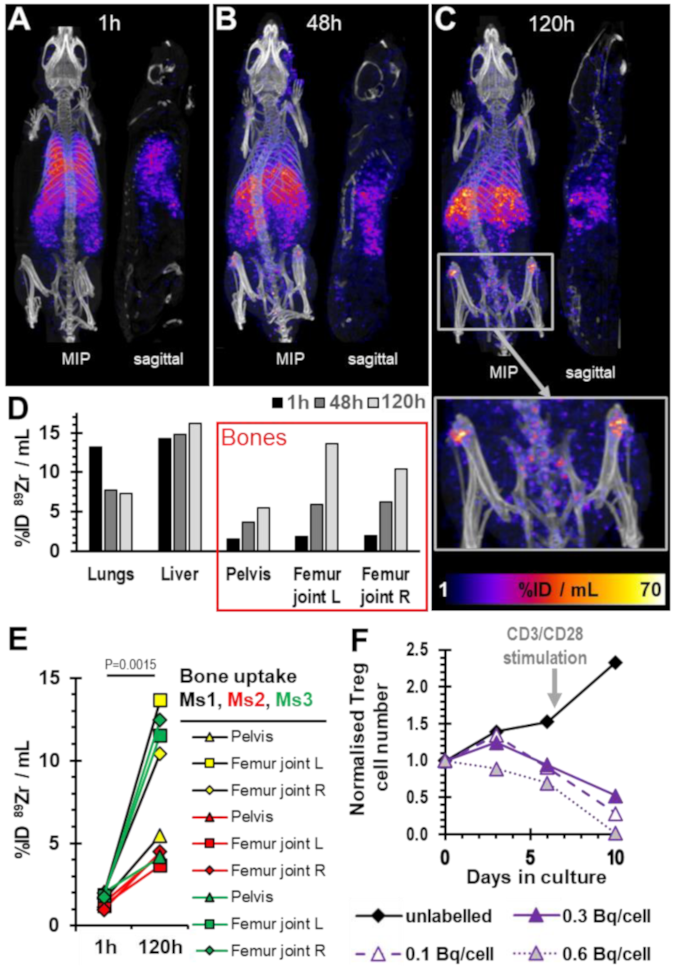

Importantly, the administered ⁸⁹Zr-Tregs initially behaved in vivo as expected for intravenously administered cells, i.e., they accumulated in the lungs at 1 h post administration and then largely cleared the lungs and redistributed elsewhere within the body within a day (Figure 5A–D). The liver accumulation after 24 h was expected, as it had been reported previously for both ⁸⁹Zr-CTLs [27] and ⁸⁹Zr-gamma-delta T cells [26]. In this context, it is further noteworthy that ¹¹¹In-Tregs homed well to transplanted livers and spleens in a previous clinical trial [22].

The ⁸⁹Zr signals recorded in bones, however, were unexpected to this extent. Moreover, they significantly increased over time across different bones (Figure 5). Importantly, bone uptake is indicative of free ⁸⁹Zr [31], thereby pointing towards either ⁸⁹Zr efflux from ⁸⁹Zr:Tregs (and thereby the loss of the ability to track the Tregs) or the death of ⁸⁹Zr-Tregs with concomitant release of free ⁸⁹Zr. While small amounts of ⁸⁹Zr efflux cannot be completely ruled out, it has previously been shown by Sato et al. that in vitro retention of ⁸⁹Zr in resting CTLs was very good (~90% over several days). Notable reductions in intracellular ⁸⁹Zr were predominantly linked to cell expansion/proliferation (i.e., label dilution), and in their work there was also no obvious bone uptake detected over a week [27]. Concomitant with our in vivo work, we assayed expansion of Tregs and ⁸⁹Zr-Tregs in vitro as well. This included the same batch that was administered in vivo, and additionally, differently labelled ⁸⁹Zr-Treg batches made from the same human donor (Figure 5F). The experiments demonstrated the expected growth of ⁸⁹Zr-Tregs, but only for the first three days (cf. Figure 5F: ⁸⁹Zr-Tregs at 0.1 and 0.3 Bq/cell). Subsequently, the ⁸⁹Zr-Tregs failed to further expand. The latter could also not be rectified by re-stimulation, and in fact, progressive cell death was observed over time (~40% cell loss compared to unlabelled Tregs already on day 6). Together, these data suggest that ⁸⁹Zr-Tregs labelled at even 0.1 Bq/cell are unfit for tracking by PET, because their ability to expand/survive over several days and their ability to survive in vivo (as indicated by progressive ⁸⁹Zr uptake into bones) appeared to be compromised. Tregs did not appear more tolerant to intracellular ⁸⁹Zr than various effector T cells [25,26,27].

The consequence of this finding, however, is that Treg in vivo tracking over several weeks is not a viable strategy when employing the ⁸⁹Zr approach and using existing PET instrumentation. The PET principle relies on positron–electron annihilation with consequential release and detection of 511 keV gamma photons. However, during its decay to ⁸⁹Y, ⁸⁹Zr additionally produces higher-energy gamma rays at 909 keV from ^89mY de-excitation [34]. This is different compared to the most frequently used PET isotope ¹⁸F, which does not present with these higher gamma rays but can only be exploited in cell tracking as part of radiotracers detecting reporter genes (due to its short 1.8 h half-life; see [35,36,37,38]). Here, we did not dissect which portion of the ⁸⁹Zr irradiation was responsible for the observed damage to Tregs. A recently hyped long-half-life radioisotope, ⁵²Mn, was also proposed for cell tracking. Unfortunately, it suffered from very large cell efflux across different cell types (irrespective of whether used as ⁵²Mn-oxine or [⁵²Mn]Mn-porphyrin [39]), and it presents with a complex decay also including high-energy gamma rays (936 keV and 1434 keV, among several others [40]); thus, ⁵²Mn also appears unlikely to be a suitable alternative to ⁸⁹Zr for Treg tracking. However, it cannot be ruled out that different PET radioisotopes with good cellular retention and half-lives in the range of days but with overall less harmful radiative decay than ⁸⁹Zr may permit somewhat higher intracellular radioisotope concentrations, perhaps allowing for some elongation of the observation time with current PET instrumentation. As increasing the intracellular amount of ⁸⁹Zr was not tolerable to Tregs, the only remaining option to extend the observation time when using ⁸⁹Zr could come from technological advancements in PET instrumentation, whereby at least an order of magnitude gain in sensitivity would be required to provide a meaningful extension of tracking time to enable Treg tracking over several weeks. This situation is likely similar when attempting to track other ⁸⁹Zr-labelled T cell types over weeks, as well. Once such technical advancements have come to fruition, it might be worthwhile to revisit the question of how long T lymphocytes may be trackable in vivo at safe intracellular ⁸⁹Zr concentrations.

To conclude, ⁸⁹Zr labelling of Tregs at intracellular radioisotope amounts compatible with cell tracking over several weeks did not achieve the desired outcomes. Currently, the best alternative for longer-term tracking of T lymphocytes is indirect cell tracking relying on non-immunogenic host reporter genes that are engineered into the cells of interest. Several options exist that exploit short-half-life radiotracers and employ repeat imaging for cell tracking [18]. The latter concept has been demonstrated for Tregs [28] and currently represents the best way to track Tregs for observation intervals extending beyond one week.

4. Materials and Methods

Reagents. Standard reagents were from Corning, Merck, Sarstedt, Thermo-Fisher, or VWR. ⁸⁹Zr was purchased from Perkin Elmer in 0.1 M oxalic acid and converted to the cell-labelling agent [⁸⁹Zr]Zr(oxinate)₄ (⁸⁹Zr-oxine) as previously described [23].

Purification and culture of human PBMCs, Tregs and Teffs. Cells were isolated from peripheral blood donated by anonymous healthy volunteers via the UK National Health Services Blood Transfusion Service (NHSBT) with informed consent (available upon request from NHSBT) according to our GMP protocols [15,16,17]. Peripheral blood mononuclear cells (PBMCs) were separated by Lymphoprep density gradient centrifugation (PAA). CD4⁺ T cells were enriched using RosetteSep (StemCell Technologies) followed by selection and separation of CD4⁺CD25⁺ Tregs and CD4⁺CD25⁻ Teffs using CD25 microbeads (Miltenyi, Woking). PBMCs were depleted of CD25⁺ cells also by using CD25 microbeads (Miltenyi, Woking) and are referred to as CD25^- PBMCs. Aliquots of CD25^- PBMCs, Tregs, and Teffs were cryopreserved in 5% (v/v) human serum (BioSera, Heathfield) containing 10% (v/v) DMSO. Tregs were activated with anti-CD3/CD28 beads (1:1 bead:cell ratio; Miltenyi, Woking) and cultured in X-Vivo15 medium (Lonza) supplemented with both 5% (v/v) human AB-serum (BioSera, Heathfield; Treg medium) and 100 nM rapamycin (LC-Laboratories, Woburn/MA, USA). A total of 1000 U/mL recombinant human IL-2 (Proleukin from Clinigen, London) was added 72 h after cell isolation. After 10 d, Tregs were activated with anti-CD3/CD28 beads (1:1 bead:cell ratio) for further expansion for 10 d. X-Vivo15 media supplemented with both human IL-2 and rapamycin (see above) was used to feed the cells every other day when their concentration was adjusted to 10⁶/mL. Tregs were cultured at 37 °C in the presence of 5% (v/v) CO₂ in a humidified incubator.

Treg radiolabelling. Isolated and expanded Tregs were re-suspended at 1 × 10⁶/mL in HBSS or X-Vivo15 as indicated and radiolabelled at room temperature (RT) through addition of 1 MBq ⁸⁹Zr-oxine in aqueous DMSO (≤ 0.5% (v/v)). Notably, as the Treg concentration remained constant to ensure Tregs did not become too dilute (thereby potentially negatively affecting them), the volume of the Treg suspension to which we admixed ⁸⁹Zr-oxine was varied (to achieve different radiolabelling conditions). After 20 min incubation, cells were pelleted, supernatant was collected, and cells were washed twice with 1 mL sterile X-Vivo15 before cells were resuspended in fully supplemented X-Vivo15 growth medium for γ-counting and further culture/experiments. ⁸⁹Zr uptake into cells was determined by quantifying radioactivity in cells and pooled supernatant/wash solutions using a γ-counter (1282-Compugamma, LKB-Wallac, Mt Waverly, Australia) and calculated using Equation (1) (wherein Cpm represents decay-corrected radioactivity counts per minute).

$${89}^{\hspace{0.17em}}Zr\hspace{0.17em}uptake\hspace{0.17em}\left[\%\right]=\frac{Cpm\hspace{0.17em}\left[Cells\right]}{Cpm\hspace{0.17em}\left[Cells\right]+Cpm\hspace{0.17em}\left[Supernatant\hspace{0.17em}and\hspace{0.17em}Washes\right]}·100$$

(1)

Intracellular ⁸⁹Zr was derived thereof by converting to Bq and dividing by the Treg number present, and data are expressed as Bq/cell.

Determination of cell viability. Viability was assessed using the LIVE/DEAD Fixable Near-IR Dead Cell Stain Kit (ThermoFisher, Loughborough, UK) according to manufacturer’s recommendations. Briefly, cells were resuspended in 1:1000 diluted LIVE/DEAD staining solutions and incubated for 30 min at 4 °C, followed by two PBS-washes, resuspension in 150 μL FACS buffer, and flow cytometric analysis.

Flow cytometric marker analysis. Cells were stained in phosphate-buffered saline (PBS) supplemented with 1% (v/v) FCS/5 mM EDTA using fluorescently conjugated primary antibodies at concentrations ranging from 2–5 µg/mL. Antibodies used were specific for CD4 (clone OKT4; conjugated to BV496; BD Bioscience, Worthing), FOXP3 (PCH101; eFLuor660; eBioscience now ThermoFisher, Loughborough), HLA-A2 (BB7.2; PE-Cy7; eBioscience), CD39 (eBioA1; PE-Cy7; eBioscience), CD25 (2A3; BV605; BD Bioscience), CTLA-4 (BNI3; BV421; BD Bioscience), and CD127 (A019D5; BV786; BioLegend). Only live cells were analyzed, with dead cells being excluded based on counterstaining with a near-infrared dye (LIVE/DEAD Fixable Near-IR Dead Cell Stain kit; ThermoFisher, Loughborough). Intracellular staining was performed using the Fix/Perm kit (eBioscience). Data were acquired using an LSRFortessa II (BDBioscience) and analyzed using FlowJo v.7 (FlowJo, Ashland/OR, USA).

Suppression assay. A total of 10⁷ cells/mL HLA-A2-positive CD4⁺CD25⁻ effector T cells were resuspended in staining solution containing 5 µM CellTrace Violet (CTV; ThermoFisher) and incubated at 37 °C for 15 min, twice washed in complete growth medium, and resuspended in growth medium (at 10⁶ Teffs/mL). HLA-A2-negative Tregs were harvested from culture, and activation beads were removed via magnetic separation, with cells washed in complete growth medium and resuspended in growth medium (at 10⁶ Tregs/mL). A total of 10⁵ CTV-labelled Teffs were plated in 96-well ‘U-bottom’ plates, and Tregs were added for co-culture (37 °C, 5% (v/v) CO₂) at indicated ratios. Dynabeads Human T-Activator CD3/CD28 beads (ThermoFisher) were added at a bead:cell ratio of 1:40. Controls included non-activated Teffs and activated Teffs in the absence of Tregs. Teff proliferation was assessed after five days. Therefore, cells were harvested and stained with anti-human HLA-A2 (2 μg/mL) for 15 min at 4 °C to distinguish between Teffs and Tregs. Using flow cytometry (BD Fortessa cell analyzer), gates were placed on Teffs and their CTV profiles determined to quantify their proliferation. Results are shown as %suppression (inverse of %Teff proliferation) relative to Teffs cultured alone. It is noteworthy that this assay, which spans five days of co-culture, determines cumulative suppressive effects exerted by the Tregs over the whole assay duration.

Animals. BALB/c recombination activating gene 2 (Rag2)-/-γc-/- (BRG; gift from A. Hayday, King’s College London) mice were bred at licensed in-house animal facilities. All mice used were male and between 6 and 8 weeks old at the beginning of the experiment. Three mice were used for experiments in Figure 5. Mice were maintained within the King’s College London Biological Services Unit under specific pathogen-free conditions in a dedicated and licensed air-conditioned animal room (at 23 ± 2 °C and 40–60% relative humidity) under light/dark cycles lasting 12 h every day. They were kept in individually ventilated standard plastic cages (IVC; 501 cm² floor space; from Tecniplast UK, London) including environmental enrichment and bedding material in the form of sterilized wood chips, paper stripes, and one cardboard roll per cage. Maximum cage occupancy was five animals, and animals were moved to fresh cages with fresh environmental enrichment and bedding material twice per week. Sterilized tap water and food were available ad libitum; food was PicoLab Rodent Diet 20 (LabDiet) in the form of 2.5 × 1.6 × 1.0 cm oval pellets that were supplied at the top of the cages. For imaging, animals were anesthetized using isoflurane (1.5% (v/v) in pure O₂). After imaging, mice were either left to recover from anesthesia (by withdrawal of anesthetic) in a pre-warmed chamber or sacrificed under anesthesia by cervical dislocation. No adverse events were associated with the procedures performed in this study, and animals put on weight in line with strain expectations (data from Charles River UK) throughout. Sentinel animals were kept on the same IVC racks as experimental animals and confirmed to be healthy after completion of the studies.

In vivo imaging of ⁸⁹Zr-Tregs. Male BRG mice (8 weeks old) were anesthetized with 2% (v/v) isoflurane/O₂. Animals then received 5 million ⁸⁹Zr-Tregs (0.1 Bq ⁸⁹Zr per cell) co-administered with 5 million HLA-A2-negative CD25^- PBMCs into their tail veins, reflecting conditions that were previously established and optimized [28,30]. The total amount of radioactivity administered was 0.7 MBq ⁸⁹Zr. Animals were kept under anesthesia after adoptive cell transfer and placed in the sphinx position onto animal supports for PET/CT imaging (NanoScan PET/CT; Mediso, Farnborough). A total of 45 min after ⁸⁹Zr-Treg administration, CT images were acquired (55 kVp tube voltage, 1200 ms exposure time, 360 projections), and 60 min after adoptive cell transfer, PET images were acquired (30 min scans). PET/CT data were reconstructed using a Monte-Carlo-based full-3D iterative algorithm (Tera-Tomo; Mediso, Farnborough) with corrections for attenuation, detector dead time, and radioisotope decay in place as needed. All images were analyzed using VivoQuant software (inviCRO Ltd., Doylestown/PA, USA) enabling the delineation of regions of interest (ROIs) for quantification of activity. CT images were used to draw ROIs for PET signal quantification. PET (hue) and CT (grayscale) images were overlayed for better appreciation of anatomical context of PET signals. The total activity in the whole animal (excluding the tail) at the time of tracer administration was defined as the injected dose (ID). Image-based ROI analysis of relevant organs was performed, and radioactivity data were expressed as %ID/mL.

Statistical analysis was performed using Prism Software v9 (GraphPad Software Inc.). Differences between two groups were evaluated by Student’s t-test (two-tailed). Comparison of late with early time points in the animal study was performed, treating data as paired when from the same animal/organ. Details to the meaning of error bars and repeats are described in the figure legends.

Ethical statement. The study involved human samples as well as animals. Human blood was obtained with ethics approval (institutional review board reference 09/H0707/86). All procedures related to animal work were performed in accordance with all legal, ethical, and institutional requirements in the UK (under authority of the HO project license PPL70/7302); animal use was minimized in line with the latter requirements.
