Synthesis, Photoswitching Behavior and Nonlinear Optical Properties of Substituted Tribenzo[a,d,g]coronene

by
Xueqing Li
1,†,
Jie Zhao
2,†,
Wei Wang
1,
Yiming Li
1,
Yunfei Li
2,*,
Shuyun Zhou
2 and
Jinchong Xiao
1,*
1
Key Laboratory of Chemical Biology of Hebei Province, College of Chemistry and Environmental Science, Hebei University, Baoding 071002, China
2
Key Laboratory of Photochemical Conversion and Optoelectronic Materials, Technical Institute of Physics and Chemistry, Chinese Academy of Sciences, Beijing 100190, China
*
Authors to whom correspondence should be addressed.
†
These authors contributed equally to this work.
Molecules 2023, 28(3), 1419; https://doi.org/10.3390/molecules28031419
Submission received: 22 December 2022 / Revised: 13 January 2023 / Accepted: 28 January 2023 / Published: 2 February 2023
(This article belongs to the Topic Recent Advances in Nonlinear Optics and Nonlinear Optical Materials)
(This article belongs to the Section Materials Chemistry)
Browse Figures
Review Reports Versions Notes

Abstract

:
A family of tribenzocoronene derivatives bearing various substituents (3) were constructed through the Diels–Alder reaction, followed by the Scholl oxidation, where the molecular structure of 3b was determined via single crystal X-ray diffraction analysis. The effect of substitution on the optical and electrochemical property was systematically investigated, with the assistance of theoretical calculations. Moreover, the thin films of the resulting molecules 3b and 3e complexed with fullerene produced strong photocurrent response upon irradiation of white light. In addition, 3b and 3e exhibit a positive nonlinear optical response resulting from the two-photon absorption and excited state absorption processes.

1. Introduction

The construction of structurally defined polycyclic aromatic hydrocarbons (PAHs) has attracted substantial interest during the past several decades because such molecules can be usually seen as a segmental model for defects of graphene possessing interesting physical properties and can be used in organic electronics including laser, photodetectors, organic light emitting diodes, organic field effect transistors and organic solar cells [1,2,3,4]. Among them, curved π-conjugated derivatives provide us with more room to deepen our understanding of the anomalous hexagon arrays, which can be obtained through the implementation of armchair, cove, fjord regions, and the embedment of four-, five- seven- and eight-membered rings [5,6,7,8]. Undoubtedly, the edge and size can affect the optoelectronic and magnetic properties to a great extent, leading to different aromaticity, energy levels and band gaps. Meanwhile, if the heteroatoms or heterorings were doped into the parent frameworks, the resulting heteroarenes exhibit some appealing behaviors such as ease of synthesis, tailoring physical property and molecular stability [9,10,11,12]. More interestingly, the introduction of some functional groups including electron-withdrawing groups and electron-donating groups into the π-systems is a straightforward method for selective modification and functionalization. As a highly symmetric (D6h) molecule, coronene is the subject of considerable investigations owing to its tailoring optoelectronic properties. The self-assembly of a single coronene can form regular nanowires used for optoelectronic devices [13]. More strikingly, this “standard” six-membered ring-fused molecule cocrystallizes with different acceptors, including 7,7,8,8-tetracyanoquinodimethane (TCNQ), 2,3,5,6-tetrafluoro-7,7,8,8-tetracyanoquinodimethane (F4TCNQ), 1,2,4,5-tetracyanobenzene (TCNB), napthalenetetracarboxylic diimide via a weak interaction [14,15,16,17,18]. In addition, the functionalization of appropriate precursors can generate expanded coronene derivatives. All the observations stimulate us to prepare novel arenes bearing a coronene unit and to investigate the physical properties.
The wide application of laser in optic devices provides great convenience in military and civil aspects [19,20,21]. However, the big injury risk of laser asks researchers to acquire excellent optical limiting materials to decrease the laser intensity in order to protect the eyes and optical devices. At present, organic materials such as fullerene derivatives, phthalocyanine, graphene and metallated graphdiyne can compete with inorganic counterparts over flexibility, machinability and quick response [22,23,24,25]. In comparison to gapless graphene, coronene and its derivatives are well defined, as well as possessing a controllable physical property and a high charge-carrier mobility. Hirata et al. found that β-estradiol doped with deuterated coronene could present large reverse saturable absorption characteristics with sunlight power level [26]. More recently, organic co-crystals based on coronene and naphthalenediimide have exhibited an enhanced nonlinear optical response and charge transfer with the increase in the intermolecular interaction in the group of Wang [27]. Until now, the optical limiting property of such functionalized coronene derivatives has been limited.
In this work, we strategically synthesized a family of substituted tribenzo[a,d,g]coronene derivatives (3a–3e, Scheme 1). The molecular structure of 5,10-di-tert-butyl-15-chlorotribenzo[a,d,g]coronene (3b) is determined through single crystal X-ray diffraction. All of them emit green fluorescence. The complexes of 3b/3e-C60 produce a strong photoresponse under irradiation of white light. Moreover, 3b and 3e exhibit nonlinear optical performance and the possible mechanism is caused by the two-photon absorption and excited state absorption processes. Clearly, systematic studies may be instructive to design and approach coronene-containing derivatives.

2. Results and Discussion

The synthesis of substituted tribenzo[a,d,g]coronenes is depicted in Scheme 1. The key intermediate 2 was substituted with 2,7-di-tert-butyl-9,14-diphenyldibenzo[de,qr]tetracenes, which was achieved in medium yield via the classical Diels–Alder reaction between black solid 2,7-di-tert-butyl-9,11-diphenyl-10H-cyclopenta[e]pyren-10-one (1) and substituted 2-aminobenoic acid under the existence of isopentyl nitrate in degassed 1,2-dichlroethane. It should be mentioned that molecules 3a and 3c were prepared according to the synthetic route [28]. A Scholl reaction of 2 in anhydrous dichloromethane with the assistance of triflic acid (TfOH) and 2,3-dichloro-5,6-dicyano-p-benzoquinone (DDQ) provided 3a–3d. Treatment of 3c with CuCN in 1-methyl-2-pyrrolidinone (NMP) generated 5,10-di-tert-butyltribenzo[a,d,g]coronene-15-carbonitrile (3e) in an isolated 24% yield. All the new compounds were purified by silica gel column chromatography and characterized through 1H NMR, 13C NMR and HR-MS (Figures S1–S18). More importantly, such resultant derivatives bearing various substituents should provide more room for their selective modification and functionalization.
To further prove the molecular structures and examine the arrangement in the solid state, flake-like single crystals of 3b were obtained by slow evaporation of 1,2-dichloroethane (DCE) and acetonitrile solution. It should be noted that no crystals suitable for single crystal X-ray analysis of 3a, 3c, 3d and 3e were formed under a similar operation condition. Molecule 3b adopts monoclinic space group C2/c with Z = 8. The unit cell dimensions are a = 26.684(3) Å, b = 13.5714(13) Å, c = 19.003(2) Å, β = 100.02(4)o (Table S1). As can be seen from Figure 1a, all the benzene rings are not in one plane, which is different from the parent coronene unit [29]. More interestingly, the benzo moieties on the pyrene and the terminal chlorobenzene unit in the horizontal tetracene part bend to the same side, and thus 3b can form a reclining-chair configuration (Figure 1b). Similar architectures were observed in the twistarenes observed in our group [30]. Molecule 3b can stack in column style, where the distance between the naphthalene in the pyrene unit is 3.63 Å (Figure 1c), which implies that π-π stacking interaction is absent [31].
The optical properties were manifested via UV-visible absorption and fluorescence spectra in a solution. As shown in Figure 2a, 3a bearing a weak electron-donating methoxyl group presents a broad absorption band centered at 451 nm in the low-energy region and 381/362/331/312 nm in the high energy region. In comparison, the other four compounds 3b–3e display similar absorption profiles, while 3e possesses a bathochromic shift absorption peak probably owing to the increase in the π-conjugation length with the introduction of cyano unit [32,33,34]. Compound 3a exhibits a broad emission peak at 506 nm and the emission maxima and contours of the other four compounds 3b–3e are almost the same (Figure 2b,d). The quantum yields are calculated to be 1.7% for 3a, 1.9% for 3b, 0.51% for 3c, 0.27% for 3d, 5.2% for 3e, respectively, by using 9,10-diphenylanthracene as a standard [28]. The fluorescence lifetimes (τs) were recorded to be 8.40 ns for 3a, 16.22 ns for 3b, 31.32/5.06 ns for 3c, 2.09/14.29 ns for 3d and 12.50 ns for 3e, respectively, by using a time-resolved fluorescence way (Figure S19). Clearly, molecules 3c and 3d display two lifetimes compared with the other three homologues. The low quantum yield of the 3d containing iodine atom and the diexponential decay process of 3c and 3d should be ascribed to the heavy atom effect.
The electrochemical properties of the functionalized coronene derivatives were examined through cyclic voltammetry in anhydrous and degassed dichloromethane. As shown in Figure 2c, all of them exhibit one reversible oxidative wave with the potentials of 0.66 V for 3a, 0.61 V for 3b, 0.59 V for 3c, 0.60 for 3d and 0.72 V for 3e, respectively, against ferrocene (Fc+/Fc), whereas no reduction waves could be monitored within the accessible scanning range in the dichloromethane. Accordingly, the HOMO energy levels are calculated to be −5.46 eV for 3a, −5.41 eV for 3b, −5.39 eV for 3c, −5.40 eV for 3d, −5.52 eV for 3e on the basis of the first oxidation potentials. Molecular orbital calculations based on the B3lyp/def2SVP indicate that the HOMOs of all the compounds are spread over substituted tribenzo[a,d,g]coronene moiety and LUMOs are located on the substituted dibenzo[fg,ij]naphtho [1,2,3,4-rst]pentaphene unit (Figure 3 and Table S2) [35,36,37,38]. Such observations suggest that the substituents do contribute to the orbitals to a lesser extent.
To examine the photoconductor properties, compounds 3b and 3e mixed with C60 were used as active layers to fabricate photodetector devices. As observed in Figure 4a,c, the blended systems of 3b-C60 and 3e-C60 were subjected to white light at varying illumination intensities, with the photocurrent increasing correspondingly. The maxima data of 0.031 µA for 3b-C60 and 0.167 µA for 3e-C60 at 200 mW/cm2 were generated when the mixture films were switched on and off. It should be stressed that no photocurrent was found that was white-light illumination-free. Such phenomena may be caused by the photo-induced charge transfer in the donor and acceptor systems. Meanwhile, film 3e-C60 exhibited a higher photocurrent than film 3b-C60, being close to the fluorescence spectra. In addition, the photoresponses to ON/OFF cycles were prompt, stable and reducible for both of them (Figure 4b,d). Such features of the tribenzocoronene derivatives endow an opportunity for them to be regarded as fascinating ingredients for a photo-controlled switch and photodetectors.
To expand the applications of such materials, the nonlinear optical properties of 3b and 3e were further studied through open aperture Z-scan technology under the Nd: YAG-based 532 nm wavelength nanosecond pulse laser irradiation [39]. Both of them present reverse saturation absorption (RSA) and the curves show symmetric peaks on both sides near the laser focus (Figure 5a,c). The nonlinear absorption coefficients (βeff) of 3b and 3e fluctuate with the energy density at the focal point, indicating that the ESA effect plays a major role in the RSA signal (Table S3) [40]. The minimum normalized transmittance (Tmin) decreases gradually with the increase in incident energy. Tmin of 3b at 20.7 μJ, 40.6 μJ and 60.5 μJ are 90%, 78% and 67%, respectively. Tmin of 3e at 20.7 μJ, 40.6 μJ and 60.5 μJ are 76%, 67% and 59%, respectively. The onset optical limiting threshold (Fon, the incident laser intensity when the normalized transmittance drops to 95%) of 3b are 1.7 J cm−2, 0.845 J cm−2 and 0.137 J cm−2 under 20.7 μJ, 40.6 μJ and 60.5 μJ irradiation, respectively. The Fon of 3e are 0.272 J cm−2, 0.146 J cm−2 and 0.215 J cm−2 under 20.7 μJ, 40.6 μJ and 60.5 μJ irradiation, respectively.
The possible mechanism of nonlinear optical processes is examined by measuring the nanosecond transient absorption spectroscopy. As shown in Figure 6, the timescale corresponding to the spectral change is approximately 50–1550 ns, which should be attributed to the effect of the triple excited state [41]. The peak position of the two compounds changed little with the delay time, indicating that the excited state absorption was generated in the same excited state, and no other processes occurred during the excited state absorption [42,43,44]. Both of them show similar spectral shapes, displaying wide excited state absorption bands after 440 nm and an isolated excited state absorption peak at 400 nm. There is also an isolated excited absorption peak of 3b at 330 nm, but the excited absorption peak of 3e is suppressed at this position, which scarcely shows a positive signal. The attenuation curves of 3b and 3e at the absorption peak of 480 nm are shown in Figure S20, and the attenuation lives of their triple excited states for 3d and 3e were 334.4 ns and 263.2 ns, respectively. On the whole, there was little difference between the two compounds, even though the excited state absorption peak of 3e at 480 nm is slightly stronger than that of 3b.
However, according to the Z-scan test results, 3e has a lower Tmin value than 3b, which may be related to the different excitation pathways of the two compounds. Generally, molecular excitation is believed to result from the absorption of the band gap and the absorption of the defect level near the band gap for ns laser pulse irradiation. The UV-visible absorption spectra show that the ground state absorption (GSA) of 3b and 3e at the wavelength of 532 nm is relatively weak (Figure 2a), which is not conducive to the generation of excited molecules. In this case, the GSA of 3e at 532 nm is slightly stronger than that of 3b, which is beneficial to generating more excited molecules under laser irradiation, and may lead to a stronger RSA signal. In addition, the TPA excitation pathway of excited molecules cannot be excluded. The two-photon fluorescence (TPF) spectra at the excitation wavelength of 800 nm were tested and the logarithmic power-dependent TPF intensity curve displayed the linear-fitted slopes of 2.01 and 2.04 (Figure S21), which indicated that the TPF intensity exhibited a quadratic curve relationship with the excitation power, proving the existence of TPA [45]. Therefore, we reasonably speculate that the nonlinear absorption signals of 3b and 3e should be caused by TPA/GSA and ESA.

3. Materials and Methods

1H NMR and 13C NMR spectra were measured on a WNMR 400 spectrometer at 400 MHz for 1H and 100 MHz for 13C without any internal standard. The chemical shifts are labelled in ppm with δ of CDCl3 (7.26 ppm in 1H NMR and 77.16 in 13C NMR). MALDI-TOF mass spectra were performed on a Bruker Biflex III MALDI-TOF. UV-visible absorption and fluorescence spectra were carried out by using a 10 mm quartz cell on an Analytic Jena SPECORD 210 PLUS and Hitachi F-7000 spectrometers, respectively. Cyclic voltammetry investigations were performed on a CHI 630A electrochemical analyzer using a standard three-electrode cell containing a Pt working electrode, a Pt wire counter electrode and an Ag/AgNO3 reference electrode under a nitrogen atmosphere. Tetrabutylammonium hexafluorophosphate solution (0.1 M, anhydrous dichloromethane) was used as an electrolyte. The scan rate was 0.1 V s−1 and the redox potentials were labelled against the Fc+/Fc couple (a standard). The photoswitching behaviors were performed through an electrochemical workstation (Modulab XM, Solartron Analytical, UK) and the voltage was 0.5 V.

3.1. Synthesis of 3a

TfOH (0.3 mL) was slowly dropped into a mixture of compound 2a (30 mg, 0.04 mmol) and DDQ (39 mg, 0.17 mmol) in anhydrous dichloromethane (15 mL) at −30 °C under an argon atmosphere. After 7 min, methanol was added to quench the reaction. The mixture solution was partitioned between Na2CO3 solution/brine and methylene chloride. The organic layer was dried over Na2SO4 and evaporated in vacuo. The crude product was purified over silica gel column chromatography with petroleum ether (PE) as an eluent to produce a yellow solid (3a, 10 mg, 40%). 1H NMR (400 MHz, 298 K, CDCl3): δ = 9.41 (s, 1H), 8.77 (d, J = 7.6 Hz, 1H), 8.56 (s, 1H), 8.30 (d, J = 8.8 Hz, 1H), 8.21–8.17 (m, 2H), 8.11–8.04 (m, 3H), 7.96 (d, J = 7.2 Hz, 1H), 7.40–7.34 (m, 3H), 7.24 (d, J = 7.6 Hz, 2H), 4.06 (s, 3H), 1.75 (s, 9H), 1.59 (s, 9H). 13C NMR (100 MHz, 298 K, CDCl3): δ = 157.0, 147.4, 145.4, 140.5, 139.4, 132.5, 131.7, 131.3, 131.1, 130.0, 129.70, 129.67, 129.38, 129.35, 129.2, 128.8, 128.0, 127.96, 127.7, 127.1, 126.9, 126.0, 125.9, 124.6, 124.1, 124.0, 123.9, 123.6, 121.00, 120.98, 120.4, 117.1, 108.4, 55.9, 38.4, 35.8, 35.1, 31.9. HR–MS (MALDI–TOF): Calc. for C45H36O: [m/z] 592.2766, found: [m/z] 592.2756.

3.2. Synthesis of 2b

A mixture of 1 (510 mg, 0.98 mmol), 2-amino-3-chlorobenzoic acid (204 mg, 1.19 mmol), isoamyl nitrate (0.2 mL) was stirred in anhydrous tetrachloroethane (TCE, 15 mL) at 150 °C under argon. After 24 h, the TCE was removed at a reduced pressure. The mixture was then partitioned between brine and methylene chloride. The organic layer was dried over Na2SO4 and evaporated in vacuo. The crude product was purified over silica gel column chromatography with PE as an eluent to give a light green solid (2b, 235 mg, 40%). 1H NMR (400 MHz, 298 K, CDCl3): δ = 7.94 (dd, J = 6.0 Hz, 2.0 Hz, 2H), 7.84 (s, 3H), 7.83 (d, J = 1.6 Hz, 1H), 7.74 (dd, J = 8.4 Hz, 1.2 Hz, 1H), 7.57–7.43 (m, 11H), 7.30 (q, J = 7.2 Hz, 1.2 Hz, 1H), 1.10 (s, 18 H). 13C NMR (100 MHz, 298 K, CDCl3): δ = 147.6, 147.1, 142.6, 142.1, 135.7, 135.0, 134.3, 133.1, 132.9, 131.8, 130.5, 130.4, 130.34, 130.27, 129.98, 129.5, 129.32, 129.26, 128.2, 127.9, 127.5, 127.2, 126.9, 126.2, 125.2, 124.4, 123.9, 122.7, 122.5, 34.9, 34.8, 31.5. HR–MS (MALDI–TOF): Calc. for C44H37Cl: [m/z] 600.2584, found: [m/z] 600.2574.

3.3. Synthesis of 3b

TfOH (0.3 mL) was slowly dropped into a mixture of compound 2b (20 mg, 0.03 mmol) and DDQ (22 mg, 0.1 mmol) in anhydrous dichloromethane (15 mL) at −30 °C under an argon atmosphere. After 5 min, methanol was added to quench the reaction. The mixture solution was partitioned between Na2CO3 solution and methylene chloride. The organic layer was dried over Na2SO4 and evaporated in vacuo. The crude product was purified over silica gel column chromatography with PE as an eluent to produce a yellow solid (3b, 13 mg, 66%). 1H NMR (400 MHz, 298 K, CDCl3): δ = 9.33 (d, J = 8.0 Hz, 1H), 8.96 (d, J = 1H), 8.86 (d, J = 7.6 Hz, 2H), 8.66 (d, J = 8.0 Hz, 1H), 8.57 (d, J = 8.4 Hz, 1H), 8.40 (q, J = 8.8 Hz, 2H), 8.32 (d, J = 8.0 Hz, 1H), 7.90 (d, J = 7.2 Hz, 1H), 7.83 (t, J = 7.6 Hz, 1H), 7.65 (t, J = 7.6 Hz, 1H), 7.58–7.51 (m, 2H), 7.44 (t, J = 7.2 Hz, 1H), 1.86 (s, 9H), 1.82 (s, 9H). 13C NMR (100 MHz, 298 K, CDCl3): δ = 146.0, 145.6, 132.9, 132.7, 132.0, 131.8, 130.8, 130.7, 129.8, 129.6, 129.3, 129.14, 129.07, 129.0, 128.8, 128.2, 127.7, 127.4, 127.1, 126.7, 126.6, 126.3, 125.9, 125.5, 124.8, 123.5, 123.2, 122.8, 122.7, 122.5, 120.8, 38.7, 38.6, 35.2, 35.1. HR–MS (MALDI–TOF): Calc. for C44H33Cl: [m/z] 596.2271, found: [m/z] 596.2263.

3.4. Synthesis of 2d

A mixture of 1 (1.5 g, 2.89 mmol), 2-amino-3-iodobenzoic acid (913 mg, 3.47 mmol), isoamyl nitrate (1.0 mL) was stirred in anhydrous tetrachloroethane (TCE, 15 mL) at 150 °C under argon. After 24 h, TCE was removed at a reduced pressure. The mixture was then partitioned between brine and methylene chloride. The organic layer was dried over Na2SO4 and evaporated in vacuo. The crude product was purified over silica gel column chromatography with PE as an eluent to produce a light green solid (2d, 1.13 g, 56%). 1H NMR (400 MHz, 298 K, CDCl3): δ = 8.19 (dd, J = 7.2 Hz, 1.2 Hz, 1H), 7.91 (d, J = 2.0 Hz, 1H), 7.84 (s, 4H), 7.83 (d, J = 2.0 Hz, 1H), 7.77 (dd, J = 8.8 Hz, 1.2 Hz, 1H), 7.56–7.43 (m, 10H), 7.01 (q, J = 7.2 Hz, 1H), 1.11 (s, 9H), 1.10 (s, 9H). 13C NMR (100 MHz, 298 K, CDCl3): δ = 147.6, 147.0, 141.8, 141.6, 140.5, 136.5, 135.3, 135.2, 134.1, 133.1, 132.6, 130.4, 130.0, 129.8, 129.3, 128.6, 128.0, 127.9, 127.5, 127.4, 127.1, 126.9, 125.9, 124.4, 123.9, 122.7, 122.5, 91.9, 34.9, 34.8, 31.5. HR–MS (MALDI–TOF): Calc. for C44H37I: [m/z] 692.1940, found: [m/z] 692.1934.

3.5. Synthesis of 3d

TfOH (0.3 mL) was slowly dropped into a mixture of compound 2b (20 mg, 0.03 mmol) and DDQ (20 mg, 0.09mmol) in anhydrous dichloromethane (15 mL) at −30 °C under an argon atmosphere. After 5 min, methanol was added to quench the reaction. The mixture solution was partitioned between Na2CO3 solution/brine and methylene chloride. The organic layer was dried over Na2SO4 and evaporated in vacuo. The crude product was purified over silica gel column chromatography with PE as an eluent to produce a light yellow solid (3d, 18 mg, 90%). 1H NMR (400 MHz, 298 K, CDCl3): δ = 9.43 (d, J = 8.0 Hz, 1H), 8.96 (d, J = 8.4 Hz, 1H), 8.86 (d, J = 6.8 Hz, 2H), 8.67 (d, J = 8.0 Hz, 1H), 8.58 (d, J = 8.0 Hz, 1H), 8.46–8.37 (m, 4H), 7.66 (t, J = 7.6 Hz, 1H), 7.60–7.52 (m, 3H), 7.48 (d, J = 8.0 Hz, 1H), 1.86 (s, 9H), 1.82 (s, 9H). 13C NMR (100 MHz, 298 K, CDCl3): δ = 146.1, 145.7, 140.7, 132.7, 132.1, 132.0, 130.4, 130.3, 130.0, 129.22, 129.20, 129.1, 129.0, 128.8, 127.2, 127.1, 126.7, 126.3, 125.0, 123.5, 123.2, 123.1, 122.7, 122.6, 120.83, 120.79, 97.5, 38.7, 38.6, 35.2, 35.1. HR–MS (MALDI–TOF): Calc. for C44H33I: [m/z] 688.1627, found: [m/z] 688.1619.

3.6. Synthesis of 3e

A mixture of 3c (100 mg, 0.16 mmol) and CuCN (28 mg, 0.31 mmol) was stirred in anhydrous NMP (6 mL) at 180 °C under argon. After 3 d, ammonium ferrous sulfate solution was added when the mixture solution was cooled to 60 °C for 2 h. The solution was then cooled down to room temperature and was partitioned between brine and methylene chloride. The organic layer was dried over Na2SO4 and evaporated in vacuo. The crude product was purified over silica gel column chromatography with PE and dichloromethane (v/v, 8:1) as an eluent to produce a light yellow solid (3e, 22 mg, 24%). 1H NMR (400 MHz, 298 K, CDCl3): δ = 9.61 (d, J = 8.0 Hz, 1H), 8.91–8.87 (m, 3H), 8.70 (d, J = 8.0 Hz, 1H), 8.63 (dd, J = 10.8 Hz, 8.4 Hz, 2H), 8.45 (dd, J = 11.2 Hz, 8.4 Hz, 2H), 8.27 (d, J = 6.8 Hz, 1H), 7.95 (t, J = 8.0 Hz, 1H), 7.68 (t, J = 8.0 Hz, 2H), 7.56 (q, J = 8.0 Hz, 2H), 1.85 (s, 9H), 1.82 (s, 9H). 13C NMR (100 MHz, 298 K, CDCl3): δ = 146.3, 145.8, 134.1, 133.9, 132.9, 132.24, 132.03, 130.7, 129.8, 129.7, 129.23, 129.17, 128.94, 128.93, 128.6, 128.54, 128.47, 127.6, 127.4, 127.2, 126.9, 126.6, 125.7, 125.6, 125.1, 124.7, 123.7, 123.5, 123.3, 123.2, 122.9, 122.7, 120.9, 120.8, 120.3, 111.4, 38.8, 35.2, 35.1. HR–MS (MALDI–TOF): Calc. for C45H33N: [m/z] 587.2613, found: [m/z] 587.2602.

4. Conclusions

In summary, we have designed and synthesized five novel coronene-containing π-systems bearing different substituents. Such an investigation highlights a significant effect of the substituents on the absorption, emission and redox properties of 3a–3e. Molecule 3d has the lowest quantum yield owing to the strong heavy atom effect of iodine. The photocurrent response of 3e-C60 is superior to that of 3b-C60, which is assigned to the higher quantum yield of 3e, leading to a highly efficient photo-induced charge transfer in the donor and acceptor system. The expanded applications suggest that the synthesized compounds 3b and 3e have a positive optical limiting performance resulting from GSA and ESA phenomena. Further examination of the post-functionalization of such key building blocks for approaching large curved PAHs with attractive optoelectronic properties are currently being undertaken in our laboratory.

Supplementary Materials

The following supporting information can be downloaded at: https://www.mdpi.com/article/10.3390/molecules28031419/s1, NMR spectra and HR–MS spectra; crystal data of 3b; Fluorescence decay for 3; βeff data for 3b and 3e; TPF intensity and the linear fitting of power-dependent TPF intensity in logarithmic coordinates of 3b and 3e. Figure S1: 1H NMR spectrum of 3a; Figure S2: 13C NMR spectrum of 3a; Figure S3: HR–MS spectrum of 3a; Figure S4: 1H NMR spectrum of 2b; Figure S5: 13C NMR spectrum of 2b; Figure S6: HR–MS spectrum of 2b; Figure S7: 1H NMR spectrum of 3b; Figure S8: 13C NMR spectrum of 3b; Figure S9: HR–MS spectrum of 3b; Figure S10: 1H NMR spectrum of 2d; Figure S11: 13C NMR spectrum of 2d; Figure S12: HR–MS spectrum of 2d; Figure S13: 1H NMR spectrum of 3d; Figure S14: 13C NMR spectrum of 3d; Figure S15: HR–MS spectrum of 3d; Figure S16: 1H NMR spectrum of 3e; Figure S17: 13C NMR spectrum of 3e; Figure S18: HR–MS spectrum of 3e; Figure S19: Fluorescence decay of (a) 3a, (b) 3b, (c) 3c, (d) 3d, (e) 3e in degassed dichloromethane; Figure S20: Decay trace of 3b (a) and 3e (b) at 480 nm; Figure S21: TPF intensity of 3b (a) and 3e (c). The linear fitting of power-dependent TPF intensity in logarithmic coordinates (b) and (d). The excitation wavelength is 800 nm; Table S1: Crystal data and structure refinement for 3b; Table S2: Cartesian coordinates of optimized 3a–3e; Table S3: βeff fitting results of (a) 3b and (b) 3e.

Author Contributions

X.L. and J.Z. contributed to this paper equally. J.X. and Y.L. (Yunfei Li) conceived and designed the experiments. X.L. and J.Z. performed the experiments. W.W., Y.L. (Yiming Li) and S.Z. analyzed the data. All authors have read and agreed to the published version of the manuscript.

Funding

This work is supported by the National Natural Science Foundation of China (21672051 and 52102013), the Natural Science Foundation of Hebei Province for Distinguished Young Scholars (B2017201072), the Key Project of the Natural Science Foundation of Hebei Province (B2021201043), the Natural Science Foundation of Hebei Province (B2020201044) and Key Research Projects of Science and Technology in Universities of Hebei Province (ZD2020128). We also thank the computational support from the High-Performance Computing Center of Hebei University.

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Data Availability Statement

The data presented in this study are available in the paper. The CCDC 2232268 contains supplementary crystallographic data for this paper. These data can be obtained free of charge via http://www.ccdc.cam.ac.uk/conts/retrieving.html (or from the Cambridge Crystallographic Data Centre, 12, Union Road, Cambridge CB2 1EZ, UK; fax: +44 1223 336033).

Conflicts of Interest

The authors declare no conflict of interest.

Sample Availability

Samples of the compounds are available from the authors.

References

  1. Narita, A.; Wang, X.; Feng, X.; Müllen, K. New advances in nanographene chemistry. Chem. Soc. Rev. 2015, 44, 6616. [Google Scholar] [CrossRef] [PubMed]
  2. Senese, A.D.; Chalifoux, W.A. Nanographene and Graphene Nanoribbon Synthesis via Alkyne Benzannulations. Molecules 2019, 24, 118. [Google Scholar] [CrossRef] [PubMed]
  3. Kurpanik, A.; Matussek, M.; Lodowski, P.; Szafraniec-Gorol, G.; Krompiec, M.; Krompiec, S. Diels–Alder Cycloaddition to the Bay Region of Perylene and Its Derivatives as an Attractive Strategy for PAH Core Expansion: Theoretical and Practical Aspects. Molecules 2020, 25, 5373. [Google Scholar] [CrossRef] [PubMed]
  4. Jin, P.; Song, T.; Xiao, J.; Zhang, Q. Recent Progress in Using Pyrene-4,5-diketones and Pyrene-4,5,9,10-tetraketones as Building Blocks to Construct Large Acenes and Heteroacenes. Asian J. Org. Chem. 2018, 7, 2046. [Google Scholar] [CrossRef]
  5. Fernández-García, J.; Evans, P.J.; Filippone, S.; Herranz, M.Á.; Martín, N. Chiral Molecular Carbon Nanostructures. Acc. Chem. Res. 2019, 52, 1565. [Google Scholar] [CrossRef] [PubMed]
  6. Fernández-García, J.; Evans, P.J.; Rivero, S.M.; Fernández, I.; García-Fresnadillo, D.; Perles, J.; Casado, J.; Martín, N. π-Extended Corannulene-Based Nanographenes: Selective Formation of Negative Curvature. J. Am. Chem. Soc. 2018, 140, 17188. [Google Scholar] [CrossRef]
  7. Kirschbaum, T.; Rominger, F.; Mastalerz, M. A Chiral Polycyclic Aromatic Hydrocarbon Monkey Saddle. Angew. Chem. Int. Ed. 2020, 59, 270. [Google Scholar] [CrossRef] [PubMed]
  8. Yang, X.; Elbert, S.M.; Rominger, F.; Mastalerz, M. A Series of Soluble Thieno-Fused Coronene Nanoribbons of Precise Lengths. J. Am. Chem. Soc. 2022, 144, 9883. [Google Scholar] [CrossRef]
  9. Borissov, A.; Kumar, Y.; Moshniaha, L.; Wong, W.; Żyła-Karwowska, M.; Stępień, M. Recent Advances in Heterocyclic Nanographenes and Other Polycyclic Heteroaromatic Compounds. Chem. Rev. 2022, 122, 565. [Google Scholar] [CrossRef]
  10. Stępień, M.; Gońka, E.; Żyła, M.; Sprutta, N. Heterocyclic Nanographenes and Other Polycyclic Heteroaromatic Compounds: Synthetic Routes, Properties, and Applications. Chem. Rev. 2017, 117, 3479. [Google Scholar] [CrossRef]
  11. Chen, W.; Yu, F.; Xu, Q.; Zhou, G.; Zhang, Q. Recent Progress in High Linearly Fused Polycyclic Conjugated Hydrocarbons (PCHs, n > 6) with Well-Defined Structures. Adv. Sci. 2020, 7, 1903766. [Google Scholar] [CrossRef]
  12. Li, J.; Zhang, Q. Linearly Fused Azaacenes: Novel Approaches and New Applications Beyond Field-Effect Transistors (FETs). ACS Appl. Mater. Interfaces 2015, 7, 28049. [Google Scholar] [CrossRef] [PubMed]
  13. Xiao, J.; Yang, H.; Yin, Z.; Guo, J.; Boey, F.; Zhang, H.; Zhang, Q. Preparation, characterization, and photoswitching/light-emitting behaviors of coronene nanowires. J. Mater. Chem. C 2011, 21, 1423. [Google Scholar] [CrossRef]
  14. Deng, X.; Yu, X.; Xiao, J.; Zhang, Q. Our research progress in heteroaggregation and homoaggregationof organic π-conjugated systems. Aggregate 2021, 2, e35. [Google Scholar] [CrossRef]
  15. Chi, X.; Besnard, C.; Thorsmølle, V.K.; Butko, V.Y.; Taylor, A.J.; Siegrist, T.; Ramirez, A.P. Structure and Transport Properties of the Charge-Transfer Salt Coronene-TCNQ. Chem. Mater. 2004, 16, 5751. [Google Scholar] [CrossRef]
  16. Yoshida, Y.; Kumagai, Y.; Mizuno, M.; Saito, G. Structure–Property Relationship of Supramolecular Rotators of Coronene in Charge-Transfer Solids. Cryst. Growth. Des. 2015, 15, 1389. [Google Scholar] [CrossRef]
  17. Zhu, W.; Zhu, L.; Zou, Y.; Wu, Y.; Zhen, Y.; Dong, H.; Fu, H.; Wei, Z.; Shi, Q.; Hu, W. Deepening Insights of Charge Transfer and Photophysics in a Novel Donor–Acceptor Cocrystal for Waveguide Couplers and Photonic Logic Computation. Adv. Mater. 2016, 28, 5954. [Google Scholar] [CrossRef]
  18. Wang, Z.; Yu, F.; Chen, W.; Wang, J.; Liu, J.; Yao, C.; Zhao, J.; Dong, H.; Hu, W.; Zhang, Q. Rational Control of Charge Transfer Excitons toward High-Contrast Reversible Mechanoresponsive Luminescent Switching. Angew. Chem. Int. Ed. 2020, 59, 17580. [Google Scholar] [CrossRef]
  19. Scalora, M.; Dowling, J.P.; Bowden, C.M.; Bloemer, M.J. Optical Limiting and Switching of Ultrashort Pulses in Nonlinear Photonic Band Gap Materials. Phys. Rev. Lett. 1994, 73, 1368. [Google Scholar] [CrossRef]
  20. Makri, E.; Ramezani, H.; Kottos, T.; Vitebskiy, I. Concept of a reflective power limiter based on nonlinear localized modes. Phys. Rev. A 2014, 89, 031802. [Google Scholar] [CrossRef] [Green Version]
  21. Pascal, S.; David, S.; Andraud, C.; Maury, O. Near-infrared dyes for two-photon absorption in the short-wavelength infrared: Strategies towards optical power limiting. Chem. Soc. Rev. 2021, 50, 6613. [Google Scholar] [CrossRef] [PubMed]
  22. Tutt, L.W.; Kost, A. Optical limiting performance of C60 and C70 solutions. Nature 1992, 356, 225. [Google Scholar] [CrossRef]
  23. Shirk, J.S.; Pong, R.G.S.; Bartoli, F.J.; Snow, A.W. Optical limiter using a lead phthalocyanine. Appl. Phys. Lett. 1993, 63, 1880. [Google Scholar] [CrossRef]
  24. Balapanuru, J.; Yang, J.; Xiao, S.; Bao, Q.; Jahan, M.; Polavarapu, L.; Wei, J.; Xu, Q.; Loh, K.P. A Graphene Oxide–Organic Dye Ionic Complex with DNA-Sensing and Optical-Limiting Properties. Angew. Chem. Int. Ed. 2010, 49, 6549. [Google Scholar] [CrossRef]
  25. Xu, L.; Sun, J.; Tang, T.; Zhang, H.; Sun, M.; Zhang, J.; Li, J.; Huang, B.; Wang, Z.; Xie, Z.; et al. Metallated Graphynes as a New Class of Photofunctional 2D Organometallic Nanosheets. Angew. Chem. Int. Ed. 2021, 60, 11326. [Google Scholar] [CrossRef]
  26. Hirata, S.; Vacha, M. Large Reverse Saturable Absorption at the Sunlight Power Level Using the Ultralong Lifetime of Triplet Excitons. J. Phys. Chem. Lett. 2017, 8, 3683. [Google Scholar] [CrossRef]
  27. Wang, L.; Liu, Y.; Wang, M. The organic co-crystals formed using naphthalenediimide-based triangular macrocycles and coronene: Intermolecular charge transfers and nonlinear optical properties. Phys. Chem. Chem. Phys. 2022, 24, 29747. [Google Scholar] [CrossRef]
  28. Wei, L.; Deng, X.; Yu, X.; Li, X.; Wang, W.; Zhang, C.; Xiao, J. Double π-Extended Helicene Derivatives Containing Pentagonal Rings: Synthesis, Crystal Analyses, and Photophysics. J. Org. Chem. 2021, 86, 17535. [Google Scholar] [CrossRef]
  29. Krygowski, T.M.; Cyrański, M.; Ciesielski, A.; Świrska, B.; Leszczyński, P. Separation of the Energetic and Geometric Contributions to Aromaticity. 2. Analysis of the Aromatic Character of Benzene Rings in Their Various Topological Environments in the Benzenoid Hydrocarbons. Crystal and Molecular Structure of Coronene. J. Chem. Inf. Comput. Sci. 1996, 36, 1135. [Google Scholar] [CrossRef]
  30. Pan, H.; Song, T.; Yin, X.; Jin, P.; Xiao, J. Synthesis, Crystal Analysis, and Optoelectronic Properties of Diazole-Functionalized Acenes and Azaacenes. Chem. Eur. J. 2018, 24, 6572. [Google Scholar] [CrossRef]
  31. Curtis, M.D.; Cao, J.; Kampf, J.W. Solid-State Packing of Conjugated Oligomers:  From π-Stacks to the Herringbone Structure. J. Am. Chem. Soc. 2004, 126, 4318. [Google Scholar] [CrossRef] [PubMed]
  32. Mahmood, A.; Khan, S.U.D.; Rana, U.A.; Janjua, M.R.S.A.; Tahir, M.H.; Nazar, M.F.; Song, Y. Effect of thiophene rings on UV/visible spectra and non-linear optical (NLO) properties of triphenylamine based dyes: A quantum chemical perspective. J. Phys. Org. Chem. 2015, 28, 418. [Google Scholar] [CrossRef]
  33. Mahmood, A.; Khan, S.U.D.; Rehman, F.U. Assessing the quantum mechanical level of theory for prediction of UV/Visible absorption spectra of some aminoazobenzene dyes. J. Saudi Chem. Soc. 2015, 19, 436. [Google Scholar] [CrossRef]
  34. Khalid, M.; Khan, M.U.; Shafiq, I.; Hussain, R.; Mahmood, K.; Hussain, A.; Jawaria, R.; Hussain, A.; Imran, M.; Assiri, M.A.; et al. NLO potential exploration for D–π–A heterocyclic organic compounds by incorporation of various π-linkers and acceptor units. Arab. J. Chem. 2021, 14, 103295. [Google Scholar] [CrossRef]
  35. Frisch, M.J.; Trucks, G.W.; Schlegel, H.B.; Scuseria, G.E.; Robb, M.A.; Cheeseman, J.R.; Scalmani, G.; Barone, V.; Mennucci, B.; Petersson, G.A.; et al. Gaussian 09, Revision B.01; Gaussian, Inc.: Wallingford, CT, USA, 2010. [Google Scholar]
  36. Mahmood, A.; Abdullah, M.I.; Nazar, M.F. Quantum Chemical Designing of Novel Organic Non-Linear Optical Compounds. Bull. Korean Chem. Soc. 2014, 35, 1391. [Google Scholar] [CrossRef]
  37. Mahmood, A.; Khan, S.U.D.; Rana, U.A.; Tahir, M.H. Red shifting of absorption maxima of phenothiazine based dyes by incorporating electron-deficient thiadiazole derivatives as π-spacer. Arab. J. Chem. 2019, 12, 1447. [Google Scholar] [CrossRef]
  38. Khalid, M.; Ali, A.; Din, Z.U.; Tahir, M.N.; Morais, S.F.A.; Braga, A.C.; Akhtar, M.N.; Imran, M.; Rodrigues-Filho, E. β-Hydroxy Carbonyl compounds via aldol reaction: Single crystal investigation and quantum chemical exploration for the unveiling of supramolecular behavior. J. Mol. Struct. 2021, 1241, 130650. [Google Scholar] [CrossRef]
  39. Sheik-Bahae, M.; Said, A.A.; Wei, T.H.; Hagan, D.J.; Van Stryland, E.W. Sensitive measurement of optical nonlinearities using a single beam. IEEE J. Quantum Elect. 1990, 26, 760. [Google Scholar] [CrossRef]
  40. He, G.S.; Tan, L.S.; Zheng, Q.; Prasad, P.N. Multiphoton Absorbing Materials:  Molecular Designs, Characterizations, and Applications. Chem. Rev. 2008, 108, 1245. [Google Scholar] [CrossRef]
  41. Wu, X.; Xiao, J.; Sun, R.; Jin, T.; Yang, J.; Shi, G.; Wang, Y.; Zhang, X.; Song, Y. Spindle-Type Conjugated Compounds Containing Twistacene Unit: Synthesis and Ultrafast Broadband Reverse Saturable Absorption. Adv. Opt. Mater. 2017, 5, 1600712. [Google Scholar] [CrossRef]
  42. Liu, R.; Dandu, N.; Chen, J.; Li, Y.; Li, Z.; Liu, S.; Wang, C.; Kilina, S.; Kohler, B.; Sun, W. Influence of Different Diimine (N∧N) Ligands on the Photophysics and Reverse Saturable Absorption of Heteroleptic Cationic Iridium(III) Complexes Bearing Cyclometalating 2-{3-[7-(Benzothiazol-2-yl)fluoren-2-yl]phenyl}pyridine (C∧N) Ligands. J. Phys. Chem. C 2014, 118, 23233. [Google Scholar] [CrossRef]
  43. Li, Y.; Dandu, N.; Liu, R.; Li, Z.; Kilina, S.; Sun, W. Effects of Extended π-Conjugation in Phenanthroline (N∧N) and Phenylpyridine (C∧N) Ligands on the Photophysics and Reverse Saturable Absorption of Cationic Heteroleptic Iridium(III) Complexes. J. Phys. Chem. C 2014, 118, 6372. [Google Scholar] [CrossRef]
  44. Liu, B.; Jabed, M.A.; Kilina, S.; Sun, W. Synthesis, Photophysics, and Reverse Saturable Absorption of trans-Bis-cyclometalated Iridium(III) Complexes (C^N^C)Ir(R-tpy) + (tpy = 2,2′:6′,2″-Terpyridine) with Broadband Excited-State Absorption. Inorg. Chem. 2020, 12, 8532. [Google Scholar] [CrossRef] [PubMed]
  45. Chen, C.K.; de Castro, A.R.B.; Shen, Y.R. Surface-Enhanced Second-Harmonic Generation. Phys. Rev. Lett. 1981, 46, 145. [Google Scholar] [CrossRef] [Green Version]
Molecules 28 01419 sch001 550

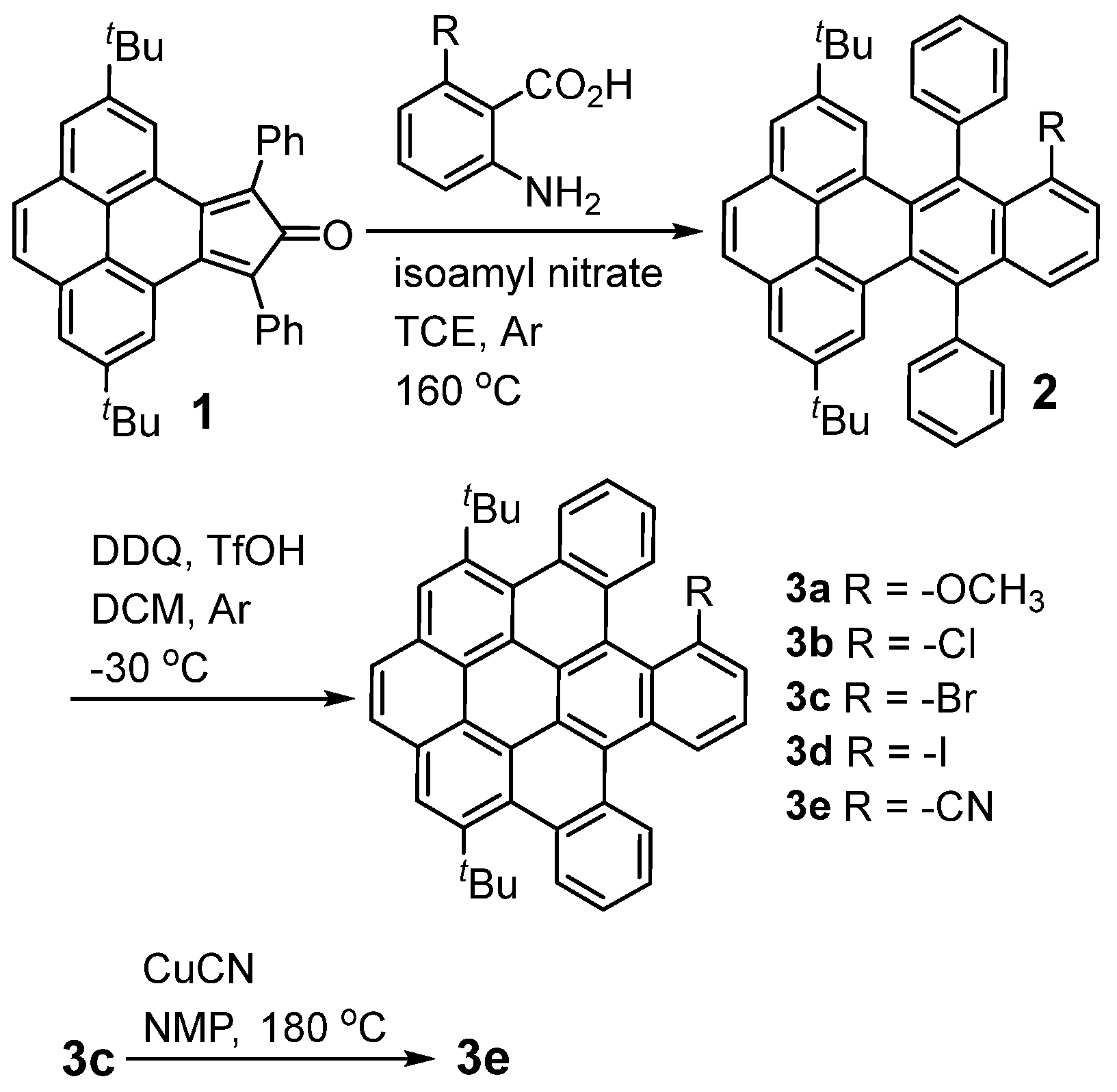

Scheme 1. Synthetic route to 3a, 3b, 3c, 3d and 3e.
Scheme 1. Synthetic route to 3a, 3b, 3c, 3d and 3e.
Molecules 28 01419 sch001
Molecules 28 01419 g001 550

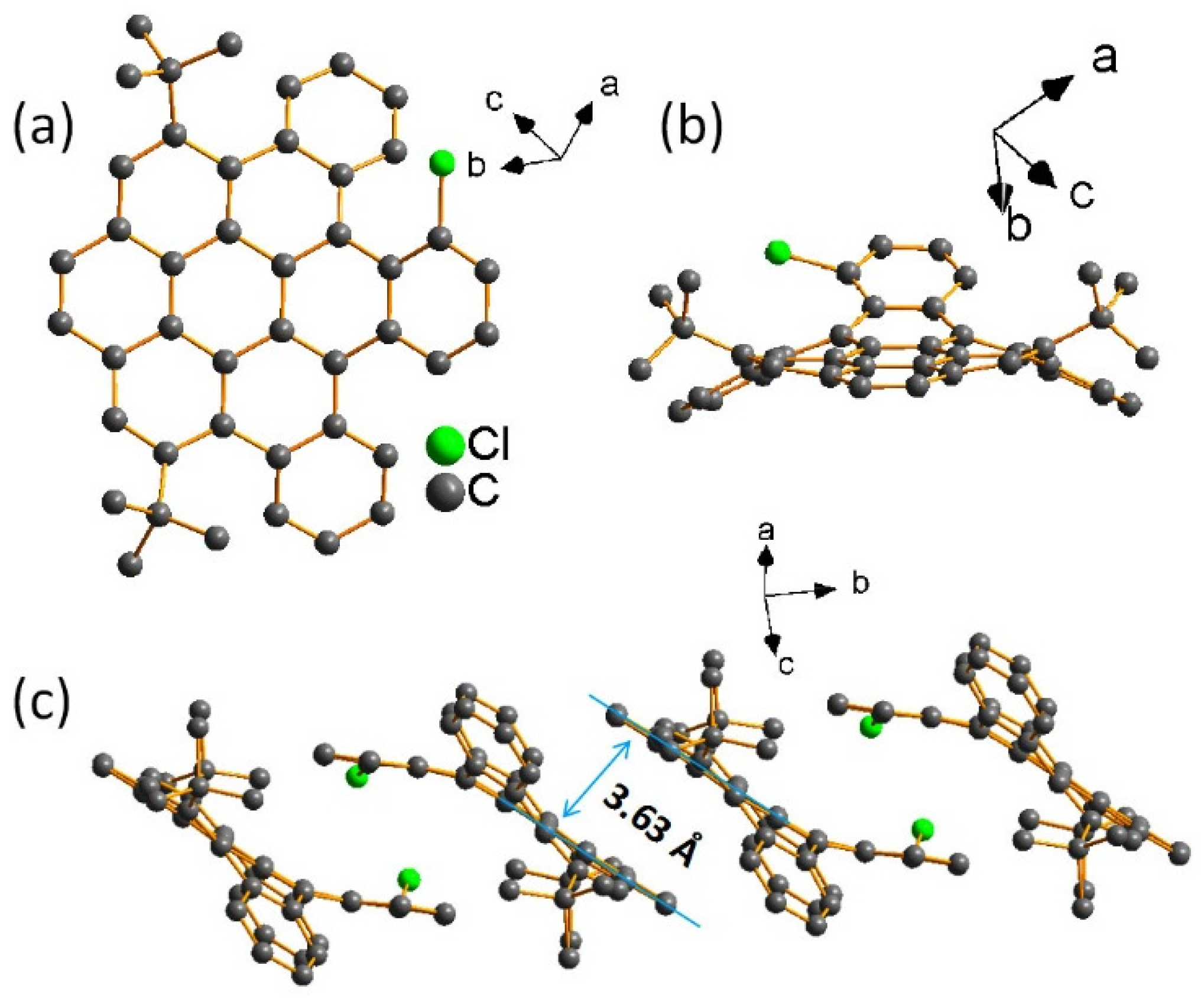

Figure 1. (a) Single crystal structure of 3b, (b) side view and (c) packing pattern.
Figure 1. (a) Single crystal structure of 3b, (b) side view and (c) packing pattern.
Molecules 28 01419 g001
Molecules 28 01419 g002 550

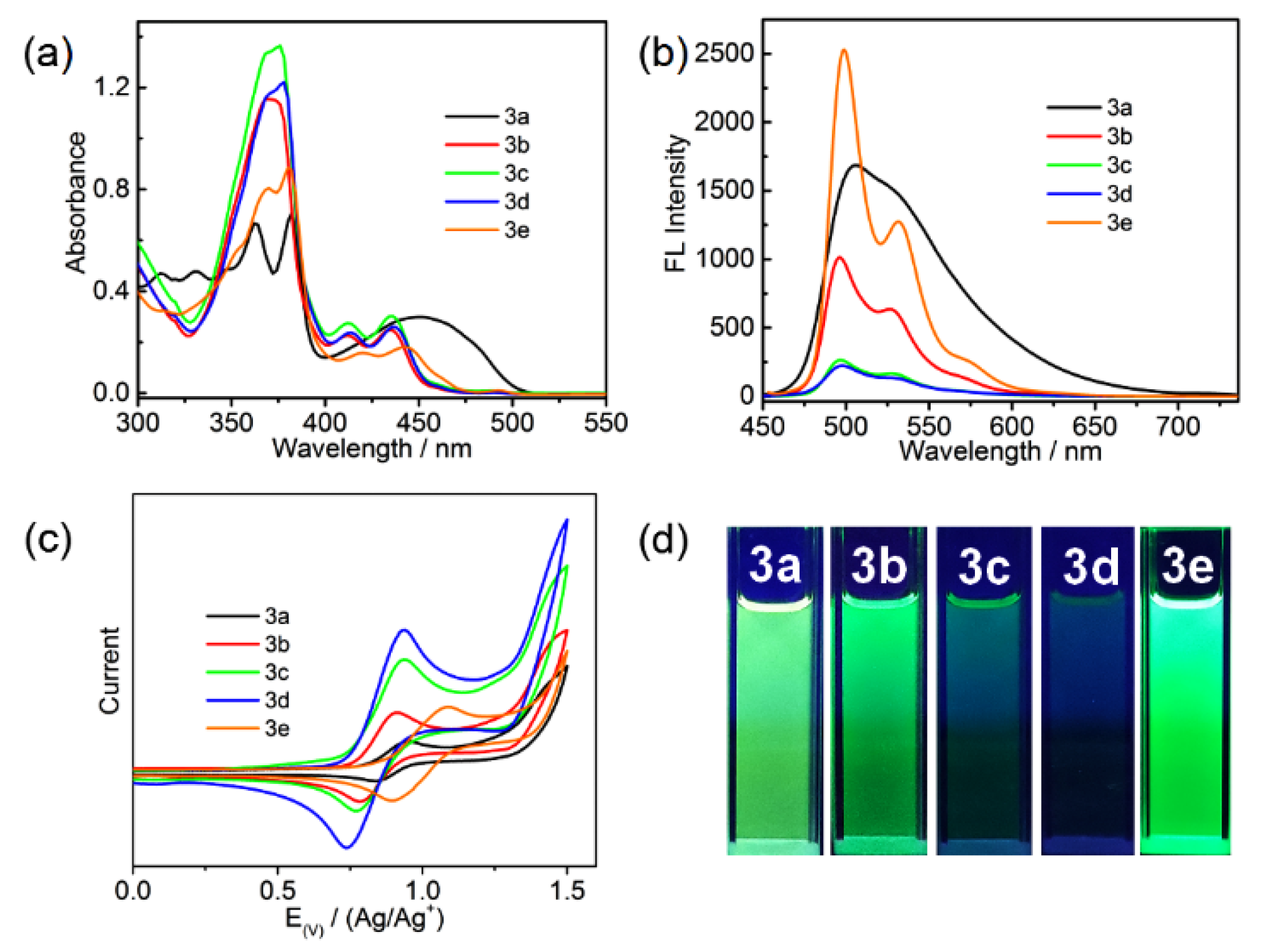

Figure 2. (a) UV-visible absorption and (b) fluorescence spectra of 3a, 3b, 3c, 3d, 3e in dichloromethane. (c) Cyclic voltammetry of 3a–3e in dry dichloromethane with tetrabutylammonium hexafluorophosphate as a supporting electrolyte. (d) Photographs with illumination at 365 nm.
Figure 2. (a) UV-visible absorption and (b) fluorescence spectra of 3a, 3b, 3c, 3d, 3e in dichloromethane. (c) Cyclic voltammetry of 3a–3e in dry dichloromethane with tetrabutylammonium hexafluorophosphate as a supporting electrolyte. (d) Photographs with illumination at 365 nm.
Molecules 28 01419 g002
Molecules 28 01419 g003 550

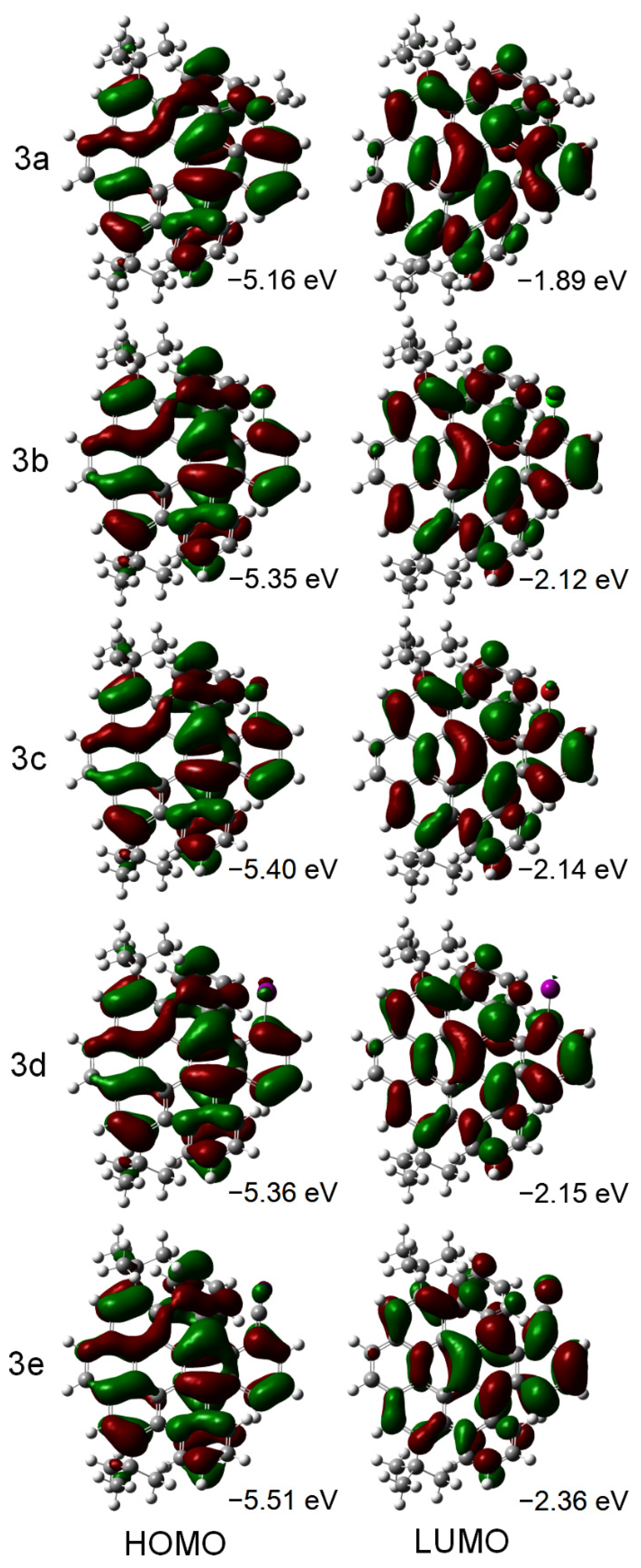

Figure 3. Frontier molecular orbitals of 3a–3e.
Figure 3. Frontier molecular orbitals of 3a–3e.
Molecules 28 01419 g003
Molecules 28 01419 g004 550

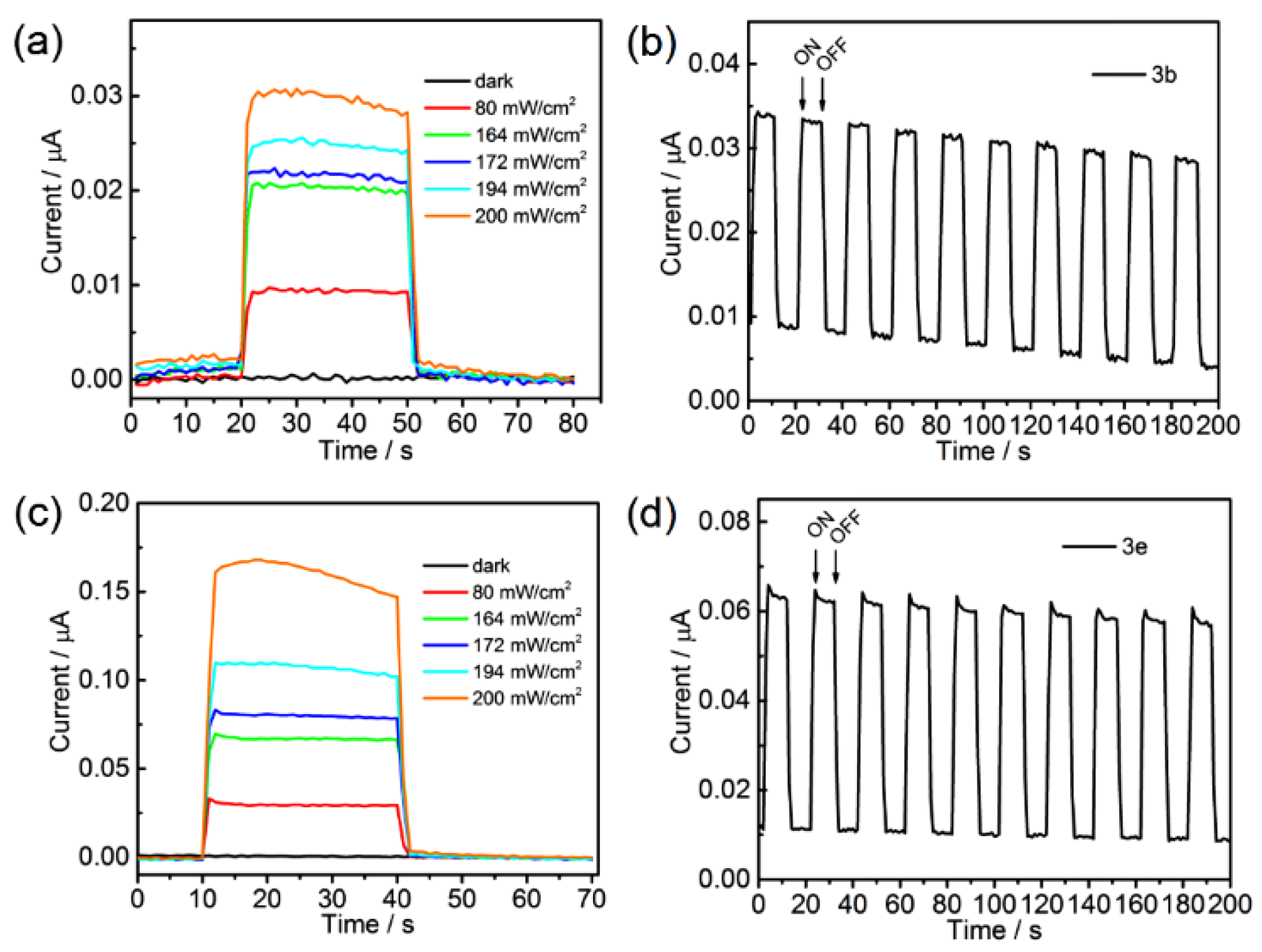

Figure 4. Dependence of current on different input light intensities (a) 3b-C60, (c) 3e-C60 and time dependence of dynamic photoresponse properties of films (b) 3b-C60, (d) 3e-C60 upon the irradiation of 200 mW/cm2 white light.
Figure 4. Dependence of current on different input light intensities (a) 3b-C60, (c) 3e-C60 and time dependence of dynamic photoresponse properties of films (b) 3b-C60, (d) 3e-C60 upon the irradiation of 200 mW/cm2 white light.
Molecules 28 01419 g004
Molecules 28 01419 g005 550

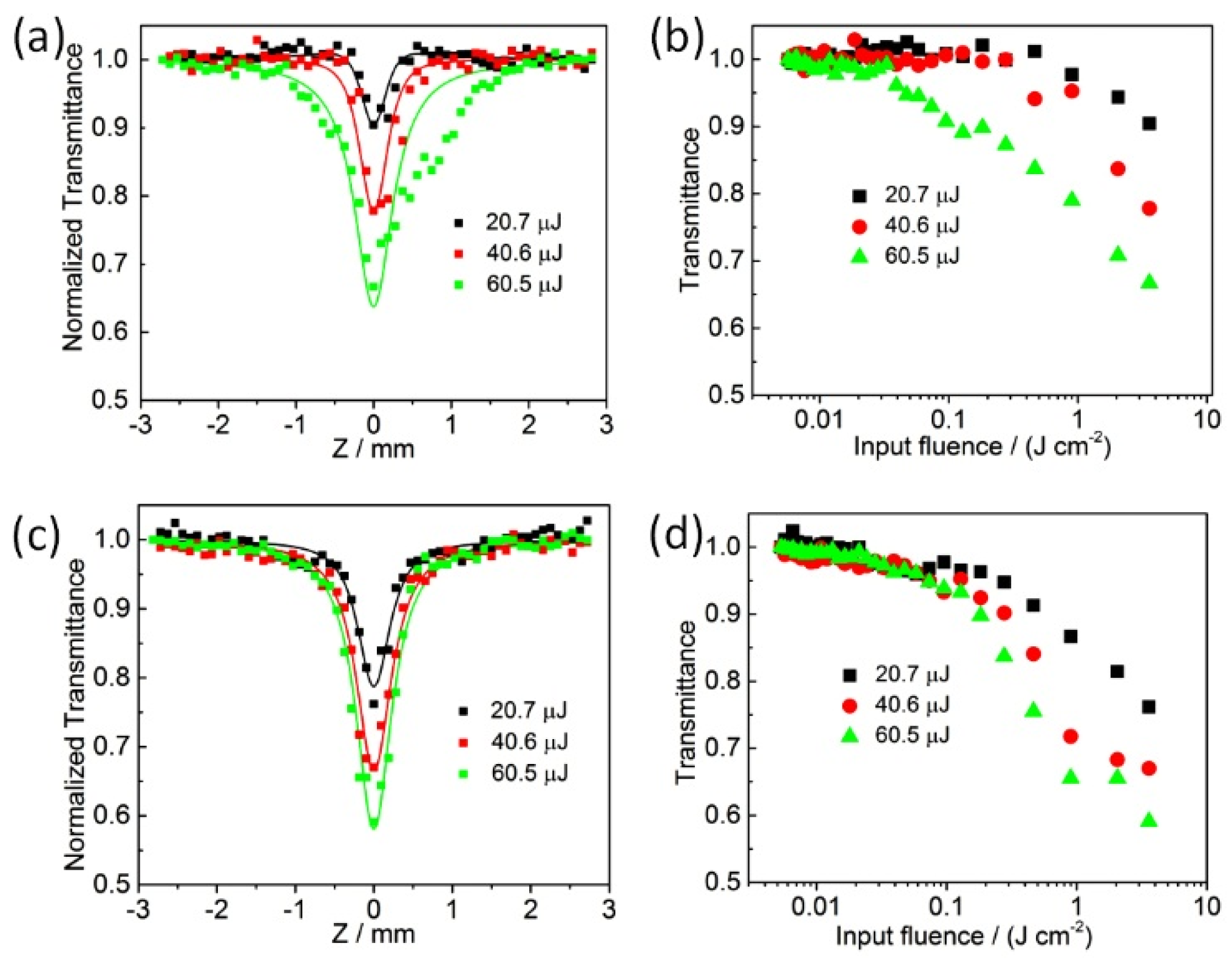

Figure 5. Typical OA Z-scan curves of 3b (a) and 3e (c) at different energies (20.7 μJ, 40.6 μJ and 60.5 μJ). Plot of normalized transmittance versus input fluence of 3b (b) and 3d (d) derived from the Z-scan curve. The incident wavelength is 532 nm.
Figure 5. Typical OA Z-scan curves of 3b (a) and 3e (c) at different energies (20.7 μJ, 40.6 μJ and 60.5 μJ). Plot of normalized transmittance versus input fluence of 3b (b) and 3d (d) derived from the Z-scan curve. The incident wavelength is 532 nm.
Molecules 28 01419 g005
Molecules 28 01419 g006 550

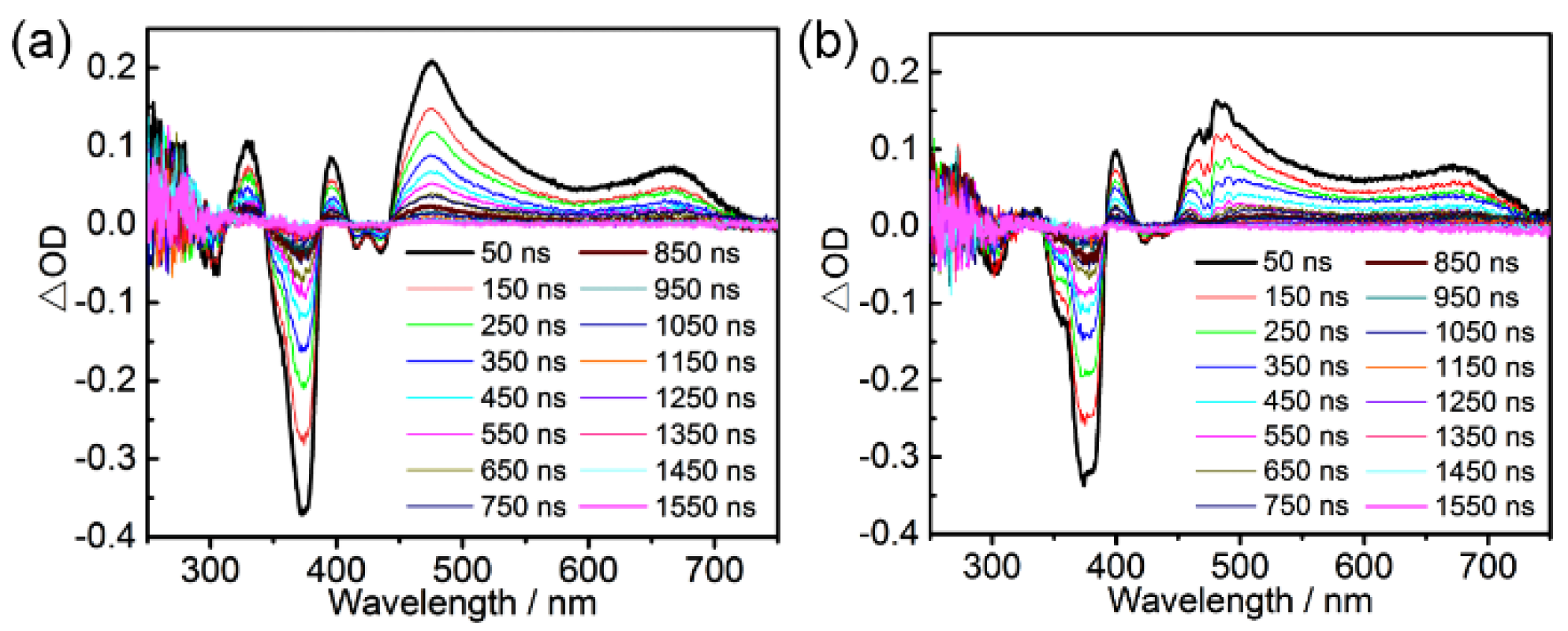

Figure 6. Time-resolved transient difference absorption of 3b (a) and 3e (b). The pump wavelength is 355 nm.
Figure 6. Time-resolved transient difference absorption of 3b (a) and 3e (b). The pump wavelength is 355 nm.
Molecules 28 01419 g006
