Preparation of Carbon-Based Solid Acid Catalyst from High-Sulfur Petroleum Coke with Nitric Acid and Ball Milling, and a Computational Evaluation of Inherent Sulfur Conversion Pathways

Department of Chemical and Petroleum Engineering, Schulich School of Engineering, University of Calgary, 2500 University Drive NW, Calgary, AB T2N 1N4, Canada
Department of Chemistry, University of British Columbia, Vancouver, BC V6T 1Z1, Canada
Department of Chemistry, University of Calgary, 2500 University Drive NW, Calgary, AB T2N 1N4, Canada
Author to whom correspondence should be addressed.
Molecules 2023, 28(20), 7051;
Submission received: 24 August 2023 / Revised: 21 September 2023 / Accepted: 5 October 2023 / Published: 12 October 2023


A series of petroleum coke (petcoke)-derived solid acid catalysts were prepared via nitric acid treatment with or without ball milling pretreatment. The inherent sulfur in petcoke was converted to sulfonic groups, which were active sites for the esterification of octanoic acid and methanol at 60 °C, with ester yields of 14–43%. More specifically, samples without ball milling treated at 120 °C for 3 h had a total acidity of 4.67 mmol/g, which was 1.6 times that of the samples treated at 80 °C, despite their −SO3H acidities being similar (~0.08 mmol/g). The samples treated for 24 h had higher −SO3H (0.10 mmol/g) and total acidity (5.25 mmol/g) but not increased catalytic activity. Ball milling increased the defects and exposed aromatic hydrogen groups on petcoke, which facilitated further acid oxidation (0.12 mmol −SO3H/g for both materials and total acidity of 5.18 mmol/g and 5.01 mmol/g for BP-N-3/120 and BP-N-8/90, respectively) and an increased ester yield. DFT calculations were used to analyze the pathways of sulfonic acid group formation, and the reaction pathway with NO2• was the most thermodynamically and kinetically favourable. The activities of the prepared catalysts were related to the number of −SO3H acid sites, the total acidity, and the oxygen content, with the latter two factors having a negative impact.

1. Introduction

Petroleum coke (petcoke) is a carbon-rich (>80 wt%), low porosity by-product from oil sand upgrading processes. The impurities, particularly sulfur, in petcoke limit its use in industrial applications and as a fuel for combustion [1]. Stockpiling petcoke in the field is problematic because of the release of aromatic, volatile organic and other pollutant compounds to the atmosphere and/or groundwater [2,3]. In recent years, researchers have explored various applications for petcoke, including the co-gasification of petcoke with biomass or municipal solid waste [4,5,6], as an adsorbent after alkaline activation to increase its porosity [7,8,9,10,11], as a solid acid catalyst after sulfonation [12,13,14,15,16], and manufacturing carbon quantum dots [17]. We previously showed that the conversion of the inherent sulfur in petcoke to sulfonic acid groups enables catalytic activity for the esterification reaction of octanoic acid and methanol [16] but have not fully explored how this conversion may occur.
Esterification reactions are of current interest because they are used in the conversion of biomass, a renewable resource, to biodiesel, which is considered a cleaner alternative to fossil fuels. In general, this reaction generates esters and water via the reaction of free fatty acids and alcohols in the presence of a homogeneous or heterogeneous catalyst. Compared to conventional homogenous acid catalysts, solid acid catalysts can be separated and do not cause corrosion of the processing equipment. The preparation of solid acid catalysts from inexpensive and abundant carbon waste, including used tire rubber [18], agricultural waste [19,20,21,22], petcoke [12,13,14,15,16], and plastic waste [23], has been studied. The general preparation method involves sulfonation of the carbon materials with concentrated acids (e.g., H2SO4). The added −SO3H groups are the catalytically active sites for the reaction. Prior to sulfonation, most waste carbon materials were modified with carbonization, pyrolysis, or activation to increase the surface area and porosity [24]. These processes, however, generally remove some of the impurities, including sulfur, from petcoke [25]. An alternative method to modify the feeds but retain the sulfur is ball milling. This method was shown to expose aromatic hydrogen groups that promote the formation of −SO3H groups on the carbon [12].
In this study, the formation of the sulfonic groups on petcoke treated with nitric acid to convert the inherent sulfur was investigated. Several solid acid catalysts were prepared by varying different parameters—time, temperature, and pretreatment—characterized, and then their catalytic activity was determined for the esterification reaction between octanoic acid and methanol. To further understand the formation of the catalytically active sites, the sulfur conversion pathways were explored via density functional theory (DFT) calculations.

2. Results and Discussion

2.1. Impact of Treatment Time and Temperature

The structural features of the samples before and after functionalization were investigated by XRD and Raman spectroscopy. The XRD profiles (Figure 1a) illustrate the degree of oxidation of petcoke. A broad peak at ~25.5° 2θ corresponds to graphite (002). This peak broadened after nitric acid treatment, and the broadening increased with treatment time, with a left shift of the peak. According to Bragg’s law and the Scherrer equation, these changes are consistent with the expansion of interlayer spacing ( d 002 ), possibly from intercalation of nitric acid and/or the formation of functional groups, and a decline in the crystallite stacking height (Lc) from exfoliation. Table 1 summarizes the d 002 and Lc values of the samples. The interlayer spacing of petcoke was 0.352 nm and increased to 0.364 nm, 0.376 nm, and 0.388 nm for samples P-N-3/80, P-N-3/120, and P-N-24/120, respectively. In parallel, the crystallite stacking height decreased from 2.14 nm for petcoke to 1.13 nm, and 1.06 nm and 0.95 nm for the functionalized samples. Increased treatment temperature and time resulted in more oxidation and exfoliation. A peak at ~10° 2θ on the profile of sample P-N-24/120 refers to graphene oxide structure and is consistent with added oxygen functionalities [26]. Since the oxidation by nitric acid disrupted the structure, the embedded impurities and microcrystals were removed, resulting in the disappearance of the sharpest peaks in the profiles of the acid-treated samples.
The Raman spectra (Figure 1b) contain broad peaks. The peaks between 1000–1800 cm−1 can be deconvoluted generally into six peaks with a Lorentzian function according to the investigation of Sadezky et al. [27]. The major peaks are centred at ~1340 cm−1 and 1575 cm−1, assigned as D-band and G-band, respectively. The D-band represents the disordered graphitic structure (A1g-symmetry), whereas the G-band represents the ideal graphitic structure (E2g-symmetry). The ID/IG ratio of petcoke was 0.92 and increased to 1.17 as the treatment time and temperature increased to 24 h and 120 °C, respectively, which was consistent with a disruption in the petcoke structure, as seen in the XRD profiles (Figure 1a). In addition to the main peaks, other peaks were located at ~1240 cm−1 (D2), ~1440 cm−1 (D3), ~1535 cm−1 (D4), and ~1610 cm−1 (D’); these deconvoluted peaks were considered evidence of the functional groups and hybridization in the graphene lattice as identified on other carbon materials, including graphene nanoribbons, graphene oxide-derived carbon quantum dots, functionalized graphene, and carbon nanotubes [28,29,30]. The intensities of the bands relative to the G band (i.e., ID2/IG, ID3/IG, ID4/IG, and ID’/IG) are shown in Table 1. The D’ band at ~1610 cm−1 is assigned to a graphitic lattice defect mode with E2g symmetry [27], while the D2 band at ~1240 cm−1 is assigned to C-H bonds or C-OH functional groups. The ID2/IG ratio generally increased after acid treatment but slightly decreased with the increase in treatment time, which may imply that the C-OH groups were further oxidized to COOH or C=O groups [29]. The D3 band and D4 band located between the D and the G bands are associated with the presence of oxygen and nitrogen groups [31]. The increase in both ID3/IG and ID4/IG ratios after acid treatment reflected the formation of these groups (consistent with the XPS results in Figure 2).
The crystallite size, La, decreased with increasing treatment time and temperature from 5.39 nm for petcoke to 4.24 nm for sample P-N-24/120 (Table 1). Petcoke samples treated for 1 h, 6 h, and 12 h at 120 °C were also analyzed. The relative area of the G band for all samples treated at 120 °C decreased up to a treatment time of 6 h and then remained relatively constant (Figure S1 in Supplementary Materials). The peak at ~1100 cm−1 after acid treatment (Figure 1b) is related to the sp2-sp3 bonds consistent with oxygen atoms covalently connecting at the sp3 carbon position from acid oxidation [27,29]. That is, the acid treatment enhanced the cleavage of the graphitic structures in petcoke and enhanced the formation of sp2-sp3 bonds. P-N-3/80 had a smaller ID/IG ratio and larger La value than those of P-N-3/120, consistent with the higher temperature treatment increasing the chemical cleavage of the petcoke structure.
Petcoke contains ultra-micropores, so the surface area and pore volume were measured via CO2 adsorption; the results are given in Table 1. Overall, acid treatment led to an increase in surface area and pore volume. The ID/IG ratio of sample P-N-3/80 was 0.97 and only slightly increased from the value of 0.92 for petcoke, but the surface area and pore volume of sample P-N-3/80 were 231 m2/g and 0.063 cm3/g, respectively, which were approximately three times the corresponding values for petcoke. Compared with petcoke, the significant increase for acid-treated samples in surface area and porosity, therefore, was not due to the change in the carbon structure but was likely a result of the removal of mineral impurities. The TGA analysis confirmed a decrease in ash content after acid treatment (Figure S2). Longer treatment times and a higher treatment temperature, however, reduced the porosity. Specifically, the surface area and pore volume decreased from 217 m2/g and 0.061 cm3/g for sample P-N-3/120 to 151 m2/g and 0.045 cm3/g for sample P-N-24/120. The increased degree of oxidation resulted in structural collapse and the generation of oxygen-containing groups blocking pores and inhibiting adsorption (Figure S3) [32,33,34].
The chemical properties were analyzed via FTIR and XPS. Most peaks in the FTIR spectra were in the range of 2000–600 cm−1. In Figure 1c, peaks between 600–900 cm−1 corresponded to aromatic hydrogen, and the peak intensity in this range decreased after acid treatment (Table 2) because of electrophilic substitution by HNO3 and the oxidation of petcoke. Peaks centred at 1600 cm−1 correspond to poly-aromatic rings of hydrocarbon molecules in petcoke, while peaks at ~1030 cm−1 and ~1200 cm−1 correspond to the S=O stretching vibrations of sulfonic groups [35]. The spectra of the acid-treated samples contained peaks at 1340 cm−1 and 1530 cm−1 corresponding to νs (NO2) and νas (NO2), respectively [36], and at 1715 cm−1 corresponding to C=O stretching in carboxylic groups. The latter band was the most intense in the spectrum of sample P-N-24/120. The main surface groups on the acid-treated petcoke, therefore, are sulfonic groups, nitro groups and carboxylic groups.
The surface elemental composition was determined using an XPS survey scan (Table 2), and the predominant elements were C and O, but N and S were also present. Petcoke also contained Si (2.7 at%) and Al (1.5 at%), but these elements were not evident after acid treatment, consistent with the XRD (Figure 1a) and TGA analyses (Figure S2). As expected, the nitrogen content increased after treatment with HNO3 while the sulfur content decreased, likely due to oxidative desulfurization since HNO3 is a strong oxidant. The O/C ratio increased significantly more as the treatment time or temperature increased compared to the decrease in the S/C ratio.
The oxidation states of the carbon and sulfur in the samples were determined via deconvoluting XPS high-resolution spectra (Figure 2) [37]. The C 1s high-resolution spectra (Figure 2 left) contain the most intense peaks centred at ~284.7 eV for the sp3 carbon and at ~284.1 eV for the sp2 carbon. The ratio of Csp3/Csp2 increased from 1.57 for petcoke to 1.6, 3.2 and 4.6 for samples P-N-3/80, P-N-3/120 and P-N-24/120, respectively. The peak at ~285.5 eV corresponds to carbon hybridized with S and N. The spectra also contain two relatively low-intensity peaks associated with C-O and C=O at ~286.6 eV and ~288.4 eV, respectively. The percentage of carbon in C-O bonds on petcoke was 8.9%, with no carbon in C=O bonds. Thus, the surface groups on petcoke include hydroxyl, ether, and epoxy groups. The percentage of carbon in C-O bonds increased to 9.7% with up to 3 h of acid treatment but decreased to 3.4% after 24 h of treatment. C=O bonds were contained in the spectra of the acid-treated samples and increased with treatment time, from 4.6% after 3 h to 10.5% after 24 h. In addition, temperature affected the existence of oxygen-containing functional groups. Compared with the samples treated at 120 °C, the samples treated at 80 °C have more C-O bonds (9.7%) and fewer C=O bonds (2.5%). A broad peak at ~290 eV associated with π-π* transition was evident for the acid-treated samples. Regarding the sulfur content, the high-resolution S2p peaks of all samples (Figure 2 right) have peaks at binding energies of ~163.8 eV and ~165 eV that are characteristic of S 2p3/2 and 2p1/2 of thiophene-S [38]. The acid-treated samples have peaks at ~167 eV and 168.4 eV related to oxidized sulfur [39], where the latter is assigned to −SO3H, confirming that during the functionalization, the inherent sulfur in petcoke can be converted to sulfonic acid.

2.2. Effect of Ball Milling Pretreatment

Ball milling pretreatment resulted in both structural and chemical changes to petcoke (Figure 3, Table 1 and Table 2). Ball milling did not change the interlayer spacing ( d 002 ) but did promote the exfoliation of petcoke. That is, after ball milling, Lc decreased to 1.47 nm (Table 1). Ball milling also resulted in a broadening of the XRD band at ~25.5° 2θ for petcoke with further broadening after acid treatment at 120 °C and 3 h (Figure 3a), as seen for the samples without ball milling (Figure 1a). There was a corresponding decrease in Lc to 0.97 nm, which was comparable to the Lc value of sample P-N-24/120. Ball milling also increased the number of defects (i.e., increased ID2/IG, ID3/IG, ID4/IG and ID’/IG ratios, Table 1). The significant decrease in La from 5.39 nm to 4.59 nm, which is even smaller than that for sample P-N-3/120, reflected the lattice cleavage introduced by ball milling. The value of La decreased to 4.47 nm for sample BP-N-3/120, and there was a significant increase in the D1 band intensity (Figure 3b). The surface area and pore volume increased after ball milling to 172 m2/g and 0.056 cm3/g, respectively.
In addition to the structural changes, ball milling impacted the surface chemical composition via the exposure of more aromatic H and the addition of oxygen on the surface of the petcoke, which facilitated the subsequent reaction with acid. That is, samples BP-N-3/120 and BP-N-8/90 had higher O and N content, −SO3H acidity and total acidity than the other samples (Table 2). In Figure 3c, the appearance of peaks between 1000–1200 cm−1 for the ball-milled petcoke is consistent with the increased oxygen content. Ball milling introduced π-π* transition to petcoke (Figure 3h). Although petcoke was oxidized via ball milling, −SO3H species were not generated. Instead, a new S peak at ~165.5 eV, ascribed to a S-O-C bond, was identified on the ball-milled petcoke (Figure 3i).

2.3. Esterification Reaction

All samples were tested in the esterification reaction between octanoic acid and methanol, and the results are shown in Figure 4. The 4 h yield of methyl octanoate decreased from 3.5% for the blank test to 2.5% with petcoke and 1.1% with ball-milled petcoke. The hydrogen bonding acceptors in esters can bond with oxygen-containing groups on carbon materials, resulting in the adsorption of the reaction product and explaining these results [40,41]. After acid treatment, the activity improved in the order of samples P-N-24/120 < P-N-3/120 < P-N-3/80 < BP-N-3/120. As the yields on these catalysts were less than half of that on a commercial Amberlyst-15 catalyst, the preparation parameters were varied further to produce catalyst BP-N-8/90 (i.e., 8 h treatment with nitric acid at 90 °C). The ester yield on this catalyst increased to ~36% after 4 h. Decreasing the methanol: octanoic acid molar ratio from 20:1 to 10:1 further increased the yield to ~43%; this higher conversion can be explained by a better dispersion of the catalyst in this condition. The TOF were between 64–143 h−1, generally consistent with more −SO3H groups improving the reactivity. When samples possess a similar level of total acidity, the sample with more −SO3H groups had a higher TOF, such as BP-N-3/120 and BP-N-8/90, compared to P-N-24/120. More specifically TOF of 114 h−1, 105 h−1, and 64 h−1 were obtained with samples P-N-3/80, P-N-3/120 and P-N-24/120, respectively. The TOF is negatively correlated with total acidity, suggesting that adsorption of the reaction products—water and methyl octanoate—by oxygen-containing functional groups on the samples hinders further reaction. Although the oxygen content and total acidity of the sample, BP-N-3/120 were higher than those of samples P-N-3/80 and P-N-3/120, its TOF was 114 h−1, which was higher than that of P-N-3/120 and equal to that of P-N-3/80. This result was likely because the ball-milled samples had more −SO3H groups, and when comparing the TOF of these materials, which have the same sulfonic acid sites concentration (0.12 mmol/g), the BP-N-8/90 has a higher TOF of 143 h−1 due to its lower total acidity of 5.01 mmol/g against 5.18 mmol/g for BP-N-3/120.
Therefore, for petcoke-derived solid acid catalysts, it is necessary to increase the number of −SO3H groups while reducing other oxygen-containing acid functional groups. The results from other recent studies are summarized in Table S1. Carbon-based solid acid catalysts have productivities varying between ~1 and 10 gproduct·gcatalyst−1·h−1, which are much lower than that achieved with sulfuric acid, 52 gproduct·gcatalyst−1·h−1. In terms of the estimated TOF, the BP-N-8/90 catalyst has a higher value of 143 h−1 than the other materials (Table S1). Although some catalysts have a higher conversion—sulfonated chitosan (83%, [42]), hollow sulfonated mesoporous carbon spheres (70%, [43]), and sulfonated spent coffee grounds (~90% [44])—the catalysts were tested at less desirable conditions that include using a higher alcohol excess, which increases the ester production cost [42,43], and higher reaction temperatures [43,44], and/or their preparation method was more complex for productivity similar or lower than that achieved by the petcoke-derived catalyst. From a molecular point of view (TOF), the sites (−SO3H) generated from the inherent sulfur in petcoke are more active than those on Amberlyst-15, and the activity, although lower, is comparable to that generated from the sulfonation process. However, the productivity of these petcoke catalysts without additional −SO3H sites is lower than Amberlyst-15 and the catalysts prepared from sulfonation, suggesting that it is critical to increase the number of −SO3H groups. A better understanding of the mechanism of sulfur conversion in petcoke is required to improve the treatment strategy and increase the number of −SO3H groups. DFT calculations were carried out to investigate the possible sulfur conversion pathways.

2.4. Exploration of Sulfonic Group Formation Mechanisms

The formation of −SO3H was verified using XPS and esterification reactions. The sulfur in petcoke mainly exists in the form of thiophene, so dibenzothiophene (DBT) was selected as a model compound in this study. The possible reaction pathway for the oxidation of DBT (Figure 5) builds on a study by D’Alessandro et al. [45]. DBT is oxidized to dibenzothiophene oxide (DBTO) and dibenzothiophene dioxide (DBTO2), followed by further oxidation to biphenylsultone (DBTO3), which is then hydrolyzed to 2-(20-hydroxybiphenyl)sulfonate (HBPS). In particular, the conversion from sulfone to sultone was proposed as an analogous Baeyer-Villiger (B–V) oxidation [45,46], during which the electron-deficient sulfur atom was further attacked by oxidizers to form the sultone structure.
Based on the structure of DBT, we envisaged two possible pathways for sulfur activation: (i) sulfur acting as a donor via its valence lone pairs and (ii) sulfur acting as an acceptor via chalcogen bonding [47,48]. The latter situation results from the presence of a “σ-hole” (area of positive electrostatic potential) at the extension of each C-S bond. These electrophilic σ-holes are potential sites for nucleophilic attack. The ability of DBT to act as a donor and/or an acceptor depends strongly on the nature of the species with which it reacts. Given the dissociation of HNO3 in aqueous environments [49], both HNO3 and NO3 were considered potential reagents in the reaction with DBT.
In both cases, the interaction between the nitrogen and sulfur-containing species was initiated via chalcogen bonding and allowed for a single-step oxygen transfer reaction to form DBTO with high activation barriers (see Figure 6). Both kinetically and thermodynamically, however, this first oxidation is preferable from the acid form, which suggests that measures to avoid hydrolysis (e.g., via the addition of H2SO4) should lead to better conversion if oxidation occurs in this manner. Further oxidation with HNO3 and/or NO3 was also explored, and details of the calculated reaction profiles are shown in Figure S4 (see Supplementary Materials). The formation of DBTO2 is more facile than the first oxidation, but the formation of DBTO3 proceeds via a very high energy transition state that is almost 100 kcal/mol (418.6 kJ/mol) higher in energy than the DBT starting material. In order for this reaction to proceed, catalysis would be required to allow for conversion from DBT DBTO3. Notably, iron is present in trace amounts in petcoke [1] and was shown to be an effective catalyst for DBT oxidation [50,51].
From the results of the XPS analysis, the nitrate groups were detected on the acid-treated samples, supporting that nitration reactions occurred during the acid treatment (Figure S5). On the basis of the nitration mechanism, the nitration agents nitronium ion (NO2+) and nitrogen dioxide radical (NO2•) were generated from HNO3.
The formation of a brown gas, consistent with the formation of nitrogen dioxide (NO2), is observed during acid treatment. The potential role of either NO2• or NO2+ in DBT oxidation, therefore, was explored. As with HNO3 and NO3, the interaction of these species with DBT proceeds via chalcogen bonding that places the reactive oxygen species with the sulfur atom (see Figure S6). The reaction with NO2+ to form DBTO and DBTO2 is significantly more facile than that observed from HNO3/NO3 but any path to the formation of DBTO3 could not be found, presumably because of the increasing steric hindrance around the sulfur atom and a concomitant large increase in Pauli repulsion between the reagents.
The reaction with NO2, however, is both thermodynamically and chemically quite reasonable (see Figure 7b). The three oxidation processes can all proceed with transition states that are <50 kcal/mol above that of the starting materials (DBT + NO2). Of all the pathways evaluated, this is the kinetically most accessible pathway. The formation of HO• was also reported to be generated during the process of HNO3 decomposition into nitrogen oxides [52]. The radical HO• is highly reactive with strong oxidizing properties, which can not only react with sulfur in petcoke but also with carbon, even graphitic carbon. Thus, HO• might also contribute to the overall oxidation process.
Following the formation of DBTO3, with the presence of H2O or OH the ring structure of sultone can be opened. The sulfonic groups and hydroxyl groups will be formed immediately in an acid environment, associated with a significant downhill process (−77.5 kcal/mol). In the presence of water, however, a spontaneous desulfurization reaction with ∆G0 of −0.4 kcal/mol and a marginal energy barrier led to the removal of the sulfonic group (Figure S7). Therefore, SO2 will be generated in the washing step via the reaction of −SO3H groups with OH. To mitigate the production of SO2, a slightly acidic environment with a shorter contact time can be used for washing. In addition, H2O is a product of the esterification reaction and may be responsible for the loss of the active sites (−SO3H groups) during the reaction. In order to retain catalytically active sites, improve the stability of the catalysts, and prevent the production of SO2, the produced water must be removed by modifying the reaction system. Molecular sieves were proposed to adsorb the water in systems using ethanol [53] but resulted in decreased conversion with methanol in our system.
Although using nitric acid to modify petcoke will generate some air pollutants such as SO2 and NO2, it is an active oxidant that converts petcoke from solid waste to a catalyst using the inherent sulfur to produce −SO3H groups. Since HO• can contribute to the oxidation process, H2O2 could be a more environmentally friendly alternative. The intercalation effect of nitric acid, however, enlarges the interlayer spacing, promoting access to more sulfur. Thus, the proposed method can be considered an efficient method of waste-to-catalyst conversion, but further optimization and improvements in the process are required. In particular, the preparation conditions must be adjusted to favour the desired reaction by adding a catalyst that promotes the formation of NO2• or selecting another oxidant that can generate radicals which have similar properties as NO2•.

3. Materials and Methods

3.1. Materials

Delayed petcoke (Suncor Energy Inc., Calgary, AB, Canada) was ground and sieved to particle sizes below 150 μm. Nitric acid (HNO3, 68–70%) was purchased from VWR International. Hydrochloric acid (HCl, 37%) and sodium hydroxide (NaOH, 0.1 M solution in water) were purchased from Sigma-Aldrich (Markham, ON, Canada) and used for the titration of the acid sites.

3.2. Preparation of Acid-Functionalized Samples

Samples were prepared as described previously [16]. Briefly, 2 g petcoke was treated with 20 mL HNO3 for 3 h or 24 h at 120 °C. The mixtures of acid and petcoke were filtered using a 0.22 µm membrane filter, and the obtained solid substrates were washed with reverse osmosis (RO) water until neutral pH was achieved, followed by drying at 120 °C overnight. The samples were named according to this treatment. For example, sample P-N-24/120 refers to petcoke (P) treated with nitric (N) acid for 24 h at 120 °C. An additional sample was prepared for 3 h at 80 °C and named P-N-3/80. To investigate the impact of ball milling before the acid treatment, a sample of petcoke was ball milled with 5 mm zirconia balls at a sample-to-ball mass ratio of 1:25 at 300 rpm for 4 h and named BP. A portion of this ball-milled petcoke was treated with HNO3 for 3 h at 120 °C or 8 h at 90 °C, and these samples were named BP-N-3/120 and BP-N-8/90. In all cases, the yield (by mass of catalyst) was over 90%.

3.3. Characterization

The structural features of petcoke-derived samples were investigated by X-ray diffraction (XRD, Rigaku Miniflex II benchtop PXRD, Rigaku Corporation, Tokyo, Japan) using a CuKα X-ray source (λ = 0.15405 nm). The sample powder was dispersed with isopropanol, and a drop was placed onto the sample holder. In addition to XRD, samples were analyzed with a WiTec Alpha-300 series confocal Raman microscope (Knoxville, TN, USA) with a 532 nm diode laser. The interlayer distances (d) and crystallite sizes (La) were determined with standard methods [37,54,55,56].
Sample porosities were measured via CO2 adsorption at 0 °C using a Tristar 3000 instrument (Micromeritics Instrument Corporation, Norcross, GA, USA). The Solution of the Adsorption Integral Equation Using Splines (SAIES) software version 2.02 was used to calculate the surface area and pore volume. The 2D Non-Local Density Functional Theory with heterogeneous surfaces model (2D-NLDFT-HS) provided the best fit for the adsorption data. All samples were degassed under vacuum at 150 °C prior to adsorption analysis.
The ash content and thermostability of petcoke-derived samples were analyzed via thermogravimetric analysis (TGA, SDT Q600, TA Instruments, New Castle, DE, USA). Approximately 0.015 g of the dried sample was heated from ambient temperature to 750 °C at 20 °C/min in a 50 mL/min flow of air and held at 750 °C for 0.5 h.
A Fourier Transform Infrared (FTIR, Nicolet iS50, Thermo Fisher Scientific, Waltham, MA, USA) spectrometer with an attenuated transmission reflectance (ATR) was used to determine the surface groups on the samples before and after treatment. The ATR spectra were collected in the 4000 to 400 cm−1 wavenumber range, accumulating 32 scans at 4 cm−1 resolution. Aromatic hydrogen content was estimated by the ATR spectra method established by Ye et al. [13]. The peaks at 600–900 cm−1 are affected by the aromatic hydrogen content of the samples. Dibenzothiophene (DBT) was used as a model compound to establish a correlation between spectral area and the aromatic hydrogen content in petcoke. Further surface analysis was conducted with X-ray photoelectron spectroscopy (XPS, Kratos Axis spectrometer, Kratos Analytical Limited, Manchester, UK) with monochromatized Al Kα (hυ = 1486.71 eV) radiation. Compositions were calculated from the survey spectra using the major elemental peaks. The software CasaXPS (Version 2.3.22PR1.0, Casa Software Ltd., Teignmouth, UK) was used for component analysis to deconvolute the C1s and S2p peaks. The number of total surface acidic groups on the samples was determined by a modified Boehm titration that involved adding 0.1 g of sample to 5 mL of a 0.1 M NaOH solution. The mixture was oscillated in a shaker (VWR Symphony 5000I Shaker, Henry Troemner LLC, Thorofare, NJ, USA) at 25 °C and 250 rpm for 24 h. This solution was then titrated with 0.01 M HCl solution using phenolphthalein as the indicator.

3.4. Esterification Reaction

The reaction between octanoic acid and methanol, Equation (1), was used to test catalyst activity. Reactions were carried out in a two-neck round bottom flask (100 mL) housed in a water bath, stirred magnetically, and jacketed by a condenser. First, 0.2 g of catalyst, 5 mL of octanoic acid, and 1 mL of dodecane (internal standard) were added to the reaction flask and heated to 60 °C while stirring at 800 rpm for 4 h. The amount of catalyst used corresponds to approximately 5 wt% of the system (i.e., ~0.2 g catalyst and 4.4 g octanoic acid). At time zero, 25 mL of methanol was added to the reaction mixture via an adapter on the side neck. Periodically, ~0.4 mL samples of the suspension were withdrawn by syringe (the total sampling decreased the initial reaction volume by less than 15%). The catalyst was separated by passing the suspension through a membrane filter (0.22 µm, EZFlow®, Foxx Life Sciences, Londonderry, NH, USA) to prevent further reaction. Next, 0.1 µL of solution was injected into a gas chromatography with a flame ionization detector (GC-FID, 6890N, Agilent Technologies, Santa Clara, CA, USA) equipped with a DB FATWAX UI capillary column (polyethylene glycol-type, 30 m × 0.25 mm × 0.25 µm). The temperature program for the GC analysis consisted of 0.5 min at 50 °C, heating at 40 °C/min to 200 °C and holding for 2 min at 200 °C. Helium was used as the carrier gas (injection using split mode with a ratio of 50:1). The temperatures of the injector and detector were set at 250 and 300 °C, respectively. The detector mode used was constant makeup flow, and the error was estimated to be <1% for all samples as determined by triplicate analysis of several aliquots.
C 7 H 15 C O O H + C H 3 O H C 7 H 15 C O O C H 3 + H 2 O
The ester yield was calculated based on the following equation:
% y i e l d = m a c t u a l m t h e o r e t i c a l × 100 %
where m a c t u a l is the mass of caprylic acid methyl ester formed and m t h e o r e t i c a l is the theoretical maximum mass of ester. The initial turnover frequencies (TOF) were calculated as follows [57]:
T O F = k × O A 0 × V m c a t a l y s t × S O 3 H
where k is the pseudo first-order rate constant (min−1), O A 0 is the initial concentration of octanoic acid (mmol/mL), V is the volume of the reaction solution (mL), m c a t a l y s t is the mass of catalyst added (g) into the reactor, and [−SO3H] is the concentration of sulfonic groups on the catalyst surface (mmol/g). The pseudo first-order model (Equation (4)) assumes that the reverse rate constant is negligible [58] and the methanol concentration is constant [13,58]:
O A = O A 0 e k t
where [OA] is the concentration (mmol/mL) of octanoic acid at time t (min) and k is the pseudo first-order rate constant (min−1). The model assumptions are satisfied at the initial stages of the reaction and with the conditions used.

3.5. DFT Calculations

Dibenzothiophene (DBT) was chosen as a model compound, and DFT calculations were run using the Gaussian 09 (G09) computational package [59]. All geometry optimizations were performed in G09 using the restricted M06-2X functional and the Def2-TZVP basis set [60,61]. In radical species, the restricted open-shell formalism was employed using the same functional and basis sets as for other species [62]. A conductor-like polarizable continuum solvation model (CPCM) of methanol and an ultrafine integration grid were applied. Geometry optimizations were performed on all species, and frequency calculations were performed at the same level of theory to confirm the absence of imaginary frequencies. Transition states were identified and optimized using the quadratic synchronous transit (QST) approach [63]. All structures labelled as transition states exhibit one imaginary frequency.

4. Conclusions

This study explored the details of using the inherent sulfur in petcoke to prepare solid acid catalysts for the esterification reaction between octanoic acid and methanol by oxidizing petcoke to obtain the catalytic active site—sulfonic groups. According to XPS analysis and the yield of methyl octanoate, some sulfur was converted into −SO3H groups by nitric acid treatment. While not a green solvent, nitric acid was effective in exfoliating the petcoke and making the sulfur accessible. The effect of treatment time and temperature was investigated, as well as the effect of ball milling pretreatment. Either a longer time or a higher temperature treatment led to an increase in oxygen-containing groups that contributed to the total acidity, while only the longer treatment time had an effect on the −SO3H acidity. Comparing 80 °C and 120 °C, the resulting −SO3H acidity was similar: ~0.08 mmol/g for the catalysts without ball-milling treatment. From the results of the esterification reaction, however, the yield of the product is not only related to the number of sulfonic groups but shows a negative correlation with oxygen-containing functional groups, implying that the adsorption effect of oxygen-containing functional groups might hinder the esterification reaction. Pretreatment with ball milling exposed defects and increased the amount of exposed aromatic hydrogen, which promoted the subsequent acid treatment to obtain more sulfonic acid groups and a more active catalyst; BP-N-8/90 for instance, resulted in an ester yield of 43% after 4 h. This yield was less than that obtained with an Amberlyst-15 catalyst (~55%), but the petcoke-derived catalyst was prepared from waste material and is not yet optimized. The DFT calculation results indicated that NO2+ and NO2• not only played a critical role in nitration during acid treatment but also contributed to the oxidation of the inherent sulfur in petcoke.

Supplementary Materials

The following supporting information can be downloaded at Figure S1: Relative area of the G band in the Raman spectra of acid-treated percoke in percentage of total area in the 1000–1800 cm−1 region; Figure S2: TGA profiles of petcoke and acid-treated petcoke (20 °C/min to 750 °C in a 50 mL/min flow of air); Figure S3: Pore size distributions of petcoke and petcoke-derived samples, as determined by CO2 adsorption using a 2D-NLDFT-HS model; Figure S4: Reaction profile of DBT reacted with nitric acid (HNO3); Figure S5: Deconvoluted high-resolution XPS spectra of N 1s; Figure S6: Reaction profile of DBT reacted with nitronium ion (NO2+); Figure S7: A spontaneous desulfurization reaction; Table S1: Esterification of octanoic acid with methanol over different acid catalysts. References [64,65,66] are cited in the supplementary material.

Author Contributions

Conceptualization, Q.H.; data curation, Q.H., N.M.C., X.T., A.S.S., P.K. and J.M.H.; formal analysis, Q.H. and N.M.C.; funding acquisition, J.M.H.; investigation, Q.H., N.M.C., X.T. and A.S.S.; methodology, Q.H., X.T. and P.K.; supervision, P.K. and J.M.H.; validation, Q.H.; visualization, Q.H.; writing—original draft, Q.H.; writing—review and editing, N.M.C., A.S.S. and J.M.H. All authors have read and agreed to the published version of the manuscript.


This research was funded by the Natural Sciences and Engineering Research Council (NSERC) of Canada, grant number RGPIN/03882-2020.

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Data Availability Statement

The data presented in this study are available on request from the corresponding author.


The Natural Sciences and Engineering Research Council (NSERC) provided funding for this study. Qing Huang would like to thank the University of Calgary for an Eyes High Doctoral Recruitment Scholarship. We thank Vicente Montes for suggesting the esterification reaction and Ye Xiao for helping with the esterification reaction setup.

Conflicts of Interest

The authors declare no conflict of interest.

Sample Availability

Not applicable.


  1. Hill, J.M.; Karimi, A.; Malekshahian, M. Characterization, gasification, activation, and potential uses for the millions of tonnes of petroleum coke produced in Canada each year. Can. J. Chem. Eng. 2014, 92, 1618–1626. [Google Scholar] [CrossRef]
  2. Manzano, C.A.; Marvin, C.; Muir, D.; Harner, T.; Martin, J.; Zhang, Y. Heterocyclic Aromatics in Petroleum Coke, Snow, Lake Sediments, and Air Samples from the Athabasca Oil Sands Region. Environ. Sci. Technol. 2017, 51, 5445–5453. [Google Scholar] [CrossRef] [PubMed]
  3. Nesbitt, J.A.; Lindsay, M.B.J. Vanadium Geochemistry of Oil Sands Fluid Petroleum Coke. Environ. Sci. Technol. 2017, 51, 3102–3109. [Google Scholar] [CrossRef]
  4. Wang, G.; Zhang, J.; Huang, X.; Liang, X.; Ning, X.; Li, R. Co-gasification of petroleum coke-biomass blended char with steam at temperatures of 1173–1373K. Appl. Therm. Eng. 2018, 137, 678–688. [Google Scholar] [CrossRef]
  5. Wei, J.; Guo, Q.; Ding, L.; Yoshikawa, K.; Yu, G. Synergy mechanism analysis of petroleum coke and municipal solid waste (MSW)-derived hydrochar co-gasification. Appl. Energy 2017, 206, 1354–1363. [Google Scholar] [CrossRef]
  6. He, Q.; Yu, J.; Song, X.; Ding, L.; Wei, J.; Yu, G. Utilization of biomass ash for upgrading petroleum coke gasification: Effect of soluble and insoluble components. Energy 2020, 192, 116642. [Google Scholar] [CrossRef]
  7. Jacobs, J.H.; Wynnyk, K.G.; Lalani, R.; Sui, R.; Wu, J.; Montes, V.; Hill, J.M.; Marriott, R.A. Removal of Sulfur Compounds from Industrial Emission Using Activated Carbon Derived from Petroleum Coke. Ind. Eng. Chem. Res. 2019, 58, 18896–18900. [Google Scholar] [CrossRef]
  8. Jang, E.; Choi, S.W.; Hong, S.-M.; Shin, S.; Lee, K.B. Development of a cost-effective CO2 adsorbent from petroleum coke via KOH activation. Appl. Surf. Sci. 2018, 429, 62–71. [Google Scholar] [CrossRef]
  9. Mochizuki, T.; Kubota, M.; Matsuda, H.; D’Elia Camacho, L.F. Adsorption behaviors of ammonia and hydrogen sulfide on activated carbon prepared from petroleum coke by KOH chemical activation. Fuel Process. Technol. 2016, 144, 164–169. [Google Scholar] [CrossRef]
  10. Bai, R.; Yang, M.; Hu, G.; Xu, L.; Hu, X.; Li, Z.; Wang, S.; Dai, W.; Fan, M. A new nanoporous nitrogen-doped highly-efficient carbonaceous CO2 sorbent synthesized with inexpensive urea and petroleum coke. Carbon 2015, 81, 465–473. [Google Scholar] [CrossRef]
  11. Jang, E.; Choi, S.W.; Lee, K.B. Effect of carbonization temperature on the physical properties and CO2 adsorption behavior of petroleum coke-derived porous carbon. Fuel 2019, 248, 85–92. [Google Scholar] [CrossRef]
  12. Wu, M.; Wang, Y.; Wang, D.; Tan, M.; Li, P.; Wu, W.; Tsubaki, N. SO3H-modified petroleum coke derived porous carbon as an efficient solid acid catalyst for esterification of oleic acid. J. Porous Mater. 2016, 23, 263–271. [Google Scholar] [CrossRef]
  13. Xiao, Y.; Hill, J.M. Solid acid catalysts produced by sulfonation of petroleum coke: Dominant role of aromatic hydrogen. Chemosphere 2020, 248, 125981. [Google Scholar] [CrossRef]
  14. Liu, S.; Wang, H.; Neumann, P.; Kim, C.S.; Smith, K.J. Esterification over Acid-Treated Mesoporous Carbon Derived from Petroleum Coke. ACS Omega 2019, 4, 6050–6058. [Google Scholar] [CrossRef]
  15. Espinoza, E.; Isernia, L. Role of the lattice-energy from chemical agents in the activation of highly-condensed carbons. J. Serb. Chem. Soc. 2021, 86, 983–995. [Google Scholar] [CrossRef]
  16. Huang, Q.; Schafranski, A.S.; Hazlett, M.J.; Xiao, Y.; Hill, J.M. Nitric Acid Functionalization of Petroleum Coke to Access Inherent Sulfur. Catalysts 2020, 10, 259. [Google Scholar] [CrossRef]
  17. Wu, M.; Wang, Y.; Wu, W.; Hu, C.; Wang, X.; Zheng, J.; Li, Z.; Jiang, B.; Qiu, J. Preparation of functionalized water-soluble photoluminescent carbon quantum dots from petroleum coke. Carbon 2014, 78, 480–489. [Google Scholar] [CrossRef]
  18. Yan, W.; Hoekman, S.K.; Broch, A.; Coronella, C.J. Effect of hydrothermal carbonization reaction parameters on the properties of hydrochar and pellets. Environ. Prog. Sustain. Energy 2014, 33, 676–680. [Google Scholar] [CrossRef]
  19. Bureros, G.M.A.; Tanjay, A.A.; Cuizon, D.E.S.; Go, A.W.; Cabatingan, L.K.; Agapay, R.C.; Ju, Y.-H. Cacao shell-derived solid acid catalyst for esterification of oleic acid with methanol. Renew. Energy 2019, 138, 489–501. [Google Scholar] [CrossRef]
  20. Ngaosuwan, K.; Goodwin, J.G.; Prasertdham, P. A green sulfonated carbon-based catalyst derived from coffee residue for esterification. Renew. Energy 2016, 86, 262–269. [Google Scholar] [CrossRef]
  21. Tang, Z.-E.; Lim, S.; Pang, Y.-L.; Shuit, S.-H.; Ong, H.-C. Utilisation of biomass wastes based activated carbon supported heterogeneous acid catalyst for biodiesel production. Renew. Energy 2020, 158, 91–102. [Google Scholar] [CrossRef]
  22. Niu, S.; Ning, Y.; Lu, C.; Han, K.; Yu, H.; Zhou, Y. Esterification of oleic acid to produce biodiesel catalyzed by sulfonated activated carbon from bamboo. Energy Convers. Manag. 2018, 163, 59–65. [Google Scholar] [CrossRef]
  23. Mateo, W.; Lei, H.; Villota, E.; Qian, M.; Zhao, Y.; Huo, E.; Zhang, Q.; Lin, X.; Wang, C.; Huang, Z. Synthesis and characterization of sulfonated activated carbon as a catalyst for bio-jet fuel production from biomass and waste plastics. Bioresour. Technol. 2020, 297, 122411. [Google Scholar] [CrossRef]
  24. Konwar, L.J.; Mäki-Arvela, P.; Mikkola, J.-P. SO3H-Containing Functional Carbon Materials: Synthesis, Structure, and Acid Catalysis. Chem. Rev. 2019, 119, 11576–11630. [Google Scholar] [CrossRef] [PubMed]
  25. Wu, J.; Montes, V.; Virla, L.D.; Hill, J.M. Impacts of amount of chemical agent and addition of steam for activation of petroleum coke with KOH or NaOH. Fuel Process. Technol. 2018, 181, 53–60. [Google Scholar] [CrossRef]
  26. Johra, F.T.; Lee, J.-W.; Jung, W.-G. Facile and safe graphene preparation on solution based platform. J. Ind. Eng. Chem. 2014, 20, 2883–2887. [Google Scholar] [CrossRef]
  27. Sadezky, A.; Muckenhuber, H.; Grothe, H.; Niessner, R.; Pöschl, U. Raman microspectroscopy of soot and related carbonaceous materials: Spectral analysis and structural information. Carbon 2005, 43, 1731–1742. [Google Scholar] [CrossRef]
  28. Ren, W.; Saito, R.; Gao, L.; Zheng, F.; Wu, Z.; Liu, B.; Furukawa, M.; Zhao, J.; Chen, Z.; Cheng, H.-M. Edge phonon state of mono- and few-layer graphene nanoribbons observed by surface and interference co-enhanced Raman spectroscopy. Phys. Rev. B 2010, 81, 035412. [Google Scholar] [CrossRef]
  29. Rajender, G.; Giri, P.K. Formation mechanism of graphene quantum dots and their edge state conversion probed by photoluminescence and Raman spectroscopy. J. Mater. Chem. C Mater. 2016, 4, 10852–10865. [Google Scholar] [CrossRef]
  30. Rebelo, S.L.H.; Guedes, A.; Szefczyk, M.E.; Pereira, A.M.; Araújo, J.P.; Freire, C. Progress in the Raman spectra analysis of covalently functionalized multiwalled carbon nanotubes: Unraveling disorder in graphitic materials. Phys. Chem. Chem. Phys. 2016, 18, 12784–12796. [Google Scholar] [CrossRef]
  31. Ayiania, M.; Weiss-Hortala, E.; Smith, M.; McEwen, J.-S.; Garcia-Perez, M. Microstructural analysis of nitrogen-doped char by Raman spectroscopy: Raman shift analysis from first principles. Carbon 2020, 167, 559–574. [Google Scholar] [CrossRef]
  32. Wei, X.; Jiang, X.; Wei, J.; Gao, S. Functional Groups and Pore Size Distribution Do Matter to Hierarchically Porous Carbons as High-Rate-Performance Supercapacitors. Chem. Mater. 2016, 28, 445–458. [Google Scholar] [CrossRef]
  33. Georgakis, M.; Stavropoulos, G.; Sakellaropoulos, G.P. Molecular dynamics study of hydrogen adsorption in carbonaceous microporous materials and the effect of oxygen functional groups. Int. J. Hydrog. Energy 2007, 32, 1999–2004. [Google Scholar] [CrossRef]
  34. Takagi, H.; Hatori, H.; Yamada, Y.; Matsuo, S.; Shiraishi, M. Hydrogen adsorption properties of activated carbons with modified surfaces. J. Alloys Compd. 2004, 385, 257–263. [Google Scholar] [CrossRef]
  35. Wang, Y.; Wang, D.; Tan, M.; Jiang, B.; Zheng, J.; Tsubaki, N.; Wu, M. Monodispersed Hollow SO3H-Functionalized Carbon/Silica as Efficient Solid Acid Catalyst for Esterification of Oleic Acid. ACS Appl. Mater. Interfaces 2015, 7, 26767–26775. [Google Scholar] [CrossRef]
  36. Zawadzki, J. IR spectroscopy investigations of acidic character of carbonaceous films oxidized with HNO3 solution. Carbon 1981, 19, 19–25. [Google Scholar] [CrossRef]
  37. Momodu, D.; Madito, M.J.; Singh, A.; Sharif, F.; Karan, K.; Trifkovic, M.; Bryant, S.; Roberts, E.P. Mixed-acid intercalation for synthesis of a high conductivity electrochemically exfoliated graphene. Carbon 2021, 171, 130–141. [Google Scholar] [CrossRef]
  38. Yang, S.; Zhi, L.; Tang, K.; Feng, X.; Maier, J.; Müllen, K. Efficient Synthesis of Heteroatom (N or S)-Doped Graphene Based on Ultrathin Graphene Oxide-Porous Silica Sheets for Oxygen Reduction Reactions. Adv. Funct. Mater. 2012, 22, 3634–3640. [Google Scholar] [CrossRef]
  39. Thushari, I.; Babel, S. Sustainable utilization of waste palm oil and sulfonated carbon catalyst derived from coconut meal residue for biodiesel production. Bioresour. Technol. 2018, 248, 199–203. [Google Scholar] [CrossRef]
  40. Sun, K.; Jin, J.; Keiluweit, M.; Kleber, M.; Wang, Z.; Pan, Z.; Xing, B. Polar and aliphatic domains regulate sorption of phthalic acid esters (PAEs) to biochars. Bioresour. Technol. 2012, 118, 120–127. [Google Scholar] [CrossRef]
  41. Özer, E.T.; Güçer, Ş. Determination of some phthalate acid esters in artificial saliva by gas chromatography–mass spectrometry after activated carbon enrichment. Talanta 2011, 84, 362–367. [Google Scholar] [CrossRef] [PubMed]
  42. Castanheiro, J. Chitosan with Sulfonic Groups: A Catalyst for the Esterification of Caprylic Acid with Methanol. Polymers 2021, 13, 3924. [Google Scholar] [CrossRef] [PubMed]
  43. Huang, L.; Song, C.; Liu, Y.; Lin, H.; Ye, W.; Huang, H.; Lu, R.; Zhang, S. Enhancement of catalytic esterification by tuning molecular diffusion in sulfonated carbon. Microporous Mesoporous Mater. 2021, 318, 111024. [Google Scholar] [CrossRef]
  44. Agapay, R.C.; Liu, H.-C.; Ju, Y.-H.; Go, A.W.; Angkawijaya, A.E.; Nguyen, P.L.T.; Truong, C.T.; Quijote, K.L. Synthesis and Initial Evaluation of Solid Acid Catalyst Derived from Spent Coffee Grounds for the Esterification of Oleic Acid and Methanol. Waste Biomass Valorization 2021, 12, 4387–4397. [Google Scholar] [CrossRef]
  45. d’Alessandro, N.; Tonucci, L.; Bonetti, M.; Di Deo, M.; Bressan, M.; Morvillo, A. Oxidation of dibenzothiophene by hydrogen peroxide or monopersulfate and metal–sulfophthalocyanine catalysts: An easy access to biphenylsultone or 2-(2′-hydroxybiphenyl)sulfonate under mild conditions. New J. Chem. 2003, 27, 989–993. [Google Scholar] [CrossRef]
  46. Ma, X.; Liu, Y.; Du, L.; Zhou, J.; Markó, I.E. Post-functionalization of dibenzothiophene to functionalized biphenyls via a photoinduced thia-Baeyer-Villiger oxidation. Nat. Commun. 2020, 11, 914. [Google Scholar] [CrossRef]
  47. Mahmudov, K.T.; Kopylovich, M.N.; Guedes da Silva, M.F.C.; Pombeiro, A.J.L. Chalcogen bonding in synthesis, catalysis and design of materials. Dalton Trans. 2017, 46, 10121–10138. [Google Scholar] [CrossRef]
  48. Vogel, L.; Wonner, P.; Huber, S.M. Chalcogen Bonding: An Overview. Angew. Chem. 2019, 131, 1896–1907. [Google Scholar] [CrossRef]
  49. Lewis, T.; Winter, B.; Stern, A.C.; Baer, M.D.; Mundy, C.J.; Tobias, D.J.; Hemminger, J.C. Dissociation of Strong Acid Revisited: X-ray Photoelectron Spectroscopy and Molecular Dynamics Simulations of HNO3 in Water. J. Phys. Chem. B 2011, 115, 9445–9451. [Google Scholar] [CrossRef]
  50. Bagherzadeh, M.; Zare, M. Oxidation of sulfides with urea–hydrogen peroxide catalyzed by iron–salen complexes. J. Sulfur Chem. 2011, 32, 335–343. [Google Scholar] [CrossRef]
  51. Shi, X.; Ren, X.; Ren, Z.; Li, J.; Wang, Y.; Yang, S.; Gu, J.; Gao, Q.; Huang, G. Iron(III)-Catalyzed Aerobic Oxidation and Cleavage/Formation of a C-S Bond. Eur. J. Org. Chem. 2014, 2014, 5083–5088. [Google Scholar] [CrossRef]
  52. Radovic, L.R.; Mora-Vilches, C.V.; Salgado-Casanova, A.J.A.; Buljan, A. Graphene functionalization: Mechanism of carboxyl group formation. Carbon 2018, 130, 340–349. [Google Scholar] [CrossRef]
  53. Oliveira, J.F.G.; Lucena, I.L.; Saboya, R.M.A.; Rodrigues, M.L.; Torres, A.E.B.; Fernandes, F.A.N.; Cavalcante, C.L.; Parente, E.J.S. Biodiesel production from waste coconut oil by esterification with ethanol: The effect of water removal by adsorption. Renew. Energy 2010, 35, 2581–2584. [Google Scholar] [CrossRef]
  54. Zhang, L.-W.; Fu, H.-B.; Zhu, Y.-F. Efficient TiO2 Photocatalysts from Surface Hybridization of TiO2 Particles with Graphite-like Carbon. Adv. Funct. Mater. 2008, 18, 2180–2189. [Google Scholar] [CrossRef]
  55. Vieira, F.; Cisneros, I.; Rosa, N.G.; Trindade, G.M.; Mohallem, N.D.S. Influence of the natural flake graphite particle size on the textural characteristic of exfoliated graphite used for heavy oil sorption. Carbon 2006, 44, 2590–2592. [Google Scholar] [CrossRef]
  56. Jawhari, T.; Roid, A.; Casado, J. Raman spectroscopic characterization of some commercially available carbon black materials. Carbon 1995, 33, 1561–1565. [Google Scholar] [CrossRef]
  57. Cortright, R.D.; Dumesic, J.A. Kinetics of heterogeneous catalytic reactions: Analysis of reaction schemes. Adv. Catal. 2001, 46, 161–264. [Google Scholar] [CrossRef]
  58. Zhang, Q.; Liu, X.; Yang, T.; Yue, C.; Pu, Q.; Zhang, Y. Facile synthesis of polyoxometalates tethered to post Fe-BTC frameworks for esterification of free fatty acids to biodiesel. RSC Adv. 2019, 9, 8113–8120. [Google Scholar] [CrossRef]
  59. Frisch, M.J.; Trucks, G.W.; Schlegel, H.B.; Scuseria, G.E.; Robb, M.A.; Cheeseman, J.R.; Montgomery, J.A.; Vreven, T.K.N.; Kudin, K.N.; Burant, J.C.; et al. Gaussian 09 Revision A.1; Gaussian Inc.: Wallingford, CT, USA, 2009. [Google Scholar]
  60. Iversen, K.J.; Wilson, D.J.D.; Dutton, J.L. Comparison of the Mechanism of Borane, Silane, and Beryllium Hydride Ring Insertion into N-Heterocyclic Carbene C–N Bonds: A Computational Study. Organometallics 2013, 32, 6209–6217. [Google Scholar] [CrossRef]
  61. Zhao, Y.; Truhlar, D.G. Exploring the Limit of Accuracy of the Global Hybrid Meta Density Functional for Main-Group Thermochemistry, Kinetics, and Noncovalent Interactions. J. Chem. Theory Comput. 2008, 4, 1849–1868. [Google Scholar] [CrossRef]
  62. Wood, G.P.F.; Sreedhara, A.; Moore, J.M.; Trout, B.L. Reactions of Benzene and 3-Methylpyrrole with the OH and OOH Radicals: An Assessment of Contemporary Density Functional Theory Methods. J. Phys. Chem. A 2014, 118, 2667–2682. [Google Scholar] [CrossRef] [PubMed]
  63. Peng, C.; Ayala, P.Y.; Schlegel, H.B.; Frisch, M.J. Using redundant internal coordinates to optimize equilibrium geometries and transition states. J. Comput. Chem. 1996, 17, 49–56. [Google Scholar] [CrossRef]
  64. Ternero-Hidalgo, J.J.; Rosas, J.M.; Palomo, J.; Valero-Romero, M.J.; Rodríguez-Mirasol, J.; Cordero, T. Functionalization of activated carbons by HNO3 treatment: Influence of phosphorus surface groups. Carbon 2016, 101, 409–419. [Google Scholar] [CrossRef]
  65. Mendes, P.; Belloni, M.; Ashworth, M.; Hardy, C.; Nikitin, K.; Fitzmaurice, D.; Critchley, K.; Evans, S.; Preece, J. A Novel Example of X-ray-Radiation-Induced Chemical Reduction of an Aromatic Nitro-Group-Containing Thin Film on SiO2 to an Aromatic Amine Film. Chem. Phys. Chem. 2003, 4, 884–889. [Google Scholar] [CrossRef] [PubMed]
  66. Rezende, M.J.C.; Pinto, A.C. Esterification of fatty acids using acid-activated Brazilian smectite natural clay as a catalyst. Renew. Energy 2016, 92, 171–177. [Google Scholar] [CrossRef]

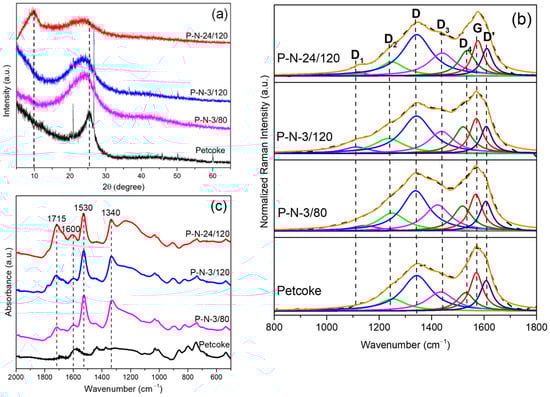

Figure 1. Physical and chemical characterization of petcoke and nitric acid treated petcoke samples. (a) XRD patterns; (b) Raman spectra; (c) FTIR spectra.
Figure 1. Physical and chemical characterization of petcoke and nitric acid treated petcoke samples. (a) XRD patterns; (b) Raman spectra; (c) FTIR spectra.
Molecules 28 07051 g001

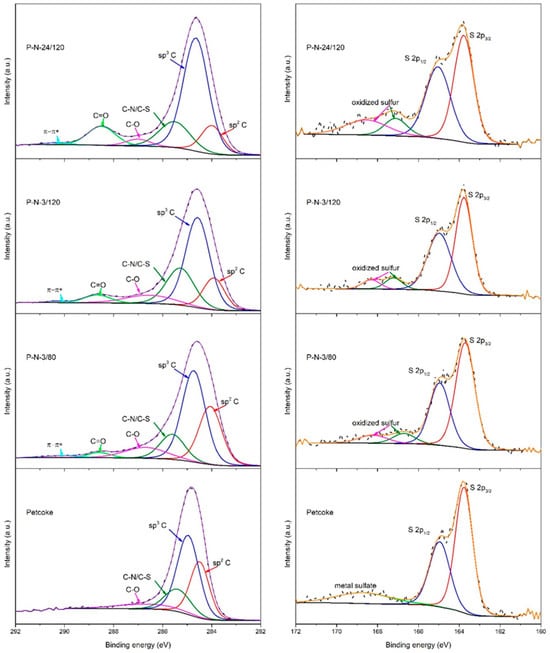

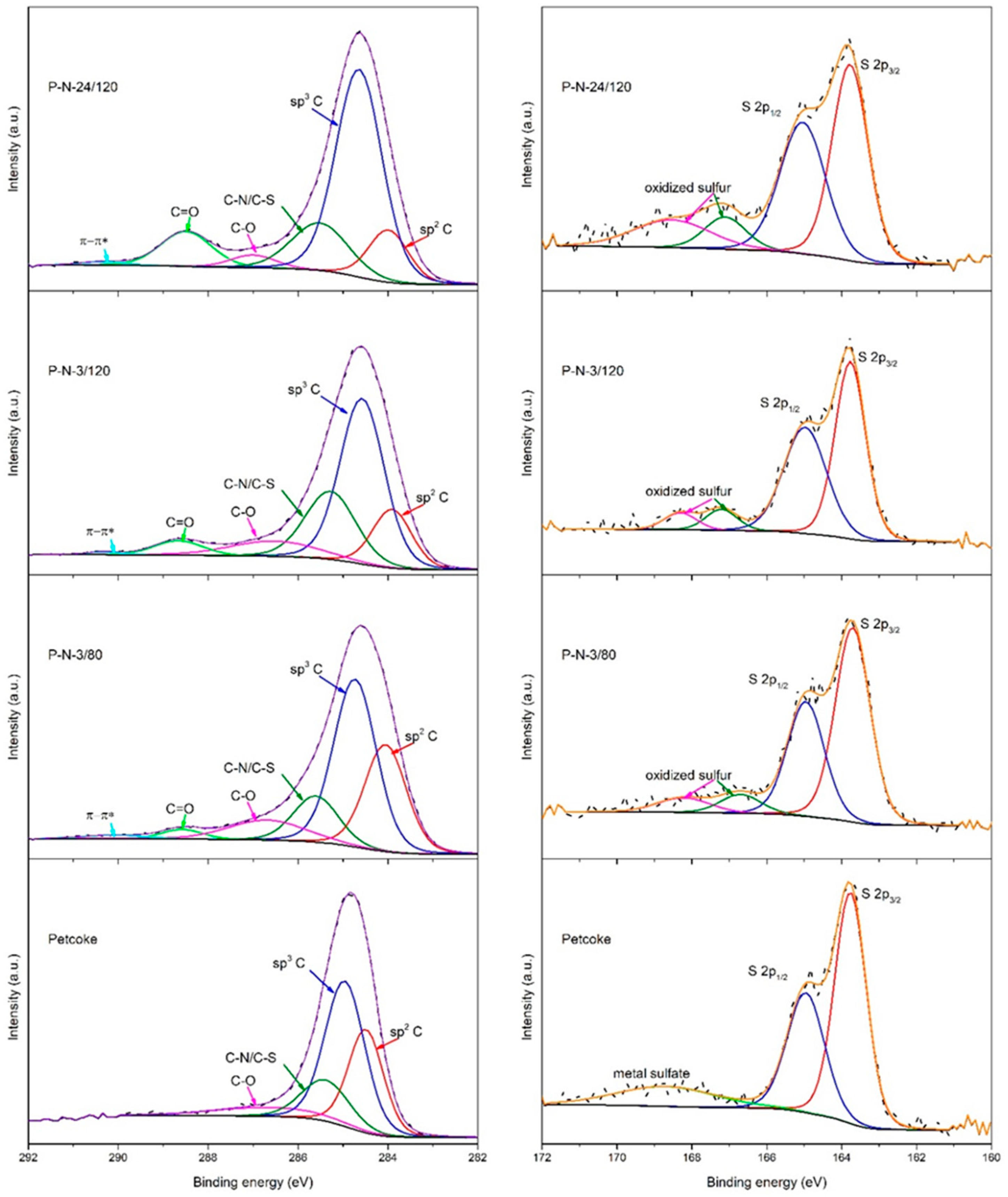

Figure 2. Deconvoluted high-resolution XPS spectra for petcoke and nitric acid modified samples: C1s (left) and S2p (right).
Figure 2. Deconvoluted high-resolution XPS spectra for petcoke and nitric acid modified samples: C1s (left) and S2p (right).
Molecules 28 07051 g002

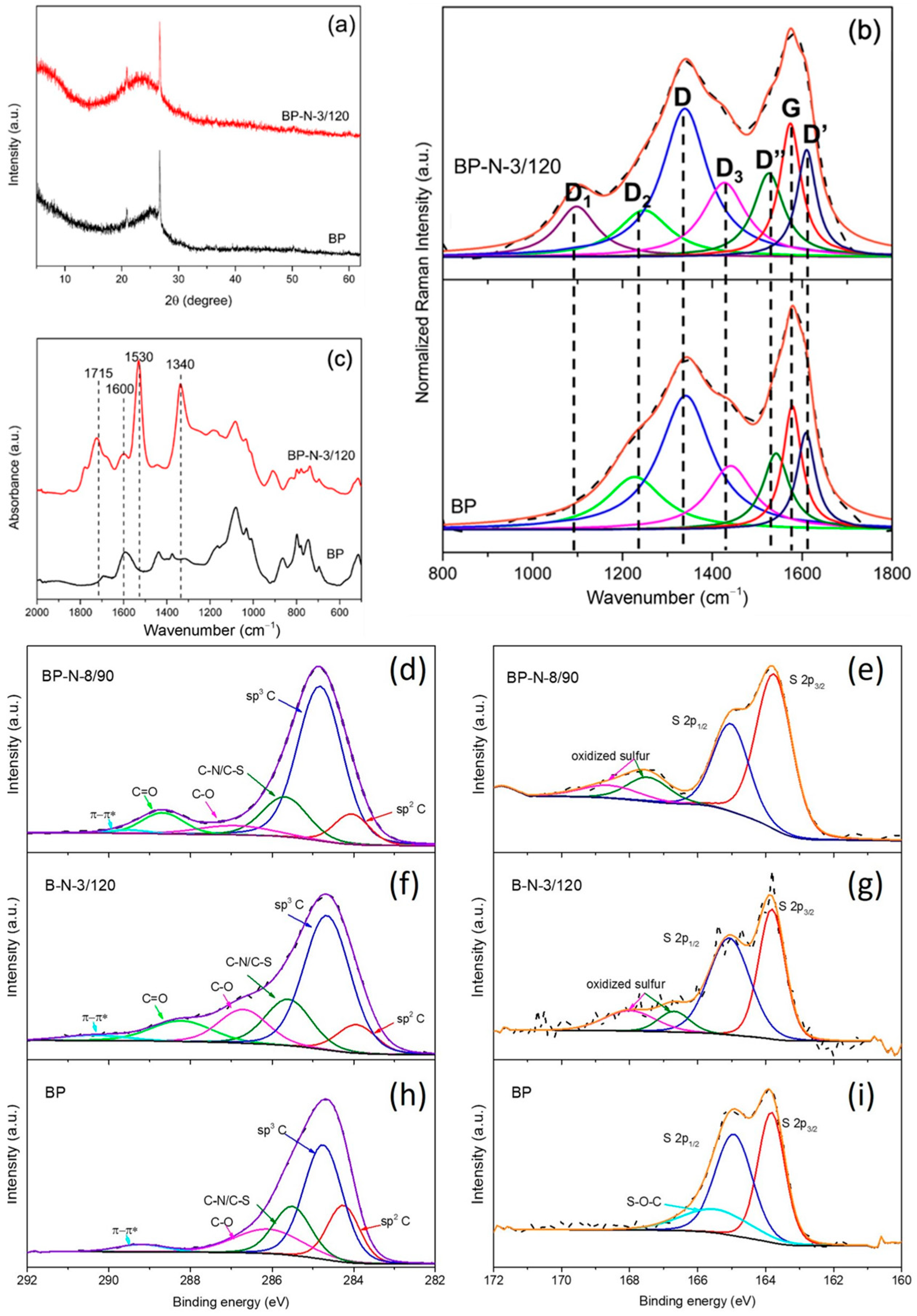

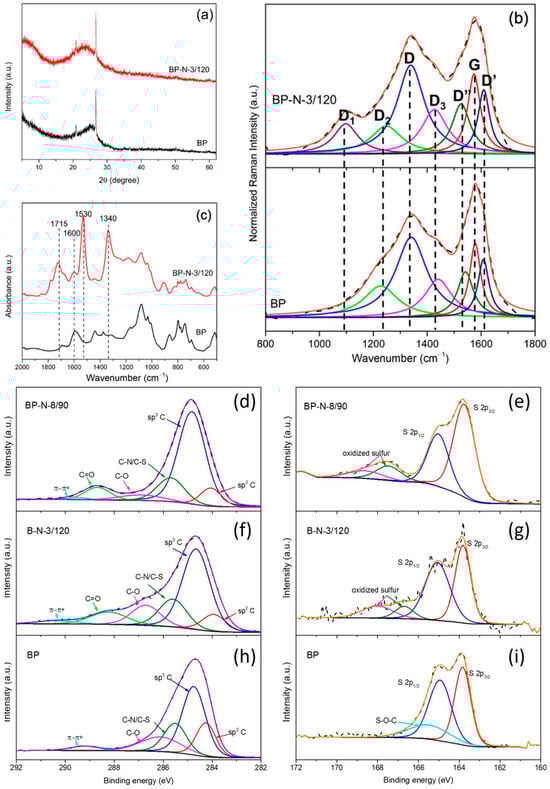

Figure 3. Physical and chemical characterization of ball-milled petcoke (BP) and nitric acid modified ball-milled petcoke (BP-N-3/120 and BP-N-8/90): (a) XRD patterns; (b) FTIR spectra; (c) Raman spectra; and (di) deconvoluted high-resolution XPS spectra of C 1s (d,f,h) and S 2p (e,g,i).
Figure 3. Physical and chemical characterization of ball-milled petcoke (BP) and nitric acid modified ball-milled petcoke (BP-N-3/120 and BP-N-8/90): (a) XRD patterns; (b) FTIR spectra; (c) Raman spectra; and (di) deconvoluted high-resolution XPS spectra of C 1s (d,f,h) and S 2p (e,g,i).
Molecules 28 07051 g003

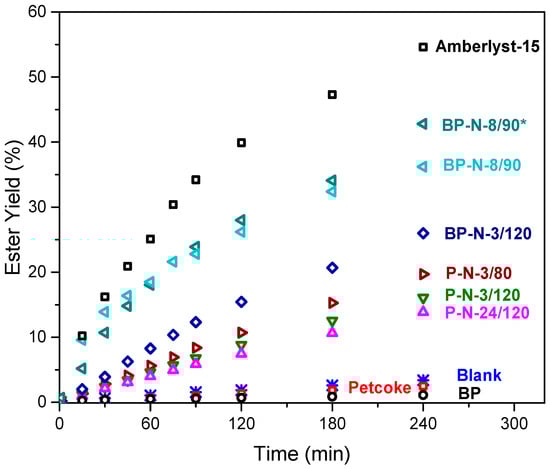

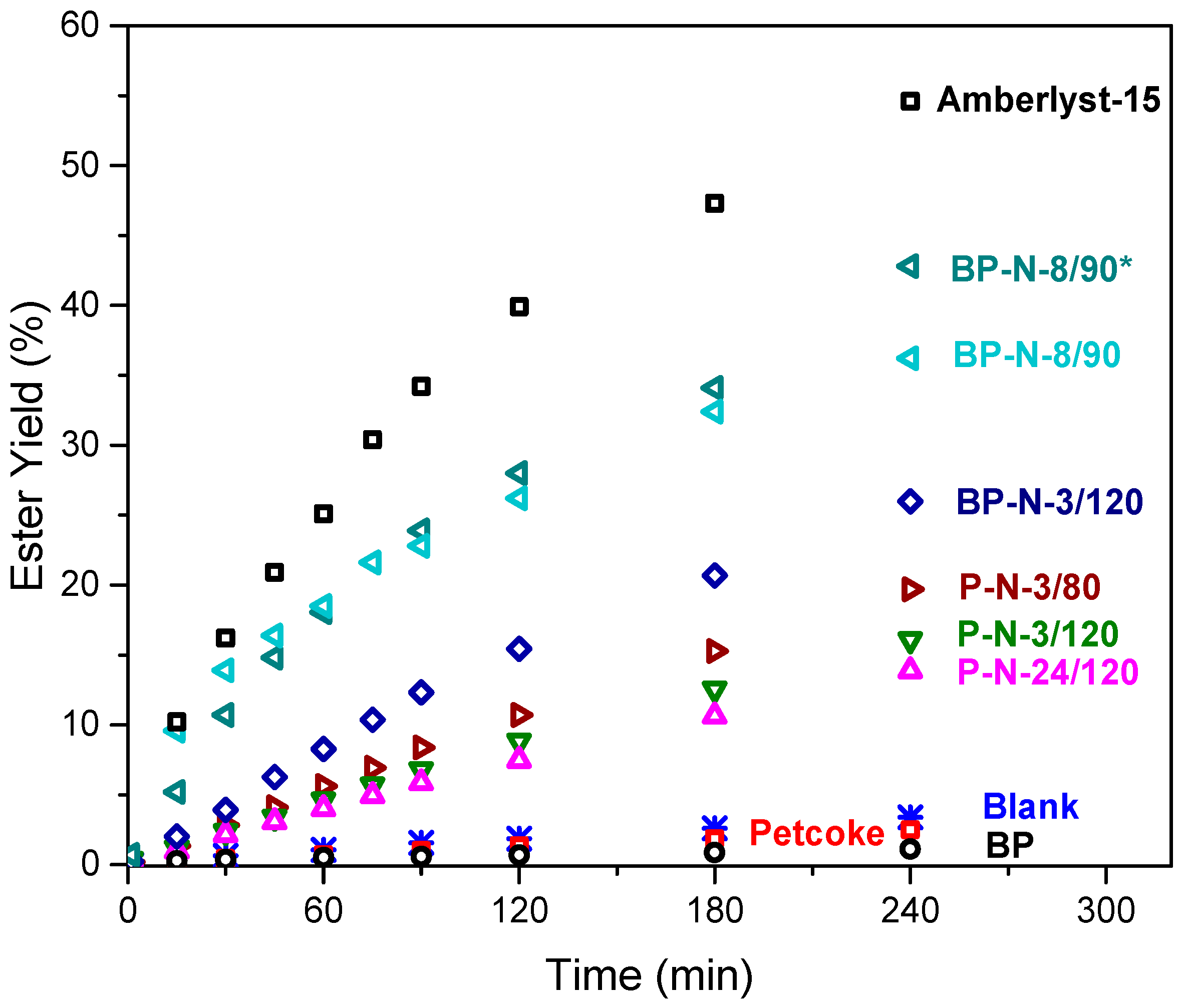

Figure 4. Esterification of octanoic acid using petcoke-derived catalysts. Reaction conditions: methanol: octanoic acid = 20:1 M ratio, 60 °C, 800 rpm, 5 wt% of catalyst. * methanol: octanoic acid = 10:1 M ratio.
Figure 4. Esterification of octanoic acid using petcoke-derived catalysts. Reaction conditions: methanol: octanoic acid = 20:1 M ratio, 60 °C, 800 rpm, 5 wt% of catalyst. * methanol: octanoic acid = 10:1 M ratio.
Molecules 28 07051 g004

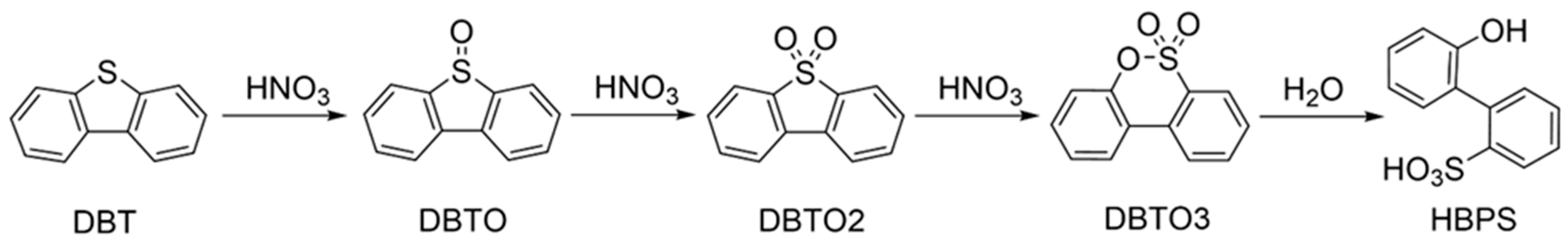

Figure 5. Possible general reaction pathway for the oxidation of DBT.
Figure 5. Possible general reaction pathway for the oxidation of DBT.
Molecules 28 07051 g005

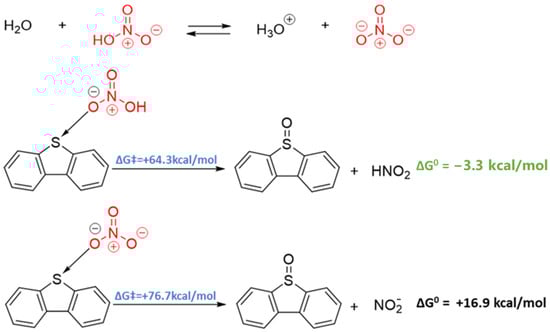

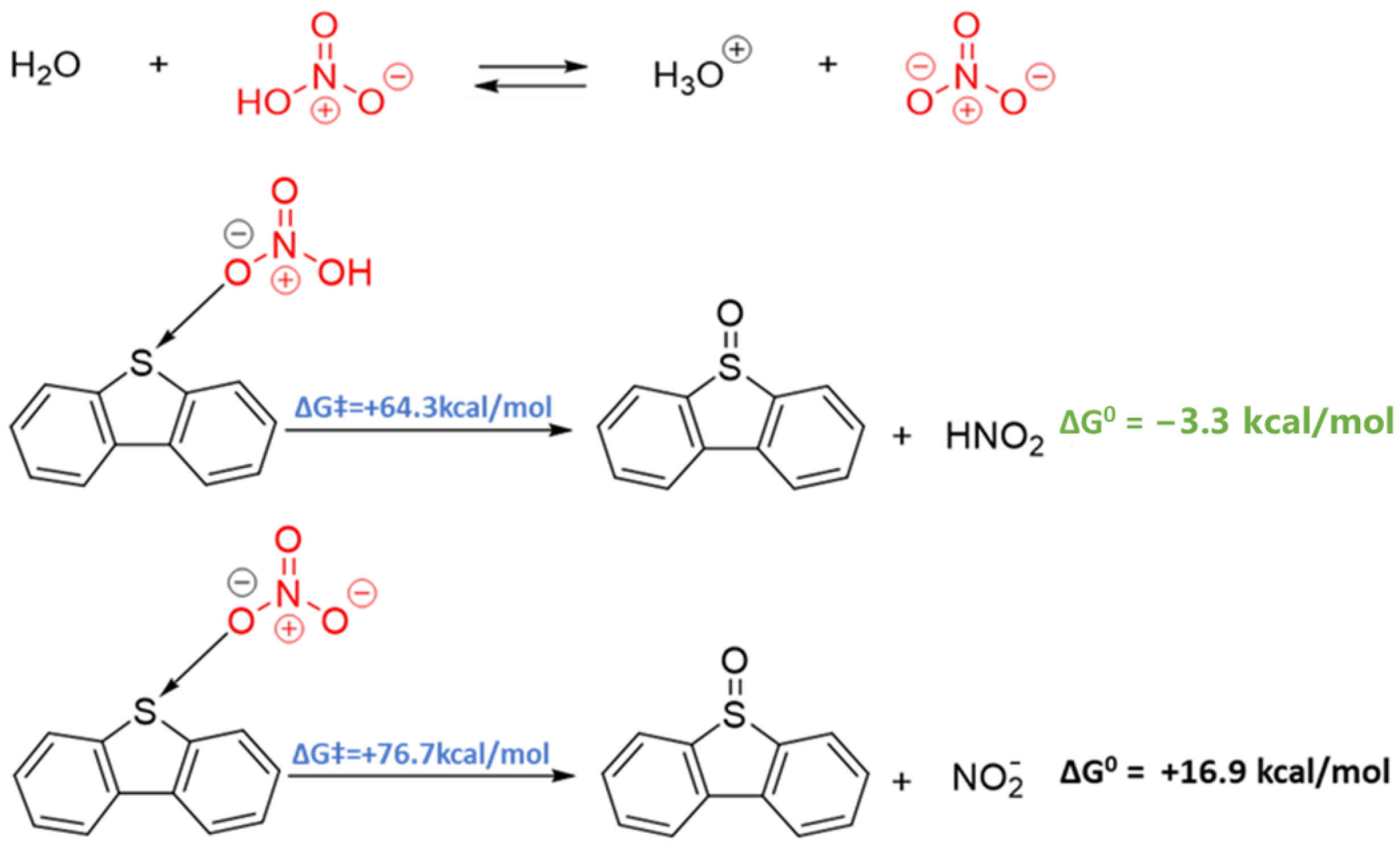

Figure 6. Reaction profile for the comparison of DBT reacted with nitric acid and nitrate anion.
Figure 6. Reaction profile for the comparison of DBT reacted with nitric acid and nitrate anion.
Molecules 28 07051 g006

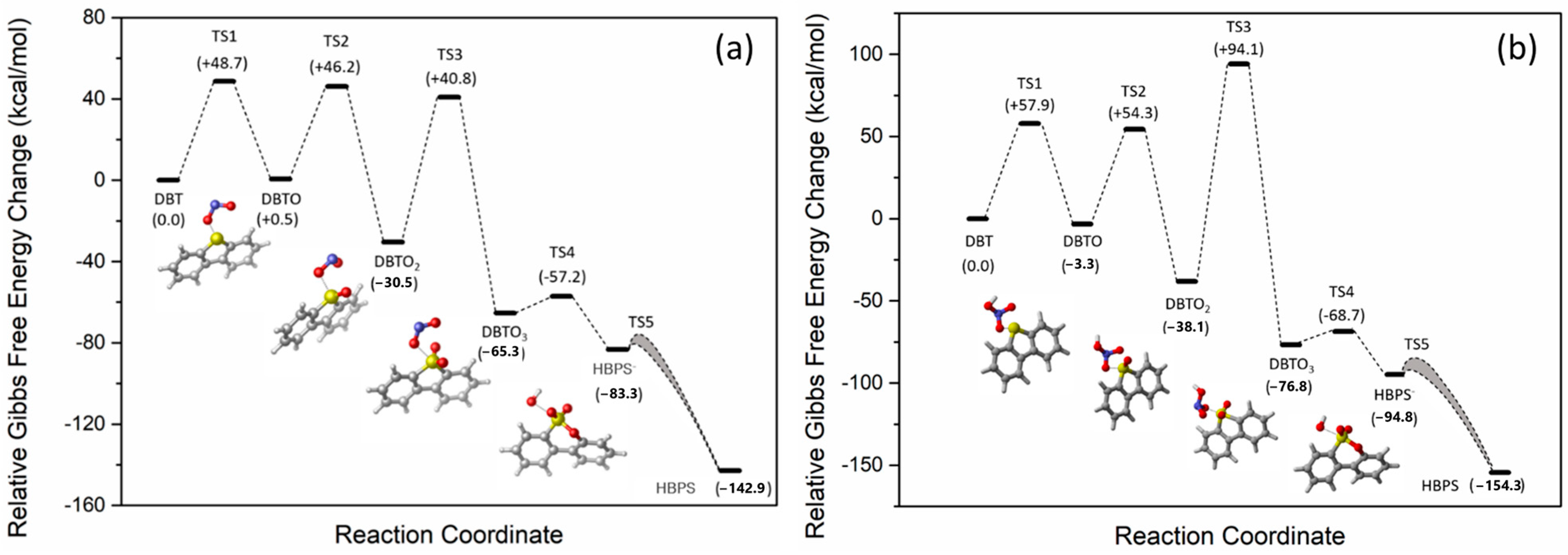

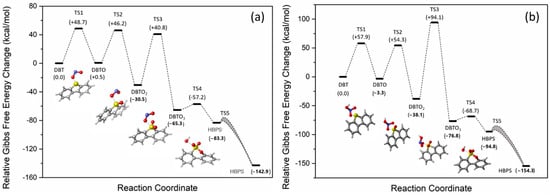

Figure 7. Energy diagram of DBT oxidized by (a) NO2• and (b) HNO3 at 25 °C. Sulfur, Nitrogen, Oxygen, Hydrogen and Carbon are represented by yellow, blue, red, white and gray atoms respectively.
Figure 7. Energy diagram of DBT oxidized by (a) NO2• and (b) HNO3 at 25 °C. Sulfur, Nitrogen, Oxygen, Hydrogen and Carbon are represented by yellow, blue, red, white and gray atoms respectively.
Molecules 28 07051 g007
Table 1. Summary of structural properties determined by XRD and Raman for petcoke before and after functionalization with nitric acid.
Table 1. Summary of structural properties determined by XRD and Raman for petcoke before and after functionalization with nitric acid.
d 002  1 (nm)Lc 2 (nm)La 3 (nm)ID/IGID2/IGID3/IGID4/IGID’/IGSurface Area 4 (m2/g)Pore Volume 4 (cm3/g)
1 Calculated from Bragg’s law; 2 Calculated from Scherrer equation; 3 Calculated from Tuinstra and Koening’s relationship; 4 Based CO2 adsorption.
Table 2. Surface chemical properties of petcoke before and after various acid treatments.
Table 2. Surface chemical properties of petcoke before and after various acid treatments.
SampleElemental Analysis (at%) 1Acidity (mmol/g)Aromatic
Hydrogen (mmol/g) 3
CONSO/CS/C−SO3H 1Total 2 Ester Yield 4 (%)TOF (h−1)
Petcoke74.518. 50.34 (0.01)1.5 (0.1)2.5- 7
P-N-3/8073.619. (0.09)1.1 (0.1)19.7114
P-N-3/12072.521. (0.16)1.1 (0.1)16.1105
P-N-24/12068.526. (0.23)0.9 (0.1)13.964
BP73.920. (0.03)2.1 (0.2)1.1- 7
BP-N-3/12069.723. (0.28)2.0 (0.2)26.0114
BP-N-8/9064. (0.08)1.7 (0.2)36.2/42.8 6143
1 Estimated from XPS results; 2 Estimated by Boehm titration, the values in brackets are the standard deviations determined from three samples; 3 Estimated by FTIR analysis (ATR), the values in brackets are the standard deviations determined from three samples; 4 after 4 h; 5 nd: not detected; 6 methanol: octanoic acid molar ratio 10:1, 7 TOF could not be calculated for materials without −SO3H acidity.
Disclaimer/Publisher’s Note: The statements, opinions and data contained in all publications are solely those of the individual author(s) and contributor(s) and not of MDPI and/or the editor(s). MDPI and/or the editor(s) disclaim responsibility for any injury to people or property resulting from any ideas, methods, instructions or products referred to in the content.

Share and Cite

MDPI and ACS Style

Huang, Q.; Cabral, N.M.; Tong, X.; Schafranski, A.S.; Kennepohl, P.; Hill, J.M. Preparation of Carbon-Based Solid Acid Catalyst from High-Sulfur Petroleum Coke with Nitric Acid and Ball Milling, and a Computational Evaluation of Inherent Sulfur Conversion Pathways. Molecules 2023, 28, 7051.

AMA Style

Huang Q, Cabral NM, Tong X, Schafranski AS, Kennepohl P, Hill JM. Preparation of Carbon-Based Solid Acid Catalyst from High-Sulfur Petroleum Coke with Nitric Acid and Ball Milling, and a Computational Evaluation of Inherent Sulfur Conversion Pathways. Molecules. 2023; 28(20):7051.

Chicago/Turabian Style

Huang, Qing, Natalia M. Cabral, Xing Tong, Annelisa S. Schafranski, Pierre Kennepohl, and Josephine M. Hill. 2023. "Preparation of Carbon-Based Solid Acid Catalyst from High-Sulfur Petroleum Coke with Nitric Acid and Ball Milling, and a Computational Evaluation of Inherent Sulfur Conversion Pathways" Molecules 28, no. 20: 7051.

Article Metrics

Back to TopTop
