Article

Ultrafine Co-Species Interspersed g-C3N4 Nanosheets and Graphene as an Efficient Polysulfide Barrier to Enable High Performance Li-S Batteries

by
Shanxing Wang
1,2,†,
Xinye Liu
2,† and
Yuanfu Deng
2,3,*
1
School of Chemistry and Materials Engineering, Huizhou University, Huizhou 516007, China
2
The Key Laboratory of Fuel Cell Technology of Guangdong Province, School of Chemistry and Chemical Engineering, South China University of Technology, Guangzhou 510640, China
3
Electrochemical Energy Engineering Research Center of Guangdong Province, South China University of Technology, Guangzhou 510640, China
*
Author to whom correspondence should be addressed.
†
These authors contributed equally to this work.
Molecules 2023, 28(2), 588; https://doi.org/10.3390/molecules28020588
Submission received: 22 November 2022 / Revised: 8 December 2022 / Accepted: 22 December 2022 / Published: 6 January 2023
(This article belongs to the Special Issue Li-Ion Battery Materials)
Browse Figures
Versions Notes

Abstract

:
Lithium-sulfur (Li-S) batteries are regarded as one of the promising advanced energy storage systems due to their ultrahigh capacity and energy density. However, their practical applications are still hindered by the serious shuttle effect and sluggish reaction kinetics of soluble lithium polysulfides. Herein, g-C3N4 nanosheets and graphene decorated with an ultrafine Co-species nanodot heterostructure (Co@g-C3N4/G) as separator coatings were designed following a facile approach. Such an interlayer can not only enable effective polysulfide affinity through the physical barrier and chemical binding but also simultaneously have a catalytic effect on polysulfide conversion. Because of these superior merits, the Li-S cells assembled with Co@g-C3N4/G-PP separators matched with the S/KB composites (up to ~70 wt% sulfur in the final cathode) exhibit excellent rate capability and good cyclic stability. A high specific capacity of ~860 mAh g−1 at 2.0 C as well as a capacity-fading rate of only ~0.035% per cycle over 350 cycles at 0.5 C can be achieved. This bifunctional separator can even endow a Li-S cell at a low current density to exhibit excellent cycling capability, with a capacity retention rate of ~88.4% at 0.2 C over 250 cycles. Furthermore, a Li-S cell with a Co@g-C3N4/G-PP separator possesses a stable specific capacity of 785 mAh g−1 at 0.2 C after 150 cycles and a superior capacity retention rate of ~84.6% with a high sulfur loading of ~3.0 mg cm−2. This effective polysulfide-confined separator holds good promise for promoting the further development of high-energy-density Li-S batteries.

1. Introduction

With the sustained growth of energy density requirements in advanced portable electronic devices and electric vehicles, the development of a new generation of secondary batteries with high energy density is extremely demanded [1,2,3]. As a strong competitor, lithium-sulfur (Li-S) batteries have attracted tremendous attention due to their ultrahigh energy density of ~2600 Wh kg−1, and elemental sulfur also possesses multiple advantages of low cost, rich availability, and environmental friendliness [4]. Nevertheless, the practical applications of Li-S cells currently face several intrinsic challenges, such as the notorious shuttle effect and sluggish reaction kinetics of intermediate polysulfides. The shuttle effect is caused by the diffusion of polysulfides dissolved in electrolytes through the separator, which usually leads to irreversible capacity attenuation and poor Coulombic efficiency [5,6]. Even worse, the sluggish redox kinetics originated from the inherent multi-step solid–liquid–solid heterogeneous reaction mechanism inevitably begets the accumulation of various sulfur species instead of immediate conversion and then causes more diffusion behavior of polysulfides, ultimately resulting in low sulfur use and a short cycling lifespan [7].
To address the aforementioned issues, extensive efforts have been devoted to mitigate the intrinsic drawbacks. One of the most effective strategies is to design functional conductive carbonaceous materials for capturing sulfur/polysulfides, such as tuning the pore size and/or porosity (micropore, mesopore, etc.) [7,8,9], doping various heteroatoms (N, O, S, P, etc.) [10,11,12,13], and tailoring the morphology (CNTs, graphene, etc.) [14,15], which indeed achieves a positive effect on boosting the performance of Li-S cells, owing to the physical confinement or chemical adsorption of carbonaceous substances toward polysulfides. Nonetheless, the shuttle behavior of intrinsic soluble polysulfides in electrolytes can be only partially restricted because of the limited absorbability originated from the functional carbons for dissolved polysulfides, leading to unsatisfied cyclic stability over long-term cycling [16,17]. In addition, it can cause the accumulation of sulfur species due to their sluggish redox conversion kinetics on the carbonaceous matrixes, which thus easily results in the diffusion of intercepted polysulfides along cycling [16,18,19]. Impressively, it has been indicated that some metal-based additives introduced into carbon substrates play an important role in the chemical adsorption and/or catalytic conversion of intermediate polysulfides, such as metal oxides (Ti4O7, Nb2O5, etc.) [20,21], metal sulfides (CoS2, MoS2, etc.) [22,23], metal nitrides (MoN, VN, etc. [18,24]), and metal nanoparticles (Fe, Co, Ni, etc.) [16,25,26], synergistically expediting the reaction kinetics of polysulfides in the redox process. Unfortunately, the chemical interaction between sulfur species and some inorganics usually can be influenced significantly by the dimension and other physical nature of the inorganic additives, thus leading to the formation of a thick passivation layer on the surface of inorganics, especially under high sulfur areal loading and long-term cycling [27,28], which finally has an adverse impact on the performance of Li-S cells under long-term cycling conditions. Therefore, it is of great importance to elaborate suitable metal-based additives with chemisorption polysulfides and timely accelerating their conversion to Li2S during the redox reaction.
Specifically, recent studies have demonstrated that tailoring metal compounds to an ultra-small size, such as nanocrystals, nanodots, and clusters, and even to the single-atomic scale could generate strong adsorption and excellent catalytic activity for polysulfides, owing to enhanced surface energy and more active terminations [16,29,30,31]. However, it is a great challenge to fabricate highly dispersed ultrafine metal compounds because the isolated ultra-small particles with high surface energy can susceptibly agglomerate into big particles in the synthesis process. Various strategies have been explored to minimize the agglomeration of isolated ultrafine particles; to this end, the most common approach is to restrict the further growth of nanocrystals by functional support and pore size confinement [32,33,34,35]. For example, Liu et al. designed highly dispersed TiO2 nanoparticles anchored onto Co-nanoparticle-decorated carbon polyhedras derived from ZIF-67 (C-Co/TiO2) as a sulfur host. The as-prepared S@C-Co/TiO2 cathode exhibited enhanced discharge capacity and long cycling capability due to the stronger chemisorption of C-Co/TiO2 for polysulfides [35]. Recently, Zhang et al. successfully fabricated MoP-quantum-dot-modified N, P-carbon nanotubes (MPQ@NP-HCNT) as a multifunctional modification layer for the Li-S separator. As a result, MoP quantum dots had a large adsorption energy for S8 and Li2Sn and improved the kinetics of the subsequent Li2S reaction simultaneously [36]. Such impressive results can give some guidance to rationally design an ultra-small-size adsorber/catalyst for polysulfides within carbonaceous matrix composites. However, there are some drawbacks, especially in the preparation of precursors, such as expensive reagents, harsh reaction conditions, and synthetic complexity, which have become a major hindrance to their large-scale commercial applications. Consequently, designing a feasible synthesis strategy with advantages of a simple procedure and low cost for fabrication of new ultra-small-size metal compounds coupled with a carbon matrix is urgently demanded.
Considering these issues, herein, we successfully fabricated highly dispersed ultrafine-Co-species-nanodot-interspersed g-C3N4 nanosheets and graphene composites (Co@g-C3N4/G) as separator coating materials using a facile and cost-effective method—pyrolysis of a mixed precursor consisting of g-C3N4, CoCl2·6H2O, and graphene oxide (GO) mixture. In this design, g-C3N4 could partially decompose to realize the reduction of GO, while serving as a template to leave some pores during calcination treatment [37,38]. Within the Co@g-C3N4/G products, the residual g-C3N4, graphene, and ultrafine Co-species could form a unique heterostructure attributed to the intimate interface interactions between graphene and g-C3N4, both with the 2D structure of nanosheets [39,40]. Hence, graphene here acted as an ideal platform for electron transfer between the residual g-C3N4 and the catalytic Co-species in the heterostructure. This heterostructural composite as a separator-modified layer can not only enable effective chemisorption toward polysulfides but also catalyze the conversion of intercepted polysulfides. As a result, the assembled Li-S cells using Co@g-C3N4/G-PP separators paired with a high-sulfur-content electrode (~70 wt%) exhibit excellent rate capability and good cyclic stability. A high specific capacity of ~860 mAh g−1 at 2.0 C as well as a capacity-fading rate of only ~0.035% per cycle over 350 cycles at 0.5 C can be achieved. This bifunctional separator can even endow a Li-S cell at a low current density to exhibit excellent cycling capability, with a capacity retention rate of ~88.4% at 0.2 C over 250 cycles. Furthermore, a Li-S cell with a Co@g-C3N4/G-PP separator possesses a stable specific capacity of 785 mAh g−1 at 0.2 C after 150 cycles and a superior capacity retention rate of ~84.6% with a high sulfur loading of ~3.0 mg cm−2.

2. Results and Discussion

2.1. Synthesis and Characterization of the Co@g-C3N4/G Heterostructure Composites

g-C3N4 was fabricated using a simple and low-cost strategy according to previous work. A schematic illustration of the synthesis process of Co@g-C3N4/G is shown in Scheme 1, that is, CoCl2·6H2O was dispersed into the GO suspensions, accompanied by the addition of as-prepared g-C3N4 by vigorous sonication to obtain a homogeneous precursor solution. As a result, the cobalt cations could be dispersed uniformly, enabled by the dual-anchoring effect of g-C3N4 and GO. This phenomenon can be attributed to the following two major aspects: (1) It has been authenticated that 2D g-C3N4 nanosheets can be as an ideal platform to trap transition metal/metal ions firmly on account of its abundant polygonal cavities and high-density N atoms, as well as electronegativity [41,42], and (2) the rich oxygen-containing functional groups (-OH, -COOH, etc.) grafted on the surface of graphene oxide could also in situ anchor metal cations under an aqueous solution state via the electrostatic force or coordination [43], namely implying that GO nanosheets can behave as a surfactant and thus uniformly disperse the anchored Co2+ ions effectively [44]. As expected, highly dispersed ultrafine-Co-species-nanodot-interspersed g-C3N4 nanosheets and graphene heterostructure nanocomposites were obtained eventually after calcination treatment.
The crystal structures of as-prepared samples were investigated using XRD, as shown in Figure 1a. A characteristic peak was observed at 26.5° in both CoO@G and G samples, and this peak was assigned to the C (002) diffraction peak [45]. Besides, the CoO@G sample had an extra peak at 42.4°, corresponding to the (200) crystal facet of CoO (JCPDS No. 75-0533) [46]. This was further confirmed from the magnified curve in the appointed region (Figure S2a). Moreover, it was easily found that the peak intensity (26.5°) of CoO@G was much stronger than that of the G sample, which is mostly attributed to the Co-species introduced to improve the structure orderliness of carbon at a relatively high temperature to some extent. In contrast, there were no characteristic peaks at 26.5° in both Co@g-C3N4/G and g-C3N4/G samples. This phenomenon may be attributed to the fact that some of the g-C3N4 in the g-C3N4/G and Co@g-C3N4/G precursor under thermal treatment was partially decomposed [37,38], and the decomposed product could destroy the structure of carbon and result in an amorphous structure. Furthermore, the Co atoms could bind the N atoms to construct Co–Nx bonds [47,48], implanting the Co@g-C3N4/G material. Thereby, these mutual effects enhance the disorder degree of obtained materials. In addition, there were no obvious diffraction peaks of Co-species in the Co@g-C3N4/G sample compared to CoO/G. The differences may be ascribed to the highly dispersed ultrafine Co-species in the final product, and thus, it is hard to detect a characteristic signal, evidencing that the addition of g-C3N4 nanosheets could effectively alleviate the aggregation of Co2+ cations under an aqueous solution state. In addition, the annealing temperature as an influencing factor in the formation of the structure and composition of the obtained Co@g-C3N4/G products was further investigated. As displayed in Figure 1b, three samples almost exhibited similar XRD patterns at the corresponding temperature. However, an extra diffraction peak appeared at ~43.7° after calcination at 600 °C (red line in Figure 1b), corresponding to the (220) crystal plane of Co [46]. This result may be attributed to the heavy aggregation of metallic Co nanoparticles with the rise in the calcination temperature, thereby leading to the formation of large-size particles, displaying a distinct diffraction peak in the XRD pattern. Therefore, we could deduce that a minor feature of Co-species in the final products at a relatively low temperature was achieved, meanwhile giving rise to strong chemical adsorption/catalyzation conversion toward polysulfides due to enhanced surface energy and abundant active sites [29,31].
The Raman spectra of the three samples at different temperatures were also investigated, as displayed in Figure 1c. In each Raman spectrum, two apparent peaks could be seen at 1350 cm−1 and 1590 cm−1, corresponding to the D-band (sp3-hybridized carbon) and G-band (sp2-hybridized carbon) [10,25]. Generally, the intensity ratio of the D band to the G band (ID/IG) is used to evaluate the graphitization degree of carbon-based materials. The ID/IG value significantly decreases with increasing calcination temperature, suggesting that a relatively high temperature could promote the graphitization of graphene.
The porous properties of the as-prepared samples were investigated using the N2 adsorption–desorption test at 77 K. The shape of the isotherms for the g-C3N4 and Co@g-C3N4/G samples were similar (Figure 1d and Figure S2b), that is, a certain amount of adsorption volume at a low relative pressure (P/P0 = 0.01–0.20), a H3 hysteresis loop at a medium relative pressure (P/P0 = 0.50–0.80), and an obvious uptake tendency at a high relative pressure (P/P0 = 0.90–1.0). These observations imply that the two prepared samples possessed a hierarchical porous structure, with the coexistence of micropores, mesopores, and some accumulated macropores [16,42], which were further identified from their pore size distribution curves. In addition, it was observed that Co@g-C3N4/G exhibited a tiny adsorption capacity at a low relative pressure (P/P0 = 0.01–0.20) compared to the g-C3N4 sample, indicating a relatively low specific surface area. This remarkable difference in these two samples may be due to the unique heterostructure of the Co@g-C3N4/G sample. The specific surface areas of g-C3N4/G and Co@g-C3N4/G were 124.4 and 48.73 m2 g−1. In addition, the pore size of Co@g-C3N4/G was predominately situated at meso-macropores regions, as can be seen from its pore size distribution curve (inserted in Figure 1d), which is conducive to promoting electrolyte penetration and Li ion transport in the cycling process [10].
The micromorphology of the corresponding samples was characterized using SEM and TEM, as shown in Figure 2. The SEM images of g-C3N4 and the precursor are displayed in Figure S3 (see Supporting Information). The g-C3N4 sample exhibited a flower-like scrolled structure with numerous crumpling and scrolling nanosheets (Figure S3a). As for the dried precursor, some flower-like scrolled g-C3N4 uniformly dispersed on the surface of wrinkled bulk graphene oxide nanosheets was clearly observed (Figure S3b). After calcination treatment at 500 °C, there was some flower-like scrolled g-C3N4 (marked in red circle) and large-size sheet-like substance (a typical feature of rGO marked in the white curve in Figure 2a,d), suggesting the coexistence of g-C3N4 and graphene. As the temperature increased to 550 °C, some crumpled, sheet-like structure was mainly displayed instead of the flower-like scrolled morphology. Specifically, numerous wrinkled, intersected nanosheets with a number of pores were observed in Figure 2b,e, which is mostly attributed to the partial decomposition of g-C3N4 with increasing temperature, thus generating a number of pores during the carbonization process [38]. Figure 2c,f also present a typical large-size crumpled, sheet-like structure from a macro point of view after annealing at 600 °C. Therefore, it could be concluded that g-C3N4 partially decomposes to realize the reduction of GO, meanwhile acting as a template to leave some pores in the calcination process. The microstructure of g-C3N4/G is similar to that of the Co@g-C3N4/G sample, as can be seen from the SEM images in Figure S3c,d. To further confirm the existence of elements in the prepared samples, the SEM mapping of Co@g-C3N4/G (550 °C) was performed, as shown in Figure 2g,h. In the SEM mapping of Co@g-C3N4/G, the elemental mapping images of a selective region of Co@g-C3N4/G exhibited a homogeneous dispersion of C, N, and Co, indicating these elements could be uniformly distributed on the surface of the sheet using this facile strategy.
The fine microstructure of Co@g-C3N4/G after calcination at 550 °C was further investigated using TEM and high-resolution TEM (HRTEM) images (Figure 2i–k). A stacked layer-like structure with some wrinkles and no agglomeration of Co species was clearly observed (Figure 2i), mostly corresponding to the typical rGO matrix. Specifically, Figure 2j displays a number of macro-/mesopores distributed in the framework (marked in white circles), which is conducive to an improvement in electrolyte penetration and Li ion diffusion according to the previous reported literature [15]. From the high-resolution TEM image (Figure 2k), numerous ultra-small-size Co-based nanodots (red circles) uniformly dispersed in a carbon framework were observed. This phenomenon may be due to the dual-anchoring effect of g-C3N4 and graphene oxide for Co2+ ions in the preparation of a precursor, effectively preventing the aggregation of Co-species in the calcination process. These ultra-small Co-based species can significantly catalyze the polysulfide conversion due to their high surface energy and more active terminations [30,36].
Fourier-transform infrared spectroscopy (FT-IR) was conducted to investigate the chemical structures of the as-prepared composites (Figure 3a). The broad characteristic peaks located at ~3000–3500 cm−1 are indexed to the stretching vibrations of N-H from the marginal amino groups and O-H from the free adsorbed hydroxyl species [39,49]. Moreover, the adsorption peaks found at ~1200–1750 cm−1 for the g-C3N4 sample can be ascribed to the stretching vibrations of N-containing heterocycles [50]. Notably, a sharp peak was observed at ~808 cm−1 in g-C3N4, correlating with the typical tri-s-triazine ring vibration [39,50]. In the spectrum of the G sample, the three peaks at ~1632, 1565, and 1200 cm−1 corresponded to the stretching vibrations of C=O, C=C, and C-O, respectively [51]. For the Co@g-C3N4/G composites, most of the characteristic peaks of N-containing heterocycles generated from residual g-C3N4 were overlapped by graphene, while only a peak at ~1575 cm−1 referred to g-C3N4 still reappeared. These results indicate that some g-C3N4 in the Co@g-C3N4/G precursor under thermal treatment is partially decomposed, which is consistent with the previous result in [37,38]. To further determine the surface chemical state for the as-prepared samples, X-ray photoelectron spectroscopy (XPS) was performed. It was seen that two samples exhibited three distinct peaks at ~285.0, 399.1, and 533.1 eV (Figure 3b), corresponding to C 1s, N 1s, and O 1s, respectively. Furthermore, a Co 2p signal located at 781.5 eV was observed in the spectrum of the Co@g-C3N4/G sample. The corresponding atom ratios of the three samples (including the pure g-C3N4 originated from our recent work [42]) are listed in Table S1. Especially, the peak intensity of N 1s for the Co@g-C3N4/G and g-C3N4/G samples decreased sharply compared with that in the pure g-C3N4 sample (Figure S4). This significant difference is also recognized in Table S1, with the N atom ratios for the Co@g-C3N4/G (~7.12 at%), g-C3N4/G (~8.7 at%), and g-C3N4 (~75.02 at%) samples. According to other reported analogous g-C3N4/graphene composites [37,49], it can be further speculated that the added limited g-C3N4 in the precursor is decomposed partly under carbonization treatment. The N 1s XPS peak for the g-C3N4/G sample can be deconvoluted into four peaks (Figure 3c), which are indexed to pyridinic N (~398.5 eV), pyrrolic N (~399.9 eV), graphitic N (~401.2 eV), and oxidized N (~402.8 eV) [37,51], respectively. As for the Co@g-C3N4/G sample, all the fitted peaks for the high-resolution N 1s spectra had a slight shift toward higher binding energies, suggesting that some of the Co atoms in Co@g-C3N4/G bound with N atoms to form Co–Nx bonds [52,53]. It needs to be pointed out that these predominant pyridinic and pyrrolic nitrogen atoms have abundant chemisorption sites for polysulfides [16,25] and that the Co–Nx bonds can act as electrocatalytic centers for polysulfide adsorption/conversion [52,54], thus propelling the redox kinetics of sulfur species. The fitted high-resolution Co 2p spectrum in the Co@g-C3N4/G sample included four peaks (Figure 3d), which are assigned to the respective Co 2p3/2 (~781.1 eV), Co 2p3/2 satellite (~785.9 eV), Co 2p1/2 (~796.9 eV), and Co 2p1/2 satellite (~803.2 eV) [55]. Interestingly, the characteristic peaks of Co 2p3/2 (Co 2p1/2) are exactly situated between Co0 2p3/2 (Co0 2p1/2) and Co2+ 2p3/2 (Co2+ 2p1/2), indicating a cationic environment of Co species [54,55,56,57]. These results further reveal that a certain number of Co atoms in yjr Co@g-C3N4/G sample were prone to coordinating with N atoms to construct Co–Nx structures.

2.2. Visible Adsorption Experiments of Prepared Materials toward Li2S6 Solutions and Morphologies of g-C3N4/G- and Co@g-C3N4/G -PP Separators

To better verify the capturing ability of Co@g-C3N4/G toward polysulfides, visible Li2S6 solution entrapment experiments were carried out and are shown in Figure 4a. First, host materials with the same mass (10 mg) were added independently to the prepared Li2S6 solution (2 mL) for static adsorption tests. The color of the Li2S6 solutions visibly changed from orange-yellow to slight yellow after standing for 6 h of adsorption in the bottle containing the Co@g-C3N4/G material. However, almost no color change in the bottle containing g-C3N4/G was observed compared to the blank Li2S6 solution. Even the color of Li2S6 solutions absorbed by the g-C3N4/G material looked rufous, which may be due to the mapping of black material at the bottom of the bottle. This phenomenon indicates that the Co@g-C3N4/G material has stronger adsorption ability toward polysulfides, further showing that Co@g-C3N4/G can effectively anchor intermediate polysulfide species by the synergistic effect of physical adsorption and chemical interaction [42,58]. Considering the unique affinity of Co@g-C3N4/G toward polysulfides, the Co@g-C3N4/G material was then used to modify the conventional PP separator for the improvement of electrochemical performance in Li-S cells. The modified separators were obtained using the vacuum-filtering method. In the optical images of functional separators using different coated materials (Figure 4b), an integrated modification layer without any detectable defect was seen, indicating the modified materials adhered well to the surface of the fresh separator. Scanning electron microscopy (SEM) was performed to further characterize the surface and cross-section morphologies of the modification layer. Evidently, the surface of the conventional PP separator in Figure 4c showed a typical macroporous feature, which easily led to the free diffusion of polysulfides across the separator. After introducing the Co@g-C3N4/G modification layer on the pristine PP separator, the macropores in the original PP separator were fully covered by the Co@g-C3N4/G material (Figure 4d). Moreover, this still maintained an obvious large-size sheet-like morphology of the predominate graphene in the coating layer, with some big voids between the interlaced lamellae, as shown in Figure 4e. This unique sheet-like structure can exactly act as a physical barrier to block the migration of polysulfides, and the interlaced voids are beneficial to electrolyte penetration and Li ion transport. In addition, the cross-sectional SEM image (Figure 4f) of the modified separator shows that the Co@g-C3N4/G interlayer attached well to the surface of the fresh PP separator, as well as having a thickness of ~20 um.

2.3. Electrochemical Performance of Li-S Batteries with the Modified Separators

For the Co@g-C3N4/G material calcined at different temperatures, it was found that there was an obvious difference in the component and micromorphology based on our analyses. First, the performances of Li-S cells assembled with different Co@g-C3N4/G-PP separators were investigated. The electrochemical performances were tested using CR2016-type coin cells prepared by the corresponding separators and S/KB cathodes with a final sulfur content up to ~70 wt%. Figure 5a presents the rate properties of the corresponding Li-S cells recorded at various rates from 0.2 to 2.0 C. The cell using the Co@g-C3N4/G-PP (550 °C) separator delivered discharge-specific capacities of 1213, 1020, 935, and 860 mAh g−1 at a 0.2, 0.5, 1.0, and 2.0 C rate, respectively, suggesting an excellent rate property. Moreover, a reversible capacity of 1149 mAh g−1 was well recovered when the current density switched back to 0.2 C, demonstrating an effective confinement ability toward sulfur species at a high rate. In comparison, the cells with the other two functional separators exhibited inferior rate capabilities. Figure 5b and Figure S5 compare the voltage profiles of Li-S cells equipped with different separators under different current rates, and it can be observed that the cells with corresponding separators all retain a clear two-plateau discharge profile, even at a considerable rate of up to 2.0 C, but the capacities of both high- and low-voltage plateaus (QH and QL) for the cell with the Co@g-C3N4/G-PP (550 °C) separator are much higher than those of the other two controlled cells, especially at faster rates, revealing an effective capture and catalytic conversion capability of the Co@g-C3N4/G (550 °C) interlayer toward polysulfide species [59,60]. Long cycling tests of cells assembled with corresponding separators were also performed (Figure 5c), and the cell with the Co@g-C3N4/G-PP (550 °C) separator exhibited the best cycling stability in comparison with the other two controlled cells. It delivered an initial specific capacity of 900 mAh g−1 and maintained a specific capacity of 657 mAh g−1 after 400 cycles at a 1.0 C rate, with a slow decline rate of 0.067% per cycle (capacity retention rate of 73.0%). In particular, a high and stable coulombic efficiency could be obtained concurrently in the whole cycling process, which indicates good electrochemical reversibility in the cell with the Co@g-C3N4/G-PP (550 °C) separator. Besides, it was seen that the cell with the Co@g-C3N4/G-PP (500 °C) separator delivered a relative low capacity, and another cell using the Co@g-C3N4/G-PP (600 °C) separator had severe capacity fading in later cycling (Figure 5c). Most possibly, the root reason for these results is a dual influence of electrical conductivity and Li ion transfer capacity in the Co@g-C3N4/G interlayer. Specifically, Co@g-C3N4/G possesses much more g-C3N4 and a relative low reduction degree of graphene after calcining at 500 °C, exhibiting limited electrical conductivity and thus leading to congested electronic transmission in the discharge–charge process [60]. As for Co@g-C3N4/G (600 °C), highly reduced graphene with obvious large-size sheets can hinder the transport of Li ions across the functional separator [61], resulting in the continuous accumulation of polysulfides over long-term cycling and then undergoing a rapid capacity decay. Hence, these observations indicate that the Co@g-C3N4/G (550 °C) material with superior electronic conductivity and Li-ion transfer capability is well fitted in separator modification for the better reuse of active sulfur. Given this, Co@g-C3N4/G (550 °C) as a separator modification material was adopted to compare with other controlled samples in the following electrochemical performance discussions.
In this section, the whole obtained materials calcined at 550 °C were used to modify the PP separator for comparison of electrochemical performances in Li-S cells. As shown in Figure 6a, it was clearly observed that the cell with the Co@g-C3N4/G separator exhibited a superior rate property, delivering specific capacities of 1213, 1020, 935, and 860 mAh g−1 at 0.2, 0.5, 1.0, and 2.0 C, respectively, which are much higher than those of other cells with corresponding separators. As for the cell with the CoO/G-PP separator, it showed the worst rate performance, which is mostly due to the hindrance of the large-size sheet G coating layer to Li ion transfer and electrolyte penetration. This reason can be supported by other previously reported papers using graphene- and GO-functioned separators [16,23,62]. Figure 6b and Figure S5 show the representative charge–discharge profiles of cells with corresponding separators, all displaying two discharge plateaus and a long charging slope. Besides, we also calculated that the voltage hysteresis between charge and discharge in the four cells were 91.7, 153.9, 169.0, 152.6 mV, from the voltage curves in Figure 6b, revealing the smallest polarization in the cell with the Co@g-C3N4/G-PP separator. Further, this result can be confirmed from the CV curves in Figure 6c; two reduction peaks were observed at 2.32 (A) and 2.02 V (B) and two oxidation peaks were observed at 2.31 (C) and 2.42 V (D) for the cell with the Co@g-C3N4/G-PP separator, which exhibited a higher CV current and smaller polarization between peaks A and C compared to the control cell, meaning more enhanced redox reaction kinetics for polysulfide conversion in the charge–discharge process [25,59]. This is also supported by the EIS measurements (Figure 6g), the lowest charge transfer resistance (Rct: 49.4 Ω) for the cell with the Co@g-C3N4/G-PP separator among the three fresh cells, which is possibly ascribed to the improved catalytic conversion of polysulfides and the high electrical conductivity of the Co@g-C3N4/G interlayer [63]. To further determine the catalytic activity of the Co@g-C3N4/G heterostructure, Figure 6d shows the cyclic voltammetry (CV) curves of symmetrical cells assembled using two Co@g-C3N4/G-coated electrodes tested in the Li2S6 electrolyte. The CV curves of symmetric cells with respective electrodes all exhibited distinct peaks, which belonged to the reduction/oxidation of polysulfides. Since only Li2S6 served as the active material in this case, it was first reduced to short-chain polysulfides (peak A) and then Li2S (peak B) during the discharge process. In the subsequent charge process, Li2S was reversibly oxidized to polysulfides (peaks C and D) and the final sulfur element [64,65]. Four distinct redox peaks could be observed, even up to a scan rate of 3 mV s−1, in the Co@g-C3N4/G symmetrical cells, implying rapid kinetics conversion for polysulfide redox reactions in the Co@g-C3N4/G interface [25,66]. Therefore, these positive results confirm that the Co@g-C3N4/G heterostructure can well propel the kinetic conversion of intermediate polysulfides in a working Li-S cell. Figure 6e displays the cycling performances of the three cells with corresponding functional separators at 1.0 C, and it was obviously seen that the cell assembled with the Co@g-C3N4/G-PP separator exhibited the best cycling stability among the three cells, delivering the highest initial capacity of 900 mAh g−1 and still maintaining a specific capacity of 657 mAh g−1 after 400 cycles, with a capacity decay rate of ~0.067% per cycle and a high coulombic efficiency of above 98.0%. In addition, the cycling performance of cells with Co@g-C3N4/G-PP separators at low rates of 0.2 and 0.5 C were investigated, all exhibiting superior cycling stability, as shown in Figure 6f. There was moderate capacity fading in the first 30 cycles under the corresponding rates and then low capacity decay in the following appointed cycling numbers. Specifically, a specific capacity of 1040 mAh g−1 was delivered after a 0.1 C low rate activation and still remained at 928 mAh g−1 over 250 cycles at a 0.2 C rate, with a capacity-fading rate of 0.043% per cycle. At a 0.5 C rate, a stable capacity of 815 mAh g−1 was achieved after 350 cycles, with a low capacity attenuation of 0.035% per cycle. The comparison in Table S2 shows that the electrochemical performances of the cell with the Co@g-C3N4/G-PP separator have some advantages over other relevant functional-separator-assembled Li-S cells in the recent literature. Overall, these favorable results manifest a good promise of the as-designed separator in the improvement of the performance of Li-S batteries. Considering the superiority of the Co@g-C3N4/G-PP separators, a cell using the Co@g-C3N4/G-PP separator and a high-sulfur-loading S/KB cathode (3.0 mg cm−2) was prepared and its cycling stability was further explored (Figure 6h). The cell could deliver a high specific capacity of 1110 mAh g−1 at 0.1 C low rate activation and then undergo stable cycling at 0.2 C, still maintaining a capacity of 785 mAh g−1 after 150 cycles. These good electrochemical performances obtained can be attributed to two major aspects: (1) High-conductivity graphene can ensure fast electron transfer, which is conducive to accelerating the redox conversion of captured polysulfides occurring on the active sites of Co-species during the electrochemical process, and (2) the residual g-C3N4 supplies rich N sites for efficient adsorbing polysulfides, thus alleviating the shuttle effect and improving sulfur use. Hence, the lithium-sulfur batteries assembled with Co@g-C3N4/G-PP separators can possess a high capacity and stable cycling performance.

3. Materials and Methods

3.1. Fabrication of Highly Dispersed Ultrafine Co-Species Interspersed g-C3N4 Nanosheets and Graphene Heterostructure (Co@g-C3N4/G)

g-C3N4 was prepared by direct thermal polymerization of urea in air, as referred from previous published work [41]. Co@g-C3N4/G heterostructure composites were synthesized via a one-step pyrolysis strategy. For preparation of the precursor, 25 mL of GO suspension (2.0 mg mL−1) was first sonicated and stirred for 0.5 h. Next, 50 mg of CoCl2·6H2O and the as-prepared g-C3N4 were added to this solution consecutively, followed by violent sonicating for another 2.0 h and vigorous stirring for another 1.0 h to produce a homogeneous mixture. Subsequently, the mixture was treated with vacuum filtration to remove the residual CoCl2·6H2O and then freeze-dried to obtain the precursor (g-C3N4/GO). Finally, the dry precursor was annealed under nitrogen protection and kept at different temperatures (500, 550, and 600 °C) for 2 h with a ramping rate of 5 °C min−1 to yield black products.
For comparison, a control sample of g-C3N4/G was prepared by following the same process without addition of CoCl2·6H2O. In addition, a CoO@G sample was obtained with pyrolysis of the precursor composed of CoCl2·6H2O and GO. Reduced GO (rGO) was obtained by direct thermal reduction of GO powder. These three controlled samples were all calcinated at 550 °C for 2 h with a heating rate of 5 °C min−1 under a nitrogen atmosphere.

3.2. Fabrication of the Co@g-C3N4/G-PP, g-C3N4/G-PP, and CoO@G-PP Separators

Modified separators were prepared using a vacuum filtration strategy. Briefly, 18.0 mg of Co@g-C3N4/G was dispersed into 150 mL of ethanol under ultrasonic treatment for 2 h, and then, 1.0 mL of the LA133 aqueous binder (0.2 wt%) was added to this solution to obtain a homogeneous slurry. Next, a certain volume of the prepared slurry was directly vacuum-filtered onto one surface of a commercial PP separator, followed by drying at room temperature, and finally punched into a 19-mm-diameter circular disk (Co@g-C3N4/G-PP). Similarly, the other corresponding separators were prepared using the same method. The areal mass density of the coating material was ~0.2 mg cm−2.

3.3. Electrochemical Measurements

The S/KB composite (the sulfur content in the S/KB composite was ~77 wt% displayed in Figure S1 [42]) was obtained through the conventional melt-diffusion method. Ketjen Black (KB: ECP600JD) and sulfur were uniformly ground in a weight ratio of 2:7 and then heated at 210 °C for 12 h in a closed autoclave filled with argon gas. The electrodes were prepared by casting the homogeneous slurry containing 90 wt% S/KB composites and 10 wt% PVDF binder onto a carbon-coated aluminum foil. The ordinary mass loading of sulfur in the as-prepared cathode was 1.3–1.5 mg cm−2. A high-sulfur-loading cathode (3.0 mg cm−2) was prepared by pasting the same slurry on aluminum foils. The electrochemical performances were tested using CR2025-type coin cells with different functional separators, assembled in an Ar-filled glove box with S/KB-based electrodes as cathodes and lithium foils as anodes. The electrolyte was composed of 1.0 M bis(trifluoromethanesulfony)imide lithium (LiTFSI) dissolved in a binary of 1,3-dioxolane (DOL) and 1,2-dimethoxyethane (DME) (1:1, v/v) containing 2 wt% LiNO3 additive. The electrolyte volumes were kept at 20 μL mg−1 sulfur for the ordinary-sulfur-loading electrodes and 12 μL mg−1 sulfur for the high-sulfur-loading electrodes.
Symmetric electrodes were prepared by pasting the homogeneous slurry containing Co@g-C3N4/G and PVDF binder in a weight ratio of 9:1 onto a circular carbon cloth (a diameter of 14 mm) with a mass loading of 0.5 mg cm−2. The catalytic conversion was evaluated using a symmetric battery, which was assembled using two identical tailor-made electrodes separated by a PP separator with 40 μL of 0.2 M Li2S6 electrolyte.
For the other tested methods, we referred to them from our recently reported papers (e.g., material characterizations, entrapment experiments, and various electrochemical tests) [25,42]. Additionally, it is pointed out that some of the physical characterization data of the pure g-C3N4 sample were from our recent work reported in [42].

4. Conclusions

In summary, g-C3N4 nanosheets and graphene decorated with the ultrafine Co-species heterostructure can act as a reinforced polysulfide barrier toward enhancing Li-S batteries. This modification layer can not only enable effective polysulfide affinity through the physical barrier and chemical binding but also simultaneously catalyze the conversion of intermediate polysulfides. As a result, Li-S cells assembled with Co@g-C3N4/G-PP separators matched with S/KB composites (up to ~70 wt% sulfur in the final cathode) exhibit excellent rate capability and good cyclic stability. A high specific capacity of ~860 mAh g−1 at 2.0 C as well as a capacity-fading rate of only ~0.035% per cycle over 350 cycles at 0.5 C can be achieved. This bifunctional separator can even endow a Li-S cell at a low current density to exhibit excellent cycling capability, with a capacity retention rate of ~88.4% at 0.2 C over 250 cycles. Furthermore, a Li-S cell with a Co@g-C3N4/G-PP separator possesses a stable specific capacity of 785 mAh g−1 at 0.2 C after 150 cycles and a superior capacity retention rate of ~84.6% with a high sulfur loading of ~3.0 mg cm−2. This effective polysulfide-confined separator holds good promise for promoting the further development of high-energy-density Li-S batteries.

Supplementary Materials

The following supporting information can be downloaded at: https://www.mdpi.com/article/10.3390/molecules28020588/s1. Refs. [42,60,67,68,69,70,71,72,73,74] are cited in Supplementary Materials.

Author Contributions

Methodology, Formal analysis, Writing—original draft, S.W.; Resources, Investigation, X.L.; Conceptualization, Project administration, Supervision, Writing—review & editing, Y.D. All authors have read and agreed to the published version of the manuscript.

Funding

This research was funded by the National Natural Science Foundation of Guangdong Province (grant no. 2022A1515010173), the National Natural Science Foundation of China (grant no. 21875071), the Research Fund Program of Guangdong Provincial Key Laboratory of Fuel Cell Technology (FC202214), and the Professorial and Doctoral Scientific Research Foundation of Huizhou University (2021JB019/15602210128).

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Data Availability Statement

Data are available upon reasonable request.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Payandeh, S.; Strauss, F.; Mazilkin, A.; Kondrakov, A.; Brezesinski, T. Tailoring the LiNbO3 coating of Ni-rich cathode materials for stable and high-performance all-solid-state batteries. Nano Res. Energy 2022, 1, e9120016. [Google Scholar] [CrossRef]
  2. Zhao, W.X.; Gao, L.X.; Ma, X.Q.; Yue, L.C.; Zhao, D.L.; Li, Z.R.; Sun, S.J.; Luo, Y.S.; Liu, Q.; Sun, X.P.; et al. An exquisite branch-leaf shaped metal sulfoselenide composite endowing an ultrastable sodium-storage lifespan over 10,000 cycles. J. Mater. Chem. A 2022, 10, 16962–16975. [Google Scholar] [CrossRef]
  3. Yue, L.h.; Ma, C.Q.; Yan, S.H.; Wu, Z.G.; Zhao, W.X.; Liu, Q.; Luo, Y.L.; Zhong, B.H.; Zhang, F.; Liu, Y.; et al. Improving the intrinsic electronic conductivity of NiMoO4 anodes by phosphorous doping for high lithium storage. Nano Res. 2022, 15, 186–194. [Google Scholar] [CrossRef]
  4. Bhargav, A.; He, J.R.; Gupta, A.; Manthiram, A. Lithium-sulfur batteries: Attaining the critical metrics. Joule 2020, 4, 285–291. [Google Scholar] [CrossRef]
  5. Deng, D.; Xue, F.; Bai, C.; Lei, J.; Yuan, R.; Zheng, M.; Dong, Q. Enhanced adsorptions to polysulfides on graphene-supported BN nanosheets with excellent Li-S battery performance in a wide temperature range. ACS Nano 2018, 12, 11120–11129. [Google Scholar] [CrossRef]
  6. Xiong, C.; Zhu, G.Y.; Jiang, H.R.; Chen, Q.; Zhao, T.S. Achieving multiplexed functionality in a hierarchical MXene-based sulfur host for high-rate, high-loading lithium-sulfur batteries. Energy Storage Mater. 2020, 33, 147–157. [Google Scholar] [CrossRef]
  7. Luo, R.; Zhang, Z.; Xi, B.J.; Feng, J.K.; Xiong, S.L. Bimetal CoNi active sites on mesoporous carbon nanosheets to kinetically boost lithium-sulfur batteries. Small 2021, 17, 2100414. [Google Scholar] [CrossRef]
  8. Yu, Z.S.; Liu, M.L.; Guo, D.Y.; Wang, J.H.; Chen, X.; Li, J.; Jin, H.L.; Yang, Z.; Chen, X.A.; Wang, S. Radially inwardly aligned hierarchical porous carbon for ultra-long-life lithium-sulfur batteries. Angew. Chem. Int. Ed. 2020, 59, 6406. [Google Scholar] [CrossRef] [PubMed]
  9. Huang, Y.-C.; Yen, Y.-J.; Tseng, Y.-H.; Chung, S.-H. Module-designed carbon-coated separators for high-loading, high-sulfur-utilization cathodes in lithium-sulfur batteries. Molecules 2022, 27, 228. [Google Scholar] [CrossRef] [PubMed]
  10. Wang, S.; Zou, K.; Qian, Y.; Deng, Y.; Zhang, L.; Chen, G. Insight to the synergistic effect of N-doping level and pore structure on improving the electrochemical performance of sulfur/N-doped porous carbon cathode for Li-S batteries. Carbon 2019, 144, 745–755. [Google Scholar] [CrossRef]
  11. Wei, W.L.; Liu, P. Rational porous design for carbon nanotubes derived from tubular polypyrrole as sulfur host for lithium-sulfur batteries. Micropor. Mesopor. Mat. 2021, 311, 110705. [Google Scholar] [CrossRef]
  12. Wang, J.X.; Jiang, K.L.; Shen, B.; Zhen, M.M. Synergetic effect of nitrogen/sulfur dual-doped hierarchically porous carbon networks for Li-S batteries. ACS Sustain. Chem. Eng. 2020, 8, 749. [Google Scholar] [CrossRef]
  13. Jo, S.-C.; Hong, J.-W.; Choi, I.-H.; Kim, M.-J.; Gon Kim, B.; Lee, Y.-J.; Young Choi, H.; Kim, D.; Kim, T.Y.; Baeg, K.-J.; et al. Multimodal capturing of polysulfides by phosphorus-doped carbon composites for flexible high-energy-density lithium-sulfur batteries. Small 2022, 18, 2202326. [Google Scholar] [CrossRef] [PubMed]
  14. Chen, H.Y.; Liu, J.F.; Cao, W.Q.; Li, X.L.; Zhang, C.H. 3D printing CO2-activated carbon nanotubes host to promote sulfur loading for high areal capacity lithium-sulfur batteries. Nano Res. 2022. [Google Scholar] [CrossRef]
  15. Han, W.J.; Li, Q.; Zhu, H.; Luo, D.; Qin, X.Y.; Li, B.H. Hierarchical porous graphene bubbles as host materials for advanced lithium sulfur battery cathode. Front. Chem. 2021, 9, 653476. [Google Scholar] [CrossRef]
  16. Cheng, Z.B.; Pan, H.; Chen, J.Q.; Meng, X.P.; Wang, R.H. Separator modified by cobalt-embedded carbon nanosheets enabling chemisorption and catalytic effects of polysulfides for high-energy-density lithium-sulfur batteries. Adv. Energy Mater. 2019, 9, 1901609. [Google Scholar] [CrossRef]
  17. Gao, X.G.; Huang, Y.; Li, X.; Gao, H.; Li, T.H. SnP0.94 nanodots confined carbon aerogel with porous hollow superstructures as an exceptional polysulfide electrocatalyst and “adsorption nest” to enable enhanced lithium-sulfur batteries. Chem. Eng. J. 2021, 420, 129724. [Google Scholar] [CrossRef]
  18. Jing, E.D.; Chen, L.; Xu, S.D.; Tian, W.Z.; Zhang, D.; Wang, N.; Bai, Z.C.; Zhou, X.X.; Liu, S.B.; Duan, D.H.; et al. Dual redox catalysis of VN/nitrogen-doped graphene nanocomposites for high-performance lithium-sulfur batteries. J. Energy Chem. 2022, 64, 574–582. [Google Scholar] [CrossRef]
  19. Pei, F.; Lin, L.; Fu, A.; Mo, S.; Ou, D.; Fang, X.; Zheng, N. A two-dimensional porous carbon-modified separator for high-energy-density Li-S batteries. Joule 2018, 2, 323–337. [Google Scholar] [CrossRef] [Green Version]
  20. Wang, F.; Ding, X.; Shi, R.; Li, M.; Lei, Y.; Lei, Z.; Jiang, G.; Xu, F.; Wang, H.; Jia, L.; et al. Facile synthesis of Ti4O7 on hollow carbon spheres with enhanced polysulfide binding for high performance lithium-sulfur batteries. J. Mater. Chem. A 2019, 7, 10494–10504. [Google Scholar] [CrossRef]
  21. Cheng, S.; Wang, J.; Duan, S.R.; Zhang, J.; Wang, Q.; Zhang, Y.; Li, L.G.; Liu, H.T.; Xiao, Q.B.; Lin, H.Z. Anionic oxygen vacancies in Nb2O5-x/carbon hybrid host endow rapid catalytic behaviors for high-performance high areal loading lithium sulfur pouch cell. Chem. Eng. J. 2021, 417, 128172. [Google Scholar] [CrossRef]
  22. Xu, J.; Yang, L.K.; Cao, S.F.; Wang, J.W.; Ma, Y.M.; Zhang, J.J.; Lu, X.Q. Sandwiched cathodes assembled from CoS2-modified carbon clothes for high-performance lithium-sulfur batteries. Adv. Sci. 2021, 8, 2101019. [Google Scholar] [CrossRef] [PubMed]
  23. Cheng, Z.B.; Chen, Y.L.; Yang, Y.S.; Zhang, L.J.; Pan, H.; Fan, X.; Xiang, S.C.; Zhang, Z.J. Metallic MoS2 nanoflowers decorated graphene nanosheet catalytically boosts the volumetric capacity and cycle life of lithium-sulfur batteries. Adv. Energy Mater. 2021, 11, 2003718. [Google Scholar] [CrossRef]
  24. Tan, T.X.; Chen, N.N.; Wang, Z.K.; Tang, Z.M.; Zhang, H.R.; Lai, Q.X.; Liang, Y.R. Thorn-like carbon nanofibers combined with molybdenum nitride nanosheets as a modified separator coating: An efficient chemical anchor and catalyst for Li-S batteries. ACS Appl. Energy Mater. 2022, 5, 6654. [Google Scholar] [CrossRef]
  25. Wang, S.; Liu, X.; Duan, H.; Deng, Y.; Chen, G. Fe3C/Fe nanoparticles embedded in N-doped porous carbon nanosheets and graphene: A thin functional interlayer for PP separator to boost performance of Li-S batteries. Chem. Eng. J. 2021, 415, 129001. [Google Scholar] [CrossRef]
  26. Tsao, Y.C.; Gong, H.X.; Chen, S.C.; Chen, G.; Liu, Y.Z.; Gao, T.Z.; Cui, Y.; Bao, Z.N. A nickel-decorated carbon flower/sulfur cathode for lean-electrolyte lithium-sulfur batteries. Adv. Energy Mater. 2021, 36, 2101449. [Google Scholar] [CrossRef]
  27. Shen, Z.H.; Jin, X.; Tian, J.M.; Li, M.; Yuan, Y.F.; Zhang, S.; Fang, S.S.; Fan, X.; Xu, W.G.; Lu, H.; et al. Cation-doped ZnS catalysts for polysulfide conversion in lithium-sulfur batteries. Nat. Catal. 2022, 5, 555–563. [Google Scholar] [CrossRef]
  28. Wang, Z.K.; Wang, Y.; Ji, H.Q.; Zhou, J.Q.; Qian, T.; Yan, C.L. Unity of opposites between soluble and insoluble lithium polysulfides in lithium-sulfur batteries. Adv. Mater. 2022, 34, e2203699. [Google Scholar] [CrossRef]
  29. He, L.; Yang, D.; Zhao, H.N.; Wei, L.Y.; Wang, D.S.; Wang, Y.Z.; Chen, G.; Wei, Y.J. Bipolar CoSe2 nanocrystals embedded in porous carbon nanocages as an efficient electrocatalyst for Li-S batteries. Chem. Eng. J. 2022, 440, 135820. [Google Scholar] [CrossRef]
  30. Pei, H.Y.; Yang, Q.; Waterhouse, G.I.N.; Guo, J.L.; Lu, S.Y. Self-supporting carbon nanofibers with Ni-single-atoms and uniformly dispersed Ni-nanoparticles as scalable multifunctional hosts for high energy density lithium-sulfur batteries. Small 2022, 27, 2202037. [Google Scholar] [CrossRef]
  31. Li, M.H.; Wang, H.; Wang, X.Y.; Ren, J.W.; Wang, R.F. Metallic FeCo clusters propelling the stepwise polysulfide conversion in lithium-sulfur batteries. J. Mater. Chem. 2022, 10, 21327–21335. [Google Scholar]
  32. Xiao, Z.B.; Li, Z.L.; Li, P.Y.; Meng, X.P.; Wang, R.H. Ultrafine Ti3C2 MXene nanodots-interspersed nanosheet for high-energy-density lithium-sulfur batteries. ACS Nano 2019, 13, 3608–3617. [Google Scholar] [PubMed]
  33. Zhang, Z.P.; Gao, X.J.; Dou, M.L.; Ji, J.; Wang, F. Biomass derived N-doped porous carbon supported single Fe atoms as superior electrocatalysts for oxygen reduction. Small 2017, 13, 1604290. [Google Scholar] [CrossRef] [PubMed]
  34. Sun, L.; Liu, Y.X.; Zhang, K.Q.; Cheng, F.; Jiang, R.Y.; Liu, Y.Q.; Zhu, J.; Jin, Z.; Pang, H. Rapid construction of highly-dispersed cobalt nanoclusters embedded in hollow cubic carbon walls as an effective polysulfide promoter in high-energy lithium-sulfur batteries. Nano Res. 2022, 6, 5105. [Google Scholar] [CrossRef]
  35. Liu, R.Q.; Liu, Z.W.; Liu, W.H.; Liu, Y.J.; Lin, X.J.; Li, Y.; Huang, P. TiO2 and Co nanoparticle-decorated carbon polyhedral as efficient sulfur host for high-performance lithium-sulfur batteries. Small 2019, 12, 1804533. [Google Scholar] [CrossRef]
  36. Zhang, J.L.; Cheng, Y.; Chen, H.B.; Wang, Y.; Chen, Q.; Hou, G.Y.; Wen, M.; Tang, Y.P. MoP quantum dot-modified N,P-carbon nanotubes as a multifunctional separator coating for high-performance lithium-sulfur batteries. ACS Appl. Mater. Inter. 2022, 14, 16289–16299. [Google Scholar] [CrossRef] [PubMed]
  37. Wang, J.; Meng, Z.; Yang, W.; Yan, X.; Guo, R.; Han, W. Facile synthesis of rGO/g-C3N4/CNT microspheres via an ethanol assisted spray-drying method for high-performance lithium-sulfur batteries. ACS Appl. Mater. Inter. 2019, 11, 819–827. [Google Scholar] [CrossRef]
  38. Wen, Z.; Wen, X.; Mao, S.; Mao, Z.; Kim, H.; Cui, S.; Lu, G.; Lu, X.; Chen, J. Crumpled nitrogen-doped graphene nanosheets with ultrahigh pore volume for high-performance supercapacitor. Adv. Mater. 2012, 24, 5610–5616. [Google Scholar] [CrossRef]
  39. Jiang, J.; Duan, D.L.; Ma, J.; Long, R.; Gao, C.; Xiong, Y.J. Van der waals heterostructures by single cobalt sites-anchored graphene and g-C3N4 nanosheets for photocatalytic syngas production with tunable CO/H2 ratio. Appl. Catal. B-Environ. 2021, 295, 120261. [Google Scholar] [CrossRef]
  40. Chen, A.M.; Liu, R.; Peng, X.; Chen, Q.F.; Wu, J.M. 2D hybrid nanomaterials for selective detection of NO2 and SO2 using “light on and off” strategy. ACS Appl. Mater. Inter. 2017, 9, 37191–37200. [Google Scholar]
  41. Gao, H.H.; Yang, H.C.; Xu, J.Z.; Li, J.X. Strongly coupled g-C3N4 nanosheets-Co3O4 quantum dots as 2D/0D heterostructure composite for peroxymonosulfate activation. Small 2018, 14, 1801355. [Google Scholar] [CrossRef] [PubMed]
  42. Liu, X.Y.; Wang, S.X.; Duan, H.H.; Deng, Y.F.; Chen, G.H. A thin and multifunctional CoS@g-C3N4/Ketjen black interlayer deposited on polypropylene separator for boosting the performance of lithium-sulfur batteries. J. Colloid Interf. Sci. 2022, 1, 470–481. [Google Scholar] [CrossRef] [PubMed]
  43. Huang, Y.; Wang, W.; Shan, J.W.; Zhu, J.L.; Wu, S.; Li, F.; Liu, Z.G.; Li, Y.Y. High volumetric energy density Li-S batteries enabled by dense sulfur monolith cathodes with ultra-small-sized sulfur immobilizers. Chem. Eng. J. 2020, 401, 126076. [Google Scholar] [CrossRef]
  44. Cao, J.; Chen, C.; Zhao, Q.; Zhang, N.; Wang, X.Y.; Niu, Z.Q.; Chen, J. A flexible nanostructured paper of a reduced graphene oxide-sulfur composite for high-performance lithium-sulfur batteries with unconventional configurations. Adv. Mater. 2016, 28, 9629–9636. [Google Scholar] [CrossRef] [PubMed]
  45. Li, Y.P.; Zhang, H.; Wang, M.M.; Han, G.Y. Hollow CoO nanoparticles embedded in N-doped mesoporous graphene for efficient oxygen reduction reaction. ChemistrySelect 2022, 7, e202200941. [Google Scholar] [CrossRef]
  46. Wan, B.; Guo, J.; Lai, W.; Wang, Y.; Liu, M.; Liu, H.; Wang, J.; Chou, S. Layered mesoporous CoO/reduced graphene oxide with strong interfacial coupling as a high-performance anode for lithium-ion batteries. J. Alloys Compd. 2021, 843, 156050. [Google Scholar] [CrossRef]
  47. Wang, S.Z.; Wang, J.L. Single atom cobalt catalyst derived from co-pyrolysis of vitamin B12 and graphitic carbon nitride for PMS activation to degrade emerging pollutants. Appl. Catal. B-Environ. 2023, 321, 122051. [Google Scholar] [CrossRef]
  48. Hu, J.S.; Zhang, P.F.; An, W.J.; Liu, L.; Liang, Y.H.; Cui, W.Q. In-situ Fe-doped g-C3N4 heterogeneous catalyst via photocatalysis-Fenton reaction with enriched photocatalytic performance for removal of complex wastewater. Appl. Catal. B-Environ. 2019, 245, 130–142. [Google Scholar] [CrossRef]
  49. Chen, Q.; Zhao, Y.; Huang, X.K.; Chen, N.; Qu, L.T. Three-dimensional graphitic carbon nitride functionalized graphene based high-performance supercapacitors. J. Mater. Chem. 2015, 3, 6761. [Google Scholar] [CrossRef]
  50. Hou, W.; Li, Y.; Ouyang, S.; Chen, H.; Ye, J.; Han, X.; Deng, Y. Bifunctional hydroxyl group over polymeric carbon nitride to achieve photocatalytic H2O2 production in ethanol aqueous solution with an apparent quantum yield of 52.8% at 420 nm. Chem. Commun. 2019, 55, 13279–13282. [Google Scholar] [CrossRef]
  51. Zhang, L.Q.; He, X.; Xu, X.W.; Liu, C.; Duan, Y.L.; Hou, L.Q.; Ma, C.; Yang, X.P.; Yang, F.; Cui, L.S.; et al. Highly active TiO2/g-C3N4/G photocatalyst with extended spectral response towards selective reduction of nitrobenzene. Appl. Catal. B-Environ. 2017, 203, 1–8. [Google Scholar] [CrossRef]
  52. Du, Z.Z.; Du, X.J.; Hu, W.; Chuang, C.H.; Xie, S.; Hu, A.; Yan, W.S.; Kong, X.H.; Wu, X.J.; Ji, H.X.; et al. Cobalt in nitrogen-doped graphene as single-atom catalyst for high-sulfur content lithium-sulfur batteries. J. Am. Chem. Soc. 2019, 141, 3977–3985. [Google Scholar] [CrossRef] [PubMed]
  53. Wang, Y.C.; Shi, C.S.; Sha, J.W.; Ma, L.Y.; Liu, E.Z.; Zhao, N.Q. Single-atom cobalt supported on nitrogen-doped three-dimensional carbon facilitating polysulfide conversion in lithium-sulfur batteries. ACS Appl. Mater. Inter. 2022, 14, 25337–25347. [Google Scholar] [CrossRef] [PubMed]
  54. Huang, T.; Sun, Y.J.; Wu, J.H.; Jin, J.; Wei, C.H.; Shi, Z.X.; Wang, M.L.; Cai, J.S.; An, X.-T.; Wang, P.; et al. A dual-functional fibrous skeleton implanted with single-atomic Co-Nx dispersions for longevous Li-S full batteries. ACS Nano 2021, 15, 14105–14115. [Google Scholar] [CrossRef] [PubMed]
  55. Li, Y.J.; Zhou, P.; Li, H.; Gao, T.T.; Zhou, L.; Zhang, Y.L.; Xiao, N.; Xia, Z.H.; Wang, L.; Zhang, Q.H.; et al. A freestanding flexible single-atom cobalt-based multifunctional interlayer toward reversible and durable lithium-sulfur batteries. Small Methods 2020, 4, 1900701. [Google Scholar] [CrossRef]
  56. Yin, P.Q.; Yao, T.; Wu, Y.; Zheng, L.R.; Lin, Y.; Liu, W.; Ju, H.X.; Zhu, J.F.; Hong, X.; Deng, Z.X.; et al. Single cobalt atoms with precise N-coordination as superior oxygen reduction reaction catalysts. Angew. Chem. Int. Ed. 2016, 128, 10958–10963. [Google Scholar] [CrossRef]
  57. Wang, P.; Ren, Y.Y.; Wang, R.T.; Zhang, P.; Ding, M.J.; Li, C.X.; Zhao, D.Y.; Qian, Z.; Zhang, Z.W.; Zhang, L.Y.; et al. Atomically dispersed cobalt catalyst anchored on nitrogen-doped carbon nanosheets for lithium-oxygen batteries. Nat. Commun. 2020, 11, 1576. [Google Scholar] [CrossRef] [Green Version]
  58. Zhou, J.; Liu, X.; Zhou, J.; Zhao, H.; Lin, N.; Zhu, L.; Zhu, Y.; Wang, G.; Qian, Y. Fully integrated hierarchical double-shelled Co9S8@CNT nanostructures with unprecedented performance for Li-S batteries. Nanoscale Horiz. 2019, 4, 182. [Google Scholar] [CrossRef]
  59. Li, Y.J.; Wang, W.Y.; Zhang, B.; Fu, L.; Wan, M.T.; Li, G.C.; Cai, Z.; Tu, S.B.; Duan, X.R.; Seh, Z.W.; et al. Manipulating redox kinetics of sulfur species using mott-schottky electrocatalysts for advanced lithium-sulfur batteries. Nano Lett. 2021, 21, 6656–6663. [Google Scholar] [CrossRef]
  60. Wang, X.L.; Li, G.R.; Li, M.J.; Liu, R.P.; Li, H.B.; Li, T.Y.; Sun, M.Z.; Deng, Y.R.; Feng, M.; Chen, Z.W. Reinforced polysulfide barrier by g-C3N4/CNT composite towards superior lithium-sulfur batteries. J. Energy Chem. 2021, 53, 234–240. [Google Scholar] [CrossRef]
  61. Zhai, P.-Y.; Peng, H.-J.; Cheng, X.-B.; Zhu, L.; Huang, J.-Q.; Zhu, W.C.; Zhang, Q. Scaled-up fabrication of porous-graphene-modified separators for high-capacity lithium-sulfur batteries. Energy Storage Mater. 2017, 7, 56–63. [Google Scholar] [CrossRef]
  62. Tian, D.; Song, X.; Wang, M.; Wu, X.; Qiu, Y.; Guan, B.; Xu, X.; Fan, L.; Zhang, N.; Sun, K. MoN supported on graphene as a bifunctional interlayer for advanced Li-S batteries. Adv. Energy Mater. 2019, 9, 1901940. [Google Scholar] [CrossRef]
  63. Pan, H.; Cheng, Z.B.; Xiao, Z.B.; Li, X.J.; Wang, R.H. The fusion of imidazolium-based ionic polymer and carbon nanotubes: One type of new heteroatom-doped carbon precursors for high-performance lithium-sulfur batteries. Adv. Funct. Mater. 2017, 27, 1703936. [Google Scholar] [CrossRef]
  64. Guo, P.Q.; Sun, K.; Shang, X.N.; Liu, D.Q.; Wang, Y.R.; Liu, Q.M.; Fu, Y.J.; He, D.Y. Nb2O5/RGO nanocomposite modified separators with robust polysulfide traps and catalytic centers for boosting performance of lithium-sulfur batteries. Small 2019, 15, 1902363. [Google Scholar] [CrossRef] [PubMed]
  65. Zhang, L.L.; Liu, D.B.; Muhammad, Z.; Wan, F.; Xie, W.; Wang, Y.J.; Song, L.; Niu, Z.Q.; Chen, J. Single nickel atoms on nitrogen-doped graphene enabling enhanced kinetics of lithium-sulfur batteries. Adv. Mater. 2019, 31, 1903955. [Google Scholar] [CrossRef]
  66. Wei, L.; Li, W.; Zhao, T.; Zhang, N.; Li, L.; Wu, F.; Chen, R. Cobalt nanoparticles shielded in N-doped carbon nanotubes for high areal capacity Li-S batteries. Chem. Commun. 2020, 56, 3007–3010. [Google Scholar] [CrossRef]
  67. Zhang, H.j.; Liu, Q.Z.; Ruan, S.J.; Ma, C.; Jia, X.F.; Qiao, W.M.; Ling, L.C.; Wang, J.T. In-situ construction of g-C3N4/carbon heterostructure on graphene nanosheet: An efficient polysulfide barrier for advanced lithium-sulfur batteries. Appl. Surf. Sci. 2022, 578, 152022. [Google Scholar] [CrossRef]
  68. Sun, W.H.; Lu, Y.-C.; Huang, Y.Q. An effective sulfur conversion catalyst based on MnCo2O4.5 modified graphitized carbon nitride nanosheets for high-performance Li-S batteries. J. Mater. Chem. A 2021, 9, 21184–21196. [Google Scholar] [CrossRef]
  69. Luo, M.; Bai, Y.; Sun, R.; Wang, Z.H.; Sun, W.; Lin, P.; Dai, X.; Sun, K.N. Enhanced performance of lithium-sulfur batteries with Co-doped g-C3N4 nanosheet-based separator. Ind. Eng. Chem. Res. 2021, 60, 1231–12405. [Google Scholar] [CrossRef]
  70. Ma, H.; Song, C.L.; Liu, N.; Zhao, Y.; Bakenov, Z. Nitrogen-deficient graphitic carbon nitride/carbon nanotube as polysulfide barrier of high-performance lithium-sulfur batteries. ChemElectroChem 2020, 7, 4906–4912. [Google Scholar] [CrossRef]
  71. Chen, M.F.; Zhao, X.M.; Li, Y.F.; Zeng, P.; Liu, H.; Yu, H.; Wu, M.; Li, Z.H.; Shao, D.S.; Miao, C.Q.; et al. Kinetically elevated redox conversion of polysulfides of lithium-sulfur battery using a separator modified with transition metals coordinated g-C3N4 with carbon-conjugated. Chem. Eng. J. 2020, 385, 123905–123916. [Google Scholar] [CrossRef]
  72. Wang, Y.; Yang, L.W.; Chen, Y.X.; Li, Q.; Chen, C.T.; Zhong, B.H.; Guo, X.D.; Wu, Z.G.; Wang, G.K. Novel bifunctional separator with a self-assembled FeOOH/coated g-C3N4/KB bilayer in lithium-sulfur batteries. ACS Appl. Mater. Inter. 2020, 12, 57859–57869. [Google Scholar] [CrossRef] [PubMed]
  73. Wang, J.N.; Wu, T.; Zhang, S.P.; Gu, S.; Jin, J.; Wen, Z.Y. Metal-organic-framework-derived N-C-Co film as a shuttle-suppressing interlayer for lithium sulfur battery. Chem. Eng. J. 2018, 334, 2356. [Google Scholar] [CrossRef]
  74. Jiang, R.J.; Jiang, M.; Huang, Z.Y.; Wang, J.; Kuang, Y.F.; Fu, C.P. Constructing light-weight polar boron-doped carbon nitride nanosheets with increased active sites and conductivity for high performance lithium-sulfur batteries. Int. J. Hydrogen Energy 2020, 45, 14940–14952. [Google Scholar] [CrossRef]
Molecules 28 00588 sch001 550

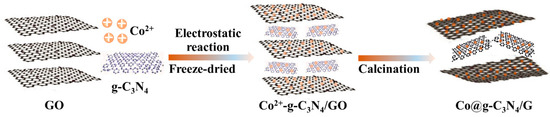

Scheme 1. Schematic diagram of the preparation process of the Co@g-C3N4/G heterostructure.
Scheme 1. Schematic diagram of the preparation process of the Co@g-C3N4/G heterostructure.
Molecules 28 00588 sch001
Molecules 28 00588 g001 550

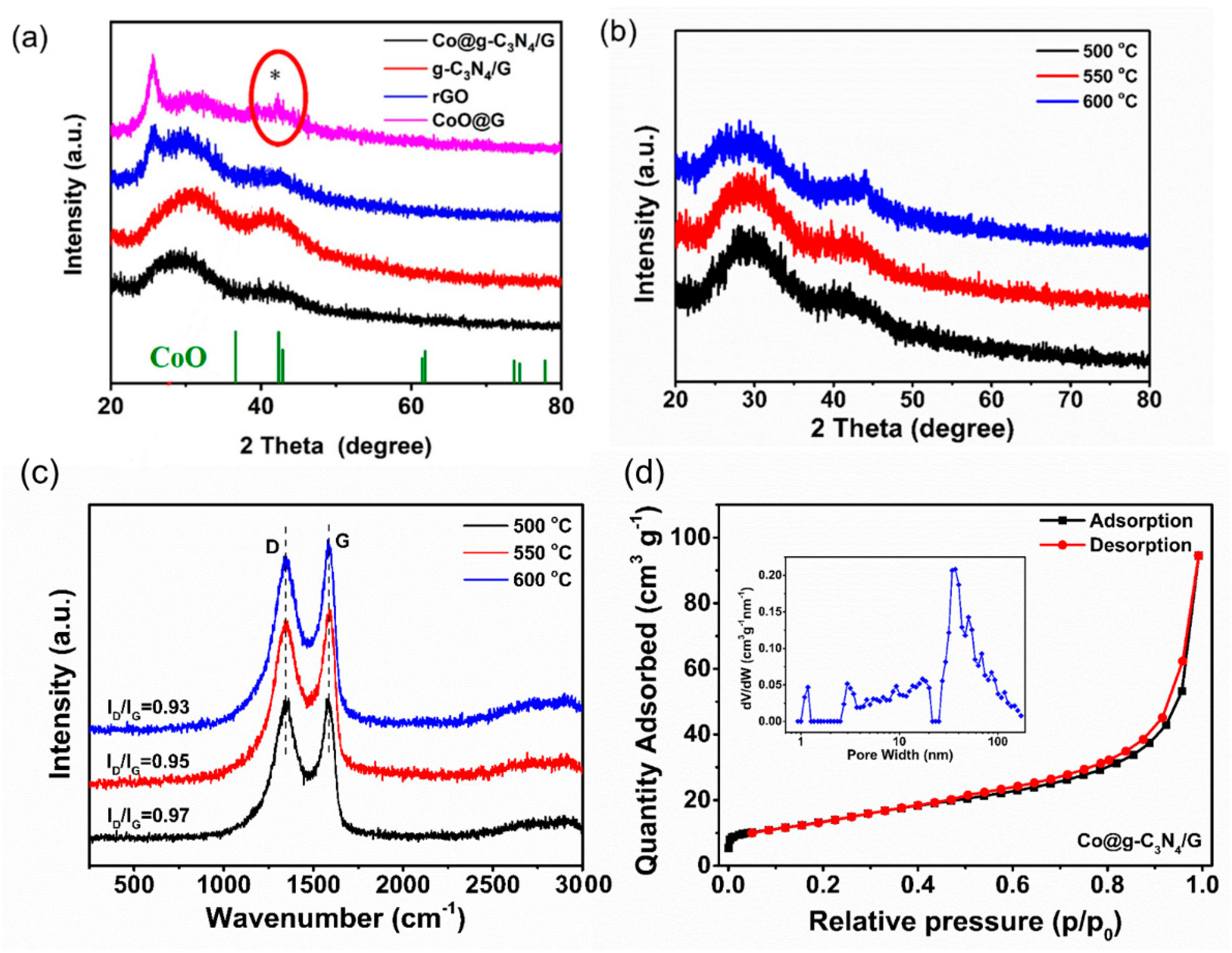

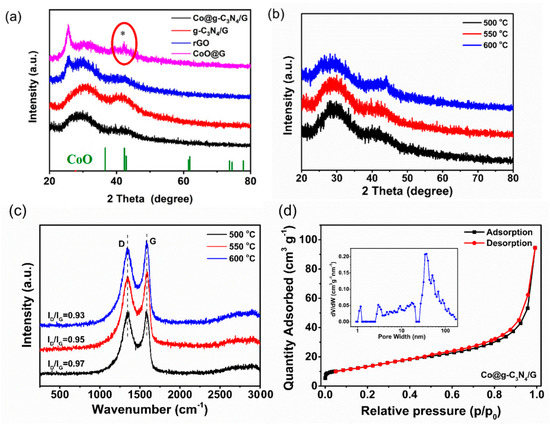

Figure 1. (a,b) XRD spectra, (c) Raman spectra, and (d) N2 adsorption–desorption curve of as-prepared samples (the corresponding pore size distribution curves are inserted in (d)). The * in Figure 1a is a diffraction peak of CoO in the CoO@G sample.
Figure 1. (a,b) XRD spectra, (c) Raman spectra, and (d) N2 adsorption–desorption curve of as-prepared samples (the corresponding pore size distribution curves are inserted in (d)). The * in Figure 1a is a diffraction peak of CoO in the CoO@G sample.
Molecules 28 00588 g001
Molecules 28 00588 g002 550
Figure 2. FE-SEM images of prepared Co@g-C3N4/G samples at different calcination temperatures: (a,d) 500, (b,e) 550, and (c,f) 600 °C. (g,h) SEM mapping and EDS of Co@g-C3N4/G at 550 °C. (j) TEM and (i,k) high–resolution TEM (HRTEM) images of the Co@g-C3N4/G sample.
Figure 2. FE-SEM images of prepared Co@g-C3N4/G samples at different calcination temperatures: (a,d) 500, (b,e) 550, and (c,f) 600 °C. (g,h) SEM mapping and EDS of Co@g-C3N4/G at 550 °C. (j) TEM and (i,k) high–resolution TEM (HRTEM) images of the Co@g-C3N4/G sample.
Molecules 28 00588 g002
Molecules 28 00588 g003 550

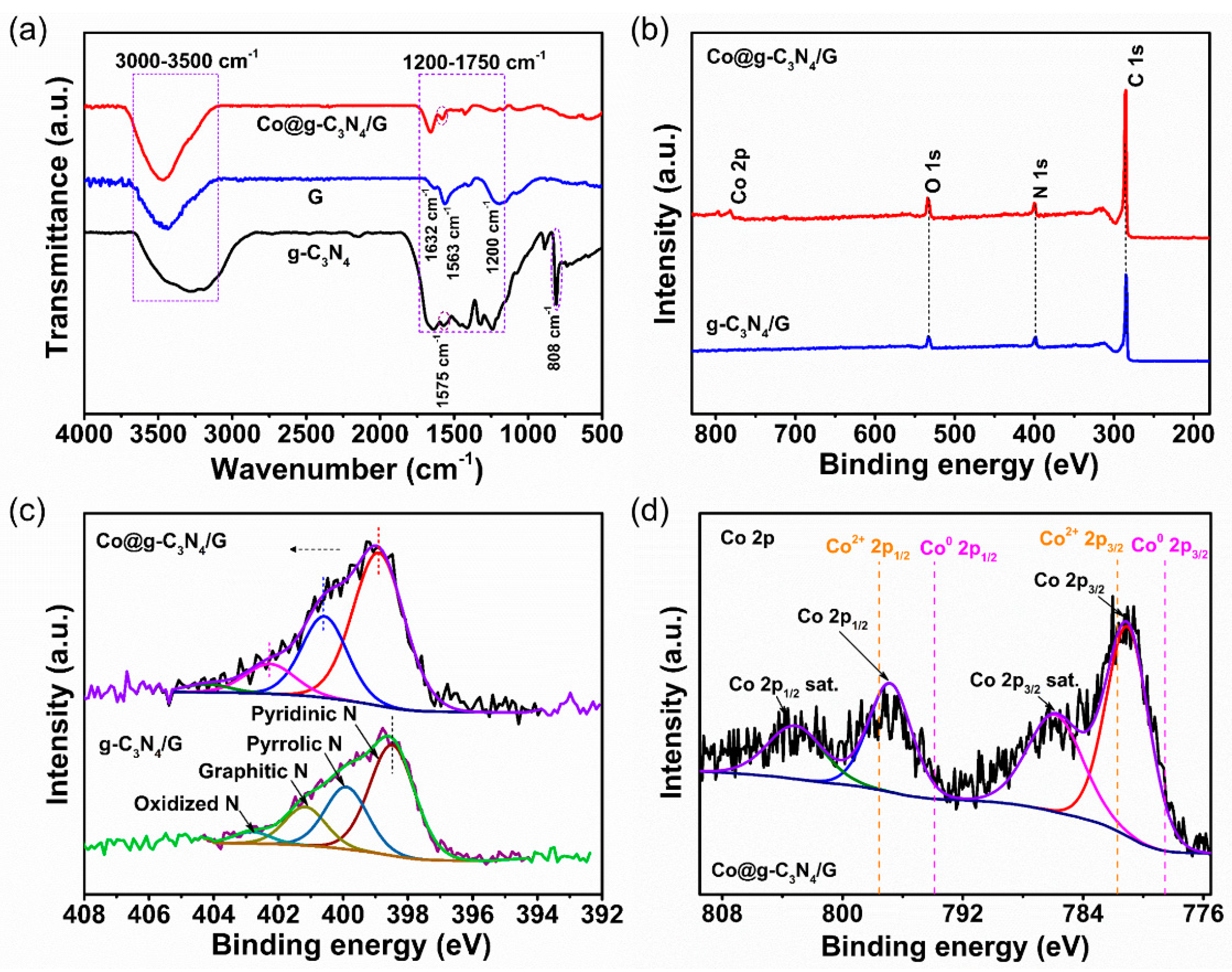

Figure 3. (a) FT−IR and (b) XPS survey spectra of the prepared samples. (c) Comparisons of N 1s high−resolution XPS spectra in Co@g-C3N4/G and g-C3N4/G samples. (d) Co 2p high−resolution XPS spectra in the Co@g-C3N4/G heterostructure.
Figure 3. (a) FT−IR and (b) XPS survey spectra of the prepared samples. (c) Comparisons of N 1s high−resolution XPS spectra in Co@g-C3N4/G and g-C3N4/G samples. (d) Co 2p high−resolution XPS spectra in the Co@g-C3N4/G heterostructure.
Molecules 28 00588 g003
Molecules 28 00588 g004 550
Figure 4. (a) Photographs of Li2S6 solution contacting with Co@g-C3N4/G and g-C3N4/G. (b) Photographs of PP, g-C3N4/G-PP, and Co@g-C3N4/G-PP separators. SEM images of (c) PP and (d,e) Co@g-C3N4/G-PP separators. (f) Cross-sectional SEM image of Co@g-C3N4/G-PP separators.
Figure 4. (a) Photographs of Li2S6 solution contacting with Co@g-C3N4/G and g-C3N4/G. (b) Photographs of PP, g-C3N4/G-PP, and Co@g-C3N4/G-PP separators. SEM images of (c) PP and (d,e) Co@g-C3N4/G-PP separators. (f) Cross-sectional SEM image of Co@g-C3N4/G-PP separators.
Molecules 28 00588 g004
Molecules 28 00588 g005 550
Figure 5. (a) Rate performances, (b) change in the high-plateau capacity and low-plateau capacity, and (c) long cycling performances of Li-S cells with the corresponding Co@g-C3N4/G-PP separators.
Figure 5. (a) Rate performances, (b) change in the high-plateau capacity and low-plateau capacity, and (c) long cycling performances of Li-S cells with the corresponding Co@g-C3N4/G-PP separators.
Molecules 28 00588 g005
Molecules 28 00588 g006 550

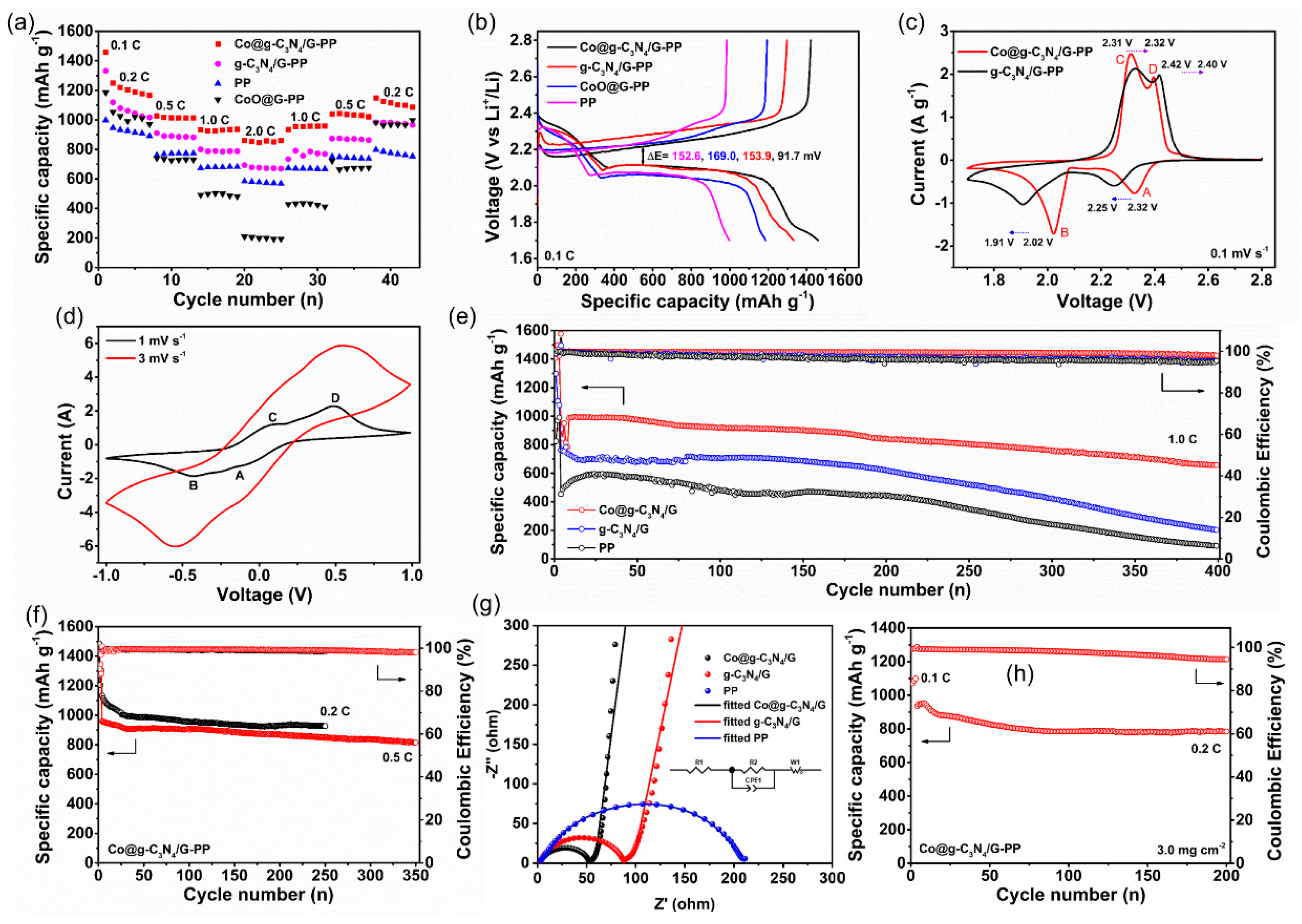

Figure 6. (a) Rate performances and (b) charge–discharge profiles at 0.1 C of Li-S cells with different separators. CV curves of (c) cells with g-C3N4/G-PP and Co@g-C3N4/G-PP separators and (d) symmetric cells using two Co@g-C3N4/G electrodes. (e,f) Cycling performances at different rates of cells with corresponding separators. (g) EIS spectra of cells with PP, g-C3N4/G-PP, and Co@g-C3N4/G-PP separators. (h) Cycling performance at 0.2 C of the cell using the Co@g-C3N4/G-PP separator with a high sulfur loading of 3.0 mg cm−2.
Figure 6. (a) Rate performances and (b) charge–discharge profiles at 0.1 C of Li-S cells with different separators. CV curves of (c) cells with g-C3N4/G-PP and Co@g-C3N4/G-PP separators and (d) symmetric cells using two Co@g-C3N4/G electrodes. (e,f) Cycling performances at different rates of cells with corresponding separators. (g) EIS spectra of cells with PP, g-C3N4/G-PP, and Co@g-C3N4/G-PP separators. (h) Cycling performance at 0.2 C of the cell using the Co@g-C3N4/G-PP separator with a high sulfur loading of 3.0 mg cm−2.
Molecules 28 00588 g006
Disclaimer/Publisher’s Note: The statements, opinions and data contained in all publications are solely those of the individual author(s) and contributor(s) and not of MDPI and/or the editor(s). MDPI and/or the editor(s) disclaim responsibility for any injury to people or property resulting from any ideas, methods, instructions or products referred to in the content.

Share and Cite

MDPI and ACS Style

Wang, S.; Liu, X.; Deng, Y. Ultrafine Co-Species Interspersed g-C3N4 Nanosheets and Graphene as an Efficient Polysulfide Barrier to Enable High Performance Li-S Batteries. Molecules 2023, 28, 588. https://doi.org/10.3390/molecules28020588

AMA Style

Wang S, Liu X, Deng Y. Ultrafine Co-Species Interspersed g-C3N4 Nanosheets and Graphene as an Efficient Polysulfide Barrier to Enable High Performance Li-S Batteries. Molecules. 2023; 28(2):588. https://doi.org/10.3390/molecules28020588

Chicago/Turabian Style

Wang, Shanxing, Xinye Liu, and Yuanfu Deng. 2023. "Ultrafine Co-Species Interspersed g-C3N4 Nanosheets and Graphene as an Efficient Polysulfide Barrier to Enable High Performance Li-S Batteries" Molecules 28, no. 2: 588. https://doi.org/10.3390/molecules28020588

APA Style

Wang, S., Liu, X., & Deng, Y. (2023). Ultrafine Co-Species Interspersed g-C3N4 Nanosheets and Graphene as an Efficient Polysulfide Barrier to Enable High Performance Li-S Batteries. Molecules, 28(2), 588. https://doi.org/10.3390/molecules28020588

Article Metrics

Back to TopTop
