Article

Tunable Resistive Switching Behaviors and Mechanism of the W/ZnO/ITO Memory Cell

by
Zhiqiang Yu
1,2,3,*,
Jinhao Jia
1,
Xinru Qu
1,
Qingcheng Wang
1,
Wenbo Kang
1,
Baosheng Liu
1,
Qingquan Xiao
2,
Tinghong Gao
2 and
Quan Xie
2
1
Faculty of Electronic Engineering, Guangxi University of Science and Technology, Liuzhou 545006, China
2
Institute of Advanced Optoelectronic Materials and Technology, College of Big Data and Information Engineering, Guizhou University, Guiyang 550025, China
3
Wuhan National Laboratory for Optoelectronics, School of Optical and Electronic Information, Huazhong University of Science and Technology, Wuhan 430074, China
*
Author to whom correspondence should be addressed.
Molecules 2023, 28(14), 5313; https://doi.org/10.3390/molecules28145313
Submission received: 6 June 2023 / Revised: 2 July 2023 / Accepted: 7 July 2023 / Published: 10 July 2023
(This article belongs to the Collection Green Energy and Environmental Materials)
Browse Figures
Versions Notes

Abstract

:
A facile sol–gel spin coating method has been proposed for the synthesis of spin-coated ZnO nanofilms on ITO substrates. The as-prepared ZnO-nanofilm-based W/ZnO/ITO memory cell showed forming-free and tunable nonvolatile multilevel resistive switching behaviors with a high resistance ratio of about two orders of magnitude, which can be maintained for over 103 s and without evident deterioration. The tunable nonvolatile multilevel resistive switching phenomena were achieved by modulating the different set voltages of the W/ZnO/ITO memory cell. In addition, the tunable nonvolatile resistive switching behaviors of the ZnO-nanofilm-based W/ZnO/ITO memory cell can be interpreted by the partial formation and rupture of conductive nanofilaments modified by the oxygen vacancies. This work demonstrates that the ZnO-nanofilm-based W/ZnO/ITO memory cell may be a potential candidate for future high-density, nonvolatile, memory applications.

1. Introduction

As the fourth fundamental element, the memristor has been regarded as one of the most potential candidates for future nonvolatile memory devices due to its merits in terms of non-volatility, fast memory speed, high integration density, good endurance, long retention, ultra-low power dissipation, and multilevel behaviors [1,2,3,4,5,6,7,8,9,10,11,12,13,14,15,16,17,18,19,20,21,22,23,24,25,26,27,28,29,30,31,32,33,34,35,36,37,38,39,40,41,42,43,44,45,46,47,48,49,50,51,52,53,54,55,56,57,58,59,60]. In recent decades, various oxides have acted as the dielectric materials for memristor applications. Among them, the transition metal oxides, such as ZnO [3,4,5,6,7], TiO2 [8,9,10,22,56,58,59,60], HfO2 [11], GaOx [12], α-Fe2O3 [13], Co3O4 [14], CuOx [15,23], WO3 [16], NiO [17], In2O3 [18], TaOx [19], and CeO2 [20] have become a new focus because of their excellent resistive switching performances. In recent decades, increasing interest has been paid to zinc oxide (ZnO)-based devices because of their features including non-toxicity, suitable band gap (3.37 eV), high electron mobility (~120 cm2 Vs−1), large exciton-binding energy (60 meV), and small electron-hole collision ionization coefficient [21]. The third-generation semiconductor material ZnO has shown excellent potential for nonvolatile memory applications. In particular, ZnO nanomaterials, especially those involving semiconducting and metal oxide nanomaterials corresponding to ZnO nanowires [5,27,32,38,48,50,55], ZnO nanotubes, and ZnO nanofilms [7,21,24,28,29,30,34,36,39,40,43,44,46,49,52,53,54], have recently received remarkable attention for different nano-electronic and optoelectronic applications due to their unique chemical and physical properties inherently different from the ZnO bulk materials, which rely mainly on their unique shape and size. Recently, the transition metal oxide ZnO nanofilms with their simple chemical composition, rich reserves, nontoxicity, and since they contain regulated oxygen vacancies, they have been regarded as one of the most outstanding oxide materials due to their potential applications in future nonvolatile resistive memory devices.
To achieve the high-density nonvolatile memory applications of memristors, the most fundamental solution is to reduce the device size itself [22,57,61,62]. Another effective strategy is to utilize the controllable multilevel resistive switching properties of the device. In addition, the electroforming process is normally required to induce reliable resistive switching behavior owing to the low density of oxygen vacancy defects in pristine-state oxides [23,38], which is an obstacle for commercial device applications. Thus, increasing attention has been devoted to the forming-free and multilevel resistive properties of nanostructured memristors for high-density nonvolatile memory applications. In recent decades, various ZnO-based memristors have shown excellent resistive switching properties for nonvolatile memory applications arising from the intrinsic defects related to oxygen vacancies in the ZnO layer [3,4,5,6,7,24,25,26,27,28,29,30,31,32,33,34,35,36,37,38,39,40,41,42,43,44,45,46,47]. In addition, several resistive switching mechanisms such as the formation and rupture of conducting filaments [7,21,24,27,28,29,30,32,39,44,46,48,52,53,54,55], the trap-controlled space-charge-limited conduction mechanism [34,40,43], the Arrhenius activation theory [38], the Schottky emission [36,49], electron tunneling [5], and the valence change mechanisms [50] have been developed to explain the nonvolatile resistive switching behaviors of ZnO-nanofilm-based memory devices.
Recently, many preparation methods including the spin coating technique [5,46], the magnetron sputtering method [21,30,43,44,49,52,53], chemical vapor deposition [24,27,50,55], the hydrothermal method [32,48], the pulsed laser deposition [34,36], the dip coating method [38,54], and the co-precipitation method [51] have been performed to prepare ZnO-nanofilm-based memory devices. Among them, the spin coating technique is suitable for the controlled synthesis of the large-scale ZnO nanofilms due to its low cost, simple process, and relatively mild reaction conditions; it is one of the effective methods for preparing the ZnO nanofilms. Additionally, the tunable nonvolatile multilevel resistive switching performances have been achieved by modulating the compliance currents [3,7,25] and reset voltages [31,39] of the ZnO-based memristors. However, there have been no such reports about the synthesis and nonvolatile resistive switching properties of ZnO-nanofilm-based W/ZnO/ITO memory cells so far. Moreover, a proper mechanism to illustrate the forming-free and nonvolatile multilevel resistive switching behaviors of ZnO-nanofilm-based W/ZnO/ITO memory cells is still urgently desired.
Herein, a facile sol–gel spin coating method has been proposed for the synthesis of spin-coated ZnO nanofilms on ITO substrates. The forming-free and tunable nonvolatile multilevel resistive switching phenomena of the ZnO-nanofilm-based W/ZnO/ITO memory cell with a relatively higher resistance ratio of about two orders of magnitude were achieved by modulating different set voltages. The filamentary resistive switching mechanism modified by oxygen vacancies has been proposed to interpret the nonvolatile resistive switching performances of the W/ZnO/ITO memory cell. This work suggests that the ZnO-nanofilm-based W/ZnO/ITO memory cell may be a potential candidate for high-density nonvolatile memory applications.

2. Results and Discussion

Figure 1a displays the XRD pattern of the as-prepared ZnO nanofilms. All the XRD diffraction peaks in the ZnO nanofilm spectrum are indexed to the hexagonal (wurtzite) phase (JCPDS Card No. 36-1451) [5]. The presence of the strong peaks suggests the high crystal quality of the ZnO nanofilms. In particular, the significantly stronger XRD diffraction peaks such as (100), (002), and (101) imply that the as-prepared wurtzite ZnO nanofilms are highly aligned along the c-axis, which are perpendicular to the ITO substrate. Figure 1b shows the cross-sectional FESEM image of the as-prepared ZnO nanofilms. The as-prepared ZnO nanofilms with a thickness of about 90 nm were surveyed, which can be acted as the dielectric material of the ZnO-nanofilm-based W/ZnO/ITO memory cell. Figure 1c presents the top-view FESEM images of the as-prepared ZnO nanofilms at high magnification. It was found that the as-prepared ZnO nanofilms are comprised of ZnO nanograins, and the nanograin distribution on the entire surface of the ZnO nanofilms was relatively uniform. Furthermore, the size distribution histogram of the ZnO nanograins, as shown in Figure 1d, further indicates that the mean nanograin size of the ZnO nanofilms was approximately 29.3 nm.
The mean crystal size of the as-prepared ZnO nanofilms can be evaluated by the Scherer’s equation [47] as follows:
D = 0.9 λ β c o s θ
where D is the crystal size of the ZnO nanofilms, β is the full width at half-maxima, λ is the X-ray wavelength (1.5406 Å), and θ is the diffraction angle. The mean crystal size of the ZnO nanofilms was calculated to be 25 nm, which demonstrates the nanocrystal feature of the as-prepared ZnO nanofilms composed of nanograins.
Figure 2 shows the survey XPS spectra, the Zn 2p and the O 1s high-resolution XPS spectra of the as-prepared ZnO nanofilms near the surface. It was observed that all the Zn and O elements, together with the C elements, can be observed in the as-prepared ZnO nanofilms, where the C elements stem from the carbon source in the air adsorbed onto the surface of the as-prepared ZnO nanofilms, which was employed to calibrate the other elements including the Zn and O elements, as shown in Figure 2a. Figure 2b depicts the Zn 2p high-resolution XPS spectra and the corresponding Gaussian fitting peaks of the as-prepared ZnO nanofilms. The Zn 2p XPS peaks observed at 1044.4 eV and 1021.3 eV binding energies can be ascribed to the Zn 2p1/2 and Zn 2p3/2, respectively. The spin-orbit splitting binding energy between the Zn 2p1/2 and Zn 2p3/2 was evaluated to be 23.1 eV, which suggests the presence of Zn2+ in the ZnO nanofilms [5,21]. The asymmetric O 1s XPS spectra, as shown in Figure 2c, can be deconvoluted with three Gaussian fitting peaks located at 529.2 eV, 530.8 eV, and 531.9 eV binding energies, which correspond to the lattice oxygen, oxygen vacancies, and the chemisorbed oxygen groups [37], respectively. In particular, the relative concentration of oxygen vacancies has been calculated to be 76.4% from the peak area around 530.8 eV, which is higher than that of the chemisorbed oxygen groups (8.1%) around 531.9 eV in the as-prepared ZnO nanofilms. The fitting results of the XPS spectra imply that a significant amount of oxygen vacancies exist in the as-prepared ZnO nanofilms, which can act as the trapping center and be responsible for the tunable nonvolatile multilevel resistive switching performances of the ZnO-nanofilm-based W/ZnO/ITO memory cell.
Figure 3a,b show the UV–visible absorption spectra and the corresponding Tauc plots of the as-prepared ZnO nanofilms, respectively. It is appreciable that the as-prepared ZnO nanofilms composed of nanograins displayed an excellent optical absorption capability with an absorption edge of about 308 nm in the UV absorption region, as shown in Figure 3a. Furthermore, the optical band gap E g of the as-prepared ZnO nanofilms can be obtained by the following Tauc equation [42]:
  α h υ n = A h υ − E g
where α is the absorbance coefficient of the as-prepared ZnO nanofilms, h is the Planck’s constant, v is the vibration frequency, and A is the optical constant. Furthermore, n is the vibration frequency of ZnO (n = 2) due to its direct band gap. As shown in Figure 3b, the optical band gap of the ZnO nanofilms composed of nanograins was be found to be 4.05 eV, which is larger than that of the pristine ZnO bulk [21] (3.37 eV) due to the nanometer size effect, further confirming the nanocrystal nature of the wurtzite ZnO nanofilms composed of nanograins.
In order to evaluate the nonvolatile resistive switching behavior of the as-prepared ZnO-nanofilm-based W/ZnO/ITO memory cell, the typical I-V measurements of the ZnO-nanofilm-based W/ZnO/ITO memory cell were carried out by sweeping the applied voltage in the sequence of 0 V → +3 V → 0 V → −1.5 V → 0 V with a compliance current fixed at 5 mA to protect the device from irreversible breakdown during the tests, as shown in Figure 4. Figure 4a shows the semi-logarithmic I-V curves of the ZnO-nanofilm-based W/ZnO/ITO memory cell over 100 successive cycles. The arrows and numbers as recorded in Figure 4a present the applied voltage sweeping direction and sequence in the device, respectively. It was observed that the ZnO-nanofilm-based W/ZnO/ITO memory cell showed a stable nonvolatile and forming-free bipolar resistive switching behavior. Moreover, the asymmetric I-V curves corresponding to the low forward and high reverse currents in the low resistance state (LRS) also revealed the self-rectifying feature of the W/ZnO/ITO memory cell. As shown in Figure 4a, the pristine resistance state of the W/ZnO/ITO memory cell was the high resistance state (HRS). When the applied voltage increased from 0 V to +3 V, the ZnO-nanofilm-based W/ZnO/ITO memory cell will gradually transition from the HRS to LRS and the set process occurred at +3 V (Vset). Subsequently, the ZnO-nanofilm-based W/ZnO/ITO memory cell will preserve the LRS until the applied voltage decreases to −1.5 V (Vreset), which means that the reset process occurs at Vreset and the device switches from the LRS to the pristine HRS, indicating the nonvolatile bipolar resistive switching behavior of the as-prepared ZnO-nanofilm-based W/ZnO/ITO memory cell.
To further illustrate the nonvolatile resistive switching mechanism of the as-prepared ZnO-nanofilm-based W/ZnO/ITO memory cell, we plotted the double-logarithmic I-V curve of the device (Figure 4b). In the LRS region, the linear I-V curve with a slope of 0.95 suggests an Ohmic conduction feature ( I ∝ V ) of the ZnO-nanofilm-based W/ZnO/ITO memory cell. In the HRS region, the slope of the I-V curve changed from 0.97 to 2.1, and then to 6.5 with rising applied voltage. The I-V response in the HRS can be divided into three different regions corresponding to the Ohmic conduction region ( I ∝ V ), the Child’s law conduction region ( I ∝ V 2 ), and the trap-filled limited conduction region ( I ∝ V m ,   m > 2 ), demonstrating the trap-controlled space-charge-limited current (SCLC) performance [4] of the ZnO-nanofilm-based W/ZnO/ITO memory cell in the HRS. During the set process, a gradual jump of current from the HRS to LRS occurred at Vset, which corresponds to the transition from the SCLC conduction region to the Ohmic conduction region of the ZnO-nanofilm-based W/ZnO/ITO memory cell. Significantly, the nonvolatile resistive switching behavior of the as-prepared ZnO-nanofilm-based W/ZnO/ITO memory cell might be assigned to the filamentary resistive switching mechanism.
In the Ohmic conduction region, the current density   J o can be given as
  J o = q n μ V d
where q is the elementary charge, n is the thermally generated free carrier density, μ is the electron mobility, V is the applied voltage, and d is the thickness of the ZnO layer in the ZnO-nanofilm-based W/ZnO/ITO memory cell.
In the Child’s law conduction region, the current density   J c can be expressed as
  J c = 9 8 ε μ ξ V 2   d 3
where ε is the dielectric constant of the ZnO layer, and ξ is the proportion of the free carrier density to the total carrier density. Obviously, the resistive switching behavior of the as-prepared W/ZnO/ITO memory cell switches from the HRS to LRS in the set process and then to HRS in the reset process, which might be consistent with the partial formation and rupture of conducting nanofilaments, respectively. Thus, the nonvolatile bipolar resistive switching behavior of the W/ZnO/ITO memory cell might be associated with the filamentary resistive switching mechanism.
The endurance performance of the as-prepared ZnO-nanofilm-based W/ZnO/ITO memory cell was recorded at 0.5 V for 100 successive cycles, as displayed in Figure 4c. It is clearly shown that both the LRS and HRS were highly stable and the resistance ratio between the HRS and the LRS exceeded 50, indicating the highly reproducible and reliable resistive switching capability of the ZnO-nanofilm-based W/ZnO/ITO memory cell. Figure 4d depicts the retention test of the ZnO-nanofilm-based W/ZnO/ITO memory cell. Obviously, the resistance ratio between the HRS and LRS can be stably maintained over 103 s and without evident deterioration. For comparison, Table 1 tabulates the performance comparison of other ZnO-based memory devices [5,21,24,27,30,32,34,36,38,40,43,44,46,48,49,50,51,52,53,54,55]. The as-prepared ZnO-nanofilm-based W/ZnO/ITO memory cell in this work has a relatively higher resistance ratio of about two orders of magnitude and a facile preparation process, which demonstrates the promising potential of the as-prepared ZnO-nanofilm-based W/ZnO/ITO memory cell for applications in next-generation nonvolatile memory devices.
To realize high-density nonvolatile memory applications, an effective strategy is to utilize the controllable multilevel resistive switching properties of the device itself. It was found that the multilevel resistive switching properties of the device can be obtained not only by regulating the reset voltages in the reset process, but also by adjusting the set voltages and compliance currents in the set process. Several previous reports have demonstrated that the multilevel resistive switching properties can be achieved by governing the compliance currents [3,7,25] and reset voltages [31,39] of the ZnO-based devices, but multilevel resistive switching properties were not observed by modulating the set voltages in the ZnO-nanofilm-based W/ZnO/ITO memory cell to date. Here, the multilevel resistive switching performances of the ZnO-nanofilm-based W/ZnO/ITO memory cell were achieved by modulating different set voltages while fixing the reset voltage at −1.5 V, as recorded in Figure 5a. It is appreciable that six distinguishable resistance states corresponding to three HRSs (HRS1, HRS2, and HRS3) and three LRSs (LRS1, LRS2, and LRS3) can be observed clearly, which are attributed to the partial formation of conductive nanofilament under different set voltages in the ZnO-nanofilm-based W/ZnO/ITO memory cell. The larger the set voltages applied to the ZnO-nanofilm-based W/ZnO/ITO memory cell, the more filaments were generated between the W top electrode and the bottom ITO electrode, resulting in the lower multilevel resistance states in both HRS and LRS. Figure 5b reveals the retention capabilities of the ZnO-nanofilm-based W/ZnO/ITO memory cell with multilevel resistance states, which demonstrates the stable and nonvolatile multilevel resistive switching properties. The resistance ratio between the HRS and the LRS can be adjusted from one to two orders of magnitude, maintained over 103 s without evident deterioration, indicating the excellent potential for high-density nonvolatile memory applications.
As mentioned above, the nonvolatile resistive switching performance of the as-prepared ZnO-nanofilm-based W/ZnO/ITO memory cell might be assigned to the filamentary resistive switching mechanism modified by oxygen vacancies. During the set process shown in Figure 6, when the positive sweeping voltage is applied to the ZnO-nanofilm-based W/ZnO/ITO memory cell in the HRS, the oxygen ions drift upward and accumulate at the W top electrode, while the oxygen vacancies will migrate from the W top electrode to the bottom ITO electrode and develop into the metallic conductive nanofilaments across the wurtzite ZnO layer. Once the partial formation of conductive nanofilament occurs with the increasing applied voltage, the ZnO-nanofilm-based W/ZnO/ITO memory cell will transition from the HRS to LRS with the rise in current. Subsequently, the device will keep the LRS until a large enough negative sweeping voltage is applied, indicating the nonvolatile feature of the device. During the reset process, when the negative sweeping voltage is applied to the ZnO-nanofilm-based W/ZnO/ITO memory cell, the external electric field will drive the oxygen vacancies to move toward the W top electrode and recombine with oxygen ions at the W/ZnO interface, causing the partial rupture of the conductive nanofilaments. After that, the device recovers to the pristine HRS with the drop in current. Thus, the partial formation and rupture of conductive nanofilaments modified by oxygen vacancies are proposed to be responsible for the nonvolatile resistive switching behavior of the as-prepared ZnO-nanofilm-based W/ZnO/ITO memory cell.
Additionally, the multilevel resistive switching performances of the as-prepared ZnO-nanofilm-based W/ZnO/ITO memory cell were achieved by modulating different set voltages while fixing the reset voltage at −1.5 V. By applying higher set voltages, more oxygen vacancies will migrate toward the bottom ITO electrode and form more nanofilaments, which leads to the lower multilevel resistance states of the device in both HRS and LRS, suggesting the excellent potential for future high-density nonvolatile memory applications.

3. Experimental Details

All the used chemicals, including zinc acetate dihydrate (Zn(C2H3O2)·2H2O, 99%), isopropyl alcohol ((CH3)2CHOH, 99.7%), and ethanolamine (NH2(CH2) 2ON, 99%) are of analytical grade and were used without further purification, and were purchased from the Sigma-Aldrich. The commercially available ITO (ITO, 7 Ω/square) substrates with a size of 1 cm × 2 cm were used for the epitaxial growth of the spin-coated ZnO nanofilms. The ITO substrates were cleaned ultrasonically for 30 min in a mixture composed of 30 mL of acetone, 30 mL of isopropanol, and 30 mL of deionized water, and then the cleaned ITO substrates were dried at room temperature.
The hexagonal phase ZnO nanofilms were directly prepared by a facile sol–gel spin coating method as follows. In brief, 0.5 mM of zinc acetate dihydrate was dissolved into a mixture containing 20 mL of isopropyl alcohol and 600 μL of ethanolamine. After constant stirring at 60 °C for 24 h, a yellow transparent mixture solution was generated, which was used as the ZnO precursor solution. The as-prepared ZnO precursor solution was spin coated onto the ITO substrates at 2000 rpm for 20 s. Then, the spin-coated nanofilms were dried at 60 °C for 5 min. After repeating the sol–gel spin coating process four times, the spin-coated ZnO precursor nanofilms were prepared. After that, the spin-coated ZnO precursor nanofilms were annealed in a muffle furnace at 500 °C for 10 min. Subsequently, the sol–gel spin coating and annealing processes were repeated again and the spin-coated ZnO nanofilms were obtained. The circular W top electrodes with a diameter of 5 μm in the W/ZnO/ITO memory cell were deposited on the as-obtained spin-coated ZnO nanofilms through the magnetron sputtering procedure.
The crystal phases and morphologies of the ZnO nanofilms were identified by using the X-ray diffraction (XRD, PANalytical PW3040/60, Cambridge, UK) with Cu Kα radiation (λ = 0.1541 nm) and Field-emission scanning electron microscopy (FESEM, FEI Nova NanoSEM 450, Lincoln, NU, USA), respectively. The chemical states of the ZnO nanofilms were confirmed using X-ray photoelectron spectroscopy (XPS, AXIS-ULTRA DLD-600W, Manchester, NH, USA) with monochromatic Al Kα radiation (hv = 1486.6 eV). The current–voltage (I-V) properties of the W/ZnO/ITO memory cell were tested using an Agilent B2901A semiconductor parameter analyzer. During the tests, the bias voltages of the ZnO-nanofilm-based W/ZnO/ITO memory cell were applied to the W top electrode with the bottom ITO electrode grounded, and a compliance current fixed at 5 mA was set to protect the device from irreversible breakdown.

4. Conclusions

In conclusion, hexagonal phase ZnO nanofilms with the growth axis perpendicular to the ITO substrate were synthesized using a facile sol–gel spin coating method. A hexagonal phase ZnO-nanofilm-based W/ZnO/ITO memory cell has been prepared for the first time. The as-prepared hexagonal phase ZnO-nanofilm-based W/ZnO/ITO memory cell possessed forming-free and tunable nonvolatile multilevel resistive switching behaviors with a relatively higher resistance ratio of about two orders of magnitude, which can be maintained over 103 s and without obvious deterioration. The tunable nonvolatile multilevel resistive switching performances of the as-prepared W/ZnO/ITO memory cell were achieved by modulating the different set voltages and the resistance ratio between the HRS and the LRS which could be adjusted from one to two orders of magnitude. Furthermore, the carrier transport properties of the as-prepared ZnO-nanofilm-based W/ZnO/ITO memory cell were assigned to the Ohmic conduction mechanism in the low resistance state and the trap-controlled space-charge-limited current conduction mechanism in the high resistance state. In addition, the partial formation and rupture of conducting nanofilaments modified by the intrinsic oxygen vacancies in the as-prepared ZnO nanofilms were found to be responsible for the forming-free and tunable nonvolatile resistive switching behaviors of the as-prepared ZnO-nanofilm-based W/ZnO/ITO memory cell. This work suggests that the as-prepared W/ZnO/ITO memory cells may be a promising candidate for applications in future high-density nonvolatile memory devices.

Author Contributions

Writing—original draft preparation, Z.Y., Q.X. (Qingquan Xiao), W.K. and X.Q.; writing—review and editing, Z.Y., Q.X. (Quan Xie), J.J. and X.Q.; conceptualization, Q.W.; methodology, B.L. and J.J.; validation, W.K., Q.X. (Qingquan Xiao) and X.Q.; data curation, T.G. and W.K.; supervision, B.L., W.K. and X.Q.; funding acquisition, Z.Y., T.G. and Q.X. (Quan Xie). All authors have read and agreed to the published version of the manuscript.

Funding

This project was supported by the National Natural Science Foundation of China (Grant Nos. 62262021, 61805053, 22269002), the Guangxi Science and Technology Project (Grant Nos. AD19110038, AD21238033), the Scientific Research Foundation of Guangxi University of Science and Technology (Grant No. 19Z07), and the Innovation Project of Guangxi Graduate Education (Grant No. YCSW2021135).

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Data Availability Statement

The data presented in this study are available on request from the corresponding author.

Acknowledgments

The authors would like to thank the Shiyanjia lab (www.shiyanjia.com) (accessed on 10 May 2022) for the XPS test and XRD refinement.

Conflicts of Interest

The authors declare no conflict of interest.

Sample Availability

Samples are available from the author.

References

  1. Chua, L.O. Memristor-The missing circuit element. IEEE Trans. Circuit Theory 1971, 18, 507–519. [Google Scholar] [CrossRef]
  2. Strukov, D.B.; Snider, G.S.; Stewart, D.R.; Williams, R.S. The missing memristor found. Nature 2008, 453, 80–83. [Google Scholar] [CrossRef] [PubMed]
  3. Milano, G.; Luebben, M.; Ma, Z.; Dunin-Borkowski, R.; Boarino, L.; Pirri, C.F.; Waser, R.; Ricciardi, C.; Valov, I. Self-limited single nanowire systems combining allin-one memristive and neuromorphic functionalities. Nat. Commun. 2018, 9, 5151. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  4. Sun, T.Y.; Shi, H.; Gao, S.A.; Zhou, Z.P.; Yu, Z.Q.; Guo, W.J.; Li, H.O.; Zhang, F.B.; Xu, Z.M.; Zhang, X.W. Stable Resistive Switching in ZnO/PVA: MoS2 Bilayer Memristor. Nanomaterials 2022, 12, 1977. [Google Scholar] [CrossRef]
  5. Sarkar, D.; Singh, A.K. Mechanism of Nonvolatile Resistive Switching in ZnO/α-Fe2O3 Core-Shell Heterojunction Nanorod Arrays. J. Phys. Chem. C 2017, 121, 12953–12958. [Google Scholar] [CrossRef]
  6. Khan, M.U.; Hassan, G.; Bae, J. Highly bendable asymmetric resistive switching memory based on zinc oxide and magnetic iron oxide heterojunction. J. Mater. Sci. Mater. Electron. 2020, 31, 1105–1115. [Google Scholar] [CrossRef]
  7. Qi, M.; Zhang, X.; Yang, L.; Wang, Z.Q.; Xu, H.Y.; Liu, W.Z.; Zhao, X.N.; Liu, Y.C. Intensity-modulated LED achieved through integrating p-GaN/n-ZnO heterojunction with multilevel RRAM. Appl. Phys. Lett. 2018, 113, 223503. [Google Scholar] [CrossRef]
  8. Chen, J.; Wu, Y.L.; Zhu, K.L.; Sun, F.; Guo, C.G.; Wu, X.L.; Cheng, G.A.; Zheng, R.T. Core-shell copper nanowire-TiO2 nanotube arrays with excellent bipolar resistive switching properties. Electrochim. Acta 2019, 316, 133–142. [Google Scholar] [CrossRef]
  9. Kim, S.E.; Lee, J.G.; Ling, L.; Liu, S.E.; Lim, H.K.; Sangwan, V.K.; Hersam, M.C.; Lee, H.S. Sodium-Doped Titania Self-Rectifying Memristors for Crossbar Array Neuromorphic Architectures. Adv. Mater. 2021, 34, 2106913. [Google Scholar] [CrossRef]
  10. Yu, Z.Q.; Sun, T.Y.; Liu, B.S.; Zhang, L.; Chen, H.J.; Fan, X.S.; Sun, Z.J. Self-rectifying and forming-free nonvolatile memory behavior in single-crystal TiO2 nanowire memory device. J. Alloys Compd. 2021, 858, 157749. [Google Scholar] [CrossRef]
  11. Persson, K.M.; Ram, M.S.; Kilpi, O.P.; Borg, M.; Wernersson, L.E. Cross-Point Arrays with Low-Power ITO-HfO2 Resistive Memory Cells Integrated on Vertical III-V Nanowires. Adv. Electron. Mater. 2020, 6, 2000154. [Google Scholar] [CrossRef]
  12. Mahmoud, N.A.; Maximilian, S.; Brian, C.O.; Erik, J.L.; Sayed, Y.S.; Marc, T.; Jillian, M.B. Bipolar Resistive Switching in Junctions of Gallium Oxide and p-type Silicon. Nano Lett. 2021, 21, 2666–2674. [Google Scholar]
  13. Yu, Z.Q.; Xu, J.M.; Liu, B.S.; Sun, Z.J.; Huang, Q.N.; Ou, M.L.; Wang, Q.C.; Jia, J.H.; Kang, W.B.; Xiao, Q.Q.; et al. A Facile Hydrothermal Synthesis and Resistive Switching Behavior of α-Fe2O3 Nanowire Arrays. Molecules 2023, 28, 3835. [Google Scholar] [CrossRef]
  14. Yao, C.Y.; Li, J.C.; Thatikonda, S.K.; Ke, Y.F.; Qin, N.; Bao, D.H. Introducing a thin MnO2 layer in Co3O4-based memory to enhance resistive switching and magnetization modulation behaviors. J. Alloys Compd. 2020, 823, 153731. [Google Scholar] [CrossRef]
  15. Huang, C.H.; Matsuzaki, K.; Nomura, K. Threshold switching of non-stoichiometric CuO nanowire for selector application. Appl. Phys. Lett. 2020, 116, 023503. [Google Scholar] [CrossRef]
  16. Hsu, C.C.; Wang, S.Y.; Lin, Y.S.; Chen, Y.T. Self-rectifying and interface-controlled resistive switching characteristics of molybdenum oxide. J. Alloys Compd. 2019, 779, 609–617. [Google Scholar] [CrossRef]
  17. You, B.K.; Park, W.I.; Kim, J.M.; Park, K.I.; Seo, H.K.; Lee, J.Y.; Jung, Y.S.; Lee, K.J. Formation in Resistive Memories by Self-Assembled Nanoinsulators Derived from a Block Copolymer. ACS Nano 2014, 9, 9492–9502. [Google Scholar] [CrossRef]
  18. Huang, C.H.; Chang, W.C.; Huang, J.S.; Lin, S.M.; Chueh, Y.L. Resistive Switching of Sn-doped In2O3/HfO2 core-shell nanowire: Geometry Architecture Engineering for Nonvolatile Memory. Nanoscale 2017, 9, 6920–6928. [Google Scholar] [CrossRef]
  19. Sun, Y.M.; Song, C.; Yin, J.; Qiao, L.L.; Wang, R.; Wang, Z.Y.; Chen, X.Z.; Yin, S.Q.; Saleem, M.S.; Wu, H.Q.; et al. Modulating metallic conductive filaments via bilayer oxides in resistive switching memory. Appl. Phys. Lett. 2019, 114, 193502. [Google Scholar] [CrossRef]
  20. Younis, A.; Chu, D.W.; Li, S.A. Stochastic memristive nature in Co-doped CeO2 nanorod arrays. Appl. Phys. Lett. 2013, 103, 253504. [Google Scholar] [CrossRef]
  21. Zoolfakar, A.S.; Kadir, R.A.; Rani, R.A.; Balendhran, S.; Liu, X.J.; Kats, E.; Bhargava, S.K.; Bhaskaran, M.; Sriram, S.; Zhuiykov, S.; et al. A comprehensive review of ZnO materials and devices. Phys. Chem. Chem. Phys. 2013, 15, 10376. [Google Scholar] [CrossRef] [PubMed]
  22. Park, J.; Biju, K.P.; Jung, S.; Lee, W.; Lee, J.; Kim, S.; Park, S.; Shin, J.; Hwang, H. Multibit Operation of TiOx-Based ReRAM by Schottky Barrier Height Engineering. IEEE Electron Device Lett. 2011, 32, 476–478. [Google Scholar] [CrossRef]
  23. Liang, K.; Huang, C.; Lai, C.; Huang, J.; Tsai, H.; Wang, Y.; Shih, Y.; Chang, M.; Lo, S.; Chueh, Y. Single CuOx Nanowire Memristor: Forming-Free Resistive Switching Behavior. ACS Appl. Mater. Interfaces 2014, 6, 16537–16544. [Google Scholar] [CrossRef] [PubMed]
  24. Bejtka, K.; Milano, G.; Ricciardi, C.; Pirri, C.F.; Porro, S. TEM Nanostructural Investigation of Ag-Conductive Filaments in Polycrystalline ZnO-Based Resistive Switching Devices. ACS Appl. Mater. Interfaces 2020, 12, 29451–29460. [Google Scholar] [CrossRef] [PubMed]
  25. Zhang, J.; Yang, H.; Zhang, Q.L.; Dong, S.R.; Luo, J.K. Structural, optical, electrical and resistive switching properties of ZnO thin films deposited by thermal and plasma-enhanced atomic layer deposition. Appl. Surf. Sci. 2013, 282, 390–395. [Google Scholar] [CrossRef]
  26. Ren, S.X.; Dong, W.C.; Tang, H.; Tang, L.Z.; Li, Z.H.; Sun, Q.; Yang, H.F.; Yang, Z.G.; Zhao, J.J. High-efficiency magnetic modulation in Ti/ZnO/Pt resistive random-access memory devices using amorphous zinc oxide film. Appl. Surf. Sci. 2019, 488, 92–97. [Google Scholar] [CrossRef]
  27. Milano, G.; Porro, S.; Ali, M.Y.; Bejtka, K.; Bianco, S.; Beccaria, F.; Chiolerio, A.; Pirri, C.F.; Ricciardi, C. Unravelling Resistive Switching Mechanism in ZnO NW Arrays: The Role of the Polycrystalline Base Layer. J. Phys. Chem. C 2018, 12, 866–874. [Google Scholar] [CrossRef]
  28. Li, S.S.; Chuang, R.W.; Su, Y.K.; Hu, Y.M. Bias voltage-controlled ferromagnetism switching in undoped zinc oxide thin film memory device. Appl. Phys. Lett. 2016, 109, 252103. [Google Scholar] [CrossRef]
  29. Zhang, J.; Yang, H.; Zhang, Q.L.; Dong, S.R.; Luo, J.K. Bipolar resistive switching characteristics of low temperature grown ZnO thin films by plasma-enhanced atomic layer deposition. Appl. Phys. Lett. 2013, 102, 012113. [Google Scholar] [CrossRef]
  30. Chang, W.Y.; Huang, H.W.; Wang, W.T.; Hou, C.H.; Chue, Y.L.; He, J.H. High Uniformity of Resistive Switching Characteristics in a Cr/ZnO/Pt Device. J. Electrochem. Soc. 2012, 159, G29–G32. [Google Scholar] [CrossRef]
  31. Sokolov, A.S.; Jeon, Y.R.; Kim, S.; Ku, B.; Choi, C. Bio-realistic synaptic characteristics in the cone-shaped ZnO memristive device. NPG Asia Mater. 2019, 11, 5. [Google Scholar] [CrossRef] [Green Version]
  32. Quintana, A.; Gómez, A.; Baró, M.D.; Suriñach, S.; Pellicer, E.; Sort, J. Self-templating faceted and spongy single-crystal ZnO nanorods: Resistive switching and enhanced piezoresponse. Mater. Des. 2017, 133, 54–61. [Google Scholar] [CrossRef] [Green Version]
  33. Chauhan AK, S.; Sharma, D.K.; Datta, A. Rate limited filament formation in Al-ZnO-Al bipolar ReRAM cells and its impact on early current window closure during cycling. J. Appl. Phys. 2019, 125, 104503. [Google Scholar] [CrossRef]
  34. Sekhar, K.C.; Kamakshi, K.; Bernstorff, S.; Gomes, M.J.M. Effect of annealing temperature on photoluminescence and resistive switching characteristics of ZnO/Al2O3 multilayer nanostructures. J. Alloys Compd. 2015, 619, 248–252. [Google Scholar] [CrossRef]
  35. Zhou, Z.; Xiu, F.; Jiang, T.F.; Xu, J.G.; Chen, J.; Liu, J.Q.; Huang, W. Solution-processable zinc oxide nanorods and a reduced graphene oxide hybrid nanostructure for highly flexible and stable memristor. J. Mater. Chem. C 2019, 7, 10764–10768. [Google Scholar] [CrossRef]
  36. Punugupati, S.; Temizer, N.K.; Narayan, J.; Hunte, F. Structural and resistance switching properties of epitaxial Pt/ZnO/TiN/Si(001) heterostructures. J. Appl. Phys. 2014, 115, 234501. [Google Scholar] [CrossRef]
  37. Manna, A.K.; Dash, P.; Das, D.; Srivastava, S.K.; Sahoo, P.K.; Kanjilal, A.; Kanjilal, D.; Varma, S. Resistive switching properties and photoabsorption behavior of Ti ion implanted ZnO thin films. Ceram. Int. 2022, 48, 3303–3310. [Google Scholar] [CrossRef]
  38. Sun, Y.H.; Yan, X.Q.; Zheng XLiu, Y.H.; Zhao, Y.G.; Shen, Y.W.; Liao, Q.L.; Zhang, Y. High On-Off Ratio Improvement of ZnO-Based Forming-Free Memristor by Surface Hydrogen Annealing. ACS Appl. Mater. Interfaces 2015, 7, 7382–7388. [Google Scholar] [CrossRef]
  39. Xu, Z.D.; Yu, L.N.; Xu, X.G.; Miao, J.; Jiang, Y. Effect of oxide/oxide interface on polarity dependent resistive switching behavior in ZnO/ZrO2 heterostructures. Appl. Phys. Lett. 2014, 104, 192903. [Google Scholar] [CrossRef]
  40. Huang, J.S.; Lee, C.Y.; Chin, T.S. Forming-free bipolar memristive switching of ZnO films deposited by cyclic-voltammetry. Electrochim. Acta 2013, 91, 62–68. [Google Scholar]
  41. Park, J.J.; Lee, S.H.; Lee, J.H.; Yong, K.J. A Light Incident Angle Switchable ZnO Nanorod Memristor: Reversible Switching Behavior Between Two Non-Volatile Memory Devices. Adv. Mater. 2013, 25, 6423–6429. [Google Scholar] [CrossRef] [PubMed]
  42. Wang, J.B.; Wang, Y.Y.; Jiang, X.; Lai, R.L.; Qiu, X.Y. Endurance degradation of solution-processed ZnO polycrystalline film-based resistive switching memory. Sci. Sin. Phys. Mech. Astron. 2020, 50, 077301. [Google Scholar]
  43. Wu, S.J.; Wang, F.; Zhang, Z.C.; Li, Y.; Han, Y.M.; Yang, Z.C.; Zhao, J.S.; Zhang, K.L. High uniformity and forming-free ZnO-based transparent RRAM with HfO𝑥 inserting layer. Chin. Phys. B 2018, 27, 087701. [Google Scholar] [CrossRef]
  44. Simanjuntak, F.M.; Ohno, T.; Samukawa, S.J. Neutral Oxygen Beam Treated ZnO-Based Resistive Switching Memory Device. ACS Appl. Electron. Mater. 2019, 1, 18–24. [Google Scholar]
  45. Jung, J.; Kwon, D.; Jung, H.; Lee, K.; Yoon, T.; Kang, C.J.; Lee, H.H. Multistate resistive switching characteristics of ZnO nanoparticles embedded polyvinylphenol device. J. Ind. Eng. Chem. 2018, 64, 85–89. [Google Scholar] [CrossRef]
  46. Choi, K.H.; Mustafa, M.; Rahman, K.; Jeong, B.K.; Doh, Y.H. Cost-effective fabrication of memristive devices with ZnO thin film using printed electronics technologies. Appl. Phys. A 2012, 106, 165–170. [Google Scholar] [CrossRef]
  47. Patil, S.R.; Chougale, M.Y.; Rane, T.D.; Khot, S.S.; Patil, A.A.; Bagal, O.S.; Jadhav, S.D.; Sheikh, A.D.; Kim, S.; Dongale, T.D. Solution-Processable ZnO Thin Film Memristive Device for Resistive Random Access Memory Application. Electronics 2018, 7, 445. [Google Scholar] [CrossRef] [Green Version]
  48. Chang, W.Y.; Lin, C.; He, J.; Wu, T. Resistive switching behaviors of ZnO nanorod layers. Appl. Phys. Lett. 2012, 96, 242109. [Google Scholar] [CrossRef]
  49. Wang, J.R.; Pan, R.B.; Cao, H.T.; Wang, Y.; Liang, L.Y.; Zhang, H.L.; Gao, J.H.; Zhuge, F. Anomalous rectification in a purely electronic memristor. Appl. Phys. Lett. 2016, 109, 143505. [Google Scholar] [CrossRef]
  50. Karthik KR, G.; Prabhakar, R.R.; Hai-, L.; Batabyal, S.K.; Huang, Y.Z.; Mhaisalkar, S.G. A ZnO nanowire resistive switch. Appl. Phys. Lett. 2013, 103, 123114. [Google Scholar] [CrossRef]
  51. Sun, B.; Liu, Y.H.; Zhao, W.X.; Chen, P. Magnetic-field and white-light controlled resistive switching behaviors in Ag/BiFeO3/γ-Fe2O3/FTO device. RSC Adv. 2015, 5, 13513–13518. [Google Scholar] [CrossRef]
  52. Huang, C.; Huang, J.; Lai, C.; Huang, H.; Lin, S.; Chueh, Y. Manipulated Transformation of Filamentary and Homogeneous Resistive Switching on ZnO Thin Film Memristor with Controllable Multistate. ACS Appl. Mater. Interfaces 2013, 5, 6017–6023. [Google Scholar] [CrossRef]
  53. Wang, H.J.; Zhu, Y.Y.; Liu, Y. Characteristics of the bipolar resistive switching behavior in memory device with Au/ZnO/ITO structure. Chin. J. Phys. 2018, 56, 3073–3077. [Google Scholar] [CrossRef]
  54. Yoo, E.J.; Kang, S.Y.; Shim, E.L.; Yoon, T.S.; Kang, C.J.; Choi, Y.J. Influence of Incorporated Pt-Fe2O3 Core-Shell Nanoparticles on the Resistive Switching Characteristics of ZnO Thin Film. J. Nanosci. Nanotechnol. 2015, 15, 8622–8626. [Google Scholar] [CrossRef]
  55. Huang, C.; Huang, J.; Lin, S.; Chang, W.; He, J.; Chueh, Y. ZnO1-x Nanorod Arrays/ZnO Thin Film Bilayer Structure: From Homojunction Diode and High-Performance Memristor to Complementary 1D1R Application. ACS Nano 2012, 6, 8407–8414. [Google Scholar] [CrossRef]
  56. Yu, Z.Q.; Han, X.; Xu, J.M.; Chen, C.; Qu, X.R.; Liu, B.S.; Sun, Z.J.; Sun, T.Y. The Effect of Nitrogen Annealing on the Resistive Switching Characteristics of the W/TiO2/FTO Memory Device. Sensors 2023, 23, 3480. [Google Scholar] [CrossRef]
  57. Sun, T.Y.; Liu, Y.; Tu, J.; Zhou, Z.P.; Cao, L.; Liu, X.P.; Li, H.O.; Li, Q.; Fu, T.; Zhang, F.B.; et al. Wafer-scale high anti-reflective nano/micro hybrid interface structures via aluminum grain dependent self-organization. Mater. Des. 2020, 194, 108960. [Google Scholar] [CrossRef]
  58. Yu, Z.Q.; Qu, X.P.; Yang, W.P.; Peng, J.; Xu, Z.M. A facile hydrothermal synthesis and memristive switching performance of rutile TiO2 nanowire arrays. J. Alloy. Compd. 2016, 688, 37–43. [Google Scholar] [CrossRef]
  59. Yu, Z.Q.; Qu, X.P.; Yang, W.P.; Peng, J.; Xu, Z.M. Hydrothermal synthesis and memristive switching behaviors of single-crystalline anatase TiO2 nanowire arrays. J. Alloy. Compd. 2016, 688, 294–300. [Google Scholar] [CrossRef]
  60. Yu, Z.Q.; Liu, M.L.; Lang, J.X.; Qian, K.; Zhang, C.H. Resistive switching characteristics and resistive switching mechanism of Au/TiO2/FTO memristor. Acta Phys. Sin. 2018, 67, 157302. [Google Scholar]
  61. Li, H.O.; Cao, L.; Fu, T.; Li, Q.; Zhang, F.B.; Xiao, G.L.; Chen, Y.H.; Liu, X.P.; Zhao, W.N.; Yu, Z.Q.; et al. Morphology-dependent high antireflective surfaces via anodic aluminum oxide nanostructures. Appl. Surf. Sci. 2019, 496, 143697. [Google Scholar] [CrossRef]
  62. Sun, T.Y.; Tu, J.; Zhou, Z.P.; Sun, R.; Zhang, X.W.; Li, H.O.; Xu, Z.M.; Peng, Y.; Liu, X.P.; Wangyang, P.H.; et al. Resistive switching of self-assembly stacked h-BN polycrystal film. Cell Rep. Phys. Sci. 2022, 3, 100939. [Google Scholar] [CrossRef]
Molecules 28 05313 g001 550

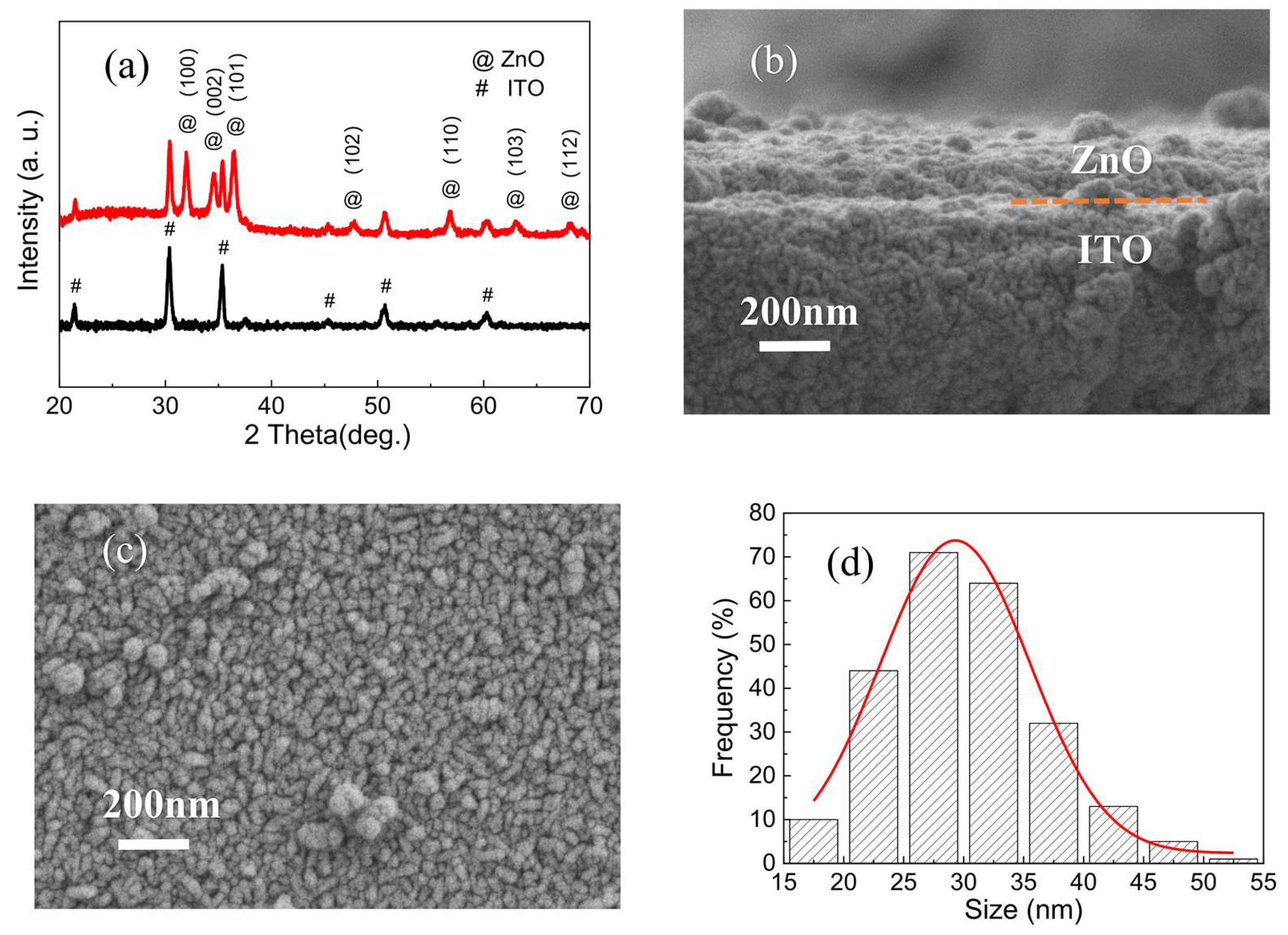

Figure 1. (a) XRD pattern of the ZnO nanofilms. FESEM images of the ZnO nanofilms: (b) the cross-sectional FESEM image, (c) the high magnification, top-view FESEM image. (d) The size distribution histogram of ZnO nanograins.
Figure 1. (a) XRD pattern of the ZnO nanofilms. FESEM images of the ZnO nanofilms: (b) the cross-sectional FESEM image, (c) the high magnification, top-view FESEM image. (d) The size distribution histogram of ZnO nanograins.
Molecules 28 05313 g001
Molecules 28 05313 g002 550

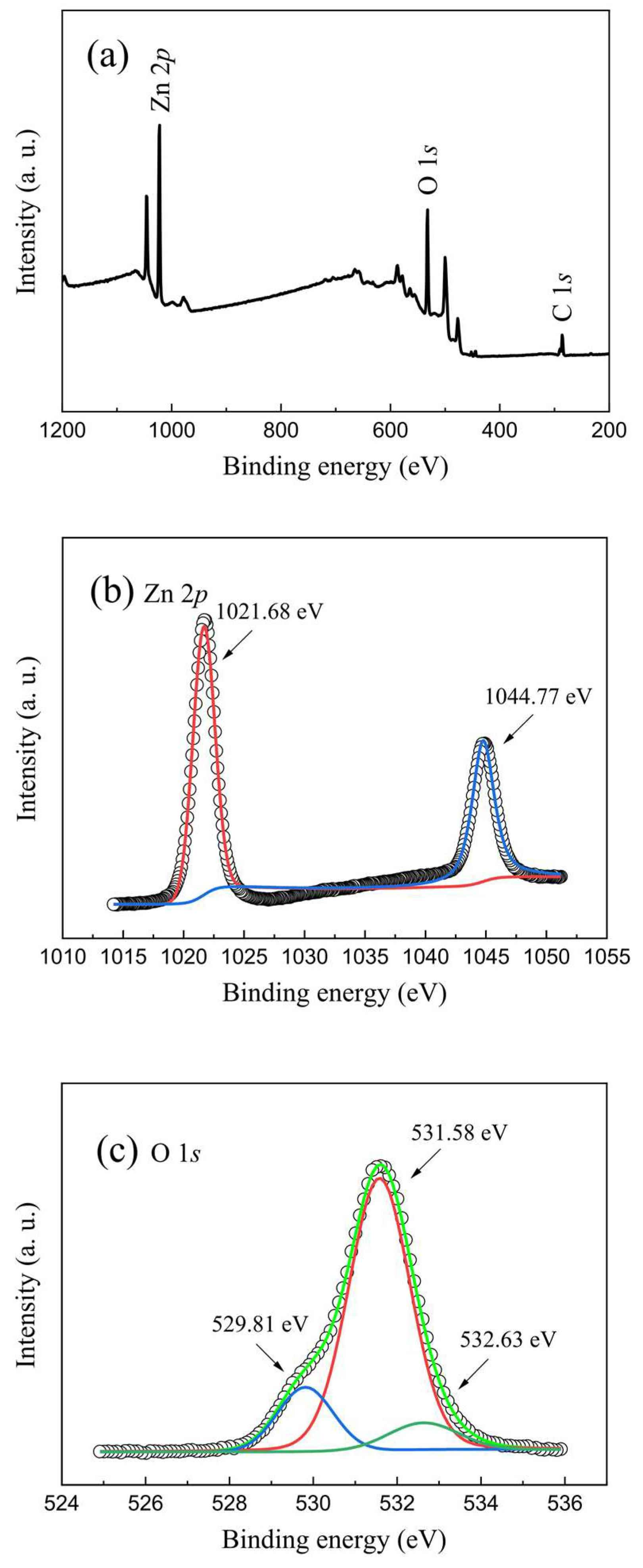

Figure 2. (a) Survey XPS spectra of the as-prepared ZnO nanofilms. (b) Zn 2p and (c) O 1s high-resolution XPS spectra of the as-prepared ZnO nanofilms.
Figure 2. (a) Survey XPS spectra of the as-prepared ZnO nanofilms. (b) Zn 2p and (c) O 1s high-resolution XPS spectra of the as-prepared ZnO nanofilms.
Molecules 28 05313 g002
Molecules 28 05313 g003 550

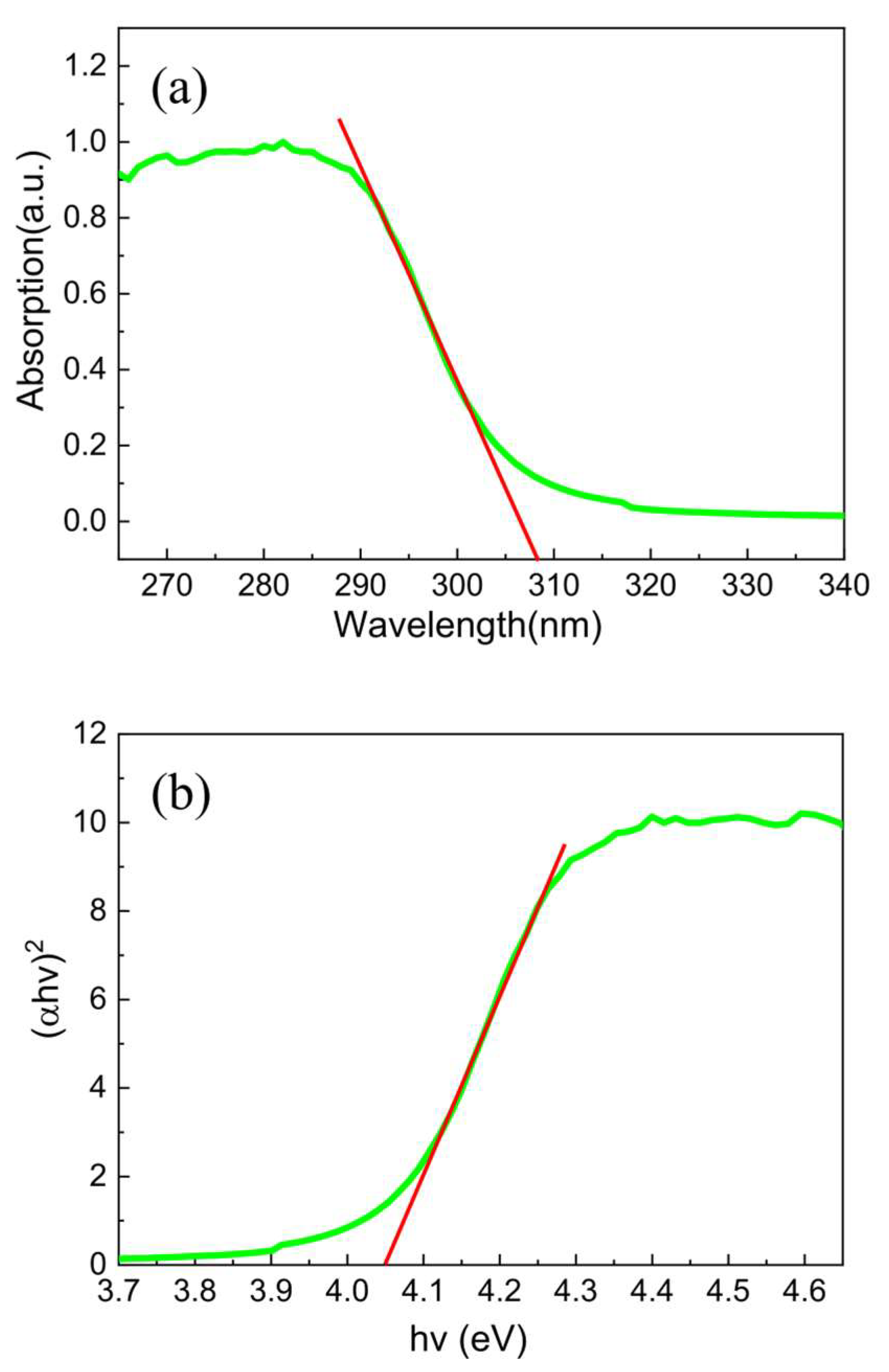

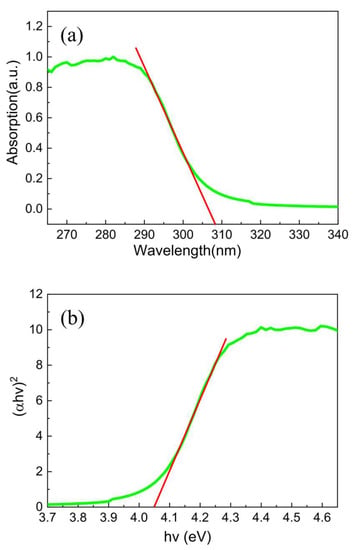

Figure 3. (a) UV–visible absorption spectra and (b) the Tauc plots of the ZnO nanofilms.
Figure 3. (a) UV–visible absorption spectra and (b) the Tauc plots of the ZnO nanofilms.
Molecules 28 05313 g003
Molecules 28 05313 g004 550

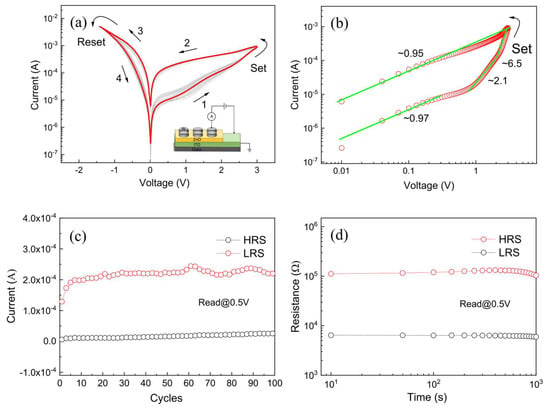

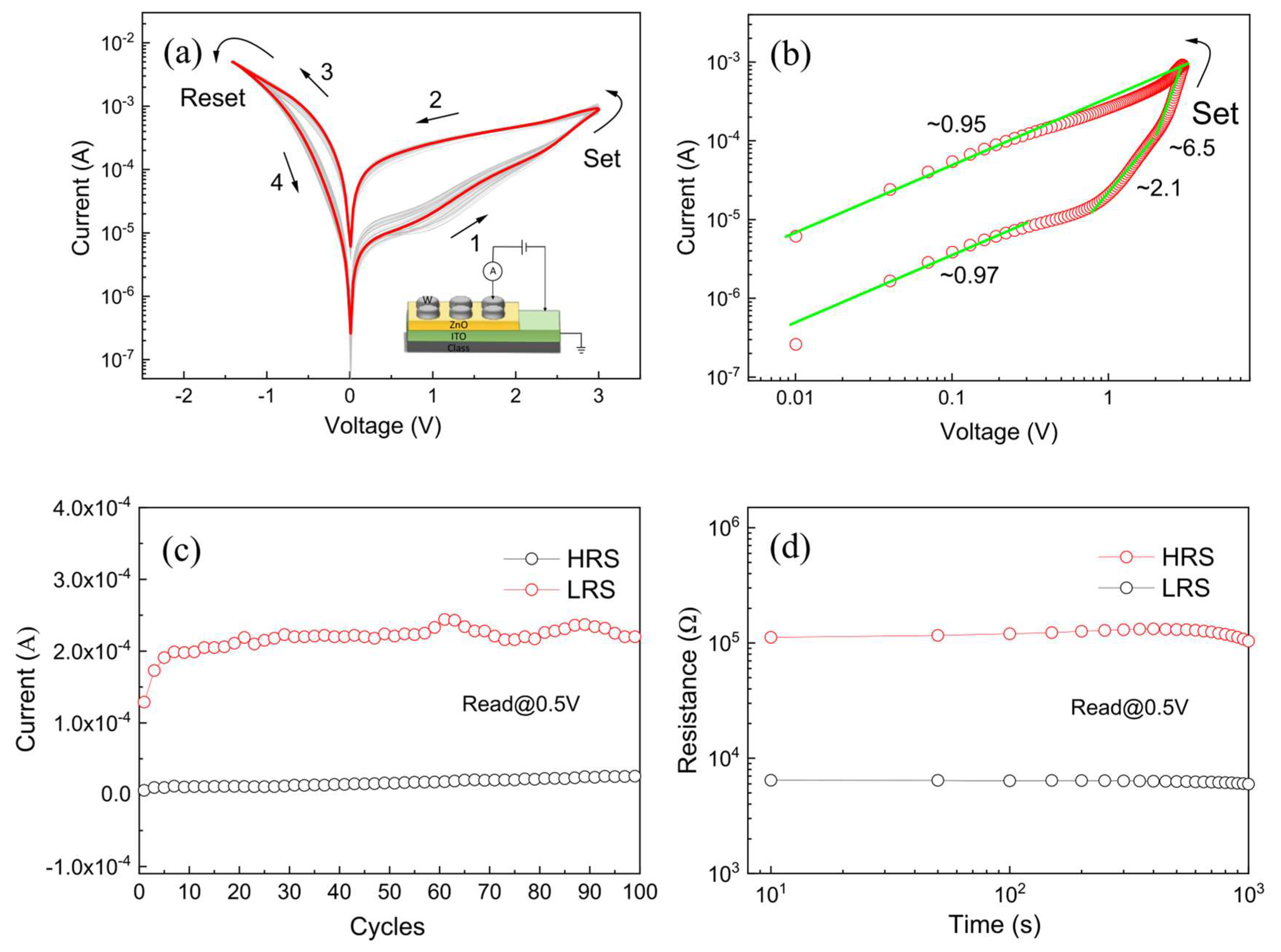

Figure 4. (a) The semi-logarithmic I-V curves of the W/ZnO/ITO memory cell for 100 successive cycles; inset is the schematic configuration of the device. (b) The double-logarithmic I-V curve of the device. (c) Endurance performance of the device. (d) Retention test of the device.
Figure 4. (a) The semi-logarithmic I-V curves of the W/ZnO/ITO memory cell for 100 successive cycles; inset is the schematic configuration of the device. (b) The double-logarithmic I-V curve of the device. (c) Endurance performance of the device. (d) Retention test of the device.
Molecules 28 05313 g004
Molecules 28 05313 g005 550

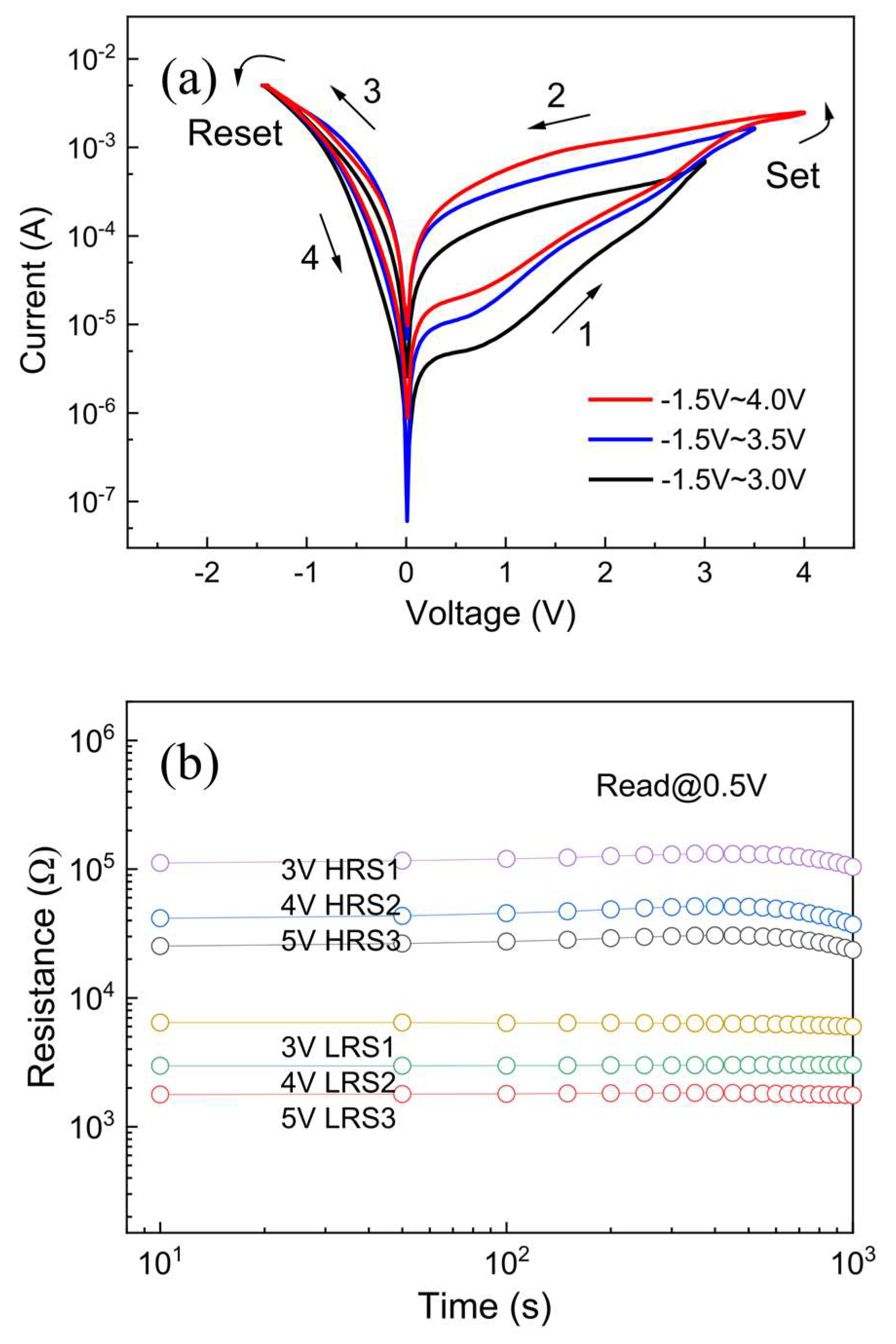

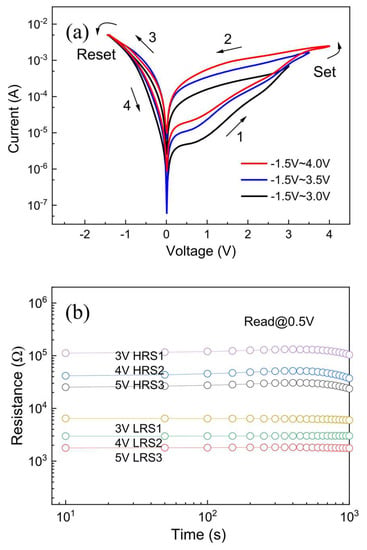

Figure 5. (a) The semi-logarithmic I-V curves and (b) retention capabilities of the W/ZnO/ITO memory cell under different set voltages.
Figure 5. (a) The semi-logarithmic I-V curves and (b) retention capabilities of the W/ZnO/ITO memory cell under different set voltages.
Molecules 28 05313 g005
Molecules 28 05313 g006 550

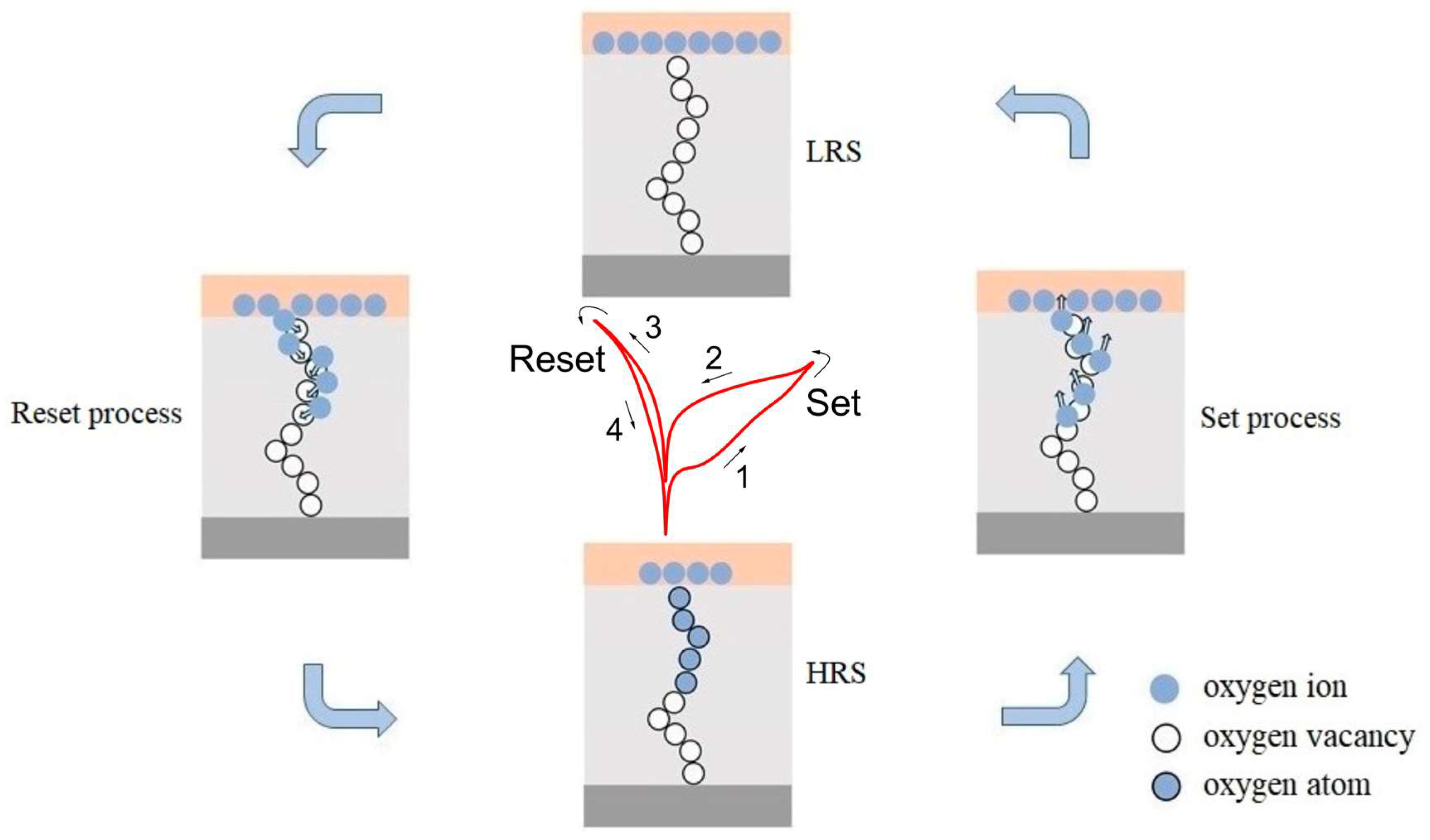

Figure 6. Schematic of the resistive switching mechanism of the W/ZnO/ITO memory cell.
Figure 6. Schematic of the resistive switching mechanism of the W/ZnO/ITO memory cell.
Molecules 28 05313 g006
Table
Table 1. Performance comparison of the ZnO-based memory devices.
Table 1. Performance comparison of the ZnO-based memory devices.
Device StructureVset/Vreset (V)Preparation ProcessRHRS/RLRS RatioRetentionReference
top-probe/α-Fe2O3/ZnO/bottom-probe−0.55/−Spin coating technique~20103 s[5]
Ag/ZnO/Pt+1/−1Magnetron sputtering~10103 s[21]
Ag/ZnO/Pt~+2/~−0.5Chemical vapor deposition>50103 s[24]
Pt/ZnO/Pt+1.2/−1Chemical vapor deposition~7104 s[27]
Cr/ZnO/Pt~+0.5/~−0.5Magnetron sputtering~10-[30]
Pt/ZnO/Zn−4/+5Hydrothermal method~1010 s[32]
Al/Si/Al2O3/(ZnO/Al2O3/Al)+7/−7Pulsed laser deposition~10103 s[34]
Pt/ZnO/TiN~+1.25/~−1Pulsed laser deposition~2-[36]
Au/ZnO nanorods/AZO−6/+7Dip coating method~10-[38]
Pt/ZnO/ITO+1/−1Cyclic voltammetry deposition~503 × 102 s[40]
ITO/HfOx/ZnO/ITO~−3/~+3Magnetron sputtering~10104 s[43]
Cu/ZnO/ITO+1/−1.7Magnetron sputtering~10-[44]
Ag/ZnO/Ag~+1.6/~−2Spin coating technique<103.1 × 103[46]
Pt/ZnO NRL/ITO+0.72/−0.59Hydrothermal method~10103 s[48]
Ti/ZnO/Pt~+2/~−1.5Magnetron sputtering~10105 s[49]
Pt/ZnO nanowire/Pt+0.5/−Chemical vapor deposition~1.50.9 × 102 s[50]
Ag/BaTiO3/γ-Fe2O3/ZnO/Ag+3.1/−4.7Co-precipitation method~10-[51]
Pt/ZnO thin film/Pt~−1.75/~+2Magnetron sputtering~10103 s[52]
Au/ZnO/ITO~+2.2/~−3.8Magnetron sputtering>10-[53]
Cr/ZnO/Pt–Fe2O3 NPs/ZnO/Cr−7/+7Dip coating method~5104 s[54]
Pt/ZnO1−x NRs/ZnO TF/Pt~+1.5/~−0.7Chemical vapor deposition40104 s[55]
W/ZnO/ITO+3/−1.5Spin coating technique50~102>103 sThis work
Disclaimer/Publisher’s Note: The statements, opinions and data contained in all publications are solely those of the individual author(s) and contributor(s) and not of MDPI and/or the editor(s). MDPI and/or the editor(s) disclaim responsibility for any injury to people or property resulting from any ideas, methods, instructions or products referred to in the content.

Share and Cite

MDPI and ACS Style

Yu, Z.; Jia, J.; Qu, X.; Wang, Q.; Kang, W.; Liu, B.; Xiao, Q.; Gao, T.; Xie, Q. Tunable Resistive Switching Behaviors and Mechanism of the W/ZnO/ITO Memory Cell. Molecules 2023, 28, 5313. https://doi.org/10.3390/molecules28145313

AMA Style

Yu Z, Jia J, Qu X, Wang Q, Kang W, Liu B, Xiao Q, Gao T, Xie Q. Tunable Resistive Switching Behaviors and Mechanism of the W/ZnO/ITO Memory Cell. Molecules. 2023; 28(14):5313. https://doi.org/10.3390/molecules28145313

Chicago/Turabian Style

Yu, Zhiqiang, Jinhao Jia, Xinru Qu, Qingcheng Wang, Wenbo Kang, Baosheng Liu, Qingquan Xiao, Tinghong Gao, and Quan Xie. 2023. "Tunable Resistive Switching Behaviors and Mechanism of the W/ZnO/ITO Memory Cell" Molecules 28, no. 14: 5313. https://doi.org/10.3390/molecules28145313

APA Style

Yu, Z., Jia, J., Qu, X., Wang, Q., Kang, W., Liu, B., Xiao, Q., Gao, T., & Xie, Q. (2023). Tunable Resistive Switching Behaviors and Mechanism of the W/ZnO/ITO Memory Cell. Molecules, 28(14), 5313. https://doi.org/10.3390/molecules28145313

Article Metrics

Back to TopTop
