Analysis of Aminoglycoside Antibiotics: A Challenge in Food Control

by
Ewelina Nowacka-Kozak
*,
Anna Gajda
and
Małgorzata Gbylik-Sikorska
Department of Pharmacology and Toxicology, National Veterinary Research Institute, Partyzantów 57, 24-100 Puławy, Poland
*
Author to whom correspondence should be addressed.
Molecules 2023, 28(12), 4595; https://doi.org/10.3390/molecules28124595
Submission received: 6 May 2023 / Revised: 30 May 2023 / Accepted: 3 June 2023 / Published: 7 June 2023
Browse Figures
Versions Notes

Abstract

:
Aminoglycosides are a widely used group of antibiotics in veterinary medicine. However, misuse and abuse of these drugs can lead to residues in the edible tissues of animals. Due to the toxicity of aminoglycosides and the exposure of consumers to the emergence of drug resistance, new methods are being sought to determine aminoglycosides in food. The method presented in this manuscript describes the determination of twelve aminoglycosides (streptomycin, dihydrostreptomycin, spectinomycin, neomycin, gentamicin, hygromycin, paromomycin, kanamycin, tobramycin, amikacin, apramycin, and sisomycin) in thirteen matrices (muscle, kidney, liver, fat, sausages, shrimps, fish honey, milk, eggs, whey powder, sour cream, and curd). Aminoglycosides were isolated from samples with extraction buffer (10 mM NH4OOCH3, 0.4 mM Na2EDTA, 1% NaCl, 2% TCA). For the clean-up purpose, HLB cartridges were used. Analysis was performed using ultra-high-performance liquid chromatography coupled with tandem mass spectrometry (UHPLC-MS/MS) with a Poroshell analytical column and a mobile phase of acetonitrile and heptafluorobutyric acid. The method was validated according to Commission Regulation (EU) 2021/808 requirements. Good performance characteristics were obtained for recovery, linearity, precision, specificity, and decision limits (CCα). This simple and high-sensitivity method can determine multi-aminoglycosides in various food samples for confirmatory analysis.

1. Introduction

Aminoglycosides are the oldest classes of antimicrobials. These are weak bases but highly polar and poorly soluble in lipids due to sugar residues in the molecules. These compounds characteristically contain several amino sugars connected to glycosidic bonds to an aminocyclitol component [1]. Aminoglycosides can be divided into four classes based on identity on aminocyclitol: (I) no deoxystreptamine (streptomycin); (II) a mono-substituted deoxystreptamine ring (apramycin); (III) a 4,5-di-substituted deoxystreptamine ring (neomycin, paromomycin, ribostamycin); and (IV) a 4,6-di-substituted deoxystreptamine ring (gentamicin, amikacin, tobramycin, kanamycin). Aminoglycosides can consist of several different chemical compounds, for example, neomycin (two stereoisomers: B, C), gentamycin (C1, C1A, C2A, and C2B), paromomycin (two stereoisomers: I, II), and kanamycin (3 isomers: A, B, and C) [2].
Aminoglycoside antibiotics are among the most common antibiotics in animal husbandry to treat severe bacterial infections. They are applicable against infections caused by Gram-negative and also Gram-positive organisms. Improper use of drugs, failure to observe the withdrawal period, or slaughtering animals during treatment can result in drug residues in the tissues. Due to extended withdrawal times and high residue levels, using these drugs as veterinary medicines carries the risk of developing resistance among bacteria, which may reduce the effectiveness of these drugs as human medicines [3]. Nearly all of the aminoglycosides are widely used in human and veterinary medicine. The residues of aminoglycoside antibiotics in food of animal origin may represent a risk to consumer health because of possible allergenicity and toxicity. Despite their high antimicrobial efficiency, aminoglycosides can accumulate in tissues and damage the nervous and digestive systems. These drugs may cause toxic effects such as ototoxicity; nephrotoxicity; fetal damage (passing through the placenta); and rare, neuromuscular blockade and hypersensitivity reactions [1,4].
As part of the EU’s official monitoring programs, mandatory monitoring of aminoglycosides in food of animal origin is carried out to ensure food safety and consumer health. The European Commission has established strict maximum residue levels (MRLs) for some aminoglycosides in various matrices (muscle, fat, liver, kidney, milk, eggs), which are included in Commission Regulation (EU) No. 37/2010 of 22 December 2009, on pharmacologically active substances and their classification regarding maximum residue limits in foodstuffs of animal origin [5]. The values of aminoglycoside MRLs range from 50 µg/kg for gentamicin in bovine muscle and fat to 20,000 µg/kg for apramycin in bovine kidney (Table 1). However, no MRLs have been specified for honey in the EU, except streptomycin, for which the Community Reference Laboratory in France has set a recommended concentration of 40 µg/kg [6,7]. The regulation does not include amikacin, hygromycin B, sisomycin, and tobramycin. In addition, MRLs in milk have not been established for apramycin and paromomycin, while in eggs, the MRL values are only for neomycin and paromomycin. The lack of assigned MRL values for the remaining compounds requires the development of a sensitive method for determining aminoglycosides.
Every year, the European Food Safety Authority (EFSA) publishes a report presenting the results of monitoring residues of veterinary drugs and other substances in live animals and animal products. The last 10 EFSA reports (2012–2021) [8,9,10,11,12,13,14,15,16,17] show that the percentage of aminoglycosides in non-compliant results from the entire group B1 (antimicrobial substances, including sulfonamides, quinolones) is more than 26%. There was a total of 489 results with aminoglycosides within ten years. The most frequently detected aminoglycoside was dihydrostreptomycin (291 non-compliant results), gentamicin (91 non-compliant results), and neomycin (58 non-compliant results). The others were spectinomycin (30 non-compliant results), streptomycin (12 non-compliant results), paromomycin (4 non-compliant results), and kanamycin (3 non-compliant results). Considering the animal species, the highest numbers of non-compliant results were found in the muscles of cattle (300) and pigs (119). There were 33 non-compliant results in sheep and goats; 16 in poultry; and 1 result each in aquaculture, horses, and rabbits. In honey, there were 10 non-compliant results: streptomycin and dihydrostreptomycin. In milk, there were eight non-compliant results containing dihydrostreptomycin, gentamicin, paromomycin, or kanamycin. It is important to note that the number of samples with non-compliant results has decreased significantly. While in 2012 and 2013, there were 83 and 76 non-compliant results, in 2020 and 2021, there were only 17 and 18, respectively.
The Rapid Alert System for Food and Feed (RASFF) has recorded one notification in the past ten years. It was dihydrostreptomycin in honey (267 µg/kg) in 2021. Some factors, such as high polarity, lack of chromophores or fluorophores, polycationic character, and low volatility, make a challenging task at the sample preparation and final determination stages [18]. Additionally, most of them consist of compounds with closely similar structures. It would affect the difficulty of including this group of compounds in multi-component methods with other antibiotics. Therefore, in the available literature, only a few publications in which aminoglycosides are included in multi-class methods [19,20]. Glinka et al. [21] reviewed the data about sample preparation and clean-up procedures for determining aminoglycosides in various matrices. Moreover, Li et al. [22] have collected information on aminoglycoside detection techniques. However, in most of the literature, aminoglycosides are determined only in two or three matrices such as muscle, eggs, milk [23]; muscles, liver, kidney [24,25]; honey and royal jelly [7]; honey and milk [26]; muscle, honey, milk [27]; or wastewater samples [28]. Various sample purification techniques are described in the literature, such as ion-exchange SPE sorbents [7,29], hydrophilic–lipophilic balance SPE sorbents [25,26,30], and non-polar SPE sorbents [31]. LC-MS/MS was described as the most common detection method [24,26,32,33,34,35]. The methods presented were mainly concerned with a few aminoglycosides. So far, the largest number of analytes in the method (21) has been presented by Kim et al. [23] only in muscle, egg, and milk. Moreover, Yang et al. [36] described some aminoglycosides in honey, milk, meat, and liver. To date, no methods allow for simultaneous determination of aminoglycosides in the muscle, kidney, liver, fat, sausages, shrimps, fish honey, milk, eggs, whey powder, sour cream, and curd.
This study aimed to develop one all-purpose method for food matrices. It is the first time an analytical method has been described for determining twelve aminoglycoside antibiotics in a wide range of matrices (honey, eggs, tissues, meat, and milk products) not presented in other publications. In addition, a significant challenge was the determination of one method of compounds without MRLs (low decision limit (CCα) required) as well as compounds with high MRL values (wide range of method linearity required).

2. Results and Discussion

2.1. Optimization of LC-MS/MS Conditions

Aminoglycosides are polar compounds due to several amino groups contributing to their weak basic nature [37]. Confirming the presence of aminoglycosides at trace residue concentrations using ultra-high-performance liquid chromatography coupled with the tandem mass spectrometry (UHPLC-MS/MS) method has been a challenge for a long time. A notable problem was the separation of aminoglycosides since some have similar structural forms and mass, such as DHSTR, STR, PAR, and NEO. Detection was performed in multiple reaction monitoring (MRM) modes by directly infusing the standard analyte solution into the mass spectrometer. Two transitions were monitored for each analyte, except ribostamycin as an internal standard with one transition. Three transitions were monitored for aminoglycosides with similar retention times or the same ions for better identification and chromatographic separation. The additional transitions were performed for AMI, DHSTR, KAN, NEO, PAR, and STR for quantification to serve the most abundant precursor ion transitions. In contrast, other transitions have been used for identification. The following mass spectrometry parameters, in positive ionization mode, were designated: collision energy (CE), declustering potential (DP), dwell time, and cell exit potential (CXP) of each compound (Table 2).
To achieve optimal separation of aminoglycosides and UHPLC-MS/MS quantification as well as confirmation, reversed-phase C18 chromatographic columns were tested—Poroshell 120 EC-C18 (2.1 × 50 mm2; 2.7 µm), Agilent ZORBAX SB-C18 (50 mm × 2.1 mm, 1.8 µm), and Poroshell 120 EC-C18 (2.1 × 150 mm2; 2.7 µm). The separation of aminoglycosides on the first column gave unsatisfactory results; non-symmetrical peaks were observed, particularly for GEN, SPC, and PAR. Moreover, low-intensity peaks on the ZORBAX SB-C18 column were obtained, especially for DHSTR, KAN, GEN, APR, and TOB.
The most efficient way to obtain suitable retention of these polar compounds is to use ion-pairing (IP) agents. Błądek et al. [38] compared various IP reagents, namely, heptafluorobutyric acid (HFBA), trifluoroacetic acid (TFA), and pentafluoropropionic acid (PFPA). During the optimization of chromatographic separation, different IP agents as a mobile phase (TFA, HFBA) with various combinations of gradient programs were tested. In this study, in our method, HFBA in low concentration gave the highest ionization, the best shapes of peaks, good recoveries, and a short elution time. In many multi-component works, HFBA is used as an ion-pairing agent [10,39,40]. The following parameters were tested during chromatographic optimization: the chromatographic column’s temperature and the mobile phase’s flow. Next, temperature was checked: 30 °C, 35 °C, and 40 °C. Different values of flow rate were optimized: 0.25, 0.30, 0.35, and 0.4 mL/min.
Finally, the most satisfactory results to analyze AMI, APR, DHSTR, GEN, HYG, KAN, NEO, PAR, SIS, SPC, STR, and TOB were achieved using a longer Poroshell 120 EC-C18 (2.1 × 150 mm; 2.7 µm) column at a temperature of 35 °C with acetonitrile and 0.025% HFBA mobile phase. The flow rate was set as 0.3 mL/min. The chromatographic separation of 12 standards of aminoglycosides is presented in Figure 1.

2.2. Optimization of Sample Preparation

Based on Cherlet et al. [32,41], some extraction mixtures, in various volumes and concentrations, were tested: 10 mM ammonium acetate/0.4 mM EDTA/1% NaCl/2% TCA with 0.2 µL/0.5 µL 0.3 M HFBA; 150 mM EDTA + 5%/15% TCA. The mainly used chemical reagents for sample preparation are TCA + EDTA [32,42,43], NH4OOCH3 + Na2EDTA + NaCl + TCA, and K2HPO4 in various concentrations [30]. The best results for all aminoglycoside isolations from the matrix were obtained in the presented method after using a solution consisting of 10 mM ammonium acetate/0.4 mM EDTA/1% NaCl/2% TCA. Different TCA concentrations in the extraction solution were also tested (1%, 2%, 5%, 15%). Figure 2 shows the recovery (%) of all analyzed aminoglycosides after using different extraction mixtures.
The very high sensitivity of aminoglycosides to change the pH value in the extraction solution makes selecting sample preparation conditions a significant challenge for the analyst. Thus, different pH values were tested (5.5, 6.5, and 8.0). Figure 3 and Figure 4 show the effect of pH values for liver and honey samples as the most sensitive matrices. The results for other matrices are presented in the Supplementary Materials (Figure S1). Tests show that at pH = 8.0, the peak area decreased by 50–80% in most cases. These results confirm that aminoglycosides are sensitive to pH changes and that pH = 6.5 is optimal for determining most aminoglycosides.
The next step was to select the appropriate cleaning up. Generally, extraction methods published for aminoglycoside analysis mostly used SPE extraction with Oasis HLB or Strata X cartridges. Oasis HLB is used in many laboratories because of its good retention properties and highly reproducible recovery of a wide range of compounds, both polar and non-polar (due to the combination of their hydrophobic–hydrophilic retention mechanism). In this study, Strata X (100 mg, 6 mL), Strata X-CW (100 mg, 6 mL)—cation weak, Strata X-AW (100 mg, 6 mL)—anion weak, and Oasis HLB (60 mg, 3 mL) cartridges were verified (Table 3). Strata X-CW gave the worst results for most of the matrices. The results were entirely satisfactory only in muscle, liver, and eggs. Strata X, in turn, gave the best results in honey and good results in kidney, fat, sausages, milk, and whey powder. The results between Strata X-AW and Oasis HLB cartridges were comparable for some matrices such as liver, honey, and milk. The Strata X-AW gave significantly better results for eggs, fish, and shrimps. However, the number of compounds and matrices makes it necessary to find a single optimal solution, so after analyzing all the columns, it was decided to use Oasis HLB cartridges with the best results for all tested compounds in all matrices. For better recovery of analytes, a double elution was used with the mixture of formic acid/isopropanol/water (10:5:85).

2.3. Method Validation

The developed method was validated according to the Commission Implementing Regulation (EU) 2021/808 [44]. A good linearity was obtained, and the correlation coefficients (r2) were higher than 0.98 for all analytes in each matrix. The selectivity of the test showed no interference peaks in the samples analyzed. Moreover, repeatability (CVs within 3.5 to 14.2, depending on compound and matrix) and within-laboratory reproducibility (CVs within 4.3 to 13.8, depending on compound and matrix) were satisfactory. The recovery values ranged from 82% to 118% for trueness −79–117%. For ruggedness, the factors and changes examined did not affect the results, indicating that the method developed is robust to minor changes that may occur in the study. The limits of quantifications (LOQ) were from 10 µg/kg to 250 µg/kg. The coefficients of variations are under 20% for the matrix factor (MF) in every analyte and matrix. The summary of validation is shown in Table 4. The example chromatograms (MRM) of a shrimp sample, as a matrix without MRL, fortified at a validation level (VL) of 100 µg/kg with all twelve analytes are presented in Figure 5.

2.4. Aminoglycosides in Real Samples

Nearly 750 muscle, tissue, and honey samples were tested for confirmation by LC-MS/MS methods over the past ten years in our laboratory. Of these, 129 samples (about 17%) contained aminoglycosides, of which up to 61% were non-compliant. The most frequently detected aminoglycoside antibiotics were DHSTR (49 non-compliant results, 19 compliant results) in the concentration range 60–229,000 µg/kg and NEO (17 non-compliant results, 22 compliant results) in the concentration range 256–87,000 µg/kg. Aminoglycosides were mainly detected in cattle (96 results) and swine (17 results). Although it may seem that the percentage of samples with aminoglycosides is small compared to other groups (tetracyclines), the toxicity of these compounds and the difficulty of quantifying them seems to be quite a challenge for analysts.
The method presented in this paper has been implemented for the official analyses of aminoglycosides in eggs as a part of the National Residue Control Plan for the surveillance of veterinary drug residues in food of animal origin as well as in commercial research. So far, no aminoglycosides have been detected in any of the egg samples tested. Additionally, the method described in this study determining 12 aminoglycosides was verified by analyzing the confirmation samples sent in the last year. More than 20 muscle and kidney samples from cattle and pigs were analyzed. Seven kidney samples contained aminoglycosides (NEO, DHSTR) at a concentration of 794–21,950 µg/kg, of which three were non-compliant results above CCα. The demonstrated method will be applied in the future to official control of aminoglycosides in other matrices, as the method developed so far does not cover the need for analyses of new compounds (AMI, APR, HYG, SIS, TOB) and matrices (processed food).

3. Materials and Methods

3.1. Chemical and Reagents

HPLC-grade acetonitrile, methanol, and isopropanol were purchased from J.T. Baker (Deventer, The Netherlands). Ethylenediaminetetraacetic acid (EDTA), sodium chloride, and sodium hydroxide were from POCH (Gliwice, Poland), and potassium hydrogen phosphate (K2HPO4) was from Chempur (Piekary Śląskie, Poland). Ammonium acetate, heptafluorobutyric acid (HFBA), and trichloroacetic acid (TCA) were obtained from Sigma–Aldrich, (St. Louis, MO, USA). Formic acid was from Fluka (Charlotte, NC, USA). Syringe 0.22 µm hydrophilic polyvinylidene fluoride (PVDF) membrane filters were purchased from Restek (Bellefonte, PA, USA). Ultra-pure water was generated by a Millipore Milli-Q System (Millipore, Molsheim, France).
The analytical reference standards of DHSTR, GEN, KAN, NEO, PAR, STR, and SPC were purchased from Dr Ehrenstorfer (Augsburg, Germany), and AMI, APR, HYG, RIB, SIS, TOB from Sigma–Aldrich (St. Louis, MO, USA). Strata X (100 mg, 6 mL), Strata X-CW (100 mg, 6 mL), and Strata X-AW (100 mg, 6 mL) cartridges were from Phenomenex (Torrance, CA, USA). Oasis HLB (60 mg, 3 mL) cartridges were from Waters (Milford, MA, USA). All matrices were obtained from local supermarkets or were originating from the Polish official residue control program. Samples were analyzed to ensure the absence of aminoglycoside residues and kept frozen at −18 °C until use.

3.2. Preparation of the Standard Stock Solution and Working Solutions

Each analyte’s individual standard stock solutions (1000 µg/mL) were dissolved in a mixture of water/acetonitrile/acetic acid (78:20:2, v/v/v). All standard stock solutions were stored at −18 °C for no longer than 3 months. Working solutions and an internal standard solution (IS) were prepared in ultra-pure water and stored at 4 °C for 1 month.

3.3. Sample Preparation

A 1.00 ± 0.01 g of homogenized samples (muscle, kidney, liver, fat, sausages, shrimps, fish, honey, milk, eggs, whey powder, sour cream, and curd) were weighed into a 50 mL polypropylene centrifuge tube. The 20 µL of the internal standard (20 µg/mL) was added. Then, 10 mL of extraction buffer (10 mM NH4OOCH3/0.4 mM Na2EDTA/1% NaCl/2% TCA) was added. Samples were vortex mixed, rotary shaken (10 min), and centrifuged (4500 rpm, 10 min, 4 °C). The pH of the supernatants was adjusted to 6.5 with 1 M NaOH solutions. Next, samples were put on Oasis HLB (60 mg, 3 mL) cartridges preconditioned with 5 mL of methanol and 5 mL of water. Aminoglycosides were eluted with a mixture: of formic acid/isopropanol/water (10:5:85), twice each at 500 µL. Finally, 200 µL of 0.3 M HFBA was added to the final extract, and after filtration using 0.22 µm PVDF filters, the extracts were moved to chromatographic glass vials and analyzed by UHPLC-MS/MS.

3.4. UHPLC-MS/MS Analysis

Aminoglycosides were analyzed using ultra-high-performance liquid chromatography Shimadzu Nexera X2 (Shimadzu, Kyoto, Japan) connected to the QTRAP 4500 triple quadrupole mass spectrometer (Sciex, Framingham, MA, USA). The Analyst 1.6.2 software (Sciex, Framingham, MA, USA) processed the data. The mass spectrometry detection was operated in the positive ESI mode with multiple reaction monitoring. The temperature of desolvation was set at 450 °C, ion spray voltage: 4500 V, nebulizer gas (N2): 60 psi, curtain gas (N2): 20 psi, collision gas (N2): medium, auxiliary gas (N2): 65 psi. All MS/MS parameters are presented in Table 2.
Chromatographic separation was achieved on a Poroshell 120 EC-C18 (2.1 × 150 mm; 2.7-µm) analytical column (Agilent Technologies, Santa Clara, CA, USA) connected to an octadecyl guard column (4 mm × 2 mm) (Phenomenex, Torrance, CA, USA), operated at 35 °C at a flow rate of 0.3 mL/min. Acetonitrile (B) and 0.025% HFBA (A) was used as a mobile phase in gradient mode. The elution program started from 90% of solvent A (0.01–4.00 min), then decreased to 20% (4.01–5.30 min), and finally came back to 90% (5.31–7.00 min). The injection volume was 5 µL, and the total run time was 7 min.

3.5. Method Validation

The presented method was validated according to the Commission Implementing Regulation (EU) 2021/808 of 22 March 2021, repealing Decisions 2002/657/EC and 98/179/EC. The validation process consisted of determining the following parameters: linearity, selectivity, precision, recovery, and decision limit (CCα). The limit of quantification (LOQ) and matrix effect were also assigned. Linearity was determined using a matrix-matched calibration curve prepared by fortifying antibiotic-free matrices at ten concentration levels, depending on the analyte and matrices. Twenty blank samples for different matrices were analyzed for potential disruption with endogenous substances to determine the selectivity. Precision (repeatability and within-laboratory reproducibility) was determined after fortifying six samples on 1, 2, and 3× VL for matrices without MRL, and in the case of designated values of MRL—0.1–0.5, 1, 1.5 MRL, in six replicates at each level. The repeatability was carried out on the same day, instrument, and operator. The coefficient of variations (CV) was calculated. Within-laboratory reproducibility was determined on two days with the same instrument and operators. For trueness, samples were fortified as for precision (1, 2, and 3× VL for matrices without MRL, and in the case of designated values of MRL—0.1–0.5, 1, 1.5 MRL) in six replicates. Trueness (%) was calculated as (mean recovery-corrected concentration detected) × 100/fortification level. The overall CVs were calculated. To test the method’s ruggedness, we tested the sample centrifugation temperature, chromatography column temperature, volume of extraction mixture, and concentration of HFBA added to the final extract. The results were analyzed using the Youden test. Decision limits were determined by analyzing 20 blank samples fortified above the MRL (for authorized substances) or VL (for unauthorized substances). The LOQ was established as the lowest point of the matrix calibration curve. The relative matrix effect was calculated for 20 different blank samples at VL. The matrix effect was assessed by calculating the matrix factor (MF) as the ratio of the analytes peak area of the extract fortified after extraction relative to the peak area obtained from the standard solution. The relative matrix effect was calculated as MF (standard) = peak area of MMS standard/peak area of solution standard, where MMS is matrix-matched standard. The calculated CV should not be greater than 20%.

4. Conclusions

Despite the current trends in the use of newer and less toxic antibiotics, aminoglycosides are still very popular due to their relatively low cost and wide range of action. Awareness is growing about the risks to consumer health of consuming food contaminated with antibiotic residues. Therefore, it is important to control their use with validated and sensitive methods developed for detecting residues in food of animal origin.
As indicated in the literature, this is the very first study on the simultaneous determination of aminoglycosides in as many as thirteen different matrices (muscle, kidney, liver, fat, sausages, shrimps, fish, honey, milk, eggs, whey powder, sour cream, curd). Even though the matrices were different, it was possible to match one technique of aminoglycosides extraction in all tested food materials. Satisfactory validation results confirm that the developed method can be used to analyze aminoglycosides as a part of the National Residue Control Plan for surveillance of veterinary drug residues in food of animal origin.

Supplementary Materials

The following supporting information can be downloaded at: https://www.mdpi.com/article/10.3390/molecules28124595/s1, Figure S1: The effect of different pH values: a—pH = 5.5; b—pH = 6.5; c—pH = 8.0 in (A) muscle, (B) kidney, (C) fat, (D) sausages, (E) shrimps, (F) fish, (G) milk, (H) eggs, (I) whey powder, (J) sour cream, (K) curd.

Author Contributions

Conceptualization, E.N.-K., A.G. and M.G.-S.; methodology, E.N.-K., A.G. and M.G.-S.; validation, E.N.-K., A.G. and M.G.-S.; investigation, E.N.-K., A.G. and M.G.-S.; writing—original draft preparation, E.N.-K.; writing—review and editing, E.N.-K., A.G. and M.G.-S. All authors have read and agreed to the published version of the manuscript.

Funding

This research received no external funding.

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Data Availability Statement

Not applicable.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Wang, J.; Macneil, J.D.; Kay, J.F. Chemical Analysis of Antibiotic Residues in Food. In Chemical Analysis of Antibiotic Residues in Food; John Wiley & Sons: Hoboken, NJ, USA, 2011. [Google Scholar] [CrossRef]
  2. Krause, K.M.; Serio, A.W.; Kane, T.R.; Connolly, L.E. Aminoglycosides: An Overview. Cold Spring Harb. Perspect. Med. 2016, 6, a027029. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  3. Kaufmann, A.; Butcher, P.; Maden, K. Determination of aminoglycoside residues by liquid chromatography and tandem mass spectrometry in a variety of matrices. Anal. Chim. Acta 2012, 711, 46–53. [Google Scholar] [CrossRef] [PubMed]
  4. Farouk, F.; Azzazy, H.M.E.; Niessen, W.M.A. Challenges in the determination of aminoglycoside antibiotics, a review. Anal. Chim. Acta 2015, 890, 21–43. [Google Scholar] [CrossRef]
  5. European Parliament and the Council of the European Union. Commission Regulation (EU) No 37/2010; Official Journal of the European Union, (L 15/1); EU: Brussels, Belgium, 2010. [Google Scholar]
  6. Kumar, P.; Rúbies, A.; Companyõ, R.; Centrich, F. Determination of aminoglycoside residues in kidney and honey samples by hydrophilic interaction chromatography-tandem mass spectrometry. J. Sep. Sci. 2012, 35, 2710–2717. [Google Scholar] [CrossRef]
  7. Wang, X.; Yang, S.; Li, Y.; Zhang, J.; Jin, Y.; Zhao, W.; Zhou, J. Optimization and application of parallel solid-phase extraction coupled with ultra-high performance liquid chromatography–tandem mass spectrometry for the determination of 11 aminoglycoside residues in honey and royal jelly. J. Chromatogr. A 2018, 1542, 28–36. [Google Scholar] [CrossRef] [PubMed]
  8. European Food Safety Authority. Report for 2012 on the Results from the Monitoring of Veterinary Medicinal Product Residues and Other Substances in Live Animals and Animal Products; EFSA supporting publication 2014:EN-540; EFSA: Parma, Italy, 2014; 65p. [Google Scholar]
  9. EFSA (European Food Safety Authority). Report for 2013 on the Results from the Monitoring of Veterinary Medicinal Product Residues and Other Substances in Live Animals and Animal Products; EFSA supporting publication 2015:EN-723; EFSA: Parma, Italy, 2015; 69p. [Google Scholar]
  10. EFSA (European Food Safety Authority). Report for 2014 on the Results from the Monitoring of Veterinary Medicinal Product Residues and Other Substances in Live Animals and Animal Products; EFSA Supporting publication 2016:EN-923; EFSA: Parma, Italy, 2016; 70p. [Google Scholar]
  11. EFSA (European Food Safety Authority). Report for 2015 on the Results from the Monitoring of Veterinary Medicinal Product Residues and Other Substances in Live Animals and Animal Products; EFSA Supporting publication 2017:14(11):EN-1150; EFSA: Parma, Italy, 2017; 69p. [Google Scholar] [CrossRef] [Green Version]
  12. EFSA (European Food Safety Authority). Report for 2016 on the Results from the Monitoring of Veterinary Medicinal Product Residues and Other Substances in Live Animals and Animal Products; EFSA supporting publication 2018:EN-1358; EFSA: Parma, Italy, 2018; 75p. [Google Scholar] [CrossRef]
  13. EFSA (European Food Safety Authority). Report for 2017 on the Results from the Monitoring of Veterinary Medicinal Product Residues and Other Substances in Live Animals and Animal Products; EFSA supporting publication 2019:EN-1578; EFSA: Parma, Italy, 2019; 88p. [Google Scholar] [CrossRef] [Green Version]
  14. EFSA (European Food Safety Authority). Report for 2018 on the Results from the Monitoring of Veterinary Medicinal Product Residues and Other Substances in Live Animals and Animal Products; EFSA supporting publication 2020:EN-1775; EFSA: Parma, Italy, 2020; 74p, ISSN 2397-8325. [Google Scholar] [CrossRef]
  15. EFSA (European Food Safety Authority). Report for 2019 on the Results from the Monitoring of Veterinary Medicinal Product Residues and Other Substances in Live Animals and Animal Products; EFSA supporting publication 2021:EN-1997; EFSA: Parma, Italy, 2021; 82p, ISSN 2397-8325. [Google Scholar] [CrossRef]
  16. EFSA (European Food Safety Authority); Brocca, D.; Salvatore, S. Report for 2020 on the Results from the Monitoring of Veterinary Medicinal Product Residues and Other Substances in Live Animals and Animal Products; EFSA supporting publication 2022:EN-7143; EFSA: Parma, Italy, 2022; 91p. [Google Scholar] [CrossRef]
  17. EFSA (European Food Safety Authority); Brocca, D.; Salvatore, S. Report for 2021 on the Results from the Monitoring of Veterinary Medicinal Product Residues and Other Substances in Live Animals and Animal Product; EFSA supporting publication 2023:EN7886; EFSA: Parma, Italy, 2023; 111p. [Google Scholar] [CrossRef]
  18. Plozza, T.; Trenerry, V.C.; Zeglinski, P.; Nguyen, H.; Johnstone, P. The confirmation and quantification of selected aminoglycoside residues in animal tissue and bovine milk by liquid chromatography tandem mass spectrometry. Int. Food Res. J. 2011, 18, 1077–1084. [Google Scholar]
  19. Dasenaki, M.E.; Michali, C.S.; Thomaidis, N.S. Analysis of 76 veterinary pharmaceuticals from 13 classes including aminoglycosides in bovine muscle by hydrophilic interaction liquid chromatography–tandem mass spectrometry. J. Chromatogr. A 2016, 1452, 67–80. [Google Scholar] [CrossRef]
  20. Gajda, A.; Nowacka-Kozak, E.; Gbylik-Sikorska, M.; Posyniak, A. Multi-residues UHPLC–MS/MS analysis of 53 antibacterial compounds in poultry feathers as an analytical tool in food safety assurance. J. Chromatogr. B Anal. Technol. Biomed. Life Sci. 2019, 1104, 182–189. [Google Scholar] [CrossRef]
  21. Glinka, M.; Wojnowski, W.; Wasik, A. Determination of aminoglycoside antibiotics: Current status and future trends. TrAC-Trends Anal. Chem. 2020, 131, 116034. [Google Scholar] [CrossRef]
  22. Li, Z.; Liu, Y.; Chen, X.; Wang, Y.; Niu, H.; Li, F.; Gao, H.; Yu, H.; Yuan, Y.; Yin, Y.; et al. Affinity-Based Analysis Methods for the Detection of Aminoglycoside Antibiotic Residues in Animal-Derived Foods: A Review. Foods 2023, 12, 1587. [Google Scholar] [CrossRef]
  23. Kim, Y.R.; Kang, H.S. Multi-residue determination of twenty aminoglycoside antibiotics in various food matrices by dispersive solid phase extraction and liquid chromatography-tandem mass spectrometry. Food Control 2021, 130, 108374. [Google Scholar] [CrossRef]
  24. Lehotay, S.J.; Lightfield, A.R. Simultaneous analysis of aminoglycosides with many other classes of drug residues in bovine tissues by ultrahigh-performance liquid chromatography–tandem mass spectrometry using an ion-pairing reagent added to final extracts. Anal. Bioanal. Chem. 2018, 410, 1095–1109. [Google Scholar] [CrossRef] [PubMed]
  25. Zhu, Z.; Liu, G.; Wang, F.; Sasanya, J.J.; Cannavan, A. Development of a Liquid Chromatography Tandem Mass Spectrometric Method for Simultaneous Determination of 15 Aminoglycoside Residues in Porcine Tissues. Food Anal. Methods 2016, 9, 2587–2599. [Google Scholar] [CrossRef]
  26. Chen, L.; Mei, M.; Huang, X. Development of multiple monolithic fiber solid-phase microextraction and liquid chromatography–tandem mass spectrometry method for the sensitive monitoring of aminoglycosides in honey and milk samples. J. Sep. Sci. 2017, 40, 4203–4212. [Google Scholar] [CrossRef] [PubMed]
  27. Yang, B.; Wang, L.; Luo, C.; Wang, X.; Sun, C. Simultaneous Determination of 11 Aminoglycoside Residues in Honey, Milk, and Pork by Liquid Chromatography with Tandem Mass Spectrometry and Molecularly Imprinted Polymer Solid Phase Extraction. J. AOAC Int. 2017, 100, 1869–1878. [Google Scholar] [CrossRef] [PubMed]
  28. Guironnet, A.; Sanchez-Cid, C.; Vogel, T.M.; Wiest, L.; Vulliet, E. Aminoglycosides analysis optimization using ion pairing liquid chromatography coupled to tandem mass spectrometry and application on wastewater samples. J. Chromatogr. A 2021, 1651, 462133. [Google Scholar] [CrossRef] [PubMed]
  29. Saluti, G.; Diamanti, I.; Giusepponi, D.; Pucciarini, L.; Rossi, R.; Moretti, S.; Sardella, R.; Galarini, R. Simultaneous determination of aminoglycosides and colistins in food. Food Chem. 2018, 266, 9–16. [Google Scholar] [CrossRef] [PubMed]
  30. Wang, Y.; Ji, S.; Zhang, F.; Zhang, F.; Yang, B.; Liang, X. A polyvinyl alcohol-functionalized sorbent for extraction and determination of aminoglycoside antibiotics in honey. J. Chromatogr. A 2015, 1403, 32–36. [Google Scholar] [CrossRef]
  31. Tölgyesi, Á.; Barta, E.; Sohn, M.; Sharma, V.K. Determination of Antimicrobial Residues in Honey by Liquid Chromatography Tandem Mass Spectrometry. Food Anal. Methods 2018, 11, 2043–2055. [Google Scholar] [CrossRef]
  32. Arsand, J.B.; Jank, L.; Martins, M.T.; Hoff, R.B.; Barreto, F.; Pizzolato, T.M.; Sirtori, C. Determination of aminoglycoside residues in milk and muscle based on a simple and fast extraction procedure followed by liquid chromatography coupled to tandem mass spectrometry and time of flight mass spectrometry. Talanta 2016, 154, 38–45. [Google Scholar] [CrossRef]
  33. Asakawa, D.; Uemura, M.; Sakiyama, T.; Yamano, T. Sensitivity enhancement of aminoglycosides in hydrophilic interaction liquid chromatography with tandem mass spectrometry by post-column addition of trace sodium acetate in methanol. Food Addit. Contam. Part A Chem. Anal. Control Expo. Risk Assess. 2018, 35, 1116–1126. [Google Scholar] [CrossRef] [PubMed]
  34. Berrada, H.; Moltó, J.C.; Mañes, J.; Font, G. Determination of aminoglycoside and macrolide antibiotics in meat by pressurized liquid extraction and LC-ESI-MS. J. Sep. Sci. 2010, 33, 522–529. [Google Scholar] [CrossRef] [PubMed]
  35. Wang, L.; Yang, B.; Zhang, X.; Zheng, H. Novel Two-Dimensional Liquid Chromatography–Tandem Mass Spectrometry for the Analysis of Twenty Antibiotics Residues in Dairy Products. Food Anal. Methods 2017, 10, 2001–2010. [Google Scholar] [CrossRef]
  36. Yang, J.; Rainville, P. Liquid Chromatography–Tandem Mass Spectrometry Analysis of Aminoglycosides in Foods Using an Ethylene-Bridged Hybrid Zwitterionic Stationary Phase and Hydrophilic–Lipophilic-Balanced Solid-Phase Extraction Cartridges. J. Agric. Food Chem. 2023, 71, 7593–7603. [Google Scholar] [CrossRef]
  37. Díez, C.; Guillarme, D.; Staub Spörri, A.; Cognard, E.; Ortelli, D.; Edder, P.; Rudaz, S. Aminoglycoside analysis in food of animal origin with a zwitterionic stationary phase and liquid chromatography–tandem mass spectrometry. Anal. Chim. Acta 2015, 882, 127–139. [Google Scholar] [CrossRef] [PubMed]
  38. Bładek, T.; Posyniak, A.; Gajda, A.; Gbylik, M.; Zmudzki, J. Multi-class procedure for analysis of antibacterial compounds in eggs by liquid chromatography-tandem mass spectrometry. Bull. Vet. Inst. Pulawy 2012, 56, 321–327. [Google Scholar] [CrossRef]
  39. Gajda, A.; Bładek, T.; Gbylik-Sikorska, M.; Nowacka-Kozak, E.; Angastiniotis, K.; Simitopoulou, M.; Kefalas, G.; Ferrari, P.; Levallois, P.; Fourichon, C.; et al. Analysis of Antimicrobials in Muscle and Drinking Water in Terms of Reducing the Need of Antimicrobial Use by Increasing the Health and Welfare of Pig and Broiler. Antibiotics 2023, 12, 326. [Google Scholar] [CrossRef]
  40. Gbylik, M.; Posyniak, A.; Mitrowska, K.; Bladek, T.; Zmudzki, J. Food Additives & Contaminants: Part A Multi-residue determination of antibiotics in fish by liquid chromatography-tandem mass spectrometry. Food Addit. Contam. Part A 2013, 30, 940–948. [Google Scholar] [CrossRef]
  41. Cherlet, M.; De Baere, S.; De Backer, P. Determination of gentamicin in swine and calf tissues by high-performance liquid chromatography combined with electrospray ionization mass spectrometry. J. Mass Spectrom. 2000, 35, 1342–1350. [Google Scholar] [CrossRef]
  42. Savoy, M.C.; Woo, P.M.; Ulrich, P.; Tarres, A.; Mottier, P.; Desmarchelier, A. Determination of 14 aminoglycosides by LC-MS/MS using molecularly imprinted polymer solid phase extraction for clean-up. Food Addit. Contam. Part A Chem. Anal. Control Expo. Risk Assess. 2018, 35, 674–685. [Google Scholar] [CrossRef]
  43. Sun, X.; Yang, Y.; Tian, Q.; Shang, D.; Xing, J.; Zhai, Y. Determination of gentamicin C components in fish tissues through SPE-Hypercarb-HPLC-MS/MS. J. Chromatogr. B Anal. Technol. Biomed. Life Sci. 2018, 1093–1094, 167–173. [Google Scholar] [CrossRef] [PubMed]
  44. COMMISSION IMPLEMENTING REGULATION (EU) 2021/808 of 22 March 2021 on the Performance of Analytical Methods for Residues of Pharmacologically Active Substances Used in Food-Producing Animals and on the Interpretation of Results as Well as on the Methods to Be Used for Sampling and Repealing Decisions 2002/657/EC and 98/179/EC; Official Journal of the European Union, 21 May 2021. Available online: http://data.europa.eu/eli/reg_impl/2021/808/oj (accessed on 6 May 2023).
Molecules 28 04595 g001 550

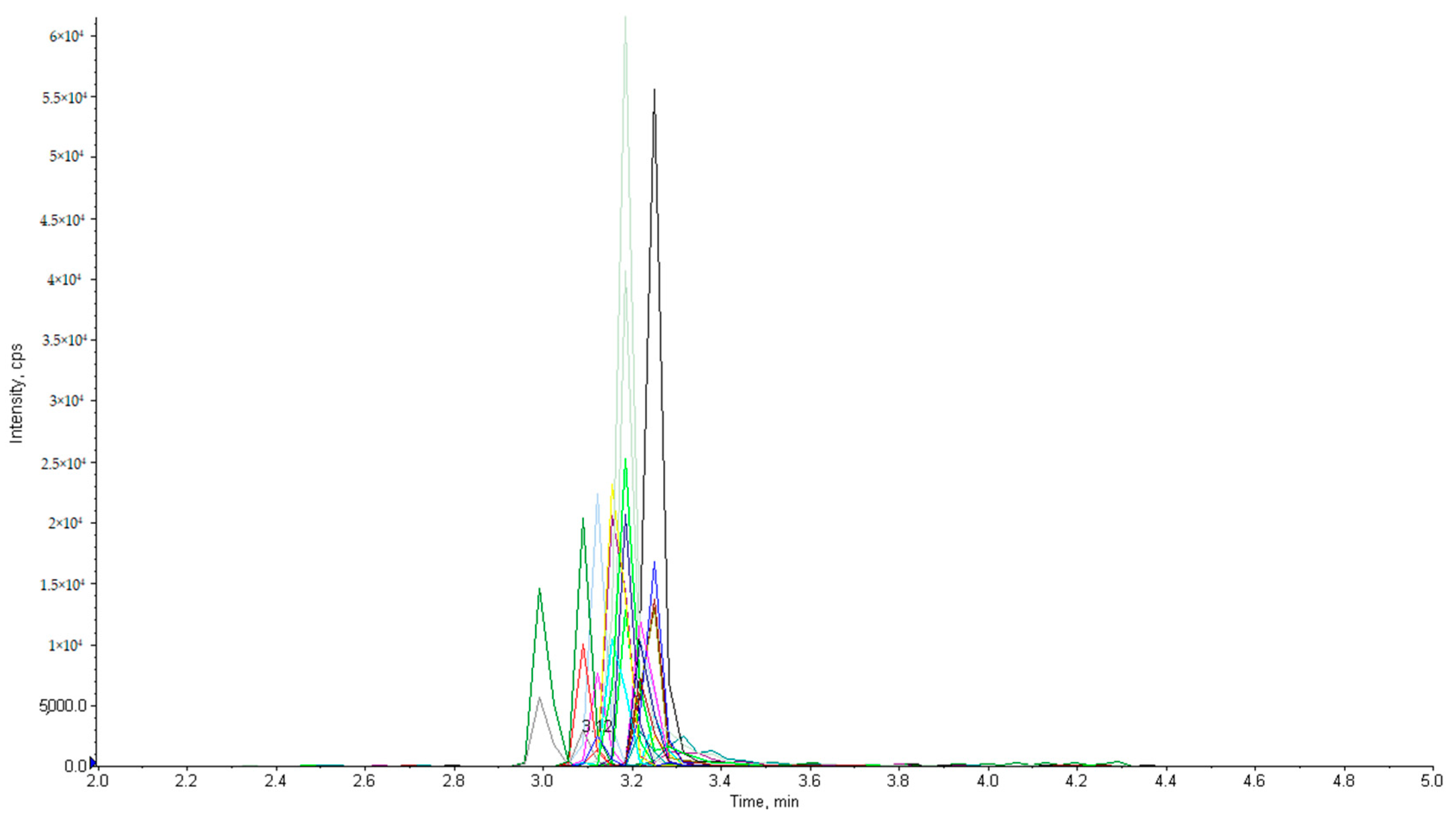

Figure 1. Chromatogram of a standard sample of 12 aminoglycosides at a 0.2 µg/mL concentration.
Figure 1. Chromatogram of a standard sample of 12 aminoglycosides at a 0.2 µg/mL concentration.
Molecules 28 04595 g001
Molecules 28 04595 g002 550

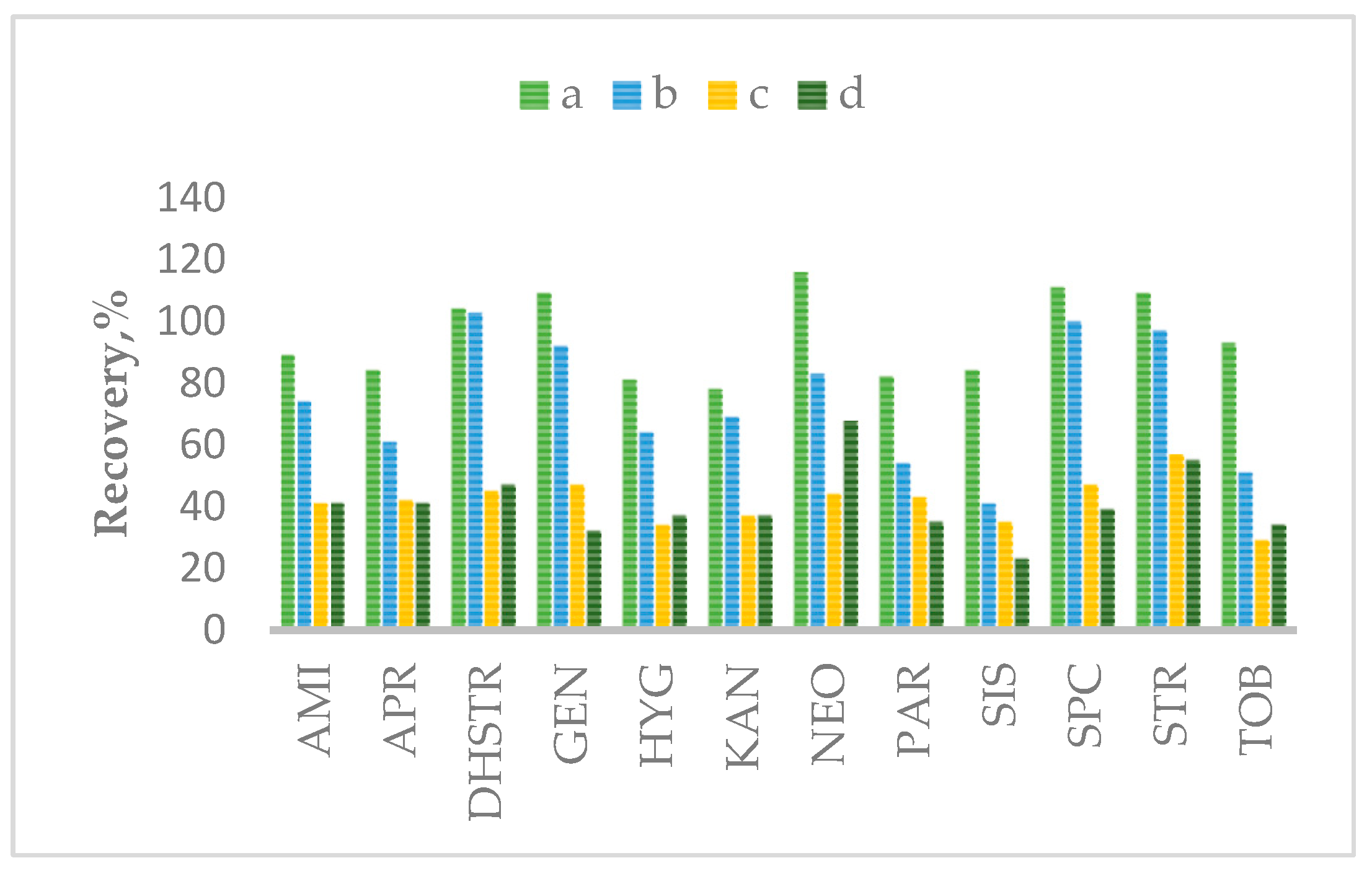

Figure 2. The effect of different extraction mixtures: a—10 mM ammonium acetate/0.4 mM EDTA/1% NaCl/2% TCA with 0.2 µL 0.3 M HFBA; b—10 mM ammonium acetate/0.4 mM EDTA/1% NaCl/2% TCA with 0.5 µL 0.3 M HFBA; c—150 mM EDTA + 15% TCA; d—150 mM EDTA + 5% TCA.
Figure 2. The effect of different extraction mixtures: a—10 mM ammonium acetate/0.4 mM EDTA/1% NaCl/2% TCA with 0.2 µL 0.3 M HFBA; b—10 mM ammonium acetate/0.4 mM EDTA/1% NaCl/2% TCA with 0.5 µL 0.3 M HFBA; c—150 mM EDTA + 15% TCA; d—150 mM EDTA + 5% TCA.
Molecules 28 04595 g002
Molecules 28 04595 g003 550

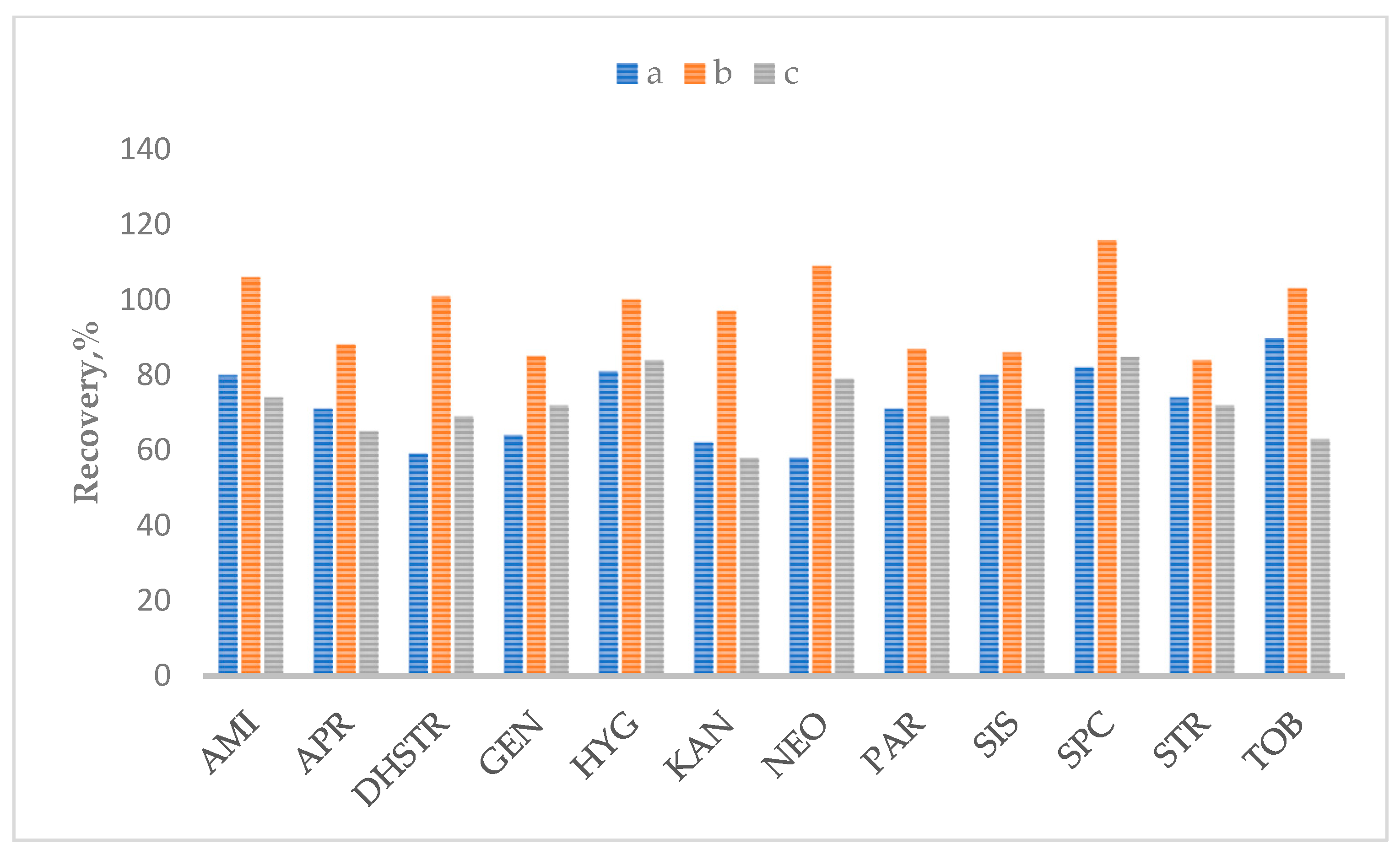

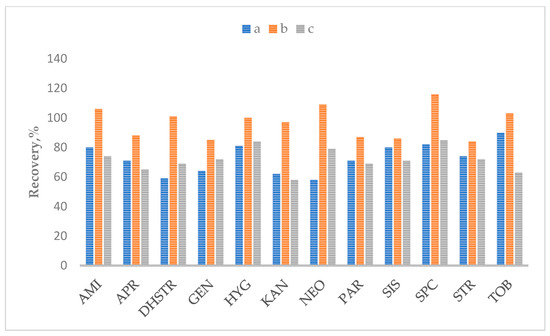

Figure 3. The effect of different pH values: a—pH = 5.5; b—pH = 6.5; c—pH = 8.0, in the liver.
Figure 3. The effect of different pH values: a—pH = 5.5; b—pH = 6.5; c—pH = 8.0, in the liver.
Molecules 28 04595 g003
Molecules 28 04595 g004 550

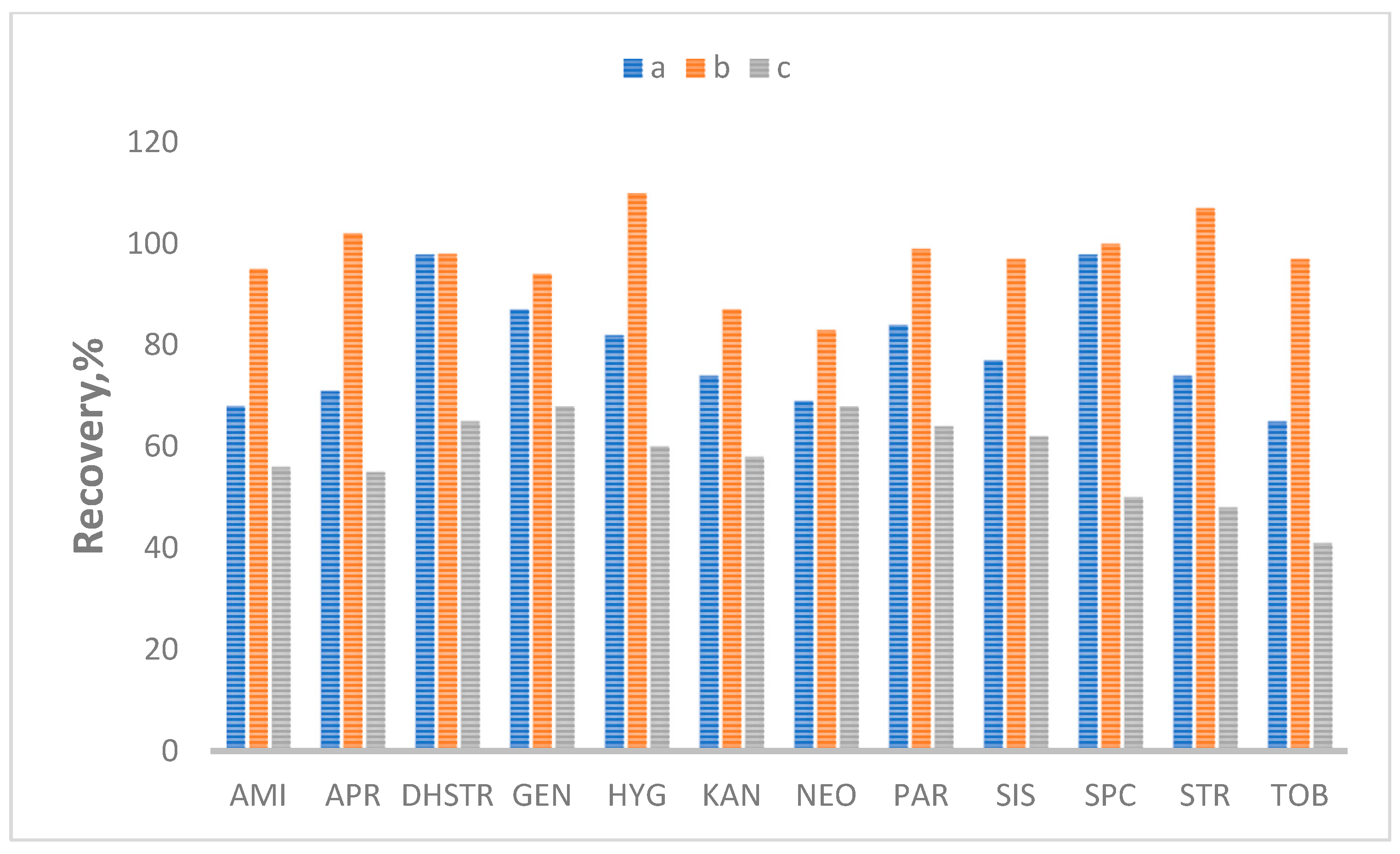

Figure 4. The effect of different pH values: a—pH = 5.5; b—pH = 6.5; c—pH = 8.0, in honey.
Figure 4. The effect of different pH values: a—pH = 5.5; b—pH = 6.5; c—pH = 8.0, in honey.
Molecules 28 04595 g004
Molecules 28 04595 g005 550

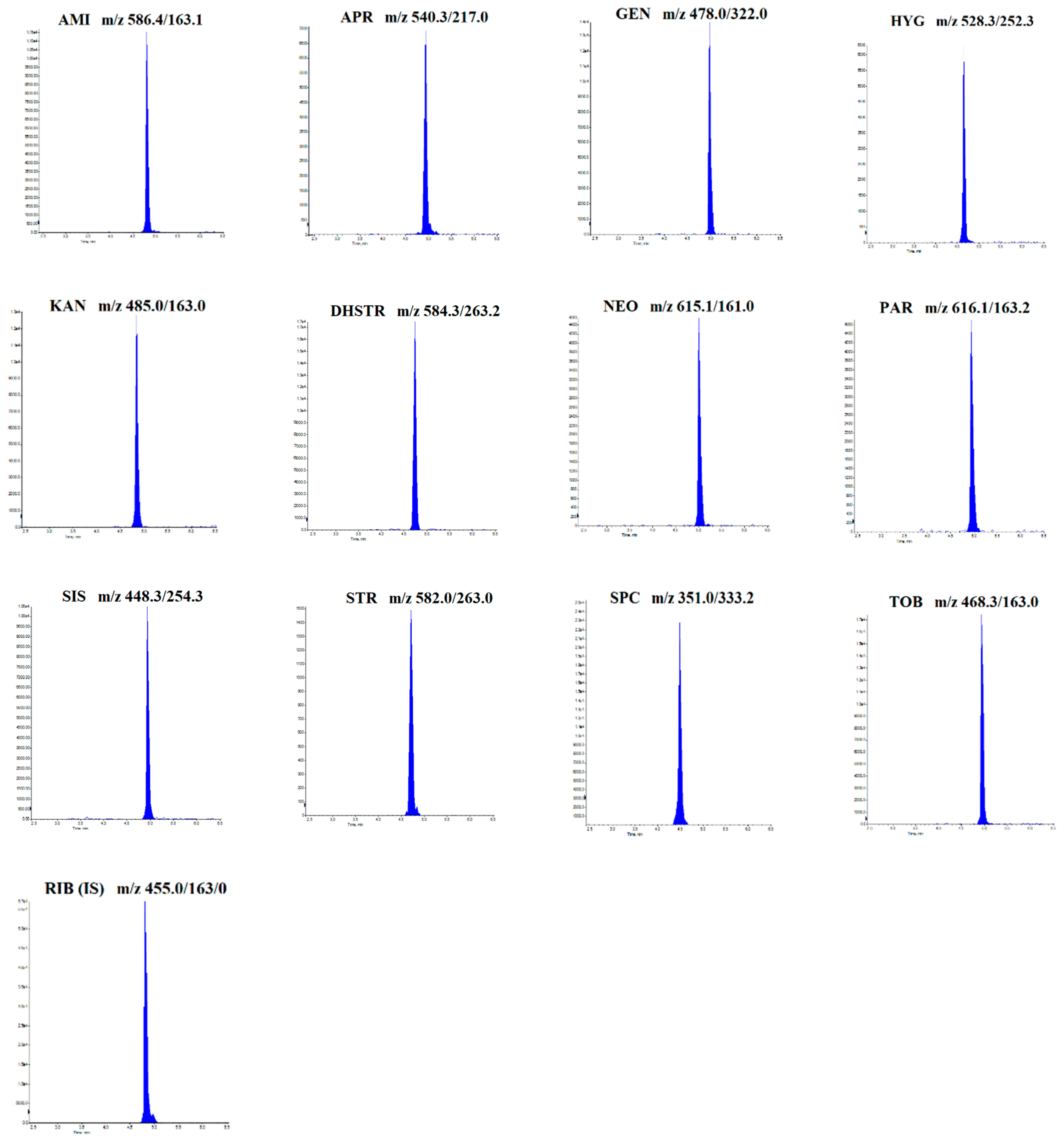

Figure 5. Chromatograms of a shrimp sample fortified with 13 aminoglycosides at 100 µg/kg (2 VL).
Figure 5. Chromatograms of a shrimp sample fortified with 13 aminoglycosides at 100 µg/kg (2 VL).
Molecules 28 04595 g005
Table
Table 1. Maximum residue limits (MRL) for aminoglycosides in food of animal origin according to the Commission Regulation EU No. 37/2010.
Table 1. Maximum residue limits (MRL) for aminoglycosides in food of animal origin according to the Commission Regulation EU No. 37/2010.
AminoglycosideFood Origin (Animal Species)MRL (µg/kg)
Apramycin Bovine1000 (muscle, fat)
10,000 (liver)
20,000 (kidney)
Dihydrostreptomycin All ruminants, porcine, rabbit500 (muscle, fat, liver)
1000 (kidney)
200 (ruminants’ milk)
GentamicinAll mammalian food producing species and fin fish50 (muscle, fat)
200 (liver)
750 (kidney)
100 (milk)
KanamycinAll food-producing species except fin fish100 (muscle, fat)
600 (liver)
2500 (kidney)
150 (milk)
NeomycinAll food-producing species500 (muscle, fat, except fish)
5500 (liver, except fish)
9000 (kidney, except fish)
1500 (milk)
500 (eggs)
ParomomycinAll food-producing species500 (muscle)
1500 (liver, kidney; except fish)
200 (eggs)
SpectinomycinOvine300 (muscle)
500 (fat)
2000 (liver)
5000 (kidney)
200 (milk)
All other food-producing species300 (muscle)
500 (fat, except fish)
1000 (liver, except fish)
5000 (kidney, except fish)
200 (milk)
StreptomycinAll ruminants, porcine, rabbit500 (muscle, fat, liver)
1000 (kidney)
200 (ruminants milk)
Table
Table 2. Mass spectrometry parameters for the quantitative analysis of aminoglycoside antibiotics: collision energy (CE), declustering potential (DP), dwell time, and cell exit potential (CXP).
Table 2. Mass spectrometry parameters for the quantitative analysis of aminoglycoside antibiotics: collision energy (CE), declustering potential (DP), dwell time, and cell exit potential (CXP).
AnalyteParent Ion (m/z)Daughter Ion(s) (m/z)Retention
Time
(min)		DP (V)CE (eV)CXP (eV)
Amikacin (AMI)586.4163.1/425.3/264.03.1211336/27/3413
Apramycin (APR)540.3217.0/199.33.1811933/3213
Dihydrostreptomycin (DHSTR)584.3263.2/246.2/221.13.067042/49/3815
Gentamicin (GEN)478.0322.0/157.03.215521/2313
Hygromycin B (HYG)528.3352.3/177.43.026233/4113
Kanamycin (KAN)485.0163.0/324.0/205.03.136032/21/3413
Neomycin (NEO)615.1161.0/163.0/293.03.2513037/38/3315
Paromomycin (PAR)616.1163.2/293.2/324.03.1911040/30/2113
Sisomicin (SIS)448.3254.3/271.33.199633/2613
Spectinomycin (SPC)351.0333.2/207.02.9313224/2815
Streptomycin (STR)582.0263.0/246.0/221.03.0615344/50/4015
Tobramycin (TOB)468.3163.0/145.03.206729/2513
Ribostamycin (RIB) *455.0163.03.12713013
* internal standard.
Table
Table 3. Comparison of different SPE cartridges.
Table 3. Comparison of different SPE cartridges.
Matrix SPE Cartridges
Strata XStrata X-CWStrata X-AWOasis HLB
Muscle+++++++
Kidney+++++++
Liver++++++++
Fat++++++++
Sausages++++++++
Shrimps+++++++
Fish+++++++
Honey+++++++++
Milk++++++++
Eggs++++++++
Whey powder++++++++
Sour cream+++++++
Curd+++++++
+: not satisfactory (recovery −20–50%); ++: quite satisfactory (recovery −50–70%), +++: satisfactory (recovery −70–120%).
Table
Table 4. Validation results.
Table 4. Validation results.
Muscle
AnalyteLOQ (µg/kg)Validation Level (µg/kg)Decision Limit CCα (µg/kg)Repeatability *, (CV, %)Within-Laboratory Reproducibility *, (CV, %)Recovery * (%)Matrix Effect * (CV, %)
AMI25.05059.46.244.721023
APR10.01000 *111410.96.781134
DHSTR50.0500 *5866.397.311023
GEN10.050 *61.97.639.241055
HYG25.05064.28.728.0199.04
KAN10.0100 *1109.259.141035
NEO10.0500 *5099.887.731047
PAR10.0500 *5179.207.9189.64
SIS10.05062.07.995.581015
SPC50.0300 *3277.238.381042
STR25.0500 *54313.913.11013
TOB10.05056.77.275.441033
Kidney
AMI10.05058.19.916.211085
APR10.020,000 *21,6423.529.2596.84
DHSTR10.01000 *10939.509.371028
GEN10.0750 *8514.6610.81056
HYG50.05062.84.267.0387.49
KAN10.02500 *27694.665.9095.18
NEO10.09000 * 10,63212.510.81094
PAR10.01500 *17409.597.191135
SIS10.05053.58.865.651075
SPC25.05000 *59674.315.7992.33
STR10.01000 *11957.458.8289.03
TOB10.05064.710.44.421054
Liver
AMI50.05063.013.011.81046
APR10.010,000 *12,09711.011.41074
DHSTR10.0500 *6219.5911.81103
GEN10.0200 *24610.47.991127
HYG25.05057.96.375.781014
KAN10.0600 *7027.074.491085
NEO1005500 *597111.59.771155
PAR50.01500 *181410.49.441124
SIS10.05068.113.611.91027
SPC25.02000 *246214.012.21094
STR10.0500 *59412.011.41036
TOB10.05069.910.38.881055
Fat
AMI10.05067.15.5112.285.63
APR10.01000 *11944.285.781074
DHSTR10.0500 *5375.759.0287.28
GEN10.050 *61.39.287.751096
HYG10.05069.58.058.261064
KAN10.0100 *1176.974.4997.36
NEO10.0500 *6047.088.251018
PAR10.05051.88.957.1288.56
SIS10.05063.75.586.4489.46
SPC25.0500 *5639.435.781007
STR25.0500 *6158.749.121024
TOB10.05051.76.6810.684.77
Sausages
AMI25.05068.413.27.9487.96
APR25.05064.710.39.6882.84
DHSTR25.05053.89.8410.794.57
GEN10.05056.67.989.581026
HYG50.05067.98.8510.31065
KAN10.05057.311.39.3697.25
NEO25.05051.84.716.1396.54
PAR25.05070.37.099.1599.45
SIS10.05054.910.811.41075
SPC25.05055.811.710.91156
STR50.05069.210.010.189.65
TOB25.05071.69.647.861125
Shrimps
AMI10.05068.77.689.121038
APR25.05051.911.510.989.46
DHSTR10.05057.99.255.5687.27
GEN10.05064.34.584.301005
HYG50.05073.86.799.551144
KAN10.05071.65.5210.31109
NEO25.05055.99.9312.81095
PAR10.05057.611.77.4298.86
SIS10.05062.510.811.81066
SPC25.05065.96.659.4897.34
STR50.05058.97.4810.189.54
TOB10.05074.95.4312.61189
Fish
AMI10.05068.99.328.151044
APR10.05054.37.459.3787.04
DHSTR10.05055.4.8.827.1893.68
GEN10.050 *59.03.969.221086
HYG10.05068.16.748.571038
KAN10.05067.39.4810.497.47
NEO10.05059.16.3411.810510
PAR10.05060.84.596.251178
SIS10.05067.17.617.1283.54
SPC25.05056.010.38.871095
STR25.05071.39.787.5689.410
TOB10.05054.77.4210.71015
Honey
AMI10.05067.211.79.841067
APR10.05070.610.711.51103
DHSTR10.05068.45.294.711108
GEN10.05068.89.157.4195.49
HYG50.05057.38.765.5991.24
KAN10.05065.511.98.361096
NEO10.05069.05.402.7186.36
PAR10.05057.14.624.151146
SIS10.05059.73.1110.51076
SPC10.05067.38.277.7189.74
STR10.05052.912.09.0598.14
TOB10.05057.18.265.951065
Milk
AMI10.05071.310.48.541115
APR25.05059.04.825.701035
DHSTR10.0200 *2617.626.881055
GEN10.0100 *1277.488.4398.46
HYG25.05060.88.586.921057
KAN10.0150 *1725.526.131036
NEO10.01500 *169010.08.661008
PAR10.05067.69.289.391106
SIS10.05057.95.578.741055
SPC50.0200 *2629.089.961099
STR10.0200 *25710.18.741046
TOB10.05064.84.834.5499.212
Eggs
AMI10.05071.97.037.971095
APR10.05064.24.555.021028
DHSTR10.05057.88.018.701088
GEN10.05060.88.949.9610815
HYG50.05067.18.929.4197.37
KAN10.05055.36.7410.11027
NEO10.0500 *5879.4710.81128
PAR10.0200 *229.011.711.210813
SIS10.05057.110.09.601018
SPC50.01001314.796.4488.68
STR10.05058.37.375.131105
TOB10.05068.15.225.8110313
Whey Powder
AMI25.05065.88.5711.21145
APR50.05058.16.9910.894.37
DHSTR10.05063.08.806.2596.511
GEN10.05067.110.29.1387.47
HYG1001001188.435.7085.95
KAN25.05054.610.88.241078
NEO10025027112.010.61047
PAR25.05056.39.167.891168
SIS10.05058.18.968.5497.86
SPC50.010012810.011.81006
STR50.010011611.813.893.75
TOB10.05055.88.679.6099.18
Sour cream
AMI50.05055.39.1310.987.64
APR50.05057.27.648.4691.43
DHSTR25.05060.810.87.681097
GEN25.05064.19.6412.599.86
HYG50.01001158.259.361066
KAN25.05054.97.5510.51177
NEO2502502796.8411.310810
PAR50.010012814.28.5694.76
SIS50.05057.39.469.9796.87
SPC50.01001218.677.5683.74
STR50.01001199.1210.61008
TOB50.05057.69.4511.71107
Curd
AMI1001001094.569.1083.98
APR25.05054.38.127.541027
DHSTR10.05057.811.67.4996.45
GEN50.05060.95.7910.384.08
HYG1001001176.457.9688.76
KAN50.05065.710.59.8110313
NEO1002502629.868.301188
PAR1001001178.648.761058
SIS10.05065.910.811.396.16
SPC50.010012413.57.9994.76
STR25.01001318.2510.183.06
TOB10.05054.37.519.3687.59
* MRL.
Disclaimer/Publisher’s Note: The statements, opinions and data contained in all publications are solely those of the individual author(s) and contributor(s) and not of MDPI and/or the editor(s). MDPI and/or the editor(s) disclaim responsibility for any injury to people or property resulting from any ideas, methods, instructions or products referred to in the content.

Share and Cite

MDPI and ACS Style

Nowacka-Kozak, E.; Gajda, A.; Gbylik-Sikorska, M. Analysis of Aminoglycoside Antibiotics: A Challenge in Food Control. Molecules 2023, 28, 4595. https://doi.org/10.3390/molecules28124595

AMA Style

Nowacka-Kozak E, Gajda A, Gbylik-Sikorska M. Analysis of Aminoglycoside Antibiotics: A Challenge in Food Control. Molecules. 2023; 28(12):4595. https://doi.org/10.3390/molecules28124595

Chicago/Turabian Style

Nowacka-Kozak, Ewelina, Anna Gajda, and Małgorzata Gbylik-Sikorska. 2023. "Analysis of Aminoglycoside Antibiotics: A Challenge in Food Control" Molecules 28, no. 12: 4595. https://doi.org/10.3390/molecules28124595

Article Metrics

Back to TopTop
