Analysis of Volatile Compounds and Flavor Fingerprint Using Gas Chromatography–Ion Mobility Spectrometry (GC-IMS) on Crassostrea gigas with Different Ploidy and Gender
by
Jingjing Fu
1,†,
Youmei Sun
1,†,
Mingxian Cui
1,
Enshuo Zhang
1,
Luyao Dong
2,
Yanchun Wang
1,
Weijun Wang
1,*,
Zan Li
1 and
Jianmin Yang
1,* 1
School of Agriculture, Ludong University, Yantai 264025, China
2
College of Fisheries and Life Science, Shanghai Ocean University, Shanghai 201306, China
*
Authors to whom correspondence should be addressed.
†
These authors contributed equally to this work and should be considered co-first authors.
Molecules 2023, 28(11), 4475; https://doi.org/10.3390/molecules28114475
Submission received: 5 May 2023
/
Revised: 26 May 2023
/
Accepted: 30 May 2023
/
Published: 31 May 2023
(This article belongs to the Special Issue Food Flavor: Molecular Decoding, Multimodal Interaction and Perception)
Abstract
:In this study, GC-IMS was used to analyze the volatile component and flavor profiles of Crassostrea gigas individuals of different ploidy and gender. Principal component analysis was used to explore overall differences in flavor profiles, and a total of 54 volatile compounds were identified. The total volatile flavor contents in the edible parts of tetraploid oysters were significantly higher than in diploid and triploid oysters. The concentrations of ethyl (E)-2-butenoate and 1-penten-3-ol were significantly higher in triploid oysters than in diploid and tetraploid oysters. In addition, the volatile compounds propanoic acid, ethyl propanoate, 1-butanol, butanal, and 2-ethyl furan were significantly higher in females than in males. The volatile compounds p-methyl anisole, 3-octanone, 3-octanone, and (E)-2-heptenal were present in higher levels in male than in female oysters. Overall, different ploidy and gender of oysters are connected with different sensory characteristics, providing new insights for understanding the flavor characteristics of oysters.
1. Introduction
Oysters belong to the Mollusca phylum, bivalve class, and pearl shell order. They are the most cultured shellfish globally, and are important marine resources. Oysters exhibit rich nutritional value [1] and are essential aquatic products that are incorporated into healthy diets [2]. Their meat is rich in proteins, fatty acids, and other compounds, leading to their widespread recognition of being delicious and their wide consumption by humans. The freshness and hygiene of oysters meet international standards and can thus be directly eaten raw [3]. Most oysters aquacultured in North China are Pacific oysters (Crassostrea gigas). The development of diploid oysters is seasonal, because propagation and ovulation occur in the summer, resulting in very thin gonads of diploid oysters after ovulation, which then affects their taste. For example, Qin et al. observed that the biochemical composition, nutritional value, and taste of triploid Hong Kong oysters (C. hongkongensis) were better than those of diploid oysters [4]. Compared with diploid oysters, triploid oysters are infertile, which reduces the energy loss caused by gonadal development [5], thereby leading to biological and economic advantages [6] that can improve meat quality [4]. Consequently, many aquaculture industries choose excellent quality triploid oysters, with the proliferation of triploid oysters becoming a top priority for the aquaculture industry. To prevent the release of a second polar body during fertilization, chemical [7] and physical methods are usually used to obtain triploid oysters [8]. However, chemicals used in chemical methods can harm experimenters due to improper operation, while triploids obtained using the physical method are not generated at a 100% induction rate [9]. However, stable and reliable triploid oysters can be produced by crossing a tetraploid male oyster gamete with a diploid female oyster gamete [8,10,11]. Moreover, tetraploid oysters can be successfully produced by self-breeding [12]. Concomitantly, some studies have observed that the biochemical compositions of oysters change, based on gonad development [13]. Li et al. showed that glycogen provides the primary energy for the occurrence of oyster gametes, and gradually decreases with gonadal development [14]. In addition, oocytes are stalled in the meiosis M1 stage before spawning [15,16], while sperm can complete two meiosis stages [17], inevitably leading to differences in energy expenditure and structural components between female and male oysters. It is consequently possible that the specific meiotic modes of oysters may result in large differences in volatile compound compositions between male and female oysters.
Volatile flavor compounds (VFCs) play important roles in the sensory and quality characteristics of oysters. Some studies have shown that vacuum hydrodistillation can characterize the key odor compounds of C. gigas in fresh oyster, which is more suitable for describing its sensory characteristics [18]. Pennarun et al. demonstrated that the sensory qualities and volatile compounds of oysters are altered by a microalgae diet [19]. In addition, the formation of volatile flavors in oysters is closely related to various chemical reactions involving lipids, proteins, and sugars [2]. For example, Ma et al. reported that hydrocarbons are the most prominent volatile flavor substances in oysters. Among these, 3-octanone appears to be the primary volatile compound in oysters, and produces a mushroom-like aroma [2]. Lin et al. investigated diploid and triploid oyster-free amino acid, inosine monophosphate, succinate, trimethylamine oxide, and betaine levels, revealing that combined chemical analysis with sensory evaluation is essential for accurately assessing the tastes of oysters [6]. Houcke et al. assessed differences in the volatile organic compounds (VOCs) produced by Ostrea edulis and C. gigas in two separate areas of the Netherlands, demonstrating that the primary volatile compound in O. edulis was 3-cyclohexene-1-ethanol, but 1, 5-octandiene-3-ol in C. gigas [20]. Sheng Liu et al. also speculated that aldehydes might be the characteristic flavor compounds in C. sikamea [21]. Van Houcke et al. found that different varieties, breeding areas and harvesting seasons all had important effects on the volatile components of the oyster. The difference between the January- and February-harvest volatile components was mainly caused by 1-pentene-3-ol, (E, Z)-2,6-nondienal and heptal [20]. Cochet.M. et al. showed that the growth cycle and breeding environment of oysters have a certain influence on its nutritional composition and quality, which in turn also affects its volatile flavor components [22]. There is no relevant literature to prove that there is odorant in oysters in a conjugated form which can be released because of the interaction with the tongue. Nevertheless, few studies have reported differences in VFCs between various oysters with different ploidy and sex characteristics. Of the few, Qin et al. investigated differences in biochemical components of three oyster types [13]. Nevertheless, few studies of volatile flavor components have been conducted by comparing male and female oysters. Consequently, the aim of this study was to explore differences in VFC profiles for oysters with different ploidy levels and sexes via GC-IMS and the development of fingerprint maps. These results provide new insights for understanding the flavors of different ploidy oysters.
2. Results and Discussion
2.1. GC-IMS Profiles of Male and Female Oysters with Different Ploidy Levels
The three-dimensional spectra of volatile components within 2N-M, 2N-F, 3N, 4N-M, and 4N-F oyster groups were evaluated using GC-IMS (Figure 1). The x-axis, y-axis, and z-axis in Figure 1 indicate the migration time (normalized treatment), retention time(s) of gas chromatography, and peak intensities, respectively. The distributions of peak signals were highly similar across groups, indicating overall similarity in VOCs across male and female oysters with different ploidy levels. However, some differences in peak intensities were observed among samples, indicating differences in volatile component contents among oysters. To more directly assess differences in the types and concentrations of volatile substances in each sample, the three-dimensional GC-IMS spectra were projected onto a two-dimensional plane to obtain an overhead GC-IMS plane (Figure 2). The red vertical line at an x-axis value of 1.0 (Figure 2) represents the normalized active ion peak (RIP). Each point on both sides of the ion peak represents one VOC and the depth of the color indicates concentration levels, with higher concentrations in red and lower concentrations in white.
To more accurately compare differences among the five oyster groups, the difference comparison model was used for the differential analysis of oyster samples. The composition profiles of the 2N-M oyster group were used as a reference in Figure 3, and the composition profiles of the other four groups were inferred from the 2N-M composition profiles. If the volatile components in the other samples were consistent with those in the 2N-M oysters, the two were offset and the background was white. In contrast, if the composition was higher than in the reference oyster, the value was colored red, or otherwise was shown in blue. Compared with diploid oysters, greater red points were apparent for triploid and tetraploid oysters during the retention period of 200–400 s and 600–800 s, indicating an enhanced signal of VOCs among oysters with different ploidy levels. Thus, significant differences in VOCs were present among oysters with different ploidy levels. Compared with the 2N-M oysters, more blue points were apparent for the 2N-F oysters during the retention period of 200–600 s. A similar observation was made for the tetraploid oyster samples, indicating that some volatile compounds disappeared, or the signal intensity decreased for oysters of different sexes. Thus, differences in VOCs between oysters of different sexes, but with the same ploidy level, were observed.
2.2. Identification of VOCs in Male and Female Oysters with Different Ploidy Levels
A qualitative analysis of the volatile components of oysters was conducted in this study (Figure 4). Taking 2N-M as an example, the x-axis represents the normalized ion migration time and the y-axis represents the retention time. Each point in Figure 4 represents a compound that was individually identified (Table 1). Eighty-five peaks were detected among the five groups, comprising fifty-four volatile compounds that accounted for 92.25% of the total peak area. These volatiles consisted of twenty alcohols, thirteen ketones, eight alcohols, five esters, two acids, three furans, two pyridines, and one ether. Due to the different concentrations of the compounds, several signals were generated when the concentrations of some compounds were too high. Thus, multiple spots were generated to visualize multiple peaks (indicating the production of monomers and dimers), when passing through the drift region. Qualitative results are shown in Table 1. Some of these compounds exhibited multiple peaks, including phenylacetaldehyde, propanoic acid, (E)-non-3-en-2-one, (E)-2-nonenal, benzaldehyde, furfural, 3-(methylsulfonyl)propanal, (E)-2-octenal, (E,E)-2,4-hexadienal, 1-nonanal, 1-hexanol, 2-butanone, 3-hydroxy, 3-octanone, (Z)-4-heptenal, and 1-pentanol, indicating the presence of both monomers and dimers of these compounds.
Ketones (38.4%), aldehydes (14.26%), alcohols (18.5%), and esters (12.8%) were the primary components of the volatile aromatic compounds detected in the oyster samples. Differences in VOCs from different samples are shown in Figure 5. Compared with diploid and triploid oysters, tetraploid oysters exhibited significantly increased levels of volatile components (p < 0.05), indicating that oysters with different ploidy levels greatly differed in flavor profiles. Thus, changes in ploidy also resulted in altered compositions of volatile components. In addition, the ketone levels in 2N-M oysters were significantly higher than in 2N-F oysters, while levels of aldehydes, alcohols, and esters were significantly higher in 2N-F oysters than in 2N-M oysters. The same observation was also made for tetraploid oysters, indicating differences in volatile flavor compounds between male and female oysters.
Ketones were the primary volatile flavor compounds that contributed to the oyster profiles. Ketones are produced by the oxidation or degradation of polyunsaturated fatty acids, the degradation of amino acids, or microbial oxidation, but they may also be generated by the oxidation of alcohols and decomposition of esters [23]. Ketones are also more stable than other volatile substances and are less prone to oxidation, resulting in longer-lasting floral fragrances. Among the ketones, 3-pentanone, 2-propanone, and 1-penten-3-one significantly contributed to the volatile flavor profiles of oysters, including through sweet floral and fruit-scented odors.
A total of 20 aldehydes were detected, and these were the most diverse compounds identified in this study. Aldehydes are typically produced by the oxidative degradation of polyunsaturated fatty acids [24]. The primary aldehydes identified here were (E)-2-pentenal, butanal, phenylacetaldehyde, (E)-2-nonenal, and (E)-2-butenal. Aldehydes generally have a low odor threshold and play an important role in oyster biological processes, while greatly influencing the flavors of oysters. Among the aldehydes, olefine aldehyde and enal contents were very high. (E)-2-pentenal produces a grass-like smell [19], while (E)-2-octena can produce an almond, cucumber-like taste [25] and phenylacetaldehyde can produce a sweet honey-like taste [26]. Benzaldehyde was also detected; when volatilized, it produces a bitter almond taste that may be related to amino acid degradation [27].
Alcohol compound thresholds are relatively high, and these compounds come from the oxidation and decomposition of oils [28] that do not appreciably contribute to the flavors of shellfish substances. However, the threshold value for unsaturated aldehydes is relatively low, and these compounds greatly contribute to oyster flavors. Alcohols often produce aromatic and plant-based aromas [2]. Among them, 1-octen-3-ol, 1-butanol, 1-penten-3-ol, and 1-propanol contribute most to oyster flavors. 1-octen-3-ol can produce unique earthy and mushroom tastes, primarily from the oxidation of unsaturated fatty acids [29].
Esters are obtained by the esterification of alcohols and carboxylic acids [30], exhibiting unique fruity and aromatic odors. Detected ester compounds included butyl pentanoate, ethyl propanoate, ethyl acetate, ethyl (E)-2-butenoate, and ethyl-butyrate.
Among the acids, propionic and acetic acids were detected at a low content, although their threshold values are large that they minimally affect oyster flavors. Furans are primarily generated by sugar decomposition and Maillard reactions, exhibit a very low aroma threshold, and imbue caramel- or meat-like odors, among others. Maillard reactions can occur between amino acids and reducing sugars, resulting in the production of numerous important flavor compounds, including heterocyclic compounds such as furans and pyrazine [31]. Heterocyclic compounds that were identified included 2-ethyl furan, 2-butylfuran, 2-pentyl furan, 2-ethyl-3-methyl pyrazine, and 2,3,5-trimethyl pyrazine, which can all produce attractive aromatic flavors. Overall, the odor profiles from the above compounds contribute to the volatile odors of di-, tri-, and tetraploid oysters being recognized as grassy, fatty, and sweet fruity aromas, respectively.
2.3. Fingerprint Analysis of VOCs in Male and Female Oysters with Different Ploidy Levels
To more directly evaluate the variation in volatile compounds and their relative concentrations in different oyster samples, a fingerprint map of VOCs was visualized to quantitatively compare differences in VOCs among groups. The fingerprint profiles of oyster samples were generated based on peak volumes (Figure 6; rows represent volatile compositions and columns represent signal peaks of VOCs for the samples, while peak color correlates to VOC concentration, with color brightness correlated to higher concentrations). Compounds are denoted by numbers; nameless ones denote undefined substances, and the suffixes -M and -D correspond to monomers and dimers, respectively. The comparison of fingerprints allowed the visualization of dynamic changes in the VOCs. Although significant differences in the types of volatile compounds were not apparent, a significant difference in volatile compound contents was apparent among the samples, and volatile compound contents in tetraploid oysters were significantly higher. Benzaldehyde, ethyl(E)-2-butenoate, and 1-penten-3-one were most abundant in diploid male samples, while (E)-non-3-en-2-one and 1-pentanol were most abundant in diploid female samples, and 1-nonanal and 1-penten-3-ol were most abundant in triploid samples. In addition, 2-butanone, 3-hydroxy, 3-octanone, 3-pentanone, 2-propanone, and 2-methyl-2-heptene-6-one were most abundant in tetraploid male samples, while (E)-2-pentenal, (E)-2-hexen-1-al, propanoic acid, 2-heptanone, 2-pentyl furan, and 2-ethyl furan were most abundant in tetraploid female samples.
2.4. Principal Component Analysis (PCA) of Volatile Compounds Profiles
To better visualize the sample data and remove noise, the dimensionality of the original data was reduced, followed by the classification of samples using PCA (Figure 7). PCA is a multivariate statistical method used to assess correlations between multiple variables and can be used to comprehensively evaluate multidimensional problems. Generally, when the cumulative contribution rates of PC1 and PC2 reach 60%, the PCA model can be used to adequately separate different samples. PCA was used to distinguish oysters with different ploidy profiles in this study, with contributions of PC1 and PC2 of 44% and 30%, respectively (total cumulative contribution of 74%), indicating distinct characteristic differences in flavor compounds between male and female oyster samples with different ploidy profiles. The samples were clearly separated in the ordination and the samples with high correlations were distributed in the same region (Figure 7). The tetraploids were clustered separately from the other samples, and exhibited a positive PC1 score, indicating that ploidy differences were associated with significant differences in VOC profiles. The VOC compositions of the diploids were relatively similar to those of the triploids, indicating the presence of more similar VFCs within diploid and triploid oysters compared to tetraploid oysters, as reflected also in more similar sensory characteristics. In addition, the 4N-M and 4N-F samples were clearly distinguished through PC2. Similar differences were observed for the diploid samples, indicating that gender differences can affect VFC profiles in oysters. Thus, GC-IMS techniques can effectively produce distinguishable VOC profiles of tetraploid and diploid oysters, triploid oyster samples, and different sexes of diploid/tetraploid oyster samples.
2.5. Comparison of Volatile Compounds between Different Sexes of Oysters
Differences in concentration of volatile compounds between diploid and tetraploid oysters of different sexes were also analyzed, based on compound peak volumes (Table 2). No significant differences in total volatile compounds were observed between diploid and tetraploid female and male oysters. Considering the edible components of diploid oysters, the contents of several volatile compounds were more abundant in diploid female oysters than in diploid male oysters (p < 0.05), including propanoic acid, (E,E)-2,4-hexadienal, 2-butanone,3-hydroxy, acetic acid, 2-butanone,3-hydroxy, 1-butanol, ethyl propanoate, butanal, 2-propanone, and 2-ethyl furan. Several volatile compounds were also significantly lower in females than in males (p < 0.05), including p-methyl anisole, (E)-2-octenal, 1-hydroxy-2-propanone, 3-octanone, 2-pentyl furan, 3-pentanone, 3-octanone, 2-nonanone, and (E)-2-heptenal. Several volatile compounds were identified that were significantly enriched in tetraploid female oysters compared to male oysters (p < 0.05), including propanoic acid, 1-hydroxy-2-propanone, 2-pentyl furan, 1-butanol, ethyl propanoate, 2-butanone, butanal, and 2-ethyl furan. In addition, several VOCs were significantly more abundant in male oysters than in female oysters, including p-methyl anisole, 2-butanone,3-hydroxy, 3-octanone, 3-octanone, ethyl (E)-2-butenoate, 2-propanone, 2-methyl-2-hepten-6-one, (E)-2-heptenal, and 2-butylfuran (p < 0.05). Overall, the volatile compounds in female oysters were significantly different from those in male oysters. The reason for the difference in volatile compounds in male and female oysters may be that the nutrients required by egg and sperm are different, which leads to the difference in volatile flavor compounds in the gonads of male and female oysters. Because the gonads’ primary role is to provide nutrients for gametogenesis and development, female oyster gonads are rich in lipids, while male oyster gonads are rich in protein. On the other hand, it could be related to the unique meiotic modes of oysters. Spermatozoa are involved in more cell membrane synthesis and require more energy, resulting in differences in biochemical composition and thus the flavor substances exhibiting differently.
2.6. Comparison of Volatile Compounds between Different Ploidy Oysters
Volatile compounds that resulted in the volatile odor differences between diploid and triploid oysters included eight ketones, four aldehydes, four esters, three alcohols, two acids, and one furan (Table 3). Ketones and aldehydes were the main factors that affected the volatile odor differences among diploid, triploid, and tetraploid oysters. Ketones were the most abundant, while aldehydes exhibited a low threshold and produced a significant effect on the aroma and taste sensory characteristics of oysters. The total content of the total volatile organic compounds (TVOC) in tetraploid oysters was significantly higher than in the diploid and triploid oysters (p < 0.05). Specifically, propanoic acid, 2-Butanone,3-hydroxy, Acetic acid, 2-Butanone,3-hydroxy, (Z)-4-heptenal, 1-butanol in tetraploid oysters, (E)-2-butenal, 3-Pentanone, Ethyl propanoate, 2-Butanone, Ethyl Acetate, Butanal, 2-propanone, ethyl-butyrate, and 2-ethyl furan content was significantly higher than that of diploidy and triploid (p < 0.05). Based on an analysis of detected volatile compounds, the diploid, triploid, and tetraploid oysters exhibited grassy, fatty, fruity, and sweet floral aromas on the whole, while these characteristic aromas were more prominent in tetraploid oysters than in diploid and triploid oysters. The reason for the difference in volatile flavor compounds may be that the cell size and shape caused by the different ploidy of Crassostrea gigas have physiological differences, and that change is probably related to the transcriptomes of different ploidy genome sizes, which affect the energy metabolism process of the oyster growth. The occurrence of gametes in oysters is inseparable from the component reserves of other tissues; triploids are sterile, and their energy is more used for growth, which leads to growth differences among triploids and tetraploid and diploids. C. gigas gonadal development is inseparable from glycogen, which is the main molecular contributor to the flavor quality of bivalves, which leads to differences among triploid-oyster and diploid- and tetraploid-oyster VOCs.
3. Materials and Methods
3.1. Materials
Fresh diploid, triploid and tetraploid C. gigas samples were collected in August of 2022 in Yantai city, Kong tong Island, Shandong Province. Diploid is a high-glycogen-content new strain Luyi No.1 (Certificate Number: GS-01-006-2020), which has been approved by the Ministry of Agriculture and Rural Affairs in China. Based on diploid Luyi No.1, we induced the tetraploid oyster, and triploid oysters were produced from diploid ♀ with tetraploid ♂ of Luyi No.1. We carefully opened the shell with a special knife, trying to keep it intact so as not to destroy the gonads. Firstly, we verified the ploidy status of each oyster using flow cytometry (Beckman Coulter Life Sciences, Shanghai, China). Single gill filaments of oysters were collected and immediately rinsed with PBS buffer to prevent contamination by the gonadal tissue from affecting the experimental results. The rinsed gill filaments were placed in ep tubes, followed by the addition of 300 μL of PBS buffer. They were cut up sufficiently, using scissors, to prepare a single cell suspension. A total of 10 μL of 0.05 mg/mL of DAPI (4′,6-Diamidino-2-phenylindole dihydrochloride) dye was added for staining, shaken well, and stained for 20 min, protected from light. Finally, the fixing solution was filtered through a 300 mesh filter screen, and the oyster ploidy was detected on the machine after completion. Afterward, the sex of the diploid and tetraploid oysters was detected, and a toothpick was used to scrape some of the material from the gonads, which was placed on a slide dripped with seawater and stirred gently. If it was grainy, it was a female oyster. If it was foggy or lumpy, it was a male oyster. The slide was placed under a microscope to confirm the gender again. After confirmation, they were divided into five groups: diploid male (2N-M), diploid female (2N-F), triploid (3N), tetraploid male (4N-M) and tetraploid female (4N-F). About 250g of soft tissue (the adductor muscle was excluded), with five oysters taken in each group. The homogenizer was used to homogenate the products, and they were put into a ziplocked bag and placed in a −80 °C refrigerator for freezing storage.
3.2. Experimental Methods
3.2.1. GC-IMS Analysis
The volatile components of each sample were identified using the Flavor Spec® flavor analyzer (G.A.S, IMSPEX Diagnostics Ltd., Rhondda Cynon Taff, UK). Prior to the experiment, the samples were thawed at 4 °C. Then, 2 g of samples from homogenates of the five oysters were weighed and placed into a bottle with 20 mL headspace, capped, and sealed. After incubating at 40 °C for 15 min, 700 μL samples were injected into the instrument with carrier gas through automatic headspace sampling. The incubation speed was 500 rpm and the injection needle temperature was 105 °C. After the initial separation using the gas chromatography column and then in the ion migration tube, the molecules to be measured migrated to the Faraday disc for detection under the action of the electric field; this was reversed by the drift gas after ionization in the ionization region, and secondary separation was achieved. Three parallel samples were included for each group.
3.2.2. GC-IMS Analysis
An MXT-WAX metal chromatographic column was used for GC-IMS, which exhibited an inner diameter of 0.53 mm and a film thickness of 1 μm. The column temperature was set to 60 °C, the carrier gas/drift gas was dinitrogen (99.999% purity), and the temperature of the ion mobility spectrum was 45 °C. Carrier gas flow rates were set at 0–2 min, 2 mL/min; 2–10 min, 10 mL/min; 10–30 min, 100 mL/min, and a drift gas flow of 150 mL/min. The analysis time was 30 min.
3.2.3. Data Analysis
The VOCal software (Version 0.4.03, GAS Deutschland, Dortmund, Germany) program was used to analyze the spectra and characterize the VOCs in the samples. The NIST (National Institute of Standards and Technology) and IMS (Information Management System) databases integrated into the software were used to identify the compounds. The Reporter plug-in was used to directly and easily compare the two-dimensional top views and three-dimensional spectra between the samples, enabling a comparison of the VOC profiles among samples. The Gallery Plot plug-in was used to visualize the fingerprint spectra of the volatile substances, followed by a qualitative and quantitative comparison of differences in the VOCs among the different samples. The Dynamic PCA (principal component analysis) plug-in was used for classification analysis to observe variation in the VOC compositions among the samples. The SPSS 20.0 software program (SPSS Inc., Chicago, IL, USA) was used to assess the significance of different ploidy and sex groups, based on the pairwise comparison method (Duncan) and by using a p < 0.05 significance threshold. The experimental results are presented as means ± standard deviation (mean ± SD).
4. Conclusions
In this study, volatile compound profiles were investigated among five groups of oysters, based on characteristic peak volumes determined with GC-IMS analysis. These analyses provided high resolution for understanding the differences in flavor compounds between oysters with different genders and ploidy levels. The total contents of volatile flavoring substances in the tetraploid oysters were significantly higher than in diploid and triploid oysters. Several compounds were significantly higher (p < 0.05), in tetraploid oysters than in diploid and triploid oysters, including propanoic acid, 2-butanone,3-hydroxy, acetic acid, 2-butanone,3-hydroxy, (Z)-4-heptenal, 1-butanol, (E)-2-butenal, 3-pentanone, ethyl propanoate, 2-butanone, ethyl acetate, butanal, 2-propanone, ethyl-butyrate, and 2-ethyl furan. Thus, the volatile aromatic characteristics of the tetraploid oysters were significantly different from those of the diploid and triploid oysters. Further, the contents of ethyl (E)-2-butenoate and 1-penten-3-ol were significantly higher in the edible parts of triploid oysters than in diploid and tetraploid oysters (p < 0.05). This could be related to triploid oysters using less energy for gonadal development. The concentrations of several volatile compounds in the female oysters were significantly higher than in the male oysters, including propanoic acid, ethyl propanoate, 1-butanol, butanal, and 2-ethyl furan. In contrast, p-methyl anisole, 3-octanone, 3-octanone, and (E)-2-heptenal concentrations were more abundant in male than female oysters. Differences between male and female oysters could be related to the oocytes of female oysters stagnating in the M1 phase of meiosis before egg laying, and may also have to do with the different nutrients that eggs and sperm need, leading to different concentrations in male and female gonads. Meanwhile, the differences among diploid, triploid and tetraploid oysters may be related to physiological differences in cell size and shape, related to the energy metabolism processes that affect oyster growth. In conclusion, this study analyzed differences in volatile flavor compounds between oysters of different ploidy and gender for the first time, providing new insights into our understanding of oyster flavor characteristics.
Author Contributions
J.F. and Y.S.: designed and supervised the study, analyzed all data, and wrote the manuscript. M.C., E.Z., L.D. and Y.W. prepared the samples. W.W., J.Y. and Z.L. designed and supervised the study. All authors have read and agreed to the published version of the manuscript.
Funding
This work was supported by the Earmarked Fund for Agriculture Seed Improvement Project of Shandong Province, China (No. 2020LZGC016), the fund of central government guiding local scientific and technological development (No. YDZX2021017).
Informed Consent Statement
Not applicable.
Data Availability Statement
Not applicable.
Conflicts of Interest
The authors declare that they have no known competing financial interest or personal relationships that could have appeared to influence the work reported in this paper.
Sample Availability
Samples of the compounds are not available from the authors.
References
- Ma, Y.; Jiang, S.; Zeng, M. In vitro simulated digestion and fermentation characteristics of polysaccharide from oyster (Crassostrea gigas), and its effects on the gut microbiota. Food Res. Int. 2021, 149, 110646. [Google Scholar] [CrossRef] [PubMed]
- Ma, Y.; Wang, R.; Zhang, T.; Xu, Y.; Jiang, S.; Zhao, Y. High Hydrostatic Pressure Treatment of Oysters (Crassostrea gigas)—Impact on Physicochemical Properties, Texture Parameters, and Volatile Flavor Compounds. Molecules 2021, 26, 5731. [Google Scholar] [CrossRef] [PubMed]
- Felici, A.; Vittori, S.; Meligrana, M.; Roncarati, A. Quality traits of raw and cooked cupped oysters. Eur. Food Res. Technol. 2020, 246, 349–353. [Google Scholar] [CrossRef]
- Qin, Y.; Zhang, Y.; Ma, H.; Wu, X.; Xiao, S.; Li, J.; Mo, R.; Yu, Z. Comparison of the biochemical composition and nutritional quality between diploid and triploid Hong Kong oysters, Crassostrea hongkongensis. Front. Physiol. 2018, 9, 1674. [Google Scholar] [CrossRef] [PubMed]
- Villanueva-Fonseca, B.P.; Góngora-Gómez, A.M.; Muñoz-Sevilla, N.P.; Domínguez-Orozco, A.L.; Hernández-Sepúlveda, J.A.; García-Ulloa, M.; Ponce-Palafox, J.T. Growth and economic performance of diploid and triploid Pacific oysters Crassostrea gigas cultivated in three lagoons of the Gulf of California. Lat. Am. J. Aquat. Res. 2017, 45, 466–480. [Google Scholar] [CrossRef]
- Hong, L.; Xiaoxue, W.; Bin, Z.; Haiqing, T.; Changhu, X.; Jiachao, X. Comparison of taste components between triploid and diploid oyster. J. Ocean. Univ. Qingdao 2002, 1, 55–58. [Google Scholar] [CrossRef]
- Quillet, E.; Panelay, P. Triploidy induction by thermal shocks in the Japanese oyster, Crassostrea gigas. Aquaculture 1986, 57, 271–279. [Google Scholar] [CrossRef]
- Dong, Q.; Eudeline, B.; Huang, C.; Allen, S.K., Jr.; Tiersch, T.R. Commercial-scale sperm cryopreservation of diploid and tetraploid Pacific oysters, Crassostrea gigas. Cryobiology 2005, 50, 1–16. [Google Scholar] [CrossRef]
- Guo, X.; Allen, S.K., Jr. Viable tetraploids in the Pacific oyster (Crassostrea gigas Thunberg) produced by inhibiting polar body 1 in eggs. Mol. Mar. Biol. Biotechnol. 1994, 3, 42–50. [Google Scholar]
- Guo, X.; Allen, S.K., Jr. Reproductive potential and genetics of triploid Pacific oysters, Crassostrea gigas (Thunberg). Biol. Bull. 1994, 187, 309–318. [Google Scholar] [CrossRef]
- Nell, J.A. Farming triploid oysters. Aquaculture 2002, 210, 69–88. [Google Scholar] [CrossRef]
- Guo, X.; DeBrosse, G.A.; Allen, S.K., Jr. All-triploid Pacific oysters (Crassostrea gigas Thunberg) produced by mating tetraploids and diploids. Aquaculture 1996, 142, 149–161. [Google Scholar] [CrossRef]
- Qin, Y.; Li, R.; Liao, Q.; Shi, G.; Zhou, Y.; Wan, W.; Li, J.; Ma, H.; Zhang, Y.; Yu, Z. Comparison of biochemical composition, nutritional quality, and metals concentrations between males and females of three different Crassostrea sp. Food Chem. 2022, 398, 133868. [Google Scholar] [CrossRef]
- Hao, R.; Du, X.; Yang, C.; Deng, Y.; Zheng, Z.; Wang, Q. Integrated application of transcriptomics and metabolomics provides insights into unsynchronized growth in pearl oyster Pinctada fucata martensii. Sci. Total Environ. 2019, 666, 46–56. [Google Scholar] [CrossRef]
- Portillo-López, A.; Gould, M.C.; Stephano, J.L. MAPK is involved in metaphase I arrest in oyster and mussel oocytes. Biol. Cell 2003, 95, 275–282. [Google Scholar] [CrossRef]
- George, O.; Johnston, M.A.; Shuster, C.B. Aurora B kinase maintains chromatin organization during the MI to MII transition in surf clam oocytes. Cell Cycle 2006, 5, 2648–2656. [Google Scholar] [CrossRef] [PubMed]
- Yoshida, M.; Asturiano, J.F. Reproduction in Aquatic Animals: From Basic Biology to Aquaculture Technology; Springer: Berlin/Heidelberg, Germany, 2020. [Google Scholar]
- Pennarun, A.L.; Prost, C.; Demaimay, M. Aroma extracts from oyster Crassostrea gigas: Comparison of two extraction methods. J. Agric. Food Chem. 2002, 50, 299–304. [Google Scholar] [CrossRef]
- Pennarun, A.L.; Prost, C.; Haure, J.; Demaimay, M. Comparison of two microalgal diets. 2. Influence on odorant composition and organoleptic qualities of raw oysters (Crassostrea gigas). J. Agric. Food Chem. 2003, 51, 2011–2018. [Google Scholar] [CrossRef]
- Van Houcke, J.; Medina, I.; Linssen, J.; Luten, J. Biochemical and volatile organic compound profile of European flat oyster (Ostrea edulis) and Pacific cupped oyster (Crassostrea gigas) cultivated in the Eastern Scheldt and Lake Grevelingen, The Netherlands. Food Control 2016, 68, 200–207. [Google Scholar] [CrossRef]
- Liu, S.; Xu, H.; Jian, S.; Xue, Q.; Lin, Z. Molecular basis of taste and micronutrient content in Kumamoto oysters (Crassostrea sikamea) and Portuguese oysters (Crassostrea angulata) from Xiangshan bay. Front. Physiol. 2021, 12, 713736. [Google Scholar] [CrossRef]
- Cochet, M.; Brown, M.; Kube, P.; Elliott, N.; Delahunty, C. Understanding the impact of growing conditions on oysters: A study of their sensory and biochemical characteristics. Aquac. Res. 2013, 46, 637–646. [Google Scholar] [CrossRef]
- Elmore, J.; Mottram, D. Flavour Development in Meat. Improving the Sensory & Nutritional Quality of Fresh Meat; Elsevier: Amsterdam, The Netherlands, 2009; pp. 111–146. [Google Scholar]
- Zhang, Z.; Li, T.; Wang, D.; Zhang, L.; Chen, G. Study on the volatile profile characteristics of oyster Crassostrea gigas during storage by a combination sampling method coupled with GC/MS. Food Chem. 2009, 115, 1150–1157. [Google Scholar] [CrossRef]
- Piveteau, F.; Le Guen, S.; Gandemer, G.; Baud, J.-P.; Prost, C.; Demaimay, M. Aroma of fresh oysters Crassostrea gigas: Composition and aroma notes. J. Agric. Food Chem. 2000, 48, 4851–4857. [Google Scholar] [CrossRef]
- Lotfy, S.N.; Fadel, H.H.; El-Ghorab, A.H.; Shaheen, M.S. Stability of encapsulated beef-like flavourings prepared from enzymatically hydrolysed mushroom proteins with other precursors under conventional and microwave heating. Food Chem. 2015, 187, 7–13. [Google Scholar] [CrossRef] [PubMed]
- Wang, Y.; Song, H.; Zhang, Y.; Tang, J.; Yu, D. Determination of aroma compounds in pork broth produced by different processing methods. Flavour Fragr. J. 2016, 31, 319–328. [Google Scholar] [CrossRef]
- Zhang, J.; Cao, J.; Pei, Z.; Wei, P.; Xiang, D.; Cao, X.; Shen, X.; Li, C. Volatile flavour components and the mechanisms underlying their production in golden pompano (Trachinotus blochii) fillets subjected to different drying methods: A comparative study using an electronic nose, an electronic tongue and SDE-GC-MS. Food Res. Int. 2019, 123, 217–225. [Google Scholar] [CrossRef]
- Ma, R.; Liu, X.; Tian, H.; Han, B.; Li, Y.; Tang, C.; Zhu, K.; Li, C.; Meng, Y. Odor-active volatile compounds profile of triploid rainbow trout with different marketable sizes. Aquac. Rep. 2020, 17, 100312. [Google Scholar] [CrossRef]
- Ramírez, R.; Cava, R. Volatile profiles of dry-cured meat products from three different Iberian X Duroc genotypes. J. Agric. Food Chem. 2007, 55, 1923–1931. [Google Scholar] [CrossRef]
- Duflos, G.; Coin, V.M.; Cornu, M.; Antinelli, J.F.; Malle, P. Determination of volatile compounds to characterize fish spoilage using headspace/mass spectrometry and solid-phase microextraction/gas chromatography/mass spectrometry. J. Sci. Food Agric. 2006, 86, 600–611. [Google Scholar] [CrossRef]

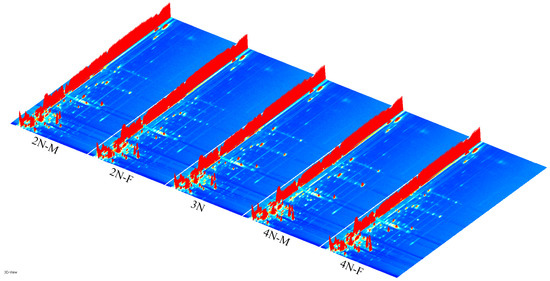

Figure 1.
Three-dimensional spectrum of the volatile components for diploid male oyster (2N-M), diploid female oyster (2N-F), triploid oyster (3N), tetraploid male oyster (4N-M) and tetraploid female oyster (4N-F), evaluated using GC-IMS. Note: the bright spot denotes a volatile component, and its hue spans from blue to red, signifying the concentration of the compound from less to greater. The x-axis, y-axis, and z-axis indicate the migration time (normalized treatment), retention time(s) of gas chromatography, and peak intensities, respectively.
Figure 1.
Three-dimensional spectrum of the volatile components for diploid male oyster (2N-M), diploid female oyster (2N-F), triploid oyster (3N), tetraploid male oyster (4N-M) and tetraploid female oyster (4N-F), evaluated using GC-IMS. Note: the bright spot denotes a volatile component, and its hue spans from blue to red, signifying the concentration of the compound from less to greater. The x-axis, y-axis, and z-axis indicate the migration time (normalized treatment), retention time(s) of gas chromatography, and peak intensities, respectively.

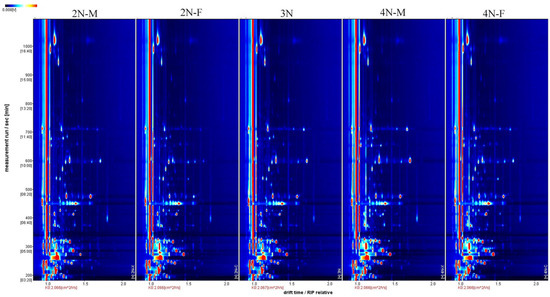

Figure 2.
Two-dimensional top view of five groups of volatile matter in oysters. The x-axis and y-axis indicate the migration time (normalized treatment), and retention time(s), respectively.
Figure 2.
Two-dimensional top view of five groups of volatile matter in oysters. The x-axis and y-axis indicate the migration time (normalized treatment), and retention time(s), respectively.

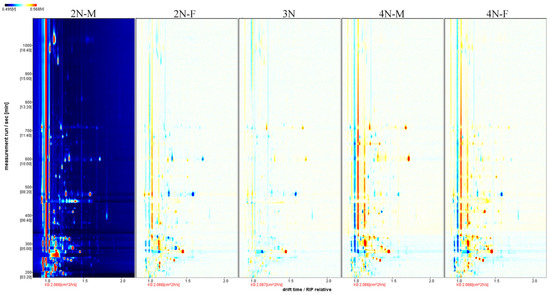

Figure 3.
Comparison and differences in the spectra of volatile components in the five groups of oysters. Using the 2N-M sample as a reference, the comparison shows how all the volatile substances in the sample differ from one sample to another, with red representing a higher concentration of the substance in the sample than the reference sample and blue representing a lower concentration.
Figure 3.
Comparison and differences in the spectra of volatile components in the five groups of oysters. Using the 2N-M sample as a reference, the comparison shows how all the volatile substances in the sample differ from one sample to another, with red representing a higher concentration of the substance in the sample than the reference sample and blue representing a lower concentration.

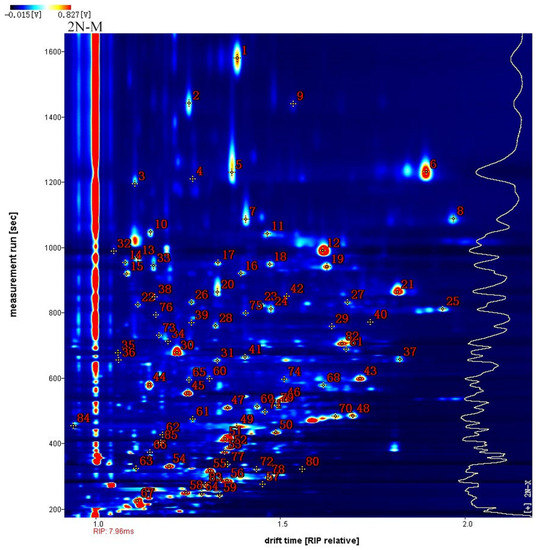

Figure 4.
Qualitative analysis of different oyster samples by GC-IMC with 2N-M was taken as an example. The figures in the figure correspond to those in Table 1.
Figure 4.
Qualitative analysis of different oyster samples by GC-IMC with 2N-M was taken as an example. The figures in the figure correspond to those in Table 1.

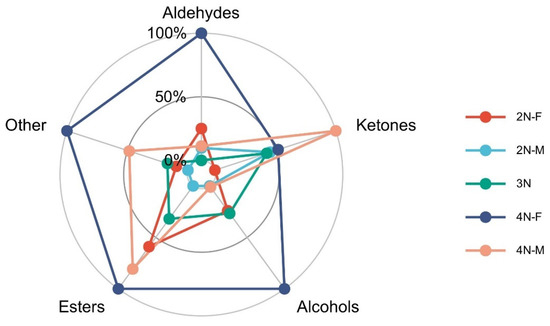

Figure 5.
Comparison of VOCs in oysters from different samples.

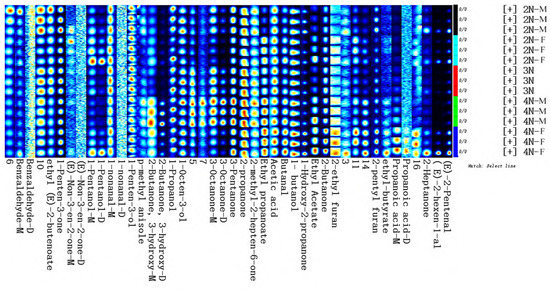

Figure 6.
Oyster sample fingerprints after incubation at 40 °C. Each row represents all of the signal peaks that were chosen in a sample and each column depicts the signal peak of the same volatile chemicals in various oyster samples.
Figure 6.
Oyster sample fingerprints after incubation at 40 °C. Each row represents all of the signal peaks that were chosen in a sample and each column depicts the signal peak of the same volatile chemicals in various oyster samples.

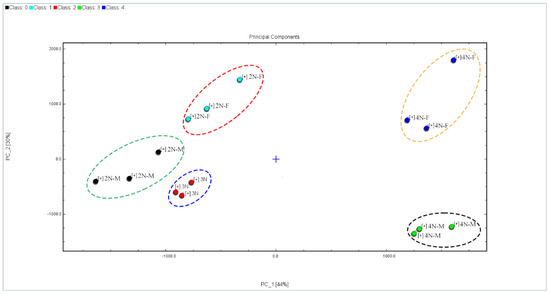

Figure 7.
PCA of VFC profiles among different oysters.
Table 1.
Qualitative GC-IMS results of male and female oysters with different ploidy oysters.
| No.1 | Compound | CAS# | Formula | MW a | RI b | Rt c | Dt d | Comment e |
|---|---|---|---|---|---|---|---|---|
| 1 | (E, Z)-2,6-nonadienal | C557482 | C9H14O | 138.2 | 1737.5 | 1580.877 | 1.3853 | |
| 2 | phenylacetaldehyde | C122781 | C8H8O | 120.2 | 1691.5 | 1441.904 | 1.25563 | Monomer |
| 3 | Propanoic acid | C79094 | C3H6O2 | 74.1 | 1597.9 | 1195.785 | 1.10796 | Monomer |
| 4 | Propanoic acid | C79094 | C3H6O2 | 74.1 | 1603.6 | 1209.576 | 1.26464 | Dimer |
| 5 | (E)-Non-3-en-2-one | C18402830 | C9H16O | 140.2 | 1611.9 | 1229.733 | 1.37089 | Monomer |
| 6 | (E)-Non-3-en-2-one | C18402830 | C9H16O | 140.2 | 1612.7 | 1231.854 | 1.89675 | Dimer |
| 7 | (E) -2-nonenal | C18829566 | C9H16O | 140.2 | 1549.9 | 1086.517 | 1.40871 | Monomer |
| 8 | (E) -2-nonenal | C18829566 | C9H16O | 140.2 | 1550.3 | 1087.265 | 1.96933 | Dimer |
| 9 | phenylacetaldehyde | C122781 | C8H8O | 120.2 | 1691.2 | 1441.125 | 1.53643 | Dimer |
| 10 | Benzaldehyde | C100527 | C7H6O | 106.1 | 1531.9 | 1048.106 | 1.1505 | Monomer |
| 11 | Benzaldehyde | C100527 | C7H6O | 106.1 | 1529.3 | 1042.566 | 1.46691 | Dimer |
| 12 | (E, E)-2,4-heptadienal | C4313035 | C7H10O | 110.2 | 1503.8 | 990.859 | 1.6172 | |
| 13 | p-methyl anisole | C104938 | C8H10O | 122.2 | 1491.9 | 967.468 | 1.1157 | |
| 14 | Furfural | C98011 | C5H4O2 | 96.1 | 1484.8 | 953.925 | 1.08248 | Monomer |
| 15 | 3-(methylsulfanyl)propanal | C3268493 | C4H8OS | 104.2 | 1466.1 | 918.838 | 1.08564 | Monomer |
| 16 | 3-(methylsulfanyl)propanal | C3268493 | C4H8OS | 104.2 | 1467.4 | 921.301 | 1.39572 | Dimer |
| 17 | Furfural | C98011 | C5H4O2 | 96.1 | 1484.2 | 952.694 | 1.33244 | Dimer |
| 20 | (E)-2-octenal | C2548870 | C8H14O | 126.2 | 1434.9 | 863.438 | 1.33086 | Monomer |
| 21 | (E)-2-octenal | C2548870 | C8H14O | 126.2 | 1434.9 | 863.438 | 1.81812 | Dimer |
| 22 | (E, E)-2,4-hexadienal | C142836 | C6H8O | 96.1 | 1411.6 | 824.042 | 1.1157 | Monomer |
| 23 | (E, E)-2,4-hexadienal | C142836 | C6H8O | 96.1 | 1413.1 | 826.505 | 1.44793 | Dimer |
| 24 | 1-nonanal | C124196 | C9H18O | 142.2 | 1403.7 | 811.116 | 1.4764 | Monomer |
| 25 | 1-nonanal | C124196 | C9H18O | 142.2 | 1404 | 811.731 | 1.94152 | Dimer |
| 28 | 1 -hexanol | C111273 | C6H14O | 102.2 | 1370.7 | 759.409 | 1.32611 | Monomer |
| 29 | 1 -hexanol | C111273 | C6H14O | 102.2 | 1369.5 | 757.562 | 1.64093 | Dimer |
| 30 | 1-Hydroxy-2-propanone | C116096 | C3H6O2 | 74.1 | 1313.6 | 677.539 | 1.2217 | |
| 31 | 2-Butanone, 3-hydroxy | C513860 | C4H8O2 | 88.1 | 1294.8 | 652.276 | 1.3317 | Dimer |
| 32 | Acetic acid | C64197 | C2H4O2 | 60.1 | 1502.6 | 988.507 | 1.05136 | |
| 33 | 1-Octen-3-ol | C3391864 | C8H16O | 128.2 | 1479.7 | 944.205 | 1.1587 | |
| 36 | 2-Butanone, 3-hydroxy | C513860 | C4H8O2 | 88.1 | 1296.6 | 654.891 | 1.06375 | Monomer |
| 37 | 1-octanal | C124130 | C8H16O | 128.2 | 1298.7 | 657.566 | 1.82562 | |
| 38 | 2-Ethyl-3-methyl pyrazine | C15707230 | C7H10N2 | 122.2 | 1426.5 | 849.028 | 1.16209 | |
| 41 | butyl pentanoate | C591684 | C9H18O2 | 158.2 | 1304.3 | 665.014 | 1.40639 | |
| 43 | 3-Octanone | C106683 | C8H16O | 128.2 | 1265.7 | 598.497 | 1.71809 | Dimer |
| 44 | (Z)-4-heptenal | C6728310 | C7H12O | 112.2 | 1254.7 | 579.319 | 1.14747 | Monomer |
| 45 | 2-pentyl furan | C3777693 | C9H14O | 138.2 | 1239 | 552.949 | 1.25109 | |
| 46 | (E)-2-hexen-1-al | C6728263 | C6H10O | 98.1 | 1227.3 | 534.114 | 1.51085 | |
| 47 | 3-Methyl-2-butenal | C107868 | C5H8O | 84.1 | 1211.6 | 509.799 | 1.35897 | |
| 48 | Heptaldehyde | C111717 | C7H14O | 114.2 | 1194.1 | 484.114 | 1.69822 | |
| 49 | 1-butanol | C71363 | C4H10O | 74.1 | 1169.8 | 450.824 | 1.38425 | |
| 50 | (Z)-2-Methylpent-2-enal | C623369 | C6H10O | 98.1 | 1157.3 | 434.743 | 1.48969 | |
| 51 | (E)-2-Pentenal | C1576870 | C5H8O | 84.1 | 1139.8 | 413.076 | 1.35223 | |
| 52 | (Z)-2-pentenal | C1576869 | C5H8O | 84.1 | 1118 | 387.568 | 1.36614 | |
| 53 | (E)-3-penten-2-one | C3102338 | C5H8O | 84.1 | 1105.9 | 374.154 | 1.35167 | |
| 54 | (E)-2-butenal | C123739 | C4H6O | 70.1 | 1053.9 | 331.065 | 1.20029 | |
| 55 | 1-Penten-3-one | C1629589 | C5H8O | 84.1 | 1031.9 | 315.212 | 1.31048 | |
| 56 | 3-Pentanone | C96220 | C5H10O | 86.1 | 985.5 | 285.945 | 1.35723 | |
| 57 | Ethyl propanoate | C105373 | C5H10O2 | 102.1 | 961.9 | 274.969 | 1.45295 | |
| 58 | 2-Butanone | C78933 | C4H8O | 72.1 | 901 | 248.547 | 1.24704 | |
| 59 | Ethyl Acetate | C141786 | C4H8O2 | 88.1 | 884 | 241.637 | 1.33831 | |
| 60 | 3-Octanone | C106683 | C8H16O | 128.2 | 1265.2 | 597.553 | 1.30973 | Monomer |
| 62 | ethyl (E)-2-butenoate | C623701 | C6H10O2 | 114.1 | 1150.4 | 426.075 | 1.18305 | |
| 63 | 1-Propanol | C71238 | C3H8O | 60.1 | 1043.2 | 323.287 | 1.11199 | |
| 64 | Butanal | C123728 | C4H8O | 72.1 | 896.2 | 246.591 | 1.28862 | |
| 65 | 1-Pentanol | C71410 | C5H12O | 88.1 | 1263.7 | 594.974 | 1.25483 | Monomer |
| 67 | 2-propanone | C67641 | C3H6O | 58.1 | 843.9 | 226.112 | 1.11453 | |
| 68 | (Z)-4-heptenal | C6728310 | C7H12O | 112.2 | 1254 | 578.092 | 1.61885 | Dimer |
| 70 | 2-Heptanone | C110430 | C7H14O | 114.2 | 1193.4 | 483.056 | 1.65086 | |
| 73 | 2-methyl-2-hepten-6-one | C110930 | C8H14O | 126.2 | 1351.1 | 730.198 | 1.17369 | |
| 74 | 1-Pentanol | C71410 | C5H12O | 88.1 | 1264.4 | 596.137 | 1.51151 | Dimer |
| 75 | 2-Nonanone | C821556 | C9H18O | 142.2 | 1396.2 | 799.107 | 1.40828 | |
| 76 | 2,3,5- trimethylpyrazine | C14667551 | C7H10N2 | 122.2 | 1393.1 | 794.156 | 1.16446 | |
| 79 | 1-Butanol, 3-methyl | C123513 | C5H12O | 88.1 | 1216.4 | 517.124 | 1.49232 | |
| 80 | ethyl-butyrate | C105544 | C6H12O2 | 116.2 | 1040.9 | 321.634 | 1.56149 | |
| 81 | 1-Octen-3-one | C4312996 | C8H14O | 126.2 | 1321.3 | 688.033 | 1.67936 | |
| 82 | (E)-2-Heptenal | C18829555 | C7H12O | 112.2 | 1333.5 | 704.915 | 1.6689 | |
| 83 | 2-ethyl furan | C3208160 | C6H8O | 96.1 | 957.8 | 273.08 | 1.29858 | |
| 84 | 1-Penten-3-ol | C616251 | C5H10O | 86.1 | 1171.9 | 453.687 | 0.94218 | |
| 85 | 2-butylfuran | C4466244 | C8H12O | 124.2 | 1130.9 | 402.512 | 1.17811 |
a Represents the molecular mass. b Represents the retention index of volatile components calculated. c Represents the retention time in the capillary GC column (unit: s). d Represents the drift time in the tube (unit: msec). e Represents the volatile component, which was monomer or dimer.
Table 2.
GC-IMS-based identification of differences between male and female oysters.
| No. | Compound | The Peak Volume | |||
|---|---|---|---|---|---|
| 2N-M | 2N-F | 4N-M | 4N-F | ||
| 3 | Propanoic acid | 104.56 ± 3.98 b | 122.28 ± 7.57 a | - | - |
| - | - | 300.06 ± 49.44 b | 615.37 ± 103.41 a | ||
| 13 | p-methyl anisole | 175.79 ± 12.15 a | 94.12 ± 11.26 b | - | - |
| - | - | 164.68 ± 15.94 a | 112.81 ± 22.24 b | ||
| 21 | (E)-2-octenal | 85.89 ± 7.44 a | 70.27 ± 10.64 b | - | - |
| - | - | 88.06 ± 6.30 | 80.31 ± 14.13 | ||
| 23 | (E,E)-2,4-hexadienal | 43.16 ± 2.50 b | 56.04 ± 7.30 a | - | - |
| - | - | 47.54 ± 10.81 | 45.02 ± 2.52 | ||
| 30 | 1-Hydroxy-2-propanone | 477.89 ± 44.53 a | 324.98 ± 53.87 b | - | - |
| - | - | 342.43 ± 28.23 b | 551.35 ± 21.73 a | ||
| 31 | 2-Butanone,3-hydroxy | 72.97 ± 7.12 b | 93.46 ± 8.48 a | - | - |
| - | - | 234.25 ± 55.86 | 155.55 ± 15.99 | ||
| 32 | Acetic acid | 1576.30 ± 5.72 b | 1652.99 ± 16.02 a | - | - |
| - | - | 1760.70 ± 45.02 | 1825.28 ± 37.38 | ||
| 36 | 2-Butanone,3-hydroxy | 95.25 ± 6.71 b | 129.73 ± 12.40 a | - | - |
| - | - | 235.27 ± 24.64 a | 176.28 ± 9.61 b | ||
| 43 | 3-Octanone | 465.51 ± 16.49 a | 165.57 ± 2.74 b | - | - |
| - | - | 1676.19 ± 155.93 a | 450.18 ± 70.83 b | ||
| 45 | 2-pentyl furan | 130.04 ± 8.65 a | 99.22 ± 13.44 b | - | - |
| - | - | 114.70 ± 21.40 b | 163.59 ± 12.81 a | ||
| 49 | 1-butanol | 1062.35 ± 26.96 b | 1165.43 ± 13.89 a | - | - |
| - | - | 1227.71 ± 80.73 b | 1434.19 ± 13.50 a | ||
| 56 | 3-Pentanone | 3463.02 ± 33.01 a | 2435.40 ± 75.58 b | - | - |
| - | - | 4518.05 ± 266.45 | 3509.57 ± 578.61 | ||
| 57 | Ethyl propanoate | 815.47 ± 52.01 b | 2568.56 ± 54.98 a | - | - |
| - | - | 3093.35 ± 40.73 b | 3523.66 ± 107.29 a | ||
| 58 | 2-Butanone | 745.20 ± 34.15 | 794.30 ± 46.05 | - | - |
| - | - | 893.98 ± 33.19 b | 1112.21 ± 10.28 a | ||
| 60 | 3-Octanone | 850.65 ± 37.88 a | 417.32 ± 36.7 b | - | - |
| - | - | 1300.20 ± 43.89 a | 652.47 ± 111.80 b | ||
| 62 | ethyl (E)-2-butenoate | 379.92 ± 68.51 | 308.87 ± 4.05 | - | - |
| - | - | 284.01 ± 5.25 a | 264.81 ± 7.75 b | ||
| 64 | Butanal | 330.81 ± 15.83 b | 472.97 ± 56.93 a | - | - |
| - | - | 558.10 ± 48.26 b | 662.81 ± 35.06 a | ||
| 67 | 2-propanone | 2616.37 ± 52.58 a | 2328.45 ± 134.30 b | - | - |
| - | - | 3054.40 ± 95.93 a | 2775.62 ± 66.91 b | ||
| 73 | 2-methyl-2-hepten-6-one | 78.51 ± 6.50 | 67.43 ± 4.05 | - | - |
| - | - | 82.51 ± 4.17 a | 66.90 ± 5.42 b | ||
| 75 | 2-Nonanone | 59.67 ± 4.50 a | 44.86 ± 3.27 b | - | - |
| - | - | 54.25 ± 7.59 | 53.33 ± 7.33 | ||
| 82 | (E)-2-Heptenal | 76.38 ± 6.70 a | 57.71 ± 6.00 b | - | - |
| - | - | 332.24 ± 18.93 a | 116.55 ± 27.76 b | ||
| 83 | 2-ethyl furan | 40.83 ± 7.08 b | 71.54 ± 2.00 a | - | - |
| - | - | 81.72 ± 2.01 b | 95.48 ± 5.88 a | ||
| 85 | 2-butylfuran | 15.21 ± 1.43 | 13.14 ± 1.62 | - | - |
| - | - | 53.36 ± 6.71 a | 20.86 ± 9.20 b | ||
| TVOC f | 27,027.36 ± 1521.508 | 26,771.64 ± 2015.42 | - | - | |
| - | - | 34,016.38 ± 953.05 | 34,890.89 ± 2916.28 | ||
f Total volatile organic compounds. Different letters in the same row indicate statistical differences between samples at a p < 0.05 level.
Table 3.
Identification of VOC differences between oysters with different ploidy levels, based on GC-IMS analysis.
Table 3.
Identification of VOC differences between oysters with different ploidy levels, based on GC-IMS analysis.
| No. | Compound | The Peak Volume | ||||
|---|---|---|---|---|---|---|
| 2N-M | 2N-F | 3N | 4N-M | 4N-F | ||
| 3 | Propanoic acid | 104.56 ± 3.98 c | - | 190.68 ± 30.05 b | 300.06 ± 49.44 a | - |
| - | 122.28 ± 7.57 b | 190.68 ± 30.05 b | - | 615.37 ± 103.41 a | ||
| 15 | 3-(methylsulfanyl)propanal | 92.75 ± 0.69 b | - | 104.51 ± 3.62 a | 103.67 ± 5.93 a | - |
| - | 92.71 ± 4.40 b | 104.51 ± 3.62 a | - | 102.83 ± 0.82 a | ||
| 30 | 1-Hydroxy-2-propanone | 477.89 ± 44.53 a | - | 311.82 ± 42.53 b | 342.43 ± 28.23 b | - |
| - | 324.98 ± 53.87 b | 311.82 ± 42.53 b | - | 551.35 ± 21.73 a | ||
| 31 | 2-Butanone,3-hydroxy-D | 72.97 ± 7.12 b | - | 64.33 ± 10.64 b | 234.25 ± 55.86 a | - |
| - | 93.46 ± 8.48 b | 64.33 ± 10.64 c | - | 155.55 ± 15.99 a | ||
| 32 | Acetic acid | 1576.30 ± 5.72 c | - | 1641.73 ± 2.81 b | 1760.70 ± 45.02 a | - |
| - | 1652.99 ± 16.02 b | 1641.73 ± 2.81 b | - | 1825.28 ± 37.38 a | ||
| 36 | 2-Butanone,3-hydroxy | 95.25 ± 6.71 b | - | 90.66 ± 16.97 b | 235.27 ± 24.64 a | - |
| - | 129.73 ± 12.40 b | 90.66 ± 16.97 c | - | 176.28 ± 9.61 a | ||
| 43 | 3-Octanone | 465.51 ± 16.49 c | - | 700.41 ± 42.92 b | 1676.19 ± 155.93 a | - |
| - | 165.57 ± 2.74 c | 700.41 ± 42.92 a | - | 450.18 ± 70.83 b | ||
| 44 | (Z)-4-heptenal | 111.71 ± 38.42 b | - | 100.00 ± 21.30 b | 202.99 ± 5.99 a | - |
| - | 144.08 ± 37.23 b | 100.00 ± 21.30 b | - | 244.71 ± 48.97 a | ||
| 49 | 1-butanol | 1062.35 ± 26.96 b | - | 1129.44 ± 34.33 ab | 1227.71 ± 80.73 a | - |
| - | 1165.43 ± 13.89 b | 1129.44 ± 34.33 b | - | 1434.19 ± 13.50 a | ||
| 54 | (E)-2-butenal | 209.26 ± 22.19 b | - | 202.55 ± 22.17 b | 328.25 ± 25.85 a | - |
| - | 278.55 ± 107.07 b | 202.55 ± 22.17 b | - | 521.75 ± 157.66 a | ||
| 56 | 3-Pentanone | 3463.02 ± 33.01 b | - | 2957.40 ± 98.31 c | 4518.05 ± 266.45 a | - |
| - | 2435.40 ± 75.58 b | 2957.40 ± 98.31 ab | - | 3509.57 ± 578.61 a | ||
| 57 | Ethyl propanoate | 815.47 ± 52.01 c | - | 1969.56 ± 54.98 b | 3093.35 ± 40.73 a | - |
| - | 2568.56 ± 54.98 b | 1969.56 ± 54.98 c | - | 3523.66 ± 107.29 a | ||
| 58 | 2-Butanone | 745.20 ± 34.15 b | - | 879.82 ± 49.96 a | 893.98 ± 33.19 a | - |
| - | 794.30 ± 46.05 c | 879.82 ± 49.96 b | - | 1112.21 ± 10.28 a | ||
| 59 | Ethyl Acetate | 532.94 ± 31.52 b | - | 593.64 ± 57.28 b | 1378.32 ± 360.09 a | - |
| - | 1057.36 ± 317.92 b | 593.64 ± 57.28 b | - | 1636.02 ± 316.90 a | ||
| 60 | 3-Octanone-M | 850.65 ± 37.88 c | - | 1052.75 ± 32.04 b | 1300.20 ± 43.89 a | - |
| - | 417.32 ± 36.7 c | 1052.75 ± 32.04 a | - | 652.47 ± 111.80 b | ||
| 62 | ethyl (E)-2-butenoate | 379.92 ± 68.51 a | - | 371.75 ± 4.54 a | 284.01 ± 5.25 b | - |
| - | 308.87 ± 4.05 b | 371.75 ± 4.54 a | - | 264.81 ± 7.75 c | ||
| 64 | Butanal | 330.81 ± 15.83 b | - | 387.23 ± 19.72 b | 558.10 ± 48.26 a | - |
| - | 472.97 ± 56.93 b | 387.23 ± 19.72 c | - | 662.81 ± 35.06 a | ||
| 67 | 2-propanone | 2616.37 ± 52.58 c | - | 2812.23 ± 76.19 b | 3054.40 ± 95.93 a | - |
| - | 2328.45 ± 134.30 b | 2812.23 ± 76.19 a | - | 2775.62 ± 66.91 a | ||
| 80 | ethyl-butyrate | 14.77 ± 2.37 ab | - | 13.38 ± 3.50 b | 19.84 ± 1.30 a | - |
| - | 14.09 ± 2.05 b | 13.38 ± 3.50 b | - | 24.56 ± 6.10 a | ||
| 82 | (E)-2-Heptenal | 76.38 ± 6.70 c | - | 185.52 ± 12.88 b | 332.24 ± 18.93 a | - |
| - | 57.71 ± 6.00 c | 185.52 ± 12.88 a | - | 116.55 ± 27.76 b | ||
| 83 | 2-ethyl furan | 40.83 ± 7.08 c | - | 59.79 ± 2.36 b | 81.72 ± 2.01 a | - |
| - | 71.54 ± 2.00 b | 59.79 ± 2.36 c | - | 95.48 ± 5.88 a | ||
| 84 | 1-Penten-3-ol | 1733.78 ± 17.79 b | - | 1821.35 ± 9.59 a | 1604.56 ± 20.70 c | - |
| - | 1744.23 ± 8.94 b | 1821.35 ± 9.59 a | - | 1649.95 ± 25.41 c | ||
| TVOC | 27,027.36 ± 1521.50 b | - | 28,222.26 ± 714.81 b | 34,016.38 ± 953.05 a | - | |
| - | 26,771.64 ± 2015.46 b | 28,222.26 ± 714.81 b | - | 34,890.89 ± 2916.28 a | ||
Different letters in the same row indicate statistical differences among samples at a p < 0.05 level.
Disclaimer/Publisher’s Note: The statements, opinions and data contained in all publications are solely those of the individual author(s) and contributor(s) and not of MDPI and/or the editor(s). MDPI and/or the editor(s) disclaim responsibility for any injury to people or property resulting from any ideas, methods, instructions or products referred to in the content. |
© 2023 by the authors. Licensee MDPI, Basel, Switzerland. This article is an open access article distributed under the terms and conditions of the Creative Commons Attribution (CC BY) license (https://creativecommons.org/licenses/by/4.0/).
Share and Cite
MDPI and ACS Style
Fu, J.; Sun, Y.; Cui, M.; Zhang, E.; Dong, L.; Wang, Y.; Wang, W.; Li, Z.; Yang, J. Analysis of Volatile Compounds and Flavor Fingerprint Using Gas Chromatography–Ion Mobility Spectrometry (GC-IMS) on Crassostrea gigas with Different Ploidy and Gender. Molecules 2023, 28, 4475. https://doi.org/10.3390/molecules28114475
AMA Style
Fu J, Sun Y, Cui M, Zhang E, Dong L, Wang Y, Wang W, Li Z, Yang J. Analysis of Volatile Compounds and Flavor Fingerprint Using Gas Chromatography–Ion Mobility Spectrometry (GC-IMS) on Crassostrea gigas with Different Ploidy and Gender. Molecules. 2023; 28(11):4475. https://doi.org/10.3390/molecules28114475
Chicago/Turabian StyleFu, Jingjing, Youmei Sun, Mingxian Cui, Enshuo Zhang, Luyao Dong, Yanchun Wang, Weijun Wang, Zan Li, and Jianmin Yang. 2023. "Analysis of Volatile Compounds and Flavor Fingerprint Using Gas Chromatography–Ion Mobility Spectrometry (GC-IMS) on Crassostrea gigas with Different Ploidy and Gender" Molecules 28, no. 11: 4475. https://doi.org/10.3390/molecules28114475
APA StyleFu, J., Sun, Y., Cui, M., Zhang, E., Dong, L., Wang, Y., Wang, W., Li, Z., & Yang, J. (2023). Analysis of Volatile Compounds and Flavor Fingerprint Using Gas Chromatography–Ion Mobility Spectrometry (GC-IMS) on Crassostrea gigas with Different Ploidy and Gender. Molecules, 28(11), 4475. https://doi.org/10.3390/molecules28114475
