Wet-Chemical Synthesis of TiO2/PVDF Membrane for Energy Applications

by
Muhammad Saleem
1,
Munirah D. Albaqami
2,
Aboud Ahmed Awadh Bahajjaj
2,
Fahim Ahmed
3,
ElSayed Din
4,
Waqas Ul Arifeen
5,* and
Shafaqat Ali
6,7,*
1
Department of Physics, The Islamia University of Bahawalpur, Bahawalpur 63100, Pakistan
2
Department of Chemistry, College of Science, King Saud University, Riyadh 11451, Saudi Arabia
3
Department of Physics, Division of Science and Technology, University of Education, Lahore 54000, Pakistan
4
Faculty of Engineering and Technology, Future University in Egypt, New Cairo 11835, Egypt
5
School of Mechanical Engineering, Yeungnam University, Gyeongsan-si 38541, Gyeongsangbuk-do, Republic of Korea
6
Department of Environmental Sciences, Government College University, Faisalabad 38000, Pakistan
7
Department of Biological Sciences and Technology, China Medical University, Taichung 40402, Taiwan
*
Authors to whom correspondence should be addressed.
Molecules 2023, 28(1), 285; https://doi.org/10.3390/molecules28010285
Submission received: 2 December 2022 / Revised: 21 December 2022 / Accepted: 23 December 2022 / Published: 29 December 2022
(This article belongs to the Special Issue Dye Chemistry—In Memory of Prof. Michael R. Detty)
Browse Figures
Versions Notes

Abstract

:
To satisfy the ever-increasing energy demands, it is of the utmost importance to develop electrochemical materials capable of producing and storing energy in a highly efficient manner. Titanium dioxide (TiO2) has recently emerged as a promising choice in this field due to its non-toxicity, low cost, and eco-friendliness, in addition to its porosity, large surface area, good mechanical strength, and remarkable transport properties. Here, we present titanium dioxide nanoplates/polyvinylidene fluoride (TiO2/PVDF) membranes prepared by a straightforward hydrothermal strategy and vacuum filtration process. The as-synthesized TiO2/PVDF membrane was applied for energy storage applications. The fabricated TiO2/PVDF membrane served as the negative electrode for supercapacitors (SCs). The electrochemical properties of a TiO2/PVDF membrane were explored in an aqueous 6 M KOH electrolyte that exhibited good energy storage performance. Precisely, the TiO2/PVDF membrane delivered a high specific capacitance of 283.74 F/g at 1 A/g and maintained capacitance retention of 91% after 8000 cycles. Thanks to the synergistic effect of TiO2 and PVDF, the TiO2/PVDF membrane provided superior electrochemical performance as an electrode for a supercapacitor. These superior properties will likely be used in next-generation energy storage technologies.

1. Introduction

The constant consumption of conventional fossil fuels and the resulting increase in environmental problems have made the development of low-carbon emissions and environmentally friendly methods of energy storage an urgent necessity [1,2]. Supercapacitors (SCs) have led to their widespread consideration as renewable sources due to the favorable electrochemical performance of rapid charging/discharging methods, high power density, and extended cycle stability [3,4]. Depending on their charge storage mechanism, SCs are classified as electric double-layer capacitors (EDLCs) or pseudocapacitors (PCs) [5]. Compared to EDLCs, PCs can offer diverse redox states and achieve high specific capacitance because of the reversible redox reactions at the electrode/electrolyte interface and on the active materials’ surfaces [6].
Electrode materials can significantly affect the use of such energy storage devices for practical applications [7,8]. Widespread functional materials, including activated carbon [9], carbon nanotubes [10], graphene [11], and transition metal oxides [12,13] have significant potential because of their stability and remarkable electrochemical performance. However, most commercial carbon materials have poor capacitance because of their formless morphology, hindered aggregation, and ineffective electrical double-layer capacitive reactions. Among various transition metal oxides, titanium oxides are considered ideal electrode materials for charge storage due to their stable structures and appropriate operating potential. Numerous studies have shown that titanium oxides with a layer structure and linked framework might be advantageous for rapidly inserting aqueous ions by providing favorable transport and distinctive pseudocapacitance [14,15].
Among numerous transition metal oxides, titanium dioxide (TiO2) is one of the most extensively employed semiconductors and photocatalysts in dye-sensitized solar cells [16]. High surface-to-volume ratio, abundant availability, good conductivity, high energy density, and outstanding light absorption properties make TiO2 a valuable material for SC electrode [17]. In particular, nanostructured TiO2 is increasingly garnering attention as an electrode material in SCs because of its large specific surface area and low cost compared with other metal oxides. For instance, Lee et al. [18] presented mesoporous MnO2 microparticles mixed with TiO2 nanoparticles, and the TiO2/MnO2 composite electrode delivered a specific capacitance of 279 F/g at 10 mV/s with 73.4% capacitance retention after 5000 cycles. However, TiO2’s significant limitations, such as its limited electrical conductivity and sluggish ion diffusion, restrict its effectiveness [19]. Therefore, to fabricate low-cost and practically applicable SCs based on TiO2, strategies that have the potential to improve the performance of TiO2 are in great demand. Alternatively, TiO2’s good chemical stability and eco-friendliness make it a promising material for the synthesis of composite electrodes in numerous charge storage devices.
Since polymer membranes offer considerable electrochemical stability and are simple to produce, such membranes have been used in SCs. To improve the membrane’s physical, electrical, and mechanical characteristics, polymer composite membrane preparation is a technology added to boost conductivity at ambient temperature [20]. Among several polymers, polyvinylidene fluoride (PVDF) is an exceptionally non-reactive thermoplastic fluoropolymer synthesized via the polymerization of vinylidene difluoride. It has a good resistance against the range of solvents (including basic and acidic ones) and, compared to other fluoropolymers, possesses a low density [21].
Therefore, considering the widespread application of TiO2 nanoplates due to their excellent characteristics that lead to enhanced chemical and thermal stability. In this work, the preparation of TiO2 nanoplates/PVDF membrane (denoted as TiO2/PVDF) was reported using a straightforward hydrothermal process. Because of its membrane-like structure, the composite material has supported the development of an effective electrode for SC applications. Experimental evidence exhibit that the TiO2/PVDF electrode has the advantageous characteristics of a high specific surface area and rapid charge transfer. Thus, the TiO2/PVDF electrode showed a maximum specific capacitance of 283.74 F/g at a current density of 1 A/g. In addition, the TiO2/PVDF electrode retained 91% of its capacitance after 8000 cycles, indicating its viability for use in the emerging field of energy storage.

2. Results and Discussion

Figure 1 provides a schematic illustration of the synthesis procedure for TiO2/PVDF membranes using a straightforward and facile hydrothermal strategy. During the fabrication method, titanium tetra-n-butoxide was converted into TiO2 nanoplates, which are then used to embellish the TiO2/PVDF membrane. As a result, a TiO2/PVDF membrane was fabricated with the ease of a simple vacuum filtration process.
FE-SEM was used to investigate the structure and morphology of the as-synthesized TiO2 product. Low and high magnification SEM images (Figure 2a–c) exhibit the homogenous dispersion of TiO2 nanoplates with an average size of 79 nm, demonstrating the outstanding TiO2 nanoplates adhesion and effective grafting on PVDF membrane. Simultaneously, particle size reduction substantially enhanced the specific surface area of TiO2 and the number of its active sites in solution [22]. Uniform dispersion of these TiO2 nanoparticles was necessary to maximize the contact area between TiO2 nanoparticles and PVDF. As a result, the TiO2/PVDF membrane with tiny and evenly dispersed TiO2 nanoparticles was expected to have a wide range of applications in the field of electrochemical energy storage. It should be noted that the morphology of the TiO2/PVDF remained almost same of like TiO2 due to the small amount of the PVDF. These TiO2 nanoplates combined to form a unique porosity network which established wide channels for the fast transport of K+ and OH− ions. Consequently, electrolyte ions may readily interact with the surface of most nanoplates. This decreased the ion diffusion distance, which ultimately resulted in an improvement in the electrochemical performance.
Figure 3a displays the X-ray diffraction (XRD) patterns of the as-synthesized TiO2. All diffraction peaks were strong, indicating that the sample had high crystallinity. The XRD analysis showed that the TiO2 pattern was accurately indexed with the standard tetragonal rutile phase (JCPDS Card No. 21-1276) [23]. The thermogravimetric analysis (TGA) was used to study the thermal stability of TiO2 from 0 to 1000 °C in an air environment at a ramping rate of 5 °C/min. Figure 3b exhibits that the TiO2 nanoplates lost just 8.3% of their weight because of the absorbed water process when subjected to temperatures between 25 and 200 °C. TiO2 nanoplates showed a weight loss of 15.78% when subjected to temperatures between 200 and 390 °C. The reduction of -OH groups on the surface of the TiO2 nanoplates was primarily responsible for this result. Furthermore, the weight of the TiO2 nanoplates decreased by 21.4% when heated to temperatures ranging from 390 to 600 °C [24]. The buoyancy effect of TGA equipment may account for the modest gain in weight seen [25,26]. Finally, stability up to 800 °C demonstrated the suitability of TiO2 for high-temperature applications, where conventional materials would degrade. Fourier transformed infrared (FTIR) was also performed to verify the composition and bonding structure of TiO2. Figure 3c shows that TiO2 had a strong band at 670 cm−1, which was associated with the stretching vibration of Ti–O [27], and the peaks at 1534 and 1736 cm−1 can be related to the stretching vibration of H-O-H. Additionally, the peaks located at 2872 and 2969 cm−1 may be attributed to the C-H stretching vibration [28], and a peak at 3020 cm−1 can be associated with O-H stretching vibration, indicating that the utilization of TiO2 might increase the hydrophilicity of the membrane [29].
The N2 adsorption/desorption isotherms of TiO2 are shown in Figure 4a, which exhibit a hysteresis loop at P/Po > 0.7 and confirm a typical type IV adsorption behavior, indicating that TiO2 likely possesses a mesoporous structure. Furthermore, when the relative pressure P/Po > 0.8, the adsorption/desorption isotherm was steep because, during cohesion and evaporation, the relative pressure was centered, suggesting that the TiO2 exhibited mesoporous characteristics. The BET-specific surface area of TiO2 was calculated to be 17.613 m2/g [28].
Figure 4b depicts the BJH pore size distribution curve, and an average pore size of 23.4 nm was observed, indicating the presence of sizable pores. Because of the large pore size and increased specific surface area, there would be more electroactive sites and easier access for the electrolyte ions. This would improve the electrode materials’ electrochemical performance for storing charge [30].
The electrochemical performance of the TiO2/PVDF membrane for the energy storage device as a supercapacitor electrode was investigated in a three-electrode setup, as shown in Figure 5. The CV profiles of the TiO2/PVDF electrode were measured in the potential window of −0.6 to 0.0 V and at various scan rates ranging from 5 to 50 mV/s, and the results are presented in Figure 5a. The nearly-rectangular CV profiles of the TiO2/PVDF electrode suggested that the electrode material exhibits exceptional capacitive performance and high-rate capability. The CV profiles possess remarkable stability, even at high scan rates, demonstrating the low polarization resistance of the TiO2/PVDF electrode [31]. In the CV profiles, the robust current response is another demonstration of the outstanding charge storage capacity and quick electrolyte ion accessibility. When the scan rate was low, both the inner and outer surfaces of the sample could be utilized as charge storage. However, when scan rates were higher, the diffusion of OH− ions was more likely to occur exclusively on the surface, and only a negligible fraction of OH− ions could insert into the inner surface. This phenomenon demonstrates that the porous characteristics of the TiO2/PVDF membrane allow it to accommodate the OH− ions [32,33,34].
Figure 5b exhibits the GCD profiles of TiO2/PVDF electrode at different current densities from 1 and 30 A/g, where symmetric GCD profiles are attributed to the pseudocapacitive characteristics of the electrode. Also, each GCD profile shows great symmetry without a discernible plateau, indicating high Coulombic efficiency and good reversibility. Figure 5c depicts the specific capacitance (Csp (F/g)) of the TiO2/PVDF electrode (according to Equation (1)) from the GCD profiles at current densities ranging from 1 to 30 A/g. The TiO2/PVDF electrode delivered a Csp of as high as 283.74, 255.09, 233.41, 216.65, 190.18, and 174.94 F/g at 1, 3, 5, 10, 20, and 30 A/g, respectively. After increasing the current density from 1 to 30 A/g, the TiO2/PVDF electrode showed a capacitance retention of 61.6%, which demonstrated a remarkable rate capability at high current density. The Csp of the electrode remained as a maximum of 174.94 F/g even though the current density was increased to 30 A/g (capacitance retention of ~61.6%). An EIS test was also performed to understand the impedance of the TiO2/PVDF electrode, and the Nyquist plot is shown in Figure 5d. The equivalent series resistance (Rs) of the electrode is characterized in the high-frequency zone by the intercept at the real axis, which was ~0.84 Ω (includes the internal resistance of electrode material and electrolyte resistance). The small value of Rs implies that there is excellent electrical conductivity between the electrode material and the current collector. The radius of a semi-circle corresponds to charge-transfer resistance (Rct), which is ~0.99 Ω. In the low-frequency zone, the quasi-vertical line represents the Warburg impedance Zw of the electrolyte diffusion. The slope of the line is associated with the ionic diffusion of the electrolyte to the electrode surface. The EIS curve was fit using an equivalent electrical model created with the help of ZSimpWin. This model included the Rct, Rs, and constant phase element (CPE). These values can be seen in the inset of Figure 5d [35,36,37]. It seems that TiO2/PVDF electrode with small Rs and Rct, became the most electrochemically active compared to MoS2 (Rs ~4 Ω and Rct ~4.3 Ω) [35], b-TiO2 (Rs ~1.60 Ω and Rct ~15.3 Ω) [38] and ICS-TiO2 (Rs ~7.5 Ω and Rct ~11.3 Ω) [39] electrodes.
The cycling stability analysis is an essential parameter for SC electrode materials. Figure 6a shows the cycling stability test of the TiO2/PVDF electrode, which was carried out by continuously operating it for 8000 GCD cycles at a current density of 10 A/g. The TiO2/PVDF electrode retained a capacitance of 91% after 8000 cycles, demonstrating the extremely high stability and excellent energy storage capabilities of the TiO2/PVDF electrode throughout GCD cycles. This enhanced electrochemical performance of the synthesized TiO2/PVDF electrode in an aqueous electrolyte may be due to the membrane-like morphology of the TiO2/PVDF electrode and its increased electrical conductivity [40]. The importance of the TiO2/PVDF electrode can be better understood by comparing its electrochemical performance with that of different composites.
Table 1 shows the overall performance of the TiO2/PVDF electrode compared to that of previously published related electrodes in terms of specific capacitance and cycling stability, which shows the superior performance of the TiO2/PVDF electrode. To analyze the overall performance of SC, the power density vs. energy density (Ragone plots) for the TiO2/PVDF electrode was calculated according to Equations (2) and (3) and displayed in Figure 6b. The estimated E and P of the TiO2/PVDF electrode were 14.78, 12.76, 11.68, 10.84, 9.34, and 8.76 Wh/kg and 300.24, 900.72, 1501.2, 3002.4, 6004.8, and 9007.2 W/kg, respectively. Since E is directly dependent on specific capacitance, a higher specific capacitance in the TiO2/PVDF electrode led to a higher E. A maximum energy density of 14.18 Wh/kg was achieved while maintaining a power density of 300.24 W/kg. The experimental data demonstrates that TiO2/PVDF membrane was a viable electrode material for SCs.

3. Experimental Section

3.1. Synthesis of TiO2 Nanoplates

To fabricate TiO2 nanoplates, a hydrothermal process was applied to titanium (IV) butoxide (Ti(BuO)4) (Sigma-Aldrich), hydrochloric acid (HCl), ethanol, and deionized (DI) water. After adding Ti(BuO)4 (4.8 g) to 15 mL of HCl, 12 mL of DI water was added. The resultant complex was agitated using a magnetic stirrer at room temperature (RT) for 30 min. The solution was then placed in an autoclave and heated in an oven at a temperature of 120 °C for reaction durations of 10 h. Then, the autoclave was left to cool at an ambient temperature naturally, and TiO2 nanoplates were collected and rinsed with DI water.

3.2. Synthesis of TiO2/PVDF Membrane

For the typical synthesis of TiO2/PVDF membrane, a solution was prepared by dissolving PVDF in dimethylformamide (DMF) (containing PVDF powder of 0.1 g dissolved in 10 mL of DMF) and stirring it to completely dissolved PVDF. Then, 0.9 g of TiO2 nanoplates were mixed in a PVDF/DMF solution. A hand-casting knife with a 150 µm gap was used to mix the slurry uniformly. Afterwards, the mixture was vacuum filtered through a mesh (0.45 µm), and the resulting TiO2/PVDF membrane was collected on the filter paper. Finally, the TiO2/PVDF membrane was washed with DI water to eliminate any residuals of the solvent and dried at 60 °C.

3.3. Physical Characterization of TiO2/PVDF Membrane

To investigate the morphology of TiO2, a field emission scanning electron microscope (FESEM, HITACHI SU8220, Hitachi High-Technologies, Tokyo, Japan) was used. The crystal structure was analyzed via an X-ray diffractometer (XRD, Philips X’Pert Pro Analytical, Philips, Singapore) using monochromatic radiation (Cu-Kα; = 0.15406 nm). The thermogravimetric analysis (TGA) measurement was carried out in an air environment at a 5 °C/min heating rate from room temperature to 1000 °C. Fourier transformed infrared (FTIR) spectra (Vector-22 spectrometer, Nicolet IS 10, Thermo Scientific, Waltham, MA, USA) was used. For the analysis of the surface area and pore size, Brunauer-Emmett-Teller (BET) and Barret-Joyner-Halenda (BJH) analytical curves with the (Micromeritics ASAP2460, Micromeritics, Shanghai, China) analyzer were acquired, respectively.

3.4. Electrochemical Characterization of TiO2/PVDF Membrane

The electrochemical measurements were carried out with a three-electrode configuration using an electrochemical workstation (CHI 660E, Corrtest Instruments, Wuhan, China). The as-synthesized TiO2/PVDF (1.5 × 2.5 cm2) membrane with a mass loading of 1.1 mg/cm2 was used as a working electrode for Hg/HgO, and platinum wire was used as a reference and counter electrodes, respectively, in an aqueous electrolyte containing 6 M KOH. A cyclic voltammogram (CV) was performed over a potential window range of −0.6 to 0.0 V. Galvanostatic charge-discharge (GCD) was carried out over the same potential window range (−0.6 to 0.0 V) at varying current densities (1 to 30 A/g). The electrochemical impedance spectroscopy (EIS) was performed at frequencies ranging from 0.001 to 100 kHz at open circuit conditions with a 5-mV amplitude.
The following Equation (1) was used to determine the specific capacitance (Csp (F/g)) of the TiO2/PVDF membrane:
Csp = 1 m v V f − V i   ∫ V i V f I   d V
where m(g) is the mass of active material, v(V/s) is the scan rate, I(A) is the applied current, and ΔV(Vf − Vi) is the potential window.
The following Equations (2) and (3) were used to calculate the energy density E (Wh/kg) and the power density P (kW/kg). Where Csp is the electrode’s specific capacitance and ΔV is the potential, td is the discharge time.
E = 0.139   C s p ∆ V 2
P = E t d

4. Conclusions

In summary, we have demonstrated TiO2/PVDF membranes fabricated via a cost-effective and straightforward hydrothermal strategy and employed as electrode material for energy storage applications. The electrochemical investigations of the as-prepared TiO2/PVDF electrode using a three-electrode configuration in an aqueous electrolyte exhibited exceptional performance and delivered a specific capacitance of 283.74 F/g at 1 A/g. The TiO2/PVDF electrode retained a capacitance of 91% after 8000 cycles. Additionally, a maximum energy density of 14.18 Wh/kg of TiO2/PVDF electrode was achieved while maintaining a power density of 300.24 W/kg. Our findings demonstrate that the TiO2/PVDF electrode has the potential to deliver an adjustable electrochemical performance, which is a prerequisite for its commercialization and use in the development of state-of-the-art supercapacitors.

Author Contributions

Conceptualization, M.S., A.A.A.B., F.A. and S.A.; methodology, M.D.A., A.A.A.B., E.D. and W.U.A.; software, M.S., M.D.A., E.D. and S.A.; validation, M.S., M.D.A. and W.U.A.; formal analysis, M.D.A., A.A.A.B., F.A., E.D., W.U.A. and S.A.; investigation, A.A.A.B., F.A. and W.U.A.; data curation, E.D.; writing—original draft preparation, M.S., M.D.A. and F.A.; writing—review and editing, A.A.A.B. and E.D.; visualization, F.A.; supervision, W.U.A. and S.A.; project administration, S.A.; funding acquisition, M.D.A., A.A.A.B. and E.D. All authors have read and agreed to the published version of the manuscript.

Funding

This work was funded by the Researchers Supporting Project Number (RSP-2021/267) King Saud University, Riyadh, Saudi Arabia.

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Data Availability Statement

Not applicable.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Russell, J.C.; Posey, V.A.; Gray, J.; May, R.; Reed, D.A.; Zhang, H.; Marbella, L.E.; Steigerwald, M.L.; Yang, Y.; Roy, X.; et al. High-performance organic pseudocapacitors via molecular contortion. Nat. Mater. 2021, 20, 1136–1141. [Google Scholar] [CrossRef] [PubMed]
  2. He, C.; Bo, T.; Ke, Y.; Wang, B.-T.; Tao, J.; Shen, P.K. Black potassium titanate nanobelts: Ultrafast and durable aqueous redox electrolyte energy storage. J. Power Sources 2021, 483, 229140. [Google Scholar] [CrossRef]
  3. Javed, M.S.; Khan, A.J.; Ahmad, A.; Siyal, S.H.; Akram, S.; Zhao, G.; Bahajjaj, A.A.A.; Ouladsmane, M.; Alfakeer, M. Design and fabrication of bimetallic oxide nanonest-like structure/carbon cloth composite electrode for supercapacitors. Ceram. Int. 2021, 47, 30747–30755. [Google Scholar] [CrossRef]
  4. Shao, Y.; El-Kady, M.F.; Sun, J.; Li, Y.; Zhang, Q.; Zhu, M.; Wang, H.; Dunn, B.; Kaner, R.B. Design and Mechanisms of Asymmetric Supercapacitors. Chem. Rev. 2018, 118, 9233–9280. [Google Scholar] [CrossRef] [PubMed]
  5. Javed, M.S.; Lei, H.; Li, J.; Wang, Z.; Mai, W. Construction of highly dispersed mesoporous bimetallic-sulfide nanoparticles locked in N-doped graphitic carbon nanosheets for high energy density hybrid flexible pseudocapacitors. J. Mater. Chem. A 2019, 7, 17435–17445. [Google Scholar] [CrossRef]
  6. Liu, L.; Hu, X.; Zeng, H.-Y.; Yi, M.-Y.; Shen, S.-G.; Xu, S.; Cao, X.; Du, J.-Z. Preparation of NiCoFe-hydroxide/polyaniline composite for enhanced-performance supercapacitors. J. Mater. Sci. Technol. 2019, 35, 1691–1699. [Google Scholar]
  7. Zheng, X.; Li, P.; Zhu, H.; Zhao, G.; Rui, K.; Shu, J.; Xu, X.; Wang, X.; Sun, W.; Dou, S.X. Understanding the structural and chemical evolution of layered potassium titanates for sodium ion batteries. Energy Storage Mater. 2020, 25, 502–509. [Google Scholar] [CrossRef]
  8. Javed, M.S.; Mateen, A.; Ali, S.; Zhang, X.; Hussain, I.; Imran, M.; Shah, S.S.A.; Han, W.J.S. The Emergence of 2D MXenes Based Zn-Ion Batteries: Recent Development and Prospects. Small 2022, 18, 2201989. [Google Scholar] [CrossRef]
  9. Javed, M.S.; Khan, A.J.; Asim, S.; Shah, S.S.A.; Najam, T.; Siyalg, S.H.; Tahir, M.F.; Zhao, Z.; Mai, W. Insights to pseudocapacitive charge storage of binary metal-oxide nanobelts decorated activated carbon cloth for highly-flexible hybrid-supercapacitors. J. Energy Storage 2020, 31, 101602. [Google Scholar] [CrossRef]
  10. Wang, S.; Liang, Y.; Zhuo, W.; Lei, H.; Javed, M.S.; Liu, B.; Wang, Z.; Mai, W. Freestanding polypyrrole/carbon nanotube electrodes with high mass loading for robust flexible supercapacitors. Mater. Chem. Front. 2021, 5, 1324–1329. [Google Scholar]
  11. Javed, M.S.; Shah, S.S.A.; Najam, T.; Aslam, M.K.; Li, J.; Hussain, S.; Ahmad, M.A.; Ashfaq, M.; Raza, R.; Mai, W. Synthesis of mesoporous defective graphene-nanosheets in a space-confined self-assembled nanoreactor: Highly efficient capacitive energy storage. Electrochim. Acta 2019, 305, 517–527. [Google Scholar] [CrossRef]
  12. Mateen, A.; Javed, M.S.; Khan, S.; Saleem, A.; Majeed, M.K.; Khan, A.J.; Tahir, M.F.; Ahmad, M.A.; Assiri, M.A.; Peng, K.-Q. Metal-organic framework-derived walnut-like hierarchical Co-O-nanosheets as an advanced binder-free electrode material for flexible supercapacitor. J. Energy Storage 2022, 49, 104150. [Google Scholar] [CrossRef]
  13. Abbas, Q.; Siyal, S.H.; Mateen, A.; Hassan, N.U.; Idrees, A.; Rehman, Z.U.; Din, E.M.T.E.; Bajaber, M.A.; Javed, M.S.J.M. Hydrothermal Synthesis of Binder-Free Metallic NiCo2O4 Nano-Needles Supported on Carbon Cloth as an Advanced Electrode for Supercapacitor Applications. Materials 2022, 15, 4499. [Google Scholar] [CrossRef]
  14. Vattikuti, S.V.P.; Devarayapalli, K.C.; Dang, N.N.; Shim, J. 1D/1D Na2Ti3O7/SWCNTs electrode for split-cell-type asymmetric supercapacitor device. Ceram. Int. 2021, 47, 11602–11610. [Google Scholar] [CrossRef]
  15. Cao, K.; Liu, H.; Li, W.; Xu, C.; Han, Q.; Zhang, Z.; Jiao, L. K2Ti6O13 nanorods for potassium-ion battery anodes. J. Electroanal. Chem. 2019, 841, 51–55. [Google Scholar] [CrossRef]
  16. Pant, B.; Park, M.; Park, S.-J. TiO2 NPs Assembled into a Carbon Nanofiber Composite Electrode by a One-Step Electrospinning Process for Supercapacitor Applications. Polymers 2019, 11, 899. [Google Scholar] [CrossRef] [Green Version]
  17. Yu, X.; Lin, D.; Li, P.; Su, Z. Recent advances in the synthesis and energy applications of TiO2-graphene nanohybrids. Sol. Energy Mater. Sol. Cells 2017, 172, 252–269. [Google Scholar] [CrossRef]
  18. Lee, H.; Jin, S.; Yim, S. Titanium oxide nanoparticle-embedded mesoporous manganese oxide microparticles for supercapacitor electrodes. J. Phys. Chem. Solids 2020, 138, 109264. [Google Scholar] [CrossRef]
  19. Elmouwahidi, A.; Bailón-García, E.; Castelo-Quibén, J.; Pérez-Cadenas, A.; Maldonado-Hódar, F.; Carrasco-Marín, F. Carbon–TiO2 composites as high-performance supercapacitor electrodes: Synergistic effect between carbon and metal oxide phases. J. Mater. Chem. A 2018, 6, 633–644. [Google Scholar] [CrossRef]
  20. Zhang, F.; Ma, X.; Cao, C.; Li, J.; Zhu, Y.J. Poly (vinylidene fluoride)/SiO2 composite membranes prepared by electrospinning and their excellent properties for nonwoven separators for lithium-ion batteries. J. Power Sources 2014, 251, 423–431. [Google Scholar] [CrossRef]
  21. Xu, Y.; Lin, Y.; Lee, M.; Malde, C.; Wang, R. Development of low mass-transfer-resistance fluorinated TiO2-SiO2/PVDF composite hollow fiber membrane used for biogas upgrading in gas-liquid membrane contactor. J. Membr. Sci. 2018, 552, 253–264. [Google Scholar] [CrossRef]
  22. Zhang, X.; Liu, Y.; Dong, S.; Ye, Z.; Guo, Y. One-step hydrothermal synthesis of a TiO2-Ti3C2Tx nanocomposite with small sized TiO2 nanoparticles. Ceram. Int. 2017, 43, 11065–11070. [Google Scholar] [CrossRef]
  23. Wang, Y.; Li, L.; Huang, X.; Li, Q.; Li, G. New insights into fluorinated TiO2 (brookite, anatase and rutile) nanoparticles as efficient photocatalytic redox catalysts. RSC Adv. 2015, 5, 34302–34313. [Google Scholar] [CrossRef]
  24. Li, X.W.; Song, R.G.; Jiang, Y.; Wang, C.; Jiang, D. Surface modification of TiO2 nanoparticles and its effect on the properties of fluoropolymer/TiO2 nanocomposite coatings. Appl. Surf. Sci. 2013, 276, 761–768. [Google Scholar] [CrossRef]
  25. Gabbott, P. Principles and Applications of Thermal Analysis; John Wiley & Sons: Hoboken, NJ, USA, 2008. [Google Scholar]
  26. Menczel, J.D.; Prime, R.B. Thermal Analysis of Polymers: Fundamentals and Applications; John Wiley & Sons: Hoboken, NJ, USA, 2009. [Google Scholar]
  27. Zheng, X.; Liu, Y.; Liu, X.; Li, Q.; Zheng, Y. A novel PVDF-TiO2@g-C3N4 composite electrospun fiber for efficient photocatalytic degradation of tetracycline under visible light irradiation. Ecotoxicol. Environ. Saf. 2021, 210, 111866. [Google Scholar] [CrossRef]
  28. Sun, F.; Ren, H.-T.; Huang, S.-Y.; Li, T.-T.; Peng, H.-K.; Lin, Q.; Lou, C.-W.; Lin, J.-H. Polyvinylidene Fluoride Electrospun Fibers Loaded TiO2 for Photocatalytic Degradation and Oil/Water Separation. Fibers Polym. 2020, 21, 1475–1487. [Google Scholar] [CrossRef]
  29. Wang, H.; Ding, K. Effect of Self-Made TiO2 Nanoparticle Size on the Performance of the PVDF Composite Membrane in MBR for Landfill Leachate Treatment. Membranes 2022, 12, 216. [Google Scholar] [CrossRef]
  30. Javed, M.S.; Shah, S.S.A.; Hussain, S.; Tan, S.; Mai, W. Mesoporous manganese-selenide microflowers with enhanced electrochemical performance as a flexible symmetric 1.8 V supercapacitor. Chem. Eng. J. 2020, 382, 122814. [Google Scholar] [CrossRef]
  31. Lukatskaya, M.R.; Kota, S.; Lin, Z.; Zhao, M.-Q.; Shpigel, N.; Levi, M.D.; Halim, J.; Taberna, P.-L.; Barsoum, M.W.; Simon, P.; et al. Ultra-high-rate pseudocapacitive energy storage in two-dimensional transition metal carbides. Nat. Energy 2017, 2, 17105. [Google Scholar] [CrossRef] [Green Version]
  32. Du, H.; Jiao, L.; Wang, Q.; Yang, J.; Guo, L.; Si, Y.; Wang, Y.; Yuan, H. Facile carbonaceous microsphere templated synthesis of Co3O4 hollow spheres and their electrochemical performance in supercapacitors. Nano Res. 2013, 6, 87–98. [Google Scholar] [CrossRef]
  33. Javed, M.S.; Mateen, A.; Hussain, I.; Ahmad, A.; Mubashir, M.; Khan, S.; Assiri, M.A.; Eldin, S.M.; Shah, S.S.A.; Han, W. Recent progress in the design of advanced MXene/metal oxides-hybrid materials for energy storage devices. Energy Storage Mater. 2022, 53, 827–872. [Google Scholar] [CrossRef]
  34. Javed, M.S.; Mateen, A.; Hussain, I.; Ali, S.; Asim, S.; Ahmad, A.; Eldin, E.t.; Bajaber, M.A.; Najam, T.; Han, W. The quest for negative electrode materials for Supercapacitors: 2D materials as a promising family. Chem. Eng. J. 2023, 452, 139455. [Google Scholar] [CrossRef]
  35. Javed, M.S.; Dai, S.; Wang, M.; Guo, D.; Chen, L.; Wang, X.; Hu, C.; Xi, Y. High performance solid state flexible supercapacitor based on molybdenum sulfide hierarchical nanospheres. J. Power Sources 2015, 285, 63–69. [Google Scholar] [CrossRef]
  36. Lal, M.S.; Lavanya, T.; Ramaprabhu, S. An efficient electrode material for high performance solid-state hybrid supercapacitors based on a Cu/CuO/porous carbon nanofiber/TiO2 hybrid composite. Beilstein J. Nanotechnol. 2019, 10, 781–793. [Google Scholar]
  37. Zhang, M.; Li, Q.; Fang, D.; Ayhan, I.A.; Zhou, Y.; Dong, L.; Xiong, C.; Wang, Q. NiO hierarchical hollow nanofibers as high-performance supercapacitor electrodes. RSC Adv. 2015, 5, 96205–96212. [Google Scholar] [CrossRef]
  38. Pazhamalai, P.; Krishnamoorthy, K.; Mariappan, V.K.; Kim, S.-J. Blue TiO2 nanosheets as a high-performance electrode material for supercapacitors. J. Colloid Interface Sci. 2019, 536, 62–70. [Google Scholar] [CrossRef]
  39. Kumar, R.; Singh, B.K.; Soam, A.; Parida, S.; Sahajwalla, V.; Bhargava, P. In situ carbon-supported titanium dioxide (ICS-TiO2) as an electrode material for high performance supercapacitors. Nanoscale Adv. 2020, 2, 2376–2386. [Google Scholar] [CrossRef] [Green Version]
  40. Shen, D.; Rao, A.M.; Zhou, J.; Lu, B. High-Potential Cathodes with Nitrogen Active Centres for Quasi-Solid Proton-Ion Batteries. Angew. Chem. 2022, 134, e202201972. [Google Scholar] [CrossRef]
  41. Tanwar, S.; Arya, A.; Singh, N.; Yadav, B.C.; Kumar, V.; Rai, A.; Sharma, A.L. High efficient carbon coated TiO2 electrode for ultra-capacitor applications. J. Phys. D Appl. Phys. 2021, 55, 055501. [Google Scholar]
  42. Tolba, G.; Motlak, M.; Bastaweesy, A.; Ashour, E.; Abdelmoez, W.; El-Newehy, M.; Barakat, N. Synthesis of novel Fe-doped amorphous TiO2/C nanofibers for supercapacitors applications. Int. J. Electrochem. Sci. 2015, 10, 3117–3123. [Google Scholar]
  43. Sun, X.; Xie, M.; Wang, G.; Sun, H.; Cavanagh, A.S.; Travis, J.J.; George, S.M.; Lian, J. Atomic Layer Deposition of TiO2 on Graphene for Supercapacitors. J. Electrochem. Soc. 2012, 159, A364–A369. [Google Scholar]
  44. Sharavath, V.; Sarkar, S.; Ghosh, S. One-pot hydrothermal synthesis of TiO2/graphene nanocomposite with simultaneous nitrogen-doping for energy storage application. J. Electroanal. Chem. 2018, 829, 208–216. [Google Scholar] [CrossRef]
  45. Jiang, L.; Ren, Z.; Chen, S.; Zhang, Q.; Lu, X.; Zhang, H.; Wan, G. Bio-derived three-dimensional hierarchical carbon-graphene-TiO2 as electrode for supercapacitors. Sci. Rep. 2018, 8, 4412. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  46. Selvakumar, M.; Bhat, D.K. Microwave synthesized nanostructured TiO2-activated carbon composite electrodes for supercapacitor. Appl. Surf. Sci. 2012, 263, 236–241. [Google Scholar] [CrossRef]
  47. Hsieh, C.-T.; Chang, C.-C.; Chen, W.-Y.; Hung, W.-M. Electrochemical capacitance from carbon nanotubes decorated with titanium dioxide nanoparticles in acid electrolyte. J. Phys. Chem. Solids 2009, 70, 916–921. [Google Scholar] [CrossRef]
  48. Ramadoss, A.; Kim, G.-S.; Kim, S.J. Fabrication of reduced graphene oxide/TiO2 nanorod/reduced graphene oxide hybrid nanostructures as electrode materials for supercapacitor applications. CrystEngComm 2013, 15, 10222–10229. [Google Scholar] [CrossRef]
Molecules 28 00285 g001 550

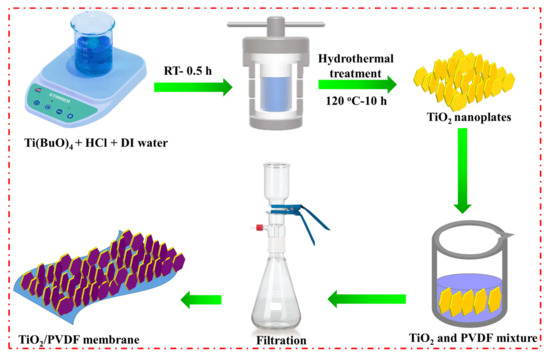

Figure 1. Schematic diagram of the synthesis strategy of TiO2/PVDF membrane.
Figure 1. Schematic diagram of the synthesis strategy of TiO2/PVDF membrane.
Molecules 28 00285 g001
Molecules 28 00285 g002 550

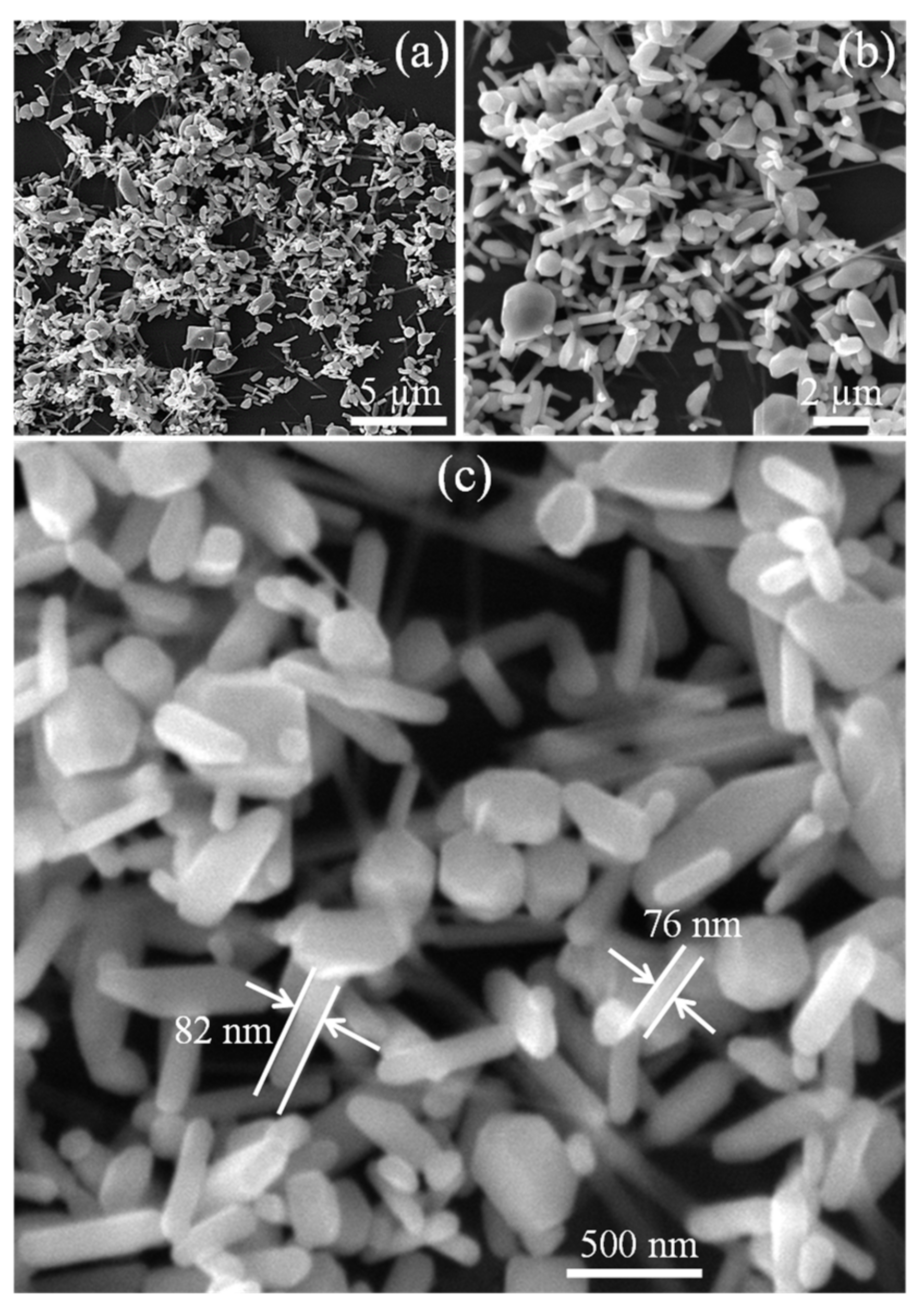

Figure 2. SEM images of TiO2 at; (a,b) Low-magnification; (c) High-magnification.
Figure 2. SEM images of TiO2 at; (a,b) Low-magnification; (c) High-magnification.
Molecules 28 00285 g002
Molecules 28 00285 g003 550

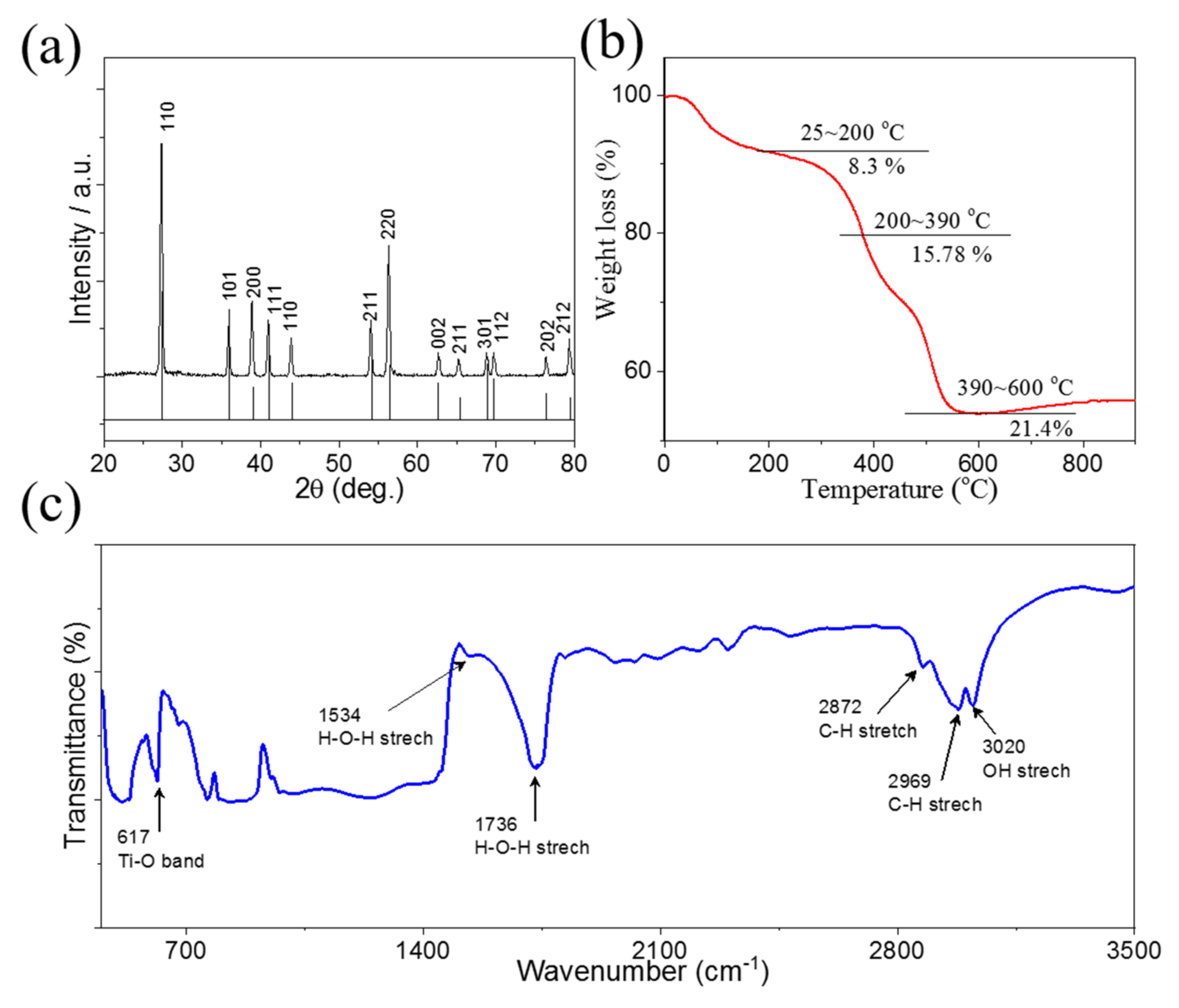

Figure 3. (a) XRD patterns of TiO2; (b) TGA curve of TiO2; (c) FTIR spectra.
Figure 3. (a) XRD patterns of TiO2; (b) TGA curve of TiO2; (c) FTIR spectra.
Molecules 28 00285 g003
Molecules 28 00285 g004 550

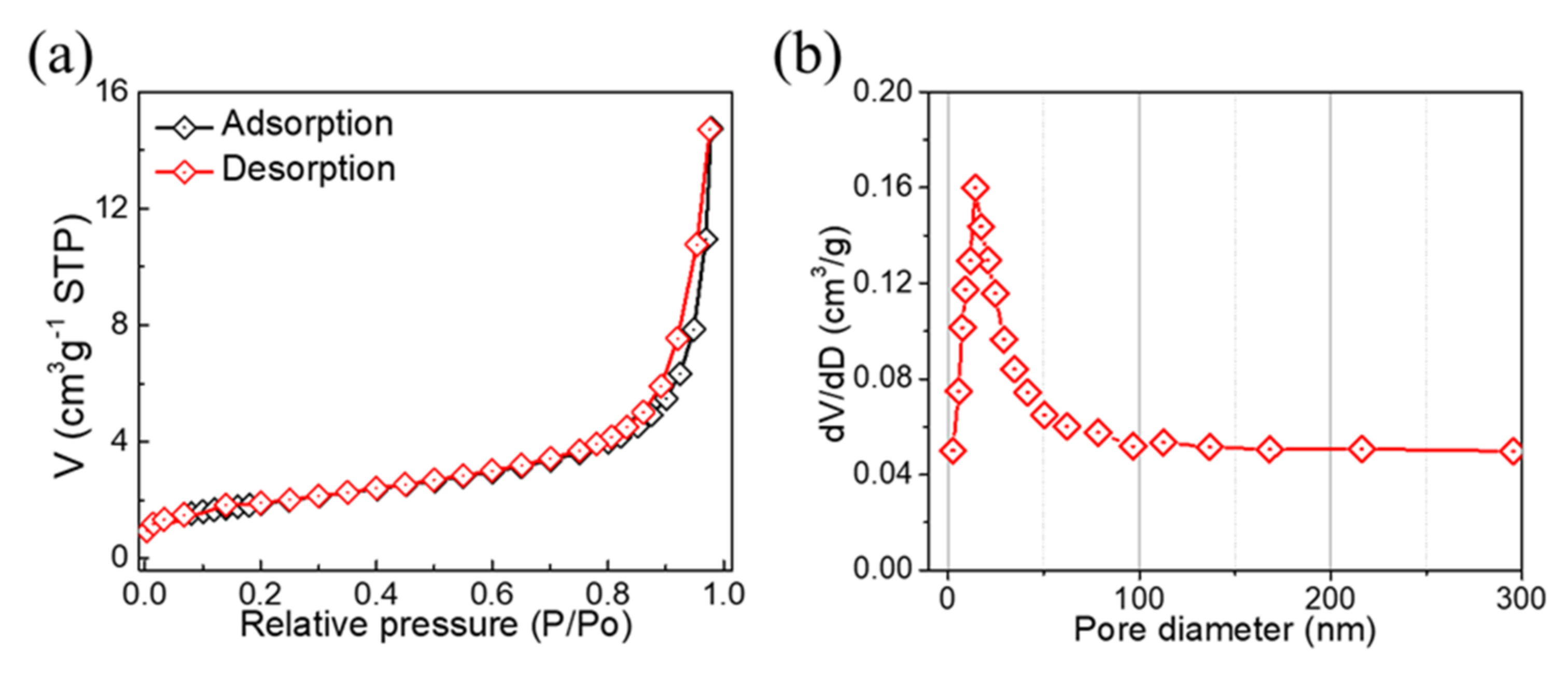

Figure 4. (a) N2 adsorption/desorption isotherm; (b) Typical pore size distribution of TiO2.
Figure 4. (a) N2 adsorption/desorption isotherm; (b) Typical pore size distribution of TiO2.
Molecules 28 00285 g004
Molecules 28 00285 g005 550

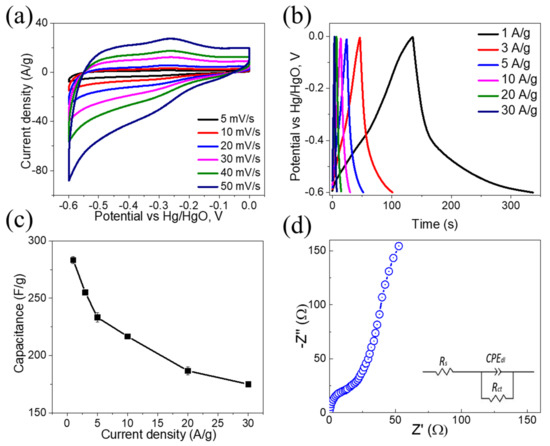

Figure 5. Electrochemical measurements of a TiO2/PVDF membrane electrode in the aqueous electrolyte; (a) CV profiles at different scan rates; (b) GCD profiles at different current densities; (c) Specific capacitance versus current density; (d) Nyquist plot.
Figure 5. Electrochemical measurements of a TiO2/PVDF membrane electrode in the aqueous electrolyte; (a) CV profiles at different scan rates; (b) GCD profiles at different current densities; (c) Specific capacitance versus current density; (d) Nyquist plot.
Molecules 28 00285 g005
Molecules 28 00285 g006 550

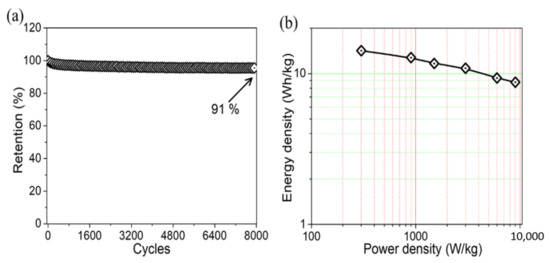

Figure 6. (a) Cycling performance of the TiO2/PVDF electrode; (b) Energy density versus power density.
