Natural Product-Derived Phosphonic Acids as Corrosion Inhibitors for Iron and Steel

by
Erik Ruf
1,
Tim Naundorf
1,
Tom Seddig
1,
Helmut Kipphardt
2 and
Wolfgang Maison
1,*
1
Department of Chemistry, Universität Hamburg, Bundesstraße 45, 20146 Hamburg, Germany
2
Metall-Chemie Technologies GmbH, Kaiser-Wilhelm-Straße 93, 20355 Hamburg, Germany
*
Author to whom correspondence should be addressed.
Molecules 2022, 27(6), 1778; https://doi.org/10.3390/molecules27061778
Submission received: 18 February 2022 / Revised: 4 March 2022 / Accepted: 6 March 2022 / Published: 8 March 2022
(This article belongs to the Special Issue Ecofriendly Inhibitor to Mitigate the Corrosion of Metals and Alloys)
Browse Figures
Review Reports Versions Notes

Abstract

:
Organic acids, typically derived from an oil-based value chain, are frequently used as corrosion inhibitors in industrial metal working fluids. The criteria for selection of these corrosion inhibitors have changed in the last decades, and are today not only performance-driven, but influenced by ecological considerations, toxicity and regulatory standards. We present scalable semisynthetic approaches to organic corrosion inhibitors based on phosphonic acids from renewable resources. They have been evaluated by chip filter assay, potentiodynamic polarization measurements, electrochemical impedance measurements and gravimetry for corrosion protection of iron and steel in an aqueous environment at slightly alkaline pH. The efficacy of several phosphonic acids tested was found to be strongly dependent on structural features influencing molecular self-assembly of protective layers, and the solubility of salts formed with di- and trivalent cations from the media or formed during corrosion. A carboxyphosphonic acid (derived from castor oil) was found to have remarkable anticorrosive effects in all media tested. We attribute the anticorrosion properties of this carboxyphosphonic acid to the formation of particularly stable protective layers on the metal surface. It might thus serve as a commercially attractive substitute for current acidic corrosion inhibitors, derived from renewable resources.

Graphical Abstract

1. Introduction

Corrosion-induced damage not only poses high security risks, but is also responsible for financial losses of around 2.5 billion USD worldwide, according to NACE (National Association of Corrosion Engineers) [1]. Among many other areas, manufacturing processes involving iron and steel are often compromised by corrosion [2]. Metal working fluids (MWFs) have therefore had a major role in manufacturing processes since pre-industrialized times. They are usually oil- or water-based emulsions or solutions, with a high number of additives providing desired properties such as anti-wear, anti-foam, and antimicrobial features as well as corrosion inhibition [3]. Depending on the field of application, various compounds with anti-corrosive properties for iron and steel have been used. The criteria for selection of these corrosion inhibitors have changed significantly in the last decades, and are today not only performance-driven, but influenced by ecological considerations, toxicity and regulatory standards [3]. Water-based MWFs of neutral or slightly alkaline pH containing ingredients of low volatility are particularly attractive in this context. A widely used class of substances for aqueous MWFs are acidic corrosion inhibitors such as carboxylic [4] or phosphonic acids [5]. In aqueous media, these compounds may be used either for applications at low pH [6] or at neutral and alkaline pH [7]. The mechanisms of action of these acidic corrosion inhibitors are heterogenous, often not well understood, and are highly dependent on the molecular structure of acid derivatives [8,9]. Metal surface binding is typically an important factor for corrosion protection with amphiphilic acids [4,10,11,12]. Phosphonic acids have been frequently used as layer-forming anticorrosives, because phosphonates show a particularly strong chemisorption on numerous metals relevant for industrial applications [13,14]. Their ability to form stable self-assembled monolayers (SAMs) has been well-documented in the literature, and they have been used for many applications besides corrosion inhibition [15,16]. In contrast to other substance classes, this ability is not limited to stainless steel or iron [17], but extends to many other metals, such as aluminum, magnesium, titanium, zirconium and the corresponding oxides [18]. Various phosphonic acids have therefore been used in large quantities as additives in MWFs. Among them are amphiphilic alkylphosphonic acids [19,20]. In addition, more polar amino- or hydroxy-phosphonic acids are often found in MWFs with antiscalant properties [21]. All of these compounds are typical industrial products from an oil-based value chain. As mentioned above, there is an increasing need for environmentally friendly corrosion inhibitors, which ideally can be obtained from renewable resources. In this context, intensive research has been carried out to find new corrosion inhibitors among plant-based bio-materials [22], natural product mixtures [23] or pure natural compounds [24] as well as specifically synthesized organic molecules intended to be benign by design [25,26,27]. In some aspects, this search for active substances in natural resources has parallels to the drug development process in pharmaceutical industry, where new lead compounds are frequently natural products. Often, these lead compounds are slightly modified via organic synthesis to become successful drugs on the market. In this work, we present the application of this general semisynthetic approach to the development of new corrosion inhibitors for iron and steel via synthesis and evaluation of natural product-derived phosphonic acids [28]. We focus on derivatives which are available in one or two scalable synthetic steps from readily available and renewable feed stocks, such as plant-derived oils and extracts.

2. Results

2.1. Synthesis

Our target compounds were designed to be nonvolatile alkylphosphonic acids with high chemical stability, amphiphilic character and good surface activity. In addition, they should be readily available in one or two scalable synthetic steps from cheap precursors derived from renewable resources, such as plant extracts or oils. A number of methods for the synthesis of alkylphosphonic acids have been reported in the literature, and the reader is referred to the recent review literature for an overview [16,18,29]. However, many methods rely on multistep procedures and/or have other drawbacks, such as low atom economy, use of expensive reagents or hazardous protocols. They are thus of limited use for upscaling and industrial applications. Herein, we focus on scalable one- or two-step modifications of alkenes or alcohols to phosphonic acids. These functional groups are present in various plant-derived natural products, such as mono- and sesquiterpenes, as well as fatty acids. A number of these natural products are available in large tonnages, either directly from natural sources or via simple industrial processes, such as pyrolysis of plant extracts or oils [30].
In a first attempt to synthesize amphiphilic phosphonic acids from natural products, we focused on a one-pot protocol established by Bravo-Altamirano and Montchamp [31]. The method is suitable for the conversion of terminal alkenes and non-hindered allylic alcohols to the corresponding phosphonic acids [32,33]. It consists of a Pd-catalyzed hydrophosphinylation and subsequent oxidation of an intermediate phosphinic acid derivative in the same reaction vessel. It is thus one of the rare direct phosphonylation reactions using hypophosphorous acid. From a practical point of view, reaction control is easy via 31P-NMR, because reactant (hypophosphorous acid), intermediate (alkylphosphinic acid), product (alkylphosphonic acid) and by-product (H3PO4) can be detected. We have applied this protocol to the synthesis of phosphonic acid (3) from undecylenic acid (1), as outlined in Scheme 1. The reaction proceeded smoothly via intermediate phosphinic acid (2), which was not isolated, but immediately oxidized with hydrogen peroxide to the final product (3) in almost quantitative yield. We scaled this reaction up to ~0.5 mol without any problems. The oxidation of intermediate phosphinic acids, such as 2, can typically be performed in the same vessel just by heating the reaction mixture under air. However, in large-scale conversions, the addition of a stoichiometric oxidant, such as hydrogen peroxide, gave much faster conversions. We did not attempt to optimize the upscaling of this procedure in this study. However, recent studies indicate that the catalyst loading in the first step could be significantly lowered, and that the second oxidation step could be performed under air if sufficient mixing of the solution can be guaranteed [34]. The direct Pd-catalyzed one-pot conversion of undecylenic acid to carboxyphosphonic acid (3) is thus more efficient than comparable two-step procedures [30,35,36].
The protocol is also applicable to selected allylic alcohols, as exemplified by the conversion of geraniol (4) in Scheme 1. In this case, the intermediate phosphinic acid (5) was oxidized with DMSO and catalytic iodine to produce the final phosphonic acid (6). We have also applied the protocol to other natural products, available at low cost. A few of the resulting phosphonic acids (7–9), derived from camphene, isopulegol and β-pinene, are depicted in Scheme 1. Yields of these products dropped significantly, compared to 3 or 6, either because of steric hindrance or competing side reactions. Substrates with internal double bonds were particularly problematic: oleic acid, for example, with an isolated internal double bond, gave only low amounts of phosphonylation products (two regioisomers, according to 1H-NMR analysis of the crude product), even after long reaction times (6 days). We have not tried to purify the resulting phosphonic acids obtained by this protocol (vide infra for an alternative procedure), and therefore did not include the data here. Other terpene starting materials with more than one alkene functionality, such as myrcene, valencene and limonene, gave only complex product mixtures. Obviously, various competing side reactions occur with these diene precursors besides (unselective) phosphonylation of double bonds.
The abovementioned one-pot protocol, consisting of a Pd-catalyzed hydrophosphinylation and subsequent oxidation, is an efficient and mild method for the synthesis of phosphonic acids from fatty acids and terpenoids. However, it is restricted to a few commercially attractive starting materials for these natural product classes, such as undecylenic acid and geraniol. For less reactive, but economically attractive substrates such as β-pinene, we obtained rather low yields of the corresponding phosphonic acid (9), and have therefore explored the direct radical hydrophosphinylation of β-pinene as a workaround [37]. We used the conditions outlined by Deprele and Montchamp [38] to convert β-pinene (10) with ammonium hypophosphite (Scheme 2). In our experiment, the subsequent oxidation of the intermediate phosphinic acid (11) with air was quite slow. Again, we used a DMSO/iodine-mediated protocol to achieve a faster oxidation to the corresponding phosphonic acid (12). The reaction produced the unexpected phosphonic acid (12) as the main product, which was clearly not identical with phosphonic acid (9) obtained by Pd catalysis above (Scheme 1). A possible mechanistic rationale for the observed major product 12 is shown in Scheme 2, and is in accordance with earlier observations for other radical reactions of β-pinene [39,40].
We were also interested in the synthesis of alkyldiphosphonic acids from natural product precursors with two double bonds. For this purpose, we used more forcing reaction conditions and a two-step approach of radical phosphite addition to alkenes, followed by hydrolysis of the resulting phosphonate esters. This method has been reported for the conversion of limonene by Biresaw et al. In this case, phosphonates were obtained by treatment of limonene with dialkylphosphites and a radical initiator [41]. The process gave a complex mixture of mono- and diphosphonic acid esters, each as isomeric mixtures. However, for technical applications, this lack of selectivity might be tolerable. We applied slightly modified reaction conditions to limonene and valencene as starting materials. Both are cheap by-products from industrial processing of citrus fruits such as lemons and oranges. We also converted β-pinene due to our earlier observation that an additional double bond was formed during the first phosphorylation reaction (Scheme 3). In all cases, diphosphonic acids (14–16) were obtained in good yields, but as complex isomeric mixtures. We did not attempt to separate these isomers, and have therefore not fully characterized these products. The 1H and 13C-NMR spectra of these isomeric mixtures are quite complex. In addition, the mixtures were obtained as hygroscopic oils or sticky solids, making elemental analysis difficult. However, HRMS clearly confirmed the elemental formula and 31P-NMR indicated only phosphonate signals around 30 ppm (see Supplementary Materials for analytical details). Isolation and purification of intermediate phosphonate esters is advantageous before final hydrolysis to phosphonic acids (14–16). The latter are hard to purify by chromatography or crystallization.
The same forcing conditions were used for the conversion of oleic acid and ricinolic acid, both cheap starting materials available from natural oils (Scheme 4). For oleic acid (17), the two-step procedure gave a clean conversion to the corresponding phosphonic acid (18), which was obtained as a racemic mixture of two isomers (only one regioisomer shown). The reaction is scalable, and has been performed up to 50 g scale. Ricinolic acid (19) gave an unexpected reaction product (24). The 31P-NMR spectrum of 24 shows eight distinct peaks, clustered in two groups of four at 27–51 ppm. We attributed the formation of these eight isomers of 24 to an initial transesterification of 24 to 20, which was likely followed by elimination to 21, leaving four different sites for phosphorylation to intermediates (22) (only one of four possible isomers shown). Final isomerization to product 23 adds two double bond isomers to each regioisomer, resulting in a total of eight isomers. We did not attempt to separate these isomers in the final product (24) after hydrolysis, but rather used the mixture in corrosion tests.
To complement our set of amphiphilic monoterpene-derived phosphonic acids, we converted citronellol (25) to phosphonic acids 27 and 28 (Scheme 5). In a first step, citronellol (25) was converted to the corresponding bromide by Appel reaction, followed by a Michaelis–Arbuzov reaction to ester 26. This intermediate was converted to unsaturated phosphonic acid (27) by deprotection with bromotrimethylsilane. Alternatively, ester 26 was hydrogenated and deprotected to the saturated phosphonic acid (28). Although this synthetic approach is certainly not economically viable, the set of three geraniol- and citronellol-derived phosphonic acids (6, 27 and 28) with 0–2 double bonds, might be useful in deciphering the role of unsaturation for layer formation on metals. It is also notable that phosphonic acid derivatives of geraniol and citronellol have received some interest as inhibitors of prenyltransferases for pharmaceutical applications [42,43].

2.2. Evaluation of Corrosion Inhibition on Steel

With a range of phosphonic acids in hand, we evaluated their efficiency for corrosion protection of iron and steel. In this study, we focused on corrosion protection in aqueous solution at slightly alkaline pH values. These are common conditions for the application of MWFs in various metal-processing industrial processes. For this purpose, our phosphonic acids were neutralized with triethanolamine (TEA, a standard alkaline additive for acidic corrosion inhibitors) in water or saline, and the protective effect was compared to commercial octylphosphonic acid (OPA) and 1,3,5-triazine-2,4,6-triaminocaproic acid (TC). The latter is a tricarboxylic acid used in many aqueous industrial MWFs, and is thus used as a benchmark corrosion inhibitor for iron and steel [44]. We are aware of the fact that MWFs are usually complex mixtures containing various additives (vide supra), which often have an additional impact on the overall performance of the MWFs in metal processing. However, a complete evaluation of MWFs is beyond the scope of this study, which rather focusses on the anticorrosive effects of the isolated phosphonic acids. We have used three different types of assays to evaluate the phosphonic acids: 1. a grey cast iron chip filter assay according to DIN 51360-2, 2. electrochemical analysis on steel, and 3. a long-term gravimetric corrosion assay on steel.

2.2.1. Chip Filter Assays

The chip filter assay according to DIN 51360-2 is a standard method used in industry for fast evaluation of the anticorrosive properties of MWFs for iron. Briefly, a defined amount of sieved grey cast iron chips is placed on a round paper filter and submerged in a hard water solution of the neutralized (here with TEA as a base) acidic corrosion inhibitor at the appropriate concentration (Table S2, see Supplementary Materials). After incubation and subsequent washing of the filter, corrosion marks are visually detected and scored between 0 (no corrosion marks) and 4 (strong staining of the filter due to corrosion). This assay is operationally very simple and can be easily used for medium throughput screening. In addition, it is quite sensitive, due the large surface area and the high corrosivity of grey cast iron chips. However, the optical detection of staining is slightly subjective, and misinterpretation according to staining that is not caused by corrosion is possible. We have therefore used this assay for a fast preselection of corrosion inhibitors. Successful derivatives were afterwards submitted to more detailed electrochemical evaluation and a long-term gravimetric assay. We tested all synthesized phosphonic acids at different concentrations to obtain limiting effective concentrations (Table S2, see Supplementary Materials). Inhibitors similarly effective to TC (scores 0 and 1 at 10 mmol/L or lower) were considered for further evaluation. Phosphonic acids (3, 7, 12 and 18) were found to give low scores at concentrations around 10 mmol/L. Assuming a layer-forming anticorrosive mechanism, the observed cutoff for inhibitor efficiency at 5–10 mmol/L matches the observed critical micelle concentrations (CMC), at least for TC (CMC(TC-TEA) = 8.9 mmol/L), OPA (CMC(OPA-TEA) = 4.7 mmol/L), 3 (CMC(3-TEA) = 4.7 mmol/L) and 7 (CMC(7-TEA) = 4.7 mmol/L), which we determined for the TEA salts by 1H-NMR in water [45]. It is notable that TC and the carboxyphosphonic acids 3 and 18 were compatible with the presence of secondary metal cations in hard water. OPA, like all other phosphonic acids tested, was hardly compatible with secondary metal cations, such as Ca2+ and Mg2+ from the hard water test media, and produced milky suspensions when applied at 10 mmol/L. The performance of several amphiphilic phosphonic acids might thus be compromised by the limited solubility of salts formed with divalent cations. Diphosphonic acids (14–16) were completely incompatible with hard water (20 dGH) above concentrations of 1 mmol/L, leading to gel formation. Phosphonic acids 6, 27 and 28 were found to be slightly less effective than 3 and 18, providing scores of 0 or 1 at concentrations higher than 20 mmol/L only.

2.2.2. Electrochemical Analysis

The time-dependent variation of OCP of S235JR steel in hard water (20 dGH) for the selected carboxyphosphonic acids 3 and 18 as well as TC and OPA for comparison is shown in Figure 1. Amphiphilic phosphonic acids have been shown to form corrosion-protective layers on metal surfaces, as mentioned above. This process is driven by chemisorption of the phosphonic acid to the metal surface, and packing effects of the side chain such as van der Waals interactions or hydrogen bonding, and is thus dependent on the structure of the phosphonic acid. In most reported cases, the assembly of amphiphilic phosphonic acid layers on iron or steel is a slow process over several hours to days [46]. This correlates well with the time-dependent efficacy of many phosphonic acids as corrosion inhibitors on iron and steel, as measured by electrochemical methods [46]. We followed OCPs over a time span of 24 h. For all solutions containing inhibitors, OCPs were significantly lower in value at any time compared to the reference without inhibitor, reflecting the formation of protective layers on the metal surface [47]. Both carboxyphosphonic acids 3 and 18 show an initial decrease in values over a few hours, followed by constant low OCPs. This is in accordance with the formation of protective layers on the metal surface, which are the reason for the known anodic inhibition of phosphonic acids, and parallels observations by Kalman et al. for long-chained ω-diphosphonic acids [48]. It is notable that OPA does not show a comparable decrease, but rather a slight increase in OCP values before reaching a constant value after 10 h. It has been described that OPA layers have a limited stability under alkaline conditions, in contrast to phosphonic acid layers of longer chain length [14]. However, the inhomogenous increase seen in the first hours might reflect poor compatibility of OPA with hard water, leading to precipitation of OPA salts with divalent cations, and thus concentration levels below surface aggregation concentration (as a rough estimate, the critical micelle concentration of OPA/TEA salt in water was measured by NMR: CMC(OPA-TEA) = 4.7 mmol/L, see Supplementary Materials). A less-perfect layer formation compared to the carboxyphosphonic acids 3 and 18 is the consequence, along with low levels of corrosion protection. The observed effect is clearly dependent on the choice of media: If OPA is applied in demineralized water (pH adjusted to 8.5 with 3 eq TEA), no precipitation is observed, and the OCP (see Figure 1A, brown line) shows the expected decrease in value with time, in accordance with the literature [49]. Interestingly, OCP values of 18 also do not constantly remain low, but show a significant increase to a value similar to that of OPA after 16 h, which also reflects the destruction of a quality protective layer at this time. In parallel, a precipitate was formed, leading to development of a milky suspension. This precipitation might again be the reason for a lack of regeneration of the protective layer, due to low concentration of 18 in solution. We assume that the layers formed by carboxyphosphonic acid 18 are less stable than layers formed by 3. This might reflect less-ordered packing of side chains upon self-assembly, caused by the branched structure of 18. Accordingly, in comparison to 3 (CMC(3-TEA) = 4.7 mmol/L) and OPA (CMC(OPA-TEA) = 4.7 mmol/L), we have observed a significantly higher CMC for carboxyphosphonic acid 18 (CMC(18-TEA) = 19.1 mmol, see Supplementary Materials). The tricarboxylic acid TC rapidly establishes a constant OCP, reflecting the fast formation of protective layers on steel. A mechanistic investigation of TC and close derivatives has, to the best of our knowledge, been performed in acidic media only, making extrapolation to alkaline systems difficult [44]. However, as a polar tricarboxylic acid derivative of heteroaromatic triazine, it most likely has complex adsorption properties on metal surfaces, with contributions from the carboxylic acids, amines and the heteroaromatic system.
Potentiodynamic polarization curves were obtained at room temperature for S235JR steel after 24 h exposure to different test media containing the corrosion inhibitors and TEA as alkaline additive (pH of test solutions 7.9–8.8). In a first set of experiments, we evaluated phosphonic acids 3, 18 and OPA along with TC in hard water (20 dGH), and a selection of the resulting parameters is presented in Table 1. To verify our concerns with respect to the hard water stability of OPA, we also measured the potentiodynamic polarization curves and EIS of OPA in demineralized water of pH 8.5 (data included in Figure 1 and entry 9 in Table 1). We measured the two most potent inhibitors, TC and 3, in different concentrations, and observed a limiting effective concentration for TC of 2.2 mmol/L and for carboxyphosphonic acid 3 of 3.8 mmol/L. Above these concentrations, almost complete inhibition of corrosion was observed (IEcorr > 99%). For comparison, data for 64.4 mmol/L (TC) and 112 mmol/L (3) are also shown. Both correspond to 3 wt% of the appropriate CI, which is a common concentration of commercial CIs such as TC in industrial MWFs. A concentration of 18.8 mmol/L (corresponding to 0.5 wt% of 3) was used for comparison of the three phosphonic acids 3, 18 and OPA. At this concentration, corrosion marks are visible on the test specimen after 24 h for treatments with 18 and OPA. A selection of the corresponding polarization curves and the Bode plots from EIS measurements are depicted in Figure 1. Together with the data in Table 1, these analyses confirm our earlier findings from the chip filter assay with grey cast iron: TC and all of our tested phosphonic acids show good to excellent corrosion protection on steel. All acidic corrosion inhibitors led to an increase in corrosion potential (Ecorr) and a decrease in corrosion current density (jcorr), along with significantly decreased corrosion rates. However, after 24 h, a difference in efficiency was observed among the tested inhibitors: TC and carboxyphosphonic acid 3 show superior inhibition efficiency, even at lower concentrations (entries 3 and 5 in Table 1). Carboxyphosphonic acid 18 and OPA are slightly less effective (entries 7 and 8 in Table 1). This might be explained with the relatively low hard water solubility of OPA, and the less-perfect layer assembly of 18, as mentioned above. The electrochemical data for OPA support this hypothesis. Consequently, in pH 8.5, water-stable layer formation and excellent anodic corrosion protection were observed for OPA. Bode plots of electrochemical impedance measurements confirm the high efficiency of TC and carboxyphosphonic acid 3 as layer-forming corrosion inhibitors, because the values of the Bode modules in the low-frequency region are highest for these two compounds (Figure 1C). Their capacitive loops in the Nyquist plots are also the largest among all compounds tested (see Supplementary Materials, Figure S1). Both high Bode moduli and large capacitive loops in Nyquist plots correlate with high corrosion resistance [50,51]. The imperfect layer formation of 18 is reflected by a Warbug impedance element, and the Bode plot of 18 reveals two time constants in contrast to all other examples.
Next, we tested 3, 18, OPA and TC in more corrosive media containing 3 wt% NaCl. The resulting parameters from potentiodynamic polarization measurements are shown in Table 2, and a selection of corresponding polarization curves, OCP vs. time, and Bode plots from EIS measurements are depicted in Figure 2. Compared to the evaluation in hard water, higher concentrations of corrosion inhibitors had to be employed to achieve a reasonable protection. However, for TC, OPA and 18 (entries 2, 3 and 5 in Table 2) efficiency is relatively low, even at high inhibitor concentrations of 64 and 100 mmol/L respectively (corresponding to 3–4.1 wt% of the acidic corrosion inhibitors). Carboxyphosphonic acid 3 clearly stands out, with excellent corrosion protection (entry 4 in Table 2). This is reflected by the time-dependent OCP in Figure 2A. For carboxyphosphonic acid 3, the OCP decreased within a few hours to a strongly reduced value in comparison to the reference solution and all other tested inhibitors. As mentioned above, this decrease in OCP values can be interpreted as assembly of a high-quality protective layer on the metal surface. Both other phosphonic acids, 18 and OPA, do not obviously assemble to stable protective layers under these corrosive conditions. Again, precipitation of salts, most likely formed with corrosion products, prohibits regeneration of protective layers with these compounds, leading to a time-dependent development of OCP to a value only slightly anodic to the reference solution. TC shows a steady development of OCP to a significantly decreased value in comparison to the reference solution. Due to its good solubility, TC layers (although less protective than layers of 3) get regenerated constantly.
At lower chloride concentration (0.5 wt% NaCl), the amount of phosphonic acid inhibitors needed to achieve almost complete corrosion protection decreased significantly, to 40 mmol/L for 18 and 20 mmol/L for 3 (entries 6 and 7 in Table 2). TC also gained some efficiency in these less-corrosive conditions (entry 8 in Table 2). However, even at 64 mmol/L (corresponding to 3 wt%) inhibitor concentration, corrosion protection was still not complete. Full protection for TC was achieved only if the NaCl concentration was further decreased to 0.1 wt% aqueous NaCl (entry 9 in Table 2). At this point, it is unclear why the protective effect of TC was compromised so strongly by NaCl. In contrast, phosphonic acid 3 showed excellent corrosion protection in hard water and in aqueous NaCl solution. These findings are again supported by Bode plots of electrochemical impedance measurements, which confirm the high efficiency of carboxyphosphonic acid 3 as a layer-forming corrosion inhibitor in NaCl solutions (Figure 2C). The values of the Bode module in the low-frequency region are by far the largest for 3. Bode plots reveal only one time constant, suggesting a charge-transfer-controlled corrosion process. The difference in size of the capacitive loops in the Nyquist plots is also extremely large among the compounds tested (see Supplementary Materials, Figure S2).

2.2.3. Gravimetric Evaluation of Anticorrosive Properties

As noted in the electrochemical evaluation above, the performance of layer-forming corrosion inhibitors can be time-dependent. Since many industrial applications require efficient corrosion inhibition over longer periods than those measured with our electrochemical studies, we included a long-term gravimetric assay with rectangular steel slides (S235JR) of 30 × 10 × 3 mm size. Due to the choice of test slides (S235JR) with intrinsically high corrosion resistance, and the limited sensitivity of gravimetric measurements, corrosive media were needed to increase the weight loss upon corrosion of the test slides to reliably detectable amounts within a reasonable timespan. We found 2% aqueous NaCl to be sufficiently corrosive to provide a weight loss of 186 mg within 12 weeks of incubation at room temperature and constant pH~8 (TEA/AcOH buffer) when no additional corrosion inhibitor was added. This amounts to a corrosion rate of 121 µm/y (Figure 3). All corrosion inhibitors tested were compared to this value, and the corresponding reduction in corrosion is given in Figure 3 (red bars) next to the corrosion rates (blue bars). We have used the TEA/AcOH buffer as a reference system, because the pH is in the same range as in our test solutions, and AcOH is known to have almost no anticorrosive properties at neutral or slightly alkaline pH values on iron and steel [52]. We focused on a selected set of readily-available phosphonic acids (3, 12, 14 and 18) for comparison. Compounds 12 (as a cyclic alkylphosphonic acid) and 14 (as a diphosphonic acid) were again included at this point to check the long-term performance of two derivatives, which do not belong to the class of carboxyphosphonic acids. As depicted in Figure 3, neither diphosphonic acid 14 or the reference compound TC showed good anticorrosive properties, with only 16% and 26% reduction, respectively. In contrast, the alkylphosphonic acids OPA and 12, as well as carboxyphosphonic acid 18 showed reasonable anticorrosive effects with reductions around 60% (Figure 3). A remarkably strong protective effect was again observed for the carboxyalkylphosphonic acid 3, which showed a reduction of 88%, confirming the results obtained by electrochemical methods. Additionally, further chip filter assays in 0.5% aqueous NaCl showed that TC fails to provide a reasonable anticorrosive effect (score 4 at 64 mmol/L inhibitor), whereas 3 gave excellent protection under the same conditions (score 0 at 20 mmol/L inhibitor). All three assays employed suggest that of the tested acidic corrosion inhibitors, only carboxyphosphonic acid 3 shows excellent anticorrosive properties in hard water and in the presence of chloride. We assume that 3 forms particularly dense layers on the metal surface and protects the surface from chloride attack, presumably by charge repulsion. Reven and Spiess have investigated the immobilization of carboxyphosphonic acids on ZrO2 and found that these compounds tend to form hydrogen-bonded multilayers on the surface [53]. Similar multilayers might be formed on steel surfaces, which would be an explanation for the outstanding performance observed with 3. The strong anticorrosive effect of carboxyalkylphosphonic acid 3 in chloride media parallels observations of Benzakour et al., who observed similar effects in the comparison of a piperazine-based diphosphonic acid with the corresponding monophosphonic acid [54], and was also noted for alkyldicarboxylic acids [55]. An additional positive property of carboxyphosphonic acid 3 is good solubility even in hard water, which is limited for many other alkylphosphonic acids.

3. Discussion

In this work, we studied natural product-derived amphiphilic phosphonic acids as corrosion inhibitors for iron and steel in aqueous media at slightly alkaline pH. With respect to their preparation, various terpenoids and fatty acids containing double bonds or allylic alcohol motifs are attractive starting materials for the synthesis of phosphonic acids, either by the Pd-catalyzed Montchamp protocol or radical phosphorylation. Both reactions are scalable, and provide the desired phosphonic acids in one or two synthetic steps. Since starting materials such as fatty acids or terpenoids can be extracted from renewable plants such as feedstock, the resulting “semisynthetic” phosphonic acids might be commercially attractive and environmentally friendly substitutes for current corrosion inhibitors, which are typically products from an oil-based industrial value chain.
The results obtained show that amphiphilic phosphonic acids such as 3, 7, 12 and 18 have a comparable molar efficiency with respect to their anticorrosive properties as commercial acidic inhibitors, such as the tricarboxylic acid TC, in demineralized water. As their molecular weight is significantly lower than that of TC, phosphonic acids 3, 7, 12 and 18 have a significantly higher efficiency if atom economy is considered. However, the anticorrosive properties of most phosphonic acids tested were found to be strongly dependent on media effects and on their molecular structures. We observed the highest efficacy with long-chain carboxyphosphonic acids, such as 3 and 18. While time-dependent anticorrosive properties were expected (phosphonic acids are known to assemble slowly into protective layers), the strong media effects which were observed were unexpected. We attribute the loss of anticorrosive effects with alkylphosphonic acids such as 12 or OPA in hard water and highly corrosive media to the limited solubility of salts with di- and trivalent cations from the media or corrosion products. This has important implications for real-world applications in metal working fluids, and restricts the use of such compounds to salt-free media, where several of our tested phosphonic acids have anticorrosive properties at least comparable to industrial benchmark inhibitors such as TC. Carboxyphosphonic acids such as 3 were found to be powerful corrosion inhibitors in corrosive media with high chloride content, as confirmed by a visual chip filter test on grey cast iron, a gravimetric test and electrochemical analysis on S235JR steel. From a mechanistic point of view, the protective effect of carboxyphosphonic acid 3 might be explained by efficient layer formation on the metal surface, and subsequent charge repulsion of the carboxy layer with chloride anions. It is remarkable that TC does not provide the same protective effect at high chloride concentration although it is a tricarboxylic acid. Carboxyphosphonic acid 3 is thus a particularly valuable corrosion inhibitor for iron and steel in contact with hard water or chloride-containing media.

4. Materials and Methods

Full experimental details are given exemplarily for the synthesis of carboxyphosphonic acid 3 by Pd-catalyzed and 18 by radical hydrophosphonylation. Experimental procedures and analytical data for all other compounds can be found in the Supplementary Materials.

4.1. NMR Spectroscopy

The 1H-, 13C- and 31P-NMR experiments were carried out at room temperature with a FourierHD 300 MHz, Avance III HD 400 MHz or Avance III HD 600 MHz spectrometer from Bruker Biospin GmbH (Ettlingen, Germany), calibrated against deuterated solvents or TMS. Additionally, HSQC, H,H-COSY and HMBC spectra were measured for peak assignment.

4.2. Mass Spectrometry

High-resolution mass spectra were measured with a MicrOTOF-Q with ESI source from Bruker Daltonik GmbH (Bremen, Germany).

4.3. Chip Filter Test

Evaluation of the anti-corrosive properties of the substances for iron was carried out according to DIN 51360-02-A, using an aqueous TEA-neutralized solution of the acidic corrosion inhibitors in either hard water (20 dGH: CaCl2 340 mg/L, MgSO4 60.0 mg/L) or 0.5% aqueous NaCl (pH 8.3 ± 0.5) at the appropriate concentration (Table S2, see Supplementary Materials). 1.5 eq TEA were added for each acidic proton in acidic corrosion inhibitors. As an example, carboxyphosphonic acid 3 contains 3 acidic protons, and thus 4.5 eq TEA were added as alkaline additive. A total of 2 mL of the appropriate test solution was incubated with 2.0 g of sieved grey cast iron turnings for 2 h, before rinsing and visual scoring according to DIN 51360-02-A. For data see Supplementary Materials: Table S2.

4.4. Gravimetric Corrosion Test

Rectangular S235JR steel slides (30 × 10 × 3 mm, obtained from Franz Krüppel GmbH+Co.KG (Krefeld, Germany) ingredients according to DIN EN 10025-2: C = 0.17%, Mn = 1.40%, P = 0.035%, S = 0.035%, N = 0.012%, Cu = 0.55%) were treated according to ASTM G1 C3.5, and cleaned in an ultrasonic bath (HCl 6 m; Urotropine 7 g/L) for 10 min and then dried in a nitrogen stream. Afterwards, the steel slides were immersed in test solutions for 12 weeks at room temperature, with regular substitution of evaporated water by addition of demineralized water. Test solutions were obtained by dissolving the appropriate acidic corrosion inhibitor in 2% aqueous NaCl and addition of 1.5 eq TEA for each acidic proton in acidic corrosion inhibitors. As an example, carboxyphosphonic acid 3 contains 3 acidic protons and thus 4.5 eq TEA were added as alkaline additive. The pH of the resulting test solutions was 8.3 ± 0.5. The corrosion rate CR in µm/y was calculated as follows:
C R = Δ m A   ·   d   ·   t 365   ·   10 9
with Δm = weight loss in g, A = 840 mm2 (sample surface), d = 7940 kg/m3 (density of steel) and t = 84 d (immersion time). Each experiment was performed in triplicate.

4.5. Electrochemistry

Quadratic S235JR steel slides (30 × 30 × 2 mm, obtained from Franz Krüppel GmbH+Co.KG ingredients according to DIN EN 10025-2: C = 0.17%, Mn = 1.40%, P = 0.035%, S = 0.035%, N = 0.012%, Cu = 0.55%) for the electrochemical assays were treated according to ASTM G1 C3.5, and cleaned in an ultrasonic bath (HCl 6 m; Urotropine 7 g/L) for 10 min and then dried in a nitrogen stream. Potentiodynamic polarization curves were measured with a Gamry (Warminster, PA, USA) ParaCell setup. The samples were used as a working electrode, and were exposed to the electrolyte with an O-ring sealed opening with a diameter of 1 cm2. The counter electrode was graphite, and the reference electrode was Ag/AgCl in a 3 M KCl solution (SCE), which has a shift of +210 mV compared with a standard hydrogen electrode (SHE). Open-circuit measurements were taken over a time of 200 s. Impedance measurements were carried out using AC signals of a 10 mV potential perturbation, and the scanning frequency range was 100 kHz to 0.01 Hz with 5 point/decade. The polarization scan was between –100 mV and +100 mV against the open circuit potential, with a scan rate of 5 mV/s. The electrolyte was either hard water (20 dGH: CaCl2 340 mg/L, MgSO4 60.0 mg/L, conductivity at 25 °C: 861 μS/cm) or NaCl solution containing the corrosion inhibitor and TEA (final pH 8.3 ± 0.5). The polarization measurement was performed after 24 h exposure at room temperature. Data were processed with the Gamry (Warminster, PA, USA) Echem Analyst program (version 7.8.2). The percentage inhibition efficiency %IEcorr was calculated as follows:
I E c o r r = I c o r r ,       u n i n h i b i t e d − I c o r r ,       i n h i b i t e d I c o r r ,       u n i n h i b i t e d 100 %
with Icorr values from the uninhibited (hard water 20 dGH, pH 7.9–8.8) and inhibited solutions, respectively. Corrosion rates were calculated according to the literature [2].

4.6. Palladium-Catalyzed Hydrophosphinylation (General Procedure)

Pd2dba3 (75%, 0.01 eq, 0.1 mmol, 122 mg) and Xantphos (0.022 eq, 0.22 mmol, 127 mg) were dissolved in 10 mL of DMF. Hypophosphorous acid (50% in H2O, 2 eq, 20 mmol, 2.35 mL) and olefin, or allylic alcohol (1 eq, 10 mmol) were added. The reaction mixture was heated as indicated in the detailed procedures, filtered, and the solvent evaporated under reduced pressure. The residue was dissolved in 50 mL of 2 M aqueous HCl and 50 mL of EtOAc. The layers were separated, and the aqueous layer was extracted three times with 50 mL of EtOAc. The combined organic layers were washed with 50 mL of saturated NaCl solution and dried over Na2SO4. Removal of the solvent gave the crude product, which was oxidized or purified via RP column chromatography as specified.

Synthesis of 10-Carboxyundecylphosphonic Acid 3 [56]

10-Undecylenic acid 1 (82.8 g, 450 mmol, 1.0 eq) was treated according to the general procedure. After 16 h, quantitative conversion to the intermediate phosphinic acid was detected via mass spectrometry. The solution was cooled to 0 °C, and 30% aqueous H2O2 (102 g, 900 mmol, 2 eq) was added over 120 min. The reaction mixture was then heated to 110 °C for 60 min. The resulting mixture was filtered, and the solvent was evaporated under reduced pressure. The residue was treated with 250 mL 2 M aqueous HCl and 250 mL of EtOAc. The organic layer was separated and the aqueous layer extracted three times with 250 mL EtOAc. The combined organic layers were washed with 250 mL saturated NaCl solution and dried over Na2SO4. After crystallization from acetone and subsequent freeze drying, 119.5 g (449 mmol, 99%) of the title compound 3 were obtained as a colorless solid. 1H NMR (600 MHz, MeOD-d4) δ = 2.29 (dt, 2J = 20.4 Hz, 3J = 7.4 Hz, 2H, 10-H), 1.71–1.64 (m, 2H, 1-H), 1.60 (dqd, 2J = 12.1 Hz, 3J = 7.4, 6.6, 3.8 Hz, 4H, 3-H, 9-H), 1.41 (p, 3J = 6.6 Hz, 2H, 2-H), 1.36–1.28 (m, 10H, 4-H, 5-H, 6-H, 7-H, 8-H). 13C NMR (151 MHz, MeOD-d4) δ = 177.65 (C11), 34.86 (d, 2JP,C = 23.2 Hz, C10), 31.75 (d, 2JP,C = 16.6 Hz, C2), 30.51 (d, 2JP,C = 3.2 Hz, (CH2)), 30.44 (CH2), 30.35 (d, 2JP,C = 6.0 Hz, (CH2)), 30.23 (d, 2JP,C = 8.7 Hz, (CH2)), 30.15 (CH2), 28.09 (d, 2JP,C = 137.9 Hz, C1), 26.03 (d, 2JP,C = 10.0 Hz, C9), 23.91 (d, 2JP,C = 5.0 Hz, C3). 31P NMR (243 MHz, MeOD-d4) δ = 30.34. HRMS (ESI) m/z: [M − H]− calculated for C11H22O5P: 265.1210, found 265.1210.

4.7. Synthesis of 10-Phosphonooctadecanoic Acid 18 [57]

To oleic acid 17 (90%, 1 eq, 159 mmol, 50.0 g) diethylphosphite (3 eq 478 mmol, 61.7 mL) was added under argon atmosphere. The solution was degassed for 30 min. Di-tert-butyl peroxide (0.1 eq, 16.0 mmol, 2.93 mL) was added. The reaction mixture was heated to 125 °C for 24 h. Another 0.1 eq Di-tert-butyl peroxide were added after 2 h, 16 h and 20 h. The reaction mixture was cooled to room temperature, and the volatile components were removed under oil pump vacuum. The residue was dissolved in 500 mL EtOAc, and washed twice with 500 mL saturated Na2CO3 solution. The organic layer was dried over Na2SO4 and filtered. Removal of the solvent under reduced pressure gave 65.2 g (155 mmol, 97%) of intermediate 10-(diethoxyphosphoryl)octadecanoic acid as a pale yellow oil. 1H NMR (300 MHz, CDCl3) δ = 4.15–4.02 (m, 4 H, 20-H), 2.27 (t, 3J = 7.6 Hz, 2 H, 9-H), 1.75–1.53 (m, 5 H, CH2), 1.53–1.18 (m, 31 H, CH2, 21-H), 0.87 (t, 3J = 6.7 Hz, 3 H, 18-H). 13C NMR (100 MHz, CDCl3) δ = 174.0 (d, 10J = 3.3 Hz, C10), 61.5 (C20), 60.3 (CH2), 36.1 (d, 1J = 137 Hz, C1), 34.5 (CH2), 34.1 (CH2), 32.0 (CH2), 29.9 (CH2), 29.7 (CH2), 29.6 (CH2), 29.5 (CH2), 29.4 (CH2), 29.3 (CH2), 29,1 (CH2), 27.8 (CH2), 27.7 (CH2), 25.1 (CH2), 24.9 (CH2), 22.8 (CH2), 16.6 (d, 3J = 5.8 Hz, C21), 14.3 (d, 9J = 22.5 Hz, C18). 31P NMR (162 MHz CDCl3) δ] = 35.11 (s), 35.06 (s). HRMS-ESI m/z: [M + H]+ calculated for C22H45O5P, 421.3077, found 421.3092.
This intermediate ester (1 eq, 143 mmol, 60.0 g) was dissolved in a mixture of 300 mL dioxane and 300 mL aqueous HCl (12 M, 3.2 mol). The reaction mixture was heated to reflux for 24 h. The organic solvent was removed under reduced pressure, and the residue was diluted with 600 mL water. The pH value was adjusted to 12 with solid NaOH. The aqueous layer was washed with each 600 mL EtOAc three times. The pH value was adjusted to 1 with concentrated aqueous HCl. The aqueous layer was extracted three times with 600 mL Et2O. The combined organic layers were then dried over Na2SO4 and filtered. Removal of the solvent under reduced pressure and coevaporating five times with 50 mL Et2O gave 47.6 g (130 mmol, 91%) of the title compound 18 as an amorphous, waxy solid. 1H NMR (300 MHz, CDCl3) δ = 7.61 (sbr, 2 H, POOH), 2.34 (t, 3J = 7.1 Hz, 2 H, 9-H), 1.80–1.57 (m, 5 H, CH2), 1.57–1.21 (m, 24 H, CH2), 0.88 (t, 3J = 6.8 Hz, 3 H, 18-H). 13C NMR (100 MHz, CDCl3) δ = 180.1 (C10), 35.6 (d, 1J = 140 Hz, C1), 34.2 (CH2), 32.1 (CH2), 29.9 (CH2), 29.7 (CH2), 29.6 (CH2), 29.5 (CH2), 29.1 (CH2), 28.9 (CH2), 28.1 (CH2), 28.0 (CH2), 27.9 (CH2), 27.7 (CH2), 27.6 (CH2), 24.7 (CH2), 22.8 (CH2), 14.3 (C18). 31P NMR (162 MHz CDCl3) δ = 40.45 (s), 40.32 (s). HRMS-ESI m/z: [M − H]− calculated for C18H37O5P, 363.2306, found 363.2296.

5. Conclusions

Natural products from renewable feedstocks, such as fatty acids or terpenoids, are attractive starting materials for “semisynthetic” phosphonic acids, which might be commercially attractive and environmentally friendly substitutes for current corrosion inhibitors. Carboxyphosphonic acid 3 was found to be a particularly good corrosion inhibitor, with a number of favorable properties such as anticorrosive effects in corrosive media with high chloride content and good hard water stability. Gravimetric tests and electrochemical analysis on S235JR steel revealed efficient layer formation on the metal surface and anodic corrosion protection.

6. Patents

As a result of the work reported herein, a patent application has been filed: WO/2021/165313, “Natural-product-derived phosphonic acids as acidic corrosion inhibitors”.

Supplementary Materials

The following supporting information can be downloaded at [58]: https://www.mdpi.com/article/10.3390/molecules27061778/s1, synthesis: experimental procedures, full analytical data and copies of NMR spectra for all compounds; CMC evaluations by 1H-NMR, including spectra, and Table S1: CMC values determined via 1H-NMR; chip filter test, including Table S2: Selected results of the chip filter test according to DIN 51360-2; Nyquist plots of EIS, including Figure S1: Nyquist plots of electrochemical impedance measurements of steel (SJR235) in in hard water (20 dGH, pH 8.3 ± 0.5) and demineralized water (only for OPA, pH 8.5 adjusted with 3 eq TEA) with different corrosion inhibitors (neutralized with TEA) and Figure S2: Nyquist plots of electrochemical impedance measurements of steel (SJR235) in aqueous 3.0% NaCl (pH 8.3 ± 0.5) with different corrosion inhibitors (neutralized with TEA).

Author Contributions

Conceptualization, W.M.; methodology, W.M., E.R., T.N. and T.S.; validation, E.R., T.N. and T.S.; formal analysis and synthesis, E.R., T.N. and T.S.; investigation, E.R., T.N. and T.S.; data curation, W.M.; writing—original draft preparation, E.R.; writing—review and editing, W.M., T.N., T.S. and H.K.; supervision, W.M.; project administration, W.M. and H.K.; funding acquisition, W.M. and H.K. All authors have read and agreed to the published version of the manuscript.

Funding

This research was funded by IFB Hamburg [grant no. 51082730].

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Data Availability Statement

Data are available from the authors upon request.

Conflicts of Interest

The authors declare no conflict of interest. The funders had no role in the design of the study; in the collection, analyses, or interpretation of data; in the writing of the manuscript, or in the decision to publish the results.

Sample Availability

Samples of the compounds 3, 12, 14, 15, 16, 18, 27 and 28 are available from the authors upon request.

References

  1. Verma, C.; Olasunkanmi, L.O.; Ebenso, E.E.; Quraishi, M.A. Substituents effect on corrosion inhibition performance of organic compounds in aggressive ionic solutions: A review. J. Mol. Liq. 2018, 251, 100–118. [Google Scholar] [CrossRef]
  2. Groysman, A. Corrosion for Everybody; Springer Science & Business Media: Cham, Germany, 2010; pp. 1–368. [Google Scholar]
  3. Brinksmeier, E.; Meyer, D.; Huesmann-Cordes, A.G.; Herrmann, C. Metalworking fluids-mechanisms and performance. Cirp Ann.-Manuf. Technol. 2015, 64, 605–628. [Google Scholar] [CrossRef] [Green Version]
  4. Kuznetsov, Y.I. Organic corrosion inhibitors: Where are we now? A review. Part II. Passivation and the role of chemical structure of carboxylates. Int. J. Corros. Scale Inhib. 2016, 5, 282–318. [Google Scholar] [CrossRef]
  5. Gunasekaran, G.; Natarajan, R.; Muralidharan, V.S.; Palaniswamy, N.; Appa Rao, B.V. Inhibition by phosphonic acids—An overview. Anti-Corr. Method Mater. 1997, 44, 248–259. [Google Scholar] [CrossRef]
  6. Finšgar, M.; Jackson, J. Application of corrosion inhibitors for steels in acidic media for the oil and gas industry: A review. Corros. Sci. 2014, 86, 17–41. [Google Scholar] [CrossRef] [Green Version]
  7. Amar, H.; Benzakour, J.; Derja, A.; Villemin, D.; Moreau, B. A corrosion inhibition study of iron by phosphonic acids in sodium chloride solution. J. Electroanal. Chem. 2003, 558, 131–139. [Google Scholar] [CrossRef]
  8. Milošev, I.; Zimerl, D.; Carriére, C.; Zanna, S.; Seyeux, A.; Iskra, J.; Stavber, S.; Chiter, F.; Poberžnik, M.; Costa, D.; et al. Editors’ choice—The effect of anchor group and alkyl backbone chain on performance of organic compounds as corrosion inhibitors for aluminum investigated using an integrative experimental-modeling approach. J. Electrochem. Soc. 2020, 167, 061509. [Google Scholar] [CrossRef]
  9. Kokalj, A. Molecular modeling of organic corrosion inhibitors: Calculations, pitfalls, and conceptualization of molecule–surface bonding. Corros. Sci. 2021, 193, 109650. [Google Scholar] [CrossRef]
  10. Abohalkuma, T.; Shawish, F.; Telegdi, J. Phosphonic acid derivatives used in self assembled layers against metal corrosion. Int. J. Corros. Scale Inhib. 2014, 3, 151–159. [Google Scholar] [CrossRef]
  11. Zhu, Y.; Free, M.L.; Woollam, R.; Durnie, W. A review of surfactants as corrosion inhibitors and associated modeling. Prog. Mater. Sci. 2017, 90, 159–223. [Google Scholar] [CrossRef]
  12. Alonso Frank, M.; Meltzer, C.; Braunschweig, B.; Peukert, W.; Boccaccini, A.R.; Virtanen, S. Functionalization of steel surfaces with organic acids: Influence on wetting and corrosion behavior. Appl. Surf. Sci. 2017, 404, 326–333. [Google Scholar] [CrossRef]
  13. Kuznetsov, Y.I. Organic corrosion inhibitors: Where are we now? A review. Part IV. Passivation and the role of mono- and diphosphonates. Int. J. Corros. Scale Inhib. 2017, 6, 384–427. [Google Scholar]
  14. Kosian, M.; Smulders, M.M.; Zuilhof, H. Structure and long-term stability of alkylphosphonic acid monolayers on SS316L stainless steel. Langmuir 2016, 32, 1047–1057. [Google Scholar] [CrossRef] [PubMed]
  15. Guerrero, G.; Alauzun, J.G.; Granier, M.; Laurencin, D.; Mutin, P.H. Phosphonate coupling molecules for the control of surface/interface properties and the synthesis of nanomaterials. Dalton Trans. 2013, 42, 12569–12585. [Google Scholar] [CrossRef] [PubMed]
  16. Queffelec, C.; Petit, M.; Janvier, P.; Knight, D.A.; Bujoli, B. Surface Modification Using Phosphonic Acids and Esters. Chem. Rev. 2012, 112, 3777–3807. [Google Scholar] [CrossRef]
  17. Raman, A.; Dubey, M.; Gouzman, I.; Gawalt, E.S. Formation of self-assembled monolayers of alkylphosphonic acid on the native oxide surface of SS316L. Langmuir 2006, 22, 6469–6472. [Google Scholar] [CrossRef]
  18. Boissezon, R.; Muller, J.; Beaugeard, V.; Monge, S.; Robin, J.-J. Organophosphonates as anchoring agents onto metal oxide-based materials: Synthesis and applications. RSC Adv. 2014, 4, 35690–35707. [Google Scholar] [CrossRef]
  19. Watanabe, S. Preparations and properties of anti-corrosion additives of water-soluble metal working fluids for aluminum alloy materials. J. Oleo Sci. 2008, 57, 1–10. [Google Scholar] [CrossRef] [Green Version]
  20. Kuznetsov, Y.I. Organic corrosion inhibitors: Where are we now? A review. Part III. Passivation and the role of the chemical structure of organophosphates. Int. J. Corros. Scale Inhib. 2017, 6, 209–239. [Google Scholar]
  21. Demadis, K.D.; Katarachia, S.D. Metal-phosphonate chemistry: Synthesis, crystal structure of calcium-aminotris-(methylene phosphonate) and inhibition of CaCO3 crystal growth. Phosphorus Sulfur 2004, 179, 627–648. [Google Scholar] [CrossRef]
  22. Umoren, S.A.; Solomon, M.M.; Obot, I.B.; Suleiman, R.K. A critical review on the recent studies on plant biomaterials as corrosion inhibitors for industrial metals. J. Ind. Eng. Chem. 2019, 76, 91–115. [Google Scholar] [CrossRef]
  23. Choi, D.-J.; You, S.-J.; Kim, J.-G. Development of an environmentally safe corrosion, scale, and microorganism inhibitor for open recirculating cooling systems. Mater. Sci. Eng. A 2002, 335, 228–235. [Google Scholar] [CrossRef]
  24. Hamadi, L.; Mansouri, S.; Oulmi, K.; Kareche, A. The use of amino acids as corrosion inhibitors for metals: A review. Egyptian J. Petrol. 2018, 27, 1157–1165. [Google Scholar] [CrossRef]
  25. Verma, C.; Verma, D.K.; Ebenso, E.E.; Quraishi, M.A. Sulfur and phosphorus heteroatom-containing compounds as corrosion inhibitors: An overview. Heteroat. Chem. 2018, 29, e21437. [Google Scholar] [CrossRef] [Green Version]
  26. Anastas, P.T. Benign by design chemistry. In Benign by Design; American Chemical Society: Washington, DC, USA, 1994; Volume 577, pp. 2–22. [Google Scholar]
  27. Kümmerer, K. Sustainable from the very beginning: Rational design of molecules by life cycle engineering as an important approach for green pharmacy and green chemistry. Green Chem. 2007, 9, 899–907. [Google Scholar] [CrossRef]
  28. Maison, W.; Kipphardt, H.; Ruf, E. Naturstoffbasierte Phosphonsäuren als Saure Korrosionsinhibitoren. WIPO Patent Application No. WO/2021/165313, 17 February 2021. [Google Scholar]
  29. Sevrain, C.M.; Berchel, M.; Couthon, H.; Jaffres, P.A. Phosphonic acid: Preparation and applications. Beilstein J. Org. Chem. 2017, 13, 2186–2213. [Google Scholar] [CrossRef]
  30. Bouilhac, C.; Travelet, C.; Graillot, A.; Monge, S.; Borsali, R.; Robin, J.J. Synthesis of fatty phosphonic acid based polymethacrylamide by RAFT polymerization and self-assembly in solution. Polym. Chem. 2014, 5, 2756–2767. [Google Scholar] [CrossRef]
  31. Bravo-Altamirano, K.; Montchamp, J.-L. A novel approach to phosphonic acids from hypophosphorous acid. Tetrahedron Lett. 2007, 48, 5755–5759. [Google Scholar] [CrossRef]
  32. Coudray, L.; Bravo-Altamirano, K.; Montchamp, J.L. Allylic phosphinates via palladium-catalyzed allylation of H-phosphinic acids with allylic alcohols. Org. Lett. 2008, 10, 1123–1126. [Google Scholar] [CrossRef]
  33. Bravo-Altamirano, K.; Abrunhosa-Thomas, I.; Montchamp, J.-L. Palladium-catalyzed reactions of hypophosphorous compounds with allenes, dienes, and allylic electrophiles:  Methodology for the synthesis of allylic H-phosphinates. J. Org. Chem. 2008, 73, 2292–2301. [Google Scholar] [CrossRef]
  34. Berger, O.; Winters, K.R.; Sabourin, A.; Dzyuba, S.V.; Montchamp, J.-L. On the cost of academic methodologies. Org. Chem. Front. 2019, 6, 2095–2108. [Google Scholar] [CrossRef]
  35. Kelley, T.W.; Boardman, L.D.; Dunbar, T.D.; Muyres, D.V.; Pellerite, M.J.; Smith, T.P. High-performance OTFTs using surface-modified alumina dielectrics. J. Phys. Chem. B 2003, 107, 5877–5881. [Google Scholar] [CrossRef]
  36. Belbachir, M.; Boutevin, B.; Pietrasanta, Y.; Rigal, G. Synthesis and chemical-transformations of telomers from methyl 10-unidecenoate. 1. Makromol. Chem.-Macromol. Chem. Phys. 1982, 183, 2347–2358. [Google Scholar] [CrossRef]
  37. Griffin, C.E.; Wells, H.J. Phosphonic acids and esters. 1. Radical initiated addition of phosphorous acid to olefins. J. Org. Chem. 1959, 24, 2049–2051. [Google Scholar] [CrossRef]
  38. Deprele, S.; Montchamp, J.L. Triethylborane-initiated room temperature radical addition of hypophosphites to olefins: Synthesis of monosubstituted phosphinic acids and esters. J. Org. Chem. 2001, 66, 6745–6755. [Google Scholar] [CrossRef]
  39. Francois, H.; Lalande, R. Radical-addition of phosphorus derivatives to pinenes. C. R. Acad. Sci. C Chim. 1974, 279, 117–119. [Google Scholar]
  40. Eddingsaas, N.C.; Loza, C.L.; Yee, L.D.; Seinfeld, J.H.; Wennberg, P.O. α-pinene photooxidation under controlled chemical conditions—Part 1: Gas-phase composition in low- and high-NOx environments. Atmos. Chem. Phys. 2012, 12, 6489–6504. [Google Scholar] [CrossRef] [Green Version]
  41. Biresaw, G.; Bantchev, G.B. Tribological properties of limonene bisphosphonates. Tribol. Lett. 2015, 60, 11. [Google Scholar] [CrossRef]
  42. Blau, N.F.; Wang, T.T.S.; Buess, C.M. Potential Inhibitors of cholesterol biosynthesis phosphonates derived from geraniol and congeners. J. Chem. Eng. Data 1970, 15, 206–208. [Google Scholar] [CrossRef]
  43. Popjak, G.; Hadley, C. Inhibition of liver prenyltransferase by citronellyl and geranyl phosphonate and phosphonylphosphate. J. Lipid Res. 1985, 26, 1151. [Google Scholar] [CrossRef]
  44. Yoo, S.-H.; Kim, Y.-W.; Shin, J.; Kim, N.-K.; Kim, J.-S. Effects of the chain length of tris(carboxyalkylamino)triazine on corrosion inhibition properties. Bull. Korean Chem. Soc. 2015, 36, 346–355. [Google Scholar] [CrossRef]
  45. Furó, I. NMR spectroscopy of micelles and related systems. J. Mol. Liq. 2005, 117, 117–137. [Google Scholar] [CrossRef]
  46. Felhősi, I.; Telegdi, J.; Pálinkás, G.; Kálmán, E. Kinetics of self-assembled layer formation on iron. Electrochim. Acta 2002, 47, 2335–2340. [Google Scholar] [CrossRef]
  47. Földes, E.; Tóth, A.; Kálmán, E.; Fekete, E.; Tomasovszky–Bobák, á. Surface changes of corona-discharge-treated polyethylene films. J. Appl. Polym. Sci. 2000, 76, 1529–1541. [Google Scholar] [CrossRef]
  48. Felhösi, I.; Kálmán, E.; Póczik, P. Corrosion protection by self-assembly. Russ. J. Electrochem. 2002, 38, 230–237. [Google Scholar] [CrossRef]
  49. Paszternák, A.; Stichleutner, S.; Felhősi, I.; Keresztes, Z.; Nagy, F.; Kuzmann, E.; Vértes, A.; Homonnay, Z.; Pető, G.; Kálmán, E. Surface modification of passive iron by alkyl-phosphonic acid layers. Electrochim. Acta 2007, 53, 337–345. [Google Scholar] [CrossRef]
  50. Shi, X.; Wang, Y.; Li, H.; Zhang, S.; Zhao, R.; Li, G.; Zhang, R.; Sheng, Y.; Cao, S.; Zhao, Y.; et al. Corrosion resistance and biocompatibility of calcium-containing coatings developed in near-neutral solutions containing phytic acid and phosphoric acid on AZ31B alloy. J. Alloys Compd. 2020, 823, 153721. [Google Scholar] [CrossRef]
  51. Soleymanibrojeni, M.; Shi, H.; Udoh, I.I.; Liu, F.; Han, E.-H. Microcontainers with 3-amino-1,2,4-triazole-5-thiol for Enhancing anticorrosion waterborne coatings for AA2024-T3. Prog. Org. Coat. 2019, 137, 105336. [Google Scholar] [CrossRef]
  52. Hefter, G.T.; North, N.A.; Tan, S.H. Organic corrosion inhibitors in neutral solutions; Part 1—Inhibition of steel, copper, and aluminum by straight chain carboxylates. Corrosion 1997, 53, 657–667. [Google Scholar] [CrossRef]
  53. Pawsey, S.; McCormick, M.; De Paul, S.; Graf, R.; Lee, Y.S.; Reven, L.; Spiess, H.W. 1H fast MAS NMR studies of hydrogen-bonding interactions in self-assembled monolayers. J. Am. Chem. Soc. 2003, 125, 4174–4184. [Google Scholar] [CrossRef]
  54. Amar, H.; Benzakour, J.; Derja, A.; Villemin, D.; Moreau, B.; Braisaz, T. Piperidin-1-yl-phosphonic acid and (4-phosphono-piperazin-1-yl) phosphonic acid: A new class of iron corrosion inhibitors in sodium chloride 3% media. Appl. Surf. Sci. 2006, 252, 6162–6172. [Google Scholar] [CrossRef]
  55. Ormellese, M.; Lazzari, L.; Goidanich, S.; Fumagalli, G.; Brenna, A. A study of organic substances as inhibitors for chloride-induced corrosion in concrete. Corros. Sci. 2009, 51, 2959–2968. [Google Scholar] [CrossRef]
  56. Chavane, V. Chimie Organique-Synthese de Quelques Acides Phosphoniques Amines de Formule Generale H3n+ (-)(Ch2) N-Po3h. Compt. Rend. Hebd. Seances L Acad. Sci. 1947, 224, 406–408. [Google Scholar]
  57. Millet, F.; Auvergne, R.; Caillol, S.; David, G.; Manseri, A.; Pébère, N. Improvement of corrosion protection of steel by incorporation of a new phosphonated fatty acid in a phosphorus-containing polymer coating obtained by UV curing. Prog. Org. Coat. 2014, 77, 285–291. [Google Scholar] [CrossRef] [Green Version]
  58. Siu, J.C.; Parry, J.B.; Lin, S. Aminoxyl-Catalyzed Electrochemical Diazidation of Alkenes Mediated by a Metastable Charge-Transfer Complex. J. Am. Chem. Soc. 2019, 141, 2825–2831. [Google Scholar] [CrossRef]
Molecules 27 01778 sch001 550

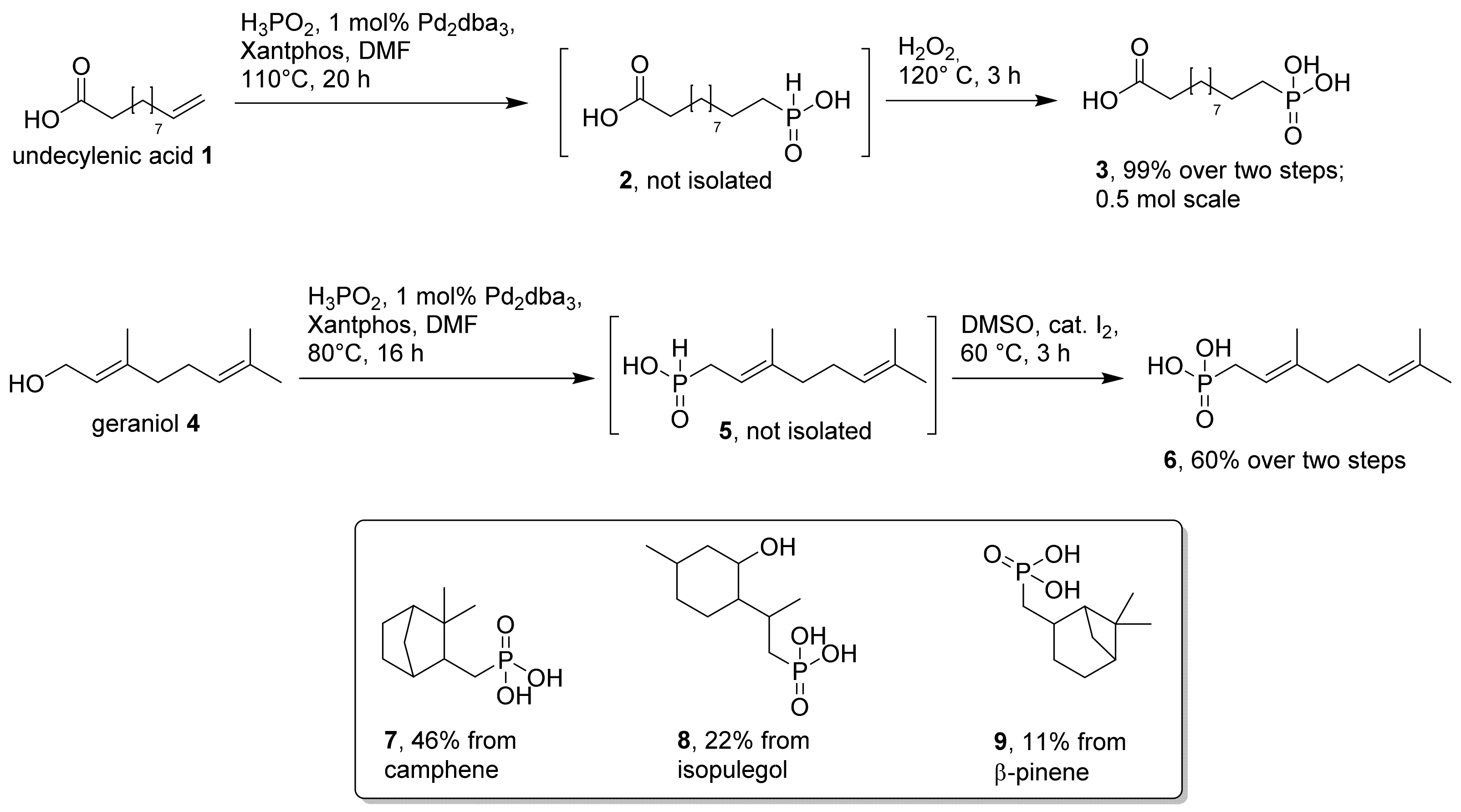

Scheme 1. Reaction conditions for the two-step conversion of alkenes and allylic alcohols to the corresponding phosphonic acids.
Scheme 1. Reaction conditions for the two-step conversion of alkenes and allylic alcohols to the corresponding phosphonic acids.
Molecules 27 01778 sch001
Molecules 27 01778 sch002 550

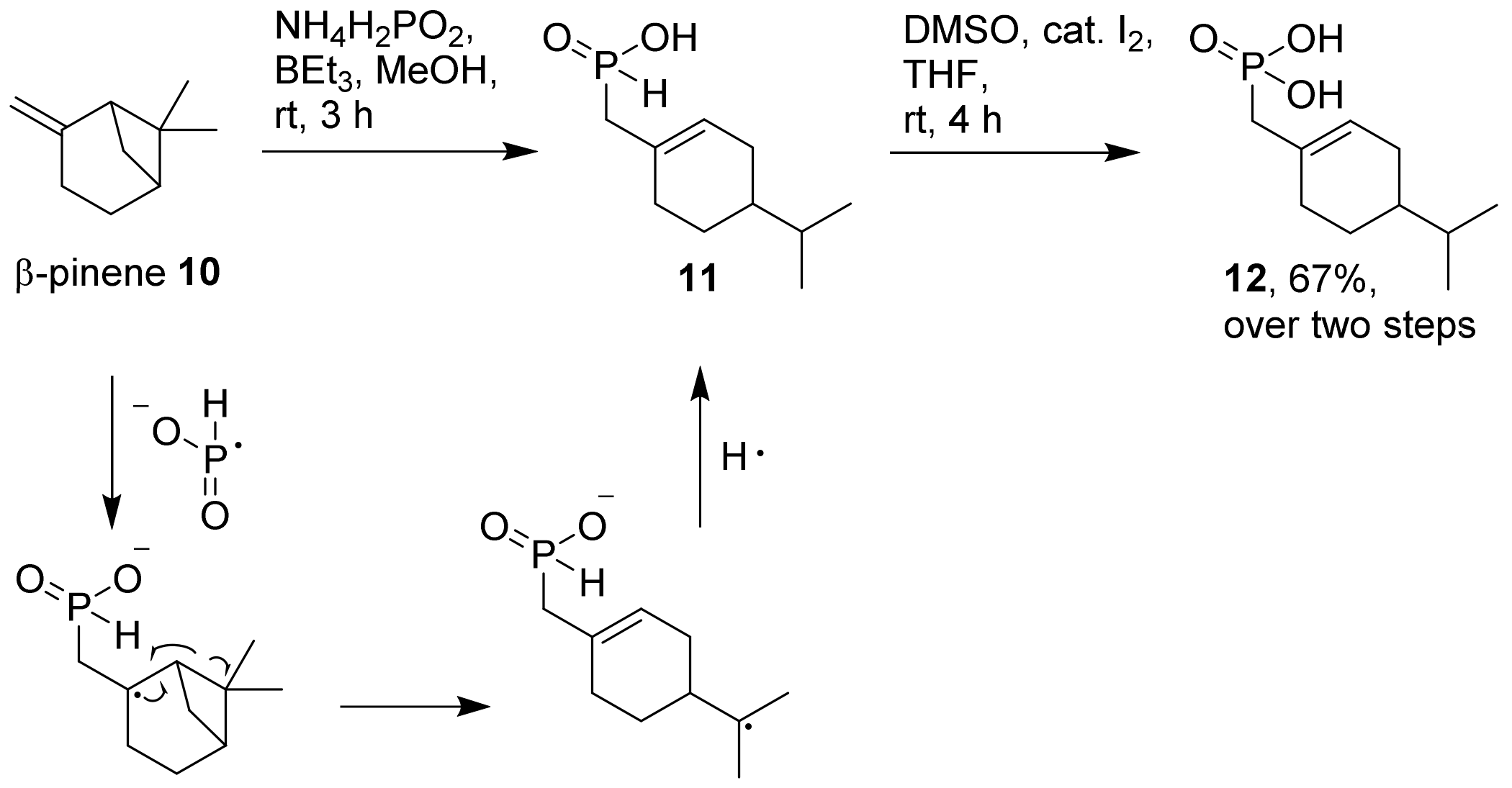

Scheme 2. Radical hydrophosphinylation of β-pinene (10) to corresponding phosphonic acid (12).
Scheme 2. Radical hydrophosphinylation of β-pinene (10) to corresponding phosphonic acid (12).
Molecules 27 01778 sch002
Molecules 27 01778 sch003 550

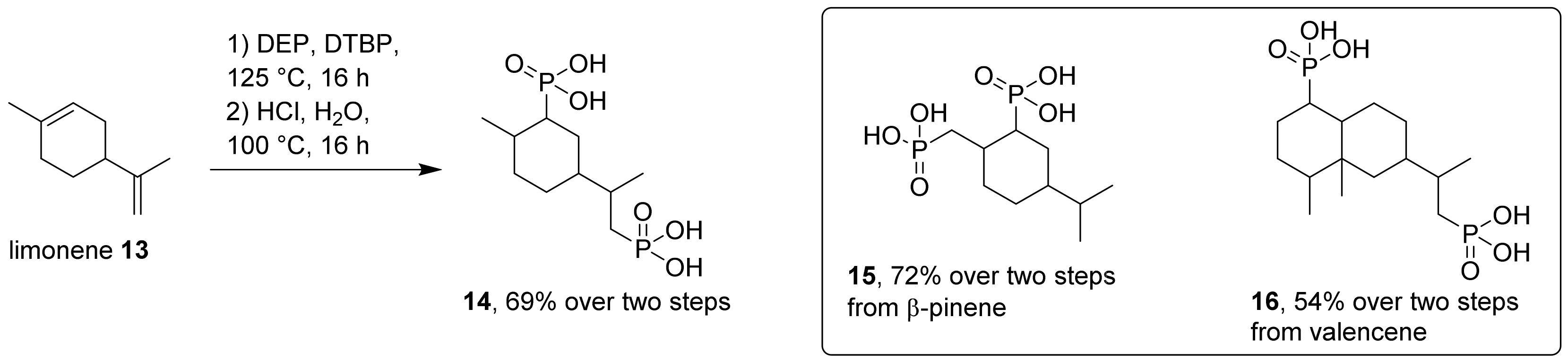

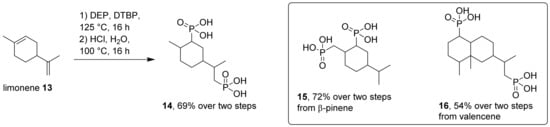

Scheme 3. Synthesis of diphosphonic acids (14–16) from limonene, valencene and β-pinene. DEP: Diethylphosphite, DTBP: Di-tert-butyl peroxide.
Scheme 3. Synthesis of diphosphonic acids (14–16) from limonene, valencene and β-pinene. DEP: Diethylphosphite, DTBP: Di-tert-butyl peroxide.
Molecules 27 01778 sch003
Molecules 27 01778 sch004 550

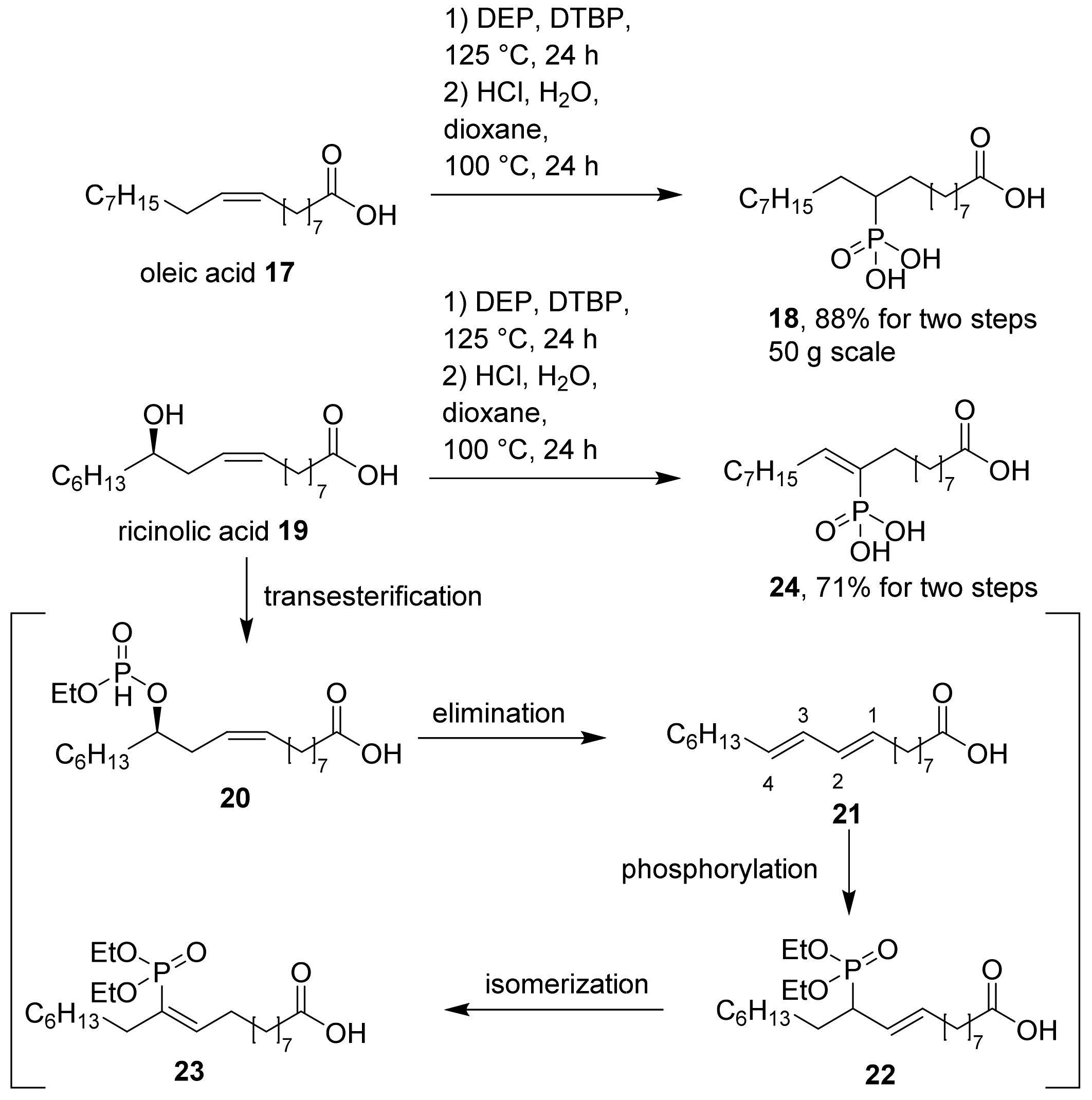

Scheme 4. Synthesis of phosphonic acids from oleic acid (17) and ricinolic acid (19), and a proposed pathway for the formation of phosphonic acid (18) (only one of two regioisomers shown) and 24 (only one of eight regio- and stereoisomers shown). DEP: Diethylphosphite, DTBP: Di-tert-butyl peroxide.
Scheme 4. Synthesis of phosphonic acids from oleic acid (17) and ricinolic acid (19), and a proposed pathway for the formation of phosphonic acid (18) (only one of two regioisomers shown) and 24 (only one of eight regio- and stereoisomers shown). DEP: Diethylphosphite, DTBP: Di-tert-butyl peroxide.
Molecules 27 01778 sch004
Molecules 27 01778 sch005 550

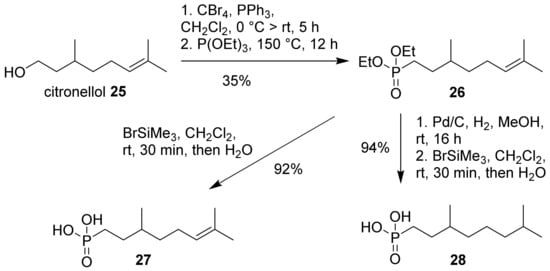

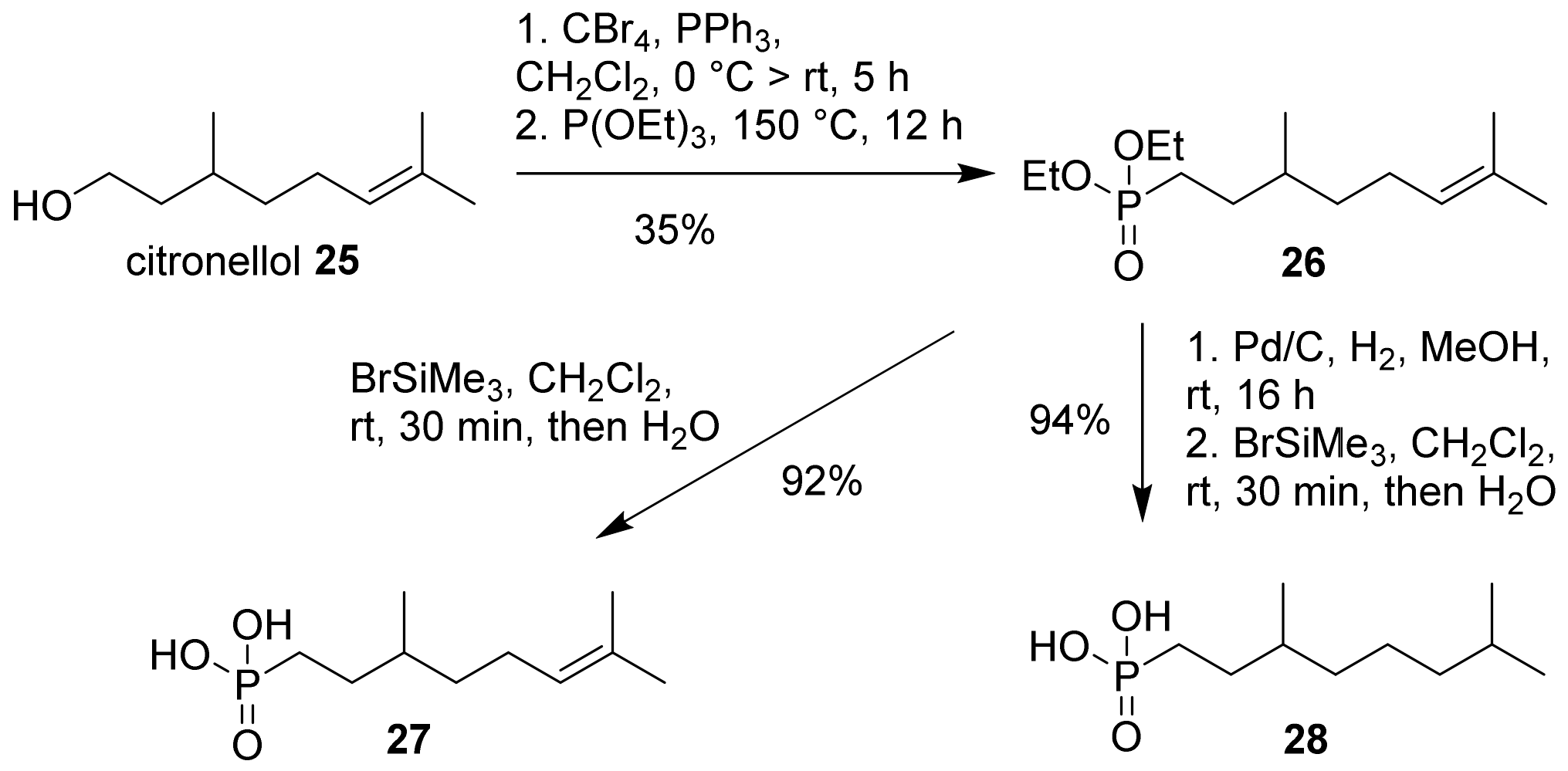

Scheme 5. Synthesis of citronellol-derived phosphonic acids (27 and 28) via Michaelis–Arbuzov reaction.
Scheme 5. Synthesis of citronellol-derived phosphonic acids (27 and 28) via Michaelis–Arbuzov reaction.
Molecules 27 01778 sch005
Molecules 27 01778 g001 550

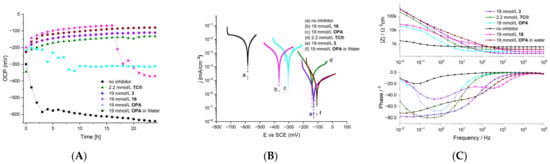

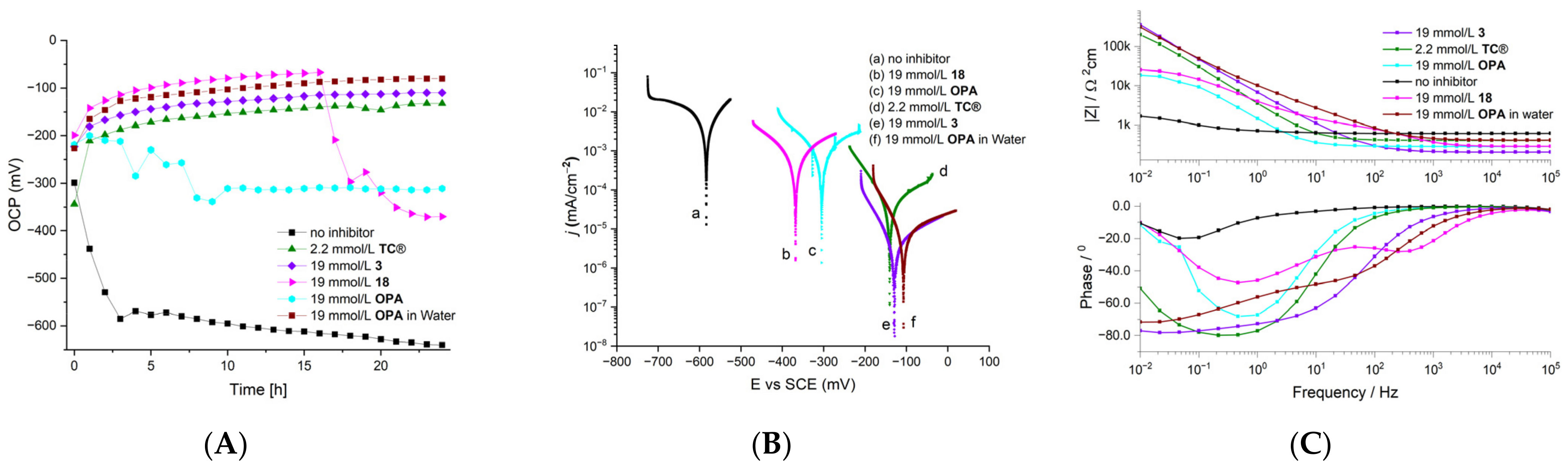

Figure 1. Electrochemical measurements of steel (SJR235) in hard water (20 dGH, pH 8.3 ± 0.5) and demineralized water (only for OPA, pH 8.5 adjusted with 3 eq TEA) with different corrosion inhibitors (neutralized with TEA). (A) Development of open circuit potential (OCP) with immersion time; (B) potentiodynamic polarization curves after 24 h immersion; (C) Bode plots of electrochemical impedance measurements.
Figure 1. Electrochemical measurements of steel (SJR235) in hard water (20 dGH, pH 8.3 ± 0.5) and demineralized water (only for OPA, pH 8.5 adjusted with 3 eq TEA) with different corrosion inhibitors (neutralized with TEA). (A) Development of open circuit potential (OCP) with immersion time; (B) potentiodynamic polarization curves after 24 h immersion; (C) Bode plots of electrochemical impedance measurements.
Molecules 27 01778 g001
Molecules 27 01778 g002 550

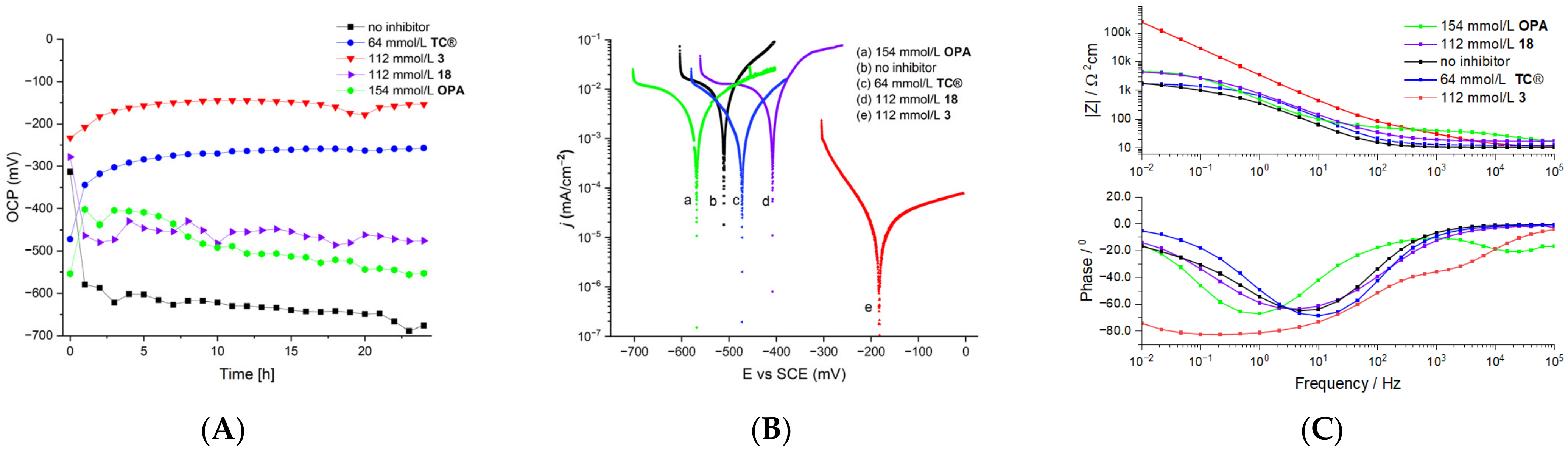

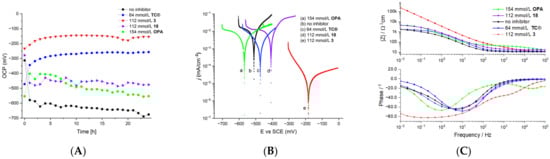

Figure 2. Electrochemical measurements of steel (SJR235) in aqueous 3.0% NaCl (pH 8.3 ± 0.5) with different corrosion inhibitors (neutralized with TEA). (A) Development of open circuit potential (OCP) with immersion time; (B) potentiodynamic polarization curves after 24 h immersion; (C) Bode plots of electrochemical impedance measurements.
Figure 2. Electrochemical measurements of steel (SJR235) in aqueous 3.0% NaCl (pH 8.3 ± 0.5) with different corrosion inhibitors (neutralized with TEA). (A) Development of open circuit potential (OCP) with immersion time; (B) potentiodynamic polarization curves after 24 h immersion; (C) Bode plots of electrochemical impedance measurements.
Molecules 27 01778 g002
Molecules 27 01778 g003 550

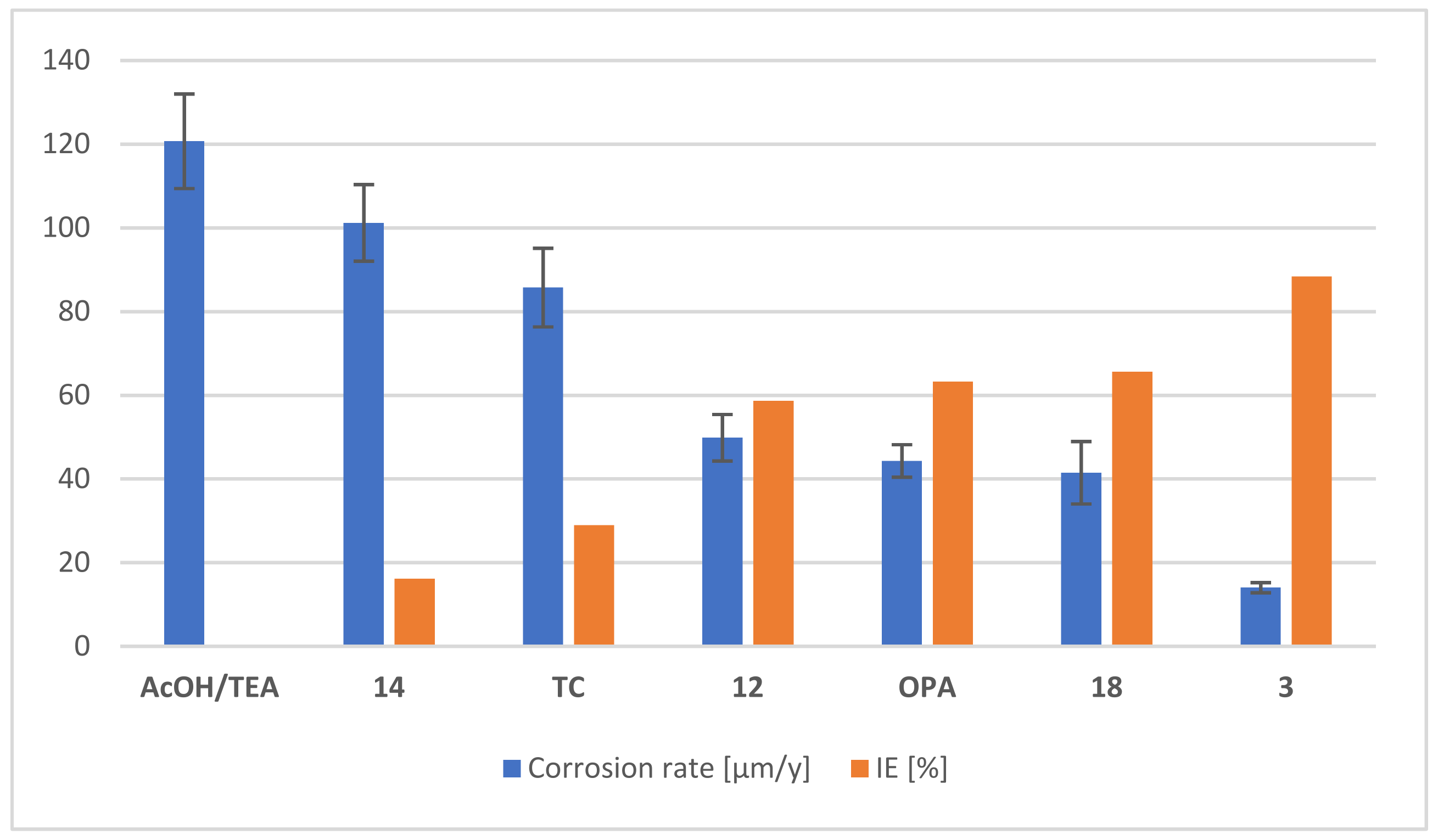

Figure 3. Results of the gravimetric tests on S235JR. Rectangular steel slides (30 × 10 × 3 mm) were immersed in test solutions containing 3 wt% of the acidic corrosion inhibitor for 12 weeks at rt. 1.5 eq TEA for each acidic proton in acidic corrosion inhibitors were added as alkaline additive. Medium: aqueous 2% NaCl solution (pH 8.3 ± 0.5). IE was calculated for each corrosion inhibitor in relation to the non-inhibited experiment (AcOH/TEA buffer).
Figure 3. Results of the gravimetric tests on S235JR. Rectangular steel slides (30 × 10 × 3 mm) were immersed in test solutions containing 3 wt% of the acidic corrosion inhibitor for 12 weeks at rt. 1.5 eq TEA for each acidic proton in acidic corrosion inhibitors were added as alkaline additive. Medium: aqueous 2% NaCl solution (pH 8.3 ± 0.5). IE was calculated for each corrosion inhibitor in relation to the non-inhibited experiment (AcOH/TEA buffer).
Molecules 27 01778 g003
Table
Table 1. Results of the potentiodynamic polarization measurements of S235JR steel after 24 h exposure to a hard water solution (20 dGH) at room temperature (pH 8.3 ± 0.5).
Table 1. Results of the potentiodynamic polarization measurements of S235JR steel after 24 h exposure to a hard water solution (20 dGH) at room temperature (pH 8.3 ± 0.5).
EntryAcid, c (mmol/L)jcorr (nA/cm2)IEIcorr (%)Ecorr (mV)βa (mV/dec)βc (mV/dec)CR (mm/y)
1−[a]37.5 × 103−−5845441540436 × 10−3
2TC [b], 64.411.499.97−15317465.3132 × 10−6
3TC [b], 2.256.299.85−14118476.9653 × 10−6
43 [b], 1125.7999.98−14921162.767.3 × 10−6
53 [b], 3.823.699.94−18980.049.2274 × 10−6
63 [b], 18.85.4699.99−13020264.663.5 × 10−6
718 [b], 18.81.79 × 10395.23−36840224420.8 × 10−3
8OPA [c], 18.81.40 × 10396.27−30592.011016.2 × 10−3
9OPA [d], 18.810.799.97−10729762.2125 × 10−6
[a] pH was adjusted with 1 M NaOH; [b] pH was adjusted with addition of 4.5 molar equivalents TEA; [c] pH was adjusted with addition of 3 molar equivalents TEA; [d] measurement in demineralized water, pH was adjusted with addition of 3 molar equivalents TEA.
Table
Table 2. Results of the potentiodynamic polarization measurements of S235JR steel after 24 h exposure against different aqueous NaCl solutions (3.0%, 0.5%; 0.1%) under mild alkaline conditions (pH 8.3 ± 0.5) at room temperature.
Table 2. Results of the potentiodynamic polarization measurements of S235JR steel after 24 h exposure against different aqueous NaCl solutions (3.0%, 0.5%; 0.1%) under mild alkaline conditions (pH 8.3 ± 0.5) at room temperature.
EntryAcid, c (mmol/L)jcorr (nA/cm2)IEIcorr (%)Ecorr (mV)βa (mV/dec)βc (mV/dec)CR (mm/y)
3.0% NaCl
1−[a]26.9 × 103-−5111361.44 × 106313 × 10−3
2TC [b], 6418.2 × 10332.34−47298.2986 × 103209 × 10−3
3OPA [c], 15463.5 × 103−[d]−5699152.57 × 103738 × 10−3
43 [b], 6468.8 99.74−19035687.2800 × 10−6
518 [b], 1122.31 × 10314.13−40888.412326.9 × 10−3
0.5% NaCl
618 [b], 4037.599.86−24031970.9436 × 10−6
73 [b], 2011.499.96−19030236.7134 × 10−6
8TC [b], 642.26 × 10391.60−25844994.526.2 × 10−3
0.1% NaCl
9TC [b], 6412999.52−17038278.4152 × 10−5
[a] pH was adjusted with 1 M NaOH; [b] pH was adjusted with addition of 4.5 molar equivalents TEA; [c] pH was adjusted with addition of 3 molar equivalents TEA; [d] corrosive effect compared to reference experiment without inhibitor.
Publisher’s Note: MDPI stays neutral with regard to jurisdictional claims in published maps and institutional affiliations.

Share and Cite

MDPI and ACS Style

Ruf, E.; Naundorf, T.; Seddig, T.; Kipphardt, H.; Maison, W. Natural Product-Derived Phosphonic Acids as Corrosion Inhibitors for Iron and Steel. Molecules 2022, 27, 1778. https://doi.org/10.3390/molecules27061778

AMA Style

Ruf E, Naundorf T, Seddig T, Kipphardt H, Maison W. Natural Product-Derived Phosphonic Acids as Corrosion Inhibitors for Iron and Steel. Molecules. 2022; 27(6):1778. https://doi.org/10.3390/molecules27061778

Chicago/Turabian Style

Ruf, Erik, Tim Naundorf, Tom Seddig, Helmut Kipphardt, and Wolfgang Maison. 2022. "Natural Product-Derived Phosphonic Acids as Corrosion Inhibitors for Iron and Steel" Molecules 27, no. 6: 1778. https://doi.org/10.3390/molecules27061778

Article Metrics

Back to TopTop
