Carbazole and Diketopyrrolopyrrole-Based D-A π-Conjugated Oligomers Accessed via Direct C–H Arylation for Opto-Electronic Property and Performance Study

by
Xiaofeng Zhang
1,†,
Lingwei Feng
2,†,
Kai Zhang
2 and
Shi-Yong Liu
1,*
1
Jiangxi Provincial Key Laboratory of Functional Molecular Materials Chemistry, College of Materials, Metallurgical and Chemistry, Jiangxi University of Science and Technology, Ganzhou 341000, China
2
School of Materials Science and Engineering, South China University of Technology, Guangzhou 510000, China
*
Author to whom correspondence should be addressed.
†
These authors contributed equally to this work.
Molecules 2022, 27(24), 9031; https://doi.org/10.3390/molecules27249031
Submission received: 26 November 2022 / Revised: 14 December 2022 / Accepted: 15 December 2022 / Published: 18 December 2022
(This article belongs to the Special Issue Hybrid MOFs for Catalytic Applications)
Browse Figures
Review Reports Versions Notes

Abstract

:
Five carbazole and diketopyrrolopyrrole-based donor-acceptor (D-A) new π-conjugated oligomers (π-COs) with gradually elongated lengths are facilely synthesized via a single pot of direct C–H arylation with merits of atom- and step-economy. The structure-property-performance correlations of these π-COs and their parent polymer are studied in detail by opto-electronic characterizations and bulk heterojunction (BHJ) organic photovoltaic (OPV) devices. It is found that the π-COs having longer lengths enable better performance in OPVs owing to the enhanced intermolecular interaction with the elongation of the conjugations. The above results not only highlight the powerful synthetic strategy here provided, but also reveal that π-COs with unique properties might find promising application in OPVs.

Graphical Abstract

1. Introduction

Bulk heterojunction (BHJ) organic photovoltaic (OPV) has received considerable attention in recent years due to its outstanding merits of low cost, flexibility, lightweight, and solution processibility etc. The rapid progress of donor & acceptor materials and the optimization of devices has enabled the power conversion efficiency (PCE) of OPV to attain a new stage and thus highlights the great potential of π-functional materials for device applications [1,2,3,4,5,6,7,8,9,10,11,12,13,14,15]. Although OPVs based on π-polymers have been rapidly developed, there are still some inherent shortcomings, such as poor reproducibility and the uncertain molecular weight of polymers. π-conjugated oligomers (π-COs), as bridges between small molecules and polymers, having defined structures, high MWs, high crystallinity and orderly packing characters, are expected to combine the advantages of small molecules and polymers, while overcoming their respective shortcomings [4,16,17,18,19,20,21,22,23,24,25,26,27,28]. Meanwhile, π-COs with gradually increasing chain lengths can help to establish the distinct structure-property-performance correlations and provide guidance for the design of OPV materials [16,17,18,19,20,21,22].
Despite the abovementioned potentials, the synthetic tools for efficient access of π-COs, especially for the long-chain ones, are still very limited. Until now, approaches to π-conjugated materials mainly rely on the Pd-catalyzed C–M/C–X (M = B or Sn, X = Br or I) Suzuki or Stille cross couplings involving the pre-functionalization of precursors with C–M bonds under harsh conditions, such as anhydrous strong bases, and low reaction temperatures [29]. Meanwhile, the poor compatibility of active Cδ−–Mδ+ bonds with the electrophilic groups will be unfavorable to the structural diversity, and thus the controllable and scalable synthesis of π-functional materials. It is known that C–H represent the most widely distributed bond among the organic compounds. The direct transformation of C–H bonds [30,31] to the desired functional groups (i.e., direct functionalization of C–H bonds) is thus considered as the preferential method to shorten synthetic steps, reduce side-products, and improve the atom economy. In recent years, direct C–H arylation (i.e., C–H/C–X couplings) has emerged as one of the most promising alternatives to the classical C–M/C–X (M = B or Sn) cross couplings for the synthesis of π-conjugated materials, owing to its outstanding merits of functional group compatibility, atom economy, and cost-effectiveness [32,33,34,35,36,37,38,39,40].
In this study, a series of carbazole (Cz) and diketopyrrolopyrrole (DPP)-based donor-acceptor (D-A) novel homologous π-COs with gradually increasing repeat units (i.e., DPP-Cz-DPP (O1), DPP-(Cz-DPP)2-DPP (O2), DPP-(Cz-DPP)3-DPP (O3), DPP-(Cz-DPP)4-DPP (O4) and DPP-(Cz-DPP)5-DPP (O5)), accordingly with 3, 5, 7, 9 and 11 monomers, and molecular weights ranging between 1449~5161, were simultaneously produced in a single pot via direct C–H arylation reaction (Scheme 1), and facilely separated by a single chromatographic column (CC), affording acceptable yields. The structure-property-performance correlations of these five π-COs with gradually increasing lengths were systematically studied by opto-electrochemical tests and OPV devices, which provides a guidance for the design of π-COs-based OPV materials.

2. Results and Discussion

2.1. Synthesis and Characterizations

The synthetic routes of the five DPP-Cz-based D-A π-COs and their parent polymer are depicted in Scheme 1. DPP and Cz were chosen, respectively, as electron-accepting and -donating units owing to their outstanding merits of tunable opto-electronic properties and high charge mobility. Carbazole, as one of the most popular electron-rich monomers in the field of organic optoelectronics, has been widely studied due to its special electricity, electrochemical and photophysical properties and thermal stability over the past 20 years. The p-π conjugation of the lone paired electrons on the N atom endows Cz with a distinct electron-donating ability and tunable highest occupied molecular orbital (HOMO) levels, which is beneficial to modulating open circuit voltage (VOC) for OPVs. DPP-Cz-based D-A polymers have been employed as donor materials in OPVs [41,42,43,44]. Typically, the D-A architecture of π-materials will induce intramolecular charge transfer (ICT) and allow light absorption shift to longer wavelengths. Here, five DPP-Cz-based A.A-D-A.A backboned π-COs, i.e., O1, O2, O3, O4, O5 and their parent polymer P1 are designed and synthesized for a structure-property-performance correlation study.
As shown in Scheme 1, five π-COs Os1~5 can be simultaneously produced in a single pot of non-equimolar direct C–H arylation coupling, wherein DPP was used in excess (1.5 eq.) to ensure the formation of π-COs end-capped by C–H bonds. Owing to the excessive amount of DPP (1.5 eq.), the chain growth will be stopped automatically after consuming the C–Br bonds of Cz, and meanwhile produce π-COs chains exclusively terminated by DPP units. This strategy of one pot reaction simultaneously affording five π-COs has distinct advantages with regard to the cost-effectiveness, labor- and energy-saving, and atomic economy. The repeating unit numbers of Os1~5 gradually increase, and progressively consist of 2, 3, 4, 5 and 6 DPP units, and 1, 2, 3, 4 and 5 Cz units, respectively. These π-COs can be smoothly separated by a single CC successively from the short-chain ones to the long-chain ones by gradually tuning the ratio of CH2Cl2/petroleum mixed eluent (Figure S1, see Supplementary Materials, SI). As a result, the isolated yields of O1, O2, O3, O4 and O5 are 21%, 16%, 13%, 12%, and 10% respectively, corresponding to a 72% total conversion of the starting DPP and Cz. In parallel, the parent polymer P1 was obtained via equimolar coupling between DPP and Cz in a yield of 83% based on CHCl3 fraction from Soxhlet extraction. All five π-COs and their parent polymer P1 possess good solubility in common organic solvents, such as CH2Cl2, CHCl3 and toluene, ensuring a solution-processability for device fabrication.
These new π-COs were characterized by NMR, Maldi-Tof MS and elemental analysis. Considering the analogous building blocks of Os1~5 and P1, we paid attention to their 1H NMR spectra of aromatic protons (Figure 1). As shown in Figure 1a, the homologous characters of Os1~5 and P1 can be directly reflected by the analogous chemical shifts in the aromatic region. The signals at 7.29–7.32 and 8.91–8.94 ppm having fixed integrals of 2 for each π-CO and P1are assigned to the protons on the terminal thiophene rings (Hh and Hb). The signals at 8.10–8.17 and 9.07–9.14 ppm are assigned to Hc and Ha on the backbone thiophene rings, both of which exhibit integrals of 2, 4, 6, 8 and 10, corresponding to the linear elongation of the oligomers from O1 to O5. The repeating unit numbers of Os1~5 can also be directly reflected by Ha/Hb integral ratios, i.e., the Ha/Hb ratios for Os1~5 are 1, 2, 3, 4 and 5, respectively, which exactly equal the repeat unit numbers of the π-COs. The Ha/Hb ratio of P1 is 34/1, and the degree of polymerization (DP) of P1 can also be inferred from this correlation. The equimolar polycondensation between DPP and Cz let the polymer chains have equal chance to be end-capped either by Cz or by DPP. Thus, the DP of P1 should be half (17) of the Ha/Hb ratio (34). Taking the end-capped building blocks into account, the average number of repeating units of P1 should be ~18. Thus, the average molecular weight (MW) of P1 estimated from 1H NMR integration should be 18 × 927 = 16,686, where 927 is the MW per repeat unit. The MWs of Os1~5 detected by Maldi-Tof MS are 1449.904, 2376.625, 3302.268, 4231.378 and 5161.625, which match well with the calculated values. The MWs of Os1~5 exhibit an interval value of 927 that equals the MW per repeat unit (Figure 1b), reinforcing the stepwise elongation from the shortest O1 to the longest O5.
The number average molecular weight (Mn) and polydispersity index (PDI) of Os1~5 and P1 were estimated by gel permeation chromatography (GPC) using polystyrene (PE) as standard and THF as eluent. The Mns are 2150, 3123, 4384, 5257, 6357 and 65,082, corresponding to PDIs of 1.05, 1.07, 1.07, 1.06, 1.07 and 1.60 for Os1~5 and P1, respectively. All π-COs exhibit PDI values around 1 with near mono-disperse distribution of Mn (Figures S2 and S3 and Table S1, SI). The GPC Mns of π-COs exhibit overestimation compared to those from Maldi-tof MS, mainly owing to the rigid π-CO chains compared to the random-coil PE standard.

2.2. Opto-Electrochemical Property Study

Typically, the opto-electronic properties of π-conjugate materials can be finely tuned via introducing D-A architecture to modulate the electron push-pull effect. Here, the DPP-Cz-based D-A π-COs (Scheme 1) with gradually elongated conjugations will be ideal models for a structure-property-performance correlation study. The opto-electrochemical properties of Os1~5 and P1 were investigated by UV-vis absorption and photoluminescence (PL) spectroscopies and a cyclic voltammetry (CV) test (Figure 2 and Table 1). As shown in Figure 2a,b, these five π-COs with A.A-D-A.A backbones exhibit broad light absorption ranging from 450 to 800 nm both in diluted chloroform (CF) solutions and solid state films. The structural evolution from O1 to O5 and P1 leads to gradual red-shifts in light absorption, implying the enhanced intramolecular charge transfer (ICT) with the elongation of π-conjugation. All π-COs and P1 exhibit similar spectral profiles involving two bands at 320–500 and 500–700 nm, which are due to the localized π-π* transition and intermolecular charge transfer associated with interchain π-π transition, respectively.
The maximum absorption peaks of Os1~5 and P1 in solutions (λmaxs) are located at 598, 603, 645, 650, 652.5 and 658 nm, respectively. The red-shifts of Os2~5 and P1 compared to O1 are 5, 47, 52, 54.5 and 60 nm, respectively, as a result of the increase of π-conjugation length. Corresponding to the gradual red-shifts of light absorption, the colors of Os1~5 and P1 solutions evolved from purple, blue-purple, blue, blue-green to green (Scheme 1). The extinction coefficients (ε) of Os1~5 solutions at λmaxs are 6.3 × 104, 1.2 × 105, 1.9 × 105, 2.8 × 105 and 3.8 × 105 M−1·cm−1 respectively, showing a near linear-correlation with the numbers of the repeating units (i.e., DPP-Cz) involved. The π-COs and P1 have two absorption peaks at 550~590 nm and 605~660 nm, respectively. As shown in Figure 2b and Figure S4 (SI), the relative intensity of the peaks at longer wavelengths compared to the peak at shorter wavelengths increase gradually as the π-COs evolved from O1 to O5 and P1 due to the increased interchain interaction with the elongation of π-conjugations. The light absorption onsets (λonset) of Os1~5 and P1 are 708, 725, 749, 756, 761 and 776 nm, respectively. Accordingly, the optical bandgaps (Egopt) of Os1~5 and P1 calculated from 1240/λonset are 1.75, 1.71, 1.66, 1.64, 1.63 and 1.60 eV, respectively.
The thin film of Os1~5 and P1 show a broadened absorption region with the λmaxf at 575, 614, 644, 638, 704.5 and 696 nm, respectively. Compared to solutions, the light absorption of thin films (λmaxf) of the π-COs and P1 exhibit a distinct broadened shift and peaks at the ICT band (Figure 2b), indicating the strong intermolecular π-π stacking in the solid-state films. Owing to the aggregated solid state, the thin films of π-COs and P1 have two more pronounced vibration peaks with a broader spectrum compared to their corresponding solutions. The PL spectroscopy test (Figure 2c) was employed to reveal the reorganization energy between the ground and excited-state transition. The CF solutions of Os1~5 excited by 500, 520, 546, 547, and 548 nm gave emission peaks (λem) at 646, 688, 692, 698 and 702 nm, respectively. The Stokes shifts (SS) of Os1~5 are 43, 43, 42, 43, and 44 nm, respectively.
The frontier molecular orbital (FMO) levels were evaluated by CV test. The highest occupied molecular orbital (HOMO) levels of π-COs and P1 can be estimated from CV curves (Figure S5, SI). The corresponding lowest unoccupied molecular orbital (LUMO) levels were calculated from ELUMO = EHOMO + Egopt. The HOMO/LUMO levels of Os1~5 and P1 are estimated to be −5.47/−3.99, −5.41/−3.70, −5.39/−3.73, −5.37/−3.74, −5.35/−3.72 and −5.32/−3.71 eV, respectively (Figure 2d). The HOMO levels display an up-shift trend from O1 to O5, owing to the increasing ratios of electronic-donating Cz with the increase of π-conjugation lengths, i.e., the DPP/Cz ratios for O1, O2, O3, O4 and O5 are 2/1, 3/2, 4/3, 5/4 and 6/5 (Scheme 1), respectively, which also accounts for the deepest LUMO level of O1.

2.3. BHJ OPV Performance Study

The OPV performances of the π-COs and P1 were studied by a device architecture of glass/ITO/PEDOT:PSS/BHJ layer/PFN-Br/Ag, wherein the BHJ layers consist of π-COs (or P1) and PC70BM as donor and acceptor, respectively. All BHJ layers were fabricated by spin-coating with π-COs/PC70BM mixed solution on unheated substrates. The current density-voltage (J–V) curves and the photovoltaic parameters of the BHJ devices are depicted in Figure 3 and Table 2. The power conversion efficiencies (PCE) π-COs increases with the increase of π-conjugation length, and the PCE of O5 is the closest to that of P1. Despite the fact that π-COs and P1 have low PCEs, the JSC of O4 and O5 are very close to that of P1, which can be attributed to O4 and O5, which are close to the effective conjugation length. In addition, the fill factor (FF) of Os1~5 increases with the increase of chain length. The FF of O5 even exceeds that of P1. Although the π-COs decreases in VOCs with the increase of chain length, however, all π-COs exhibit higher VOCs compared to P1 (0.75 V), which can be attributed to a deeper HOMO level of the π-COs (Figure 2d) that have larger offsets with the LUMO of PC70BM.

3. Materials and Methods

3.1. Measurements and Reagents

Unless otherwise specified, all of the conventional chemicals were purchased from Energy Chemical. Cz and DPP were purchased from SunaTech Inc., Soochow. The anhydrous toluene was obtained by distillation after calcium hydride treatment. The 1H and 13C NMR spectra were obtained from the samples dissolved in CDCl3 using a Bruker 400 spectrometer (1H NMR 400 MHz and 13C NMR 101 MHz). MALDI-TOF MS were performed on a Bruker Auto flex II using 2,5-dihydroxybenzoicacid or α-cyano-4-hydroxycinnamicacid as the matrixes. Elemental analyses were conducted on a Flash EA 1112 elemental analyzer. The Mn, Mw and PDI of all oligomers and polymers were measured with the GPC (Viscotek TDA302 triple detector) using THF as the eluent. The UV-vis absorption spectra were measured by a Shimadzu UV-2450 spectrophotometer. Cyclic voltammetry (CV) was done on a CHI 661C electrochemical workstation with a Pt disk, Pt plate, and standard 10 calomel electrode (SCE) as the working electrode, counter electrode, and reference electrode, respectively, in a 0.1 mol L−1 tetrabutylammonium hexafluorophosphate (Bu4NPF6) CH2Cl2 solution.

3.2. Synthesis of Os1~5

DPP (209.60 mg, 0.399 mmol, 1.5 equiv), Cz (150 mg, 0.266 mmol, 1 equal), PivOH (8.15 mg, 30% mol), anhydrous Cs2CO3 (173.50 mg, 0.533 mmol), Pd2(dba)3 (3.70 mg, 1.5 mol%), and tris(o-methoxyphenyl) phosphine (2.90 mg, 3 mol%) were added into a Schlenk tube. The mixture in the Schlenk tube was evacuated and argon-filled three times. Next, 5 mL toluene was added into the tube via a syringe and the air in the Schlenk tube was removed by freeze-vacuum-thaw cycles three times. The argon-filled tube was then placed in an oil pot at 100 °C for 24 h. Removal of the toluene by rotary evaporator afforded the crude product, which was purified by CC on silica gel using a mixture of CH2Cl2 and hexane as an eluent (The volume ratio CH2Cl2/hexane gradually increased from 0.8 to 3) and successively gave Os1~5, O1 (58 mg, yield 21%), O2 (42 mg, yield 16%), O3 (35 mg, yield 13%), O4 (32 mg, yield 12%), O5 (26 mg, yield, 10%).
O1 (DPP-Cz-DPP): 1H NMR (400 MHz, CDCl3) δ 9.11 (dd, J = 16.9, 3.6 Hz), 8.93–8.88 (m), 8.16–8.07 (m), 7.86 (s), 7.70–7.54 (m), 7.30–7.27 (m), 4.64 (s), 4.18–4.02 (m), 2.48–2.25 (m), 2.08–1.86 (m), 1.31 (ddd, J = 67.7, 37.5, 27.1 Hz), 0.99–0.85 (m), 0.78 (t, J = 6.9 Hz).
MALDI-TOF MS (m/z): [M]+ calcd. For C89H119N5O4S4, 1451.188, found 1449.904.
Elemental analysis: calcd for: C89H119N5O4S4, C, 73.66; H, 8.27; N, 4.83%. Found: C, 73.54; H, 8.22; N, 4.79%.
O2 (DPP-(Cz-DPP)2): 1H NMR (400 MHz, CDCl3) δ 9.11 (s), 8.91 (dd, J = 3.8, 1.0 Hz), 8.13 (dd, J = 11.7, 8.4 Hz), 7.87 (s), 7.71–7.54 (m), 7.28 (dd, J = 5.0, 4.0 Hz), 4.7 –4.58 (m), 4.13 (dd, J = 23.3, 15.6 Hz), 2.35 (dd, J = 9.5, 4.5 Hz), 2.01 (dd, J = 8.9, 4.1 Hz), 1.44–1.10 (m), 1.00–0.85 (m), 0.79 (t, J = 6.9 Hz).
MALDI-TOF MS (m/z): [M]+ calcd. For C148H198N8O6S6, 2377.596, found 2376.625.
Elemental analysis: calcd for: C148H198N8O6S6 C, 74.76; H, 8.39; N, 4.71%. Found: C, 74.68; H, 8.32; N, 4.75%.
O3 (DPP-(Cz-DPP)3): 1H NMR (400 MHz, CDCl3) δ 9.09 (d, J = 14.8 Hz), 8.90 (d, J = 3.3 Hz), 8.12 (s), 7.87 (s), 7.63 (dd, J = 21.8, 16.8 Hz), 4.65 (s), 4.11 (d, J = 37.9 Hz), 2.36 (d, J = 7.4 Hz), 2.05 (s), 1.43–1.15 (m), 0.99–0.86 (m), 0.79 (t, J = 6.5 Hz).
MALDI-TOF MS (m/z): [M]+ calcd. For C207H277N11O8S8, 3304.003, found 3302.268.
Elemental analysis: calcd for: C207H277N11O8S8, 75.25; H, 8.45; N, 4.4.66%. Found: C, 75.28; H, 8.42; N, 4.69%.
O4 (DPP-(Cz-DPP)4): 1H NMR (400 MHz, CDCl3) δ 9.11 (d, J = 16.8 Hz, 8H), 8.94 (d, J = 3.1 Hz, 2H), 8.19–8.09 (m, 8H), 7.90 (s, 4H), 7.7–7.56 (m, 22H), 7.33–7.29 (m, 2H), 4.68 (s, 4H), 4.14 (d, J = 39.6 Hz, 20H), 2.39 (s, 8H), 1.99 (d, J = 55.5 Hz, 18H), 1.48–1.15 (m, 176H), 1.03–0.89 (m, 60H), 0.84–0.78 (m, 24H).
MALDI-TOF MS (m/z): [M]+ calcd. For C266H356N14O10S10, 4230.411, found 4231.378.
Elemental analysis: calcd for: C266H356N14O10S10, 75.52; H, 8.48; N, 4.64%. Found: C, 75.48; H, 8.45; N, 4.69%.
O5 (DPP-(Cz-DPP)5):1H NMR (400 MHz, CDCl3) δ 9.13 (d, J = 16.1 Hz, 10H), 8.94 (d, J = 3.1 Hz, 2H), 8.13 (d, J = 8.4 Hz, 10H), 7.90 (s, 5H), 7.72–7.59 (m, 27H), 7.32–7.29 (m, 2H), 4.67 (s, 5H), 4.14 (d, J = 39.0 Hz, 24H), 2.39 (s, 10H), 2.06 (s, 24H), 1.45–1.16 (m, 216H), 1.04–0.91 (m, 72H), 0.82 (dd, J = 6.7, 4.4 Hz, 30H).MALDI-TOF MS (m/z): [M]+ calcd. For C325H435N17O12S12, 5156.818, found 5156.625.
Elemental analysis: calcd for: C325H435N17O12S12, 75.70; H, 8.50; N, 4.62%. Found: C, 75.68; H, 8.47; N, 4.64%.

3.3. Synthesis of P1 ((Cz-DPP)n)

DPP (139.71 mg, 1 equiv) and Cz (150 mg, 1 equal) were used as reactants. Other additives are the same as the synthesis of π-COs. After polymerization for 48 h, the crude product was purified by precipitation in methanol, filtered, and washed on Soxhlet with methanol acetone, hexanes, and chloroform successively. The chloroform fraction was condensed under reduced pressure, and obtained the polymer P1: (238 mg, yield 83%).
1H NMR (400 MHz, CDCl3) δ 9.13 (d, J = 14.4 Hz, 2H), 8.93 (s, 1H), 4.66 (s, 1H), 4.11 (d, J = 69.4 Hz, 4H).

3.4. BHJ Device Fabrication

The conventional glass/ITO/PEDOT:PSS/BHJ layer/PFN-Br/Ag structure was employed to fabricate the OPV devices. The indium tin oxide (ITO) substrates were cleaned sequentially with deionized water and isopropyl alcohol by ultrasonication, and then dried in an oven at 60 °C overnight. The dried ITO substrates were treated with oxygen plasma for 5 min and then coated with PEDOT:PSS at 3000 rpm for 60 s. The film was annealed on a hot dish at 150 °C in air for 15 min to obtain a thickness of about 40 nm. The substrates were then transferred to a N2-protected glove box. The active layer was obtained by spin-coating a chlorobenzene solution containing D: A (1:1) and 0.5% (v/v) 8-diiodooctane (DIO) additive at a total concentration of 20 mg mL−1. The optimum film thickness of about 100 nm was obtained by controlling the rotation speed of about 2500 rpm. The substrate coated with the active layer was then placed on a hot plate and thermally annealed for 10 min. Subsequently, about 6 nm of PFN-Br was spin-coated onto the active layer as a cathode interfacial layer. Finally, 100 nm of silver was thermally deposited on top of the interface by a mask in a vacuum chamber at 1 × 10−7 Torr pressure. The effective area of the device is 0.04 cm2.

4. Conclusions

A series of DPP-Cz based π-COs Os1~5 with gradually increasing π-conjugation lengths were designed and facilely synthesized via a one-pot direct C–H arylation for opto-electronic property and OPV performance study. All π-COs involve the same building blocks (i.e., DPP and Cz), but have different conjugation lengths. The Os1~5 and their parent polymer P1 were employed as donor materials to pair with PC71BM for BHJ OPV device study. The results obtained here demonstrate that D-A backboned π-COs with progressively increased conjugation chain lengths via one pot C-H/C-Br coupling is a promising way to design and synthesize π-COs for BHJ OPV device applications and expand the horizons of π-functional materials.

Supplementary Materials

The supplementary materials are available online https://www.mdpi.com/1420-3049/27/24/9031/s1. Figure S1: TLC analysis of the direct arylated coupling between DPP and Cz in molar ratio of 1.5/1 using CH2Cl2: hexane (1.5:1 and 2:1 respectively, v/v) as eluent; Figure S2: GPC profiles of oligomers Os1~5; Figure S3: GPC profile of P1 and the corresponding list of the obtained data; Table S1 Retention time in GPC, and GPC/Maldi-Tof/NMR molecular weights for O1~5; Figure S4: Partial enlargement of the absorption peaks of Uv-vis spectra of Os1~5 and P1; Figure S5: CV curves of oligomers Os1~5 and polymer P1; Figures S6–S11: 1H NMR spectra of Os1~5 and P1 in CDCl3; Figures S12-S16 MALDI-TOF MS of Os1~5 and P1.

Author Contributions

Conceptualization, S.-Y.L.; methodology, X.Z. and L.F.; synthesis, X.Z.; device test, L.F.; data curation, X.Z.; writing—review and editing, S.-Y.L.; supervision, S.-Y.L. and K.Z.; project administration, S.-Y.L. and K.Z.; funding acquisition, S.-Y.L. All authors have read and agreed to the published version of the manuscript.

Funding

This research was funded by the National Natural Science Foundation of China (nos 21374075 and 22169009), and the Jiangxi Provincial Natural Science Foundation (no. 20212ACB204007).

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Data Availability Statement

Not applicable.

Conflicts of Interest

The authors declare that they have no conflict of interest.

Sample Availability

Samples of the compounds Os1~5 and P1 are available from the authors.

References

  1. Li, Y. Molecular design of photovoltaic materials for polymer solar cells: Toward suitable electronic energy levels and broad absorption. Acc. Chem. Res. 2012, 45, 723–733. [Google Scholar] [CrossRef] [PubMed]
  2. Wadsworth, A.; Hamid, Z.; Kosco, J.; Gasparini, N.; McCulloch, I. The bulk heterojunction in organic photovoltaic, photodetector, and photocatalytic applications. Adv. Mater. 2020, 32, 2001763. [Google Scholar] [CrossRef] [PubMed]
  3. Tong, Y.; Xiao, Z.; Du, X.; Zuo, C.; Li, Y.; Lv, M.; Yuan, Y.; Yi, C.; Hao, F.; Hua, Y.; et al. Progress of the key materials for organic solar cells. Sci. China Chem. 2020, 63, 758–765. [Google Scholar] [CrossRef]
  4. Lin, Y.; Zhan, X. Oligomer molecules for efficient organic photovoltaics. Acc. Chem. Res. 2016, 49, 175–183. [Google Scholar] [CrossRef]
  5. Hou, J.; Inganäs, O.; Friend, R.H.; Gao, F. Organic Solar Cells Based on Non-Fullerene Acceptors. Nat. Mater. 2018, 17, 119–128. [Google Scholar] [CrossRef] [PubMed]
  6. Lin, Y.; Wang, J.; Zhang, Z.-G.; Bai, H.; Li, Y.; Zhu, D.; Zhan, X. An Electron Acceptor Challenging Fullerenes for Efficient Polymer Solar Cells. Adv. Mater. 2015, 27, 1170–1174. [Google Scholar] [CrossRef] [PubMed]
  7. Yuan, J.; Zhang, Y.; Zhou, L.; Zhang, G.; Yip, H.-L.; Lau, T.-K.; Lu, X.; Zhu, C.; Peng, H.; Johnson, P.A.; et al. Single-Junction Organic Solar Cell with over 15% Efficiency Using Fused-Ring Acceptor with Electron-Deficient Core. Joule 2019, 3, 1140–1151. [Google Scholar] [CrossRef]
  8. Squeo, B.M.; Ganzer, L.; Virgili, T.; Pasini, M. BODIPY-Based Molecules, a Platform for Photonic and Solar Cells. Molecules 2021, 26, 153. [Google Scholar] [CrossRef]
  9. Xie, L.; Tang, W.; Liu, Z.; Tang, W.; Yuan, Z.; Qin, Y.; Yan, L.; Zhu, X.; Zhu, W.; Wang, X. Effects of Side-Chain Engineering with the S Atom in Thieno[3,2-b]thiophene-porphyrin to Obtain Small-Molecule Donor Materials for Organic Solar Cells. Molecules 2021, 26, 6134. [Google Scholar] [CrossRef]
  10. Zou, X.; Wen, G.; Hu, R.; Dong, G.; Zhang, C.; Zhang, W.; Huang, H.; Dang, W. An Insight into the Excitation States of Small Molecular Semiconductor Y6. Molecules 2020, 25, 4118. [Google Scholar] [CrossRef]
  11. Ma, R.; Yan, C.; Fong, P.W.K.; Yu, J.; Liu, H.; Yin, J.; Huang, J.; Lu, X.; Yan, H.; Li, G. In situ and ex situ investigations on ternary strategy and co-solvent effects towards high-efficiency organic solar cells. Energy Environ. Sci. 2022, 15, 2479–2488. [Google Scholar] [CrossRef]
  12. Ma, R.; Yan, C.; Yu, J.; Liu, T.; Liu, H.; Li, Y.; Chen, J.; Luo, Z.; Tang, B.; Lu, X.; et al. High-Efficiency Ternary Organic Solar Cells with a Good Figure-of-Merit Enabled by Two Low-Cost Donor Polymers. ACS Energy Lett. 2022, 7, 2547–2556. [Google Scholar] [CrossRef]
  13. Ma, R.; Zhou, K.; Sun, Y.; Liu, T.; Kan, Y.; Xiao, Y.; Peña, T.A.D.; Li, Y.; Zou, X.; Xing, Z.; et al. Achieving high efficiency and well-kept ductility in ternary all-polymer organic photovoltaic blends thanks to two well miscible donors. Matter 2022, 5, 725–734. [Google Scholar] [CrossRef]
  14. Yao, S.; Yang, T.; Shen, X.; Li, T.; Huang, B.; Liu, H.; Lu, X.; Liu, T.; Zou, B. Realizing the efficiency-stability balance for all-polymer photovoltaic blends. J. Mater. Chem. C 2022, 10, 9723–9729. [Google Scholar] [CrossRef]
  15. Yao, S.; Huang, C.; Wang, Q.; Yang, T.; Shi, S.; Liu, Y.; Zhao, C.; Zhang, Z.; Shen, X.; Li, T.; et al. Tuning the Crystallinity and Phase Separation by Two-Step Annealing Enables Block Copolymer-Based Organic Solar Cells with 15% Efficiency. Solar RRL 2022, 6, 2200617. [Google Scholar] [CrossRef]
  16. Kan, B.; Li, M.; Zhang, Q.; Liu, F.; Wan, X.; Wang, Y.; Ni, W.; Long, G.; Yang, X.; Feng, H.; et al. A series of simple oligomer-like small molecules based on oligothiophenes for solution-processed solar cells with high efficiency. J. Am. Chem. Soc. 2015, 137, 3886–3893. [Google Scholar] [CrossRef] [PubMed]
  17. Wang, J.L.; Liu, K.K.; Yan, J.; Wu, Z.; Liu, F.; Xiao, F.; Chang, Z.F.; Wu, H.B.; Gao, Y.; Russell, T.P. Series of multifluorine substituted oligomers for organic solar cells with efficiency over 9% and fill factor of 0.77 by combination thermal and solvent vapor annealing. J. Am. Chem. Soc. 2016, 138, 7687–7697. [Google Scholar] [CrossRef] [PubMed]
  18. Zhou, C.; Liang, Y.; Liu, F.; Sun, C.; Huang, X.; Xie, Z.; Huang, F.; Roncali, J.; Russell, T.P.; Cao, Y. Chain length dependence of the photovoltaic properties of monodisperse donor–acceptor oligomers as model compounds of polydisperse low band gap polymers. Adv. Funct. Mater. 2014, 24, 7538–7547. [Google Scholar] [CrossRef]
  19. Liang, Y.; Zhang, D.; Wu, Z.; Jia, T.; Lüer, L.; Tang, H.; Hong, L.; Zhang, J.; Zhang, K.; Brabec, C.J.; et al. Organic solar cells using oligomer acceptors for improved stability and efficiency. Nat. Energy 2022, 7, 1180–1190. [Google Scholar] [CrossRef]
  20. Yuan, L.; Lu, K.; Xia, B.; Zhang, J.; Wang, Z.; Wang, Z.; Deng, D.; Fang, J.; Zhu, L.; Wei, Z. Acceptor end-capped oligomeric conjugated molecules with broadened absorption and enhanced extinction coefficients for high-efficiency organic solar cells. Adv. Mater. 2016, 28, 5980–5985. [Google Scholar] [CrossRef]
  21. Wang, L.-H.; Chen, X.-J.; Ye, D.-N.; Liu, H.; Chen, Y.; Zhong, A.-G.; Li, C.-Z.; Liu, S.-Y. Pot- and atom-economic synthesis of oligomeric non-fullerene acceptors via C−H direct arylation. Polym. Chem. 2022, 13, 2351–2361. [Google Scholar] [CrossRef]
  22. Liu, H.; Tao, Y.D.; Wang, L.H.; Ye, D.N.; Huang, X.M.; Chen, N.; Li, C.Z.; Liu, S.Y. C-H Direct Arylation: A Robust Tool to Tailor the pi-Conjugation Lengths of Non-Fullerene Acceptors. ChemSusChem 2022, 15, e202200034. [Google Scholar] [CrossRef] [PubMed]
  23. Lawrence, J.; Goto, E.; Ren, J.M.; McDearmon, B.; Kim, D.S.; Ochiai, Y. A versatile and efficient strategy to discrete conjugated oligomers. J. Am. Chem. Soc. 2017, 139, 13735–13739. [Google Scholar] [CrossRef] [PubMed]
  24. Liu, H.; Zhang, X.-F.; Wang, L.-H.; Chen, Y.; Ye, D.-N.; Chen, L.; Wen, H.-R.; Liu, S.-Y. One-Pot Synthesis of 3- to 15-Mer π-Conjugated Discrete Oligomers with Widely Tunable Optical Properties. Chin. J. Chem. 2021, 39, 577–584. [Google Scholar] [CrossRef]
  25. Chen, Y.; Hu, L.; Su, Z.; Zhang, X.-F.; Liu, H.; Wang, L.-H.; Huang, B.; Li, Z.; Liu, S.-Y. Hole Transfer Prompted by Viscous Oligomer Solid Additives in Non-Fullerene Bulk-Heterojunction Layers. ACS Appl. Polym. Mater. 2022, 4, 1940–1947. [Google Scholar] [CrossRef]
  26. Liu, S.-Y.; Cheng, J.-Z.; Zhang, X.-F.; Liu, H.; Shen, Z.-Q.; Wen, H.-R. Single-step access to a series of D–A π-conjugated oligomers with 3–10 nm chain lengths. Polym. Chem. 2019, 10, 325–330. [Google Scholar] [CrossRef]
  27. Chen, Y.; Wan, X.; Long, G. High Performance Photovoltaic Applications Using Solution-Processed Small Molecules. Acc. Chem. Res. 2013, 46, 2645–2655. [Google Scholar] [CrossRef]
  28. Chen, H.; Zou, Y.; Liang, H.; He, T.; Xu, X.; Zhang, Y.; Ma, Z.; Wang, J.; Zhang, M.; Li, Q.; et al. Lowing the energy loss of organic solar cells by molecular packing engineering via multiple molecular conjugation extension. Sci. China Chem. 2022, 65, 1362–1373. [Google Scholar] [CrossRef]
  29. Carsten, B.; He, F.; Son, H.J.; Xu, T.; Yu, L. Stille Polycondensation for Synthesis of Functional Materials. Chem. Rev. 2011, 111, 1493–1528. [Google Scholar] [CrossRef]
  30. Stuart, D.R.; Fagnou, K. The Catalytic Cross-Coupling of Unactivated Arenes. Science 2007, 316, 1172–1175. [Google Scholar] [CrossRef]
  31. Bergman, R.G. C–H activation. Nature 2007, 446, 391–393. [Google Scholar] [CrossRef] [PubMed]
  32. Osedach, T.P.; Andrew, T.L.; Bulovic, V. Effect of synthetic accessibility on the commercial viability of organic photovoltaics. Energy Environ. Sci. 2013, 6, 711–718. [Google Scholar] [CrossRef]
  33. Liu, S.-Y.; Shi, M.-M.; Huang, J.-C.; Jin, Z.-N.; Hu, X.-L.; Pan, J.-Y.; Li, H.-Y.; Jen, K.-Y.A.; Chen, H. C–H activation: Making diketopyrrolopyrrole derivatives easily accessible. J. Mater. Chem. A 2013, 1, 2795–2805. [Google Scholar] [CrossRef]
  34. Okamoto, K.; Zhang, J.; Housekeeper, J.B.; Marder, S.R.; Luscombe, C.K. C–H Arylation Reaction: Atom Efficient and Greener Syntheses of π-Conjugated Small Molecules and Macromolecules for Organic Electronic Materials. Macromolecules 2013, 46, 8059–8078. [Google Scholar] [CrossRef]
  35. Pouliot, J.-R.; Grenier, F.; Blaskovits, J.T.; Beaupre, S.; Leclerc, M. Direct (Hetero)arylation Polymerization: Simplicity for Conjugated Polymer Synthesis. Chem. Rev. 2016, 116, 14225–14274. [Google Scholar] [CrossRef]
  36. Gobalasingham, N.S.; Thompson, B.C. Direct arylation polymerization: A guide to optimal conditions for effective conjugated polymers. Prog. Polym. Sci. 2018, 83, 135–201. [Google Scholar] [CrossRef]
  37. Tan, Z.-R.; Xing, Y.-Q.; Cheng, J.-Z.; Zhang, G.; Shen, Z.-Q.; Zhang, Y.-J.; Liao, G.; Chen, L.; Liu, S.-Y. EDOT-based conjugated polymers accessed via C–H direct arylation for efficient photocatalytic hydrogen production. Chem. Sci. 2022, 13, 1725–1733. [Google Scholar] [CrossRef]
  38. Stepek, I.A.; Itami, K. Recent Advances in C–H Activation for the Synthesis of π-Extended Materials. ACS Mater. Lett. 2020, 2, 951–974. [Google Scholar] [CrossRef]
  39. Mainville, M.; Leclerc, M. Direct (Hetero)arylation: A Tool for Low-Cost and Eco-Friendly Organic Photovoltaics. ACS Appl. Polym. Mater. 2021, 3, 2–13. [Google Scholar] [CrossRef]
  40. Chen, N.; Yang, L.-J.; Chen, Y.; Wu, Y.; Huang, X.-M.; Liu, H.; Xie, H.-Y.; Hu, L.; Li, Z.; Liu, S.-Y. PBDB-T Accessed via Direct C−H Arylation Polymerization for Organic Photovoltaic Application. ACS Appl. Polym. Mater. 2022, 4, 7282–7289. [Google Scholar] [CrossRef]
  41. Chen, T.-W.; Peng, K.-L.; Lin, Y.-W.; Su, Y.-J.; Ma, K.-J.; Hong, L.; Chang, C.-C.; Hou, J.; Hsu, C.-S. A chlorinated nonacyclic carbazole-based acceptor affords over 15% efficiency in organic solar cells. J. Mater. Chem. A 2020, 8, 1131. [Google Scholar] [CrossRef]
  42. Zou, Y.P.; Gendron, D.; Badrou-Aich, R.; Najari, A.; Tao, Y.; Leclerc, M. A High-Mobility Low-Bandgap Poly(2,7-carbazole) Derivative for Photovoltaic Applications. Macromolecules 2009, 42, 2891–2894. [Google Scholar] [CrossRef]
  43. Wienk, M.M.; Turbiez, M.; Gilot, J.; Janssen, R. Narrow-bandgap diketopyrrolopyrrole polymer solar cells: The effect of processing on the performance. Adv. Mater. 2008, 20, 2556–2560. [Google Scholar] [CrossRef]
  44. Kim, H.G.; Kang, B.; Ko, H.; Lee, J.; Shin, J.; Cho, K. Synthetic tailoring of solid-state order in diketopyrrolopyrrole-based copolymers via intramolecular noncovalent interactions. Chem. Mater. 2015, 27, 829–838. [Google Scholar] [CrossRef]
Molecules 27 09031 sch001

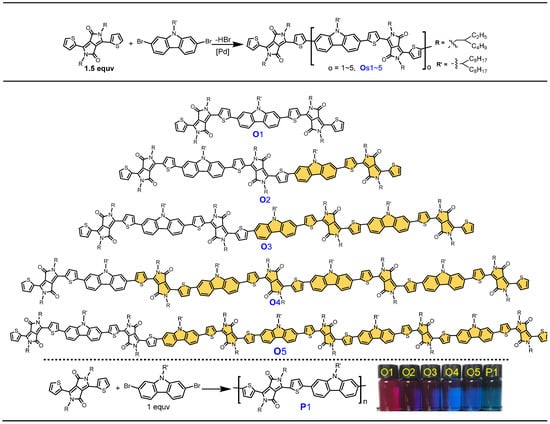

Scheme 1. One-pot synthesis of π-COs Os1~5 and their parent polymer P1 via direct C–H arylation (inset: photo images of π-COs and P1 in CF solutions).
Scheme 1. One-pot synthesis of π-COs Os1~5 and their parent polymer P1 via direct C–H arylation (inset: photo images of π-COs and P1 in CF solutions).
Molecules 27 09031 sch001
Molecules 27 09031 g001

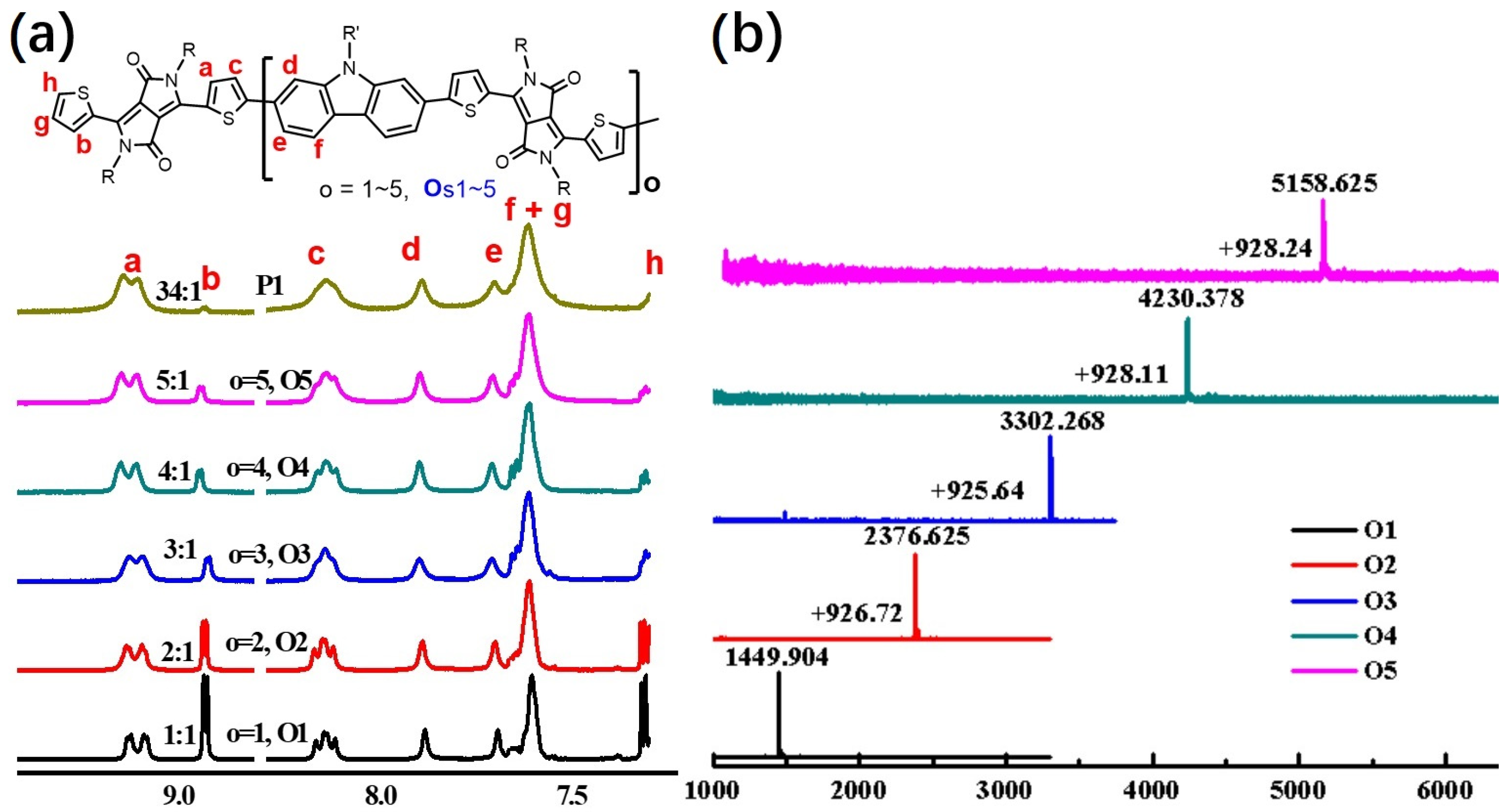

Figure 1. (a) 1H NMR spectra of Os1~5 and P1 in aromatic region; (b) MALDI-TOF MS spectra of Os1~5.
Figure 1. (a) 1H NMR spectra of Os1~5 and P1 in aromatic region; (b) MALDI-TOF MS spectra of Os1~5.
Molecules 27 09031 g001
Molecules 27 09031 g002

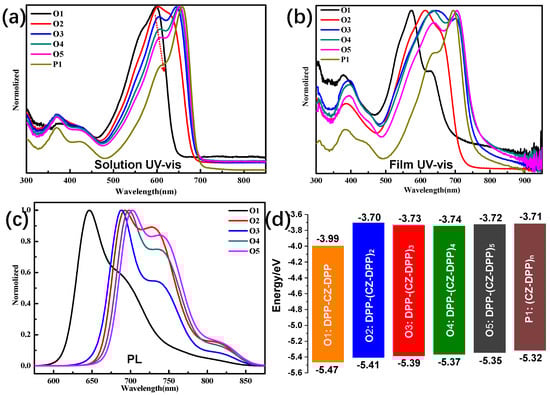

Figure 2. UV-vis absorption spectra of π-COs and P1 in CF solutions (a) and thin solid films (b); PL spectra (c) and HOMO/LUMO levels alignment (d) of π-COs and P1.
Figure 2. UV-vis absorption spectra of π-COs and P1 in CF solutions (a) and thin solid films (b); PL spectra (c) and HOMO/LUMO levels alignment (d) of π-COs and P1.
Molecules 27 09031 g002
Molecules 27 09031 g003

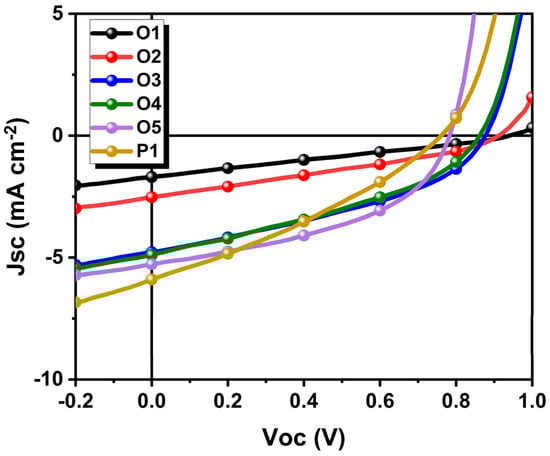

Figure 3. J-V curves of π-COs (or P1): PC70BM based BHJ OPV devices.
Figure 3. J-V curves of π-COs (or P1): PC70BM based BHJ OPV devices.
Molecules 27 09031 g003
Table 1. Key opto-electrochemical property data of Os1~5 and P1.
Table 1. Key opto-electrochemical property data of Os1~5 and P1.
π-CO/P1λmaxs (nm)λmaxf (nm)λonset (nm)Egopt (eV)HOMO (eV)LUMO (eV)ε (M−1·cm−1)
O15985757081.75−5.47−3.996.3 × 104
O26036147251.71−5.41−3.701.2 × 105
O36456447491.66−5.39−3.731.9 × 105
O46506387561.64−5.37−3.742.8 × 105
O5652.5704.57611.63−5.35−3.723.8 × 105
P16586967761.60−5.32−3.72--
Table 2. BHJ device parameters of Os1~5 and P1 a).
Table 2. BHJ device parameters of Os1~5 and P1 a).
BHJsVOC (V)JSC (mA/cm2)FF (%)PCE (%)
O1:PC70BM0.941 ± 0.0011.67 ± 0.0426.43 ± 0.070.41 ± 0.01
O2:PC70BM0.887 ± 0.0342.59 ± 0.1029.00 ± 2.330.67 ± 0.05
O3:PC70BM0.879 ± 0.0034.23 ± 0.7736.32 ± 2.971.36 ± 0.35
O4:PC70BM0.861 ± 0.0015.16 ± 0.2436.83 ± 0.801.64 ± 0.11
O5:PC70BM0.786 ± 0.0044.85 ± 0.6046.16 ± 1.131.76 ± 0.16
P1:PC70BM0.747 ± 0.0196.17 ± 0.0740.93 ± 0.911.89 ± 0.01
a) Average of 8 individual devices.
