Versatile Fluorine-Containing Building Blocks: β-CF3-1,3-enynes

by
Mingqing Liu
,
Zongxiang Yu
,
Jingtong Li
and
Yuanjing Xiao
*
Department of Chemistry, School of Chemistry and Molecular Engineering, East China Normal University, 500 Dongchuan Road, Shanghai 200241, China
*
Author to whom correspondence should be addressed.
Molecules 2022, 27(24), 9020; https://doi.org/10.3390/molecules27249020
Submission received: 20 November 2022 / Revised: 11 December 2022 / Accepted: 15 December 2022 / Published: 17 December 2022
(This article belongs to the Special Issue Insights for Organofluorine Chemistry)
Browse Figures
Review Reports Versions Notes

Abstract

:
The development of diversity-oriented synthesis based on fluorine-containing building blocks has been one of the hot research fields in fluorine chemistry. β-CF3-1,3-enynes, as one type of fluorine-containing building blocks, have attracted more attention in the last few years due to their distinct reactivity. Numerous value-added trifluoromethylated or non-fluorinated compounds which have biologically relevant structural motifs, such as O-, N-, and S-heterocycles, carboncycles, fused polycycles, and multifunctionalized allenes were synthesized from these fluorine-containing building blocks. This review summarizes the most significant developments in the area of synthesis of organofluorine compounds based on β-CF3-1,3-enynes, providing a detailed overview of the current state of the art.

1. Introduction

Increasing demands for organofluorine compounds in human life [1,2,3,4,5,6,7,8,9,10,11,12] prompt chemists to develop many ingenious strategies to introduce the fluorine element into organic compounds [13,14,15,16,17,18,19,20,21,22,23,24,25,26,27]. Among these strategies, synthesis with fluorine containing building blocks is a very important method for the introduction of fluorine atoms or fluoroalkyl groups into target molecules [28,29,30,31,32,33,34,35,36]. β-CF3-1,3-enynes as one type of fluorine-containing building blocks have attracted more attention in the last few years due to their distinct reactivity. Numerous value-added fluorine-containing compounds which have biologically relevant structural motifs, such as O-, N-, and S-heterocycles, carboncycles, fused polycycles, and multifunctionalized allenes, were synthesized from these fluorine-containing building blocks. With the strong electron-negative effect of CF3-group on the C–C double bond, the electron density of conjugated enynes significantly changed, making the molecules exhibit distinct reactivity which enables diversity-oriented synthesis of organofluorine compounds. Within the remit of this review, β-CF3-1,3-enynes and their derivatives will all be discussed. The content summarized in this review are organized on the basis of the type of trifluoromethylated compounds obtained by using β-CF3-1,3-enynes and their derivatives as fluorine-containing building blocks, i.e., construction of trifluoromethylated carboncycles, construction of trifluoromethylated heterocycles and further subdivided according to the size of the ring, i.e., three-membered trifluoromethylated carboncycles, five-membered trifluoromethylated carboncycles, six-membered trifluoromethylated carboncycles, five-membered trifluoromethylated heterocycles, six-membered trifluoromethylated heterocycles and other value-added trifluoromethylated or non-fluorinated organic compounds.

2. Construction of Trifluoromethylated Carboncycles

2.1. Construction of Three-Membered Trifluoromethylated Carboncycles

In 2019, Wang and Liu reported highly diastereoselective cyclopropanation reactions of β-CF3-1,3-enynes with sulfur ylides via a maneuverable one-pot, two-step procedure. β-CF3-1,3-enynes undergo cyclopropanation reactions with sulfur ylides under mild reaction conditions without fluoride elimination, which affords the cis-isomer mainly. Interestingly, a sequential TBAF-mediated deprotection of the triisopropylsilyl group results in a diastereoenriched epimerization which gives rise to the transcyclopropanes as the sole isomers (Scheme 1a) [37]. A base-triggered thermodynamic epimerization took place during the process, resulting in stereoselectivity enrichment (Scheme 1b). This newly developed protocol was then applied to 2-CF3-3,5-diyne-1-enes for synthesis of diverse 1,3-diyne-tethered cyclopropanes [38].
Recently, a highly efficient solvent-controlled synthesis of bis(trifluoromethyl) cyclopropanes and bis(trifluoromethyl)pyrazolines via a [2 + 1] or [3 + 2] cycloaddition reaction of β-CF3-1,3-enynes with CF3CHN2 was developed by Cao and co-workers. The distribution of cyclopropanes and pyrazolines is remarkably dependent on the polarity of the solvent used. Less polar solvents, such as DCE, were suitable for the [2 + 1] cycloaddition reaction, whereas polar solvents, such as DMAc, were found to favor the [3 + 2] cycloaddition reaction [39] (Scheme 2).

2.2. Construction of Five-Membered Trifluoromethylated Carboncycles

In 2011, Jeong and coworkers reported Pd-catalyzed intramolecular carbocyclization of 2-trifluoromethyl-1,1-diphenyl-1,3-enynes to afford 2-trifluoromethyl-1-methylene-3-phenylindene derivatives via electrophilic hydroarylation by the use of 10 mol% Pd(OAc)2 in the presence of CF3CO2H and CH2Cl2. It was postulated that this reaction proceeds via ortho-palladation of enynes to give a corresponding intermediate, which undergoes the insertion to a triple bond to give the vinylpalladium species. Protiodepalladation of vinylpalladium species affords 1-methylene indenes. The substrates were synthesized from pentafluoroethyl phenyl dithioketal in several steps. Both aryl and alkyl-substituted 1,3-enynes are tolerated, however, the stereoisomer ratios of 5/4 of 1-methylene indenes were afforded in this 5-exo-dig carbocyclization. In the case of carbocyclization of trimethylsilyl- or triisopropylsilyl-substituted 1,3-enynes, reduced product was obtained [40] (Scheme 3).
In an elegant piece of work, The Trost group reported palladium-catalyzed trimethylenemethane cycloadditions with α-trifluoromethyl-styrenes, trifluoromethyl-enynes, and dienes under mild reaction conditions. The trifluoromethyl group serves as a unique σ-electron-withdrawing group for the activation of the olefin toward the cycloaddition. This method allows for the formation of exomethylene cyclopentanes bearing a quaternary center substituted by the trifluoromethyl group (Scheme 4) [41]. Diaminophosphite ligand was employed in this reaction to afford desired cycloaddition product in moderated to excellent yields (45–93%). The obtention of the cycloadduct unaccompanied by fluoride elimination may be suggestive of a concerted mechanism.
In 2017, we developed a concise approach to access ring-trifluoromethylated cyclopentene frameworks, utilizing silver-catalyzed double hydrocarbonation reaction of β-CF3-1,3-enynes with bisnucleophiles 1,3-dicarbonyl compounds [42] (Scheme 5). β-CF3-1,3-enynes possessing electron-withdrawing aryl groups on the alkyne moiety smoothly underwent the cyclization reaction with 1,3-dicarbonyl compounds to give ring-trifluoromethylated cyclopentene in moderate to excellent yields. A series of β-diketones, malonate derivatives as well as β-ketoesters could be employed as reaction partner to afford the corresponding ring-trifluoromethylated cyclopentenes in good to excellent yields. Unsymmetrical 1,3-diketone or β-keto esters afford the desired cyclopentenes as a mixture of two diastereomers in excellent yields with moderate to good diastereoselectivity. The use of organic base effectively suppressed the defluorination process.
Interestingly, Chang and Zhang recently revealed that inorganic base K3PO4 can effectively promote synthesis of CF3-substituted cyclopentenes when using malononitrile as carbon nucleophile to react with β-CF3-1,3-enynes. Their developed protocol disclosed that the fluorine retention of β-CF3-1,3-enynes did not rely on organic base and the additional patterns did not depend on electron-deficient β-CF3-1,3-enynes. The reasons may mainly be due to the stability of in situ formed carbon anion intermediates containing the cyano group and CF3-substituted cyclopentenes with double bond migration formed [43] (Scheme 6).
In 2020, Liu’s group reported the phosphine-catalyzed [3 + 2] cycloadditions of trifluoromethyl enynes/enediynes with allenoates to form cyclopentenes containing a CF3-substituted quaternary carbon center with great regioselectivity [44] (Scheme 7). This reaction occurs with excellent regioselectivity under mild conditions, affording alkyne- and diyne-tethered cyclopentene derivatives containing a CF3-substituted quaternary carbon center in moderate to good yields.

2.3. Construction of Six-Membered Trifluoromethylated Carboncycles

In 2013, the Gevorgyan group demonstrated the synthesis of trifluoromethylated benzene derivatives via chemo- and regioselective Pd-catalyzed [4 + 2] cross-benzannulation of β-CF3-1,3-enynes with diynes [45] (Scheme 8). Both β-F-1,3-enynes and β-perfluoroalkylated 1,3-enynes also are good reaction partners in these Pd-catalyzed [4 + 2] cross-benzannulation reaction affording corresponding trifluoromethylated and perfluoroalkylated benzene derivatives. This cycloaddition strategy proved to be effective for the rapid construction of aromatic fluorides from easily available acyclic starting materials.
In 2014, the Zhang group disclosed an iron-promoted electrophilic annulation of trifluoromethyl-containing aryl enynes with disulfides or diselenides affording polysubstituted naphthalenes in moderate to excellent yields. The reaction proceeded with high selectivity to provide the 6-endo-dig cyclization product and showed good functional group tolerance. The authors observed that the aryl groups bearing electron-withdrawing substituents in these substrates results in lower yields. The utilization of inexpensive ferric chloride and commercially available disulfides and diselenides as electrophiles are significant advantages for the usefulness of this reaction [46] (Scheme 9).
Based on their experimental results, a plausible mechanism was outlined, as shown in Scheme 9b. The reaction of disulfide with iodine may take place to produce the active RSI in situ. The presence of BPO promotes the generation of free radical RS• which subsequently reacted with I2 to form RSI. The electrophilic addition of RSI to the triple bond of enyne affords intermediate A (Path 1). The Lewis acid (FeCl3)-catalyzed intramolecular electrophilic attack on the neighboring aryl group provides intermediate B, and subsequent deprotonation yields the desired products. However, a free radical pathway cannot be ruled out (Path 2), in view of the fact that the product can be isolated in the absence of I2. The addition of RS• to enyne produces a vinyl radical C, which then undergoes an intramolecular cyclization to form radical D. The following oxidation by I2 or FeCl3 produces the corresponding carbocation, which loses a H+ to yield desired products.

3. Construction of Trifluoromethylated Heterocycles

3.1. Construction of Five-Membered Trifluoromethylated Heterocycles

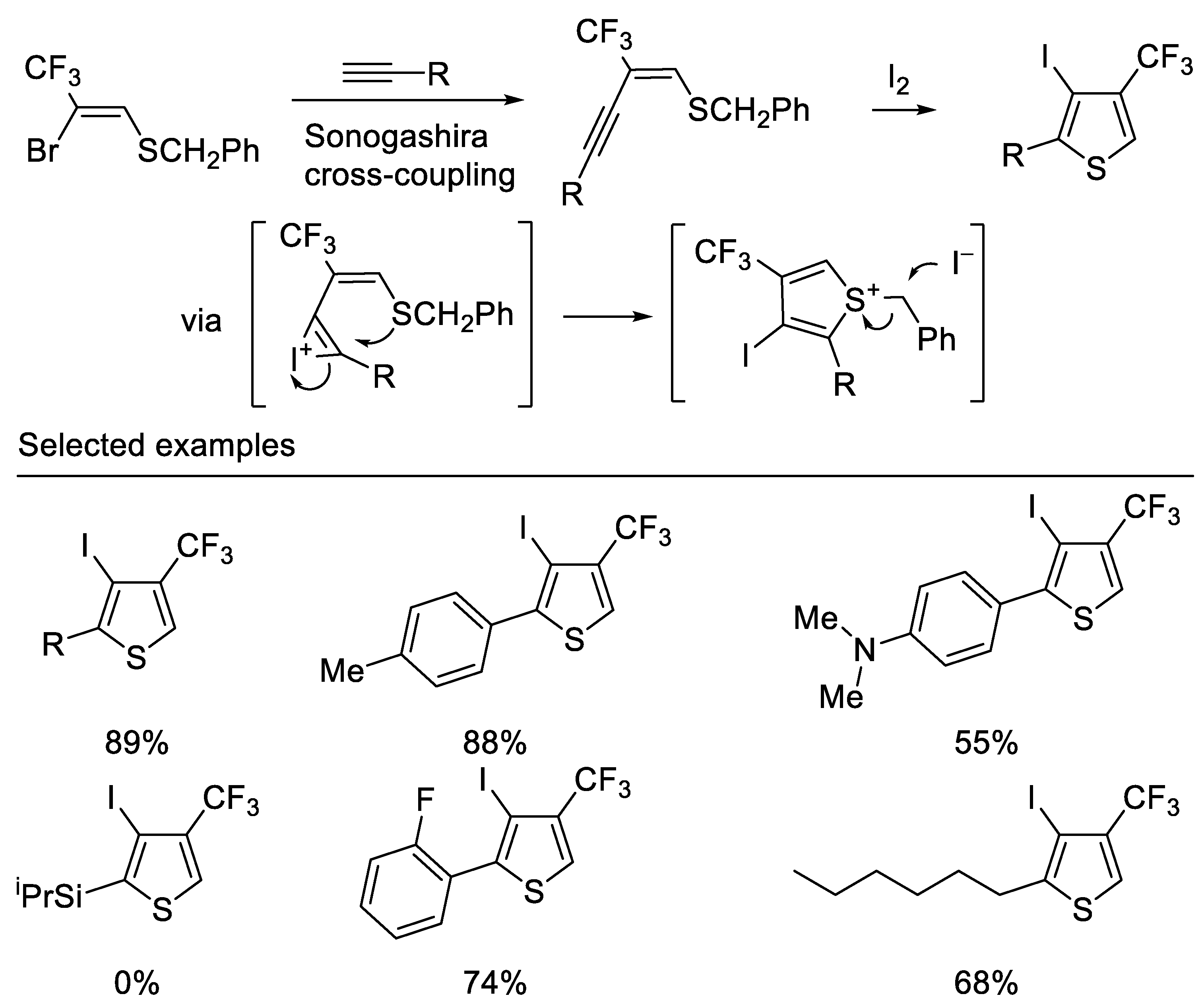

Recently, Hanamoto and co-workers developed a convenient method for the synthesis of 4-CF3-3-iodo-2-substituted thiophene from (Z)-2-bromo-2-CF3-vinyl benzyl sulfide in two steps. The Sonogashira cross-coupling reaction of (Z)-2-bromo-2-CF3-vinyl benzyl sulfide with various terminal acetylenes afforded the corresponding (E)-2-CF3-1-buten-3-ynyl benzyl sulfides in good to high yields. Subsequent iodocyclization afforded the corresponding 4-CF3-3-iodo-2-substituted thiophenes in good to high yields. It is noteworthy that the substrate bearing a triisopropylsilyl group was intact under optimal reaction conditions due to the bulky silyl group hindering the approach of electrophilic iodine [47] (Scheme 10).

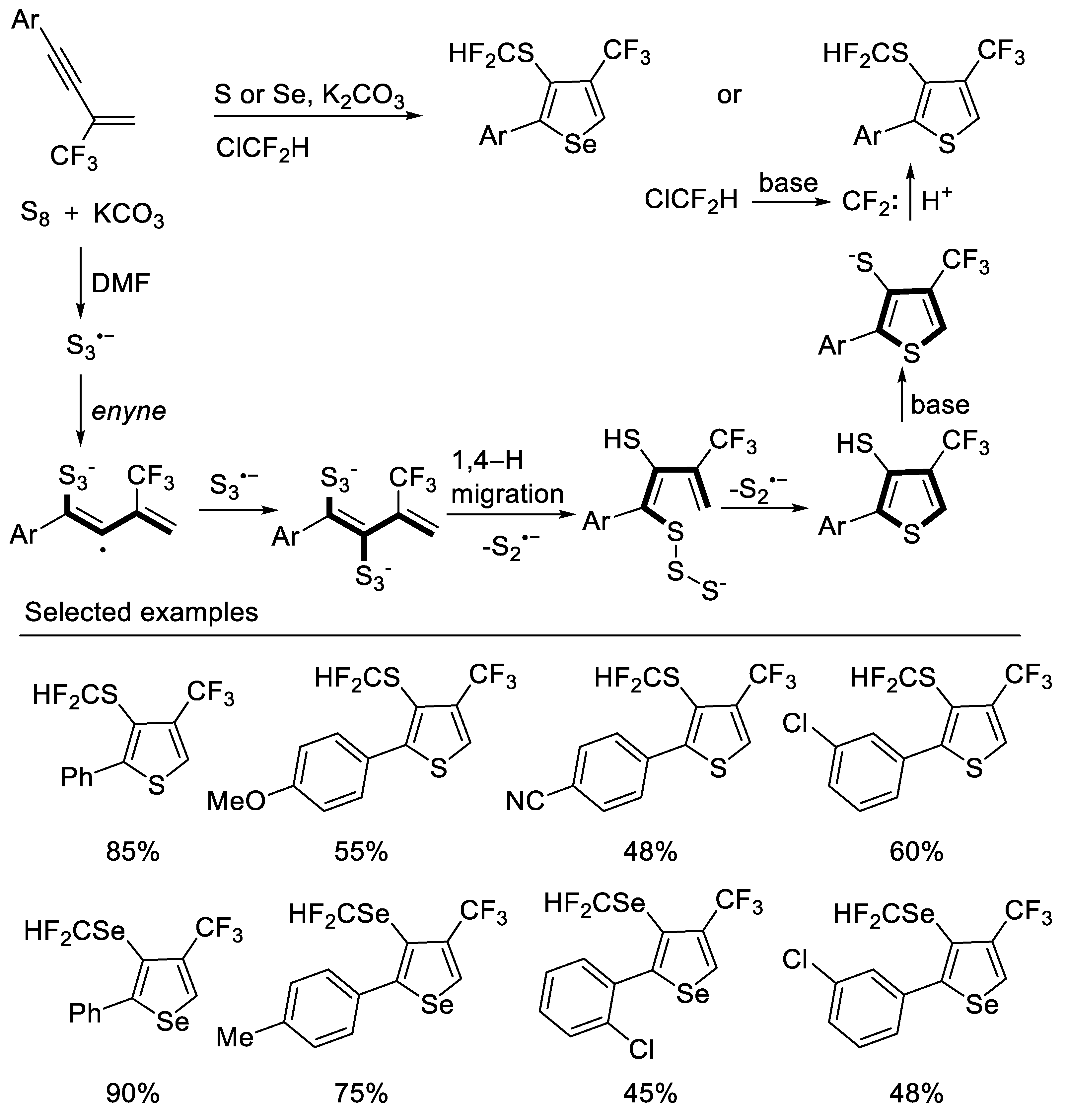

Other methods to construct thiophene derivatives from β-CF3-1,3-enynes were also reported. In 2020, Song group developed a divergent strategy for the construction of 3-SCF2H-4-CF3-thiophenes from readily available 1,3-enynes and S8 via a tandem thiophene construction/selective C3 thiolation/difluoromethylthiolation under a ClCF2H atmosphere with excellent substrate compatibility. Experiments had shown that the construction of the thiophene ring may be a radical annulation process with S3•− generated in situ, and freon is used as a cheap difluoromethylation reagent. A series of 3-SeCF2H-4-CF3-selenophenes can also be constructed by similar strategies [48] (Scheme 11).
In their subsequent work, they developed a divergent method for precise constructions of cyclic unsymmetrical diaryl disulfides or diselenides and polythiophenes from β-CF3-1,3-enynes and S8 when the ortho group is F, Cl, Br, and NO2 on aromatic rings. However, when the ortho group is H, disulfides (diselenides) were constructed These transformations undergo a cascade thiophene construction/selective C3-position thiolation process. A novel plausible radical annulation process was proposed and validated by DFT calculations [49] (Scheme 12).
In 2014, we developed novel divergent cyclizations of N-(2-(trifluoromethyl)-3-alkynyl)hydroxylamines which are easily prepared from the corresponding β-CF3-1,3- enynes and the salt of hydroxylamine under basic reaction conditions via simple nucleophilic addition by subtle choice of the catalyst system, leading to two important trifluoromethylated nitrogen containing heterocycles, such as 4-trifluoromethyl cyclic nitrone and pyrrole. The IPrAuNTf2/HNTf2 co-catalyzed cyclization of N-(2-perfluoroalkyl-3-alkynyl) hydroxylamines produces pyrroles in moderate to excellent yields, whereas the AgOTf-catalyzed reaction affords cyclic nitrones in high yields. The notable features of the method are its easily accessible starting materials, mild reaction conditions and divergent synthesis [50] (Scheme 13).

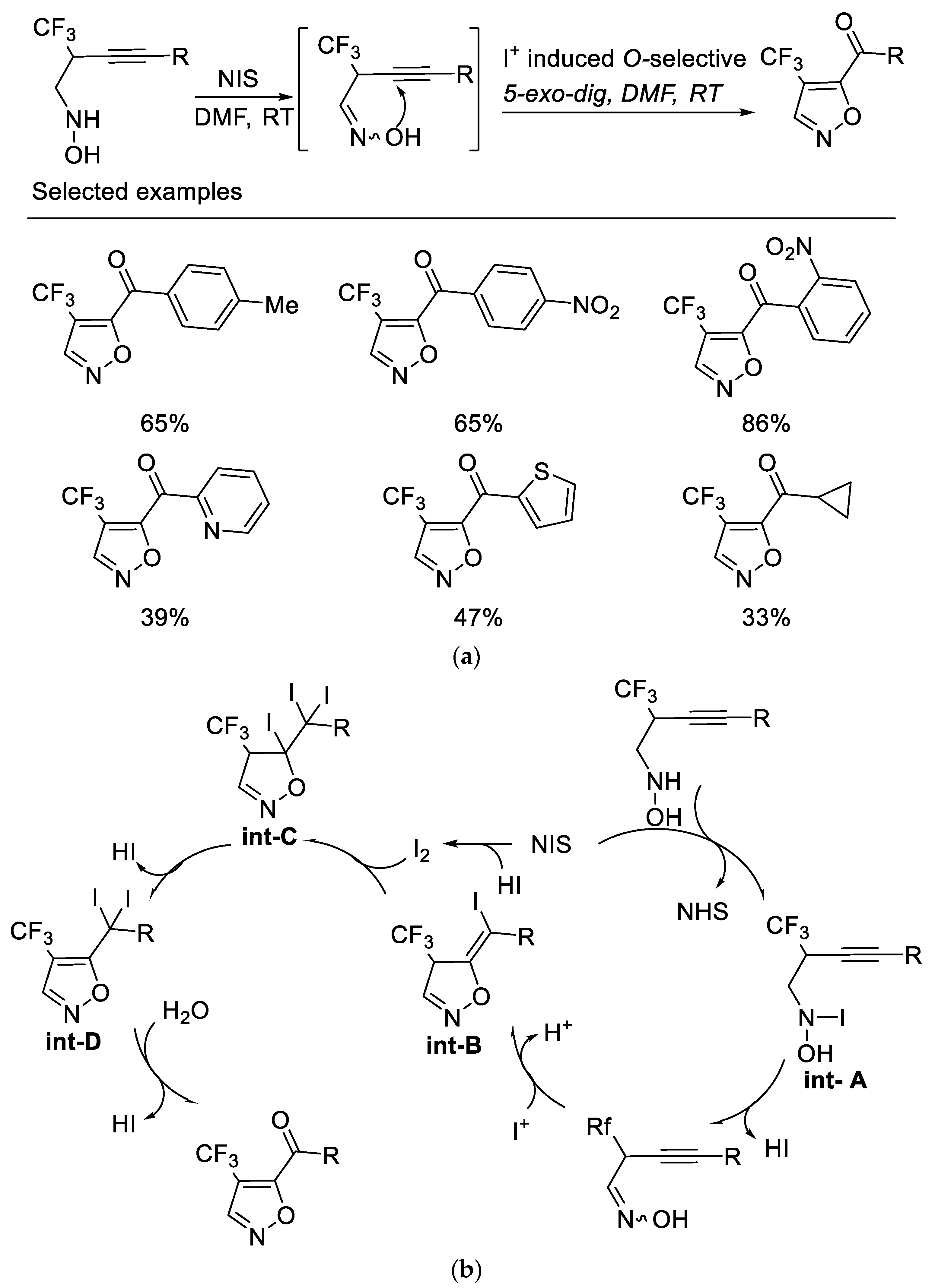

Following the above work, we subsequently developed a novel NIS-mediated oxidative cyclization of N-(2-trifluoromethyl-3-alkynyl) hydroxylamine under mild conditions, which provides a facile route to various 4-trifluoromethyl-5-acylisoxazoles. It was found that the NIS acts as both an oxidant and an electrophile for this sequential transformation. The key intermediate oxime formed by oxidation of hydroxylamine by NIS could be isolable, which underwent I+-induced O-selected 5-exo-dig cyclization and subsequent cascade reaction to afford 4-trifluoromethyl-5-acylisoxazoles. It is also noteworthy that no desired product was obtained when alkyne bearing TMS group or terminal alkyne was used as substrate [51] (Scheme 14a). Control experiments indicated that the oxygen atom of the ketone originated from water rather than from molecular dioxygen (Scheme 14b).
The exclusive O-selected 5-exo-dig cyclization of oxime in the above transformation conditions have aroused our interest because oximes can be employed as N-selective nucleophiles or as O-selective nucleophiles in many chemical transformations. We deduced that the Brønsted acid (HI) in situ formed in the above transformation conditions decreases the nucleophilicity of oxime nitrogen and destroys the inter- or intramolecular hydrogen bond between oxime oxygen and trifluoromethyl group, thus facilitating O-selective 5-exo-dig cyclization. We envisioned that with a proper choice of transition metal catalysts, the isolated oximes might undergo N-selective 5-endo-dig electrophilic cyclization owing to their inter- or intramolecular hydrogen bond between oxime oxygen and the trifluoromethyl group, which decreased the nucleophilicity of the oxime oxygen [52]. Thus, another type of interesting nitrogen containing heterocycle i.e., fluorinated N-hydroxypyrroles, could be obtained (Scheme 15, path a). Furthermore, if excess NIS and molecular iodine (I2) formed in situ in the reaction were reduced with a proper reductant, the in situ formed Brønsted acid would catalyze the O-selective 5-exo-dig or 6-endo-dig electrophilic cyclization of oximes; thus, an easy two-step, one-pot-synthesis of 4-trifluoromethyl-5-alkylisoxazoles (Scheme 15, path b) would be developed. Based on the above considerations, we developed the divergent regioselective cyclizations of N-(2-trifluoromethyl-3-alkynyl) oximes by subtle choice of gold(I) or Brønsted acid catalyst system, leading to 4-trifluoromethyl N-hydroxypyrroles or 5-akylisoxazoles. In order to avoid the tedious separation of unstable N-(2-trifluoromethyl-3-alkynyl) oximes, an easy two-step, one-pot synthesis of 4-trifluoromethyl-5-alkylisoxazoles from N-(2-trifluoromethyl-3-alkynyl) hydroxyl-amines is realized. This two-step, one-pot procedure is a complementary method for the synthesis of 4-trifluoromethyl-5-alkyl isoxazoles from those unstable N-(2-trifluoromethyl-3-alkynyl) oximes [53] (Scheme 15).
After we studied the chemistry of β-CF3-1,3-enynes with the bisnucleophile hydroxylamine and subsequent transformations, we then studied the reaction of β-CF3-1,3-enynes with the bisnucleophile 2-aminomalonates. A dramatic substituent effect was observed in the reaction of β-CF3-1,3-enynes with the bisnucleophile 2-aminomalonates. When N-tosylated 2-aminomalonate was used as bisnucleophile, the reactions proceeded smoothly to afford 2-fluoro-2-pyrrolines via double direct C-F substitutions [54]. In contrast, either 4-trifluoromethyl pyrrolidines or gem-difluoro-1,3- conjugated enynes were delivered when N-acetylated 2-aminomalonate was used as reaction partner. β-CF3-1,3-enynes show an interesting substituent effect on the product diversity. β-CF3-1,3-enynes bearing electron-donating or weak electron-withdrawing groups, such as Me, MeO, Cl and Br, on the aryl substituent of the alkyne moiety afford functionalized gem-difluoro-1,3-conjugated enynes in moderate to good yields, whereas 4-trifluoromethyl pyrrolidines are isolated as the predominant product in moderate to good yields from those β-CF3-1,3-enynes with strong electron-deficient aromatic substituent. Various functionalized 4-(difluoromethylene)-1,2,3,4-tetrahydropyridines could be obtained in good yields via the gold(I)-catalyzed intramolecular 6-endo-dig cyclization of the corresponding gem-difluoro-1,3-conjugated enynes under mild conditions [55] (Scheme 16).

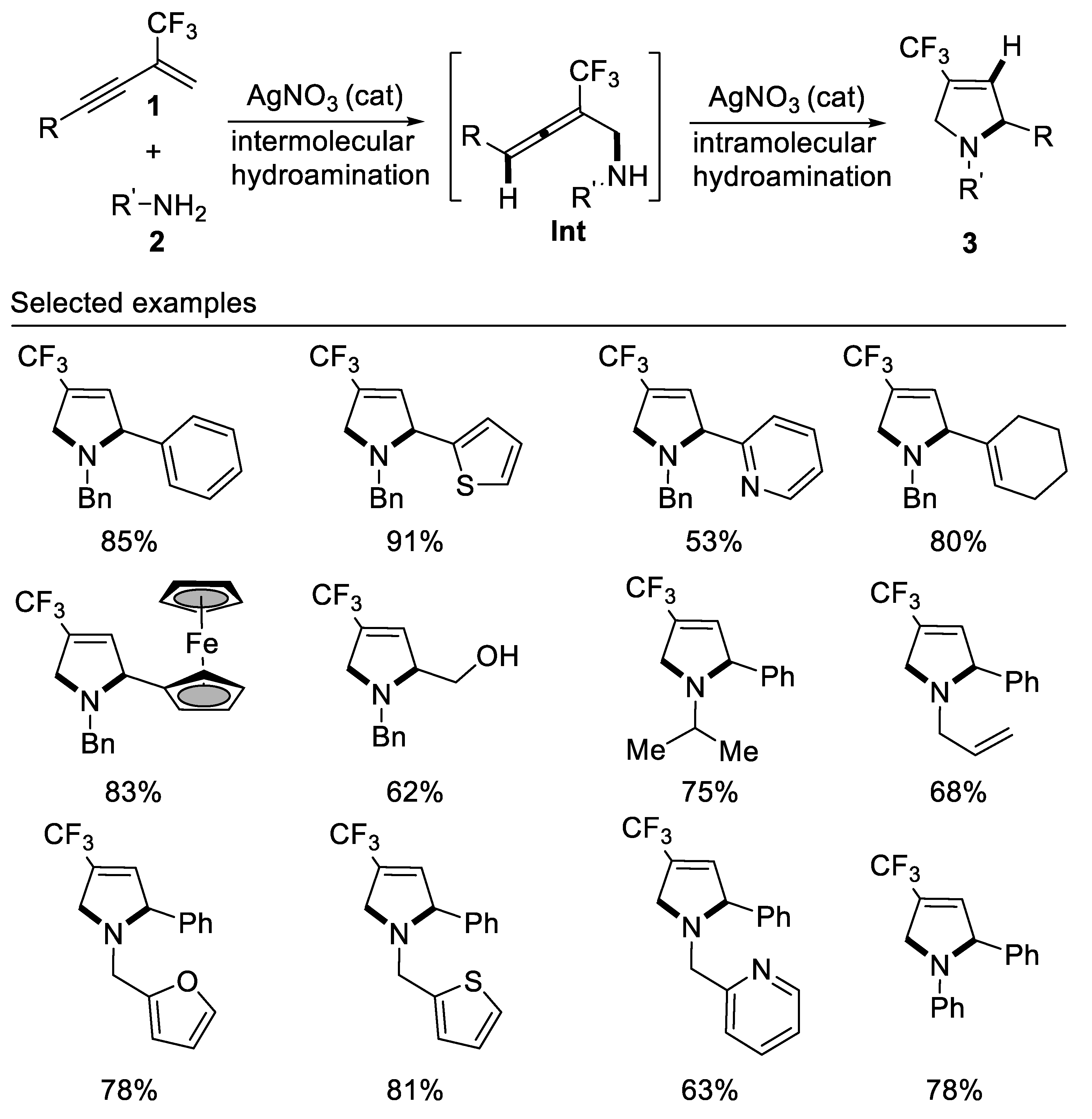

In 2017, we developed the first example of tandem intermolecular hydroamination and cyclization reaction of β-CF3-1,3-enynes with bisnucleophile primary amines affording 4-trifluoromethyl-3-pyrrolines by employing a cheap silver catalyst under mild reaction conditions. This new method is compatible with alkyl, aryl, and allyl primary amines, representing an atom-economic protocol for the construction of 4-trifluoromethyl-3-pyrrolines for the first time. It should be noted that the reaction also works well for aromatic primary amines, albeit requiring a higher reaction temperature [56] (Scheme 17).
Following the above work, we subsequently developed a facile two-step, one-pot method for the synthesis of a range of halogenated trifluoromethylated pyrroles from β-CF3-1,3-enynes, readily aliphatic primary amines and halogenating agents, such as NBS and NIS. By variation of the halogenating agents, ring trifluoromethylated monoiodo pyrrole or dibromo pyrrole skeletons can be readily accessed in moderate to good yields. The different outcome of the reactions with NIS and NBS may be due to their different electrophilic properties towards pyrrole. This two-step, one-pot method employs a key halogenating-agents mediating step to trigger a cascade process featuring an initial electrophilic cyclization of the first intermolecular hydroamination product [57] (Scheme 18).
More recently, in 2021, we developed the first example of a tandem double hydroamination reaction of β-CF3-1,3-enynes with bisnucleophiles hydrazine derivatives under mild reaction conditions. By variation of the substituents on the hydrazine nitrogen atom, three types of trifluoromethylated pyrazolidines, pyrazolines and pyrazoles can be readily accessed in moderate to good yields. The reaction with simple hydrazine monohydrate or sulfonyl hydrazines as nucleophiles produces 1,3,4-trisubstituted pyrazolines, whereas the reaction with acetyl hydrazine as nucleophiles affords 1,4,5-trisubstituted pyrazolidines. Using phenylhydrazine or tert-butylhydrazine as reaction partners, the products are easily oxidized to form 1,4,5-trisubstituted pyrazoles [58] (Scheme 19).

3.2. Construction of Six-Membered Trifluoromethylated Heterocycles

In 2000, the Qing group first reported the synthesis of 4-trifluoromethyl-2H-pyrans by palladium-catalyzed cyclization of (E)-3-alkynyl-3-trifluoromethyl allylic alcohols. The 6-endo-dig cyclization, not the 5-exo-dig cyclization, is favored due to the fact that the trifluoromethyl group possesses powerful electron-withdrawing properties and (E)-3-alkynyl-3-trifluoromethyl allylic alcohols bearing an aryl group adjacent to the hydroxyl lead to dienone under same reaction conditions [59] (Scheme 20).
A straightforward and efficient approach to alkyne-functionalized ring-monofluorinated 4H-pyrans via a simple base-mediated cascade reaction of β-CF3-1,3-enynes with 1,3-dicarbonyl compounds or monocyano- substituted carbon nucleophiles, such as 3-oxo-3-phenylpropanenitrile, 3-oxo-butyronitrile was developed by our group [60] and Chang [10]. Substituted alkynyl group was used as an activating group. The key events of this reaction involve two consecutive C-F substitutions under very mild conditions (Scheme 21).
Very recently, we developed the first example of a tandem intermolecular hydrocarbonation/intramolecular heterocyclization reaction of β-CF3-1,3-enynes with bisnucleophiles β -ketothioamides under mild reaction conditions. By variation of the substituents linked to the carbonyl or on the β-ketothioamides nitrogen atom, ring trifluoromethylated pyrans, or thiopyrans, can be readily accessed in moderate to good yields. Enynes possessing electron-withdrawing aryl groups on the alkyne moiety are generally good candidates for present transformation and β-ketothioamides bearing a piperidine substituent on the amide moiety, and (hetero)aryl groups on the keto moiety would mainly afford pyran, whereas β-ketothioamides bearing pyrrolidine substituent on the amide moiety and (hetero)aryl or alkyl groups on keto moiety lead to the formation of thiopyrans. Other substituted forms of N,N-disubstituted β-ketothioamides would give mixtures of pyrans and thiopyrans. We think that the formation of the oxygen enol or sulfur enol intermediate Int-B could be affected by electronic and spatial effects of substituents on either the keto moiety or the nitrogen atom of the β-ketothioamide from the reaction of Int-A under basic conditions, which results in pyrans or thiopyrans. β-ketothioamides bearing a piperidine substituent on the amide moiety and (hetero)aryl groups on the keto moiety would mainly form oxyenols, leading to the formation of pyran, whereas sulfur enol would predominantly form β-ketothioamides bearing a pyrrolidine substituent on the amide moiety and (hetero)aryl or alkyl groups on the keto moiety, leading to the formation of thiopyrans. Other substituted forms of N,N-disubstituted β-ketothioamides would give mixtures of oxygen enol and sulfur enol which result in mixtures of pyrans and thiopyrans. The salient features of this tandem include atom-economical, mild reaction condition, ease of operation and product diversity [61] (Scheme 22).

4. Construction of Other Value-Added Trifluoromethylated or Non-Fluorinated Organic Compounds

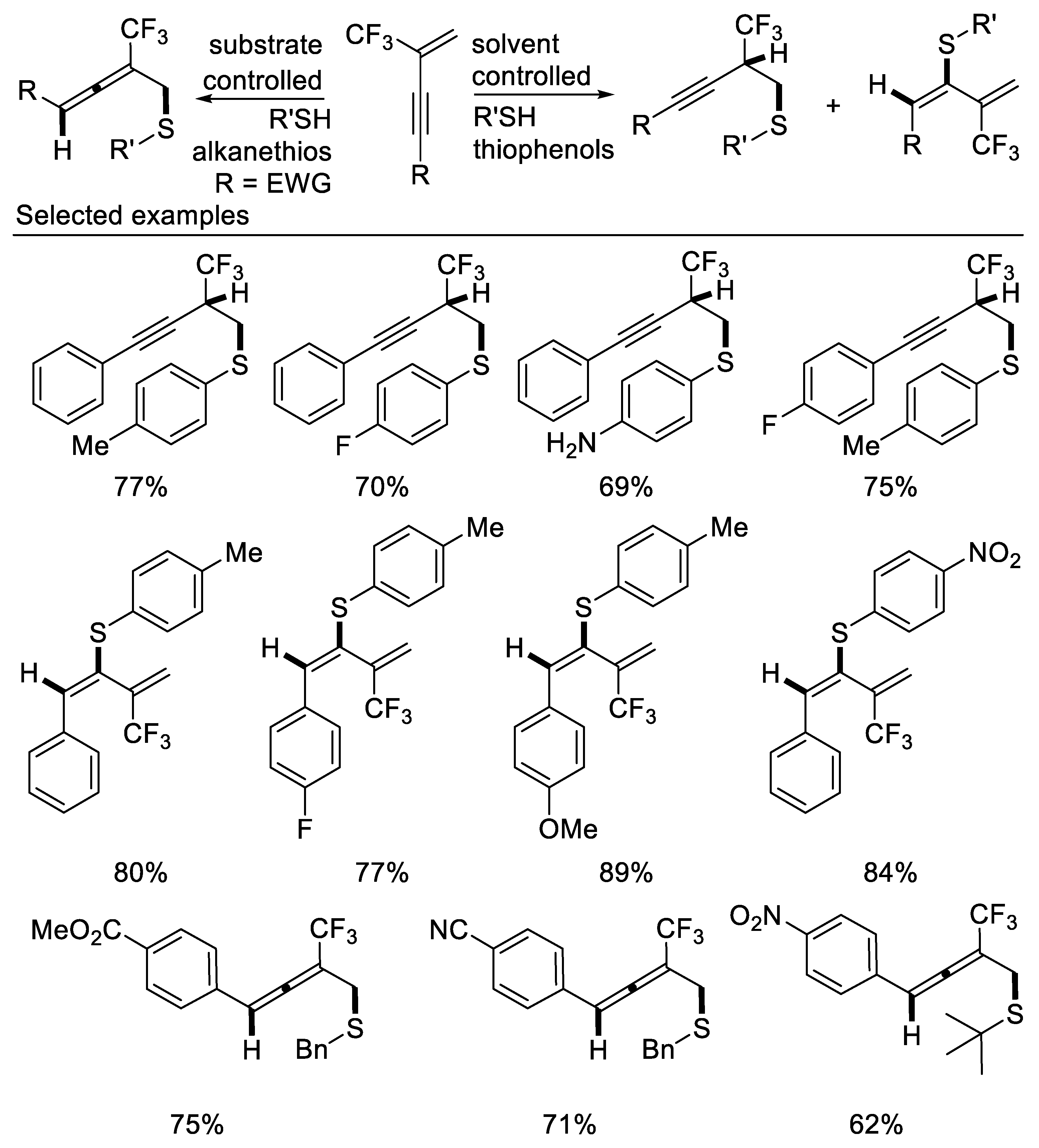

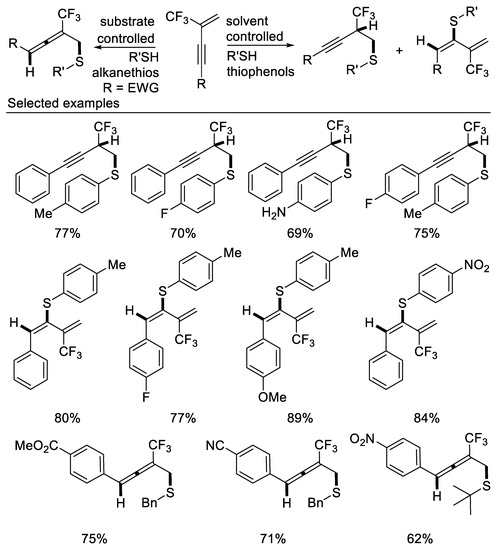

The divergent synthesis of thioether-functionalized trifluoromethyl-alkynes, 1,3-dienes and allenes from the regioselective nucleophilic addition reactions of β-CF3-1,3-enynes with sulfur nucleophiles was discovered by our group in 2018. The addition patterns depend on the type of enynes, sulfur nucleophiles and reaction conditions used. 1,4-addition leading to thioether-functionalized trifluoromethyl-allenes was realized when enynes possessing electron-withdrawing aryl groups on the alkyne moiety were used as reaction partners and alkanethiols were used as nucleophiles, whereas solvent-controlled construction of thioether-functionalized 1,3-dienes and alkynes were realized, respectively, via 3,4-addition pattern or 1,2-addition pattern if thiophenols were applied as nucleophiles. The three types of compounds containing both sulfur and fluorine elements are valuable building blocks for synthesis of multifunctional trifluoromethylated vinyl sulfides and thiophenes derivatives [62] (Scheme 23).

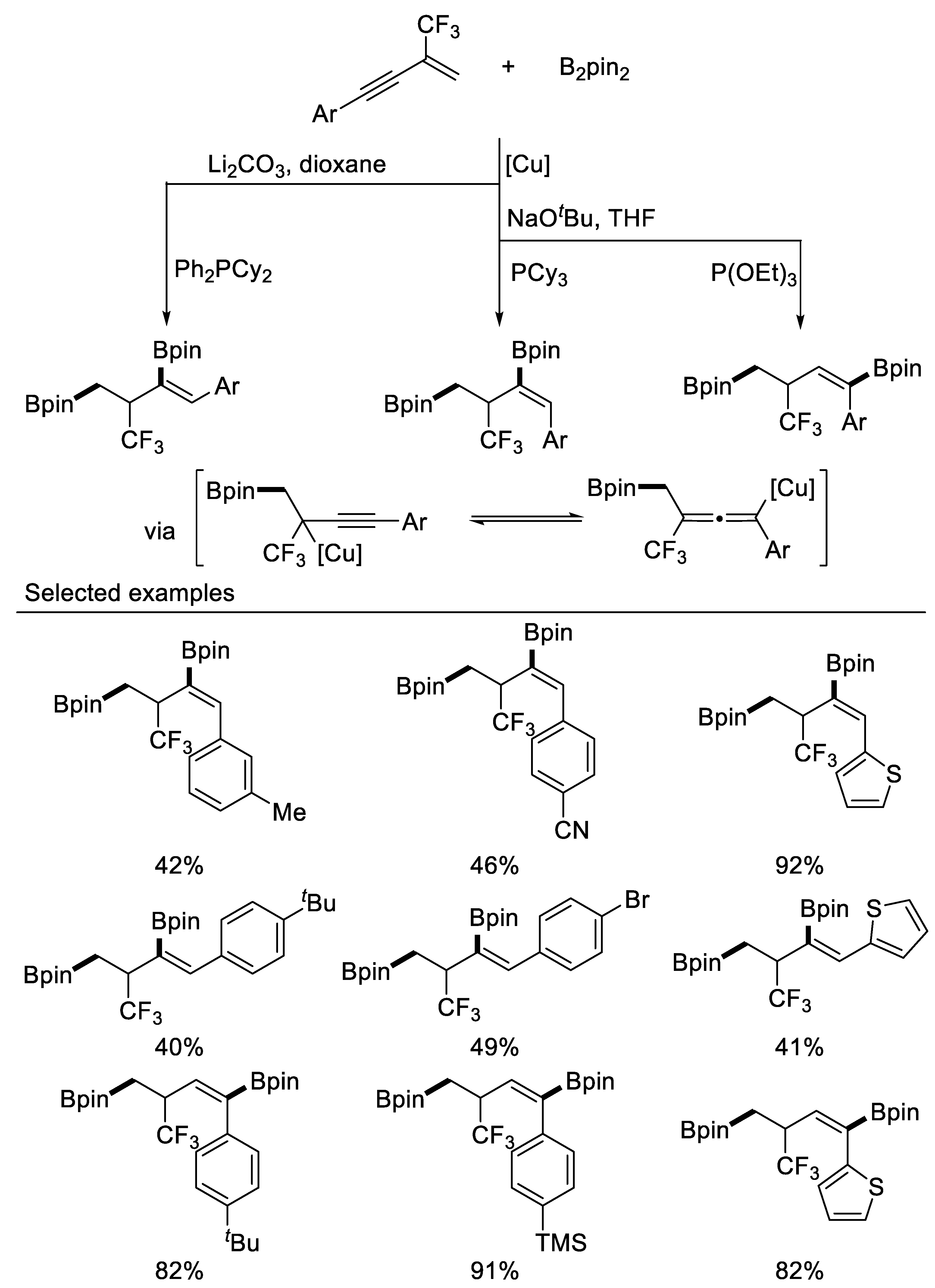

In 2020, Song and coworkers reported three unprecedented Cu-catalyzed regio- and stereo-divergent chemoselective sp2/sp3 1,3- and 1,4-diborylation of β-CF3-1,3-enynes, affording a broad array of diborylated compounds containing CF3 group in simple and efficient ways. Homopropargylic boronates and homoallenyl boronates as the key intermediates for the above three transformations were obtained after carefully modifying the reaction conditions. DFT calculations explain the reactivity, regioselectivity, as well as the stereoselectivity in these transformations in detail [63] (Scheme 24).

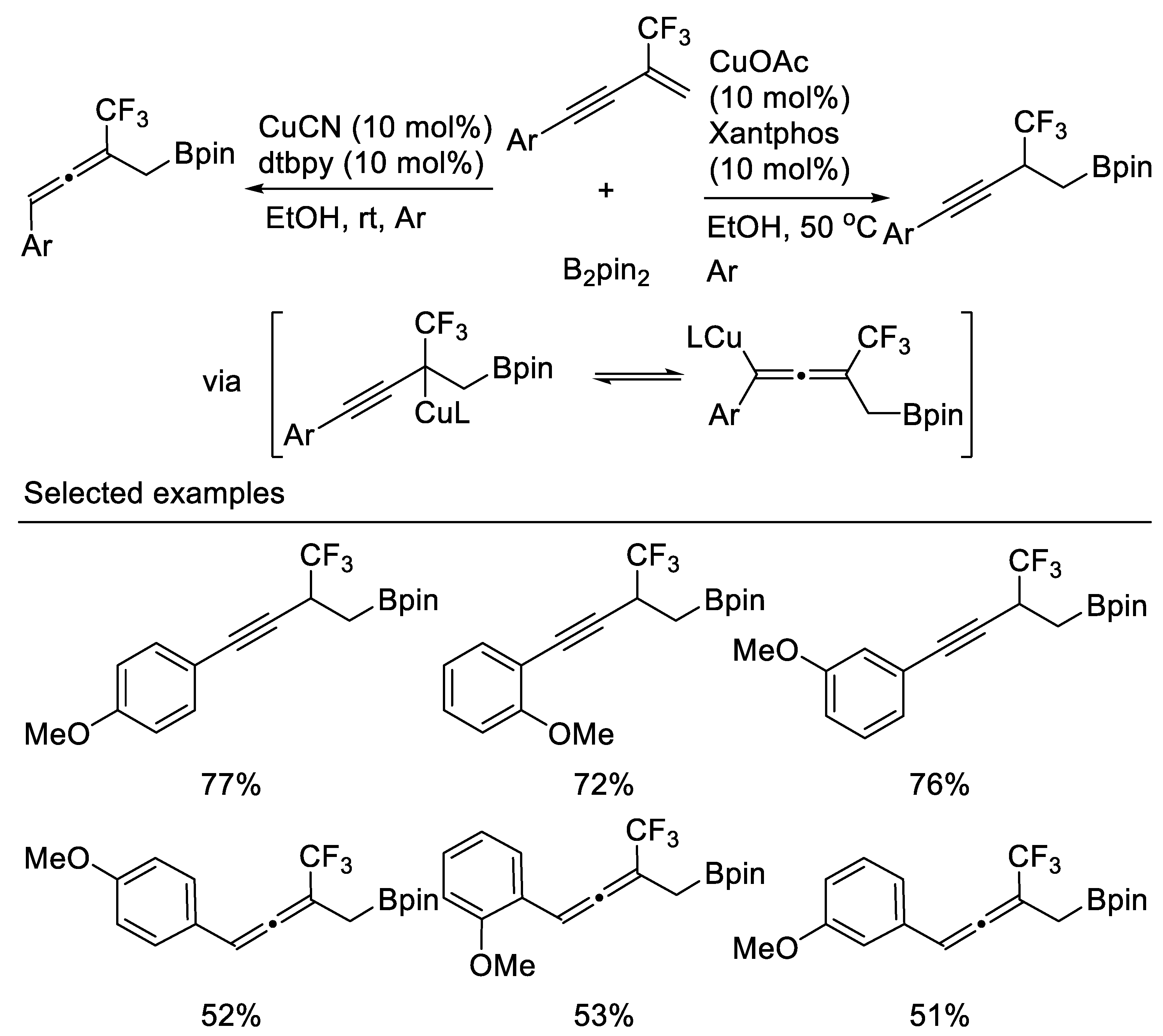

In the same year, a regio-divergent boroprotonation of β-CF3-1,3-enynes controlled by ligand for divergent synthesis of CF3-substituted homopropargyl boronates and homoallenyl boronates was reported by Cao and coworkers They found that XantPhos promoted the 1,2-boroprotonation of β-CF3-1,3-enynes in good yields and with complete regiocontrol. Conversely, 1,4-boroprotonation products were accessed with high selectivity and in moderate yield upon switching to the bidentate, nitrogen-based ligand 4,4′-di-tert-butyl-2,2′-bipyridine (dtbpy) [64] (Scheme 25).

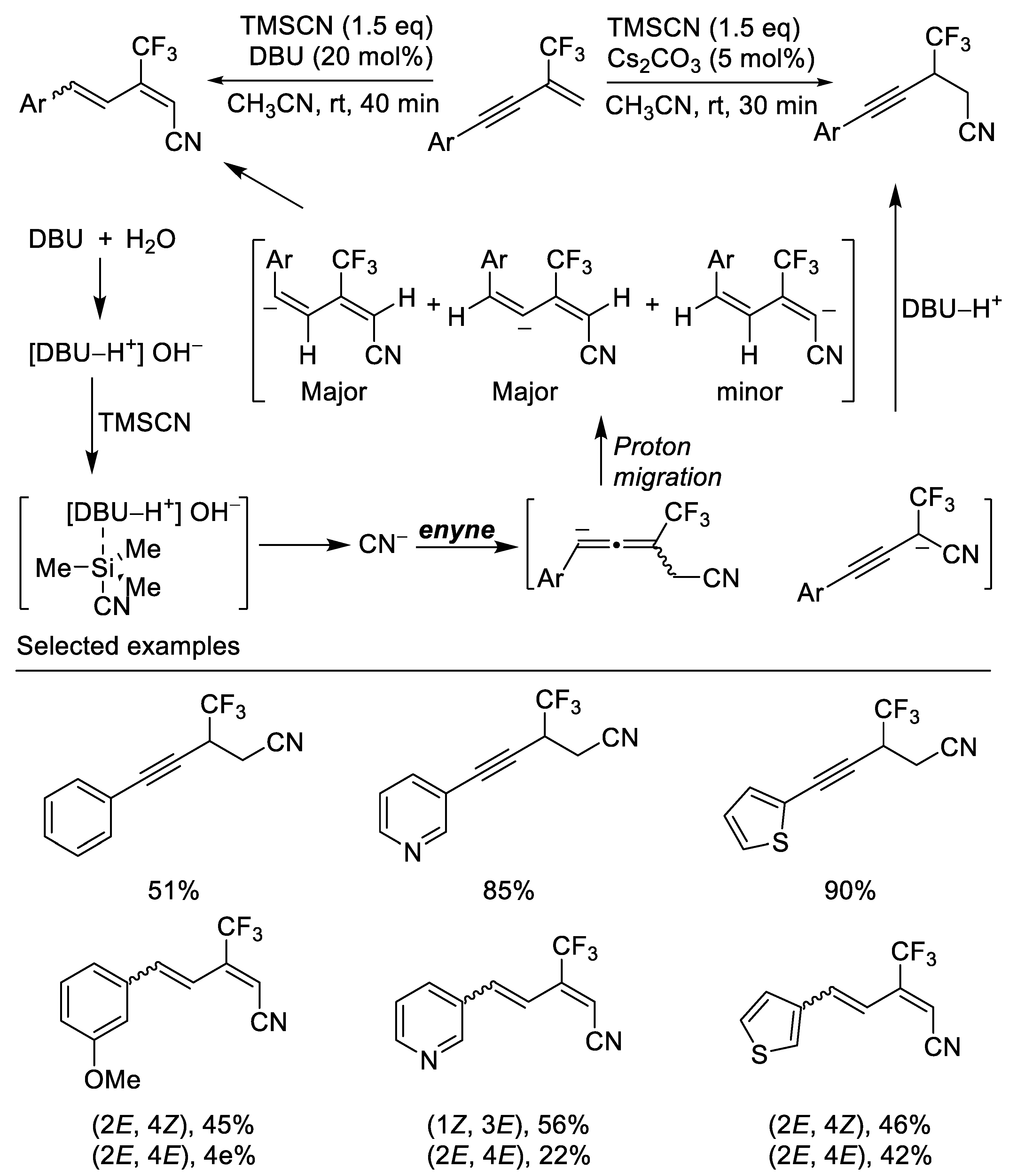

In their subsequent work, base-catalyzed nucleophilic additions of TMSCN to β-CF3-1,3-enynes, affording 1,2-hydrocyanation or 1,4-hydrocyanation products in good to excellent yields with high regioselectivity, were developed. When the reaction of β-CF3-1,3-enynes with TMSCN was carried out in the presence of 20 mol% DBU, the reactions afforded the 1,4-hydrocyanation products i.e., cyanated CF3-substituted 1,3- butadienes in fair to excellent yields, whereas the reaction provided the 1,2-hydrocyanation products by using 5 mol% Cs2CO3 instead of DBU [65] (Scheme 26).

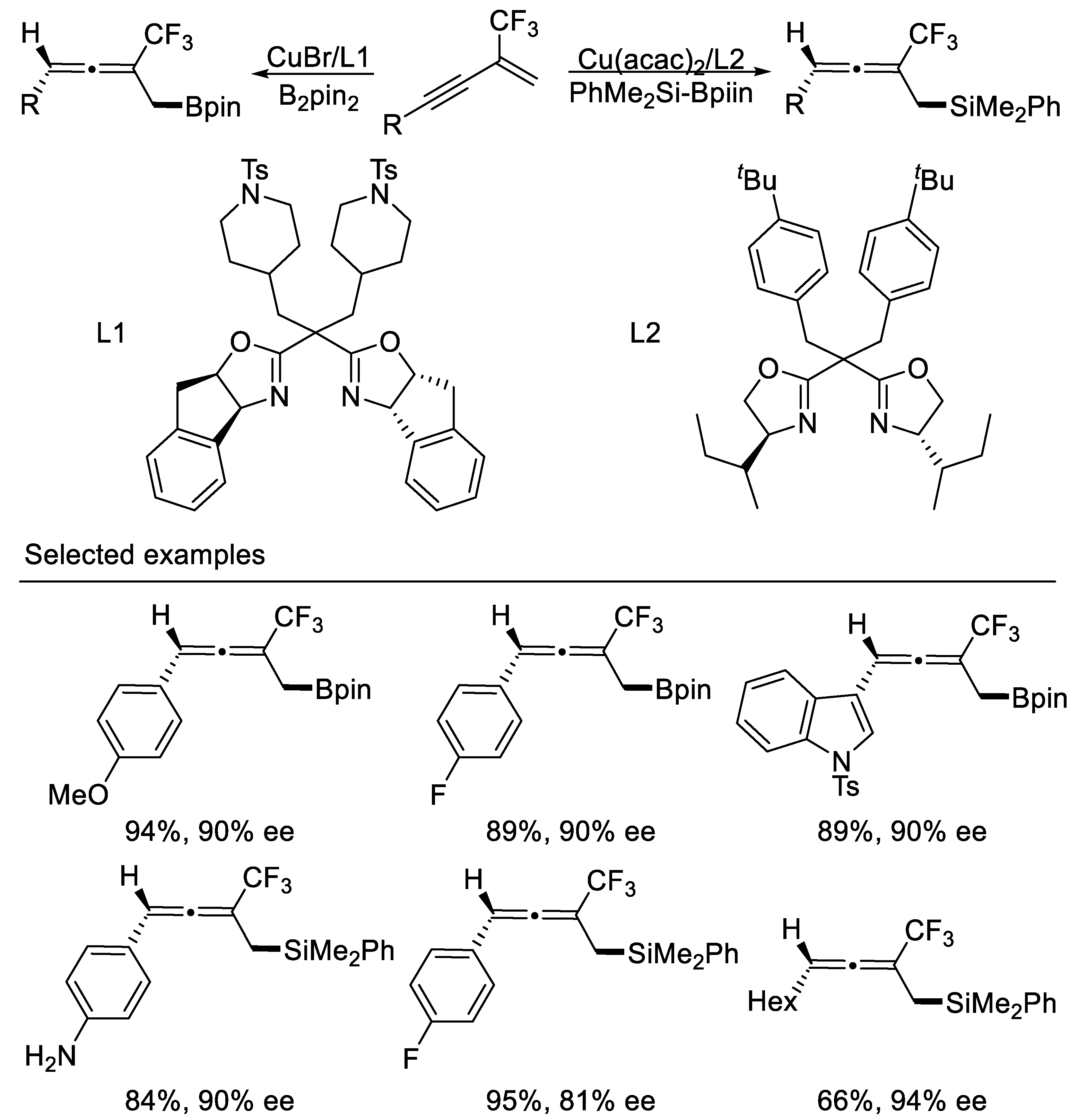

The Cu-catalyzed 1,4-protosilylation and protoborylation of β-CF3-1,3-enynes to access functionalized homoallenyl silanes and homoallenyl boronates were developed by Xu and co-workers. This protocol also provides a general method to synthesize optically active homoallenyl silanes and homoallenyl boronates in moderate to excellent yields with high enantiomeric excess by using new designed chiral bisoxazoline ligands [66] (Scheme 27).
In their subsequent work, an interesting selective and diverse defluoromethoxylation reactions of β-CF3-1,3-enynes with potassium methoxide affording enynic and allenyl orthoesters under mild reaction conditions was developed. The transformations of enynic orthoesters proved that this class of compounds are efficient and flexible “platform molecules” for the synthesis of various functionalized allenes [67] (Scheme 28).
Recently, Liu and coworkers reported the first 1,2-dicarbofunctionalization of β-CF3-1,3-enynes with pyridinium salts via a cascade process involving a base-promoted [3 + 2] cycloaddition followed by a visible-light-mediated Norrish-type-II fragmentation. This protocol allows for the formation of pyridines bearing a trifluoromethyl-substituted quaternary center in moderate to excellent yields under mild conditions. Besides β-CF3-1,3-enynes, other trifluoromethyl alkenes, such as α-CF3-(hetero)aryl alkenes, and N-[(α-trifluoromethyl)vinyl]imides, are good candidates for this transformation [68] (Scheme 29).

5. Conclusions

In this review, we have summarized recent efforts to develop new diversity-oriented synthesis based on β-CF3-1,3-enynes in one type of fluorine-containing building blocks. The distinct reactivity of β-CF3-1,3-enynes and their variants allow these reactions to deliver numerous value-added fluorine-containing compounds which have biologically relevant structural motifs, such as O-, N-, and S-heterocycles, carboncycles, fused polycycles, and multifunctionalized allenes. While the advances made to date are remarkable, further inventing novel and efficient transformations of β-CF3-1,3-enynes to synthesize diverse trifluoromethylated cyclic molecules, such as furan and acyclic molecules, is still interesting and urgent.

Author Contributions

Writing—original draft preparation, M.L.; writing—review and editing, Z.Y., J.L. and Y.X.; conceptualization and supervision, Y.X. All authors have read and agreed to the published version of the manuscript.

Funding

We are grateful to the National Natural Science Foundation of China (21871093), and STCSM (20ZR1417600) for financial support.

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Meanwell, N.A. Synopsis of Some Recent Tactical Application of Bioisosteres in Drug Design. J. Med. Chem. 2011, 54, 2529–2591. [Google Scholar] [CrossRef]
  2. Wang, J.; Sánchez-Rosellό, M.; Aceňa, J.L.; del Pozo, C.; Sorochinsky, A.E.; Fustero, S.; Soloshonok, V.A.; Liu, H. Fluorine in pharmaceutical industry: Fluorine-containing drugs introduced to the market in the last decade (2001–2011). Chem. Rev. 2014, 114, 2432–2506. [Google Scholar] [CrossRef]
  3. Bassetto, M.; Ferla, S.; Pertusati, F. Polyfluorinated groups in medicinal chemistry. Future Med. Chem. 2015, 7, 527–546. [Google Scholar] [CrossRef]
  4. Gouverneur, V.; Müller, K. Fluorine in Pharmaceutical and Medicinal Chemistry: From Biophysical Aspects to Clinical Applications; Imperial College Press: London, UK, 2012. [Google Scholar]
  5. Kirsch, P. Modern Fluoroorganic Chemistry: Synthesis, Reactivity, Applications, 2nd ed.; Wiley-VCH: Weinheim, Germany, 2013. [Google Scholar]
  6. Boltalina, O.V.; Nakajima, T. New Fluorinated Carbons: Fundamentals and Applications; Elsevier: Amsterdam, The Netherlands, 2016. [Google Scholar]
  7. Lowe, P.T.; O’Hagan, D. 4’-Fluoro-nucleosides and nucleotides: From nucleocidin to an emerging class of therapeutics. Chem. Soc. Rev. 2023, in press. [Google Scholar] [CrossRef]
  8. Zhang, C.; Yan, K.; Fu, C.; Peng, H.; Hawker, C.J.; Whittaker, A.K. Biological Utility of Fluorinated Compounds: From Materials Design to Molecular Imaging, Therapeutics and Environmental Remediation. Chem. Rev. 2022, 122, 167–208. [Google Scholar] [CrossRef]
  9. He, J.; Li, Z.; Dhawan, G.; Zhang, W.; Sorochinsky, A.E.; Butler, G.; Soloshonok, V.A.; Han, J. Fluorine-containing drugs approved by the FDA in 2021. Chin. Chem. Lett. 2023, 34, 107578–107587. [Google Scholar] [CrossRef]
  10. Han, J.; Kiss, L.; Mei, H.; Remete, A.M.; Ponikvar-Svet, M.; Sedgwick, D.M.; Roman, R.; Fustero, S.; Moriwaki, H.; Soloshonok, V.A. Chemical Aspects of Human and Environmental Overload with Fluorine. Chem. Rev. 2021, 121, 4678–4742. [Google Scholar] [CrossRef]
  11. Firouzjaei, M.D.; Zolghadr, E.; Ahmadalipour, S.; Taghvaei, N.; Afkhami, F.A.; Nejati, S.; Elliott, M.A. Chemistry, abundance, detection and treatment of per-and polyfuoroalkyl substances in water: A review. Environ. Chem. Lett. 2022, 20, 661–679. [Google Scholar] [CrossRef]
  12. Ogawa, Y.; Tokunaga, E.; Kobayashi, O.; Hirai, K.; Shibata, N. Current Contributions of Organofluorine Compounds to the Agrochemical Industry. iScience 2020, 23, 101467–101489. [Google Scholar] [CrossRef]
  13. Furuya, T.; Kamlet, A.S.; Ritter, T. Catalysis for fluorination and trifluoromethylation. Nature 2011, 473, 470–477. [Google Scholar] [CrossRef]
  14. Tomashenko, O.A.; Grushin, V.V. Aromatic trifluoromethylation with metal complexes. Chem. Rev. 2011, 111, 4475–4521. [Google Scholar] [CrossRef] [PubMed]
  15. Zhang, C.-P.; Chen, Q.-Y.; Guo, Y.; Xiao, J.-C.; Gu, Y.-C. Progress in fluoroalkylation of organic compounds via sulfinatodehalogenation initiation system. Chem. Soc. Rev. 2012, 41, 4536–4559. [Google Scholar] [CrossRef] [PubMed]
  16. Yang, X.; Wu, T.; Phipps, R.J.; Toste, F.D. Advances in Catalytic Enantioselective Fluorination, Mono-, Di-, and Trifluoromethylation, and Trifluoromethylthiolation Reactions. Chem. Rev. 2015, 115, 826. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  17. Liang, T.; Neumann, C.N.; Ritter, T. Introduction of fluorine and fluorinecontaining functional groups. Angew. Chem. Int. Ed. 2013, 52, 8214–8264. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  18. Tlili, A.; Toulgoat, F.; Billard, T. Synthetic Approaches to Trifluoromethoxy-Substituted Compounds. Angew. Chem. Int. Ed. 2016, 55, 11726–11735. [Google Scholar] [CrossRef] [PubMed]
  19. Rong, J.; Ni, C.; Hu, J. Metal-Catalyzed Direct Difluoromethylation Reactions. Asian J. Org. Chem. 2017, 6, 139–152. [Google Scholar] [CrossRef]
  20. Liu, Q.; Ni, C.; Hu, J. China’s flourishing synthetic organofluorine chemistry: Innovations in the new millennium. Natl. Sci. Rev. 2017, 4, 303–325. [Google Scholar] [CrossRef] [Green Version]
  21. Yang, L.; Dong, T.; Revankar, H.M.; Zhang, C.-P. Recent progress on fluorination in aqueous media. Green Chem. 2017, 19, 3951–3992. [Google Scholar] [CrossRef]
  22. Zhu, Y.; Han, J.; Wang, J.; Shibata, N.; Sodeoka, M.; Soloshonok, V.A.; Coelho, J.A.S.; Toste, F.D. Modern Approaches for Asymmetric Construction of Carbon-Fluorine Quaternary Stereogenic Centers: Synthetic Challenges and Pharmaceutical Needs. Chem. Rev. 2018, 118, 3887–3964. [Google Scholar] [CrossRef]
  23. Szpera, R.; Moseley, D.F.J.; Smith, L.B.; Sterling, A.J.; Gouverneur, V. The Fluorination of C-H Bonds: Developments and Perspectives. Angew. Chem. Int. Ed. 2019, 58, 14824–14848. [Google Scholar] [CrossRef]
  24. Sicard, A.J.; Baker, R.T. Fluorocarbon Refrigerants and their Syntheses: Past to Present. Chem. Rev. 2020, 120, 9164–9303. [Google Scholar] [CrossRef] [PubMed]
  25. Linclau, B.; Ardá, A.; Reichardt, N.C.; Sollogoub, M.; Unione, L.; Vincent, S.P.; Jiménez-Barbero, J. Fluorinated carbohydrates as chemical probes for molecular recognition studies. Current status and perspectives. Chem. Soc. Rev. 2020, 49, 3863–3888. [Google Scholar] [CrossRef] [PubMed]
  26. Tarantino, G.; Hammond, C. Catalytic C(sp3)-F bond formation: Recent achievements and pertaining challenges. Green Chem. 2020, 22, 5195–5209. [Google Scholar] [CrossRef]
  27. Huonnic, K.; Linclau, B. The Synthesis and Glycoside Formation of Polyfluorinated Carbohydrates. Chem. Rev. 2022, 122, 15503–15602. [Google Scholar] [CrossRef] [PubMed]
  28. Nie, J.; Guo, H.-C.; Cahard, D.; Ma, J.-A. Asymmetric construction of stereogenic carbon centers featuring a trifluoromethyl group from prochiral trifluoromethylated substrates. Chem. Rev. 2011, 111, 455–529. [Google Scholar] [CrossRef] [PubMed]
  29. Dherbassy, Q.; Manna, S.; Talbot, F.J.T.; Prasitwatcharakorn, W.; Perry, G.J.P.; David, J. Procter, D.J. Copper-catalyzed functionalization of enynes. Chem. Sci. 2020, 11, 11380–11393. [Google Scholar] [CrossRef] [PubMed]
  30. Mlostoń, G.; Shermolovich, Y.; Heimgartner, H. Synthesis of Fluorinated and Fluoroalkylated Heterocycles Containing at Least One Sulfur Atom via Cycloaddition Reactions. Materials 2022, 15, 7244. [Google Scholar] [CrossRef]
  31. Metelev, V.G.; Bogdanov, A.A., Jr. Synthesis and applications of theranostic oligonucleotides carrying multiple fluorine atoms. Theranostics 2020, 10, 1391–1414. [Google Scholar] [CrossRef]
  32. Ogiwara, Y.; Sakai, N. Acyl Fluorides in Late-Transition-Metal Catalysis. Angew. Chem. Int. Ed. 2020, 59, 574–594. [Google Scholar] [CrossRef]
  33. Wehbi, M.; Mehdi, A.; Negrell, C.; David, G.; Alaaeddine, A.; Améduri, B. Phosphorus-Containing Fluoropolymers: State of the Art and Applications. ACS Appl. Mater. Interfaces 2020, 12, 38–59. [Google Scholar] [CrossRef]
  34. Butcher, T.W.; Amberg, W.M.; Hartwig, J.F. Transition-Metal-Catalyzed Monofluoroalkylation: Strategies for the Synthesis of Alkyl Fluorides by C-C Bond Formation. Angew. Chem. Int. Ed. 2022, in press. [Google Scholar]
  35. Ai, H.J.; Ma, X.; Song, Q.; Wu, X.F. C–F bond activation under transition-metal-free conditions. Sci. China Chem. 2021, 64, 1630–1659. [Google Scholar] [CrossRef]
  36. Zhang, B.; Wang, J. Assembly of versatile fluorine-containing structures via N-heterocyclic carbene organocatalysis. Sci. China Chem. 2022, 65, 1691–1703. [Google Scholar] [CrossRef]
  37. Chen, S.; Zhang, J.; Yang, M.; Liu, F.; Xie, Z.; Liu, Y.; Lin, W.; Wang, D.; Li, X.; Wang, J. Diastereoselective synthesis of cyclopropanes bearing trifluoromethyl-substituted all-carbon quaternary centers from 2-trifluoromethyl-1,3-enynes beyond fluorine elimination. Chem. Commun. 2019, 55, 3879–3882. [Google Scholar] [CrossRef]
  38. Chen, G.-S.; Yan, X.-X.; Chen, S.-J.; Mao, X.-Y.; Li, Z.-D.; Liu, Y.-L. Diastereoselective Synthesis of 1,3-Diyne-Tethered Trifluoromethylcyclopropanes through a Sulfur Ylide Mediated Cyclopropanation/DBU-Mediated Epimerization Sequence. J. Org. Chem. 2020, 85, 6252–6260. [Google Scholar] [CrossRef]
  39. Ma, Z.; Deng, Y.; He, J.; Cao, S. Solvent-controlled base-free synthesis of bis(trifluoromethyl)-cyclopropanes and –pyrazolines via cycloaddition of 2-trifluoromethyl-1,3-enynes with 2,2,2-trifluorodiazoethane. Org. Biomol. Chem. 2022, 20, 5071–5075. [Google Scholar] [CrossRef]
  40. Hwang, J.H.; Jung, Y.H.; Hong, Y.Y.; Jeon, S.L.; Jeong, I.H. Synthesis of novel 2-trifluoromethyl-1-methylene-3-phenylindene derivatives via carbocyclization reaction of 2-trifluoromethyl-1,1-diphenyl-1,3-enynes. J. Fluor. Chem. 2011, 132, 1227–1231. [Google Scholar] [CrossRef]
  41. Trost, B.M.; Laurent Debien, L. Palladium-Catalyzed Trimethylenemethane Cycloaddition of Olefins Activated by the σ-Electron-Withdrawing Trifluoromethyl Group. J. Am. Chem. Soc. 2015, 137, 11606–11609. [Google Scholar] [CrossRef]
  42. Zeng, Y.; Huang, C.; Ni, P.; Liu, L.; Xiao, Y.; Zhang, J. Silver-Catalyzed Double Hydrocarbonation of 2-Trifluoromethyl-1,3-Conjugated Enynes with 1,3-Dicarbonyl Compounds: Synthesis of Ring-Trifluoromethylated Cyclopentene. Adv. Synth. Catal. 2017, 359, 3555–3559. [Google Scholar] [CrossRef]
  43. Zhang, J.; Ma, Z.-G.; Tian, Y.; Li, W.; Gao, W.-C.; Chang, H.-H. Divergent Synthesis of Fluorinated Alkenes, Allenes, and Enynes via Reaction of 2-Trifluoromethyl-1,3-enynes with Carbon Nucleophiles. J. Org. Chem. 2022, 87, 15086–15100. [Google Scholar] [CrossRef]
  44. Chen, S.-J.; Chen, G.S.; Zhang, J.-W.; Li, Z.-D.; Zhao, Y.-L.; Liu, Y.-L. Phosphine-catalyzed [3 + 2] cycloadditions of trifluoromethyl enynes/enediynes with allenoates: Access to cyclopentenes containing a CF3-substituted quaternary carbon center. Org. Chem. Front. 2020, 7, 3399–3405. [Google Scholar] [CrossRef]
  45. Zatolochnaya, O.V.; Gevorgyan, V. Synthesis of Fluoro- and Perfluoroalkyl Arenes via Palladium-Catalyzed [4 + 2] Benzannulation Reaction. Org. Lett. 2013, 15, 2562–2565. [Google Scholar] [CrossRef] [PubMed]
  46. Yang, Z.-J.; Hu, B.-L.; Deng, C.-L.; Zhang, X.-G. Iron-Promoted Electrophilic Annulation of Aryl Enynes with Disulfides or Diselenides Leading to Polysubstituted Naphthalenes. Adv. Synth. Catal. 2014, 356, 1962–1966. [Google Scholar] [CrossRef]
  47. Ikeda, G.; Kawasaki, M.; Hanamoto, T. Sonogashira cross-coupling of (Z)-2-bromo-2-CF3-vinyl benzyl sulfide and access to 4-CF3-3-iodo-2-substituted thiophenes. J. Fluor. Chem. 2021, 248, 109838–109843. [Google Scholar] [CrossRef]
  48. Jin, S.; Kuang, Z.; Song, Q. Precise Construction of SCF2H or SeCF2H Groups on HeteroarenesGenerated in Situ from CF3-Containing 1,3-Enynes. Org. Lett. 2020, 22, 615–619. [Google Scholar] [CrossRef] [PubMed]
  49. Jin, S.; Li, S.-J.; Ma, X.; Su, J.; Chen, H.; Lan, Y.; Song, Q. Elemental-Sulfur-Enabled Divergent Synthesis of Disulfides, Diselenides, and Polythiophenes from β-CF3-1,3-Enynes. Angew. Chem. Int. Ed. 2021, 60, 881–888. [Google Scholar] [CrossRef]
  50. Zeng, Q.; Zhang, L.; Yang, J.; Xu, B.; Xiao, Y.; Zhang, J. Pyrroles versus cyclic nitrones: Catalyst-controlled divergent cyclization of N-(2-perfluoroalkyl-3-alkynyl) hydroxylamines. Chem. Commun. 2014, 50, 4203–4206. [Google Scholar] [CrossRef]
  51. Zhang, L.; Zeng, Q.; Mao, A.; Wu, Z.; Luo, T.; Xiao, Y.; Zhang, J. NIS-mediated oxidative cyclization of N-(2-trifluoromethyl-3-alkynyl) hydroxylamines: A facile access to 4-trifluoromethyl-5-acylisoxazoles. Org. Biomol. Chem. 2014, 12, 8942–8946. [Google Scholar] [CrossRef]
  52. Tan, B.; Shi, Z.; Chua, P.; Li, Y.; Zhong, G. Unusual domino Michael/Aldol condensation reactions employing oximes as N-selective nucleophiles: Synthesis of N-hydroxypyrroles. Angew. Chem. Int. Ed. 2009, 48, 758–761. [Google Scholar] [CrossRef]
  53. Zeng, Q.; Zhang, L.; Xiao, Y.; Zhang, J. Divergent access to N-hydroxypyrroles and isoxazoles via the gold(I)- or Brønsted acid-catalysed regioselective cyclization of N-(2-trifluoromethyl-3-alkynyl) oximes. Org. Biomol. Chem. 2018, 16, 1375–1380. [Google Scholar] [CrossRef]
  54. Yang, J.; Zhou, X.; Zeng, Y.; Huang, C.; Xiao, Y.; Zhang, J. Synthesis of 2-fluoro-2-pyrrolines via tandem reaction of α-trifluoromethyl-α,β-unsaturated carbonyl compounds with N-tosylated 2-aminomalonates. Chem. Commun. 2016, 52, 4922–4925. [Google Scholar] [CrossRef] [PubMed]
  55. Yang, J.; Zhou, X.; Zeng, Y.; Huang, C.; Xiao, Y.; Zhang, J. Divergent synthesis from reactions of 2-trifluoromethyl-1,3-conjugated enynes with N-acetylated 2-aminomalonates. Org. Biomol. Chem. 2017, 15, 2253–2258. [Google Scholar] [CrossRef] [PubMed]
  56. Zhou, X.; Huang, C.; Zeng, Y.; Xiong, J.; Xiao, Y.; Zhang, J. Silver-catalysed tandem hydroamination and cyclization of 2-trifluoromethyl-1,3-enynes with primary amines: Modular entry to 4-trifluoromethyl-3-pyrrolines. Chem. Commun. 2017, 53, 1084–1087. [Google Scholar] [CrossRef] [PubMed]
  57. Huang, C.-Q.; Zeng, Y.; Cheng, H.; Hu, A.; Liu, L.; Xiao, Y.; Zhang, J. A One-Pot Construction of Halogenated Trifluoromethylated Pyrroles through NXS (X = Br, I) Triggered Cascade. Org. Lett. 2017, 19, 4968–4971. [Google Scholar] [CrossRef] [PubMed]
  58. Wei, L.; Ding, S.; Liu, M.; Yu, Z.; Xiao, Y. Synthesis of Trifluoromethylated Pyrazolidines, Pyrazolines and Pyrazoles via Divergent Reaction of β-CF3-1,3-Enynes with Hydrazines. Org. Lett. 2021, 23, 7718–7723. [Google Scholar] [CrossRef]
  59. Qing, F.-L.; Gao, W.-Z. The first synthesis of 4-trifluoromethyl-2H-pyrans by palladium-catalyzed cyclization of (E)-3-alkynyl-3-trifluoromethyl allylic alcohols. Tetrahedron Lett. 2000, 41, 7727–7730. [Google Scholar] [CrossRef]
  60. Yang, J.; Mao, A.; Yue, Z.; Zhu, W.; Luo, X.; Zhu, C.; Xiao, Y.; Zhang, J. A simple base-mediated synthesis of diverse functionalized ring-fluorinated 4H-pyrans via double direct C−F substitutions. Chem. Commun. 2015, 51, 8326. [Google Scholar] [CrossRef]
  61. Zeng, Q.; Huang, X.; Liu, M.; Yu, Z.; Xiao, Y. Synthesis of Trifluoromethylated 4H-Pyran and 4H-Thiopyran via Divergent Reaction of β-CF3-1,3-Enynes with Ketothioamides. Org. Lett. 2022, 24, 8186–8191. [Google Scholar] [CrossRef]
  62. Cheng, H.; Zhou, X.; Hu, A.; Ding, S.; Wang, Y.; Xiao, Y.; Zhang, J. Thioether-Functionalized Trifluoromethyl-Alkynes, 1,3-Dienes and Allenes: Divergent Synthesis from Reaction of 2-Trifluoromethyl-1,3-Conjugated Enynes with Sulfur Nucleophiles. RSC Adv. 2018, 8, 34088–34093. [Google Scholar] [CrossRef] [Green Version]
  63. Kuang, Z.; Chen, H.; Qiu, J.; Ou, Z.; Lan, Y.; Song, Q. Cu-Catalyzed Regio- and Stereodivergent Chemoselective sp2/sp3 1,3-and 1,4-Diborylations of CF3-Containing 1,3-Enynes. Chem 2020, 6, 2347–2363. [Google Scholar] [CrossRef]
  64. Li, J.; Liu, C.; He, J.; Xu, S.; Zhao, X.; Zhu, Y.; Cao, S. Ligand-Controlled Copper-Catalyzed 1,2 or 1,4-Protoborylation of 2-Trifluoromethyl-1,3-Conjugated Enynes. Org. Chem. Front. 2020, 7, 1495–1501. [Google Scholar] [CrossRef]
  65. Xu, S.; Deng, Y.; He, J.; Zeng, Q.; Liu, C.; Zhang, Y.; Zhu, B.; Cao, S. Synthesis of CF3-Containing Linear Nitriles from α-(Trifluoromethyl)styrenes. Org. Lett. 2021, 23, 5853–5858. [Google Scholar] [CrossRef] [PubMed]
  66. Yang, C.; Liu, Z.-L.; Dai, D.-T.; Li, Q.; Ma, W.-W.; Zhao, M.; Xu, Y.-H. Catalytic Asymmetric Conjugate Protosilylation and Protoborylation of 2-Trifluoromethyl Enynes for Synthesis of Functionalized Allenes. Org. Lett. 2020, 22, 1360–1367. [Google Scholar] [CrossRef]
  67. Dai, D.-T.; Xu, J.-L.; Chen, Z.-Y.; Wang, Z.-L.; Xu, Y.-H. Synthesis of Enynic and Allenic Orthoesters via Defluoromethoxylation of 2-Trifluoromethyl-1,3-enynes. Org. Lett. 2021, 23, 1898–1903. [Google Scholar] [CrossRef]
  68. Chen, S.-J.; Chen, G.-S.; Deng, T.; Li, J.-H.; He, Z.-Q.; Liu, L.-S.; Ren, H.; Liu, Y.-L. 1,2-Dicarbofunctionalization of Trifluoromethyl Alkenes with Pyridinium Salts via a Cycloaddition/Visible-Light-Enabled Fragmentation Cascade. Org. Lett. 2022, 24, 702–707. [Google Scholar] [CrossRef] [PubMed]
Molecules 27 09020 sch001 550

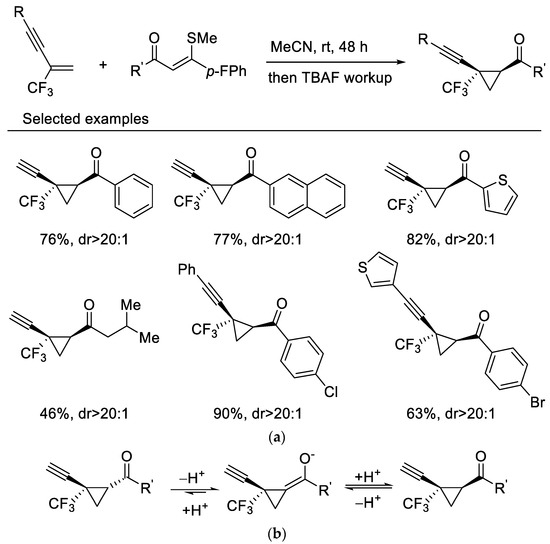

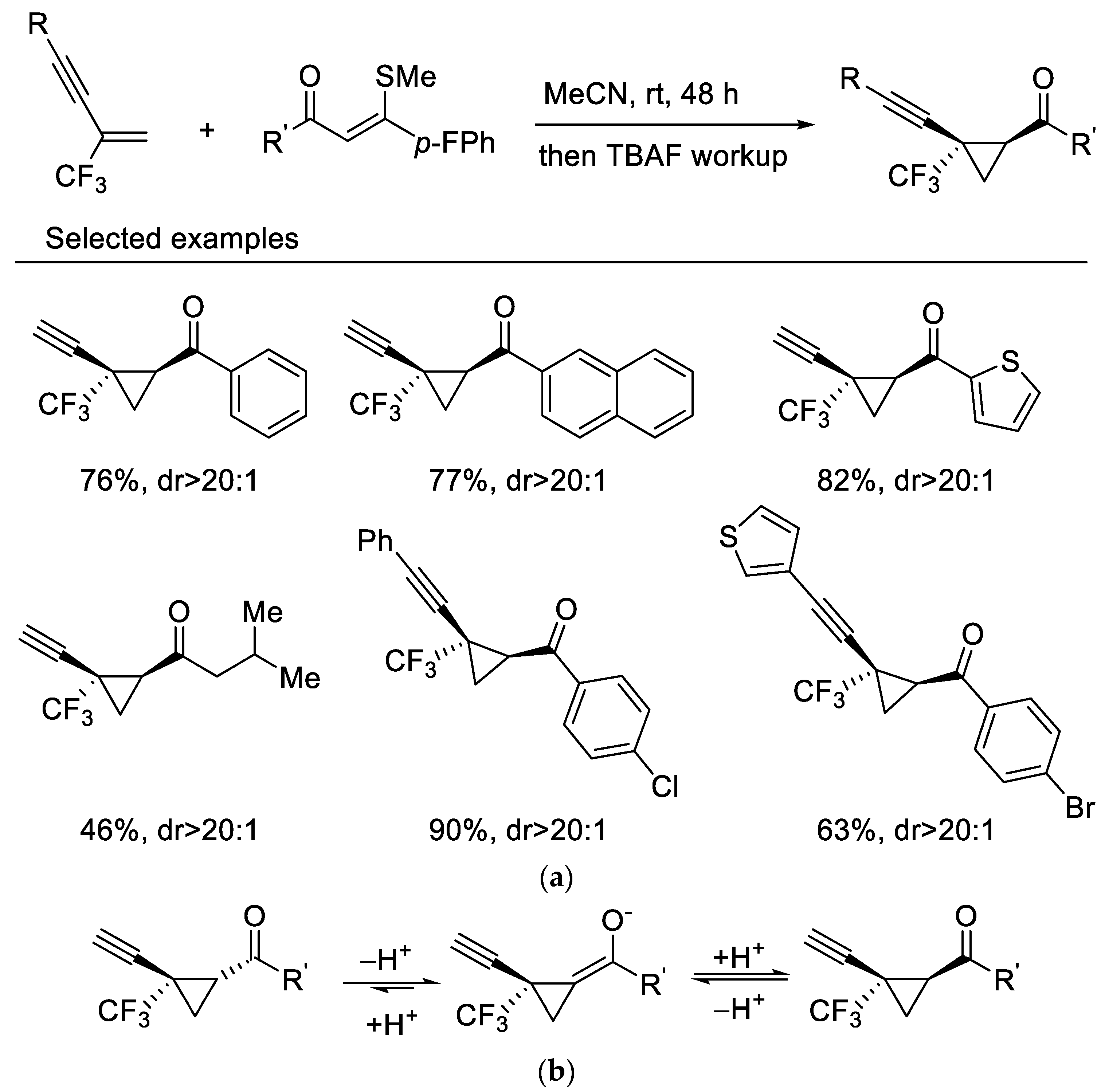

Scheme 1. (a) Synthesis of trifluoromethylated cyclopropanes. (b) The mechanism of thermodynamic epimerization.
Scheme 1. (a) Synthesis of trifluoromethylated cyclopropanes. (b) The mechanism of thermodynamic epimerization.
Molecules 27 09020 sch001
Molecules 27 09020 sch002 550

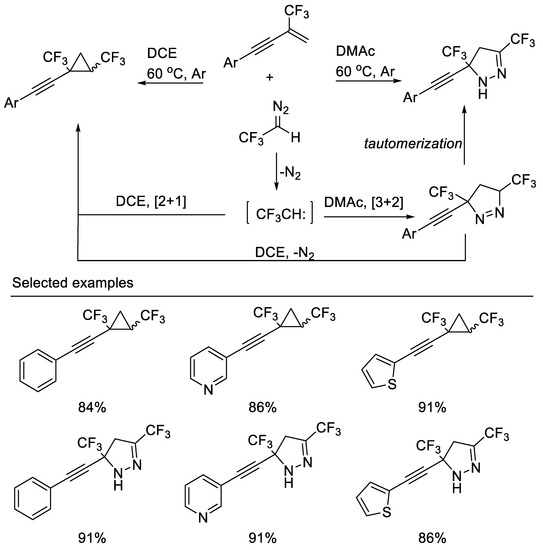

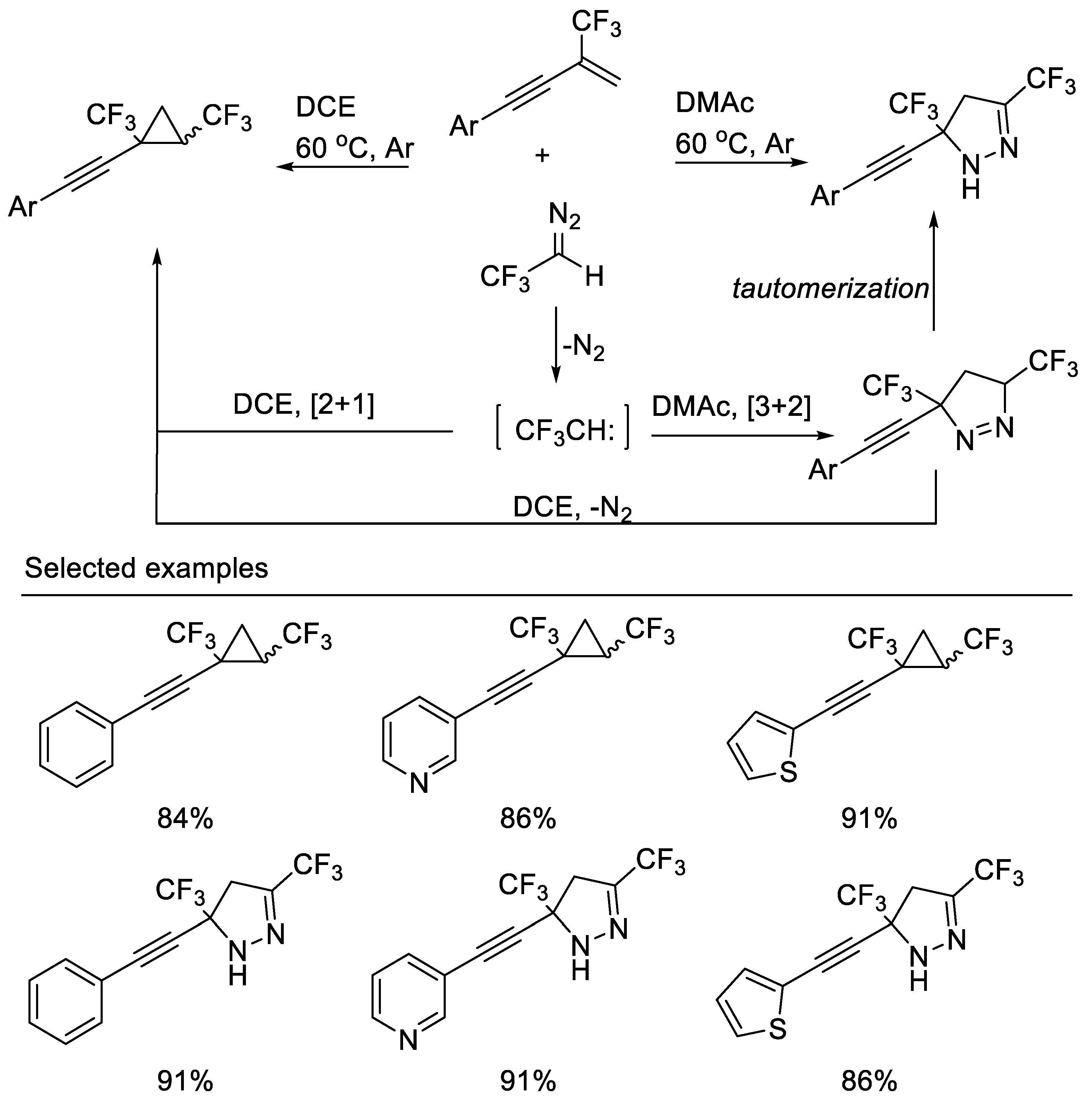

Scheme 2. Divergent synthesis of bis(trifluoromethyl) cyclopropanes and pyrazolines.
Scheme 2. Divergent synthesis of bis(trifluoromethyl) cyclopropanes and pyrazolines.
Molecules 27 09020 sch002
Molecules 27 09020 sch003 550

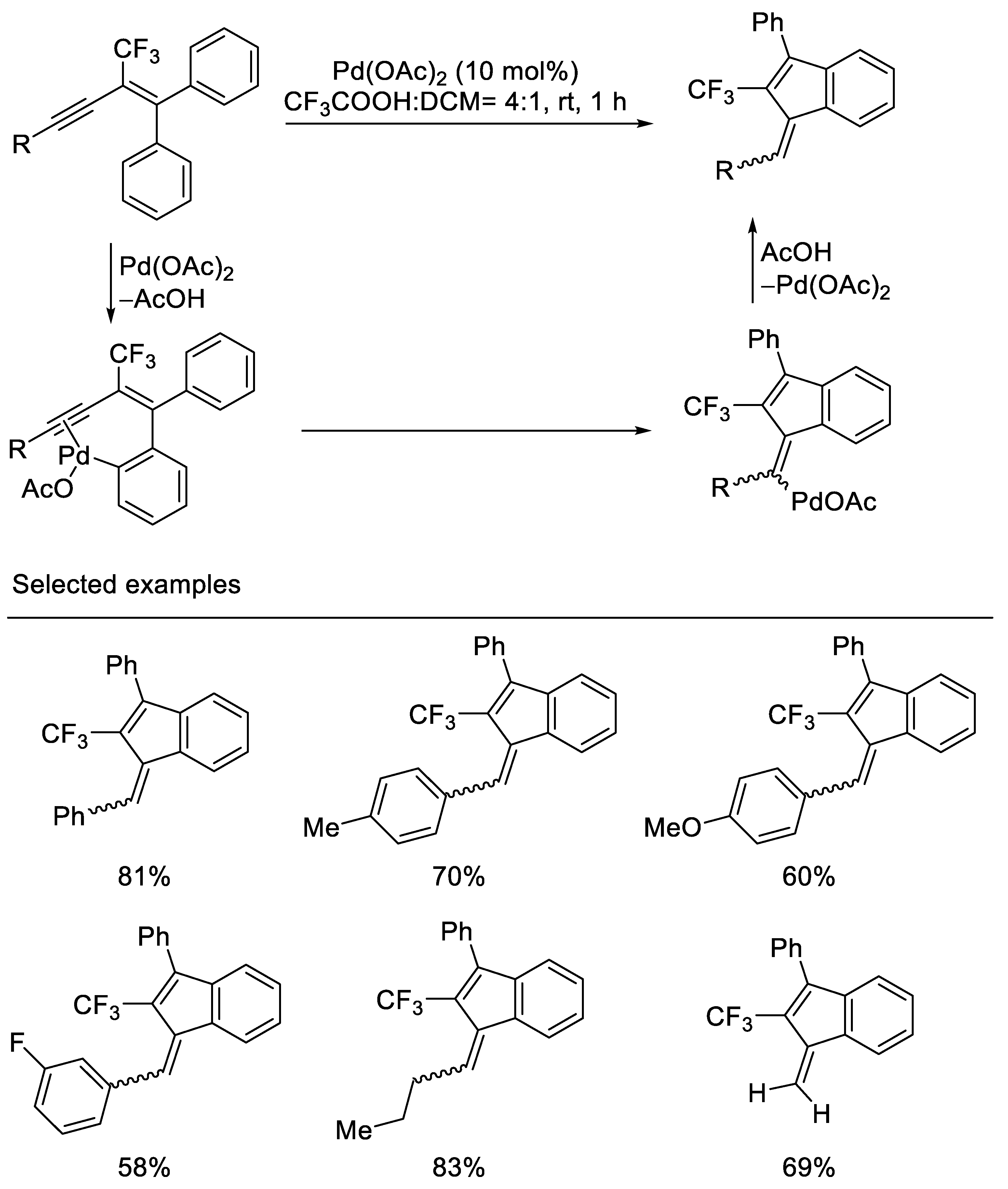

Scheme 3. Synthesis of trifluoromethylated 1-methylene indenes derivatives.
Scheme 3. Synthesis of trifluoromethylated 1-methylene indenes derivatives.
Molecules 27 09020 sch003
Molecules 27 09020 sch004 550

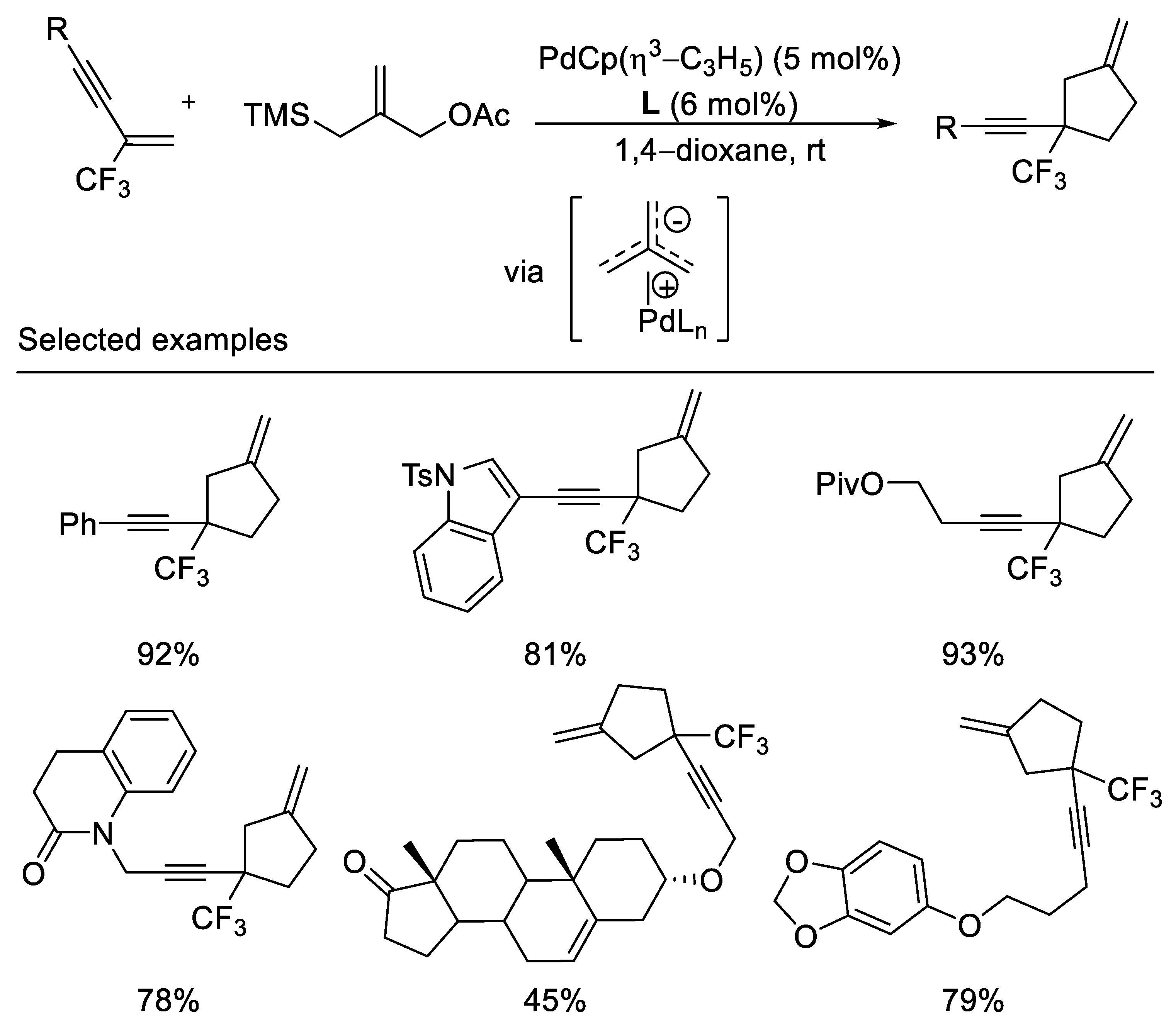

Scheme 4. Synthesis of trifluoromethylated exomethylene cyclopentanes.
Scheme 4. Synthesis of trifluoromethylated exomethylene cyclopentanes.
Molecules 27 09020 sch004
Molecules 27 09020 sch005 550

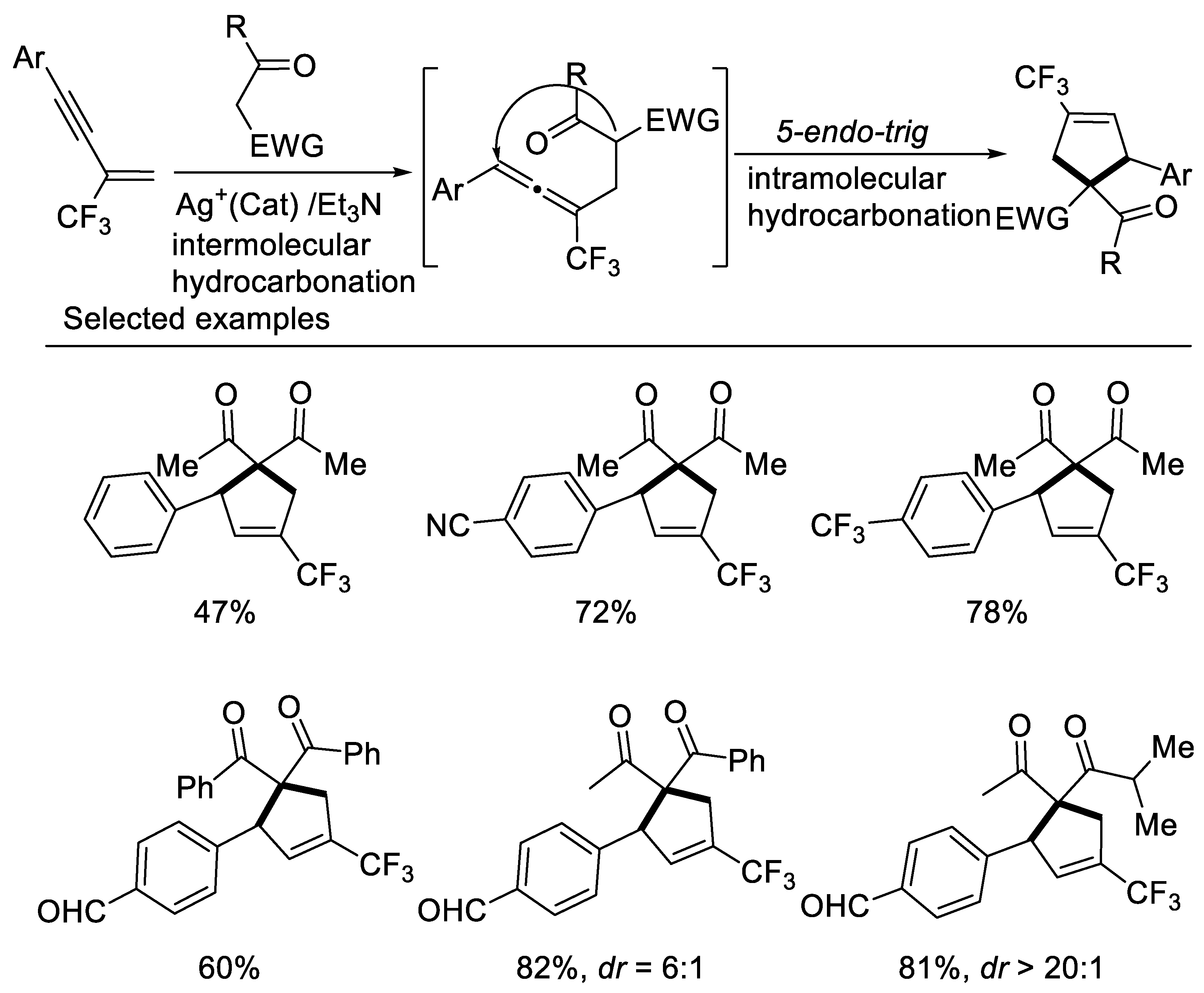

Scheme 5. Synthesis of ring-trifluoromethylated cyclopentene derivatives.
Scheme 5. Synthesis of ring-trifluoromethylated cyclopentene derivatives.
Molecules 27 09020 sch005
Molecules 27 09020 sch006 550

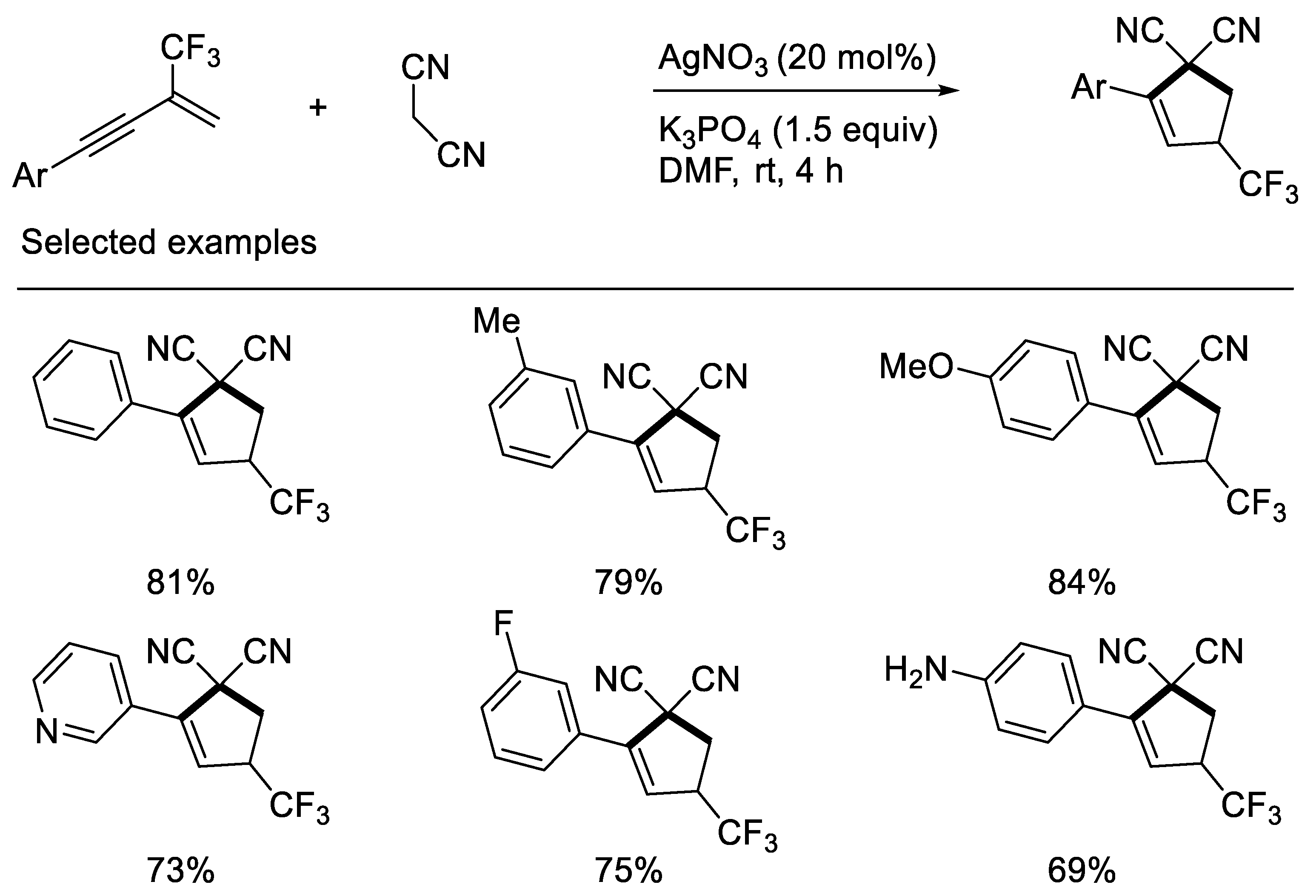

Scheme 6. Synthesis of CF3-substituted cyclopentene derivatives.
Scheme 6. Synthesis of CF3-substituted cyclopentene derivatives.
Molecules 27 09020 sch006
Molecules 27 09020 sch007 550

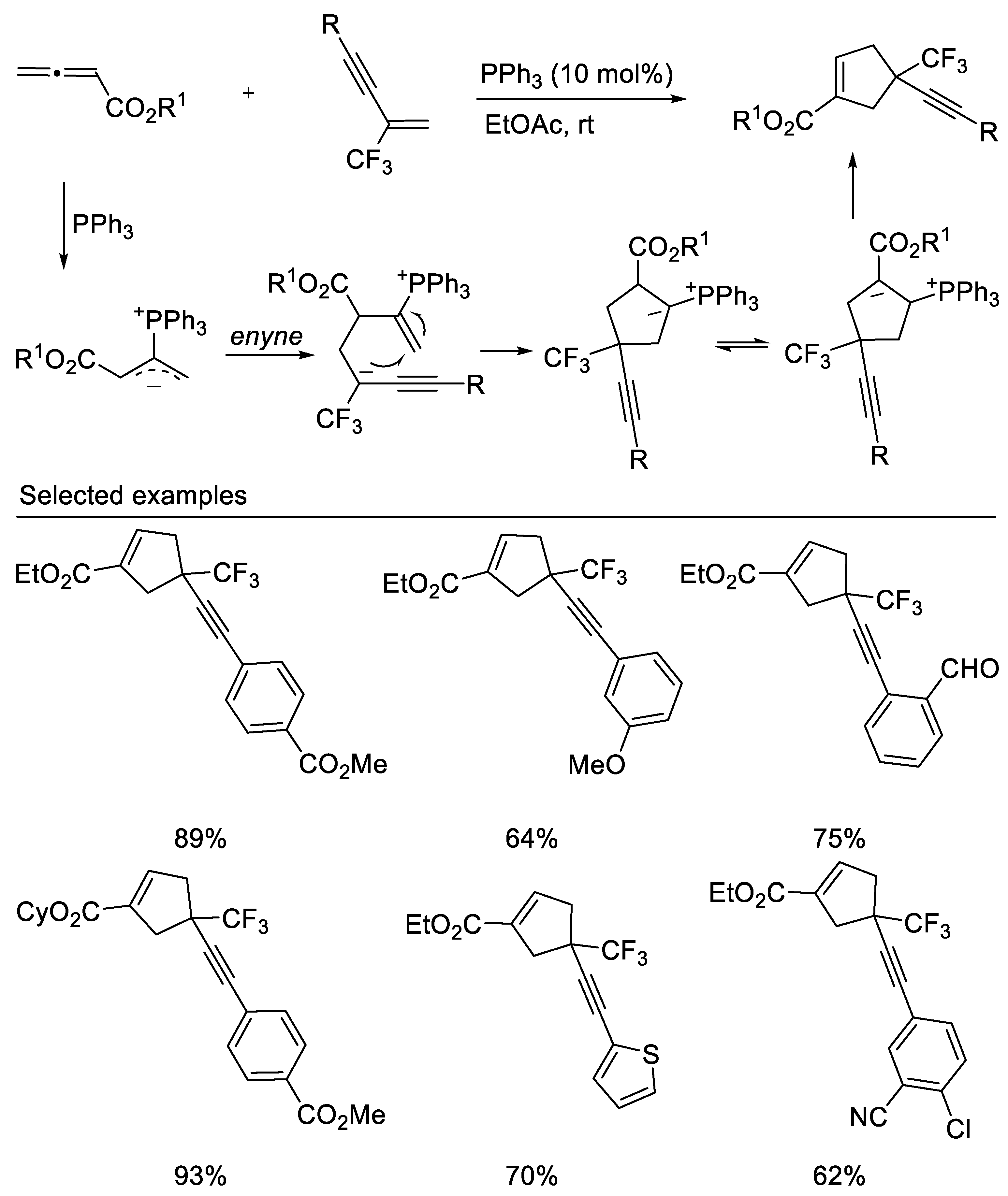

Scheme 7. Phosphine-catalyzed [3 + 2] cycloadditions.
Scheme 7. Phosphine-catalyzed [3 + 2] cycloadditions.
Molecules 27 09020 sch007
Molecules 27 09020 sch008 550

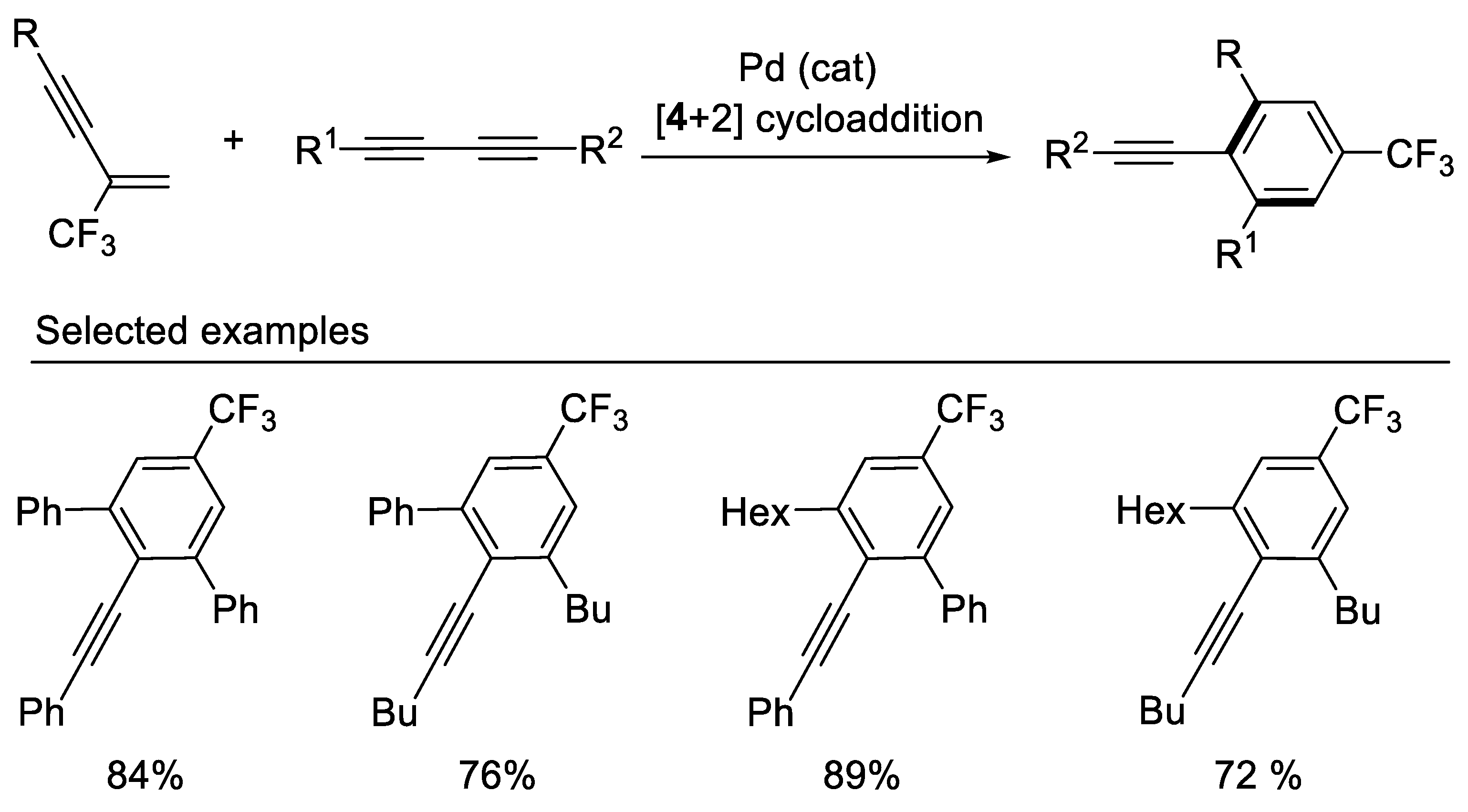

Scheme 8. Synthesis of trifluoromethylated benzene derivatives.
Scheme 8. Synthesis of trifluoromethylated benzene derivatives.
Molecules 27 09020 sch008
Molecules 27 09020 sch009 550

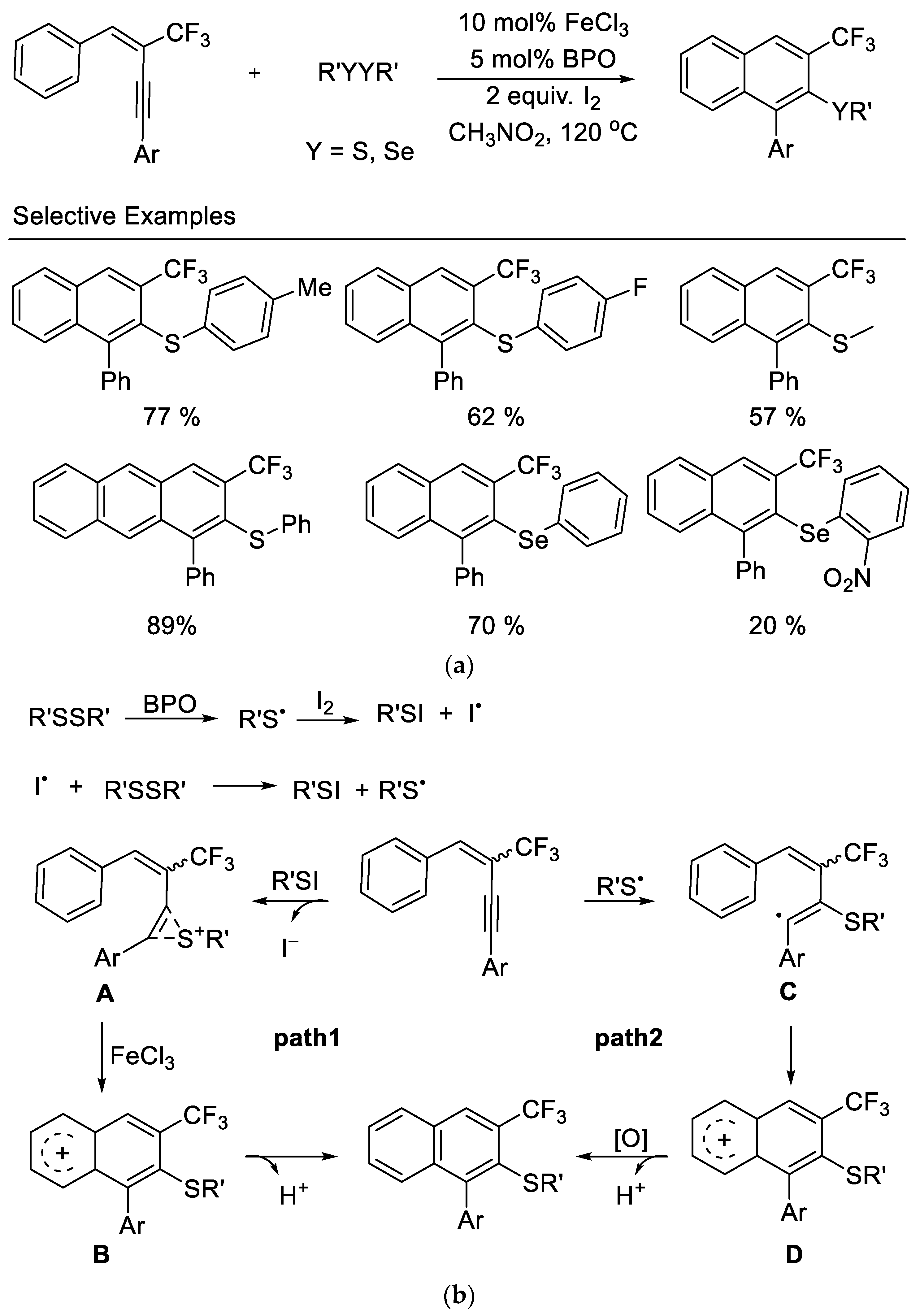

Scheme 9. (a) Synthesis of trifluoromethylated naphthalenes derivatives. (b) Possible mechanism for synthesis of trifluoromethylated naphthalenes derivatives.
Scheme 9. (a) Synthesis of trifluoromethylated naphthalenes derivatives. (b) Possible mechanism for synthesis of trifluoromethylated naphthalenes derivatives.
Molecules 27 09020 sch009
Molecules 27 09020 sch010 550
Scheme 10. Synthesis of trifluoromethylated thiophene derivatives.
Scheme 10. Synthesis of trifluoromethylated thiophene derivatives.
Molecules 27 09020 sch010
Molecules 27 09020 sch011 550
Scheme 11. Synthesis of 3-SCF2H-4-CF3-thiophenes derivatives.
Scheme 11. Synthesis of 3-SCF2H-4-CF3-thiophenes derivatives.
Molecules 27 09020 sch011
Molecules 27 09020 sch012 550
Scheme 12. Synthesis of diaryl disulfides or diselenides and polythiophenes derivatives.
Scheme 12. Synthesis of diaryl disulfides or diselenides and polythiophenes derivatives.
Molecules 27 09020 sch012
Molecules 27 09020 sch013 550

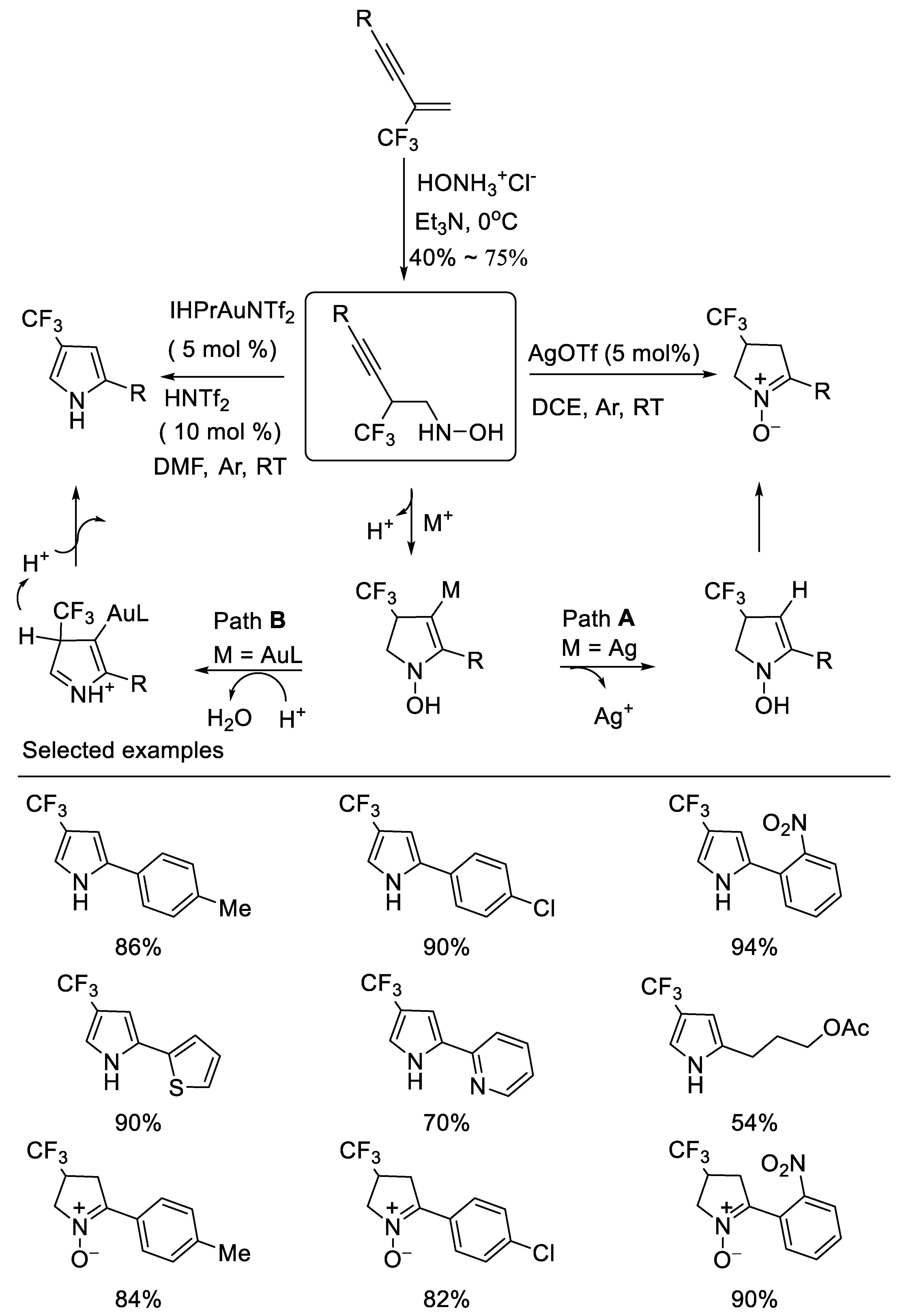

Scheme 13. Divergent synthesis of trifluoromethylated cyclic nitrone and pyrrole.
Scheme 13. Divergent synthesis of trifluoromethylated cyclic nitrone and pyrrole.
Molecules 27 09020 sch013
Molecules 27 09020 sch014 550
Scheme 14. (a) Synthesis of 4-trifluoromethyl-5-acylisoxazoles. (b) Plausible mechanism for synthesis of 4-trifluoromethyl-5-acylisoxazoles.
Scheme 14. (a) Synthesis of 4-trifluoromethyl-5-acylisoxazoles. (b) Plausible mechanism for synthesis of 4-trifluoromethyl-5-acylisoxazoles.
Molecules 27 09020 sch014
Molecules 27 09020 sch015 550
Scheme 15. Divergent synthesis of trifluoromethylated N-hydroxypyrroles or 5-akylisoxazoles.
Scheme 15. Divergent synthesis of trifluoromethylated N-hydroxypyrroles or 5-akylisoxazoles.
Molecules 27 09020 sch015
Molecules 27 09020 sch016 550

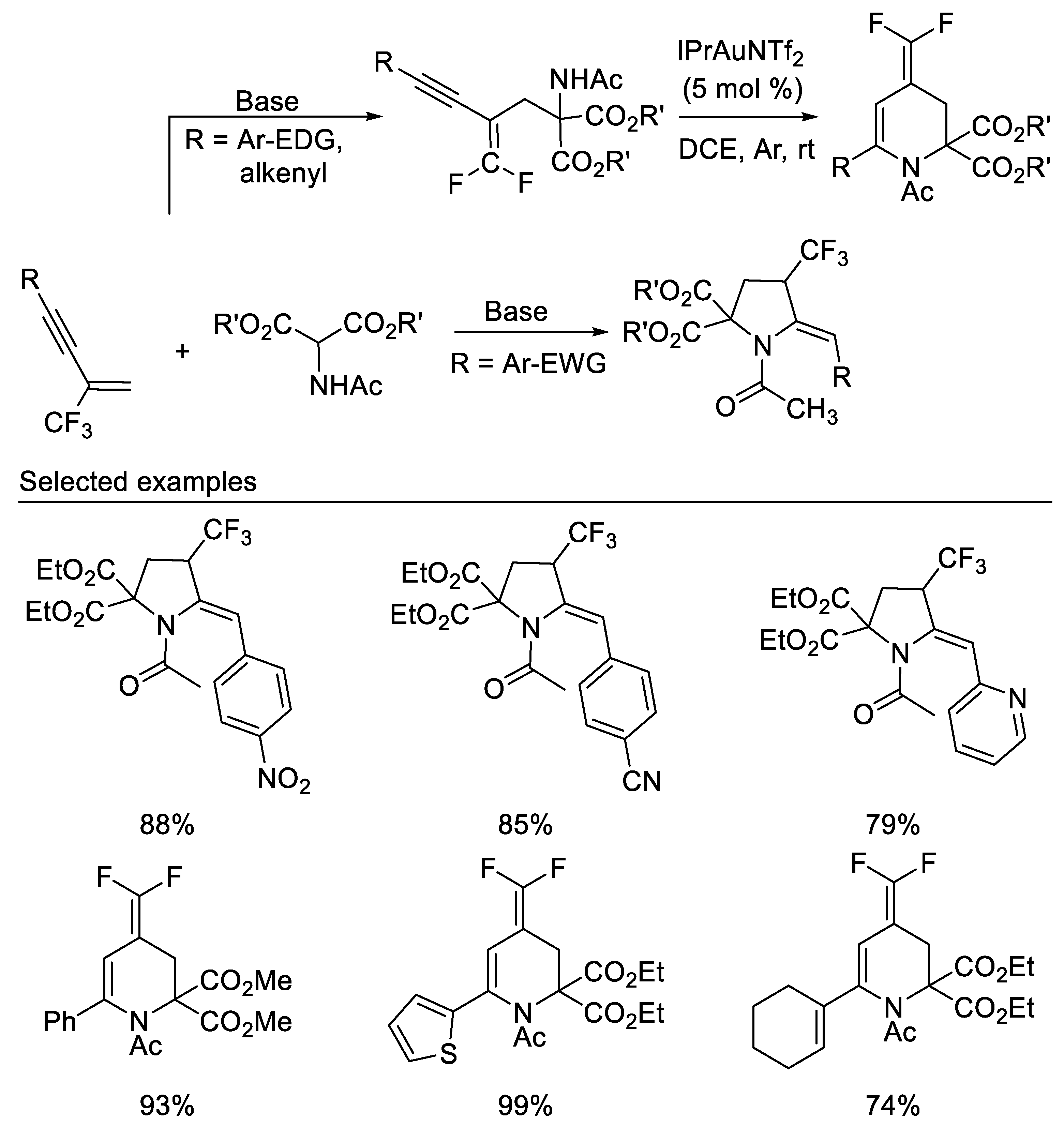

Scheme 16. Divergent synthesis of trifluoromethylated pyrrolidines or difluoromethylidene tetrahydropyridines.
Scheme 16. Divergent synthesis of trifluoromethylated pyrrolidines or difluoromethylidene tetrahydropyridines.
Molecules 27 09020 sch016
Molecules 27 09020 sch017 550
Scheme 17. Synthesis of 4-trifluoromethyl-3-pyrrolines.
Scheme 17. Synthesis of 4-trifluoromethyl-3-pyrrolines.
Molecules 27 09020 sch017
Molecules 27 09020 sch018 550

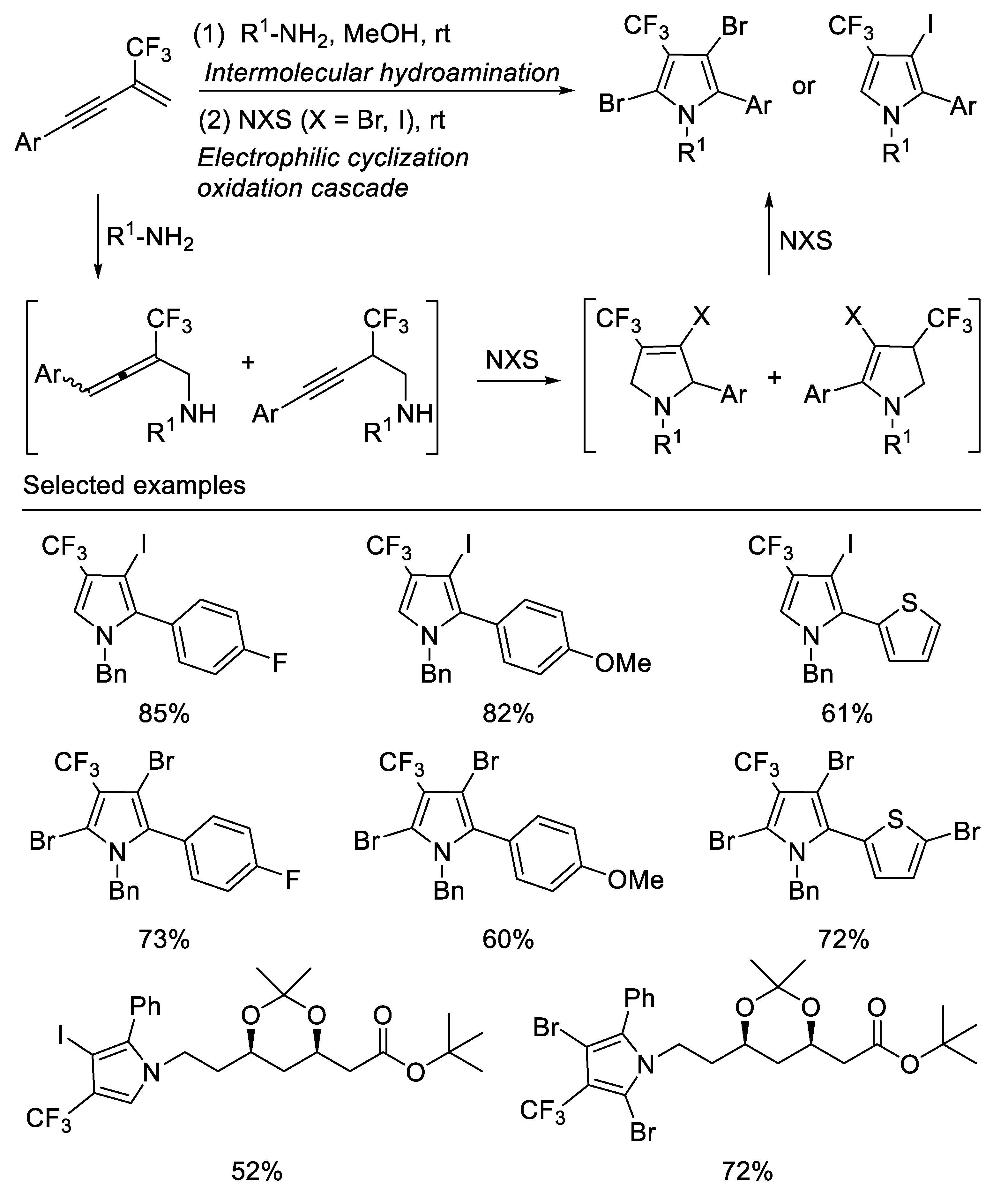

Scheme 18. Synthesis of halogenated trifluoromethylated pyrroles.
Scheme 18. Synthesis of halogenated trifluoromethylated pyrroles.
Molecules 27 09020 sch018
Molecules 27 09020 sch019 550

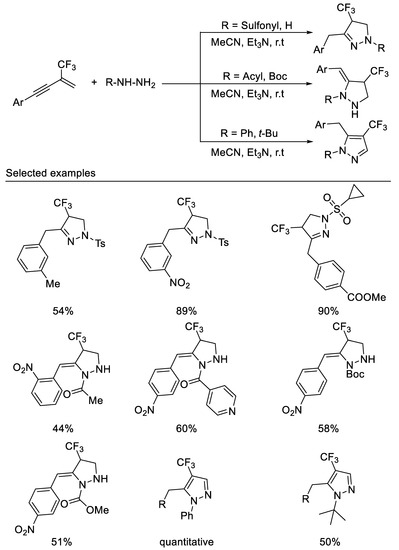

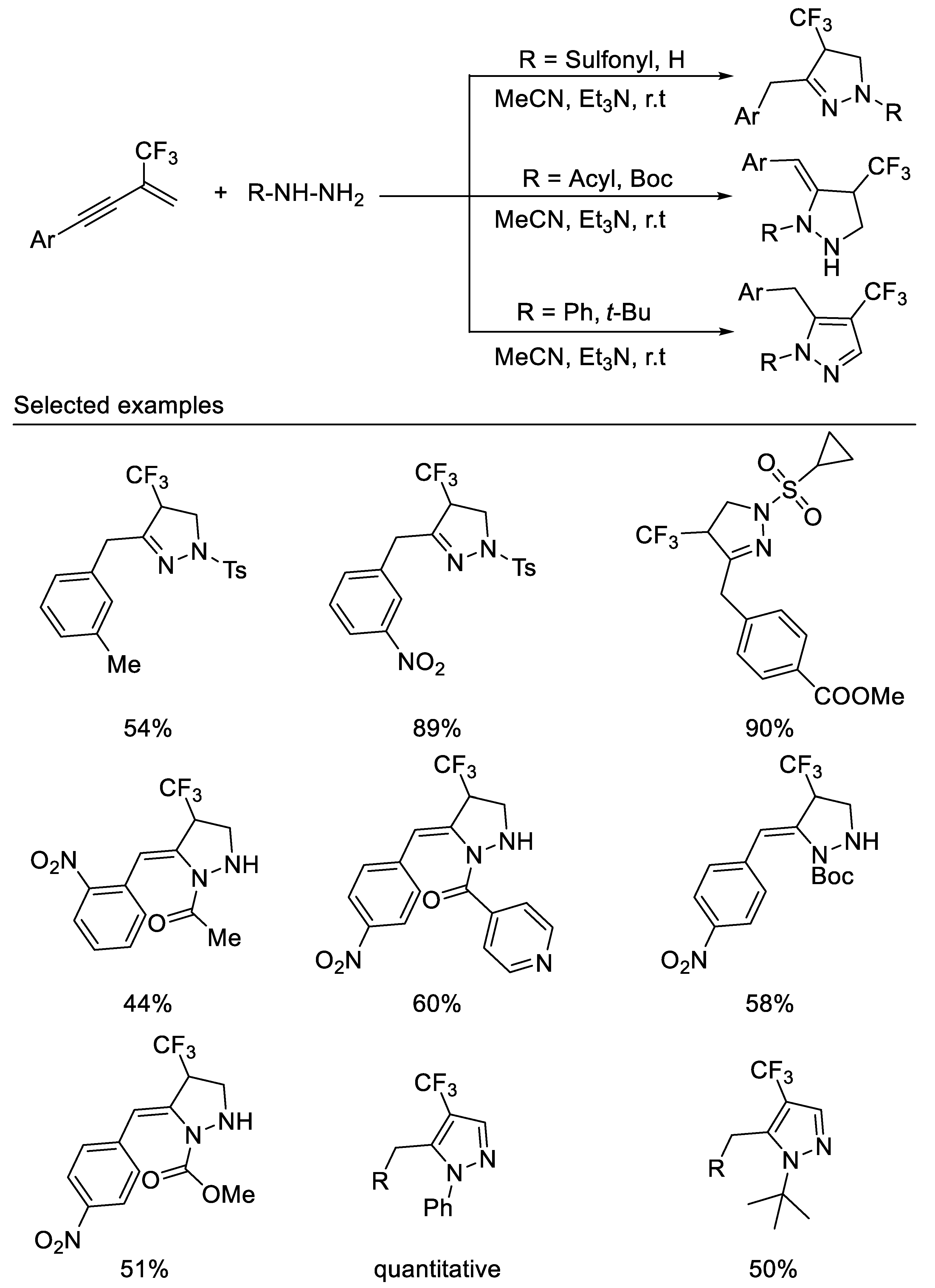

Scheme 19. Divergent synthesis of trifluoromethylated pyrazolidines, pyrazolines and pyrazoles.
Scheme 19. Divergent synthesis of trifluoromethylated pyrazolidines, pyrazolines and pyrazoles.
Molecules 27 09020 sch019
Molecules 27 09020 sch020 550
Scheme 20. Synthesis of 4-trifluoromethyl-2H-pyrans derivatives.
Scheme 20. Synthesis of 4-trifluoromethyl-2H-pyrans derivatives.
Molecules 27 09020 sch020
Molecules 27 09020 sch021 550

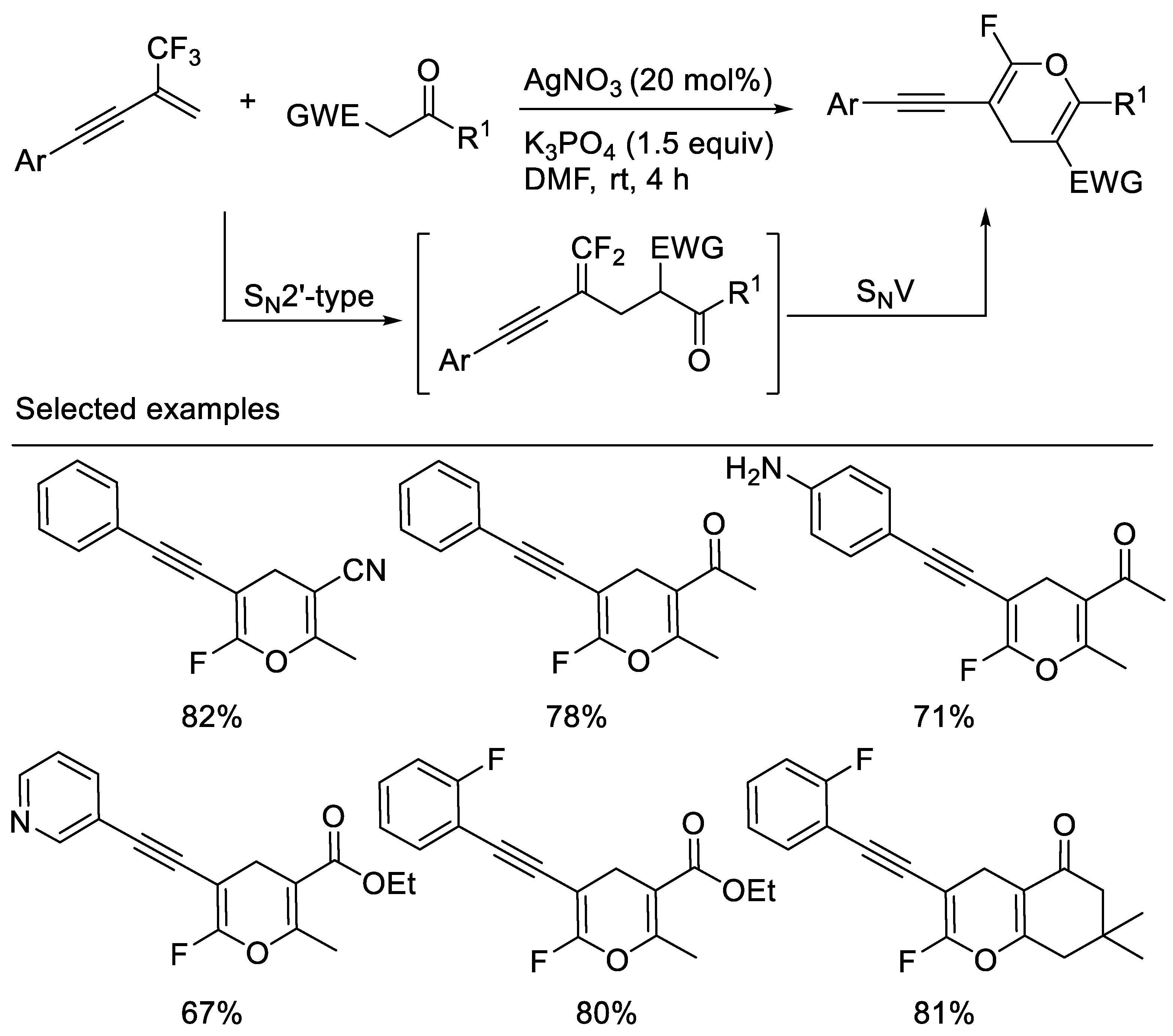

Scheme 21. Synthesis of alkyne-functionalized ring-monofluorinated 4H-pyrans.
Scheme 21. Synthesis of alkyne-functionalized ring-monofluorinated 4H-pyrans.
Molecules 27 09020 sch021
Molecules 27 09020 sch022 550

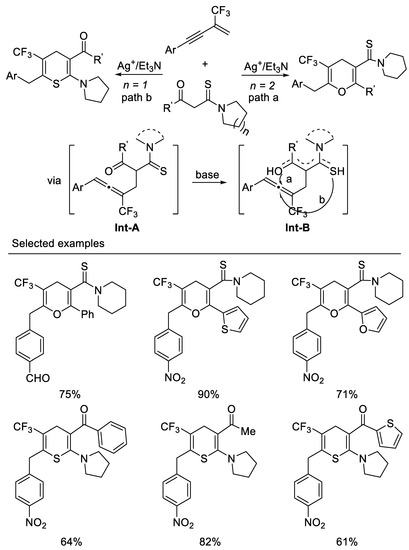

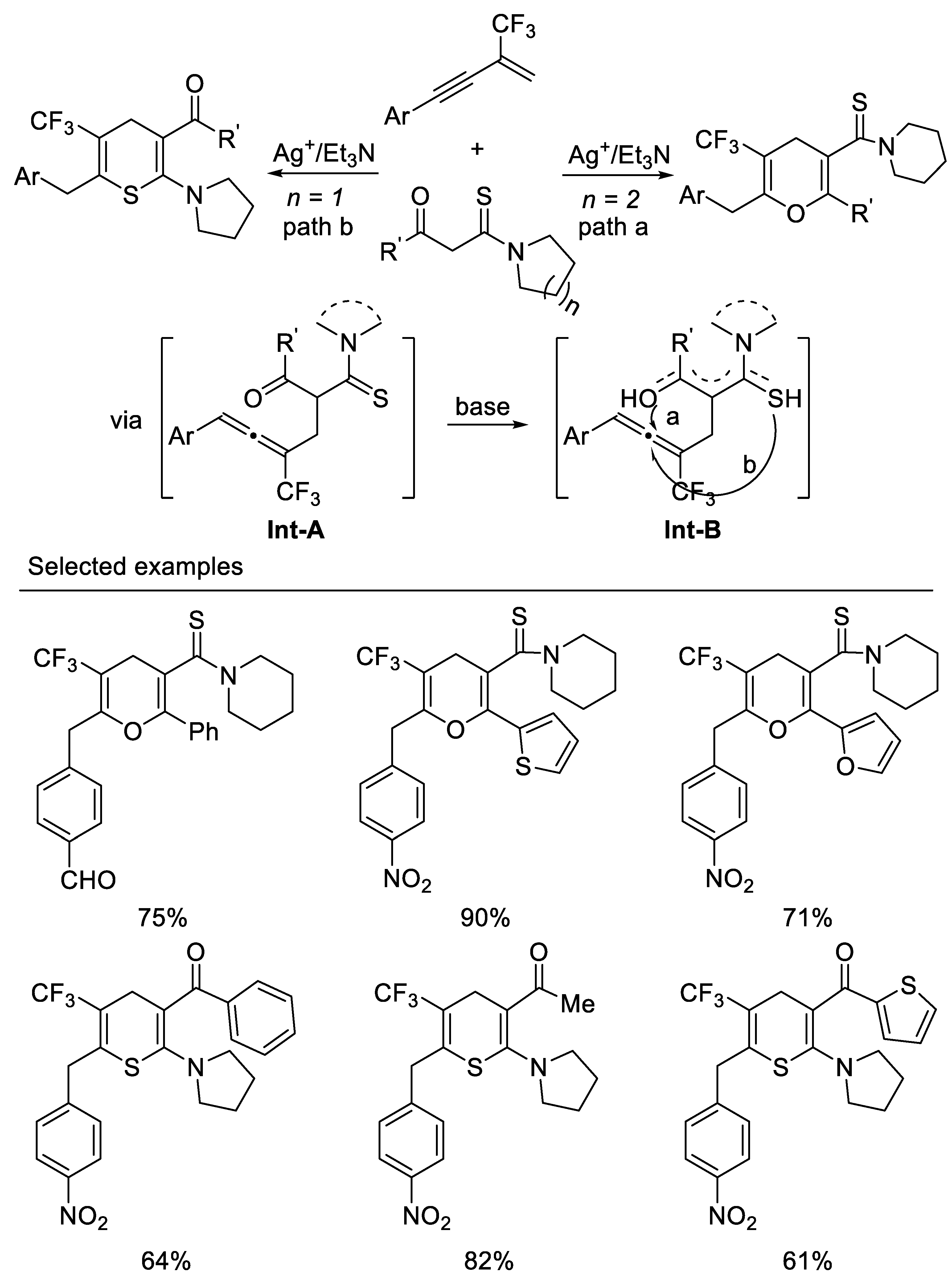

Scheme 22. Synthesis of ring trifluoromethylated pyrans, or thiopyrans.
Scheme 22. Synthesis of ring trifluoromethylated pyrans, or thiopyrans.
Molecules 27 09020 sch022
Molecules 27 09020 sch023 550
Scheme 23. Synthesis of thioether-functionalized CF3-alkynes, 1,3-dienes and allenes.
Scheme 23. Synthesis of thioether-functionalized CF3-alkynes, 1,3-dienes and allenes.
Molecules 27 09020 sch023
Molecules 27 09020 sch024 550
Scheme 24. Synthesis of diborylated compounds containing CF3 group.
Scheme 24. Synthesis of diborylated compounds containing CF3 group.
Molecules 27 09020 sch024
Molecules 27 09020 sch025 550
Scheme 25. Synthesis of trifluoromethylated homopropargyl boronates and homoallenyl boronates.
Scheme 25. Synthesis of trifluoromethylated homopropargyl boronates and homoallenyl boronates.
Molecules 27 09020 sch025
Molecules 27 09020 sch026 550
Scheme 26. Synthesis of trifluoromethylated linear nitriles.
Scheme 26. Synthesis of trifluoromethylated linear nitriles.
Molecules 27 09020 sch026
Molecules 27 09020 sch027 550
Scheme 27. Synthesis of enantioenriched trifluoromethylated homoallenyl silanes and homoalleny boronates.
Scheme 27. Synthesis of enantioenriched trifluoromethylated homoallenyl silanes and homoalleny boronates.
Molecules 27 09020 sch027
Molecules 27 09020 sch028 550
Scheme 28. Synthesis of non-fluorinated enynic and allenyl orthoesters.
Scheme 28. Synthesis of non-fluorinated enynic and allenyl orthoesters.
Molecules 27 09020 sch028
Molecules 27 09020 sch029 550

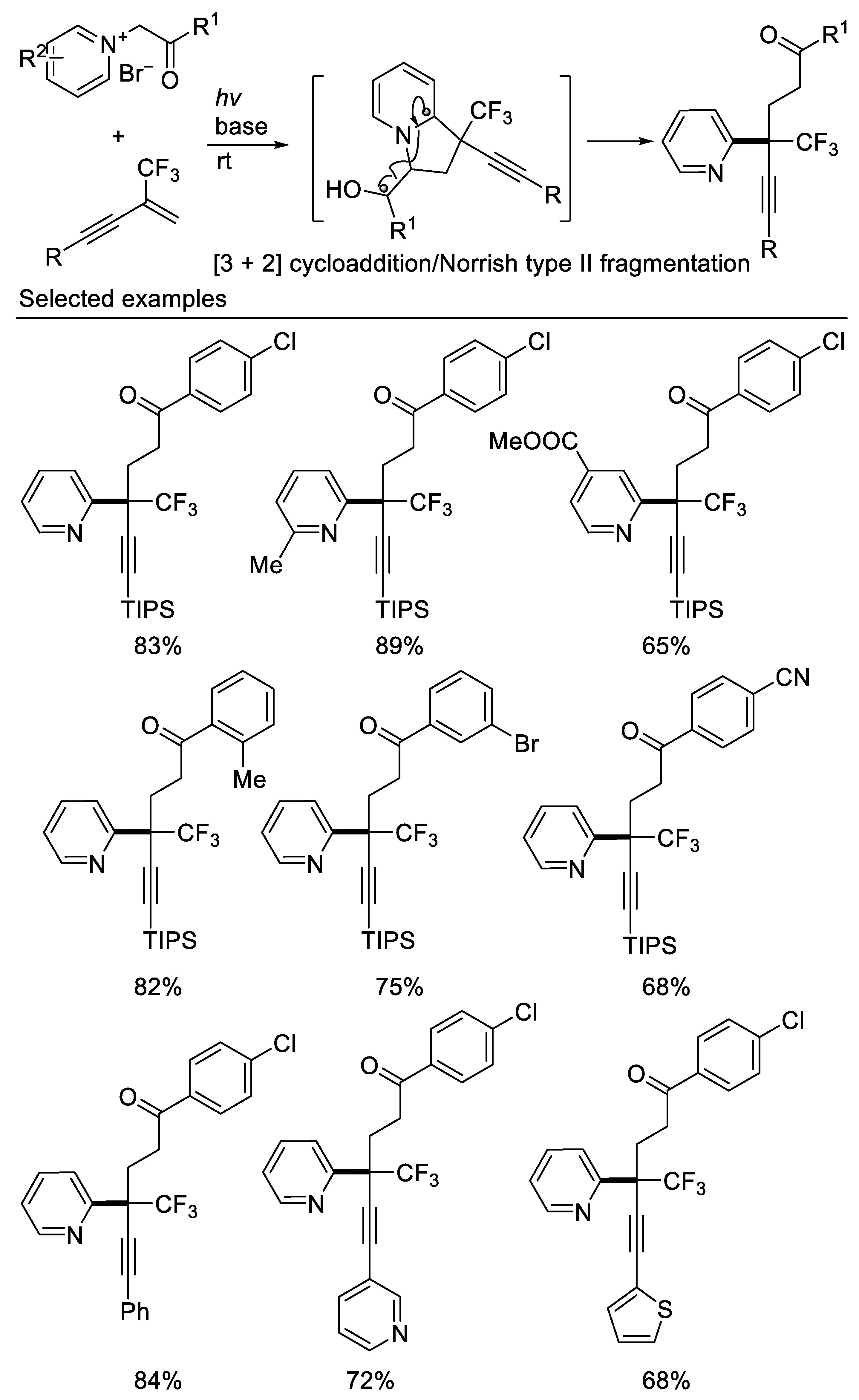

Scheme 29. Synthesis of pyridines bearing a CF3-substituted quaternary center.
Scheme 29. Synthesis of pyridines bearing a CF3-substituted quaternary center.
Molecules 27 09020 sch029
Publisher’s Note: MDPI stays neutral with regard to jurisdictional claims in published maps and institutional affiliations.

Share and Cite

MDPI and ACS Style

Liu, M.; Yu, Z.; Li, J.; Xiao, Y. Versatile Fluorine-Containing Building Blocks: β-CF3-1,3-enynes. Molecules 2022, 27, 9020. https://doi.org/10.3390/molecules27249020

AMA Style

Liu M, Yu Z, Li J, Xiao Y. Versatile Fluorine-Containing Building Blocks: β-CF3-1,3-enynes. Molecules. 2022; 27(24):9020. https://doi.org/10.3390/molecules27249020

Chicago/Turabian Style

Liu, Mingqing, Zongxiang Yu, Jingtong Li, and Yuanjing Xiao. 2022. "Versatile Fluorine-Containing Building Blocks: β-CF3-1,3-enynes" Molecules 27, no. 24: 9020. https://doi.org/10.3390/molecules27249020

Article Metrics

Back to TopTop
