Article

Energetic [1,2,5]oxadiazolo [2,3-a]pyrimidin-8-ium Perchlorates: Synthesis and Characterization

by
Kirill V. Strizhenko
1,
Anastasia D. Smirnova
1,2,
Sergei A. Filatov
2,
Valery P. Sinditskii
1,2,
Adam I. Stash
3,
Kyrill Yu. Suponitsky
3,
Konstantin A. Monogarov
4,
Vitaly G. Kiselev
5 and
Aleksei B. Sheremetev
1,*
1
Zelinsky Institute of Organic Chemistry, Russian Academy of Sciences, 119991 Moscow, Russia
2
Mendeleev University of Chemical Technology, 125047 Moscow, Russia
3
Nesmeyanov Institute of Organoelement Compounds, Russian Academy of Sciences, 119334 Moscow, Russia
4
Semenov Federal Research Center for Chemical Physics, Russian Academy of Sciences, 119991 Moscow, Russia
5
Institute of Chemical Kinetics and Combustion, Russian Academy of Sciences, Siberian Branch, 630090 Novosibirsk, Russia
*
Author to whom correspondence should be addressed.
Molecules 2022, 27(23), 8443; https://doi.org/10.3390/molecules27238443
Submission received: 7 November 2022 / Revised: 19 November 2022 / Accepted: 25 November 2022 / Published: 2 December 2022
(This article belongs to the Special Issue Recent Developments in the Synthesis and Functionalization of Nitrogen Heterocycles)
Browse Figures
Review Reports Versions Notes

Abstract

:
A convenient method to access the above perchlorates has been developed, based on the cyclocondensation of 3-aminofurazans with 1,3-diketones in the presence of HClO4. All compounds were fully characterized by multinuclear NMR spectroscopy and X-ray crystal structure determinations. Initial safety testing (impact and friction sensitivity) and thermal stability measurements (DSC/DTA) were also carried out. Energetic performance was calculated by using the PILEM code based on calculated enthalpies of formation and experimental densities at r.t. These salts exhibit excellent burn rates and combustion behavior and are promising ingredients for energetic materials.

1. Introduction

Most energetic materials are a mixture of substances, among which an oxidizer, fuel, binder and various corrective additives can be specified. The most widely used oxidizer is ammonium perchlorate, NH4ClO4 [1,2,3,4]. In the early stages of research, compositions based on NH4ClO4 included powdered metals as fuel. However, in recent years, there has been a tendency to partially or even completely replace metallic fuels in energetic materials with high-nitrogen compounds characterized by high positive enthalpies of formation.

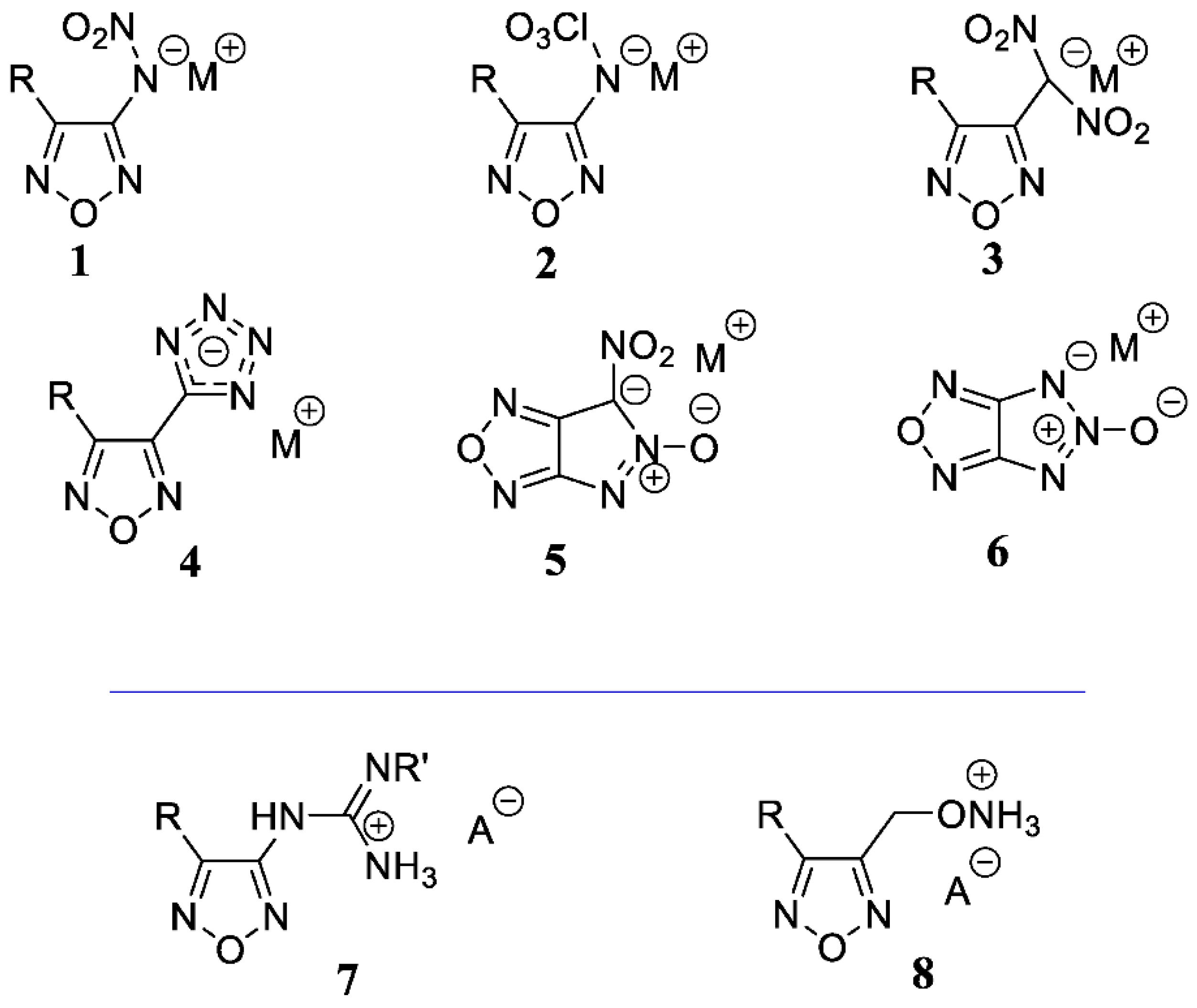

Energetic salts with nitrogen-rich organic cations and/or anions (typically azole-based ions) are a major area for the development of high-energy materials, since salts have a high density and positive enthalpy of formation, are often thermally stable, and are not volatile [5,6,7]. Designing energetic salts by combining various cations and anions to achieve a specific purpose is a simple but powerful methodology. Most of these salts, however, have a strongly negative oxygen balance and, with a lack of oxidizer, form toxic or undesirable solid decomposition products [8].
When using energetic salts in combination with solid inorganic oxidizers—for example, with NH4ClO4—additional problems are observed. A metathesis reaction between NH4ClO4 and energetic azole-based salts leads to the formation of new salts where the anions have been swapped. As a result, the properties of this composition could change unpredictably [9]. To overcome this disadvantage, a variety of energetic organic salts may be limited by the use of perchlorates.
The characteristics of the energetic salts are dictated by the physical and chemical features of both ions in their composition. In this light, the importance of synthesizing organic salts of perchloric acid with various cations and the study of their properties becomes important. It is important to note that, unlike nitrates, perchlorates have a significant effect on the transformation of organic compounds [10,11,12], which favors the completeness of the combustion of the latter.
Due to its inherent density, positive enthalpy of formation, thermal stability, and the presence of an active oxygen atom, the 1,2,5-oxadiazole (furazan) ring is an attractive building block for the development of new energetic compounds [13,14,15,16,17]. Significant progress has been achieved in the development of furazan-based salts, some types of which are depicted in Figure 1. Typically, the furazan moiety is located in the anionic part of the energetic salt, as in salts of nitramines 1 [18,19,20,21,22,23], perchlorylamines 2 [24], dinitromethyl 3 [25,26,27,28,29,30,31,32], tetrazolyl 4 [33,34,35,36,37], pyrazolo [3,4-c]furazanates 5 [38,39,40], and [1,2,3]triazolo [4,5-c][1,2,5]oxadiazoles 6 [41]. Cations involving the furazan ring are very rare; in the previously described salts (7 [42] and 8 [20]), the positive charge is located in the side chain.
There is no literature precedence for energetic salts incorporating a furazan-based backbone with a positive charge on the nitrogen atom of this ring.
Although a few 2-methyl-1,2,5-oxadiazolium [43] and 1,2,5-oxadiazolo [2,3-a]-pyrimidinium perchlorates [44,45] were synthesized, only partial physical and spectral properties were available, but the sensitivity, thermal stability, combustion features, and explosive performance were not reported. However, these early studies have demonstrated that monocyclic salts are less accessible and more reactive.
In light of the above, we report here a new, straightforward method for the synthesis of energetic 1,2,5-oxadiazolo [2,3-a]-pyrimidinium perchlorates, and their full characterization, including energetic properties. The only known pathway for the synthesis of 1,2,5-oxadiazolo [2,3-a]-pyrimidinium perchlorates is based on the reaction of 3-amino-4-R-furazans 9 with 1,3-dicarbonyl compounds [44]. However, an investigation of the scope and limitations of functionalized reactants has not been previously reported. Although a range of alkyl and aryl-substituted oxadiazolo [2,3-a]-pyrimidinium perchlorates have been prepared by this approach, there have been no examples bearing explosophoric groups [46] so far.

2. Results

2.1. Synthesis

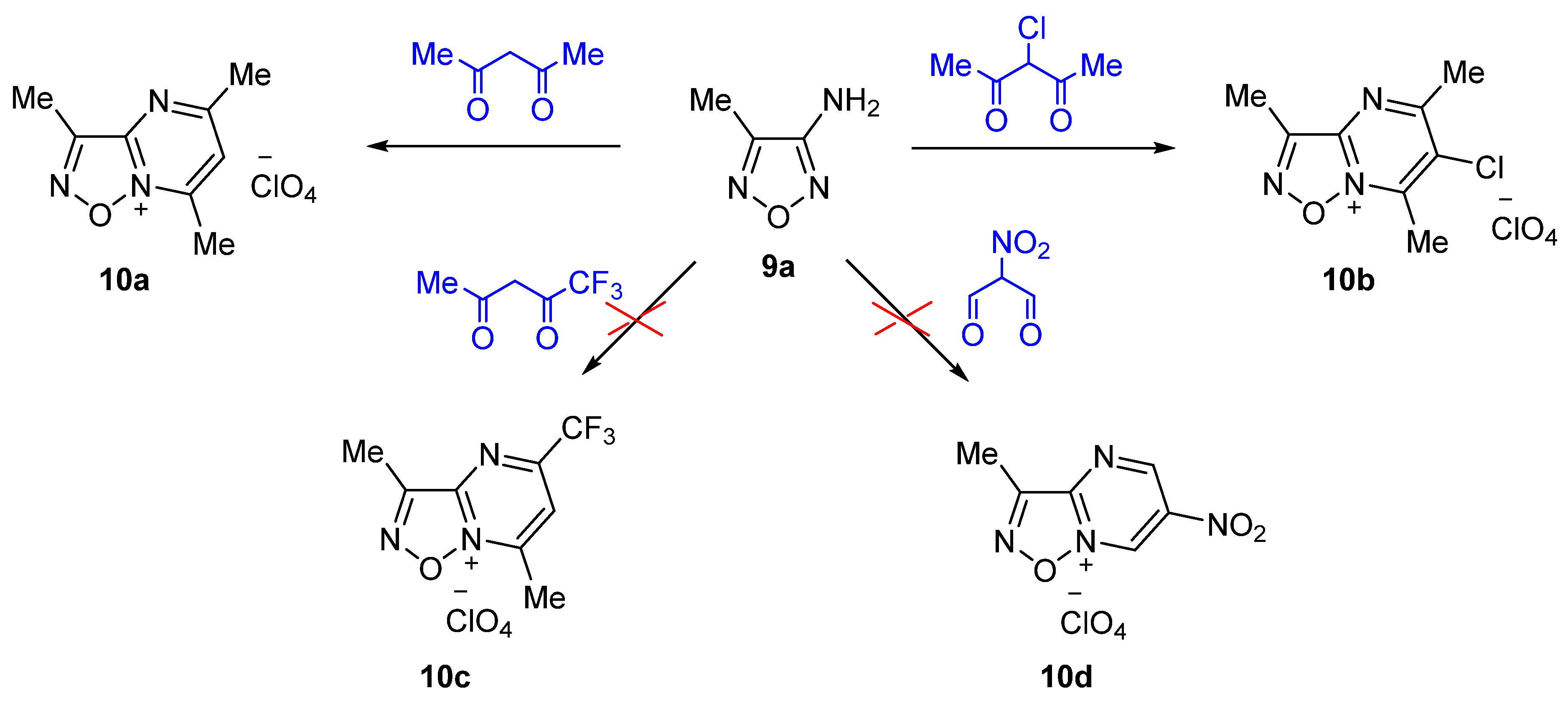

Readily available 3-amino-4-methylfurazan (9a) [47] became our model precursor of choice. There is a literature report [44] on the synthesis of 1,2,5-oxadiazolo [2,3-a]-pyrimidinium perchlorate 10a from compound 9a and pentane-2,4-dione in a mixture of AcOH and HClO4, but no synthetic details are given. In our hands, such a procedure turned out to be somewhat unpredictable; the yield of the final 1,2,5-oxadiazolo [2,3-a]-pyrimidinium perchlorate 10a was relatively low (only 23% vs. 73% reported earlier).
After several experiments, we found that replacing AcOH in the reaction mixture with Ac2O improved the conversion significantly and gave a 44% yield of the product 10a (Scheme 1). A change in dehydrating agent from Ac2O to (CF3CO)2O allowed us to increase the yield up to 87%. It has been suggested that the solubility of the product 10 in the reaction mixture is the most important in this process. (CF3CO)2O is completely unnecessary as a reagent, and the much cheaper and easier-to-handle trifluoroacetic acid was employed instead. Gratifyingly, treatment of amine 9a with pentane-2,4-dione in a mixture of 58% HClO4 and CF3CO2H at room temperature gave the cyclocondensation product 10a in 3 h. Thus, without any complicated workup, the desired product was isolated in 71% yield and >99% purity through simple filtration and washing.
With the optimized conditions developed, we explored the scope of the method with a variety of 1,3-dicarbonyl compounds and aminofurazans bearing explosophoric groups. A 1,3-dicarbonyl compound with one halogen, namely 3-chloropentane-2,4-dione, furnished the desired product 10b in a good yield (85%). The use of 1,3-dicarbonyl compounds possessing strongly electron-withdrawing substituents, e.g., trifluoromethyl or nitro groups (Scheme 1), failed to give the corresponding bicycles 10c and 10d.

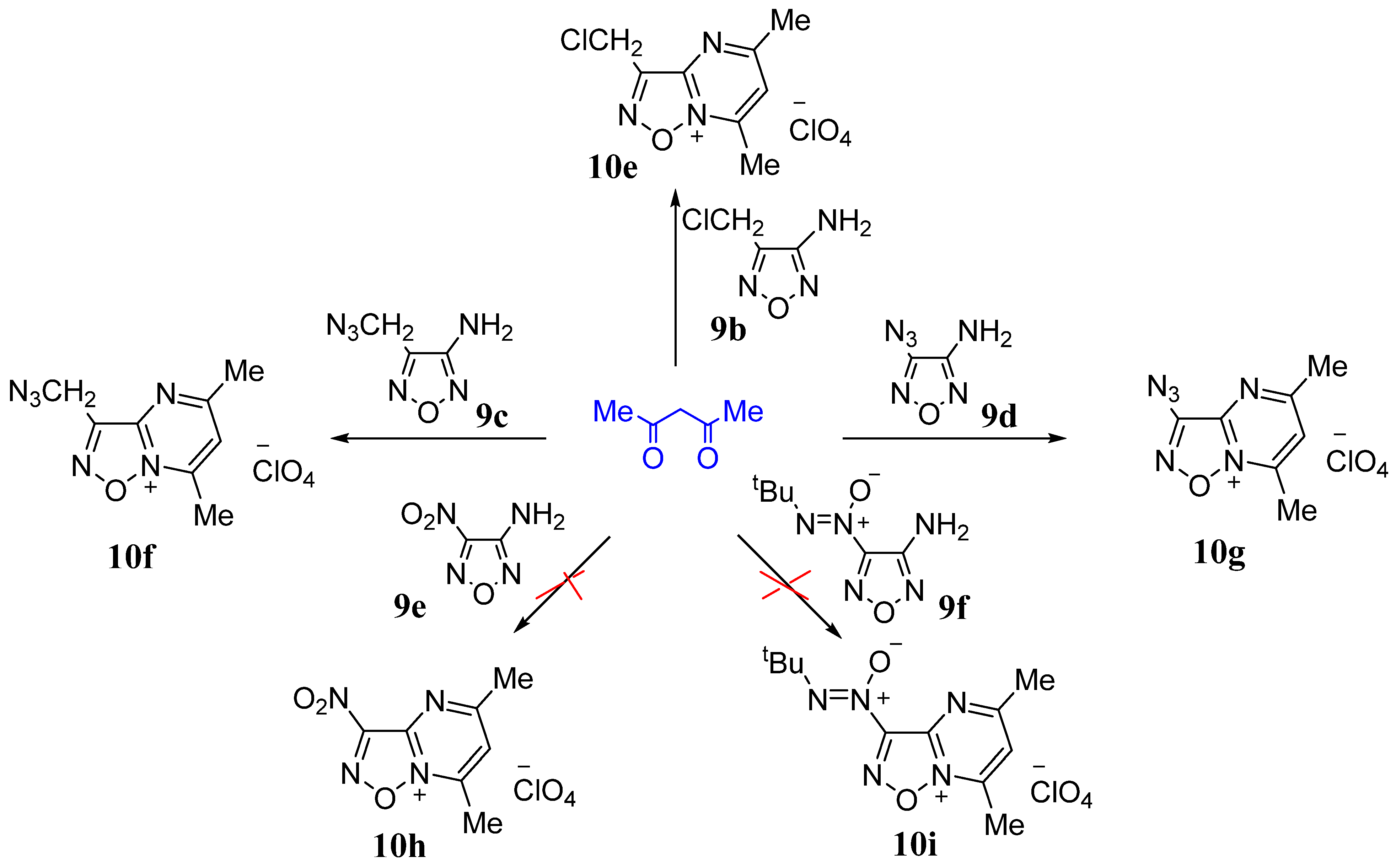

Scheme 2 shows the results of applying our optimized cyclocondensation conditions to a range of aminofurazans. Aminofurazans bearing a functionalized methyl group, 3-amino-4-chloromethylfurazan (9b) [48] and 3-amino-4-azidomethylfurazan (9c) [48], were equally effective as the model compound 9a, with excellent yields (ca. 95%) being obtained for pentane-2,4-dione in the HClO4/CF3CO2H system. Moreover, 3-amino-4-azidofurazan (9d) [49,50] was a good substrate for the reaction and gave the target product 9e in 71% yield. Synthesis of 1,2,5-oxadiazolo [2,3-a]-pyrimidinium perchlorate failed in cases where the starting furazan had a very strong electron-withdrawing substituent: reactions with 3-amino-4-nitrofurazan 9e [51] or with 3-amino-4-tertbutylazoxyfurazan 9f [52] did not give the desired salts 10h and 10i. Only recovery of the starting materials from the reaction mixture was achieved.
With the exception of compound 10a, all perchlorates prepared in this way are new, and the structures of the products have been confirmed by elemental analyses, IR, and 1H, 13C, 15N, and 35Cl NMR spectroscopy. The 1H, 13C and 15N chemical shift assignments were determined by using 1H selective NOE, 1H-13C HSQC, 1H-13C HMBC, and 1H-15N HMBC experiments. In the 35Cl NMR spectrum, the characteristic chlorine signal of the perchlorate anion appeared at 1012 ppm, which is close to the reported values of similar compounds [53]. For clarity, the compound of this study, together with relevant NMR parameters, is depicted in Figure 2.

2.2. X-ray Analysis

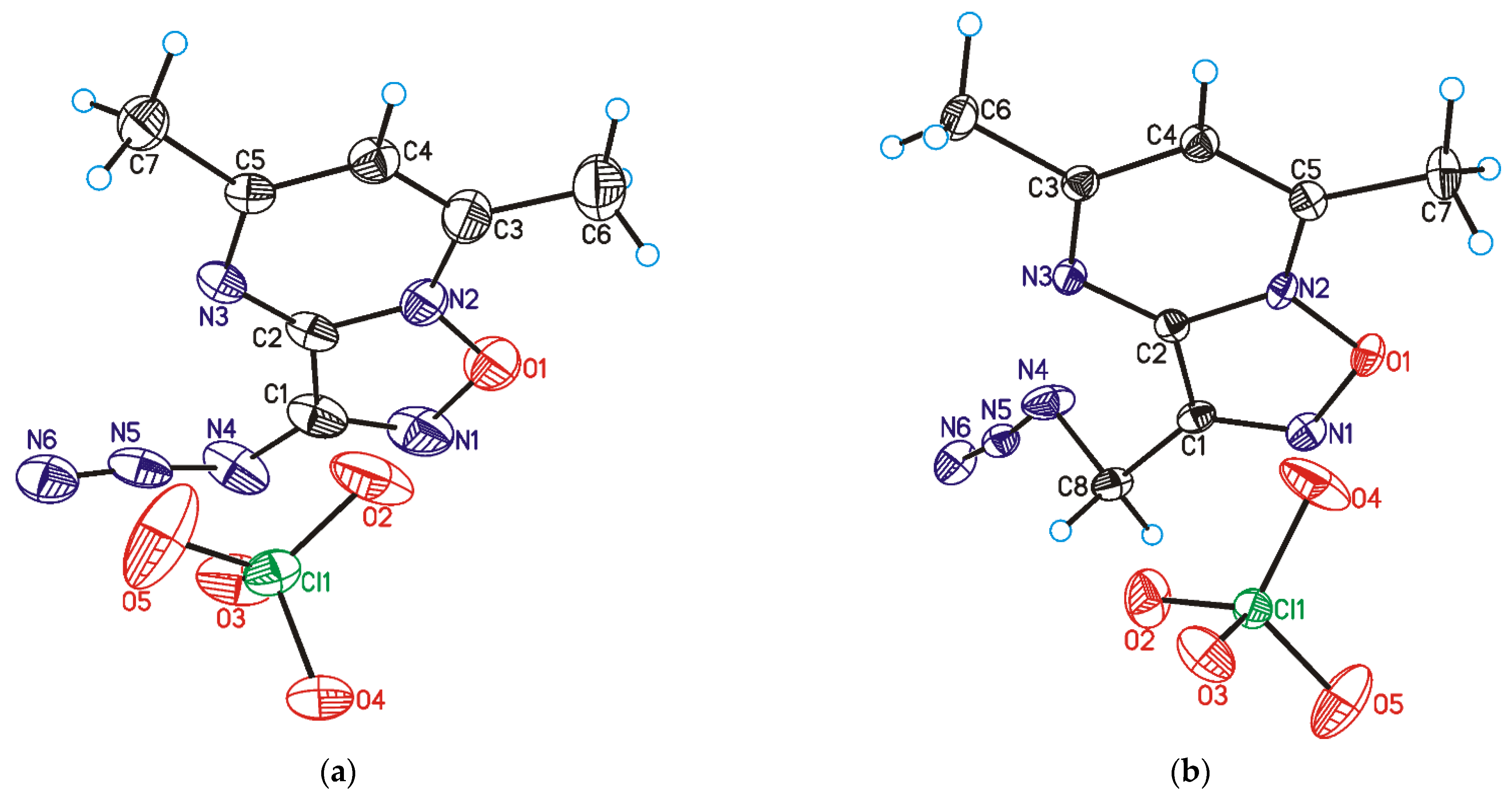

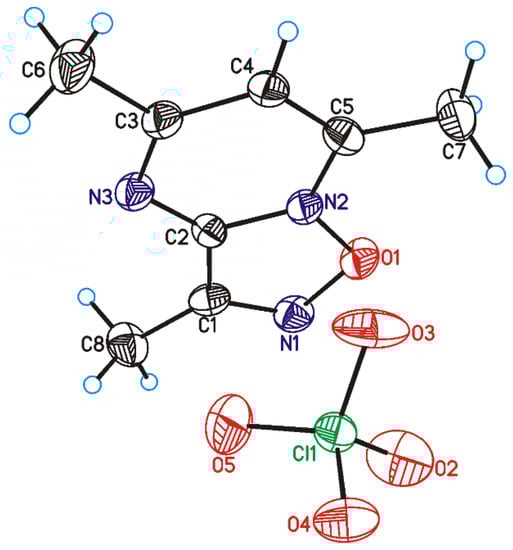

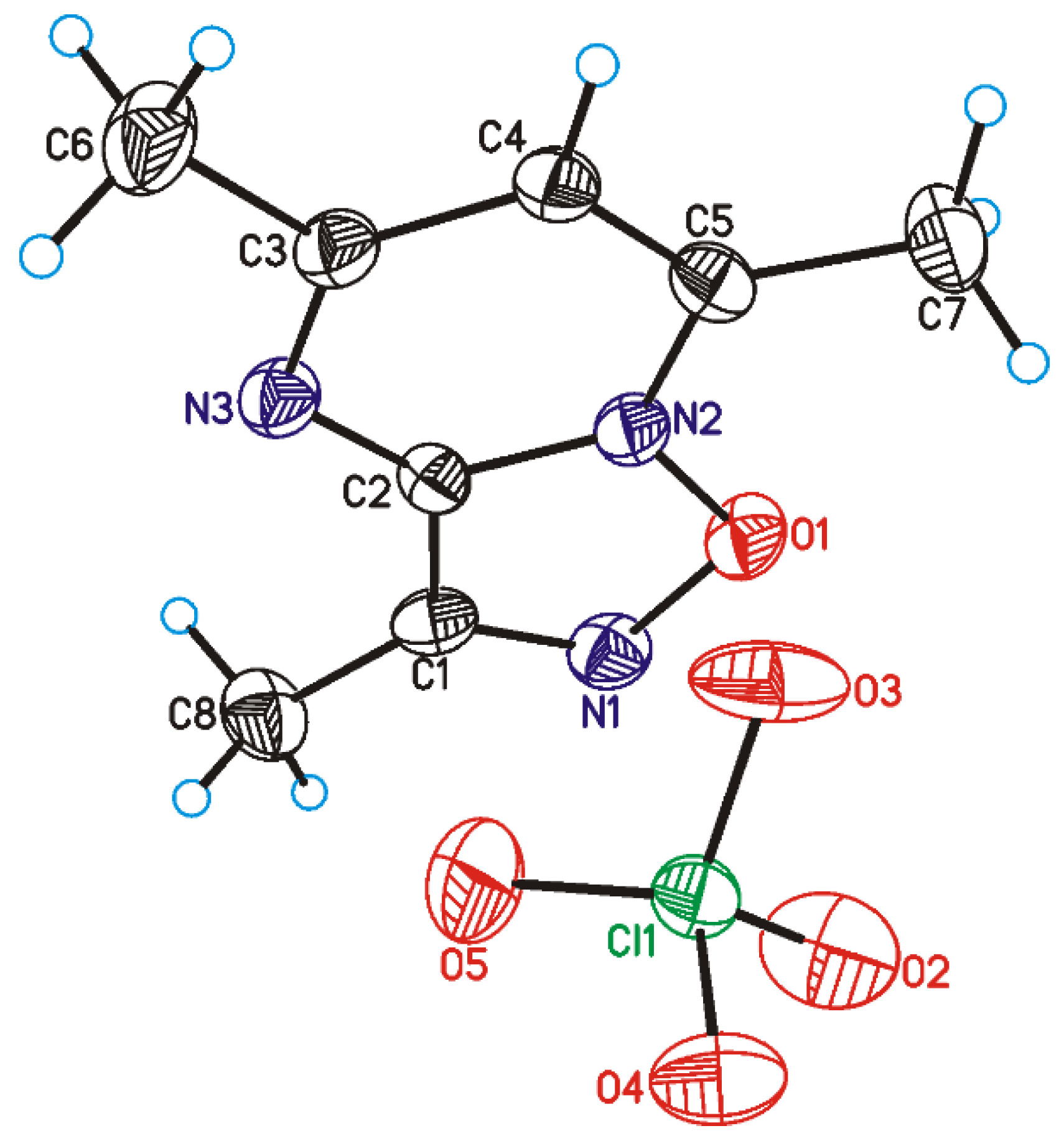

The X-ray crystal structures of perchlorates 10a, 10f, and 10g, differing only by the substituent at the 1,2,5-oxadiazole ring, are shown in Figure 3 and Figure 4. Both symmetrically independent molecules of methyl compound 10a adopt a planar structure. Azido groups in three symmetrically independent molecules of 10g are rotated ca. 17.6°–26.7° out of the plane of the bicyclic backbone. For compound 10f, the CH2N3 substituent deviates even more significantly from the plane of the heterocycle (the C2–C1–C8–N4 torsion angle is equal to 59.7(2)°).
The N–O bond lengths in the 1,2,5-oxadiazole ring, which are usually the most sensitive to the influence of substituents [54,55,56], are distributed so that the O1–N2 bond is significantly shorter than the other one in all three compounds. The difference in these bonds Δ(NO) (for 10a and 10g, the average value over symmetrically independent molecules is used) increases in the order of the decreasing electron-withdrawing effect of the substituent at the C1 atom (the Δ(NO) is 0.022, 0.026, 0.035 Å for compounds 10g, 10f, and 10a, respectively).

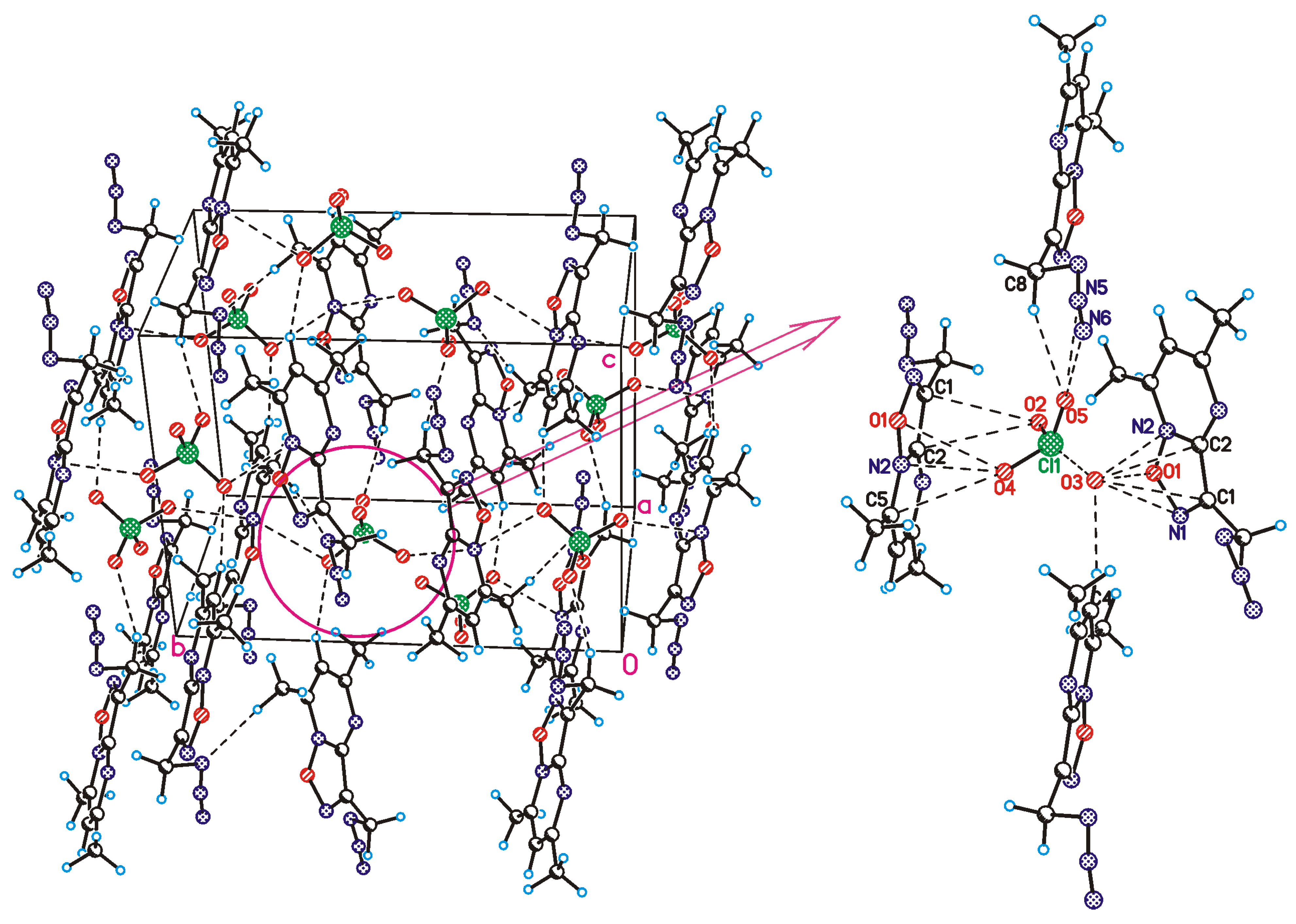

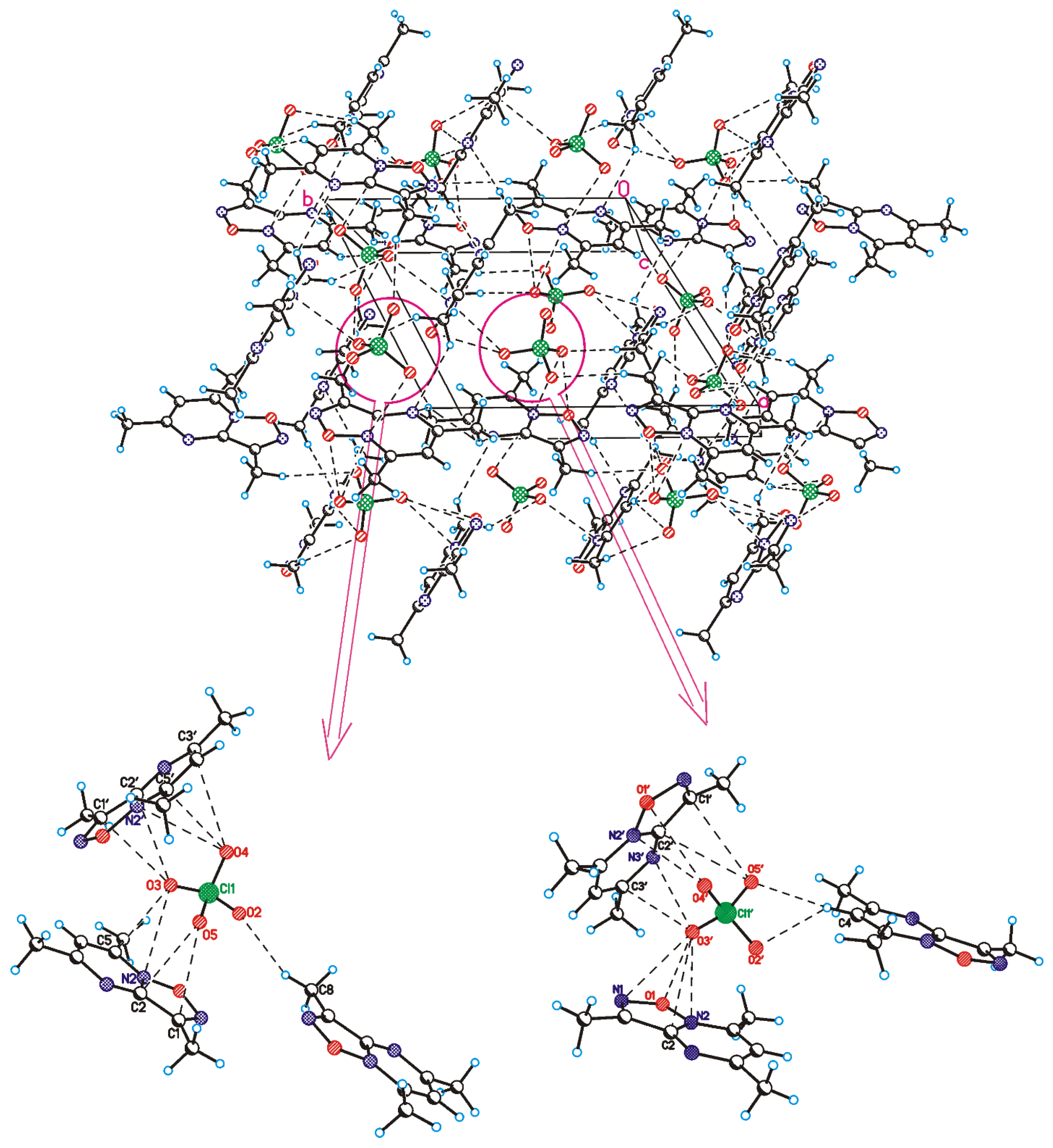

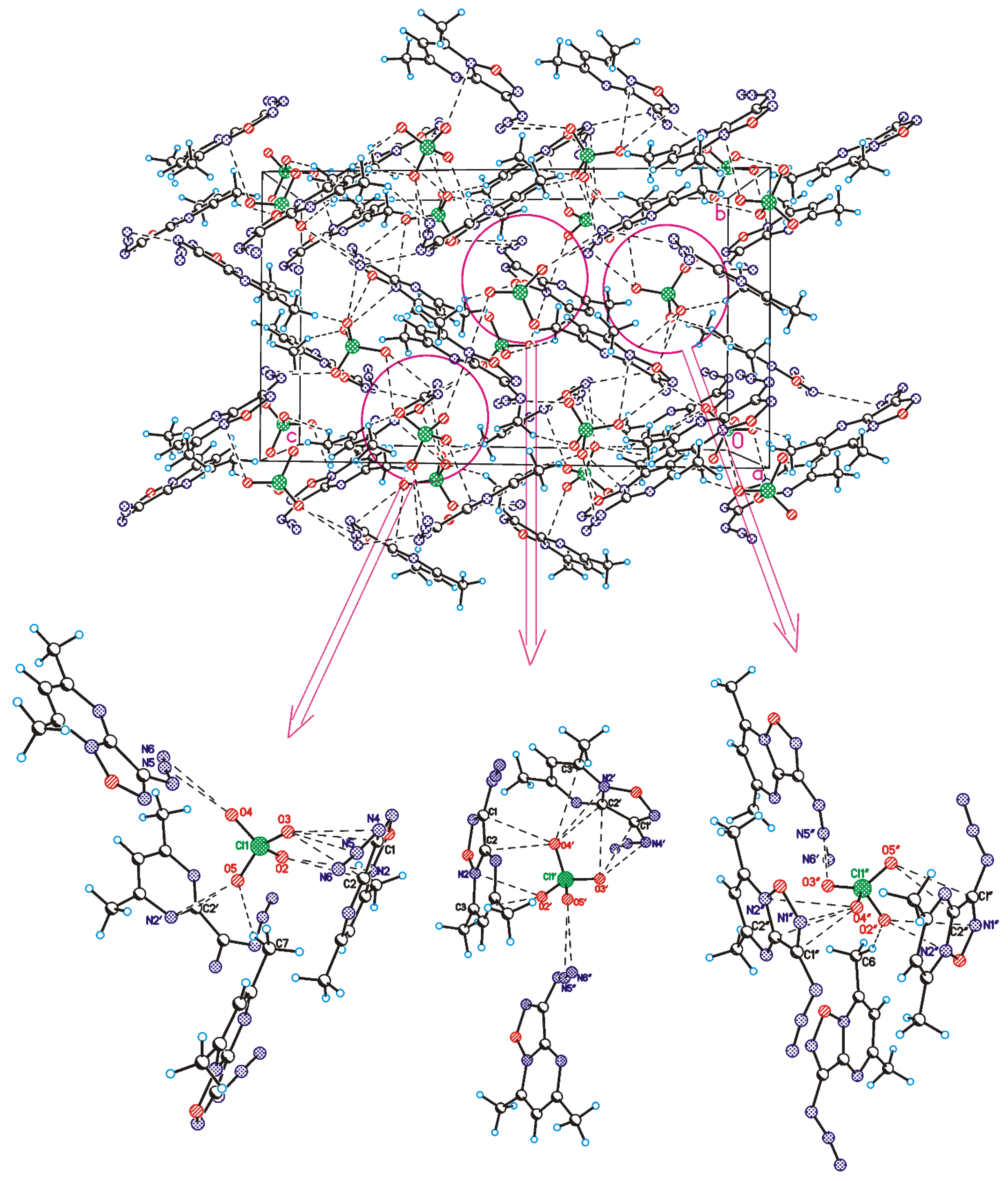

For all three compounds, the molecules in the crystal are linked together by O…π, C–H…O(N), and van-der-Waals interactions. As expected, most of them are observed between anions and cations, as depicted in Figure 5, Figure 6 and Figure 7. In the cases of azido compounds (Figure 6 and Figure 7), each anion (except for one in 10g, Figure 6) is linked to four cations by means of O…π and C–H…O interactions, and the interaction patterns are quite similar for both compounds. In the case of Me derivatives (Figure 5), each anion is surrounded by three counterions. In all three structures, the cation…cation interactions are caused by van-der-Waals forces and weak C–H…N hydrogen bonds, while no anion…anion contacts are observed.
As expected, the density of Me compound 10a (1.549 g cm−3 at 100 K) is lower than that of its azido analogues. However, unexpectedly, the density of the azido derivative 10g turned out to be lower than that of the azidomethyl compound 10f (1.611 vs. 1.649 g cm−3 at 100 K). Probably due to the significant disorder in the structure 10f, disordered fragments occupy a larger volume, which leads to a decrease in density.

2.3. Initial Safety Testing

For initial safety testing, the impact (IS) and friction (FS) sensitivities of perchlorates 10a, 10e–10g were measured. The sensitivity measurements were carried out using common BAM techniques and compared to tetrazene, which is considered as the benchmark primary metal-free explosive (Table 1). Compound 10a bearing the methyl group at 1,2,5-oxadiazole ring and compound 10e with the chloromethyl group showed similar impact and friction sensitivities. A change in the position of the chlorine atom—namely, its transfer from the methyl group to the pyrimidine ring, as in compound 10c—slightly reduces the sensitivity to friction and increases the thermal stability. Unexpectedly, when the chloromethyl group was replaced with an azidomethyl group, as in compound 10f, the sensitivity decreased to 2.6 J. The friction sensitivity of compound 10a is two times lower than that of the chlorine derivative 10e, and two times higher than that of azidomethyl compound 10f. The primary differential scanning calorimetric (DSC, 5 °C min−1) tests are also presented in Table 1.
All perchlorates in this study are more thermally stable than tetrazene, slightly exceeding it in impact sensitivity, but less sensitive to friction. Compound 10g with the azido group at the 1,2,5-oxadiazole ring is the most impact- and friction-sensitive in this series of salts.

2.4. Thermal Analysis

Since the azide compounds 10f and 10g are the most energetic, we continued to characterize them and the model compound 10a from the point of view of their decomposition under heating. The thermal stabilities of the compounds were determined by DSC and thermogravimetric analysis (TGA) measurements scanning at 10 °C min−1. The model compound 10a decomposes without melting, and the maximum heat release was observed at 218–219 °C, which is comparable to that of common RDX. However, decomposition proceeds very intensively; an acceptable DSC curve can only be obtained on a sample less than 0.2 mg. In TGA measurements, the weight loss occurring at this temperature is approximately 19%, which is close to MeCN release (15.6%), as previously observed for 1,2,5-oxadiazoles [48,57,58,59,60,61,62]. Further weight loss is observed after 280 °C, which characterizes the second stage of decomposition (see Supplementary Materials, Figure S1).
Decomposition of the model compound 10a under isothermal conditions was performed using a Bourdon glass compensation pressure gauge [63] in the temperature range of 160–180 °C. The ratio of the weight of the sample to the volume of the reaction vessel (m/V) was ~1 × 10−3 g cm3. The destruction of 10a under this condition proceeds with an acceleration in time, which, at temperatures above 160 °C, turns into a degenerate thermal explosion (Supplementary Materials, Figure S4). During decomposition, only 60–95 cm3 g or 0.7–1.11 moles of colorless gaseous products were released from a mole of the initial 10a, most of which condenses during cooling. After stopping the process, a dark brown powder remains at the bottom of the vessel. An absorption band of the ClO4− (1100 cm−1) anion was observed in the IR spectrum of the residue.

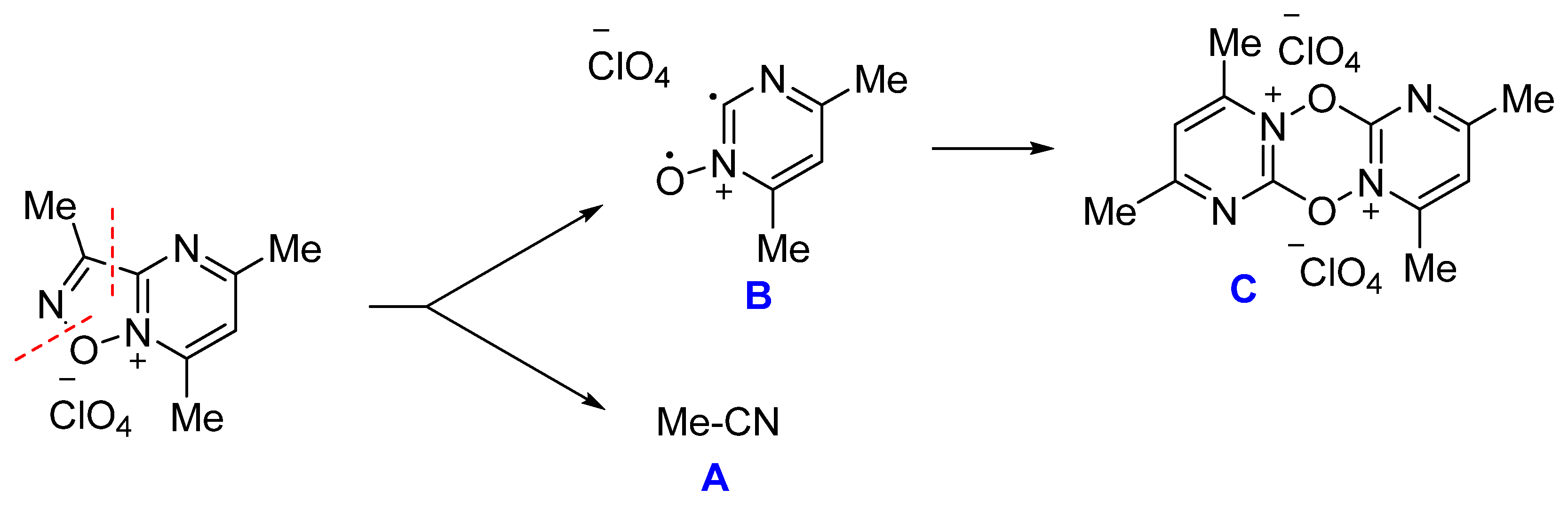

A probable mechanism of the initial destruction stage of salt 10a is proposed in Scheme 3. This is consistent with the typical decomposition mechanism of 1,2,5-oxadiazoles previously observed for various compounds of this heterocycle [57,58,60,62]. The breaking of the two bonds of the 1,2,5-oxadiazole ring (indicated in the Scheme 3) gives the nitrile product A as a result of the typical ring disintegration process. Rapid intermolecular cyclization of the resulting reactive monocyclic intermediate B leads to a tricyclic intermediate C, capable of further transformations.
X-ray diffraction analysis of 10a shows that the O1–N2 bond is significantly shorter than the other O1–N1 bond of the 1,2,5-oxadiazole ring, which explains the breaking of the latter. The IR spectrum of the final residue includes bands corresponding to C=N bonds (1640, 1590, 1430 cm−1), as well as a strong absorption band of the ClO4− anion (1100 cm−1).
The main heat effect is achieved due to the formation of C–O bonds during the formation of tricyclic compound C. The formation of two new C–O bonds, even without taking into account the change in the enthalpy part, makes it possible to estimate the heat effect at 746 J g−1, which is in good agreement with the DSC data (1164 J g−1).
Compound 10f bearing the CH2N3 group at the 1,2,5-oxadiazole ring melts at 142 °C (enthalpy of melting Lm > 23 J g−1), and, immediately after this, the exothermic stage of decomposition begins (Supplementary Materials, Figure S3). Decomposition of 10f proceeds in two stages. At the first, occurring at 143–180 °C with a maximum at 159 °C (1438 J g−1), the weight reduction was 27.6%, which corresponds to a loss of N3CH2CN (26.9%), as a result of the breaking of two bonds in the 1,2,5-oxadiazole ring, similar to what was observed for 10a (Scheme 3). With such isothermal decomposition of 10f, the gas release is 120 cm3 g−1 or 1.66 mol per mol of the compound (see Supplementary Materials, Figure S6). It is obvious that, in this case, there is also a decomposition of the azide group.
Compound 10g bearing an electron-withdrawing azide group at the 1,2,5-oxadiazole ring is slightly less thermally stable. When heated using a 10 °C min−1 ramp rate, it decomposes in the range of 140–164 °C (maximum heat release of 150 °C). Total energy of the decomposition was 2061 J g−1. Weight loss at this stage reaches 54%, which indicates a deeper decomposition process than is shown in Scheme 3. On the DSC curve, there is another area with weaker heat release at 325 °C, where the weight loss is 21% (see SI, Figure S2).
The decomposition of all compounds of this study under isothermal conditions proceeds with an acceleration in time, and, after completion, a dark brown powder remains at the bottom of the vessel. Here, decomposition was carried out at temperatures below the onset decomposition temperature registered in the DSC. The observed acceleration is associated with the submelting of samples. The analysis of such gas release curves makes it possible to simultaneously determine two decomposition constants, (i) in the solid phase (ks) and (ii) in the liquid phase (kliq). The obtained data are summarized in Table 2 and Figure S7 (see Supplementary Materials). The activation energies of decomposition in the solid phase are relatively low (145–164 kJ mol−1) and, within the measurement error (±10 kJ mol−1), practically do not change during the transition to the liquid phase (152–157 kJ mol−1). In general, there are two trends in the data in Table 2. The first is that the decomposition in the liquid phase is much faster than in the solid phase. The second trend is that the rate decomposition constants of the perchlorates of this study, both in the solid phase and in the melt phase, and the Hammett constants of the substituent at the 1,2,5-oxadiazole ring, increase synchronously. A good correlation between the rate of thermal decomposition and the Hammett constant indicates a unified mechanism of the initial stage of destruction of these compounds.
Since the decomposition of compounds proceeds with acceleration, the data obtained under non-isothermal conditions (see Supplementary Materials, Table S1) give the formal kinetics of the total process. Previously, the decomposition of tetrazene was described only under non-isothermal conditions [65]. Comparison of the decomposition kinetics under the same conditions (see Supplementary Materials, Figure S7) reveals that the perchlorates of this study are superior to tetrazene in thermal stability. The decomposition rate constant of tetrazene at 150 °C is several orders of magnitude higher than that of the studied perchlorates (Table 2).

2.5. Combustion

The combustion behaviors of the perchlorates were studied on pressed charges in polyurethane tubes (4 mm inner diameter and ca. 8 mm length). However, at elevated pressures, combustion in the tubes turns into an explosion. For example, the compound 10g could be burned only at a pressure below 3 MPa. For compound 10f, a clear result was obtained only when using charges in the form of thin (~1 mm) plates pressed to a high density. The use of such charges avoids the penetration of hot gases into the pores and prevents the transition of layer-by-layer combustion in convective ones. As a result, compound 10f was able to burn even at high pressures (Figure 8 and Table 3).

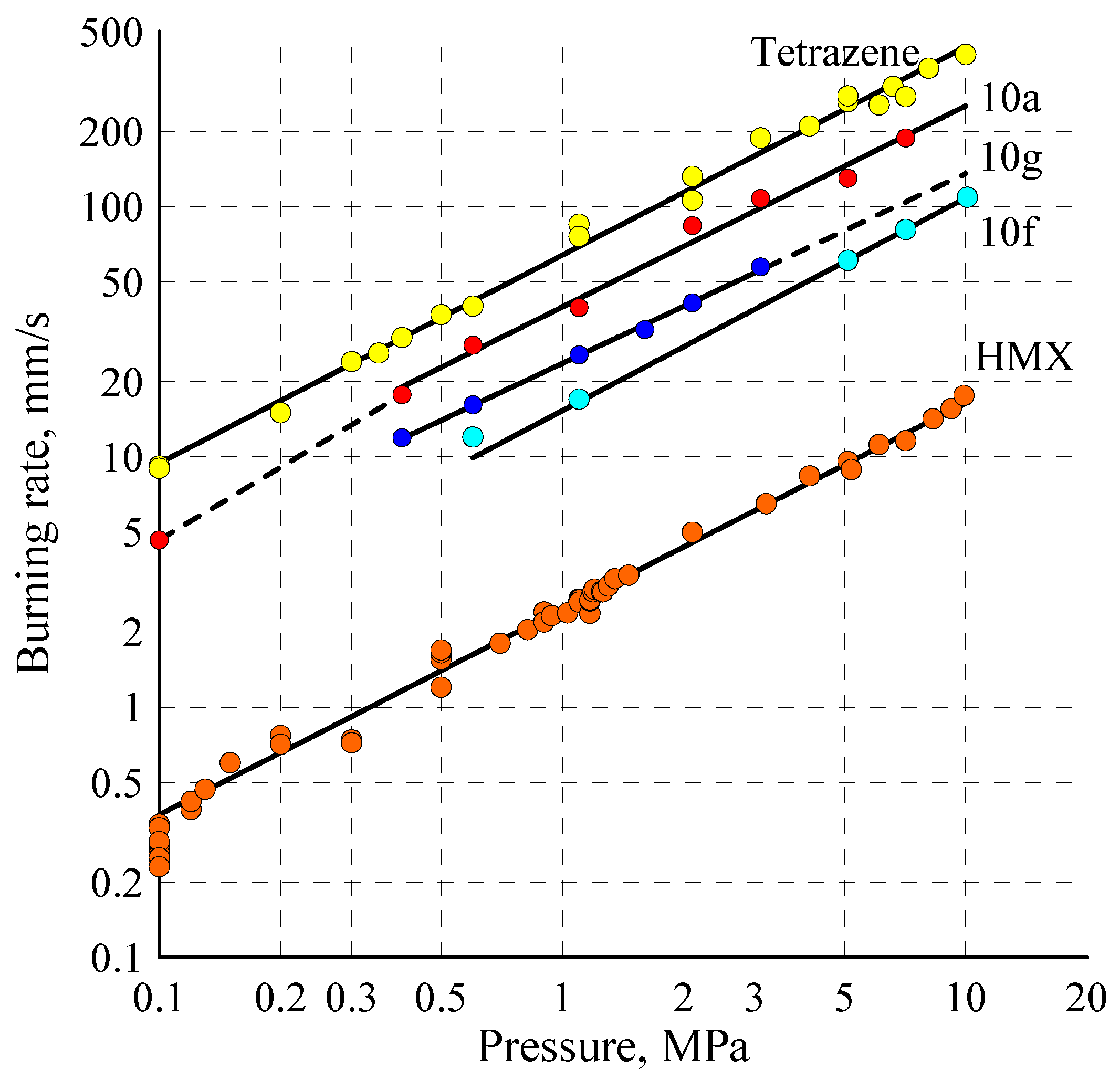

As can be seen from Figure 8, the burning rates of compounds 10 are significantly higher than HMX (1,3,5,7-tetranitro-1,3,5,7-tetraazacyclooctane) [66] and comparable to the burning rates of tetrazene [67].
Remarkably, the burning rates of the perchlorates of this study increase in the following order: 10f < 10g < 10a. However, a similar trend is observed in terms of increasing stability; that is, the decomposition rate of these perchlorates decreases. This result demonstrates a drastic difference from the usual correlations, when an increase in thermal stability leads to a decrease in the burning rate. It can be assumed that the thermolysis of perchlorates, which proceeds with the formation of gaseous products, is a process that determines the temperature of their surfaces during combustion. In this case, the more stable the perchlorate, the higher the temperature of its surface during combustion. If the burning rate is determined by reactions in the condensed phase, which is typical for compounds with low thermal stability [68], the surface temperature at which the leading combustion reaction takes place will be a more significant factor than the decomposition rate.

2.6. Explosive Performance

To evaluate the performance of these newly synthesized compounds, the enthalpies of formation were calculated (see Supplementary Materials) and are summarized in Table 4. Even for the model compound 10a bearing three ballast methyl groups, the enthalpy of formation is positive and there is +0.56 kJ g−1, which is twice as high as that of benchmark 1,3,5-trinitro-1,3,5-triazinane (RDX; +0.32 kJ g−1). As expected, the introduction of an azide group into one methyl group, and, moreover, the replacement of the methyl group with an azide group, significantly increases the enthalpy of formation, which exceeds the value for tetrazene [69]. This is clearly seen in Table 4. It is obvious that the further replacement of the remaining methyl groups with explosophoric substituents will make it possible to design more effective target products.
With the crystal density and enthalpy of formation data in hand, the explosive performance of perchlorates was demonstrated with the refined empirical methods implemented in the PILEM code [70]. Since the salts in Table 4 are more than two times poorer in oxygen than RDX (α = 0.667), their detonation velocities are lower than those of RDX (D = 8850 m s−1), close to that of trinitrotoluene (TNT, D = 6663 m s−1), and slightly lower than that of tetrazene.
The results presented in Table 2 and Table 4 show that compounds 10f and 10g bearing CH2N3 and N3 groups, respectively, have similar performance with respect to detonation velocity and detonation pressure, whereas 10f is less sensitive to impact and friction. This feature can be used for the further tuning of the [1,2,5]oxadiazolo [2,3-a]pyrimidin-8-ium backbone.

3. Materials and Methods

Caution: Although we have encountered no difficulties during preparation and handling of these products, they are potentially explosive energetic materials. Manipulations must be carried out by using appropriate standard safety precautions.
Most of the reagents and starting materials were purchased from commercial sources and used without additional purification. The starting 3-amino-4-methylfurazan (9a) [47], 3-amino-4-chloromethylfurazan (9b) [48], 3-amino-4-azidomethylfurazan (9c) [48], 3-amino-4-azidofurazan (9d) [49,50], 3-amino-4-nitrofurazan 9e [51], and 3-amino-4-tertbutylazoxyfurazan 9f [52] were synthesized by using previously reported procedures.
IR spectra were recorded on a BrukerALPHA instrument in KBr pellets. The 1H and 13C, 14N spectra were recorded on a Bruker AM-300 instrument (300.13, 75.47, and 21.69 MHz, respectively) at 299 K. The chemical shifts of 1H and 13C nuclei were reported relative to TMS (1H and 13C, 0.00 ppm). 1H–15N HMBC experiments were run to measure the 15N chemical shifts (15N, relative to liquid NH3, 0.00 ppm). Elemental analysis was performed on a PerkinElmer 2400 Series II instrument. Analytical TLC was performed using commercially pre-coated silica gel plates (Kieselgel 60 F254), and visualization was effected with short-wavelength UV light.
Thermal stability was studied by differential scanning calorimetry (DSC) using a Mettler Toledo DSC 822e module. The sample (1–2 mg) was weighed in an aluminum crucible (40 µL), sealed under air with a press, and then pierced with a needle to leave two holes with a diameter of ca. 1 mm. The decomposition of a sample was carried out in a nitrogen atmosphere at a purge rate of 50 μL min−1. The temperature of the onset of intense decomposition (Tonset) was taken as the temperature determining thermal stability. The samples were subjected to thermostating in the measuring cell at a temperature of 25 °C for 30 min before the start of measurements.
Impact and friction sensitivities were measured with a BAM-type apparatus in a series of experiments according to STANAG procedures [71,72].
The burning rate was determined in a constant-pressure device (Crawford bomb) with a volume of 2 L in a nitrogen atmosphere. The combustion process of the sample was recorded using a pressure strain gauge, which transmitted the signal to a digital oscilloscope. The start and end times of combustion were determined from oscillograms. The burning rate was calculated by dividing the sample height by the burning time and was related to the mean integral pressure during the experiment. The error in determining the burning rate did not exceed 3%.
Single-Crystal X-ray Diffraction Study. The single crystals of perchlorates 10a, 10f, and 10g were grown by crystallization from hot AcOH solution. Single-crystal X-ray diffraction experiments were carried out using a SMART APEX2 CCD diffractometer (λ(Mo-Kα) = 0.71073 Å, graphite monochromator, ω-scans) at 100 K. Collected data were processed by the SAINT and SADABS programs incorporated into the APEX2 program package [73]. The structures were solved by the direct methods and refined by the full-matrix least-squares procedure against F2 in anisotropic approximation. The refinement was carried out with the SHELXTL program [74]. The CCDC numbers (2210557 for 10a, 2210558 for 10f, and 2210559 for 10g) contain the supplementary crystallographic data for this paper. These data can be obtained free of charge via www.ccdc.cam.ac.uk/data_request/cif, accessed on 1 November 2022.
Crystallographic data for compound10a: C7H7N6O+ClO4− are monoclinic, space group P21/c: a = 15.1208(6) Å, b = 11.7428(5) Å, c = 20.4811(8) Å, β = 98.7126(13)°, V = 3594.7(3) Å3, Z = 12, M = 290.64, dcryst = 1.611 g·cm−3. wR2 = 0.2394 calculated on F2hkl for all 7199 independent reflections with 2θ < 52.5° (GOF = 1.004, R = 0.0680 calculated on Fhkl for 5235 reflections with I > 2σ(I)).
Crystallographic data for compound10f: C8H9N6O+ClO4− are monoclinic, space group P21/n: a = 8.1920(3) Å, b = 13.8353(5) Å, c = 10.8329(4) Å, β = 91.751(2)°, V = 1227.21(8) Å3, Z = 4, M = 304.66, dcryst = 1.649 g·cm−3. wR2 = 0.0805 calculated on F2hkl for all 2703 independent reflections with 2θ < 54.2° (GOF = 1.050, R = 0.0297 calculated on Fhkl for 2300 reflections with I > 2σ(I)).
Crystallographic data for compound10g: C8H10N3O+ClO4− are triclinic, space group P-1: a = 11.2823(6) Å, b = 11.4350(6) Å, c = 11.6297(6) Å, α = 98.260(3)°, β = 118.986(2)°, γ = 110.895(2)°, V = 1130.45(11) Å3, Z = 4, M = 263.64, dcryst = 1.549 g·cm−3. wR2 = 0.1358 calculated on F2hkl for all 4613 independent reflections with 2θ < 52.8° (GOF = 1.105, R = 0.0522 calculated on Fhkl for 3871 reflections with I > 2σ(I)).
3,5,7-Trimethyl-[1,2,5]oxadiazolo [2,3-a]pyrimidin-8-ium perchlorate (10a). A mixture of 58% HClO4 (0.97 g, 5.6 mmol), CF3CO2H (3.5 mL), and 3-amino-4-methylfurazan (0.5 g, 5.0 mmol) was stirred for 5 min at rt, and pentane-2,4-dione (0.56 g, 5.6 mmol) was added. The mixture was stirred for 3 h at rt and then diluted with Et2O (20 mL). The precipitate was isolated by filtration, washed with EtOH (3 × 5 mL) and Et2O (2 × 5 mL), and dried under vacuum to give salt 10a (80%) as a white solid: mp 213–214 °C dec [lit. [44] mp 195–197 °C (dec)]; IR (KBr) ν 3092, 2934, 1629, 1575, 1563, 1442, 1401, 1377, 1363, 1269, 1205, 1094 cm−1; 1H NMR (CD3CN) δ 2.84 (s, 3H), 2.95 (s, 3H), 3.05 (s, 3H), 8.06 (s, 1H); 13C NMR (CD3CN) δ 9.3, 16.2, 25.6, 122.7, 146.2, 151.1, 154.7, 177.9; 15N NMR (CD3CN) δ 268.8, 281.0, 389.2; 35Cl NMR (CD3CN) δ 1012.1. Anal. Calcd for C8H10ClN3O5 (263.63): C, 36.45; H, 3.82; N, 15.94. Found: C, 36.40; H, 3.79; N, 15.91.
6-Chloro-3,5,7-trimethyl-[1,2,5]oxadiazolo [2,3-a]pyrimidin-8-ium perchlorate (10b). Following the same procedure outlined above, 3-chloropentane-2,4-dione gave the desired product 10b (85%) as a white solid: mp 180–181 °C dec; IR (KBr) ν 3026, 2934, 1605, 1552, 1395, 1266, 1095 cm−1; 1H NMR (CD3CN) δ 2.63 (s, 3H), 3.02 (s, 3H), 3.14 (s, 3H); 13C NMR (CD3CN) δ 8.9, 15.2, 25.1, 132.1, 143.4, 149.3, 154.5, 175.1. Anal. Calcd for C8H9Cl2N3O5 (298.08): C, 32.24; H, 3.04; N, 14.10. Found: C, 32.29; H, 3.07; N, 14.05.
3-Chloromethyl-5,7-dimethyl-[1,2,5]oxadiazolo [2,3-a]pyrimidin-8-ium perchlorate (10e). Following the same procedure outlined above, the reaction of 3-amino-4-chloromethylfurazan (9b) with pentane-2,4-dione gave the desired product 10e (96%) as a white solid: mp 195–196 °C dec; IR (KBr) ν 3076, 3023, 2932, 1626, 1572, 1441, 1396, 1377, 1262, 1202, 1093, 779, 738, 625 cm−1; 1H NMR (CD3CN) δ 2.98 (s, 3H), 3.02 (s, 3H), 3.08 (s, 3H), 5.21 (s, 2H), 8.12 (s, 1H); 13C NMR (CD3CN) δ 15.3, 24.8, 31.8, 122.4, 143.7, 150.6, 153.0, 177.7. Anal. Calcd for C8H9Cl2N3O5 (298.08): C, 32.24; H, 3.04; N, 14.10. Found: C, 32.21; H, 3.02; N, 14.06.
3-Azidomethyl-5,7-dimethyl-[1,2,5]oxadiazolo [2,3-a]pyrimidin-8-ium perchlorate (10f). Following the same procedure, the reaction of 3-amino-4-azidomethylfurazan (9c) with pentane-2,4-dione gave the desired product 10e (94%) as a white solid: mp 195–196 °C dec; IR (KBr) ν 3081, 2934, 2215, 2125, 1624, 1573, 1442, 1424, 1333, 1282, 1264, 1195, 1093 cm−1; 1H NMR (CD3CN) δ 2.93 (s, 3H), 3.05 (s, 3H), 3.08 (s, 3H), 5.04 (s, 2H), 8.08 (s, 1H); 13C NMR (CD3CN) δ 14.5, 23.9, 42.2, 121.4, 143.3, 149.7, 151.7, 176.7. Anal. Calcd for C8H9ClN6O5 (304.65): C, 31.54; H, 2.98; N, 27.59. Found: C, 31.60; H, 3.03; N, 27.56.
3-Azido-5,7-dimethyl-[1,2,5]oxadiazolo [2,3-a]pyrimidin-8-ium perchlorate (10g). Following the same procedure, the reaction of 3-amino-4-azidofurazan (9d) with pentane-2,4-dione gave the desired product 10g (71%) as a white solid: mp 140–141 °C dec; IR (KBr) ν 3082, 2930, 2157, 1625, 1543, 1443, 1412, 1306, 1266, 1177, 1091 cm−1; 1H NMR (CD3CN) δ 2.96 (s, 3H), 3.05 (s, 3H), 8.13 (s, 1H); 13C NMR (CD3CN) δ 15.9, 25.6, 123.5, 140.8, 152.0, 153.0, 178.2. Anal. Calcd for C7H7ClN6O5 (290.62): C, 28.93; H, 2.43; N, 28.92. Found: C, 29.00; H, 2.47; N, 28.86.

4. Conclusions

A new group of furazan-based energetic materials, [1,2,5]oxadiazolo [2,3-a]pyrimidin-8-ium perchlorates bearing explosophoric groups, have been synthesized for the first time. The synthetic protocol does not require complex procedures, relying on the simple mixing of available reagents and the usual filtering of the desired product. All compounds were fully characterized by multinuclear NMR spectroscopy and X-ray crystal structure determinations. Initial safety testing (impact and friction sensitivity) and thermal stability measurements (DTA) were also carried out. These salts demonstrate an excellent burn rate and combustion behavior. Considering the simplicity of preparation and the inherent combination of properties, the [1,2,5]oxadiazolo [2,3-a]pyrimidin-8-ium backbone may be used as an effective building block in the creation of new energetic materials for various purposes.

Supplementary Materials

The following supporting information can be downloaded at: https://www.mdpi.com/article/10.3390/molecules27238443/s1. Figures of thermograms for decomposition in non-isothermal conditions, curves of decomposition in isothermal conditions, estimation of standard (solid-state) enthalpies of formation, and copies of NMR spectra are available in supplementary information. Figure S1. Figure S2. TGA and DSC curves of compound 10g at a heating rate 10 °C min−1. Figure S3. TGA and DSC curves of compound 10f at a heating rate 10 °C min−1. Table S1. Results of DSC study for compounds of this study. Figure S4. Gas release curves of compound 10a at different temperatures. Points are experiment, lines are fittings. Figure S5. Gas release curves of compound 10f at different temperatures. Points are experiment, lines are fittings. Figure S6. Figure S7. Comparison of decomposition kinetic data for compounds 10a, 10f, 10g and tetrazene obtained in non isothermal (DSC, triangles) and isothermal (Manometry, points) conditions. Figure S8. Effect of Hammett constants of substituent constants at the 1,2,5-oxadiazole ring on the decomposition rate in liquid and solid state. Temperature is 150 °C. Figure S9. The Born-Haber thermodynamic cycle employed for the estimation of the formation enthalpy of the crystalline salts 10a, 10f, and 10g. Table S2. The Thermochemical Properties of compounds 10a, 10f, and 10g. Points are experiment, lines are fittings. Refs. [75,76,77,78,79,80,81,82,83,84,85,86,87,88,89] are cited in the Supplementary Materials.

Author Contributions

Conceptualization, V.P.S. and A.B.S.; methodology, K.V.S. and A.B.S.; investigation, K.V.S., A.D.S., S.A.F., A.I.S., K.Y.S., K.A.M. and V.G.K.; writing—original draft, V.P.S., K.V.S. and K.Y.S.; writing—review and editing, V.P.S. and A.B.S.; project administration, A.B.S.; funding acquisition, A.B.S. All authors have read and agreed to the published version of the manuscript.

Funding

This research was supported by the Russian Science Foundation (grant no. 20-13-00289).

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Data Availability Statement

CCDC 2210557, 2210558 and 2210559 contain the supplementary crystallographic data for this paper. The data can be obtained free of charge from The Cambridge Crystallographic Data Centre via https://www.ccdc.cam.ac.uk/structures.

Acknowledgments

The authors thank the Department of Structural Studies of the Zelinsky Institute of Organic Chemistry for X-ray analyses of compound 10g. Single-crystal X-ray study of compounds 10a and 10f and crystal structure analysis were supported by the Ministry of Science and Higher Education of the Russian Federation (Contract/Agreement No. 075-00697-22-00).

Conflicts of Interest

The authors declare no conflict of interest. The funders had no role in the design of the study; in the collection, analyses, or interpretation of data; in the writing of the manuscript, or in the decision to publish the results.

Sample Availability

Since all the compounds in this study are potentially dangerous, the authors do not assume responsibility for providing these samples. On the other hand, a description of the preparation of all compounds can be found in the manuscript and in the Supplementary Materials.

References

  1. Rogov, N.G.; Ischenko, M.A. Solid Composite Propellants: Components, Requirements, Properties; SPSTU: St. Petersburg, Russia, 2005. (In Russian) [Google Scholar]
  2. Madyakin, F.P. Components and Combustion Products of Pyrotechnic Compositions; KSTU: Kazan, Russia, 2006. (In Russian) [Google Scholar]
  3. Singh, H.; Shekhar, H. Solid Rocket Propellants: Science and Technology Challenges; Royal Society of Chemistry: London, UK, 2017. [Google Scholar]
  4. Zhang, L.; Lin, Q.-Q.; Cheng, B.; Wang, P.; Lu, M.; Lin, Q.-H. Effect of hexanitroethane (HNE) and hydrazinium nitroformate (HNF) on energy characteristics of composite solid propellants. FirePhysChem 2021, 1, 116–122. [Google Scholar] [CrossRef]
  5. Gao, H.; Shreeve, J.M. Azole-Based Energetic Salts. Chem. Rev. 2011, 111, 7377–7436. [Google Scholar] [CrossRef] [PubMed]
  6. Zhang, Q.; Shreeve, J.M. Energetic Ionic Liquids as Explosives and Propellant Fuels: A New Journey of Ionic Liquid Chemistry. Chem. Rev. 2014, 114, 10527–10574. [Google Scholar] [CrossRef]
  7. Sebastiao, E.; Cook, C.; Hub, A.; Murugesu, M. Recent developments in the field of energetic ionic liquids. J. Mater. Chem. A 2014, 2, 8153–8173. [Google Scholar] [CrossRef]
  8. Chingin, K.; Perry, R.H.; Chambreau, S.D.; Vaghjiani, G.L.; Zare, R.N. Generation of melamine polymer condensates upon hypergolic ignition of dicyanamide ionic liquids. Angew. Chem. Int. Ed. 2011, 50, 8634–8637. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  9. Sheremetev, A.B. Zelinsky Institute of Organic Chemistry, Russian Academy of Sciences, Moscow, Russia. 2001; Unpublished work. [Google Scholar]
  10. Dorofeenko, G.N.; Krivun, S.V.; Dulenko, V.I.; Zhdanov, Y.A. Perchloric acid and its compounds in organic synthesis. Russ. Chem. Rev. 1965, 34, 88–104, [Translation of Usp. Khim. 1965, 34, 219–252]. [Google Scholar] [CrossRef]
  11. Deshpande, S.S.; Kumar, A. Activation of Organic Reactions by Perchlorates. Adv. Org. Synth. 2005, 1, 215–232. [Google Scholar] [CrossRef]
  12. Dalpozzo, R.; Bartoli, G.; Sambri, L.; Melchiorre, P. Perchloric Acid and Its Salts: Very Powerful Catalysts in Organic Chemistry. Chem. Rev. 2010, 110, 3501–3551. [Google Scholar] [CrossRef] [PubMed]
  13. Sheremetev, A.B.; Makhova, N.N.; Friedrichsen, W. Monocyclic Furazans and Furoxans. Adv. Heterocycl. Chem. 2001, 78, 65–188. [Google Scholar] [CrossRef]
  14. Fershtat, L.L.; Makhova, N.N. 1,2,5-Oxadiazole-Based High-Energy-Density Materials: Synthesis and Performance. ChemPlusChem 2020, 85, 13–42. [Google Scholar] [CrossRef]
  15. Zhang, J.; Zhou, J.; Bi, F.; Wang, B. Energetic materials based on poly furazan and furoxan structures. Chin. Chem. Lett. 2020, 31, 2375–2394. [Google Scholar] [CrossRef]
  16. Li, Y.; Yuan, J.M.; Zhao, W.; Qu, Y.; Xing, X.W.; Meng, J.W.; Liu, Y.C. Application and Development of 3,4-Bis(3-nitrofurazan-4-yl)furoxan (DNTF). Russ. J. Gen. Chem. 2021, 91, 445–455. [Google Scholar] [CrossRef]
  17. Tang, J.; Yang, H.; Cui, Y.; Cheng, G. Nitrogen-rich tricyclic-based energetic materials. Mater. Chem. Front. 2021, 5, 7108–7118. [Google Scholar] [CrossRef]
  18. Willer, R.L.; Day, R.S.; Park, D.J. Composition of Salts of 3-Nitramino-4-Nitrofurazan for Propellants. U.S. Patent 5,460,669, 28 June 1995. [Google Scholar]
  19. Williams, G.K.; Brill, T.B. Thermal decomposition of energetic materials 72: Unusual behavior of substituted furazan compounds upon flash pyrolysis. Combust. Flame 1998, 114, 569–576. [Google Scholar] [CrossRef]
  20. Sheremetev, A.B.; Yudin, I.L.; Aleksandrova, N.S.; Aronova, S.M.; Kryazhevskikh, I.A.; Lempert, D.B. Hydroxylammonium salts of furazan family. Int. Annu. Conf. ICT 2003, 34, 101/1–101/10. [Google Scholar]
  21. Blomquist, H.R. (Nitramino)Nitrofurazan-Based Monopropellant Smokeless Gas Generating Compositions, Especially for Airbags. U.S. Patent 6,513,834, 29 August 2003. [Google Scholar]
  22. Wang, B.; Xiong, H.; Cheng, G.; Yang, H. Incorporating Energetic Moieties into Four Oxadiazole Ring Systems for the Generation of High-Performance Energetic Materials. ChemPlusChem 2018, 83, 439–447. [Google Scholar] [CrossRef]
  23. Ma, J.; Chinnam, A.K.; Cheng, G.; Yang, H.; Zhang, J.; Shreeve, J.M. 1,3,4-Oxadiazole Bridges: A Strategy to Improve Energetics at the Molecular Level. Angew. Chem. Int. Ed. 2021, 60, 5497–5504. [Google Scholar] [CrossRef] [PubMed]
  24. Sheremetev, A.B. (Perchlorylamino)furazans and its salts: New high-energy-density materials with high sensitivity. Mendeleev Commun. 2020, 30, 490–493. [Google Scholar] [CrossRef]
  25. Li, H.; Zhao, F.; Wang, B.; Zhai, L.; Lai, W.; Liu, N. A new family of energetic salts based on oxybridged bis(dinitromethyl)furazan: Syntheses, characterization and properties. RSC Adv. 2015, 5, 21422–21429. [Google Scholar] [CrossRef]
  26. Zhai, L.; Fan, X.; Wang, B.; Bi, F.; Liab, Y.; Zhua, Y. A green high-initiation-power primary explosive: Synthesis, 3D structure and energetic properties of dipotassium 3,4-bis(3-dinitromethylfurazan-4-oxy)furazan. RSC Adv. 2015, 5, 57833–57841. [Google Scholar] [CrossRef]
  27. Tang, Y.; Gao, H.; Imler, G.H.; Parrish, D.A.; Shreeve, J.M. Energetic dinitromethyl group functionalized azofurazan and its azofurazanates. RSC Adv. 2016, 6, 91477–91482. [Google Scholar] [CrossRef]
  28. Huang, H.; Li, Y.; Yang, J.; Pan, R.; Lin, X. Materials with good energetic properties resulting from the smart combination of nitramino and dinitromethyl group with furazan. New J. Chem. 2017, 41, 7697–7704. [Google Scholar] [CrossRef]
  29. Ma, Q.; Gu, H.; Huang, J.; Liu, D.; Li, J.; Fan, G. Synthesis and Characterization of New Melt-cast Energetic Salts: Dipotassium and Diaminoguanidinium N,N′-Dinitro-N,N′-Bis(3-dinitromethyl-furazanate-4-yl)methylenediamine. Propellants Explos. Pyrotech. 2018, 43, 90–95. [Google Scholar] [CrossRef]
  30. Guo, T.; Wang, Z.; Tang, W.; Wang, W.; Bi, F.; Wang, B.; Zhou, Z.; Meng, Z.; Ge, Z. A good balance between the energy density and sensitivity from assembly of bis(dinitromethyl) and bis(fluorodinitromethyl) with a single furazan ring. J. Anal. Appl. Pyrolysis 2018, 134, 218–230. [Google Scholar] [CrossRef]
  31. Yu, Q.; Chinnam, A.K.; Yin, P.; Imler, G.H.; Parrish, D.A.; Shreeve, J.M. Finding furoxan rings. J. Mater. Chem. A 2020, 8, 5859–5864. [Google Scholar] [CrossRef]
  32. Zhou, Y.; Gao, H.; Shreeve, J.M. Dinitromethyl groups enliven energetic salts. Energ. Mater. Front. 2020, 1, 2–15. [Google Scholar] [CrossRef]
  33. Wang, B.; Zhang, G.; Huo, H.; Fan, Y.; Fan, X. Synthesis, characterization and thermal properties of energetic compounds derived from 3-amino-4-(tetrazol-5-yl)furazan. Chin. J. Chem. 2011, 29, 919–924. [Google Scholar] [CrossRef]
  34. Ilyushin, M.A.; Shugaley, I.V.; Tselinskii, I.V.; Garabadzhiu, A.V. Environmental Problems and Their Solutions of Using Energy-Rich Substances for Initiating Devices. Russ. J. Gen. Chem. 2013, 83, 2624–2632. [Google Scholar] [CrossRef]
  35. Ilyushin, M.A.; Tselinsky, I.V.; Shugalei, I.V. Environmentally Friendly Energetic Materials for Initiation Devices. Cent. Eur. J. Energ. Mater. 2012, 9, 293–327. [Google Scholar]
  36. Stepanov, A.I.; Sannikov, V.S.; Dashko, D.V.; Roslyakov, A.G.; Astrat’yev, A.A.; Stepanova, E.V.; Aliev, Z.G.; Goncharov, T.K.; Aldoshin, S.M. Synthesis and properties of 3-azido-4-(2H-tetrazol-5-yl)furazan. Chem. Heterocycl. Compd. 2017, 53, 779–785. [Google Scholar] [CrossRef]
  37. Dong, Z.; An, D.; Yang, R.; Ye, Z. Insensitive and Thermostable Energetic Materials Based on 3-Ureido-4-tetrazole-furazan: Synthesis, Characterization, and Properties. Z. Anorg. Allg. Chem. 2019, 645, 1285–1290. [Google Scholar] [CrossRef]
  38. Yu, Q.; Yang, H.; Ju, X.; Lu, C.; Lin, Q.; Zhang, J.; Cheng, G. 1D Energetic Metal-Organic Framework: Sodium 6-Nitro-5-oxidopyrazolo [3,4-c][1,2,5]oxadiazol-4-ide with Good Thermal Stability. ChemistrySelect 2017, 2, 4673–4677. [Google Scholar] [CrossRef]
  39. Tang, Y.; He, C.; Shreeve, J.M. A furazan-fused pyrazole N-oxide via unusual cyclization. J. Mater. Chem. A 2017, 5, 4314–4319. [Google Scholar] [CrossRef]
  40. Hermann, T.S.; Klapotke, T.M.; Krumm, B. Formation and Characterization of Heavy Alkali and Silver Salts of the 4-Nitro-pyrazolo-(3,4-c)-furazan-5-N-oxide Anion. Propellants Explos. Pyrotech. 2018, 43, 54–61. [Google Scholar] [CrossRef]
  41. Voronin, A.A.; Fedyanin, I.V.; Churakov, A.M.; Pivkina, A.N.; Muravyev, N.V.; Strelenko, Y.A.; Klenov, M.S.; Lempert, D.B.; Tartakovsky, V.A. 4H-[1,2,3]Triazolo [4,5-c][1,2,5]oxadiazole 5-oxide and Its Salts: Promising Multipurpose Energetic Materials. ACS Appl. Energy Mater. 2020, 3, 9401–9407. [Google Scholar] [CrossRef]
  42. Sheremetev, A.B.; Yudin, I.L.; Aleksandrova, N.S. High nitrogen furazan derivatives for gas generetors. In Proceedings of the Twenty-Third International Pyrotechnics Seminar, Tsukuba, Japan, 30 September 1997; pp. 377–388. [Google Scholar]
  43. Davis, M.; Deady, L.W.; Homfeld, E. Rates of N-methylation of 2-Methybenzotriazole, 2,1,3-Benzoxadiazole, 2,1,3-Benzothia(or Selena)diazole, 1,2,5-Oxadiazole and 1,2,5-Thiadiazole. Aust. J. Chem. 1974, 27, 1917–1921. [Google Scholar] [CrossRef]
  44. Bachkovsky, I.P.; Mikhailovsky, A.P.; Chuiguk, V.A. 1,2,5-Oxadiazolo [2,3-a]-pyrimidinium salts. Ukr. Khim. Zh. 1980, 46, 637–639. [Google Scholar]
  45. Struchkov, Y.T.; Batsanov, A.S.; Chuiguk, V.A.; Batog, L.V.; Kulikov, A.S.; Pivina, T.S.; Strelenko, Y.A. 5,7-Dimethyl-3-phenylfurazano- and -furoxano [5,4-a]pyrimidinium perchlorates: A new type of condensed system. Chem. Heterocycl. Comp. 1992, 24, 193–197, [Translation of Khim. Geterotsikl. Soedin. 1992, 2, 233–238]. [Google Scholar] [CrossRef]
  46. Zhou, J.; Zhang, J.; Wang, B.; Qiu, L.; Sheremetev, A.B. Recent Synthetic Efforts towards High Energy Density Materials: How to Design High-Performance Energetic Structures? FirePhysChem 2022, 2, 83–139. [Google Scholar] [CrossRef]
  47. Sheremetev, A.B.; Shamshina, Y.L.; Dmitriev, D.E. Synthesis of 3-alkyl-4-aminofurazans. Russ. Chem. Bull. 2005, 54, 1032–1037, [Translation of Izv. Akad. Nauk. Ser. Khim. 2005, 4, 1007–1012]. [Google Scholar] [CrossRef]
  48. Sheremetev, A.B.; Mel’nikova, S.F.; Kokareva, E.S.; Nekrutenko, R.E.; Strizhenko, K.V.; Suponitsky, K.Y.; Pham, T.D.; Pivkina, A.N.; Sinditskii, V.P. Nitroxy- and azidomethyl azofurazans as advanced energetic materials. Def. Technol. 2022, 18, 1369–1381. [Google Scholar] [CrossRef]
  49. Tselinskii, I.V.; Mel’nikova, S.F.; Vergizov, S.N. Azidofurazans in the synthesis of condensed systems. Zhurnal Org. Khimii 1981, 17, 1123–1124. [Google Scholar]
  50. Rakitin, O.A.; Zalesova, O.A.; Kulikov, A.S.; Makhova, N.N.; Godovikova, T.I.; Khmel’nitskii, L.I. Synthesis and reactivity of furazanyl- and furoxanyldiazonium salts. Russ. Chem. Bull. 1993, 42, 1865–1870, [Translation of Izv. Akad. Nauk. Ser. Khim. 1993, 11, 1949–1955]. [Google Scholar] [CrossRef]
  51. Novikova, T.S.; Melnikova, T.M.; Kharitonova, O.V.; Kulagina, V.O.; Aleksandrova, N.S.; Sheremetev, A.B.; Pivina, T.S.; Khmelnitskii, L.I.; Novikov, S.S. An Effective Method for the Oxidation of Aminofurazans to Nitrofurazans. Mendeleev Commun. 1994, 4, 138–140. [Google Scholar] [CrossRef]
  52. Apasov, E.T.; Sheremetev, A.B.; Dzhetigenov, B.A.; Kalinin, A.V.; Tartakovsky, V.A. Reaction of Silylated Aminonitrofurazan with N-Magnesium Amine Derivatives. Bull. Russ. Acad. Sci. Div. Chem. Sci. 1992, 41, 1500–1501. [Google Scholar] [CrossRef]
  53. Skibsted, J.; Jakobsen, H.J. 35Cl and 37Cl Magic-Angle Spinning NMR Spectroscopy in the Characterization of Inorganic Perchlorates. Inorg. Chem. 1999, 38, 1806–1813. [Google Scholar] [CrossRef] [PubMed]
  54. Suponitsky, K.Y.; Lyssenko, K.A.; Antipin, M.Y.; Aleksandrova, N.S.; Sheremetev, A.B.; Novikova, T.S. 4,4-Bis(nitramin)azofurazane and its Salts. Study of Molecular and Crystal Structure Based on X-ray and Quantum Chemical Data. Russ. Chem. Bull. 2009, 58, 2129–2136. [Google Scholar] [CrossRef]
  55. Suponitsky, K.Y.; Lyssenko, K.A.; Ananyev, I.V.; Kozeev, A.M.; Sheremetev, A.B. Role of Weak Intermolecular Interactions in the Crystal Structure of Tetrakis-furazano [3,4-c:3′,4′-g:3″,4″-k:3‴,4‴-o][1,2,5,6,9,10,13,14]octaazacyclohexadecine and Its Solvates. Cryst. Growth Des. 2014, 14, 4439–4449. [Google Scholar] [CrossRef]
  56. Suponitsky, K.Y.; Smol’yakov, A.F.; Ananyev, I.V.; Khakhalev, A.V.; Gidaspov, A.A.; Sheremetev, A.B. 3,4-Dinitrofurazan: Structural Nonequivalence of Ortho-Nitro Groups as a Key Feature of the Crystal Structure and Density. ChemistrySelect 2020, 5, 14543–14548. [Google Scholar] [CrossRef]
  57. Manelis, G.B.; Nazin, G.M.; Rubtsov, Y.I.; Strunin, V.A. Thermal Decomposition and Combustion of Explosives and Propellants; CRC Press: London, UK, 2003. [Google Scholar] [CrossRef]
  58. Sinditskii, V.P.; Burzhava, A.V.; Sheremetev, A.B.; Aleksandrova, N.S. Thermal and combustion properties of 3,4-Bis(3-nitrofurazan-4-yl)furoxan (DNTF). Propellants Explos. Pyrotech. 2012, 37, 575–580. [Google Scholar] [CrossRef]
  59. Sinditskii, V.P.; Burzhava, A.V.; Egorshev, V.Y.; Sheremetev, A.B.; Zelenov, V.P. Combustion of Furazanotetrazine Dioxide. Combust. Explos. Shock. Waves 2013, 49, 117–120, [Translation of Fiz. Goren. Vzriv. 2013, 49, 134–137]. [Google Scholar] [CrossRef]
  60. Sinditskii, V.P.; Burzhava, A.V.; Chernyi, A.N.; Shmelev, D.S.; Apalkova, V.N.; Palysaeva, N.V.; Sheremetev, A.B. A comparative study of two difurazanyl ethers. J. Therm. Anal. Calorim. 2016, 123, 1431–1438. [Google Scholar] [CrossRef]
  61. Sinditskii, V.P.; Smirnova, A.D.; Serushkin, V.V.; Aleksandrova, N.S.; Sheremetev, A.B. Furazan-fused azacyclic nitramines: Influence of structural features on the combustion and the thermolysis. ChemistrySelect 2020, 5, 13868–13877. [Google Scholar] [CrossRef]
  62. Sinditskii, V.P.; Burzhava, A.V.; Sheremetev, A.B. Macrocyclic tetra(azo-) and tetra(azoxyfurazan)s: Comparative study of decomposition and combustion with linear analogs. Energetic Mater. Front. 2021, 2, 87–95. [Google Scholar] [CrossRef]
  63. Sinditskii, V.P.; Smirnova, A.D.; Serushkin, V.V.; Yudin, N.V.; Vatsadze, I.A.; Dalinger, I.L.; Kiselev, V.G.; Sheremetev, A.B. Nitroderivatives of N-pyrazolyltetrazoles: Thermal decomposition and combustion. Thermochim. Acta 2021, 698, 178876. [Google Scholar] [CrossRef]
  64. Vereschagin, A.N. Inductive Effect. Constants of Substituents for Correlation Analysis; Nauka: Moscow, Russia, 1988. [Google Scholar]
  65. Whelan, D.J.; Spear, R.J.; Read, R.W. The thermal decomposition of some primary explosives as studied by differential scanning calorimetry. Thermochim. Acta 1984, 80, 149–163. [Google Scholar] [CrossRef]
  66. Sinditskii, V.P.; Egorshev, V.Y.; Berezin, M.V.; Serushkin, V.V. Mechanism of HMX combustion in a wide range of pressures. Combust. Explos. Shock. Waves 2009, 45, 461–477. [Google Scholar] [CrossRef]
  67. Fogelzang, A.E.; Egorshev, V.Y.; Pimenov, A.Y.; Sinditskii, V.P.; Saklanty, A.R.; Svetlov, B.S. Investigation of the Steady-State Burning of Primary Explosives at High Pressures. Dokl. Akad. Nauk SSSR 1985, 285, 1449–1452. [Google Scholar]
  68. Sinditskii, V.P.; Egorshev, V.Y.; Serushkin, V.V.; Levshenkov, A.I.; Berezin, M.V.; Filatov, S.A. Combustion of energetic materials governed by reactions in the condensed phase. Inter. J. Ener. Mat. Chem. Prop. 2010, 9, 147–192. [Google Scholar] [CrossRef]
  69. Kolesov, V.I.; Kapranov, K.O.; Tkacheva, A.V.; Kulagin, I.A. Explosive Characteristics of Tetrazene and MTX-1. Combust. Explos. Shock Waves. 2021, 57, 350–355. [Google Scholar] [CrossRef]
  70. Muravyev, N.V.; Wozniak, D.R.; Piercey, D.G. Progress and performance of energetic materials: Open dataset, tool, and implications for synthesis. J. Mater. Chem. A 2022, 10, 11054–11073. [Google Scholar] [CrossRef]
  71. STANAG 4489; Explosives, Impact Sensitivity Tests. NATO: Brussels, Belgium, 1999.
  72. STANAG 4487; Explosives, Friction Sensitivity Tests. NATO: Brussels, Belgium, 2002.
  73. Bruker AXS Inc. APEX2 and SAINT; Bruker AXS Inc.: Madison, WI, USA, 2014. [Google Scholar]
  74. Sheldrick, G.M. Crystal structure refinement with SHELXL. Acta Cryst. C 2015, 71, 3–8. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  75. Kissinger, H.E. Reaction kinetics in differential thermal analysis. Anal. Chem. 1957, 29, 1702–1706. [Google Scholar] [CrossRef]
  76. Jenkins, H.D.B.; Roobottom, H.K.; Passmore, J.; Glasser, L. Relationships among Ionic Lattice Energies, Molecular (Formula Unit) Volumes, and Thermochemical Radii. Inorg. Chem. 1999, 38, 3609–3620. [Google Scholar] [CrossRef]
  77. Jenkins, H.D.B.; Tudela, D.; Glasser, L. Lattice Potential Energy Estimation for Complex Ionic Salts from Density Measurements. Inorg. Chem. 2002, 41, 2364–2367. [Google Scholar] [CrossRef]
  78. Curtiss, L.A.; Raghavachari, K.; Redfern, P.C.; Pople, J.A. Assessment of Gaussian-2 and density functional theories for the computation of enthalpies of formation. J. Chem. Phys. 1997, 106, 1063. [Google Scholar] [CrossRef] [Green Version]
  79. Frisch, M.J.; Trucks, G.W.; Schlegel, H.B.; Scuseria, G.E.; Robb, M.A.; Cheeseman, J.R.; Scalmani, G.; Barone, V.; Petersson, G.A.; Nakatsuji, H.; et al. Gaussian 09, Revision D.01; Gaussian, Inc.: Wallingford, CT, USA, 2016. [Google Scholar]
  80. Werner, H.-J.; Knowles, P.J.; Knizia, G.; Manby, F.R.; Schutz, M.; Celani, P.; Korona, T.; Lindh, R.; Mitrushenkov, A.; Rauhut, G.; et al. MOLPRO, Version 2010.1. Users Man. Version. 2010. Available online: https://www.molpro.net/pipermail/molpro-user/2010-September/003868.html (accessed on 1 November 2022).
  81. Karton, A.; Martin, J.M.L. Explicitly correlated Wn theory: W1-F12 and W2-F12. J. Chem. Phys. 2012, 136, 124114. [Google Scholar] [CrossRef] [Green Version]
  82. Kesharwani, M.K.; Brauer, B.; Martin, J.M.L. Frequency and Zero-Point Vibrational Energy Scale Factors for Double-Hybrid Density Functionals (and Other Selected Methods): Can Anharmonic Force Fields Be Avoided? J. Phys. Chem. A 2015, 119, 1701–1714. [Google Scholar] [CrossRef]
  83. Karton, A.; Schreiner, P.R.; Martin, J.M.L. Heats of formation of platonic hydrocarbon cages by means of high-level thermochemical procedures. J. Comput. Chem. 2016, 37, 49–58. [Google Scholar] [CrossRef] [Green Version]
  84. Kiselev, V.G.; Goldsmith, C.F. Accurate Prediction of Bond Dissociation Energies and Barrier Heights for High-Energy Caged Nitro and Nitroamino Compounds Using a Coupled Cluster Theory. J. Phys. Chem. A 2019, 123, 4883–4890. [Google Scholar] [CrossRef] [PubMed]
  85. Kiselev, V.G.; Goldsmith, C.F. Accurate Thermochemistry of Novel Energetic Fused Tricyclic 1,2,3,4-Tetrazine Nitro Derivatives from Local Coupled Cluster Methods. J. Phys. Chem. A 2019, 123, 9818–9827. [Google Scholar] [CrossRef] [PubMed]
  86. Gorn, M.V.; Gritsan, N.P.; Goldsmith, C.F.; Kiselev, V.G. Thermal Stability of Bis-Tetrazole and Bis-Triazole Derivatives with Long Catenated Nitrogen Chains: Quantitative Insights from High-Level Quantum Chemical Calculations. J. Phys. Chem. A 2020, 124, 7665–7677. [Google Scholar] [CrossRef] [PubMed]
  87. Muravyev, N.V.; Monogarov, K.A.; Melnikov, I.N.; Pivkina, A.N.; Kiselev, V.G. Learning to Fly: Thermochemistry of Energetic Materials by Modified Thermogravimetric Analysis and Highly Accurate Quantum Chemical Calculations. Phys. Chem. Chem. Phys. 2021, 23, 15522–15542. [Google Scholar] [CrossRef] [PubMed]
  88. Lee, T.J.; Taylor, P.R. A diagnostic for determining the quality of single-reference electron correlation methods. Int. J. Quantum Chem. 1989, 36, 199–207. [Google Scholar] [CrossRef]
  89. Chase, M.W., Jr. NIST-JANAF Thermochemical Tables; American Chemical Society: Washington, DC, USA, 1998; Volume 9. [Google Scholar]
Molecules 27 08443 g001 550
Figure 1. Known energetic furazan-based salts.
Figure 1. Known energetic furazan-based salts.
Molecules 27 08443 g001
Molecules 27 08443 sch001 550
Scheme 1. Reaction of 3-amino-4-methylfurazan (9a) with 1,3-dicarbonyl compounds.
Scheme 1. Reaction of 3-amino-4-methylfurazan (9a) with 1,3-dicarbonyl compounds.
Molecules 27 08443 sch001
Molecules 27 08443 sch002 550
Scheme 2. Reaction of pentane-2,4-dione with aminofurazans.
Scheme 2. Reaction of pentane-2,4-dione with aminofurazans.
Molecules 27 08443 sch002
Molecules 27 08443 g002 550

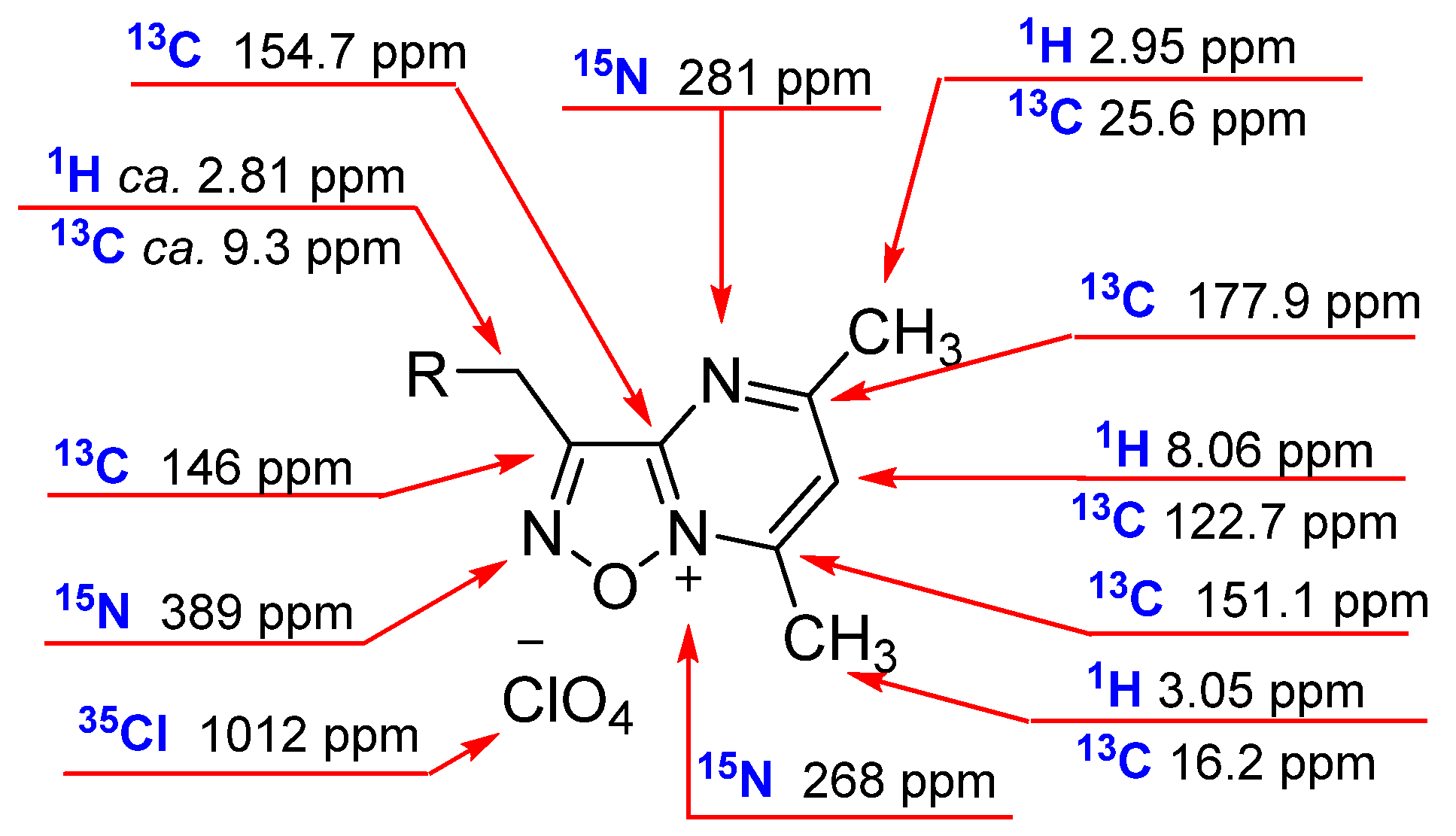

Figure 2. Typical 1H, 13C, 15N, and 35Cl NMR shifts of 1,2,5-oxadiazolo [2,3-a]-pyrimidinium perchlorates.
Figure 2. Typical 1H, 13C, 15N, and 35Cl NMR shifts of 1,2,5-oxadiazolo [2,3-a]-pyrimidinium perchlorates.
Molecules 27 08443 g002
Molecules 27 08443 g003 550
Figure 3. General view of Me compounds 10a showing atomic numbering. Thermal ellipsoids are given at 50% probability level. The first symmetrically independent molecule is shown.
Figure 3. General view of Me compounds 10a showing atomic numbering. Thermal ellipsoids are given at 50% probability level. The first symmetrically independent molecule is shown.
Molecules 27 08443 g003
Molecules 27 08443 g004 550
Figure 4. General view of azido compounds 10g (a) and 10f (b) showing atomic numbering. Thermal ellipsoids are given at 50% probability level. For 10g, the first symmetrically independent molecule is shown.
Figure 4. General view of azido compounds 10g (a) and 10f (b) showing atomic numbering. Thermal ellipsoids are given at 50% probability level. For 10g, the first symmetrically independent molecule is shown.
Molecules 27 08443 g004
Molecules 27 08443 g005 550
Figure 5. Crystal packing fragment of compound 10a. C–H…N cation…cation and C–H…O and O…π anion…cation interactions are shown by dashed lines. Detailed view of anion…cation interactions is provided at the bottom. Minor part of the disorder is omitted for clarity.
Figure 5. Crystal packing fragment of compound 10a. C–H…N cation…cation and C–H…O and O…π anion…cation interactions are shown by dashed lines. Detailed view of anion…cation interactions is provided at the bottom. Minor part of the disorder is omitted for clarity.
Molecules 27 08443 g005
Molecules 27 08443 g006 550
Figure 6. Crystal packing fragment of compound 10g. C–H…N cation–cation and C–H…O and O…π anion…cation interactions are shown by dashed lines. Detailed view of anion…cation interactions is provided at the bottom. Minor part of the disorder is omitted for clarity.
Figure 6. Crystal packing fragment of compound 10g. C–H…N cation–cation and C–H…O and O…π anion…cation interactions are shown by dashed lines. Detailed view of anion…cation interactions is provided at the bottom. Minor part of the disorder is omitted for clarity.
Molecules 27 08443 g006
Molecules 27 08443 g007 550
Figure 7. Crystal packing fragment of compound 10f. C–H…N cation…cation and C–H…O and O…π anion…cation interactions are shown by dashed lines. Detailed view of anion–cation interactions is provided on the right side.
Figure 7. Crystal packing fragment of compound 10f. C–H…N cation…cation and C–H…O and O…π anion…cation interactions are shown by dashed lines. Detailed view of anion–cation interactions is provided on the right side.
Molecules 27 08443 g007
Molecules 27 08443 sch003 550
Scheme 3. The proposed first stage of decomposition of salt 10a.
Scheme 3. The proposed first stage of decomposition of salt 10a.
Molecules 27 08443 sch003
Molecules 27 08443 g008 550
Figure 8. Comparison of burning rates at different pressures for 10a, 10f, and 10g with tetrazene and HMX. Dotted line is extrapolation.
Figure 8. Comparison of burning rates at different pressures for 10a, 10f, and 10g with tetrazene and HMX. Dotted line is extrapolation.
Molecules 27 08443 g008
Table
Table 1. Explosive sensitivity for compounds of this study in comparison with tetrazene.
Table 1. Explosive sensitivity for compounds of this study in comparison with tetrazene.
CompoundFormulaIS, a JFS, b NDSC, c °C
10aC8H10Cl1N3O5
(263.63)		2.0 ± 0.432 ± 6212
10bC8H9Cl2N3O5
(298.08)		2.1 ± 0.836 ± 8177
10eC8H9Cl2N3O5
(298.08)		2 ± 160 ± 30207
10fC8H9Cl1N6O5
(304.65)		2.6 ± 1.116 ± 8142
10gC7H7Cl1N6O5
(290.62)		1.0 ± 0.35.9 ± 0.8136
tetrazeneC2H8N10O1
(188.15)		3 ± 2<5127
a Impact sensitivity (STANAG 4489). b Friction sensitivity (STANAG 4487). c Onset decomposition temperature (DSC, 5 °C min−1).
Table
Table 2. Parameters of the Arrhenius equation for perchlorates and benchmark tetrazene.
Table 2. Parameters of the Arrhenius equation for perchlorates and benchmark tetrazene.
SamplSubstituentσIaStateT, °ClogA bEa, c
kJ mol−1		k150C, d
s−1 × 104
10aCH3−0.07Solid160–18014.51640.015
10fN3CH20.11Solid110–12014.31570.084
10gN30.33Solid80–10515.014512
Tetrazenee Solid115–12518.7163372
10aCH3−0.07Liquid170–18018.7 f183 f1.1
10fN3CH20.11Liquid110–13017.6157163
10gN30.33Liquid90–11018.8152530
a Hammett constant [64]. b The Arrhenius preexponential factor. c Activation energy. d Rate constant at 150 °C. e Data from non-isothermal conditions [65]. f Estimated values for two points.
Table
Table 3. The combustion parameters of perchlorates and benchmark compounds.
Table 3. The combustion parameters of perchlorates and benchmark compounds.
CompoundΔp, a MPaBurning Rate rb = Apnrb10, d
mm s−1
A bn c
10a0.1–0.4
0.4–10.0		42.7
39.7		0.96
0.80
250
10g0.1–0.4
0.4–10.0		14.4
23.6		0.21
0.76
139
10f5.1–10.015.30.85109
Tetrazene0.1–10.064.00.83435
HMX0.1–10.02.470.8216
a Pressure range. b Empirical coefficient. c Pressure exponent in the burning rate law. d Calculated burning rate at 10 MPa.
Table
Table 4. Explosive performance for compounds of this study in comparison with tetrazene.
Table 4. Explosive performance for compounds of this study in comparison with tetrazene.
CompoundFormula
Mw		d20, a
g cm−3		α bΔfH0, c
kJ mol−1
(kJ g−1)		D, d
m s−1		PC-J, e
GPa
10aC8H10Cl1N3O5
(263.63)		1.5020.262+147.1
(+0.56)		640019
10fC8H9Cl1N6O5
(304.65)		1.5990.268+552.8
(+1.81)		700025
10gC7H7Cl1N6O5
(290.62)		1.5620.314+557.2
(+1.92)		700024
TetrazeneC2H8N10O1
(188.15)		1.6350.125+156 [69]
(+0.83)		760020
a Density at room temperature. b Oxygen coefficient. For a compound with the molecular formula of CxHyHalvNwOz, α = (z + v/2)/(2x + y/2). A compound with a > 1 is an oxidizer. c Calculated enthalpy of the formation for solid state. d Detonation velocity at maximal density. e Detonation pressure.
Publisher’s Note: MDPI stays neutral with regard to jurisdictional claims in published maps and institutional affiliations.

Share and Cite

MDPI and ACS Style

Strizhenko, K.V.; Smirnova, A.D.; Filatov, S.A.; Sinditskii, V.P.; Stash, A.I.; Suponitsky, K.Y.; Monogarov, K.A.; Kiselev, V.G.; Sheremetev, A.B. Energetic [1,2,5]oxadiazolo [2,3-a]pyrimidin-8-ium Perchlorates: Synthesis and Characterization. Molecules 2022, 27, 8443. https://doi.org/10.3390/molecules27238443

AMA Style

Strizhenko KV, Smirnova AD, Filatov SA, Sinditskii VP, Stash AI, Suponitsky KY, Monogarov KA, Kiselev VG, Sheremetev AB. Energetic [1,2,5]oxadiazolo [2,3-a]pyrimidin-8-ium Perchlorates: Synthesis and Characterization. Molecules. 2022; 27(23):8443. https://doi.org/10.3390/molecules27238443

Chicago/Turabian Style

Strizhenko, Kirill V., Anastasia D. Smirnova, Sergei A. Filatov, Valery P. Sinditskii, Adam I. Stash, Kyrill Yu. Suponitsky, Konstantin A. Monogarov, Vitaly G. Kiselev, and Aleksei B. Sheremetev. 2022. "Energetic [1,2,5]oxadiazolo [2,3-a]pyrimidin-8-ium Perchlorates: Synthesis and Characterization" Molecules 27, no. 23: 8443. https://doi.org/10.3390/molecules27238443

Article Metrics

Back to TopTop
