Article

Unusual Formation of 1,2,4-Oxadiazine Core in Reaction of Amidoximes with Maleic or Fumaric Esters

by
Sofia I. Presnukhina
1,
Marina V. Tarasenko
2,
Kirill K. Geyl
1,
Svetlana O. Baykova
1,
Sergey V. Baykov
1,
Anton A. Shetnev
2 and
Vadim P. Boyarskiy
1,*
1
Institute of Chemistry, Saint Petersburg State University, 7/9 Universitetskaya Nab., 199034 Saint Petersburg, Russia
2
Pharmaceutical Technology Transfer Centre, Yaroslavl State Pedagogical University Named after K.D. Ushinsky, 108 Respublikanskaya St., 150000 Yaroslavl, Russia
*
Author to whom correspondence should be addressed.
Molecules 2022, 27(21), 7508; https://doi.org/10.3390/molecules27217508
Submission received: 9 October 2022 / Revised: 26 October 2022 / Accepted: 1 November 2022 / Published: 3 November 2022
(This article belongs to the Special Issue Chemistry of Nitrogen Heterocyclic Compounds)
Browse Figures
Versions Notes

Abstract

:
We have developed a simple and convenient method for the synthesis of 3-aryl- and 3-hetaryl-1,2,4-oxadiazin-5-ones bearing an easily functionalizable (methoxycarbonyl)methyl group at position 6 via the reaction of aryl or hetaryl amidoximes with maleates or fumarates. The conditions for this reaction were optimized. Different products can be synthesized selectively in good yields depending on the base used and the ratio of reactants: substituted (1,2,4-oxadiazin-6-yl)acetic acids, corresponding methyl esters, or hybrid 3-(aryl)-6-((3-(aryl)-1,2,4-oxadiazol-5-yl)methyl)-4H-1,2,4-oxadiazin-5(6H)-ones. The reaction is tolerant to substituents’ electronic and steric effects in amidoximes. As a result, a series of 2-(5-oxo-3-(p-tolyl)-5,6-dihydro-4H-1,2,4-oxadiazin-6-yl)acetic acids, their methyl esters, and 1,2,4-oxadiazoles based on them were prepared and characterized by HRMS, 1H, and 13C NMR spectroscopy. The structures of three of them were elucidated with X-ray diffraction.

Graphical Abstract

1. Introduction

Amidoximes are polynucleophilic species that are widely used in synthetic chemistry to assemble diverse heterocyclic [1,2,3,4] and organometallic systems [5,6]. The type of the formed heterocyclic core depends mainly on the structure of the electrophile. In particular, the coupling of amidoximes with carbonyl-based compounds such as aldehydes [7,8,9], carboxylic acids [10,11,12], and their derivatives (esters [13,14,15,16], anhydrides [17,18,19,20], as well as acyl chlorides [21,22,23,24]) usually results in 1,2,4-oxadiazoles. In this case, both nucleophilic centers of amidoxime (NOH and NH2 groups) attack the same carbon atom of the electrophile (Scheme 1A).
On the other hand, amidoximes react with α,β-unsaturated carbonyl compounds via the Michael addition to the electron-deficient carbon atom of the double bond followed by N-O bond cleavage and the formation of imidazole or pyrimidine core depending on reaction conditions (Scheme 1B), which are harsh in both cases [25].
At the same time, it seems interesting to develop a convenient route for the preparation of 1,2,4-oxadiazines based on such a reaction. These relatively little-studied heterocyclic compounds have significant potential in medicinal chemistry [26,27,28,29,30,31,32,33]. The research in the field of biological activity of this scaffold is hampered, first of all, by the lack of a suitable simple and universal method for its synthesis [34].
In order for amidoximes to be a starting material for the preparation of 1,2,4-oxadiazines, it is necessary that the electrophilic centers in the polyelectrophile occupy a vicinal position (Scheme 1C). For example, the reaction of amidoximes with α-halocarbonyl compounds or their derivatives with the formation of 1,2,4-oxadiazine core has been described [35,36,37]. Other similar examples are reactions with perfluoroarenes [38], acetyleniodonium salts [39], and acetylenedicarboxylates [40].
At first glance, the latter method is quite convenient due to the availability of acetylenedicarboxylates. Unfortunately, this reaction for most substrates resulted in low product yields (not exceeding 50%). The reason for this, most likely, is the excessive reactivity of the intermediate, which contains the fumaric acid fragment. In the basic media, this intermediate is able not only to cyclize to the target oxadiazinone but also to react with nucleophiles present in the system, forming the double bond addition by-products [40].
The use of maleates and fumarates as polyelectrophiles, rather than acetylenedicarboxylates, looks much more attractive. However, the literature provides no examples of the oxadiazine systems synthesis in this way. Although the addition of amidoximes to diethyl chlorofumarate led to the formation of an oxadiazinon, the reaction yield was lower than the one with diethyl acetylenedicarboxylate [40].
We have recently shown [41,42,43] that, in the MOH-DMSO medium, both key stages of the coupling between amidoximes and esters, namely O-acylation and 1,2,4-oxadiazole ring closing, occur even at room temperature. We assumed that 1,2,4-oxadiazinones could also be formed in this medium. We have studied this possibility with the example of dimethyl maleate (DMM) and dimethyl fumarate and have shown that this reaction can indeed be a convenient method for the synthesis of 1,2,4-oxadiazinones. Below we present the results of this study.

2. Results and Discussion

To start, we evaluated the procedure [43] previously used for the assembly of 1,2,4-oxadiazole core via the condensation of amidoximes with esters (Table 1, entry 1). Although acid 3a was isolated as the main product instead of the expected ester 4a, this first experiment encouraged us to conduct a more detailed study. The yield of acid 3a was only 37%, but the following optimization of DMM and NaOH amounts, as well as the reaction time, provided a 65% yield of the product (Table 1, entries 2 and 4). Increasing the reagent amounts and prolonging the reaction time did not improve the product yield; however, it significantly promoted side processes, mainly the formation of 4-methylbenzonitrile (Table 1, entries 3 and 5). Variation of the base used revealed that NaOH is the most suitable alkali metal hydroxide for the preparation of acids 3, while the use of t-BuONa allows one to obtain corresponding esters 4 (Table 1, entries 6–8). In the latter case, hybrid 5a bearing two heterocyclic cores (1,2,4-oxadiazinone and 1,2,4-oxadiazole) with the same aromatic substituent (4-methylphenyl) was detected as a minor byproduct (aside from 4-methylbenzonitrile). Probably, its formation can be explained by the reaction of ester 4a with the second molecule of amidoxime 1a. After reducing the DMM/amidoxime ratio from 2:1 to 0.4:1, we obtain hybrid 5a in yield of 82% (Table 1, entry 11). Finally, we carried out the reactions with isomeric dimethyl fumarate (Table 1, entries 12 and 13) and found no significant difference in the reactivity of the two esters (fumarate and maleate).
Next, we investigated the scope of amidoximes for the synthesis of acids 3 (Scheme 2), esters 4, and hybrids 5 (Scheme 3). Electron-withdrawing substituents at position 4 of amidoximes have almost no effect on the yield of the corresponding products either in NaOH–DMSO medium or in t-BuONa–DMSO medium. The presence of electron donor groups OMe and OPh in amidoximes leads to some decrease in the yields of acids (3c, 3i) or esters (4c), but this effect is small. In the synthesis of hybrids 5, neither the methoxy group nor even the amino group reduced the yields of the desired products (5c, 5h). Substituents in the ortho-position also do not interfere with the reaction, although they slightly reduce the yield of the corresponding products (3j, 3k, 4i, 4k, 5i) compared to their para-substituted isomers.
The use of heterocyclic amidoximes made it possible to obtain 3-hetaryl-substituted derivatives of 1,2,4-oxadiazin-5-ones in acceptable yields. At the same time, for 5-methyl-thiazol-2-yl and pyridin-4-yl substituents, the corresponding hybrids 5 are formed as well as acids 3 or esters 4. For pyridin-2-yl amidoxime, the yield of hybrid 5k is noticeably lower than that of ester 4p. Nevertheless, we managed to isolate the corresponding hybrid, which confirms the fundamental possibility of using the reaction we discovered for the synthesis of 1,2,4-oxadiazinones bearing additional heterocyclic cores in this case as well.
To additionally confirm the structures of the obtained products, we used X-ray diffraction. Monocrystalline samples were grown for compounds 4d, 5b, and 5f, and their structures were established by XRD (the structures solution and refinement details, as well as numbering plots presented in Supplementary Materials, Table S1 and Figures S1–S3). In cases of hybrids 5b and 5f, molecules in the crystals form dimers via N-H···O hydrogen bonds between two oxadiazinone moieties (Figure 1B,C), whereas in the structure of ester 4d, the acidic NH proton of the oxadiazinone rings is involved in hydrogen bonds with oxygen atoms of methoxy carbonyl groups (Figure 1A). Moreover, π···π stacking between aromatic rings was observed in each case.
Based on the literature data, we can suggest the following possible mechanism for the formation of oxadiazines (Scheme 4). It is well known that amidoximes deprotonate in basic media and attack (by the oxygen atoms) double bonds activated by electron-withdrawing substituents [1,40,44]. In our case, intermediate I3 is obtained in this way. Then, in the basic media, the amino group reacts with alkoxycarbonyl group [45], and the cyclization occurs to intermediate I4, which, after protonation and elimination of methanol, forms the target product, similar to the reaction described in [37].

3. Material and Methods

3.1. General

Amidoximes 1 were prepared from commercial nitriles according to the literature procedures [10,17,46]. Maleic and fumaric esters, as well as all other reagents and solvents, were purchased from Merck (Merck KGaA, Darmstadt, Germany) and used as is. Reactions were monitored by analytical thin layer chromatography (TLC) Macherey-Nagel, TLC plates Silufol UV-254 using UV light for detection. Column chromatography was carried out with silica gel grade 60 (0.040–0.063 mm) 230–400. NMR spectra were recorded on Bruker Avance DPX 400 (400 MHz, 101 MHz, and 376 MHz for 1H, 13C, and 19F, respectively) or on Bruker Avance III 500 MHz (500 MHz for 1H, 126 MHz for 13C) in DMSO-d6, CDCl3, or acetone-d6. Chemical shifts are reported as parts per million (δ, ppm). The 1H and 13C spectra were calibrated using the residual signals of nondeuterated solvents as internal reference (2.50 ppm for residual 1H, 39.50 ppm for 13C in DMSO-d6, 2.05 ppm for residual 1H, 29.84 and 206.26 for residual 13C in acetone-d6; 7.26 ppm for residual 1H, 77.16 ppm for 13C in CDCl3). 19F NMR spectra were referenced through the solvent lock (2H) signal according to IUPAC recommended secondary referencing method and the manufacturer’s protocols, and the chemical shifts are reported relative to CFCl3 (δ 0.0 ppm). Multiplicities are abbreviated as follows: s = singlet, d = doublet, t = triplet, q = quartet, m = multiplet, br = broad; coupling constants, J, are reported in Hertz (Hz). Melting points were determined in open capillary tubes on Electrothermal IA 9300 series Digital Melting Point Apparatus (Calibre Scientific, LA, CA, USA). High-resolution mass spectra (HRMS) were measured on Bruker Maxis HRMS-ESI-qTOF (ESI Ionization) (Bruker, Billerica, MA, USA).
Singe crystals for X-ray studying were obtained by slow evaporation of DMSO solutions of corresponding oxadiazines 4d, 5b, and 5f at RT in air. X-ray diffraction data were collected at an Xcalibur Eos (4d) (Agilent Technologies, Santa Clara, CA, USA), at a Rigaku SuperNova (5f), and at a Rigaku XtaLAB Synergy-S (5b) (Rigaku Corporation, Tokyo, Japan) diffractometers using MoKα (λ = 0.71073 nm) or CuKα (λ = 0.154184 nm) radiation. The structures have been solved with the ShelXT [47] structure solution program using Intrinsic Phasing and refined with the ShelXL [48] refinement package incorporated in the OLEX2 program package [49] using Least Squares minimization. Empirical absorption correction was applied in CrysAlisPro [50] program complex using spherical harmonics, implemented in SCALE3 ABSPACK scaling algorithm. Supplementary crystallographic data for this paper have been deposited at Cambridge Crystallographic Data Centre and can be obtained free of charge via www.ccdc.cam.ac.uk/data_request/cif (accessed on 30 October 2022). CCDC numbers 2210873 (4d), 2210875 (5b), and 2210876 (5f).

3.2. Oxadiazinones Preparation and Characterization

General procedure for preparation acids 3. To a solution of amidoxime 1 (2 mmol) and ester 2 (4 mmol) in DMSO (3 mL), powdered NaOH (240 mg, 4 mmol) was rapidly added. The reaction mixture was stirred at room temperature for 18 h, diluted with cold brine (30 mL), and twice washed with toluene (5 mL). The water solution was acidified to pH of about 1 by hydrochloric acid and cooled to 5 °C. The resulting precipitate was filtered off, washed with cold water (5 mL), and dried in air at 50 °C.
2-(5-Oxo-3-(4-methylphenyl)-5,6-dihydro-4H-1,2,4-oxadiazin-6-yl)acetic acid 3a. White powder; 65% yield (161 mg); m.p. 198–199 °C. 1H NMR (400 MHz, DMSO-d6): δ 12.55 (s, 1H), 11.33 (s, 1H), 7.64 (d, J = 8.3 Hz, 2H), 7.29 (d, J = 8.0 Hz, 2H), 4.54 (dd, J = 7.7, 4.5 Hz, 1H), 2.92 (dd, J = 16.8, 4.5 Hz, 1H), 2.66 (dd, J = 16.8, 7.7 Hz, 1H), 2.36 (s, 3H). 13C NMR (101 MHz, DMSO-d6): δ 171.4, 167.3, 152.4, 141.8, 129.8, 127.3, 126.8, 73.1, 33.7, 21.6. HRMS (ESI), m/z: [M + Na]+ calcd. for C12H12N2NaO4 271.0689; found 271.0703.
2-(5-Oxo-3-phenyl-5,6-dihydro-4H-1,2,4-oxadiazin-6-yl)acetic acid 3b. Beige powder; 82% yield (192 mg); m.p. 179–181 °C. 1H NMR (400 MHz, DMSO-d6): δ 12.63 (s, 1H), 11.41 (s, 1H), 7.76 (d, J = 7.3 Hz, 2H), 7.58–7.43 (m, 3H), 4.58 (dd, J = 7.6, 4.5 Hz, 1H), 2.94 (dd, J = 16.8, 4.5 Hz, 1H), 2.68 (dd, J = 16.8, 7.7 Hz, 1H). 13C NMR (101 MHz, CDCl3): δ 171.2, 167.0, 152.3, 131.6, 129.5, 129.1, 127.2, 72.9, 33.5. HRMS (ESI), m/z: [M + Na]+ calcd. for C11H10N2NaO4 257.0533; found 257.0538.
2-(3-(4-Methoxyphenyl)-5-oxo-5,6-dihydro-4H-1,2,4-oxadiazin-6-yl)acetic acid 3c. Beige powder; 54% yield (143 mg); m.p. 202–204 °C. 1H NMR (400 MHz, DMSO-d6): δ 12.58 (s, 1H), 11.31 (s, 1H), 7.71 (d, J = 8.5 Hz, 2H), 7.04 (d, J = 8.5 Hz, 2H), 4.54 (dd, J = 7.1, 4.5 Hz, 1H), 3.82 (s, 3H), 2.93 (dd, J = 16.7, 4.1 Hz, 1H), 2.66 (dd, J = 16.7, 7.7 Hz, 1H). 13C NMR (101 MHz, CDCl3): δ 171.3, 167.2, 162.0, 152.0, 128.8, 121.5, 114.5, 72.9, 55.9, 33.5. HRMS (ESI), m/z: [M + Na]+ calcd. for C12H12N2NaO5 287.0638; found 287.0644.
2-(3-(4-Nitrophenyl)-5-oxo-5,6-dihydro-4H-1,2,4-oxadiazin-6-yl)acetic acid 3d. Yellow powder; 66% yield (184 mg); m.p. 210–213 °C. 1H NMR (400 MHz, DMSO-d6): δ 1H NMR (400 MHz, DMSO) δ 12.13 (s, 1H), 8.33 (d, J = 8.9 Hz, 2H), 8.03 (d, J = 8.9 Hz, 2H), 4.65 (dd, J = 7.6, 4.5 Hz, 1H), 2.94 (dd, J = 16.8, 4.5 Hz, 1H), 2.68 (dd, J = 16.8, 7.6 Hz, 1H). 13C NMR (101 MHz, DMSO-d6): δ 171.3, 166.8, 151.0, 149.4, 135.5, 128.7, 124.2, 73.2, 33.7. HRMS (ESI), m/z: [M + Na]+ calcd. for C11H9N3NaO6 316.0540; found 316.0527.
2-(5-Oxo-3-(4-(trifluoromethyl)phenyl)-5,6-dihydro-4H-1,2,4-oxadiazin-6-yl)acetic acid 4e. White powder; 62% yield (187 mg); m.p. 218–220 °C. 1H NMR (400 MHz, DMSO-d6): δ 12.60 (s, 1H), 11.59 (s, 1H), 7.97 (d, J = 8.2 Hz, 2H), 7.87 (d, J = 8.2 Hz, 2H), 4.63 (dd, J = 7.7, 4.5 Hz, 1H), 2.95 (dd, J = 16.8, 4.6 Hz, 1H), 2.70 (dd, J = 16.9, 7.7 Hz, 1H). 13C NMR (101 MHz, DMSO-d6): δ 171.4, 167.0, 151.5, 133.6, 131.7 (q, J = 32.1 Hz), 128.4, 126.2, 124.5 (d, J = 272.7 Hz), 73.2, 33.6. 19F NMR (376 MHz, DMSO-d6): δ –61.43. HRMS (ESI), m/z: [M + Na]+ calcd. for C12H9F3N2NaO4 325.0407; found 325.0409.
2-(3-(4-Fluorophenyl)-5-oxo-5,6-dihydro-4H-1,2,4-oxadiazin-6-yl)acetic acid 3f. Beige powder; 63% yield (159 mg); m.p. 202–203 °C. 1H NMR (400 MHz, DMSO-d6): δ 12.56 (s, 1H), 11.43 (s, 1H), 7.84–7.77 (m, 2H), 7.34 (t, J = 8.9 Hz, 2H), 4.57 (dd, J = 7.7, 4.5 Hz, 1H), 2.93 (dd, J = 16.8, 4.5 Hz, 1H), 2.67 (dd, J = 16.8, 7.7 Hz, 1H). 13C NMR (101 MHz, DMSO-d6): δ 171.4, 167.2, 164.4 (d, J = 248.8 Hz), 151.8, 130.0 (d, J = 8.7 Hz), 126.2, 116.4 (d, J = 22.1 Hz), 73.1, 33.6. 19F NMR (376 MHz, DMSO-d6): δ –109.20. HRMS (ESI), m/z: [M + Na]+ calcd. for C11H9FN2NaO4 275.0439; found 275.0453.
2-(3-(4-Bromophenyl)-5-oxo-5,6-dihydro-4H-1,2,4-oxadiazin-6-yl)acetic acid 3g. White powder; 69% yield (216 mg); m.p. 246–248 °C. 1H NMR (400 MHz, DMSO-d6): δ 12.55 (s, 1H), 11.44 (s, 1H), 7.70 (s, 4H), 4.58 (dd, J = 7.7, 4.5 Hz, 1H), 2.93 (dd, J = 16.8, 4.5 Hz, 1H), 2.67 (dd, J = 16.8, 7.7 Hz, 1H). 13C NMR (101 MHz, DMSO-d6): δ 171.4, 167.1, 151.8, 132.3, 129.4, 128.9, 125.4, 73.1, 33.6. HRMS (ESI), m/z: [M + Na]+ calcd. for C11H9BrN2NaO4 334.9638; found 334.9649.
2-(3-(4-Chlorophenyl)-5-oxo-5,6-dihydro-4H-1,2,4-oxadiazin-6-yl)acetic acid 3h. White powder; 64% yield (172 mg); m.p. 191–193 °C. 1H NMR (400 MHz, DMSO-d6): δ 12.38 (br s, 1H), 11.52 (s, 1H), 7.78 (d, J = 8.5 Hz, 2H), 7.57 (d, J = 8.5 Hz, 2H), 4.59 (dd, J = 7.5, 4.5 Hz, 1H), 2.93 (dd, J = 16.8, 4.4 Hz, 1H), 2.67 (dd, J = 16.8, 7.7 Hz, 1H). 13C NMR (101 MHz, DMSO-d6): δ 171.2, 166.9, 151.5, 136.4, 129.2, 129.1, 128.3, 73.0, 33.5. HRMS (ESI), m/z: [M + H]+ calcd. for C11H10ClN2O4 269.0324; found 269.0337.
2-(5-Oxo-3-(4-phenoxyphenyl)-5,6-dihydro-4H-1,2,4-oxadiazin-6-yl)acetic acid 3i. Beige powder; 38% yield (124 mg); m.p. 179–180 °C. 1H NMR (400 MHz, DMSO-d6): δ 12.55 (s, 1H), 11.38 (s, 1H), 7.77 (d, J = 8.9 Hz, 2H), 7.46 (t, J = 8.0 Hz, 2H), 7.23 (t, J = 7.4 Hz, 1H), 7.13–7.03 (m, 4H), 4.56 (dd, J = 7.7, 4.5 Hz, 1H), 2.93 (dd, J = 16.7, 4.5 Hz, 1H), 2.67 (dd, J = 16.8, 7.7 Hz, 1H). 13C NMR (101 MHz, DMSO-d6): δ 171.4, 167.2, 160.2, 156.1, 152.0, 130.9, 129.4, 125.1, 124.2, 120.3, 118.4, 73.1, 33.7. HRMS (ESI), m/z: [M + Na]+ calcd. for C17H14N2NaO5 349.0795; found 349.0812.
2-(5-Oxo-3-(2-methylphenyl)-5,6-dihydro-4H-1,2,4-oxadiazin-6-yl)acetic acid 3j. White powder; 45% yield (112 mg); m.p. 201–202 °C. 1H NMR (400 MHz, DMSO-d6): δ 12.60 (s, 1H), 11.21 (s, 1H), 7.46–7.40 (m, 2H), 7.35–7.27 (m, 2H), 4.62 (dd, J = 7.8, 4.4 Hz, 1H), 2.94 (dd, J = 16.8, 4.4 Hz, 1H), 2.68 (dd, J = 16.7, 7.8 Hz, 1H), 2.35 (s, 3H). 13C NMR (101 MHz, DMSO-d6): δ 171.42, 166.82, 153.15, 137.37, 131.22, 131.04, 130.06, 126.50, 73.05, 33.71, 20.06. HRMS (ESI), m/z: [M + Na]+ calcd. for C12H12N2NaO4 271.0689; found 271.0704.
2-(3-(2-Chlorophenyl)-5-oxo-5,6-dihydro-4H-1,2,4-oxadiazin-6-yl)acetic acid 3k. Beige powder; 48% yield (129); m.p. 197–199 °C. 1H NMR (400 MHz, DMSO-d6): δ 12.65 (s, 1H), 11.42 (s, 1H), 7.64–7.55 (m, 3H), 7.47 (td, J = 7.4, 1.5 Hz, 1H), 4.60 (dd, J = 7.8, 4.5 Hz, 1H), 2.94 (dd, J = 16.8, 4.6 Hz, 1H), 2.72 (dd, J = 16.8, 7.7 Hz, 1H). 13C NMR (101 MHz, DMSO-d6): δ 171.16, 166.35, 151.53, 132.82, 132.75, 131.94, 130.23, 129.41, 127.89, 72.98, 33.37. HRMS (ESI), m/z: [M + H]+ calcd. for C11H10ClN2O4 269.0324; found 269.0334.
2-(3-(3,4-Dichlorophenyl)-5-oxo-5,6-dihydro-4H-1,2,4-oxadiazin-6-yl)acetic acid 3l. White powder; 67% yield (203 mg); m.p. 243–245 °C. 1H NMR (400 MHz, DMSO-d6): δ 12.60 (s, 1H), 11.52 (s, 1H), 8.00 (s, 1H), 7.80–7.72 (m, J = 8.5, 6.2, 1.9 Hz, 2H), 4.60 (dd, J = 7.4, 4.6 Hz, 1H), 2.93 (dd, J = 16.8, 4.4 Hz, 1H), 2.69 (dd, J = 16.9, 7.6 Hz, 1H). 13C NMR (101 MHz, DMSO-d6): δ 171.3, 166.9, 150.8, 134.5, 132.2, 131.6, 130.2, 129.4, 127.6, 73.2, 33.6. HRMS (ESI), m/z: [M+Na]+ calcd. for C11H8Cl2N2NaO4 324.9753; found 324.9738.
2-(3-(3,5-Dichlorophenyl)-5-oxo-5,6-dihydro-4H-1,2,4-oxadiazin-6-yl)acetic acid 3m. White powder; 76% yield (230 mg); m.p. 248–250 °C. 1H NMR (400 MHz, DMSO-d6): δ 12.59 (s, 1H), 11.51 (s, 1H), 7.83 (s, 1H), 7.79 (s, 2H), 4.60 (dd, J = 7.7, 4.5 Hz, 1H), 2.93 (dd, J = 16.9, 4.5 Hz, 1H), 2.69 (dd, J = 16.9, 7.7 Hz, 1H). 13C NMR (101 MHz, DMSO-d6): δ 171.3, 166.8, 150.5, 135.1, 133.0, 131.1, 126.2, 73.2, 33.6. HRMS (ESI), m/z: [M + Na]+ calcd. for C11H8Cl2N2NaO4 324.9753; found 324.9774.
2-(3-(5-Methylthiophen-2-yl)-5-oxo-5,6-dihydro-4H-1,2,4-oxadiazin-6-yl)acetic acid 3n. White powder; 52% yield (132 mg); m.p. 202–203 °C. 1H NMR (400 MHz, DMSO-d6): δ 12.55 (s, 1H), 11.50 (s, 1H), 7.58 (d, J = 3.7 Hz, 1H), 6.87 (dd, J = 3.6, 0.9 Hz, 1H), 4.57 (dd, J = 7.7, 4.4 Hz, 1H), 2.92 (dd, J = 16.8, 4.4 Hz, 1H), 2.66 (dd, J = 16.8, 7.8 Hz, 1H), 2.47 (s, 3H) 13C NMR (101 MHz, DMSO-d6): δ 171.3, 167.0, 148.5, 144.6, 129.8, 128.8, 126.8, 73.5, 33.6, 15.7. HRMS (ESI), m/z: [M + Na]+ calcd. for C10H10N2NaO4S 277.0253; found 277.0244.
General procedure for preparation esters 4. To a solution of amidoxime 1 (2 mmol) in DMSO (3 mL), t-BuONa (192 mg, 2 mmol) was rapidly added. The reaction mixture was stirred at room temperature for 10 min, and ester 2 (4 mmol) was added. The reaction mixture was stirred at room temperature for another 4 h and was diluted with cold brine (30 mL). Compounds 4a, 4d, 4e, 4g, and 4l–p were filtered off, washed with cold water (5 mL) or 2), and dried in air at 50 °C. Compounds 4b, 4c, 4f, 4h–k were extracted with toluene (5 × 3 mL) and dried under reducing pressure. If necessary, the crude product was purified by column chromatography on SiO2 using EA:Hexane:MeOH mixture as an eluent.
Methyl 2-(3-(4-methylphenyl)-5-oxo-5,6-dihydro-4H-1,2,4-oxadiazin-6-yl)acetate 4a. White powder; 78% yield (205 mg); m.p. 158–160 °C. 1H NMR (400 MHz, CDCl3): δ 8.58 (s, 1H), 7.59 (d, J = 7.9 Hz, 2H), 7.28 (d, J = 7.9 Hz, 2H), 4.76–4.71 (m, 1H), 3.74 (s, 3H), 3.10 (dd, J = 16.9, 5.0 Hz, 1H), 2.89 (dd, J = 16.8, 7.2 Hz, 1H), 2.40 (s, 3H). 13C NMR (101 MHz, CDCl3): δ 170.0, 166.6, 151.1, 142.6, 130.1, 126.1, 125.8, 73.2, 52.5, 33.4, 21.7. HRMS (ESI), m/z: [M + Na]+ calcd. for C13H14N2NaO4 285.0846; found 285.0845.
Methyl 2-(5-oxo-3-phenyl-5,6-dihydro-4H-1,2,4-oxadiazin-6-yl)acetate 4b. White powder; 48% yield (119 mg); m.p. 124–126 °C. 1H NMR (400 MHz, CDCl3): δ 8.92 (s, 1H), 7.72 (d, J = 7.2 Hz, 2H), 7.56–7.44 (m, 3H), 4.75 (dd, J = 7.1, 5.1 Hz, 1H), 3.73 (s, 3H), 3.10 (dd, J = 16.8, 5.1 Hz, 1H), 2.90 (dd, J = 16.8, 7.2 Hz, 1H). 13C NMR (101 MHz, CDCl3): δ 170.5, 167.0, 152.5, 131.9, 129.6, 129.3, 127.4, 72.8, 52.5, 33.4. HRMS (ESI), m/z: [M + Na]+ calcd. for C12H12N2NaO4 271.0689; found 271.0681.
Methyl 2-(3-(4-methoxyphenyl)-5-oxo-5,6-dihydro-4H-1,2,4-oxadiazin-6-yl)acetate 4c. White powder; 42% yield (117 mg); m.p. 161–163 °C. 1H NMR (400 MHz, CDCl3): δ 10.05 (s, 1H), 8.74 (d, J = 5.1 Hz, 2H), 7.67 (d, J = 5.8 Hz, 2H), 4.79–4.73 (m, 1H), 3.74 (s, 3H), 3.11 (dd, J = 16.9, 5.3 Hz, 1H), 2.93 (dd, J = 16.9, 6.8 Hz, 1H). 13C NMR (126 MHz, CDCl3): δ 169.9, 167.1, 162.4, 150.9, 127.7, 120.5, 114.5, 72.8, 55.5, 52.3, 33.2. HRMS (ESI), m/z: [M + Na]+ calcd. for C13H14N2NaO5 301.0795; found 301.0794.
Methyl 2-(3-(4-nitrophenyl)-5-oxo-5,6-dihydro-4H-1,2,4-oxadiazin-6-yl)acetate 4d. Yellow powder; 73% yield (214 mg); m.p. 112–113 °C. 1H NMR (400 MHz, DMSO-d6): δ 11.71 (s, 1H), 8.34 (d, J = 8.6 Hz, 2H), 8.03 (d, J = 8.8 Hz, 2H), 4.71 (dd, J = 7.7, 4.5 Hz, 1H), 3.67 (s, 3H), 3.07 (dd, J = 16.9, 4.6 Hz, 1H), 2.85 (dd, J = 16.8, 7.7 Hz, 1H). 13C NMR (101 MHz, DMSO-d6): δ 170.2, 166.5, 151.1, 149.4, 135.4, 128.7, 124.2, 72.8, 52.3, 33.1. HRMS (ESI), m/z: [M + Na]+ calcd. for C12H11N3NaO6 316.0540; found 316.0527.
Methyl 2-(5-oxo-3-(4-(trifluoromethyl)phenyl)-5,6-dihydro-4H-1,2,4-oxadiazin-6-yl)acetate 4e. White powder; 52% yield (164 mg); m.p. 172–173 °C. 1H NMR (400 MHz, CDCl3): δ 9.65 (s, 1H), 7.90 (d, J = 8.2 Hz, 2H), 7.73 (d, J = 8.1 Hz, 2H), 4.79–4.73 (m, 1H), 3.09 (dd, J = 16.8, 5.4 Hz, 1H), 2.92 (dd, J = 16.8, 6.8 Hz, 1H). 13C NMR (101 MHz, CDCl3): δ 169.8, 167.3, 150.0, 133.7 (d, J = 33.1 Hz), 132.0, 126.8, 126.3 (q, J = 3.5 Hz), 123.7 (d, J = 272.8 Hz), 73.0, 52.5, 33.3. 19F NMR (376 MHz, CDCl3): δ –63.13. HRMS (ESI), m/z: [M + Na]+ calcd. for C13H11F3N2NaO4 339.0563; found 339.0558.
Methyl 2-(3-(4-fluorophenyl)-5-oxo-5,6-dihydro-4H-1,2,4-oxadiazin-6-yl)acetate 4f. White powder; 62% yield (165 mg); m.p. 165–166 °C. 1H NMR (400 MHz, CDCl3): δ 9.06 (s, 1H), 7.74 (dd, J = 8.7, 5.1 Hz, 2H), 7.19–7.12 (m, 2H), 4.75–4.71 (m, 1H), 3.73 (s, 3H), 3.09 (dd, J = 16.9, 5.2 Hz, 1H), 2.89 (dd, J = 16.8, 7.0 Hz, 1H). 13C NMR (101 MHz, DMSO-d6): δ 170.4, 166.9, 152.8, 151.9, 132.3, 129.5, 127.1 (d, J = 335.2 Hz), 72.8, 52.5, 33.3. 19F NMR (376 MHz, CDCl3): δ –107.05. HRMS (ESI), m/z: [M + Na]+ calcd. for C12H11FN2NaO4 289.0595; found 289.0584.
Methyl 2-(3-(4-bromophenyl)-5-oxo-5,6-dihydro-4H-1,2,4-oxadiazin-6-yl)acetate 4g. White powder; 78% yield (255 mg); m.p. 146–147 °C. 1H NMR (400 MHz, CDCl3): δ 9.09 (s, 1H), 7.61 (s, 4H), 4.74 (dd, J = 7.0, 5.2 Hz, 1H), 3.74 (s, 3H), 3.09 (dd, J = 16.8, 5.2 Hz, 1H), 2.90 (dd, J = 16.8, 7.0 Hz, 1H). 13C NMR (101 MHz, DMSO-d6): δ 170.4, 166.9, 151.9, 132.3, 129.5, 128.8, 125.5, 72.8, 52.5, 33.3. HRMS (ESI), m/z: [M + Na]+ calcd. for C12H11BrN2NaO4 348.9794; found 348.9778.
Methyl 2-(3-(4-chlorophenyl)-5-oxo-5,6-dihydro-4H-1,2,4-oxadiazin-6-yl)acetate 4h. White powder; 55% yield (155 mg); m.p. 168–170 °C. 1H NMR (400 MHz, CDCl3): δ 9.21 (s, 1H), 7.68 (d, J = 8.6 Hz, 2H), 7.44 (d, J = 8.6 Hz, 2H), 4.73 (dd, J = 6.9, 5.2 Hz, 1H), 3.73 (s, 3H), 3.09 (dd, J = 16.8, 5.2 Hz, 1H), 2.90 (dd, J = 16.8, 7.0 Hz, 1H). 13C NMR (101 MHz, CDCl3): δ 170.5, 167.0, 151.9, 136.6, 129.4, 129.3, 128.5, 72.84, 52.5, 33.3. HRMS (ESI), m/z: [M + Na]+ calcd. for C12H11ClN2NaO4 305.0300; found 305.0280.
Methyl 2-(3-(2-methylphenyl)-5-oxo-5,6-dihydro-4H-1,2,4-oxadiazin-6-yl)acetate 4i. White powder; 52% yield (136 mg); m.p. 115–117 °C. 1H NMR (400 MHz, CDCl3): δ 9.09 (s, 1H), 7.47–7.27 (m, 2H), 7.38–7.30 (m, 2H), 4.73 (dd, J = 7.2, 5.1 Hz, 1H), 3.72 (d, J = 1.3 Hz, 3H), 3.08 (dd, J = 16.9, 4.9 Hz, 1H), 2.88 (dd, J = 16.8, 7.1 Hz, 1H), 2.39 (s, 3H).13C NMR (101 MHz, DMSO-d6): δ 170.5, 167.0, 152.6, 138.6, 132.5, 129.5, 129.2, 127.9, 124.6, 72.8, 52.5, 33.4, 21.5. HRMS (ESI), m/z: [M + Na]+ calcd. for C13H14N2NaO4 285.0846; found 285.0859.
Methyl 2-(3-(2-methoxyphenyl)-5-oxo-5,6-dihydro-4H-1,2,4-oxadiazin-6-yl)acetate 4j. White powder; 46% yield (128 mg); m.p. 110–112 °C. 1H NMR (400 MHz, CDCl3): δ 9.08 (s, 1H), 7.36 (t, J = 7.9 Hz, 1H), 7.30–7.25 (m, 2H), 7.05 (dd, J = 8.2, 2.4 Hz, 1H), 4.73 (dd, J = 7.2, 5.0 Hz, 1H), 3.83 (s, 3H), 3.73 (s, 3H), 3.08 (dd, J = 16.8, 5.0 Hz, 1H), 2.88 (dd, J = 16.8, 7.1 Hz, 1H). 13C NMR (126 MHz, CDCl3): δ 169.8, 166.6, 160.1, 150.8, 130.2, 129.7, 118.3, 118.1, 111.0, 72.9, 55.5, 52.3, 33.1. HRMS (ESI), m/z: [M + Na]+ calcd. for C13H14N2NaO5 301.0795; found 301.0802.
Methyl 2-(3-(2-chlorophenyl)-5-oxo-5,6-dihydro-4H-1,2,4-oxadiazin-6-yl)acetate 4k. Light-brown powder; 41% yield (116 mg); m.p. 91–92 °C. 1H NMR (400 MHz, CDCl3): δ 8.76 (s, 1H), 7.56 (d, J = 7.6 Hz, 1H), 7.44 (d, J = 3.4 Hz, 2H), 7.37–7.32 (m, 1H), 4.72 (dd, J = 7.5, 4.8 Hz, 1H), 3.71 (s, 3H), 3.03 (dd, J = 16.7, 4.8 Hz, 1H), 2.86 (dd, J = 16.8, 7.5 Hz, 1H). 13C NMR (126 MHz, CDCl3): δ 169.8, 165.7, 150.6, 132.6, 132.6, 131.5, 130.5, 128.0, 127.5, 72.9, 52.4, 33.1. HRMS (ESI), m/z: [M + Na]+ calcd. for C12H11ClN2NaO4 305.0300; found 305.0274.
Methyl 2-(3-(3,4-dichlorophenyl)-5-oxo-5,6-dihydro-4H-1,2,4-oxadiazin-6-yl)acetate 4l. White powder; 60% yield (190 mg); m.p. 163–165 °C. 1H NMR (400 MHz, CDCl3): δ 9.21 (s, 1H), 7.87 (s, 1H), 7.60–7.53 (m, 2H), 4.74 (dd, J = 6.9, 5.0 Hz, 1H), 3.74 (s, 3H), 3.11 (dd, J = 16.9, 5.1 Hz, 1H), 2.92 (dd, J = 16.9, 6.9 Hz, 1H). 13C NMR (101 MHz, DMSO-d6): δ 170.4, 166.8, 150.9, 134.6, 132.2, 131.6, 130.2, 129.4, 127.6, 72.9, 52.5, 33.3. HRMS (ESI), m/z: [M + Na]+ calcd. for C12H10Cl2N2NaO4 338.9910; found 338.9909.
Methyl 2-(3-(3,5-dichlorophenyl)-5-oxo-5,6-dihydro-4H-1,2,4-oxadiazin-6-yl)acetate 4m. White powder; 53% yield (168 mg); m.p. 145–147 °C. 1H NMR (400 MHz, CDCl3): δ 9.41 (s, 1H), 7.67 (s, 2H), 7.50 (s, 1H), 4.75–4.70 (m, 1H), 3.74 (s, 3H), 3.13 (dd, J = 16.9, 3.6 Hz, 1H), 2.93 (dd, J = 17.1, 6.9 Hz, 1H). 13C NMR (101 MHz, CDCl3): δ 169.9, 167.3, 149.0, 136.2, 131.8, 131.4, 124.8, 73.0, 52.6, 33.2. HRMS (ESI), m/z: [M + Na]+ calcd. for C12H10Cl2N2NaO4 338.9910; found 338.9887.
Methyl 2-(3-(5-methylthiophen-2-yl)-5-oxo-5,6-dihydro-4H-1,2,4-oxadiazin-6-yl)acetate 4n. White powder; 53% yield (142 mg); m.p. 168–170 °C. 1H NMR (400 MHz, CDCl3): δ 9.69 (s, 1H), 7.32 (d, J = 3.7 Hz, 1H), 6.75 (s, 1H), 4.77–4.71 (m, 1H), 3.73 (s, 3H), 3.07 (dd, J = 16.7, 5.2 Hz, 1H), 2.88 (dd, J = 16.6, 7.2 Hz, 1H), 2.49 (s, 3H). 13C NMR (126 MHz, CDCl3): δ 169.7, 167.2, 147.4, 145.6, 127.9, 127.8, 126.0, 73.1, 52.3, 33.2, 15.6. HRMS (ESI), m/z: [M + Na]+ calcd. for C11H12N2NaO4S 291.0410; found 291.0390.
Methyl 2-(5-oxo-3-(pyridin-4-yl)-5,6-dihydro-4H-1,2,4-oxadiazin-6-yl)acetate 4o. White powder; 50% yield (125 mg); m.p. 145–147 °C. 1H NMR (400 MHz, CDCl3): δ 10.05 (s, 1H), 8.74 (d, J = 5.0 Hz, 2H), 7.67 (d, J = 5.7 Hz, 2H), 4.79–4.73 (m, 1H), 3.74 (s, 3H), 3.11 (dd, J = 16.9, 5.3 Hz, 1H), 2.93 (dd, J = 16.9, 6.8 Hz, 1H). 13C NMR (126 MHz, CDCl3): δ 169.7, 166.8, 150.6, 149.1, 136.4, 120.0, 72.9, 52.4, 33.1. HRMS (ESI), m/z: [M + Na]+ calcd. for C11H11N3NaO4 272.0642; found 272.0639.
Methyl 2-(5-oxo-3-(pyridin-2-yl)-5,6-dihydro-4H-1,2,4-oxadiazin-6-yl)acetate 4p. White powder; 61% yield (152 mg); m.p. 119–120 °C. 1H NMR (400 MHz, CDCl3): δ 9.42 (s, 1H), 8.58 (d, J = 4.5 Hz, 1H), 8.08 (d, J = 7.9 Hz, 1H), 7.81 (td, J = 7.7, 1.6 Hz, 1H), 7.45–7.40 (m, 1H), 4.75 (dd, J = 7.6, 4.4 Hz, 1H), 3.75 (s, 3H), 3.15 (dd, J = 16.9, 4.5 Hz, 1H), 2.91 (dd, J = 16.9, 7.6 Hz, 1H). 13C NMR (101 MHz, CDCl3): δ 170.0, 165.1, 148.8, 145.3, 137.7, 126.3, 121.1, 73.4, 52.5, 40.5, 33.6. HRMS (ESI), m/z: [M + Na]+ calcd. for C11H11N3NaO4 272.0642; found 272.0656.
General procedure for preparation of hybrids 5. To a solution of amidoxime 1 (5 mmol) and ester 2 (2 mmol) in DMSO (3 mL), t-BuONa (384 mg, 4 mmol) was rapidly added. The reaction mixture was stirred at room temperature for 18 h and diluted with cold brine (30 mL). The resulting precipitate was filtered off, washed with cold water (5 mL), and dried in air at 50 °C. If necessary, the crude product was purified by column chromatography on SiO2 using EA:Hexane:MeOH mixture as an eluent.
3-(4-Methylphenyl)-6-((3-(4-methylphenyl)-1,2,4-oxadiazol-5-yl)methyl)-4H-1,2,4-oxadiazin-5(6H)-one 5a. Beige powder; 82% yield (297 mg); m.p. 189–190 °C. 1H NMR (400 MHz, Acetone-d6): δ 10.26 (s, 1H), 7.97 (d, J = 8.0 Hz, 2H), 7.76 (d, J = 8.0 Hz, 2H), 7.37 (d, J = 8.0 Hz, 2H), 7.32 (d, J = 7.9 Hz, 2H), 4.98 (dd, J = 8.2, 4.6 Hz, 1H), 3.80 (dd, J = 16.4, 4.5 Hz, 1H), 3.55 (dd, J = 16.4, 8.1 Hz, 1H), 2.42 (s, 3H), 2.40 (s, 3H). 13C NMR (101 MHz, Acetone-d6): δ 176.5, 168.2, 165.4, 152.0, 141.7, 141.6, 129.6, 129.3, 127.1, 126.6, 126.4, 124.1, 73.2, 26.0, 20.6, 20.5. HRMS (ESI), m/z: [M + Na]+ calcd. for C20H18N4NaO3 385.1277; found 385.1251.
3-Phenyl-6-((3-phenyl-1,2,4-oxadiazol-5-yl)methyl)-4H-1,2,4-oxadiazin-5(6H)-one 5b. Beige powder; 61% yield (204 mg); m.p. 194–196 °C. 1H NMR (400 MHz, DMSO-d6): δ 11.59 (s, 1H), 8.05–7.99 (m, 2H), 7.79–7.75 (m, 2H), 7.61–7.47 (m, 6H), 4.95 (dd, J = 8.0, 4.6 Hz, 1H), 3.78 (dd, J = 16.5, 4.6 Hz, 1H), 3.59 (dd, J = 16.4, 8.0 Hz, 1H). 13C NMR (101 MHz, DMSO-d6): δ 177.2, 168.1, 166.2, 152.5, 132.1, 131.8, 129.7, 129.2, 129.1, 127.5, 127.3, 126.5, 73.1, 26.2. HRMS (ESI), m/z: [M + Na]+ calcd. for C18H14N4NaO3 357.0958; found 357.0943.
3-(4-Methoxyphenyl)-6-((3-(4-methoxyphenyl)-1,2,4-oxadiazol-5-yl)methyl)-4H-1,2,4-oxadiazin-5(6H)-one 5c. Beige powder; 51% yield (178 mg); m.p. 181–182 °C. 1H NMR (400 MHz, DMSO-d6): δ 11.49 (s, 1H), 7.95 (d, J = 8.8 Hz, 2H), 7.72 (d, J = 8.9 Hz, 2H), 7.11 (d, J = 8.8 Hz, 2H), 7.04 (d, J = 8.9 Hz, 2H), 4.89 (dd, J = 8.0, 4.5 Hz, 1H), 3.84 (s, 3H), 3.82 (s, 3H), 3.73 (dd, J = 16.4, 4.6 Hz, 1H), 3.53 (dd, J = 16.4, 8.1 Hz, 1H). 13C NMR (101 MHz, DMSO-d6): δ 176.9, 167.8, 166.4, 162.2, 162.1, 152.3, 129.2, 128.8, 121.3, 118.8, 115.1, 114.5, 73.1, 55.9, 26.2. HRMS (ESI), m/z: [M + Na]+ calcd. for C20H18N4NaO5 417.1169; found 417.1165.
3-(4-Nitrophenyl)-6-((3-(4-nitrophenyl)-1,2,4-oxadiazol-5-yl)methyl)-4H-1,2,4-oxadiazin-5(6H)-one 5d. Yellow powder; 76% yield (322 mg); m.p. 216–217 °C. 1H NMR (400 MHz, DMSO-d6): δ 11.87 (s, 1H), 8.41 (d, J = 8.7 Hz, 2H), 8.33 (d, J = 8.7 Hz, 2H), 8.26 (d, J = 8.6 Hz, 2H), 8.03 (d, J = 8.9 Hz, 2H), 5.04 (dd, J = 7.9, 4.6 Hz, 1H), 3.85 (dd, J = 16.6, 4.7 Hz, 1H), 3.68 (dd, J = 16.6, 7.9 Hz, 1H). 13C NMR (101 MHz, DMSO-d6): δ 178.0, 166.9, 165.8, 151.3, 149.7, 149.5, 135.2, 132.2, 128.9, 128.8, 125.0, 124.2, 73.1, 26.2. HRMS (ESI), m/z: [M + Na]+ calcd. for C18H12N6NaO7 447.0660; found 447.0659.
3-(4-(Trifluoromethyl)phenyl)-6-((3-(4-(trifluoromethyl)phenyl)-1,2,4-oxadiazol-5-yl)methyl)-4H-1,2,4-oxadiazin-5(6H)-one 5e. Light-yellow powder; 53% yield (249 mg); m.p. 203–205 °C. 1H NMR (400 MHz, DMSO-d6): δ 11.79 (s, 1H), 8.21 (d, J = 8.1 Hz, 2H), 7.99–7.93 (m, 4H), 7.86 (d, J = 8.3 Hz, 2H), 5.02 (dd, J = 7.8, 4.6 Hz, 1H), 3.82 (dd, J = 16.5, 4.7 Hz, 1H), 3.64 (dd, J = 16.5, 7.8 Hz, 1H). 13C NMR (101 MHz, DMSO-d6): δ 177.8, 167.2, 166.1, 151.8, 133.3, 131.9 (d, J = 31.1 Hz), 131.6 (d, J = 30.9 Hz), 130.3, 128.3 (d, J = 11.7 Hz), 126.8 (q, J = 3.6 Hz), 126.0 (q, J = 3.6 Hz), 125.7, 122.9, 120.2, 73.1, 26.3.19F NMR (376 MHz, DMSO-d6): δ –61.47, –61.56. HRMS (ESI), m/z: [M + H]+ calcd. for C20H13F6N4O3 471.0886; found 471.0901.
3-(4-Fluorophenyl)-6-((3-(4-fluorophenyl)-1,2,4-oxadiazol-5-yl)methyl)-4H-1,2,4-oxadiazin-5(6H)-one 5f. Beige powder; 68% yield (252 mg); m.p. 175–177 °C. 1H NMR (400 MHz, DMSO-d6): δ 11.62 (s, 1H), 8.06 (dd, J = 8.7, 5.6 Hz, 2H), 7.82 (dd, J = 8.8, 5.5 Hz, 2H), 7.38 (dt, J = 28.2, 8.9 Hz, 4H), 4.94 (dd, J = 7.9, 4.6 Hz, 1H), 3.77 (dd, J = 16.5, 4.6 Hz, 1H), 3.58 (dd, J = 16.5, 8.0 Hz, 1H). 13C NMR (101 MHz, DMSO-d6): δ 177.3, 167.3, 166.1, 165.6 (d, J = 12.3 Hz), 163.1 (d, J = 12.2 Hz), 151.8, 130.0 (d, J = 9.1 Hz), 129.9 (d, J = 8.9 Hz), 125.7 (d, J = 3.1 Hz), 123.1 (d, J = 3.1 Hz), 116.9 (d, J = 22.2 Hz), 116.2 (d, J = 22.2 Hz), 73.0, 26.2. 19F NMR (376 MHz, DMSO-d6): δ –108.41, –108.95. HRMS (ESI), m/z: [M + H]+ calcd. for C18H13F2N4O3 371.0950; found 371.0951.
3-(4-Chlorophenyl)-6-((3-(4-chlorophenyl)-1,2,4-oxadiazol-5-yl)methyl)-4H-1,2,4-oxadiazin-5(6H)-one 5g. Beige powder; 70% yield (282 mg); m.p. 200–201 °C. 1H NMR (400 MHz, DMSO-d6): δ 11.65 (s, 1H), 8.01 (d, J = 8.4 Hz, 2H), 7.78 (d, J = 8.3 Hz, 2H), 7.65 (d, J = 8.5 Hz, 2H), 7.57 (d, J = 8.3 Hz, 2H), 4.95 (dd, J = 7.9, 4.6 Hz, 1H), 3.77 (dd, J = 16.5, 4.6 Hz, 1H), 3.59 (dd, J = 16.5, 7.9 Hz, 1H). 13C NMR (101 MHz, DMSO-d6): δ 177.5, 167.3, 166.1, 151.8, 136.8, 136.6, 129.9, 129.3, 129.2, 129.1, 128.1, 125.3, 73.0, 26.2. HRMS (ESI), m/z: [M + H]+ calcd. for C18H13Cl2N4O3 403.0359; found 403.0378.
3-(4-Aminophenyl)-6-((3-(4-aminophenyl)-1,2,4-oxadiazol-5-yl)methyl)-4H-1,2,4-oxadiazin-5(6H)-one 5h. Beige powder; 57% yield (208 mg); m.p. 180–181 °C. 1H NMR (400 MHz, DMSO-d6): δ 11.21 (s, 1H), 7.67 (d, J = 8.4 Hz, 2H), 7.44 (d, J = 8.4 Hz, 2H), 6.66 (d, J = 8.5 Hz, 2H), 6.59 (d, J = 8.4 Hz, 2H), 5.75 (s, 2H), 5.70 (s, 2H), 4.78 (dd, J = 8.2, 4.5 Hz, 1H), 3.64 (dd, J = 16.4, 4.6 Hz, 1H), 3.43 (dd, J = 16.3, 8.2 Hz, 1H). 13C NMR (101 MHz, DMSO-d6): δ 176.1, 168.3, 166.6, 152.8, 152.3, 152.2, 128.8, 128.4, 115.3, 114.0, 113.5, 113.1, 73.2, 26.1. HRMS (ESI), m/z: [M + Na]+ calcd. for C18H16N6NaO3 387.1176; found 387.1177.
3-(2-Chlorophenyl)-6-((3-(2-chlorophenyl)-1,2,4-oxadiazol-5-yl)methyl)-4H-1,2,4-oxadiazin-5(6H)-one 5i. Beige powder; 49% yield (198 mg); m.p. 156–158 °C. 1H NMR (400 MHz, CDCl3): δ 8.08 (s, 1H), 7.96 (dd, J = 7.6, 1.9 Hz, 1H), 7.65 (d, J = 7.5 Hz, 1H), 7.56 (d, J = 7.7 Hz, 1H), 7.53–7.36 (m, 5H), 5.04 (dd, J = 8.2, 4.5 Hz, 1H), 3.83 (dd, J = 16.5, 4.5 Hz, 1H), 3.61 (dd, J = 16.5, 8.2 Hz, 1H). 13C NMR (101 MHz, Acetone-d6): δ 176.0, 167.1, 164.7, 151.3, 132.9, 132.9, 132.3, 132.1, 131.8, 131.5, 130.9, 129.9, 129.1, 127.4, 127.3, 126.1, 73.3, 25.8.. HRMS (ESI), m/z: [M + Na]+ calcd. for C18H12Cl2N4NaO3 425.0179; found 425.0185.
3-(5-Methylthiophen-2-yl)-6-((3-(5-methylthiophen-2-yl)-1,2,4-oxadiazol-5-yl)methyl)-4H-1,2,4-oxadiazin-5(6H)-one 5j. Beige powder; 47% yield (176 mg); m.p. 190–191 °C. 1H NMR (400 MHz, DMSO-d6): δ 11.68 (s, 1H), 7.60 (d, J = 3.8 Hz, 2H), 6.97 (d, J = 3.6 Hz, 1H), 6.88 (d, J = 3.7 Hz, 1H), 4.91 (dd, J = 8.2, 4.5 Hz, 1H), 3.71 (dd, J = 16.5, 4.5 Hz, 1H), 3.52 (dd, J = 16.5, 8.1 Hz, 1H), 2.53 (s, 3H), 2.46 (s, 3H). 13C NMR (101 MHz, DMSO-d6): δ 176.9, 166.0, 164.2, 148.6, 145.1, 144.7, 130.7, 129.9, 128.3, 127.5, 126.6, 125.2, 73.3, 26.1, 15.5, 15.5. HRMS (ESI), m/z: [M + Na]+ calcd. for C16H14N4NaO3S2 397.0400; found 397.0398.
3-(Pyridin-4-yl)-6-((3-(pyridin-4-yl)-1,2,4-oxadiazol-5-yl)methyl)-4H-1,2,4-oxadiazin-5(6H)-one 5k. Beige powder; 35% yield (118 mg); m.p. 208–210 °C. 1H NMR (400 MHz, DMSO-d6): δ 11.81 (s, 1H), 8.84–8.79 (m, 2H), 8.75–8.70 (m, 2H), 7.96–7.90 (m, 2H), 7.76–7.72 (m, 2H), 5.03 (dd, J = 7.9, 4.6 Hz, 1H), 3.84 (dd, J = 16.5, 4.6 Hz, 1H), 3.67 (dd, J = 16.5, 7.9 Hz, 1H). 13C NMR (101 MHz, DMSO-d6): δ 178.0, 166.9, 165.8, 151.4, 150.9, 150.7, 136.7, 133.7, 121.4, 121.1, 73.1, 26.2. HRMS (ESI), m/z: [M + H]+ calcd. for C16H13N6O3 337.1044; found 337.1039.
3-(Pyridin-2-yl)-6-((3-(pyridin-2-yl)-1,2,4-oxadiazol-5-yl)methyl)-4H-1,2,4-oxadiazin-5(6H)-one 5l. Beige powder; 32% yield (108 mg); m.p. 180–184 °C. 1H NMR (400 MHz, CDCl3): δ 9.48 (s, 1H), 8.78 (d, J = 4.8 Hz, 1H), 8.59 (d, J = 4.8 Hz, 1H), 8.09 (dd, J = 17.7, 7.9 Hz, 2H), 7.82 (q, J = 6.9 Hz, 2H), 7.47–7.36 (m, 2H), 5.02 (dd, J = 8.5, 4.3 Hz, 1H), 3.84 (dd, J = 16.4, 4.3 Hz, 1H), 3.56 (dd, J = 16.4, 8.5 Hz, 1H). 13C NMR (101 MHz, CDCl3): δ 176.4, 168.5, 164.0, 150.6, 148.9, 148.7, 146.4, 145.2, 137.7, 137.1, 126.4, 125.7, 123.5, 121.1, 73.9, 26.8. HRMS (ESI), m/z: [M + H]+ calcd. for C16H13N6O3 337.1044; found 337.1065.

4. Concluding Remarks

In this work, we found a previously unknown formation of the 1,2,4-oxadiazine core. We have shown that the reaction of aryl or hetaryl amidoximes with maleates or fumarates affords substituted 1,2,4-oxadiazin-5-ones. Using the example of N’-hydroxy-4-methylbenzimidamide 1a, the conditions for this reaction were optimized. We have found that, depending on the base used and the ratio of reactants, different products can be synthesized selectively in good yields. The use of NaOH as the base afforded 2-(5-oxo-3-(p-tolyl)-5,6-dihydro-4H-1,2,4-oxadiazin-6-yl)acetic acid 3a, and t-BuONa–the corresponding methyl ester 4a. In case of an excess of 1a, hybrid 3-(p-tolyl)-6-((3-(p-tolyl)-1,2,4-oxadiazol-5-yl)methyl)-4H-1,2,4-oxadiazin-5(6H)-one was the main reaction product. The reaction is tolerant to the electronic effect of substituents in amidoximes. The introduction of the substituent in the ortho position of arylamidoxime slightly reduces the yield but does not prevent the reaction in general. As a result, we have developed a simple and convenient method for the synthesis of 3-aryl- and 3-hetaryl-1,2,4-oxadiazin-5-ones bearing an easily functionalizable (methoxycarbonyl)methyl group at position 6.

Supplementary Materials

The following supporting information can be downloaded at: https://www.mdpi.com/article/10.3390/molecules27217508/s1. Copies of 1H, 13C, and 19F NMR spectra for compounds 3, 4, and 5; X-ray diffraction data.

Author Contributions

Conceptualization, S.V.B. and A.A.S.; methodology, S.V.B. and A.A.S.; investigation, S.I.P., M.V.T., K.K.G. and S.O.B.; writing—original draft preparation, S.V.B. and V.P.B.; writing—review and editing, S.V.B. and V.P.B.; visualization, M.V.T. and A.A.S.; supervision, V.P.B.; project administration, S.V.B. All authors have read and agreed to the published version of the manuscript.

Funding

This study was supported by the Russian Foundation for Basic Research (grant 19-33-60064).

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Data Availability Statement

The data presented in this study are available on request from the corresponding author.

Acknowledgments

The authors are grateful to the Center for Magnetic Resonance, Center for X-ray Diffraction Studies, and Center for Chemical Analysis and Materials Research (all belonging to Saint Petersburg State University) for physicochemical measurements. S.V.B. and S.O.B. express their deepest gratitude to Daria Babakina for her friendship and support.

Conflicts of Interest

The authors declare no competing interest.

Sample Availability

Samples of the compounds are not available from the authors.

References

  1. Baykov, S.; Semenov, A.; Tarasenko, M.; Boyarskiy, V.P. Application of amidoximes for the heterocycles synthesis. Tetrahedron Lett. 2020, 61, 152403. [Google Scholar] [CrossRef]
  2. Mehmood, H.; Iqbal, M.A.; Lu, L.; Hua, R. Base-Promoted Annulation of Amidoximes with Alkynes: Simple Access to 2,4-Disubstituted Imidazoles. Molecules 2020, 25, 3621. [Google Scholar] [CrossRef] [PubMed]
  3. Pivneva, E.E.; Galenko, A.V.; Dar’In, D.V.; Lobanov, P.S. Rearrangement of the adducts of α-(aminocarbonyl)-acetamidoximes with acylacetylenes, leading to 2-aminopyrrole derivatives. Chem. Heterocycl. Compd. 2012, 48, 875–880. [Google Scholar] [CrossRef]
  4. Shabalin, D.A.; Dunsford, J.J.; Ngwerume, S.; Saunders, A.R.; Gill, D.M.; Camp, J.E. Synthesis of 2,4-Disubstituted Imidazoles via Nucleophilic Catalysis. Synlett 2020, 31, 797–800. [Google Scholar] [CrossRef]
  5. Bolotin, D.S.; Bokach, N.A.; Demakova, M.Y.; Kukushkin, V.Y. Metal-Involving Synthesis and Reactions of Oximes. Chem. Rev. 2017, 117, 13039–13122. [Google Scholar] [CrossRef]
  6. Bolotin, D.S.; Bokach, N.A.; Kukushkin, V.Y. Coordination chemistry and metal-involving reactions of amidoximes: Relevance to the chemistry of oximes and oxime ligands. Coord. Chem. Rev. 2016, 313, 62–93. [Google Scholar] [CrossRef] [Green Version]
  7. Wang, W.; Xu, H.; Xu, Y.; Ding, T.; Zhang, W.; Ren, Y.; Chang, H. Base-mediated one-pot synthesis of 1,2,4-oxadiazoles from nitriles, aldehydes and hydroxylamine hydrochloride without addition of extra oxidant. Org. Biomol. Chem. 2016, 14, 9814–9822. [Google Scholar] [CrossRef]
  8. Shetnev, A.A.; Pankratieva, V.E.; Kunichkina, A.S.; Vlasov, A.S.; Proskurina, I.K.; Kotov, A.; Korsakov, M.K. Synthesis of 3,5-Disubstituted 1,2,4-Oxadiazoles from Amidoximes and Aldehydes in the Superbasic System NaOH/DMSO. Russ. J. Org. Chem. 2020, 56, 1181–1186. [Google Scholar] [CrossRef]
  9. Teslenko, F.E.; Churakov, A.I.; Larin, A.A.; Ananyev, I.V.; Fershtat, L.L.; Makhova, N.N. Route to 1,2,4- and 1,2,5-oxadiazole ring assemblies via a one-pot condensation/oxidation protocol. Tetrahedron Lett. 2020, 61, 151678. [Google Scholar] [CrossRef]
  10. Sharonova, T.; Pankrat’Eva, V.; Savko, P.; Baykov, S.; Shetnev, A. Facile room-temperature assembly of the 1,2,4-oxadiazole core from readily available amidoximes and carboxylic acids. Tetrahedron Lett. 2018, 59, 2824–2827. [Google Scholar] [CrossRef]
  11. Thacker, P.S.; Angeli, A.; Argulwar, O.S.; Tiwari, P.L.; Arifuddin, M.; Supuran, C.T. Design, synthesis and biological evaluation of coumarin linked 1,2,4-oxadiazoles as selective carbonic anhydrase IX and XII inhibitors. Bioorg. Chem. 2020, 98, 103739. [Google Scholar] [CrossRef] [PubMed]
  12. Tolmachev, A.; Bogolubsky, A.V.; Pipko, S.E.; Grishchenko, A.V.; Ushakov, D.V.; Zhemera, A.V.; Viniychuk, O.O.; Konovets, A.I.; Zaporozhets, O.A.; Mykhailiuk, P.K.; et al. Expanding Synthesizable Space of Disubstituted 1,2,4-Oxadiazoles. ACS Comb. Sci. 2016, 18, 616–624. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  13. Amarasinghe, K.K.; Maier, M.B.; Srivastava, A.; Gray, J.L. One-pot synthesis of 1,2,4-oxadiazoles from carboxylic acid esters and amidoximes using potassium carbonate. Tetrahedron Lett. 2006, 47, 3629–3631. [Google Scholar] [CrossRef]
  14. Strelnikova, J.; Rostovskii, N.V.; Starova, G.L.; Khlebnikov, A.F.; Novikov, M.S. Rh(II)-Catalyzed Transannulation of 1,2,4-Oxadiazole Derivatives with 1-Sulfonyl-1,2,3-triazoles: Regioselective Synthesis of 5-Sulfonamidoimidazoles. J. Org. Chem. 2018, 83, 11232–11244. [Google Scholar] [CrossRef] [PubMed]
  15. Shetnev, A.; Baykov, S.; Kalinin, S.; Belova, A.; Sharoyko, V.; Rozhkov, A.; Zelenkov, L.; Tarasenko, M.; Sadykov, E.; Korsakov, M.; et al. 1,2,4-Oxadiazole/2-Imidazoline Hybrids: Multi-target-directed Compounds for the Treatment of Infectious Diseases and Cancer. Int. J. Mol. Sci. 2019, 20, 1699. [Google Scholar] [CrossRef] [Green Version]
  16. Nam, S.; Na, H.G.; Oh, E.H.; Jung, E.; Lee, Y.H.; Jeong, E.J.; Ou, Y.-D.; Zhou, B.; Ahn, S.; Shin, J.S.; et al. Discovery and synthesis of 1,2,4-oxadiazole derivatives as novel inhibitors of Zika, dengue, Japanese encephalitis, and classical swine fever virus infections. Arch. Pharmacal Res. 2022, 45, 280–293. [Google Scholar] [CrossRef]
  17. Tarasenko, M.; Duderin, N.; Sharonova, T.; Baykov, S.; Shetnev, A.; Smirnov, A.V. Room-temperature synthesis of pharmaceutically important carboxylic acids bearing the 1,2,4-oxadiazole moiety. Tetrahedron Lett. 2017, 58, 3672–3677. [Google Scholar] [CrossRef]
  18. Baykov, S.; Tarasenko, M.; Zelenkov, L.E.; Kasatkina, S.; Savko, P.; Shetnev, A. Diastereoselective Opening of Bridged Anhydrides by Amidoximes Providing Access to 1,2,4-Oxadiazole/Norborna(e)ne Hybrids. Eur. J. Org. Chem. 2019, 2019, 5685–5693. [Google Scholar] [CrossRef]
  19. Presnukhina, S.; Tarasenko, M.; Baykov, S.; Smirnov, S.N.; Boyarskiy, V.; Shetnev, A.; Korsakov, M.K. Entry into (E)-3-(1,2,4-oxadiazol-5-yl)acrylic acids via a one-pot ring-opening/ring-closing/retro-Diels-Alder reaction sequence. Tetrahedron Lett. 2020, 61, 151543. [Google Scholar] [CrossRef]
  20. Tarasenko, M.V.; Kotlyarova, V.D.; Baykov, S.V.; Shetnev, A.A. 2-(1,2,4-Oxadiazol-5-yl)anilines Based on Amidoximes and Isatoic Anhydrides: Synthesis and Structure Features. Russ. J. Gen. Chem. 2021, 91, 768–778. [Google Scholar] [CrossRef]
  21. Tsiulin, P.A.; Sosnina, V.V.; Krasovskaya, G.G.; Danilova, A.S.; Baikov, S.V.; Kofanov, E. Formation and cyclization of N′-(benzoyloxy)benzenecarboximidamides. Russ. J. Org. Chem. 2011, 47, 1874–1877. [Google Scholar] [CrossRef]
  22. Novikov, M.S.; Strelnikova, J.O.; Rostovskii, N.V.; Khoroshilova, O.V.; Khlebnikov, A.F. An Efficient Synthesis of Functionalized 2H-1,3,5-Oxadiazines via Metal-Carbenoid-Induced 1,2,4-Oxadiazole Ring Cleavage. Synthesis 2021, 53, 348–358. [Google Scholar] [CrossRef]
  23. Agat’Ev, P.A.; Shlenev, R.M.; Tarasov, A.V.; Danilova, A.S. New synthesis of 3,5-diaryl-1,2,4-oxadiazoles containing a sulfonyl chloride or sulfonamide group. Russ. J. Org. Chem. 2015, 51, 988–991. [Google Scholar] [CrossRef]
  24. Fershtat, L.L.; Ananyev, I.V.; Makhova, N.N. Efficient assembly of mono- and bis(1,2,4-oxadiazol-3-yl)furoxan scaffolds via tandem reactions of furoxanylamidoximes. RSC Adv. 2015, 5, 47248–47260. [Google Scholar] [CrossRef]
  25. Wu, P.; Zhang, X.; Chen, B. Direct synthesis of 2,4,5-trisubstituted imidazoles and di/tri-substituted pyrimidines via cycloadditions of α,β-unsaturated ketones/aldehydes and N′-hydroxyl imidamides. Tetrahedron Lett. 2019, 60, 1103–1107. [Google Scholar] [CrossRef]
  26. Dénes, L.; Jednákovits, A.; Hargitai, J.; Pénzes, Z.; Balla, A.; Tálosi, L.; Krajcsi, P.; Csermely, P. Pharmacologically activated migration of aortic endothelial cells is mediated through p38 SAPK. J. Cereb. Blood Flow Metab. 2002, 136, 597–603. [Google Scholar] [CrossRef] [Green Version]
  27. Weller, H.N.; Miller, A.V.; Dickinson, K.E.J.; Hedberg, S.A.; Delaney, C.L.; Serafino, R.P.; Moreland, S. Synthesis of N-Alkyl-1,2,4-oxadiazinones as Angiotensin-II (AT1) Receptor Antagonists. Heterocycles 1993, 36, 1027–1038. [Google Scholar] [CrossRef]
  28. Bursavich, M.G.; Harrison, B.A.; Acharya, R.; Costa, D.E.; Freeman, E.A.; Hrdlicka, L.A.; Jin, H.; Kapadnis, S.; Moffit, J.S.; Murphy, D.; et al. Discovery of the Oxadiazine FRM-024: A Potent CNS-Penetrant Gamma Secretase Modulator. J. Med. Chem. 2021, 64, 14426–14447. [Google Scholar] [CrossRef]
  29. Bursavich, M.G.; Harrison, B.A.; Acharya, R.; Costa, D.E.; Freeman, E.A.; Hodgdon, H.E.; Hrdlicka, L.A.; Jin, H.; Kapadnis, S.; Moffit, J.S.; et al. Design, Synthesis, and Evaluation of a Novel Series of Oxadiazine Gamma Secretase Modulators for Familial Alzheimer’s Disease. J. Med. Chem. 2017, 60, 2383–2400. [Google Scholar] [CrossRef]
  30. Hakimelahi, G.H.; Li, P.-C.; Moosavi-Movahedi, A.A.; Chamani, J.; Khodarahmi, G.A.; Ly, T.W.; Valiyev, F.; Leong, M.K.; Hakimelahi, S.; Shia, K.-S.; et al. Application of the Barton photochemical reaction in the synthesis of 1-dethia-3-aza-1-carba-2-oxacephem: A novel agent against resistant pathogenic microorganisms. Org. Biomol. Chem. 2003, 1, 2461–2467. [Google Scholar] [CrossRef]
  31. Huang, X.; Zhou, W.; Liu, X.; Li, H.; Sun, G.; Mandal, M.; Vicarel, M.; Zhu, X.; Bennett, C.; McCraken, T.; et al. Synthesis and SAR Studies of Fused Oxadiazines as γ-Secretase Modulators for Treatment of Alzheimer’s Disease. ACS Med. Chem. Lett. 2012, 3, 931–935. [Google Scholar] [CrossRef] [PubMed]
  32. Li, H.; Qin, J.; Dhondi, P.; Zhou, W.; Vicarel, M.; Bara, T.; Cole, D.; Josien, H.; Pissarnitski, D.; Zhu, Z.; et al. The discovery of fused oxadiazepines as gamma secretase modulators for treatment of Alzheimer’s disease. Bioorg. Med. Chem. Lett. 2013, 23, 466–471. [Google Scholar] [CrossRef] [PubMed]
  33. Sun, Z.-Y.; Asberom, T.; Bara, T.; Bennett, C.; Burnett, D.; Chu, I.; Clader, J.; Cohen-Williams, M.; Cole, D.; Czarniecki, M.; et al. Cyclic Hydroxyamidines as Amide Isosteres: Discovery of Oxadiazolines and Oxadiazines as Potent and Highly Efficacious γ-Secretase Modulators in Vivo. J. Med. Chem. 2012, 55, 489–502. [Google Scholar] [CrossRef] [PubMed]
  34. Shetnev, A.A.; Zubkov, F.I. The latest advances in chemistry of 1,2,4-oxadiazines (microreview). Chem. Heterocycl. Compd. 2017, 53, 495–497. [Google Scholar] [CrossRef]
  35. Kara, Y.S.; Yıldız, B. Synthesis and substituent effect study on 13C NMR chemical shifts of 4-(substitue-phenyl)-6-methyl-3-phenyl-4H-1,2,4-oxadiazin-5(6H)-one. J. Mol. Struct. 2022, 1250, 131787. [Google Scholar] [CrossRef]
  36. Dürüst, Y.; Altuğ, C.; Kiliç, F. Thiophene-Substituted 1,2,4-Oxadiazoles and Oxadiazines. Phosphorus Sulfur Silicon Relat. Elem. 2007, 182, 299–313. [Google Scholar] [CrossRef]
  37. Veerman, J.J.N.; Bursavich, M.G.; Bruseker, Y.B.; van Esseveldt, B.C.J.; Glen, R.; Harrison, B.A.; Heijne, E.H.; McRiner, A.J.; Meulemans, T.M.; van Rijnsbergen, P.; et al. Strategic and Tactical Approaches to the Synthesis of 5,6-Dihydro-[1,2,4]oxadiazines. Heterocycles 2016, 92, 2166–2200. [Google Scholar] [CrossRef]
  38. Ranjbar-Karimi, R.; Karbakhsh-Ravari, A.; Poorfreidoni, A. Reactions of pentafluoropyridine with amidoximes. J. Iran. Chem. Soc. 2017, 14, 2397–2405. [Google Scholar] [CrossRef]
  39. Li, M.; Li, W.; Lin, C.-D.; Wang, J.-H.; Wen, L.-R. One Base for Two Shots: Metal-Free Substituent-Controlled Synthesis of Two Kinds of Oxadiazine Derivatives from Alkynylbenziodoxolones and Amidoximes. J. Org. Chem. 2019, 84, 6904–6915. [Google Scholar] [CrossRef]
  40. Guzmán, A.; Romero, S.; Urquiza, E.M.G.; Muchowski, J.M. Reaction of arylamidoximes with dimethyl acetylenedicarboxylate and diethyl chlorofumarate. Stereochemistry of the adducts and the derived 1,2,4-oxadiazines. J. Heterocycl. Chem. 1980, 17, 1101–1105. [Google Scholar] [CrossRef]
  41. Baykov, S.; Sharonova, T.; Osipyan, A.; Rozhkov, S.; Shetnev, A.; Smirnov, A. A convenient and mild method for 1,2,4-oxadiazole preparation: Cyclodehydration of O-acylamidoximes in the superbase system MOH/DMSO. Tetrahedron Lett. 2016, 57, 2898–2900. [Google Scholar] [CrossRef]
  42. Tarasenko, M.; Sidneva, V.; Belova, A.; Romanycheva, A.; Sharonova, T.; Baykov, S.; Shetnev, A.; Kofanov, E.; Kuznetsov, M. An efficient synthesis and antimicrobial evaluation of 5-alkenyl- and 5-styryl-1,2,4-oxadiazoles. Arkivoc 2018, 2018, 458–470. [Google Scholar] [CrossRef]
  43. Baykov, S.; Sharonova, T.; Shetnev, A.; Rozhkov, S.; Kalinin, S.; Smirnov, A.V. The first one-pot ambient-temperature synthesis of 1,2,4-oxadiazoles from amidoximes and carboxylic acid esters. Tetrahedron 2017, 73, 945–951. [Google Scholar] [CrossRef]
  44. Zora, M.; Kivrak, A.; Kelgokmen, Y. A novel one-pot synthesis of ferrocenyl-substituted 1,2,4-oxadiazoles. J. Organomet. Chem. 2014, 759, 67–73. [Google Scholar] [CrossRef]
  45. Gangloff, A.R.; Litvak, J.; Shelton, E.J.; Sperandio, D.; Wang, V.R.; Rice, K.D. Synthesis of 3,5-disubstituted-1,2,4-oxadiazoles using tetrabutylammonium fluoride as a mild and efficient catalyst. Tetrahedron Lett. 2001, 42, 1441–1443. [Google Scholar] [CrossRef]
  46. Srivastava, R.M.; Pereira, M.C.; Faustino, W.W.M.; Coutinho, K.; dos Anjos, J.V.; De Melo, S.J. Synthesis, mechanism of formation, and molecular orbital calculations of arylamidoximes. Mon. Chem.—Chem. Mon. 2009, 140, 1319. [Google Scholar] [CrossRef]
  47. Sheldrick, G.M. SHELXT—Integrated space-group and crystal-structure determination. Acta Crystallogr. Sect. A Found. Adv. 2015, 71, 3–8. [Google Scholar] [CrossRef] [Green Version]
  48. Sheldrick, G.M. Crystal structure refinement with SHELXL. Acta Crystallogr. Sect. C Struct. Chem. 2015, C71, 3–8. [Google Scholar] [CrossRef] [Green Version]
  49. Dolomanov, O.V.; Bourhis, L.J.; Gildea, R.J.; Howard, J.A.K.; Puschmann, H. OLEX2: A complete structure solution, refinement and analysis program. J. Appl. Cryst. 2009, 42, 339–341. [Google Scholar] [CrossRef]
  50. CrysAlis Pro. Data Collection and Processing Software for Agilent X-ray Diffractometers; Aglient Technologies: Yarnton, UK, 2013. [Google Scholar]
Molecules 27 07508 sch001 550

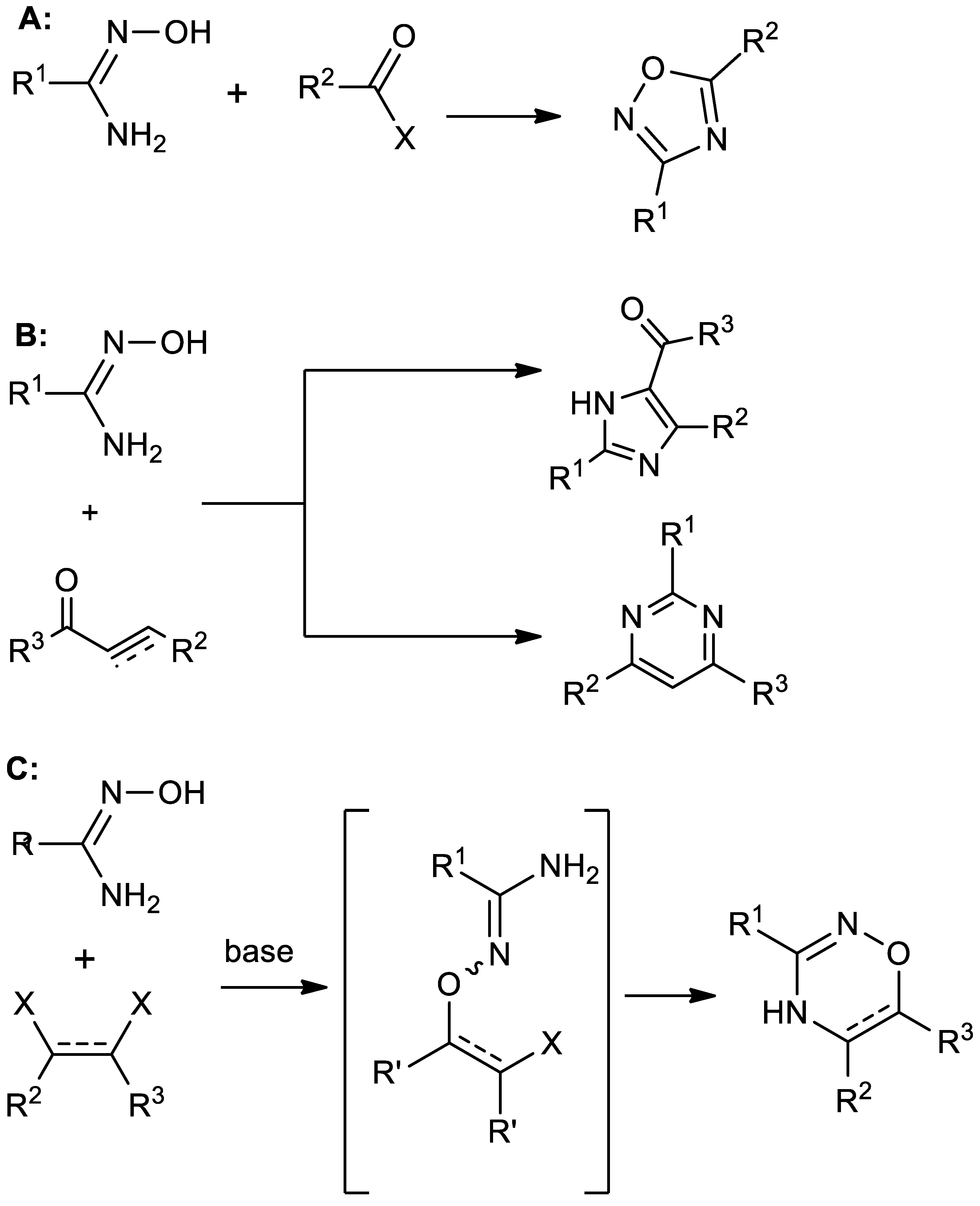

Scheme 1. Previously known reactions of amidoximes with carboxylic acid derivatives (A), α,β–unsaturated carbonyl compounds (B), and vicinal bis-electrophiles (C).
Scheme 1. Previously known reactions of amidoximes with carboxylic acid derivatives (A), α,β–unsaturated carbonyl compounds (B), and vicinal bis-electrophiles (C).
Molecules 27 07508 sch001
Molecules 27 07508 sch002 550

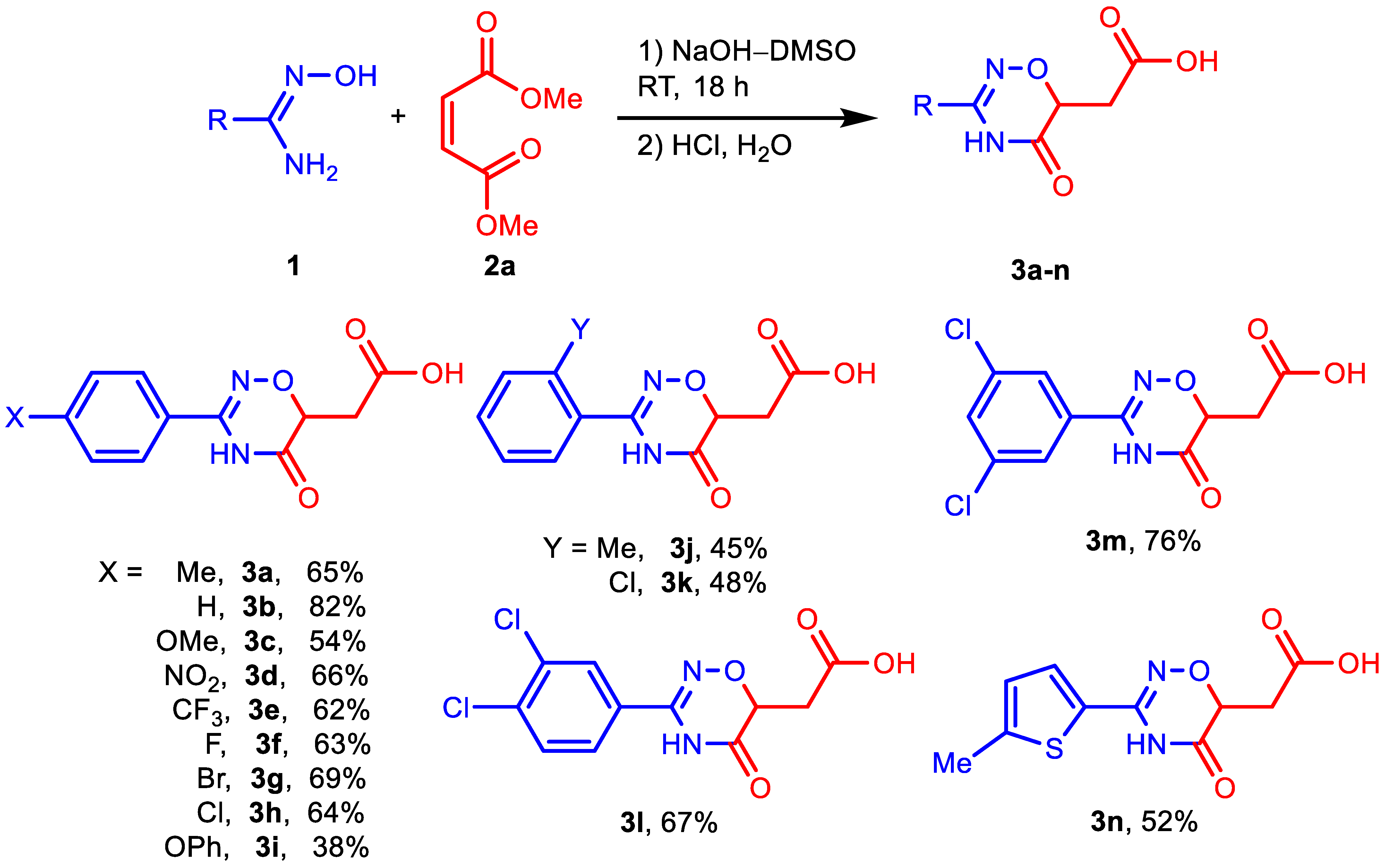

Scheme 2. Reaction of amidoximes 1 with 2a in NaOH–DMSO medium. Reaction conditions: 1 (2 mmol), 2 (4 mmol), NaOH (4 mmol), DMSO (3 mL), RT, 18 h. Isolated yields are presented.
Scheme 2. Reaction of amidoximes 1 with 2a in NaOH–DMSO medium. Reaction conditions: 1 (2 mmol), 2 (4 mmol), NaOH (4 mmol), DMSO (3 mL), RT, 18 h. Isolated yields are presented.
Molecules 27 07508 sch002

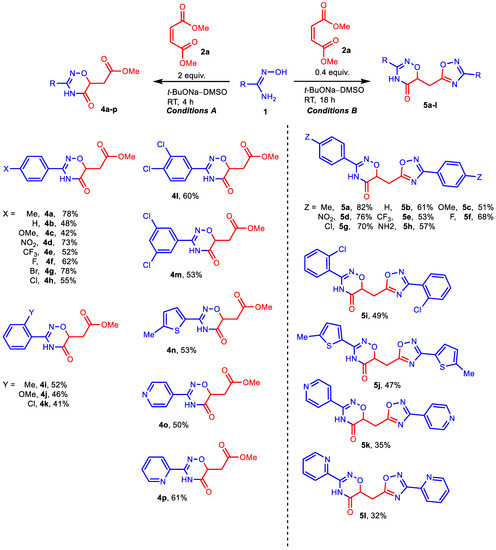

Molecules 27 07508 sch003 550

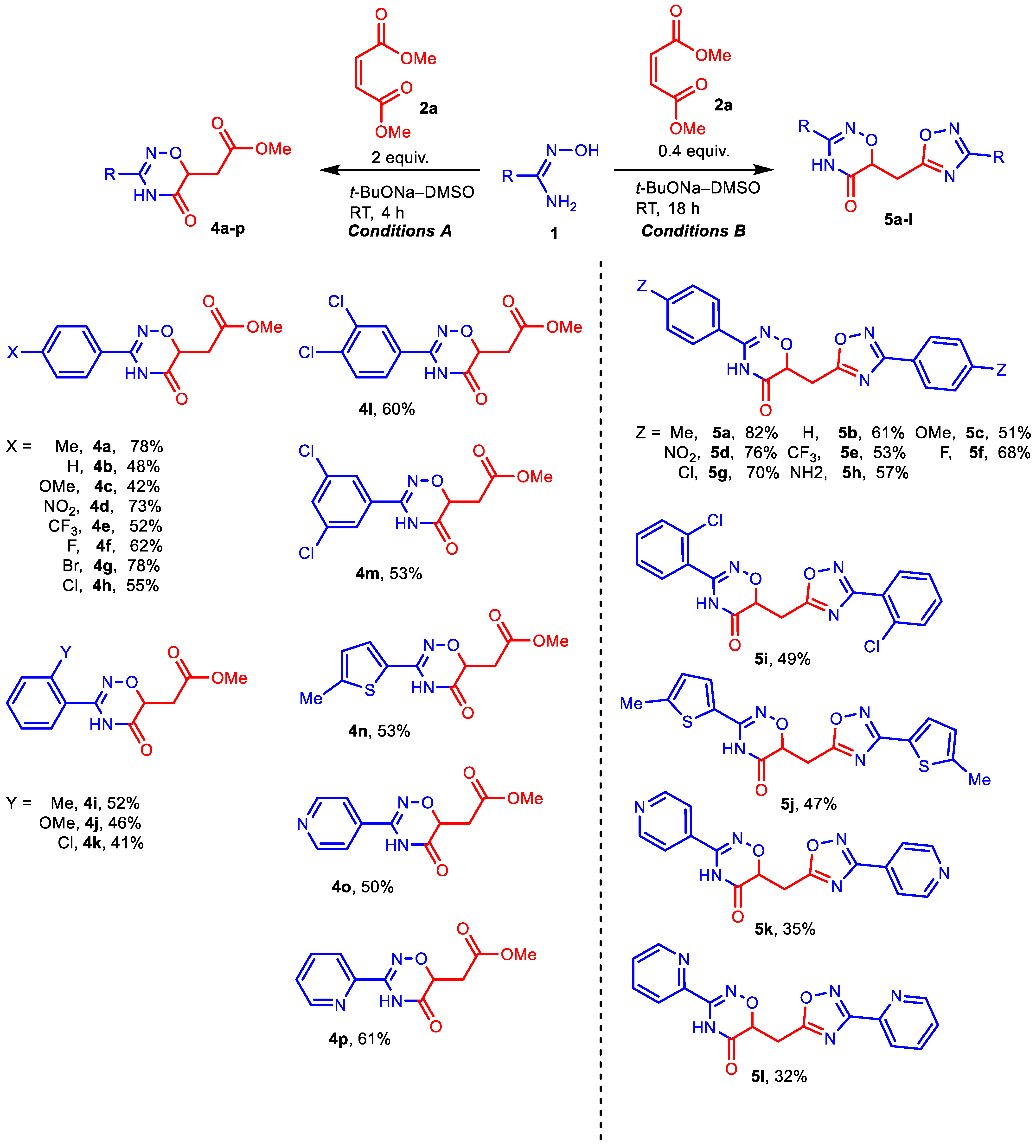

Scheme 3. Reactions of amidoximes 1 with 2a in t-BuONa–DMSO medium. Reaction conditions: (left) 1 (2 mmol), 2 (4 mmol), t-BuONa (2 mmol), DMSO (3 mL), RT, 4 h; (right) 1 (5 mmol), 2 (2 mmol), t-BuONa (4 mmol), DMSO (3 mL), RT, 18 h. Isolated yields are presented.
Scheme 3. Reactions of amidoximes 1 with 2a in t-BuONa–DMSO medium. Reaction conditions: (left) 1 (2 mmol), 2 (4 mmol), t-BuONa (2 mmol), DMSO (3 mL), RT, 4 h; (right) 1 (5 mmol), 2 (2 mmol), t-BuONa (4 mmol), DMSO (3 mL), RT, 18 h. Isolated yields are presented.
Molecules 27 07508 sch003
Molecules 27 07508 g001 550

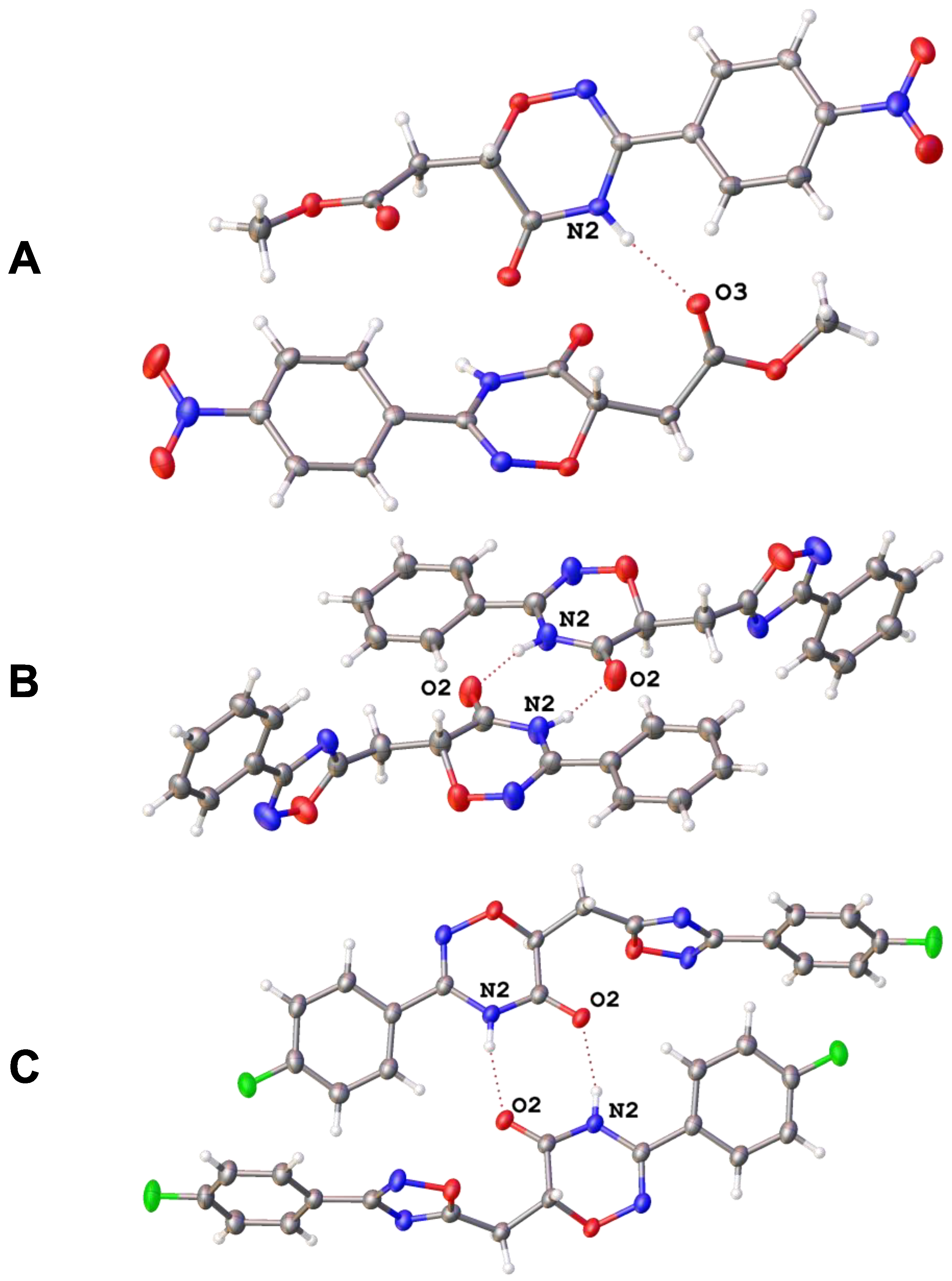

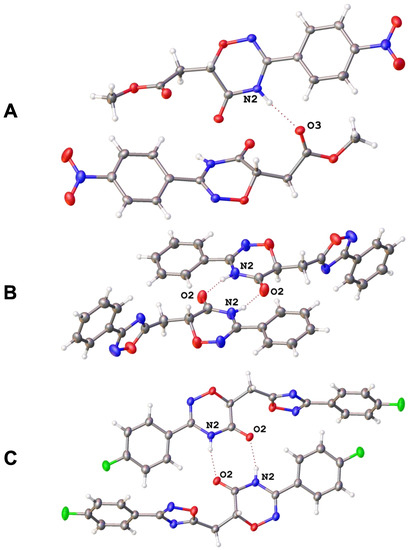

Figure 1. Hydrogen-bonded dimers in crystals of 4d (A), 5b (B), and 5f (C).
Figure 1. Hydrogen-bonded dimers in crystals of 4d (A), 5b (B), and 5f (C).
Molecules 27 07508 g001
Molecules 27 07508 sch004 550

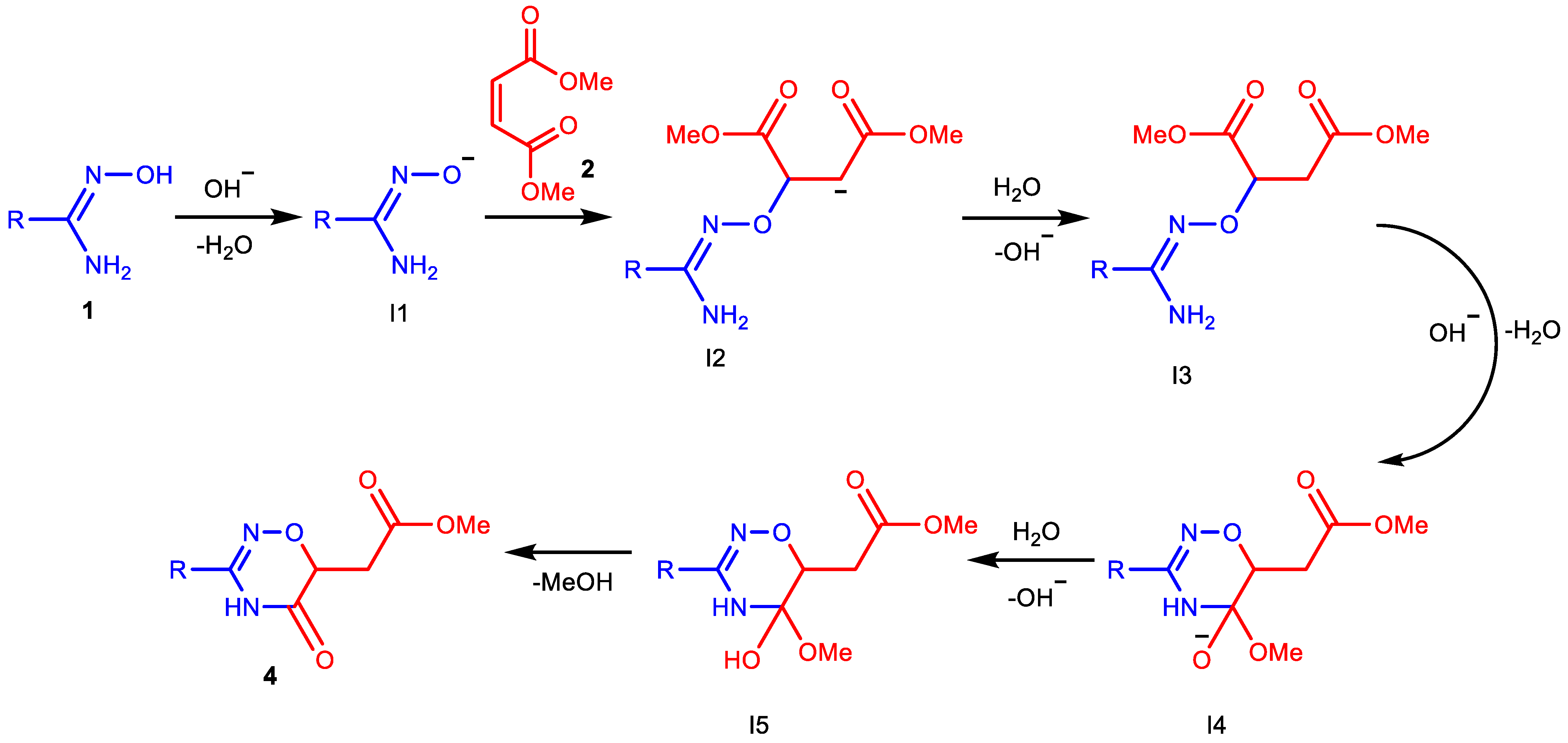

Scheme 4. Plausible mechanism of 1,2,4-oxadiazine ring formation.
Scheme 4. Plausible mechanism of 1,2,4-oxadiazine ring formation.
Molecules 27 07508 sch004
Table

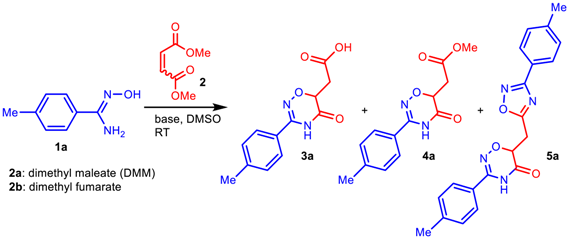

Table 1. Optimization of the reaction conditions.
Table 1. Optimization of the reaction conditions.
Molecules 27 07508 i001
Entry2a (Equiv)Base
(Equiv)		Time, hIsolated Yield, %
3a4a5a
11.5NaOH (1.5)43726–
22.0NaOH (2.0)44717–
32.5NaOH (2.5)43514–
42.0NaOH (2.0)1865trace–
52.0NaOH (2.0)2461trace–
62.0LiOH (2.0)1860trace–
72.0KOH (2.0)1855trace–
82.0t-BuONa (1.0)4–78trace
92.0t-BuONa (2.0)4–5818
100.4t-BuONa (2.0)4–2954
110.4t-BuONa (2.0)18–trace82
12 a2.0NaOH (2.0)1863trace–
13 a2.0t-BuONa (1.0)4–76trace
a Dimethyl fumarate 2b was used instead of 2a.
Publisher’s Note: MDPI stays neutral with regard to jurisdictional claims in published maps and institutional affiliations.

Share and Cite

MDPI and ACS Style

Presnukhina, S.I.; Tarasenko, M.V.; Geyl, K.K.; Baykova, S.O.; Baykov, S.V.; Shetnev, A.A.; Boyarskiy, V.P. Unusual Formation of 1,2,4-Oxadiazine Core in Reaction of Amidoximes with Maleic or Fumaric Esters. Molecules 2022, 27, 7508. https://doi.org/10.3390/molecules27217508

AMA Style

Presnukhina SI, Tarasenko MV, Geyl KK, Baykova SO, Baykov SV, Shetnev AA, Boyarskiy VP. Unusual Formation of 1,2,4-Oxadiazine Core in Reaction of Amidoximes with Maleic or Fumaric Esters. Molecules. 2022; 27(21):7508. https://doi.org/10.3390/molecules27217508

Chicago/Turabian Style

Presnukhina, Sofia I., Marina V. Tarasenko, Kirill K. Geyl, Svetlana O. Baykova, Sergey V. Baykov, Anton A. Shetnev, and Vadim P. Boyarskiy. 2022. "Unusual Formation of 1,2,4-Oxadiazine Core in Reaction of Amidoximes with Maleic or Fumaric Esters" Molecules 27, no. 21: 7508. https://doi.org/10.3390/molecules27217508

APA Style

Presnukhina, S. I., Tarasenko, M. V., Geyl, K. K., Baykova, S. O., Baykov, S. V., Shetnev, A. A., & Boyarskiy, V. P. (2022). Unusual Formation of 1,2,4-Oxadiazine Core in Reaction of Amidoximes with Maleic or Fumaric Esters. Molecules, 27(21), 7508. https://doi.org/10.3390/molecules27217508

Article Metrics

Back to TopTop
