Intramolecular Interactions in Derivatives of Uracil Tautomers

by
Paweł A. Wieczorkiewicz
1,*,
Tadeusz M. Krygowski
2 and
Halina Szatylowicz
1,*
1
Faculty of Chemistry, Warsaw University of Technology, Noakowskiego 3, 00-664 Warsaw, Poland
2
Department of Chemistry, University of Warsaw, Pasteura 1, 02-093 Warsaw, Poland
*
Authors to whom correspondence should be addressed.
Molecules 2022, 27(21), 7240; https://doi.org/10.3390/molecules27217240
Submission received: 26 September 2022 / Revised: 17 October 2022 / Accepted: 21 October 2022 / Published: 25 October 2022
(This article belongs to the Collection Hydrogen Bonds)
Browse Figures
Versions Notes

Abstract

:
The influence of solvents on intramolecular interactions in 5- or 6-substituted nitro and amino derivatives of six tautomeric forms of uracil was investigated. For this purpose, the density functional theory (B97-D3/aug-cc-pVDZ) calculations were performed in ten environments (1 > ε > 109) using the polarizable continuum model (PCM) of solvation. The substituents were characterized by electronic (charge of the substituent active region, cSAR) and geometric parameters. Intramolecular interactions between non-covalently bonded atoms were investigated using the theory of atoms in molecules (AIM) and the non-covalent interaction index (NCI) method, which allowed discussion of possible interactions between the substituents and N/NH endocyclic as well as =O/−OH exocyclic groups. The nitro group was more electron-withdrawing in the 5 than in the 6 position, while the opposite effect was observed in the case of electron donation of the amino group. These properties of both groups were enhanced in polar solvents; the enhancement depended on the ortho interactions. Substitution or solvation did not change tautomeric preferences of uracil significantly. However, the formation of a strong NO∙∙∙HO intramolecular hydrogen bond in the 5-NO2 derivative stabilized the dienol tautomer from +17.9 (unsubstituted) to +5.4 kcal/mol (substituted, energy relative to the most stable diketo tautomer).

1. Introduction

Uracil is a common and naturally occurring pyrimidine derivative. The best known occurrences of uracil are probably nucleic acids, as it is one of the five bases of the nucleic acid. In RNA, uracil forms a complementary base pair with adenine, while its 5-methylated derivative, called thymine, is an equivalent base in DNA [1]. Uracil and its derivatives have also found applications in other branches of biochemistry. For example, 5-fluorouracil is used in treatment of several cancer types by chemotherapy [2,3], while 5-bromo and iodo uracil derivatives are studied as radiosensitizers for radiotherapy [4,5,6,7]. In 2013, a computational study of various 5-substituted uracil derivatives (X = CN, SCN, NCS, NCO, OCN, SH, N3, NO2) was performed in order to identify the most suitable radiosensitizers for experimental studies [8]. The most promising derivatives with high electron affinities, 5-(N-Trifluoromethylcarboxy)aminouracil [9], 5-thiocyanatouracil [10] and 5-selenocyanatouracil [11], were synthesized. Among them, 5-thiocyanatouracil has already been tested against prostate cancer cells with promising results [12]. Some uracil derivatives show antifungal and antimicrobial properties, whereas others act as inhibitors of specific enzymes [13]. On the other hand, some of them are mutagenic, for example, 5-hydroxyuracil [14]. An interesting novel class of compounds that are derived from nucleic acid base molecules, including uracil, are ferrocene-like complexes in which the nitrogen base molecule is attached to one of the cyclopentadienyl ligands [15]. It is a relatively new class of compounds that may find applications in pharmacy, biology and electrochemistry.
An important issue regarding nucleic acid bases is tautomerism. Each of the bases can exist in several forms that differ in the position of the labile hydrogen atom. In general, one of these forms is more stable than the others, and most of the molecules exist in that form [16,17,18]. For this reason, RNA and DNA base pairs are built only from N9H tautomer of purine bases and N1H of pyrimidine bases [1]. However, relative stability of the tautomers can significantly change upon oxidation, reduction [17], substitution of the nucleobase [19,20], polarity of the environment [17] and even interaction with a metal cation [21,22]. Tautomerism of nucleobases is of interest in knowledge of biochemical processes. Importantly, it has been proposed that the existence of rare tautomeric forms can cause mutations of genetic code recorded in the DNA or alter functions performed by different variants of RNA [23,24,25,26,27]. Therefore, much effort has been put into studying the properties of uracil and its tautomers, including both theoretical and experimental studies ([16,28] and references therein). As mentioned above, various uracil derivatives are used or currently being studied for medical applications, where they are introduced into the human body. For this reason, investigating which factors can affect the tautomeric equilibria of uracil (and how) is a relevant research topic.
Uracil consists of a pyrimidine ring and two attached −OH groups at the 2 and 4 positions. However, the most stable tautomeric form has both hydrogen atoms of the −OH groups attached to the nitrogen atoms in the pyrimidine ring. The four most stable uracil tautomers (u1–u4) and their two rotamers (u5, u6), along with their relative stabilities, are shown in Figure 1. Based on calorimetric experiments [29], it was found that the dienol form is 20 ± 10 kcal/mol less stable than u1, while u3 by 19 ± 6 kcal/mol. In addition, both diketo (u1) and keto-enol tautomers (u2, u3) were identified using the dispersed fluorescence spectra, although the precise structure of the latter was not determined [30]. The most stable keto-enol tautomer was estimated to have about 9.6 kcal/mol higher energy than the diketo form (u1).
The aim of the research is to investigate both the intramolecular interactions in uracil derivatives and their sensitivity to solvent change, as well as their ability to change tautomeric preferences. Similar studies on adenine and purine derivatives were recently carried out [31,32]; our computational results were in agreement with the experimental NMR data of 8-halopurines obtained by other groups [19,20].
For this study, we selected the 5- and 6-substituted nitro and amino derivatives of the six tautomeric forms of uracil (Figure 1). The nitro and amino groups represent model electron-withdrawing and electron-donating substituents, respectively. In addition, the nitro group rotated by 90 degrees from the plane of the ring was taken into account. This group interacts with the substituted system only inductively, as opposed to the planar NO2 group, which acts through induction and resonance.
Two substitution positions, 5 and 6, differ in through-space ortho interactions and through-bond interactions with endocyclic N atoms/NH groups as well as −OH/=O groups. In position 5, depending on the tautomeric form, the substituent can interact through-space with the C4=O or C4−OH group. In turn, the substituent in position 6 can interact through-space with the N or NH group in the 1 position. Regarding the through-space interactions, in some cases, formation of an intramolecular hydrogen bond is possible. Thus, the question arises whether it can alter tautomeric preferences.
Regarding the through-bond interactions, the 5 position is meta-related towards two endocyclic N/NH groups and ortho- and para-related towards two exocyclic −OH/=O groups. Conversely, the 6 position is meta-related to the −OH/=O and ortho- and para-related towards N/NH. Here, it is important to mention that in pyrimidines, the position of the substituent in relation to the endocyclic N atoms has a profound influence on the substituent–substituted system interaction, which affects the electron-withdrawing/donating strength of substituents. This topic is discussed in our recent paper [33].
It should be emphasized that the −OH and =O groups have opposite electronic properties: the −OH group is an electron-donating substituent, whereas =O is an electron-withdrawing substituent. Therefore, the tautomeric form should be important for the intramolecular interactions in uracil derivatives.

2. Methodology

Quantum chemical DFT calculations [34,35] were performed in the Gaussian 16 program [36]. We used the B97-D3/aug-cc-pVDZ method, in accordance with our recent research regarding purine and adenine derivatives [31,32,37]. The optimized geometries correspond to the minima on the potential energy surface since no imaginary vibrational frequencies were found. In the constrained optimization cases, i.e., systems with the NO2 group rotated by 90 degrees, one imaginary frequency corresponding to the rotation along the C-N bond was found.
Electronic properties of substituents were evaluated using the charge of the substituent active region (cSAR) parameter [38,39]. Its definition is presented in Figure 2. Positive cSAR values indicate the deficit of electrons in the substituent active region, i.e., the substituent is electron-donating. Negative values represent an excess of electrons in the active region of the substituent, indicating its electron-withdrawing properties. To allow comparison with our other results, the atomic charges used to calculate cSAR were obtained by the Hirshfeld method [40].
In order to study solvent effects, the IEF-PCM implicit model of solvation was used [41,42,43]. Calculations were performed in ten media, listed in Table 1 along with their dielectric constants. It should be mentioned that the PCM has been used many times in computational studies of nucleic acid bases [6,17,19]. In the AT and GC base pairs, the molecular geometries obtained with the PCM were in good agreement with the experimental data and the calculations using the H2O microsolvation model [44].
Analysis of electron density using the atoms in molecules (AIM) theory [45] was performed in the AIMAII program [46]. The main goal of this analysis was the search for possible bond critical points (BCPs) of non-covalent intramolecular interactions. When such a BCP was present, we estimated the interaction energy according to the formula of Afonin et al. (Equation (1)) [47], derived from the Espinosa equation [48].
E HB = 0.277   ·   V BCP + 0.450
where VBCP is the potential energy density (in kcal ∙ mol−1 ∙ bohr−3) at the BCP. This equation can be applied to OH⋯O, OH⋯N, OH⋯halogen, NH⋯O, NH⋯N, CH⋯O, CH⋯N and CH⋯halogen interactions.
Intramolecular interactions between non-covalently bonded atoms were also investigated using the non-covalent interaction index (NCI) method [49]. The nature of a given interaction was assigned and color-coded according to the value of sgn(λ2) ∙ ρ(r), where λ2 is the second eigenvalue of the Hessian matrix of electron density (ρ(r)). Points on reduced density gradient isosurfaces with a value of sgn(λ2)∙ρ(r) > 0 indicate non-bonding (steric) contacts (in red), with sgn(λ2)∙ρ(r)~0 indicating weakly attractive interactions (e.g., van der Waals, in green) and sgn(λ2)∙ρ(r) < 0 indicating strongly attractive interactions (e.g., hydrogen and halogen bonding, in blue). For more information on the NCI analysis, see Johnson et al. [49]. In our case, NCI calculations were performed in Multiwfn 3.8 software [50] and the visualization in the VMD program [51].

3. Results and Discussion

3.1. Electronic Properties of Substituents

The raw data generated in this study and used in statistical analyses are available in the Supplementary Materials. Table 2 presents the cSAR values of the substituents in all studied systems. In the case of amino derivatives, the NH2 substituent in position 6 has more than twice, in the cSAR scale, stronger electron-donating properties than in position 5. In nitro derivatives, the NO2 group in position 5 is more electron-withdrawing than in position 6. Therefore, the substitution position, i.e., the position in relation to the nitrogen atoms in the ring, has a decisive influence on the properties of the substituent. In contrast, the effect of the tautomeric form of uracil is clearly less significant. It is also worth noting that in polar solvents, the characteristic properties of both NO2 and NH2 groups are enhanced, as shown by the difference between cSAR(X) values in the water and gas phase (Δ).
In 5-NH2 derivatives, electron-donating strength of the amino group decreases in the sequence: u2 > u5~u4~u1 > u3 > u6. The clearly lower cSAR(X) for u6 is a consequence of the rotation of the NH2 group by 90 degrees and the formation of the hydrogen bond, H2N∙∙∙HO, which is discussed in more detail later in the paper. In this case, the large influence of the solvent on the cSAR(NH2) value is due to the rotation of the NH2 group to more planar conformation with respect to the ring in polar solvents. This strengthens the resonance effect.
In 6-NH2 derivatives, electron-donating strength of the amino group decreases in the sequence: u3 > u1~u5 > u6~u4 > u2. Two systems containing the NH endocyclic group at the ortho position, u3 and u1, have the greatest electron-donating properties. An interesting difference is present between the u5 form and its rotamers: u4 and u6. Among them, the highest cSAR(NH2) value and the lowest Δ occur in u5, where the two OH groups are facing in the same direction. When they are in opposite directions, as in u4 and u6, the value of cSAR(X) is lower, while Δ is higher. This may be due to the differences in the dipole moments in these two cases, as the conformation of the OH groups has a significant impact on the value and direction of molecular dipole moment (Table S1). By far the strongest solvent effect on cSAR(X) among the 6-NH2 derivatives occurs in u1 and u3 (highest Δ). These systems also have the highest values of the dipole moment (Table S1). All cSAR(NH2) values in 5-NH2 derivatives are lower than in aniline (0.094), while in 6-NH2 they are higher.
Generally, in all 5-NO2 tautomers, the NO2 group is withdrawing electrons more strongly than in nitrobenzene, where the cSAR(X) is higher, −0.140. Its rotation by 90 degree increases cSAR(NO2) by about 0.4 units. The only exception is u6, where a decrease in cSAR is observed; however, this is caused by the hydrogen bonding between the NO2 and ortho OH groups. In 5-NO2 systems, electron-withdrawing strength of the nitro group decreases in the sequence: u3 > u4~u5 > u2 > u1 > u6. The systems with the strongest electron-withdrawing NO2 groups (u3, u4 and u5) have an electron-donating OH group in the ortho position, but its hydrogen atom is directed to the endocyclic N atom, so that NO∙∙∙OH interaction can be expected. When NO∙∙∙HO interaction is present (5-NO2 u6), the electron-withdrawing ability of the NO2 group is the weakest. Again, the greatest variability of cSAR(X) due to solvation occurs in the derivatives with the highest values of the dipole moments (u1 and u2).
In the 6-NO2 derivatives, the cSAR(NO2) values are high, indicating weak electron-withdrawing properties. This is caused by the disturbance of the resonance interactions by ring nitrogen atoms in ortho and para positions. Weak resonance is also evidenced by a smaller increase in cSAR due to the rotation of NO2 by 90° as compared to the 5-NO2 derivatives. This increase is by about 0.2 units, with the exception of u1 and u3 where cSAR(NO2) is positive and its change due to rotation is smaller. Electron-withdrawing strength decreases in the sequence: u2 > u4 > u6~u5 > u1 > u3. The loss of electron-withdrawing properties (cSAR close to 0.0) of the 6-NO2 group occurs in the u1 and u3 derivatives, where the NH group is in the ortho position. Thus, apart from the relative position of the endo N atoms and the substituent, the NO∙∙∙HN through-space interaction has an effect as well. The summary of the cSAR analysis in the form of a bar chart is shown in Figure 3.
In most cases, the dependences of cSAR(X) on 1/ε are well approximated by a linear function. The parameters of resulting cSAR (X) = a∙(1/ε) + b functions are summarized in Table 3. The slope value, a, informs about the sensitivity of the electronic properties of the substituent in a given derivative to the solvent effect. In general, except for u6 5-NH2, large absolute values of the coefficient occur in systems with a large dipole moment, and small ones in systems with a small dipole moment (Table 3 and Table S1). In 6-substituted systems (6-NO2 and 6-NH2), the values of a in u1 and u3 (ortho NH) clearly differ from other tautomers (ortho N). This can be attributed to the influence of ortho interactions with endocylic N/NH groups. It can be concluded that the repulsive ortho interaction, NH∙∙∙HN for 6-NH2 and NO∙∙∙N for 6-NO2, causes high sensitivity of the substituent properties to the solvent effect, whereas the attractive interaction causes low sensitivity. A similar effect was observed in adenine and purine derivatives [29,30].
Properties of the =O/−OH groups of all studied forms of uracil, quantified by cSAR, are shown in Figure 4. Negative values correspond to the electron-withdrawing =O group, whereas positive values to the electron-donating −OH. Both the interactions with the substituent and the type of tautomer can affect the electron-donating (−OH) or -withdrawing (=O) properties of these groups. The electron-withdrawing properties of the =O groups are greater in the amino derivatives than in the nitro derivatives, which is shown by the more negative cSAR(=O) values in the 5-NH2 and 6-NH2 derivatives. In turn, the electron-donating properties of the −OH groups are greater in the nitro than in the amino derivatives. This is due to charge transfer between groups with opposite electronic properties. Global ranges of variation of cSAR are 0.143 for the =O group and 0.107 for the −OH group. The ranges for the =O group in C4 and C2 positions are 0.096 and 0.078, respectively, while the average values are −0.134 for C4 and −0.115 for C2. In the case of the −OH group, the ranges are 0.099 for C4 and 0.103 for C2 positions; the average values are 0.159 for C4 and 0.199 for C2. Thus, the characteristic electronic properties of the −OH group are on average stronger in the C2 position, while those of the =O group are stronger in the C4 position. Stronger electronic properties are accompanied by higher ranges of their variability.
The C2 position of the uracil ring is double ortho with respect to the two endo N/NH atoms/groups, while the C4 position is ortho and para. So, two electronegative atoms in the ortho position of the −OH group might enhance its electron-donating properties, while diminishing the electron-withdrawing by the =O group. A similar effect of ortho N atoms on the substituent properties was observed in our recent studies on nitro and amino derivatives of pyridine, pyrimidine, pyrazine and triazine [33].

3.2. Geometry

Analysis of geometry will be focused on the lengths of CN bonds connecting the NO2 and NH2 substituents and the substituted system. As shown in Figure 5a, they vary depending on the substitution position and the tautomeric form. In the case of 5-NH2 derivatives, the shortest CN bond occurs in the u2 tautomer and the longest in u6. The u2 tautomer is also characterized by the highest electron-donating strength of the NH2 group among 5-NH2 derivatives (Table 2 and Figure 3). In the case of the u6 tautomer in the gas phase, the NH2 group is rotated by 90 degrees in order to form a H2N∙∙∙HO hydrogen bond with the OH group in the ortho position. This is accompanied by a significant extension of the CN bond, which reaches the length observed for the 5-NO2 group in u6. In 6-NH2 derivatives, CN bonds are shorter than in 5-NH2, which is connected with the strong electron-donating 6-NH2 group. A slightly longer bond relative to other tautomers occurs in u1 and u3. This may be due to the presence of the NH group in the ortho position resulting in NH∙∙∙HN steric interaction.
In NO2 derivatives, shorter CN bonds are found in 5-NO2 than in 6-NO2 systems. This is in line with the electron-withdrawing strength of the 5-NO2 and 6-NO2 groups. In position 5, the shortest bond occurs in u6, where a strong NO∙∙∙HO hydrogen bond is formed, while the second shortest is in u3, in which the NO2 group has the strongest electron-accepting properties among all systems. For 6-NO2 tautomers, clearly the shortest bonds occur in u1 and u3, where the NH group is in the ortho position. This results from the attractive NO∙∙∙HN interaction.
The rotation of the NO2 group in 5-NO2 derivatives causes the elongation of CN bonds, which is related to the disturbance of the resonance effect of the NO2 group. The largest elongation occurs in the u6 5-NO2 derivative. It is caused by breaking of the NO∙∙∙HO hydrogen bond as a result of NO2 rotation. In the 6-NO2 systems, in four tautomers: u2, u4, u5 and u6 (ortho N), the NO2 rotation clearly shortens the CN bond. This is caused by the weakening of through-space repulsive interactions with the ortho endocyclic N atom. Thus, the main factor determining the CN bond lengths in the 5-NO2 derivatives is the resonance between the NO2 group and the substituted system, while in the 6-NO2 derivatives it is the ortho interaction.
The solvation effect is also reflected in the CN bond lengths. Figure 5b shows the difference in CN bond lengths between the values obtained in the aqueous solution and the gas phase. In NH2 derivatives, a stronger solvent effect occurs in 6-NH2 systems, while in the case of NO2 derivatives, in 5-NO2 systems. This is connected with the greater variability of the substituent’s electronic properties in these systems (see, for example, Table 3). Thus, the bond shortening is related to an increase in the characteristic electronic properties of a given substituent, due to the increase in the solvent polarity.

3.3. Intramolecular Interactions between Non-Covalently Bonded Atoms

An important aspect of the interaction between the substituent and the substituted system are through-space ortho interactions, which in some cases could already be seen by the cSAR(X) values and CN bond lengths. In order to identify these interactions, the lengths of two NH/NO bonds of the NH2/NO2 groups were plotted against each other (Figure 6). Deviations from the equal length of these two bonds may indicate the existence of an asymmetric through-space interaction. Such plots also provide information about the attractive/repulsive nature of these interactions, based on the location of a point above or below the y = x line.
First of all, it should be noticed that the asymmetry in the bond lengths of the NO2 group is about four times greater than that of the NH2 group. Moreover, for the nitro group, the obtained results indicate greater variability of interactions, but as expected in systems with rotated groups, the lengths of both NO bonds are similar. Both repulsive and attractive interactions as well as hydrogen bonds are observed. In the latter case, the systems in which the interaction meets the Koch–Popelier criteria for hydrogen bonding [52] are depicted as H-bonds in Figure 6. Only one system (in the gas phase), visible in the plot, u6 5-NO2, fulfills the criteria. Additionally, an increase in the polarity of the solvent weakens the through-space interactions—an increase in the O∙∙∙H distance and a decrease in O∙∙∙HO angle, as shown in Figure 7. An interesting system in which, despite the symmetry between NH bonds, there is a strong H-bond is u6 5-NH2. In this case, the NH2 group rotates by 90°, and forms a H2N∙∙∙HO hydrogen bond. Moreover, the NH2 group in the formamide solution rotates slightly towards the coplanar conformation (76.7° dihedral angle) and the H-bond is weakened. This rotation is an interesting example of competition of attractive through-space interactions and the resonance between the group and the substituted system. In the gas phase, the H-bond has a greater influence on the structure, but in the polar solvent, due to the weakening of the H-bond, stabilization by resonance forces the group to be coplanar. The structures of u6 5-NO2 and u6 5-NH2 are shown in Figure 7.
Based on the potential energy density at the critical point of each hydrogen bond, their energy was calculated from the Afonin equation (Equation (1)). For comparison, the hydrogen bond energy was also calculated using the rotational method [53], i.e., the difference between u6 and u5 rotamers. Both methods give similar results (Table 4), especially in the case of stronger hydrogen bonding in u6 5-NO2.
Figure 8 shows the energy scan along the dihedral angle between the amino group and the uracil ring plane. The global minimum corresponds to the conformer shown in Figure 7, the minimum near scan coordinate 300 corresponds to the form rotated by 180° from the global minimum, so that NH2∙∙∙HO bifurcated contact is present. Two maxima correspond to forms with close NH∙∙∙HO contacts (1.956 Å). Rotational barrier height is 5.08 kcal/mol, while the difference in energy between the two minima is 4.16 kcal/mol.
The NCI analysis, shown in Figure 9, was performed to visualize all non-covalent interactions. In most cases, only weak interactions (green-shaded isosurfaces) are present. However, in systems where the asymmetry of two NH/NO bonds (Figure 6) was high, a blue color can be noticed on the isosurfaces between the interacting atoms. This indicates a stronger attractive character of these interaction. The u1 5-NH2 system, which has the highest bond length asymmetry (Figure 6) among the amino derivatives, has very slight blue features on the isosurface between NH and =O, which indicated stronger attractive interaction than in u2–u5 5-NH2 systems. The intramolecular H-bond in u6 5-NH2, discussed earlier, appears as a mostly blue isosurface between H2N and HO. The H-bond in the u6 5-NO2 system is so strong that the NCI analysis treats it as a partially covalent interaction, as the hole is pierced through the isosurface along the H∙∙∙O line. In u1 and u3 6-NO2 systems, some blue accents are noticeable on the isosurface corresponding to the NO∙∙∙HN contact. Bond critical points of non-covalent interactions were found only in u6 5-NH2 and u6 5-NO2.
Interestingly, in several nitropurines, NO∙∙∙HN interactions have a bond critical point [30]. It is possible that this interaction is on the edge of being classified as H-bonding. The reasons are probably low values of O∙∙∙HN angles (105.6° in 1H 6-nitropurine vs. 101.4° in u1 6-NO2 uracil), which are close to the limit of 110° proposed by Desiraju [54], and rather high O∙∙∙H distances (2.107 Å in 1H 6-nitropurine vs. 2.200 Å in u1 6-NO2 uracil).

3.4. Tautomer Stability

The last section is devoted to the effects of substitution and solvation on the stability of uracil tautomers. Table 5 presents electronic energies of each system relative to the u1 tautomer. In all cases, this tautomer remains the most stable, irrespective of substitution and solvation. Considering the 5-NO2 substitution, the u6 5-NO2 derivative is a particularly interesting case. Formation of a strong NO∙∙∙HO H-bond results in a large stabilization relative to the unsubstituted u6 tautomer (by 12.5 kcal/mol). Consequently, among the 5-NO2 tautomers, u6 becomes the second most stable tautomer after u1, despite the fact that u6 is the least stable tautomer for unsubstituted uracil. Rotating the 5-NO2 group by 90 degrees and breaking the hydrogen bond increases the relative energy of u6 by 10.4 kcal/mol and in 5-NO2 (90°), u6 is again the least stable tautomer.
In the case of 5-NH2 substitution, the energy difference between the u1 and u2 tautomers decreases compared to the unsubstituted systems, while between u1 and others it increases. In 6-NH2, the relative energies are smaller than for unsubstituted systems. A noteworthy increase in stability relative to u1 is observed for u2, u4, u5 and u6 tautomers (between 5 and 6 kcal/mol), while much less for u3 (1.1 kcal/mol). In the case 6-NO2 tautomers, apart from u3, the relative energies decrease slightly, but not as much as in 6-NH2. In all cases, the relative energies between the u1 tautomer and the second most stable one are above 5.4 kcal/mol; therefore, it is unlikely that substitution with NH2 or NO2 groups can significantly affect the tautomeric equilibrium. Solvation. in most cases, further increases the difference between u1 and the other forms, as evidenced by the positive values of Δ (apart of two cases) in Table 5. The only cases where Δ is negative are the two NH2 derivatives of the u3 tautomer: u3 5-NH2 (Δ = −2.2 kcal/mol) and u3 6-NH2 (Δ = −0.6 kcal/mol).
Similarly to the cSAR (X), electronic energy can be plotted against 1/ε and relations approximated with straight lines can be obtained (Table 6). In this case, the slopes (a) inform about the sensitivity of the energy of a given system to the solvent effect. In most cases, the u1 and u3 tautomers are the most sensitive, these two tautomers have an endo NH group in the 1 position of the uracil ring. The only exception is the 6-NO2 substitution, where the u2 and u6 tautomers are most sensitive to the solvent effect. The u4 and u5 tautomers are in all but one case (H-bond forming u6 5-NO2) the least sensitive. In amino derivatives, the sensitivity to the solvent effect seems to be correlated with the dipole moments of the molecules, i.e., a large dipole moment is associated with a large value of a. However, no such relation can be observed in the case of nitro derivatives.
Plotting the relative energy, Erel, against the cSAR(X) for all systems in all solvents (Figure 10) reveals linearly correlated groups of points for each tautomer. The linearity comes from the fact that both Erel and cSAR change linearly with 1/ε (see Table 3 and Table 6). The ranges on the y and x axes for particular tautomers are a visual representation of the strength of the solvent effect on Erel and cSAR, respectively. It is clearly visible that, in general, the greatest changes in both parameters occur for the 5-NO2 and 6-NH2 derivatives.

4. Conclusions

This work is devoted to the influence of the substituent and solvent on the tautomeric preferences and intramolecular interactions of uracil. For this purpose, the four most stable uracil tautomers and two rotamers of the dienol form, substituted by nitro and amino groups at C5 and C6 positions in ten environments, were studied. In addition, changes in the properties of the substituents were also realized by rotating the NO2 group 90 degrees about the CN bond. The research was carried out using the DFT-D method and the polarizable continuum solvent model (PCM).
In uracil derivatives, the properties of the substituents depend primarily on their position with respect to endocyclic N atoms and less on the tautomeric form. Changing the =O to −OH group in the C2 or/and C4 position has less effect on the electronic properties of the substituent (and geometry), despite their opposite electronic properties. Therefore, the relationships between the relative position of endocyclic N atoms and the substituent on its electronic properties and geometry observed in simple monosubstituted N-heterocycles (pyridine, pyrimidine, pyrazine, etc.) [33] can be applied to more complex systems, such as uracil. Thus, the NH2 substituent at the 6 position of uracil has more than twice (in the cSAR scale) stronger electron-donating properties than at the C5 position. In contrast, the NO2 group has more electron-withdrawing power in position C5 than in position C6. The characteristic properties of both NO2 and NH2 groups are enhanced in polar solvents. The strength of the solvation effects on the substituent properties depends on through-space ortho interactions. This has also been previously observed in purine and adenine derivatives [29,30].
Regarding the intramolecular interactions between non-covalently bonded atoms, both repulsive and attractive interactions, including hydrogen bonds, are observed. This is evidenced by the results of the NCI and AIM analyses and geometric parameters. Interesting hydrogen bonding interactions, NO∙∙∙HO and H2N∙∙∙HO (with NH2 rotated by 90°), were found in u6 5-NO2 and 5-NH2 derivatives, respectively. The NO∙∙∙HO interaction is strong and it highly stabilizes the u6 tautomeric form of 5-NO2 derivative, with respect to other tautomers. The attractive interactions between the 6-NO2 group and endocyclic NH group (NO∙∙∙HN) are visible on the NCI plots and in the geometry data, but do not have the bond critical point. Interaction between the NH2 group and endocyclic N atom (NH∙∙∙N) is not detectable by any method.
The substitution of the uracil molecule, as well as the solvation effects, does not significantly alter its tautomeric preferences. This differs from what has been reported for purine and adenine derivatives, where substitution and solvation significantly affected the tautomeric equilibrium [17,19,29,30]. However, the observed decrease in the relative energy of u6 and u2 uracil tautomers due to the 5-NO2 and 6-NH2 substitution, respectively, may cause an increase in the amount of enol tautomers in the equilibrium mixture.

Supplementary Materials

The following supporting information can be downloaded at: https://www.mdpi.com/article/10.3390/molecules27217240/s1, Table S1: Dipole moments; Tables S2–S21: Relative and solvation electronic energies and Gibbs energies of all systems; Tables S22 and S23: Statistical data on G and Gsolv vs. 1/ε correlations; Tables S24–S29: cSAR(X) values for nitro and amino substituents in all systems; Table S30: Geometry data in the gas phase and formamide; Table S31: Differences between CN bond length in formamide and the gas phase; Table S32: CO bond lengths of C=O/C-OH groups in 2 and 4 position of the uracil molecule; Table S33: cSAR(X) values of C=O/C-OH groups; Table S34: Ranges and average values of cSAR(X) of C=O/C-OH groups in 2 and 4 position.

Author Contributions

Conceptualization, H.S. and T.M.K.; methodology, H.S. and P.A.W.; validation, H.S. and P.A.W.; formal analysis, H.S. and P.A.W.; investigation, P.A.W.; data curation, P.A.W.; writing—original draft preparation, H.S and P.A.W.; writing—review and editing, T.M.K. and P.A.W.; visualization, P.A.W.; supervision, H.S.; funding acquisition, T.M.K. and H.S. All authors have read and agreed to the published version of the manuscript.

Funding

H.S. and P.A.W. thank the Warsaw University of Technology for financial support. The APC was funded by MDPI.

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Data Availability Statement

The data presented in this study are available in the article and in the associated Supplementary Materials.

Acknowledgments

The authors would like to thank the Wrocław Center for Networking and Supercomputing and the Interdisciplinary Center for Mathematical and Computational Modeling (Warsaw, Poland) for providing computer time and facilities.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Neidle, S.; Sanderson, M. Principles of Nucleic Acid Structure, 2nd ed.; Elsevier: San Diego, CA, USA, 2021. [Google Scholar]
  2. Chu, C.K.; Baker, D.C. (Eds.) Nucleosides and Nucleotides as Antitumor and Antiviral Agents; Springer US: Boston, MA, USA, 1993. [Google Scholar]
  3. Pozharskiĭ, A.F.; Katritzky, A.R.; Soldatenkov, A.T. Heterocycles in Life and Society: An Introduction to Heterocyclic Chemistry, Biochemistry, and Applications, 2nd ed.; Wiley: Chichester, UK, 2011. [Google Scholar]
  4. Gong, L.; Zhang, Y.; Liu, C.; Zhang, M.; Han, S. Application of Radiosensitizers in Cancer Radiotherapy. Int. J. Nanomed. 2021, 16, 1083–1102. [Google Scholar] [CrossRef] [PubMed]
  5. Wang, S.; Zhao, P.; Zhang, C.; Bu, Y. Mechanisms Responsible for High Energy Radiation Induced Damage to Single-Stranded DNA Modified by Radiosensitizing 5-Halogenated Deoxyuridines. J. Phys. Chem. B 2016, 120, 2649–2657. [Google Scholar] [CrossRef] [PubMed]
  6. Rak, J.; Chomicz, L.; Wiczk, J.; Westphal, K.; Zdrowowicz, M.; Wityk, P.; Żyndul, M.; Makurat, S.; Golon, Ł. Mechanisms of Damage to DNA Labeled with Electrophilic Nucleobases Induced by Ionizing or UV Radiation. J. Phys. Chem. B 2015, 119, 8227–8238. [Google Scholar] [CrossRef] [PubMed]
  7. Poštulka, J.; Slavíček, P.; Fedor, J.; Fárník, M.; Kočišek, J. Energy Transfer in Microhydrated Uracil, 5-Fluorouracil, and 5-Bromouracil. J. Phys. Chem. B 2017, 121, 8965–8974. [Google Scholar] [CrossRef] [PubMed]
  8. Chomicz, L.; Zdrowowicz, M.; Kasprzykowski, F.; Rak, J.; Buonaugurio, A.; Wang, Y.; Bowen, K.H. How to Find Out Whether a 5-Substituted Uracil Could Be a Potential DNA Radiosensitizer. J. Phys. Chem. Lett. 2013, 4, 2853–2857. [Google Scholar] [CrossRef]
  9. Spisz, P.; Kozak, W.; Chomicz-Mańka, L.; Makurat, S.; Falkiewicz, K.; Sikorski, A.; Czaja, A.; Rak, J.; Zdrowowicz, M. 5-(N-Trifluoromethylcarboxy)Aminouracil as a Potential DNA Radiosensitizer and Its Radiochemical Conversion into N-Uracil-5-Yloxamic Acid. Int. J. Mol. Sci. 2020, 21, 6352. [Google Scholar] [CrossRef]
  10. Zdrowowicz, M.; Chomicz, L.; Żyndul, M.; Wityk, P.; Rak, J.; Wiegand, T.J.; Hanson, C.G.; Adhikary, A.; Sevilla, M.D. 5-Thiocyanato-2′-Deoxyuridine as a Possible Radiosensitizer: Electron-Induced Formation of Uracil-C5-Thiyl Radical and Its Dimerization. Phys. Chem. Chem. Phys. 2015, 17, 16907–16916. [Google Scholar] [CrossRef]
  11. Sosnowska, M.; Makurat, S.; Zdrowowicz, M.; Rak, J. 5-Selenocyanatouracil: A Potential Hypoxic Radiosensitizer. Electron Attachment Induced Formation of Selenium Centered Radical. J. Phys. Chem. B 2017, 121, 6139–6147. [Google Scholar] [CrossRef]
  12. Zdrowowicz, M.; Datta, M.; Rychłowski, M.; Rak, J. Radiosensitization of PC3 Prostate Cancer Cells by 5-Thiocyanato-2′-Deoxyuridine. Cancers 2022, 14, 2035. [Google Scholar] [CrossRef]
  13. Pałasz, A.; Cież, D. In Search of Uracil Derivatives as Bioactive Agents. Uracils and Fused Uracils: Synthesis, Biological Activity and Applications. Eur. J. Med. Chem. 2015, 97, 582–611. [Google Scholar] [CrossRef]
  14. Tsuda, H.; Ohshima, Y.; Nomoto, H.; Fujita, K.; Matsuda, E.; Iigo, M.; Takasuka, N.; Moore, M.A. Cancer Prevention by Natural Compounds. Drug Metab. Pharmacokinet. 2004, 19, 245–263. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  15. Kowalski, K. Ferrocenyl-Nucleobase Complexes: Synthesis, Chemistry and Applications. Coord. Chem. Rev. 2016, 317, 132–156. [Google Scholar] [CrossRef]
  16. Raczyńska, E.D. Quantum-Chemical Studies on the Favored and Rare Isomers of Isocytosine. Comput. Theor. Chem. 2017, 1121, 58–67. [Google Scholar] [CrossRef]
  17. Raczyńska, E.D.; Kamińska, B. Variations of the Tautomeric Preferences and π-Electron Delocalization for the Neutral and Redox Forms of Purine When Proceeding from the Gas Phase (DFT) to Water (PCM). J. Mol. Model. 2013, 19, 3947–3960. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  18. Raczyńska, E.D.; Makowski, M.; Hallmann, M.; Kamińska, B. Geometric and Energetic Consequences of Prototropy for Adenine and Its Structural Models—A Review. RSC Adv. 2015, 5, 36587–36604. [Google Scholar] [CrossRef]
  19. Chen, Y.-L.; Wu, D.-Y.; Tian, Z.-Q. Theoretical Investigation on the Substituent Effect of Halogen Atoms at the C 8 Position of Adenine: Relative Stability, Vibrational Frequencies, and Raman Spectra of Tautomers. J. Phys. Chem. A 2016, 120, 4049–4058. [Google Scholar] [CrossRef]
  20. Laxer, A.; Major, D.T.; Gottlieb, H.E.; Fischer, B. (15 N5)-Labeled Adenine Derivatives: Synthesis and Studies of Tautomerism by 15N NMR Spectroscopy and Theoretical Calculations. J. Org. Chem. 2001, 66, 5463–5481. [Google Scholar] [CrossRef]
  21. Lippert, B.; Gupta, D. Promotion of Rare Nucleobase Tautomers by Metal Binding. Dalton Trans. 2009, 24, 4619–4634. [Google Scholar] [CrossRef]
  22. Raczyńska, E.D.; Gal, J.-F.; Maria, P.-C.; Kamińska, B.; Igielska, M.; Kurpiewski, J.; Juras, W. Purine Tautomeric Preferences and Bond-Length Alternation in Relation with Protonation-Deprotonation and Alkali Metal Cationization. J. Mol. Model. 2020, 26, 93. [Google Scholar] [CrossRef] [Green Version]
  23. Singh, V.; Fedeles, B.I.; Essigmann, J.M. Role of Tautomerism in RNA Biochemistry. RNA 2015, 21, 1–13. [Google Scholar] [CrossRef]
  24. Khuu, P.; Ho, P.S. A Rare Nucleotide Base Tautomer in the Structure of an Asymmetric DNA Junction. Biochemistry 2009, 48, 7824–7832. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  25. Brovarets’, O.O.; Hovorun, D.M. Renaissance of the Tautomeric Hypothesis of the Spontaneous Point Mutations in DNA: New Ideas and Computational Approaches. In Mitochondrial DNA-New Insights; Seligmann, H., Ed.; InTech: London, UK, 2018. [Google Scholar]
  26. Srivastava, R. The Role of Proton Transfer on Mutations. Front. Chem. 2019, 7, 536. [Google Scholar] [CrossRef] [PubMed]
  27. Slocombe, L.; Al-Khalili, J.S.; Sacchi, M. Quantum and Classical Effects in DNA Point Mutations: Watson–Crick Tautomerism in AT and GC Base Pairs. Phys. Chem. Chem. Phys. 2021, 23, 4141–4150. [Google Scholar] [CrossRef] [PubMed]
  28. Jalbout, A.F.; Trzaskowski, B.; Xia, Y.; Li, Y.; Hu, X.; Li, H.; El-Nahas, A.; Adamowicz, L. Structures, Stabilities and Tautomerizations of Uracil and Diphosphouracil Tautomers. Chem. Phys. 2007, 332, 152–161. [Google Scholar] [CrossRef]
  29. Beak, P.; White, J.M. Relative Enthalpies of 1,3-Dimethyl-2,4-Pyrimidinedione, 2,4-Dimethoxypyrimidine, and 4-Methoxy-1-Methyl-1-2-Pyrimidinone: Estimation of the Relative Stabilities of Two Protomers of Uracil. J. Am. Chem. Soc. 1982, 104, 7073–7077. [Google Scholar] [CrossRef]
  30. Tsuchiya, Y.; Tamura, T.; Fujii, M.; Ito, M. Keto-Enol Tautomer of Uracil and Thymine. J. Phys. Chem. 1988, 92, 1760–1765. [Google Scholar] [CrossRef]
  31. Jezuita, A.; Wieczorkiewicz, P.A.; Szatylowicz, H.; Krygowski, T.M. Effect of the Solvent and Substituent on Tautomeric Preferences of Amine-Adenine Tautomers. ACS Omega 2021, 6, 18890–18903. [Google Scholar] [CrossRef]
  32. Jezuita, A.; Wieczorkiewicz, P.A.; Szatylowicz, H.; Krygowski, T.M. Solvent Effect on the Stability and Reverse Substituent Effect in Nitropurine Tautomers. Symmetry 2021, 13, 1223. [Google Scholar] [CrossRef]
  33. Wieczorkiewicz, P.A.; Szatylowicz, H.; Krygowski, T.M. Energetic and Geometric Characteristics of the Substituents: Part 2: The Case of NO2, Cl, and NH2 Groups in Their Mono-Substituted Derivatives of Simple Nitrogen Heterocycles. Molecules 2021, 26, 6543. [Google Scholar] [CrossRef]
  34. Becke, A.D. Perspective: Fifty Years of Density-Functional Theory in Chemical Physics. J. Chem. Phys. 2014, 140, 18A301. [Google Scholar] [CrossRef]
  35. Jones, R.O. Density functional theory: Its origins, rise to prominence, and future. Rev. Mod. Phys. 2015, 87, 897–923. [Google Scholar] [CrossRef] [Green Version]
  36. Frisch, M.J.; Trucks, G.W.; Schlegel, H.B.; Scuseria, G.E.; Robb, M.A.; Cheeseman, J.R.; Scalmani, G.; Barone, V.; Petersson, G.A.; Nakatsuji, H.; et al. Gaussian 16, Revision C.01; J. Gaussian Inc.: Wallingford, CT, USA, 2016. [Google Scholar]
  37. Marek, P.H.; Szatylowicz, H.; Krygowski, T.M. Stacking of Nucleic Acid Bases: Optimization of the Computational Approach—The Case of Adenine Dimers. Struct. Chem. 2019, 30, 351–359. [Google Scholar] [CrossRef] [Green Version]
  38. Sadlej-Sosnowska, N. On the Way to Physical Interpretation of Hammett Constants: How Substituent Active Space Impacts on Acidity and Electron Distribution in p-Substituted Benzoic Acid Molecules. Polish J. Chem. 2007, 81, 1123–1134. [Google Scholar]
  39. Sadlej-Sosnowska, N. Substituent Active Region—A Gate for Communication of Substituent Charge with the Rest of a Molecule: Monosubstituted Benzenes. Chem. Phys. Lett. 2007, 447, 192–196. [Google Scholar] [CrossRef]
  40. Hirshfeld, F.L. Bonded-Atom Fragments for Describing Molecular Charge Densities. Theoret. Chim. Acta 1977, 44, 129–138. [Google Scholar] [CrossRef]
  41. Tomasi, J.; Mennucci, B.; Cancès, E. The IEF version of the PCM solvation method: An overview of a new method addressed to study molecular solutes at the QM ab initio level. J. Mol. Struct. Theochem 1999, 464, 211–226. [Google Scholar] [CrossRef]
  42. Cancès, E.; Mennucci, B.; Tomasi, J. A New Integral Equation Formalism for the Polarizable Continuum Model: Theoretical Background and Applications to Isotropic and Anisotropic Dielectrics. J. Chem. Phys. 1997, 107, 3032–3041. [Google Scholar] [CrossRef]
  43. Tomasi, J.; Mennucci, B.; Cammi, R. Quantum Mechanical Continuum Solvation Models. Chem. Rev. 2005, 105, 2999–3094. [Google Scholar] [CrossRef]
  44. Romero, E.E.; Hernandez, F.E. Solvent Effect on the Intermolecular Proton Transfer of the Watson and Crick Guanine–Cytosine and Adenine–Thymine Base Pairs: A Polarizable Continuum Model Study. Phys. Chem. Chem. Phys. 2018, 20, 1198–1209. [Google Scholar] [CrossRef]
  45. Bader, R.F.W. Atoms in Molecules: A Quantum Theory; Clarendon Press: Oxford, UK, 1994. [Google Scholar]
  46. Todd, A.; Keith, T.K. Gristmill Software, Overland Park KS, AIMAll (Version 19.10.12), USA. 2019. Available online: Aim.tkgristmill.com (accessed on 23 September 2022).
  47. Afonin, A.V.; Vashchenko, A.V.; Sigalov, M.V. Estimating the Energy of Intramolecular Hydrogen Bonds from 1H NMR and QTAIM Calculations. Org. Biomol. Chem. 2016, 14, 11199–11211. [Google Scholar] [CrossRef]
  48. Espinosa, E.; Molins, E.; Lecomte, C. Hydrogen Bond Strengths Revealed by Topological Analyses of Experimentally Observed Electron Densities. Chem. Phys. Lett. 1998, 285, 170–173. [Google Scholar] [CrossRef]
  49. Johnson, E.R.; Keinan, S.; Mori-Sánchez, P.; Contreras-García, J.; Cohen, A.J.; Yang, W. Revealing Noncovalent Interactions. J. Am. Chem. Soc. 2010, 132, 6498–6506. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  50. Lu, T.; Chen, F. Multiwfn: A Multifunctional Wavefunction Analyzer. J. Comput. Chem. 2012, 33, 580–592. [Google Scholar] [CrossRef] [PubMed]
  51. Humphrey, W.; Dalke, A.; Schulten, K. VMD: Visual Molecular Dynamics. J. Mol. Graph. 1996, 14, 33–38. [Google Scholar] [CrossRef]
  52. Koch, U.; Popelier, P.L.A. Characterization of C-H-O Hydrogen Bonds on the Basis of the Charge Density. J. Phys. Chem. 1995, 99, 9747–9754. [Google Scholar] [CrossRef]
  53. Jabłoński, M. A Critical Overview of Current Theoretical Methods of Estimating the Energy of Intramolecular Interactions. Molecules 2020, 25, 5512. [Google Scholar] [CrossRef]
  54. Desiraju, G.R. A Bond by Any Other Name. Angew. Chem. Int. Ed. 2011, 50, 52–59. [Google Scholar] [CrossRef]
Molecules 27 07240 g001 550

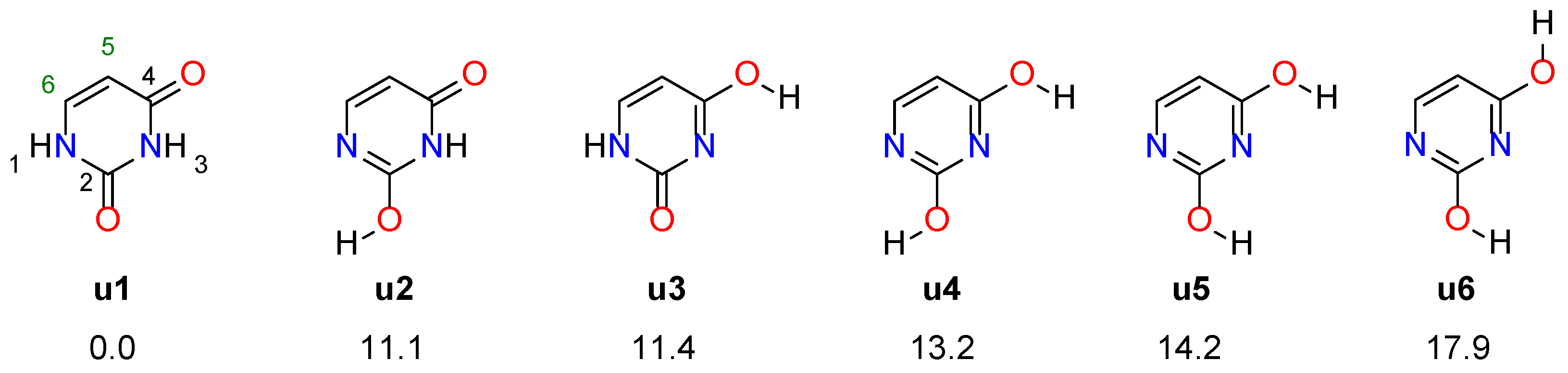

Figure 1. Four most stable tautomers of uracil (u1–u4) and two rotamers of u4 (u5, u6). The numbers given below are their relative energies in kcal/mol.
Figure 1. Four most stable tautomers of uracil (u1–u4) and two rotamers of u4 (u5, u6). The numbers given below are their relative energies in kcal/mol.
Molecules 27 07240 g001
Molecules 27 07240 g002 550

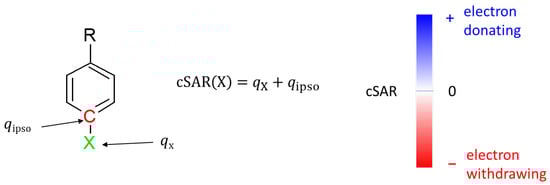

Figure 2. Definition of cSAR and interpretation of its value. qX is the sum of atomic charges of all atoms forming a substituent X, while qipso is the atomic charge at the ipso atom.
Figure 2. Definition of cSAR and interpretation of its value. qX is the sum of atomic charges of all atoms forming a substituent X, while qipso is the atomic charge at the ipso atom.
Molecules 27 07240 g002
Molecules 27 07240 g003 550

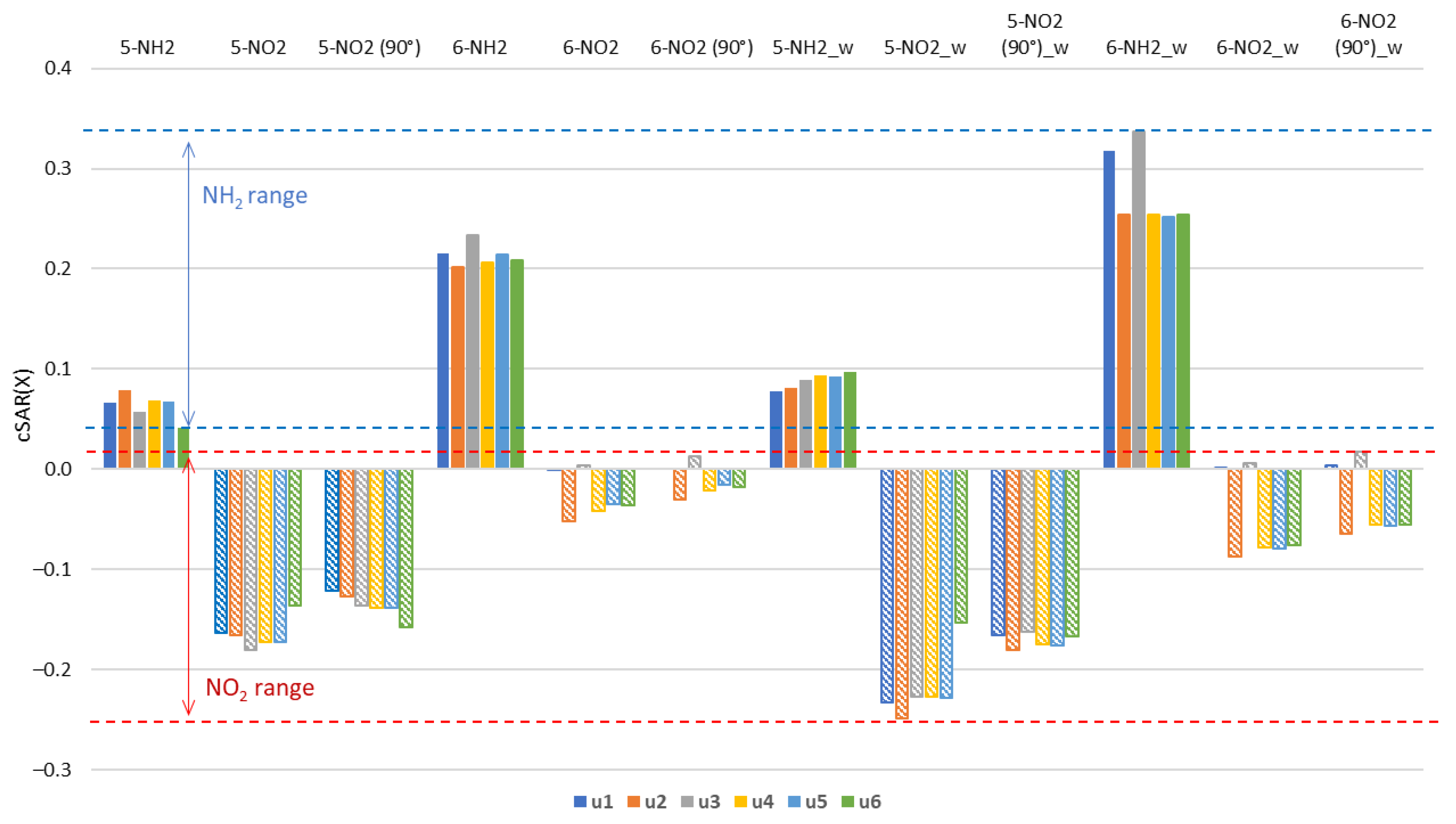

Figure 3. Values of cSAR(X) (in e) for X = NH2, NO2 groups in the gas phase and in the aqueous solution (_w). The 90° in parentheses indicates nitro derivatives where 90° rotation around the CN bond was forced.
Figure 3. Values of cSAR(X) (in e) for X = NH2, NO2 groups in the gas phase and in the aqueous solution (_w). The 90° in parentheses indicates nitro derivatives where 90° rotation around the CN bond was forced.
Molecules 27 07240 g003
Molecules 27 07240 g004 550

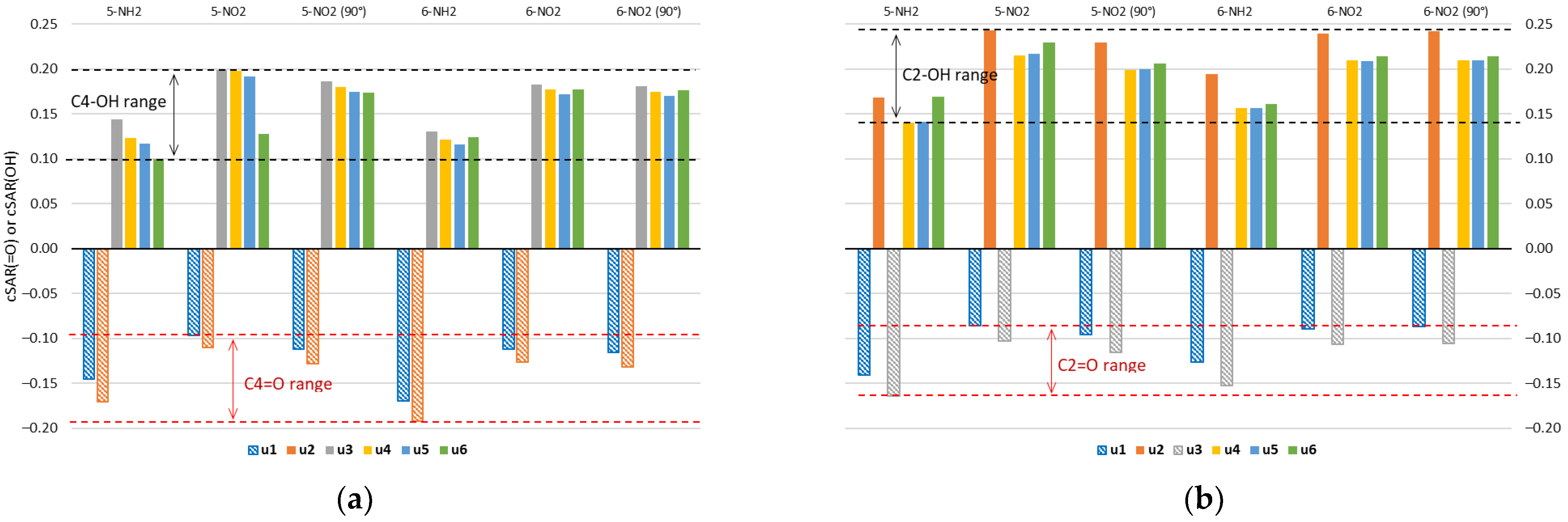

Figure 4. Values of cSAR(=O) or cSAR(OH) (in e) for two groups in (a) C4 and (b) C2 position of uracil molecule. Data for NH2- and NO2-substituted uracil derivatives in the gas phase.
Figure 4. Values of cSAR(=O) or cSAR(OH) (in e) for two groups in (a) C4 and (b) C2 position of uracil molecule. Data for NH2- and NO2-substituted uracil derivatives in the gas phase.
Molecules 27 07240 g004
Molecules 27 07240 g005 550

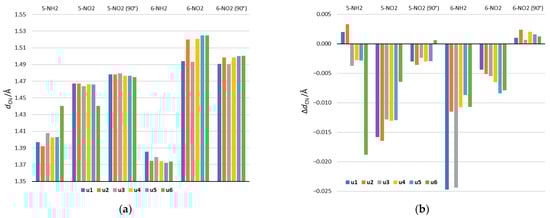

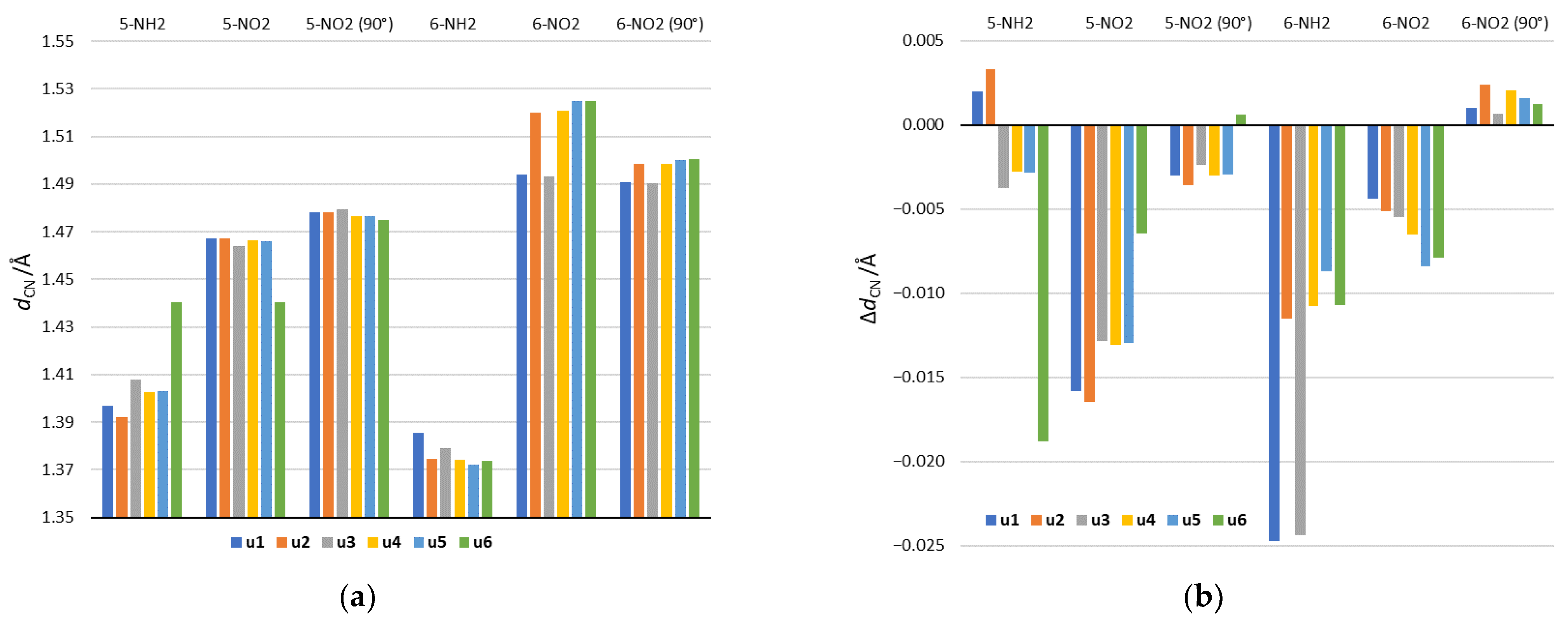

Figure 5. (a) The lengths of the CN bonds, connecting the substituent and substituted system in the gas phase and (b) differences between their lengths in formamide (the most polar solvent) and in the gas phase. Positive values of ΔdCN indicate longer bond in formamide than in the gas phase, while negative values indicate shorter.
Figure 5. (a) The lengths of the CN bonds, connecting the substituent and substituted system in the gas phase and (b) differences between their lengths in formamide (the most polar solvent) and in the gas phase. Positive values of ΔdCN indicate longer bond in formamide than in the gas phase, while negative values indicate shorter.
Molecules 27 07240 g005
Molecules 27 07240 g006 550

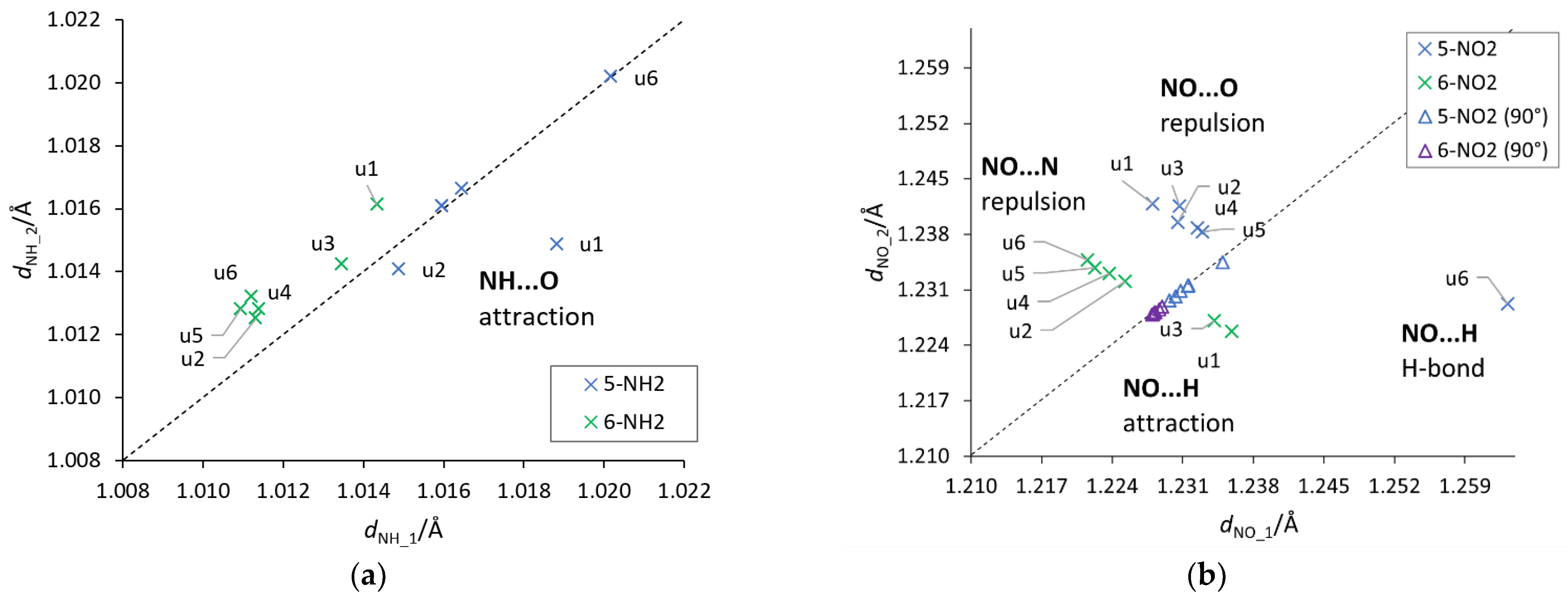

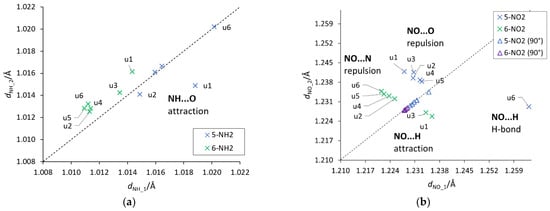

Figure 6. Plots between the lengths of the two (a) NH and (b) NO bonds of the NH2/NO2 groups. The dashed y = x line indicates a symmetry between the bonds. A system where asymmetry is present and the H-bond is detected (u6 5-NO2) has been marked appropriately. NH_1 and NO_1 are the bonds facing towards the lower atom numbers in the ring (for example, 4 in 5 substitution), while NH_2 and NO_2 towards higher numbers (see the atom numbering in Figure 1).
Figure 6. Plots between the lengths of the two (a) NH and (b) NO bonds of the NH2/NO2 groups. The dashed y = x line indicates a symmetry between the bonds. A system where asymmetry is present and the H-bond is detected (u6 5-NO2) has been marked appropriately. NH_1 and NO_1 are the bonds facing towards the lower atom numbers in the ring (for example, 4 in 5 substitution), while NH_2 and NO_2 towards higher numbers (see the atom numbering in Figure 1).
Molecules 27 07240 g006
Molecules 27 07240 g007 550

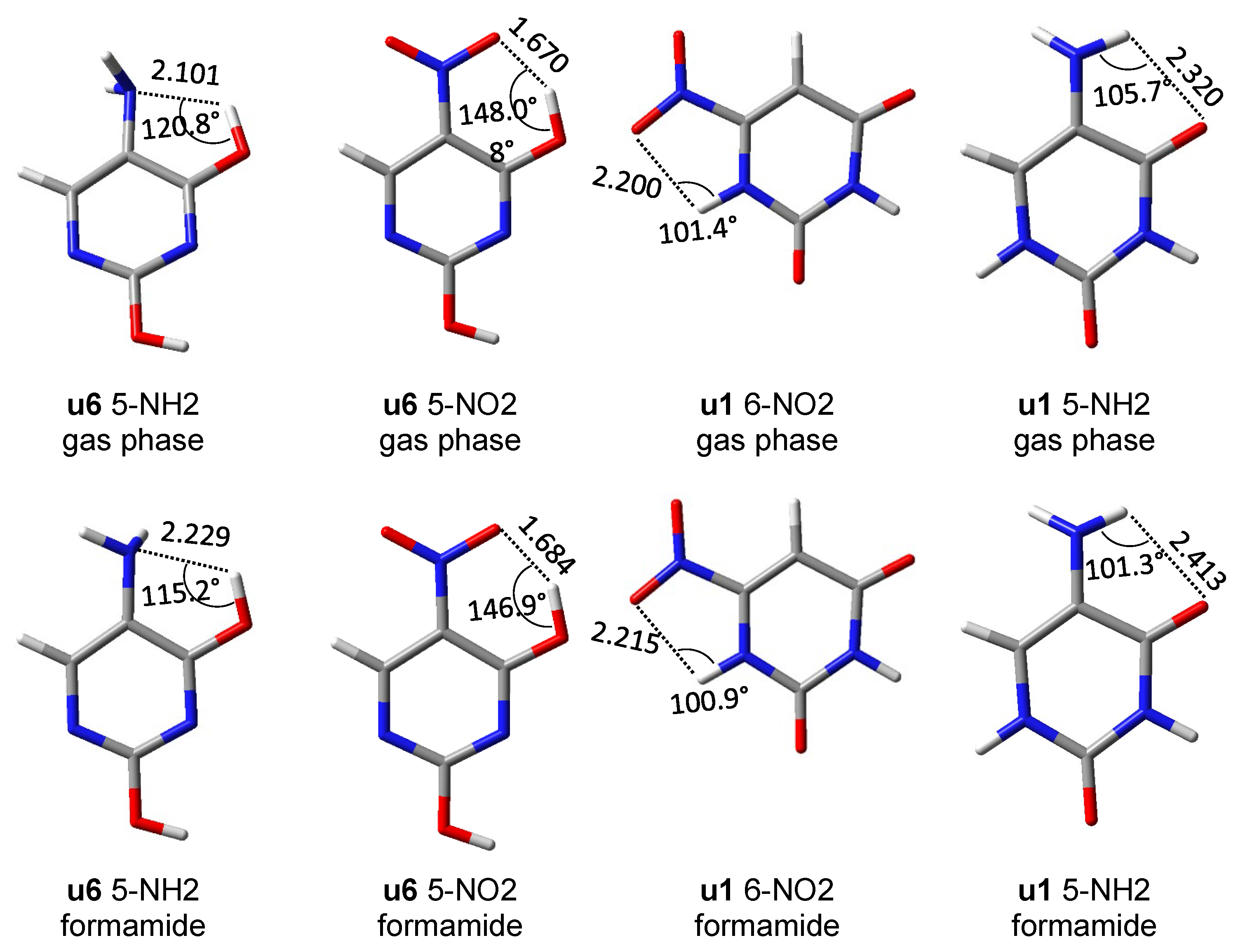

Figure 7. Structures of several systems, in which an interesting intramolecular interaction is present, and geometric data for this interaction (distances in Å).
Figure 7. Structures of several systems, in which an interesting intramolecular interaction is present, and geometric data for this interaction (distances in Å).
Molecules 27 07240 g007
Molecules 27 07240 g008 550

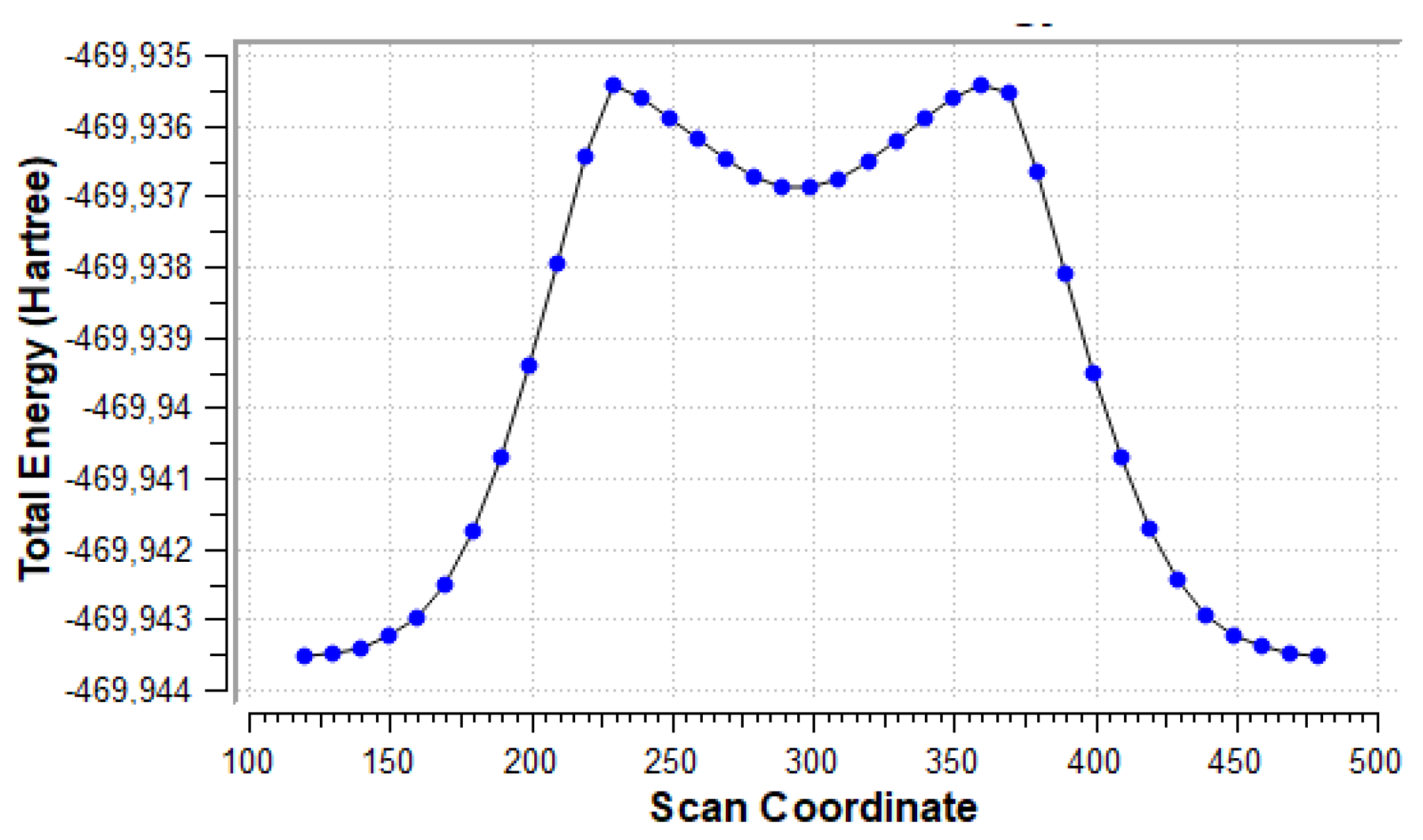

Figure 8. Energy scan for rotation of the NH2 group about the CN bond in the u6 5-NH2 system, shown in Figure 7.
Figure 8. Energy scan for rotation of the NH2 group about the CN bond in the u6 5-NH2 system, shown in Figure 7.
Molecules 27 07240 g008
Molecules 27 07240 g009 550

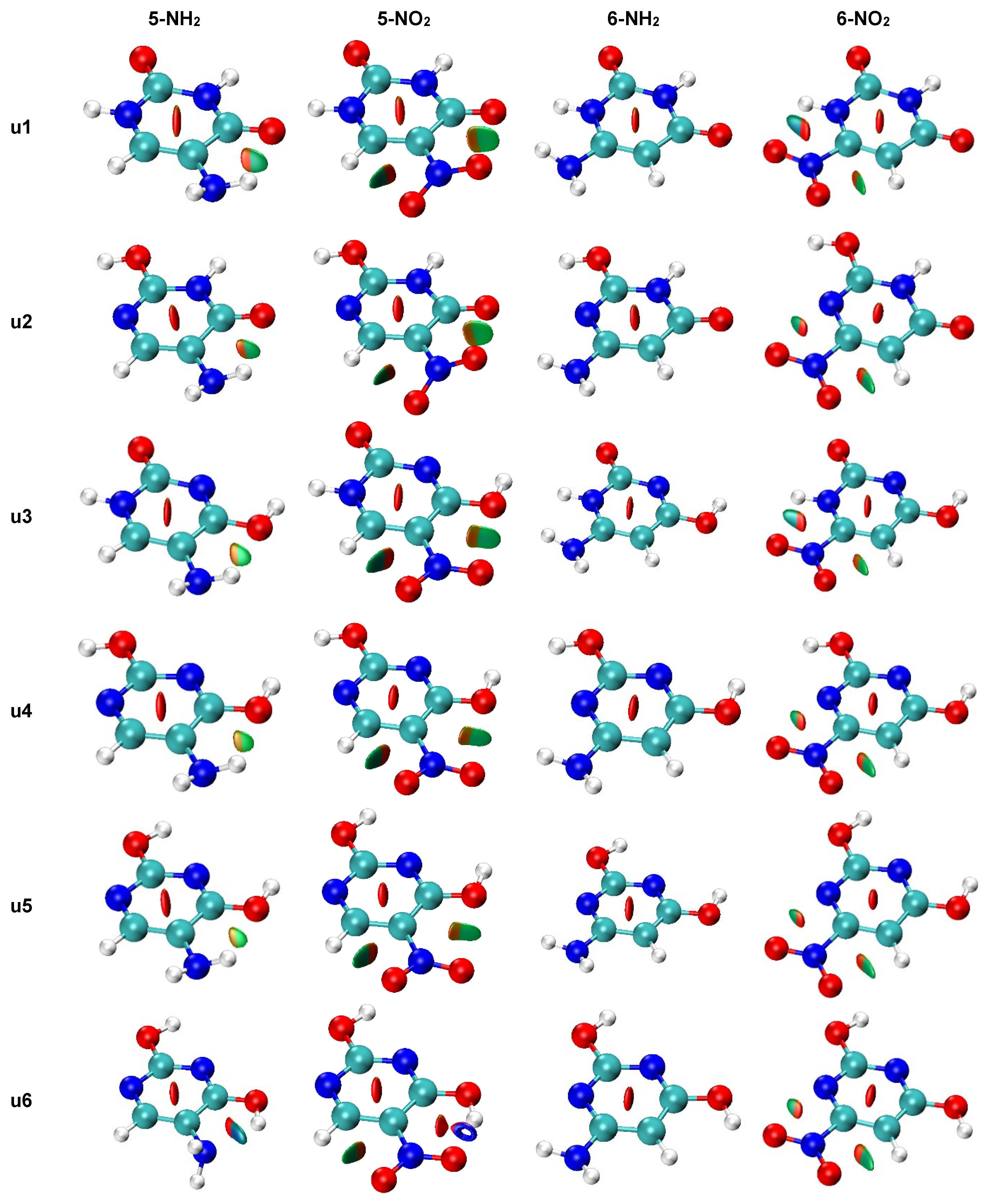

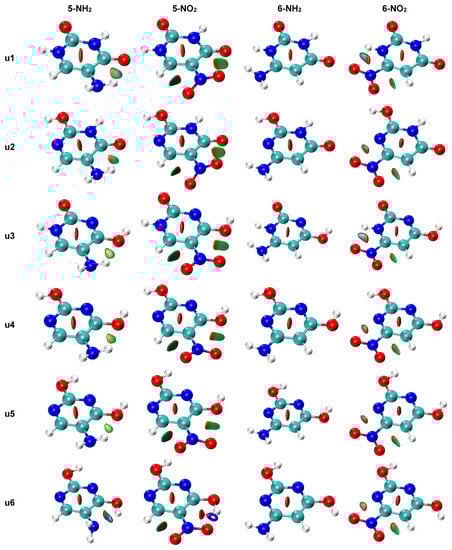

Figure 9. NCI plots for all studied systems (gas phase geometry). Isosurfaces correspond to the value of reduced density gradient function of 0.5. Red shading indicates non-bonding (steric) contacts, green weakly attractive interactions (e.g., van der Waals) and blue strongly attractive interactions (e.g., hydrogen bonding).
Figure 9. NCI plots for all studied systems (gas phase geometry). Isosurfaces correspond to the value of reduced density gradient function of 0.5. Red shading indicates non-bonding (steric) contacts, green weakly attractive interactions (e.g., van der Waals) and blue strongly attractive interactions (e.g., hydrogen bonding).
Molecules 27 07240 g009
Molecules 27 07240 g010 550

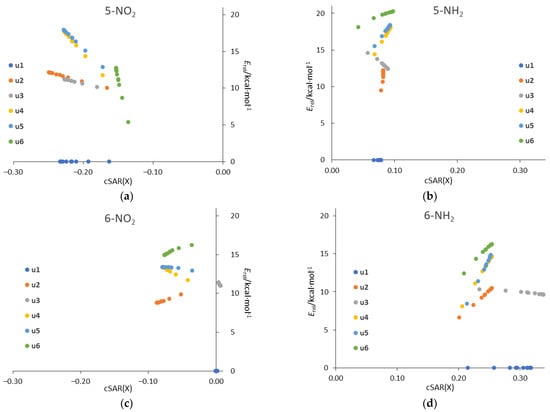

Figure 10. Plots of relative energy of tautomer against the cSAR(X) (in e) for (a) 5-NO2, (b) 5-NH2, (c) 6-NO2, (d) 6-NH2 systems in all considered solvents.
Figure 10. Plots of relative energy of tautomer against the cSAR(X) (in e) for (a) 5-NO2, (b) 5-NH2, (c) 6-NO2, (d) 6-NH2 systems in all considered solvents.
Molecules 27 07240 g010
Table
Table 1. Media in which calculations were performed, and their dielectric constants, ε.
Table 1. Media in which calculations were performed, and their dielectric constants, ε.
FormamideWaterDMSOEthanolPyridineTHFo-CresolChloroformTolueneGas Phase
108.9478.3646.8324.8512.987.436.764.712.371.00
Table
Table 2. Values of cSAR(X) (in elementary charge units, e) for X = NH2, NO2 groups in the gas phase. Δ indicates a difference between the cSAR(X) values in the aqueous solution (PCM) and the gas phase.
Table 2. Values of cSAR(X) (in elementary charge units, e) for X = NH2, NO2 groups in the gas phase. Δ indicates a difference between the cSAR(X) values in the aqueous solution (PCM) and the gas phase.
Taut.5-NH2Δ5-NO2Δ5-NO2 (90°)Δ6-NH2Δ6-NO2Δ6-NO2 (90°)Δ
u10.0670.011−0.163−0.070−0.121−0.0450.2150.102−0.0010.0020.0010.003
u20.0780.003−0.166−0.082−0.127−0.0530.2010.052−0.052−0.035−0.030−0.034
u30.0570.032−0.180−0.047−0.136−0.0260.2340.1030.0040.0030.0130.005
u40.0680.025−0.173−0.055−0.138−0.0370.2060.048−0.042−0.036−0.021−0.034
u50.0680.025−0.172−0.055−0.139−0.0370.2140.038−0.035−0.044−0.015−0.041
u60.0420.055−0.136−0.018−0.157−0.0090.2080.045−0.036−0.040−0.018−0.037
range0.0370.0520.0450.0640.0360.0440.0320.0650.0560.0470.0430.046
Table
Table 3. Parameters of cSAR(X) = a∙(1/ε) + b linear regressions: slopes, a, and determination coefficients, R2; unit cSAR(X) is e.
Table 3. Parameters of cSAR(X) = a∙(1/ε) + b linear regressions: slopes, a, and determination coefficients, R2; unit cSAR(X) is e.
Tautomer5-NH25-NO25-NO2 (90°)6-NO26-NO2 (90°)6-NH2
aR2aR2aR2aR2aR2aR2
u1−0.0110.9930.0710.9570.0440.996−0.0020.772−0.0020.683−0.1030.952
u2−0.0030.8310.0840.9610.0520.9960.0360.9810.0340.998−0.0530.962
u3−0.0320.9740.0470.9690.0261.000−0.0030.654−0.0040.838−0.1040.950
u4−0.0250.9760.0550.9670.0370.9980.0360.9810.0340.999−0.0490.965
u5−0.0250.9740.0560.9680.0370.9980.0450.9720.0410.997−0.0390.979
u6−0.0560.9680.0180.9830.0100.9890.0400.9740.0370.998−0.0460.963
Table
Table 4. Energies (in kcal/mol) of intramolecular hydrogen bonds in the gas phase calculated by means of rotational method (energy of u6 minus u5) and from the Afonin equation (Equation (1)).
Table 4. Energies (in kcal/mol) of intramolecular hydrogen bonds in the gas phase calculated by means of rotational method (energy of u6 minus u5) and from the Afonin equation (Equation (1)).
RotationalAfonin
u6 5-NO2−7.49−7.55
u6 5-NH2−3.36 *−2.61
* Calculated by rotating the OH group in the 4 position by 180° with NH2 group frozen in u6 5-NH2 conformation (perpendicular relative to the plane of the ring).
Table
Table 5. Energies (in kcal/mol) relative to the u1 tautomer. Δ indicates a difference in relative energies between the aqueous phase and the gas phase, Δ = Erel(aq) − Erel(gas).
Table 5. Energies (in kcal/mol) relative to the u1 tautomer. Δ indicates a difference in relative energies between the aqueous phase and the gas phase, Δ = Erel(aq) − Erel(gas).
Taut.H5-NH2Δ5-NO2Δ5-NO2 (90°)Δ6-NH2Δ6-NO2Δ6-NO2 (90°)
u10.00.00.00.00.00.00.00.00.00.00.00.0
u211.19.52.710.12.19.12.56.63.89.91.15.4
u311.414.6−2.210.21.111.80.210.3−0.611.40.411.1
u413.214.43.611.85.911.65.68.16.511.71.67.2
u514.215.52.912.95.012.64.88.56.412.90.58.1
u617.918.12.15.47.315.84.812.43.916.21.311.7
Table
Table 6. Slopes, a, of Erel = a ∙ (1/ε) + b linear regressions (in all cases R2 > 0.97) and molecular dipole moments in the gas phase, μ (Erel in kcal/mol, μ in Debye).
Table 6. Slopes, a, of Erel = a ∙ (1/ε) + b linear regressions (in all cases R2 > 0.97) and molecular dipole moments in the gas phase, μ (Erel in kcal/mol, μ in Debye).
Tautomer5-NH25-NO25-NO2 (90°)6-NO26-NO2 (90°)6-NH2
aμaμaμaμaμaμ
u10.01804.50.02344.90.02074.70.01520.50.01641.10.02316.2
u20.01352.30.02007.00.01686.30.01704.50.01554.20.01684.8
u30.02165.90.02172.20.02032.30.01592.80.01672.60.02426.6
u40.01202.60.01373.80.01202.80.01263.30.01122.80.01253.2
u50.01333.30.01524.70.01323.70.01445.80.01255.40.01271.9
u60.01453.80.01151.80.01301.30.01734.70.01574.50.01684.2
Publisher’s Note: MDPI stays neutral with regard to jurisdictional claims in published maps and institutional affiliations.

Share and Cite

MDPI and ACS Style

Wieczorkiewicz, P.A.; Krygowski, T.M.; Szatylowicz, H. Intramolecular Interactions in Derivatives of Uracil Tautomers. Molecules 2022, 27, 7240. https://doi.org/10.3390/molecules27217240

AMA Style

Wieczorkiewicz PA, Krygowski TM, Szatylowicz H. Intramolecular Interactions in Derivatives of Uracil Tautomers. Molecules. 2022; 27(21):7240. https://doi.org/10.3390/molecules27217240

Chicago/Turabian Style

Wieczorkiewicz, Paweł A., Tadeusz M. Krygowski, and Halina Szatylowicz. 2022. "Intramolecular Interactions in Derivatives of Uracil Tautomers" Molecules 27, no. 21: 7240. https://doi.org/10.3390/molecules27217240

Article Metrics

Back to TopTop
