Selective Formation of Unsymmetric Multidentate Azine-Based Ligands in Nickel(II) Complexes

by
Kennedy Mawunya Hayibor
1,
Yukinari Sunatsuki
2 and
Takayoshi Suzuki
1,3,*
1
Graduate School of Natural Science and Technology, Okayama University, Okayama 700-8530, Japan
2
Advanced Science Research Center, Okayama University, Okayama 700-8530, Japan
3
Research Institute for Interdisciplinary Science, Okayama University, Okayama 700-8530, Japan
*
Author to whom correspondence should be addressed.
Molecules 2022, 27(20), 6788; https://doi.org/10.3390/molecules27206788
Submission received: 30 September 2022 / Revised: 6 October 2022 / Accepted: 7 October 2022 / Published: 11 October 2022
(This article belongs to the Special Issue Crystal Structures of Metal Complexes)
Browse Figures
Review Reports Versions Notes

Abstract

:
A mixture of 2-pyridine carboxaldehyde, 4-formylimidazole (or 2-methyl-4-formylimidazole), and NiCl2·6H2O in a molar ratio of 2:2:1 was reacted with two equivalents of hydrazine monohydrate in methanol, followed by the addition of aqueous NH4PF6 solution, afforded a NiII complex with two unsymmetric azine-based ligands, [Ni(HLH)2](PF6)2 (1) or [Ni(HLMe)2](PF6)2 (2), in a high yield, where HLH denotes 2-pyridylmethylidenehydrazono-(4-imidazolyl)methane and HLMe is its 2-methyl-4-imidazolyl derivative. The spectroscopic measurements and elemental analysis confirmed the phase purity of the bulk products, and the single-crystal X-ray analysis revealed the molecular and crystal structures of the NiII complexes bearing an unsymmetric HLH or HLMe azines in a tridentate κ3 N, N’, N” coordination mode. The HLH complex with a methanol solvent, 1·MeOH, crystallizes in the orthorhombic non-centrosymmetric space group P212121 with Z = 4, affording conglomerate crystals, while the HLMe complex, 2·H2O·Et2O, crystallizes in the monoclinic and centrosymmetric space group P21/n with Z = 4. In the crystal of 2·H2O·Et2O, there is intermolecular hydrogen-bonding interaction between the imidazole N–H and the neighboring uncoordinated azine-N atom, forming a one-dimensional polymeric structure, but there is no obvious magnetic interaction among the intra- and interchain paramagnetic NiII ions.

Graphical Abstract

1. Introduction

Azines are a class of organic molecules with diimine functionality, R1R2C=N–N=CR3R4, which are often regarded as analogs of 1,3-butadiene (R1R2C=CH–CH=CR3R4) due to the resemblance and similarity in their functional groups [1,2], and represent a well-known class of compounds with interesting chemical properties [3] and applications in several and diverse fields [2]. In the area of synthetic organic chemistry, they serve as excellent synthons for obtaining heterocyclic compounds such as purines, pyrazoles, and pyrimidines by undergoing [2,3] criss-cross cycloaddition in the presence of dienophiles [4,5,6]. They are good pharmaceutical and biological agents, for example, antimalarial, anticonvulsant, and antioxidant properties [7,8,9,10]. In the agricultural field, azines exhibit herbicidal properties [11,12]. Azine-based polymers are successfully used for chemosensors [13,14,15] and they also possess promising cathodic abilities for organic batteries [16,17,18] and could be also employed for 2D field effect transistors in their crystallized phase as silicon [19]. Some azine-based polymers possess promising cathodic abilities for organic batteries and are vital in optoelectronic devices. Furthermore, compounds containing the diimine (C=N–N=C) linkers have been investigated as highly luminescent frameworks [20,21,22] as well as good photosensitizers in solar cells [23].
The coordinating ability of the diimine group in the azines is interesting due to the flexibility of the N–N bond. A series of transition-metal complexes of azine-based ligands, which possess interesting structural motifs and other properties, have been reported [2,24]. Pyridyl ketazine is one of the unique azine-based ligands that have been explored by several researchers for its coordinating abilities and modes, thus paving way for the investigation of several azine-based ligands for their unique coordination chemistry [25,26,27]. Our previous studies reported a series of mono- and dinuclear iron(II) complexes with imidazole-4-carbaldehyde azine and other imidazole groups as azine ligands showcasing different modes of coordination towards the iron(II) in the various complexes [28,29,30].
Recently, we have investigated the chemistry of pyridyl and imidazolyl azine-based ligands, where an unprecedented selective synthesis of the unsymmetric (2-pyridyl)(2-methyl-4-imidazolyl)azine is obtained in an excellent yield with an interesting bonding mode [30]. Pursuing our interest in the unsymmetric azine-based ligand, we attempted to synthesize the corresponding nickel(II) complexes bearing 2-pyridylmethylidenehydrazono-(4-imidazolyl)methane (HLH) and 2-pyridylmethylidenehydrazono-(2-methyl-4-imidazolyl)methane (HLMe).

2. Results and Discussion

2.1. Preparation of Unsymmetric (2-Pyridyl)(4-Imidazolyl)azines and Their Nickel(II) Complexes

The most intuitive and possibly simplest method for preparation of an unsymmetric (2-pyridyl)(4-imidazolyl)azine is a reaction of stoichiometric amounts of 2-pyridinecarboxaldehyde, 1H-imidazole-4-carboxaldehyde (or its 2-methyl derivative), and hydrazine (Scheme 1) [31,32]. However, as was expected, all attempts to prepare the compounds HLR with this method failed to isolate the desired compounds, because the reaction gave a complicated mixture of the products (Figure S1 in the Supplementary Materials) which were hard to be separated by any purification method. In a previous study [30], we serendipitously found that the reaction in the presence of iron(II) salts gave selectively the crystals of a FeII complex bearing unsymmetric azine, [Fe(HLMe)2](PF6)2·1.5H2O. To clarify the role of transition-metal salts in the selective formation of a certain complex, we used a nickel(II) chloride for the preparation of (2-pyridyl)(4-imidazolyl)azine complexes.
A mixture of 2-pyridine carboxaldehyde, 4-formylimidazole (or 2-methyl-4-formylimidazole), and NiCl2.6H2O in a 2:2:1 molar ratio in methanol was reacted with a stoichiometric amount of hydrazine monohydrate, followed by the addition of an aqueous solution of NH4PF6, which gave an obvious color change of the reaction solution to deep reddish orange. From the reaction mixture, air-stable deep reddish orange crude product (1 from 4-formylimidazole or 2 from the 2-methyl derivative) was obtained by evaporation of the solvent in a relatively high yield (80% and 83% for compounds 1 and 2, respectively). The crude products are soluble in common polar organic solvents and recrystallized from acetonitrile by vapor diffusion of methanol to deposit block-shaped deep reddish orange crystals of 1·MeOH. For compound 2, platelet single-crystals of 2·H2O·Et2O suitable for X-ray diffraction study were deposited by vapor diffusion of diethyl ether into a methanol solution. In the FT-IR measurement of both compounds, the crude and recrystallized products gave almost identical spectra, which showed ν(C=N) stretching bands at 1619 and 1603 cm−1 for 1 and 1625 and 1603 cm−1 for 2 (Figure S2). This suggests that like the above-mentioned FeII complex [30], a certain NiII complex was selectively formed among several possible products. The elemental analyses of the vacuum-dried (partially efflorescent) samples suggested the empirical composition of [Ni(HLH)2](PF6)2·0.5MeOH and [Ni(HLMe)2](PF6)2.MeCN.1.5MeOH for 1 and 2, respectively.
The χMT values of 1 and 2 at 300 K are 1.14 and 1.21 cm3 K mol−1, respectively. These values are almost constant down to 20 K, then, decrease sharply below 20 K due to magnetic anisotropies of them (Figure S3). No significant magnetic interactions between complex cations were observed. In addition, magnetizations at 1.9 K for both complexes (Figure S3) did not reach the saturation values at 5 T, indicating the existence of magnetic anisotropies for both complexes. They are common behavior for magnetically isolated octahedral mononuclear nickel(II) complexes.
Absorption spectra of complexes 1 and 2 recorded in acetonitrile at room temperature were shown in Figure S4. Both complexes displayed two absorption bands in the region of 200–550 nm. The absorption bands in the higher energy region around 200–330 nm can be assigned to ligand-centered (LC) π–π* and n–π* transitions, respectively. The lowest energy absorption band for the complexes around 450–550 nm can be ascribed as the metal-to-ligand charge transfer (MLCT) band.

2.2. Crystal Structures of the Nickel(II) Complexes

The molecular and crystal structures of 1·MeOH and 2·H2O·Et2O was confirmed by the single-crystal X-ray analysis at 188(2) K. Compound 1·MeOH crystallized in the orthorhombic system and a non-centrosymmetric space group P212121 with Z = 4 (Table 1), indicating conglomerate crystallization (spontaneous resolution of the enantiomers). The asymmetric unit consists of one [Ni(HLH)2]2+ cation, two PF6− anions, and a methanol molecule of crystallization. An ORTEP drawing of 1 is shown in Figure 1. The NiII center was coordinated by two HLH ligands in a pseudo-octahedral coordination geometry. Each HLH ligand has an E,Z configuration (mode (i) in Scheme 2) serving as tridentate coordination to a NiII center in a meridional fashion via pyridyl-N, imidazolyl-N, and one of the azine-N atoms close to the pyridyl substitution group. This coordination mode forms a five-membered chelate ring on the pyridine side and a six-membered one on the imidazole side. It is noted that the other azine-N atom remains uncoordinated and the imidazole-NH group remains protonated.
The coordination bond lengths and angles of 1 are summarized in Table 2, which indicates the nearly ideal octahedral coordination geometry around the Ni center, with minor deviations. The Ni–N bond lengths are in the range of 2.039(5)–2.095(5) Å, which are typical for NiII–N(imine) coordination bonds [33,34]. The five-membered chelate bite angles (N1–Ni1–N2 and N6–Ni1–N7) are smaller by ca. 10° than the six-membered chelate bite angles (N2–Ni1–N5, N7–Ni1–N10), as expected. The mutually trans bond angle of N2–Ni1–N7 for the azine-N donors (175.7(2)°) is close to the ideal value.
The packing structure of 1·MeOH was illustrated in Figure S5. In the crystal structure, an explicit hydrogen-bond was observed between one of the imidazole N–H group and the O atom of the methanol molecule of crystallization: N9(–H)···O1 2.710(8) Å (Figure 1), but no other intermolecular interactions were found. In a previous study, we reported the crystal structure of the analogous FeII complex, [Fe(HLMe)2](PF6)2·1.5H2O [30], in which a noble kryptoracemate resulted from a formation of a one-dimensional helical polymer by an intermolecular hydrogen-bonding interaction. In the present NiII complex 1·MeOH, although the compound was crystallized in a non-enantiogenic (Sohncke) space group, P212121, the complex cation was crystallized in a discrete form (Figure S5) and did not show the kryptoracemate phenomenon. We have tried to measure the solid-state CD spectra of a piece of single-crystal of 1·MeOH (in a KBr disk), but no CD signal was observed.
The compound, 2·H2O·Et2O, crystallized in the monoclinic system and centrosymmetric space group P21/n with Z = 4 (Table 1). The molecular structure of the NiII complex cation in 2 (Figure 2) is very similar to that in 1, except for the large deviation of the bond angles, e.g., N2–Ni1–N7 and N5–Ni1–N7 (Table 2), which resulted from steric congestion from the substituted methyl group at the imidazole ring.
In the crystal structure, the intermolecular hydrogen-bonding interaction was observed between the imidazole N–H and azine-N groups: N9(–H9)···N8 2.714(6) Å, forming one-dimensional coordination polymers (Figure 3). In contrast to the corresponding FeII complex [30], this NiII complex 2·H2O·Et2O crystallized in a centrosymmetric space group P21/n, indicating the crystal consists of the racemic mixture.

3. Materials and Methods

3.1. Chemicals and Physical Methods

All chemicals and solvents used for syntheses of azine compounds and Ni complexes were reagent grade and used without further purification. First, 2-pyridinecarboxaldehyde, 1H-imidazole-4-carboxaldehyde, 2-methyl-1H-imidazole-4-carboxaldehyde, nickel(II) chloride hexahydrate, and ammonium hexafluorophosphate were purchased from FUJIFILM (Tokyo, Japan). All reactions were carried out under aerobic conditions. Infrared spectra (KBr pellets; 4000–400 cm−1) were recorded on a JASCO FT-001 Fourier transform infrared spectrometer (JASCO, Tokyo, Japan). Absorption spectra were recorded on a Shimadzu UV/Vis-1650 spectrophotometer (Kyoto, Japan) in the range of 200–600 nm at room temperature in acetonitrile. The 1H NMR spectra were acquired on a Varian 400-MR spectrometer (Los Angeles, CA, USA); the chemical shifts were referenced to residual 1H NMR signals of solvents and are reported versus TMS. Elemental analyses were conducted at Advanced Science Research Center, Okayama University. Magnetic susceptibilities were measured on a Quantum Design MPMS XL5 SQUID magnetometer (Tokyo, Japan) in a 1.9–300 K temperature range under an applied magnetic field of 0.1 T at the Okayama University of Science. Corrections for diamagnetism were applied using Pascal’s constants [35].

3.2. Preparation of Nickel(II) Complexes

3.2.1. [Ni(HLH)2](PF6)2 (1)

A methanol solution (30 mL) of NiCl2·6H2O (0.477 g, 2.00 mmol) was added to a methanol solution (60 mL) containing 2-pyridinecarboxaldehyde (0.432 g, 4.00 mmol) and 1H-imidazole-4-carboxaldehyde (0.387 g, 4.00 mmol), followed by additions of hydrazine monohydrate (0.207 g, 4.00 mmol) in methanol (30 mL) and NH4PF6 (0.652 g, 4.00 mmol) in water (20 mL). The mixture was stirred at ca. 60 °C for 3 h. The resulting solution was concentrated by a rotary vacuum evaporator to give a deep reddish-orange precipitate. The crude product was dissolved in methanol and acetonitrile and recrystallized by slow evaporation to deposit deep reddish-orange microcrystals. Crystals suitable for the SC-XRD study were obtained from a mixture of acetonitrile and methanol. Yield: 1.72 g (80%). Anal. Found: C, 32.41; H, 2.36; N, 18.38%. Calcd for C20.5H20F12NiN10O0.5P2 (for 1·0.5MeOH: C, 32.27; H, 2.64; N, 18.36%. IR (KBr pellet): νC=N (imine) 1619, 1603 cm−1; νP–F (PF6−) 840 cm−1.

3.2.2. [Ni(HLMe)2](PF6)2 (2)

Complex 2 was obtained in a similar manner using 2-methyl-1H-imidazole-4-carboxaldehyde instead of 1H-imidazole-4-carboxaldehyde. Yield: 83%. Anal. Found: C, 35.45; H, 3.43; N, 17.95%. Calcd for C25.5H31F12NiO1.5P2 (for 2·CH3CN·1.5CH3OH: C, 35.44; H, 3.62; N, 17.83. IR (KBr pellet cm−1): νC=N (imine) 1635, 1609 (fs) νP–F (PF6−) 845(s). Deep reddish-orange platelet crystals (2·H2O·Et2O) suitable for SC-XRD were obtained from a mixture of methanol and diethyl ether.

3.3. Structure Determination by X-ray Crystallography

The single-crystal X-ray diffraction data for compounds 1·MeOH and 2·H2O·Et2O were collected at 188(2) K using a Rigaku RAXIS RAPID II imaging plate area detector employing graphite monochromated Mo Kα radiation (λ = 0.71073 Å). The structures were solved by the direct method, employing the SIR2014 software packages [36], and refined on F2 by full-matrix least-squares techniques using the SHELXL2014 program package [37]. All non-hydrogen atoms were refined anisotropically, and hydrogen atoms were included in the calculations with riding models. All calculations were performed using the Crystal Structure software package [38]. The crystal parameters, data collection procedure, and refinement results for the two compounds 1·MeOH and 2·H2O·Et2O are summarized in Table 1.

4. Conclusions

In this study, we attempted to prepare transition-metal(II) complexes of an unsymmetrical azine-type ligand, HLR, having 2-pyridyl and (2-methyl-)1H-imidazol-4-yl substituent groups. The desired azine could not be isolated in pure form from a simple stoichiometric reaction of hydrazine and respective aldehydes. However, in our previous study using FeII salts, a highly selective formation of [Fe(HLMe)2](PF6)2·1.5H2O was observed, and the complex was found to be a kryptoracemate as a result of a one-dimensional helical chain structure by hydrogen-bonding interaction. At present, we have studied another two cases with nickel(II) salts: [Ni(HLH)2](PF6)2·MeOH (1·MeOH) and [Ni(HLMe)2](PF6)2·H2O·Et2O (2·H2O·Et2O). In both cases, a highly selective formation of the unsymmetrical azine complex was observed among other possible symmetrical and/or unsymmetrical complexes.
In the crystal of 1·MeOH, the compound was crystallized in a non-enantiogenic (Sohncke) space group, P212121, but the complex cation, [Ni(HLH)2]2+, was only hydrogen-bonded to the solvated methanol molecule. In the crystal structure of 2·H2O·Et2O, there observed a one-dimensional hydrogen-bonded polymer chain made from [Ni(HLMe)2]2+, but it was crystallized in a centrosymmetric space group, P21/c. Thus, it can be concluded that the reason for the selective formation of an unsymmetric azine ligand in [Fe(HLMe)2](PF6)2·1.5H2O was not solely the formation of the characteristic hydrogen-bonded chain. The suitable tridentate chelate formation of E,Z-HLR with mode (i) (in Scheme 2), which gives a five-membered chelate ring at the pyridyl coordination site and a six-membered chelate ring at the imidazolyl one, would probably be the most stable among the other coordination modes of symmetrical and unsymmetrical azine derivatives.

Supplementary Materials

The following supporting information can be downloaded at: https://www.mdpi.com/article/10.3390/molecules27206788/s1, Text for Syntheses of the symmetrical and unsymmetrical azine compounds; Figure S1: 1H NMR Spectra of the azines; Figure S2: FT-IR spectra of [Ni(HLH)2](PF6)2 (1) and [Ni(HLMe)2](PF6)2 (2); Figure S3: The χMT vs T plots of 1 and 2 and magnetizations of 1 and 2 at 1.9 K; Figure S4: Absorption spectra of 1 and 2 in acetonitrile at room temperature; Figure S5: Packing diagram of 1·MeOH viewed along the crystallographic a axis; Figure S6: Packing diagrams of 2·H2O·Et2O viewed along crystallographic a and b axes.

Author Contributions

Conceptualization, Y.S. and T.S.; methodology, K.M.H. and Y.S.; validation, K.M.H., Y.S. and T.S.; formal analysis, K.M.H., Y.S. and T.S.; investigation, K.M.H. and Y.S.; resources, Y.S. and T.S.; data curation, K.M.H.; writing—original draft preparation, K.M.H.; writing—review and editing, T.S.; visualization, K.M.H., Y.S. and T.S.; supervision, T.S.; project administration, T.S.; funding acquisition, T.S. All authors have read and agreed to the published version of the manuscript.

Funding

This research was supported by JSPS KAKENHI Grant No. 21K05084.

Data Availability Statement

Crystallographic data for compounds 1·MeOH and 2·H2O·Et2O have been deposited with the Cambridge Crystallographic Data Centre, CCDC 2209932, and 2209933, respectively. These data can be obtained free of charge from The Cambridge Crystallographic Data Centre via www.ccdc.cam.ac.uk/data_request/cif (accessed on 28 September 2022).

Acknowledgments

K.M.H. thanks to RIIS, Okayama University for generous support.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Safari, J.; Gandomi-Ravandi, S. Structure, synthesis and application of azines: A historical perspective. RSC Adv. 2014, 4, 46224–46249. [Google Scholar] [CrossRef]
  2. Chourasiya, S.S.; Kathuria, D.; Wani, A.A.; Bharatam, P.V. Azines: Synthesis, structure, electronic structure and their applications. Org. Biomol. Chem. 2019, 17, 8486–8521. [Google Scholar] [CrossRef]
  3. Hopkins, J.M.; Bowdridge, M.; Robertson, K.N.; Cameron, T.S.; Jenkins, H.A.; Clyburne, J.A.C. Generation of Azines by the Reaction of a Nucleophilic Carbene with Diazoalkanes: A Synthetic and Crystallographic Study. J. Org. Chem. 2001, 66, 5713–5716. [Google Scholar] [CrossRef]
  4. Padwa, A. 1,3-Dipolar Cycloaddition Chemistry; John Wiley and Sons: New York, NY, USA, 1984; Volumes 1 and 2. [Google Scholar]
  5. El-Alali, A.; Al-Kamali, A.S. Reactions of 1,3-dipolar aldazines and ketazines with the dipolarophile dimethyl acetylenedicarboxylate. Can. J. Chem. 2002, 80, 1293–1301. [Google Scholar] [CrossRef]
  6. Meth-Cohn, O.; Smalley, R.K. Heterocyclic chemistry. Annu. Rep. Prog. Chem. Sect. B Org. Chem. 1976, 73, 239–277. [Google Scholar] [CrossRef]
  7. Godara, M.; Maheshwari, R.; Varshney, S.; Varshney, A.K. Synthesis and characterization of some new coordination compounds of boron with mixed azines. J. Serb. Chem. Soc. 2007, 72, 367–374. [Google Scholar] [CrossRef]
  8. Sheng, R.; Wang, P.; Liu, W.; Wu, X.; Wu, S. A new colorimetric chemosensor for Hg2+ based on coumarin azine derivative. Sens. Actuators B Chem. 2008, 128, 507–511. [Google Scholar] [CrossRef]
  9. Kim, S.-H.; Gwon, S.-Y.; Burkinshaw, S.M.; Son, Y.-A. The synthesis and proton-induced spectral switching of a novel azine dye and its boron complex. Dye. Pigment. 2010, 87, 268–271. [Google Scholar] [CrossRef]
  10. Bodtke, A.; Pfeiffer, W.-D.; Ahrens, N.; Langer, P. Horseradish peroxidase (HRP) catalyzed oxidative coupling reactions using aqueous hydrogen peroxide: An environmentally benign procedure for the synthesis of azine pigments. Tetrahedron 2005, 61, 10926–10929. [Google Scholar] [CrossRef]
  11. Dolezal, M.; Kralov, K. Synthesis and Evaluation of Pyrazine Derivatives with Herbicidal Activity. In Herbicides, Theory, and Applications; Larramendy, M.L., Soloneski, S., Eds.; IntechOpen Limited: London, UK, 2011. [Google Scholar]
  12. Moreland, D.E. Biochemical Mechanisms of Action of Herbicides and the Impact of Biotechnology on the Development of Herbicides. J. Pestic. Sci. 1999, 24, 299–307. [Google Scholar] [CrossRef]
  13. Manigandan, S.; Muthusamy, A.; Nandhakumar, R.; David, C.I.; Anand, S. Synthesis, characterization, theoretical investigations and fluorescent sensing behavior of oligomeric azine-based Fe3+ chemosensors. High Perform. Polym. 2022, 34, 321–336. [Google Scholar] [CrossRef]
  14. Sawminathan, S.; Munusamy, S.; Manickam, S.; Jothi, D.; KulathuIyer, S. Azine based fluorescent rapid “off-on” chemosensor for detecting Th4+ and Fe3+ ions and its real-time application. Dye. Pigment. 2021, 196, 109755. [Google Scholar] [CrossRef]
  15. Irmi, N.M.; Purwono, B.; Anwar, C. Synthesis of Symmetrical Acetophenone Azine Derivatives as Colorimetric and Fluorescent Cyanide Chemosensors. Indones. J. Chem. 2021, 21, 1337–1347. [Google Scholar] [CrossRef]
  16. Acker, P.; Speer, M.E.; Wössner, J.S.; Esser, B. Azine-based polymers with a two-electron redox process as cathode materials for organic batteries. J. Mater. Chem. A 2020, 8, 11195–11201. [Google Scholar] [CrossRef]
  17. Lyu, H.; Sun, X.G.; Dai, S. Organic Cathode Materials for Lithium-Ion Batteries: Past, Present, and Future. Adv. Energy Sustain. Res. 2021, 2, 2000044. [Google Scholar] [CrossRef]
  18. Hager, M.D.; Esser, B.; Feng, X.; Schuhmann, W.; Theato, P.; Schubert, U.S. Polymer-Based Batteries—Flexible and Thin Energy Storage Systems. Adv. Mater. 2020, 32, 2000587. [Google Scholar] [CrossRef]
  19. Tantardini, C.; Kvashnin, A.G.; Gatti, C.; Yakobson, B.I.; Gonze, X. Computational Modeling of 2D Materials under High Pressure and Their Chemical Bonding: Silicene as Possible Field-Effect Transistor. ACS Nano 2021, 15, 6861–6871. [Google Scholar] [CrossRef]
  20. Singh, A.; Kociok-Köhn, G.; Chauhan, R.; Muddassir, M.; Gosavi, S.W.; Kumar, A. Ferrocene Appended Asymmetric Sensitizers with Azine Spacers with phenolic/nitro anchors for Dye-Sensitized Solar Cells. J. Mol. Struct. 2021, 1249, 131630. [Google Scholar] [CrossRef]
  21. Dalapati, S.; Jin, S.; Gao, J.; Xu, Y.; Nagai, A.; Jiang, D. An Azine-Linked Covalent Organic Framework. J. Am. Chem. Soc. 2013, 135, 17310–17313. [Google Scholar] [CrossRef]
  22. Konavarapu, S.K.; Biradha, K. Luminescent Triazene-Based Covalent Organic Frameworks Functionalized with Imine and Azine: N2 and H2 Sorption and Efficient Removal of Organic Dye Pollutants. Cryst. Growth Des. 2019, 19, 362–368. [Google Scholar] [CrossRef]
  23. Sęk, D.; Siwy, M.; Małecki, J.G.; Kotowicz, S.; Golba, S.; Nowak, E.M.; Sanetra, J.; Schab-Balcerzak, E. Polycyclic aromatic hydrocarbons connected with Schiff base linkers: Experimental and theoretical photophysical characterization and electrochemical properties. Spectrochim. Acta Part A Mol. Biomol. Spectrosc. 2017, 175, 168–176. [Google Scholar] [CrossRef] [PubMed]
  24. Yang, Q.-F.; Cui, X.-B.; Yu, J.-H.; Lu, J.; Yu, X.-Y.; Zhang, X.; Xu, J.-Q.; Hou, Q.; Wang, T.-G. A series of metal–organic complexes constructed from in situ generated organic amines. CrystEngComm 2008, 10, 1534–1541. [Google Scholar] [CrossRef]
  25. Stratton, W.J.; Busch, D.H. The Complexes of Pyridinaldazine with Iron(II) and Nickel(II). J. Am. Chem. Soc. 1958, 80, 1286–1289. [Google Scholar] [CrossRef]
  26. Stratton, W.J.; Rettig, M.F.; Drury, R.F. Metal complexes with azine ligands. I. Ligand hydrolysis and template synthesis in the iron(II)-2-Pyridinaldazine system. Inorg. Chim. Acta 1969, 3, 97–102. [Google Scholar] [CrossRef]
  27. Stratton, W.J. Metal complexes with azine ligands. II. Iron(II), cobalt(II), and nickel(II) complexes with 2-pyridyl methyl ketazine. Inorg. Chem. 1970, 9, 517–520. [Google Scholar] [CrossRef]
  28. Sunatsuki, Y.; Kawamoto, R.; Fujita, K.; Maruyama, H.; Suzuki, T.; Ishida, H.; Kojima, M.; Iijima, S.; Matsumoto, N. Structures and Spin States of Bis(tridentate)-Type Mononuclear and Triple Helicate Dinuclear Iron(II) Complexes of Imidazole-4-carbaldehyde azine. Inorg. Chem. 2009, 48, 8784–8795. [Google Scholar] [CrossRef]
  29. Sunatsuki, Y.; Maruyama, H.; Fujita, K.; Suzuki, T.; Kojima, M.; Matsumoto, N. Mononuclear Bis(tridentate)-Type and Dinuclear Triple Helicate Iron(II) Complexes Containing 2-Ethyl-5-methylimidazole-4-carbaldehyde Azine. Bull. Chem. Soc. Jpn. 2009, 82, 1497–1505. [Google Scholar] [CrossRef]
  30. Sunatsuki, Y.; Fujita, K.; Maruyama, H.; Suzuki, T.; Ishida, H.; Kojima, M.; Glaser, R. Chiral Crystal Structure of a P212121 Kryptoracemate Iron(II) Complex with an Unsymmetric Azine Ligand and the Observation of Chiral Single Crystal Circular Dichroism. Cryst. Growth Des. 2014, 14, 3692–3695. [Google Scholar] [CrossRef]
  31. Safari, J.; Gandomi-Ravandi, S. Highly Efficient Practical Procedure for the Synthesis of Azine Derivatives Under Solvent-Free Conditions. Synth. Commun. 2011, 41, 645–651. [Google Scholar] [CrossRef]
  32. Safari, J.; Gandomi-Ravandi, S.; Monemi, M. Novel and selective synthesis of unsymmetrical azine derivatives via a mild reaction. Monatsh. Chem. 2013, 144, 1375–1380. [Google Scholar] [CrossRef]
  33. Tang, B.; Ye, J.-H.; Ju, X.-H. Computational Study of Coordinated Ni(II) Complex with High Nitrogen Content Ligands. ISRN Org. Chem. 2011, 2011, 920753. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  34. Colpas, G.J.; Kumar, M.; Day, R.O.; Maroney, M.J. Structural investigations of nickel complexes with nitrogen and sulfur donor ligands. Inorg. Chem. 1990, 29, 4779–4788. [Google Scholar] [CrossRef]
  35. Bain, G.A.; Berry, J.F. Diamagnetic Corrections and Pascal’s Constants. J. Chem. Educ. 2008, 85, 532–536. [Google Scholar] [CrossRef]
  36. Burla, M.C.; Caliandro, R.; Carrozzini, B.; Cascarano, G.L.; Cuocci, C.; Giacovazzo, C.; Mallamo, M.; Mazzone, A.; Polodori, G. Crystal structure determination, and refinement via SIR2014. J. Appl. Crystallogr. 2015, 48, 306–309. [Google Scholar] [CrossRef]
  37. Sheldrick, G.M. Crystal structure refinement with SHELXL. Acta Crystallogr. Sect. C Struct. Chem. 2015, C71, 3–8. [Google Scholar] [CrossRef] [Green Version]
  38. Rigaku Co., Ltd. CrystalStructure; Rigaku Co., Ltd.: Akishima, Tokyo, 2000–2016. [Google Scholar]
Molecules 27 06788 sch001 550

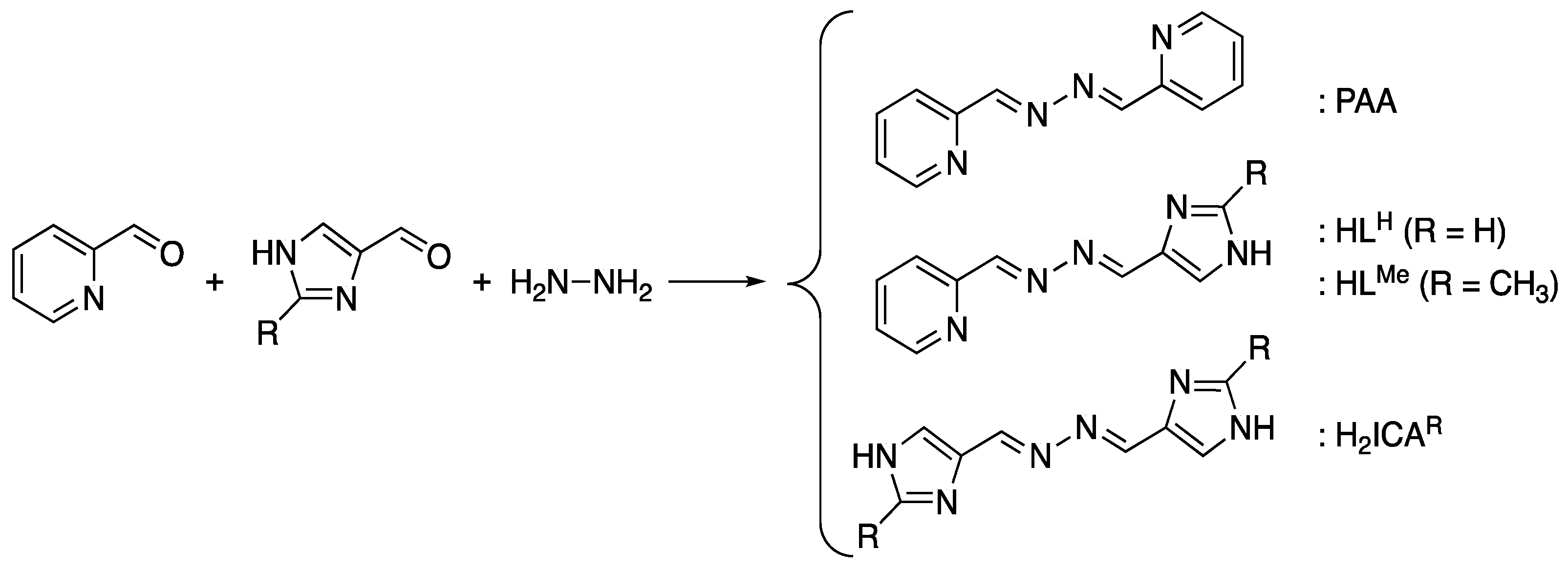

Scheme 1. Preparation of (2-pyridyl and/or 4-imidazolyl)azine compounds.
Scheme 1. Preparation of (2-pyridyl and/or 4-imidazolyl)azine compounds.
Molecules 27 06788 sch001
Molecules 27 06788 g001 550

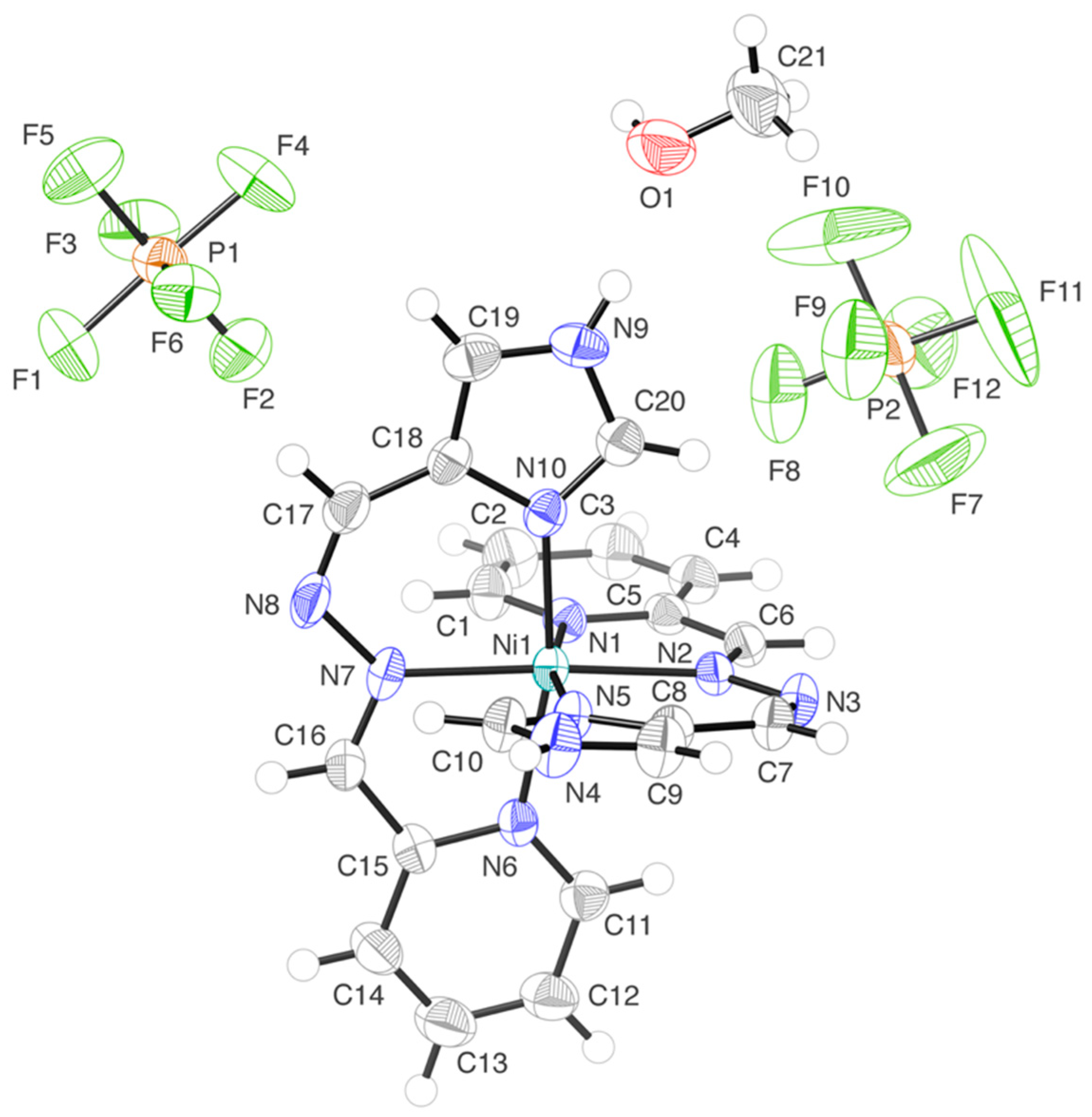

Figure 1. An ORTEP drawing of [Ni(HLH)2](PF6)2·MeOH (1·MeOH) with an atom-numbering scheme (ellipsoids are drawing at a 50% probability level).
Figure 1. An ORTEP drawing of [Ni(HLH)2](PF6)2·MeOH (1·MeOH) with an atom-numbering scheme (ellipsoids are drawing at a 50% probability level).
Molecules 27 06788 g001
Molecules 27 06788 sch002 550

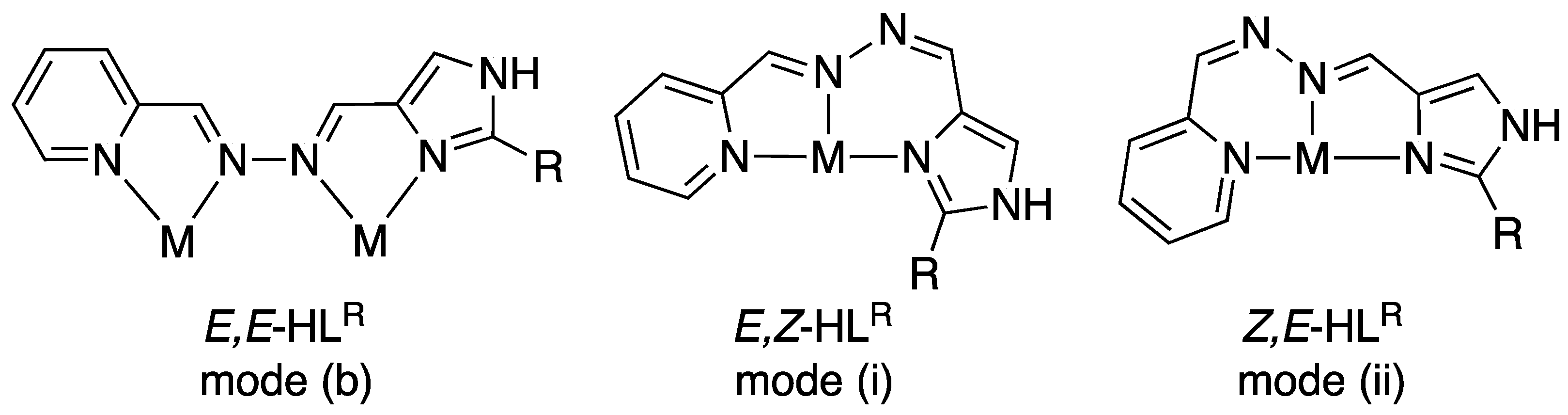

Scheme 2. Possible configuration and their bridging or tridentate coordination modes for HLR azines.
Scheme 2. Possible configuration and their bridging or tridentate coordination modes for HLR azines.
Molecules 27 06788 sch002
Molecules 27 06788 g002 550

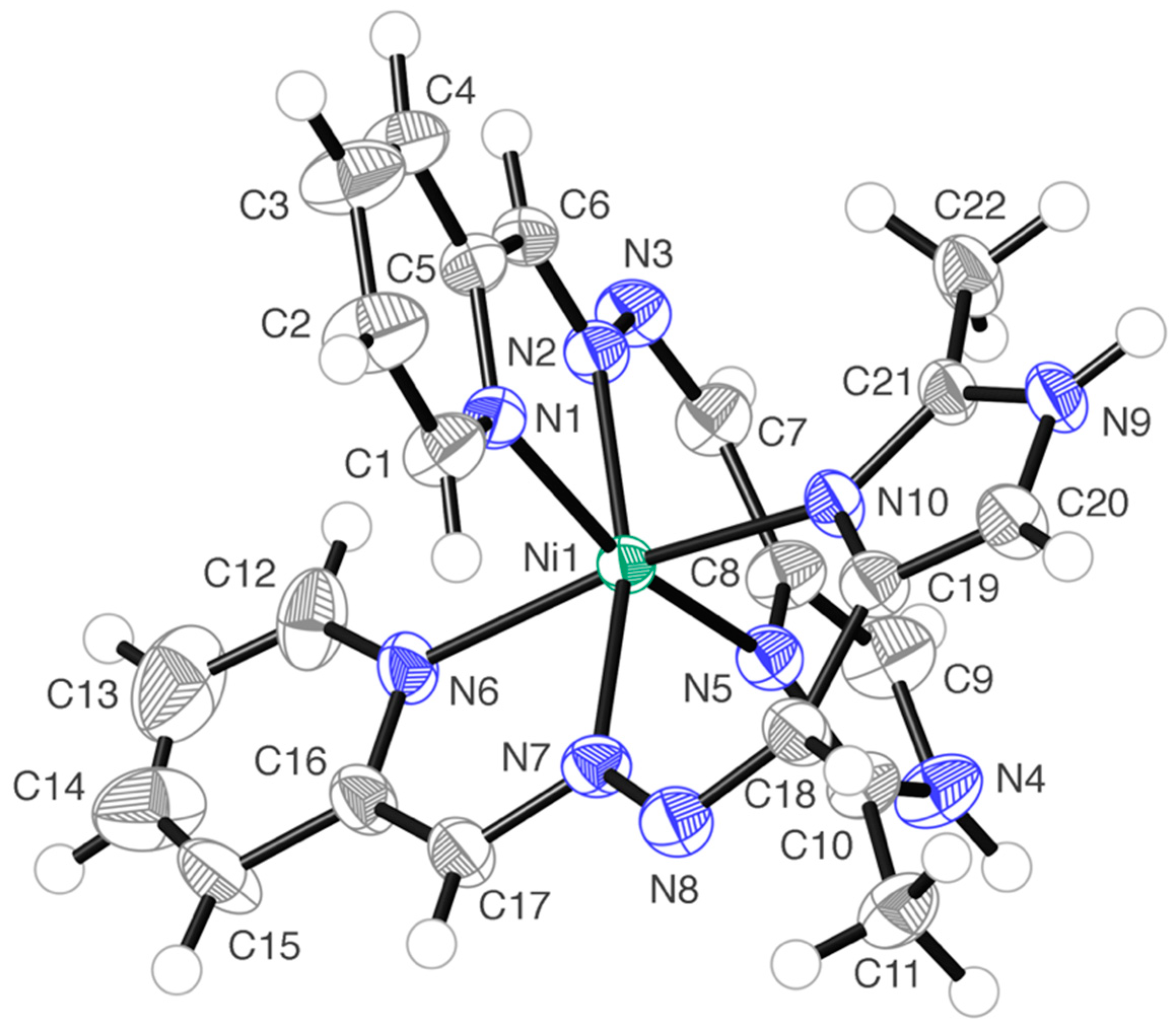

Figure 2. An ORTEP drawing of the complex cation [Ni(HLMe)2]2+ in 2·H2O·Et2O with an atom-numbering scheme (ellipsoids are drawing at a 30% probability level).
Figure 2. An ORTEP drawing of the complex cation [Ni(HLMe)2]2+ in 2·H2O·Et2O with an atom-numbering scheme (ellipsoids are drawing at a 30% probability level).
Molecules 27 06788 g002
Molecules 27 06788 g003 550
Figure 3. Intermolecular hydrogen-bonding interaction gives a one-dimensional polymer chain in 2·H2O·Et2O. Color code: Ni, teal; P orange; F, yellow-green; N, blue; C, gray; H, silver.
Figure 3. Intermolecular hydrogen-bonding interaction gives a one-dimensional polymer chain in 2·H2O·Et2O. Color code: Ni, teal; P orange; F, yellow-green; N, blue; C, gray; H, silver.
Molecules 27 06788 g003
Table
Table 1. Crystallographic data of compounds 1·MeOH and 2·H2O·Et2O.
Table 1. Crystallographic data of compounds 1·MeOH and 2·H2O·Et2O.
Compound1·MeOH2·H2O·Et2O
Chemical formulaC21H22F12N10NiOP2C26H34F12N10NiO2P2
Formula weight779.10867.25
T/K188(2)188(2)
Crystal color and shape orange, blockorange, platelet
Size of specimen/mm0.30 × 0.26 × 0.250.45 × 0.30 × 0.29
Crystal systemOrthorhombicMonoclinic
Space group, ZP212121, 4P21/n, 4
a/Å8.6212(4)12.5812(12)
b/Å10.3267(6)14.6221(12)
c/Å33.20894(17)19.9359(18)
β/°9098.664(3)
U/Å32956.6(2)3625.6(6)
Dcalc/g cm−31.7501.589
µ(Mo Kα)/mm−10.87830.7270
Rint0.05470.0628
No. reflns/params.6767/4268299/478
R1 [F2: Fo2 > 2σ(Fo2)]0.05220.0903
wR2 (F2: all data)0.13510.2966
GoF0.8721.084
Flack param.0.022(7)—
Table
Table 2. Selected bond lengths (l/Å) and angles (ɸ/°) around the NiII center in compounds 1·MeOH and 2·H2O·Et2O.
Table 2. Selected bond lengths (l/Å) and angles (ɸ/°) around the NiII center in compounds 1·MeOH and 2·H2O·Et2O.
Compound1·MeOH2·H2O·Et2O
Ni1–N1, Ni–N62.094(4), 2.095(5)2.110(4), 2.126(4)
Ni1–N2, Ni–N72.084(4), 2.082(4)2.078(4), 2.093(4)
Ni1–N5, Ni–N102.047(5), 2.039(5)2.068(4), 2.065(4)
N1–Ni1–N2, N6–Ni1–N779.22(19), 78.55(19)78.80(16), 78.94(17)
N2–Ni1–N5, N7–Ni1–N1087.99(18), 88.63(19)88.95(16), 89.00(16)
N1–Ni1–N5, N6–Ni1–N10167.20(18), 166.57(18)166.81(16), 167.93(16)
N1–Ni1–N6, N5–Ni1–N1088.85(18), 91.3(2)91.91(18), 89.59(16)
N2–Ni1–N7175.74(19)165.77(16)
N1–Ni1–N7, N2–Ni1–N699.83(19), 97.26(17)90.25(15), 92.25(16)
N1–Ni1–N10, N5–Ni1–N689.45(19), 93.27(19)87.64(16), 93.46(16)
N2–Ni1–N10, N5–Ni1–N795.50(19), 92.97(19)99.48(16), 102.60(16)
