Electrochemical Shell-Isolated Nanoparticle-Enhanced Raman Spectroscopy of Imidazole Ring Functionalized Monolayer on Smooth Gold Electrode

1
Center for Physical Sciences and Technology (FTMC), Department of Organic Chemistry, Sauletekio Ave. 3, LT-10257 Vilnius, Lithuania
2
Life Sciences Center, Institute of Biochemistry, Department of Bioelectrochemistry and Biospectroscopy, Vilnius University, Sauletekio Ave. 7, LT-10257 Vilnius, Lithuania
*
Authors to whom correspondence should be addressed.
Molecules 2022, 27(19), 6531; https://doi.org/10.3390/molecules27196531
Received: 22 August 2022 / Revised: 20 September 2022 / Accepted: 23 September 2022 / Published: 3 October 2022
(This article belongs to the Special Issue Raman Spectroscopy Analysis of Surfaces)

Abstract

:
The imidazole ring (Im) of histidine side chains plays a unique role in the function of proteins through covalent bonding with metal ions and hydrogen bonding interactions with adjusted biomolecules and water. At biological interfaces, these interactions are modified because of the presence of an electric field. Self-assembled monolayers (SAMs) with the functional Im group mimic the histidine side chain at electrified interfaces. In this study, we applied in-situ shell-isolated nanoparticle-enhanced Raman spectroscopy (SHINERS) to probe the structure and hydrogen bonding of Im-functionalized SAM on smooth Au at the electrochemical interface. The self-assembly of molecules on the Au induced the proton shift from N1 atom (Tautomer-I), which is the dominant form of Im in the bulk sample, to N3 atom (Tautomer-II). The impact of electrode potential on the hydrogen bonding interaction strength of the Im ring was identified by SHINERS. Temperature-Raman measurements and density functional theory (DFT) analysis revealed the spectral marker for Im ring packing (mode near 1496–1480 cm−1) that allowed us to associate the confined and strongly hydrogen bonded interfacial Im groups with electrode polarization at −0.8 V. Reflection adsorption IR (RAIR) spectra of SAMs with and without Im revealed that the bulky ring prevented the formation of a strongly hydrogen bonded amide group network.

1. Introduction

Histidine plays a crucial role in the architecture and activity of enzymes, as it is often found to ligate transition metal ions at the active sites of metalloproteins [1,2]. Such a versatility comes from its side chain imidazole (Im) ring that can take part in many interactions, for example (i) cation-πIm, (ii) π-π stacking, (iii) hydrogenIm-π, (iv) coordination with metal cations through nitrogen lone electron pair, and (v) hydrogen bonding (H-bonding) [2]. This versatility makes Im particularly suitable for surface applications through the SAM chemistry [3,4,5,6,7,8]. The Im-derivatives functionalized SAMs have been used in biosensing applications, modulations of enzyme activity, purification of biologically relevant molecules, corrosion prevention, and others [5,6,7,8].
The pKa for imidazole is around 5.9. Thus, two forms of histidine side-chain functional group, Tautomer-I (T-I; N1–H, N3) and Tautomer-II (T-II; N1, N3–H), are possible under the physiological conditions. In neutral pH and room temperature, T-I is the more energetically favorable [9]. However, owing to the intermolecular Im interactions and the surface charge effect, the tautomeric equilibrium of surface-adsorbed Im derivatives might differ from that of the solution phase. Indeed, a clear transition from T-I to T-II was observed for Im functionalized lipoic acid compound as it adsorbed on the silver electrode [10]. Vibrational spectroscopy, especially Raman, is particularly useful in Im studies because of the diagnostic technique’s ability to differentiate between two tautomeric forms, probe ring protonation state and interactions with transition metal cations [9,10,11,12,13,14,15,16,17,18]. For example, the analysis of the three well-established Raman band pairs at 1568/1585, 1282/1260, and 983/1004 cm−1 allows to discriminate between T-I and T-II [19]. The coordination with metal ion effectively decreases the Im ring C4=C5 bond length, so that the related ν(C4=C5) increases by 5–20 cm−1 from the initial positions at 1568–1573 and 1583–1588 cm−1 for T-I and T-II, respectively [16]. The deuterium exchanged imidazolium cation ( ImD 2 + ) exhibits an intensive spectral mode near 1405 cm−1, which is particularly valuable in determining the imidazole deuteration state using regular Raman spectroscopy [20,21]. A special case to be mentioned is the investigation of Im ring deuteration state in proteins based on 1405 cm–1 spectral mode in UV-resonance Raman [22,23].
Surface-enhanced Raman spectroscopy (SERS) provides detailed molecular-level information on the bonding, orientation, and structure of surface-adsorbed molecules in situ [24,25,26,27,28,29]. However, SERS is restricted by the necessity to use corrugated noble metal surfaces. Recently developed shell-isolated nanoparticle-enhanced Raman spectroscopy (SHINERS) overcomes such a limitation [30,31]. The method is based on the Raman signal amplification by the plasmonic core nanoparticles (usually Au or Ag) that are covered with thin (2–3 nm) isolating shells from SiO2, TiO2, or other dielectric material. The inert shell protects the probed molecules from interactions with the metal core, increases nanoparticle stability, and acts as a barrier between the probe and the core, preventing from charge transfer and disturbance of the double layer. The SHINERS method has already shown great potential for the in-situ analysis of the molecule adsorption, interfacial structure, and interactions of molecules on smooth and well-defined surfaces and at electrochemical interfaces [32,33,34,35,36,37,38,39,40,41,42,43].
This research aims to attain molecular level insights into the structure and hydrogen bonding of the imidazole ring at the electrified interface. We report the synthesis and vibrational spectroscopy characterization of the imidazole ring terminated alkanethiol molecule with intrachain amide group, N-(2-(1H-imidazol-4-yl)ethyl)-6-mercaptohexanamide (IMHA). The use of in-situ electrochemical SHINERS and ex-situ reflection-absorption infrared spectroscopy (RAIRS) techniques allowed for probing IMHA SAM that was adsorbed on the highly defined, atomically smooth Au surfaces. The effect of electrode potential on monolayer structure, tautomerism, and hydrogen bonding interaction strength of imidazole ring at electrochemical interface was spectroscopically assessed.

2. Materials and Methods

2.1. Synthesis of N-(2-(1H-Imidazol-4-yl)ethyl)-6-mercaptohexanamide (IMHA) and 6-Mercapto-N-methylhexanamide (Fragment Molecule)

Materials were purchased from Apollo Scientific (histamine dihydrochloride), Alfa Aesar (6-bromohexanoic acid, oxalyl chloride, NaOMe (30 wt% in methanol)), TCI (1-(3-dimethylaminopropyl)-3-ethylcarbodiimide hydrochloride (EDCI Cl), methylamine (40% in methanol), and Sigma Aldrich (thioacetic acid, K2CO3, 1,4-dithio-DL-threitol (DTT), CH2Cl2 (DCM), methanol, triethylamine, dimethylformamide (DMF), 4-dimethylaminopyridine (DMAP)). DMSO-d6 (99.5 atom% D) and CDCl3 (99.8 atom% D) for nuclear magnetic resonance spectroscopy were obtained from Apollo Scientific. IMHA was synthesized from histamine dihydrochloride and 6-bromohexanoic acid, as shown in Figure 1. The details of synthesis and related analytical data of the IMHA, imidazole-truncated IMHA (6-mercapto-N-methylhexanamide) (fragment molecule), and their intermediates are presented in the Supplementary data file (General methods section, Scheme S1, and Figure S1).

2.2. Synthesis of Silicon Dioxide Covered Spherical Silver Nanoparticles ([email protected]2)

The reagents and solvents were used without further purifications: silver nitrate (AgNO3, 99%), trisodium citrate dihydrate (99%), (3-aminopropyl)triethoxysilane (99%), and sodium silicate solution (NaOH 10%, SiO2 27%) (Merck). All solutions were prepared with ultra-pure water (resistivity of 18.2 MΩ·cm) from Direct-Q 3UV (Merck, Darmstadt, Germany). Nanoparticles (NPs) were synthesized under microwave irradiation according to the previously published method [44]. Briefly, the bare silver-core NPs were prepared by the AgNO3 reduction with sodium citrate and capped with silica shell. Then, core-shell NPs were purified by a repeated centrifugation, supernatant removal, and resuspension. Figure 2 shows the [email protected]2 NPs images obtained by high-resolution transmission electron microscopy (HR-TEM). HR-TEM images were collected by an FEI Tecnai G2 F20 X-TWIN TEM (FEI, Netherlands) microscope with an accelerating voltage of 200 kV. The microscope was equipped with an EDX (EDAX) spectrometer and Gatan Orius CCD camera. The measurements were carried out in a bright-field regime.

2.3. Preparation and Characterization of SAM

A 120-nm Au film was deposited on clean glass slides by using a Quorum 150T magnetron-sputtering machine and a 99.99% Au target. After that, the slides were incubated in 10−3 M IMHA ethanol solution for twenty-four hours unless indicated otherwise; then rinsed with ethanol and dried under N2. For SHINERS experiments, the slides were mounted into an electrochemical cell and filled with Milli-Q water. After that, 3 μL of [email protected]2 were carefully injected directly on the surface of Au and left to rest for 10 min for nanoparticles to adsorb. Then, the cell was thorough rinsed with 0.01 M phosphate buffer (pH 7) containing 0.1 M Na2SO4.
Reflection absorption IR spectroscopy (RAIRS) spectra were obtained by using a Vertex 80v FTIR spectrometer (Bruker, Germany) equipped with the LN-MCT narrow band detector and the horizontal reflection accessory. The spectral resolution was set at 4 cm−1. Spectra were acquired by 400 scans at a grazing angle of 80° by using p-polarized light. The sample chamber and the spectrometer were evacuated during the measurements to approximately 2 hPa pressure. The spectrum of deuterium substituted octadecanethiol (ODT-d38) SAM adsorbed on Au was used as a reference. FTIR transmission spectrum was recorded from KBr pellet-dispersed IMHA using an Alpha spectrometer (Bruker, Germany) equipped with an RT-DTGS detector. The resolution was set to 4 cm−1; 50 interferogram scans were co-added.
SHINERS spectra were recorded using high throughput (instrument NA = 0.22) Tornado HyperFlux spectrometer (Tornado Spectral Systems, Mississauga, ON, Canada) equipped with fiber-optic cable for excitation and collection of the Raman spectra. The 785 nm beam of the diode laser was used as the excitation source. The laser power at the sample was set to 38 mW, and the beam was focused on a 100 μm diameter spot on the sample. Spectra were recorded for 300 s by co-adding thirty 10-s scans. For temperature-controlled Raman measurements, the LinKam temperature control system PE95/T95 with the accuracy of 0.05 °C was used. IMHA powder was measured with 80 mW laser power and 100 s integration time, at 22, 130, and 135 °C. Spectroelectrochemical measurements were carried out in a three-electrode cell, where slides with Au film were used as a working electrode, platinum wire as a counter electrode, and KCl saturated Ag/AgCl as a reference electrode.
Raman wavenumbers were calibrated according to the polystyrene spectrum. Band frequencies were obtained by fitting experimental contours with mixed Gaussian-Lorentzian form components by using the GRAMS/AI 8.0 (Thermo Scientific, Waltham, MA, USA) software.
Theoretical modeling study of IMHA molecule was performed using Gaussian package version G09 D.01 [45]. Geometry optimization and frequency calculation were completed with the DFT method using the hybrid B3LYP functional and 6-311++G(2d,p) basis set. The polarizable continuum model (IEFPCM) was used to emulate the water environment. The frequency calculation ended with no imaginary wavenumbers, indicating the geometry at minimum energy. Frequency and intensity scaling were applied according to the previously described procedure [46].

3. Results and Discussion

3.1. Assignments of Raman Bands

The studied IMHA molecule comprises four functional units: (i) the surface-active thiol group (SH), (ii) the hydrocarbon chain (−(CH2)5−), (iii) the amide group (−CO−NH−), and (iv) the terminal Im ring (Figure 3). To facilitate Raman band assignments, we have synthesized a compound similar to IMHA thiol without the terminal Im ring (fragment compound) (Figure 3). Detailed assignments of the Raman bands are provided in the Supplementary Data file (Figure S2 and related discussion) and Table 1.
To evaluate Raman modes related to intra- and intermolecular interactions and those sensitive to the ordering of alkyl chain, we performed a temperature-dependent Raman study of powder IMHA compound (Figure 4). Changes in temperature provoke structural or phase transitions and a variety of conformational alterations in a molecular system. In general, an increase in temperature induces disordering in the molecular arrangement. Such disordering may be reflected in changes of spectral mode bandwidths (related to vibrational energy distribution), peak position (energy of particular vibration), and relative intensities (distribution of two or more different forms of a molecule). Therefore, temperature-Raman provides additional means for scrutinizing a given compound. The medium intensity modes near 1566, 1321, and 983 cm−1 in the 22 °C spectrum are related to vibrations of the Tautomer-I (N1–H, N3) form of Im ring and are assigned to ν(C4=C5) stretching, ν(Im) breathing + δ(C5H), and β(CH) deformation, respectively [19]. At the elevated temperatures (130–135 °C), the shoulders appear at 1582 and 1345 cm−1 specific to the Tautomer-II (N1, N3–H) form of Im. The relative percentage of T-II determined by the integral intensity ratio A1582/(A1582 + A1564) is 16% for the compound at 130 °C and 32% for the one at 135 °C. It should be noted that the frequency of an intense band at 1321 cm−1 downshifts to 1305 cm−1 at 135 °C. In addition, the band notably broadens. Such spectral changes reflect a decrease in H-bonding interaction strength primarily at N3 site, because of a considerable contribution from ν(N3−C2) vibration to this mode for Tautomer-I [19].
The 1497 cm−1 band assigned to ν(N1–C2) + β(C2H) motion is not sensitive to Im tautomerism [19]. The band, however, shifts to higher wavenumbers with the coordination of metal cation at the nitrogen lone electron pair. Moreover, electrode polarization also induces shifting for imidazole-copper pair (9 ± 2 cm−1V−1) [18]. We found a 17 cm−1 downshift of the spectral mode to 1480 cm−1 and a clear increase in full width at half-maximum (FWHM) with the temperature raised to 135 °C. These spectral changes are associated with the increased motional freedom of the Im ring. Therefore, the spectral changes near 1496–1480 cm−1 may serve as a useful spectral marker for Im ring packing.
Nested within the alkane chain, the amide group acts as an intermolecular stabilizing agent, which forms the extended H-bond network between neighboring molecular chains. It has been already shown that such an interaction radically increases the desorption temperature and chemical stability of the monolayer [50]. From the temperature-Raman spectra of the powder compound, only the medium-low intensity Amide-I (Am-I) band at 1636 cm−1 can be recognized. This spectral mode is related to C=O stretching (83%) coupled with out-of-phase ν(C−N) and δ(C–C−N) and can serve as a diagnostic tool in identifying the secondary structure of peptides [47]. The 14 cm−1 frequency upshift during the solid-to-liquid transition with the temperature elevation, clearly shows the weakening of the H-bonding at the amide’s C=O group.

3.2. RAIRS Analysis of the Monolayer Formation

Figure 5 shows RAIRS spectra of the IMHA monolayer adsorbed on a smooth gold surface. The spectral features at 1645, 1556, and 1264 cm−1 are assigned to amide bands, Am-I, Am-II, and Am-III, respectively, whereas the ones near 1460 and 1380 cm−1 to methylene scissoring and wagging deformations, δ(CH2). The RAIRS-surface selection rule allows interrogating the orientation of molecular groups because the intensity of particular spectral mode directly depends on the projection of the mode’s transition dipole moment (TDM) on the surface normal [51]. While Am-I and Am-II have TDMs oriented perpendicular to each other in the amide bond plane, they also have perpendicular and parallel TDM orientations with respect to carbohydrate chain [51]. Thus, for the neatly packed IMHA monolayer, the Am-II is expected to dominate the spectrum. Indeed, at progressively longer incubation time, the Am-II intensity at 1556 cm−1 increases and the intensity of Am-I at 1645 cm−1 decreases. The integral intensity ratio Am-II/Am-I provides a qualitative measure of the molecular reorientation (Figure 5B). The experimental data of Am-II/Am-I were fitted with a sigmoidal function:
A = A 0 + a 1 + ( t t m ) b
where tm is the transition inflection point found at 162 min. At 10 s incubation time, the Am-II/Am-I ratio was 1.4, which is slightly above 0.9 calculated for IMHA molecules chaotically dispersed in KBr pellet (Figure S3). The ratio doubled in 10 min and after 24 h it reached 11.2, so most molecules had a planar amide group oriented perpendicularly to the surface. Such an orientation is strengthened by the H-bonding interaction involving the amide group (C=O···H) and dipole–dipole interaction between the C=O groups [52]. The link between Amide-I and -II wavenumbers and the H-bonding strength at C=O and N–H groups has been clearly established [53,54,55]. We find marginal Am-I frequency decrease with the development of SAM (by 3 cm−1 during the 120 min incubation) revealing minor increase of the H-bonding strength at C=O. The frequency of the Am-II band remained constant.
In the RAIRS spectrum of 24 h-incubated fragment SAM, the Amide-II spectral band is blue-shifted by 12 cm−1 compared to the IMHA SAM (after 24 h incubation), showing the stronger H-bonding at the N–H group for fragment molecule. Interestingly, surface-adsorption of molecules from solution phase induced spectral shift of Am-II mode by −20 for IMHA and 13 cm−1 for the fragment molecule (Table 2). Such frequency shifting is related to different molecular packing efficiency in bulk and SAM. The Im ring in IMHA molecule introduces sterical hindrances for the neighboring amides to engage in the formation of an optimal H-bonding network.

3.3. General Features of IMHA Monolayer SHINERS Spectrum

Figure 6A presents evidence of [email protected]2 functionality. The Raman spectrum of nanoparticles has virtually no vibrational modes until the nanoparticles are placed on top of smooth surface-adsorbed IMHA monolayer. The intense mode at 702 cm−1 corresponds to ν(C–S)T stretching vibration of the molecules, which adopt a nearly vertical orientation with the surface at the C–S bond, whereas the corresponding gauche mode ν(C–S)G appears as a weak feature at 622 cm−1. The predominant trans configuration agrees with the vertical orientation of molecules at the amide group in mature SAM as revealed by RAIRS. Weak Am-I bands at 1685 and 1640 cm−1 were immediately ascribed to surface molecules that are involved in strong and weak H-bonding at amide groups, respectively. The rather complex 1500–1700 cm−1 region contains no Am-II mode because this mode is typically either very weak or not detectable in Raman spectra [56]. Two strong bands at 1062 and 1019 cm−1 were found to be not sensitive to H/D exchange and were assigned to stretching vibrations of hydrocarbon chain, ν(C–C)T and ν(C–C), respectively (Table 1). The higher frequency component was assigned to the in-phase vibration of –(CH2)5− chain in extended all-trans conformation based on DFT calculations (1089 cm−1 band) and previously reported temperature-dependent SERS studies of SAMs [57]. The 1019-cm−1 band was assigned to the C–C stretching vibration of hydrocarbon chain connecting amide and Im groups based on DFT suggestion (1018 cm−1 band).
The tautomeric equilibrium of Au-adsorbed IMHA could certainly differ from that of the solution phase. Indeed, ν(C4=C5) + ν(C4–C6) + β(C5H) mode at 1582 cm−1 fall close to the 1588−1583 cm−1 range typical for T-II [16]. While in the case of T-I conformer, this mode is expected to be observed at considerably lower wavenumbers (1573–1568 cm−1). The downshift of this mode to 1575 cm−1 in D2O solution immediately confirms H/D exchange at nitrogen sites of Im ring in the monolayer. Another couple of bands, at 1261 for H2O and 1257 cm−1 for D2O solutions, confirm the T-II surface form of IMHA [16].

3.4. Potential-Controlled SHINERS Measurements of IMHA Monolayer

Negative electrode polarization at −0.8 V potential was applied for 30 s in the beginning of each potential-controlled measurement to desorb impurities of low surface affinity, which may originate from nanoparticles. Preliminary examination showed that pretreatment of the monolayer at negative potentials increases the reproducibility of results. Figure 6B shows SHINERS spectra from the smooth Au electrode adsorbed IMHA at −0.8 and 0.2 V electrode polarizations.
Plenty of SERS research on metal–sulfur bond has been carried out for the roughened metal adsorbed monolayers [57,58]. However, only with SHINERS approach the well-defined and smooth substrate adsorbed molecules become more accessible to Raman spectroscopy [37,59]. The Au–S stretching mode found at 257 cm−1 upshifts to 279 cm−1 (δ = 22 cm−1) when the potential is tuned from −0.8 to 0.2 V attesting the increase in Au–S bond strength. A similar value was found in a previous study on flat Au-adsorbed N-(6-mercapto)hexylpyridinium [37], whose high tuning rate was ascribed to force constant changes in Au–S bond strength because of electrode polarization and to some extent to the Stark effect [37,60]. As for C–S bond, the populations of gauche and trans molecular conformers were matching at −0.8 V, but with positive electrode polarization trans became strongly favored (Figure S4). Both conformational bands redshift with the tuning rate of −5.3 ± 0.2 and −6.9 ± 0.2 cm−1V−1, respectively, indicating potential-induced decrease in C–S bond strength, while at the same time Au–S bond became increasingly stronger at more positive potentials [61]. Within the tested potential window, the trans/gauche ratio (I701/I633) increases from 1 to 3 with transition midpoint potential of −0.34 ± 0.02 V. Notably, all spectral changes are reversible as the electrode potential is set to −0.8 V. Two strong bands at 1051 and 1014 cm−1 were assigned to stretching vibrations of hydrocarbon chain, ν(C–C)T and ν(C–C), respectively (Table 1). It should be noted that the relative intensity of ν(C−C)T band increases at more positive electrode potentials together with growing ν(C−S)T mode. In the high frequency region of Figure 6B, symmetric and asymmetric stretching vibrations of methylene groups ν(CH2) near 2858 and 2921 cm−1 were found (E = −0.8 V). These modes will be discussed in more detail later in the manuscript.
To interpret the rather complex midrange region that is occupied by the imidazole ring, amide group vibrations, and the deformations of the methylene groups, a separate H/D exchange experiment was performed for the IMHA monolayer. The H/D exchange process was accomplished at the open circuit potential (0.17 V) by exchanging phosphate buffer solution (PBS) (with 0.1 M Na2SO4, pH 6.9) to pure D2O (Figure 7). Amide-I spectral mode is found to be composed of low- and high-energy components at 1643 and 1676 cm−1, both of which downshift by 7–8 cm−1 upon the exchange. We find that vibrational modes in the 1300–1610 cm−1 were sensitive to the solvent exchange. For example, the Tautomer-II related C=C stretching mode of the Im ring ν(C4=C5) clearly downshifts from 1590 to 1571 cm−1 [16]. The well-defined feature at 1492 cm–1 assigned to ν(C2–N3) coupled with β(C2H) downshifts to 1483 cm−1 in accordance with literature data [18]. The intense band at 1333 cm−1 develops in D2O solutions. This band was identified as a Tautomer-II marker band for N3D protonated histidine [62]. Interestingly, the mode at 1545 cm−1 becomes significantly pronounced at 0.2 V potential (Figure 7A) and almost disappears due to the H/D exchange. Its assignment remains not fully clear because the contribution from the Am-II could be almost certainly ruled out since the deuteration of amide’s N atom would introduce Am-II’ with additional spectral intensity near 1450 cm−1 [63,64]. The only possible proximal spectral modes are expected near 1535 cm−1 for deprotonated 4-methylimidazole and doubly protonated histidine, both of which in neutral pH are not likely [13,62]. Presented SHINERS data revealed that the imidazole ring in the SAM at relatively positive electrode potentials is in the N3H protonation state (Tautomer-II).
Figure 8 shows the detailed SHINERS analysis of biased potential induced structural changes in IMHA SAM. An 11.2 cm−1 upshift in the frequency of dominant Amide-I component is detected with more positive electrode potentials (Figure 8C). To complement that, we analyzed the relative intensities of Am-I modes of strongly (ca. 1631 cm−1) and loosely H-bonded (ca. 1680 cm−1) molecules. The intensity ratio of these expressed as I1631/I1680 monotonically decreased from 3.4 to 2.3 with the negative to positive potential excursion. Both frequency shift and relative intensity changes show that a positive bias potential disengages molecules from the more strongly H-bounded network at the C=O moiety of amide groups.
As Figure 6 and Figure 8 show, the positions of imidazole-tautomerism marker bands near 1262, and 1597 cm−1 remain consistent with N3–H protonation (Tautomer-II) within the tested potential window [19]. However, at −0.8 V potential, a shoulder at 1573 cm−1 associated with Tautomer-I protonation form of Im becomes visible. Positive polarization diminishes mode intensity, while its T-II counterpart at 1597 cm−1 becomes stronger. Thus, SHINERS data show the T-II being the preferred tautomeric form at each tested potential, with a minor portion of molecules adopting T-I at the most negative polarizations. Potential induces a slight shift of the 1597 cm−1 to lower wavenumbers by 3.6 cm−1 due to lengthening of the C4=C5 bond. Interestingly, the Im ring mode at 1490 cm−1 assigned to C2–N3 stretching coupled with in-plane deformation β(C2H), ν(C2–N1), and ν(C5–N1) shows the nonmonotonous dependency on potential [10,18]. This mode shifts by −4.9 cm−1 (tuning rate 13.3 cm−1V−1) in the range from −0.8 to −0.4 V and then upshifts by 1.8 cm−1 (Figure 8D). Besides, the spectral mode notably increases in FWHM by ca. 10 cm−1 of the −0.4 V spectrum compared to the −0.8 V one. From temperature-Raman measurements, decreasing mode frequency and increasing FWHM were linked with liberated imidazole ring motion. Thus, spectral data show that Im ring confinement in the monolayer at more positive electrode potentials is relaxed. The strong band at 1262 cm−1 (−0.8 V) due to Im ring breathing vibration coupled with C2–H in-plane deformation is very sensitive to potential perturbation; frequency of this band upshifts to 1266 cm−1 at electrode polarization 0.2 V. Consequently, the potential-difference spectrum clearly shows derivative-like feature at 1279/1254 cm−1 (Figure 8B). Temperature-dependent Raman study of bulk IMHA compound revealed an upshift in the position of this mode at elevated temperature (135 °C) (Figure 4). This might be related to decreased H-bonding interaction strength at the Im ring site. Such spectral observations are consistent with decreased H-bonding interaction strength at both amide (Am-I band) and Im ring sites at more positive electrode polarization.

3.5. Raman Markers for H-Bonding Interaction

In order to better understand the way H-bonding interaction affects imidazole ring structure and its vibrational frequencies, DFT modeling was carried out for 5-ethyl-1H-imidazole (Im-CH2-CH3) molecule isolated in vacuum and coordinated with one and two explicit water molecules (Figure 9). Calculations of T-II form molecule predict that 1608-cm–1 mode is mainly C4=C5 stretching motion; 1499 cm−1 mode is assigned to ν(C2–N1) + ν(C2–N3) + β(C2H) and associated with 1492 cm−1 mode in SHINERS spectra. The 1423 cm–1 mode emerges due to β(N3H) + ν(N3–C4) + ν(N3–C2) vibrations; 1382 cm−1 mode is tautomerism sensitive Im breathing mode. With increasing H-bonding coordination number, the 1499-cm−1 mode shifts to higher frequencies by 2–6 cm−1 (coordination number 1) and by 9 cm−1 (coordination number 2). The same holds for a compound in T-I form, for which an 8 cm–1 shift was found when in contact with two H2Os. The predicted wavenumber shift confirms the principal mode’s sensitivity to H-bonding interaction at the Im group and agrees with the temperature-Raman data presented in Figure 4 where the higher wavenumbers were associated with stronger hydrogen bonding interactions for the sample at room temperature. We already ascribed the decrease in position of 1492 cm−1 mode with liberated Im ring based on temperature-Raman. However, DFT proves that such a liberation is hydrogen bonding strength-related. Thus, the sharp wavenumber drop from −0.8 to −0.4 V potentials in Figure 8D clearly indicates reduction of H-bonding at Im, which is followed by a slight strengthening in −0.4/0.2 V range.
Interestingly, we found stronger H-bonding interactions for Im coordinated with two H2O molecules rather than one H2O. In this case, the length of N1···H2O and N3–H···H2O bonds decreased by 1.9 and 2.7 pm with an introduction of the second H2O molecule (insets in Figure 9). A much higher, up to 30 cm−1, frequency shift was found for 1423-cm−1 mode. However, this mode was difficult to identify in experimental SHINERS spectra of IMHA SAM because of the overlapping with methylene deformation vibrations.

4. Conclusions

Hydrogen bonding is fundamental in protein architecture, interactions, and molecular recognition. Imidazole group of histidine amino acid is a major player in active centers of enzymes and protein secondary structure because of its ability to accept and donate H-bonding. To study H-bonding interactions of imidazole ring at electrified interfaces, first, we synthesized alkanethiol molecule with interchain amide group and terminal imidazole functional group (IMHA), then studied IMHA SAMs adsorbed on atomically smooth Au surfaces by means of SHINERS and RAIRS techniques.
(i) From RAIRS data molecules adsorb on a surface chaotically but with time (transition midpoint was 162 min), their intrachain amide groups become nearly perpendicular to the surface, which points to the more neatly organized SAM. However, the formation of an optimal H-bond network among amide groups was precluded by the steric hindrances introduced by bulky IMHA’s imidazole group, as revealed by a study of the imidazole-truncated fragment molecule. For further endeavors, mixed IMHA/fragment molecule SAMs are suggested.
(ii) Adsorption on a surface induced a tautomeric transition in IMHA molecules from Tautomer-I (N1–H, N3) to Tautomer-II (N1, N3–H). The Tautomer-II was strongly favored at electrode polarization close to open circuit potential. However, an increased portion of Tautomer-I molecules was observed at −0.8 V.
(iii) Temperature-Raman and DFT modeling identified the 1492 cm−1 mode as sensitive to imidazole ring confinement and H-bonding strength. The analysis of this mode revealed the potential-dependent behavior of the interfacial Im ring, such that the Im is the most strongly confined and H-bonded at −0.8 V electrode polarization and the weakest confined and H-bonded at −0.4 V.
The presented data on construction, structure, and potential dependence of imidazole ring group-functionalized SAMs will possibly be valuable for the development of biosensors, molecular electronics, environmental, and pollution studies.

Supplementary Materials

The following supporting information can be downloaded at: https://www.mdpi.com/article/10.3390/molecules27196531/s1, Scheme S1: Synthesis scheme of IMHA compound and fragment molecule; Figure S1: 1H NMR and 13C NMR spectra of N-(2-(1H-imidazol-4-yl)ethyl)-6-mercaptohexanamide (IMHA); Figure S2: (A) Raman spectra of powder IMHA, fragment molecule, and histidine. (B) Raman spectra of powder fragment molecule and the 0.33 M solutions in H2O and D2O. Figure S3: FTIR transmission spectra of IMHA and fragment molecule powders dispersed in KBr pellets. Am-I and Am-II spectral modes were approximated using Gaussian shape components. The full-widths at half maxima of Am-I and Am-II bands are given next to corresponding wavenumbers; Figure S4: (A) SHINERS spectra of IMHA adsorbed on smooth Au electrode at indicated potentials in the 600–750 cm–1 spectral region. Spectra were recorded in 0.1 M Na2SO4 aqueous solution containing 0.01 M phosphate buffer (pH 7). The excitation wavelength was 785 nm. (B) Dependence of relative integrated intensity I701/I633 ratio of IMHA bands on electrode potential fitted with the sigmoidal curve (Boltzmann model, R2= 0.99658). The transition midpoint potential value was determined at –0.34 ± 0.02 V, shown by the dashed line. The grey bar around the midpoint line shows the error in the fitting value. (C) Dependence of ν(C–S)G and ν(C–S)T modes wavenumbers of IMHA on electrode potential. Data in (B) and (C) sections were presented as an average of three independent measurements.

Author Contributions

Conceptualization, M.T., and G.N.; methodology, A.Z., T.C., R.S. and L.L.; software, M.T.; validation, A.Z. and M.T.; formal analysis, A.Z., and M.T.; investigation, A.Z., M.T., T.C. and R.S.; resources, G.N and L.L.; data curation, A.Z. and M.T.; writing—original draft preparation, A.Z. and M.T.; writing—review and editing, G.N.; visualization, A.Z. and M.T.; supervision, G.N. All authors have read and agreed to the published version of the manuscript.

Funding

This research received no external funding.

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Data Availability Statement

All data supporting the findings of this study are available from the corresponding author upon reasonable request.

Acknowledgments

G.N. gratefully acknowledges the Center of Spectroscopic Characterization of Materials and Electronic/Molecular Processes (SPECTROVERSUM Infrastructure) for use of Raman and FT-IR spectrometers.

Conflicts of Interest

The authors declare no conflict of interest.

Sample Availability

Samples of the compounds are available from the authors.

References

  1. Sundberg, R.J.; Martin, R.B. Interactions of histidine and other imidazole derivatives with transition metal ions in chemical and biological systems. Chem. Rev. 1974, 74, 471–517. [Google Scholar] [CrossRef]
  2. Liao, S.-M.M.; Du, Q.-S.S.; Meng, J.-Z.Z.; Pang, Z.-W.W.; Huang, R.-B.B. The multiple roles of histidine in protein interactions. Chem. Cent. J. 2013, 7, 44. [Google Scholar] [CrossRef] [PubMed]
  3. Zaitouna, A.J.; Lai, R.Y. Design and characterization of a metal ion-imidazole self-assembled monolayer for reversible immobilization of histidine-tagged peptides. Chem. Commun. 2011, 47, 12391–12393. [Google Scholar] [CrossRef]
  4. Hwang, S.; Lee, B.S.; Chi, Y.S.; Kwak, J.; Choi, I.S.; Lee, S.G. Faradaic impedance titration and control of electron transfer of 1-(12-mercaptododecyl)imidazole monolayer on a gold electrode. Electrochim. Acta 2008, 53, 2630–2636. [Google Scholar] [CrossRef]
  5. Tappura, K.; Vikholm-Lundin, I.; Albers, W.M. Lipoate-based imprinted self-assembled molecular thin films for biosensor applications. Biosens. Bioelectron. 2007, 22, 912–919. [Google Scholar] [CrossRef]
  6. Saada, M.C.; Montero, J.L.; Vullo, D.; Scozzafava, A.; Winum, J.Y.; Supuran, C.T. Carbonic anhydrase activators: Gold nanoparticles coated with derivatized histamine, histidine, and carnosine show enhanced activatory effects on several mammalian isoforms. J. Med. Chem. 2011, 54, 1170–1177. [Google Scholar] [CrossRef]
  7. Pourrostam-Ravadanaq, P.; Safa, K.D.; Abbasi, H. Study of imidazole performance as pseudo-affinity ligand in the purification of IgG from bovine milk. Anal. Biochem. 2020, 597, 113693. [Google Scholar] [CrossRef]
  8. Durainatarajan, P.; Prabakaran, M.; Ramesh, S.; Periasamy, V. Self-assembly on copper surface by using imidazole derivative for corrosion protection. J. Adhes. Sci. Technol. 2018, 32, 1733–1749. [Google Scholar] [CrossRef]
  9. Ashikawa, I.; Itoh, K. Raman spectra of polypeptides containing L-histidine residues and tautomerism of imidazole side chain. Biopolymers 1979, 18, 1859–1876. [Google Scholar] [CrossRef]
  10. Matulaitienė, I.; Kuodis, Z.; Eicher-Lorka, O.; Niaura, G. SERS characterization of imidazole ring terminated self-assembled monolayer formed from lipoic acid histamide on silver electrode. J. Electroanal. Chem. 2013, 700, 77–85. [Google Scholar] [CrossRef]
  11. Garfinkel, D.; Edsall, J.T. Raman Spectra of Amino Acids and Related Compounds. VIII. Raman and Infrared Spectra of Imidazole, 4-Methylimidazole and Histidine. J. Am. Chem. Soc. 1958, 80, 3807–3812. [Google Scholar] [CrossRef]
  12. Ashikawa, I.; Itoh, K. Raman Scattering Study on Tautomerism of L-Histidine. Chem. Lett. 1978, 7, 681–684. [Google Scholar] [CrossRef]
  13. Mesu, J.G.; Visser, T.; Soulimani, F.; Weckhuysen, B.M. Infrared and Raman spectroscopic study of pH-induced structural changes of L-histidine in aqueous environment. Vib. Spectrosc. 2005, 39, 114–125. [Google Scholar] [CrossRef]
  14. Martusevičius, S.; Niaura, G.; Talaikytė, Z.; Razumas, V. Adsorption of L-histidine on copper surface as evidenced by surface-enhanced Raman scattering spectroscopy. Vib. Spectrosc. 1996, 10, 271–280. [Google Scholar] [CrossRef]
  15. Carter, D.A.; Pemberton, J.E. Raman spectroscopy and vibrational assignments of 1- and 2-methylimidazole. J. Raman Spectrosc. 1997, 28, 939–946. [Google Scholar] [CrossRef]
  16. Takeuchi, H. Raman structural markers of tryptophan and histidine side chains in proteins. Biopolymers 2003, 72, 305–317. [Google Scholar] [CrossRef]
  17. Miura, T.; Satoh, T.; Hori-i, A.; Takeuchi, H. Raman marker bands of metal coordination sites of histidine side chains in peptides and proteins. J. Raman Spectrosc. 1998, 29, 41–47. [Google Scholar] [CrossRef]
  18. Matulaitienė, I.; Pociūtė, E.; Kuodis, Z.; Eicher-Lorka, O.; Niaura, G. Interaction of 4-imidazolemethanol with a copper electrode revealed by isotope-edited SERS and theoretical modeling. Phys. Chem. Chem. Phys. 2015, 17, 16483–16493. [Google Scholar] [CrossRef]
  19. Toyama, A.; Ono, K.; Hashimoto, S.; Takeuchi, H. Raman spectra and normal coordinate analysis of the N1-H and N3-H tautomers of 4-methylimidazole: Vibrational modes of histidine tautomer markers. J. Phys. Chem. A 2002, 106, 3403–3412. [Google Scholar] [CrossRef]
  20. Tasumi, M.; Harada, I.; Takamatsu, T.; Takahashi, S. Raman studies of L-histidine and related compounds in aqueous solutions. J. Raman Spectrosc. 1982, 12, 149–151. [Google Scholar] [CrossRef]
  21. Takeuchi, H.; Kimura, Y.; Koitabashi, I.; Harada, I. Raman bands of N-deuterated histidinium as markers of conformation and hydrogen bonding. J. Raman Spectrosc. 1991, 22, 233–236. [Google Scholar] [CrossRef]
  22. Wu, Q.; Li, F.; Wang, W.; Hecht, M.H.; Spiro, T.G. UV Raman monitoring of histidine protonation and H-2H exchange in plastocyanin. J. Inorg. Biochem. 2002, 88, 381–387. [Google Scholar] [CrossRef]
  23. Zhao, X.; Wang, D.; Spiro, T.G. A UV Resonance Raman Monitor of Histidine Protonation in Proteins: Bohr Protons in Hemoglobin. J. Am. Chem. Soc. 1998, 120, 8517–8518. [Google Scholar] [CrossRef]
  24. Mosier-Boss, P.A. Review of SERS substrates for chemical sensing. Nanomaterials 2017, 7, 142. [Google Scholar] [CrossRef]
  25. Langer, J.; De Aberasturi, D.J.; Aizpurua, J.; Alvarez-Puebla, R.A.; Auguié, B.; Baumberg, J.J.; Bazan, G.C.; Bell, S.E.J.; Boisen, A.; Brolo, A.G.; et al. Present and future of surface-enhanced Raman scattering. ACS Nano 2020, 14, 28–117. [Google Scholar] [CrossRef]
  26. Niaura, G.; Gaigalas, A.K.; Vilker, V.L. Surface-enhanced Raman spectroscopy of phosphate anions: Adsorption on silver, gold, and copper electrodes. J. Phys. Chem. B 1997, 101, 9250–9262. [Google Scholar] [CrossRef]
  27. Silva, E.F.; Wysard, J.S.; Bandeira, M.C.E.; Mattos, O.R. Electrochemical and surface enhanced Raman spectroscopy study of Guanine as corrosion inhibitor for copper. Corr. Sci. 2021, 191, 109714. [Google Scholar] [CrossRef]
  28. Silva, E.F.; Wysard, J.S.; Bandeira, M.C.E.; Mattos, O.R.; Alves, W.A. On the 4-methylimidazole behavior at a copper electrode: A view from surface-enhnaced Raman scattering. J. Raman Spectrosc. 2019, 50, 1438–1444. [Google Scholar] [CrossRef]
  29. Gutowski, L.; Liszewska, M.; Bartosewicz, B.; Budner, B.; Weyher, J.L.; Jankiewicz, B.J. Investigation of organic monoradicals reactivity using surface-enhanced Raman spectroscopy. Spectrochim. Acta A 2022, 278, 121312. [Google Scholar] [CrossRef]
  30. Anema, J.R.; Li, J.-F.F.; Yang, Z.-L.L.; Ren, B.; Tian, Z.-Q.Q. Shell-Isolated Nanoparticle-Enhanced Raman Spectroscopy: Expanding the Versatility of Surface-Enhanced Raman Scattering. Annu. Rev. Anal. Chem. 2011, 4, 129–150. [Google Scholar] [CrossRef]
  31. Li, J.F.; Huang, Y.F.; Ding, Y.; Yang, Z.L.; Li, S.B.; Zhou, X.S.; Fan, F.R.; Zhang, W.; Zhou, Z.Y.; Wu, D.Y.; et al. Shell-isolated nanoparticle-enhanced Raman spectroscopy. Nature 2010, 464, 392–395. [Google Scholar] [CrossRef]
  32. Wen, B.Y.; Jin, X.; Li, Y.; Wang, Y.H.; Li, C.Y.; Liang, M.M.; Panneerselvam, R.; Xu, Q.C.; Wu, D.Y.; Yang, Z.L.; et al. Shell-isolated nanoparticle-enhanced Raman spectroscopy study of the adsorption behaviour of DNA bases on Au(111) electrode surfaces. Analyst 2016, 141, 3731–3736. [Google Scholar] [CrossRef] [PubMed]
  33. Li, C.Y.; Chen, S.Y.; Zheng, Y.L.; Chen, S.P.; Panneerselvam, R.; Chen, S.; Xu, Q.C.; Chen, Y.X.; Yang, Z.L.; Wu, D.Y.; et al. In-situ electrochemical shell-isolated Ag nanoparticles-enhanced Raman spectroscopy study of adenine adsorption on smooth Ag electrodes. Electrochim. Acta 2016, 199, 388–393. [Google Scholar] [CrossRef]
  34. Barbillon, G. Applications of Shell-Isolated Nanoparticle-Enhanced Raman Spectroscopy. Photonics 2021, 8, 46. [Google Scholar] [CrossRef]
  35. Li, J.F.; Zhang, Y.J.; Ding, S.Y.; Panneerselvam, R.; Tian, Z.Q. Core-shell nanoparticle-enhanced Raman spectroscopy. Chem. Rev. 2017, 117, 5002–5069. [Google Scholar] [CrossRef]
  36. Yu, Z.; Xu, Y.X.; Su, J.Q.; Radjenovic, P.M.; Wang, Y.H.; Zheng, J.F.; Teng, B.; Shao, Y.; Zhou, X.S.; Li, J.F. Probing Interfacial Electronic Effects on Single-Molecule Adsorption Geometry and Electron Transport at Atomically Flat Surfaces. Angew. Chem. Int. Ed. Engl. 2021, 60, 15452–15458. [Google Scholar] [CrossRef]
  37. Zdaniauskiene, A.; Charkova, T.; Matulaitiene, I.; Eicher-Lorka, O.; Matijoška, A.; Skapas, M.; Selskis, A.; Niaura, G. Electrochemical Shell-Isolated Nanoparticle-Enhanced Raman Spectroscopy: Bonding, Structure, and Ion-Pairing of the Positive Charge Bearing Pyridinium Ring Terminated Monolayer at Smooth Gold Electrode. J. Phys. Chem. C 2018, 122, 1234–1242. [Google Scholar] [CrossRef]
  38. Zdaniauskienė, A.; Ignatjev, I.; Charkova, T.; Talaikis, M.; Lukša, A.; Šetkus, A.; Niaura, G. Shell-Isolated Nanoparticle-Enhanced Raman Spectroscopy for Probing Riboflavin on Graphene. Materials 2022, 15, 1636. [Google Scholar] [CrossRef]
  39. Li, J.-F.F.; Ding, S.-Y.Y.; Yang, Z.-L.L.; Bai, M.-L.L.; Anema, J.R.; Wang, X.; Wang, A.; Wu, D.-Y.Y.; Ren, B.; Hou, S.-M.M.; et al. Extraordinary Enhancement of Raman Scattering from Pyridine on Single Crystal Au and Pt Electrodes by Shell-Isolated Au Nanoparticles. J. Am. Chem. Soc. 2011, 133, 15922–15925. [Google Scholar] [CrossRef]
  40. Krajczewski, J.; Kudelski, A. Shell-isolated nanoparticle-enhanced Raman spectroscopy. Front. Chem. 2019, 7, 410. [Google Scholar] [CrossRef]
  41. Niciński, K.; Krajczewski, J.; Kudelski, A.; Witkowska, E.; Trzcińska-Danielewicz, J.; Girstun, A.; Kamińska, A. Detection of circulating tumor cells in blood by shell-isolated nanoparticle-enhanced Raman spectroscopy (SHINERS) in microfluidic device. Sci. Rep. 2019, 9, 9267. [Google Scholar] [CrossRef] [PubMed]
  42. Krajczewski, J.; Michałowska, A.; Kudelski, A. Star-shaped plasmonic nanostructures: New, simply synthesized materials for Raman analysis of surfaces. Spectrochim. Acta A 2020, 225, 117469. [Google Scholar] [CrossRef] [PubMed]
  43. Haryanto, A.; Lee, C.W. Shell isolated nanoparticle enhanced Raman spectroscopy for mechanistic investigation of electrochemical reactions. Nano Convergence 2022, 9, 9. [Google Scholar] [CrossRef] [PubMed]
  44. Daublytė, E.; Zdaniauskienė, A.; Talaikis, M.; Drabavičius, A.; Charkova, T. A facile microwave-assisted synthesis of [email protected]2 nanoparticles for Raman spectroscopy. New J. Chem. 2021, 45, 10952–10958. [Google Scholar] [CrossRef]
  45. Frisch, M.J.; Trucks, G.W.; Schlegel, H.B.; Scuseria, G.E.; Robb, M.A.; Cheeseman, J.R.; Scalmani, G.; Barone, V.; Petersson, G.A.; Nakatsuji, H.; et al. Gaussian 09; Revision D.01; Gaussian, Inc.: Wallingford, CT, USA, 2013. [Google Scholar]
  46. Talaikis, M.; Eicher-Lorka, O.; Valinčius, G.; Niaura, G. Water-induced structural changes in the membrane-anchoring monolayers revealed by isotope-edited SERS. J. Phys. Chem. C 2016, 120, 22489–22499. [Google Scholar] [CrossRef]
  47. Niaura, G. Raman Spectroscopy in Analysis of Biomolecules. In Encyclopedia of Analytical Chemistry; John Wiley & Sons, Ltd.: Hoboken, NJ, USA, 2014; pp. 1–34. [Google Scholar] [CrossRef]
  48. Nelson, P.N. Chain Length and Thermal Sensitivity of the Infrared Spectra of a Homologous Series of Anhydrous Silver(I) n –Alkanoates. Int. J. Spectrosc. 2016, 2016, 3068430. [Google Scholar] [CrossRef]
  49. Riauba, L.; Niaura, G.; Eicher-Lorka, O.; Butkus, E. A study of cysteamine ionization in solution by Raman spectroscopy and theoretical modeling. J. Phys. Chem. A 2006, 110, 13394–13404. [Google Scholar] [CrossRef]
  50. Kim, M.; Hohman, J.N.; Serino, A.C.; Weiss, P.S. Structural manipulation of hydrogen-bonding networks in amide-containing alkanethiolate monolayers via electrochemical processing. J. Phys. Chem. C 2010, 114, 19744–19751. [Google Scholar] [CrossRef]
  51. Kuodis, Z.; Matulaitienė, I.; Špandyreva, M.; Labanauskas, L.; Stončius, S.; Eicher-Lorka, O.; Sadzevičienė, R.; Niaura, G. Reflection Absorption Infrared Spectroscopy Characterization of SAM Formation from 8-Mercapto-N-(phenethyl)octanamide Thiols with Phe Ring and Amide Groups. Molecules 2020, 25, 5633. [Google Scholar] [CrossRef]
  52. Jackson, M.; Mantsch, H.H. The Use and Misuse of FTIR Spectroscopy in the Determination of Protein Structure. Crit. Rev. Biochem. Mol. Biol. 1995, 9238, 95–120. [Google Scholar] [CrossRef]
  53. Clegg, R.S.; Hutchison, J.E. Hydrogen-bonding, self-assembled monolayers: Ordered molecular films for study of through-peptide electron transfer. Langmuir 1996, 12, 5239–5243. [Google Scholar] [CrossRef]
  54. Kocherbitov, V.; Latynis, J.; Misiūnas, A.; Barauskas, J.; Niaura, G. Hydration of lysozyme studied by Raman spectroscopy. J. Phys. Chem. B 2013, 117, 4981–4992. [Google Scholar] [CrossRef] [PubMed]
  55. Myshakina, N.S.; Ahmed, Z.; Asher, S.A. Dependence of amide vibrations on hydrogen bonding. J. Phys. Chem. B 2008, 112, 11873–11877. [Google Scholar] [CrossRef]
  56. Talaikis, M.; Strazdaitė, S.; Žiaunys, M.; Niaura, G. Far-Off Resonance: Multiwavelength Raman Spectroscopy Probing Amide Bands of Amyloid-β-(37–42). Molecules 2020, 25, 3556. [Google Scholar] [CrossRef]
  57. Matulaitienė, I.; Kuodis, Z.; Matijoška, A.; Eicher-Lorka, O.; Niaura, G. SERS of the Positive Charge Bearing Pyridinium Ring Terminated Self-Assembled Monolayers: Structure and Bonding Spectral Markers. J. Phys. Chem. C 2015, 119, 26481–26492. [Google Scholar] [CrossRef]
  58. Holze, R. The adsorption of thiophenol on gold—A spectroelectrochemical study. Phys. Chem. Chem. Phys. 2015, 17, 21364–21372. [Google Scholar] [CrossRef] [PubMed]
  59. Nyamekye, C.K.A.; Weibel, S.C.; Smith, E.A. Directional Raman scattering spectra of metal–sulfur bonds at smooth gold and silver substrates. J. Raman Spectrosc. 2021, 52, 1246–1255. [Google Scholar] [CrossRef]
  60. Vericat, C.; Vela, M.E.; Corthey, G.; Pensa, E.; Cortés, E.; Fonticelli, M.H.; Ibañez, F.; Benitez, G.E.; Carro, P.; Salvarezza, R.C. Self-assembled monolayers of thiolates on metals: A review article on sulfur-metal chemistry and surface structures. RSC Adv. 2014, 4, 27730–27754. [Google Scholar] [CrossRef]
  61. Bryant, M.A.; Pemberton, J.E. Surface Raman Scattering of Self-Assembled Monolayers Formed from 1-Alkanethiols at Ag. J. Am. Chem. Soc. 1991, 113, 3629–3637. [Google Scholar] [CrossRef]
  62. Balakrishnan, G.; Jarzecki, A.A.; Wu, Q.; Kozlowski, P.M.; Wang, D.; Spiro, T.G. Mode recognition in UV resonance Raman spectra of imidazole: Histidine monitoring in proteins. J. Phys. Chem. B 2012, 116, 9387–9395. [Google Scholar] [CrossRef]
  63. Xu, M.; Shashilov, V.; Lednev, I.K. Probing the cross-β core structure of amyloid fibrils by hydrogen-deuterium exchange deep ultraviolet resonance Raman spectroscopy. J. Am. Chem. Soc. 2007, 129, 11002–11003. [Google Scholar] [CrossRef] [PubMed]
  64. Razmute-Razmė, I.; Kuodis, Z.; Eicher-Lorka, O.; Niaura, G. SERS observation of soft C-H vibrational mode of bifunctional alkanethiol molecules adsorbed at Au and Ag electrodes. Phys. Chem. Chem. Phys. 2010, 12, 4564–4568. [Google Scholar] [CrossRef] [PubMed]

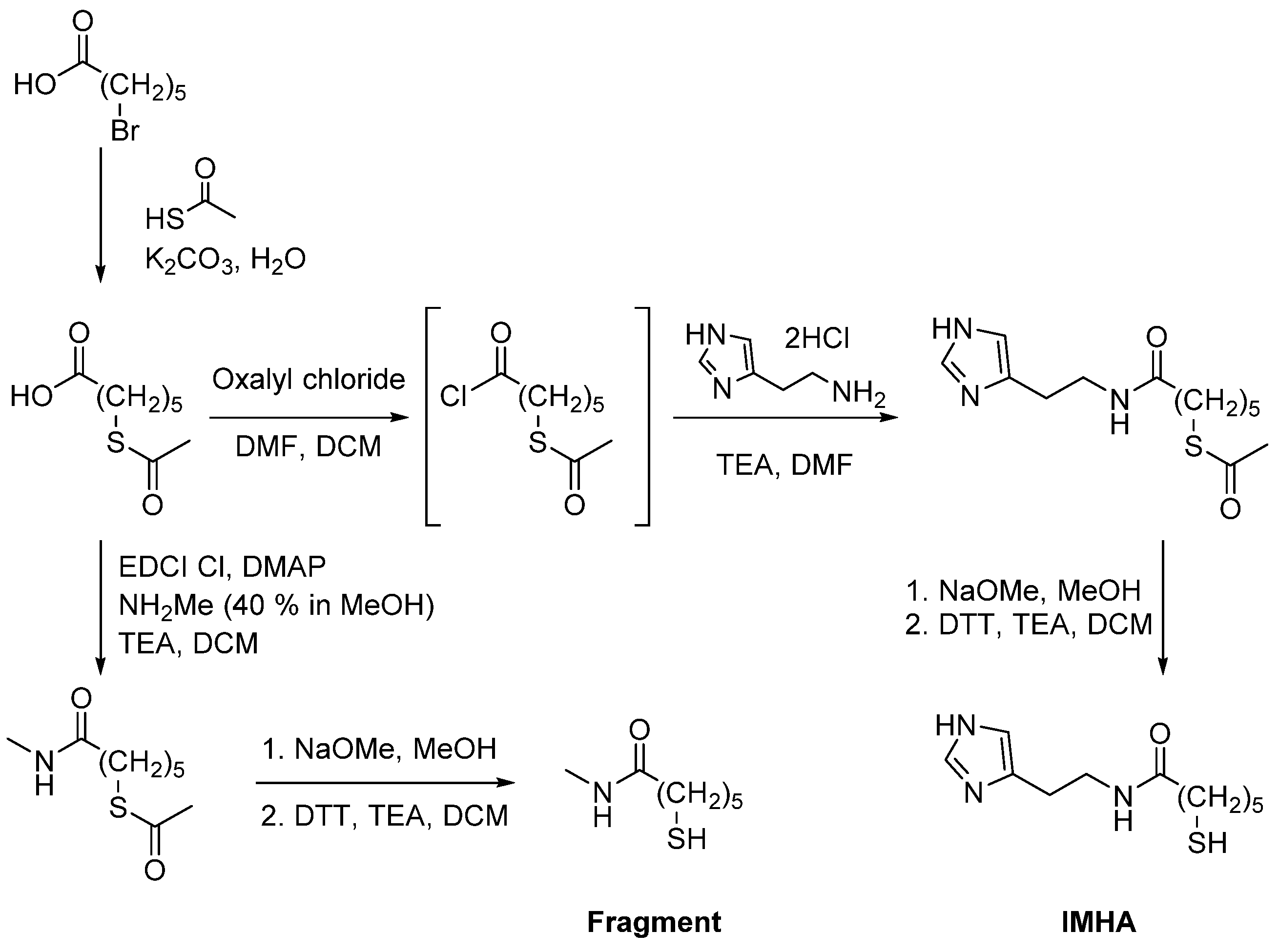

Figure 1. Synthesis scheme of IMHA and fragment molecule.
Figure 1. Synthesis scheme of IMHA and fragment molecule.
Molecules 27 06531 g001
Figure 2. HR-TEM images of [email protected]2 nanoparticles. Ag core and SiO2 sizes were 85 ± 5 nm and 3 nm.
Figure 2. HR-TEM images of [email protected]2 nanoparticles. Ag core and SiO2 sizes were 85 ± 5 nm and 3 nm.
Molecules 27 06531 g002

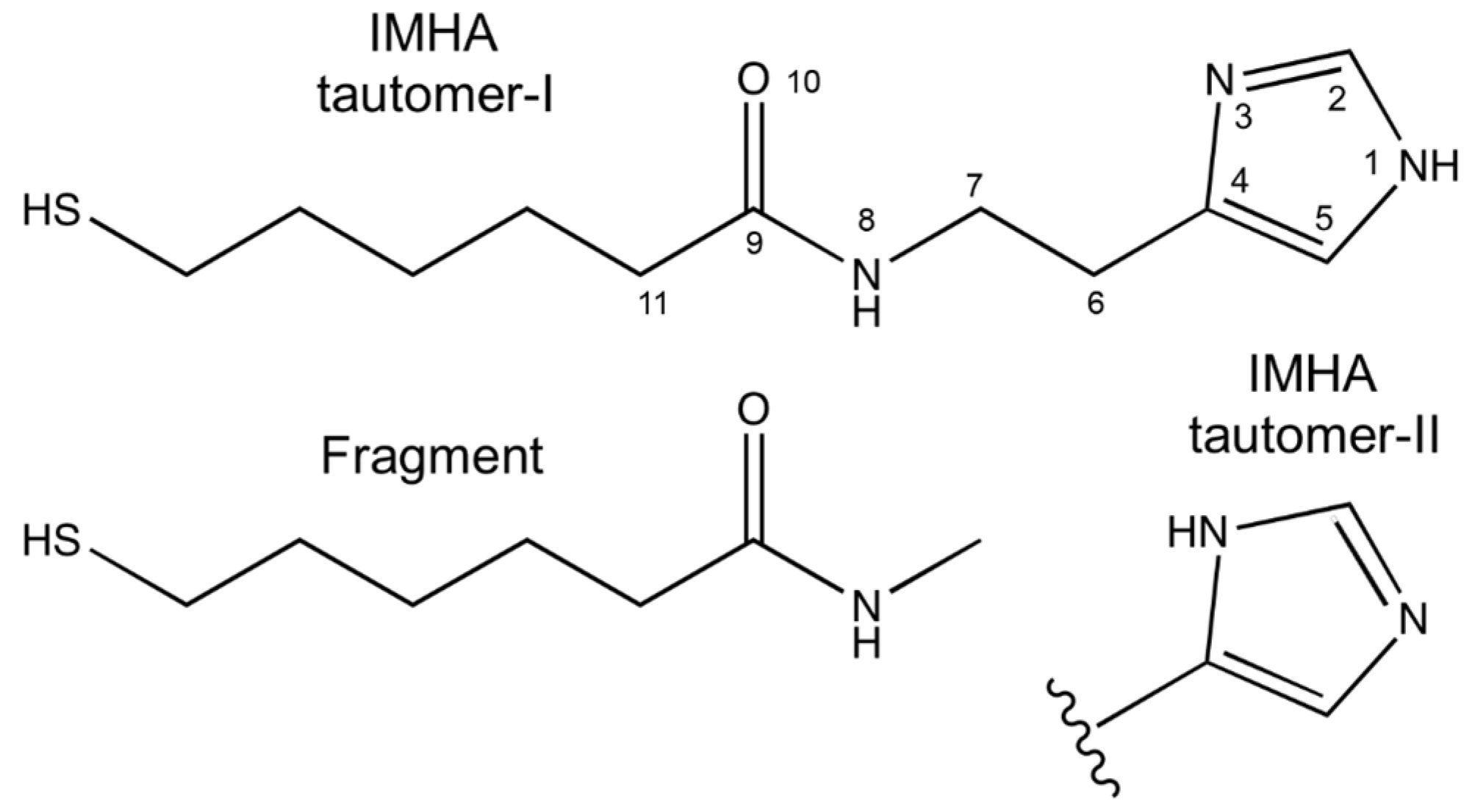

Figure 3. Molecular structure of Tautomer-I and Tautomer-II form of IMHA and the structure of fragment molecule.
Figure 3. Molecular structure of Tautomer-I and Tautomer-II form of IMHA and the structure of fragment molecule.
Molecules 27 06531 g003

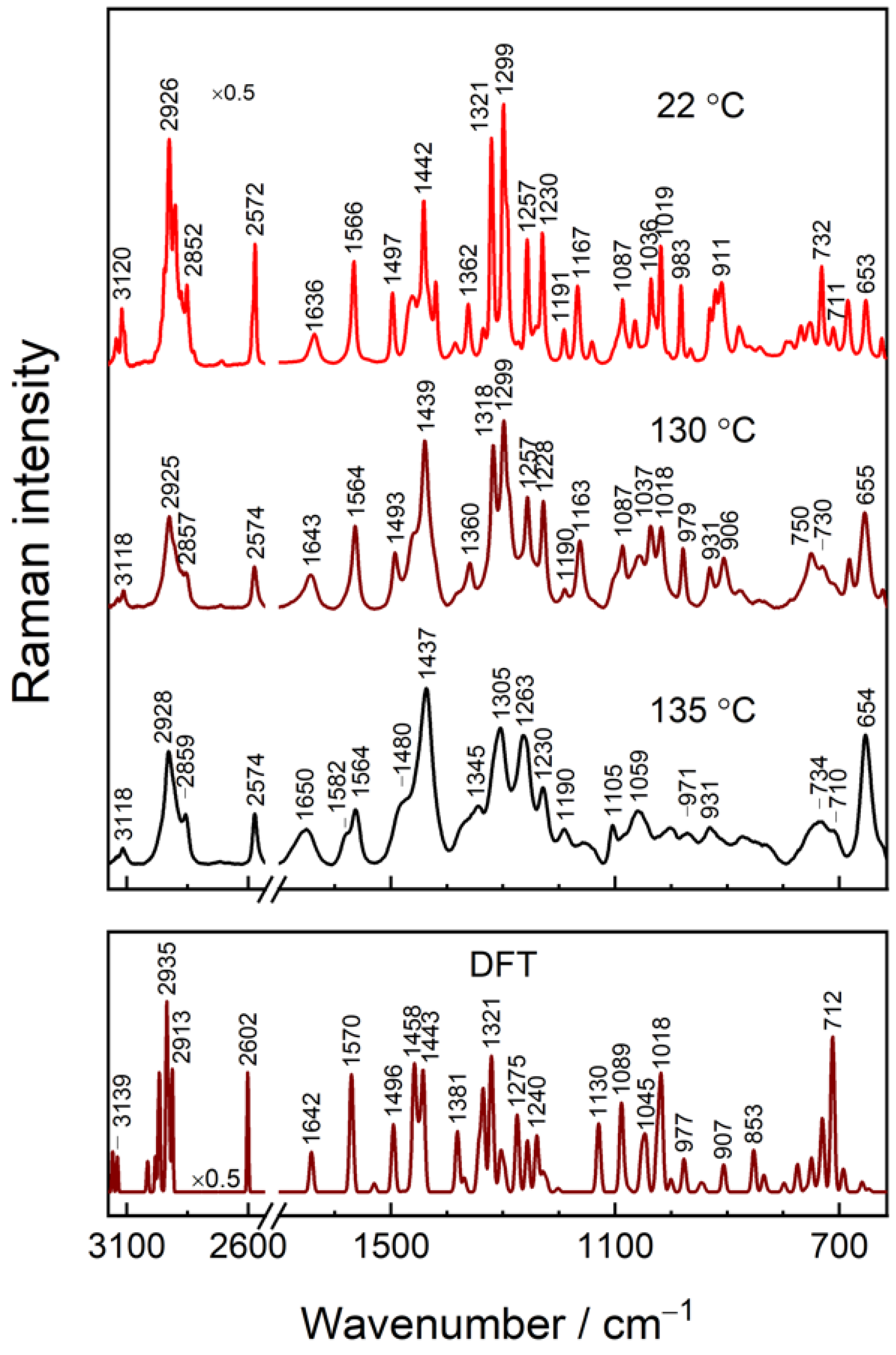

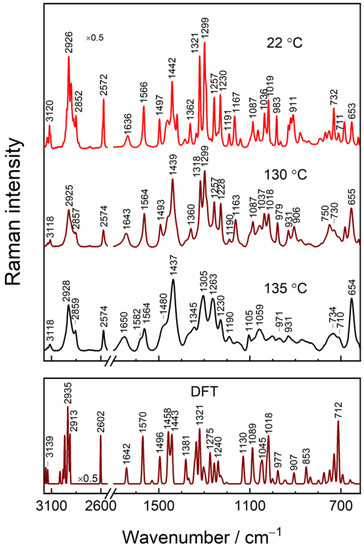

Figure 4. Temperature-dependent Raman spectra of solid IMHA at 22, 130, and 135 °C (upper panel) and DFT spectrum of IMHA (bottom panel). The intensity of the 2530–3175 cm−1 region is scaled by 0.5.
Figure 4. Temperature-dependent Raman spectra of solid IMHA at 22, 130, and 135 °C (upper panel) and DFT spectrum of IMHA (bottom panel). The intensity of the 2530–3175 cm−1 region is scaled by 0.5.
Molecules 27 06531 g004

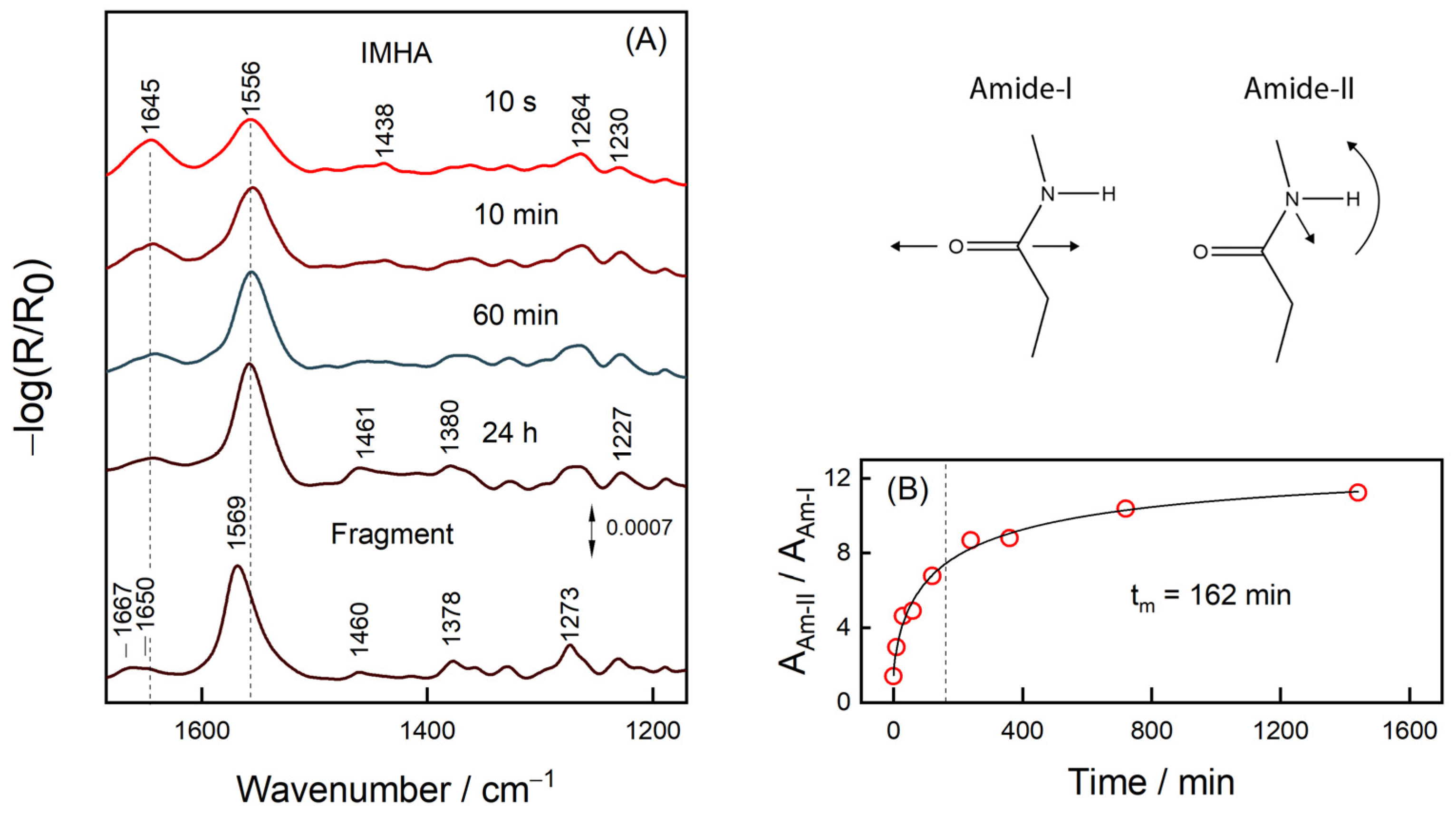

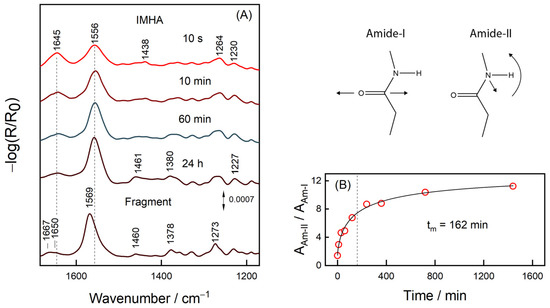

Figure 5. (A) The immersion time dependent RAIRS spectra of IMHA and the spectrum of the fragment molecule after 24 h-incubation. (B) Dependence of integral intensity ratio Am-II/Am-I on the immersion time fitted with the sigmoidal curve (R2 = 0.9925). The transition midpoint at 162 min marked by a dashed line. Cartoon depicts the atom motions in Amide-I and Amide-II vibrations.
Figure 5. (A) The immersion time dependent RAIRS spectra of IMHA and the spectrum of the fragment molecule after 24 h-incubation. (B) Dependence of integral intensity ratio Am-II/Am-I on the immersion time fitted with the sigmoidal curve (R2 = 0.9925). The transition midpoint at 162 min marked by a dashed line. Cartoon depicts the atom motions in Amide-I and Amide-II vibrations.
Molecules 27 06531 g005

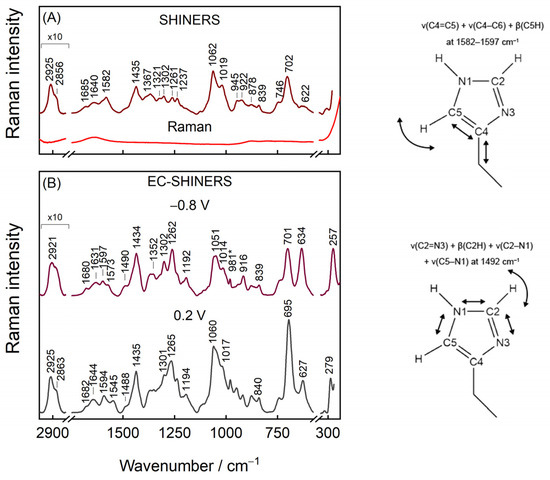

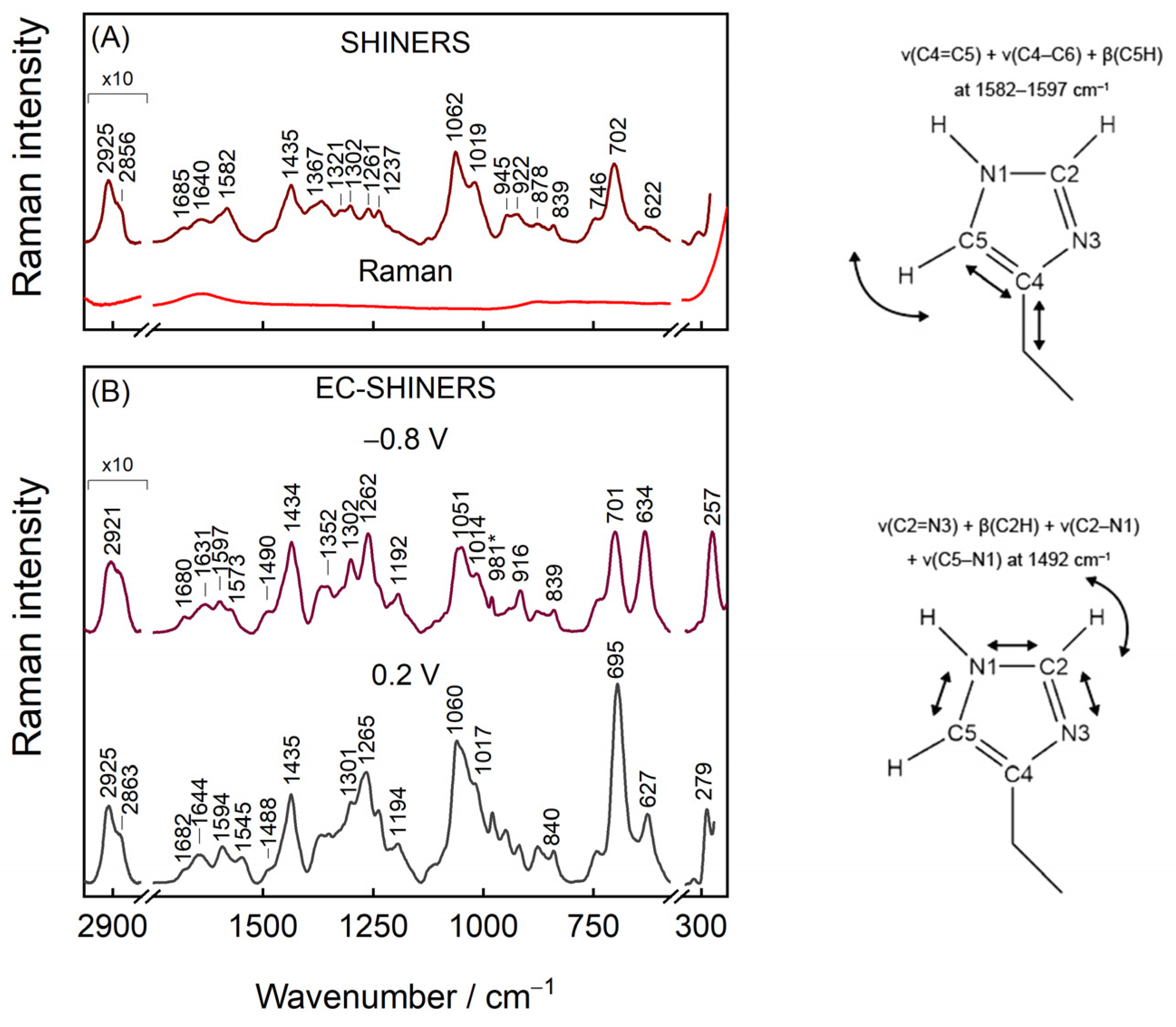

Figure 6. (A) SHINERS and Raman spectra of IMHA SAM on a smooth Au electrode in H2O. (B) EC-SHINERS spectra recorded at −0.8 and 0.2 V potentials in phosphate buffer solution (PBS; pH 7.0, with 0.1 M Na2SO4). Asterisk (*) at 981 cm−1 marks SO42− vibrational mode from the solution. Cartoon depicts the selected imidazole ring motions.
Figure 6. (A) SHINERS and Raman spectra of IMHA SAM on a smooth Au electrode in H2O. (B) EC-SHINERS spectra recorded at −0.8 and 0.2 V potentials in phosphate buffer solution (PBS; pH 7.0, with 0.1 M Na2SO4). Asterisk (*) at 981 cm−1 marks SO42− vibrational mode from the solution. Cartoon depicts the selected imidazole ring motions.
Molecules 27 06531 g006

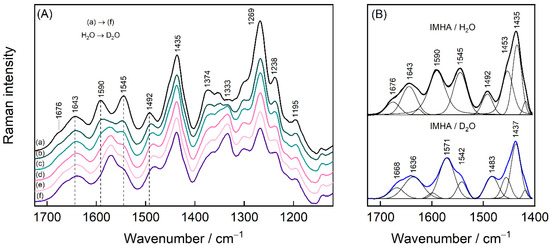

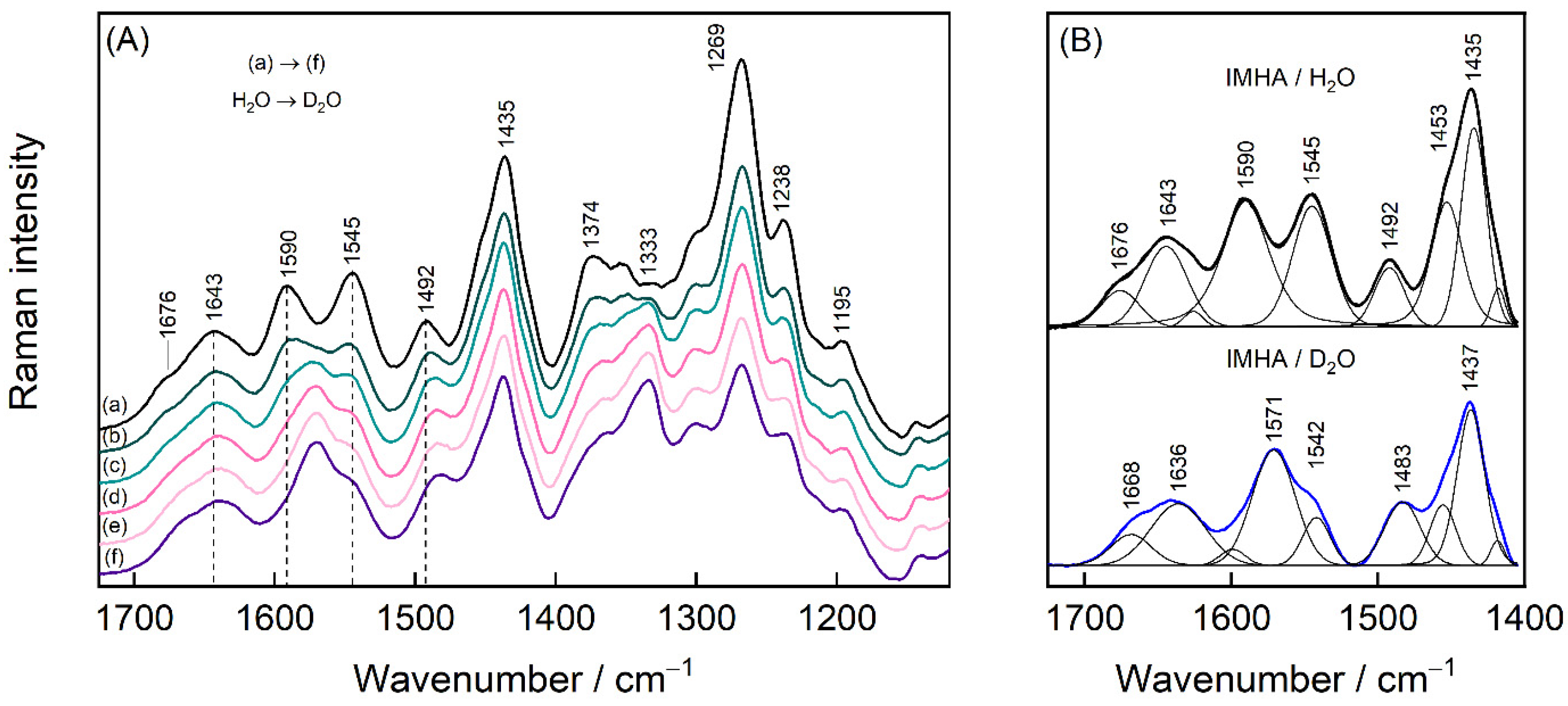

Figure 7. (A) SHINERS spectra in 1120–1725 cm−1 region of IMHA monolayer at open circuit potential in PBS solution (a), which was gradually exchanged to D2O (b)–(f). In each step, 20 vol% of the solution was removed from the cell and then the same amount of D2O was added. (B) The spectra of the first and the last step of the H/D exchange fitted with Gaussian-Lorentzian shape components.
Figure 7. (A) SHINERS spectra in 1120–1725 cm−1 region of IMHA monolayer at open circuit potential in PBS solution (a), which was gradually exchanged to D2O (b)–(f). In each step, 20 vol% of the solution was removed from the cell and then the same amount of D2O was added. (B) The spectra of the first and the last step of the H/D exchange fitted with Gaussian-Lorentzian shape components.
Molecules 27 06531 g007

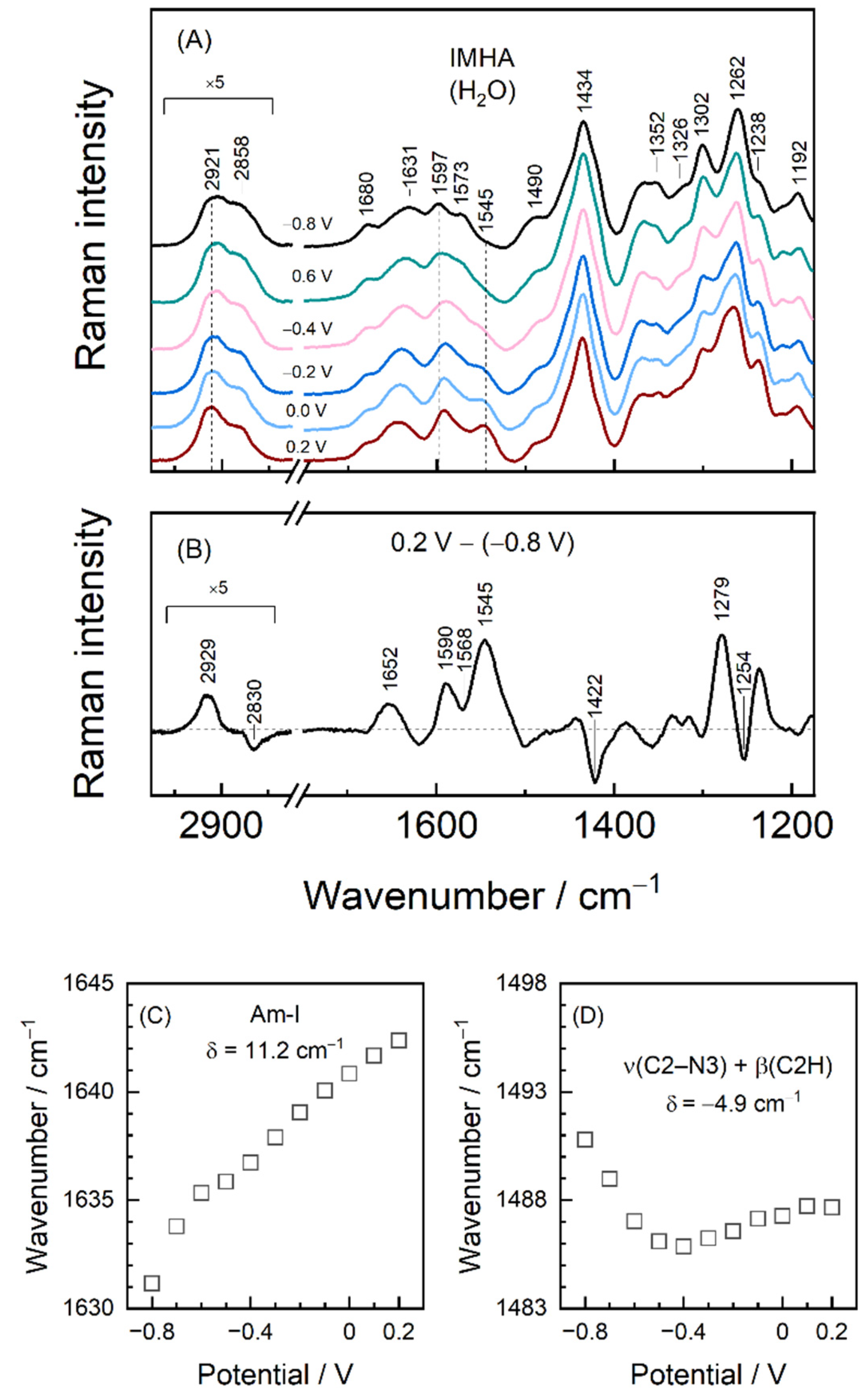

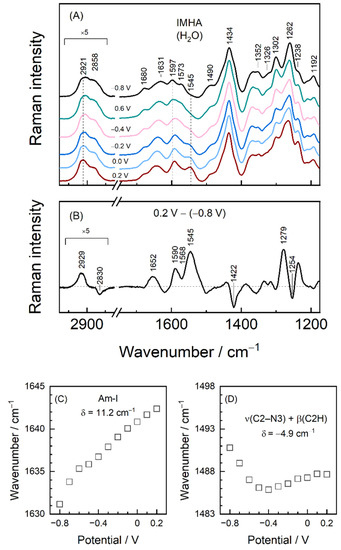

Figure 8. (A) EC-SHINERS spectra in 1120–1750 cm−1 and 2750–3050 cm−1 regions at indicated potentials. Spectra correspond to the ones in Figure 6. (B) EC-SHINERS difference spectrum constructed by subtracting 0.2 V spectrum from the one registered at −0.8 V. (C) Potential dependence of the Amide-I and (D) ν(C2–N3) + β(C2H) mode wavenumbers.
Figure 8. (A) EC-SHINERS spectra in 1120–1750 cm−1 and 2750–3050 cm−1 regions at indicated potentials. Spectra correspond to the ones in Figure 6. (B) EC-SHINERS difference spectrum constructed by subtracting 0.2 V spectrum from the one registered at −0.8 V. (C) Potential dependence of the Amide-I and (D) ν(C2–N3) + β(C2H) mode wavenumbers.
Molecules 27 06531 g008

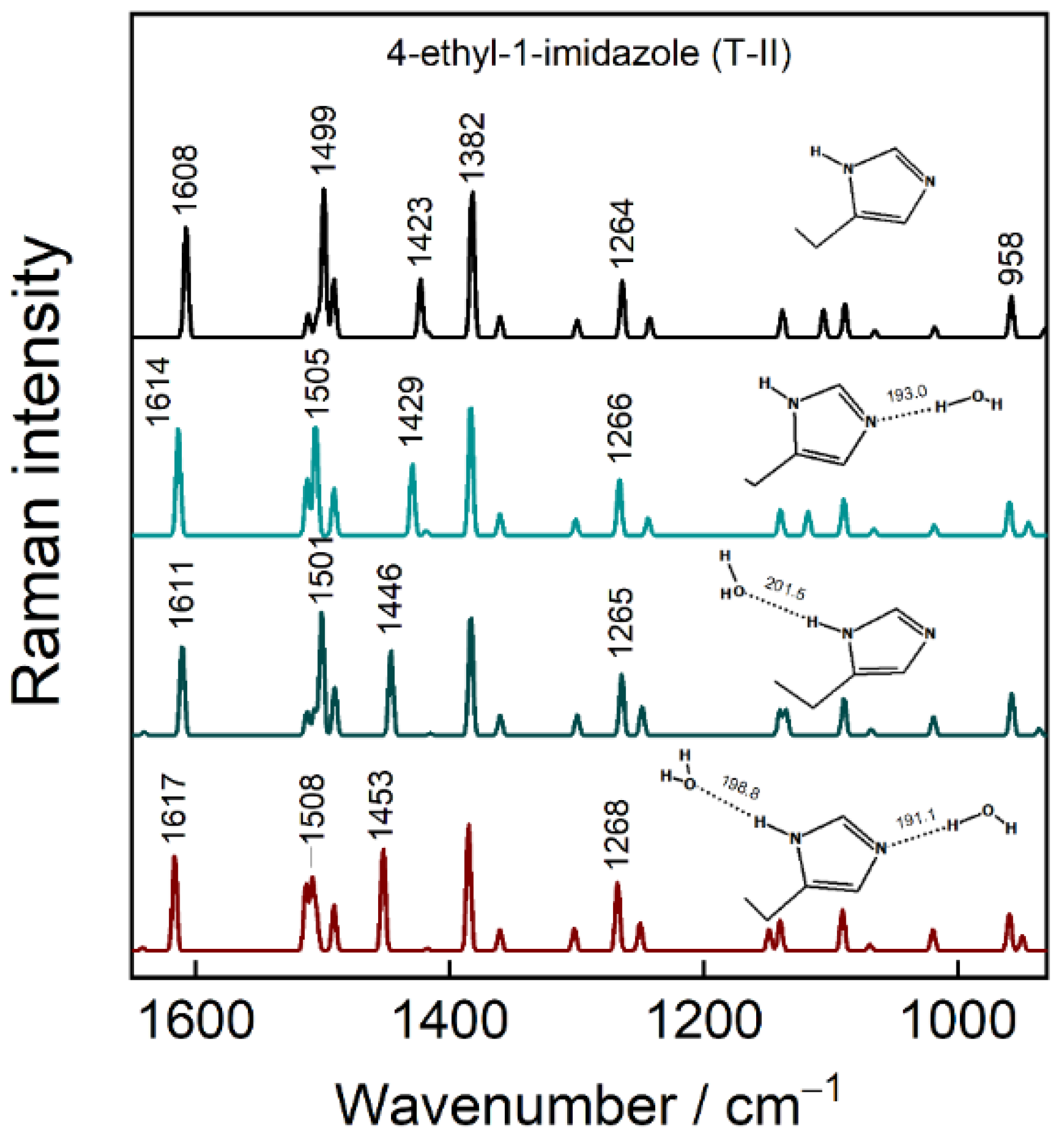

Figure 9. DFT spectra and optimized structures of Tautomer-II form of model compound 4-ethyl-1-imidazole with H-bonding coordination number from 0 to 2. The lengths of H-bonds are indicated in pm.
Figure 9. DFT spectra and optimized structures of Tautomer-II form of model compound 4-ethyl-1-imidazole with H-bonding coordination number from 0 to 2. The lengths of H-bonds are indicated in pm.
Molecules 27 06531 g009
Table 1. Temperature-Raman, SHINERS, and DFT frequencies and assignments of IMHA.
Table 1. Temperature-Raman, SHINERS, and DFT frequencies and assignments of IMHA.
Raman, cm−1SHINERS, cm−1DFTRef.Assignment
22 °C130 °C135 °CH2O, −0.8 V
314231393144 sh 3158 ν(C5–H)
312031183118 3139 ν(C2–H)
29262925292829212935 νas(CH2)
28522857285928562913 νs(CH2)
257225742574n.a.2602 ν(S–H)
1636164316501680
1631
1642 ν(C=O) Amide-I
1582 T-II1597 T-II1587 T-II[9,18,19]ν(C4=C5) + ν(C4–C6) + β(C5H)
1566 T-I1564 T-I1564 T-I1573 T-I1570 T-I
1530 ν(C–N) + δ(NH) Amide-II
1497149314801490 sh1496[10,18]ν(C2–N3) + β(C2H) + ν(C2–N1) + ν(C5–N1)
14641461 1458 δ(CH2) scissoring
14421439143714341443 δ(CH2) scissoring
13621360 13721381 w(CH2)
1345 T-II1352 sh T-II[19]δ(CH2) + ν(Im) breathing + δ(C5H)
1321 T-I1318 T-I1326 sh T-I1335 T-I
12991299130513021303 t(CH2)
1257 T-II1257 T-II1263 T-II1262 T-II [9,19,47]ν(Im) breathing + β(C2H)
12301228123012381240[18]β(C5H) + β(C2H) + ν(C5–N1)
11911190119011921202 t(C6H2) + δ(N8H)
11671163 1130[13]ν(C2–N1) + δ(N1H)
108710871105 1089 ν(C–C)T + δ(CSH) + δ(CCS)
10361037105910511045 ν(C–C)T
10191018 10141018 ν(C6–C7)
983979971 977[9,19]β(CH) Im for T-I
931931931 943 t(CH2) + r(CH2)
921 916948[13]β(CH) Im
911906 907 δ(N8C9C11)
841842 839835 γ(C2H)
753750 750[48]γ(C5H) + r(CH2)
732730734 730[48]r(CH2) + ν(S–C)T
711709710701712 ν(S–C)T
685682 694 γ(Im)
653655654634n.a.[49]ν(S–C)G + δ(Im)
Abbreviations: n.a., not applicable; sh, shoulder; G, gauche; T, trans; r, rocking; w, wagging; t, twisting; δ, deformation; β, in-plane deformation; γ, out-of-plane deformation; ν, stretching; Im, imidazole; T-I, Tautomer-I; T-II, Tautomer-II.
Table 2. Wavenumbers and FWHM (bold) of Am-I and Am-II modes of IMHA and fragment molecule obtained from samples in powder form and SAMs.
Table 2. Wavenumbers and FWHM (bold) of Am-I and Am-II modes of IMHA and fragment molecule obtained from samples in powder form and SAMs.
IMHAFragment
SAM, 24 hPowderδSAM, 24 hPowderδ
Am-II, cm−11557, 291577, 37−201569, 281556, 5213
Am-I, cm−11642, 421638, 2761650, 28; 1667, 161647, 413; 20
Abbreviation: δ, wavenumber shift, νSAM–νpowder.
Publisher’s Note: MDPI stays neutral with regard to jurisdictional claims in published maps and institutional affiliations.

Share and Cite

MDPI and ACS Style

Zdaniauskienė, A.; Talaikis, M.; Charkova, T.; Sadzevičienė, R.; Labanauskas, L.; Niaura, G. Electrochemical Shell-Isolated Nanoparticle-Enhanced Raman Spectroscopy of Imidazole Ring Functionalized Monolayer on Smooth Gold Electrode. Molecules 2022, 27, 6531. https://doi.org/10.3390/molecules27196531

AMA Style

Zdaniauskienė A, Talaikis M, Charkova T, Sadzevičienė R, Labanauskas L, Niaura G. Electrochemical Shell-Isolated Nanoparticle-Enhanced Raman Spectroscopy of Imidazole Ring Functionalized Monolayer on Smooth Gold Electrode. Molecules. 2022; 27(19):6531. https://doi.org/10.3390/molecules27196531

Chicago/Turabian Style

Zdaniauskienė, Agnė, Martynas Talaikis, Tatjana Charkova, Rita Sadzevičienė, Linas Labanauskas, and Gediminas Niaura. 2022. "Electrochemical Shell-Isolated Nanoparticle-Enhanced Raman Spectroscopy of Imidazole Ring Functionalized Monolayer on Smooth Gold Electrode" Molecules 27, no. 19: 6531. https://doi.org/10.3390/molecules27196531

Article Metrics

Back to TopTop
