Article

Furan-Containing Chiral Spiro-Fused Polycyclic Aromatic Compounds: Synthesis and Photophysical Properties

1
Department of Applied Chemistry, Graduate School of Engineering, Tokyo University of Agriculture and Technology, 2-24-16 Naka-cho, Koganei, Tokyo 184-8588, Japan
2
Instrumentation Analysis Center, Tokyo University of Agriculture and Technology, 2-24-16 Naka-cho, Koganei, Tokyo 184-8588, Japan
*
Author to whom correspondence should be addressed.
Molecules 2022, 27(16), 5103; https://doi.org/10.3390/molecules27165103
Submission received: 22 July 2022 / Revised: 8 August 2022 / Accepted: 9 August 2022 / Published: 11 August 2022
(This article belongs to the Special Issue Synthesis of Heteroaromatic Compounds)

Abstract

:
Spiro-fused polycyclic aromatic compounds (PACs) have received growing interest as rigid chiral scaffolds. However, furan-containing spiro-fused PACs have been quite limited. Here, we design spiro[indeno[1,2-b][1]benzofuran-10,10′-indeno[1,2-b][1]benzothiophene] as a new family of spiro-fused PACs that contains a furan unit. The compound was successfully synthesized in enantiopure form and also transformed to its S,S-dioxide derivative and the pyrrole-containing analog via aromatic metamorphosis. The absorption and emission properties of the obtained furan-containing chiral spiro-fused PACs are apparently different from those of their thiophene analogs that have been reported, owing to the increased electron-richness of furan compared to thiophene. All of the furan-containing chiral spiro-fused PACs were found to be circularly polarized luminescent materials.

Graphical Abstract

1. Introduction

Spiro-fused polycyclic aromatic compounds (PACs), in which two planarized biaryls are connected perpendicularly by a tetragonal spiro atom, have been intensively studied in the last few decades, owing to their unique three-dimensional structure, high thermal stability, superior processability, and promising photophysical and electronic properties [1,2,3]. These intriguing characteristics offer advantages in (opto)electronic applications, such as organic field effect transistors [4,5], organic light emitting diodes [6,7,8], and organic solar cells [9,10,11,12]. The prototypical motif of spiro-fused PACs is 9,9′-spirobi[fluorene] (SBF). A variety of SBF-based compounds with functional substituent(s) and/or a π-extended structure have been developed for the purpose of tuning the photophysical and electronic properties [1,2]. Incorporation of heterocycle unit(s) into π-conjugated systems or a heteroatom as a spiro atom has also been a promising strategy to achieve the desired functions of spiro-fused PACs [3,13,14,15,16].
When two dissymmetric biaryls are linked by a spiro atom, the resulting spiro compound is chiral. Two different dissymmetric biaryls give a C1-symmetric spiro compound, while two identical dissymmetric biaryls afford a C2-symmetric one. Although chiral spiro-fused PACs have attracted less attention until recently, there have been several reports on their applications to molecular recognition [17,18], diastereoselective self-assembly [19,20], and asymmetric catalysts [21,22]. In 2016, Kuninobu, Takai, and co-workers reported the first example of a chiral spiro-fused PAC [23] that exhibited circularly polarized luminescence (CPL), which has received significant interest, owing to its potential applications [24,25,26,27,28]. This report has triggered many studies on spiro-fused PACs that exhibit CPL [29,30,31,32,33,34,35,36,37]. We have also developed a series of chiral spiro-fused PACs, such as spiro-SS, -SS(O)2, and -SN (Figure 1) [16,38,39,40,41,42]. These spiro-fused PACs exhibit CPL and their optical properties were found to depend on the substituents and the incorporated heterocycle units. The recent studies clearly demonstrate the excellent potential of spiro-fused PACs as chiral materials, and further investigations are still required for elucidating the structure–property relationship, and thus developing spiro-fused PACs with tailored properties.
In the course of our studies, we have focused on incorporating a furan unit in a chiral spiro-fused PAC skeleton. Furan, the oxygen analog of thiophene, has reduced aromaticity and is more electron-rich compared to thiophene [43]. Therefore, the electronic perturbation of a furan unit to a π-conjugated system would be different from that of a thiophene unit, inducing unique electronic and photophysical properties. To date, a wide range of furan-containing π-conjugated compounds have been reported as organic functional materials [44,45,46,47,48]. However, the synthetic attempt of spiro-fused PACs containing furan unit(s) have been quite limited. In 2010, Ohe and co-workers reported the first examples of furan-containing spiro-fused PACs [49,50]. These compounds were found to be highly emissive. More recently, the chiral spiro-fused PAC with a furan unit has been reported by Nakamura and co-workers, demonstrating CPL properties [35]. Herein, we report the synthesis and photophysical properties of furan-containing chiral spiro-fused PACs 13, which are oxygen analogs of spiro-SS, -SS(O)2, and -SN (Figure 1). The S,S-dioxide derivative 2 and the pyrrole-containing compound 3 can be synthesized from 1 through aromatic metamorphosis. Incorporation of a furan unit in place of a thiophene unit was found to have great impact on photophysical properties.

2. Results

Our first attempt to prepare racemic 1 (rac-1) is illustrated in Scheme 1. 3-Bromo-2-(bromophenyl)-1-benzothiophene (4) was dilithiated with BuLi, and then treated with the ester 5. The subsequent Friedel–Crafts cyclization of the resulting tertiary alcohol 6 successfully gave the desired compound rac-1 (37% yield from 4). The structure was confirmed by X-ray crystallographic analysis (Figure 2). Both enantiomers were found to be contained in the unit cell. The two spiro-linked π-conjugated planes are almost completely perpendicular (87.3°). Screening of optical resolution conditions with HPLC on a chiral stationary phase (chiral HPLC) showed that baseline separation of enantiomers cannot be achieved.
In order to prepare each enantiomer of 1, we designed the hydroxy-substituted spiro compound 11, which would be converted into 1 via a two-step reaction (Scheme 2). Previously, Lützen and co-workers have reported the efficient optical resolution of 9,9′-spirobi[fluorene]-2,2′-diol and its derivatives with chiral HPLC [51]. We have also demonstrated that the dihydroxylated derivative of spiro-SS can be separated into enantiomers with chiral HPLC more efficiently than its parent compound spiro-SS [39]. Furthermore, Nakamura and co-workers reported the optical resolution of the furan-containing chiral spiro-fused PAC with one hydroxy group by using chiral HPLC [35]. Accordingly, we envisaged that incorporation of a hydroxy group on 1 would make an efficient optical resolution with chiral HPLC possible.
The synthesis of the hydroxy-substituted compound 11 and its transformation to 1 are illustrated in Scheme 2. First, 2-(2-bromo-4-methoxyphenyl)-1-benzothiophene (7) was lithiated with BuLi, and then treated with 10H-indeno[1,2-b][1]benzofuran-10-one (8). The resulting tertiary alcohol 9 was converted into the methoxy-substituted spiro compound rac-10 via acid-promoted Friedel–Crafts cyclization (66% yield from 8). Finally, demethylation of rac-10 with BBr3 gave the hydroxy-substituted compound 11 (58% yield) in a racemic form. As expected, the optical resolution of rac-11 was achieved by HPLC with a CHIRALPAK® IA column with hexane/CHCl3 (50/50) as an eluent (Figure S18). In addition, the hydroxy group of 11 was found to be cleaved off via the transformation to the triflate 12 (85% yield with rac-11; 87% yield with (+)-11) and the following palladium-catalyzed reduction with formic acid (96% yield with rac-12; 89% yield with (+)-12) [39]. This two-step reaction should not affect the chiral center. Therefore, the transformation of enantiopure 11 can give the corresponding enantiomer of 1 without racemization.
A benzothiophene skeleton can be transformed to an indole one by aromatic metamorphosis, which includes oxidation of a thiophene unit and the inter/intra molecular SNAr reaction of the resulting S,S-dioxide unit with a primary amine [52]. Recently, we applied this transformation to spiro-SS [40]. The resulting spiro-fused compounds with one [spiro-SS(O)2] or two S,S-dioxide units or with one (spiro-SN) or two pyrrole units showed photophysical properties that were quite different from the parent compound spiro-SS. In this context, we investigated the transformation of 1 to the S,S-dioxide derivative 2 and the pyrrole-containing compound 3 (Scheme 3). The oxidation of rac-1 was readily achieved by using an excess amount of 3-chloroperbenzoic acid (mCPBA) as an oxidant, affording rac-2 in high yield (96%). Furthermore, the reaction of rac-2 with aniline in the presence of KHMDS (potassium hexamethyldisilazide) successfully gave rac-3 in a moderate yield (64%). Enantiomers of 2 and 3 were also prepared from enantiopure 1. The oxidation and the inter/intra molecular SNAr reaction should not affect the chiral center. Therefore, these transformations could proceed without racemization to afford enantiopure 2 and 3.
The UV–vis absorption and photoluminescence (PL) spectra of spiro-fused PACs 13 are shown in Figure 3. The photophysical data are summarized in Table 1, together with those of the previously reported spiro-SS, spiro-SS(O)2, and spiro-SN for comparison. We also performed theoretical calculations by density functional theory (DFT) and time-dependent (TD) DFT methods at the B3LYP/6-31G(d) level of theory to understand the experimental photophysical properties.
Compound rac-1 gave a well-resolved absorption spectrum, with the longest absorption maximum (λabs) at 337 nm (Figure 3a). In contrast, the absorption spectrum of the S,S-dioxide derivative rac-2 exhibited well-resolved absorption bands in the <340 nm range and broad absorption bands in the longer wavelength range. Such a difference in the absorption properties between rac-1 and rac-2 is the same as that observed for spiro-SS and spiro-SS(O)2 [38]. By analogy with the discussion on spiro-SS and spiro-SS(O)2 in our previous report, the well-resolved absorption bands and the broader absorption bands were derived from the indeno[1,2-b][1]benzofuran subunit and the indeno[1,2-b][1]benzothiophene S,S-dioxide subunit, respectively. Each of these two subunits works as an almost-independent chromophore, since their perpendicular arrangement through a spiro carbon atom allows a limited orbital interaction between them in the ground state. The absorption spectrum of rac-3 is slightly broader and red-shifted in comparison to that of rac-1, exhibiting a shoulder peak at 353 nm. The absorption spectra of rac-13 are almost independent of solvent polarity (Figure S19a–c). The TD-DFT calculations demonstrated that the spiro-fused PACs rac-13 exhibit the calculated longest absorption bands at 352 nm, 428 nm, and 361 nm, respectively, all of which are assigned to the transitions dominated by the HOMO→LUMO transition (Table S5). The obtained calculation results are qualitatively coincident with their experimental absorption spectra. The absorption spectra of rac-13 are very similar to those of their thiophene analogs spiro-SS, -SS(O)2, and -SN, respectively [38,40]. Therefore, the replacement of a thiophene unit with a furan unit was found to have little impact on absorption properties.
In the PL spectra, rac-1 exhibited emission maximum (λem) at 369 nm in CH2Cl2 (Figure 3b). A slight red-shift was observed with an increase in solvent polarity (λem: 361 nm (hexane), 366 nm (toluene), 366 nm (THF), 369 nm (CH2Cl2), and 381 nm (acetonitrile) Figure S19d). The S,S-dioxide derivative rac-2 exhibited emission maximum at 434 nm in non-polar hexane, which is largely red-shifted compared to that of rac-1. With the increase in solvent polarity, a significant positive solvatochromic shift was observed (Figure 4a). In addition, the second emission band clearly appeared at the longer wavelength (519 nm) in CH2Cl2 and became predominant in the most polar acetonitrile (542 nm). According to our previous report [38], the shorter-wavelength emission band reflects the feature of the indeno[1,2-b][1]benzothiophene S,S-dioxide subunit. On the other hand, the longer-wavelength one could be ascribed to the photo-induced intramolecular charge transfer (ICT), in which the indeno[1,2-b][1]benzofuran and the indeno[1,2-b][1]benzothiophene S,S-dioxide subunits work as electron-donating and electron-accepting units, respectively. Indeed, the HOMO and LUMO estimated by DFT calculation are mainly localized in indeno[1,2-b][1]benzofuran and the indeno[1,2-b][1]benzothiophene S,S-dioxide subunits, respectively, by reflecting the donor–acceptor-type structure (Figure 5). The emission band of the pyrrole-containing compound rac-3 is also red-shifted compared to that of rac-1. In addition, the PL spectrum of rac-3 exhibited a stronger dependence on solvent polarity than that of rac-1 (Figure 4b). The HOMO of rac-3 is delocalized both on indeno[1,2-b][1]benzofuran and indeno[1,2-b]indole subunits, but the apparently larger distribution is demonstrated on the latter subunit. In contrast, the LUMO is mainly located on the indeno[1,2-b][1]benzofuran subunit. Therefore, indeno[1,2-b][1]benzofuran and indeno[1,2-b]indole subunits act as electron-accepting and electron-donating units, respectively, inducing an ICT character of rac-3 in its emissive state and a clear positive solvatochromic shift in the PL spectrum.
Next, the effect of the furan unit on the emission properties of rac-13 was evaluated through a comparison with those of the thiophene analogs spiro-SS, SS(O)2, and -SN. As described above, the PL spectrum of rac-2 in CH2Cl2 clearly shows the longer-wavelength emission band, owing to a photo-induced ICT, and it is predominant in acetonitrile (Figure 4a). On the other hand, such an emission band is less clear and observed only as a shoulder in the case of spiro-SS(O)2 [38]. This difference could be attributed to the more electron-rich furan unit, which works as a stronger electron-donating unit and allows more efficient photo-induced ICT. The degree of the solvatochromic shift of rac-3em: 374 nm (hexane) and 421 (acetonitrile)) (Figure 4b) is slightly smaller than that of the thiophene analog spiro-SNem: 375 nm (hexane) and 430 (acetonitrile)) [40]. The indeno[1,2-b]indole unit is the electron-donating unit both in rac-3 and spiro-SN, and the indeno[1,2-b][1]benzofuran and the indeno[1,2-b][1]benzothiophene subunits work as electron-accepting units in rac-3 and spiro-SN, respectively. Therefore, the smaller solvatochromic shift of rac-3 could be due to the less efficient electron-accepting character of the more electron-rich indeno[1,2-b][1]benzofuran unit. The absolute quantum yields of rac-1 and rac-3 are 0.13 and 0.16, respectively (Table 1), which are much higher than those of spiro-SS (0.06) and spiro-SN (0.02) [38,40]. The S,S-dioxide derivative rac-2 is merely emissive (<0.01), similar to spiro-SS(O)2 [38].
Chiroptical properties of 13 were investigated by CD and CPL spectroscopies (Figure 6 and Table 2). The CD spectrum of (+)-1 exhibited two large positive Cotton effects at 340 nm and 328 nm and several negative and positive ones around 305 nm and 260 nm, respectively, which are quite similar to those of (+)-(S)-spiro-SS [38,39]. Therefore, the absolute configuration of (+)-1 is considered to be S. The TD-DFT calculation results also support this assignment. CD spectra of (+)-2 and (+)-3 are slightly different from those of the thiophene analogs spiro-SS(O)2 and spiro-SN, respectively, but the sign of the first Cotton effect of (+)-2 and (+)-3 is identical to that of (+)-(S)-isomers of spiro-SS(O)2 and spiro-SN [38,40]. The dissymmetry factors in absorption, gabsε/ε = (εLεR)/[(εL + εR)/2]), were estimated to be approximately 1.2 × 10−3 for (+)-1, 1.4 × 10−3 for (+)-2, and +1.4 × 10−3 for (+)-3. In the CPL spectra, (+)- and (−)-13 gave mirror-image CPL spectra with each other. The dissymmetry factors in luminescence, glum [2ΔI/I = 2(ILIR)/(IL + IR), IL and IR: luminescence intensities of left and right circularly polarized light, respectively) [24], of (+)-13 were estimated to be +0.90 × 10−3, +2.8 × 10−3, and +0.97 × 10−3, respectively, which are comparable to those of spiro-SS, SS(O)2, and -SN [38,40] and the previously reported chiral small organic molecules with significant CPL activity. The solvent effect on CPL was also investigated for (+)-2, since its PL spectrum exhibits significant positive solvatochromism. As expected, with the increase in solvent polarity, the CPL maximum shifted to the longer wavelength range (Figure 6b).

3. Materials and Methods

3.1. General Procedures

All manipulations that involved air- and/or moisture-sensitive compounds were carried out with the standard Schlenk technique under argon. Analytical thin-layer chromatography was performed on glass plates coated with 0.25-mm 230–400 mesh silica gel that contained a fluorescent indicator. Column chromatography was performed by using silica gel (spherical neutral, particle size 63–210 μm). The recycling preparative HPLC was performed with YMC–GPC T–2000 and T–4000 columns (chloroform as an eluent). Most of the reagents were purchased from commercial suppliers, such as Sigma-Aldrich Co. LLC (St. Louis, MO, USA), Tokyo Chemical Industry Co., Ltd. (Tokyo, Japan), and Kanto Chemical Co., Inc. (Tokyo, Japan), and used without further purification, unless otherwise specified. Commercially available anhydrous solvents were used for air- and/or moisture sensitive reactions. Compound 4 was prepared according to the literature [53].
NMR spectra were recorded in CDCl3 on a JEOL-ECX400 spectrometer (JEOL Ltd., Tokyo, Japan) (1H 400 MHz; 13C 101 MHz; 19F 376 MHz). Chemical shifts were reported in ppm relative to the internal standard signal (0 ppm for Me4Si in CDCl3 and acetone-d6) for 1H and the deuterated solvent signal (77.16 ppm for CDCl3 and 29.84 ppm for acetone-d6) for 13C. Data are presented as follows: chemical shift, multiplicity (s = singlet, brs = broad singlet, d = doublet, t = triplet, m = multiplet and/or multiple resonances), coupling constant in hertz (Hz), and signal area integration in natural numbers. Melting points were determined on SRS OptiMelt melting point apparatus (Stanford Research Systems, Sunnyvale, CA, USA). High resolution mass spectra were taken with a Bruker Daltonics micrOTOF–QII mass spectrometer (Bruker Corporation, Billerica, MA, USA) by the atmospheric pressure chemical ionization-time-of-flight (APCI–TOF) method. UV–vis absorption spectra were recorded on a JASCO V-650 spectrophotometer (JASCO Corporation, Tokyo, Japan). Photoluminescence spectra were recorded on a JASCO FP–6500 spectrofluorometer (JASCO Corporation, Tokyo, Japan). Absolute quantum yields were determined by an absolute quantum yield measurement system with a JASCO ILF–533 integrating sphere (JASCO Corporation, Tokyo, Japan). HPLC analyses and optical resolution were carried out using a DAICEL CHIRALPAK® IA-3 column (4.6 mm × 250 mm) and a DAICEL CHIRALPAK® IA column (20 mm × 250 mm) (Daicel Corporation, Tokyo, Japan), respectively. Circular dichroism (CD) spectra were recorded on a JASCO J–725 spectrometer (JASCO Corporation, Tokyo, Japan). CPL spectra were measured by using a JASCO CPL–300 spectrometer (JASCO Corporation, Tokyo, Japan). Optical rotations were measured on a JASCO P–2200 polarimeter (JASCO Corporation, Tokyo, Japan) using a 50-mm cell.

3.2. Synthesis

3.2.1. Methyl 2-(1-Benzofuran-2-yl)benzoate (5)

A mixture of methyl 2-bromobenzoate (0.97 mL, 6.9 mmol), (1-benzofuran-2-yl)boronic acid (1.23 g, 7.6 mmol), Pd2(dba)3 (0.13 g, 0.14 mmol), SPhos (0.22 g, 0.53 mmol), and K2CO3 (2.86 g, 21 mmol) in anhydrous MeCN (30 mL) and deionized water (3 mL) was placed in a 100-mL Schlenk tube and degassed by three freeze–pump–thaw cycles. After stirring at 80 °C for 24 h under argon, the reaction mixture was cooled to room temperature. To the reaction mixture, 1 M aqueous HCl was slowly added, and the resulting mixture was extracted with CH2Cl2 (10 mL × 3). The combined organic layers were dried over anhydrous Na2SO4, filtered, and concentrated under reduced pressure. The resulting crude residue was purified by silica-gel column chromatography with hexane/CH2Cl2 (3/2, Rf = 0.48) as an eluent to give 5 as a colorless oil (1.55 g, 89% yield). The 1H and 13C NMR data were identical to those reported in the literature [54].
Molecules 27 05103 i001

3.2.2. rac-Spiro[indeno[1,2-b][1]benzofuran-10,10′-indeno[1,2-b][1]benzothiophene] (rac-1)

A mixture of 4 (0.74 g, 2.0 mmol) and N,N,N′,N′-tetramethylethylenediamine (1.2 mL, 8.0 mmol) in anhydrous THF (15 mL) was placed in a 50-mL Schlenk tube and cooled to −78 °C. To the mixture was added BuLi (2.3 M in hexane, 1.8 mL, 4.2 mmol) dropwise, and the resulting mixture was stirred at −78 °C for 1 h. Compound 5 (0.56 g, 2.2 mmol) in anhydrous THF (15 mL) was slowly added to the reaction mixture at −78 °C, and the resulting mixture was stirred at −78 °C for 1 h, warmed to ambient temperature, and then stirred for 18 h, before being quenched with water. The resulting mixture was extracted with EtOAc (5 mL × 3), and the combined organic layers were dried over anhydrous Na2SO4, filtered, and concentrated under reduced pressure. The resulting crude residue containing the tertiary alcohol 6 was used in the following step without purification.
The obtained crude residue was dissolved in CH2Cl2 (7 mL). To the solution, trifluoroacetic acid (1.5 mL) was added at ambient temperature, and the reaction mixture was stirred at ambient temperature for 6 h, before being quenched with aqueous saturated NaHCO3. The resulting mixture was extracted with CH2Cl2 (10 mL × 4), and the combined organic layers were dried over anhydrous Na2SO4, filtered, and concentrated under reduced pressure. The resulting crude residue was purified by silica-gel column chromatography with hexane (Rf = 0.38) as an eluent to give rac-1 as a colorless solid (0.30 g, 37% yield); mp 245.5–246.6 °C; 1H NMR (400 MHz, CDCl3) δ 7.82 (d, J = 8.2 Hz, 1H), 7.74 (d, J = 7.3 Hz, 1H), 7.66 (d, J = 7.8 Hz, 1H), 7.58 (d, J = 8.2 Hz, 1H), 7.39–7.35 (m, 2H), 7.18–7.12 (m, 2H), 7.07 (td, J = 7.3, 0.9 Hz, H), 7.04 (td, J = 7.8, 0.9 Hz, H), 7.01–6.93 (m, 2H), 6.83 (d, J = 7.3 Hz, 1H), 6.77–6.73 (m, 3H); 13C NMR (101 MHz, CDCl3) δ 162.4, 160.2, 149.8, 148.7, 144.4, 144.0, 141.7, 139.2, 133.4, 128.3, 128.2, 127.2, 126.9, 125.5, 124.9, 124.4, 124.2, 124.0, 123.9, 123.8, 123.5, 123.3, 121.1, 120.1, 119.3, 118.2, 112.4, 57.4 (one missing signal for an aromatic carbon is presumed to overlap one of the signals that was observed.); HRMS–APCI+ (m/z) calcd for C29H17OS+ ([M + H]+), 413.0995, found 413.0994.
Molecules 27 05103 i002

3.2.3. 2-(2-Bromo-4-methoxyphenyl)-1-benzothiophene (7)

A mixture of (1-benzothiophen-2-yl)boronic acid (99 mg, 0.55 mmol), 2-bromo-1-iodo-4-methoxybenzene (0.15 g, 0.49 mmol), Na2CO3 (0.11 g, 1.1 mmol), and Pd(PPh3)4 (29 mg, 25 μmol) in anhydrous 1,4-dioxane (2.1 mL) and deionized water (0.30 mL) was placed in a 30-mL Schlenk tube and degassed by three freeze–pump–thaw cycles. After stirring at 90 °C for 48 h under argon, the reaction mixture was cooled to room temperature. To the reaction mixture, 1 M aqueous HCl was slowly added, and the resulting mixture was extracted with CH2Cl2 (5 mL × 3). The combined organic layers were dried over anhydrous Na2SO4, filtered, and concentrated under reduced pressure. The resulting crude residue was purified by silica-gel column chromatography with hexane/EtOAc (9/1, Rf = 0.52) as an eluent and preparative HPLC to give 7 as a colorless solid (0.11 g, 67% yield): mp 82.3–84.1 °C; 1H NMR (400 MHz, CDCl3) δ 7.84 (dd, J = 8.2, 0.9 Hz, 1H), 7.80 (dd, J = 7.3, 1.4 Hz, 1H), 7.46 (d, J = 8.2 Hz, 1H), 7.42 (s, 1H), 7.37 (td, J = 6.9, 1.4 Hz, 1H), 7.32 (td, J = 7.3, 1.4 Hz, 1H), 7.25 (d, J = 2.7 Hz, 1H), 6.92 (dd, J = 8.7, 2.7 Hz, 1H), 3.85 (s, 3H); 13C NMR (101 MHz, CDCl3) δ 160.0, 142.1, 140.2, 140.0, 132.9, 127.8, 124.5, 124.4, 124.2, 123.8, 123.6, 122.2, 118.9, 113.8, 55.8; HRMS–APCI+ (m/z) calcd for C15H12BrOS+ ([M + H]+), 318.9787, found 318.9791.

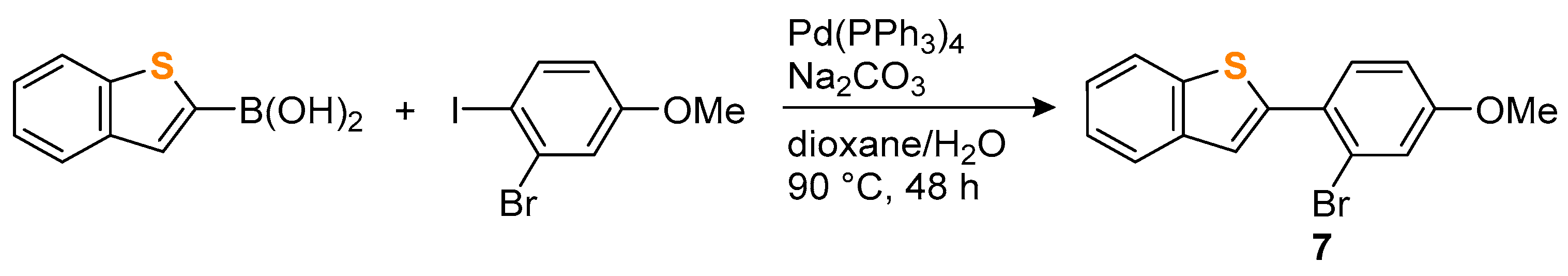

Molecules 27 05103 i003

3.2.4. 2-(1-Benzofuran-2-yl)benzoic Acid (13)

To a solution of 5 (1.75 g, 6.9 mmol) in methanol (20 mL), a mixture of NaOH (1.68 g, 42 mmol) and water (20 mL) was added at room temperature. After stirring at 60 °C for 4.5 h, the reaction mixture was cooled to room temperature and acidified with 1 M aqueous HCl. The resulting mixture was extracted with Et2O (10 mL × 4). The combined organic layers were dried over anhydrous Na2SO4, filtered, and concentrated under reduced pressure to give 5 as a colorless solid (1.60 g, 97% yield); mp 132.8–135.3 °C; 1H NMR (400 MHz, acetone-d6) δ 11.30 (br, 1H), 7.84 (d, J = 7.3 Hz, 1H), 7.83 (d, J = 7.3 Hz, 1H), 7.67–7.62 (m, 2H), 7.55 (td, J = 7.8, 1.4 Hz, 1H), 7.51 (ddd, J = 8.2, 1.8, 0.9 Hz, 1H), 7.3 (ddd, J = 8.7, 7.3, 1.4 Hz, 1H), 7.25 (td, J = 7.6, 1.4 Hz, 1H), 7.12 (d, J = 0.9 Hz, 1H); 13C NMR (101 MHz, acetone-d6) δ 169.6, 155.93, 155.88, 132.8, 131.9, 130.4, 130.2, 130.1, 130.0, 129.7, 125.3, 123.8, 122.1, 111.8, 105.3; HRMS–APCI+ (m/z) calcd for C15H11O3+ ([M + H]+), 239.0703, found 239.0702.

3.2.5. 10H-Indeno[1,2-b][1]benzofuran-10-one (8)

A mixture of 13 (3.83 g, 16 mmol) and thionyl chloride (1.4 mL, 19 mmol) in anhydrous CH2Cl2 (160 mL) was placed in a 300-mL three-neck flask with a condenser at ambient temperature. To the mixture, anhydrous DMF (100 µL) was added, and the resulting mixture was stirred for 1.5 h at 40 °C. The volatiles were removed under reduced pressure to afford the acid chloride intermediate.
A mixture of AlCl3 (3.26 g, 24 mmol) and anhydrous CH2Cl2 (180 mL) was charged in a 500-mL three-neck flask with a condenser and a dropping funnel and cooled at 0 °C. To the mixture, a solution of the acid chloride intermediate in anhydrous CH2Cl2 (160 mL) was slowly added via the dropping funnel over 2 h at 0 °C under argon atmosphere. The reaction mixture was stirred for 18 h at 40 °C, cooled to ambient temperature, and then poured into ice-cooled 1 M aqueous HCl. The resulting mixture was extracted with CH2Cl2 (100 mL × 3), and the combined organic layers were dried over anhydrous Na2SO4, filtered, and concentrated under reduced pressure. The resulting crude residue was purified by silica-gel column chromatography with hexane/EtOAc (9/1, Rf = 0.49) as an eluent to give 8 as an orange solid (1.44 g, 41% yield). The 1H and 13C NMR data were identical to those reported in the literature [55].

3.2.6. rac-2′-Methoxyspiro[indeno[1,2-b][1]benzofuran-10,10′-indeno[1,2-b][1]benzothiophene] (rac-10)

A mixture of 7 (0.48 g, 1.5 mmol) and N,N,N′,N′-tetramethylethylenediamine (0.45 mL, 3.0 mmol) in anhydrous THF (12 mL) was placed in a 100-mL Schlenk flask and cooled to −78 °C. To the mixture, BuLi (2.6 M in hexane, 0.59 mL, 1.5 mmol) was added dropwise, and the resulting mixture was stirred at −78 °C for 1 h. Compound 8 (0.27 g, 1.3 mmol) in anhydrous THF (12 mL) was slowly added to the reaction mixture at −78 °C, and the resulting mixture was stirred at −78 °C for 1 h, warmed to ambient temperature, and then stirred for 18 h, before being quenched with water. The resulting mixture was extracted with CH2Cl2 (10 mL × 3), and the combined organic layers were dried over anhydrous Na2SO4, filtered, and concentrated under reduced pressure. The resulting crude residue was roughly purified by silica-gel column chromatography with hexane/EtOAc (9/1) as an eluent. The fractions (Rf = 0.16) that contained the tertiary alcohol 9 and some impurities were concentrated under reduced pressure.
The resulting residue was dissolved in CH2Cl2 (10 mL) and cooled to 0 °C. To the solution, trifluoroacetic acid (0.4 mL) was added at 0 °C, and the reaction mixture was stirred at 0 °C for 1 h, before being quenched with aqueous saturated NaHCO3. The resulting mixture was extracted with CH2Cl2 (10 mL × 3), and the combined organic layers were dried over anhydrous Na2SO4, filtered, and concentrated under reduced pressure. The resulting crude residue was purified by silica-gel column chromatography with hexane/EtOAc (9/1, Rf = 0.49) as an eluent to give rac-10 as a colorless solid (0.37 g, 66% yield from 8); mp 216.4–221.6 °C; 1H NMR (400 MHz, CDCl3) δ 7.78 (ddd, J = 8.2, 1.8, 0.9 Hz, 1H), 7.73 (ddd, J = 7.3, 1.8, 0.9 Hz, 1H), 7.57 (d, J = 8.2, 1H), 7.55 (d, J = 8.2, 1H), 7.36 (td, J = 7.6, 0.9 Hz, 1H), 7.15 (ddd, J = 8.2, 6.9, 1.4, 1H), 7.10 (ddd, J = 8.2, 6.9, 1.4, 1H), 7.04 (td, J = 7.6, 1.4 Hz, 1H), 6.98–6.94 (m, 2H), 6.89 (dd, J = 8.2, 2.3 Hz, 1H), 6.79–6.77 (m, 2H), 6.69 (ddd, J = 7.8, 1.4, 0.9 Hz, 1H), 6.39 (d, J = 2.3 Hz, 1H), 3.63 (s, 3H); 13C NMR (101 MHz, CDCl3) δ 162.3, 160.2, 159.4, 150.9, 150.1, 144.4, 143.5, 140.1, 133.7, 133.4, 132.2, 128.2, 127.2, 125.9, 124.8, 124.4, 124.1, 123.9, 123.7, 123.6, 123.5, 120.7, 120.6, 119.4, 118.1, 113.4, 112.4, 109.9, 57.4, 55.6; HRMS–APCI+ (m/z) calcd for C30H19O2S+ ([M + H]+), 443.1100, found 443.1103.

3.2.7. rac-Spiro[indeno[1,2-b][1]benzofuran-10,10′-indeno[1,2-b][1]benzothiophene]-2′-ol (rac-11)

To a mixture of rac-10 (1.04 g, 2.4 mmol,) and anhydrous CH2Cl2 (24 mL), BBr3 (1 M in CH2Cl2, 4.7 mL, 4.7 mmol) was added dropwise at 0 °C. After stirring at 0 °C for 2.5 h, the reaction was quenched with water. The resulting mixture was extracted with CH2Cl2 (15 mL × 3) and the combined organic layers were dried over anhydrous Na2SO4, filtered, and concentrated under reduced pressure. The resulting crude residue was purified by silica-gel column chromatography with hexane/EtOAc (3/1, Rf = 0.46) as an eluent to give rac-11 as a colorless solid (0.59 g, 58% yield). rac-11 can be separated into enantiopure (−)-11 and (+)-11 by HPLC equipped with an analytical DAICEL CHIRALPAK® IA-3 column (Φ4.6 mm × 250 mm) (tR = 12.7 min for (−)-11 and 14.5 min for (+)-11 (flow rate: 1.0 mL/min; eluent: hexane/CHCl3 = 50/50)): [α]D25 for (+)-11 +175 (c 0.112, CH2Cl2); mp 261.2–265.7 °C; 1H NMR (500 MHz, CDCl3) δ 7.80 (d, J = 8.0 Hz, 1H), 7.74 (d, J = 7.4 Hz, 1H), 7.58 (d, J = 8.6 Hz, 1H), 7.52 (d, J = 8.0 Hz, 1H), 7.38 (t, J = 7.2 Hz, 1H), 7.18 (td, J = 8.0, 1.2 Hz, 1H), 7.12 (td, J = 8.0, 1.2 Hz, 1H), 7.06 (td, J = 7.5, 1.2 Hz, 1H), 7.00–6.96 (m, 2H), 6.84 (dd, J = 8.0, 2.3 Hz, 1H), 6.80–6.79 (m, 2H), 6.70 (d, J = 8.0 Hz, 1H), 6.32 (d, J = 2.6 Hz, 1H), 4.54 (brs, 1H); 13C NMR (101 MHz, CDCl3) δ 162.3, 160.2, 155.1, 151.1, 150.0, 144.4, 143.5, 140.0, 133.6, 133.3, 132.3, 128.2, 127.2, 125.7, 124.8, 124.4, 124.1, 124.0, 123.75, 123.69, 123.5, 120.9, 120.7, 119.3, 118.2, 115.0, 112.4, 111.2, 57.3; HRMS–APCI+ (m/z) calcd for C29H17O2S+ ([M + H]+), 429.0944, found 429.0931.

3.2.8. rac-Spiro[indeno[1,2-b][1]benzofuran-10,10′-indeno[1,2-b][1]benzothiophene]-2′-yl Trifluoromethanesulfonate (rac-12)

A mixture of rac-11 (82 mg, 0.19 mmol) and anhydrous triethylamine (0.14 mL, 1.0 mmol) in anhydrous CH2Cl2 (2 mL) was placed in a 20-mL Schlenk tube and cooled to –78 °C. To the mixture, trifluoromethanesulfonic anhydride (45 µL, 0.27 mmol) was added dropwise, and the resulting mixture was stirred at –78 °C for 30 min. The reaction was quenched with water, and then the resulting mixture was extracted with CH2Cl2 (5 mL × 3). The combined organic layers were dried over anhydrous Na2SO4, filtered, and concentrated under reduced pressure. The resulting crude residue was purified by silica-gel column chromatography with hexane/EtOAc (9/1, Rf = 0.43) as an eluent to give rac-12 as a colorless solid (92 mg, 85% yield); 1H NMR (400 MHz, CDCl3) δ 7.84 (d, J = 7.8 Hz, 1H), 7.77 (d, J = 7.3 Hz, 1H), 7.70 (d, J = 8.2 Hz, 1H), 7.60 (d, J = 8.2 Hz, 1H), 7.42 (dd, J = 7.6, 6.6 Hz, 1H), 7.32 (dd, J = 8.2, 2.3 Hz, 1H), 7.22–7.18 (m, 2H), 7.09 (td, J = 7.6, 0.9 Hz, 1H), 7.02 (td, J = 7.3, 0.9 Hz, 1H), 6.99 (t, J = 7.8 Hz, 1H), 6.77–6.72 (m, 4H); 13C NMR (101 MHz, CDCl3) δ 162.6, 160.2, 151.5, 148.3, 144.4, 143.7, 142.4, 139.5, 133.3, 133.1, 128.7, 127.5, 125.2, 124.9, 124.3, 124.2, 124.0, 123.92, 123.89, 123.7, 121.5, 121.4, 120.8, 119.0, 118.70 (q, JCF = 321 Hz), 118.5, 116.9, 112.6, 57.5 (one missing signal for an aromatic carbon is presumed to overlap one of the signals that was observed.); 19F NMR (376 MHz, CDCl3) δ − 72.8; HRMS–APCI+ (m/z) calcd for C30H16F3O4S2+ ([M + H]+), 561.0437, found 561.0443.
The crude product of (+)-12 was also obtained by using (+)-11 (62 mg, 0.14 mmol), anhydrous triethylamine (0.10 mL, 0.72 mmol), and trifluoromethanesulfonic anhydride (32 µL, 0.20 mmol), according to the procedure for rac-12. Purification by silica-gel column chromatography with hexane/EtOAc (9/1, Rf = 0.43) as an eluent gave (+)-12 as a colorless solid (70 mg, 87% yield): [α]D25 +128 (c 0.158, CH2Cl2). The 1H and 13C NMR spectra were identical to those of rac-12.

3.2.9. rac-Spiro[indeno[1,2-b][1]benzofuran-10,10′-indeno[1,2-b][1]benzothiophene] (rac-1)

A mixture of rac-12 (56 mg, 0.10 mmol), Pd(OAc)2 (1.2 mg, 5.3 µmol), PPh3 (2.4 mg, 9.2 µmol), anhydrous triethylamine (85 µL, 0.61 mmol), formic acid (15 µL, 0.39 mmol), and anhydrous DMF (1.0 mL) was placed in a 20-mL Schlenk tube and degassed by three freeze–pump–thaw cycles. After stirring at 80 °C for 2 h under argon, the reaction mixture was cooled to room temperature. The reaction was quenched by adding 1 M aqueous HCl slowly, and the resulting mixture was extracted with CH2Cl2 (5.0 mL × 3). The combined organic layers were dried over anhydrous Na2SO4, filtered, and concentrated under reduced pressure. The resulting crude residue was purified by silica-gel column chromatography with hexane/EtOAc (9/1, Rf = 0.70) as an eluent to give rac-1 as a colorless solid (40 mg, 96% yield). The 1H and 13C NMR spectra were identical to those of rac-1 described above.
The crude product of (+)-1 was also obtained by using (+)-12 (79 mg, 0.12 mmol), Pd(Oac)2 (1.4 mg, 6.2 μmol), PPh3 (3.1 mg, 12 μmol), anhydrous trimethylamine (0.12 mL, 0.83 mmol), formic acid (22 μL, 0.53 mmol), and DMF (1.4 mL), according to the procedure for rac-1. Purification by silica-gel column chromatography with hexane/EtOAc (9/1, Rf = 0.70) as an eluent gave (+)-1 as a colorless solid (52 mg, 89% yield): [α]D25 +154 (c 0.298, CH2Cl2). The 1H and 13C NMR spectra were identical to those of rac-1.

3.2.10. rac-Spiro[indeno[1,2-b][1]benzofuran-10,10′-indeno[1,2-b][1]benzothiophene] 5′,5′-Dioxide (rac-2)

To a mixture of rac-1 (0.12 g, 0.30 mmol) and CH2Cl2 (2.0 mL), m-chloroperoxybenzoic acid (contains ca. 30% water, 0.19 g, 1.1 mmol) was added at 0 °C. The resulting mixture was stirred at 0 °C for 24 h. The reaction was quenched with a mixture of an aqueous saturated Na2S2O3 and NaHCO3, and then the resulting mixture was extracted with CH2Cl2 (5.0 mL × 3). The combined organic layers were dried over anhydrous Na2SO4, filtered, and concentrated under reduced pressure. The resulting crude residue was purified by silica-gel column chromatography with CHCl3 (Rf = 0.81) as an eluent to give rac-2 as a colorless solid (0.13 mg, 96% yield); 1H NMR (400 MHz, CDCl3) δ 7.83 (d, J = 7.8 Hz, 1H), 7.77 (d, J = 7.3 Hz, 1H), 7.66 (d, J = 7.3 Hz, 1H), 7.59 (d, J = 8.2 Hz, 1H), 7.46–7.41 (m, 2H), 7.28 (t, J = 7.6 Hz, 1H), 7.24–7.20 (m, 1H), 7.18–7.09 (m, 3H), 7.06 (t, J = 7.6 Hz, 1H), 6.94 (m, 2H), 6.84 (d, J = 7.8 Hz, 1H), 6.35 (d, J = 7.3 Hz, 1H); 13C NMR (101 MHz, CDCl3) δ 162.8, 160.2, 151.4, 147.7, 146.3, 144.5, 142.9, 134.0, 133.5, 133.3, 130.0, 129.2, 128.9, 128.5, 128.0, 127.8, 124.6, 124.3, 124.0, 123.8, 123.7, 122.9, 121.8, 121.6, 119.2, 118.8, 112.6, 57.7 (one missing signal for an aromatic carbon is presumed to overlap one of the signals that was observed.); HRMS–APCI+ (m/z) calcd for C29H17O3S+ ([M + H]+), 445.0893, found 445.0891.
The crude product of (+)-2 was obtained by using (+)-1 (27 mg, 65 μmol), m-chloroperoxybenzoic acid (41 mg, 0.17 mmol), and CH2Cl2 (0.7 mL), according to the procedure for rac-2. Purification by silica-gel column chromatography with CHCl3 (Rf = 0.81) as an eluent gave (+)-2 as a colorless solid (28 mg, 96% yield): [α]D25 +151 (c 0.15, CH2Cl2). The 1H and 13C NMR spectra were identical to those of rac-2.

3.2.11. rac-5′-Phenyl-5′H-spiro[indeno[1,2-b][1]benzofuran-10,10′-indeno[1,2-b]indole] (rac-3)

A solution of KHMDS (0.5 M in toluene, 0.19 mL, 93 μmol) was charged in a 20-mL Schlenk tube, and toluene was removed under reduced pressure. The resulting residue was dissolved with anhydrous xylene (0.3 mL) under argon. The resulting xylene solution of KHMDS was added to a mixture of rac-2 (14 mg, 31 μmol) and aniline (5.7 µL, 62 μmol) in another 20-mL Schlenk tube under argon at ambient temperature. The resulting solution was stirred at 140 °C for 48 h. The reaction mixture was cooled to an ambient temperature, and 1 M aqueous HCl was added slowly to the reaction mixture. The resulting mixture was extracted with CH2Cl2 (5 mL × 4), and the combined organic layers were dried over Na2SO4, filtered, and concentrated under reduced pressure. The crude residue was purified by silica-gel column chromatography with hexane/EtOAc (9/1, Rf = 0.48) as an eluent to give rac-3 as a colorless solid (9.4 mg, 64% yield); mp 255.1–259.2 °C; 1H NMR (400 MHz, CDCl3) δ 7.75–7.66 (m, 5H), 7.60–7.54 (m, 2H), 7.40–7.34 (m, 2H), 7.18–7.13 (m, 3H), 7.08–7.03 (m, 2H), 7.00–6.94 (m, 2H), 6.89–6.78 (m, 5H); 13C NMR (101 MHz, CDCl3) δ 162.3, 160.2, 151.3, 150.6, 144.6, 142.5, 138.1, 135.4, 133.5, 129.8, 128.0, 127.8, 127.5, 127.1, 127.0, 126.4, 126.2, 124.7, 123.8, 123.69, 123.67, 123.34, 123.29, 122.8, 122.3, 120.9, 119.4, 119.0, 118.9, 117.9, 112.3, 111.1, 54.3; HRMS–APCI+ (m/z) calcd for C35H22NO+ ([M + H]+), 472.1696, found 472.1687.
The crude product of (+)-3 was obtained by using (+)-2 (16 mg, 36 μmol), aniline (7 μL, 77 μmol), KHMDS (0.5 M in toluene, 0.22 mL), and xylene (0.36 mL), according to the procedure for rac-3. Purification by silica-gel column chromatography with hexane/EtOAc (9/1, Rf = 0.48) as an eluent gave (+)-3 as a colorless solid (4.7 mg, 27% yield): [α]D25 +175 (c 0.094, CH2Cl2). The 1H and 13C NMR spectra were identical to those of rac-3.

3.3. Computational Studies

The DFT and TD-DFT calculations were performed by using the Gaussian 09 program [56] at the B3LYP/6-31G(d) level of theory in the gas phase. The starting molecular models for DFT geometry optimizations were built and optimized with MMFF molecular mechanics by using the Spartan ’08 package (Wavefunction, Inc., Irvine, CA, USA). Six singlet states were calculated in the TD-DFT calculations. The visualization of the molecular orbitals was performed using GaussView 5.

3.4. X-ray Crystallography

For X-ray crystallographic analysis, a suitable single crystal was selected under ambient conditions, mounted using a nylon loop filled with paraffin oil, and transferred to the goniometer of a RIGAKU R-AXIS RAPID diffractometer (Rigaku Corporation, Tokyo, Japan), with graphite-monochromated Cu–Kα irradiation (λ = 1.54187 Å). The structure was solved by a direct method (SIR 2008 [57]) and refined by full-matrix least-squares techniques against F2 (SHELXL-2014 [58,59]). The intensities were corrected for Lorentz and polarization effects. All non-hydrogen atoms were refined anisotropically. Hydrogen atoms were placed using AFIX instructions.
Crystal data for rac-1: formula: C29H16OS (M = 412.48 g/mol): monoclinic, space group P21/n (No. 14), a = 14.2753(3) Å, b = 9.8401(2) Å, c = 15.7643(3) Å, β = 114.4630(10)°, V = 2015.63(7) Å3, Z = 4, T = 193(2) K, μ(CuKα) = 1.566 mm−1, Dcalc = 1.359 g/cm3, 34,993 reflections measured (3.519° ≤ θ ≤ 68.226°), 3684 unique (Rint = 0.0448; Rsigma = 0.0213), which were used in all calculations. The final R1 was 0.0688 (I > 2σ(I)) and wR2 was 0.2028 (all data). CCDC 2,191,229 contains the supplementary crystallographic data for this paper. The data can be obtained free of charge from the Cambridge Crystallographic Data Centre via www.ccdc.cam.ac.uk/structures, accessed on 8 August 2022.

4. Conclusions

In summary, we have synthesized furan-containing chiral spiro-fused PACs 1–3. Aromatic metamorphosis strategy was applied to 1, affording the pyrrole-containing 3, as well as the S,S-dioxide derivative 2. The hydroxylated derivatives of 1 were found to be separated into enantiopure isomers by chiral HPLC, which allowed us to prepare enantiomers of 1–3. Introduction of a furan unit has proven to have a great impact on their photophysical properties. The observed impact could be attributed to the increased electron-richness of furan compared to thiophene. The synthesized furan-containing chiral spiro-fused PACs demonstrated CPL with a glum value of <2.3 × 10−3, which is comparable to those of the reported chiral small organic molecules.

Supplementary Materials

The following supporting information can be downloaded at: https://www.mdpi.com/article/10.3390/molecules27165103/s1, Figures S1–S17: 1H, 13C, and 19F NMR spectra for 13, 7, and 1013; Table S1: Crystallographic data for rac-1; Figure S18: HPLC chart for optical resolution of 11; Figure S19: UV–vis (13) and PL (1) spectra in various solvents; Figures S20–S22: Molecular orbitals for (R)-13; Tables S2–S4: Coordinates and absolute energy of the optimized structures for (R)-13; Table S5: The selected absorption of (R)-13 calculated by TD-DFT method.

Author Contributions

Conceptualization, K.T. and K.N. (Koji Nakano); validation, K.T. and K.N. (Koji Nakano); formal analysis, K.T. and K.N. (Koji Nakano); investigation, K.T., K.N. (Keiichi Noguchi) and K.N. (Koji Nakano); data curation, K.T., K.N. (Keiichi Noguchi) and K.N. (Koji Nakano); writing—original draft preparation, K.N. (Koji Nakano); writing—review and editing, K.T. and K.N. (Koji Nakano); supervision, K.N. (Koji Nakano); project administration, K.N. (Koji Nakano); funding acquisition, K.N. (Koji Nakano). All authors have read and agreed to the published version of the manuscript.

Funding

This work was partially supported by MEXT KAKENHI, grant number 16H00824.

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Data Availability Statement

The data presented in this study are available in the Supplementary Materials.

Acknowledgments

The authors are grateful to Kyoko Nozaki (The University of Tokyo) for chiral HPLC separation. The computations were performed using the Research Center for Computational Science, Okazaki, Japan.

Conflicts of Interest

The authors declare no conflict of interest.

Sample Availability

Samples of the compounds are available from the authors.

References

  1. Pudzich, R.; Fuhrmann-Lieker, T.; Salbeck, J. Spiro compounds for organic electroluminescence and related applications. Adv. Polym. Sci. 2006, 199, 83–142. [Google Scholar] [CrossRef]
  2. Saragi, T.P.I.; Spehr, T.; Siebert, A.; Fuhrmann-Lieker, T.; Salbeck, J. Spiro Compounds for Organic Optoelectronics. Chem. Rev. 2007, 107, 1011–1065. [Google Scholar] [CrossRef] [PubMed]
  3. Liu, S.; Xia, D.; Baumgarten, M. Rigidly Fused Spiro-Conjugated π-Systems. ChemPlusChem 2021, 86, 36–48. [Google Scholar] [CrossRef] [PubMed]
  4. Ohshita, J.; Lee, K.-H.; Hamamoto, D.; Kunugi, Y.; Ikadai, J.; Kwak, Y.-W.; Kunai, A. Synthesis of Novel Spiro-condensed Dithienosiloles and the Application to Organic FET. Chem. Lett. 2004, 33, 892–893. [Google Scholar] [CrossRef]
  5. Saragi, T.P.I.; Fuhrmann-Lieker, T.; Salbeck, J. Comparison of Charge-Carrier Transport in Thin Films of Spiro-Linked Compounds and Their Corresponding Parent Compounds. Adv. Funct. Mater. 2006, 16, 966–974. [Google Scholar] [CrossRef]
  6. Poriel, C.; Rault-Berthelot, J. Structure–property relationship of 4-substituted-spirobifluorenes as hosts for phosphorescent organic light emitting diodes: An overview. J. Mater. Chem. C 2017, 5, 3869–3897. [Google Scholar] [CrossRef]
  7. Poriel, C.; Sicard, L.; Rault-Berthelot, J. New generations of spirobifluorene regioisomers for organic electronics: Tuning electronic properties with the substitution pattern. Chem. Commun. 2019, 55, 14238–14254. [Google Scholar] [CrossRef] [PubMed]
  8. Qu, Y.-K.; Zheng, Q.; Fan, J.; Liao, L.-S.; Jiang, Z.-Q. Spiro Compounds for Organic Light-Emitting Diodes. Acc. Mater. Res. 2021, 2, 1261–1271. [Google Scholar] [CrossRef]
  9. Ma, S.; Fu, Y.; Ni, D.; Mao, J.; Xie, Z.; Tu, G. Spiro-fluorene based 3D donor towards efficient organic photovoltaics. Chem. Commun. 2012, 48, 11847–11849. [Google Scholar] [CrossRef]
  10. Yan, Q.; Zhou, Y.; Zheng, Y.-Q.; Pei, J.; Zhao, D. Towards rational design of organic electron acceptors for photovoltaics: A study based on perylenediimide derivatives. Chem. Sci. 2013, 4, 4389. [Google Scholar] [CrossRef]
  11. Wu, X.-F.; Fu, W.-F.; Xu, Z.; Shi, M.; Liu, F.; Chen, H.-Z.; Wan, J.-H.; Russell, T.P. Spiro Linkage as an Alternative Strategy for Promising Nonfullerene Acceptors in Organic Solar Cells. Adv. Funct. Mater. 2015, 25, 5954–5966. [Google Scholar] [CrossRef]
  12. Yi, J.; Wang, Y.; Luo, Q.; Lin, Y.; Tan, H.; Wang, H.; Ma, C.Q. A 9,9′-spirobi[9H-fluorene]-cored perylenediimide derivative and its application in organic solar cells as a non-fullerene acceptor. Chem. Commun. 2016, 52, 1649–1652. [Google Scholar] [CrossRef] [PubMed]
  13. Murakami, K.; Ooyama, Y.; Higashimura, H.; Ohshita, J. Synthesis, Properties, and Polymerization of Spiro[(dipyridinogermole)(dithienogermole)]. Organometallics 2015, 35, 20–26. [Google Scholar] [CrossRef]
  14. Ohshita, J.; Hayashi, Y.; Adachi, Y.; Enoki, T.; Yamaji, K.; Ooyama, Y. Optical and Photosensitizing Properties of Spiro(dipyridinogermole)(dithienogermole)s with Eletron-Donating Amino and Electron-Withdrawing Pyridinothiadiazole Substituents. ChemistrySelect 2018, 3, 8604–8609. [Google Scholar] [CrossRef]
  15. Ohshita, J.; Kondo, K.; Adachi, Y.; Song, M.; Jin, S.-H. Synthesis of spirodithienogermole with triphenylamine units as a dopant-free hole-transporting material for perovskite solar cells. J. Mater. Chem. C 2021, 9, 2001–2007. [Google Scholar] [CrossRef]
  16. Terada, N.; Uematsu, K.; Higuchi, R.; Tokimaru, Y.; Sato, Y.; Nakano, K.; Nozaki, K. Synthesis and Properties of Spiro-double Sila[7]helicene: The LUMO Spiro-conjugation. Chem. Eur. J. 2021, 27, 9342–9349. [Google Scholar] [CrossRef] [PubMed]
  17. Dobler, M.; Miljnko, D.; Martin, E.; Vladmir, P.; Dumić, M.; Egli, M.; Prelog, V. Chiral Poly(9,9′-spirobifIuorene) Crown Ethers. Angew. Chem. Int. Ed. 1985, 24, 792–794. [Google Scholar] [CrossRef]
  18. Alcazar, V.; Diederich, F. Enantioselective Complexation of Chiral Dicarboxylic Acids in Clefts of Functionalized 9,9′-Spirobifluorenes. Angew. Chem. Int. Ed. 1992, 31, 1521–1523. [Google Scholar] [CrossRef]
  19. Hovorka, R.; Meyer-Eppler, G.; Piehler, T.; Hytteballe, S.; Engeser, M.; Topic, F.; Rissanen, K.; Lützen, A. Unexpected Self-Assembly of a Homochiral Metallosupramolecular M4L4 Catenane. Chem. Eur. J. 2014, 20, 13253–13258. [Google Scholar] [CrossRef]
  20. Hovorka, R.; Hytteballe, S.; Piehler, T.; Meyer-Eppler, G.; Topic, F.; Rissanen, K.; Engeser, M.; Lützen, A. Self-assembly of metallosupramolecular rhombi from chiral concave 9,9′-spirobifluorene-derived bis(pyridine) ligands. Beilstein J. Org. Chem. 2014, 10, 432–441. [Google Scholar] [CrossRef] [Green Version]
  21. Cheng, X.; Xie, J.H.; Li, S.; Zhou, Q.L. Asymmetric hydrogenation of α,β-unsaturated carboxylic acids catalyzed by ruthenium(II) complexes of spirobifluorene diphosphine (SFDP) ligands. Adv. Synth. Catal. 2006, 348, 1271–1276. [Google Scholar] [CrossRef]
  22. Cheng, X.; Zhang, Q.; Xie, J.-H.; Wang, L.-X.; Zhou, Q.-L. Highly Rigid Diphosphane Ligands with a Large Dihedral Angle Based on a Chiral Spirobifluorene Backbone. Angew. Chem. Int. Ed. 2005, 44, 1118–1121. [Google Scholar] [CrossRef] [PubMed]
  23. Murai, M.; Takeuchi, Y.; Yamauchi, K.; Kuninobu, Y.; Takai, K. Rhodium-Catalyzed Synthesis of Chiral Spiro-9-silabifluorenes by Dehydrogenative Silylation: Mechanistic Insights into the Construction of Tetraorganosilicon Stereocenters. Chem. Eur. J. 2016, 22, 6048–6058. [Google Scholar] [CrossRef] [PubMed]
  24. Tanaka, H.; Inoue, Y.; Mori, T. Circularly Polarized Luminescence and Circular Dichroisms in Small Organic Molecules: Correlation between Excitation and Emission Dissymmetry Factors. ChemPhotoChem 2018, 2, 386–402. [Google Scholar] [CrossRef] [Green Version]
  25. Chen, N.; Yan, B. Recent Theoretical and Experimental Progress in Circularly Polarized Luminescence of Small Organic Molecules. Molecules 2018, 23, 3376. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  26. Ma, J.L.; Peng, Q.; Zhao, C.H. Circularly Polarized Luminescence Switching in Small Organic Molecules. Chem. Eur. J. 2019, 25, 15441–15454. [Google Scholar] [CrossRef]
  27. Li, X.; Xie, Y.; Li, Z. The Progress of Circularly Polarized Luminescence in Chiral Purely Organic Materials. Adv. Photonics Res. 2021, 2, 2000136. [Google Scholar] [CrossRef]
  28. Wan, S.-P.; Lu, H.-Y.; Li, M.; Chen, C.-F. Advances in circularly polarized luminescent materials based on axially chiral compounds. J. Photochem. Photobiol. C Photochem. Rev. 2022, 50, 100500. [Google Scholar] [CrossRef]
  29. Shintani, R.; Misawa, N.; Takano, R.; Nozaki, K. Rhodium-Catalyzed Synthesis and Optical Properties of Silicon-Bridged Arylpyridines. Chem. Eur. J. 2017, 23, 2660–2665. [Google Scholar] [CrossRef]
  30. Miki, K.; Noda, T.; Gon, M.; Tanaka, K.; Chujo, Y.; Mizuhata, Y.; Tokitoh, N.; Ohe, K. Near-Infrared Circularly Polarized Luminescence through Intramolecular Excimer Formation of Oligo(p-phenyleneethynylene)-Based Double Helicates. Chem. Eur. J. 2019, 25, 9211–9216. [Google Scholar] [CrossRef]
  31. Feng, J.; Fu, L.; Geng, H.; Jiang, W.; Wang, Z. Designing a near-infrared circularly polarized luminescent dye by dissymmetric spiro-fusion. Chem. Commun. 2019, 56, 912–915. [Google Scholar] [CrossRef] [PubMed]
  32. Oniki, J.; Moriuchi, T.; Kamochi, K.; Tobisu, M.; Amaya, T. Linear [3]Spirobifluorenylene: An S-Shaped Molecular Geometry of p-Oligophenyls. J. Am. Chem. Soc. 2019, 141, 18238–18245. [Google Scholar] [CrossRef] [PubMed]
  33. Zhu, K.; Kamochi, K.; Kodama, T.; Tobisu, M.; Amaya, T. Chiral cyclic [n]spirobifluorenylenes: Carbon nanorings consisting of helically arranged quaterphenyl rods illustrating partial units of woven patterns. Chem. Sci. 2020, 11, 9604–9610. [Google Scholar] [CrossRef] [PubMed]
  34. Yang, S.Y.; Wang, Y.K.; Peng, C.C.; Wu, Z.G.; Yuan, S.; Yu, Y.J.; Li, H.; Wang, T.T.; Li, H.C.; Zheng, Y.X.; et al. Circularly Polarized Thermally Activated Delayed Fluorescence Emitters in Through-Space Charge Transfer on Asymmetric Spiro Skeletons. J. Am. Chem. Soc. 2020, 142, 17756–17765. [Google Scholar] [CrossRef] [PubMed]
  35. Hamada, H.; Nakamuro, T.; Yamashita, K.; Yanagisawa, H.; Nureki, O.; Kikkawa, M.; Harano, K.; Shang, R.; Nakamura, E. Spiro-Conjugated Carbon/Heteroatom-Bridgedp-Phenylenevinylenes: Synthesis, Properties, and Microcrystal Electron Crystallographic Analysis of Racemic Solid Solutions. Bull. Chem. Soc. Jpn. 2020, 93, 776–782. [Google Scholar] [CrossRef]
  36. Hamada, H.; Itabashi, Y.; Shang, R.; Nakamura, E. Axially Chiral Spiro-Conjugated Carbon-Bridged p-Phenylenevinylene Congeners: Synthetic Design and Materials Properties. J. Am. Chem. Soc. 2020, 142, 2059–2067. [Google Scholar] [CrossRef]
  37. Yang, S.Y.; Feng, Z.Q.; Fu, Z.; Zhang, K.; Chen, S.; Yu, Y.J.; Zou, B.; Wang, K.; Liao, L.S.; Jiang, Z.Q. Highly Efficient Sky-Blue π-Stacked Thermally Activated Delayed Fluorescence Emitter with Multi-Stimulus Response Properties. Angew. Chem. Int. Ed. 2022, 61, in press. [Google Scholar] [CrossRef]
  38. Takase, K.; Noguchi, K.; Nakano, K. Circularly Polarized Luminescence from Chiral Spiro Molecules: Synthesis and Optical Properties of 10,10′-Spirobi(indeno[1,2-b][1]benzothiophene) Derivatives. Org. Lett. 2017, 19, 5082–5085. [Google Scholar] [CrossRef]
  39. Takase, K.; Noguchi, K.; Nakano, K. [1]Benzothiophene-Fused Chiral Spiro Polycyclic Aromatic Compounds: Optical Resolution, Functionalization, and Optical Properties. J. Org. Chem. 2018, 83, 15057–15065. [Google Scholar] [CrossRef]
  40. Takase, K.; Noguchi, K.; Nakano, K. Synthesis of Pyrrole-Containing Chiral Spiro Molecules and Their Optical and Chiroptical Properties. Bull. Chem. Soc. Jpn. 2019, 92, 1008–1017. [Google Scholar] [CrossRef]
  41. Kubo, M.; Takase, K.; Noguchi, K.; Nakano, K. Solvent-sensitive circularly polarized luminescent compounds bearing a 9,9′-spirobi[fluorene] skeleton. Org. Biomol. Chem. 2020, 18, 2866–2876. [Google Scholar] [CrossRef] [PubMed]
  42. Kubo, M.; Noguchi, K.; Nakano, K. Chiral Benzo[b]silole-Fused 9,9′-Spirobi[fluorene]: Synthesis, Chiroptical Properties, and Transformation to pi-Extended Polycyclic Arene. ChemPlusChem 2021, 86, 171–175. [Google Scholar] [CrossRef]
  43. Bulumulla, C.; Gunawardhana, R.; Gamage, P.L.; Miller, J.T.; Kularatne, R.N.; Biewer, M.C.; Stefan, M.C. Pyrrole-Containing Semiconducting Materials: Synthesis and Applications in Organic Photovoltaics and Organic Field-Effect Transistors. ACS Appl. Mater. Interfaces 2020, 12, 32209–32232. [Google Scholar] [CrossRef] [PubMed]
  44. Qiu, B.; Yuan, J.; Zou, Y.; He, D.; Peng, H.; Li, Y.; Zhang, Z. An asymmetric small molecule based on thieno[2,3-f]benzofuran for efficient organic solar cells. Org. Electron. 2016, 35, 87–94. [Google Scholar] [CrossRef]
  45. Tsuji, H.; Nakamura, E. Design and Functions of Semiconducting Fused Polycyclic Furans for Optoelectronic Applications. Acc. Chem. Res. 2017, 50, 396–406. [Google Scholar] [CrossRef]
  46. Peng, H.; Luan, X.; Qiu, L.; Li, H.; Liu, Y.; Zou, Y. New naphtho[1,2-b:5,6-b′]difuran based two-dimensional conjugated small molecules for photovoltaic application. Opt. Mater. 2017, 72, 147–155. [Google Scholar] [CrossRef]
  47. Cao, H.; Rupar, P.A. Recent Advances in Conjugated Furans. Chem. Eur. J. 2017, 23, 14670–14675. [Google Scholar] [CrossRef]
  48. Zheng, B.; Huo, L. Recent Advances of Furan and Its Derivatives Based Semiconductor Materials for Organic Photovoltaics. Small Methods 2021, 5, e2100493. [Google Scholar] [CrossRef]
  49. Kowada, T.; Ohe, K. Synthesis and Characterization of Highly Fluorescent and Thermally Stable π-Conjugates involving Spiro[fluorene-9,4′-[4H]indeno[1,2-b]furan]. Bull. Korean Chem. Soc. 2010, 31, 577–581. [Google Scholar] [CrossRef] [Green Version]
  50. Kowada, T.; Kuwabara, T.; Ohe, K. Synthesis, structures, and optical properties of heteroarene-fused dispiro compounds. J. Org. Chem. 2010, 75, 906–913. [Google Scholar] [CrossRef]
  51. Stobe, C.; Seto, R.; Schneider, A.; Lützen, A. Synthesis, Chiral Resolution, and Absolute Configuration of C2-Symmetric, Chiral 9,9′-Spirobifluorenes. Eur. J. Org. Chem. 2014, 2014, 6513–6518. [Google Scholar] [CrossRef]
  52. Bhanuchandra, M.; Murakami, K.; Vasu, D.; Yorimitsu, H.; Osuka, A. Transition-Metal-Free Synthesis of Carbazoles and Indoles by an SNAr-Based “Aromatic Metamorphosis” of Thiaarenes. Angew. Chem. Int. Ed. 2015, 54, 10234–10238. [Google Scholar] [CrossRef] [Green Version]
  53. Hung, T.Q.; Dang, T.T.; Villinger, A.; Sung, T.V.; Langer, P. Efficient synthesis of thieno[3,2-b:4,5-b′]diindoles and benzothieno[3,2-b]indoles by Pd-catalyzed site-selective C-C and C-N coupling reactions. Org. Biomol. Chem. 2012, 10, 9041–9044. [Google Scholar] [CrossRef] [PubMed]
  54. Bates, C.G.; Saejueng, P.; Murphy, J.M.; Venkataraman, D. Synthesis of 2-Arylbenzo[b]furans via Copper(I)-Catalyzed Coupling of o-Iodophenols and Aryl Acetylenes. Org. Lett. 2002, 4, 4727–4729. [Google Scholar] [CrossRef]
  55. Wei, B.; Zhang, D.; Chen, Y.H.; Lei, A.; Knochel, P. Preparation of Polyfunctional Biaryl Derivatives by Cyclolanthanation of 2-Bromobiaryls and Heterocyclic Analogues Using nBu2LaCl4·LiCl. Angew. Chem. Int. Ed. 2019, 58, 15631–15635. [Google Scholar] [CrossRef] [Green Version]
  56. Frisch, M.J.; Trucks, G.W.; Schlegel, H.B.; Scuseria, G.E.; Robb, M.A.; Cheeseman, J.R.; Scalmani, G.; Barone, V.; Mennucci, B.; Petersson, G.A.; et al. Gaussian 09 Rev. E.01; Gaussian, Inc.: Wallingford, CT, USA, 2016. [Google Scholar]
  57. Burla, M.C.; Caliandro, R.; Camalli, M.; Carrozzini, B.; Cascarano, G.L.; De Caro, L.; Giacovazzo, C.; Polidori, G.; Siliqi, D.; Spagna, R. IL MILIONE: A suite of computer programs for crystal structure solution of proteins. J. Appl. Crystallogr. 2007, 40, 609–613. [Google Scholar] [CrossRef]
  58. Sheldrick, G.M. A short history of SHELX. Acta Crystallogr. A 2008, 64, 112–122. [Google Scholar] [CrossRef] [Green Version]
  59. Sheldrick, G.M. Crystal structure refinement with SHELXL. Acta Crystallogr. Sect. C Struct. Chem. 2015, 71, 3–8. [Google Scholar] [CrossRef]
Figure 1. Molecular structures of previously reported chiral spiro-fused PACs and 13 in this study.
Figure 1. Molecular structures of previously reported chiral spiro-fused PACs and 13 in this study.
Molecules 27 05103 g001

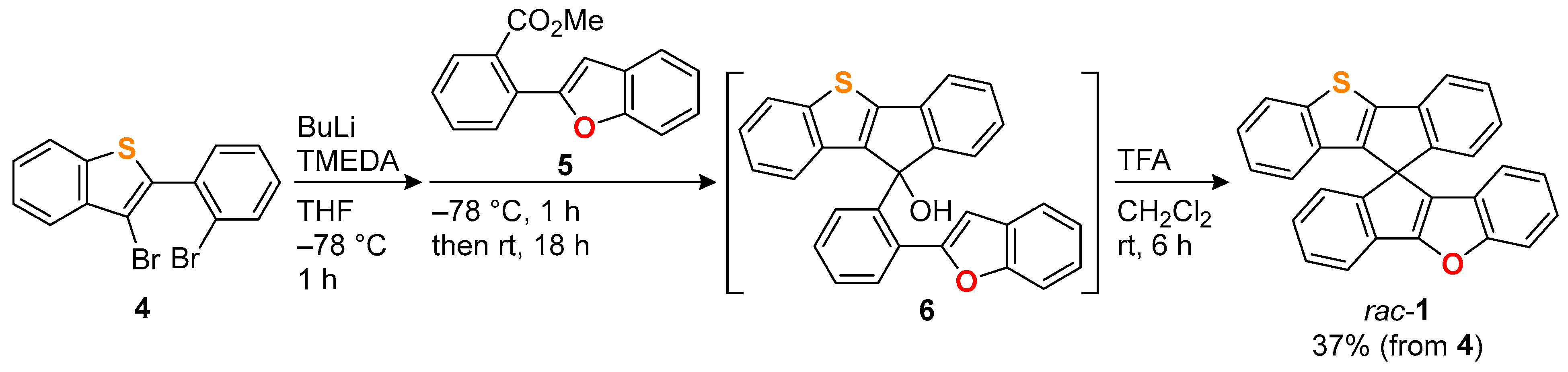

Scheme 1. Synthesis of rac-1.
Scheme 1. Synthesis of rac-1.
Molecules 27 05103 sch001

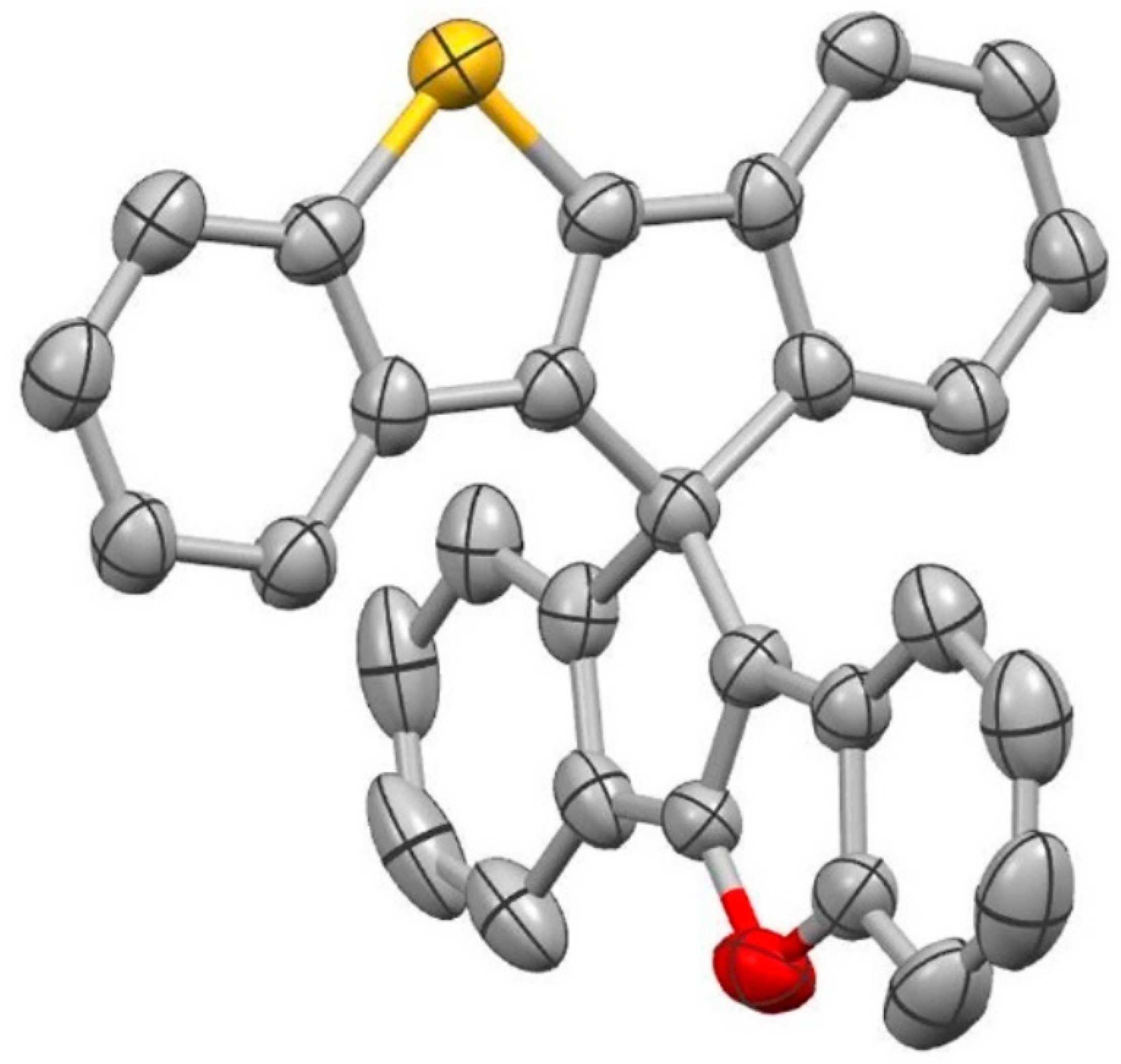

Figure 2. ORTEP drawing of rac-1 with thermal ellipsoids at 50% probability. All hydrogen atoms are omitted for clarity.
Figure 2. ORTEP drawing of rac-1 with thermal ellipsoids at 50% probability. All hydrogen atoms are omitted for clarity.
Molecules 27 05103 g002
Scheme 2. Synthesis of the hydroxy-substituted spiro compound 11 and its transformation to 1.
Scheme 2. Synthesis of the hydroxy-substituted spiro compound 11 and its transformation to 1.
Molecules 27 05103 sch002
Scheme 3. Synthesis of the S,S-dioxide derivative 2 and the pyrrole-containing compound 3.
Scheme 3. Synthesis of the S,S-dioxide derivative 2 and the pyrrole-containing compound 3.
Molecules 27 05103 sch003

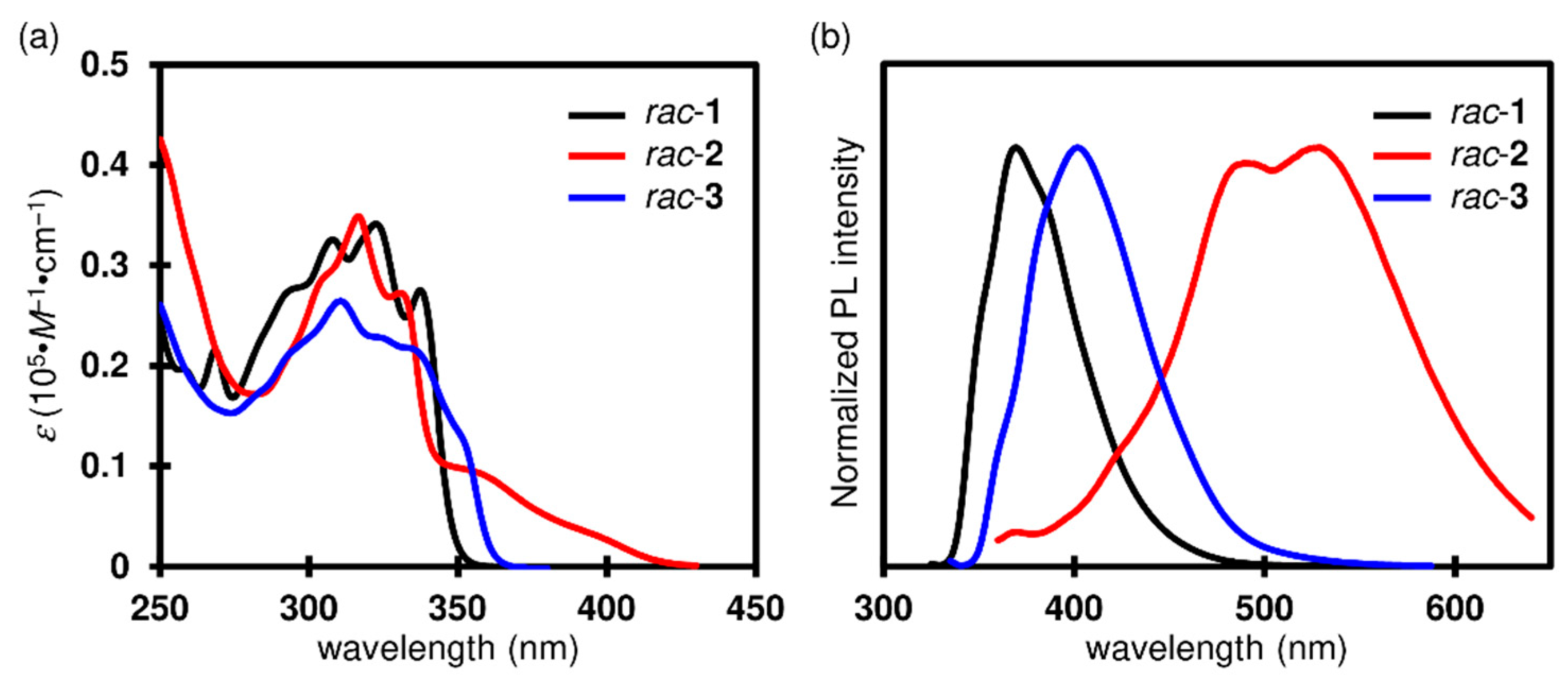

Figure 3. (a) UV–vis absorption and (b) PL spectra of rac-1–3 in CH2Cl2.
Figure 3. (a) UV–vis absorption and (b) PL spectra of rac-1–3 in CH2Cl2.
Molecules 27 05103 g003

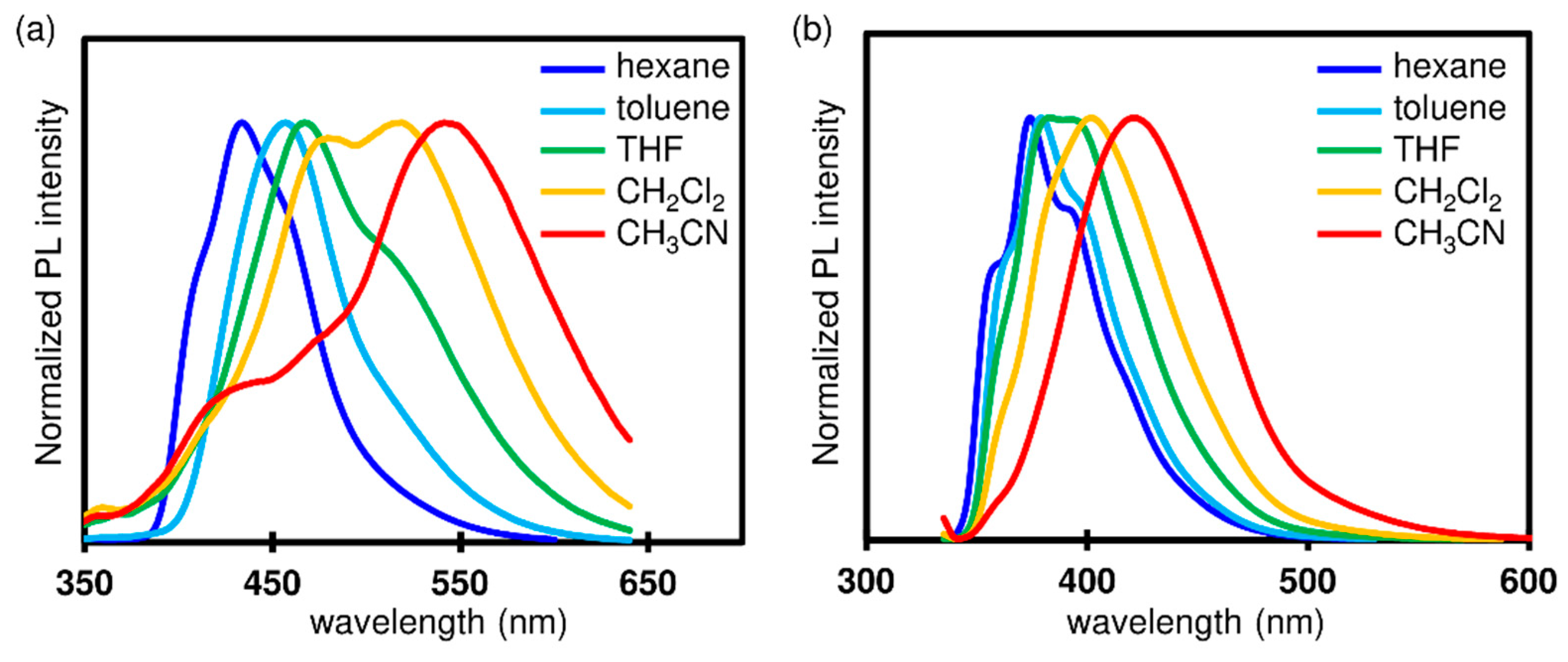

Figure 4. Solvent effect on PL spectra of (a) rac-2 and (b) rac-3.
Figure 4. Solvent effect on PL spectra of (a) rac-2 and (b) rac-3.
Molecules 27 05103 g004

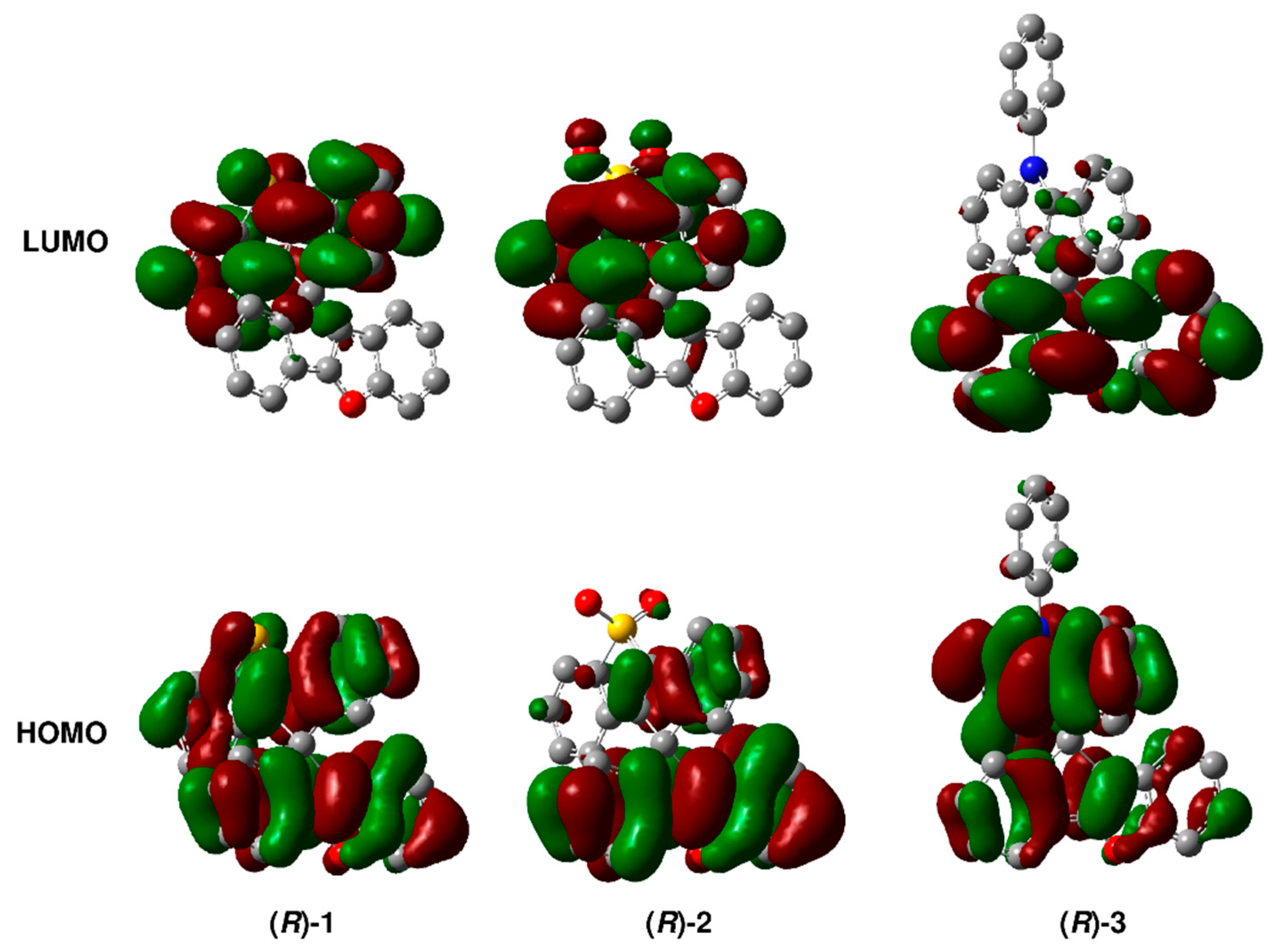

Figure 5. Frontier molecular orbitals of (R)-13.
Figure 5. Frontier molecular orbitals of (R)-13.
Molecules 27 05103 g005

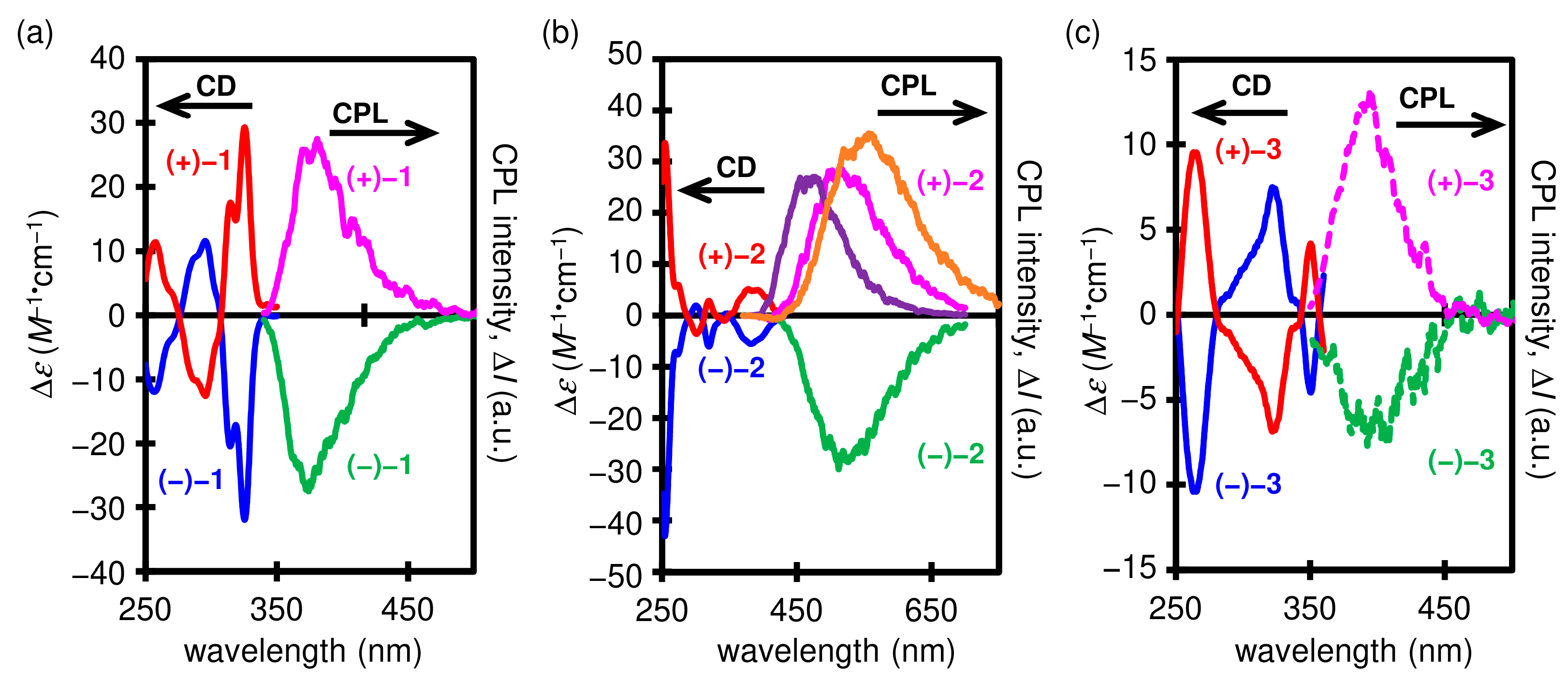

Figure 6. CD and CPL spectra of (a) 1, (b) 2, and (c) 3 in CH2Cl2 (red and blue lines for CD; pink and green lines for CPL; purple and orange lines in (b) for CPL in toluene and acetonitrile, respectively).
Figure 6. CD and CPL spectra of (a) 1, (b) 2, and (c) 3 in CH2Cl2 (red and blue lines for CD; pink and green lines for CPL; purple and orange lines in (b) for CPL in toluene and acetonitrile, respectively).
Molecules 27 05103 g006
Table 1. Photophysical properties of spiro-fused PACs 13.
Table 1. Photophysical properties of spiro-fused PACs 13.
λabs (nm) aλem (nm) bΦ c
rac-1337369 (320)13
rac-2332, 355 (sh)480, 519 (330)<1
rac-3335, 353 (sh)402 (330)16
rac-SSd340368 (330)6
rac-SS(O)2d336, 356 (sh)459 (380)1
rac-SNe334, 350 (sh)414 (330)2
a The longest absorption maximum in CH2Cl2. sh: shoulder. b Emission maximum in CH2Cl2. Excitation wavelength in parenthesis. c Absolute quantum yield in CH2Cl2. d Reference [38]. e Reference [40].
Table 2. Chiroptical date of spiro-fused PACs 13 in CH2Cl2.
Table 2. Chiroptical date of spiro-fused PACs 13 in CH2Cl2.
gabs (×10−3) aglum (×10−3) b|[α]D25| c
(+)-1+1.2 (341 nm)+0.90 (381 nm)154 (c 0.298)
(+)-2+1.4 (378 nm)+2.8 (517 nm)151 (c 0.150)
(+)-3+0.31 (351 nm)+0.97 (394 nm)175 (c 0.094)
a Calculated at the longest CD maximum. Wavelength for the calculated gabs in parentheses. b Calculated at the CPL maximum. Wavelength for the calculated glum in parentheses. c In CH2Cl2. Concentration in parentheses.
Publisher’s Note: MDPI stays neutral with regard to jurisdictional claims in published maps and institutional affiliations.

Share and Cite

MDPI and ACS Style

Nakano, K.; Takase, K.; Noguchi, K. Furan-Containing Chiral Spiro-Fused Polycyclic Aromatic Compounds: Synthesis and Photophysical Properties. Molecules 2022, 27, 5103. https://doi.org/10.3390/molecules27165103

AMA Style

Nakano K, Takase K, Noguchi K. Furan-Containing Chiral Spiro-Fused Polycyclic Aromatic Compounds: Synthesis and Photophysical Properties. Molecules. 2022; 27(16):5103. https://doi.org/10.3390/molecules27165103

Chicago/Turabian Style

Nakano, Koji, Ko Takase, and Keiichi Noguchi. 2022. "Furan-Containing Chiral Spiro-Fused Polycyclic Aromatic Compounds: Synthesis and Photophysical Properties" Molecules 27, no. 16: 5103. https://doi.org/10.3390/molecules27165103

Article Metrics

Back to TopTop
