Novel D-A-π-A1 Type Organic Sensitizers from 4,7-Dibromobenzo[d][1,2,3]thiadiazole and Indoline Donors for Dye-Sensitized Solar Cells

Abstract

Two novel D-A-π-A1 metal-free organic dyes of the KEA series containing benzo[d][1,2,3]thiadiazole (isoBT) internal acceptor, indoline donors fused with cyclopentane or cyclohexane rings (D), a thiophene as a π-spacer, and a cyanoacrylate as an anchor part were synthesized. Monoarylation of 4,7-dibromobenzo[d][1,2,3]thiadiazole by Suzuki-Miyamura cross-coupling reaction showed that in the case of indoline and carbazole donors, the reaction was non-selective, i.e., two monosubstituted derivatives were isolated in each case, whereas only one mono-isomer was formed with phenyl- and 2-thienylboronic acids. This was explained by the fact that heterocyclic indoline and carbazole fragments are much stronger donor groups compared to thiophene and benzene, as confirmed by cyclic voltammetry measurements and calculation of HOMO energies of indoline, carbazole, thiophene and benzene molecules. The structure of monoaryl(hetaryl) derivatives was strictly proven by NMR spectroscopy and X-ray diffraction. The optical and photovoltaic properties observed for the KEA dyes showed that these compounds are promising for the creation of solar cells. A comparison with symmetrical benzo[c][1,2,3]thiadiazole dyes WS-2 and MAX114 showed that the asymmetric nature of benzo[d][1,2,3]thiadiazole KEA dyes leads to a hypsochromic shift of the ICT band in comparison with the corresponding benzo[c][1,2,5]thiadiazole isomers. KEA dyes have a narrow HOMO-LUMO gap of 1.5–1.6 eV. Amongst these dyes, KEA321 recorded the best power efficiency (PCE), i.e., 5.17%, which is superior to the corresponding symmetrical benzo[c][1,2,3]thiadiazole dyes WS-2 and MAX114 (5.07 and 4.90%).

1. Introduction

Recently, the problem of the increasing temperature of the earth has become seriously aggravated, largely due to the use of carbonized energy sources such as coal, oil and gas. The second cause of concern for humanity is the depletion of these energy sources. Therefore, the search for renewable and environmentally friendly energy sources has become an important and urgent task. Solar energy is the most accessible and practically inexhaustible source of energy. In the past few decades, along with well-developed silicon-based photovoltaic devices, research on dye-sensitized solar cells (DSSCs) has been intensively developed due to their relative cheapness, low dye consumption, low-light capability and facile fabrication [1,2,3,4]. The photosensitizer is the most important component of this type of solar cell, as it directly determines their efficiency. There are three main classes of sensitizers that have shown the most outstanding results: ruthenium complexes [5,6,7], porphyrin dyes [8,9,10] and metal-free organic dyes [11,12,13]. Among them, metal-free organic dyes seem to be the most promising due to their tunable optoelectronic properties via flexible molecular designs, high molar extinction coefficients for light harvesting, low synthetic and purification cost compared to their counterpart, i.e., ruthenium and porphyrin dyes, high molar extinction coefficient, easy synthesis, low purification cost and virtually unlimited structure variation, as required to achieve the best possible performance [11,12,13,14,15]. Most of these molecules have the traditional D-π-A structure, consisting of an electron donor (D), a π-bridge and an electron acceptor (A) [16,17,18].

About ten years ago, it was found that structures like D-A-π-A1 possess higher light-harvesting ability and better power conversion efficiency (PCE) and stability [19,20,21]. One of the most common auxiliary acceptors used in D-A-π-A1 structures was benzo[c][1,2,5]thiadiazole (BT) [22,23,24,25]. Surprisingly, its isomer, benzo[d][1,2,3]thiadiazole (isoBT), has not been explored in DSSCs. It was previously found that the most suitable precursor, 4,7-dibromobenzo[d][1,2,3]thiadiazole, can be easily prepared in a two-step synthesis process from the commercially available 2-aminobenzothiol [26,27]. A study of its chemical properties showed that the nucleophilic substitution of 4,7-dibromobenzo[d][1,2,3]thiadiazole with morpholine gave selectively mono-4-substituted 4-(7-bromobenzo[d][1,2,3]thiadiazol-4-yl)morpholine [28]. In addition to the cross-coupling reactions of this dibromide, 4,7-di(hetaryl) derivatives can be easily prepared in moderate yields by Stille reaction [27], and some 4,7-di(hetaryl)benzo[d][1,2,3]thiadiazoles can lead to compounds with promising photovoltaic properties. Therefore, in this work, we aimed to obtain new organic dyes based on the benzo[d][1,2,3]thiadiazole (isoBT) unit. Herein, we describe a study of cross-coupling reactions of 4,7-dibromobenzo[d][1,2,3]thiadiazole with donor molecules in order to obtain monosubstituted derivatives for the preparation of donor-acceptor-π-spacer-acceptor1 (D-A-π-A1)-conjugated molecules which could find potential applications in DSSCs. In these molecules, benzo[d][1,2,3]thiadiazole played the role of internal acceptor, a thiophene cycle as a π-bridge and a cyanoacrylate residue as a terminal acceptor and anchor.

2. Results and Discussion

2.1. Synthesis of D-A-π-A1 Dyes

The synthetic strategy for the preparation of the target D-A-π-A1 dyes consisted of a number of steps, as shown in Scheme 1. It included two successive cross-coupling reactions with boronic acids or their esters (Suzuki-Miyamura reaction) and with tributylstannyl derivatives (Stille reaction), followed by the Knoevenagel reaction with cyanoacetic acid tert-butyl ester, and finally, hydrolysis of ester 4 to afford the desired KEA dyes.

Monoarylation of 4,7-dibromobenzo[d][1,2,3]thiadiazole is the most challenging task and requires special attention in order to achieve the best yields [25]. According to the literature [25 and references therein], the two most common protocols for the substitution of bromine atoms with aryl groups are the reaction with arylboronic acids or its esters (the Suzuki reaction) and the reaction with trialkylstannates (the Stille reaction). Arylation of 4,7-dibromobenzo[c][1,2,5]thiadiazole with one equivalent of trialkylstannyl derivative led to low yields (15–35%) of mono-arylated heterocycles, since they reacted readily further with the formation of bis-aryl products [24]. Better results for the isolation of mono-substituted derivatives have been achieved by Suzuki cross-coupling reaction; for example, monoarylated derivatives have been isolated in high yields in the reactions of 4,7-dibromobenzo[c][1,2,5]thiadiazole with arylboronic acid by using the same NCP pincer palladacycle [29]. Also where the reactivity of two bromine atoms in 4,7-dibromo[1,2,5]chalcogenadiazolo[3,4-c]pyridines has differed substantially, regioselective arylation occurred [30,31] and the Suzuki reaction gave a considerably higher yield (72%) compared to the Stille reaction (27%) [24].

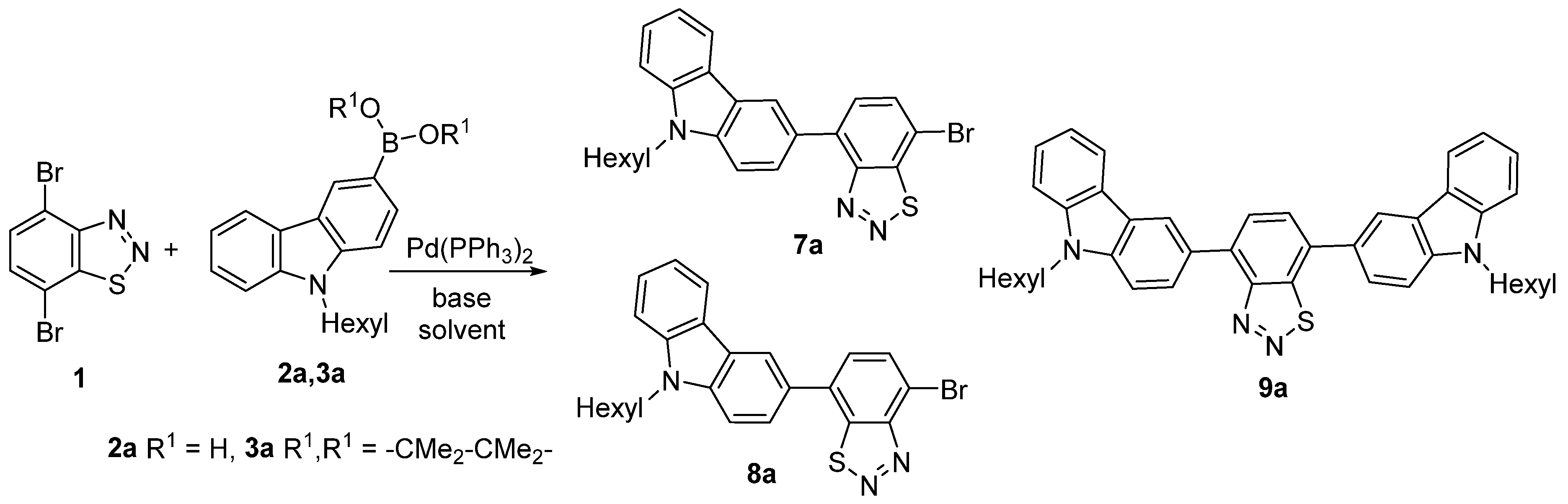

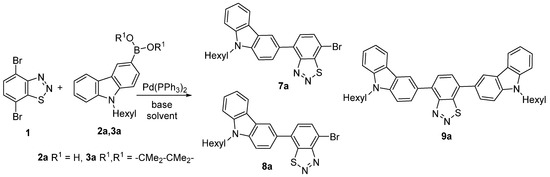

Therefore, the behavior of 4,7-dibromobenzo[d][1,2,3]thiadiazole 1 in the palladium-catalyzed Suzuki-Miyamura coupling reactions in order to obtain mono-aryl(hetaryl)benzo[d][1,2,3]thiadiazoles was investigated (Scheme 2). This study, with one equivalent of (9-hexyl-9H-carbazol-3-yl)boronic acid and its pinacolate ester 2, included varying the base, solvent and reaction temperature. The results are summarized in

Table 1. Cross-coupling of 4,7-dibromobenzo[d][1,2,3]thiadiazole 1 with (9-hexyl-9H-carbazol-3-yl)boronic acid (R¹ = H) 2a and its pinacolate ester (R¹ = -CMe₂-CMe₂-) 3a.

Entry	B(OR)2	Solvent	Base	Conditions	Yields (%)
					7a	8a	9a	1
1	BPin	THF/H2O	K2CO3	70 °C, 8 h	23	24	23	15
2	BPin	THF	Cs2CO3	70 °C, 8 h	20	22	18	17
3	BPin	dioxane/H2O	K2CO3	110 °C, 6 h	19	22	21	20
4	BPin	toluene/H2O	K2CO3	120 °C, 5 h	19	21	22	17
5	BPin	DMF/H2O	K2CO3	80 °C, 12 h	traces	0	0	90
6	BPin	Toluene/H2O	K2CO3	rt, 24 h	12	14	15	38
7	BPin	dioxane/H2O	K2CO3	rt, 1.5 h	4	4	traces	87
8	B(OH)2	THF/H2O	K2CO3	80 °C, 8 h	19	22	20	18

.

A study of the Suzuki reaction of 4,7-dibromobenzo[d][1,2,3]thiadiazole 1 with one equivalent of boronic acid 2a or its pinacolate ester 3a showed that the reaction was not selective and led to a mixture of two monohetaryl derivatives 7a and 8a and bis-aryl derivative 9a, with yields of these products of around 20%. The nature of the solvent, either type of solvent (THF) or a mixture of solvents that are capable of solubilizing organic substrates (THF, toluene, or dioxane) and inorganic salts (water) did not influence the results of the reaction. The yields for the pinacolate ester 3a were slightly higher than for the corresponding boronic acid 2a (compare Entries 1 and 8 in Table 1). THF gave the best yields of mono-substituted derivatives 7a and 8a (Table 1, Entry 1).

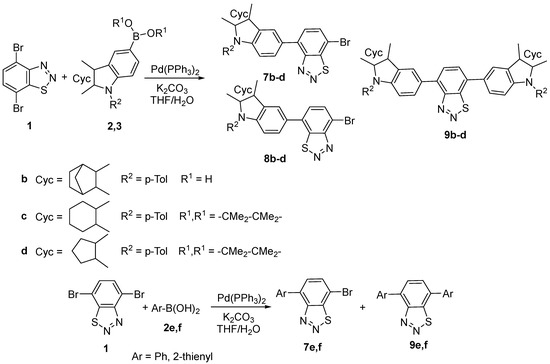

The conditions for the synthesis of monohetaryl derivatives 7a and 8a were further used for several boronic acids 2 and esters 3 (Scheme 3). It was found that in the case of indoline donors 2b-d, the reaction remained non-selective; two monosubstituted derivatives, 7b-d and 8b-d, were isolated in all these cases with yields of about 20% (

Table 2. Yields of compounds 7–9 in the Suzuki cross-coupling reactions of 4,7-dibromobenzo[d][1,2,3]thiadiazole 1 with boronic acids 2 and their pinacolate esters 3.

Entry	B(OR)2	Yields, %
		7	8	9
1	2a	23	24	23
2	3b	25	16	8
3	3c	25	27	24
4	3d	21	22	13
5	2e	47	0	26
6	2f	44	0	23

). Compounds 8c, 8d and 9d were not isolated in a pure state due to the difficulty of purification; nevertheless, their structure was proven by ¹H NMR and MALDI-MS spectral data. Unexpectedly, when phenyl- and 2-thienylboronic acids 6e,f (one equiv) were involved in Suzuki-Miyamura coupling reactions with 4,7-dibromobenzo[d][1,2,3]thiadiazole 1, only one mono-isomer, 7e,f, was formed together with disubstituted derivatives 9e,f with double yields (compared to the yields of mono-products 7a-d), i.e., about 40% (Scheme 3).

As is known [32,33], the Suzuki reaction mechanism includes the formation of an intermediate complex of palladium with halide and boronic acid, in which electrons are transferred from the metal to the halide and from the boronic acids to the metal. In order to evaluate the donor ability of the substituent of the studied boronic acids to donate electrons, the oxidation potentials of donor 10 are shown in

Table 3. Electrochemical properties of donor molecules 10.

Compound	Electrode	Eoxonset a, V	Eoxonset (vs. Fc/Fc+) a, V	EHOMO b, eV
10a	Pt	1.24	0.74	−5.84
	glassy carbon	1.25	0.75	−5.85
10c	Pt	0.72	0.22	−5.32
	glassy carbon	0.71	0.21	−5.31
10d	Pt	0.63	0.12	−5.22
	glassy carbon	0.63	0.12	−5.22
10e	Pt	2.33	1.92	−7.02
	glassy carbon	2.24	1.82	−6.92
10f	Pt	1.91	1.5	−6.6
	glassy carbon	1.85	1.44	−6.54

^a Here E^ox_onset and E^red_onset are a linear extrapolation of the low reduction potential side of the first oxidation or reduction wave respectively to the base line relative to Fc/Fc⁺ respectively. ^b Energies of HOMO frontier orbital were calculated according to Equation (1), see below.

, as determined by cyclic voltammetry (CV) (see Supplementary Materials). It was established that all compounds were oxidized irreversibly on platinum and glassy carbon electrodes, and the values of the oxidation potentials practically did not depend on the type of electrode. Oxidation peaks of donors 10a,c,d were observed by CV in DMF solutions (0.1 M Bu₄NClO₄), whereas for 10e and 10f, having a higher oxidation potential, peaks were obtained in acetonitrile solution. To estimate the energies of the highest occupied molecular orbital (E_HOMO), we used estimated peak onset values (E^ox_onset). The values of E^ox_onset were calculated relative to the potential of the reversible oxidation of ferrocene/ferrocenium (Fc/Fc⁺) redox pair, the absolute potential of which was taken as −5.1 eV [34,35]. The values of E_HOMO presented in the Table 3 were calculated according to Equation (1) (see below).

The cyclic voltammetry showed that heterocyclic fragments 10a, 10c and 10d had much higher E_HOMO values, which indicated that they were much stronger donor groups compared to benzene 10e and thiophene 10f. It can be assumed that the relative ease of electron transfer in the intermediate complex may be one of the factors contributing to the formation of a mixture of monoisomers 7a-d and 8a-d, in contrast to thienyl- and phenylboronic acids 2e,f.

2.2. Proof of the Structure of Monobromo Derivatives 7 and 8 by NMR Spectroscopy and X-ray Diffraction

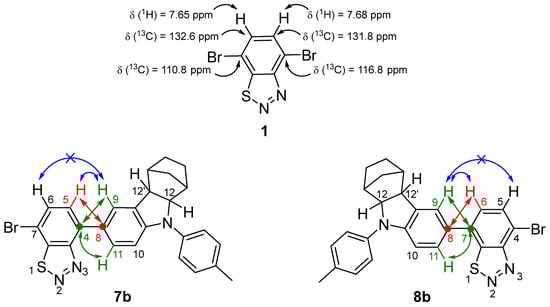

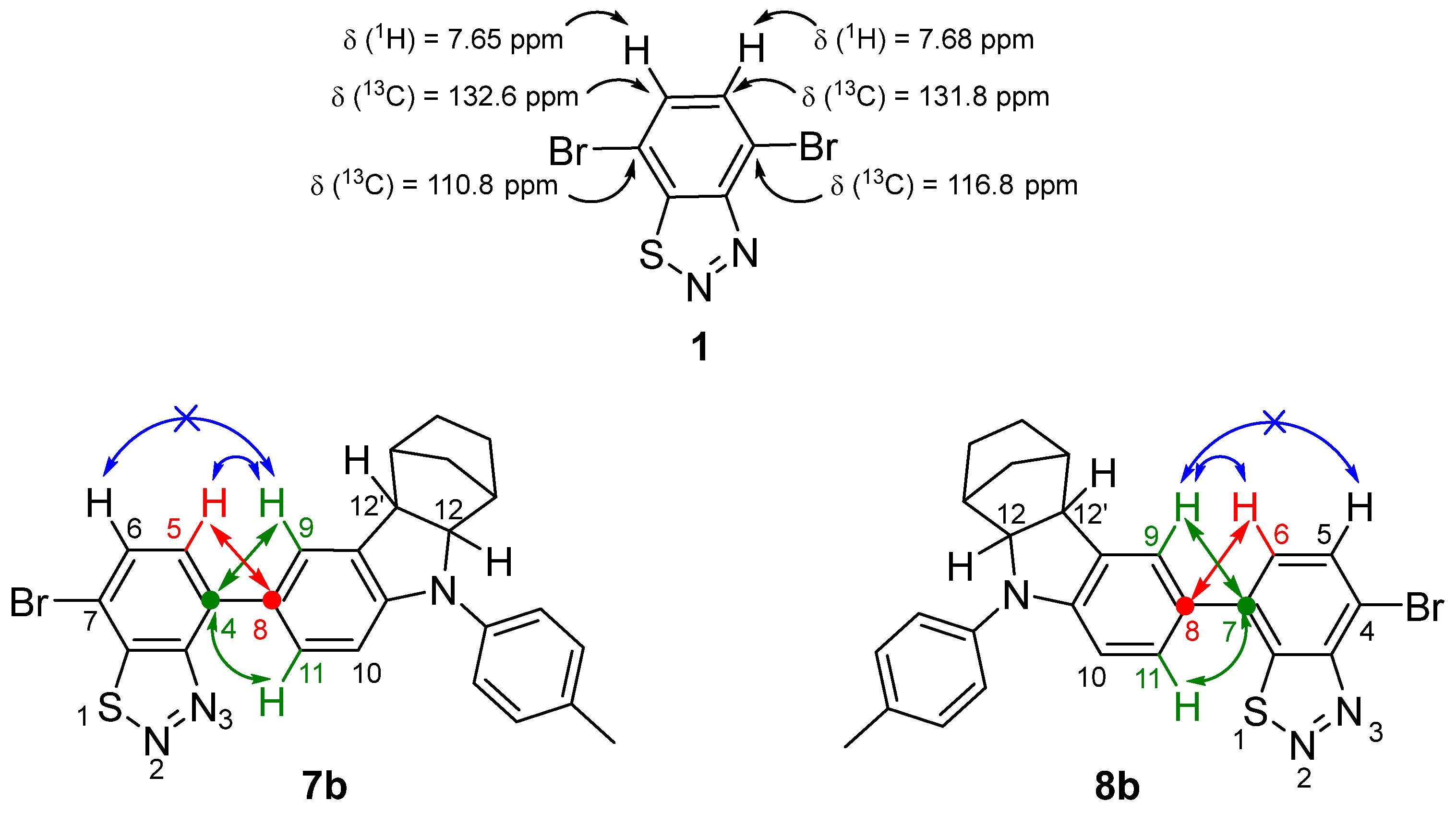

A set of two-dimensional NMR spectra was recorded in order to correlate the signals in the ¹H and ¹³C spectra. The key interatomic interactions for both isomers 7b and 8b are shown in Figure 1. For product 8b, a proton doublet at C6 is observed at 7.53 ppm with an interaction in HMBC spectra with the quaternary carbon 8 of the donor fragment (highlighted in red), while for the second proton of the isothiadiazole ring at C5 at 7.83 ppm, this interaction is absent. An additional confirmation of this proved the interaction in HMBC spectra of protons at C9 and C11 of the donor fragment with the quaternary carbon 7 of isothiadiazole (highlighted in green). Similarly, for isomer 7b, key interactions in HMBC spectra of the proton at C5, which manifests itself at 7.55 ppm, with the quaternary carbon 8 of the donor (red highlight), as well as protons at C9 and C11 of the donor fragment with carbon 4 of isothiadiazole (green highlight), are observed. The absence of cross peaks in the HMBC spectrum of compound 7b related to the interaction of the proton at C6 and the nodal carbon 8 of the donor, as well as the absence of NOE interaction between protons at C6 and C9/C11 as well as the presence of one between the protons C5 and C9/C11 (blue arrows) additionally confirm the correlation of signals.

The use of NMR spectroscopy made it possible to combine the results of XRD and HMBC data, and perform a complete correlation of signals in the ¹H and ¹³C spectra for dibromide 1 (Figure 1) and isomers 7b, 8b (see Supplementary Materials). As such, we were able to establish that the introduction of a donor substituent led to an upfield shift of the signals from both the nearest proton and the corresponding carbon of the benzo[d][1,2,3]thiadiazole system compared to the parent 4,7-dibromobenzo[d][1,2,3]thiadiazole 1. In this case, the signal of carbon, which had undergone substitution, was shifted to a lower field, and the signal of carbon with the remaining bromine atom had a chemical shift ±3 ppm relative to the corresponding dibromide 1 chemical shift (

Table 4. Key ¹H and ¹³C signals in the spectra of compounds 1, 7 and 8.

Compound	C4	C5	C5-H	C6	C6-H	C7
1	116.83	131.82	7.68	132.65	7.65	110.83
7a	138.17	128.05	7.57	132.00	7.87	109.03
7b	137.61	126.90	7.55	132.10	7.77	108.31
7c	137.86	129.36	7.57	132.61	7.78	108.90
7d	137.72	129.60	7.56	132.15	7.79	108.31
7e	136.95	128.07	7.58	131.89	7.88	110.29
7f	138.26	125.90	7.55	132.03	7.78	109.51
8a	115.43	131.42	7.93	126.57	7.53	134.82
8b	114.66	131.44	7.84	127.41	7.53	134.39

). At the same time, the chemical shifts of carbons bearing a bromine atom (C7 for 7; C4 for 8) were characterized by the largest upfield shifts compared to the rest of the signals of aromatic hydrocarbons. Based on the above conclusions, an unambiguous determination of the structure of all obtained mono-substituted compounds 7 and 8 was made.

For compounds 8c, 8d, 9d, which could not be isolated in pure form, ¹H NMR spectra, as well as MALDI-TOF spectra were recorded (see Supplementary Materials), on the basis of which their formation could be confirmed. Thus, for compound 8d, the doublet corresponding to the proton at C6 appeared at 7.65 ppm, and the proton doublet at C5 was observed at 7.85 ppm, while the proton signals at C5/6, recorded for isomer 7d, were observed as a minor product. Additional confirmation could serve as a change of chemical shifts of protons at the nodal carbon atoms 12/12′ of the donor fragment: for 7d, two multiplets were observed in the regions of 3.92–4.01 and 4.86–4.93 ppm, and for 8d for the main product, in the regions of 4.65–4.74 ppm and 5.37–5.45 ppm. In this case, the ¹H NMR spectrum of the bis-derivative 9d was characterized by the presence of all four multiplets in the given regions, integrating as single protons.

In the case of compound 8c, the difference in chemical shifts of key protons at C5/6 was not so characteristic, since the chemical the shift of one of the doublets was the same for both isomers; however, the doublet signal of the second proton for 8c appeared in a weaker field, at 7.86 ppm corresponding to a proton at C6, and a doublet at 7.86 ppm characterized the proton at C5. In the high-field region of proton signals at C12/12’, the difference in chemical shifts for both isomers was not as critical as in the case of the 7d–8d pair, but its presence also served as additional evidence for the formation of the 8c isomer.

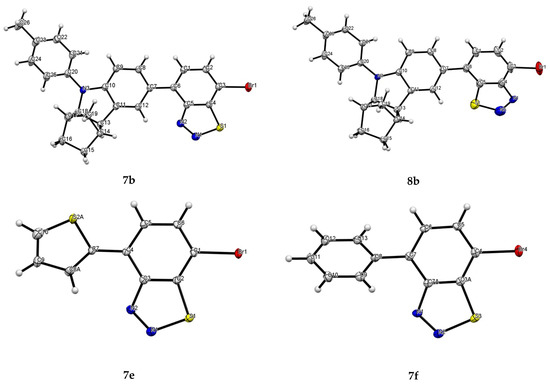

The structures of a few monobromo derivatives 7 and 8 were confirmed by single crystal X-ray diffraction study of compounds 7b, 8b, 7e and 7f (Figure 2).

2.3. Synthesis and Characterization of the Dyes

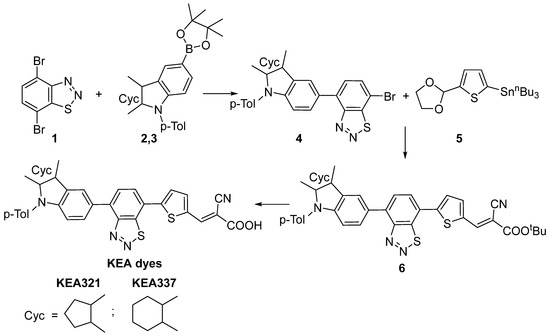

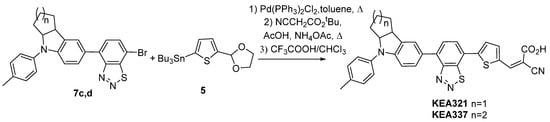

Synthesis of the target dyes in the KEA321 and KEA337 series was carried out using Stille cross-coupling reaction of 4-substituted 7-dibromobenzo[d][1,2,3]thiadiazole with π-spacer 5 (Scheme 4). This stage was carried out under conditions of Stille reactions catalyzed by PdCl₂(PPh₃)₂ in toluene followed by saponification with HCl to remove dioxolane protection. After this, the products were introduced into the Knoevenagel reaction with cyanoacetic acid tert-butyl ester with subsequent hydrolysis resulting in the final structures KEA321 and KEA337, which, after thorough chromatographic purification, were used in solar cell device fabrication.

2.4. Optical Properties

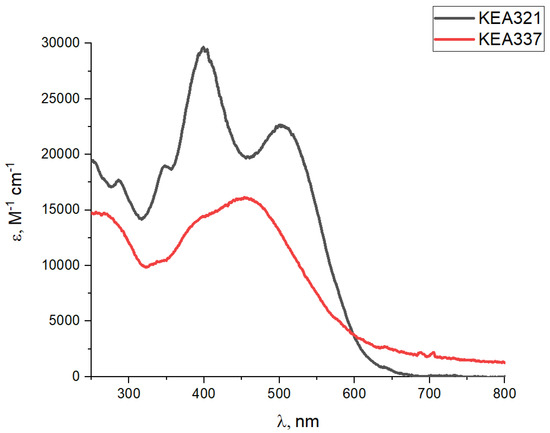

For the obtained dyes KEA321 and KEA327, UV-Vis spectra were recorded in a DCM solution at a concentration of 5.5 × 10⁻⁵ M.

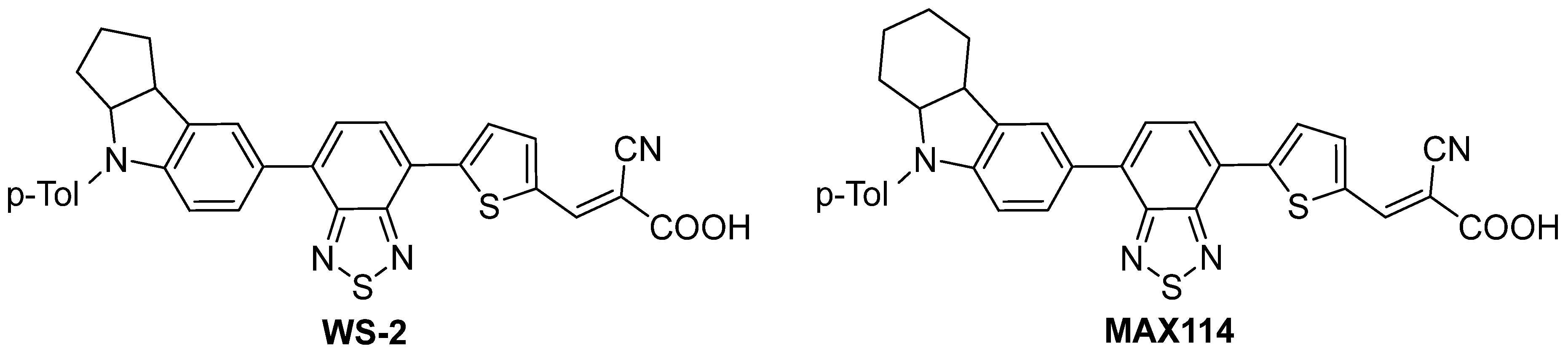

Table 5. UV-Vis absorption characteristics of the KEA dyes, WS-2, and MAX114.

Dye	λmax1, [nm] a	εmax1 × 103, [M−1cm−1] a	λmax2, [nm] a	εmax2 × 103, [M−1cm−1] a
KEA321	404	29.5	504	22.9
KEA337	398	14.5	454	16.2
WS-2 b	394	14.1	533	16.7
MAX114 c	392	16.3	507	20.4

^a The UV-Vis optical responses were obtained in DCM solution (5.5 × 10⁻⁵ M). ^b Values for WS-2 were taken from the literature [36]. ^c Values for MAX114 were taken from the literature [37].

shows the absorption maxima (λ_max) and the corresponding extinction coefficients (ε) for KEA dyes, as well as for isomeric dyes MAX114 and WS-2 based on benzo[c][1,2,5]thiadiazole (Figure 3).

Both new dyes had two absorption maxima; however, for the KEA337 compound, due to the proximity of both maxima, their merging was observed. The short-wavelength absorption band at 400 nm, which for KEA337 was identified as a shoulder, and for KEA321 was characterized by a high extinction coefficient, corresponded to π/π* electron transition, and long-wavelength absorption maxima in the range of 450–500 nm indicated the presence of an intramolecular charge transfer (ICT) process between donor and acceptor fragments (Figure 4). For all four dyes, π/π* transition absorption peaks were observed in a narrow wavelength range, i.e., 394–401 nm, which characterizes close values of the energy level gap. The long-wavelength absorption maxima obeyed the previously established regularity [27]: the asymmetric nature of benzo[d][1,2,3]thiadiazole leads to a hypsochromic shift of the ICT band in comparison with the corresponding benzo[c][1,2,5]thiadiazole isomers. Higher extinction coefficients of dyes based on benzo[c][1,2,5]thiadiazole may indicate that the symmetry breaking of the acceptor benzo[d][1,2,3]thiadiazole fragment reduces the efficiency of intramolecular charge transfer for compounds of the KEA series.

2.5. Electrochemical Properties

To estimate the energy values of the frontier orbitals and to determine the stability of the particles formed during electron transfer, cyclic voltammetry patterns (CV curves) of KEA321 and KEA337 were measured. The first stages of the electrooxidation (EO) and electroreduction (ER) curves of the studied compounds are shown in Figure 5, and the potential values and calculated frontier orbitals energies are summarized in

Table 6. Electrochemical properties of the KEA dyes in DMF solutions.

Dye	Eredonset (vs. Fc/Fc+) a, V	Eoxonset (vs. Fc/Fc+) a, V	ELUMO b, eV	EHOMO b, eV	Eg c, eV
KEA321	−1.31	0.21	−3.79	−5.31	−1.52
KEA337	−1.49	0.15	−3.61	−5.25	−1.64

^a Here E^ox_onset and E^red_onset are a linear extrapolation of the low reduction potential side of the first oxidation or reduction wave respectively to the base line relative to Fc/Fc⁺ respectively. ^b Energies of frontier orbitals were calculated according to Equations (1) and (2). ^c E_g = E_LUMO − E_HOMO.

.

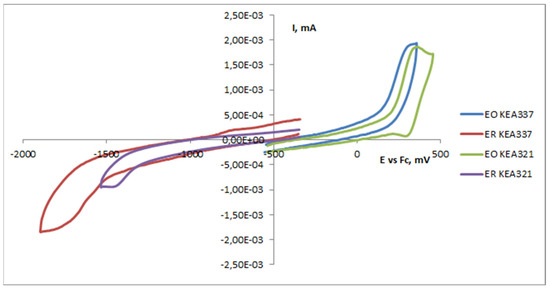

The potentials of the ER and EO peaks of KEA321 and KEA337 were close to each other, the ER in both cases proceeded irreversibly, and the EO peak of KEA321 had a quasi-reversible character, in contrast to the irreversible EO peak of KEA337 (Table 6). To calculate the energies of the lowest unoccupied molecular orbital (E_LUMO) and the highest occupied molecular orbital (E_HOMO), we used estimates of the peak onset values ER (E^red_onset) and EO (E^ox_onset), respectively. The values of E^red_onset and E^ox_onset were calculated relative to the potential of the reversible oxidation of ferrocene/ferrocenium (Fc/Fc⁺) redox pair, the absolute potential of which equaled −5.1 eV [34,35]. We used Equations (1) and (2) to calculate the values of E_LUMO and E_HOMO:

E_HOMO (eV) = −|e|(E^ox_{onset, Fc/Fc+} + 5.1)

(1)

E_LUMO (eV) = −|e|(E^red_{onset, Fc/Fc+} + 5.1)

(2)

The obtained E_LUMO values of both compounds were above the energy level of TiO₂ semiconductor (−4.2 eV) [38], while the E_HOMO values were below the I⁻/I₃⁻ (−4.9 eV) level [39]. Thus, the electrochemical characteristics obtained for the KEA dyes allowed us to state that these compounds are promising for the creation of solar cells.

2.6. Photovoltaic Performance

The new dyes based on benzo[d][1,2,3]thiadiazole were used to construct DSSCs with a two-layer photoanode made of TiO₂ (4.5 μm scattering layer and 9 μm transparent layer), I⁻/I₃⁻ electrolyte, and a Pt film as the counter electrode (See Supporting Information for the preparation of DSSCs). The resulting cells were tested under AM1.5 G irradiation (100 mW cm⁻²); the photovoltaic parameters of the best devices compared to the MAX114 and WS-2 isomeric dyes are shown in

Table 7. DSSCs characteristics for the best devices using the KEA sensitizers.

Dye	Voc (mV)	Jsc (mA·cm−2)	FF	η (%)
KEA321	0.65	12.94	0.61	5.15
KEA337	0.66	10.99	0.67	4.83
WS-2 a	0.59	11.80	0.63	5.07
MAX114 b	0.57	11.50	0.75	4.90

^a Values for WS-2 were taken from the literature [36]. ^b Values for MAX114 were taken from the literature [37].

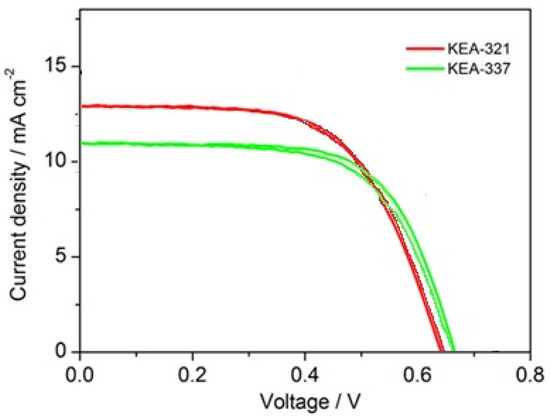

, and the current-voltage characteristics of the KEA series compounds are shown in Figure 6 (statistics of photovoltaic performance of DSSCs fabricated with KEA dyes are given in Supporting Information). Despite higher values of the molar extinction coefficient in the UV-Vis spectrum obtained for the WS-2 dye, its J_SC is somewhat lower than for the benzo[d][1,2,3]thiadiazole analogue of KEA321. At the same time, for a pair of compounds based on the hexahydro-1H-carbazole donor block, the trend in J_SC changes is somewhat more predictable: the dye with benzo[c][1,2,5]thiadiazole acceptor MAX114, which has a four times higher value of ε, showed J_SC of 0.5 mA cm⁻², which is higher than its KEA337 isomer. The V_OC values for DSSCs based on the new KEA series are higher than those for isomeric analogs with a symmetric acceptor (WS-2 and MAX114), probably, due to reduced recombination through the blocking effect of the dye.

3. Materials and Methods

3.1. Materials and Reagents

All chemicals were purchased from the commercial sources (Sigma-Aldrich, MO, USA) and used as received. 4,7-Dibromobenzo[d][1,2,3]thiadiazole 1 [27], 6-(4,4,5,5-tetramethyl-1,3,2-dioxaborolan-2-yl)-9-(p-tolyl)-2,3,4,4a,9,9a-hexahydro-1H-1,4-methanocarbazole 3a [40], 6-(4,4,5,5-tetramethyl-1,3,2-dioxaborolan-2-yl)-9-(p-tolyl)-2,3,4,4a,9,9a-hexahydro-1H-carbazole 3c [37], 7-(4,4,5,5-tetramethyl-1,3,2-dioxaborolan-2-yl)-4-(p-tolyl)-1,2,3,3a,4,8b-hexahydrocyclopenta[b]indole 3d [41], (9-hexyl-4b,8a-dihydro-9H-carbazol-3-yl)boronic acid 2b [42], phenylboronic acid 2e [43], thiophen-2-ylboronic acid [44] were prepared according to the previously described protocols. All synthetic operations were performed under a dry argon atmosphere. The solvents were purified by distillation over the appropriate drying agents.

3.2. Analytical Instruments

The solution UV-visible absorption spectra were recorded using an OKB Spektr SF-2000 UV/Vis/NIR spectrophotometer (Saint-Petersburg, Russia) controlled with SF-2000 software. All samples were measured in a 1 cm quartz cell at room temperature with a 5.5 × 10⁻⁵ mol/mL concentration in DCM. The melting points were determined on a Kofler hot-stage apparatus and were uncorrected. ¹H and ¹³C NMR spectra were taken with a Bruker AM-300 machine (Bruker Ltd., Moscow, Russia) with TMS as the standard. J values are given in Hz. MS spectra (EI, 70 eV) were obtained with a Finnigan MAT INCOS 50 instrument (Thermo Finnigan LLC, San Jose, CA, USA). High-resolution MS spectra were measured on a Bruker micrOTOF II instrument using electrospray ionization (ESI). The measurement was operated in a positive ion mode (interface capillary voltage −4500 V) or in a negative ion mode (3200 V); the mass range was from m/z 50 to m/z 3000 Da; external or internal calibration was performed with Electrospray Calibrant Solution (Fluka Chemicals Ltd., Gillingham, UK). A syringe injection was used for solutions in acetonitrile, methanol, or water (flow rate 3 μL·min⁻¹). Nitrogen was applied as a dry gas; the interface temperature was set at 180 °C. IR spectra were measured with a Bruker “Alpha-T” instrument (Bruker, Billerica, MA, USA) in KBr pellets. Electrochemical measurements were carried out in a dry argon atmosphere using an IPC Pro MF potentiostat (Econix, Russia). The redox properties of compounds were determined using cyclic voltammetry in a three-electrode electrochemical system. A three-electrode system consisting of platinum as the working electrode with an area of 0.8 mm², platinum wire as the counter electrode, and a saturated calomel electrode (SCE) as the reference electrode was employed. The reduction and oxidation potentials were determined in MeCN or in DMF, using 0.1 mol L⁻¹ n-Bu₄NClO₄ as the supporting electrolyte. The cyclic voltammetry (CV) measurements were performed with the use of scan rates of 0.1–5.0 V s⁻¹. The first reduction/oxidation potentials were referenced to the internal standard redox couple Fc/Fc⁺. Ferrocene was added to each sample solution at the end of the experiment and employed for calibration.

3.3. X-ray Analysis

X-ray diffraction data were collected at 100 K on a four-circle Rigaku Synergy S diffractometer equipped with a HyPix600HE area-detector (kappa geometry, shutterless ω-scan technique), using graphite monochromatized Cu K_α-radiation. The intensity data were integrated and corrected for absorption and decay by the CrysAlisPro program [45]. The structure was solved by direct methods using SHELXT and refined on F² using SHELXL-2018 [46] in the OLEX2 program [47]. All non-hydrogen atoms were refined with individual anisotropic displacement parameters. All hydrogen atoms were placed in ideal calculated positions and refined as riding atoms with relative isotropic displacement parameters. A rotating group model was applied for methyl groups. The Cambridge Crystallographic Data Centre contains the supplementary crystallographic data for this paper No. CCDC 2112091 (7e), 2116443 (7f), 2061783 (7b), 2061784 (8b). These data can be obtained free of charge via http://www.ccdc.cam.ac.uk/conts/retrieving.html (accessed on 3 February 2022) (or from the CCDC, 12 Union Road, Cambridge CB2 1EZ, UK; Fax: +44-1223-336033; E-mail: [email protected]). Crystal data and structure refinement for these compounds are given in

Table 8. Crystal data and structure refinement for compounds 7b and 8b.

	Compound 7b	Compound 8b
Empirical formula	C26H22BrN3S	C26H22BrN3S
Formula weight	488.43	488.43
Temperature	100(2) K	100(2) K
Wavelength	0.71073 Å	0.71073 Å
Crystal system	monoclinic	Triclinic
Space group	P21/c	P-1
Unit cell dimensions	a = 11.4845(11) Å	a = 9.3264(2) Å
	b = 10.3419(10) Å	b = 9.7012(2) Å
	c = 18.4029(18) Å	c = 12.0096(3) Å
	α = 90°	α = 78.2162(7)°
	β = 101.867(3)°	β = 89.0002(7)°
	γ = 90°	γ = 88.9216(8)°
Volume	2139.0(4) Å3	1063.41(4) Å3
Z	4	2
Density (calculated)	1.517	1.525
Absorption coefficient	2.039	2.051
F(000)	1000	500
Crystal size	0.370 × 0.310 × 0.260 mm	0.570 × 0.300 × 0.120 mm
Theta range for data collection	2.591 to 34.000°	2.467 to 26.998°
Index ranges	−18 ≤ h ≤ 18, −16 ≤ k ≤ 16, −28 ≤ l ≤ 28	−11 ≤ h ≤ 11, −12 ≤ k ≤ 12, −15 ≤ l ≤ 15
Reflections collected	81,377	30,186
Independent reflections	8716	4636
	[R(Int) = 0.0541]	[R(int) = 0.0311]
Completeness to theta	99.7	99.9
Absorption correction	Multi-scan	Semi-empirical from equivalents
Max. and min. transmission	(not specified)	0.1004 and 0.0595
Refinement method	Full-matrix least-squares on F2	Full-matrix least-squares on F2
Data/restraints/parameters	8716/0/281	4636/1/281
Goodness-of-fit on F2	1.014	1.073
Final R indices [I > 2sigma(I)]	R1 = 0.0333, wR2 = 0.0909	R1 = 0.0719, wR2 = 0.1870
R indices (all data)	R1 = 0.0418, wR2 = 0.0980	R1 = 0.0781, wR2 = 0.1928
Largest diff. peak and hole	0.823 and −0.622 Å−3	2.446 and −1.031 Å−3

and

Table 9. Crystal data and structure refinement for compound 7e and 7f.

	Compound 7e	Compound 7f
Empirical formula	C12H7BrN2S	C10H5BrN2S2
Formula weight	291.17	297.19
Temperature	100.00(10) K	100.00(10) K
Wavelength	0.71073 Å	0.71073 Å
Crystal system	monoclinic	monoclinic
Space group	P121/c1	P121/c1
Unit cell dimensions	a = 11.4348(3)	a = 3.85910(10)
	b = 14.7803(5)	b = 20.3833(6)
	c = 6.7783(3)	c = 12.7488(5)
	α = 90°	α = 90°
	β = 106.295(4)°	β = 90.357(3)°
	γ = 90°	γ = 90°
Volume	1099.58(7) Å3	1002.82(6) Å3
Z	4	4
Density (calculated)	1.759	1.968
Absorption coefficient	3.897	4.476
F(000)	576	584
Crystal size	0.103 × 0.11 × 0.59 mm	0.04 mm3
Theta range for data collection	2.311 to 33.370°	2.559 to 34.479
Index ranges	−16 ≤ h ≤ 16; −22 ≤ k ≤ 19; −10 ≤ l ≤ 9	−6 ≤ h ≤ 5; −31 ≤ k ≤ 32; −19 ≤ l ≤ 19
Reflections collected	3686	3832
Independent reflections	3014	3069
	[R(Int) = 0.0522]	[R(Int) = 0.0588]
Completeness to theta	99.94	99.9
Absorption correction	spherical harmonics	spherical harmonics
Max. and min. transmission	(not specified)	(not specified)
Refinement method	Full-matrix least-squares on F2	Full-matrix least-squares on F2
Data/restraints/parameters	3686/0/145	3832/2/146
Goodness-of-fit on F2	1.091	1.029
Final R indices [I > 2sigma(I)]	R1 = 0.0367, wR2 = 0.0925	R1 = 0.0389, wR2 = 0.0779
R indices (all data)	R1 = 0.0478, wR2 = 0.0962	R1 = 0.0565, wR2 = 0.0823
Largest diff. peak and hole	1.044 and −0.706 Å−3	1.026 and −0.538 Å−3

.

3.4. General Procedure for Suzuki-Miyamura Coupling Reactions

In 50 mL round-bottom flask, of boronic acid 2 or pinacolate ester 3 (0.51 mmol), 4,7-dibromobenzo[d][1,2,3]thiadiazole 1 (149 mg, 0.51 mmol) were dissolved in tetrahydrofuran (20 mL), and a solution of K₂CO₃ (70 mg, 0.51 mmol) in water (5 mL) was added. The mixture was degassed for 20 min with a stream of argon, and Pd(PPh₃)₄ (29 mg, 0.026 mmol) was added. After refluxing for 8 h, the reaction mixture was diluted by ethylacetate (20 mL) and washed with water (3 × 20 mL). Organic layer was dried by Na₂SO₄, and then evaporated. The precipitate was purified by column chromatography with mixture of petroleum ether and dichloromethane (15:1).

7-Bromo-4-(9-hexyl-9H-carbazol-3-yl)benzo[d][1,2,3]thiadiazole(7a)

Yellow-green oil (59 mg, 25%). ¹H NMR (300 MHz, CDCl₃, δ, ppm): 8.57 (s, 1H), 8.08 (d, J = 7.7, 1H), 8.00 (d, J = 8.5, 1H), 7.76 (d, J = 7.8, 1H), 7.60 (d, J = 7.9, 1H), 7.49–7.32 (m, 3H), 7.22–7.13 (m, 1H), 4.25 (t, J = 7.2, 2H), 1.90–1.74 (m, 2H), 1.41–1.13 (m, 6H), 0.86–0.70 (m, 3H). ¹³C NMR (75 MHz, CDCl₃, δ, ppm): 155.7, 145.5, 141.1, 140.9, 138.2, 132.1, 128.1, 127.7, 127.5, 126.2, 123.5, 123.1, 122.0, 120.8, 119.4, 109.2, 109.1, 109.0, 43.4, 31.7, 29.1, 27.1, 22.7, 14.1. HRMS-ESI (m/z): calcd for (C₂₄H₂₂BrN₃S) [M + H]⁺ 464.0790, found 464.0791. UV-Vis (CH₂Cl₂, λ_max, nm/logε): 284/4.24, 376/3.75. IR, ν, cm⁻¹: 3057, 2925, 2855, 1729, 1599, 1457, 1347, 1266, 1151, 801, 740. R_f = 0.63 (petroleum ether/ethylacetate–5/1).

4-Bromo-7-(9-hexyl-9H-carbazol-3-yl)benzo[d][1,2,3]thiadiazole(8a)

Yellow-green oil (38 mg, 16%). ¹H NMR (300 MHz, CDCl₃, δ, ppm): 8.24 (s, 1H), 8.06 (d, J = 7.7, 1H), 7.83 (d, J = 7.8, 1H), 7.67–7.56 (m, 2H), 7.50–7.36 (m, 3H), 7.23–7.15 (m, 1H), 4.26 (t, J = 7.2, 2H), 1.92–1.75 (m, 2H), 1.37–1.19 (m, 6H), 0.85–0.78 (m, 3H). ¹³C NMR (75 MHz, CDCl₃, δ, ppm): 157.2, 142.9, 141.2, 140.8, 134.9, 131.5, 130.1, 128.6, 126.6, 124.8, 123.8, 122.7, 120.7, 119.6, 119.3, 115.5, 109.6, 109.3, 43.5, 31.7, 29.1, 27.1, 22.7, 14.1. HRMS-ESI (m/z): calcd for (C₂₄H₂₂BrN₃S) [M + H]⁺ 464.0790, found 464.0791. UV-Vis (CH₂Cl₂, λ_max, nm/logε): 288/4.55, 346/4.00. IR, ν, cm⁻¹: 3055, 2925, 2858, 1727, 1599, 1460, 1343, 1253, 1152, 807, 741. R_f = 0.52 (petroleum ether/ethylacetate–5/1).

4,7-Bis(9-hexyl-9H-carbazol-3-yl)benzo[d][1,2,3]thiadiazole(9a)

Yellow-green oil (26 mg, 8%). ¹H NMR (300 MHz, CDCl₃, δ, ppm): 8.76 (d, J = 1.4, 1H), 8.44 (d, J = 1.6, 1H), 8.19 (m, 3H), 7.96 (s, 2H), 7.83 (d, J = 6.7, 1H), 7.61–7.44 (m, 6H), 7.33–7.26 (m, 2H), 4.37 (t, J = 7.2, 4H), 1.99–1.88 (m, 4H), 1.49–1.30 (m, 12H), 0.93–0.87 (m, 6H). ¹³C NMR (75 MHz, CDCl₃, δ, ppm): 157.4, 142.4, 141.2, 141.2, 140.8, 140.6, 136.9, 133.2, 131.3, 128.6, 128.3, 128.0, 127.9, 126.4, 126.0, 125.0, 123.7, 123.5, 123.3, 122.9, 122.0, 120.8, 120.7, 119.5, 119.4, 119.2, 109.5, 109.2, 109.0, 109.0, 43.5, 31.7, 29.2, 27.2, 22.7, 14.1. HRMS-ESI (m/z): calcd for (C₄₂H₄₂N₄S) [M] 634.3122, found 634.3125. UV-Vis (CH₂Cl₂, λ_max, nm/logε): 296/4.56, 386/4.11. IR, ν, cm⁻¹: 3355, 2925, 2857, 1726, 1601, 1456, 1381, 1235, 1147, 799, 724. R_f = 0.33 (petroleum ether/ethylacetate–10/1).

7-Bromo-4-(9-(p-tolyl)-2,3,4,4a,9,9a-hexahydro-1H-1,4-methanocarbazol-6-yl)benzo[d][1,2,3]thiadiazole(7b)

Yellow orange solid (57 mg, 23 %), mp 104–105 °C. ¹H NMR (300 MHz, CDCl₃, δ, ppm): 7.80–7.75 (m, 2H), 7.66 (d, J = 8.3, 1H), 7.55 (d, J = 8.0, 1H), 7.26–7.24 (m, 2H), 7.18–7.16 (m, 2H), 6.93 (d, J = 8.3, 1H), 4.34 (d, J = 8.2, 1H), 3.41 (d, J = 8.2, 1H), 2.46 (s, 1H), 2.44 (s, 1H), 2.35 (s, 3H), 1.65–1.55 (m, 3H), 1.47–1.37 (m, 1H), 1.31–1.19 (m, 2H). ¹³C NMR (75 MHz, CDCl₃): 155.3, 150.6, 145.4, 140.3, 137.6, 134.1, 132.3, 132.0, 130.0, 129.7, 126.8, 126.4, 120.9, 108.2, 107.3, 71.8, 50.3, 43.8, 41.0, 32.5, 28.7, 25.3, 21.0. HRMS-ESI (m/z): calcd for [M] 488.0750 found 488.0746. UV-Vis (CH₂Cl₂, λ_max, nm/logε): 310/4.27, 425/4.16. IR, ν, cm⁻¹: 3589, 3569, 3448, 1604, 1513, 1460, 1255, 1113, 804. R_f = 0.54 (petroleum ether/ethylacetate–10/1).

4-Bromo-7-(9-(p-tolyl)-2,3,4,4a,9,9a-hexahydro-1H-1,4-methanocarbazol-6-yl)benzo[d][1,2,3]thiadiazole(8b)

Yellow orange solid (60 mg, 24 %), mp 207–208 °C. ¹H NMR (300 MHz, CDCl₃, δ, ppm): 7.83 (d, J = 7.8, 1H), 7.53 (d, J = 7.8, 1H), 7.33 (s, 1H), 7.29–7.14 (m, 5H), 6.87 (d, J = 8.3, 1H), 4.34 (d, J = 8.2, 1H), 3.36 (d, J = 8.2, 1H), 2.45 (s, 1H), 2.41 (s, 1H), 2.35 (s, 3H), 1.66–1.52 (m, 3H), 1.47–1.38 (m, 1H), 1.29–1.14 (m, 2H). ¹³C NMR (75 MHz, CDCl₃) 157.2, 150.7, 141.8, 140.0, 134.8, 134.4, 132.7, 131.4, 130.1, 127.3, 126.9, 123.7, 121.1, 114.6, 107.3, 71.8, 50.2, 43.9, 41.0, 32.5, 28.7, 25.3, 21.0. HRMS-ESI (m/z): calcd for [M] 488.0750 found 488.0746. UV-Vis (CH₂Cl₂, λ_max, nm/logε): 314/428, 345/4.27, 410/3.99. IR, ν, cm⁻¹: 3856, 3823, 2956, 2926, 2869, 1727, 1603, 1514, 1458, 1271, 1122, 806. R_f = 0.41 (petroleum ether/ethylacetate–10/1).

4,7-Bis(9-(p-tolyl)-2,3,4,4a,9,9a-hexahydro-1H-1,4-methanocarbazol-6-yl)benzo[d][1,2,3]thiadiazole(9b)

Orange solid (40 mg, 23 %), mp 140–141 °C. ¹H NMR (300 MHz, CDCl₃, δ, ppm): 7.83 (m, 1H), 7.71 (m, 3H), 7.41 (s, 1H), 7.34 (d, J = 8.3, 1H), 7.30–7.15 (m, 8H), 6.98 (d, J = 8.3, 1H), 6.92 (d, J = 8.3, 1H), 4.34 (d, J = 8.1, 2H), 3.48–3.34 (m, 2H), 2.48–2.43 (m, 4H), 2.35 (s, 6H), 1.67–1.52 (m, 7H), 1.47–1.39 (m, 2H), 1.32–1.19 (m, 3H). ¹³C NMR (75 MHz, CDCl₃): 171.3, 157.1, 150.1, 141.3, 140.6, 140.3, 135.7, 134.6, 134.0, 132.3, 132.0, 132.0, 131.9, 130.0, 129.9, 129.5, 129.5, 127.2, 126.8, 126.7, 126.6, 126.5, 123.8, 120.8, 120.6, 107.5, 71.7, 60.5, 50.3, 43.9, 41.0, 32.6, 31.1, 28.7, 25.4, 25.3, 21.2, 21.0, 14.4. HRMS-ESI (m/z): calcd for [M] 683.3158 found 683.3158. UV-Vis (CH₂Cl₂, λ_max, nm/logε): 306/4.32, 355/4.51, 433/4.35. IR, ν, cm⁻¹: 3569, 3547, 3448, 2750, 2443, 1605, 1513, 1468, 1255, 805. R_f = 0.40 (petroleum ether/ethylacetate–10/1).

7-Bromo-4-(9-(p-tolyl)-2,3,4,4a,9,9a-hexahydro-1H-carbazole-6-yl)benzo[d][1,2,3]thiadiazole(7c)

Yellow solid (61 mg, 25 %), mp 115–116 °C. ¹H NMR (300 MHz, CDCl₃, δ, ppm): 7.82 (s, 1H), 7.78 (d, J = 7.9, 1H), 7.70 (d, J = 8.3, 1H), 7.57 (d, J = 7.9, 1H), 7.28–7.21 (m, 4H), 6.89 (d, J = 8.3, 1H), 4.19 (m, 1H), 3.36 (m, 1H), 2.41 (s, 3H), 1.89–1.38 (m, 8H). ¹³C NMR (75 MHz, CDCl₃): 140.3, 137.9, 137.3, 135.5, 133.8, 132.6, 132.0, 131.8, 130.2, 130.1, 129.4, 128.2, 127.1, 126.9, 124.9, 123.4, 108.9, 108.4, 64.9, 40.6, 28.3, 25.9, 22.9, 21.3, 21.1. HRMS-ESI (m/z): calcd for (C₂₅H₂₂BrN₃S) [M + H]⁺ 476.0796 found 476.0791. UV-Vis (CH₂Cl₂, λ_max, nm/logε): 303/4.18, 414/4.05. IR, ν, cm⁻¹: 3459, 3437, 2928, 2853, 2353, 1606, 1512, 1454, 1272, 929, 805. R_f = 0.69 (petroleum ether/ethylacetate = 10/1).

4-Bromo-7-(9-(p-tolyl)-2,3,4,4a,9,9a-hexahydro-1H-carbazole-6-yl)benzo[d][1,2,3]thiadiazole(8c)

Yellow oil (66 mg, 27 %). ¹H NMR (300 MHz, CDCl₃, δ, ppm): 7.76 (d, J = 7.8, 1H), 7.46 (d, J = 7.9, 1H), 7.32–7.26 (m, 1H), 7.23 (m, 2H), 7.21–7.12 (m, 4H), 4.12–4.01 (m, 1H), 3.22 (m, 1H), 2.30 (s, 3H), 1.75–1.38 (m, 8H). MS-MALDI (m/z): [M]⁺ calcd for (C₂₅H₂₂BrN₃S) 475.07123, found 475.07061.

4,7-Bis(9-(p-tolyl)-2,3,4,4a,9,9a-hexahydro-1H-carbazole-6-yl)benzo[d][1,2,3]thiadiazole(9c)

Orange solid (40 mg, 24 %), mp 125–127 °C. ¹H NMR (300 MHz, CDCl₃, δ, ppm): 7.88 (s, 1H), 7.81–7.72 (m, 3H), 7.50 (s, 1H), 7.41 (d, J = 9.7, 1H), 7.31–7.21 (m, 8H), 6.93 (d, J = 8.2, 1H), 6.87 (d, J = 8.2, 1H), 4.26–4.15 (m, 2H), 3.45–3.29 (m, 2H), 2.42 (s, 6H), 1.98–1.57 (m, 13H), 1.51–1.42 (m, 3H). ¹³C NMR (75 MHz, CDCl₃): 157.1, 149.9, 149.8, 141.4, 140.6, 140.3, 136.1, 136.0, 135.3, 133.7, 133.4, 132.3, 130.6, 130.2, 130.1, 130.0, 129.2, 128.0, 127.3, 127.2, 126.9, 126.5, 124.9, 123.3, 123.1, 122.2, 110.6, 110.0, 109.0, 108.9, 64.9, 40.6, 40.6, 28.3, 28.3, 26.0, 25.9, 22.9, 22.8, 21.3, 21.3, 21.2, 21.0, 21.0. HRMS-ESI (m/z): calcd for (C₄₄H₄₂N₄S) [M + H]⁺ 659.3208 found 659.3203. UV-Vis (CH₂Cl₂, λ_max, nm/logε): 345/4.42, 420/4.24. IR, ν, cm⁻¹: 3456, 2926, 2852, 1605, 1513, 1464, 1375, 1268, 1108, 807. R_f = 0.38 (petroleum ether/ethylacetate = 10/1).

7-Bromo-4-(4-(p-tolyl)-1,2,3,3a,4,8b-hexahydrocyclopenta[b]indol-7-yl)benzo[d][1,2,3]thiadiazole(7d)

Orange oil (49 mg, 21 %). ¹H NMR (300 MHz, CDCl₃, δ, ppm): 7.79 (s, 1H), 7.78 (d, J = 6.01, 1H), 7.68 (d, J = 8.4, 1H), 7.55 (d, J = 7.9, 1H), 7.26–7.16 (m, 4H), 7.00 (d, J = 8.4, 1H), 4.93–4.81 (m, 1H), 4.00–3.88 (m, 1H), 2.36 (s, 3H), 2.07–1.60 (m, 6H). ¹³C NMR (75 MHz, CDCl₃, δ, ppm): 155.4, 149.2, 145.4, 140.1, 137.7, 135.6, 132.1, 132.1, 130.0, 129.6, 126.9, 126.4, 126.3, 120.8, 108.3, 107.5, 69.6, 45.5, 35.4, 33.8, 29.8, 24.6. HRMS-ESI (m/z): [M + H]⁺calcd for (C₂₄H₂₀BrN₃S) 462.0634, found 462.0634. UV-Vis (CH₂Cl₂, λ_max, nm/logε): 309/3.99, 428/3.84. IR, ν, cm⁻¹: 3561, 3434, 2924, 2854, 1605, 1513, 1459, 1378, 1266, 926, 801. R_f = 0.53 (petroleum ether/ethyl acetate–10:1).

4-Bromo-7-(4-(p-tolyl)-1,2,3,3a,4,8b-hexahydrocyclopenta[b]indol-7-yl)benzo[d][1,2,3]thiadiazole(8d)

Orange oil (51 mg, 22 %). ¹H NMR (300 MHz, CDCl₃, δ, ppm): 7.82 (s, 1H), 7.73 (d, J = 7.9, 1H), 7.65 (m, 1H), 7.54 (d, J = 7.9, 1H), 7.30–7.10 (m, 4H), 7.02 (d, J = 3.5, 1H), 5.29 (m, 1H), 4.58 (q, J = 6.6, 1H), 2.45 (s, 3H), 2.07–1.59 (m, 6H). MS-MALDI (m/z): [M]⁺ calcd for (C₂₄H₂₀BrN₃S) 463.07123, found 463.02299.

4,7-Bis(4-(p-tolyl)-1,2,3,3a,4,8b-hexahydrocyclopenta[b]indol-7-yl)benzo[d][1,2,3]thiadiazole(9d)

Dark-orange oil (42 mg, 13 %). ¹H NMR (300 MHz, CDCl₃, δ, ppm): 7.95 (m, 1H), 7.85 (m, 1H), 7.80–7.67 (m, 4H), 7.22–7.09 (m, 8H), 6.99 (d, J = 8.4, 1H), 6.92 (d, J = 8.2, 1H), 5.33 (m, 2H), 4.61 (m, 2H), 2.47 (s, 6H), 2.03–1.84 (m, 12H). MS-MALDI (m/z): [M]⁺ calcd for (C₄₂H₃₈N₄S) 630.28117, found 630.27999.

7-Bromo-4-phenylbenzo[d][1,2,3]thiadiazole(7e)

Yellow-white solid (70 mg, 47 %), mp 134–135 °C. ¹H NMR (300 MHz, CDCl₃, δ, ppm): 7.98–7.90 (m, 2H), 7.87 (d, J = 7.8, 1H), 7.63–7.46 (m, 4H). ¹³C NMR (75 MHz, CDCl₃): 155.4, 145.5, 137.1, 136.8, 132.0, 129.9, 129.1, 128.9, 128.2, 110.5. HRMS-ESI (m/z): calcd for (C₁₂H₇BrN₂S) [M + H]⁺ 290.9586 found 290.9586. UV-Vis (CH₂Cl₂, λ_max, nm/logε): 279/3.97, 343/3.84. IR, ν, cm⁻¹: 3518, 3462, 3438, 3054, 1630, 1455, 1358, 1296, 1117, 931, 845, 771, 693. R_f = 0.31 (tetrachloromethane).

4,7-Diphenylbenzo[d][1,2,3]thiadiazole(9e)

Yellow solid (19 mg, 26 %), mp 137–138 °C. ¹H NMR (300 MHz, CDCl₃, δ, ppm): 8.04 (d, J = 7.6, 1H), 7.94 (d, J = 7.6, 1H), 7.86 (m, 1H), 7.74 (d, J = 7.5, 1H), 7.68–7.46 (m, 8H). ¹³C NMR (75 MHz, CDCl₃): 157.2, 142.4, 140.2, 137.5, 133.7, 131.5, 130.0, 129.6, 129.5, 129.3, 129.0, 128.8, 128.8, 128.3, 127.9, 127.5, 127.3, 116.6. HRMS-ESI (m/z): calcd for (C₁₈H₁₂N₂S) [M + H]⁺ 289.0798 found 289.0794. UV-Vis (CH₂Cl₂, λ_max, nm/logε): 279/3.84, 343/3.72. IR, ν, cm⁻¹: 3055, 3026, 2916, 2853, 1542, 1461, 1443, 1352, 1258, 934, 849, 761, 696. R_f = 0.29 (tetrachloromethane).

7-Bromo-4-(thiophen-2-yl)benzo[d][1,2,3]thiadiazole(7f)

Yellow-white solid (66 mg, 44 %), mp 133–134 °C. ¹H NMR (300 MHz, CDCl₃, δ, ppm): 8.18 (d, J = 3.7, 1H), 7.81–7.71 (m, 2H), 7.53 (d, J = 5.1, 1H), 7.23 (t, J = 4.8, 1H). ¹³C NMR (75 MHz, CDCl₃): 153.5, 145.7, 138.3, 132.0, 129.9, 129.2, 128.5, 128.3, 125.9, 109.5. HRMS-ESI (m/z): calcd for (C₁₀H₅BrN₂S₂) [M + H]⁺ 296.9147 found 296.9150. UV-Vis (CH₂Cl₂, λ_max, nm/logε): 306/3.56, 360/3.46. IR, ν, cm⁻¹: 3436, 2364, 1625, 1447, 1343, 1267, 1227, 1187, 1017, 931, 826, 688. R_f = 0.56 (petroleum ether/ethylacetate–10/1).

4,7-Di(thiophen-2-yl)benzo[d][1,2,3]thiadiazole(9f)

Orange solid (35 mg, 23%), mp 118–119 °C. [29]

3.5. Synthesis of Dyes KEA321 and KEA337

Compounds 7c or 7d (0.25 mmol) and 5 (167 mg, 0.38 mmol) were dissolved in toluene (20 mL). The mixture was degassed for 20 min with a stream of argon under stirring, and PdCl₂(PPh₃)₂ (15 mg, 0.013 mmol) was added. After refluxing for 8 h, the reaction mixture was treated with 2 N HCl (20 mL) for 1 h, washed with water (5 × 25 mL), and the organic phase was dried over MgSO₄, filtered, and concentrated under reduced pressure. The residue was purified by flash chromatography with ethyl acetate/petroleum ether 1:5. The product was used in the next step without further purification. The crude product was dissolved in toluene (20 mL), the cyanoacetic acid tert-butyl ester (53 mg, 0.37 mmol), ammonium acetate (30 mg, 0.39 mmol) and acetic acid (1 mL) were added, and the mixture was refluxed with molecular sieve 4 Å for 6 h. After refluxing, the reaction mixture was diluted with water (25 mL) and extracted with ethyl acetate (4 × 25 mL). The combined organic phases were washed with a sodium carbonate solution (3 × 50 mL), dried over MgSO₄, filtered, and evaporated under reduced pressure. The residue is purified by silica column chromatography with ethyl acetate/petroleum ether 1:100. Tret-butyl ethers was dissolved in solution of CF₃CO₂H/CHCl₃ (5 mL, 1:3). After stirring for 5 h under argon at room temperature, the mixture was diluted with dichloromethane (25 mL) and washed with water (3 × 25 mL). The combined organic phases were dried over MgSO₄, filtered, and evaporated under reduced pressure. The residue was purified by silica column chromatography with methanol/dichloromethane 1:5 to obtain final products KEA.

2-Cyano-3-(5-(4-(4-(p-tolyl)-1,2,3,3a,4,8b-hexahydrocyclopenta[b]indol-7-yl)benzo[d][1,2,3]thiadiazol-7-yl)thiophen-2-yl)acrylic acid(KEA321)

Dark-purple powder (133 mg, 95 %), mp 223–225 °C. ¹H NMR (300 MHz, DMSO-d₆, δ, ppm): 8.60 (s, 1H), 8.33 (d, J = 7.9, 1H), 8.17 (d, J = 4.1, 1H), 8.10–7.88 (m, 4H), 7.83 (d, J = 8.6, 1H), 7.32–7.21 (m, 3H), 7.00 (d, J = 8.5, 1H), 4.98 (m, 1H), 3.95 (m, 1H), 2.32 (s, 3H), 2.17–2.04 (m, 1H), 1.95–1.62 (m, 4H), 1.52–1.40 (m, 1H). ¹³C NMR (75 MHz, DMSO-d⁶, δ, ppm): 163.4, 156.2, 149.6, 148.4, 146.1, 140.9, 140.8, 139.3, 139.1, 137.9, 135.6, 135.2, 131.3, 129.9, 129.8, 129.7, 129.3, 128.7, 128.5, 126.5, 126.2, 125.8, 122.1, 120.0, 116.4, 106.8, 68.5, 44.6, 35.0, 33.1, 24.0, 20.5. MS-MALDI (m/z): [M]⁺ calcd for (C₃₂H₂₄N₄O₂S₂) 560.13439, found 560.13352. UV-Vis (CH₂Cl₂, λ_max, nm/logε): 399/4.47, 501/4.36. IR, ν, cm⁻¹: 3434, 2979, 2931, 2217, 1710, 1581, 1429, 1369, 1281, 1257, 1149, 1090, 799. R_f = 0.46 (dichloromethane/methanol–2:1).

2-Cyano-3-(5-(4-(9-(p-tolyl)-2,3,4,4a,9,9a-hexahydro-1H-carbazol-6-yl)benzo[d][1,2,3]thiadiazol-7-yl)thiophen-2-yl)acrylic acid(KEA337)

Dark-purple powder (133 mg, 93 %), mp 234–236 °C. ¹H NMR (300 MHz, DMSO-d₆, δ, ppm): 8.27 (m, 2H), 8.02–7.72 (m, 5H), 7.45–7.37 (m, 1H), 7.27 (m, 3H), 6.83 (d, J = 8.1 Hz, 1H), 4.33–4.15 (m, 1H), 2.89–2.75 (m, 1H), 2.35 (s, 3H), 1.96–1.84 (m, 2H), 1.78–1.61 (m, 2H), 1.57–1.28 (m, 4H). ¹³C NMR (75 MHz, DMSO-d₆, δ, ppm): 163.1, 156.2, 149.4, 146.2, 141.1, 139.5, 138.9, 137.5, 137.2, 136.7, 134.9, 132.8, 130.1, 129.9, 129.5, 128.0, 126.5, 126.2, 124.7, 123.3, 122.8, 122.4, 118.5, 110.8, 109.6, 108.0, 63.7, 27.4, 25.2, 22.5, 22.0, 20.6, 20.5. MS-MALDI (m/z): [M]⁺ calcd for (C₃₃H₂₆N₄O₂S₂) 574.15063, found 574.14917. UV-Vis (CH₂Cl₂, λ_max, nm/logε): 454/4.21. IR, ν, cm⁻¹: 3435, 2925, 2852, 2213, 1685, 1609, 1514, 1377, 1209, 1139, 802. R_f = 0.46 (dichloromethane/methanol–2:1).

4. Conclusions

In summary, two new organic D-A-π-A1 dyes of the KEA series were designed and synthesized. In order to prepare the precursors for these dyes, i.e., unsymmetrical monoaryl(hetaryl) derivatives of benzo[d][1,2,3]thiadiazole, the Suzuki-Miyamura cross-coupling reaction between 4,7-dibromobenzo[d][1,2,3]thiadiazole and aryl(hetaryl)boronic acids and their esters was thoroughly investigated. Fused indoline and carbazole derivatives formed two isomers, whereas phenyl- and 2-thienylboronic acids formed only one 4-substituted compound. Cyclic voltammetry measurements showed that fused indoline and carbazole had much higher E_HOMO values than benzene and thiophene, which indicated that they were much stronger donors, which should facilitate electron transfer in the intermediate complex, contributing to the formation of a mixture of monoisomers, in contrast to thienyl- and phenylboronic acids. The structure of mono derivatives was rigorously proven by NMR spectroscopy and X-ray analysis. The KEA dyes had a very narrow energy gap and the position of E_HOMO and E_LUMO was suitable for the effective use of these dyes in solar cells. The asymmetric nature of benzo[d][1,2,3]thiadiazole KEA dyes in comparison with the symmetrical benzo[c][1,2,5]thiadiazole isomers led to a hypsochromic shift in the ICT band and lower extinction coefficients which suggested that that the symmetry breaking of the acceptor benzo[d][1,2,3]thiadiazole fragment reduced the efficiency of intramolecular charge transfer for compounds of the KEA series. KEA dyes had a narrow HOMO-LUMO gap of 1.5–1.6 eV, which apparently led to the better power efficiency (PCE), i.e., 5.17%, for KEA321, which was superior to the corresponding symmetrical benzo[c][1,2,3]thiadiazole dyes WS-2 and MAX114 (5.07 and 4.90%). Thus, it was shown that the exchange of a symmetrical benzo[c][1,2,5]thiadiazole ring to an asymmetrical benzo[d][1,2,3]thiadiazole can lead to promising photovoltaic properties.
