GC-MS/MS Quantification of EGFR Inhibitors, β-Sitosterol, Betulinic Acid, (+) Eriodictyol, (+) Epipinoresinol, and Secoisolariciresinol, in Crude Extract and Ethyl Acetate Fraction of Thonningia sanguinea
Abstract
:1. Introduction
2. Results and Discussion
2.1. Validation Parameters of Analytical Method Using GC-MS/MS
2.1.1. Linearity
2.1.2. Limit of Detection and Limit of Quantification
2.1.3. Precision and Accuracy
2.1.4. Specificity and Sensitivity
2.2. Application of Validated Analytical Method

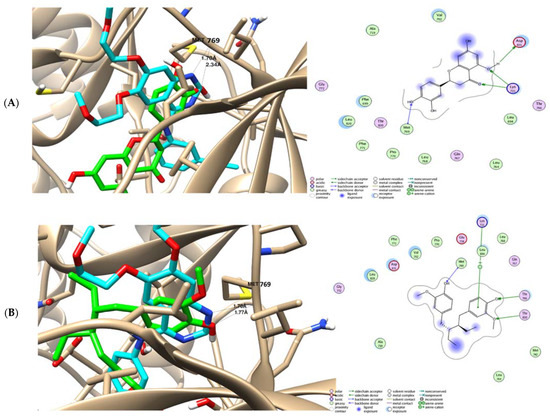

2.3. Molecular Docking Studies of Isolated Compounds toward EGFR

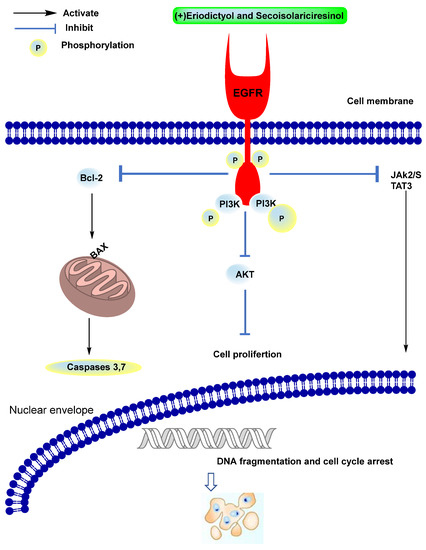

2.4. Compounds (+) Eriodictyol and Secoisolariciresinol Inhibited EGFR
3. Materials and Methods
3.1. Plant Material and Collection Process
3.2. Extraction, Fractionation, and Isolation of Pure Compounds
3.2.1. Extraction Process and Fractionation Procedure
3.2.2. Isolation of Pure Compounds
3.3. Gas Chromatography Coupled to Tandem Mass Spectrometry (GC-MS/MS)
3.3.1. Calibration Graph of Isolated Compounds (1–5)
3.3.2. GC-MS/MS Analysis Conditioning
3.3.3. Plant Sample Assay
3.4. Molecular Docking Studies
3.5. EGFR Protein Kinase (PK) Inhibition
4. Conclusions
Supplementary Materials
Author Contributions
Funding
Institutional Review Board Statement
Data Availability Statement
Conflicts of Interest
Sample Availability
References
- Pompermaier, L.; Schwaiger, S.; Mawunu, M.; Lautenschlaeger, T.; Stuppner, H.; Faure, K. Purification of Thonningianins A and B and Four Further Derivatives from Thonningia sanguinea By One- and Two-Dimensional Centrifugal Partition Chromatography. J. Sep. Sci. 2019, 43, 524–530. [Google Scholar] [CrossRef] [Green Version]
- Thomford, A.K.; Abdelhameed, R.F.A.; Yamada, K. Chemical Studies on The Parasitic Plant Thonningia Sanguinea Vahl. RSC Adv. 2018, 8, 21002–21011. [Google Scholar] [CrossRef] [PubMed] [Green Version]
- Gyamfi, M.A.; Yonamine, M.; Aniya, Y. Free-Radical Scavenging Action of Medicinal Herbs from Ghana Thonningia Sanguinea on Experimentally Induced Liver Injuries. Gen. Pharmacol. 1999, 32, 661–667. [Google Scholar] [CrossRef]
- Ohiri, F.C.; Uzodinma, V.C. Antimicrobial Properties of Thonningia Sanguinea Root Extracts. Fitoterapia 2000, 71, 176–178. [Google Scholar] [CrossRef]
- Ohtani, I.; Gotoh, N.; Tanaka, J.; Higa, T.; Gyamfi, M.A.; Aniya, Y. Thonningianins A and B, New Antioxidants from The African Medicinal Herb Thonningia sanguinea. J. Nat. Prod. 2000, 63, 676–679. [Google Scholar] [CrossRef] [PubMed]
- Rubens, D.M.; Constantin, O.O.; Moevi, A.; Nathalie, G.K.; Daouda, T.; David, N.J.; Mireille, D.; Joseph, D.A. Anti Staphylococcus aureus Activity of The Aqueous Extract and Hexanic Fraction of Thonningia sanguinea (Cote ivoire). Int. J. Pharm. Phytochem. 2015, 7, 301–306. [Google Scholar]
- N’Guessan, J.D.; Dinzedi, M.R.; Guessennd, N.; Coulibaly, A.; Dosso, M.; Djaman, A.J.; Guede-Guina, F. Antibacterial Activity of The Aqueous Extract of Thonningia sanguinea Against Extended-Spectrum-β-Lactamases (ESBL) Producing Escherichia coli and Klebsiella pneumoniae Strains. Trop. J. Pharm. Res. 2007, 6, 779–783. [Google Scholar] [CrossRef] [Green Version]
- N’guessan, J.D.; Coulibaly, A.; Ramanou, A.A.; Okou, O.C.; Djaman, A.J.; Guede-Guina, F. Antibacterial Activity of Thonningia sanguinea Against Some Multi-Drug Resistant Strains of Salmonella enterica. Afr. Health Sci. 2007, 7, 155–158. [Google Scholar] [CrossRef]
- Séverin, K.K.; Alassane, T.; Karamoko, O.; Joseph, D.A.; David, J.N. In Vitro Anticoccidial Activity of Thonningia sanguinea Extract on Eimeria tenella and Eimeria necatrix Sporozoites Cells. Afr. J. Microbiol. Res. 2012, 6, 6247–6251. [Google Scholar] [CrossRef]
- Jigam, A.A.; Abdulrazaq, U.T.; Mahmud, H.A.; Tijani, F.O. Efficacy of Thonningia sanguinea Vahl. (Balanophoraceae) Root Extract Against Plasmodium berghei, Plasmodium chabaudi, Inflammation and Nociception in Mice. J. Appl. Pharm. Sci. 2012, 2, 47–51. [Google Scholar]
- Gyamfi, M.A.; Aniya, Y. Medicinal Herb, Thonningia sanguinea Protects Against Aflatoxin B1 Acute Hepatotoxicity in Fischer 344 Rats. Hum. Exp. Toxicol. 1998, 17, 418–423. [Google Scholar] [CrossRef] [PubMed]
- Pompermaier, L.; Heiss, E.H.; Alilou, M.; Mayr, F.; Monizi, M.; Lautenschlaeger, T.; Schuster, D.; Schwaiger, S.; Stuppner, H. Dihydrochalcone Glucosides from The Subaerial Parts of Thonningia sanguinea and Their In Vitro PTP1B Inhibitory Activities. J. Nat. Prod. 2018, 81, 2091–2100. [Google Scholar] [CrossRef]
- Abdelhameed, R.F.A.; Elhady, S.S.; Sirwi, A.; Samir, H.; Ibrahim, E.A.; Thomford, A.K.; el Gindy, A.; Hadad, G.M.; Badr, J.M.; Nafie, M.S. Thonningia sanguinea Extract: Antioxidant and Cytotoxic Activities Supported by Chemical Composition and Molecular Docking Simulations. Plants 2021, 10, 2156. [Google Scholar] [CrossRef] [PubMed]
- Vundru, S.S.; Kale, R.K.; Singh, R.P. β-sitosterol induces G1 arrest and causes depolarization of mitochondrial membrane potential in breast carcinoma MDA-MB-231 cells. BMC Complement. Altern. Med. 2013, 13, 280. [Google Scholar] [CrossRef] [PubMed] [Green Version]
- Saeed, M.E.M.; Mahmoud, N.; Sugimoto, Y.; Efferth, T.; Abdel-Aziz, H. Betulinic Acid Exerts Cytotoxic Activity Against Multidrug-Resistant Tumor Cells via Targeting Autocrine Motility Factor Receptor (AMFR). Front. Pharmacol. 2018, 9, 481. [Google Scholar] [CrossRef]
- Zhang, Y.; Zhang, R.; Ni, H. Eriodictyol exerts potent anticancer activity against A549 human lung cancer cell line by inducing mitochondrial-mediated apoptosis, G2/M cell cycle arrest and inhibition of m-TOR/PI3K/Akt signalling pathway. Arch. Med. Sci. 2020, 16, 446–452. [Google Scholar] [CrossRef]
- Sólyomváry, A.; Darcsi, A.; Könye, R.; Tóth, G.; Noszál, B.; Molnár-Perl, I.; Lorántfy, L.; Dobos, J.; Őrfi, L.; Béni, S.; et al. Optimized conversion of antiproliferative lignans pinoresinol and epipinoresinol: Their simultaneous isolation and identification by centrifugal partition chromatography and high performance liquid chromatography. J. Chromatogr. B. 2017, 1052, 142–149. [Google Scholar] [CrossRef]
- Morsy, M.A.; El-Sheikh, A.A.K.; Ibrahim, A.R.N.; Venugopala, K.N.; Kandeel, M. In silico and in vitro identification of secoisolariciresinol as a re-sensitizer of P-glycoprotein-dependent doxorubicin-resistance NCI/ADR-RES cancer cells. Peer J. 2020, 8, e9163. [Google Scholar] [CrossRef]
- Alhazmi, H.A.; Khalid, A.; Sultana, S.; Abdelwahab, S.I.; Ahsan, W.; Oraiby, M.E.; al Bratty, M. Determination of Phytocomponents of Twenty-one Varieties of Smokeless Tobacco using Gas Chromatography-Mass Spectroscopy (GC-MS). S. Afr. J. Chem. 2019, 72, 47–54. [Google Scholar] [CrossRef]
- Mazimba, O.; Masesane, I.B.; Majinda, R.R.T.; Muzila, A. GC-MS Analysis and Antimicrobial Activities of The Non-Polar Extracts of Mundulea sericea. S. Afr. J. Chem. 2012, 65, 50–52. [Google Scholar]
- Goda, M.S.; Eltamany, E.E.; Habib, E.S.; Hassanean, H.A.; Ahmed, S.A.; Abdelhameed, R.F.A.; Ibrahim, A.K. Gas Chromatography-Mass Spectrometry Analysis of Marine Seagrass Thalassodendron ciliatum Collected from Red Sea. Rec. Pharm. Biomed. Sci. 2020, 4, 1–15. [Google Scholar] [CrossRef]
- Abdelhameed, R.F.A.; Habib, E.S.; Ibrahim, A.K.; Yamada, K.; Abdel-Kader, M.S.; Ibrahim, A.K.; Ahmed, S.A.; Badr, J.M.; Nafie, M.S. Chemical Profiling, Cytotoxic Activities Through Apoptosis Induction In MCF-7 Cells and Molecular Docking of Phyllostachys heterocycla Bark Nonpolar Extract. J. Biomol. Struct. Dyn. 2021, 2021, 1–12. [Google Scholar] [CrossRef] [PubMed]
- Kezimana, P.; Dmitriev, A.A.; Kudryavtseva, A.V.; Romanova, E.V.; Melnikova, N.V. Secoisolariciresinol Diglucoside of Flaxseed, and Its Metabolites: Biosynthesis and Potential for Nutraceuticals. Front. Genet. 2018, 9, 641. [Google Scholar] [CrossRef] [Green Version]
- Sawada, N.; Kataoka, K.; Kondo, K.; Arimochi, H.; Fujino, H.; Takahashi, Y.; Miyoshi, T.; Kuwahara, T.; Monden, Y.; Ohnishi, Y. Betulinic Acid Augments the Inhibitory Effects of Vincristine on Growth and Lung Metastasis of B16F10 Melanoma Cells in Mice. Br. J. Cancer 2004, 90, 1672–1678. [Google Scholar] [CrossRef] [Green Version]
- Awad, A.B.; Barta, S.L.; Fink, C.S.; Bradford, P.G. β-Sitosterol Enhances Tamoxifen Effectiveness in Breast Cancer Cells by Affecting Ceramide Metabolism. Mol. Nutr. Food Res. 2008, 52, 419–426. [Google Scholar] [CrossRef]
- Lee, K.; Kim, D. In-Silico Molecular Binding Prediction for Human Drug Targets Using Deep Neural Multi-Task Learning. Genes 2019, 10, 906. [Google Scholar] [CrossRef] [Green Version]
- Bharathi, A.; Roopan, S.M.; Vasavi, C.S.; Munusami, P.; Gayathri, G.A.; Gayathri, M. In Silico Molecular Docking and In Vitro Antidiabetic Studies of Dihydropyrimido [4, 5-a] acridin-2-amines. Bio Med. Res. Int. 2014, 2014, 1–10. [Google Scholar] [CrossRef] [Green Version]
- de Silva, S.F.; Alcorn, J. Flaxseed Lignans as Important Dietary Polyphenols for Cancer Prevention and Treatment: Chemistry, Pharmacokinetics, and Molecular Targets. Pharmaceuticals 2019, 12, 68. [Google Scholar] [CrossRef] [Green Version]
- Li, W.; Du, Q.; Li, X.; Zheng, X.; Lv, F.; Xi, X.; Huang, G.; Yang, J.; Liu, S. Eriodictyol Inhibits Proliferation, Metastasis, and Induces Apoptosis of Glioma Cells via PI3K/Akt/NF-κB Signaling Pathway. Front. Pharmacol. 2020, 11, 114. [Google Scholar] [CrossRef]
- Harari, P.M. Epidermal Growth Factor Receptor Inhibition Strategies in Oncology. Endocr. Relat. Cancer. 2004, 11, 689–708. [Google Scholar] [CrossRef] [Green Version]
- Normanno, N.; Pergameno, M.; Lannaccone, A.; de Luca, A. Mechanisms of Action of EGFR Inhibitors. In EGFR Inhibitors in Cancer Treatment; Future Medicine Ltd.: London, UK, 2012; pp. 6–17. [Google Scholar]
- Zheng, Q.; Han, L.; Dong, Y.; Tian, J.; Huang, W.; Liu, Z.; Jia, X.; Jiang, T.; Zhang, J.; Li, X.; et al. JAK2/STAT3 Targeted Therapy Suppresses Tumor Invasion via Disruption of the EGFRvIII/JAK2/STAT3 Axis and Associated Focal Adhesion in EGFRvIII-Expressing Glioblastoma. Neuro. Oncol. 2014, 16, 1229–1243. [Google Scholar] [CrossRef] [Green Version]
- ElZahabi, H.S.A.; Nafie, M.S.; Osman, D.; Elghazawy, N.H.; Soliman, D.H.; L-Helby, A.A.H.E.; Arafa, R.K. Design, Synthesis and Evaluation of New Quinazolin-4-One Derivatives as Apoptotic Enhancers and Autophagy Inhibitors with Potent Antitumor Activity. Eur. J. Med. Chem. 2021, 222, 113609. [Google Scholar] [CrossRef]
- Marín, R.M.; Porto, R.M.d.; Paredes, M.E.H.; Alarcón, A.B.; Balmaseda, I.H.; del Valle, R.M.S.; Lopes, M.T.P.; Guerra, I.R. GC/MS Analysis and Bioactive Properties of Extracts Obtained from Clusia minor L. Leaves. J. Mex. Chem. Soc. 2018, 62, 170–188. [Google Scholar]
- Nafie, M.S.; Tantawy, M.A.; Elmgeed, G.A. Screening of Different Drug Design Tools to Predict the Mode of Action of Steroidal Derivatives as Anti-Cancer Agents. Steroids 2019, 152, 108485. [Google Scholar] [CrossRef]
- Nafie, M.S.; Kishk, S.M.; Mahgoub, S.; Amer, A.M. Quinoline-based Thiazolidinone Derivatives as Potent Cytotoxic and Apoptosis-inducing Agents through EGFR Inhibition. Chem. Biol. Drug Des. 2022, 99, 547–560. [Google Scholar] [CrossRef]
- Abdelhameed, R.F.A.; Habib, E.S.; Ibrahim, A.K.; Yamada, K.; Abdel-Kader, M.S.; Ahmed, S.A.; Ibrahim, A.K.; Badr, J.M.; Nafie, M.S. Chemical Constituent Profiling of Phyllostachys Heterocycla Var. Pubescens with Selective Cytotoxic Polar Fraction through EGFR Inhibition in HepG2 Cells. Molecules 2021, 26, 940. [Google Scholar] [CrossRef]
Parameter | β-Sitosterol | Betulinic Acid | Eriodictyol | Epipinoresinol | Secoisolariciresinol |
---|---|---|---|---|---|
Concentration range (μg/mL) | 7.0–12.0 | 7.0–12.0 | 7.0–12.0 | 7.0–12.0 | 7.0–12.0 |
Correlation coefficient (R2) | 0.9851 | 0.9928 | 0.9773 | 0.9937 | 0.9960 |
LOD (μg/mL) | 0.08 | 0.06 | 0.08 | 0.12 | 0.11 |
LOQ (μg/mL) | 0.26 | 0.18 | 0.25 | 0.4 | 0.38 |
Slope (b) | 2071.8 | 4704.4 | 996.82 | 1223.2 | 738.37 |
Intercept (a) | 74,876 | 13,942 | 68,478 | 4446.2 | 25,573 |
Analytes | Added Conc. (μg/mL) | Intra-Day | Inter-Day | ||
---|---|---|---|---|---|
Recovery% ± SD | RSD | Recovery% ± SD | RSD | ||
β-Sitosterol | 7.0 | 99.21 ±1.01 | 1.02 | 99.56 ± 1.11 | 1.11 |
10.0 | 100.25 ±1.21 | 1.21 | 100.35 ±1.35 | 1.35 | |
12.0 | 101.26 ± 0.89 | 0.88 | 99.95 ±1.45 | 1.45 | |
Betulinic acid | 7.0 | 100.67 ± 1.09 | 1.08 | 101.11 ±1.21 | 1.20 |
10.0 | 98.90 ± 1.21 | 1.22 | 100.91 ± 1.12 | 1.11 | |
12.0 | 99.45 ± 1.45 | 1.46 | 99.15 ± 1.32 | 1.33 | |
Eriodictyol | 7.0 | 100.13 ± 1.33 | 1.32 | 99.93 ± 1.14 | 1.14 |
10.0 | 99.93 ± 0.85 | 0.85 | 98.56 ± 1.15 | 1.17 | |
12.0 | 99.87 ± 0.77 | 0.77 | 99.96 ± 1.10 | 1.10 | |
Epipinoresinol | 7.0 | 101.00 ± 0.87 | 0.86 | 101.10 ± 0.99 | 0.98 |
10.0 | 101.73 ± 0.92 | 0.90 | 102.31 ± 0.98 | 0.96 | |
12.0 | 99.64 ± 0.87 | 0.87 | 100.45 ± 0.87 | 0.87 | |
Secoisolariciresinol | 7.0 | 99.32 ±1.07 | 1.08 | 99.89 ± 1.08 | 1.08 |
10.0 | 99.77 ±1.14 | 1.14 | 100.95 ± 0.98 | 0.97 | |
12.0 | 101.45 ± 1.01 | 1.00 | 102.31± 1.34 | 1.31 |
Samples | Average Conc. (μg/mL) | ||||
---|---|---|---|---|---|
β-Sitosterol | Betulinic Acid | Eriodictyol | Epipinoresinol | Secoisolariciresinol | |
Methanol crude extract | 21.1 ± 0.56 | 0.88 ± 0.06 | 22.74 ± 0.71 | 11.0 ± 0.33 | 7.22 ± 0.21 |
Ethyl acetate fraction | 5.5 ± 0.12 | 0.86 ± 0.05 | 38.9 ±0.89 | 23.8 ±0.67 | 24.08 ±1.02 |
Compound | Binding Affinity (Kcal/mol) | Type of Interaction | Bond Length (A°) | Interaction Moiety Involved | Amino Acid |
---|---|---|---|---|---|
Co-crystallized ligand | −11.26 | H-acceptor | 1.70 | -N- | Met 769 |
(+) Eriodictyol | −19.93 | H-acceptor | 2.34 | -OH | Met 769 |
Secoisolariciresinol | −16.63 | H-acceptor | 1.77 | -OH | Met 769 |
Compound | Percentage of Autophosphorylation Inhibition at Conc. [10 µM] | IC50 nM * |
---|---|---|
(+) Eriodictyol | 80.34 ± 2.64 | 76.16 ± 1.66 |
Secoisolariciresinol | 79.62 ± 2.16 | 80.26 ± 1.67 |
Erlotinib | 83.89 ± 2.03 | 78.65 ± 1.85 |
