Improved Fire Retardancy of Cellulose Fibres via Deposition of Nitrogen-Modified Biopolyphenols

VTT Technical Research Centre of Finland Ltd., P.O. Box 1000 Espoo, Finland
Author to whom correspondence should be addressed.
Molecules 2022, 27(12), 3741;
Submission received: 15 May 2022 / Revised: 8 June 2022 / Accepted: 8 June 2022 / Published: 10 June 2022
(This article belongs to the Special Issue New Prospects in Flame-Retardant Materials)


Driven by concerns over the health and environmental impacts of currently used fire retardants (FRs), recent years have seen strong demand for alternative safer and sustainable bio-based FRs. In this paper, we evaluated the potential of nitrogen-modified biopolyphenols as FRs for cellulosic natural fibres that could be used in low-density cellulose insulations. We describe the preparation and characterisation of nitrogen-modified lignin and tannin containing over 10% nitrogen as well as the treatment of cellulose pulp fibres with combinations of lignin or tannin and adsorption-enhancing retention aids. Combining lignin or tannin with a mixture of commercial bio-based flocculant (cationised tannin) and anionic retention chemical allowed for a nearly fourfold increase in lignin adsorption onto cellulosic pulp. The nitrogen-modified biopolyphenols showed significant improvement in heat release parameters in micro-scale combustion calorimetry (MCC) testing compared with their unmodified counterparts. Moreover, the adsorption of nitrogen-modified lignin or tannin onto cellulose fibres decreased the maximum heat release rate and total heat release compared with cellulose reference by 15–23%. A further positive finding was that the temperature at the peak heat release rate did not change. These results show the potential of nitrogen-modified biopolyphenols to improve fire-retarding properties of cellulosic products.

1. Introduction

Fibrous cellulosic thermal insulation materials are mainly produced and used in geographical locations such as Scandinavia, Northern America, and Central Europe, where wood-based raw material (recycled newsprint or wood) is abundant. The wood-based insulations in blown or panel form have a comparatively low carbon footprint [1] and their raw material comes mainly from sustainably managed forests either directly or after product (paper) recycling. As the building and construction sector is a major source of CO2 emissions globally [2], special attention will be paid in the future to the carbon footprint of single building materials and this may open up new opportunities for cellulosic insulation materials.
Thermal insulations in buildings require appropriate reaction-to-fire properties. Typically, the fire classification of commercial cellulosic insulation is Euroclass E or equivalent, which is the least demanding fire rating among building materials and restricts their use, for example, in multi-story buildings. The ignition time of cellulosic materials decreases as a function of material density [3], showing a clear need for fire retardants (FRs). However, the heat release rate is naturally, without FRs, smaller compared with low density plastic insulation, like expanded polystyrene (EPS) [4,5]. The heat release rate can be further decreased with various types of FRs.
Recent years have seen a growing demand for safer FRs to replace effective, but harmful halogen-based FRs in the construction sector and other sectors [6]. While relatively safe inorganic and inorganic/organic FRs, such as the intumescent FR combination of ammonium polyphosphate and pentaerythritol, are widely used, especially among polyolefins, it is nowadays increasingly regarded that FR raw materials should not be drawn from resources that are used for fertilisers in food production (e.g., phosphates) or require large molar equivalents of synthetic chemicals for production (e.g., pentaerythritol). In this regard, FRs based on technical lignin [7] and tannin [8] present themselves as a more sustainable alternative. Lignin and tannin are phenolic biopolymers with a relatively high carbon content and a good ability to form carbonaceous char. In the event of fire, FR coatings based on lignin and tannin form a layer of char on the surface of the burning material, helping to isolate it from heat, oxygen, and flammable gases of combustion [9]. These insulation properties are enhanced by chemically introduced nitrogen functionalities, giving rise to nitrogen-based gases such as ammonia and nitrogen oxide that make the coatings more intumescent. For lignin, other fire-inhibiting mechanisms have also been put forward [9]. The aromatic units of lignin and tannin can be modified, e.g., by Mannich reaction [4,10] or Michael addition of amino-based nucleophiles [11] to reactive quinone methide intermediates to add nitrogen as amino or urea groups into their polymeric structures, while carbonyl groups occurring on the lignin phenylpropane side chains or as quinones can react with nitrogen nucleophiles such as urea or amines according to the Schiff base reaction to give imines [12]. Although urea and formaldehyde used in the Mannich reaction to add nitrogen to lignin or tannin are synthetic products, and urea is synthesised from ammonia whose main use is in nitrogen-based fertilisers, the polyphenol still comprises nearly 90% of the nitrogen-modified product. Moreover, formaldehyde is produced from methanol that today can be sourced from biorefineries. There are several other routes available for adding nitrogen to biopolyphenols, e.g., polyurethane synthesis [13,14].
The ignition and combustion of wood and other cellulosic materials are mainly based on the pyrolysis (i.e., thermal decomposition) of cellulose and the reactions of pyrolysis products with each other and with gases in the air, mainly oxygen. When the temperature increases, cellulose starts to pyrolyse. The decomposition products either remain inside the material or are released as gases. Gaseous substances react with each other and oxygen, releasing a large amount of heat that further induces pyrolysis and combustion reactions.
Depending on environmental conditions such as temperature, oxygen concentration, moisture, fire retardants, pH, and so on, the pyrolysis of cellulose can proceed mainly along two pathways. The tar forming pathway, taking place at a temperature of approximately 300 °C, is related to the normal burning. In this case, pyrolysis produces a lot of tar, including levoglucosan, which decomposes easily to burning gases under the influence of heat. Thermal decomposition can also take place through a char-forming pathway. In this process, cellulose is first transformed to unstable, active cellulose that further decomposes so that the reaction products are mainly carbon dioxide and water, and a backbone of cellulose containing a lot of carbon [15]. Our hypothesis was that the addition of biopolyphenols and especially N-modified biopolyphenols to cellulosic fibres could add to the char-forming process and lessen the formation of levoglucosan.
The use of organic polymers as FRs in fibrous cellulose insulation materials is uncommon and not straightforward. For example, lignin or other biopolyphenols in powder form could be mixed with dry or wet cellulose fibres, resulting in weak interaction and bonding between the polymeric particles and fibres. Lignobond [16] is a technique that has been used, e.g., in papermaking to deposit high molecular mass lignin tightly onto wet fibre surfaces before material formation in aqueous media. The precipitation of lignin has been shown to improve the strength and water resistance properties of boards or unbleached paper grades. In Lignobond, lignin powder is first dissolved in base and added into the fibre slurry. After mixing, the pH is adjusted to 4.5 with an acid, which starts the precipitation of lignin into solids and onto fibre surfaces. The addition of a cationic and anionic retention aid system into the slurry further improves the retention of lignin onto fibre surfaces.
We exploited the Lignobond process to add unmodified and nitrogen-modified biopolyphenols, lignin or tannin, onto bleached softwood kraft fibres to investigate their effect on the fire retarding of the cellulosic fibre network. The nitrogen-modification of lignin and tannin was accomplished via Mannich and other reactions by reacting the alkali-dissolved biopolyphenols with urea and formaldehyde. The nitrogen-modified biopolyphenols decreased the heat release rate and total heat release of the cellulose material without changing the temperature at the peak heat release rate. The effect on ignitability was not investigated during this phase.

2. Results and Discussion

2.1. Nitrogen-Modification of Lignin and Tannin

Adding nitrogen to polyphenols is known to improve their FR properties. Polyphenols with a high nitrogen content can be synthesised using urea and formaldehyde reagents under alkaline conditions [10], whereby multiple reaction routes that result in the introduction of amino or imino groups are available. Unsubstituted aromatic carbons ortho or para to a phenolic hydroxyl group are potentially reactive sites in the Mannich reaction of lignin and tannin, whereby the most nucleophilic, electron-rich aromatic carbons attack the electrophilic immonium ion intermediate formed by urea and formaldehyde. Such carbons occur in guaiacyl and p-hydroxyphenyl units of lignin and A-rings of procyanidin-type condensed tannin. The Mannich reaction of lignin or tannin with urea and formaldehyde gives methyleneurea-substituted lignin, while any carbonyl groups in lignin may undergo Schiff base reaction with urea, which produce imines [10]. Further potential reaction routes are conjugate (Michael) additions of urea to quinone methide intermediates, formed in lignin under alkaline conditions, or to pre-existing ring-conjugated double bonds or quinones [17] in the lignin polymer. These reaction routes are illustrated in Figure 1.
31P NMR spectral analysis (Table 1) shows that the nitrogen-modification reduced the guaiacyl and p-hydroxyphenyl units of hardwood (HW) kraft lignin in accordance with the mechanism of Mannich reaction [4,10], the amino groups in the product appearing at ca. 133 pm [18] (Figure 2). The number of Mannich reactive sites is approximately the sum of ortho-unsubstituted guaiacyl and p-hydroxyphenyl hydroxyls, 0.91 mmol/g, which is only 26% of the total phenolic hydroxyls. In the modified lignin, there are only 0.31 mmol/g of these phenolic hydroxyls left—a reduction of 0.60 mmol/g (66%, or a little less if the increase in lignin molar mass resulting from the nitrogen modification is considered). Theoretically, the molar increase in primary and secondary amino groups should be twice the number of reactive sites consumed (excluding the possibility of crosslinking reactions giving diarylmethyl urea), or 1.20 mmol/g, while the measured amino content was slightly higher at 1.47 mmol/g. It is possible that base-catalysed hydrolysis of alkyl–aryl ether linkages liberated more phenolic hydroxyls and increased the number of Mannich-reactive sites during the reaction. Amino groups of imines or other amino-bearing reaction products may also contribute to the signal intensity near 133 pm.
The nitrogen content of the HW kraft lignin increased from negligible to 10% (Table 1). Given the relatively small number of Mannich reactive sites in the lignin, this figure is too high to assume that all of the nitrogen was introduced by the Mannich reaction, as it would correspond to a methyleneurea substituent (MW 73 g/mol) content of 26% in the modified lignin and place the degree of lignin methyleneurea substitution at 1.0 per lignin unit (assuming 200 g/mol for an average phenylpropane unit). It thus seems that urea-based modifications that do not involve formaldehyde (Schiff base reaction and Michael addition) contributed significantly to the introduction of nitrogen in the lignin polymer.
Spruce tannins are predominantly procyanidin-type condensed tannins [19,20]. After correction for non-tannin components amounting to ca. 40%, the N content (Table 1) of the procyanidin component is ca. 17.7%, corresponding to a methyleneurea substituent content of 46% per procyanidin unit, or a substitution rate of 1.2 methyleneurea groups per procyanidin unit (MW 288 g/mol), assuming that only procyanidin units participated in the Mannich reaction. The main sites of reaction are probably the double-activated electron-rich carbons of the A-ring located ortho-ortho and ortho-para to the phenolic hydroxyls. While the three unsubstituted carbons of the B-ring are in the ortho or para position of a phenolic hydroxyl, they are also deactivated by being meta to the other phenolic hydroxyl, rendering them considerably less nucleophilic than the double activated A-ring carbons.

2.2. Heat Release Properties of Unmodified and N-Modified Biopolyphenols

The peak heat release rate (PHRR), temperature at PHRR (TPHRR), and total heat release (THR) of pure lignin and tannin samples were determined by micro-scale combustion calorimetry (MCC). The char yield was determined gravimetrically.
The MCC test results of pure compounds are presented in Table 2 as PHRR, TPHRR, THR, and char yield values, and in Figure 3 as HRR as a function of temperature, comparing unmodified and N-modified samples. The repeatability of the replicate tests was found to be good, as can be seen from the scalar values of Table 2. Therefore, only test 1 of each sample is shown in Figure 3 to represent the heat release behaviour in the MCC tests.
For pure lignin, it was observed that N-modification significantly reduced (33–60%) the PHRR value, but bought the peak to a lower temperature. THR was clearly reduced (23–35%) by N-modification. No consistent trend was seen for char yield; the value either increased or decreased depending on the compound.
For spruce tannin, the benefits of N modification for heat release were consistent: PHRR and THR decreased (by 33 and 30%, respectively) and TPHRR increased significantly. Char yield was slightly reduced, but the difference was minor.

2.3. Deposited Amounts of Biopolyphenols on Cellulose Kraft Pulp Fibres

A preliminary retention trial (Table 3) was conducted with unmodified HW kraft lignin to select the most promising retention aids for further tests with nitrogen-modified lignin. The retention of lignin on filtrated pulp fibre pads was very low when only lignin was deposited onto the fibres, improving somewhat with the addition of cationic Tanfloc SG. However, the application of Tanfloc SG together with anionic polyacrylamide (A-PAM) allowed for full retention to be achieved. Based on these results, the combination with the highest determined lignin content (2.5% Tanfloc SG + 0.45% A-PAM) was selected for deposition trials with nitrogen-modified biopolyphenols.
The N-modified biopolyphenols were precipitated to bleached SW kraft pulp that itself contained a negligible amount of lignin. Lignin analysis (Table 4) showed that the highest deposited amount was obtained with N-modified HW kraft lignin, that is, 15.9%, and the smallest amount with N-modified spruce tannin, that is, 10.5%. Chemical modification reduced the deposited amount of HW kraft lignin. The dried pulp fibre pads after the Lignobond precipitation with corresponding filtrates are shown in Figure 4. The brown colour of the filtrates resulted from non-adsorbed biopolyphenols.
SEM images taken from the air-dried pulp fibre pads (Figure 5) show the deposited N-modified lignin and tannin particles on the fibre surfaces and in the fibre network. The particles formed crust-like areas on the fibre surfaces and did not fully cover the fibres. The approximate size of the particles lay between 1 and 20 µm, evaluated from the SEM images.

2.4. Heat Release Properties of Modified Biopolyphenols Deposited on Cellulose Pulp Fibres

The MCC test results of mixtures with kraft cellulose fibres and Tanfloc SG 2.5% + 0.45% A-PAM are presented in Table 5 as PHRR, TPHRR, THR, and char yield values. The repeatability of the replicate tests was not as good as for pure biopolyphenols, as can be seen from the scalar values in Table 5.
The difference between the bleached SW kraft pulp as such and with the retention aid system Tanfloc SG + A-PAM was relatively small. The material with the retention aid system exhibited ca. 5% higher PHRR and THR values than the material without it. Its TPHRR was a few degrees lower. The char yield for both materials was low, ca. 7%.
The addition of N-modified lignin or tannin significantly improved the PHRR and THR values. The reduction of PHRR was 23% for lignin and 17% for tannin compared with the bleached SW kraft pulp reference. THR reduced 13–19% for lignin and 15% for tannin. TPHRR was of the same order for all specimens studied. The char yield was roughly doubled compared with the reference material. Overall, the addition of N-modified biopolyphenols to cellulose fibres had a favourable effect.

3. Materials and Methods

3.1. Materials

SW (Pinus sylvestris/Picea abies) and HW (Eucalyptus sp.) kraft lignins were industrial lignins precipitated using carbon dioxide from the black liquor of pulp mills that produce paper-grade kraft pulp. SW CatLignin, from Pinus sylvestris/Picea abies, was produced at a laboratory scale from industrial black liquor using a patented CatLignin method [21] based on heat treatment of black liquor, followed by conventional precipitation using carbon dioxide and acidic washing. Spruce tannin with a tannin content of ca. 60% was prepared by soda cooking of spruce (Picea abies) bark followed by acid precipitation (pH 2.5) of tannin from the spent liquor. Tanfloc SG, mimosa tannin cationised with formaldehyde and ammonium chloride [22], was purchased from Christian Markmann GmbH, Hamburg, Germany.
Bleached kraft softwood pulp was obtained from Metsä Fibre Äänekoski mill. Anionic polyacrylamide (A-PAM) was Kemira’s Superfloc A100HMW and aluminium sulphate 18 hydrate was purchased from Acros.

3.2. Methods

3.2.1. Nitrogen-Modification of Biopolyphenols

For nitrogen modification of lignin or tannin with urea and formaldehyde, lignin, or tannin, 10.00 g based on oven-dry weight and 10.00 g of urea were placed in a round-bottomed flask equipped with a reflux condenser and dissolved at 70 °C in NaOH solution prepared by combining 210 g of Milli-Q water and 2.0 g of 50% NaOH solution, corresponding to an NaOH dose of 0.65 equivalents per alkali-consuming functional group (hydroxyl and carboxyl). This was followed by the addition of 10 mmol of formaldehyde per 1 g of lignin or tannin, added as 37% aqueous formalin solution (8.1 g) over 10 min. The mixture was refluxed at 70 °C with mechanical stirring for 10 h, after which the product was allowed to cool and then precipitated by first adding 100 mL of water acidified with HCl to pH 3, and then adding concentrated HCl solution dropwise until the pH was lowered to 2–3. The precipitate was washed twice with HCl solution (pH 3) before being freeze-dried.

3.2.2. Chemical Characterisation of Biopolyphenols

The N content was determined using an organic elemental (CHNS) analyser (Flash 2000 Series, Thermo Fisher Scientific BV, Delft, The Netherlands), as described by Nordlund et al. [23]. The hydroxyl and carboxyl contents of lignin were determined from lignin dissolved in pyridine and deuterated chloroform (1.6/1, v/v) and phosphitylated with 2-chloro-4,4,5,5-tetramethyl-1,3,2-dioxaphospholane by 31P NMR on a Bruker Avance III 500 MHz NMR spectrometer at room temperature [24]). Endo-N-Hydroxy-5-norbornene-2,3-dicarboximide was used as the internal standard.

3.2.3. Deposition of Biopolyphenols on Cellulose Fibres

Bleached SW kraft pulp was soaked overnight in Milli-Q water, disintegrated at a concentration of 3%, and then further diluted to 1.3%. Table 6 shows the detailed formulation used for Lignobond precipitation. Nitrogen-modified biopolyphenols were dissolved in 0.5 M NaOH. A-PAM was dissolved in 9 mL of Milli-Q water. Then, 150 mL of cellulose fibre slurry was mixed in a decanter glass. The nitrogen-modified biopolyphenols (20% of dry fibre weight) were added to the slurry and the mixture was stirred for 10 min. The pH of the slurry was adjusted to 4.5 with 1 M HCl, after which first Tanfloc SG powder (2.5% on dry fibre) and then A-PAM solution (0.45% on dry fibre) were added as retention aids. The slurry was further mixed for 20 min and then filtered using a wire cloth (mesh size 90 µm). Finally, the wet pulp pad was dried under ambient conditions.

3.2.4. Determination of Pulp Pad Biopolyphenol Content

The lignin/tannin content of pulps was determined as the sum of acid insoluble (Klason) and acid-soluble polyphenols [25]. Klason lignin is the solid residue left after total dissolution of all carbohydrates by 72% sulfuric acid at 20 °C (68 °F) for 2.0 h, followed by dilution to 3% sulfuric acid and refluxing for 4 h. Acid-soluble lignin is determined by UV spectroscopy (UV spectrophotometer: Perkin Elmer Lambda 900, Waltham, MA, USA) from the acid hydrolysis liquid.

3.2.5. Scanning Electron Microscopy

The dry fibre pad sample was attached with double-sided carbon tape to an aluminium sample stub before sputtering a 5 nm layer of Au/Pd with Leica EM ACE200 sputter coater. Secondary electron images with an Everhart–Thornley detector at 1000 times original magnification were collected with a field-emission scanning electron microscope (FE-SEM Merlin, Carl Zeiss Microscopy, Oberkochen, Germany) using an acceleration voltage of 2 kV and probe current of 60 pA.

3.2.6. Micro-Scale Combustion Calorimetry

Micro-scale combustion calorimetry (MCC) is an experimental method for measuring the heat release rate of a small sample (ca. 1–10 mg) as a function of temperature [26,27]. It reveals how much combustible gases evolve and how much energy is released in the pyrolysis of the specimen tested.
In this work, the peak heat release rate (PHRR), temperature at PHRR (TPHRR), and total heat release (THR) of lignin and tannin samples were determined by MCC (Govmark Microscale Combustion Calorimeter Model-MCC-2, New York, NY, USA) in a nitrogen atmosphere at a heating rate of 1.4 K/s. The char yield, defined as a percentage by the weight of solid residue remaining after MCC relative to the initial weight of the test specimen, was determined gravimetrically. Two replicate tests were performed for each material.
The MCC measurements performed are considered as an initial screening of the prototype FR systems, the most promising of which are proposed for further evaluation using larger-scale fire test methods, such as the cone calorimeter [28].

4. Conclusions

We investigated the potential of safe and renewable biopolyphenols in the fire retarding of another renewable material, cellulose fibres. Our key ideas were the addition of nitrogen to various technical lignin or tannin to enhance their fire-retarding performance, and the deposition of the modified biopolyphenols onto cellulose fibre surfaces by the Lignobond process with a tannin-based retention system. We showed that the N-modification greatly reduced (up to 60%) the specific heat release parameters of the pure biopolyphenols. The effects of modified biopolyphenols on the fire properties of cellulose fibre networks were of a lesser magnitude, but their positive effect was clear. Thus, the results showed their potential to improve the fire-retarding properties of cellulosic products. The decrease in MCC parameters did not reveal the effect of biopolyphenols on the ignitability of cellulose fibre networks, which should be assessed separately.

Author Contributions

Conceptualisation, T.P. and P.W.; methodology, T.P., P.W. and T.H.; investigation, P.W., T.H. and T.P.; writing—original draft preparation, P.W., T.H. and T.P.; writing—review and editing, P.W., T.H. and T.P. All authors have read and agreed to the published version of the manuscript.


This research was funded by European Regional Development Fund (ERDF) grant number A75938 and participating companies of PAfP (Piloting Alternatives for Plastics) project. ERDF and all involved companies are thanked for enabling the study.

Institutional Review Board Statement

Not applicable.

Data Availability Statement

Not applicable.


The authors acknowledge the technical assistance of Jarna Teikari.

Conflicts of Interest

The authors declare no conflict of interest. The funders had no role in the design of the study; in the collection, analyses, or interpretation of data; in the writing of the manuscript; or in the decision to publish the results.


  1. Kunič, R. Carbon footprint of thermal insulation materials in building envelopes. Energy Effic. 2017, 10, 1511–1528. [Google Scholar] [CrossRef]
  2. Orsini, F.; Marrone, P. Approaches for a low-carbon production of building materials: A review. J. Clean. Prod. 2019, 241. [Google Scholar] [CrossRef]
  3. Tsantaridis, L. Reaction to Fire Performance of Wood and Other Building Products—Cone Calorimeter Results and Analysis. Master’s Thesis, KTH—Royal Institute of Technology, Department of Civil and Architectural Engineering, Division of Building Materials, Stockholm, Sweden, 2003; 65p. [Google Scholar]
  4. Zhang, R.; Xiao, X.; Tai, Q.; Huang, H.; Hu, Y. Modification of lignin and its application as char agent in intumescent flame-retardant poly(lactic acid). Polym. Eng. Sci. 2012, 52, 2620–2626. [Google Scholar] [CrossRef]
  5. Zheng, C.; Li, D.; Ek, M. Cellulose-fiber-based insulation materials with improved reaction-to-fire properties. Nord. Pulp Pap. Res. J. 2017, 32, 466–472. [Google Scholar] [CrossRef]
  6. Hobbs, C.E. Recent advances in bio-based flame retardant additives for synthetic polymeric materials. Polymers 2019, 11, 224. [Google Scholar] [CrossRef] [Green Version]
  7. Kai, D.; Tan, M.J.; Chee, P.L.; Chua, Y.K.; Yap, Y.L.; Loh, X.J. Towards lignin-based functional materials in a sustainable world. Green Chem. 2016, 18, 1175–1200. [Google Scholar] [CrossRef]
  8. Basak, S.; Raja, A.S.M.; Saxena, S.; Patil, P.G. Tannin based polyphenolic bio-macromolecules: Creating a new era towards sustainable flame retardancy of polymers. Polym. Degrad. Stab. 2021, 189, 109603. [Google Scholar] [CrossRef]
  9. Yang, H.; Yu, B.; Xu, X.; Bourbigot, S.; Wang, H.; Song, P. Lignin-derived bio-based flame retardants toward high-performance sustainable polymeric materials. Green Chem. 2020, 22, 2129–2161. [Google Scholar] [CrossRef]
  10. Widsten, P.; Tamminen, T.; Paajanen, A.; Hakkarainen, T.; Liitiä, T. Modified and unmodified technical lignins as flame retardants for polypropylene. Holzforschung 2021, 75, 584–590. [Google Scholar] [CrossRef]
  11. Peter, M.G. Chemical Modifications of Biopolymers by Quinones and Quinone Methides. Angew. Chem. Int. Ed. Engl. 1989, 28, 555–570. [Google Scholar] [CrossRef]
  12. Chatterjee, M.; Ishizaka, T.; Kawanami, H. Reductive amination of furfural to furfurylamine using aqueous ammonia solution and molecular hydrogen: An environmentally friendly approach. Green Chem. 2016, 18, 487–496. [Google Scholar] [CrossRef]
  13. Handika, S.O.; Lubis, M.A.R.; Sari, R.K.; Laksana, R.P.B.; Antov, P.; Savov, V.; Gajtanska, M.; Iswanto, A.H. Enhancing thermal and mechanical properties of ramie fiber via impregnation by lignin-based polyurethane resin. Materials 2021, 14, 6850. [Google Scholar] [CrossRef]
  14. Aristri, M.A.; Lubis, M.A.R.; Laksana, R.P.B.; Sari, R.K.; Iswanto, A.H.; Kristak, L.; Antov, P.; Pizzi, A. Thermal and mechanical performance of ramie fibers modified with polyurethane resins derived from acacia mangium bark tannin. J. Mater. Res. Technol. 2022, 18, 2413–2427. [Google Scholar] [CrossRef]
  15. Hakkarainen, T.; Mikkola, E.; Östman, B.; Tsantaridis, L.; Brumer, H.; Piispanen, P. Innovative Eco-Efficient High Fire Performance Wood Products for Demanding Applications; State-of-the-Art; VTT Technical Research Centre of Finland: Espoo, Finland; SP Trätek: Stockholm, Sweden; KTH Biotechnology: Stockholm, Sweden, 2005. [Google Scholar]
  16. Forss, K.G.; Fuhrmann, A.G.M.; Toroi, M. Procedure for Manufacturing Lignocellulosic Material Product. European Patent EP 0355041 B1, 7 March 1988. [Google Scholar]
  17. Giummarella, N.; Pylypchuk, I.V.; Sevastyanova, O.; Lawoko, M. New Structures in Eucalyptus Kraft Lignin with Complex Mechanistic Implications. ACS Sustain. Chem. Eng. 2020, 8, 10983–10994. [Google Scholar] [CrossRef]
  18. Li, M.; Yoo, C.G.; Pu, Y.; Ragauskas, A.J. 31P NMR Chemical Shifts of Solvents and Products Impurities in Biomass Pretreatments. ACS Sustain. Chem. Eng. 2018, 6, 1265–1270. [Google Scholar] [CrossRef]
  19. Bianchi, S.; Kroslakova, I.; Janzon, R.; Mayer, I.; Saake, B.; Pichelin, F. Characterization of condensed tannins and carbohydrates in hot water bark extracts of European softwood species. Phytochemistry 2015, 120, 53–61. [Google Scholar] [CrossRef] [PubMed]
  20. Varila, T.; Brännström, H.; Kilpeläinen, P.; Hellström, J.; Romar, H.; Nurmi, J.; Lassi, U. From Norway spruce bark to carbon foams: Characterization, and applications. BioResources 2020, 15, 3651–3666. [Google Scholar] [CrossRef]
  21. Wikberg, H.; Ohra-Aho, T.; Leppävuori, J.; Liitiä, T.; Kanerva, H. Method for Producing Reactive Lignin. WO2018115592A1, 28 June 2018. [Google Scholar]
  22. Decusati, O.G.; Lamb, L.H. Manufacturing Process for Quaternary Ammonium Tannate, a Vegetable Coagulating/Flocculating Agent. European Patent EP 1078884A2, 27 August 1999. [Google Scholar]
  23. Nordlund, E.; Lille, M.; Silventoinen, P.; Nygren, H.; Seppänen-Laakso, T.; Mikkelson, A.; Aura, A.-M.; Heiniö, R.-L.; Nohynek, L.; Puupponen-Pimiä, R.; et al. Plant cells as food—A concept taking shape. Food Res. Int. 2018, 107, 297–305. [Google Scholar] [CrossRef] [PubMed]
  24. Granata, A.; Argyropoulos, D.S. 2-Chloro-4,4,5,5-tetramethyl-1,3,2-dioxaphospholane, a Reagent for the Accurate Determination of the Uncondensed and Condensed Phenolic Moieties in Lignins. J. Agric. Food Chem. 1995, 43, 1538–1544. [Google Scholar] [CrossRef]
  25. Dence, C.W. The Determination of Lignin. In Methods in Lignin Chemistry; Springer: Berlin/Heidelberg, Germany, 1992; pp. 33–61. [Google Scholar]
  26. Lyon, R.E.; Walters, R.N. Pyrolysis combustion flow calorimetry. J. Anal. Appl. Pyrolysis 2004, 71, 27–46. [Google Scholar] [CrossRef]
  27. Lyon, R.E.; Walters, R.N.; Stoliarov, S.I.; Safronava, N. Principles and Practice of Microscale Combustion Calorimetry; DOT/FAA/TC-12/53; Federal Aviation Administration: Atlantic City Airport, NJ, USA, 2013; 75p. [Google Scholar]
  28. ISO 5660-1:2015; Reaction-to-Fire Tests—Heat Release, Smoke Production and Mass Loss Rate—Part 1: Heat Release Rate (Cone Calorimeter Method) and Smoke Production Rate (Dynamic Measurement). International Organization for Standardization: Geneva, Switzerland, 2015.

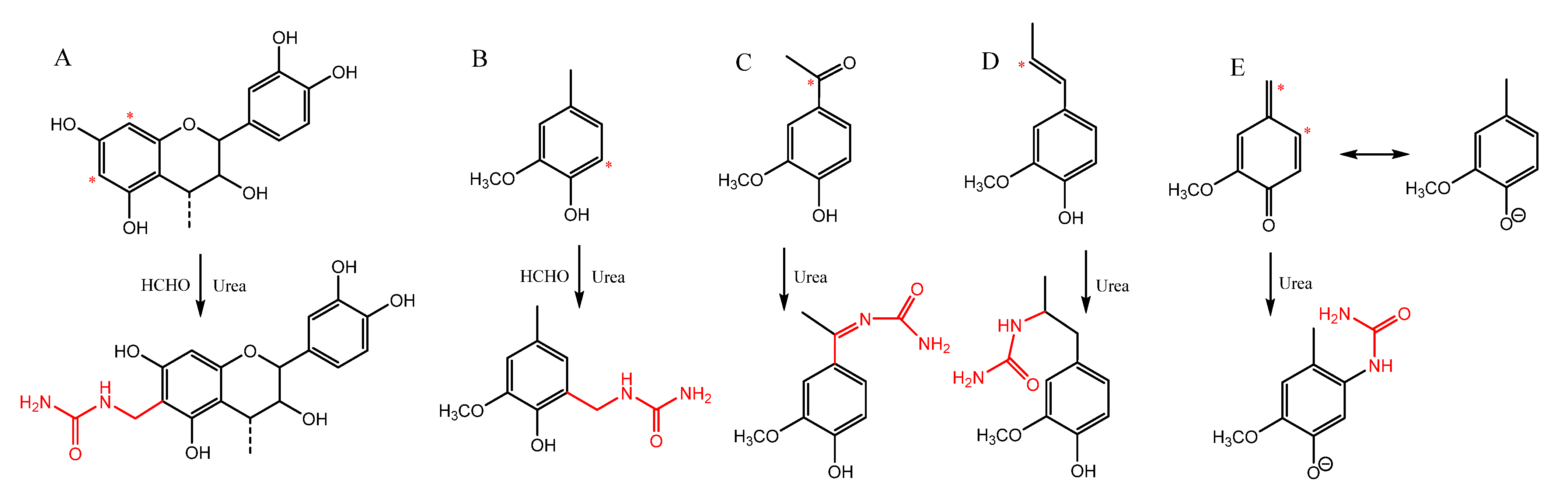

Figure 1. Nitrogen modification of (A) tannin and (B) lignin aromatic units by Mannich reaction, lignin carbonyls by Schiff base reaction (C), Michael addition to ring-conjugated double bonds in lignin side chain (D), and Michael addition to quinone methide intermediates in lignin (E). Asterisks indicate reactive sites.
Figure 1. Nitrogen modification of (A) tannin and (B) lignin aromatic units by Mannich reaction, lignin carbonyls by Schiff base reaction (C), Michael addition to ring-conjugated double bonds in lignin side chain (D), and Michael addition to quinone methide intermediates in lignin (E). Asterisks indicate reactive sites.
Molecules 27 03741 g001

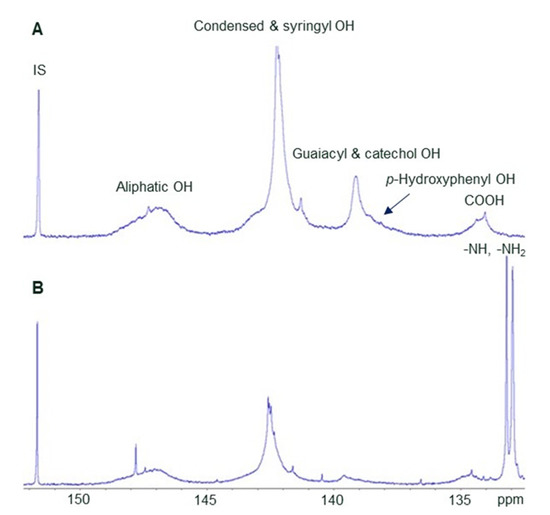

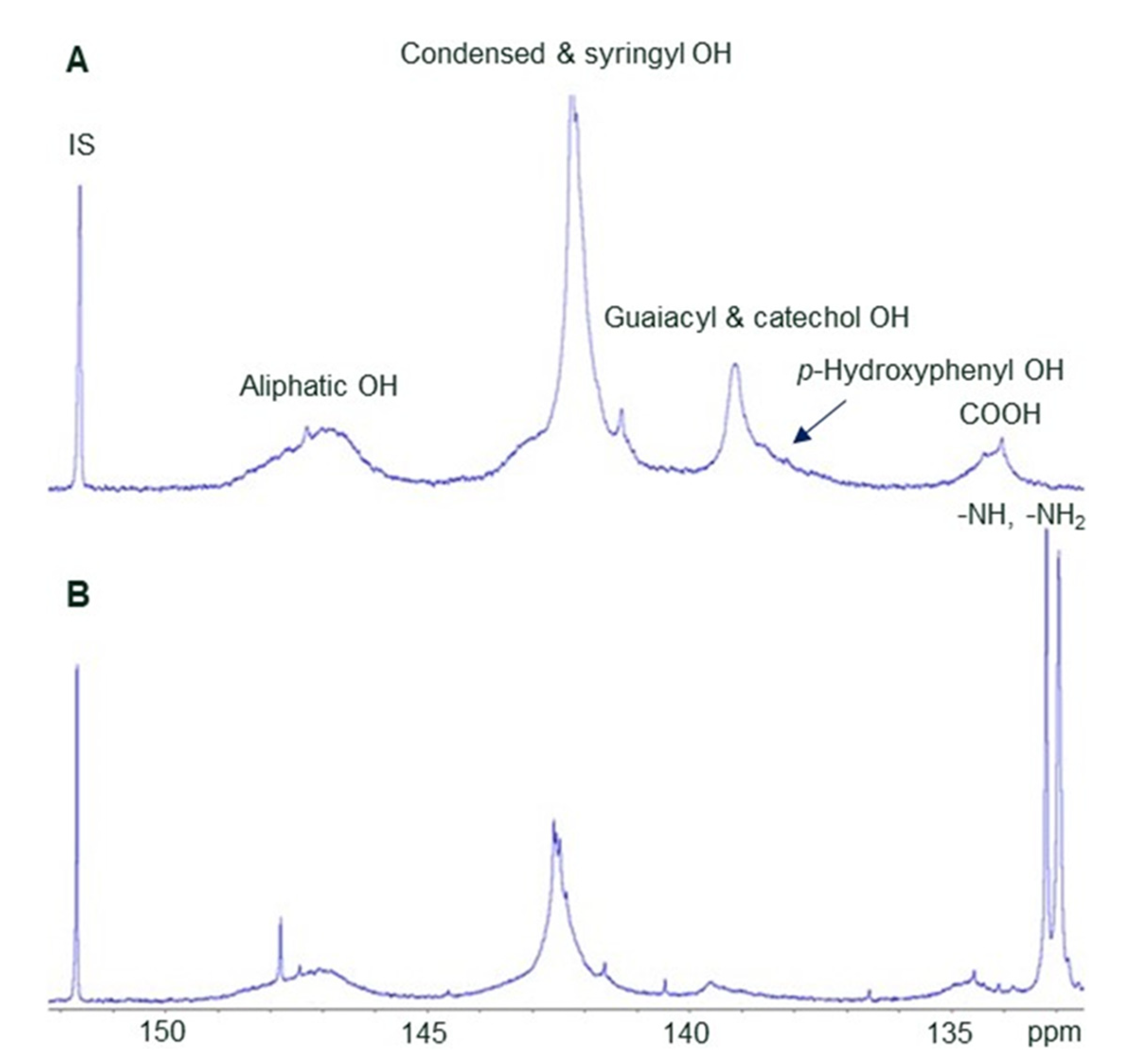

Figure 2. 31P NMR spectra of HW kraft lignin before (A) and after (B) reaction with urea and formaldehyde. IS = internal standard.
Figure 2. 31P NMR spectra of HW kraft lignin before (A) and after (B) reaction with urea and formaldehyde. IS = internal standard.
Molecules 27 03741 g002

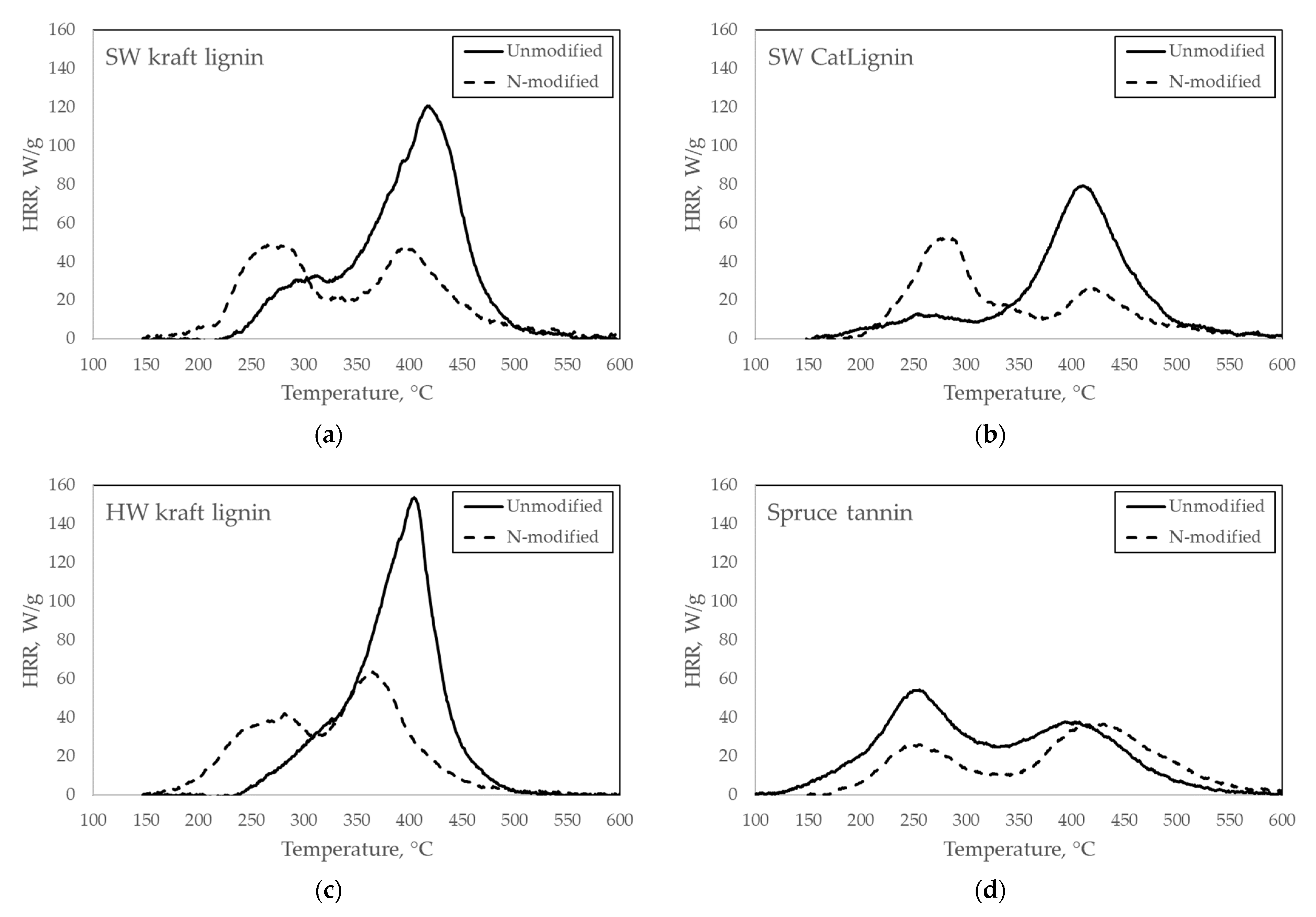

Figure 3. Heat release rate (HRR) in the MCC tests of unmodified and N-modified pure compounds: (a) SW kraft lignin, (b) SW CatLignin, (c) HW kraft lignin, and (d) Spruce tannin. The result of test 1 is shown for each compound.
Figure 3. Heat release rate (HRR) in the MCC tests of unmodified and N-modified pure compounds: (a) SW kraft lignin, (b) SW CatLignin, (c) HW kraft lignin, and (d) Spruce tannin. The result of test 1 is shown for each compound.
Molecules 27 03741 g003

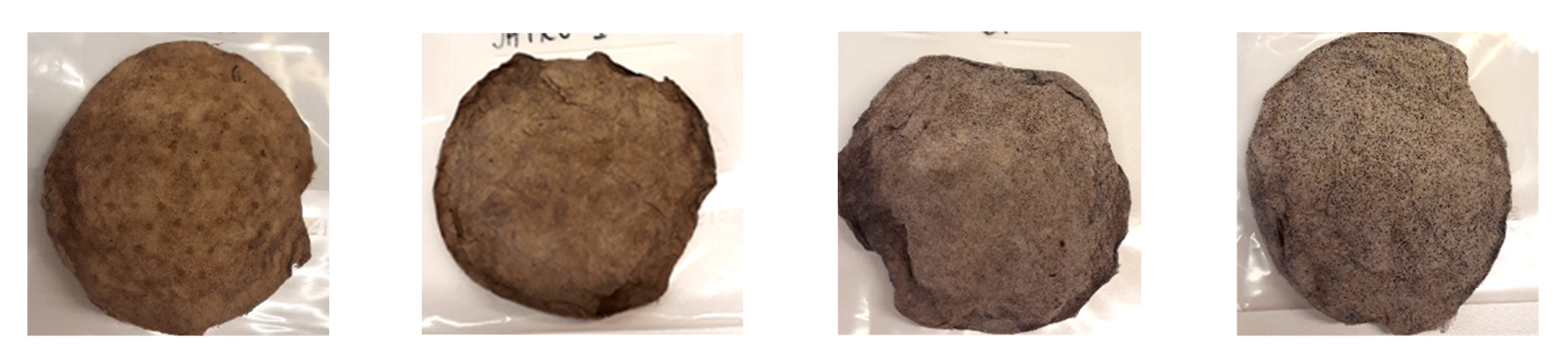

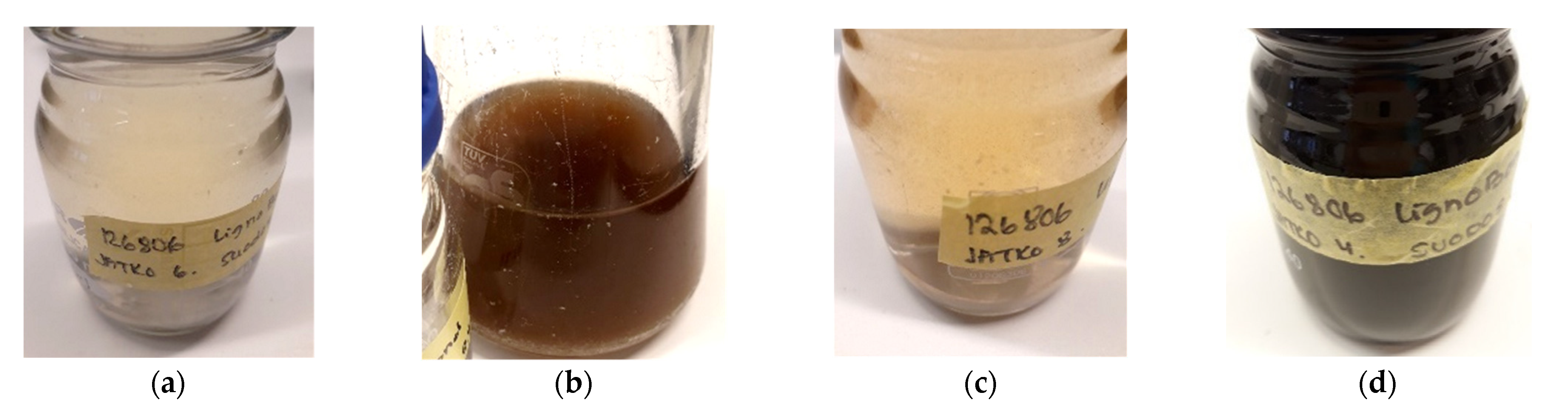

Figure 4. Pulp fibre pads (top image) and filtrates (bottom image) after LignoBond deposition of N-modified biopolyphenols: (a) SW kraft lignin, (b) SW CatLignin, (c) HW kraft lignin, and (d) Spruce tannin.
Figure 4. Pulp fibre pads (top image) and filtrates (bottom image) after LignoBond deposition of N-modified biopolyphenols: (a) SW kraft lignin, (b) SW CatLignin, (c) HW kraft lignin, and (d) Spruce tannin.
Molecules 27 03741 g004aMolecules 27 03741 g004b

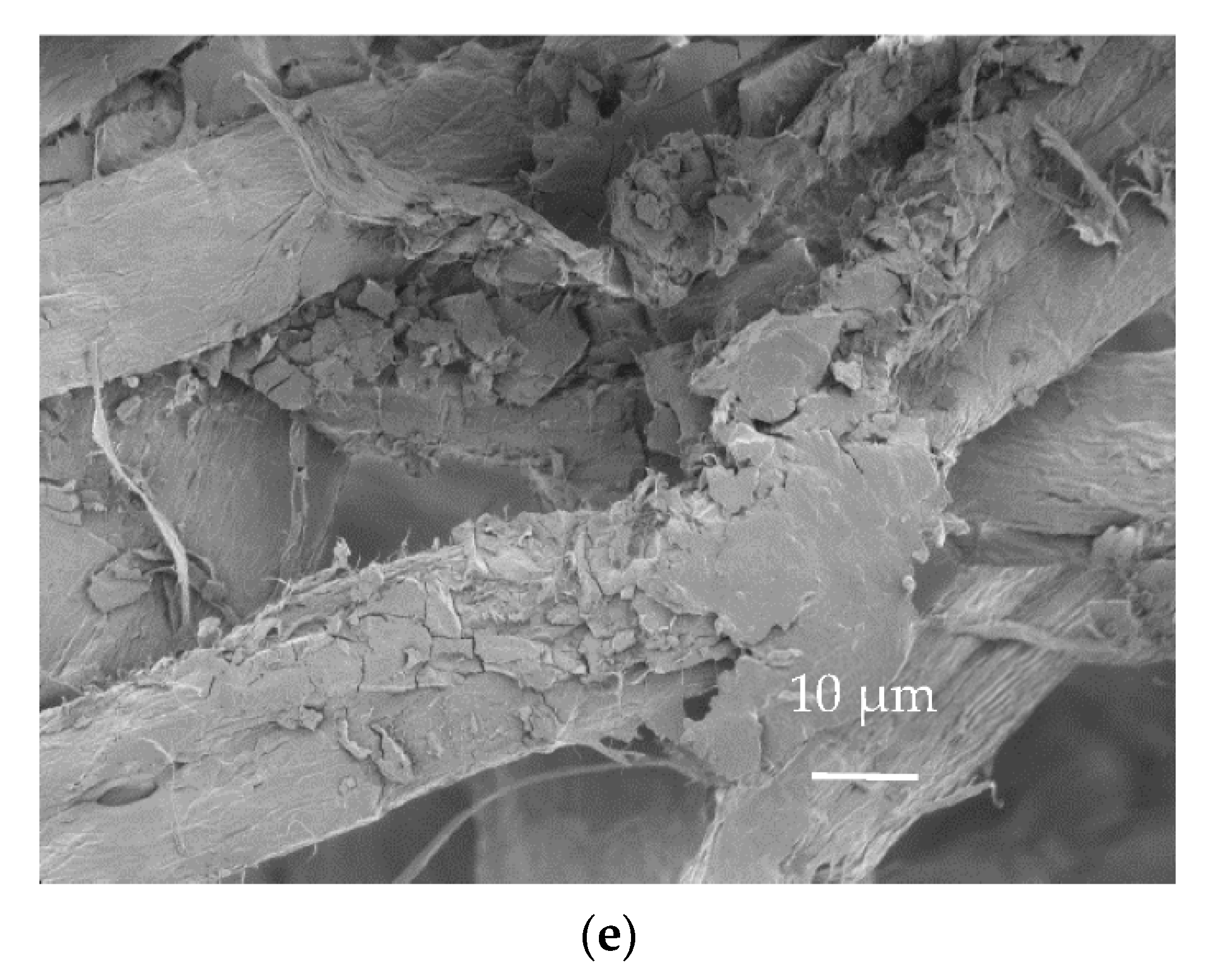

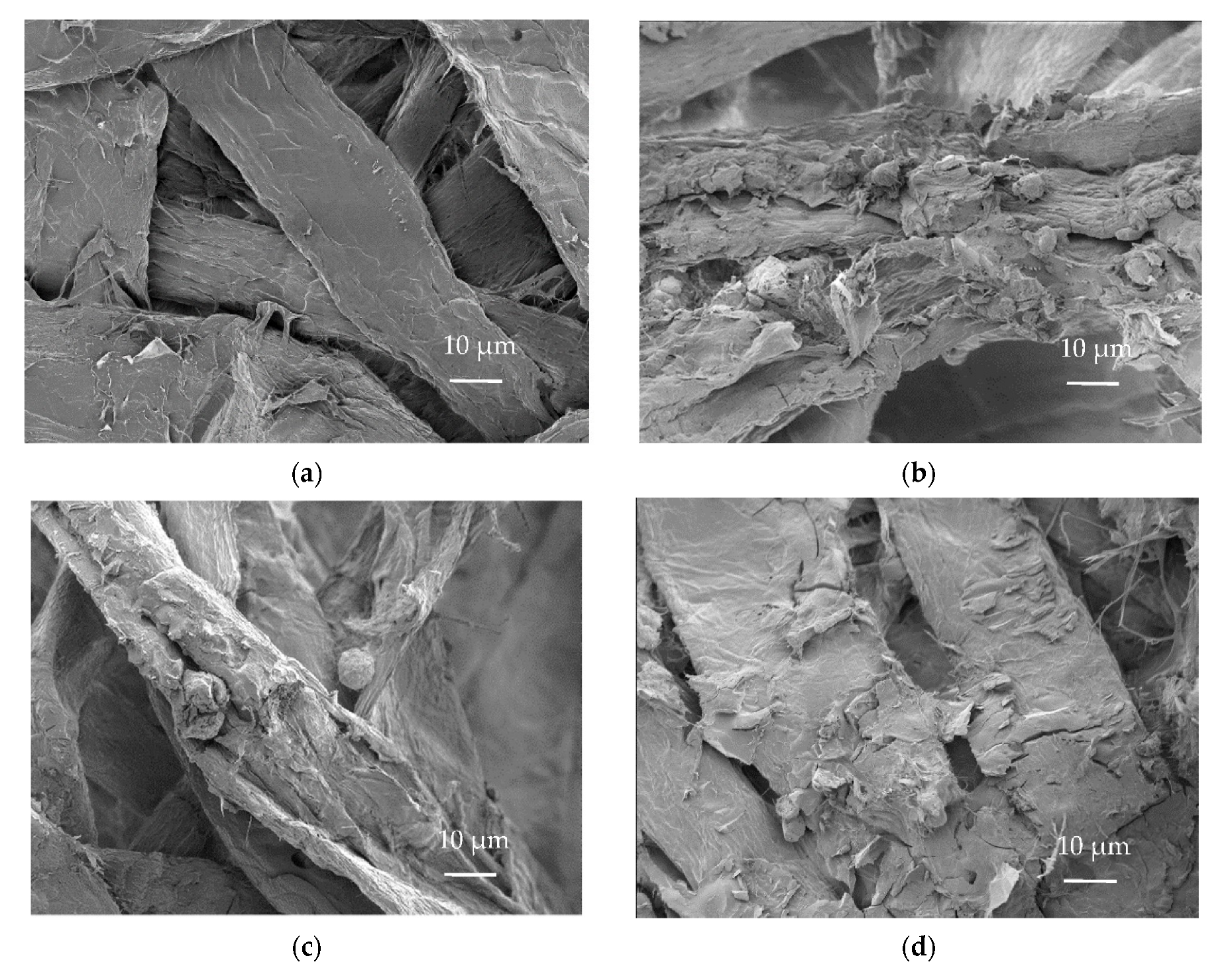

Figure 5. SEM images of pulp fibre pads showing the deposited N-modified lignin and tannin on cellulose fibre surfaces: (a) bleached SW kraft pulp (reference), (b) +N-modified SW kraft lignin, (c) +N-modified SW CatLignin, (d) +N-modified HW kraft lignin, and (e) +N-modified spruce tannin.
Figure 5. SEM images of pulp fibre pads showing the deposited N-modified lignin and tannin on cellulose fibre surfaces: (a) bleached SW kraft pulp (reference), (b) +N-modified SW kraft lignin, (c) +N-modified SW CatLignin, (d) +N-modified HW kraft lignin, and (e) +N-modified spruce tannin.
Molecules 27 03741 g005aMolecules 27 03741 g005b
Table 1. Functional group (31P NMR) and nitrogen (CHNS analysis) content of lignin 1 and tannin.
Table 1. Functional group (31P NMR) and nitrogen (CHNS analysis) content of lignin 1 and tannin.
Lignin/TanninCarboxyl, mmol/gAliphatic Hydroxyl, mmol/gPhenolic Hydroxyl by Subtype (Lignins Only),
Total Phenolic Hydroxyl, mmol/gAmino, mmol/gN, %
Condensedor syringylGuaiacylp-OH-phenyl
HW kraft lignin0.29 ± 0.000.95 ± 0.022.62 ± 0.090.80 ± 0.020.11 ± 0.093.53 ± 0.13 0.12 ± 0.00
N-modified HW kraft lignin0.30 ± 0.091.02 ± 0.042.77 ± 0.020.29 ± 0.010.02 ± 0.022.58 ± 0.051.47 ± 0.2110.12 ± 0.05
Spruce tannin 31.13 ± 0.022.01 ± 0.06 3.49 ± 0.15 0.57 ± 0.01
N-modified spruce tannin 2 10.61 ± 0.02
Tanfloc SG 7.60 ± 0.02
1 For data on N-modified and unmodified softwood (SW) kraft and SW CatLignin, see [10]; 2 insoluble in NMR solvent—spectrum unable to be recorded; 3 tannin content 60%.
Table 2. MCC test results of pure compounds.
Table 2. MCC test results of pure compounds.
Sample PHRR (W/g)TPHRR (°C)THR (J/g)Char Yield (wt-%)
SW kraft ligninTest 1
Test 2
SW kraft lignin 1
Test 1
Test 2
SW CatLigninTest 1
Test 2
SW CatLignin
Test 1
Test 2
HW kraft ligninTest 1
Test 2
HW kraft lignin
Test 1
Test 2
Spruce tanninTest 1
Test 2
N-modified spruce tanninTest 1
Test 2
1 The sample exhibited two heat release peaks of similar heights. Therefore, two values are presented for PHRR and TPHRR.
Table 3. Lignin content and filtration retention of bleached kraft pulp combined with HW kraft lignin and retention aids. Mixtures with >95% retention were analysed in triplicate.
Table 3. Lignin content and filtration retention of bleached kraft pulp combined with HW kraft lignin and retention aids. Mixtures with >95% retention were analysed in triplicate.
Retention AidsKlason Lignin, % 1Acid-Soluble Lignin, % 1Total Lignin, % 1Retention, % 2
Tanfloc SG 2.5%9.70.910.791.0
Tanfloc SG 2.5%, A-PAM 0.15%20.0 ± 0.33.1 ± 0.123.0 ± 0.298.4
Tanfloc SG 2.5%, A-PAM 0.30%22.0 ± 3.22.9 ± 0.025.0 ± 3.2103.0
Tanfloc SG 2.5%, A-PAM 0.45%22.8 ± 0.83.3 ± 0.126.1 ± 0.799.4
1 Lignin values include the contribution from Tanfloc SG, if included; 2 100% retention is the sum of fibres, lignin, and retention aids applied.
Table 4. Chemical analysis of samples made with the Tanfloc SG 2.5% and A-PAM 0.45% retention system.
Table 4. Chemical analysis of samples made with the Tanfloc SG 2.5% and A-PAM 0.45% retention system.
SampleKlason Lignin, %Acid-Soluble Lignin, %Total Lignin, %N, %
Bleached SW kraft pulp1.2 ± 0.00.0 ± ± 0.00
+N-modified SW kraft lignin12.5 ± 1.11.1 ± ± 0.13
+N-modified SW CatLignin11.5 ± 0.60.6 ± ± 0.22
+N-modified HW kraft lignin14.5 ± 1.01.4 ± ± 0.01
+N-modified spruce tannin9.8 ± 1.00.7 ± ± 0.02
Table 5. MCC test results of mixtures with kraft cellulose fibres and Tanfloc SG 2.5% + 0.45% A-PAM.
Table 5. MCC test results of mixtures with kraft cellulose fibres and Tanfloc SG 2.5% + 0.45% A-PAM.
Sample PHRR (W/g)TPHRR (°C)THR (J/g)Char Yield (wt-%)
Bleached SW kraft pulpTest 1
Test 2
Bleached SW kraft pulp + retention aid system Tanfloc SG + A-PAMTest 1
Test 2
+N-modified SW kraft ligninTest 1
Test 2
+N-modified SW CatLigninTest 1
Test 2
+N-modified HW kraft ligninTest 1
Test 2
+N-modified spruce tanninTest 1
Test 2
Table 6. Formulation in Lignobond precipitation.
Table 6. Formulation in Lignobond precipitation.
Dry Weight or Volume% of Pulp Amount
Bleached SW kraft pulp1.95 g100
N-modified biopolyphenol0.40 g20
0.5 M NaOH5 mL
Tanfloc SG50 mg2.5
A-PAM9 mg0.45
