Acid-Catalyzed Liquefaction of Biomasses from Poplar Clones for Short Rotation Coppice Cultivations

CERENA-Centre for Natural Resources and the Environment, Instituto Superior Técnico, Av. Rovisco Pais, 1049-001 Lisboa, Portugal
INIAV—Instituto Nacional de Investigação Agrária e Veterinária, I.P., Ministry of Agriculture, 2780-159 Oeiras, Portugal
IDMEC—Instituto de Engenharia Mecânica, Instituto Superior Técnico, Av. Rovisco Pais, 1049-001 Lisboa, Portugal
WOODCHEM SA., Estrada das Moitas Altas, 2401-902 Leiria, Portugal
Author to whom correspondence should be addressed.
Molecules 2022, 27(1), 304;
Submission received: 22 November 2021 / Revised: 26 December 2021 / Accepted: 2 January 2022 / Published: 4 January 2022


Liquefaction of biomass delivers a liquid bio-oil with relevant chemical and energetic applications. In this study we coupled it with short rotation coppice (SRC) intensively managed poplar cultivations aimed at biomass production while safeguarding environmental principles of soil quality and biodiversity. We carried out acid-catalyzed liquefaction, at 160 °C and atmospheric pressure, with eight poplar clones from SRC cultivations. The bio-oil yields were high, ranging between 70.7 and 81.5%. Average gains of bio-oil, by comparison of raw biomasses, in elementary carbon and hydrogen and high heating, were 25.6, 67, and 74%, respectively. Loss of oxygen and O/C ratios averaged 38 and 51%, respectively. Amounts of elementary carbon, oxygen, and hydrogen in bio-oil were 65, 26, and 8.7%, and HHV averaged 30.5 MJkg−1. Correlation analysis showed the interrelation between elementary carbon with HHV in bio-oil or with oxygen loss. Overall, from 55 correlations, 21 significant and high correlations among a set of 11 variables were found. Among the most relevant ones, the percentage of elementary carbon presented five significant correlations with the percentage of O (−0.980), percentage of C gain (0.902), percentage of O loss (0.973), HHV gain (0.917), and O/C loss (0.943). The amount of carbon is directly correlated with the amount of oxygen, conversely, the decrease in oxygen content increases the elementary carbon and hydrogen concentration, which leads to an improvement in HHV. HHV gain showed a strong positive dependence on the percentage of C (0.917) and percentage of C gain (0.943), while the elementary oxygen (−0.885) and its percentage of O loss (0.978) adversely affect the HHV gain. Consequently, the O/C loss (0.970) increases the HHV positively. van Krevelen’s analysis indicated that bio-oils are chemically compatible with liquid fossil fuels. FTIR-ATR evidenced the presence of derivatives of depolymerization of lignin and cellulose in raw biomasses in bio-oil. TGA/DTG confirmed the bio-oil burning aptitude by the high average 53% mass loss of volatiles associated with lowered peaking decomposition temperatures by 100 °C than raw biomasses. Overall, this research shows the potential of bio-oil from liquefaction of SRC biomasses for the contribution of renewable energy and chemical deliverables, and thereby, to a greener global economy.

1. Introduction

As society and scientific knowledge develop, it becomes increasingly important to reduce the dependency on petrochemicals due to their dwindling reserves and their negative impact on the environment inflicted by their exploration. The European Union (EU) has set a goal to increase the budget for R&D into eco-innovations due to the importance that the European Commission has identified in this field [1], with a 294.5 billion € investment in 2020, corresponding to about 2.18% of GDP [2]. With this, the EU wants to take a leading role in the development of policies that aim to propel industries and practices into a more sustainable and environmentally friendly future.
Lignocellulosic biomasses are a renewable, continuous, and sustainable feedstock delivering liquid, gaseous, and solid materials useful for several industries [3,4]. Some significant hurdles prevail in their competitiveness by comparison with petrochemical sources. The costs of harvesting, manufacturing lines, the environmental management, the logistics of transport of light lignocellulosic materials, and their conversion wastes are examples of their drawbacks which tend to be surpassed as the need to accelerate a transition to green and circular economy gains relevance. Challenges are also posed [5] in the domain of socio–cultural–economic impacts of tree harvesting, deforestation, and the destruction of century-old forests. Given the complexity of these issues, each country identifies (within its sphere of direct influence) the most attractive lignocellulosic materials and waste streams to employ as feedstock for valorization [6].
Alternative forms of forest and land management are thus required to control the risks of excessive deforestation and the uncontrolled use of lignocellulosic materials. Short rotation coppicing comes as a possibility for biomass production while safeguarding ecosystem biodiversity and soil quality. These coppices are carbon neutral and intensively managed industrial crops, with productive cycles between two to five years, a plant density between 1200 to 10,000 per hectare, and six to seven productive cycles. The lands are subjected to fallow/rotation after that. In Europe, poplar is the predominant SRC species due to its high biomass productivity (ranging between 12 and 20 Mgha−1y−1 or higher) and its great potential for genetic improvement [7,8,9,10,11].
Poplar (Populus sp.) is common in SRC cultivations, with well-known fuel aptitudes [12,13] that can be hybridized to improve the bark/wood ratio, resistance to diseases, or calorific power. Besides ash and water, poplar wood contains major extractive organic compounds (ranging between 1.5 and 3%) and biopolymers, such as lignin, cellulose, and hemicellulose (ranging between 17 and 23%, 43 to 46%, and 29 to 36%, respectively) [14].
Recently published work on thermochemical conversion of poplar clones from SRCs includes studies on torrefaction [15,16], pyrolysis [17,18,19,20], and hydrothermal liquefaction [21], and solvent liquefaction [6,22,23,24,25].
Our research work focused on converting eight SRC poplar clones through acid-catalyzed liquefaction, allowing the conversion of biomass thermochemically through mild temperatures at ambient pressure [26]. A bio-oil with a high heating value greater than 40 MJkg−1 was previously obtained through this process [27].
Thermochemical liquefaction of different biomass feedstocks has been studied, including spruce [28], pinewood [22,29,30], eucalyptus [31,32,33], potato peels [34], cork powder [35], spent coffee beans [36], beech [37], or wheat straw [28,38,39]. The results from such studies demonstrated that different biomasses, with distinct chemical compositions and structures, can be used for the acid-catalyzed liquefaction to produce bio-oils in high yields. The previous studies demonstrated, the produced liquid bio-oil can be further used as an environmentally friendly raw material for the chemical industry or fuels [18,26,40,41,42,43,44,45,46].
The acid-catalyzed liquefaction is a thermochemical process that converts the main biopolymers (cellulose, hemicelluloses, and lignin) into low molecular weight compounds, a bio-oil. The properties of the obtained bio-oil are close to those of petroleum except for the oxygen content. For instance, from the soybean’s liquefaction, a bio-oil with a higher heating value of 44.22 MJkg−1 and a H/C molar ratio of 1.9 was obtained [27].
For this work, we chose eight samples of different SRC poplar genotypes as the feedstock for the acid-catalyzed liquefaction process based on our experience with this species. Poplar proliferates preferably in milder climates, such as those found in southern Europe, even though some plantations produce satisfactory yields in northern Europe as well [47]. Given the potential of SRC for biomass production, under environmental sustainability, the proposed objectives target enlarging the scope of thermochemical conversion for added-value products, e.g., chemicals and fuels. The acid-catalyzed liquefaction was applied to an array of commercial poplar clones, to study their potential to produce bio-oil in high yield. We characterized the bio-oils and solid residues to assess their use as biofuels and chemicals. To the best of our knowledge, the comparison between liquified biomasses from different poplar clones was never disclosed. Within this context, our work supports further development on thermochemical conversion technologies to value this type of biomass feedstock.

2. Materials and Methods

We employed eight different poplar genotypes as biomass feedstocks. Their genotype, origin, parentage, and hemicellulose, cellulose, and lignin content are shown in Table 1. The selected genotypes were AF8, Bakan (Bak), Brandaris (Bra), Ellert (Ell), Grimminge (Gri), Hees (Hee), Skado (Ska), and Wolterson (Wol). The biomass samples were not pre-treated, except from shredding on a Retsch© SM 2000 mill equipped with a 4 mm sieve to decrease the grain size and thus increase the surface area. We purchased the solvent 2-Ethylhexanol and the catalyst 97% p-Toluenesulfonic acid (PTSA) from Sigma–Aldrich. Technical acetone for washing purposes was acquired locally.

2.1. Liquefaction Procedure

The liquefaction, an acid-catalyzed process, was performed at 160 °C, at ambient pressure, for the predetermined reaction time. The biomass samples and the solvent were fed into the LENZ Glass Reactor, in a solvent:biomass ratio of 5:1. 2-Ethylhexanol (2-EH) was used as a solvent and the weight of biomass was based on its dry state.
The mass of catalyst, PTSA, was set at 3% (w/w) of the mass of solvent and biomass samples. After 90 min at 160 °C, the process was quenched to 80 °C. Afterward, the bio-oil crude was filtered to retrieve the solid residues.
Upon process completion, the reactor cooled to room temperature to be further vacuum filtrated. The solid residues were washed with acetone and dried in the oven at 110 ± 3 °C for 24 h. The excess solvent of the bio-oil samples was removed under a vacuum. The process conversion, bio-oil yield, was calculated as per the weight of the solid fraction obtained after filtration, according to Equation (1):
Bio-oil yield (%) = (1 − ms0/msi) × 100,
where msi is the mass of dry biomass fed to the reactor, in grams, and ms0 is the mass of solid residues obtained at the end of the process, in grams.

2.2. Fourier Transformed Infrared (FTIR-ATR) Analysis of Biomass and Bio-Oil

The FTIR-ATR analysis was performed on a Spectrum Two–Perkin Elmer spectrometer. The spectra were captured from 4000 to 600 cm−1 and treated in Perkin Elmer–Spectrum IR software.

2.3. Elemental Analysis

The carbon (C), hydrogen (H), and nitrogen (N) content in biomass, solid residues, and bio-oil were assessed by a LECO TruSpec CHN analyzer, whilst a LECO CNS2000 analyzer determined sulfur (S) content.

2.4. Higher Heating Value (HHV) Calculation

Commonly, biomass and its derivatives, i.e., bio-oil and residues, contain up to 97–99% of C, H, O. Additional elements, such as sulfur and nitrogen, are present in negligible amounts, below the detection limit, and thus difficult to measure or quantify [22,49]. We assessed the oxygen content according to Equation (2):
O (%) = 100 − C (%) − H (%),
According to Rodrigues et al. [15], the elemental analysis of poplar clones vary from 51.5–52.2%, 5.2–5.4%, 42.0–43.3%, and 0.4–0.7% for C, H, O, and N, respectively. The elemental composition of poplar clones in SRC in the Czech Republic was similar to such values [13].
The higher heat value (HHV) of the biomass and solid residues was assessed using the method disclosed by Yin et al. [50] using Equation (3). The HHV of bio-oils was evaluated by Equation (4), which is specifically established for bio-oils [51].
HHV (MJ/kg) = 0.2949C + 0.8250H,
HHV (MJ/kg) = 0.363302C + 1.087033H − 0.1009920,

2.5. Energy Densification Ratio (EDR) Calculation

The energy densification ratio (EDR), a dimensionless indicator, informs on how the HHV was improved thanks to the liquefaction process [52]. We used Equation (5) to calculate the EDR values:
EDR = HHVbio-oil/HHVbiomass,
where HHVbio-oil and HHVbiomass are the higher heating values of bio-oil and biomass samples, respectively.

2.6. Van Krevelen Diagram

The van Krevelen diagrams are useful to spot variations between different types of kerogen and fuels. This diagram cross-plots the hydrogen and carbon atomic ratio (10H/C) as a function of the oxygen to carbon atomic ratios of carbonaceous compounds. The van Krevelen diagram is suitable for identifying and revealing compositional differences between organic products [45]. Using the data obtained via elemental analysis, we plotted the chemical compositions of biomass, bio-oil, and solid residues in the van Krevelen diagram.

2.7. Thermogravimetric Analysis (TGA)

The thermogravimetric analysis of raw biomass, bio-oils, and solid residues was performed using the Hitachi-STA7200. The evaluation was accomplished between 25 and 600 °C in a nitrogen atmosphere, with a 100 mL/min flow and a heating rate of 5 °C/min.

2.8. Pearson’s Correlations

The ultimate analysis and HHV data were used to access correlations between 11 variables using SPSS Statistics software. The analysis was performed to find a correlation pattern within the bio-oil variables and quantify the interactions between them. The C, H, and O content of the bio-oils were correlated with the gain of C, H, H/C, O/C, HHV, and with the loss of O, ash, and moisture content. The number of correlations was assessed according to Equation (6):
N Pearson’s r = (n2 − n)/2,
where N is the number of correlations and n is the number of variables.

3. Results and Discussion

Poplars are increasingly used for biofuel production due to their high growth and biomass productivity. They have a significant holocellulose (ranging between 47 and 52% for cellulose and 19 and 24% for hemicelluloses) and a moderate lignin content (ranging between 26 and 30%). This work presents the liquefaction results of eight different poplar genotypes. The experimental conditions, such as solvent and catalyst, were previously optimized in studies for other biomasses [29,32,33], as well as for poplar [26]. In particular, the system 2-ethylhexanol/PTSA has been shown to allow the production of bio-oils in high yields [22,53].
For comparison, results from Rodrigues et al. [15] regarding poplar genotypes’ torrefaction were used. The liquefaction assays were conducted in duplicate at 160 °C for 90 min, using 3 wt. % PTSA as the catalyst and 1:5 biomass:solvent ratio. At first glance, bio-oil yields higher than 70% indicated the SRC poplar clones’ aptitude for liquefaction. The bio-oil yields are shown in Figure 1. Overall, the process led to a bio-oil yield ranging from 70.7 to 81.5%. The highest bio-oil yields of around 81% were obtained for the AF8 and Skado genotypes, while the lowest conversion was achieved with the Brandaris sample. Overall, the conversions are in accordance with the literature concerning similar thermochemical conversion under the same experimental conditions [29,54]. In comparison, the microwave-assisted pyrolysis of poplar, where the bio-oil achieved a maximum of 30.8%, and the conducted liquefaction process led to higher yields [17].
It should be noted that the solid residue fraction can be given by the difference for the complete conversion once the gaseous streams are reduced and can be neglected [29,30]. The solids contain unreacted biomass as well as any decomposition products. In fact, during the liquefaction, solid residues can be produced from the decomposition of lignocellulosic biomass, and are commonly referred to as humins [29,30,33]. Such occurrence is well-explained and is associated with the recondensation of decomposition products of reactions [55,56,57].
The chemical characterization of biomass and its bio-oil counterparts, as well as the solid residues and torrefied samples, is shown in Table 2. It encompasses the ultimate analysis, moisture, and ash content, calculated HHV, H/C, and O/C ratios. Table 3 presents the values of % C gain, % H gain, % O gain, % ash loss, % moisture loss, H/C gain, and O/C loss of the bio-oils from biomass liquefaction, compared to the untreated biomass samples.
The bio-oil elemental analysis is in accordance with those obtained for other biomasses, e.g., pinewood, eucalyptus, and tomato pomace [22,30,32,58]. The results from the chemical analysis of bio-oil proved that the sets of liquefied biomasses were very distinct from the chemical composition of the raw biomasses and the solid residue. The carbon content (%, dry basis) was higher for the bio-oil, ranging from 64.4% (AF8 and Brandaris) to 66.1% (Ellert). On the other hand, the elementary carbon content of the residues averaged 50.19%, presenting values between 48.6% (Hees) and 52.3% (AF8). While the solid residues showed a slightly lower elementary carbon content than the feedstock, the% carbon gain for the bio-oils was, on average, ~25%. An advantage of bio-oil is that its ash content is much lower than that of the torrefied biomass. The liquefaction delivered bio-oils with a very similar average carbon content (~67%) to that from the torrefied biomass (see Figure 2) [15].
Regarding hydrogen content (%, dry basis), the bio-oils, averaging ~8.7%, presented values ranging from 8.4% (AF8 and Skado) to 8.9% (Bakan, Grimminge, Wolterson) (Table 1). Such values demonstrated an average 65% gain in the hydrogen content by comparison with the raw biomass. The solid residues presented a hydrogen content like that from the raw biomass. Additionally, the hydrogen content was up to 75% higher than the torrefied biomass, wherein losses of hydrogen and H/C ratios were detected [15].
As expected, the oxygen content (%, dry basis) was considerably lower for the bio-oils and torrefied biomass compared to their biomass counterparts, with values averaging ~26%, ~28%, and ~42%, respectively (see Figure 2). The highest oxygen content was obtained for the genotype AF8 genotype samples (27.2%) and the lowest for genotype Ellert (25.1%). The correspondent oxygen amount of the solid residues were in line with those of the raw biomasses. The average % O loss (~38%) was concomitant with increases in C and H contents of around 25.61% and 65.17% (Table 2). The loss of oxygen occurs through water elimination, which is retrieved by distillation during the process [29]. Consequently, the H/C and O/C ratios showed significant gains of around 32 and 51% (Table 2). The ash and moisture content ranged from 0.1 to 0.4% and 0.96 to 1.49%, respectively, for the obtained bio-oils. A significant decrease in ash and moisture content compared with the raw poplar genotypes was obtained upon biomass liquefaction (see Figure 2).
The average ratios O/C and 10H/C of bio-oils from biomass poplar clones were 0.40 and 1.34, respectively (Table 1). The variations of these ranges between clones were small, with the O/C ratio ranging between 0.38 and 0.42 and the 10H/C ratio ranging between 1.31 and 1.38. The O/C of bio-oils was lower than that of raw poplar biomass samples and like the O/C values of torrefied poplar clones. On the other hand, the H/C increased considerably due to the rise in hydrogen in bio-oil samples.
These variations explain the improvement in the calculated HHV since lower oxygen content and O/C ratios lead to higher HHV. On average, the bio-oils presented an HHV of 30.49 MJ/kg. AF8 presented the lowest value (29.85 MJ/kg), while Wolterson presented the highest (30.84 MJ/kg). The HHV of the biomass was on average 17.51 MJ/kg, and that of torrefied biomass was 24.5 MJ/kg, demonstrating that the HHV was remarkably improved with the liquefaction. The presence of residual solvent can also potentiate, although not to the fullest extent, the observed increase on the HHV. However, the solvent was removed, and work from Condeço et al., 2021, showed that liquefaction processes with low conversion led to lower HHV oil, indicating that increases in HHV result from the conversion of the lignocellulosic materials into bio-oil [59]. The values of Ma et al. [27], although higher (>40 MJkg−1) than those obtained in this work, were indicative of the potential of this solvolytic liquefaction for delivering bio-oil with high heating power.
The HHV gain of bio-oil by comparison with raw biomass averaged 74%. Compared with torrefied biomass [15], wherein the increase in HHV was ~40%, bio-oil still presented a high energy densification ratio (74%). Figure 2 highlights the significant increase in the % elemental carbon and the decrease in the % O content, which increases the HHV of the biomass when compared to the raw and torrefied biomass.
The energy densification ratio (EDR) was employed to calculate the effectiveness of the process. The increase in the EDR results from solid mass decrease due to dehydration and decarboxylation reactions [52]. The average bio-oil EDR of 1.74 showed that the liquefaction of poplar biomass led to higher energy densification. On the other hand, the solid residues led to a slight loss in the heating values, which accounted for an EDR of 0.97. The lower average EDR of 1.39 for torrefied biomass reflected the aptitude of liquefaction for delivering a bio-oil product with high calorific potential.
The van Krevelen diagram identified the fuel quality changed with the chemical composition variation. Usually, biomasses with lower O/C and H/C ratios are considered good fuel aptitudes due to lower water vapor, minimum energy loss, and less smoke upon combustion [60].
Overall, the van Krevelen diagram (Figure 3) showed that the bio-oil locations were close to those of liquid fossil fuels (such as diesel or gasoline), demonstrating that liquefaction leads to liquid products similar to fossil fuels. By comparison, torrefaction leads to products similar and compatible with fossil coals/peat. On the other hand, the solid residues were closer to the highly oxidized compounds. In comparison with biomass, the atomic ratios of O/C and H/C of solid residues increased, while for bio-oil, the H/C increased, and O/C decreased. This suggests that bio-oil is a better fuel than raw biomass itself. The decrease in O/C atomic ratios leads to an increase in the high energy bonds (C-C) and a reduction in low energy bonds (O-C) leading to an HHV improvement. González-Arias et al. postulated that such change might be explained by the occurrence of dehydration reactions that leads to hydroxyl groups loss and by the decarboxylation reactions that eliminate the carboxyl and carbonyl groups [52].
The distribution of Pearson correlations among chemical variables and calorific power of bio-oils and raw biomass samples reflected the above-described tendencies (Table 4). From 55 correlations, 21 significant and high correlations (r > 0.7) among a set of 11 variables were found. Among the most relevant, the % elementary carbon presented five significant correlations with % O (−0.980), % C gain (0.902), % O loss (0.973), HHV gain (0.917), and O/C loss (0.943). As expected, the amount of carbon was directly correlated with the amount of oxygen. The decrease in oxygen content increased the elementary carbon and hydrogen concentration, which led to an improvement in HHV. The HHV gain showed a strong positive dependence with the % C (0.917) and % C gain (0.943). Conversely, the elementary oxygen (−0.885) and its % O loss (0.978) adversely affected the HHV gain. Consequently, the O/C loss (0.970) increased the HHV positively.
Figure 4 and Table 5 show the ATR-FTIR spectra and data of raw biomass (Figure 4a), bio-oil (Figure 4b), and solid residues (Figure 4c) for the eight poplar genotypes. No significant differences in the profiles of functional groups were detected among samples of poplar genotypes within each profile. The major spectral differences concerned the absorption intensity in the range between 2800 and 3000 cm−1 assigned to C–H stretching vibrations. In this range, the bio-oils had a higher absorption than biomass and solid residues. In the range 1370 and 1730 cm−1, solid residues have visibly lower absorption than bio-oils or biomass. In the range 1100–1200 cm−1 we saw lower absorption in bio-oils in comparison with biomass and solid residue samples. Overall, the spectra of all samples displayed a broad band around 3500 cm−1, a characteristic band resulting from OH stretching vibration.
The absorption differences between 2800 and 3000 cm−1, assigned to C–H stretching vibrations, point out the presence of derivatives of holocellulose and lignin in bio-oil. In the range from 1370 to 1730 cm−1, biomass spectra showed the peaks at 1604 and 1514 cm−1, generally attributed to the presence of lignin. These same peaks were identified on the bio-oil spectra at 1611 and 1519 cm−1, respectively, and were practically non-existent in the spectra of solid residues. These peaks in bio-oil spectra revealed that lignin was depolymerized, hence its derivatives were present. Moreover, the peaks related to syringyl and guaicyl units at 1378 and 1246 cm−1, respectively, were identified within the bio-oil samples. On the other hand, the peaks related to hemicellulose and cellulose associated with the stretching and vibrations of functional groups (see Table 5) were identified in the biomass as well as the bio-oil samples (peaks at 1465, 1174, 1108, 1031 cm−1). The differences in absorption in the range from 1100 to 1200 cm−1 reflected the inherent chemical differences between the profile of bio-oil and the other two. Additionally, at 1723 cm−1, a peak was shown due to the vibrational states of carbonyl functional groups present in aldehydes, ketones, acids, or esters, which resulted from the conversion of cellulose or hemicellulose into levulinic acid, furfural, and related compounds [61]. On the other hand, in the biomass, the correspondent peak profiled in the biomass sample spectra (1720 cm−1) is associated with hemicellulose and lignin [59]. The peak at 1646 cm−1, assigned to the OH bending of water, confirmed the presence of water in the biomass samples. Regarding the solid residues’ spectra, peaks related to lignin were identified at 1612, 1514, 1365, and 1263 cm−1, and those concerning holocellulose appeared at 1462, 1197, 1101, and 1029 cm−1 (Table 5). These peaks indicated the presence of unreacted biomass in solid residues.
The TGA/DTG curves and mass losses of biomass, bio-oils, and solid residues between 0 and 600 °C, are shown in Figure 5 and Table 6. Regarding raw biomass, TGA analysis evidenced four stages of decomposition. During the first stage, at temperatures ranged between 25 °C and 120 °C, a mass loss averaging 7% occurred, concerning volatile components and free water content. The second (120–300 °C) and third stages (300–400 °C) averaged weight losses of 19 and 47%, respectively. The biomass’s biopolymolecular structure suffered restructuration at this point, releasing smaller compounds (e.g., H2O, CO, CO2, etc.). The cellulose and hemicellulose, alongside lignin, decomposed to form volatiles and low molecular weight compounds during these two stages. While the decomposition of holocellulose led mainly to volatiles; lignin produces primarily carbon. Cellulose, xylan, and lignin contained about 91, 77, and 66% of volatile matter, respectively. The fourth stage, beginning at 400 °C, involved a slower decomposition and significantly lower mass loss of 7% (similar to the first stage) and was associated with the volatilization of carbon via C–C and C–H bonds cleavage [71].
The TGA curves analysis showed that bio-oils from poplar liquefaction were more volatile than the fresh raw material, thus requiring lower peaking temperatures to vaporize and decompose. The maximum temperatures of TGA decomposition were about 325 °C and 225 °C for raw biomasses and bio-oil, respectively. The TGA curves also revealed that the bio-oils decomposed in a three-stage pattern, between about 50 °C and 600 °C (Table 6). The onset temperature of thermal decomposition of bio-oils was about 50 °C. The bio-oil samples presented the first weight loss, ca. 16%, up to 185 °C, due to volatilization of moisture and low molecular weight compounds. From 180–300 °C, the second stage exhibited an average mass loss of ~37%, corresponding to the bio-oil’s heavier components that require low temperatures to decompose or volatilize. Seehar et al. hypothesized that the mass loss at these temperatures might denote the presence of chemical structures analogs to those from gasoline, diesel, and jet fuel [72]. The third stage (300–600 °C) showed an average mass loss of 17%, which can be attributed to residual char formation from the sample’s slow degradation.
Generally, the thermogravimetric curves of bio-oil samples showed an average mass loss of up to 70%. The mass loss as volatiles up to 300 °C, summing up ca. 53%, can denote some gasoline, jet fuel, and diesel segments [72]. Such decomposition profile supports their potential use in combustion applications [73]. The DTG curves showed that the bio-oil dropped weight at lower temperatures, confirming the presence of a lighter product than their biomass counterparts. Most of the mass loss was verified below 230 °C.
The TGA curves of the solid residues showed four decomposition stages. Within the first stage (temperatures up to 115 °C) they showed a low average mass loss of 3%, related to the loss of moisture and other light compounds. The second (125–260 °C) and third (260–525 °C) stage of thermal decomposition of solid residues corresponded to average mass losses of 30 and 26%, respectively. Such stages displayed peaking temperatures of 325 °C and 250 °C, typical of cellulose and hemicellulose, respectively, suggesting that the biomass liquefaction was incomplete [59]. In the fourth stage, corresponding to temperatures higher than 525 °C, a slight mass loss of 6% was attributed to heavy compounds resulting from the condensation of liquefaction products that led to insoluble solids. It is worth noting that, on DTG curves, a slight mass loss above 350 ºC, <2%mass/min, led to the peak of the 4th stage. This suggests the presence of heavy compounds by comparison with the DTG of biomass and bio-oils.

4. Conclusions

This study evaluated the aptitude of bio-oils obtained via acid-catalyzed liquefaction of poplar woody biomasses from eight clones from short rotation crops. The laboratory assays were performed under mild conditions of 160 °C and ambient pressure, and the resulting bio-oil yield ranged between 70.7 and 81.5%, within the scope of cited literature. Loss of oxygen and O/C ratios averaged 38 and 51%, respectively. Elementary amounts of carbon, oxygen, and hydrogen in bio-oil were 65, 26, and 8.7%, respectively, and HHV averaged a value of 30.5 MJkg−1. Correlation analysis showed the interconnectedness between, e.g., elementary carbon with HHV in bio-oil or with oxygen loss. The van Krevelen diagram proved that bio-oils are more chemically compatible with liquid fossil fuels, such as diesel or gasoline than the initial biomass. FTIR analysis evidenced the drastic chemical conversion of raw woody biomass through the presence of derivatives of depolymerization of lignin and holocellulose in bio-oil. Results of TGA/DTG in a nitrogen atmosphere confirmed the burning aptitude of bio-oil by the high mass losses of volatiles of 53% and by peaking decomposition temperatures lowered by 100 °C than those of raw biomasses. Overall, the TGA analysis showed that bio-oils from poplar liquefaction were more volatile than the fresh feedstock, thus requiring lower peaking temperatures to vaporize and decompose. Additionally, in comparison with biomass, the bio-oil atomic ratios of H/C increased, and O/C decreased. This reflects the fact that bio-oil is a better fuel than raw biomass. Liquefaction results from this research confirmed the potential of biomasses from SRC cultivations to produce energy and chemicals.

Author Contributions

Conceptualization, R.G.d.S. and A.R.; methodology, R.G.d.S. and A.R.; formal analysis, R.G.d.S., A.R., I.P., D.G., L.S. and S.V.; investigation, R.G.d.S., L.C. and S.M.; resources, R.G.d.S., J.C.B., and A.R.; writing—original draft preparation, R.G.d.S., J.C.B., A.R. and A.R.G.; writing—review and editing, R.G.d.S., A.R. and S.O.; supervision, R.G.d.S.; project administration, R.G.d.S.; funding acquisition, R.G.d.S. and J.C.B. All authors have read and agreed to the published version of the manuscript.


The authors gratefully acknowledge the funding of the FCT project Clean Forest (PCIF/GVB/0167/2018) to develop this work.

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Data Availability Statement

Not applicable.


This study was also supported by FCT, through CERENA strategic project (FCT-UIDB/04028/2020) and IDMEC, under LAETA, project FCT-UIDB/50022/2020, which supported the infrastructures. The authors also thank Reinhart Ceulemans from the University of Antwerp for providing biomass from Bakan, Brandaris, Ellert, Grimminge, Hees, and Skado clones, and ACHAR for providing biomass from AF2 and AF8 clones.

Conflicts of Interest

The authors declare no conflict of interest.

Sample Availability

Samples of the compounds are not available from the authors.


  1. Timmermans, F.; Katainen, J. Reflection Paper: Towards a Sustainable Europe by 2030; European Commission: Brussels, Belgium, 2019. [Google Scholar]
  2. Office of the European Commission, P. R&D and Eco-Innovation Fact Sheet; European Commission: Brussels, Belgium, 2020. [Google Scholar]
  3. Silvestre, W.P.; Pauletti, G.F.; Godinho, M.; Baldasso, C. Fodder radish seed cake pyrolysis for bio-oil production in a rotary kiln reactor. Chem. Eng. Process. Process Intensif. 2018, 124, 235–244. [Google Scholar] [CrossRef]
  4. Konwar, L.J.; Mikkola, J.P.; Bordoloi, N.; Saikia, R.; Chutia, R.S.; Kataki, R. Sidestreams from bioenergy and biorefinery complexes as a resource for circular bioeconomy. In Waste Biorefinery: Potential and Perspectives; Elsevier B.V: Amsterdam, The Netherlands, 2018; pp. 85–125. ISBN 9780444639929. [Google Scholar]
  5. Searle, S. Sustainability Challenges of Lignocellulosic Bioenergy Crops; International Council on Clean Transportation (ICCT): Washington, DC, USA, 2018. [Google Scholar]
  6. Song, C.; Zhang, C.; Zhang, S.; Lin, H.; Kim, Y.; Ramakrishnan, M.; Du, Y.; Zhang, Y.; Zheng, H.; Barceló, D. Thermochemical liquefaction of agricultural and forestry wastes into biofuels and chemicals from circular economy perspectives. Sci. Total Environ. 2020, 749, 141972. [Google Scholar] [CrossRef] [PubMed]
  7. Vanbeveren, S.P.P.; Ceulemans, R. Biodiversity in short-rotation coppice. Renew. Sustain. Energy Rev. 2019, 111, 34–43. [Google Scholar] [CrossRef]
  8. Research, F. Resources Short Rotation Coppice. Available online: (accessed on 13 September 2021).
  9. Rodrigues, A.; Vanbeveren, S.P.P.; Costa, M.; Ceulemans, R. Relationship between soil chemical composition and potential fuel quality of biomass from poplar short rotation coppices in Portugal and Belgium. Biomass Bioenergy 2017, 105, 66–72. [Google Scholar] [CrossRef]
  10. Rodrigues, A.M.; Costa, M.M.G.; Nunes, L.J.R. Short rotation woody coppices for biomass production: An integrated analysis of the potential as an energy alternative. Curr. Sustain. Energy Rep. 2021, 8, 70–89. [Google Scholar] [CrossRef]
  11. Sixto, H.; Hernandez, M.J.; Barrio, M.; Carrasco, J.; Cañellas, I. Populus genus for the biomass production for energy use: A review. Investig. Agrar. Sist. Recur. For. 2007, 16, 277. [Google Scholar] [CrossRef] [Green Version]
  12. Robbins, M.P.; Evans, G.; Valentine, J.; Donnison, I.S.; Allison, G.G. New opportunities for the exploitation of energy crops by thermochemical conversion in northern Europe and the UK. Prog. Energy Combust. Sci. 2012, 38, 138–155. [Google Scholar] [CrossRef]
  13. Štochlová, P.; Novotná, K.; Costa, M.; Rodrigues, A. Biomass production of poplar short rotation coppice over five and six rotations and its aptitude as a fuel. Biomass Bioenergy 2019, 122, 183–192. [Google Scholar] [CrossRef]
  14. Sjöström, E.; Alen, R.; Timell, T.E. Analytical Methods in Wood Chemistry, Pulping and Papermaking, Springer Series in Wood Science; Springer: Berlin/Heidelberg, Germany, 1999. [Google Scholar]
  15. Rodrigues, A.; Loureiro, L.; Nunes, L.J.R. Torrefaction of woody biomasses from poplar SRC and Portuguese roundwood: Properties of torrefied products. Biomass Bioenergy 2018, 108, 55–65. [Google Scholar] [CrossRef]
  16. Álvarez, A.; Migoya, S.; Menéndez, R.; Gutiérrez, G.; Pizarro, C.; Bueno, J.L. Torrefaction of Short Rotation Coppice Willow. Characterization, hydrophobicity assessment and kinetics of the process. Fuel 2021, 295, 2021. [Google Scholar] [CrossRef]
  17. Bartoli, M.; Rosi, L.; Giovannelli, A.; Frediani, P.; Frediani, M. Bio-oil from residues of short rotation coppice of poplar using a microwave assisted pyrolysis. J. Anal. Appl. Pyrolysis 2016, 119, 224–232. [Google Scholar] [CrossRef]
  18. Yogalakshmi, K.N.; Sivashanmugam, T.P.D.P.; Kavitha, S.; Kannah, R.Y.; Varjani, S.; AdishKumar, S.; Kumar, G.; Banu, J.R. Lignocellulosic biomass-based pyrolysis: A comprehensive review. Chemosphere 2022, 286. [Google Scholar]
  19. Soares Dias, A.P.; Rego, F.; Fonseca, F.; Casquilho, M.; Rosa, F.; Rodrigues, A. Catalyzed pyrolysis of SRC poplar biomass. Alkaline carbonates and zeolites catalysts. Energy 2019, 183, 1114–1122. [Google Scholar] [CrossRef]
  20. Rego, F.; Soares Dias, A.P.; Casquilho, M.; Rosa, F.C.; Rodrigues, A. Pyrolysis kinetics of short rotation coppice poplar biomass. Energy 2020, 207, 2020. [Google Scholar] [CrossRef]
  21. Wu, X.F.; Zhou, Q.; Li, M.F.; Li, S.X.; Bian, J.; Peng, F. Conversion of poplar into bio-oil via subcritical hydrothermal liquefaction: Structure and antioxidant capacity. Bioresour. Technol. 2018, 270, 216–222. [Google Scholar] [CrossRef]
  22. Amado, M.; Bastos, D.; Gaspar, D.; Matos, S.; Vieira, S.; Bordado, J.M.; Galhano dos Santos, R. Thermochemical liquefaction of pinewood shaves—Evaluating the performance of cleaner and sustainable alternative solvents. J. Clean. Prod. 2021, 304, 127088. [Google Scholar] [CrossRef]
  23. Rohde, V.; Hahn, T.; Wagner, M.; Böringer, S.; Tübke, B.; Brosse, N.; Dahmen, N.; Schmiedl, D. Potential of a short rotation coppice poplar as a feedstock for platform chemicals and lignin-based building blocks. Ind. Crops Prod. 2018, 123, 698–706. [Google Scholar] [CrossRef]
  24. Kormin, S.; Rus, A.Z.M. Preparation and Characterization of Biopolyol from Liquefied Oil Palm Fruit Waste: Part 1. Mater. Sci. Forum 2017, 882, 108–112. [Google Scholar] [CrossRef] [Green Version]
  25. Kormin, S.; Zafiah Rus, A.M.; Onn Malaysia, H.; Raja, P.; Pahat, B. Preparation and Characterization of Biopolyol From Liquefied Oil Palm Fruit Waste: Part 2; Trans Tech Publications, Ltd.: Stafa-Zurich, Switzerland.
  26. Mateus, M.M.; do Vale, M.; Rodrigues, A.; Bordado, J.C.J.C.; Galhano dos Santos, R. Is biomass liquefaction an option for the viability of poplar short rotation coppices? A preliminary experimental approach. Energy 2017, 124, 40–45. [Google Scholar] [CrossRef]
  27. Ma, L.; Wang, T.; Liu, Q.; Zhang, X.; Ma, W.; Zhang, Q. A review of thermal–chemical conversion of lignocellulosic biomass in China. Biotechnol. Adv. 2012, 30, 859–873. [Google Scholar] [CrossRef]
  28. Kunaver, M.; Jasiukaitytė, E.; Čuk, N. Ultrasonically assisted liquefaction of lignocellulosic materials. Bioresour. Technol. 2012, 103, 360–366. [Google Scholar] [CrossRef]
  29. Braz, A.; Mateus, M.M.M.M.; dos Santos, R.G.D.R.G.; Machado, R.; Bordado, J.M.J.M.; Correia, M.J.N.J.N. Modelling of pine wood sawdust thermochemical liquefaction. Biomass Bioenergy 2019, 120, 200–210. [Google Scholar] [CrossRef]
  30. Goncalves, D.; Orišková, S.; Matos, S.; Machado, H.; Vieira, S.; Bastos, D.; Gaspar, D.; Paiva, R.; Bordado, J.C.; Rodrigues, A.; et al. Thermochemical Liquefaction as a Cleaner and Efficient Route for Valuing Pinewood Residues from Forest Fires. Molecules 2021, 26, 7156. [Google Scholar] [CrossRef]
  31. Zhang, H.; Pang, H.; Shi, J.; Fu, T.; Liao, B. Investigation of liquefied wood residues based on cellulose, hemicellulose, and lignin. J. Appl. Polym. Sci. 2012, 123, 850–856. [Google Scholar] [CrossRef]
  32. Fernandes, F.; Matos, S.; Gaspar, D.; Silva, L.; Paulo, I.; Vieira, S.; Pinto, P.C.R.; Bordado, J.; dos Santos, R.G. Boosting the Higher Heating Value of Eucalyptus globulus via Thermochemical Liquefaction. Sustainability 2021, 13, 3717. [Google Scholar] [CrossRef]
  33. Mateus, M.M.M.M.; Guerreiro, D.; Ferreira, O.; Bordado, J.C.J.C.; dos Santos, R.G. Heuristic analysis of Eucalyptus globulus bark depolymerization via acid-liquefaction. Cellulose 2017, 24, 659–668. [Google Scholar] [CrossRef]
  34. Dos Santos, R.G.; Ventura, P.; Bordado, J.C.; Mateus, M.M. Valorizing potato peel waste: An overview of the latest publications. Rev. Environ. Sci. Biotechnol. 2016, 15, 585–592. [Google Scholar] [CrossRef]
  35. Soares, B.; Gama, N.; Freire, C.; Barros-Timmons, A.; Brandao, I.; Silva, R.; Neto, C.P.; Ferreira, A.; Pascoal Neto, C.; Ferreira, A. Ecopolyol Production from Industrial Cork Powder via Acid Liquefaction Using Polyhydric Alcohols. ACS Sustain. Chem. Eng. 2014, 2, 846–854. [Google Scholar] [CrossRef]
  36. Soares, B.; Gama, N.; Freire, C.S.R.; Barros-Timmons, A.; Brandão, I.; Silva, R.; Neto, C.P.; Ferreira, A. Spent coffee grounds as a renewable source for ecopolyols production. J. Chem. Technol. Biotechnol. 2015, 90, 1480–1488. [Google Scholar] [CrossRef]
  37. Daneshvar, S.; Behrooz, R.; Najafi, S.K.; Mir, G.; Sadeghi, M. Preparation of Polyurethane Adhesive from Wood Sawdust polyol: Application of Response Surface Methodology for Optimization of Catalyst and Glycerol. Biointerface Res. Appl. Chem. 2022, 12, 1870–1883. [Google Scholar] [CrossRef]
  38. Wang, H.; Chen, H.-Z. A novel method of utilizing the biomass resource: Rapid liquefaction of wheat straw and preparation of biodegradable polyurethane foam (PUF). J. Chin. Inst. Chem. Eng. 2007, 38, 95–102. [Google Scholar] [CrossRef]
  39. Liang, L.; Mao, Z.; Li, Y.; Wan, C.; Wang, T.; Zhang, L.; Zhang, L. Liquefaction of crop residues for polyol production. Bioresources 2006, 1, 248–256. [Google Scholar] [CrossRef]
  40. Patel, A.; Shah, A.R. Integrated lignocellulosic biorefinery: Gateway for production of second generation ethanol and value added products. J. Bioresour. Bioprod. 2021, 6, 108–128. [Google Scholar] [CrossRef]
  41. Dos Santos, R.G.; Carvalho, R.; Silva, E.R.; Bordado, J.C.; Cardoso, A.C.; Do Rosário Costa, M.; Mateus, M.M. Natural polymeric water-based adhesive from cork liquefaction. Ind. Crops Prod. 2016, 84, 314–319. [Google Scholar] [CrossRef]
  42. Vale, M.; Mateus, M.M.; dos Santos, R.G.; Nieto de Castro, C.; de Schrijver, A.; Bordado, J.C.; Marques, A.C. Replacement of petroleum-derived diols by sustainable biopolyols in one component polyurethane foams. J. Clean. Prod. 2019, 212, 1036–1043. [Google Scholar] [CrossRef]
  43. Mohan, D.; Pittman, C.U.; Steele, P.H. Pyrolysis of wood/biomass for bio-oil: A critical review. Energy Fuels 2006, 20, 848–889. [Google Scholar] [CrossRef]
  44. Arvindnarayan, S.; Prabhu, K.K.S.; Shobana, S.; Kumar, G.; Dharmaraja, J. Upgrading of micro algal derived bio-fuels in thermochemical liquefaction path and its perspectives: A review. Int. Biodeterior. Biodegrad. 2017, 119, 260–272. [Google Scholar] [CrossRef]
  45. dos Santos, R.G.; Bordado, J.C.; Mateus, M.M. Potential biofuels from liquefied industrial wastes—Preliminary evaluation of heats of combustion and van Krevelen correlations. J. Clean. Prod. 2016, 137, 195–199. [Google Scholar] [CrossRef]
  46. Lee, S.-H.; Teramoto, Y.; Shiraishi, N. Biodegradable polyurethane foam from liquefied waste paper and its thermal stability, biodegradability, and genotoxicity. J. Appl. Polym. Sci. 2002, 83, 1482–1489. [Google Scholar] [CrossRef]
  47. Dimitriou, I.; Rutz, D. Sustainable Short Rotation Coppice. A Handbook; y WIP Renewable Energies: Munich, Germany, 2015; ISBN 978-3-936338-36-2. [Google Scholar]
  48. Rego, F.; Soares Dias, A.P.; Casquilho, M.; Rosa, F.C.; Rodrigues, A. Fast determination of lignocellulosic composition of poplar biomass by thermogravimetry. Biomass Bioenergy 2019, 122, 375–380. [Google Scholar] [CrossRef]
  49. Sheng, C.; Azevedo, J.L.T. Estimating the higher heating value of biomass fuels from basic analysis data. Biomass Bioenergy 2005, 28, 499–507. [Google Scholar] [CrossRef]
  50. Yin, C.-Y. Prediction of higher heating values of biomass from proximate and ultimate analyses. Fuel 2011, 90, 1128–1132. [Google Scholar] [CrossRef] [Green Version]
  51. Mateus, M.M.; Bordado, J.M.; dos Santos, R.G. Estimation of higher heating value (HHV) of bio-oils from thermochemical liquefaction by linear correlation. Fuel 2021, 302, 121149. [Google Scholar] [CrossRef]
  52. González-Arias, J.; Sánchez, M.E.; Martínez, E.J.; Covalski, C.; Alonso-Simón, A.; González, R.; Cara-Jiménez, J. Hydrothermal carbonization of olive tree pruning as a sustainableway for improving biomass energy potential: Effect of reaction parameters on fuel properties. Processes 2020, 8, 1201. [Google Scholar] [CrossRef]
  53. Mateus, M.M.M.M.; Carvalho, R.; Bordado, J.C.J.C.; dos Santos, R.G. Biomass acid-catalyzed liquefaction—Catalysts performance and polyhydric alcohol influence. Data Br. 2015, 5, 736–738. [Google Scholar] [CrossRef] [Green Version]
  54. dos Santos, R.G.; Acero, N.F.; Matos, S.; Carvalho, R.; Vale, M.; Marques, A.C.; Bordado, J.C.; Mateus, M.M. One-Component Spray Polyurethane Foam from Liquefied Pinewood Polyols: Pursuing Eco-Friendly Materials. J. Polym. Environ. 2018, 26, 91–100. [Google Scholar] [CrossRef]
  55. Hassan, E.M.; Shukry, N. Polyhydric alcohol liquefaction of some lignocellulosic agricultural residues. Ind. Crops Prod. 2008, 27, 33–38. [Google Scholar] [CrossRef]
  56. Pan, H.; Zheng, Z.; Hse, C.Y. Microwave-assisted liquefaction of wood with polyhydric alcohols and its application in preparation of polyurethane (PU) foams. Eur. J. Wood Wood Prod. 2012, 70, 461–470. [Google Scholar] [CrossRef]
  57. dos Santos, R.G.; Bordado, J.C.; Mateus, M.M. Microwave-assisted Liquefaction of Cork—From an Industrial Waste to Sustainable Chemicals. Ind Eng Manag. 2015, 4, 173–177. [Google Scholar] [CrossRef] [Green Version]
  58. Vidal, M.; Bastos, D.; Silva, L.; Gaspar, D.; Paulo, I.; Matos, S.; Vieira, S.; Bordado, J.M.; dos Santos, R.G. Up-cycling tomato pomace by thermochemical liquefaction—A response surface methodology assessment. Biomass Bioenergy 2022, 156, 106324. [Google Scholar] [CrossRef]
  59. Condeço, J.A.D.; Hariharakrishnan, S.; Ofili, O.M.; Mateus, M.M.; Bordado, J.M.; Correia, M.J.N. Energetic valorisation of agricultural residues by solvent-based liquefaction. Biomass Bioenergy 2021, 147, 106003. [Google Scholar] [CrossRef]
  60. Jadhav, A.; Ahmed, I.; Baloch, A.G.; Jadhav, H.; Nizamuddin, S.; Siddiqui, M.T.H.; Baloch, H.A.; Qureshi, S.S.; Mubarak, N.M. Utilization of oil palm fronds for bio-oil and bio-char production using hydrothermal liquefaction technology. Biomass Convers. Biorefinery 2019, 1–9. [Google Scholar] [CrossRef]
  61. Grilc, M.; Likozar, B.; Levec, J. Kinetic model of homogeneous lignocellulosic biomass solvolysis in glycerol and imidazolium-based ionic liquids with subsequent heterogeneous hydrodeoxygenation over NiMo/Al2O3 catalyst. Catal. Today 2015, 256, 302–314. [Google Scholar] [CrossRef]
  62. Xu, F.; Yu, J.; Tesso, T.; Dowell, F.; Wang, D. Qualitative and quantitative analysis of lignocellulosic biomass using infrared techniques: A mini-review. Appl. Energy 2013, 104, 801–809. [Google Scholar] [CrossRef] [Green Version]
  63. Mateus, M.M.; Ventura, P.; Rego, A.; Mota, C.; Castanheira, I.; Bordado, J.M.; dos Santos, R.G. Acid liquefaction of potato (Solanum tuberosum) and sweet potato (Ipomoea batatas) cultivars peels—Pre-screening of antioxidant activity/total phenolic and sugar contents. BioResources 2017, 12, 1463–1478. [Google Scholar] [CrossRef] [Green Version]
  64. Traoré, M.; Kaal, J.; Martínez Cortizas, A. Differentiation between pine woods according to species and growing location using FTIR-ATR. Wood Sci. Technol. 2017, 52, 487–504. [Google Scholar] [CrossRef] [Green Version]
  65. Zohdi, V.; Whelan, D.R.; Wood, B.R.; Pearson, J.T.; Bambery, K.R.; Black, M.J. Importance of Tissue Preparation Methods in FTIR Micro-Spectroscopical Analysis of Biological Tissues: ‘Traps for New Users’. PLoS ONE 2015, 10, e0116491. [Google Scholar] [CrossRef] [Green Version]
  66. Zhuang, J.; Li, M.; Pu, Y.; Ragauskas, A.J.; Yoo, C.G. Observation of potential contaminants in processed biomass using fourier transform infrared spectroscopy. Appl. Sci. 2020, 10, 4345. [Google Scholar] [CrossRef]
  67. Bui, N.Q.; Fongarland, P.; Rataboul, F.; Dartiguelongue, C.; Charon, N.; Vallée, C.; Essayem, N. FTIR as a simple tool to quantify unconverted lignin from chars in biomass liquefaction process: Application to SC ethanol liquefaction of pine wood. Fuel Process. Technol. 2015, 134, 378–386. [Google Scholar] [CrossRef]
  68. Yona, A.M.C.; Budija, F.; Kričej, B.; Kutnar, A.; Pavlič, M.; Pori, P.; Tavzes, Č.; Petrič, M.; Kricej, B.; Kutnar, A.; et al. Production of biomaterials from cork: Liquefaction in polyhydric alcohols at moderate temperatures. Ind. Crops Prod. 2014, 54, 296–301. [Google Scholar] [CrossRef]
  69. Popescu, C.M.; Popescu, M.C.; Singurel, G.; Vasile, C.; Argyropoulos, D.S.; Willfor, S. Spectral characterization of eucalyptus wood. Appl. Spectrosc. 2007, 61, 1168–1177. [Google Scholar] [CrossRef] [PubMed]
  70. Mateus, M.M.; Gaspar, D.; Matos, S.; Rego, A.; Motta, C.; Castanheira, I.; Bordado, J.M.; Dos Santos, R.G. Converting a residue from an edible source (Ceratonia siliqua L.) into a bio-oil. J. Environ. Chem. Eng. 2019, 7. [Google Scholar] [CrossRef]
  71. Zhang, Y.; Liu, Z.; Hui, L.; Wang, H. Diols as solvent media for liquefaction of corn stalk at ambient pressure. BioResources 2019, 13, 6818–6836. [Google Scholar] [CrossRef]
  72. Seehar, T.H.; Toor, S.S.; Shah, A.A.; Pedersen, T.H.; Rosendahl, L.A. Biocrude production from wheat straw at sub and supercritical hydrothermal liquefaction. Energies 2020, 13, 3114. [Google Scholar] [CrossRef]
  73. Shawal, N.N.; Murtala, A.M.; Adilah, A.K.; Hamza, U.D. Identification of Functional Groups of Sustainable Bio-Oil Substrate and its Potential for Specialty Chemicals Source. Adv. Mater. Res. 2012, 557–559, 1179–1185. [Google Scholar] [CrossRef]

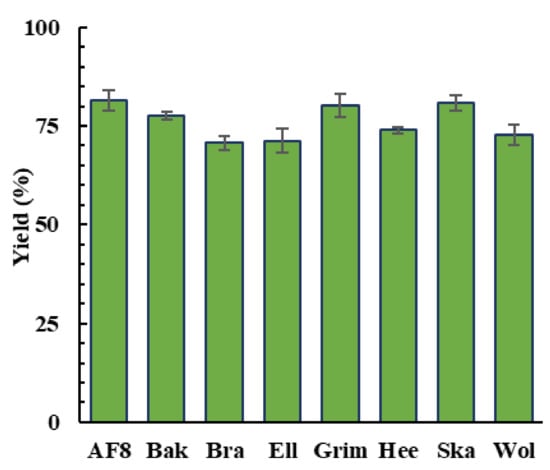

Figure 1. Comparison of the yield of bio-oils obtained via acid-catalyzed liquefaction of poplar clones.
Figure 1. Comparison of the yield of bio-oils obtained via acid-catalyzed liquefaction of poplar clones.
Molecules 27 00304 g001

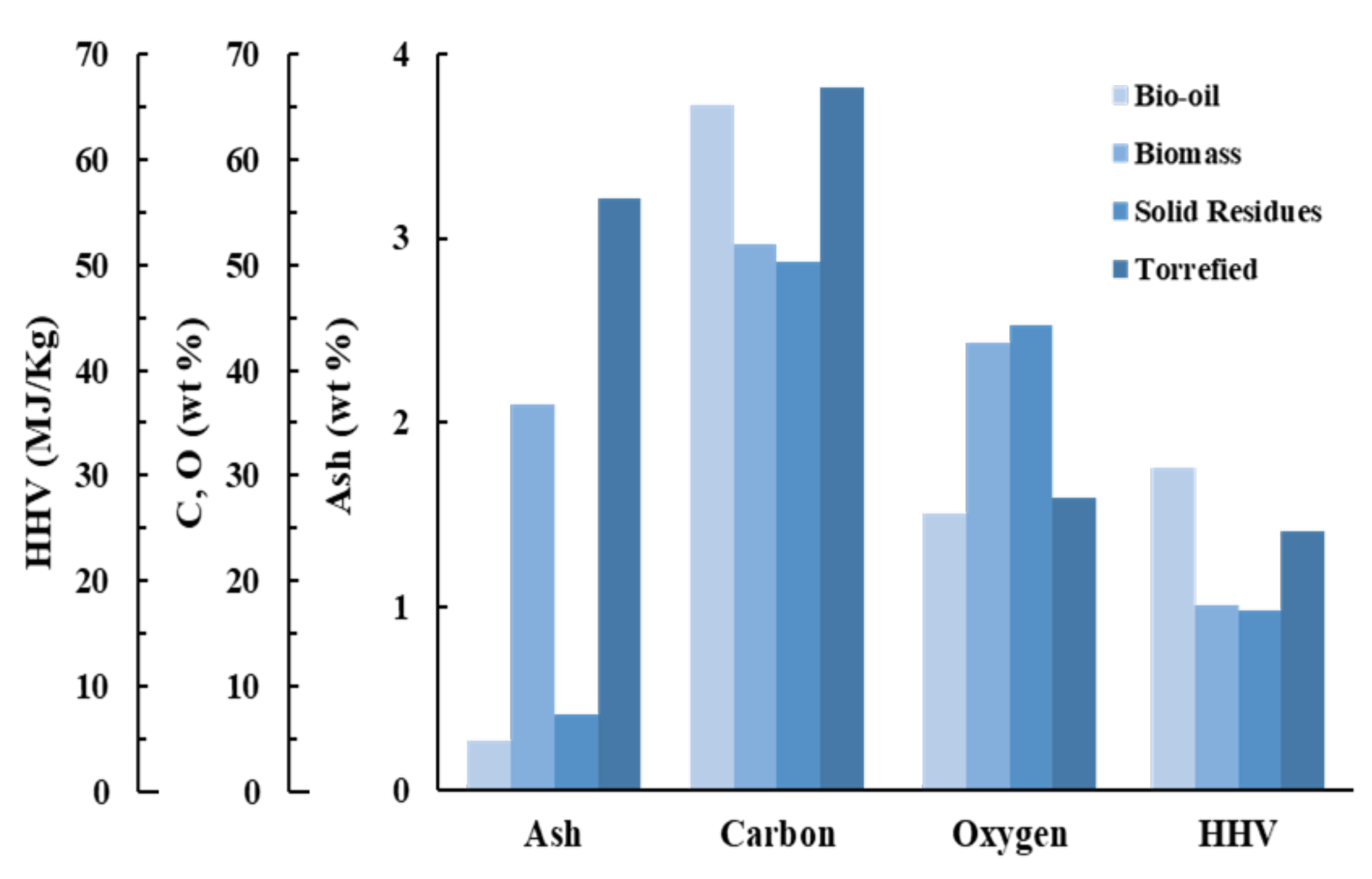

Figure 2. Comparison of the average ash, carbon, oxygen contents, and HHV between bio-oils, biomass, solid residues, and torrefied biomass.
Figure 2. Comparison of the average ash, carbon, oxygen contents, and HHV between bio-oils, biomass, solid residues, and torrefied biomass.
Molecules 27 00304 g002

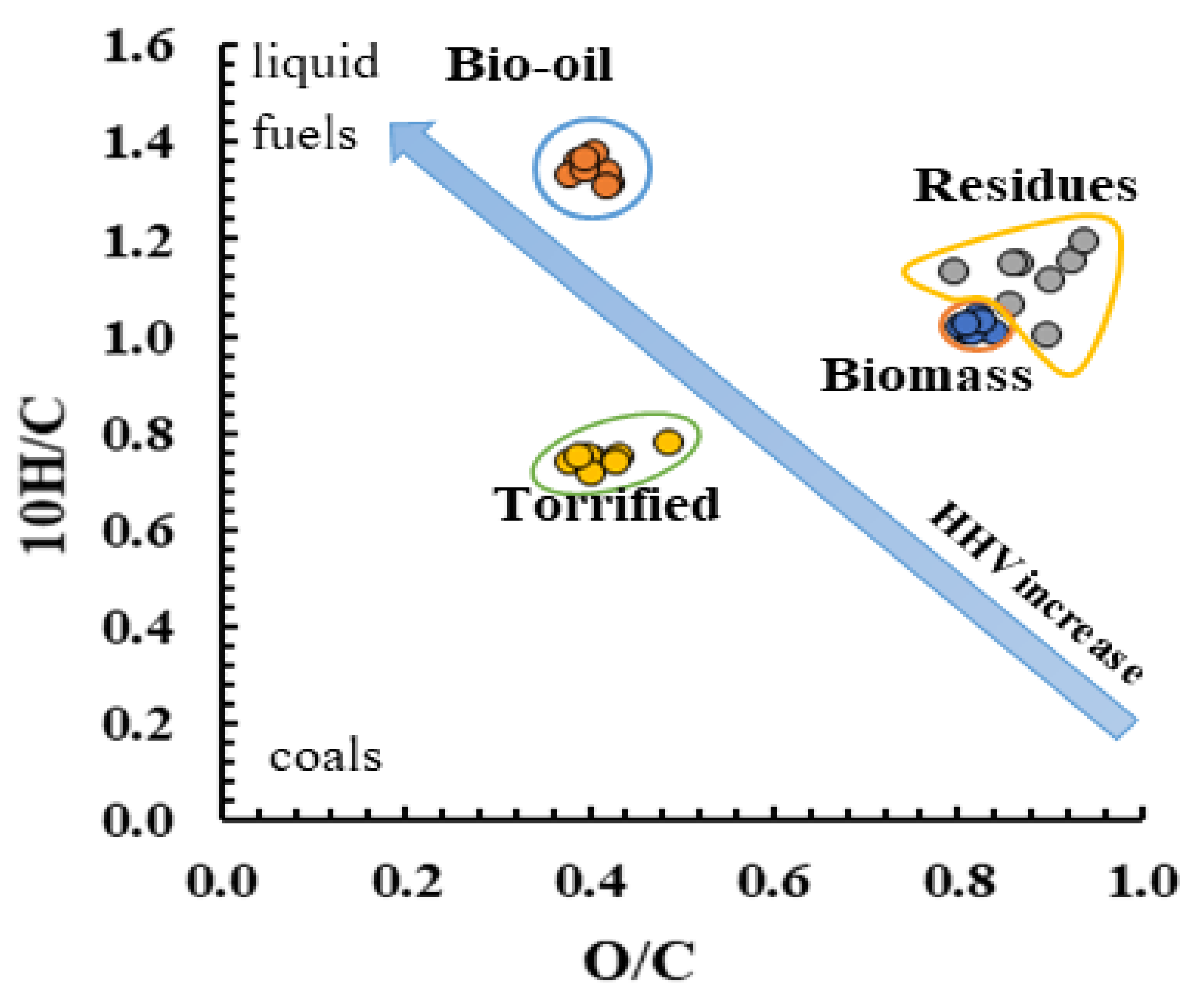

Figure 3. Van Krevelen diagram comparing the H/C and O/C ratios of biomass, solid residues, torrefied biomass, and bio-oils.
Figure 3. Van Krevelen diagram comparing the H/C and O/C ratios of biomass, solid residues, torrefied biomass, and bio-oils.
Molecules 27 00304 g003

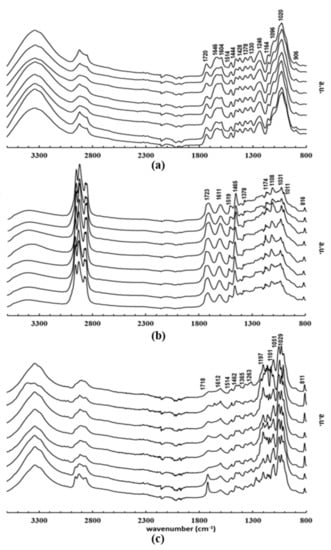

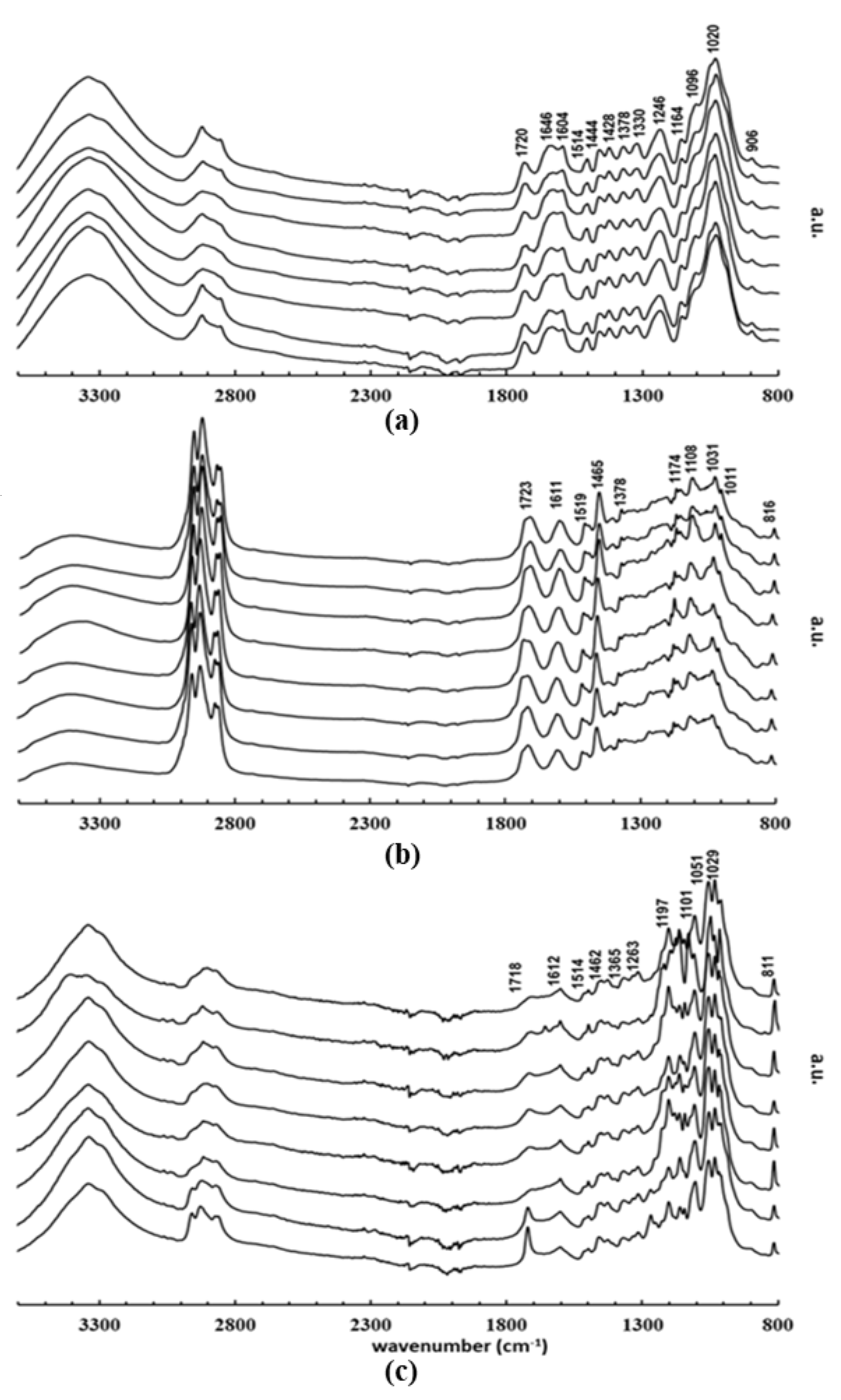

Figure 4. FTIR-ATR spectra of (a) biomass; (b) bio-oil, and (c) solid residue.
Figure 4. FTIR-ATR spectra of (a) biomass; (b) bio-oil, and (c) solid residue.
Molecules 27 00304 g004

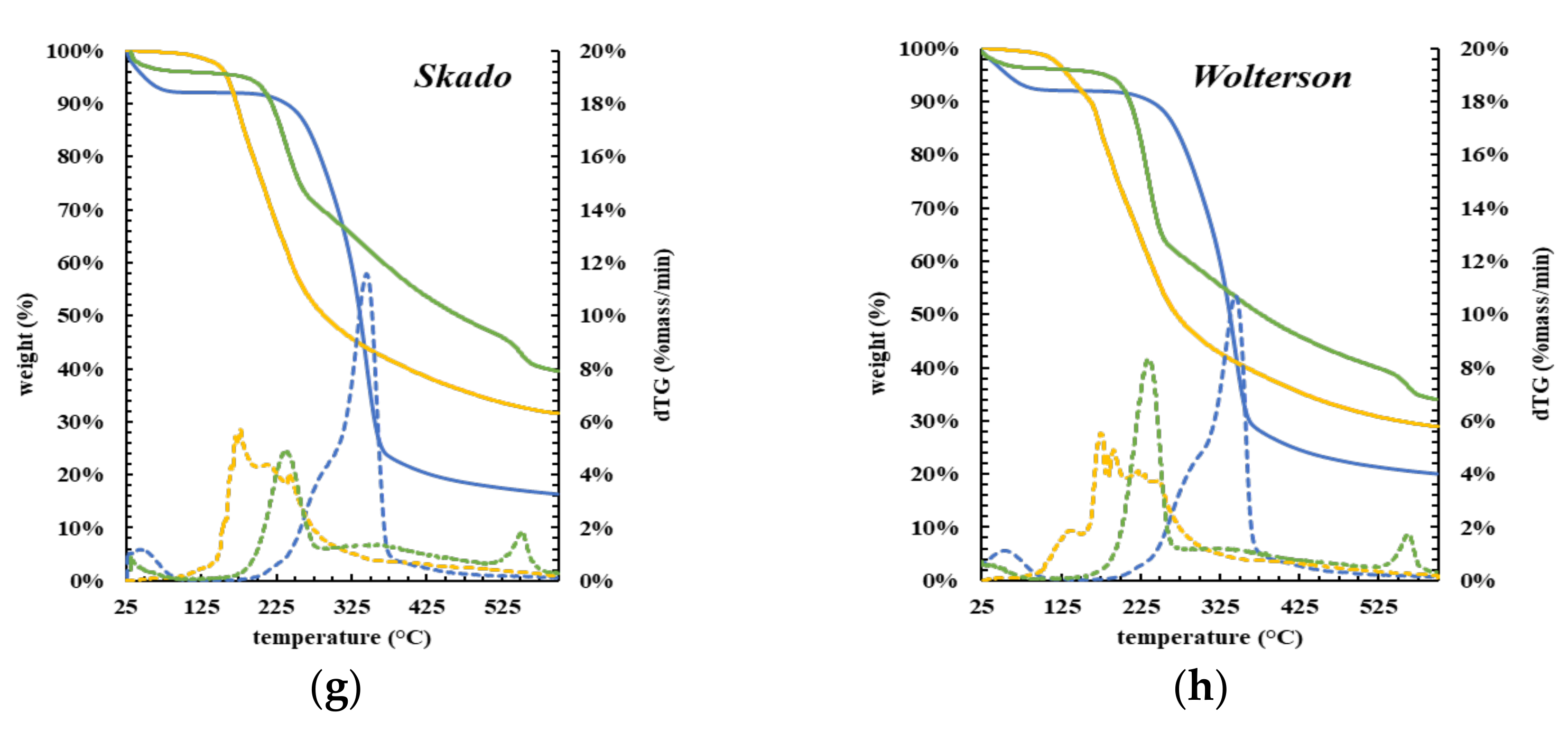

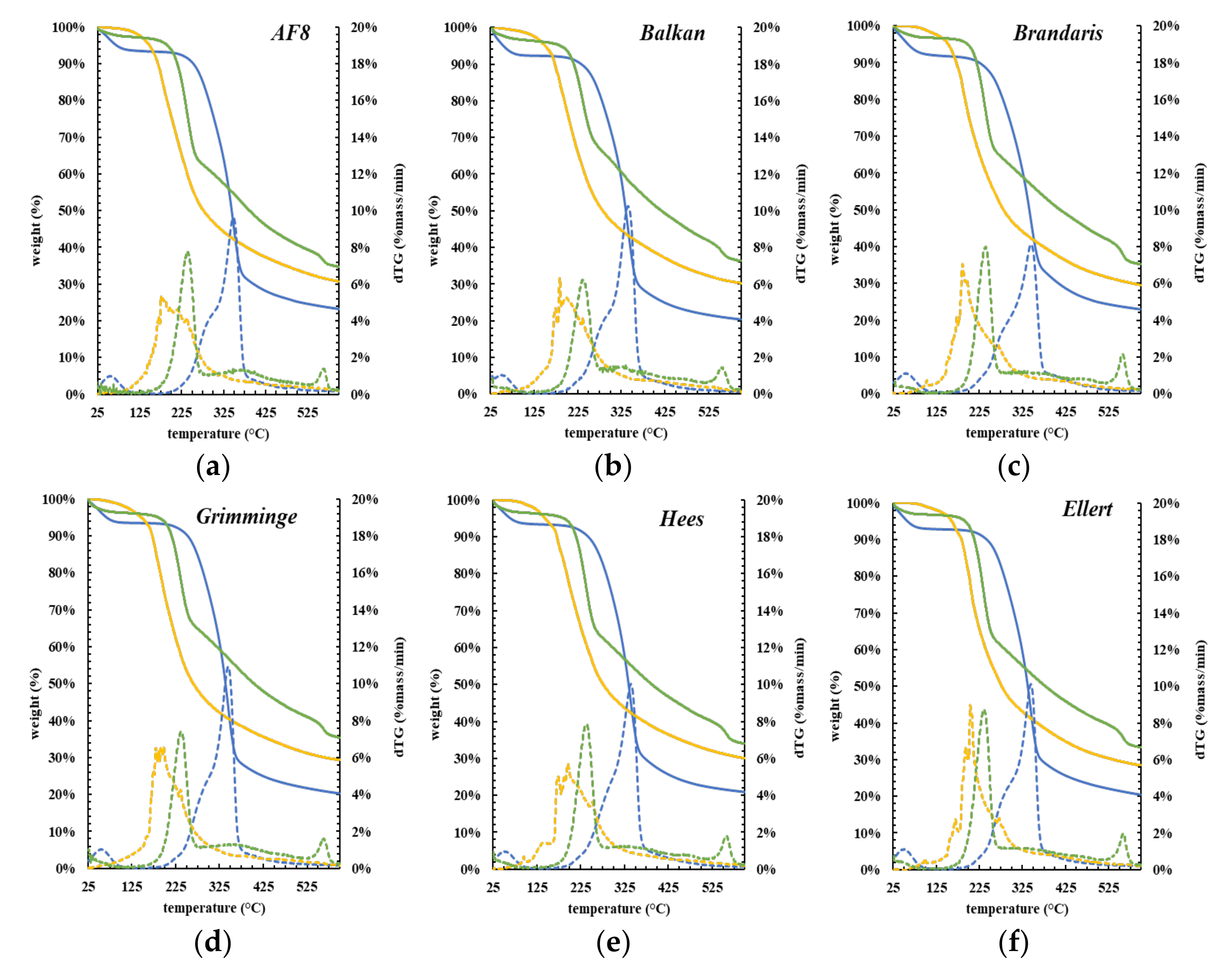

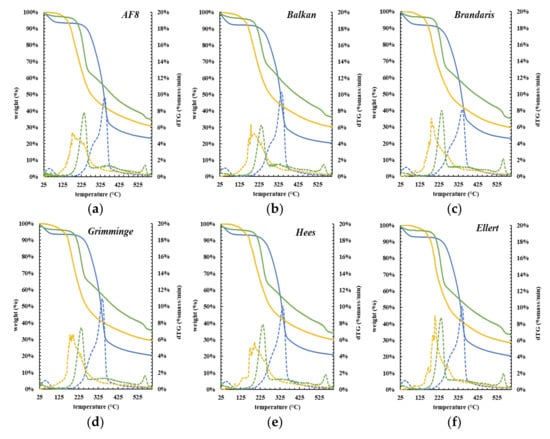

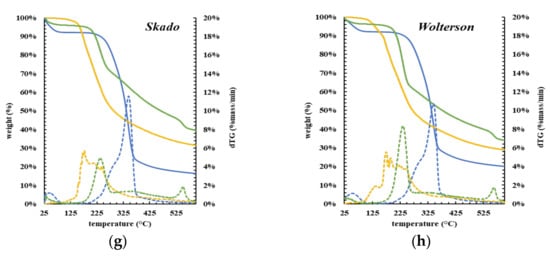

Figure 5. TGA and DTG thermograms of biomass (blue), bio-oil (yellow), and solid residues (green) of all poplar clones: (a) AF8; (b) Balkan; (c) Brandaris; (d) Grimminge; (e) Hees; (f) Ellert; (g) Skado; (h) Wolterson. The dashed line is gTG and the solid line is TGA.
Figure 5. TGA and DTG thermograms of biomass (blue), bio-oil (yellow), and solid residues (green) of all poplar clones: (a) AF8; (b) Balkan; (c) Brandaris; (d) Grimminge; (e) Hees; (f) Ellert; (g) Skado; (h) Wolterson. The dashed line is gTG and the solid line is TGA.
Molecules 27 00304 g005aMolecules 27 00304 g005b
Table 1. Hemicellulose, cellulose, and lignin estimated the content of the poplar genotypes [48].
Table 1. Hemicellulose, cellulose, and lignin estimated the content of the poplar genotypes [48].
Lignocellulosic Content (%)
AF8PortugalHybrid P. generosa234828
BakanBelgiumHybrid P. trichocarpa × P. maximowiczii195228
BrandarisBelgiumSpecies P. nigra234729
EllertBelgiumHybrid P. canadensis244826
GrimmingeBelgiumTriple hybrid P. deltoides × (P. trichocarpa × P. deltoides)244827
HeesBelgiumHybrid P. canadensis235026
SkadoBelgiumHybrid P. trichocarpa × P. maximowiczii204930
WoltersonBelgiumSpecies P. nigra244827
Table 2. Chemical characterization of poplar clones, bio-oils, solid residues, and torrefied biomass.
Table 2. Chemical characterization of poplar clones, bio-oils, solid residues, and torrefied biomass.
SamplesChemical Composition 1 (%)Ash
Biomass [15]AF851.55.2<0.543.32.189.5817.201.010.84CH1.22O0.61
Solid residuesAF852.35.9<0.541.80.3--18.441.130.80CH1.34O0.66
Torrefied biomass [15]AF866.34.90.3628.443.46--24.20.740.43CH0.89O0.32
1 Dry basis; 2 calculated HHV.
Table 3. Ratios of C, H, HHV H/C gain and of O, Ash, Moisture, and O/C loss of the bio-oils obtained from the liquefaction of poplar clone samples.
Table 3. Ratios of C, H, HHV H/C gain and of O, Ash, Moisture, and O/C loss of the bio-oils obtained from the liquefaction of poplar clone samples.
SampleC Gain (%)H Gain (%)O Loss (%)Ash Loss (%)HHV Gain (%)Moisture Loss (%)H/C Gain (%)O/C Loss (%)
Table 4. Pearson’s correlation (r) from elemental analysis and bio-oil variables.
Table 4. Pearson’s correlation (r) from elemental analysis and bio-oil variables.
Variables (%)
Variables (%)C10.669−0.980 20.902 20.4850.973 20.0420.917 20.0490.0900.943
H0.6691−0.803 10.3890.814 10.6170.5950.5610.6760.7120.537
O−0.980 2−0.803 11−0.827 1−0.605−0.945 2−0.192−0.885 2−0.219−0.261−0.899
C Gain0.902 20.389−0.827 110.1500.947 2−0.3110.943 2−0.201−0.2720.972
H Gain0.4850.8141−0.6050.15010.4050.6500.4000.5020.8680.291
O Loss0.973 20.617−0.945 20.947 20.4051−0.1190.978 20.0000.0120.984
Ash Loss0.0420.595−0.192−0.3110.650−0.1191−0.2070.8130.739−0.205
HHV Gain0.917 20.561−0.885 20.943 20.4000.978 2−0.2071−0.062−0.0010.970
Moisture Loss0.0490.676−0.219−0.2010.5020.0000.813 1−0.06210.643−0.068
H/C Gain0.0900.712 1−0.261−0.2720.868 20.0120.739 1−0.0010.6431−0.091
O/C Loss0.943 20.537−0.899 20.972 20.2910.9842−0.2050.970 2−0.068−0.0911
1 p < 0.05; 2 p < 0.01.
Table 5. FTIR-ATR relevant peaks for biomass, bio-oil, and solid residues.
Table 5. FTIR-ATR relevant peaks for biomass, bio-oil, and solid residues.
Peaks (cm−1)Band AssignmentRef.
BiomassBio-OilResiduesFunctional GroupCompounds
172017231718C=O carbonyls in ester groups and acetyl groups in xylanKetones, esters, hemicellulose, and carboxylic acids and esters[62,63,64]
1646 O-H bendingWater[65,66]
160416111612C=C aromatic ring vibrationLignin[62,67]
151415191514C=C aromatic ring stretchingLignin[32,68]
144414651462OCH3-, -CH2-, and C-H stretchingCellulose, hemicellulose[69]
137813781365Aromatic C-H deformationSyringyl rings[63]
1330 C-O syringyl ringLignin[62]
124612481263Aromatic ring vibrationGuaicyl lignin[62]
116411741197C-O-C asymmetrical stretchingCellulose, hemicellulose[62]
109611081101C-O-C stretchingCellulose, hemicellulose[64]
102010311029C-O, C=C, and C-C-O stretchingCellulose, hemicellulose, lignin[62]
906 Glycosidic linkageCellulose, hemicellulose[62,68]
816811C-H out-of-planeCellulose, hemicellulose[70]
Table 6. Mass loss from TGA curves for biomass, bio-oils, and solid residues.
Table 6. Mass loss from TGA curves for biomass, bio-oils, and solid residues.
SamplesTGA Curve
1st Stage2nd Stage3rd Stage4th Stage
Temp. Range (°C)Mass Loss (%)Temp. Range (°C)Mass Loss (%)Temp. Range (°C)Mass Loss (%)Temp. Range (°C)Mass Loss (%)
Publisher’s Note: MDPI stays neutral with regard to jurisdictional claims in published maps and institutional affiliations.

Share and Cite

MDPI and ACS Style

Paulo, I.; Costa, L.; Rodrigues, A.; Orišková, S.; Matos, S.; Gonçalves, D.; Gonçalves, A.R.; Silva, L.; Vieira, S.; Bordado, J.C.; et al. Acid-Catalyzed Liquefaction of Biomasses from Poplar Clones for Short Rotation Coppice Cultivations. Molecules 2022, 27, 304.

AMA Style

Paulo I, Costa L, Rodrigues A, Orišková S, Matos S, Gonçalves D, Gonçalves AR, Silva L, Vieira S, Bordado JC, et al. Acid-Catalyzed Liquefaction of Biomasses from Poplar Clones for Short Rotation Coppice Cultivations. Molecules. 2022; 27(1):304.

Chicago/Turabian Style

Paulo, Ivo, Luis Costa, Abel Rodrigues, Sofia Orišková, Sandro Matos, Diogo Gonçalves, Ana Raquel Gonçalves, Luciana Silva, Salomé Vieira, João Carlos Bordado, and et al. 2022. "Acid-Catalyzed Liquefaction of Biomasses from Poplar Clones for Short Rotation Coppice Cultivations" Molecules 27, no. 1: 304.

Article Metrics

Back to TopTop
