Pyrene-Based Fluorescent Porous Organic Polymers for Recognition and Detection of Pesticides

by
Zhuojun Yan
1,
Jinni Liu
1,
Congke Miao
2,
Pinjie Su
2,
Guiyue Zheng
1,
Bo Cui
1,
Tongfei Geng
1,
Jiating Fan
1,
Zhiyi Yu
1,
Naishun Bu
2,*,
Ye Yuan
3,* and
Lixin Xia
1,4,*
1
College of Chemistry, Liaoning University, Shenyang 110036, China
2
School of Environmental Science, Liaoning University, Shenyang 110036, China
3
Key Laboratory of Polyoxometalate and Reticular Material Chemistry of Ministry of Education, Faculty of Chemistry, Northeast Normal University, Changchun 130024, China
4
Liaoning Key Laboratory of Chemical Additive Synthesis and Separation, Yingkou Institute of Technology, Yingkou 115014, China
*
Authors to whom correspondence should be addressed.
Molecules 2022, 27(1), 126; https://doi.org/10.3390/molecules27010126
Submission received: 31 October 2021 / Revised: 10 December 2021 / Accepted: 22 December 2021 / Published: 26 December 2021
(This article belongs to the Special Issue Potential Applications of Functional Porous Organic Frameworks)
Browse Figures
Review Reports Versions Notes

Abstract

:
Eating vegetables with pesticide residues over a long period of time causes serious adverse effects on the human body, such as acute poisoning, chronic poisoning, and endocrine system interference. To achieve the goal of a healthy society, it is an urgent issue to find a simple and effective method to detect organic pesticides. In this work, two fluorescent porous organic polymers, LNU-45 and LNU-47 (abbreviation for Liaoning University), were prepared using π-conjugated dibromopyrene monomer and boronic acid compounds as building units through a Suzuki coupling reaction. Due to the large π-electron delocalization effect, the resulting polymers revealed enhanced fluorescence performance. Significantly, in sharp contrast with the planar π-conjugated polymer framework (LNU-47), the distorted conjugated structure (LNU-45) shows a higher specific surface area and provides a broad interface for analyte interaction, which is helpful to achieve rapid response and detection sensitivity. LNU-45 exhibits strong fluorescence emission at 469 nm after excitation at 365 nm in THF solution, providing strong evidence for its suitability as a luminescent chemosensor for organic pesticides. The fluorescence quenching coefficients of LNU-45 for trifluralin and dicloran were 5710 and 12,000 (LNU-47 sample by ca. 1.98 and 3.38 times), respectively. Therefore, LNU-45 serves as an effective “real-time” sensor for the detection of trifluralin and dicloran with high sensitivity and selectivity.

Graphical Abstract

1. Introduction

Pesticide residues have posed huge risks to humans and the ecological environment, causing health problems such as skin irritation, headaches, cancer, and asthma [1]. Pesticides consist of a set of insecticides and herbicides, primarily applied in forestry and crop plantations. In the case of chlorothalonil (CTL), nitrofen (NF), trifluralin (TFL), and dicloran (DCN), these carcinogens accumulate easily in the body, resulting in acute concentrations that cause cancers in humans and livestock [2]. Therefore, various detection methods are being investigated, including capillary electrophoresis [3,4], liquid chromatography [5,6], and electrochemical methods [7,8,9,10,11,12,13]. Although these methods reveal high sensitivity and selectivity, their broad applications are limited by several disadvantages including high cost, complicated operation, and time-consuming pretreatment. The quantitative and visual detection of trace pesticides is still a significant challenge in the field of medico-health and environmental protection.
Fluorescence sensing has the advantages of speediness, convenience, high sensitivity, and “real-time” detection, making it an ideal choice for monitoring toxic pesticides [14]. In recent years, many researchers have reported the use of fluorescence sensors in many applications, such as the detection of trace metal ions, nitro explosives, biological molecules, radioactive iodine, and anions [15,16]. Fluorescent materials play a crucial role in achieving selective and sensitive monitoring. With the development of functional materials, several fluorescent solids, such as carbon nanotubes, carbon dots (CDS), and porous networks, have been widely investigated and have become a newly established sensing system [17]. Among them, porous organic polymers (POPs) attract wide attention owing to their unique characteristics, such as their large surface area, adjustable pore structure, and stable skeleton [18,19]. Based on the advantages mentioned above, POPs have been applied in various fields (electrochemical energy storage and conversion, gas separation, biosensor, catalysis, proton conduction, etc.) and have achieved great success in fluorescent sensor applications [20,21]. Introducing fluorescent chromophores into polymer networks is considered a promising approach to fluorescence sensing detection [22,23]. Pyrene is a polycyclic antiaromatic compound composed of four fused benzene rings. The important features of a long fluorescence lifetime and high fluorescence quantum yield make pyrene a very useful emission chromophore [24,25,26]. During the past few years, more and more work has focused on the construction of pyrene-based POPs [27]. These solids exhibit some excellent characteristics, including good thermal stability, high porosity, and strong luminescence. Based on various synthetic strategies, pyrene-based POP materials with a high density of aromatic fragments provide unique electronic conjugation effects for the enrichment of organic guests [28,29].
Common pesticides, such as trifluralin (TFL) and dicloran (DCN), have electron absorbing nitro or strong electron negative groups (fluorine and chlorine atoms) that can interact with the electron-donating POPs. In this context, two fluorescent porous polymer-bearing pyrene groups are synthesized through the Suzuki coupling reaction. Because of the expansion of the π-conjugated structure, polymer solids enable strong fluorescence performance. LNU-45 has a distorted conjugate skeleton with a high specific surface area and provides a broad interface for analyte interaction. Effective photo-induced electron transfer (PET) is thus produced in the porous structure of POPs after the interaction with pesticides, which is helpful to achieve a rapid response and high detection sensitivity [30]. Therefore, LNU-45 has good selective detection ability for pesticides (trifluralin and dicloran) at ultra-low concentrations, and shows significant potential in the actual detection of organic pesticides.

2. Results and Discussion

Two porous polymers (LNU-45 and LNU-47) were synthesized through the Suzuki coupling reaction using 2,7-dibromopyrene (monomer 2) as one monomer together with respective tris(4-boronic acid pinacol ester phenyl)amine (monomer 1) and benzene-1,3,5-triyltriboronic acid pinacol ester (monomer 3) as another monomer (Scheme 1a,b). The successful synthesis of the LNU frameworks was determined using Fourier transform infrared (FT-IR) and solid-state 13C-NMR spectroscopy. The C-B and B-O stretching vibrations located at ~1360 and 1140 cm−1, respectively, were obviously weakened in the IR spectra of the resulting polymers. At the same time, the C-Br stretching vibration at ~760 cm−1 for the dibromopyrene monomer disappeared from the FT-IR spectra, verifying the completeness of the Suzuki coupling reaction (Figure 1a,b) [31]. The signal peaks in the range of 120–150 ppm were attributed to the aromatic carbons in the framework, including substituted and unsubstituted aromatic carbons (Figure 1c,d). The carbon atoms of the pyrene group and phenyl carbon atoms bonded to the nitrogen center were observed at 136–140 ppm and 147 ppm, respectively, which confirmed the structural integrity of the LNU networks [32,33].
The thermal stability of the LNUs was characterized by thermo-gravimetric analysis (TGA) under air atmosphere (Figure S1: see Supplementary Materials). The skeletal decomposition of the POP solids occurred in the range of 350–400 °C, indicating that the LNUs possessed great thermal stability. Powder X-ray diffraction (PXRD) patterns of the LNUs showed no obvious peaks, which demonstrated the amorphous nature of the polymer networks (Figure S2: see Supplementary Materials).
Scanning electron microscopy (SEM) images show that LNUs mainly exist in the form of irregular balls, with an average diameter of 50–100 nm (Figure S3a,b: see Supplementary Materials). As illustrated in the transmission electron microscopy (TEM) images (Figure S3c,d: see Supplementary Materials), LNUs exhibit a disordered worm-like structure, which demonstrates the porous characteristics of the materials. N2 adsorption–desorption isotherms at 77 K and 1 bar reflect the porous nature of the polymers. As shown in Figure 2a, both LNU-45 and LNU-47 have a steep gas adsorption at a relatively low pressure (P/P0 < 0.02), indicating the existence of micropores in the POP networks. The specific surface areas of LNU-45 and LNU-47 were obtained using the Brunauer–Emmett–Teller (BET) model to be 322.401 m2 g−1 and 181.924 m2 g–1, respectively. The pore size distributions of the LNUs were calculated according to non-local density functional theory (NLDFT), suggesting that LNU-45 possessed micropores at 1.165–1.809 nm and LNU-47 centered at 1.81 nm (Figure 2b). All data for LNU-45 and LNU-47 materials are listed in Table 1.
The solid UV-visible absorption spectra were conducted for LNU-45, LNU-47, and 2,7-dibromopyrene, respectively. (Figure S4: see Supplementary Materials). It was observed that the LNUs displayed a strong and wide absorption peak in the region of 250–450 nm compared with the monomer (200–350 nm), because the expansion of the polymeric skeleton increased the π-electron delocalization effect of the conjugated structure [34,35]. Obviously, the peak width of LNU-45 was much wider than that of LNU-47, which was assigned to the π → π* electronic transition of the electron-rich triphenylamine groups in LNU-45.
Under 365 nm UV irradiation, the color of the LNU powders appeared blue (Figure 3a,b). 2 mg of LNU powders were dispersed into 8 mL of methanol (MT), ethanol (EAL), methyl trichloride (TCM), dichloromethane (DCM), tetrahydrofuran (THF), N,N’-dimethylformamide (DMF), acetone (DMK), and acetonitrile (ACN). It can be seen from the fluorescence spectrum that there is a small peak at about 650–720 nm, which is attributed to a fundamental peak of the sensing chromophore (Figure S5: see Supplementary Materials) [35]. As shown in Figure 3c,f, the LNU samples had the highest fluorescence intensity measured in THF solvent with an excitation wavelength of 365 nm. The fluorescence quantum yields of LNU-45 and LNU-47 were 21.31% and 13.20%, respectively, performing the strongest fluorescence of the materials in THF solvent [36]. Because the enthalpy of π-π interaction between the LNUs and the THF solvent is much larger than that of other solvents, the porous network needs to overcome a high potential barrier to realize the flexible rotation of structural fragment, leading to the higher fluorescence intensity [37].
Several common organic pesticides, including nitrofen (NF), chlorothalonil (CTL), trifluralin (TFL), and dicloran (DCN), were poured into the THF solution of the LNU powders under the same conditions. As shown in Figure 4a,b, the fluorescence quenching was observed as the contact of LNU solids and different organic pesticides compared with the initial dispersion liquid of the LNUs. Notably, both LNU-45 and LNU-47 showed a strong quenching effect on trifluralin and dicloran molecules (Figure S6a,b: see Supplementary Materials). Because trifluralin and dicloran contain electron-withdrawing nitro groups as well as strong electron-negative groups (fluorine and chlorine atoms), these electron-deficient molecules attract the energy from the LNU skeleton, leading to the quenching behavior of POP solids [38].
Subsequently, we examined the sensitivity of fluorescent porous organic polymers for the detection of pesticide analytes. The LNUs were evenly dispersed in the same amount of THF solvent, and the pesticide molecules (trifluralin and dicloran) with different concentrations were gradually added into the mixture. With the increase of analyte concentration, the fluorescence quenching effect of the LNUs became more obvious and quenched completely (Figure 5a–d). In order to better explain this phenomenon, X-ray photoelectron spectroscopy (XPS) was used to calculate the relative content of each element (C, N, F, Cl) corresponding to the amount of pesticide adsorbed into the POP architecture [39,40,41,42,43,44,45]. As shown in Figure S7, the adsorption uptakes were calculated to be 116.0 mg g−1 (NF-adsorbed LNU-45), 70.0 mg g−1 (CTL-adsorbed LNU-45), 139.8 mg g−1 (DCN-adsorbed LNU-45), and 231.9 mg g−1 (TFL-adsorbed LNU-45). It can be seen that DCN and TFL are more easily enriched in the LNU-45 skeleton, which is conducive to the detection ability of the fluorescence sensor for DCN and TFL at low concentrations [46]. At the same time, the photoinduced electron transfer (PET) occurs between polymer and pesticide molecules. The pesticides containing strong electron-withdrawing groups possess low-energy π*-type orbitals. Their LUMO energies are close to or lower than the LUMO energy of the LNUs, which drive the electron transfer from POPs to pesticides, leading to a strong quenching effect on fluorescence. However, the alkyl group with an electron donating effect will affect the ability of TFL pesticide compounds to accept electron charges [34]. Therefore, LNUs show a strong fluorescence quenching phenomenon with DCN.
The quenching efficiency of the LNUs was calculated by (I0-I)/I0 × 100%, where I0 represents the initial fluorescence intensity and I represents the fluorescence intensity after quenching [47]. The Stern–Volmer mechanism is widely used to describe the relationship between the concentration of a given reagent and the value of quantum yield during photophysical processes. The important parameter Ksv represents a constant of the fluorescence quenching degree caused by the collision between the excited fluorescence molecule and the quenching agent [48]. The sensitivity of the LNUs for pesticide molecules was evaluated by means of the following Stern–Volmer equation:
(I0/I) − 1 = Ksv [C]
where [C] is the pesticide concentration, and Ksv is the fluorescence quenching Stern–Volmer parameter [47]. Figure 5e,f illustrate the Stern–Volmer plots of the LNUs for the trifluralin and dicloran, from which the fluorescence quenching Stern–Volmer coefficients are obtained.
A linear fitting was performed to obtain a good correlation between pesticide concentration and intensity. The fluorescence quenching coefficients of LNU-45 and LNU-47 for trifluralin were 5710 and 2880, respectively; the values of LNU-45 and LNU-47 for dicloran were 12,000 and 3550, respectively. This is consistent with the fluorescence intensity obtained by adding different pesticides into the THF solutions of LNU-45 and LNU-47, as shown in Figure 4. The minimum concentrations of trifluralin and dicloran corresponding to the quenching efficiency over 90% for LNU-45 were 9 × 10−4 and 8 × 10−4 mol L−1, respectively (Figure 5g,h). The limit of detection (LOD) is defined as 3σ/Ksv (σ is the standard deviation of the blank solution). The calculated detection limits of DCN were 0.0155 ppm for LNU-45 and 0.0197 ppm for LNU-47, which is better than some reported values, such as 0.13 ppm for BPyTPE, 2.93 ppm for (H3O)[Zn2L(H2O)]·3NMP·6H2O, 3.85 ppm for {(Me2NH2)[In(BDPO)]·DMF·2H2O}n, 0.212 ppm for 1-L, 0.233 ppm for 3-L, and 0.1753 ppm for DNA-AuNCs [1,14,49,50,51]. The results demonstrated that LNUs could detect trifluralin and dicloran with high selectivity and sensitivity, providing the possibility of detecting residual organic pesticides for practical applications. It is worth noting that the decrease in fluorescence intensity was immediately observed after adding the analyte to the dispersion solution of the LNUs.
More importantly, LNU-45 not only shows high specific recognition for pesticide molecules, but can also be recycled for long-term use. After filtration and activation using ethanol, LNU-45 is able to be used for continuous fluorescence detection of DCN (Figure S8: see Supplementary Materials). It is found that LNUs can be reused as sensors for detecting organic pesticides. In addition, the obvious fluorescence quenching phenomenon is observed instantly and intuitively after adding DCN pesticide to the LNU suspensions (Figure S9: see Supplementary Materials). Compared with traditional methods, such as capillary electrophoresis, liquid chromatography, or electrochemistry, LNU-45 shows the advantages of simple, fast, high sensitivity, and “real-time” detection in the pesticide detection process.

3. Materials and Methods

3.1. Materials

Benzene-1,3,5-triyltriboronic acid pinacol ester and tris(4-boronic acid pinacol ester phenyl)amine were purchased from Sukailu, Suzhou, China. 2,7-dibromopyrene, chlorothalonil, nitrofen, trifluralin, and dicloran were all purchased from Aladdin, Shanghai, China. Potassium carbonate was obtained from Energy Chemical, Shanghai, China. Tetrakis(triphenylphosphine)palladium was obtained from Sigma-Aldrich, St. Louis, MO, USA. Other chemicals and solvents were purchased from commercial suppliers and used without further purification. All reactions were performed under a purified nitrogen atmosphere.

3.2. Synthesis of LNU-45 and LNU-47

In a 100 mL round bottom flask, tris(4-boronic acid pinacol ester phenyl)amine (400.0 mg, 0.64 mmol) and 2,7-dibromopyrene (346.6 mg, 0.96 mmol) were dissolved in 60 mL of N,N’-dimethylformamide. The system was then frozen with liquid nitrogen, with the process of vacuuming and blowing nitrogen repeated three times. Following this process, tetrakis(triphenylphosphine)palladium (40.0 mg, 0.035 mmol) and 5 mL of potassium carbonate solution (2 mol L−1) were rapidly mixed into the reaction system. After repeating the above degassing process three times, the mixture was heated to 130 °C and refluxed for 48 h. The precipitates were then filtered to leave the insoluble solids, and washed with tetrahydrofuran, water, and acetone solvents multiple times to remove the unreacted monomers and catalyst residues. The crude product was further purified using Soxhlet extraction with tetrahydrofuran and dichloromethane. Finally, after drying at 90 °C under vacuum for 12 h, the powder obtained was the target product: LNU-45. LNU-47 was synthesized using a similar procedure, except that benzene-1,3,5-triyltriboronic acid pinacol ester (290.9 mg, 0.64 mmol) was used to replace tris(4-boronic acid pinacol ester phenyl)amine.

4. Conclusions

We prepared two fluorescent porous organic polymers through the Suzuki coupling reaction using a π-conjugated dibromopyrene building block. Due to the extension of the π-conjugated structure, the generated LNU with a π-electron delocalization effect effectively enhances the fluorescence performance. In contrast to the planar fluorescence structure (LNU-47), the distorted framework provides a broad interface for analyte interaction, which allows LNU-45 to exhibit high sensitivity and selectivity in the “real-time” sensing detection of trifluralin and dicloran. Therefore, the LNU-45 fluorescence sensor has the advantages of being fast, sensitive, and visual, and has broad application prospects in pesticide molecular detection.

Supplementary Materials

The following supporting information can be downloaded online, Figure S1: TGA plots of LNU-45 and LNU-47 at air condition, Figure S2: Powder X-ray diffraction patterns of LNU-45 and LNU-47, Figure S3: SEM images for LNU-45 (a) and LNU-47 (b), TEM images for LNU-45 (c) and LNU-47 (d), Figure S4: Solid UV-visible absorption spectra of 2,7-dibromopyrene, LNU-45, and LNU-47, respectively, Figure S5: Fluorescence spectra of tris(4-boronic acid pinacol ester phenyl)amine (monomer 1), 2,7-dibromopyrene (monomer 2), and benzene-1,3,5-triyltriboronic acid pinacol ester (monomer 3), respectively, Figure S6: (a) Fluorescence spectra for the suspensions of LNU-45 (0.25 mg mL−1) with different pesticides. (b) Fluorescence spectra for the suspensions of LNU-47 (0.25 mg mL−1) with different pesticides, Figure S7: Raw XPS spectra for POP sample and pesticide-adsorbed POP sample (a), XPS spectra for POP sample and pesticide-adsorbed POP sample with a self-consistent (LNU-45-derived) integral baseline (b), a self-consistent (LNU-45-based) integral baseline (c), and a self-consistent (average) integral baseline (d), Table S1: Element analysis based on the integral area of XPS spectra (Figure S7a), Table S2: Element analysis based on the integral area of XPS spectra (Figure S7b), Table S3: Element analysis based on the integral area of XPS spectra (Figure S7c), Table S4: Element analysis based on the integral area of XPS spectra (Figure S7d), Table S5: CHN element analysis, Figure S8: Five consecutive quench/regeneration cycles of LNU-45. The blue and green columns represent the fluorescent intensity of the original status and after treatment with DCN, respectively, Figure S9: Photographs showing the quenching process of DCN for LNU-45 (a) and LNU-47 (b).

Author Contributions

Z.Y. (Zhuojun Yan), N.B. and L.X. designed and planned the project. J.L. and G.Z. conducted all of the experiments. C.M. and P.S. helped to characterize the samples. B.C., T.G., J.F. and Z.Y. (Zhiyi Yu) helped to synthesize the materials. Z.Y. (Zhuojun Yan), Y.Y. and J.L. analyzed the data and wrote the paper. Z.Y. (Zhuojun Yan), N.B., Y.Y. and L.X. revised the paper. All authors have read and agreed to the published version of the manuscript.

Funding

This work was funded by National Natural Science Foundation of China (31972522, 21704037, 21671089), Liaoning Revitalization Talents Program (XLYC2002097, XLYC2007032), National Key Research and Development Project of China (2018YFC1801200), Major Science and Technology Project of Liaoning Province (2019JH1/10300001), Scientific Research Fund of Liaoning Provincial Education Department (LQN202003, L2020002), Liaoning Provincial Natural Science Foundation (2021-MS-149, 2020-YKLH-22).

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Data Availability Statement

All data related to this study are presented in this publication.

Acknowledgments

All individuals appreciate the partial support of Liaoning University.

Conflicts of Interest

The authors declare no conflict of interest.

Sample Availability

Samples are not available from the author.

References

  1. Di, L.; Xia, Z.Q.; Li, J. Selective sensing and visualization of pesticides by ABW-type metal-organic framework based luminescent sensors. RSC Adv. 2019, 9, 38469–38476. [Google Scholar] [CrossRef] [Green Version]
  2. Zhao, Y.X.; Sui, Z.Y.; Chang, Z.S.; Wang, S.L.; Liang, Y.; Liu, X.; Feng, L.J.; Chen, Q.; Wang, N. A trifluoromethyl-grafted ultra-stable fluorescent covalent organic framework for adsorption and detection of pesticides. J. Mater. Chem. A 2020, 8, 25156–25164. [Google Scholar] [CrossRef]
  3. Wang, A.; Fang, Y. Applications of capillary electrophoresis with electrochemical detection in pharmaceutical and biomedical analyses. Electrophoresis 2000, 21, 1281–1290. [Google Scholar] [CrossRef]
  4. Samuel, B.; Elena, S. Chiral capillary electrophoresis. TrAC Trends Anal. Chem. 2020, 124, 115807–115825. [Google Scholar]
  5. Wen, Y.F.; Chen, S.; Yuan, Y.J.; Shao, Q.; He, X.J.; Qiao, H.Q. A quantitative HPLC method for simultaneous determination of prodrug of voriconazole and voriconazole in beagle plasma, and its application to a toxicokinetic study. Acta Chromatogr. 2022, 34, 162–169. [Google Scholar] [CrossRef]
  6. Li, J.; Yan, X. Comprehensive two-dimensional normal-phase liquid chromatography × reversed-phase liquid chromatography for analysis of toad skin. Anal. Chim. Acta 2017, 972, 114–120. [Google Scholar] [CrossRef]
  7. Köksoy, B.; Akyüz, D.; Şenocak, A.; Durmuş, M.; Demirbas, E. Sensitive, simple and fast voltammetric determination of pesticides in juice samples by novel BODIPY-phthalocyanine-SWCNT hybrid platform. Food Chem. Toxicol. 2021, 147, 111886–111897. [Google Scholar] [CrossRef]
  8. Tümay, S.O.; Şenocak, A.; Sarı, E.; Şanko, V.; Durmuş, M.; Demirbas, E. A new perspective for electrochemical determination of parathion and chlorantraniliprole pesticides via carbon nanotube-based thiophene-ferrocene appended hybrid nanosensor. Sens. Actuators B Chem. 2021, 345, 130344–130347. [Google Scholar] [CrossRef]
  9. Şenocak, A. Fast, simple and sensitive determination of coumaric acid in fruit juice samples by magnetite nanoparticleszeolitic imidazolate framework material. Electroanalysis 2020, 32, 2330–2339. [Google Scholar] [CrossRef]
  10. Polyakov, M.; Ivanova, V.; Klyamer, D.; Köksoy, B.; Şenocak, A.; Demirbaş, E.; Durmuş, M.; Basova, T. A hybrid nanomaterial based on singlewalled carbon nanotubes cross-linked via axially substituted silicon (iv) phthalocyanine for chemiresistive sensors. Molecules 2020, 25, 2073. [Google Scholar] [CrossRef]
  11. Şenocak, A.; Tümay, S.O.; Sarı, E.; Şanko, V.; Durmuş, M.; Demirbas, E. The simultaneously voltammetric determination of spinosad and chlorantraniliprole pesticides by carbazole-ferrocene functionalized carbon nanotube architecture. J. Electrochem. Soc. 2021, 168, 087513–087523. [Google Scholar] [CrossRef]
  12. Köksoy, B.; Akyüzb, D.; Şenocak, A.; Durmuş, M.; Demirbaş, E. Novel SWCNT-hybrid nanomaterial functionalized with subphthalocyanine substituted asymmetrical zinc (II) phthalocyanine conjugate: Design, synthesis, characterization and sensor properties for pesticides. Sens. Actuators B Chem. 2021, 329, 129198–129207. [Google Scholar] [CrossRef]
  13. Şenocak, A.; Tümay, S.O.; Makhseed, S.; Demirbas, E.; Durmuş, M. A synergetic and sensitive physostigmine pesticide sensor using copper complex of 3D zinc (II) phthalocyanine-SWCNT hybrid material. Biosens. Bioelectron. 2021, 174, 112819–112826. [Google Scholar] [CrossRef] [PubMed]
  14. Tao, C.L.; Chen, B.; Liu, X.G. A highly luminescent entangled metal-organic framework based on pyridine-substituted tetraphenylethene for efficient pesticide detection. Chem. Commun. 2017, 53, 9975–9978. [Google Scholar] [CrossRef]
  15. Skorjanc, T.; Shetty, D.; Valant, M. Covalent organic polymers and frameworks for fluorescence-based sensors. ACS Sens. 2021, 6, 1461–1481. [Google Scholar] [CrossRef]
  16. Tümay, S.O.; Şanko, V.; Demirbas, E.; Şenocak, A. Fluorescence determination of trace level of cadmium with pyrene modified nanocrystalline cellulose in food and soil samples. Food Chem. Toxicol. 2020, 146, 111847–111857. [Google Scholar] [CrossRef] [PubMed]
  17. Li, Z.L.; Wang, L.; Li, Y.; Feng, Y.Y.; Feng, W. Carbon-based functional nanomaterials: Preparation, properties and applications. Compos. Sci. Technol. 2019, 179, 10–40. [Google Scholar] [CrossRef]
  18. Jarju, J.J.; Lavender, A.M.; Espiña, B.; Romero, V.; Salonen, L.M. Covalent organic framework composites: Synthesis and analytical applications. Molecules 2020, 25, 5404. [Google Scholar] [CrossRef]
  19. Diercks, C.S.; Kalmutzki, M.J.; Yaghi, O.M. Covalent organic frameworks-organic chemistry beyond the molecule. Molecules 2017, 22, 1575. [Google Scholar] [CrossRef] [Green Version]
  20. Geng, K.Y.; He, T.; Liu, R.Y.; Dalapati, S.; Tan, K.T.; Li, Z.P.; Tao, S.H.; Gong, Y.F.; Jiang, Q.H.; Jiang, D.L. Covalent organic frameworks: Design, synthesis, and functions. Chem. Rev. 2020, 16, 8814–8933. [Google Scholar] [CrossRef]
  21. Kotha, S.; Meshram, M.; Panguluri, N.R.; Shah, V.; Todeti, S.; Shirbhate, M.E. Synthetic approaches to star-shaped molecules with 1,3,5-trisubstituted aromatic cores. Chem. Asian J. 2019, 14, 1356–1403. [Google Scholar] [CrossRef] [PubMed]
  22. Yuan, Y.; Ren, H.; Sun, F.; Jing, X.; Cai, K.; Zhao, X.; Wang, Y.; Wei, Y.; Zhu, G. Sensitive detection of hazardous explosives via highly fluorescent crystalline porous aromatic frameworks. J. Mater. Chem. 2012, 22, 24558–24562. [Google Scholar] [CrossRef] [Green Version]
  23. Yan, Z.J.; Ren, H.; Ma, H.P.; Yuan, R.R.; Yuan, Y.; Zou, X.Q.; Sun, F.X.; Zhu, G.S. Construction and sorption properties of pyrene-based porous aromatic frameworks. Microporous Mesoporous Mater. 2013, 173, 92–98. [Google Scholar] [CrossRef] [Green Version]
  24. Porcua, P.; Estrada-Montaño, A.S.; Vonlanthena, M.; Cuétara-Guadarrama, F.; González-Méndez, I.; Sorroza-Martínez, K.; Zaragoza-Galán, G.; Rivera, E. Azobenzene dyads containing fullerene, porphyrin and pyrene chromophores: Molecular design and optical properties. Dyes Pigm. 2022, 197, 109858–109879. [Google Scholar] [CrossRef]
  25. Hüsnüye, A.A.; Süreyya, O.T.; Ahmet, Ş.; Serkan, Y. Pyrene functionalized cyclotriphosphazene-based dyes: Synthesis, intramolecular excimer formation, and fluorescence receptor for the detection of nitro-aromatic compounds. Dyes Pigm. 2018, 153, 172–181. [Google Scholar]
  26. Alidagi, H.A.; Tümay, S.O.; Ahmet, Ş.; Çiftbudak, Ö.F.; Çoşut, B.; Yeşilot, S. Constitutional isomers of dendrimer-like pyrene substituted cyclotriphosphazenes: Synthesis, theoretical calculations, and use as fluorescence receptors for the detection of explosive nitroaromatics. New J. Chem. 2019, 43, 16738–16747. [Google Scholar] [CrossRef]
  27. Wu, H.T.; Xu, H.; Tao, F.R.; Su, X.; Yu, W.W.; Li, T.D.; Cui, Y.Z. Preparation of a hyperbranched porous polymer and its sensing performance for nitroaromatics. New J. Chem. 2018, 42, 12802–12810. [Google Scholar] [CrossRef]
  28. Tang, C.; Xu, H.; Liu, F.; Liu, X.D.; Lai, W.Y.; Wang, X.L.; Huang, W. Alternating pyrene-fluorene linear copolymers: Influence of non-conjugated and conjugated pyrene on thermal and optoelectronic properties. Synth. Met. 2013, 174, 33–41. [Google Scholar] [CrossRef]
  29. Mikroyannidis, J.A.; Fenenko, L.; Yahiro, M.; Adachi, C. Alternating copolyfluorenevinyles with polynuclear aromatic moieties: Synthesis, photophysics, and electroluminescence. Polym. Chem. 2007, 45, 4661–4670. [Google Scholar] [CrossRef]
  30. Zhao, M.T.; Chen, J.Z.; Chen, B.; Zhang, X.; Shi, Z.Y.; Liu, Z.Q.; Ma, Q.L.; Peng, Y.W.; Tan, C.L.; Wu, X.J.; et al. Selective epitaxial growth of oriented hierarchical metal-organic framework heterostructures. J. Am. Chem. Soc. 2020, 19, 8953–8961. [Google Scholar] [CrossRef]
  31. Xia, L.X.; Zhang, H.C.; Feng, B.; Yang, D.Q.; Bu, N.S.; Zhao, Y.B.; Yan, Z.J.; Li, Z.N.; Yuan, Y.; Zhao, X.J. Facile strategy to prepare fluorescent porous aromatic frameworks for sensitive detection of nitroaromatic explosives. Chem. J. Chin. Univ. 2019, 40, 2456–2464. [Google Scholar]
  32. Zhang, X.H.; Wang, X.P.; Xiao, J.; Wang, S.Y.; Huang, D.K.; Ding, X.; Xiang, Y.G.; Chen, H. Synthesis of 1,4-diethynylbenzene-based conjugated polymer photocatalysts and their enhanced visible/near-infrared-light-driven hydrogen production activity. J. Catal. 2017, 350, 64–71. [Google Scholar] [CrossRef]
  33. Geng, T.M.; Zhang, C.; Hu, C.; Liu, M.; Fei, Y.T.; Xia, H.Y. Synthesis of 1,6-disubstituted pyrene-based conjugated microporous polymers for reversible adsorption and fluorescence sensing of iodine. New J. Chem. 2020, 44, 2312–2320. [Google Scholar] [CrossRef]
  34. Guo, L.; Cao, D.P. Color tunable porous organic polymer luminescent probes for selective sensing of metal ions and nitroaromatic explosives. J. Mater. Chem. C 2015, 3, 8490–8494. [Google Scholar] [CrossRef]
  35. Zhan, S.Z.; Li, M.; Zhou, X.P.; Wang, J.H.; Yang, J.R.; Li, D. When Cu4I4 cubane meets Cu3(pyrazolate)3 triangle: Dynamic interplay between two classical luminophores functioning in a reversibly thermochromic coordination polymer. Chem. Commun. 2011, 47, 12441–12443. [Google Scholar] [CrossRef]
  36. He, Q.J.; Shi, J.L.; Cui, X.Z.; Zhao, J.J.; Chen, Y.; Zhou, J. Rhodamine B-co-condensed spherical SBA-15 nanoparticles: Facile co-condensation synthesis and excellent fluorescence features. J. Mater. Chem. 2009, 19, 3395–3403. [Google Scholar] [CrossRef]
  37. Geng, T.M.; Li, D.K.; Zhu, Z.M. Fluorescent conjugated microporous polymer based on perylene tetraanhydride bisimide for sensing o-nitrophenol. Anal. Chim. Acta. 2018, 1011, 77–85. [Google Scholar] [CrossRef]
  38. Zhang, B.; Li, B.; Wang, Z.G. Creation of carbazole-based fluorescent porous polymers for recognition and detection of various pesticides in water. ACS Sens. 2020, 5, 162–170. [Google Scholar] [CrossRef]
  39. Engelhard, M.H.; Baer, D.R.; Herrera-Gomez, A.; Sherwood, P.M.A. Introductory guide to backgrounds in XPS spectra and their impact on determining peak intensities. J. Vac. Sci. Technol. A 2020, 38, 063203–063227. [Google Scholar] [CrossRef]
  40. Tougaard, S. Practical guide to the use of backgrounds in quantitative XPS. J. Vac. Sci. Technol. A 2021, 39, 011201–011222. [Google Scholar] [CrossRef]
  41. Shard, A.G.; Spencer, S.J. A simple approach to measuring thick organic films using the XPS inelastic background. Surf. Interface Anal. 2017, 49, 1256–1270. [Google Scholar] [CrossRef]
  42. Müller, A.; Sparnacci, K.; Unger, W.E.S.; Tougaard, S. Determining nonuniformities of core-shell nanoparticle coatings by analysis of the inelastic background of X-ray photoelectron spectroscopy survey spectra. Surf. Interface Anal. 2020, 52, 770–777. [Google Scholar] [CrossRef]
  43. Oku, M.; Shishido, T.; Matsuta, H.; Wagatsuma, K. Comparison of the background corrected valence band XPS spectra of Fe and Co aluminides and silicides with their electronic structures. J. Electron. Spectros. Relat. Phenomena 2006, 153, 75–80. [Google Scholar] [CrossRef]
  44. Turner, N.H. Estimates of peak areas and relative atomic amounts from wide-scan XPS spectra. Surf. interface Anal. 1992, 18, 47–51. [Google Scholar] [CrossRef]
  45. Dwyer, V.M. Background intensity determination in AES/XPS. Surf. Sci. 1988, 193, 549–568. [Google Scholar] [CrossRef]
  46. Krishnan, S.; Suneesh, C.V. Fluorene—Triazine conjugated porous organic polymer framework for superamplified sensing of nitroaromatic explosives. J. Photochem. 2019, 371, 414–422. [Google Scholar] [CrossRef]
  47. Cui, C.; Wang, Q.; Xin, C.; Liu, Q.Y.; Deng, X.; Liu, T.T.; Xu, X.H.; Zhang, X.M. Covalent organic framework nanofiber with bidentate ligand as enhanced fluorescent sensor for Cu2+. Microporous Mesoporous Mater. 2020, 299, 110122–110130. [Google Scholar] [CrossRef]
  48. Geethanjalia, H.S.; Nagaraja, D.; Melavanki, R.M. Exploring the mechanism of fluorescence quenching in two biologically active boronic acid derivatives using Stern-Volmer kinetics. J. Mol. Liq. 2015, 209, 669–675. [Google Scholar] [CrossRef]
  49. Ma, L.N.; Zhang, B.; Wang, Z.H.; Hou, L.; Zhu, Z.H.; Wang, Y.Y. Efficient gas and VOC separation and pesticide detection in a highly stable interpenetrated Indium-Organic framework. Inorg. Chem. 2021, 60, 10698–10706. [Google Scholar] [CrossRef]
  50. Zhang, L.Q.; Wang, X.W.; Gu, L.; Yu, Y.H.; Gao, J.S. Three pairs of luminescent coordination polymers based on CoII and CdII clusters for the detection of antibiotics, pesticides and chiral nitro aromatic compounds. RSC Adv. 2020, 10, 9475–9476. [Google Scholar] [CrossRef] [Green Version]
  51. Lu, Q.; Zhou, T.Y.; Wang, Y.P.; Gong, L.S.; Liu, J.B. Transformation from gold nanoclusters to plasmonic nanoparticles: A general strategy towards selective detection of organophosphorothioate pesticides. Biosens. Bioelectron. 2018, 99, 274–280. [Google Scholar] [CrossRef] [PubMed]
Molecules 27 00126 sch001 550

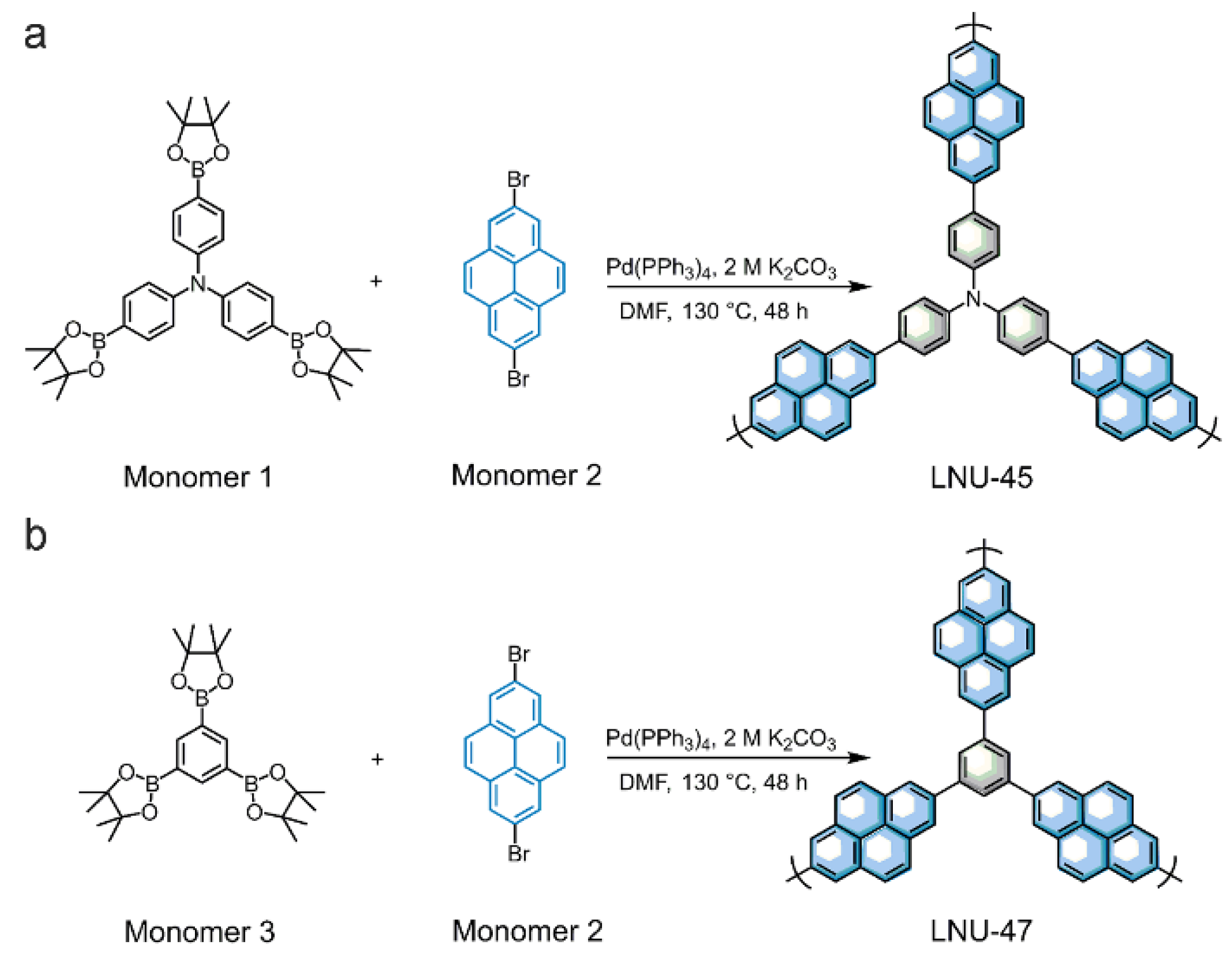

Scheme 1. Synthetic routes of LNU-45 (a) and LNU-47 (b) via the Suzuki coupling reaction.
Scheme 1. Synthetic routes of LNU-45 (a) and LNU-47 (b) via the Suzuki coupling reaction.
Molecules 27 00126 sch001
Molecules 27 00126 g001 550

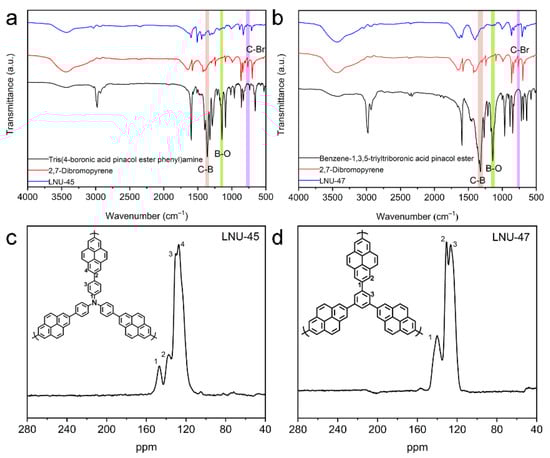

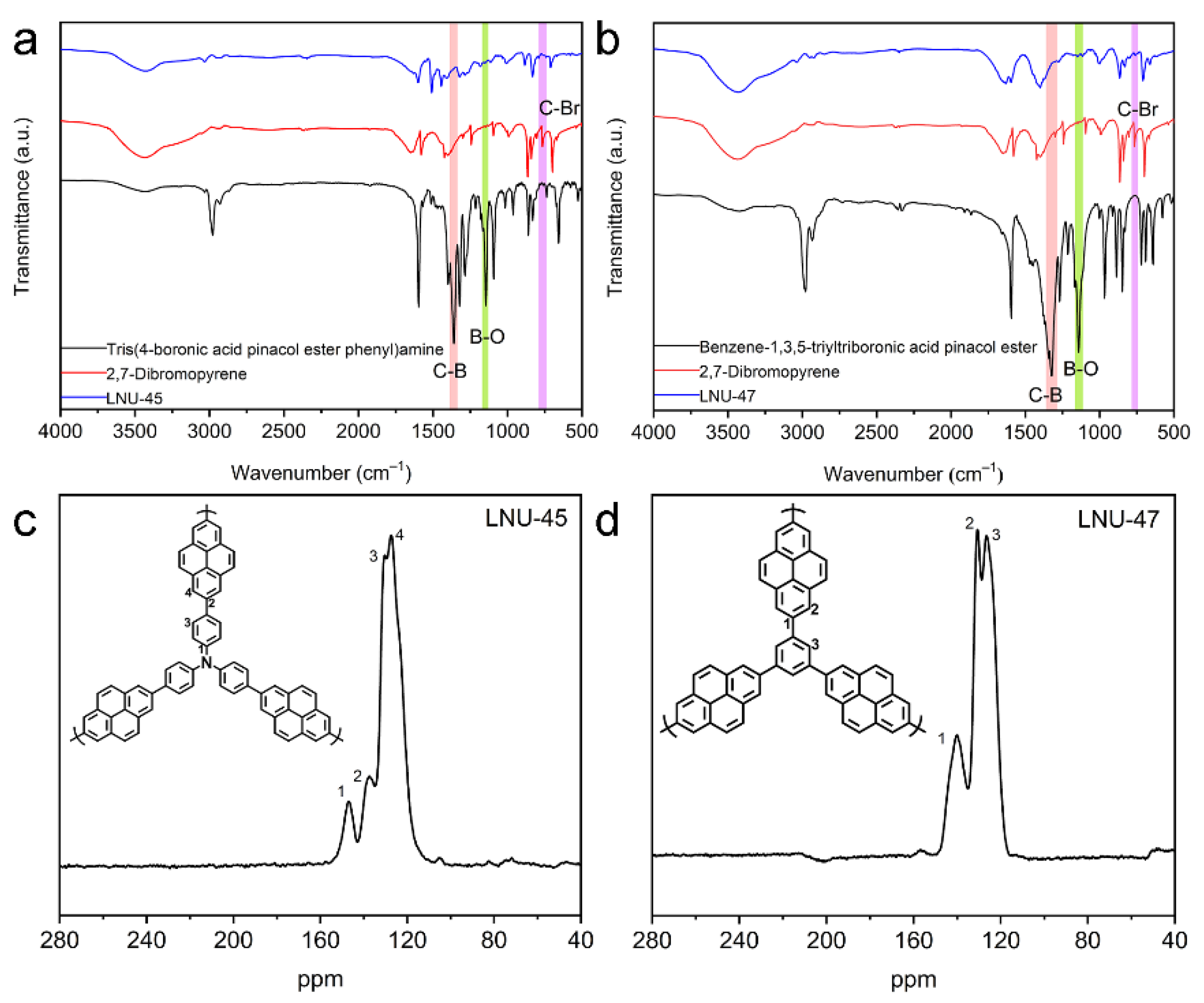

Figure 1. FT-IR spectra of LNU-45 (a) and LNU-47 (b). Solid-state 13C-NMR spectra of LNU-45 (c) and LNU-47 (d).
Figure 1. FT-IR spectra of LNU-45 (a) and LNU-47 (b). Solid-state 13C-NMR spectra of LNU-45 (c) and LNU-47 (d).
Molecules 27 00126 g001
Molecules 27 00126 g002 550

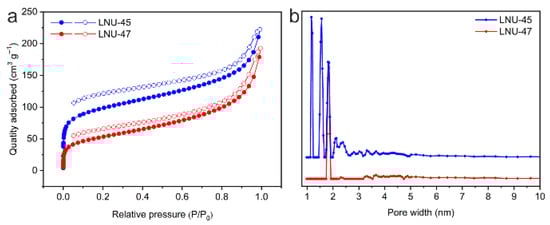

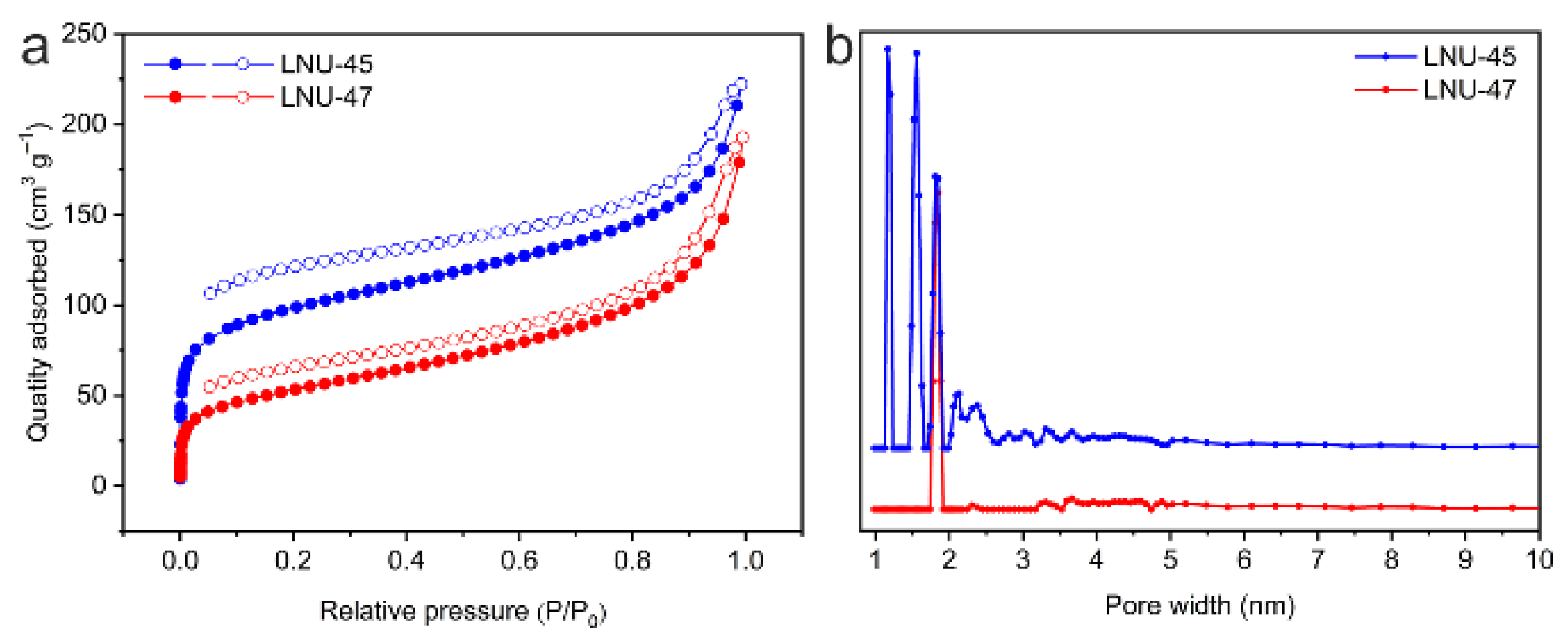

Figure 2. N2 adsorption–desorption isotherms (a) and pore size distribution (b) of LNU-45 and LNU-47.
Figure 2. N2 adsorption–desorption isotherms (a) and pore size distribution (b) of LNU-45 and LNU-47.
Molecules 27 00126 g002
Molecules 27 00126 g003 550

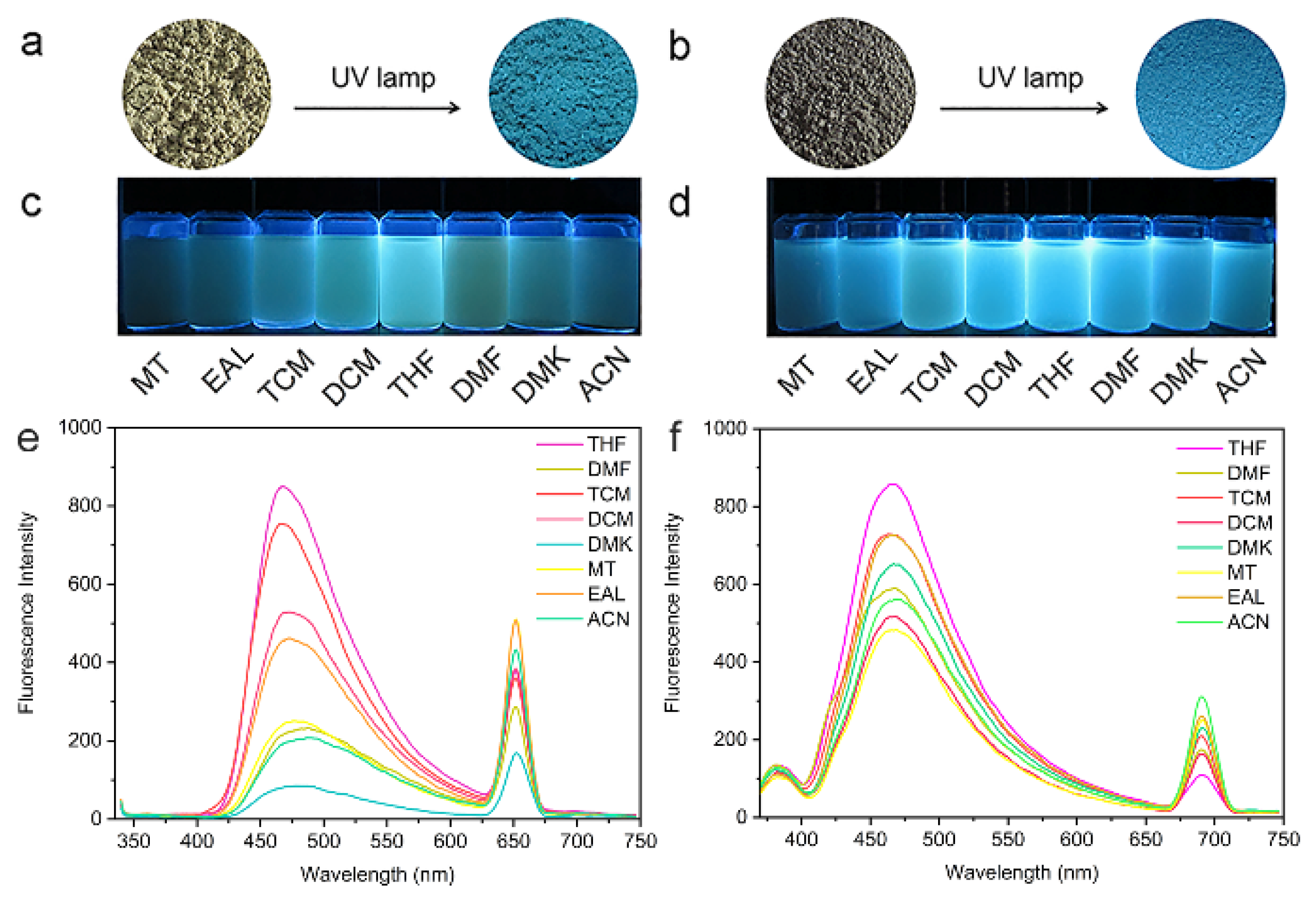

Figure 3. Color change of LNU-45 (a) and LNU-47 (b) powder before and after UV lamp irradiation (λex = 365 nm). LNU-45 (c) and LNU-47 (d) dispersed in different organic solvents under UV light (λex = 365 nm). Fluorescence emission spectra of LNU-45 (e) and LNU-47 (f) dispersed in different organic solvents (0.25 mg mL−1).
Figure 3. Color change of LNU-45 (a) and LNU-47 (b) powder before and after UV lamp irradiation (λex = 365 nm). LNU-45 (c) and LNU-47 (d) dispersed in different organic solvents under UV light (λex = 365 nm). Fluorescence emission spectra of LNU-45 (e) and LNU-47 (f) dispersed in different organic solvents (0.25 mg mL−1).
Molecules 27 00126 g003
Molecules 27 00126 g004 550

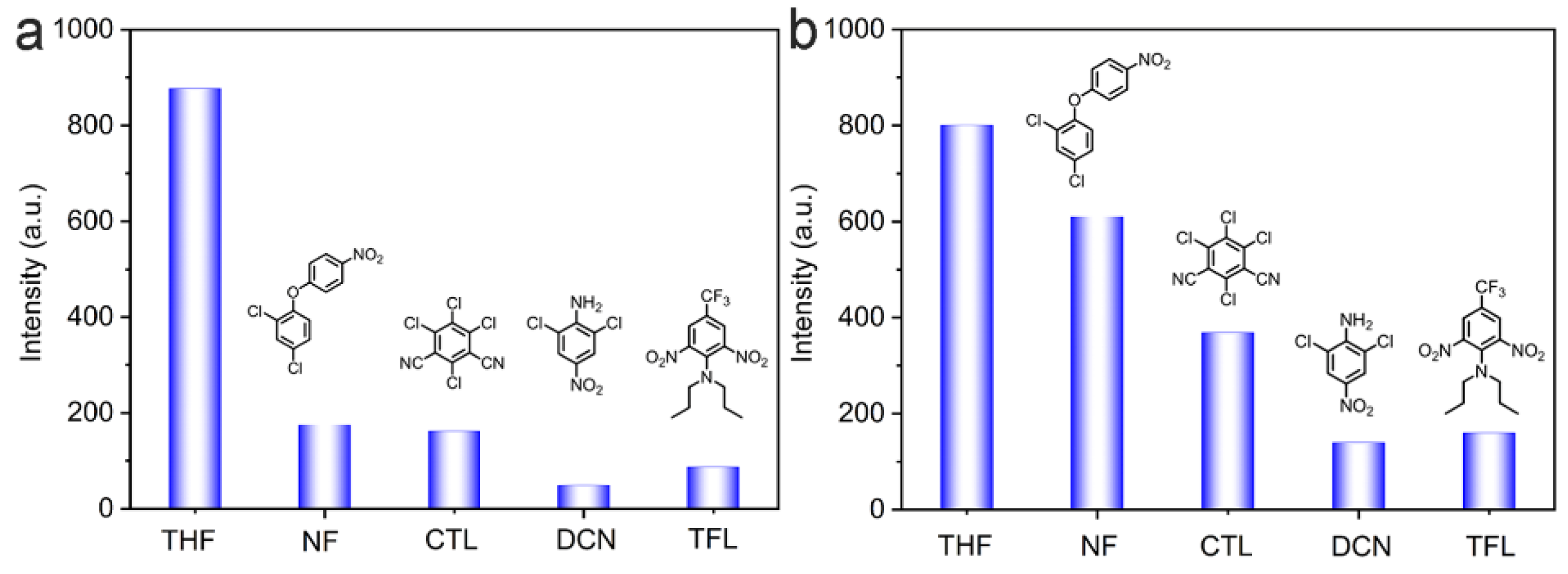

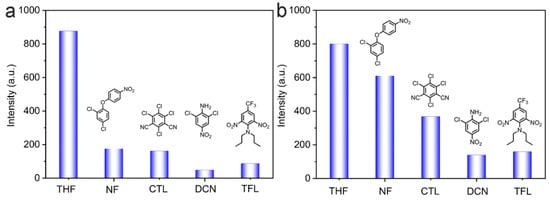

Figure 4. Comparison graphs of the fluorescence intensity for LNU-45 (a) and LNU-47 (b) in THF solution interacting with different pesticides.
Figure 4. Comparison graphs of the fluorescence intensity for LNU-45 (a) and LNU-47 (b) in THF solution interacting with different pesticides.
Molecules 27 00126 g004
Molecules 27 00126 g005 550

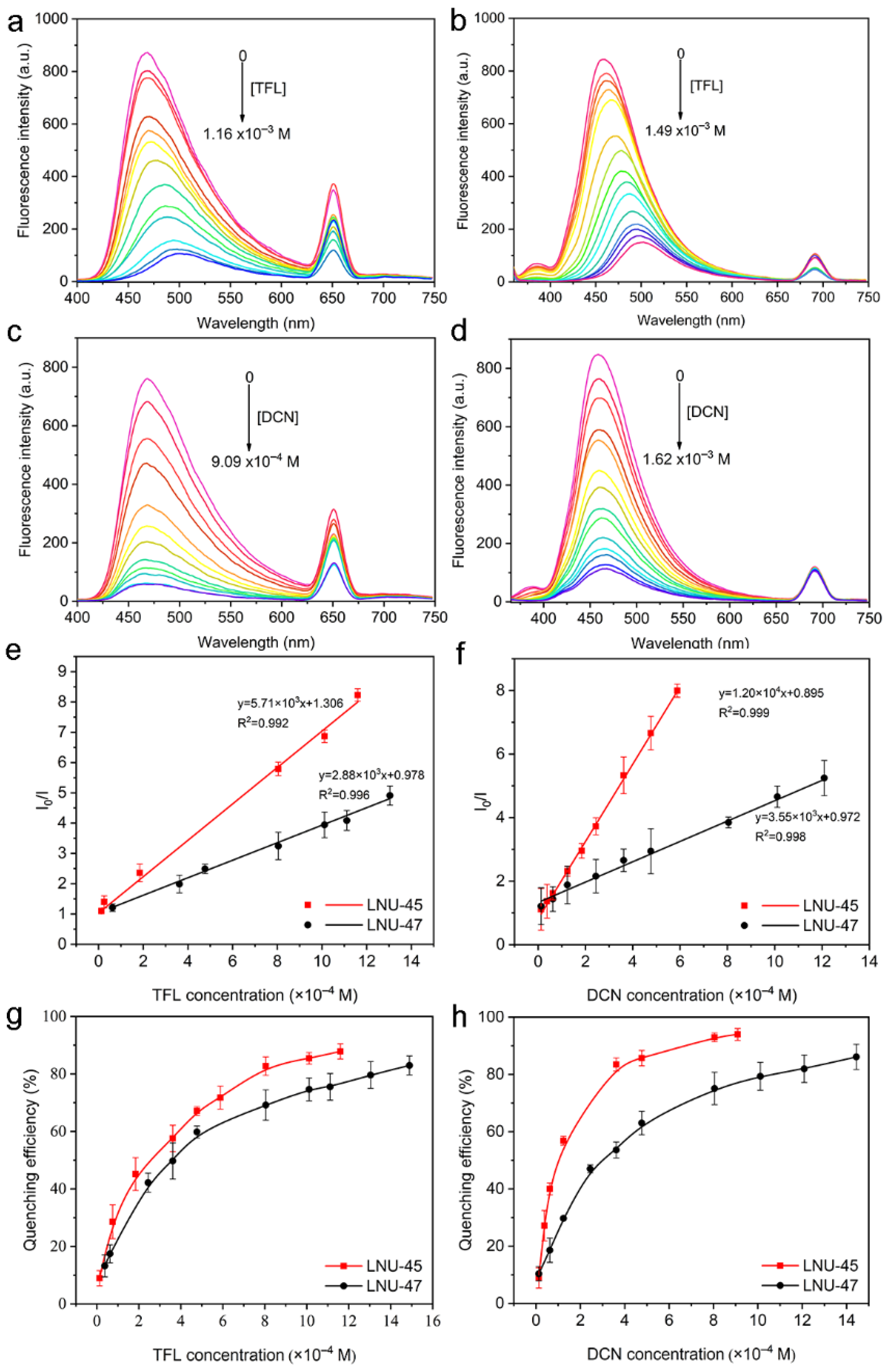

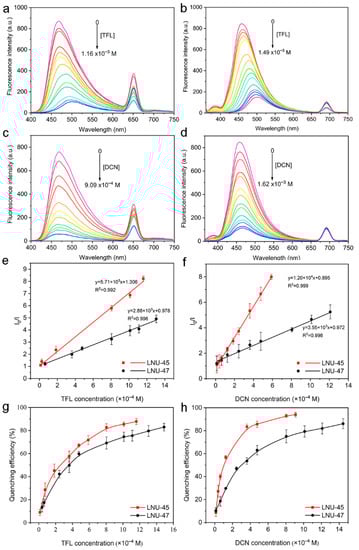

Figure 5. Fluorescence emission spectra of LNU-45 (a) and LNU-47 (b) in THF upon the addition of trifluralin in different amounts. Fluorescence emission spectra of LNU-45 (c) and LNU-47 (d) in THF upon the addition of dicloran in different amounts. Stern–Volmer plots of LNU-45 (e) and LNU-47 (f) quenched by trifluralin and dicloran, respectively. Quenching efficiency of LNU-45 (g) and LNU-47 (h) for pesticides with different concentrations.
Figure 5. Fluorescence emission spectra of LNU-45 (a) and LNU-47 (b) in THF upon the addition of trifluralin in different amounts. Fluorescence emission spectra of LNU-45 (c) and LNU-47 (d) in THF upon the addition of dicloran in different amounts. Stern–Volmer plots of LNU-45 (e) and LNU-47 (f) quenched by trifluralin and dicloran, respectively. Quenching efficiency of LNU-45 (g) and LNU-47 (h) for pesticides with different concentrations.
Molecules 27 00126 g005
Table
Table 1. Porosity data for LNU-45 and LNU-47.
Table 1. Porosity data for LNU-45 and LNU-47.
SampleSBET
(m2 g−1)		Smicro
(m2 g−1)		Vmicro
(cm3 g−1)		Vtotal
(cm3 g−1)		Pore Size
(nm)
LNU-45322.401121.9890.0650.1311.165–1.809
LNU-47181.92431.8080.0170.0491.810
