Synthesis and Single Crystal Structures of N-Substituted Benzamides and Their Chemoselective Selenation/Reduction Derivatives

,
,
,
and
1
EaStCHEM School of Chemistry, University of St Andrews, St Andrews Fife KY16 9ST, UK
2
Department of Chemistry, Khalifa University, Abu Dhabi 127788, United Arab Emirates
*
Author to whom correspondence should be addressed.
†
Dedication: The co-authors dedicate this paper to Prof. Slawin on the occasion of her 60th birthday.
Molecules2021, 26(8), 2367;https://doi.org/10.3390/molecules26082367
This article belongs to the Special Issue Advances in Chemical Crystallography: A Themed Issue Honoring Professor Alexandra M. Z. Slawin on the Occasion of Her 60th Birthday
Version Notes
Order Reprints
Review Reports

Abstract

A series of N-aryl-N-(2-oxo-2-arylethyl) benzamides and cinnamides has been prepared. The reaction of the benzamides with Woollins’ reagent, a highly efficient chemoselective selenation/reduction reagent, gave the corresponding N-aryl-N-(arylenethyl) benzoselenoamides in good yields. Five representative single crystal X-ray structures are discussed.

1. Introduction

2,4-Bis (phenyl)-1,3-diselenadiphosphetane-2,4-diselenide (Woollins’ reagent, WR) has played a role in synthetic chemistry in the past two decades [,,,,,,,,,,,,]. It has been successfully applied as an efficient building unit to synthesize a series of eight-, nine-, and ten-membered selenophosphorus heterocycles with P-Se-Se-P linkage [], as well as unique octaselenocyclododecane with four carbon atoms and eight selenium atoms in this twelve-membered cycle []. Another attractive application has been that it acts as a highly chemoselective reagent, e.g., the reduction of a wide range of 1,4-enediones and 1,4-ynediones in methanol led to saturated 1,4-diketones [] and the selective reduction of the double bond of 2-α,β-unsaturated thiazo- and selenazolidinones gave the corresponding saturated heterocycles []. Woollins’ reagent has also been used as a reducting agent to transfer porpholactone into dihydroporpholactone or into adjacent-tetrahydroporpholactone [].
Organoselenium compounds have received growing attention during the last decades due to their importance as useful precursors in synthetic chemistry [,], as new synthetic materials [], and their biological and medicinal significance []. To continue our interest in the chemistry of Woollins’ reagent towards various organic substrates, we report an investigation on the use of WR as a selenation/reduction reagent for transferring N-aryl-N-(2-oxo-2-arylethyl) benzamides into the corresponding N-aryl-N-(arylenethyl) benzoselenoamides.

2. Results and Discussion

2.1. Synthesis and Characterization

The synthesis of anilinoacetophenones 1–3, N-aryl-N-arylamidoacetophenones 4–6 and N-aryl-N-cinnamidoacetophenones 7–9 was carried out using a modified literature method []. The reaction of anilines and an equivalent of the appropriate bromoacetophenones in dry acetonitrile at room temperature gave anilinoacetophenones 1–3 in 81–87% yields, respectively. Anilinoacetophenones 1 and 2 are new compounds, while 3 is a known compound, prepared previously by a similar method [,]; however, its single-crystal X-ray structure has not been reported previously. Acylation of anilinoacetophenones 1–3 with the appropriate acid chlorides in 1,2-dichloroethane at reflux led to the N-aryl-N-arylamidoacetophenones 4–6 and N-aryl-N-cinnamidoacetophenones 7–9 in 76–91% yields, as shown in Scheme 1. All the new compounds were characterized by standard analytical and spectroscopic techniques. 1–9 show the anticipated [M]+ or [M + H]+ peak in their mass spectra, satisfactory accurate mass measurements, and appropriate isotopic distributions; the 1H NMR spectra display all the characteristic peaks of the phenyl backbones in compounds and the characteristic peaks of the NH group in compound 1–3. The 13C NMR spectra of compounds 1–9 display the characteristic signals of the C=O groups.

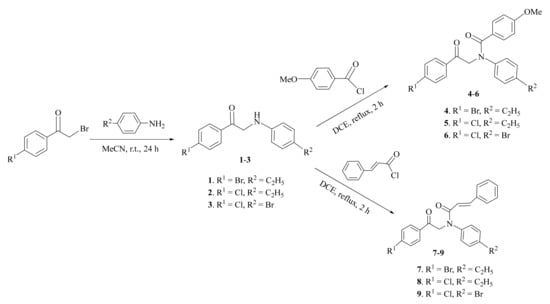

Scheme 1. Synthesis of anilinoacetophenones 1–3, N-aryl-N-arylamidoacetophenones 4–6 and N-aryl-N-cinnamidoacetophenones 7–9.
Selenation of N-aryl-N-arylamidoacetophenones 4–6 by WR gave rise to N-aryl-N-arylethylbenzoselenoamides 10–12 in 50%, 46% and 40% yields, respectively, rather than the expected 1,3-selenazole products (Scheme 2). One C=O group has been converted to C=Se and the other reduced to CH2 to give the final product N-Aryl-N-arylethylbenzoselenoamides 10–12. It is well known that WR is an efficient chemoselective reduction agent for diketones [], α,β-unsaturated thioazo and selenoazolidinones []. Based on the literature research and our findings, a possible mechanism for the selective reduction of N-substituted-N-phenylamidoacetophenones 4–6 is broadly similar to that of NaSeH and LiSeH as selective reducing agents of α,β-unsaturated carbonyl compounds [] and of PhSe-SePh as a reducing agent for electron deficient olefins [], and it is probable that the reduction proceed through a Micheal reaction [,,].

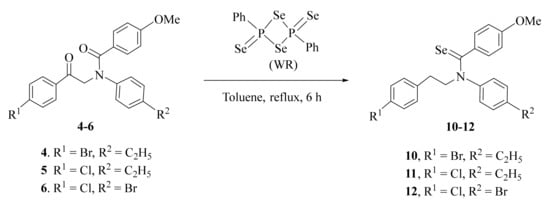

Scheme 2. Selenation of N-aryl-N-phenylamidoacetophenones 4–6.
Reacting N-aryl-N-cinnamidoacetophenones 7–9 with WR under similar reaction conditions did not lead to a reaction, with the starting materials being recovered (Scheme 3). We speculate that the extra C=C bond in N-substituted-N-phenylamidoacetophenones 7–9 which gives a conjugated structure, may be more stable and robust than N-substituted-N-phenylamidoacetophenones 4–6 towards WR.

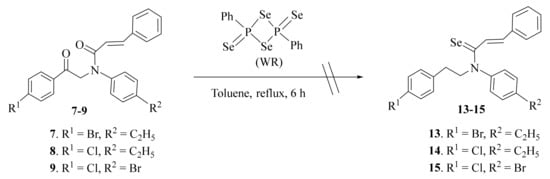

Scheme 3. Attempted selenation of N-aryl-N-cinnamidoacetophenones 7–9.
The new selenium derivatives 10–12 are quite stable both as solids and in solution, in air and moist atmospheres, and are soluble in common organic solvents. They show the anticipated molecular ion peaks [M + H]+ in their CI spectra and [M]+ in their EI spectra, and satisfactory accurate mass measurements (EI). All the characteristic peaks of the phenyl backbones were found, and the characteristic peaks of the NH group disappeared in their 1H NMR spectra. Their 13C NMR spectra all show the normal signals for the C=Se groups (δC, 204.8–206.8 ppm). Their 77Se NMR spectra exhibit singlet signals at δSe = 598.4, 601.5 and 601.4 ppm for 10–12, respectively.

2.2. Single Crystal Structure Analysis

Single crystals of 3, 7, 10–12 suitable for X-ray crystallographic analysis were grown by slow evaporation of dichloromethane solutions of the compound in air at room temperature. Selected crystallographic data are given in Table 1 and the resulting molecular structures are illustrated in Figure 1 and Figure 2.
Table 1. Details of the X-ray data collections and refinements for compounds 3, 7, 10–12.

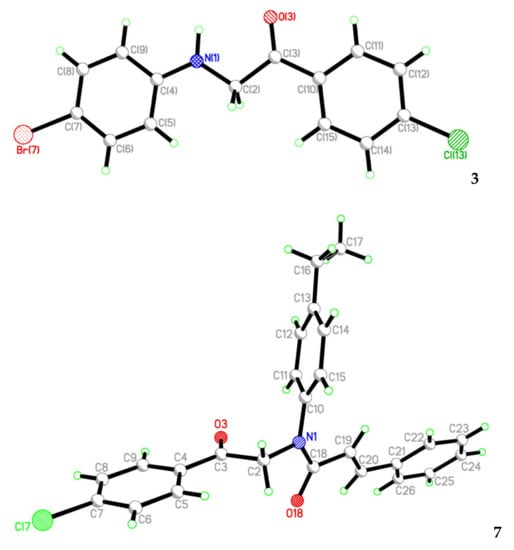

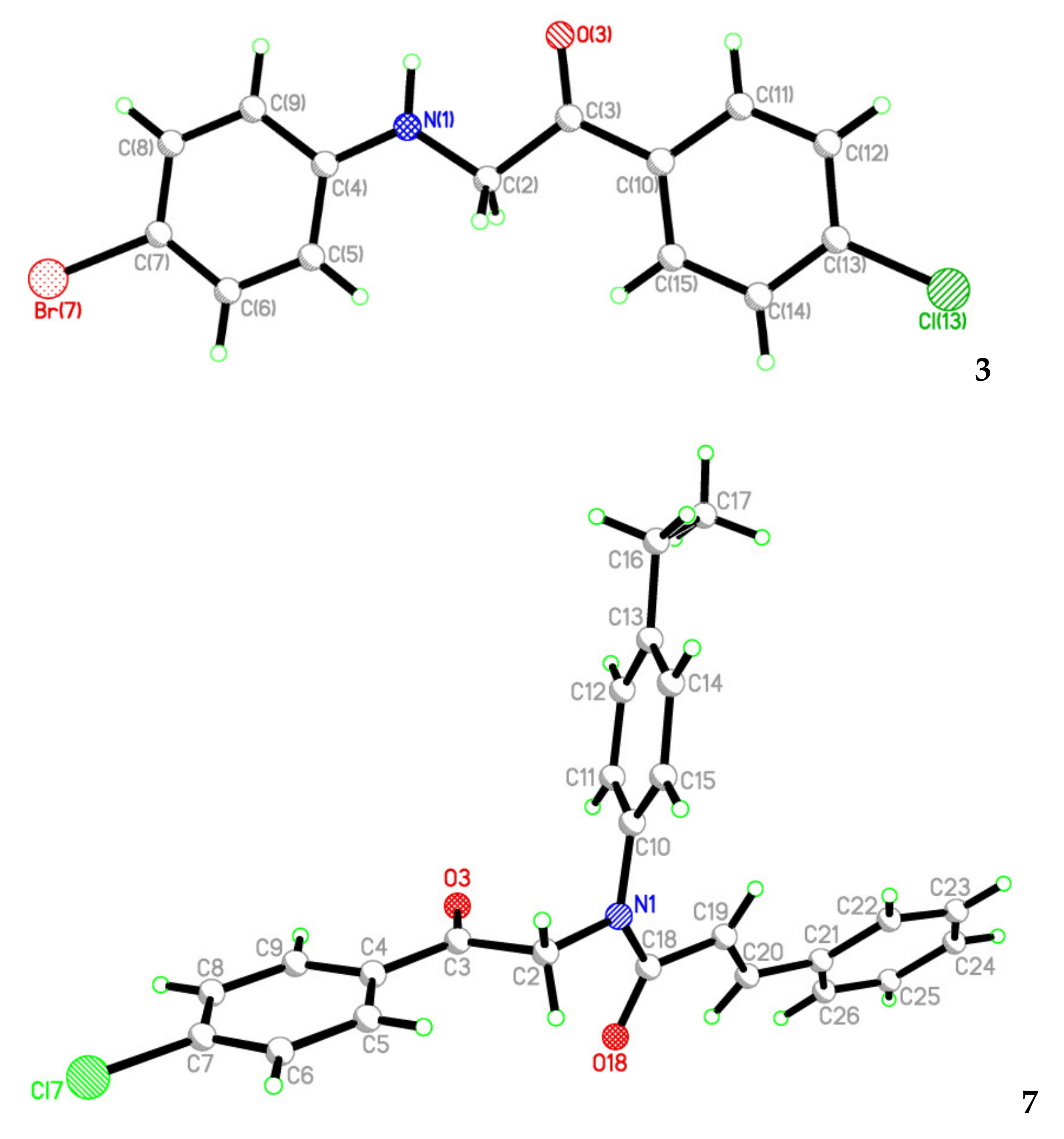

Figure 1. Single crystal X-ray structures of anilinoacetophenone 3 and N-aryl-N-cinnamidoacetophenone 7.

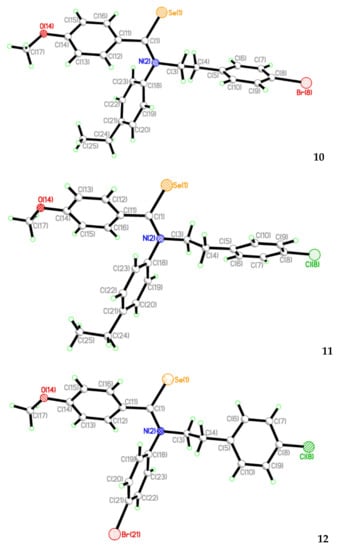

Figure 2. Single crystal X-ray structures of selenoamides 10, 11 and 12.
The molecular structure of anilinoacetophenone 3 (Figure 1) shows a planar arrangement, with a mean deviation of non-hydrogen atoms from the plane of 0.047 Å. Adjacent molecules of 3 interact to form hydrogen-bonded dimers via a pair of NH···O hydrogen bonds at a H···O distance of 2.59(4) Å, and N···O separation of 3.360(5) Å. The structure of the N-aryl-N-cinnamidoacetophenone 7 shows the compound in a twisted-T conformation (Figure 1). As expected, the acetophenone group retains its planarity (mean deviation of non-hydrogen atoms from the plane of 0.004 Å). Meanwhile, the other two phenyl ring planes are twisted out of the acetophenone plane, with angles between planes of 71.36 and 50.74° for C(10)-C(15) and C(21)-C(26), respectively.
The X-ray structures of 10, 11 and 12 are depicted in Figure 2, each displaying similar twisted-T conformations. The three aryl rings [C(5)-C(10) (ring 1), C(11)-C(16) (ring 2) and C(18)-C(23) (ring 3) in all three compounds] are all twisted with respect to each other, the angles between ring planes being 28.92, 69.02 and 62.00° in 10, 18.92, 62.23 and 64.51° in 11 and 55.76, 61.91 and 68.23° in 12 for rings 1 and 2, 1 and 3, and 2 and 3, respectively. This pattern of ring twists puts all the rings out of the plane of the selenoamide, except for ring 1 in compound 12, which is near parallel to the selenoamide, inclined at 9.24°. The C=Se double bond lengths [1.832(3) Å in 10, 1.833(2) Å in 11 and 1.8264(19) Å in 12] are very similar, falling at the middle of the range of C=Se bonds in known selenoamides [1.81(5) to 1.856(4) Å]. [] The conformations of 10–12 are all very similar, that between 10 and 11, being almost identical. The difference between this conformation and that adopted by 12 is in the orientation of ring 1, which differs by ~67° between the two conformations.

3. Materials and Methods

3.1. General

Unless otherwise stated, all reactions were carried out under an oxygen-free nitrogen atmosphere using pre-dried solvents and standard Schlenk techniques, subsequent chromatographic and work up procedures were performed in air. 1H (400.1 MHz), 13C (100.6 MHz) and 77Se-{1H} (51.5 MHz, referenced to external Me2Se) NMR spectra were recorded at 25 °C (NMR Jeol GSX270). IR spectra were recorded as KBr pellets in the range of 4000–250 cm−1 on a Perkin-Elmer 2000 FTIR/Raman spectrometer Mass spectrometry was performed by the EPSRC National Mass Spectrometry Service Centre, Swansea.

Crystallography

X-ray diffraction data for compounds 3, 7 and 10–12 were collected at either 93 K or 173 K using a Rigaku FR-X Ultrahigh Brilliance Microfocus RA generator/confocal optics with XtaLAB P200 diffractometer [Mo Kα radiation (λ = 0.71075 Å)]. Intensity data were collected using ω steps accumulating area detector images spanning at least a hemisphere of reciprocal space. Data for all compounds were collected using CrystalClear 2.1 [] and processed (including correction for Lorentz, polarization and absorption) using either CrystalClear [] or CrysAlisPro 1.171.38.43. [] Structures were solved by dual-space (SHELXT-2014/4 []) or Patterson (PATTY []) methods and refined by full-matrix least-squares against F2 (SHELXL-2018/3 []). Non-hydrogen atoms were refined anisotropically, and hydrogen atoms were refined using a riding model, except for the amine hydrogen in 3 which was located from the difference Fourier map and refined isotropically subject to a distance restraint. All calculations were performed using the CrystalStructure 4.3 interface []. Selected crystallographic data are presented in Table 1. Deposition numbers 2071413–2071417 contains the supplementary crystallographic data for this paper. These data are provided free of charge by the joint Cambridge Crystallographic Data Centre and Fachinformationszentrum Karlsruhe Access Structures service www.ccdc.cam.ac.uk/structures.

3.2. Synthesis

3.2.1. General Procedure for Synthesis of Compounds 1–3

The appropriate aniline (20 mmol) and the phenacyl bromide (10 mmol) were combined in MeCN (40 mL) and allowed to stir at room temperature for 24 h. The amine salt was filtered off and the filtrate was concentrated under vacuum. The residue was dissolved in EtOAc (40 mL) and washed sequentially with H2O (50 mL), 5% citric acid (50 mL) and brine (25 mL). The organic layer was dried over Na2SO4, filtered through a pad of silica gel and the solvent was evaporated to give the product aminoacetophenones 1–3 in good yield.
1-(4-Bromophenyl)-2-((4-ethylphenyl)amino)ethan-1-one (1). Brown solid (83% yield). M.p. 151–153 °C. Selected IR (KBr, cm−1), 1679(vs), 1617(s), 1583(s), 1522(vs), 1585(m), 1388(m), 1351(m), 1311(m), 1216(m), 1178(m), 1140(m), 1068(s), 992(vs), 812(vs), 576(m), 501(m). 1H NMR (CDCl3, δ), 7.80 (d, J(H,H) = 8.6 Hz, 2H), 7.69 (d, J(H,H) = 8.4 Hz, 2H), 7.32 (s, 1H), 7.09 (d, J(H,H) = 8.6 Hz, 2H), 6.68 (d, J(H,H) = 8.6 Hz, 2H), 4.60 (s, 2H), 2.58 (d, J(H,H) = 7.6 Hz, 2H), 1.22 (d, J(H,H) = 7.6 Hz, 3H) ppm. 13C NMR (CDCl3, δ), 194.4, 145.0, 133.9, 133.7, 132.2, 129.3, 129.0, 128.7, 113.2, 50.7, 28.0, 16.0 ppm. Accurate mass measurement [ESI+, m/z]: found 318.0482 [M + H]+, calculated mass for C16H16BrNOH: 318.0486.
1-(4-Chlorophenyl)-2-((4-ethylphenyl)amino)ethan-1-one (2). Dark yellow solid (81% yield). M.p. 148–149 °C. Selected IR (KBr, cm−1), 1678(vs), 1618(m), 1598(s), 1522(s), 1489(m), 1440(m), 1395(m), 1352(s), 1312(m), 1218(s), 1090(s), 993(s), 815(vs), 577(m), 529(m). 1H NMR (CDCl3, δ), 7.99 (d, J(H,H) = 8.6 Hz, 2H), 7.52 (d, J(H,H) = 8.6 Hz, 2H), 7.32 (s, 1H), 7.09 (d, J(H,H) = 8.4 Hz, 2H), 6.68 (d, J(H,H) = 8.4 Hz, 2H), 4.41 (s, 2H), 2.60 (q, J(H,H) = 7.6 Hz, 2H), 1.23 (t, J(H,H) = 7.6 Hz, 3H) ppm. 13C NMR (CDCl3, δ), 194.2, 145.0, 140.3, 133.9, 133.3, 129.3, 129.2, 129.1, 128.7, 113.2, 50.8, 28.0, 16.0 ppm. Accurate mass measurement [ESI+, m/z]: found 274.0992 [M + H]+, calculated mass for C16H16ClNOH: 274.0994.
2-((4-Bromophenyl)amino)-1-(4-chlorophenyl)ethan-1-one (3). Greenish yellow solid (87% yield). M.p. 165–166 °C. Selected IR (KBr, cm−1), 1678(vs), 1595(s), 1510(s), 1491(s), 1400(m), 1357(s), 1256(m), 1218(m), 1094(s), 991(s), 814(s), 797(m), 574(m), 499(m). 1H NMR (CDCl3, δ), 7.98 (d, J(H,H) = 8.6 Hz, 2H), 7.52 (d, J(H,H) = 8.6 Hz, 2H), 7.32 (d, J(H,H) = 8.4 Hz, 2H), 7.28 (s, 1H), 6.60 (d, J(H,H) = 8.4 Hz, 2H), 4.56 (s, 2H) ppm. 13C NMR (CDCl3, δ), 194.2, 145.0, 140.3, 133.9, 133.3, 129.3, 129.2, 129.2, 128.7, 113.2, 50.8, 28.0, 16.0 ppm. Accurate mass measurement [ESI+, m/z]: found 323.9789 [M + H]+, calculated mass for C14H11BrClNOH: 323.9791.

3.2.2. General Procedure for Synthesis of Compounds 4–9

The appropriate aminoacetophenone (5.0 mmol) was dissolved in dichloroethane (25 mL) and refluxed for 2 h with the appropriate acid chloride (5.0 equiv). Volatiles were evaporated in vacuo, and the residue was recrystallized from ethyl acetate to give the expected products 4–9.
N-(2-(4-Bromophenyl)-2-oxoethyl)-N-(4-ethylphenyl)-4-methoxybenzamide (4). Yellow solid (91% yield). M.p. 127–129 °C. Selected IR (KBr, cm−1), 1678(vs), 1617(m), 1590(m), 1521(s), 1352(m), 1306(m), 1262(m), 1219(m), 1091(m), 994(s), 844(m), 815(s), 772(m), 696(m), 613(m), 546(m), 503(m). 1H NMR (CDCl3, δ), 8.09 (d, J(H,H) = 8.9 Hz, 2H), 7.90 (d, J(H,H) = 8.7 Hz, 2H), 7.68 (d, J(H,H) = 8.6 Hz, 2H), 7.09 (d, J(H,H) = 8.6 Hz, 2H), 6.97 (d, J(H,H) = 8.9 Hz, 2H), 6.68 (d, J(H,H) = 8.5 Hz, 2H), 4.59 (s, 2H), 3.91 (s, 3H), 2.59 (q, J(H,H) = 7.6 Hz, 2H), 1.22 (t, J(H,H) = 7.6 Hz, 3H) ppm. 13C NMR (CDCl3, δ), 194.5, 171.3, 164.2, 145.0, 133.9, 133.7, 132.4, 133.2, 132.0, 129.3, 129.0, 128.7, 121.7, 113.8, 113.3, 55.5, 50.8, 28.0, 16.0 ppm. Accurate mass measurement [CI+, m/z]: found 452.0859 [M + H]+, calculated mass for C24H22BrNO3H: 452.0861.
N-(2-(4-Chlorophenyl)-2-oxoethyl)-N-(4-ethylphenyl)-4-methoxybenzamide (5). Bright yellow solid (81% yield). M.p. 126–128 °C. Selected IR (KBr, cm−1), 1678(vs), 1617(s), 1590(s), 1512(vs), 1396(m), 1352(m), 1307(m), 1262(m), 1218(m), 1179(m), 1090(s), 994(s), 815(s), 772(m), 613(m), 578(m), 546(m), 503(m). 1H NMR (CDCl3, δ), 8.10 (d, J(H,H) = 8.9 Hz, 2H), 7.99 (d, J(H,H) = 8.6 Hz, 2H), 7.51 (d, J(H,H) = 8.6 Hz, 2H), 7.09 (d, J(H,H) = 8.4 Hz, 2H), 6.97 (d, J(H,H) = 8.9 Hz, 2H), 6.68 (d, J(H,H) = 8.4 Hz, 2H), 4.61 (s, 2H), 3.91 (s, 3H), 2.59 (q, J(H,H) = 7.6 Hz, 2H), 1.23 (t, J(H,H) = 7.6 Hz, 3H) ppm. 13C NMR (CDCl3, δ), 194.2, 171.5, 164.0, 145.0, 140.3, 133.9, 133.3, 132.4, 129.3, 129.2, 129.0, 128.8, 121.7, 113.7, 113.2, 55.5, 50.8, 28.0, 16.0 ppm. Accurate mass measurement [CI+, m/z]: found 408.1366 [M + H]+, calculated mass for C24H22ClNO3H: 408.1367.
N-(4-Bromophenyl)-N-(2-(4-chlorophenyl)-2-oxoethyl)-4-methoxybenzamide (6). Gray solid (83% yield). M.p. 150–152 °C. Selected IR (KBr, cm−1), 1680(s), 1601(s), 1574(m), 1513(m), 1487(m), 1427(s), 1301(s), 1260(s), 1166(s), 1025(m), 926(m), 844(s), 816(m), 772(s), 696(m), 613(s), 547(s), 503(m), 484(m). 1H NMR (CDCl3, δ), 8.09 (d, J(H,H) = 8.9 Hz, 2H), 7.98 (d, J(H,H) = 8.6 Hz, 2H), 7.52 (d, J(H,H) = 8.6 Hz, 2H), 7.32 (d, J(H,H) = 8.9 Hz, 2H), 6.97 (d, J(H,H) = 8.8 Hz, 2H), 6.61 (d, J(H,H) = 8.8 Hz, 2H), 4.57 (s, 2H), 3.91 (s, 3H) ppm. 13C NMR (CDCl3, δ), 193.5, 171.3, 164.0, 145.8, 140.6, 133.0, 132.4, 132.1, 129.3, 129.2, 121.6, 114.7, 113.8, 110.8, 109.7, 55.5, 50.2 ppm. Accurate mass measurement [CI+, m/z]: found 458.0157 [M + H]+, calculated mass for C22H17BrClNO3H: 458.0159.
N-(2-(4-Bromophenyl)-2-oxoethyl)-N-(4-ethylphenyl)cinnamamide (7). Yellow solid (79% yield). M.p. 126–127 °C. Selected IR (KBr, cm−1), 1697(s), 1656(vs), 1620(s), 1584(s), 1510(s), 1401(m), 1376(s), 1327(m), 1209(s), 1069(s), 1005(s), 982(s), 840(m), 812(s), 703(s), 698(s), 569(m), 549(s). 1H NMR (CDCl3, δ), 7.87 (d, J(H,H) = 7.6 Hz, 2H), 7.73 (d, J(H,H) = 15.6 Hz, 1H), 7.63 (d, J(H,H) = 7.8 Hz, 2H), 7.38–7.26 (m, 8H), 6.49 (d, J(H,H) = 15.6 Hz, 1H), 5.18 (s, 2H), 2.72 (q, J(H,H) = 7.6 Hz, 2H), 1.29 (t, J(H,H) = 7.6 Hz, 3H) ppm. 13C NMR (CDCl3, δ), 192.9, 166.4, 144.3, 142.7, 140.0, 135.1, 134.1, 132.1, 129.9, 129.6, 129.5, 129.1, 128.7, 128.1, 128.0, 118.0, 56.5, 28.5, 15.4 ppm. Accurate mass measurement [CI+, m/z]: found 448.0916 [M + H]+, calculated mass for C25H22BrNO2H: 448.0912.
N-(2-(4-Chlorophenyl)-2-oxoethyl)-N-(4-ethylphenyl)cinnamamide (8). Dark yellow solid (80% yield). M.p. 155–157 °C. Selected IR (KBr, cm−1), 1697(s), 1653(s), 1617(s), 1587(s), 1510(s), 1402(m), 1380(s), 1329(m), 1214(s), 1089(s), 1000(m), 981(s), 819(s), 766(m), 703(m), 548(m), 525(m). 1H NMR (CDCl3, δ), 7.92 (d, J(H,H) = 7.6 Hz, 2H), 7.70 (d, J(H,H) = 15.1 Hz, 1H), 7.43 (d, J(H,H) = 7.8 Hz, 2H), 7.28–7.21 (m, 8H), 6.45 (d, J(H,H) = 16.1 Hz, 1H), 5.16 (s, 2H), 2.68 (q, J(H,H) = 7.6 Hz, 2H), 1.25 (t, J(H,H) = 7.6 Hz, 3H) ppm. 13C NMR (CDCl3, δ), 192.8, 166.5, 144.4, 142.8, 140.1, 140.0, 135.2, 133.7, 129.7, 129.5, 129.1, 129.0, 128.8, 128.1, 128.0, 118.0, 56.6, 28.6, 15.5 ppm. Accurate mass measurement [CI+, m/z]: found 404.1408 [M + H]+, calculated mass for C25H22ClNO2H: 404.1412.
N-(4-Bromophenyl)-N-(2-(4-chlorophenyl)-2-oxoethyl)cinnamamide (9). Off-white solid (76% yield). M.p. 174–176 °C. Selected IR (KBr, cm−1), 1696(s), 1657(s), 1617(s), 1587(m), 1486(vs), 1408(m), 1373(s), 1207(s), 1092(m), 1070(m), 1013(s), 816(s), 763(m), 696(m), 484(s). 1H NMR (CDCl3, δ), 7.95 (d, J(H,H) = 8.6 Hz, 2H), 7.74 (d, J(H,H) = 15.5 Hz, 1H), 7.58 (d, J(H,H) = 8.6 Hz, 2H), 7.48 (d, J(H,H) = 8.6 Hz, 2H), 7.39–7.32 (m, 6H), 6.46 (d, J(H,H) = 15.5 Hz, 2H), 5.18 (s, 2H) ppm. 13C NMR (CDCl3, δ), 192.4, 166.1, 143.5, 141.5, 140.2, 134.8, 133.4, 132.9, 130.0, 129.9, 129.5, 129.2, 128.8, 128.1, 122.0, 117.3, 56.3 ppm. Accurate mass measurement [CI+, m/z]: found 456.0184 [M + H]+, calculated mass for C23H17BrClNO2H: 456.0189.

3.2.3. General Procedure for Synthesis of Compounds 10–12

A mixture of the appropriate benzamide or cinnamide with an equivalent of WR in dry toluene was refluxed for 6 h. Following cooling to room temperature and filtration to remove unreacted solid, the filtrate was evaporated in vacuo, the residue was dissolved in 2 mL of dichloromethane and purified by silica gel column chromatography (1:1 hexane/dichloromethane as eluant) to give the products 10–12. Cinnamides 7–9 did not show any reaction with WR, returning the starting materials.
N-(4-Bromophenethyl)-N-(4-ethylphenyl)-4-methoxybenzoselenoamide (10). Greyish yellow paste (0.25g, 50%). Selected IR (KBr, cm−1), 1601(s), 1508(s), 1488(m), 1448(s), 1399(s), 1300(m), 1250(vs), 1170(s), 1073(m), 1029(m), 830(m), 806(m). 1H NMR (CD2Cl2, δ), 8.03 (d, J(H,H) = 8.0 Hz, 1H), 7.45 (d, J(H,H) = 8.4 Hz, 2H), 7.26–7.23 (m, 4H), 7.10–7.02 (m, 3H), 6.94 (d, J(H,H) = 8.0 Hz, 2H), 6.10 (d, J(H,H) = 8.4 Hz, 2H), 4.72 (t, J(H,H) = 8.1 Hz, 2H), 3.74(s, 3H), 3.24 (t, J(H,H) = 8.1 Hz, 2H), 2.60 (q, J(H,H) = 7.6 Hz, 2H), 1.21 (t, J(H,H) = 7.6 Hz, 3H) ppm. 13C NMR (CD2Cl2, δ), 206.6, 159.5, 143.7, 140.0, 137.6, 131.5, 130.7, 129.0, 128.6, 126.2, 120.2, 114.4, 112.4, 62.4, 55.2, 31.4, 28.3, 15.0 ppm. 77Se NMR (CDCl3, δ), 598.4 ppm. Accurate mass measurement [CI+, m/z]: found 502.0283 [M + H]+, calculated mass for C24H24BrNOSeH: 502.0285.
N-(4-Chlorophenethyl)-N-(4-ethylphenyl)-4-methoxybenzoselenoamide (11). Reddish yellow paste (0.21 g, 46%). Selected IR (KBr, cm−1), 1602(s), 1508(s), 1488(m), 1448(s), 1398(s), 1300(m), 1251(vs), 1170(s), 1030(m), 832(m), 809(m). 1H NMR (CDCl3, δ), 7.25–7.23 (m, 4H), 7.19 (d, J(H,H) = 8.6 Hz, 2H), 7.02 (d, J(H,H) = 8.0 Hz, 2H), 6.85 (d, J(H,H) = 8.0 Hz, 2H), 6.55 (d, J(H,H) = 8.0 Hz, 2H), 6.55 (d, J(H,H) = 8.0 Hz, 2H), 4.67 (d, J(H,H) = 8.0 Hz, 2H), 3.69 (s, 3H), 3.21 (d, J(H,H) = 8.0 Hz, 2H), 2.54 (q, J(H,H) = 8.1 Hz, 2H), 1.18 (t, J(H,H) = 8.0 Hz, 3H) ppm. 13C NMR (CDCl3, δ), 206.8, 159.7, 143.7, 139.8, 136.8, 132.5, 130.4, 129.2, 128.8, 128.7, 126.2, 112.7, 62.8, 55.3, 31.5, 28.4, 15.2 ppm. 77Se NMR (CDCl3, δ), 601.5 ppm. Accurate mass measurement [CI+, m/z]: found 458.0789 [M + H]+, calculated mass for C24H24ClNOSeH: 458.0790.
N-(4-Bromophenyl)-N-(4-chlorophenethyl)-4-methoxybenzoselenoamide (12). Pale orange paste (0.20 g, 40%). Selected IR (KBr, cm−1), 1601(s), 1489(m), 1485(s), 1446(m), 1392(m), 1302(m), 1251(vs), 1170(vs), 1068(m), 1011(m), 832(m), 801(m). 1H NMR (CDCl3, δ), 7.33 (d, J(H,H) = 8.2 Hz, 2H), 7.27–7.16 (m, 6H), 6.82 (d, J(H,H) = 8.2 Hz, 2H), 6.58 (d, J(H,H) = 8.3 Hz, 2H), 4.63 (q, J(H,H) = 8.4 Hz, 2H), 3.72 (s, 3H), 3.16 (d, J(H,H) = 8.4 Hz, 3H) ppm. 13C NMR (CDCl3, δ), 204.8, 160.0, 145.0, 139.6, 136.5, 132.7, 130.3, 129.6, 129.2, 128.8, 128.0, 121.1, 113.0, 62.3, 55.4, 29.8 ppm. 77Se NMR (CDCl3, δ), 601.4 ppm. Accurate mass measurement [CI+, m/z]: found 507.9580 [M + H]+, calculated mass for C22H19BrClNOSeH: 507.9582.

4. Conclusions

In summary, we have disclosed Woollins’ reagent used as a highly efficient chemoselective selenation/reduction reagent for benzamide leading to N-aryl-N-(arylenethyl)benzoselenoamides. The reported results enhance the application of Woollins′ reagent further, providing an efficient route to the preparation of the unusual substituted selenoamides.

Author Contributions

G.H. and J.D.W. conceived and designed the project; G.H. performed the experiments; D.B.C., C.L.C.-W. and A.M.Z.S. did the crystallography; All authors have read and agreed to the published version of the manuscript.

Funding

This research received no external funding.

Institutional Review Board Statement

Not applicable.

Data Availability Statement

Not applicable.

Acknowledgments

We are grateful to the University of St Andrews for financial support and the EPSRC National Mass Spectrometry Service Centre (Swansea) for mass spectral measurements.

Conflicts of Interest

The authors declare no conflict of interest.

Sample Availability

Samples of all compounds are not available from the authors.

References

  1. Hua, G.; Woollins, J.D. Formation and reactivity of phosphorus-selenium rings. Angew. Chem. Int. Ed. 2009, 48, 1368–1377. [Google Scholar] [CrossRef] [PubMed]
  2. Hua, G.; Zhang, Q.; Li, Y.; Slawin, A.M.Z.; Woollins, J.D. Novel heterocyclic selenazadiphospholaminediselenides, zwitterionic carbamimidoyl(phenyl)phosphinodiselenoic acids and selenoureas derived from cyanamides. Tetrahedron 2009, 65, 6074–6082. [Google Scholar] [CrossRef]
  3. Hua, G.; Li, Y.; Fuller, A.L.; Slawin, A.M.Z.; Woollins, J.D. Facile synthesis and structure of novel 2,5-disubstituted 1,3,4-selenadiazoles. Eur. J. Org. Chem. 2009, 2009, 1612–1618. [Google Scholar] [CrossRef]
  4. Gómez Castaño, J.A.; Romano, R.M.; Beckers, H.; Willner, H.; Della Védova, C.O. Trifluoroselenoacetic acid, CF3C(O)SeH: Preparation and properties. Inorg. Chem. 2010, 49, 9972–9977. [Google Scholar] [CrossRef]
  5. Hua, G.; Li, Y.; Fuller, A.L.; Slawin, A.M.Z.; Woollins, J.D. Synthesis and X-ray structures of new phosphorus-selenium heterocycles with an E-P(Se)-E’ (E, E’ = N, S, Se) linkage. New J. Chem. 2010, 34, 1565–1571. [Google Scholar] [CrossRef]
  6. Huang, Y.; Jahreis, G.; Lücke, C.; Wildemann, D.; Fischer, G. Modulation of the Peptide Backbone Conformation by the Selenoxo Photoswitch. J. Am. Chem. Soc. 2010, 132, 7578–7579. [Google Scholar] [CrossRef] [PubMed]
  7. Hua, G.; Fuller, A.; Slawin, A.M.; Woollins, J.D. Novel five- to ten-membered organoselenium heterocycles from the selenation of aryl-diols. Eur. J. Org. Chem. 2010, 2010, 2607–2615. [Google Scholar] [CrossRef]
  8. Hua, G.; Henry, J.B.; Li, Y.; Mount, A.R.; Slawin, A.M.Z.; Woollins, J.D. Synthesis of novel 2,5-diarylselenophenes from selenation of 1,4-diarylbutane-1,4-diones or methanol/arylacetylenes. Org. Biomol. Chem. 2010, 8, 1655–1660. [Google Scholar] [CrossRef]
  9. Hua, G.; Fuller, A.L.; Slawin, A.M.; Woollins, J.D. Formation of new organoselenium heterocycles and ring reduction of ten-membered heterocycles into seven-memered heterocycle. Polyhedron 2011, 30, 805–808. [Google Scholar] [CrossRef]
  10. Hua, G.; Fuller, A.L.; Buehl, M.; Slawin, A.M.; Woollins, J.D. Selenation/Thionation of α-Amino Acids: Formation and X-ray Structures of Diselenopiperazine and Dithiopiperazine and Related Compounds. Eur. J. Org. Chem. 2011, 2011, 3067–3073. [Google Scholar] [CrossRef]
  11. Hua, G.; Cordes, D.B.; Li, Y.; Slawin, A.M.; Woollins, J.D. Symmetrical organophosphorus spiroheterocycles from selenation of carbohydrazides. Tetrahedron Lett. 2011, 52, 3311–3314. [Google Scholar] [CrossRef]
  12. Wong, R.C.S.; Ooi, M.L. A new approach to coordination chemistry involving phosphorus-selenium based ligands: Ring opening, deselenation and phosphorus-–phosphorus coupling of Woollins’ Reagent. Inorg. Anica Chim. Acta 2011, 366, 350–356. [Google Scholar] [CrossRef]
  13. Gray, I.P.; Bhattacharyya, P.; Slawin, A.M.; Woollins, J.D. A new synthesis of (PhPSe2)2 (Woollins’ Reagnet) and its use in the synthesis of novel P-Se heterocycles. Chem. Eur. J. 2005, 11, 6221–6227. [Google Scholar] [CrossRef]
  14. Hua, G.; Li, Y.; Slawin, A.M.; Woollins, J.D. Synthesis and structure of eight-, nine- and ten-membered rings with P-Se-Se-P linkages. Angew. Chem. 2008, 120, 2899–2901. [Google Scholar]
  15. Hua, G.; Griffin, J.M.; Ashbrook, S.E.; Slawin, A.M.; Woollins, J.D. Octaselenocycododecane. Angew. Chem. Int. Ed. 2011, 123, 4209–4212. [Google Scholar] [CrossRef]
  16. Mandal, M.; Chatterjee, S.; Jaisankar, O. Woollins’ reagent: A chemoselective reducing agent for 1,4-enediones and 1,4-ynediones to saturated 1,4-diones. Synlett 2012, 23, 2615. [Google Scholar] [CrossRef]
  17. Pizzo, C.; Graciela, M. Woollins’ reagent promotes selective reduction of α, β-unsaturated thiazo and selenazolidinones. Tetrahedron Lett. 2017, 58, 1445–1447. [Google Scholar] [CrossRef]
  18. Yu, Y.; Furuyama, T.; Tang, J.; Wu, Z.Y.; Chen, J.Z.; Kobayashi, N.; Zhang, J.L. Stable iso-bacteriochlorin mimics from porpholactone: Effect of α,β-oxazolone moiety on the frontier π-molecular orbitals. Inorg. Chem. Front. 2015, 2, 671–677. [Google Scholar] [CrossRef]
  19. Wirth, T. Organoselenium chemistry in stereoselective reactions. Angew. Chem. Int. Ed. 2000, 39, 3740–3749. [Google Scholar] [CrossRef]
  20. Rhoden, C.R.; Zeni, G. New development of synthesis and reactivity of seleno- and tellurophenes. Org. Biomol. Chem. 2011, 9, 1301–1303. [Google Scholar] [CrossRef] [PubMed]
  21. Uemoto, T.; Emmanuel, M. S- Se-, Te-(perfluoroalkyl)dibenzothiophenium, -selenophenium, and -tellurophenium salts. Adv. Heterocycl. Chem. 1995, 64, 323–339. [Google Scholar] [CrossRef]
  22. Nogueira, C.W.; Zeni, G.; Rocha, J.B.T. Organoselenium and Organotellurium Compounds: Toxicology and Pharmacology. Chemin Rev. 2005, 36, 6255–6286. [Google Scholar] [CrossRef]
  23. Lakner, F.J.; Parker, M.A.; Rogovoy, B.; Khvat, A.; Ivachtchenko, A. Synthesis of novel trisubstituted imidazolines. Synthesis 2009, 12, 1987–1990. [Google Scholar]
  24. Porretta, G.C.; Biava, M.; Fioravanti, R.; Fischetti, M.; Melino, C.; Venza, F.; Bolle, P.; Tita, B. Research on antibacterial and antifungal agents. VIII. Synthesis and antimicrobial activity of 1,4-diarylpyrroles. Eur. J. Med. Chem. 1992, 27, 717–722. [Google Scholar] [CrossRef]
  25. Nishiyama, Y.; Yoshida, M.; Ohkawa, S.; Hamanaka, S. New agents for the selective reduction of the carbon-carbon double bond of alpha/betal unsaturated carbonyl compounds. J. Org. Chem. 1991, 56, 6720–6722. [Google Scholar] [CrossRef]
  26. Mesquita, K.D.; Waskow, B.; Schumacher, R.F.; Perin, G.; Jacob, R.G.; Alves, D. Glycerol/hypophosphorus acid and PhSeSePh: An efficient and selective system for reactions in the carbon-carbon double bond of (E)-chalcones. J. Braz. Chem. Soc. 2014, 25, 1261–1269. [Google Scholar]
  27. Lalezari, I.; Ghanbarpour, F.; Niazi, M.; Jafari-Namin, R. Selenium heterocycles XIV. 2,6-Diaryltetrahydroselenopyran-4-ones. J. Heterocycl. Chem. 1974, 11, 469–470. [Google Scholar] [CrossRef]
  28. Miyashita, M.; Yoshikoehi, A. Facile and highly efficient conjugate addition of benzeneselenol to α,β-unsaturated carbonyl compounds. Synthesis 1980, 8, 664–666. [Google Scholar] [CrossRef]
  29. Li, Y.; Hua, G.-X.; Slawin, A.M.Z.; Woollins, J.D. The X-ray Crystal Structures of Primary Aryl Substituted Selenoamides. Molecules 2009, 14, 884–892. [Google Scholar] [CrossRef] [PubMed]
  30. CrystalClear-SM Expert v2.1; Rigaku Americas: The Woodlands, TX, USA; Rigaku Corporation: Tokyo, Japan, 2015.
  31. CrysAlisPro v1.171.38.43.; Rigaku Oxford Diffraction; Rigaku Corporation: Oxford, UK, 2015.
  32. Sheldrick, G.M. SHELXT—Integrated space-group and crystal structure determination. Acta Crystallogr. Sect. A 2015, 71, 3–8. [Google Scholar] [CrossRef]
  33. Beurskens, P.T.; Beurskens, G.; de Gelder, R.; Garcia-Granda, S.; Gould, R.O.; Israel, R.; Smits, J.M.M. DIRDIF-99; Crystallography Laboratory, University of Nijmegen: Nijmegen, The Netherlands, 1999. [Google Scholar]
  34. Sheldrick, G.M. Crystal structure refinement with SHELXL. Acta Crystallogr. Sect. C 2015, 71, 3–8. [Google Scholar] [CrossRef] [PubMed]
  35. CrystalStructure v4.3.0; Rigaku Americas: The Woodlands, TX, USA; Rigaku Corporation: Tokyo, Japan, 2018.
