Article

Sulfanyl Porphyrazines with Morpholinylethyl Periphery—Synthesis, Electrochemistry, and Photocatalytic Studies after Deposition on Titanium(IV) Oxide P25 Nanoparticles

by
Tomasz Koczorowski
1,*,
Wojciech Szczolko
1,
Anna Teubert
2 and
Tomasz Goslinski
1
1
Chair and Department of Chemical Technology of Drugs, Poznan University of Medical Sciences, Grunwaldzka 6, 60-780 Poznan, Poland
2
Institute of Bioorganic Chemistry, Polish Academy of Sciences, Z. Noskowskiego 12, 61-704 Poznan, Poland
*
Author to whom correspondence should be addressed.
Molecules 2021, 26(8), 2280; https://doi.org/10.3390/molecules26082280
Submission received: 29 March 2021 / Revised: 11 April 2021 / Accepted: 13 April 2021 / Published: 15 April 2021
(This article belongs to the Special Issue Exclusive Feature Papers in Colorants)
Browse Figures
Versions Notes

Abstract

:
The syntheses, spectral UV–Vis, NMR, and electrochemical as well as photocatalytic properties of novel magnesium(II) and zinc(II) symmetrical sulfanyl porphyrazines with 2-(morpholin-4-yl)ethylsulfanyl peripheral substituents are presented. Both porphyrazine derivatives were synthesized in cyclotetramerization reactions and subsequently embedded on the surface of commercially available P25 titanium(IV) oxide nanoparticles. The obtained macrocyclic compounds were broadly characterized by ESI MS spectrometry, 1D and 2D NMR techniques, UV–Vis spectroscopy, and subjected to electrochemical studies. Both hybrid materials, consisting of porphyrazine derivatives embedded on the titanium(IV) oxide nanoparticles’ surface, were characterized in terms of particle size and distribution. Next, they were subjected to photocatalytic studies with 1,3-diphenylisobenzofuran, a known singlet oxygen quencher. The applicability of the obtained hybrid material consisting of titanium(IV) oxide P25 nanoparticles and magnesium(II) porphyrazine derivative was assessed in photocatalytic studies with selected active pharmaceutical ingredients, such as diclofenac sodium salt and ibuprofen.

1. Introduction

Porphyrazines (Pzs) are synthetic tetrapyrrole macrocyclic molecules, known as aza-analogues of porphyrins. Their physicochemical properties can be tuned by the exchange of the central metal cation or by peripheral substitution [1]. Substituted porphyrazines reveal high absorption in the UV–Vis region and good effectiveness for singlet oxygen generation. In addition, they are usually soluble in organic solvents [2,3,4,5]. Their unique physicochemical properties, including optical and electrochemical ones, make them useful in biosensing [6], photocatalysis [7], nonlinear optics [8], and biomedicine, where they can be considered as photosensitizers for photodynamic therapy [9]. Amino and sulfanyl porphyrazines can be obtained from a cyclotetramerization reaction starting from diaminomaleonitrile or dimercaptomaleonitrile disodium salt derivatives, respectively.
Porphyrazines peripherally substituted with sulfanyl moieties have been studied widely over the last twenty years. They are well-soluble in common organic solvents [10,11,12], and present interesting optical [13,14] and electrochemical properties, and have therefore been applied as sensing materials in technology [15,16,17,18,19,20,21]. Other applications of sulfanyl Pzs concern photodynamic therapy (PDT) [22,23,24], wastewater treatment [25,26,27], and catalysis [28,29,30,31]. Symmetrical octa-substituted sulfanyl porphyrazines, unlike their unsymmetrical derivatives, usually present low singlet oxygen generation quantum yields, and therefore their biological activities are limited [32,33]. Recently, many symmetrical and unsymmetrical magnesium(II) and zinc(II) sulfanyl porphyrazines with bulky dendrimeric periphery were synthesized and evaluated in terms of their suitability for photodynamic therapy (PDT) [34,35,36,37,38]. In addition, some sulfanyl porphyrazines and phthalocyanines with morpholinyl moieties were studied as photosensitizers for PDT and photodynamic antimicrobial chemotherapy (PACT) and revealed promising potential [39,40,41].
Due to the presence of an expanded aromatic system in porphyrazines, they are often highly hydrophobic, and therefore less soluble or even insoluble in water. Thus, diverse methods, using specific carriers, have been employed to allow porphyrazines and related compounds to form stable suspensions in aqueous solutions. The carriers most widely applied in medicine and technology are liposomes [24,42,43], metal and metal oxide nanoparticles [44,45,46], and polymeric nanomaterials [47]. Among the metal oxide nanoparticles, one of the most interesting is titanium(IV) oxide nanoparticles (TiO2), which have unique photochemical features. Uncoated TiO2 nanoparticles are photoactive only when irradiated with UV light. However, TiO2 nanocarriers coated with photoactive compounds, like porphyrinoid macrocycles, when irradiated with light of an appropriate energy, can absorb light and participate in energy transfer, and thus more effectively take part in photochemical reactions [48,49,50].
Herein, we present the synthesis, spectral UV–Vis, NMR, and electrochemical as well as photocatalytic properties of novel magnesium(II) and zinc(II) symmetrical sulfanyl porphyrazines with 2-(morpholin-4-yl)ethylsulfanyl peripheral substituents. The synthesized macrocyclic compounds were embedded on the surface of commercially available P25 titanium(IV) oxide nanoparticles. The obtained grafted hybrid material was subjected to photocatalytic studies with 1,3-diphenylisobenzofuran, a known singlet oxygen quencher, and with diclofenac sodium salt and ibuprofen as examples of active pharmaceutical ingredients.

2. Results and Discussion

2.1. Synthesis and Physicochemical Characterization

The synthetic pathway was based on the alkylation reaction of commercially available mercaptomaleonitrile disodium salt (1) with 4-(2-chloroethyl)morpholine hydrochloride (2) in dimethylformamide (DMF), and with potassium carbonate as a base, which led to compound 3 (Scheme 1) [20,51]. Next, the Linstead macrocyclization reaction of 3 with magnesium butanolate as a base in n-butanol led to novel symmetric sulfanyl magnesium(II) porphyrazine 4 [52]. Simultaneously, compound 3 was also used in the macrocyclization reaction with Zn(OAc)2 and 1,8-diazabicyclo[5.4.0]undec-7-ene (DBU) in n-pentanol to give zinc(II) porphyrazine 5 [53].
All synthesized novel macrocyclic compounds were characterized using various analytical techniques, including high-resolution mass spectra (ESI), one- and two-dimensional NMR spectroscopy, and UV–Vis spectrophotometry. Notably, Pzs 4 and 5 have very low melting points at 113–116 °C and 121–123 °C, respectively, which is relatively low compared with other sulfanyl and amino porphyrazines that melt over 300 °C [20,54].
In the UV–Vis spectra of porphyrazines 4 and 5 in dichloromethane, two intensive bands were found: a Soret or B band in the range of 250–400 nm, and a Q band between 600 and 800 nm (Figure 1). Magnesium(II) Pz 4 revealed strong absorption Soret and Q bands with maxima at 375 m and 671 nm, whereas zinc(II) Pz 5 maxima appeared at 373 and 668 nm, respectively. The only difference between the UV–Vis spectra of 4 and 5 was noted in the region between 450 and 550 nm, where, for Pz 4, only a weak absorption maximum at 497 nm appeared. A similar effect was noted before for sulfanyl porphyrazines with peripheral phthalimide motifs [38].
In the NMR spectra of porphyrazines 4 and 5, which were recorded in pyridine-d5, four distinguishable signals in the aliphatic region were noted in the 1H NMR, whereas there were six signals in the 13C NMR (four aliphatic and two aromatic, originating from pyrrolyl rings of macrocycle, see Supplementary Materials). The two-dimensional technique 1H-1H COSY NMR was used to assist allocation and analysis of protons within ethylsulfanyl and morpholinyl substituents. Signal shift analyses performed for Pz 4 and Pz 5 indicated similarities for two morpholinyl proton signals and one of two methylene signals within the ethylene linker. A slight difference in the shifts of signals was noted for another methylene group within the ethylene linker. These methylene protons appeared as a singlet at 4.64 ppm for Pz 4, and as a multiplet in the range of 3.81–3.89 ppm for Pz 5. In addition, in the 1H NMR spectra of Pz 4 and 5, the proton signals were generally up-field shifted in comparison with those in the structure of symmetrical magnesium(II) phthalocyanine with eight 2-(morpholin-4-yl)ethoxy substituents [39]. This finding could be explained by a higher electronegativity of oxygen atoms than sulfur present in the peripheries of both groups of macrocycles.

2.2. Electrochemistry

The electrochemical study was performed to assess the electrochemical properties of the obtained porphyrazines, aiming to propose their prospective potential applicabilities. The cyclic (CV) and differential pulse (DPV) voltammetry measurements were conducted in organic solvent (dichloromethane), with the addition of supporting electrolyte: 0.1 M tetrabutylammonium perchlorate. The classic three-electrode system was employed with the glassy carbon working electrode. Due to the use of Ag wire as a pseudo-reference electrode, the ferrocene was added as an internal standard, and all results were adjusted to the ferrocene/ferrocenium peak potential. In the CV experiments, the scan potential range was set between 50 and 250 mV/s. The obtained results are presented in Figure 2 and Figure 3 and Table 1.
In the voltammograms recorded for both porphyrazines 4 and 5, four redox peak potentials were noted. Almost all redox peaks observed in the CV voltammograms are irreversible due to the aggregation-disaggregation behavior of porphyrazines in dichloromethane; thus, redox pairs can be observed only in the DPV measurements. A similar phenomenon was previously observed for iron(II) porphyrazine bearing identical periphery to both herein studied Pzs [20]. However, the oxidation peaks (IV) at 0.62 V for Pz 4 and 0.53 V for Pz 5 were noted in the DPV voltammogram only when the applied potential was increasing over time from −2.0 to 0.7 V. Conversely, when the applied potential was decreasing over time, oxidation peaks were not observed (Figure 2 and Figure 3). The oxidation peak currents were at least five times higher than the highest reduction peak (I) in the case of both porphyrazines (Figure 2 and Figure 3). Such a high oxidation peak current could also be a result of an aggregation phenomenon, which was previously observed for other sulfanyl porphyrazines [15]. Notably, the peak potentials of zinc(II) porphyrazine 5 shifted to more negative potentials in comparison with magnesium(II) complex 4 (Table 1), which is the result of different metal cations present inside their cores [55].
Measurements performed for amino porphyrazines in dichloromethane indicated that the first oxidation peak appears below 0 V vs. Fc/Fc+ [56,57]. A different situation was observed when alkyl- or phenylsulfanyl substituents were present in the macrocyclic periphery. Then, peaks shifted toward positive values due to a strong electron-withdrawing effect [55,58]. The oxidation peak potentials (IV) of Pzs 4 and 5 comply with this rule.
In order to calculate the HOMO-LUMO energy levels in compounds such as porphyrinoid macrocycles, electrochemical measurements were used. The electrochemical energy gap (Egap el) was calculated by determining the onset potentials of first oxidation and first reduction processes originating from the porphyrazine ring with the use of the following equations:
EHOMO = −(Vonset ox − VFOC + 4.8) eV,
ELUMO = −(Vonset red − VFOC + 4.8) eV,
Egap el = (ELUMO − EHOMO) eV
In the above equations, VFOC stands for the ferrocene half-wave potential, Vonset ox is assigned as the Pz oxidation onset, and Vonset red represents the Pz reduction onset. For all these values (eV), the calculations of the first oxidation and the first reduction were adjusted to the ferrocene’s energy level at −4.8 eV. The value of 4.8 eV refers to a standard electrode potential for normal hydrogen electrode (NHE) at −4.6 eV on the zero vacuum level scale, and a value of 0.2 eV versus NHE for the potential of ferrocene standard [59,60]. The calculated electrochemical energy gap was slightly higher for magnesium(II) porphyrazine 4 than for zinc(II) complex 5 (Figure 4 and Table 2).
At the same time as the previous calculations, we calculated the optical band gaps (Egap opt) based on the UV–Vis spectra Q band onsets, according to the equation E = hc/λonset [61]. Both electrochemical and optical energy gaps, which we obtained, were subsequently compared and are presented in Table 2. The optical band gaps (Egap opt) for porphyrazines 4 and 5 were found to be in agreement with those obtained from electrochemical measurements within approx. 0.2 eV.

2.3. TiO2 Deposition and Characterization

Titanium(IV) oxide (TiO2) nanoparticles have often been utilized in diverse studies as carriers for photosensitizers [62,63]. Among many titanium(IV) oxide types, the commercially available P25, consisting of a mixture of crystal phases of anatase and rutile, is the most popular. Herein, the hybrid materials, type Pz@P25, were prepared by depositing porphyrazine 4 or 5 on the surface of TiO2 nanoparticles. The solutions of macrocycles were added to titania suspension, sonicated, and mixed for 72 h, yielding 4@P25 and 5@P25, respectively. The resulting hybrid materials contained 5% (w/w) of the macrocycle. The sizes and the dispersities of the obtained nanomaterials were subjected to the detailed analyses using a NanoSight LM10 instrument (sCMOS camera, 405 nm laser), equipped with a nanoparticle tracking analysis system. The diameters of the obtained hybrid materials were assessed and compared with the pure TiO2 nanoparticles. The results are presented in Table 3.
Considering the measured particle size values, strong agglomeration of the hybrid nanoparticles was observed. The mean particle sizes of the 4@P25 and 5@P25 were four times higher than the unmodified P25 (74.8 ± 7.7 nm). This could suggest that the deposition of the macrocycles strongly influences the titanium(IV) oxide nanoparticles. In addition, in both cases, the calculated polydispersity indices were below 0.2, which indicated that the distributions of nanoparticles within the studied hybrid materials are monodisperse. It also seems that the presence of sulfanyl porphyrazines on the surface of P25 nanoparticles hampers the electrostatic interactions between Pz@P25 nanoparticles and allows obtaining Pz@P25 of specific diameters.

2.4. Photocatalysis

All hybrid materials were assessed for their photocatalytic oxidation abilities. These properties were studied with the use of a known singlet oxygen quencher, 1,3-diphenylisobenzofurane (DPBF), according to previously presented procedures [20,65]. In the UV–Vis spectrum, the decrease in the DPBF absorption band at 413 nm over a period of time results from the transformation of DPBF towards the new product, which is 1,2-dibenzoylbenzene (Scheme 2).
Measurements were performed in DMF at ambient temperature, and with the use of red-light LED lamps (665 nm). The intensity of light was adjusted to 10 mW/cm2. The irradiations were conducted in a 10 mm quartz cuvette equipped with a magnetic stirrer. The results of photocatalytic reactions were evaluated with the use of UV–Vis spectrophotometry.
The photocatalytic oxidations of DPBF were performed using three types of materials: 4@P25, 5@P25, and unmodified P25. Their catalytic activity was assessed by recording the UV–Vis scans within the range of 250–800 nm for 8 min, and every 2 min. The 4@P25 hybrid material containing magnesium(II) sulfanyl porphyrazine deposited on the surface of TiO2 nanoparticles revealed the highest photocatalytic activity. Moderate activity was noted for 5@P25 and the lowest activity for the unmodified P25 (Figure 5). In the case of 5@P25 nanoparticles, the linear plots of DPBF absorbance were decreasing with time, which indicates that the photooxidation process follows the first-order kinetics (Figure 5D). In the parallel study, the R2 value measured for 4@P25 hybrid material and P25 nanoparticles slightly deviated from unity.
The results obtained in the photocatalytic oxidation study with DPBF indicated the 4@P25 hybrid material as a candidate for further photocatalytic study with selected active pharmaceutical ingredients (APIs): diclofenac sodium salt and ibuprofen. Both APIs are common non-steroidal anti-inflammatory drugs, and therefore constitute an important component of drug-related pollutants in water. What is essential is that the UV–Vis method can be employed for the photodegradation study of both APIs. The photodegradation study was performed in the same conditions as previously established for the photooxidation of DPBF. The results are presented in Figure 6. In the UV–Vis spectra, decreases in both APIs absorbances over a period of time were observed, which indicates the photodegradation of the studied compounds. For this reason, the obtained hybrid material 4@P25 can be considered an efficient heterogenic catalyst for further photooxidation studies of diverse organic compounds.

3. Materials and Methods

3.1. Materials and Instruments

All the reactions described in this paper were conducted under argon. Before attempting the reaction, the glassware was oven-dried (at 140 °C). All solvents were rotary evaporated under vacuum at or below 40 °C. All reaction temperatures reported in the experimental section refer to the external bath temperatures. The reactions were performed on a Heidolph MR Hei-Tec, equipped with Radleys Heat-On heating mantle. All solvents and reagents were obtained from commercial suppliers (Merck, Darmstadt, Germany; TCI, Zwijndrecht, Belgium, and Fluorochem, Hadfield, UK), and used without any further purification, unless otherwise stated. Melting points were measured with the use of a Stuart Bibby apparatus (Triad Scientific, Staffordshire, UK) and are uncorrected. Flash column chromatography was performed on a Merck neutral aluminum oxide gel, whereas thin-layer chromatography (TLC) was performed on aluminum oxide F254 plates (Merck) and visualized with a UV lamp (λmax 254 or 365 nm). UV–Vis spectra were recorded with the use of an Ocean Optics USB 2000+ spectrometer (Ocean Opitics Inc., Largo, FL, USA). 1H NMR and 13C NMR spectra were recorded using Bruker Avance 400 and 500 (Bruker, Karlsruhe, Germany) spectrometers. Chemical shifts (δ) are specified in parts per million (ppm) and are referenced against a residual solvent peak (pyridine-d5), whereas coupling constants (J) are calculated in Hertz (Hz). The abbreviations s, t, and m refer to singlet, triplet, and multiplet, respectively. Mass spectra (ESI MS) were performed in the Wielkopolska Centre of Advanced Technologies, Adam Mickiewicz University in Poznan, Poland.

3.2. Synthesis

2,3-Bis[2-(morpholin-4-ylo)ethylsulfanyl]-(2Z)-butene-1,4-dinitrile (3) is a known compound synthesized and characterized earlier in our group [20]: dimercaptomaleonitrile disodium salt (558 mg; 3.0 mmol) (1), 4-(2-chloroethyl)morpholine hydrochloride (1.396 g; 7.5 mmol) (2) and K2CO3 (4.140 g; 30.0 mmol) were mixed in DMF (30 mL) at 60 °C for 24 h under argon. Next, the reaction mixture was cooled to room temperature and filtered through Celite, then the filtrate was evaporated with toluene to a dry solid residue. Crude solid was subjected to a flash column chromatography with Al2O3 (DCM:CH3OH; 50:1) to give 3 as yellow crystals (810 mg; 71% yield).
{2,3,7,8,12,13,17,18-Octakis[2-(morpholin-4-yl)ethylsulfanyl]porphyrazinato} magnesium(II) (4): magnesium turnings (45 mg; 1.88 mmol) and iodide (1 crystal) were suspended in n-butanol (15 mL) and refluxed for 6 h in an inert atmosphere. After the reaction mixture was cooled to room temperature, compound 3 (692 mg; 1.88 mmol) was added and the mixture was refluxed for 18 h. Next the mixture was filtrated through Celite and the solvents were evaporated with toluene to a dry solid. Crude product was purified by column chromatography on Al2O3 (DCM:MeOH, 50:1) to give porphyrazine 4 (110 mg; 16% yield) as a green-blue solid: mp 113-116 °C; Rf (DCM:MeOH:N(C2H5)3, 10:1:0.1) 0.42. UV–Vis (DCM): λmax, nm (logε) 375 (4.68), 497 (3.91), 671 (4.71). 1H NMR (400 MHz; pyridine-d5): δH, ppm 2.60 (s, 32H, morph-CH2), 3.11 (s, 16H, CH2), 3.67 (s, 32H, morph-CH2), 4.64 (t, 3J = 10.0 Hz, 16H, CH2). 13C NMR (100 MHz; pyridine-d5): δC, ppm 33.5; 54.5; 60.0; 67.5; 141.9; 158.4. HRMS ESI (pos): calc. for C64H97N16O8S8Mg m/z 1497.5291 [M + H]+; found m/z 1497.5340 [M + H]+.
{2,3,7,8,12,13,17,18-Octakis[2-(morpholin-4-yl)ethylsulfanyl]porphyrazinato} zinc(II) (5): dimercaptomaleonitrile 3 (700 mg; 1.9 mmol), Zn(OAc)2 (175 mg, 0.95 mmol) and DBU (142 μL, 0.95 mmol) in n-pentanol (4 mL) were refluxed in an inert atmosphere for 18 h. Next, the reaction mixture was filtrated through Celite and the filtrate was evaporated with toluene to dryness. Crude solid was purified by column chromatography with Al2O3 (DCM:MeOH; 50:1→10:1) to give porphyrazine 5 (90 mg; 12%) as a dark green solid: mp 121--123 °C; Rf (DCM:MeOH:N(C2H5)3, 10:1:0.1) 0.57. UV–Vis (DCM): λmax, nm (logε) 373 (4.79); 668 (4.71). 1H NMR (500 MHz; pyridine-d5): δH, ppm 2.54--2.63 (m, 32H, morph-CH2), 3.09 (s, 16H, CH2), 3.63--3.69 (m, 32H, morph-CH2), 3.81–3.89 (m, 16H, CH2). 13C NMR (125 MHz; pyridine-d5): δC, ppm 33.34; 54.37; 59.88; 67.38; 141.92; 157.34. HRMS ESI (pos): calc. for C64H97N16O8S8Zn m/z 1539.4721 [M+H]+; found m/z 1539.4756 [M + H]+.

3.3. Electrochemical Studies

The electrochemical studies were performed with a Metrohm Autolab PGSTAT128N potentiostat (Metrohm, Herisau, Switzerland). The data acquisition and storage were driven by Metrohm Nova 2.1.4 software (Metrohm). The measurements were obtained with the use of a glassy carbon (GC) working electrode (area = 0.071 cm2), Ag wire (pseudo-reference electrode), and a platinum wire (counter electrode). Before each procedure, the GC electrode was polished with aqueous 50 nm Al2O3 slurry (purchased from Sigma-Aldrich) using a polishing cloth and was subsequently washed in an ultrasonic bath with deionized water for 10 min to remove inorganic impurities. Ferrocene/ferrocenium couple (Fc/Fc+) was applied as an internal standard. The solvent (dichloromethane) containing a supporting electrolyte (0.1 M tetrabutylammonium perchlorate (TBAP)) in a glass cell (volume 10 mL) was deoxygenated by purging nitrogen gas for 10 min prior to each experiment. All electrochemical experiments were carried out at 22 °C. The solvent and reagent were purchased from Sigma-Aldrich Chemie GmbH, Steinheim, Germany.

3.4. Deposition of Porphyrazines on TiO2 P25 Nanoparticles

Studied porphyrazines were deposited on P25 Aeroxide®® titanium(IV) oxide (TiO2) nanoparticles using the chemical deposition method [50]. In general, porphyrazine 4 or 5 in the amount of 5 mg was added to a dispersion of 100 mg P25 nanoparticles (sized approx. 21 nm) in 20 mL of dichloromethane:methanol mixture (1:1, v/v). After the reaction mixture had been stirred for 72 h, the solvents were evaporated on a rotary evaporator. Next, the obtained hybrid material was air dried for 24 h. The ratio of the macrocycle to the P25 TiO2 was 1:20 (w/w).
The hybrid materials were subjected to nanoparticle size measurements using a Malvern Panalytical NanoSight LM10 instrument (Malvern, UK), equipped with sCMOS camera, and 405 nm laser. The data acquisition and storage were provided by Nanoparticle Tracking Analysis (NTA) 3.2 Dev Build 3.2.16 software (Malvern, UK). Throughout, the nanoparticles’ dispersions were diluted with water (1 mg in 1 mL) to obtain the operating range of nanoparticle concentration. The measurements were performed at 25.0 ± 0.1 °C, and at the syringe pump infusion rate set to 100 µL/min.

3.5. Photocatalytic Studies

The photocatalytic studies were performed using a red-light LED lamp (EcoEnergy, Gdańsk, Poland) at wavelength 665 nm, and a power adjusted to 10 mW/cm2 with the use of an Optel radiometer. The measurements were conducted in a 10 mm quartz cuvette in N,N′-dimethylformamide (DMF). In the experiments with a reference standard 1,3-diphenylisobenzofurane (DPBF), 1 mL of 0.1 mM DPBF solution in DMF was mixed with 1 mL of TiO2 dispersion in DMF (0.1 mg/mL). In the experiments with active pharmaceutical ingredients (diclofenac sodium salt and ibuprofen), DPBF was replaced by 1 mL of 0.3 mM diclofenac sodium salt solution in DMF or 1 mL of 1.5 mM ibuprofen solution in DMF. The irradiations of mixtures were performed with an LED lamp within 8 min. The UV–Vis spectra were recorded every 2 min on an Ocean Optics USB 2000+ spectrometer (Ocean Optics Inc., Largo, FL, USA).

4. Conclusions

Two novel sulfanyl magnesium(II) and zinc(II) porphyrazines with morpholinylethyl periphery were synthesized in the cyclotetramerization reaction using a dimercaptomaleonitrile derivative. The obtained macrocyclic compounds were broadly characterized by ESI MS spectrometry, 1D and 2D NMR techniques, and UV–Vis spectroscopy. Both porphyrazines were subjected to electrochemical studies. Subsequently, the obtained porphyrazines were embedded on titanium(IV) oxide nanoparticles’ surface and characterized in terms of particle size and distribution. The obtained hybrid materials’ applicability was assessed in photocatalytic studies with a singlet oxygen quencher (DPBF) and selected drug active pharmaceutical ingredients (diclofenac sodium salt and ibuprofen). In the UV–Vis and NMR studies, the characteristic features of porphyrazines were confirmed. The electrochemical studies revealed four irreversible redox processes for both porphyrazines. In addition, the calculated electrochemical band gap values were found to be in agreement with the optical ones. Interestingly, the obtained hybrid materials presented four times higher particle sizes compared with unmodified titanium(IV) oxide P25 nanoparticles and were monodispersive. The 4@P25 material was found to be the most active in comparative photocatalytic tests with 1,3-diphenylisobenzofurane, and it was therefore used in the photooxidation studies of diclofenac sodium salt and ibuprofen. The 4@P25 material revealed good photocatalytic potential. For this reason, it can be considered in future photocatalytic experiments with various organic compounds and active pharmaceutical ingredients as a potential hybrid material for the photodegradation of various organic pollutants.

Supplementary Materials

The following are available online: Figure S1. 1H NMR spectrum of 4 in pyridine-d5. # indicates solvent residual peaks. Figure S2. 13C NMR spectrum of 4 in pyridine-d5. # indicates solvent residual peaks. Figure S3. 1H-1H COSY NMR spectrum of 4 in pyridine-d5. Figure S4. 1H NMR spectrum of 5 in pyridine-d5. * indicates solvent residual peaks and # stands for water residual. Figure S5. 13C NMR spectrum of 5 in pyridine-d5. * indicates solvent residual peaks. Figure S6. 1H-1H COSY NMR spectrum of 5 in pyridine-d5.

Author Contributions

Conceptualization, T.K.; methodology, T.K.; investigation, T.K., W.S. and A.T.; writing—original draft preparation, T.K.; writing—review and editing, W.S. and T.G.; visualization, A.T.; supervision, T.G.; funding acquisition, T.G. All authors have read and agreed to the published version of the manuscript.

Funding

This research was funded by National Science Centre, Poland under Grant No. 2016/21/B/NZ9/00783.

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Data Availability Statement

Not applicable.

Acknowledgments

This study was supported by the National Science Centre, Poland under Grant No. 2016/21/B/NZ9/00783 and the European Fund Regional Development Fund No. UDA-POIG.02.01.00-30-182/09. The authors thank Beata Kwiatkowska and Rita Kuba for excellent technical assistance.

Conflicts of Interest

The authors declare no conflict of interest

Sample Availability

Samples of the compounds 3, 4, and 5 are available from the authors.

References

  1. Rodríguez-Morgade, M.S.; Stuzhin, P.A. The chemistry of porphyrazines: An overview. J. Porphyrins Phthalocyanines 2004, 8, 1129–1165. [Google Scholar] [CrossRef]
  2. Fuchter, M.J.; Zhong, C.; Zong, H.; Hoffman, B.M.; Barrett, A.G.M. Porphyrazines: Designer Macrocycles by Peripheral Substituent Change. Aust. J. Chem. 2008, 61, 235–255. [Google Scholar] [CrossRef]
  3. Belviso, S.; Ricciardi, G.; Lelj, F.; Scolaro, L.M.; Bencini, A.; Carbonera, C. Inducing asymmetry in free-base, MnIII, NiII and CuII (ethylsulfanyl)porphyrazines: Synthetic aspects and spectro-electrochemical implications. J. Chem. Soc. Dalton Trans. 2001, 1143–1150. [Google Scholar] [CrossRef]
  4. Belviso, S.; Giugliano, A.; Amati, M.; Ricciardi, G.; Lelj, F.; Scolaro, L.M. Two-electron reduction of alkyl(sulfanyl)porphyrazines: A route to free-base and peripherally metallated asymmetric porphyrazines. Dalton Trans. 2003, 305–312. [Google Scholar] [CrossRef]
  5. Belviso, S.; Capasso, A.; Santoro, E.; Najafi, L.; Lelj, F.; Superchi, S.; Casarini, D.; Villani, C.; Spirito, D.; Bellani, S.; et al. Thioethyl-Porphyrazine/Nanocarbon Hybrids for Photoinduced Electron Transfer. Adv. Funct. Mater. 2018, 28, 1705418. [Google Scholar] [CrossRef] [Green Version]
  6. Lochman, L.; Machacek, M.; Miletin, M.; Uhlířová, Š.; Lang, K.; Kirakci, K.; Zimcik, P.; Novakova, V. Red-Emitting Fluorescence Sensors for Metal Cations: The Role of Counteranions and Sensing of SCN– in Biological Materials. ACS Sens. 2019, 4, 1552–1559. [Google Scholar] [CrossRef]
  7. Cao, L.; Yang, C.; Zhang, B.; Lv, K.; Li, M.; Deng, K. Synergistic photocatalytic performance of cobalt tetra(2-hydroxymethyl-1,4-dithiin)porphyrazine loaded on zinc oxide nanoparticles. J. Hazard. Mater. 2018, 359, 388–395. [Google Scholar] [CrossRef]
  8. Belviso, S.; Santoro, E.; Penconi, M.; Righetto, S.; Tessore, F. Thioethyl Porphyrazines: Attractive Chromophores for Second-Order Nonlinear Optics and DSSCs. J. Phys. Chem. C 2019, 123, 13074–13082. [Google Scholar] [CrossRef]
  9. Yuzhakova, D.V.; Lermontova, S.A.; Grigoryev, I.S.; Muravieva, M.S.; Gavrina, A.I.; Shirmanova, M.V.; Balalaeva, I.V.; Klapshina, L.G.; Zagaynova, E.V. In vivo multimodal tumor imaging and photodynamic therapy with novel theranostic agents based on the porphyrazine framework-chelated gadolinium (III) cation. Biochim. Biophys. Acta Gen. Subj. 2017, 1861, 3120–3130. [Google Scholar] [CrossRef]
  10. Kunt, H.; Gonca, E. Synthesis and characterization of novel metal-free and metallo-porphyrazines with eight 3-thiopropylpentafluorobenzoate units. Polyhedron 2012, 38, 218–223. [Google Scholar] [CrossRef]
  11. Gonca, E. Metallo-porphyrazines with eight [5-thiopentyl 3,4,5-tris(benzyloxy)benzoate] groups: Synthesis, characterization, aggregation, and solubility behavior. J. Mol. Struct. 2017, 1130, 10–18. [Google Scholar] [CrossRef]
  12. Gonca, E. New soluble porphyrazine derivatives containing electron-rich substituents. J. Coord. Chem. 2013, 66, 1720–1729. [Google Scholar] [CrossRef]
  13. Yoshida, T.; Furuyama, T.; Kobayashi, N. Synthesis and optical properties of tetraazaporphyrin phosphorus(V) complexes with electron-rich heteroatoms. Tetrahedron Lett. 2015, 56, 1671–1674. [Google Scholar] [CrossRef]
  14. Fernandez-Ariza, J.; Urbani, M.; Rodriguez-Morgade, M.S.; Torres, T. Panchromatic Photosensitizers Based on Push-Pull, Unsymmetrically Substituted Porphyrazines. Chem. A Eur. J. 2017, 24, 2618–2625. [Google Scholar] [CrossRef]
  15. Tuncer, S.; Koca, A.; Gul, A.; Avcıata, U. Synthesis, characterization, electrochemistry and spectroelectrochemistry of novel soluble porphyrazines bearing unsaturated functional groups. Dye Pigment. 2012, 92, 610–618. [Google Scholar] [CrossRef]
  16. Belviso, S.; Amati, M.; Rossano, R.; Crispini, A.; Lelj, F. Non-symmetrical aryl- and arylethynyl-substituted thioalkyl-porphyrazines for optoelectronic materials: Synthesis, properties, and computational studies. Dalton Trans. 2014, 44, 2191–2207. [Google Scholar] [CrossRef] [PubMed]
  17. Falkowski, M.; Rebis, T.; Kryjewski, M.; Popenda, L.; Lijewski, S.; Jurga, S.; Mielcarek, J.; Milczarek, G.; Goslinski, T. An enhanced electrochemical nanohybrid sensing platform consisting of reduced graphene oxide and sulfanyl metalloporphyrazines for sensitive determination of hydrogen peroxide and l-cysteine. Dye Pigment. 2017, 138, 190–203. [Google Scholar] [CrossRef]
  18. Falkowski, M.; Rebis, T.; Piskorz, J.; Popenda, L.; Jurga, S.; Mielcarek, J.; Milczarek, G.; Goslinski, T. Multiwalled carbon nanotube/sulfanyl porphyrazine hybrids deposited on glassy carbon electrode—Effect of nitro peripheral groups on electrochemical properties. J. Porphyrins Phthalocyanines 2017, 21, 295–301. [Google Scholar] [CrossRef]
  19. Falkowski, M.; Rebis, T.; Piskorz, J.; Popenda, L.; Jurga, S.; Mielcarek, J.; Milczarek, G.; Goslinski, T. Improved electrocatalytic response toward hydrogen peroxide reduction of sulfanyl porphyrazine/multiwalled carbon nanotube hybrids deposited on glassy carbon electrodes. Dye Pigment 2016, 134, 569–579. [Google Scholar] [CrossRef]
  20. Koczorowski, T.; Rębiś, T.; Szczolko, W.; Antecka, P.; Teubert, A.; Milczarek, G.; Goslinski, T. Reduced graphene oxide/iron(II) porphyrazine hybrids on glassy carbon electrode for amperometric detection of NADH and L-cysteine. J. Electroanal. Chem. 2019, 848. [Google Scholar] [CrossRef]
  21. Rębiś, T.; Falkowski, M.; Milczarek, G.; Goslinski, T. Electrocatalytic NADH Sensing using Electrodes Modified with 2-[2-(4-Nitrophenoxy)ethoxy]ethylthio-Substituted Porphyrazine/Single-Walled Carbon Nanotube Hybrids. ChemElectroChem 2020, 7, 2838–2850. [Google Scholar] [CrossRef]
  22. Piskorz, J.; Lijewski, S.; Gierszewski, M.; Gorniak, K.; Sobotta, L.; Wicher, B.; Tykarska, E.; Düzgüneş, N.; Konopka, K.; Sikorski, M.; et al. Sulfanyl porphyrazines: Molecular barrel-like self-assembly in crystals, optical properties and in vitro photodynamic activity towards cancer cells. Dye Pigment 2017, 136, 898–908. [Google Scholar] [CrossRef]
  23. Piskorz, J.; Mlynarczyk, D.T.; Szczolko, W.; Konopka, K.; Düzgüneş, N.; Mielcarek, J. Liposomal formulations of magnesium sulfanyl tribenzoporphyrazines for the photodynamic therapy of cancer. J. Inorg. Biochem. 2018, 184, 34–41. [Google Scholar] [CrossRef] [PubMed]
  24. Sobotta, L.; Skupin-Mrugalska, P.; Piskorz, J.; Mielcarek, J. Porphyrinoid photosensitizers mediated photodynamic inactivation against bacteria. Eur. J. Med. Chem. 2019, 175, 72–106. [Google Scholar] [CrossRef] [PubMed]
  25. Kabay, N.; Baygu, Y.; Alpoguz, H.K.; Kaya, A.; Gök, Y. Synthesis and characterization of porphyrazines as novel extractants for the removal of Ag(I) and Hg(II) from aqueous solution. Dye Pigment 2013, 96, 372–376. [Google Scholar] [CrossRef]
  26. Liu, Y.; Zhou, X.; Zhang, Z.; Zhang, B.; Deng, K. Effect of carrier and axial ligand on the photocatalytic activity of cobalt thioporphyrazine. Chin. J. Catal. 2017, 38, 330–336. [Google Scholar] [CrossRef]
  27. Yang, C.; Gao, L.; Zhang, B.; Zhang, Z.; Deng, K. Uniform zinc thioporphyrazine nanosphere by self-assembly and the photocatalytic performance. J. Porphyrins Phthalocyanines 2018, 22, 868–876. [Google Scholar] [CrossRef]
  28. Zhang, Z.; Wen, X.; Deng, K.; Zhang, B.; Lv, K.; Sun, J. Photodegradation of rhodamine B with molecular oxygen catalyzed by a novel unsymmetrical iron porphyrazine under simulated sunlight. Catal. Sci. Technol. 2013, 3, 1415–1422. [Google Scholar] [CrossRef]
  29. Yang, C.; Sun, J.; Deng, K.; Wang, D. Synthesis and photocatalytic properties of iron(II)tetramethyl- tetra(1,4-dithiin)porphyrazine. Catal. Commun. 2008, 9, 321–326. [Google Scholar] [CrossRef]
  30. Su, R.; Sun, J.; Sun, Y.; Deng, K.; Cha, D.; Wang, D. Oxidative degradation of dye pollutants over a broad pH range using hydrogen peroxide catalyzed by FePz(dtnCl2)4. Chemosphere 2009, 77, 1146–1151. [Google Scholar] [CrossRef]
  31. Tang, J.; Chen, L.; Sun, J.; Lv, K.; Deng, K. Synthesis and properties of iron(II) tetra(1,4-dithiin)porphyrazine bearing peripheral long-chain alkyl group of active end-bromine. Inorg. Chem. Commun. 2010, 13, 236–239. [Google Scholar] [CrossRef]
  32. Wieczorek, E.; Mlynarczyk, D.T.; Kucinska, M.; Dlugaszewska, J.; Piskorz, J.; Popenda, L.; Szczolko, W.; Jurga, S.; Murias, M.; Mielcarek, J.; et al. Photophysical properties and photocytotoxicity of free and liposome-entrapped diazepinoporphyrazines on LNCaP cells under normoxic and hypoxic conditions. Eur. J. Med. Chem. 2018, 150, 64–73. [Google Scholar] [CrossRef] [PubMed]
  33. Mlynarczyk, D.T.; Lijewski, S.; Falkowski, M.; Piskorz, J.; Szczolko, W.; Sobotta, L.; Stolarska, M.; Popenda, L.; Jurga, S.; Konopka, K.; et al. Dendrimeric Sulfanyl Porphyrazines: Synthesis, Physico-Chemical Characterization, and Biological Activity for Potential Applications in Photodynamic Therapy. ChemPlusChem 2016, 81, 460–470. [Google Scholar] [CrossRef] [PubMed]
  34. Mlynarczyk, D.T.; Dlugaszewska, J.; Falkowski, M.; Popenda, L.; Kryjewski, M.; Szczolko, W.; Jurga, S.; Mielcarek, J.; Goslinski, T. Tribenzoporphyrazines with dendrimeric peripheral substituents and their promising photocytotoxic activity against Staphylococcus aureus. J. Photochem. Photobiol. B Biol. 2020, 204, 111803. [Google Scholar] [CrossRef] [PubMed]
  35. Mlynarczyk, D.T.; Piskorz, J.; Popenda, L.; Stolarska, M.; Szczolko, W.; Konopka, K.; Jurga, S.; Sobotta, L.; Mielcarek, J.; Düzgüneş, N.; et al. S-seco-porphyrazine as a new member of the seco-porphyrazine family—Synthesis, characterization and photocytotoxicity against cancer cells. Bioorg. Chem. 2020, 96, 103634. [Google Scholar] [CrossRef]
  36. Lijewski, S.; Gierszewski, M.; Sobotta, L.; Piskorz, J.; Kordas, P.; Kucinska, M.; Baranowski, D.; Gdaniec, Z.; Murias, M.; Karolczak, J.; et al. Photophysical properties and photochemistry of a sulfanyl porphyrazine bearing isophthaloxybutyl substituents. Dye Pigment 2015, 113, 702–708. [Google Scholar] [CrossRef]
  37. Gierszewski, M.; Falkowski, M.; Sobotta, L.; Stolarska, M.; Popenda, L.; Lijewski, S.; Wicher, B.; Burdzinski, G.; Karolczak, J.; Jurga, S.; et al. Porphyrazines with peripheral isophthaloxyalkylsulfanyl substituents and their optical properties. J. Photochem. Photobiol. A Chem. 2015, 307–308, 54–67. [Google Scholar] [CrossRef]
  38. Falkowski, M.; Kucinska, M.; Piskorz, J.; Wieczorek-Szweda, E.; Popenda, L.; Jurga, S.; Sikora, A.; Mlynarczyk, D.T.; Murias, M.; Marszall, M.P.; et al. Synthesis of sulfanyl porphyrazines with bulky peripheral substituents—Evaluation of their photochemical properties and biological activity. J. Photochem. Photobiol. A Chem. 2021, 405, 112964. [Google Scholar] [CrossRef]
  39. Kucinska, M.; Skupin-Mrugalska, P.; Szczolko, W.; Sobotta, L.; Sciepura, M.; Tykarska, E.; Wierzchowski, M.; Teubert, A.; Fedoruk-Wyszomirska, A.; Wyszko, E.; et al. Phthalocyanine Derivatives Possessing 2-(Morpholin-4-yl)ethoxy Groups As Potential Agents for Photodynamic Therapy. J. Med. Chem. 2015, 58, 2240–2255. [Google Scholar] [CrossRef] [PubMed]
  40. Dlugaszewska, J.; Szczolko, W.; Koczorowski, T.; Skupin-Mrugalska, P.; Teubert, A.; Konopka, K.; Kucinska, M.; Murias, M.; Düzgüneş, N.; Mielcarek, J.; et al. Antimicrobial and anticancer photodynamic activity of a phthalocyanine photosensitizer with N -methyl morpholiniumethoxy substituents in non-peripheral positions. J. Inorg. Biochem. 2017, 172, 67–79. [Google Scholar] [CrossRef]
  41. Kucinska, M.; Plewinski, A.; Szczolko, W.; Kaczmarek, M.; Goslinski, T.; Murias, M. Modeling the photodynamic effect in 2D versus 3D cell culture under normoxic and hypoxic conditions. Free Radic. Biol. Med. 2021, 162, 309–326. [Google Scholar] [CrossRef] [PubMed]
  42. Rak, J.; Pouckova, P.; Benes, J.; Vetvicka, D. Drug Delivery Systems for Phthalocyanines for Photodynamic Therapy. Anticancer Res. 2019, 39, 3323–3339. [Google Scholar] [CrossRef] [Green Version]
  43. Ghosh, S.; Carter, K.A.; Lovell, J.F. Liposomal formulations of photosensitizers. Biomaterials 2019, 218, 119341. [Google Scholar] [CrossRef]
  44. Chelminiak-Dudkiewicz, D.; Rybczynski, P.; Smolarkiewicz-Wyczachowski, A.; Mlynarczyk, D.T.; Wegrzynowska-Drzymalska, K.; Ilnicka, A.; Goslinski, T.; Marszałł, M.P.; Ziegler-Borowska, M. Photosensitizing potential of tailored magnetite hybrid nanoparticles functionalized with levan and zinc (II) phthalocyanine. Appl. Surf. Sci. 2020, 524, 146602. [Google Scholar] [CrossRef] [PubMed]
  45. Aksenova, N.A.; Savko, M.A.; Uryupina, O.Y.; Roldugin, V.I.; Timashev, P.S.; Kuz’Min, P.G.; Shafeev, G.A.; Solov’Eva, A.B. Effect of the preparation method of silver and gold nanoparticles on the photosensitizing properties of tetraphenylporphyrin–amphiphilic polymer—nanoparticle systems. Russ. J. Phys. Chem. A 2017, 91, 124–129. [Google Scholar] [CrossRef]
  46. Bera, K.; Maiti, S.; Maity, M.; Mandal, C.; Maiti, N.C. Porphyrin–Gold Nanomaterial for Efficient Drug Delivery to Cancerous Cells. ACS Omega 2018, 3, 4602–4619. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  47. Setaro, F.; Wennink, J.W.H.; Mäkinen, P.I.; Holappa, L.; Trohopoulos, P.N.; Ylä-Herttuala, S.; Van Nostrum, C.F.; De La Escosura, A.; Torres, T. Amphiphilic phthalocyanines in polymeric micelles: A supramolecular approach toward efficient third-generation photosensitizers. J. Mater. Chem. B 2020, 8, 282–289. [Google Scholar] [CrossRef]
  48. Ziental, D.; Czarczynska-Goslinska, B.; Mlynarczyk, D.T.; Glowacka-Sobotta, A.; Stanisz, B.; Goslinski, T.; Sobotta, L. Titanium Dioxide Nanoparticles: Prospects and Applications in Medicine. Nanomaterials 2020, 10, 387. [Google Scholar] [CrossRef] [Green Version]
  49. Musial, J.; Krakowiak, R.; Mlynarczyk, D.T.; Goslinski, T.; Stanisz, B.J. Titanium Dioxide Nanoparticles in Food and Personal Care Products—What Do We Know about Their Safety? Nanomaterials 2020, 10, 1110. [Google Scholar] [CrossRef]
  50. Lü, X.-F.; Li, J.; Wang, C.; Duan, M.-Y.; Luo, Y.; Yao, G.-P.; Wang, J.-L. Enhanced photoactivity of CuPp-TiO2 photocatalysts under visible light irradiation. Appl. Surf. Sci. 2010, 257, 795–801. [Google Scholar] [CrossRef]
  51. Forsyth, T.P.; Williams, D.B.G.; Montalban, A.G.; Stern, C.L.; Barrett, A.G.M.; Hoffman, B.M. A Facile and Regioselective Synthesis of Trans-Heterofunctionalized Porphyrazine Derivatives. J. Org. Chem. 1998, 63, 331–336. [Google Scholar] [CrossRef]
  52. Linstead, R.P.; Whalley, M. 944. Conjugated macrocylces. Part XXII. Tetrazaporphin and its metallic derivatives. J. Chem. Soc. 1952, 1952, 4839–4846. [Google Scholar] [CrossRef]
  53. Roncucci, G.; Dei, D.; De Filippis, M.P.; Fantetti, L.; Masini, I.; Cosimelli, B.; Jori, G. Zinc-Phthalocyanines and Corresponding Conjugates, Their Preparation and Use in Photodynamic Therapy and as Diagnostic Agents. U.S. Patent 5,965,598, 12 October 1999. [Google Scholar]
  54. Koczorowski, T.; Ber, J.; Sokolnicki, T.; Teubert, A.; Szczolko, W.; Goslinski, T. Electrochemical and catalytic assessment of peripheral bromoaryl-substituted manganese and iron porphyrazines. Dye Pigment 2020, 178, 108370. [Google Scholar] [CrossRef]
  55. Tuncer, S.; Koca, A.; Gül, A.; Avciata, U. 1,4-Dithiaheterocycle-fused porphyrazines: Synthesis, characterization, voltammetric and spectroelectrochemical properties. Dye Pigment 2009, 81, 144–151. [Google Scholar] [CrossRef]
  56. Fuchter, M.J.; Beall, L.S.; Baum, S.M.; Montalban, A.G.; Sakellariou, E.G.; Mani, N.S.; Miller, T.; Vesper, B.J.; White, A.J.; Williams, D.J.; et al. Synthesis of porphyrazine-octaamine, hexamine and diamine derivatives. Tetrahedron 2005, 61, 6115–6130. [Google Scholar] [CrossRef]
  57. Kryjewski, M.; Tykarska, E.; Rębiś, T.; Dlugaszewska, J.; Ratajczak, M.; Teubert, A.; Gapiński, J.; Patkowski, A.; Piskorz, J.; Milczarek, G.; et al. Porphyrazine with bulky 2-(1-adamantyl)-5-phenylpyrrol-1-yl periphery tuning its spectral and electrochemical properties. Polyhedron 2015, 98, 217–223. [Google Scholar] [CrossRef]
  58. Rębiś, T.; Lijewski, S.; Nowicka, J.; Popenda, L.; Sobotta, L.; Jurga, S.; Mielcarek, J.; Milczarek, G.; Goslinski, T. Electrochemical properties of metallated porphyrazines possessing isophthaloxybutylsulfanyl substituents: Application in the electrocatalytic oxidation of hydrazine. Electrochim. Acta 2015, 168, 216–224. [Google Scholar] [CrossRef]
  59. Hajri, A.; Touaiti, S.; Jamoussi, B. Preparation of Organic Zn-Phthalocyanine-Based Semiconducting Materials and Their Optical and Electrochemical Characterization. Adv. Optoelectron. 2013, 2013, 321563. [Google Scholar] [CrossRef]
  60. Pommerehne, J.; Vestweber, H.; Guss, W.; Mahrt, R.F.; Bässler, H.; Porsch, M.; Daub, J. Efficient two layer leds on a polymer blend basis. Adv. Mater. 1995, 7, 551–554. [Google Scholar] [CrossRef]
  61. Sakamoto, K.; Furuya, N.; Soga, H.; Yoshino, S. Cyclic voltammetry of non-peripheral thioaryl substituted phthalocyanines. Dye Pigment 2013, 96, 430–434. [Google Scholar] [CrossRef]
  62. Sułek, A.; Pucelik, B.; Kuncewicz, J.; Dubin, G.; Dąbrowski, J.M. Sensitization of TiO2 by halogenated porphyrin derivatives for visible light biomedical and environmental photocatalysis. Catal. Today 2019, 335, 538–549. [Google Scholar] [CrossRef]
  63. Oliveira, D.F.; Batista, P.S.; Muller, P.S.; Velani, V.; França, M.D.; De Souza, D.R.; Machado, A.E. Evaluating the effectiveness of photocatalysts based on titanium dioxide in the degradation of the dye Ponceau 4R. Dye Pigment 2012, 92, 563–572. [Google Scholar] [CrossRef]
  64. Kozlov, N.K.; Natashina, U.A.; Tamarov, K.P.; Gongalsky, M.B.; Solovyev, V.V.; Kudryavtsev, A.A.; Sivakov, V.; Osminkina, L.A. Recycling of silicon: From industrial waste to biocompatible nanoparticles for nanomedicine. Mater. Res. Express 2017, 4, 095026. [Google Scholar] [CrossRef] [Green Version]
  65. Sobotta, L.; Fita, P.; Szczolko, W.; Wrotynski, M.; Wierzchowski, M.; Goslinski, T.; Mielcarek, J. Functional singlet oxygen generators based on porphyrazines with peripheral 2,5-dimethylpyrrol-1-yl and dimethylamino groups. J. Photochem. Photobiol. A Chem. 2013, 269, 9–16. [Google Scholar] [CrossRef]
Molecules 26 02280 sch001 550

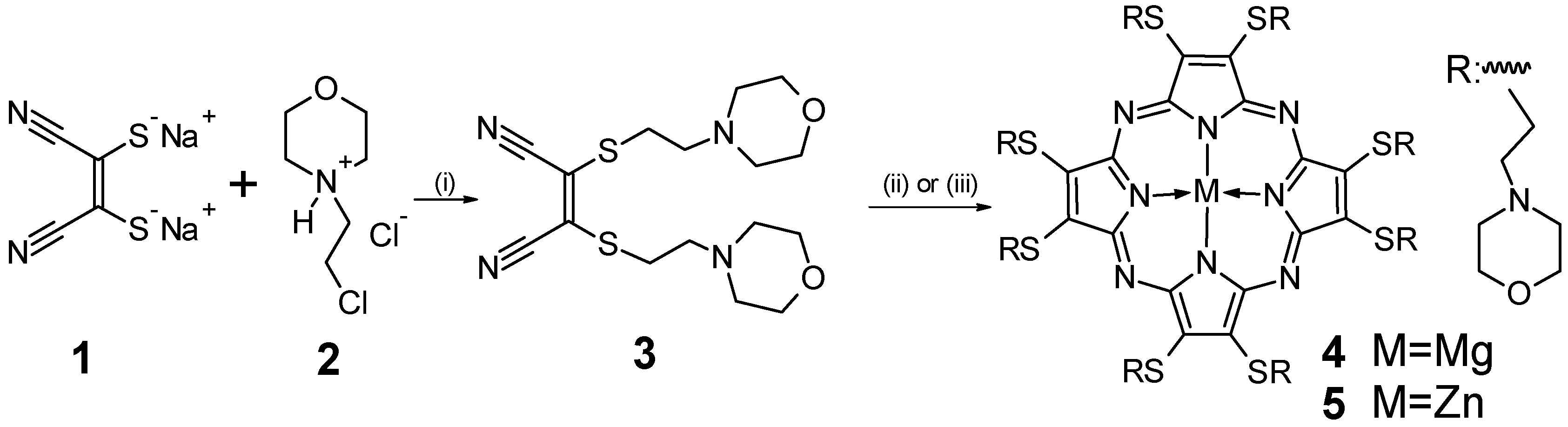

Scheme 1. Reagents and conditions: (i) K2CO3, DMF, 60 °C, 24 h; (ii) Mg(n-BuO)2, n-butanol, reflux, 24 h; (iii) Zn(OAc)2, DBU, n-pentanol, reflux, 24 h; DBU—1,8-diazabicyclo[5.4.0]undec-7-ene, DMF—dimethylformamide.
Scheme 1. Reagents and conditions: (i) K2CO3, DMF, 60 °C, 24 h; (ii) Mg(n-BuO)2, n-butanol, reflux, 24 h; (iii) Zn(OAc)2, DBU, n-pentanol, reflux, 24 h; DBU—1,8-diazabicyclo[5.4.0]undec-7-ene, DMF—dimethylformamide.
Molecules 26 02280 sch001
Molecules 26 02280 g001 550

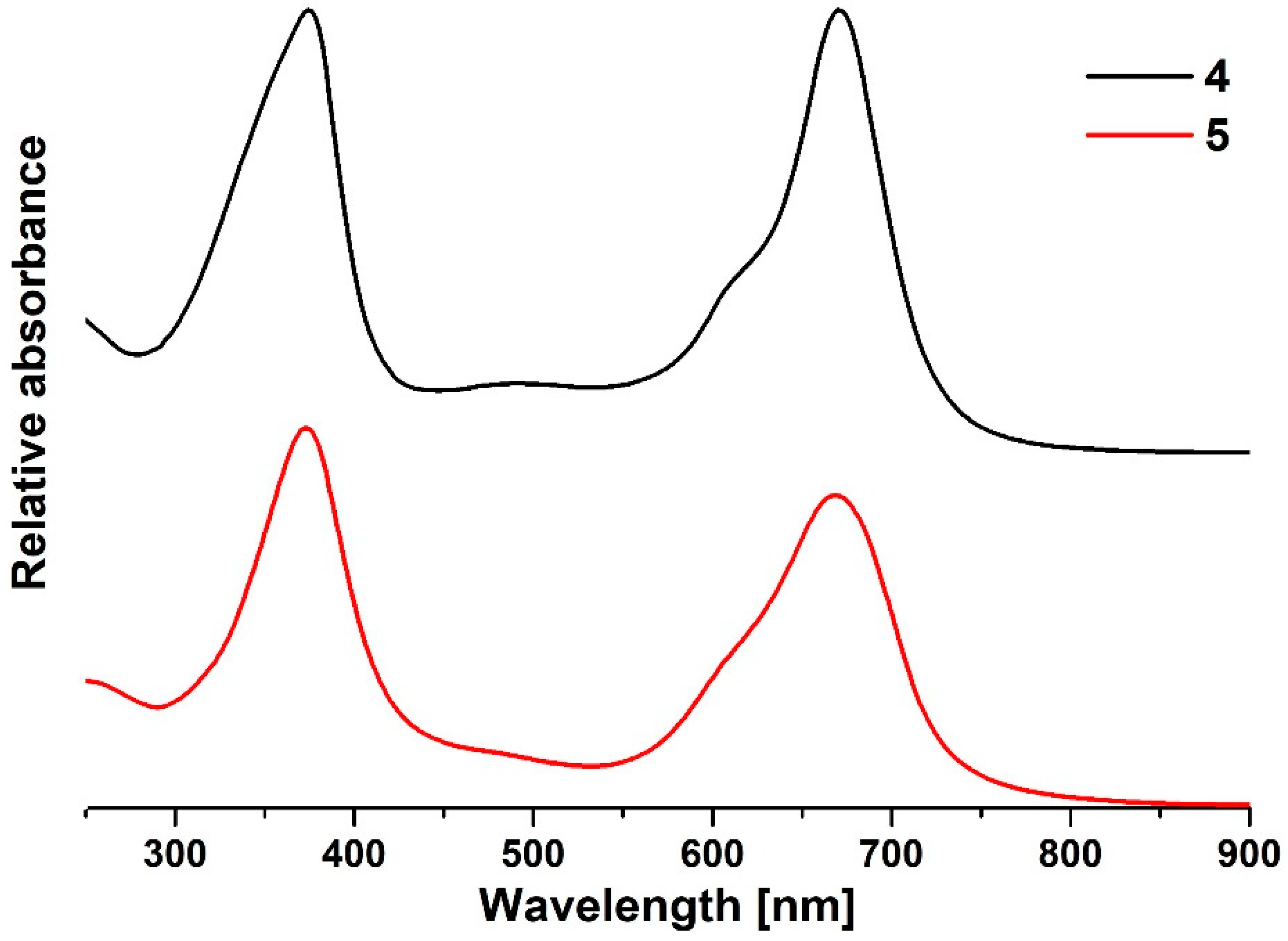

Figure 1. The UV–Vis spectrum of Pz 4 (black line) and Pz 5 (red line) in dichloromethane.
Figure 1. The UV–Vis spectrum of Pz 4 (black line) and Pz 5 (red line) in dichloromethane.
Molecules 26 02280 g001
Molecules 26 02280 g002 550

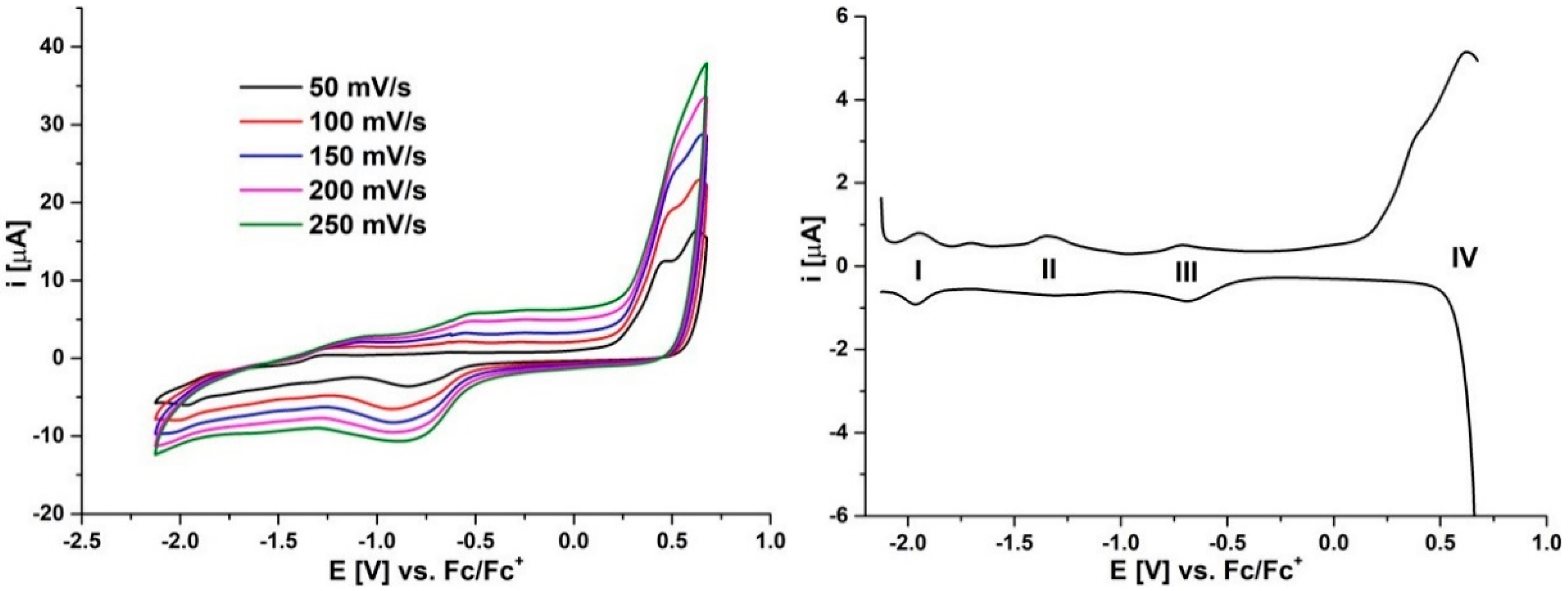

Figure 2. The cyclic and differential pulse voltammograms of porphyrazine 4 in 0.1 M TBAP/DCM. The DPV parameters: modulation amplitude 20 mV and step rate 5 mV·s−1.
Figure 2. The cyclic and differential pulse voltammograms of porphyrazine 4 in 0.1 M TBAP/DCM. The DPV parameters: modulation amplitude 20 mV and step rate 5 mV·s−1.
Molecules 26 02280 g002
Molecules 26 02280 g003 550

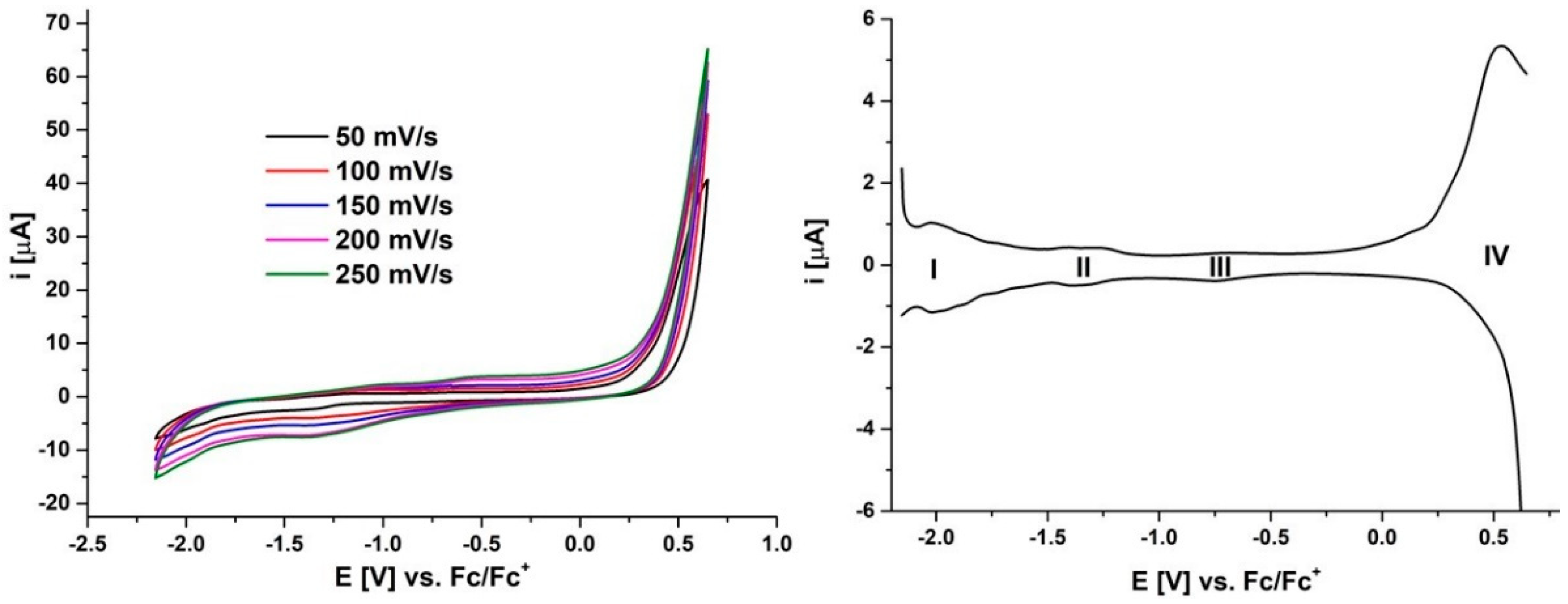

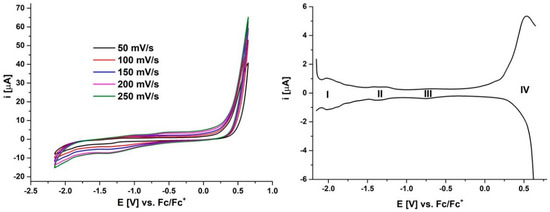

Figure 3. The cyclic and differential pulse voltammograms of porphyrazine 5 in 0.1 M TBAP/DCM. The DPV parameters: modulation amplitude 20 mV and step rate 5 mV·s−1.
Figure 3. The cyclic and differential pulse voltammograms of porphyrazine 5 in 0.1 M TBAP/DCM. The DPV parameters: modulation amplitude 20 mV and step rate 5 mV·s−1.
Molecules 26 02280 g003
Molecules 26 02280 g004 550

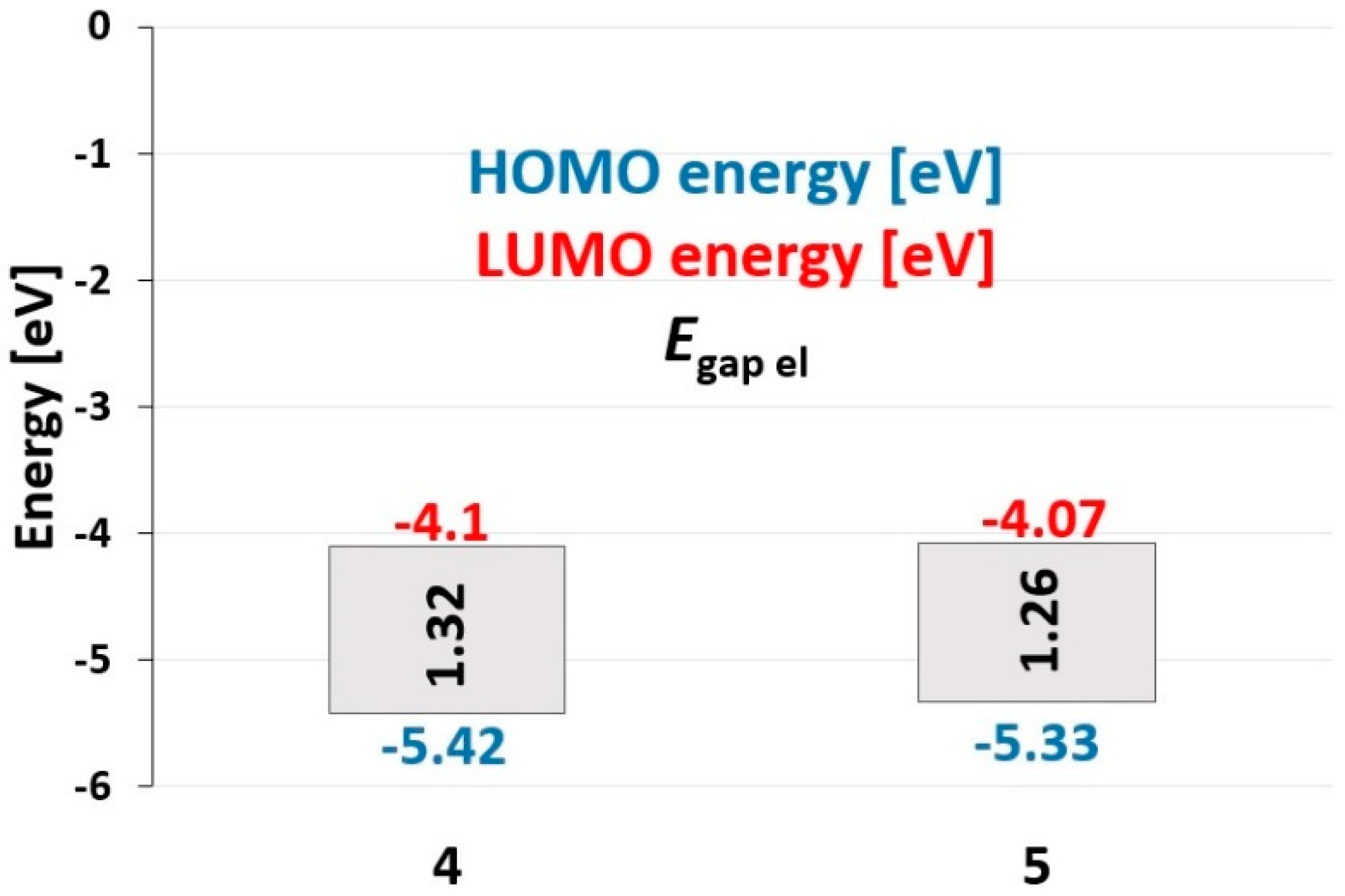

Figure 4. The HOMO-LUMO energy levels estimated for electrochemical data for porphyrazines 4 and 5.
Figure 4. The HOMO-LUMO energy levels estimated for electrochemical data for porphyrazines 4 and 5.
Molecules 26 02280 g004
Molecules 26 02280 sch002 550

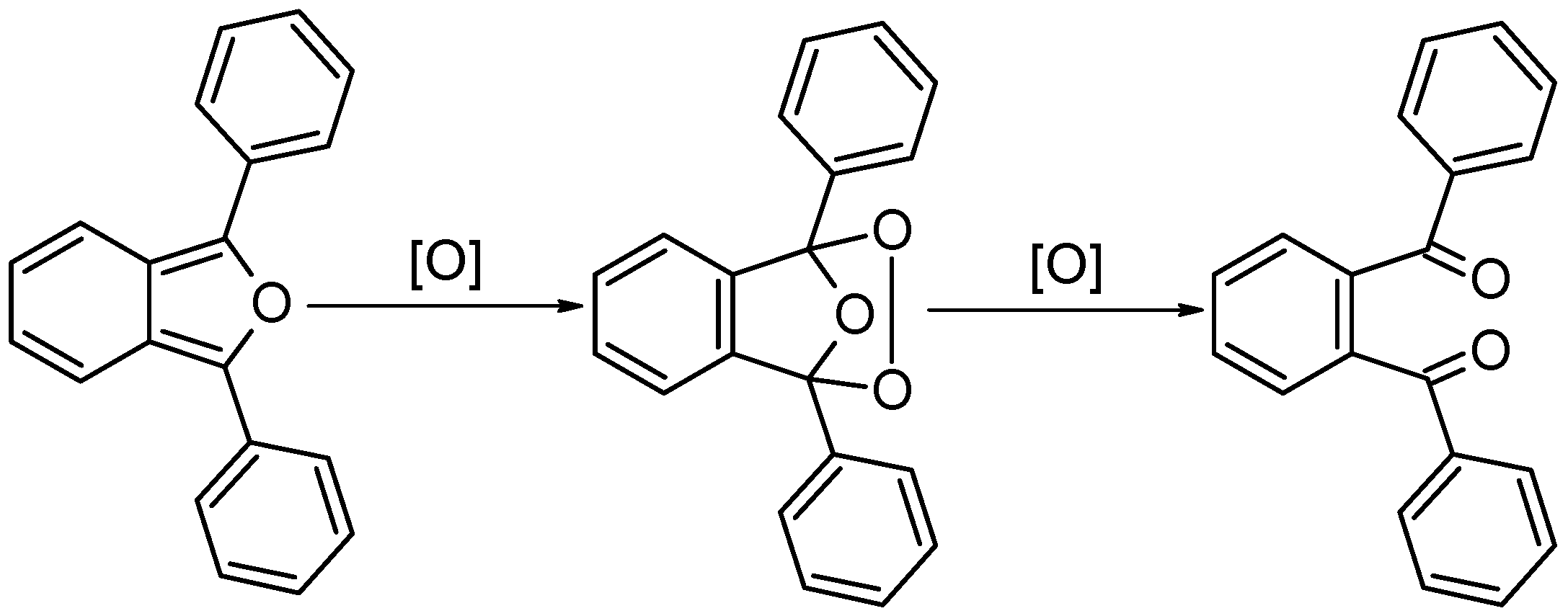

Scheme 2. The oxidation of 1,3-diphenylisobenzofurane to 1,2-dibenzoylbenzene.
Scheme 2. The oxidation of 1,3-diphenylisobenzofurane to 1,2-dibenzoylbenzene.
Molecules 26 02280 sch002
Molecules 26 02280 g005 550

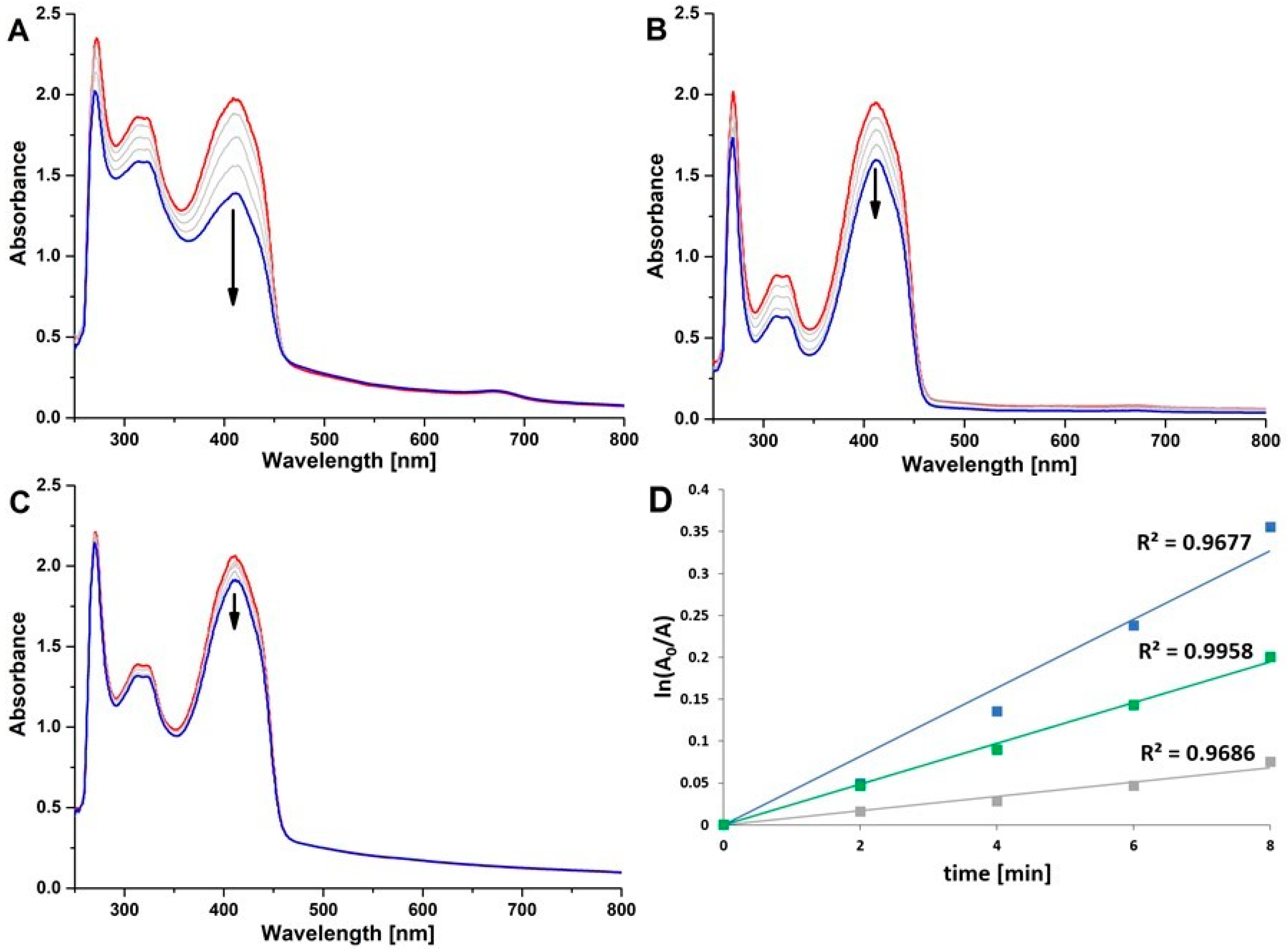

Figure 5. The UV–Vis spectra for the oxidation of DPBF in dimethylformamide in the presence of 4@P25 (A), 5@P25 (B), and P25 (C) as catalysts over a period of time. (D) the plots of DPBF absorbance in time in the presence of 4@P25 (blue), 5@P25 (green), and P25 (grey); DPBF—1,3-diphenylisobenzofurane.
Figure 5. The UV–Vis spectra for the oxidation of DPBF in dimethylformamide in the presence of 4@P25 (A), 5@P25 (B), and P25 (C) as catalysts over a period of time. (D) the plots of DPBF absorbance in time in the presence of 4@P25 (blue), 5@P25 (green), and P25 (grey); DPBF—1,3-diphenylisobenzofurane.
Molecules 26 02280 g005
Molecules 26 02280 g006 550

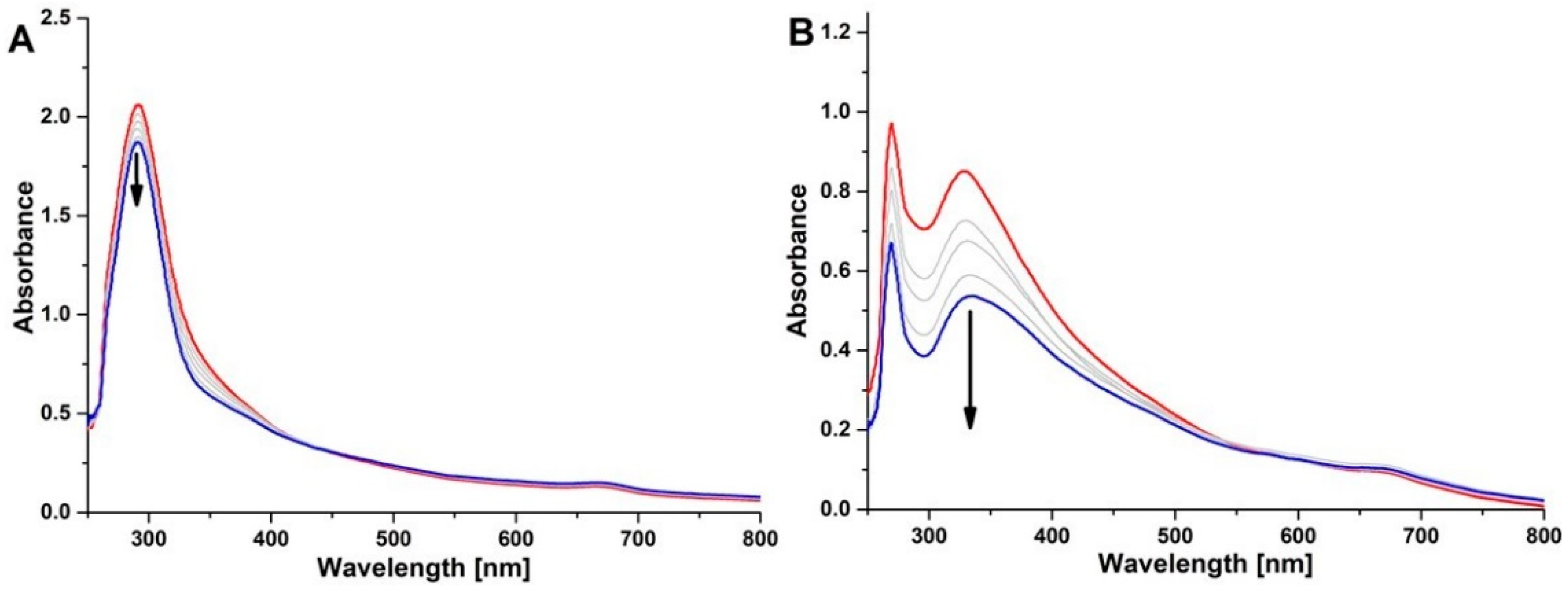

Figure 6. The UV–Vis spectra of photooxidation of diclofenac sodium salt (A) and ibuprofen (B) in dimethylformamide with 4@P25 as a catalyst over a period of time.
Figure 6. The UV–Vis spectra of photooxidation of diclofenac sodium salt (A) and ibuprofen (B) in dimethylformamide with 4@P25 as a catalyst over a period of time.
Molecules 26 02280 g006
Table
Table 1. The electrochemical data of porphyrazines 4 and 5.
Table 1. The electrochemical data of porphyrazines 4 and 5.
Pz MPz(−2)/
MPz(−3)
I		MPz(−1)/
MPz(−2)
II		MPz(0)/
MPz(−1)
III		MPz(0)/
MPz(+1)
IV
4E1/2 [V]
vs. Fc/Fc+		−1.95−1.33−0.700.62
5E1/2 [V]
vs. Fc/Fc+		−2.02−1.34−0.740.53
Table
Table 2. The optical and electrochemical HOMO-LUMO band gaps for porphyrazines 4 and 5.
Table 2. The optical and electrochemical HOMO-LUMO band gaps for porphyrazines 4 and 5.
λmax [nm]λonset [nm]Optical Band Gap Egap opt [eV]Electrochemical Band Gap Egap el [eV]
SoretQ Band
43756718201.511.32
53736688501.461.26
Table
Table 3. The particle size distribution of P25, 4@P25, and 5@P25.
Table 3. The particle size distribution of P25, 4@P25, and 5@P25.
MaterialMeasured Particle Size (nm)Polydispersity Index a
P2574.8 ± 7.70.17
4@P25327.4 ± 15.50.13
5@P25322.5 ± 28.20.15
a Calculated according to the formula PDI = (SD/mean diameter)2 [64].
Publisher’s Note: MDPI stays neutral with regard to jurisdictional claims in published maps and institutional affiliations.

Share and Cite

MDPI and ACS Style

Koczorowski, T.; Szczolko, W.; Teubert, A.; Goslinski, T. Sulfanyl Porphyrazines with Morpholinylethyl Periphery—Synthesis, Electrochemistry, and Photocatalytic Studies after Deposition on Titanium(IV) Oxide P25 Nanoparticles. Molecules 2021, 26, 2280. https://doi.org/10.3390/molecules26082280

AMA Style

Koczorowski T, Szczolko W, Teubert A, Goslinski T. Sulfanyl Porphyrazines with Morpholinylethyl Periphery—Synthesis, Electrochemistry, and Photocatalytic Studies after Deposition on Titanium(IV) Oxide P25 Nanoparticles. Molecules. 2021; 26(8):2280. https://doi.org/10.3390/molecules26082280

Chicago/Turabian Style

Koczorowski, Tomasz, Wojciech Szczolko, Anna Teubert, and Tomasz Goslinski. 2021. "Sulfanyl Porphyrazines with Morpholinylethyl Periphery—Synthesis, Electrochemistry, and Photocatalytic Studies after Deposition on Titanium(IV) Oxide P25 Nanoparticles" Molecules 26, no. 8: 2280. https://doi.org/10.3390/molecules26082280

Article Metrics

Back to TopTop
