Arene Ruthenium(II) Complexes Bearing the κ-P or κ-P,κ-S Ph2P(CH2)3SPh Ligand

Institute of Chemistry, Martin Luther University Halle-Wittenberg, Kurt-Mothes-Straße 2, D-06120 Halle, Germany
Institute for Biological Research “Sinisa Stankovic” National Institute of Republic of Serbia, University of Belgrade, Bulevar despota Stefana 142, 11060 Belgrade, Serbia
Department of Engineering and Natural Sciences, University of Applied Sciences Merseburg, Eberhard-Leibnitz-Strasse 2, DE-06217 Merseburg, Germany
Institute of Chemistry, Chemnitz University of Technology, Straße der Nationen 62, D-09111 Chemnitz, Germany
Faculty of Pharmacy, University of Business Academy in Novi Sad, Trg Mladenaca 5, 21000 Novi Sad, Serbia
Author to whom correspondence should be addressed.
Molecules 2021, 26(7), 1860;
Submission received: 29 December 2020 / Revised: 16 March 2021 / Accepted: 19 March 2021 / Published: 25 March 2021
(This article belongs to the Special Issue Organometallic Compounds: Synthesis and Biological Activity)


Neutral [Ru(η6-arene)Cl2{Ph2P(CH2)3SPh-κP}] (arene = benzene, indane, 1,2,3,4-tetrahydronaphthalene: 2a, 2c and 2d) and cationic [Ru(η6-arene)Cl(Ph2P(CH2)3SPh-κPS)]X complexes (arene = mesitylene, 1,4-dihydronaphthalene; X = Cl: 3b, 3e; arene = benzene, mesitylene, indane, 1,2,3,4-tetrahydronaphthalene, and 1,4-dihydronaphthalene; X = PF6: 4a4e) complexes were prepared and characterized by elemental analysis, IR, 1H, 13C and 31P NMR spectroscopy and also by single-crystal X-ray diffraction analyses. The stability of the complexes has been investigated in DMSO. Complexes have been assessed for their cytotoxic activity against 518A2, 8505C, A253, MCF-7 and SW480 cell lines. Generally, complexes exhibited activity in the lower micromolar range; moreover, they are found to be more active than cisplatin. For the most active ruthenium(II) complex, 4b, bearing mesitylene as ligand, the mechanism of action against 8505C cisplatin resistant cell line was determined. Complex 4b induced apoptosis accompanied by caspase activation.

Graphical Abstract

1. Introduction

One of today’s most clinically used antitumor drug cisplatin was synthesized in 1845 by M. Peyrone. However, the structure remained unknown for the next 50 years [1,2]. A. Werner deducted the square planar structure, and the cisplatin was distinguished from the trans analog. Cisplatin was approved in 1978 as an antitumor agent for testicular and ovarian cancers [3,4,5]. A major disadvantage of cisplatin are its strong side effects due to its nephrotoxicity, neurotoxicity and ototoxicity [6,7]. This led to the development for alternative drugs (carboplatin, oxaliplatin, etc.) [8]. However, the side effects of the general high toxic properties of the platinum compounds were not suppressed.
At the same time, attempts were made to circumvent the side effects using nonplatinum-based cytotoxic metal compounds [9,10,11,12]. Very promising effects have been already found with titanium(IV), gallium(III), gold(III), and tin(IV) compounds [13,14,15,16,17,18,19,20].
The organoruthenium(II/III) compounds seem to be particularly suitable because of their lower general toxicity in comparison with cisplatin, as well as their ability to utilize iron pathways in the body [21,22]. Keppler, Sadler and Dyson gave significant contribution in the field of ruthenium-based anticancer drugs [23,24,25]. For some ruthenium compounds, it was shown that they express a very good cytotoxic activity; importantly, particular compounds also possess an antimetastatic activity [26,27]. In some cases, they can overcome the resistance of cancer cells while the ruthenium complexes hardly affect normal cells [17]. For certain cancer lines, it has already been demonstrated that their resistance to an organic drug can be overcome by complexing to ruthenium [28]. A problem of the first anticancer active ruthenium(III)-based compound, fac-[Ru(NH3)3Cl3] (Figure 1A), is the low solubility [29]. Subsequently, water-soluble compounds such as the NAMI-A (Figure 1B) were synthesized [26]. NAMI-A shows inhibition of the formation of metastases in the lung independently of the cytostatic activity without attacking the actual tumor. Certain properties, such as faster ligand (aqua) exchange of the ruthenium in the oxidation state +2 versus +3, suggest that it is more suitable for reactions in biological systems [30,31].
It was also shown that the oxidation state +2 is stabilized through π-bonded arene ligands [32]. Existing problems such as side effects, solubility, and resistances remain in part. Several arene ruthenium(II) complexes exhibited both in vitro and in vivo promising anticancer activity. Such complexes were active in vitro in the range of 6–300 μM against human cancer cell lines (Figure 1C) [32,33]. Up to now, there are barely a few cytotoxic active ruthenium(II) complexes bearing phosphorus ligands (type D–F; Figure 1) [34,35,36]. Complex [Ru(η6-p-cymene)Cl2(pta)] (pta = 1,3,5-triaza-7-phosphaadamantane; Figure 1D) relived almost no anticancer activity, but on the other hand a promising antimetastatic activity [37]. Our group has explored neutral arene ruthenium(II) and iridium(III) complexes having κP- and κP,κS-coordinated ω-diphenylphosphino-functionalized alkyl phenyl sulfide, sulfoxide, and sulfone ligands (type F, Figure 1) on their anticancer activity [34,35,38,39,40]. All complexes were found very active, importantly particular complexes showed in vitro cytotoxicities equal or higher than cisplatin.
Here, we describe the synthesis and characterization of various neutral (2a, 2c and 2d) and cationic arene ruthenium(II) complexes (4a4e, 3b, 3e) with κP- and κP,κS coordinated, respectively, 3-diphenylphosphino-functionalized propyl phenyl sulfide ligand Ph2P(CH2)3SPh. Solvolysis as well as their cytotoxic activity, especially the influence of the arene ligands, were explored. Furthermore, on the most active compound the mechanism of action against 8505C tumour cell line was elucidated.

2. Results and Discussion

2.1. Synthesis

Various binuclear ruthenium(II) complexes [{Ru(η6-arene)Cl2}2] (arene = benzene, mesitylene, indane, thn and 1,4-dialin) and Ph2P(CH2)3SPh were used for the synthesis of the 2a4e complexes as given in Scheme 1. In the reaction in which MeOH was used, a clear red solution becomes blurred over the time from which an orange precipitate of [Ru(η6-arene)Cl2{Ph2P(CH2)3SPh-κP}] (arene = benzene, 2a; indane, 2c; thn (1,2,3,4-tetrahydronaphthalene), 2d) could be collected by filtration, washed with n-pentane and dried in vacuum. Instead of corresponding neutral ruthenium(II) complexes 2b (arene = mesitylene) and 2e (arene = 1,4-dialin (1,4-dihydronaphthalene)) using the same synthetic route, cationic [Ru(η6-arene)Cl{Ph2P(CH2)3SPh-κP,κS}]Cl (arene = mesitylene, 3b; 1,4-dialin, 3e) was obtained. It was supposed that during this reaction substitution of a Cl ligand occurred with ring closure by the coordination of sulphur atom to ruthenium(II).
For the preparation of the cationic ruthenium(II) complexes of the [Ru(η6-arene)Cl{Ph2P(CH2)3SPh-κP,κS}][PF6] type, desired complexes were synthesized directly from appropriate ruthenium(II) dimers or from the corresponding neutral ruthenium(II) complexes [Ru(η6-arene)Cl{Ph2P(CH2)3SPh-κP,κS}]Cl (arene = benzene, 2a; indane, 2c; thn, 2d) as shown in Scheme 1. Ruthenium(II) dimers, [{Ru(η6-arene)Cl2}2] (1a1e), were dissolved in MeOH and allowed to react with Ph2P(CH2)3SPh for 3 h. Afterwards, [NH4][PF6] was added and 4a4e, [Ru(η6-arene)Cl{Ph2P(CH2)3SPh-κP,κS}][PF6] were obtained in almost quantitative yields. Using this procedure without addition of [NH4][PF6] the formation of complexes 2b and 2e in the reaction mixture could be proved (31P NMR); however, all attempts of isolation of this two complexes failed. Alternatively, neutral 2a, 2c, and 2d complexes were dissolved in MeOH, and [NH4][PF6] was added yielding the appropriate cationic complexes (Scheme 1). Generally, after a short time, yellow to orange products precipitated from the reaction mixture. Neutral as well as the cationic ruthenium(II) complexes are well soluble in acetone, methanol and chloroform, but insoluble in diethyl ether and n-pentane.

2.2. Molecular Structure and Chemical Properties of the Arene Ruthenium(II) Complexes

Ruthenium(II) complexes 2a4e were characterized by microanalysis, IR and NMR (1H, 13C, 31P) spectroscopies and purity was determined with elemental analysis. Single-crystal X-ray structure analyses were performed for 3b, 4d, and 4e.

2.2.1. Crystallographic Data

Single crystals of the cationic ruthenium(II) complexes [Ru(η6-mesitylene)Cl{Ph2P(CH2)3SPh-κPS}]Cl·H2O (3b) [Ru(η6-thn)Cl{Ph2P(CH2)3SPh-κPS}]PF6 (4d) and [Ru(η6-1,4-dialin)Cl{Ph2P(CH2)3SPh-κPS}]PF6 (4e) suitable for X-ray diffraction analyses were gained from methylene chloride/n-pentane solutions at room temperature. The compounds crystallized in discrete cations and anions. Weak C–H∙∙∙F interactions (C∙∙∙F 2.471(1)–2.823(5) Å) were found between them. Two crystallographically independent molecules were found in the unit cell of 4e. Related bond lengths and angles differ marginally. In Figure 2 the molecular structures of the cations are shown.
Ruthenium(II) complexes are found in a half sandwich structure (“piano stool”). The coordination sphere around ruthenium(II) cation are built up by a η6-arene, a chloride, and κPS coordinated Ph2P(CH2)3SPh ligand. The angles at the ruthenium(II) atoms are close to 90° (82.4(6)–90.8(3)°). Six-membered ruthenacycles (RuPCCCS) for 3b, 4d and 4e are found in chair conformation.
For all three complexes, the Ru–Cl (2.389(5)–2.412(2) Å; median Ru–Cl: 2.414 Å, lower/higher quartile: 2.389/2.442 Å, n = 5542), Ru–P (2.317(6)–2.342(9) Å; median Ru–P: 2.332 Å, lower/higher quartile: 2.287/2.375 Å, n = 2520) are in the expected range. The Ru–S bond lengths (2.367(6)–2.388(3) Å) are slightly above the usual bond lengths (median Ru–S: 2.299 Å, lower/higher quartile: 2.266/2.352 Å, n = 678; n—number of observations).

2.2.2. Infrared Spectroscopic Data

The IR spectra of the ruthenium(II) complexes showed characteristic bands around 290 cm–1, which arise from Ru–Cl vibrations, while the bands found at 250 cm–1 are characteristic for bridging chlorido ligands in the dimers. These two bands are used for distinguishment between bridging and terminal chlorido ligands in appropriate ruthenium(II) arene complexes and can be easily used to determine the structure [41,42,43,44]. The X-ray crystallography for compounds 3b, 4d and 4e confirmed assigned bands to be consistent with the assumed terminal Ru–Cl vibration. Most studies make no use of the fingerprint region and just the standard range for IR is mentioned and observed. Absorptions at around 680 cm–1 could be assigned to P–C vibrations of the ligand [45]. C=C- and C–H bands are found at 1400 and 1600 cm–1 as well as 3000 cm–1, respectively and are in the expected ranges for ruthenium(II) complexes [34,35]. The dominant band at 742–748 cm–1 derived from thioether S–C parts of the prepared complexes [46].

2.2.3. NMR Data

The NMR spectra confirm the constitution of the complexes and all signals were found in the expected range with correct intensities in the 1H NMR spectra. Thus, in the 1H NMR spectra (Figure 3), the resonances of the coordinating aromatic moiety (arene ligand) in the neutral complexes are found within the expected chemical shift range (5–6 ppm) but slightly upfield in comparison to the appropriate ruthenium(II) dimers. In the case of complexes bearing more complex aromatic system than benzene, the corresponding proton resonances are found at expected values. The resonances of the hydrogen atoms from the propyl chain of the Ph2P(CH2)3SPh ligand appeared in the range of 1 ppm to 3 ppm. The hydrogen atoms of the phenyl moieties from Ph2P(CH2)3SPh2 are resonating between 7 to 8 ppm.
As seen in Figure 2, in the 1H NMR spectra of the cationic complexes, additional resonances in comparison to neutral ones could be identified. In the range between 1 and 4.2 ppm, the protons of the propyl chain [Ph2P(CH2)3SPh] can be found. For complex 4a the protons of the coordinated aromatic show the same resonance as for 2a. A similar behavior was observed for the compound 4e. The other complexes (4b4d) showed a splitting of these resonances of the aromatic systems. The phenyl residues of the Ph2P(CH2)3SPh are slightly shifted in comparison to neutral complexes (7.4 to 8.2 ppm). The 13C NMR spectra show the same expected results as in 1H NMR spectra. By means of C,H-COSY NMR spectroscopy, appropriate assignment of the resonances was possible (see Figures S1–S10).
Singlets were found in the 31P NMR spectra of Ph2P(CH2)3SPh2 ligand. Neutral ruthenium(II) complexes (2a, 2c and 2d) [Ru(η6-arene)Cl{Ph2P(CH2)3SPh-κP}] showed chemically induced shift upfield in the 31P NMR spectra (ca. 45 ppm). However, the formation of six-membered ruthenacycles (3b, 3e and 4a4e) resulted in downfield shifts of up to 7.2 ppm in comparison to neutral complexes and upfield ca. 38 ppm in comparison to the phosphorous resonance in the free ligand.
In the 31P NMR spectra of cationic 4a4e, besides the resonances resulting from the coordinated Ph2P(CH2)3SPh2 ligand, a septet at –144 ppm was observed for the PF6 anion.

2.3. Stability of Complexes in DMSO

The synthesized ruthenium(II) complexes were investigated for in vitro antitumor activity (vide infra), and hence, stability of ruthenium(II) complexes in DMSO was investigated, since DMSO was used as solubilizing agent. Earlier, Gasser et al. studied the behavior of [Ru(η6-arene)Cl2(L)] complexes (L = N-heterocyclic ligands) in DMSO [47].
Thus, ruthenium(II) complexes prone to dissociation in DMSO unquestionably will demonstrate changed in vitro activities in comparison to parental compounds. Recently, Keppler and co-workers showed that cyclometalated 1,2,3-triazole-derived ruthenium(II) [Ru(η6-arene)Cl2(L-κC,κN)] complexes (L = N-heterocyclic ligands) readily formed stable DMSO adducts in DMSO-containing solution [23]. However, using DMSO as a solubilizer in in vitro viability assay had no significant influence on the cytotoxicity.
All synthesized ruthenium(II) complexes are stable and storable for several weeks in air. As expected, decomposition reactions occur faster in solution than in solid state. On the basis of a solution color change (orange/red → brown/black), degradation is already visible after storage at room temperature for more than four weeks. Subsequently, such behavior is documented with 1H and 31P NMR spectroscopies. For the neutral and cationic ruthenium(II) complexes, a similar behavior in DMSO was observed. The investigation 4a stability in DMSO, as an example, over 72 h is presented in Figure 4. The 1H NMR spectra over time clearly indicate that 4a degrades to low extend for investigated period of time. Thus, for the in vitro studies 4a is acting on the cells.
Within 72 h, there were appearances of new chemical shifts with low intensity detectable in the aromatic region, ascribed to free Ph2P(CH2)3SPh, in both 1H and 31P NMR spectra. However, after 72 h for neutral and cationic ruthenium(II) complexes, much clearer appearance of degradation products could be identified. Apart from the chemical shifts belonging to the free Ph2P(CH2)3SPh ligand observed in the 1H NMR, consequently, the new resonances are also noted in the 31P NMR spectra. The decomposition reactions also occur in different solvents. For instance, degradation in chloroform (it might be due to chlorination, often via a radical pathway) is much faster than in DMSO. Moreover, significant decompositions in chloroform could be observed, for example, after only 12 h for the complex 4a. To summarize, the decomposition of ruthenium(II) complexes in DMSO occurs only after days.

2.4. Cytotoxicity Study

To evaluate the efficacy of the new neutral (2a, 2c, 2d) and cationic ruthenium(II) complexes (4a4e) human 518A2 (melanoma), 8505C (anaplastic thyroid tumor), A253 (head and neck tumor), MCF-7 (breast), and SW480 (colon) cell lines were treated with diverse concentrations of ruthenium(II) complexes for 96 h. The viabilities of cells were assessed using sulforhodamine-B (SRB) microculture colorimetric assay [48]. All ruthenium(II) complexes exhibited a dose-dependent inhibition of the cell growth (Figure 5). The IC50 values are summarized in Table 1. Additionally, for comparison, the respective activities of analogous complexes having p-cymene as arene ligand [Ru(η6-p-cymene)Cl2{Ph2P(CH2)3SPh-κP}] (2f) and [Ru(η6-p-cymene)Cl{Ph2P(CH2)3SPh-κPS}][PF6] (4f) as well as cisplatin are included.
As shown in our previous study, the ligand Ph2P(CH2)3SPh showed much lower antitumor activity (IC50 = 10.7–26.8 µM) than the investigated ruthenium(II) complexes. κP or κPS coordination of Ph2P(CH2)3SPh to [Ru(η6-arene)Cl2] or [Ru(η6-arene)Cl] moiety, respectively, makes the obtained ruthenium(II) complexes extremely active against all tumor cell lines. Most of the complexes exhibited much higher activity than cisplatin, up to 17 times. Thus, the most active cationic ruthenium(II) complex bearing mesitylene ligand (4b) showed the highest cytotoxic potency against cisplatin resistant MCF-7 cell line. For few ruthenium(II) complexes, similar cytotoxic effects were found as the reference compound cisplatin, and only one was less active (neutral complex 2c against 518A2). From the neutral complexes, the most active was found to be 2a, while from the cationic, 4b. Benzene, indane and thn aryl ligands bound to a [RuCl2{Ph2P(CH2)3SPh-κP}] or [RuCl{Ph2P(CH2)3SPh-κPS}]+ moiety exhibit similar effects on the in vitro anticancer activity. Complexes 2a, 2c, and 2d in comparison to the corresponding neutral ruthenium(II) complex bearing the p-cymene ligand showed superior activities up to 4.1/3.4 times against 8505C/MCF-7 and up to 6.7 times against cisplatin sensitive A253 [34,35]. Cationic complexes 4a, 4c, and 4d exhibited mainly higher activity than the appropriate ruthenium(II) complex having the p-cymene ligand on 518A2 and 8505C cell lines.
For further analysis, 8505C anaplastic thyroid carcinoma, resistant to chemotherapy, was selected. To define the cause of decreased number of viable cells in cultures exposed to IC50 dose of 4b, presence of apoptotic as well as necrotic cells was estimated by Annexin V-FITC/PI staining. As could be seen in Figure 6a, cultivation in the presence of 4b elevated percentage of early apoptotic cells, marked as Ann+/PI. In addition, occurrence of late apoptotic, double positive cells (Ann+/PI+), was found in cultures exposed to 4b.
These cells are rather secondary than primary necrotic, having in mind that apoptotic cells in culture must necrotize at the end point. Obtained results indicated that 4b induced apoptosis of 8505C. Subsequently, apostat staining showed that apoptosis triggered by the investigated drug in 8505C cells was accompanied by caspase activation (Figure 6b). While autophagy often follows the apoptosis as a cell attempt to repair damage, but also, under some circumstances, the same process could mediate cell removal herein. The amount of autophagosomes in cytoplasm of 8505C cells treated with 4b was quantified using supravital dye acridine orange (AO). Flow-cytometric analysis (Figure 6c) revealed slightly elevated fluorescence upon the treatment with 4b., thus pointing out the irrelevance of autophagic process to the drugs antitumor action. The same mode of action was found for complexes 2f and 4f [40]; however, the compound described herein is superior to those already published since an IC50 dose of 4b causes similar effect as double IC50 doses of complexes 2f and 4f.

3. Materials and Methods

3.1. General Manipulations

Reactions were performed under argon using standard Schlenk techniques. Solvents were dried (methylene chloride over CaH2; diethyl ether/n-pentane over Na/benzophenone; ethanol over magnesiumethanolate) and freshly distilled prior to use. NMR spectra (1H, 13C, 31P) were recorded at 27 °C with Varian Gemini 2000 (400 MHz) and Inova 500 (500 MHz) spectrometers. Chemical shifts are relative to solvent signals (CDCl3, δH 7.26, δC 77.0) as internal references; δ(31P) is relative to external H3PO4 (85%). Microanalyses (C, H, S) were performed in the Microanalytical Laboratory of the University of Halle using a CHNS-932 (LECO) elemental analyzer. IR spectra were recorded with Bruker Tensor 27 FT-IR Spectrometer from 4000–250 cm–1. [{RuCl26-arene)}2] (arene = benzene, mesitylene, indane, thn (1,2,3,4-tetrahydronaphthalene), and 1,4-dialin (1,4-dihydronaphthalene): 1a1e, respectively) and the ligand Ph2P(CH2)3SPh were prepared according to literature procedures [34,43].

3.2. Synthetic Procedures

3.2.1. Preparation of [Ru(η6-arene)Cl2{Ph2P(CH2)3SPh-κP}] (2a, 2c, 2d) and [Ru(η6-arene)Cl{Ph2P(CH2)3SPh-κP,κS}]Cl (3b, 3e)

To an ethanol solution (50 mL) of respective dimer [{RuCl26-arene)}2] (1a–1e; 50 mg) Ph2P(CH2)3SPh (2.2 equiv.) was added while stirring for 3 (2a, 2c or 2d) or 5 h (3b, 3e). Afterwards, the obtained precipitate was filtered off, washed with n-pentane (2 × 5 mL), and dried in vacuum.
2a. Yield: 85 mg (73%). Anal. Found: C, 55.03; H, 4.47; S, 5.72. Calcd for C31H35Cl2PRuS (586.52): C, 55.29; H, 4.64; S, 5.47. 1H NMR (500 MHz, CDCl3): δ 7.85–7.77 (m, 4H, CHPh), 7.52–7.40 (m, 6H, CHPh), 7.20–7.06 (m, 5H, CHPh), 5.33 (s, 6H, CH), 2.83–2.62 (m, 4H, CH2PPh2; CH2SPh), 1.57–1.46 (m, 2H, CH2CH2CH2). 13C NMR (126 MHz, CDCl3): δ 136.0–125.7 (18 × CPh), 88.5 (6 × CH), 34.3 (CH2SPh), 23.3 (CH2PPh2), 23.0 (CH2CH2CH2). 31P NMR (202 MHz, CDCl3): δ 24.5 (1JP,CH2 = 29.6 Hz). IR (υ, cm–1): 291(s), 349(m), 428(m), 453(m), 497(s), 519(m), 650(m), 692(m), 742(s), 810(m), 850(w), 987(m), 1097(m), 1169(w), 1435(m), 1475(w), 1624(w), 2912(w), 2991(w), 3053(w).
2c. Yield: 67 mg (62%). Anal. Found: C, 57.21; H, 4.72; S, 5.41. Calcd for C30H31Cl2PRuS (626.58): C, 57.51; H, 4.99; S, 5.12. 1H NMR (500 MHz, CDCl3): δ 7.84–7.67 (m, 4H, CHPh), 7.49–7.37 (m, 6H, CHPh), 7.20–7.06 (m, 5H, CHPh), 5.12–5.06 (m, 2H, CH), 4.56–4.50 (m, 2H, CH), 3.02–2.95 (m, 2H, CH2PPh2), 2.82–2.70 (m, 4H, CH2SPh; CH2), 2.64–2.53 (m, 2H, CH2), 2.34–2.22 (m, 1H, CH2), 2.07–1.98 (m, 1H, CH2), 1.62–1.47 (m, 2H, CH2CH2CH2). 13C NMR (126 MHz, CDCl3): δ 133.0–128.4 (18 × CPh), 111.2 (2 × Ci), 83.4 (2 × CH), 82.6 (2 × CH)H, 34.2 (CH2SPh), 29.7 (2 × CH2), 23.9 (CH2PPh2), 23.1 (CH2), 22.7 (CH2CH2CH2). 31P NMR (202 MHz, CDCl3): δ 25.5 (1JP,CH2 = 30.9 Hz, 1JP,C = 9.6 Hz). IR (υ, cm–1): 285(s), 331(m), 349(m), 380(m), 435(s), 453(m), 495(s), 522(m), 581(w), 617(w), 650(m), 692(s), 712(m), 746(s), 810(m), 875(m), 910(w), 987(m), 1043(w), 1066(w), 1095(m), 1193(w), 1250(w), 1311(w), 1421(m), 1481(w), 1581(w), 1600(w), 2862(w), 2920(w), 2976(w), 3049(w).
2d·H2O. Yield: 79 mg (75%). Anal. Found: C, 57.93; H, 4.85; S, 5.37. Calcd for C31H35Cl2OPRuS (640.61): C, 58.12; H, 5.19; S, 5.00. 1H NMR (400 MHz, CDCl3): δ 7.74–7.56 (m, 4H), 7.53–7.35 (m, 6H), 7.29–7.05 (m, 5H), 5.78–5.68 (m, 2H), 5.57–5.46 (m, 2H), 2.92–2.53 (m, 6H, CH2PPh2; CH2SPh; CH2), 2.45–2.22 (m, 2H, CH2), 1.83–1.58 (m, 4H, CH2; CH2CH2CH2), 1.48–1.33 (m, 2H, CH2). 13C NMR (101 MHz, CDCl3): δ 132.9–128.3 (18 × CPh), 94.6 (2 × Ci), 82.0 (2 × CH), 80.9 (2 × CHHH), 34.4 (CH2SPh), 26.3 (2 × CH2), 26.0 (CH2PPh2), 21.3 (CH2CH2CH2), 21.1 (2 × CH2). 31P NMR (162 MHz, CDCl3): δ 28.4 (1JP,CH2 = 30.5 Hz). IR (υ, cm–1): 298(s), 380(m), 436(m), 457(m), 490(m), 532(m), 580(w), 632(w), 700(m), 725(m), 748(s), 798(w), 815(w), 852(m), 905(w), 982(w), 1093(m), 1155(w), 1196(w), 1298(w), 1414(m), 1437(m), 1479(w), 1516(w), 1578(w), 2866(w), 2933(w), 3057(w).
3b·H2O. Yield: 66 mg (60%). Anal. Found: C, 55.68; H, 5.22; S, 4.83. Calcd for C30H35Cl2OPRuS (646.61): C, 55.72; H, 5.46; S, 4.95. 1H NMR (500 MHz, CDCl3): δ 8.52–7.37 (m, 15H, CHPh), 5.23 (s, 3H, CH), 4.05 (t, 2JH,H = 12.0 Hz, 1H, CH2SPh), 3.31 (m, 1H, CH2PPh2), 2.60 (d, 2JH,H = 12.0 Hz, 1H, CH2SPh), 2.30–1.90 (m, 2H, CH2PPh2; CH2CH2CH2), 1.80 (s, 9H), 1.28–1.13 (m, 1H, CH2CH2CH2). 13C NMR (126 MHz, CDCl3): δ 135.5–128.7 (18 × CPh), 110.4 (3 × Ci), 89.3 (3 × CH), 36.0 (CH2SPh), 25.2 (CH2PPh2), 21.9 (CH2CH2CH2), 18.8 (3xCH3). 31P NMR (202 MHz, CDCl3): δ 22.1 (1JP,CH2 = 31.1 Hz, 1JP,C = 10.5 Hz). IR (υ, cm–1): 299(m), 349(w), 434(m), 453(m), 488(m), 501(m), 521(m), 642(m), 692(m), 744(m), 808(m), 860(w), 989(m), 1039(m), 1097(m), 1169(w), 1298(w), 1381(w), 1437(m), 1477(w), 1539(w), 2910(w), 2966(w), 3051(w).
3e·H2O. Yield: 80 mg (74%). Anal. Found: C, 56.48; H, 4.72; S, 5.02. Calcd for C31H33Cl2OPRuS (656.61): C, 56.71; H, 4.76; S, 4.88. 1H NMR (500 MHz, CDCl3): δ 8.48–7.37 (m, 15H, CHPh), 6.51 (s (br), 1H, CH), 5.80 (s (br), 1H, CH), 5.56–5.32 (m, 3H, CH), 4.56 (s, 1H, CH) 4.12 (t, 2JH,H = 11.9 Hz, 1H, CH2SPh), 3.38 (s (br), 1H, CH2PPh2), 2.56 (‘ddd’, 5H, CH2PPh2; CH2SPh; CH2), 2.26–2.10 (m, 1H, CH2), 2.06–1.93 (m, 1H, CH2CH2CH2), 1.24 (s (br), 1H, CH2). 13C NMR (126 MHz, CDCl3): δ 132.4–128.9 (18 × CPh), 122.5 (CH), 121.8 (CH), 105.6 (2 × Ci) 89.3 (2 × CH), 88.2 (2 × CH), 33.8 (CH2SPh), 26.4 (2 × CH2), 26.2 (CH2PPh2), 21.4 (CH2CH2CH2). 31P NMR (202 MHz, CDCl3): δ 22.2 (s). IR (υ, cm–1): 295(m), 351(w), 449(m), 487(m), 525(m), 645(m), 688(m), 743(s), 820(m), 854(w), 989 (w), 1096(m), 1169(w), 1273(w), 1390(w), 1437(m), 1480(w), 1525(w), 1660(w), 2925(w), 2960(w), 3053(w).

3.2.2. Preparation of [Ru(η6-arene)Cl{Ph2P(CH2)3SPh-κP,κS}][PF6] (4a4e)

To a methanol solution (50 mL) of respective [{RuCl26-arene)}2] (50 mg) Ph2P(CH2)3SPh (2.2 mmol) was added while stirring. As shown by 31P NMR spectroscopy, complexes 2b and 2e were formed [δ: 2b, 29.1 (s); 2e, 27.8 (s)], however, isolation failed. After 3 h, [NH4][PF6] (6 equiv.) was added and the reaction mixture was stirred for additional 3 h. The obtained precipitate was filtered off, washed with diethyl ether (2 × 5 mL) and dried in vacuum.
Alternatively, to a an anhydrous methanol solution (50 mL) of the appropriate neutral complex (2a, 2c, or 2d) [NH4][PF6] (6 equiv.) was added and the reaction solution was stirred at room temperature for 3 h. Then, the obtained precipitate was filtered off, washed with n-pentane (2 × 5 mL) and dried in vacuum.
4a. Yield: 58 mg (99%). Anal. Found: C, 46.48; H, 3.98. Calcd for C27H27ClF6P2RuS (696.03): C, 46.59; H, 3.91. 1H NMR (400 MHz, CDCl3): δ 8.32–7.47 (m, 15H, CHPh), 5.53 (s, 6H, CH), 4.03 (t,2JH,H = 11.7 Hz, 1H, CH2SPh), 3.40–3.26 (m, 1H, CH2PPh), 2.73–2.61 (m, 1H, CH2SPh), 2.33–2.13 (m, 1H, CH2PPh), 2.03–1.86 (m, 1H, CH2CH2CH2), 1.33–1.18 (m, 1H, CH2CH2CH2). 13C NMR (126 MHz, CDCl3): δ 137.7–129.1 (18 × CPh), 92.9 (CH), 33.3 (CH2SPh), 26.9 (CH2PPh), 21.3 (CH2CH2CH2). 31P NMR (202 MHz, CDCl3): δ 20.5 (1JP,CH2 = 32.6 Hz, 1JP,C = 10.4 Hz), –144.1 (sep, 1JP,F = 713 Hz, PF6). IR (υ, cm–1): 293(m), 314(m), 356(m), 455(m), 484(s), 495(m), 520(m), 555(s), 648(m), 690(m), 744(s), 829(s), 900(w), 987(w), 1026(w), 1097(w), 1169(w), 1261(w), 1313(w), 1392(w), 1438(m), 1481(w), 1579(w), 2864(w), 2916(w), 3057(w).
4b. Yield: 56 mg (98%). Anal. Found: C, 49.17; H, 4.48. Calcd for C30H33ClF6P2RuS (738.11): C, 48.82; H, 4.51. 1H NMR (400 MHz, CDCl3): δ 8.36–7.37 (m, 15H, CHPh), 4.96 (s, 3H), 4.04 (t, 2JH,H = 12.3 Hz, 1H, CH2SPh), 3.30 (s (br), 1H, CH2PPh), 2.70–2.53 (m, 1H, CH2SPh), 2.28–1.93 (m, 2H, CH2PPh; CH2CH2CH2), 1.75 (s, 9H, CH3), 1.33–1.12 (m, 1H, CH2CH2CH2). 13C NMR (101 MHz, CDCl3): δ 135.1–128.7 (18 × CPh), 110.4 (Ci), 89.01 (CH), 36.03 (CH2SPh), 25.53 (CH2PPh), 21.84 (CH2CH2CH2), 18.38 (CH3). 31P NMR (202 MHz, CDCl3): δ 21.9 (1JP,C = 10.1 Hz), –144.0 (sep, 1JP,F = 712 Hz, PF6). IR (υ, cm–1): 300(m), 349(w), 434(m), 451(m), 486(s), 522(m), 555(s), 615(w), 644(m), 690(m), 744(m), 831(s), 877(w), 916(w), 989(w), 1034(w), 1097(w), 1168(w), 1268(w), 1300(w), 1394(w), 1439(m), 1479(w), 1537(w), 1578(w), 2912(w), 2976(w), 3060(w).
4c. Yield: 57 mg (97%). Anal. Found: 49.13; H, 4.21. Calcd for C30H33ClF6P2RuS (736.09): C, 48.95; H, 4.24. 1H NMR (500 MHz, CDCl3): δ 8.41–7.40 (m, 15H, CHPh), 5.80 (t, 3JH,H = 5.7 Hz, 1H, CH), 5.60 (m, 1H, CH), 5.49 (d, 3JH,H = 5.7 Hz, 1H, CH), 4.80 (‘dd’, 1H, CH), 4.10 (t, 2JH,H = 11.8 Hz, 1H, CH2SPh), 3.44–3.31 (m, 1H, CH2PPh), 2.67 (‘dd’, 1H, CH2SPh), 2.472.31 (m, 1H, CH2PPh), 2.32–2.12 (m, 2H, CH2), 2.06–1.89 (m, 2H, CH2CH2CH2; CH2), 1.82–1.70 (m, 2H, CH2), 1.68 –1.59 (m, 1H, CH2), 1.31–1.10 (m, 1H, CH2CH2CH2). 13C NMR (126 MHz, CDCl3): δ 135.1–128.8 (18 × CPh), 92.5 (Ci), 88.0 (CH), 84.6 (CH), 33.4 (CH2SPh), 29.7 (CH2), 29.3 (CH2), 24.1 (CH2PPh), 22.6 (CH2), 21.3 (CH2CH2CH2).31P NMR (202 MHz, CDCl3): δ 20.6 (1JP,CH2 = 30.7 Hz, 1JP,C = 10.5 Hz), –144.1 (sep, 1JP,F = 712 Hz, PF6). IR (υ, cm–1): 285(s), 326(m), 349(w), 376(w), 438(m), 482(m), 523(m), 555(s), 646(m), 692(s), 710(m), 746(s), 829(s), 872(m), 910(w), 991(w), 1097(w), 1169(w), 1259(w), 1396(w), 1419(w), 1441(m), 1472(w), 1574(w), 2910(w), 2972(w), 3043(w).
4d. Yield: 55 mg (94%). Anal. Found: C, 49.63; H, 4.40. Calcd for C31H33ClF6P2RuS (750.12): C, 49.63; H, 4.43. 1H NMR (400 MHz, CDCl3): δ 8.28–7.42 (m, 15H, CHPh), 5.80 (t, 3JH,H = 5.5 Hz, 1H, CH), 5.50 (dd, J = 9.4, 5.2 Hz, 1H, CH), 5.28 (d, 3JH,H = 5.7 Hz, 1H, CH), 4.52–4.45 (m, 1H, CH), 4.12 (t, 2JH,H = 11.8 Hz, 1H, CH2SPh), 3.45–3.32 (m, 1H, CH2PPh), 2.73–2.62 (m, 1H, CH2SPh), 2.31–2.09 (m, 2H, CH2), 2.03–1.90 (m, 2H, CH2CH2CH2; CH2), 1.84–1.56 (m, 3H, CH2), 1.47–1.35 (m, 2H, CH2), 1.32–1.14 (m, 1H, CH2CH2CH2). 13C NMR (101 MHz, CDCl3): δ 135.1–128.9 (18 × CPh), 96.0 (Ci), 88.5 (CH), 86.0 (CH), 85.4 (CH), 33.6 (CH2SPh), 25.8 (CH2), 25.7 (CH2), 24.6 (CH2PPh), 21.3 (CH2CH2CH2), 20.5 (CH2). 31P NMR (162 MHz, CDCl3): δ 21.5 (1JP,CH2 = 30.3 Hz, 1JP,C = 10.5 Hz), –144.1 (sep, 1JP,F = 710 Hz, PF6). IR (υ, cm–1): 283(m), 347(m), 438(m), 486(m), 523(m), 555(s), 646(m), 692(m), 744(m), 756(m), 829(s), 904(w), 989(w), 1097(w), 1167(w), 1261(w), 1398(w), 1439(m), 1574(w), 2864(w), 2912(w), 2949(w), 3055(w).
4e. Yield: 54 mg (95%). Anal. Found: C, 50.00; H, 4.17. Calcd for C31H31ClF6P2RuS (748.10): C, 49.77; H, 4.18. 1H NMR (500 MHz, CDCl3): δ 8.26–7.41 (m, 15H, CHPh), 5.84 (s, 1H, CH), 5.52–5.29 (m, 4H, CH), 4.70–4.57 (m, 1H, CH), 4.10 (t, 2JH,H = 12.1 Hz, 1H, CH2SPh), 3.39 (s (br), 1H, CH2PPh), 2.83 (d, JH,H = 22.2 Hz, 1H, CH2), 2.75–2.62 (m, 2H, CH2SPh; CH2), 2.49 (d, JH,H = 22.2 Hz, 1H, CH2), 2.34–2.12 (m, 2H, CH2PPh; CH2), 2.06–1.92 (m, 1H, CH2CH2CH2), 1.31–1.14 (m, 1H, CH2CH2CH2). 13C NMR (126 MHz, CDCl3): δ 135.2–129.0 (18 × CPh), 122.2 (CH), 121.8 (CH), 92.89(Ci), 89.5 (CH), 87.8 (CH), 85.1 (CH), 34.3 (CH2SPh), 26.1 (CH2), 24.3 (CH2PPh), 21.4 (CH2CH2CH2). 31P NMR (162 MHz, CDCl3): δ 22.0 (1JP,CH2 = 30.8 Hz, 1JP,C = 10.6 Hz), –144.1 (sep, 1JP,F = 712 Hz, PF6). IR (υ, cm–1): 291(m), 353(w), 449(m), 484(m), 523(m), 555(s), 656(m), 690(s), 742(s), 827(s), 989(w), 1097(w), 1169(w), 1263(w), 1315(w), 1398(w), 1438(m), 1481(w), 1523(w), 1578(w), 1670(w), 2918(w), 3059(w).

3.3. Crystallography

Data for X-ray diffraction analyses of single crystals of 3b·H2O, 4d, and 4e were collected on an Rigaku Oxford Gemini S diffractometer at 110K using Mo-Kα radiation (λ = 0.71073 Å, graphite monochromator, CrysAlis Pro Version Absorption corrections were applied multiscanning with the SCALE3 ABSPACK algorithm (Tmin/Tmax: 0.89/1.00, 3b·H2O; 0.84/1.00 4d; 0.98/1.00, 4e), respectively, of the CrysAlisPro software package. The structures were solved with direct methods using SHELXS-2013 and refined using full-matrix least-square routines against F2 with SHELXL-2013 [49]. All non-hydrogen atoms were refined with anisotropic displacement parameters and hydrogen atoms with isotropic ones. Carbon-bonded hydrogen atoms were placed in calculated positions according to the riding model. The hydrogen atom positions of the water molecule of 3b·H2O were taken from difference Fourier maps and refined with DFIX and DANG constraints. CCDC 1907326-1907328 contains the supplementary crystallographic data for this paper. These data can be obtained free of charge from the Cambridge Crystallographic Data Centre via (accessed on 29 December 2020).

3.4. In Vitro Studies

3.4.1. Reagents and Cells

Fetal calf serum (FCS), RPMI-1640, phosphate-buffered saline (PBS) and dimethyl sulfoxide (DMSO) were obtained from Sigma (St. Louis, MO, USA). Acridin orange (AO) was from Labo-Moderna (Paris, France). Annexin V-FITC (AnnV) and apostat were purchased from Biotium (Hayward, CA, USA) and R&D (R&D Systems, Minneapolis, MN, USA), while penicillin/streptomycin from PAA Laboratories.
The cell lines 518A2, 8505C, A253, MCF-7 and SW480 were routinely maintained as monolayers in nutrient medium (RPMI-1640 supplemented with 10% FCS, 2 mM l-glutamine, 0.01% sodium pyruvate and 1% penicillin/streptomycin) at 37 °C in a humidified atmosphere with 5% CO2. Stock solutions of investigated compounds were prepared in DMSO at a concentration of 20 mM, filtered through Millipore filter, 0.22 μm, before use, and diluted by nutrient medium to various working concentrations. After standard trypsinization, cells were seeded at 2.5 × 103 cells/well in 96-well plates for viability determination and 1.5 × 105 cells/well in 6-well plate for flow cytometry.

3.4.2. Determination of Cell Viability by Sulphorhodamine Assay (SRB)

The viability of adherent viable cells was measured by SRB assay [48]. Cells were exposed to a wide range of doses of the drugs for 96 h and then fixed with 10% of TCA for 2 h at 4 °C. After fixation, cells were washed in distilled water, stained with 0.4% SRB solution 30 min at RT, washed, and dried overnight. The dye was dissolved in 10 mM TRIS buffer, and the absorbance was measured at 540 nm with the reference wavelength at 640 nm. IC50 values, defined as the concentrations of the compound at which 50% of cell inhibition occurs ± SD were calculated using four-parameter logistic function and presented as mean from three independent experiments.

3.4.3. AnnexinV-FITC/PI, AO Staining and Caspase Detection

Cells were exposed to IC50 dose of 4b for 72 h. After trypsinization cells were stained with AnnV-FITC/PI (Biotium, Hayward, CA, USA) or apostat according to the manufacturer’s instruction. Alternatively, cells were stained with solution of 100 μM AO 15 min at 37 °C. Cells were analyzed with CyFlow® Space Partec with Partec FloMax® software.

4. Conclusions

In this work, the synthesis of various neutral and cationic ruthenium complexes of the general formulae [Ru(η6-arene)Cl2{Ph2P(CH2)3SPh-κP}] and [Ru(η6-arene)Cl{Ph2P(CH2)3SPh-κP,κS}]X (arene = benzene, mesitylene, indane, thn, and 1,4-dialin; X = Cl or PF6), respectively, was established. Complexes were characterized by IR and multinuclear NMR spectroscopy. Moreover, crystal structures of 3b, 4d, and 4e complexes were obtained and confirmed proposed structures. The stability of the complexes in DMSO, thus possibility of DMSO to replace ligands, was investigated using NMR spectroscopy. Solvolysis is considerably hindered within the first 3 days, therefore the applied ruthenium(II) complexes in in vitro investigations did not suffer with the DMSO substitution in the stock solution.
The cytotoxicity of all arene ruthenium(II) complexes was determined in five human cancer cell lines (518A2, 8505C, A253, MCF-7 and SW480). All ruthenium(II) complexes demonstrated high cytotoxic potential with the IC50 values down to the low micromolar range. Selected cationic ruthenium(II) complex bearing the mesytil moiety (4b) was found to induce apoptosis in 8505C cisplatin resistant cell line. This process was associated with caspase activation. Taken together, herein are synthesized ruthenium(II) complexes with strong anticancer potential, whose mechanism of action is based on the caspase triggered apoptosis, thus encouraging future development of this promising ruthenium(II) complexes.

Supplementary Materials

The following are available online, Figure S1: [Ru(η6-benzene)Cl2{Ph2P(CH2)3SPh-κP}] 2a, Figure S2: [Ru(η6-benzene)Cl{Ph2P(CH2)3SPh-κP,κS}]PF6 4a, Figure S3: [Ru(η6-indane)Cl2{Ph2P(CH2)3SPh-κP}] 2c, Figure S4: [Ru(η6-indane)Cl{Ph2P(CH2)3SPh-κPS}]PF6 4c, Figure S5: [Ru(η6-thn)Cl2{Ph2P(CH2)3SPh-κP}] 2d, Figure S6: [Ru(η6-thn)Cl{Ph2P(CH2)3SPh-κPS}]PF6 4d, Figure S7: [Ru(η6-mesitylene)Cl{Ph2P(CH2)3SPh-κPS}]Cl 3b, Figure S8: [Ru(η6-mesitylene)Cl{Ph2P(CH2)3SPh-κPS}]PF6 4b, Figure S9: [Ru(η6-1,4-dialin)Cl{ Ph2P(CH2)3SPh-κP,κS}]Cl 3e, Figure S10: [Ru(η6-1,4-dialin)Cl{ Ph2P(CH2)3SPh-κP,κS}]PF6 4e.

Author Contributions

Conceptualization, G.L. and G.N.K.; methodology, G.L., H.L., S.M., D.M.-I. and G.N.K.; formal analysis, S.A., V.P., T.E., T.R., S.M. and D.M.-I.; investigation, S.A, V.P., T.E., H.L. and T.R.; resources, G.L., S.M. and D.M.-I.; data curation, S.A.; validation: S.M., and D.M.-I.; writing—original draft preparation, G.N.K.; writing—review and editing, T.E., H.L., T.R., S.M., D.M.-I. and G.N.K.; visualization, S.A., V.P., T.E. and T.R.; supervision, G.L., S.M., D.M.-I., G.N.K.; project administration, G.L. All authors have read and agreed to the published version of the manuscript.


G.L. gratefully acknowledges financial support from Graduiertenförderung des Landes Sachsen-Anhalt. The authors from the University of Belgrade would like to acknowledge financial support from the Ministry of Science and Technological Development of the Republic of Serbia (451-03-9/2021-14/200007).

Data Availability Statement

Data Supporting obtained results can be obtained from the authors upon request.


We would like to express deep gratitude to D. Steinborn and H. Schmidt (MLU) for very helpful discussion and suggestions.

Conflicts of Interest

The authors declare no conflict of interest. The funders had no role in the design of the study; in the collection, analyses, or interpretation of data; in the writing of the manuscript; or in the decision to publish the results.

Sample Availability

Samples of the compounds reported herein are available from the authors.


  1. Arnesano, F.; Natile, G. Mechanistic Insight into the Cellular Uptake and Processing of Cisplatin 30 Years after Its Approval by FDA. Coord. Chem. Rev. 2009, 253, 2070–2081. [Google Scholar] [CrossRef]
  2. Gomez-Ruiz, S.; Maksimović-Ivanić, D.; Mijatović, S.; Kaluđerović, G.N. On the Discovery, Biological Effects, and Use of Cisplatin and Metallocenes in Anticancer Chemotherapy. Bioinorg. Chem. Appl. 2012, 2012, 140284. [Google Scholar] [CrossRef] [PubMed]
  3. Kaluđerović, G.N.; Paschke, R. Anticancer Metallotherapeutics in Preclinical Development. Curr. Med. Chem. 2011, 18, 4738–4752. [Google Scholar] [CrossRef] [PubMed]
  4. Kelland, L. The Resurgence of Platinum-Based Cancer Chemotherapy. Nat. Rev. Cancer 2007, 7, 573–584. [Google Scholar] [CrossRef]
  5. Rancoule, C.; Guy, J.-B.; Vallard, A.; Ben Mrad, M.; Rehailia, A.; Magné, N. 50th anniversary of cisplatin. Bull. Cancer 2016. [Google Scholar] [CrossRef]
  6. Wong, E.; Giandomenico, C.M. Current Status of Platinum-Based Antitumor Drugs. Chem. Rev. 1999, 99, 2451–2466. [Google Scholar] [CrossRef] [PubMed]
  7. Dugbartey, G.J.; Peppone, L.J.; de Graaf, I.A.M. An Integrative View of Cisplatin-Induced Renal and Cardiac Toxicities: Molecular Mechanisms, Current Treatment Challenges and Potential Protective Measures. Toxicology 2016, 371, 58–66. [Google Scholar] [CrossRef] [Green Version]
  8. Deo, K.M.; Pages, B.J.; Ang, D.L.; Gordon, C.P.; Aldrich-Wright, J.R. Transition Metal Intercalators as Anticancer Agents-Recent Advances. Int. J. Mol. Sci. 2016, 17, 1818. [Google Scholar] [CrossRef] [Green Version]
  9. Guo, Z.; Sadler, P.J. Metals in Medicine. Angew. Chem. Int. Ed. 1999, 38, 1512–1531. [Google Scholar] [CrossRef]
  10. Markowska, A.; Kasprzak, B.; Jaszczyńska-Nowinka, K.; Lubin, J.; Markowska, J. Noble Metals in Oncology. Contemp. Oncol. 2015, 19, 271–275. [Google Scholar] [CrossRef] [Green Version]
  11. Johnstone, T.C.; Suntharalingam, K.; Lippard, S.J. Third Row Transition Metals for the Treatment of Cancer. Philos. Trans. A Math. Phys. Eng. Sci. 2015, 373. [Google Scholar] [CrossRef] [Green Version]
  12. Allardyce, C.S.; Dyson, P.J. Metal-Based Drugs That Break the Rules. Dalton Trans. 2016, 45, 3201–3209. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  13. Palermo, G.; Magistrato, A.; Riedel, T.; von Erlach, T.; Davey, C.A.; Dyson, P.J.; Rothlisberger, U. Fighting Cancer with Transition Metal Complexes: From Naked DNA to Protein and Chromatin Targeting Strategies. ChemMedChem 2016, 11, 1199–1210. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  14. Pantelić, N.; Stanojković, T.P.; Zmejkovski, B.B.; Sabo, T.J.; Kaluđerović, G.N. In Vitro Anticancer Activity of Gold(III) Complexes with Some Esters of (S,S)-Ethylenediamine-N,N’-Di-2-Propanoic Acid. Eur. J. Med. Chem. 2015, 90, 766–774. [Google Scholar] [CrossRef] [PubMed]
  15. Nardon, C.; Fregona, D. Gold(III) Complexes in the Oncological Preclinical Arena: From Aminoderivatives to Peptidomimetics. Curr. Top. Med. Chem. 2016, 16, 360–380. [Google Scholar] [CrossRef] [PubMed]
  16. Ott, I.; Gust, R. Non Platinum Metal Complexes as Anti-Cancer Drugs. Arch. Pharm. 2007, 340, 117–126. [Google Scholar] [CrossRef]
  17. Muhammad, N.; Guo, Z. Metal-Based Anticancer Chemotherapeutic Agents. Curr. Opin. Chem. Biol. 2014, 19, 144–153. [Google Scholar] [CrossRef]
  18. Abeysinghe, P.M.; Harding, M.M. Antitumour Bis(Cyclopentadienyl)Metal Complexes: Titanocene and Molybdocene Dichloride and Derivatives. Dalton Trans. 2007, 3474–3482. [Google Scholar] [CrossRef]
  19. Kaluđerović, M.R.; Mojić, M.; Gómez-Ruiz, S.; Mijatović, S.; Maksimović-Ivanić, D. Anticancer Activity of Organogallium(III) Complexes in Colon Cancer Cells. Anticancer Agents Med. Chem. 2016, 16, 359–364. [Google Scholar]
  20. Sirajuddin, M.; Ali, S. Organotin(IV) Carboxylates as a Promising Potential Drug Candidates in the Field of Cancer Chemotherapy. Curr. Pharm. Des. 2016, 22, 6665–6681. [Google Scholar] [CrossRef]
  21. Renfrew, A.K.; Phillips, A.D.; Egger, A.E.; Hartinger, C.G.; Bosquain, S.S.; Nazarov, A.A.; Keppler, B.K.; Gonsalvi, L.; Peruzzini, M.; Dyson, P.J. Influence of Structural Variation on the Anticancer Activity of RAPTA-Type Complexes: Ptn versus Pta. Organometallics 2009, 28, 1165–1172. [Google Scholar] [CrossRef]
  22. Scolaro, C.; Bergamo, A.; Brescacin, L.; Delfino, R.; Cocchietto, M.; Laurenczy, G.; Geldbach, T.J.; Sava, G.; Dyson, P.J. In Vitro and in Vivo Evaluation of Ruthenium(II)−Arene PTA Complexes. J. Med. Chem. 2005, 48, 4161–4171. [Google Scholar] [CrossRef]
  23. Riedl, C.A.; Flocke, L.S.; Hejl, M.; Roller, A.; Klose, M.H.M.; Jakupec, M.A.; Kandioller, W.; Keppler, B.K. Introducing the 4-Phenyl-1,2,3-Triazole Moiety as a Versatile Scaffold for the Development of Cytotoxic Ruthenium(II) and Osmium(II) Arene Cyclometalates. Inorg. Chem. 2017, 56, 528–541. [Google Scholar] [CrossRef]
  24. Brabec, V.; Pracharova, J.; Stepankova, J.; Sadler, P.J.; Kasparkova, J. Photo-Induced DNA Cleavage and Cytotoxicity of a Ruthenium(II) Arene Anticancer Complex. J. Inorg. Biochem. 2016, 160, 149–155. [Google Scholar] [CrossRef]
  25. Palmucci, J.; Marchetti, F.; Pettinari, R.; Pettinari, C.; Scopelliti, R.; Riedel, T.; Therrien, B.; Galindo, A.; Dyson, P.J. Synthesis, Structure, and Anticancer Activity of Arene-Ruthenium(II) Complexes with Acylpyrazolones Bearing Aliphatic Groups in the Acyl Moiety. Inorg. Chem. 2016, 55, 11770–11781. [Google Scholar] [CrossRef]
  26. Alessio, E.; Mestroni, G.; Bergamo, A.; Sava, G. Ruthenium Antimetastatic Agents. Curr. Top. Med. Chem. 2004, 4, 1525–1535. [Google Scholar] [CrossRef]
  27. Antonarakis, E.S.; Emadi, A. Ruthenium-Based Chemotherapeutics: Are They Ready for Prime Time? Cancer Chemother. Pharmacol. 2010, 66, 1–9. [Google Scholar] [CrossRef] [Green Version]
  28. Peacock, A.F.A.; Sadler, P.J. Medicinal Organometallic Chemistry: Designing Metal Arene Complexes as Anticancer Agents. Chem. Asian J. 2008, 3, 1890–1899. [Google Scholar] [CrossRef]
  29. Berger, I.; Hanif, M.; Nazarov, A.A.; Hartinger, C.G.; John, R.O.; Kuznetsov, M.L.; Groessl, M.; Schmitt, F.; Zava, O.; Biba, F.; et al. In Vitro Anticancer Activity and Biologically Relevant Metabolization of Organometallic Ruthenium Complexes with Carbohydrate-Based Ligands. Chem. Eur. J. 2008, 14, 9046–9057. [Google Scholar] [CrossRef]
  30. Bergamo, A.; Masi, A.; Dyson, P.J.; Sava, G. Modulation of the Metastatic Progression of Breast Cancer with an Organometallic Ruthenium Compound. Int. J. Oncol. 2008, 33, 1281–1289. [Google Scholar] [CrossRef] [PubMed]
  31. Schluga, P.; Hartinger, C.G.; Egger, A.; Reisner, E.; Galanski, M.; Jakupec, M.A.; Keppler, B.K. Redox Behavior of Tumor-Inhibiting Ruthenium(III) Complexes and Effects of Physiological Reductants on Their Binding to GMP. Dalton Trans. 2006, 1796–1802. [Google Scholar] [CrossRef] [PubMed]
  32. Morris, R.E.; Aird, R.E.; del Socorro Murdoch, P.; Chen, H.; Cummings, J.; Hughes, N.D.; Parsons, S.; Parkin, A.; Boyd, G.; Jodrell, D.I.; et al. Inhibition of Cancer Cell Growth by Ruthenium(II) Arene Complexes. J. Med. Chem. 2001, 44, 3616–3621. [Google Scholar] [CrossRef]
  33. Aird, R.E.; Cummings, J.; Ritchie, A.A.; Muir, M.; Morris, R.E.; Chen, H.; Sadler, P.J.; Jodrell, D.I. In Vitro and in Vivo Activity and Cross Resistance Profiles of Novel Ruthenium (II) Organometallic Arene Complexes in Human Ovarian Cancer. Br. J. Cancer 2002, 86, 1652–1657. [Google Scholar] [CrossRef] [Green Version]
  34. Ludwig, G.; Kaluđerović, G.N.; Bette, M.; Block, M.; Paschke, R.; Steinborn, D. Highly Active Neutral Ruthenium(II) Arene Complexes: Synthesis, Characterization, and Investigation of Their Anticancer Properties. J. Inorg. Biochem. 2012, 113, 77–82. [Google Scholar] [CrossRef]
  35. Ludwig, G.; Kaluđerović, G.N.; Rueffer, T.; Bette, M.; Korb, M.; Block, M.; Paschke, R.; Lang, H.; Steinborn, D. Cationic Arene Ruthenium(II) Complexes with Chelating P-Functionalized Alkyl Phenyl Sulfide and Sulfoxide Ligands as Potent Anticancer Agents. Dalton Trans. 2013, 42, 3771–3774. [Google Scholar] [CrossRef] [PubMed]
  36. Allardyce, C.S.; Dyson, P.J.; Ellis, D.J.; Heath, S.L. [Ru(η6-p-Cymene)Cl2(Pta)] (Pta = 1,3,5-Triaza-7-Phosphatricyclo- []Decane): A Water Soluble Compound That Exhibits PH Dependent DNA Binding Providing Selectivity for Diseased Cells. Chem. Commun. 2001, 1396–1397. [Google Scholar] [CrossRef]
  37. Weiss, A.; Berndsen, R.H.; Dubois, M.; Müller, C.; Schibli, R.; Griffioen, A.W.; Dyson, P.J.; Nowak-Sliwinska, P. In Vivo Anti-Tumor Activity of the Organometallic Ruthenium(II)-Arene Complex [Ru(η6-p-Cymene)Cl2(Pta)] (RAPTA-C) in Human Ovarian and Colorectal Carcinomas. Chem. Sci. 2014, 5, 4742–4748. [Google Scholar] [CrossRef] [Green Version]
  38. Ludwig, G.; Ranđelović, I.; Maksimović-Ivanić, D.; Mijatović, S.; Bulatović, M.Z.; Miljković, D.; Korb, M.; Lang, H.; Steinborn, D.; Kaluđerović, G.N. Anticancer Potential of (Pentamethylcyclopentadienyl)Chloridoiridium(III) Complexes Bearing κP and κPS-Coordinated Ph2PCH2CH2CH2S(O)xPh (x=0–2) Ligands. ChemMedChem 2014, 9, 1586–1593. [Google Scholar] [CrossRef]
  39. Ludwig, G.; Mijatovic, S.; Randelovic, I.; Bulatovic, M.; Miljkovic, D.; Maksimovic-Ivanic, D.; Korb, M.; Lang, H.; Steinborn, D.; Kaluđerović, G.N. Biological Activity of Neutral and Cationic Iridium(III) Complexes with κP and κPS Coordinated Ph2PCH2S(O)xPh (x=0–2) Ligands. Eur. J. Med. Chem. 2013, 69, 216–222. [Google Scholar] [CrossRef]
  40. Ludwig, G.; Mojić, M.; Bulatović, M.Z.; Mijatović, S.; Maksimović-Ivanić, D.; Steinborn, D.; Kaluđerović, G.N. Biological Potential of Halfsandwich Ruthenium(II) and Iridium(III) Complexes. Anticancer Agents Med. Chem. 2015, 16, 1455–1460. [Google Scholar] [CrossRef]
  41. Lalrempuia, R.; Rao Kollipara, M. Reactivity Studies of η6-Arene Ruthenium(II) Dimers with Polypyridyl Ligands: Isolation of Mono, Binuclear p-Cymene Ruthenium(II) Complexes and Bisterpyridine Ruthenium(II) Complexes. Polyhedron 2003, 22, 3155–3160. [Google Scholar] [CrossRef]
  42. Kumar, K.N.; Venkatachalam, G.; Ramesh, R.; Liu, Y. Half-Sandwich Para-Cymene Ruthenium(II) Naphthylazophenolato Complexes: Synthesis, Molecular Structure, Light Emission, Redox Behavior and Catalytic Oxidation Properties. Polyhedron 2008, 27, 157–166. [Google Scholar] [CrossRef]
  43. Bennett, M.A.; Smith, A.K. Arene Ruthenium(II) Complexes Formed by Dehydrogenation of Cyclohexadienes with Ruthenium(III) Trichloride. J. Chem. Soc. Dalton Trans. 1974, 233–241. [Google Scholar] [CrossRef]
  44. Zelonka, R.A.; Baird, M.C. Benzene Complexes of Ruthenium(II). Can. J. Chem. 1972, 50, 3063–3072. [Google Scholar] [CrossRef]
  45. Durig, J.R.; Gounev, T.K.; Lee, M.S.; Little, T.S. Spectra and Structure of Organophosphorus Compounds. LI. IR and Raman Spectra, Conformational Stability, Barriers to Internal Rotation, Vibrational Assignment, and Ab Initio Calculations of n-Propylphosphine. J. Mol. Struct. 1994, 327, 23–53. [Google Scholar] [CrossRef]
  46. Maiti, S.K.; Kalita, M.; Singh, A.; Deka, J.; Barman, P. Investigation of DNA Binding and Bioactivities of Thioether Containing Schiff Base Copper(II), Cobalt(II) and Palladium(II) Complexes: Synthesis, Characterization, Spectrochemical Study, Viscosity Measurement. Polyhedron 2020, 184, 114559. [Google Scholar] [CrossRef]
  47. Patra, M.; Joshi, T.; Pierroz, V.; Ingram, K.; Kaiser, M.; Ferrari, S.; Spingler, B.; Keiser, J.; Gasser, G. DMSO-Mediated Ligand Dissociation: Renaissance for Biological Activity of N-Heterocyclic-[Ru(η6-Arene)Cl2] Drug Candidates. Chem. Eur. J. 2013, 19, 14768–14772. [Google Scholar] [CrossRef]
  48. Vichai, V.; Kirtikara, K. Sulforhodamine B Colorimetric Assay for Cytotoxicity Screening. Nat. Protoc. 2006, 1, 1112–1116. [Google Scholar] [CrossRef]
  49. Sheldrick, G.M. SHELXT—Integrated Space-Group and Crystal-Structure Determination. Acta Crystallogr. Sect. A 2015, 71, 3–8. [Google Scholar] [CrossRef] [Green Version]

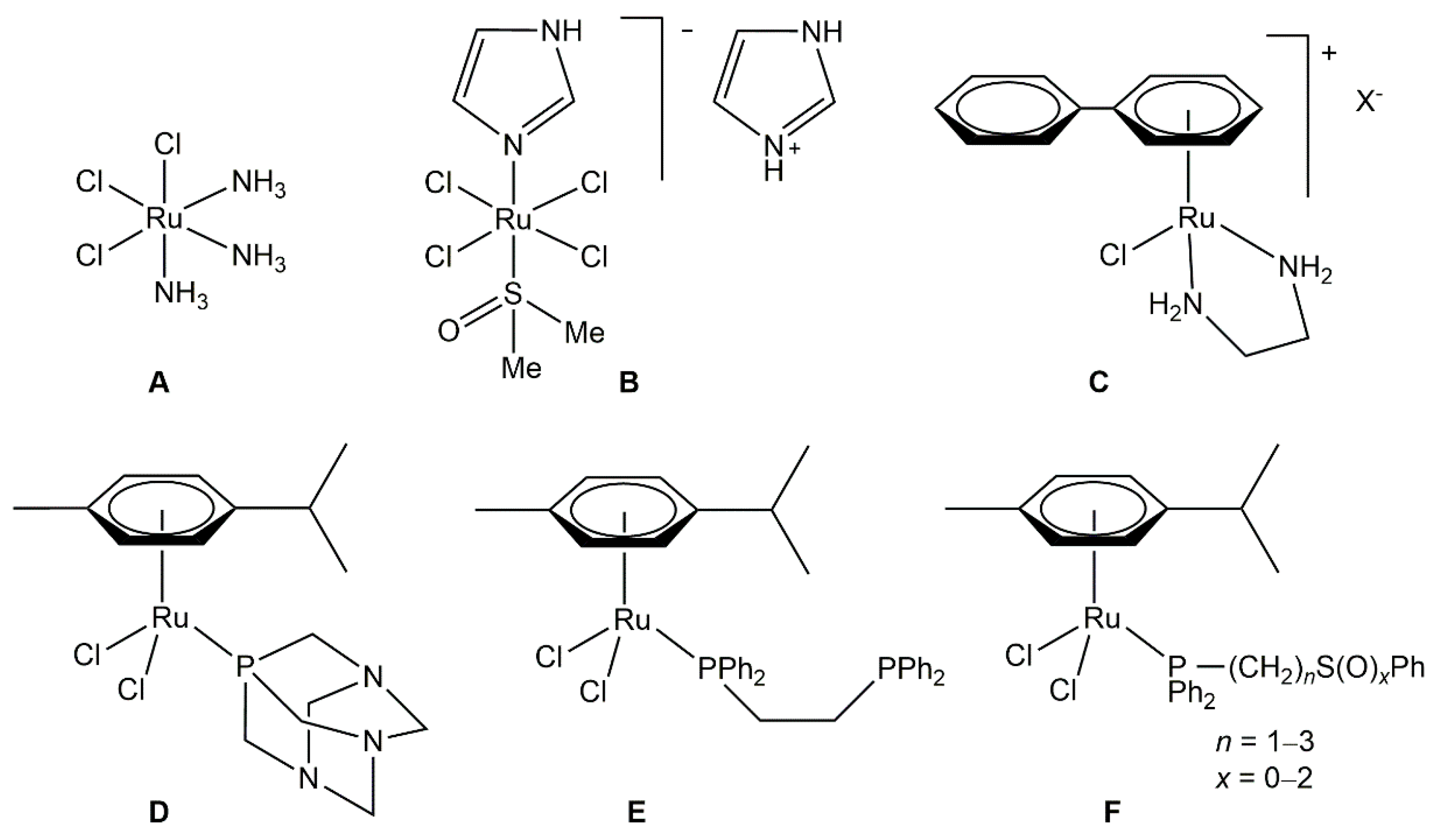

Figure 1. Examples of ruthenium(II/III) anticancer active compounds.
Figure 1. Examples of ruthenium(II/III) anticancer active compounds.
Molecules 26 01860 g001

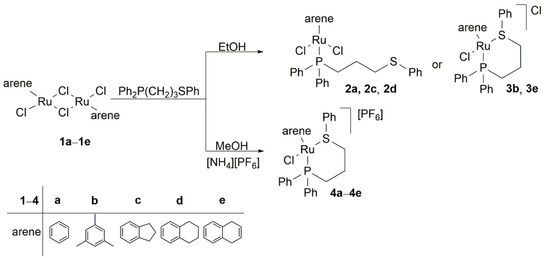

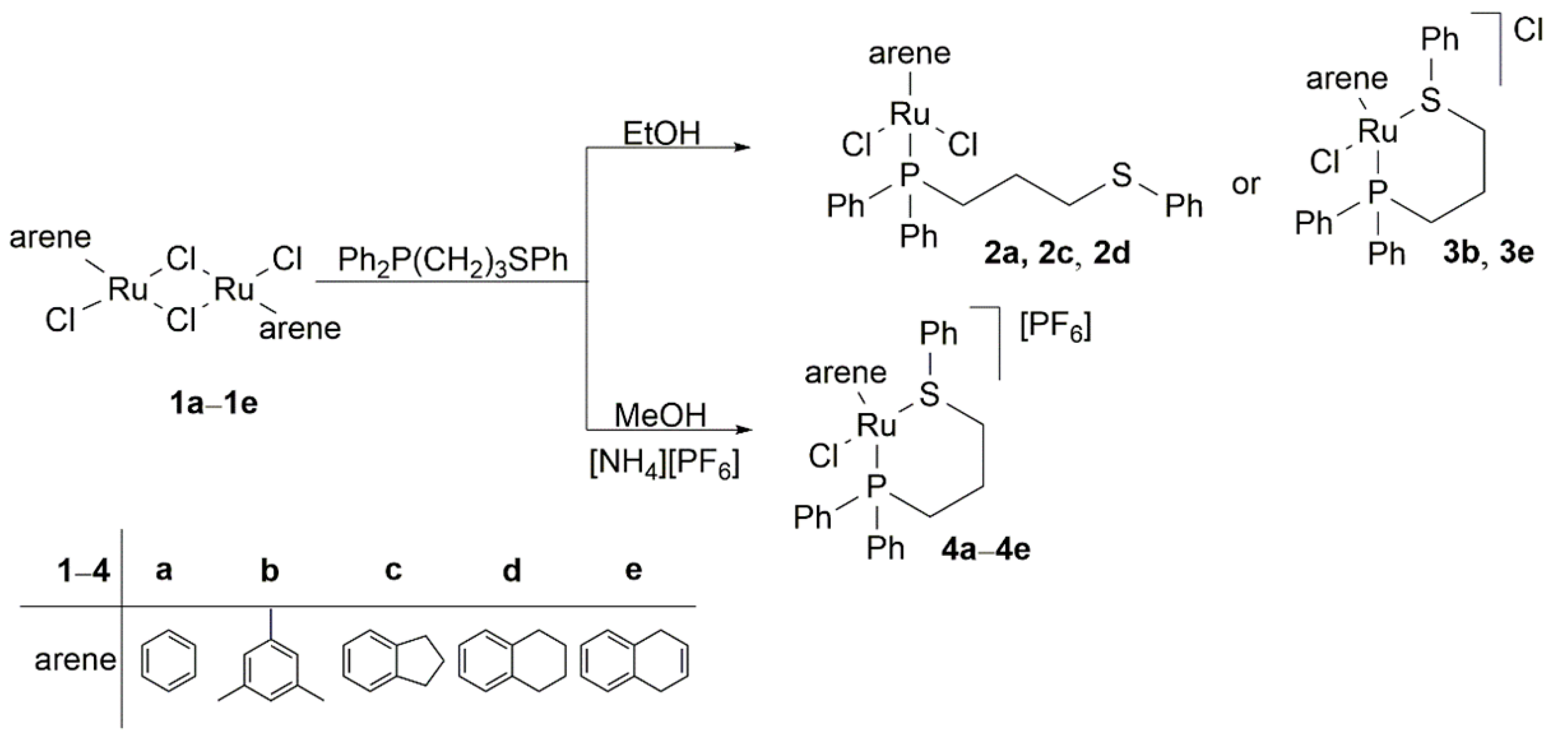

Scheme 1. Synthesis of Ru(II) complexes.
Scheme 1. Synthesis of Ru(II) complexes.
Molecules 26 01860 sch001

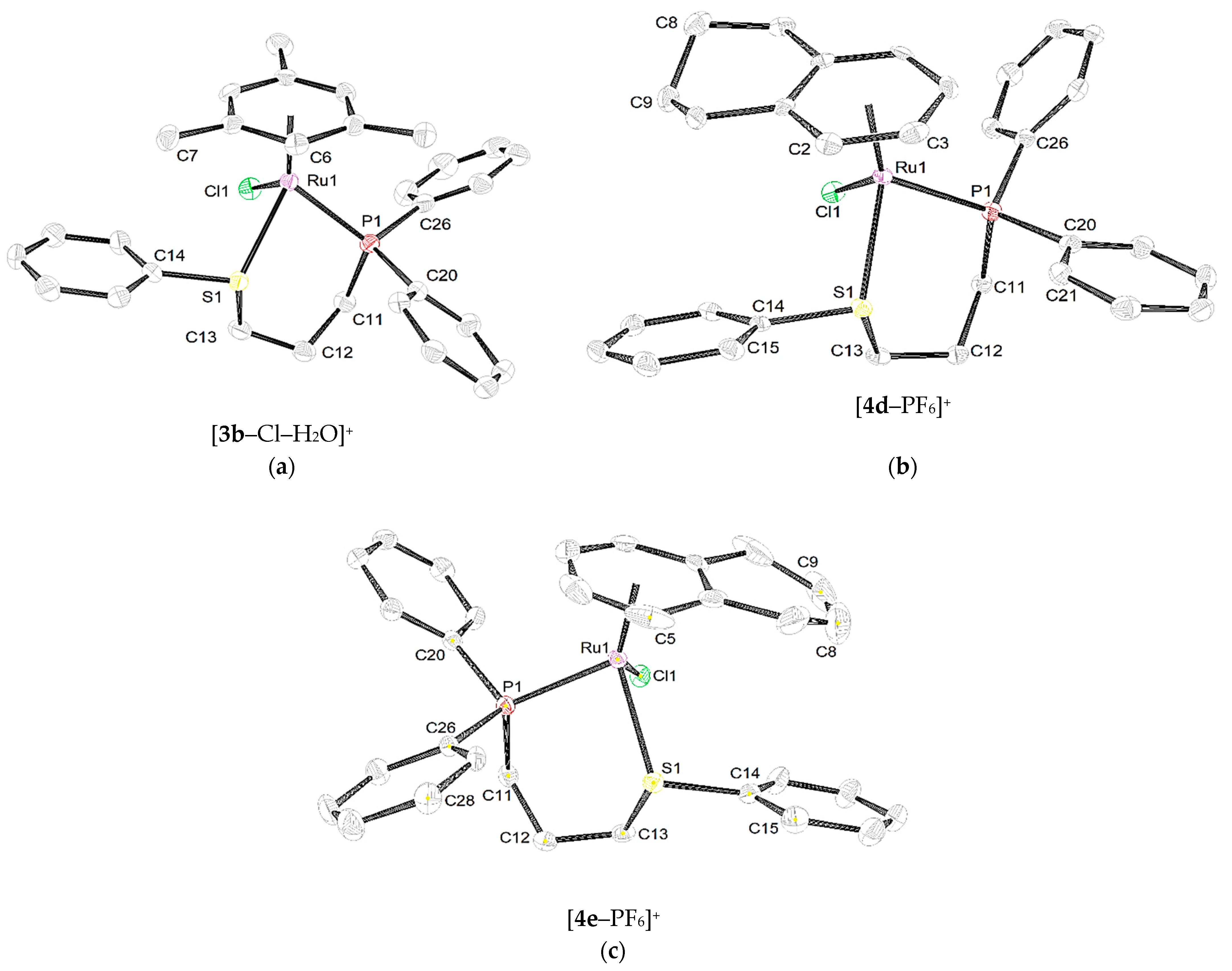

Figure 2. Molecular structure of [Ru(η6-arene)Cl{Ph2P(CH2)3SPh-κPS}]Cl·H2O (arene = mesitylene, thn and 1,4-dialin: (a) 3b, (b) 4d, and (c) 4e, respectively). For 4e only one independent cation is displayed. The ellipsoids are shown with a probability of 50%. H atoms have been omitted for clarity.
Figure 2. Molecular structure of [Ru(η6-arene)Cl{Ph2P(CH2)3SPh-κPS}]Cl·H2O (arene = mesitylene, thn and 1,4-dialin: (a) 3b, (b) 4d, and (c) 4e, respectively). For 4e only one independent cation is displayed. The ellipsoids are shown with a probability of 50%. H atoms have been omitted for clarity.
Molecules 26 01860 g002

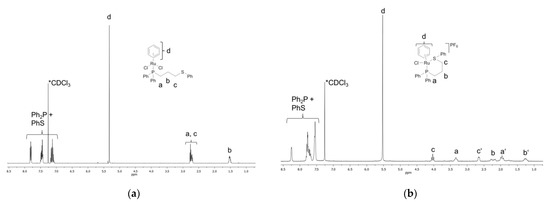

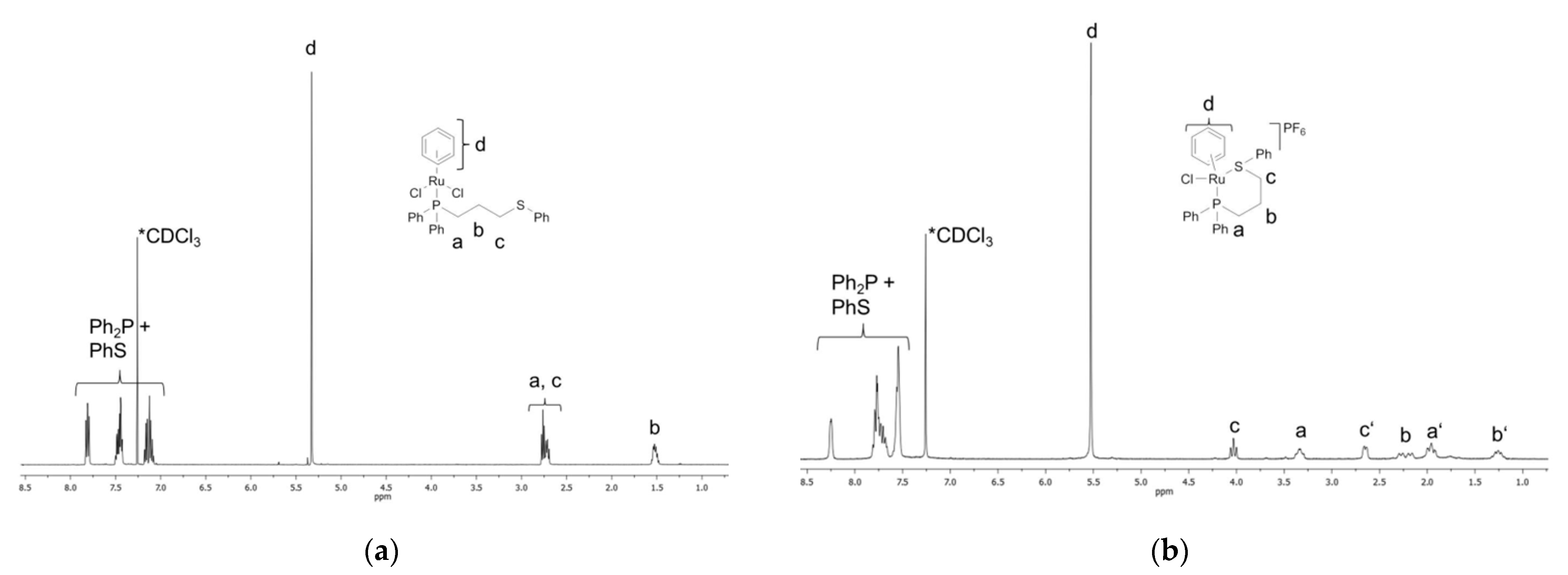

Figure 3. 1H NMR spectra of Ph2P(CH2)3SPh, 2a and 4a, as an example. * solvent.
Figure 3. 1H NMR spectra of Ph2P(CH2)3SPh, 2a and 4a, as an example. * solvent.
Molecules 26 01860 g003

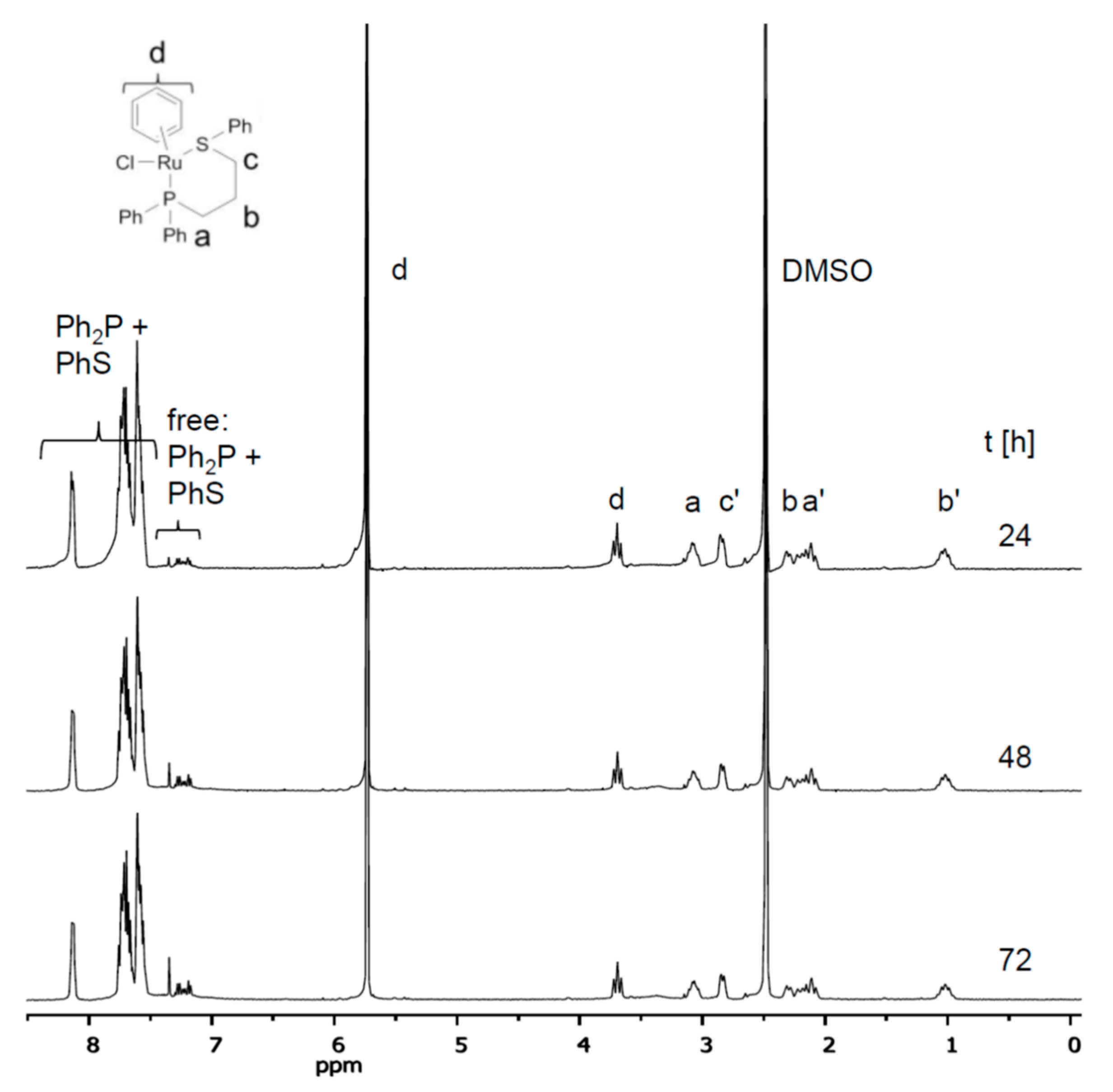

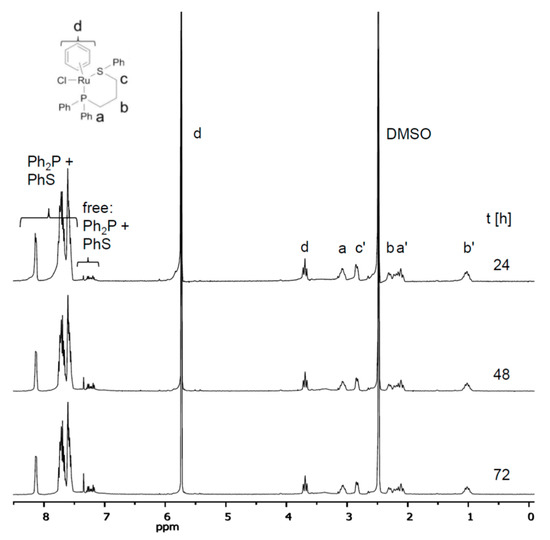

Figure 4. Decomposition of the 4a cation, as an example, in DMSO-d6 observed by time dependent 1H NMR spectroscopy over 72 h.
Figure 4. Decomposition of the 4a cation, as an example, in DMSO-d6 observed by time dependent 1H NMR spectroscopy over 72 h.
Molecules 26 01860 g004

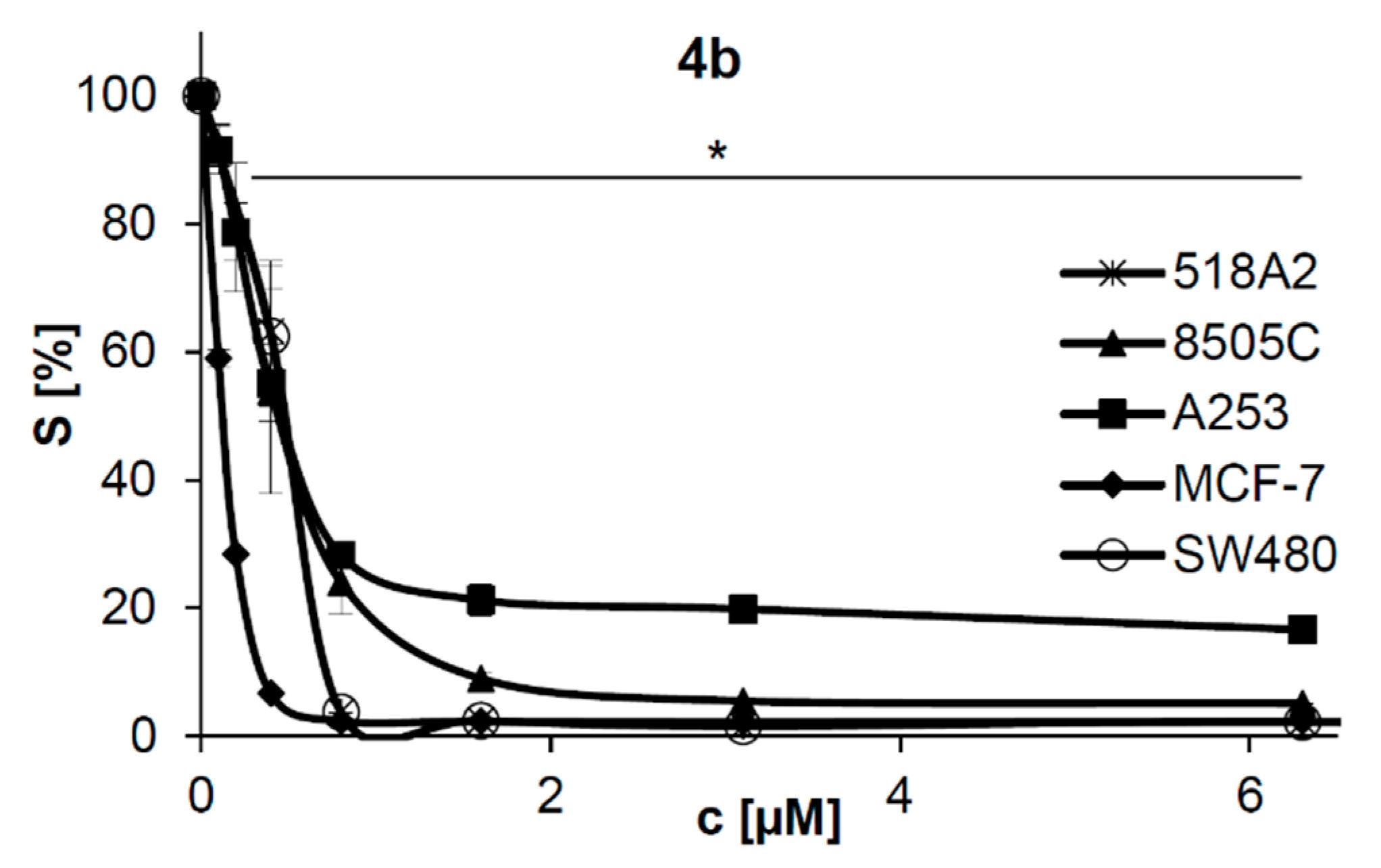

Figure 5. Representative graphs showing the survival (in %) of cells growth for 96 h in the presence of increasing concentrations of 4b (as an example, * p < 0.05).
Figure 5. Representative graphs showing the survival (in %) of cells growth for 96 h in the presence of increasing concentrations of 4b (as an example, * p < 0.05).
Molecules 26 01860 g005

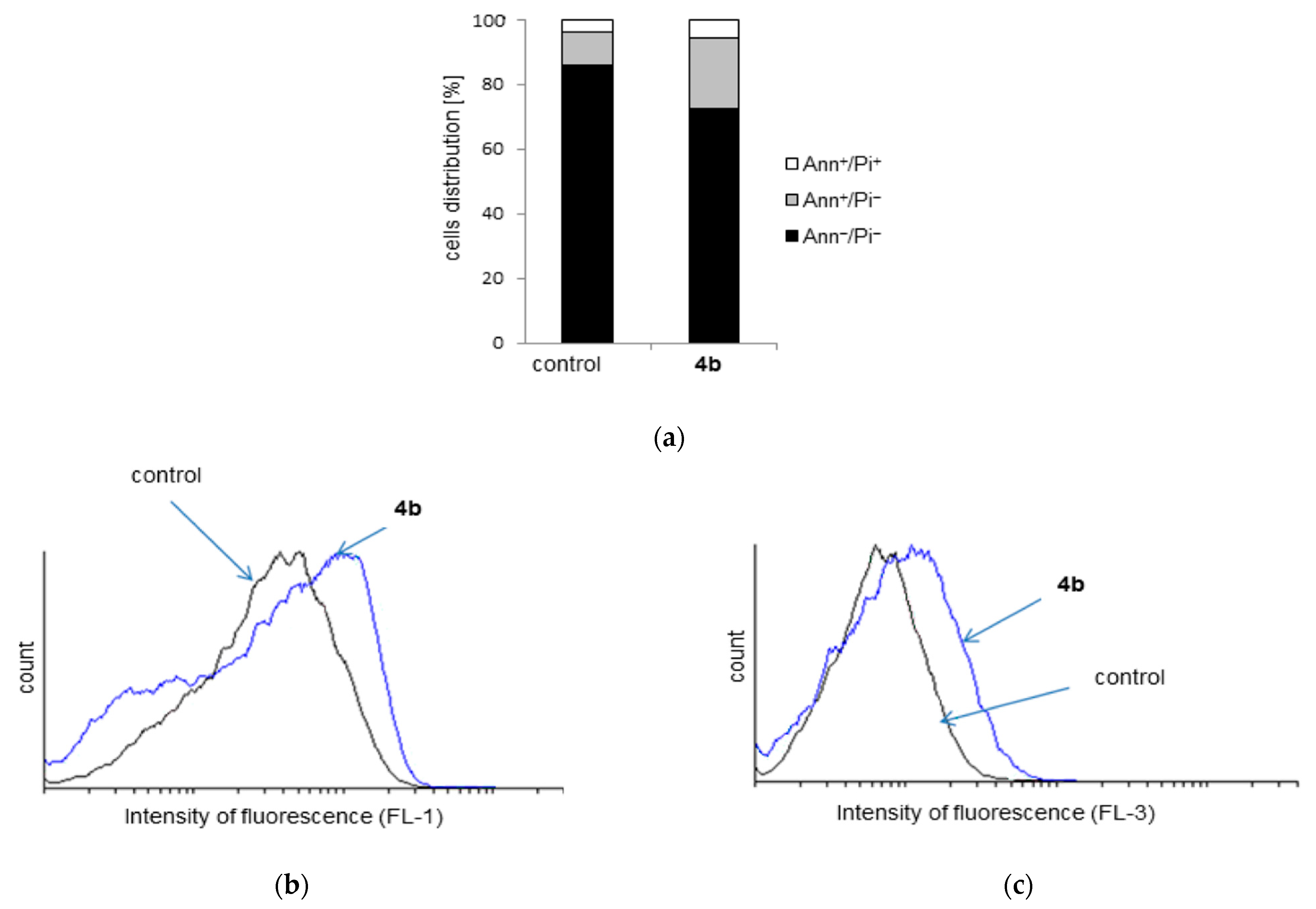

Figure 6. 8505C cells treated with 4b: (a) apoptosis, (b) caspase activation, and (c) induction of autophagy after 72 h of treatment with IC50 dose.
Figure 6. 8505C cells treated with 4b: (a) apoptosis, (b) caspase activation, and (c) induction of autophagy after 72 h of treatment with IC50 dose.
Molecules 26 01860 g006
Table 1. IC50 [µM] values of complexes 2a, 2c, 2d, 4a4e as well as 2f [34] and 4f [35] and cisplatin.
Table 1. IC50 [µM] values of complexes 2a, 2c, 2d, 4a4e as well as 2f [34] and 4f [35] and cisplatin.
2a0.77 ± 0.040.88 ± 0.050.64 ± 0.050.52 ± 0.061.23 ± 0.08
2c2.16 ± 0.041.03 ± 0.080.59 ± 0.060.70 ± 0.041.91 ± 0.15
2d0.81 ± 0.042.98 ± 0.150.98 ± 0.120.78 ± 0.061.56 ± 0.10
2f3.02 ± 0.063.64 ± 0.133.94 ± 0.111.75 ± 0.452.68 ± 0.10
4a1.35 ± 0.020.76 ± 0.040.30 ± 0.020.24 ± 0.040.75 ± 0.02
4b0.43 ± 0.010.41 ± 0.010.35 ± 0.020.12 ± 0.010.43 ± 0.01
4c0.84 ± 0.090.97 ± 0.070.73 ± 0.060.23 ± 0.051.52 ± 0.13
4d0.75 ± 0.030.90 ± 0.090.82 ± 0.090.36 ± 0.031.97 ± 0.16
4e0.80 ± 0.030.28 ± 0.020.40 ± 0.030.49 ± 0.030.77 ± 0.02
4f1.32 ± 0.101.32 ± 0.100.37 ± 0.060.17 ± 0.011.30 ± 0.05
cisplatin1.52 ± 0.195.02 ± 0.230.81 ± 0.022.03 ± 0.113.24 ± 0.21
Publisher’s Note: MDPI stays neutral with regard to jurisdictional claims in published maps and institutional affiliations.

Share and Cite

MDPI and ACS Style

Arlt, S.; Petković, V.; Ludwig, G.; Eichhorn, T.; Lang, H.; Rüffer, T.; Mijatović, S.; Maksimović-Ivanić, D.; Kaluđerović, G.N. Arene Ruthenium(II) Complexes Bearing the κ-P or κ-P,κ-S Ph2P(CH2)3SPh Ligand. Molecules 2021, 26, 1860.

AMA Style

Arlt S, Petković V, Ludwig G, Eichhorn T, Lang H, Rüffer T, Mijatović S, Maksimović-Ivanić D, Kaluđerović GN. Arene Ruthenium(II) Complexes Bearing the κ-P or κ-P,κ-S Ph2P(CH2)3SPh Ligand. Molecules. 2021; 26(7):1860.

Chicago/Turabian Style

Arlt, Sören, Vladana Petković, Gerd Ludwig, Thomas Eichhorn, Heinrich Lang, Tobias Rüffer, Sanja Mijatović, Danijela Maksimović-Ivanić, and Goran N. Kaluđerović. 2021. "Arene Ruthenium(II) Complexes Bearing the κ-P or κ-P,κ-S Ph2P(CH2)3SPh Ligand" Molecules 26, no. 7: 1860.

Article Metrics

Back to TopTop
