ICP-MS Determination of 23 Elements of Potential Health Concern in Liquids of e-Cigarettes. Method Development, Validation, and Application to 37 Real Samples

by
Andrea Mara
1,
Ilaria Langasco
1,
Sara Deidda
1,
Marco Caredda
2,
Paola Meloni
1,
Mario Deroma
3,
Maria I. Pilo
1,
Nadia Spano
1 and
Gavino Sanna
1,*
1
Dipartimento di Chimica e Farmacia, Università degli Studi di Sassari, Via Vienna 2, 07100 Sassari, Italy
2
AGRIS Sardegna, Loc. Bonassai, S.S. 291 Km 18.6, 07100 Sassari, Italy
3
Dipartimento di Agraria, Università degli Studi di Sassari, Viale Italia 39/a, 07100 Sassari, Italy
*
Author to whom correspondence should be addressed.
Molecules 2021, 26(21), 6680; https://doi.org/10.3390/molecules26216680
Submission received: 13 October 2021 / Revised: 29 October 2021 / Accepted: 29 October 2021 / Published: 4 November 2021
(This article belongs to the Special Issue Environmental Analytical Chemistry)
Browse Figures
Versions Notes

Abstract

:
The lack of interest in the determination of toxic elements in liquids for electronic cigarettes (e-liquids) has so far been reflected in the scarce number of accurate and validated analytical methods devoted to this aim. Since the strong matrix effects observed for e-liquids constitute an exciting analytical challenge, the main goal of this study was to develop and validate an ICP-MS method aimed to quantify 23 elements in 37 e-liquids of different flavors. Great attention has been paid to the critical phases of sample pre-treatment, as well as to the optimization of the ICP-MS conditions for each element and of the quantification. All samples exhibited a very low amount of the elements under investigation. Indeed, the sum of their average concentration was of ca. 0.6 mg kg−1. Toxic elements were always below a few tens of a μg per kg−1 and, very often, their amount was below the relevant quantification limits. Tobacco and tonic flavors showed the highest and the lowest concentration of elements, respectively. The most abundant elements came frequently from propylene glycol and vegetal glycerin, as confirmed by PCA. A proper choice of these substances could further decrease the elemental concentration in e-liquids, which are probably barely involved as potential sources of toxic elements inhaled by vapers.

1. Introduction

Electronic cigarettes (e-cigarettes) were introduced on the market in the mid-2000s and are considered a healthier alternative to traditional smoking. There are different types of devices, components, and e-liquids [1,2] to meet all consumer needs. However, all of them share the same components as well as principle of functioning. It consists of a power source, such as a rechargeable lithium battery, and a cartridge (or a tank) containing the liquid (henceforward called e-liquid). An electrical resistance (i.e., the atomizer), activated by a puff or by a button, is the heating element, which promotes the nebulization of the e-liquid and the formation of the aerosol inhaled by the vaper. An electronic system may be able to report the information related to the nebulization process (volts, watts, ohms, puffs) from a smartphone, LEDs, or an integrated screen. The flavored e-liquid is mainly formed by low amounts of water and two EU food additives, namely propylene glycol (E1520, according to the EU classification, (PG)) [3] and vegetal glycerin (E422, (VG)) [4]. Both generally recognized as safe (GRAS) by the U.S. Food and Drug Administration. In addition, it may contain variable amounts of nicotine, never exceeding the concentration of 20 mg cm−3 in EU countries [5].
Although they are considered healthier than traditional cigarettes, owing to their lack of toxic products formed by combustion [6,7,8,9], the health risks related to the use of e-cigarettes have also been widely studied [10,11,12,13]. The apparatuses mainly involved are the respiratory [14,15], the cardiovascular [16,17], the nervous [18], and the reproductive systems [19]. Nicotine [20] is likely one of the most toxic components assimilated by means of tobacco smoke. It is quickly assimilated [21] and adversely affects respiratory, cardiovascular, renal, and reproductive systems [22]. However, the presence of nicotine in e-liquids is optional, and it may be dosed to accomplish any nicotine replacement therapy needs. In a close analogy to what happens with traditional tobacco smoke, attention has been paid to the formation of potentially harmful compounds from the thermal degradation of the main ingredients of e-liquids, such as the flavors, PG and VG [23,24,25]. Hence, chromatographic methods devoted to determining species such as nitrosamines, VOCs, carbonyls, polycyclic aromatic hydrocarbons, and aldehydes have been developed for this purpose [26,27,28,29]. Nevertheless, and only with some exceptions [30], the absence of any combustion process and the low temperatures measured in the nebulization process of e-liquids greatly reduce the concentration and the number of harmful species in comparison to what is observed in the smoke of traditional cigarettes [7]. Moreover, the concentration of toxic metals and metalloids contained in the aerosol of e-cigarettes seems lower than that measured in traditional smoke [31,32,33]. Although, Badea et al. measured detectable amounts of rare earths in the serum of e-cigarette smokers [34]. Moreover, in this case, many analytical methods for the determination of elements in aerosols and—more rarely—in e-liquids were recently developed [35]. Only in a few cases, elemental determination is carried out on both liquids and aerosols [25,36,37,38]. In these contributions, the concentration of the elements measured was higher in aerosols rather than in e-liquids, with the only exception being the study performed by Beauval et al. [25], where the amount found in both matrices was comparable. The elemental amounts found in these studies are hardly comparable among them, due to the great differences in e-cigarettes, e-liquids, and sampling techniques and puffing protocols in the aerosol determination [39,40].
Moreover, the analytical technique used for elemental determination is a possible reason for the differences observed among the literature studies. Inductively coupled plasma (ICP) methods (e.g., ICP-mass spectrometry (ICP-MS) [7,25,33,36,37,38,39,40,41,42,43,44,45,46] or ICP-optical emission spectroscopy (ICP-OES) [47,48,49,50]) are the instrumental techniques mainly used for this purpose, although sometimes X-ray fluorescence methods have also been used [51]. As far as the toxic elements are concerned, those most frequently measured are As [7,25,36,37,39,41,42,43,44,45,49,51], Pb [7,25,33,36,37,41,43,44,45,47,51], Cd [7,25,33,36,37,41,42,43,44,45,51], and Cr [7,25,33,36,39,41,43,44,45,47,48,51], while sometimes also Sn [36,39,44,45,47,48,49], Sb [25,36,39,41,49], Hg [25,41,44,45], and Tl [25,41] were quantified.
Although it may seem obvious that determining the amounts of elements that are potentially health-threatening contained in e-liquids might be important in defining the overall level of exposure of vapers, until now the limits posed (or suggested) by countries [52,53] or international organizations [54] on the concentration of toxic elements are quite rare. This also reflects the scarce number of literature contributions addressed to this aim. From a purely analytical viewpoint, it is surprising that the possibility of a severe bias in the ICP-MS determination of these analytes, caused by a matrix almost entirely formed by organic species such as e-liquids, was considered only by one research group [41]. In addition, only two research groups [25,36,41] attempted to quantify a reasonable number among the toxic elements and oligoelements while, to the best of our knowledge, toxic elements such as Ba, Bi, and U were never quantified in e-liquids.
Therefore, the principal aim of this contribution was to develop and validate an ICP-MS method able to determine the total amount of the 23 elements of potential health concern, i.e., Al, As, B, Ba, Be, Bi, Cd, Co, Cr, Cu, Fe, Hg, Li, Mn, Mo, Ni, Pb, Se, Sb, Sn, Tl, U, and Zn, in a reliable sampling of e-liquids produced in Sardinia, Italy. Particular attention has been taken to optimize critical phases such as sample pre-treatment and quantification method. Samples were analyzed simply after a proper dilution or after microwave-assisted mineralization, whereas external calibration (in the absence or in the presence of the matrix) and internal calibration were kept into consideration for quantification. Since the need for studies aimed to evaluate the role of the flavor components in the contamination by trace elements in e-liquids was evidenced in previous publications [25], the optimized methods were tested on 37 different flavors and on the constituents of all e-liquids (i.e., PG, VG, water, and nicotine).

2. Results and Discussion

2.1. Method Assessment

2.1.1. Sample Pre-Treatment

The technique of sample pre-treatment most frequently described in the literature for e-liquids [25,36,37,41] is a simple dilution in an HNO3 aqueous solution, exploiting their complete solubility in such a solvent. However, the e-liquids may represent in principle a strongly interfering matrix in ICP-MS measurement, due to their very high amount (always over 95% w/w) of organic matter. Consequently, low levels of dilution of e-liquids also potentially allow for quantifying the trace elements, but inevitably increase the noise and the interference of the carbon-based polyatomic ions (especially on the quantification of elements such as Cr and V [41]). On the other hand, high levels of dilution reduce bias due to matrix effects, but likely permit the quantification only of the most abundant elements. In order to allow a comparison with literature data, the first approach of sample pre-treatment chosen in this study was the dilution of e-liquids, according to Beauval et al. [25,41]. The same method was also used for pre-treating the pure organic constituents of the e-liquids (i.e., PG, VG, and nicotine). Hence, ca. 0.3 g of sample, exactly weighted on an analytical balance (±0.0001 g uncertainty), was diluted to a final volume of 15 cm3 with an aqueous solution containing a 2% (v/v) HNO3 solution and 0.1% (v/v) of TritonTM X-100. In addition, by weighting 1.5 g and 0.15 g of the sample (finale volume 15 cm3), 1:10 (w/v) and 1:100 (w/v) dilutions were also tested to optimize the method. All samples were filtered through a 0.22 μm nylon filter prior to ICP-MS analysis. Unfortunately, a high number of ionic counts for blanks were observed for several analytes (i.e., for Cr, V, and Zn) when the 1:10 and 1:50 dilutions were used, likely due to a very strong interference by polyatomic ions. Conversely, using a 1:100 dilution, this interference was reduced, but it was no more possible to quantify the trace analytes. In addition, the high amount of organic species conveyed to plasma causes serious instrumental issues, such as a thick deposit of soot in the RF coil, in the torch, and in the cones. For these reasons, after some preliminary tests, the pre-treatment for dilution was abandoned.
Another option for the decomposition of the organic matrix in the e-liquids is an acid/oxidant attack assisted by microwaves. An amount of 0.3 g of the sample, exactly weighted on an analytical balance, was treated with 0.5 cm3 of HNO3 and 6 cm3 of water inside a 15 cm3 internal volume polytetrafluoroethylene (PTFE) vessel. Due to the high amounts of polyols contained in this matrix, the operative conditions used were the best compromise among the maximization of the oxidizing power and the minimization of the risk of unpredictable and potentially violent reactions inside the vessels. Figure 1 shows the trends of the microwave power and of the internal temperature and pressure of the vessel.
The whole mineralization cycle lasts 70 min. After this time, the vessels were opened at room temperature and the mineralized samples were diluted up to 15 cm3 and filtered through a 0.22 μm nylon filter.

2.1.2. ICP-MS Method

Table 1 reports the instrumental parameters and the elemental settings used for the ICP-MS determination of 23 toxic elements and oligoelements in e-liquids.
Whereas the elemental settings used for the determination of Al, As, Cd, Cr, Cu, Fe, Hg, Mn, Mo, Ni, Pb, Se, Sb, Tl, and Zn were from methods previously assessed by this research group [55,56,57], slightly modified to optimize them towards this matrix, those used to quantify B, Ba, Be, Bi, Co, Li, Sn, and U were specifically devoted to e-liquids. In particular, the choice of quantification ion is extremely important for the overall reliability of the method. It should be the best compromise between the lowest LoD and the minimization of any possible interference. Be, Bi, and Co are monoisotopic, hence no alternative is possible. For elements showing a multiplicity of isotopes, the most abundant one provides generally the highest instrumental sensitivity, and this is a very appealing feature when very low concentrations must be measured. For this reason, 11B, 138Ba, 7Li, 120Sn, and 238U, respectively, were chosen for the quantification of these elements in this study. The interference from molecular ions (mainly from oxides, carbides, nitrides, hydrides, or Ar-based species formed in the plasma, but also from polyatomic ions that originated from elements contained in high amounts in the matrix) is one of the most meaningful causes of bias in ICP-MS measurements [58]. Its presence/absence for each analyte has been established based on the behavior of the ionic signal measured at the increasing of He flows. A change of the slope of the decreasing trend of the ionic signal measured on a real sample at the increasing of the He flow accounted for the presence of an interference by molecular ions [59]. For explanatory purposes, Figure 2 reports the behavior of the ionic signal of the 52Cr+ ion at variations of the He flow. This behavior is similar to those observed for the remaining elements determined in KED mode.
It is evident that the first linear tract of the curve (He flow up to 2 cm3 min−1) gives an account for the removal of the molecular ionic interference, likely due to the 40Ar12C+ ion, whereas the second linear tract of the curve (roughly parallel to the x-axis, He flows higher than 4 cm3 min−1) accounts for a slight reduction of signal of the elemental ion as a function of the increase of the He flow. The abscissa of the intersection among both linear plots provided the optimized He flow aimed to remove the interference, which has been observed for 14 elements out 23. Hence, while the number of ionic counts of B, Be, Bi, Li, Hg, Mo, Pb, Tl, and U was measured in normal mode, the bias from polyatomic ions has been minimized for the remaining elements, using He flows between 3 cm3 min−1 and 4 cm3 min−1.

2.1.3. Quantification, Quality Assurance and Quality Control

Both external and internal calibration approaches have been used in this study. External calibration (using either analyte standard solutions dissolved in water or in a synthetic matrix, henceforward called SM, formed by 54% of PG, 43% of VG, and 3% of water, respectively) has always been used for all pre-treatments chosen (dilution or microwave-assisted mineralization), but the ascertainment of a severe matrix effect in the quantification of almost all elements suggested the use of the internal calibration, accomplished by means of multiple additions of standard solutions. Figure 3 reports the linear calibration plots obtained using both external and internal calibration for the determination of As.
Constant and proportional bias due to matrix effects are well evident by the comparison of the behaviors of the two external calibration plots (obtained either on a 2% (v/v) HNO3 solution in water, line 1, or on a 2% (v/v) HNO3 solution in SM, line 2) and of the three internal calibration plots, obtained on tobacco, tonic, and fruity flavors, respectively. A similar behavior is also evident for the remaining elements quantified. It is well known that the internal calibration method has evident disadvantages with respect to the external calibration method. Firstly, it is cumbersome and quite time-consuming, since it requires the preparation of calibration curves for each individual sample and the relevant blanks [60]. In addition, it is characterized by a very high uncertainty, due to the widening of the confidence range of the internal calibration plot [61]. Conversely, its careful execution can almost suppress any matrix interferences, allowing the obtainment of a basically bias-free measurement [62]. A 10 μg dm−3 solution of Rh was used as an internal standard to compensate for any possible signal instability, while a washing cycle of at least 80 s was interposed between two consecutive samples to eliminate any possible memory effect. All data have been blank-corrected. In order to constantly monitor the overall level of accuracy of the method, one reagent blank every five samples was analyzed, whereas a standard solution containing 0.1 μg kg−1 of Be, Bi, Cd, Co, Tl, and U, 1 μg kg−1 of Li, Pb, Sb, and Se, 10 μg kg−1 of As, Al, Cu, and Mn, 50 μg kg−1 of B, Ba, Cr, and Hg, and 100 μg kg−1 of Fe, Mo, Ni, Sn, and Zn in SM was analyzed every ten samples. Each sample was analyzed in duplicate, and each piece of analytical data is the average of four replicated ICP-MS measurements.

2.2. Validation

Validation was performed in terms of Limit of Detection (LoD), Limit of Quantification (LoQ), and precision. Table 2 reports the relevant figures for all the parameters evaluated.
LoD and LoQ have been calculated according to Currie [63]. The standard deviation needed for the calculation of the LoD (and, hence, also for the LoQ) was calculated on the repeated measurement of 15 blanks. At last, for the elements previously measured in e-liquids, the data obtained are comparable with those reported in the literature [25,36,41,42]. Precision has been measured in terms of repeatability, twice quantifying the same real sample along the whole analytical process in the same analytical session by means of an internal calibration method (multiple standard addition). Quite high CV% values have been obtained for all parameters, ranging between 10% (for Al) and 100% (for Cu and Se). Since Se has always been found below its LoD for all samples of e-liquids, the precision was evaluated for this element by spiking the samples with the amount of Se standard solution needed to reach a final concentration in the samples slightly over the LoQ (i.e., 15 μg kg−1). Regardless, it is well known that, for the peculiar features of the standard addition method, the precision parameters measured that work in this way are much worse than those measured by quantifying by external calibration [61]. Trueness is usually measured by (i) analyzing a certified reference material (CRM), (ii) by comparison with an independent and validated analytical method, or, ultimately, (iii) with recovery tests, performed by spiking the sample with repeated amounts of pure analyte. Unfortunately, none of these methods can be used in this case. To the best of our knowledge, no CRM of e-liquids is commercially available, and the heavy matrix effect observed in this study, well substantiated in Figure 3, discourages using any apparently “similar” matrix. In addition, no independent and validated analytical method capable of measuring the concentration of 23 elements at concentrations no higher than a few μg dm−3 is currently available in our labs. Finally, the close similarities among the application of both the standard addition method and the recovery tests based on spiked samples suggest also discarding this option. In the attempt to obtain a tentative evaluation of the trueness of the method, a “synthetic e-liquid” was prepared, where known amounts of each analyte were added to the SM solution to reach a concentration close to the average value measured for the real samples. For the analytes that were not frequently quantified, their final concentration in the synthetic e-liquid was the LoQ. Multiple spiking tests, performed on this sample, allowed the obtainment of recoveries between 81% (for Cr) and 118% (for Zn), exhibiting hence a negligible level of bias if compared to the very low level of concentration measured.

2.3. Concentration of 23 Elements in 37 e-Liquids

The data relative to the determination of the amount of 23 elements in 37 e-liquids belonging to three main flavors (i.e., fruity, tobacco, and tonic) are summarized, in terms of both mean and ranges, in Table 3.
The data reported in Table 3 show that all e-liquids considered exhibit a very low amount of the evaluated analytes, being only ca. 0.6 mg kg−1, the sum of their average concentrations measured in this study. These amounts are comparable with the literature data [25,36,41] and confirm that the amount of potentially toxic elements contained in e-devices is orders of magnitude less than in traditional cigarettes [44,45]. Among all elements considered, only Se has always been found below its LoD in all samples analyzed. This is not surprising, knowing the scarce sensitivity of Se in terms of counts per second as a function of its concentration [59]. In addition, the mineralization process implies a dilution of 50 times of the sample, hence the effective LoD for mineralized solutions is 92 ng dm−3, i.e., quite close to the instrumental detection limit [64]. As far as the remaining elements are concerned, only six elements out of 36 (i.e., As, Co, Cr, Fe, Li, and Mn) exhibit a mean concentration higher than the LoQ. Only three elements, i.e., As, Cr, and Li, are always quantified (100% of the samples), but none of them seem to represent an effective health threat for vapers. Indeed, the highest amount measured for these elements is 11 μg kg−1 for As and 40 μg kg−1 for Cr. Only for the sake of comparison, the limits posed by the EU guidelines for these elements in water intended for human use are 10 μg kg−1 for As and 50 μg kg−1 for Cr, respectively [65], whereas the amount of daily intake for humans of water is, obviously, several orders of magnitude higher than that of e-liquids. Additionally, Li is less abundant than As and Cr, and its average concentration is only 1.9 μg kg−1. The average concentration of the elements most frequently quantified are, in decreasing percentage, Co (average concentration <0.34 μg kg−1, quantified in the 84% of samples), Zn (<109 μg kg−1, 76%), Mn (<10 μg kg−1, 73%), Sb (<2.9 μg kg−1, 73%), and Fe (<308 μg kg−1, 65%). Among the remaining toxic elements, only Sn and Ba have been quantified in over 25% of the samples, where the remaining elements, i.e., Be, Cd, Hg, Pb, Tl, and U, had seldom reached the relevant LoQs.
Table 4 reports a comparison between the data (mean and range) here obtained and those reported in the literature. To favor a reliable comparison among data obtained in different studies, only those obtained by using ICP-MS methods have been considered in this table.
Among the literature contributions considered in Table 4, V is the only element not analyzed in this study, but it previously was quantified by Beauval et al. [25,41]. Conversely, the amounts of B, Ba, Bi, Li, Mo, and U in e-liquids were measured for the first time in this study. Another element never quantified in previous studies, i.e., Se, was found to be below its LoD in this research. The amounts of elements analyzed in this study are in good agreement with results reported using validated methods for the determination of several elements in a statistically significant number of samples [25,36,41]. The most important differences regard the most abundant (and the most interfered) elements, such as Al, Fe, and Zn, which were frequently present in higher concentrations in this study. On the other hand, the amounts of another “critical” element, such as Ni, are higher in the literature studies than in this research. For elements such as As, Cd, Ni, and Pb, data here reported are in fair agreement with those reported by Song et al. [43], even if the validation of the method used in that contribution was not reported in the paper. On the whole, and with only very rare exceptions, such as the quite high amounts of Sb in a few of the e-liquids measured by Beauval et al. [41], the amounts of toxic elements found in e-liquids in this, as well as in previous studies [25,36,37,41,42,43], are coherent with a negligible health risk associated to its intake by vapers. The data measured here are several orders of magnitude below the worrying amounts measured by Hess et al. [33] for Cd, Cu, Mn, Ni, and Pb in two of the most popular brands of e-liquids sold in the USA. On the other hand, these concentrations, albeit much higher than those measured in the cited literature studies, are within the amounts recommended by the AFNOR [52], i.e., 1 mg kg−1 for Cd and Hg, 3 mg kg−1 for As, 5 mg kg−1 for Sb, and 10 mg kg−1 for Pb.
Data reported also account for some differences among the three classes of flavors. Figure 4 shows the box-whisker plots for the concentrations of the most representative elements under exam in nine fruity, sixteen tobacco, and twelve tonic e-liquids. As a general behavior, tobacco flavors are the richest in the considered elements, whereas tonic flavors are the less abundant. In particular, tobacco flavors exhibit the highest amounts of Al, Bi, Cd, Fe, Hg, Li, Mn, Mo, and Ni, whereas the amounts of Al, Be, Bi, and Cd are always below the relevant LoDs in tonic flavors. Interestingly, fruity flavors show the highest amounts of some bivalent elements such as Ba, Be, Cu, Pb, Sn, and Zn.

2.4. Concentration of 23 Elements in PG, VG, Water, and Nicotine Used in the Composition of the e-Liquids

Table 5 reports the concentration of the 23 elements under exam in all the compounds used for the preparation of the e-liquids, with the only exclusion being of the concentrated flavor, always present in a 10% (w/w) amount in the final composition of the e-liquid.
Organic samples were analyzed using the same method developed for e-liquids, whereas water was analyzed using literature official methods [66,67]. The data reported in Table 5 give an account for an overall negligible contribution of toxic elements in the composition of the e-liquids. On the other hand, it is evident that the most abundant elements in e-liquids come from VG (i.e., As, Cr, Cu, Li, and Zn) and PG (i.e., B, Cr, Fe, and Zn). Furthermore, the water is quite rich in B, whereas nicotine (always absent in all the samples analyzed, see Section 3.1) is very rich in Al (5 mg kg−1). Moreover, the amounts of Cr, Zn, and Sb are significant. Since the concentration of Cr is relatively elevated in both VG and PG, it is likely that the high amount of this element measured in the aerosols can depend not only on the metal constituents of the e-cigarette, but also on the aliquot of Cr present in the organic solvents in the e-liquids. Hence, a reduction of the elemental concentrations of the main trace elements contained in the e-liquids would be an effective tool to further reduce the amount of oligoelements in them.

2.5. Principal Components Analysis

In order to verify which elements were deriving either from the constituents or from the flavors, the whole dataset consisting of 37 samples of e-liquids and 22 elements (Se was always found below its LoD and thus excluded) was normalized with respect to the concentration of each element measured in the SM (i.e., in the absence of any contribution given by any flavor), obtaining a dataset expressed in terms of standard deviation referred to in the SM concentration. A principal components analysis (PCA) was carried out on the normalized dataset. Figure 5 shows the loading plot (a), with its zoomed view (b), and the score plot (c), with its zoomed view (d).
The two principal components explain 76% of the total variance. In the loading plot (Figure 5a,b), 17 out the 22 elements quantified are crowded around the center of the plot, giving no contribution to the explained variance, whereas elements such as Al, Pb, Ni, and mainly Mn and Sn are responsible for the variability expressed by the first two components. In the score plot, most of the samples are grouped in the origin of the two PC axes, with only a few samples highly differing from the others. To interpret the obtained PCA, it must be kept in mind that data were normalized with respect to the concentrations of the elements in the SM; this means that the samples grouping around the origin of the axes in the score plot (Figure 5c,d) show no variability with respect to the SM, whereas samples distant from the origin are those that mostly differ from the SM. This difference is due to a few elements (Mn, Sn and, to a minor extent, Al, Pb, and Ni are responsible for the variability seen in the plots). This means that the tobacco samples 10to, 15to, 21to, and 25to, described by high positive score values of PC2, are the richest in Al and, in particular, Mn, with respect to the SM. On the other hand, the samples 4fr, 13to, 27tn, 5fr, 9fr, and 1fr, described by high positive score values of PC1 and negative score values of PC2, are richer in Sn, Ni, and Pb, with respect to the SM.
Looking at the zoomed view of the plots (Figure 5b,d), it is interesting to observe that positive scores of PC1 are correlated by the increase of the amount of each analyte in the e-liquid, with respect to the amount present in the SM. The almost complete absence of elements and samples described by negative scores of PC1 is, in our opinion, a clear marker of the overall reliability of the data here obtained. Summarizing, Sn, Mn, and—in decreasing amounts—Ni, Al, and Pb, are elements that mainly originated from the flavors, whereas the remaining elements are derived mainly from the constant compounds of the e-liquids, i.e., PG, VG, and water. In addition, it is interesting to observe that tonic e-liquids are the category closest to the matrix concentration, whereas fruity and tobacco e-liquids are the most scattered samples.

3. Materials and Methods

3.1. Samples and Reagents

The 37 samples of e-liquids were provided by a local producer. Eight of them were fruity-flavored, twelve were tonic-flavored, and seventeen were tobacco-flavored. Table 6 reports the composition of each class of e-liquids.
The same producer also provided the pure compounds (i.e., propylene glycol, glycerin, and water) that were added to the concentrated flavor to produce the samples analyzed. Albeit they were all nicotine-free, the producer also provided a sample of pure nicotine to evaluate its contribution to the overall amount of trace elements in the nicotine-added e-liquids.
HNO3 69% (NORMATON for ultra-trace analysis, VWR, Milan, Italy) and type I water (MilliQ plus System, Millipore, Vimodrone, Italy) were used in all the phases of the study. TritonTM X-100 aqueous solution, 10%(w/v) was from Merck, Milan, Italy. ICP-MS elemental standards of Al, As, B, Ba, Be, Bi, Cd, Co, Cr, Cu, Fe, Hg, Li, Mn, Mo, Ni, Pb, Sb, Sn, Tl, U, and Zn (1000 mg dm−3 each) were purchased from LabKings (Hilversum, The Netherlands). The ICP-MS setup solution (a 1% v/v aqueous solution of HNO3 containing 1 μg dm−3 each of Be, Ce, Fe, In, Li, Mg, Pb, and U), the ICP-MS KED setup solution (a 1% (v/v) aqueous solution of HNO3 containing 10 μg dm−3 of Co and 1 μg dm−3 of Ce), and the internal standard solution (10 μg dm−3 of Rh in a 1% v/v aqueous solution of HNO3) were all from Perkin Elmer, Milan, Italy. All the samples were filtered before the analysis using a polypropylene filter (pore diameter: 0.22 µm) from VWR, Milan, Italy.

3.2. Instrumentation

The samples were mineralized using a microwave SRC system (UltraWave™, Milestone, Sorisole, Italy). The elemental determination was performed using a NexION 300X ICP-MS spectrometer (Perkin Elmer, Milan, Italy) equipped with a nebulization system composed of a glass concentric nebulizer, a glass cyclonic spray chamber, an autosampler model S10, and a KED collision cell. All the elements were determined simultaneously, and the information about the analytes and operational conditions has already been reported in Table 1.

3.3. Statistical Analysis

Principal components analysis (PCA) was performed by means of the R-based software Chemometric Agile Tool (CAT) developed by the Italian group of chemometrics [68].

4. Conclusions

The perceived need in the literature for sensitive, reliable, and validated ICP-MS methods to quantify a wide range of both toxic elements and oligoelements in e-liquids is the main reason for accomplishing this study. Hence, an original method capable of determining the concentration of 23 elements in such a matrix has been developed and validated in terms of LoD, LoQ, precision, and trueness. The need to circumvent the very strong matrix effect has required the introduction of significant changes with respect to the methods described in the literature. Namely, the sample pre-treatment step has been accomplished by microwave-assisted mineralization. Moreover, the ICP-MS instrumental parameters have been optimized to enhance the sensitivity and reduce the spectral interference by the polyatomic ions. Finally, the quantification, performed by means of an internal calibration with three additions of standards, has allowed for the obtainment of accurate data. The method has been applied to 37 different e-liquids of three different classes of flavors (i.e., fruity, tobacco, and tonic). The average concentration of all analytes is aligned with the lowest amounts measured in the literature, confirming hence that, also in this case, the potential health risk related to the amount of toxic elements in e-liquids is orders of magnitude less than that measured for traditional cigarettes. Almost all toxic elements have been found below an amount lower than a few μg kg−1 and, very often, they were below the relevant LoQ. The data obtained also give an account for the slight differences among the classes of flavors. Tobacco and tonic flavors exhibit the highest and the lowest amounts of elements, respectively. The results of the PCA showed that the multivariate approach allowed easy differentiation of the elements derived from constituents and those from added flavors. For this reason, this approach may be generalized in order to minimize the amount of each element in the final e-liquids. In conclusion, e-liquids seem to be scarcely involved as potential sources of toxic elements inhaled by vapers. Hence, further investigations are needed to ascertain the influence of the conditions of use for e-cigarettes on the dragging in the vapor phase for the elements of potential toxicity in humans.

Supplementary Materials

The following table is available online. Table S1. Elemental concentration of toxic elements and oligoelements in 37 different e-liquids.

Author Contributions

Conceptualization, A.M. and G.S.; methodology, A.M., M.D. and G.S.; validation, A.M., I.L. and G.S.; formal analysis, A.M. and M.C.; investigation, A.M., I.L., S.D. P.M. and M.D.; resources, G.S.; data curation, A.M., M.C. and G.S.; writing—original draft preparation, A.M., M.C. and G.S.; writing—review and editing, A.M., I.L., M.C., M.I.P., N.S. and G.S.; visualization, A.M., M.C. and G.S.; supervision, G.S.; project administration, G.S.; funding acquisition, G.S. All authors have read and agreed to the published version of the manuscript.

Funding

This research was funded by Università degli Studi di Sassari (“Fondo di Ateneo per la ricerca 2020”).

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Acknowledgments

The authors gratefully thank the New Flavours company, Sassari, Sardinia, Italy, for the generous supply of e-liquids and their common co-formulants (i.e., PG, VG, water, and nicotine). Moreover, the GAUSS UNISS, Grandi Attrezzature Università di Sassari is gratefully acknowledged for the access granted to their ICP-MS instrument.

Conflicts of Interest

The authors declare no conflict of interest.

Sample Availability

Samples of the compounds are not available from the authors but may be requested from the New Flavours company.

References

  1. Williams, M.; Talbot, P. Variability Among Electronic Cigarettes in the Pressure Drop, Airflow Rate, and Aerosol Production. Nicotine Tob. Res. 2011, 13, 1276–1283. [Google Scholar] [CrossRef]
  2. Breland, A.; Soule, E.; Lopez, A.; Ramôa, C.; El-Hellani, A.; Eissenberg, T. Electronic cigarettes: What are they and what do they do? Ann. N. Y. Acad. Sci. 2017, 1394, 5–30. [Google Scholar] [CrossRef]
  3. European Commission. Food Additives. E1520. Propane-1,2-Diol (Propylene Glycol). Available online: https://webgate.ec.europa.eu/foods_system/main/index.cfm?event=substance.view&identifier=351 (accessed on 12 October 2021).
  4. European Commission. Food Additives. E422. Glycerol. Available online: https://webgate.ec.europa.eu/foods_system/main/index.cfm?event=substance.view&identifier=166 (accessed on 12 October 2021).
  5. European Directive 2014/40/EU of the European Parliament and of the Council of 3 April 2014 on the approximation of the laws, regulations and administrative provisions of the Member States concerning the manufacture, presentation and sale of tobacco and related products and repealing Directive 2001/37/EC Text with EEA relevance. Off. J. Eur. Union. L 2014, 127/1. Available online: https://eur-lex.europa.eu/legal-content/EN/TXT/HTML/?uri=CELEX:32014L0040&from=EN (accessed on 12 October 2021).
  6. Talhout, R.; Schulz, T.; Florek, E.; Van Benthem, J.; Wester, P.; Opperhuizen, A. Hazardous Compounds in Tobacco Smoke. Int. J. Environ. Res. Public Health 2011, 8, 613–628. [Google Scholar] [CrossRef]
  7. Goniewicz, M.L.; Knysak, J.; Gawron, M.; Kosmider, L.; Sobczak, A.; Kurek, J.; Prokopowicz, A.; Jabłońska-Czapla, M.; Rosik-Dulewska, C.; Havel, C.; et al. Levels of selected carcinogens and toxicants in vapour from electronic cigarettes. Tob. Control. 2013, 23, 133–139. [Google Scholar] [CrossRef] [Green Version]
  8. Hecht, S.S.; Carmella, S.G.; Kotandeniya, D.; Pillsbury, M.E.; Chen, M.; Ransom, B.W.S.; Vogel, R.; Thompson, E.; Murphy, S.E.; Hatsukami, D.K. Evaluation of Toxicant and Carcinogen Metabolites in the Urine of E-Cigarette Users Versus Cigarette Smokers. Nicotine Tob. Res. 2015, 17, 704–709. [Google Scholar] [CrossRef] [PubMed]
  9. Grana, R.; Benowitz, N.; Glantz, S.A. E-Cigarettes. Circulation 2014, 129, 1972–1986. [Google Scholar] [CrossRef] [PubMed]
  10. Pisinger, C.; Døssing, M. A systematic review of health effects of electronic cigarettes. Prev. Med. 2014, 69, 248–260. [Google Scholar] [CrossRef] [Green Version]
  11. Wang, G.; Liu, W.; Song, W. Toxicity assessment of electronic cigarettes. Inhal. Toxicol. 2019, 31, 259–273. [Google Scholar] [CrossRef]
  12. Sapru, S.; Vardhan, M.; Li, Q.; Guo, Y.; Li, X.; Saxena, D. E-cigarettes use in the United States: Reasons for use, perceptions, and effects on health. BMC Public Health 2020, 20, 1518. [Google Scholar] [CrossRef]
  13. Cao, Y.; Wu, D.; Ma, Y.; Ma, X.; Wang, S.; Li, F.; Li, M.; Zhang, T. Toxicity of electronic cigarettes: A general review of the origins, health hazards, and toxicity mechanisms. Sci. Total. Environ. 2021, 772, 145475. [Google Scholar] [CrossRef]
  14. Chun, L.F.; Moazed, F.; Calfee, C.S.; Matthay, M.A.; Gotts, J.E. Pulmonary toxicity of e-cigarettes. Am. J. Physiol. Lung Cell. Mol. Physiol. 2017, 313, L193–L206. [Google Scholar] [CrossRef] [PubMed]
  15. Leigh, N.J.; Tran, P.L.; O’Connor, R.J.; Goniewicz, M.L. Cytotoxic effects of heated tobacco products (HTP) on human bronchial epithelial cells. Tob. Control. 2018, 27, s26–s29. [Google Scholar] [CrossRef] [Green Version]
  16. Putzhammer, R.; Doppler, C.; Jakschitz, T.; Heinz, K.; Förste, J.; Danzl, K.; Messner, B.; Bernhard, D. Vapours of US and EU Market Leader Electronic Cigarette Brands and Liquids Are Cytotoxic for Human Vascular Endothelial Cells. PLoS ONE 2016, 11, e0157337. [Google Scholar] [CrossRef]
  17. Carnevale, R.; Sciarretta, S.; Violi, F.; Nocella, C.; Loffredo, L.; Perri, L.; Peruzzi, M.; Marullo, A.G.M.; De Falco, E.; Chimenti, I.; et al. Acute Impact of Tobacco vs. Electronic Cigarette Smoking on Oxidative Stress and Vascular Function. Chest 2016, 150, 606–612. [Google Scholar] [CrossRef]
  18. Kuntic, M.; Oelze, M.; Steven, S.; Kröller-Schön, S.; Stamm, P.; Kalinovic, S.; Frenis, K.; Vujacic-Mirski, K.; Jimenez, M.T.B.; Kvandova, M.; et al. Short-term e-cigarette vapour exposure causes vascular oxidative stress and dysfunction: Evidence for a close connection to brain damage and a key role of the phagocytic NADPH oxidase (NOX-2). Eur. Heart J. 2020, 41, 2472–2483. [Google Scholar] [CrossRef] [Green Version]
  19. Whittington, J.R.; Simmons, P.M.; Phillips, A.M.; Gammill, S.K.; Cen, R.; Magann, E.F.; Cardenas, V.M. The Use of Electronic Cigarettes in Pregnancy: A Review of the Literature. Obstet. Gynecol. Surv. 2018, 73, 544–549. [Google Scholar] [CrossRef]
  20. Schweitzer, K.S.; Chen, S.X.; Law, S.; Van Demark, M.; Poirier, C.; Justice, M.J.; Hubbard, W.C.; Kim, E.S.; Lai, X.; Wang, M.; et al. Endothelial disruptive proinflammatory effects of nicotine and e-cigarette vapor exposures. Am. J. Physiol. Lung Cell. Mol. Physiol. 2015, 309, L175–L187. [Google Scholar] [CrossRef] [PubMed]
  21. Vansickel, A.R.; Cobb, C.O.; Weaver, M.F.; Eissenberg, T.E. A Clinical Laboratory Model for Evaluating the Acute Effects of Electronic “Cigarettes”: Nicotine Delivery Profile and Cardiovascular and Subjective Effects. Cancer Epidemiol. Biomark. Prev. 2010, 19, 1945–1953. [Google Scholar] [CrossRef] [Green Version]
  22. Bodas, M.; Van Westphal, C.; Carpenter-Thompson, R.; Mohanty, D.K.; Vij, N. Nicotine exposure induces bronchial epithelial cell apoptosis and senescence via ROS mediated autophagy-impairment. Free Radic. Biol. Med. 2016, 97, 441–453. [Google Scholar] [CrossRef] [PubMed]
  23. Bekki, K.; Uchiyama, S.; Ohta, K.; Inaba, Y.; Nakagome, H.; Kunugita, N. Carbonyl Compounds Generated from Electronic Cigarettes. Int. J. Environ. Res. Public Health 2014, 11, 11192–11200. [Google Scholar] [CrossRef] [PubMed]
  24. Khlystov, A.; Samburova, V. Flavoring Compounds Dominate Toxic Aldehyde Production during E-Cigarette Vaping. Environ. Sci. Technol. 2016, 50, 13080–13085. [Google Scholar] [CrossRef]
  25. Beauval, N.; Antherieu, S.; Soyez, M.; Gengler, N.; Grova, N.; Howsam, M.; Hardy, E.M.; Fischer, M.; Appenzeller, B.M.R.; Goossens, J.-F.; et al. Chemical Evaluation of Electronic Cigarettes: Multicomponent Analysis of Liquid Refills and their Corresponding Aerosols. J. Anal. Toxicol. 2017, 41, 670–678. [Google Scholar] [CrossRef] [Green Version]
  26. Kim, H.-J.; Shin, H.-S. Determination of tobacco-specific nitrosamines in replacement liquids of electronic cigarettes by liquid chromatography–tandem mass spectrometry. J. Chromatogr. A 2013, 1291, 48–55. [Google Scholar] [CrossRef]
  27. Famele, M.; Ferranti, C.; Abenavoli, C.; Palleschi, L.; Mancinelli, R.; Draisci, R. The Chemical Components of Electronic Cigarette Cartridges and Refill Fluids: Review of Analytical Methods. Nicotine Tob. Res. 2015, 17, 271–279. [Google Scholar] [CrossRef]
  28. Bansal, V.; Kim, K.-H. Review on quantitation methods for hazardous pollutants released by e-cigarette (EC) smoking. TrAC Trends Anal. Chem. 2016, 78, 120–133. [Google Scholar] [CrossRef]
  29. Ogunwale, M.A.; Li, M.; Raju, M.V.R.; Chen, Y.; Nantz, M.H.; Conklin, D.J.; Fu, X.-A. Aldehyde Detection in Electronic Cigarette Aerosols. ACS Omega 2017, 2, 1207–1214. [Google Scholar] [CrossRef] [PubMed]
  30. Behar, R.Z.; Davis, B.; Wang, Y.; Bahl, V.; Lin, S.; Talbot, P. Identification of toxicants in cinnamon-flavored electronic cigarette refill fluids. Toxicol. Vitr. 2014, 28, 198–208. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  31. Pappas, R.S.; Polzin, G.M.; Zhang, L.; Watson, C.H.; Paschal, D.C.; Ashley, D.L. Cadmium, lead, and thallium in mainstream tobacco smoke particulate. Food Chem. Toxicol. 2006, 44, 714–723. [Google Scholar] [CrossRef]
  32. Fresquez, M.R.; Pappas, R.S.; Watson, C.H. Establishment of Toxic Metal Reference Range in Tobacco from US Cigarettes. J. Anal. Toxicol. 2013, 37, 298–304. [Google Scholar] [CrossRef] [Green Version]
  33. Hess, C.A.; Olmedo, P.; Navas-Acien, A.; Goessler, W.; Cohen, J.E.; Rule, A.M. E-cigarettes as a source of toxic and potentially carcinogenic metals. Environ. Res. 2017, 152, 221–225. [Google Scholar] [CrossRef] [Green Version]
  34. Badea, M.; Luzardo, O.P.; González-Antuña, A.; Zumbado, M.; Rogozea, L.; Floroian, L.; Alexandrescu, D.; Moga, M.; Gaman, L.; Radoi, M.; et al. Body burden of toxic metals and rare earth elements in non-smokers, cigarette smokers and electronic cigarette users. Environ. Res. 2018, 166, 269–275. [Google Scholar] [CrossRef] [PubMed]
  35. Zhao, D.; Aravindakshan, A.; Hilpert, M.; Olmedo, P.; Rule, A.M.; Navas-Acien, A.; Aherrera, A. Metal/Metalloid Levels in Electronic Cigarette Liquids, Aerosols, and Human Biosamples: A Systematic Review. Environ. Health Perspect. 2020, 128, 036001. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  36. Olmedo, P.; Goessler, W.; Tanda, S.; Grau-Perez, M.; Jarmul, S.; Aherrera, A.; Chen, R.; Hilpert, M.; Cohen, J.E.; Navas-Acien, A.; et al. Metal Concentrations in e-Cigarette Liquid and Aerosol Samples: The Contribution of Metallic Coils. Environ. Health Perspect. 2018, 126, 027010. [Google Scholar] [CrossRef]
  37. Palazzolo, D.L.; Crow, A.P.; Nelson, J.M.; Johnson, R.A. Trace Metals Derived from Electronic Cigarette (ECIG) Generated Aerosol: Potential Problem of ECIG Devices That Contain Nickel. Front. Physiol. 2017, 7, 663. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  38. Zhao, J.; Nelson, J.; Dada, O.; Pyrgiotakis, G.; Kavouras, I.G.; Demokritou, P. Assessing electronic cigarette emissions: Linking physico-chemical properties to product brand, e-liquid flavoring additives, operational voltage and user puffing patterns. Inhal. Toxicol. 2018, 30, 78–88. [Google Scholar] [CrossRef] [PubMed]
  39. Mikheev, V.B.; Brinkman, M.C.; Granville, C.A.; Gordon, S.M.; Clark, P.I. Real-Time Measurement of Electronic Cigarette Aerosol Size Distribution and Metals Content Analysis. Nicotine Tob. Res. 2016, 18, 1895–1902. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  40. Halstead, M.; Gray, N.; Gonzalez-Jimenez, N.; Fresquez, M.; Valentin-Blasini, L.; Watson, C.; Pappas, R.S. Analysis of Toxic Metals in Electronic Cigarette Aerosols Using a Novel Trap Design. J. Anal. Toxicol. 2020, 44, 149–155. [Google Scholar] [CrossRef] [PubMed]
  41. Beauval, N.; Howsam, M.; Antherieu, S.; Allorge, D.; Soyez, M.; Garçon, G.; Goossens, J.F.; Lo-Guidice, J.M.; Garat, A. Trace elements in e-liquids—Development and validation of an ICP-MS method for the analysis of electronic cigarette refills. Regul. Toxicol. Pharmacol. 2016, 79, 144–148. [Google Scholar] [CrossRef]
  42. Flora, J.W.; Meruva, N.; Huang, C.B.; Wilkinson, C.T.; Ballentine, R.; Smith, D.C.; Werley, M.S.; McKinney, W.J. Characterization of potential impurities and degradation products in electronic cigarette formulations and aerosols. Regul. Toxicol. Pharmacol. 2016, 74, 1–11. [Google Scholar] [CrossRef] [Green Version]
  43. Song, J.-J.; Go, Y.Y.; Mun, J.Y.; Lee, S.; Im, G.J.; Kim, Y.Y.; Lee, J.H.; Chang, J. Effect of electronic cigarettes on human middle ear. Int. J. Pediatr. Otorhinolaryngol. 2018, 109, 67–71. [Google Scholar] [CrossRef] [PubMed]
  44. Tayyarah, R.; Long, G.A. Comparison of select analytes in aerosol from e-cigarettes with smoke from conventional cigarettes and with ambient air. Regul. Toxicol. Pharmacol. 2014, 70, 704–710. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  45. Margham, J.; McAdam, K.; Forster, M.; Liu, C.; Wright, C.; Mariner, D.; Proctor, C. Chemical Composition of Aerosol from an E-Cigarette: A Quantitative Comparison with Cigarette Smoke. Chem. Res. Toxicol. 2016, 29, 1662–1678. [Google Scholar] [CrossRef]
  46. Zhao, D.; Navas-Acien, A.; Ilievski, V.; Slavkovich, V.; Olmedo, P.; Adria-Mora, B.; Domingo-Relloso, A.; Aherrera, A.; Kleiman, N.J.; Rule, A.M.; et al. Metal concentrations in electronic cigarette aerosol: Effect of open-system and closed-system devices and power settings. Environ. Res. 2019, 174, 125–134. [Google Scholar] [CrossRef]
  47. Williams, M.; Villarreal, A.; Bozhilov, K.; Lin, S.; Talbot, P. Metal and Silicate Particles Including Nanoparticles Are Present in Electronic Cigarette Cartomizer Fluid and Aerosol. PLoS ONE 2013, 8, e57987. [Google Scholar] [CrossRef] [Green Version]
  48. Williams, M.; To, A.; Bozhilov, K.; Talbot, P. Strategies to Reduce Tin and Other Metals in Electronic Cigarette Aerosol. PLoS ONE 2015, 10, e0138933. [Google Scholar] [CrossRef]
  49. Williams, M.; Bozhilov, K.; Ghai, S.; Talbot, P. Elements including metals in the atomizer and aerosol of disposable electronic cigarettes and electronic hookahs. PLoS ONE 2017, 12, e0175430. [Google Scholar] [CrossRef] [PubMed]
  50. Williams, M.; Bozhilov, K.N.; Talbot, P. Analysis of the elements and metals in multiple generations of electronic cigarette atomizers. Environ. Res. 2019, 175, 156–166. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  51. Kamilari, E.; Farsalinos, K.; Poulas, K.; Kontoyannis, C.G.; Orkoula, M.G. Detection and quantitative determination of heavy metals in electronic cigarette refill liquids using Total Reflection X-ray Fluorescence Spectrometry. Food Chem. Toxicol. 2018, 116, 233–237. [Google Scholar] [CrossRef]
  52. AFNOR. XP D90-300-2—Electronic Cigarettes and E-Liquids-Part 2: Requirements and Test Methods for E-Liquids; European Association for the Co-ordination of Consumers Representation in Standardisation; AISBL Press: Brussels, Belgium, 2015. [Google Scholar]
  53. BSI. PAS 54115:2015—Vaping Products, including Electronic Cigarettes, e-Liquids, e-Shisha and Directly-Related Products. In Manufacture, Importation, Testing and Labelling Guide; British Standards Institution (BSI) Press: London, UK, 2015. [Google Scholar]
  54. European Association for the Coordination of Consumer Representation in Standardization (ANEC). E-Cigarettes and E-Liquids—Limits for Chemicals; Basis for discussion. Position Paper ANEC-PT-2019-CEG-005. ANEC: Brussels, Belgium, 2019. Available online: https://www.anec.eu/images/Publications/position-papers/Chemicals/ANEC-PT-2019-CEG-005.pdf (accessed on 12 October 2021).
  55. Langasco, I.; Caredda, M.; Sanna, G.; Panzanelli, A.; Pilo, M.I.; Spano, N.; Petretto, G.; Urgeghe, P.P. Chemical Characterization of Craft Filuferru Spirit from Sardinia, Italy. Beverages 2018, 4, 62. [Google Scholar] [CrossRef] [Green Version]
  56. Spanu, A.; Valente, M.; Langasco, I.; Leardi, R.; Orlandoni, A.M.; Ciulu, M.; Deroma, M.A.; Spano, N.; Barracu, F.; Pilo, M.I.; et al. Effect of the irrigation method and genotype on the bioaccumulation of toxic and trace elements in rice. Sci. Total. Environ. 2020, 748, 142484. [Google Scholar] [CrossRef]
  57. Langasco, I.; Barracu, F.; Deroma, M.A.; López-Sánchez, J.F.; Mara, A.; Meloni, P.; Pilo, M.I.; Estrugo, À.S.; Sanna, G.; Spano, N.; et al. Assessment and validation of ICP-MS and IC-ICP-MS methods for the determination of total, extracted and speciated As. Application to samples from a soil-rice system at varying the irrigation method. J. Env. Manag. 2021. submitted. [Google Scholar]
  58. May, T.W.; Wiedmeyer, R.H. A Table of Polyatomic Interferences in ICP-MS. At. Spectrosc. 1998, 19, 150–155. [Google Scholar]
  59. Spanu, A.; Langasco, I.; Valente, M.; Deroma, M.A.; Spano, N.; Barracu, F.; Pilo, M.I.; Sanna, G. Tuning of the Amount of Se in Rice (Oryza sativa) Grain by Varying the Nature of the Irrigation Method: Development of an ICP-MS Analytical Protocol, Validation and Application to 26 Different Rice Genotypes. Molecules 2020, 25, 1861. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  60. Goncalves, D.A.; Jones, B.T.; Donati, G.L. The reversed-axis method to estimate precision in standard additions analysis. Microchem. J. 2016, 124, 155–158. [Google Scholar] [CrossRef]
  61. Andersen, J.E.T. The standard addition method revisited. TrAC Trends Anal. Chem. 2017, 89, 21–33. [Google Scholar] [CrossRef]
  62. Harris, D.C. Quantitative Chemical Analysis, 8th ed.; W.H. Freeman: New York, NY, USA, 2010. [Google Scholar]
  63. Currie, L.A. Nomenclature in evaluation of analytical methods including detection and quantification capabilities. Anal. Chim. Acta 1999, 391, 105–126. [Google Scholar] [CrossRef]
  64. Chemnitzer, R. Strategies for Achieving the Lowest Possible Detection Limits in ICP-MS. Spectrosc. (St. Monica) 2019, 34, 12–16. Available online: https://www.spectroscopyonline.com/view/strategies-achieving-lowest-possible-detection-limits-icp-ms (accessed on 12 October 2021).
  65. Council of the European Union. Council Directive 98/83/EC of 3 November 1998 on the Quality of Water Intended for Human Consumption. Off. J. Eur. Union. L 1998, 330, 32–54. Available online: https://eur-lex.europa.eu/legal-content/EN/TXT/PDF/?uri=CELEX:31998L0083&from=IT (accessed on 12 October 2021).
  66. Water quality—Application of inductively coupled plasma mass spectrometry (ICP-MS)—Part 1: General Guidelines. In International Organization for Standardization: Method ISO 17294-1; ISO: Geneva, Switzerland, 2004.
  67. Water quality—Application of inductively coupled plasma mass spectrometry (ICP-MS)—Part 2, determination of selected elements including uranium isotopes. In International Organization for Standardization: Method ISO 17294-2; ISO: Geneva, Switzerland, 2016.
  68. CAT (Chemometric Agile Tool). Available online: http://gruppochemiometria.it/index.php/software (accessed on 12 October 2021).
Molecules 26 06680 g001 550

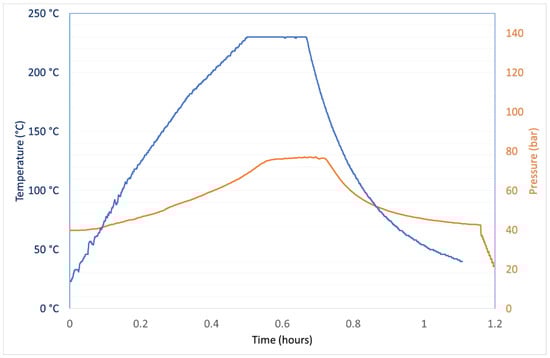

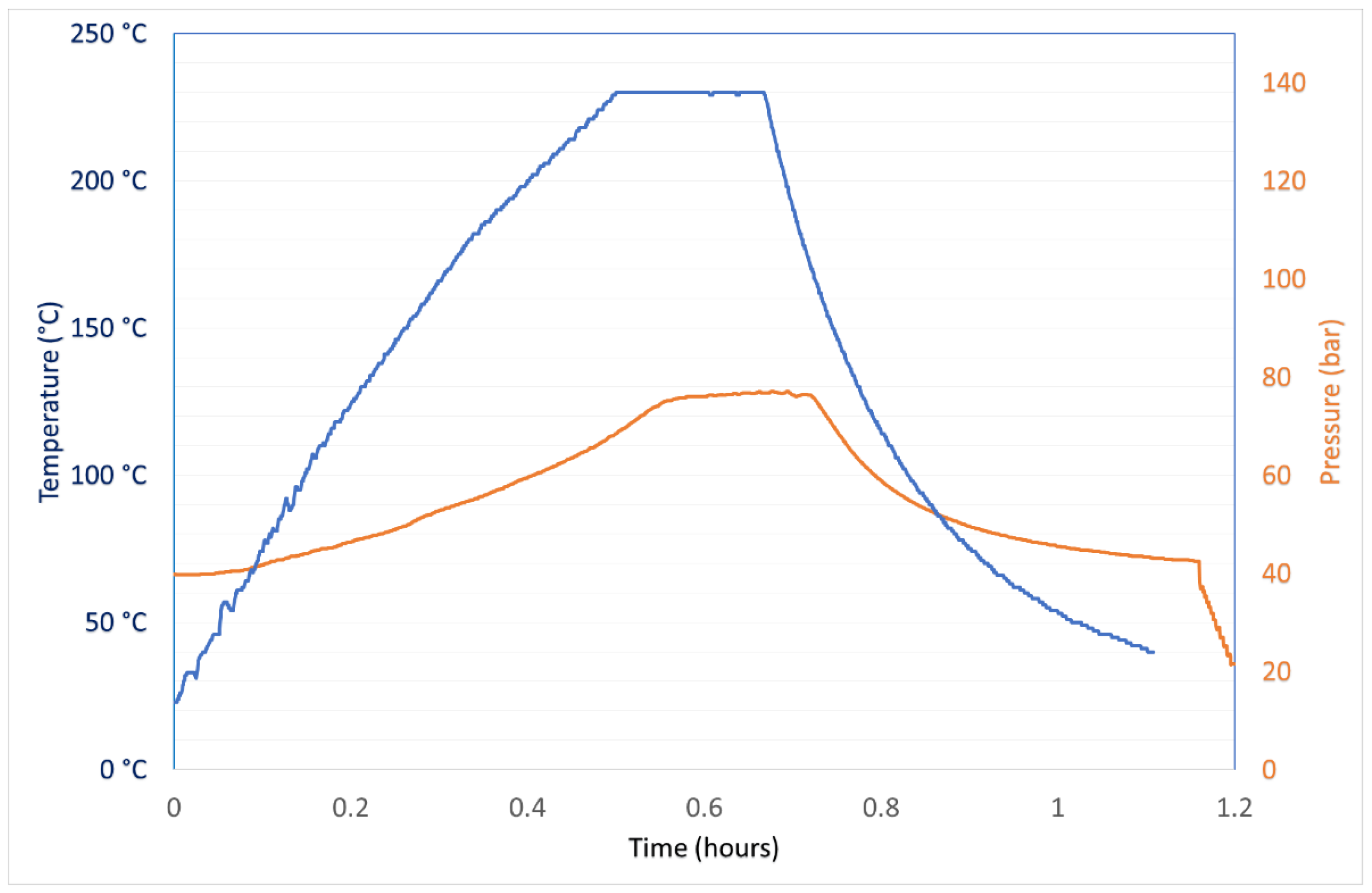

Figure 1. Trends of temperature and pressure inside vessels along a typical mineralization cycle of 0.3 g of an e-liquid dissolved in 0.5 cm3 of HNO3 and 6 cm3 of water.
Figure 1. Trends of temperature and pressure inside vessels along a typical mineralization cycle of 0.3 g of an e-liquid dissolved in 0.5 cm3 of HNO3 and 6 cm3 of water.
Molecules 26 06680 g001
Molecules 26 06680 g002 550

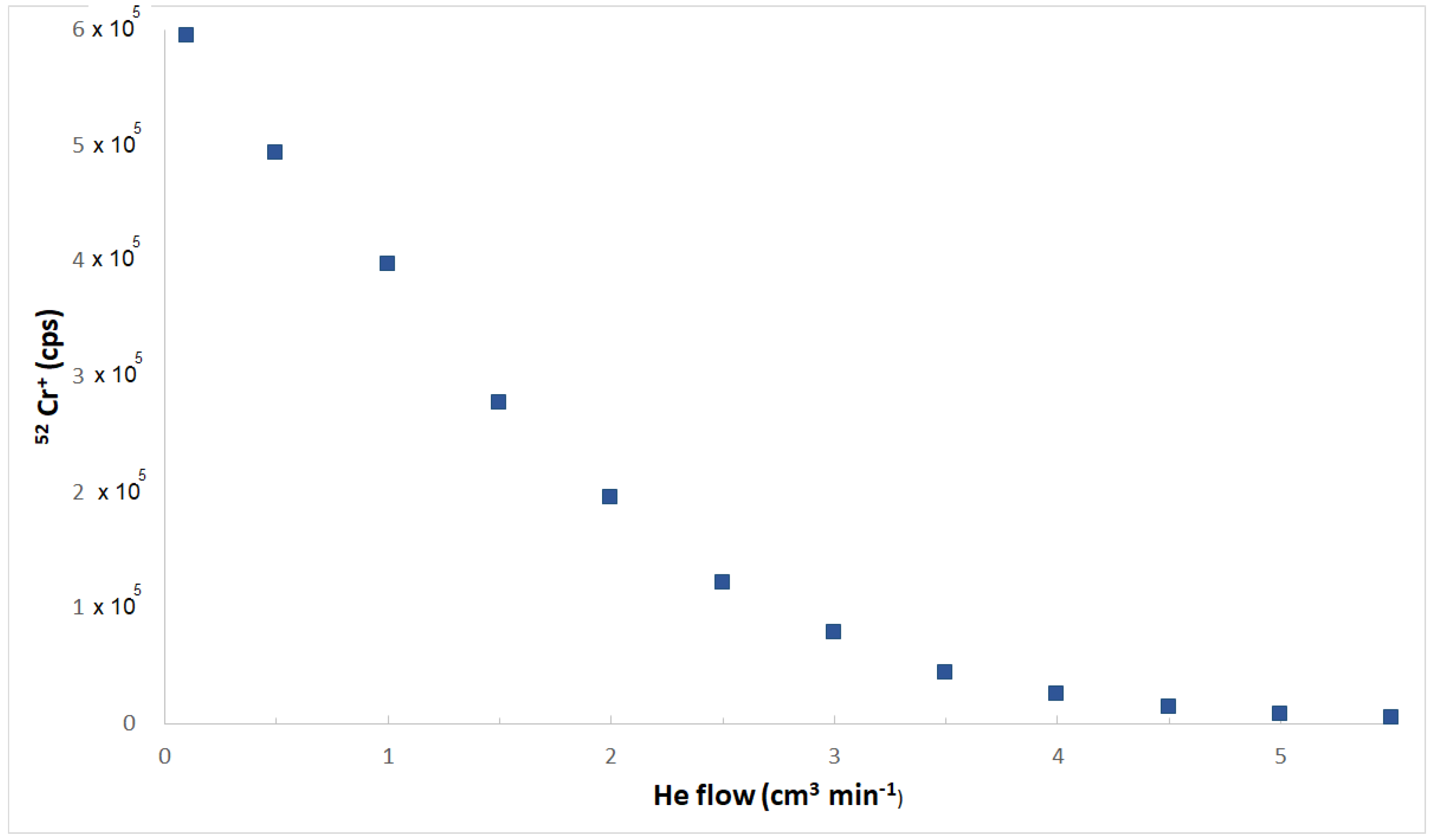

Figure 2. Dependence of the ionic signal of the 52Cr+ ion at variations of the He flow.
Figure 2. Dependence of the ionic signal of the 52Cr+ ion at variations of the He flow.
Molecules 26 06680 g002
Molecules 26 06680 g003 550

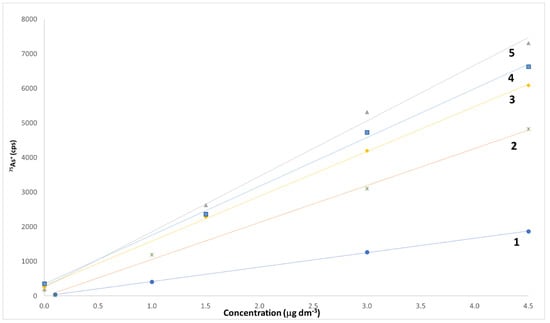

Figure 3. Linear calibration plots obtained using both external and internal calibration for the determination of As. Line 1, external calibration, As concentration in the range between 0.1 and 4.5 μg dm−3 in 2% (v/v) HNO3 in water; line 2, external calibration, As concentration in the range between 0.1 and 4.5 μg dm−3 in 2% (v/v) HNO3 in synthetic matrix; line 3, internal calibration for a tobacco flavor sample; line 4, internal calibration for a tonic flavor sample; line 5, internal calibration for a fruity flavor sample. In calibration lines 3–5, the amounts of As added to samples are of 113 pg, 226 pg, and 339 pg, respectively.
Figure 3. Linear calibration plots obtained using both external and internal calibration for the determination of As. Line 1, external calibration, As concentration in the range between 0.1 and 4.5 μg dm−3 in 2% (v/v) HNO3 in water; line 2, external calibration, As concentration in the range between 0.1 and 4.5 μg dm−3 in 2% (v/v) HNO3 in synthetic matrix; line 3, internal calibration for a tobacco flavor sample; line 4, internal calibration for a tonic flavor sample; line 5, internal calibration for a fruity flavor sample. In calibration lines 3–5, the amounts of As added to samples are of 113 pg, 226 pg, and 339 pg, respectively.
Molecules 26 06680 g003
Molecules 26 06680 g004 550

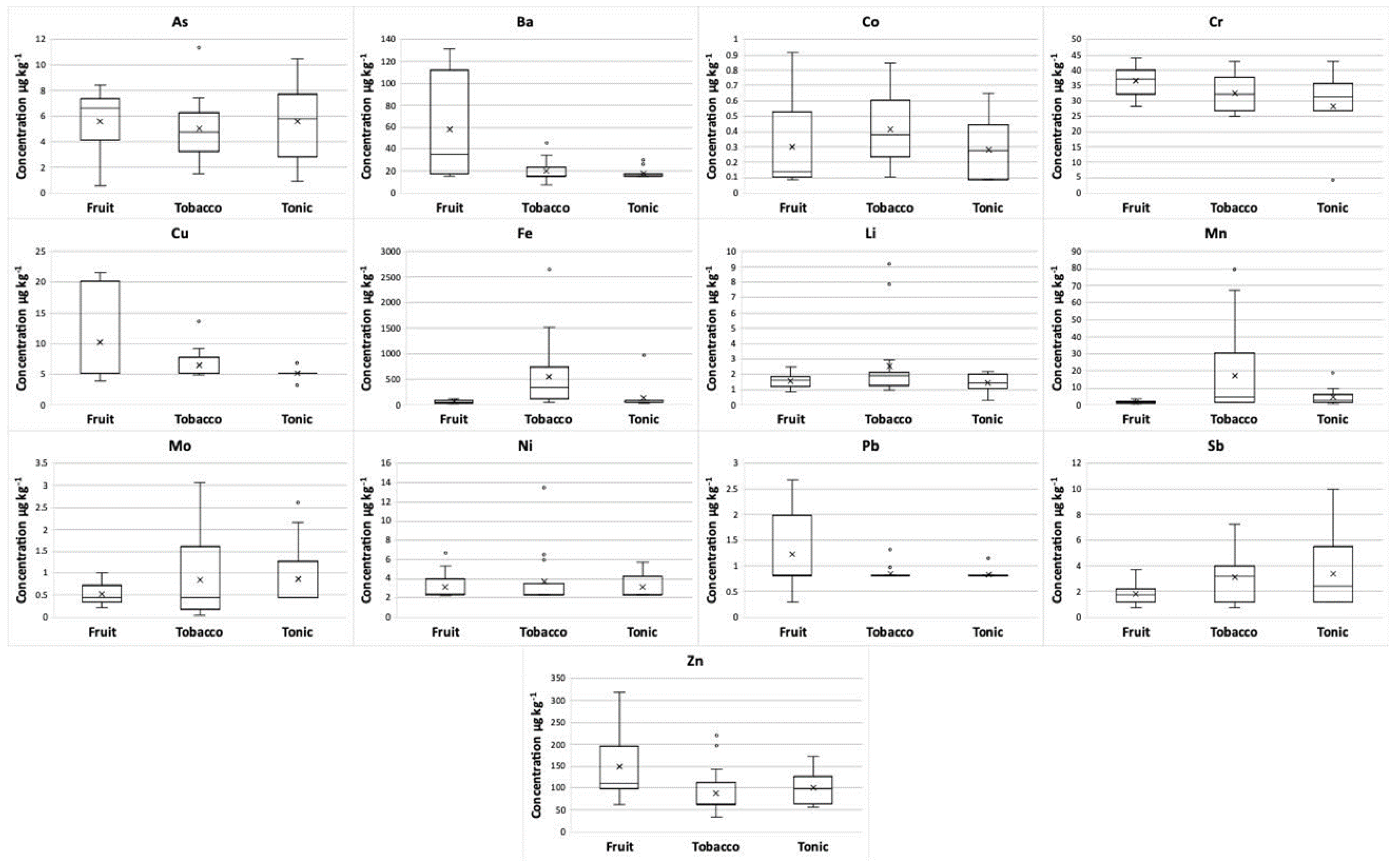

Figure 4. Box-whisker plots of the concentrations of As, Ba, Co, Cr, Cu, Fe, Li, Mn, Mo, Ni, Pb, Sb, and Zn in the three different flavor classes of e-liquids. The horizontal lines in the box represent the 25th percentile, the mean value, and the 75th percentile, respectively, and the interval between the ends of the whiskers represents the range. The “x” symbol is the median value, and the “°” symbol represents the outlier amounts.
Figure 4. Box-whisker plots of the concentrations of As, Ba, Co, Cr, Cu, Fe, Li, Mn, Mo, Ni, Pb, Sb, and Zn in the three different flavor classes of e-liquids. The horizontal lines in the box represent the 25th percentile, the mean value, and the 75th percentile, respectively, and the interval between the ends of the whiskers represents the range. The “x” symbol is the median value, and the “°” symbol represents the outlier amounts.
Molecules 26 06680 g004
Molecules 26 06680 g005 550

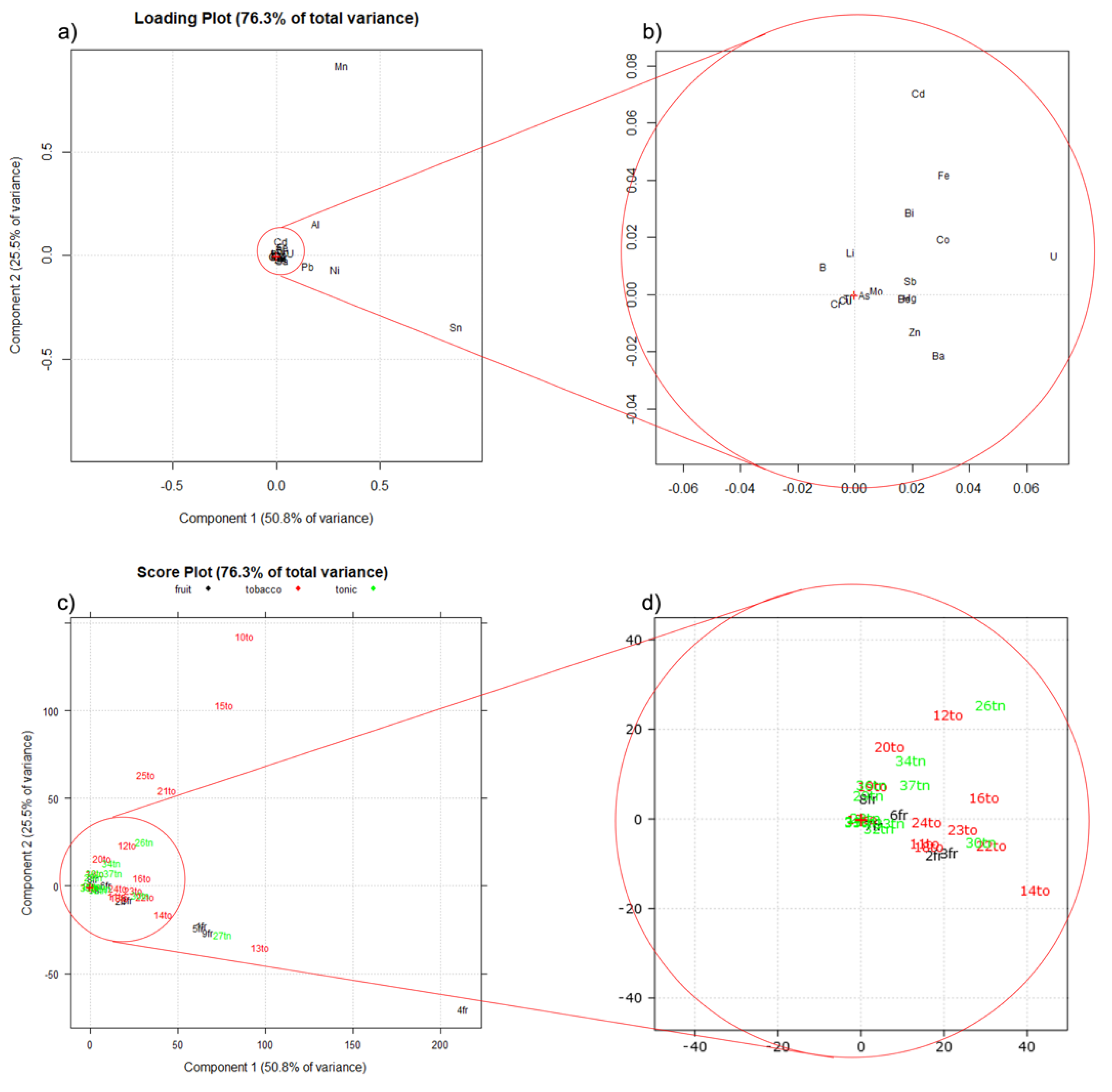

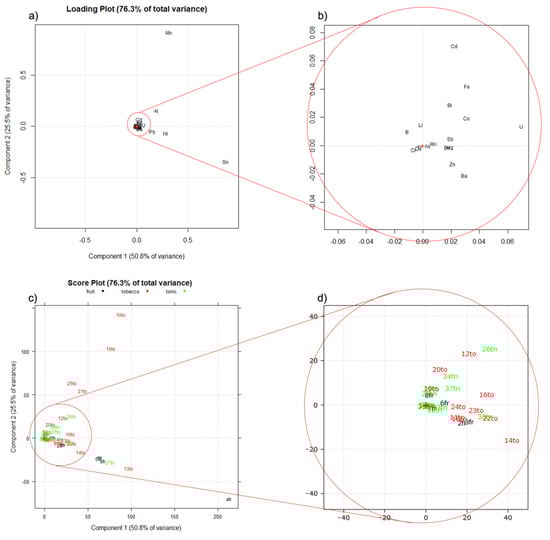

Figure 5. PCA performed on the same dataset processed and normalized, for each analyte, with respect to the relevant concentration measured in the synthetic matrix (SM). (a) Loading plot; (b) zoomed view of the loading plot; (c) score plot; (d) zoomed view of the score plot; to: tobacco flavored samples; fr: fruity-flavored samples; tn: tonic-flavored samples.
Figure 5. PCA performed on the same dataset processed and normalized, for each analyte, with respect to the relevant concentration measured in the synthetic matrix (SM). (a) Loading plot; (b) zoomed view of the loading plot; (c) score plot; (d) zoomed view of the score plot; to: tobacco flavored samples; fr: fruity-flavored samples; tn: tonic-flavored samples.
Molecules 26 06680 g005
Table
Table 1. Instrumental parameters and elemental settings used for the ICP-MS determination of 23 toxic elements and oligoelements in e-liquids.
Table 1. Instrumental parameters and elemental settings used for the ICP-MS determination of 23 toxic elements and oligoelements in e-liquids.
RF power generator (W)1300KED a mode cell entrance voltage (V)−8.0
Ar plasma flow (dm3 min−1)18.0KED mode cell exit voltage (V)−25.0
Ar auxiliary flow (dm3 min−1)1.20Resolution (Da)0.7
Ar nebulizer flow (dm3 min−1)0.91Scan modePeak hopping
NebulizerMeinhard®, glassDetector modeDual
Spray chamberCyclonic, glassDwell time (ms)50
Skimmer and sampling conesNickelNumber of points per peak3
Sampling depth (mm)0Acquisition time (s)6
Deflector voltage (V)−8.00Acquisition dead time (ns)35
Analog stage voltage (V)−1750KED gasHelium, 99.999%
Pulse stage voltage (V)+1350Masses of optimization7Li, 89Y and 205Tl
Quantification Ion
(% abundance)		InterferentsAnalyzing ModeHe Flow
(cm3 min−1)		Correction
Equation
27 Al+ (100)11B16O+; 13C14N+; 11Be16O+; 26Mg1H+; 12C 15N+; 54Cr2+; 54Fe2+KED3.5none
75 As+ (100)40Ar35Cl+; 59Co16O+; 39K36Ar+; 63Cu12C+; 40Ca35Cl+; 58Ni16O1H+KED3.0none
11 B+ (80.1)noneNormal none
138 Ba+ (71.7)40Ar258Ni+; 138La+; 122Sn16O+; 137Ba1H+; 121Sb16O1H+KED4.0−0.000901 × 139La −0.002838 × 140Ce
9 Be+ (100)noneNormal none
209 Bi+ (100)noneNormal none
111 Cd+ (12.80)95Mo16O+; 97Mo14N+; 79Br16O2+; 94Zr16O1H+; 71Ga40Ar+KED4.0none
59 Co+(100)43Ca16O+; 42Ca16O1H+; 24Mg35Cl+; 40Ar18O1H+; 118Sn2+; 27Al16O2+; 58Ni1H+; 24Mg35Cl+KED3.5none
52 Cr+ (83.79)40Ar12C+; 36Ar16O+; 1H35Cl16O+; 104Pd2+; 51V1H+; 40Ca12C+; 38Ar14N+KED3.0none
63 Cu+ (69.17)40Ar23Na+; 31P16O2+; 47Ti16O+; 28Si35Cl+; 51V12C+KED4.0none
57 Fe+ (2.12)40Ar16O1H+; 40Ca16O1H+; 40K16O1H+KED3.0none
7 Li+ (92.50)noneNormal none
202 Hg+ (22.86)186W16O+Normal none
55 Mn+ (100)40Ar14N1H+; 37Cl18O+; 39K16O+KED3.0none
98 Mo+ (24.13)98Ru+; 81Br17O+; 40K218O+; 58Ni40Ar+; 63Cu35Cl+Normal −0.10961 × 101Ru
60 Ni+ (26.22)44Ca16O+; 43Ca16O1H+; 23Na37Cl+; 25Mg35Cl+; 28Si16O2+KED3.5none
208 Pb+ (52.40)noneNormal none
121 Sb+ (57.21)107Ag14N+; 109Ag12C+; 105Pd16O+; 81Br40Ar+; 120Sn1H+KED3.5none
82 Se+ (8.73)82Kr+; 81Br1H+; 66Zn16O+; 68Zn14N+; 164Dy2+; 65Cu16O1H+KED3.5−0.00783 × 83Kr
120 Sn+ (32.58)39K81Br+; 80Se40Ar+; 104Pd16O+; 104Ru16O+KED3.5none
205 Tl+ (70.26)189Os16O+Normal none
238 U+ (99.3)noneNormal none
66Zn+ (27.90)50Ti16O+; 34S16O2+; 132Ba2+; 50Cr16O+; 65Cu1H+; 26Mg40Ar+; 31P35Cl+; 52Cr14N+KED3.0none
a Kinetic Energy Discrimination, KED.
Table
Table 2. Validation parameters for the ICP-MS determination of the total amount of 23 toxic elements and oligoelements in e-liquids.
Table 2. Validation parameters for the ICP-MS determination of the total amount of 23 toxic elements and oligoelements in e-liquids.
ElementLoD
(μg kg−1)		LoQ
(μg kg−1)		Repeatability
(CV%)		ElementLoD
(μg kg−1)		LoQ
(μg kg−1)		Repeatability (CV%)
Al268410Li0.371.240
As0.511.740Mn1.65.140
B3712060Mo0.451.570
Ba155030Ni2.37.460
Be0.0570.1970Pb0.802.740
Bi0.0890.2980Sb1.13.750
Cd0.120.3990Se4.615100
Co0.0890.2960Sn0.240.7830
Cr4.21470Tl0.0550.1850
Cu5.217100U0.210.6930
Fe5318090Zn6220030
Hg4.51590
Table
Table 3. Mean amounts, ranges (both in μg kg−1), and percentage of quantified samples (C > LoQ) in the determination of 23 toxic elements and oligoelements in 37 different e-liquids.
Table 3. Mean amounts, ranges (both in μg kg−1), and percentage of quantified samples (C > LoQ) in the determination of 23 toxic elements and oligoelements in 37 different e-liquids.
ElementsAll Flavors (n = 37)
(Mean; Range;
% Samples > LoQ)		Fruity Flavors (n = 9)
(Mean; Range;
% Samples > LoQ)		Tobacco Flavors (n = 16)
(Mean; Range;
% Samples > LoQ)		Tonic Flavors (n = 12)
(Mean; Range;
% Samples > LoQ)
Al<33; <26–1608%<35; <26–11011%<37; <26–16013%<26; <26; <260%
As5; 0.6–11100%6; 0.6–8100%5; 1.5–11100%6; 0.8–10100%
B<61; <37–14054%<50;<37–10033%<60; <37–10056%<70; <37–14067%
Ba<27; <15–13062%<55; <15–13078%<20; <15–4563%<18; <15–3050%
Be<0.06; <0.057–0.1214%<0.07; <0.057–0.1233%<0.058; <0.057–0.0613%<0.057; <0.057–<0.0570%
Bi<0.11; <0.089–0.327%<0.09; <0.089–0.111%<0.14; <0.089–0.356%<0.089; <0.089–<0.0890%
Cd<0.14; <0.12–15%<0.12; <0.12–<0.120%<0.18; <0.12–16%<0.12; <0.12–0.138%
Co<0.34; <0.089–0.984%<0.3; <0.089–0.978%<0.4; 0.1–0.8100%<0.3; <0.089–0.667%
Cr34; 20–40100%38; 30–40100%34; 30–40100%32; 20–40100%
Cu<7.1; <5.2–2041%<10; <5.2–2056%<7; <5.2– 1450%<5.4; <5.2–717%
Fe<308; <53–300065%<66; <53–10056%<570; <53–300088%<140; <53–100042%
Hg<5; <4.5–148%<5; <4.5–1011%<5; <4.5–146%<5; <4.5–58%
Li1.9; 0.7–9100%1.5; 0.8–2100%2.5; 0.9–9100%1.5; 0.7–2.2100%
Mn<10; <1.6– 8073%<2; <1.6–467%<18; <1.6–8069%<5; <1.6–2083%
Mo<0.8; <0.45–357%<0.6; <0.45–144%<1; <0.45–381%<0.7; <0.45–233%
Ni<3.5; <2.3–1446%<3.4; <2.3–767%<3.8; <2.3–1444%<3.2; <2.3–633%
Pb<1.0; <0.8–319%<1.4; <0.8–344%<0.84; <0.8–1.313%<0.81; <0.8–18%
Sb<2.9; <1.1–1073%<1.8; <1.1–478%<3.1; <1.1–775%<3.4; <1.1–1067%
Se<4.6; <4.6–<4.60%<4.6; <4.6–<4.60%<4.6; <4.6–<4.60%<4.6; <4.6–<4.60%
Sn<0.6; <0.24–465%<1; <0.24–467%<0.5; <0.24–1.681%<0.37; <0.24–1.542%
Tl<0.07; <0.055–0.1646%<0.07; <0.055–0.1622%<0.06; <0.055–0.1538%<0.08; <0.055–0.1575%
U<0.29; <0.21–0.741%<0.29; <0.21–0.644%<0.31; <0.21–0.644%<0.26; <0.21–0.733%
Zn<109; <62–30076%<150; <62–30089%<90; <62–22063%<100; <62– 17083%
Each sample has been analyzed twice. In italics: data below the LoD; in underlined: data below the LoQ. All average data have been rounded after calculation. The average data prefixed with the sign “<“ have been calculated based on at least one concentration that has been found below the corresponding LoD.
Table
Table 4. Average amounts and ranges (in μg kg−1) of elements of health concern in e-liquids. Concentration was measured by means of ICP-MS methods.
Table 4. Average amounts and ranges (in μg kg−1) of elements of health concern in e-liquids. Concentration was measured by means of ICP-MS methods.
ElementsRef. [25] a
(n = 6)		Ref. [33] b
(n = 5)		Ref. [36] c
(n = 56)		Ref. [37] d
(n = 1)		Ref. [41] a
(n = 27)		Ref. [42] e
(n = 2)		Ref. [43] f
(n = 3)		This Study
(n = 37)
Al12; 10–15 50.3; 46.22–59.67.7 ± 0.512.9; 8.82–30.7 <33; <26–160
As1.2; <1–1.5 0.08 ± 0.041.57; <1–3.42<4302.18; 0.83–3.045; 0.6–11
B <61; <37–140
Ba <27; <15–130
Be<0.1 <0.1 <0.06; <0.057–0.12
Bi <0.11; <0.089–0.3
Cd<0.443.5; 0.137–755<0.1<0.01<0.4<2200.54; <0.25–1.28<0.14; <0.12–1
Co0.15; <0.1–0.27 0.262; <0.1–0.884 <0.34; <0.089–0.9
Cr5.2; 4.1–7.7669; 41.5–1690012; 12–14.26 7.16; 4.08–11.5 34; 20–40
Cu23; <20–32 5.14; <1.0–16.1<0.0127.0; <20–30.6 <7.1; <5.2–20
Fe 66.5; 48.74–130.94.1 ± 0.2 <308; <53–3000
Hg<4 4.38; <4–4.54 <5; <4.5–14
Li 1.9; 0.7–9
Mn2.1; <1.6–3.31627; 11.8–315001.09; <1.0–2.740.159 ± 0.0063.99; <1.6–8.42 <10; <1.6– 80
Mo <0.8; <0.45–3
Ni<167613; 13.7–727007.33; 5.30–47.40.161 ± 0.007<16 3.43; 1.42–5.11<3.5; <2.3–14
Pb<1444; 3.17–48700.476; 0.243–1.05<0.01<1 12.28; <0.25–23.49<1.0; <0.8–3
Sb1.6; 1.2–1.5 1.0; 1.0–1.219 7.21; 0.400–214 <2.9; <1.1–10
Se <4.6; <4.6–<4.6
Sn 1.53; 0.689–3.75 <0.6; <0.24–4
Tl<0.1 <0.1 <0.07; <0.055–0.16
V0.45; <0.4–0.64 0.602; <0.4–1.36 -
U <0.29; <0.21–0.7
Zn<200 18.2; 11.94–28.20.51 ± 0.03418; <200–510 <109; <62–300
In italics: data below the LoD; in underlined: data below the LoQ. a Solvents: PG < 65%, VG < 35%, samples with (16 mg cm−3) or without nicotine. b E-liquids were popular brands sold in the USA. An interlaboratory trial confirmed these data. c Solvents: PG, 70% VG, 30%. Data are relative to median, where the range is within the 25th and the 75th percentile. Data reported in this column are the sum of those reported in Table 2 of the paper and the amount of the relevant blanks reported in Table S1 of the supplementary material. Data are from only one measurement for each sample. Trueness has been evaluated through an interlaboratory trial and by analysis of a NIST SRM®® 1640a (Trace Elements in Natural Water). d E-liquid was 1:100 diluted with HNO3 1% in water before ICP-MS analysis. All trace metal analyses were performed as a contracted service. No details were provided on the validation of the ICP-MS method. e MarkTen®® Menthol and Classic e-liquids, both containing 1.5% nicotine. No details were provided on the validation of the ICP-MS method. f No details were provided on the nature and validation of the ICP-MS determination.
Table
Table 5. Mean amounts (in μg kg−1± SD) of 23 toxic elements and oligoelements in VG, PG, water, and nicotine used for the preparation of the e-liquids. n = 3.
Table 5. Mean amounts (in μg kg−1± SD) of 23 toxic elements and oligoelements in VG, PG, water, and nicotine used for the preparation of the e-liquids. n = 3.
ElementVGPGWaterNicotine
Al<26<26<55000 ± 1000
As7 ± 22.6 ± 0.60.020 ± 0.0050.8 ± 0.2
B<37110 ± 10470 ± 70<37
Ba<15<150.18 ± 0.02<15
Be<0.057<0.057<0.01<0.057
Bi<0.089<0.089<0.005<0.089
Cd<0.12<0.120.04 ± 0.02<0.12
Co0.2 ± 0.1<0.089<0.005<0.089
Cr56 ± 749 ± 6<0.159 ± 8
Cu22 ± 4<5.2<0.1<5.2
Fe0.6 ± 0.1100 ± 20<10.6 ± 0.1
Hg<4.5<4.5<0.005<4.5
Li6 ± 1<0.370.374 ± 0.001<1.2
Mn<1.6<1.62.8 ± 0.211 ± 2
Mo<0.45<0.450.8 ± 0.2<0.45
Ni<2.3<2.32.5 ± 0.6<2.3
Pb<0.80<0.801.6 ± 0.1<0.80
Sb<3.7<1.10.67 ± 0.01120 ± 20
Se<4.6<4.60.035 ± 0.015<4.6
Sn<0.24<0.24<0.01<0.24
Tl<0.18<0.055<0.001<0.055
U<0.21<0.21<0.003<0.21
Zn180 ± 4041 ± 95 ± 1160 ± 30
VG: vegetal glycerin; PG: propylene glycol; SD: standard deviation; in italics: amounts below the LoD; underlined: amounts below the LoQ.
Table
Table 6. Composition of the three classes of e-liquids.
Table 6. Composition of the three classes of e-liquids.
e-Liquid Flavor ClassPG (%)VG (%)Concentrated
Flavor (%)		Water (%)
Fruity504082
Tobacco504064
Tonic504073
Publisher’s Note: MDPI stays neutral with regard to jurisdictional claims in published maps and institutional affiliations.

Share and Cite

MDPI and ACS Style

Mara, A.; Langasco, I.; Deidda, S.; Caredda, M.; Meloni, P.; Deroma, M.; Pilo, M.I.; Spano, N.; Sanna, G. ICP-MS Determination of 23 Elements of Potential Health Concern in Liquids of e-Cigarettes. Method Development, Validation, and Application to 37 Real Samples. Molecules 2021, 26, 6680. https://doi.org/10.3390/molecules26216680

AMA Style

Mara A, Langasco I, Deidda S, Caredda M, Meloni P, Deroma M, Pilo MI, Spano N, Sanna G. ICP-MS Determination of 23 Elements of Potential Health Concern in Liquids of e-Cigarettes. Method Development, Validation, and Application to 37 Real Samples. Molecules. 2021; 26(21):6680. https://doi.org/10.3390/molecules26216680

Chicago/Turabian Style

Mara, Andrea, Ilaria Langasco, Sara Deidda, Marco Caredda, Paola Meloni, Mario Deroma, Maria I. Pilo, Nadia Spano, and Gavino Sanna. 2021. "ICP-MS Determination of 23 Elements of Potential Health Concern in Liquids of e-Cigarettes. Method Development, Validation, and Application to 37 Real Samples" Molecules 26, no. 21: 6680. https://doi.org/10.3390/molecules26216680

Article Metrics

Back to TopTop
