Article

Dual Catalytic Hairpin Assembly-Based Automatic Molecule Machine for Amplified Detection of Auxin Response Factor-Targeted MicroRNA-160

by
Lei Wang
1,
Xing Dai
1,
Yujian Feng
1,
Qiyang Zhao
1,
Lin Liu
2,
Chang Xue
3,*,
Langtao Xiao
1,* and
Ruozhong Wang
1,*
1
Hunan Provincial Key Laboratory of Phytohormones and Growth Development, College of Bioscience and Biotechnology, Hunan Agricultural University, Changsha 410128, China
2
Guangdong Provincial Key Laboratory of Plant Epigenetics, College of Life Sciences and Oceanography, Shenzhen University, Shenzhen 518060, China
3
Key Laboratory of Laboratory Medicine, Ministry of Education of China, Zhejiang Provincial Key Laboratory of Medicine Genetics, School of Laboratory Medicine and Life Sciences, Institute of Functional Nucleic Acids and Personalized Cancer Theranostics, Wenzhou Medical University, Wenzhou 325035, China
*
Authors to whom correspondence should be addressed.
Molecules 2021, 26(21), 6432; https://doi.org/10.3390/molecules26216432
Submission received: 17 August 2021 / Revised: 20 October 2021 / Accepted: 23 October 2021 / Published: 25 October 2021
(This article belongs to the Special Issue Application of Nucleic Acid Probe in Analysis and Detection)
Browse Figures
Review Reports Versions Notes

Abstract

:
MicroRNA160 plays a crucial role in plant development by negatively regulating the auxin response factors (ARFs). In this manuscript, we design an automatic molecule machine (AMM) based on the dual catalytic hairpin assembly (D-CHA) strategy for the signal amplification detection of miRNA160. The detection system contains four hairpin-shaped DNA probes (HP1, HP2, HP3, and HP4). For HP1, the loop is designed to be complementary to miRNA160. A fragment of DNA with the same sequences as miRNA160 is separated into two pieces that are connected at the 3′ end of HP2 and 5′ end of HP3, respectively. In the presence of the target, four HPs are successively dissolved by the first catalytic hairpin assembly (CHA1), forming a four-way DNA junction (F-DJ) that enables the rearrangement of separated DNA fragments at the end of HP2 and HP3 and serving as an integrated target analogue for initiating the second CHA reaction, generating an enhanced fluorescence signal. Assay experiments demonstrate that D-CHA has a better performance compared with traditional CHA, achieving the detection limit as low as 10 pM for miRNA160 as deduced from its corresponding DNA surrogates. Moreover, non-target miRNAs, as well as single-base mutation targets, can be detected. Overall, the D-CHA strategy provides a competitive method for plant miRNAs detection.

1. Introduction

MicroRNA (miRNA) is a type of non-coding single-stranded RNA widely found in eukaryotic cells, with a length of about 20–24 nucleotides [1,2]. MiRNA helps regulate various biological processes in plants, including maintenance of genome integrity, development, metabolism, alongside adaptive responses to environmental stress [3,4,5,6]. For example, miRNA160 plays an important role in the auxin (IAA) response in plants by targeting auxin response factor (ARF) genes, including ARF10, ARF16, and ARF17 genes [7,8,9]. In the auxin signal transduction pathway, miRNA160 is an essential factor for maintaining the normal development of roots, leaves, and floral organs, alongside seed germination and callus formation [10,11,12,13]. To maintain the water balance in leaves, miR160 serves as a regulator to ensure the normal development and environmental adaptation of plants [7,8]. Moreover, miR160 affects the expression of ARF17 and thus is related to tapetum development and pollen wall formation [14]. As a result, there has been enormous interest in developing biosensors for the sensitive, convenient, and cost-effective detection of miRNA160.
The detection of miRNAs remains a great challenge owing to the inherent properties, such as small size, low expression level, and high sequence homology [15,16,17,18]. In general, traditional miRNA detection methods include microarray, northern blotting, and quantitative reverse transcription PCR (RT-qRCR) [19,20,21]. Despite the advantages of microarrays, such as high-throughput and multiple miRNA detection, the demands of complicated instrumentation greatly limit the application of microarrays for the online detection of miRNA [22,23]. The time-consuming operation and limited throughout, as well as poor sensitivity, restrict the practical detection of northern blotting for trace miRNA detection [24]. Although RT-qRCR assay is accomplished with high speed and high sensitivity, the thermal-recycling controlling system and expensive instruments increase the detection cost [25,26,27]. Due to these limitations above, the development of new sensing probes is one of the current areas driving the demand for convenient, simple, sensitive, and specific detection of miRNAs.
Besides genetic molecules in living systems, DNA is now also known as a versatile tool in the fields of biochemical analysis and nanomaterials [28,29,30,31]. Due to the advantages of programmability, controllability, and diversity of base-pairing, a variety of DNA nanostructures have been assembled and found spectacular applications in designing DNA sensing probes, providing numerous opportunities for reliable detection of various target analytes, such as DNA, RNA, metal ion, and protein [32,33,34,35,36,37]. For example, Deng et al. [38] developed a rolling circle amplification (RCA)-based amplification technology for miRNA detection with high specificity. Although the method is sensitive, the synthesis and purification of the circular probe require complicated procedures. Moreover, the usage of protein enzymes inevitably increases the detection cost. To overcome those difficulties, various signal amplification strategies without protein enzymes were developed, such as hybrid chain reaction (HCR) and catalytic hairpin assembly (CHA) [39,40,41,42]. Both HCR and CHA are an enzyme-free process that provides an efficiently-amplified signal and have been often applied in the detection of miRNAs [43,44].
In this manuscript, we present an automatic molecule machine (AMM) based on the dual catalytic hairpin assembly (D-CHA) process for the signal amplification detection of ARF-targeted miRNA160. The general CHA reaction uses complementary DNA strands as DNA probes and is introduced into hairpin-shaped structures before the detection [45,46,47], providing several advantages, such as low detection cost, convenient storage, low background signal, and simple operation [48,49,50]. The CHA-based detection has been used as a satisfactory alternative amplification method for the detection of numerous biomarkers in medical diagnoses [51,52,53] and combined with different analytical techniques, such as fluorescence, electrochemistry, colourimetry, surface plasmon resonance (SPR), and electrophoresis [54,55,56,57,58]. In this work, the AMM system contains four hairpin-shaped DNA probes (HP), including HP1, HP2, HP3, and HP4. Specifically, HP1 was used as a recognition element for miRNA160. A DNA fragment with the same sequence as target miRNA160 is split into two halves and innovatively introduced at the 3′ end of HP2 and 5′ end of HP3, respectively. A pair of fluorophore (FAM) and quencher (BHQ1) molecules are modified at the ends of HP4 for signalling. After the target induces the assembly of four-way DNA junction (F-DJ) based on the first catalytic hairpin assembly (CHA), the split DNA halves are brought together and serve as an integrated target analogue to initiate the second CHA reaction. This dual-CHA-based signal amplification is termed D-CHA. The comparative experiments have demonstrated that the D-CHA strategy displays a better assay performance compared with traditional CHA, possessing several advantages, such as simple operation procedure, high sensitivity, and specificity.

2. Results and Discussion

2.1. Design of AMM Machine and Its Dual Catalytic Hairpin Assembly

The AMM system contains four hairpin-shaped (HP) DNA probes, HP1, HP2, HP3, and HP4. The loop of HP1 is designed to be a recognition element for miRNA160. A DNA fragment with the same sequences as target miRNA160 was split into two halves and placed at the 3′ end of HP2 and 5′ end of HP3, respectively. For signalling, a pair of fluorophore (FAM) and quencher (BHQ1) molecules were modified at the ends of HP4. As shown in Figure 1, a dual catalytic hairpin assembly (D-CHA) process contains CHA1 and CHA2 for ultrasensitive detection of miRNA160. CHA1: In the presence of the target, four HPs were successively dissolved, forming a four-way DNA junction (F-DJ). Specifically, HP1 was first dissolved by the target species, releasing its 3′ end. The released 3′ sequence of HP1 is designated to bind HP2 by strand displacement, releasing the 3′ end of HP2. Similarly, HP3 and HP4 are opened, and the released 3′ sequence of HP4, in turn, hybridizes with HP1, releasing the target species and initiating the next round of hybridization/displacement reactions. CHA2: After the formation of F-DJ from CHA1, the two red halves at the ends of HP2 and HP3 are brought together and serve as a target analogue to initiate the second CHA reaction. The reaction process is the same as CHA1, but a combined DNA fragment is used as a target instead of miRNA160. The reaction continues autonomously until most DNA probes are assembled into F-DJ.

2.2. Feasibility of AMM for miRNA160 Detection

Considering the intrinsic characteristics of RNA, such as susceptibility to nuclease degradation, a DNA analogue of miRNA160 (named miRNA160D) was used in this section. The feasibility of the AMM system for the miRNA160D amplification detection was validated by collecting the fluorescence spectrum. As shown in Figure 2A, the low fluorescence intensity is detected for HP4 in sample a, indicating that FAM is effectively quenched by the BHQ1 due to the hairpin-shaped structure of HP4. Subsequently, when HP3, HP2, and HP1 were successively added to HP4, no substantial increase in fluorescence intensity was detected, as shown in samples b, c, and d, and demonstrated that the four hairpin-shaped DNA probes could stably coexist in the absence of target miRNA. In contrast, the high fluorescence intensity can be detected once the target is added to sample e, revealing that AMM can provide an intense signal response. The data in Figure 2B shows that the F-DJ prepared from the D-CHA-based system triggered by target (i) and the reaction mixture (ii) of HP1, HP2, HP3, and HP4 after annealing have identical gel mobility. Overall, the low background and the high signal response of the AMM system demonstrate that it is suitable for the target detection with a low expression, such as miRNAs.

2.3. D-CHA-Based Signal Amplification

For improving the high sensitivity of the sensing system, the dual catalytic hairpin assembly (D-CHA) strategy was proposed. After the first CHA reaction, F-DJ is formed and brings two halves of the target analogue at the ends of the HP2 and HP3 together, initiating the second CHA reaction and providing additional stimuli that contribute to ultrasensitive miRNA160D detection.
To provide convincing evidence for the D-CHA amplification effect, the closely-related comparative experiments were performed. A CHA-based system with the same component was used as control, but HP2-VI without the extended end was used instead of HP2. After the first CHA reaction, the four-way DNA junction (F-DJ) is formed, and the second CHA cannot be triggered owing to the lack of a combined target analogue. The corresponding assay system is called a single CHA-based one (S-CHA). As shown in Figure 3, only a 170% fluorescence increase is detected for S-CHA in the presence of target miRNA, while the fluorescence intensity of D-CHA increases by 336% upon target stimulation, demonstrating that the combined target analogue efficiently contributes to the signal amplification. Moreover, the fluorescence increase of the D-CHA-based system is much higher than S-CHA, indicating that the design of D-CHA does promote the autocatalytic reaction acceleration (See Supplementary Materials Figure S1).

2.4. Assay Performance of the AMM System for miRNA160D Detection

To make AMM operate with high efficiency in the presence of miRNA160D, the reaction time and probe sequences were first optimized. To investigate the optimal reaction time, the fluorescence intensity of AMM in the presence and absence of miRNA160D was recorded after incubating for different time periods ranging from 0.5 to 10 h. As exhibited in Figure S2, the signal-to-noise ratio (F/F0) gradually increases with the reaction time progresses until reaching the plateau. It can be found that the optimal time is 8 h. The sequences of two halves of the target analogue at the ends of HP2 and HP3 are crucial for the D-CHA reaction. Thus, the dependence of the fluorescence signal on the sequences of HP2 and HP3 was studied by using different HP2 and HP3 for miRNA160D detection. As shown in Figure S3, HP2-II and HP3-II offered the highest signal-to-noise ratio (F/F0) and was thus used in the subsequent experiments.
Subsequently, the assay performance of the AMM system was evaluated by probing a series of different concentrations of miRNA160D under the optimized experimental conditions. As shown in Figure 4A, the signal intensity at 520 nm gradually increases with the increase in target concentration, demonstrating that the quantitative detection of miRNA160D can be achieved. The fluorescence spectra of AMM in the presence of a low concentration of target miRNA can be found in the inset. If the target concentration is capable of generating a detectable signal higher than the background, it is defined as the limit of detection (LOD), the LOD as low as 10 pM is achieved for miRNA160D detection. Figure 4B,C plots the fluorescence intensity against the target concentration in the high concentration range and low concentration range, where F and C represent the peak fluorescence intensity and the miRNA160D concentration, respectively. Meanwhile, a detectable signal can be obtained in the presence of a synthetic RNA target (Figure S4) or extracted RNA from peach (Figure S5), indicating the feasibility of the method for RNA detection.

2.5. Detection Specificity

The selectivity is another essential parameter for evaluating the assay performance of DNA probes. To test the selectivity of the AMM machine, the DNA surrogates of common plant miRNAs (miRNA156D, miRNA159D, miRNA164D, miRNA390D, miRNA396D) were detected against miRNA160D under identical conditions. As exhibited in Figure 5A, if defining the signal intensity induced by miRNA160D is 100%, the relative fluorescence signal of non-target miRNAs is not more than 30%, demonstrating a high detection specificity of AMM towards target miRNA. Moreover, five mutant targets were retrieved from the miRBase database (http://www.mirbase.org/) (accessed on 10 September 2021), including one-, two-, three-, four-, and five-base mismatched target (MT1, MT2, MT3, MT4, and MT5), were detected. As depicted in Figure 5B, no substantial signal increase is observed upon mutant targets compared with the background. The feasibility of AMM for discriminating the mutant miRNA from miRNA160D has also been demonstrated via a blind test (Table S2). Namely, AMM is able to discriminate the single-base-mismatched targets, indicating a high capability to distinguish mismatched targets. Besides, compared with previous CHA-based probes, AMM displays comprehensive advantages (Table S3).

3. Conclusions

In summary, a dual CHA amplification is proposed on the basis of the extension of hairpin probe ends by adding the same sequences as the target, leading to the formation of an automatic molecule machine (AMM) system for the sensitive detection of ARF-targeted miRNA160. In the presence of the target, four HPs are successively dissolved during the first CHA, generating a four-way DNA junction (F-DJ) and releasing the pre-hybridized target species. The next round of reactions is initiated by the released target; F-DJ has a combined target analogue composed of two halves that are respectively designed at the end of HP2 and HP3, enabling another CHA reaction. Thus, the amplified fluorescence signal can be achieved compared with traditional CHA. The target can be detected down to 10 pM. Moreover, the non-target miRNA, as well as single-base mutation targets, can be distinguished, indicating a high specificity. Overall, the AMM system comes with simple operation steps, high sensitivity, and specificity, providing a competitive method for detecting plant miRNA.

4. Materials and Methods

4.1. Materials

DNA sequences used in this experiment were synthesized and purified by Shanghai Shengong Biological Engineering Co., Ltd. (Shanghai, China). All DNA sequences are listed in Table S1. HP4 modified with FAM and BHQ1 was purified by high-performance liquid chromatography (HPLC), while other label-free sequences were polyacrylamide gel electrophoresis (PAGE)-purified. The DNA sequences were dissolved in ultrapure water to a concentration of 10 µM after centrifugation at 8000 rpm for 2 min, and the resulting solutions were kept at 4 °C before use. Other reagents were analytical grade and purchased from Sinopharm Chemical Reagent Co. (Shanghai, China).

4.2. Preparation of AMM System

Four DNA probes (HP1, HP2, HP3, and HP4) were separately annealed to form a hairpin-shaped structure by following steps: 1 μL of 10 μM DNA probe was added into 9 μL of TAE buffer (2 mM EDTA, 12.5 mM MgCl2, 40 mM Tris, pH = 8.0) and heated at 90 °C for 5 min. The resulting solution was gradually cooled to room temperature. Subsequently, AMM (40 μL) was prepared by mixing the four solutions together.

4.3. RNA Extracted from Peach

The mortar and pestle were first cooled sufficiently by liquid nitrogen. The peach kernel sample was added and ground to powder. After the liquid nitrogen was completely volatilized, 1 mL of Trizol was added and reacted for 10 min (the sample volume should not exceed 10% of Trizol). Chloroform (0.2 mL) was added and reacted for another 10 min. Afterwards, the supernatant was collected by centrifuging (15,800 rpm) at 4 °C for 10 min. Isopropanol (0.5 mL) was added and reacted at −20 °C for at least 15 min, and then the RNA precipitation was collected by centrifuging (15,800 rpm) at 4 °C for 10 min. The RNA was washed by cooled ethyl alcohol (1 mL, 75%), then resuspended in diethyl oxydiformate (DEPC) treated water.

4.4. Fluorescence Measurement

A 0.5-μL aliquot of the target at a given concentration of H2O was added to the AMM system prepared above, followed by incubating at 25 °C for 8 h. After diluting with TAE buffer to the final volume of 200 μL, the fluorescence spectrum of the resulting solutions was collected between 500 to 600 nm on a Hitachi F-7000 (Hitachi Ltd., Tokyo, Japan). The fluorescence peak at λem = 520 nm was used to evaluate the fluorescence intensity.

Supplementary Materials

The following are available online, Figure S1: The real-time monitoring of fluorescence change; Figure S2: Optimization of reaction time; Figure S3: The dependence of the fluorescence signal on the sequence of HP2 and HP3; Figure S4: Fluorescence spectra of AMM upon the different concentrations of target RNA; Figure S5: The detection of miRNA160 that was extracted from the peach; Table S1: Oligonucleotide sequences used in this work; Table S2: Blind test results of miRNA160D; Table S3: Comparison in assay ability and advantages [59,60,61,62,63].

Author Contributions

Conceptualization, C.X., L.X. and R.W.; formal analysis, C.X., L.W., X.D., Y.F., Q.Z. and L.L.; investigation, C.X. and L.W.; resources, R.W.; data curation, L.W.; writing—original draft preparation, C.X. and L.W.; writing—review and editing, C.X., L.X. and R.W.; visualization, C.X., L.X. and R.W.; supervision, C.X., L.X. and R.W.; project administration, R.W.; funding acquisition, R.W. All authors have read and agreed to the published version of the manuscript.

Funding

The work was supported by the National Natural Science Foundation of China (Grant 31871714 and 31671777), Scientific Research Fund of Hunan Provincial Education Department (Grants 19A221).

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Data Availability Statement

Data regarding this article will be provided upon request.

Conflicts of Interest

The authors declare no conflict of interest.

Sample Availability

Samples of the compounds are available from the authors.

References

  1. Sun, G. MicroRNAs and their diverse functions in plants. Plant Mol. Biol. 2012, 80, 17–36. [Google Scholar] [CrossRef]
  2. Li, M.; Yu, B. Recent advances in the regulation of plant miRNA biogenesis. RNA Biol. 2021, 1–10. [Google Scholar] [CrossRef]
  3. Djami-Tchatchou, A.T.; Neeti, S.M.; Khayalethu, N.; Dubery, I.A. Functional Roles of microRNAs in Agronomically Important Plants—Potential as Targets for Crop Improvement and Protection. Front. Plant Sci. 2017, 8, 378. [Google Scholar] [CrossRef] [Green Version]
  4. Kar, M.M.; Raichaudhuri, A. Role of microRNAs in mediating biotic and abiotic stress in plants. Plant Gene 2021, 26, 100277. [Google Scholar] [CrossRef]
  5. Xu, S. Research Progress in Plant MiRNA Functions and the Roles in Stresses. Biotechnol. Bull. 2012, 4, 1–7. [Google Scholar]
  6. Pagano, L.; Rossi, R.; Paesano, L.; Marmiroli, N.; Marmiroli, M. miRNA regulation and stress adaptation in plants. Environ. Exp. Bot. 2021, 184, 104369. [Google Scholar] [CrossRef]
  7. Xin, L.; Dong, X.; Liu, Z.; Shi, Z.; Li, T. Repression of ARF10 by microRNA160 plays an important role in the mediation of leaf water loss. Plant Mol. Biol. 2016, 92, 313–336. [Google Scholar]
  8. Liu, P.P.; Montgomery, T.A.; Fahlgren, N.; Kasschau, K.D.; Carrington, J.C. Repression of AUXIN RESPONSE FACTOR10 by microRNA160 is critical for seed germination and post-germination stages. Plant J. 2007, 52, 133–146. [Google Scholar] [CrossRef]
  9. Liu, N.; Wu, S.; Li, Z.; Khan, A.Q.; Tu, L. Repression of microRNA 160 results in retarded seed integument growth and smaller final seed size in cotton. Crop J. 2020, 8, 602–612. [Google Scholar] [CrossRef]
  10. Natarajan, B.; Kalsi, H.S.; Godbole, P.; Malankar, N.; Thiagarayaselvam, A.; Siddappa, S.; Thulasiram, H.V.; Chakrabarti, S.K.; Banerjee, A.K. MiRNA160 is associated with local defense and systemic acquired resistance against Phytophthora infestans infection in potato. J. Exp. Bot. 2018, 69, 2023–2036. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  11. Wójcik, A.; Nodine, M.; Gaj, M. miR160 and miR166/165 Contribute to the LEC2-Mediated Auxin Response Involved in the Somatic Embryogenesis Induction in Arabidopsis. Front. Plant Sci. 2017, 8, 2024. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  12. Yang, T.; Wang, Y.; Teotia, S.; Wang, Z.; Shi, C.; Sun, H.; Gu, Y.; Zhang, Z.; Tang, G. The interaction between miR160 and miR165/166 in the control of leaf development and drought tolerance in Arabidopsis. Sci. Rep. 2019, 9, 2832. [Google Scholar] [CrossRef]
  13. Lin, J.S.; Chia-Chia, K.; Yang, I.C.; Wei-An, T.; Shen, Y.H.; Lin, C.; Liang, Y.C.; Li, Y.C.; Yun-Wei, K.; Yu-Chi, K. MicroRNA160 Modulates Plant Development and Heat Shock Protein Gene Expression to Mediate Heat Tolerance in Arabidopsis. Front. Plant Sci. 2018, 9, 68. [Google Scholar] [CrossRef] [Green Version]
  14. Wang, B.; Xue, J.S.; Yu, Y.H.; Liu, S.Q.; Yang, Z.N. Fine regulation of ARF17 for anther development and pollen formation. BMC Plant Biol. 2017, 17, 243. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  15. Cheng, Y.; Dong, L.; Zhang, J.; Zhao, Y.; Li, Z. Recent advances in microRNA detection. Analyst 2018, 143, 1758–1774. [Google Scholar]
  16. Wee, E.J.H.; Trau, M. Simple Isothermal Strategy for Multiplexed, Rapid, Sensitive, and Accurate miRNA Detection. ACS Sens. 2016, 1, 670–675. [Google Scholar] [CrossRef]
  17. Xu, J.; Wu, Z.S.; Wang, Z.; Le, J.; Zheng, T.; Jia, L. Autonomous assembly of ordered metastable DNA nanoarchitecture and in situ visualizing of intracellular microRNAs. Biomaterials 2017, 120, 57–65. [Google Scholar] [CrossRef] [PubMed]
  18. Li, H.; Tang, Y.; Zhao, W.; Wu, Z.; Wang, S.; Yu, R. Palindromic molecular beacon-based intramolecular strand-displacement amplification strategy for ultrasensitive detection of K-ras gene. Anal. Chim. Acta 2019, 1065, 98–106. [Google Scholar] [CrossRef] [PubMed]
  19. Zhu, C.S.; Zhu, L.; Tan, D.A.; Qiu, X.Y.; Zhu, L.Y. Avenues toward microRNA detection: A review of technical advances and challenges. Comput. Struct. Biotechnol. J. 2019, 17, 904–916. [Google Scholar] [CrossRef]
  20. Wei, L.; Ruan, K. MicroRNA detection by microarray. Anal. Bioanal. Chem. 2009, 394, 1117–1124. [Google Scholar]
  21. Wang, X.; Tong, Y.; Wang, S. Rapid and Accurate Detection of Plant miRNAs by Liquid Northern Hybridization. Int. J. Mol. Sci. 2010, 11, 3138–3148. [Google Scholar] [CrossRef] [Green Version]
  22. Zhao, X.Z.; Kiselev, E.; Lountos, G.T.; Wang, W.; Tropea, J.E.; Needle, D.; Hilimire, T.A.; Schneekloth, J.S., Jr.; Waugh, D.S.; Pommier, Y.; et al. Small molecule microarray identifies inhibitors of tyrosyl-DNA phosphodiesterase 1 that simultaneously access the catalytic pocket and two substrate binding sites. Chem. Sci. 2021, 12, 3876–3884. [Google Scholar] [CrossRef] [PubMed]
  23. Wu, Y.; Zhang, Y.; Zhang, X.; Luo, S.; Li, L. Research advances for exosomal miRNAs detection in biosensing: From the massive study to the individual study. Biosens. Bioelectron. 2020, 177, 112962. [Google Scholar] [CrossRef] [PubMed]
  24. Jebelli, A.; Oroojalian, F.; Fathi, F.; Mokhtarzadeh, A.; Guardia, M. Recent advances in surface plasmon resonance biosensors for microRNAs detection. Biosens. Bioelectron. 2020, 169, 112599. [Google Scholar] [CrossRef] [PubMed]
  25. Dave, V.P.; Ngo, T.A.; Pernestig, A.K.; Tilevik, D.; Kant, K.; Nguyen, T.; Wolff, A.; Dang, D.B. MicroRNA amplification and detection technologies: Opportunities and challenges for point of care diagnostics. Lab. Investig. 2019, 99, 452–469. [Google Scholar] [CrossRef]
  26. Tian, T.; Wang, J.; Xiang, Z. A review: MicroRNA detection methods. Org. Biomol. Chem. 2015, 13, 2226–2238. [Google Scholar] [CrossRef] [PubMed]
  27. Fiedler, S.D.; Carletti, M.Z.; Christenson, L.K. Quantitative RT-PCR methods for mature microRNA expression analysis. Methods Mol. Biol. 2010, 630, 49–64. [Google Scholar] [PubMed]
  28. Ren, K.; Liu, Y.; Wu, J.; Zhang, Y.; Zhu, J.; Yang, M.; Ju, H. A DNA dual lock-and-key strategy for cell-subtype-specific siRNA delivery. Nat. Commun. 2016, 7, 13580. [Google Scholar] [CrossRef] [PubMed]
  29. Bossert, N.; de Bruin, D.; Götz, M.; Bouwmeester, D.; Heinrich, D. Fluorescence-tunable Ag-DNA biosensor with tailored cytotoxicity for live-cell applications. Sci. Rep. 2016, 6, 37897. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  30. Li, C.; Luo, M.; Wang, J.; Niu, H.; Shen, Z.; Wu, Z.S. Rigidified DNA Triangle-Protected Molecular Beacon from Endogenous Nuclease Digestion for Monitoring microRNA Expression in Living Cells. ACS Sens. 2020, 5, 2378–2387. [Google Scholar] [CrossRef] [PubMed]
  31. Xue, C.; Zhang, S.; Yu, X.; Hu, S.; Lu, Y.; Wu, Z.S. Periodically Ordered, Nuclease-Resistant DNA Nanowires Decorated with Cell-Specific Aptamers as Selective Theranostic Agents. Angew. Chem. Int. Ed. 2020, 59, 17540–17547. [Google Scholar] [CrossRef] [PubMed]
  32. Xu, J.; Qiu, X.; Hildebrandt, N. When Nanoworlds Collide: Implementing DNA Amplification, Nanoparticles, Molecules, and FRET into a Single MicroRNA Biosensor. Nano Lett. 2021, 21, 4802–4808. [Google Scholar] [CrossRef]
  33. Soomro, S.; Venkateswaran, S.; Vanarsa, K.; Kharboutli, M.; Nidhi, M.; Susarla, R.; Zhang, T.; Sasidharan, P.; Lee, K.H.; Rosh, J.; et al. Predicting disease course in ulcerative colitis using stool proteins identified through an aptamer-based screen. Nat. Commun. 2021, 12, 3989. [Google Scholar] [CrossRef]
  34. Xu, W.; Tian, J.; Luo, Y.; Zhu, L.; Huang, K. A rapid and visual turn-off sensor for detecting copper (II) ion based on DNAzyme coupled with HCR-based HRP concatemers. Sci. Rep. 2017, 7, 43362. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  35. Yang, Z.; Zhang, S.; Zhao, H.; Niu, H.; Wu, Z.S.; Chang, H.T. Branched DNA Junction-Enhanced Isothermal Circular Strand Displacement Polymerization for Intracellular Imaging of MicroRNAs. Anal. Chem. 2018, 90, 13891–13899. [Google Scholar] [CrossRef]
  36. Shen, Z.F.; Li, F.; Jiang, Y.F.; Chen, C.; Xu, H.; Li, C.C.; Yang, Z.; Wu, Z.S. Palindromic Molecule Beacon-Based Cascade Amplification for Colorimetric Detection of Cancer Genes. Anal. Chem. 2018, 90, 3335–3340. [Google Scholar] [CrossRef] [PubMed]
  37. Li, F.; Zhao, H.; Wang, Z.Y.; Wu, Z.S.; Yang, Z.; Li, C.C.; Xu, H.; Lyu, J.X.; Shen, Z.F. Single palindromic molecular beacon-based amplification for genetic analysis of cancers. Biosens. Bioelectron. 2017, 91, 692–698. [Google Scholar] [CrossRef]
  38. Deng, R.; Tang, L.; Tian, Q.; Wang, Y.; Lin, L.; Li, J. Toehold-initiated rolling circle amplification for visualizing individual microRNAs in situ in single cells. Angew. Chem. Int. Ed. 2014, 53, 2389–2393. [Google Scholar] [CrossRef] [PubMed]
  39. Du, W.; Lv, M.; Li, J.; Yu, R.; Jiang, J. A ligation-based loop-mediated isothermal amplification (ligation-LAMP) strategy for highly selective microRNA detection. Chem. Commun. 2016, 52, 12721–12724. [Google Scholar] [CrossRef] [PubMed]
  40. Kim, H.Y.; Ahn, J.K.; Lee, C.Y.; Park, H.G. A hairpin probe-mediated isothermal amplification method to detect target nucleic acid. Anal. Chim. Acta 2020, 1114, 7–14. [Google Scholar] [CrossRef]
  41. Liao, R.; He, K.; Chen, C.; Cai, C.; Chen, X. Double-strand Displacement Biosensor and Quencher-free Fluorescence Strategy for Rapid Detection of microRNA. Anal. Chem. 2016, 88, 4254–4258. [Google Scholar] [CrossRef] [PubMed]
  42. Yao, J.; Zhang, Z.; Deng, Z.; Wang, Y.; Guo, Y. An enzyme free electrochemical biosensor for sensitive detection of miRNA with a high discrimination factor by coupling the strand displacement reaction and catalytic hairpin assembly recycling. Analyst 2017, 142, 4116–4123. [Google Scholar] [CrossRef] [PubMed]
  43. Song, C.; Zhang, J.; Jiang, X.; Gan, H.; Wang, L. SPR/SERS dual-mode plasmonic biosensor via catalytic hairpin assembly-induced AuNP network. Biosens. Bioelectron. 2021, 190, 113376. [Google Scholar] [CrossRef] [PubMed]
  44. Miao, J.; Wang, J.; Guo, J.; Gao, H.; Peng, M. A plasmonic colorimetric strategy for visual miRNA detection based on hybridization chain reaction. Sci. Rep. 2016, 6, 32219. [Google Scholar] [CrossRef] [PubMed]
  45. Chen, H.L.; Guo, M.M.; Tang, H.; Wu, Z.; Tang, L.J.; Yu, R.Q.; Jiang, J.H. Nucleic acid amplification-based methods for microRNA detection. Anal. Methods 2015, 7, 2258–2263. [Google Scholar] [CrossRef]
  46. Liu, J.; Zhang, Y.; Xie, H.; Zhao, L.; Zheng, L.; Ye, H. Applications of Catalytic Hairpin Assembly Reaction in Biosensing. Small 2019, 15, e1902989. [Google Scholar] [CrossRef] [PubMed]
  47. Xue, C.; Xiao, S.; Ouyang, C.H.; Li, C.C.; Gao, Z.H.; Shen, Z.F.; Wu, Z.S. Inverted mirror image molecular beacon-based three concatenated logic gates to detect p53 tumor suppressor gene. Anal. Chim. Acta 2019, 1051, 179–186. [Google Scholar] [CrossRef] [PubMed]
  48. Jung, C.; Ellington, A.D. Diagnostic Applications Applications of Nucleic Acid Circuits. Acc. Chem. Res. 2014, 47, 1825–1835. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  49. Liang, C.P.; Ma, P.Q.; Liu, H.; Guo, X.G.; Yin, B.C.; Ye, B.C. Rational Engineering of a Dynamic, Entropy-Driven DNA Nanomachine for Intracellular MicroRNA Imaging. Angew. Chem. Int. Ed. 2017, 56, 9077–9081. [Google Scholar] [CrossRef] [PubMed]
  50. Xue, C.; Zhang, S.; Li, C.; Yu, X.; Ouyang, C.; Lu, Y.; Wu, Z.S. Y-Shaped Backbone-Rigidified Triangular DNA Scaffold-Directed Stepwise Movement of a DNAzyme Walker for Sensitive MicroRNA Imaging within Living Cells. Anal. Chem. 2019, 91, 15678–15685. [Google Scholar] [CrossRef]
  51. Li, D.; Cheng, W.; Li, Y.; Xu, Y.J.; Li, X.; Yin, Y.; Ju, H.; Ding, S. Catalytic Hairpin Assembly Actuated DNA Nanotweezer for Logic Gate Building and Sensitive Enzyme-Free Biosensing of MicroRNAs. Anal. Chem. 2016, 88, 7500–7506. [Google Scholar] [CrossRef] [PubMed]
  52. Tafese, T. Enzyme-free signal amplified Au nanoparticle fluorescence detection of thrombin via target-triggered catalytic hairpin assembly. Microchem. J. 2020, 160, 105649. [Google Scholar]
  53. Wang, J.; Sun, Y.; Lau, C.; Lu, J. Target-fueled catalytic hairpin assembly for sensitive and multiplex microRNA detection. Anal. Bioanal. Chem. 2020, 412, 3019–3027. [Google Scholar] [CrossRef] [PubMed]
  54. Zou, L.N.; Wu, Q.; Zhou, Y.J.; Gong, X.; Liu, X.Q.; Wang, F. A DNAzyme-powered cross-catalytic circuit for amplified intracellular imaging. Chem. Commun. 2019, 55, 6519–6522. [Google Scholar] [CrossRef]
  55. Park, C.; Park, H.; Lee, H.J.; Lee, H.S.; Park, K.H.; Choi, C.H.; Na, S. Double amplified colorimetric detection of DNA using gold nanoparticles, enzymes and a catalytic hairpin assembly. Microchim. Acta. 2018, 186, 34. [Google Scholar] [CrossRef]
  56. Chen, R.P.; Blackstock, D.; Sun, Q.; Chen, W. Dynamic protein assembly by programmable DNA strand displacement. Nat. Chem. 2018, 10, 474–481. [Google Scholar] [CrossRef]
  57. Li, J.B.; Lei, P.H.; Ding, S.J.; Zhang, Y.; Yang, J.R.; Cheng, Q.; Yan, Y.R. An enzyme-free surface plasmon resonance biosensor for real-time detecting microRNA based on allosteric effect of mismatched catalytic hairpin assembly. Biosens. Bioelectron. 2016, 77, 435–441. [Google Scholar] [CrossRef] [PubMed]
  58. Zhao, R.N.; Feng, Z.; Zhao, Y.N.; Jia, L.P.; Ma, R.N.; Zhang, W.; Shang, L.; Xue, Q.W.; Wang, H.S. A sensitive electrochemical aptasensor for Mucin 1 detection based on catalytic hairpin assembly coupled with PtPdNPs peroxidase-like activity. Talanta 2019, 200, 503–510. [Google Scholar] [CrossRef]
  59. Ouyang, W.; Liu, Z.; Zhang, G.; Chen, Z.; Guo, L.; Lin, Z.; Qiu, B.; Chen, G. Enzyme-free fluorescent biosensor for miRNA-21 detection based on MnO2 nanosheets and catalytic hairpin assembly amplification. Anal. Methods 2016, 8, 8492–8497. [Google Scholar] [CrossRef]
  60. Dai, J.Y.; He, H.F.; Duan, Z.J.; Zhou, C.S.; Long, Y.Y.; Zheng, B.Z.; Du, J.; Guo, Y.; Xiao, D. Target-triggered autonomous assembly of DNA polymer chains and its application in colorimetric nucleic acid detection. J. Mater. Chem. B 2016, 4, 3191–3194. [Google Scholar] [CrossRef]
  61. Wu, J.; Tian, Y.H.; He, L.; Zhang, J.; Huang, Z.J.; Luo, Z.W.; Duan, Y.X. An efficient localized catalytic hairpin assembly-based DNA nanomachine for miRNA-21 imaging in living cells dagger. Analyst 2021, 146, 3041–3051. [Google Scholar] [CrossRef] [PubMed]
  62. Zhang, H.M.; Wang, K.Y.; Bu, S.J.; Li, Z.Y.; Ju, C.J.; Wan, J.Y. Colorimetric detection of microRNA based on DNAzyme and nuclease-assisted catalytic hairpin assembly signal amplification. Mol. Cell. Probes 2018, 38, 13–18. [Google Scholar] [CrossRef] [PubMed]
  63. Li, N.X.; Du, M.Y.; Liu, Y.C.; Ji, X.H.; He, Z.K. Multipedal DNA Walker Biosensors Based on Catalyzed Hairpin Assembly and Isothermal Strand-Displacement Polymerase Reaction for the Chemiluminescent Detection of Proteins. ACS Sens. 2018, 3, 1283–1290. [Google Scholar] [CrossRef] [PubMed]
Molecules 26 06432 g001 550

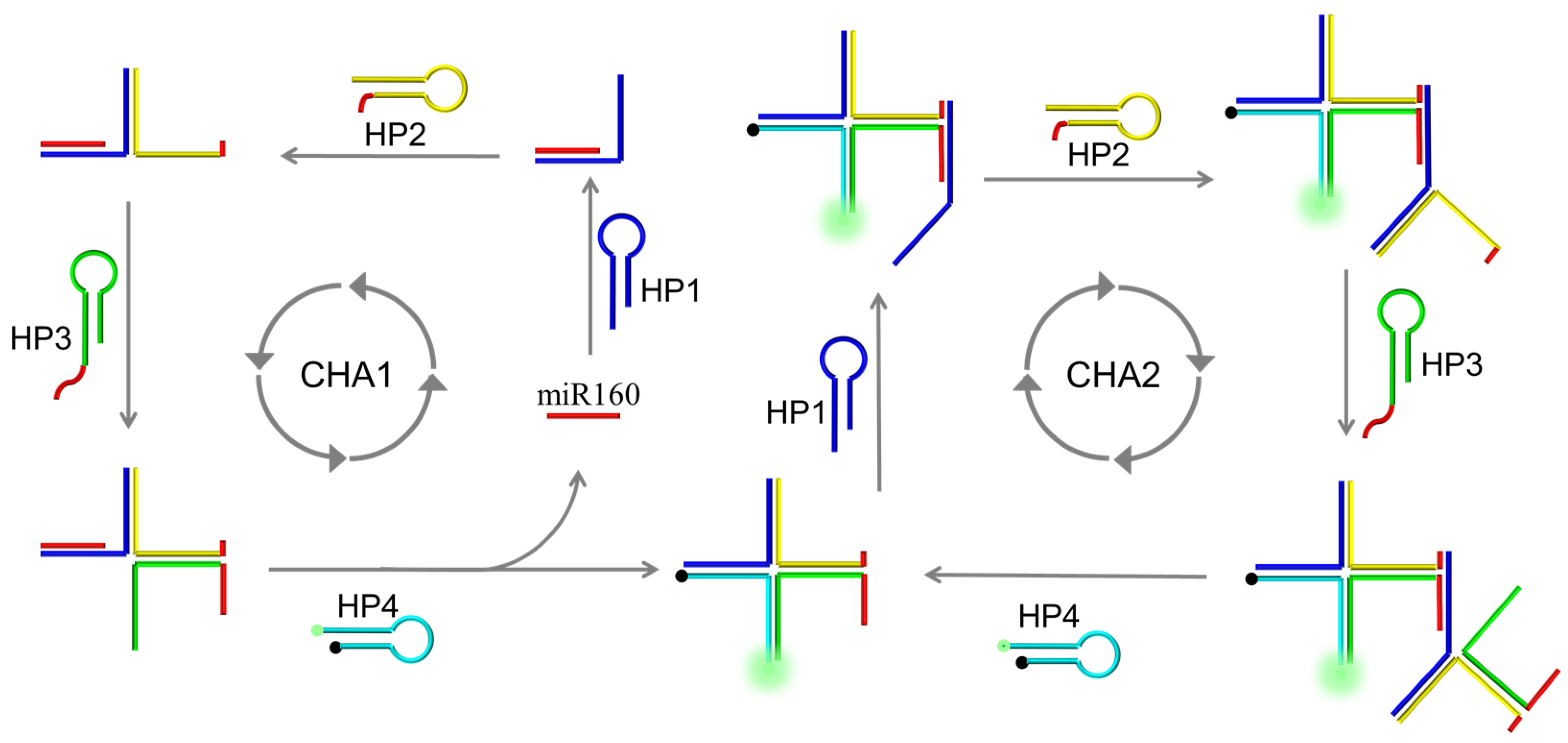

Figure 1. A schematic diagram of experimental principles of the AMM system for plant miRNA160 detection. The AMM system contains two catalytic hairpin assembly (CHA) processes. CHA1: In the presence of the target, HP1 is dissolved and releases the 3′ end of HP1 that hybridizes with HP2 and releases the 3′ end of HP2. Similarly, the hairpin-shaped HP3 is opened and subsequently hybridizes with HP4. The released 3′ sequence of HP4 can, in turn, bind to HP1, displacing the pre-hybridized target species and forming a four-way DNA junction (F-DJ). CHA2: Besides the released target initiating the next round of hybridization/displacement reactions, the red DNA fragments at the ends of HP2 and HP3 are brought together and serve as an integrated target analogue to initiate the second CHA reaction.
Figure 1. A schematic diagram of experimental principles of the AMM system for plant miRNA160 detection. The AMM system contains two catalytic hairpin assembly (CHA) processes. CHA1: In the presence of the target, HP1 is dissolved and releases the 3′ end of HP1 that hybridizes with HP2 and releases the 3′ end of HP2. Similarly, the hairpin-shaped HP3 is opened and subsequently hybridizes with HP4. The released 3′ sequence of HP4 can, in turn, bind to HP1, displacing the pre-hybridized target species and forming a four-way DNA junction (F-DJ). CHA2: Besides the released target initiating the next round of hybridization/displacement reactions, the red DNA fragments at the ends of HP2 and HP3 are brought together and serve as an integrated target analogue to initiate the second CHA reaction.
Molecules 26 06432 g001
Molecules 26 06432 g002 550

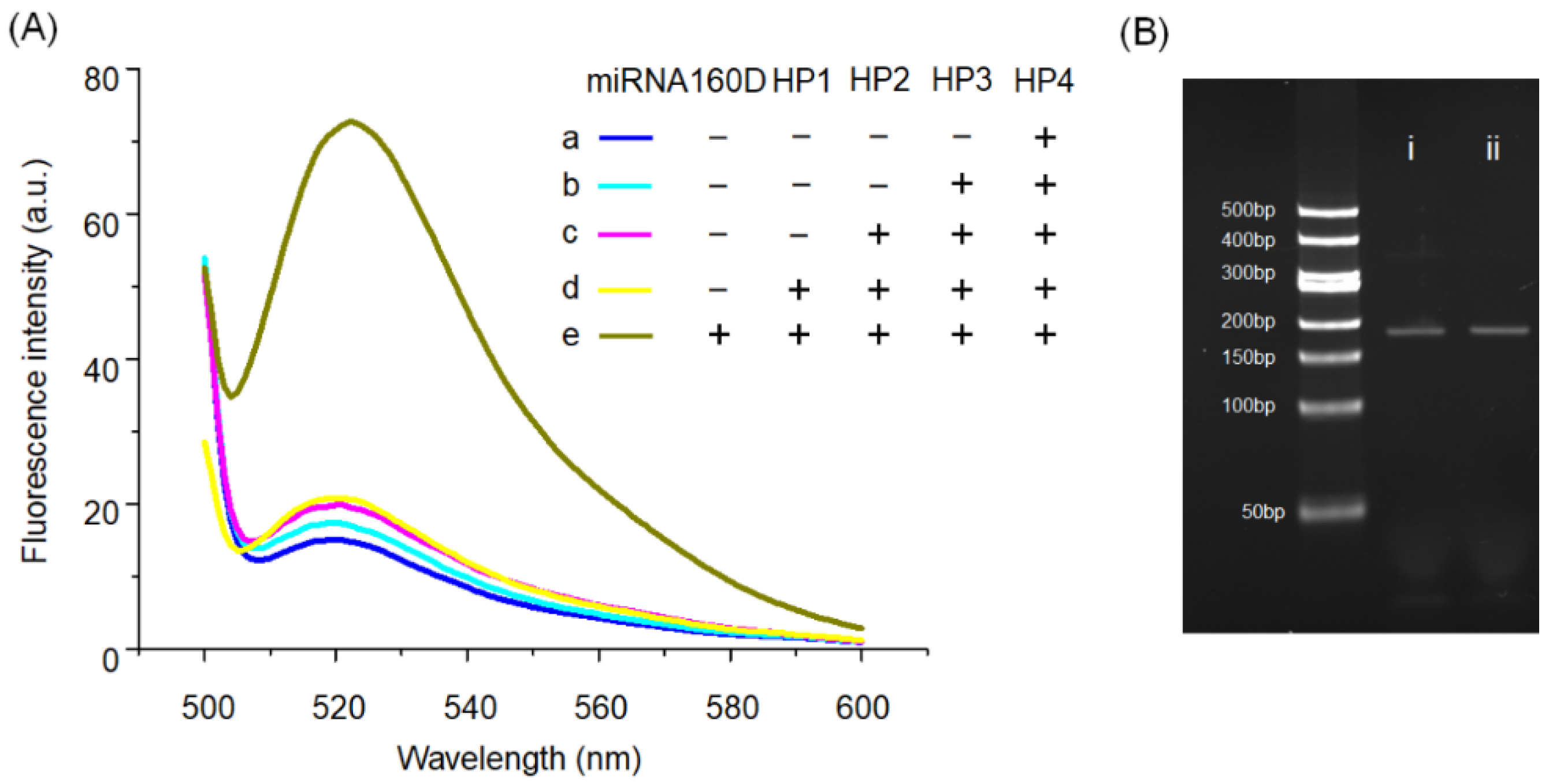

Figure 2. The feasibility of the AMM system for the detection of plant miRNA160D. (A) Fluorescence spectra of various reaction mixtures were collected to evaluate the assay ability. Sample a: HP4; Sample b: HP3 + HP4; Sample c: HP2 + HP3 + HP4; Sample d: HP1 + HP2 + HP3 + HP4; Sample e: HP1 + HP2 + HP3 + HP4 + miR160. (B) Comparative nPAGE analysis of reaction products of four-way DNA junction (F-DJ) from D-CHA-based system that triggered by target (i) and the reaction mixture of HP1, HP2, HP3, and HP4 after annealing (ii). The concentration of HP1, HP2, HP3, HP4, and target are 250 nM, 250 nM, 250 nM, 250 nM, and 125 nM, respectively. HP2-II and HP3-II were separately used as HP2 and HP3 in this section; the optimal process can be found in Figure S3.
Figure 2. The feasibility of the AMM system for the detection of plant miRNA160D. (A) Fluorescence spectra of various reaction mixtures were collected to evaluate the assay ability. Sample a: HP4; Sample b: HP3 + HP4; Sample c: HP2 + HP3 + HP4; Sample d: HP1 + HP2 + HP3 + HP4; Sample e: HP1 + HP2 + HP3 + HP4 + miR160. (B) Comparative nPAGE analysis of reaction products of four-way DNA junction (F-DJ) from D-CHA-based system that triggered by target (i) and the reaction mixture of HP1, HP2, HP3, and HP4 after annealing (ii). The concentration of HP1, HP2, HP3, HP4, and target are 250 nM, 250 nM, 250 nM, 250 nM, and 125 nM, respectively. HP2-II and HP3-II were separately used as HP2 and HP3 in this section; the optimal process can be found in Figure S3.
Molecules 26 06432 g002
Molecules 26 06432 g003 550

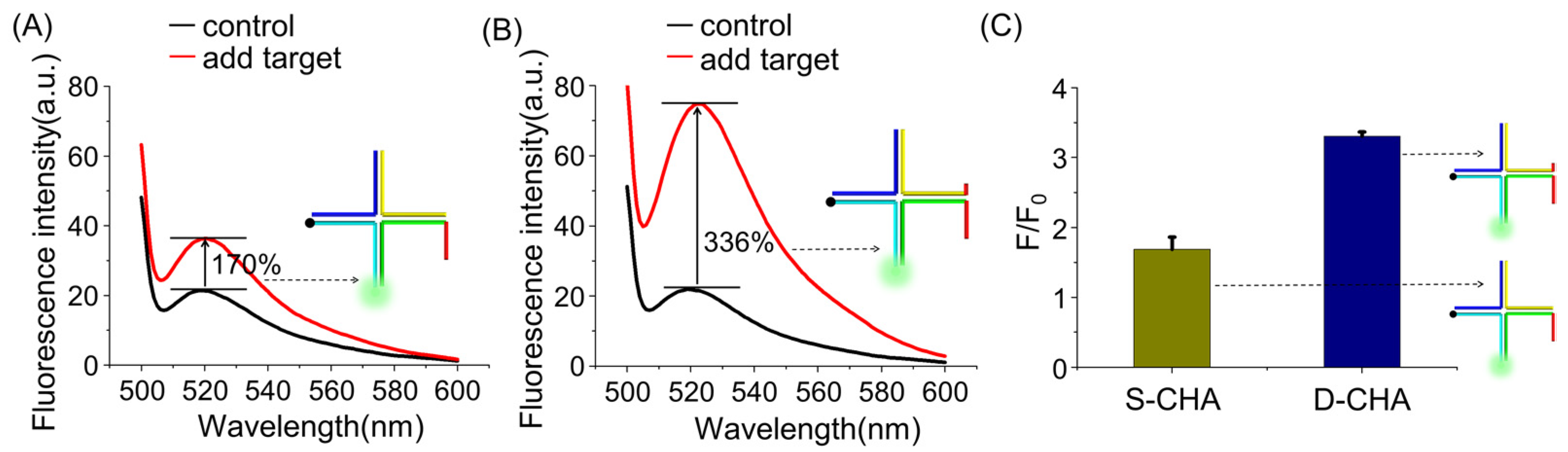

Figure 3. The assay performance of S-CHA-(A) and D-CHA-(B) based system. The red line and black line denote the fluorescence spectra of the system in the presence and absence of the target, respectively. (C) Comparative evaluation of the signal-to-noise ratio (F/F0) of the two systems for miRNA160D detection. F0 and F represent the signal in the absence and presence of target miR160, respectively. The concentration of HP1, HP2, HP3, HP4, and target are 250 nM, 250 nM, 250 nM, 250 nM, and 125 nM, respectively. The error bars represent means ± SD (n = 3).
Figure 3. The assay performance of S-CHA-(A) and D-CHA-(B) based system. The red line and black line denote the fluorescence spectra of the system in the presence and absence of the target, respectively. (C) Comparative evaluation of the signal-to-noise ratio (F/F0) of the two systems for miRNA160D detection. F0 and F represent the signal in the absence and presence of target miR160, respectively. The concentration of HP1, HP2, HP3, HP4, and target are 250 nM, 250 nM, 250 nM, 250 nM, and 125 nM, respectively. The error bars represent means ± SD (n = 3).
Molecules 26 06432 g003
Molecules 26 06432 g004 550

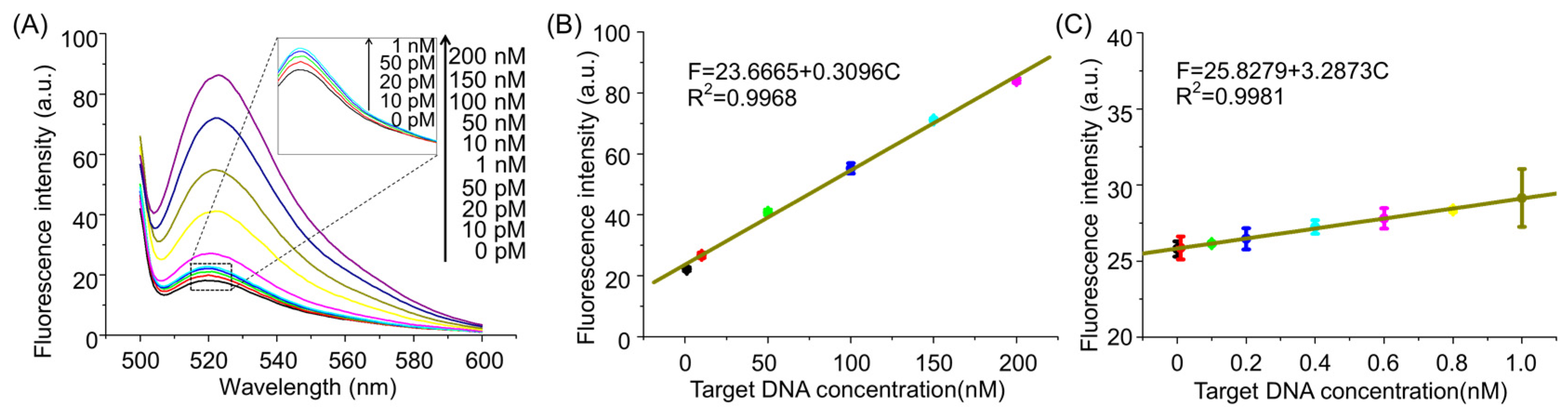

Figure 4. Quantitative detection of plant miRNA160D by AMM. (A) Fluorescence spectra of AMM upon the different concentrations of target DNA: 0, 0.01 nM, 0.02 nM, 0.05 nM, 1 nM, 10 nM, 30 nM, 50 nM, 80 nM, 100 nM, 150 nM, and 200 nM. Inset: Fluorescence spectra at low concentrations of miRNA160D. The calibration curves in the high concentration range (B) and low concentration range (C). The concentration of HP1, HP2, HP3, and HP4 are 250 nM, 250 nM, 250 nM, and 250 nM, respectively. The error bars represent means ± SD (n = 3).
Figure 4. Quantitative detection of plant miRNA160D by AMM. (A) Fluorescence spectra of AMM upon the different concentrations of target DNA: 0, 0.01 nM, 0.02 nM, 0.05 nM, 1 nM, 10 nM, 30 nM, 50 nM, 80 nM, 100 nM, 150 nM, and 200 nM. Inset: Fluorescence spectra at low concentrations of miRNA160D. The calibration curves in the high concentration range (B) and low concentration range (C). The concentration of HP1, HP2, HP3, and HP4 are 250 nM, 250 nM, 250 nM, and 250 nM, respectively. The error bars represent means ± SD (n = 3).
Molecules 26 06432 g004
Molecules 26 06432 g005 550

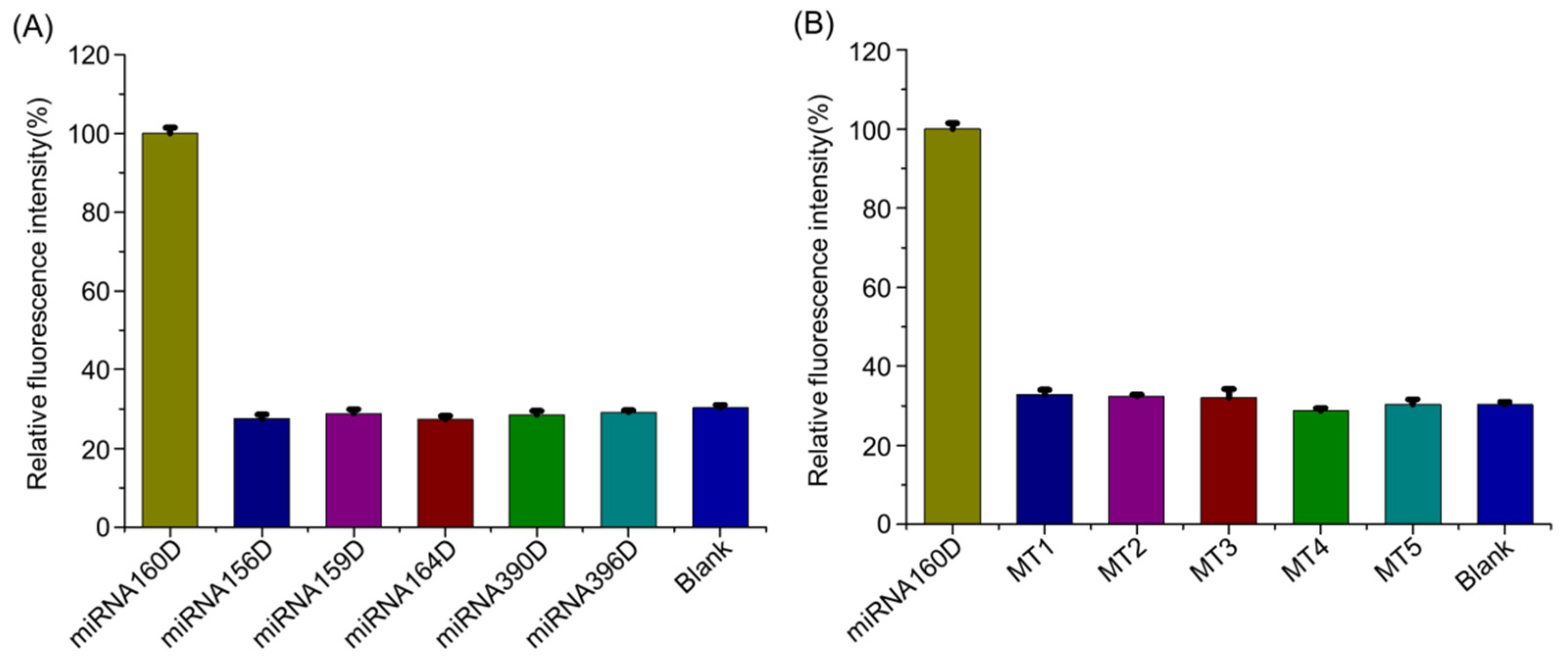

Figure 5. The detection specificity of AMM towards miR160. The fluorescence intensity was recorded upon non-targets (A) and mutant targets with one-, two-, three-, four-, and five-base mismatched targets (abbreviated as MT1, MT2, MT3, MT4, and MT5, respectively) (B). The concentration of HP1, HP2, HP3, HP4, and target are 250 nM, 250 nM, 250 nM, 250 nM, and 125 nM, respectively. The error bars represent means ± SD (n = 3).
