Rational Construction of a Responsive Azo-Functionalized Porous Organic Framework for CO2 Sorption

by
Rongrong Yuan
1,
Hao Sun
1 and
Hongming He
2,*
1
Department of Materials Science and Engineering, Jilin Jianzhu University, Changchun 130118, China
2
Tianjin Key Laboratory of Structure and Performance for Functional Molecules, College of Chemistry, Tianjin Normal University, Tianjin 300387, China
*
Author to whom correspondence should be addressed.
Molecules 2021, 26(16), 4993; https://doi.org/10.3390/molecules26164993
Submission received: 28 July 2021 / Revised: 8 August 2021 / Accepted: 12 August 2021 / Published: 18 August 2021
(This article belongs to the Special Issue Potential Applications of Functional Porous Organic Frameworks)
Browse Figures
Versions Notes

Abstract

An azo-functionalized porous organic framework (denoted as JJU-1) was synthesized via FeCl3-promoted oxidative coupling polymerization. By virtue of a porous skeleton and a light/heat responsive azo functional group, this task-specific JJU-1 displays a reversible stimuli-responsive adsorption property triggered by UV irradiation and heat treatment. The initial Brunauer–Emmet–Teller (BET) surface area of this porous material is 467 m2 g–1. The CO2 sorption isotherms exhibit a slight decrease after UV irradiation because of the trans to cis conversion of the azo functional skeleton. It is worth mentioning that the responsive CO2 adsorption performance can be recycled for three cycles via alternating external stimuli, confirming the excellently reversible switchability of trans-to-cis isomerization and controllable CO2 adsorption.

1. Introduction

As a common greenhouse gas, the increased concentration of carbon dioxide (CO2) has caused global ecological and environmental problems. Effective capture and utilization of CO2 is very important for environmental protection and economic value. To settle this thorny problem, one of the most effective approaches is the carbon capture and storage (CCS) technology [1,2]. Recently, many scientists have developed and exploited various materials for high-efficient adsorption of CO2 [3,4,5,6]. In the last few decades, porous organic frameworks (POFs) have been attracting a great deal of attention, because they have many advantages including a high surface area, excellent physicochemical stability, convenient designability, and fascinating structure [7,8,9,10,11,12]. POFs have been synthesized in large quantities and widely investigated in the CO2 sorption field [13,14,15,16]. Up to now, various synthetic reactions have been explored in the preparation of POFs, including the Yamamoto reaction [17], the Sonogashira–Hagihara cross-coupling reaction [18], the Suzuki coupling reaction [19], oxidative coupling polymerization [20], and the Friedel–Crafts alkylation reaction [21]. Nevertheless, most polymerization reactions commonly require rigorous reaction conditions in the preparation of POFs, including high temperatures, expensive noble metal catalysts, and inert gas shielding. Recently, the FeCl3-promoted oxidative coupling polymerization has been considered as a potential approach to construct POFs [22,23,24,25,26]. This method possesses outstanding advantages due to the low-cost catalyst, moderate reaction temperature, and high yield. Among all organic monomers, carbazole-based building blocks are easily to construct three-dimensional (3D) porous structures. Meanwhile, carbazole itself has good thermal stability and acid/alkali resistance. Its unique rigid ring and conjugated electron-rich system are not only beneficial to the formation of porous materials, but also can strengthen the interaction between carbazole and the adsorbed substance. The electron-rich carbazole groups can be coupled chemically under an oxidant such as FeCl3 [27,28,29].
Recently, photoresponsive CO2 adsorbents have been attracting lots of attention, because the CO2 adsorption capacity can be adjusted conveniently by light irradiation. As we know, functional materials that respond to different external stimuli, such as redox potential, temperature, pH value, and light, have been developed and used extensively in various applications [30,31,32,33,34,35]. The development of sensitive smart materials has become one of the important research areas, because the controllability, rapid responsiveness, and high precision are beneficial in many vital applications. Light is considered as the most attractive among all stimulation forms, because light is a handy and usually non-invasive signal. Photochromic molecules like azobenzene have been attracting particular attention for photoresponsive functional materials [36]. Upon UV irradiation, azobenzene can isomerize from the nonpolar and planar trans-form to the nonplanar cis-form with a dipole moment, which can significantly affect the sorption and release of guest species [37]. Additionally, the cis azobenzene can go back to its thermodynamically stable trans-form via the irradiation with visible light or thermal relaxation. Recently, the azobenzene photoresponsive porous materials have been designed and explored for regulating CO2 adsorption performance [38,39,40,41,42,43,44,45]. It is still very important to design and prepare such functional materials with CO2 storage/release sensitivity and good CO2 separation performance.
Taking the above into account, a carbazole-based organic building block of 1,3-bis(N-carbazolyl)benzene (BCB) was selected to react with azobenzene (AB) to construct a novel POF material (denoted as JJU-1) by FeCl3-promoted oxidative coupling polymerization (Scheme 1). The as-synthesized JJU-1 has high thermal stability, moderate surface area, and hierarchical pore structure. Furthermore, the CO2 adsorption isotherms of JJU-1 under UV irradiation and thermal regeneration can be well-repeated for three cycles. The CO2 uptake corresponds to a 11.5% decrease after UV irradiation, and almost recovers to the initial value after thermal regeneration, indicating the reversibility of the photoresponsive behavior in this prepared porous material. Therefore, the azo-functionalized POF with controllable CO2 adsorption could bring potential applications in CCS.

2. Results

2.1. Structural Description

Firstly, the trans/cis isomerization of azobenzene as a research model is confirmed by UV-Vis measurements. A typical strong π→π* absorption band at 325 nm and a weak π→π* absorption band at 435 nm in dichloromethane can be found in the UV-Vis spectra, which are assigned to the trans and cis isomerization of the azo functional group. After exposure to UV light, the intensity of the 325 nm band decreases along with the slightly increasing intensity of the 435 nm band because of the trans-to-cis isomerization of azobenzene (Figure S1). Furthermore, the prepared sample and the UV/heat irradiated samples are fully studied by many technologies. The skeleton structure of JJU-1 is initially investigated by Fourier transform infrared (FT-IR) spectroscopy (Figure 1a). Through comparison of the FT-IR spectra of initial monomers and final products, the characteristic absorption peaks are summed up as follows: (a) an obvious peak at ~3000 cm–1 is mainly ascribed to the C–H stretching vibration of the hydrogen atom in phenyl ring; (b) the peaks (680~560 cm–1) belong to the C–H deformation vibration of four adjacent hydrogen atoms in the 1,2-disubstituted phenyl ring of carbazole group, which are significantly weakened due to the reduction of adjacent ring hydrogen atoms from four to three; (c) some peaks in the range of 800~690 cm–1 are the C–H deformation vibration of ring hydrogen atoms of the 1,2-disubstituted phenyl ring of the carbazole group; (d) the characteristic stretching band of –N=N– at 1445 cm–1 presents in JJU-1 [46]. Furthermore, the 13C solid-state NMR was measured to determine the skeleton structure of JJU-1. As seen in Figure 1b, three prominent peaks are present in the range of 100~150 ppm, belonging to aromatic carbon atoms of the phenyl ring. The strongest signal at 123 ppm is principally assigned to the un-substituted phenyl carbon atom. Meanwhile, both relatively weaker signals at 106 and 137 ppm could be caused by the substituted phenyl carbon atom [47]. This evidence indicate that JJU-1 possesses the objective skeleton. On the other hand, powder X-ray diffraction (PXRD) was used to study the crystallinity of as-synthesized materials. No obvious diffraction peak is found in Figure 1c, suggesting the amorphous nature of JJU-1. As illustrated in Figure 1d, the thermogravimetric analysis (TGA) curve shows that this prepared sample has high thermal stability in air.
Furthermore, scanning electron microscopy (SEM) and transmission electron microscopy (TEM) technologies have been widely used to study the morphology and microstructure. Herein, SEM and TEM images were recorded for inspecting the morphology and structure of as-synthesized JJU-1. As seen in (Figure 2a), the SEM image shows that the prepared solid samples are cross-linked irregular nanoparticles, which is consistent with the PXRD pattern. In addition, the TEM still exhibits that JJU-1 has an out-of-order and worm-like porous structure (Figure 2b). According to these results, the as-synthesized JJU-1 is successfully synthesized as amorphous powder materials.

2.2. Gas Sorption Properties

N2 sorption isotherms of activated samples after heating at 150 °C for 10 h under vacuum were measured at 77 K to investigate the porous structure of JJU-1. As shown in (Figure 3a), the adsorption isotherms are the combination phenomena of type-I and type-IV curves [48], which is widely found in some reported POF materials [49,50,51]. The N2 adsorption amount can rapidly reach up to 115.9 cm3 g–1 at 0.1 atm, and the maximum N2 uptake is as high as 200.6 cm3 g–1 at 1 atm. The N2 sorption performance mainly happens in the micropores, as the sharp adsorption amounts at the low pressure region. Besides, the pore expansion and larger pores cause the distinct hysteresis between the adsorption and desorption plots. Furthermore, the increasing sorption uptake with the boosting pressure proves the existence of mesoporous structure. The surface area of activated JJU-1 is calculated by Langmuir and Brunauer–Emmet–Teller (BET) models. Meanwhile, the pore size distribution of JJU-1 is calculated by the non-local density functional theory (NLDFT). All results are summarized and listed in (Table 1). JJU-1 displays different N2 sorption behaviors at 77 K after UV light irradiation for 5 h, with a slightly increasing N2 sorption amount (Figure 3a). The BET surface area plots are shown in Figure S2 and Table S1. Although the specific surface area is similar with the initial sample, it is worth mentioning that the micropore size distribution of JJU-1 decreases slightly after UV light irradiation (Figure 3b). In addition, the pore volume of JJU-1 also slightly changes after UV light irradiation. These results prove that the introduction of azobenzene into the porous skeleton is an efficient approach for regulating the pore property of POFs.
According to previous reports, the trans/cis isomerization of azobenzene is able to generate apparent geometrical and dipole changes [52,53,54,55]. CO2 sorption tests were carried out to obtain the uptake capacity, which can be used to investigate the dynamic photoswitching for controllable CO2 adsorption of JJU-1. As seen in (Figure 4a), the initial JJU-1 can obviously adsorb a large amount of CO2 at 273 and 298 K at 1 atm, with maximum uptakes of 45.3 and 26.3 cm3 g–1. Nevertheless, JJU-1 after UV irradiation for 5 h shows significantly different CO2 adsorption behaviors (Figure 4b). Furthermore, the CO2 adsorption enthalpy (Qst) can be calculated based on CO2 sorption isotherms at 273 K and 298 K (Figure 4c and Figure S3). The Qst value of the initial sample toward CO2 is calculated as 27.1 kJ mol–1. The Qst value of JJU-1 after UV irradiation for 5 h is obviously different from that of initial samples; meanwhile, the corresponding Qst value increases to 33.1 kJ mol–1. The configuration change of azobenzene from trans to cis results in an increased affinity for CO2; however, the reduction of micropore volume is the major reason for the decreasing CO2 adsorption after UV irradiation. More importantly, the CO2 sorption isotherms of the material after UV irradiation and thermal regeneration were repeatedly measured for three cycles. Figure 4d and Figure S4 show the detailed CO2 adsorption isotherms at 273 K under 1 atm. No obvious variation of the CO2 adsorption behavior was observed during the trans/cis isomerization of the azo-functional skeleton after recycling three times via alternating external stimuli (Table 2). Comparison with the previous reported materials, this prepared JJU-1 exhibits outstanding CO2 sorption performance under controlled external stimuli (Table S2). Additionally, the gas sorption behaviors may be mainly caused by the reversible trans/cis transformation of the azo functional group under UV irradiation and thermal regeneration (Figure S5). Three UV irradiation/thermal relaxation cycles confirm the reversible behavior during the CO2 storage/release process. As a result, the introduction of the azo group in POFs is beneficial to the synthesis of photoresponsive POFs toward CO2.

3. Materials and Methods

3.1. Materials and General Methods

All available chemicals were purchased commercially and used as received without further purification. Notably, CHCl3 was dried over CaH2 before using in the synthetic process. UV-Vis spectra were recorded on Mapada V-1200 (Shanghai Meipuda instrument Co., LTD, Shanghai, China). The UV exposure experiments for trans to cis isomerization were performed by a ZF-1A UV analyzer (JIAPENG, Shanghai, China). The FT-IR spectra were recorded on an IFS 66V/S Fourier transform infrared spectrometer (Bruker Corporation, Rheinstetten, Germany). The 13C CP-MAS spectrum was recorded in a Bruker AV-400-WB (Bruker Corporation, Billerica, MA, USA). PXRD was performed on a Rigaku D/MAX 2550 diffractometer (Rigaku, Tokyo, Japan) by using Cu-Kα radiation at 40 kV and 200 mA over a 2θ range of 4–40o. SEM images were measured on a MIRA-3 LMU scanning electron microscope (Tescan, Brno, The Czech Republic). TEM images were collected on a Tecnai G2 F20 S-TWIN (FEI, Hillsboro, WA, USA). TGA was implemented on a PerkinElmer STA6000 thermal analyzer (PERKINELMER, Waltham MA, USA) in air at a heating rate of 10 °C min–1. Gas sorption measurements were measured on a Micromeritics ASAP 2020 M surface at 77 K (Micromeritics Instrument Corporation, Norcross, GA, USA). For the cis to trans isomerization, the degassing port on a Micromeritics ASAP 2020 gas sorption analyser was used by setting the program to 150 °C for 10 h.

3.2. Synthesis of JJU-1

A mixture of 1,3-bis(N-carbazolyl)benzene (204 mg, 0.5 mmol), azobenzene (456 mg, 2.5 mmol), and FeCl3 (487 mg, 3 mmol) was added in a round-bottomed flask. After pumping into a vacuum, the reaction system was trice inflated with inert N2. Then, dried CHCl3 (20 mL) was added through a syringe. The mixture was heated to 80 °C under N2 atmosphere for 24 h. After cooling to room temperature, the crude product was obtained by filtration and washed with water, chloroform, methanol and acetone to remove unreacted monomers or catalyst residues. Further purification of as-synthesized JJU-1 was carried out by the Soxhlet extraction with methanol for 48 h. The final product was dried in a vacuum for 6 h at 60 °C to give the target samples.

4. Conclusions

In this work, an azo-containing POF has been successfully synthesized via FeCl3-promoted oxidative coupling polymerization. The structure and porosity of the prepared material are well characterized and discussed. The trans/cis isomerization of azo group in the porous skeleton is achieved by UV irradiation and thermal regeneration. The CO2 uptake corresponds to a 11.5% decrease after UV irradiation, and almost recovers to the initial value after thermal regeneration. Furthermore, the CO2 adsorption isotherms of the POF using UV irradiation and thermal regeneration are repeatedly measured for three cycles. This work proves that responsive azo-functionalized POFs with controllable adsorption of CO2 have great potential applications in CCS, and are worthy of further study.

Supplementary Materials

The following are available online, Figure S1: Changes in the adsorption spectra of azobenzene in CH2Cl2 over the time during the irradiation with 365 nm light; Figure S2: BET surface area plots; Figure S3: The plots of pressures in function of gas uptakes and the parameters (virial-type expression) for the calculation of heats of adsorption of CO2 for (a) initial JJU-1 and (b) JJU-1-1st UV; Figure S4: The reversible CO2 adsorption isotherms at 273 K by UV irradiation and thermal treatment of JJU-1; Figure S5: The schematic diagram of the structure changes during the reversible trans/cis transformation of azo functional group under UV irradiation and thermal regeneration; Table S1: The BET surface area report of JJU-1; Table S2: BET surface area reports and CO2 uptakes of some similar POFs.

Author Contributions

Writing—original draft preparation and funding acquisition, R.Y.; investigation and data curation, H.S.; writing—review and editing, H.H. All authors have read and agreed to the published version of the manuscript.

Funding

This research was funded by the financial support of National Natural Science Foundation of China (21805109).

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Data Availability Statement

The data presented in this study are available in the Supplementary Materials.

Conflicts of Interest

The authors declare no conflict of interest.

Sample Availability

Samples of the compounds are Not available from the authors.

References

  1. Yu, J.; Xie, L.H.; Li, J.R.; Ma, Y.; Seminario, J.M.; Balbuena, P.B. CO2 Capture and Separations Using MOFs: Computational and Experimental Studies. Chem. Rev. 2017, 117, 9674–9754. [Google Scholar] [CrossRef] [PubMed]
  2. Gupta, V.; Mandal, S.K. A Highly Stable Triazole-Functionalized Metal-Organic Framework Integrated with Exposed Metal Sites for Selective CO2 Capture and Conversion. Chem. Eur. J. 2020, 26, 2658–2665. [Google Scholar] [CrossRef] [PubMed]
  3. He, H.; Sun, Q.; Gao, W.; Perman, J.A.; Sun, F.; Zhu, G.; Aguila, B.; Forrest, K.; Space, B.; Ma, S. A Stable Metal–Organic Framework Featuring a Local Buffer Environment for Carbon Dioxide Fixation. Angew. Chem. Int. Edit. 2018, 57, 4657–4662. [Google Scholar] [CrossRef] [PubMed]
  4. Pelech, I.; Sibera, D.; Staciwa, P.; Narkiewicz, U.; Cormia, R. Pressureless and Low-Pressure Synthesis of Microporous Carbon Spheres Applied to CO2 Adsorption. Molecules 2020, 25, 5328. [Google Scholar] [CrossRef] [PubMed]
  5. He, H.; Perman, J.A.; Zhu, G.; Ma, S. Metal–Organic Frameworks for CO2 Chemical Transformations. Small 2016, 12, 6309–6324. [Google Scholar] [CrossRef]
  6. Demakov, P.A.; Volynkin, S.S.; Samsonenko, D.G.; Fedin, V.P.; Dybtsev, D.N. A Selenophene-Incorporated Metal–Organic Framework for Enhanced CO2 Uptake and Adsorption Selectivity. Molecules 2020, 25, 4396. [Google Scholar] [CrossRef]
  7. Tian, Y.Y.; Zhu, G.S. Porous Aromatic Frameworks (PAFs). Chem. Rev. 2020, 120, 8934–8986. [Google Scholar] [CrossRef] [PubMed]
  8. Han, Z.-Y.; Li, H.-K.; Zhu, Q.-Q.; Yuan, R.; He, H. An Intriguing Electrochemical Impedance Aptasensor Based on a Porous Organic Framework Supported Silver Nanoparticles for Ultrasensitively Detecting Theophylline. Chin. Chem. Lett. 2021. [Google Scholar] [CrossRef]
  9. Tan, L.X.; Tan, B. Hypercrosslinked Porous Polymer Materials: Design, Synthesis, and Applications. Chem. Soc. Rev. 2017, 46, 3322–3356. [Google Scholar] [CrossRef]
  10. Han, Z.-Y.; Zhu, Q.-Q.; Zhang, H.-W.; Yuan, R.; He, H. A Porous Organic Framework Composite Embedded with Au Nanoparticles: An Ultrasensitive Electrochemical Aptasensor toward Detection of Oxytetracycline. J. Mater. Chem. C 2020, 8, 14075–14082. [Google Scholar] [CrossRef]
  11. Chen, P.; Sun, J.S.; Zhang, L.; Ma, W.Y.; Sun, F.X.; Zhu, G.S. Porous Aromatic Framework (PAF-1) as Hyperstable Platform for Enantioselective Organocatalysis. Sci. China Mater. 2019, 62, 194–202. [Google Scholar] [CrossRef]
  12. Cardoso, V.F.; Correia, D.M.; Ribeiro, C.; Fernandes, M.M.; Lanceros-Mendez, S. Fluorinated Polymers as Smart Materials for Advanced Biomedical Applications. Polymers 2018, 10, 161. [Google Scholar] [CrossRef]
  13. Krishnaraj, C.; Jena, H.S.; Lecoeuvre, F.; Leus, K.; van der Voort, P. Rigid Nanoporous Urea-Based Covalent Triazine Frameworks for C2/C1 and CO2/CH4 Gas Separation. Molecules 2021, 26, 3670. [Google Scholar] [CrossRef] [PubMed]
  14. Krishnan, S.; Suneesh, C.V. Post-Synthetic Modification of Fluorenone Based Hypercrosslinked Porous Copolymers for Carbon Dioxide Capture. J. Solid State Chem. 2021, 299, 122152. [Google Scholar] [CrossRef]
  15. Maya, E.M.; Valverde-Gonzalez, A.; Iglesias, M. Conversion of CO2 into Chloropropene Carbonate Catalyzed by Iron (II) Phthalocyanine Hypercrosslinked Porous Organic Polymer. Molecules 2020, 25, 4598. [Google Scholar] [CrossRef]
  16. Xu, G.; Zhu, Y.; Xie, W.; Zhang, S.; Yao, C.; Xu, Y. Porous Cationic Covalent Triazine-Based Frameworks as Platforms for Efficient CO2 and Iodine Capture. Chem. Asian J. 2019, 14, 3259–3263. [Google Scholar] [CrossRef]
  17. Yu, H.; Xu, S.; Liu, Y.; Chen, H.; Li, H. A Porous Organic Poly(triphenylimidazole) Decorated with Palladium Nanoparticles for the Cyanation of Aryl Iodides. Chem. Asian J. 2018, 13, 2708–2713. [Google Scholar] [CrossRef] [PubMed]
  18. Hu, C.; Gao, Y.C.; Zhang, C.; Liu, M.; Geng, T.M. The Effects of the Crosslinking Position and Degree of Conjugation in Perylene Tetraanhydride Bisimide Microporous Polymers on Fluorescence Sensing Performance. RSC Adv. 2020, 10, 5108–5115. [Google Scholar] [CrossRef]
  19. Wang, D.Y.; Wang, W.J.; Wang, R.; Xi, S.C.; Dong, B. A Fluorescent Covalent Triazine Framework Consisting of Donor-Acceptor Structure for Selective and Sensitive sensing of Fe3+. Eur. Polym. J. 2021, 147, 110297. [Google Scholar] [CrossRef]
  20. Feng, L.J.; Chen, Q.; Zhu, J.H.; Liu, D.P.; Zhao, Y.C.; Han, B.H. Adsorption Performance and Catalytic Activity of Porous Conjugated Polyporphyrins via Carbazole-Based Oxidative Coupling Polymerization. Polym. Chem. 2014, 5, 3081–3088. [Google Scholar] [CrossRef]
  21. Wu, Y.; Li, L.; Yang, W.; Feng, S.; Liu, H. Hybrid Nanoporous Polystyrene Derived from Cubic Octavinylsilsesquioxane and Commercial Polystyrene via the Friedel-Crafts Reaction. RSC Adv. 2015, 5, 12987–12993. [Google Scholar] [CrossRef]
  22. Yuan, R.; Yan, Z.; Shaga, A.; He, H. Design and Fabrication of an Electrochemical Sensing Platform Based on a Porous Organic Polymer for Ultrasensitive Ampicillin Detection. Sensor. Actuat. B Chem. 2021, 327, 128949. [Google Scholar] [CrossRef]
  23. Krusenbaum, A.; Graetz, S.; Bimmermann, S.; Hutsch, S.; Borchardt, L. The Mechanochemical Scholl Reaction as a Versatile Synthesis Tool for the Solvent-Free Generation of Microporous Polymers. RSC Adv. 2020, 10, 25509–25516. [Google Scholar] [CrossRef]
  24. Yuan, R.; He, H. Construction of an Electrochemical Aptasensor Based on a Carbazole-Bearing Porous Organic Polymer for Rapid and Ultrasensitive Detection of Penicillin. Appl. Surf. Sci. 2021, 563, 150307. [Google Scholar] [CrossRef]
  25. Qian, L.; Hong, H.; Han, M.; Xu, C.; Wang, S.; Guo, Z.; Yan, D. A Ketone-Functionalized Carbazolic Porous Organic Framework for Sensitive Fluorometric Determination of p-Nitroaniline. Microchim. Acta 2019, 186, 457. [Google Scholar] [CrossRef]
  26. Hao, S.; Liu, Y.; Shang, C.; Liang, Z.; Yu, J. CO2 Adsorption and Catalytic Application of Imidazole Ionic Liquid Functionalized Porous Organic Polymers. Polym. Chem. 2017, 8, 1833–1839. [Google Scholar] [CrossRef]
  27. Malacrida, C.; Lu, Y.; Dirnberger, K.; Gámez-Valenzuela, S.; Delgado, M.C.R.; Ludwigs, S. Towards Highly Conducting Bicarbazole Redox Polymer Films with Plateau-Like Conductivities. J. Mater. Chem. C 2020, 8, 15393–15405. [Google Scholar] [CrossRef]
  28. Yang, X.-L.; Hu, D.-Y.; Chen, Q.; Li, L.; Li, P.-X.; Ren, S.-B.; Bertuzzo, M.; Chen, K.; Han, D.-M.; Zhou, X.-H.; et al. A Pyrene-Cored Conjugated Microporous Polycarbazole for Sensitive and Selective Detection of Hazardous Explosives. Inorg. Chem. Commun. 2019, 107, 107453. [Google Scholar] [CrossRef]
  29. Qiao, S.; Du, Z.; Yang, R. Design and Synthesis of Novel Carbazole-Spacer-Carbazole Type Conjugated Microporous Networks for Gas Storage and Separation. J Mater. Chem. A 2014, 2, 1877–1885. [Google Scholar] [CrossRef]
  30. Coskun, A.; Banaszak, M.; Astumian, R.D.; Stoddart, J.F.; Grzybowski, B.A. Great Expectations: Can Artificial Molecular Machines Deliver on Their Promise? Chem. Soc. Rev. 2012, 41, 19–30. [Google Scholar] [CrossRef]
  31. Hazra, A.; Bonakala, S.; Adalikwu, S.A.; Balasubramanian, S.; Maji, T.K. Fluorocarbon-Functionalized Superhydrophobic Metal–Organic Framework: Enhanced CO2 Uptake via Photoinduced Postsynthetic Modification. Inorg. Chem. 2021, 60, 3823–3833. [Google Scholar] [CrossRef] [PubMed]
  32. Cobo, I.; Li, M.; Sumerlin, B.S.; Perrier, S. Smart Hybrid Materials by Conjugation of Responsive Polymers to Biomacromolecules. Nat. Mater. 2015, 14, 143–159. [Google Scholar] [CrossRef]
  33. Aznar, E.; Oroval, M.; Pascual, L.; Murguia, J.R.; Martinez-Manez, R.; Sancenon, F. Gated Materials for on-Command Release of Guest Molecules. Chem. Rev. 2016, 116, 561–718. [Google Scholar] [CrossRef]
  34. Zakrzewski, J.J.; Heczko, M.; Jankowski, R.; Chorazy, S. Reversible Humidity-Driven Transformation of a Bimetallic {EuCo} Molecular Material: Structural, Sorption, and Photoluminescence Studies. Molecules 2021, 26, 1102. [Google Scholar] [CrossRef]
  35. Vassalini, I.; Alessandri, I. Switchable Stimuli-Responsive Heterogeneous Catalysis. Catalysts 2018, 8, 569. [Google Scholar] [CrossRef]
  36. Geng, J.S.; Liu, K.; Liang, Y.Y.; Yu, J.P.; Hu, K.Q.; Yuan, L.H.; Feng, W.; Chai, Z.F.; Mei, L.; Shi, W.Q. An Azobenzene-Modified Photoresponsive Thorium–Organic Framework: Monitoring and Quantitative Analysis of Reversible trans–cis Photoisomerization. Inorg. Chem. 2021, 60, 8519–8529. [Google Scholar] [CrossRef] [PubMed]
  37. Bandara, H.M.D.; Burdette, S.C. Photoisomerization in Different Classes of Azobenzene. Chem. Soc. Rev. 2012, 41, 1809–1825. [Google Scholar] [CrossRef]
  38. Bera, R.; Ansari, M.; Alam, A.; Das, N. Triptycene, Phenolic-OH, and Azo-Functionalized Porous Organic Polymers: Efficient and Selective CO2 Capture. ACS Appl. Polym. Mater. 2019, 1, 959–968. [Google Scholar] [CrossRef]
  39. Cheng, L.; Jiang, Y.; Qi, S.-C.; Liu, W.; Shan, S.-F.; Tan, P.; Liu, X.-Q.; Sun, L.-B. Controllable Adsorption of CO2 on Smart Adsorbents: An Interplay between Amines and Photoresponsive Molecules. Chem. Mater. 2018, 30, 3429–3437. [Google Scholar] [CrossRef]
  40. Huang, R.; Hill, M.R.; Babarao, R.; Medhekar, N.V. CO2 Adsorption in Azobenzene Functionalized Stimuli Responsive Metal–Organic Frameworks. J. Phys. Chem. C 2016, 120, 16658–16667. [Google Scholar] [CrossRef]
  41. Yuan, R.; Ren, H.; He, H.; Jiang, L.; Zhu, G. Targeted Synthesis of Porous Aromatic Frameworks with Stimuli-Responsive Adsorption Properties. Sci. China Mater. 2015, 58, 38–43. [Google Scholar] [CrossRef][Green Version]
  42. Maity, D.K.; Dey, A.; Ghosh, S.; Halder, A.; Ray, P.P.; Ghoshal, D. Set of Multifunctional Azo Functionalized Semiconducting Cd(II)-MOFs Showing Photoswitching Property and Selective CO2 Adsorption. Inorg. Chem. 2018, 57, 251–263. [Google Scholar] [CrossRef] [PubMed]
  43. Yang, C.T.; Kshirsagar, A.R.; Eddin, A.C.; Lin, L.-C.; Poloni, R. Tuning Gas Adsorption by Metal Node Blocking in Photoresponsive Metal–Organic Frameworks. Chem. Eur. J. 2018, 24, 15167–15172. [Google Scholar] [CrossRef]
  44. Jiang, Y.; Tan, P.; Qi, S.C.; Liu, X.Q.; Yan, J.H.; Fan, F.; Sun, L.B. Metal–Organic Frameworks with Target-Specific Active Sites Switched by Photoresponsive Motifs: Efficient Adsorbents for Tailorable CO2 Capture. Angew. Chem. Int. Edit. 2019, 58, 6600–6604. [Google Scholar] [CrossRef]
  45. Yuan, R.; Sun, H.; Yan, Z.; He, H. Rational Design and Synthesis of a Task-Specific Porous Organic Framework Featured Azobenzene as a Photoresponsive Low-Energy CO2 Adsorbent. J. Solid State Chem. 2021, 297, 122049. [Google Scholar] [CrossRef]
  46. Li, S.; Prasetya, N.; Ladewig, B.P. Investigation of Azo-COP-2 as a Photoresponsive Low-Energy CO2 Adsorbent and Porous Filler in Mixed Matrix Membranes for CO2/N2 Separation. Ind. Eng. Chem. Res. 2019, 58, 9959–9969. [Google Scholar] [CrossRef]
  47. Yuan, R.; Yan, Z.; Shaga, A.; He, H. Solvent-Free Mechanochemical Synthesis of a Carbazole-Based Porous Organic Polymer with High CO2 Capture and Separation. J. Solid State Chem. 2020, 287, 121327. [Google Scholar] [CrossRef]
  48. Thommes, M.; Kaneko, K.; Neimark, A.V.; Olivier, J.P.; Rodriguez-Reinoso, F.; Rouquerol, J.; Sing, K.S.W. Physisorption of Gases, with Special Reference to the Evaluation of Surface Area and Pore Size Distribution (IUPAC Technical Report). Pure Appl. Chem. 2015, 87, 1051–1069. [Google Scholar] [CrossRef]
  49. Xing, G.; Yan, T.; Das, S.; Ye, L.; Ye, K. Charged Porous Organic Frameworks Bearing Heteroatoms with Enhanced Isosteric Enthalpies of Gas Adsorption. RSC Adv. 2018, 8, 20434–20439. [Google Scholar] [CrossRef]
  50. Wang, M.; Wang, S.; Song, X.; Liang, Z.; Su, X. Photo-Responsive Oxidase Mimic of Conjugated Microporous Polymer for Constructing a pH-Sensitive Fluorescent Sensor for Bio-Enzyme Sensing. Sensor. Actuat. B Chem. 2020, 316, 128157. [Google Scholar] [CrossRef]
  51. Wang, S.; Wang, M.; Liu, Y.; Meng, X.; Ye, Y.; Song, X.; Liang, Z. Novel D-π-A Conjugated Microporous Polymer as Visible Light-Driven Oxidase Mimic for Efficient Colorimetric Detection of Glutathione. Sensor. Actuat. B Chem. 2021, 326, 128808. [Google Scholar] [CrossRef]
  52. Li, S.; Zhao, W.; Li, H.; Fang, Q. A Photoresponsive Azobenzene-functionalized Covalent Organic Framework. Chem. J. Chin. Univ. 2020, 41, 1384–1390. [Google Scholar]
  53. Bujak, K.; Nocon, K.; Jankowski, A.; Wolinska-Grabczyk, A.; Schab-Balcerzak, E.; Janeczek, H.; Konieczkowska, J. Azopolymers with Imide Structures as Light-Switchable Membranes in Controlled Gas Separation. Eur. Polym. J. 2019, 118, 186–194. [Google Scholar] [CrossRef]
  54. Kanj, A.B.; Mueller, K.; Heinke, L. Stimuli-Responsive Metal–Organic Frameworks with Photoswitchable Azobenzene Side Groups. Macromol. Rapid Commun. 2018, 39, 1700239. [Google Scholar] [CrossRef]
  55. Mukhopadhyay, R.D.; Praveen, V.K.; Ajayaghosh, A. Photoresponsive Metal–Organic Materials: Exploiting the Azobenzene Switch. Mater. Horiz. 2014, 1, 572–576. [Google Scholar] [CrossRef]
Molecules 26 04993 sch001
Scheme 1. The synthetic process of JJU-1 via FeCl3-promoted oxidative coupling polymerization.
Scheme 1. The synthetic process of JJU-1 via FeCl3-promoted oxidative coupling polymerization.
Molecules 26 04993 sch001
Molecules 26 04993 g001

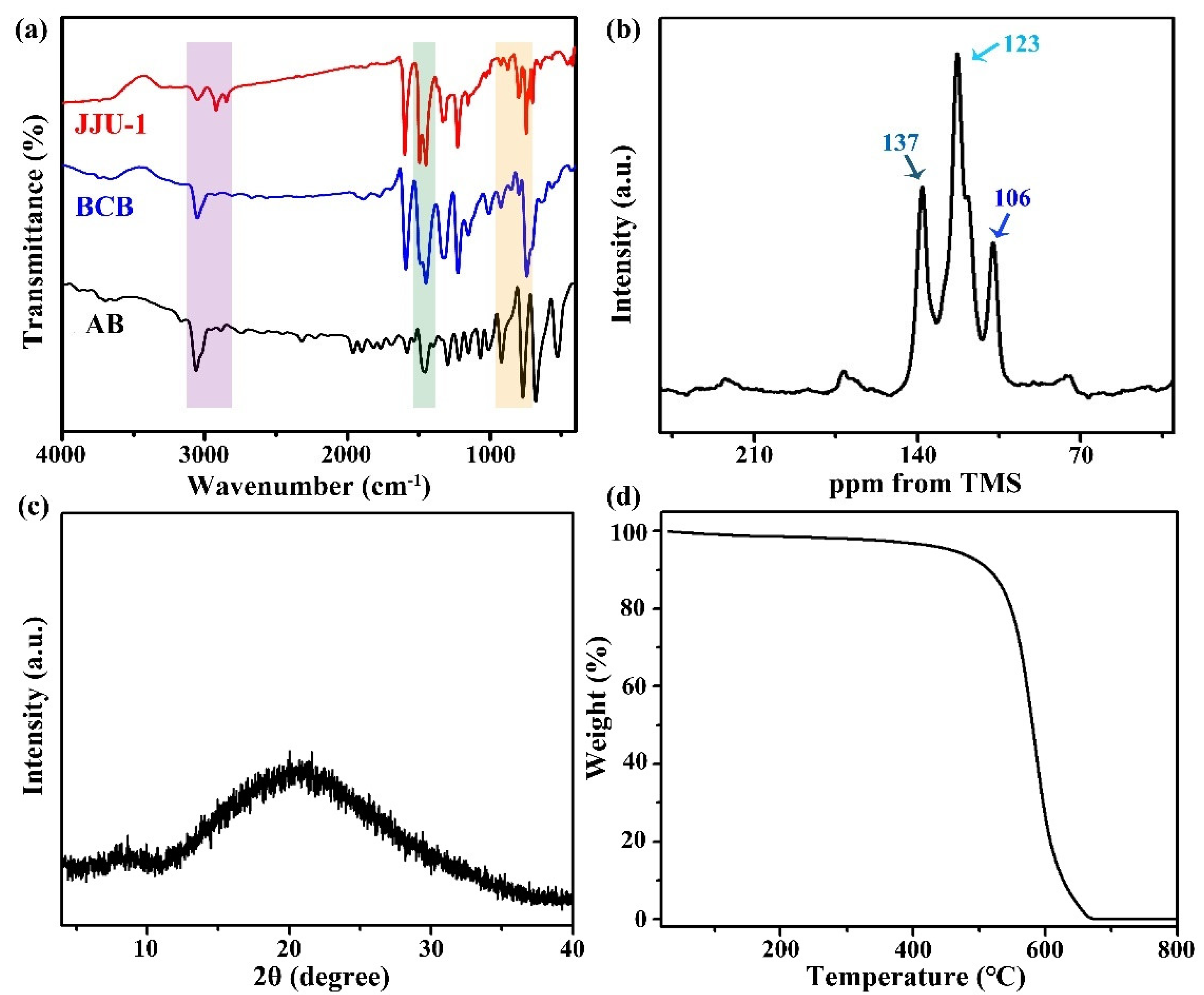

Figure 1. (a) FT-IR spectra of AB (black), BCB (blue) and JJU-1 (red); (b) the 13C solid-state NMR spectrum; (c) PXRD and (d) TGA curve of JJU-1.
Figure 1. (a) FT-IR spectra of AB (black), BCB (blue) and JJU-1 (red); (b) the 13C solid-state NMR spectrum; (c) PXRD and (d) TGA curve of JJU-1.
Molecules 26 04993 g001
Molecules 26 04993 g002

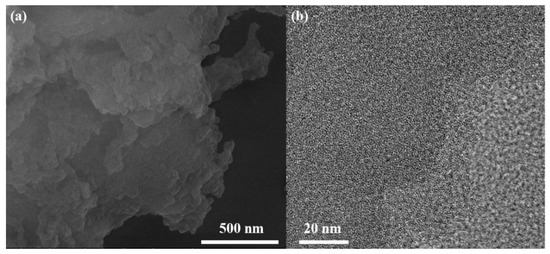

Figure 2. (a) SEM and (b) TEM images of the as-synthesized JJU-1.
Figure 2. (a) SEM and (b) TEM images of the as-synthesized JJU-1.
Molecules 26 04993 g002
Molecules 26 04993 g003
Figure 3. (a) N2 adsorption and desorption isotherms and (b) pore size distributions of initial JJU-1 (black) and after UV irradiation for 5 h (red).
Figure 3. (a) N2 adsorption and desorption isotherms and (b) pore size distributions of initial JJU-1 (black) and after UV irradiation for 5 h (red).
Molecules 26 04993 g003
Molecules 26 04993 g004

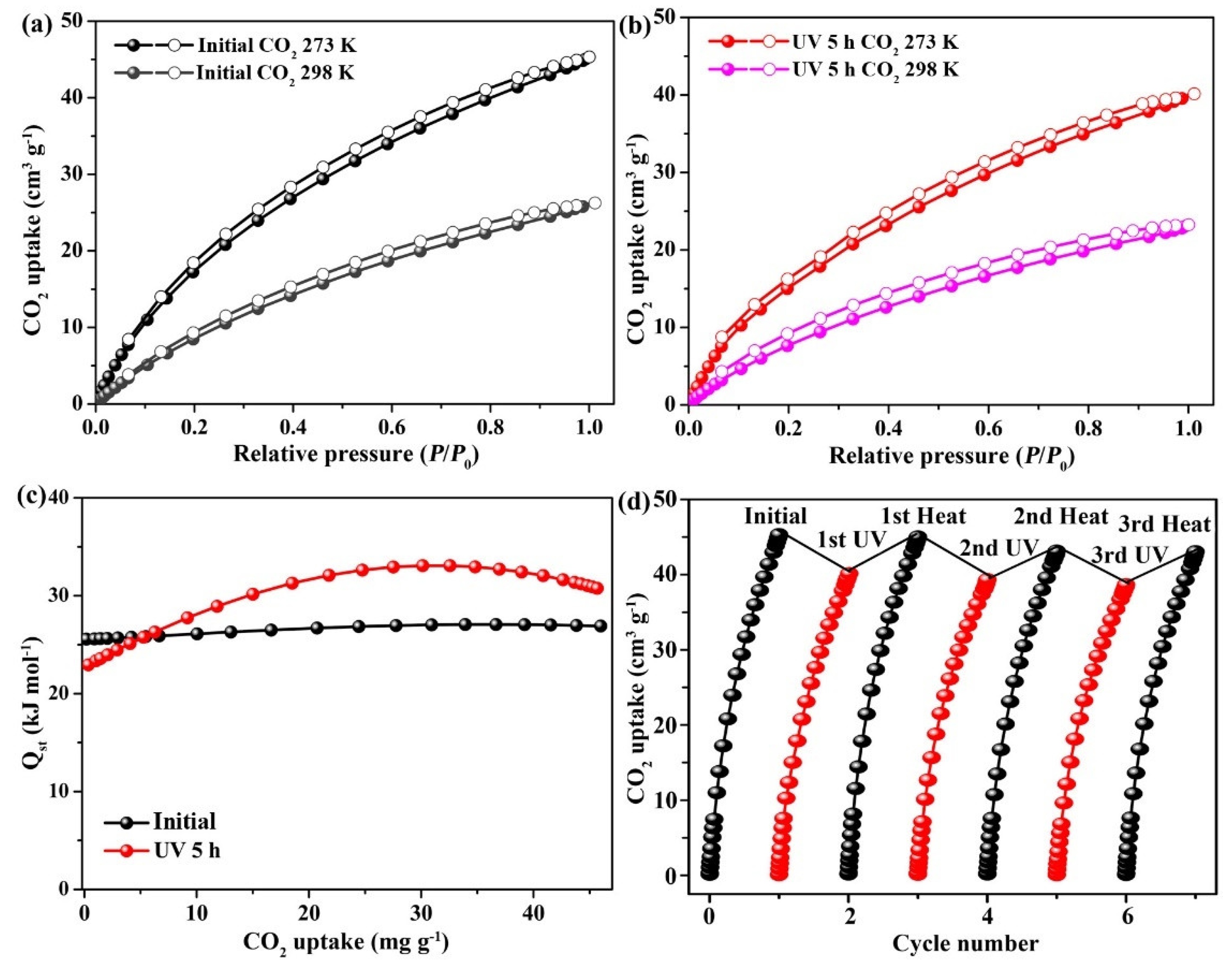

Figure 4. CO2 adsorption isotherms of (a) initial JJU-1 and (b) JJU-1 after UV irradiation for 5 h; (c) the corresponding Qst plots; (d) the reversibility of JJU-1 after UV and heat treatment for three cycles.
Figure 4. CO2 adsorption isotherms of (a) initial JJU-1 and (b) JJU-1 after UV irradiation for 5 h; (c) the corresponding Qst plots; (d) the reversibility of JJU-1 after UV and heat treatment for three cycles.
Molecules 26 04993 g004
Table 1. Summary of porosity, pore volume and CO2 adsorption properties for JJU-1.
Table 1. Summary of porosity, pore volume and CO2 adsorption properties for JJU-1.
SamplesSABET a
[m2 g–1]		SALangmuir b
[m2 g–1]		VTotal c
[cm3 g–1]		VMicro d
[cm3 g–1]		CO2 Uptake
[cm3 g–1]		Qst CO2
(kJ mol–1)
273 K298 K
Initial4675300.310.1545.326.327.1
UV 5 h4695320.340.1740.123.233.1
a Surface area (m2 g−1) calculated from the N2 adsorption based on the BET model; b Surface area (m2 g−1) calculated from the N2 adsorption isotherms based on the Langmuir model; c The total pore volume (cm3 g−1) calculated at P/P0 = 0.97; d The micropore volume (cm3 g−1) calculated by the t-plot method.
Table 2. Summary of CO2 adsorption properties of JJU-1.
Table 2. Summary of CO2 adsorption properties of JJU-1.
JJU-1CO2 Uptake (273 K, 1 bar), [cm3 g−1]
Initial45.3
1st UV40.1
1st Heat45.0
2nd UV39.3
2nd Heat43.1
3rd UV38.7
3rd Heat43.1
Publisher’s Note: MDPI stays neutral with regard to jurisdictional claims in published maps and institutional affiliations.
