Molecular Dynamics Simulations for Effects of Fluoropolymer Binder Content in CL-20/TNT Based Polymer-Bonded Explosives

by
Shenshen Li
and
Jijun Xiao
*
Molecules and Materials Computation Institute, School of Chemistry and Chemical Engineering, Nanjing University of Science and Technology, Nanjing 210094, China
*
Author to whom correspondence should be addressed.
Molecules 2021, 26(16), 4876; https://doi.org/10.3390/molecules26164876
Submission received: 8 July 2021 / Revised: 5 August 2021 / Accepted: 9 August 2021 / Published: 12 August 2021
(This article belongs to the Special Issue Promising High-Energy-Density Materials)
Browse Figures
Review Reports Versions Notes

Abstract

:
In order to better understand the role of binder content, molecular dynamics (MD) simulations were performed to study the interfacial interactions, sensitivity and mechanical properties of 2,4,6,8,10,12-hexanitro-2,4,6,8,10,12-hexaazaisowurtzitane/2,4,6-trinitrotoluene (CL-20/TNT) based polymer-bonded explosives (PBXs) with fluorine rubber F2311. The binding energy between CL-20/TNT co-crystal (1 0 0) surface and F2311, pair correlation function, the maximum bond length of the N–NO2 trigger bond, and the mechanical properties of the PBXs were reported. From the calculated binding energy, it was found that binding energy increases with increasing F2311 content. Additionally, according to the results of pair correlation function, it turns out that H–O hydrogen bonds and H–F hydrogen bonds exist between F2311 molecules and the molecules in CL-20/TNT. The length of trigger bond in CL-20/TNT were adopted as theoretical criterion of sensitivity. The maximum bond length of the N–NO2 trigger bond decreased very significantly when the F2311 content increased from 0 to 9.2%. This indicated increasing F2311 content can reduce sensitivity and improve thermal stability. However, the maximum bond length of the N–NO2 trigger bond remained essentially unchanged when the F2311 content was further increased. Additionally, the calculated mechanical data indicated that with the increase in F2311 content, the rigidity of CL-20/TNT based PBXs was decrease, the toughness was improved.

1. Introduction

High-performance and insensitive explosives are always the target of researchers in the field of energetic materials [1,2,3,4]. However, high performance and safety are somewhat mutually exclusive for current single compound explosives, which seriously limits their development and applications [5,6]. Among well-known commercially available single-compound explosives, 2,4,6,8,10,12-hexanitro-2,4,6,8,10,12-hexaazaisowurtzitane (CL-20) is the most famous high energy density compound [7], which features high density and high detonation velocity but fails to meet the important safety requirements due to its high sensitivity [8]. Contrasting with CL-20, 2,4,6-trinitrotoluene (TNT) has different features in many ways [9,10,11,12], including low oxygen balance, modest detonation velocity, economical production costs, and low impact sensitivity, but energy density is relatively low. Fortunately, the method of producing co-crystals offers a practical solution to improve certain properties of energetic materials such as oxygen balance, sensitivity, detonation velocity, and safety [13,14,15]. Bolton [16] prepared co-crystal of CL-20/TNT in a 1:1 molar ratio, which exhibits lower sensitivity than CL-20, and has closed detonation performance and oxygen balance to CL-20.
The combination of explosives with polymeric binders to form polymer-bonded explosives (PBXs) was an important advancement in high-explosives science, offering improved safety and reliability, while maintaining performance [17,18,19]. Based on those advantages, PBXs are widely applied in many defense and economic scopes. A lot of experimental research [8,20] and theoretical studies [21,22,23] on energetic composite materials including PBXs are drawing more and more attention in recent decades. Not only can PBXs reduce the impact and friction sensitivity of explosives in PBXs [24,25], but they also have good physical and mechanical properties of polymers [26,27] and hence can be produced and used safely and conveniently.
Due to a balance of chemical and mechanical properties with processability when mixed with explosives, fluoropolymers emerged as commonly used binder [28]. To estimate the effect of the polymer binders on the co-crystal-based PBXs, we select fluoropolymer F2311 as the polymeric binder in CL-20/TNT based PBXs, which is a random copolymer made up of vinylidenedifluoride (VDF) and chlorotrifluoroethylene (CTFE) with the molar ratio of 1:1, showed in Figure 1a.
The goal of this study is to explore intermolecular interactions and mechanical properties of the CL-20/TNT-based PBXs in different F2311 contents using molecular dynamics (MD) simulation. This paper is arranged as follows. At first, several CL-20/TNT based PBXs in different F2311 content were constructed. Then, we performed MD simulations to study interactions between CL-20/TNT and F2311 and the mechanical properties of PBXs. Pair correlation function (PCF) was used to explore the interface structures between the co-crystal explosive and the polymer binders. Binding energy (Ebind) can provide information about interfacial reaction and thermal stability. More specifically, N-NO2 trigger bond lengths of CL-20 were discussed in terms of the relationship with sensitivity. In addition, the mechanical properties such as tensile modulus (E), bulk modulus (K), shear modulus (G), Poisson’s ratio (ν) and Cauchy pressure (C12-C44) were also calculated, and both are discussed in this paper.

2. Models and Computational Methods

All simulations were conducted utilizing the condensed-phase optimized molecular potentials for atomistic simulation studies (COMPASS) force field [29], which is suitable for simulations of nitro-compound explosives and their PBXs, and is suitable for calculating of interfacial interactions between different components in PBXs [30,31,32]. The primitive CL-20/TNT co-crystal cell [16] derived from X-ray diffraction contains 8 CL-20 molecules and 8 TNT molecules. Based on the co-crystal cell, the primary cell of CL-20/TNT corresponding to 6 (3 × 2 × 1) unit cells were built. We built four F2311 molecular chains, which contain 10, 36, 62 and 88 constitutional repeating units, respectively. Additionally, the corresponding amorphous F2311 cells were obtained by using the high-low pressure dynamics simulation method [33]. The procedure of building PBXs models were as follows. For the crystalline surfaces (1 0 0) of the CL-20/TNT cocrystal (3 × 2 × 1) unit cells, the c lattice length was 43.40 Å, and the corresponding interface, a × b, was 26.74 Å × 24.70 Å. Then, the corresponding interface, a × b, of the F2311 cells was changed to 26.74 Å × 24.70 Å; the size a × b was kept unchanged; c lattice lengths of fluoropolymer box step-by-step were resized until the F2311 theoretical density was reached; each step of the adjustment needs the molecular dynamics simulation running to equilibrium state. Then, PBXs models were made by merging F2311 fluoropolymer on the (1 0 0) crystalline surface of CL-20/TNT. Therefore, there are four PBXs models shown in Figure 2. The weight percentages of the F2311 in the PBXs models are 2.5%, 9.2%, 14.9% and 19.9%, respectively.
All the models were allowed to evolve dynamically in isothermal-isobaric (NPT) ensemble at 300K and atmospheric pressure, in which the temperature was maintained through the Andersen stochastic collision method [34] and the pressure was controlled via the Parrinello–Rahman [35] scheme with all cell parameters fully relaxed at atmospheric pressure. The van der Waals (vdW) interactions were truncated at 9.5 Å with long range tail correction, and the electrostatic interactions were calculated via the standard Ewald summation. The equations of motion were integrated with a step of 1 fs. Equilibration run was performed for 5 ns, which is referred to the equilibrium at the new state by running for a period for the simulating model and should be extended at least until the instantaneous values of the potential energy and temperature, etc., for the simulating model have ceased to show a systematic drift and have started to oscillate about steady mean values. After equilibration run, production runs of 1 ns were performed, during which data were collected with 10 fs sampling interval for analysis. These computations were all carried out using software Material Studio from Biovia Inc.

3. Results and Discussions

3.1. Binding Energy

Binding energy (Ebind) is defined as the negative value of the intermolecular interaction energy (Einter). The intermolecular interaction energy between different components can calculate by subtracting individual component energy in the system from the total energy of the whole system [30]. As mentioned above, Ebind between CL-20/TNT and F2311 can be evaluated as Ebind = −Einter =−(Etotal − ECL-20/TNT − EF2311), where Etotal is the PBXs total energy, ECL-20/TNT and EF2311 are the energy of CL-20/TNT and F2311, respectively. Binding energy stands for the level of interaction between two components. In this paper, it can reflect the thermal stability of energetic systems and can find out the influence on PBXs with different F2311 contents. Etotal, ECL-20/TNT, EF2311, Ebind and Ebind′ are tabulated in Table 1, where Ebind′ is the Ebind of unit quantity of F2311 binders.
Based on the theoretical results shown in Table 1, we can find that the value of Ebind increases with increase in F2311 contents in PBXs, which means that increasing the F2311 content in CL-20/TNT-based PBXs can enhance the interaction between F2311 and CL-20/TNT and the thermodynamic stability of the PBXs. However, it was noticed that the trend of Ebind’ decreases with F2311 contents. Herein, we can find a reasonable explanation from the illustration in Figure 2, where it can be seen that the quantity of uncontacted F2311 with CL-20/TNT increased more with increasing of F2311 contents than the quantity of contacted F2311.

3.2. Pair Correction Function

The interface structure between CL-20/TNT and F3211 molecular chain was explored by pair correlation function (PCF). PCF gives a measure of probability density g(r) of finding an atom at some distance and thus provides insight into a material structure through revealed local spatial ordering. The PCF curves for different atom pairs in CL-20/TNT and F3211 were plotted in Figure 3. The oxygen atoms in CL-20/TNT, nitrogen atom in CL-20/TNT and fluorine atoms in F2311 were labeled as O, N and F, respectively, while hydrogen atoms in F2311 and CL-20/TNT were labeled as H1 and H2, respectively.
Generally the interaction distance range for hydrogen bond is 2.0–3.1 Å, and the distance range for stronger vdW and electrostatic interactions is 3.1–5.0 Å. When the distance between two atoms is farther than 5.0 Å, the vdW interaction is quite weak. From Figure 3a,b, it was found that in hydrogen bond range, the PCF curves all give comparatively high peaks, indicating that the hydrogen bonds exist in H2···F pairs and H1···O pairs of F2311 molecules and CL-20/TNT. Additionally, the peaks vary in intensity with F2311 content. From Figure 3a, we can find that the g(r) value of low F2311 content is mostly larger than high F2311 content. Similarly, the trend of g(r) value in Figure 3b is almost the same, but largest value for hydrogen bonds is 9.2% F2311 content. Figure 4 gives a visual representation of hydrogen bonding interactions of H1···O and of H2···F for 2.5% F2311 content, for example. For H1···N in Figure 3c, the curve has a comparatively high peak only in the vdW interaction range, implying only vdW and electrostatic interactions exist between H1···N.

3.3. N-NO2 Trigger Bond Length

For energetic compounds, there exists a criterion to theoretically judge the relative sensitivity [22]. According to Principle of Smallest Bond Order (PBSO) based on quantum chemical calculation, for a series of energetic compounds with smaller bond order of trigger bond in molecular means the compound is more sensitive [36,37]. This principle has been used extensively in the prediction of impact sensitivity for various types of energetic compounds. Classical MD simulation does not provide electronic structure, and cannot give the bond order data. However, MD simulation can provide statistical distribution of bond length instead of the bond order data. Usually, chemical bond length can be characterized by the bond order and bond length in molecular. Thus it is suitable to evaluate sensitivity based on the molecular structure parameter, bond length, obtained through MD simulation.
We all know that the N-NO2 bond is a trigger bond of nitramine explosives. Additionally, it is well know that CL-20 is more sensitive than TNT, and the CL-20 component in CL-20/TNT is prior to decompose in detonation. Therefore, in this work, the N-NO2 bond in CL-20 is chosen as the trigger bond. Table 2 presents the results of trigger bond (N-NO2) lengths of CL-20 component in PBXs at different F2311 contents. When the bond length is longer, the bond is fractured more easily, which makes CL-20 molecules more active and decompose more easily. It can be found from Table 2 that the average bond lengths Lave of all the models are almost unchanged, but the maximum bond length (Lmax) of trigger bond has more obvious change with F2311 content increasing, which means that Lmax of the trigger bond is more tightly correlated to the initial bond fractured in PBXs’ detonation. As the content increases, the maximum bond length decreases gradually. When the content of F2311 rose to 9.2%, the Lmax decreased from 1.5972 Å to 1.5817 Å. After that, the Lmax changed slightly, basically maintaining the level of 9.2%. The change is consistent with the fact that energetic material becomes less sensitive as F2311 content increases. Hence, using Lmax to measure the sensitivity of energetic is efficient. Additionally, we can find that when the content of F2311 reaches 9.2%, continuous increase of the F2311 content has less effect on the sensibility.

3.4. Mechanical Properties

Mechanical properties are the most important properties of energy materials, because they are related to the preparation, storage, transportation and usage of materials. Elastic modulus is the index of a material’s stiffness, and it is also the measurement of a material’s resistance to elastic deformation. The plasticity and fracture properties can be related to the elastic modulus. Higher shear modulus means higher stiffness and shear strength, reflecting resistance to shearing strain [23,38,39]. Higher bulk modulus means higher rupture strength, that is, the greater the value of K is, the more energy will be required for a material to rupture [31,40,41]. Cauchy pressure (C12-C44) can reflect the brittle/ductile behavior of a material. The high value of Cauchy pressure (C12-C44) is related to ductility, and the low value is related to brittleness. When a material is compressed in one direction, it usually tends to expand in the other two directions perpendicular to the direction of compression. Poisson’s ratio is a measure of this effect.
Based on the fluctuation analysis of the production trajectories and Reuss average [42] of the co-crystal model (without F2311 binder) and its corresponding PBXs models, the calculated tensile modulus (E), bulk modulus (K), shear modulus (G), Poisson’s ratio (ν), Cauchy pressure (C12-C44) are listed Table 3. As we can see from Table 3, E, K and G reduced gradually with the increase of F2311 content, indicating that the stiffness of the PBXs decreases. Additionally, it can be found that the polymer addition has less effect on Poisson’s ratio. The Cauchy pressure (C12-C44) values increase with F2311 content increasing, which can be deduced that the ductility of the Cl-20/TNT based PBXs increases with increasing F2311 content. Generally, less stiffness and better ductility for PBXs compared to CL-20/TNT means it is easier to deplete and disperse partially the external stimulus energy imposed on them during loading and transportation, which can reduce possibility of hot spots, and thus has lower sensitivity.

4. Conclusions

In this study, we performed a NPT-MD simulations of CL-20/TNT-based PBXs with F2311 as polymeric binders. The simulations involved binding energy calculation and PCF analysis for the thermal stability evaluation and the interfacial structure exploration between the co-crystal and F2311, the maximum bond length of the N–NO2 trigger bond and mechanical property computation. These studies are in favor of theoretical research and practical applications of the co-crystal.
From the calculated binding energies, Ebind between F2311 and Cl-20/TNT increases with the increasing content of F2311, but Ebind of unit quantity of F2311 binders reduces due to the specific surface area of F2311 contacted CL-20/TNT. Therefore, the interaction between the binder and the explosive can be improved by increasing the contact area of binder and explosive. PCF analysis of atom pairs in the interfacial structure has indicated that hydrogen bond exists between CL-20/TNT and F2311. Additionally, the hydrogen bond mainly came from H1···O and of H2···F. By analyzing the maximum bond length of N-NO2 trigger bond, it can be found that increasing F2311 content can decrease the sensitivity of CL-20/TNT based PBXs, but a continuous increase in the F2311 content has less effect on the sensibility when the content of F2311 reaches 9.2%. The mechanical properties shows that as the F2311 content increases, the moduli of CL-20/TNT-based PBXs decrease, but the ductility was improved. To sum up, the small amount of polymer binders F2311 coating with the CL-20/TNT co-crystal makes the PBXs more insensitive and give them better mechanical properties.

Author Contributions

Conceptualization, S.L. and J.X.; methodology, S.L.; formal analysis, S.L.; investigation, S.L.; writing—original draft preparation, S.L.; writing—review and editing, J.X.; visualization, S.L.; supervision, J.X.; funding acquisition, J.X. All authors have read and agreed to the published version of the manuscript.

Funding

The research was funded by the grant from the National Natural Science Foundation of China (Grant No. 11572160).

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Data Availability Statement

All data are contained within the article.

Acknowledgments

The authors would like to thank the grant from the National Natural Science Foundation of China (Grant No. 11572160).

Conflicts of Interest

The author declares no conflict of interest.

Sample Availability

Samples of the compounds used in this study are available from the authors.

References

  1. Xiao, H.M.; Xu, X.J.; Qiu, L. Theoretical Design of High. Energy Density Materials; Science Press: Beijing, China, 2008. [Google Scholar]
  2. Xiao, J.J.; Zhu, W.H.; Zhu, W.; Xiao, H.M. Molecular Dynamics of Energetic Materials; Science Press: Beijing, China, 2013. [Google Scholar]
  3. Sikder, A.K.; Sikder, N. A review of advanced high performance, insensitive and thermally stable energetic materials emerging for military and space applications. J. Hazard. Mater. 2004, 112, 1–15. [Google Scholar] [CrossRef]
  4. Agrawal, J.P. Recent trends in high-energy materials. Prog. Energy Combust. Sci. 1998, 24, 1–30. [Google Scholar] [CrossRef]
  5. Huang, X.; Zhao, X.; Long, X.; Dai, X.; Zhang, K.; Li, M.; Guo, F.; Qiao, Z.; Wen, Y. Comparison Study of Carbon Clusters Formation during Thermal Decomposition of 1,3,5-triamino-2,4,6-trinitrobenzene and Benzotrifuroxan: A ReaxFF based Sequential Molecular Dynamics Simulation. Phys. Chem. Chem. Phys. 2020, 22, 5154–5162. [Google Scholar] [CrossRef]
  6. CHOI, C.S.; BOUTIN, H.P. A Study of the Crystal Structure of β-cyclotetramethylene Tetranitramine by Neutron Diffraction. Acta Cryst. B 1970, 26, 1235–1240. [Google Scholar] [CrossRef]
  7. Li, H.; Shu, Y.; Gao, S.; Chen, L.; Ma, Q.; Ju, X. Easy methods to study the smart energetic TNT/CL-20 co-crystal. J. Mol. Model. 2013, 19, 4909–4917. [Google Scholar] [CrossRef]
  8. Pang, W.Q.; Wang, K.; Zhang, W.; Luca, L.T.; Fan, X.Z.; Li, J.Q. CL-20-Based Cocrystal Energetic Materials: Simulation, Preparation and Performance. Molecules 2020, 25, 4311. [Google Scholar] [CrossRef]
  9. Jia, Q.; Lei, D.; Zhang, S.; Zhang, J.; Liu, N.; Kou, K. Solubility Measurement and Correlation for HNIW·TNT Co-crystal in Nine Pure Solvents from T = (283.15 to 318.15) K. J. Mol. Liq. 2021, 323, 114592. [Google Scholar] [CrossRef]
  10. Liu, H.; Li, Q.K.; He, Y.H. Pyrolysis of CL20-TNT Cocrystal from ReaxFF/lg Reactive Molecular Dynamics Simulations. Acta Phys. Sin. Chin. Ed. 2013, 62, 208202. [Google Scholar] [CrossRef]
  11. Sha, Y.; Zhang, X. Impact sensitivity and moisture adsorption on the surface of CL-20/TNT cocrystal by molecular dynamics simulation. Appl. Surf. Sci. 2019, 483, 91–97. [Google Scholar] [CrossRef]
  12. Zhu, S.; Ji, J.; Zhu, W. Intermolecular Interactions, Vibrational Spectra, and Detonation Performance of CL-20/TNT Cocrystal. J. Chin. Chem. Soc. 2020, 67, 1742–1752. [Google Scholar] [CrossRef]
  13. Bao, L.; Lv, P.; Fei, T.; Liu, Y.; Sun, C.; Pang, S. Crystal structure and explosive performance of a new CL-20/benzaldehyde cocrystal. J. Mol. Struct. 2020, 1215, 128267. [Google Scholar] [CrossRef]
  14. Chen, P.Y.; Zhang, L.; Zhu, S.G.; Cheng, G.B. Theoretical Study of BTF/TNA Cocrystal: Effects of Hydrostatic Pressure and Temperature. Def. Technol. 2015, 11, 132–139. [Google Scholar] [CrossRef] [Green Version]
  15. Liu, G.R.; Wei, S.H.; Zhang, C.Y. Review of the Intermolecular Interactions in Energetic Molecular Cocrystals. Cryst. Growth. Des. 2020, 20, 7065–7079. [Google Scholar] [CrossRef]
  16. Bolton, O.; Matzger, A.J. Improved stability and smart-material functionality realized in an energetic cocrystal. Angew. Chem. Int. Ed. 2011, 50, 8960–8963. [Google Scholar] [CrossRef] [PubMed]
  17. He, Z.; Meng, T.; Wang, Y.; Guo, Z.; Liu, F.; Liu, Z. Effect of 2,4,6-Triamino-3,5-Dinitropyridine-1-Oxide on the Properties of 1,3,5-Trinitro-1,3,5-Triazinane-based PBX Explosives. Propellants Explos. Pyrotech. 2021, 46, 530–536. [Google Scholar] [CrossRef]
  18. Xu, X.J.; Xiao, J.J.; Huang, H.; Li, J.S.; Xiao, H.M. Molecular Dynamics Simulations on the Structures and Properties of ε-CL-20-based PBXs. Sci. China Ser. B Chem. 2007, 50, 737–745. [Google Scholar] [CrossRef]
  19. Liu, B.; Gao, P.; Li, S.s.; Xiao, Y.; Xiao, J. Molecular Dynamics Investigation of Adhesion Between CL-20/TNT Co-crystal Surfaces and Adhesives of PLA, PCL, P(LA-co-CL). Chem. J. Chin. Univ. Chin. 2018, 11, 2556–2564. [Google Scholar]
  20. Zhou, Z.; Chen, P.; Duan, Z.; Huang, F. Study on Fracture Behaviour of a Polymer-Bonded Explosive Simulant Subjected to Uniaxial Compression Using Digital Image Correlation Method. Strain 2012, 48, 326–332. [Google Scholar] [CrossRef]
  21. Dandekar, A.; Koslowski, M. Effect of particle proximity and surface properties on the response of PBX under vibration. Comput. Mater. Sci. 2021, 192, 110334. [Google Scholar] [CrossRef]
  22. Xiao, J.J.; Wang, W.R.; Chen, J.; Ji, G.F.; Zhu, W.; Xiao, H.M. Study on Structure, Sensitivity and Mechanical Properties of HMX and HMX-based PBXs with Molecular Dynamics Simulation. Comput. Theor. Chem. 2012, 999, 21–27. [Google Scholar] [CrossRef]
  23. Cao, Q.; Xiao, J.J.; Gao, P.; Li, S.S.; Zhao, F.; Wang, Y.A.; Xiao, H.M. Molecular dynamics simulations for CL-20/TNT co-crystal based polymer-bonded explosives. J. Theor. Comput. Chem. 2017, 16, 1750072. [Google Scholar] [CrossRef]
  24. Mares, J.O.; Miller, J.K.; Sharp, N.D.; Moore, D.S.; Adams, D.E.; Groven, L.J.; Rhoads, J.F.; Son, S.F. Thermal and mechanical response of PBX 9501 under contact excitation. J. Appl. Phys. 2013, 113, 084904. [Google Scholar] [CrossRef] [Green Version]
  25. Asay, B. Shock Wave Science and Technology Reference Library; Springer: Heidelberg, Germany, 2009. [Google Scholar]
  26. Yang, Y.; Li, X.; Zhao, Y.; Han, Y.; Sun, Y.; Wang, J. Preparation and characterization of core–shell structured FOX-7/F2602 PBX with improved thermal stability and reduced sensitivity. AIP Adv. 2021, 11, 025323. [Google Scholar] [CrossRef]
  27. Peiris, S.M.; Piermarini, G.J. Static Compression of Energetic Materials; Springer: Berlin/Heidelberg, Germany, 2008. [Google Scholar]
  28. Liu, J.H.; Yang, Z.J.; Liu, S.J.; Zhang, J.H.; Liu, Y.G. Effects of Fluoropolymer Binders on the Mechanical Properties of TATB-Based PBX. Propellants Explos. Pyrotech. 2018, 43, 664–670. [Google Scholar] [CrossRef]
  29. Sun, H. COMPASS: An Ab Initio Force-Field Optimized for Condensed-Phase Applications—Overview with Details on Alkane and Benzene Compounds. J. Phys. Chem. B 1998, 102, 7338–7364. [Google Scholar] [CrossRef]
  30. Sun, T.; Xiao, J.J.; Ji, G.; Zhao, F.; Xiao, H. Molecular Dynamics Simulation Studies of the CL-20/DNB Co-crystal. Cent. Eur. J. Energ. Mat. 2016, 13, 677–693. [Google Scholar] [CrossRef]
  31. Xu, X.; Xiao, J.; Huang, H.; Li, J.; Xiao, H. Molecular Dynamic Simulations on the Structures and Properties of Epsilon-CL-20(0 0 1)/F2314 PBX. J. Hazard. Mater. 2010, 175, 423–428. [Google Scholar] [CrossRef]
  32. Fu, J.; Wang, B.; Chen, Y.; Li, Y.; Tan, X.; Wang, B.; Ye, B. Computational analysis the relationships of energy and mechanical properties with sensitivity for FOX-7 based PBXs via MD simulation. Roy. Soc. Open Sci 2021, 8, 200345. [Google Scholar] [CrossRef] [PubMed]
  33. Ren, H.; Zhang, Q.; Chen, X.; Zhao, W.; Zhang, J.; Zhang, H.; Zeng, R.; Xu, S. A molecular simulation study of a series of cyclohexanone formaldehyde resins: Properties and applications in plastic printing. Polymer 2007, 48, 887–893. [Google Scholar] [CrossRef]
  34. Andersen, H.C. Molecular dynamics simulations at constant pressure and/or temperature. J. Chem. Phys. 1980, 72, 2384–2393. [Google Scholar] [CrossRef] [Green Version]
  35. Martyna, G.J.; Tobias, D.J.; Klein, M.L. Constant Pressure Molecular Dynamics Algorithms. J. Chem. Phys. 1994, 101, 4177–4189. [Google Scholar] [CrossRef]
  36. Xiao, J.J.; Zhao, L.; Zhu, W.; Chen, J.; Ji, G.F.; Zhao, F.; Wu, Q.; Xiao, H.M. Molecular Dynamics Study on the Relationships of Modeling, Structural and Energy Properties with Sensitivity for RDX-based PBXs. Sci. China Chem. 2012, 55, 2587–2594. [Google Scholar] [CrossRef]
  37. Xiao, H.M.; Wang, Z.X.; Yao, J.M. Quantum Chemical Study on Sensitivity and Stability of Aromatic Nitro Explosives I. Nitro Derivatives of Aminobenzenes. Acta Chim. Sin. 1985, 43, 14–18. [Google Scholar]
  38. Sun, T.; Xiao, J.J.; Liu, Q.; Zhao, F.; Xiao, H.M. Comparative Study on Structure, Energetic and Mechanical Properties of a ε-CL-20/HMX Cocrystal and its Composite with Molecular Dynamics Simulation. J. Mater. Chem. A 2014, 2, 13898. [Google Scholar] [CrossRef]
  39. Hu, Q.M.; Yang, R. Mechanical properties of structural materials from first-principles. Curr. Opin. Solid State Mater. Sci. 2006, 10, 19–25. [Google Scholar] [CrossRef]
  40. Xiao, Y.Q.; Sun, T.; Li, S.S.; Xiao, J.J. Molecular Dynamics Simulation Studies of the CL-20/DNB Co-crystal Based PBX with HTPB. J. Phys. Conf. Ser. 2021, 1721, 012010. [Google Scholar] [CrossRef]
  41. Xu, X.J.; Xiao, H.M.; Xiao, J.J.; Zhu, W.; Huang, H.; Li, J.S. Molecular Dynamics Simulations for Pure ε-CL-20 and ε-CL-20-based PBXs. J. Phys. Chem. B 2006, 110, 7203–7207. [Google Scholar] [CrossRef]
  42. Parrinello, M.; Rahman, A. Strain Fuctuation and Elastic Constants. J. Chem. Phys. 1982, 76, 2662–2666. [Google Scholar] [CrossRef]
Molecules 26 04876 g001 550

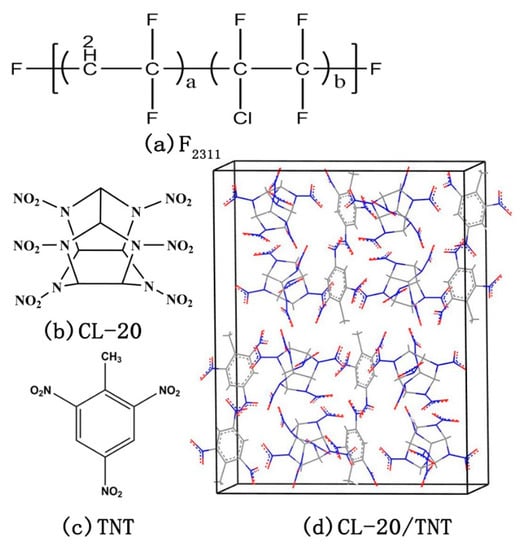

Figure 1. Molecular structures of (a) F2311, (b) CL-20, and (c) TNT. (d) The primitive cell of the CL-20/TNT co-crystal.
Figure 1. Molecular structures of (a) F2311, (b) CL-20, and (c) TNT. (d) The primitive cell of the CL-20/TNT co-crystal.
Molecules 26 04876 g001
Molecules 26 04876 g002 550

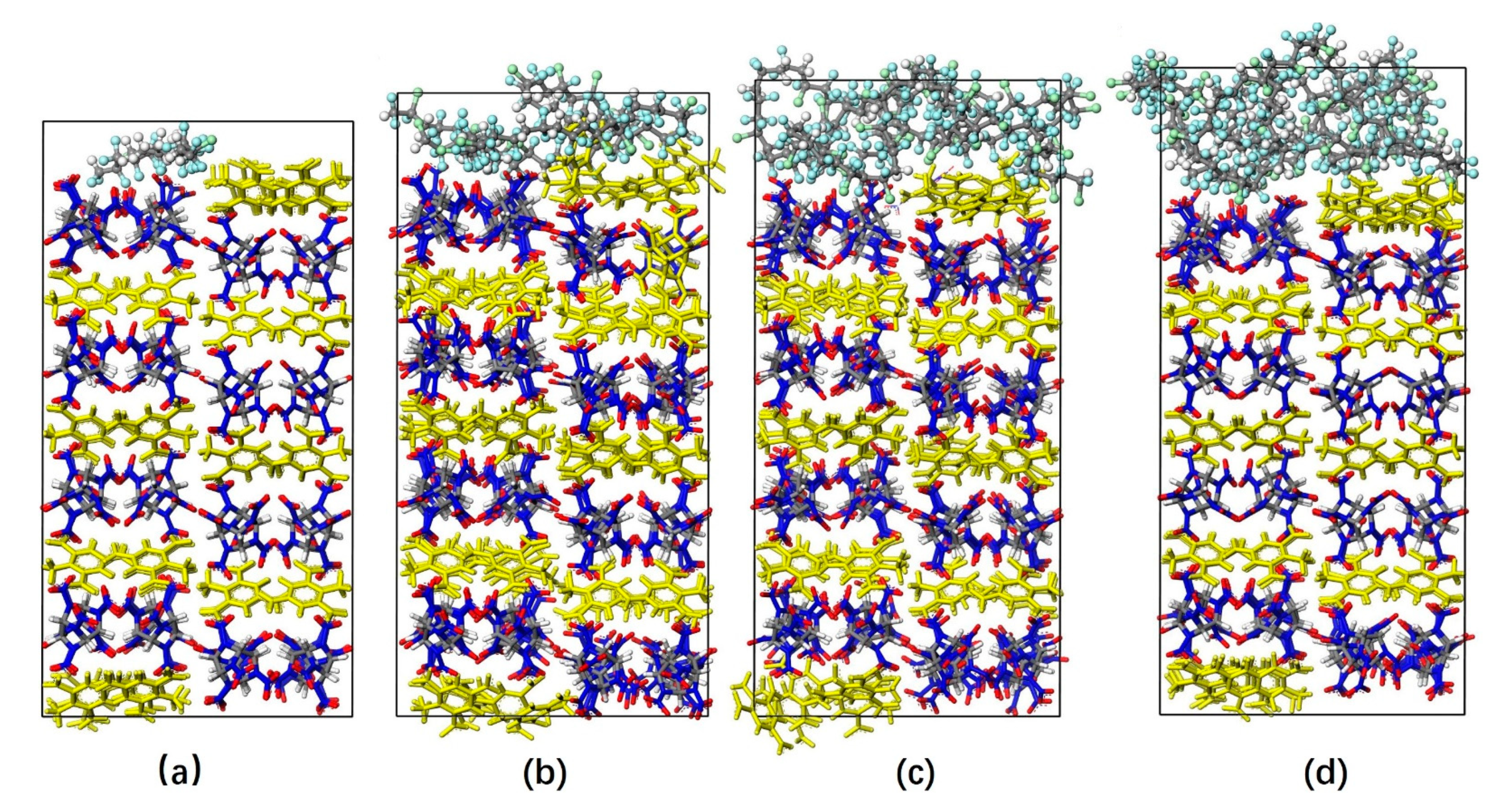

Figure 2. PBXs models with F2311 content (a) 2.5%, (b) 9.2%, (c) 14.9%, (d) 19.9% (CL-20 in stick model, TNT in yellow and F2311 in Ball model).
Figure 2. PBXs models with F2311 content (a) 2.5%, (b) 9.2%, (c) 14.9%, (d) 19.9% (CL-20 in stick model, TNT in yellow and F2311 in Ball model).
Molecules 26 04876 g002
Molecules 26 04876 g003 550

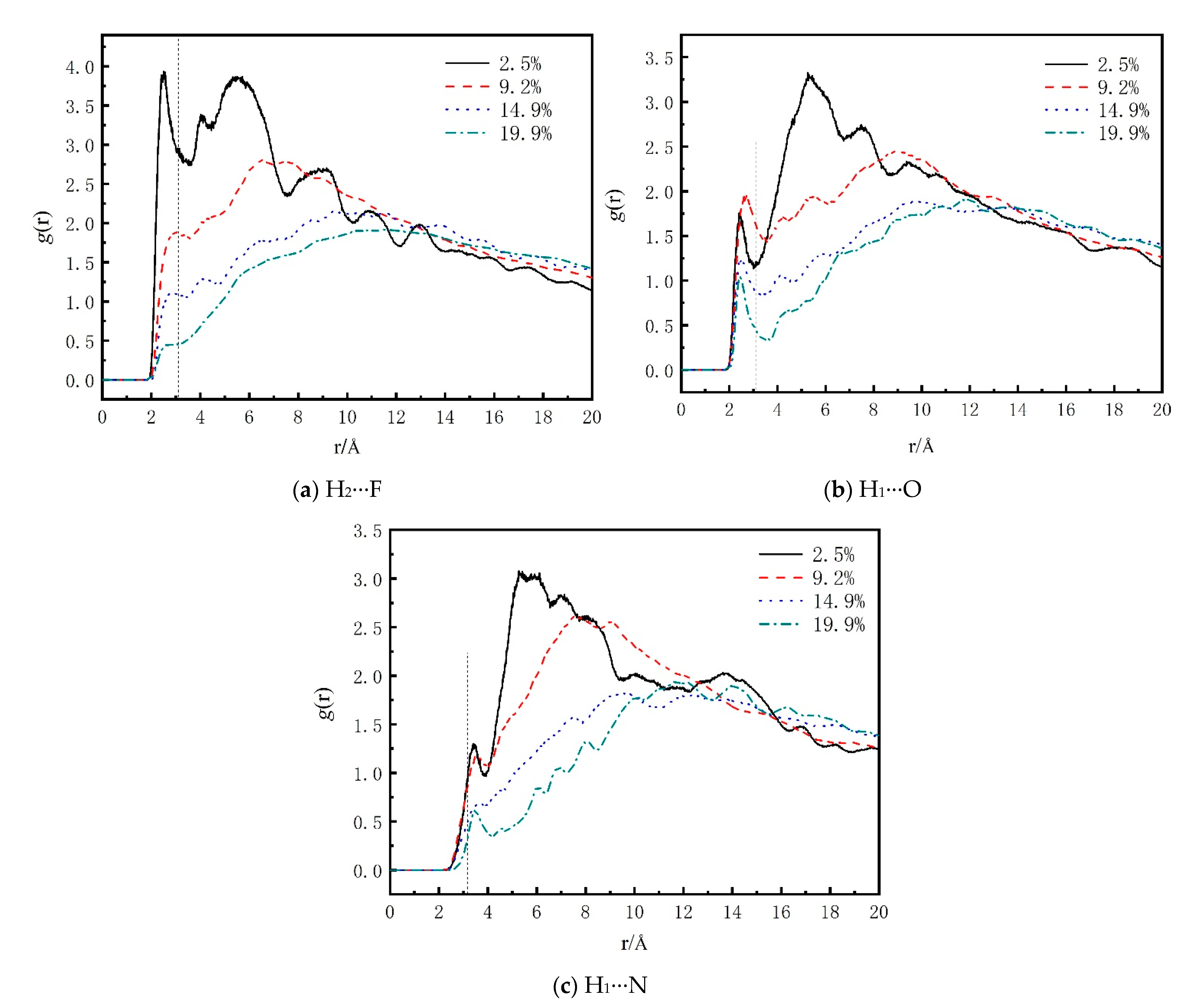

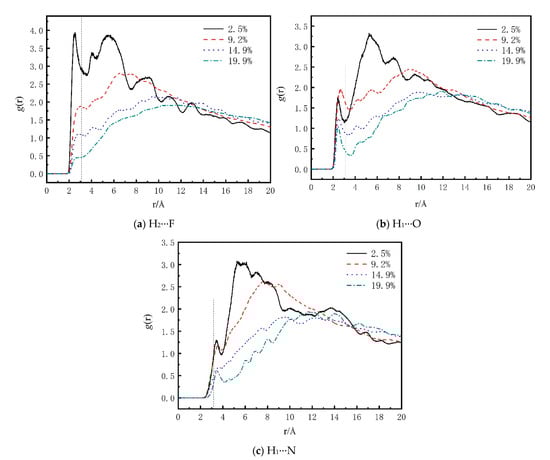

Figure 3. PCF for atom pairs in CL-20/TNT-based PBXs, (a) H2···F, (b) H1···O, (c) H1···N.
Figure 3. PCF for atom pairs in CL-20/TNT-based PBXs, (a) H2···F, (b) H1···O, (c) H1···N.
Molecules 26 04876 g003
Molecules 26 04876 g004 550

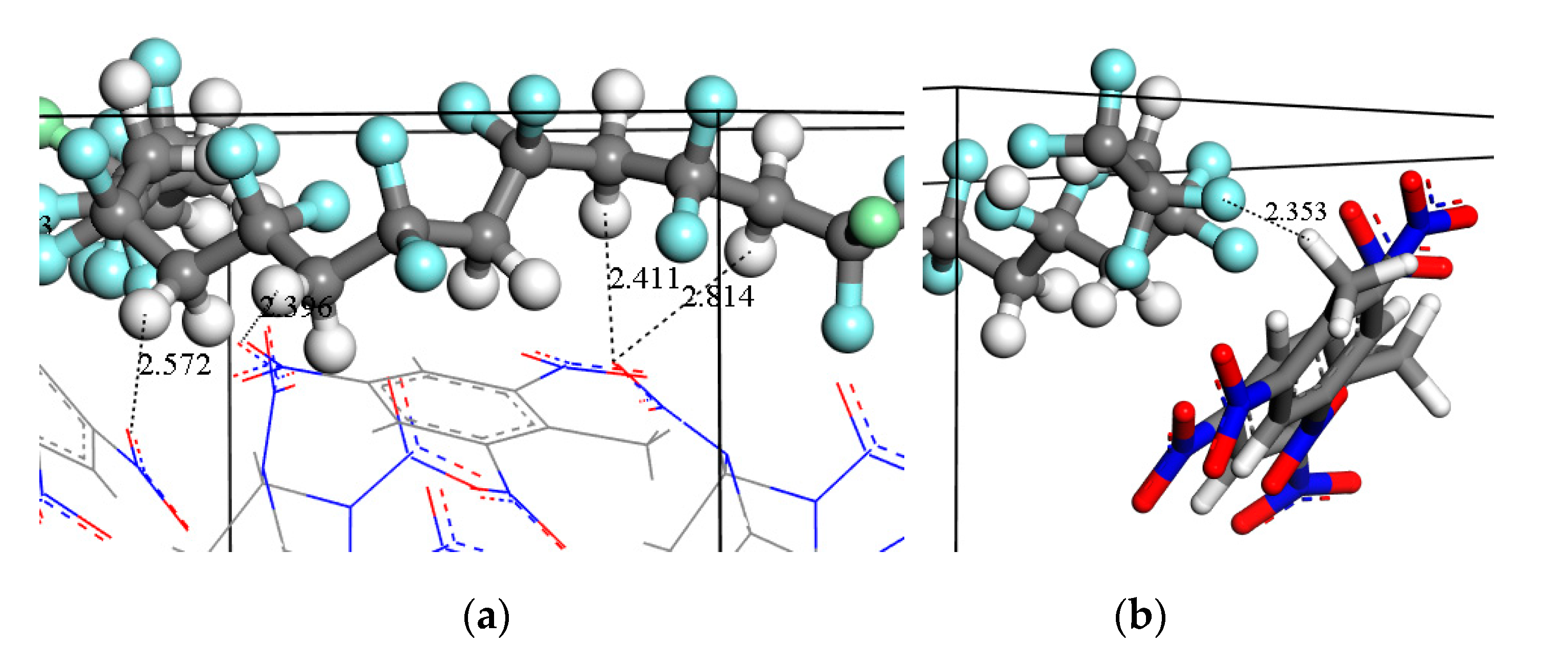

Figure 4. Illustration of hydrogen bonds of (a) O atoms in the co-crystal (red line model) with H atoms in F2311 (white ball) and (b) H atoms in the co-crystal (white stick) with F atoms in F2311 (pale blue ball).
Figure 4. Illustration of hydrogen bonds of (a) O atoms in the co-crystal (red line model) with H atoms in F2311 (white ball) and (b) H atoms in the co-crystal (white stick) with F atoms in F2311 (pale blue ball).
Molecules 26 04876 g004
Table
Table 1. Ebind, Etotal, EF2311, ECL-20/TNT and Ebind′ of PBXs in different F2311 contents a.
Table 1. Ebind, Etotal, EF2311, ECL-20/TNT and Ebind′ of PBXs in different F2311 contents a.
F2311 ContentsEbindEtotalEF2311ECL-20/TNTEbind′
2.5%90.64−1309.09−325.22−1267.5036.25
(7.13)(30.64)(9.07)(31.27)(1.59)
9.2%250.95−1341.98−643.64−1252.5227.27
(4.47)(30.82)(9.16)(28.65)(1.26)
14.9%281.69−1393.27−1137.96−1251.3018.90
(4.59)(29.36)(7.25)(23.24)(1.43)
19.9%356.72−1477.70−923.94−1256.5917.93
(6.75)(29.99)(7.82)(31.93)(1.22)
a Unit: kcal·mol−1; The corresponding deviations are listed in parenthesis.
Table
Table 2. The trigger bond (N-NO2) lengths (Å) of CL-20 at different F2311 contents a.
Table 2. The trigger bond (N-NO2) lengths (Å) of CL-20 at different F2311 contents a.
Content0.0%2.5%9.2%14.9%19.9%
Lave1.39271.39351.39361.39321.3934
(0.028) a(0.028)(0.031)(0.030)(0.030)
Lmax1.59721.58431.58171.58161.5817
a The corresponding deviations for Lave are listed in parenthesis.
Table
Table 3. Tensile modulus (E), bulk modulus (K), shear modulus (G), Poisson’s ratio (ν) and Cauchy pressure (C12-C44) for the PBXs models with different F2311 contents a.
Table 3. Tensile modulus (E), bulk modulus (K), shear modulus (G), Poisson’s ratio (ν) and Cauchy pressure (C12-C44) for the PBXs models with different F2311 contents a.
Content0.0%2.5%9.2%14.9%19.9%
E6.22(0.03)5.38(0.05)4.32(0.06)4.11(0.03)3.65(0.02)
K7.49(0.04)6.41(0.10)5.22(0.12)5.02(0.07)4.54(0.04)
G1.88(0.02)1.54(0.03)1.34(0.07)1.36(0.02)1.33(0.02)
ν0.38(0.02)0.39(0.00)0.38(0.00)0.38(0.00)0.37(0.00)
C12-C441.79(0.11)2.81(0.11)2.78(0.16)3.07(0.13)3.42(0.11)
a The corresponding deviations are listed in parenthesis. The units for E, K and G are GPa.
