A Comparative Study of Pyrolysis Liquids by Slow Pyrolysis of Industrial Hemp Leaves, Hurds and Roots

Department of Applied Physics, University of Eastern Finland, P.O. Box 1627, 70211 Kuopio, Finland
Department of Environmental Science, University of Eastern Finland, P.O. Box 1627, 70211 Kuopio, Finland
Department of Chemistry, University of Eastern Finland, P.O. Box 111, 80101 Joensuu, Finland
School of Pharmacy, University of Eastern Finland, P.O. Box 1627, 70211 Kuopio, Finland
SIB Labs, University of Eastern Finland, P.O. Box 1627, 70211 Kuopio, Finland
Author to whom correspondence should be addressed.
Molecules 2021, 26(11), 3167;
Submission received: 28 April 2021 / Revised: 21 May 2021 / Accepted: 22 May 2021 / Published: 25 May 2021
(This article belongs to the Special Issue Lignocellulosic Materials)


This study assessed the pyrolysis liquids obtained by slow pyrolysis of industrial hemp leaves, hurds, and roots. The liquids recovered between a pyrolysis temperature of 275–350 °C, at two condensation temperatures 130 °C and 70 °C, were analyzed. Aqueous and bio-oil pyrolysis liquids were produced and analyzed by proton nuclear magnetic resonance (NMR), gas chromatography–mass spectrometry (GC-MS), and atmospheric pressure photoionization Fourier transform ion cyclotron resonance mass spectrometry (APPI FT-ICR MS). NMR revealed quantitative concentrations of the most abundant compounds in the aqueous fractions and compound groups in the oily fractions. In the aqueous fractions, the concentration range of acetic acid was 50–241 gL−1, methanol 2–30 gL−1, propanoic acid 5–20 gL−1, and 1-hydroxybutan-2-one 2 gL−1. GC-MS was used to compare the compositions of the volatile compounds and APPI FT-ICR MS was utilized to determine the most abundant higher molecular weight compounds. The different obtained pyrolysis liquids (aqueous and oily) had various volatile and nonvolatile compounds such as acetic acid, 2,6-dimethoxyphenol, 2-methoxyphenol, and cannabidiol. This study provides a detailed understanding of the chemical composition of pyrolysis liquids from different parts of the industrial hemp plant and assesses their possible economic potential.

1. Introduction

The industrial hemp plant (Cannabis sativa. L.) is one of the cannabis varieties that is grown as an agricultural crop. Industrial hemp is an annual, non-psychoactive plant selected for its low concentration of the psychoactive compound, delta-9-tetrahydrocannabinol (Δ-9-THC), i.e., not more than 0.3% on a dry wet basis. Industrial hemp is characterized as a second-generation lignocellulosic biomass [1] and is mainly composed of cellulose (39–50%), hemicelluloses (18–25%), and lignin (21–24%) [2,3,4].
Hemp is a fast-growing crop that provides high quantity biomass in a short time with 10–15 t·ha−1 of hemp dry matter yields, a short vegetation period of 3–4 months, and a rapid growth up to 4 m in height. The short rotation nature of this crop and its fast growth are closely linked to the potential of using this biomass [5]. According to the European Industrial Hemp Association’s (EIHA) report published in 2017, hemp cultivation and its market have increased considerably and undergone a remarkable development since the 1990s due to the unique properties of this plant, making it suitable for many applications. Over 51 hemp species have been developed since 2013, compared to 12 species cultivated prior to 1995 [6].
Industrial hemp has two main commercial products, namely fibers and seeds. The main by-product is hurd from the production of fibers and seeds, but also the leaves or roots of the plant can be collected. Most of the leaves of hemp plant grown for fiber are returned to the field to serve as soil mulch. As a wide range of hemp varieties are good candidates for phytoremediation [7], extractives in the woody biomass such as hemp plant stalks and roots can be extracted and exploited for chemical, medicinal, and other uses. Roots are major contributors to the total biomass in woody and wood plants and they play critical roles in carbon sequestration [8,9]. Medical uses of hemp roots have been studied, e.g., Cannabis sativa. L. roots have been used to treat fever [10], difficult childbirth [11], gastrointestinal activity [12], sexually transmitted disease [13], inflammation [14], tumors, arthritis, and joint pain, as has been previously reviewed [15]. Despite a long history of medicinal use, the roots of cannabis plants have been mostly ignored in modern medical research and thermochemical processes.
The pyrolysis of biomass is an irreversible thermochemical conversion method that involves the thermal decomposition of biomass in the absence of oxygen to obtain three product states, i.e., solid char, condensable gases, and non-condensable gases [16,17]. The classification of pyrolysis methods such as slow pyrolysis, fast pyrolysis, and gasification depends on, e.g., temperature, heating rate, reaction, and residence time. A key factor enhancing the environmental sustainability of slow pyrolysis of biomass is the production of biochar and its various applications as well as the production of pyrolysis liquids that are rich in organic compounds [18,19].
Lignocellulosic biomass distillates produced by fractional condensation in the slow pyrolysis process can be categorized into two categories: a water-based solution (pyroligneous acid) containing acetic acid, methanol, acetone, methyl acetate, etc., and a bio-oil or tar containing phenols, levoglucosan, triterpenes, and others. The processes underpinning the slow pyrolysis of biomass have been extensively studied, especially process parameters, process stages, heating rate, operation, and condensation temperatures [17,19].
Several pyrolysis studies of industrial hemp seeds and hurds have been carried out, especially on a small laboratory scale [20,21]. The need to investigate the chemical composition of lignocellulosic biomass pyrolysis liquids has led to the extensive use of various modern analytical techniques including Fourier-transform infrared spectroscopy (FTIR), nuclear magnetic resonance spectroscopy (NMR), gas chromatography-mass spectrometry (GC-MS), liquid chromatography (LC), liquid chromatography-mass spectrometry (LC-MS), two-dimensional gas chromatography (2D GC-MS), and thermogravimetric analysis (TGA). GC-MS has played an important role in revealing the chemical composition of volatile compounds of lignocellulosic biomass bio-oils. 2D GC-MS has been successfully applied to separate some higher MW compounds present in bio-oil since this technique has a superior separation capability than conventional GC-MS due to its two columns with different polarities, which can be exploited at the same time [22,23,24]. Fourier transform ion cyclotron resonance (FT-ICR) mass spectrometry (MS) is an important technique for analyzing complex mixtures due to its ultra-high mass resolution, especially targeting the least volatile heavy ends of pyrolysis liquids [25,26]. Of the chemical characterization techniques mentioned above, NMR has played a crucial role in elucidating the chemical composition and concentration of compounds in pyrolysis liquids from lignocellulosic biomass [23,24]. Several biomasses including different varieties of industrial hemp bio-oils have been investigated and analyzed with the above approaches [27,28,29].
Despite all the studies mentioned above, there is limited information regarding the concentration of different compounds in distillates from the whole industrial hemp plant, i.e., the leaves, hurds, and roots. Furthermore, it would be desirable to perform a chemical characterization of pyrolysis liquids, especially with respect to hemp roots. The understanding of the chemical composition of pyrolysis liquid is important for better application, separation, and purification. In this study, we conducted a comprehensive comparative investigation of the chemical composition of volatile and non-volatile compounds of the aqueous (water-based solution) and bio-oil fractions obtained after the slow pyrolysis of hemp leaves, hurds, and roots, especially using quantitative NMR. The second objective was to determine the chemical compositions of the volatile and non-volatile compounds by applying GC-MS and (APPI) FT-ICR MS, respectively. To our knowledge, this is the first scientific study to have investigated and compared the chemical composition of the aqueous and bio-oil fractions of industrial hemp leaves, hurds, and roots especially with several liters of slow pyrolysis reactor scale. We describe new data for the concentration of compounds in different hemp pyrolysis liquid samples and compare the chemical composition of distillates from different sections of the industrial hemp plant, leaves, hurds, and roots. Our working hypothesis was that the concentrations of biomolecules in distillates from leaves, hurds, and roots would be significantly different.

2. Materials and Methods

2.1. Sample Preparation

Futura 75 is a widely used industrial fiber hemp which is grown in Finland. Industrial hemp seeds of the variety of Futura 75 were planted in Kivennapa, Juankoski, Finland (63.0697° N, 27.9989° E) at the end of spring 2016 and were manually harvested in autumn 2016. Hemp harvest yield in our field experiment on dry basis was: leaves 6.4 t·ha−1, stem (fibre and hurds) 34.3 t·ha−1, and roots 7.8 t·ha−1. The pretreatment of the samples was carried out manually, separating the leaves from the stalks. Hemp hurds were obtained by manually peeling the fiber from the hemp stalk and the roots were collected and cleaned to remove soil. All samples (leaves, hurds, and roots) were stored at 5 °C prior to further processing. Each sample was manually compressed into steel tubes with a hydraulic press using a pressure of 10 MPa. The liquids released during the compression were weighed to evaluate the mass balance. The moisture content (dry weight) for each of the sample was LV 106%, HR 135%, and RT 130%.

2.2. Slow Pyrolysis Process

The slow pyrolysis runs (at low temperature) were carried out in a batch pyrolysis reactor of a 10 L stainless steel reactor with a diameter of 30 cm. An electric heater was used to heat the reactor in a controlled manner with a typical heating rate of 2 °C min−1 and a carrier gas of CO2 flow rate of 2 L min−1. In this study, slow pyrolysis liquids were categorized into three stages based on the operating temperatures which were selected for drying stage DS (22–135 °C), torrefaction stage TS (135–275 °C), and pyrolysis stage PS (275–350 °C). There were three liquid collection points in the pyrolysis process set at condensation temperatures of 130 °C, 70 °C, and 5 °C. The average retention times for the drying, torrefaction, and pyrolysis stages were 20 h, 20 h, and 5 h, respectively. Hemp pyrolysis liquids selected for analysis were liquid fractions obtained at an operating temperature range of 275–350 °C and condensation temperatures 130 °C and 70 °C for each raw material. The criteria for the sample selection were based on identifying phenols (product of lignin degradation), especially the most abundant phenols that can be obtained at low pyrolysis temperatures. Lignin is a recognized rich source of valuable green chemicals and distillates by the thermochemical process [30,31,32]. The schematic diagram of the stepwise slow pyrolysis process is shown in Figure 1.

2.3. Nuclear Magnetic Resonance (NMR) and Chemical Characterization

NMR spectroscopy method was used in the identification of the structure of chemical compounds by detecting proton (1H) and carbon-13 (13C) nuclei and their environment within the molecules. 1H NMR spectroscopy was used to obtain the general profile of the compounds. The selected samples were measured by using a Bruker Avance III HD 600 MHz NMR-system (Billerica, MA, USA) operating with liquid nitrogen cooled multinuclear Z gradient 5 mm cryoprobe at the 1H frequency of 600 MHz equipped with an automated sample changer. The chemical shift table of 13C NMR was used to determine the carbon environment in a molecule.
NMR samples were divided into two categories based on the condensation temperatures 130 °C and 70 °C. The first category, C1 (bio-oil), consisted of leaves (LV1), hurd (HR1), and roots (RT1) pyrolyzed at temperature 275–350 °C and condensed at a temperature of 130 °C. The second category, C2 (aqueous), consisted of LV2, HR2, and RT2 pyrolyzed at temperature 275–350 °C and condensed at 70 °C. The sample mass of LV1, HR1, and RT1 used for the NMR measurements was 18.8 mg, 27.2 mg, and 20.8 mg, respectively, and was dissolved in 475 μL of deuterated methanol MeOD (CD3OD). The sample volume of LV2, HR2, and RT2 was 50 μL; it was dissolved in 400 μL of deuterated methanol MeOD (CD3OD). Note: The difference in the sample mass of LV1, HR1, and RT1 was due to its oily form, which is difficult to measure to accurate using a pipette in contrast to LV2, HR2, and RT2 in aqueous form. All samples were prepared in 5 mm NMR tubes. The volume of TSP 25 μL of 1.5 mM of trimethylsilyl propionic-2,2,3,3-d4 acid sodium salt (TSP) was added to all the samples as an internal reference standard at chemical shift 0 ppm.

2.3.1. 2D NMR Spectroscopy

The structural elucidation of the most abundant compounds in the pyrolysis liquid was carried using 2D NMR techniques such as correlation spectroscopy (COSY), heteronuclear single quantum correlation (HSQC), and heteronuclear multiple bond correlation (HMBC). 2D NMR homonuclear correlation spectroscopy COSY (1H-1H) was used to determine correlations between neighboring protons in the identified compounds. HSQC was used to determine 1H-13C single bond correlations, where 1H directly bonded to 13C. HMBC was used to identify correlations between 1H-13C that are two or more bonds apart from each other [33]. The coupling constants (J) indicate the number of neighboring protons and their distance (typically two or three bonds away) in the carbon backbone [34].

2.3.2. Concentration Calculation

The measured 1H NMR spectra were phased manually. The baseline correction was carried out using the Cubic Spline Baseline Correction routine in the Bruker Topspin software. Measurements were analyzed by using Bruker BioSpin GmbH TopSpin 4.0.9 software (Billerica, MA, USA). The procedure for the calculation of the concentration of compounds in the pyrolysis liquids is as follows: (1) Spectrum phase adjustment; (2) Baseline correction; (3) Checking of chemical shifts with TSP referenced at 0 ppm; (4) TSP peak integration and calibration to 9.000 (TSP has 9 1Hs); (5) Integration of other peaks; (6) Concentration calculation of the identified compound. The parameters used in the concentration calculation of the identified compounds were a volume of TSP 25 μL and 50 μL of the sample. From the NMR spectrum, the peak area of the identified compound was integrated (integrated peak area) and the number of protons corresponding to the integrated peak was considered as shown in Equation (1).
C o n c ( m M ) = ( I n t e g r a t e d   p e a k   a r e a   /   N u m b e r   o f   p r o t o n s S a m p l e   v o l u m e   /   T S P   v o l u m e ) × T S P   C o n c .   ( m M )
It is important to notice that the concentration of one of the hemp hurd distillate fractions used in this study was determined in our previous study [24]. This distillate fraction is included in this study for proper comparison of each part of the hemp plant using the same measurement parameters and to determine how accurate NMR analysis could be in determining the concentration of compounds of distillates.

2.4. GC-MS

Samples were diluted with methanol at a 1:10 ratio and they were analyzed in a gas chromatograph (Agilent 7890B, Agilent Technologies Inc., Santa Clara, CA, USA) and a mass spectrometer (Agilent 5977A). An Agilent HP-5 silica capillary column (30 m × 0.25 mm, film thickness 0.25 µm) was used. Split injection in a 1:20 ratio was used and the injector temperature was 250 °C. The temperature program was 40 °C, hold for 8 min, increase 5 °C/min to 180 °C and then increase 10 °C/min to the final temperature of 250 °C, maintained for 20 min. Helium was used as the carrier gas. The SCAN method was used with an atomic mass unit from 33 to 400. The identification of compounds was accomplished by retention times and GC-MS data library (NIST02, National Institute of Standards and Technology, Gaithersburg, MD, USA). The relative abundance of the total ion chromatogram areas of the compounds was calculated. The method was used for quick screening of the distillates and to support the other analytical methods used in the study.

2.5. FT-ICR Mass Spectrometry

All experiments were performed on a 12-T Bruker Solarix XR FT-ICR instrument (Bruker Daltonics, Bremen, Germany), equipped with an Apollo-II atmospheric pressure ion source. Positive-ion APPI was used as an ionization technique in all of the measurements due to its higher selectivity toward neutral, aliphatic, and aromatic compounds. The samples were dissolved in a toluene-methanol mixture (30:70, v/v) to a concentration of ~100 µg/mL. The samples were introduced into the ion source by a syringe pump (at a flow rate of 10 mL/h) through a heated nebulizer operating at 400 °C under a nitrogen sheath gas. For each spectrum, 100 co-added 8 MWord time-domain transients were summed, full-sine apodized, and zero-filled once to provide the final 16 MWord magnitude-mode data in an m/z range of 100 to 2000. The instrument control and data acquisition were performed by Bruker ftmsControl 2.1 software. The initial spectral post-processing was done with Bruker DataAnalysis 5.0 SR1 software, including internal mass re-calibration with a calibration list, made in-house for conventional bio-oil samples. The data were then transferred to PetroOrg IS 18.0.3 software (Omics LLC, Tallahassee, FL, USA) for molecular formula assignments and data visualization. Only the peaks with a signal-to-noise ratio (S/N) ≥ 6 were taken into account. In the assignments of molecular formulae, monoisotopic compositions were limited to 12C1–100, 1H1–200, 14N0–6, 16O0–30, 32S0–2, with a double bond equivalent (DBE) of 0–50 and a mass error of ≤1.0 ppm.

3. Results and Discussion

The thermal degradation by slow pyrolysis of industrial hemp leaves, hurds, and roots produced water-based solutions and bio-oil fractions. NMR, GC-MS, and (+) APPI FT-ICR MS have been proven to be useful and reliable analytical tools in the chemical characterization, identification, and quantification of chemical composition. As hypothesized, the concentrations of biomolecules varied significantly (by more than an order of magnitude) between distillates from leaves, hurd, and roots. For example, hurd contained the highest concentration of alcohols, esters/sugars, and phenols, however leaves were rich with aromatics (cannabinoids). The chemistry of slow pyrolysis at low temperatures and the results of each analytical technique are discussed separately below.

3.1. Slow Pyrolysis Product Yields

Liquid condensates (bio-oil and water-based solutions), biochar, and non-condensable gases were obtained from the slow pyrolysis process of industrial hemp leaves (LV), hurds (HR), and roots (RT) carried out at a low temperature range of 22–350 °C. A total number of 27 raw pyrolysis liquids were obtained from three slow pyrolysis runs (9 liquid fractions obtained per process) as presented in Table 1, which also describes the process run details and the mass balance of the samples. The main purpose of Table 1 is to show the mass balance of each sample with respect to the product yields of the process.
The results in Table 1 indicate that the yield distribution of the liquids at the drying stage was affected mainly by the moisture content of the samples. However, the liquid yields at the torrefaction and pyrolysis stages were affected by the type of chemical constituents and density of the samples. The mass loss percentage, which consists mostly of the non-condensable gases, was LV 22%, HR 27%, and RT 21%. The biochar mass percentage was 29% for LV, HR 30%, and 29% for RT, i.e., about the same. The pyrolysis liquid mass percentage was LV 47%, HR 43%, and RT 48%. Although the pyrolysis process parameters were optimized for biochar production, the liquid yields were higher and biochar yields correspondingly lower. The higher amount of pyrolysis liquids released after drying stage for wet materials suggests that moisture was still left in the sample after drying stage. The findings of this study are in accordance with the observations of [24], revealing that wet biomass such as green hemp provides higher pyrolysis liquids yield when compared to biochar while dry biomass produces higher biochar yield when compared to the liquid. The results revealed that the type of biomass used has an effect on the biochar and liquid yields and by optimization of the process it would be possible to steer the process to maximize biochar or liquid yields. In order to optimize the yields and take into account environmental and economical impacts, the type of biomass, heating rate, residence time and operating temperature are important parameters to consider.

3.2. Chemistry of Slow Pyrolysis

The chemistry of slow pyrolysis begins with drying which is carried out below 130 °C. The degradation of chemical components of lignocellulosic biomass begins around 130–150 °C due to the evaporation of chemically bound water. The decomposition of hemicelluloses starts to take place above 180 °C [35]. The reaction is endothermic when the temperature is below 200 °C. The process becomes exothermic around 220–270 °C and the major compounds produced are acetic acid, formic acid, and carbon dioxide [36]. Decomposition of cellulose starts around 240 °C and it happens at different stages, starting with dehydration, then decarboxylation, carbonization at 300 °C, and bio-oil is formed around 320 °C [37]. Cellulose experiences secondary reactions by cracking the vapors into secondary biochar, tar, and gases. Lignin decomposition occurs over a broad range of temperatures from around 200 °C up to 500 °C. Extractives decomposition also occurs over a broad range of temperature from around 150–400 °C [36,38].

3.3. Chemical Characterization

We compared the industrial hemp pyrolysis liquids and identified differences in the chemical composition and the concentration of the major chemical compound groups. Out of the 27 raw liquids obtained, 6 liquids were selected, measured, and analyzed in detail using 1H NMR, GC-MS, and APPI FT-ICR MS.

3.3.1. 1H NMR

1H NMR is an excellent tool to determine types of functionalities present in a sample and concentrations of assigned individual compounds. Bio-oils (LV1, HR1, and RT1) were analyzed for the concentration (mM) of the main compound groups while water-based solutions (LV2, HR2, and RT2) were analyzed for the concentration of the most abundant individual compounds. The 1H NMR results in six samples are shown in Figure 2a,b, LV1, HR1, and RT1 (condensed at 130 °C). The number of protons (1H) used to calculate the concentration depend on the number of chemically equivalent protons in each integrated signal [39]. The chemical shift regions and concentrations of different compound groups are listed in Table 2.
LV2, HR2, and RT2 (Figure 2b) condensed at 70 °C contained organic acids, alcohols, and phenols. Note that the sample LV2 consisted of two phases which were separated into two different samples, namely LV2B (bottom/oily phase) and LV2T (top/aqueous phase). The amount of LV2B was around 10% of the total LV2 composition and exhibited a similar NMR spectrum as LV1 and is not included in Figure 2b. The chemical shift regions and concentrations of the identified compounds are listed in Table 2 and Table 3.

3.3.2. NMR

From the 1H NMR spectra and concentration values, it is evident that there are significant differences in the concentrations and chemical compositions as is highlighted in the spectra shown in Figure 2a,b. In Figure 2a (C1 category), these differences are evident especially in the chemical shift regions of ketones/acids, anhydrosugars/esters, and phenolics. In this category, as expected, LV1 had the highest concentration of hydrocarbon compounds (12.4 mM), the most upfield NMR spectrum region. HR1 and RT1 had lower and relatively similar concentration values, i.e., 6.9 mM and 8.6 mM, respectively. In general, hurd contained the highest concentration of alcohols, esters/anhydrosugars, and phenols. However, leaves had the highest concentration of ketones/acids and aromatics.
Category 2 samples, LV2T, HR2, and RT2, were analyzed so that major and minor individual compounds could be identified; as expected, these distillates mainly contained water, acetic acid, and methanol. The concentrations of the identified compounds varied as follows: acetic acid (50–241 gL−1), methanol (2–30 gL−1), propanoic acid (5–20 gL−1), methyl acetate (1–7 gL−1), and formic acid (1–2 gL−1). However, one ketone compound, 1-hydroxybutan-2-one (2 gL−1), and furans such as furfural (2 gL−1) and HMF (4 gL−1) were detected only in the HR2 distillate, revealing the major compound composition differences between the hemp leaves, hurds, and roots.
The findings of this study can be compared with the results for hurds in an earlier study [24] to give overall insight into the chemical composition of the hemp plant (leaves, hurds, and root) pyrolysis liquids. Both studies revealed that hemp leaves (aqueous phase) had the highest concentration of acetic acid 241 gL−1, hurd between 47–151 gL−1, and roots 66 gL−1 at operation and condensation temperatures of 275–350 °C and 70 °C, respectively. Furthermore, according to [24], pyrolysis liquids of FINOLA and FUTURA 75 (winter retted) hurd produced at operation and condensation temperatures of 135–275 °C and 70 °C had acetic acid concentrations of 259 gL−1 and 260 gL−1, respectively. The results are similar to acetic acid concentration from hemp leaves of 241 gL−1. The findings of this study showed that pyrolysis liquid of hemp leaves obtained at pyrolysis stage 275–350 °C and condensation temperature at 70 °C have similar chemical concentrations of acetic acid when compared to pyrolysis liquids obtained from hemp hurds at torrefaction stage 135–275 °C and the condensation temperature at 70 °C studied earlier.

3.3.3. GC-MS Analysis

The results of the peak identification were accepted when a chemical match (similarity index) was equal to or greater than 90%. The GC-MS analysis was carried out with a view to compare the compounds present in both water-based solutions and bio-oil samples. Both the water-based solutions and bio-oil samples were complex mixtures of compounds such as organic acids, alcohols, ketones, phenols, sesquiterpenes, aromatic ketones, fatty acids, fatty acid methyl esters, aromatic esters, and others which are listed in Table 4, Table 5, Table 6, Table 7, Table 8, Table 9 and Table 10.
The GC-MS analysis of the bio-oil revealed different total amounts of compounds: LV1 (12 compounds), HR1 (29 compounds), and RT1 (21 compounds). The 12 compounds detected in LV1 included cannabinoids, aromatics and carbohydrates, alkenes, and alkanes, as well as some others. The most abundant compound, resorcinol, (−)-(E)-2-p-mentha-1,8-dien-3-yl-5-pentyl-, present at 6.5% is a synonym for (−)-trans-cannabidiol, a non-psychoactive compound with putative health benefits [40]. The other cannabinoids found including cannabinol CBN (mildly psychoactive compound), accounted for 2.4%, and delta-8-tetrahydrocannabinol for 0.92%. Other compounds detected at significant composition percentages were pentadecanoic acid,14-methyl-,methyl ester (4.7%), 4-ethylphenol (3.0%), and eicosane (2.16%); the remaining compounds were present at lower composition percentages.
Out of the 31 compounds identified in HR1, 13 compounds had a concentration higher than 1%. The most abundant compounds were phenols such as 2,6-dimethoxyphenol (9.7%) and 2-methoxyphenol (4.5%). Other compound groups such as sugars, furans, alcohols, cyclic ketones, and others were present at lower composition percentage values. There were 23 compounds identified in RT1; 12 of these were evident at a composition value higher than 1% and of these the vast majority (11/12) were phenols with the most abundant compounds being 2,6-dimethoxyphenol (16.6%), 2-methoxyphenol (5.1%), p-cresol (4.0%), 4-ethyl-2-methoxyphenol (4.0%), and cis-2-methoxy-4-propenylphenol 2.89%. HR1 and RT1 revealed similarities in their chemical compositions, i.e., a significant number of methylated or methoxylated phenolic compounds were detected including the two most abundant compounds, 2,6-dimethoxyphenol and 2-methoxyphenol. In contrast, cannabinoids were the most abundant in LV1.
According to [41], the hemicellulose content of hemp leaves was 254 mg g−1, cellulose 96 mg g−1, lignin 166 mg g−1, and protein 247 mg g−1 while fresh hemp stalk contained hemicelluloses 269 mg g−1, celluloses 396 mg g−1, lignin 218 mg g−1, and proteins 35 mg g−1. The mass concentration of lignin is known to decrease in leaves [42]. Therefore, the decrease in the amount of cellulose and lignin in LV1 is one of the major factors responsible for the low concentration of phenols in LV1. In addition, the biosynthesis of unique cannabinoid compounds takes place mainly in the glandular trichomes in the leaves of the hemp plant [43]. This accounts for the presence of cannabinoids such as THC, CBD, etc. in LV1 and explains the major chemical composition differences when LV1 is compared to HR1 and RT1.
The water-based solution fractions revealed a total of 5, 23, 26, and 28 different compounds as listed in LV2 T, LV2B, HR2, and RT2, respectively. The two most abundant compounds identified in the LV2 T were acetic acid (39.0%) and propionic acid (1.1%). LV2B had a similar chemical composition as LV1. HR2 appeared to have a phenol-predominant composition, with the two most abundant compounds being 2,6-dimethoxyphenol (7.9%) and 2-methoxyphenol (6.7%). Other phenols, ketones and furans were present at lower percentages. In RT2, 11 compounds had a composition value higher than 1% with acetic acid (11.6%), 2-methoxyphenol (9.7%), and 2,6-dimethoxyphenol (2.2%) as the three most abundant compounds. This group of phenols might be valuable for different applications and are present at high enough concentrations to allow purification.
The 2D GC-MS analysis and identification of volatile compounds in Futura 75 pyrolysis liquids (top phase and bottom phase) was performed and the results are reported in detail in [24]. The top aqueous phase, which is similar to the water-based fraction in this study, revealed the presence of monophenols such as 1,4-benzenediol, 2-methyl-1,4-benzenediol, apocynin, and 4-methylsyringol while fatty acids with their methyl esters, alkanes, alkenes, methoxyphenols and steroid compounds were detected in the bottom oily phase with 2,6-dimethoxyphenol as the most abundant compound. Compounds such as 4-methylsyringol were observed in both the top and bottom phases, e.g., in LV1 and LV2B where some compounds such as delta.8-tetrahydrocannabinol and 2,4-dimethylphenol were detected. The same situation occurs with 2,6-dimethoxyphenol and 2-methoxyphenol in HR1 and HR2. These results revealed that hemp leaves are the most suitable part of the hemp plant for producing cannabinoids and hurds and roots are more suitable parts for producing phenols. In general, all parts of hemp plants are good sources of organic acids (acetic acid and propanoic acid) especially leaves with the highest concentration.
Some investigators have reported that the pyrolytic distillate product from lignocellulosic biomass constituents such as water-based distillate (wood vinegar) is rich in phenols [44,45]; these compounds as well as acetic acid have antibacterial and antifungal activities [45,46]. According to some studies, acetic acid, 2-methoxyphenol (guaiacol), and 2,6-dimethoxyphenol (syringol) are the major compounds present in wood vinegar with pesticide, insecticide, and herbicidal activities [47,48,49]. Furthermore, several water-soluble mono- and oligophenols such as 2-methoxyphenol, 2,6-dimethoxyphenol, and 2-methylphenol (cresol) are the major phenols that are present in the bio-oil distillate and these have been reported to have significant antifungal activity as pesticides [45,50,51]. The presence of these active compounds in the industrial hemp distillate fractions, at such high concentrations, indicates that hemp distillates have similar or even more potent antibacterial, antifungal, and other pesticide properties when compared to many other lignocellulosic biomasses.

3.3.4. (+) APPI FT-ICR MS

Positive-ion APPI FT-ICR mass spectrometry was used to acquire an overall chemical fingerprinting of the distillate samples. This technique makes possible the detection of much heavier compounds as compared to GC-MS and consequently these two techniques provide a more comprehensive view of the chemical composition of the slow pyrolysis liquids. The measured (+) APPI FT-ICR mass spectra are presented in Figure 3a,b. Van Krevelen diagrams revealed the Ox compounds detected in the pyrolysis oil samples as shown in Figure 4. The most abundant compounds found in the distillate sample are listed in Table 11 and Table 12.
Note the mass spectra are plotted as line spectra showing all assigned peaks within m/z 100–500 at S/N ratio ≥ 6. The number of the identified CHNOS species in the samples varied from 2.400 (RT2) up to 8.300 (LV1), highlighting the very complex chemistry of the distillates.
In general, hydrocarbons (HC), oxygen-containing compounds (Ox), nitrogen-containing (Ny), and both oxygenated nitrogen-containing (NyOx) and sulfur-containing (OxSz) species were detected in the samples. The HC species are likely to have resulted from the extensive degradation of terpenoids. In addition, other reactions, such as dealkylation and condensation, can occur during slow pyrolysis, forming polyaromatic hydrocarbons (PAH) from lignin-derived phenols. The Ox class dominated in RT and HR; this class includes different types of oxygenated compounds. The hemp leaves contain more nitrogen than the other parts of the plant [41] and this can also be seen in the results; the Ny and NyOx compounds were detected at a higher abundance in the leaf samples as compared to the hurds and roots.
Table 11 and Table 12 present the most abundant nonvolatile compounds found in the distillate sample. Based on the MS data, cannabidiol (C21H30O2) was the most abundant compound in LV1 (Table 11) and this is consistent with the GC results shown in Table 4. In addition, different terpenoids and terpenes were also found at high concentration percentages in LV1. The results of LV2B (oily phase) were very similar to LV1 (Table 12). With respect to the most abundant compounds in LV2T (aqueous phase), we detected some currently unidentified N2O2 class compounds and some Ox class species. In RT1, HR1, and HR2, the most abundant compound was syringol (C8H10O3), which results from the decomposition of lignin. Amide derivates (fatty amides) dominated in RT2 (Table 12).
Van Krevelen diagrams (i.e., atomic H/C versus O/C ratio for each compounds) for all Ox species are shown in Figure 4 [52]. These diagrams provide an overview of the chemical compounds present in the samples. The pyrolysis liquids produced from leaves (LV1 and LV2B) were clearly different from the root and hurd samples. LV1 and LV2B contained fewer oxygenated and more condensed species as compared to RT and HR. The most abundant compounds in LV1 and LV2B could be found in the region of H/C ≈ 1.1–1.5 and O/C ≈ 0.1, which indicates that they are likely terpenoid derivatives. The aqueous phase (LV2T) included more oxygenated and fewer aromatic species than the other LV samples, as expected.
Pyrolytic lignins, i.e., phenolic compounds (H/C ≈ 0.6–1.4 and O/C ≈ 0.2–0.5), were present at a higher abundance in RT and HR as compared to LV1 and LV2B. There were no clear differences between RT1 and HR1. In contrast, RT2 included more aliphatic and fewer lignin-derived species than HR2. No carbohydrates were detected; this is due to the fact that their efficient ionization with (+) APPI is not possible.
Despite good reputation of GC-MS and FT-ICR MS in bio-oil analysis, they have common limitations such as unavailability of mass spectra of some pyrolysis liquid compounds in MS libraries, and lack of analytical standards. These factors mean GC-MS and FT-ICR MS methods provide only partial information about the chemical composition and result in incomplete chemical composition of pyrolysis liquids. Therefore, they are not suitable for determining concentration. All these limitations are consistent with other studies [53]. On the other hand, NMR is good for determination of the concentration of compounds but its limitations such as overlapping peaks makes it difficult to determine minor compounds (compounds in low concentration) and therefore provide incomplete composition results. In general, NMR, GC-MS, and FT-ICR MS provided a complementary and comprehensive characterization of the pyrolysis liquids.

3.4. The Economic Assessment

The economic assessment is of great importance due to present situation in the EU and Africa concerning demand and optimal utilization of slow pyrolysis for biopesticides, biostimulants, and biofertilizers. The economic assessment of hemp pyrolysis liquids can be evaluated based on the demand for a product in society. For example, in the developing countries in Africa and Asia, the economic assessment is based on demand for cheap natural pesticides and biochar with higher heating values. This implies that the use of slow pyrolysis process would represent a promising method for the sustainable utilization of the local lignocellulose biomass which could be subjected to pyrolysis for bio-based commercial applications [18,54]. In Europe, the commercial situation is different. The economic assessment in Europe could be divided into three categories: biofuels (production of bioethanol, biodiesel, biogas) [55], biopesticides, and green chemicals [47].
If one inspects the results from a bioeconomical and financial point of view, then it is evident that the optimal utilization of water-based solutions and bio-oils from the pyrolysis process to acquire biopesticides would involve lower costs and more straightforward processes. For example, the water-based solution distillate only requires filtration and dilution and the production of a biopesticide from a bio-oil distillate simply involves dilution, centrifugation, and filtration [56,57,58]. In the future, the driving force behind the development of novel biopesticides will be the legislation on what kind of materials can be used as pesticides. There is a goal to reduce the use of synthetic pesticides in order to minimize the risks to human health and the environment (EFSA 2019). For example, the adoption of the European commission strategy in 2006 with the implementation of its directives in 2009 and most importantly the EU ban on propiconazole, the active substance in a plant protection product 2018 (EC No 396/2005, EC No 1107/2009, and commission implementing decisions (EU) 2020/27) have resulted in a high demand for natural pesticides such as those originating from liquid distillates as a replacement for synthetic chemical pesticides (EU Regulation 2016/2031).
Despite the clear need for natural, affordable pesticides and the well-known pesticide properties of plant-based liquid distillates, they have not been approved for commercial sale in Europe. This failure can be traced to the limited number of studies investigating the concentration profile of the water-based and bio-oil distillates. Further studies are needed to determine concentration profiling of lignocellulosic biomass distillates as well as testing their effects on health and the environment. Only then will it be possible to reveal the full economic potential and the possible commercialization of pyroligneous acids and bio-oils as viable biopesticide products not only in Europe but throughout the wider world.
Bio-oil is a good source of green and phytochemicals and their extraction from bio-oil is an important way to enhance the commercial value of any biochemical-related business. Related to the health and chemical industries, the separation of cannabinoids such as CBD and THC and the terpenes from the bio-oil distillate was demonstrated in this study. These compounds have potential medicinal properties, and they can be obtained by various techniques including conventional distillation. However, the separation of heat-sensitive compounds or some compounds with high boiling points requires the use of a vacuum distillation known as molecular distillation at low temperature with a short contact distillation path in an evaporator [59,60]. Phenols extracted from bio-oil distillates can be used as raw materials in the development of green chemicals. They are renewable and can be readily separated with solvents to obtain value-added products with the possibility of commercial scale production [61,62]. The extraction methods for phenols include solvent, steam, and molecular distillation. In economic terms, a solvent extraction process is a less capital-intensive process when compared to a short molecular distillation method or other types of high-tech stream extraction processes with a subsequent liquid–liquid extraction using water, ethyl acetate, pentane, or toluene.
The separation of acetic acid from pyrolysis liquids has been performed using different methods in which a typical method was liquid–liquid extraction with aliphatic tertiary amines [63]. Envisaging the economy of a separation process, distillation is the most widely used method of separating fluid mixtures and is considered to be attractive for obtaining acetic-acid-rich fractions from pyrolysis liquids. Though acetic acid was one of the main compounds from the aqueous fraction, its yield would be about 40 kgton−1 with a value less than EUR 100 as a bulk product with low purity. The remarkable difference between hemp leaves, hurds, and roots is the presence of 1-hydroxybutan-2-one which can only be found in the hemp hurds. It is considered as the most expensive of the compounds quantified and the total amount in the distillates is roughly 1.3 kgton−1 (including torrefaction and pyrolysis distillates). In general, this could be purified to higher than 95% purity and if we assume 50% efficiency, the price of product would be EUR 1300–6500 for 1 ton of raw material input with the price EUR 20–100/ g−1 (Molport, 2021). Based on the above rough estimates, there is clearly a potential for high value products based on hemp liquids, especially hemp hurds liquid. However, more investigations are needed to evaluate the overall potential slow pyrolysis process that can compete with other methods and be profitable commercially without incentives.

4. Conclusions

The detailed chemical characterization of volatile and nonvolatile compounds and assessment of the concentration of the main compound groups present in the slow pyrolysis distillates from industrial hemp leaves, hurds, and roots were successfully carried out with more than 115 compounds being identified. The stepwise slow pyrolysis with fractional condensation turned out separate aqueous and bio-oil fractions without extra steps. The process parameters such as heating rate, process, and condensing temperatures can be optimized to increase the yield of a certain compound or compound group. The aqueous fraction is mainly composed of acetic acid, methanol, propanoic acid, formic acid, furfural, and 1-hydroxybutan-2-one while the bio-oil fraction is mainly composed of fatty acids, phenols, levoglucosan, triterpenes, cannabidiol, and others.
NMR, FT-ICR MS, and GC-MS spectroscopy were successfully applied in this comparative study. The possible use of bio-oil in the chemical and agrochemical industries requires a detailed understanding and analysis of the concentrations of the individual higher molecular weight compounds present in the bio-oil. Further studies will be needed to elucidate the structures of the higher molecular compounds as well as their stability and concentration in the bio-oil. Future work should include testing of the antifungal and antibacterial efficacy of the liquid distillates and bio-oils obtained from industrial hemp leaves and roots, as well as an assessment of their commercial potential.

Author Contributions

Conceptualization, A.S., R.L., L.T. and J.V.; methodology, A.S., J.H., M.H., J.J. and T.K.; software, A.S., J.H. and M.H.; validation, R.L., J.V. and J.J.; formal analysis, A.S. and J.J.; investigation, A.S. and R.L.; resources, A.S., L.T., J.H. and R.L.; data curation, A.S.; writing—original draft preparation, A.S., J.J., R.L. and M.H.; writing—review and editing, A.S., R.L., L.T., J.V., M.H. and J.J.; visualization, A.S. and R.L.; supervision, R.L. and J.V.; project administration, R.L.; funding acquisition, R.L. and J.V. All authors have read and agreed to the published version of the manuscript.


This study was partly funded by the European Agricultural Fund for Rural Development (EAFRD) administered by Centre for Economic Development, Transport and the Environment, (Northern Savo, project 16664).


The FT-ICR facility is supported by Biocenter Finland (FINStruct), Biocenter Kuopio, and the European Regional Development Fund (grant A70135). We thank Maritta Salminkoski for her help in the NMR sample preparation.

Conflicts of Interest

The authors declare no conflict of interest.

Sample Availability

Samples of the compounds are not available.


EIHAEuropean Industrial Hemp Association
t·ha−1Tonne per hectare
HRHemp hurds
LVHemp leaves
RTHemp hurds, and Hemp roots
(LV1, HR1, RT1)#1 refers to bio-oil (oily) pyrolysis liquid
(LV2, HR2, RT2)#2 refers to aqueous (water-based) pyrolysis liquid
NMRnuclear magnetic resonance spectroscopy
GC-MSgas chromatography-mass spectrometry
FT-ICR MSFourier transform ion cyclotron resonance mass spectrometry


  1. Wawro, A.; Batog, J.; Gieparda, W. Chemical and enzymatic treatment of hemp biomass for bioethanol production. Appl. Sci. 2019, 9, 5348. [Google Scholar] [CrossRef] [Green Version]
  2. Gandolfi, S.; Ottolina, G.; Riva, S.; Fantoni, G.P.; Patel, I. Complete chemical analysis of carmagnola hemp hurds and structural features of its components. Bioresources. 2013, 8, 2641–2656. [Google Scholar] [CrossRef]
  3. Vassilev, S.V.; Vassileva, C.G.; Vassilev, V.S. Advantages and disadvantages of composition and properties of biomass in comparison with coal: An overview. Fuel 2015, 158, 330–350. [Google Scholar] [CrossRef]
  4. Acharjee, T.; Guan, W.; Lee, Y.N.; Jiang, Z. Production of lactic acid from mixed feed of paper mill sludge and hemp hurd by simultaneous saccharification and co-fermentation. Sci. Technol. For. Prod. Process. 2018, 6, 29. [Google Scholar]
  5. Burczyk, H.; Grabowska, L.; Kołodziej, J.; Strybe, M. Industrial hemp as a raw material for energy production. J. Ind. 2008, 13, 37–48. [Google Scholar] [CrossRef]
  6. Elma, M.J.; Zhang, Q.; Amaducci, S.; Yang, M.; Trindade, L.M. New developments in fiber hemp (Cannabis sativa L.) breeding. Ind. Crop. Prod. 2014, 68, 32–41. [Google Scholar] [CrossRef]
  7. Linger, P.; Mussig, J.; Fischer, H.; Kobert, J. Industrial hemp (Cannabis sativa L.) growing on heavy metal contaminated soil: Fibre quality and phytoremediation potential. Ind. Crop. Prod. 2012, 16, 33–42. [Google Scholar] [CrossRef]
  8. Smyth, C.E.; Kurz, E.T.; Stinson, G. National-scale estimates of forest root biomass carbon stocks and associated carbon fluxes in Canada. Glob. Biogeochem. Cycles 2013, 27, 1262–1273. [Google Scholar] [CrossRef]
  9. Raich, J.W.; Clark, D.A.; Schwendenmann, L.; Wood, T.E. Aboveground tree growth varies with belowground carbon allocation in a tropical rainforest environment. PLoS ONE 2014, 9, e100275. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  10. Manfred, L. Siete mil Recetas Botanicas a Base de mil Trescientas Plantas Medicinales; Editorial Kier S.A.: Buenos Aires, Argentina, 2008. [Google Scholar]
  11. Brand, E.; Wiseman, N. Concise Chinese Materia Medica; Paradigm Publications: Taos, NM, USA, 2008. [Google Scholar]
  12. Forster, E. History of hemp in Chile. J. Int. Hemp Assoc. 1996, 3, 72–77. [Google Scholar]
  13. Rumpf, G.E.; Beekman, E.M. The Poison Tree: Selected Writings of Rumphius on the Natural History of the Indies; University of Massachusetts Press: Amherst, MA, USA, 1981; Volume xii. [Google Scholar]
  14. Culpeper, N. Culpeper’s Complete Herbal: Consisting of a Comprehensive Description of Nearly All Herbs with Their Medicinal Properties and Directions for Compounding the Medicines Extracted from Them; W. Foulsham: London, UK, 1994; Volume xii, p. 430. [Google Scholar]
  15. Ryz, R.N.; Remillard, D.J.; Russo, E.B. Cannabis Roots: A traditional therapy with future potential for treating inflammation and pain. Cannabis Cannabinoid Res. 2017, 2, 210–216. [Google Scholar] [CrossRef] [PubMed]
  16. Crombie, K.; Mašek, O. Investigating the potential for a self-sustaining slow pyrolysis system under varying operating conditions. Bioresour. Technol. 2004, 162, 148–156. [Google Scholar] [CrossRef] [Green Version]
  17. Amini, E.; Safdari, M.S.; DeYoung, J.T.; Weise, D.R.; Fletcher, T.H. Characterization of pyrolysis products from slow pyrolysis of live and dead vegetation native to the southern United States. Fuel 2019, 235, 1475–1491. [Google Scholar] [CrossRef]
  18. Vilppo, T.; Pitkänen, S.; Melin, M.; Mononen, K. Methods and techniques for efficient charcoal production. In Sustainable Fuelwood Management in West Africa; Mononen, K., Pitkänen, S., Eds.; University of Eastern Finland: Joensuu, Finland, 2016; pp. 67–94. [Google Scholar]
  19. Dhyani, V.; Bhaskar, T. A comprehensive review on the pyrolysis of lignocellulosic biomass. J. Renew. Energy 2018, 129, 695–716. [Google Scholar] [CrossRef]
  20. Branca, C.; Blasi, C.D.; Galgano, A. Experimental analysis about the exploitation of industrial hemp (Cannabis sativa) in pyrolysis. Fuel Process Technol. 2017, 162, 20–29. [Google Scholar] [CrossRef]
  21. Matassa, S.; Esposito, G.; Pirozzi, F.; Papirio, S. Exploring the biomethane potential of different industrial hemp (Cannabis sativa L.) biomass residues. Energies 2020, 13, 3361. [Google Scholar] [CrossRef]
  22. Asmadi, M.; Kawamoto, H.; Saka, S. Thermal reactions of guaiacol and syringol as lignin model aromatic nuclei. J. Anal. Appl. Pyrolysis 2011, 92, 88–98. [Google Scholar] [CrossRef]
  23. Hao, N.; Bent, H.; Yoo, C.G.; Adhikari, S.; Ragauskas, A. Review of NMR characterization of pyrolysis oils. Energy Fuel 2016, 30, 6863–6880. [Google Scholar] [CrossRef]
  24. Salami, A.; Raninen, K.; Heikkinen, J.; Tomppo, L.; Vilppo, T.; Selenius, M.; Raatikainen, O.; Lappalainen, R.; Vepsäläinen, J. Complementary chemical characterization of distillates obtained from industrial hemp hurds by thermal processing. Ind. Crop. Prod. 2020, 155, 112760. [Google Scholar] [CrossRef]
  25. Kekäläinen, T.; Venäläinen, T.; Jänis, J. Characterization of birch wood pyrolysis oils by ultrahigh-resolution Fourier transform ion cyclotron resonance mass spectrometry: Insights into thermochemical conversion. Energy Fuel 2014, 28, 4596–4602. [Google Scholar] [CrossRef]
  26. Smith, F.D.; Podgorski, D.C.; Rodgers, R.P.; Blankney, G.T.; Hendrickson, C.L. Tesla FT-ICR Mass Spectrometer for Ultrahigh-Resolution Analysis of Complex Organic Mixtures. Anal. Chem. 2018, 90, 2041–2047. [Google Scholar] [CrossRef] [PubMed]
  27. Yang, H.M.; Zhao, W.; Norinaga, K.; Fang, J.J.; Wang, Y.G.; Zong, Z.-M.; Wei, X.Y. Separation of phenols and ketones from biooil produced from ethanolysis of wheat stalk. Sep. Purif. Technol. 2015, 152, 238–245. [Google Scholar] [CrossRef] [Green Version]
  28. Rizhikovs, J.; Brazdausks, P.; Dobele, G.; Jurkjane, V.; Paze, A.; Meile, K.; Puke, M. Pretreated hemp shives: Possibilities of conversion into levoglucosan and levoglucosenone. Ind. Crop. Prod. 2019, 139, 111520. [Google Scholar] [CrossRef]
  29. Ascrizzi, R.; Ceccarini, L.; Tavarini, S.; Flamini, G.; Angelini, L.L. Valorisation of hemp inflorescence after seed harvest: Cultivation site and harvest time influence agronomic characteristics and essential oil yield and composition. Ind. Crop. Prod. 2019, 139, 111541. [Google Scholar] [CrossRef]
  30. Li, C.; Zhao, X.; Wang, A.; Huber, G.W.; Zhang, T. Catalytic transformation of lignin for the production of chemicals and fuels. Chem. Rev. 2015, 115, 11559–11624. [Google Scholar] [CrossRef] [PubMed]
  31. Behling, R.; Valange, S.; Chatel, G. Heterogeneous catalytic oxidation for lignin valorization into valuable chemicals: What results? What limitations? What trends? Green Chem. 2016, 18, 1839–1854. [Google Scholar] [CrossRef]
  32. Gillet, S.; Aguedo, M.; Petitjean, L.; Morais, A.R.C.; da Costa Lopes, A.M.; Łukasik, R.M.; Anastas, P.T. Lignin transformations for high value applications: Towards targeted modifications using green chemistry. Green Chem. 2017, 19, 4200. [Google Scholar] [CrossRef]
  33. Friebolin, H. Basic One- and Two-Dimensional NMR Spectroscopy; Wiley-VCH: Weinheim, Germany, 2005; pp. 43–106. [Google Scholar]
  34. Clayden, J.; Greeves, N.; Warren, S. Organic Chemistry; Oxford University Press: New York, NY, USA, 2001; pp. 56–59. [Google Scholar]
  35. Bhaskar, T.; Bhavya, B.; Singh, R.; Naik, D.V.; Kumar, A.; Goyal, H.B. Thermochemical conversion of biomass to biofuels. In Biofuels: Alternative Feedstocks and Conversion Processes; Pandey, A., Ed.; Academic Press: London, UK, 2011; pp. 51–77. [Google Scholar]
  36. Nachenius, R.; Ronsse, F.; Venderbosch, R.; Prins, W. Biomass pyrolysis. In Chemical Engineering for Renewables Conversion; Murzin, D.Y., Ed.; Academic Press: Burlington, MA, USA, 2013; pp. 75–139. [Google Scholar]
  37. Fagernäs, L.; Kuoppala, E.; Tiilikkala, K.; Oasmaa, A. Chemical composition of birch wood slow pyrolysis products. Energy Fuel 2012, 26, 1275–1283. [Google Scholar] [CrossRef]
  38. Basu, P. Torrefaction and pyrolysis. In Biomass Gasification, Pyrolysis and Torrefaction: Practical Design and Theory; Academic Press: Cambridge, MA, USA, 2013; pp. 87–176. [Google Scholar] [CrossRef]
  39. Organic Chemistry at UC Boulder. Organic Chemistry at UC Boulder. Available online: (accessed on 12 March 2021).
  40. Shannon, S.; Lewis, N.; Lee, H.; Hughes, S. Cannabidiol in Anxiety and Sleep: A Large Case Series. Perm. J. 2019, 23, 18-041. [Google Scholar] [CrossRef] [Green Version]
  41. Väisänen, T.; Kilpeläinen, P.; Kitunen, V.; Lappalainen, R.; Tomppo, L. Effect of steam treatment on the chemical composition of hemp (Cannabis sativa L.) and identification of the extracted carbohydrates and other compounds. Ind. Crop. Prod. 2019, 131, 224–233. [Google Scholar] [CrossRef]
  42. Kitajima, K.; Wright, J.; Westbrook, J.W. Leaf cellulose density as the key determinant of inter- and intra-specific variation in leaf fracture toughness in a species-rich tropical forest. Interface Focus 2016, 6, 20150100. [Google Scholar] [CrossRef]
  43. Happyana, N.; Agnolet, S.; Muntendam, R.; Van Dam, A.; Schneider, B.; Kayser, O. Analysis of cannabinoids in laser-microdissected trichomes of medicinal Cannabis sativa using LCMS and cryogenic NMR. Phytochemistry 2013, 87, 51–59. [Google Scholar] [CrossRef]
  44. Ma, X.H.; Wei, Q.; Zhang, S.S.; Shi, L.; Zhao, Z. Isolation and bioactivities of organic acids and phenols from walnut shell pyroligneous acid. J. Anal. Appl. Pyrolysis 2011, 91, 338–343. [Google Scholar] [CrossRef]
  45. Yang, J.F.; Yang, C.H.; Liang, M.T.; Gao, Z.J.; Wu, Y.W.; Chuang, L.Y. Chemical composition, antioxidant, and antibacterial activity of wood vinegar from Litchi chinensis. Molecules 2016, 21, 1150. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  46. Duan, X.; Wang, H.; Liu, Z.; Feng, C.; Cui, Y. Antibacterial activities of wood vinegar from agricultural and forestry wastes dry distillation products. Southwest China J. Agric. Sci. 2016, 29, 425–429. [Google Scholar]
  47. Tiilikkala, K.; Fagernäs, L.; Tiilikkala, J. History and use of wood pyrolysis liquids as biocide and plant protection product. Open Agric. J. 2010, 4, 111–118. [Google Scholar] [CrossRef] [Green Version]
  48. Omulo, G.; Willett, S.S.; Jeffrey, B.; Noble, K.; Isa, Z.A.; Kiggundu, N. Characterization of slow pyrolysis wood vinegar and tar from banana wastes biomass as potential organic pesticides. J. Sustain. Dev. 2017, 10, 81. [Google Scholar] [CrossRef] [Green Version]
  49. Li, Z.; Zhang, Z.; Wu, L.; Wang, Z. Characterization of five kinds of wood vinegar obtained from agricultural and forestry wastes and identification of major antioxidants in wood vinegar. Chem. Res. Chin. Univ. 2019, 35, 12–20. [Google Scholar] [CrossRef]
  50. Stankovikj, F.; Garcia-Perez, M. TG-FTIR method for the characterization of bio-oils in chemical families. Energy Fuels 2017, 31, 1689–1701. [Google Scholar] [CrossRef]
  51. Medeiros, L.-C.D.; Pimenta, A.S.; Braga, R.M.; Carnaval, T.K.A.; Neto, P.N.; Melo, D.M.A. Effect of pyrolysis heating rate on the chemical composition pf wood vinegar from eucalyptus urograndis and mimosa tenuiflora. Rev. Árvore 2019, 43, e430408. [Google Scholar] [CrossRef]
  52. Kim, S.; Kramer, R.W.; Hatcher, P.G. Graphical method for analysis of ultrahigh-resolution broadband mass spectra of natural organic matter, the van Krevelen diagram. Anal. Chem. 2003, 75, 5336–5344. [Google Scholar] [CrossRef]
  53. Smith, E.A.; Lee, Y.J. Petroleomic analysis of bio-oils from the fast pyrolysis of biomass: Laser desorption ionization-linear ion trap-orbitrap mass spectrometry approach. Energy Fuels 2010, 24, 5190–5198. [Google Scholar] [CrossRef] [Green Version]
  54. Soka, O.; Oyekola, O. A feasibility assessment of the production of char using the slow pyrolysis process. Heliyon 2020, 6, e04346. [Google Scholar] [CrossRef] [PubMed]
  55. EurObserv’ER. The state of renewable energies in Europe. In18th EurObserv’ER Report; EurObserv’ER: Paris, France, 2018. [Google Scholar]
  56. Rahmat, B.; Pangesti, D.; Natawijay, D.; Sufyadi, D. Generation of wood-waste vinegar and its effectiveness as a plant growth regulator and pest insect repellent. BioResources 2014, 9, 6350–6360. [Google Scholar] [CrossRef] [Green Version]
  57. Guo, Z.; Wang, S.; Gu, Y.; Xu, G.; Li, X.; Luo, Z. Separation characteristics of biomass pyrolysis oil in molecular distillation. Sep. Purif. Technol. 2010, 76, 52–57. [Google Scholar] [CrossRef]
  58. Galhiane, M.S.; Rissato, S.R.; Santos, L.S.; Chierice, G.O.; Almeida, M.V.; Fumis, T.; Chechim, I.; Sampaio, A.C. Evaluation of the performance of a castor-oil based formulation in limiting pesticide residues in strawberry crops. Química Nova 2012, 35, 341–347. [Google Scholar] [CrossRef]
  59. Wang, S.; Gu, Y.; Liu, Q.; Yao, Y.; Guo, Z.; Luo, Z.; Cen, K. Separation of bio-oil by molecular distillation. Fuel Process. Technol. 2009, 90, 738–745. [Google Scholar] [CrossRef]
  60. Ketenoglu, O.; Tekin, A. Applications of molecular distillation technique in food products. Ital. J. Food Sci. 2015, 27, 277–281. [Google Scholar] [CrossRef]
  61. Kanaujia, P.K.; Sharma, Y.K.; Garg, M.O.; Tripathi, D. Review of analytical strategies in the production and upgrading of bio-oils derived from lignocellulosic biomass. J. Anal. Appl. Pyrol. 2014, 105, 55–74. [Google Scholar] [CrossRef]
  62. Shah, Z.; Cataluña, R.; Ceschi, M.; da Silva, R. Separation of Phenol from Bio-oil Produced from Pyrolysis of Agricultural Wastes. Mod. Chem. Appl. 2017, 5, 1000199. [Google Scholar] [CrossRef]
  63. Mahfud, F.H.; van Geel, F.P.; Venderbosch, R.H.; Heeres, H.J. Acetic acid recovery from fast pyrolysis oil. An exploratory study on liquid-liquid reactive extraction using aliphatic tertiary amines. Sep. Sci. Technol. 2008, 43, 3056–3074. [Google Scholar] [CrossRef] [Green Version]

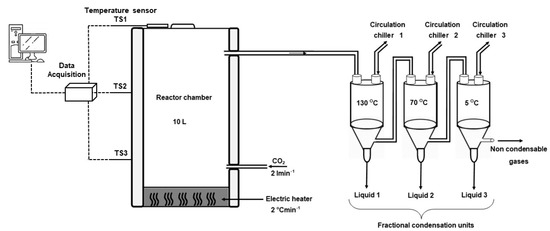

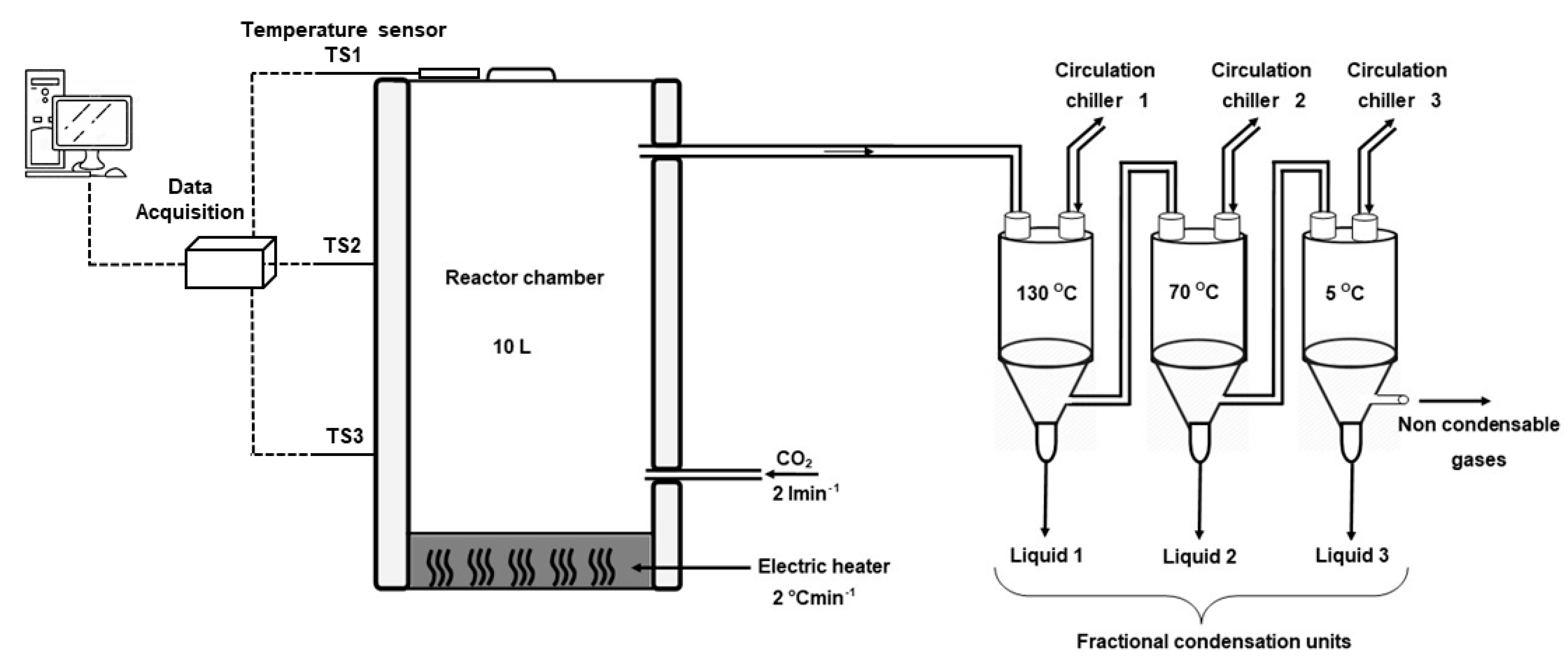

Figure 1. Schematic diagram of stepwise slow pyrolysis process.
Figure 1. Schematic diagram of stepwise slow pyrolysis process.
Molecules 26 03167 g001

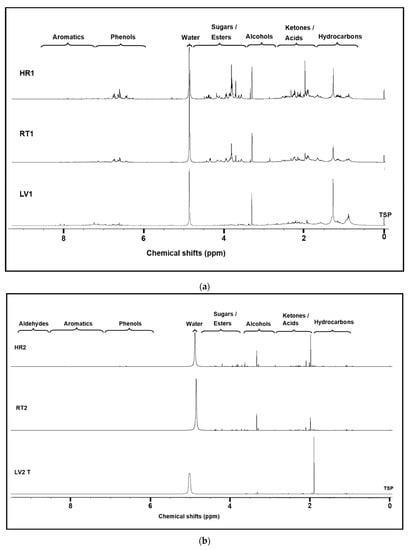

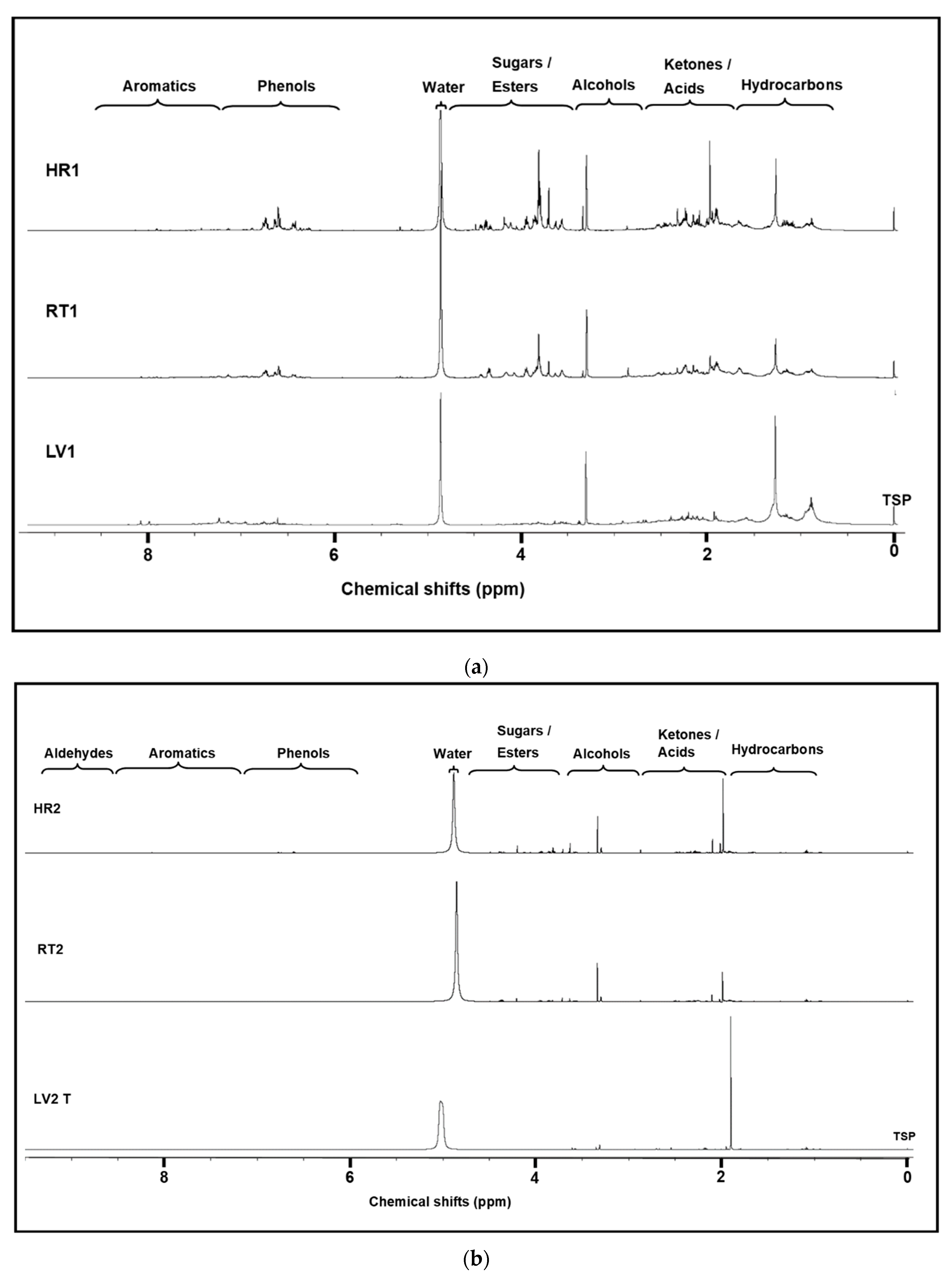

Figure 2. (a) Comparison of the proton nuclear magnetic resonance (1H NMR) spectra of hemp distillates pyrolyzed and condensed at temperatures 275–350 °C and 130 °C, respectively. (b) Comparison of the 1H NMR spectra of hemp distillates pyrolyzed and condensed at temperatures 275–350 °C and 70 °C, respectively.
Figure 2. (a) Comparison of the proton nuclear magnetic resonance (1H NMR) spectra of hemp distillates pyrolyzed and condensed at temperatures 275–350 °C and 130 °C, respectively. (b) Comparison of the 1H NMR spectra of hemp distillates pyrolyzed and condensed at temperatures 275–350 °C and 70 °C, respectively.
Molecules 26 03167 g002

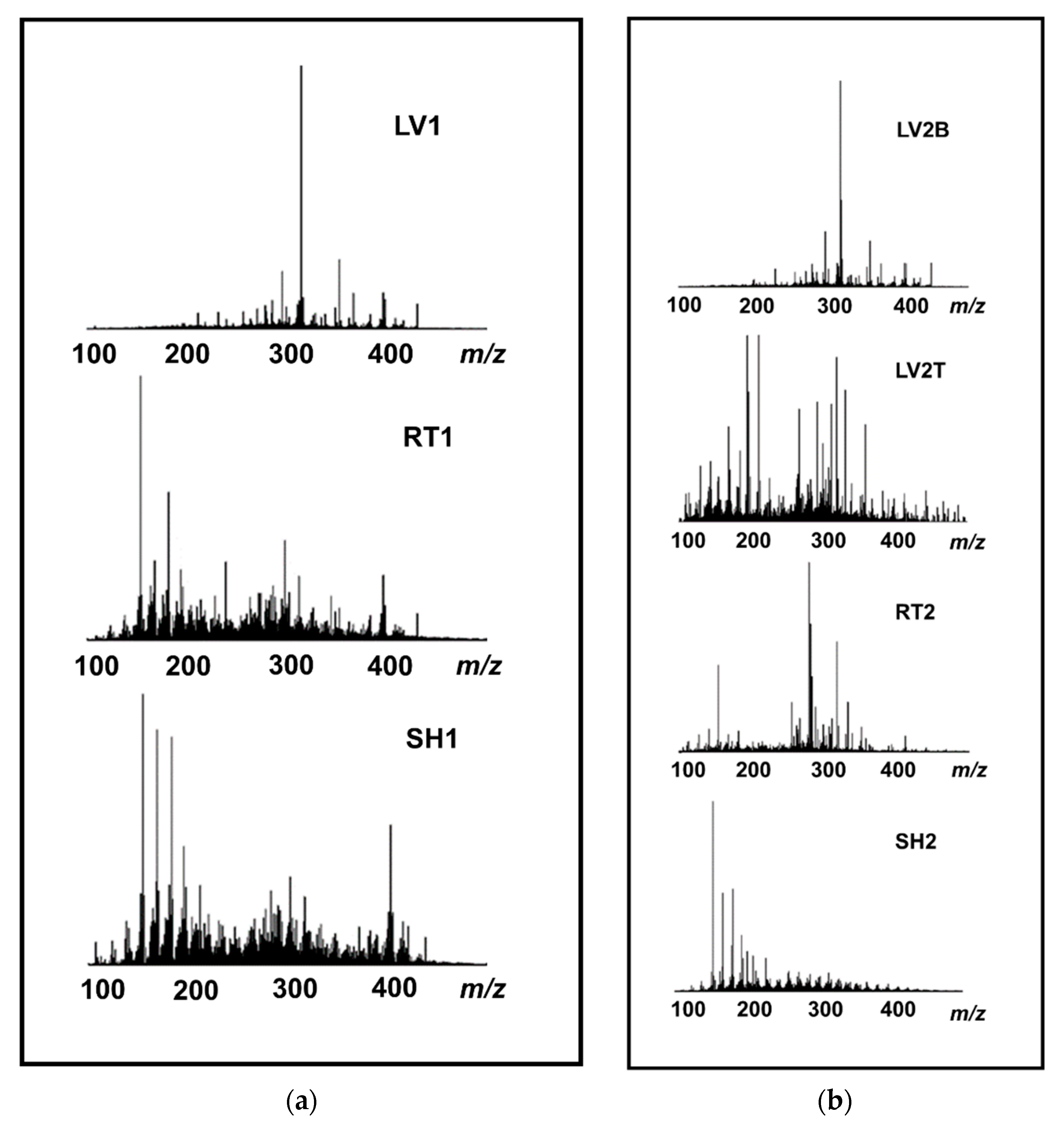

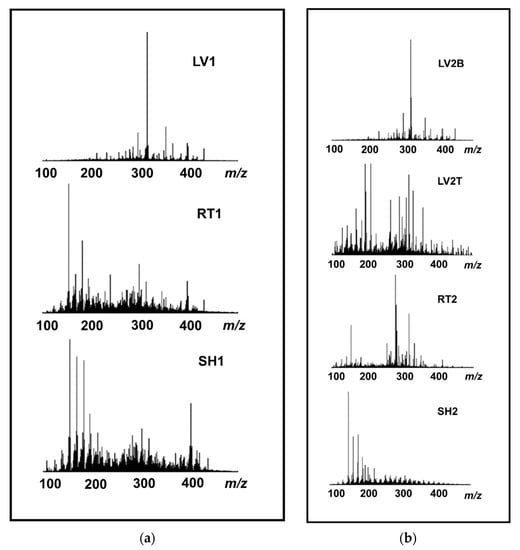

Figure 3. (a) APPI FT-ICR mass spectra of LV1, RT1, and HR1 of hemp distillates at pyrolysis stage 275–350 °C and condensed at 130 °C. (b) APPI FT-ICR mass spectra of LV2B, LV2T, RT2, and HR2 of hemp distillates at pyrolysis stage 275–350 °C and condensed at 70 °C.
Figure 3. (a) APPI FT-ICR mass spectra of LV1, RT1, and HR1 of hemp distillates at pyrolysis stage 275–350 °C and condensed at 130 °C. (b) APPI FT-ICR mass spectra of LV2B, LV2T, RT2, and HR2 of hemp distillates at pyrolysis stage 275–350 °C and condensed at 70 °C.
Molecules 26 03167 g003

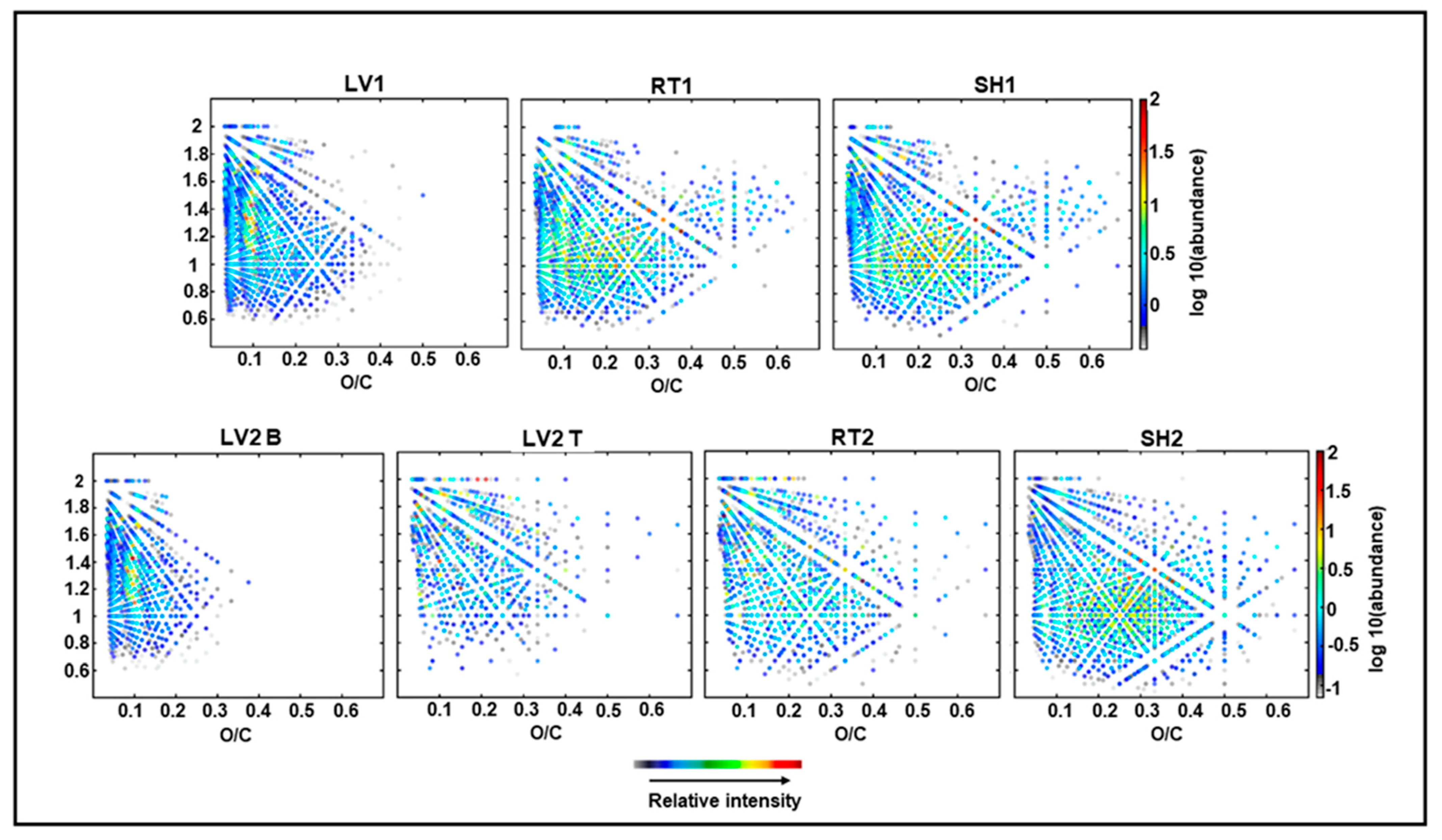

Figure 4. Van Krevelen diagrams (color-coded for relative intensity) for the Ox compounds detected in the pyrolysis oil distillates LV1, RT1, and SH1 condensed at 130 °C and pyrolysis water-based distillates LV2B, LV2T, RT2, and SH2 condensed at 70 °C by APPI FT-ICR MS.
Figure 4. Van Krevelen diagrams (color-coded for relative intensity) for the Ox compounds detected in the pyrolysis oil distillates LV1, RT1, and SH1 condensed at 130 °C and pyrolysis water-based distillates LV2B, LV2T, RT2, and SH2 condensed at 70 °C by APPI FT-ICR MS.
Molecules 26 03167 g004
Table 1. Slow pyrolysis process runs and mass balance of distillates.
Table 1. Slow pyrolysis process runs and mass balance of distillates.
Parameters Fresh Hemp Sample
Raw material at the beginning(g)12,934583012,409
Liquid released in compression pressure 20 MPa(g)615212486125
Raw material in the process(g)678245826284
Dry raw material in the process
Moisture content
(dry weight%)106135130
Density at the beginning of process(g/cm3)1.140.771.06
Retention time(h)
Drying stage, DS(h)201920
Torrefaction stage, TS(h)192020
Pyrolysis stage, PS(h)456
Mass of distillates(g)
Drying stage, DS (25–135 °C)
Condensation, 130 °C(g)13857
Condensation, 70 °C(g)12758931256
Condensation, 5 °C(g)501353474
Total mass drying stage(g)178912541787
Torrefaction stage, TS (135–275 °C)
Condensation, 130 °C(g)241543
Condensation, 70 °C(g)17659131455
Condensation, 5 °C(g)441386531
Total mass torrefaction stage(g)223013142029
Pyrolysis stage, PS (275–350 °C)
* Condensation, 130 °C(g)46616
* Condensation, 70 °C(g)302731
Condensation, 5 °C(g)448381
Total mass pyrolysis stage(g)120116128
Residual char(g)144610111285
Mass loss(g)1110887963
Total mass yield of distillates(%)474348
Residual char(%)293029
Mass loss(%)222721
* means selected samples for chemical characterization with several complementary techniques.
Table 2. Concentration of compound groups in hemp distillates of leaves, hurds, and roots at a condensation temperature of 130 °C by 1H NMR.
Table 2. Concentration of compound groups in hemp distillates of leaves, hurds, and roots at a condensation temperature of 130 °C by 1H NMR.
Chemical Shift (ppm)Compound GroupC1 (mM)
3.2–3.9Alcohols **
4.2–5.0Esters/Sugars *
* signifies that a water peak was excluded, ** CD3OD peak excluded.
Table 3. Concentration of identified compounds in hemp distillates of leaves, hurds, and roots at a condensation temperature of 70 °C by 1H NMR.
Table 3. Concentration of identified compounds in hemp distillates of leaves, hurds, and roots at a condensation temperature of 70 °C by 1H NMR.
Chemical Shift (ppm)CompoundC2 (gL−1)
1.99Acetic acid2417791106
1.09Propanoic acid20511
3.64Methyl acetate715
8.20Formic acid-0.80.6
- signifies that compound was not detected.
Table 4. Chemical composition of distillates of hemp leaves (LV1) from pyrolysis stage (PS) condensed at 130 °C and analyzed by gas chromatography–mass spectrometry (GC-MS).
Table 4. Chemical composition of distillates of hemp leaves (LV1) from pyrolysis stage (PS) condensed at 130 °C and analyzed by gas chromatography–mass spectrometry (GC-MS).
NoCompoundRT (min)Similarity IndexMol. Form.Relative Abundance (%)
1Resorcinol, (−)-(E)-2-p-mentha-1,8-dien-3-yl-5-pentyl-44.36898C21H30O26.5
2Pentadecanoic acid, 14-methyl-, methyl ester38.84796C17H34O24.7
6Methyl dehydroabietate43.53396C21H30O21.8
8Heptadecanoic acid, 14-methyl-, methyl ester41.28793C19H38O21.1
Similarity index ≥ 90.
Table 5. Chemical composition of hemp hurds (HR1) distillates from pyrolysis stage (PS) condensed at 130 °C and analyzed by GC-MS.
Table 5. Chemical composition of hemp hurds (HR1) distillates from pyrolysis stage (PS) condensed at 130 °C and analyzed by GC-MS.
NoCompoundRT (min)Similarity IndexMol. Form.Relative Abundance (%)
8Hexadecanoic acid, methyl ester38.84298C17H34O22.1
17Docosanoic acid, methyl ester45.52599C23H46O20.5
189-Octadecenoic acid, methyl ester, (E)-41.07196C19H36O20.4
20Methyl stearate41.28299C19H38O20.3
24Methyl 18-methylnonadecanoate43.25798C21H42O20.2
26Tricosanoic acid, methyl ester47.04093C24H48O20.2
29Methyl 13-methyltetradecanoate37.28490C16H32O20.1
Similarity index ≥ 90.
Table 6. Chemical composition of hemp roots (RT1) distillates from pyrolysis stage (PS) condensed at 130 °C and analyzed by GC-MS.
Table 6. Chemical composition of hemp roots (RT1) distillates from pyrolysis stage (PS) condensed at 130 °C and analyzed by GC-MS.
NoCompoundRT (min)Similarity IndexMol. Form.Relative Abundance (%)
9Homovanillyl alcohol30.95481C9H12O31.4
10Hexadecanoic acid, methyl ester38.84799C17H34O21.2
12Phenol, 4-(2-propenyl)-2,6-dimethoxy34.81994C11H14O31.1
18Methyl dehydroabietate43.53396C21H30O20.5
Similarity index ≥ 90.
Table 7. Chemical composition of distillates of hemp leaves (LV2T) from pyrolysis stage (PS) condensed at 70 °C and analyzed by GC-MS.
Table 7. Chemical composition of distillates of hemp leaves (LV2T) from pyrolysis stage (PS) condensed at 70 °C and analyzed by GC-MS.
NoCompoundRT (min)Similarity IndexMol. Form.Relative Abundance (%)
1Acetic acid2.70791C2H4O239.0
2Propanoic acid10.24290C3H6O21.1
Similarity index ≥ 90.
Table 8. Chemical composition of distillates of hemp leaves (LV2B) from pyrolysis stages (PS) condensed at 70 °C analyzed by GC-MS.
Table 8. Chemical composition of distillates of hemp leaves (LV2B) from pyrolysis stages (PS) condensed at 70 °C analyzed by GC-MS.
NoCompoundRT (min)Similarity IndexMol. Form.Relative Abundance (%)
2Hexadecanoic acid, methyl ester38.84299C17H34O24.5
15Methyl stearate41.28299C19H38O20.8
17Methyl dehydroabietate43.52999C21H30O20.7
20Methyl 10-trans,12-cis-octadecadienoate40.94299C19H34O20.7
Similarity index ≥ 90.
Table 9. Chemical composition of hemp hurds (HR2) distillates from pyrolysis stage (PS) condensed at 70 °C and analyzed by GC-MS.
Table 9. Chemical composition of hemp hurds (HR2) distillates from pyrolysis stage (PS) condensed at 70 °C and analyzed by GC-MS.
NoNameRT (min)Similarity IndexMol. FormRelative Abundance (%)
18Phenol, 2-methyl-17.36996C7H8O0.2
232-Furanmethanol, acetate15.05090C7H8O30.1
Similarity index ≥ 90.
Table 10. Chemical composition of hemp root (RT2) distillates from pyrolysis stage (PS) condensed at 70 °C and analyzed by GC-MS.
Table 10. Chemical composition of hemp root (RT2) distillates from pyrolysis stage (PS) condensed at 70 °C and analyzed by GC-MS.
NoCompoundRT (min)Similarity IndexMol. Form.Relative Abundance (%)
1Acetic acid2.72491C2H4O211.6
64-Hydroxybutanoic acid11.50890C4H8O31.8
11Propanoic acid3.97290C3H6O21.3
18Methyl 4-hydroxybutanoate14.59390C5H10O30.4
Similarity index ≥ 90.
Table 11. Most abundant compounds detected in LV1, RT1, and HR1 with APPI FT-ICR MS.
Table 11. Most abundant compounds detected in LV1, RT1, and HR1 with APPI FT-ICR MS.
m/zMolecular FormulaCompound *Relative Abundance (%)
396C29H48Triterpene hydrocarbon13
398C29H50Triterpene hydrocarbon11
182C10H14O3Dihydroconiferyl alcohol56
168C9H12O3Homovanillyl alcohol30
239C18H22Triterpene hydrocarbon30
396C29H48Triterpene hydrocarbon25
168C9H12O3Homovanillyl alcohol87
182C10H14O3Dihydroconiferyl alcohol85
396C29H48Triterpene hydrocarbon52
194C11H14O3Vanillyl acetone44
* Tentative peak assignments: Pubchem, Phenol Explorer, Lipid MAPS.
Table 12. Most abundant compounds detected in LV2B, LV2T, RT2, and HR2 with APPI FT-ICR MS.
Table 12. Most abundant compounds detected in LV2B, LV2T, RT2, and HR2 with APPI FT-ICR MS.
m/zMolecular FormulaCompound *Relative Abundance (%)
396C29H48Triterpene hydrocarbon11
278C18H30O2Pinolenic acid11
331C19H38O4Glyceryl palmitate70
359C21H42O4Glyseryl stearate52
182C10H14O3Dihydroconiferyl alcohol54
168C9H12O3Homovanillyl alcohol52
194C11H14O3Vanillyl acetone29
202C13H14O2Unknown (phenolic)21
210C11H14O4Sinapinyl alcohol19
228C15H26O2Bisphenol A (impurity?)17
* Tentative peak assignments: Pubchem, Phenol Explorer, Lipid MAPS.
Publisher’s Note: MDPI stays neutral with regard to jurisdictional claims in published maps and institutional affiliations.

Share and Cite

MDPI and ACS Style

Salami, A.; Heikkinen, J.; Tomppo, L.; Hyttinen, M.; Kekäläinen, T.; Jänis, J.; Vepsäläinen, J.; Lappalainen, R. A Comparative Study of Pyrolysis Liquids by Slow Pyrolysis of Industrial Hemp Leaves, Hurds and Roots. Molecules 2021, 26, 3167.

AMA Style

Salami A, Heikkinen J, Tomppo L, Hyttinen M, Kekäläinen T, Jänis J, Vepsäläinen J, Lappalainen R. A Comparative Study of Pyrolysis Liquids by Slow Pyrolysis of Industrial Hemp Leaves, Hurds and Roots. Molecules. 2021; 26(11):3167.

Chicago/Turabian Style

Salami, Ayobami, Jorma Heikkinen, Laura Tomppo, Marko Hyttinen, Timo Kekäläinen, Janne Jänis, Jouko Vepsäläinen, and Reijo Lappalainen. 2021. "A Comparative Study of Pyrolysis Liquids by Slow Pyrolysis of Industrial Hemp Leaves, Hurds and Roots" Molecules 26, no. 11: 3167.

Article Metrics

Back to TopTop
