Open AccessArticle

Desymmetrizing Heteroleptic [Cu(P^P)(N^N)][PF6] Compounds: Effects on Structural and Photophysical Properties, and Solution Dynamic Behavior

Department of Chemistry, University of Basel, BPR 1096, Mattenstrasse 24a, CH-4058 Basel, Switzerland
*
Author to whom correspondence should be addressed.
Academic Editors: Burgert Blom, Erika Ferrari, Vassilis Tangoulis, Cédric R. Mayer, Axel Klein and Constantinos C. Stoumpos
Molecules 2021, 26(1), 125; https://doi.org/10.3390/molecules26010125
Received: 14 December 2020 / Revised: 24 December 2020 / Accepted: 24 December 2020 / Published: 29 December 2020

Abstract

The preparation, characterization and electrochemical and photophysical properties of a series of desymmetrized heteroleptic [Cu(P^P)(N^N)][PF6] compounds are reported. The complexes incorporate the chelating P^P ligands bis(2-(diphenylphosphanyl)phenyl)ether (POP) and (9,9-dimethyl-9H-xanthene-4,5-diyl)bis(diphenylphosphane) (xantphos), and 6-substituted 2,2′-bipyridine (bpy) derivatives with functional groups attached by –(CH2)n– spacers: 6-(2,2′-bipyridin-6-yl)hexanoic acid (1), 6-(5-phenylpentyl)-2,2′-bipyridine (2) and 6-[2-(4-phenyl-1H-1,2,3,triazol-1-yl)ethyl]-2,2′-bipyridine (3). [Cu(POP)(1)][PF6], [Cu(xantphos)(1)][PF6], [Cu(POP)(2)][PF6], [Cu(xantphos)(2)][PF6], and [Cu(xantphos)(3)][PF6] have been characterized in solution using multinuclear NMR spectroscopy, and the single crystal structure of [Cu(xantphos)(3)][PF6].0.5Et2O was determined. The conformation of the 6-[2-(4-phenyl-1H-1,2,3,triazol-1-yl)ethyl]-substituent in the [Cu(xantphos)(3)]+ cation is such that the α- and β-CH2 units reside in the xanthene ‘bowl’ of the xantphos ligand. The 6-substituent desymmetrizes the structure of the [Cu(P^P)(N^N)]+ cation and this has consequences for the interpretation of the solution NMR spectra of the five complexes. The NOESY spectra and EXSY cross-peaks provide insight into the dynamic processes operating in the different compounds. For powdered samples, emission maxima are in the range 542–555 nm and photoluminescence quantum yields (PLQYs) lie in the range 13–28%, and a comparison of PLQYs and decay lifetimes with those of [Cu(xantphos)(6-Mebpy)][PF6] indicate that the introduction of the 6-substituent is not detrimental in terms of the photophysical properties.
Keywords: copper(I); bisphosphane; 2,2′-bipyridine; photophysics; X-ray diffraction copper(I); bisphosphane; 2,2′-bipyridine; photophysics; X-ray diffraction

1. Introduction

Copper(I) coordination compounds are a focus of attention as efficient emissive materials for organic light emitting diodes (OLEDs) [1] and light-emitting electrochemical cells (LECs) [2,3,4,5,6]. In a LEC, an ionic transition metal complex (iTMC) can function both as the emitter and as charge carrier. Heteroleptic [Cu(P^P)(N^N)]+ complexes in which N^N is a diimine and P^P is a bisphosphane are of particular interest because many exhibit thermally activated delayed fluorescence (TADF) [7,8,9]. In TADF-compounds, the energy gap between the excited singlet and triplet states is small, leading to reverse intersystem crossing which gives rise to enhanced photoluminescence quantum yields (PLQYs). The current generations of [Cu(P^P)(N^N)]+ complexes have their origins in derivatives containing 2,2′-bipyridine (bpy) or 1,10-phenanthroline (phen) which were found by McMillin to exhibit low-lying metal-to-ligand charge transfer (MLCT) excited states [10,11].
Improving the photophysical properties of [Cu(P^P)(N^N)]+ complexes can be approached by structural modification of either the P^P or N^N domains. Typically, the P^P ligand is a wide bite-angle bisphosphane such as bis(2-(diphenylphosphanyl)phenyl)ether (POP) or (9,9-dimethyl-9H-xanthene-4,5-diyl)bis(diphenylphosphane) (xantphos) (Scheme 1) and these commercially available ligands remain the most popular choices. While structure–property relationships may be developed [12,13,14], enhanced PLQY is most often the result of trial-and-error structural variation of the N^N ligand. Synthetically, it is easier to vary the functionalities in the latter than in the P^P domain. It has also been shown that intramolecular π-stacking interactions in [Cu(P^P)(phen)]+ and [Cu(P^P)(4,7-Ph2phen)]+ (4,7-Ph2phen = 4,7-diphenyl-1,10-phenanthroline) lead to increased PLQY values because of inhibition of the flattening of the coordination sphere in the excited state [15]. In addition to enhancing photophysical behaviour, one of the challenges in the design of [Cu(P^P)(N^N)]+ emitters is to minimize the tendency for ligand-redistribution reactions. One approach has been to use macrocyclic ligands to produce pseudorotaxanes [16]. The covalent linkage of the P^P and N^N domains is an attractive way forward but appears to have been little explored. This approach will involve the use of longer chains as linkers, and strategies that might be developed involve condensation reactions between appropriate functionalities on the P^P and N^N domains, or the use of click chemistry. In this paper, we consider the consequences on the structural, dynamic and photophysical properties of copper(I) iTMCs of the desymmetrization caused by the introduction of model linker chains at the 6-position of a bpy (ligands 13 in Scheme 1). We have previously demonstrated that the introduction of 6-methyl, 6-ethyl, 6-phenyl or 6-phenylthio substituents is beneficial to the photophysical properties of [Cu(POP)(bpy)]+ and [Cu(xantphos)(bpy)]+ derivatives [17,18,19]. However, to the best of our knowledge, little is known about the effects of introducing longer, and potentially sterically demanding, 6-substituents.

2. Results and Discussion

2.1. Ligand Syntheses

Compound 1 has previously been reported and was prepared according to the published method [20]. The route shown in Scheme 2 was used to synthesize compound 2. The first step was lithiation of the methyl group in 6-methyl-2,2′-bipyridine (6-Mebpy) using lithium diisopropylamide (LDA) prepared in situ. The intermediate was then treated with 1-bromo-4-phenylbutane to give 2. The base peak at m/z 303.10 in the electrospray (ESI) mass spectrum arose from the [M + H]+ ion. The 1H- and 13C{1H}-NMR spectra were assigned using 2D methods, and HMQC and HMBC spectra are shown in Figures S1 and S2 in the Supplementary Materials.
Compound 3 was prepared by adapting a literature procedure [21] and the synthetic route is summarized in Scheme 3. The base peak (m/z 328.08) in the ESI mass spectrum corresponded to the [M + H]+ ion, and the 1H and 13C{1H} NMR spectra (assigned using COSY, NOESY and HMQC and HMBC methods) were fully in accord with the structure shown in Scheme 3. Figure 1 illustrates the 1H NMR spectrum of 3, and additional spectra are presented in Figures S3 and S4. Using the atom numbering given in Scheme 1, protons Ha and Hb were distinguished by the observation of NOESY crosspeaks between Ha and HB5, and between Hb and HE5 (Figure 1b).

2.2. Synthesis and Characterization of Heteroleptic Copper(I) Complexes

[Cu(POP)(1)][PF6] and [Cu(POP)(2)][PF6] were prepared by initially reacting [Cu(MeCN)4][PF6] and POP in CH2Cl2, followed by the addition of 1 or 2. For the xantphos-containing compounds, xantphos and the N^N ligand were added at the same time to a CH2Cl2 solution of [Cu(MeCN)4][PF6]. The reasons for these different routes have previously been discussed [18]. [Cu(POP)(1)][PF6], [Cu(POP)(2)][PF6], [Cu(xantphos)(1)][PF6], [Cu(xantphos)(2)][PF6] and [Cu(xantphos)(3)][PF6] were isolated as yellow solids in yields ranging from 78% to 99%. Positive-mode ESI mass spectra showed peaks arising from the [M − PF6]+ ion and in all but [Cu(xantphos)(3)][PF6], this was the base peak. For [Cu(xantphos)(3)][PF6], a low intensity peak at m/z 968.26 corresponded to [M − PF6]+ and the base peak at m/z 811.16 was assigned to the fragment ion [Cu(xantphos)(Mebpy)]+. For each compound, the presence of the [PF6] counterion was confirmed in the negative-mode ESI mass spectrum, and by a characteristic septet in the 31P{1H} NMR spectrum. A singlet at δ –13.1 ppm in the 31P{1H} NMR spectra of [Cu(P^P)(1)][PF6] and [Cu(P^P)(2)][PF6] was assigned to the POP or xantphos ligand, while in [Cu(xantphos)(3)][PF6], the xantphos ligand gave rise to a signal at δ –12.7 ppm. Before considering the NMR characterization of the complexes, we present the crystal structure of [Cu(xantphos)(3)][PF6].0.5Et2O.
Single crystals of [Cu(xantphos)(3)][PF6].0.5Et2O were grown from a CH2Cl2 of the compound layered with diethyl ether. The compound crystallizes in the triclinic space group P–1. Disorder of the phenyl ring of the coordinated ligand 3 (see the experimental section) meant that this part of the structure was refined isotropically, as seen in the ORTEP representation in Figure S5 in the Supplementary Materials. Table 1 presents important bond lengths and angles, and P–C bond lengths are typical, lying in the range 1.827(3) to 1.834(3) Å. Atom Cu1 in the [Cu(xantphos)(3)]+ cation is in a distorted tetrahedral environment, with the largest angle in the coordination sphere being P2–Cu1–N2 = 118.78(7)o. Figure 2a,b show two views of the [Cu(xantphos)(3)]+ cation, and is noteworthy that the 6-substituent lies over and to one side of the ‘bowl’ shaped cavity of the xanthene; this is relevant to the subsequent NMR spectroscopic discussion. The space-filling diagram in Figure 2c illustrates that the conformation of the chain is such that is desymmetrizes the structure. It is tempting to suggest that this is associated with a stacking of the triazole ring over one arene ring of the xanthene. However, the distance between the ring-centroids is 4.07 Å indicating that this is, at best, a weak π-interaction. Figure 2b reveals that two of the PPh2 phenyl rings are aligned to give a π-stacking interaction. The angle between the ring planes is 10.0°, and the centroid...centroid distance is 3.85 Å, making this an effective interaction and one that is typical in many [Cu(xantphos)(N^N)]+ complexes [19]. Figure S6 illustrates this interaction and also highlights the proximity of bpy proton HA6 (see Scheme 1) to the stacked rings which is pertinent to the NMR spectroscopic discussion below.
Attempts to grow X-ray quality crystals of the remaining four complexes were unsuccessful, and we therefore modelled one of the POP-containing complexes in order to gain information about the structural relationship between the substituent attached to the bpy domain, and the POP ligand. The structure of [Cu(POP)(1)]+ was minimized, first at a molecular mechanics (MM2) level, and this geometry was used as an input to a DFT level energy minimization (B3LYP 6-31G*) [22]. Figure 3 shows the minimized structures of the [Cu(POP)(1)]+, [Cu(POP)(2)]+, [Cu(xantphos)(1)]+ and [Cu(xantphos)(2)]+ cations. Significantly, the 6-substituent is positioned over one phenyl ring of the POP-backbone (Figure 3a,b) or over one arene ring of the xanthene unit (Figure 3c,d), in a similar orientation to that observed for the triazole-containing chain in the solid-state structure of [Cu(xantphos)(3)][PF6] (Figure 2).

2.3. NMR Spectroscopic Properties and Dynamic Behaviour

The 1H- and 13C{1H}-NMR spectra of the complexes were recorded in acetone-d6 and assigned using a combination of COSY, NOESY, HMQC and HMBC methods. 1H-NMR, HMQC and HMBC spectra are depicted in Figures S7–S21 in the Supplementary Materials, and full assignments are given in the Material and Methods section. Figure 4 compares the aromatic regions of the 1H-NMR spectra of [Cu(POP)(1)][PF6] and [Cu(xantphos)(1)][PF6]. Several features are of note. First, on going from Figure 4a,b, the signal for HC6 is lost as the CMe2 unit is introduced into the P^P ligand backbone (Scheme 1). Secondly, in the spectrum of [Cu(xantphos)(1)][PF6], the signal for bpy HA6 is broadened, and presumably this is associated with the proximity of this proton to two phenyl rings of the PPh2 groups of the xantphos ligand (see Figure S6). The third notable distinction between the 1H spectra is the splitting of the signals for the phenyl rings into two sets (labelled D and D’), a phenomenon more pronounced in [Cu(xantphos)(1)][PF6] than [Cu(POP)(1)][PF6]. The difference is also apparent in the HMQC spectra, expansions of which are displayed in Figure 5.
Non-dissociative dynamic processes to be considered include: (i) rotation of the phenyl rings around P–C bonds which has a very low energy barrier; (ii) conformational change of the 6-substituent from the left- to the right-side of the complex as defined in Scheme 4a; (iii) the conformational change of the POP backbone (Scheme 4b), or conformational change of the xanthene unit in xantphos (Scheme 4c). We may assume that process (i) occurs in all the complexes at 298 K. Processes (ii) and (iii) may be coupled or independent, and the series of complex cations described here reveals different scenarios. First, we compare [Cu(xantphos)(1)][PF6] and [Cu(POP)(1)][PF6]. The NOESY spectra in Figure 6 and Figure 7 are particularly informative. The backbone of the xanthene unit is less flexible than that of POP, and the conformational change for xanthene (Scheme 4c) is expected to be a higher energy process than that of POP (Scheme 4b). There are no exchange (EXSY) peaks between the signals for the xantphos HMe and HMe’ protons in [Cu(xantphos)(1)][PF6] (top part of Figure 6a), consistent with no conformational change of the xanthene unit. Additionally, no EXSY peaks are observed between the PPh2 HD2 and HD2′ protons. As Figure 7a shows for [Cu(xantphos)(1)][PF6], in addition to a NOESY crosspeak to HB5(bpy), the protons in the CH2 group attached to the bpy unit (Ha in Scheme 1) show a NOESY crosspeak with HD2, but not with HD2′. The data are consistent with the 6-substituent undergoing the conformational change shown in Scheme 4a. This in not coupled with inversion of the xanthene unit (i.e., the process in Scheme 4c is not fast on the NMR timescale at 298 K). In contrast, in the NOESY spectrum of [Cu(POP)(1)][PF6] (Figure 6b), EXSY peaks are observed between HD2 and HD2′, indicating that phenyl rings D and D’ exchange, but the process in slow enough on the NMR timescale at 298 K that signals for phenyl groups in two chemically different environments remain distinct. Significantly, the signal for the CH2 group attached to bpy in [Cu(POP)(1)][PF6] is an overlapping doublet of doublets (Figure 7b), indicating that these protons are diastereotopic. Figure 7b shows part of the NOESY spectrum of [Cu(POP)(1)][PF6], where separate crosspeaks between Ha and HD2, and between Ha’ and HD2′, in addition to the Ha/Ha’ to HB5(bpy) crosspeaks are observed. The data for [Cu(POP)(1)][PF6] are therefore in accord with a combination of the processes shown in (Scheme 4a,b. Analyses of the NMR spectra of [Cu(xantphos)(2)][PF6] and [Cu(POP)(2)][PF6] demonstrate that their dynamic behaviours mimic those of [Cu(xantphos)(1)][PF6] and [Cu(POP)(1)][PF6], respectively (Figures S22 and S23 in the Supplementary Materials).
In contrast to the dynamic behaviour in [Cu(xantphos)(1)][PF6] and [Cu(xantphos)(2)][PF6], [Cu(xantphos)(3)][PF6] undergoes a combination of the processes illustrated in (Scheme 4a,c). The 1H- and 13C{1H}-NMR spectra of an acetone-d6 solution of [Cu(xantphos)(3)][PF6] (298 K) display two sets of signals for the PPh2 phenyl rings, and in the NOESY spectrum, EXSY peaks are observed between the HD2/HD2′, HD3/HD3′, and HD4/HD4′ pairs (Figure 8a). Critically, there are EXSY peaks between the two methyl groups of the CMe2 unit of xantphos (Figure 8b) confirming that the xanthene unit undergoes a conformation change (Scheme 4c) which is slow on the NMR timescale at 298 K. The NMR spectroscopic data are consistent with this being combined with the ‘flip’ of the 6-substituent (Scheme 4a). It is possible that this is associated with the presence of the aromatic triazole unit in the middle of the substituent chain (see structural discussion and Figure 2).

2.4. Electrochemical and Photophysical Properties

The electrochemical behaviour of the copper(I) compounds was investigated using cyclic voltammetry and Table 2 summarizes the observed processes. For comparison, the parent compounds [Cu(POP)(bpy)][PF6] and [Cu(xantphos)(bpy)][PF6] undergo a reversible copper(I) oxidation at +0.72 V and +0.76 V, respectively [23], and, on going from [Cu(xantphos)(bpy)][PF6] to [Cu(xantphos)(6-Mebpy)][PF6] to [Cu(xantphos)(6,6′-Me2bpy)][PF6], oxidation of Cu+ occurs at higher potentials (E1/2ox = +0.76 V, +0.85 V and +0.96 V, respectively) [23]. Although the copper oxidation for each of the compounds reported in Table 2 is irreversible, the Epc values are similar to the E1/2ox for [Cu(xantphos)(6-Mebpy)][PF6] to [Cu(xantphos)(6,6′-Me2bpy)][PF6], and are consistent with the steric demands of the 6-substituents hindering the flattening of the copper coordination sphere which accompanies oxidation from Cu+ to Cu2+. Each compound also undergoes a reversible bpy-centred reduction, and Figure S24 in the Supplementary Materials shows cyclic voltammograms (CVs) for [Cu(POP)(2)][PF6] and [Cu(xantphos)(2)][PF6] as representative data.
The solution absorption spectra of the heteroleptic compounds are displayed in Figure 9 and absorption maxima are given in Table 3. Absorptions below ca. 330 nm arise from ligand-centred transitions. These regions of the spectra of the two POP-containing compounds are similar, and those of the xantphos-containing complexes are also comparable, with the more intense high-energy bands for [Cu(xantphos)(3)][PF6] being consistent with the presence of the triazole unit. Each of the five complexes exhibits a low-intensity, broad absorption with λmax in the range 381–384 nm which is assigned to metal-to-ligand charge-transfer (MLCT).
When de-aerated solutions of the compounds are excited into the MLCT band (λexc = 365 nm), they emit very weakly in the orange region. All solution PLQYs were <1%. As has been described for related heteroleptic [Cu(P^P)(N^N)]+ complexes [18], the emissions are assigned to dπ(Cu)→π*(bpy) (3MLCT) transitions. The emissions gain in intensity upon going from solution to powdered samples and we focus only on the solid-state data. The emission bands are unstructured (Figure 10) and values of λmaxem are given in Table 4. PLQY values range from 13% for [Cu(POP)(2)][PF6] to 28% for [Cu(xantphos)(1)][PF6]. As Table 4 shows, the xantphos-containing compounds have higher PLQY values than those in which P^P is POP. A biexponential fit was used for the lifetime decays (see Table 4), and values of τ were all of the same order of magnitude (5.1–8.7 μs). Pleasingly, the PLQYs for [Cu(xantphos)(1)][PF6], [Cu(xantphos)(2)][PF6] and [Cu(xantphos)(2)][PF6] are not significantly lower than that of solid [Cu(xantphos)(6-Mebpy)][PF6] (33.8%), and the decay lifetimes (Table 4) are similar to the 9.6 μs reported for [Cu(xantphos)(6-Mebpy)][PF6] [18], indicating that the switch from a 6-methyl to longer chain substituent is not detrimental to the photophysical properties.

3. Materials and Methods

3.1. General

1H-, 13C{1H}- and 31P{1H}-NMR spectra were recorded using a Bruker Avance III-500 NMR spectrometer (Bruker BioSpin AG, Fällanden, Switzerland) at 298 K. 1H and 13C NMR chemical shifts were referenced to residual solvent peaks with respect to δ (TMS) = 0 ppm and 31P NMR chemical shifts with respect to δ (85% aqueous H3PO4) = 0 ppm. Shimadzu LCMS-2020 (Shimadzu Schweiz GmbH, 4153 Reinach, Switzerland) and Bruker esquire 3000plus instruments (Bruker BioSpin AG) were used to record electrospray ionization (ESI) mass spectra with samples introduced. Solution absorption and emission spectra were recorded using an Agilent 8453 spectrophotometer (Agilent Technologies Inc., Santa Clara, CA, USA) and Shimadzu RF-5301PC spectrofluorometer (Shimadzu Schweiz GmbH), respectively. PLQYs were measured using a Hamamatsu absolute photoluminescence quantum yield spectrometer C11347 Quantaurus-QY, and emission lifetimes and powder emission spectra were measured using a Compact Fluorescence lifetime Spectrometer C11367 Quantaurus-Tau (Hamamatsu, 4500 Solothurn, Switzerland) with an LED light source (λexc = 365 nm).
Cyclic voltammograms were recorded using a CH Instruments 900B potentiostat (CH Instruments, city, TX, USA) or a VersaSTAT 3F (AMETEK Princeton Applied Research, Oak Ridge, TN, USA) respectively with [nBu4N][PF6] (0.1 mol dm–3) as the supporting electrolyte. The scan rate was 0.1 V s–1, and samples were dissolved in propylene carbonate (ca. 1 × 10−4 mol dm–3). The working electrode was glassy carbon (ALS Co. Ltd., 131-0033 Tokyo, Japan), the reference electrode was a leakless Ag+/AgCl (eDAQ ET069-1) and the counter-electrode was a platinum wire (Advent Research Materials Ltd., OX29 4JA Eynsham, UK). Final potentials were internally referenced with respect to the Fc/Fc+ couple.
POP, Cu2O, 2-pyridylzinc bromide, nBuLi, iPr2NH and CuSO4.5H2O were purchased from Acros Organics (Chemie Brunschwig AG, Basel, Switzerland). HPF6, xantphos, 1-bromo-4-phenylbutane were purchased from Fluorochem (Chemie Brunschwig AG, Basel, Switzerland). (Ph3P)4Pd, phenylethyne and NaN3 were purchased from Sigma Aldrich (Sigma Aldrich Chemie GmbH, Steinheim, Germany).
(2,2′-Bipyridin-6-yl)hexanoic acid (1) [20], 6-methyl-2,2′-bipyridine [24], 6-(2-bromoethyl)-2,2′-bipyridine [25] and [Cu(NCMe)4][PF6] [26] were prepared according to literature procedures.

3.2. Compound 2

The reaction was carried out in flame-dried glassware on a Schlenk line under an N2 atmosphere. Diisopropylamine (152 mg, 0.212 mL, 1.50 mmol, 1.0 eq.) was dissolved in dry THF (5 mL) and the mixture was cooled to −78 °C. n-Butyllithium in hexanes (408 mg, 0.600 mL, 2.5 M, 1.50 mmol, 1.0 eq.) was added and the reaction mixture was stirred for 1 h. A solution of 6-methyl-2,2′-bipyridine (93.2 mg, 0.25 mmol, 1.0 eq.) in dry THF (10 mL) was added and the mixture turned dark blue. After the reaction mixture was stirred for another 3 h, a solution of 1-bromo-4-phenylbutane in dry THF (10 mL) was added and the mixture was allowed to warm up to room temperature overnight keeping the vessel submerged in the cooling bath. Then, saturated aqueous NH4Cl (15 mL) was added and the mixture was extracted with CH2Cl2 (3 × 35 mL). The combined organic fractions were dried over MgSO4 and filtered. After the solvent was removed under reduced pressure, the residue was purified by flash column chromatography using basic alumina to give 6-(5-phenylpentyl)-2,2′-bipyridine (2) (138 mg, 0.46 mmol, 30%) as a colourless oil. For the chromatography, three columns were run: first column: cyclohexane/ethyl acetate, gradient from 3 to 20% ethyl acetate in cyclohexane over 16 column volumes, basic alumina; second column: cyclohexane/toluene (1:1), basic alumina; third column: cyclohexane/ethyl acetate (10:1), basic alumina. 1H-NMR (500 MHz, CDCl3) δ/ppm: 8.66 (m, 1H, HA6), 8.51 (d, J = 8.0 Hz, 1H, HA3), 8.29 (d, J = 7.9 Hz, 1H, HB3), 7.90 (dd, J = 9.4, 7.7 Hz, 1H, HA4), 7.80 (dd, J = 7.7, 7.7 Hz, 1H, HB4), 7.39 (m, 1H, HA5), 7.27 (m, 1H, HB5), 7.23 (m, 2H, HF3), 7.20 (m, 2H, HF2), 7.14 (m, 1H, HF4), 2.86 (t, J = 7.6, Hz, 2H, Ha), 2.62 (t, 7.6, Hz, 2H, He), 1.86 (m, 2H, Hb), 1.70 (m, 2H, Hd), 1.45 (m, 2H, Hc). 13C{1H}-NMR (126 MHz, CDCl3) δ/ppm: 157.2 (CA2), 156.2 (CB2), 150.0 (CA6), 143.5 (CE1), 138.0 (CB4), 137.6 (CA4), 129.2 (CE2), 129.1 (CE3), 126.5 (CB6), 126.4 (CE4), 124.5 (CA5), 123.7 (CB5), 121.4 (CA3), 118.6 (CB3), 38.7 (Ca), 36.4 (Ce), 32.6 (Cd), 30.2 (Cb), 29.6 (Cc). ESI MS: m/z 303.10 [M + H]+ (base peak, calc. 303.19), 325.11 [M + Na]+ (calc. 325.17).

3.3. Compound 3

6-(2-Bromoethyl)-2,2′-bipyridine (130 mg, 0.49 mmol, 1.0 eq.) was dissolved in DMF (2 mL), and NaN3 (48.2 mg, 0.74 mmol, 1.5 eq.) was added. The reaction mixture was stirred for ca. 15 h, and then water (5 mL) was added and the mixture was extracted with CH2Cl2 (4 × 15 mL). The solvent volume was reduced under vacuum. Phenylethyne (101 mg, 0.99 mmol, 2.0 eq.), water (1 mL) and t-BuOH (5mL) were added, followed by CuSO4.5H2O (12.3 mg, 0.049 mmol, 0.1 eq.) and sodium ascorbate (97.9 mg, 0.49 mmol, 1.0 eq.). The mixture was stirred at 35 °C for 72 h. The 1H NMR spectrum of the crude material indicated an incomplete conversion, and therefore more CuSO4.5H2O (123 mg, 0.49 mmol, 1.0 eq.) and sodium ascorbate (97.9 mg, 0.49 mmol, 1.0 eq.) were added. The reaction mixture was stirred at 35 °C for 5 h. Water (10 mL) was added and the mixture was extracted with CH2Cl2 (3 × 20 mL). The combined organic layers were washed with water (2 × 30 mL) and dried over MgSO4. The solvent was removed under vacuum and the residue was dissolved in CH2Cl2 (10 mL). The organic layer was washed with a mixture (2 × 20 mL) of aqueous H2O2 (ca 1 %) and Na4EDTA (ca. 1% in 2 M aqueous NaOH). The organic layer was dried over MgSO4 and the solvent was removed under vacuum. The product was purified by column chromatography (Alox 90 basic, cyclohexane: ethyl acetate 2: 1) to give 3 as a white solid (87.0 mg, 0.27 mmol, 54%). 1H-NMR (500 MHz, CDCl3) δ/ppm: 8.69 (d, J = 4.1 Hz, 1H, HA6), 8.41 (d, J = 7.9 Hz, 1H, HA3), 8.28 (d, J = 7.9 Hz, 1H, HB3), 7.79 (t, J = 7.7 Hz, 1H, HA4), 7.74 (d, J = 7.9 Hz, 2H, HF2), 7.71 (t, J = 7.8 Hz, 1H, HB4), 7.62 (s, 1H, HE5), 7.37 (t, J = 7.6 Hz, 2H, HF3), 7.34−7.27 (overlapping m, 2H, HA5+F4), 7.09 (d, J = 7.6 Hz, 1H, HB5), 4.98 (t, J = 6.9 Hz, 2H, Hb), 3.50 (t, J = 6.9 Hz, 2H, Ha). 13C{1H}-NMR (126 MHz, CDCl3) δ/ppm: 156.5 (CB6), 156.1 (CA2), 156.0 (CB2), 149.4 (CA6), 147.6 (CE4), 137.8 (CB4), 137.0 (CA4), 130.8 (CF1), 128.9 (CF3), 128.1 (CF4), 125.8 (CF2), 124.0 (CA5), 123.8 (CB5), 121.2 (CA3), 120.2 (CE5), 119.5 (CB3), 49.5 (Cb), 38.4 (Ca). ESI MS: m/z 328.08 [M + H]+ (base peak calc. 328.16), 350.08 [M + Na]+ (calc. 350.14).

3.4. [Cu(POP)(1)][PF6]

[Cu(MeCN)4][PF6] (93.2 mg, 0.25 mmol, 1.0 eq.) and POP (148 mg, 0.28 mmol, 1.1 eq.) were dissolved in CH2Cl2 (30 mL) and the mixture stirred for 1 h. Compound 1 (67.6 mg, 0.25 mmol, 1.0 eq.) was added and the mixture turned red, then orange while it was stirred for 1 h. The colour indicated the presence of homoleptic [Cu(1)2][PF6] and therefore additional POP (26.9 mg, 0.05 mmol, 0.2 eq.) was added. The mixture turned yellow and after stirring for 1.5 h, the mixture was filtered and the volume was reduced in vacuo. The product was precipitated by addition of Et2O and the solid was washed by sonication in Et2O (4 × 15 mL). After recrystallization, [Cu(POP)(1)][PF6] was isolated as a yellow solid (213 mg, 0.21 mmol, 84%). 1H-NMR (500 MHz, acetone-d6) δ/ppm: 10.45 (br s, 1H, HCOOH), 8.71 (d, J = 5.0 Hz, 1H, HA6), 8.50 (d, J = 8.1 Hz, 1H, HA3), 8.43 (d, J = 7.9 Hz, 1H, HB3), 8.16 (t, J = 7.9 Hz, 1H, HB4), 8.07 (td, J = 7.8, 1.6 Hz, 1H, HA4), 7.54 (d, J = 7.9 Hz, 1H, HB5), 7.46–7.35 (overlapping m, 7H, HA5+C5+D4+D4′), 7.28 (t, J = 7.6 Hz, 8H, HD3+D3′), 7.21 (m, 2H, HC6), 7.18–7.13 (overlapping m, 6H, HC4+D2′), 7.07 (m, 4H, HD2), 6.88 (dtd, J = 7.8, 4.0, 1.7 Hz, 2H, HC3), 2.81 (dd, J = 8.2, 8.2 Hz, 2H, Ha), 2.12 (t, J = 7.4 Hz, 2H, He), 1.31 (m, 2H, Hd), 1.25 (m, 2H, Hb), 0.85 (m, 3H, Hc). 13C{1H}-NMR (126 MHz, acetone-d6) δ/ppm: 174.5 (CCOOH), 163.7 (CB6), 158.8 (t, JPC = 6 Hz, CC1), 153.6 (t, JPC = 2 Hz, CA2), 152.4 (CB2), 150.3 (CA6), 140.1 (CB4), 139.7 (CA4), 134.9 (CC3), 134.2 (t, JPC = 8 Hz, CD2′), 133.7 (t, JPC = 8 Hz, CD2), 133.2 (CC5), 132.1 (t, JPC = 17 Hz, CD1), 131.1 (CD4′), 131.0 (CD4), 129.8 (t, JPC = 5 Hz, CD3+D3′), 126.7 (CA5), 126.1 (t, JPC = 2 Hz, CC2), 125.3 (CB5), 125.1 (t, JPC = 14 Hz, CC2), 123.6 (CA3), 121.4 (t, JPC = 2 Hz, CC6), 121.2 (CB3), 40.8 (Ca), 34.0 (Ce), 29.5 (Cc), 28.7 (Cb), 25.5 (Cd). 31P{1H}-NMR (202 Hz, acetone-d6) δ/ppm: −13.1, −144.3 (septet, JPF = 707 Hz, [PF6]). ESI MS: m/z 871.21 [M−PF6]+ (base peak, calc. 871.23). UV-Vis (CH2Cl2, 2.5 × 10–5 mol dm–3): λ/nm (ε/dm3 mol–1 cm–1) 250 (28,000), 292 (23,500), 380 (3000). Found: C 61.28, H 4.71, N 2.66; C52H46CuF6N2O3P3 requires C 61.39, H 4.56, N 2.75%.

3.5. [Cu(xantphos)(1)][PF6]

[Cu(MeCN)4][PF6] (93.2 mg, 0.25 mmol, 1.0 eq.) was dissolved in CH2Cl2 (15 mL). A solution of xantphos (145 mg, 0.25 mmol, 1.0 eq.) and 1 (67.6 mg, 0.25 mmol, 1.0 eq.) in CH2Cl2 (30 mL) was added and the mixture turned red then yellow while being stirred for 2 h at room temperature. The yellow solution was filtered and the solvent was removed from the filtrate in vacuo leaving a yellow solid that was washed with Et2O (4 × 10 mL), recrystallized and dried under vacuum. [Cu(xantphos)(1)][PF6] (259 mg, 0.25 mmol, 98%) was isolated as a yellow solid. 1H-NMR (500 MHz, acetone-d6) δ/ppm: 10.41 (s, 1H, HCOOH), 8.62 (br, 1H, HA6), 8.50 (d, J = 8.2 Hz, 1H, HA3), 8.43 (d, J = 7.9 Hz, 1H, HB3), 8.20 (t, J = 7.9 Hz, 1H, HB4), 8.10 (td, J = 7.8, 1.6 Hz, 1H, HA4), 7.87 (dd, J = 7.8, 1.5 Hz, 2H, HC5), 7.61 (d, J = 7.8 Hz, 1H, HB5), 7.53 (dd, J = 7.6, 5.1 Hz, 1H, HA5), 7.40 (t, J = 7.4 Hz, 2H, HD4′), 7.36–7.29 (overlapping m, 4H, HC4+D4), 7.27 (m, 4H, HD3′), 7.20 (m, 4H, HD2′), 7.16 (m, 4H, HD3), 6.90 (m, 4H, HD2), 6.71 (m, 2H, HC3), 2.48 (t, J = 7.6 Hz, 2H, Ha), 2.02 (t, J = 7.7 Hz, 2H, He), 1.95 (s, 3H, Hxantphos-Me), 1.64 (s, 3H, Hxantphos-Me’), 1.23–1.12 (m, 4H, Hb+c), 0.51 (m, 2H, Hd). 13C{1H}- NMR (126 MHz, acetone-d6) δ/ppm: 174.3 (CCOOH), 163.0 (CB6), 155.9 (t, JPC = 6 Hz, CC1), 153.5 (t, JPC = 2 Hz, CA2), 152.3 (t, JPC = 2 Hz, CB2), 150.0 (CA6), 140.3 (CB4), 139.9 (CA4), 135.1 (t, JPC = 2 Hz, CC6), 134.0 (t, JPC = 8 Hz, CD2), 133.4 (t, JPC = 8 Hz, CD2′), 132.8 (m, CD1′), 132.3 (m, CD1), 131.5 (CC3), 131.1 (CD4), 130.9 (CD4′), 129.9 (t, JPC = 5 Hz, CD3′), 129.7 (t, JPC = 5 Hz, CD3), 128.6 (CC5), 127.0 (CA5), 126.3 (t, JPC = 2 Hz, CC4), 125.5 (CB5), 123.8 (CA3), 121.50 (t, J = 14 Hz, CC2), 121.46 (CB3), 41.2 (Ca), 37.0 (Cxantphos-bridge), 33.8 (br, Ce), 30.9 (br, Cxantphos-Me’), 28.8 (Cd), 28.5 (Cb), 25.7 (br, Cxantphos-Me), 25.5 (Cc). 31P{1H}-NMR (202 Hz, acetone-d6) δ/ppm: −13.1, −144.2 (septet, JPF = 708 Hz, [PF6]). ESI MS: m/z 911.21 [M − PF6]+ (base peak, calc. 911.26), 641.10 [Cu(xantphos)]+ (calc. 641.12). UV-Vis (CH2Cl2, 2.5 × 10–5 mol dm–3): λ/nm (ε/dm3 mol–1 cm–1) 248sh (31,500), 285 (28,000), 381 (3100). Satisfactory elemental analysis could not be obtained.

3.6. [Cu(POP)(2)][PF6]

[Cu(MeCN)4][PF6] (86.8 mg, 0.23 mmol, 1.0 eq.) and POP (126 mg, 0.23 mmol, 1.0 eq.) were dissolved in CH2Cl2 (30 mL) and the mixture was stirred for 2 h. Compound 2 (70.6 mg, 0.23 mmol, 1.0 eq.) was added and the mixture turned red, then yellow while it was stirred for 2 h. The mixture was filtered and the volume was reduced under vacuum. The product was purified by preparative crystallization from CH2Cl2 by addition of Et2O. After drying, [Cu(POP)(2)][PF6] was isolated as a yellow solid (191 mg, 0.18 mmol, 78%). 1H- NMR (500 MHz, acetone-d6) δ/ppm: 8.68 (d, J = 5.1 Hz, 1H, HA6), 8.50 (d, J = 8.1 Hz, 1H, HA3), 8.42 (d, J = 7.8 Hz, 1H, HB3), 8.15 (dd, J = 7.9, 7.9 Hz, 1H, HB4), 8.07 (dd, J = 7.9, 8.0 Hz, 1H, HA4), 7.53 (d, J = 7.8 Hz, 1H, HB5), 7.45–7.35 (overlapping m, 7H, HD4+D4′+C5+A5), 7.26 (m, 10H, HD3+D3′+E3), 7.19–7.12 (overlapping m, 11H, HE2+E4+C4+C6+D2′), 7.05 (m, 4H, HD2), 6.88 (m, 1H, HC3), 2.80 (m, 2H, Ha), 2.44 (m, 2H, He), 1.28 (m, 2H, Hd), 1.27 (m, 2H, Hb), 0.85 (m, 2H, Hc). 13C{1H}-NMR (126 MHz, acetone-d6) δ/ppm: 163.8 (CB6), 158.8 (t, JPC = 6 Hz, CC1), 153.6 (CA2), 152.4 (CB2), 150.2 (CA6), 143.3 (CE1), 140.1 (CB4), 139.7 (CA4), 135.0 (CC3), 134.2 (t, JPC = 8 Hz, CD2′), 133.7 (t, JPC = 8 Hz, CD2), 133.2 (CC5), 132.1 (m, CD1+D1′), 131.0 (CD4+D4′), 129.8 (t, JPC = 5 Hz, CD3+D3′), 129.3 (CE2/E3), 129.1 (CE2/E3), 126.6 (CA5), 126.5 (CE4), 126.1 (t, JPC = 2 Hz, CC4), 125.4 (CB5), 125.0 (t, JPC = 14 Hz, CC2), 123.6 (CA3), 121.3 (t, JPC = 2 Hz, CC6), 121.2 (CB3), 40.9 (Ca), 36.3 (Ce), 32.1 (Cd), 29.5 (Cc), 29.0 (Cb). 31P{1H}-NMR (202 MHz, 298 K, acetone-d6) δ/ppm: −13.1, −144.2 (septet, JPF = 707 Hz, [PF6]). ESI-MS m/z: 903.25 [M − PF6]+ (base peak, calc. 903.27), 601.09 [Cu(POP)]+ (calc. 601.09). UV-Vis (CH2Cl2, 2.5 × 10–5 mol dm–3): λ/nm (ε/dm3 mol–1 cm–1) 250 (25,750), 290 (22,000), 383 (3000). Found: C 64.44, H 4.91, N 2.67; C57H50CuF6N2OP3 requires C 65.23, H 4.80, N 2.67.

3.7. [Cu(xantphos)(2)][PF6]

[Cu(MeCN)4][PF6] (86.1 mg, 0.23 mmol, 1.0 eq.), xantphos (134 mg, 0.23 mmol, 1.0 eq.) and 2 (70.0 mg, 0.23 mmol, 1.0 eq.) were dissolved in CH2Cl2 (30 mL). The mixture turned red, then yellow while it was stirred for 2 h. The mixture was filtered and the volume was reduced under vacuum. The product was purified by preparative crystallization from CH2Cl2 by addition of Et2O. AFter drying, [Cu(xantphos)(2)][PF6] was isolated as a yellow solid (204 mg, 0.19 mmol, 81%). 1H-NMR (500 MHz, acetone-d6) δ/ppm: 8.59 (m, 1H, HA6), 8.51 (d, J = 8.2 Hz, 1H, HA3), 8.43 (d, J = 7.9 Hz, 1H, HB3), 8.19 (dd, J = 7.9, 7.9 Hz, 1H, HB4), 8.10 (dd, J = 9.1, 7.7 Hz, 1H, HA4), 7.84 (dd, J = 7.9, 1.4 Hz, 2H, HC5), 7.58 (d, J = 7.7 Hz, 1H, HB5), 7.52 (dd, J = 6.8, 5.5 Hz, 1H, HA5), 7.39 (t, J = 7.4 Hz, 2H, HD4′), 7.34 (t, J = 7.5 Hz, 2H, HD4), 7.26 (m, 2H, HC4), 7.25 (m, 4H, HD3′), 7.23 (m, 2H, HE3), 7.19 (m, 4H, HD2′), 7.15 (m, 4H, HD3), 7.15 (m, 1H, HE4), 7.05 (m, 2H, HE2), 6.91 (m, 4H, HD2), 6.7 (m, 1H, HC3), 2.49 (dd, J = 7.6 Hz, 2H, Ha), 2.34 (dd, J = 7.6 Hz, 2H, He), 1.93 (s, 3H, Hxantphos-Me’), 1.65 (s, 3H, Hxantphos-Me), 1.22 (m, 2H, Hd), 1.19 (m, 2H, Hb), 0.55 (m, 2H, Hc). 13C{1H}-NMR (126 MHz, acetone-d6) δ/ppm: 153.5 (CA2), 163.1 (CB6), 155.8 (t, JPC = 6 Hz, CC1), 152.3 (CB2), 150.0 (CA6), 143.2 (CE1), 140.3 (CB4), 139.9 (CA4), 135.1 (t, JPC = 2 Hz, CC6), 134.0 (t, JPC = 8 Hz, CD2), 133.4 (t, JPC = 8 Hz, CD2′), 132.8 (t, JPC = 16 Hz, CD1′), 132.4 (t, JPC = 18 Hz, CD1), 131.5 (CC3), 131.1 (CD4), 130.9 (CD4′), 129.9 (t, JPC = 5 Hz, CD3′), 129.7 (t, JPC = 5 Hz, CD3), 129.7 (CE3), 129.1 (CE2), 128.6 (CC5), 127.0 (CA5), 126.5 (CE4), 126.3 (t, J = 2 Hz, CC4), 125.5 (CB5), 123.8 (CA3), 121.5 (t, JPC = 13 Hz, CC2), 121.4 (CB3), 41.3 (Ca), 36.9 (Cxantphos-bridge), 36.1 (Ce), 32.2 (Cd), 30.8 (Cxantphos-Me), 28.9 (Cc), 28.7 (Cb), 25.9 (Cxantphos-Me’). 31P{1H}-NMR (202 MHz, 298 K, acetone-d6) δ/ppm: −13.1, −144.2 (septet, JPF = 707 Hz). ESI-MS m/z: 943.32 [M − PF6]+ (base peak, calc. 943.30), 641.11 [Cu(xantphos)]+ (calc. 641.12). UV-Vis (CH2Cl2, 2.5 × 10–5 mol dm–3): λ/nm (ε/dm3 mol–1 cm–1) 248 (26,500), 284 (25,000), 383 (2750). Found: C 65.50, H 4.92, N 2.57; C60H54CuF6N2OP3 requires C 66.14, H 5.00, N 2.57.

3.8. [Cu(xantphos)(3)][PF6]

[Cu(MeCN)4][PF6] (42.1 mg, 0.11 mmol, 1.0 eq.) was dissolved in CH2Cl2 (15 mL). A solution of xantphos (65.4 mg, 0.11 mmol, 1.0 eq.) and 3 (37.0 mg, 0.11 mmol, 1.0 eq.) was added and the mixture turned red then yellow as it was stirred for 2 h at room temperature. The reaction mixture was filtered and the solvent was removed from the filtrate to yield a yellow solid that was washed with Et2O (4 × 10 mL), recrystallized and dried under vacuum. [Cu(xantphos)(3)][PF6] was isolated as a yellow solid (125 mg, 0.11 mmol, 99%). 1H-NMR (500 MHz, acetone-d6) δ/ppm: 8.56 (d, J = 8.2 Hz, 1H, HA3), 8.49 (d, J = 7.9 Hz, 1H, HB3), 8.32 (br s, 1H, HA6), 8.14 (t, J = 7.9 Hz, 1H, HB4), 8.11 (t, J = 7.9 Hz, 1H, HA4), 7.87 (d, J = 7.8 Hz, 2H, HC5), 7.73 (d, J = 7.7 Hz, 2H, HF2), 7.68 (s, 1H, HE5), 7.45 (dd, J = 7.6, 5.3 Hz, 1H, HA5), 7.43–7.36 (overlapping m, 5H, HB5+D4+F3), 7.34−7.27 (overlapping m, 5H, HF4+C4+D4′), 7.25 (m, 4H, HD3′), 7.18−7.09 (overlapping m, 8H, HD2′+D3), 6.97 (m, 4H, HD2), 6.70 (m, 2H, HC3), 4.20 (t, J = 6.9 Hz, 2H, Hb), 3.31 (br t, 3H, Ha), 1.87 (s, 3H, Hxantphos-Me), 1.75 (s, 3H, Hxantphos-Me’). 13C{1H}-NMR (126 MHz, acetone-d6) δ/ppm: 158.6 (CB6), 155.7 (t, JPC = 6.3 Hz, CC1), 153.3 (CA2), 153.0 (CB2), 149.8 (CA6), 147.9 (CE4), 140.5 (CB4), 140.0 (CA4), 135.1 (t, JPC = 2 Hz, CC6), 133.9 (t, JPC = 8 Hz, CD2), 133.5 (t, JPC = 8 Hz, CD2′), 132.5 (t, JPC = 17 Hz, CD1′), 132.0 (t, JPC = 18 Hz, CD1), 131.9 (CF1), 131.7 (CC3), 131.11 (CD4′), 131.06 (CD4), 129.92 (t, JPC = 5 Hz, CD3′), 129.88 (t, JPC = 5 Hz, CD3), 129.7 (CF3), 128.9 (CF4), 128.8 (CC5), 127.1 (CA5), 126.5 (t, JPC = 2 Hz, CC4), 126.3 (CF2), 126.0 (CB5), 124.1 (CA3), 122.4 (CB3), 121.23 (t, JPC = 14 Hz, CC2), 121.17 (CE5), 48.1 (Cb), 40.9 (Ca), 37.0 (Cxantphos-bridge), 29.6 (Cxantphos-Me’), 27.2 (Cxantphos-Me). 31P{1H}-NMR (202 Hz, acetone-d6) δ/ppm: −12.7, −144.3 (septet, JPF = 707 Hz). ESI MS: m/z 968.26 [M − PF6]+ (calc. 968.27), 811.16 [Cu(xantphos)(Mebpy)]+ (base peak calc. 811.21), 641.09 [Cu(xantphos)]+ (calc. 641.12). UV-Vis (CH2Cl2, 2.5 × 10–5 mol dm–3): λ/nm (ε/dm3 mol–1 cm–1) 248 (50,000), 283 (30,000), 385 (3000). Found: C 63.24, H 4.63, N 6.19; C59H49CuF6N5OP3 requires C 63.58, H 4.43, N 6.28%.

3.9. Crystallography

Single crystal data were collected on a Bruker APEX-II diffractometer with data reduction, solution and refinement using the programs APEX [27] and CRYSTALS [28]. The program CSD Mercury 2020.1 [29] was used for the structure analysis and structural figures. SQUEEZE [30] was used to treat the solvent region, and the electron density removed equated to half a molecule of Et2O per complex cation. The anion in [Cu(xantphos)(3)][PF6].0.5Et2O was orientationally disordered and was modelled over two positions with fractional occupancies of 0.70 and 0.30. The phenyl ring in ligand 3 was also orientationally disordered over two positions, and the rings had to be refined isotropically and with rigid body restraints.
C61H54CuF6N5O1.5P3, Mr = 1151.59, yellow block, triclinic, space group P–1, a = 10.9834(7), b = 15.5458(9), c = 18.6079(11) Å, α = 110.395(2), β = 94.433(2), γ = 110.363(2)o, V = 2719.7(3) Å3, Dc = 1.41 g cm–3, T = 123 K, Z = 2, μ(CuKα) = 1.981 mm–1. Total 36,022 reflections, 10,070 unique (Rint = 0.029). Refinement of 9303 reflections (682 parameters) with I > 2σ(I) converged at final R1 = 0.0628 (R1 all data = 0.0660), wR2 = 0.1619 (wR2 all data = 0.1626), gof = 1.0476. CCDC 2047805.

4. Conclusions

We have prepared and characterized two new bpy ligands, 2 and 3, which contain extended 6-substituents. These and ligand 1 have been incorporated into heteroleptic copper(I) coordination compounds [Cu(POP)(1)][PF6], [Cu(xantphos)(1)][PF6], [Cu(POP)(2)] [PF6], [Cu(xantphos)(2)][PF6], and [Cu(xantphos)(3)][PF6]. Characterization of these compounds included the determination of the single-crystal structure of [Cu(xantphos)(3)][PF6].0.5Et2O, and this confirmed the expected distorted tetrahedral copper(I) coordination environment. The 6-substituent is oriented so that the α- and β-CH2 units reside in the xanthene ‘bowl’ of the xantphos ligand, and the conformation of the chain is such that is desymmetrizes the structure. This has implications for the interpretation of the solution NMR spectra of the five complexes, and analysis of the 2D spectra provides evidence for different combinations of possible dynamic processes operating in different compounds. Each copper(I) complex exhibits a broad MLCT absorption band with λmax in the range 381–384 nm, and excitation into this band results in a very weak, orange emission in solution. In the solid state, the heteroleptic complexes exhibit emission maxima between 542 nm and 555 nm, and PLQY values range from 13% for [Cu(POP)(2)][PF6] to 28% for [Cu(xantphos)(1)][PF6]. These quantum yields are not significantly lower than that of [Cu(xantphos)(6-Mebpy)][PF6] and the decay lifetimes of the new compounds are also similar to that of the analogous 6-Mebpy containing derivative. These results demonstrate that going from a 6-methyl to longer-chain substituent is not unfavourable in terms of the photophysical properties.

Supplementary Materials

The following are available online, Figures S1–S4: NMR spectra of ligands 2 and 3; Figures S5 and S6: Structural figures of the [Cu(xantphos)(3)]+ cation; Figures S7–S23: NMR spectra of the heteroleptic complexes; Figure S24: Cyclic voltammograms of [Cu(POP)(2)][PF6] and [Cu(xantphos)(2)][PF6].

Author Contributions

Project conceptualization, administration, supervision and funding acquisition, E.C.C. and C.E.H.; investigation, M.M. and F.B.; data analysis, M.M. and F.B.; crystallography, A.P.; writing, C.E.H., M.M.; manuscript editing, M.M., F.B., E.C.C., A.P. All authors have read and agreed to the published version of the manuscript.

Funding

This research was funded in part by the Swiss National Science Foundation, grant number 200020_182000.

Acknowledgments

We thank the University of Basel for support of our research.

Data Availability Statement

The data presented in this study are available on request from the corresponding author. The data are not publicly accessible at present.

Conflicts of Interest

The authors declare no conflict of interest.

Sample Availability

Samples of the compounds are not available from the authors.

References

  1. Ravaro, L.P.; Zanoni, K.P.S.; de Camargo, A.S.S. Luminescent copper(I) complexes as promising materials for the next generation of energy-saving OLED devices. Energy Rep. 2020, 6, 37–45. [Google Scholar] [CrossRef]
  2. Elie, M.; Gaillard, S.; Renaud, J.L. Light-Emitting Electrochemical Cells: Concepts, Advances and Challenges; Costa, R.D., Ed.; Springer International Publishing: New York City, NY, USA, 2017. [Google Scholar]
  3. Costa, R.D.; Ortí, E.; Bolink, H.J.; Monti, F.; Accorsi, G.; Armaroli, N. Luminescent ionic transition metal complexes for light-emitting electrochemical cells. Angew. Chem. Int. Ed. 2012, 51, 8178–8211. [Google Scholar] [CrossRef] [PubMed]
  4. Fresta, E.; Costa, R.D. Beyond traditional light-emitting electrochemical cells—A review of new device designs and emitters. J. Mater. Chem. C 2017, 5, 5643–5675. [Google Scholar] [CrossRef]
  5. Armaroli, N.; Accorsi, G.; Cardinali, F.; Listorti, A. Photochemistry and Photophysics of Coordination Compounds: Copper. Top. Curr. Chem. 2007, 280, 69–115. [Google Scholar] [CrossRef]
  6. Costa, R.D.; Tordera, D.; Ortí, E.; Bolink, H.J.; Schönle, J.; Graber, S.; Housecroft, C.E.; Constable, E.C.; Zampese, J.A. Copper(I) complexes for sustainable light-emitting electrochemical cells. J. Mater. Chem. C 2011, 21, 16108–16118. [Google Scholar] [CrossRef]
  7. Yersin, H.; Czerwieniec, R.; Shafikov, M.Z.; Suleymanova, A.F. TADF Material Design: Photophysical Background and Case Studies Focusing on CuI and AgI Complexes. Chem. Phys. Chem. 2017, 18, 3508–3535. [Google Scholar] [CrossRef]
  8. Czerwieniec, R.; Leitl, M.J.; Homeier, H.H.H.; Yersin, H. Cu(I) complexes—Thermally activated delayed fluorescence. Photophysical approach and material design. Coord. Chem. Rev. 2016, 325, 2–28. [Google Scholar] [CrossRef]
  9. Leitl, M.J.; Krylova, V.A.; Djurovich, P.I.; Thompson, M.E.; Yersin, H. Phosphorescence versus Thermally Activated Delayed Fluorescence. Controlling Singlet–Triplet Splitting in Brightly Emitting and Sublimable Cu(I) Compounds. J. Am. Chem. Soc. 2014, 136, 16032–16038. [Google Scholar] [CrossRef]
  10. Buckner, M.T.; McMillin, D.R. Photoluminescence from copper(I) complexes with low-lying metal-to-ligand charge transfer excited states. J. Chem. Soc. Chem. Commun. 1978, 759–761. [Google Scholar] [CrossRef]
  11. Rader, R.A.; McMillin, D.R.; Buckner, M.T.; Matthews, T.G.; Casadonte, D.J.; Lengel, R.K.; Whittaker, S.B.; Darmon, L.M.; Lytle, F.E. Photostudies of 2,2′-bipyridine bis(triphenylphosphine)copper(1+), 1,10-phenanthroline bis(triphenylphosphine)copper(1+), and 2,9-dimethyl-1,10-phenanthroline bis(triphenylphosphine)copper(1+) in solution and in rigid, low-temperature glasses. Simultaneous multiple emissions from intraligand and charge-transfer states. J. Am. Chem. Soc. 1981, 103, 5906–5912. [Google Scholar] [CrossRef]
  12. Weber, M.D.; Viciano-Chumillas, M.; Armentano, D.; Cano, J.; Costa, R.D. σ-Hammett parameter: A strategy to enhance both photo- and electro-luminescence features of heteroleptic copper(I) complexes. Dalton Trans. 2017, 46, 6312–6323. [Google Scholar] [CrossRef] [PubMed]
  13. Alkan-Zambada, M.; Constable, E.C.; Housecroft, C.E. The Role of Percent Volume buried in the Characterization of Copper(I) Complexes for Lighting Purposes. Molecules 2020, 25, 2647. [Google Scholar] [CrossRef] [PubMed]
  14. Keller, S.; Alkan-Zambada, M.; Prescimone, A.; Constable, E.C.; Housecroft, C.E. Extended π-Systems in Diimine Ligands in [Cu(P^P)(N^N)][PF6] Complexes: From 2,2′-Bipyridine to 2-(Pyridin-2-yl)quinoline. Crystals 2020, 10, 255. [Google Scholar] [CrossRef]
  15. Leoni, E.; Mohanraj, J.; Holler, M.; Mohankumar, M.; Nierengarten, I.; Monti, F.; Sournia-Saquet, A.; Delavaux-Nicot, B.; Nierengarten, J.-F.; Armaroli, N. Heteroleptic Copper(I) Complexes Prepared from Phenanthroline and Bis-Phosphine Ligands: Rationalization of the Photophysical and Electrochemical Properties. Inorg. Chem. 2018, 57, 15537–15549. [Google Scholar] [CrossRef] [PubMed]
  16. Mohankumar, M.; Holler, M.; Meichsner, E.; Nierengarten, J.-F.; Niess, F.; Sauvage, J.-P.; Delavaux-Nicot, B.; Leoni, E.; Monti, F.; Malicka, J.M.; et al. Heteroleptic Copper(I) Pseudorotaxanes Incorporating Macrocyclic Phenanthroline Ligands of Different Sizes. J. Am. Chem. Soc. 2018, 140, 2336–2347. [Google Scholar] [CrossRef]
  17. Keller, S.; Constable, E.C.; Housecroft, C.E.; Neuburger, M.; Prescimone, A.; Longo, G.; Pertegás, A.; Sessolo, M.; Bolink, H.J. [Cu(bpy)(P^P)]+ containing light-emitting electrochemical cells: Improving performance through simple substitution. Dalton Trans. 2014, 43, 16593–16596. [Google Scholar] [CrossRef]
  18. Keller, S.; Pertegás, A.; Longo, G.; Martínez, L.; Cerdá, J.; Junquera-Hernández, J.M.; Prescimone, A.; Constable, E.C.; Housecroft, C.E.; Ortí, E.; et al. Shine bright or live long: Substituent effects in [Cu(N^N)(P^P)]+-based light-emitting electrochemical cells where N^N is a 6-substituted 2,2′-bipyridine. J. Mater. Chem. C 2016, 4, 3857–3871. [Google Scholar] [CrossRef]
  19. Alkan-Zambada, M.; Keller, S.; Martínez-Sarti, L.; Prescimone, A.; Junquera-Hernández, J.M.; Constable, E.C.; Bolink, H.J.; Sessolo, M.; Ortí, E.; Housecroft, C.E. [Cu(P^P)(N^N)][PF6] compounds with bis(phosphane) and 6-alkoxy, 6-alkylthio, 6-phenyloxy and 6-phenylthio-substituted 2,2′-bipyridine ligands for light-emitting electrochemical cells. J. Mater. Chem. C 2018, 6, 8460–8471. [Google Scholar] [CrossRef]
  20. Liu, B.Y.; Ganzel, P.; Traylor, T.G. Synthesis and structural characterization of a novel binuclear copper complex: Bis[μ-O,O’-6(2,2′-bipyridyl)hexalato]dicopper(II) bis(perchlorate). Inorg. Chim. Acta 1997, 254, 407–410. [Google Scholar] [CrossRef]
  21. Bevilacqua, V.; King, M.; Chaumontet, M.; Nothisen, M.; Gabillet, S.; Buisson, D.; Puente, C.; Wagner, A.; Taran, F. Copper-chelating Azides for Efficient Click Conjugation Reactions in Complex Media. Angew. Chem. Int. Ed. 2014, 53, 5872–5876. [Google Scholar] [CrossRef]
  22. Spartan’18; v. 1.4.4; Wavefunction, Inc.: Irvine, CA, USA, 2019.
  23. Keller, S.; Brunner, F.; Junquera-Hernández, J.M.; Pertegás, A.; La-Placa, M.-G.; Prescimone, A.; Constable, E.C.; Bolink, H.J.; Ortí, E.; Housecroft, C.E. CF3 Substitution of [Cu(P^P)(bpy)][PF6] complexes: Effects on Photophysical Properties and Light-emitting Electrochemical Cell Performance. ChemPlusChem 2018, 83, 217–229. [Google Scholar] [CrossRef] [PubMed]
  24. Kim, S.H.; Rieke, R.D. 2-Pyridyl and 3-pyridylzinc bromides: Direct preparation and coupling reaction. Tetrahedron 2010, 66, 3135–3146. [Google Scholar] [CrossRef]
  25. Ziessel, R.; Toupet, L.; Chardon-Noblat, S.; Deronzier, A.; Matt, D. Co-ordinative properties of a hybrid phosphine–bipyridine ligand. J. Chem. Soc. Dalton Trans. 1997, 3777–3784. [Google Scholar] [CrossRef]
  26. Kubas, G.J.; Monzyk, B.; Crumbliss, A.L. Tetrakis(acetonitrile)copper(I) hexafluorophosphate. Inorg. Synth. 1979, 19, 90–92. [Google Scholar] [CrossRef]
  27. APEX2, version 2, User Manual, M86-E01078; Bruker Analytical X-ray Systems, Inc.: Madison, WI, USA, 2016.
  28. Betteridge, P.W.; Carruthers, J.R.; Cooper, R.I.; Prout, K.; Watkin, D.J. CRYSTALS version 12: Software for guided crystal structure analysis. J. Appl. Cryst. 2003, 36, 1487. [Google Scholar] [CrossRef]
  29. Macrae, C.F.; Sovago, I.; Cottrell, S.J.; Galek, P.T.A.; McCabe, P.; Pidcock, E.; Platings, M.; Shields, G.P.; Stevens, J.S.; Towler, M.; et al. Mercury 4.0: From visualization to analysis, design and prediction. J. Appl. Cryst. 2020, 53, 226–235. [Google Scholar] [CrossRef] [PubMed]
  30. Spek, A.L. PLATON SQUEEZE: A tool for the calculation of the disordered solvent contribution to the calculated structure factors. Acta Crystallogr. 2015, 71, 9–18. [Google Scholar] [CrossRef]
Scheme 1. Structures of the P^P and N^N ligands with labelling for the NMR assignments.
Scheme 1. Structures of the P^P and N^N ligands with labelling for the NMR assignments.
Molecules 26 00125 sch001
Scheme 2. Synthetic route to compound 2. Reagents and Conditions: (i) Lithium diisopropylamide (LDA), THF, −78 °C; (ii) 1-bromo-4-phenylbutane, THF, room temperature. Yield = 30%.
Scheme 2. Synthetic route to compound 2. Reagents and Conditions: (i) Lithium diisopropylamide (LDA), THF, −78 °C; (ii) 1-bromo-4-phenylbutane, THF, room temperature. Yield = 30%.
Molecules 26 00125 sch002

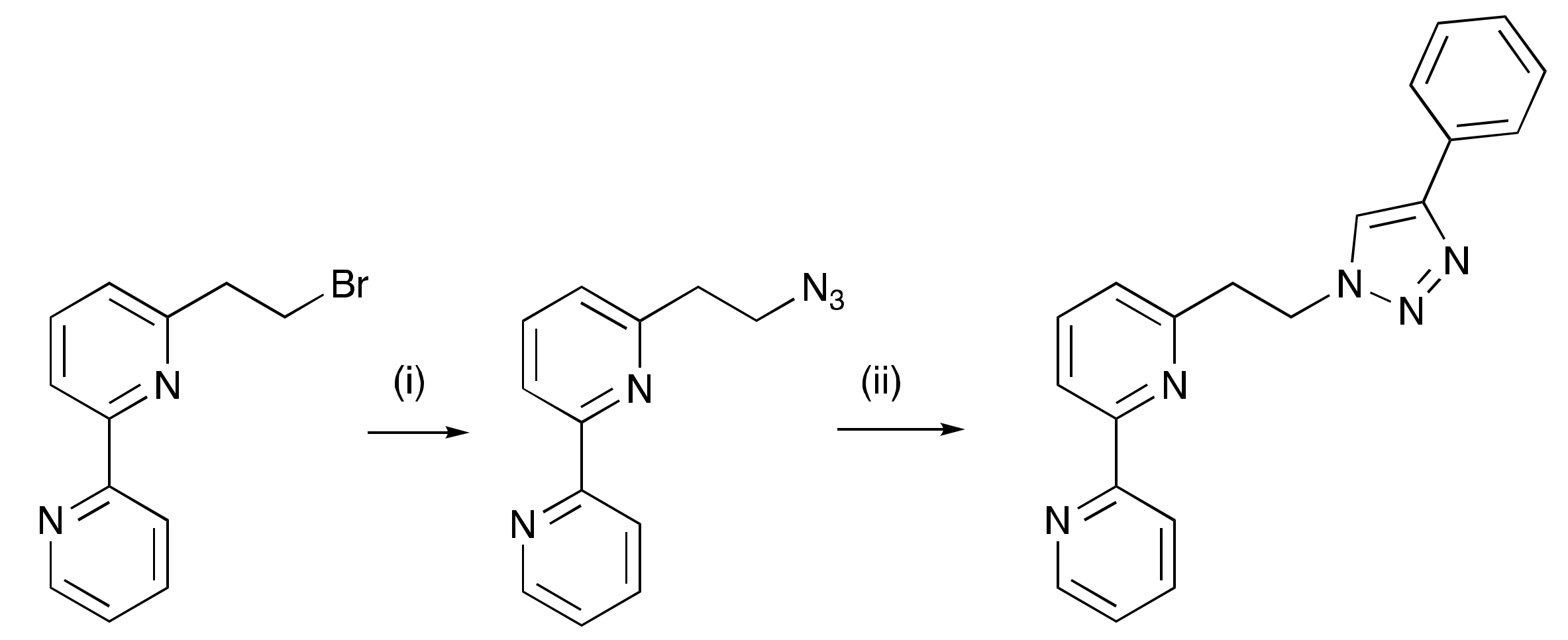

Scheme 3. Synthetic route to compound 3. Reagents and Conditions: (i) NaN3, DMF, room temperature; (ii) phenylethyne, CuSO4.5H2O, sodium ascorbate, t-BuOH/H2O, 35 °C. Yield = 54%.
Scheme 3. Synthetic route to compound 3. Reagents and Conditions: (i) NaN3, DMF, room temperature; (ii) phenylethyne, CuSO4.5H2O, sodium ascorbate, t-BuOH/H2O, 35 °C. Yield = 54%.
Molecules 26 00125 sch003

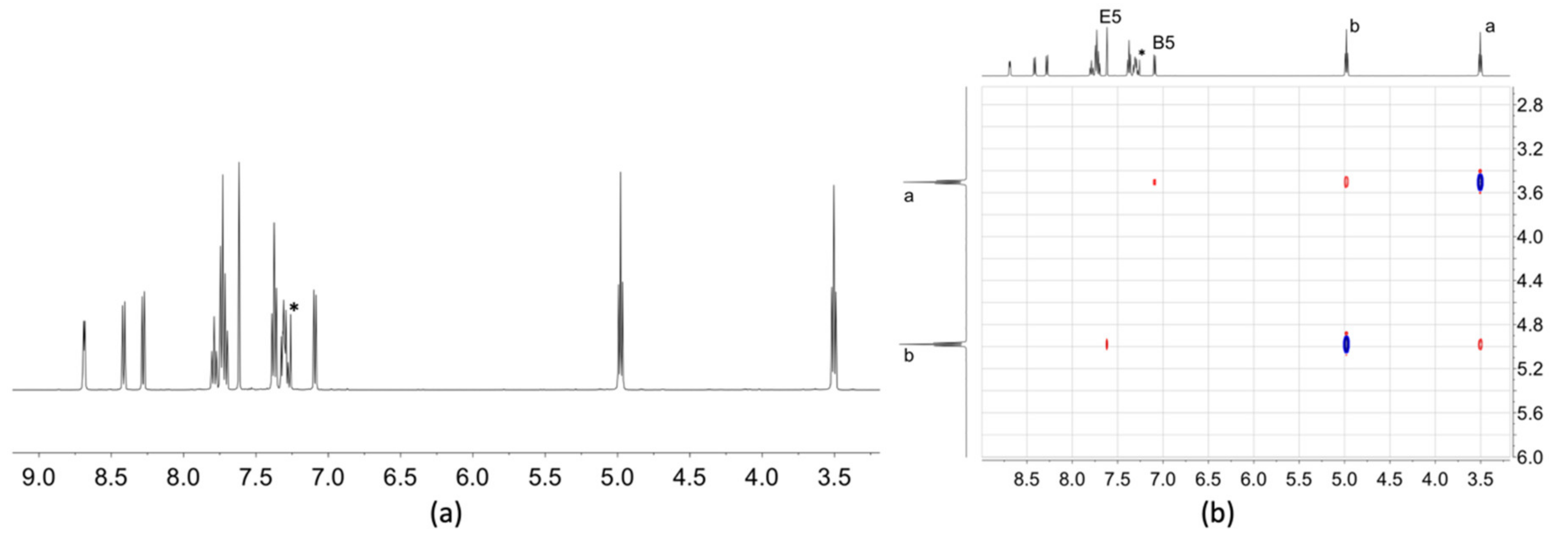

Figure 1. (a) The 1H-NMR spectrum (500 MHz, CDCl3, 298 K) of compound 3, and (b) part of the NOESY spectrum of 3 (500 MHz, CDCl3, 298 K). * = residual CHCl3.
Figure 1. (a) The 1H-NMR spectrum (500 MHz, CDCl3, 298 K) of compound 3, and (b) part of the NOESY spectrum of 3 (500 MHz, CDCl3, 298 K). * = residual CHCl3.
Molecules 26 00125 g001

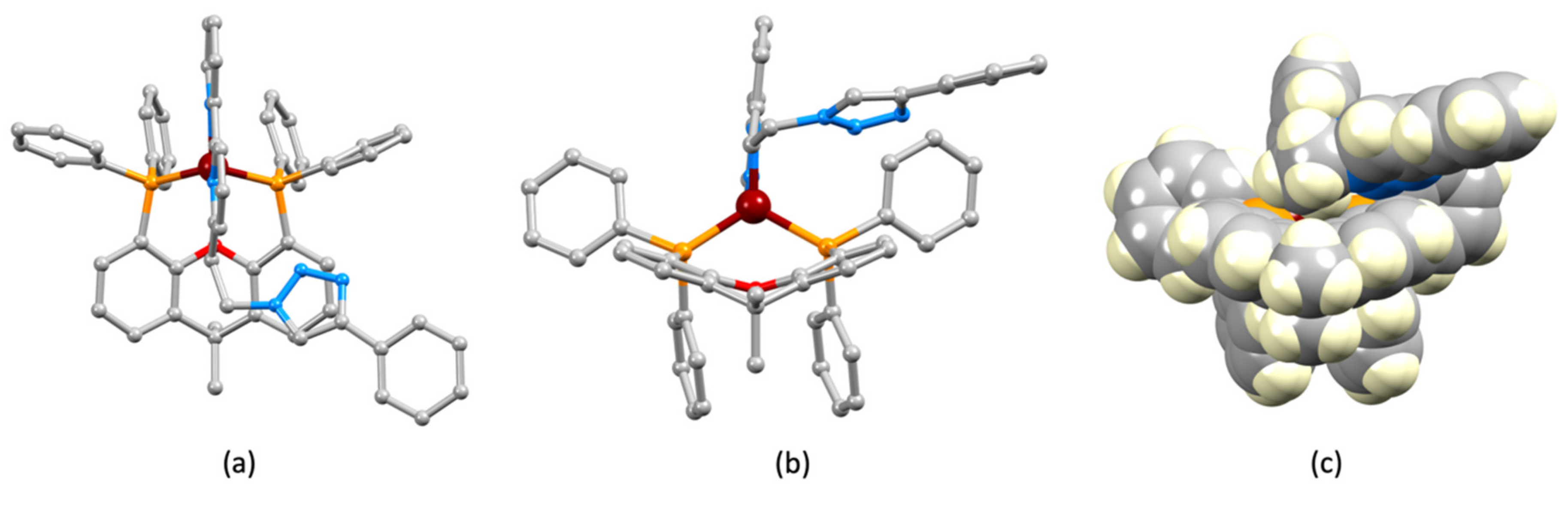

Figure 2. (a,b) Two views of the [Cu(xantphos)(3)]+ cation, and (c) a space-filling representation of diagram (b).
Figure 2. (a,b) Two views of the [Cu(xantphos)(3)]+ cation, and (c) a space-filling representation of diagram (b).
Molecules 26 00125 g002

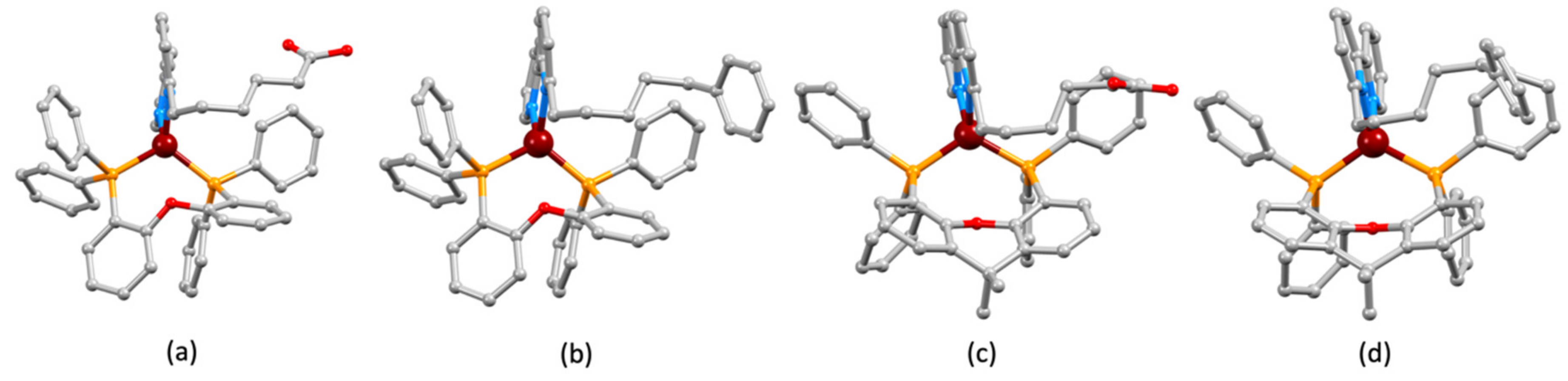

Figure 3. The energy minimized structures of the cations (a) [Cu(POP)(1)]+, (b) [Cu(POP)(2)]+, (c) [Cu(xantphos)(1)]+ and (d) [Cu(xantphos)(2)]+.
Figure 3. The energy minimized structures of the cations (a) [Cu(POP)(1)]+, (b) [Cu(POP)(2)]+, (c) [Cu(xantphos)(1)]+ and (d) [Cu(xantphos)(2)]+.
Molecules 26 00125 g003
Figure 4. Aromatic regions of the 1H-NMR spectra (500 MHz, acetone-d6, 298 K) of (a) [Cu(POP)(1)][PF6] and (b) [Cu(xantphos)(1)][PF6].
Figure 4. Aromatic regions of the 1H-NMR spectra (500 MHz, acetone-d6, 298 K) of (a) [Cu(POP)(1)][PF6] and (b) [Cu(xantphos)(1)][PF6].
Molecules 26 00125 g004

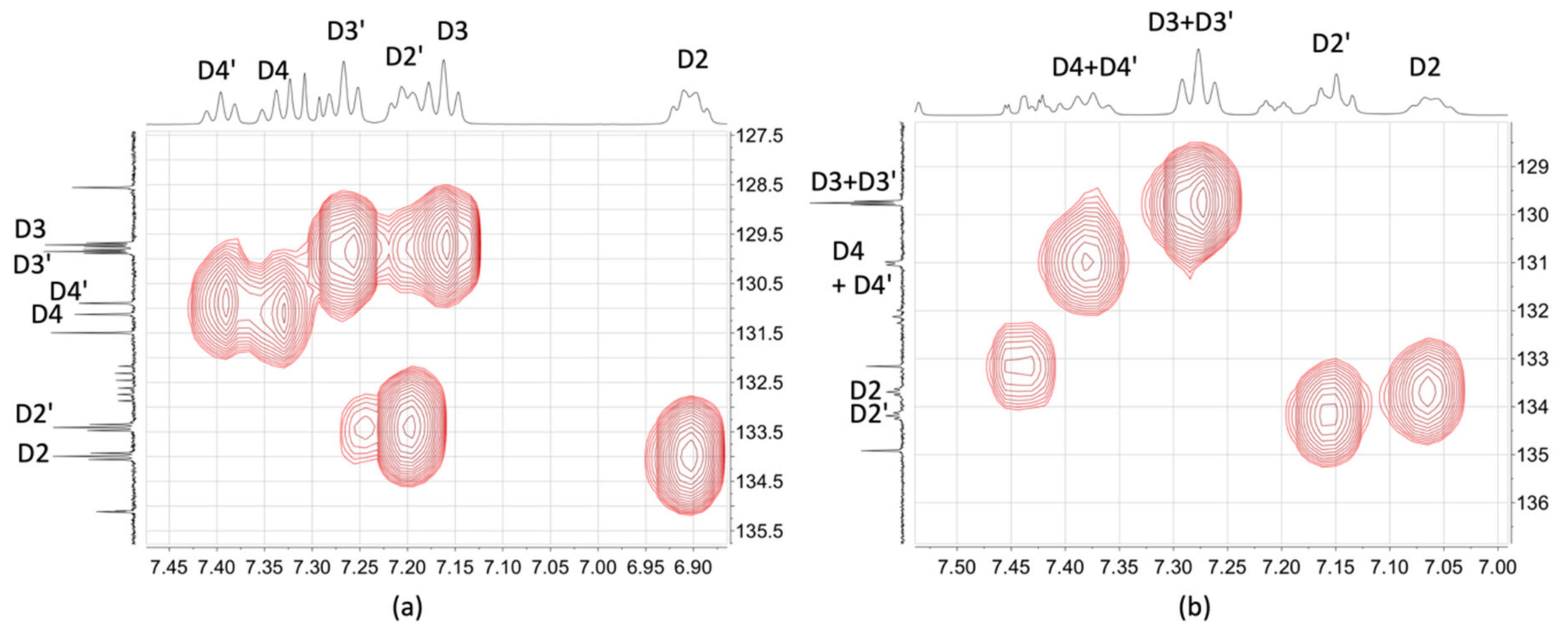

Figure 5. Part of the HMQC spectra (1H 500 MHz, 13C 126 MHz, acetone-d6, 298 K) of (a) [Cu(xantphos)(1)][PF6] and (b) [Cu(POP)(1)][PF6].
Figure 5. Part of the HMQC spectra (1H 500 MHz, 13C 126 MHz, acetone-d6, 298 K) of (a) [Cu(xantphos)(1)][PF6] and (b) [Cu(POP)(1)][PF6].
Molecules 26 00125 g005

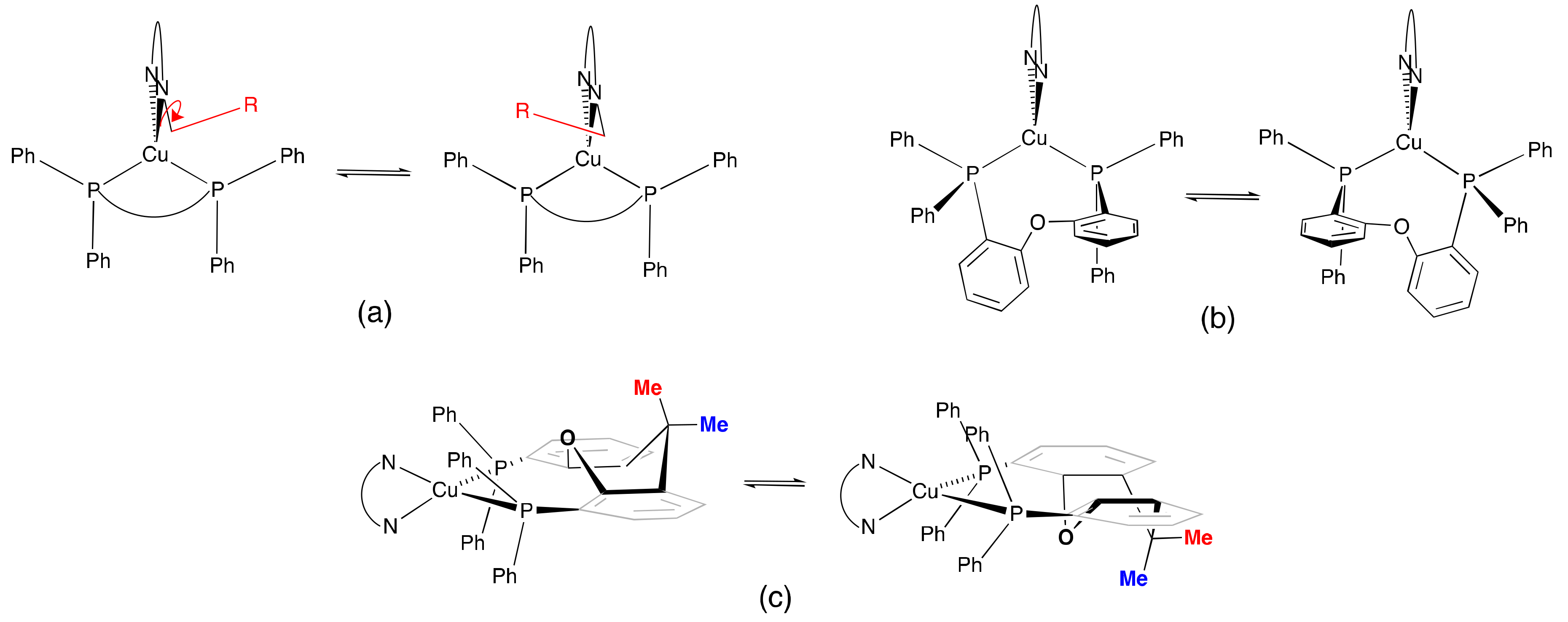

Scheme 4. Some of the possible dynamic processes in [Cu(P^P)(N^N)]+ cations: (a) desymmetrization of the P^P ligand by conformational change of a 6-substituent when N^N = bpy, (b) conformational change of the POP backbone, and (c) inversion of the xanthene unit in xantphos which exchanges the positions of the methyl groups with respect to the O atom in the xanthene unit.
Scheme 4. Some of the possible dynamic processes in [Cu(P^P)(N^N)]+ cations: (a) desymmetrization of the P^P ligand by conformational change of a 6-substituent when N^N = bpy, (b) conformational change of the POP backbone, and (c) inversion of the xanthene unit in xantphos which exchanges the positions of the methyl groups with respect to the O atom in the xanthene unit.
Molecules 26 00125 sch004

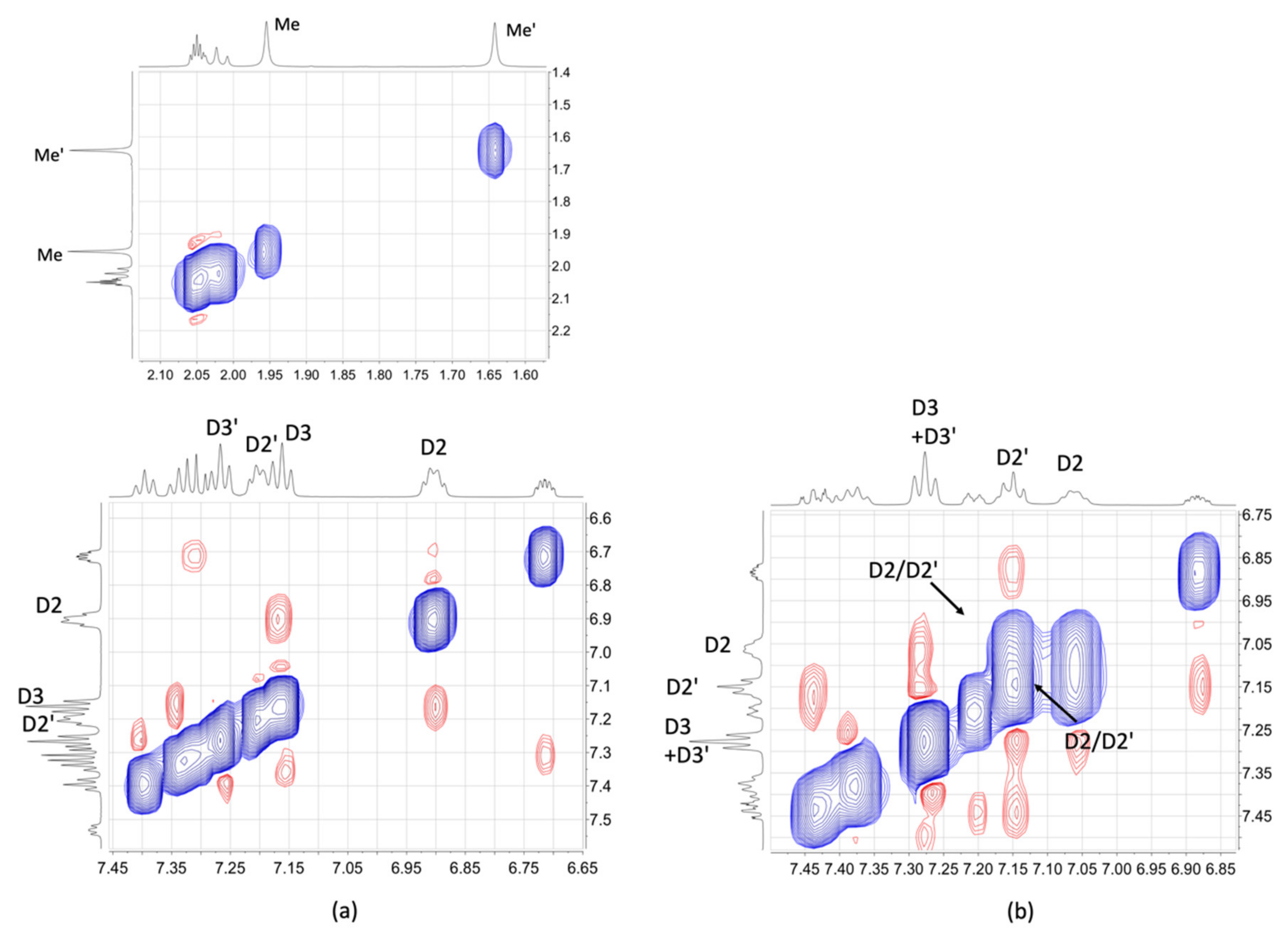

Figure 6. Part of the NOESY spectra (500 MHz, acetone-d6, 298 K) of (a) [Cu(xantphos)(1)][PF6] with the methyl region shown at the top, and (b) [Cu(POP)(1)][PF6]. EXSY peaks appear in the opposite phase (blue) to NOESY crosspeaks (red), and are observed between HD2 and HD2′ in [Cu(POP)(1)][PF6] but not in [Cu(xantphos)(1)][PF6].
Figure 6. Part of the NOESY spectra (500 MHz, acetone-d6, 298 K) of (a) [Cu(xantphos)(1)][PF6] with the methyl region shown at the top, and (b) [Cu(POP)(1)][PF6]. EXSY peaks appear in the opposite phase (blue) to NOESY crosspeaks (red), and are observed between HD2 and HD2′ in [Cu(POP)(1)][PF6] but not in [Cu(xantphos)(1)][PF6].
Molecules 26 00125 g006

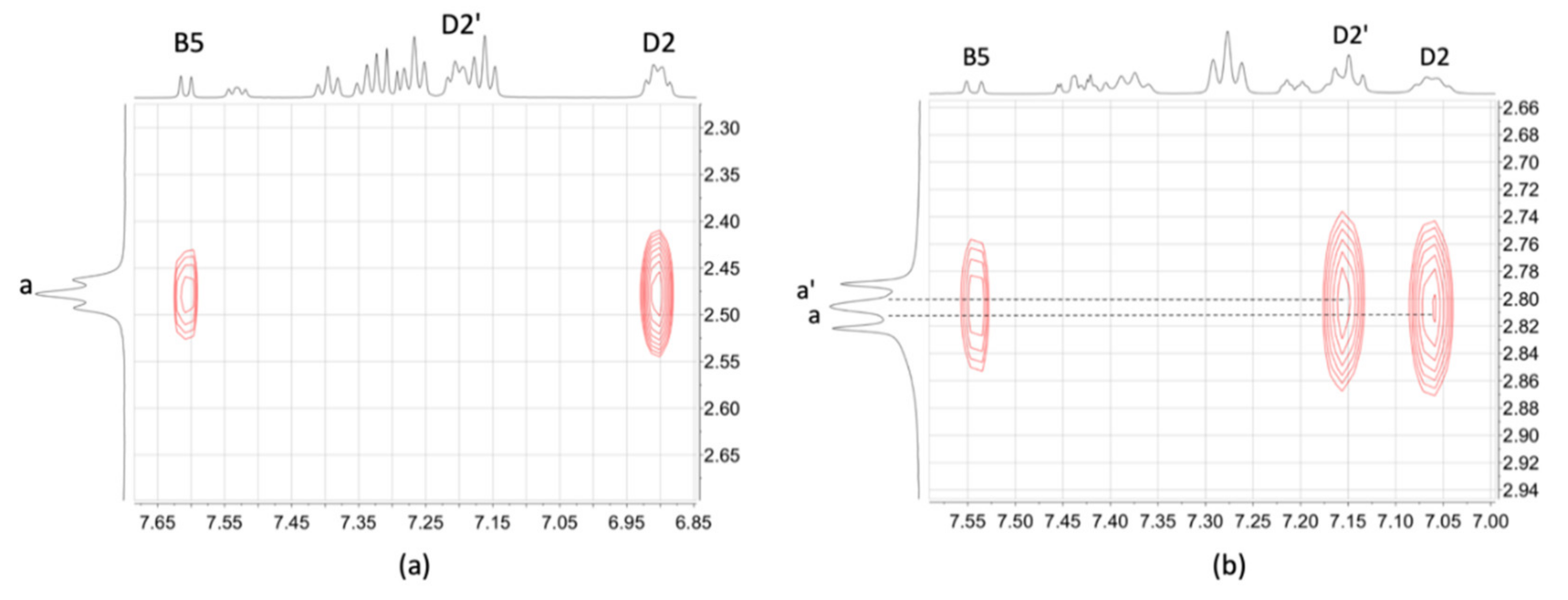

Figure 7. Part of the NOESY spectra (500 MHz, acetone-d6, 298 K) of (a) [Cu(xantphos)(1)][PF6] showing NOESY crosspeaks between Ha and HB5, and Ha and HD2, and (b) [Cu(POP)(1)][PF6] showing crosspeaks between the diastereotopic protons Ha/Ha’ and HB5, between Ha and HD2, and between Ha’ and HD2′.
Figure 7. Part of the NOESY spectra (500 MHz, acetone-d6, 298 K) of (a) [Cu(xantphos)(1)][PF6] showing NOESY crosspeaks between Ha and HB5, and Ha and HD2, and (b) [Cu(POP)(1)][PF6] showing crosspeaks between the diastereotopic protons Ha/Ha’ and HB5, between Ha and HD2, and between Ha’ and HD2′.
Molecules 26 00125 g007

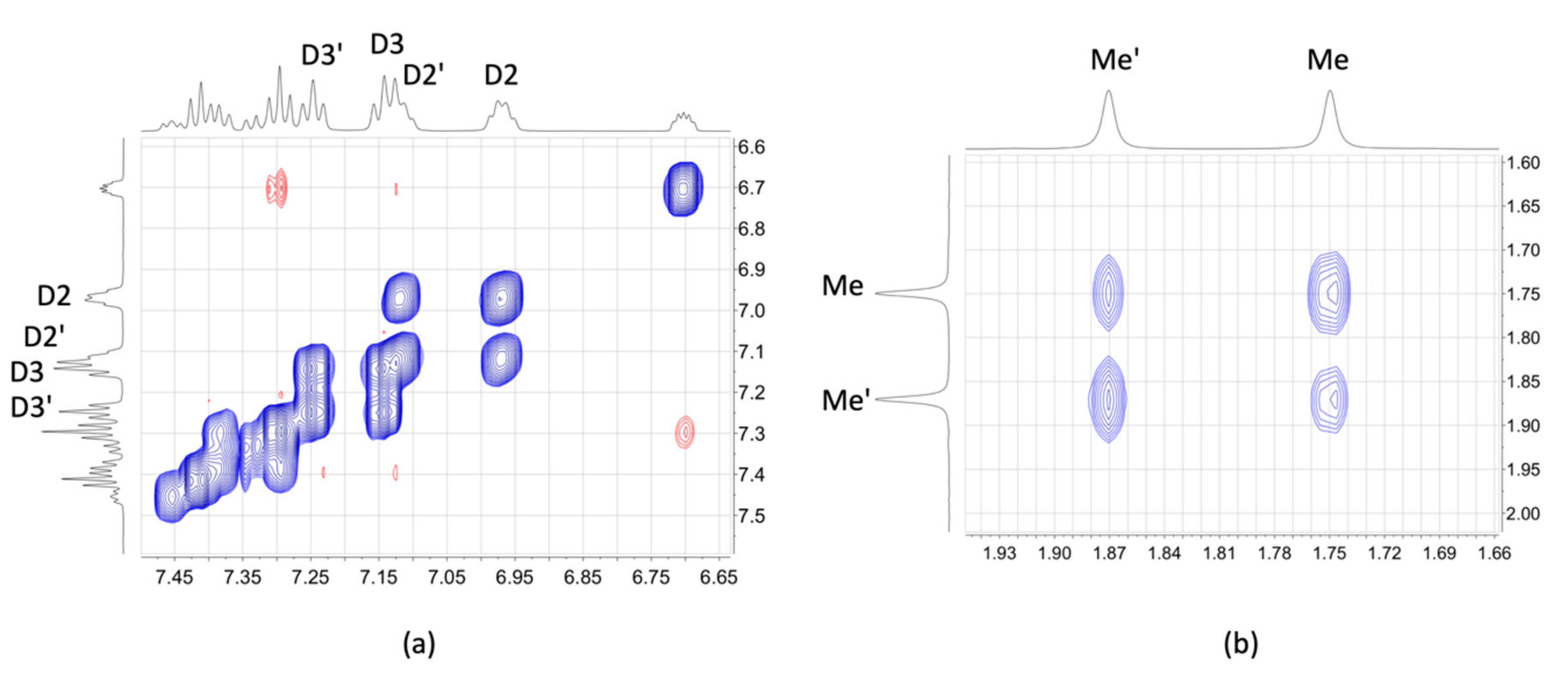

Figure 8. Part of the NOESY spectra (500 MHz, acetone-d6, 298 K) of [Cu(xantphos)(3)][PF6]. (a) The EXSY between HD2 and HD2′, and between HD3 and HD3′; the EXSY peaks between HD4 and HD4′ are also visible close to the diagonal. (b) EXSY peaks between HMe and HMe’ in the xanthene unit.
Figure 8. Part of the NOESY spectra (500 MHz, acetone-d6, 298 K) of [Cu(xantphos)(3)][PF6]. (a) The EXSY between HD2 and HD2′, and between HD3 and HD3′; the EXSY peaks between HD4 and HD4′ are also visible close to the diagonal. (b) EXSY peaks between HMe and HMe’ in the xanthene unit.
Molecules 26 00125 g008

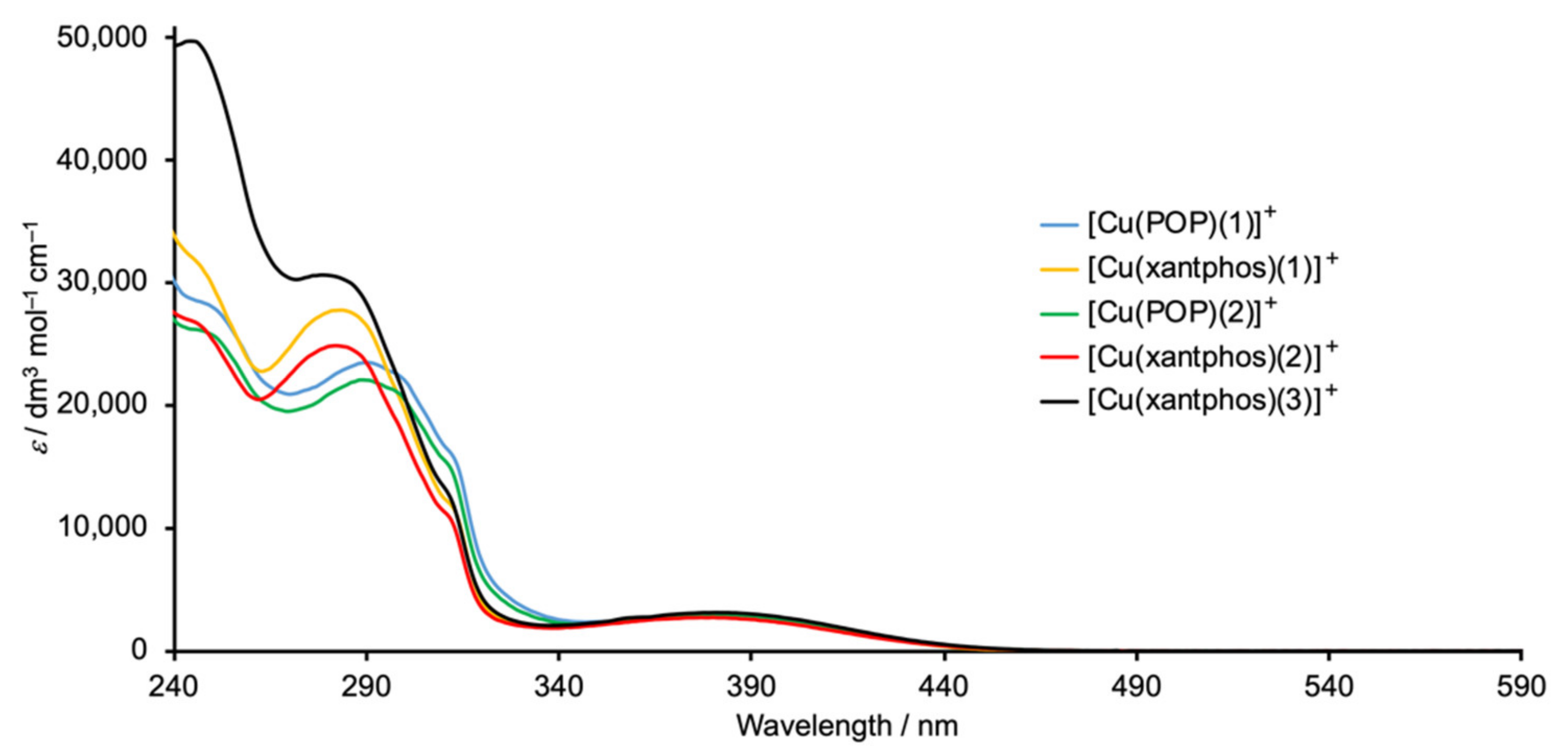

Figure 9. Solution absorption spectra (CH2Cl2, 2.5 × 10−5 mol dm−3) of the heteroleptic copper(I) complexes.
Figure 9. Solution absorption spectra (CH2Cl2, 2.5 × 10−5 mol dm−3) of the heteroleptic copper(I) complexes.
Molecules 26 00125 g009
Figure 10. Normalized emission spectra of powdered samples of the heteroleptic copper(I) complexes (λexc = 365 nm).
Figure 10. Normalized emission spectra of powdered samples of the heteroleptic copper(I) complexes (λexc = 365 nm).
Molecules 26 00125 g010
Table 1. Selected bond lengths and angles in the [Cu(xantphos)(3)]+ cation. See Figure S5 (Supplementary Materials) for atom numbering.
Table 1. Selected bond lengths and angles in the [Cu(xantphos)(3)]+ cation. See Figure S5 (Supplementary Materials) for atom numbering.
BondBond Length/ÅAngleBond Angle/o
Cu1–P12.2673(7)P1–Cu1–P2114.33(3)
Cu1–P22.2591(7)P1–Cu1–N1113.50(7)
Cu1–N12.063(2)P2–Cu1–N1111.67(7)
Cu1–N22.066(2)P1–Cu1–N2113.80(7)
O1–C201.384(3)P2–Cu1–N2118.78(7)
O1–C22 1.388(3)N1–Cu1–N280.18(10)
N3–N4 1.332(5)C20–O1–C22114.96(19)
N4–N5 1.316(5)N3–N4–N5108.8(3)
Table 2. Copper(I)/(II) oxidation potentials in the copper(I) compounds. Propylene carbonate solutions (ca. 10−4 mol dm–3); values are referenced internally to Fc/Fc+ = 0.0 V; [nBu4N][PF6] as supporting electrolyte and scan rate of 0.1 V s–1.
Table 2. Copper(I)/(II) oxidation potentials in the copper(I) compounds. Propylene carbonate solutions (ca. 10−4 mol dm–3); values are referenced internally to Fc/Fc+ = 0.0 V; [nBu4N][PF6] as supporting electrolyte and scan rate of 0.1 V s–1.
CompoundEpca/VE1/2/VEpcEpa/mV
[Cu(POP)(1)][PF6]+0.85−2.0780
[Cu(xantphos)(1)][PF6]+0.93−2.0690
[Cu(POP)(2)][PF6]+0.92−2.10120
[Cu(xantphos)(2)][PF6]+0.94−2.13130
[Cu(xantphos)(3)][PF6]+0.81−2.0290
a The value Epc is given rather than E1/2ox because each oxidative process is irreversible.
Table 3. Absorption maxima for CH2Cl2 solutions of the copper(I) compounds (2.5 × 10−5 mol dm−3).
Table 3. Absorption maxima for CH2Cl2 solutions of the copper(I) compounds (2.5 × 10−5 mol dm−3).
Compoundλmax/nm (εmax/dm3 mol−1 cm−1)
π*←πMLCT
[Cu(POP)(1)][PF6]247 sh (28,500), 292 (23,400), 299 sh (22,300), 312 sh (14,800)381 (2900)
[Cu(xantphos)(1)][PF6]247 sh (31,400), 285 (27,700), 315 sh (11,500)383 (2900)
[Cu(POP)(2)][PF6]250 sh (25,600), 292 (21,900), 300 sh (20,500), 312 sh (14,800)384 (2850)
[Cu(xantphos)(2)][PF6]248 sh (26,200), 285 (24,800), 312 sh (10,700)382 (2700)
[Cu(xantphos)(3)][PF6]247 (49,400), 282 (30,600), 312 sh (12,400) 383 (3100)
Table 4. Emission properties of the [Cu(P^P)(N^N)][PF6] compounds in the solid state.
Table 4. Emission properties of the [Cu(P^P)(N^N)][PF6] compounds in the solid state.
Compoundλexc /nmλmaxem/ nmPLQY/%τ/μs aτ(1)/μs (A1)τ(2)/μs (A2)
[Cu(POP)(1)][PF6]365552175.45.94 (0.82)2.30 (0.14)
[Cu(xantphos)(1)][PF6]365542287.28.29 (0.77)2.16 (0.88)
[Cu(POP)(2)][PF6]365555135.15.47 (0.85)1.88 (0.09)
[Cu(xantphos)(2)][PF6]365546268.79.64 (0.83)2.26 (0.12)
[Cu(xantphos)(3)][PF6]365548257.18.64 (0.71)2.24 (0.22)
aA biexponential fit to the lifetime decay was used because a single exponential gave a poor fit; τ is calculated from τ = τ = A i τ i / A i where Ai is the pre-exponential factor for the lifetime; values of τ(1), τ(2), A1 and A2 are given in the right-hand columns of the table.
