MnO2/rGO/CNTs Framework as a Sulfur Host for High-Performance Li-S Batteries

1
College of Material Science and Engineering, Liaoning Technical University, Fuxin 123000, China
2
College of Mechanical Engineering, Liaoning Technical University, Fuxin 123000, China
3
College of Mining, Liaoning Technical University, Fuxin 123000, China
*
Authors to whom correspondence should be addressed.
Academic Editors: Vivek Kumar and Charles C. Chusuei
Molecules 2020, 25(8), 1989; https://doi.org/10.3390/molecules25081989
Received: 30 March 2020 / Revised: 17 April 2020 / Accepted: 22 April 2020 / Published: 23 April 2020
Lithium-sulfur batteries are very promising next-generation energy storage batteries due to their high theoretical specific capacity. However, the shuttle effect of lithium-sulfur batteries is one of the important bottlenecks that limits its rapid development. Herein, physical and chemical dual adsorption of lithium polysulfides are achieved by designing a novel framework structure consisting of MnO2, reduced graphene oxide (rGO), and carbon nanotubes (CNTs). The framework-structure composite of MnO2/rGO/CNTs is prepared by a simple hydrothermal method. The framework exhibits a uniform and abundant mesoporous structure (concentrating in ~12 nm). MnO2 is an α phase structure and the α-MnO2 also has a significant effect on the adsorption of lithium polysulfides. The rGO and CNTs provide a good physical adsorption interaction and good electronic conductivity for the dissolved polysulfides. As a result, the MnO2/rGO/CNTs/S cathode delivered a high initial capacity of 1201 mAh g−1 at 0.2 C. The average capacities were 916 mAh g−1, 736 mAh g−1, and 547 mAh g−1 at the current densities of 0.5 C, 1 C, and 2 C, respectively. In addition, when tested at 0.5 C, the MnO2/rGO/CNTs/S exhibited a high initial capacity of 1010 mAh g−1 and achieved 780 mAh g−1 after 200 cycles, with a low capacity decay rate of 0.11% per cycle. This framework-structure composite provides a simple way to improve the electrochemical performance of Li-S batteries. View Full-Text
Keywords: lithium sulfur battery; α-MnO2; carbon nanotubes; composites; cathode material lithium sulfur battery; α-MnO2; carbon nanotubes; composites; cathode material
Show Figures

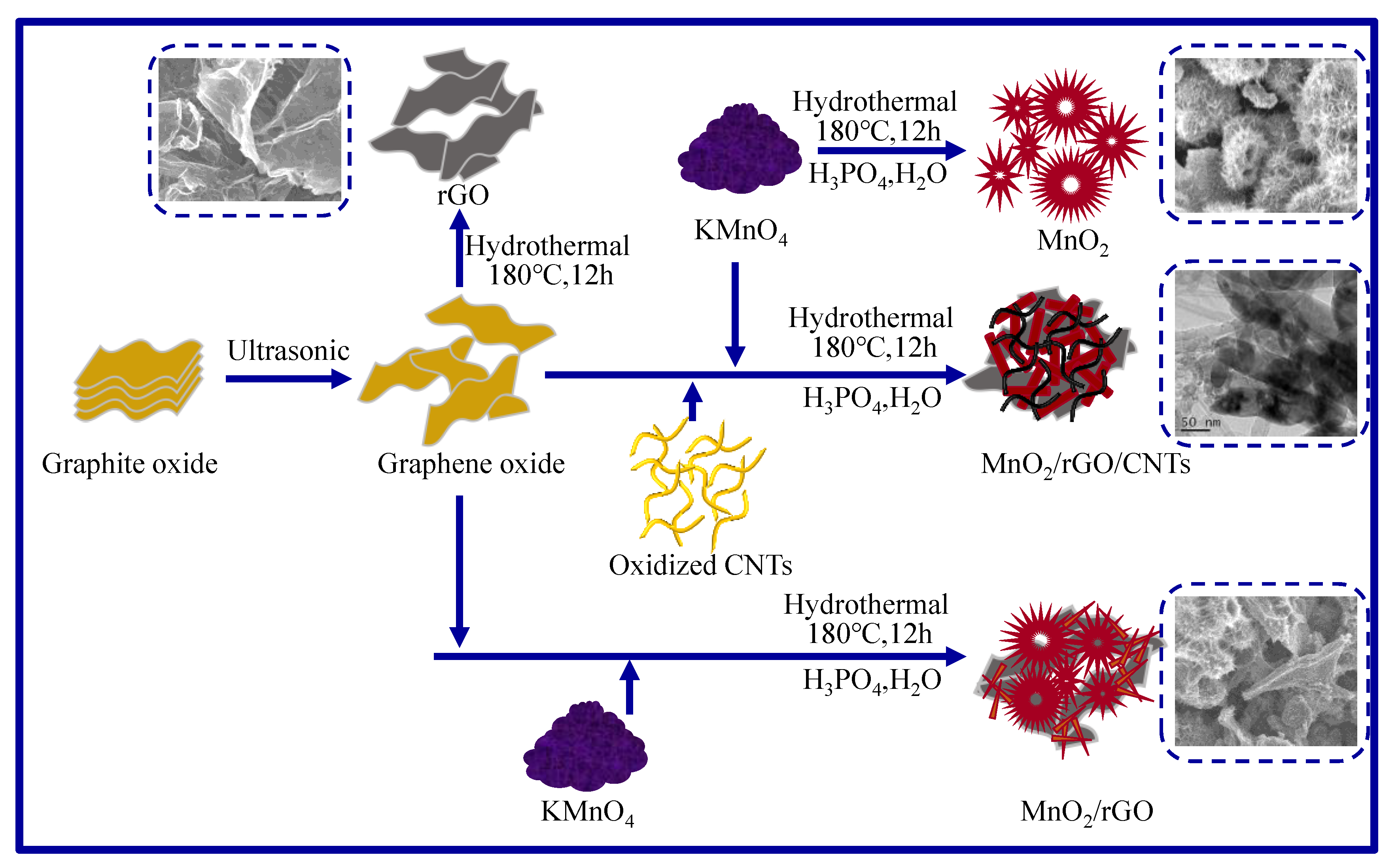

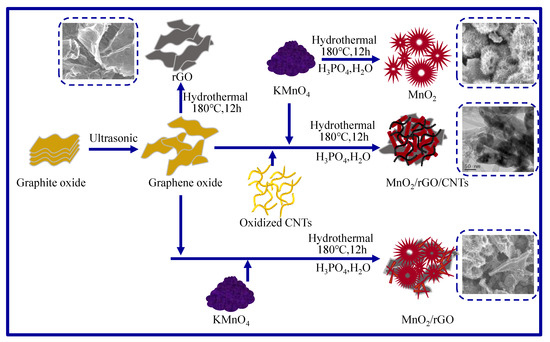

Graphical abstract
